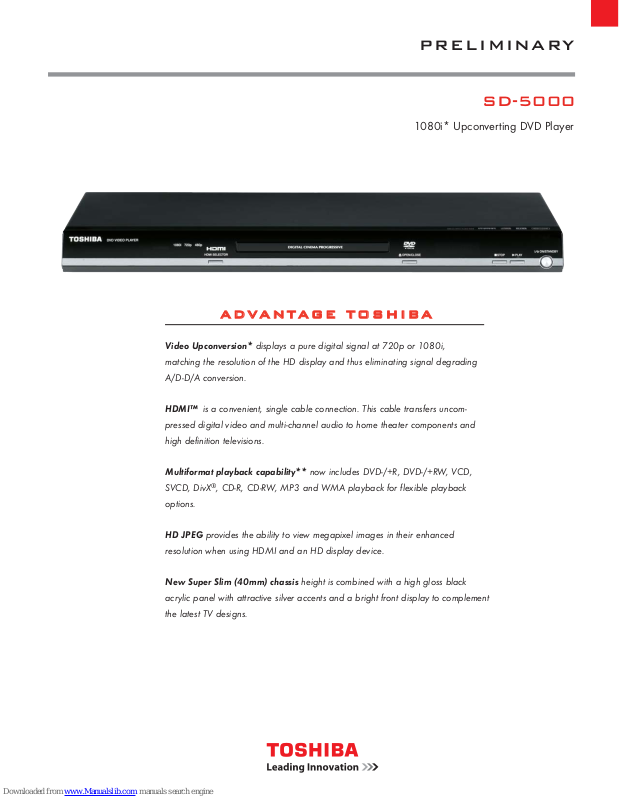

Toshiba SD-5000, SD5000 - SD 5000 REGION FREE UPCONVERTING 720p/1080i HI-DEF DVD PLAYER. PLAYS DVDs Specifications
SD-5000
1080i* Upconverting DVD Player
ADVANTAGE TOSHIBA
Video Upconversion* displays a pure digital signal at 720p or 1080i,
matching the resolution of the HD display and thus eliminating signal degrading
A/D-D/A conversion.
HDMI™ is a convenient, single cable connection. This cable transfers uncom-
pressed digital video and multi-channel audio to home theater components and
high definition televisions.
Multiformat playback capability** now includes DVD-/+R, DVD-/+RW, VCD,
SVCD, DivX®, CD-R, CD-RW, MP3 and WMA playback for flexible playback
options.
HD JPEG provides the ability to view megapixel images in their enhanced
resolution when using HDMI and an HD display device.
New Super Slim (40mm) chassis height is combined with a high gloss black
acrylic panel with attractive silver accents and a bright front display to complement
the latest TV designs.
PRELIMINARY
SD-5000 Specifications
Video Upconversion* 720p/1080i
Video D/A 14-Bit/108MHz
Component Video Output ColorStream Pro
®
Progressive Scan 3:2 Pulldown Digital Cinema Progressive
HD JPEG
✓
DivX®Home Theater Certified ✓
Playback** DVD-R, DVD-RW, CD-R, CD-RW
Digital Picture Zoom
✓
Fast Scan ✓
Slow Motion ✓
Multi-Camera Angle Select ✓
Multi-Language Select ✓
Multi-Subtitle Select ✓
Audio D/A 192 kHz/24 bit
Dolby
®
Digital/DTS®Compatible ✓
WMA & MP3 Playback** ✓
3D Surround Sound ✓
Parental Lock ✓
Screen Saver ✓
Tray Lock ✓
New super slim (40mm) black acrylic
cabinet with silver trim
✓
Front LED display ✓
HDMI
TM
1
ColorStream
®
Component Video Output 1 set
S-Video 1
RCA-Video 1
L-R Audio 1
Coaxial Out 1
Unit Dimension (WHD) in. 16.93 x 1.57 x 7.83
Carton Dimension (WHD) in. 19.21 x 3.15 x 11.38
Unit Weight 3.52
Carton Weight 4.99
UPC Code 022265000212
Video
Audio
http://www.tacp.toshiba.com Customer Solutions: 800.631.3811
© Toshiba America Consumer Products, L.L.C.
82 Totowa Road, Wayne, NJ 07470 (2007). All Rights Reserved (3/07.06)
TosLink is a registered trademark of Toshiba Corporation. ColorStream is a registered
trademark of Toshiba America Consumer Products, L.L.C. Dolby and the double-D symbol
are registered trademarks of Dolby Laboratories. “DTS” is a registered trademark of DTS,
Inc. DivX, DivX Certified, and associated logos are trademarks of DivX, Inc. and are used
under license. HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
Product design and specifications subject to change or modification without notice.
*A HDTV or HD Monitor with an HDCP capable HDMI or DVI input is required for video
upconversion. To upconvert to 720p or 1080i resolution, a 720p or 1080i capable HDTV or
HD Monitor (as applicable) is required.
**Some DVD-R/DVD-RW and CD-R/CD-RW discs may be incompatible due to laser pick up
and disc design. CD-R/CD-RW discs must be recorded using CD-DA method for CD audio
playback. The DVD player may not support some MP3/WMA/JPEG/DivX recordings due to
differences in recording formats, disc structure, or condition of the disc (use of CD-RW for
MP3 files is not recommended). See owner’s manual for more information.
Terminals
Convenience
Product & Packaging
