Toshiba SD340ESE, SD340ESB User Manual

Introduction

2

DIGITAL VIDEO

D VD VIDEO PLA YER

SD-340ESE

SD-340ESB

OWNER’S MANUAL

Connections

Basic playback

Advanced playback

Function setup

Others

18

26

34

53

62

© 2004 Toshiba Corporation

Introduction

SAFETY PRECAUTIONS

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS

APPLIANCE TO RAIN OR MOISTURE. DANGEROUS HIGH VOLTAGES ARE PRESENT
INSIDE THE ENCLOSURE. DO NOT OPEN THE CABINET. REFER SERVICING TO
QUALIFIED PERSONNEL ONLY.

CAUTION: This Digital Video Disc Player employs a Laser System.

To ensure proper use of this product, please read this owner’s manual carefully and retain for
future reference. Should the unit require maintenance, contact an authorized service location ­see service procedure.

Use of controls of adjustments or performance of procedures other than those specified herein
may result in hazardous radiation exposure.

To prevent direct exposure to laser beam, do not try to open the enclosure.
Visible laser radiation may be present when the enclosure is opened.
DO NOT STARE INTO BEAM.

CLASS 1
LASER PRODUCT

In the spaces provided below, record the Model and Serial No. located on the rear panel of your DVD player.
Model No. Serial No.

Retain this information for future reference.

The following information applies only to the model for U.K.

General Information

If the socket outlets in your home are not suitable for the plug supplied with this unit,
the plug must be cut off and an appropriate one fitted.

The plug severed from this mains lead must be destroyed as it is hazardous if
inserted into a live socket.

IMPORTANT

The wires in this mains lead are coloured in accordance with the following code:

BLUE: NEUTRAL
BROWN: LIVE
As the colours of the wires in the mains lead of this unit may not correspond with
the coloured markings identifying the terminals in your plug, proceed as follows:
The wire that is coloured blue must be connected to the terminal in the plug
which is marked with the letter N or coloured black.
The wire that is coloured brown must be connected to the terminal which is
marked with the Letter L or coloured red.

Do not connect either wire to the earth terminal which is mar ked by the letter E or by
the safety earth symbol or coloured green or green-and-yellow.

Use a 5A fuse which is approved by ASTA or BSI to BS1362.
Always replace the fuse cover after changing the fuse.

2

Location of the required label

The rating plate and the safety caution are
on the rear of the unit.

Introduction

3

Introduction

IMPORTANT SAFETY INSTRUCTIONS

CAUTION: PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS GIVEN IN THIS

OWNER’S MANUAL AND THOSE MARKED ON THE UNIT . RET AIN THIS BOOKLET FOR
FUTURE REFERENCE.

This set has been designed and manufactured to assure personal safety. Improper use can result in electric
shock or fire hazard. The safeguards incorporated in this unit will protect you if you observe the following
procedures for installation, use and servicing. This unit is fully transistorized and does not contain any parts that
can be repaired by the user.

DO NOT REMOVE THE CABINET CO VER, OR YOU MA Y BE EXPOSED TO DANGEROUS VOLTAGE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL ONLY.

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

4

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instr uctions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other appar atus (including
amplifiers) that produce heat.

9. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.

10. Only use attachments/accessor ies specified by the manufacturer.

Introduction

11.Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer , or sold with the apparatus. When a cart is used, use caution when
moving the cart/apparatus combination to avoid injury from tip-over.

S3125A

12.Unplug this apparatus during lightning storms or when unused for long periods of time.

5

Introduction

IMPORTANT SAFETY INSTRUCTIONS

13.Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate
normally, or has been dropped.

ADDITIONAL SAFETY INSTRUCTIONS

14.When you use headphones, keep the v olume at a moderate le v el. If you use the headphones continuously
with high volume sound, it may cause hearing damage.

15.Do not overload wall outlets; extension cords, or integral convenience receptacles as this can result in a
risk of fire or electric shock.

16.Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases,
shall be placed on the apparatus.

17. Keep your fingers well clear of the disc tray as it is closing. Neglecting to do so may cause serious
personal injury.

6

18. Do not place a heavy object on or step on the apparatus. The object may fall, causing serious personal
injury and serious damage to the apparatus.

19.Do not use a cracked, deformed, or repaired disc. These discs are easily broken and may cause serious
personal injury and apparatus malfunction.

Introduction

7

Introduction

Precautions

Notes on handling

When shipping the DVD video player, the original
shipping carton and packing materials come in handy.
For maximum protection, repack the unit as it was
originally packed at the factory. Take care not to give
it a shock or shake when carrying.
Do not use volatile liquids, such as insect spray, near
the DVD video player. Do not leave rubber or plastic
products in contact with the DVD video player for a
long time. They will leave marks on the finish.
The top and rear panels of the DVD video player may
become warm after a long period of use. This is not a
malfunction.
When the DVD video player is not in use, be sure to
remove the disc and turn off the power.
If you do not use the DVD video player for a long
period, the unit may not function properly in the
future. Turn on and use the DVD video player
occasionally.

Notes on locating

Place the DVD video player on a level surface. Do not
use it on a shaky or unstable surface such as a
wobbling table or inclined stand. The loaded disc may
come off the proper position and cause damage to
the DVD video player.
When you place this DVD video player near a TV,
radio, or VCR, the playback picture may become poor
and the sound may be distorted. In this case, place
the DVD video player away from the TV, radio, or
VCR.

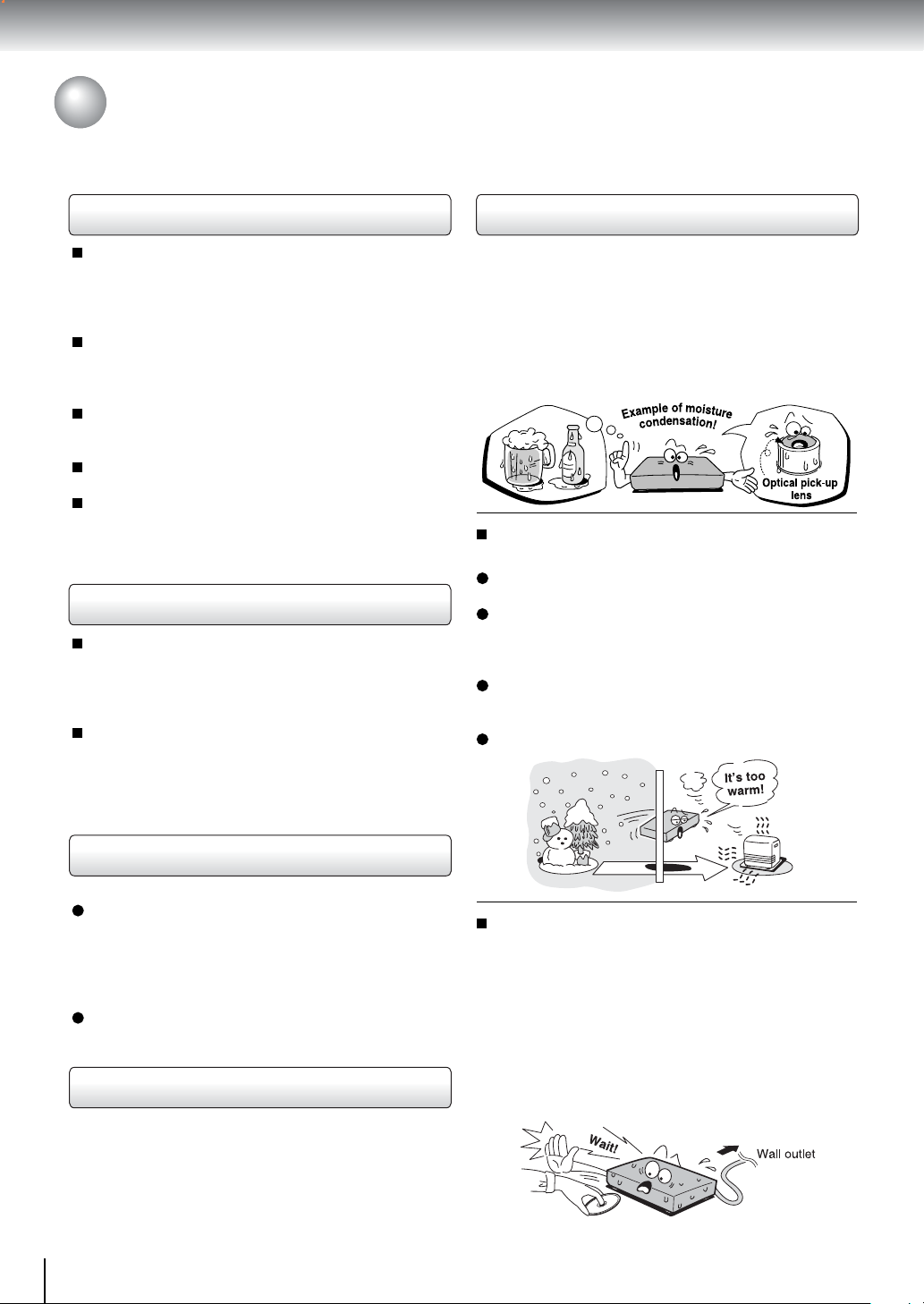

Notes on moisture condensation

Moisture condensation damages the DVD video
player. Please read the following carefully.

Moisture condensation occurs, for example, when you
pour a cold drink into a glass on a warm day. Drops of
water form on the outside of the glass. In the same way,
moisture may condense on the optical pick-up lens
inside this unit, one of the most crucial internal par ts of
the DVD video player.

Moisture condensation occurs during the
following cases.

When you bring the DVD video player directly from a
cold place to a warm place.
When you use the DVD video player in a room where
you just turned on the heater, or a place where the
cold wind from the air conditioner directly hits the
unit.
In summer, when you use the DVD video player in a
hot and humid place just after you move the unit from
an air conditioned room.
When you use the DVD video player in a humid place.

Notes on cleaning

Use a soft, dry cloth for cleaning.

For stubborn dirt, soak the cloth in a weak detergent
solution, wring well and wipe. Use a dry cloth to wipe
it dry.
Do not use any type of solvent, such as thinner and
benzine, as they may damage the surface of the DVD
video player.
If you use a chemical saturated cloth to clean the
unit, follow that product’s instructions.

To obtain a clear picture

The DVD video player is a high technology, precision
device. If the optical pick-up lens and disc drive par ts
are dirty or worn down, the picture quality becomes
poor. To obtain a clear picture, we recommend regular
inspection and maintenance (cleaning or parts
replacement) every 1,000 hours of use depending on
the operating environment. For details, contact your
nearest dealer.

8

Do not use the DVD video player when moisture
condensation may occur.

If you use the DVD video player in such a situation, it
may damage discs and internal parts. Remove the
disc, connect the power cord of the DVD video player
to the wall outlet, turn on the DVD video player, and
leave it for two or three hours. After two or three
hours, the DVD video player will have warmed up and
evaporated any moisture. Keep the DVD video player
connected to the wall outlet and moisture
condensation will seldom occur.

Notes on Discs

On handling discs

Do not touch the playback side of the disc.

Playback side

Do not attach paper or tape to discs.

On cleaning discs

Fingerprints and dust on the disc cause picture and
sound deterioration. Wipe the disc from the center
outwards with a soft cloth. Always keep the disc
clean.

Structure of disc contents

Normally, DVD video discs are divided into titles, and
the titles are sub-divided into chapters. VIDEO CDs and
audio CDs are divided into tracks.

DVD video disc

DVD video disc

Title 1 Title 2

Chapter 1 Chapter 2 Chapter 1 Chapter 2 Chapter 3

VIDEO CD/audio CD

VIDEO CD/audio CD

Track 1 Track 2 Track 3 Track 4 Track 5

Each title, chapter or track is assigned a number, which
is called “title number”, “chapter number” or “track
number” respectively.
There may be discs that do not hav e these numbers.

Introduction

If you cannot wipe off the dust with a soft cloth, wipe
the disc lightly with a slightly moistened soft cloth and
finish with a dry cloth.
Do not use any type of solvent such as thinner,
benzine, commercially available cleaners or antistatic
spray for vinyl LPs. It may damage the disc.

On storing discs

Do not store discs in a place subject to direct sunlight
or near heat sources.
Do not store discs in places subject to moisture and
dust such as a bathroom or near a humidifier.
Store discs vertically in a case. Stacking or placing
objects on discs outside of their case may cause
warping.

Notes on copyright

It is forbidden by law to copy, broadcast, show,
broadcast on cable, play in public, and rent copyrighted
material without permission.

DVD video discs are copy protected, and any
recordings made from these discs will be distorted.

This product incorporates copyright protection
technology that is protected by method claims of certain
U.S. patents and other intellectual proper ty rights
owned by Macrovision Corporation and other rights
owners. Use of this copyright protection technology
must be authorized by Macrovision Corporation, and is
intended for home and other limited viewing uses only
unless otherwise authorized by Macrovision
Corporation. Reverse engineering or disassembly is
prohibited.

9

Introduction

Notes on Discs (continued)

About this owner’s manual

This owner’s manual explains the basic instructions of
this DVD video player. Some DVD video discs are
produced in a manner that allows specific or limited
operation during playback. As such, the DVD video
player may not respond to all operating commands. This
is not a defect in the DVD video player. Refer to
instruction notes of discs.

” may appear on the TV screen during operation.

“

” means that the operation is not permitted by the

A “
DVD video player or the disc.

Notes on region numbers

The region number of this DVD video player is 2. If
region numbers, which stand for their playable area, are

printed on your DVD video disc and you do not find
or , disc playback will not be allowed by the player.

(In this case, the DVD video player will display a
message on-screen.)

On VIDEO CDs

This DVD video player supports VIDEO CDs equipped
with the PBC (Version 2.0) function. (PBC is the
abbreviation of Playback Control.) You can enjoy two
playback variations depending on types of discs.

• VIDEO CD not equipped with PBC function
(Version 1.1)

Sound and movie can be played on this DVD video
player in the same way as an audio CD.

• VIDEO CD equipped with PBC function
(Version 2.0)

In addition to operation of a VIDEO CD not equipped
with the PBC function, you can enjoy playback of
interactive software with search function by using the
menu displayed on the TV screen (Menu Playback).
Some of the functions described in this owner’s
manual may not work with some discs.

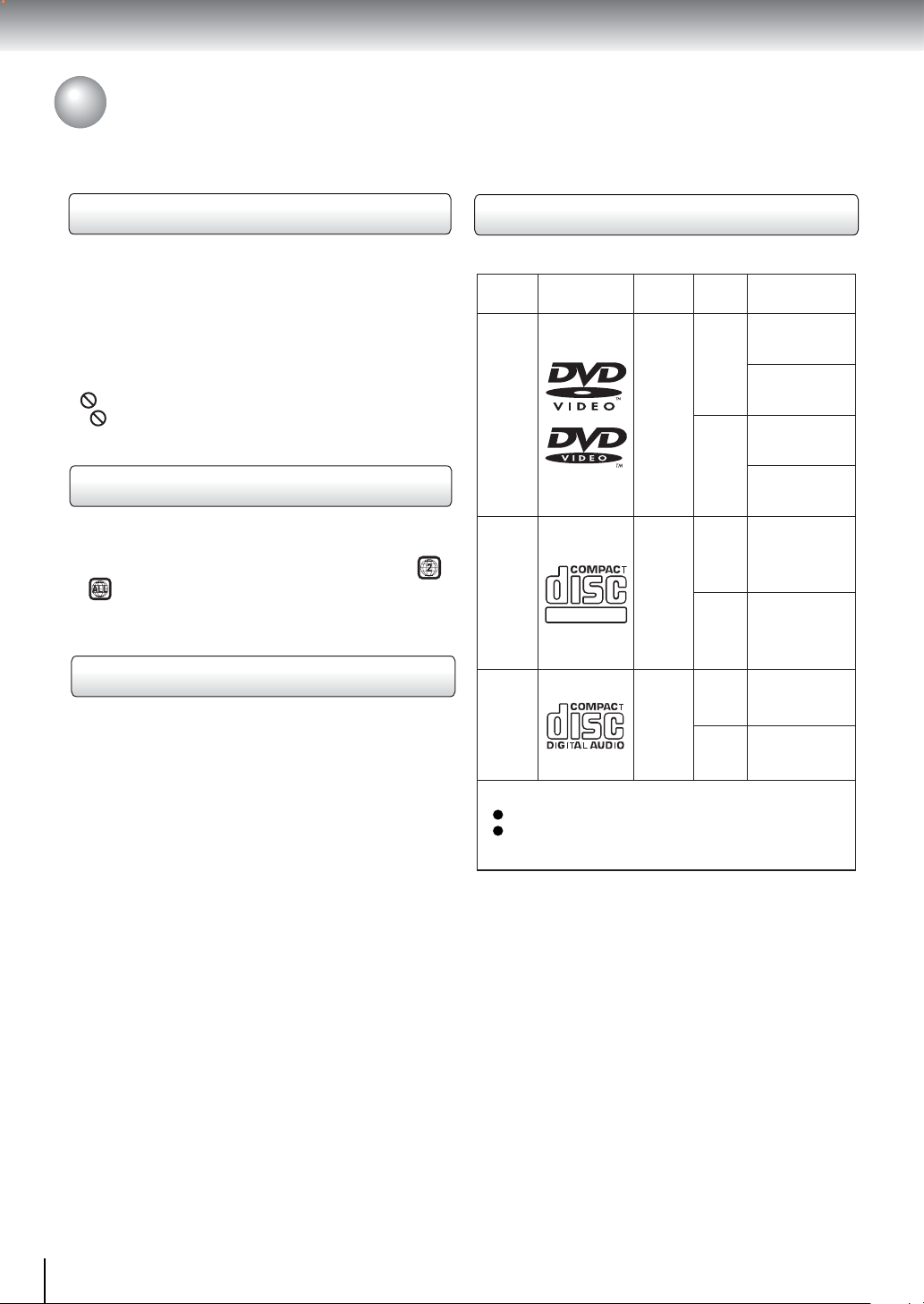

Playable discs

This DVD video player can play the following discs.

Disc Mark

DVD
video
discs

VIDEO
CDs

Audio
CDs

The following discs are also availabl e.

Some of these discs may be incompatible.

DIGITAL VIDEO

DVD-R discs of DVD video format
CD-R/CD-RW discs of CD-DA for mat

Contents

Audio
video

(moving

pictures)

Audio
video

(moving

pictures)

Audio

Disc
Size

12 cm

+

8 cm

12 cm

+

8 cm

12 cm

8 cm

(CD

single)

• You cannot play discs other than those listed above.

• You cannot play DVD-RAM discs or
non-standardized discs, etc., even if they may be
labeled as above.

• This DVD video player uses the NTSC/PAL color
system, and cannot play DVD video discs recorded in
any other color system (SECAM, etc.).

Maximum

playback time

Approx. 4 hours

(single sided disc)

Approx. 8 hours

(double sided disc)

Approx. 80 minutes

(single sided disc)

Approx. 160 minutes

(double sided disc)

Approx. 74 min utes

Approx. 20 minutes

Approx. 74 min utes

Approx. 20 minutes

10

Table of Contents

Introduction

SAFETY PRECAUTIONS.......................... 2

IMPORTANT SAFETY INSTRUCTIONS ... 4

Precautions .............................................. 8

Notes on Discs ......................................... 9

Notes on region numbers............................... 10

Table of Contents ................................... 11

Identification of Controls....................... 12

Front panel .....................................................12

Rear panel...................................................... 12

DVD display.................................................... 13

Remote control ............................................... 14

Loading batteries ........................................... 15

Operating with the remote control .................. 15

Connections

Connecting to a TV................................. 18

Connecting to a TV ......................................... 18

Connecting to an audio system and TV

equipment with component video jacks ....... 19

Connecting to Optional Equipment ...... 20

Connecting to an amplifier equipped with a

Dolby Digital decoder................................... 21

Connecting to an amplifier equipped with

Dolby Surround Pro Logic............................ 21

Connecting to an amplifier equipped with a

DTS decoder................................................ 22

Connecting to an amplifier equipped with an

MPEG2 audio decoder................................. 22

Connecting to an amplifier equipped with a

digital audio input......................................... 23

Basic playback

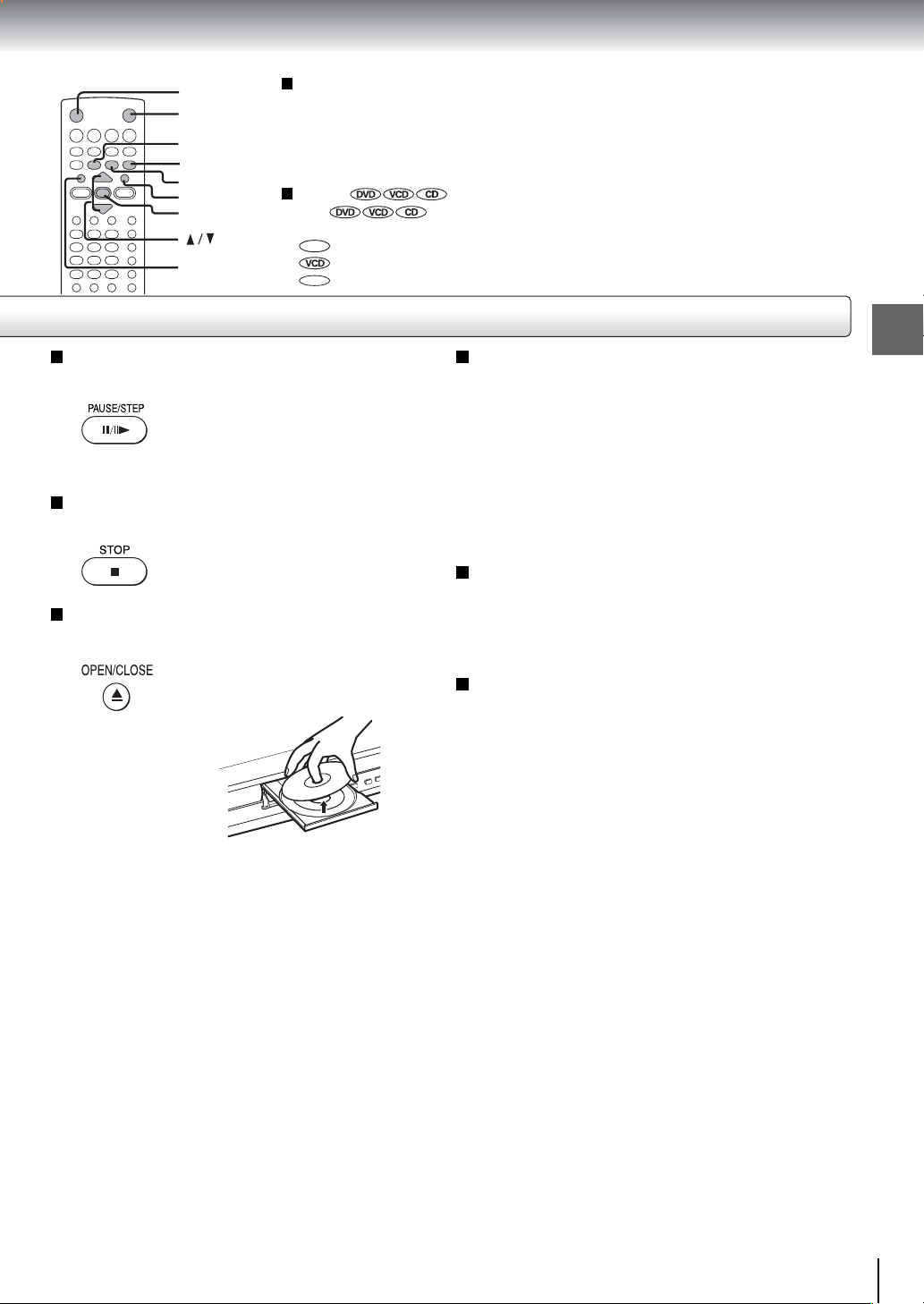

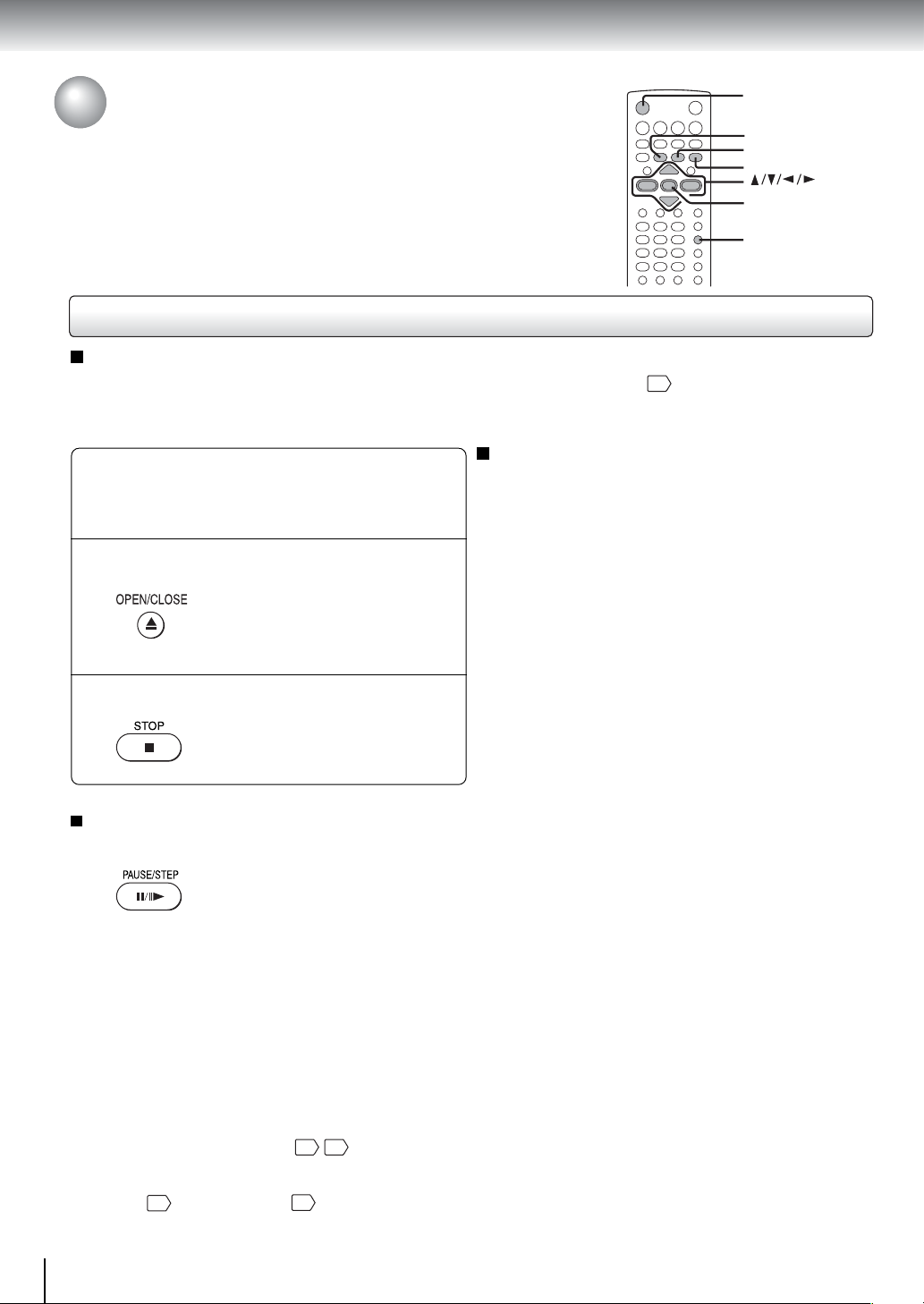

Playing a Disc......................................... 26

Basic playback ............................................... 26

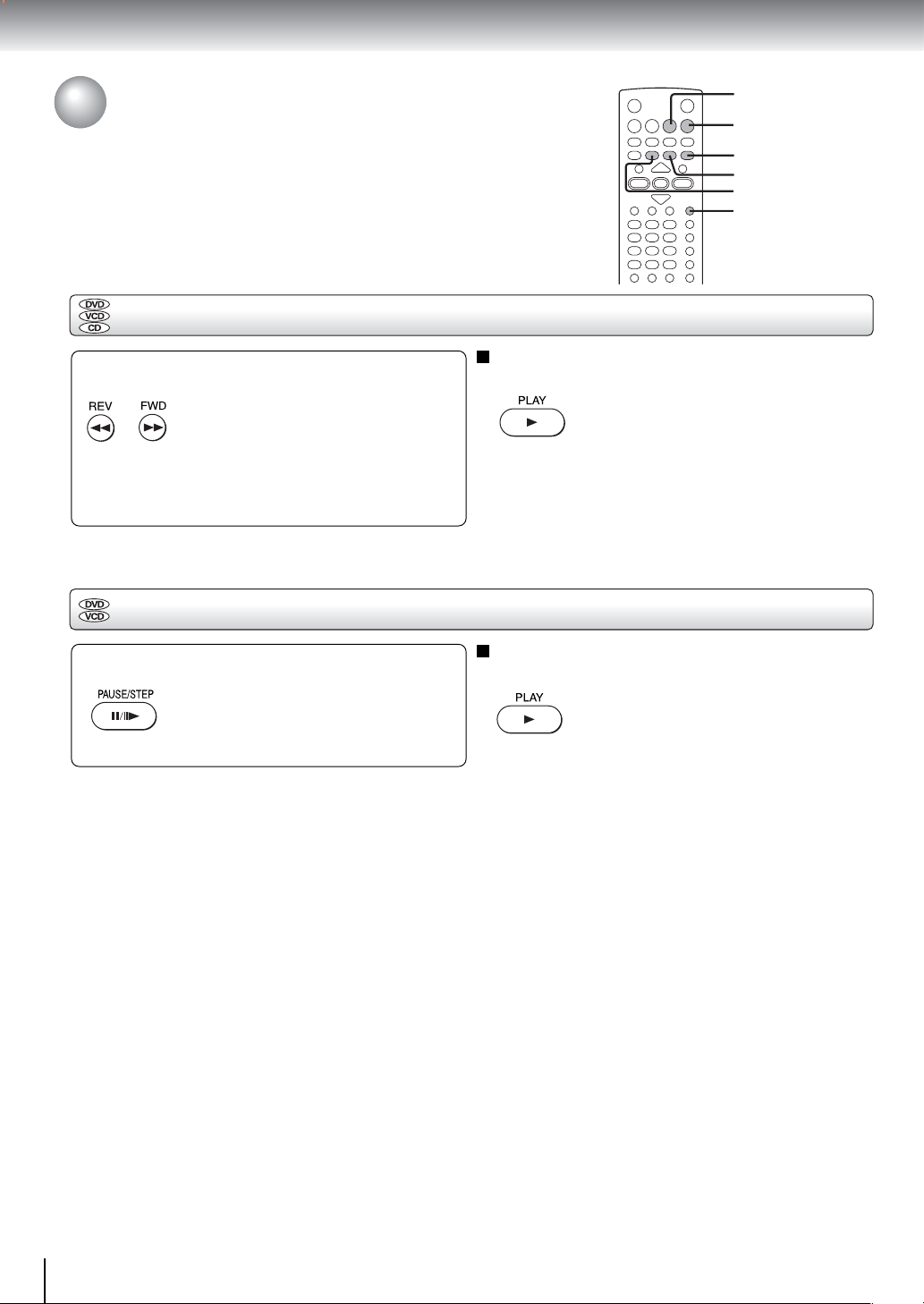

V ariable Speed Playback ....................... 28

Playing in fast reverse or fast forward

directions...................................................... 28

Playing frame by frame .................................. 28

Playing in slow-motion ................................... 29

Resuming playback from the same location ..29

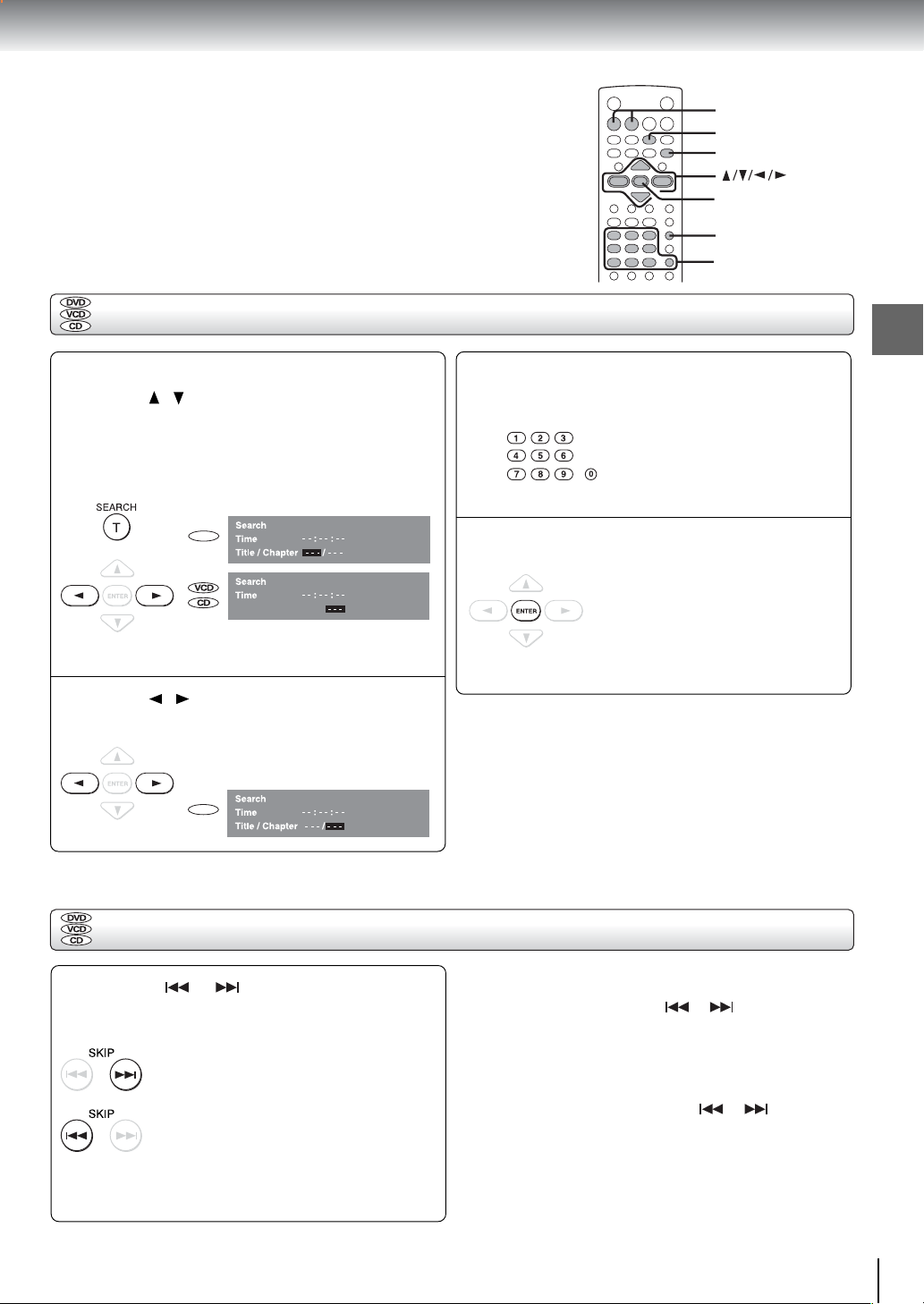

Locating a Desired Section ................... 30

Locating a title using the top menu ................ 30

Locating a desired section by entering the

corresponding number ................................. 31

Locating a specific chapter or track ............... 3 1

Advanced playback

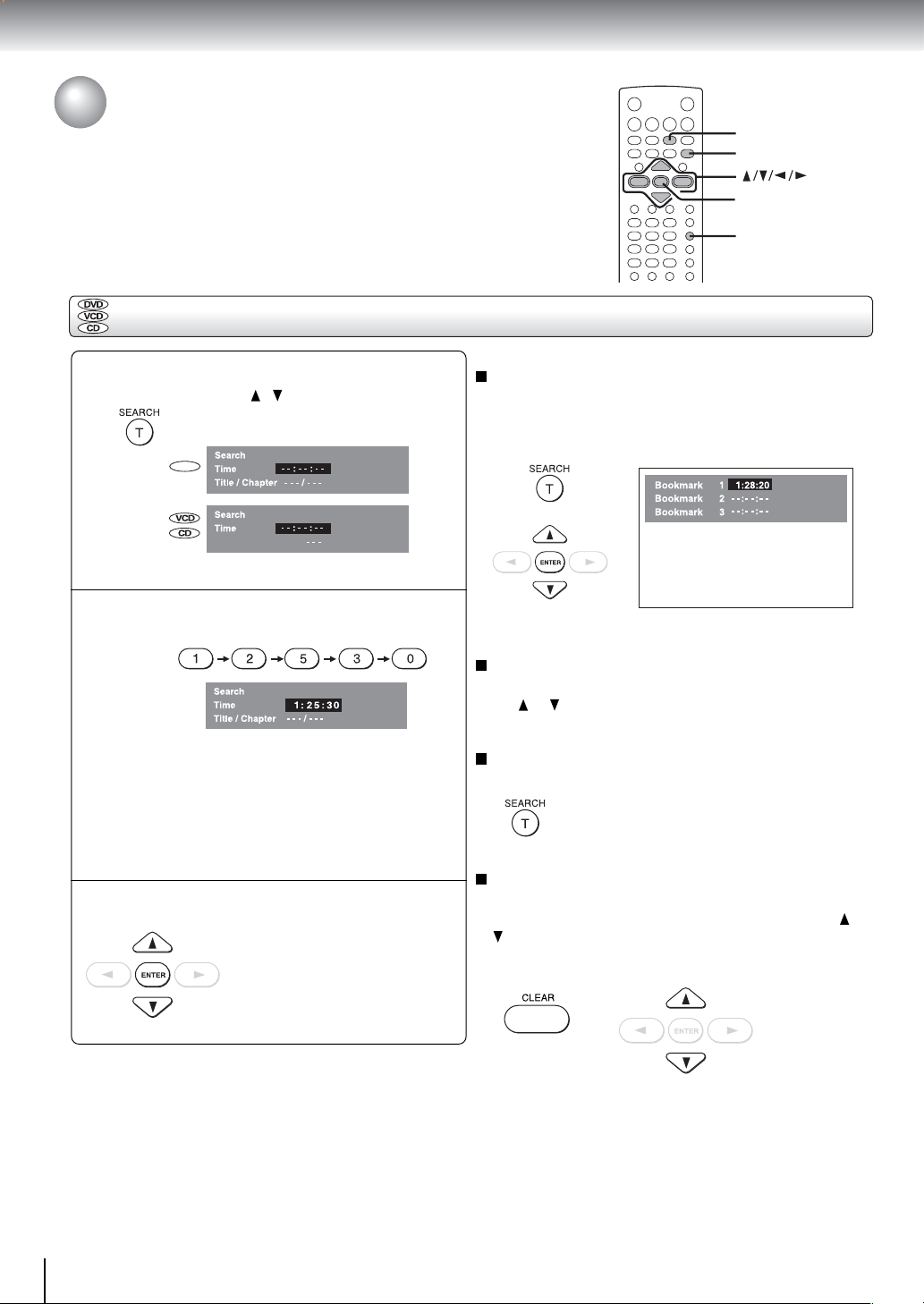

Accessing a Specific Location Directly ...

Entering the time counter of the desired

location......................................................... 34

Repeating a Specific Segment .............. 35

Repeating a specific segment ........................ 35

Playing in a Varied Order ....................... 36

Playing titles, chapters or tracks in a varied

order............................................................. 36

Playing in a Favourite Order.................. 37

Setting titles, chapters, or tracks in a favourite

order............................................................. 37

Zooming a Picture.................................. 38

Zooming a picture ..........................................38

Selecting the Picture Enhancement

(E.P.M.) .................................................... 39

Selecting the picture enhancement................ 39

Selecting the Sound Enhancement

(E.A.M.) ................................................... 40

Selecting the sound enhancement................. 40

Selecting the Camera Angle.................. 41

Changing the camera angle ........................... 41

Selecting Subtitles ................................. 42

Selecting a subtitle language ......................... 4 2

Selecting a Language ............................ 43

Selecting a playback audio setting.................43

On-screen Display Operation................ 44

On-screen display operation ..........................44

Playing MP3/WMA Files......................... 46

Playing MP3/WMA files.................................. 46

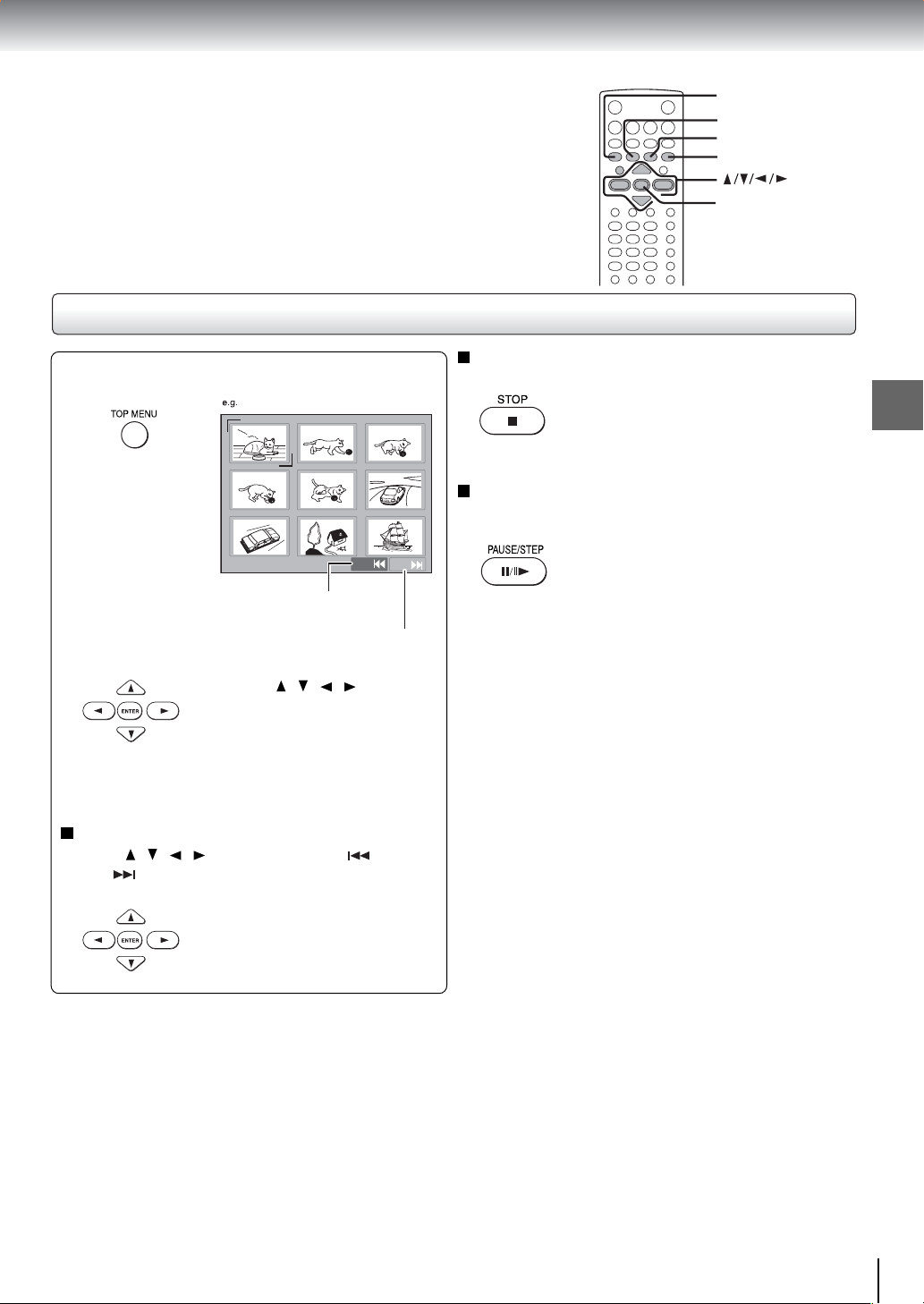

Viewing JPEG Files................................ 48

Starting from a thumbnail view.......................48

Viewing DivXTM / MPEG-4 Files.............. 49

Playing DivXTM / MPEG-4 files........................ 49

Function setup

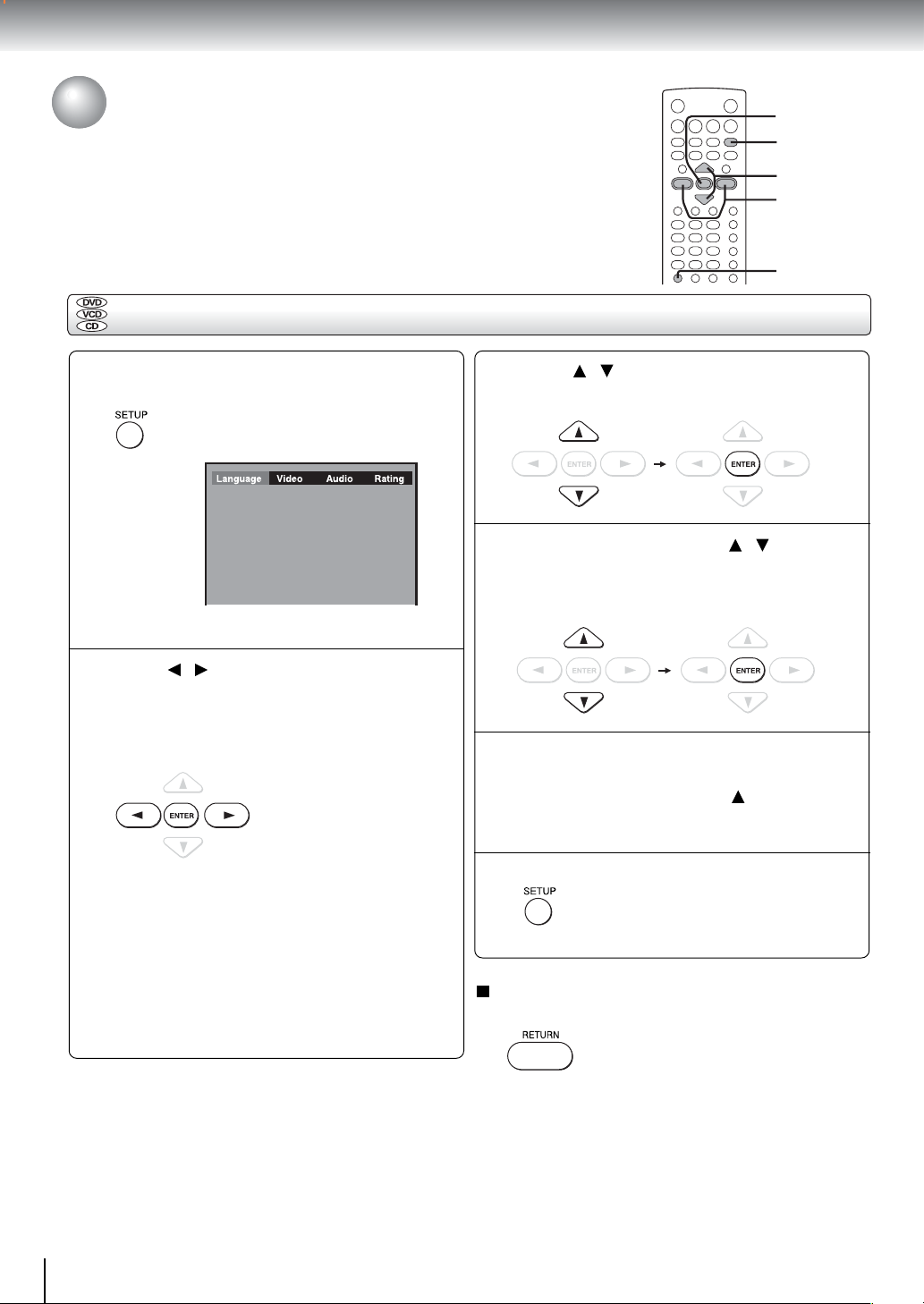

Customizing the Function Settings ...... 53

Setting procedure...........................................54

Setting details................................................. 55

T able of Langua ges................................ 61

Others

Before Calling Service Personnel ......... 64

Specifications......................................... 65

Introduction

34

11

Introduction

Identification of Controls

See the page in for details.

Front panel

13

Rear panel

ENTER button

RETURN button

MENU button

TOP MENU button

30

60

30

12

When connecting the optical digital cable, remove
the cap and fit the connector into the jack firmly.
When not using the jack, keep the cap inserted to
protect it from dust intrusion.

DVD display

Play mode

indicator

Title number

Total playing

time indicator

indicator

Chapter number

indicator

Memory playback indicator

Track number

indicator

Introduction

Random (shuffle)

playback indicator

TITLETOTAL

CHPGROUP

TRK

R

M

MR

-

B

A

DVD

VCD

Multifunctional indicator (indicates

operating status or messages, etc.)

DVD / VIDEO CD /

CD indicator

When you start playback, the elapsed time indicators appear. Pressing the FL.SELECT button switches
them to the title/chapter/track number indicators. Some discs may not permit this operation.

The indicators vary depending on the kinds of discs you play.

DVD video disc

• During playback:

Example

DVD

TITLE

• During playback:

Example

CHP

VCD

VIDEO CD Audio CD

TRK

Angle icon

indicator

Repeat playback

indicator

• During playback:

Example

TRK

CD

Playing chapter 3 of title 2

Some discs may not display chapter
numbers or elapsed time.

Playing track 6

Some discs may not display track
numbers or elapsed time.

Playing track 6

13

Introduction

Identification of Controls (continued)

The instructions in this manual describe the functions on the remote control. See the page in for details.

Remote control

43

FL.SELECT button

40

41

45

37

42

FL.SELECT

54

MENU

MENU button *

38

39

35

36

14

* MENU button

Use the MENU button to display the menu included on
many DVD video discs. To operate a menu, follo w the
instructions in “Locating a title using the top menu.”

30

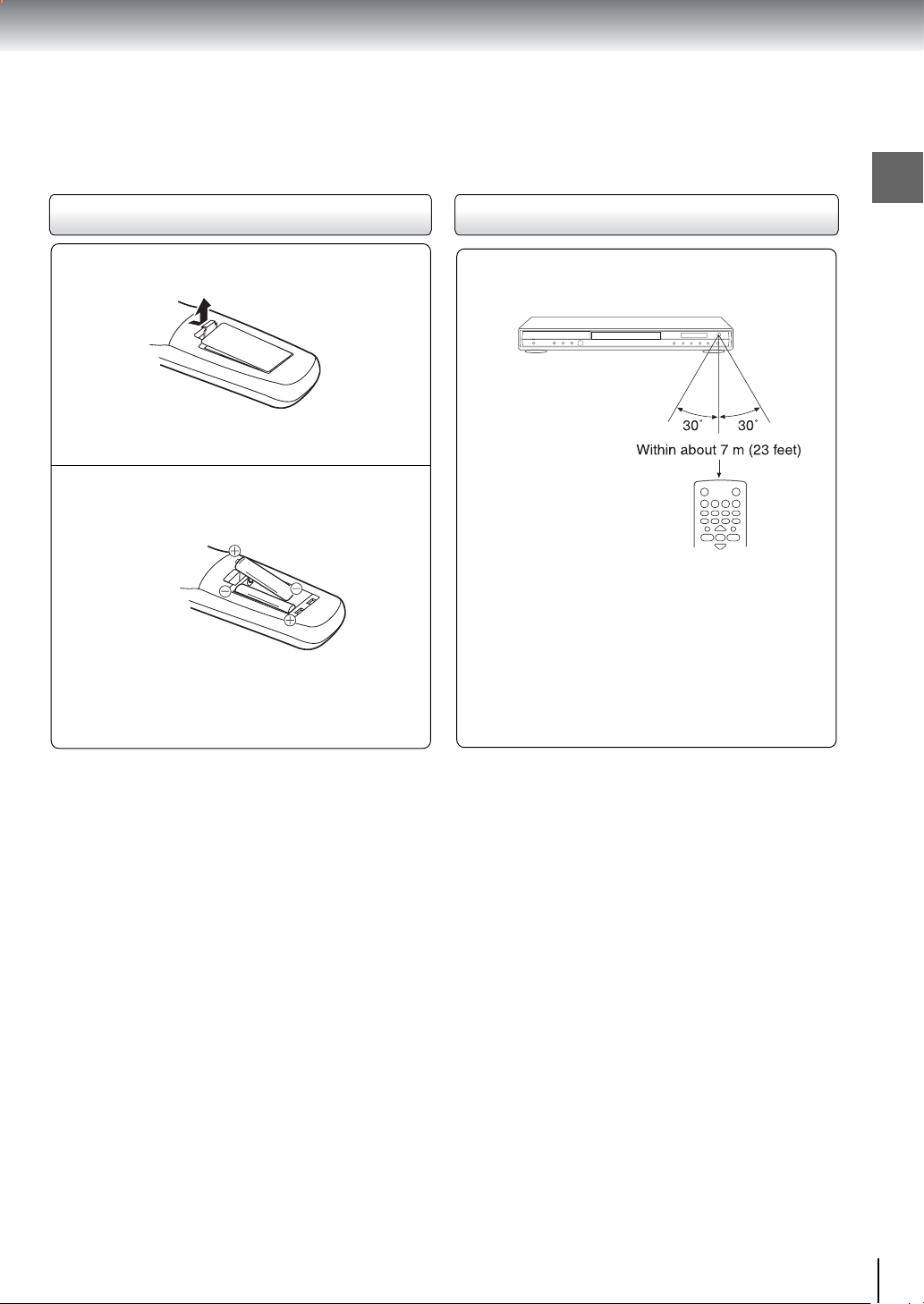

Loading batteries

Operating with the remote control

Introduction

Open the cover .

1

Insert batteries (R03 size).

2

Make sure to match the + and – on the batteries
to the marks inside the battery compartment.

Notes on batteries

Improper use of batteries may cause battery leakage and
corrosion. To operate the remote control correctly, follow the
instructions below.

• Do not insert batteries into the remote control in the
wrong direction.

• Do not charge, heat, open, or short-circuit the batteries.
Do not throw batteries into a fire.

• Do not leave dead or exhausted batteries in the remote
control.

• Do not use different types of batteries together, or mix old
and new batteries.

• If you do not use the remote control for a long period of
time, remove the batteries to avoid possible damage from
battery corrosion.

• If the remote control does not function correctly or if the
operating range becomes reduced, replace all batteries
with new ones.

• If battery leakage occurs, wipe the batter y liquid from the
battery compartment, then inser t new batteries.

Point the remote contr ol at the remote
sensor and press the buttons.

Distance: About 7 m (23 feet) from the front of the

remote sensor

Angle: About 30° in each direction of the front of

the remote sensor

* Do not expose the remote sensor of the DVD video

player to a strong light source such as direct
sunlight or other illumination. If you do so, you may
not be able to operate the DVD video player via the
remote control.

Notes on the remote control

• Direct the remote control at the remote sensor of the DVD
video player.

• When using the remote control, press the buttons at
intervals of about 1 second to ensure the correct mode of
operation.

• Do not drop or give the remote control a shock.

• Do not leave the remote control near an extremely hot or
humid place.

• Do not spill water or put anything wet on the remote
control.

• Do not open the remote control.

15

Connections

Read this chapter first to make all necessary
preparations.

Connecting to a TV
(Using the SCART socket)
Connecting to a TV
(Using the phone type jacks)
Connecting to a TV
(Using the component video

jacks)
Connecting to an amplifier

equipped with a Dolby Digital
decoder

Connecting to an amplifier
equipped with Dolby Surround
Pro Logic

Connecting to an amplifier
equipped with a DTS decoder

Connecting to an amplifier
equipped with an MPEG2 audio
decoder

Connecting to an amplifier
equipped with a digital audio
input

Connections

Connecting to a TV

Connect the DVD video player to your TV.

For details of output sound, see 43.

Connecting to a TV (Using the SCART socket)

Normal TV

To SCART input

To AV

• Make the following setting.

On-screen display

“Video Output”

* With progressive scan off.

Select:

CVBS

RGB
* YUV

Page

54

58

SCART cable

Connecting to a TV (Using a phono type jacks)

Normal TV

T o VIDEO

To audio

input

To audio
input

OUT

(yellow)

(yellow)

Audio cable

Notes

• Refer to the owner’s manual of the connected TV as well.

• When you connect the DVD video player to your TV, be sure to turn off the power and unplug both units from the wall outlet
before making any connections.

• If your television set has one audio input, connect the left and right audio outputs of the DVD video player to a Y cable
adapter (not supplied) and then connect to your TV.

• Connect the DVD video player directly to your TV. If you connect the DVD video player to a VCR, TV/VCR combination or
video selector, the playback picture may be distorted as DVD video discs are copy protected.

• Analog audio out will not have sound if DTS playback is selected.

To 2ch AUDIO OUT
(R: red, L:white)

• Make the following setting.

On-screen display

“Video Output”

* With progressive scan off.

Select:

“PCM” or “Raw”“Digital Out”

CVBS

RGB
* YUV

Page

545459

58

18

Interlaced outputs/inputs

Some TVs or monitors are equipped with component video inputs.
Connecting to these inputs allows you to enjoy higher quality picture
playback.
Actual labels for component video inputs may vary depending on the
TV manufacturer. (ex. Y, R-Y, B-Y or Y, CB, CR)
In some TVs or monitors, the color lev els of the pla ybac k picture ma y
be reduced slightly or the tint may change. In such a case , adjust the
TV or monitor for optimum performance.

Progressive outputs/inputs

Some TVs or monitors are equipped with component video inputs that
are capable of reproducing a progressively scanned video signal.
Connecting to these inputs allows you to view the highest quality
pictures with less flicker .

Consumers should note that not all high definition television sets are
fully compatible with this product and may cause artifacts to be
displayed in the picture. In case of 525 or 625 progressive scan
picture problems, it is recommended that the user switch the
connection to the “standard definition” output. If there are questions
regarding our TV set compatibility with this model 525p and 625p DVD
player , please contact our customer service center.

Connecting to a TV (Using the component video jacks)

To Y video input

To P

B

video

input

R

video

To P

input

Connections

To audio
input

To 2ch AUDIO OUT

(R: red, L:white)

Audio cable

Switching the output signal (interlaced/
progressive) using the remote control

You can temporarily switch the output signal for better
picture quality.
Press PROGRESSIVE on the remote control during stop
mode.

• Make the following setting.

On-screen display

Digital Out

Video output

Select:

PCM or Raw

YUV

Page

54
545958

Press PROGRESSIVE again to turn off progressive mode.

Notes

• Refer to the owner’s manual of the connected equipment as well.

• When you connect the DVD video player to other equipment, be sure to turn off the power and unplug all of the equipment from the
wall outlet before making any connections.

• If you place the DVD video player near a tuner or radio, the radio broadcast sound might be distorted. In this case, place the DVD
video player away from the tuner and radio.

• The output sound of the DVD video player has a wide dynamic range. Be sure to adjust the receiver’s volume to a moderate
listening level. Otherwise, high volume sound may damage your hearing as well as the speakers.

• Turn off the amplifier before you connect or disconnect the DVD video player’s power cord. If you leave the amplifier power on, the
speakers may be damaged.

• Progressive can be on/off only when video output is set to YUV.

• When Progressive is on, only component video will be output.

• When the TV system is set to PAL mode, all output will be forced to PAL type (e.g. 625p, 625i, etc.).

• When the TV system is set to NTSC mode, all output will be forced to NTSC type (e.g. 525p, 525i, etc.).

• Analog audio out will not have sound if DTS playback is selected.

58

58

58

19

Connections

Connecting to Optional Equipment

You can enjoy high quality dynamic sounds by connecting the DVD video player
to optional audio equipment.

• For connection to your TV, see “Connecting to a TV”
.

18 19

• For details of output sound, see

43

.

• This section uses the following reference marks.

: Front speaker
: Rear speaker
: Sub woofer
: Center speaker
: Signal flow

Notes

• DO NOT connect the OPTICAL or COAXIAL DIGITAL

AUDIO OUT jack of the DVD video player to the AC-3 RF
input of a Dolby Digital Receiver. This input on your A/V
Receiver is reserved for Laserdisc use only and is
incompatible with the OPTICAL / COAXIAL DIGITAL
AUDIO OUT jack of the DVD video player.

• Connect the COAXIAL DIGITAL AUDIO OUT jack of the

DVD video player to the “DIGITAL (COAXIAL)” input of a
Receiver or Processor.

• Connect the OPTICAL DIGITAL AUDIO OUT jack of the

DVD video player to the “DIGITAL (OPTICAL)” input of a
Receiver or Processor.

• Refer to the owner’s manual of the connected equipment

as well.

• When you connect the DVD video player to other

equipment, be sure to turn off the power and unplug all of
the equipment from the wall outlet before making any
connections.

• The output sound of the DVD video player has a wide

dynamic range. Be sure to adjust the receiver’s volume to
a moderate listening level. Otherwise, the speakers may
be damaged by a sudden high volume sound.

• Turn off the amplifier before you connect or disconnect

the DVD video player’s power cord. If you leave the
amplifier power on, the speakers may be damaged.

Warning

• When you are connecting (via the OPTICAL or
COAXIAL DIGITAL AUDIO OUT jack) an AV decoder
that does not have Dolby Digital, Digital Theater
Systems (DTS) or MPEG2 decoding function, be sure
to set “Digital Out” to “PCM” from the on-screen

displays 54 59. Otherwise, high volume sound may
damage your hearing as well as the speakers.

• When playing DTS-encoded discs (audio CDs),
excessive noise may be output from the analog audio
output jacks. To avoid possible damage to the audio
system, you should take proper precautions when the
analog audio output jacks of the DVD video player are
connected to an amplification system. To enjoy DTS
Digital Surround™ playback, an external 5.1 channel
DTS Digital Surround™ decoder system must be
connected to the OPTICAL or COAXIAL DIGITAL
AUDIO OUT jack of the DVD video player.

20

Connecting to an amplifier equipped with a Dolby Digital decoder

Connections

Dolby Digital

Dolby Digital is the surround sound technology used in theaters showing the
latest movies, and is now available to reproduce this realistic effect in the home.
You can enjoy motion picture and live concert DVD video discs with this dynamic
realistic sound by connecting the DVD video player to a 6 channel amplifier
equipped with a Dolby Digital decoder or Dolby Digital processor. If you have a
Dolby Surround Pro Logic decoder, you will obtain the full benefit of Pro Logic
from the same DVD movies that provide full 5.1-channel Dolby Digital
soundtracks, as well as from titles with the Dolby Surround mark.

Manufactured under license from Dolby
Laboratories. “Dolb y”, “Pro Logic” and the
double-D symbol are trademarks of Dolby
Laboratories. Confidential unpublished
works. Copyright 1992-1997 Dolby
Laboratories. All rights reserved.

• Use DVD video discs encoded via
the Dolby Digital recording
system.

• Make the following setting.

Amplifier equipped with a
Dolby Digital decoder

To COAXIAL
type digital
audio input

T o OPTICAL
type digital
audio input

Optical digital cable

75 Ω coaxial cable

Connect
either.

On-screen display Select:

“Raw”

“Digital Out”

Recording system

or

‘PCM”

Connecting to an amplifier equipped with Dolby Surround Pro Logic

Dolby Surround Pro Logic

You can enjoy the dynamic realistic sound of Dolby Surround Pro Logic by
connecting an amplifier and speaker system (right and left front speakers, a
center speaker, and one or two rear speakers).

With an amplifier equipped with Dolby Digital

Connect the equipment the same way as described in “Connecting to an
amplifier equipped with a Dolby Digital decoder.” Refer to that amplifier’s
owner’s man ual and set the amplifier so you can enjoy Dolby Surround Pro
Logic sound.

With an amplifier not equipped with Dolby Digital

Connect the equipment as follows.

*

Amplifier equipped with
Dolby Surround Pro Logic

T o audio input

T o ANALOG
AUDIO OUT

• Make the following setting.

On-screen display Select:

“Digital Out”

* Connect one or two rear speakers.
The output sound from the rear speakers
will be monaural even if you connect two
rear speakers.

“Raw”

or

“PCM”

Page

54
59

D

43

Page

54
59

Audio cable

21

Connections

Connecting to Optional Equipment (Continued)

Connecting to an amplifier equipped with a DTS decoder

Digital Theater Systems (DTS)

DTS is a high quality surround technology used in theaters and now availab le for
home use, on DVD video discs or audio CDs.
If you have a DTS decoder or processor, you can obtain the full benefit of 5.1
channel DTS encoded sound tracks on DVD video discs or audio CDs.

“DTS” and “DTS Digital Out” are
trademarks of Digital Theater Systems,
Inc.

• Use DVD video discs or audio
CDs encoded via the DTS
recording system.

• Make the following setting.

Amplifier equipped with
a DTS decoder

To COAXIAL
type digital
audio input

T o OPTICAL
type digital
audio input

Optical digital cable

75 Ω coaxial cable

Connect
either.

On-screen display Select:

“Digital Out”

Recording system DTS

“Raw”

Connecting to an amplifier equipped with an MPEG2 audio decoder

MPEG2 sound

You can enjoy motion picture and live concert DVD video discs with
dynamic realistic sound by connecting an amplifier equipped with an
MPEG2 audio decoder or MPEG2 audio processor.

Amplifier equipped with an
MPEG2 audio decoder

To COAXIAL
type digital
audio input

T o OPTICAL
type digital
audio input

Optical digital cable

Connect
either.

• Use DVD video discs encoded via
the MPEG2 recording system.

• Make the following setting.

On-screen display Select:

“Digital Out”

Recording system MP EG2

“Raw”

or

“PCM”

Page

54
59

43

Page

54
59
43

22

75 Ω coaxial cable

Connecting to an amplifier equipped with a digital audio input

Connections

2 channel digital stereo

You can enjoy the dynamic sound of 2 channel digital stereo by connecting an
amplifier equipped with a digital audio input and speaker system (right and left
front speakers).

Amplifier equipped with
a digital audio input

To COAXIAL
type digital
audio input

T o OPTICAL
type digital
audio input

Optical digital cable

75 Ω coaxial cable

Connect
either.

• Make the following setting.

On-screen display Select:

“PCM”“Digital Out”

Page

54
59

23

Basic playback

Begin your operation.

Playing a Disc
Variab le Speed Playbac k
Locating a Desired Section

Basic playback

CAUTION

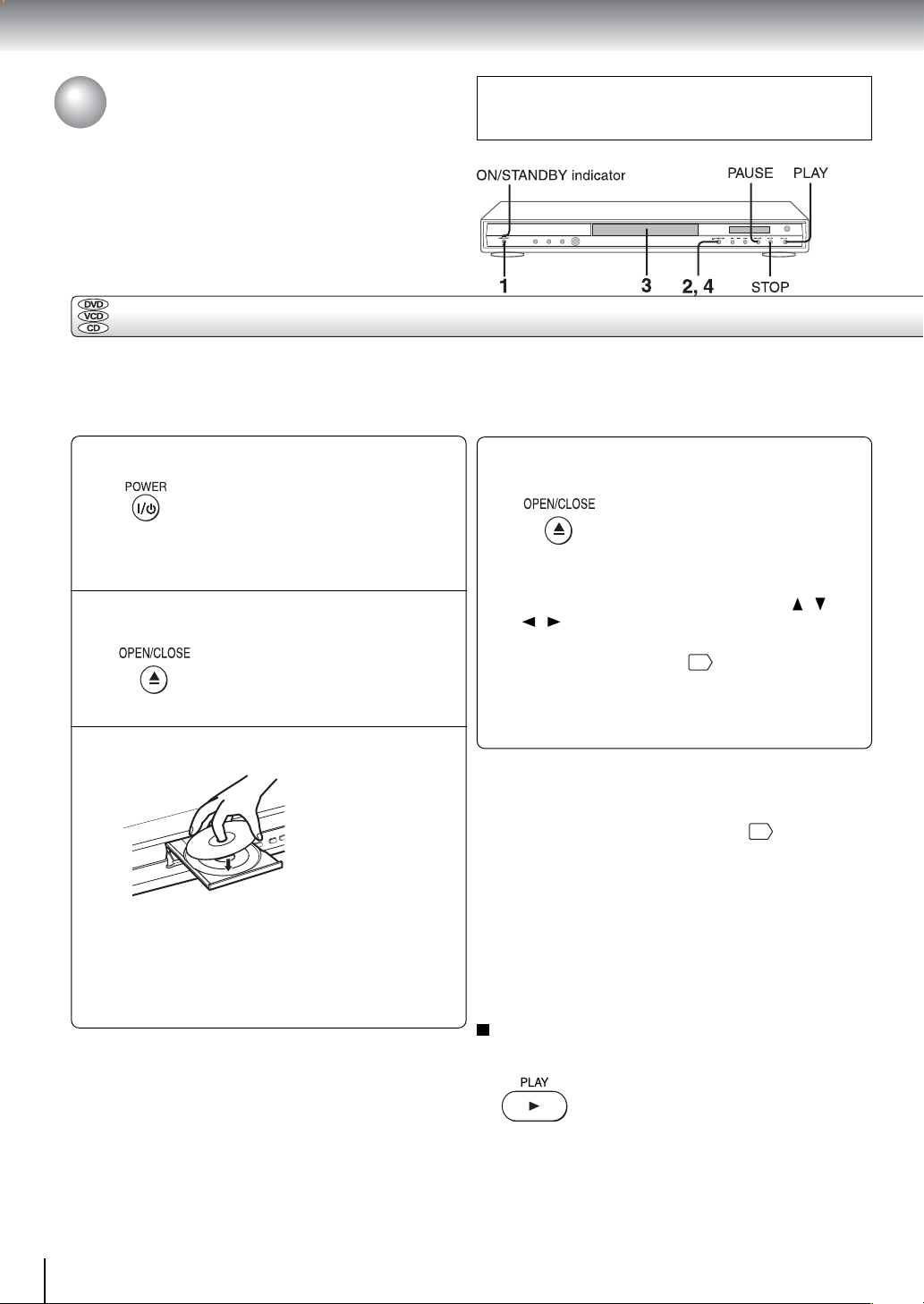

Playing a Disc

This section shows you the basics on how to play a disc.

Keep your fingers well clear of the disc tray as it is closing.
Neglecting to do so may cause serious personal injury.

Basic playback

Preparations

• When you want to view a disc, turn on the TV and select the video input connected to the DVD video player.

• When you want to enjoy the sound of discs from the audio system, turn on the audio system and select the input connected
to the DVD video player.

Press the POWER button.

1

The DVD video player turns on.
The ON/STANDBY indicator on the
player turns green.

Press OPEN/CLOSE.

2

The disc tray opens.

Place the disc on the disc tray.

3

With the playback
side down

• There are two different disc sizes. Place the disc in
the correct guide on the disc tray. If the disc is out of
the guide, it may damage the disc and cause the
DVD video player to malfunction.

• Do not place a disc which is unplayable in this DV D
video player.

Press OPEN/CLOSE to close the disc

4

tray.

Playback starts.

If you insert a DVD video disc that contains a
top menu, a menu may appear. Use the

/ to select the title you want to view, then

press ENTER to start playback. See “Locating a
title using the top menu”

• You may need to press the TOP MENU or MENU
button to display disc menu (depending on the
actual DVD video disc.)

Note

• If the disc tray is holding a disc you have already play ed,
playback will begin from the location where you last
stopped. For resuming playback, see

• Some Video CD are recorded with PBC (Playback
Control), a menu with recorded contents may appear on
the TV if you ha ve turned the PBC on. Y ou can make y our
selection according to its PBC menu. Press the MENU
button on the remote control to turn PBC on and off
anytime during Video CD playbac k. When s witching from
PBC off to PBC on mode, playback will start from the
beginning of the disc.

To start playback in the stop mode

Press PLAY.

.

30

/ /

.

29

26

2, 4
1

STOP
PLAY
PAUSE

MENU
ENTER

TOP MENU

To obtain a higher quality picture

Occasionally, some picture noise not usually visible during a normal broadcast
may appear on the TV screen while playing a DVD video disc because the high
resolution pictures on these discs include a lot of information. While the amount of
noise depends on the TV you use with this DVD video player, you should generally
reduce the sharpness adjustment on your TV when viewing DVD video discs.

About

The icons on the heading bar show the play able discs for the
function described under that heading.

DVD

: You can use this function with DVD video discs.
: You can use this function with VIDEO CDs.

CD

: You can use this function with audio CDs.

To pause playback (still mode)

Press PAUSE/STEP during playback.

To resume normal playback, press
the PLAY button.

• The sound is muted during still
mode.

To stop playback

Press STOP.

To remove the disc

Press OPEN/CLOSE.

Remove the disc after the disc tray
opens completely.

Be sure to press the OPEN/CLOSE button to close
the disc tray after you remove the disc.

To turn the power off (To enter the standby
mode)

Press POWER button to turn the ON/STANDBY
indicator to red.

Note

Be aware that this equipment is still powered even after the
ON/STANDBY indicator tur ns red (standby mode) by pressing
the POWER button. To disconnect this equipment completely
from the mains power, pull out the power plug from the wall
outlet.

About the screen saver

If you pause a picture of a DVD video disc and leave it
still for a long while, the screen saver of the DVD video
player automatically appears. To turn off the screen
saver, press the PLAY button.

Automatic Power Off function

If the DVD video player is stopped, or the screen saver
is engaged for approximately 20 minutes, the DVD
video player will automatically turn itself off.

Basic playback

Notes

• Do not move the DVD video player during playback. Doing so may damage the disc.

• Use the OPEN/CLOSE button to open and close the disc tray. Do not push the disc tray while it is moving. Doing so may
cause the DVD video player to malfunction.

• Do not push up on the disc tray or put any objects other than discs on the disc tray. Doing so may cause the DVD video
player to malfunction.

• In many instances, a menu screen will appear after playback of a movie is completed. Prolonged display of an on-screen
menu may damage your television set, permanently etching that image onto its screen. To avoid this, be sure to press the
STOP button on your remote control once the movie is completed.

27

Basic playback

Variable Speed Playback

You can play discs at various speeds, and resume playback from the location
where you stopped playback.

Playing in fast reverse or fast forward directions

Press REV or FWD during playback.

REV: Fast reverse playback
FWD: Fast forward playback

Each time you press the REV or
FWD button, the playback speed
changes.

Playing frame by frame

To resume normal playback

Press PLAY.

Notes

• The DVD video player mutes sound and subtitles dur ing
reverse and forward scan of DVD video discs. It also mutes
sound of VCD/CD discs during reverse and forward scan.

• The playback speed may differ depending on the disc.

REV
FWD
PLAY

PAUSE
STOP

SLOW

Press P AUSE/STEP during still playback.

Each time you press the PAUSE/
STEP button, the picture advances
one frame.

To resume normal playback

Press PLAY.

Note

The sound is muted during frame by frame playback.

28

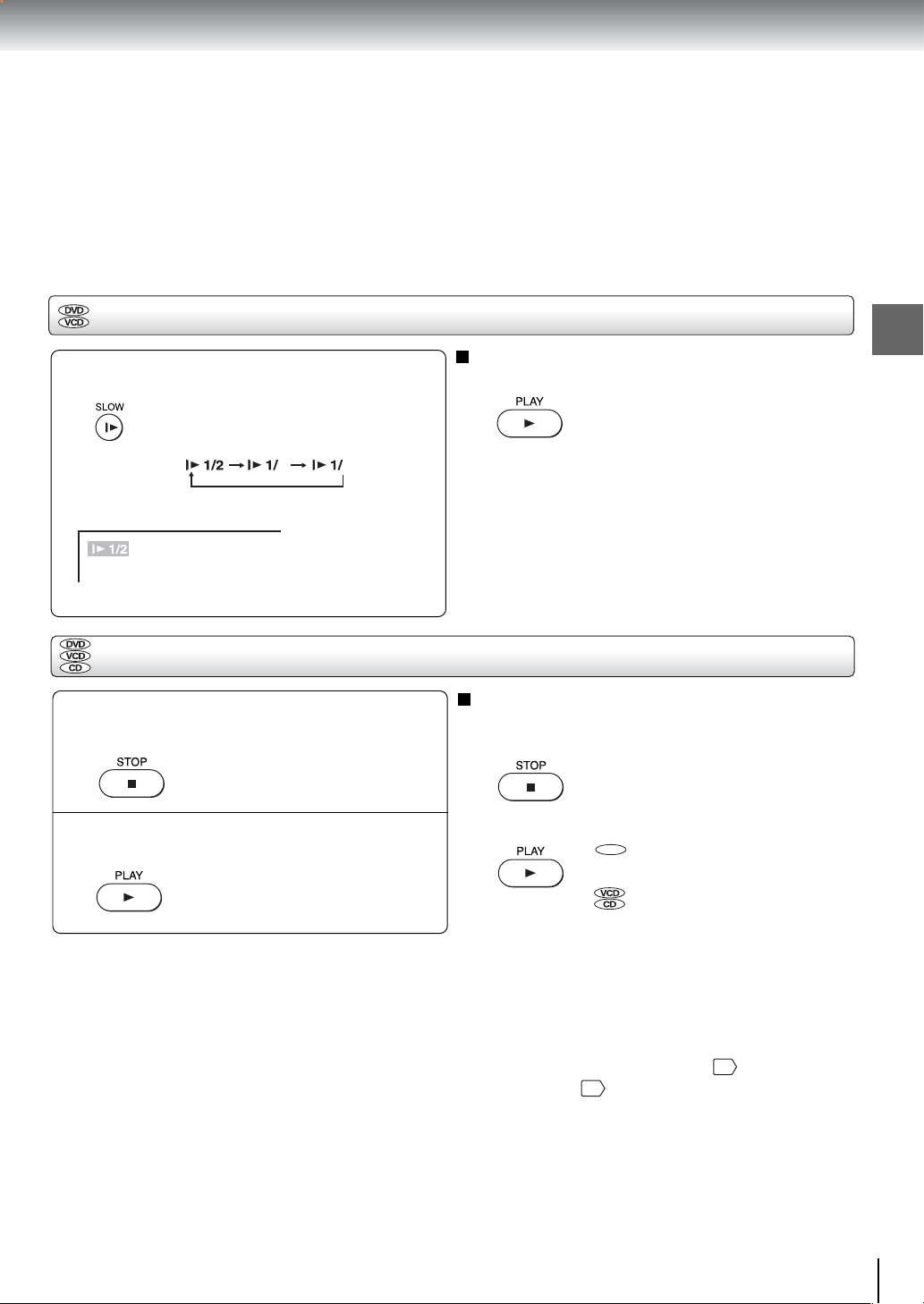

Playing in slow-motion

Press SLOW during pla yback.

Each time you press the SLOW
button, the slow-motion speed
changes in the following sequence:

4 8

To resume normal playback

Press PLAY.

Notes

• The sound is muted during slow-motion playback.

• 3 speeds are available.

Resuming playback from the same location

Press STOP at the location where y ou
want to interrupt playback.

1

The DVD video player memorizes
the location where playback is
stopped.

Press PLA Y.

To start playback from the beginning regardless
of the location where you stopped playback

1 Press STOP twice.

2 Press PLAY.

2

The DVD video player resumes
playback from the location where
you stopped playback.

• If you want to return to the beginning of a DVD video

The DVD video player deletes the
memory of the location.

DVD

Playback starts from the
beginning of the current title.

Playback starts from the
beginning of the disc.

disc, open and close the disc tray once with the
OPEN/CLOSE button before pressing the PLAY
button.

Basic playback

Notes

• Resuming cannot function when:
–you change the parental lock setting 59 or select a disc

menu language 56.

–you open the disc tray.
–you disconnect the power plug of the DVD video player.
–you play a PBC-featured video CD while the PBC on.

• There may be a difference in the location where playback
resumes depending on the disc.

• Settings you changed using the on-screen displays while
the DVD video player keeps a location in the memory may
function only after the memory is cleared.

29

Basic playback

TOP MENU

Locating a Desired Section

ENTER

Normally, DVD video discs are divided into titles, and the titles are sub-divided into chapters. VIDEO CDs and audio CDs are
divided into tracks. You can quickly locate any specific title, chapter, or track.

DVD video disc

Title 1 Title 2

Chapter 1 Chapter 2 Chapter 1 Chapter 2 Chapter 3

DVD

Locating a title using the top menu

Track 1

VIDEO CD/audio CD

T rack 2 Track 3 Track 4 Track 5

Press TOP MENU.

1

The top menu appears on the T V
screen.

e.g.

Press / / / to select the title you
want.

2

If the titles in the top menu are
assigned a number, you can directly
locate a specific title by pressing its
designated number with the number
buttons.

Press ENTER.

3

Playback starts from chapter 1 of
the selected title.

Notes

• The instructions above describe basic procedures which
may vary depending on the contents of the DVD video disc.
If different instructions appear on the TV screen, follow
those instructions.

• If you display the top menu during playback and press the
TOP MENU button again without selecting any title, the DVD
video player may resume playback from the point where you
first pressed the TOP MENU button (depending on the
actual DVD video disc.)

• This method of locating a title is available only on a disc that
contains a top menu.

• Instruction notes of discs may refer to the button that
displays the top menu as TITLE button.

30

SKIP
CLEAR
PLAY

ENTER
T

Number buttons

Locating a desired section by entering the corresponding number

Press T .

1

Press / to highlight the Title/Chapter
or T rack.

If you are using a VIDEO CD/audio CD, skip step 2.
Then at step 3, enter the number for the track you
want using the number buttons.

e.g.

DVD

Track

Press / to select a section you want

2

to locate.

e.g. When you want to locate a chapter.

DVD

Press the number buttons to enter title,
chapter or track number.

3

Press ENTER.

4

Playback starts from the selected
section.

Notes

• Pressing the CLEAR button resets the numbers. To clear the
display, press the T button several times.

• This method of locating a title is available only on a disc that
contains title numbers.

Basic playback

Locating a specific chapter or track

Press SKIP or repeatedly to access
the chapter or track number you want.

Playback starts from the selected chapter or track.

To locate succeeding chapters or
tracks.

Playback starts from the beginning of
the current chapter or track.
When you press twice in quick
successions, playback starts from the
beginning of the preceding chapter or
track.

Notes

• Some titles may not display chapter numbers.

• If you press and hold the SKIP or button on the
front panel during playback, the DVD video player performs
fast reverse or fast forward playback. You can vary the
speed by pressing the button repeatedly.
To locate chapters or tracks during fast reverse or fast
forward playback, first press the PLAY button to resume
normal playback, then use the SKIP or button.

31

Advanced playback

Customizing the performance of your DVD video player.

Accessing a Specific Location
Directly

Repeating a Specific Segment
Playing in a Varied Order
Playing in a Favourite Order
Zooming a Picture
Selecting the Picture Enhancement

(E.P.M.)
Selecting the Sound Enhancement

(E.A.M.)
Selecting the Camera Angle
Selecting Subtitles
Selecting a Language
On-screen Display Operation
Playing MP3/WMA Files
Viewing JPEG Files
Playing DivXTM/MPEG-4 Files

Advanced playback

Accessing a Specific Location Directly

The unit stores the points that you want to watch again up to 3 points.
You can resume playback from each scene.

Entering the time counter of the desired location

CLEAR
PLAY

ENTER
T

Press T .

1

Press / button to highlight the
time counter.

DVD

Track

Press the number buttons to enter the
time.

2

e.g.

• The first number you entered represent hour.

• The second two numbers you entered represent
minutes.

• The third two numbers you entered represent
seconds.

• If you input a wrong number, press CLEAR.

Press ENTER.

3

Playback starts from the
desired location.

To set and play favourite bookmark during
playback

1. Press T twice, the display of Bookmark appears, then
press ENTER to mark the desired scene.

2. Press ENTER to play the favourite bookmark.

To set other bookmarks.

Follow step 1 and move through the menu by pressing

or button.

the

Press T again to remove this display.

To cancel the Bookmark

Follow step 1, then press CLEAR to cancel the
bookmark. Move through the menu by pressing the

button to cancel other bookmarks.

or

Notes

• Some discs may not respond to this process.

• Some scenes may not be located precisely as you
specified.

• This method for accessing specific locations is available
only within the current title of the DVD video disc or within
the current track of the VIDEO CD / audio CD.

34

Notes

• Some discs may not work with marking operation.

• The marking is cancelled when you open the disc tray or
turn the power off.

• Some subtitles recorded around the marker may fail to
appear.

Repeating a Specific Segment

You can specify a desired segment and repeat it.

Repeating a specific segment

A-B RPT

Press A-B RPT at the beginning of the
segment (point A) you want to play

1

repeatedly.

Press A-B RPT again at the end of the
segment (point B).

2

The DVD video pla y er automatically
returns to point A and starts repeat
playback of the selected segment (A-B).

To resume normal playback

Press A-B RPT until Rep off is displayed.

Advanced playback

Notes

• Some discs may not permit A-B repeat operation.

• You cannot set the A-B repeat function for a segment that
includes multiple camera angles 41.

• You can specify a segment only within the current title or
track (VIDEO CD).

• There may be a slight difference between point A and the
location where playback actually resumes depending on the
disc.

35

Advanced playback

Playing in a Varied Order

You can play titles, chapters within a title, or tracks in a varied order.

Playing titles, chapters or tracks in a varied order

2

ENTER

1

Press PLAY MODE.

1

Press / button to select desired
features and then press ENTER
button to toggle desired mode.

e.g.

Off

Shuffle

Chapter:

Repeats the chapters within the current title.

Title:

Repeats the current title.

Single:

Repeats the current track.

All:

Repeats the entire disc.

Off:

Resumes normal playback.

Play mode
Mode
Repeat

Off

Chapter

Title

Single

Press PLA Y.

2

Press the PLAY button, the DVD
video player starts playback in the
selected mode.

Off
Off

To resume normal playback

Press ENTER until the Off is displayed.

Note

Some discs may not permit these operations.

Off

All

36

Playing in a Favourite Order

You can combine your favourite titles, chapters, or tracks and play them in the
order you determine. You can program up to 12 selections into the memory.
(Memory playback)

Setting titles, chapters, or tracks in a fav ourite order

CLEAR

2

2
1

Insert a disc and press MEMORY during
stop.

1

The following displa y appears.

e.g.

Select the items in the order you want
by pressing the number buttons.

2

Each time you press the / / / button, the
space is highlighted in turn. Highlight where you
want to enter, then press the corresponding
number buttons.

To select another chapter in the same title, you do
not need to select the title number.

To select tracks from a VIDEO CD/audio CD in
order, press the number buttons for the track.

Press / / / to move the highlighted
bar to Play Program, then press the

3

ENTER.

To change the programmed selections

1 While the display appears on the TV screen, press

/ / / to move the highlighted bar to the item

you want to change.

2 Change the selection following the instructions in

step 2.

To cancel the programmed selections

1 While the display appears on the TV screen, press

/ / / to move the highlighted bar to the item

you want to cancel.

2 Press CLEAR.

To resume normal playback from memory
playback

Press MEMORY button.

/ / / to move the highlighted bar to Clear

Press
All, then press the ENTER. All the input programmes
will be cleared.
Press PLAY button to resume normal playback.

Normal playback will start from first
location.

To program during playback

If you press the MEMORY button during playback, a
programming display appears.
Follow steps 2 and 3.

Notes

• Some discs may not permit memory playback operation.

• If you select repeat 36 during memory playback, the DVD
video player repeats the current memory playback.

• If you press the MEMORY or RETURN button while the
display appears on the TV screen, the display disappears.

• The programmed selections will be cleared when you turn
off the DVD video player.

Advanced playback

The DVD video player starts
memory playback.

37

Advanced playback

Zooming a Picture

You can magnify areas within a picture.

Zooming a picture

ZOOM

Press ZOOM during normal, slow or still
playback.

The DVD video player enters the
zoom playback mode and displays
the icon.

e.g.

2

Each time you press the ZOOM
button, the magnification level
changes as follows:

1 2 3

Press the ZOOM button to select the
magnification level.
Variation of the levels includes
image reduction.

You can shift the highlight within the
icon by the

When you reach the edge of the
image, the display will not shift
anymore in that direction.

/ / / buttons.

Off

To resume normal playback

Press ZOOM repeatedly until the
Original picture is restored.

Notes

• Some discs may not respond to zoom feature.

• During some scenes, the buttons may not work as
described.

• Zooming does not work on subtitles or menus included on
DVD video discs.

• While the icon is displayed, the / / / buttons cannot
work on menus included on the DVD video discs. If you
want to view the menus, turn off the icon.

• The magnification level varies depending on the picture size
you select.

58

is displayed.

Off

38

Off

Press the ZOOM button repeatedly
until the

is displayed.

Off

Selecting the Picture Enhancement (E.P.M.*)

You can easily select a preferred picture enhancement.

*E.P.M.: Enhanced Picture Mode

Selecting the picture enhancement

Press E.P .M.

1

The picture enhancement menu
appears.

Select the picture enhancement by
pressing / , then press / to make

2

your selections.

To exit the picture enhancement selection

Press E.P.M. again.

Note

Actual effect to picture may vary depending on the TV. Make

08

selection according to your preference.

08

2

E.P.M.

Advanced playback

Each time you press the / button, the picture
enhancement changes.

39

Advanced playback

Selecting the Sound Enhancement (E.A.M.*)

You can easily switch a preferred audio enhancement.

*E.A.M.: Enhanced Audio Mode

Selecting the sound enhancement

E.A.M.

Press E.A.M.

1

The sound enhancement will
appear:

3D On

Press the E.A.M. button again, the sound
enhancement change to OFF.

3D*:
To obtain expansive virtual surround sound effects
from two speakers.

To use this enhancement on sounds output from
the ANALOG AUDIO OUT jacks, be sure to set
“Digital Out” to “PCM”.

* Effective in playback of a DVD video disc or a

VIDEO CD.

To exit the audio enhancement selection

Leave the DVD video player unattended for about 5
seconds after having made a selection.

Notes

• Actual effects to sounds may vary depending on the

speaker system. Make selection according to your
preference.

• Actual effects to sounds may vary depending on the disc.

• When the DVD video player is connected to an amplifier

equipped with Dolby Surround Pro Logic, select “Normal”.
Otherwise, Dolby Surround Pro Logic may function
differently than usual.

40

Selecting the Camera Angle

If the scene was recorded from multiple angles, you can easily change
the camera angle of the scene you are watching.

DVD

Changing the camera angle

ANGLE

Press ANGLE while playing a scene
recorded with multiple angles.

1

While playing a scene recorded with
multiple angles, press the ANGLE
button.

e.g.

Number changes to show the
number of the current angle. (The
maximum number of possible angles
is 9)

Press ANGLE while the angle number is
displayed on the TV screen.

2

Press the ANGLE button repeatedly
to change the scene to the next
angle in those recorded.

• About two seconds later, playback
continues from the new angle you
selected.

• If no button is pressed within 10
seconds, playback continues
without changing the current
angle.

To resume normal playback

Press the ANGLE repeatedly until the “
displayed.

Notes:

• This function can only be used for discs on which scenes
shot from multiple angles have been recorded.

• If only one angle is recorded, “

” is displayed.

1/1

1/3

” is

Advanced playback

41

Advanced playback

Selecting Subtitles

You can display subtitles on the TV screen and select a subtitle language
from those included on the DVD video disc.

DVD

Selecting a subtitle language

Press SUBTITLE during playback.

To turn subtitles on or off

1 Press SUBTITLE during playback.

1

The current subtitle setting is
displayed.

e.g.

Off

Press SUBTITLE while the subtitle setting
is displayed on the TV screen.

2

Each time you press the SUBTITLE
button, the subtitle languages
included on the DVD video disc
change.

2 Press SUBTITLE repeatedly until the

Notes

• Some DVD video discs are set to display subtitles
automatically, and you cannot turn them off even if you set
the subtitle function to off.

• During some scenes, the subtitles may not appear
immediately after you select your desired.

• Some DVD video discs will allow you to make subtitle
selections and turn subtitles on or off only via the disc
menu.

SUBTITLE

is

displayed.

1/3 Fre

Bonsoir!

To turn off the subtitle setting
display, press the SUBTITLE button
repeatedly until

Notes

• When you turn on the DVD video player or replace a disc, the player returns to the initial default setting 60.
When you select a subtitle language which is not included on the disc, the DVD video player plays a prior language

programmed on the disc.

• During some scenes, the subtitles may not appear immediately after you change the subtitle language.

is displayed.

42

Selecting a Language

You can select a preferred language and sound recording system from those
included on the DVD video disc.

Selecting a playback audio setting

AUDIO

Press AUDIO during playbac k.

12

The current audio setting is
displayed.

e.g.

Recorded audio format number
changes sequentially. (The
maximum number of possible audio
formats is 8)

The abbreviation of the language appears instead
of the language name. Refer to the list of

languages and their abbreviations.

61

Press AUDIO while the audio setting is
displayed on the TV screen.

Each time you press the AUDIO
button, the audio settings included
on the DVD video disc change.

To turn off the audio setting display, press the
AUDIO button.

Notes

• When you turn on the DVD video player or replace a disc,
player returns to the initial default setting 60.
If you select a sound track which is not included on the disc,

the DVD video player plays a prior sound track programmed
on the disc.

• Some discs allow you to change audio selections only via
the disc menu. If this is the case, press the MENU button
and choose the appropriate language from the selections on
the disc menu.

Selecting sound channels of VIDEO CDs

Press AUDIO repeatedly during
playback to hear a different audio
channel (stereo, Left or Right).

Output sound conversion table

Advanced playback

54 59

Notes

• Signals of 96kHz from the OPTICAL
or COAXIAL DIGITAL AUDIO OUT
jack are depressed to 48 kHz by
down sampling process when:

– “3D On” is selected.
– a copyright protected disc is played.

• Quantization bit of signals of 20 bit or
higher which is output from the
OPTICAL or COAXIAL DIGITAL
AUDIO OUT jack is 16 bit if they are
in a copyright protected disc.

40

43

Advanced playback

On-screen Display Operation

When you turn on the on-screen display, you can view information on
operational status and access features and settings.

On-screen display operation

Press NA VI.

The following displa y appears.
Each time you press the NAVI button, the on-screen display as follows.

ENTER
NAVI

See the pages in

e.g. When playing a DVD video disc

Title number

Chapter number

Elapsed time

Features

Title number (Track number)

Locate a title or track using the number
buttons.

Chapter number

Locate a chapter using the number buttons.

31

Elapsed time of the current title or track

To enter the time to locate a desired location.

34

31

for details on the features.

1/3 1/16 00:02:30

: To stop playback.

: Playback starts from the beginning of the

current chapter or track.

: To start playback.

: To locate succeeding chapters or tracks.

31

27

31

26

44

: To pause playback.

27

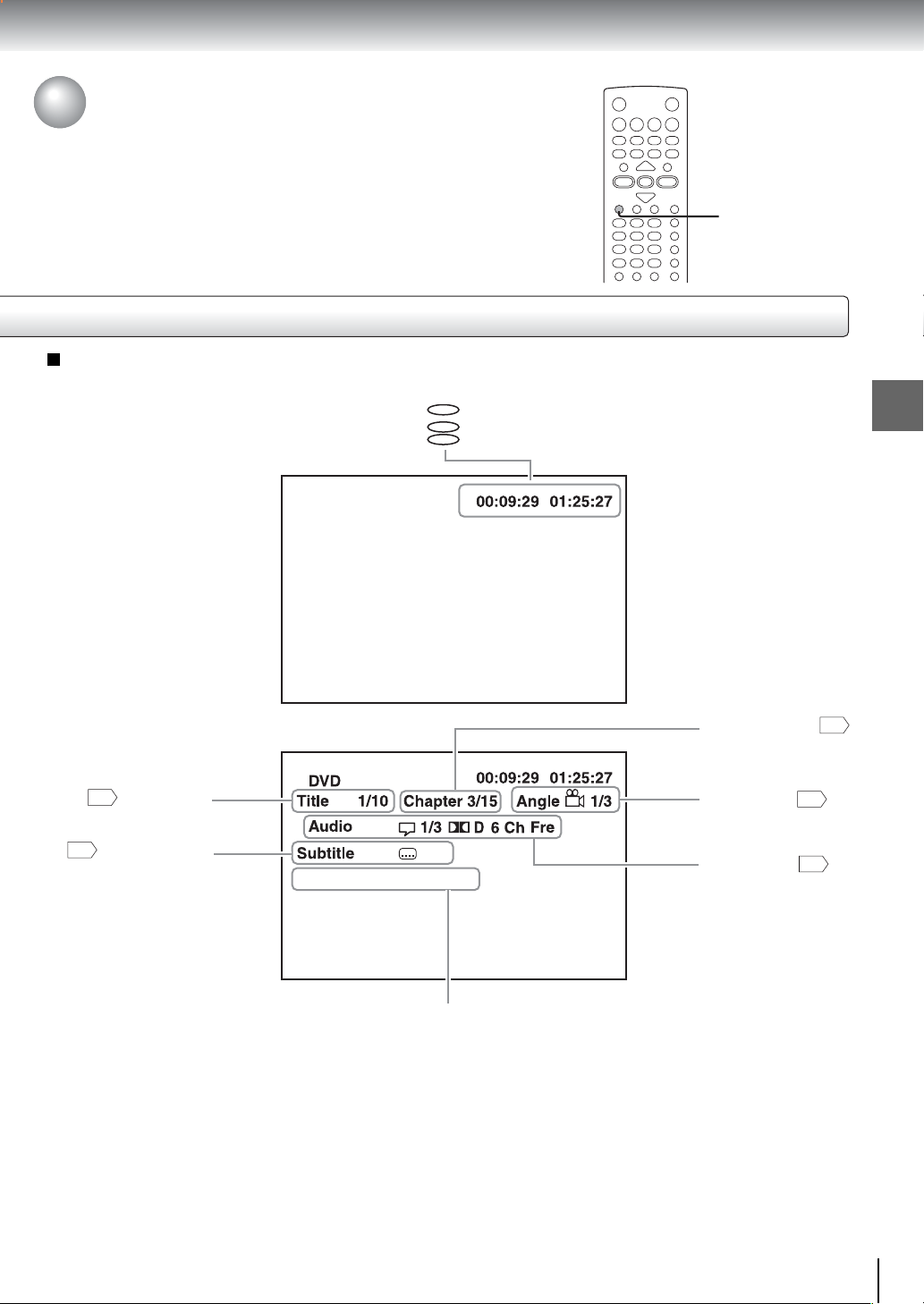

On-screen Display Operation (Continued)

On-screen display operation

Viewing the operational status

1 Press DISPLAY.

The following displa y appears.

Time counter

DVD

Elapsed time / remaining time of the current title

VCD

Elapsed time / remaining time of the current track

CD

DISPLAY

Advanced playback

31

Title number

42

Subtitle Setting

Bitrate 5.888Mbpss

2 To turn off the display, press DISPLAY again.
Bit rate (Mbit/s)

Amount of picture, sound and subtitle data in
the DVD video disc transferred per second.
The larger the value is, the more data
processed, but this does not necessarily insure
better picture quality.

Off

Bit Rate

Chapter number

Angle Setting

Audio Setting

31

41

43

45

Advanced playback

Playing MP3/WMA Files

You can play MP3/WMA files that have been recorded on a CD-R or CD-ROM on
the DVD video player.

Playing MP3/WMA files

Preparations

• Make sure that a disc you want to play is compatible with this DVD video player.

Place a CD that contains MP3/WMA files
on the disc tray.

1

Press OPEN/CLOSE to load the disc.

2

Playback starts.

T o stop pla ybac k, press STOP.

Selecting a track (file) in the disc

1 Press T.
2 Enter the track number to select a track you want

to play.

3 Press ENTER to begin playback of the selected

track.
The current track being played is highlighted in
green.

Notes

• Letters of a file/folder name overflowing the given space
are not displayed.

• You can not play in Fast reverse or Fast forward during
MP3/WMA playback.

3

2
3

PAUSE/STEP
PLAY

ENTER
T

47

To pause playback

Press PAUSE/STEP during playback.

To resume normal playback, press
the PLAY button.

Notes

• Some discs may not permit this operation.

• WMA tracks copy-protected cannot be played.

• The OPTICAL or COAXIAL DIGITAL AUDIO OUT jack outputs MP3/WMA sounds in the linear PCM format regardless of
the current “Digital Out” selection 59 43 .

• If you stop playback by pressing the STOP button, and then press the PLAY button, playback will star t from the beginning of
the track.

• The SKIP 31 and PLAY MODE 36 functions are also available.

46

Playable files

MP3/WMA disc compatibility with this player is limited as follows:

• Playable discs: CD-ROM, CD-R (650MB / 74 min. only)
CD-RW is not recommendable.

• Sampling Frequency: 44.1 kHz only

• Bit rate: WMA: 48 kbps - 192 kbps (CBR*)
MP3: 32 kbps - 320 kbps (CBR*)

• CD physical format: Mode 1, Mode 2 XA Form 1

• File system: ISO9660 Level 1, 2 or Joliet

• File name: A file name should be in alphabet and numerals only, and must incorporate “MP3” or
“WMA” extension.
e.g.“********.MP3”, “********.WMA”

• Total number of folders: Less than 256

• Total number of files: Less than 1000

• WMA codec version: V7 or V8 (Stereo sound only)

* CBR = Constant Bit Rate

This DVD video player requires discs/recordings to
meet certain technical standards in order to achieve
optimal playback quality. Pre-recorded DVDs are
automatically set to these standards. There are many
different types of recordable disc formats (including CD­R containing MP3/WMA files). Given the fact that
technology in this area is still maturing, Toshiba cannot
guarantee that all genre of recordable discs will produce
optimal playback quality. The technical cr iter ia set out
in this owner’s manual are meant as a guide only.

Advanced playback

Customers should also note that permission is required
in order to download MP3 files and music from the
internet. Toshiba has no right to grant such permission.
Permission should always be sought from the copyright
owner.

Microsoft, Windows Media, and the Windows
Logo are trademarks or registered trademarks
of Microsoft Corporation in both the United
States and other countries.

Note

When the WMA or MP3 file is out of the above specifications,
the song may be skipped or muted with counter moving.

47

Advanced playback

Viewing JPEG Files

You can play JPEG files that have been recorded on a CD-R or CD-ROM on the
DVD video player.
You can select a preferred view: a page of 9 thumbnail images or a single image
view.
Also, rotating, enlarging and shifting of each image can be possible.

Starting from a thumbnail view

Preparations

• Prepare a disc that contains JPEG files you want to view.

• Make your TV shape conform to the 4:3 picture size. Only 4:3 pictures can be played regardless of the function
settings via the on-screen displays of the DVD video player. If the TV is adjusted to other sizes, e.g. “WIDE,”
images will appear to be horizontally expanded. For details, refer to the owner’s manual of your T V.

Press OPEN/CLOSE to open the disc
tray, place a disc that contains JPEG

1

files.

Press OPEN/CLOSE to close the
disc tray, after completion of reading,
playback automatically starts. The
next picture will automatically display
after a few seconds.

A view appears.
(Automatic
mode)
e.g.

50

To quit the JPEG playback, press STOP.

• Pressing the OPEN/CLOSE button to
open the disc tray can also quit the
playback.

To pause playback

Press PAUSE/STEP during playback

To resume normal playback, press

PLAY.

To change the image

To view the succeeding image, press
SKIP .

A list of folders
in the disc
appears.
(Selection
mode) e.g.

Flower

0001
0002
0003

0004
0005

Press / / / to select your
desired file, and then press ENTER
or PLAY button to star t playback.
Press STOP to display a folder list.

Press SEARCH and enter the track
number to quickly select your image.

Search
Track

0006
0007
0008

0009
0010

To view the previous image, press SKIP

.

To magnify image

Press ZOOM repeatedly.

Each time you press the ZOOM button,
the magnification level changes as
follows:

Variation of the levels includes image reduction. You can
shift the highlight within the icon by the / / /
buttons. When you reach the edge of the image, the
display will not shift anymore in that direction.

1 2 3

Off

To rotate an image

Press the ANGLE repeatedly

The image rotates by clockwise 90­degree.

To resume normal playback

Press the ZOOM repeatedly until the
displayed.

• Original picture is restored when the
icon disappears.

• Some files may not display their own
entire depending on the size.

Off

is

48

Viewing a thumbnail view

Press TOP MENU in full-screen review .

1

1

STOP
PAUSE/STEP
PLAY

ENTER

To quit the JPEG playback, press STOP.

• Pressing the OPEN/CLOSE button
to open the disc tray can also quit
the playback.

To pause playback

Press PAUSE/STEP during playback

Advanced playback

Prev Next

To view the

previous 9 images.

succeeding 9 images.

Press the / / / to select an
image, press PLAY to view one
image in full-screen and
automatically images will be
displayed one by one again in a
few seconds.

Turn the page if necessary

Press / / / to highlight the Prev or
Next
screen.

Notes

• Some files may not display their own entire depending on the size.

• If you press the TOP MENU in full-screen review, the DVD video player will display a menu of 9 thumbnail images.

and ENTER to review other thumbnail

To view the

To resume normal playback, press
PLAY.

49

Advanced playback

JPEG files compatibility

Discs whose compatibility with this DVD video player has been confirmed by TOSHIBA are as follows.
Many of these discs, when loaded, will make the DVD video player enter the automatic mode
folder in the disc. To play other folders, display a folder list and select a folder.

CANON QuickCD
FUJICOLOR CD
Kodak Picture CD
NORITSU QSS CD

48

to play a prescribed

JPEG disc compatibility with this DVD video player is limited as follows:

• Playable discs: CD-ROM, CD-R (650MB / 74 min. only)

• CD physical format: Mode 1, Mode 2 XA Form 1

• File system: ISO9660 Level 1, 2 or Joliet

• File name: A file name should be in alphabet and numerals only, and must incorporate “JPG”

• Total number of folders: Less than 256

• Total number of files: Less than 1000

Some files may not display their own entire image depending on the size.
Some discs may not permit this operation. Especially, the following conditions of included files will increase the disc’s

disability.

1. Pixels over 3072 x 2048 in height and/or width

2. File format except Exif

CD-RW is not recommendable.

extension.
e.g.“********.JPG” (Do not name the file with “JPE” or “JPEG” extension.)

50

Playing DivX/MPEG-4 Files

You can play DivX and MPG-4 files that have been recorded on a CD-R or CD­ROM on the DVD video player.

Playing DivX/MPEG-4 files

Press OPEN/CLOSE to open the disc
tray, place a disc that contains DivX or

1

MPEG-4 files.

Press OPEN/CLOSE to close the
disc tray, after completion of reading,
playback of first movie automatically
starts.

Press STOP to display a folder list.

A list of folders
in the disc
appears.

e.g.

CD-R

[Root]

t01_t02_kids
t03_t04_kids
t05_aes_encrypt
u01_longflight_div
t01_t02_kids

5

u03_divx51_stret
u04_divx1_smpte
u05_divx1_smpte

Advanced playback

Press / / / to select your
desired file, and then press
ENTER or PLAY button to start
playback.

Note

It is recommended you record same kind of files in a CD­ROM or CD-R.

51

Advanced playback

Playable files

DivX / MPEG-4 disc compatibility with this player is limited as follows:

• Playable discs: CD-ROM, CD-R (650MB / 74 min. only)

• DivX versions: DivX 3.11, 4.12, 5.0, 5.1

• Audio format: CBR MP3, VBR MP3, Mono MP3, DivX

• Enhance video: GMC, Qpel, Progressive B-frames

• Frame rate: 8 to 25 fps

• CD physical format: Mode 1, Mode 2 XA Form 1

• File system: ISO9660 Level 1, 2 or Joliet

• File name: A file name should be in alphabet and numerals only, and must incorporate “MPG” or

• Total number of folders: Less than 256

• Total number of files: Less than 1000

CD-RW is not recommendable.

“AVI” extension.
e.g.“********.MPG”, “********.AVI”

TM

AC3

DivXTM, DivXTM Certified, and associated logos are trademarks of
DivNet-works, Inc. and used under license .

52

Function setup

You can change the default settings to customize
performance to your preference.

Customizing the Function
Settings

T ab le of Languages

Function setup

Customizing the Function Settings

You can change the default settings to customize performance to your
preference.

Setting procedure

Press SETUP during stop.

31

The following on-screen display
appears.

4

ENTER
RETURN

3, 4
2

1, 6

Press / to select the setting you
want to change, then press ENTER.

Change the selection by / buttons,
by referring to the corresponding
pages, then press ENTER.

Press / to select an option for the
setting you want to change, then press

2

ENTER.

(See the next page.)

Language settings

Video settings
Audio settings

Rating settings

Repeat steps 3 and 4 to change other
settings.

5

To select another option, press to go back to
step 2.

Press SETUP.

6

The on-screen display disappears.

To return to the previous display

Press RETURN.

Note

To quit the procedure, press the SETUP button to turn off the
on-screen display.

54

Setting

Details Page

Language

Video

Audio

Rating

OSD Menu

Subtitle

Audio

DVD Menu

TV Shape

TV System

Video Output

Digital Output

Password

DVD

DVD

DVD

DVD

DVD

To select a preferred language for on-screen
display.

To select a preferred language for subtitles.

To select a preferred language for the sound
track.

To select a preferred language for disc menus.

To select a picture size according to aspect
ratio of your TV.

To select the video system of a disc.

To select whether you send CVBS, YUV or RGB
signals to the connected TV.

T o select an output sound format corresponding
to your system connection.

To create a personal security code.

56

56
57

57

58

58

58

Function setup

59

59

Rating

Load Factory

DVD

To turn the parental lock function on or off.

T o return the initial settings such as Language,
Video, Audio and etc. to the factory default.

60

60

55

Function setup

Customizing the Function Settings (continued)

Setting details

Language

OSD Menu

English: To view on-screen displays in english.
Deutsch: To view on-screen displays in german.
Français:To view on-screen displays in french.
Español: To view on-screen displays in spanish.
Italiano: To view on-screen displays in italian.

1) Press ENTER.

2) Press

3) Press ENTER button, then the

4) Press ENTER.

5) Press RETURN.

/ to select the OSD Menu.

/ to shift

and change the Language.

Subtitle

English: To display subtitles in english.
Deutsch: To display subtitles in german.
Français: To vdisplay subtitles in french.
Español: To display subtitles in spanish.
Italiano: To display subtitles in italian.
Auto: To display subtitles in different languages

Off: To disable subtitles.

1) Press ENTER.

2) Press

3) Press ENTER button, then the
and change the Language.

4) Press ENTER.

5) Press RETURN.

DVD

other than you selected.

/ to select the Subtitle.

/ to shift

56

Note

Some DVD video discs may not include your pre­selected language. In this case, the DVD video player
automatically displays disc menus consistent with the
disc’s initial language setting.

Notes

• Some DVD video discs may be set to display subtitles

in a different language other than you selected. A pr ior
subtitle language may be programmed on the disc.

• Some DVD video discs allow you to change subtitle

selections only via the disc menu. If this is the case,
press the MENU button and choose the appropriate
subtitle language from the selection on the disc menu.

Audio

English: To play sound tracks in english.
Deutsch: To play sound tracks in german.
Français:To play sound tracks in french.
Español: To play sound tracks in spanish.
Italiano: To play sound tracks in italian.

DVD DVD

DVD Menu

English: To display DVD menus in english.
Deutsch: To display DVD menus in german.
Français:To display DVD menus in french.
Español: To display DVD menus in spanish.
Italiano: To display DVD menus in italian.

1) Press ENTER.

2) Press

3) Press ENTER button, then the

/ to select the AUDIO.

/ to shift

and change the Language.

4) Press ENTER.

5) Press RETURN.

Note

Some DVD video discs may not be played in a different
language than you selected. A prior language may be
programmed on the disc.

1) Press ENTER.

2) Press

3) Press ENTER button, then the

/ to select the DVD menu.

/ to shift

and change the Language.

4) Press ENTER.

5) Press RETURN.

Note

Some DVD video discs may not be include yur pre­selected language. In this case, the DVD video player
automatically displays disc menus consistent with the
disc’s initial language setting.

Function setup

57

Function setup

Customizing the Function Settings (continued)

Setting details

TV System

Video

TV Shape

DVD

1) Press / to select the Video.

2) Press ENTER.

3) Press ENTER button, then press the
shift and change the TV type

4) Press ENTER.

5) Press RETURN.

/ to

1) Press / to select the Video.

2) Press ENTER.

3) Press

/ to select the TV system.

4) Press ENTER button, then press
and change the TV system.

5) Press ENTER.

6) Press RETURN.

PAL

YUV

/ to shift

NTSC

PAL

Auto

4:3 Pan Scan: Select when a standard 4:3 TV is

connected.
Displays pictures cropped to fill
your TV screen. Either or both
sides of the picture are cut off.

4:3 Letterbox: Select when a standard 4:3 TV is

connected.
Displays theatrical images with
masking bars above and below the
picture.

16:9 Widescreen: Select when a 16:9 wide TV is

connected.

Notes

• The displayable picture size is preset on the DVD
video disc. Therefore, the playback picture of some
DVD video discs may not conform to the picture size
you select.

• When you play DVD video discs recorded in the 4:3
picture size only, the playback picture always appears
in the 4:3 picture size regardless of the TV shape
setting.

• If you select “16:9 Widescreen” and you own a 4:3 TV
set, the DVD playback picture will be horizontally
distorted during playback. Images will appear to be
horizontally compressed. Always be sure that your TV
shape conforms to the actual TV in use.

NTSC: Select if your TV system is NTSC.
PAL: To play a PAL disc. Connect a PAL TV to

Auto: The DVD video player automatically

view a picture.
identifies PAL or NTSC video system of a

disc. Connect a multisystem TV (PAL/NTSC
compatible) to view a picture.
A playback picture may be distorted when
detected a signal change between PAL and
NTSC on the disc.
For the case of Progressive mode, your
multisystem TV must be able to suppor t
525p and 625p.

Video Output

1) Press / to select the Video.

2) Press ENTER.

3) Press

4) Press ENTER button, then press
the output mode.

5) Press ENTER.

6) Press RETURN.

CVBS: Select if you connect the DVD to TV via

YUV: Corresponding to your TV which has a

RGB: Select if you connect the DVD to TV via

/ to select the Video Output.

/ to select

SCART cable or composite video
(yellow) input.

YUV (component video) inputs.
Progressive mode can only be on when
YUV is selected.

SCART cable.

58

Audio

Rating

Digital Out

Selected the output sound format corresponding to
your system connection.

1) Press / to select Audio.

2) Press ENTER.

3) Press ENTER button, then press
and change the output sound format.

4) Press ENTER.

5) Press RETURN.

PCM: Select when connected to a 2 channel

digital stereo amplifier.

The DVD video player outputs sounds in the
PCM 2 channel format when you play a
DVD video disc recorded on the Dolby
Digital, MPEG1 OR MPEG2 recording
system.

Raw: Does not have a Dolby Digital Decode.

Note

When you make a connection to a TV, or Dolby Surround
Pro Logic or stereo system via the analog audio jacks,
select “PCM” or “Raw”.

/ to shift

Password / Rating

DVD

DVD discs equipped with the password function are
rated according to their content. The contents
allowed by a parental lock level and the way a DVD
disc can be controlled may vary from disc to disc.

For example, if the disc allowed, you could edit out
violent scenes unsuitable for children and replace
them with more suitable scenes, or you could lock
out playback of the disc altogether.

• DVD video discs may or may not respond to the
parental lock settings. This is not a defect in the
DVD video player. Make sure this function works
with your DVD video discs.

1) Press / to select the Rating.

2) Press ENTER.

3) Press

/ to select Rating and then press
ENTER repeatedly to set the parental lock
level.

4) Press

to the Password and enter your 4­digits security code, then press ENTER button.

5) Press RETURN.

Password
Rating
Load factory

----

8. Adult
No

Password
Rating
Load factory

----

8. Adult
No

Function setup

Notes

• If you make a mistake before pressing ENTER button,
press CLEAR button and enter your 4-digit security
code again.

• You cannot play DVD discs rated higher than the level
you selected unless you cancel the parental lock
function.

(continued)

59

Function setup

Customizing the Function Settings (continued)

Setting details

(continued)

The parental lock level is equivalent to the following
ratings:

Level 1:Kid Safe
Level 2:G
Level 3:PG
Level 4:PG-13
Level 5:PG-R
Level 6:R
Level 7:NC-17
Level 8:Adult

Indicates Parental lock is not active.
The Parental lock is active.

If you forget the passwor d, you can erase your
current password by pressing number button
8 on the remote four times, then press ENTER
button to confirm the setting.

PASSWORD: 8888

Load factory

If you want to return the inital settings such as
Language, Video, Audio and etc. to the factory
default, do the following:

1) Press / to select the Rating.

2) Press ENTER.

3) Press

4) Press ENTER.

5) Press
button.

Note

When you reset the DVD video player to the factory
default, the DVD video player will take 3-5 seconds to
reset.

/ to select the Load factory.
/ to select Yes, then press ENTER

Password
Rating
Load factory

----

8. Adult
No

No

Yes

60

Table of Languages

Table of languages and their abbreviations

Abbreviation

– – –

CHI (ZH)
DUT (NL)
ENG (EN)
FRE (FR)
GER (DE)
ITA (IT)
JPN (JA)
KOR (KO)
MAY (MS)
SPA (ES)

AA
AB
AF
AM
AR
AS
AY
AZ
BA
BE
BG
BH
BI
BN
BO
BR
CA
CO
CS
CY
DA
DZ
EL
EO
ET
EU
FA
FI
FJ
FO
FY
GA
GD
GL

Language

No alternate
language
Chinese
Dutch
English
French
German
Italian
Japanese
Korean
Malay
Spanish
Afar
Abkhazian
Afrikaans
Amharic
Arabic
Assamese
Aymara
Azerbaijani
Bashkir
Belorussian
Bulgarian
Bihari
Bislama
Bengali, Bangla
Tibetan
Breton
Catalan
Corsican
Czech
Welsh
Danish
Bhutani
Greek
Esperanto
Estonian
Basque
Persian
Finnish
Fiji
Faroese
Frisian
Irish
Scottish Gaelic
Galician

Abbreviation

GN
GU
HA
HI
HR
HU
HY
IA
IE
IK
IN
IS
IW
JI
JW
KA
KK
KL
KM
KN
KS
KU
KY
LA
LN
LO
LT
LV
MG
MI
MK
ML
MN
MO
MR
MT
MY
NA
NE
NO
OC
OM
OR
PA
PL
PS

Language

Guarani
Gujarati
Hausa
Hindi
Croatian
Hungarian
Armenian
Interlingua
Interlingue
Inupiak
Indonesian
Icelandic
Hebrew
Yiddish
Javanese
Georgian
Kazakh
Greenlandic
Cambodian
Kannada
Kashmiri
Kurdish
Kirghiz
Latin
Lingala
Laotian
Lithuanian
Latvian, Lettish
Malagasy
Maori
Macedonian
Malayalam
Mongolian
Moldavian
Marathi
Maltese
Burmese
Nauru
Nepali
Norwegian
Occitan
(Afan) Oromo
Oriya
Panjabi
Polish
Pashto, Pushto

Abbreviation

PT
QU
RM
RN
RO
RU
RW
SA
SD
SG
SH
SI
SK
SL
SM
SN
SO
SQ
SR
SS
ST
SU
SV
SW
TA
TE
TG
TH
TI
TK
TL
TN
TO
TR
TS
TT
TW
UK
UR
UZ
VI
VO
WO
XH
YO
ZU

Language

Portuguese
Quechua
Rhaeto-Romance
Kirundi
Rumanian
Russian
Kinyarwanda
Sanskrit
Sindhi
Sango
Serbo-Croatian
Singhalese
Slovak
Slovenian
Samoan
Shona
Somali
Albanian
Serbian
Siswati
Sesotho
Sundanese
Swedish
Swahili
Tamil
Telugu
Tajik
Thai
Tigrinya
Turkmen
Tagalog
Setswana
Tongan
Turkish
Tsonga
Tatar
Twi
Ukrainian
Urdu
Uzbek
Vietnamese
Volapük
Wolof
Xhosa
Yoruba
Zulu

Function setup

61

Others

Before Calling Service Personnel
Specifications

Others

Before Calling Service Personnel

Check the following guide for the possible cause of a problem before contacting service.

Symptoms and correction

Symptom

No power.

The DVD video pla yer turned off
by itself.

No picture or abnormal colour
(pinkish, greenish, etc.).

Scrolling, jumping or B/W
picture.

No sound.

The playback picture has
occasional distortion.

Brightness is unstable or noises
are present in the playback
pictures.

The DVD video pla y er does not
start playback.

Playback does not follo w the
course of the disc’s program.

Buttons do not work.

The remote control does not
work properly.

Cause

• The power plug is disconnected.

• The automatic power off function turned the
unit off.

• The TV is not set to receive DVD signal
output.

• The video cable is not connected securely .

• Mismatch setting between TV and this unit.

• Wrong connection.

• Incompatible TV system.

• The equipment connected with the audio
cable is not set to receive DVD signal output.

• The audio cable is not connected securely .

• The audio receiver or TV is turned off.

• The setting of output sound format is
incorrect.

• The disc is dirty.

• It is in fast forward or fast rev erse pla ybac k.

• The effect of copy protection.

• No disc is inserted.

• An unplayable disc is inserted.

• The disc is placed upside down.

• The disc is not placed within the guide.

• The disc is dirty.

• The parental lock function is set.

• It is in the mode of repeat playback, memory
playback, etc.

• Power supply fluctuations or other
abnormalities such as static electricity may
interrupt correct operations.

• The remote control is not pointed at the
remote sensor of the D VD video play er.

• The remote control is too far from the D VD
video player .

• The batteries in the remote control are
exhausted.

Correction

• Connect the power plug securely into the
wall outlet.

• Press the PLA Y button.

• Select the appropriate video input mode on
the TV so the picture from the DVD video
player appears on the TV screen.

• Connect the video cable securely into the
appropriate jacks.

• Select the correct Video Output setting.

• Check the connection.

• Select the correct TV system.

• Select the correct input mode of the audio
receiver so you can listen to the sound from
the DVD video pla y er.

• Connect the audio cable securely into the
appropriate jacks.

• T urn on the equipment connected with the
audio cable.

• Select the proper audio setting.

• Eject the disc and clean it.

• Sometimes a small amount of picture
distortion may appear. This is not a
malfunction.

• Connect the DVD video pla y er directly to the
TV. Avoid connecting the DVD video player
to a VCR or TV/VCR combination.

• Insert a disc.

• Insert a playable disc. (Check the disc type
and color system.)

• Place the disc with the playback side down.

• Place the disc correctly inside the guide on
the disc tray .

• Clean the disc.

• Cancel the parental lock function or change
the parental lock level.

• These operations may prev ent a proper
progress of the contents.

• Press and hold the ON/ST ANDBY b utton on
the front panel for more than about 3
seconds. The D VD video pla y er turns off.
Press the button again to turn it on. If the
buttons still do not work, disconnect the
power plug and insert it into the wall outlet
again.

• Point the remote control at the remote
sensor of the DVD video player.

• Operate the remote control within about 7 m.

• Replace the batteries with new ones.

Page

18

27

26

18,19

58

18,19

58

26

18-23

26

43,54,59

9

-

18

26
10

26
26

9

54,59

-

-

15

15

15

64

Specifications

DVD video pla yer / outputs / supplied accessories

DVD Video Player

Power supply 100 - 240 V AC, 50/60 Hz
Pow er consumption 13 W
Mass 1.7 kg
External dimensions 430 x 50 x 200 mm (W/H/D)
Signal system PAL/3.58 NTSC
Laser Semiconductor laser, wavelength 650/780 nm
Frequency range DVD linear sound : 48 kHz sampling 4 Hz to 22 kHz

96 kHz sampling 4 Hz to 44 kHz
Signal-to-noise ratio More than 100 dB
Audio dynamic range More than 93 dB
Harmonic distortion Less than 0.005 %
Wow and flutter Below measurable level (less than ±0.001 % (W.PEAK))
Operating conditions Temperature: 5 °C to 35 °C, Operation status: Horizontal

Others

Outputs

Video output (SCART) 1.0 V (p-p), 75 Ω, SCART socket x 1
Video output (Phone type) 1.0 V (p-p), 75 Ω, negative sync., pin jack x 1
Component video output (Y) 1.0 V (p-p), 75 Ω, negative sync., pin jack x 1

)/(PR) 0.7 V (p-p), 75 Ω, pin jack x 2

(P

B

Audio output (COAXIAL DIGITAL) 0.5 V (p-p), 75 Ω, pin jac k x 1
Audio output (OPTICAL DIGITAL) Optical connector x 1
Audio output (ANALOG) 2.0 V (rms), 680 Ω, pin jacks (L, R) x 1

Supplied Accessories

Remote control (SE-R0142) ...........................................1

Batteries (R03) ...............................................................2

Power cord......................................................................1

• Designs and specifications are subject to change without notice.

65

Others

Memo

66

Memo

Others

67

811-340E91-010
