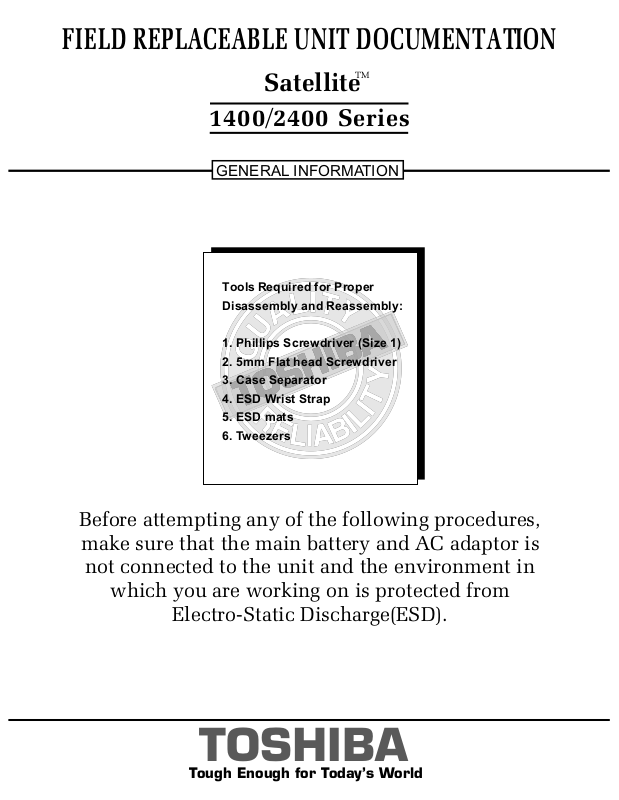

FIELD REPLACEABLE UNIT DOCUMENTATION
GENERAL INFORMATION
GENERAL INFORMATION
GENERAL INFORMATION
GENERAL INFORMATION
GENERAL INFORMATION
TM
Satellite
1400/2400 Series
GENERAL INFORMATION
Tools Required for Proper
Disassembly and Reassembly:
Before attempting any of the following procedures,
make sure that the main battery and AC adaptor is
not connected to the unit and the environment in
which you are working on is protected from
Electro-Static Discharge(ESD).
1. Phillips Screwdriver (Size 1)
2. 5mm Flat head Screwdriver
3. Case Separator
4. ESD Wrist Strap
5. ESD mats
6. Tweezers
TOSHIBA
Tough Enough for Today’s World
FIELD REPLACEABLE UNIT DOCUMENTATION
TM
Satellite
1400/2400 Series
TABLE OF CONTENTS:
1. BATTERY PACK REMOVAL
2. OPTIONAL PC CARD REMOVAL
3. HDD REMOVAL
4. MEMORY MODULE REMOVAL
5. MINI PCI CARD REMOVAL
6. MODEM BOARD REMOVAL
7. KEYBOARD REMOVAL
8. SWITCH BOARD REMOVAL
9. TOP COVER REMOVAL
10. COOLING MODULE REMOVAL
11. CPU REMOVAL
12. CD-R/W/DVD-ROM DRIVE REMOVAL
13. FDD REMOVAL
14. TOUCHPAD ASSEMBLY REMOVAL
15. RTC BATTERY REMOVAL
16. SD/ SOUND BOARD REMOVAL
17. CD SWITCH BOARD REMOVAL
18. HDD INTERFACE BOARD REMOVAL
19. BATTERY BOARD REMOVAL
20. SYSTEM BOARD REMOVAL
21. SPEAKERS REMOVAL
22. 14’’ DISPLAY MASK REMOVAL
23. FL INVERTER AND 14’’ LCD REMOVAL
TOSHIBA
Tough Enough for Today’s World
FIELD REPLACEABLE UNIT DOCUMENTATION
TM
Satellite
1400/2400 Series
BATTERY PACK REMOVAL
Battery
release lever
Battery pack assy
Battery pack
Battery cover
1. Turn the computer upside down as shown.
2. Slide the battery release lever in the direction of the
arrow.
3. Lift out the battery pack assy.
OPTIONAL PC CARD REMOVAL
PC Card
Eject button
1. Press the eject button of the PC Card you want to
remove.
2. Press the extended eject button to pop the PC card
out slightly.
3. Grasp the PC Card and pull it out
NOTE: Before removing any PCMCIA device, make sure
it is “STOPPED” in the PC Card Manager.
4. Separate the battery pack from the battery cover.
HDD REMOVAL
HDD cover
M2.5x4 black flat head screw
1. Turn the computer upside down.
2. Remove one M2.5x4 black flat head screw securing
HDD slot cover and pull out the cover.
.
TOSHIBA
Tough Enough for Today’s World
FIELD REPLACEABLE UNIT DOCUMENTATION
TM
Satellite
1400/2400 Series
HDD REMOVAL
M3x4 Flat head screws
HDD bracket
HDD bracket handle HDD assy
3. Grasp the HDD bracket handle and pull to
disconnect the HDD assembly.
4. Lift the HDD assembly out of the HDD bay.
5. Remove four M3x4 brass flat head screws securing
the HDD bracket to the drive.
MEMORY MODULE REMOVAL
M2.5x4 black flat head screw
1. Turn the computer upside down.
2. Remove one M2.5x4 black flat head screws
securing the memory cover.
3. Lift out the cover.
Memory module
Memory
cover
Memory clips
4. Slowly spread out the memory clips and pull the
memory module out of the connector on a 45 degree
angle.
TOSHIBA
Tough Enough for Today’s World
FIELD REPLACEABLE UNIT DOCUMENTATION
TM
Satellite
1400/2400 Series
MINI PCI CARD REMOVAL
Mini
PCI slot
cover
M2.5x4 black flat head screws
1. Turn the computer upside down.
2. Remove one M2.5x4 black flat head screw securing
the Mini PCI slot cover.
MODEM BOARD REMOVAL
Modem slot
cover
Mini PCI
card
PCI clips
3. Gently press out the Mini PCI slot clips and pull the
Mini PCI card out of the connector on a 30 degree
angle.
M2.5x4 black flat head screws
1. Remove two M2.5x4 black flat head screws securing
the modem slot cover.
2. Insert your finger nail or the case separator into the
notched side of the cover and lift up to release the
latch securing the modem slot cover.
TOSHIBA
Tough Enough for Today’s World
Modem
M2x4 brass flat head screws
3. Disconnect the MJ harness from JP1 on the modem
board.
4. Remove two M2x4 brass flat head screws securing
the modem board.
5. Lift up the modem board to disconnect it from the
system board.
MJ Harness
FIELD REPLACEABLE UNIT DOCUMENTATION
TM
Satellite
1400/2400 Series
KEYBOARD REMOVAL
M2.5x4 black flat head screw
Keyboard
lock
Keyboard
holder
1. Open the display panel.
2. Remove the keyboard holder at the top of the
keyboard.
KEYBOARD REMOVAL
PJ2003
Keyboard
cable
Keyboard
6. Lift out the keyboard and set it on the palm rest.
7. Disconnect the keyboard cable from PJ2003 on the
system board and lift out the keyboard.
M2.5x2.8 black flat head screws
3. Remove two M2.5x2.8 black flat head screws
securing the keyboard.
4. Remove one M2.5x4 black flat head screw securing
the keyboard lock.
5. Lift out the keyboard lock.
SWITCH BOARD REMOVAL
Switch
board
M2.5x4
black flat
head
screw
switch
board
cable
PJ2018
1. Disconnect the switch board cable from PJ2018
on the system board.
2. Remove one M2.5x4 black flat head screw securing
the switch board to the top cover assembly.
3. Lift out the switch board and disconnect the switch
board cable from PJ7200.
TOSHIBA
Tough Enough for Today’s World
FIELD REPLACEABLE UNIT DOCUMENTATION
TM
Satellite
1400/2400 Series
TOP COVER REMOVAL
M2.5x25 black screws
M2.5x16
black
screw
Heat sink plate
M2.5x6 black flat head screws
1. Turn the computer upside down and remove the
following nineteen screws:
- 13 M2.5x6 black screws
- 6 M2.5x25 black screws
TOP COVER REMOVAL
LCD/FL
harness
PJ2021
PJ2020
Left/Right speaker harness
1. Disconnect the LCD harness from PJ5001 on the
system board.
2. Disconnect the left and right speakers from PJ2021
and PJ2020 on the system board.
3. Separate the top cover from the bottom cover by lifting
up the rear of the top cover and slowly working your way
to the front cover.
M2x6 brass screws
2. Turn the computer right side up and open the
LCD panel.
3. Remove two M2.5x16 black and two M2x6 brass
screws securing the heat sink plate.
4. Lift out the heat sink plate.
COOLING MODULE REMOVAL
Cooling
module
M2.5x6 black flat head screw
1. Disconnect the fan harness from PJ8770 on the
system board.
2. Remove two M2x6 brass screws and one M2.5x6
black flat head screw securing the cooling module
to the system board.
3. Lift out the cooling module.
M2.5x6 black screw
M2x6 brass screws
TOSHIBA
Tough Enough for Today’s World
FIELD REPLACEABLE UNIT DOCUMENTATION
TM
Satellite
1400/2400 Series
CPU REMOVAL
Close
Silicone grease
1. Insert a flat head screwdriver in the CPU lock and
rotate it clockwise to unlock the CPU.
2. Lift out the CPU.
NOTE: When installing the CPU, make sure that a silicone
grease is applied before attaching the heat sink.
Please refer to FSB-200112 for the complete
procedures on how to apply the silicone grease.
CD-R/W/DVD-ROM DRIVE REMOVAL FDD REMOVAL
Open
CPU lock
CPU
CD-R/W/DVD-ROM DRIVE REMOVAL
CD-R/W/DVD-ROM drive
1. Slide the CD-R/W/DVD-ROM drive to the right to
disconnect it from PJ2001 on the system board.
CD-R/W/DVD-ROM drive
CD-R/W/DVD-ROM bracket
2. Remove two M2x5 silver screws securing the
CD-R/W/DVD-ROM drive bracket and lift out the
bracket.
TOSHIBA
PJ2007
FDD cable
FDD assy
1. Disconnect the FDD cable from PJ2007 on the
system board.
2. Lift out the FDD assembly from the system board.
Tough Enough for Today’s World
FIELD REPLACEABLE UNIT DOCUMENTATION
TM
Satellite
1400/2400 Series
FDD REMOVAL
FDD bracket
M2.5x2.6 black screws
FDD cable
3. Disconnect the FDD cable from the FDD.
4. Remove four M2.5x2.6 black screws securing the
FDD bracket.
5. Separate the FDD from the FDD bracket.
FDD
RTC BATTERY REMOVAL
TOUCHPAD ASSEMBLY REMOVAL
PJ2004
Touchpad
cable
M2.5x5 silver flat head screw
1. Disconnect the touchpad cable from PJ2004 on the
system board..
2. Remove one M2.5x5 silver flat head screw securing
the touch pad assembly.
3. Lift out the touchpad assembly.
SD/SOUND BOARD REMOVAL
Touchpad assembly
RTC battery
PJ9999
1. Disconnect the RTC battery harness from PJ9999
on the SD/Sound board.
2. Unlatch the two latches securing the RTC battery and
lift out the RTC battery.
RTC battery harness
Sound
cable
SD cable
Sound
board
CD control switch cable
1. Disconnect the following cable from the
SD/Sound board:
- Sound cable from PJ103
- SD cable from PJ150 on the
- CD Control switch cable from PJ7103
2. Remove one M2.5x4 black flat head screw
securing the SD/Sound board.
3. Lift out the SD/Sound board.
PJ7103
PJ7100
PJ7101
M2.5x4 black flat head screw
TOSHIBA
Tough Enough for Today’s World
FIELD REPLACEABLE UNIT DOCUMENTATION
TM
Satellite
1400/2400 Series
CD SWITCH BOARD REMOVAL
PJ7300
CD control
switch cable
M2.5x4 black flat head screws CD control switch board
1. Disconnect the CD switch cable from PJ7300 on
the CD switch board.
2. Remove two M2.5x4 black flat head screw securing
the CD switch board.
3. Lift out the CD switch board.
BATTERY BOARD REMOVAL
HDD INTERFACE BOARD REMOVAL
HDD
interface
board
M2x4 brass screws
1. Remove two M2x4 brass screws securing the
HDD interface board.
2. Disconnect the HDD interface board from PJ2000
on the system.
SYSTEM BOARD REMOVAL
Battery
board
PJ8810
1. Disconnect the battery board harness from PJ8810
on the system board.
2. Lift out the battery board.
3. Disconnect the battery board harness from PJ8811 on
the battery board.
Battery board harness
TOSHIBA
Plastic
brace
PJ2013
PJ2012
Sound cable
1. Disconnect the sound cable from PJ2012 on the
system board.
2. Disconnect the SD cable from PJ2013 on the system
board.
3. Remove one M2.5x6 black flat head screw securing
the plastic brace.
4. Lift out the plastic brace.
SD cable
M2.5x6 black flat head screw
Tough Enough for Today’s World
FIELD REPLACEABLE UNIT DOCUMENTATION
TM
Satellite
1400/2400 Series
SYSTEM BOARD REMOVAL
M2.5x14
hex screw
M2.5x6
hex screw
M2.5x6 black flat head screw
5. Disconnect the DC-In jack from PJ8800 on the system
board.
6. Remove three M2.5x6 black flat head screws,
one M2.5x6 hex screw and one M2.5x14 hex screw
securing the system board.
7. Lift out the system board.
SPEAKERS REMOVAL
Tape
Left/right
speaker
cables
M2.5x6 brass screws
1. Peel off the tape securing the left and right speaker
cables and untangle the cables from the top cover.
2. Remove four M2.5x6 brass screws securing the left
and right speakers.
Left and Right speaker covers
3. Remove the left and right speakers.
TOSHIBA
Tough Enough for Today’s World
FIELD REPLACEABLE UNIT DOCUMENTATION
TM
Satellite
1400/2400 Series
14” DISPLAY MASK REMOVAL
Latch
Display
mask
LCD
Mask seals
1. Remove two mask seals at the bottom corners of the
display assembly using a pair of fine-tipped tweezers.
2. Remove two M2.5x6 flat head brack screws securing
the display mask.
3. There are 22 latches securing the display mask.
Carefully insert your fingers between the mask and the
LCD panel and pry open the latches starting from the
bottom six latches, to the five latches on the right
and left sides, ending with the six top latches.
FL INVERTER AND 14” LCD REMOVAL
LCD module
Mask
seals
M2x5
brass
screws
LCD/FL cable
1. Remove one M2x5 silver screw securing the
FL inverter board.
2. Carefully lift up the FL inverter board and
disconnect the LCD/FL cable from CN1 and the
FL cable from CN2.
3. Remove four mask seals to expose four screws
securing the LCD module assembly.
4. Remove four M2X4 brass screws securing the
LCD module assembly..
5. Carefully rotate out the top of the LCD module
enough to access the display cable
6. Peel off the tape securing the LCD/FL cable and
disconnect the cable.
7. Remove four M2x3 silver screws securing the left
and right LCD brackets and separate the brackets
from the LCD module.
M2x5 silver screw
FL inverter board
Mask
seals
M2x5
brass
screws
FL cable
TOSHIBA
Tough Enough for Today’s World
Loading...
