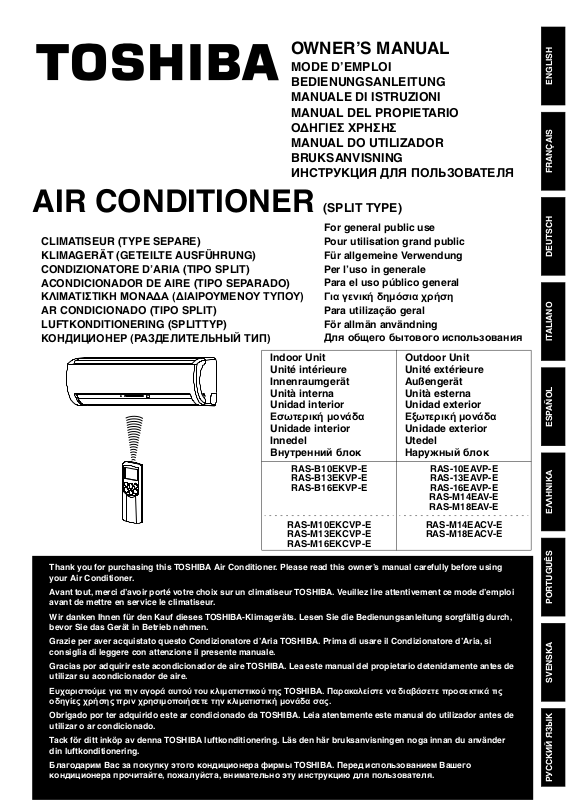

Toshiba RAS-B10EKVP-E, RAS-10EAVP-E, RAS-M14EAV-E, RAS-13EAVP-E, RAS-B16EKVP-E User Manual

...

OWNER’S MANUAL

MODE D’EMPLOI BEDIENUNGSANLEITUNG MANUALE DI ISTRUZIONI MANUAL DEL PROPIETARIO

Ο∆ΗΓΙΕΣ ΧΡΗΣΗΣ

MANUAL DO UTILIZADOR BRUKSANVISNING

ИНСТРУКЦИЯ ДЛЯ ПОЛЬЗОВАТЕЛЯ

AIR CONDITIONER (SPLIT TYPE)

For general public use

CLIMATISEUR (TYPE SEPARE) KLIMAGERÄT (GETEILTE AUSFÜHRUNG) CONDIZIONATORE D’ARIA (TIPO SPLIT) ACONDICIONADOR DE AIRE (TIPO SEPARADO)

ΚΛΙΜΑΤΙΣΤΙΚΗ ΜΟΝΑ∆Α (∆ΙΑΙΡΟΥΜΕΝΟΥ ΤΥΠΟΥ)

AR CONDICIONADO (TIPO SPLIT) LUFTKONDITIONERING (SPLITTYP)

КОНДИЦИОНЕР (РАЗДЕЛИТЕЛЬНЫЙ ТИП)

Pour utilisation grand public Für allgemeine Verwendung Per l’uso in generale Para el uso público general

Για γενική δηµόσια χρήση

Para utilização geral För allmän användning

Для общего бытового использования

ENGLISHFRANÇAISDEUTSCHITALIANOESPAÑOLΕΛΛΗΝΙΚΑPORTUGUÊSРУССКИЙ ЯЗЫК SVENSKA

Indoor Unit Outdoor Unit Unité intérieure Unité extérieure Innenraumgerät Außengerät Unità interna Unità esterna Unidad interior Unidad exterior

Εσωτερική µονάδα Εξωτερική µονάδα

Unidade interior Unidade exterior Innedel Utedel

Внутренний блок Наружный блок

RAS-B10EKVP-E RAS-B13EKVP-E RAS-B16EKVP-E

RAS-M10EKCVP-E RAS-M13EKCVP-E RAS-M16EKCVP-E

Thank you for purchasing this TOSHIBA Air Conditioner. Please read this owner’s manual carefully before using your Air Conditioner.

Avant tout, merci d’avoir porté votre choix sur un climatiseur TOSHIBA. Veuillez lire attentivement ce mode d’emploi avant de mettre en service le climatiseur.

Wir danken Ihnen für den Kauf dieses TOSHIBA-Klimageräts. Lesen Sie die Bedienungsanleitung sorgfältig durch, bevor Sie das Gerät in Betrieb nehmen.

Grazie per aver acquistato questo Condizionatore d’Aria TOSHIBA. Prima di usare il Condizionatore d’Aria, si consiglia di leggere con attenzione il presente manuale.

Gracias por adquirir este acondicionador de aire TOSHIBA. Lea este manual del propietario detenidamente antes de utilizar su acondicionador de aire.

Ευχαριστούµε για την αγορά αυτού του κλιµατιστικού της ΤΟSΗΙΒΑ. Παρακαλείστε να διαβάσετε προσεκτικά τις οδηγίες χρήσης πριν χρησιµοποιήσετε την κλιµατιστική µονάδα σας.

Obrigado por ter adquirido este ar condicionado da TOSHIBA. Leia atentamente este manual do utilizador antes de utilizar o ar condicionado.

Tack för ditt inköp av denna TOSHIBA luftkonditionering. Läs den här bruksanvisningen noga innan du använder din luftkonditionering.

Благодарим Вас за покупку этого кондиционера фирмы TOSHIBA. Перед использованием Вашего кондиционера прочитайте, пожалуйста, внимательно эту инструкцию для пользователя.

RAS-10EAVP-E RAS-13EAVP-E RAS-16EAVP-E RAS-M14EAV-E RAS-M18EAV-E

RAS-M14EACV-E RAS-M18EACV-E

CONTENTS/SOMMAIRE

ENGLISH

ACCESSORIES.............................................................................. 1

SAFETY PRECAUTIONS............................................................... 1

NAMES OF PARTS........................................................................ 3

NAMES AND FUNCTIONS OF INDICATORS AND CONTROLS

ON INDOOR UNIT....................................................................... 3

REMOTE CONTROL AND ITS FUNCTIONS ................................ 4

NAMES AND FUNCTIONS OF INDICATORS ON REMOTE

CONTROL.................................................................................... 5

PREPARATION AND CHECK BEFORE USE ............................... 5

USING THE REMOTE CONTROL ................................................. 7

AUTOMATIC OPERATION ............................................................ 8

AUTOMATIC OPERATION (AUTO CHANGEOVER) .................... 8

COOLING/HEATING OPERATION................................................ 9

DRY OPERATION.......................................................................... 9

FAN ONLY OPERATION (cooling-only models only)..................... 9

PURE OPERATION ..................................................................... 10

Hi POWER OPERATION ............................................................. 11

TIMER OPERATION .................................................................... 11

MEMORY/PRESET OPERATION................................................ 13

ADJUSTING AIR FLOW DIRECTION .......................................... 14

AUTO RESTART OPERATION.................................................... 15

HOW THE AIR CONDITIONER WORKS..................................... 16

TEMPORARY OPERATION......................................................... 17

CLEANING OPERATION ............................................................. 17

USUAL MAINTENANCE .............................................................. 18

SPECIAL MAINTENANCE ........................................................... 20

AIR CONDITIONER OPERATION AND PERFORMANCE.......... 23

TROUBLESHOOTING ................................................................. 24

SPECIFICATIONS........................................................................ 27

TROUBLESHOOTING (Remote Control)..................................... 28

About indoor unit and outdoor unit combinations

• The RAS-B10EKVP-E, RAS-B13EKVP-E and RAS-B16EKVP-E

indoor units can be connected to a single outdoor unit or a multi outdoor unit.

For single unit connection

Use the following combinations. RAS-B10EKVP-E/RAS-10EAVP-E RAS-B13EKVP-E/RAS-13EAVP-E RAS-B16EKVP-E/RAS-16EAVP-E

For multi unit connection

Refer to the specifications included with the multi outdoor unit.

• The RAS-M10EKCVP-E, RAS-M13EKCVP-E and RAS-M16EKCVP-E indoor units can be connected to a multi outdoor unit. Refer to the specifications included with the multi outdoor unit.

About indoor unit model names

Heat pump models

(RAS-B10EKVP-E, RAS-B13EKVP-E and RAS-B16EKVP-E) These indoor units can perform both cooling and heating operation.

Cooling-only models

(RAS-M10EKCVP-E, RAS-M13EKCVP-E and RAS-M16EKCVP-E)

These indoor units are cooling-only models, and cannot perform heating operation.

FRANÇAIS

ACCESSOIRES.............................................................................. 1

MESURES DE SECURITE............................................................. 1

NOM ET FONCTION DES TEMOINS ET COMMANDES DE

L’UNITE INTERIEURE................................................................. 3

TELECOMMANDE ET SES FONCTIONS ..................................... 4

NOM ET FONCTION DES INDICATEURS DE LA

TELECOMMANDE....................................................................... 5

PREPARATION ET VERIFICATION AVANT UTILISATION.......... 5

UTILISATION DE LA TELECOMMANDE....................................... 7

FONCTIONNEMENT AUTOMATIQUE .......................................... 8

FONCTIONNEMENT AUTOMATIQUE (PERMUTATION

AUTOMATIQUE).......................................................................... 8

REFROIDISSEMENT/CHAUFFAGE.............................................. 9

DESHUMIDIFICATION................................................................... 9

VENTILATEUR SEULEMENT (modèles refroidissement

seulement) ................................................................................... 9

MODE PURE................................................................................ 10

MODE Hi POWER........................................................................ 11

MODE MINUTERIE ...................................................................... 11

MODE MEMOIRE/PREREGLAGE............................................... 13

REGLAGE DU SENS DU FLUX D’AIR ........................................ 14

FONCTION DE REDEMARRAGE AUTOMATIQUE .................... 15

COMMENT LE CLIMATISEUR FONCTIONNE............................ 16

FONCTIONNEMENT TEMPORAIRE........................................... 17

OPERATION DE NETTOYAGE ................................................... 17

ENTRETIEN REGULIER.............................................................. 18

ENTRETIEN SPECIAL ................................................................. 20

FONCTIONNEMENT ET PERFORMANCES DU

CLIMATISEUR........................................................................... 23

DEPISTAGE DES PANNES......................................................... 24

CARACTERISTIQUES TECHNIQUES ........................................ 27

DEPISTAGE DES PANNES (Télécommande)............................. 28

Sur les combinaisons d’unités intérieure et extérieure

• Les unités intérieures RAS-B10EKVP-E, RAS-B13EKVP-E et RAS-B16EKVP-E peuvent être raccordées à une seule unité

extérieure ou à une unité extérieure multiple.

Pour un raccordement à une seule unité

Utilisez les combinaisons suivantes. RAS-B10EKVP-E/RAS-10EAVP-E RAS-B13EKVP-E/RAS-13EAVP-E RAS-B16EKVP-E/RAS-16EAVP-E

Pour un raccordement à une unité multiple

Reportez-vous aux caractéristiques techniques fournies avec l’unité extérieure multiple.

• Les unités intérieures RAS-M10EKCVP-E, RAS-M13EKCVP-E et RAS-M16EKCVP-E peuvent être raccordées à une unité extérieure multiple. Reportez-vous aux caractéristiques techniques fournies avec l’unité extérieure multiple.

Sur les noms des modèles d’unité intérieure

Modèles pompe à chaleur

(RAS-B10EKVP-E, RAS-B13EKVP-E et RAS-B16EKVP-E) Ces unités intérieures peuvent effectuer des opérations de refroidissement et de chauffage.

Modèles refroidissement seulement

(RAS-M10EKCVP-E, RAS-M13EKCVP-E et RAS-M16EKCVP-E) Ces unités intérieures sont des modèles refroidissement seulement et elles ne peuvent pas effectuer des opérations de chauffage.

ACCESSORIES

Remote control Remote control holder Batteries (two) Zeolite-plus filter

AIR FILTER COMPONENTS

SAFETY PRECAUTIONS

DANGER

• DO NOT ATTEMPT TO INSTALL THIS UNIT BY YOURSELF. THIS UNIT REQUIRES A QUALIFIED INSTALLER.

• DO NOT ATTEMPT TO REPAIR THE UNIT BY YOURSELF. THIS UNIT HAS NO COMPONENTS WHICH YOU CAN REPAIR.

• OPENING OR REMOVING THE COVER WILL EXPOSE YOU TO DANGEROUS VOLTAGES.

• TURNING OFF THE POWER SUPPLY WILL NOT PREVENT POTENTIAL ELECTRIC SHOCK.

WARNING

ENGLISHFRANÇAISDEUTSCHITALIANOESPAÑOLΕΛΛΗΝΙΚΗPORTUGUÊS###SW######RU###

INSTALLATION WARNINGS

• Be sure to ask a dealer or a store specialized in electric work to install the air conditioner.

• If the air conditioner is improperly installed by yourself, it can cause some problems such as water leaks, electric shock, fire, and so on.

• Be sure to always ground the air conditioner.

• Do not connect the ground wire to gas pipes, water pipes, lightning rods or ground wires of telephones. If the air conditioner is improperly grounded, it can cause an electric shock.

CAUTION

TO DISCONNECT THE APPLIANCE FROM THE MAIN POWER SUPPLY This appliance must be connected to the main power supply by a circuit breaker or a switch with a contact separation of at least 3 mm.

The installation fuse (25A D type ) must be used for the power supply line of this air conditioner.

OPERATION WARNINGS

• Avoid cooling the room too strongly or exposing the human body to cool wind for a long time because it can be detrimental to your health.

• Never insert fingers or sticks into the air outlet and air inlet to avoid getting injured and damaging the machine because there are fans running at a high speed inside both the air inlet and air outlet.

• When you notice something unusual with the air conditioner (such as a burning smell or weak cooling power), immediately turn off the main switch and the circuit breaker from the main power supply to stop the air conditioner, and contact the dealer.

• If the air conditioner is continuously operated when something is wrong, it can cause machine failure, electric shock, fire, and so on.

• Do not spill water or other liquid on the indoor unit. If the unit is wet, it can cause an electric shock.

MOVEMENT AND REPAIR WARNINGS

• Do not attempt to move or repair the unit by yourself.

• Since there is high voltage inside the unit, you can get an electric shock when removing the cover and main unit.

• Always ask the dealer to move the air conditioner for re-installing it in another place. If it is improperly installed, it can cause electric shock or fire.

• Whenever the air conditioner needs repairs, request repairs from the dealer. If the air conditioner is repaired improperly it can cause an electric shock or fire.

1 EN

CAUTION

INSTALLATION CAUTIONS

• Securely lay the drain hose for the best draining results.

• Incorrect drainage can cause flooding in the house and furniture to get wet.

• Be sure to connect the air conditioner to a dedicated power supply having the rated voltage. Otherwise, the unit can break down or cause a fire.

• Do not install the unit in a place where inflammable gas can leak.

• A fire can result if inflammable gas accumulates around the unit.

• The indoor unit shall be installed so that the top of the indoor unit is at least 2 m in height. Also, avoid putting anything on the top of the indoor unit.

OPERATION CAUTIONS

• Carefully read this manual before starting the air conditioner. The manual includes a lot of important information for daily operation.

• Do not use this air conditioner for other purposes such as preserving food, precision instruments, art objects, breeding animals, or growing potted plants.

• Do not install this air conditioner in a special-purpose room such as a ship or any kind of vehicle. Doing so could harm machine performance.

• Avoid exposing potted plants and animals to wind from the air conditioner because it harms their health and growth.

• When the air conditioner is operated together with a combustion device in the same place, pay careful attention to ventilation and let fresh air into the room. Poor ventilation can cause an oxygen shortage.

• When the air conditioner is used in a closed room, pay careful attention to the ventilation of the room. Poor ventilation can cause an oxygen shortage.

• Do not touch the operation buttons with wet hands. Doing so could cause an electric shock.

• Do not place any combustion device in a place where it is directly exposed to wind from the air conditioner. Doing so could cause incomplete combustion.

• When the air conditioner will not be used for an extended period of time, turn off the main switch or the circuit breaker for added safety. Disconnecting from the power supply protects the unit from lightning and power surges.

• Do not put a container with water such as a vase on the unit because water can enter into the unit and cause an electric shock due to deterioration in the electric insulation.

• Check the concrete blocks underneath the outdoor unit occasionally. If the base is left damaged or deteriorated, the unit can topple over and could possibly cause an injury.

• Do not wash the unit with water. This could cause an electric shock.

• Do not use alcohol, benzene, thinner, glass cleaner, polishing powder or other solvent for cleaning the unit because they can deteriorate and damage the air conditioner.

• Before cleaning the unit, be sure to turn off the main switch or circuit breaker to prevent injuries from the electric fan running inside.

• For details of the cleaning method, refer to “USUAL MAINTENANCE” and “SPECIAL MAINTENANCE” on pages 18 to 22.

• Do not put anything on or step on the indoor unit and outdoor unit. If you do so, it can topple over and cause an injury.

• To allow the air conditioner to operate at maximum performance, operate within the operating temperature range specified in the instructions. Failure to do so can cause a malfunction, break down, or water to leak from the unit.

NAMES OF PARTS

Outdoor unit

a Drain hose, refrigerant connecting pipe and electric wires b Air inlet (Side and rear) c Air outlet

Indoor unit

d Room temperature sensor e Front panel f Air inlet grille g Air filter h Air outlet i Horizontal air flow louver j Vertical air flow louver k Display panel l Infrared signal receiver m Remote control n Plasma pure filter o Zeolite-plus filter p Air ionizer

NAMES AND FUNCTIONS OF INDICATORS AND CONTROLS

ENGLISHFRANÇAISDEUTSCHITALIANOESPAÑOLΕΛΛΗΝΙΚΗPORTUGUÊS###SW######RU###

ON INDOOR UNIT

Display panel

The operating states are shown below.

a RESET button b FILTER indicator (Orange) c TIMER indicator (Yellow) d PURE indicator (Blue) e OPERATION indicator (Green)

The operation indicators flash rapidly (five times per second) when a safety protection feature is activated.

f S.CLEAN indicator (Green)

When the unit shuts down after having operated for 10 or more minutes in the cooling or dry mode, the cleaning operation is started automatically, and the S.CLEAN indicator on the unit’s display panel turns on.

RESET button

If you misplace or lose the remote control or its batteries are used up, push the RESET button.

1. Push the RESET button to start the automatic operation

(AUTO). Push this button again to stop operation.

e f

3 EN

REMOTE CONTROL AND ITS FUNCTIONS

a Infrared signal transmitter

Transmits signals to the indoor unit.

b button

Press the button to start operation. (A receiving beep is heard.) Press the button again to stop operation. (A receiving beep is heard.) If no receiving sound is heard from the indoor unit, press the button twice.

c Mode select button (MODE)

Press this button to select a mode. Each time you press the button, the modes cycle in order from A: Auto changeover control, : COOL, : DRY, : HEAT (heat pump models only), : FAN ONLY (cooling-only models only) and back to A. (A receiving beep is heard.)

d Temperature button ( )

TEMP

.. The temperature setting is increased to 30°C.

... The temperature setting is reduced to 17°C.

(A receiving beep is heard.)

e Fan speed button (FAN)

Press this button to select the fan speed. When you select AUTO, the fan speed is automatically adjusted according to the room temperature. You can also manually select the desired fan speed from five available settings.

(LOW , LOW+ , MED , MED+ , HIGH ) (A receiving beep is heard.)

f Auto louver button (SWING)

Press this button to swing the louver. (A receiving beep is heard.) Press the button again to stop the louver from swinging. (A receiving beep is heard.) () see page 14.)

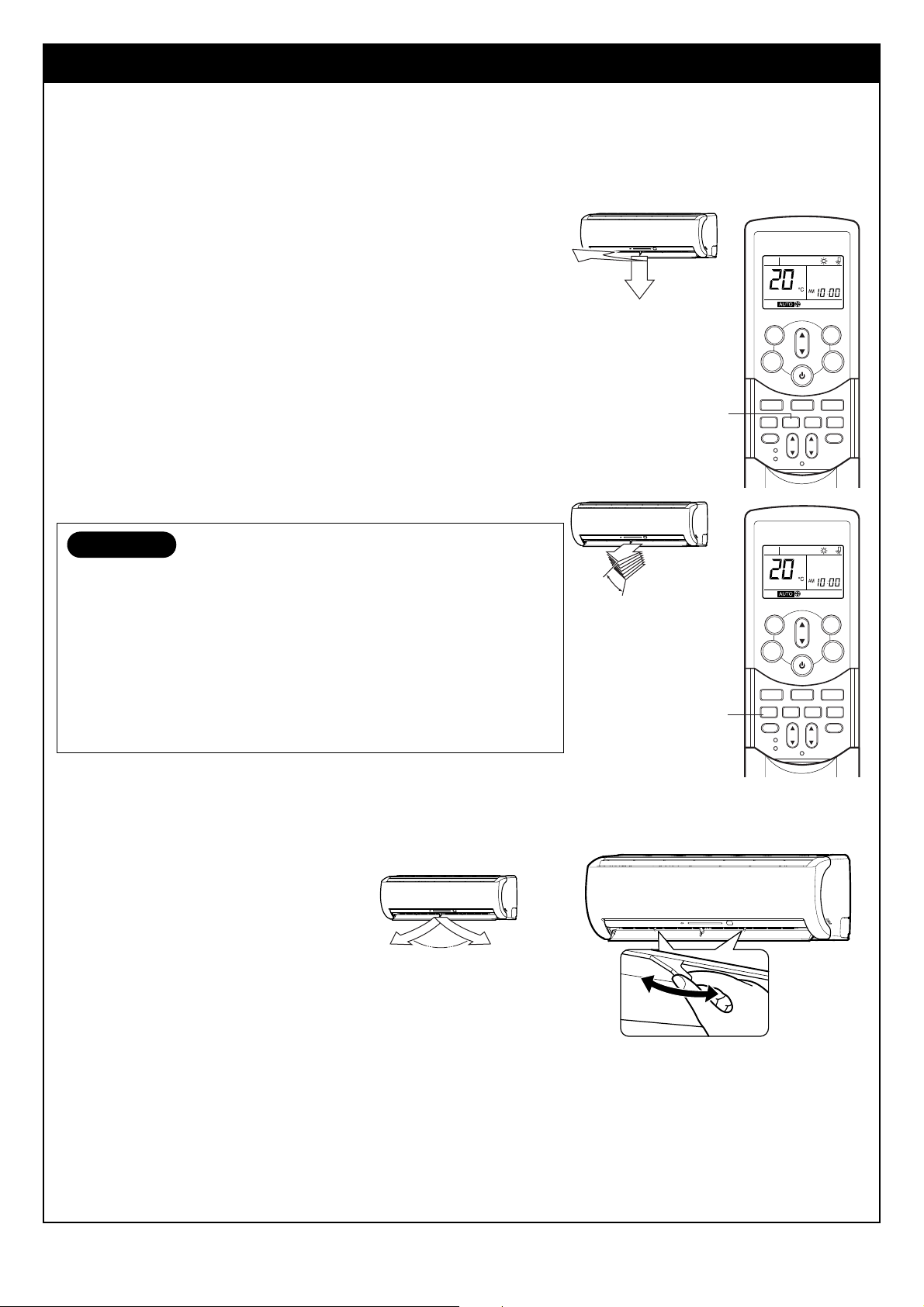

g Set louver button (FIX)

Press this button to adjust the air flow direction. (A receiving beep is heard.) () see page 14.)

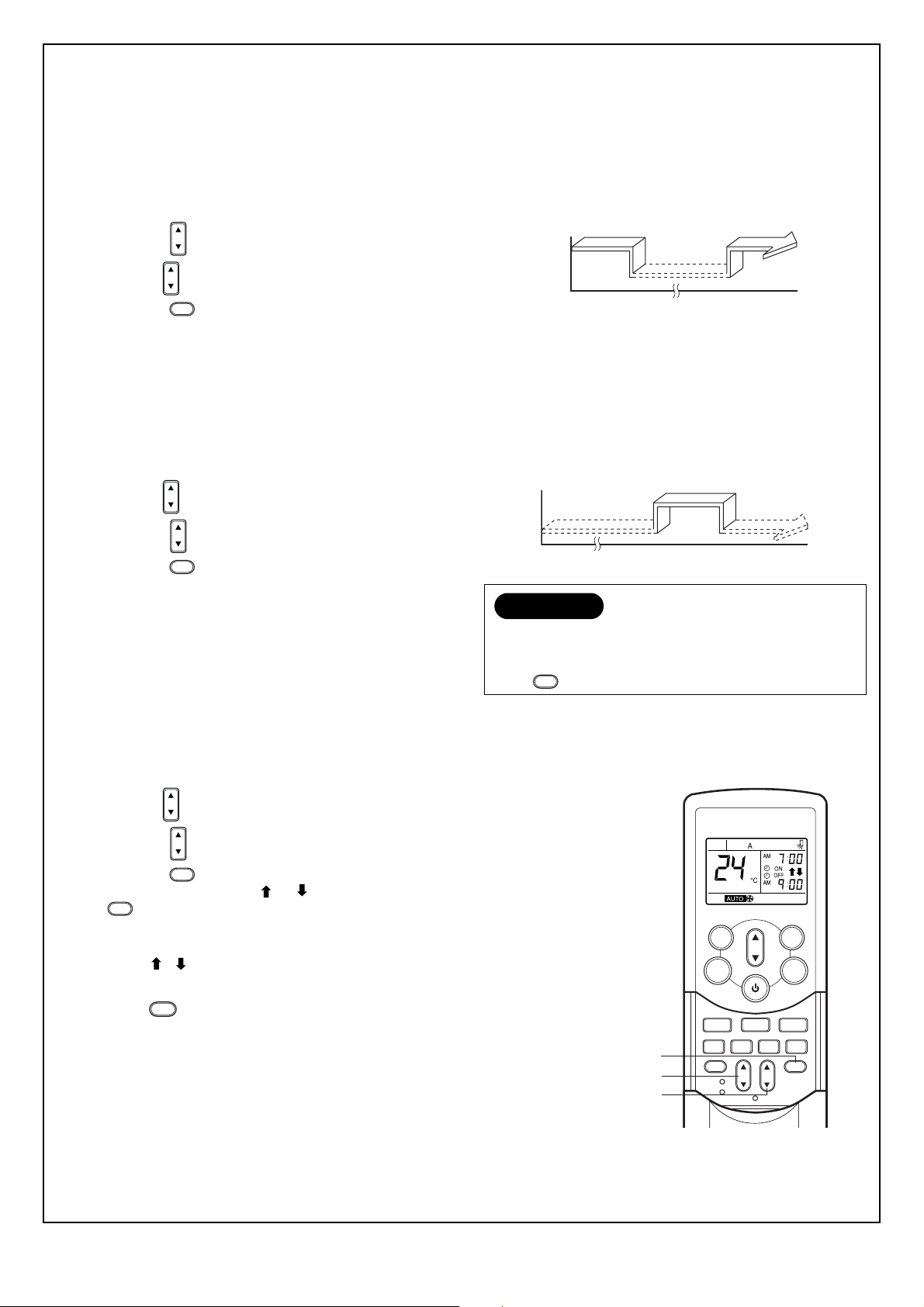

h ON timer button (ON)

Use this button to change the clock and ON timer times.

To move up the time, press of the ON button.

To move down the time, press of the ON button.

i OFF timer button (OFF)

Use this button to change the OFF timer times.

n Automatic operation button (AUTO)

Press this button to operate the air conditioner automatically. (A receiving beep is heard.) () see page 16.)

o Economy button (ECO)

Press this button to operate the air conditioner economically. () see page 16.)

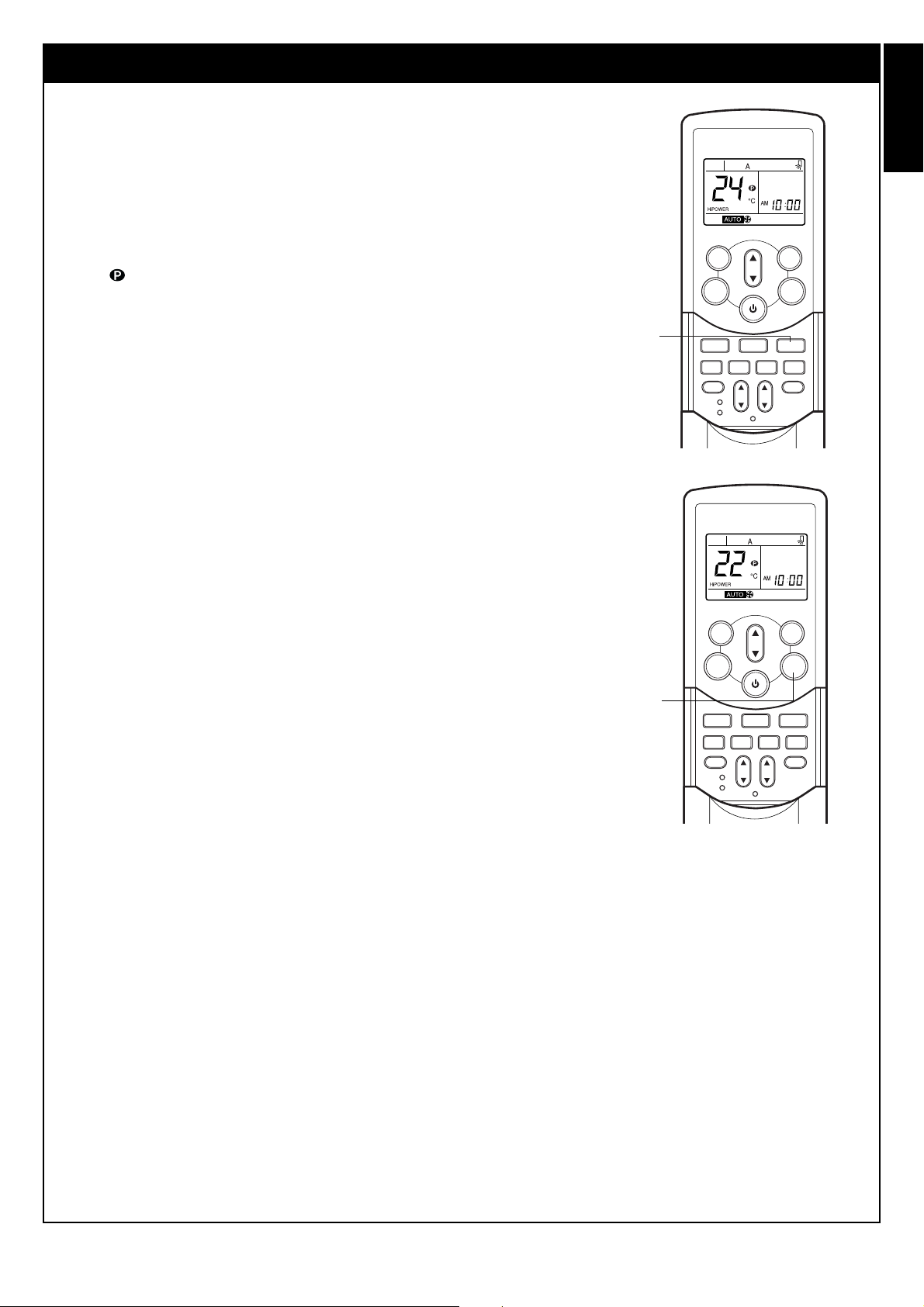

p PRESET button

Press this button to operate the air conditioner according to the settings stored using the MEMO button. () see page 13.)

q PURE button (PURE)

Press this button to start the electrical air purifying operation. Press the button again to stop operation.

r Sleep timer button (SLEEP)

Press this button to start the sleep timer (OFF timer) operation. You can select the OFF timer time from among four settings (1, 3, 5 or 9 hours).

q d c

b l

g f

PURE

MODE

HiPOWER

SWING

CLR

CLOCK

RESET

FIX

CHECK

TEMP

ECO

FAN

OFF

AUTO

PRESET

MEMO

1.3.5.9H

SLEEP

SET

p o

m e r j i

To move up the time, press of the OFF button.

OFF

To move down the time, press of the OFF button.

j Reserve button (SET)

Press this button to store the time settings. (A receiving beep is heard.)

k Cancel button (CLR)

Press this button to cancel the ON timer and OFF timer. (A receiving beep is heard.)

l High power button (Hi POWER)

Press this button to start high power operation. () see page 16.)

m Memory button (MEMO)

Press this button to ready for storing the settings. Hold down the button for more than 3 seconds to store the setting indicated on the remote control and until the

mark is displayed. () see page 13.)

OFF

NAMES AND FUNCTIONS OF INDICATORS ON REMOTE CONTROL

Display

All indicators, except for the clock time indicator, are displayed by pressing the button.

a Transmission mark

This transmission mark ( ) indicates when the remote control transmits signals to the indoor unit.

b Mode indicator

Indicates the current operation mode.

• Heat pump models (AUTO: Automatic control, A: Auto changeover control, : COOL, : DRY,

:HEAT)

• Cooling-only models (AUTO: Automatic control, A: Auto changeover control, : COOL, : DRY,

: FAN ONLY)

c Temperature indicator

Indicates the temperature setting (17°C to 30°C).

d PURE indicator

Shows that the electrical air purifying operation is in progress.

e FAN speed indicator

Indicates the selected fan speed. AUTO or one of five fan speed levels (LOW , LOW+ , MED , MED+ , HIGH ) can be shown.

Indicates AUTO when the operating mode is either AUTO or : DRY.

f TIMER and clock time indicator

• In the illustration, all indicators are shown for purposes of explanation. During operation, only the relevant indicators are shown on the remote control.

The time setting for timer operation or the clock time is indicated. The current time is always indicated except during TIMER operation.

g Hi POWER indicator

Indicates when Hi POWER operation starts. Press the Hi POWER button to start and press it again to stop operation.

h (MEMORY) indicator

Flashes for 3 seconds when the MEMO button is pressed during operation. The mark is shown when holding down the button for more than 3 seconds while the mark is flashing. Press another button to turn off the mark.

i ECO indicator

Indicates when the ECO is activated. Press the ECO button to start and press it again to stop operation.

j A. B change indicator remote control

• When the remote control switching function is set, “B” appears in the remote control display. (When the remote control setting is “A”, there is no indication at this position.)

Remote control switching function

• If two indoor units are installed in the same room or adjoining rooms, both units may start and stop at the same time when the remote control is operated. This can be prevented by setting the switching function so that each indoor unit is operated only by the corresponding remote control.

• To use the remote control switching function, contact the air conditioner dealer or the installation company.

ENGLISHFRANÇAISDEUTSCHITALIANOESPAÑOLΕΛΛΗΝΙΚΗPORTUGUÊS###SW######RU###

PREPARATION AND CHECK BEFORE USE

Loading the remote control batteries

a Remove the cover, and insert the batteries. b Press the RESET button.

The clock time indicator flashes. Adjust the clock. Reattach the cover.

5 EN

HiPOWER

SWING

CLR

CLOCK

RESET

ECO

FIX

CHECK

FAN

OFF

MEMO

1.3.5.9H

SLEEP

SET

Batteries

• To replace the batteries, use two new batteries (AAA type).

• The batteries will last about one year under normal usage.

• Replace the batteries if there is no receiving beep from the indoor unit or when the air conditioner cannot be operated using the remote control.

• To avoid malfunctions due to battery leakage, remove the batteries when not using the remote control for more than one month.

• Slide off the cover while pressing the sides.

• Battery replacement

Be careful not to reverse the (+) position and the (–) position.

Setting the clock

Before you start operating the air conditioner, set the clock of the remote control using the procedures given in this section. The clock panel on the remote control will indicate the time regardless of whether the air conditioner is in use or not.

Initial setting

When batteries are inserted in the remote control, the clock panel displays AM 0:00 and flashes.

a ON button

Press the ON button to set the current time.

Each press of the ON button changes the time in one minute increments. Holding down the ON button changes the time in ten minute increments.

b SET button

SET

Press the SET button.

SET

The current time is displayed and the clock starts.

PURE

MODE

HiPOWER

SWING

CLR

CLOCK

RESET

FIX

CHECK

TEMP

ECO

FAN

OFF

AUTO

PRESET

MEMO

1.3.5.9H

SLEEP

SET

Adjusting the clock

a CLOCK button

Press the CLOCK button. The clock time indicator flashes.

b ON button

c SET button

Press the ON button to set the current time.

Each press of the ON button changes the time in one minute increments. Holding down the ON button changes the time in ten minute increments.

SET

Press the SET button.

SET

The current time is displayed and the clock starts.

HiPOWER

SWING

FIX

CLR

CLOCK

RESET

CHECK

Push CLOCK

ECO

MEMO

1.3.5.9H

SLEEP

FAN

SET

OFF

b a

PURE

MODE

HiPOWER

SWING

CLR

CLOCK

RESET

FIX

CHECK

AUTO

TEMP

PRESET

ECO

MEMO

1.3.5.9H

FAN

SLEEP

SET

OFF

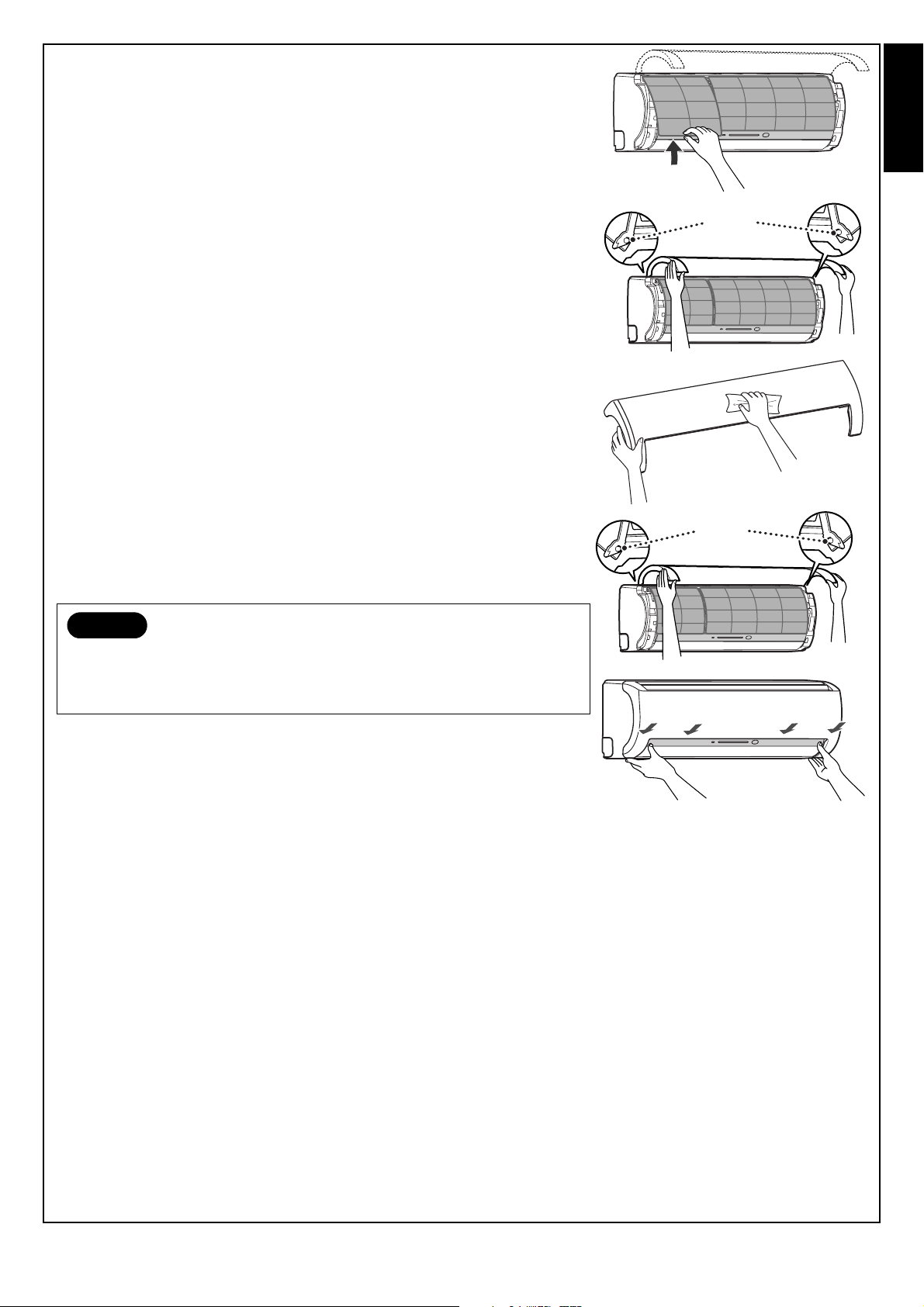

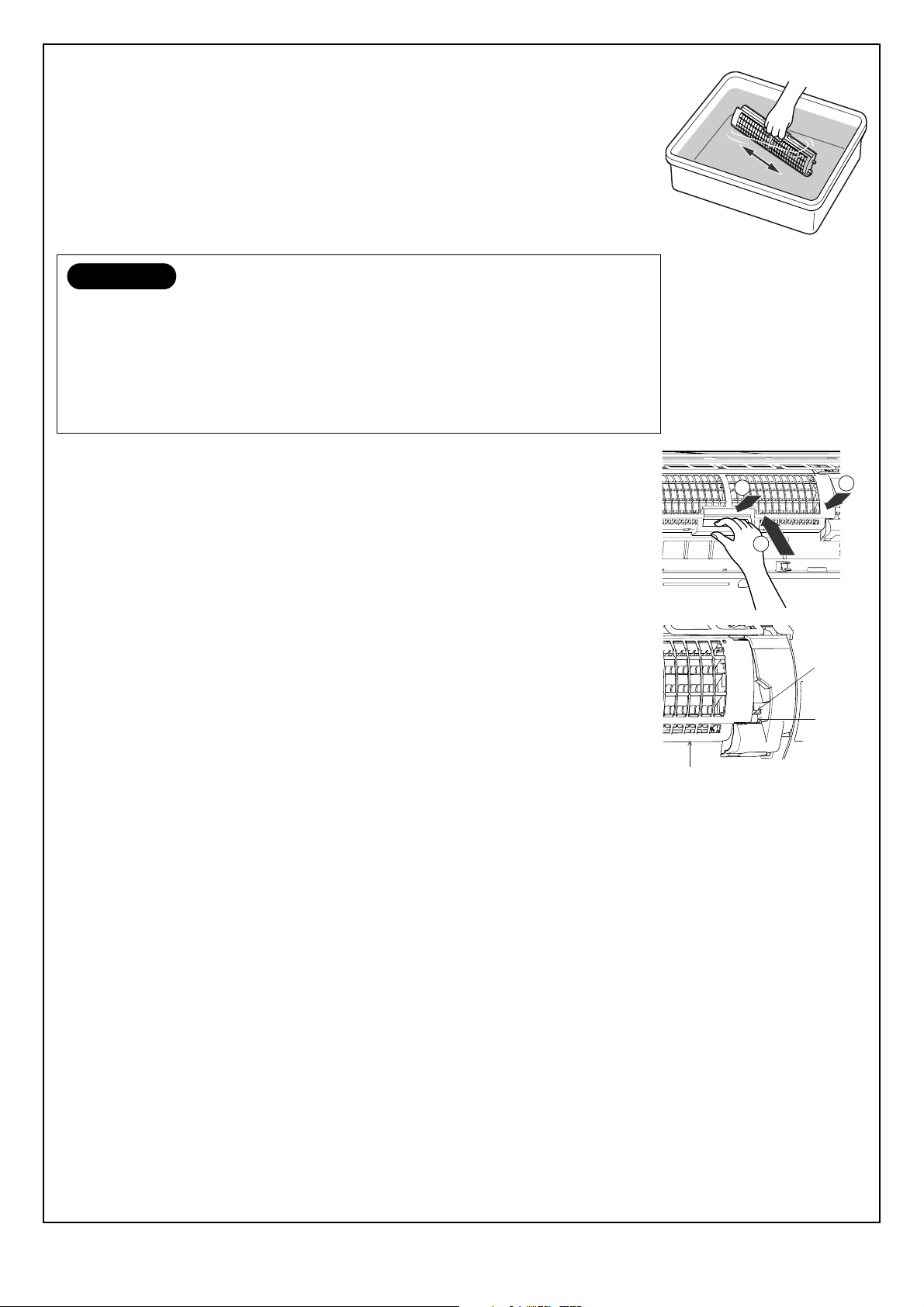

Preparing the filters

a Open the air inlet grille, and remove the air filters. b Attach the supplied Zeolite-plus filter.

Air filters

Zeolite-plus filter

USING THE REMOTE CONTROL

CAUTION

• The air conditioner will not operate if curtains, doors or other objects block the signals from the remote control to the indoor unit.

• Be careful that liquids do not spill onto the remote control.

• Do not expose the remote control to direct sunlight or heat. If the infrared signal receiver on the indoor unit is exposed to direct sunlight, the air conditioner may not function properly. Use curtains to prevent sunlight from reaching the receiver.

• Signals may not be properly received, if the room using the air conditioner has fluorescent lighting with electronic starters. If you are planning on using fluorescent lamps, consult with your local dealer.

• If other electrical appliances are activated by the remote control, move these appliances or consult with your local dealer.

ENGLISHFRANÇAISDEUTSCHITALIANOESPAÑOLΕΛΛΗΝΙΚΗPORTUGUÊS###SW######RU###

Location of the remote control

• Keep the remote control where its signals can reach the receiver of the indoor unit (a distance of up to 7 m is allowed).

• When you select timer operation, the remote control automatically transmits a signal to the indoor unit at the specified time. If you keep the remote control in a location where proper signal transmission is blocked, a time lag of up to 15 minutes may occur.

Remote control holder

Installing the remote control holder

• Before you actually install the remote control holder on a wall or pillar, check whether the remote control signals can be received by the indoor unit.

Mounting and removing the remote control

• To mount the remote control, hold it parallel to the remote control holder and push it in fully. To remove the remote control, slide the remote control upwards and out from the holder.

7 m

7 EN

AUTOMATIC OPERATION

When you set the air conditioner to AUTO mode, it automatically selects cooling, heating (heat pump models only), or fan only operation depending on the room temperature. () see page 16.) The fan speed and louver are also automatically controlled.

Start

a button

Press this button to start the air conditioner.

b AUTO button (AUTO)

Press AUTO button.

c Temperature button ( )

Set the desired temperature.

• The OPERATION indicator (green) on the display panel of the indoor unit lights. The operating mode is selected according to the room temperature and operation starts after approximately 3 minutes.

• If the AUTO mode is uncomfortable, you can select the desired conditions manually. The temperature, fan speed and louver position can be changed, and MODE is also changed from AUTO to A when the fan speed or louver position is changed. The fan speed indicator is also shown.

Stop

button

Press this button again to stop the air conditioner.

TEMP

PURE

MODE

HiPOWER

SWING

CLR

CLOCK

RESET

FIX

CHECK

TEMP

ECO

FAN

OFF

AUTO

PRESET

MEMO

1.3.5.9H

SLEEP

SET

AUTOMATIC OPERATION (AUTO CHANGEOVER)

When you set the air conditioner to A mode or switch over from AUTO operation because of a change in settings, the air conditioner automatically selects cooling, heating (heat pump models only), or fan only operation depending on the room temperature. () see page 16.)

Start

a button

Press this button to start the air conditioner.

b Mode select button (MODE)

Select A.

c Temperature button ( )

Set the desired temperature.

d Fan speed button (FAN)

Select one of “AUTO” LOW , LOW+ , MED , MED+ , HIGH .

• The temperature, fan speed and louver position can be changed. You can select the desired conditions manually.

Stop

button

Press this button again to stop the air conditioner.

TEMP

c b a

PURE

MODE

HiPOWER

SWING

CLR

CLOCK

RESET

FIX

CHECK

TEMP

ECO

FAN

OFF

AUTO

PRESET

MEMO

1.3.5.9H

SLEEP

SET

+ 21 hidden pages
