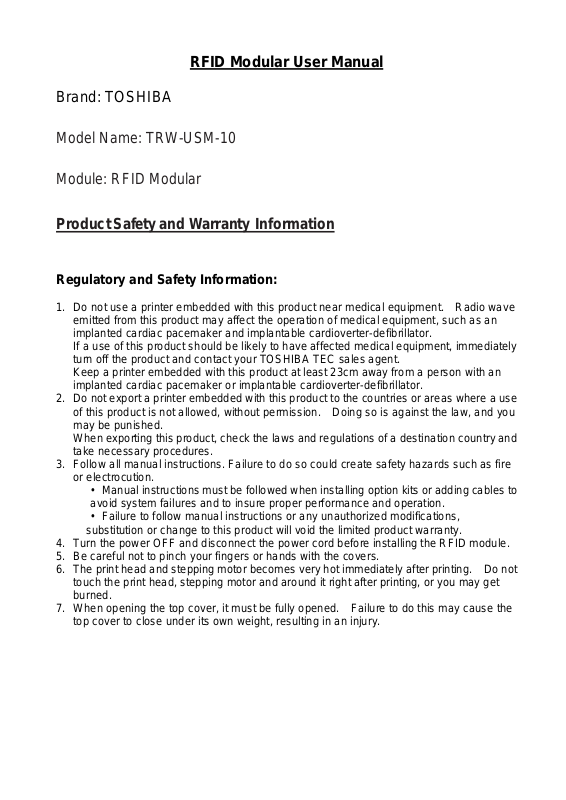

Page 1
RFID Modular User Manual
Brand: TOSHIBA
Model Name: TRW-USM-10
Module: RFID Modular
Product Safety and Warranty Information
Regulatory and Safety Information:
1. Do not use a printer embedded with this product near medical equipment. Radio wave
emitted from this product may affect the operation of medical equipment, such as an
implanted cardiac pacemaker and implantable cardioverter-defibrillator.
If a use of this product should be likely to have affected medical equipment, immediately
turn off the product and contact your TOSHIBA TEC sales agent.
Keep a printer embedded with this product at least 23cm away from a person with an
implanted cardiac pacemaker or implantable cardioverter-defibrillator.
2. Do not export a printer embedded with this product to the countries or areas where a use
of this product is not allowed, without permission. Doing so is against the law, and you
may be punished.
When exporting this product, check the laws and regulations of a destination country and
take necessary procedures.
3. Follow all manual instructions. Failure to do so could create safety hazards such as fire
or electrocution.
• Manual instructions must be followed when installing option kits or adding cables to
avoid system failures and to insure proper performance and operation.
• Failure to follow manual instructions or any unauthorized modifications,
substitution or change to this product will void the limited product warranty.
4. Turn the power OFF and disconnect the power cord before installing the RFID module.
5. Be careful not to pinch your fingers or hands with the covers.
6. The print head and stepping motor becomes very hot immediately after printing. Do not
touch the print head, stepping motor and around it right after printing, or you may get
burned.
7. When opening the top cover, it must be fully opened. Failure to do this may cause the
top cover to close under its own weight, resulting in an injury.
Page 2
Copyright © 2016 TOSHIBA TEC.
All rights reserved.
No part of this publication may be quoted, reproduced, translated or used in any form or by any
means, electronic or mechanical, including photocopying and microfilm, without the prior
written permission of TOSHIBA TEC.
Notice
TOSHIBA TEC reserves the right to make mo difications on print errors or update specifications
in this guide without prior notice.
Page 3
ACCESSORIES:
All the following parts are supplied with the kit. Make sure you have all items shown below.
If any part is missing, please contact your TOSHIBA TEC sales agent.
RFID Module
Bush (1 pc)
Shield label
There are three types depending on the antenna
mounting position
F
C
R
Cable ties (2 pcs)
PT‐3x6screw （１pc）
Installation Manual
(1 copy)
RFID media guide
RFID module harness
FCC ID Sticker (1 pc)
FCCID:XXXXXXXXXXX
ICID:XXXX‐XXXXXXXX
Page 4
Product Information:
1.
Application
This product applies to
2. External
3
. Characteristics
3.1
Electrical Characte ristics
RFID
reader/writer for
UHF
band
Item
Input Voltage
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
Others
Characteristics
DC 5V
5-60 C.
10 –90 %
-
40–60 C.
10 – 90 %
RoHS complies
+/-
10%
Page 5
3.2
Host Interface
3.2.1
Characteristics
Item
Characteristics
connector
Signal
Baud rate
Format
Protocol
9600
S10B-ZR-SM4A-TF(LF)(SN)
UART TTL
BPS
8
bit,1 stop
level interface
and 38400
bit,
TTEC protocol
BPS
non
3.3
RF Interface
3.3.1
Connector
Characteristics
AYU1-1P-02676-120 (JST)
3.3.2
RF Characteristics
Item
Frequency
characteristics
UHF 902-928MHz,869MHz
Supported EPCglobal UHF Generation 2
(selectable)
parity,
non
xoff
4. Antenna
Item
VSWR
size
RF output power
Air Interface
Sensitivity
Frequency deviation
Supported Regions
characteristics
Less than 2.3 (Return
25mm x 120 mm x 7mm
100 mW max
EPCglobal Class-1 Generation-2 UHF RFID
-40
dBm
or less
+/-
10 ppm
Europe regions following ETSI EN 300 220
Loss <-8dB)
These characteristics are checked by Investigation
Page 6
System. 4 antenna
Item
VSWR
size
characteristics
Less than 2.3
25mm x 120 mm x 7mm
Loss <-8d)
COMPLIANCE STATEMENT:
Page 7
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution:
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This transmitter module must not be co-located or operating in conjunction
with any other antenna or transmitter.
IMPORTANT NOTE:
In the event that these conditions can not be met (for example certain laptop
configurations or co-location with another transmitter), then the FCC authorization is no
longer considered valid and the FCC ID can not be used on the final product. In these
circumstances, the OEM integrator will be responsible for re-evaluating the end product
(including the transmitter) and obtaining a separate FCC authorization.
End Product Labeling
The final end product must be labeled in a visible area with the following:
“Contains FCC ID: BJIOH0007”.
Page 8
Manual Information to the End User
The OEM integrator has to be aware not to provide information to the end user regarding
how to install or remove this RF module in the user’s manual of the end product which
integrates this module.
Canada Statement
This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject
to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils
radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes :
(1) l’appareil ne doit pas produire de brouillage;
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d’en compromettre le fonctionnement.
Caution Exposure:
This device meets the exemption from the routine evaluation limits in section 2.5 of
RSS102 and users can obtain Canadian information on RF exposure and compliance.
Le dispositif répond à l'exemption des limites d'évaluation de routine dans la section 2.5
de RSS102 et les utilisateurs peuvent obtenir des renseignements canadiens sur
l'exposition aux RF et le respect.
The final end product must be labelled in a visible area with the following:
The Industry Canada certification label of a module shall be clearly visible at all times
when installed in the host device, otherwise the host device must be labelled to display the
Industry Canada certification number of the module, preceded by the words “Contains
transmitter module”, or the word “Contains”, or similar wording expressing the same
meaning, as follows:
Contains transmitter module IC: 1004C-MS0001
The end user manual shall include all required regulatory information/warning as show in
this manual.
