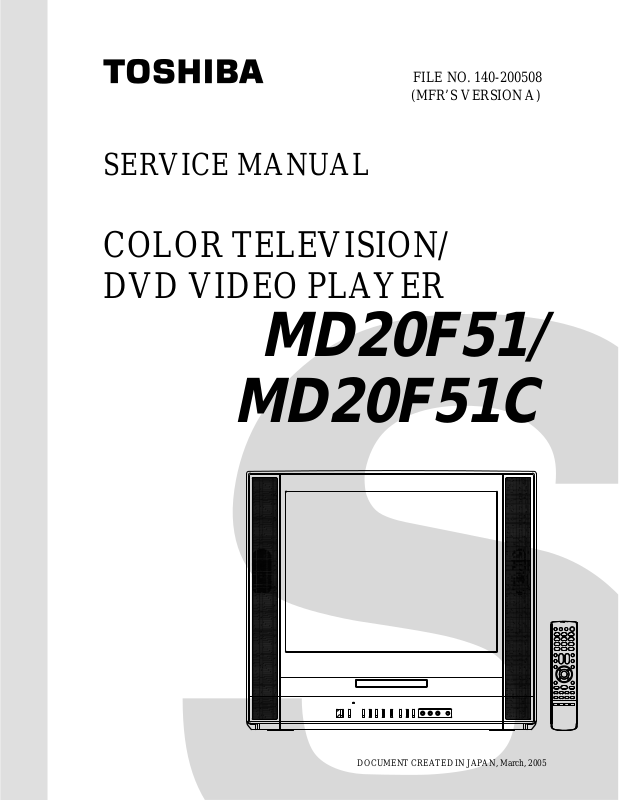

Toshiba MD20F51, MD20F51C Schematic

FILE NO. 140-200508

(MFR’S VERSION A)

SERVICE MANUAL

COLOR TELEVISION/ DVD VIDEO PLAYER

MD20F51/

MD20F51C

DOCUMENT CREATED IN JAPAN, March, 2005

CAUTION

THIS DIGITAL VIDEO PLAYER EMPLOYS A LASER SYSTEM. TO ENSURE PROPER USE OF THIS PRODUCT, PLEASE READ THIS SERVICE MANUAL CARE-

FULLY AND RETAIN FOR FUTURE REFERENCE. SHOULD THE UNIT REQUIRE MAINTENANCE, CONTACT AN AUTHORIZED SERVICE LOCATION-SEE SERVICE PROCEDURE.

USE OF CONTROLS, ADJUSTMENTS OR THE PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

TO PREVENT DIRECT EXPOSURE TO LASER BEAM, DO NOT TRY TO OPEN THE ENCLOSURE. VISIBLE LASER RADIATION MAY BE PRESENT WHEN THE ENCLOSURE IS OPENED. DO NOT STARE INTO BEAM.

Location of the required Marking

The rating sheet and the safety caution are on the rear of the unit.

CERTIFICATION: COMPLIES WITH FDA RADIATION PERFORMANCE STANDARDS, 21 CFR SUBCHAPTER J.

PREPARATION OF SERVICING

The laser diode used for a pickup head may be destroyed with external static electricity. Moreover, even if it is operating normally after repair, when static electricity discharge is received at the time of repair, the life of the product may be shortened. Please perform the following measure against static electricity, be careful of destruction of a laser diode at the time of repair.

• Place the unit on a workstation equipped to protect against static electricity, such as conductive mat.

• Soldering iron with ground wire or ceramic type is used.

• A worker needs to use a ground conductive wrist strap for body.

A1-1 MD20F51/MD20F51C

SERVICING NOTICES ON CHECKING

As for the places which need special attentions, they are indicated with the labels or seals on the cabinet, chassis and parts. Make sure to keep the indications and notices in the operation manual.

2. AVOID AN ELECTRIC SHOCK

There is a high voltage part inside. Avoid an electric shock while the electric current is flowing.

3. USE THE DESIGNATED PARTS

The parts in this equipment have the specific characters of incombustibility and withstand voltage for safety. Therefore, the part which is replaced should be used the part which has the same character. Especially as to the important parts for safety which is indicated in the circuit diagram or the table of parts as a mark, the designated parts must be used.

4. PUT PARTS AND WIRES IN THE ORIGINAL POSITION AFTER ASSEMBLING OR WIRING

There are parts which use the insulation material such as a tube or tape for safety, or which are assembled in the condition that these do not contact with the printed board. The inside wiring is designed not to get closer to the pyrogenic parts and high voltage parts. Therefore, put these parts in the original positions.

5. TAKE CARE TO DEAL WITH THE CATHODE-RAY TUBE

In the condition that an explosion-proof cathoderay tube is set in this equipment, safety is secured against implosion. However, when removing it or serving from backward, it is dangerous to give a shock. Take enough care to deal with it.

6. AVOID AN X-RAY1. KEEP THE NOTICES

Safety is secured against an X-ray by considering about the cathode-ray tube and the high voltage peripheral circuit, etc. Therefore, when repairing the high voltage peripheral circuit, use the designated parts and make sure not modify the circuit. Repairing except indicates causes rising of high voltage, and it emits an X-ray from the cathoderay tube.

PERFORM A SAFETY CHECK AFTER

7. SERVICING

Confirm that the screws, parts and wiring which were removed in order to service are put in the original positions, or whether there are the portions which are deteriorated around the serviced places serviced or not. Check the insulation between the antenna terminal or external metal and the AC cord plug blades. And be sure the safety of that.

(INSULATION CHECK PROCEDURE)

1.

Unplug the plug from the AC outlet.

2.

Remove the antenna terminal on TV and turn on the TV.

3.

Insulation resistance between the cord plug terminals and the eternal exposure metal [Note 2] should be more than 1M ohm by using the 500V insulation resistance meter [Note 1].

4.

If the insulation resistance is less than 1M ohm, the inspection repair should be required.

[Note 1]

If you have not the 500V insulation resistance meter, use a Tester.

[Note 2]

External exposure metal: Antenna terminal

HOW TO ORDER PARTS

Please include the following informations when you order parts. (Particularly the VERSION LETTER.)

1. MODEL NUMBER and VERSION LETTER The MODEL NUMBER can be found on the back of each product and the VERSION LETTER can be

found at the end of the SERIAL NUMBER.

2. PART NO. and DESCRIPTION You can find it in your SERVICE MANUAL.

A1-2 MD20F51/MD20F51C

IMPORTANT SAFEGUARDS

1.

READ INSTRUCTIONS

All the safety and operating instructions should be read before the unit is operated.

2.

RETAIN INSTRUCTIONS

The safety and operating instructions should be retained for future reference.

3.

HEED WARNINGS

All warnings on the unit and in the operating instructions should be adhered to.

4.

FOLLOW INSTRUCTIONS

All operating and use instructions should be followed.

5.

CLEANING

Unplug this unit from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

6.

ATTACHMENTS

Do not use attachments not recommended by the unit’s manufacturer as they may cause hazards.

7.

WATER AND MOISTURE

Do not use this unit near water. For example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool.

8.

ACCESSORIES

Do not place this unit on an unstable cart, stand, tripod, bracket, or table. The unit may fall, causing serious injury, and serious damage to the unit. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer.

8A.

An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

9.

VENTILATION

Slots and openings in the cabinet and in the back or bottom are provided for ventilation, to ensure reliable operation of the unit, and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the unit on a bed, sofa, rug, or other similar surface. This unit should never be placed near or over a radiator or heat source. This unit should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.

10.

POWER SOURCES

This unit should be operated only from the type of power source indicated on the rating plate. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For units intended to operate from battery power, or other sources, refer to the operating instructions.

11.

GROUNDING OR POLARIZATION

This unit is equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug. If your unit is equipped with a 3-wire grounding-type plug, a plug having a third (grounding) pin, this plug will only fit into a grounding-type power outlet. This too, is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding-type plug.

12.

POWER-CORD PROTECTION

Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.

13.

LIGHTNING

To protect your unit from a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the unit due to lightning and power line surges.

14.

POWER LINES

An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits, as contact with them might be fatal.

15.

OVERLOADING

Do not overload wall outlets and extension cords, as this can result in a risk of fire or electric shock.

16.

OBJECT AND LIQUID ENTRY

Do not push objects through any openings in this unit, as they may touch dangerous voltage points or short out parts that could result in fire or electric shock. Never spill or spray any type of liquid into the unit.

PORT ABLE CAR T WARNING

(symbol provided by RETAC)

S3126A

A1-3 MD20F51/MD20F51C

IMPORTANT SAFEGUARDS (CONTINUED)

OUTDOOR ANTENNA GROUNDING

17.

If an outside antenna or cable system is connected to the unit, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Section 810 of the National Electrical Code, ANSI/NFPA 70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

SERVICING

18.

Do not attempt to service this unit yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

DAMAGE REQUIRING SERVICE

19.

Unplug this unit from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a.

When the power-supply cord or plug is damaged.

b.

If liquid has been spilled, or objects have fallen into the unit.

c.

If the unit has been exposed to rain or water.

d.

If the unit does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions, as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the unit to its normal operation.

e.

If the unit has been dropped or the cabinet has been damaged.

f.

When the unit exhibits a distinct change in performance, this indicates a need for service.

REPLACEMENT PARTS

20.

When replacement parts are required, be sure the service technician uses replacement parts specified by the manufacturer or those that have the same characteristics as the original parts. Unauthorized substitutions may result in fire, electric shock or other hazards.

SAFETY CHECK

21.

Upon completion of any service or repairs to this unit, ask the service technician to perform safety checks to determine that the unit is in proper operating condition.

WALL OR CEILING MOUNTING

22.

The product should be mounted to a wall or ceiling only as recommended by the manufacturer.

HEAT

23.

The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

DISC TRAY

24.

Keep your fingers well clear of the disc tray as it is closing. It may cause serious personal injury.

CONNECTING

25.

When you connect the product to other equipment, turn off the power and unplug all of the equipment from the wall outlet. Failure to do so may cause an electric shock and serious personal injury. Read the owner's manual of the other equipment carefully and follow the instructions when making any connections.

SOUND VOLUME

26.

Reduce the volume to the minimum level before you turn on the product. Otherwise, sudden high volume sound may cause hearing or speaker damage.

SOUND DISTORTION

27.

Do not allow the product output distorted sound for a longtime. It may cause speaker overheating and fire.

HEADPHONES

28.

When you use the headphones, keep the volume at a moderate level. If you use the headphones continuously with high volume sound, it may cause hearing damage.

LASER BEAM

29.

Do not look into the opening of the disc tray or ventilation opening of the product to see the source of the laser beam. It may cause sight damage.

DISC

30.

Do not use a cracked, deformed, or repaired disc. These discs are easily broken and may cause serious personal injury and product malfunction.

NOTE TO CATV SYSTEM INSTALLER

31.

This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

A1-4 MD20F51/MD20F51C

IMPORTANT SAFEGUARDS (CONTINUED)

EXAMPLE OF ANTENNA GROUNDING AS PER THE NATIONAL ELECTRICAL CODE

ANTENNA LEAD IN WIRE

GROUND

CLAMP

ANTENNA DISCHARGE UNIT (NEC SECTION 810-20)

ELECTRIC SERVICE

EQUIPMENT

GROUNDING CONDUCTORS (NEC SECTION 810-21)

GROUND CLAMPS

NEC-NATIONAL ELECTRICAL CODE

S2898A

POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H)

A1-5 MD20F51/MD20F51C

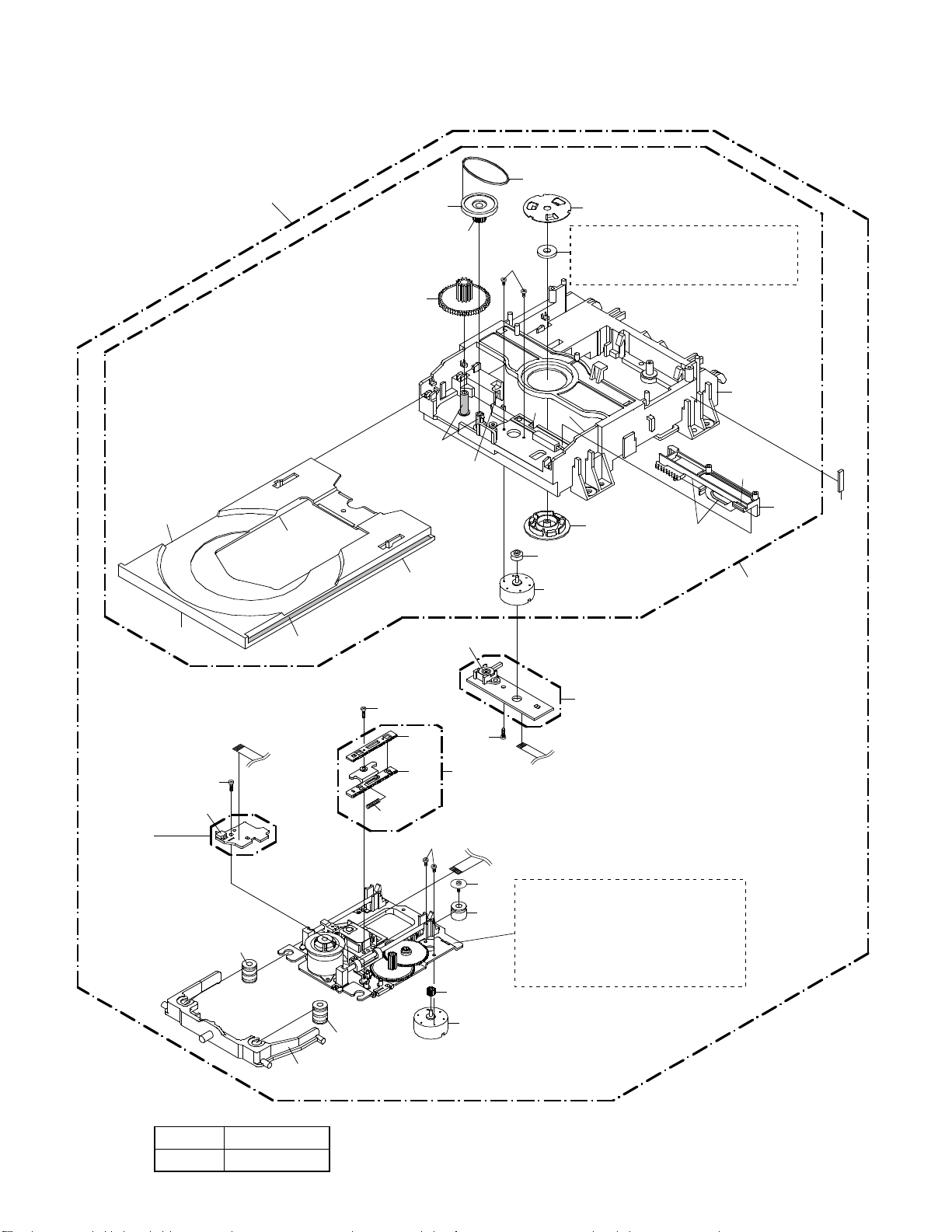

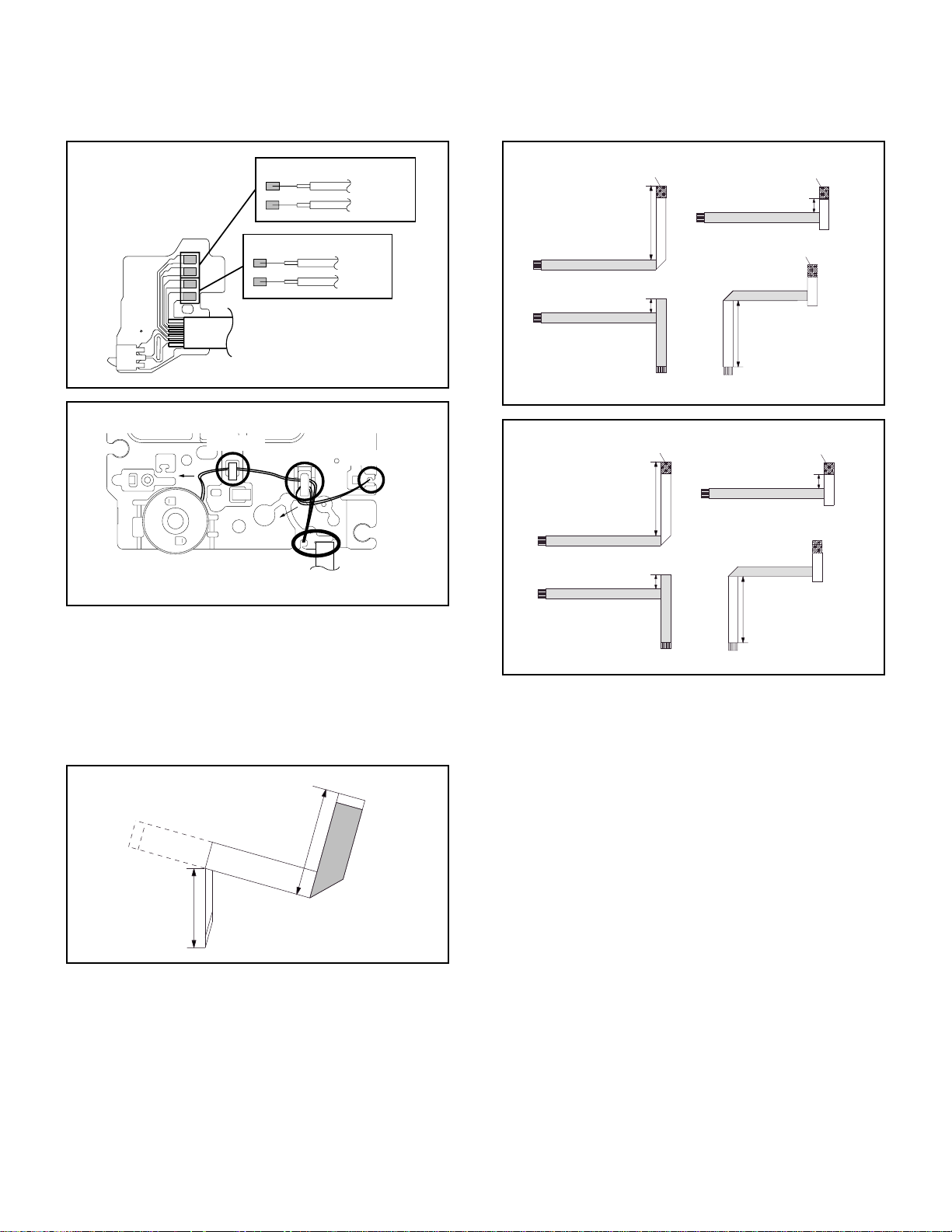

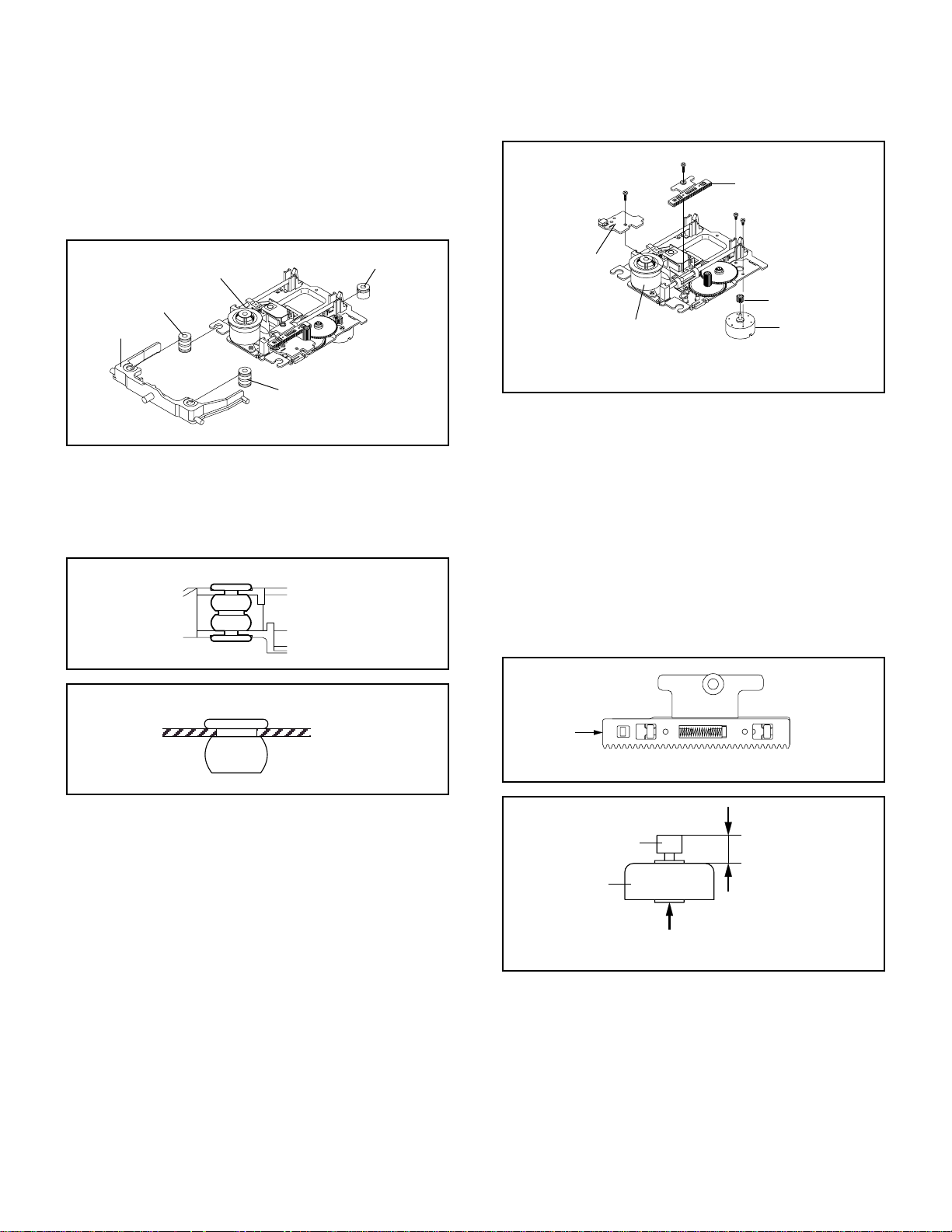

WHEN REPLACING DVD DECK

[ When removing the DVD Deck ]

Before removing Pick Up PCB and DVD PCB connector, the short circuit the position shown in Fig. 1 using a soldering iron. If you remove the DVD Deck with no soldering, the Laser may be damaged.

[ When installing the DVD Deck ]

Remove all the soldering on the short circuit position after the connection of Pick Up PCB and DVD PCB connector.

NOTE

Before your operation, please read “PREPARATION OF SERVICING”.

• Use the Lead Free solder.

• Manual soldering conditions

•

• Soldering temperature: 350 ± 5˚C

• Soldering time: Within 2 seconds

• Soldering combination: Sn-3.0Ag-0.5Cu When Soldering/Removing of solder, use the draw in equipment over the Pick Up Unit to keep the

• Flux smoke away from it.

Pick Up PCB

Fig. 1

Short circuit using a soldering iron.

DISC REMOVAL METHOD AT NO POWER SUPPLY

1.

Remove the Back Cabinet and AV PCB/DVD Block. (Refer to item 1 of the DISASSEMBLY

INSTRUCTIONS.)

2.

Rotate the Main Gear in the direction of the arrow by hand.

(Refer to Fig. 1)

3.

Manually open the Tray.

Deck CDMain Gear

Fig. 1

A1-6

MD20F51/MD20F51C

PARENTAL CONTROL - RATING LEVEL

4 DIGIT PASSWORD CANCELLATION

If the stored 4 digit password in the Rating Level menu needs to be cancelled, please follow the steps below.

Turn Unit ON.

1. Set the DVD to the Stop Mode.

2. Check that 'No disc' is displayed on the screen.

3. Press and hold the 'STOP' button on the front panel.

4. Simultaneously press and hold the '7' key on the remote control unit.

5. Hold both keys for more than 3 seconds.

6. The On Screen Display message 'PASSWORD CLEAR' will appear.

7. The 4 digit password has now been cleared.

8.

TRAY LOCK

Tray cannot be opened by setting the Tray Lock, please follow the steps below.

Turn Unit ON.

1. Set the DVD to the Stop Mode.

2. Press and hold the 'STOP' key on the front panel.

3. Simultaneously press and hold the '9' key on the remote control unit.

4. Hold both keys for more than 2 seconds.

5. The On Screen Display message ' ' will appear.

6. The Tray Lock has now been set up.

7.

NOTE: No indications on the screen when the Tray Lock is setting. To unlock the Tray Lock, please follow the steps below.

Turn Unit ON.

1. Set the DVD to the Stop Mode.

2. Press and hold the 'STOP' key on the front panel.

3. Simultaneously press and hold the '9' key on the remote control unit.

4. Hold both keys for more than 2 seconds.

5. The On Screen Display message ' ' will appear.

6. The Tray Lock has now been cleared.

7.

NOTE: No indications on the screen when the Tray Lock is setting.

It is likely to be going to be changed to the following steps without a previous notice in the future. If the above is not effective measures, please follow the steps below.

Tray cannot be opened by setting the Tray Lock, please follow the steps below.

Turn Unit ON.

1. Set the DVD to the Stop Mode.

2. Press it in order of 'SETUP', 'SUBTITLE', '3', 'AUDIO' and '0' key of a remote control unit.

3. The On Screen Display message ' ' will appear.

4. The Tray Lock has now been set up.

5.

NOTE: No indications on the screen when the Tray Lock is setting. To unlock the Tray Lock, please follow the steps below.

Turn Unit ON.

1. Set the DVD to the Stop Mode.

2. Press it in order of 'SETUP', 'SUBTITLE', '3', 'AUDIO' and '0' key of a remote control unit.

3. The On Screen Display message ' ' will appear.

4. The Tray Lock has now been cleared.

5.

NOTE: No indications on the screen when the Tray Lock is setting.

A1-7

MD20F51/MD20F51C

ABOUT LEAD FREE SOLDER (PbF)

Distinction of PbF PCB:

PCBs (manufactured) using lead free solder will have a PbF printing on the PCB. (Please refer to figures.)

Caution:

Pb free solder has a higher melting point than standard solder;

•

Typically the melting point is 50°F~70°F(30°C~40°C) higher. Please use a soldering iron with temperature control and adjust it to 650°F ± 20°F (350°C ± 10°C). In case of using high temperature soldering iron, please be carefull not to heat too long. Pb free solder will tend to splash when heated too high (about 1100°F/ 600°C).

•

All products with the printed circuit board with PbF printing must be serviced with lead free solder.

•

When soldering or unsoldering, completely remove all of the solder from the pins or solder area, and be sure to heat the soldering points with the lead free solder until it melts sufficiently.

Recommendations

Recommended lead free solder composition is Sn-3.0Ag-0.5Cu.

A1-8

MD20F51/MD20F51C

TABLE OF CONTENTS

CAUTION ....................................................................................................................................

SERVICING NOTICES ON CHECKING.....................................................................................

HOW TO ORDER PARTS ..........................................................................................................

IMPORTANT SAFEGUARDS.....................................................................................................

WHEN REPLACING DVD DECK ...............................................................................................

DISC REMOVAL METHOD AT NO POWER SUPPLY .............................................................

PARENTAL CONTROL-RATING LEVEL ..................................................................................

TRAY LOCK................................................................................................................................

ABOUT LEAD FREE SOLDER (PbF)........................................................................................

TABLE OF CONTENTS..............................................................................................................

GENERAL SPECIFICATIONS ...................................................................................................

DISASSEMBLY INSTRUCTIONS

1. REMOVAL OF MECHANICAL PARTS AND P. C. BOARDS............................................

2. REMOVAL OF DVD DECK PARTS ...................................................................................

3. REMOVAL OF ANODE CAP..............................................................................................

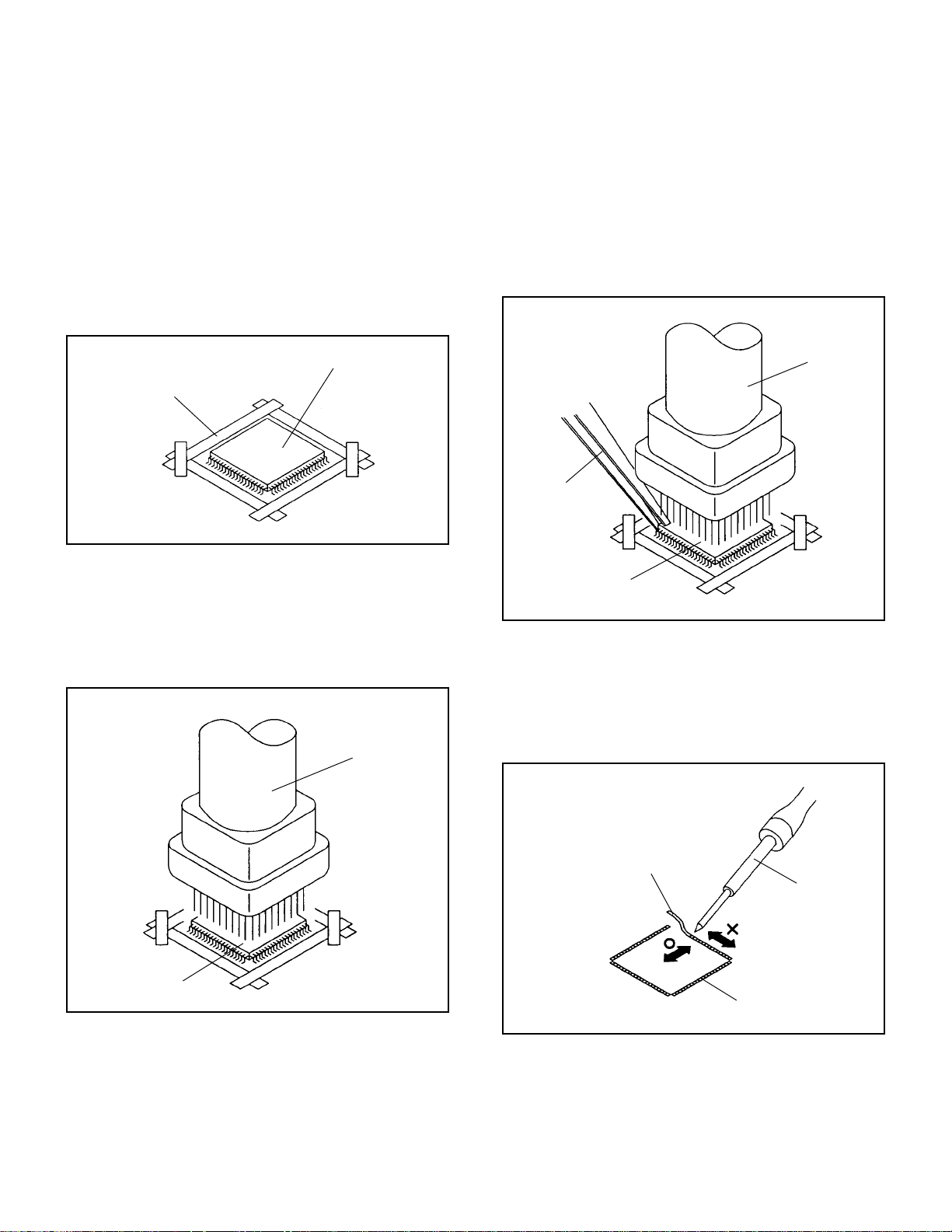

4. REMOVAL AND INSTALLATION OF FLAT PACKAGE IC ...............................................

SERVICE MODE LIST ................................................................................................................

CONFIRMATION OF HOURS USED .........................................................................................

WHEN REPLACING EEPROM (MEMORY) IC ..........................................................................

ELECTRICAL ADJUSTMENTS..................................................................................................

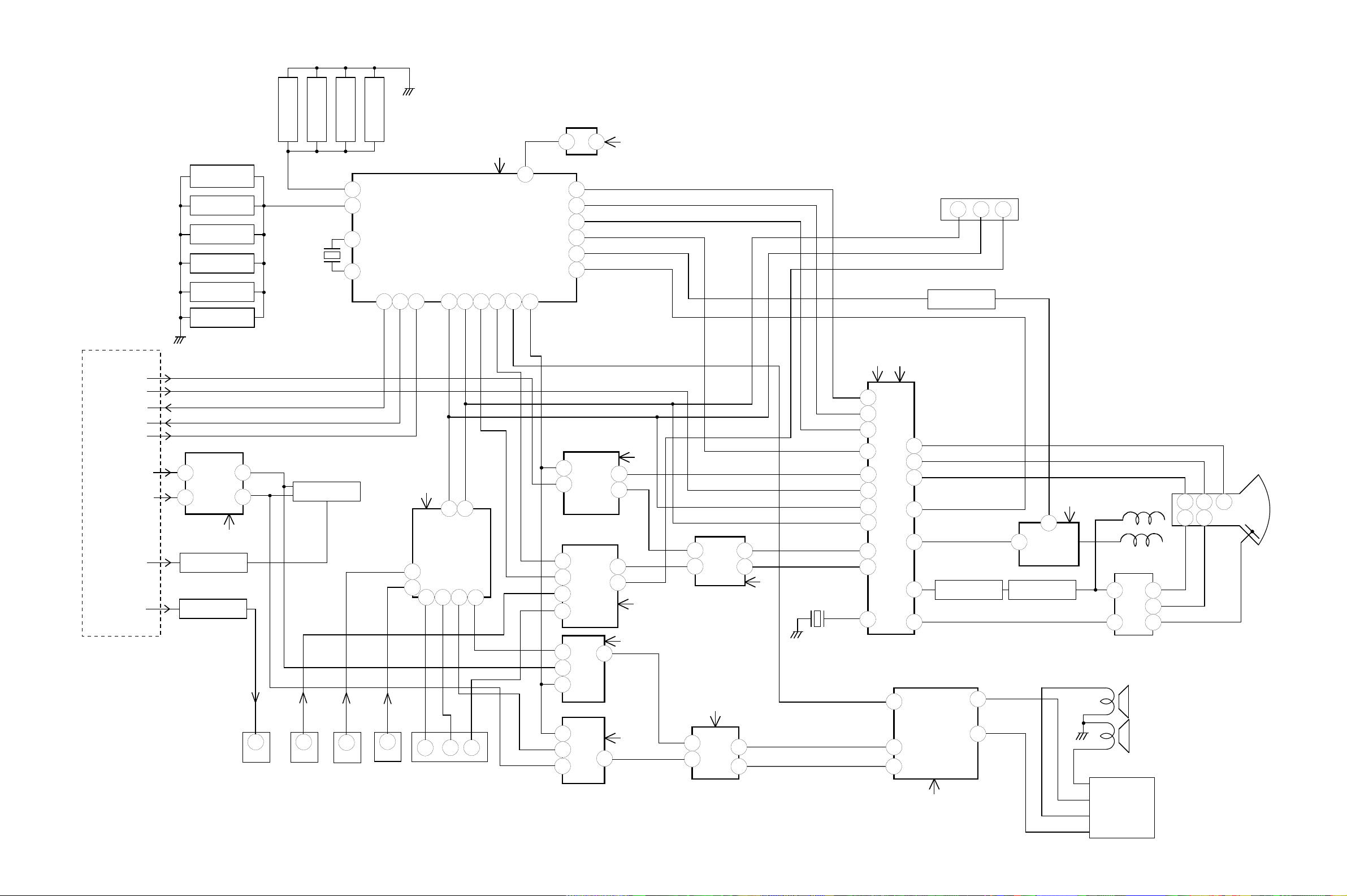

BLOCK DIAGRAMS

DVD..........................................................................................................................................

TV ............................................................................................................................................

POWER ..................................................................................................................................

PRINTED CIRCUIT BOARDS

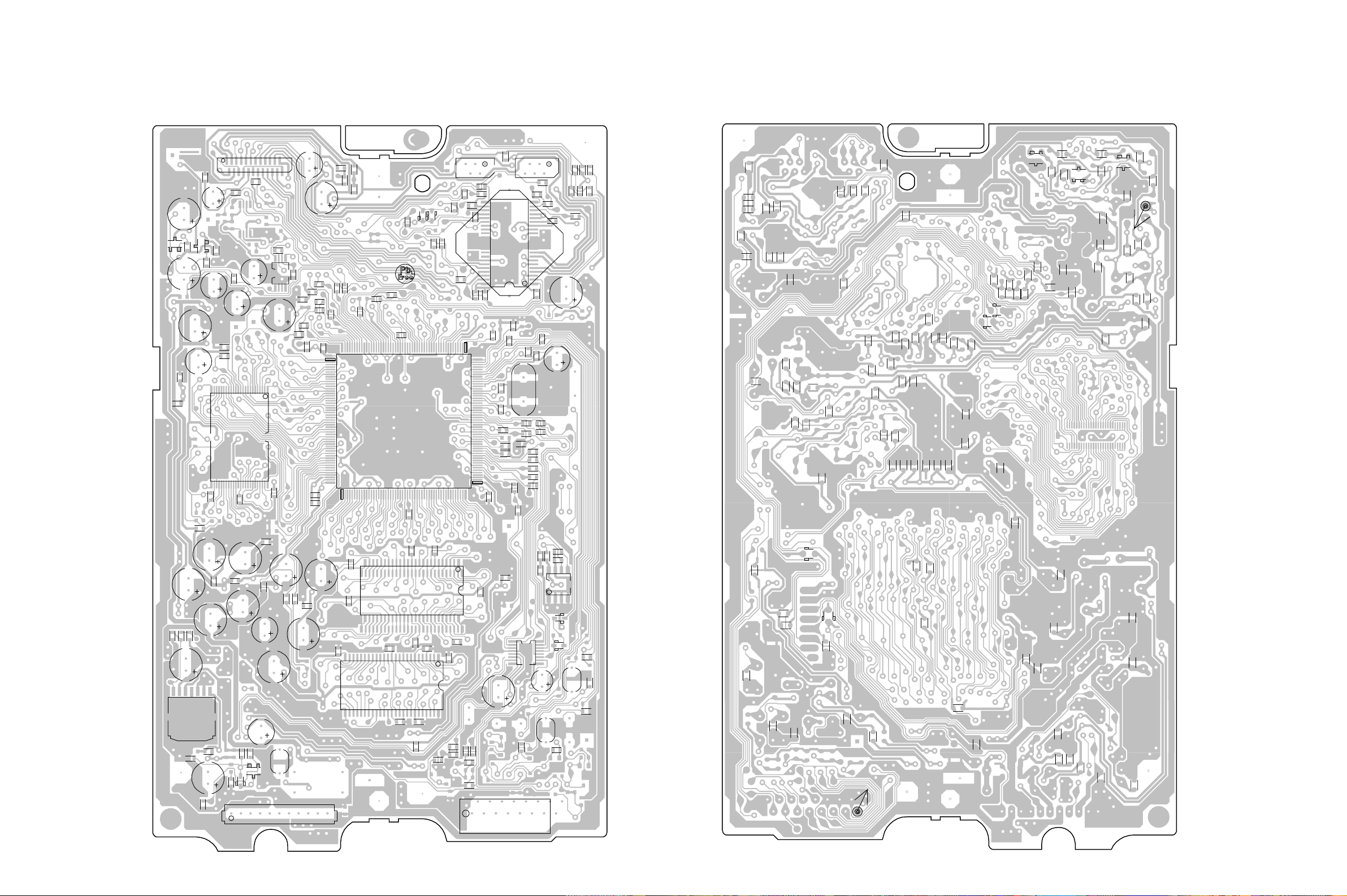

DVD..........................................................................................................................................

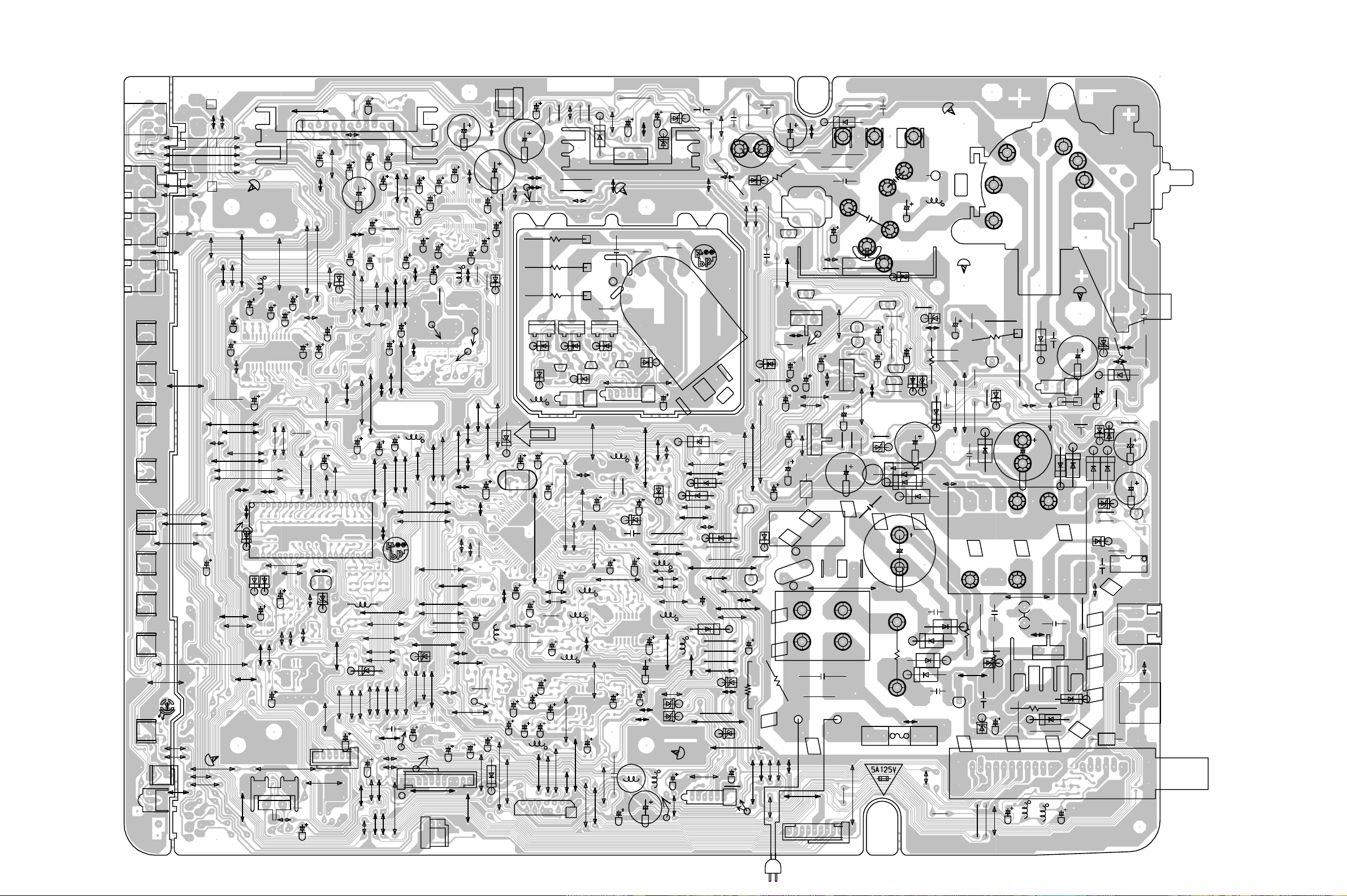

AV/CRT ....................................................................................................................................

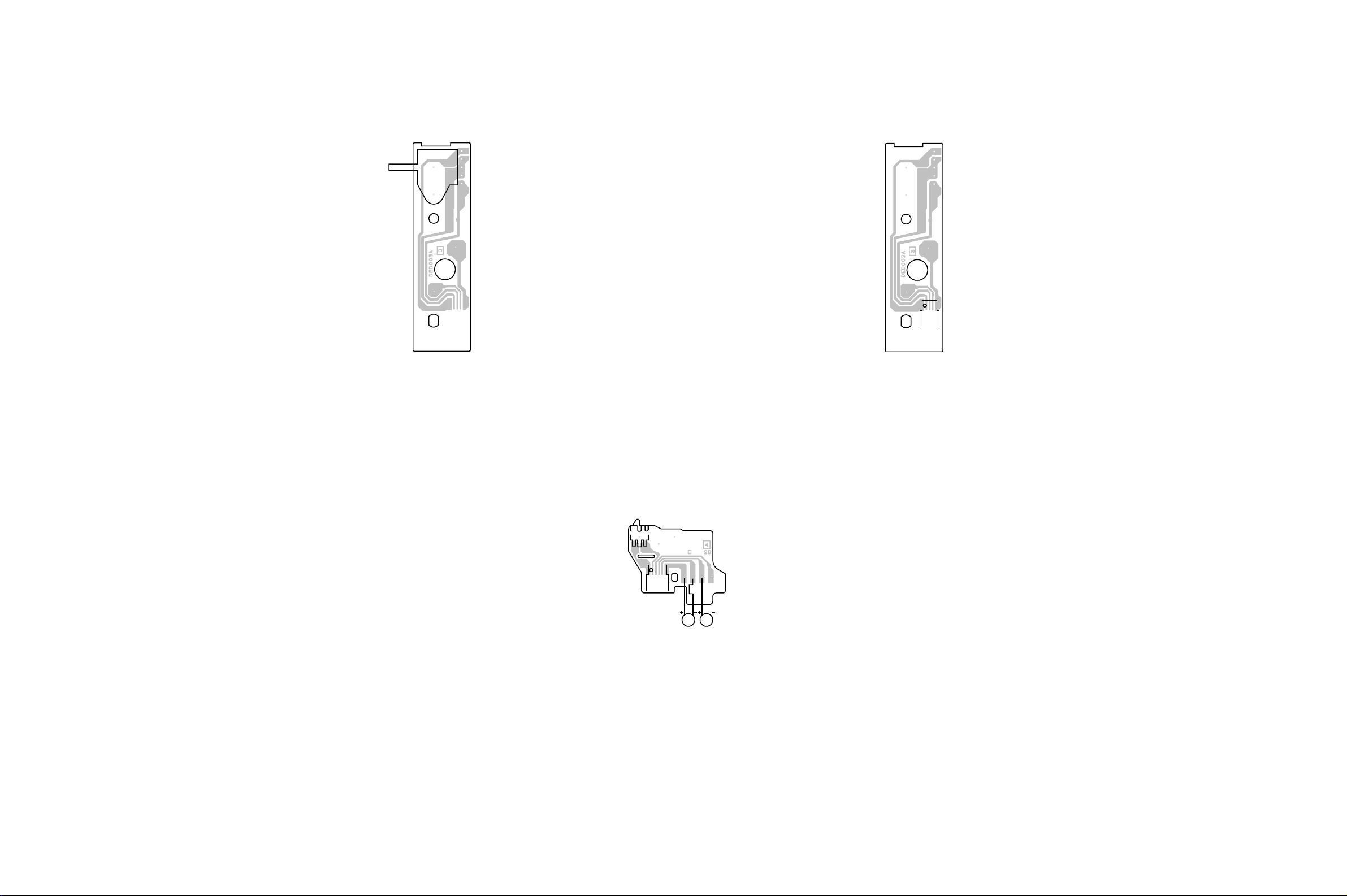

LOADING MOTOR/SW ...........................................................................................................

SCHEMATIC DIAGRAMS

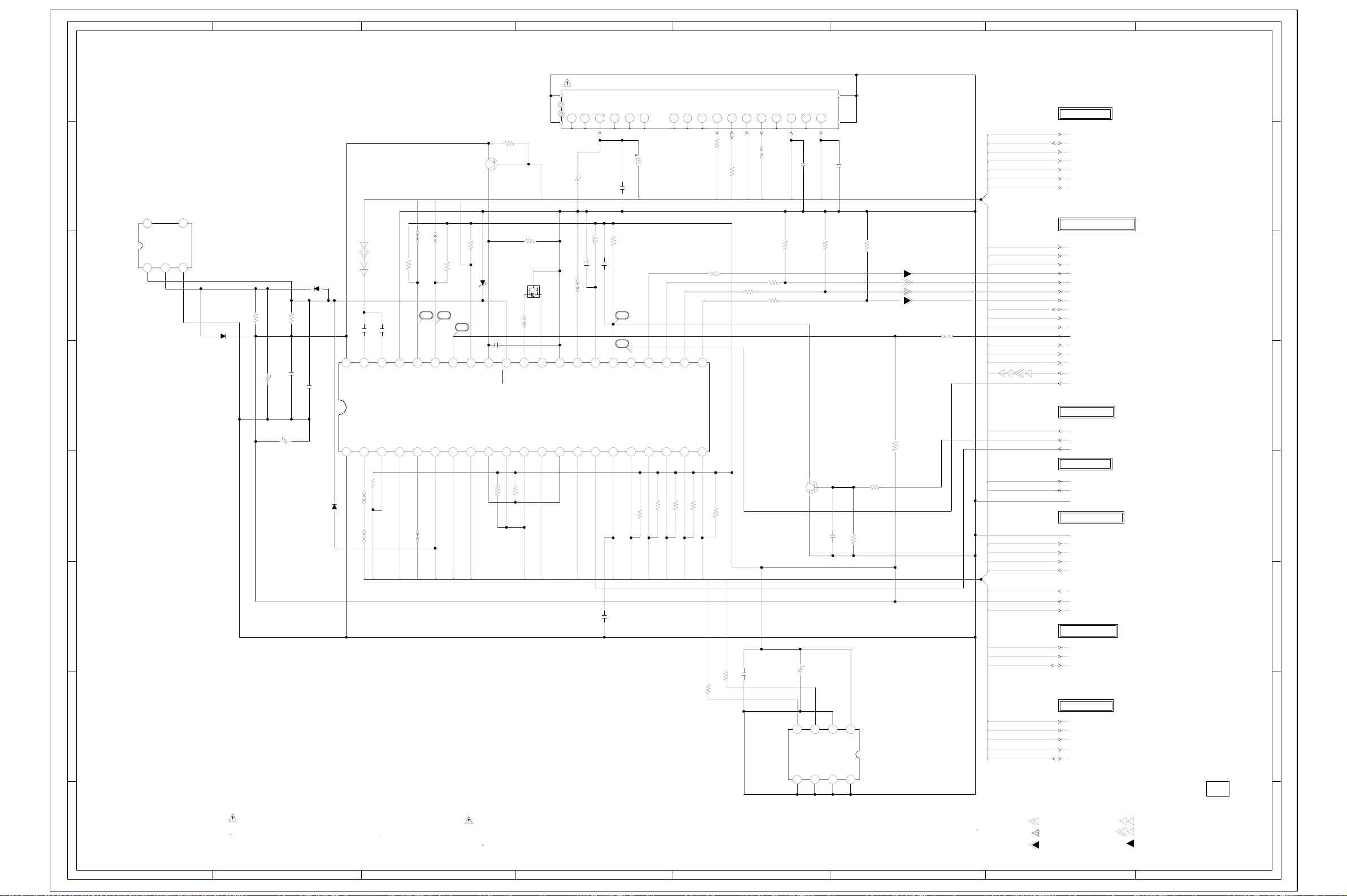

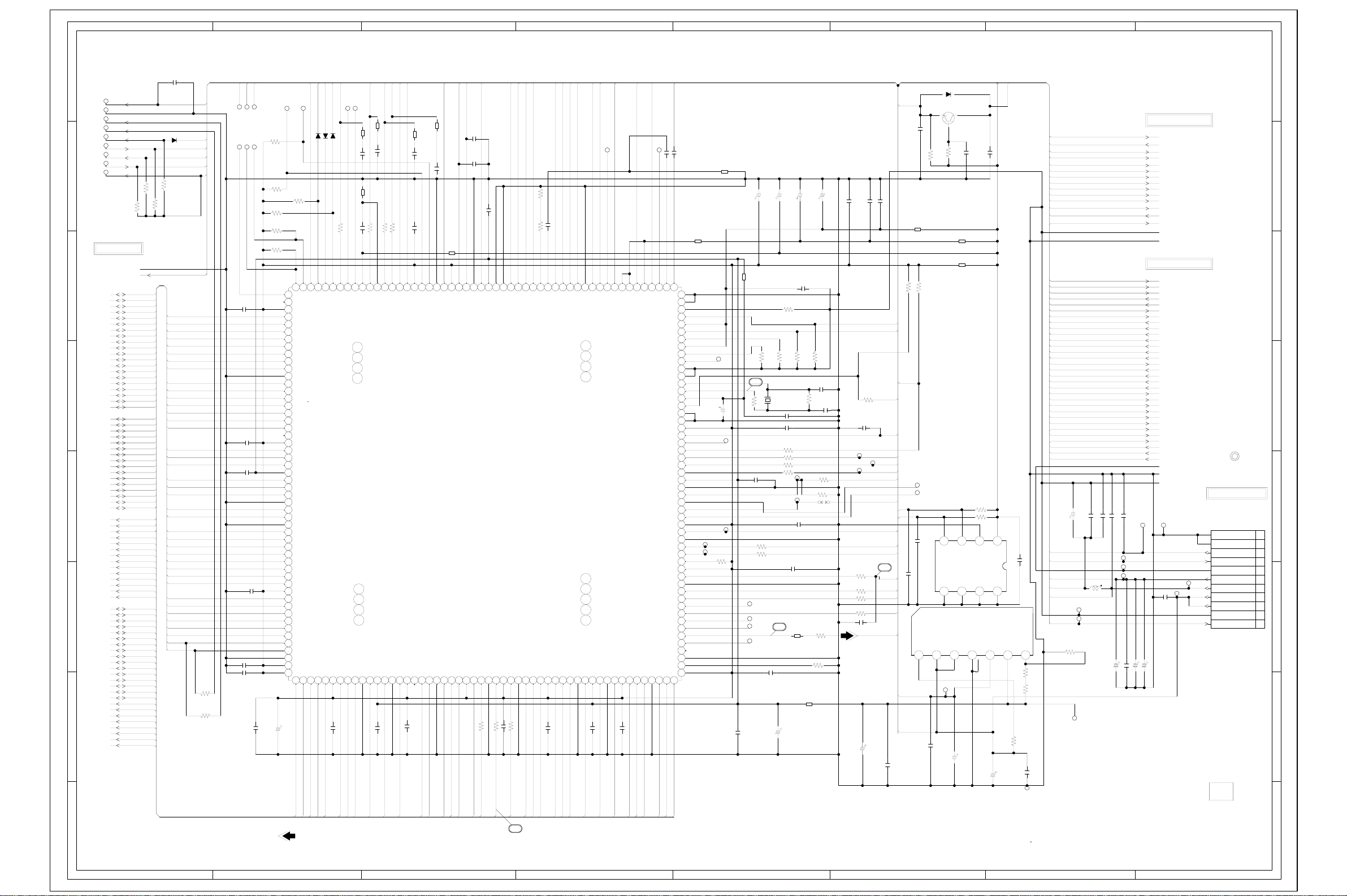

MPEG/MICON/DSP.................................................................................................................

MEMORY .................................................................................................................................

MOTOR DRIVE .......................................................................................................................

AUDIO/VIDEO .........................................................................................................................

REGULATOR1.........................................................................................................................

MICON/TUNER .......................................................................................................................

VIF/SIF/CHROMA....................................................................................................................

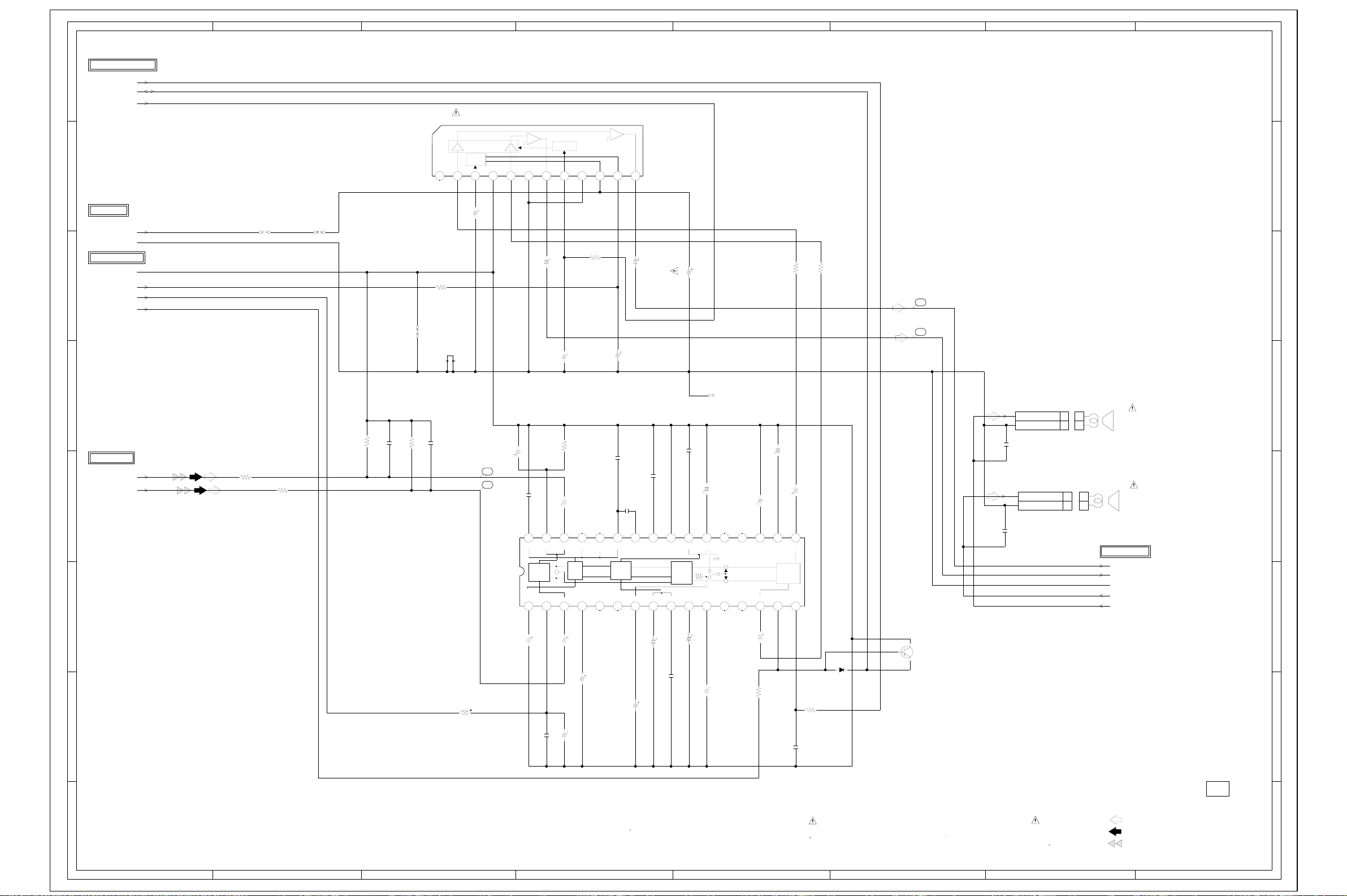

SOUND AMP ...........................................................................................................................

IN/OUT .....................................................................................................................................

STEREO ..................................................................................................................................

DEFLECTION ..........................................................................................................................

CRT ..........................................................................................................................................

POWER ...................................................................................................................................

LOADING MOTOR/SW ...........................................................................................................

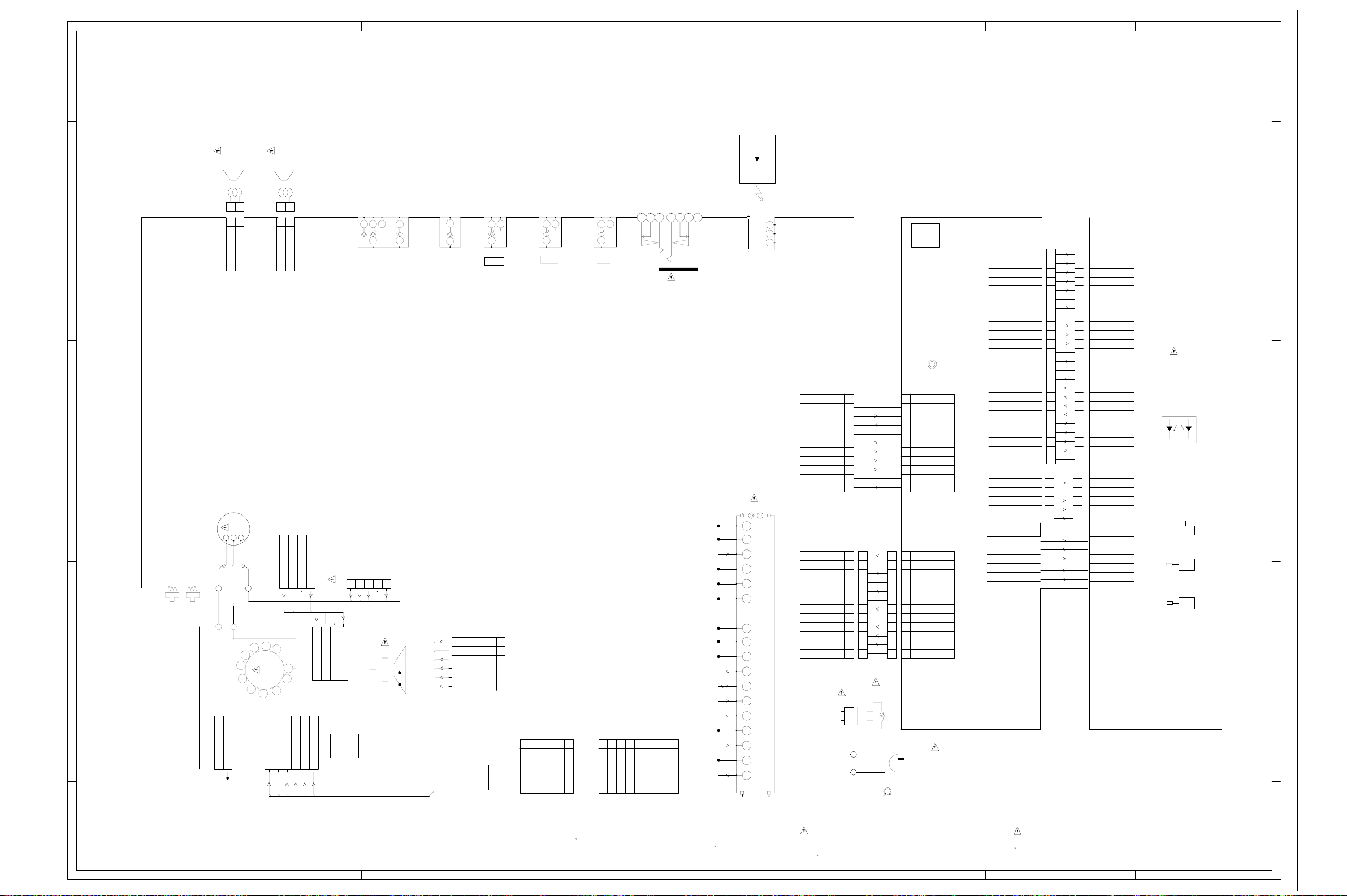

INTERCONNECTION DIAGRAM ...............................................................................................

WAVEFORMS .............................................................................................................................

MECHANICAL EXPLODED VIEWS...........................................................................................

DVD DECK EXPLODED VIEW...................................................................................................

MECHANICAL REPLACEMENT PARTS LIST .........................................................................

DVD DECK PLACEMENT PARTS LIST ....................................................................................

ELECTRICAL REPLACEMENT PARTS LIST...........................................................................

A1-1 A1-2 A1-2 A1-3~A1-5 A1-6 A1-6 A1-7 A1-7 A1-8 A2-1 A3-1~A3-12

B1-1, B1-2 B2-1~B2-4 B3-1 B4-1, B4-2 C-1 C-1 C-2 D-1~D-6

E-1, E-2 E-3, E-4 E-5, E-6

F-1, F-2 F-3~F-6 F-7, F-8

G-1, G-2 G-3, G-4 G-5, G-6 G-7, G-8 G-9, G-10 G-11, G-12 G-13, G-14 G-15, G-16 G-17, G-18 G-19, G-20 G-21, G-22 G-23, G-24 G-25, G-26 G-27, G-28 G-29, G-30 H-1~H-3 I1-1~I1-3 I2-1 J1-1, J1-2 J2-1 J3-1~J3-10

A2-1

MD20F51/MD20F51C

GENERAL SPECIFICATIONS

G-1 TV CRT CRT Size / Visual Size 20 inch / 508.0 mmV

System CRT Type Flat

Color System NTSC Speaker 2 Speaker

Sound Output Max 5W + 5W

G-2 DVD System Color System NTSC

Disc DVD, CD-DA, CD-R/RW, Video CD

Disc Diameter 120 mm , 80 mm Drive DM3O Search speed Fwd 4 step

Slow speed Fwd 1/7 - 1/2 times

G-3 Tuning Broadcasting System US System M

System Tuner and System 1Tuner

Receive CH Destination US(w/CABLE)

Intermediate Picture(FP) 45.75MHz Frequency Sound(FS) 41.25MHz

Preset CH No Stereo/Dual TV Sound US-Stereo Tuner Sound Muting Yes

G-4 Signal Video Signal Input Level 1 V p-p/75 ohm

RGB Signal Output Level -Audio Signal Input Level -8.0dBm/50k ohm

G-5 Power Power Source AC 120V, 60Hz

Power Consumption at AC 115W at 120V 60Hz

Protector Power Fuse Yes

Magnetic Field BV/BH +0.45G / 0.18G

Position Front Size 1.8 x 3.9 Inch Impedance 8 ohm

10%(Typical) __

DVD-R/RW (Video Format Only)

Actual 2-120 times(DVD, VIDEO CD)

Rev 4 step

Actual 2-120 times(DVD, VIDEO CD)

Actual --

CH Coverage 2~69, 4A, A-5~A-1, A~I, J~W, W+1~W+84

FP-FS 4.50MHz

Output Level -S/N Ratio (Weighted) -Horizontal Resolution at DVD Mode --

Output Level Digital Output Level 0.5 V p-p/75 ohm S/N Ratio at DVD (Weighted) -Harmonic Distortion -Frequency Response : at DVD --

at Video CD --

at SVCD --

at CD --

DC --

at DC -Stand by (at AC) 4W at 120V 60Hz Per Year -- kWh/Year

Safety Circuit Yes IC Protector(Micro Fuse) No Dew Sensor

4-40 times (CD)

Rev 1/7 - 1/2 times

--

No

A3-1 MD20F51

GENERAL SPECIFICATIONS

G-6 Regulation Safety UL

G-7 Temperature Operation +5oC ~ +40oC

G-8 Operating Humidity Less than 80% RH G-9 On Screen Menu(TV) Yes

Display Menu Type Icon

TV Setup Yes

Channel Setup Yes

V-chip Setup Yes

Language Yes Sleep Timer Yes CH / AV(LINE) / DVD Yes Stereo/Audio Output Yes

Control Volume Yes Level Brightness / Contrast / Sharpness / Color Yes

Tint Yes

Bass/Treble/Balance Yes Caption / Text Yes Auto Search/Position No Game Yes Mute Yes

Radiation FCC X-Radiation DHHS Laser DHHS

Storage -20oC ~ +60oC

Picture Yes Audio Yes Picture Preference Yes

TV/CABLE Yes Auto CH Memory Yes Add/ Delete Yes

Bilingual No SAP Yes

A3-2 MD20F51

GENERAL SPECIFICATIONS

G-10 On Screen Menu (DVD) Yes

Display Menu Type Icon

G-11 OSD Language (TV) English, French, Spanish

(DVD) English, French, Spanish

G-12 Clock and Sleep Timer Max Time 120 Min

Timer Step 10 Min

On/Off Timer Program(On Timer / Off Timer) No Wake Up Timer No Timer Back-up (at Power Off Mode) more than -- Min Sec

Language Yes

Menu Yes Subtitle Yes Audio Yes OSD Language(Set up Language) Yes

Video Yes

E.B.L. (Enhanced Black Level) No TV Screen Size(4:3) Yes OSD Display On/Off Yes Picture Mode (Video/Film/Auto) Yes JPEG Interval Yes

Audio Yes

DRC (Dynamic Range Control) Yes Dialogue (On DRC[TV] / Off DRC[Std]) No Surround No

System Yes

Disc/Card Slot No Password Lock/ Un Lock Yes Parental Yes Select Files Yes HDMI (480p/1080i/720p) No

Output No Open Yes Close Yes No disc Yes Reading Yes Play Yes Still/Pause Yes Stop Yes Prohibit Mark Yes PBC Yes Step Yes Skip(>>|) Yes Skip(|<<) Yes Random Yes (CD, VIDEO CD, MP3, WMA, JPEG ) Repeat Yes Slow+ Yes Slow- Yes Search+ Yes Search- Yes Jump Yes Resume Yes Title No. Yes Chapter No. Yes Track No. Yes Time Yes Sub Title No. Yes Angle No. Yes Vocal On/Off No Audio No. Yes Audio Stereo L/R Yes (Video CD) Zoom Yes Marker No. Yes Program Play Back Yes (CD, VIDEO CD, MP3, WMA, JPEG ) Surround On/Off No Screen Saver No MP3, WMA, JPEG Folder Name Yes

File Name Yes

File No Yes

Time Yes (MP3, WMA Only)

Track No Yes

A3-3 MD20F51

GENERAL SPECIFICATIONS

G-13 Remote Unit RC-KG

Control Glow in Dark Remocon Yes

Remocon Format TOSHIBA Format TOSHIBA Custom Code 40-BF H, 44-BB H, 45-BA H, 45-BC H Power Source Voltage(D.C) 3V

UM size x pcs UM-4 x 2 pcs

Total Keys 48 Key Keys Power Yes

1 Yes

2 Yes

3 Yes

4 Yes

5 Yes

6 Yes

7 Yes

8 Yes

9 Yes

0 Yes

Play Yes

Stop Yes

Search+ Yes

Search- Yes

Closed Caption/Skip+ Yes

Quick View(CH RTN)/Skip- Yes

Slow+ Yes

Slow- Yes

Pause/Still/Step Yes

DISPLAY Yes

TV/DVD Yes

Cancel Yes

Audio Select Yes

Angle Yes

Subtitle Yes

Top Menu Yes

Menu Yes

DVD Menu Yes

Return Yes

CH Up Yes

CH Down Yes

Vol Down Yes

Vol Up Yes

Up/ Set+ Yes

Down/ Set- Yes

Left/Select- Yes

Right/Select+ Yes

Enter Yes

Play Mode Yes

Input Select/Zoom Yes

Repeat A-B Yes

Mute Yes

Open/Close Yes

Sleep Yes

Marker Yes

Jump Yes

Game Yes

A3-4 MD20F51

GENERAL SPECIFICATIONS

G-14 Features CABLE Yes

(TV) Auto Shut Off Yes

Auto Setup Yes Auto CH Memory Yes V-Chip USA V-chip Yes

CANADA V-chip No

Auto Search No SAP Yes Game Position Yes FM Transmitter No Energy Star No Closed Caption Yes Comb Filter (2lines) Yes Protect of FBT Leak Circuit Yes Picture Preference Yes Choke Coil No Power On Memory No

Features Tray Lock Yes (DVD) Video CD Playback Yes

SVCD Playback No

Overlay Graphics And Text No

Command List No

Entry Point Jump No

MP3 Playback Yes WMA Playback Yes JPEG Playback Yes Digital Out (Dolby Digital) Yes

(MPEG) Yes

(PCM) Yes

(DTS) Yes

Down Mix Out (Dolby Digital) Yes

(DTS) No

3D Surround No Screen Saver Audio DAC 192kHz / 24bit

G-15 Accessories Owner's Manual Language English

w/Guarantee Card Yes

Remote Control Unit Yes Battery Yes

UM size x pcs UM-4 x 2 pcs

OEM Brand No

Rod Antenna No

Poles No

Terminal --

Loop Antenna No

Terminal --

U/V Mixer No 300 ohm to 75 ohm Antenna Adapter Yes Antenna Change Plug No Guarantee Card No Registration Card Yes Warranty Card No ESP Card No Service Station List No DC Car Cord (Center+) No Columbia Offer Sheet No Sheet Information (Return) Yes Netflix Card Yes

No

A3-5 MD20F51

GENERAL SPECIFICATIONS

G-16 Interface Switch Front Power (Tact) Yes

Rear Main Power SW No

Indicator Power Yes (Red)

Terminals Front Video Input RCA x 1

Rear Video Input RCA x 1

G-17 Set Size Approx. W x D x H (mm) 574x481.5x514.5 G-18 Weight Net (Approx.) 25.0kg (55.1lbs)

G-19 Carton Master Carton No

Gift Box Material Double/White

Drop Test Natural Dropping At 1 Corner / 2 Edges / 4 Surfaces

Container Stuffing (40' container) 216 Sets

G-20 Material Cabinet Front PS 94V0 DECABROM

PCB Non-Halogen Demand No

G-21 Environment Environmental standard requirement (by buyer) Green procurement of TOSHIBA

Channel Up Yes

Channel Down Yes

Volume Up Yes

Volume Down Yes

Play Yes

Open/Close Yes

Skip+ /Search+ Yes

Skip- /Search- Yes

Still/Pause No

Stop Yes

Main Power SW No

Stand-by No

On Timer No

Audio Input RCA x 2(Stereo)

Other Terminal HeadPhone

Audio Input RCA x 2(Stereo)

Video Output No

Audio Output No

Digital Audio Output Coaxial (DVD Only)

Diversity No

DC Jack 12V(Center +) No

VHF/UHF Antenna Input F Type

Gross (Approx.) 28.5kg (62.8lbs)

Content --- Sets

Material --- / ---

Dimensions W x D x H(mm) ---

Description of Origin ---

W/Color Photo Label No

Dimensions W x D x H(mm) 660 x 575 x 625

Description of Origin Yes

Height (cm) 60 (ORION SPEC:31)

Rear PS 94V0 DECABROM

Jack Panel -

Eyelet Demand Yes

Pb-free Phase3(Phase3A)

A3-6 MD20F51

GENERAL SPECIFICATIONS

G-1 TV CRT CRT Size / Visual Size 20 inch / 508.0 mmV

System CRT Type Flat

Color System NTSC Speaker 2 Speaker

Sound Output Max 5W + 5W

G-2 DVD System Color System NTSC

Disc DVD, CD-DA, CD-R/RW, Video CD

Disc Diameter 120 mm , 80 mm Drive DM3O Search speed Fwd 4 step

Slow speed Fwd 1/7 - 1/2 times

G-3 Tuning Broadcasting System US System M

System Tuner and System 1Tuner

Receive CH Destination US(w/CABLE)

Intermediate Picture(FP) 45.75MHz Frequency Sound(FS) 41.25MHz

Preset CH No Stereo/Dual TV Sound US-Stereo Tuner Sound Muting Yes

G-4 Signal Video Signal Input Level 1 V p-p/75 ohm

RGB Signal Output Level -Audio Signal Input Level -8.0dBm/50k ohm

Magnetic Field BV/BH +0.45G / 0.18G

Position Front Size 1.8 x 3.9 Inch Impedance 8 ohm

10%(Typical) __

DVD-R/RW (Video Format Only)

Actual 2-120 times(DVD, VIDEO CD)

Rev 4 step

Actual 2-120 times(DVD, VIDEO CD)

Actual --

CH Coverage 2~69, 4A, A-5~A-1, A~I, J~W, W+1~W+84

FP-FS 4.50MHz

Output Level -S/N Ratio (Weighted) -Horizontal Resolution at DVD Mode --

Output Level Digital Output Level 0.5 V p-p/75 ohm S/N Ratio at DVD (Weighted) -Harmonic Distortion -Frequency Response : at DVD --

at Video CD --

at SVCD --

at CD --

4-40 times (CD)

Rev 1/7 - 1/2 times

--

A3-7 MD20F51C

GENERAL SPECIFICATIONS

G-5 Power Power Source AC 120V, 60Hz

Power Consumption at AC 115W at 120V 60Hz

Protector Power Fuse Yes

G-6 Regulation Safety CSA

G-7 Temperature Operation +5oC ~ +40oC

G-8 Operating Humidity Less than 80% RH G-9 On Screen Menu(TV) Yes

Display Menu Type Icon

TV Setup Yes

Channel Setup Yes

V-chip Setup

Language Yes Sleep Timer Yes CH / AV(LINE) / DVD Yes Stereo/Audio Output Yes

Control Volume Yes Level Brightness / Contrast / Sharpness / Color Yes

Tint Yes

Bass/Treble/Balance Yes Caption / Text Yes Auto Search/Position No Game Yes Mute Yes

DC --

Stand by (at AC) 4W at 120V 60Hz Per Year -- kWh/Year

Safety Circuit Yes IC Protector(Micro Fuse) No Dew Sensor

Radiation IC X-Radiation HWC Laser DHHS

Storage -20oC ~ +60oC

Picture Yes Audio Yes Picture Preference Yes

TV/CABLE Yes Auto CH Memory Yes Add/ Delete Yes

Bilingual No SAP Yes

at DC --

No

A3-8 MD20F51C

GENERAL SPECIFICATIONS

G-10 On Screen Menu (DVD) Yes

Display Menu Type Icon

G-11 OSD Language (TV) English, French, Spanish

(DVD) English, French, Spanish

G-12 Clock and Sleep Timer Max Time 120 Min

Timer Step 10 Min

On/Off Timer Program(On Timer / Off Timer) No Wake Up Timer No Timer Back-up (at Power Off Mode) more than -- Min Sec

Language Yes

Menu Yes Subtitle Yes Audio Yes OSD Language(Set up Language) Yes

Video Yes

E.B.L. (Enhanced Black Level) No TV Screen Size(4:3) Yes OSD Display On/Off Yes Picture Mode (Video/Film/Auto) Yes JPEG Interval Yes

Audio Yes

DRC (Dynamic Range Control) Yes Dialogue (On DRC[TV] / Off DRC[Std]) No Surround No

System Yes

Disc/Card Slot No Password Lock/ Un Lock Yes Parental Yes Select Files Yes HDMI (480p/1080i/720p) No

Output No Open Yes Close Yes No disc Yes Reading Yes Play Yes Still/Pause Yes Stop Yes Prohibit Mark Yes PBC Yes Step Yes Skip(>>|) Yes Skip(|<<) Yes Random Yes (CD, VIDEO CD, MP3, WMA, JPEG ) Repeat Yes Slow+ Yes Slow- Yes Search+ Yes Search- Yes Jump Yes Resume Yes Title No. Yes Chapter No. Yes Track No. Yes Time Yes Sub Title No. Yes Angle No. Yes Vocal On/Off No Audio No. Yes Audio Stereo L/R Yes (Video CD) Zoom Yes Marker No. Yes Program Play Back Yes (CD, VIDEO CD, MP3, WMA, JPEG ) Surround On/Off No Screen Saver No MP3, WMA, JPEG Folder Name Yes

File Name Yes

File No Yes

Time Yes (MP3, WMA Only)

Track No Yes

A3-9 MD20F51C

GENERAL SPECIFICATIONS

G-13 Remote Unit RC-KG

Control Glow in Dark Remocon Yes

Remocon Format TOSHIBA Format TOSHIBA Custom Code 40-BF H, 44-BB H, 45-BA H, 45-BC H Power Source Voltage(D.C) 3V

UM size x pcs UM-4 x 2 pcs

Total Keys 48 Key Keys Power Yes

1 Yes

2 Yes

3 Yes

4 Yes

5 Yes

6 Yes

7 Yes

8 Yes

9 Yes

0 Yes

Play Yes

Stop Yes

Search+ Yes

Search- Yes

Closed Caption/Skip+ Yes

Quick View(CH RTN)/Skip- Yes

Slow+ Yes

Slow- Yes

Pause/Still/Step Yes

DISPLAY Yes

TV/DVD Yes

Cancel Yes

Audio Select Yes

Angle Yes

Subtitle Yes

Top Menu Yes

Menu Yes

DVD Menu Yes

Return Yes

CH Up Yes

CH Down Yes

Vol Down Yes

Vol Up Yes

Up/ Set+ Yes

Down/ Set- Yes

Left/Select- Yes

Right/Select+ Yes

Enter Yes

Play Mode Yes

Input Select/Zoom Yes

Repeat A-B Yes

Mute Yes

Open/Close Yes

Sleep Yes

Marker Yes

Jump Yes

Game Yes

A3-10 MD20F51C

GENERAL SPECIFICATIONS

G-14 Features CABLE Yes

(TV) Auto Shut Off Yes

Features Tray Lock Yes (DVD) Video CD Playback Yes

G-15 Accessories Owner's Manual Language English/French

Auto Setup Yes Auto CH Memory Yes V-Chip USA V-chip No

Auto Search No SAP Yes Game Position Yes FM Transmitter No Energy Star No Closed Caption Yes Comb Filter (2lines) Yes Protect of FBT Leak Circuit Yes Picture Preference Yes Choke Coil No Power On Memory No

SVCD Playback No

MP3 Playback Yes WMA Playback Yes JPEG Playback Yes Digital Out (Dolby Digital) Yes

Down Mix Out (Dolby Digital) Yes

3D Surround No Screen Saver Audio DAC 192kHz / 24bit

Remote Control Unit Yes Battery Yes

Rod Antenna No

Loop Antenna No

U/V Mixer No 300 ohm to 75 ohm Antenna Adapter Yes Antenna Change Plug No Guarantee Card No Registration Card No Warranty Card No ESP Card No Service Station List No DC Car Cord (Center+) No Columbia Offer Sheet No Sheet Information (Return) Yes Netflix Card No

CANADA V-chip No

Overlay Graphics And Text No

Command List No

Entry Point Jump No

(MPEG) Yes

(PCM) Yes

(DTS) Yes

(DTS) No

No

w/Guarantee Card Yes

UM size x pcs UM-4 x 2 pcs

OEM Brand No

Poles No

Terminal --

A3-11 MD20F51C

GENERAL SPECIFICATIONS

G-16 Interface Switch Front Power (Tact) Yes

Rear Main Power SW No

Indicator Power Yes (Red)

Terminals Front Video Input RCA x 1

Rear Video Input RCA x 1

G-17 Set Size Approx. W x D x H (mm) 574x481.5x514.5 G-18 Weight Net (Approx.) 25.0kg (55.1lbs)

G-19 Carton Master Carton No

Gift Box Material Double/White

Drop Test Natural Dropping At 1 Corner / 2 Edges / 4 Surfaces

Container Stuffing (40' container) 216 Sets

G-20 Material Cabinet Front PS 94V0 DECABROM

PCB Non-Halogen Demand No

G-21 Environment Environmental standard requirement (by buyer) Green procurement of TOSHIBA

Channel Up Yes

Channel Down Yes

Volume Up Yes

Volume Down Yes

Play Yes

Open/Close Yes

Skip+ /Search+ Yes

Skip- /Search- Yes

Still/Pause No

Stop Yes

Main Power SW No

Stand-by No

On Timer No

Audio Input RCA x 2(Stereo)

Other Terminal HeadPhone

Audio Input RCA x 2(Stereo)

Video Output No

Audio Output No

Digital Audio Output Coaxial (DVD Only)

Diversity No

DC Jack 12V(Center +) No

VHF/UHF Antenna Input F Type

Gross (Approx.) 28.5kg (62.8lbs)

Content --- Sets

Material --- / ---

Dimensions W x D x H(mm) ---

Description of Origin ---

W/Color Photo Label No

Dimensions W x D x H(mm) 660 x 575 x 625

Description of Origin Yes

Height (cm) 60 (ORION SPEC:31)

Rear PS 94V0 DECABROM

Jack Panel -

Eyelet Demand Yes

Pb-free Phase3(Phase3A)

A3-12 MD20F51C

DISASSEMBLY INSTRUCTIONS

1.REMOVAL OF MECHANICAL PARTS AND P.C. BOARDS

1-1: BACK CABINET (Refer to Fig. 1-1)

1.

Remove the 7 screws 1.

2.

Remove the screw 2 which are used for holding the Back Cabinet.

3.

Remove the AC cord from the AC cord hook 3.

4.

Remove the Back Cabinet in the direction of arrow.

Front Cabinet

1

2

1

1-2: CRT PCB (Refer to Fig. 1-2) CAUTION: BEFORE REMOVING THE ANODE CAP,

DISCHARGE ELECTRICITY BECAUSE IT CONTAINS HIGH VOLTAGE. BEFORE ATTEMPTING TO REMOVE OR REPAIR ANY PCB, UNPLUG THE POWER CORD FROM THE AC SOURCE.

1.

Remove the Anode Cap. (Refer to REMOVAL OF ANODE CAP)

2.

Disconnect the following connector: (CP801).

3.

Remove the CRT PCB in the direction of arrow.

Front Cabinet

3

Back Cabinet

Fig. 1-1

CRT PCB

1-3: AV PCB/DVD BLOCK (Refer to Fig. 1-3)

1.

Remove the 2 screws 1.

2.

Disconnect the following connectors: (CP301, CP302, CP401 and CP3800).

3.

Remove the AV PCB/DVD Block in the direction of arrow.

CP3800

CP301

Front Cabinet

1

CP302

AV PCB/DVD Block

1-4: DVD BLOCK (Refer to Fig. 1-4)

1.

Remove the 11 screws 1.

2.

Remove the Top Shield in the direction of arrow (A).

3.

Disconnect the following connectors: (CP8001 and CP8002).

4.

Remove the 4 screws 2.

5.

Remove the DVD Block in the direction of arrow (B).

6.

Remove the screw 3.

7.

Remove the Jack Shield.

8.

Remove the AV PCB in the direction of arrow (C).

1

(A)

1

Top Shield

1

2

1

2

DVD Block

1

CP401

Fig. 1-3

CP801

Fig. 1-2

2

CP8002

CP8001

(B)

AV PCB

Jack Shield

(C)

Bottom Plate

3

Fig. 1-4

B1-1 MD20F51/MD20F51C

DISASSEMBLY INSTRUCTIONS

1-5: DVD PCB/DVD DECK (Refer to Fig. 1-5)

1.

Short circuit the position shown in Fig. 1-5 using a soldering iron. If you remove the DVD Deck with no soldering, the Laser may be damaged.

2.

Unlock the 2 supports 1.

3.

Remove the Front Tray Plate in the direction of arrow (A).

4.

Remove the 4 screws 2.

5.

Remove the DVD Deck in the direction of arrow (A).

6.

Disconnect the following connectors: (CP2301, CP2302 and CP2303).

7.

Remove the 2 screws 3.

8.

Remove the DVD PCB in the direction of arrow (B).

3

DVD PCB

Deck CD

Front Tray Plate

1

(A)

2

(3)

(C)

2

1

2

(3)

2

(B)

CP2301

CP2302

CP2303

Deck Angle

Short circuit using a soldering iron.

Pick Up PCB

Fig. 1-5

NOTE

Before your operation, please read “PREPARATION OF

1. SERVICING”. Use the Lead Free solder.

2. Manual soldering conditions

3.

• Soldering temperature: 350 ± 5˚C

• Soldering time: Within 2 seconds

• Soldering combination: Sn-3.0Ag-0.5Cu When Soldering/Removing of solder, use the drawing

4. equipment over the Pick Up Unit to keep the Flux smoke away from it. When installing the DVD Deck, remove all the soldering on

5. the short circuit position after the connection of Pick Up PCB and DVD PCB connector.

B1-2 MD20F51/MD20F51C

DISASSEMBLY INSTRUCTIONS

2. REMOVAL OF DVD DECK PARTS

NOTE

1. Disassemble only the DVD DECK PARTS parts listed here. Minute adjustments are needed if the disassembly is done. If the repair is needed except listed parts, replace the DVD MECHA ASS'Y.

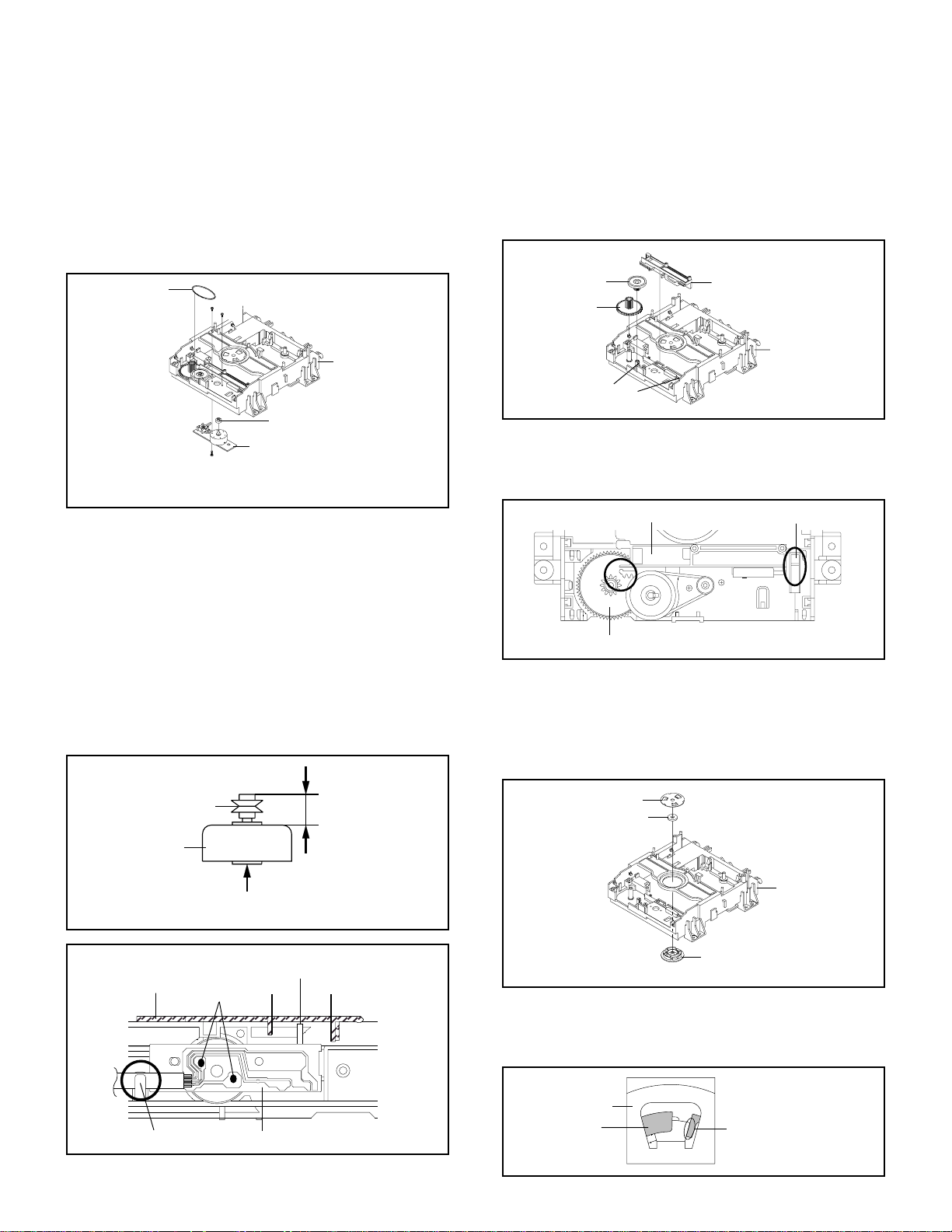

2-1: TRAY (Refer to Fig. 2-1-A)

Set the Tray opened. (Refer to the DISC REMOVAL

1.

METHOD AT NO POWER SUPPLY)

Unlock the 2 supports 1 and remove the Tray.

2.

Loader Ass'y

Tray

NOTE

In case of the Tray installation, install them as the circled

1. section of Fig. 2-1-B so that the each markers are met.

1

Fig. 2-1-A

1

2

Loader Sub Ass'y

Insulator (R)

Traverse Ass'y

• Screw Torque: 2.0 ± 0.5kgf•cm

Fig. 2-2-A

NOTE

In case of the Traverse Ass'y, install it from (1) to (4) in

1. order. (Refer to Fig. 2-2-B) In case of the Traverse Ass'y installation, hook the wire

2. on the Loader Ass'y as shown Fig. 2-2-C.

Loader Ass'y (Bottom Side)

(3)

Rack Loading

(3)

Holder Traverse

Loader Ass'y

Tray

2-2: TRAVERSE ASS'Y (Refer to Fig. 2-2-A)

Remove the screw 1.

1. Unlock the 2 supports 2.

2. Remove the Insulator (R) from the Loader Sub Ass'y.

3. Remove the Traverse Ass'y.

4.

Fig. 2-1-B

(2)

(4)

Check Lock

Loader Ass'y

(4)

Check Hook

(1)

Traverse Ass'y

Fig. 2-2-B

Fig. 2-2-C

B2-1 MD20F51/MD20F51C

DISASSEMBLY INSTRUCTIONS

2-3: LOADING MOTOR PCB ASS'Y/ LOADING BELT

(Refer to Fig. 2-3-A)

1.

Remove the Loading Belt.

2.

Remove the screw 1.

3.

Remove the 2 screws 2.

4.

Remove the Loading Motor PCB Ass'y.

5.

Remove the Pulley Motor.

Loading Belt

2

Loader Sub Ass’y

Pulley Motor

1

• Screw Torque: 2.5 ± 0.3kgf•cm (Screw 1)

• Screw Torque: 1.0 ± 0.3kgf•cm (Screw 2)

Loading Motor PCB Ass’y

Fig. 2-3-A

NOTE

1.

In case of the Pulley Motor installation, check if the value of the Fig. 2-3-B is correct.

2.

When installing the Loading Motor, do it on the position of Fig. 2-3-C with the following soldering conditions. Manual soldering conditions

• Soldering temperature: 350 ± 5˚C

• Soldering time: Within 4 seconds

• Soldering combination: Sn-3.0Ag-0.5Cu

3.

When installing the Loading Motor PCB Ass'y, install it correctly as Fig. 2-3-C.

4.

In case of the Loading Motor PCB Ass'y installation, hook the wire on the Traverse Ass'y as shown Fig. 2-3-C.

2-4: RACK LOADING/GEAR MAIN/GEAR PULLEY

(Refer to Fig. 2-4-A)

1.

Press down the catcher 1 and slide the Rack Loading.

2.

Unlock the support 2 and remove the Gear Pulley.

3.

Remove the Gear Main.

Gear Pulley

Gear Main

2

1

Rack Loading

Main Frame

Fig. 2-4-A

NOTE

1. In case of the Rack Loading installation, do not mesh it to the Gear Main as shown the Fig. 2-4-B.

Rack Loading

Gear Main

Check Hook

Fig. 2-4-B

2-5: CLAMPER ASS'Y (Refer to Fig. 2-5-A)

Press the Clamper and rotate the Plate Clamper

1. clockwise, then unlock the 3 supports 1. Remove the Clamper Plate, Magnet Clamper and

2. Clamper.

Pulley Motor

Loading Motor

Rack Loading

Check Hook

Safety surface for pressing of the insert.

The Lever should be position between A and B.

Soldering

Loading Motor PCB Ass’y

AB

7.0 ± 0.1mm

Fig. 2-3-B

Fig. 2-3-C

Plate Clamper

Magnet Clamper

Main Frame

1

Clamper

1

Fig. 2-5-A

NOTE

1. In case of the Clamper Ass'y installation, install correctly as Fig. 2-5-B.

Plate Clamper

Clamper

No gap

Fig. 2-5-B

B2-2 MD20F51/MD20F51C

DISASSEMBLY INSTRUCTIONS

2-6:

HOLDER TRAVERSE/INSULATOR (F)/INSULATOR (R) (Refer to Fig. 2-6-A)

Remove the Holder Traverse.

1. Remove the 2 Insulator (F).

2. Remove the Insulator (R).

3.

1

2

Rack Feed Ass'y

3

Traverse Ass'y

Insulator (F)

Holder Traverse

Insulator (F)

Insulator (R)

Fig. 2-6-A

NOTE

1.2.In case of the Insulator (F) installation, install correctly as Fig. 2-6-B. In case of the Insulator (R) installation, install correctly as Fig. 2-6-C.

Insulator (F)

Holder Traverse

Fig. 2-6-B

Insulator (R)

Traverse Ass'y (Top Side)

Fig. 2-6-C

Switch PCB Ass'y

Gear Motor

Traverse Ass'y

• Screw Torque: 5.0 ± 0.3kgf•cm (Screw 1)

• Screw Torque: 3.0 ± 0.3kgf•cm (Screw 2)

• Screw Torque: 1.0 ± 0.3kgf•cm (Screw 3)

Feed Motor

Fig. 2-7-A

NOTE

1.

When pushing the Rack Feed in the direction of the arrow, it should be restored to the original position by the spring force. (Refer to Fig. 2-7-B)

2.

In case of the Gear Motor installation, check if the value of the Fig. 2-7-C is correct.

3.

When installing the wire of the Switch PCB Ass'y, install it correctly as Fig. 2-7-D. Manual soldering conditions

• Soldering temperature: 350 ± 5˚C

• Soldering time: Within 4 seconds

• Soldering combination: Sn-3.0Ag-0.5Cu

4.

After the assembly of the Traverse Ass'y, hook the wire on the Traverse Ass'y as shown Fig. 2-7-E.

Push

Rack Feed Ass'y

Fig. 2-7-B

2-7:

RACK FEED ASS'Y/SWITCH PCB ASS'Y/FEED MOTOR (Refer to Fig. 2-7-A)

Remove the screw 1.

1. Remove the Rack Feed Ass'y.

2. Remove the screw 2.

3. Remove the Switch PCB Ass'y.

4. Remove the 2 screw 3.

5. Remove the Feed Motor.

6. Remove the Gear Motor.

7.

Gear Motor

Feed Motor

Safety surface for pressing of the insert.

6.0 ± 0.2mm

Fig. 2-7-C

B2-3 MD20F51/MD20F51C

DISASSEMBLY INSTRUCTIONS

~ FEED MOTOR ~

Switch PCB Ass'y

~ SPINDLE MOTOR ~

• Install wire from (1) to (4) in order.

Traverse Ass'y (Bottom Side)

Check Hook

• Loosen the wire in the direction of the arrow.

Check Hook

BLUE (4) ORANGE (3)

BLACK (2) RED (1)

Check Hook

Fig. 2-7-D

Fig. 2-7-E

[ 5 pin FFC ]

Reinforcement Plate

(1)

55 ± 1mm

Printing Surface

(2)

• Proceed the steps (1) through (4).

[ 6 pin FFC ]

10 ± 1mm

Printing Surface

Reinforcement Plate

(1)

59 ± 1mm

Printing Surface

(2)

10 ± 1mm

Printing Surface

Fold

Printing Surface

Fold

Printing Surface

(3)

(4)

(3)

(4)

Printing Surface

Fold

Printing Surface

60 ± 1mm

Printing Surface

Fold

Printing Surface

44 ± 1mm

Reinforcement Plate

10 ± 1mm

Fold

Reinforcement Plate

Fig. 2-8-B

Reinforcement Plate

10 ± 1mm

Fold

2-8: FFC WIRE HANDLING

1.

When installing the FFC, fold it correctly and install it as shown from Fig. 2-8-A to Fig. 2-8-C.

NOTE

Do not make the folding lines except the specified

1. positions for the FFC.

[ 24 pin FFC ]

Fold it by 90

˚

43 ± 1mm

± 1mm

54

Printing

Surface

Fold

Fig. 2-8-A

• Proceed the steps (1) through (4).

Fig. 2-8-C

B2-4 MD20F51/MD20F51C

DISASSEMBLY INSTRUCTIONS

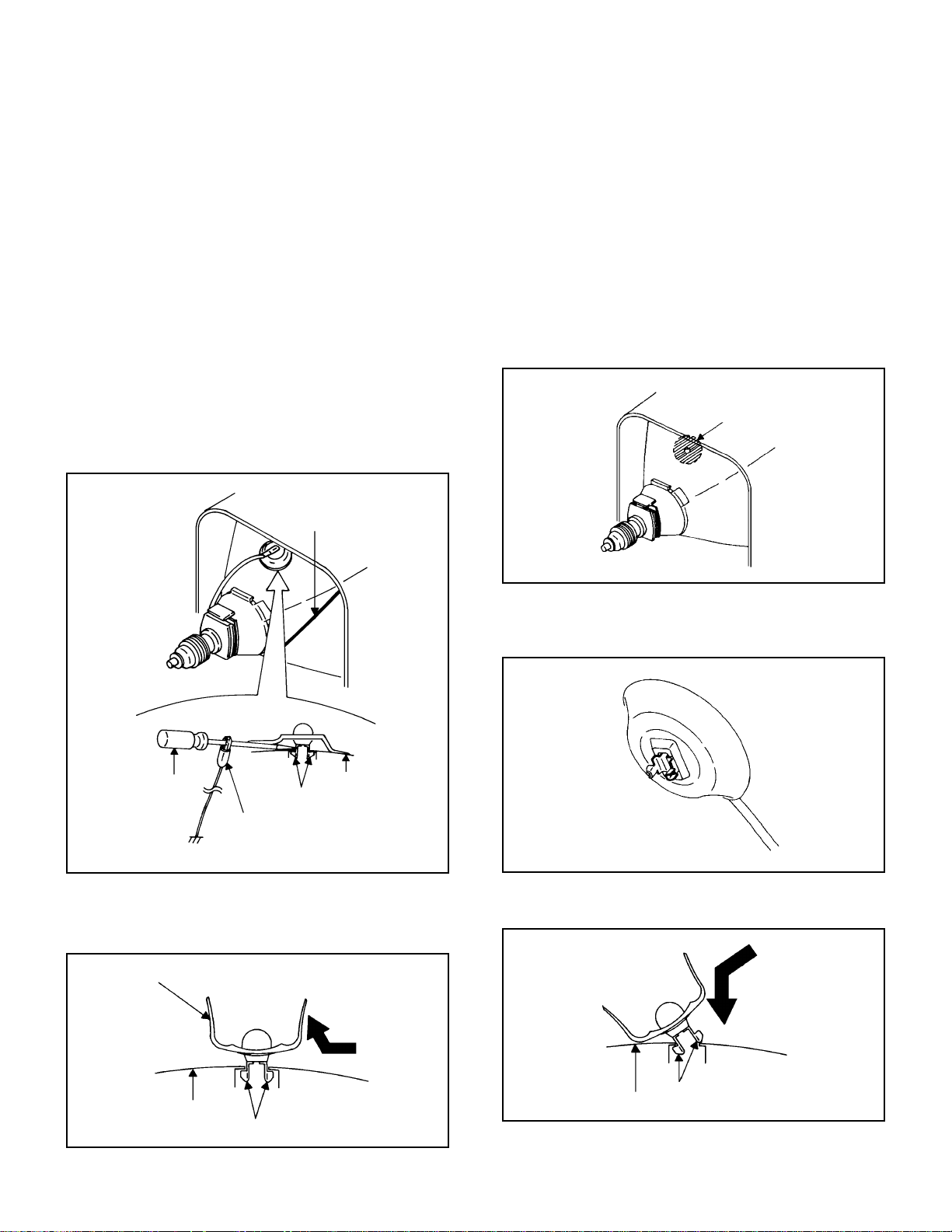

3. REMOVAL OF ANODE CAP

Read the following NOTED items before starting work.

After turning the power off there might still be a potential

*

voltage that is very dangerous. When removing the Anode Cap, make sure to discharge the Anode Cap's potential voltage.

*

Do not use pliers to loosen or tighten the Anode Cap terminal, this may cause the spring to be damaged.

REMOVAL

1. Follow the steps as follows to discharge the Anode Cap.

(Refer to Fig. 3-1.)

Connect one end of an Alligator Clip to the metal part of a flat-blade screwdriver and the other end to ground. While holding the plastic part of the insulated Screwdriver, touch the support of the Anode with the tip of the Screwdriver. A cracking noise will be heard as the voltage is discharged.

GND on the CRT

3. After one side is removed, pull in the opposite direction to remove the other.

NOTE

Take care not to damage the Rubber Cap.

INSTALLATION

1. Clean the spot where the cap was located with a small amount of alcohol. (Refer to Fig. 3-3.)

NOTE

Confirm that there is no dirt, dust, etc. at the spot where the cap was located.

Location of Anode Cap

Fig. 3-3

Screwdriver

Alligator Clip

GND on the CRT

Flip up the sides of the Rubber Cap in the direction of the

2. arrow and remove one side of the support.

(Refer to Fig. 3-2.)

Rubber Cap

Support

CRT

Fig. 3-1

2.3.Arrange the wire of the Anode Cap and make sure the wire is not twisted. Turn over the Rubber Cap. (Refer to Fig. 3-4.)

Fig. 3-4

4. Insert one end of the Anode Support into the anode button, then the other as shown in Fig. 3-5.

CRT

Support

Fig. 3-2

Support

CRT

5.6.Confirm that the Support is securely connected. Put on the Rubber Cap without moving any parts.

B3-1 MD20F51/MD20F51C

Fig. 3-5

DISASSEMBLY INSTRUCTIONS

4. REMOVAL AND INSTALLATION OF FLAT PACKAGE IC

REMOVAL

1. Put Masking Tape (cotton tape) around the Flat Package

IC to protect other parts from any damage.

(Refer to Fig. 4-1.) NOTE

Masking is carried out on all the parts located within 10 mm distance from IC leads.

Masking Tape (Cotton Tape)

2. Heat the IC leads using a blower type IC desoldering

machine. (Refer to Fig. 4-2.)

NOTE

Do not rotate or move the IC back and forth , until IC can move back and forth easily after desoldering the leads completely.

IC

Fig. 4-1

Blower type IC desoldering machine

3. When IC starts moving back and forth easily after desoldering completely, pickup the corner of the IC using a tweezers and remove the IC by moving with the IC desoldering machine. (Refer to Fig. 4-3.)

NOTE

Some ICs on the PCB are affixed with glue, so be careful not to break or damage the foil of each IC leads or solder lands under the IC when removing it.

Blower type IC desoldering machine

Tweezers

IC

4.5.Peel off the Masking Tape. Absorb the solder left on the pattern using the Braided Shield Wire. (Refer to Fig. 4-4.)

NOTE

Do not move the Braided Shield Wire in the vertical direction towards the IC pattern.

Fig. 4-3

Braided Shield Wire

Soldering Iron

IC

Fig. 4-2

IC pattern

Fig. 4-4

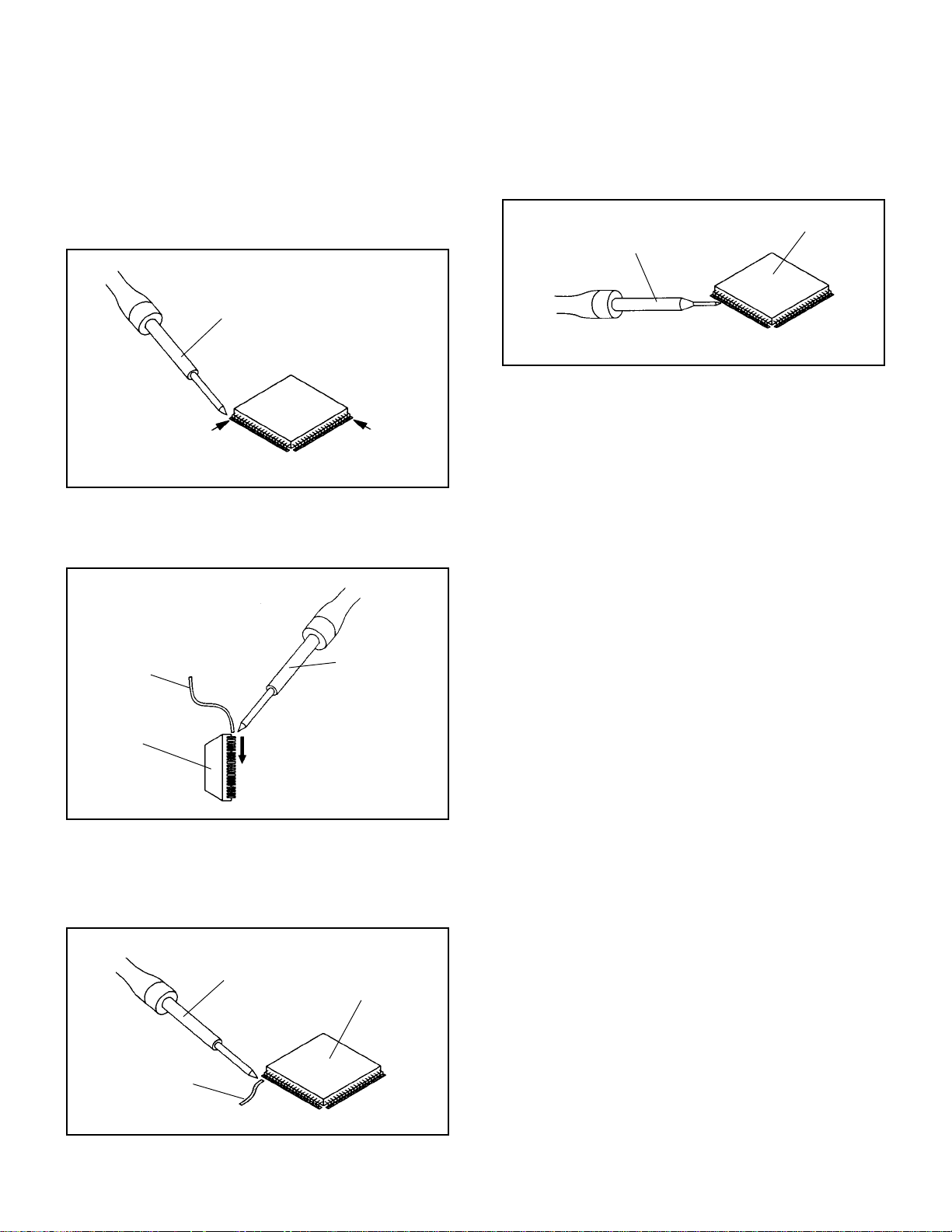

B4-1 MD20F51/MD20F51C

DISASSEMBLY INSTRUCTIONS

INSTALLATION

1. Take care of the polarity of new IC and then install the new IC fitting on the printed circuit pattern. Then solder each lead on the diagonal positions of IC temporarily.

(Refer to Fig. 4-5.)

Soldering Iron

Solder temporarily

Fig. 4-5

2. Supply the solder from the upper position of IC leads sliding to the lower position of the IC leads. (Refer to Fig. 4-6.)

4. When bridge-soldering between terminals and/or the soldering amount are not enough, resolder using a Thintip Soldering Iron. (Refer to Fig. 4-8.)

IC

Thin-tip Soldering Iron

Fig. 4-8

5. Finally, confirm the soldering status on four sides of the IC using a magnifying glass. Confirm that no abnormality is found on the soldering position and installation position of the parts around the IC. If some abnormality is found, correct by resoldering.

NOTE

When the IC leads are bent during soldering and/or repairing, do not repair the bending of leads. If the bending of leads are repaired, the pattern may be damaged. So, always be sure to replace the IC in this case.

Solder

IC

Supply soldering from upper position to lower position

Soldering Iron

Fig. 4-6

3. Absorb the solder left on the lead using the Braided Shield Wire. (Refer to Fig. 4-7.)

NOTE

Do not absorb the solder to excess.

Soldering Iron

IC

Braided Shield Wire

Fig. 4-7

B4-2 MD20F51/MD20F51C

SERVICE MODE LIST

This unit is provided with the following SERVICE MODES so you can repair, examine and adjust easily. To enter to the SERVICE MODE function, press and hold both buttons simultaneously on the main unit and on the remote control

for more than the standard time (second).

Set

Condition

TV mode

DVD mode

(No disc)

TV mode

ALL mode

DVD mode

(No disc)

Set Key Operations

VOL. DOWN

(Minimum)

VOL. DOWN

(Minimum)

VOL. DOWN

(Minimum)

VOL. DOWN

(Minimum)

VOL. DOWN

(Minimum)

STOP 7 3 sec.

Remocon

Key

0 2 sec.

1 2 sec.

4 2 sec.

6 2 sec.

9 2 sec.

Standard

Time

Releasing of V-CHIP PASSWORD.

Initialization of factory data on TV. NOTE:

Initialization of factory data on DVD. NOTE: Do not use this for the normal servicing.

POWER ON total hours are displayed on the screen. Refer to the "PREVENTIVE CHECKS AND SERVICE INTERVALS" (CONFIRMATION OF HOURS USED).

Can be checked of the INITIAL DATA of MEMORY IC. Refer to the "WHEN REPLACING EEPROM (MEMORY) IC".

Display of the Adjustment MENU on the screen. Refer to the "ELECTRICAL ADJUSTMENT" (On-Screen Display Adjustment).

Releasing of PARENTAL LOCK. Refer to the “PARENTAL CONTROL - RATING LEVEL”. NOTE:

Do not use this for the normal servicing. If you set factory initialization, the memories are reset such as the channel setting, and the POWER ON total hours.

The function will only work without the setting of DVD disc at DVD mode.

DVD mode

(Stop)

STOP 9 3 sec.

Tray cannot be opened. Refer to the “TRAY LOCK”. NOTE: No indications on the screen when the Tray Lock is setting.

CONFIRMATION OF HOURS USED

POWER ON total hours can be checked on the screen. Total hours are displayed in 16 system of notation.

NOTE: If you set factory initialization, the total hours is reset to "0".

1.

Turn on the POWER, and set to the TV mode.

2.

Set the VOLUME to minimum.

3.

Press both VOL. DOWN button on the set and Channel button (6) on the remote control for more than 2 seconds.

4.

After the confirmation of using hours, turn off the power.

ADDRESS DATA

INIT 00 06 CRT ON 0010

FIG. 1

C-1 MD20F51/MD20F51C

Initial setting content of MEMORY IC.

POWER ON total hours.

= (16 x 16 x 16 x thousands digit value) + (16 x 16 x hundreds digit value) + (16 x tens digit value) + (ones digit value)

WHEN REPLACING EEPROM (MEMORY) IC

If a service repair is undertaken where it has been required to change the MEMORY IC, the following steps should be taken to ensure correct data settings while making reference to TABLE 1.

NOTE: No need to set data for after position INI 27 due to the adjustment value.

+0 +1 +2 +3 +4 +5 +6 +7 +8 +9

+A

+B +C +D +E +FINI

*1

INI

USA CANADA

06 3F 4C 00 D1 05 30 25 15 57

50

60 50 AA 45 79 63 50 50 78

10

80 88 83 88 89 88 FF FF --- ---

20 --- --- --- --- --- ---

Table 1

1.

Enter DATA SET mode by setting VOLUME to minimum.

2.

Press both VOL. DOWN button on the set and Channel button (6) on the remote control for more than 2 seconds. ADDRESS and DATA should appear as FIG 1.

3.

ADDRESS is now selected and should "blink". Using the VOL. UP/DOWN button on the remote, step through the ADDRESS until required ADDRESS to be changed is reached.

4.

Press ENTER to select DATA. When DATA is selected, it will "blink".

5.

Again, step through the DATA using VOL. UP/DOWN button until required DATA value has been selected.

6.

Pressing ENTER will take you back to ADDRESS for further selection if necessary.

7.

Repeat steps 3 to 6 until all data has been checked.

8.

When satisfied correct DATA has been entered, turn POWER off (return to STANDBY MODE) to finish DATA input.

After the data input, set to the initializing of shipping.

9.

Turn POWER on.

10.

Press both VOL. DOWN button on the set and Channel button (1) on the remote control for more than 2 seconds.

11.

After the finishing of the initializing of shipping, the unit will turn off automatically.

The unit will now have the correct DATA for the new MEMORY IC.

*1 00 D8 40 0F 4F00 52 3A 80 11 00 00

ADDRESS DATA

INIT 00 06 CRT ON 0010

FIG. 1

0A

03 02

C-2

MD20F51/MD20F51C

ELECTRICAL ADJUSTMENTS

1.

BEFORE MAKING ELECTRICAL ADJUSTMENTS

Read and perform these adjustments when repairing the circuits or replacing electrical parts or PCB assemblies.

CAUTION

•

Use an isolation transformer when performing any service on this chassis.

•

Before removing the anode cap, discharge electricity because it contains high voltage.

•

When removing a PCB or related component, after unfastening or changing a wire, be sure to put the wire back in its original position.

•

When you exchange IC and Transistor with a heat sink, apply the silicon grease on the contact section of the heat sink. Before applying new silicon grease, remove all the old silicon grease. (Old grease may cause damages to the IC and Transistor).

Prepare the following measurement tools for electrical adjustments.

1. Oscilloscope

2. Digital Voltmeter

3. AC Voltmeter

4. Pattern Generator

5. Multi-Sound Signal Generator

On-Screen Display Adjustment

Set the VOLUME to minimum.

1. Press the VOL. DOWN button on the set and the

2. Channel button (9) on the remote control for more than 2 seconds to appear the adjustment mode on the screen as shown in Fig. 1-1.

NO.

FUNCTION

01

OSD H

02

OSD CONTRAST

03

CUT OFF

04

H POSITION

05

H. BLK L

06

H. BLK R

07

V SIZE

08

V POSITION

09

V LINEARITY

10

V S CORRECTION

11

V. COMP

12

R CUT OFF

13

G CUT OFF

14

B CUT OFF

15

R DRIVE

16

G DRIVE

17

B DRIVE

18

BRIGHTNESS(CENT.)

19

BRIGHTNESS(MAX)

20

BRIGHTNESS(MIN)

21

CONTRAST(CENT.)

22

CONTRAST(MAX)

23

CONTRAST(MIN)

24

COLOR(CENT.)

25

COLOR(MAX)

26

COLOR(MIN)

27

TINT

28

SHARPNESS

29

SUB BIAS

30

BRI. AV(CENT.)

31

BRI. AV(MAX)

32

BRI. AV(MIN)

33

CONT. AV(CENT.)

34

CONT. AV(MAX)

FUNCTION

NO.

35

CONT. AV(MIN)

36

COL. AV(CENT.)

37

COL. AV(MAX)

38

COL. AV(MIN)

39

TINT AV

40

SHARPNESS AV

41

SUB BIAS

42

BRI. DVD(CENT.)

43

BRI. DVD(MAX)

44

BRI. DVD(MIN)

45

CONT. DVD(CENT.)

46

CONT. DVD(MAX)

47

CONT. DVD(MIN)

48

COL. DVD(CENT.)

49

COL. DVD(MAX)

50

COL. DVD(MIN)

51

TINT DVD

52

SHARPNESS DVD

53

SUB BIAS

54

BRI. GAME(CENT.)

55

BRI. GAME(MAX)

56

BRI. GAME(MIN)

57

CONT. GAME(CENT.)

58

CONT. GAME(MAX)

59

CONT. GAME(MIN)

60

SUB BIAS

61

TUNING V MUTE

62

POWER ON V MUTE

63

INPUT LEVEL

64

SEPARATION L

65

SEPARATION H

66

X-RAY TEST

67

H.STOP

68

H. FREQ

Fig. 1-2

2. BASIC ADJUSTMENTS

2-1: CONSTANT VOLTAGE

1.

Place the set in is AV MODE without signal.

2.

Using the remote control, set the brightness and contrast to normal position.

3.

Connect the digital voltmeter to TP401.

4.

Adjust the VR3800 until the digital voltmeter is 115 ± 0.3V.

Function Step No.

Use the Channel UP/DOWN button or Channel button (1-

3.

01 OSD

15

0) on the remote control to select the options shown in Fig. 1-2.

Press the MENU button on the remote control to end the

4. adjustments.

Fig. 1-1

2-2: FOCUS

1.

2.

3.

2-3: CUT OFF

1.

2.

3.

4.

5.

6.

D-1

Receive the monoscope pattern. Turn the Focus Volume fully counterclockwise once. Adjust the Focus Volume until picture is distinct.

Adjust the unit to the following settings. R CUT OFF=7F, G CUT OFF=7F, B CUT OFF=7F, R DRIVE=3F, G DRIVE=07, B DRIVE=3F Place the set in Aging Test for more than 15 minutes. Set condition is AV MODE without signal. Using the remote control, set the brightness and contrast to normal position. Activate the adjustment mode display of Fig. 1-1 and press the channel button (03) on the remote control to select "CUT OFF". Adjust the Screen Volume until a dim raster is obtained.

MD20F51/MD20F51C

ELECTRICAL ADJUSTMENTS

2-4: WHITE BALANCE NOTE: Adjust after performing CUT OFF adjustment.

1.

Place the set in Aging Test for more than 15 minutes.

2.

Receive the gray scale pattern from the Pattern Generator.

3.

Using the remote control, set the brightness and contrast to normal position.

4.

Activate the adjustment mode display of Fig. 1-1 and press the channel button (16) on the remote control to select "G DRIVE".

5.

Press the CH. UP/DOWN button on the remote control to select the "R CUT OFF", "G CUT OFF", "B CUT OFF", "R DRIVE" or "B DRIVE".

6.

Adjust the VOL. UP/DOWN button on the remote control to whiten the R CUT OFF, G CUT OFF, B CUT OFF, R DRIVE, and B DRIVE at each step tone sections equally.

7.

Perform the above adjustments 5 and 6 until the white color is looked like a white.

2-5: HORIZONTAL POSITION

1.

Receive the monoscope pattern.

2.

Using the remote control, set the brightness and contrast to normal position.

3.

Activate the adjustment mode display of Fig. 1-1 and press the channel button (04) on the remote control to select "HPOSI".

4.

Press the VOL. UP/DOWN button on the remote control until the SHIFT quantity of the OVER SCAN on right and left becomes minimum.

2-6: VERTICAL POSITION

1.

Receive the monoscope pattern.

2.

Using the remote control, set the brightness and contrast to normal position.

3.

Activate the adjustment mode display of Fig. 1-1 and press the channel button (08) on the remote control to select "VPOSI".

4.

Check if the step No. V POSI is "01".

5.

Adjust the VR402 until the horizontal line becomes fit to notch of the shadow mask.

(Refer to Fig. 2-1)

horizontal line

2-7: VERTICAL SIZE

1.

Receive the monoscope pattern.

2.

Using the remote control, set the brightness and contrast to normal position.

3.

Activate the adjustment mode display of Fig. 1-1 and press the channel button (07) on the remote control to select "VSIZE".

4.

Press the VOL. UP/DOWN button on the remote control until the Up/Down OVER SCAN Quantity becomes equal to the Right/Left OVER SCAN Quantity.

5.

Receive a broadcast and check if the picture is normal.

2-8: VERTICAL LINEARITY NOTE:

1.

2.

3.

4.

2-9: SEPARATION

1.

2.

3.

4.

5.

6.

7.

8.

9.

Adjust after performing adjustments in section 2-7. After the adjustment of Vertical Linearity, reconfirm the Vertical Position and Vertical Size adjustments.

Receive the monoscope pattern. Using the remote control, set the brightness and contrast to normal position. Activate the adjustment mode display of Fig. 1-1 and press the channel button (09) on the remote control to select "VLIN". Press the VOL. UP/DOWN button on the remote control until the SHIFT quantity of the OVER SCAN on upside and downside becomes minimum.

Set the multi-sound signal generator L-ch=1KHz, R-ch =Non input and receive the RF signal. Connect the oscilloscope to the SP351 code. Press the AUDIO SELECT button on the remote control to set to the stereo mode. Activate the adjustment mode display of Fig. 1-1 and press the channel button (64) on the remote control to select "SEPAL". Press the RIGHT/LEFT button on the remote control to adjust it until the R-ch output becomes minimum. Press the CH UP button 1 time to set to "SEPAH" mode. Press the RIGHT/LEFT button on the remote control to adjust it until the R-ch output becomes minimum. Set the multi-sound signal generator L-ch=Non input, R-ch=1KHz and receive the RF signal. Connect the oscilloscope to the SP352 code. Then perform the above adjustments 3~7.

Notch

Shadow mask

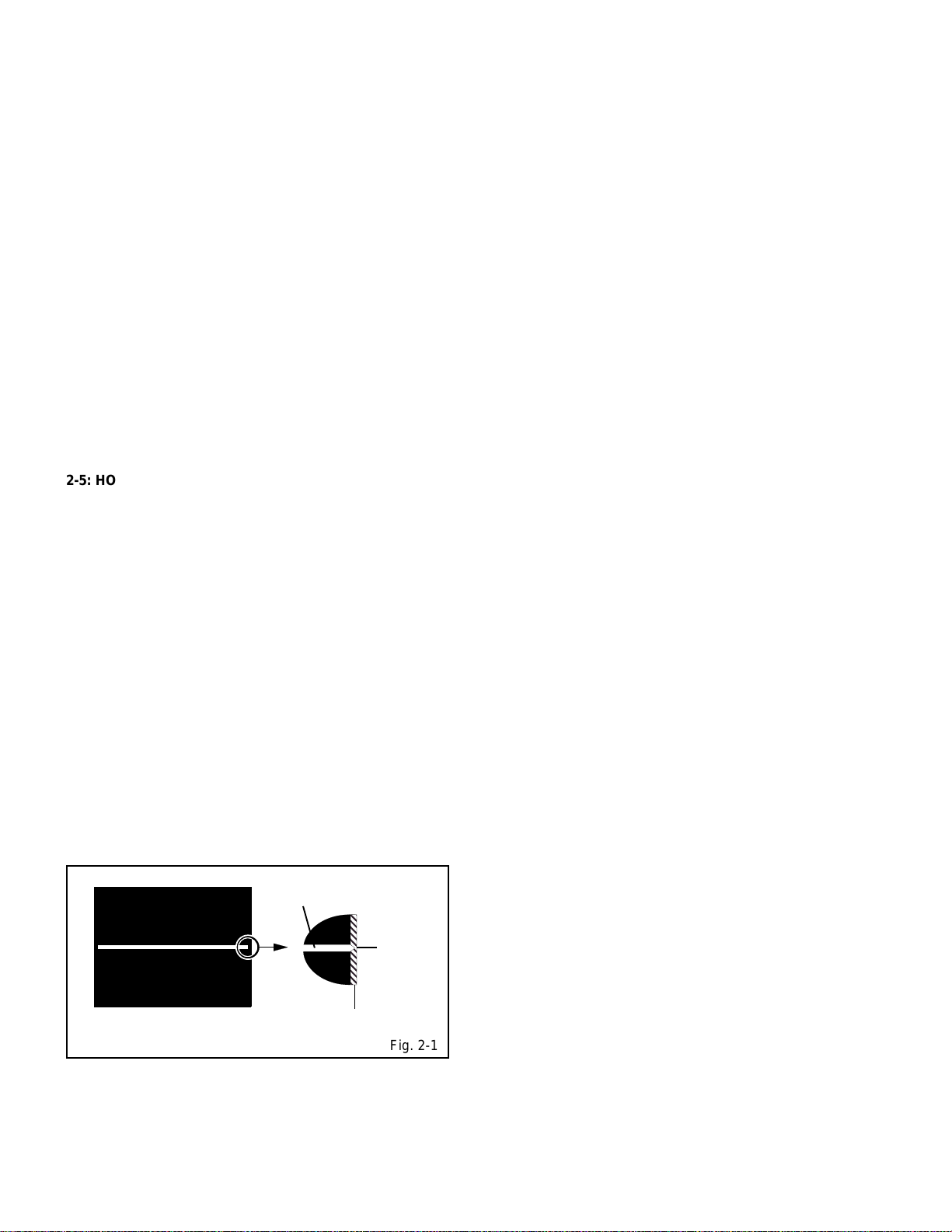

Fig. 2-1

D-2

MD20F51/MD20F51C

ELECTRICAL ADJUSTMENTS

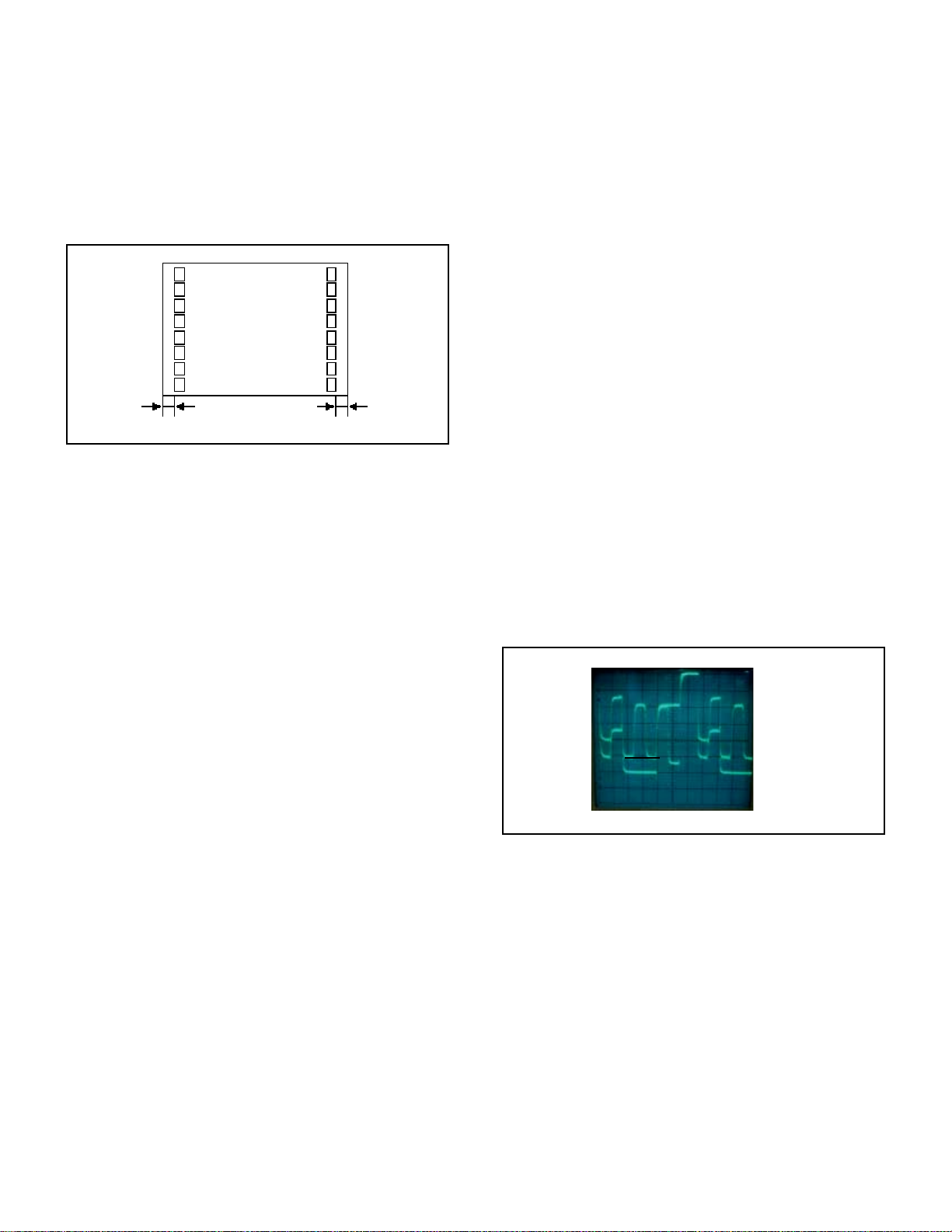

2-10: OSD HORIZONTAL

Activate the adjustment mode display of Fig. 1-1.

1. Press the RIGHT/LEFT button on the remote control until

2. the difference of A and B becomes minimum.

(Refer to Fig. 2-2)

01 OSD 15

A

2-11: LEVEL

1.

Receive the monoscope pattern.

2.

Connect the AC voltmeter to pin 6 of CP101.

3.

Activate the adjustment mode display of Fig. 1-1 and press the channel button (63) on the remote control to select "LVL".

4.

Press the VOL. UP/DOWN button on the remote control until the AC voltmeter is 75 ± 2mV.

2-12: BRIGHT CENTER

1.

Receive the monoscope pattern. (RF Input)

2.

Using the remote control, set the brightness and contrast to normal position.

3.

Activate the adjustment mode display of Fig. 1-1 and press the channel button (18) on the remote control to select "BRTC".

4.

Press the RIGHT/LEFT button on the remote control until the white 10% is starting to be visible

5.

Receive the monoscope pattern. (Audio Video Input)

6.

Press the INPUT button on the remote control to set to the AV mode.

7.

Using the remote control, set the brightness and contrast to normal position.

8.

Activate the adjustment mode display of Fig. 1-1 and press the channel button (30) on the remote control to select "BRTCA".

9.

Press the VOL. UP/DOWN button on the remote control until the white 10% is starting to be visible

10.

Press the TV/DVD button on the remote control to set to the DVD mode.

11.

Activate the adjustment mode display of Fig. 1-1 and press the channel button (42) on the remote control to select "BRTCD".

12.

Press the RIGHT/LEFT button on the remote control to set the same step numbers as the AV.

13.

Press the GAME button on the remote control to set to the GAME mode.

14.

Activate the adjustment mode display of Fig. 1-1 and press the channel button (54) on the remote control to select "BRTCG".

15.

Press the RIGHT/LEFT button on the remote control to set the same step numbers as the AV.

B

Fig. 2-2

2-13: TINT CENTER

1.

Receive the color bar pattern. (RF Input)

2.

Using the remote control, set the brightness, contrast, color and tint to normal position.

3.

Connect the oscilloscope to TP022.

4.

Activate the adjustment mode display of Fig. 1-1 and press the channel button (27) on the remote control to select "TNTC".

5.

Press the RIGHT/LEFT button on the remote control until the section "A" becomes a straight line.

(Refer to Fig. 2-3)

6.

Receive the color bar pattern. (Audio Video Input)

7.

Press the INPUT button on the remote control to set to the AV mode.

8.

Using the remote control, set the brightness, contrast, color and tint to normal position.

9.

Activate the adjustment mode display of Fig. 1-1 and press the channel button (39) on the remote control to select "TNTCA".

10.

Press the RIGHT/LEFT button on the remote control until the section "A" becomes a straight line.

(Refer to Fig. 2-3)

11.

Press the TV/DVD button on the remote control to set to the DVD mode.

12.

Activate the adjustment mode display of Fig. 1-1 and press the channel button (51) on the remote control to select "TNTCD".

13.

Press the RIGHT/LEFT button on the remote control until the tint step No. becomes "40".

D-3

"A"

Fig. 2-3

MD20F51/MD20F51C

ELECTRICAL ADJUSTMENTS

2-14: COLOR CENTER

1.

Receive the color bar pattern. (RF Input)

2.

Using the remote control, set the brightness, contrast, color and tint to normal position.

3.

Connect the oscilloscope to TP024.

4.

Activate the adjustment mode display of Fig. 1-1 and press the channel button (24) on the remote control to select "COLC".

5.

Adjust the VOLTS RANGE VARIABLE knob of the oscilloscope until the range between white 100% and 0% is set to 4 scales on the screen of the oscilloscope.

6.

Press the VOL. UP/DOWN button on the remote control until the red color level is adjusted to 110 ± 5% of the white level. (Refer to Fig. 2-4)

7.

Receive the color bar pattern. (Audio Video Input)

8.

Press the INPUT button on the remote control to set to the AV mode.

9.

Using the remote control, set the brightness, contrast, color and tint to normal position.

10.

Activate the adjustment mode display of Fig. 1-1 and press the channel button (36) on the remote control to select "COLCA".

11.

Adjust the VOLTS RANGE VARIABLE knob of the oscilloscope until the range between white 100% and 0% is set to 4 scales on the screen of the oscilloscope.

12.

Press the VOL. UP/DOWN button on the remote control until the red color level is adjusted to 110 ± 5% of the white level. (Refer to Fig. 2-4)

13.

Press the TV/DVD button on the remote control to set to the DVD mode.

14.

Activate the adjustment mode display of Fig. 1-1 and press the channel button (48) on the remote control to select "COLCD".

15.

Press the VOL. UP/DOWN button on the remote control to set the same step numbers as the AV.

110%

White 100%

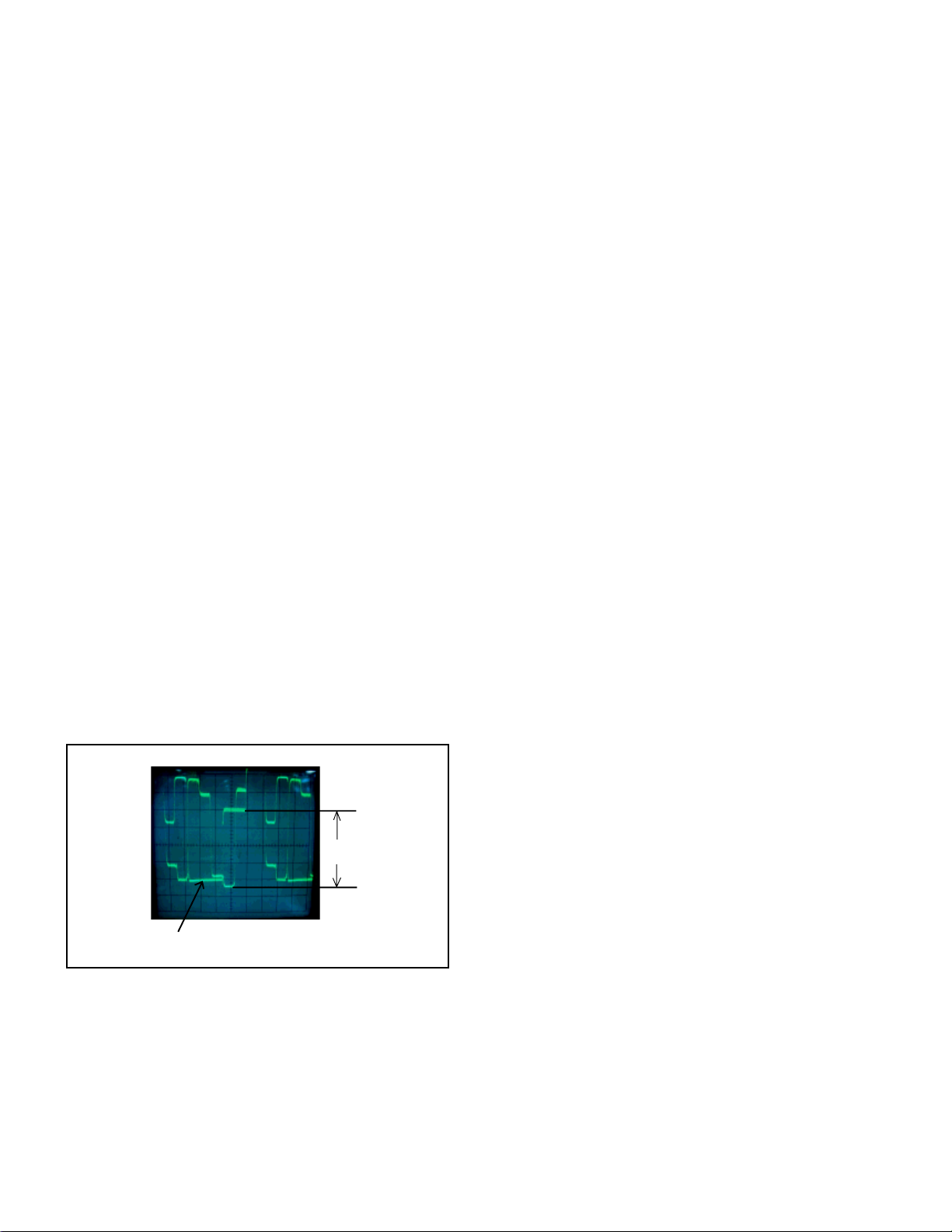

Fig. 2-4

2-15: CONTRAST MAX

Activate the adjustment mode display of Fig. 1-1 and

1. press the channel button (22) on the remote control to select "CNTX". Press the VOL. UP/DOWN button on the remote control

2. until the contrast step No. becomes "50" Receive a broadcast and check if the picture is normal.

3. Press the INPUT button on the remote control to set to

4. the AV mode. Activate the adjustment mode display of Fig. 1-1 and

5. press the channel button (34) on the remote control to select "CNTXA". Press the RIGHT/LEFT button on the remote control until

6. the contrast step No. becomes "50" Receive a broadcast and check if the picture is normal.

7. Press the TV/DVD button on the remote control to set to

8. the DVD mode. Activate the adjustment mode display of Fig. 1-1 and

9. press the channel button (46) on the remote control to select "CNTXD". Press the RIGHT/LEFT button on the remote control to

10. increase the step numbers by 5 steps to the AV. Press the GAME button on the remote control to set to

11. the GAME mode. Activate the adjustment mode display of Fig. 1-1 and

12. press the channel button (58) on the remote control to select "CNTXG". Press the RIGHT/LEFT button on the remote control to

13. set the same step numbers as the AV.

2-16: Confirmation of Fixed Value (Step No.)

Please check if the fixed values of the each adjustment items are set correctly referring below.

NO.

FUNCTION

02

OSD CONTRAST

05

H. BLK L

06

H. BLK R

10

V S CORRECTION

11

V. COMP

16

G DRIVE

19

BRIGHTNESS(MAX)

20

BRIGHTNESS(MIN)

21

CONTRAST(CENT.)

23

CONTRAST(MIN)

25

COLOR(MAX)

26

COLOR(MIN)

28

SHARPNESS

29

SUB BIAS

31

BRI. AV(MAX)

32

BRI. AV(MIN)

33

CONT. AV(CENT.)

35

CONT. AV(MIN)

37

COL. AV(MAX)

38

COL. AV(MIN)

40

SHARPNESS AV

41

SUB BIAS

43

BRI. DVD(MAX)

STEP NO.

03 00 02 0A 03 07 4A 10 2A 05 7F 07 18 50 4A 10 2A 05 7F 07 18 50 4A

FUNCTION

NO.

BRI. DVD(MIN)

44

CONT. DVD(CENT.)

45

CONT. DVD(MIN)

47

COL. DVD(MAX)

49

COL. DVD(MIN)

50

SHARPNESS DVD

52

SUB BIAS

53

BRI. GAME(MAX)

55

BRI. GAME(MIN)

56

CONT. GAME(CENT.)

57

CONT. GAME(MIN)

59

SUB BIAS

60

TUNING V MUTE

61

POWER ON V MUTE

62

H. FREQ

68

STEP NO.

10 2A 05 7F 07 18 50 4A 10 2A 05 50 00 40 3F

D-4

MD20F51/MD20F51C

ELECTRICAL ADJUSTMENTS

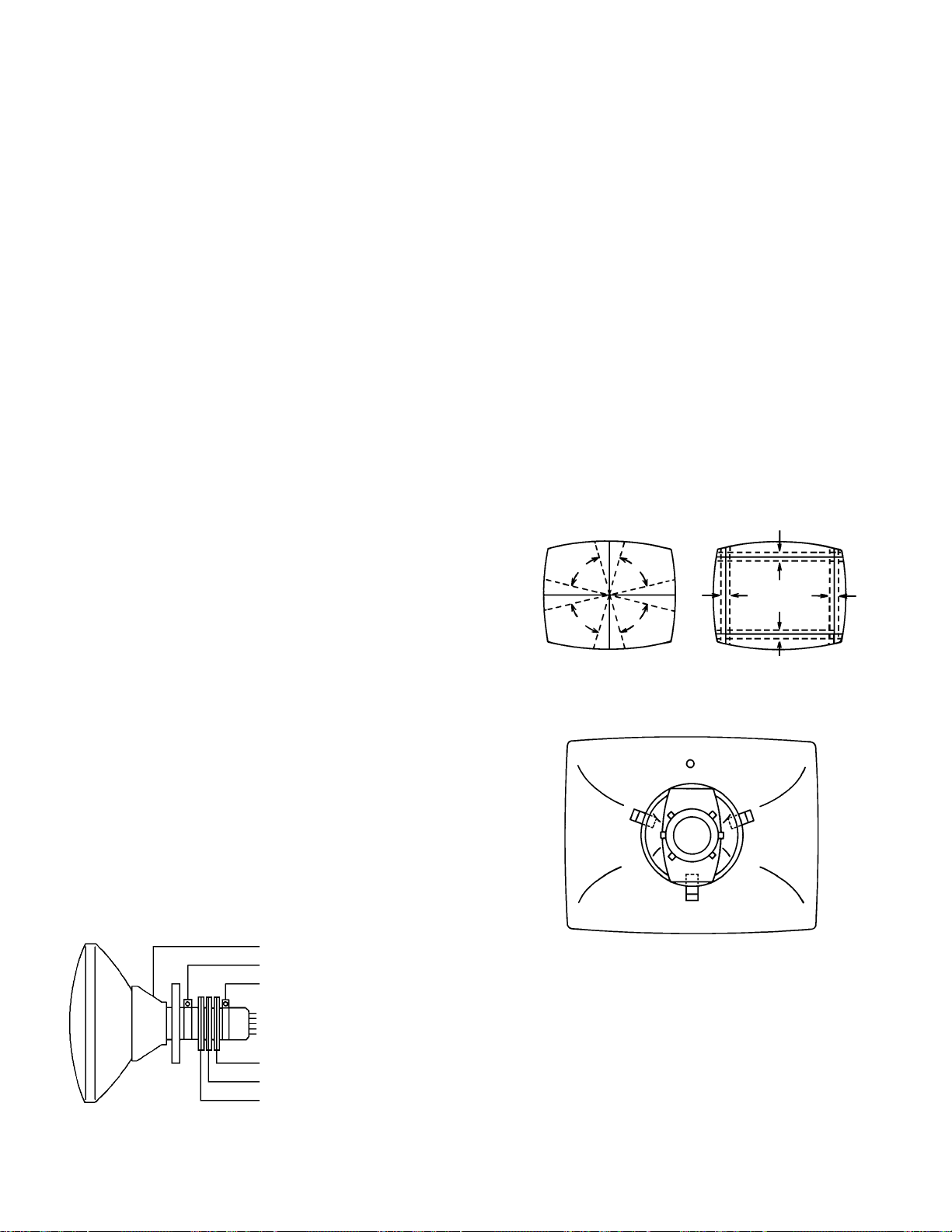

3.

PURITY AND CONVERGENCE ADJUSTMENTS

NOTE

Turn the unit on and let it warm up for at least 30

1. minutes before performing the following adjustments. Place the CRT surface facing east or west to reduce the

2. terrestrial magnetism. Turn ON the unit and demagnetize with a Degauss Coil.

3.

3-1: STATIC CONVERGENCE (ROUGH ADJUSTMENT)

1.

Tighten the screw for the magnet. Refer to the adjusted CRT for the position. (Refer to Fig. 3-1) If the deflection yoke and magnet are in one body, untighten the screw for the body.

2.

Receive the green raster pattern from the color bar generator.

3.

Slide the deflection yoke until it touches the funnel side of the CRT.

4.

Adjust center of screen to green, with red and blue on the sides, using the pair of purity magnets.

5.

Switch the color bar generator from the green raster pattern to the crosshatch pattern.

6.

Combine red and blue of the 3 color crosshatch pattern on the center of the screen by adjusting the pair of 4 pole magnets.

7.

Combine red/blue (magenta) and green by adjusting the pair of 6 pole magnets.

8.

Adjust the crosshatch pattern to change to white by repeating steps 6 and 7.

3-2: PURITY NOTE

Adjust after performing adjustments in section 3-1.

3-3: STATIC CONVERGENCE NOTE

Adjust after performing adjustments in section 3-2.

1.

Receive the crosshatch pattern from the color bar generator.

2.

Combine red and blue of the 3 color crosshatch pattern on the center of the screen by adjusting the pair of 4 pole magnets.

3.

Combine red/blue (magenta) and green by adjusting the pair of 6 pole magnets.

3-4: DYNAMIC CONVERGENCE

NOTE

Adjust after performing adjustments in section 3-3.

1.2.Adjust the differences around the screen by moving the deflection yoke upward/downward and right/left.

(Refer to Fig. 3-2-a)

Insert three wedges between the deflection yoke and CRT funnel to fix the deflection yoke.

(Refer to Fig. 3-2-b)

R G B

UPWARD/DOWNWARD SLANT RIGHT/LEFT SLANT

R G B

Fig. 3-2-a

R G B

1.

Receive the green raster pattern from color bar generator.

2.

Adjust the pair of purity magnets to center the color on the screen. Adjust the pair of purity magnets so the color at the ends are equally wide.

3.

Move the deflection yoke backward (to neck side) slowly, and stop it at the position when the whole screen is green.

4.

Confirm red and blue colors.

5.

Adjust the slant of the deflection yoke while watching the screen, then tighten the fixing screw.

DEFLECTION YOKE DEFLECTION YOKE SCREW MAGNET SCREW

6 POLE MAGNETS 4 POLE MAGNETS

PURITY MAGNETS

Fig. 3-1

D-5

WEDGE

WEDGE POSITION

Fig. 3-2-b

MD20F51/MD20F51C

ELECTRICAL ADJUSTMENTS

4. ELECTRICAL ADJUSTMENT PARTS LOCATION GUIDE (WIRING CONNECTION)

CRT PCB

CP806

TP022

CP802B

TP024

CP803B

J801

CP801

AC IN

SPEAKER

CD301

(SP351)

CP101

CP8002

CP301

CP8001

CD802

TU001

J4201

CP802A

S3801

S3802

CRT

CP3800

CD8101

CD801

VR3800

CD3800

CP803A

TP401

CRT

CD803

FB401

J2203

CP401

VR402

CP302

J2204

J2201

CRT

CD302

SPEAKER

(SP352)

DVD DECK

D-6

AV PCB

CD2001

CD2301

CD2302

J2202

CP8101

CD4002

CP2303

CP2302

CP2301

DVD PCB

MD20F51/MD20F51C

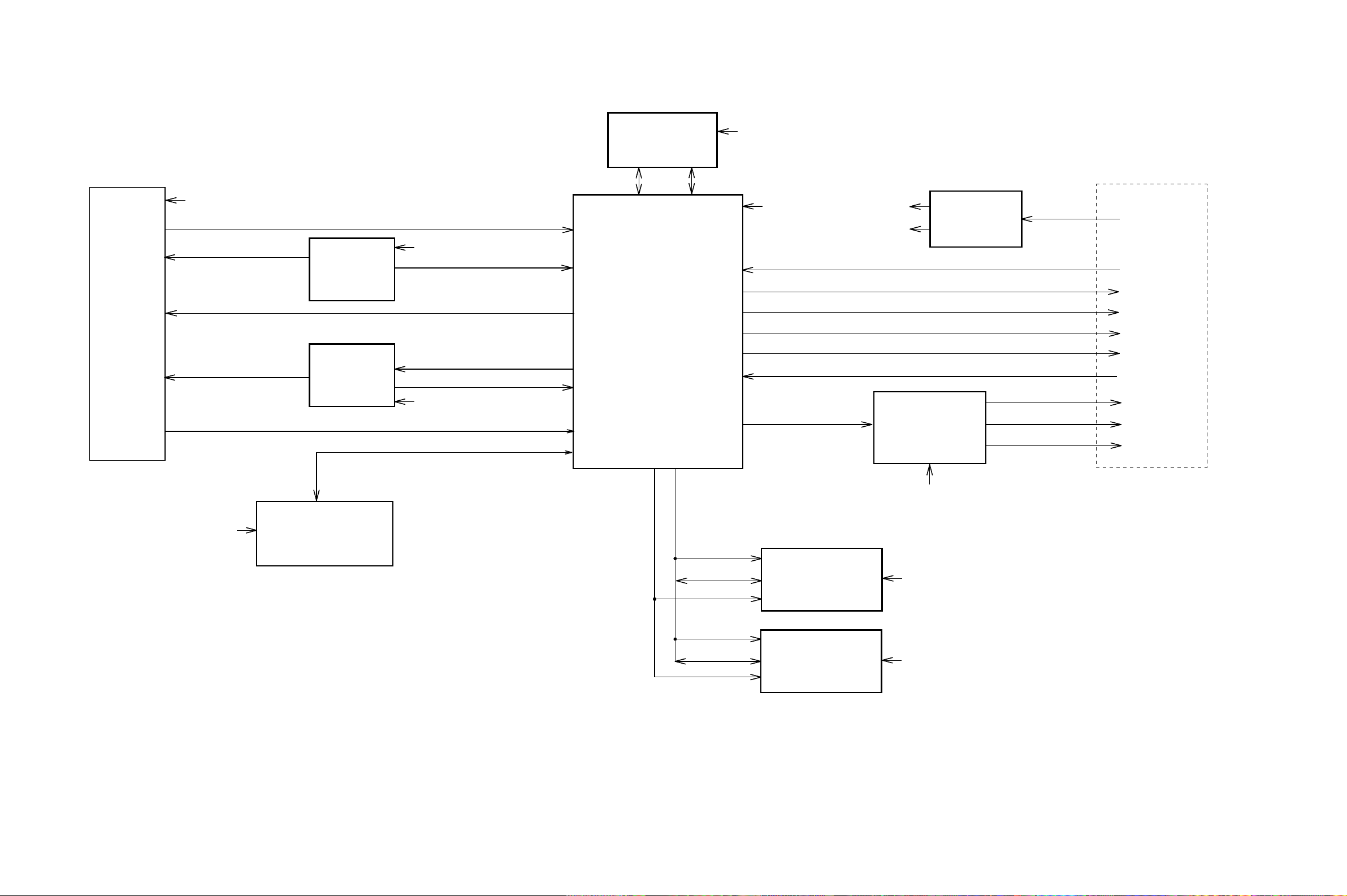

DVD BLOCK DIAGRAM

DVD LOADER DM-3S

OPU

SPINDLE/ STEPING/ SLED MOTOR

D

RF, A, B, C, D, E, F

MD_CD, MD_DVD

DVD/CD, DVD_LD, CD_LD

TR+/-, FO+/-, MOT_LD+/-, MOT_SLED+/-, MOT_SPDL+/-

HOME, TIN_SW, TOUT_SW

OPE-AMP

IC2304

BA10358FV-E2

Motor Drive

IC2301

LA6565-TE-L-E

HA0~A19, HD0~D15, MEMCS0, RD, WR

D

VR_DVD, VR_CD

SPINDLE/SLED/ FOCUS/TRACK_PWM, TRAY_CLOSE/OPEN

ADCIN_5, 6, 7

E

2K EEPROM

IC4002

BR24L02F-WE2

2

I CDAT

MPEG/MICON/DSP/FR_AMP

IC4001

ZR36862PQCG

2

I CCLK

A

A, C

ML, MC, MD, AMCLK, ABCLK, ALRCLK, ASDATA0

A B

+3.3V, 1.9V REG

IC4003

BA33E00WHFP-TR

STEREO DAC

IC8102

PCM1753DBQR

D

TV BLOCK

C

TX RX

SPDIF

DVD C DVD Y

DVD RESET

ZERO

DVD_A_OUT_L DVD_A_OUT_R

A

8Mbit Flash

IC4007

SST39VF800A-70-4C-EKE

SD_A0~A10

SD_D0~D15

16Mbit SDRAM

IC4009

K4S161622H-UC60

A

SD_A0~A10

RAMDQM, CLK2, CKE, WE#, CAS#,

RAS#, CS0#, CS1#, SD_BA0

SD_D0~D15

16Mbit SDRAM

IC4008

K4S161622H-UC60

A

B---1.8V C---3.8V

A---3.3V

D---5V E---9V

E-1 E-2MD20F51/MD20F51C

TV BLOCK DIAGRAM

FROM DVD BLOCK

DVD C DVD Y

DVD_RESET

RX TX

DVD_A_OUT_L

DVD_A_OUT_R

ZERO

SPDIF

POWER ON/OFF

OPEN/CLOSE

STOP

PLAY

SKIP FF

SKIP REW

AMP

3

IC4201

NJM4580M

(TE1)

5

Q4203

MUTE

Q4201

DRIVER

*E

CH UP

CH DOWN

VOL UP

VOL DOWN

IC103 PST3231NR

*A

2

1

*A

RESET

33

22 23 24 26 27 36

TU001

10

11

17

X101

16MHz

18 17

31

32

MICON

IC101

OEC6084A

Q105

6 11 12

38 437

19 20

2

BUFFER

*B *C

57 56

IC4203 NJM2533V(TE2)

C-SW

*D

1

7

L

R

Q4209~Q4212

MUTE SW

*D

19 18

SOUND

DECORDER

IC902

AN5829S-E1V

2 3

23

24 22

21

2 3

VIDEO SW

IC4202 NJM2534V(TE2)

2

4

7 1

5 3

*B

13

4

DIGITAL COMB

IC1501 TC90A45FG

15 10

FILTER

*D

X601

3.579545MHz

55

59

40 30 51 50

32

35

R.OUT

14

G.OUT

15

B.OUT

16

45

*F

3

7

19

Q405

23

H.DRIVE

1

Q406

V.OUT IC401 LA78040N-E

H.OUT

25

FB401

1

FBT

9

DY801

11F678

F S

HV

V801 CRT

2

J4201

2

V

J2202

2 L

J2203

2

R

J2204

4 2 6

J4203

1 3

2

2 1

3

R CH SW

IC905

NJM2533V

(TE2)

*E

7

L CH SW

IC906

NJM2533V

(TE2)

*E

7

*B

3

30

TONE CONTROL

IC302 AN5891SA-E1V

16 19

CHROMA IC601 LA76319NM-MPB-E

8

SOUND AMP

2

IC351

AN5276

12

5

SOUND+B

SPEAKER

SP351

7

SPEAKER

SP352

*A---AT+5.6V *B---P.CON+9V

HEADPHONE

J2201

*C---CHROMA+5V *D---P.CON+A5V *E---P.CON+12V *F---P.CON+25V

MD20F51/MD20F51CE-3 E-4

L3800

DEGAUSS COIL

RY3800

DEGAUSS RELAY

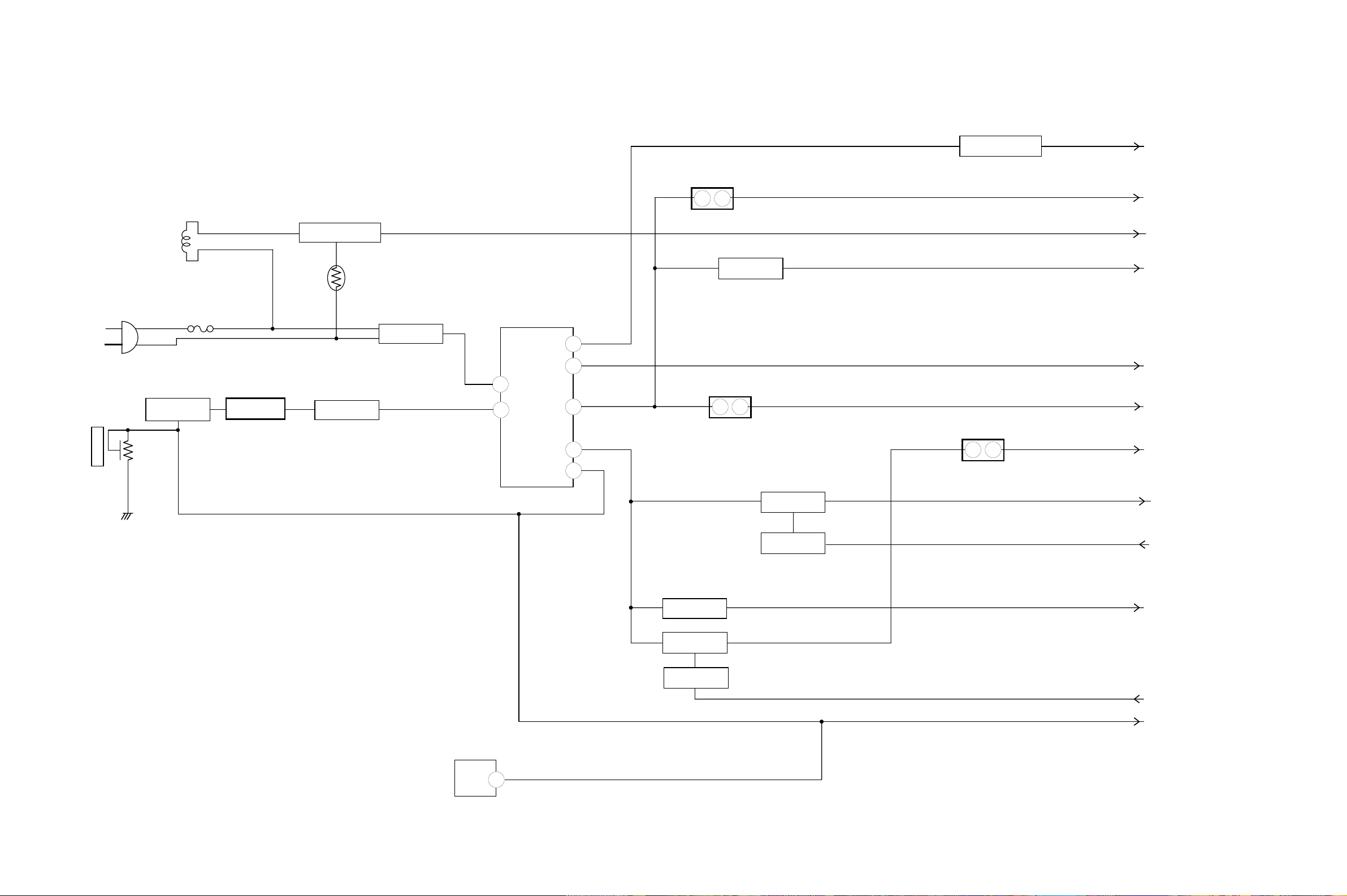

POWER BLOCK DIAGRAM

5V REG. IC3001 KIA7805API

1

3

Q3008

DRIVE

Q3003

3.3V OUT

P.CON+3.3V

P.CON+D5V

DEGAUSS_H

AT+5.7V

AC IN

VR3800

+B ADJ.

Q3800

FEED BACK

SW

F3800

IC3800 PS2561AL1-1-V(W)

FEED BACK

TH3800

Q3803

POWER

D3808, D3809, D3815, D3816

RECTIFIER

TRANSFORMER SWITCHING T3800

8

5

10

18

17 14

11

Q3005

DRIVER

Q3000

DRIVER

Q3001

5V REG. IC3002 KIA7805API

3

1

SW

Q3002

DRIVER

Q3007

P.ON SW

9V REG. IC3005 KIA7809API

3

1

SOUND+B

P.CON+5V

P.CON+D9V

P.CON+12V

POWER_ON_H

P.CON+9V

E-5

FB401

DVD_H

+B

2

MD20F51/MD20F51C

E-6

PRINTED CIRCUIT BOARDS

C2341_1

Q2302

C4076

B4002

DMD020A

R4081

R4009

C4042

R2340

C2340_1

R4040

C4089

R4080

C4053_1

IC4003

C2348

Q2301

R2332

C4070

C4071_1

R4070

C4043

C2328_1

R2306

C2327_1

C4039 R4041

W854

C4100

B4007

C4011_1

C4009_1

R2360

IC4007

B4005

C4091

CP2301

R2355

R2333

C2346_1

C4062

C4090

R4011

Q4004

D4001

C2343_1

C4063

R4013

C4095

C4084_1

R2361

IC2304

C4064

B4006

C4067_1

C4021

CD4002

C4001

C4068_1

R4051

C4083_1

R4054

L4001

DVD (TOP SIDE)

R2303

R2362

B4009

R4050

R4053

C2329_1

R4061

R4078

R4077

R4049

C4016

C4017

C4077

C4044

C2310_1

R4063

C4008

C4078_1

R4060

1

53

C4087

C2303R2304

C2302

R4062

C4047_1

R4048_1

C4096

R4052

C4032

C4074

IC4008

C4058

C4088

IC4001

R2319

R4008

C4046_1

IC4009

C4059

D2303

C4061

C4041_1

R4038

R8112

D2304

R2305

C4045_1

C8113

C8126

R2307

R2335

157

105

C4040_1

C4060

CP2302

R2326

C2304

R8113

C8122

R2327

R2324

R2334

C8114

R2301

C4050_1

C8125

R2321

R2308

C4029

R4014

C4085

C4028

C4081

R4069

R4024

C4038

CP8101_2

C2313

IC2301

R4002

CP2303

R4001

R4021

W842 C4031

R4025 C4098 R4026 R4027 R4058

B4010

R4071

C8119_1

W819

R2337

R2325

C2307

R4004

IC8102

R2330

R2338

R4005

X4001

R4019

R4020

R4035

C4037

C8121_1

R4003

R4031

IC4002

D8112

D8111

W818

C4069_1

C4093 C4094

L8102

R2351

R2353

R2328

C2314_1

C8107

L8103

C8104

R2342

R2349

R2352

R2350

HS2301

C8109

C2358

R2329 R2323

C2306

W875

R4016

DMD020A

C8108

R4047

C2360

C2311

R4036

C8105

C2359

R2331

R4037

C2301

C4034

C4035

R4012

R4072

D4003

C8106

R4042

R4018

R4045

C4026

D4005

R4039

S800Y

DVD (BOTTOM SIDE)

C2357

R2357

R2358

C2305

R2339

R2336

R4022

C4004

R4043

B4014

B4017

B4001

C4024

C4030

C4023

R4064

C4022

R4059

W835

C4033

C4020

C4002

C4019

R4057

C8120

C4086

C4007

C4027

B8103

B4018

R4076

R4073

C4025

B4016

C4010

C4013

D4002

C4066

D4004

B4013

C4014

B4012

C4057

C4056

C4018

Q2305

B4011

C4003

B4008

C2350

R2309

C4099

R2359

R2348

C4072

C4036

C4080

R2347

C2342

C4082

Q2304

B2303

C4097

C4065

R2356

C2347

R2346

C2331

C2332

B4003

C4092

Q2303

C2315

R2318

C2326

C4052 C4012

C4015

B2301

R2341

B2304

B2302

S800X

B2305

C4075

F-1

MD20F51/MD20F51C

F-2

J2201

R2225

R2226

J2204

J2203

J2202

SW2221 SW2223

SW2217

SW2219

SW2216

SW2214

SW2218

SW2220

SW2215

SW2213

OS2202

W848

W882 D2201

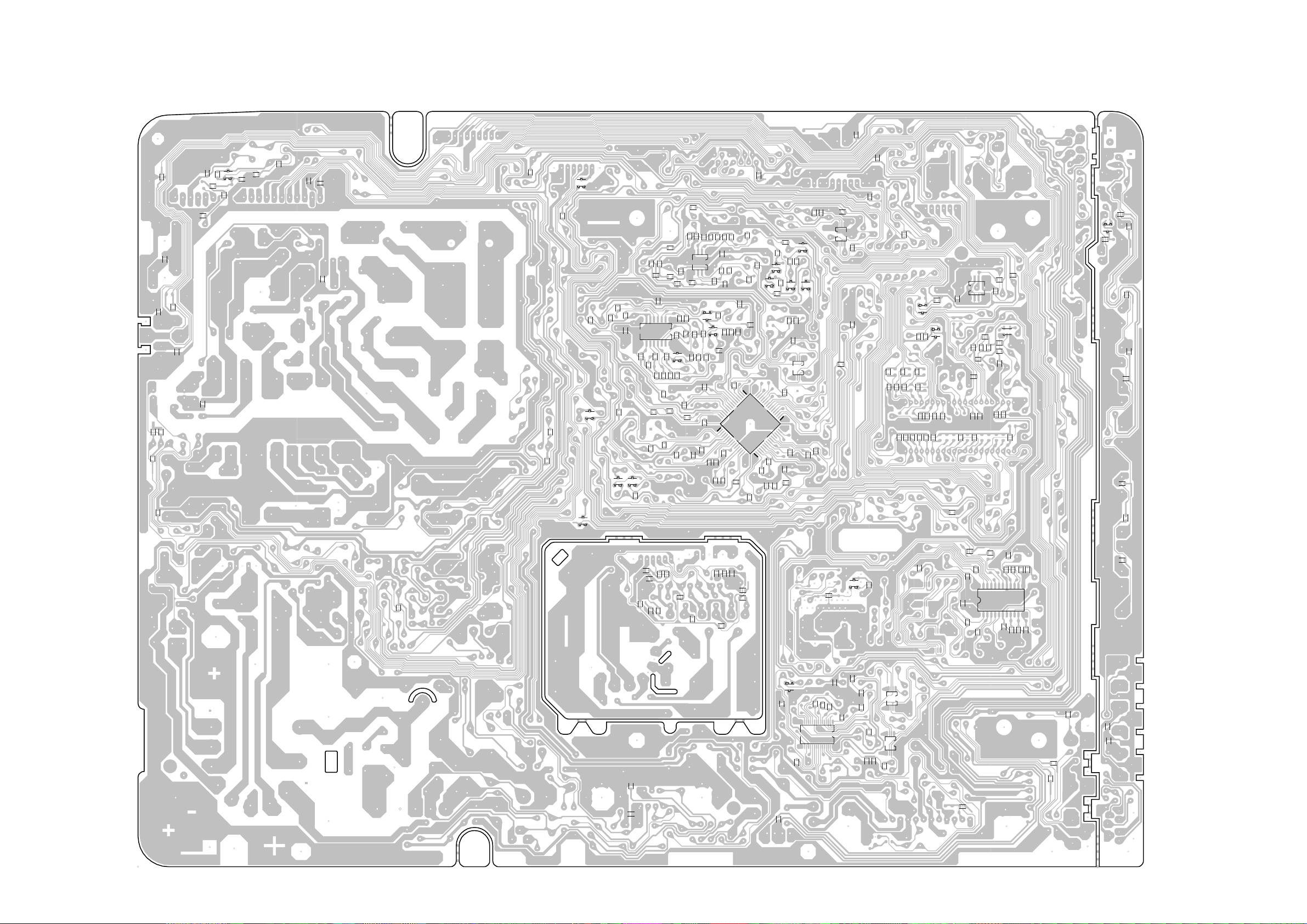

PRINTED CIRCUIT BOARDS AV/CRT (INSERTED PARTS)

SOLDER SIDE

W089

C317_1

W253

S809X

S807Y

W123

W115

W104

R4240

W165

W148

C314_1

C319_1

R309

W125

S801X

C4218

W159

CP302

W090

R307

W122

C624

W110

R630

C4237

C4239

D2205

C354

W172

W195

C941

W244

W878

R357

IC351

W179

R356

W177

C352

W170

C946_1

D3006

C943

W184

W183

C945

C410_1

W204

W202

CME012A

W222

D3825

W215

W217

W216

C3017

W194

W193

W097

W185

W218

C3025

W248

W232

C318_2

C353

C924_1

C947_1

W098

W186

C920

W206

W106

L101

W140

W138

W136

W827

W832

W126

W153 W242

W234

C923_1

W087

R301

W101

W102

C955_1

C954_1

W093

W113

W819

C3005

W164

S809Y

W154 W151

W150

W233

C355

C304_1

W100

W094

C922

W117

W803

W088

C302_2

C325_1

W900

W092

L904

W116

W131

S001Y

W103

S808X

W118

W108 W107

D3007

W130

C4213

S803X

C308_2

W134

W129

CP301

C326_1

W121

W109

W146

W141 W139

R4252 R4251

W128

W149

C356

C311

C315

C327

R916

W120

W145

W168

CP8001

L301

W112

W105

W133

C323

W119

W132

C4219

R

W180

W181

W

W892

W868

W880 W891

W885

W883

W889

W887

W896 W895

W801

W884

W886

W890

R4203

W842

W240

W238

W869

Y

W169

W197

C936

C932

R909

W213

W205

W201

C4201

W226

W241

R

W

Y

W196

W214

W209 W203

W200

D105

W225

C931_1

W190

W211

W198

W219

W254

HS351

W171

L902

C928_1

C907

W858

W893

S807X

D101

C101_1

W221

C119_1

HS3001

Q3003

W256

IC101

D106

W220

W230

W251

W847

W229

C103

W224

W239

C926

C921

R3023

X101

W223

W182

C925

W192

W210

W228

W804

CP4201

C321_1

W825

W173

R3814

W863

D102

C3018

W124

D416

C4234

W163

R353

C316_1

D301

W144

L1505

C4203

C4231

W156

C628

X601

W137

C357

W845

R1516

C4232

L4201

W837

R159

D801

C602

C405

W086

S802Y

Q804

D804

C604

CP8002

W111

R1514

W158

C407

R805

R807

CP803B

L801

C626

C603

W143 W142

C4230

C4229

W157

R416

R803

Q801

D803

C622

C1521

L4205

C4217

W161

R414

R418 R415

W850

W114

L1502

W167

W152

W091

TP022

TP023

D806

W818

W038

L1501

W081

R413_1

TP024

CP806

W041

R411_1

Q802

W058

W056

W075

R806

Q805Q806

D802

W052

W247

C4206

W077

W074

W034

D401

W916

L602_2

C619

C606

W246

C4214

C1525

C406

Q803

CP802B

R618

C3004

R467

IC401

C802

R616

C611

C609

L3000

HS401

R804

D805

W035

C612_1

C1516

C4207

W083

C3001_1

W046

D607

C1518

W084

W843

W050

D609

D604

C404

D404

CCE012A

W048

R612

W069

W067

W066

L1503

W059

W085

L4203

S802X

D403

R802

J

8

C803

W047

W043

R627

W071 L601

W062

0

1

R613

L1504

D3005

W072

C434_1

D414

D409

W040 W039 W036

W057

R3006

C3014_1

R412

P801

C

R3004

W044

R3830

C605

D605

W054

W076

R614

CP802A

W914

D3008

R3003

W068

D603

R3007

R603

R3009

W055

W082

W033

R402

W032

D3003

D606

C411_1

W070

Q3801

W061

W060

W856

S801Y

Q3009

W065

W063

C634

R407

D405

W031

D3803

W011

W049

R3810

S808Y

VR402

W030

C417

W053

W051

C3820

D3805

PH3800

C3028_1

R3025

W078

W079

L402

R426

R456

IC3002

R3011

S001X

C3020_1

TH3800

W028

W024

C421

Q405

W255

R424

W014

C3023_2

C3015_2

C3012

R

3806

W026

W027

R422

T401

Q3010

W020

S3802

W023

W016

R460

R3012

W009

W021

PH3801

CP101

W841

C3030

B3001

C3801

R3803

C429

R421

D411

R419 R417 C450_1

C

428

C418

Q406

HS402

W015

Q3008

Q3006

S803Y

C3827

S3801

C3002_2

W815

C3021

IC3005

CP3800

R4215

C3026_1

R3001

Q3002

IC3001

W010

R3019

R3020

R3829

R3809

D3828

C3816

RY3800

W022

L3801

FH3800

- REPLACE AS MARKED RISK OF FIRE

W025

Q3005

W013

CP401

D406

R3022

C3013_2

R3010

Q3000

R3002

W017

R3817

C423

D3802

C3818

F3800

W808

C422

R444

R401

C3003

D3817

C3812

D3815

D3809

R447

L401

D408

W851

D3831

D3811

D3823

D3824

W870

C3810

W828

R4205

R405

R404

R3813

C3815

D3816

D3808

FH3801

.

Q3802

W012

C3824

C401

W807

W005

R406

R3802

D3821

R3828

R3826

C3814

D3804

R408

Q401

R409

R3801

R3827

R003

R004

R410

C3807

R3812

W008

TP401

D3826

C3826

B3800

D3810

C3808_1

R3816

R453

W840

T3800

R3821

C4204_1

D413

W007

W006

HS3800

L4202

FB401

CP803A

W004

C3811_1

R3822

TP402

D3818_1

Q3803

TU001

L001

C430

R445

D3812

D3807

C431

TP403

VR3800

R3825

C006_1

C402

D3820

D3827

D3830

R3805

D3806

C3804

W802

D410

W836

D3801

D402

R3804

IC3800

J4203

J4201

B4201

R423

R3800

R3831

D3822

D3819

R3833

C432_1

R430

W002

R450_1

C3823

C3822

Q3800

W820

F-3

CD3800

MD20F51/MD20F51C

F-4

PRINTED CIRCUIT BOARDS

AV/CRT (CHIP MOUNTED PARTS)

SOLDER SIDE

C330

C4235

C3817

C3809

C3803

R4217

C4224

R3808

C4236

C4228

R4221

C002

R4216

C3805

Q4201

R4241

C4215

R4210

R4242

C4205

C001

C129

C3806

C3016

R3021

R3005

R634

Q602

Q3001

Q3007

R1507

C1506

Q605

C1511

R622

C1509C1519

Q601

R628

R4212

IC1501

C1515

C1513

R611

C4210

R1506

C614

R4202

R4211

R4219

C1517

C1512

C1510

R605

R610

C617

R4213

Q1501

R1501

R1503

R4218

C1505

C1504

R1504

R609

R615

R4201

R4208

R4223

C1507

C1508

R608

C4212

IC4201

Q1503

R1505

R1502

C1502

C618

C4226

Q1502

C1501

C1520

C607

C608

C613

R4224

C4222

R1509

C620

C601

C4220

R4228

R1510

17

R617

R4229

C4216

R4232

C4225

R1508

R619

W809

C621

R4231

C1514

R1515

R602

R1512

R1511

33

R4230

R4233

1

IC601

R624

W904

W834

Q4203

C630

Q4209

R4204

49

C629

C627

W821

R4238

R625

R626

Q4210

R4243

W823

C625

Q4212

R4239

C1524

C1503

C4238

IC4203

C632

C4233

Q4211

C616

R4222

C4221

C631

R4220

IC4202

R4237

C3007

C3006

W888

R4236

R157

R145

CME012A

R141

R142

C3008

R149

R144

R109

Q104

R106

R160

R148

R140

C128

R120

R119

C127

R134

R114

Q105

C109

C110

W805

W901

C117

R132

IC199_1

W814

R115

R125

C104

R126

R190

W812

C124

R147

R101 R103

R110

R143

IC103

C108

C102

C107

R123

R127

Q2201 R2201

R2214

R2216

R2219

R2217

R2215

R2218

R2220

R3008

CCE012A

R420

W861

R814

C435_1

R816

W860

C809

C810

R815

R811

R808

W859

R810

C811

R813

R809 R801

C322

C329

Q301

C312

IC302

C328

W903

C309

C307

C303

C324

Q902

C310

R304

R302

W902

C313

R306

C306

IC906

IC905

R303

C944

R355

R912

R910

C950

C952

C951

C953

R911

IC902

C933

C929

R908

C934

C935

C938

C937

R913

C939

R4281

R4282

R2221

C4273

C2202

C2203

F-5

MD20F51/MD20F51C

F-6

PRINTED CIRCUIT BOARDS

LOADING MOTOR (INSERTED PARTS)

SOLDER SIDE

SW1

LOADING MOTOR (CHIP MOUNTED PARTS)

SOLDER SIDE

CD2302

SW

SOLDER SIDE

SW2

RE

DD00

OR

BL

M2602M2601

CD2301

BLUE

F-7

MD20F51/MD20F51C

F-8

ABC D E F GH

MPEG/MICON/DSP SCHEMATIC DIAGRAM

8

JG001

JG002

JG003

JG004

JG005

JG006

JG007

JG008

7

6

5

4

3

2

JG009

FROM/TO MEMORY

GND

P.CON+3.3V

HA0 HA1 HA2 HA3 HA4 HA5 HA6 HA7 HA8

HA9 HA10 HA11 HA12 HA13 HA14 HA15 HA16 HA17 HA18 HA19

HD0

HD1

HD2

HD3

HD4

HD5

HD6

HD7

HD8 M_GND

HD9 HD10 HD11 HD12 HD13 HD14 HD15

MEMCS0

RD

WR SD_A0 SD_A1 SD_A2 SD_A3 SD_A4 SD_A5 SD_A6 SD_A7 SD_A8 SD_A9

SD_A10

SD_D0 SD_D1 SD_D2 SD_D3 SD_D4 SD_D5 SD_D6 SD_D7 SD_D8 SD_D9

SD_D10 SD_D11 SD_D12 SD_D13 SD_D14

SD_D15 RAMCS0# RAMCS1# RAMRAS# RAMCAS#

SD_BA0

RAMDQM

RAMWE#

RAMCLK

1

R4036

C4038

0.01 B

UNREG+3.8V

BOOT2

BOOT1

D4005

DUPTD1

1SS355

DUPRD1

DUPTD0

DUPRD0

P.CON+5V

4.7K

R4039

4.7K

R4037

4.7K

R4038

4.7K

HA15 HA16 DAC_VIDEO_C HA14 DAC_VIDEO_B HA13 HA12 HD15 HA11 HD7

HA10 P-H/I-L HD14 HA9 HD6 HA8 HD13 HD5

HD12 WR ML HD4 I2C_CLK MC

HD11 V_SW HD3 D1_2 HA19 D1_1

HD10 I2CCLK HA18 I2CDAT

HD2 STBY_L HA17 HD9 I2CDAT HA7 I2CCLK HD1 RX HA6 HD8 IAMCLK HA5

HD0 IALRCLK ALRCLK HA4 RD ASDATA0 HA3 ASDATA1 HA2 ASDATA2

MEMCS0 SPDIF HA1 MIC_ON HA0

R4054

1K

R4053

1K

C4008

0.1 F

C4010

0.1 F

C4013

0.1 F

C4014

0.1 F

C4016 0.1 F C4017 0.1 F

BOOTSEL1

BOOTSEL2

ADCIN_5

ADCIN_6

JG036

JG032

JG033

PM15

FPCDOUT

ADCIN_7

JG035

JG031

FPCCLK

C4077

JG034

DUPTD1

DUPRD1

DUPTD0

JG029

IRRCV

3.3

SD_A3

3.3

SD_A5

D4003 1SS355

D4004 1SS355

3.3

SD_A2

DUPRD0

D4002 1SS355

3.3

DUPRD0

DUPTD0

RAMADD(6)

VDDP

3.3

C4018 0.1 F

SD_A6

JG022

JG023

FOCUS_PWM

B4009

C4001

0.0012 B

FS1

FS2

B4014

MMZ1608R102CT

R4063 15K

3.3

PWMCO(0)

GPCI/O(46)

IDGPCI/O(4)

208

207

206

205

53

54

55

56

RAMADD(0)

RAMADD(1)

RAMADD(7)

3.3

3.303.3

SD_A1

SD_A7

SD_A0

SLED_PWM

SPINDLE_PWM

B4011

MMZ1608R102CT

SGND

C4002 0.1 F

R4060 11K

R4061 11K

0

3.3

VDDPWM

GNDPWM

PWMCO(4)

SSCTXD

SSCCLK

DUPTD1

DUPRD1

RAMADD(4)

RAMADD(3)

RAMADD(5)

RAMADD(2)

VDDC

GNDP

RAMADD(8)

1.8

3.3

C4019 0.1 F

SD_A10

SD_A8

TRACK_PWM

TRAY_OPEN

TRAY_CLOSE

C4056

0.027 B

C4003 0.027 B

R4062 39K

3.3

PWMCO(2)

PWMCO(3)

SPINDLEPULSE

RAMADD(10)

RAMADD(9)

GNDC

0

3.3

C4020 0.1 F

SD_A9

SLEDPULSE

VDDP

JG030

FPCSTRB

R4052

4.7K

R4051

R4078

4.7K

R4077

4.7K

R4050

4.7K

R4049

4.7K

3.3

3.3 110

SSCRXD

3.3

MEMCS(1)

NC

3.3 3

VDDP

3.3 4

MEMAD(15)

3.3 5

MEMAD(16)

3.3

MEMAD(14)

3.3

MEMAD(13)

3.3

MEMAD(12)

3.3

MEMDA(15)

3.3

MEMAD(11)

3.3

MEMDA(7)

111213141516171819 22021222324

0

GNDP

3.3

MEMAD(10)

3.3

MEMDA(14)

3.3

MEMAD(9)

3.3

MEMDA(6)

3.3

MEMAD(8)

3.3

MEMDA(13)

3.3

MEMDA(5)

3.3

NC

MEMAD(20)

3.3

VDDP

3.3

MEMDA(12)

3.3

MEMWR#

3.3

MEMDA(4)

1.8

VDDC

2526272829

3.3

MEMDA(11)

3.3

MEMDA(3)

3.3

MEMAD(19)

0

GNDC

3.3

MEMDA(10)

30313233343536373839

3.3

MEMAD(18)

0

GNDP

3.3

MEMDA(2)

3.3

MEMAD(17)

3.3

MEMDA(9)

3.3

MEMAD(7)

3.3

MEMDA(1)

3.3

MEMAD(6)

3.3

MEMDA(8)

3.3

MEMAD(5)

40414243444546474849

3.3

VDDP

3.3

MEMDA(0)

3.3

MEMAD(4)

3.3

MEMRD#

3.3

MEMAD(3)

3.3

MEMAD(2)

3.3

MEMCS(0)#

3.3

MEMAD(1)

3.3

MEMAD(0)

0

GNDP

50

3.3

VDD-IP

5152

3.3

VDDP

53 545556 57 58 59660 61 62 63 64 65 66 67 68 69770 71 72 73 74 75 76 77 78 79880 81 82 83 84 85 86 87 88 89990 91 92 93 94 95 96 97 98 99

3.3

1006.3V KA

0.1 F

C4078_1

SD_A4

B4013

B4012

MMZ1608R102CT

(W840)

C4033 0.1 F

0

3.3

GNDP

VDD-IP

ICGPI/O(6)

ICGPI/O(7)

RAMADD(11)

RAMBA(0)

GNDP

RAMCS(0)# RAMBA(1)

0

3.3

NC

RAMCS0#

SD_BA0

DVD/CD

3.2

IDGPCI/O(3)

RAMCS(1)#

3.3

RAMCS1#

DRVSB

TIN_SW

TOUT_SW

(DVD-L/CD-H)

C4096

0.001 B

C4032

0.001 B

C4057

180P CH

MMZ1608R102CT

B4016

0

3.3

3.1

3.3

GNDC

VDDP

GPCI/O(32)

ICGPCI/O(4)

ICGPCI/O(5)

MPEG/MICON/DSP/RF_AMP IC

IC4001 ZR36862PQCG

RAMWE#

RAMDQM

VDDP

RAMCAS#

RAMRAS#

3.3

R4059 100

RAMCAS#

RAMWE#

RAMDQM

RAMRAS#

DIGITAL AUDIO SIGNAL(PB)

(MUTE-L)

C4088 0.1 F

0

1.8

VDDC

AGND1

GNDPCLK

PCLK

0

3.0

R4008 100

RAMCLK

0

AGNDREF

VDDPCLK

3.3

C4022 0.1 F

CD_LD

DVD_LD

3.1

CD_LD

DVD_LD

RAMDAT(8)

GNDP

0

R4064 100

SD_D8

2

VR_DVD/CD

(VR_CD)

(VR_DVD)

R4043

10K +-1%

R4022

0.3

CD_MD

DVD_MD

RAMDAT(9)

RAMDAT(7)

3.3

SD_D7

SD_D9

SD_D6

VC

C4004 0.1 F

10K +-1%

1.3

2.2

VC

VBGAP

RESOUT

RAMDAT(6)

VDDP

RAMDAT(10)

3.3

C4023 0.1 F

SD_D10

OPU_F

SPDL_SENS+

2.1

2.4

RAMDAT(5)

RAMDAT(11)

3.3

SD_D11

SD_D5

OPU_E

OPU_D

SPDL_SENS-

TP4026

0

3.5

2.3

J

EKF

AGND

160

A

159

G

158

RFN

157

RFP

DJTCK / ICGPCI/O(3) / VID(0)

DJTO / GPCI/O(30) / VID(1) DJTDI / GPCI/O(29) / VID(2) DJTMS / GPCI/O(28) / VID(3)

100

RAMDAT(14)

101

GNDP

102

RAMDAT(1)

103

RAMDAT(15)

104

RAMDAT(0)

GNDP

VDDC

GNDC

RAMDAT(12)

RAMDAT(4)

0

3.3

1.8

3.3

C4024 0.1 F

SD_D12

SD_D4

NOTE:THE DC VOLTAGE EACH PART WAS

(DVD PCB)

OPU_C

OPU_B

3.3

2.4

2.302.4

CHD

SVDD

AVDD

VDDP

RAMDAT(13)

RAMDAT(3)

3.3

C4025 0.1 F

SD_D13

SD_D3

SD_D2

MEASURED WITH THE DIGITAL TESTER DURING PLAYBACK.

OPU_A

2.4

3.3

B

GNDDACBS2

GNDDACP

AVDD1

CVBS/G/Y

GNDDACD GNDDACD

IDGPCI/O(2)

GPCI/O(31)

GPCI/O(27) IDGPI/O(1)

ICGPCI/O(2)

GPCI/O(26)

ICGPCI/O(1)

VDDP-A2

GNDP-A2

AOUT(0) AOUT(1) AOUT(2)

IDGPCI/O(0) ICGPCI/O(0)

GPCI/O(20)

RAMDAT(2)

101102 103104

100

0

3.3

SD_D14

TP4025

0.1

RSET

C/B/U

VDDDAC

Y/R/V CVBS/C VDDDAC

GCLK

VDDA

RESET#

GNDA GNDP VDDP

VDDC GNDC

VDDP

GNDP HSYNC VSYNC

AMCLK

ABCLK

ALRCLK GPAI/O

SPDIF

GNDP

VDDP

3.3

SD_D1

RFINN

1.6

Y/C

AIN

SD_D15

RF

MMZ1608R102CT

C4085 0.001 B

C4086 0.001 B

(AFEGND)

RFINP

B4018

MMZ1608R102CT

VDDPWM

+1.8V +3.3V

1.8

157158159160161162163164165166167168169170171172173174175176177178179180181182183184185186187188189190191192193194195196197198199200201202203204205206207208

0 0

1.3

1.1

3.3

1.2

1.4

3.3

1.4

0 0

2.6

3.2

XO

1.8

3.3

C4069_1

476.3V KA

0 0

3.3

HOME HOME PM16

2.9

(MIC_DET)

3.3

(DJTDO)

3.3

I2C_DAT MD

1.8 0

(ICETCK)

3.3

(ICETDO)

3.3

(MUTEC)

3.3

(ICETMS)

3.3

(PM11)

0

TP4017

3.3 TP4018

3.3

R4024

3.3

4.7K

3.3

0

3.3

0

3.3

0 0

3.3

0 0

(PM1)

NC

0 0

3.3

105106 107108 109110111 112113 114115 116117118 119120 121122 123124125 126127 128129 130131132 133134 135136 137138139 140141 142143 144145146 147148 149150 151152153 154155 156

3.3

SD_D0

B4017

TP4019

JG028

(W834)

VDDDAC

VDDAFERF

C4082

C4067_1

B4001 MMZ1608R102CT

(10mA)

R4005

1

100

R4042

(W836)

C4030 0.1 F

JG021

R4073 33 R4076 33

JG024

TP4015 TP4016

JG020

C4026 0.1

0.1 F

476.3V KA

1006.3V KA

C4068_1

C4007 0.1 F

R4001

820 +-1%

R4004

R4003

75 +-1%

R4012

27MHz

X4001

100BT02701

C4028 0.1 F

C4027 0.1 F

R4072 10 R4019 33 R4020 33 R4021 33

TP4007

C4029 0.1 F

C4031 0.01 B

4

B4010

MMZ1608R102CT

F

MMZ1608R102CT

1006.3V KA

C4083_1

476.3V KA

2206.3V KA

C4070

C4071_1

C4072 0.1 F

R4002

75 +-1%

C4034 6P CH

C4035

1M

16P CH

C4081 0.1 F

TP4004

R4047 33

R4069 4.7K

TP4010

W842

IABCLK ABCLK

R4071

150

R4014 4.7K

B4006

(250mA)

TP4005

R4025 220

R4026 220 R4027 220

R4058 220

C4098

10P CH

NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME

D4001

DUPTD1

C4076 0.1 F

C4075 0.1 F

MMZ1608R102CT

R4016

RESET

100

TP4006

SYS_MUTE

3

AMCLK VCC+9V

P.CON+3.3V UNREG+3.8V

UNREG+3.8V

1006.3V KA

C4011_1

0.1 F

C4012

1SS355

3.3 5.2

LEVEL CONVERT

2.9

C4042

B4002

R4045 560

R4018 4.7K

TP4008

TP4009

C4093

C4094 100P CH

1234567

2.5 4.2 4.2 0 3.3

Q4004

KTC3875S_Y_RTK

10P CH

47K

4.7K

C4043

R4013

R4011

(120mA)

B4003

MMZ1608R102CT

B4005

MMZ1608R102CT

R4031 4.7K

R4035

3.3 3.3

5678

100P CH

EEPROM IC

IC4002 BR24L02F-WE2

REG+3.3V +1.9V IC

IC4003

BA33E00WHFP-TR

VCC2 VCC1 GND VO1 VO2EN

TP4024

0.1 F

C4052

C4053_1

1006.3V KA

(250mA)

(130mA)

CH

47P

8

C4091

100P CH

4.7K

0 3.3

000

C4009_1

RX

P.CON+3.3V

VCCWPSCLSDA

NCNCNCGND

1234

0

4716V KA

1.8

R4070

OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE

C4037

TP4003

ADJ

R4009

R4080

47K

C4015

476.3V KA

C4084_1

DUPRD1

0.1 F M_GND

P.CON+A5V

P.CON+5V

SPDIF

R4081

3.9K +-1%

0.8

330

+-1%

4.7K

+-1%

TP4023

0.1 F

C4036 0.1 B

L4001

2.2uH 0305

TP4027

TP4028

C4097 0.01 B

8

FROM/TO AUDIO/VIDEO

SYS_MUTE V_SW DAC_VIDEO_C

DAC_VIDEO_B ASDATA0

ABCLK ALRCLK AMCLK MD MC ML

P-H/I-L RESET P.CON+5V

GND

FROM/TO MOTOR DRIVE

TRAY_OPEN TRAY_CLOSE HOME TOUT_SW TIN_SW DVD/CD DRVSB RF OPU_A OPU_B OPU_C OPU_D OPU_E OPU_F VC SPDL_SENSSPDL_SENS+ VR_DVD/CD VR_DVD/CD DVD_LD CD_LD SPINDLE_PWM SLED_PWM TRACK_PWM FOCUS_PWM P.CON+A5V P.CON+3.3V VCC+9V ADCIN_5 ADCIN_6 ADCIN_7

GND

TP4011

TP4012

C4092 100P CH

C4065 0.01 B

TP4013 TP4014

TP4020

C4066

1B

C4090 10010V KA

C4080 0.01 B

C4100 10010V KA

C4089 10010V KA

TP4022

TP4021

L4002

W5T29X7.5X19

FROM/TO REGULATOR1

DVD/VR 130mm DVD COMBO 250mm CD4002

(CP8001)

C32B2202

GND(D)

TX

RX

GND(M)

P.CON+9V

P.CON+A5V

P.CON+3.8V

GND(A)

SPDIF

7

6

5

4

1

2

3

4

5

6

7

8

9

3

10

11

2

PCB130 DMD020

1

ABC D E F GH

MD20F51/MD20F51C G-2G-1

ABC D E F GH

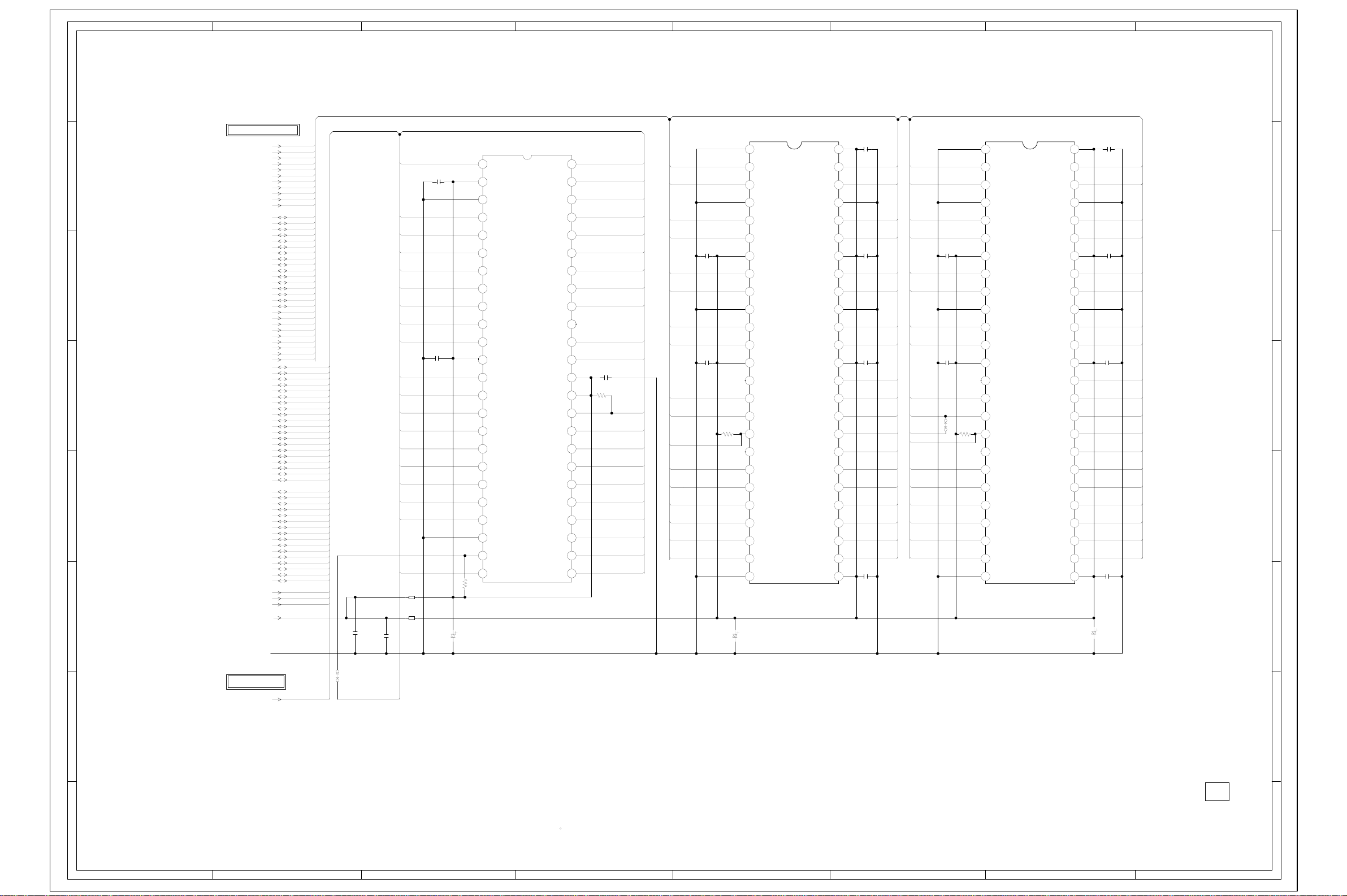

MEMORY SCHEMATIC DIAGRAM

8

(DVD PCB)

8

FROM/TO MPEG/MICON/DSP

SD_A0 SD_A1 SD_A2 SD_A3

7

6

5

4

3

SD_A4 SD_A5 SD_A6 SD_A7 SD_A8 SD_A9

SD_A10

SD_D0 SD_D1 SD_D2 SD_D3 SD_D4 SD_D5 SD_D6 SD_D7 SD_D8

SD_D9 SD_D10 SD_D11 SD_D12 SD_D13 SD_D14 SD_D15

RAMCS0# RAMCS1# RAMRAS# RAMCAS#

SD_BA0 RAMDQM RAMWE# RAMCLK RAMCKE

HA10 HA11 HA12 HA13 HA14 HA15 HA16 HA17 HA18 HA19

HD10 HD11 HD12 HD13 HD14 HD15

MEMCS0

P.CON+3.3V

GND

HA0 HA1 HA2 HA3 HA4 HA5 HA6 HA7 HA8 HA9

HD0 HD1 HD2 HD3 HD4 HD5 HD6 HD7 HD8 HD9

FLASHCS HA2

RD WR

MMZ1608R102CT

C4095

0.01 B

HA16 HA15

C4064

0.1 F

HD15 HA12

HD7 HA11

HD14 HA10

HD6 HA9

HD13 HA8

HD5 HA19

HD12

HD4 WR

C4062

0.1 F

HD11

HD3

HD10 HA19

HD2 HA18

HD9 HA17

HD1 HA7

HD8 HA6

HD0 HA5

RD HA4

HA0 HA1

B4007

B4008

C4099

0.01 B

C4063

FLASH IC 8M

IC4007 SST39VF800A-70-4C-EKE

1.2

3.3 VCCQ A14

0

GND

0.7 DQ15

1.9 DQ7

1.3 DQ14

1.2 DQ6

0.6 DQ13

0.7 DQ5

40 41 42 43 44 45 46 47 48

0.8 DQ12

DQ4

3.3 VCC

1.6 DQ11

1.6 DQ3

1.3 DQ10

1.2 DQ2

1.4 DQ9

1.4 DQ1

0.9 DQ8

30 31 32 33 34 35 36 37 38 39

1.6 DQ0

2.6 OE#

0

GND

2.6 CE#

2.5 1.6 A0

25 26 27 28 29

4.7K

R4040

2206.3V KA

A15A16

A13

A12

A11

A10

A19

A20

RP#

VPP

WP#

A19

A18

A17

WE#

1.7

110111213141516171819 22021222324

1.0

0.8

3

1.5

4

2.5

56789

1.3

1.6

A9

1.5

A8

0

NC

3.31.6

0

0.1

R4041

4.7K

0

1.6

0.7

1.4

A7

1.6

A6

1.6

A5

1.3

A4

1.7

A3

2.5

A2

A1

HA14

HA13

(W837)

RESET

C4039

0.1 F

(W838)

HA3

SD_D15 SD_D0 SD_D15 SD_D0

SD_D14 SD_D1 SD_D14 SD_D1

SD_D13 SD_D2 SD_D13 SD_D2

SD_D12 SD_D3 SD_D12 SD_D3

C4059

0.1 F

SD_D11 SD_D4 SD_D11 SD_D4

SD_D10 SD_D5 SD_D10 SD_D5

SD_D9 SD_D6 SD_D9 SD_D6

SD_D8 SD_D7 SD_D8 SD_D7

C4058

0.1 F

RAMDQM RAMWE# RAMDQM RAMWE#

RAMCLK2 RAMCAS# RAMCLK RAMCAS#

RAMCKE

SD_A9 SD_BA0 SD_A9 SD_BA0

SD_A8 SD_A10 SD_A8 SD_A10

SD_A7 SD_A0 SD_A7 SD_A0

SD_A6 SD_A1 SD_A6 SD_A1

SD_A5 SD_A2 SD_A5 SD_A2

SD_A4 SD_A3 SD_A4 SD_A3

16M SDRAM IC

IC4008 K4S161622H-UC60

0 0

VSS VDD

50

3.3 3.3 DQ15

3.3 DQ14

3.3 VSSQ

3.3 DQ13

3.3 DQ12

3.3 VDDQ

3.3 DQ11

3.3 DQ10

3.3 VSSQ

3.3 DQ9

40 41 42 43 44 45 46 47 48 49

3.3 DQ8

3.3 VDDQ

0

NC

3.3 UDQM

2.3 2.3 CLK

R4057

3.3 CKE

47K

0

NC

33 34 35 36 37 38 39

3.3 A9

3.3 A8

3.3 A7

30 31 32

3.3 A6

3.3 A5

3.3 A4

0 0

26 27 28 29

1006.3V KA

C4044

VDD

DQ0

DQ1

VSSQ

DQ2

DQ3

VDDQ

DQ4

DQ5

VSSQ

DQ6

DQ7

VDDQ

LDQM

/WE

/CAS

/RAS

/CS

A10/AP

VDDVSS

C4060

3.3

110111213141516171819 2202122232425

0.1 F

3.3

3

3.3

4

3.3

5

3.3

6789

C4061

3.3

0.1 F

3.3

0

3.3

C4074

3.3

0.1 F

3.3

BA

3.3

A0

3.3

A1

3.3

A2

3.3

A3

3.3

RAMDQM RAMDQM

RAMRAS# RAMCLK2 RAMRAS#

RAMCS0# RAMCS1#

C4087

0.1 F

C4041_1

0.1 F

RAMCKE

C4040_1

0.1 F

W835

16M SDRAM IC

IC4009 K4S161622H-UC60

50

3.3

3.3 40 41 42 43 44 45 46 47 48 49

3.3

0

NC

3.3

R4048_1

47K

0

NC

33 34 35 36 37 38 39

3.3

3.3 30 31 32

3.3

26 27 28 29

VSS

DQ15

DQ14

VSSQ

DQ13

DQ12

VDDQ

DQ11

DQ10

VSSQ

DQ9

DQ8

VDDQ

NC

UDQM

CLK

CKE

NC

A9

A8

A7

A6

A5

A4

VSSQ

VDDQ

VSSQ

VDDQ

LDQM

/CAS

/RAS

A10/AP

DQ0

DQ1

DQ2

DQ3

DQ4

DQ5

DQ6

DQ7

/WE

/CS

VDDVSS

C4050_1

3.3

110111213141516171819 2202122232425

0.1 F

3.3

3

3.3

4

3.3

5

3.3

6789

C4045_1

3.3

0.1 F

3.3

0

3.3

C4046_1

3.3

0.1 F

3.3

BA

3.3

A0

3.3

A1

3.3

A2

3.3

A3

C4047_1

3.3

0.1 F

7

6

5

4

3

1006.3V KA

C4021

FROM AUDIO/VIDEO

RESET

2

1

W854

MEMCS0

NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME

OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE

NOTE:THE DC VOLTAGE EACH PART WAS

MEASURED WITH THE DIGITAL TESTER DURING PLAYBACK.

PCB130 DMD020

2

1

ABC D E F GH

MD20F51/MD20F51C G-4G-3

ABC D E F GH

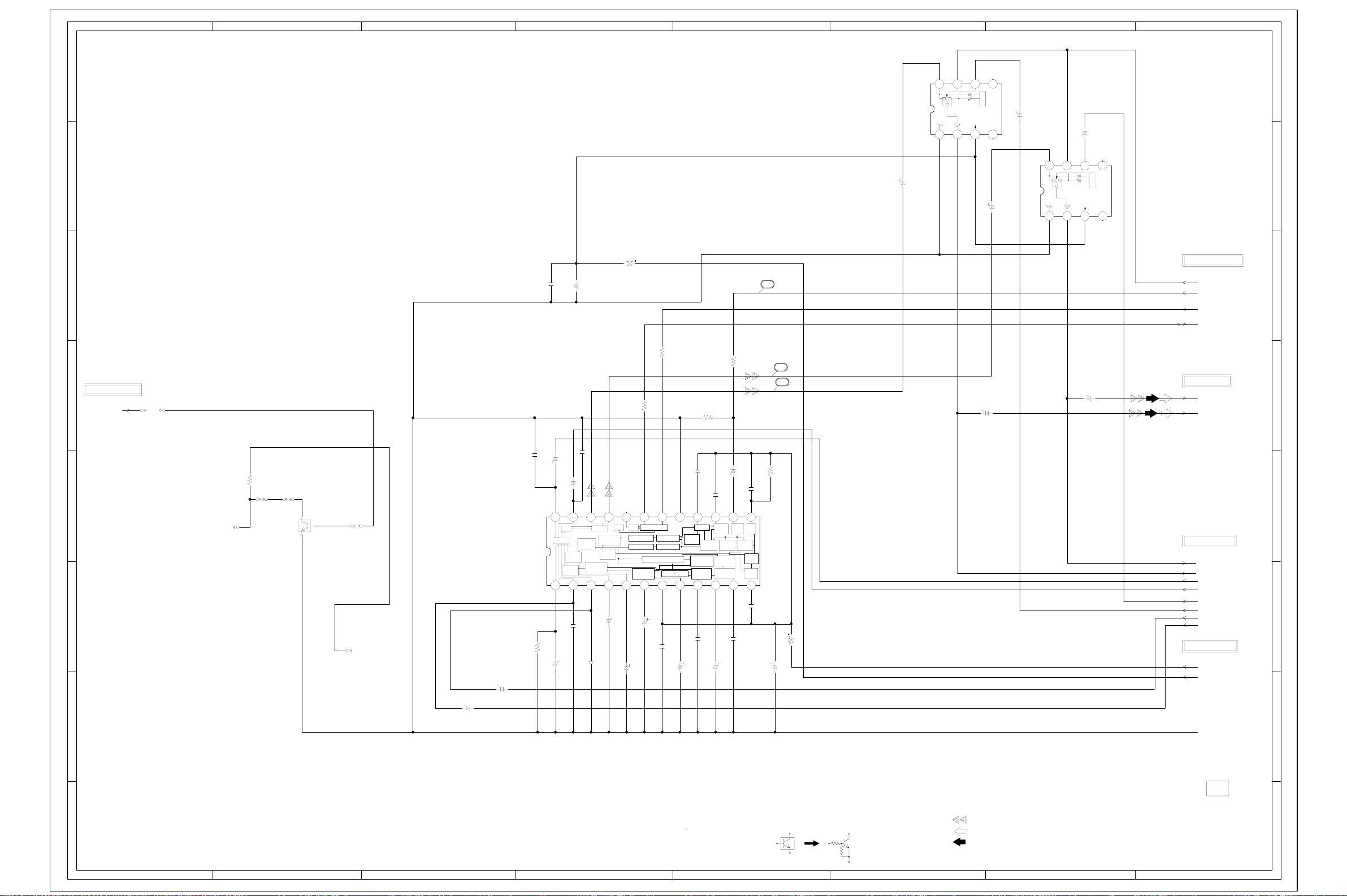

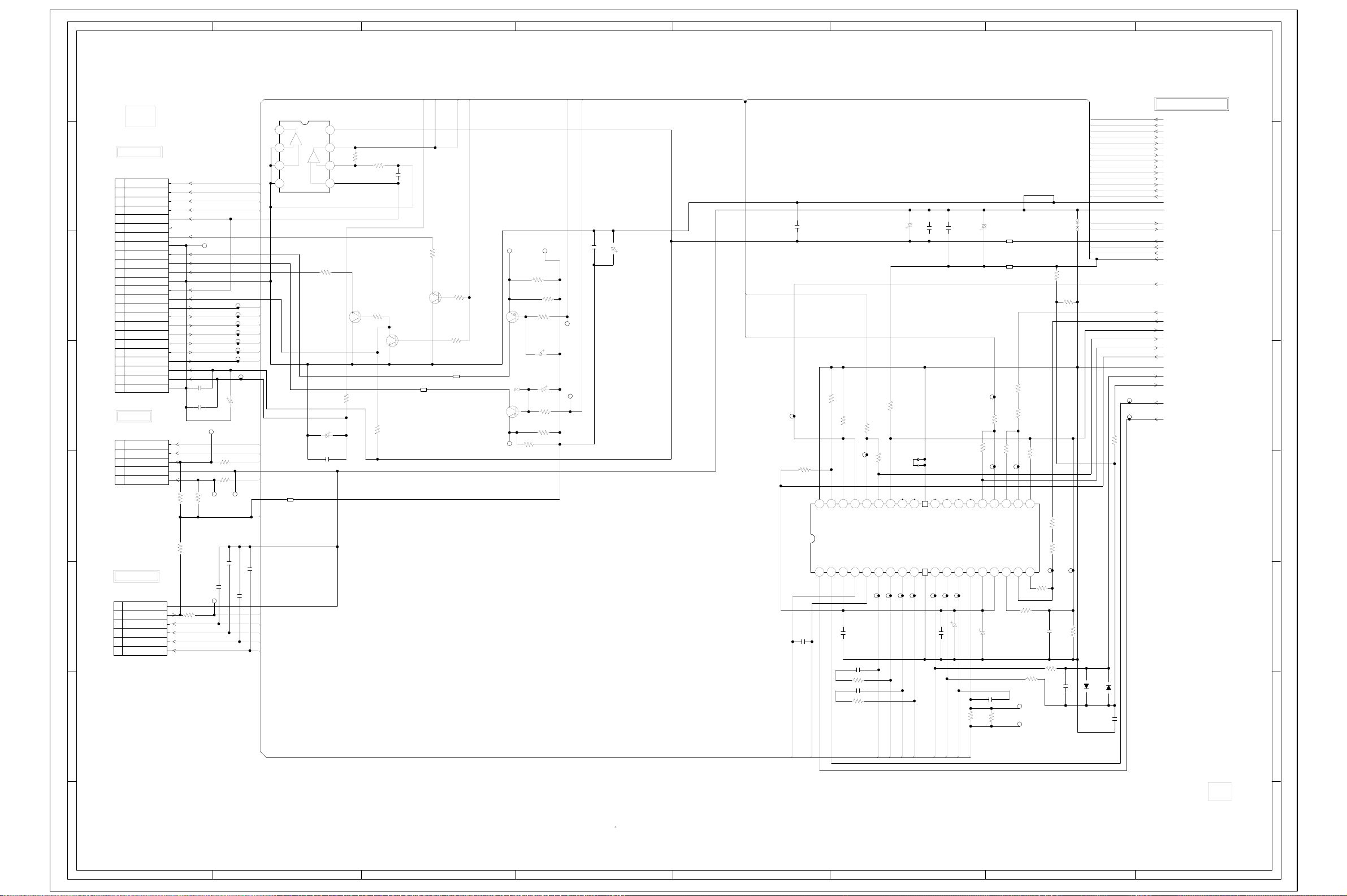

MOTOR DRIVE SCHEMATIC DIAGRAM

8

(DVD PCB)

8

OPE AMP IC

TR-

TR+

FO-

FO+

RF

OPU_C

OPU_B

OPU_A

OPU_D

OPU_F

OPU_E

JG012

C2360

100P CH

IC2304 BA10358FV-E2

0

1234

NC

+

-

0

-VS

OPU_VREF

B2305

MMZ1608R102CT

B2305 short --- +3.3V

4.9

+VS

0.3

0.2

+

-

R2361

0.2

5678

R2359

82

VR DVD

0.1

0

33

R2360

C2328_1

476.3V KA

C2348

1B

2.2K

R2362

3.3K

Q2305 KTC3875S_Y_RTK

R2348

0.1

3.3K

(W834)

0

1K

R2355

DM3S/3O

FROM/TO LOADER

7

6

5

4

3

CP2301 09-5000-024-001-001

1

T-

2

T+

3

F-

4

F+

5

MON(DVD)

6

NC(SW)

7

VOL(DVD)

8

GND(DVD)

9

LD(DVD)

10

LD(CD)

11

VOL(CD)

12

GND(CD)

13

MON(COM)

14

DVD/CD

15

RF

16

C

17

B

18

A

19

D

20

F

21

E

22

VCC

23

Vref

24

GND(PDIC)

TO LOADER

CP2302 00_6232_005_006_800+

5

LD-

4

LD+

3

OPEN

2

GND(D)

1

CLOSE

FROM/TO LOADER

CP2303 00_6232_006_006_800+

SW(GND)

6

LIMIT SW

5

SLD-

4

SLD+

3

SP1-

2

SP1+

1

NC

R2350

R2342

4.7K

R2349

100

DVD/CDPD

VR/DVD

JG056

VR/CD

DVD/CDPD

DVD_CD

C2331

0.1 F

C2315

0.1 F

TP2304

R2351

4.7K

TP2306

HOME

MOT_SLED-

MOT_SLED+

MOT_SPDL-

MOT_SPDL+

JG016

JG040

JG011

JG010

JG013

JG015

JG014

C2329_1

TP2303

R2353

100

R2352

100

P.CON+3.3V

C2357

C2358

100P CH

DVDLD

CDLD

476.3V KA

MOT_LD-

MOT_LD+

TOUT_SW

TIN_SW

TP2305

100P CH

C2359

2

VC

C2350

1B

VR DVD

Q2303

KTC3875S_Y_RTK

0.1

0.7

DVD/CD

Q2304

KTC3875S_Y_RTK

B2302

MMZ1608R102CT

(VR_CD)

82

R2356

0

0.7

0

MMZ1608R102CT

VR_DVD/CD

(VR_DVD)

R2346

3.3K

R2347

3.3K

B2301

DVD/CD

DVD LD

2SA1036K

CTL

Q2301

CD LD CTL

Q2302

2SA2048

JG019

JG017

4.5

1.0

S800X

1.0

4.5

3.9

R2341

6.3V

6.8

JG018

R2306

6.8

R2332

220

C2340_1

C2341_1

R2333

220

R2340

6.8

R2318

6.8

1006.3V KA

100

CD_LD

DVD_LD

(RF_GND) (W806)

0.1 F

476.3V KA

C2326

0.1 F

C2327_1

TP2307

TP2308

KA

RF_A5V

TRACK_PWM

FOCUS_PWM

C2332

10K

R2308

TP2322

R2338

12K

IC2301 LA6565

MOTOR DRIVE IC

C2313

0.1 B

0

1K

R2301

3.4 3.3 3.3 1.72.6 3.0 1.7 3.3 1.5 1.6 8.8 2.9 2.2 4.3 3.8 1.8

S-GND

VCONT

REV

FWD

1 101112131415161718

C2301

C2302 0.1 B

R2303 2.2

C2303 0.1 B

R2304 2.2

75K

R2307

TP2321

R2305

VIN4

VIN4-

MUTE1

MUTE234

VD4+

VLD+

VCC2

VLD-

456789

TP2309

0.1 F

C2346_1

R2309

100 +-1%

VC2

10K

HS76

NC NC00NC

VREF-IN

VD4-

TP2310

TP2311

476.3V KA

HS2301

763WSAA023

REG-OUT

VREF-OUT

VD3-

VD3+

TP2312

0

C2347

38

37

0.1 F

REG-IN

VD2+

TP2313

C2342

TP2314

F

C2306 0.1

C2314_1

0.1 F

VIN+OP

VD2-

TP2315

10010V KA

NCNCNC

242526272829330313233343536

VO_OP

VIN-OP

VD1-

VD1+

C2307 0.1 B

R2323

C2343_1

MMZ1608R102CT

TP2320

R2319

27K

R2321

TP2319

VIN3VCC1

10010V KA

C2310_1

1.2 R2329

476.3V KA

VIN3-

VCCS

1.2

B2304

B2303

33K

R2326

R2334

R2324

5.6K

TP2318

VIN2

VIN1+A

VIN2-

VIN1-A

2.92.31.78.98.96.96.96.56.56.66.61.41.49.69.68.93.33.3

R2328

4.7K

JG057

JG058

10K

1K

R2327

19220212223

R2358

120

(W804)

4.7K

VIN 1 VIN2+

R2325

6.8K

R2337

R2330

TP2317

C2311

R2357

R2336

1K

0.1 B

390

R2339

1.2K

10K

1K

C2304

W875

TP2316

R2331 100 +-1%

0.022 B

D2303

1SS355

D2304 1SS355

C2305

0.1 B

TP2323

TP2324

R2335 3.3K

FROM/TO MPEG/MICON/DSP

DVD/CD DVD_LD CD_LD VR_DVD/CD VR_DVD/CD RF OPU_A OPU_B OPU_C OPU_D OPU_E OPU_F VC HOME GND

GND

TOUT_SW TIN_SW

P.CON+A5V TRACK_PWM FOCUS_PWM P.CON+3.3V

DRVSB

SPINDLE_PWM

SLED_PWM

ADCIN_7

ADCIN_5

ADCIN_6

VCC+9V

M_GND

SPDL_SENS+

SPDL_SENS-

TRAY_CLOSE

TRAY_OPEN

7

6

5

4

3

2

MOT_SPDL+

MOT_SPDL-

MOT_LD+

MOT_LD-

NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME

1

OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE

NOTE:THE DC VOLTAGE EACH PART WAS

MEASURED WITH THE DIGITAL TESTER DURING PLAYBACK.

TR+

TR-

FO+

FO-

MOT_SLED-

MOT_SLED+

PCB130 DMD020

1

ABC D E F GH

MD20F51/MD20F51C G-6G-5

ABC D E F GH

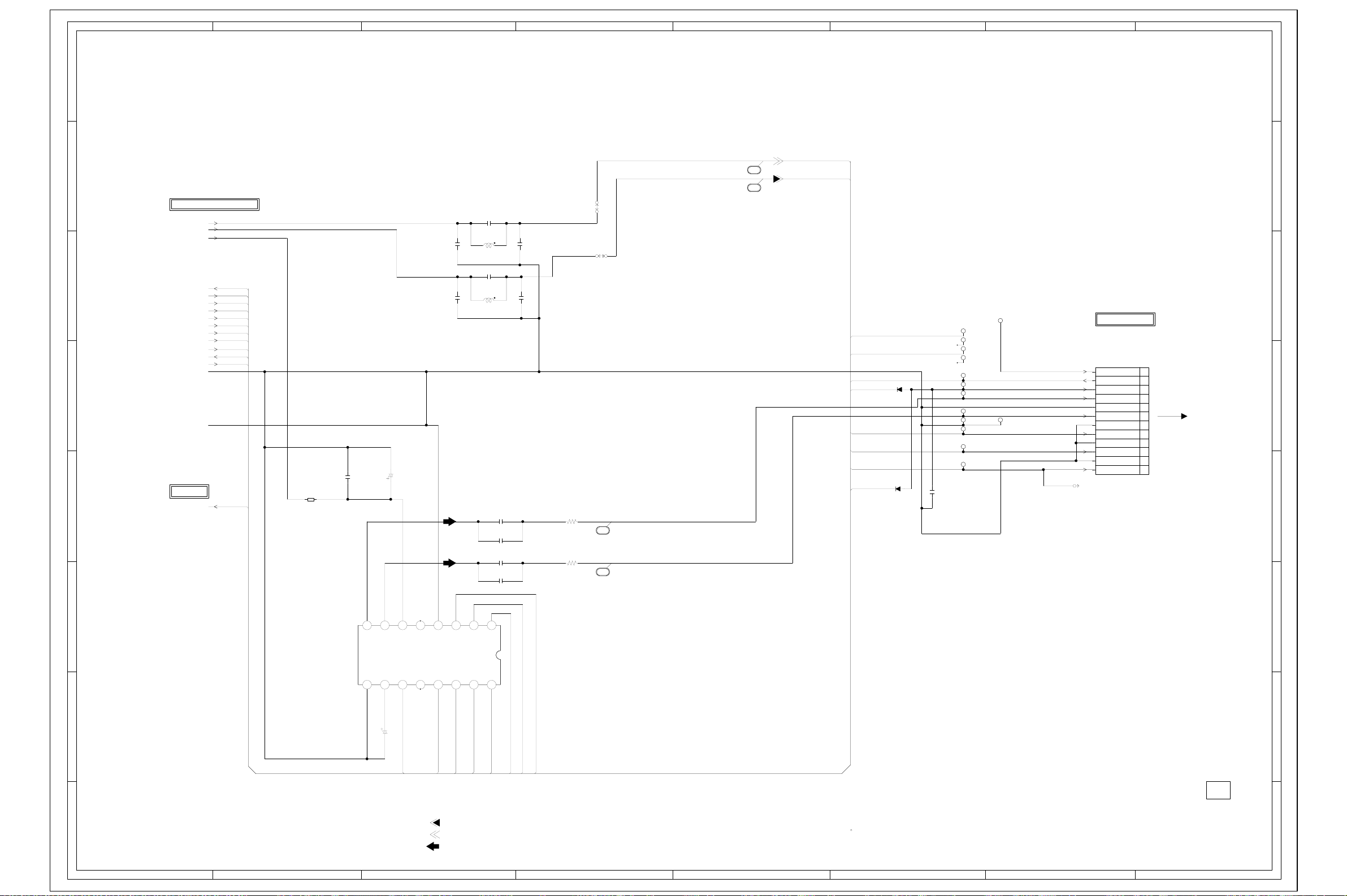

AUDIO/VIDEO SCHEMATIC DIAGRAM

8

(DVD PCB)

8

C/B/U

7

FROM/TO MPEG/MICON/DSP/RF_AMP

C8104

C8107

150P CH

C8105

12P CH L8102

1uH 0305

C8108

12P CH

L8103

1uH 0305

C8106

C8109

150P CH

DAC_VIDEO_C DAC_VIDEO_B

P.CON+5V

6

RESET

AMCLK ABCLK

ALRCLK

ASDATA0

P-H/I-L

V_SW

SYS_MUTE

GND

MC MD ML

DAC_VIDEO_C

DAC_VIDEO_B

W818

W819

Y/R/V

9

10

5

GND

C8120

4

TO MEMORY

RESET

B8103

MMZ1608R102CT

0.1 F

C8119_1

1006.3V KA

C8114

1B

C8125

1B

C8113

1B

C8126

1B

R8113

470

R8112

470

6

7

DAC_C_VIDEO

DAC_B_VIDEO

P-H/I-L

V_SW

RESET

D8111 1SS355

ZERO

R_AUDIO

L_AUDIO

DAC_B_VIDEO

DAC_C_VIDEO

DAC_D_DVD_VIDEO

SYS_MUTE

D8112

1SS355

C8122

7

6

TP8102

TP8103

NC

TP8104

TP8105

NC

TP8106

TP8107

TP8108

TP8109

TP8110

TP8112

TP8113

TP8114

0.001 B

TP8101

TP8111

S800Y

FROM/TO REGULATOR1

DVD/VR 95mm

DVD COMBO 180mm

(CP8002)

CP8101_2 IMSA-9604S-12F

DVD-H(GND)

DVD RESET

ZERO

AUDIO-R

GND

AUDIO-L

GND

Y

GND

C

GND

CVBS

12

11

10

9

8

FFC(1.0mm pitch)

7

6

5

4

3

2

1

CD8101

2F0C1602

5

4

3

2.4

AGND VOUTR

IC8102 PCM1753DBQR

STEREO DAC IC

9

0

10 11

2.4

NC

0

5678

VCC

VDD

DGND

VOUTL

ZEROL/NA

ZEROR/ZEROA

VCOM

12 13 14 15 16

3.3 0 0 0 3.3 1.7 NC

LRCK

MC

MD

1.61.11.63.34.92.5 1

234

BCK

DATA

SCK

ML

2

1025V KA

C8121_1

MD

MC

R.SIGNAL B.SIGNAL

ML

+ COMPONENT SIGNAL(U) + COMPONENT SIGNAL(V)

ZERO

1

AMCLK

ABCLK

ASDATA0

ALRCLK

NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME

OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE

NOTE:THE DC VOLTAGE EACH PART WAS

MEASURED WITH THE DIGITAL TESTER DURING PLAYBACK.

PCB130 DMD020

3

2

1

AUDIO SIGNAL(PB)

ABC D E F GH

MD20F51/MD20F51C G-8G-7

ABC D E F GH

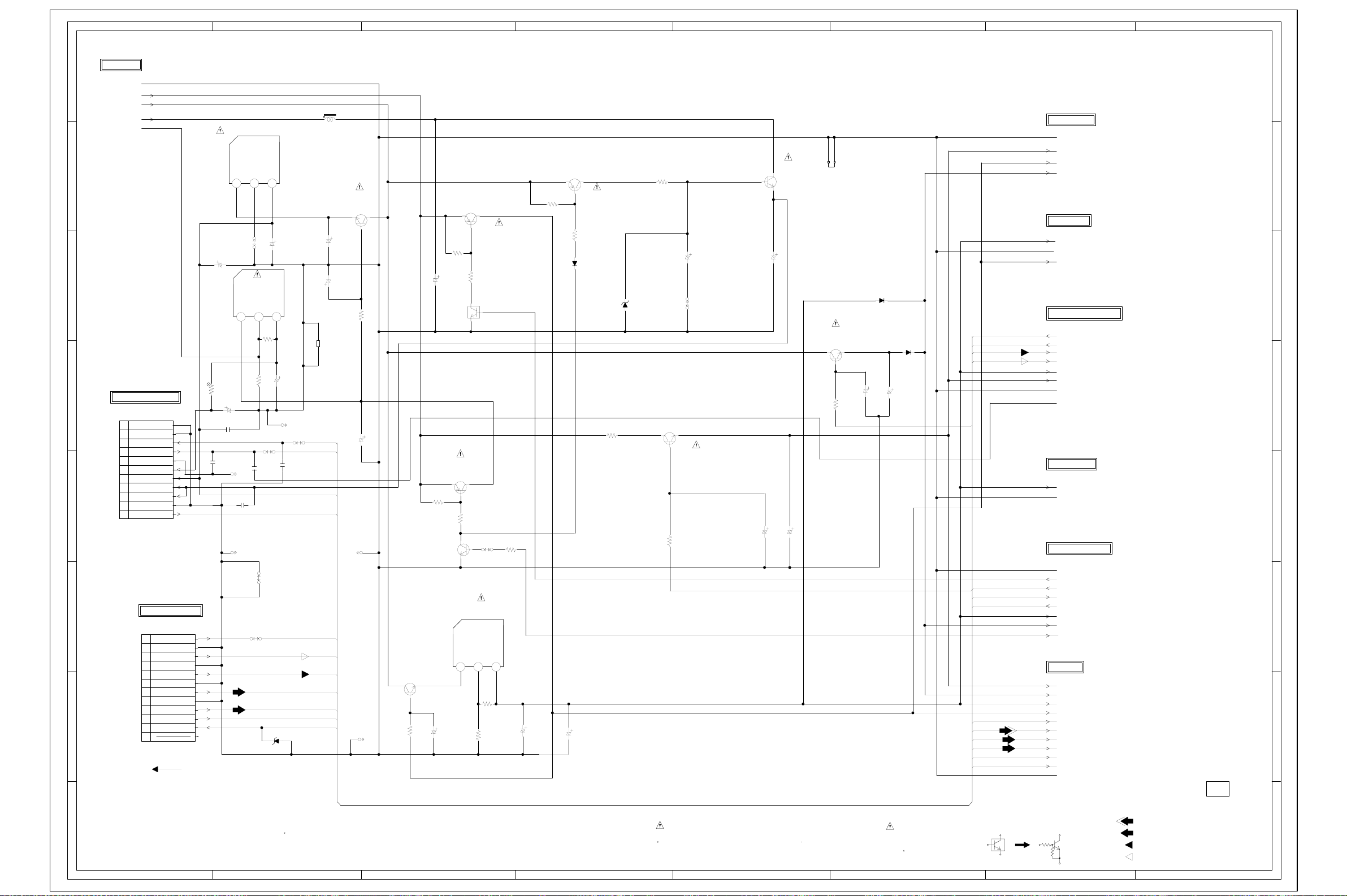

REGULATOR1 SCHEMATIC DIAGRAM

8

7

6

5

4

3

2

FROM POWER

GND

UNREG+12V

UNREG+8V

UNREG+5V

GND_A

FROM/TO MPEG/MICON/DSP

CP8001

(CD4002)

A2001WV2-11P

1

GND

2

GND

3

TX

4

RX

5

GND(M)

6

P.CON+9V

7

P.CON+5V

8

P.CON+3.8V

9

P.CON+3.8V

10

GND

11

SPDIF

FROM/TO AUDIO/VIDEO

CP8002 IMSA-9604S-12Z14

12

11

10

9

8

7

6

5

4

3

2

1

(CP8101_2)

CVBS

GND

C(CVBS)

GND

Y(G)

GND

AUDIO-L

GND

AUDIO-R

ZERO

DVD RESET

CD8002

2H0C1001

R3025

C3006

NC

IC3001 KIA7805API

IN GND OUT

123

8.1 0 5.0

C3004

2206.3V YK

12.3 0 9.1

4.7 1W C3001_1

10050V YK

C3016

0.1 F

S803X

470P CH

C3007

0.1 B

S001X

5V REG IC

10010V YK

W815

C3015_2

9V REG IC

IC3005

KIA7809API

IN GND OUT

123

R3020

470

1/4W

C3012

R3019

18 1/4W

S802X

W803

C3008

C3005

56P CH

W856

W904

D3007

MTZJ5.6B

47016V YK

W819

470P CH

L3000

10uH

C3002_2

C3026_1

B3001

W5RH3.5X5X1.0

TX

RX

P.CON+5V_A

SPDIF-134

DVD_VIDEO

DVD_C

DVD_Y

DVD_A_OUT_L

DVD_A_OUT_R

ZERO

DVD_RESET

TSL0808

1025V KA

DRIVER

Q3006

KTC3203_Y

7.9

10.8

R3001

C3021

S001Y

S803Y

8.0

100 1/4W

(AV PCB)

TO SOUND AMP

GND

P.CON+9V

3.3V OUT

3.9

3.2 3.4

C3025

C3023_2

P.CON+12V

1025V KA

Q3003

KTC4369

3306.3V YK

C3030

8.08.0

DRIVER

7.2

R3005

7.38.0

0.6 DRIVER

Q3002

R3008

22016V YK

C3017

47016V YK

DRIVER

KTA1281_Y

13.1 12.6

R3002

10K 1/4W

DRIVER

12.8

Q3001

KTC3875S_Y_RTK

DRIVER

Q3010

KTC3209_Y

8.6

9.0

9.4

100 1/4W

C3003

1050V MHE

R3022

KTA1281_Y

10K

R3004

1K 1/4W

P.ON SW

4.0

KRC102SRTK

0

Q3000

12.8

R3003

1K 1/4W

W901

5.1

0

5V_REG IC

IC3002 KIA7805API

IN OUTGND

123

4.908.1

R3011

220 1/4W

15 1/4W

R3012

Q3007

R3023

2.2K 1/4W

C3020_1

1M

10010V YK

R3021

D3003

C3014_1

1K

1SS133

10010V YK

Q3009

KTA1281_Y

33 1/2W

D3005

R3010

R3006

120 1/2W

MTZJ4.3B

11.9 9.0

9.6

R3007

C3018

W878

KTC3209_Y

100 1/4W

DRIVER Q3005

150V YK

P.CON+9V

10016V YK

HS3001

763WAA0157

DRIVER

Q3008

KTC3203_Y

8.0

3.6

R3009

5.0

100 1/4W

8.5VREG

C3028_1

D3006

11EQS04N

1025V KA

C3013_2

D3008

11EQS04N

10010V YK

AT5.7VREG

P.CON+12V

AT+5.6V

TO STEREO

P.CON+5V

GND

P.CON+12V

FROM/TO VIF/SIF/CHROMA

8.5VREG

AT5.7VREG DVD_Y

DVD_C

P.CON+5V

P.CON+9V

GND

GND1

TO DEFLECTION

P.CON+5V

GND

FROM/TO MICON/TUNER

GND

POWER_ON_H

DVD_RESET

TX

RX

P.CON+5V

AT+5.6V

DVD_H

TO IN/OUT

P.CON+9V

AT+5.6V

P.CON+5V

P.CON+12V

P.CON+5V_A

SPDIF-134

DVD_A_OUT_L

DVD_A_OUT_R

ZERO

DVD_VIDEO

GND

PCB250 CME012

8

7

6

5

4

3

2

NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME

1

OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE

ABC D E F GH

NOTE:THE DC VOLTAGE EACH PART WAS

MEASURED WITH THE DIGITAL TESTER DURING PLAYBACK.

CAUTION

:SINCE THESE PARTS MARKED BY

CRITICAL FOR SAFETY,USE ONES DESCRIBED IN PARTS LIST ONLY

ARE

ATTENTION

:LES PIECES REPAREES PAR UN ETANT

DANGEREUSES AN POINT DE VUE SECURITE N’UTILISER QUE CELLS DECRITES DANS LA NOMENCLATURE DES PIECES

CAUTION: DIGITAL TRANSISTOR

DIGITAL AUDIO SIGNAL(PB)

AUDIO SIGNAL(PB)

1

PLAYBACK LUMINANCE SIGNAL PLAYBACK COLOR SIGNAL

MD20F51/MD20F51C G-10G-9

ABC D E F GH

MICON /TUNER SCHEMATIC DIAGRAM

+B

3

4

C002

56uH

R134

C128

0.01 B

25

26

V-SYNC

AFT

(FM POWER)

AFT

C110

0.001 B

(AV PCB)

5

6

L001

100uH 0405

P.CON+5V

0.1 B

1K

H-SYNC

OSD Y/BLK

KEY1

KEY2

4.7K

R114

KEY_A

KEY_B

R120

4.7K

AV2

OSG B

AV2

R106

8

DATA

11

100

100 1/4W

2.7K

C117

AFT OUT

12

AFT

R141

0.01 B

OUT

AUDIO

SIF OUTBTIF OUT

13

14

NC

W828

TUNER_AUDIO

R144

2.7K R145

2.7K

MEMORY IC

15

+30V

R148

4.7K

C119_1

5678

IC199_1 BR24L04F-WE2

CLOCK

9

7

8

10

R004

100 1/4W

R003

SCL

SDA

R140

100

2223242526272829

OSD G

OSD RIIC BUS OFF

AV1

5.204.15.25.22.3005.25.23.73.75.203.25.200

R109

4.7K

AV1

I2C_OFF

SDA

R143

R142

4.7K

SCL

R147

100

16

C001

0.1 F

KTC3875S_Y_RTK

5.0

0

10010V YK

SDAVSS

20

OUT

VIDEO

17

21

C129

TUNER_VIDEO

R149

4.7K

V-BUFFER

Q105

0

C127

SCL

MODE

E2

E1

FROM/TO IN/OUT

SCL

SDA

I2C_OFF

REMOCON

KEY_A

100P CH

R157

4.7K

W804

10K

R190

R159

33K 1/4W

2.2K

R160

0.0082 B

VCCE0

1234

KEY_B

POWER_ON_H

FROM/TO VIF/SIF/CHROMA

POWER_ON_H

AV2

AV1

OSD_Y

OSD_B

OSD_G

OSD_R

SDA

SCL

TV/DVD

SYNC_VIDEO

H_CONTROL

PROTECT

TUNER_VIDEO

VIDEO_OUT2

HD

FROM DEFLECTION

+30V

VD

X-RAY

FROM/TO POWER

DEGAUSS_H

POWER_FAIL

GND

FROM/TO REGULATOR1

GND

DVD_RESET

POWER_ON_H

RX

TX

P.CON+5V

AT+5.6V

DVD_H

FROM/TO SOUND AMP

A_MUTE

SCL

SDA

FROM/TO STEREO

DVD_RESET

TV/DVD

TUNER_AUDIO

SCL

SDA

PCB250 CME012

7

6

5

4

3

2

8

TU001 115-V-KA35ARB

19

1

2

18

POWER_FAIL

123

30313233343536373839

X IN

TX

NC NC NC NCNC NC NC NCNC

10010V YK

C006_1

L101

C109

0.1 B

W805

TEST

OVDD(OVSS)

UART_CLK_IN

H_CONTROL

OVCC(OVDD)

X-RAY IN

R119

10K

REMOCON

R123

D102 MTZJ5.6B

24

(REMOCON)REMORT

DEGAUSS H

DEGAUSS_H

5.2

4.1

4.7

R125

4.7K

X101

CSTLS16M0X53-A0

W863

C124

0.1 F

5.24.75.10.24.33.902.92.65.2 2.42.1 005.25.04.2 0000

X OUT

RESET

POWER FAIL

UART_START_BIT

4.7K

R126

R132

RX

10K

RX

UART_CLK_OUT

SW

Q104

7

NC

IC103

RESET IC

PST3231NR

OUT

123

6

5

4

NC

0.30.2 45

NC

GND

IN

5.25.2

0

10K

D106

1SS133

R101

C101_1

3310V KA

C103

2206.3V YK

R103

C102

D101

1SS133

10K

0.01 B

C104

0.1 B

D105

VIDEO_OUT2

R110

B

C107

C108

0.1

404142

VDD

VIDEO IN 2

IC101 OEC6084AMICON IC

VSS

TV/DVD

1 101112131415161718192 20 21

5.1

W893

1SS133

W847

TV/DVD

(FM DATA)

VIDEO IN 1

3

2.2K

R127

PROTECT

(FM CLK)

PROTECT

VVSS

TV MUTE

4

A_MUTE

KTA1504S_Y_RTK

SDA

SCL

W812

W814

4.7K R115

4.7K

2322

SD

SCL

SDA

DVD RESET

5.1

DVD_RESET

POWER

POWER_ON_H

EXT MUTE

56789

5.0

W858

DVD_H

3

2

CAUTION

1

:SINCE THESE PARTS MARKED BY

CRITICAL FOR SAFETY,USE ONES DESCRIBED IN PARTS LIST ONLY

ARE

ATTENTION

:LES PIECES REPAREES PAR UN ETANT

DANGEREUSES AN POINT DE VUE SECURITE N’UTILISER QUE CELLS DECRITES DANS LA NOMENCLATURE DES PIECES

NOTE:THE DC VOLTAGE AT EACH PART WAS MEASURED

WITH THE DIGITAL TESTER WHEN THE COLOR BROADCAST WAS RECEIVED IN GOOD CONDITION AND PICTURE IS NORMAL.

NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME

OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE

B.SIGNAL G.SIGNAL R.SIGNAL

TUNER VIDEO SIGNAL PLAYBACK VIDEO SIGNAL

PLAYBACK LUMINANCE SIGNAL

1

ABC D E F GH

MD20F51/MD20F51C G-12G-11

ABC D E F GH

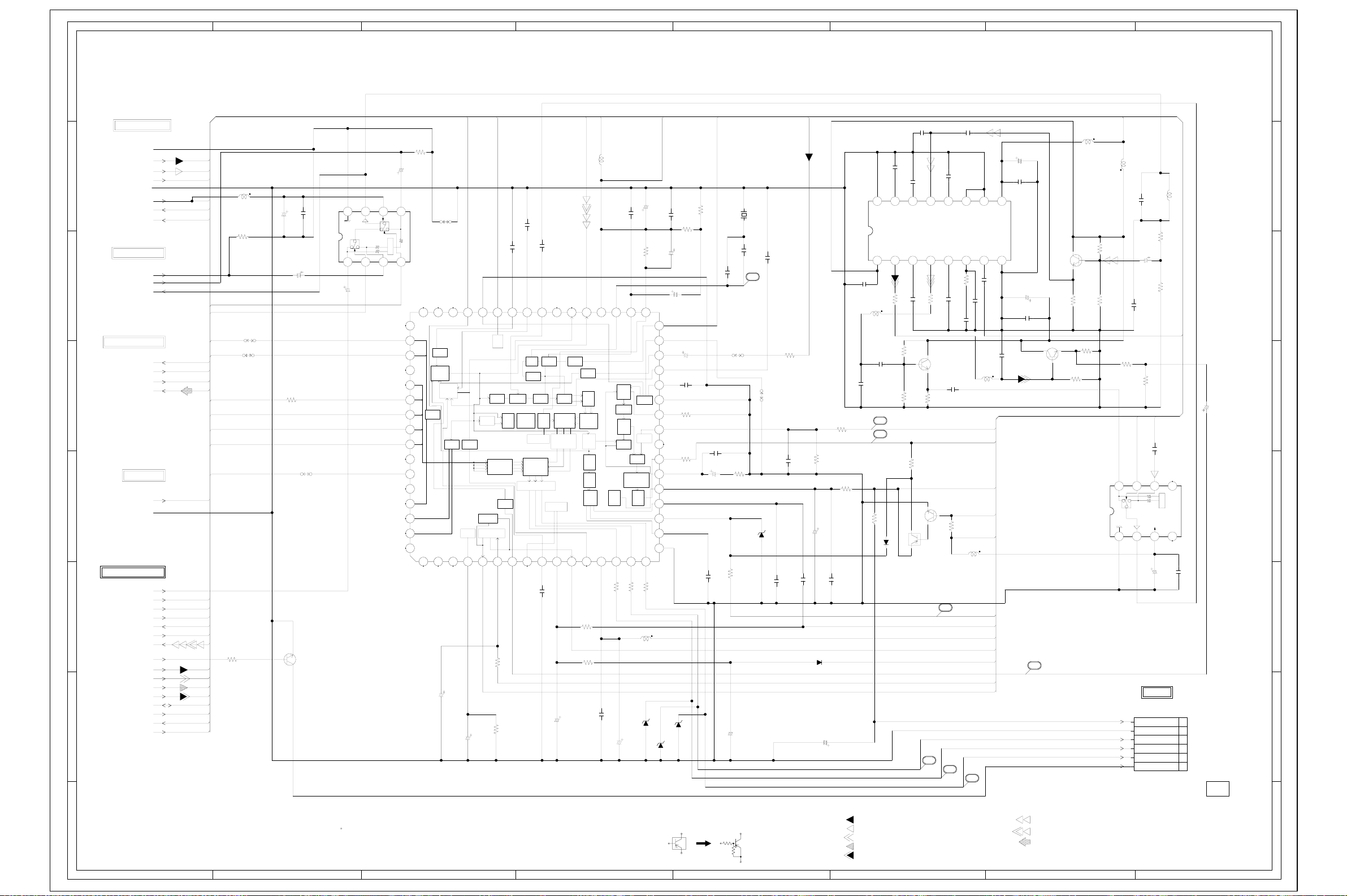

VIF/SIF/CHROMA SCHEMATIC DIAGRAM

8

FROM/TO REGULATOR1

NCNCNCNCNC

FSC

VIDEO_OUT2

L602_2

CLMP

AF SW

COLOP CLAMP

SYNC

SEP

VER SEP

VER C/D

VER

RAMP

R608

5.6K

R605

27K

P.CON+5V

C608

220uH

HOR VCC

R609 100

0.1 B

GND1

DVD_Y

7

6

5

4

3

2

DVD_C

P.CON+5V

GND

P.CON+9V

AT5.7VREG

8.5VREG

FROM/TO IN/OUT

REAR_VIDEO

FRONT_VIDEO

VIDEO_OUT

FROM/TO DEFLECTION

V.OUT

ACL

AFC

H.OUT

FROM POWER

UNREG+12V

GND

FROM/TO MICON/TUNER

TUNER_VIDEO

AV1

AV2

TV/DVD

HD

POWER_ON_H

VIDEO_OUT2

PROTECT

OSD_Y

OSD_B

OSD_G

OSD_R

SDA

SCL

SYNC_VIDEO

H_CONTROL

L4203

100uH 0305

4716V YK

C4221

0.01 F

C4219

R4220

75

C4213

2.250V KA

AV2

AV1

W827

SCL

W832

SDA

6.0

R630

1K 1/4W

0

W823

SW Q602 KTC3875S_Y_RTK

OSD_Y

OSD_B

OSD_G AFC

OSD_R

HD

R634

4.7K

BUFFER

VIDEO SW IC

IC4202 NJM2534V

1234

2.250V KA

C4239

CHROMA IC

IC601

LA76319NM-MPB-E

4.8 4.6 4.8

4.7

R4222

75

2.250V KA

C4218

4.69.03.90

5678

BAIAS

0 0 0 5.2 0 5.2 2.5 2.5 4.5 3.9 2.5 3.4 5.0 3.0 3.5 2.6

0

NC

49

5.2 50515253545556575859

5.2

0

NC

5.0

NC

5.2

3.4

BUS

3.4

0

NC

5.0

NC

6061626364

0.1

NC

2.6

NC

2.8

NC

0.2

NC

1101112 13 14 15 16

0 0 0 5.0 6.0 8.6 2.6 3.3 2.8 3.4 8.6 2.6 7.9 3.7 3.5 3.5

NC NC NC NC

CLMP

VIDEO

SW

2

C603

W888

AUDIO

SYNC_VIDEO

POWER_ON_H

C632

0.1 B

C631

C616

REG

SW

LPF

3

22016V YK

ATT

RST

C602

BPF

TRAP

CONTRAST

REG-SW

5V/8V-REG

5

R603

R602

150V KA

YC SN ACC

V/Y

SW

OSD

CLMP

6

7 89

330 1/2W

10K

0.1 B

VXD

APC1

TINT

CL

SHARPBSSG

DC REST

OSD

SW

ORIVE/OUT-OFF

NC

C607

0.1 B

MATRIX

CONTRAST

BRIGHT

ABL/ACL

0.1 B

C606

CEMO

RGB

150V KA

1/256

C609

HOR VCO

HOR C/D

AFC1

C624

C627 0.047 B

X-RAY

AFC2

PHASE

SHIFTER

HOR

OUT

R610 100

100uH 0305

D604

22016V YK

333435363738394404142434445464748

FBP

R611 100 R624

L601

(AV PCB)

P.CON+5V_B

2206.3V YK

C625

0.1 B R625

12K

150V KA

680K

C626

C628

0.4750V KA

3.2

0

C622

2.5

30 31 32

150V KA

2.5

C601

0

0.01 B

0

R619

1.7

4.7K +-1%

5.9

0.4 NC

R616

1.0

100 1/4W

2.7

5.2

2.4

20 21 22 23 24 25 26 27 28 29

2.9

3.0

0

17 18 19

D606

MTZJ12B

D605

MTZJ12B

R626

12K

C618

0.0056 B C619

150V KA

C611

FSC

0.47 MMTS

C630

C605

R612

8P CH

W818

R615

8.2K

X601

C629

100 1/4W

4.716V KANP

3.579545MHz

100DT3R531

8P CH

C621

28

W809

D607

0.1 B

MTZJ12B

C614

R622

C620

0.33 B

DVD_Y

1

IC1501 TC90A45FG

DIGITAL COMB FILTER IC

C1504

0.01 B

L1501

15uH 0305

390

R618

220 1/4W

2.2K

R617

100P CH

R613

100 1/2W

4.750V KA

C612_1

C617

C613

0.33 B

D603

1N4005-EIC

C634

150V KA

C1502

0.1 B

C1501

100P CH

33

34

R614

0.1 B

C1506

27P CH

C1505

0.01 B

C1507

0 2.4

SS

AV

DD

AV

5.4 3.8

220 1/4W

D609

0.01 B

2345678

VRB

VRTBIAS2

OUT

Y

1.4 4.2 3.6 2.2 2.5 0

100

R1505

C1508

0.01 B

5.0

6.8K

R1502

1.7

1.1

R1503

3.3K R1504

R627

680 1/4W

0

4.4

5.0

4.4

1SS133

9.0 SW

Q605

KRA102SRTK

C1509

ADIN

BIAS1

OUT

C

BIAS3

330

C1510

R1501

BUFFER

Q1501

KTC3875S_Y_RTK

C1520

0.1 B

1K

SW

Q601

KTC3875S_Y_RTK

5.0

R628

32

30

29

C1511

0.47 B

0.01 B

TEST

VFIL

820

R1506

0.01 B C1513

C1512

0.01 B

15uH 0305

H.OUT

P.CON+9V

H_CONTROL

10K

P.CON+5V

L4205

100uH 0305

P.CON+5V_B

P.CON+9V

8.5VREG

UNREG+12V

AT5.7VREG

31

10111213141516

C1515

180P CH

L1502

V.OUT

03.0 2.6 2.6 0 5.5

KILLER

CKIN

100P CH

ACL

C1518

C1519

0.01 B

DD

DV

SS

DV

9

C1514

56P CH

KTC3875S_Y_RTK

4706.3V YK

C1516

47016V YK

C1517

0.01 B

BUFFER

Q1502

L1503

820uH

KTC3875S_Y_RTK

2.5

5.4

1.9

1K

R1507

R1509

2.1

4.4

27

560

2.4

R1508

1.2K

L1504

BUFFER

Q1503

56K

R1510

27K

R1511

R1514

100 1/4W

1.3 4.8 1.3 0.3 1234

C_SW IC

IC4203 NJM2533V

P.CON+5V

150uH 0305

C1503

TV/DVD

CP802A

B2013H02-6P

C1524

C1521

KA

220P CH

R1515

L1505

220P CH

R1516

3.350V

R1512

680

DVD_C

C1525

0.1 B

BAIAS

VCC

0.3

476.3V KA

C4237

TO CRT

(CP802B)

CLAMP

GND

G.OUT

R.OUT

B.OUT

CLAMP_OFF

1K 1/4W

3.3K

NC

NC0 1.3 5.0

FSC

5678

1uH

C4238

150V KA

C604

0.1 F

1

2

3

4

5

6

PCB250 CME012

8

7

6

5

4

3

2

1

NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME

OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE

NOTE:THE DC VOLTAGE AT EACH PART WAS MEASURED

WITH THE DIGITAL TESTER WHEN THE COLOR BROADCAST WAS RECEIVED IN GOOD CONDITION AND PICTURE IS NORMAL.

CAUTION: DIGITAL TRANSISTOR

PLAYBACK LUMINANCE SIGNAL PLAYBACK COLOR SIGNAL

B.SIGNAL G.SIGNAL R.SIGNAL

TUNER VIDEO SIGNAL PLAYBACK VIDEO SIGNAL

DEFLECTION SIGNAL

1

ABC D E F GH

MD20F51/MD20F51C G-14G-13

ABC D E F GH

8

7

6

FROM/TO MICON/TUNER

SCL

SDA

A_MUTE

FROM POWER

SOUND+B

SOUND_GND

FROM REGULATOR1

GND

P.CON+12V

P.CON+9V

AT+5.6V

SOUND AMP SCHEMATIC DIAGRAM

(AV PCB)

SOUND AMP IC

IC351 AN5276

+

-

ATT. +

+

RIPPLE FILTER

CH1

NC

RF

IN IN

1 10111223456789

NC

W837W850

R353

10K 1/4W

W845

HS351

763WAA0225

C352

10035V MHE

GND

CH2

ATT.CONT.

NC

MUTE

C353

GND VCC

0.7 6.712.114.96.700000 0 13.9

100016V YK

2.250V YK

C354

OUT

STAND

R357

22K 1/4W

+

-

CH1CH2 OUT-BY

100016V YK

C355

C356

YK

47

16V

C357

100035V YK

R3551KR356

2.2K 1/4W

35

36

8

7

6

GNDPF4

RTRBBB

C312

Volume

Control

0.01 B

C313

C314_1

0.01 B

2.2K

S802Y

C315

1025V KA

C316_1

CP302

213213102W1

SP OUT R+

SOUND GND

1025V KA

C319_1

0.150V KA

NC NC

+

NC

TDBLD

1025V KA

C317_1

NC

20212223242526272829

NCNC

1025V KA

C318_2

R309

33K 1/4W

Balance /MUTE

4.34.04.2002.03.04.04.04.00.10.14.04.07.90.6

C321_1

L ONTVDBDLBLT

SCLSDAR OUT 171819

C322

1025V KA

R307

100 1/4W

100P CH

D301

1SS133

SW

Q301

KTA1504S_Y_RTK

0

5.0

3.9

C329

C330

0.0012 B

CP301

213213102W1

SP OUT L+

SOUND GND

0.0012 B

C3123806

1

2

1

2

CD302

1

2

CD301

C3123806

1

2

R CH SPEAKER

SP352

YDP4010-2

8 OHM

L CH

SPEAKER

FROM/TO IN/OUT

SP_OUT_L

SP_OUT_R

SOUND_GND

SP_OUT_L2

SP_OUT_R2

SP351

YDP4010-2

8 OHM

5

4

3

2

5

4.7K

R304

C310

FROM STEREO

A_OUT_L

A_OUT_R

4

R301

2.7K 1/4W

R303

2.7K

3

2

C306

4.7K

R306

0.001 B

51

50

L301

100uH 0405

1025V KA

C325_1

C324

0.033 B

4.0 1.6 4.0 0 0 3.9 4.0 4.0 0 4.0 4.0 0 0 4.0 4.1 4.0 1101112 13 14 15 16

PF1 AGC L IN

TONE_CONTROL IC

MODE

control

IC302 AN5891SA-E1V

C302_2

220K

R302

C307

0.015 B

C328

0.033 B

150V KA

C304_1

2

1025V KA

C303

4 56789

3

SURRAGC

+

R IN VrefVCC

303132

150V YK

C326_1

C308_2

22016V YK

C327

0.01 B

C309

0.033

Tone

Control

NCNC

B

PF3PF2

C323

0.150V KA

C311

150V KA

NCNC NC NC

NCNC

NC NC

1025V KA

PCB250 CME012

1

NOTE:THE DC VOLTAGE AT EACH PART WAS MEASURED

WITH THE DIGITAL TESTER WHEN THE COLOR BROADCAST WAS RECEIVED IN GOOD CONDITION AND PICTURE IS NORMAL.

NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME

OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE

CAUTION

:SINCE THESE PARTS MARKED BY

CRITICAL FOR SAFETY,USE ONES DESCRIBED IN PARTS LIST ONLY

ARE

ATTENTION

:LES PIECES REPAREES PAR UN ETANT

DANGEREUSES AN POINT DE VUE SECURITE N’UTILISER QUE CELLS DECRITES DANS LA NOMENCLATURE DES PIECES

AUDIO SIGNAL

AUDIO SIGNAL(PB)

TUNER AUDIO SIGNAL

1

ABC D E F GH

MD20F51/MD20F51C G-16G-15

8

7

FROM/TO STEREO

6

FROM/TO VIF/SIF/CHROMA

FROM REGULATOR1

5

4

FROM/TO MICON/TUNER

3

FROM/TO SOUND AMP

2

ABC D E F GH

R4203

C4201

W883

R4281

100

W896

4716V KA

R4282

100

W895

W882

W886

W887

W801

W842

W848

W889

W884

W890

W885

W891

W868

W880

W892

W869

D2201

R2201

5.0

5.0 0

R2225

330 1/4W

R2226

234

6

7

HEADPHONE_JACK

J2201

MSJ-2000_AG

LTL-1CHEE-002A

220

SW

Q2201

KRC103SRTK

SW2213

POWER ON/OFF

SW2214

CH DOWN

330 1/4W

5

R2214

820

EVQ21505R

R2215

820

1

OPEN/CLOSE

CH UP

CH

C2202

470P

C2203

SW2215

SW2216

1K

STOP

SW2217

EVQ21505R

SW2218

VOL UP

EVQ21505R

NC NC

HNC

2

1

E

FRONT VIDEO JACK

J2202 MTJ-032-05A-30-FE

YELLOW

R2218

1.5K

EVQ21505R

1.5K

3

R2216

R22171KR2219

CH

470P

OS2202

PIC-37243SR

Vout

1

B+

2

GND

3

R2220

2.7K

PLAY

SW2219

EVQ21505R

SW2220

VOL DOWN

EVQ21505R

HNC

3

2

1

E

FRONT AUDIO JACK

J2203 MTJ-032-05A-32-FE

R2221

5.6K

SW2221

SKIP FF

EVQ21505R

HNC

23

1

E

FRONT AUDIO JACK

J2204 MTJ-032-05A-31-FE

REDWHITE

SKIP REW

SW2223

EVQ21505R

8

7

6

5

AOUDIO_OUT_L

AUDIO_OUT_R

DVD_AUDIO_L

DVD_AUDIO_R

FRONT_A_IN_L

FRONT_A_IN_R

REAR_A_IN_L

REAR_A_IN_R

REAR_VIDEO

FRONT_VIDEO

VIDEO_OUT

P.CON+5V_A

P.CON+5V

SPDIF-134

AT+5.6V

P.CON+12V

DVD_A_OUT_L

DVD_A_OUT_R

ZERO

P.CON+9V

GND

DVD_VIDEO

L4202

100uH 0305

S808Y

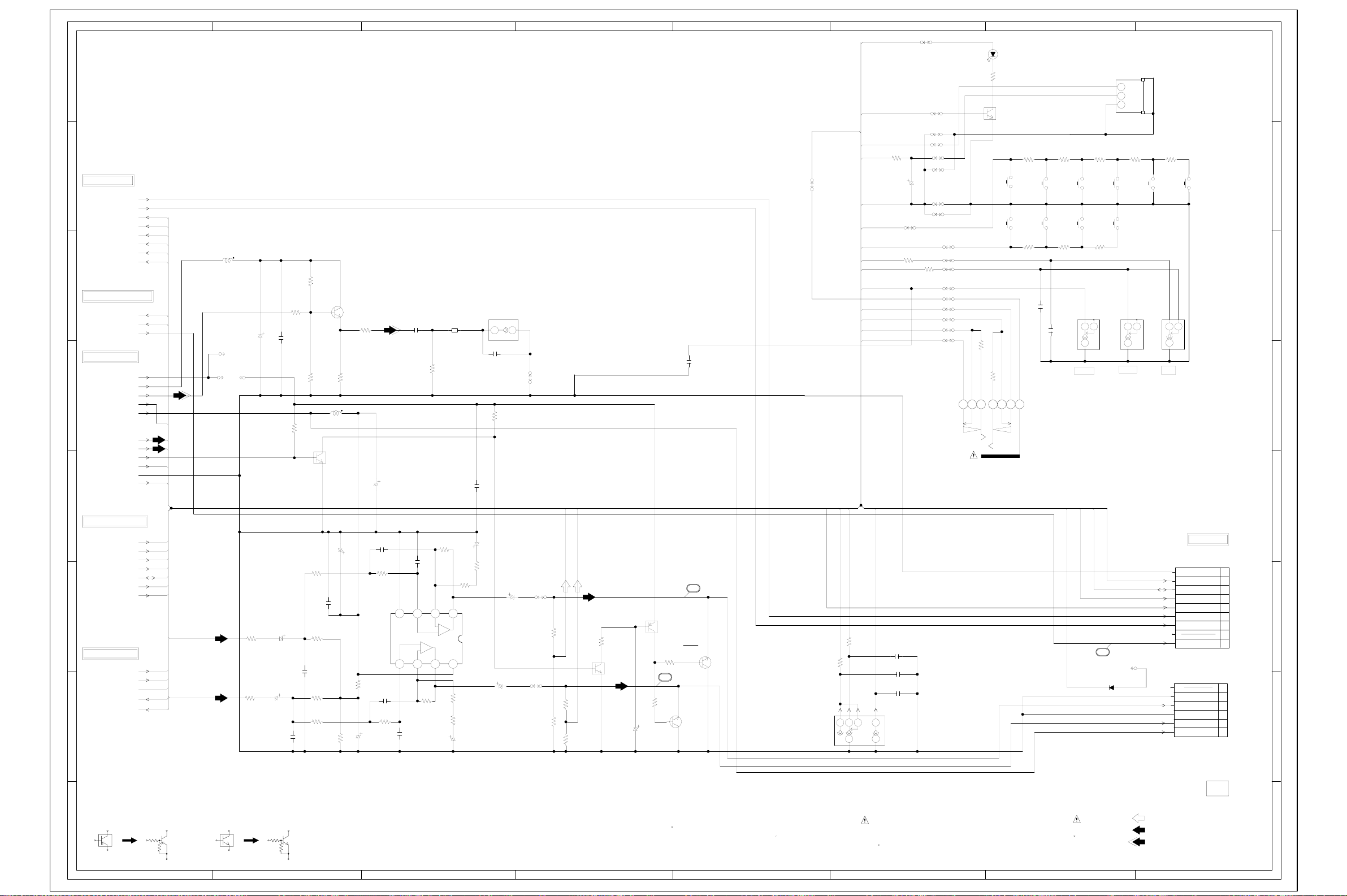

IN/OUT SCHEMATIC DIAGRAM

AT+5.6V

(AV PCB)

POWER_ON_H

SOUND_GND

REMOCON

AT+5.6V

100 1/4W

W825

GND

KEY_A

KEY_B

FRONT_A_IN_R

FRONT_A_IN_L

R4241

1.5K

4.9

1.6

R4210

100uH 0305

MUTE DET Q4203 KRC104SRTK

D AUDIO DRIVER

KTC3875S_Y_RTK

R4216

1.2

220

Q4201

68

C4203

C4215

0.1 B

10016V YK

W5RH3.5X5X1.0

R4221

100K

B4201

R4205

2.2K 1/4W

10010V YK

C4204_1

C4205

0.022 B

S801XS801Y

3.3K

R4242

L4201

4.7K

R4204

0

2.9 0

COAXIAL

J4201

MSP-251V-05NI-FE-LF

2

H

C4224

100P CH

10K

R4243

C4233

220P CH

1

E

C4273

W820

150P CH

FRONT_VIDEO

SP_OUT_R2

SP_OUT_R

SP_OUT_L

SP_OUT_L2

4

SCL

SDA

I2C_OFF

KEY_A

KEY_B

POWER_ON_H

SCL

SDA

REMOCON

I2C_OFF

SP_OUT_L

SP_OUT_R

SOUND_GND

SP_OUT_L2

SP_OUT_R2

DVD_A_OUT_L

DVD_A_OUT_R

R4201

10K

R4202

10K

C4206

C4207

2.250V KA

C4210

C4212

820P CH

R4208

10K

R4211

100K

820P CH

R4212

100K

R4213

10K

C4216

C4217

0.1 B

R4219

1K

10016V YK

C4220

0.0015 B

R4224

10K

0

A_GND

AMP IC

IC4201 NJM4580M(TE1)

5678

5.2 5.2 5.2 10.4 0

1K

R4218

C4222

0.0015 B

R4223

10K

3310V KA

C4214

C4225

R4229

12K

C4226

100P CH

5.2 5.2 5.2

+

-

R4228

12K

100P CH

R4232

R4233

C4230

2.250V KA

C4229

1K

R4230

R4231

10K

1234

VCC

10K

1K

2.250V

KA

C4231

2216V KA

C4232

2216V KA

W834

W821

R4251

R4236

DVD_AUDIO_L

DVD_AUDIO_R

100 1/4W

1/4W

R4252

100

10K

R4237

5.2

0

MUTE SW.

Q4210

KRA101SRTK

R4238

3.3K

MUTE SW.

KRC103SRTK

0

5.2

Q4209

C4234

P.CON+9V

REAR_A_IN_L

37

5.2

R4240

R4239

1K

38

1K 1/4W

0

MUTE SW

Q4212 KTC3875S Y_RTK

MUTE SW

Q4211 KTC3875 S_Y_RTK

0

REAR A/V JACK(STEREO)

J4203

MSP-213V2-432_NI_LF

R4217

0

4.750V KA

REAR_VIDEO

REAR_A_IN_R

R4215

100 1/4W

C4228

H1NCH1H2

0.0056 B

100P CH

6

5

100

234

1

EE

C4235

C4236

DVD_VIDEO

39

(W155)

1SS133

D2205

S809Y

NC

TEST POINT

A2001WV2-9P

GND

I2C SCL

I2C SDA

I2C OFF

P.CON+9V

AUDIO OUT L

AUDIO OUT R

VIDEO OUT

A2001WV2-6P

GND

DVD_AUDIO_L

GND

DVD_AUDIO_R

P.CON+12V

CP101

CP4201

1

2

3

4

5

6

7

8

9

1

2

3

4

5

6

3

2

CAUTION: DIGITAL TRANSISTOR

1

PCB250 CME012

CAUTION: DIGITAL TRANSISTOR

NOTE:THE DC VOLTAGE EACH PART WAS

MEASURED WITH THE DIGITAL TESTER DURING PLAYBACK.

NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME

OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE

ATTENTION

:LES PIECES REPAREES PAR UN ETANT

DANGEREUSES AN POINT DE VUE SECURITE N’UTILISER QUE CELLS DECRITES DANS LA NOMENCLATURE DES PIECES

CAUTION

:SINCE THESE PARTS MARKED BY

CRITICAL FOR SAFETY,USE ONES DESCRIBED IN PARTS LIST ONLY

ARE

AUDIO SIGNAL AUDIO SIGNAL(PB)

DIGITAL AUDIO SIGNAL(PB)

1

ABC D E F GH

MD20F51/MD20F51C G-18G-17

ABC D E F GH

STEREO SCHEMATIC DIAGRAM

8

7

6

5

FROM MICON/TUNER

DVD_RESET

S807X S807Y

C944

(AV PCB)

1234

R CH SW IC

IC905 NJM2533V

0 5.6 12.0 0.3

1025V KA

C946_1

L904

100uH 0305

100 1/4W

40

41

42

4716V YK

0.1 F

C945

100

R912

R911

100

R909

R908

270

NC

6.4 0.306.3

BAIAS

1025V KA

C947_1

C923_1

1025V KA

C954_1

12.05.60

6.406.3

C955_1

C924_1

1025V KA

NC

0.3

BAIAS

VCC

5678

0.3 NC

FROM/TO MICON/TUNER

TV/DVD

TUNER_AUDIO

SCL

SDA

TO SOUND AMP

A_OUT_L

A_OUT_R

5678

NC

1234

L CH SW IC

1025V KA

IC906 NJM2533V

VCC

8

7

6

5

C950

C920

0.001 B

R916

270 1/4W

4

S809X

W902W900

DVD RESET SW

Q902

DTC124EKA

0.2 5

0

W903

Matrix

SOUND DECORDER IC

IC902 AN5829S

1 101112

3

S808X

C943

C941

2

2.250V KA

R910

220K

C921

0.001 B

C907

C933

C932

Cancel

Pilot

St.PLL

Filter

Wide Band

Expand

Spectral

C934

0.3350V KA

Filter Stereo

0.047 B

C935

0.1 B

Det

Pilot

Filter Noise

Filter

Spectral

RMS Det

Spectral

0.022 B

3.350V KA

C936

2.250V KA

C922

NC

2.2 2.2 2.2 2.2 4.2 4.4 3.4 2.2

OUT SW

AGC

De-Emph

75us

Cancel Offset

Expand

Cancel

Wide Band

Offset

3456789

2

1.0 2.2 2.3 2.4 0.7 5.1 2.6 2.6 0.6 2.2 3.62.2

C952

0.001 B

4.750V KA C953

0 0 3.7

2021222324

DAC

ZAP

Switch

L-R Filter L-R Demod

(L-R)/SAP

Filter SAPout

Wide Band

4.750V KA

C925

C926

0.001 B

IIC Decoder

fH.2fH Trap Filter

RMS Det

C928_1

4.750V KA

L+R DemodL+R Filter

1025V KA

C929

GND

dbx De-Emph

Vcc

0.1 B

C937

Input

4.750V KA

R913

2.7M

C938

0.1 B

3.4

13141516171819

Det

VCA

SAP

Filter

SAP

Demod

SAP

Det

Noise

C939

0.1 B

C931_1

L902

100uH 0305

10010V YK

0.1 B

FROM/TO IN/OUT

AOUDIO_OUT_L

AUDIO_OUT_R

REAR_A_IN_L

REAR_A_IN_R

DVD_AUDIO_L

DVD_AUDIO_R FRONT_A_IN_R FRONT_A_IN_L

FROM REGULATOR1

P.CON+5V

P.CON+12V

4

3

2

GND

C951

2.250V KA

PCB250 CME012

NOTE:THE DC VOLTAGE AT EACH PART WAS MEASURED

1

WITH THE DIGITAL TESTER WHEN THE COLOR BROADCAST WAS RECEIVED IN GOOD CONDITION AND PICTURE IS NORMAL.

NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME

OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE

CAUTION: DIGITAL TRANSISTOR

TUNER AUDIO SIGNAL AUDIO SIGNAL

1

AUDIO SIGNAL(PB)

ABC D E F GH

MD20F51/MD20F51C G-20G-19

ABC D E F GH

8

7

6

5

4

3

2

FROM/TO VIF/SIF/CHROMA

V.OUT

ACL

AFC

H.OUT

FROM REGULATOR1

GND

P.CON+5V

TO MICON/TUNER

VD

X-RAY

+30V

FROM POWER

+B

UNREG+12V

GND

D408

MTZJ33B

R404

56K 1/2W

R405

56K 1/2W

R424

3.9K 1/4W

CURRENT DET.

W841

Q401

2SA1624

V.OUTPUT IC

IC401 LA78040N-E

AMP

+

PUMP UP

Vcc GND

1234567

3.9 25.5 1.3 0 12.9 24.8 3.9

10035V MHE

D401

11E1-EIC

C406

C435_1

W914

W916

135.0

0.47 2W

C401

4.7250V YK

R408

0.001 B

R409

22K 1/4W

47K 1/4W

R406

C404

R420

2.2K

150V MHE

D414

1N4005-EIC

R410

R412

8.2K 1/4W

0

135.0

THERMAL PROTECTION

HS401

763WAA0237

14.3

0

H-DRIVE Q405 KTC3227_Y

0

C410_1

5.6K 1/4W

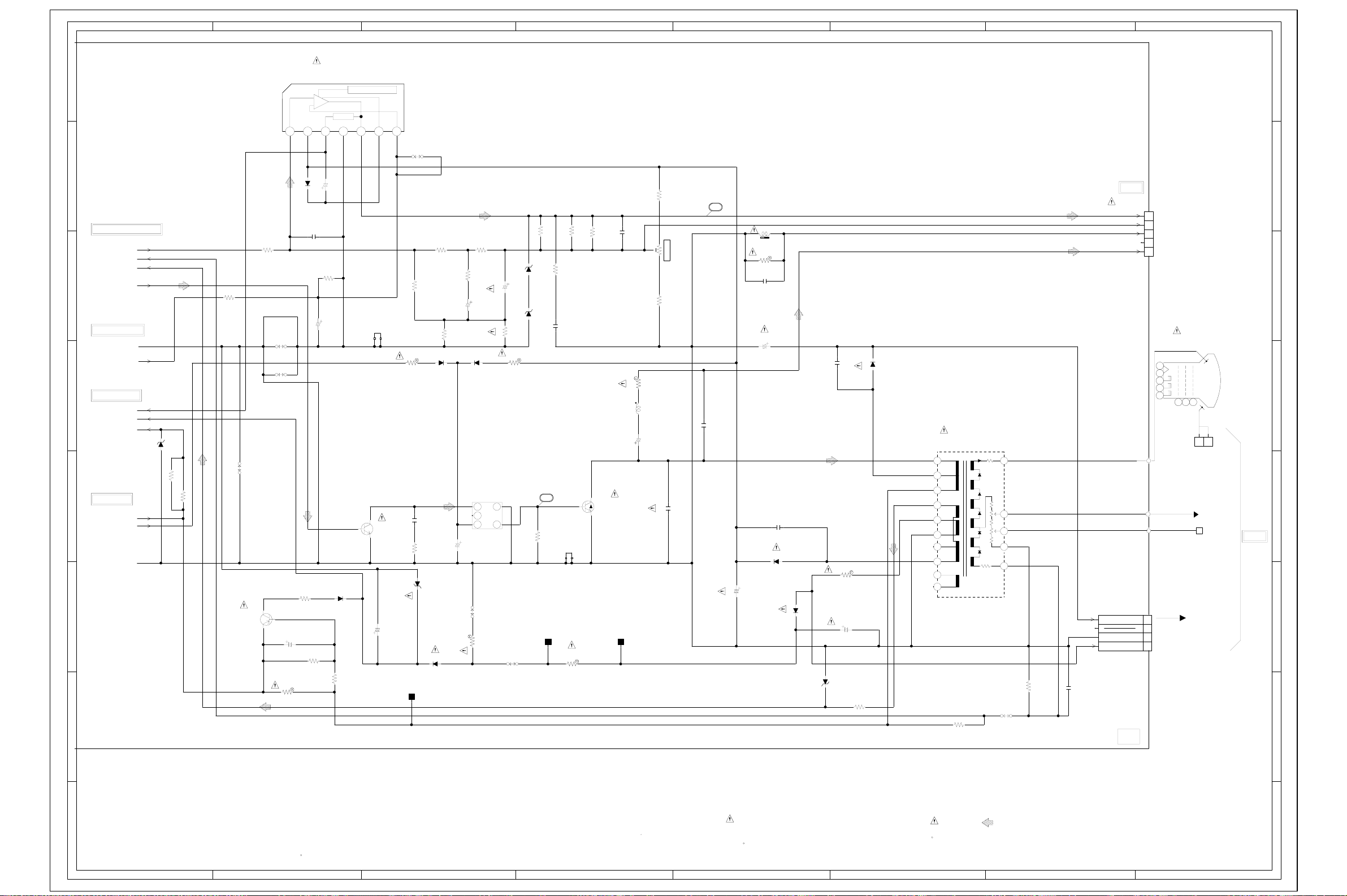

DEFLECTION SCHEMATIC DIAGRAM

8

(AV PCB)

W843

7

A1561WV2-A5P

CP803A

B2013H02-4P

180V

GND

HEATER

TO DY

CP401

(CP803B)

PCB250 CME012

5

4

3

2

NC

1

6

V801

A51LYZ095X80

9

10

R

8

G

6

B

11

4

3

2

1

FOCUS

SCREEN

175

CD801_1 CH823004

12

(CP801)

5

4

TO CRT

3

2

1/2W

R421

680

MKT

R417

R422

R413_1

27K 1/4W M +-1%

R411_1

10K 1/4W M +-1%

R415

R401

D406

180 2W

1SS133

0.01100V MMTS

C417

R456

470 1/2W

D416

MTZJ5.1B

KA

10

25V

D409

1SS133

TP401

1.8 1/2W

C418

R414

C405

0.2

22.3

47K 1/4W

D405

1SS133

NC

2250V MHE

W851

R444

R416

820 1/4W

0.4750V YK

T401

ETH14Y47AY

45

3

5.6K M +-1%

C407

R418

R402

220 2W

031.0

12

1.3

W840

220025V YK

1.5 1/2W

560 1/2W

D403

R467

MTZJ33B

D404

MTZJ33B

C434_1

44

R460

100 1/4W

TP402 TP403

1/2W

1

0.22100V MKT

247.6

1.3

HS402

763WSAA021

R445

39K M +-1%

560 1/2W

R419

0

C411_1

560 1/2W

H.OUTPUT

Q406

2SD2499(LBOEC1)

0.22100V

L401

R447

C422

68 1/2W

4.7mH

2.2250V MHE

0909

R407

C428

V.POSI

1/2W

1K

VR402

0.0131.25KV MPP

METAL

2.2K

C423

43

0.39250V PMS

C421

L402

ELH5L4112N

R426

1K 1W C450_1

0.0012KV RR

C431

47035V MHE

22250V YK

1N4937

C429

0.0022500V B

D411

D402

1N4937

D410

C430

0.001500V B

R450_1

2.2 1W

C402

MTZJ6.8B

22100V YK

R423

12K 1/4W

D413

1N4937

272.0

113.8

110.4

25.0

14.0 NC

NC

FB401 FJN20A003_M

COL

1

E180

6

B+

2

AFC

0

9

HEA

0

TER

10

GND

8

E12

4

E27

3

GND

8

E8

5

R453

220K 1/2W

HV

F

S

GND

0

11

ABL

2.7

7

180V

NC

HEATER

C432_1

0.1100V MKT

W836

R430

56K 1/2W

NOTE:THE DC VOLTAGE AT EACH PART WAS MEASURED

WITH THE DIGITAL TESTER WHEN THE COLOR BROADCAST

1

WAS RECEIVED IN GOOD CONDITION AND PICTURE IS NORMAL.

NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME

OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE

THE RESISTOR MARKED F IS FUSE RESISTOR.NOTE: THE ALUMI ELECTROLYTIC CAPACITOR MARKED NP IS NON POLAR ONE.

ATTENTION

:LES PIECES REPAREES PAR UN ETANT

DANGEREUSES AN POINT DE VUE SECURITE N’UTILISER QUE CELLS DECRITES DANS LA NOMENCLATURE DES PIECES

CAUTION

:SINCE THESE PARTS MARKED BY

CRITICAL FOR SAFETY,USE ONES DESCRIBED IN PARTS LIST ONLY

ARE

DEFLECTION SIGNAL

1

ABC D E F GH

MD20F51/MD20F51C G-22G-21

ABC D E F GH

8

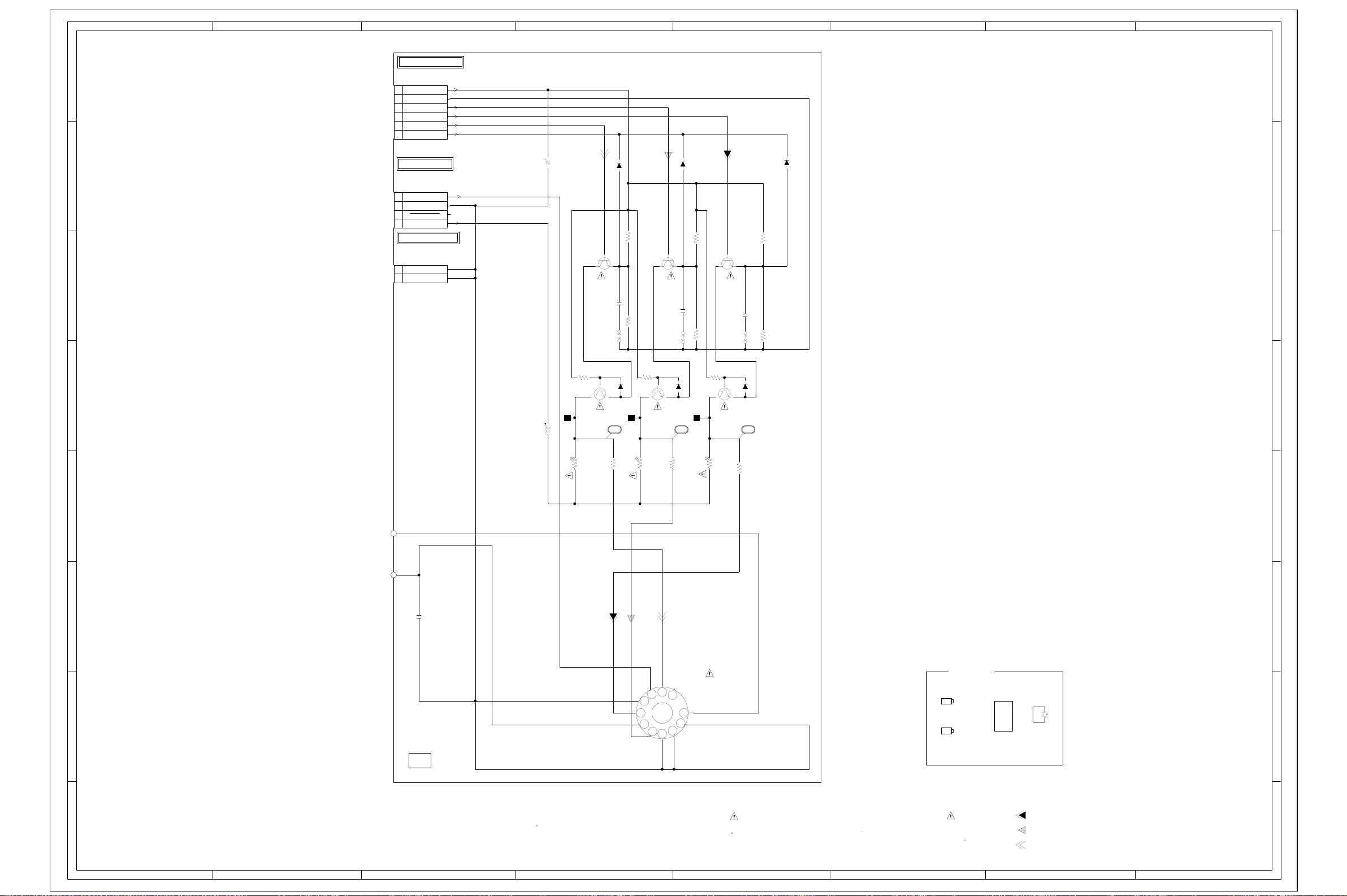

CRT SCHEMATIC DIAGRAM

(CRT PCB)

7

6

5

FROM VIF/SIF/CHROMA

(CP802A)

CP802B B2013H02-6P

1

CLAMP

2

GND

3

G.OUT

4

R.OUT

5

B.OUT

6

CLAMP_OFF

FROM DEFLECTION

CP803B

(CP803A)

B2013H02-4P

1

HEATER

2

GND

3

4

180V

FROM/TO DEFLECTION

CP801

(CD801_1)

A2361WV2-2P

1

GND

2

GND

8

150V KA

C803

NC

180V

L801

150uH 0607

TP022

R803

R801

122.8

BLUE OUT

100.6

BLUE OUT

Q801

KTC3199_Y

560

Q804

2SC4217

2W

12K

D804

1SS133

1.8K

R809

3.2

2.7

C811

330P CH

220

R813

W859

R808

7.3 D801

125.1

1SS133

6.9

TP023

1/4W

R802

R807

2.7K

3.2

98.4

GREEN OUT

KTC3199_Y

560

7.3

GREEN OUT

Q805

2SC4217

2W

12K

Q803

R806

D802

D805

C810

W860

2.7K 1/4W

1SS133

180P CH

R816

1SS133

TP024

R814 1.8K

220

127.6

R805

3.2

95.42.7

RED OUT

KTC3199_Y

R810

560

RED OUT

2SC4217

2W

12K

Q802

Q806

2.7

C809

W861

7.3 D803

6.96.9

474645

R804

2.7K 1/4W

R811

270P CH

R815

1SS133

1.8K

220

D806

1SS133

7

6

5

4

FOCUS

SCREEN

CP806

3

2

NOTE:THE DC VOLTAGE AT EACH PART WAS MEASURED

1

WITH THE DIGITAL TESTER WHEN THE COLOR BROADCAST WAS RECEIVED IN GOOD CONDITION AND PICTURE IS NORMAL.

NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME

OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE

C802

PCB110 CCE012

0.00222KV B

ACCESSORY

121

CAUTION

119

6.2

10

0

9

8

0

7

6

11700

:SINCE THESE PARTS MARKED BY

CRITICAL FOR SAFETY,USE ONES DESCRIBED IN PARTS LIST ONLY

CRT SOCKET

NC

11

5

J801

ISHS53S

124

0

F

0

1

ARE

ATTENTION

:LES PIECES REPAREES PAR UN ETANT

DANGEREUSES AN POINT DE VUE SECURITE N’UTILISER QUE CELLS DECRITES DANS LA NOMENCLATURE DES PIECES

UM4

BT001

GR03X-SP2

UM4

BT002

GR03X-SP2

TM101

ORT204N7404359-U

BL001 HPN-01

R.SIGNAL

G.SIGNAL

B.SIGNAL

4

3

2

1

ABC D E F GH

MD20F51/MD20F51C G-24G-23

ABC D E F GH

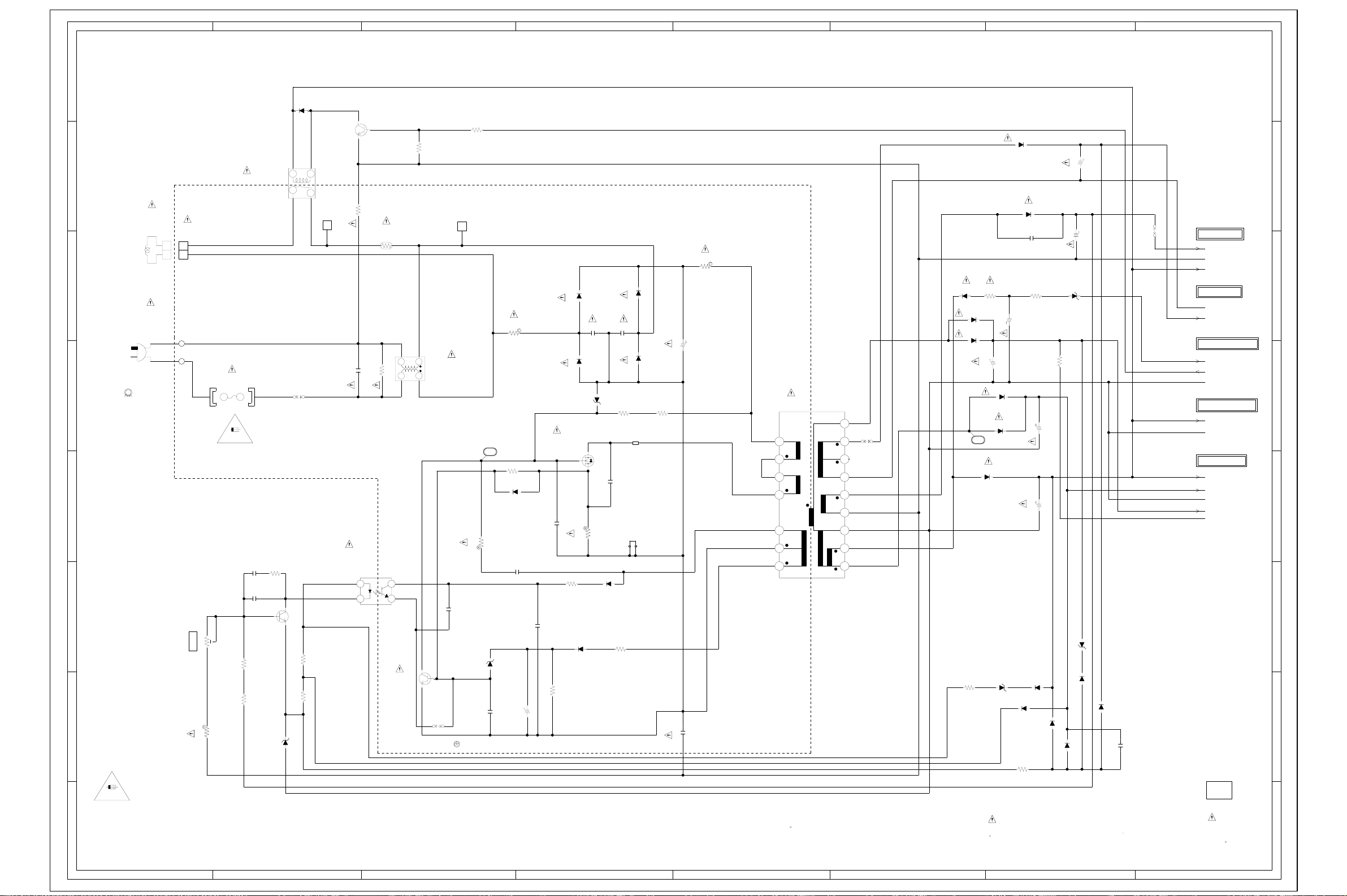

POWER SCHEMATIC DIAGRAM

8

D3805

1SS133

(LKS1af-12V)

7

DEGAUSS COIL

L3800

8R200024

21

CP3800 A1561WV2-2P

2

1

RY3800

ALKS321

12

3

4

PH3801

003P-2100

1

0.2

0

R3806

RELAY DRIVE

0.6

Q3801

KTC3198

2.7M 1/2W +-10%

TH3800

B59203-S1060-B14

R3810

10K 1/4W

PH3800

003P-2100

R3814

10K 1/4W

1

6

POWER Q3803

2SK3326(2)

C3814

330 1/4W

0.01 B

R3822

1K 1/2W

D3808

D3809

6.3

0.001500V B

R3833

1N4937

AC120V_60Hz

CD3800

09414909

WIDE

MLADE

5

L3803

W5T_20X10X10A

WHITE

BLACK

S3802

WHITE

S3801

BLACK

FH3800

EYF-52BCY

F3800

51MS050L

5A125V

5A 125V

FH3801

EYF-52BCY

W808

C3801

0.22275V ECQUL

R3803

1.5M 1/2W

34

COIL,LINE FILTER

SS28V-R20130

12

L3801

4

C3804

R3812

0.001500V B

IS THE LIVE CONNECTIONCAUTION:

FEED BACK

IC3800

R3804

R3805

MTZJ5.6B

PS2561AL1-1-V(W)

330 1/4W

1K 1/4W

7.3

6.3

13.6

1

0.4

2

34

6.3

BUFFER

Q3802

KTC3203_Y

0.4

0

W802

C3817

R3808

0.022 B

10K

C3809

6.3

0.012 B

3

METAL

+B ADJ

VR3800

470

FEED BACK SWITCHING

R3801

R3802

Q3800

KTC3198

6.8K 1/4W

56K 1/2W

6.0

5.4

2

R3800

3.3K +-1%

5A 125V

D3801

48

D3804

C3806

330 1W

R3817

17W

R3816

1K 1/4W

1SS133

MTZJ18B

0.01 B

D3812

C3807

0.047100V MMTS

C3808_1

C3805

1025V KA

0.0022

G

R3821

D3807

RM11C-EIC

C3810

500V

B

RM11C-EIC

D3810

240

D

S

0

0.22 1W

D3806

1SS133

MTZJ18B

C3811_1

(AV PCB)

D3815

RM11C-EIC

C3812

500V

0.0022

B

D3816

RM11C-EIC

R3826

1.2M 1/4W

R3825

100 1/2W

1.2M 1/4W

B3800

W4BRH3.5X6X1.0X2

820P2KV RR

HS3800

763WAA0222

R3827

C3815

C3816

R3828

0.22 1W

470200V UP

0.0047250V KX (2200PF)

16.0

D3823

30PRA60-FC

220025V MHE

C3827

D3821

RU3AM-EIC

C3824

330P2KV R

D3818_1

R3829

100 1/4W

1N4937

D3824

21DQ09N

D3817

21DQ09N

C3818

R3813

49

D3820

21DQ09N

D3819

21DQ09N

D3830

21DQ09N

MTZJ3.9B

T3800

81390314

168

8

P2

168

7

168

6

P1

168

5

3

P4

0

2

P3

1

4.5V

135V

4.0

10

4.1 W870

5V

11

8.7

SB

12

NC

0

SG

13

135

14

0

HG

15

0

LG

16

14.2

12V

17

8.2

8V

18

100 1/4W

D3831

C3820

330016V MHE

100 1/4W

1050V YK

D3822

1SS133

R3831

R3830

1K 1/4W

C3822

C3823

D3802

1SS133

100016V MHE

100025V MHE

D3826

R3809

1SS133

D3825

MTZJ12B

33K 1/4W

D3827

C3826

D3828

D3811

1SS133

220200V EZ

MTZJ2.2B

1SS133

D3803

1SS133

C3803

W807

270P CH

TO DEFLECTION

+B

GND

UNREG+12V

TO SOUND AMP

SOUND_GND

SOUND+B

FROM/TO MICON/TUNER

POWER_FAIL

DEGAUSS_H

GND

TO VIF/SIF/CHROMA

UNREG+12V

GND

TO REGULATOR1

UNREG+12V

UNREG+8V

GND

UNREG+5V GND_A

PCB250 CME012

8

7

6

5

4

3

2

ATTENTION

1

CAUTION

:POUR UNE PROTECTION CONTINUE LES RISQUES D’INCEIE

N’UTILISER QUE DES FUSIBLE DE MEME TYPE

:FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,

REPLACE ONLY WITH THE SAME TYPE FUSE

5A 125V(F3800).

NOTE:THE DC VOLTAGE AT EACH PART WAS MEASURED

WITH THE DIGITAL TESTER WHEN THE COLOR BROADCAST WAS RECEIVED IN GOOD CONDITION AND PICTURE IS NORMAL.

NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME

OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE

CAUTION

:SINCE THESE PARTS MARKED BY

CRITICAL FOR SAFETY,USE ONES DESCRIBED IN PARTS LIST ONLY

ARE

ATTENTION

:LES PIECES REPAREES PAR UN ETANT

DANGEREUSES AN POINT DE VUE SECURITE N’UTILISER QUE CELLS DECRITES DANS LA NOMENCLATURE DES PIECES

1

ABC D E F GH

MD20F51/MD20F51C G-26G-25

ABC D E F GH

8

LOADING MOTOR/SW SCHEMATIC DIAGRAM

7

6

5

(SW PCB)

(LOADING MOTOR PCB)

7

6

5

SW1

SW2

CD2301 2H062102

1 GND(SW) 2

PICK UP INNER LIMIT SWITCH

3

FEED MOTOR (-)

4

FEED MOTOR (+)

5

SPINDLE MOTOR (-)

6

PCB640 DED002

SPINDLE MOTOR (+)

4

ESE22MH24

M2602

M

BCZ3B03

M2601

M

JCV9B06

CD2302 2H052601

PCB610 DED003

5 4

3 2 1

SW-2(CLOSE)

GND(SW)

SW-1(OPEN) LOADING MOTOR(+) LOADING MOTOR(-)

3

2

SSS-13-2

M2603

M

BCZ3B52

4

3

2

1

G-27

NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME

OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE

1

ABC D E F GH

MD20F51/MD20F51C G-28

ABC D E F GH

INTERCONNECTION DIAGRAM

8

COMMAND TRANSMITTER

TM101

SP351

8 OHM

7

L CH

CD301

SPEAKER

1

CP301

SP OUT L+

2

SOUND GND

6

5

4

FBT

FB401

FOCUSSCREEN

3

FOCUS

CP806

SCREEN

9

8

7

1

CP801

GND

2

GND

CD801_1

2

10

6

CP802B

SP352

R CH

SPEAKER

1

CD302

1SP OUT R+

CP302

1

CP803A

HEATER

11

12

J801

CRT SOCKET

4

5

12345

GND

CLAMP

8 OHM

2

SOUND GND

2

GND

NC

CD803

F

1

G.OUT

R.OUT

3

CP803B

B.OUT

4

180V

GND

HEATER

1

2

6

CLAMP_OFF

NC

3

CRT PCB

PCB110 CCE012

CP401

180V

4

H1NCH1H2

2 34

1

EE

REAR A/V JACK(STEREO)

J4203

1

234

5

NC

V801

OS2202

Vout

1

GND

2

B+

3

CP8001

GND

1

GND

2

TX

3

RX

4

GND(M)

GND

SPDIF

CVBS

GND

C(CVBS)

GND

Y(G)

GND

AUDIO-L

GND

AUDIO-R

ZERO

DVD RESET

GND

CP8002

CP3800

S3802

S3801

5

6

7

8

9

10

11

12

11

10

9

8

7

6

5

4

3

2

1

DEGAUSS COIL

1

2

9

8

7

6

5

4

3

2

1

21

CD8002 CD8101

L3800

WHITE

BLACK

FFC

L3803

P.CON+9V

P.CON+5V

P.CON+3.8V

TU001

18

19

1

NC

2

NC

3

+B

4

NC

5

NC

6

NC

7

NC

8

NC

9

NC

CLOCK

10

DATA

11

AFT OUT

12

AUDIO

13

OUT

SIF OUT

14

BT

15

IF OUT

16

VIDEO

17

OUT

20

21

DVD PCB

PCB130 DMD020

L4002

CD4002

GND

1

GND

2

TX

3

RX

4

GND(M)

5

P.CON+9V

6

P.CON+5V

7

P.CON+3.8V

8

P.CON+3.8V

9

GND

10

SPDIF

11

CP8101_2

1

CVBS

1

2

3

4

5

6

7

8

9

10

11

12

2

3

4

5

6

7

8

9

10

11

12

WIDE

BLADE

GND

C(CVBS)

GND Y(G)

GND

AUDIO-L

GND

AUDIO-R

ZERO

DVD RESET

GND

AC120V_60Hz

CD3800

GND(PDIC)

VREF

VCC

E

F

D

A

B

C

RF

GND(NC)

MON(COM)

GND(CD)

VOL(CD)

LD(CD)

LD(DVD)

GND(DVD)

VOL(DVD)

NC(SW)

MON(DVD)

F+

F-

T+

T-

CLOSE

GND(D)

OPEN

LD+

LD-

SP1+

SP1-

SLD+

SLD-

LIMIT SW

SW(GND)

CP2301

CP2302

CP2303

FFC

24

23

22

21

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

FFC

1

2

3

4

5

1

2

3

4

5

6

GND(PDIC)

24

VREF

23

VCC

22

21

20

19

18

17

16

15

14

13

12

11

10

1

2

3

4

5

E

F

D

A

B

C

RF

GND(NC)

MON(COM)

GND(CD)

VOL(CD)

LD(CD)

LD(DVD)

9

GND(DVD)

8

VOL(DVD)

7

NC(SW)

6

MON(DVD)

5

4

F+

3

F-

2

T+

1

T-

CLOSE

GND(D)

OPEN

LD+

LD-

SP1+

SP1-

SLD+

SLD-

LIMIT SW

SW(GND)

DVD DRIVE DK4001

CV_VLM102

DM3S/3O

OPTICAL PICK-UP

SPINDLE MOTOR

LOADING MOTOR

SLED MOTOR

987

DVD_VIDEO

VIDEO_OUT

1

5

NC

234

6

I2C SCL

321

I2C SDA

I2C OFF

7

HEADPHONE_JACK

645

P.CON+9V

AUDIO OUT R

AUDIO OUT L

J2201

FRONT VIDEO JACK

CP802A

CLAMP

GND

G.OUT

R.OUT

B.OUT

CLAMP_OFF

AV PCB PCB250 CME012

HNC

2 3

1

E

YELLOW

J2202

1

2

3

4

5

6

H

6

5

ANODE

H.V

CRT

2

1

E

COAXIAL

J4201

HNC

2 3

1

WHITE RED

FRONT AUDIO JACK

J2203

1

CP4201

GND

DVD_VIDEO

DVD_AUDIO_L

E

GND

DVD_AUDIO_R

FRONT AUDIO JACK

65432

P.CON+12V

HNC

2 3

1

E

J2204

CP101

GND

8

7

6

5

4

3

2

1

OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE

THE TIMETHIS INTERCONNECTION DIAGRAM IS THE LATEST ATNOTE:

ATTENTION

:LES PIECES REPAREES PAR UN ETANT

DANGEREUSES AN POINT DE VUE SECURITE N’UTILISER QUE CELLS DECRITES DANS LA NOMENCLATURE DES PIECES

CAUTION

:SINCE THESE PARTS MARKED BY

CRITICAL FOR SAFETY,USE ONES DESCRIBED IN PARTS LIST ONLY

ARE

1

ABC D E F GH

MD20F51/MD20F51C G-30G-29

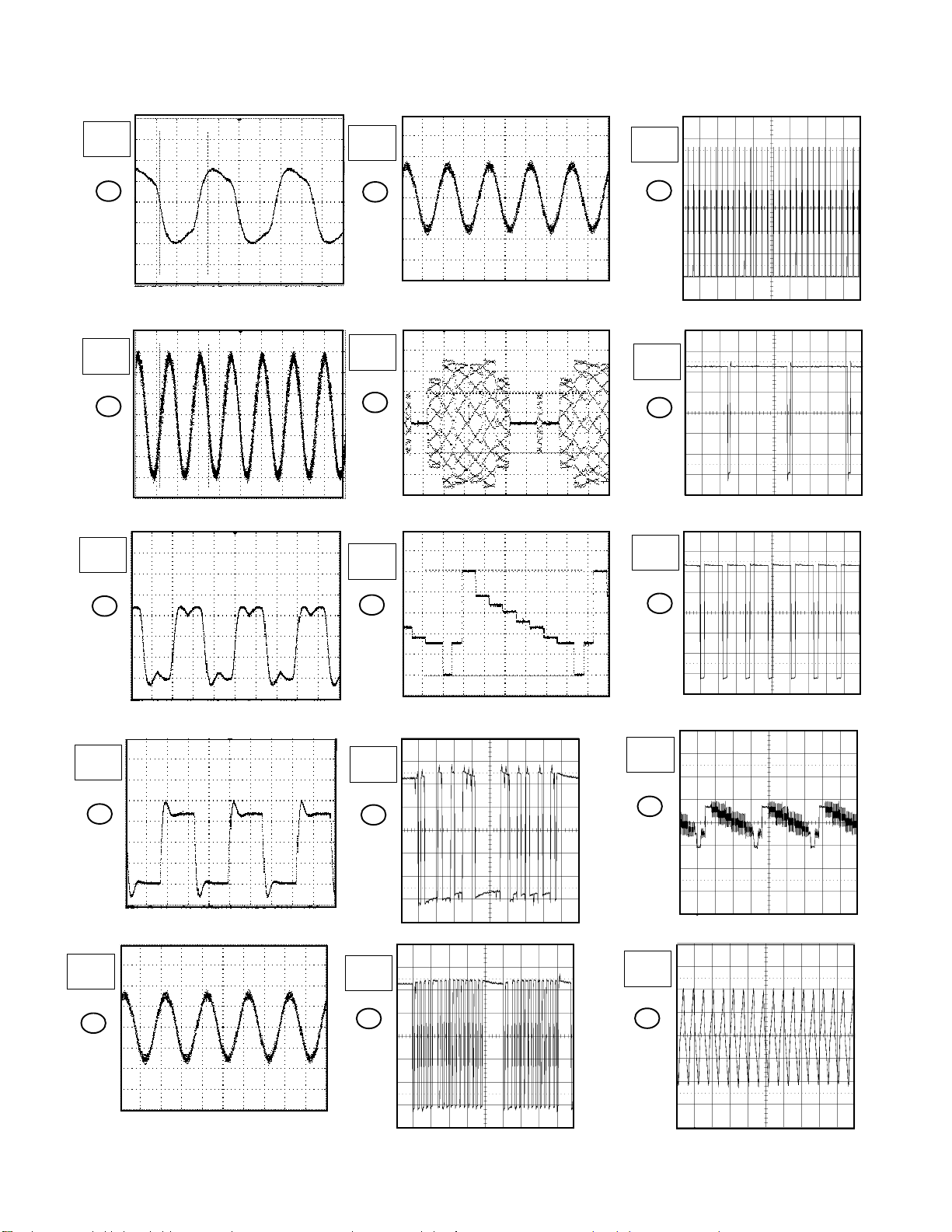

MPEG/MICON/DSP

WAVEFORMS

10ns 100mV

5ns 20mV

20ns

1.0V

500µs 500mV

1

2

10µs 100mV

100µs 200mV

7

9

POWER ON

0.2ms

1.0V

24

POWER ON 5ms

1.0V

25

POWER ON 50µs

1.0V

3

200ns

1.0V

4

AUDIO/VIDEO

500µs 500mV

6

10

MICON/TUNER

POWER ON

0.2ms

1.0V

22

POWER ON

0.2ms

1.0V

23

26

VIF/SIF/CHROMA

POWER ON 20µs

0.5V

27

STANDBY

0.5µs 50mV

28

NOTE:

The following waveforms were measured at the point of the corresponding balloon number in the schematic diagram.

H-1

MD20F51/MD20F51C

POWER ON 10µs

2.0V

WAVEFORMS

POWER ON 20µs

2.0V

IN/OUT

DVD PLAY

0.5ms 200mV

29

POWER ON 10µs

2.0V

30

POWER ON 10µs

2.0V

31

34

SOUND AMP

POWER ON 1ms 100mV

35

POWER ON 1ms 100mV

36

37

DVD PLAY

0.5ms 200mV

38

DVD PLAY 10µs

0.5V

39

POWER ON 10ms

0.5V

32

POWER ON 20µs

0.5V

33

POWER ON 1ms 200mV

50

POWER ON 1ms 200mV

51

NOTE:

STEREO

POWER ON 1ms 50mV

40

POWER ON 1ms 200mV

41

The following waveforms were measured at the point of the corresponding balloon number in the schematic diagram.

H-2

MD20F51/MD20F51C

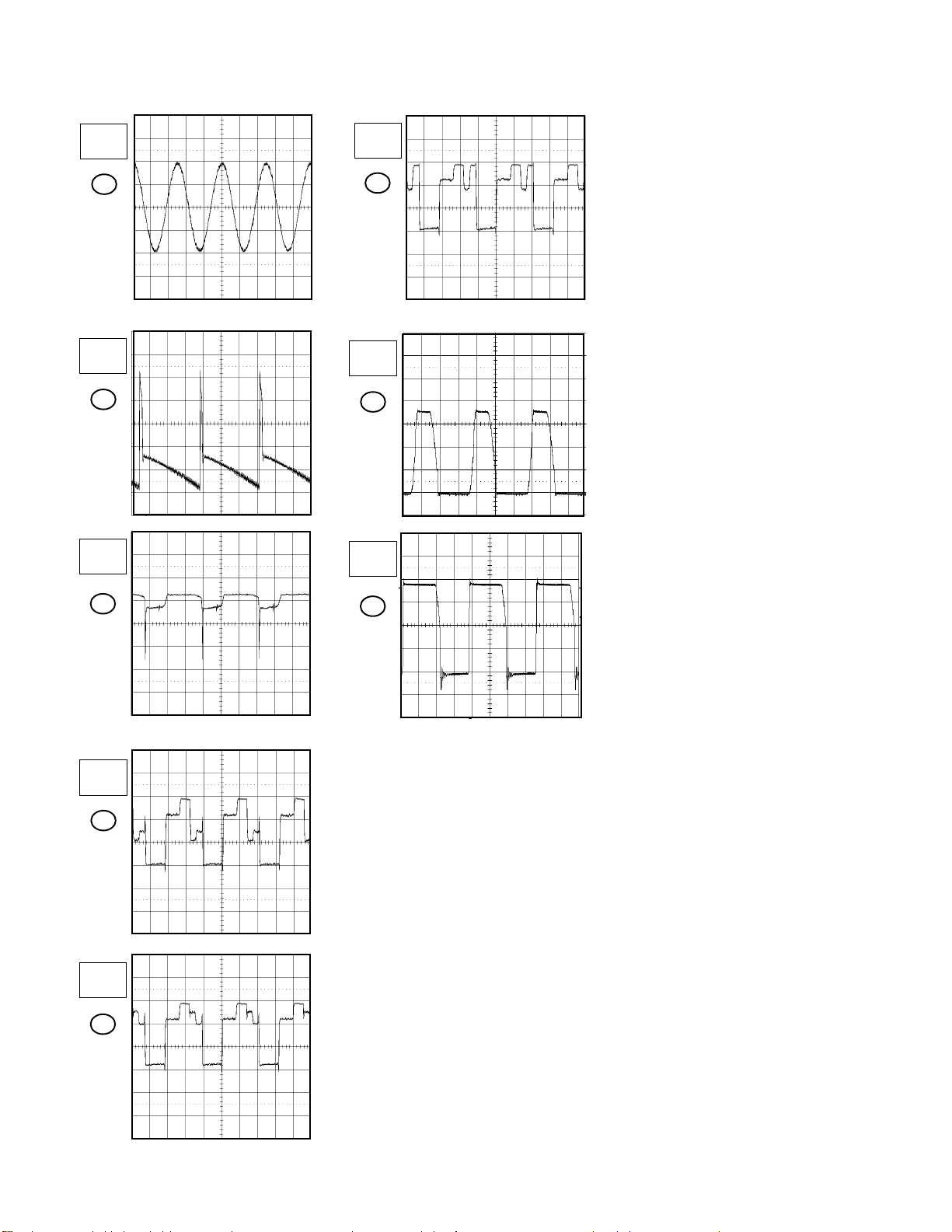

WAVEFORMS

POWER ON 1ms 200mV

42

DEFLECTION

POWER ON 5ms

10.0V

43

POWER ON 20µs

5.0V

POWER ON 20µs 50V

47

POWER

STANDBY 5µs

5.0V

48

STANDBY 5µs

5.0V

44

CRT

POWER ON 20µs 50V

45

POWER ON 20µs 50V

46

49

The following waveforms were measured at the point of the corresponding

NOTE:

balloon number in the schematic diagram.

H-3

MD20F51/MD20F51C

MECHANICAL EXPLODED VIEW

202

102C

202

120

202

206

202

112

122

110

201

124

122

110

101H

101B

101D

201

210

201

214

101H

102B

123

PCB110 (CRT PCB ASS'Y)

215

108

107

215

108

121

101H

101G

101F

202

102A

202

102

102B

215

108

107

214

107

215

108

214

101E

101C

101A

A

I1-1

140

139

101

MD20F51/MD20F51C

119

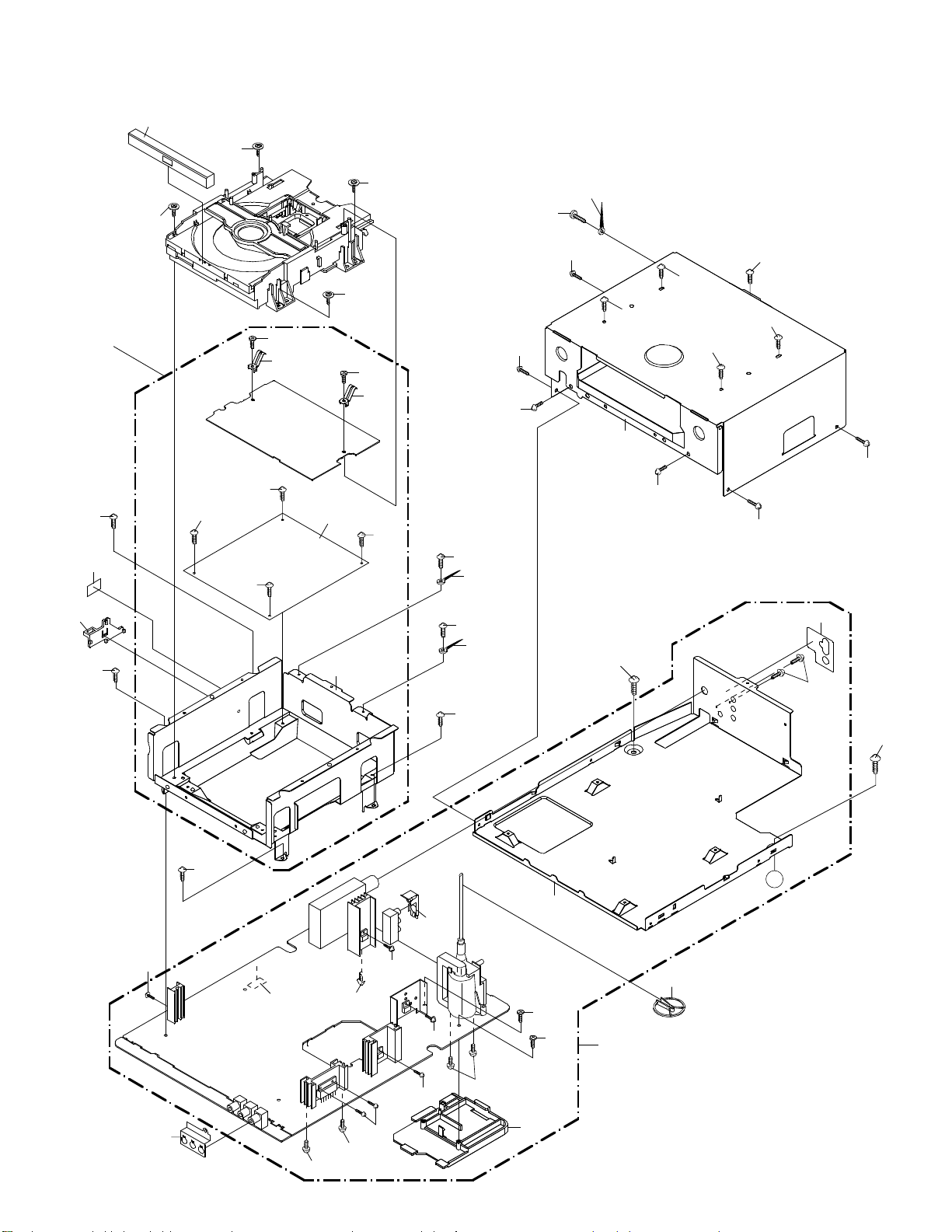

MECHANICAL EXPLODED VIEW

212

PCB130 (DVD PCB ASS'Y)

209

131

109

209

208

213

103

130

104

212

213

103

208

125

208

209

118

208

118

208

114

203

208

115

206

203

205

117

209

116

207

211

204

106

205

211

207

I1-2

206

105

113

206

A

111

PCB250 (AV PCB ASS'Y)

MD20F51/MD20F51C

MECHANICAL EXPLODED VIEW

(PACKING DIAGRAM)

134, 135, 136, 137, 138, BL001, TM101

127

129

126

132

128

I1-3

128

MD20F51/MD20F51C

600

DVD DECK EXPLODED VIEW

611

608

612

AA

615

AA

610

AA

SW1

704

AA

Cannot supply separately. If the repair is needed, replace the LOADER SUB ASS'Y.

AA

602

609

M2603

AA

614

AA

607

613

619

705

SW2

PCB640 (SW PCB ASS'Y)

CLASS

GREASE

605

CD2301

MARK

AA

601

605

705

618

NOTE:

PCB610 (LOADING MOTOR PCB ASS'Y)

617

616

702

701

604

CD2302

CD2001

703

Do not replace the parts. Because, minute adjustments are needed if

606

this condition is disassembled further more. If the repair is needed, replace the DVD MECHA ASS'Y.

603

M2602

Applying positions AA for the grease are displayed for this section. Check if the correct grease is applied for each position.

I2-1

MD20F51/MD20F51C

MECHANICAL REPLACEMENT PARTS LIST

Location No. TSB P/N Reference No. Description

101 AE006434 7A701A367A FRONT CABI ASS'Y 101A AE006435 701WPJC977 CABINET,FRONT 101B AE006436 711WPAA123 PLATE,FRONT 101C AE006437 713WPAA191 GLASS,LED 101D AE006438 713WPAA190 GUIDE,REMOCON 101E AE004182 723549A040 BADGE,BRAND 101F AE006439 735WPAA806 STOPPER,BUTTON 101G AE006440 735WPBB365 BUTTON,FRAME 101H AE003110 800WQ0A052 FELT SHEET

102 AE006441 7A702A099A BACK CABI ASS'Y 102A AE006442 702WPAA822 CABINET,BACK 102B AE006443 800WQ0A109 FELT SHEET 102C AE006444 800WQ0A108 FELT SHEET

103 AE004480 753WUA0069 SPRING,EARTH 104 AE005250 761WSA0155 ANGLE,DECK 105 BZ710699 761WPA0249 HOLDER,FBT 106 BZ710659 752WSA0290 SHIELD,COMPO 107 AE005207 761WPAA115 HOLDER,SPEAKER 108 AD300518 801WR00001 DAMPER,SPEAKER 109 AE003511 774WPA0006 HOLDER,WIRE

110 BZ710259 762WPA0011 HOLDER,CRT WIRE 111 BZ710260 899HV3T000 HOLDER,ANODE WIRE 112 AE006464 723000C838 POP LABEL 113 AE006446 702WSAA127 PLATE,BOTTOM 114 AE005249 702WSA0213 SHIELD,TOP 115 AD302048 7230007603 SHEET,JACK 116 AE006447 724WNAA008 SHEET,PC 117 AD302077 752WSA0333 SHIELD,JACK 118 BZ710039 8995034000 CORD CLIP UL CO. 119 AE002943 712WPJB972 PLATE,TRAY-FRONT

120 AE006465 722549A429 SHEET,RATING 121 AE005650 723000C727 SHEET,CAUTION 122 AE002965 800WR0A010 SHEET,CRT SUPPORT (D) 123 AE006449 726000A099 SHEET,CRT SERVICEMAN 124 BZ710660 741WUA0021 SPRING,EARTH 125 AD301370 899EFBA002 WIRING-CLIP 126 AE005914 791WHAA114 FILM BAG 127 AD302056 792WHA0422 PACKAGE,TOP 128 AD302057 792WHA0423 PACKAGE,BOTTOM 129 AE006466 793WCDC629 GIFT BOX

130 AE006188 752WSA0488 SHIELD,DECK 131 AE006189 753WEA0018 SHEET,CU 132 AE006467 723000C834 SHEET,BAR CODE 133 AE006468 A5S101U975 INSTRUCTION BOOK KIT 134 AE005985 JB5KD400 POLYBAG,INSTRUCTION(RED CAUTION) 135 AE004983 J2D60117A REGISTRATION CARD 136 AE004982 J2D60129A INFORMATION SHEET 137 AE004980 J2D60143A NETFLIX CARD 138 AE006469 J5S10101A INSTRUCTION BOOK

201 AE005916 8141J50C5U SCREW,TAP TITE(P) GW22 5x35 202 AE004847 8117540A6U SCREW,TAP TITE(B0) TRUSS 4x16 203 AE003523 811754080U SCREW,TAP TITE(B0) TRUSS 4x8 204 AE003524 8109I30A0U SCREW,TAP TITE(B) WH7 3x10 205 AE005659 8109I3080U SCREW,TAP TITE(B) WH7 3x8 206 AE003526 810923080U SCREW,TAP TITE(B) BIND 3x8 207 AE005917 810963080Q SCREW,TAP TITE(B) BRAZIER 3x8 208 AE005675 810923060U SCREW,TAP TITE(B) BIND 3x6 209 AE005474 810923070U SCREW,TAP TITE(B) R BIND 3x7

210 AE003528 8110630A0U SCREW,TAP TITE(P) BRAZIER 3x10 211 AE003531 810763080U SCREW,TAP TITE(S) BRAZIER 3x8 212 AE005541 810F13080U SEMS(F) 3x8 213 AE003530 811022680U SCREW,TAP TITE(P) BIND 2.6x8 214 AE003529 811063080U SCREW,TAP TITE(P) BRAZIER 3x8 215 AE005398 8162540A6U SCREW,TAPPING (BO) WASHER 18

J1-1 MD20F51

MECHANICAL REPLACEMENT PARTS LIST

Location No. TSB P/N Reference No. Description

101 AE006434 7A701A367A FRONT CABI ASS'Y 101A AE006435 701WPJC977 CABINET,FRONT 101B AE006436 711WPAA123 PLATE,FRONT 101C AE006437 713WPAA191 GLASS,LED 101D AE006438 713WPAA190 GUIDE,REMOCON 101E AE004182 723549A040 BADGE,BRAND 101F AE006439 735WPAA806 STOPPER,BUTTON 101G AE006440 735WPBB365 BUTTON,FRAME 101H AE003110 800WQ0A052 FELT SHEET

102 AE006441 7A702A099A BACK CABI ASS'Y 102A AE006442 702WPAA822 CABINET,BACK 102B AE006443 800WQ0A109 FELT SHEET 102C AE006444 800WQ0A108 FELT SHEET

103 AE004480 753WUA0069 SPRING,EARTH 104 AE005250 761WSA0155 ANGLE,DECK 105 BZ710699 761WPA0249 HOLDER,FBT 106 BZ710659 752WSA0290 SHIELD,COMPO 107 AE005207 761WPAA115 HOLDER,SPEAKER 108 AD300518 801WR00001 DAMPER,SPEAKER 109 AE003511 774WPA0006 HOLDER,WIRE

110 BZ710259 762WPA0011 HOLDER,CRT WIRE 111 BZ710260 899HV3T000 HOLDER,ANODE WIRE 112 AE006470 723000C842 POP LABEL 113 AE006446 702WSAA127 PLATE,BOTTOM 114 AE005249 702WSA0213 SHIELD,TOP 115 AD302048 7230007603 SHEET,JACK 116 AE006447 724WNAA008 SHEET,PC 117 AD302077 752WSA0333 SHIELD,JACK 118 BZ710039 8995034000 CORD CLIP UL CO. 119 AE002943 712WPJB972 PLATE,TRAY-FRONT

120 AE006471 722549A432 SHEET,RATING 121 AE006290 723000C728 SHEET,CAUTION 122 AE002965 800WR0A010 SHEET,CRT SUPPORT (D) 123 AE006449 726000A099 SHEET,CRT SERVICEMAN 124 BZ710660 741WUA0021 SPRING,EARTH 125 AD301370 899EFBA002 WIRING-CLIP 126 AE005914 791WHAA114 FILM BAG 127 AD302056 792WHA0422 PACKAGE,TOP 128 AD302057 792WHA0423 PACKAGE,BOTTOM 129 AE006472 793WCDC634 GIFT BOX

130 AE006188 752WSA0488 SHIELD,DECK 131 AE006189 753WEA0018 SHEET,CU 132 AE006473 723000C841 SHEET,BAR CODE 133 AE006474 A5S103U975 INSTRUCTION BOOK KIT 134 AE005715 JB5KD200 POLYBAG,INSTRUCTION(RED CAUTION) 136 AE005543 J2E50729A INFORMATION SHEET 138 AE007203 J5S10321A INSTRUCTION BOOK(E/F) 139 AE006166 722000A267 SHEET,CSA WARNING

140 AE006242 722000A266 SHEET,HWC

201 AE005916 8141J50C5U SCREW,TAP TITE(P) GW22 5x35 202 AE004847 8117540A6U SCREW,TAP TITE(B0) TRUSS 4x16 203 AE003523 811754080U SCREW,TAP TITE(B0) TRUSS 4x8 204 AE003524 8109I30A0U SCREW,TAP TITE(B) WH7 3x10 205 AE005659 8109I3080U SCREW,TAP TITE(B) WH7 3x8 206 AE003526 810923080U SCREW,TAP TITE(B) BIND 3x8 207 AE005917 810963080Q SCREW,TAP TITE(B) BRAZIER 3x8 208 AE005675 810923060U SCREW,TAP TITE(B) BIND 3x6 209 AE005474 810923070U SCREW,TAP TITE(B) R BIND 3x7

210 AE003528 8110630A0U SCREW,TAP TITE(P) BRAZIER 3x10 211 AE003531 810763080U SCREW,TAP TITE(S) BRAZIER 3x8 212 AE005541 810F13080U SEMS(F) 3x8 213 AE003530 811022680U SCREW,TAP TITE(P) BIND 2.6x8 214 AE003529 811063080U SCREW,TAP TITE(P) BRAZIER 3x8 215 AE005398 8162540A6U SCREW,TAPPING (BO) WASHER 18

J1-2 MD20F51C

DVD DECK REPLACEMENT PARTS LIST

Location No. TSB P/N Reference No. Description

! 600 AE005942 A5R801V650 DVD MECHA ASS'Y A5R801V650 601 AE005003 92P100109A HOLDER,TRAVERSE 602 AE003550 92P100094A CLAMPER 603 AE003551 92P100088A GEAR,MOTOR 604 AE003537 92AAA0013A FEED RACK ASS'Y 605 AE003538 92P200013A INSULATOR(F) 606 AE003539 92P200014A INSULATOR(R) 607 AE005929 92SBB0030A LOADER SUB ASS'Y 608 AE003541 92P100095A GEAR,PULLEY 609 AE003542 92P100097A PULLEY,MOTOR

610 AE003549 92P100096A GEAR,MAIN 611 AE003544 92P200012A BELT,LOADING 612 AE003545 92P000014A PLATE,CLAMPER 613 AE003546 92P100093A RACK,LOADING 614 AE003547 92P100091A FRAME,MAIN 615 AE004280 92P100100A TRAY 616 AE003535 92P100089A RACK,FEED 1 617 AE003536 92P100090A RACK,FEED 2 618 AE003543 92P300020A SPRING,RACK FEED 619 BZ710149 800WFAA008 CUSHION C

701 AE003530 811022680U SCREW,TAP TITE(P) BIND 2.6x8 702 AE003554 814011723U SCREW,PAN M1.7x2.3 P3 703 AE003555 816112080U SEMS.TAP TITE(P) PAN W10 2x8 704 AE003556 814011730U SCREW,PAN M1.7x3 P3 705 AE003557 811022080U SCREW,TAP TITE(P) BIND 2x8

CD2001 AD301855 122H0O1901 CORD JUMPER 2H0O1901 CD2301 AE003558 122H062102 CORD JUMPER 2H062102 CD2302 AE003559 122H052601 CORD JUMPER 2H052601 ! M2602 AE005930 1515S98003 FEED MOTOR BCZ3B03B ! M2603 AE005931 1596S18003 MOTOR,LOADING BCZ3B52B PCB610 AE005932 A5R801V610 PCB ASS'Y DED003A PCB640 AE005933 A5R801V640 PCB ASS'Y DED002B SW1 AE003564 0515S32002 SWITCH SSS-13-2 SW2 AE003565 0500101037 PUSH SWITCH ESE22MH24

J2-1 MD20F51/MD20F51C

ELECTRICAL REPLACEMENT PARTS LIST

Location No. TSB P/N Reference No. Description

RESISTORS

! R401 AD302023 R3X28A181J R,METAL 180 OHM 2W ! R402 BZ210262 R3X28A221J R,METAL OXIDE 220 OHM 2W ! R408 BZ210285 R3X28AR47J R,METAL OXIDE 0.47 OHM 2W ! R418 BZ210130 R002T21R5J RC 1.5 OHM 1/2W ! R426 BZ210003 R3K181102J R,METAL OXIDE 1K OHM 1W ! R444 BZ210244 R4X5T6562F R,METAL 5.6K OHM 1/6W ! R445 AD301011 R4X5T6393F R,METAL 39K OHM 1/6W ! R447 AE006221 R638U2680J R,FUSE 68 OHM 1/2W ! R450 AE006460 R638812R2J R,FUSE 2.2 OHM 1W ! R803 BZ210050 R3X18A123J R,METAL OXIDE 12K OHM 2W ! R805 BZ210050 R3X18A123J R,METAL OXIDE 12K OHM 2W ! R807 BZ210050 R3X18A123J R,METAL OXIDE 12K OHM 2W R3025 BZ210204 R3X1814R7J R,METAL OXIDE 4.7 OHM 1W ! R3800 BZ210230 R4X5T6332F R,METAL 3.3K OHM 1/6W ! R3803 BZ210206 R002T2155J RC 1.5M OHM 1/2W ! R3806 BZ210080 R0G3K2275K RC 2.7M OHM 1/2W ! R3812 BZ210217 R3X181331J R,METAL OXIDE 330 OHM 1W ! R3817 BZ210117 R5X2CE010J R,CEMENT 1 OHM 7W ! R3821 BZ210063 R3X181R22J R,METAL OXIDE 0.22 OHM 1W ! R3828 AE005735 R63881R22J R,FUSE 0.22 OHM 1W ! R3829 AD301203 R002T4101J RC 100 OHM 1/4W

CAPACITORS

! C357 AD300067 E02LF4102M CE 1000 UF 35V ! C402 AD300064 E02LT8220M CE 22 UF 100V ! C407 BZ210176 E02LF3222M CE 2200 UF 25V ! C421 BZ110065 E5EZT4471M CE 470 UF 35V C423 BZ110136 P4J7F3394J CMPP 0.39 UF 250V PMS ! C428 AD301978 P4N8FJ133H CMPP 0.013 UF 1.25KV ! C431 BZ110204 E0ELFD220M CE 22 UF 250V C450 BZ110202 C0PLRR713K CC 0.001 UF 2KV R C802 BZ110226 C0JBB07H3K CC 0.0022UF 2KV B C1525 BZ110254 CQG0B0415K CC 0.1 UF 50V B ! C3801 BZ110025 P2122B224M CMP 0.22 UF 275V ECQUL ! C3810 AE001347 C0J0B05H3K CC 0.0022UF 500V B C3811 BZ110203 C0PLRR7W2K CC 820 PF 2KV RR ! C3812 AE001347 C0J0B05H3K CC 0.0022UF 500V B ! C3815 BZ110012 E51CGC471M CE 470 UF 200V ! C3816 AE002878 CD39E0MQ3M CC 0.0047UF 250V ! C3818 BZ110169 E5EZF2332M CE 3300 UF 16V ! C3820 AD301348 E02LU5100M CE 10 UF 50V ! C3822 BZ110028 E5EZT2102M CE 1000 UF 16V ! C3823 BZ110032 E5EZF3102M CE 1000 UF 25V C3824 BZ110239 C03L0R7L2K CC 330 PF 2KV R ! C3826 AE004799 E61SFC221M CE 220 UF 200V ! C3827 BZ110101 E5EZF3222M CE 2200 UF 25V

DIODES

D101 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77 D102 BZ410021 D97U05R61B DIODE,ZENER MTZJ5.6B T-77 D105 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77 D106 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77 D301 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77 D401 BZ410043 D2WT011E10 DIODE,SILICON 11E1-EIC ! D402 AD300731 D2WXN49370 DIODE,SILICON 1N4937 D403 BZ410037 D97U03301B DIODE,ZENER MTZJ33B T-77 D404 BZ410037 D97U03301B DIODE,ZENER MTZJ33B T-77 D405 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77 D406 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77 D408 BZ410037 D97U03301B DIODE,ZENER MTZJ33B T-77 ! D409 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77 D410 BZ410022 D97U06R81B DIODE,ZENER MTZJ6.8B T-77 ! D411 AD300731 D2WXN49370 DIODE,SILICON 1N4937 ! D413 AD300731 D2WXN49370 DIODE,SILICON 1N4937 D414 BZ410085 D2WXN40050 DIODE,SILICON 1N4005-EIC ! D416 BZ410020 D97U05R11B DIODE,ZENER MTZJ5.1B T-77 D603 BZ410085 D2WXN40050 DIODE,SILICON 1N4005-EIC D604 AD300070 D97U01201B DIODE,ZENER MTZJ12B T-77 D605 AD300070 D97U01201B DIODE,ZENER MTZJ12B T-77 D606 AD300070 D97U01201B DIODE,ZENER MTZJ12B T-77 D607 AD300070 D97U01201B DIODE,ZENER MTZJ12B T-77 D609 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77 D801 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77

J3-1 MD20F51

ELECTRICAL REPLACEMENT PARTS LIST

Location No. TSB P/N Reference No. Description

DIODES

D802 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77 D803 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77 D804 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77 D805 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77 D806 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77 D2201 BZ410087 0021E2Q140 LED LTL-1CHEE-002A D2205 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77 D2303 BZ410086 DD7R0S3550 DIODE,SILICON 1SS355 TE-17 D2304 BZ410086 DD7R0S3550 DIODE,SILICON 1SS355 TE-17 D3003 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77 D3005 AE003870 D97U04R31B DIODE,ZENER MTZJ4.3B T-77 D3006 BZ410012 D28TQS04N0 DIODE,SCHOTTKY 11EQS04N-TA1B2 D3007 BZ410021 D97U05R61B DIODE,ZENER MTZJ5.6B T-77 D3008 BZ410012 D28TQS04N0 DIODE,SCHOTTKY 11EQS04N-TA1B2 D3801 BZ410021 D97U05R61B DIODE,ZENER MTZJ5.6B T-77 D3802 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77 D3803 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77 D3804 AD300671 D97U01801B DIODE,ZENER MTZJ18B T-77 D3805 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77 D3806 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77 D3807 AD300731 D2WXN49370 DIODE,SILICON 1N4937 ! D3808 BZ410062 D2WTRM11C0 DIODE,SILICON RM11C-EIC ! D3809 BZ410062 D2WTRM11C0 DIODE,SILICON RM11C-EIC D3810 AD300671 D97U01801B DIODE,ZENER MTZJ18B T-77 D3811 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77 D3812 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77 ! D3815 BZ410062 D2WTRM11C0 DIODE,SILICON RM11C-EIC ! D3816 BZ410062 D2WTRM11C0 DIODE,SILICON RM11C-EIC ! D3817 BZ410010 D28T21DQN9 DIODE,SCHOTTKY 21DQ09N-TA2B1 ! D3818 AD300731 D2WXN49370 DIODE,SILICON 1N4937 ! D3819 BZ410010 D28T21DQN9 DIODE,SCHOTTKY 21DQ09N-TA2B1 ! D3820 BZ410010 D28T21DQN9 DIODE,SCHOTTKY 21DQ09N-TA2B1 ! D3821 BZ410126 D2WXRU3AM0 DIODE,SILICON RU3AM-EIC D3822 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77 ! D3823 AE006082 D28F0PRA60 DIODE,RECTIFIER 30PRA60-FC ! D3824 BZ410010 D28T21DQN9 DIODE,SCHOTTKY 21DQ09N-TA2B1 D3825 AD300070 D97U01201B DIODE,ZENER MTZJ12B T-77 D3826 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77 D3827 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77 D3828 BZ410067 D97U02R21B DIODE,ZENER MTZJ2.2B T-77 ! D3830 BZ410010 D28T21DQN9 DIODE,SCHOTTKY 21DQ09N-TA2B1 D3831 BZ410064 D97U03R91B DIODE,ZENER MTZJ3.9B T-77 D4001 BZ410086 DD7R0S3550 DIODE,SILICON 1SS355 TE-17 D4002 BZ410086 DD7R0S3550 DIODE,SILICON 1SS355 TE-17 D4003 BZ410086 DD7R0S3550 DIODE,SILICON 1SS355 TE-17 D4004 BZ410086 DD7R0S3550 DIODE,SILICON 1SS355 TE-17 D4005 BZ410086 DD7R0S3550 DIODE,SILICON 1SS355 TE-17 D8111 BZ410086 DD7R0S3550 DIODE,SILICON 1SS355 TE-17 D8112 BZ410086 DD7R0S3550 DIODE,SILICON 1SS355 TE-17

ICS

IC101 AE006062 I55D06084A IC OEC6084A IC103 AD301641 I9UF032310 IC PST3231NR IC199 AE006462 A5S101U255 INIT DATA BR24L04F-WE2 IC302 AD301983 I01FF58910 IC AN5891SA-E1V ! IC351 AD300056 I0FSP52760 IC AN5276 ! IC401 AE002783 I03TD804N0 IC LA78040N-E IC601 AE004116 I03FC319N0 IC LA76319NM-MPB-E IC902 BZ611068 I01FF58290 IC AN5829S-E1V IC905 BZ611104 I0QF02533V IC NJM2533V(TE2) IC906 BZ611104 I0QF02533V IC NJM2533V(TE2) IC1501 AE006220 I05FEA45FG IC TC90A45FG IC2301 AE003581 I03F065650 IC LA6565-TE-L-E IC2304 AE005769 I07J003580 IC BA10358FV-E2 ! IC3001 BZ611015 I1KA97805A IC KIA7805API ! IC3002 BZ611015 I1KA97805A IC KIA7805API ! IC3005 BZ611033 I1KA97809A IC KIA7809API ! IC3800 AE002809 000220002W PHOTO COUPLER PS2561AL1-1-V(W) IC4001 AE005760 ICQK068620 IC ZR36862PQCG IC4002 AE005421 I57J0L02F0 IC BR24L02F-WE2 IC4003 AE006061 I07F9E00W0 IC BA33E00WHFP-TR IC4007 AE006453 S5S101UF01 MEMORY DATA SST39VF800A-70-4C-EKE

J3-2 MD20F51

ELECTRICAL REPLACEMENT PARTS LIST

Location No. TSB P/N Reference No. Description

ICS

IC4008 AE006454 IFLJ0622H6 IC K4S161622H-UC60 IC4009 AE006454 IFLJ0622H6 IC K4S161622H-UC60 IC4201 AE001295 I0QJ045800 IC NJM4580M(TE1) IC4202 BZ611139 I0QF02534V IC NJM2534V(TE2) IC4203 BZ611104 I0QF02533V IC NJM2533V(TE2) IC8102 AE003584 I17F017530 IC PCM1753DBQR

TRANSISTORS

Q104 BZ510108 TAAA1504SY TRANSISTOR,SILICON KTA1504S_Y_RTK Q105 BZ510109 TCAA3875SY TRANSISTOR,SILICON KTC3875S_Y_RTK Q301 BZ510108 TAAA1504SY TRANSISTOR,SILICON KTA1504S_Y_RTK ! Q401 BZ510004 TA3T016240 TRANSISTOR,SILICON 2SA1624-AA ! Q405 BZ510097 TCAT03227Y TRANSISTOR,SILICON KTC3227_Y-AT Q406 BZ510040 TDUU024990 TRANSISTOR,SILICON 2SD2499(LB0EC1) Q601 BZ510109 TCAA3875SY TRANSISTOR,SILICON KTC3875S_Y_RTK Q602 BZ510109 TCAA3875SY TRANSISTOR,SILICON KTC3875S_Y_RTK Q605 BZ510090 TPAAB05001 COMPOUND TRANSISTOR KRA102SRTK ! Q801 BZ510100 TCATC3199Y TRANSISTOR,SILICON KTC3199_Y-AT ! Q802 BZ510100 TCATC3199Y TRANSISTOR,SILICON KTC3199_Y-AT ! Q803 BZ510100 TCATC3199Y TRANSISTOR,SILICON KTC3199_Y-AT ! Q804 BZ510009 TC3F042170 TRANSISTOR,SILICON 2SC4217(D,E)-RAC ! Q805 BZ510009 TC3F042170 TRANSISTOR,SILICON 2SC4217(D,E)-RAC ! Q806 BZ510009 TC3F042170 TRANSISTOR,SILICON 2SC4217(D,E)-RAC Q902 BZ510021 TNYJC05001 COMPOUND TRANSISTOR DTC124EKAT146 Q1501 BZ510109 TCAA3875SY TRANSISTOR,SILICON KTC3875S_Y_RTK Q1502 BZ510109 TCAA3875SY TRANSISTOR,SILICON KTC3875S_Y_RTK Q1503 BZ510109 TCAA3875SY TRANSISTOR,SILICON KTC3875S_Y_RTK Q2201 BZ510067 TNAAC05002 COMPOUND TRANSISTOR KRC103SRTK Q2301 BZ510112 T67J1036K0 TRANSISTOR,SILICON 2SA1036KT146 Q2302 AE003592 T67J048TL0 TRANSISTOR,SILICON 2SA2048TL Q2303 BZ510109 TCAA3875SY TRANSISTOR,SILICON KTC3875S_Y_RTK Q2304 BZ510109 TCAA3875SY TRANSISTOR,SILICON KTC3875S_Y_RTK Q2305 BZ510109 TCAA3875SY TRANSISTOR,SILICON KTC3875S_Y_RTK ! Q3000 BZ510057 TAAT01281Y TRANSISTOR,SILICON KTA1281_Y Q3001 BZ510109 TCAA3875SY TRANSISTOR,SILICON KTC3875S_Y_RTK ! Q3002 BZ510057 TAAT01281Y TRANSISTOR,SILICON KTA1281_Y ! Q3003 AD301780 TCA0043690 TRANSISTOR,SILICON KTC4369(O,Y) ! Q3005 BZ510105 TCAT03209Y TRANSISTOR,SILICON KTC3209_Y-AT ! Q3006 BZ510070 TCAT032034 TRANSISTOR,SILICON KTC3203_Y-AT Q3007 BZ510071 TNAAB05003 COMPOUND TRANSISTOR KRC102SRTK ! Q3008 BZ510070 TCAT032034 TRANSISTOR,SILICON KTC3203_Y-AT ! Q3009 BZ510057 TAAT01281Y TRANSISTOR,SILICON KTA1281_Y Q3010 BZ510105 TCAT03209Y TRANSISTOR,SILICON KTC3209_Y-AT Q3800 BZ510069 TCATC31980 TRANSISTOR,SILICON KTC3198-AT(Y,GR) Q3801 BZ510069 TCATC31980 TRANSISTOR,SILICON KTC3198-AT(Y,GR) ! Q3802 BZ510070 TCAT032034 TRANSISTOR,SILICON KTC3203_Y-AT ! Q3803 BZ510098 T220033260 FET 2SK3326(2) Q4004 BZ510109 TCAA3875SY TRANSISTOR,SILICON KTC3875S_Y_RTK Q4201 BZ510109 TCAA3875SY TRANSISTOR,SILICON KTC3875S_Y_RTK Q4203 BZ510088 TNAAD05001 COMPOUND TRANSISTOR KRC104SRTK Q4209 BZ510067 TNAAC05002 COMPOUND TRANSISTOR KRC103SRTK Q4210 BZ510107 TPAAA05001 COMPOUND TRANSISTOR KRA101SRTK Q4211 BZ510109 TCAA3875SY TRANSISTOR,SILICON KTC3875S_Y_RTK Q4212 BZ510109 TCAA3875SY TRANSISTOR,SILICON KTC3875S_Y_RTK

COILS &TRANSFORMERS

L001 BZ310196 02167B101K COIL 100 UH L101 BZ310030 021LA6560K COIL 56 UH L301 BZ310196 02167B101K COIL 100 UH L401 BZ310004 021679472K COIL 4.7 MH ! L402 BZ310013 0221000013 COIL,LINEARITY ELH5L4112N L601 BZ310041 02167F101J COIL 100 UH L602 BZ310113 021673221K COIL 220 UH L801 BZ310069 02167D151K COIL 150 UH L902 BZ310041 02167F101J COIL 100 UH L904 BZ310041 02167F101J COIL 100 UH L1501 AD300613 02167F150J COIL 15 UH L1502 AD300613 02167F150J COIL 15 UH L1503 BZ310138 021673821K COIL 820 UH L1504 BZ310139 02167F151J COIL 150 UH L1505 BZ310077 021LA61R0M COIL 1 UH L3000 AD301785 02167E100K COIL R6-1 10 UH ! L3800 BZ310066 028R200024 COIL,DEGAUSS 8R200024

J3-3 MD20F51

ELECTRICAL REPLACEMENT PARTS LIST

Location No. TSB P/N Reference No. Description

COILS &TRANSFORMERS

! L3801 AE003611 029X000116 COIL,LINE FILTER SS28V-R20130 L3803 AD301539 02AHB0A0A4 CORE,FERRITE W5T_20X10X10A L4001 BZ310191 02167F2R2J COIL 2.2 UH L4002 BZ310118 02AHB9A972 CORE,FERRITE W5T29X7.5X19 L4201 BZ310041 02167F101J COIL 100 UH L4202 BZ310041 02167F101J COIL 100 UH L4203 BZ310041 02167F101J COIL 100 UH L4205 BZ310041 02167F101J COIL 100 UH L8102 AE000828 02167F1R0K COIL 1 UH L8103 AE000828 02167F1R0K COIL 1 UH T401 BZ310172 045013003J TRANS,HORIZONTAL DRIVE ETH14Y47AY ! T3800 AD302030 0481390314 TRANSFORMER,SWITCHING 81390314

JACKS

! J801 AD301356 066F130020 SOCKET,CATHODE RAY,TUBE ISHS53S ! J2201 AE003431 060J131016 HEADPHONE JACK MSJ-2000_AG J2202 AE002949 060J421036 RCA JACK MTJ-032-05A-30-FE J2203 AE002950 060J421037 RCA JACK MTJ-032-05A-32-FE J2204 AE002951 060J421030 RCA JACK MTJ-032-05A-31-FE J4201 AE003568 060J401102 RCA JACK MSP-251V-05NI-FE-LF J4203 AE002759 060J431020 RCA JACK MSP-213V2-432_NI_LF

SWITCHES

SW2213 BZ612010 0504101T34 SWITCH,TACT EVQ21505R SW2214 BZ612010 0504101T34 SWITCH,TACT EVQ21505R SW2215 BZ612010 0504101T34 SWITCH,TACT EVQ21505R SW2216 BZ612010 0504101T34 SWITCH,TACT EVQ21505R SW2217 BZ612010 0504101T34 SWITCH,TACT EVQ21505R SW2218 BZ612010 0504101T34 SWITCH,TACT EVQ21505R SW2219 BZ612010 0504101T34 SWITCH,TACT EVQ21505R SW2220 BZ612010 0504101T34 SWITCH,TACT EVQ21505R SW2221 BZ612010 0504101T34 SWITCH,TACT EVQ21505R SW2223 BZ612010 0504101T34 SWITCH,TACT EVQ21505R

VARIABLE RESISTORS

VR402 BZ210218 V1K63H3BTE VOLUME,SEMI FIXED NVG6TLTAB222 VR3800 BZ210265 V1K63Q2BTE VOLUME,SEMI FIXED NVG6TLTAB471

P.C.BOARD ASSEMBLIES

PCB110 AE006455 A5S102U110 PCB ASS'Y CCE012A PCB130 AE006456 A5S102U130 PCB ASS'Y DMD020A PCB250 AE006463 A5S101U250 PCB ASS'Y CME012A

MISCELLANEOUS

B2301 AE005476 0246C51024 CORE,BEADS MMZ1608R102CT B2302 AE005476 0246C51024 CORE,BEADS MMZ1608R102CT B2303 AE005476 0246C51024 CORE,BEADS MMZ1608R102CT B2304 AE005476 0246C51024 CORE,BEADS MMZ1608R102CT B2305 AE005476 0246C51024 CORE,BEADS MMZ1608R102CT B3001 BZ310121 024HT03553 CORE,BEADS W5RH3.5X5X1.0 B3800 BZ310122 024HT03563 CORE,BEADS W4BRH3.5X6X1.0X2 B4001 AE005476 0246C51024 CORE,BEADS MMZ1608R102CT B4002 AE005476 0246C51024 CORE,BEADS MMZ1608R102CT B4003 AE005476 0246C51024 CORE,BEADS MMZ1608R102CT B4005 AE005476 0246C51024 CORE,BEADS MMZ1608R102CT B4006 AE005476 0246C51024 CORE,BEADS MMZ1608R102CT B4007 AE005476 0246C51024 CORE,BEADS MMZ1608R102CT B4008 AE005476 0246C51024 CORE,BEADS MMZ1608R102CT B4009 AE005476 0246C51024 CORE,BEADS MMZ1608R102CT B4010 AE005476 0246C51024 CORE,BEADS MMZ1608R102CT B4011 AE005476 0246C51024 CORE,BEADS MMZ1608R102CT B4012 AE005476 0246C51024 CORE,BEADS MMZ1608R102CT B4013 AE005476 0246C51024 CORE,BEADS MMZ1608R102CT B4014 AE005476 0246C51024 CORE,BEADS MMZ1608R102CT B4016 AE005476 0246C51024 CORE,BEADS MMZ1608R102CT B4017 AE005476 0246C51024 CORE,BEADS MMZ1608R102CT B4018 AE005476 0246C51024 CORE,BEADS MMZ1608R102CT B4201 BZ310121 024HT03553 CORE,BEADS W5RH3.5X5X1.0 B8103 AE005476 0246C51024 CORE,BEADS MMZ1608R102CT BL001 BZ310014 023C00022A COIL,BALUN HPN-01 BT001 AE005640 141R004016 BATTERY,MANGAN GR03X-SP2 BT002 AE005640 141R004016 BATTERY,MANGAN GR03X-SP2 CD301 AE006268 06C3123806 CORD,CONNECTOR C3123806 CD302 AE006268 06C3123806 CORD,CONNECTOR C3123806 CD801 AE005637 06CH823004 CORD,CONNECTOR CH823004 CD802 AE001076 WDL6044038 FLAT CABLE AWM2468 A WG26 6C BLACK 440MM

J3-4 MD20F51

ELECTRICAL REPLACEMENT PARTS LIST

Location No. TSB P/N Reference No. Description

MISCELLANEOUS

CD803 AE004016 WBL6036038 FLAT CABLE AWM2468 A WG26 4C BLACK 360MM CP101 BZ614458 069S290629 CONNECTOR PCB SIDE A2001WV2-9P CP301 AE005936 069W120459 CONNECTOR PCB SIDE 213213102W1 CP302 AE005936 069W120459 CONNECTOR PCB SIDE 213213102W1 ! CP401 BZ614303 069S450089 CONNECTOR PCB SIDE A1561WV2-A5P CP801 BZ614269 069S320010 CONNECTOR PCB SIDE A2361WV2-2P ! CD3800 AE005639 1209414909 CORD,AC BUSH 9414909 CD4002 AE006055 06C32B2202 CORD,CONNECTOR C32B2202 CD8101 AE003576 122F0C1602 CORD,JUMPER 2F0C1602 CP2301 AE003571 069GYOT119 CONNECTOR PCB SIDE 09-5000-024-001-001 CP2302 AE005934 069EV53030 CONNECTOR PCB SIDE 00_6232_005_006_800+ CP2303 AE005935 069EV63030 CONNECTOR PCB SIDE 00_6232_006_006_800+ ! CP3800 BZ614283 069S420110 CONNECTOR PCB SIDE A1561WV2-2P CP4201 BZ614242 069S260629 CONNECTOR PCB SIDE A2001WV2-6P CP8001 BZ614214 069S2B0629 CONNECTOR PCB SIDE A2001WV2-11P CP8002 AD301797 069J7C0029 CONNECTOR PCB SIDE IMSA-9604S-12Z14 CP802A BZ614333 067U006049 WIRE HOLDER B2013H02-6P CP802B BZ614333 067U006049 WIRE HOLDER B2013H02-6P CP803A BZ614334 067U004029 WIRE HOLDER B2013H02-4P CP803B BZ614334 067U004029 WIRE HOLDER B2013H02-4P CP8101 AE006053 069J7C0589 CONNECTOR PCB SIDE IMSA-9604S-12F CUS133 BZ710149 800WFAA008 CUSHION C EL001 BZ614044 124120301A EYE LET XRY20X30BD EL002 BZ614043 124116281A EYE LET XRY16X28BD ! F3800 BZ614504 081PC05005 FUSE 51MS050L ! FB401 AE006458 043220059F TRANSFORMER,FLYBACK FJN20A003_M FH3800 AE002634 06710T0009 HOLDER,FUSE EYF-52BCY FH3801 AE002634 06710T0009 HOLDER,FUSE EYF-52BCY OS2202 BZ614199 077Q004017 REMOTE RECEIVER PIC-37243SR PH3800 BZ614016 069W01001A CONNECTOR PCB SIDE 003P-2100 PH3801 BZ614016 069W01001A CONNECTOR PCB SIDE 003P-2100 ! RY3800 AD300114 0560V20115 RELAY ALKS321 ! SP351 AE006459 070N546012 SPEAKER YDP4010-2 ! SP352 AE006459 070N546012 SPEAKER YDP4010-2 TM101 AE006056 076D0KG010 TRANSMITTER ORT204N7404359-U ! TU001 AE006069 0163300018 RF UNIT 115-V-KA35ARB ! TH3800 AD302000 D8EE0B1400 DEGAUSS ELEMENT B59203-S1060-B14 ! V801 AE005627 0981210456 CRT W/DY A51LYZ095X80 X101 BZ613019 1002T01606 CERAMIC OSCILLATOR CSTLS16M0X53-A0 X601 AD301653 100DT3R531 CRYSTAL HC-49/U X4001 AD301803 100BT02701 CRYSTAL HC-49U/S

RESISTOR

CAPACITORS

RC................... CARBON RESISTOR

CC................... CERAMIC CAPACITOR

CE................... ALUMI ELECTROLYTIC CAPACITOR

CP................... POLYESTER CAPACITOR

CPP.................. POLYPROPYLENE CAPACITOR

CPL.................. PLASTIC CAPACITOR

CMP...................... METAL POLYESTER CAPACITOR

CMPL................ METAL PLASTIC CAPACITOR

CMPP................ METAL POLYPROPYLENE CAPACITOR

J3-5 MD20F51

ELECTRICAL REPLACEMENT PARTS LIST

Location No. TSB P/N Reference No. Description

RESISTORS

! R401 AD302023 R3X28A181J R,METAL 180 OHM 2W ! R402 BZ210262 R3X28A221J R,METAL OXIDE 220 OHM 2W ! R408 BZ210285 R3X28AR47J R,METAL OXIDE 0.47 OHM 2W ! R418 BZ210130 R002T21R5J RC 1.5 OHM 1/2W ! R426 BZ210003 R3K181102J R,METAL OXIDE 1K OHM 1W ! R444 BZ210244 R4X5T6562F R,METAL 5.6K OHM 1/6W ! R445 AD301011 R4X5T6393F R,METAL 39K OHM 1/6W ! R447 AE006221 R638U2680J R,FUSE 68 OHM 1/2W ! R450 AE006460 R638812R2J R,FUSE 2.2 OHM 1W ! R803 BZ210050 R3X18A123J R,METAL OXIDE 12K OHM 2W ! R805 BZ210050 R3X18A123J R,METAL OXIDE 12K OHM 2W ! R807 BZ210050 R3X18A123J R,METAL OXIDE 12K OHM 2W R3025 BZ210204 R3X1814R7J R,METAL OXIDE 4.7 OHM 1W ! R3800 BZ210230 R4X5T6332F R,METAL 3.3K OHM 1/6W ! R3803 BZ210206 R002T2155J RC 1.5M OHM 1/2W ! R3806 BZ210080 R0G3K2275K RC 2.7M OHM 1/2W ! R3812 BZ210217 R3X181331J R,METAL OXIDE 330 OHM 1W ! R3817 BZ210117 R5X2CE010J R,CEMENT 1 OHM 7W ! R3821 BZ210063 R3X181R22J R,METAL OXIDE 0.22 OHM 1W ! R3828 AE005735 R63881R22J R,FUSE 0.22 OHM 1W ! R3829 AD301203 R002T4101J RC 100 OHM 1/4W

CAPACITORS

! C357 AD300067 E02LF4102M CE 1000 UF 35V ! C402 AD300064 E02LT8220M CE 22 UF 100V ! C407 BZ210176 E02LF3222M CE 2200 UF 25V ! C421 BZ110065 E5EZT4471M CE 470 UF 35V C423 BZ110136 P4J7F3394J CMPP 0.39 UF 250V PMS ! C428 AD301978 P4N8FJ133H CMPP 0.013 UF 1.25KV ! C431 BZ110204 E0ELFD220M CE 22 UF 250V C450 BZ110202 C0PLRR713K CC 0.001 UF 2KV R C802 BZ110226 C0JBB07H3K CC 0.0022UF 2KV B C1525 BZ110254 CQG0B0415K CC 0.1 UF 50V B ! C3801 BZ110025 P2122B224M CMP 0.22 UF 275V ECQUL ! C3810 AE001347 C0J0B05H3K CC 0.0022UF 500V B C3811 BZ110203 C0PLRR7W2K CC 820 PF 2KV RR ! C3812 AE001347 C0J0B05H3K CC 0.0022UF 500V B ! C3815 BZ110012 E51CGC471M CE 470 UF 200V ! C3816 AE002878 CD39E0MQ3M CC 0.0047UF 250V ! C3818 BZ110169 E5EZF2332M CE 3300 UF 16V ! C3820 AD301348 E02LU5100M CE 10 UF 50V ! C3822 BZ110028 E5EZT2102M CE 1000 UF 16V ! C3823 BZ110032 E5EZF3102M CE 1000 UF 25V C3824 BZ110239 C03L0R7L2K CC 330 PF 2KV R ! C3826 AE004799 E61SFC221M CE 220 UF 200V ! C3827 BZ110101 E5EZF3222M CE 2200 UF 25V

DIODES

D101 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77 D102 BZ410021 D97U05R61B DIODE,ZENER MTZJ5.6B T-77 D105 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77 D106 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77 D301 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77 D401 BZ410043 D2WT011E10 DIODE,SILICON 11E1-EIC ! D402 AD300731 D2WXN49370 DIODE,SILICON 1N4937 D403 BZ410037 D97U03301B DIODE,ZENER MTZJ33B T-77 D404 BZ410037 D97U03301B DIODE,ZENER MTZJ33B T-77 D405 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77 D406 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77 D408 BZ410037 D97U03301B DIODE,ZENER MTZJ33B T-77 ! D409 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77 D410 BZ410022 D97U06R81B DIODE,ZENER MTZJ6.8B T-77 ! D411 AD300731 D2WXN49370 DIODE,SILICON 1N4937 ! D413 AD300731 D2WXN49370 DIODE,SILICON 1N4937 D414 BZ410085 D2WXN40050 DIODE,SILICON 1N4005-EIC ! D416 BZ410020 D97U05R11B DIODE,ZENER MTZJ5.1B T-77 D603 BZ410085 D2WXN40050 DIODE,SILICON 1N4005-EIC D604 AD300070 D97U01201B DIODE,ZENER MTZJ12B T-77 D605 AD300070 D97U01201B DIODE,ZENER MTZJ12B T-77 D606 AD300070 D97U01201B DIODE,ZENER MTZJ12B T-77 D607 AD300070 D97U01201B DIODE,ZENER MTZJ12B T-77 D609 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77 D801 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77

J3-6 MD20F51C

ELECTRICAL REPLACEMENT PARTS LIST

Location No. TSB P/N Reference No. Description

DIODES

D802 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77 D803 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77 D804 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77 D805 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77 D806 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77 D2201 BZ410087 0021E2Q140 LED LTL-1CHEE-002A D2205 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77 D2303 BZ410086 DD7R0S3550 DIODE,SILICON 1SS355 TE-17 D2304 BZ410086 DD7R0S3550 DIODE,SILICON 1SS355 TE-17 D3003 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77 D3005 AE003870 D97U04R31B DIODE,ZENER MTZJ4.3B T-77 D3006 BZ410012 D28TQS04N0 DIODE,SCHOTTKY 11EQS04N-TA1B2 D3007 BZ410021 D97U05R61B DIODE,ZENER MTZJ5.6B T-77 D3008 BZ410012 D28TQS04N0 DIODE,SCHOTTKY 11EQS04N-TA1B2 D3801 BZ410021 D97U05R61B DIODE,ZENER MTZJ5.6B T-77 D3802 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77 D3803 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77 D3804 AD300671 D97U01801B DIODE,ZENER MTZJ18B T-77 D3805 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77 D3806 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77 D3807 AD300731 D2WXN49370 DIODE,SILICON 1N4937 ! D3808 BZ410062 D2WTRM11C0 DIODE,SILICON RM11C-EIC ! D3809 BZ410062 D2WTRM11C0 DIODE,SILICON RM11C-EIC D3810 AD300671 D97U01801B DIODE,ZENER MTZJ18B T-77 D3811 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77 D3812 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77 ! D3815 BZ410062 D2WTRM11C0 DIODE,SILICON RM11C-EIC ! D3816 BZ410062 D2WTRM11C0 DIODE,SILICON RM11C-EIC ! D3817 BZ410010 D28T21DQN9 DIODE,SCHOTTKY 21DQ09N-TA2B1 ! D3818 AD300731 D2WXN49370 DIODE,SILICON 1N4937 ! D3819 BZ410010 D28T21DQN9 DIODE,SCHOTTKY 21DQ09N-TA2B1 ! D3820 BZ410010 D28T21DQN9 DIODE,SCHOTTKY 21DQ09N-TA2B1 ! D3821 BZ410126 D2WXRU3AM0 DIODE,SILICON RU3AM-EIC D3822 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77 ! D3823 AE006082 D28F0PRA60 DIODE,RECTIFIER 30PRA60-FC ! D3824 BZ410010 D28T21DQN9 DIODE,SCHOTTKY 21DQ09N-TA2B1 D3825 AD300070 D97U01201B DIODE,ZENER MTZJ12B T-77 D3826 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77 D3827 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77 D3828 BZ410067 D97U02R21B DIODE,ZENER MTZJ2.2B T-77 ! D3830 BZ410010 D28T21DQN9 DIODE,SCHOTTKY 21DQ09N-TA2B1 D3831 BZ410064 D97U03R91B DIODE,ZENER MTZJ3.9B T-77 D4001 BZ410086 DD7R0S3550 DIODE,SILICON 1SS355 TE-17 D4002 BZ410086 DD7R0S3550 DIODE,SILICON 1SS355 TE-17 D4003 BZ410086 DD7R0S3550 DIODE,SILICON 1SS355 TE-17 D4004 BZ410086 DD7R0S3550 DIODE,SILICON 1SS355 TE-17 D4005 BZ410086 DD7R0S3550 DIODE,SILICON 1SS355 TE-17 D8111 BZ410086 DD7R0S3550 DIODE,SILICON 1SS355 TE-17 D8112 BZ410086 DD7R0S3550 DIODE,SILICON 1SS355 TE-17

ICS

IC101 AE006062 I55D06084A IC OEC6084A IC103 AD301641 I9UF032310 IC PST3231NR IC199 AE006477 A5S103U255 INIT DATA BR24L04F-WE2 IC302 AD301983 I01FF58910 IC AN5891SA-E1V ! IC351 AD300056 I0FSP52760 IC AN5276 ! IC401 AE002783 I03TD804N0 IC LA78040N-E IC601 AE004116 I03FC319N0 IC LA76319NM-MPB-E IC902 BZ611068 I01FF58290 IC AN5829S-E1V IC905 BZ611104 I0QF02533V IC NJM2533V(TE2) IC906 BZ611104 I0QF02533V IC NJM2533V(TE2) IC1501 AE006220 I05FEA45FG IC TC90A45FG IC2301 AE003581 I03F065650 IC LA6565-TE-L-E IC2304 AE005769 I07J003580 IC BA10358FV-E2 ! IC3001 BZ611015 I1KA97805A IC KIA7805API ! IC3002 BZ611015 I1KA97805A IC KIA7805API ! IC3005 BZ611033 I1KA97809A IC KIA7809API ! IC3800 AE002809 000220002W PHOTO COUPLER PS2561AL1-1-V(W) IC4001 AE005760 ICQK068620 IC ZR36862PQCG IC4002 AE005421 I57J0L02F0 IC BR24L02F-WE2 IC4003 AE006061 I07F9E00W0 IC BA33E00WHFP-TR IC4007 AE006453 S5S101UF01 MEMORY DATA SST39VF800A-70-4C-EKE

J3-7 MD20F51C

ELECTRICAL REPLACEMENT PARTS LIST

Location No. TSB P/N Reference No. Description

ICS

IC4008 AE006454 IFLJ0622H6 IC K4S161622H-UC60 IC4009 AE006454 IFLJ0622H6 IC K4S161622H-UC60 IC4201 AE001295 I0QJ045800 IC NJM4580M(TE1) IC4202 BZ611139 I0QF02534V IC NJM2534V(TE2) IC4203 BZ611104 I0QF02533V IC NJM2533V(TE2) IC8102 AE003584 I17F017530 IC PCM1753DBQR

TRANSISTORS

Q104 BZ510108 TAAA1504SY TRANSISTOR,SILICON KTA1504S_Y_RTK Q105 BZ510109 TCAA3875SY TRANSISTOR,SILICON KTC3875S_Y_RTK Q301 BZ510108 TAAA1504SY TRANSISTOR,SILICON KTA1504S_Y_RTK ! Q401 BZ510004 TA3T016240 TRANSISTOR,SILICON 2SA1624-AA ! Q405 BZ510097 TCAT03227Y TRANSISTOR,SILICON KTC3227_Y-AT Q406 BZ510040 TDUU024990 TRANSISTOR,SILICON 2SD2499(LB0EC1) Q601 BZ510109 TCAA3875SY TRANSISTOR,SILICON KTC3875S_Y_RTK Q602 BZ510109 TCAA3875SY TRANSISTOR,SILICON KTC3875S_Y_RTK Q605 BZ510090 TPAAB05001 COMPOUND TRANSISTOR KRA102SRTK ! Q801 BZ510100 TCATC3199Y TRANSISTOR,SILICON KTC3199_Y-AT ! Q802 BZ510100 TCATC3199Y TRANSISTOR,SILICON KTC3199_Y-AT ! Q803 BZ510100 TCATC3199Y TRANSISTOR,SILICON KTC3199_Y-AT ! Q804 BZ510009 TC3F042170 TRANSISTOR,SILICON 2SC4217(D,E)-RAC ! Q805 BZ510009 TC3F042170 TRANSISTOR,SILICON 2SC4217(D,E)-RAC ! Q806 BZ510009 TC3F042170 TRANSISTOR,SILICON 2SC4217(D,E)-RAC Q902 BZ510021 TNYJC05001 COMPOUND TRANSISTOR DTC124EKAT146 Q1501 BZ510109 TCAA3875SY TRANSISTOR,SILICON KTC3875S_Y_RTK Q1502 BZ510109 TCAA3875SY TRANSISTOR,SILICON KTC3875S_Y_RTK Q1503 BZ510109 TCAA3875SY TRANSISTOR,SILICON KTC3875S_Y_RTK Q2201 BZ510067 TNAAC05002 COMPOUND TRANSISTOR KRC103SRTK Q2301 BZ510112 T67J1036K0 TRANSISTOR,SILICON 2SA1036KT146 Q2302 AE003592 T67J048TL0 TRANSISTOR,SILICON 2SA2048TL Q2303 BZ510109 TCAA3875SY TRANSISTOR,SILICON KTC3875S_Y_RTK Q2304 BZ510109 TCAA3875SY TRANSISTOR,SILICON KTC3875S_Y_RTK Q2305 BZ510109 TCAA3875SY TRANSISTOR,SILICON KTC3875S_Y_RTK ! Q3000 BZ510057 TAAT01281Y TRANSISTOR,SILICON KTA1281_Y Q3001 BZ510109 TCAA3875SY TRANSISTOR,SILICON KTC3875S_Y_RTK ! Q3002 BZ510057 TAAT01281Y TRANSISTOR,SILICON KTA1281_Y ! Q3003 AD301780 TCA0043690 TRANSISTOR,SILICON KTC4369(O,Y) ! Q3005 BZ510105 TCAT03209Y TRANSISTOR,SILICON KTC3209_Y-AT ! Q3006 BZ510070 TCAT032034 TRANSISTOR,SILICON KTC3203_Y-AT Q3007 BZ510071 TNAAB05003 COMPOUND TRANSISTOR KRC102SRTK ! Q3008 BZ510070 TCAT032034 TRANSISTOR,SILICON KTC3203_Y-AT ! Q3009 BZ510057 TAAT01281Y TRANSISTOR,SILICON KTA1281_Y Q3010 BZ510105 TCAT03209Y TRANSISTOR,SILICON KTC3209_Y-AT Q3800 BZ510069 TCATC31980 TRANSISTOR,SILICON KTC3198-AT(Y,GR) Q3801 BZ510069 TCATC31980 TRANSISTOR,SILICON KTC3198-AT(Y,GR) ! Q3802 BZ510070 TCAT032034 TRANSISTOR,SILICON KTC3203_Y-AT ! Q3803 BZ510098 T220033260 FET 2SK3326(2) Q4004 BZ510109 TCAA3875SY TRANSISTOR,SILICON KTC3875S_Y_RTK Q4201 BZ510109 TCAA3875SY TRANSISTOR,SILICON KTC3875S_Y_RTK Q4203 BZ510088 TNAAD05001 COMPOUND TRANSISTOR KRC104SRTK Q4209 BZ510067 TNAAC05002 COMPOUND TRANSISTOR KRC103SRTK Q4210 BZ510107 TPAAA05001 COMPOUND TRANSISTOR KRA101SRTK Q4211 BZ510109 TCAA3875SY TRANSISTOR,SILICON KTC3875S_Y_RTK Q4212 BZ510109 TCAA3875SY TRANSISTOR,SILICON KTC3875S_Y_RTK

COILS &TRANSFORMERS

L001 BZ310196 02167B101K COIL 100 UH L101 BZ310030 021LA6560K COIL 56 UH L301 BZ310196 02167B101K COIL 100 UH L401 BZ310004 021679472K COIL 4.7 MH ! L402 BZ310013 0221000013 COIL,LINEARITY ELH5L4112N L601 BZ310041 02167F101J COIL 100 UH L602 BZ310113 021673221K COIL 220 UH L801 BZ310069 02167D151K COIL 150 UH L902 BZ310041 02167F101J COIL 100 UH L904 BZ310041 02167F101J COIL 100 UH L1501 AD300613 02167F150J COIL 15 UH L1502 AD300613 02167F150J COIL 15 UH L1503 BZ310138 021673821K COIL 820 UH L1504 BZ310139 02167F151J COIL 150 UH L1505 BZ310077 021LA61R0M COIL 1 UH L3000 AD301785 02167E100K COIL R6-1 10 UH ! L3800 BZ310066 028R200024 COIL,DEGAUSS 8R200024

J3-8 MD20F51C

ELECTRICAL REPLACEMENT PARTS LIST

Location No. TSB P/N Reference No. Description

COILS &TRANSFORMERS

! L3801 AE003611 029X000116 COIL,LINE FILTER SS28V-R20130 L3803 AD301539 02AHB0A0A4 CORE,FERRITE W5T_20X10X10A L4001 BZ310191 02167F2R2J COIL 2.2 UH L4002 BZ310118 02AHB9A972 CORE,FERRITE W5T29X7.5X19 L4201 BZ310041 02167F101J COIL 100 UH L4202 BZ310041 02167F101J COIL 100 UH L4203 BZ310041 02167F101J COIL 100 UH L4205 BZ310041 02167F101J COIL 100 UH L8102 AE000828 02167F1R0K COIL 1 UH L8103 AE000828 02167F1R0K COIL 1 UH T401 BZ310172 045013003J TRANS,HORIZONTAL DRIVE ETH14Y47AY ! T3800 AD302030 0481390314 TRANSFORMER,SWITCHING 81390314

JACKS

! J801 AD301356 066F130020 SOCKET,CATHODE RAY,TUBE ISHS53S ! J2201 AE003431 060J131016 HEADPHONE JACK MSJ-2000_AG J2202 AE002949 060J421036 RCA JACK MTJ-032-05A-30-FE J2203 AE002950 060J421037 RCA JACK MTJ-032-05A-32-FE J2204 AE002951 060J421030 RCA JACK MTJ-032-05A-31-FE J4201 AE003568 060J401102 RCA JACK MSP-251V-05NI-FE-LF J4203 AE002759 060J431020 RCA JACK MSP-213V2-432_NI_LF

SWITCHES

SW2213 BZ612010 0504101T34 SWITCH,TACT EVQ21505R SW2214 BZ612010 0504101T34 SWITCH,TACT EVQ21505R SW2215 BZ612010 0504101T34 SWITCH,TACT EVQ21505R SW2216 BZ612010 0504101T34 SWITCH,TACT EVQ21505R SW2217 BZ612010 0504101T34 SWITCH,TACT EVQ21505R SW2218 BZ612010 0504101T34 SWITCH,TACT EVQ21505R SW2219 BZ612010 0504101T34 SWITCH,TACT EVQ21505R SW2220 BZ612010 0504101T34 SWITCH,TACT EVQ21505R SW2221 BZ612010 0504101T34 SWITCH,TACT EVQ21505R SW2223 BZ612010 0504101T34 SWITCH,TACT EVQ21505R

VARIABLE RESISTORS

VR402 BZ210218 V1K63H3BTE VOLUME,SEMI FIXED NVG6TLTAB222 VR3800 BZ210265 V1K63Q2BTE VOLUME,SEMI FIXED NVG6TLTAB471

P.C.BOARD ASSEMBLIES

PCB110 AE006455 A5S102U110 PCB ASS'Y CCE012A PCB130 AE006456 A5S102U130 PCB ASS'Y DMD020A PCB250 AE006478 A5S103U250 PCB ASS'Y CME012A

MISCELLANEOUS

B2301 AE005476 0246C51024 CORE,BEADS MMZ1608R102CT B2302 AE005476 0246C51024 CORE,BEADS MMZ1608R102CT B2303 AE005476 0246C51024 CORE,BEADS MMZ1608R102CT B2304 AE005476 0246C51024 CORE,BEADS MMZ1608R102CT B2305 AE005476 0246C51024 CORE,BEADS MMZ1608R102CT B3001 BZ310121 024HT03553 CORE,BEADS W5RH3.5X5X1.0 B3800 BZ310122 024HT03563 CORE,BEADS W4BRH3.5X6X1.0X2 B4001 AE005476 0246C51024 CORE,BEADS MMZ1608R102CT B4002 AE005476 0246C51024 CORE,BEADS MMZ1608R102CT B4003 AE005476 0246C51024 CORE,BEADS MMZ1608R102CT B4005 AE005476 0246C51024 CORE,BEADS MMZ1608R102CT B4006 AE005476 0246C51024 CORE,BEADS MMZ1608R102CT B4007 AE005476 0246C51024 CORE,BEADS MMZ1608R102CT B4008 AE005476 0246C51024 CORE,BEADS MMZ1608R102CT B4009 AE005476 0246C51024 CORE,BEADS MMZ1608R102CT B4010 AE005476 0246C51024 CORE,BEADS MMZ1608R102CT B4011 AE005476 0246C51024 CORE,BEADS MMZ1608R102CT B4012 AE005476 0246C51024 CORE,BEADS MMZ1608R102CT B4013 AE005476 0246C51024 CORE,BEADS MMZ1608R102CT B4014 AE005476 0246C51024 CORE,BEADS MMZ1608R102CT B4016 AE005476 0246C51024 CORE,BEADS MMZ1608R102CT B4017 AE005476 0246C51024 CORE,BEADS MMZ1608R102CT B4018 AE005476 0246C51024 CORE,BEADS MMZ1608R102CT B4201 BZ310121 024HT03553 CORE,BEADS W5RH3.5X5X1.0 B8103 AE005476 0246C51024 CORE,BEADS MMZ1608R102CT BL001 BZ310014 023C00022A COIL,BALUN HPN-01 BT001 AE005640 141R004016 BATTERY,MANGAN GR03X-SP2 BT002 AE005640 141R004016 BATTERY,MANGAN GR03X-SP2 CD301 AE006268 06C3123806 CORD,CONNECTOR C3123806 CD302 AE006268 06C3123806 CORD,CONNECTOR C3123806 CD801 AE005637 06CH823004 CORD,CONNECTOR CH823004 CD802 AE001076 WDL6044038 FLAT CABLE AWM2468 A WG26 6C BLACK 440MM

J3-9 MD20F51C

ELECTRICAL REPLACEMENT PARTS LIST

.

Location No. TSB P/N Reference No. Description

MISCELLANEOUS

CD803 AE004016 WBL6036038 FLAT CABLE AWM2468 A WG26 4C BLACK 360MM CP101 BZ614458 069S290629 CONNECTOR PCB SIDE A2001WV2-9P CP301 AE005936 069W120459 CONNECTOR PCB SIDE 213213102W1 CP302 AE005936 069W120459 CONNECTOR PCB SIDE 213213102W1 ! CP401 BZ614303 069S450089 CONNECTOR PCB SIDE A1561WV2-A5P CP801 BZ614269 069S320010 CONNECTOR PCB SIDE A2361WV2-2P ! CD3800 AE005639 1209414909 CORD,AC BUSH 9414909 CD4002 AE006055 06C32B2202 CORD,CONNECTOR C32B2202 CD8101 AE003576 122F0C1602 CORD,JUMPER 2F0C1602 CP2301 AE003571 069GYOT119 CONNECTOR PCB SIDE 09-5000-024-001-001 CP2302 AE005934 069EV53030 CONNECTOR PCB SIDE 00_6232_005_006_800+ CP2303 AE005935 069EV63030 CONNECTOR PCB SIDE 00_6232_006_006_800+ ! CP3800 BZ614283 069S420110 CONNECTOR PCB SIDE A1561WV2-2P CP4201 BZ614242 069S260629 CONNECTOR PCB SIDE A2001WV2-6P CP8001 BZ614214 069S2B0629 CONNECTOR PCB SIDE A2001WV2-11P CP8002 AD301797 069J7C0029 CONNECTOR PCB SIDE IMSA-9604S-12Z14 CP802A BZ614333 067U006049 WIRE HOLDER B2013H02-6P CP802B BZ614333 067U006049 WIRE HOLDER B2013H02-6P CP803A BZ614334 067U004029 WIRE HOLDER B2013H02-4P CP803B BZ614334 067U004029 WIRE HOLDER B2013H02-4P CP8101 AE006053 069J7C0589 CONNECTOR PCB SIDE IMSA-9604S-12F CUS133 BZ710149 800WFAA008 CUSHION C EL001 BZ614044 124120301A EYE LET XRY20X30BD EL002 BZ614043 124116281A EYE LET XRY16X28BD ! F3800 BZ614504 081PC05005 FUSE 51MS050L ! FB401 AE006458 043220059F TRANSFORMER,FLYBACK FJN20A003_M FH3800 AE002634 06710T0009 HOLDER,FUSE EYF-52BCY FH3801 AE002634 06710T0009 HOLDER,FUSE EYF-52BCY OS2202 BZ614199 077Q004017 REMOTE RECEIVER PIC-37243SR PH3800 BZ614016 069W01001A CONNECTOR PCB SIDE 003P-2100 PH3801 BZ614016 069W01001A CONNECTOR PCB SIDE 003P-2100 ! RY3800 AD300114 0560V20115 RELAY ALKS321 ! SP351 AE006459 070N546012 SPEAKER YDP4010-2 ! SP352 AE006459 070N546012 SPEAKER YDP4010-2 TM101 AE006056 076D0KG010 TRANSMITTER ORT204N7404359-U ! TU001 AE006069 0163300018 RF UNIT 115-V-KA35ARB ! TH3800 AD302000 D8EE0B1400 DEGAUSS ELEMENT B59203-S1060-B14 ! V801 AE005627 0981210456 CRT W/DY A51LYZ095X80 X101 BZ613019 1002T01606 CERAMIC OSCILLATOR CSTLS16M0X53-A0 X601 AD301653 100DT3R531 CRYSTAL HC-49/U X4001 AD301803 100BT02701 CRYSTAL HC-49U/S

RESISTOR

CAPACITORS

RC................... CARBON RESISTOR

CC................... CERAMIC CAPACITOR

CE................... ALUMI ELECTROLYTIC CAPACITOR

CP................... POLYESTER CAPACITOR

CPP.................. POLYPROPYLENE CAPACITOR

CPL.................. PLASTIC CAPACITOR

CMP......................

CMPL................ METAL PLASTIC CAPACITOR

CMPP................ METAL POLYPROPYLENE CAPACITOR

METAL POLYESTER CAPACITOR

J3-10 MD20F51C

TOSHIBA CORPORATION

1-1, SHIBAURA 1-CHOME, MINATO-KU, TOKYO 105-8001, JAPAN

Toshiba MD20F51, MD20F51C Schematic

Specifications and Main Features

Frequently Asked Questions

User Manual
