Toshiba M5-ST8112 User Manual

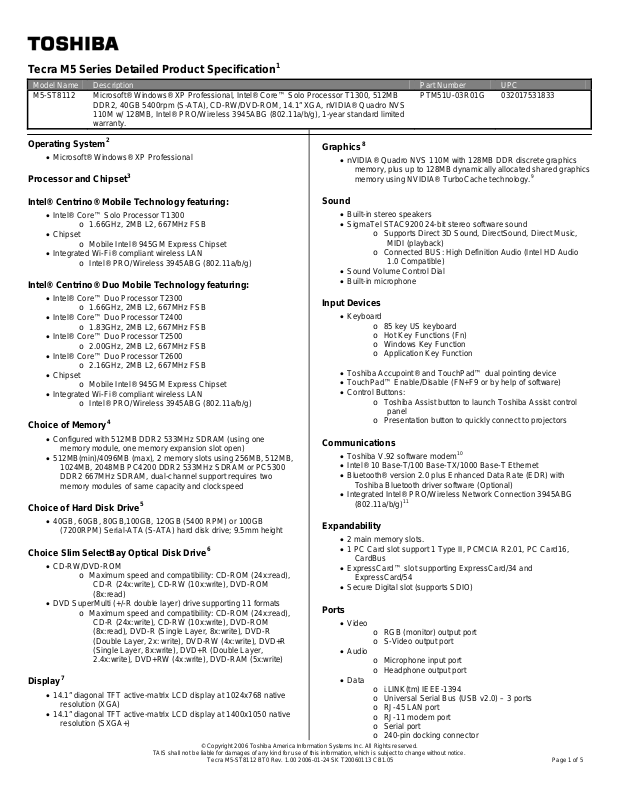

Tecra M5 Series Detailed Product Specification

Model Name Description Part Number UPC

M5-ST8112 Microsoft® Windows® XP Professional, Intel® Core™ Solo Processor T1300, 512MB

PTM51U-03R01G 032017531833 DDR2, 40GB 5400rpm (S-ATA), CD-RW/DVD-ROM, 14.1” XGA, nVIDIA® Quadro NVS 110M w/ 128MB, Intel® PRO/Wireless 3945ABG (802.11a/b/g), 1-year standard limited warranty.

Operating System

• Microsoft® Windows® XP Professional

Processor and Chipset

Intel® Centrino® Mobile Technology featuring:

• Intel® Core™ Solo Processor T1300

• Chipset

• Integrated Wi-Fi® compliant wireless LAN

o 1.66GHz, 2MB L2, 667MHz FSB o Mobile Intel® 945GM Express Chipset o Intel® PRO/Wireless 3945ABG (802.11a/b/g)

Graphics8

• nVIDIA® Quadro NVS 110M with 128MB DDR discrete graphics memory, plus up to 128MB dynamically allocated shared graphics memory using NVIDIA® TurboCache technology.

Sound

• Built-in stereo speakers

• SigmaTel STAC9200 24-bit stereo software sound

o Supports Direct 3D Sound, DirectSound, Direct Music,

MIDI (playback)

o Connected BUS: High Definition Audio (Intel HD Audio

1.0 Compatible)

• Sound Volume Control Dial

Intel® Centrino® Duo Mobile Technology featuring:

• Intel® Core™ Duo Processor T2300

• Intel® Core™ Duo Processor T2400

• Intel® Core™ Duo Processor T2500

• Intel® Core™ Duo Processor T2600

• Chipset

• Integrated Wi-Fi® compliant wireless LAN

Choice of Memory

• Configured with 512MB DDR2 533MHz SDRAM (using one

• 512MB(min)/4096MB (max), 2 memory slots using 256MB, 512MB,

o 1.66GHz, 2MB L2, 667MHz FSB o 1.83GHz, 2MB L2, 667MHz FSB o 2.00GHz, 2MB L2, 667MHz FSB o 2.16GHz, 2MB L2, 667MHz FSB o Mobile Intel® 945GM Express Chipset o Intel® PRO/Wireless 3945ABG (802.11a/b/g)

memory module, one memory expansion slot open) 1024MB, 2048MB PC4200 DDR2 533MHz SDRAM or PC5300

DDR2 667MHz SDRAM, dual-channel support requires two memory modules of same capacity and clockspeed

Choice of Hard Disk Drive5

• 40GB, 60GB, 80GB,100GB, 120GB (5400 RPM) or 100GB (7200RPM) Serial-ATA (S-ATA) hard disk drive; 9.5mm height

• Built-in microphone

Input Devices

• Keyboard

• Toshiba Accupoint® and TouchPad™ dual pointing device

• TouchPad™ Enable/Disable (FN+F9 or by help of software)

• Control Buttons:

o 85 key US keyboard o Hot Key Functions (Fn) o Windows Key Function o Application Key Function

o Toshiba Assist button to launch Toshiba Assist control

panel

o Presentation button to quickly connect to projectors

Communications

• Toshiba V.92 software modem10

• Intel® 10 Base-T/100 Base-TX/1000 Base-T Ethernet

• Bluetooth® version 2.0 plus Enhanced Data Rate (EDR) with

Toshiba Bluetooth driver software (Optional)

• Integrated Intel® PRO/Wireless Network Connection 3945ABG (802.11a/b/g)

Expandability

• 2 main memory slots.

Choice Slim SelectBay Optical Disk Drive

• CD-RW/DVD-ROM

o Maximum speed and compatibility: CD-ROM (24x:read),

CD-R (24x:write), CD-RW (10x:write), DVD-ROM (8x:read)

• DVD SuperMulti (+/-R double layer) drive supporting 11 formats o Maximum speed and compatibility: CD-ROM (24x:read),

CD-R (24x:write), CD-RW (10x:write), DVD-ROM (8x:read), DVD-R (Single Layer, 8x:write), DVD-R (Double Layer, 2x: write), DVD-RW (4x:write), DVD+R (Single Layer, 8x:write), DVD+R (Double Layer,

2.4x:write), DVD+RW (4x:write), DVD-RAM (5x:write)

• 1 PC Card slot support 1 Type II, PCMCIA R2.01, PC Card16, CardBus

• ExpressCard™ slot supporting ExpressCard/34 and ExpressCard/54

• Secure Digital slot (supports SDIO)

Ports

• Video

o RGB (monitor) output port o S-Video output port

• Audio

o Microphone input port o Headphone output port

Display7

• 14.1” diagonal TFT active-matrix LCD display at 1024x768 native resolution (XGA)

• 14.1” diagonal TFT active-matrix LCD display at 1400x1050 native resolution (SXGA+)

• Data

o i.LINK(tm) IEEE-1394 o Universal Serial Bus (USB v2.0) – 3 ports o RJ-45 LAN port o RJ-11 modem port o Serial port o 240-pin docking connector

Tecra M5-ST8112 BT0 Rev. 1.00 2006-01-24 SK T20060113 CB1.05 Page 1 of 5

TAIS shall not be liable for damages of any kind for use of this information, which is subject to change without notice.

o TOSHIBA Power Saver Utility

Physical Description for this Product Series

• Dimensions (WxDxH Front/H Rear): 12.4” (315.6mm) x 10.3” (261.0mm) x 1.23” (31.2mm)[F]/1.35” (34.2mm)[R] without feet

• Weight: Starting at 5.2 lbs (2.37kg) depending upon configuration

• Indicators: Main Battery Charging, DC-IN, Power/Sleep, HDD

Activity, Wireless On, Caps Lock, Arrow Mode, Numeric Lock

• Chassis Description

o Case material: PC ABS + Magnesium

BIOS

• TSETUP, ACPI, PNP, VESA, DPMS, DDC, SM BIOS v2.4, PCI

o Wireless On/Off Switch o TOSHIBA Fn-esse® Shortcut Utility o TOSHIBA Mouse Utility o FN Shortcut Keys

BIOS v2.1 support

o LCD Cover Color: Titanium Silver

• Physical Security

o Slot for cable lock; o Items protected by a screw: Memory, HDD

• Software Security

o Passwords: User power-on password, supervisor

password

o Hotkey locks: Screen Blank

Software18

• Toshiba Software and Utilities

o TOSHIBA ConfigFree® o TOSHIBA Custom Utilities o Electronic User’s Guide

• Third-party Software

o Microsoft Office® OneNote® 2003 o Microsoft Works®

Power Supply

• 75W (15V x 5A) Auto sensing external AC Adapter, 100-240V / 5060Hz frequency (Universal) input.

• Dimensions (WxDxH): 5.0” (127.0mm) x 2.01” (51.0mm) x 1.18” (30.0mm)

• Weight: starting at 0.78 lbs (355 g)

o Intuit® Quicken® New User Edition 2005 o Sun® Java™ 2 Runtime Environment o Adobe® Acrobat® Reader o InterVideo® WinDVD® 5 o InterVideo® WinDVD Creator 2 Platinum o Sonic Solutions® RecordNow!™ Basic for Toshiba o Sonic Solutions® Drive Letter Access™ (DLA) o Microsoft® Windows Media Player version 10

Battery13

• 6-cell (4700mAh) rechargeable, removable Lithium Ion (Li-Ion) battery pack

• Dimensions (WxDxH): 8.15” (207.0mm) x 0.79” (20.0mm) x 1.17” (45.0mm)

• Weight: starting at 0.75 lbs (338 g)

• Battery Life (measured by MobileMark™)14

• Trial Software

o Yahoo! Music Engine o McAfee® VirusScan® (30-day trial)

o McAfee® antiSpyware (30-day trial) o McAfee® Personal Firewall Plus (30-day trial) o McAfee® SpamKiller® (30-day trial) o AOL® Internet Service (90-day trial)

o Included 6-cell battery: 4 hours, 3 minutes o Optional 12-cell battery: 7 hours, 36 minutes o Optional SlimSelectBay battery:

 7 hours, 17 minutes with 6-cell primary  10 hours, 58 minutes with 12-cell primary

• Recharge Time

o Main Battery Off/On – approximately 3.0

hrs/approximately 3.5 to 13.0 hrs

Toshiba EasyGuard™15

• Protect & Fix

o Shock Absorbing Design

 HDD Shock Absorber

o Hard Disk Drive Protection

 3D Accelerometer  HDD Dome Shock Protector  HDD Shock Absorber

o Spill-Resistant Keyboard o Magnesium Alloy Casework o TOSHIBA PC Diagnostic Tool o Key Component Access

• Secure

o Multiple-Level Password Utilities o Fingerprint Reader (includes software for password and

identity management)

o Trusted Platform Module (TPM v1.2) o TOSHIBA Secure Digital Token Utility o Reinforced Security Cable Lock Slot o Execute Disable Bit

• Connect

o Diversity Antenna o TOSHIBA ConfigFree® o Voice-over-IP Ready Design

• Optimize

o Presentation Button o TOSHIBA Zooming Utility o One-touch Resolution Change

Tecra M5-ST8112 BT0 Rev. 1.00 2006-01-24 SK T20060113 CB1.05 Page 2 of 5

TAIS shall not be liable for damages of any kind for use of this information, which is subject to change without notice.

Environmental Specifications

Operating Non-operating

Temperature Thermal Gradient 15° C per hour (max) 20° C per hour (max)

Relative Humidity (non-condensing) Altitude (relative to sea level) Shock 7G, 1.5G with CD-

Vibration 0.2G, 0.25G with CD-

TECRA / PORTEGE – 1 YEAR STANDARD LIMITED WARRANTY

Service Upgrades and Extensions

Toshiba offers many different enhanced services such as SystemGuard®, At-Home Repair, and Service Express to provide additional support to your notebook PC. For a full description and complete list of programs and program terms and conditions, please visit

5° to 35° C (41° to 95° F)

-20° to 65° C (-4° to 149° F)

20% to 80% 10% to 95%

-60 to 3,000 meters -60 to 10,000 meters 60G

ROM installed

1.0G

ROM installed

• This product is compatible with European Union Directive 2002/95/EC, Restriction of the use of certain Hazardous Substances in electrical and electronic equipment (RoHS) restricting use of lead, cadmium, mercury, hexavalent chromium, PBB, and PBDE.

www.pcsupport.toshiba.com.

Recommended Services

Extended Service Plans

Provides an extended service plan for up to 4 total years from the original notebook purchase date.

Part Number Description

WSN-PEQQ2V 2nd Year Extended Service Plan WSN-PEQQ3V 2nd/3rd Year Extended Service Plan WSN-PEQQ4V 2nd/3rd/4th Year Extended Service Plan

SystemGuard Accidental Damage Service w/ ServiceExpress

Provides advanced protection from damage caused from handling. Select your express repair service with either Depot Express or Carry-In Express and go to the front of the line. Extended Service Plan included with 4 Year plan. SystemGuard coverage must be purchased within the first 30 days of notebook purchase.

Part Number Description WSN-PSGQ1V 1st Year WSN-PEGQ2V 1st/2nd Year + Extended Service Plan WSN-PEGQ3V 1st/2nd/3rd Year + Extended Service Plan

SystemGuard Accidental Damage Service + Business On-Site Repair

Combines SystemGuard and Business On-Site Repair coverage. Extended Service Plan included with 4 Year plan. SystemGuard coverage must be purchased within the first 30 days of notebook purchase.

Part Number Description WSN-PSGN1V 1st Year WSN-PEGN2V 1st/2nd Year + Extended Service Plan WSN-PEGN3V 1st/2nd/3rd Year + Extended Service Plan

ServiceExpress

Select your express repair service with either Depot Express or Carry-In Express. Depot Express: Your notebook will be repaired and returned via overnight shipment (excluding weekends and holidays). Carry-In Express: Take your notebook into a Premier ASP and go to the front of the line for expedited repair service. Extended Service Plan included with 4 Year plan.

Part Number Description WSN-PSQP1V 1st Year WSN-PEQP2V 1st/2nd Year + Extended Service Plan WSN-PEQP3V 1st/2nd/3rd Year + Extended Service Plan

Business On-Site Repair

On-site service will be provided at the customer’s business location (excluding weekends and holidays) to perform the necessary hardware repairs. Extended Service Plan included with 4 Year plan.

Part Number Description WSN-PSQN1V 1st Year WSN-PEQN2V 1st/2nd Year + Extended Service Plan

WSN-PEQN3V 1st/2nd/3rd Year + Extended Service Plan

Accessories

For memory compatibility and the most updated accessories, please visit

www.accessories.toshiba.com

Power

Part Number Description PA3283U-3ACA Toshiba 75W Global AC Adapter PA3356U-2BRS Toshiba Primary Li Ion Battery Pack (6 Cell) PA3509U-1BRM Toshiba Primary Extended Capacity Li Ion Battery

Pack (9 Cell)

PA3357U-1BRL Toshiba Primary High Capacity Li Ion Battery Pack

(12 Cell) PA3129U-2BRS Toshiba Slim SelectBay 2nd Battery Pack PA3091U-1CHG Toshiba Battery Charger with Integrated AC Adapter

Expansion

Part Number Description PA3474U-1PRP Toshiba Advanced Port Replicator III Plus

Security & Protection

Part Number Description PA1370U-1ETC Toshiba Keyboard Protector (Satellite/Tecra/Qosmio) PA410U Targus DEFCON CL Notebook Cable Lock

Storage

Part Number Description PA3109U-3FDD Toshiba USB Floppy Disk Drive Kit PA3407U-1H80 Toshiba 80GB HDD Kit with (Bracket) 5400 rpm

SATA PA3430U-1HA0 Toshiba 100GB HDD Kit with (Bracket) 5400 rpm

SATA PA3134U-1ETC Toshiba Slim SelectBay HDD Adapter (Black Bezel) PA1399U-1MEM Toshiba 1GB USB Hi-Speed Flash Drive

Wireless/Bluetooth

Part Number Description PA3455U-1BTM Toshiba USB Adapter with Bluetooth 2.0+EDR

Capability

Subject to Change

While Toshiba has made every effort at the time of publication to ensure the accuracy of the information provided herein, product specifications, configurations, prices, system/component/options availability are all subject to change without notice. For the most up-to-date product information about your computer, or to stay current with the various computer software or hardware options, visit Toshiba’s Web site at

http://www.pcsupport.toshiba.com

Return Policy

Notwithstanding anything to the contrary in any third party License Agreement or product documentation supplied with your PC, Toshiba America Information Systems, Inc. (“TAIS”) does not accept the return of component parts, or bundled software, that have been removed from the PC system. Pro-rata refunds on individual PC components or bundled software, including the operating system, will not be granted. If you wish to return a complete PC system, contact the TAIS dealer where you purchased the product, and comply with the dealer’s standard return policies and procedures.

Toshiba America Information Systems, Incorporated (“TAIS”) 9740 Irvine Boulevard Irvine CA 92618 ToshibaDirect website: TAIS website for resellers: TAIS PC Support website:

Portégé, Satellite, Tecra, SelectBay, ConfigFree and SystemGuard are registered trademarks and Qosmio and EasyGuard are trademarks of Toshiba America Information Systems, Inc. and/or Toshiba Corporation. Intel, Celeron, Centrino, Intel Inside, Pentium, the Intel Centrino logo, and the Intel Inside logo are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries. Microsoft and Windows are registered trademarks and OneNote registered is a trademark of Microsoft Corporation in the United States and/or other countries. Winstone® is a registered trademark and BatteryMark™ is a trademark of Ziff Davis Publishing Holdings Inc. in the U.S. and other countries. MobileMark™ is a trademark of the Business Applications Performance Corporation. Wi-Fi is a registered certification mark of the Wi-Fi Alliance. The Bluetooth word mark and logos are owned
