Toshiba M50 User Manual

User’s Manual

M50

Choose freedom.

computers.toshiba-europe.com

Copyright

© 2005 by TOSHIBA Corporation. All rights reserved. Under copyright law,
this manual cannot be reproduced in any form without the prior written
permission of TOSHIBA. No patent liability is assumed, with respect to the
use of the information contained herein.

TOSHIBA M50 Series Portable Personal Computer User's Manual

First edition Aug. 2005
Ownership and copyright of music, video computer programs, databases,

etc. are protected by the copyright laws. These copyrighted materials may
be copied for private use at home only. If, beyond the limitation above, you
copy (including to transform data formats) or modify these materials,
transfer them or distribute them via the Internet without approval of
copyright owners, you may be subject to claims for compensation for
damage and/or criminal penalities due to infringements of copyrights or
personal rights. Please remember to observe the copyright laws when you
use this product to copy the copyrighted works or perform other actions.
Please note that you may infringe the owner's rights protected by the
copyright laws if you use the screen mode switching functions (e.g.Wide
mode, Wide Zoom mode, etc.) of this product to display enlarged images/
video at coffee shops or hotels for the purposes of profits or providing these
to the public.

Disclaimer

TOSHIBA M50 Series

This manual has been validated and reviewed for accuracy. The
instructions and descriptions it contains are accurate for the M50 series
Portable Personal Computers at the time of this manual’s production.
However, succeeding computers and manuals are subject to change
without notice. TOSHIBA assumes no liability for damages incurred directly
or indirectly from errors, omissions or discrepancies between the computer
and the manual.

Trademarks

IBM is a registered trademark and IBM PC, OS/2, and PS/2 are trademarks
of International Business Machines Corporation. Celeron, Intel, Intel
SpeedStep, and Pentium are trademarks or registered trademarks of Intel
Corporation or its subsidiaries in the United States and other countries.

MS-DOS, Microsoft, Windows and DirectX are registered trademarks of
Microsoft Corporation.

Centronics is a registered trademark of Centronics Data Computer
Corporation. Photo CD is a trademark of Eastman Kodak.

Bluetooth is a trademark owned by its proprietor and used by TOSHIBA
under license.

iLINK is a trademark of Sony Corporation.

User’s Manual ii

Other trademarks and registered trademarks not listed above may be used
in this manual.

TruSurround XT, WOW XT, SRS and symbol are trademarks of
SRS Labs, Inc.

TruSurround XT, WOW XT, TruBass, SRS 3D and FOCUS technologies
are incorporated under license from SRS Labs, Inc.

Macrovision License of Notice

This product incorporates copyright protection technology that is protected
by methods and claims of certain U.S. patents and other intellectual rights
owned by Macrovision Corporation, and other rights owners. Use of this
copyright protection technology must be authorized by Macrovision
Corporation and is intended for home and other limited viewing uses only
unless authorized by Macrovision Corporation. Reverse engineering of
disassembly is prohibited.

EU Declaration of Conformity

TOSHIBA declares, that the product: M50 Series conforms to the following
Standards:

This product is labelled with the CE Mark in accordance with the related
European Directives, notably Electromagnetic Compatibility Directive
89/ 336/EEC for the notebook and the electronic accessories including the
supplied power adapter, the Radio Equipment and Telecommunications
Terminal Equipment Directive 99/5/EEC in case of implemented
telecommunication accessories and the Low Voltage Directive 73/23/EEC
for the supplied power adapter.

CE Marking is the responsibility of TOSHIBA EUROPE GmbH,
Hammfelddamm 8, 41460 Neuss, Germany, phone [phone].

For a copy of the related CE Declaration of Conformity please refer to the
following website: http://epps.toshiba-teg.com.

TOSHIBA M50 Series

Following information is only for EU-member states:

The symbol indicates that this product may not be treated as
household waste. Please ensure this product is properly
disposed as inappropriate waste handling of this product may
cause potential hazards to the environment and human health.
For more detailed information about recycling of this product,
please contact your local city office, your household waste
disposal service or the shop where you purchased the product.

This symbol may not stick depending on the country and region where you
purchased.

User’s Manual iii

Modem warning notice

Conformity Statement

The equipment has been approved to [Commission Decision "CTR21"] for
pan- European single terminal connection to the Public Switched
Telephone Network (PSTN).

However, due to differences between the individual PSTNs provided in
different countries/regions the approval does not, of itself, give an
unconditional assurance of successful operation on every PSTN network
termination point.

In the event of problems, you should contact your equipment supplier in the
first instance.

Network Compatibility Statement

This product is designed to work with, and is compatible with the following
networks. It has been tested to and found to confirm with the additional
requirements conditional in EG 201 121.

TOSHIBA M50 Series

Germany ATAAB AN005,AN006,AN007,AN009,AN010

Greece ATAAB AN005,AN006 and GR01,02,03,04

Portugal ATAAB AN001,005,006,007,011 and

Spain ATAAB AN005,007,012, and ES01

Switzerland ATAAB AN002

Norway ATAAB AN002, 005, 007 and

All other countries/
regions

Specific switch settings or software setup are required for each network,
please refer to the relevant sections of the user guide for more details.

The hookflash (timed break register recall) function is subject to separate
national type approvals. It has not been tested for conformity to national
type regulations, and no guarantee of successful operation of that specific
function on specific national networks can be given.

and DE03,04,05,08,09,12,14,17

P03,04,08,10

NO 01, 02

ATAAB AN003,004

User’s Manual iv

Safety Instructions

Use the following safety guidelines to help protect yourself and your
computer.

When Using Your Computer

Do not operate your portable computer for an extended period of time with
the base resting directly on your body. With extended operation, heat can
potentially build up in the base. Allowing sustained contact with the skin
could cause discomfort or, eventually, a burn.

■ Do not attempt to service the computer yourself. Always follow

installation instructions closely.

■ Do not carry a battery in your pocket, purse, or other container where

metal objects (such as car keys) could short-circuit the battery
terminals. The resulting excessive current follow can cause extremely
high temperatures and may result in damage from burns.

■ Be sure that nothing rests on your AC adapter's power cable and that

the cable is not located where it can be tripped over or stepped on.

■

Place the AC adapter in a ventilated area, such as a desk top or on the
floor, when you use it to run the computer or to charge the battery. Do not
cover the AC adapter with papers or other items that will reduce cooling;
also, do not use the AC adapter while it is inside a carrying case.

■ Use only the AC adapter and batteries that are approved for use with

this computer. Use of another type of battery or AC adapter may risk fire
or explosion.

■ Before you connect the computer to a power source, ensure that the

voltage rating of the AC adapter matches that of the available power
source.

115 V/60Hz in most of North and South America and some Far Eastern
countries such as Taiwan.

100 V/50Hz in eastern Japan and 100 V/60Hz in western Japan.
230 V/50 Hz in most of Europe, the Middle East, and the Far East.

■ If you use an extension cable with your AC adapter, ensure that the total

ampere rating of the products that are plugged into it do not exceed the
ampere rating of the extension cable itself.

■ To help avoid the potential hazard of electric shock, do not connect or

disconnect any cables or perform maintenance or reconfiguration of this
product during an electrical storm.

■ When setting up the computer for work, place it on a level surface.

■ Do not dispose of batteries in a fire. They may explode. Check with

local authorities for disposal instructions.

■ When traveling, do not check the computer as baggage. You can put

your computer through an X-ray security machine, but never put your
computer through a metal detector. If you have the computer checked
by hand, be sure to have a charged battery available in case you are
asked to turn on the computer.

TOSHIBA M50 Series

User’s Manual v

TOSHIBA M50 Series

■ When traveling with the hard drive removed from the computer, wrap

the drive in a non-conducting material, such as cloth or paper. If you
have the drive checked by hand, be ready to install the drive in the
computer. Your can put the hard drive through an X-ray security
machine, but never put it through a metal detector.

■ When traveling, do not place the computer in overhead storage

compartments where it could slide around. Do not drop your computer
or subject it to other mechanical shocks.

■ Protect your computer, battery, and hard drive from environmental

hazards such as dirt, dust, food, liquids, temperature extremes, and
overexposure to sunlight.

■ When you move your computer between environments with very

different temperature and/or humidity ranges, condensation may form
on or within the computer. To avoid damaging the computer, allow
sufficient time for the moisture to evaporate before using the computer.

■

When you disconnect a cable, pull on its connector or on its strain relief
loop, not on the cable itself. As you pull out the connector, keep it evenly
aligned to avoid bending any connector pins. Also, before you connect a
cable make sure both connectors are correctly oriented and aligned.

■ Before you clean your computer, turn if off, unplug it from its power

source, and remove the battery.

■ Handle components with care. Hold a component such as a memory

module by its edges, not its pins.

When using telephone equipment in conjunction with your computer, basic
safety precautions should always be followed to reduce the risk of fire,
electric shock and injury to persons, including the following:

■ Do not use this product near water, for example, near a bathtub,

washing bowl, kitchen sink or laundry tub, in a wet basement or near a
swimming pool.

■ Avoid using a telephone (other than a cordless type) during an electrical

storm. There may be a remote risk of electric shock from lightning.

■ Do not use the telephone to report a gas leak in the vicinity of the leak.

■ Use only the power cord indicated in this manual.

■ Replace only with the same or equivalent type battery recommended by

the manufacturer.

■ Dispose of used batteries according to the manufacturer's instructions.

■ To reduce the risk of fire, use only No. 26 AWG or larger

telecommunication line cord.

Use only the battery pack that came with the computer or an optional
battery pack. Use of the wrong battery could damage your computer.

TOSHIBA assumes no liability for any damage in such case.

User’s Manual vi

Optical Disc Drive Safety Instruction

The optical disc drive employs a laser system. To ensure proper use of this
product, please read the manual carefully and retain for future reference.
Should the unit ever require maintenance, contact an authorized service
location.
Use of controls, adjustments or the performance of procedures other than
those specified may result in hazardous radiation exposure.
To prevent direct exposure to the laser beam, do not try to open the
enclosure.

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF
PROCEDURES OTHER THAN THOSE SPECIFIED IN THE
MANUAL MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

The optical drive that is used in this computer is equipped with a laser
device. A classification label with the following sentence is affixed to the
surface of the drive.

TOSHIBA M50 Series

The drive with the label above is certified by the manufacturer that the drive
complies with the requirement for laser product on the date of
manufacturing pursuant to article 21 of Code of Federal Regulations by the
United States of America, Department of Health & Human Services, Food
and Drug Administration.

In other countries, the drive is certified to comply with the requirement
pursant to IEC 825 and EN60825 on class 1 laser product.

This computer is equipped with one of the optical drive in the following list
according to the model

Manufacturer Type

Panasonic
Communications Co.,
LTD.

TOSHIBA Samsung
Storage Technology

Hitachi LG Data Storage,
Inc.

User’s Manual vii

CD-RW/DVD-ROM UJDA770

CD-RW/DVD-ROM TS-L462C

CD-RW/DVD-ROM GCC-4244

Manufacturer Type

TOSHIBA M50 Series

Panasonic
Communications Co.,
LTD.

TEAC DVD Super Multi DV-W28EA-6TT

Hitachi LG Data Storage,
Inc.

Pioneer DVD Super Multi DVR-K16TBT

Important Notice

Copyrighted works including, but not limited to music, video, computer
program, databases are protected by copyright laws. Unless specifically
permitted under applicable copyright laws, you cannot copy, modify, assign,
transmit or otherwise dispose of any copyrighted work with the consent of
the owner of the copyright.

Please take notice that unauthorized copying, modification, assignment,
transmission and disposition may be subject to claims for damages and
penalties.

DVD Super Multi UJ-841B

DVD Super Multi GSA-4082N

User’s Manual viii

General Precautions

TOSHIBA computers are designed to optimize safety, minimize strain and
withstand the rigors of portability. However, certain precautions should be
observed to further reduce the risk of personal injury or damage to the
computer.

Be certain to read the general precautions below and to note the cautions
included in the text of the manual.

Stress injury

Carefully read the Safety Instruction Manual. It contains information on
prevention of stress injuries to your hands and wrists that can be caused by
extensive keyboard use. Chapter 3, Getting Started, also includes
information on work space design, posture and lighting that can help
reduce physical stress.

Heat injury

■ Avoid prolonged physical contact with the bottom of the computer. If the

computer is used for long periods, its surface can become very warm.
While the temperature will not feel hot to the touch, if you maintain
physical contact with the computer for a long time (if you rest the
computer on your lap, for example) your skin might suffer low-heat
injury.

■ If the computer has been used for a long time, avoid direct contact with

the metal plate supporting the I/O ports. It can become hot.

■ The surface of the AC adapter can become hot when in use.

This condition does not indicate a malfunction. If you need to transport
the AC adapter, disconnect it and let it cool before moving it.

■ Do not lay the AC adapter on a material that is sensitive to heat.

The material could be damaged.

TOSHIBA M50 Series

Pressure or impact damage

Do not apply heavy pressure to the computer or subject it to strong impact.
Excessive pressure or impact can damage computer components or

otherwise cause malfunctions.

PC Card overheating

Some PC Cards can become hot with prolonged use. Overheating of a
PC Card can result in errors or instability in the PC Card operation. Also be
careful when you remove a PC Card that has been used for a long time.

User’s Manual ix

TOSHIBA M50 Series

Mobile phone

Use of mobile phones can interfere with the audio system. Computer
operation is not impaired but it is recommended that a distance of 30cm be
maintained between the computer and a mobile phone in use.

LCD

Over a period of time, and depending on the usage of the computer, the
brightness of the LCD screen will deteriorate. This is an intrinsic
characteristic of LCD technology. Maximum brightness is only available
when operating in AC power mode. The screen will dim when the computer
is operated on battery power and you may not be able to increase the
brightness of the screen.

Central Processing Unit (“CPU”) Performance Disclaimer:

CPU performance in your computer product may vary from specifications
under the following conditions:

■ use of certain external peripheral products

■ use of battery power instead of AC power

■ use of certain multimedia, computer generated graphics or video

applications

■ use of standard telephone lines or low speed network connections

■ use of complex modeling software, such as high end computer aided

design applications

■ use of several applications or functionalities simultaneously

■ use of computer in areas with low air pressure (high altitude > 1,000

meters or > 3,280 feet above sea level)

■ use of computer at temperatures outside the range of 5 ºC to 30 ºC

(41 ºF to 86 ºF) or > 25 ºC (77 ºF) at high altitude (all temperature
references are approximate and may vary depending on the specific
computer model).

CPU performance may also vary from specifications due to design
configuration.

Under some conditions, your computer product may automatically shut­down.

This is a normal protective feature designed to reduce the risk of lost data
or damage to the product when used outside recommended conditions.

To avoid risk of lost data, always make back-up copies of data by
periodically storing it on an external storage medium. For optimum
performance, use your computer product only under recommended
conditions. Read additional restrictions under “Environmental Conditions”
in your product Resource Guide. Contact Toshiba Technical Service and
Support for more information.

User’s Manual x

TOSHIBA M50 Series

Graphics Processing Unit (“GPU”) Performance Disclaimer:

The graphics processing unit ("GPU") performance may vary depending on
product model, design configuration, applications, power management
settings and features utilized.

GPU performance is only optimized when operating in AC power mode and
may decrease considerably when operating in battery power mode.

Main Memory Disclaimer

The graphics system in your computer may use part of the main system
memory for graphics performance and therefore reduce the amount of
system memory available for other computing activities. The amount of
system memory allocated to support graphics may vary depending on the
graphics system, applications utilized, system memory size and other
factors.

Copy Protection

Copy protection technology included in certain media may prevent or limit
recording or viewing of the media.

Hard Disk Drive Capacity

1 Gigabyte (GB) means 1000 x 1000 x 1000 = 1,000,000,000 bytes using
powers of 10. The computer operating system, however, reports storage
capacity using powers of 2 for the definition of 1 GB = 1024 x 1024 x 1024
= 1,073,741,824 bytes, and therefore may show less storage capacity.
Available storage capacity will also be less if the product includes one or
more pre-installed operating systems, such as Microsoft Windows
any pre-installed software applications or media content. Actual formatted
capacity may vary.

®

, and/or

Non-applicable Icons

Certain notebook chassis are designed to accommodate all possible
configurations for an entire product series. Your selected model may not
have all the features and specifications corresponding to all of the icons or
switches shown on the notebook chassis, unless you have selected all
those features.

Wireless LAN

The transmission speed over the wireless LAN and the distance over which
wireless LAN can reach may vary depending on surrounding
electromagnetic environment, obstacles, access point design and
configuration, and client design and software/hardware configurations.
The actual transmission speed will be lower than the theoretical maximum
speed.

SRS

SRS TruSurround XT is available in the Microsoft Windows® operating
system only.

User’s Manual xi

TOSHIBA M50 Series

Images

All images are simulated for purposes of illustration.

Express Media Player

The Express Media Player is not a Windows® based application. Battery life
will be less than when using similar applications in the Windows operating
system.

LCD Brightness and Eye Strain

Your LCD display has a brightness approaching that of a TV device.
We recommend that you adjust the brightness of your LCD to a
comfortable level to prevent possible strain on your eyes.

CE compliance

This product and the supplied accessories are designed to observe the
related EMC (Electromagnetic Compatibility) and safety standards.
However, TOSHIBA cannot guarantee that this product still observes these
EMC standards if accessories or cables not manufactured / distributed by
TOSHIBA are connected or implemented. To avoid in general EMC
problems, the following advice should be observed:

■ Only CE marked accessories should be connected / implemented

■ Only best shielded cables should be connected

Working environment

This product was designed to fulfill the EMC (Electromagnetic Compatibility)
requirements for "residential, commercial and light industry environments".

The following environment is not approved:

■ Industrial Environments (e.g. environments where a with a mains

voltage of 380V threephase is being used).

In the following environments the use of this product can be restricted:

■

Medical Environments: This product is not certified as a medical product
according to the Medical Product Directive 93/42/EEC, but can be used
in office areas where the use is not restricted. Please disable the wireless
LAN or Bluetooth hardware in such areas as long this feature is not
official supported by the operator of the related medical facility.

■ Vehicle Environments: Please read operator’s manual of the vehicle

manufacturer for further restrictions of use.

■ Aircraft Environments: Please following the advices of the flight

personnel regarding restrictions of use.

User’s Manual xii

TOSHIBA M50 Series

Any consequences resulting from the use of this product in working
environments that are not approved or the use is restricted are not the
responsibility of Toshiba Corporation. The consequences of the use of this
product in those working environments may be:

■ Interference with other devices or machines in the nearby surrounding

area

■ Malfunction of, or data loss from, this product caused by disturbances

generated by other devices or machines in the nearby surrounding area

Furthermore, for general safety reasons, the use of this product in
environments with explosive atmospheres is not permitted.

Network connection (Class A warning)

If this product has networking capabilities and will be connected to a
network, Class A radiation limits will be observed (in accordance with
technical conventions). This means that if the product will be used in a
domestic environment, other devices in the near surrounding area may
suffer interference. Consequently, please do not use this product in such
environments (for example a living room), otherwise you could be held
responsible for any ensuing interference.

Information on the secure writing to optical disc media

Even if your software gives no indication that any problems have occurred,
you should always check to ensure that information has been successfully
stored on recordable optical media (CD-R, CD-RW and so forth).

Wireless LAN and your Health

Wireless LAN products, like other radio devices, emit radio frequency
electromagnetic energy. The level of energy emitted by Wireless LAN
devices however is far less than the electromagnetic energy emitted by
other wireless devices such as mobile phones.

Because Wireless LAN products operate within the guidelines found in
radio frequency safety standards and recommendations, TOSHIBA
believes Wireless LAN is safe for use by consumers. These standards and
recommendations reflect the consensus of the scientific community and
result from deliberations of panels and committees of scientists who
continually review and interpret the extensive research literature.

In some situations or environments, the use of Wireless LAN may be
restricted by the proprietor of the building or responsible representatives of
the organisation. These situations may for example include:

■ Using the Wireless LAN equipment on board of aeroplanes

■ In any other environment where the risk of interference to other devices

or services is perceived or identified as harmful.

If you are uncertain of the policy that applies on the use of wireless devices
in a specific organisation or environment (e.g. airports), you are
encouraged to ask for authorisation to use the Wireless LAN device prior to
turning on the equipment.

User’s Manual xiii

TOSHIBA M50 Series

Safety Instruction for Wireless Products

If your computer has a wireless function, all safety instructions must be
read carefully and must be fully understood, before you attempt to use it.
This manual contains the safety instructions that must be observed in order
to avoid potential hazards that could result in personal injuries or could
damage your wireless products.

Limitation of Liability

For damage occurring due to an earthquake or thunder, fire beyond our
responsibility, action by third party, other accident, intentional or accidental
mistakes by a user, misuse or use under abnormal conditions, we do not
take any responsibility.

For incidental damage (loss of business profit, business interruption, etc.)
occurring due to use or disability of the product, we do not take any
responsibility.

For damage occurring due to non observance of the contents described in
the instruction manual, we do not take any responsibility.

For damage occurring due to erroneous operation or hang up caused by
use in combination with products not related to our company, we do not
take any responsibility.

Usage Restrictions

Do not use the Wireless Products for controlling the following equipment:

■ Equipment directly linked with human life corresponding to the

following.

■ Medical equipment such as life support systems, equipment used in

operations, etc.

■ Exhaust systems for gases such as poisonous gas etc. and exhaust

systems for smoke.

■ Equipment that must be set up in compliance with various laws such

as the Fire Services Act, the Construction Standard Act, etc.

■ Equipment corresponding to that mentioned above.

■ Equipment linked with human safety or having a serious influence on

the safe maintenance of public function, etc., because it is not designed
or manufactured for this type of use.

■ Traffic control equipment for air, railroad, road, marine transport, etc.

■ Equipment used in atomic power plants etc.

■ Equipment corresponding to that mentioned above.

User’s Manual xiv

TOSHIBA M50 Series

Warning

Turn OFF the Wireless Communication switch of wireless products in a
congested place, such as a crowded commuter train.

Keep this product away from a cardiac pacemaker at least 22cm.
Radio waves can potentially affect cardiac pacemaker operation, thereby

causing respiratory troubles.
Turn OFF the Wireless communication switch inside a medical facility or

near medical electric equipment. Do not bring medical electric equipment
close to the product.

Radio waves can potentially affect medical electric equipment, thereby
causing an accident due to malfunction.

Turn OFF the Wireless communication switch near an automatic door, fire
alarm or other automatic control equipment.

Radio waves can potentially affect automatic control equipment, thereby
causing an accident due to malfunction.

Do not turn ON the Wireless communication switch in aircraft or in places
that generate or can generate radio interference.

Radio waves can potentially affect equipment, such as that used on-board
aircraft, causing an accident due to malfunction.

You should monitor possible radio interference or other issues that may
arise with other equipment while the product is used. If any effect is noted,
turn OFF the Wireless communication switch.

Otherwise, radio waves can potentially affect other equipment, thereby
causing an accident due to malfunction.

When using the product in a car, check with the automobile dealer if the
car has an adequate electromagnetic compatibility (EMC).

Radio waves of the product can potentially hamper safe driving.
Depending on car model, the product can rarely affect car electronic

equipment if it is used in a car.

Note

Do not use this product in the following places:
Near a microwave oven or other environment which generates a magnetic

field.
Near any place or equipment that generates static electricity or radio

interference.
Depending on the environment, in a place where radio waves cannot reach

the product.

User’s Manual xv

Table of Contents

General Precautions

Wireless LAN and your Health . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xiii

Preface

Online Manual contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -xx

Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -xxi

Equipment checklist. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -xxii

Chapter 1 M50 Features

Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Special features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7

Utilities. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9

Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12

Chapter 2 The Grand Tour

Front with the display closed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Right side . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Left side. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

Back side. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

Underside . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6

Front with the display open. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8

Keyboard Indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10

Optical Disc drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11

Chapter 3 Getting Started

Setting up your work space. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Connecting the AC adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5

Opening the display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6

Turning on the power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6

Starting up for the first time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7

Turning off the power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7

Restarting the computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11

Restoring the preinstalled software from the Product

Recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-12

User’s Manual xvi

Table of Contents

Chapter 4

Operating Basics

Using the TouchPad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Using the internal modem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

LAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6

Wireless LAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7

Using optical disc drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8

Express Media Player. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13

Writing CDs on a CD-RW/DVD-ROM drive . . . . . . . . . . . . . . . . . . . . 4-17

Writing CDs/DVDs on a DVD Super Multi drive supporting

double layer disc recording. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-19

When Using WinDVD Creator 2 Platinum. . . . . . . . . . . . . . . . . . . . . 4-23

RecordNow! Basic for TOSHIBA. . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-25

DLA for TOSHIBA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-26

Media Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-27

Diskettes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-27

TV-Out . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-28

Setting up more than one display. . . . . . . . . . . . . . . . . . . . . . . . . . . 4-28

Cleaning the computer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-29

Moving the computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-29

Chapter 5 The Keyboard

Typewriter keys. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

F1 ... F12 function keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2

Soft keys: Fn key combinations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2

Hotkeys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3

Windows special keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4

Keypad overlay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5

Generating ASCII characters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6

Chapter 6 Power and Power-Up Modes

Power conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

Power indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-3

Battery types. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4

Care and use of the battery pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-5

Replacing the battery pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-10

TOSHIBA Password Utility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-12

Power-up modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-13

Panel power off/on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-14

System automatic Standby/Hibernation . . . . . . . . . . . . . . . . . . . . . . 6-14

Chapter 7 HW Setup

Accessing HW Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

HW Setup Window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

User’s Manual xvii

Table of Contents

Chapter 8

Optional Devices

PC Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2

Memory expansion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-4

Additional battery pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-7

Additional AC adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-7

External monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-7

Television . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-7

Security lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-9

Chapter 9 Troubleshooting

Problem solving process. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-1

Hardware and system checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-3

TOSHIBA support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-17

Appendix A Specifications

Appendix B Display Modes

Appendix C AC Power Cord and Connectors

Appendix D If your computer is stolen

Glossary

User’s Manual xviii

Preface

Congratulations on your purchase of the M50 series computer.
This powerful notebook computer provides excellent expansion capability,
including multimedia devices, and it is designed to provide years of reliable,
high-performance computing.

This manual tells how to set up and begin using your M50 series computer.
It also provides detailed information on configuring your computer, basic
operations and care, using optional devices and troubleshooting.

If you are a new user of computers or if you're new to portable computing,
first read over the M50 Features and The Grand Tour chapters to
familiarize yourself with the computer's features, components and
accessory devices. Then read Getting Started for step-by-step instructions
on setting up your computer.

If you are an experienced computer user, please continue reading the
preface to learn how this manual is organized, then become acquainted
with this manual by browsing through its pages. Be sure to look over the

Special features section of the M50 Features, to learn about features that

are unique to the computer.

User’s Manual xix

Online Manual contents

This manual has nine chapters, four appendixes, a glossary and an index.
Chapter 1, M50 Features, is an overview of the computer's special

features, utilities, and options.
Chapter 2, The Grand Tour, identifies the components of the computer and

briefly explains how they function.
Chapter 3, Getting Started, provides a quick overview of how to begin

operating your computer and gives tips on safety and designing your work
area. Be sure to read the sections on setting up the operating system and
on restoring the preinstalled software.

Chapter 4, Operating Basics, includes instructions on using the following
devices: TouchPad, the optical disc drives, the internal modem, LAN and
wireless LAN. It also provides tips on care of the computer, diskettes and
DVD/CD-ROMs.

Chapter 5, The Keyboard, describes special keyboard functions including
the keypad overlay and hotkeys.

Chapter 6, Power and Power-Up Modes, gives details on the computer's
power resources.

Chapter 7, HW Setup, introduces you to the TOSHIBA Hardware Setup
program.

Chapter 8, Optional Devices, describes the optional hardware available.
Chapter 9, Troubleshooting, provides helpful information on how to perform

some diagnostic tests, and suggests courses of action if the computer
doesn't seem to be working properly.

The Appendices provide technical information about your computer.
The Glossary defines general computer terminology and includes a list of

acronyms used in the text.

Preface

User’s Manual xx

Conventions

This manual uses the following formats to describe, identify, and highlight
terms and operating procedures.

Abbreviations

On first appearance, and whenever necessary for clarity, abbreviations are
enclosed in parentheses following their definition. For example: Read Only
Memory (ROM). Acronyms are also defined in the Glossary.

Icons

Icons identify ports, dials, and other parts of your computer. The indicator
panel also uses icons to identify the components it is providing information
on.

Keys

The keyboard keys are used in the text to describe many computer
operations. A distinctive typeface identifies the key top symbols as they
appear on the keyboard. For example, Enter identifies the Enter key.

Key operation

Some operations require you to simultaneously use two or more keys. We
identify such operations by the key top symbols separated by a plus sign
(+). For example, Ctrl + C means you must hold down Ctrl and at the same
time press C. If three keys are used, hold down the first two and at the
same time press the third.

Preface

DISKCOPY A: B: When procedures require an action such as

clicking an icon or entering text, the icon's name
or the text you are to type in is represented in the
type face you see to the left.

Display

ABC

User’s Manual xxi

Names of windows or icons or text generated by
the computer that appears on its display screen
is presented in the type face you see to the left.

Messages

Messages are used in this manual to bring important information to your
attention. Each type of message is identified as shown below.

Pay attention! A caution informs you that improper use of equipment or
failure to follow instructions may cause data loss or damage your
equipment.

Please read. A note is a hint or advice that helps you make best use of
your equipment.

Equipment checklist

Carefully unpack your computer. Save the box and packing materials for
future use.

* indicates an optional part that is dependant on the model purchased

Check to make sure you have all the following items:

Hardware

■ M50 Series Portable Personal Computer

■ Universal AC Adapter and Power Cord

■ USB Floppy Disk Drive *

■ Modular cable for modem *

Preface

Software

Microsoft® Windows® XP Home Edition

■ The following software which is preinstalled on your hard disk:

■ Microsoft

■ DVD Video Player

■ TOSHIBA Power Saver

■ TOSHIBA ConfigFree

■ TOSHIBA Assist

■ TOSHIBA Controls

■ TOSHIBA PC Diagnostic Tool

■ TOSHIBA Touch and Launch

■ TOSHIBA TouchPad On/Off Utility

■ RecordNow! Basic for TOSHIBA

■ DLA for TOSHIBA

■ TOSHIBA Zooming Utility

■ TOSHIBA CD/DVD Drive Acoustic Silencer

■ TOSHIBA Hardware Setup

User’s Manual xxii

®

Windows® XP Home Edition

■ TOSHIBA Accessibility

■ TOSHIBA Virtual Sound

■ TOSHIBA Hotkey Utility

■ WinDVD Creator 2 Platinum *

■ Online Manual

■ Product Recovery media and additional Software

The system may not function properly if you use drivers that are not
preinstalled or distributed by TOSHIBA

■ Product Recovery

■ Additional Software CD *

■ Express Media Player Recovery CD *

Documentation

■ Your computer's documentation:

■ M50 Series Personal Computer User's Manual

■ M50 Series Quickstart

■ Instructiion Manual for Safety and Comfort

■ Microsoft

■ Warranty Information

If any of the items are missing or damaged, contact your dealer
immediately.

®

Windows® XP manual package *

Preface

User’s Manual xxiii

M50 Features

This chapter identifies the computer's special features, options and
accessories.

Basic features are described in a separate pamphlet.

Some of the features described in this manual may not function properly if
you use an operating system that was not preinstalled by TOSHIBA.

Features

The M50 Series computer uses TOSHIBA's advanced Large Scale
Integration (LSI), Complementary Metal-Oxide Semiconductor (CMOS)
technology extensively to provide compact size, minimum weight, low
power usage, and high reliability. This computer incorporates the following
features and benefits:

Chapter 1

Processor

Depending on the model you purchased:
Mobile Intel

370/380

®

Celeron® M Processor 350J/360J/

Chip Set

®

ATI RADEON
ENE KB910 C1 for Keyboard Controller, Battery

management Unit, and RTC
Realtek RTL 8100CL 10/100 LAN controller
ALC250_D for AC97 Codec.

User’s Manual 1-1

XPRESS 200M

M50 Features

Memory

The graphics system in your computer may use part of the main system
memory for graphics performance and therefore reduce the amount of
system memory available for other computing activities. The amount of
system memory allocated to support graphics may vary depending on the
graphics system, applications utilized, system memory size and other
factors.

Slot Two SO-DIMM slots, upgradable 1 SO-DIMM up

to 1GB can be upgraded through memory
expansion slot. You need to remove existing
SO-DIMM if SO-DIMM is installed in memory
expansion slot. Maximum upgradable system
memory is 2GB with two SO-DIMM slots.

L2 Cache

1MB L2 Cache (Intel

®

Celeron® M Processor)

Video RAM Up to 128 MB integrated solution and shared with

main memory when main memory is more than
256MB.

Up to 64 MB integrated solution and shared with
main memory when main memory is 256MB.

BIOS

1MB Flash ROM for system BIOS
Suspend to memory or hard disk drive
Hardware password protection
Various Hotkey functions for system control
Complete ACPI 1.0b functionality

User’s Manual 1-2

M50 Features

Power

Battery Pack 4-cell Lithium Ion smart battery pack with

14.4V*2000mAh capacity
6-cell Lithium Ion smart battery pack with

10.8V*4000mAh capacity
8-cell Lithium Ion smart battery pack with

14.4V*4300mAh capacity
Approximately 12 hours or longer charging time

to 100% battery capacity with system switched
on.

Approximately 4 hours charge time to 100%
battery capacity with system switched off.

Approximately 1.5 days discharging time in
Standby Mode for the 8-cell battery, 1 day for the
6-cell battery and 0.75 days for 4-cell battery.

Discharge time in shutdown mode is
approximately 1 month

RTC Battery The computer has an internal battery to back up

its Real Time Clock (RTC), calender and setup
information. This battery will last for an average
of one month with no external power source.

AC adapter The universal AC adapter provides power to the

system and recharges the batteries when they
are low. It comes with a detachable power cord.

Floppy Diskette Drive devices

External USB Floppy Disk Drive (depends on the
model purchased)

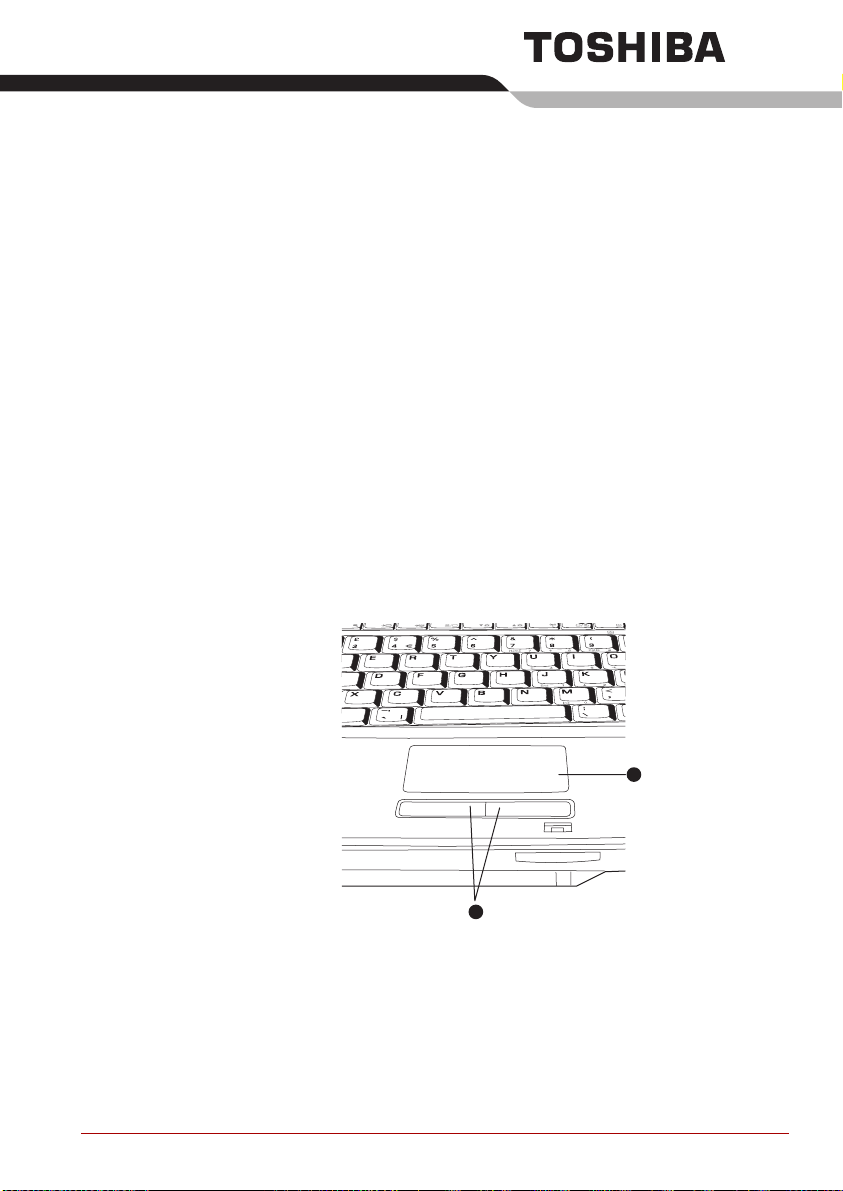

TouchPad

A TouchPad and control buttons in the palm rest
enable control of the on-screen pointer.

Display

14” TFT screen with a resolution of 1280
horizontal x 768 vertical pixels WXGA

User’s Manual 1-3

M50 Features

Disks

Fixed hard disk Depending on the model purchased, one of the

following drives will be installed:

40.0 billion bytes (37.26GB)

60.0 billion bytes (55.88GB)

80.0 billion bytes (74.52GB)

100.0 billion bytes (93.16GB)

120.0 billion bytes (111.78GB)
Bus Master IDE

9.5m/m 2.5" hard disk drive support
Ultra DMA 100

CD-RW/DVD-ROM
drive

DVD Super Multi
drive with double
layer disc recording
support

Some models are equipped with a full-size
CD-RW/DVD-ROM module that lets you record
data to rewritable CD/CD-RWs as well as run
either 12cm (4.72") or 8cm (3.15") CD/DVDs
without using an adapter. It reads DVD-ROMs at
maximum 8 speed and CD-ROMs at maximum
24 speed. It writes CD-Rs at up to 24 speed,
CD-RWs at up to 24 speed. This drive supports
the following formats:

■ DVD-ROM ■ DVD-Video

■ CD-R ■ CD-RW

■ CD-DA ■ CD-Text

■ Photo CD (single/multi-session)

■ CD-ROM Mode1, Mode2

■ CD-ROMXA Mode2 (Form1, Form2)

■ Enhanced CD(CD-EXTRA)

Some models are equipped with a full-size
DVD Super Multi drive module with double layer
support that lets you record data to rewritable
CD/DVDs as well as run either 12cm (4.72") or
8cm (3.15") CD/DVDs without using an adapter.
It reads DVD-ROMs at maximum 8 speed and
CD-ROMs at maximum 24 speed. It writes
CD-Rs at up to 24 speed, CD-RWs at up to 10
speed, DVD-Rs at maximum 8 speed, DVD-RWs
at maximum 4 speed, DVD+RWs at maximum 4
speed, DVD+Rs at maximum 8 speed, DVD+R
(double layer) at maximum 2.4 speed, DVD-R
(dual layer) at maximum 2 speed, and DVD-RAM
at maximum 5 speed. This drive supports the
same formats as the CD-RW/DVD-ROM drive
plus the following:

User’s Manual 1-4

M50 Features

■ DVD-ROM ■ DVD-Video

■ DVD-R ■ DVD-RW

■ DVD+R ■ DVD+RW

■ DVD-RAM ■ DVD+R (double layer)

■ DVD-R (dual layer)

■ CD-R ■ CD-RW

■ CD-DA ■ CD-Text

■ Photo CD (single/multi-session)

■ CD-ROM Mode1, Mode2

■ CD-ROMXA Mode2 (Form1, Form2)

■ Enhanced CD (CD-EXTRA)

Computers in this series can be configured with multiple types of optical
disc drive. For more information on the optical disc drives available, talk to
your dealer. More information on using the optical disc drive can be found
in Chapter 4, Operating Basics.

Slots (depending on configuration)

PC Card Accommodates one type II device.

Ports (depending on configuration)

External monitor 15-pin analog VGA port supports VESA DDC2B

compatible functions.

Universal Serial Bus The computer has four Universal Serial Bus

(USB) ports that comply with the USB 2.0
standard, which enables data transfer speeds
more than 40 times faster than USB 1.1 (which
this computer also supports).

TV Out The 4-pin S-Video port is compatible with PAL or

NTSC TV standard, supporting Macrovision 7.02
copy protection.

Multimedia (depending on configuration)

Sound system

The integrated Windows
system provides support for internal speakers as
well as jacks for an external microphone and
headphones.

Express Media
Player

User’s Manual 1-5

Lets you use the computer's fixed optical disc
drive as a stand-alone audio CD player or video
DVD player.

®

compatible sound

M50 Features

Headphone jack A standard 3.5mm stereo jack is provided for the

connection of external headphones or speakers.

Microphone jack A standard 3.5 mm mini microphone jack enables

connection of monaural microphone input.

Communications

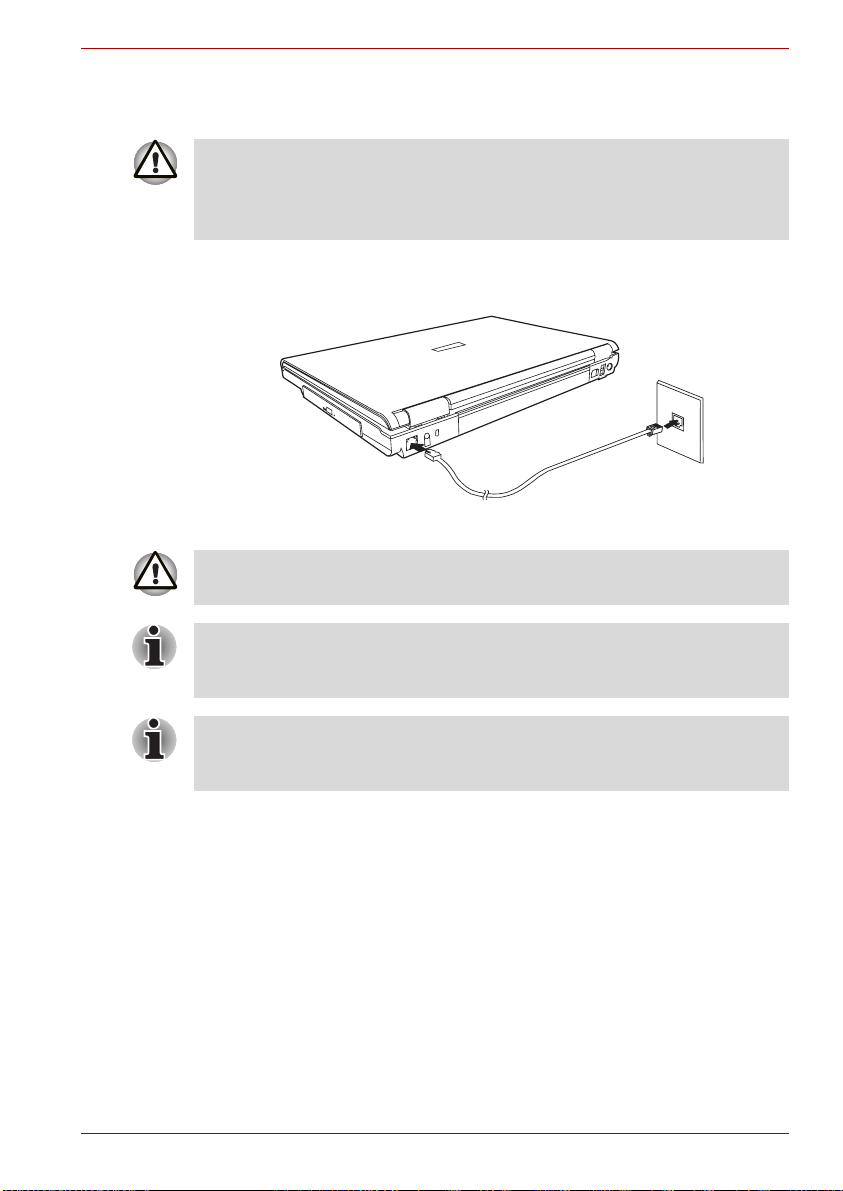

Modem An internal modem provides capability for data

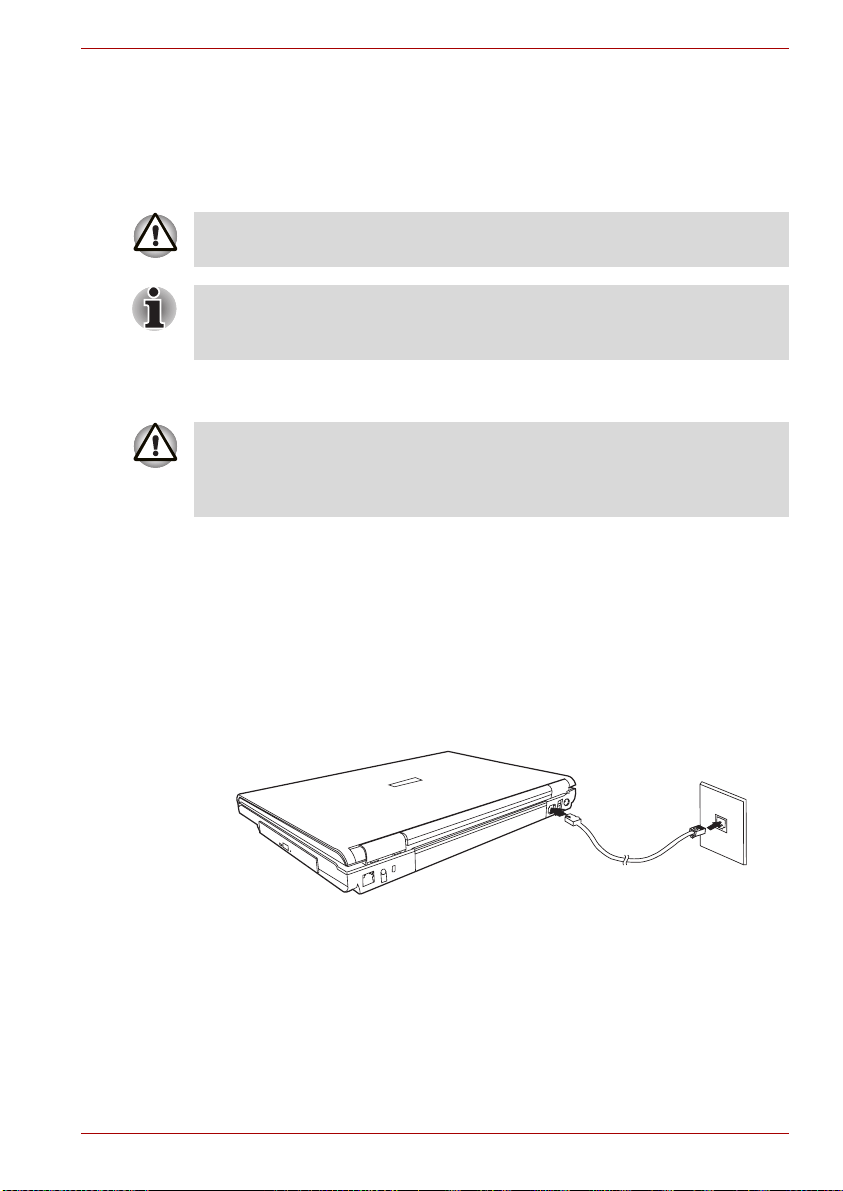

LAN The computer has built-in support for Ethernet

Wireless LAN Some computers in this series are equipped with

and fax communication. It supports the V.90 or
V.92 standards depending on the region and
provides a modem jack for connection to a
telephone line. The speed of data and fax
transfer depends on the analog telephone line
conditions.

LAN (10 megabits per second, 10BASE-T) and
Fast Ethernet LAN (100 Mbps 100BASE-TX)

a wireless LAN mini-PCI card that is compatible
with other systems that support the 802.11g
wireless communications standards. It offers
frequency selection between 2.4GHz and allows
roaming over multiple channels.

Security

Power-on password protection
Two level password architecture

Security Lock Slot

Receives an optional security lock in order to
anchor the computer to a desk or other large,
heavy object.

User’s Manual 1-6

Special features

The following features are either unique to TOSHIBA computers or are
advanced features, which make the computer more convenient to use.

M50 Features

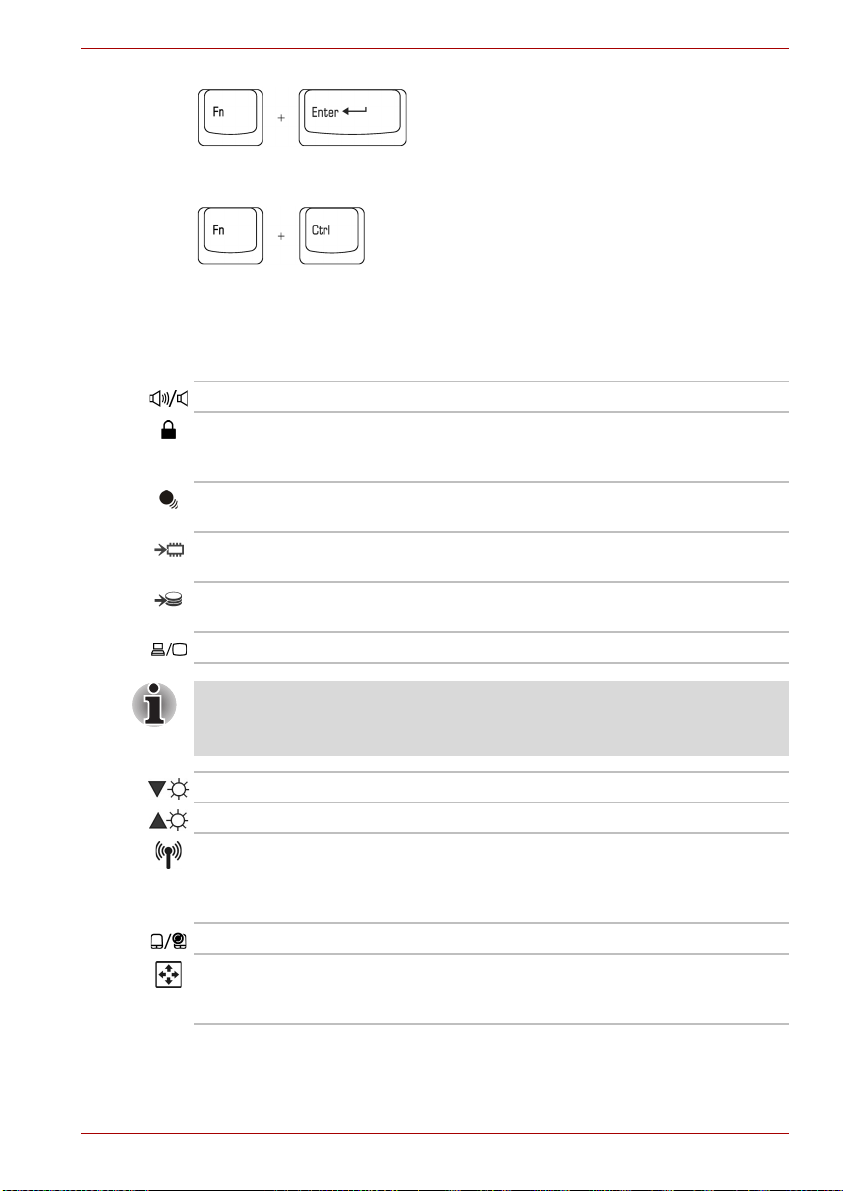

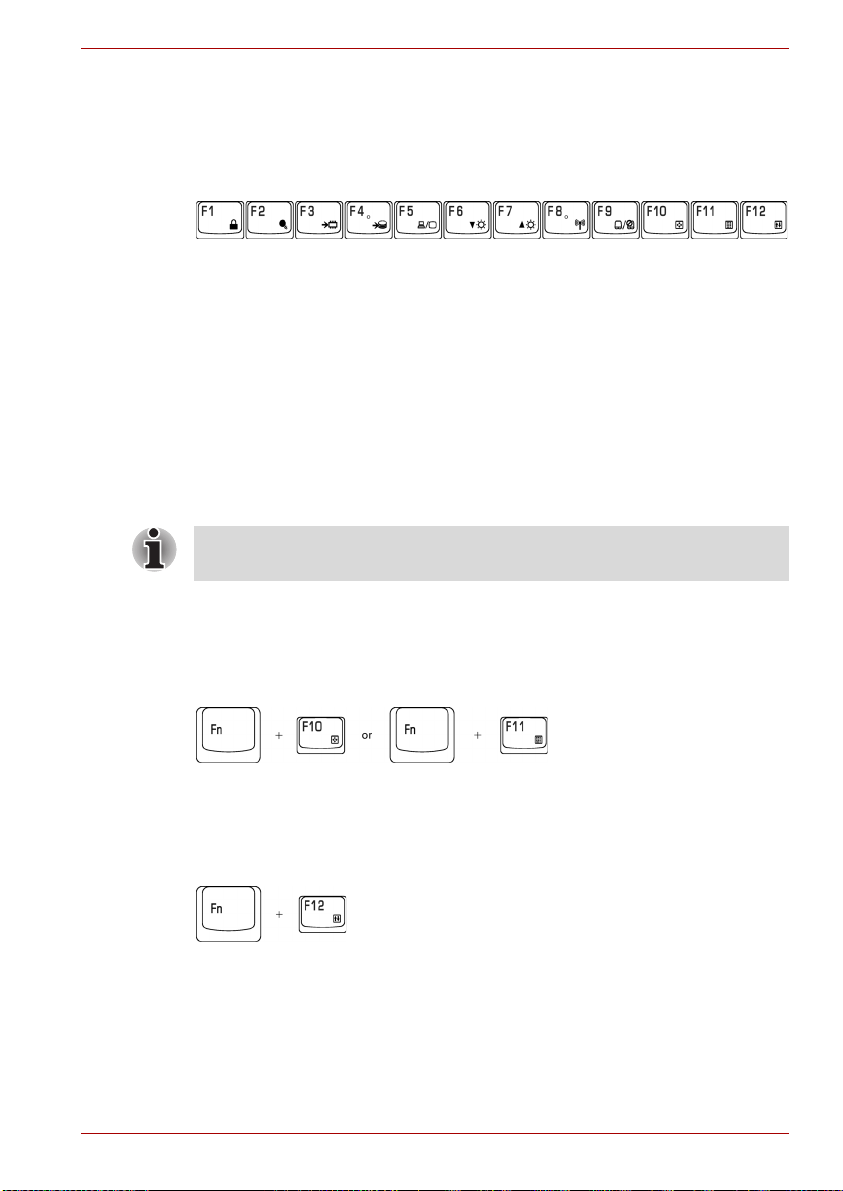

Hotkeys Key combinations that let you quickly modify the

Display Automatic
Power off

Hard Disk Drive
Automatic Power Off

System Automatic
Standby/Hibernation

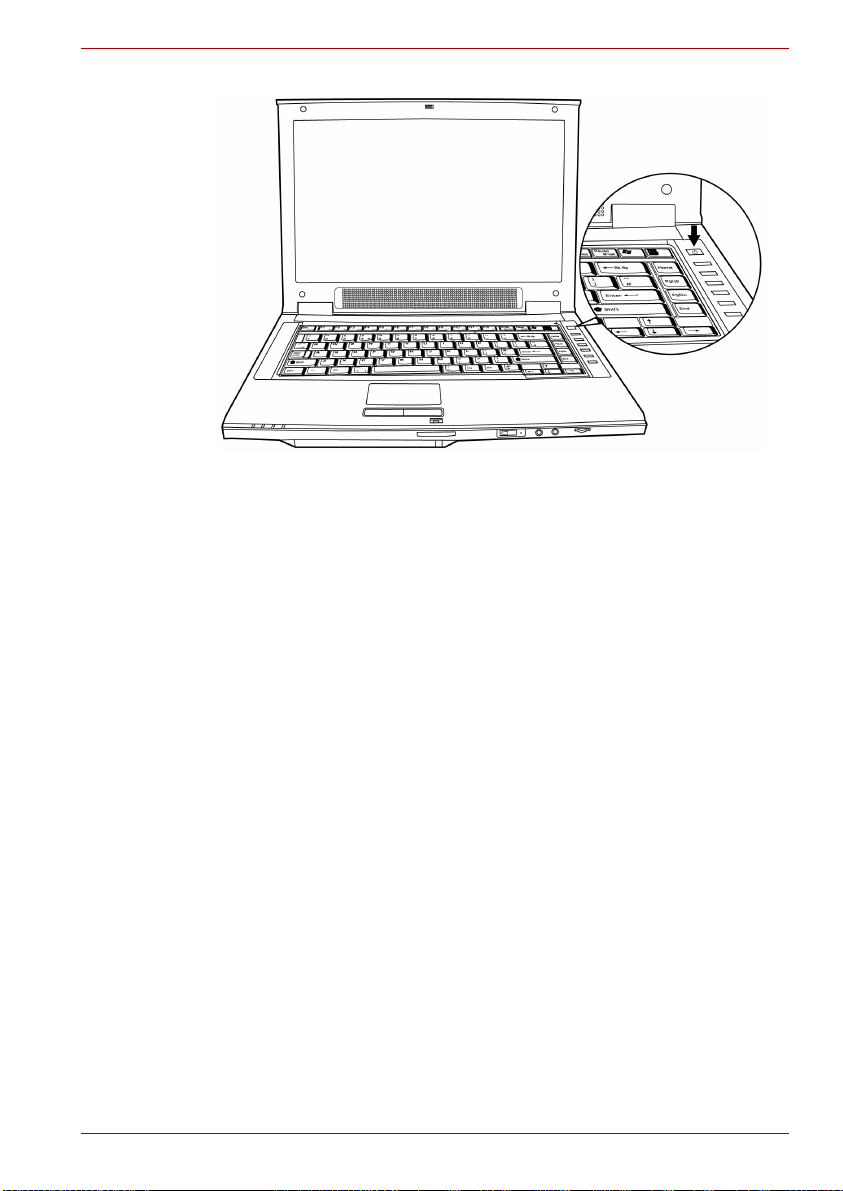

Keypad Overlay A ten-key pad is integrated into the keyboard.

system configuration directly from the keyboard
without running a system configuration program.

This feature automatically cuts off power to the
internal display when there is no input from the
keyboard or pointing device for a specified time
period. Power is restored when any key is
pressed or when there is input from a pointing
device. You can specify the time period in the
TOSHIBA Power Saver utility.

This feature automatically cuts off power to the
hard disk drive when it is not accessed for a
specified time period. Power is restored when the
hard disk is accessed. You can specify the time
period in the TOSHIBA Power Saver utility.

This feature automatically places the system into
either Standby Mode or Hibernation Mode when
there is no input or hardware access for a
specified time period. You can specify the time
period and select either System Standby or
System Hibernate in the TOSHIBA Power Saver
utility.

Refer to the Keypad overlay section in Chapter 5,

The Keyboard, for instructions on using the

keypad overlay.

Power-on Password Two levels of password security are available,

Battery Save Mode This feature lets you save battery power. You can

Instant Security A Hotkey function which blanks the screen and

Panel Power Off/On This feature turns power to the computer off

User’s Manual 1-7

Supervisor and User, which can prevent
unauthorized access to your computer.

specify the level of system power management in
the TOSHIBA Power Saver utility.

activates password security to provide quick and
easy data security.

when the display panel is closed and turns it back
on when the panel is opened. You can specify
the setting in the TOSHIBA Power Saver utility.

M50 Features

Low Battery
Automatic
Hibernation

When battery power is exhausted to the point
that computer operation cannot be continued, the
system automatically enters Hibernation Mode
and shuts itself down. You can specify the setting
in the TOSHIBA Power Saver utility.

Hibernation This feature lets you turn off the power without

exiting from your software. The contents of main
memory are saved to the hard disk. When you
turn on the power again, you can continue
working right where you left off. Refer to the

Turning off the power section in Chapter 3,
Getting Started, for details.

Standby In Standby Mode, power to the system remains

on, but the processor and all other devices are
effectively in 'sleep mode'. When the computer is
in Standby Mode, the Power LED flashes amber.
The computer enters Standby Mode regardless
of the Hibernate Mode setting. Refer to the

Turning off the power section in Chapter 3,
Getting Started, for details.

■ Before entering Standby mode, be sure to save your data.

■ Do not install or remove a memory module while the computer is in

Standby mode. The computer or the module could be damaged.

■ Do not remove the battery pack while the computer is in Standby mode.

Data in memory will be lost.

User’s Manual 1-8

Utilities

M50 Features

This section describes preinstalled utilities and tells how to start them.
For details on operations, refer to each utility's online manual, help files or
readme files.

TOSHIBA Power
Saver

TOSHIBA Assist TOSHIBA Assist is a graphical user interface that

TOSHIBA PC
Diagnostic Tool

TOSHIBA Controls (Depending on the model you purchased)

DVD Video Player The DVD player is used to play DVD Video

TOSHIBA Power Saver provides configuration
option to conserve power when the computer is
running on either battery or mains power. You
can start TOSHIBA Power Saver as follows:

If Control Panel is in Category View:

startControl PanelPerformance and
MaintenanceTOSHIBA Power Saver

If Control Panel is in Classic View:

startControl PanelTOSHIBA Power Saver

provides easy access to help and and services.
You can start the TOSHIBA Assist as follows:

startAll Programs TOSHIBA Utilities
TOSHIBA Assist

TOSHIBA PC Diagnostic Tool displays basic
configuration information on the computer and
allows basic tests of the internal devices devices
to be performed.

startAll ProgramsTOSHIBAUtilitiesPC
Diagnostic Tool

This utility allows you to configure the computer's
audio/video control buttons and setup the audio/
video playback applications.

■ Buttons

Assign applications or functions to the Internet
button and the CD/DVD button.

The default settings are default browser and
CD/DVD.

■ Media Apps

Allows the selection of the application to be used
for audio and video playback.

startControl PanelTOSHIBA Controls

media through an on-screen interface and
functions.

startAll ProgrammsIntervideo WinDVD

Intervideo WinDVD

User’s Manual 1-9

M50 Features

TOSHIBA ConfigFree ConfigFree is a suite of utilities to allow easy

control of communication devices and network
connections. ConfigFree also allows you to find
communication problems and create profiles for
easy switching between location and
communication networks.

startAll Programms
TOSHIBANetworkingConfigFree

TOSHIBA TouchPad
On/Off Utility

Pressing Fn+F9 in a Windows
enables or disables the TouchPad function.

®

environment

When you press these hot keys, the current
setting will change and be displayed as an icon
on screen.

RecordNow! Basic
for TOSHIBA

You can create discs in several formats including
audio CDs that can be played on a standard
stereo CD player and data discs to store the files
and folders on your hard disk drive. This software
can be used on a model with a CD-RW/DVD­ROM drive or a DVD Super Multi drive.

startAll Programms SonicRecordNow!

DLA for TOSHIBA DLA (Drive Letter Access) is the packet writing

software which provides the function to write files
and/or folders to DVD+RW, DVD-RW or CD-RW
media via a drive letter like a floppy disk or other
removable disk media.

startAll Programms SonicDLA

TOSHIBA Touch and
Launch

TOSHIBA Touch and Launch is a tool that allows
you to perform various tasks easily using the
Touch Pad. It is useful in the following conditions:

- To open a file located on the desktop whose

icon is obscured by a window.

- To open a page contained in the Internet

Explorer Favorites menu.

- To display the list of currently open windows

and change the active window.

It also provides the following functions by
customizing the settings.

- To open a file stored in a predefined folder.

- To quickly launch your frequently used

applications which have been registered.

User’s Manual 1-10

M50 Features

TOSHIBA Zooming
Utility

TOSHIBA Hardware
Setup

TOSHIBA
Accessibility

TOSHIBA Virtual
Sound

This utility allows you to enlarge or reduce the
icon size on the desktop or the application
window.

startAll Programms
TOSHIBAUtilitiesZooming Utility

This program lets you customize your hardware
settings according to the way you work with your
computer and the peripherals you use.

startControl Panel Printers and Other
HardwareTOSHIBA HW Setup

This utility lets you make the Fn key sticky, that
is, you can press it once, release it, and then
press an "F number" key. The Fn key remains
active until another key is pressed.

TOSHIBA Virtual Sound works as an audio filter
using SRS WOW XT and SRS TruSurround XT
functions provided by SRS Labs, Inc. in the
United States. The audio filter enables you to
enjoy improved quality sound and music on your
computer.

- Turning on the feature
To turn on the feature of the audio filiter, follow

the steps below.

1. startAll ProgramsTOSHIBA Utilities

Virtual Sound

2. TOSHIBA Virtual Sound setting window is
displayed.

3.Click “On” in the Basic Setting.

CD/DVD Drive
Acoustic Silencer

This utility allows you to configure the read speed
of CD drive. You can either configure Normal
Mode, which operates the drive at its maximum
speed for quick data access, or Quiet Mode,
whcih runs at single speed for CD audio and
which can lessen operational noise. It is
ineffective in DVD.

WinDVD Creator 2
Platinum

TOSHIBA Hotkey
Utility

You can edit digital video and make a
DVD-Video.

This Program lets you quickly modify the system
configuration directly from the keyboard without
running a system configuration program.

User’s Manual 1-11

Options

M50 Features

You can add a number of options to make your computer even more
powerful and convenient to use. The following options are available:

Memory Modules Two memory module can be installed in this

Use only PC4200 compatible memory modules. See your TOSHIBA dealer
for details

Battery Pack An additional battery pack can be purchased

AC adapter If you use your computer at more than one site

USB Floppy Diskette
Drive

computer.

from your TOSHIBA dealer. Use it as a spare to
increase your computer operating time.

frequently, it may be convenient to purchase an
additional AC adapter for each site so you will not
have to carry the adapter with you.

Lets you attach a floppy disk drive to your
computer by means of a USB cable.

User’s Manual 1-12

The Grand Tour

This chapter identifies the various components of your computer. Become
familiar with each component before you operate the computer.

Certain types of notebook chassis are designed to accommodate all
possible configurations for an entire product series. Your selected model
may not have all the features and specifications corresponding to all of the
icons or switches shown on the notebook chassis, unless you have
selected all those features.

Front with the display closed

The following figure shows the computer front with its display panel in the
closed position.

1 32 4

Chapter 2

87 965

1. DC IN LED

OWER LED

2. P

ATTERY LED

3. B

ARD DISK DRIVE LED

4. H

5. W

IRELESS COMMUNICATION

S

WITCH*

Front of the computer with display closed

IRELESS COMMUNICATION

6. W
LED*

ICROPHONE JACK

7. M

8. HEADPHONE JACK

9. VOLUME CONTROL

* The availability of this feature is dependant on the model you purchased.

User’s Manual 2-1

The Grand Tour

DC IN LED The DC IN LED indicates the computer is

connected to the AC adapter and it is plugged
into an AC power source.

Power LED In normal operating mode, the Power LED is

green. If the system is in Standby Mode the LED
will flash amber, while the LED will be off when
the computer is turned off or is in Hibernation
Mode.

Battery LED The Battery LED indicates the battery's current

charge/discharge status. It lights green when the
battery is fully charged. It lights amber while the
battery is being charged from the AC adapter. It
flashes amber when the battery capacity is low.

Hard Disk Drive LED The Hard Disk Drive LED indicates that the hard

disk drive is being accessed. Every time your
computer runs a program, opens a file, or
performs some other function in which it must
access the hard disk drive, this light will go on.

Wireless
Communication
Switch

The wireless communication switch turns on the
wireless networking transceiver. The Wireless

Communication LED beside it indicates that
wireless networking is turned on.

(The availability of this function depends on the
model you purchased.)

Wireless
Communication LED

Indicates whether the wireless LAN is active or
not.

(The availability of this function depends on the
model you purchased.)

Microphone Jack The standard 3.5 mm mini microphone jack

enables connection of a three conductive type
mini-jack for a monaural microphone.

Headphone Jack The headphone jack lets you connect stereo

headphones or other audio-output devices such
as external speakers. Connecting headphones or
other devices to this jack automatically disables
the internal speakers.

Volume Co n t r o l Use this dial to adjust the volume of the stereo

speakers or headphones.

User’s Manual 2-2

Right side

The following figure shows the computer's right side.

The Grand Tour

1 2

1. OPTICAL DISC DRIVE 2. OPTICAL DISC DRIVE LED

The right side of the computer

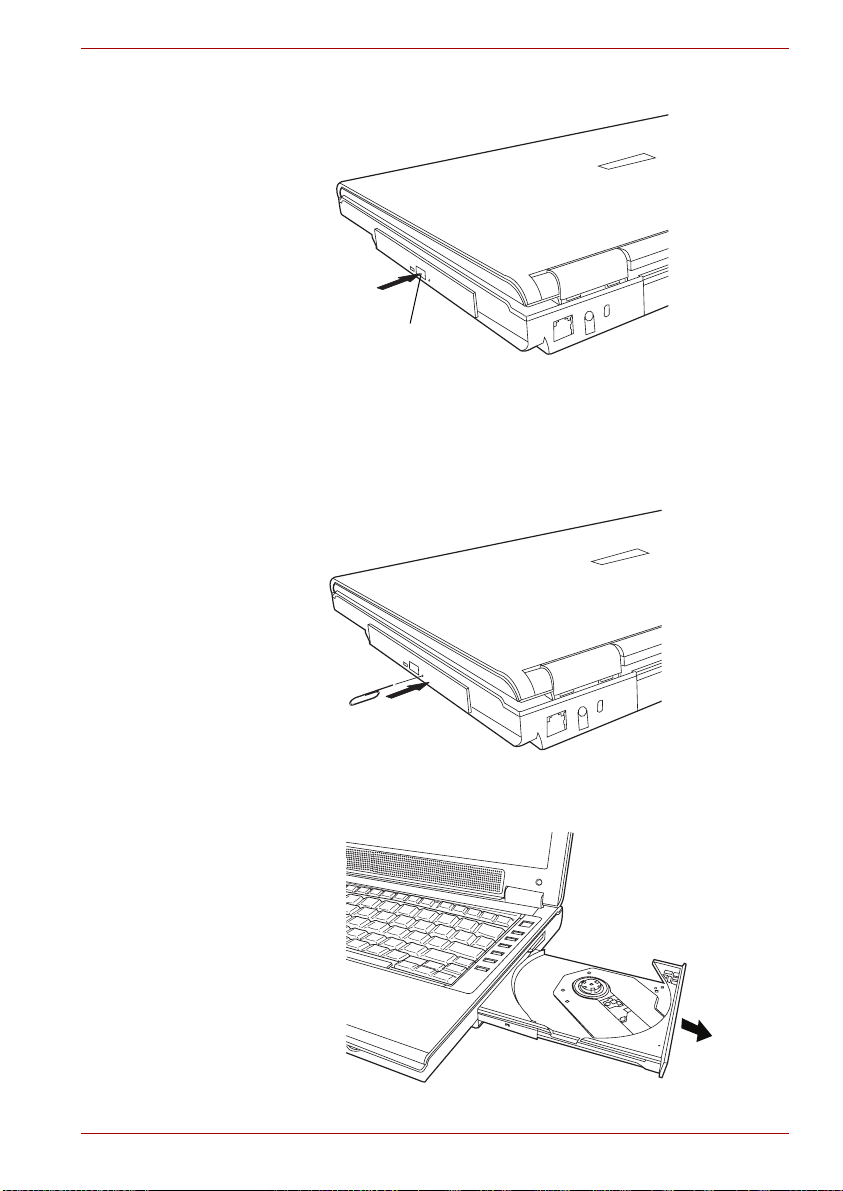

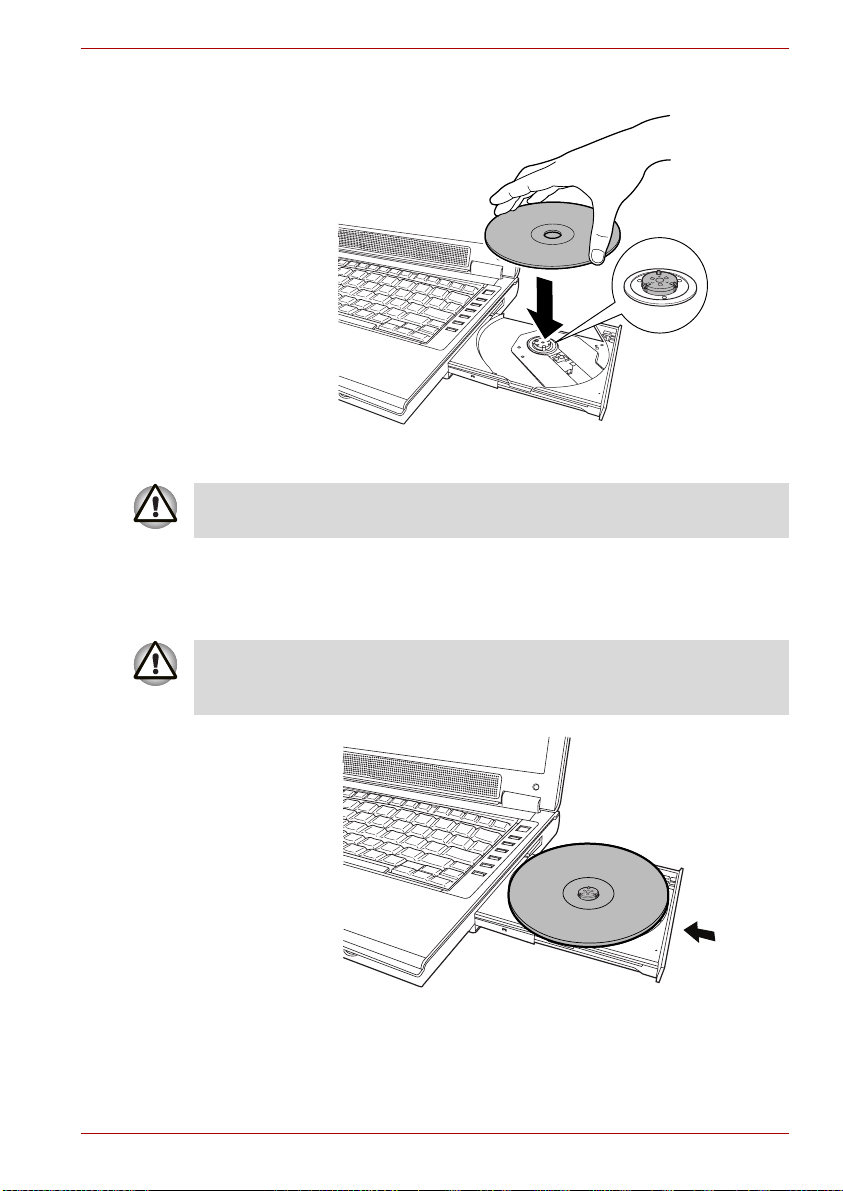

Optical Disc Drive The computer is configured with a full-size optical

disc drive module that lets you run either 12 cm
(4.72") or 8 cm (3.15") discs without using an
adapter. See the Drives section in this chapter for
technical specifications on each drive and
Chapter 4, Operating Basics, for information on
using the drive and caring for discs.

Optical Disc Drive
LED

This indicator lets you know when the Optical
Disc Drive is being accessed.

User’s Manual 2-3

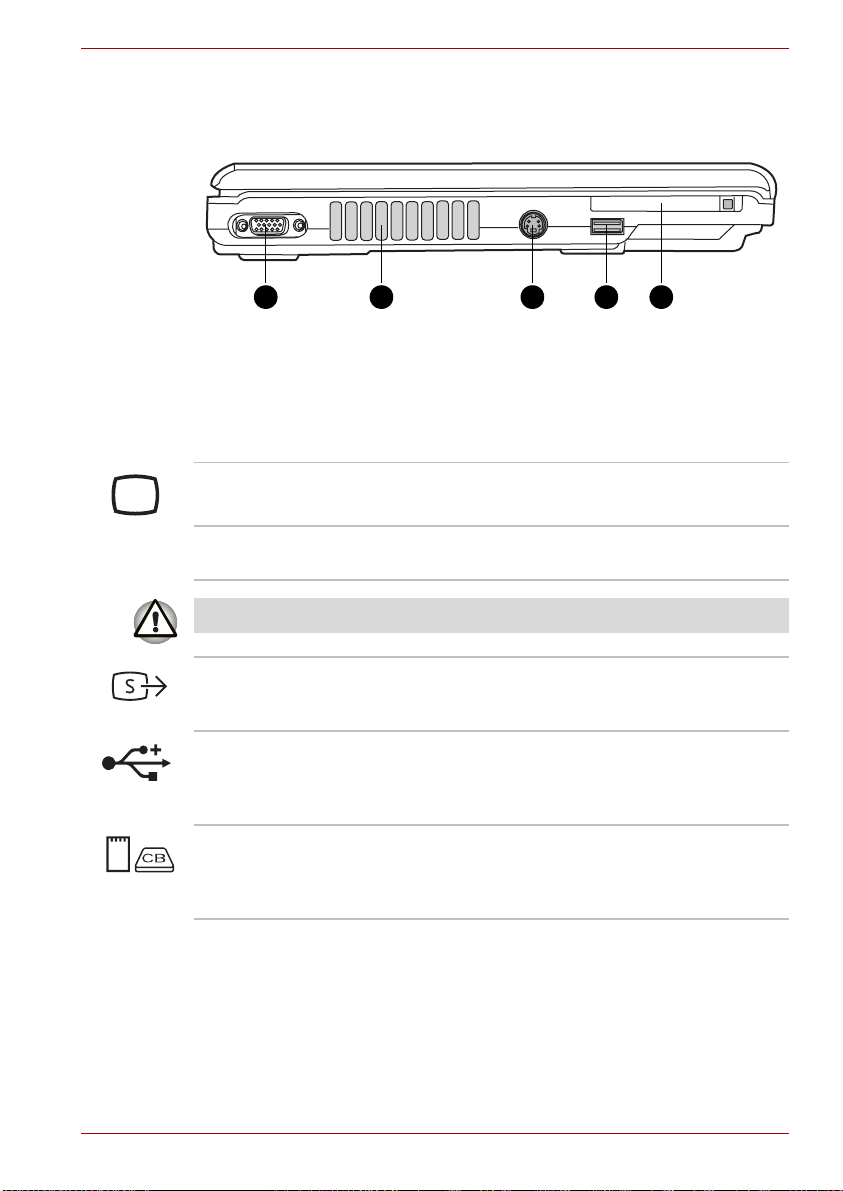

Left side

The Grand Tour

The following figure shows the computer's left side.

1 2 3 54

1. RGB MONITOR PORT *

AN VENTS

2. F

3. TV OUT PORT *

The left side of the computer

NIVERSAL SERIAL BUS

4. U
(USB) P

5. PC CARD SLOT

ORT

* The availability of this feature is dependant on the model you purchased.

RGB (Monitor) Port This 15-pin port lets you connect an external

video display to the computer.

Fan Vents The fan vents help prevent the CPU from

overheating.

To prevent possible over heating of the CPU, never block the fan vent.

TV Out Port Connect a 4-pin S- video cable into this

connector in order to output either an NTSC or
PAL television signal.

Universal Serial Bus
(USB) Port

The Universal Serial Bus (USB 2.0 and 1.1
compatible) port enable USB-equipped devices
such as keyboards, mice, hard drives, scanners,
and printers to be connected to the computer.

PC Card Slot The PC Card slot can accommodate one 5 mm

PC Card (Type II). You can install any industry
standard PC Card such as a SCSI adapter,
Ethernet adapter or flash memory card.

User’s Manual 2-4

Back side

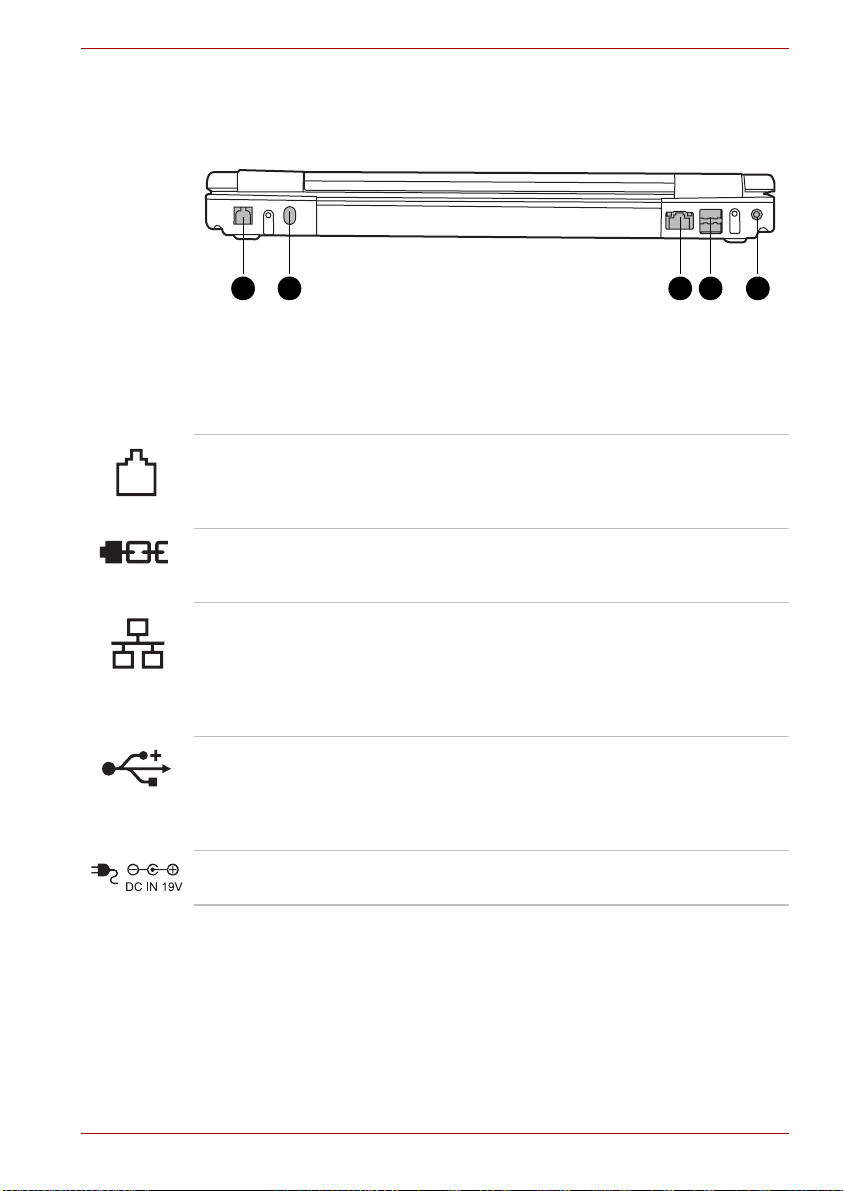

The following figure shows the computer back panel.

The Grand Tour

1 2 53 4

1. MODEM JACK

2. SECURITY LOCK

3. LAN JACK

The back side of the computer

4. UNIVERSAL SERIAL BUS
(USB) P

5. DC IN 19V JACK

ORTS

Modem Jack In regions where an internal modem is installed

as standard equipment, this jack lets you use a
modular cable to connect the modem directly to a
telephone line.

Security Lock An optional security cable attaches to this port in

order to anchor your computer to a desk or other
large object to deter theft.

LAN Jack This jack lets you connect to a LAN. The adapter

has built-in support for Ethernet LAN
(10 megabits per second, 10BASE-T) and Fast
Ethernet LAN (100 megabits per second,
100BASE-TX). Two indicators built into the jack
let you see the LAN status.

Universal Serial Bus
(USB) Ports

The Universal Serial Bus (USB 2.0 and

1.1 compatible) ports enable USB-equipped
devices such as keyboards, mice, hard drives,
scanners, and printers to be connected to the
computer.

DC IN 19V Jack The DC IN jack is where you plug in the AC

adapter.

User’s Manual 2-5

Underside

The following figure shows the underside of the computer. Make sure the
display is closed before turning over your computer.

The Grand Tour

1

2

1. EXPANSION MEMORY SOCKET

2. FAN VENT *

ATTERY PACK

3. B

5

4. BATTERY PACK LOCK

5. BATTERY PACK LATCH

The bottom of the computer

4

3

* The availability of this feature is dependant on the model you purchased.

Expansion Memory
Socket

Use this socket to install a memory module to
increase your computer's memory. Refer to the

Memory expansion section in Chapter 8,
Optional Devices.

Fan Vent The fan vent helps prevent the CPU from

overheating.

To prevent possible overheating of the CPU, never block the fan vent.

Battery Pack The battery pack powers the computer when the

AC adapter is not connected. For detailed
information on the battery pack, refer to
Chapter 6, Power and Power-Up Modes.

User’s Manual 2-6

The Grand Tour

Battery Pack Lock When you slide this into its locked position, the

battery pack cannot be released even if you
attempt to slide the battery pack latch into its
open position.

Battery Pack Latch With the Battery Pack Lock in its unlocked

position, you can slide this latch in order to
remove the battery pack.

User’s Manual 2-7

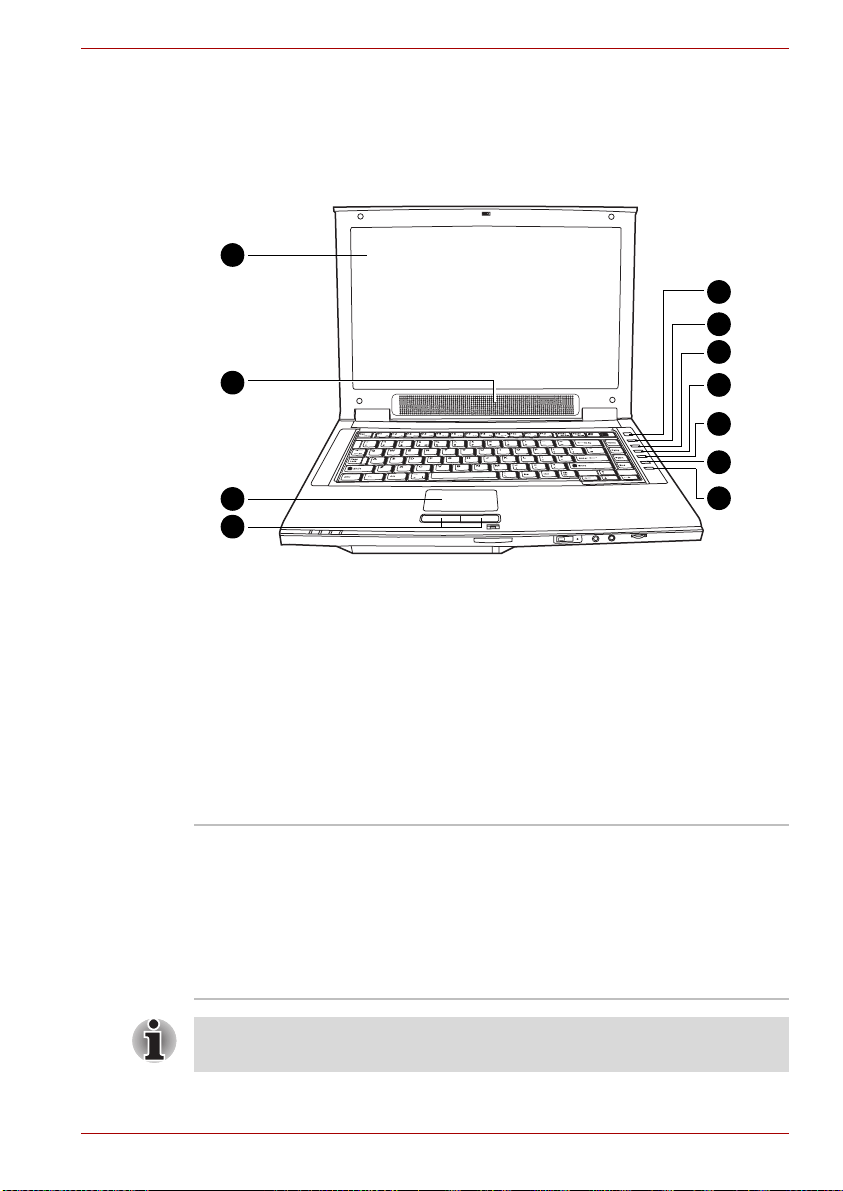

Front with the display open

The following figure shows the front of the computer with the display open.
To open the display, push the latch on the front of the display and lift it up.
Position the display at a comfortable viewing angle.

1

2

The Grand Tour

5

6

7

8

9

10

3

11

4

1. DISPLAY SCREEN

2. SPEAKER

3. TOUCH PAD

4. TOUCH PAD CONTROL
BUTTONS

5. POWER BUTTON

6. INTERNET BUTTON *

7. CD/DVD B

8. P

9. S

10. N

11. P

UTTON *
LAY/PAUSE *
TOP *
EXT *
REVIOUS *

The front with the display open

* The availability of this feature is dependant on the model you purchased.

Display Screen The LCD displays high-contrast text and graphics

at a resolution up to 2048X1536 pixels. Refer to

Appendix B - Display Modes for further

information. When the computer operates from
the AC adapter, the display screen's image will
be somewhat brighter than when it operates on
battery power - this is normal and is designed to
conserve battery power.

To prolong the life of your display screen, use a screen saver when you're
not using the computer and it is idle.

User’s Manual 2-8

The Grand Tour

Speaker The computer provides two speakers for stereo

sound reproduction.

TouchPad The TouchPad pointing device is located in the

center of the palm rest and is used to control the
on-screen pointer. Refer to the Using the

TouchPad section in Chapter 4, Operating
Basics.

TouchPad Control
Buttons

Control buttons below the TouchPad let you
select menu items or manipulate text and
graphics designated by the on-screen pointer.

Power Button Press the power button to turn the computer's

power on and off. There is an LED inside the
power button which shines green when the
system is on.

Internet Button Press the Internet button to open your default

web brower.
(This function is available depending on the

model you purchased.)
The button setting can be changed in TOSHIBA

Controls properties. To access the TOSHIBA
Controls properties, click start, click the Control
Panel, click Printers and the Software and
select the TOSHIBA Controls icon.

CD/DVD Button

Pressing this button when the computer's power
is off will run Express Media Player. Once
Express Media Player is launched, the power
indicator turns on, the audio control buttons are
enabled and pressing this button again will do
nothing. If you press this button while the
computer is switched on or switched off into
Standby Mode, it will launch either Windows

®

Media

Player or WinDVD depending on the

media that is loaded.
(The availability of this function depends on the

model you purchased.)
The button setting can be changed in TOSHIBA

Controls properties. To access the TOSHIBA
Controls properties, click start, click the Control
Panel, click Printers and the Software and
select the TOSHIBA Controls icon.

When you use Express Media Player, please assign the CD/DVD button to
"CD/DVD" in TOSHIBA Controls Properties.

User’s Manual 2-9

The Grand Tour

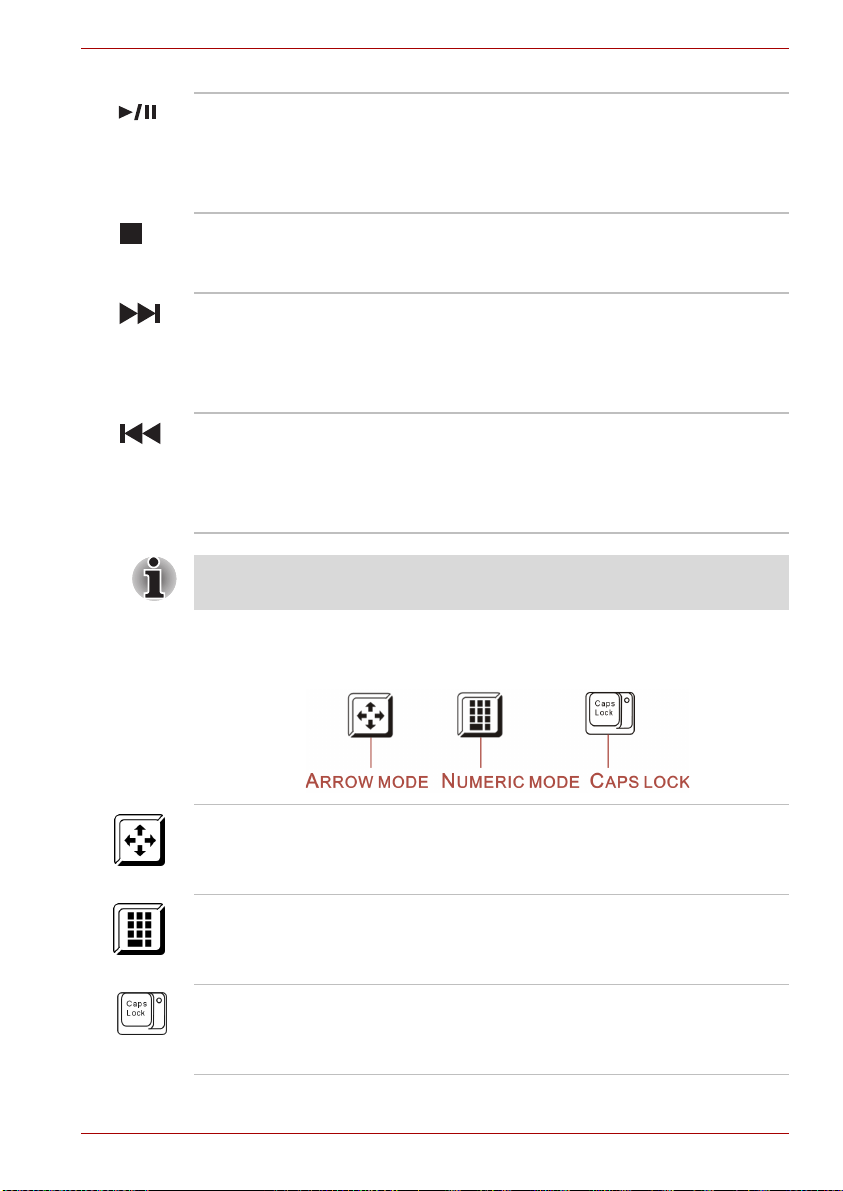

Play/Pause Press this button to begin playing an audio CD, a

Stop Stops playing the CD, DVD or digital audio.

Next Skips forward to the next track, chapter or digital

Previous Skips backwards to the previous track, chapter or

If Random or Shuffle is selected in Windows® Media Player, selecting Next
or Previous advances to a random selection.

Keyboard Indicators

DVD movie or digital audio files. This button also
acts as a Pause button.

(The availability of this function depends on the
model you purchased.)

(The availability of this function depends on the
model you purchased.)

file. Refer to Chapter 4, Operating Basics, for
details.

(The availability of this function depends on the
model you purchased.)

digital file. Refer to Chapter 4, Operating Basics,
for details.

(The availability of this function depends on the
model you purchased.)

Arrow Mode When the Arrow mode icon lights green, you can

use the keypad overlay (light gray labeled keys)
as cursor keys. Refer to the Keypad overlay
section in Chapter 5, The Keyboard.

Numeric Mode

Caps Lock The Caps Lock LED lights when you press the

User’s Manual 2-10

You can use the keypad overlay (light gray labeled
keys) for numeric input when the Numeric mode
icon lights green. Refer to the
section in Chapter 5,

Caps Lock key. When this light is on, pressing a
letter key on the keyboard produces an
uppercase (capital) letter.

The Keyboard

Keypad overlay

.

Optical Disc drive

The computer will either have a CD-RW/DVD-ROM drive, DVD-ROM drive
or double layer DVD Super Multi drive depending on its configuration. An
ATAPI interface controller is used for the operation of these optical drives.
When the computer is accessing a disc, an indicator on the drive glows.

Region codes for DVD drives and media

The disc drive and its media are manufactured according to the
specifications of six marketing regions. When you purchase DVD-Video,
make sure it matches your drive, otherwise it will not play properly.

Code Region

1 Canada, United States

2 Japan, Europe, South Africa, Middle East

3 Southeast Asia, East Asia

4 Australia, New Zealand, Pacific Islands, Central

America, South America, Caribbean

5 Russia, Indian Subcontinent, Africa, North Korea,

Mongolia

6 China

The Grand Tour

Writable discs

This section describes the types of writable discs. Check the specifications
for your drive to for the type of discs it can write. Use Record Now! to write

compact discs. Refer to Chapter 4, Operating Basics.

CDs

■ CD-R discs can be written only once. The recorded data cannot be

erased or changed.

■ CD-RW discs can be recorded more than once. Use either 1x, 2x, or 4x

multi-speed CD-RW discs or high-speed 4x to 10x discs. The write
speed of ultra-speed CD-RW discs is a maximum of 24x speed.

DVDs

■ DVD-R and DVD+R discs can be written only once. The recorded data

cannot be erased or changed.

■ DVD-RW, DVD+RW and DVD-RAM discs can be recorded more than

once.

User’s Manual 2-11

The Grand Tour

CD-RW/DVD-ROM drive

The full-size CD-RW/DVD-ROM drive module lets you record data to
rewritable CDs as well as run either 12 cm (4.72") or 8 cm (3.15") discs
without using an adapter.

The read speed is slower at the center of a disc and faster at the other
edge.

DVD read 8 speed (maximum)
CD read 24 speed (maximum)
CD-R write 24 speed (maximum)
CD-RW write 24 speed (maximum, ultra-speed media)

DVD Super Multi drive with double layer disc recording
support

The full-size DVD super multi drive module lets you record data to
rewritable discs as well as run either 12cm (4.72") or 8cm (3.15") discs
without using an adapter.

The read speed is slower at the center of a disc and faster at the other
edge.

DVD read 8 speed (maximum)
DVD-R write 8 speed (maximum)
DVD-RW write 4 speed (maximum)
DVD+R write 8 speed (maximum)
DVD+RW write 4 speed (maximum)
DVD-RAM write 5 speed (maximum)
CD read 24 speed (maximum)
CD-R write 24 speed (maximum)
CD-RW write 10 speed (maximum, ultra-speed media)
DVD+R (DL) write 2.4 speed (maximum)
DVD-R (DL) write 2 speed (maximum)

This drive cannot use discs that allow writing faster than 8x speed or faster
(DVD-R and DVD+R with Single Layer), 4x speed or faster (DVD-RW and
DVD+RW), 5x speed (DVD-RAM) or faster (CD-RW).

User’s Manual 2-12

AC adapter

The AC adapter converts AC power to DC power and reduces the voltage
supplied to the computer. It can automatically adjust to any voltage from
100 to 240 volts and to a frequency of either 50 or 60 hertz, enabling you to
use the computer in almost any country/region.

To recharge the battery, simply connect the AC adapter to a power source
and the computer. See Chapter 6, Power and Power-Up Modes, for details.

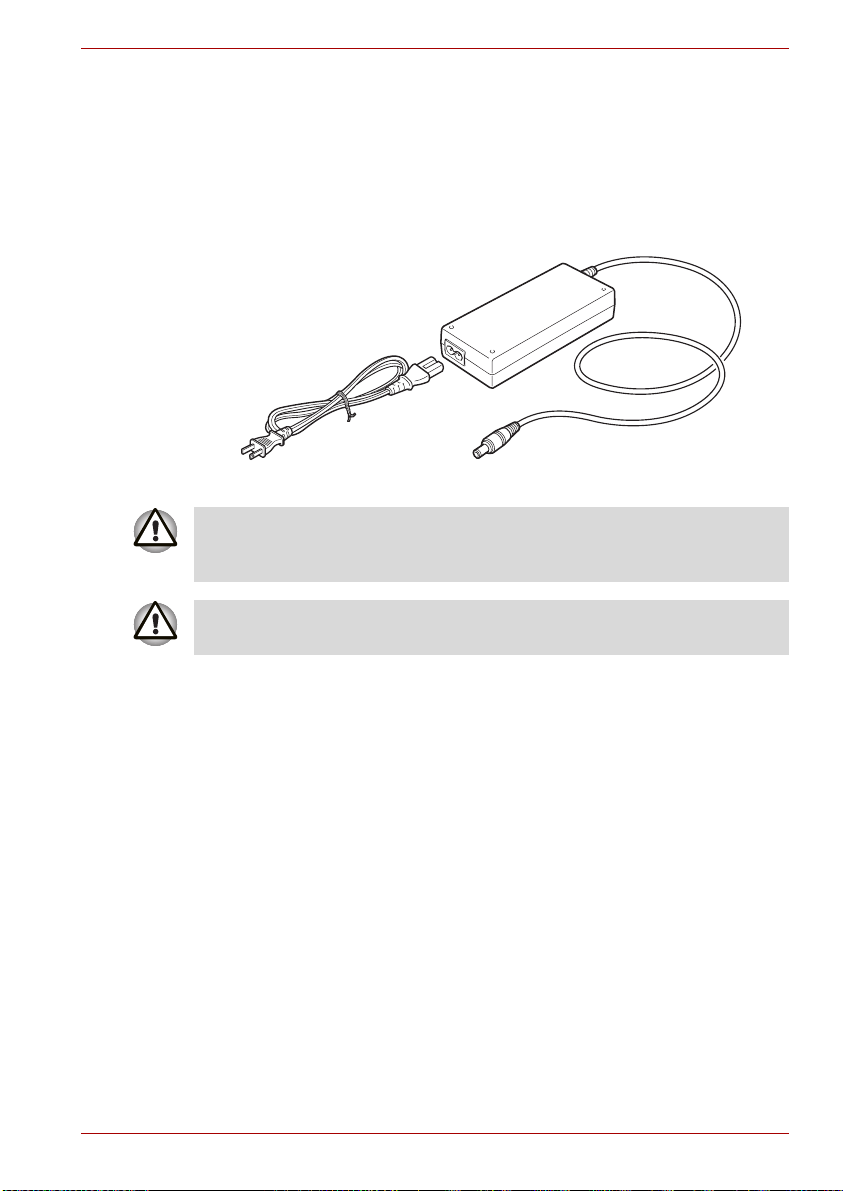

The AC adapter

Use of the wrong adapter could damage your computer. TOSHIBA
assumes no liability for any damage in such case. The output rating for the
computer is 19 volts DC.

The Grand Tour

Please use only the AC Adapter supplied with the computer or an AC
adapter certified by TOSHIBA.

User’s Manual 2-13

Getting Started

This chapter provides basic information to get you started using your
computer. It covers the following topics:

■ Setting up your work space - for your health and safety

Be sure also to read Instruction Manual for Safety & Comfort. This guide,
which is included with the computer, explains product liability.

■ Connecting the AC adapter

■ Opening the display

■ Turning on the power

■ Starting up for the first time

■ Turning off the power

■ Restarting the computer

■ Restoring the pre-installed software from the Product Recovery media.

All users should be sure to carefully read the section Starting up for the first
time, which describes the actions to take when you first turn on the power
to the computer.

Chapter 3

Setting up your work space

Establishing a comfortable work site is important for you and your
computer. A poor work environment or stressful work habits can result in
discomfort or serious injury from repetitive strain to your hands, wrists or
other joints. Proper ambient conditions should also be maintained for the
computer's operation. This section discusses the following topics:

■ General conditions

■ Placement of the computer and peripheral devices

■ Seating and posture

■ Lighting

■ Work habits

User’s Manual 3-1

General conditions

In general, if you are comfortable, so is your computer, but read the
following to make sure your work site provides a proper environment.

■ Make sure there is adequate space around the computer for proper

ventilation.

■ Make sure the AC power cord connects to an outlet that is close to the

computer and easily accessible.

■ The temperature should be 5 to 35 degrees Centigrade (41 to

95 degrees Fahrenheit) and the relative humidity should be 20 to
80 percent.

■ Avoid areas where rapid or extreme changes in temperature or humidity

may occur.

■ Keep the computer free of dust, moisture, and exposure to direct

sunlight.

■ Keep the computer away from heat sources, such as electric heaters.

■ Do not use the computer near liquids or corrosive chemicals.

■ Some components in the computer, including data storage media, can

be damaged by magnets. Do not place the computer near magnetic
objects or bring magnetic objects close to the computer. Be careful of
objects, such as stereo speakers, that produce strong magnetic fields
during operation. Also, be careful with metal objects, such as bracelets,
which can be inadvertently magnetized.

■ Do not operate the computer in close proximity to a mobile phone.

■ Leave ample ventilation room for the fan. Ensure that there are no

obstructions around any of the system inlets or exhaust vents.

Getting Started

Placement of computer

Position the computer and peripheral devices to provide comfort and safety.

■ Set the computer on a flat surface at a comfortable height and distance.

The display should be no higher than eye level to avoid eye strain.

■ Place the computer so that it is directly in front of you when you work

and make sure you have adequate space to easily operate other
devices.

■ Allow adequate space behind the computer to let you freely adjust the

display. The display should be angled to reduce glare and maximize
visibility.

■ If you use a paper holder, set it at about the same height and distance

as the computer.

User’s Manual 3-2

Seating and posture

The height of your chair in relation to the computer and keyboard as well as
the support it gives your body are primary factors in reducing work strain.

Posture and positioning of the computer

■ Place your chair so that the keyboard is at or slightly below the level of

your elbow. You should be able to type comfortably with your shoulders
relaxed.

■ Your knees should be slightly higher than your hips. If necessary, use a

foot rest to raise the level of your knees to ease pressure on the back of
your thighs.

■ Adjust the back of your chair so it supports the lower curve of your

spine.

■ Sit straight so that your knees, hips and elbows form approximately

90 degree angles when you work. Do not slump forward or lean back
too far.

Getting Started

Lighting

Proper lighting can improve legibility of the display and reduce eye strain.

■ Position the computer so that sunlight or bright indoor lighting does not

reflect off the screen. Use tinted windows, shades or other screens to
eliminate sun glare.

■ Avoid placing the computer in front of bright light that could shine

directly in your eyes.

■ If possible, use soft, indirect lighting in your computer work area. Use a

lamp to illuminate your documents or desk, but be sure to position the
lamp so that it does not reflect off the display or shine in your eyes.

User’s Manual 3-3

Work habits

A key to avoiding discomfort or injury from repetitive strain is to vary your
activities.

If possible, schedule a variety of tasks into your work day. If you must
spend long periods at the computer, finding ways to break up the routine
can reduce stress and improve your efficiency.

■ Sit in a relaxed posture. Good positioning of your chair and equipment

as described earlier can reduce tension in your shoulders or neck and
ease back strain.

■ Vary your posture frequently.

■ Occasionally stand up and stretch or exercise briefly.

■ Exercise and stretch your wrists and hands a number of times during

the day.

■ Frequently, look away from the computer and focus your eyes on a

distant object for several seconds, for example 30 seconds every
15 minutes.

■ Take frequent short breaks instead of one or two long breaks, for

example, two or three minutes every half hour.

■ Have your eyes examined regularly and visit a doctor promptly, if you

suspect you might be suffering from a repetitive strain injury.

■ Please check every couple of months to ensure the fan inlets or

exhaust vents (see sections 2-5 and 2-7) are unobstructed. Clean them
if necessary.

A number of books are available on ergonomics and repetitive strain injury
or repetitive stress syndrome. For more information on these topics or for
pointers on exercises for such stress points as hands and wrists, please
check with your library or book vendor. Also refer to the computer's
Instruction Manual for Safety and Comfort.

Getting Started

User’s Manual 3-4

Connecting the AC adapter

Attach the AC adapter when you need to charge the battery or you want to
operate from AC power. It is also the fastest way to get started, because
the battery pack will need to be charged before you can operate from
battery power. The AC adapter can be connected to any power source
supplying from 100 to 240 volts and 50 or 60 hertz. For details on using the
AC adapter to charge the battery pack, refer to Chapter 6, Power and

Power-Up Modes.

Use of the wrong adapter could damage your computer. TOSHIBA
assumes no liability for any damage in such case. The output rating for the
computer is 19 volts DC.

1. Connect the power cord to the AC adapter.

Getting Started

Connecting the power cord to the AC adapter

2. Connect the DC output plug on the AC adapter to the DC IN input port

on the back of the computer.

Connecting the adapter to the computer

3. Plug the power cord into a live wall outlet. The Battery and DC IN

indicators on the front of the computer should glow.

User’s Manual 3-5

Opening the display

The display panel can be rotated in a wide range of angles for optimal
viewing.

1. Push the display latch on the front of the computer.

2. Lift the panel up and adjust it to the best viewing angle for you.

Use reasonable care when opening and closing the display panel. Opening
it vigorously or slamming it shut could damage the computer.

Turning on the power

This section describes how to turn on the power.

Getting Started

Opening the display

After you turn on the power for the first time, do not turn it off until you have
set up the operating system. Refer to the section Starting up for the first

time in this chapter.

1. If a USB floppy diskette drive is connected, make sure the drive is empty ­if a diskette is in the drive, press the eject button to remove it.

2. Open the display panel.

3. Press the computer's power button and then release it.

User’s Manual 3-6

Turning on the power

Starting up for the first time

Getting Started

When you first turn on the power, the computer's initial screen is the
Windows
each screen. During setup, you can click the Back button to return to the
previous screen.

Be sure to read the Windows
Agreement carefully.

®

XP Startup Screen Logo. Follow the on-screen directions for

Turning off the power

The power can be turned off in one of three modes, either Shutdown Mode
(also known as Boot Mode), Hibernation Mode or Standby Mode.

Shut Down mode (Boot mode)

When you turn off the power in Shut Down mode, no data is saved and the
computer will boot to the operating system's main screen.

1. If you have entered data, save it to the hard disk, to writable optical
media or to a diskette.

2. Make sure all disk activity has stopped, then remove the optical disc or
floppy diskette.

®

Operating System End User License

User’s Manual 3-7

Make sure the built-in hard disk drive and optical disc drive indicators
are off before you switch the computer off. If you turn off the power while a
disk is being accessed, you can lose data or damage the disk.

3. Click Start and click Shut Down. From the Shut Down window click
Tur n O f f .

4. Turn off the power to any peripheral devices.

Do not turn the computer or devices back on immediately. Wait a moment
to let all capacitors fully discharge.

Hibernation mode

The hibernation feature saves the contents of memory to the hard disk
when the computer is turned off. The next time the computer is turned on,
the previous state is restored. The hibernation feature does not save the
status of peripheral devices.

1. While entering hibernation mode, the computer saves the contents of
memory to the Hard Disk Drive. Data will be lost if you remove the
battery or disconnect the AC adapter before the save is completed.
Wait for the Built-in Hard Disk Drive indicator to go out.

2. Do not install or remove a memory module while the computer is in
hibernation mode. Data will be lost.

Benefits of Hibernation

The hibernation feature provides the following benefits:

■ Can be configured so that data is automatically saved to the hard disk

before the computer shuts down because of a low battery.

Getting Started

For the computer to shut down in hibernation mode, the hibernation feature
must be enabled in two places in Power Options: Hibernate tab and
TOSHIBA Power Saver: Basic Setup tab. Otherwise, the computer will
shut down in Standby mode. If battery power becomes depleted, data
saved in Standby will be lost.

■ You can return to your previous working environment immediately when

you turn on the computer.

■ Saves power by shutting down the system when the computer receives

no input or hardware access for the duration set by the System
hibernate feature.

■ You can use the panel power off feature.

User’s Manual 3-8

Getting Started

Starting Hibernation

You can also enable Hibernation by pressing Fn + F4. See Chapter 5, The

Keyboard, for details.

To enter Hibernation mode, follow the steps below.

1. Click Start.

2. Select Shut Down.

3. Open the Shut Down dialog box. If Hibernate is not displayed go to
step 4. If Hibernate is displayed go to step 5.

4. Press the Shift key. The Standby item will change to Hibernate.

5. Select Hibernate.

Automatic Hibernation

The computer will enter Hibernate mode automatically when you press the
power button or close the lid. First, however, make the appropriate settings
according to the steps below.

1. Open the Control Panel.

2. Open Performance and Maintenance and open Power Options.

3. Select the Hibernation tab.

4. Select Enable Hibernate, then click OK button.

5. Open Toshiba Power Saver.

6. Select Setup Action tab.

7. Enable the desired Hibernation settings for When I press the power
button and When I close the lid of my portable computer.

8. Click the OK button.

Data save in hibernation mode

When you turn off the power in hibernation mode, the computer takes a
moment to save current memory data to the hard disk. During this time, the
Built-in Hard Disk Drive indicator will light.

After the computer has saved all data to the hard disk, and it has
completely shutdown, you can turn off the power to any peripheral devices.

Do not turn the computer or devices back on immediately. Wait a moment
to let all capacitors fully discharge.

User’s Manual 3-9

Standby mode

In standby mode the power remains on, but the CPU and all other devices
are in sleep mode.

■ If the computer is not used or accessed in any way, including areas

such as the receipt of an e-mail, for approximately 15 or 30 minutes
when the AC adapter is connected, it will automatically enter Standby
Mode. This function is the default setting within the TOSHIBA Power
Saver utility.

■ To restore operation, press the power button.

■ If the computer automatically enters Standby mode while a network

application is active, the application might not be restored when the
computer wakes up from Standby.

■ To prevent the computer from automatically entering Standby Mode

you should disable the Standby feature within the TOSHIBA Power
Saver utility. However, please note that disabling this feature will mean
the computer is not longer Energy Star compliant.

Standby precautions

■ Before entering Standby mode, be sure to save your data.

■ Do not remove/install memory or remove power components:

■ Do not remove/install memory modules - the computer or the

module itself could be damaged.

■ Do not remove the battery pack.

In any of the above cases, the data being maintained by Standby Mode
will be lost.

■ If you carry the computer on board an aircraft or into a hospital, be sure

to shut down the computer in hibernation mode or in shutdown mode to
avoid radio signal interference.

Getting Started

Benefits of standby

The standby feature provides the following benefits:

■ Restores the previous working environment more rapidly than

Hibernation Mode.

■ Saves power by shutting down the system when the computer receives

no input or hardware access for the duration set by the System Standby
feature.

■ You can use the panel power off feature.

User’s Manual 3-10

Getting Started

Enabling Standby

You can also enable Standby by pressing Fn + F3. See Chapter 5, The

Keyboard, for details.

You can enter standby mode in one of three ways:

1. Click Start, then Shut Down and then Stand by.

2. Close the display panel. This feature must be enabled. Refer to the
Setup Action tab in TOSHIBA Power Saver Utility described in the
Control Panel.

3. Press the power button. This feature must be enabled. Refer to the
Setup Action tab in TOSHIBA Power Saver Utility described in the
Control Panel.

When you turn the power back on, you can continue where you left when
you shut down the computer.

■ When the computer is shut down in standby mode, the power indicator

glows amber.

■ If you are running the computer on battery power, you can lengthen the

operating time by shutting down into Hibernation Mode. Standby Mode
consumes more power from the battery when the computer is switched
off.

Standby limitations

Standby will not function under the following conditions:

■ Power is turned back on immediately after shutting down.

■ Memory circuits are exposed to static electricity or electrical noise.

Restarting the computer

Certain conditions require that you reset the system. For example, if:

■ You change certain computer settings.

■ An error occurs and the computer does not respond to your keyboard

commands.

There are three ways to reset the computer system:

1. Select Restart from the Shut Down dialogue box.

2. If the computer is already on, press Ctrl + Alt + Del.

3. Press the power button to turn the computer off, then press it a second
to time in order to restart.

Only use step 3 if the operating system freezes or locks up due to a crash.
Performing step 3 should only ever be a last resort as you will lose all
unsaved data and could potentially damage critical files.

User’s Manual 3-11

Getting Started

Restoring the preinstalled software from the Product Recover y

If preinstalled files are damaged, use the Product Recovery disc to restore
them. To restore the operating system and all preinstalled software, follow
the steps below.

Please use the Express Media Player Recovery CD first to reinstall the
"Express Media Player" before you reinstall a Windows
(Depends on configuration).

® operating system.

Restoring the complete system

If pre-installed files are damaged, use the Express Media Player Recovery
CD and the Product Recovery disc to restore them.

Some models do not have Express Media Player pre-installed, therefore
the Express Media Player Recovery CD is not available. In these instances
please refer to the procedure in “Restoring the operating system” as
described below.

Restoring the Express Media Player

To restore the Express Media Player, follow the steps below.

1. Load the Express Media Player Recovery CD in the optical media drive
and turn off the computer’s power.

2. Hold down the F12 key and turn on the power. When the boot menu
appears, release the F12 key.

3. Use the cursor keys to select the CD/DVD drive in the Boot menu.

4. Follow the on-screen instructions and select ‘Overwrite Installation’
using the cursor keys to restore the Express Media Player.

When you are using "Delete all partitions" the hard disk will be reformatted
and all data will be lost.

Restoring the operating system

To restore the operating system and all pre-installed software, follow the
steps below.

When you reinstall the Windows operating system, the hard disk will be
reformatted and all data will be lost.

1. Load the Product Recovery media in the drive and turn off the
computer’s power.

2. Switch on the computer and, when the In Touch with Tomorrow
TOSHIBA prompt appears, press the F12 key to display the Boot Menu.

3. Use the cursor key to select the CD-ROM/DVD drive in the display
menu.

4. Follow the on-screen instructions.

User’s Manual 3-12

5. If your computer came with additional software installed, this software
can not be recovered from the Product Recovery disk. Re-install these
applications (e.g. Works Suite, DVD Player, Games, etc.) separately
from other media.

Restoring TOSHIBA utilities and drivers

If Windows is working properly, individual drivers or applications can be
separately restored. The TOSHIBA Tools & Utilities folder (C:\TOOLSCD)
contains drivers and applications, which are included with your computer
system. If your system drivers or applications have become damaged in
some way, you can reinstall most of the components from this folder.

Create a copy of this folder to an external media for more convenience.

Getting Started

User’s Manual 3-13

Operating Basics

This chapter gives information on basic operations including using the
TouchPad, optical disc drives, the internal modem, LAN and wireless LAN.
It also provides tips on caring for your computer and on heat dispersal.

Using the TouchPad

To use the TouchPad, simply move your finger tip across it in the direction
you want the on-screen pointer to go.

Chapter 4

2

1

1. TOUCHPAD CONTROL BUTTONS 2. TOUCHPAD

TouchPad and control buttons

The two buttons below the TouchPad are used like the buttons on a
standard mouse.

Press the left button to select a menu item or to manipulate text or graphics
designated by the pointer. Press the right button to display a menu or other
function depending on the software you are using.

User’s Manual 4-1

Do not press on the TouchPad too hard or press a sharp object such as a
ball point pen against it. The TouchPad could be damaged.

The TouchPad has similar functions to a two-button mouse with a scroll
wheel. For some functions, you can tap it instead of pressing a button.

You can customize pointing device actions in Mouse Properties. Open the
Control Panel, select the Mouse icon and press Enter to open the Mouse
Properties window.

Click Click the left control button or tap the TouchPad once.
Double-click Click the left control button twice or tap the TouchPad

twice.

Scroll Vertical: Move your finger up or down the right edge of

the TouchPad.
Horizontal: Move your finger left or right along the bottom

edge of the TouchPad.

Using the internal modem

This section describes how to setup the modem and use it to connect to
other computer systems. Refer to the computer's online help files and the
online help files for your modem software, for more information.

The internal modem does not support the voice functions described in the
help files. All data and fax functions are supported.

Operating Basics

■ In case of a lightning storm, unplug the modem cable from the

telephone jack.

■ Do not connect the modem to a digital telephone line. A digital line will

damage the modem.

IMPORTANT SAFETY INSTRUCTIONS

When using your telephone equipment, basic safety precautions should
always be followed to reduce the risk of fire, electric shock and injury to
persons, including the following:

1. Do not use this product near water, for example, near a bathtub, wash
bowl, kitchen sink or laundry tub, in a wet basement or near a
swimming pool.

2. Avoid using a telephone (other than a cordless type) during an
electrical storm. There may be a remote risk of electric shock from
lightning.

3. Do not use the telephone to report a gas leak in the vicinity of the leak.

4. Use only the power cord indicated in this manual.

User’s Manual 4-2

Region selection

Telecommunication regulations vary from one country/region to another, so
you will need to make sure the internal modem's settings are correct for the
country/region in which it will be used.

1. Open the Modem Region Select application. It is located on the
Programs menu at TOSHIBA > Networking.

Do not use the Country/Region Select function in the Modem setup utility
in the Control Panel if the function is available. If you change the Country/
Region in the Control Panel, the change may not take effect.

2. The Region Selection icon appears on the Windows Task Bar.

The Region Selection icon

3. Click the icon with the primary mouse button to display a list of regions
that the modem supports. A sub menu for telephony location
information will also be displayed. A check will appear next to the
currently selected region and telephony location.

4. Select a region from the region menu or a telephony location from the
submenu.

■ When you click a region it becomes the modem's region selection,

and the New Location for telephony will be set automatically.

■ When you select a telephony location, the corresponding region is

automatically selected and it becomes the modem's current region
setting.

Operating Basics

Properties menu

Click the icon with the secondary mouse button to display the following
menu.

The properties menu

User’s Manual 4-3

Settings

You can enable or disable the following settings:

AutoRun Mode

Region Select Utility starts automatically when you start up the operating
system.

Open the Dialing Properties dialog box after selecting
region.

The dialing properties dialog box will be displayed automatically after you
select the region.

Location list for region selection.

A submenu appears displaying location information for telephony.

Open dialog box, if the modem and Telephony Current
Location region code do not match.

A warning dialog box is displayed if current settings for region code and
telephony location are incorrect.

Modem Selection

If the computer cannot recognize the internal modem, a dialog box is
displayed. Select the COM port for your modem to use.

Operating Basics

Dialing Properties

Select this item to display the dialing properties.

If you are using the computer in Japan, technical regulations described in
the Telecommunications Business Law require that you select Japan
region mode. It is illegal to use the modem in Japan with any other
selection.

User’s Manual 4-4

Connecting

To connect the internal modem cable, follow the steps below.

■ In case of a lightning storm, unplug the modem cable from the

telephone jack.

■ Do not connect the modem to a digital telephone line. A digital line will

damage the modem.

1. Plug one end of the modular cable into the modem jack.

2. Plug the other end of the modular cable into a telephone jack

Connecting the internal modem

Do not pull on the cable or move the computer while the cable is
connected.

Operating Basics

If you use a storage device such as an optical media drive or hard disk
drive connected to a 16-bit PC Card, you may find that the modem speed
is slow or the communication session might be interrupted.

If you find that the modem speed is low or communication is interrupted
when you are using the modem, please set the CPU speed to Maximum
within the TOSHIBA Power Saver utility.

Disconnecting

To disconnect the internal modem cable, follow the steps below.

1. Pinch the lever on the connector in the telephone jack and pull out the
connector.

2. Disconnect the cable from the computer in the same manner.

User’s Manual 4-5

LAN

The computer is equipped with networking hardware that supports Ethernet
LAN (10megabits per second, 10BASE-T) and Fast Ethernet LAN (100
megabits per second, 100BASE-TX). This section describes how to
connect/disconnect to a LAN.

Do not install or remove an optional memory module while the Wake-up on
LAN feature is enabled.

The Wake-up on LAN feature does not work on battery power, you should
always leave the computer connected to the AC adapter if you are using
this feature.

Connecting the LAN cable

The computer must be configured properly before connecting to a LAN.
Logging onto a LAN using the computer's default settings could cause a
malfunction in LAN operation. Check with your LAN administrator
regarding set-up procedures.

If you are using Ethernet LAN (10 megabits per second, 10BASE-T), you
can connect using either a CAT5 or a CAT3 cable.

If you are using 100BASE-TX Fast Ethernet, you must connect using a
CAT5 cable.

To connect the LAN cable, follow the steps below.

1. Turn off the power to the computer and to all external devices
connected to the computer.

2. Plug one end of the cable into the LAN jack. Press gently until you hear
the latch click into place.

Operating Basics

Connecting the LAN cable

3. Plug the other end of the cable into a LAN hub connector. Check with
your LAN administrator before connecting to a hub.

User’s Manual 4-6

Disconnecting the LAN cable

To disconnect the LAN cable, follow the steps below.

1. Pinch the lever on the connector in the computer's LAN jack and pull
out the connector.

2. Disconnect the cable from the LAN hub in the same manner. Check
with your LAN administrator before disconnecting from the hub.

Wireless LAN

The wireless LAN is compatible with other LAN systems that comply with
the IEEE 802.11g wireless LAN standards.

It supports the following:

■ Automatic Transmit Rate Select mechanism in the transmit range of 54,

11, 5.5, 2 and 1 Mbit/s.

■ Advanced Encryption Standard (AES) data encryption, based on 128bit

encryption algorithm. (Revision G combo type.)

Wake-up on LAN does not function on a Wireless LAN.

■ Frequency Channel Selection (2.4 GHz)

■ Roaming over multiple channels

■ Card Power Management

■ Wired Equivalent Privacy (WEP) data encryption

Operating Basics

Wireless LAN disclaimer

The transmission speed over the wireless LAN and the distance over which
wireless LAN can reach may vary depending on surrounding
electromagnetic environment, obstacles, access point design and
configuration, and client design and software/hardware configurations.
The actual transmission speed will be lower than the theoretical maximum
speed.

Security

1. TOSHIBA strongly recommends that you enable the WEP encryption
function otherwise your computer could be left open to illicit access via
the wireless LAN connection which may result in an intrusion that can
lead to the theft or loss of stored data among other things. In addition,
the owner of an Internet connection is responsible for all browsing,
downloading, and uploading activities on that connection. Therefore, an
unsecured wireless network connected directly to the Internet is an
open invitation for outsiders to abuse your ISP account and privileges.

2. TOSHIBA is not liable for the eavesdropping on your data due to the
use of the wireless LAN connection and any damage that may occur
thereof.

User’s Manual 4-7

Wireless communication switch

You can enable or disable the wireless LAN function with the on/off switch.
No transmissions are sent or received when the switch is off. Slide the
switch forward to turn it on and backward to turn it off.

Turn the switch off in airplanes and hospitals. Check the LED, it stops
glowing when the wireless communication function is off.

Wireless communication LED

The LED indicates the status of the wireless communication functions.

LED status Indication

LED off Wireless communication switch is set to off

LED glows Wireless communication switch is on

Using optical disc drives

The illustrations in this section might differ slightly from your drive, but
operation is the same for all optical disc drives. The full-size drive provides
high-performance execution of disc-based programs. You can run either 12
cm (4.72") or 8 cm (3.15") discs without an adapter. An ATAPI interface
controller is used for disc drive operation. When the computer is accessing
a disc, an indicator on the drive illuminates.

Operating Basics

Use the WinDVD application to view DVD-Video discs.

If you have a CD-RW/DVD-ROM drive, refer also to the Writing CDs on CD­RW/DVD-ROM drive section for precautions on writing to CDs.

If you have a DVD Super Multi drive, refer also to the Writing CD/DVDs on
DVD Super Multi drive section for precautions on writing to CDs.

Loading optical disc media

To load a disc, follow the steps below.

1. Turn on the power.

2. a. Press the eject button to open the drawer slightly.

User’s Manual 4-8

Operating Basics

Eject button

Pressing the eject button

b. Pressing the eject button will not open the drawer when the

computer's power is off. If the power is off, you can open the drawer
by inserting a slender object (about 15 mm) such as a straightened
paper clip into the eject hole just to the right of the eject button.

Manual release with the eject hole

3. Grasp the drawer gently and pull until it is fully open.

Pulling the drawer open

User’s Manual 4-9

Operating Basics

4. Lay the disc, label side up, in the drawer.

Inserting a disc

Be careful not to touch the lens or the area around it. Doing so could cause
the drive to malfunction.

5. Press gently at the center of the disc until you feel it click into place.
The disc should lie below the top of the spindle, flush with its base.

6. Push the center of the drawer to close it. Press gently until it locks in
place.

If the disc is not seated properly when the drawer is closed, it might be
damaged. Also, the drawer might not open fully when you press the eject
button.

Closing the drive drawer

User’s Manual 4-10

Removing compact discs

To remove the disc, follow the steps below.

Do not press the eject button while the computer is accessing the disc
drive. Wait for the optical disc indicator to go out before you open the
drawer. Also, if the disc is spinning when you open it, wait for it to stop
before you remove it.

1. To pop the drawer partially open, press the eject button. Gently pull the
drawer out until it is fully opened.

■ When the drawer pops open slightly, wait a moment to make sure the

disc has stopped spinning before pulling the drawer fully open.

■ Turn off the power before you use the eject hole. If the disc is spinning

when you open the drawer, it could fly off the spindle and cause injury.

2. The disc extends slightly over the sides of the drawer so you can grasp
it. Hold it gently and lift it out.

Operating Basics

Removing a disc

3. Push the center of the drawer to close it. Press gently until it locks into
place.

User’s Manual 4-11

Buttons

The Internet button and the CD/DVD button can be assigned functions and
applications in the TOSHIBA Controls Properties.

Operating Basics

CD/DVD play control buttons

In addition to the power button, the following four buttons control functions
relating to the playback of optical media and digital audio data:

Play/Pause Starts or pauses play

Stop Stops play

Next Advances to the next track, chapter or data

Previous Returns to the previous track, chapter or data

If Random or Shuffle is selected in Windows® Media Player, selecting Next
or Previous advances to a random selection.

User’s Manual 4-12

Express Media Player

The Express Media player is installed depending on the configuration you
purchased.

Express Media Player is a quick play feature that enables users to perform
DVD and CD playback without loading Windows.

Notes for Express Media Player

Express Media Player (CD) and Express Media Player (DVD) Usage

■ Dirty or scratched CD/DVDs might not be playable. In addition, the

CD/DVD might not be removable if the dirt or scratches are serious.

■ Press the personal computer's power switch for five seconds or more to

force it to shut down, you can open the drawer by inserting slender
object (about 15mm) into the eject hole. Refer to the Loading compact
discs section in Chapter 4, .

Express Media Player (DVD) Usage

■ Express Media Player (DVD) plays the disc according to the way the

DVD-Video has been programmed by the producer, hence sometimes it
might not work as expected.

■ ( ) might appear on screen during operation. When ( ) is displayed, it

means that Express Media Player (DVD) or DVD-Video prohibits that
particular operation from being carried out.

■ Please also read the instructions that come with the DVD that you want

to play.

■ Depending on the DVD being played, there might be dropping of frames

or skipping of audio.

■ The DVD can only be played on the LCD display of the computer.

External video output is not supported.

■ For DVD titles with parental control, the level settings for the parental

control function is not supported.

■ Data stored in Video CD, DVD-Audio, -VR or +VR formats cannot be

played. In addition, media that has not been finalized or MPEG, DivX,
mini DVD and other file formats also cannot be played.

■ Closed captions are not displayed.

■ Audio is only output in two channel stereo format.

■ Titles with DTS or SDDS audio will have no audio output if such audio is

selected.

■ Audio output from SPDIF is not supported.

■ This system is not karaoke mode compatible.

■ When continuous actions are to be carried out, ensure that the current

action is completed before carrying out the next one. Failure to do so
might result in unexpected results.

Operating Basics

User’s Manual 4-13

■ To remove a disc from the drive while the player is stopped, simply

press the eject button on the drive. If the player is playing the media,
press the "E" key, which will stop the player and eject the disc. If you
manually remove the disc by using the eject hole on the drive during
playback, the DVD-Video playback may not work. If this should happen,
please reboot the Express Media Player before using.

Express Media Player Settings

There are a few settings that need to be made in order to use the Express
Media Player functions for the first time. These are as follows:

Initial settings

When Express Media Player is first started or the recovery CD is used, the
screen for carrying out the initial settings of the Express Media Player is
displayed.

Please implement the settings as follows:

1. Language for displaying the Express Media Player set up and guide.
(Please refer to Table 1 for the language code.)

2. Keyboard. (Please refer to Table 2 for the keyboard code.)

Display Language setting and keyboard setting can be changed using the
set up for the DVD Player.

Display Language Code Language

English English

Español Spanish

Operating Basics

Français French

Italiano Italian

Nederlands Dutch

Português Portuguese

简体中文

繁體中文

Deutsch German

Table 1 Display Language

User’s Manual 4-14

Simplified Chinese

Traditional Chinese

Operating Basics

Keyboard Code Keyboard Code

EN1 US English PT1 Portuguese

EN2 UK English RU1 Russian

ES1 Spanish SV1 Swedish

FR1 French TR1 Turkish

FR2 Canadian-

AR1 Arabic

French

IT1 Italian BE1 Belgian

IW1 Hebrew DA1 Danish

JA1 Japanese DE1 German

KO1 Korean DE2 Swiss-German

NO1 Norwegian EL1 Greek

PL1 Polish

Table 2 Keyboard Code

Functions via the Front operation panel and the keyboard in the
Express Media Player mode

This list shows how the functions available from the keyboard correspond
to those available from the Front operation panel.

Front panel Computer CD DVD

- Power switch Terminates CD Terminates DVD

CD/DVD - Launch the CD Launch the DVD

- Fn + F7 Increases the
brightness

- Fn + F6 Decreases the
brightness

Increases the
brightness

Decreases the
brightness

- 1 Select track 1 Select chapter 1

- 2 Select track 2 Select chapter 2

- 3 Select track 3 Select chapter 3

- 4 Select track 4 Select chapter 4

- 5 Select track 5 Select chapter 5

- 6 Select track 6 Select chapter 6

- 7 Select track 7 Select chapter 7

User’s Manual 4-15

Operating Basics

- 8 Select track 8 Select chapter 8

- 9 Select track 9 Select chapter 9

- 0 Normally functions

- F8 - Displays the top

- F9 - Displays the menu

-

-

-

-

- Enter Executes the

- F2 - Displays or hides

- Esc - Menu cancel or

-PgUp - -

-PgDn - -

-

-

- M Mute the volume Mute the volume

- O Rewinds by about

- P Skip by about 10









Ctrl +



Ctrl +



K Next track Next chapter

as “0”

- Move the cursor

- Move the cursor

- Move the cursor

- Move the cursor

selected option

Increases the
volume

Decreases the
volume

10 seconds

seconds

Normally functions
as “0”

menu

Executes the
selected option

the Settings Menu

back or return

Increases the
volume

Decreases the
volume

Rewinds quickly

Skips forwards
quickly

L Previous track Previous chapter

Space Play or pauses Play or pauses

Ctrl + Space Stop Stop

- Ctrl + R Repeat -

User’s Manual 4-16

Operating Basics

- Ctrl + S Shuffle -

- D Changes the
screen

- G - Changes the angle

- S - Changes the

- A - Changes the audio

- T - Select the title

- Y - Slow play

- F1 Display the
keyguide

-E Eject Eject

- W Changes the SRS
WOW XT Mode *

* SRS function is disable as a default.To enable it, follow these steps.

1. Press “F2” key to show menu. (“Display Setting” of left menu is
highlighted.)

2.Move the cursor with down arrow key and Select “Audio Settings” of left
menu.

3. Press right allow key to move cursor. (“Surround Setting Off” is
highlighted.)

4.Press “Enter” key to show the options.

5. Move the cursor once with down arrow key and select “Build-in Speaker”,
and Enter.

6. If you use External speaker or headphone, please select other settings.

Changes the
screen

subtitle

channel

Display the
keyguide

-

Writing CDs on a CD-RW/DVD-ROM drive

You can use the CD-RW/DVD-ROM drive to write data to CD-R/RW discs.
The following applications for writing are preinstalled:
Record Now!/DLA, licensed by Sonic Solutions.

Important message

Before you write or rewrite to CD-R/RW media, read and follow all setup
and operating instructions in this section. If you fail to do so, the CD-RW/
DVD-ROM drive may not function properly, and you may fail to write or
rewrite, lose data or incur other damage.

User’s Manual 4-17

Disclaimer

TOSHIBA does not bear responsibility for the following:

■ Damage to any CD-R/-RW disc that may be caused by writing or

rewriting with this product.

■ Any change or loss of the recorded contents of CD-R/-RW media that

may be caused by writing or rewriting with this product, or for any
business profit loss or business interruption that may be caused by the
change or loss of the recorded contents.

■

Damage that may be caused by using third party equipment or software.

Given the technological limitations of current optical disc writing drives, you
may experience unexpected writing or rewriting errors due to disc quality or
problems with hardware devices. Also, it is a good idea to make two or
more copies of important data, in case of undesired change or loss of the
recorded contents.

CD-R discs can be written only once. CD-RW discs can be rewritten many
times.

Before writing or rewriting

Please observe the following points when you write or rewrite the data.

■ We recommend the following manufacturers of CD-R and CD-RW

media. Media quality can affect write or rewrite success rates.

CD-R: TAIYOYUDEN CO., LTD.

MITSUBISHI CHEMICAL CORPORATION
RICOH Co., Ltd.
Hitachi Maxell Ltd.

Operating Basics

CD-RW: MITSUBISHI CHEMICAL CORPORATION

TOSHIBA has confirmed the operation of CD-R and CD-RW media of the
manufacturers above. Operation of other media cannot be guaranteed.

■ CD-RW can generally be rewritten about 1,000 times. However, the

actual number of rewrites is affected by the quality of the media and the
way it is used.

■ Be sure to connect the universal AC adapter when you write or rewrite.

Be sure to close all other software programs except the writing software.

■

■ Do not run software such as a screen saver which can put a heavy load

on the CPU.

■ Operate the computer at full power. Do not use power-saving features.

■ Do not write while virus check software is running. Wait for it to finish,

then disable virus detection programs including any software that
checks files automatically in the background.

■ Do not use hard disk utilities, including those intended to enhance hard

disk access speeds, as they may cause unstable operation and
damage data.

User’s Manual 4-18

RICOH Co., Ltd.

■ Write from the computer's hard disk drive to the CD. Do not try to write

from shared devices such as a LAN server or any other network device.

■ Writing with software other than Sonic RecordNow! has not been

confirmed. Therefore, operation with other software cannot be
guaranteed.

When writing or rewriting

Note the following when you write or rewrite a CD-R or CD-RW.

■ Always copy data from the hard disk drive to the CD. Do not use cut-

and-paste as the original data will be lost if there is a write error.

■ Do not perform any of the following actions:

■ Change users in the Windows XP operating system.

■ Operate the computer for any other function, including the use of a

mouse or the TouchPad, and the closing/opening of the LCD panel.

■ Start a communication application, such as a modem.

■ Apply impact or vibration to the PC.

■ Install, remove or connect external devices such as PC Cards, USB

devices, an external display, i.LINK devices or optical digital
devices.

■ Open the optical disc drive.

■ If the media is poor in quality, dirty or damaged, writing or rewriting

errors may occur.

■ Set the computer on a level surface and avoid places subject to

vibration, such as airplanes, trains, or cars. Do not use an unstable
surface, such as a stand.

■ Keep mobile phones and other wireless communication devices away

from the computer.

Operating Basics

Writing CDs/DVDs on a DVD Super Multi drive supporting double layer disc recording

You can use the DVD Super Multi drive to write data to either CD-R/RW or
DVD-R/-RW/+R/+RW/-RAM/+R DL/-R DL discs. The following applications

for writing are preinstalled:
Record Now!/DLA, licensed by Sonic Solutions. InterVideo WinDVD

Creator 2 Platinum, which is a product of InterVideo, Inc.

Important message

Before you write or rewrite to CD-R/RW or DVD-R/-RW/+R/+RW/-RAM
media, read and follow all set-up and operating instructions in this section.
If you fail to do so, the DVD Super Multi drive may not function properly,
and you may fail to write or rewrite, lose data or incur other damage.

User’s Manual 4-19

Disclaimer

TOSHIBA does not bear responsibility for the following:

■ Damage to any CD-R/RW or DVD-R/-RW/+R/+RW/-RAM /+R DL/-R DL

disc that may be caused by writing or rewriting with this product.

■ Any change or loss of the recorded contents of CD-R/RW or DVD-R/-

RW/ +R/+RW /-RAM/+R DL/-R DL media that may be caused by writing
or rewriting with this product, or for any business profit loss or business
interruption that may be caused by the change or loss of the recorded
contents.

■ Damage that may be caused by using third party equipment or

software.

Given the technological limitations of current optical disc writing drives, you
may experience unexpected writing or rewriting errors due to disc quality or
problems with hardware devices. Also, it is a good idea to make two or
more copies of important data, in case of undesired change or loss of the
recorded contents.

Before writing or rewriting

Please observe the following points when you write or rewrite data.

■ Based on TOSHIBA's limited compatibility testing, we suggest the

following manufacturers of CD-R/RW and DVD-R/+R/-RW/+RW/-RAM/
+R DL/-R DL media. However, in no event does TOSHIBA guarantee
the operation, quality or performance of any disc. Disc quality can affect
write or rewrite success rates.

Operating Basics

CD-R: TAIYOYUDEN CO., LTD.

MITSUBISHI CHEMICAL CORPORATION
RICOH Co., Ltd.
Hitachi Maxell Ltd.

CD-RW: MITSUBISHI CHEMICAL CORPORATION

DVD-R: DVD Specifications for Recordable Disc for

DVD-RW: DVD Specifications for Re-recordable Disc for

DVD+R: MITSUBISHI CHEMICAL CORPORATION

DVD+RW: MITSUBISHI CHEMICAL CORPORATION

User’s Manual 4-20

RICOH Co., Ltd.

General Version 2.0

TAIYOYUDEN CO., LTD.
Matsushita Electric Industrial Co., Ltd.

Version 1.1 or Version 1.2

VICTOR COMPANY OF JAPAN, LIMITED
MITSUBISHI CHEMICAL CORPORATION

RICOH Co., Ltd.

RICOH Co., Ltd.

Operating Basics

*DVD-RAM: DVD Specifications for DVD-RAM Disc for

Version 2.0, Version 2.1 or Version 2.2

Matsushita Electric Industrial Co., Ltd.
Hitachi Maxell Ltd.
*DVD Multi drive and DVD Super Multi can use
DVD-RAM.

DVD+R (Double

MITSUBISHI CHEMICAL CORPORATION

Layer):

DVD-R (Dual

MITSUBISHI CHEMICAL COPRORATION

Layer):

■ If the disc is poor in quality, dirty or damaged, writing or rewriting errors

may occur. Be careful to check the disc for dirt or damage before you
use it.

■ The actual number of rewrites to CD-RW or DVD-RW/+RW/-RAM is

affected by the quality of the disc and the way it is used.

■ There are two types of DVD-R: authoring and general use discs. Do not

use authoring discs. Only general use discs can be written to by a
computer drive.

■ You can use DVD-RAM discs that can be removed from a cartridge and

DVD-RAM discs designed without a cartridge. You cannot use a disc
with a 2.6 GB single-sided capacity or 5.2 GB double-sided capacity.

■ Other DVD-ROM drives for computers or other DVD players may not be

able to read DVD-R/+R/-RW/+RW/-RAM/+R DL/-R DL discs.

■ Data written to a CD-R/DVD-R/+R disc cannot be deleted either in

whole or in part.

■ Data deleted (erased) from a CD-RW and DVD-RW/+RW/-RAM disc

cannot be recovered. Check the content of the disc carefully before you
delete it. If multiple drives that can write data to discs are connected, be
careful not to delete data from the wrong drive.

■ In writing to a DVD-R/+R/-RW/+RW/-RAM/+R DL/-R DL disc, some disc

space is required for file management, so you may not be able to write
the full capacity of the disc.

■ Since the disc is based on the DVD-R/-RW standard, it will be filled with

dummy data if the written data is less than about 1 GB. Even if you write
only a small amount of data, it might take time to fill in the dummy data.

■ Two types of DVD-R/+R/-RW/+RW/-RAM discs are on the market: data

and video. Use a video disc to store video data. You can use video
discs on a DVD recorder as well as on your computer's DVD-ROM
drive. You cannot use data discs on a DVD recorder.

■ DVD-RAM formatted by FAT32 cannot be read in Windows 2000

without DVD-RAM Driver Software.

■ When multiple drives that can write data to discs are connected, be

careful not to write to the wrong drive.

■ Be sure to connect the universal AC adapter before you write or rewrite.

User’s Manual 4-21

■ Before you enter standby/hibernation mode, be sure to finish DVD-RAM

writing. Writing is finished if you can eject DVD-RAM media.

■ Be sure to close all other software programs except the writing

software.

■ Do not run software such as a screen saver, which can put a heavy load

on the CPU.

■ Operate the computer at full power. Do not use power-saving features.

■ Do not write while virus check software is running. Wait for it to finish,

then disable virus detection programs including any software that
checks files automatically in the background.

■ Do not use hard disk utilities, including those intended to enhance hard

disk access speed, as they may cause unstable operation and damage
data.

■ Write from the computer's hard disk drive to the CD/DVD. Do not try to

write from shared devices such as a LAN server or any other network
device.

■ Writing with software other than Sonic RecordNow! or InterVideo

WinDVD Creator 2 Platinum has not been confirmed. Therefore,
operation with other software cannot be guaranteed.

When writing or rewriting

Please observe/consider the following when you write or rewrite to a CD-R/
RW, DVD-R/-RW/-RAM/-R DL or DVD+R/+RW/+R DL disc.

■ Do not perform any of the following actions when writing or rewriting:

■ Change users in the Windows XP operating system.

■ Operate the computer for any other function, including using a

mouse or Touch Pad or closing/opening the LCD panel.

■ Start a communication application such as a modem.

■ Apply impact or vibration to the computer.

■ Install, remove or connect external devices such as PC card, USB

devices, an external display, i.Link devices or optical digital devices.

■ Use the audio/video control button to reproduce music or voice.

■ Open the drive.

■ Do not use shut down/log off and standby/hibernation while writing or

rewriting.

■ Make sure writing or rewriting is completed before going into Standby

mode/Hibernation mode. Writing is completed if you can open the drive
tray.

■ Set the computer on a level surface and avoid places subject to

vibration such as airplanes, trains or cars. Do not use an unstable
surface such as a stand.

■ Keep mobile phones and other wireless communication devices away

from the computer.

■ Always copy data from the hard disk drive to the CD. Do not use cut-

and-paste as the original data will be lost if there is a write error.

Operating Basics

User’s Manual 4-22

When Using WinDVD Creator 2 Platinum

How to learn more about InterVideo WinDVD Creator

Click the icon “Additional Software CD” on your Desktop to install the
WinDVD Creator using the Additional Software CD.

The Additional Software CD is bundled depending on the model you
purchased.

Please refer to the on-line help for InterVideo WinDVD Creator information.

Important information for use

Note the following limitations when you write video DVD:

1. Editing digital video

■ Log in with Administrator rights to use WinDVD Creator.

■ Make sure that your computer is running on AC power when using

WinDVD Creator.

■ Operate the computer at Full Power. Do not use power-saving features.

■ While you are editing DVD, you can display previews. However, if

another application is running, the preview might not display properly.

■ WinDVD Creator cannot show video on the RGB (Monitor) when in

simultaneous mode.

■ WinDVD Creator cannot edit or play copy protected content.

■ Do not change display settings while using WinDVD Creator.

■ Do not enter standby/hibernation mode while using WinDVD Creator.

■ Do not operate WinDVD Creator immediately after turning on the

computer. Please wait until all Disc Drive activity has stopped.

■ When recording to a DV-Camcorder, to ensure you capture all of your

data, let the camcorder record for a few seconds before you begin
recording your actual data.

■ CD recorder, JPEG functions, DVD-Audio, mini DVD and Video CD

functions are not supported in this version.

■ While recording video to DVD or tape, please close all other programs.

■ Do not run software like a screen saver because it can put a heavy load

on the CPU.

■ Do not run communication applications like a modem or a LAN.

2. Before recording the video to DVD

■ When you record to DVD disc, please use only discs recommended by

the Drive manufacturer.

■ Do not set the working drive to a slow device like a USB 1.1 hard disk

drive or it will fail to write DVD.

Operating Basics

User’s Manual 4-23

Operating Basics

■ Do not perform any of the following actions:

- Operate the computer for any other function, including using a mouse

or TouchPad or closing/opening the LCD panel.

- Bump or cause vibration to the computer.

- Use the Mode control button and Audio/Video control button to

reproduce music or voice.

- Open the DVD drive.

- Install, remove or connect external devices, including the following:
PC card, SD card, USB devices, external display, i.LINK. devices,

optical digital devices.

■ Please verify your disc after recording important data.

■ DVD-R/+R/-RW disc cannot be written in VR format.

■ WinDVD Creator cannot export to DVD-Audio, VideoCD, miniDVD

format.

■ WinDVD Creator can write DVD-RAM/+RW in VR format, but the disc

may only play on your computer.

■ When writing to DVD disc, WinDVD Creator requires 2GB or more over

disk space every one hour of video.

■ When you make a fully recorded DVD, the chapter sequence may not

play correctly.

3. About Disc Manager

■ WinDVD Creator can edit one play list on a disc.

■ WinDVD Creator might show a different a thumbnail than you

previously set in CE DVD-RAM recorder.

■ Using the Disc Manager, you can edit DVD-VR format on DVDRAM,

DVD+VR format on DVD+RW, and DVD-Video format on DVD-RW.

4. About recorded DVDs

■ Some DVD-ROM drives for personal computers or other DVD players

may not be able to read DVD-R/+R/-RW/+RW/-RAM discs.

■ When playing your recorded disc on your computer, please use the

WinDVD software application.

■ If you use an over-used rewritable disc, the full formatting might be

locked. Please use a brand new disc.

User’s Manual 4-24

RecordNow! Basic for TOSHIBA

Note the following limitations when you use RecordNow!:

■ DVD-Video cannot be created using RecordNow!

■ DVD-Audio cannot be created using RecordNow!

■ You cannot use the RecordNow! "Audio CD for Car or Home CD Player"

function to record music to the DVD-R/-RW or DVD+R/+RW media.

■ Do not use the "Exact Copy" function of RecordNow! to copy DVD-

Video and DVD-ROM with copyright protection.

■ DVD-RAM media cannot be backed up with the "Exact Copy" function

of RecordNow!

■ You cannot back up a CD-ROM or CD-R/RW to DVD-R/-RW or DVD+R/

+RW using the"Exact Copy" function of RecordNow!.

■ You cannot back up DVD-ROM, DVD-Video or DVD-R/-RW or DVD+R/

+RW to CD-R/RW using RecordNow!

■ RecordNow! cannot record in packet format.

■ You might not be able to use the 'Exact Copy' function of RecordNow! to

backup a DVD-R/-RW or DVD+R/+RW disc that was made with other
software on a different DVD-R/-RW or DVD+R/+RW recorder.

■ If you add data to a DVD-R and DVD+R disc that you have already

recorded to, you might not be able to read the added data under some
circumstances. It cannot be read in 16-bit operating systems, such as
Windows 98SE and Windows ME, in Windows NT4 you will need
Service Pack 6 or later to read the data, and in Windows 2000 you will
need Service Pack 2 or later to read it. Some optical media drives
cannot read added data regardless of the operating system.

■ RecordNow! does not support recording to DVD-RAM discs. To record

to a DVD-RAM, use Explorer or other similar utility.

■ When you back up a DVD disc, be sure the source drive supports

recording to DVD-R/-RW or DVD+R/+RW discs. If the source drive
does not support recording to DVD-R/-RW or DVD+R/+RW discs, it
might not be backed up correctly.

■ When you back up a DVD-R, DVD-RW, DVD+R or DVD+RW, be sure to

use the same type of disc.

■ You cannot partially delete any data written to a CD-RW, DVD-RW or

DVD+RW disc.

Operating Basics

User’s Manual 4-25

Data Verification

To verify that data is written or rewritten correctly, follow the steps below
before you write or rewrite a Data disc.

1. Click the Options button ( ) on the RecordNow! Console to open
the Options panels.

2. Select the Data in the left-side menu.

3. Mark the Verify data written to the disc after burning check box in the
Data Options.

4. Click the OK button.

DLA for TOSHIBA

Note the following limitations when you use DLA:

■ This software supports only rewritable discs (DVD+RW, DVD-RW, and

CD-RW). It does not support DVD+R, DVD-R, and CD-R discs that are
not rewritable.

■ DLA does not support formatting a DVD-RAM disc and writing to it.

They are performed by DVD-RAM Driver Software. If DLA Format menu
may appear when inserting a DVD-RAM disc into the drive and right­clicking the drive icon in Windows Explorer, please use "DVDForm" to
format this disc. You can run "DVDForm" by clicking the Start button on
the taskbar to display the Start menu and then selecting "All Programs",
"DVD-RAM", "DVD-RAM Driver" and "DVDForm" sequentially.

■ Do not use any discs that have been formatted with packet writing

software other than DLA. Similarly, do not use any discs that have been
formatted with DLA with any packet writing software other than DLA.
When using a disc you are not familiar with, format it by selecting Full
Format before using it.

■ Do not use the Cut & Paste function for files and folders. A file or folder

that has been cut may be lost if writing fails due to an error on the disc.

■ When writing the Setup files for the program into a disc formatted by

DLA and starting Setup from this disc, an error may occur. In this case,
plase copy them to your hard disk and then run Setup.

Operating Basics

User’s Manual 4-26

Media Care

This section provides tips on protecting data stored on your discs and
diskettes.

Handle your media with care. The following simple precautions will
increase the lifetime of your media and protect the data stored on it:

1. Store your discs in the container they came in to protect them and keep

2. Do not bend the disc.

3. Do not write on, apply a sticker to, or otherwise mar the surface of the

4. Hold the disc by its outside edge or the edge on the center hole.

5. Do not expose to direct sunlight, or extreme heat or cold, and do not

6. If your discs become dusty or dirty, wipe them with a clean dry cloth.

Diskettes

1. Store your diskettes in the container they came in to protect them and

2. Do not slide back the diskette's protective metal covering or touch the

3. Data may be lost if the diskette is twisted, bent, or exposed to direct

4. Do not place heavy objects on your diskettes.

5. Do not eat, smoke, or use erasers near your diskettes. Foreign particles

6. Magnetic energy can destroy data on diskettes. Keep your diskettes

Operating Basics

them clean.

disc that contains data.

Fingerprints on the surface can prevent the drive from properly reading
data.

place heavy objects on your discs.

Wipe from the center out, do not wipe in a circular direction around the
disc. If necessary, use a cloth dampened in water or a neutral cleaner.
Do not use benzine, thinner or similar cleaner.

keep them clean. If a diskette is dirty, do not use cleaning fluid. Clean it
with a soft damp cloth.

diskette's magnetic surface. Fingerprints may prevent the diskette drive
from reading data from the diskette.

sunlight, or extreme heat or cold.

inside the diskette's jacket can damage the magnetic surface.

away from speakers, radios, television sets and other sources of
magnetic fields.

User’s Manual 4-27

TV-Out

Use the TV-Out port to connect to a television. Be sure to use a 4 pin type
S-video cable. For more details, see Appendix B.

TV Out Port

Setting up more than one display

You can set up your computer to utilize more than one display, effectively
spreading a single desktop screen across two monitors.

The Display Properties window allows you to adjust more precisely the
relative positioning of the two displays when they are configured as an
extended desktop. On the Display Properties window, the two displays can
be positioned horizontally, vertically or in any diagonal configuration you
wish, as shown below.

Operating Basics

If an external display will not be connected next time you use your
computer, you should cancel any extended desktop or clone display
settings before shutting down your computer.

Clone display settings are those where more than one device has been
selected and is simultaneously applicable.

User’s Manual 4-28

Cleaning the computer

To help ensure long, trouble-free operation, keep the computer free of dust
and use care with liquids around the computer.

■ Be careful not to spill liquids into the computer. If the computer does get

wet, turn the power off immediately and let the computer dry completely
before you turn it on again.

■ Clean the computer using a slightly damp (with water) cloth. You can

use glass cleaner on the display. Spray a small amount of cleaner on a
soft, clean cloth and wipe the screen gently with the cloth.

Never spray cleaner directly onto the computer or let liquid run into any
part of it. Never use harsh or caustic chemical products to clean the
computer.

Moving the computer

The computer is designed for rugged durability. However, a few simple
precautions taken when moving the computer will help ensure trouble-free
operation.

■ Make sure all disk activity has ended before moving the computer.

Check the Built-in Hard Disk Drive and optical disc drive indicators
on the computer.

■ If a diskette is in the diskette drive, remove it.

■ If a disc is in the optical disc drive, remove it. Also make sure the optical

disc drive drawer is securely closed.

■ Turn off the power to the computer.

■ Disconnect all peripherals before moving the computer.

■ Close the display. Do not pick up the computer by its display panel or

back (where the interface ports are located).

■ Close all port covers.

■ Disconnect the AC adapter if it is connected.

■ Use the carrying case when transporting the computer.

Operating Basics

User’s Manual 4-29

The Keyboard

The computer's keyboard layouts are compatible with a 101/102-key
enhanced keyboard. By pressing some keys in combination, all the 101/
102-key keyboard functions can be executed on the computer.

The number of keys on your keyboard depends on which country/region's
keyboard layout your computer is configured with. Keyboards for numerous
languages are available.

There are five types of keys: typewriter keys, keypad overlay, function keys,
soft keys and cursor control keys. The typewriter keys and keypad overlay
keys are gray. The other keys are dark gray.

Typewriter keys

The typewriter keys, produce the upper- and lower-case letters, numbers,
punctuation marks, and special symbols that appear on the screen.

There are some differences, however, between using a typewriter and
using a computer keyboard:

■ Letters and numbers produced in computer text vary in width. Spaces,

which are created by a space character may also vary depending on
line justification and other factors.

■ The lowercase l (el) and the number 1 (one) are not interchangeable on

computers as they are on a typewriter.

■ The uppercase O (oh) and the 0 (zero) are not interchangeable.

■ The Caps Lock function key locks only the alphabetic characters in

uppercase while the shift lock on a typewriter places all keys in the
shifted position.

■ The Shift keys, the Tab key, and the BkSp (backspace) key perform the

same function as their typewriter counterparts but also have special
computer functions.

Chapter 5

User’s Manual 5-1

F1 ... F12 function keys

The function keys, not to be confused with Fn, are the 12 keys at the top of
your keyboard. These keys are dark gray, but function differently from the
other dark gray keys.

F1 through F12 are called function keys because they execute
programmed functions when pressed. Used in combination with the Fn key,
keys marked with icons execute specific functions on the computer. See
the section, Soft keys: Fn key combinations, in this chapter. The function
executed by individual keys depends on the software you are using.

Soft keys: Fn key combinations

The Fn (function) is unique to TOSHIBA computers and is used in
combination with other keys to form soft keys. Soft keys are key
combinations that enable, disable or configure specific features.

Some software may disable or interfere with soft-key operations. Soft-key
settings are not restored by the Standby feature.

The Keyboard

Emulation keys

Your software may require you to use keys that the keyboard does not
have. Pressing the Fn key and one of the following keys simulates the
enhanced keyboard's functions.

Press Fn + F10 or Fn + F11 to access the integrated keypad. When
activated, the gray keys with white numbers become numeric keypad keys
(Fn + F11) or cursor control keys (Fn + F10). Refer to the Keypad overlay
section in this chapter for more information on how to operate these keys.
The power on default for both settings is off.

Press Fn + F12 (ScrLock) to lock the cursor on a specific line. The power
on default is off.

User’s Manual 5-2

Hotkeys

The Keyboard

Press Fn + Enter to simulate Enter on the enhanced keyboard's numeric
keypad.

Press Fn + Ctrl to simulate the enhanced keyboard's right Ctrl key.

Fn + ESC Volume Mute Turns the volume on and off.

Fn + F1 Instant Security Enters screen saver mode and

blanks the screen. To restore your desktop, press
any key or use the TouchPad.

Fn + F2 Power Save Modes Displays the power save

modes and lets you change the power settings

Fn + F3 Standby This hot key switches the system to

Standby mode.

Fn + F4 Hibernate This hot key switches the system to

Hibernate mode.

Fn + F5 Display Selection Changes displays.

Default resolution for simultaneous mode is set to WXGA (1280x768). If
you connect an RGB (Monitor) that is not WXGA resolution, change it in
"Display Properties".

Fn + F6 Brightness Down

Fn + F7 Brightness Up

Fn + F8 Wireless Device Controls Pressing this hot key

allows you to switch between active wireless
devices if the wireless communication switch is
switched on.

Fn + F9 TouchPad On/Off

Fn + F10 Cursor Keypad On/Off This hot key enables/

User’s Manual 5-3

disables the embedded cursor keypad. See
chapter 3 for more information.

The Keyboard

Fn + F11 Numeric Keypad On/Off This hot key enables/

disables the embedded numeric keypad. See
chapter 3 for more information.

Fn + F12 Scroll Lock On/Off

Fn + Space Change Resolution Cycles sequentially from

Fn + 1

Fn + 2

Before using Fn+1 and Fn+2, you must install the TOSHIBA Zooming
Utility. Please be aware that this 'zooming' function is only available within
Microsoft Internet Explorer, Microsoft Office, Windows Media Player and
Adobe Reader, and for the icons on the desktop.

Windows special keys

The keyboard provides two keys that have special functions in Windows
XP. One activates the Start menu and the other has the same function as
the secondary mouse button.

This key activates the Windows XP Start menu

the current resolution to 800x600 to 1024x768
and back again to the original resolution.

Zoom Out To reduce the icon size on the
desktop or the application window, press the
1 key while holding down the Fn key.

Zoom In To enlarge the icon size on the desktop
or the application window, press the 2 key while
holding down the Fn key.

This key has the same function as the secondary mouse button.

User’s Manual 5-4

Keypad overlay

Your computer's keyboard does not have an independent numeric keypad,
but its numeric keypad overlay functions like one.

The keys in the center of the keyboard with white letters make up the
numeric keypad overlay. The overlay provides the same functions as the
numeric keypad.

Turning on the overlays

The numeric keypad overlay can be used for numeric data input or cursor
and page control.

Arrow mode

To turn on the Arrow mode, press Fn + F10 (Arrow mode indicator lights).
Now try cursor and page control using the keys shown in the disagram
below. Press Fn + F10 again to turn off the overlay.

Numeric mode

To turn on the Numeric mode, press Fn + F11 (Numeric mode indicator
lights). Now try numeric data entry using the keys below. Press Fn + F11
again to turn off the overlay.

The Keyboard

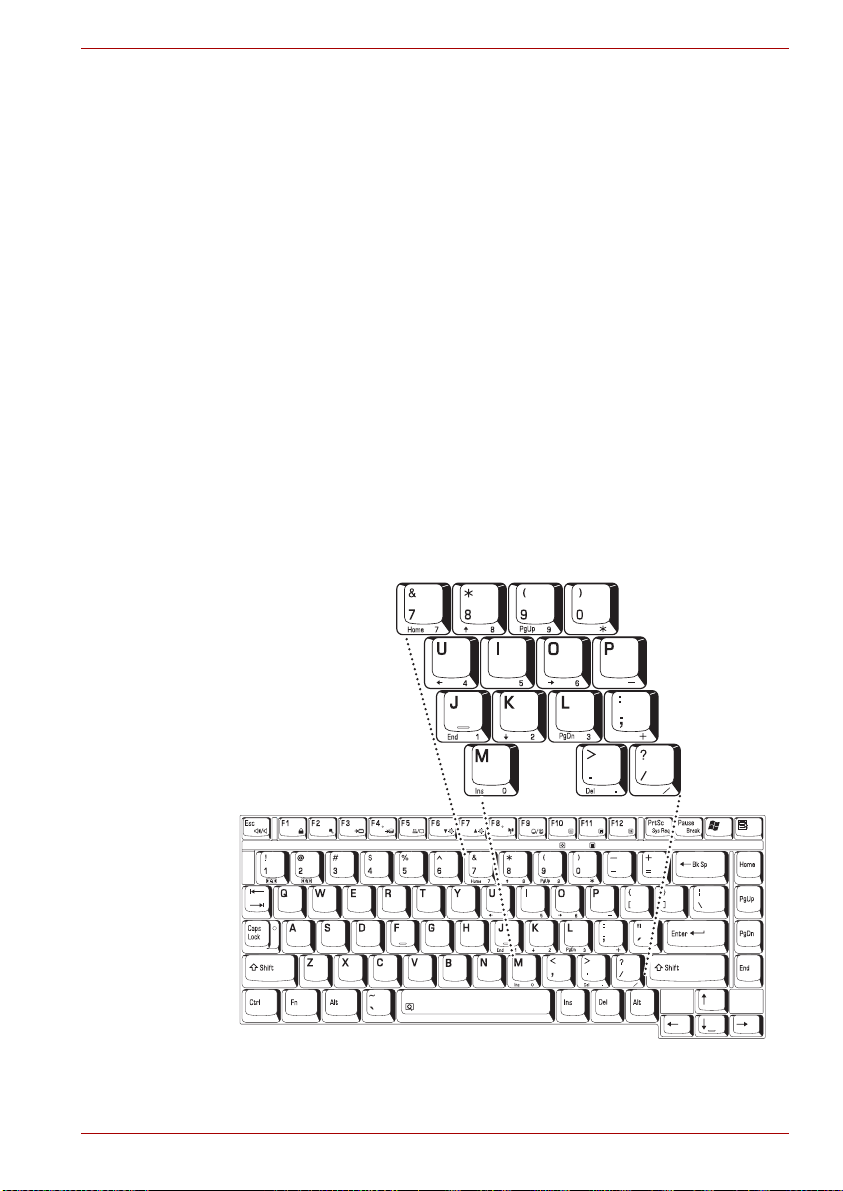

The numeric keypad overlay (U.S.)

User’s Manual 5-5

Temporarily using normal keyboard (overlay on)

While using the overlay, you can temporarily access the normal keyboard
without turning off the overlay:

1. Hold down Fn and press any other key. All keys will operate as if the
overlay were off.

2. Type upper-case characters by holding down Fn + Shift and pressing a
character key.

3. Release Fn to continue using the overlay.

Temporarily using overlay (overlay off)

While using the normal keyboard, you can temporarily use the keypad
overlay without turning it on:

1. Press and hold down Fn.

2. Check the keyboard indicators. Pressing Fn turns on the most recently
used overlay. If the Numeric mode indicator lights, you can use the
overlay for numeric entry. If the Arrow mode indicator lights, you can
use it for cursor and page control.

3. Release Fn to return to normal keyboard operation.

Temporarily changing modes

If the computer is in Numeric mode, you can switch temporarily to Arrow
mode by pressing a shift key.

If the computer is in Arrow mode, you can switch temporarily to Numeric
mode by pressing a shift key.

The Keyboard

Generating ASCII characters

Not all ASCII characters can be generated using normal keyboard
operation. But, you can generate these characters using their ASCII codes.

With the overlay on:

1. Hold down Alt.

2. Using the overlay keys, type the ASCII code.

3. Release Alt, and the ASCII character appears on the display screen.

With the overlay off:

1. Hold Alt + Fn.

2. Using the overlay keys, type the ASCII code.

3. Release Alt + Fn, and the ASCII character appears on the display
screen.

User’s Manual 5-6

Chapter 6

Power and Power-Up Modes

The computer's power resources include the AC adapter and internal
batteries. This chapter gives details on making the most effective use of
these resources including charging and changing batteries, tips for saving
battery power, and power up modes.

Power conditions

The computer's operating capability and battery charge status are affected
by the power conditions: whether an AC adapter is connected, whether a
battery is installed and what the charge level is for the battery.

Power on Power off (no operation)

AC adapter
connected

User’s Manual 6-1

Battery fully
charged

Battery partially
charged

No battery
installed or no
charge

• Operates

• No charge

• LED: Battery green
DC IN green

• Operates

• Charge

• LED: Battery Amber
DC IN green

• Operates

• No charge

• LED: Battery off
DC IN green

• No charge

• LED: Battery green
DC IN green

• Charge

• LED: Battery Amber
DC IN green

• No charge

• LED: Battery off
DC IN green

AC adapter
not
connected

Battery capacity
is above low
battery trigger
point

Power and Power-Up Modes

Power on Power off (no operation)

• Operates

• LED: Battery off
DC IN off

Battery capacity
is below low
battery trigger
point

Battery capacity
exhausted

No battery
installed

• Operates

• Alarm sounds (this

function depends on how
the computer is
configured)

• LED: Battery flashes
amber
DC IN off

Computer goes into
Hibernation or shuts down

(depending on the
TOSHIBA Power Saver
setting)

• No operation

• LED: Battery off
DC IN off

User’s Manual 6-2

Power indicators

As shown in the above table, the Battery, DC IN and Power indicators alert
you to the computer's operating capability and battery charge status

Battery indicator

Check the Battery indicator to determine the status of the battery. The
following indicator lights indicate the battery status.

Flashing amber The battery charge is low. The AC adapter must

Amber Indicates the AC adapter is connected and is

Green Indicates the AC adapter is connected and the

No light Under any other conditions, the indicator does

DC IN indicator

Check the DC IN indicator to determine the power status with the AC
adapter connected:

Power and Power-Up Modes

be connected to recharge the battery

charging the battery.

battery is fully charged.

not light.

Green Indicates the AC adapter is connected and is

No light Indicates the AC adapter is not connected.

correctly supplying power to the computer.

Power indicator

Check the Power indicator to determine the power status with the AC
adapter connected:

Green The power button will glow green while power is

Blinking amber Indicates power is being supplied to the

No light Under any other conditions, the indicator does

User’s Manual 6-3

being supplied and the computer is turned on.
The power indicator on the front of computer
will glow green when the computer is switched
on.

computer while the computer is in Standby
mode.

not light.

Battery types

The computer has two types of batteries:

■ Battery pack

■ Real Time Clock (RTC) battery

Battery pack

When the AC adapter is not connected, the computer's main power source
is a removable lithium ion battery pack, also referred to in this manual as
the battery.

You can purchase additional battery packs for extended use of the
computer away from an AC power source.

The battery is a disposable item. When its operation becomes short even
when fully charged, replace it with a new one.

■ The battery pack is a lithium ion battery, which can explode if not

properly replaced, used, handled or disposed of. Dispose of the battery
as required by local ordinances or regulations. Use only batteries
recommended by TOSHIBA as replacements.

■ Do not remove the battery pack while the computer is in Standby Mode.

In this mode data is stored in memory, so if the computer loses power, it
will be lost.

■ Battery type (depending on the model you purchased):

4 cell-PA3451U-1BAS, PA3451U-1BRS
6 cell-PA3465U-1BAS, PA3465U-1BRS
8 cell-PA3457U-1BAS, PA3457U-1BRS

Power and Power-Up Modes

Real Time Clock battery

The Real Time Clock (RTC) battery provides power for the internal real
time clock and calendar. It also maintains the system configuration.

If the RTC battery becomes completely discharged, the system loses this
data and the real time clock and calendar stop working. The following
message appears when you turn on the power:

ERROR 0271:Check date and time settings.

The computer's RTC battery is a lithium battery and should be replaced
only by your dealer or by a TOSHIBA service representative. The battery
can explode if not properly replaced, used, handled or disposed of.
Dispose of the battery as required by local ordinances or regulations.

User’s Manual 6-4

WARNING 0251:System CMOS checksum bad ­Default configuration used.
Press <F1> to resume, <F2> to Setup.
