Toshiba libretto 100ct Service Manual

Page 1

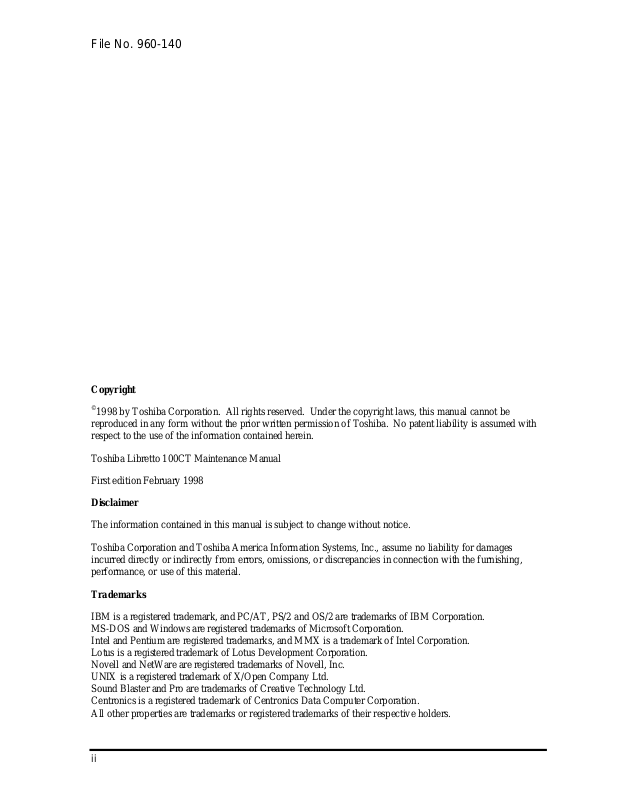

File No. 960-140

1 Toshiba Personal Computer

1998 by Toshiba Corporation. All rights reserved. Under the copyright laws, this manual cannot be reproduced in any form without the prior written permission of Toshiba. No patent liability is assumed with respect to the use of the information contained herein.

Toshiba Libretto 100CT Maintenance Manual First edition February 1998

Disclaimer

The information contained in this manual is subject to change without notice. Toshiba Corporation and Toshiba America Information Systems, Inc., assume no liability for damages

incurred directly or indirectly from errors, omissions, or discrepancies in connection with the furnishing, performance, or use of this material.

Trademarks

IBM is a registered trademark, and PC/AT, PS/2 and OS/2 are trademarks of IBM Corporation. MS-DOS and Windows are registered trademarks of Microsoft Corporation. Intel and Pentium are registered trademarks, and MMX is a trademark of Intel Corporation. Lotus is a registered trademark of Lotus Development Corporation. Novell and NetWare are registered trademarks of Novell, Inc. UNIX is a registered trademark of X/Open Company Ltd. Sound Blaster and Pro are trademarks of Creative Technology Ltd. Centronics is a registered trademark of Centronics Data Computer Corporation. All other properties are trademarks or registered trademarks of their respective holders.

Page 2

File No. 960-140

Preface

This maintenance manual describes how to perform hardware service maintenance for the Toshiba Personal Computer Libretto 100CT.

The procedures described in this manual are intended to help service technicians isolate faulty Field Replaceable Units (FRUs) and replace them in the field.

SAFETY PRECAUTIONS

Four types of messages are used in this manual to bring important information to your attention. Each of these messages will be italicized and identified as shown below.

DANGER: “Danger” indicates the existence of a hazard that could result in death or serious injury if the safety instruction is not observed.

WARNING: “Warning” indicates the existence of a hazard that could result in bodily injury if the safety instruction is not observed.

CAUTION: “Caution” indicates the existence of a hazard that could result in property damage if the safety instruction is not observed.

NOTE: A Note contains general information that relates to your safe maintenance services.

Improper repair of the computer may result in safety hazards. Toshiba requires service technicians and authorized dealers or service providers to ensure the following safety precautions are adhered to strictly.

Be sure to fasten screws securely with the right screwdriver. If a screw is

not fully fastened, it could loosen and create a short circuit, which could cause overheating, smoke, or fire.

If you replace the battery pack, RTC battery, or backup battery, be sure to

use only the same model battery or an equivalent battery recommended by Toshiba. Installation of the wrong battery can cause the battery to explode.

iii

Page 3

File No. 960-140

The manual is divided into the following parts:

Chapter 1 Hardware Overview describes the system unit and each FRU. Chapter 2 Troubleshooting Procedures explains how to diagnose and resolve

FRU problems.

Chapter 3 Tests and Diagnostics describes how to perform test and diagnostic

operations for maintenance service.

Chapter 4 Replacement Procedures describes the removal and replacement of the

FRUs.

Appendices The eight appendices describe the following:

Handling the LCD module Board layout Pin assignments Keyboard scan/character codes Key layout Wiring diagrams BIOS Rewrite Procedures Reliability

Page 4

File No. 960-140

Conventions

This manual uses the following formats to describe, identify, and highlight terms and operating procedures.

Acronyms

On the first appearance and whenever necessary for clarification, acronyms are enclosed in parentheses following their definition. For example:

Read Only Memory (ROM)

Keys

Keys are used in the text to describe many operations. The keytop symbol, as it appears on the keyboard, is printed in boldface type.

Key operation

Some operations require you to simultaneously use two or more keys. We identify such operations by the keytop symbols separated by a plus (+) sign. For example, Ctrl + Pause (Break) means you must hold down Ctrl and at the same time press Pause (Break). If three keys are used, hold down the first two and at the same time press the third.

User input

Text that you are instructed to type in is shown in the boldface type below:

The display

Text generated by the computer that appears on its display is presented in the typeface below:

DISKCOPY A: B:

Format complete

System transferred

Page 5

File No. 960-140

Table of Contents

Chapter 1 Hardware Overview

1.1 Features..................................................................................................................1-1

1.2 System Unit Block Diagram....................................................................................1-5

1.3 3.5-inch External FDD............................................................................................1-9

1.4 2.5-inch Hard Disk Drive......................................................................................1-10

1.5 Keyboard..............................................................................................................1-11

1.6 TFT Color LCD....................................................................................................1-12

1.7 Power Supply .......................................................................................................1-14

1.8 Batteries ...............................................................................................................1-16

Chapter 2 Troubleshooting Procedures

2.1 Troubleshooting......................................................................................................2-1

2.2 Troubleshooting Flowchart.....................................................................................2-2

2.3 Power Supply Troubleshooting...............................................................................2-6

2.4 System Board Troubleshooting.............................................................................2-14

2.5 FDD Troubleshooting...........................................................................................2-25

2.6 HDD Troubleshooting..........................................................................................2-28

2.7 Keyboard Troubleshooting....................................................................................2-34

2.8 Pointing Device Troubleshooting..........................................................................2-36

2.9 Display Troubleshooting.......................................................................................2-37

Chapter 3 Tests and Diagnostics

3.1 The Diagnostic Test................................................................................................3-1

3.2 Executing the Diagnostic Test.................................................................................3-3

3.3 Subtest Names........................................................................................................3-7

3.4 System Test............................................................................................................3-9

3.5 Memory Test........................................................................................................3-10

3.6 Keyboard Test......................................................................................................3-12

Page 6

File No. 960-140

3.7 Display Test..........................................................................................................3-16

3.8 Floppy Disk Test ..................................................................................................3-20

3.9 Printer Test...........................................................................................................3-22

3.10 Async Test............................................................................................................3-24

3.11 Hard Disk Test.....................................................................................................3-26

3.12 Real Timer Test....................................................................................................3-30

3.13 NDP Test .............................................................................................................3-32

3.14 Expansion Test.....................................................................................................3-33

3.15 Sound Test...........................................................................................................3-35

3.16 Error Code and Error Status Names......................................................................3-36

3.17 Hard Disk Test Detail Status.................................................................................3-39

3.18 Hard Disk Format.................................................................................................3-41

3.19 Head Cleaning......................................................................................................3-46

3.20 Log Utilities..........................................................................................................3-47

3.21 Running Test........................................................................................................3-49

3.22 Floppy Disk Drive Utilities....................................................................................3-51

3.23 System Configuration............................................................................................3-56

3.24 SETUP.................................................................................................................3-58

Chapter 4 Replacement Procedures

4.1 Overview................................................................................................................4-1

4.2 HDD.......................................................................................................................4-8

4.3 Optional Memory Module.....................................................................................4-10

4.4 Keyboard..............................................................................................................4-12

4.5 Display Assembly..................................................................................................4-13

4.6 RTC Battery.........................................................................................................4-17

4.7 System Board, Heat Sink and PC Card Slot..........................................................4-18

4.8 Display Mask........................................................................................................4-20

4.9 FL Inverter Board.................................................................................................4-22

4.10 LCD Module........................................................................................................4-24

4.11 Speaker, Power Switch Board and AccuPoint Board.............................................4-27

4.12 LCD Flexible Cable and Microphone.....................................................................4-30

vii

Page 7

File No. 960-140

4.13 I/O Adapter Board................................................................................................4-35

Appendices

Appendix A Handling the LCD Module.........................................................................A-1

Appendix B Board Layout.............................................................................................B-1

Appendix C Pin Assignments.........................................................................................C-1

Appendix D Keyboard Scan/Character Codes................................................................D-1

Appendix E Key Layout ................................................................................................E-1

Appendix F Wiring Diagrams.........................................................................................F-1

Appendix G BIOS Rewrite Procedures..........................................................................G-1

Appendix H Reliability................................................................................................... H-1

viii

Page 8

Chapter 1 Hardware Overview

File No. 960-140

Page 9

File No. 960-140

1-ii

Page 10

File No. 960-140

Chapter 1 Contents

1.1 Features..................................................................................................................1-1

1.2 System Unit Block Diagram....................................................................................1-5

1.3 3.5-inch External FDD............................................................................................1-9

1.4 2.5-inch Hard Disk Drive......................................................................................1-10

1.5 Keyboard..............................................................................................................1-11

1.6 TFT Color LCD....................................................................................................1-12

1.6.1 TFT Color LCD Module..................................................................1-12

1.6.2 FL Inverter Board............................................................................1-13

1.7 Power Supply .......................................................................................................1-14

1.8 Batteries ...............................................................................................................1-16

1.8.1 Main Battery....................................................................................1-16

1.8.2 Battery Icon.....................................................................................1-16

1.8.3 Battery Charging Control.................................................................1-17

1.8.4 RTC Battery....................................................................................1-17

Figures

Figure 1-1 Front of the computer........................................................................................1-4

Figure 1-2 System unit configuration..................................................................................1-4

Figure 1-3 System unit block diagram.................................................................................1-5

Figure 1-4 3.5-inch FDD...................................................................................................1-9

Figure 1-5 2.5-inch HDD.................................................................................................1-10

Figure 1-6 Keyboard.......................................................................................................1-11

Figure 1-7 TFT color LCD..............................................................................................1-12

1-iii

Page 11

File No. 960-140

Tables

Table 1-1 3.5-inch FDD specifications...............................................................................1-9

Table 1-2 2.5-inch HDD specifications..............................................................................1-9

Table 1-3 LCD specifications...........................................................................................1-12

Table 1-4 FL inverter board specifications.......................................................................1-13

Table 1-5 Power supply board output rating....................................................................1-15

Table 1-6 Battery specifications........................................................................................1-16

Table 1-7 Time required for quick charges........................................................................1-17

Table 1-8 RTC battery charging/data preservation time................................................... 1-17

1-iv

Page 12

File No. 960-140

1 Features

1.1 Features

The computer uses Toshiba's advanced Large Scale Integration (LSI), and Complementary Metal-Oxide Semiconductor (CMOS) technology extensively to provide compact size, minimum weight, low power usage and high reliability. This computer incorporates the following features and benefits:

Microprocessor

The computer is equipped with an Intel® Pentium® processor with MMX Technology that operates at 166MHz and 1.8/2.5 volts.

Memory

The computer comes with 32MB of Extend Data Out (EDO) DRAM.

HDD

The computer has a 2.5-inch HDD with a capacity of 2.1GB HDD or 3.2GB HDD.

Display

The computer has a 7.1-inch color, Thin Film Transistor (TFT) Liquid Crystal Display (LCD), that enables display up to 256K colors at a resolution 800 x 480 pixels.

A video controller and 2MB of VRAM enable an external monitor to display 16M colors at a resolution of 800 x 600 pixels or 64K colors at a resolution of 1024 x 768 pixels.

Keyboard

An-easy-to-use 80/82-key keyboard provides a numeric keypad overlay for fast numeric data entry or for cursor and page control. The keyboard also includes two keys that have special functions in Microsoft® Windows® 95. It supports software that uses a 101- or 102-key enhanced keyboard.

Batteries

The computer has two batteries a Lithium-Ion main battery pack and RTC battery that backs up the Real Time Clock and CMOS memory.

Expansion memory slot

An optional 32MB memory module can be installed in the memory slot.

Page 13

File No. 960-140

Universal Serial Bus (USB)

The USB enables daisy-chain connection of up to 127 USB-equipped devices and 12Mbps serial data transfer. It is designed for easy configuration by a PnP operating system and provides hot insertion/ejection capability. The USB port is only on the Enhanced Port Replicator.

External monitor port

The port is available only on the I/O adapter and enables connection of an external SVGA compatible monitor.

PC card slot

A PC card slot accommodates two 5mm cards (Type II) or one 10.5mm (Type III) card, which support the PC card Standard. These slots support an external FDD, 16-bit PC cards and CardBus PC cards (32 bit) as well as the Zoomed Video (ZV) port cards, which are dedicated to high-performance video data transfer such as MPEG video play back.

AccuPoint

This pointer control stick, located in the right of the display panel, provides convenient control of the cursor without requiring desk space for a mouse.

Docking interface

A 140-pin, docking interface port enables connection of the I/O adapter or an optional Enhanced Port Replicator.

The Enhanced Port Replicator has two additional PC card slots that one accommodates a 10.5mm card (Type III) and one accommodates a 5mm card (Type II). These slots support CardBus PC card. The Enhanced Port Replicator also has PS/2 mouse, PS/2 compatible keyboard, USB, parallel, serial and external monitor ports.

Infrared port

The infrared port is compatible with Fast InfraRed (FIR) standards enabling wireless 4Mbps data transfer with Infrared Data Association (IrDA) 1.1 compatible devices.

Sound system

A Sound Blaster Pro and Windows Sound System compatible sound system gives the computer multimedia capability. The sound system is equipped with speaker, microphone and stereo headphone jack.

Page 14

File No. 960-140

External FDD

A 3.5-inch external FDD is connected to the PC card slot and accommodates both 2HD (1.44MB) and 2DD (720KB) disks.

Page 15

File No. 960-140

The computer is shown in Figure 1-1. The system unit configuration is shown in Figure 1-

Figure 1-1 Front of the computer

Figure 1-2 System unit configuration

Page 16

File No. 960-140

1.2 System Unit Block Diagram

Figure 1-3 is a block diagram of the system unit.

Figure 1-3 System unit block diagram

Page 17

File No. 960-140

The system unit is composed of the following major components:

Intel Pentium processor

Intel 166MHz Pentium processor with MMX Technology. The math co-processor and 32KB cache memory are integrated into the Pentium.

Standard RAM

• 32 MB, four 4M x 16-bit EDO DRAM chips

• 3.3 volt operation

• No parity bit

• Access time 60 ns

• Data transfer is 64-bit width

BIOS ROM (Flash EEPROM)

• 512 KB, one 512K x 8-bit chip

− 256 KB are used for system BIOS

− 64 KB are used for VGA-BIOS

− 8 KB are used for plug and play data area

− 8 KB are used for password security

− 16 KB are used for boot strap

− 288 KB are reserved

• 5 volt operation

• Access time 120 ns

• Data transfer is 8-bit width

Optional memory

One expansion memory slot is available for 32MB memory modules. The 32MB memory modules consist of four 4M x 16-bit EDO DRAM chips.

• 3.3 volt operation

• No parity bit

• Access time 60 ns

• Data transfer is 64-bit width

Page 18

File No. 960-140

System Controller Gate Array

• This gate array has the following functions:

− CPU interface/control

− DRAM control

− PCI master/slave interface

− Write buffer (CPU-DRAM, CPU-PCI, PCI-DRAM)

− Prefetch buffer (CPU-PCI, PCI-DRAM)

− Mobile-PC/PCI support DMA function

− Serial interrupt function

− Power management control

− Suspend/resume control

− CPU stop clock function

− PCI clock stop function

− ACPI support function

I/O & PC Card Controller Gate Array

• This gate array has the following functions:

− One UARTs 16550A equivalent (One SIO is used for SIR.)

− One parallel port control supported ECP

− mini ISA bus control

− PCI bus front end control

− PC card control

− ZV-port support

− CardBus control

− FIR function

− Universal I/O port

− Beep volume

− Speaker control

− RTC One T9934 chip is used

Video Controller

• The NeoMagic NM2160 chip is used. The Video controller incorporates

2MB of video memory using a 128-bit data path.

Keyboard Controller (KBC)

• One M38813S chip is used. This KBC includes the keyboard scan

controller and keyboard interface controller. The KBC controls the internal keyboard, external keyboard, AccuPoint and PS/2 mouse.

AccuPoint Controller (IPSC)

• One EMEP 010B chip is used.

• This controller provides simultaneous control of the Pointing Device.

Page 19

File No. 960-140

Sound Controller

• One OPL3-SA3 is used.

• The OPL3-SA3 incorporates OPL3 FM synthesizer, Digital Analog

Converter (DAC) and MPU401 MIDI interface.

Page 20

File No. 960-140

1.3 3.5-inch External FDD

The 3.5inch external FDD is a thin, high performance reliable drive that supports 720KB (formatted) 2DD and 1.44MB (formatted) 2HD disks. The FDD can be connected to the PC card slot

The FDD is shown in Figure 1-4. The specifications for the FDD are listed in Table 1-1.

Figure 1-4 3.5-inch FDD

Table 1-1 3.5-inch FDD specifications

Item 2-MB mode 1-MB mode

Storage capacity (KB)

Unformatted

Formatted Number of heads 2 2 Number of cylinders 80 80 Access time (ms)

Track to track Average

Head settling time Recording track density (tpi) 135 135 Data transfer rate (Kbps) 500 250 Rotation speed (rpm) 300 300 Recording method Modified Frequency Modulation (MFM)

2,000 1,440

181

1,000

720

181

Page 21

File No. 960-140

1.4 2.5-inch Hard Disk Drive

The removable HDD is a random access non-volatile storage device. It has a nonremovable 2.5-inch magnetic disk and mini-Winchester type magnetic heads.

The computer supports 2.1GB HDD or 3.2GB HDD. The HDD is shown in Figure 1-5. Specifications are listed in Table 1-2.

Figure 1-5 2.5-inch HDD

Table 1-2 2.5-inch HDD specifications

Items IBM DYKA-22160 IBM DYKA-23240

Formatted capacity (bytes) 2,167,603,200 3,253,469,184 Logical cylinders 4,200 6,304 Logical heads 16 16 Logical sectors 63 63 Bytes per sector 512 512 Rotation speed (rpm) 4,200 4,200 Recording method 8-9 RLL 8-9 RLL

Page 22

File No. 960-140

1.5 Keyboard

The 84-(USA) or 86-(European) key keyboard is mounted on the system unit. The keyboard is connected to the keyboard controller on the system board through a 24-pin flat cable. The keyboard is shown in Figure 1-6.

See Appendix E for optional keyboard configurations.

Figure 1-6 Keyboard

Page 23

File No. 960-140

1.6 TFT Color LCD

The display panel contains a TFT color LCD module, a fluorescent lamp (FL) and an FL inverter board.

1.6.1 TFT Color LCD Module

The LCD enables display of up to 256K colors at a resolution 800 x 480 pixels. The LCD is shown in Figure 1-7. Specifications are listed in Table 1-3.

Figure 1-7 TFT color LCD

Table 1-3 LCD specifications

Items Specifications

Number of Pixels (pixels) 800x480 Dot pitch (mm) 0.192x0.192 Display area (mm) 153.6(H)x92.16(V) Contrast 1:150 (Typ)

Page 24

File No. 960-140

1.6.2 FL Inverter Board

The FL inverter board supplies high frequency current to light the LCD’s Fluorescent Lamp.

Specifications for the FL inverter are listed in Table 1-4.

Table 1-4 FL inverter board specifications

Item Specifications

Input Voltage (V)

Power (W)

Output Voltage (Vrms)

Current (mA)

*NOTE: The FL currents at power on are:

Level 3 : 3.5mA Level 2 : 2.9mA Level 1 : 2.6mA Level 0 : 2.0mA

2.3

800

2.0 to 3.5*

Page 25

File No. 960-140

1.7 Power Supply

The power supply supplies ten kinds of voltages to the system board, has one microprocessor and it operates at 4MHz. It performs the following functions:

1. Determines if the AC adapter or battery is connected to the computer.

2. Detects DC output and circuit malfunctions.

3. Controls the battery icon, and DC IN icon.

4. Turns the battery charging system on and off and detects a fully charged battery.

5. Determines if the power can be turned on and off.

6. Provides more accurate detection of a low battery.

7. Calculates the remaining battery capacity.

The embedded controller operates at 2MHz and has the following functions:

1. Controls ACPI in Windows 98.

2. Monitors the computer’s temperature.

3. Controls power supply to the docking port.

4. General purpose port.

Page 26

File No. 960-140

The power supply output rating is specified in Table 1-5.

Table 1-5 Power supply board output rating

Power supplied Yes/No

Use Name Voltage(V) Suspend Power off No battery

CPU +1.8V 1.8 NO NO NO CPU, CLKGEN, System

Controller GA CLKGEN +3.3V 3.3 NO NO NO System Controller GA, PC

Card Slot, VGA Controller, I/O & PC Card Controller GA, DRAM

VGA Controller, PC Card Slot

Flash Memory, KBC, IPSC, LCD Panel, HDD, LEDs, Sound, E2PROM,GA

KB/Mouse Port IFVCC 5.0 NO NO NO PSC MCV 5.0 YES YES NO Embedded Controller S5V 5.0 YES YES NO RTC RTCV 5.0 YES YES YES

+2.5V 2.5 NO NO NO

B3V 3.3 YES NO NO

B5V 5.0 YES NO NO

VCC 5.0 NO NO NO

Page 27

File No. 960-140

1.8 Batteries

The computer has tow types of batteries:

Main battery pack RTC battery

The battery specifications are listed in Table 1-6.

Table 1-6 Battery specifications

Battery name Material Output voltage Capacity

Main battery Lithium-Ion 10.8 V 1,200 mAh

RTC battery Nickel Metal Hydride 2.4 V 11 mAh

2,400 mAh (High capacity)

1.8.1 Main Battery

The removable main battery pack is the computer’s main power source when the Universal AC Adapter is not connected. The main battery pack maintains the state of the computer when the computer enters in resume mode.

1.8.2 Battery Icon

The icon shows the status of the removable battery pack. The status of each can be determined by color:

Orange The battery is being charged. (Universal AC Adapter connected) Green The battery is full charged. (Universal AC Adapter connected) Blinking orange The battery is low when the power is on. No light Under any other conditions, the LED does not light.

Page 28

File No. 960-140

1.8.3 Battery Charging Control

Battery charging is controlled by a power supply microprocessor that is mounted on the system board. The microprocessor controls whether the charge is on or off and detects a full charge when the Universal AC Adapter and battery are connected to the computer. The system charges the battery using quick charge or trickle charge.

Quick Battery Charge

The battery quick charges when the Universal AC Adapter is connected and the system is powered off or in suspend mode.

Table 1-7 Time required for quick charges

Status Charging time

Quick charge 1(power off) 2 to 3 hours Quick charge 2(power on) 5 to 6 hours

If any of the following occurs, the Main Battery quick charge process stops.

1. The Main Battery becomes fully charged.

2. The AC adapter or Main Battery is removed.

3. The Main Battery or output voltage is abnormal.

Trickle Battery Charge

When the main battery is fully charged and the AC adapter is attached, the microprocessor automatically changes quick charge 1 or 2 to trickle charge.

1.8.4 RTC Battery

The RTC battery provides power to keep the current date, time and other setup information in memory while the computer is turned off. Table 1-8 lists the charging time and data preservation period of the RTC battery.

Table 1-8 RTC battery charging/data preservation time

Status Time

Charging Time 48 hours Data preservation period (full charge) 1 month

Page 29

File No. 960-140

Page 30

Chapter 2 Troubleshooting Procedures

File No. 960-140

Page 31

File No. 960-140

2-ii

Page 32

File No. 960-140

Chapter 2 Contents

2.1 Troubleshooting......................................................................................................2-1

2.2 Troubleshooting Flowchart.....................................................................................2-2

2.3 Power Supply Troubleshooting...............................................................................2-6

Procedure 1 Power Status Check.............................................................2-6

Procedure 2 Error Code Check................................................................2-8

Procedure 3 Connection Check..............................................................2-11

Procedure 4 Quick Charge Check..........................................................2-12

Procedure 5 Replacement Check............................................................2-13

2.4 System Board Troubleshooting.............................................................................2-14

Procedure 1 Message Check..................................................................2-15

Procedure 2 Printer Port LED Check on Boot Mode..............................2-17

Procedure 3 Printer Port LED Check on Resume Mode.........................2-23

Procedure 4 Diagnostic Test Program Execution Check.........................2-24

Procedure 5 Replacement Check............................................................2-24

2.5 FDD Troubleshooting...........................................................................................2-25

Procedure 1 FDD Head Cleaning Check................................................2-25

Procedure 2 Diagnostic Test Program Execution Check.........................2-26

Procedure 3 Connector Check and Replacement Check..........................2-27

2.6 HDD Troubleshooting..........................................................................................2-28

Procedure 1 Message Check..................................................................2-29

Procedure 2 Partition Check..................................................................2-30

Procedure 3 Format Check ....................................................................2-31

Procedure 4 Diagnostic Test Program Execution Check.........................2-32

Procedure 5 Connector Check and Replacement Check..........................2-33

2.7 Keyboard Troubleshooting....................................................................................2-34

Procedure 1 Diagnostic Test Program Execution Check.........................2-34

Procedure 2 Connector and Replacement Check....................................2-35

2-iii

Page 33

File No. 960-140

2.8 Pointing Device Troubleshooting..........................................................................2-36

Procedure 1 Diagnostic Test Program Execution Check.........................2-36

Procedure 2 Connector and Replacement Check ....................................2-36

2.9 Display Troubleshooting.......................................................................................2-37

Procedure 1 Diagnostic Test Program Execution Check.........................2-37

Procedure 2 Connector and Replacement Check....................................2-38

Figures

Figure 2-1 Troubleshooting flowchart ...............................................................................2-3

Figure 2-2 Printer port LED............................................................................................2-17

Tables

Table 2-1 Battery icon.......................................................................................................2-6

Table 2-2 DC IN icon........................................................................................................2-7

Table 2-3 Printer port LED boot mode status .................................................................2-18

Table 2-4 Printer port LED Resume mode error status.....................................................2-23

Table 2-5 FDD error code and status...............................................................................2-26

Table 2-6 Hard disk drive error code and status...............................................................2-32

2-iv

Page 34

File No. 960-140

1.1 Troubleshooting

Chapter 2 describes how to determine if a Field Replaceable Unit (FRU) in the computer is causing the computer to malfunction. The FRUs covered are:

1. System Board 4. Hard Disk Drive 7. Pointing Board

2. FL Inverter Board 5. Keyboard

3. Floppy Disk Drive 6. Display

The Diagnostics Disk operations are described in Chapter 3. Detailed replacement procedures are given in Chapter 4.

The following tools are necessary for implementing the troubleshooting procedures:

1. Diagnostics Disk

2. Phillips screwdriver (2 mm)

3. Toshiba MS-DOS system disk(s)

(You must install the following onto the disk: SYS.COM, FORMAT.COM, FDISK.COM and FDISK.EXE)

4. 2DD or 2HD formatted work disk for floppy disk drive testing

5. Cleaning kit for floppy disk drive troubleshooting

6. Printer port LED

7. Printer port wraparound connector

8. Serial port wraparound connector

9. PC card wraparound card

10. Multimeter

11. I/O Adapter

12. External FDD

1-1

Page 35

File No. 960-140

1.2 Troubleshooting Flowchart

Use the flowchart in Figure 2-1 as a guide for determining which troubleshooting procedures to execute. Before going through the flowchart steps, verify the following:

Ask the user if a password is registered and, if it is, ask him or her to enter the

password. If the user has forgotten the system password, perform the following procedure at the appropriate step in the flowchart in Figure 2-1:

Connect the printer port wraparound board (F31PRT), then turn the POWER switch on. The computer will override the password function by erasing the current password.

Verify with the customer that Toshiba Windows® 95 is installed on the hard disk. Non-

Toshiba operating systems can cause the computer to malfunction.

Make sure all optional equipment is removed from the computer. Make sure the floppy disk drive is empty.

1-2

Page 36

File No. 960-140

Figure 2-1 Troubleshooting flowchart (1/2)

1-3

Page 37

File No. 960-140

Figure 2-1 Troubleshooting flowchart (2/2)

If the diagnostics program cannot detect an error, the problem may be intermittent. The Running Test program should be executed several times to isolate the problem. Check the Log Utilities function to confirm which diagnostic test detected an error, then perform the appropriate troubleshooting procedures as follows:

1. If an error is detected on the system test, memory test, display test, async test, printer

test, expansion test, sound test or real timer test, perform the System Board Troubleshooting Procedures in Section 2.4.

2. If an error is detected on the floppy disk test, perform the FDD Troubleshooting

Procedures in Section 2.5.

3. If an error is detected on the hard disk test, perform the HDD Troubleshooting

Procedures in Section 2.6.

1-4

Page 38

File No. 960-140

4. If an error is detected on the keyboard test, perform the Keyboard Troubleshooting

Procedures in Section 2.7.

5. If an error is detected on the display test, perform the Display Troubleshooting

Procedures in Section 2.9.

1-5

Page 39

File No. 960-140

1.3 Power Supply Troubleshooting

The power supply controls many functions and components. To determine if the power supply is functioning properly, start with Procedure 1 and continue with the other Procedures as instructed. The procedures described in this section are:

Procedure 1: Power Status Check Procedure 2: Error Code Check Procedure 3: Connection Check Procedure 4: Quick Charge Check Procedure 5: Replacement Check

Procedure 1 Power Status Check

The following icons indicate the power supply status:

Battery icon DC IN icon

The power supply controller displays the power supply status through the Battery and the DC IN icons as listed in the tables below.

Table 2-1 Battery icon

Battery icon Power supply status

Lights orange Quick charge Lights green Battery is fully charged and AC adapter is connected Blinks orange

(even intervals) Flashes orange Doesn’t light Any condition other than those above.

The battery level becomes low while operating the computer on battery

power. The power switch is pressed on when the battery level is low.

*1 Auto Hibernation Off will be executed soon. *2 Auto Hibernation Off has already been executed.

1-6

Page 40

Table 2-2 DC IN icon

DC IN icon Power supply status

Lights green DC power is being supplied from the AC adapter.

File No. 960-140

Blinks orange Doesn’t light Any condition other than those above.

Power supply malfunction

*3 When the power supply controller detects a malfunction, the DC IN icon blinks

and an error code is displayed. To check the power supply status, install a battery pack and connect an AC adapter. Check 1 If the DC IN icon blinks orange, go to Procedure 2. Check 2 If the DC IN icon does not light, go to Procedure 3. Check 3 If the battery icon does not light orange or green, go to Procedure 4.

CAUTION: Use only an AC adapter manufactured for the Libretto 100CT. If you use another AC adapter, the computer's power supply may malfunction or a fuse on the system board may be blown.

1-7

Page 41

File No. 960-140

Procedure 2 Error Code Check

If the power supply microprocessor detects a malfunction, the DC IN icon blinks orange. The blink pattern indicates an error as shown below.

Start Off for 2 seconds Error code (8 bit)

“1” On for one second “0” On for half second

Interval between data bits Off for half second The error code begins with the least significant digit. Example: Error code 12h (Error codes are given in hexadecimal format.)

Check 1 Convert the DC IN icon blink pattern into the hexadecimal error code and

compare it to the tables below.

DC power supplied through AC adapter

Error code Meaning

10h AC Adapter voltage is over 16.5V (15V+10%). 12h Current from the DC power supply is over the limit (3.13A). 13h Current from the DC power supply is over the limit (0.5A) when there

is no load.

14h Current sensing IC is not normal.

1-8

Page 42

Main Battery

Error code Meaning

20h Battery voltage is over the limit (13.46V). 21h Main battery charge current is over the limit (2.53A). 22h Mai battery discharge current is over the maximum allowed limit when

23h Main battery charge current is over limit (1.80A) when there . 24h Current sensing IC is not normal. 25h Main battery charge current is over the limit (0.5A).

S5V output

Error code Meaning

40h S5V voltage is under the limit (4.75V).

File No. 960-140

there is no load (0.5A).

B5V output

Error code Meaning

B3V output

Error code Meaning

50h B5V voltage is over the limit (5.5V). 51h B5V voltage is under the limit (4.5V) when power supply is turned on. 52h B5V voltage is under the limit (4.5V) when the computer is booting up. 53h B5V dose not start up when the computer is suspended.

60h B3V voltage is over the limit (3.8V). 61h B3V voltage is under the limit (2.81V) when power supply is turned on. 62h B3V voltage is under the limit (2.81V) when the computer is booting

up.

63h B3V dose not start up when the computer is suspended.

1-9

Page 43

File No. 960-140

B2V output

Error code Meaning

B1V output

Error code Meaning

70h B2V voltage is over the limit (2.88V). 71h B2V voltage is under the limit (2.13V) when power supply is turned on. 72h B2V voltage is under the limit (2.13V) when the computer is booting

up.

73h B2V voltage is over the limit (2.13V) when power supply is turned off.

80h B1V voltage is over the limit (2.16V). 81h B1V voltage is under the limit (1.44V) when power supply is turned on. 82h B1V voltage is under the limit (1.44V) when the computer is booting

up.

83h B1V voltage is over the limit (1.44V) when power supply is turned off.

Check 2 In the case of error code 10h:

Make sure the AC adapter is firmly connected to the computer is DC IN

socket and to power source. If this cables are connected correctly, go to the following step:

Replace the AC adapter with a new one. If the error still exists, go to

Procedure 5.

Check 3 In the case of error code 20h:

Make sure the battery pack is correctly installed in the computer. If the battery

pack is correctly installed, go to the following step:

Replace the battery pack with a new one. If the error still exists, go to

Procedure 5.

Check 4 In the case of error code 21h:

Go to Procedure 3.

Check 5 When for any other error, go to Procedure 5.

1-10

Page 44

File No. 960-140

Procedure 3 Connection Check

The power supply wiring diagram is shown below:

Any of the connectors may be disconnected. Perform Check 1. Check 1 Make sure the Libretto 100's AC adapter is firmly connected to the computer's DC

IN socket and a power source. If these cables are connected correctly, go to Check 2.

Check 2 Replace the AC adapter with a new one. If the DC IN icon does not glow green,

go to Procedure 5.

1-11

Page 45

File No. 960-140

Procedure 4 Quick Charge Check

The power supply may not charge the battery pack. Perform the following procedures:

1. Reinstall the battery pack.

2. Attach the AC adapter and turn on the power. If you cannot turn on the power, go to

Procedure 5.

3. Run the Diagnostic test, go to System test and execute subtest 06 (quick charge)

described in Chapter 3.

4. When quick charge is complete, the diagnostics test displays the result code. Check

the result code against the table below and perform any necessary check.

Result code Contents Check items

0 The battery is quick charging normally. Normal 1 The battery is fully charged. Normal 2 The AC adapter is not attached. Check 1 3 The AC adapter’s output voltage is not normal. Check 1 4 The Battery is not installed. Check 2 5 The battery’s output voltage is not normal. Check 3 6 The battery’s temperature is not normal. Check 4 7 A bad battery is installed. Check 2 8 Any other problems. Check 5

Check 1 Make sure the AC adapter and AC power cord are firmly plugged into the DC IN

socket and the wall outlet. If these cables are connected correctly, replace the AC power cord and AC adapter.

Check 2 Make sure the battery is properly installed. If the battery is properly installed,

replace it with a new one.

Check 3 The battery pack may be completely discharged. Wait a few minutes to charge the

battery pack. If the battery pack is still not charged, replace the battery pack with a new one.

Check 4 The battery’s temperature is too hot or cold. Return the temperature to a normal

operating condition. If the battery pack still is not charged, replace the battery pack with a new one.

Check 5 Go to Procedure 5.

1-12

Page 46

File No. 960-140

Procedure 5 Replacement Check

The AC adapter may be disconnected or damaged. Disassemble the computer following the steps described in Chapter 4, Replacement Procedures. After checking the connection, perform the following checks:

Check 1 Replace the AC adapter with a new one. If the problem still exists, go to Check 2. Check 2 Replace the system board with a new one. Refer to Chapter 4 for instructions on

how to remove and replace the system board.

1-13

Page 47

File No. 960-140

1.4 System Board Troubleshooting

This section describes how to determine if the system board is defective or not functioning properly. Start with Procedure 1 and continue with the other procedures as instructed. The procedures described in this section are:

Procedure 1: Message Check Procedure 2: Printer Port LED Check on Boot Mode Procedure 3: Printer Port LED Check on Resume Mode Procedure 4: Diagnostic Test Program Execution Check Procedure 5: Replacement Check

1-14

Page 48

File No. 960-140

Procedure 1 Message Check

When the power is turned on, the system performs the Initial Reliability Test (IRT) installed in the BIOS ROM. The IRT tests each IC on the system board and initializes it.

If an error message is shown on the display, perform Check 1. If there is no error message, go to Procedure 2. If Toshiba MS-DOS or Toshiba Windows 95 is properly loaded, go to Procedure 4.

Check 1 If one of the following error messages displays on the screen, press the F1 key as

the message instructs. These errors occur when the system configuration preserved in the RTC memory (CMOS type memory) is not the same as the actual configuration or when the data is lost.

If you press the F1 key as the message instructs, the TSETUP screen appears to set the system configuration. If error message (b) appears often when the power is turned on, replace the RTC battery. If any other error message displays, perform Check 2.

(a) *** Bad HDD type ***
