Page 1
INSTRUCTION MANUAL
EIM-4000086G A.1
CCD COLOR CAMERA
IK-6210A/IK-6410A
Please read this manual thoroughly before use, and keep it handy
for future reference.
Record in space provided below the Model # and
the Serial # as found on the label on the bottom of
this unit.
Model # Serial #
Retain this information for future reference.
TABLE OF CONTENTS
IMPORTANT SAFEGUARDS........................................ 2
1. FEATURES AND DESCRIPTION ................................. 4
2. COMPONENTS ............................................................ 4
3. PART NAMES AND FUNCTIONS ................................ 5
4. CAMERA INSTALLATION............................................. 6
5. CONNECTIONS AND OPERATIONS .......................... 7
6. LENS ............................................................................ 9
7. LINE-LOCK PHASE...................................................... 10
8. AUTOMATIC ELECTRONIC SHUTTER (AES)............. 11
9. BACKLIGHT COMPENSATION (BLC) ......................... 11
10. NOTES ON USE AND INSTALLATION ........................ 12
11. IN CASE OF PROBLEMS ............................................ 12
12. SPECIFICATIONS ........................................................ 13
13. EXTERIOR VIEW ......................................................... 15
00_Cover 06.8.7, 11:08 AM1
Page 2
IMPORTANT SAFEGUARDS
1. Read Instructions
All the safety and operating instructions should be
read before the product is operated.
2. Retain Instructions
The safety instructions and instruction manual should
be retained for future reference.
3. Warnings
Comply with all warnings on the product and in the
instruction manual.
4. Follow Instructions
Follow all operating and use instructions.
5. Cleaning
Disconnect this video product from the power supply
before cleaning.
6. Attachments
Do not use attachments not recommended by the
video product manufacturer as they may cause
hazards.
7. Water and Moisture
Do not use this video product near water. Some
examples are: near a bath tub, wash bowl, kitchen
sink, or laundry tub, in a wet basement, or near a
swimming pool.
8. Accessories
Do not place this video product on an unstable cart,
stand, tripod, bracket or table. The video product may
fall, causing serious injury to a person, or serious
damage to the product. Use only with stand, tripod,
bracket, or table recommended by the manufacturer,
or sold with the video product. Any mounting of the
product should follow the manufacturer’s instr uctions,
and should use a mounting accessory recommended
by the manufacturer.
9. Ventilation
This video product should never be placed near or
over a radiator or heat register. If this product is placed
in a built in installation verify that there is proper
ventilation so that the camera temperature operates
within the recommended temperature range.
10. Power Sources
This video product should be operated only from the
type of power source indicated on the information
label. If you are not sure of the type of power supply
at your location, consult your product dealer.
11. Power-Cord Protection
Power cords should be routed so that they are not
likely to be walked on or pinched by items placed upon
or against them. Pay particular attention to cords at
plugs, screws and the point where they exit the
product.
12. Installation
Install this video product on a secure part of the ceiling
or wall. If installed on a unsecured location the camera
could fall causing injury and damage.
13. Lightning
For additional protection on this video product during
a lightning storm, or when it is left unattended and
unused for long periods of time, unplug it from the
wall outlet and disconnect the power supply and cable
system. This will prevent damage to the video product
due to lightning and power-line surges. If lightning
occurs, do not touch the unit or any connected cables
in order to avoid electric shock.
14. Overloading
Do not overload the power supply or extension cords
as this can result in a risk of fire or electric shock.
15. Object and Liquid Entry
Never push objects of any kind into this video product
through openings as they may touch dangerous
electrical points or short-out parts that could result in
a fire or electrical shock. Never spill liquid of any kind
on the video product.
16. Servicing
Do not attempt to service this video product yourself
as opening or removing covers may expose you to
dangerous electrical or other hazards. Refer all
servicing to qualified service personnel.
17. Damage Requiring service
Disconnect this video product from the power supply
and refer servicing to qualified service personnel
under the following conditions.
a. When the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into
the video product.
c. If the video product has been exposed to rain or
water.
d. If the video product does not operate normally by
following the operating instructions in the instruction
manual. Adjust only those controls that are covered
by the instruction manual as an improper adjustment
of other controls may result in damage and will often
require extensive work by a qualified technician to
restore the video product to its normal operation.
e. If the video product has been dropped or the cabinet
has been damaged.
f. When the video product exhibits a distinct change
in performance which indicates a need for service.
18. Replacement Parts
When replacing parts be sure the service technician
uses parts specified by the manufacturer or have the
same characteristics as the original part.
Unauthorized substitutions may result in fire, electric
shock or other hazards.
19. Safety Check
Upon completion of any service or repairs to this video
product, ask the service technician to perform safety
checks to determine that the video product is in proper
operating condition.
01_p2-p32 06.8.7, 11:08 AM2
- 2 -
Page 3
• The CAUTION label, shown on the left,
is attached on the camera.
CAUTION TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightening flash with arrowhead
symbol, within an equilateral triangle,
is intended to alert the user to the
presence of uninsulated “dangerous
voltage” within the product’s enclosure
that may be of sufficient magnitude to
constitute a risk of electric shock to
persons.
The exclamation point within an
WARNING :
TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR
MOISTURE.
CAUTION :
CONNECT 24V AC UL LISTED CLASS 2
POWER SUPPLY.
equilateral triangle is intended to alert
the user to the presence of important
operating and maintenance (servicing)
instructions in the literature
accompanying the appliance.
FIELD INSTALLATION MARKING :
THIS INSTALLATION SHOULD BE
MADE BY A QUALIFIED SERVICE
PERSON AND SHOULD CONFORM TO
ALL LOCAL CODES.
FCC (USA)-INFORMATION
NOTE : This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user will be required to correct the
interference at his own expense.
USER-INSTALLER CAUTION : Your authority to operate this FCC verified equipment could
be voided if you make changes or modifications not expressly approved by the party.
01_p2-p32 06.8.7, 11:08 AM3
- 3 -
Page 4
1. FEATURES AND DESCRIPTION
1. 24V AC/12V DC dual-voltage capable extends power choice.
2. Camera has the ability to automatically switch the display to color in daylight or black and
white at night.
3. Camera synchronization mode is selectable between internal and line-lock.
4. The shutter speed is automatically adjusted according to the subject brightness.
5. Back Light Compensation (BLC) adjusts for strong backlight conditions.
6. White balance is automatically adjusted depending on color temperature variations (AWB)
7. Easy back focus adjustment for an easy installation.
8. Built-in 1/3 inch high – resolution CCD. (IK-6410A)
9. Minimum illumination of 0.2 lux at F1.2. (IK-6210A)
Minimum illumination of 0.2 lux at F1.0. (IK-6410A)
10. S/N ratio of 50dB.
2. COMPONENTS
(1) Camera ............................................. 1
(2) Accessories ...................................... 1
(a) Lens Connector (E.Y.C-221) ........ 1
(b) Instruction Manual ....................... 1
(c) Lens Cap ..................................... 1
01_p2-p32 06.8.7, 11:08 AM4
- 4 -
Page 5
3. PART NAMES AND FUNCTIONS
116 (4.57)
50 (1.97)
63 (2.48)
Left side View
Top Vi ew
Right Side View
Bottom View
Front View
Rear View
Lens:
Mount a CS-mount lens.
24V AC/12V DC
power terminal
Video output terminal:
connect to a TV monitor, etc.
AES / VIDEO / DC select switch:
AES : Auto electronic shutter function.
VIDEO : When using Al lens (with amp).
DC : When using AI lens (without amp).
LEVEL:
DC - Type AI Lens
adjustment trimmer
Select switch :
Line Lock mode ON/OFF
BLC ON/OFF
V PHASE :
Line-Lock Phase
adjustment terminal
Auto-IRIS Terminal
Focus ring:
Rotate the ring to
appropriate setting.
Focus Lock Screw
Dimensions : mm (inch)
- 5 -
01_p2-p32 06.8.7, 11:08 AM5
Page 6
4. CAMERA INSTALLATION
Installation Example
9.5 (0.37)
4 (0.16)
Wall
1/4"-20UNC
112 (4.41)
15 (0.59)
The Installation example is for reference only.
Mounting bracket is not included.
φ6 (0.24)
80 (3.15)
Dimensions : mm (inch)
01_p2-p32 06.8.7, 11:08 AM6
- 6 -
Page 7
5. CONNECTIONS AND OPERATIONS
Notes on connecting
•Power plugs of connected equipment must be disconnected before camera
installation.
•A 75-ohm coaxial cable with connector (3C-2V or 5C-2V) is required for standard
connection.
•For details of wiring and operation of equipment to be connected, refer to their
operation manuals.
• Lens, power supply with cable, connectors and coaxial cable are not supplied with
the camera.

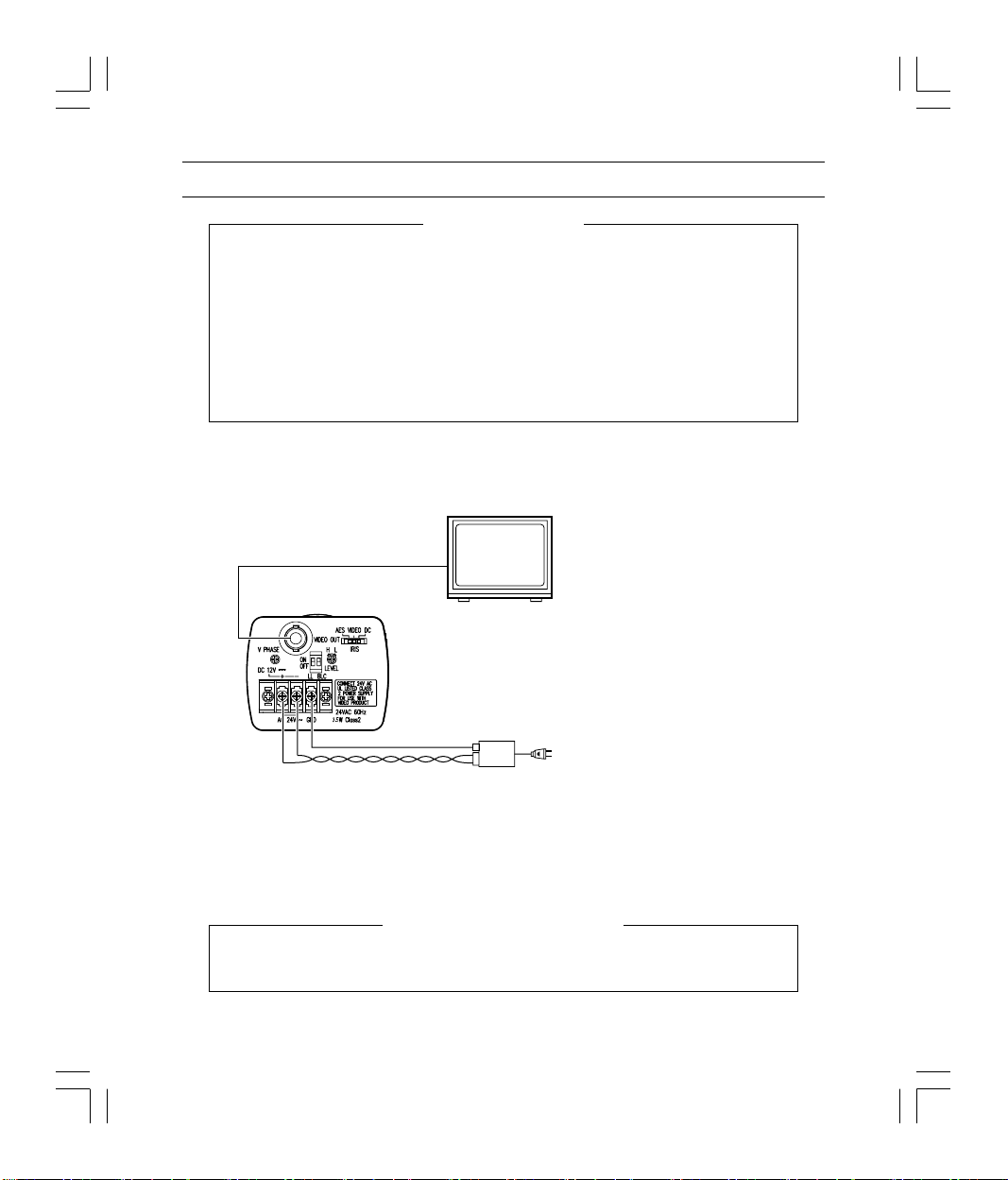

5-1. Basic connection Single system configuration
MONITOR TV
CAMERA
24V AC UL Listed Class 2 power supply
or
12V DC power supply
120V AC
(*) Recommend power cord is twisted pair line
with a minimum wire size of 18 AWG.
CAUTION: Never input 24V AC and 12V DC at the same time.
The recommended power supplies for this camera are 6 watt minimum for each 24V
AC UL Listed Class 2 power supply or 12V DC power supply.
01_p2-p32 06.8.7, 11:08 AM7
Do not overload power supply
- 7 -
Page 8
5-2. Line-Lock Control
• Matching the vertical synchronization with the power frequency is called the Line-Lock.
• This function is activated when the LL switch is set to ON.
ON
OFF
LL
• When two or more cameras are switched by the video switcher for viewing by a monitor TV, the
vertical sync. phase can be locked to the power frequency, and a stable vertical sync. is obtained
without being disturbed at the time of switching.
CAMERA1
MONITOR TV
CAMERA2 VIDEO SWITCHER
TO 24V AC UL Listed
Class 2 power supply
Note:
• The camera is synchronized to the power frequency of 60 ±1 Hz covering a normal fluctuation of
the power frequency. However, the camera may not cover a large fluctuation caused from the
power generated by an engine generator, etc.
•It takes about 10 seconds or more until a stable synchronization is obtained after the power is
turned on. This is normal, because several seconds are required to stabilize the camera against
power noise.
• Refer to "7. LINE-LOCK PHASE" for adjustment.
5-3. Operation
1. Mount the lens to the camera.
2. Mount the camera to the camera mount.
Caution: If the lens weight is more than 2.2 lbs (1 kg) mount the lens to the camera mount.
Refer to section 6 for lens types and connection.
3. Connect the cables and support equipment to obtain a picture.
4. Adjust the lens aperture (if applicable).
01_p2-p32 06.8.7, 11:08 AM8
- 8 -
Page 9
6. LENS
43
21
Camera Side
Back-Focus Adjusment
Back-Focus is adjusted at the factory to accommodate most standard lenses.
Sometimes, slight adjustment to the camera back-focus is
necessary.
Loosen the Focus Lock Screw. Achieve a clear image by
rotating the focus ring.
Tighten the Focus Lock Screw.
Focus Lock Screw
Focus ring
Auto-iris Lens
This camera supports two types of auto-iris lens: Video
and DC (direct drive) types. Connect the auto-iris
connector plug to the IRIS terminal on the side of the
camera. Refer to the chart below for correct wiring and
Video IRIS Direct Drive
Lens IRIS Lens
1 +12V Damp – (y)
IRIS terminal
pin
IRIS Switch VIDEO position DC position
2NC Damp + (γ)
3 VIDEO Driver + (wh)
4 GND Driver – (g)
IRIS
Auto-iris lens
01_p2-p32 06.8.7, 11:08 AM9
- 9 -
Page 10

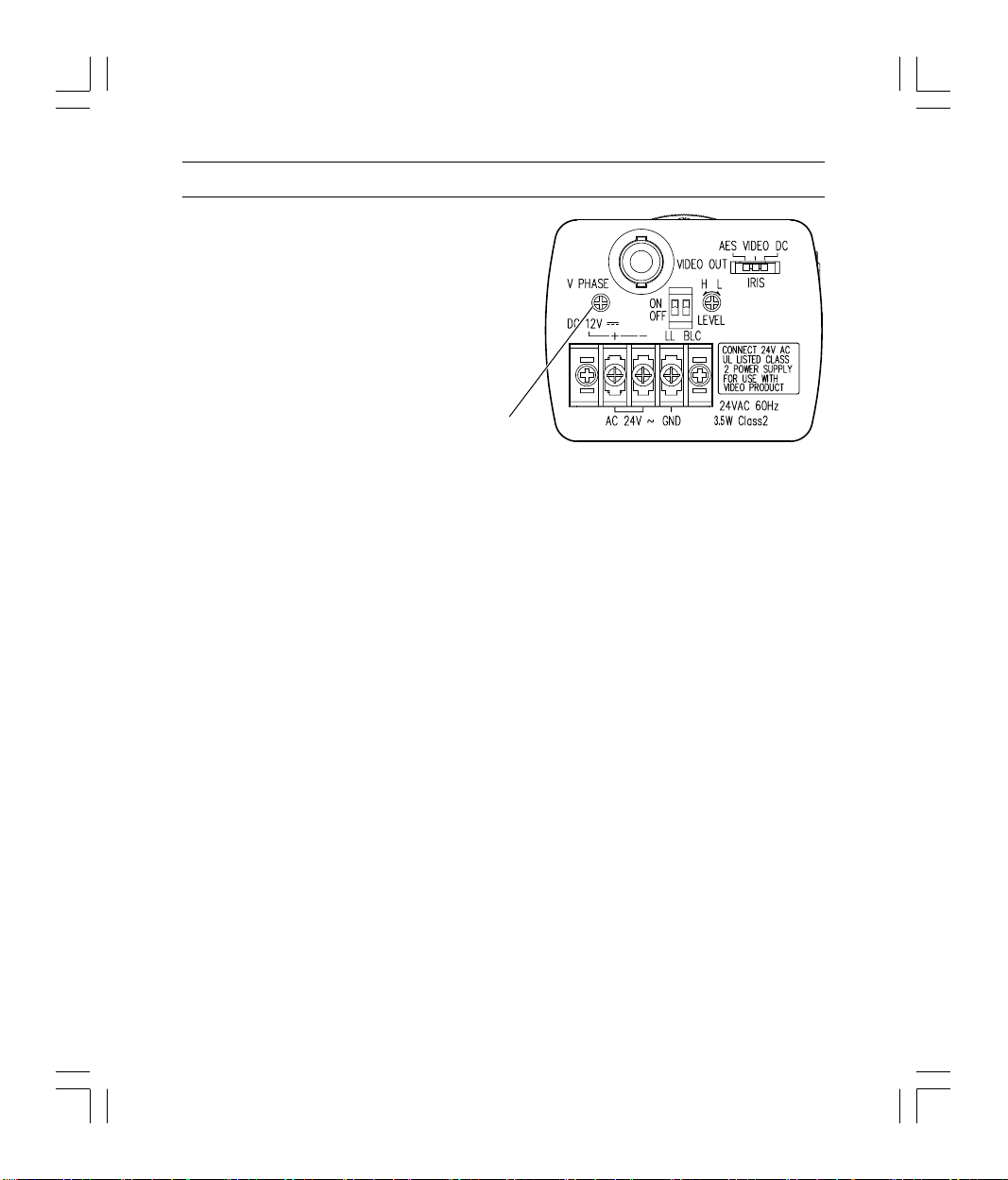

7. LINE-LOCK PHASE
If two or more cameras within a system have
different AC line phases are switched by the video
switcher, the picture on the monitor TV will fluctuate
vertically.
Connect 24V AC input lines of all cameras so that
they all share the same phase.
If you still have vertical fluctuation, adjust the
V.PHASE controller.
V. PHASE CONTROLLER
Note:
• Refer to “5-2. Line-Lock Control”.
01_p2-p32 06.8.7, 11:08 AM10
- 10 -
Page 11
8. AUTOMATIC ELECTRONIC SHUTTER (AES)
Exposure time is controlled automatically within a range of 1/60 sec. to 1/100000 sec. to obtain an
adequate signal when the IRIS switch is moved to AES.
When the back panel switch is turned to VIDEO or DC, the exposure time is fixed 1/60 sec.
9. BACKLIGHT COMPENSATION (BLC)
To activate backlight compensation, set the BLC switch to ON.
ON
OFF
BLC
When the automatic electronic iris feature is used with an auto iris lens, the exposure adjustment
is automatically performed so that a best picture is obtained at a monitor zone of about 50% in
horizontal and about 50% in vertical direction.
This function is effective when a strong light enters the portion other than this zone and auto iris
lens closes and darkens the area to view.
(Monitor screen)
01_p2-p32 06.8.7, 11:08 AM11
50%
50%
- 11 -
Page 12
10. NOTES ON USE AND INSTALLATION
• Do not aim the camera at the sun
Never aim the camera at the sun even with the camera power off.
• Do not shoot intense light
Intense light such as a spotlight may cause a bloom or smear. A vertical stripe may appear on
the screen. However, this is not a malfunction.
•Treat the camera with care
Do not drop the camera or subject it to intense vibration.
•Never touch internal parts
Do not touch the internal parts of the camera other than the parts specified.
• Do not splash water on the camera
Install the camera where the camera can be kept dry. If the camera gets wet, turn off the power
and contact your dealer.
• Keep the camera installation away from video noise
If cables are wired near electric lighting wires or a TV set, noise may appear in images. In this
event, relocate cables or reinstall equipment.
• Check the ambient temperature and humidity
Avoid using the camera where the temperature is hotter or colder than the specified operating
range. Doing so could affect the internal parts or cause the image quality to deteriorate. Special
care is required to use the camera at high temperature and humidity.
• Should you notice any trouble
If any trouble occurs while you are using the camera, turn off the power and contact your dealer.
If you continue to use the camera when there is something wrong with it, the trouble may get
much worse and an unpredictable problem may occur.
11. IN CASE OF PROBLEMS
Condition
No image
Unnatural color
01_p2-p32 06.8.7, 11:08 AM12
Check Point
Are the camera and connected equipment turned on?
Is the iris of the lens adjusted properly?
Are cables connected correctly?
Is the monitor TV adjusted correctly?
Is the lighting too dim?
- 12 -
Page 13
12. SPECIFICATIONS
IK-6210A
Power 24V AC ~ ±10% 60Hz / 12V DC
Power consumption 3.5W with Al lens
Image sensor 1/3 inch CCD image sensor
Image pickup area 0.194 inch (4.92 mm) horizontal x 0.145 inch (3.69 mm) vertical
Effective picture element 510 horizontal x 492 vertical
Scanning system 2:1 interlace NTSC Standard TV system
Scanning frequency 15.75 KHz horizontal 60 Hz vertical
Synchronization Line-Lock, Internal manually switchable
Resolution 350 Horizontal TV lines
Minimum illuminance of subject 0.2 lux (F1.2, More than 10% of image output γ = 0.45)
S/N 50 dB or more (weight ON)
Video output VBS 1.0 V p-p / 75 ohms, composite
Output impedance 75 ohms unbalanced
White balance Automatic (2500 K to 10,000 K)
Iris control Video Out / Iris Driver Circuit Built in
Gain control Average AGC (26 dB)
Backlight compensation Manual ON/OFF switching, center zone light measuring system
Lens mount CS mount
Ambient temperature 14˚F to 122˚F (-10˚C to +50˚C)
Ambient humidity 20% to 80%
Weight 0.77 lbs (350 g)
External dimensions 2.48(W) x 1.97(H) x 4.57(D) inches (63(W) x 50(H) x 116(D) mm)
Automatic electronic shutter ON (1/60 s to 1/100000 s) /OFF (1/60 s)
±10%
01_p2-p32 06.8.7, 11:08 AM13
- 13 -
Page 14
IK-6410A
Power 24V AC ~ ±10% 60Hz / 12V DC
Power consumption 3.5W with Al lens
Image sensor 1/3 inch CCD image sensor
Image pickup area 0.194 inch (4.92 mm) horizontal x 0.145 inch (3.69 mm) vertical
Effective picture element 771 horizontal x 492 vertical
Scanning system 2:1 interlace NTSC Standard TV system
Scanning frequency 15.75 KHz horizontal 60 Hz vertical
Synchronization Line-Lock, Internal manually switchable
Resolution 480 Horizontal TV lines
Minimum illuminance of subject 0.2 lux (F1.0, More than 10% of image output γ = 0.45)
S/N 50 dB or more (weight ON)
Video output VBS 1.0 V p-p / 75 ohms, composite
Output impedance 75 ohms unbalanced
White balance Automatic (2500 K to 10,000 K)
Iris control Video Out / Iris Driver Circuit Built in
Gain control Average AGC (26 dB)
Backlight compensation Manual ON/OFF switching, center zone light measuring system
Lens mount CS mount
Ambient temperature 14˚F to 122˚F (-10˚C to +50˚C)
Ambient humidity 20% to 80%
Weight 0.77 lbs (350 g)
External dimensions 2.48(W) x 1.97(H) x 4.57(D) inches (63(W) x 50(H) x 116(D) mm)
Automatic electronic shutter ON (1/60 s to 1/100000 s) /OFF (1/60 s)
±10%
01_p2-p32 06.8.7, 11:08 AM14
- 14 -
Page 15
13. EXTERIOR VIEW
1/4"-20UNC
3.5
1/4"-20UNC
116 (4.57)
01_p2-p32 06.8.7, 11:08 AM15
50 (1.97)
63 (2.48)
Dimensions : mm (inch)
- 15 -
Page 16
LIMITED WARRANTY
CCD SECURITY CAMERA IK-6210A/IK-6410A
The Imaging System Division ("ISD") of Toshiba America Information Systems, Inc. makes the following limited warranties with regard to
this CCD Camera Model IK-6210A/IK-6410A ("Product"). These limited warranties extend to the Original End-User ("You[r]").
Three (3) Year Limited Warranty of Labor and Parts ISD warrants that this Product will perform in accordance with specifications for a
period of three (3) years from the date of purchase by the Original End-User. During this three (3) year period, ISD will repair or replace the
Product, if it does not perform as warranted. In order to take advantage of this Limited Warranty. You must: (a) call (877) 855-1349 to
receive a RMA number: and (b) pay all transportation and insurance charges for shipment of the Product to the ASP or Toshiba Exchange
Center. ISD reserves the right to substitute factory refurbished parts in place of those in need of repair.
Instruction Manual (Owner's Manual): You should read the Instruction Manual (Owner's Manual) thoroughly before operating this
Product. Before seeking warranty service, you should check the troubleshooting guide in the Instruction Manual (Owner's Manual) and
follow the instructions to correct the problem.
How to Obtain Warranty Service Step-by-step Procedures: To obtain warranty service. You should:
1. Contact Toshiba at (877) 855-1349 to first verify operation or installation assistance. (877) 855-1FIX
2. If technical support determines that the unit is defective, an RMA will be issued with return instructions for repair.
3. Securely pack the Product in the original carton and external shipping pack, include a letter explaining the problem with a copy of the
bill of sale or proof of purchase.
4. Prepay all transportation and insurance costs.
Your Responsibilities: This Limited Warranty is subject to the following conditions:
1. You must provide the bill of sale or proof of purchase at the time that warranty service is required.
2. You must notify (877) 855 1349 within (30) days after you discover that the product does not perform in accordance with specifications
during the Limited Warranty period.
3. You must pack the Product in its original carton using the original packing material. Then insert the original carton containing the
Product into another carton with additional packing material before shipping the Product to an ASP or Toshiba Exchange Center.
DISCLAIMERS: ALL OTHER EXPRESS OR IMPLIED WARRANTIES ON THIS PRODUCT, INCLUDING THE IMPLIED WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY DISCLAIMED. SOME STATES DO NOT
ALLOW THE EXCLUSION OF IMPLIED WARRANTIES OR LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS. SO
THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU.
IF THIS PRODUCT IS NOT IN GOOD WORKING ORDER AS WARRANTED ABOVE, YOUR SOLE AND EXCLUSIVE REMEDY
SHALL BE THE REPAIR OF REPLACEMENT OF THE PRODUCT. IN NO EVENT WILL ISD OR ITS PARENT COMPANY OR ANY ASP
BE LIABLE TO YOU OR ANY THIRD PARTY FOR ANY DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE PRODUCT.
THIS LIMITATION APPLIES TO DAMAGES OF ANY KIND, INCLUDING ANY DIRECT OR INDIRECT DAMAGES, LOST PROFITS,
LOST SAVINGS OR OTHER SPECIAL, INCIDENTAL, EXEMPLARY OR CONSEQUENTIAL DAMAGES, WHETHER FOR BREACH
OF CONTRACT, TORT OR OTHERWISE, OR WHETHER ARISING OUT OF THE USE OF OR INABILITY TO USE SUCH PRODUCT,
EVEN IF TAIS, ITS PARENT COMPANY, OR AN ASP HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR OF ANY
CLAIM BY ANY OTHER PARTY. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES FOR SOME PRODUCTS, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO
YOU.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH MAY VARY FROM
STATE TO STATE.
THIS LIMITED WARRANTY SHALL BE VOID IF THE PRODUCT OR PARTS HAVE BEEN SUBJECTED TO MISUSE, ABUSE,
ACCIDENT, IMPROPER INSTALLATION, IMPROPER MAINTENANCE, OR USE IN VIOLATION OF ISD'S WRITTEN INSTRUCTIONS,
OR WHERE THE PRODUCT HAS BEEN ALTERED OR MODIFIED WITHOUT ISD'S PRIOR AUTHORIZATION, OR UPON THE
REMOVAL OR ALTERATION OF ISD'S FACTORY SERIAL NUMBER. LABOR SERVICE CHARGES FOR PRODUCT INSTALLATION,
SET UP AND ADJUSTMENT OF CONTROLS ARE NOT COVERED BY THIS LIMITED WARRANTY
No person, agent, distributor, dealer, authorized service provider, or company is authorized to change, modify, or extend the terms of this
Limited Warranty in any manner whatsoever. The time within which an action must be commenced to enforce any obligation of ISD arising
under this Limited Warranty or under any statute, or law of the United States or any state thereof, is herby limited to one (1) year from the
date You discovered or should have discovered the problem. This limitation does not apply to implied warranties arising under state law.
Some states do not permit limitation of the time within which You may bring an action beyond the limits provided by state law, so the above
provision may not apply to You. This Limited Warranty gives You specific legal rights and You may also have other rights which vary from
state to state.
TOSHIBA AMERICA INFORMATION SYSTEMS, INC.
Imaging Systems Division
01_p2-p32 06.8.7, 11:08 AM16
Loading...
