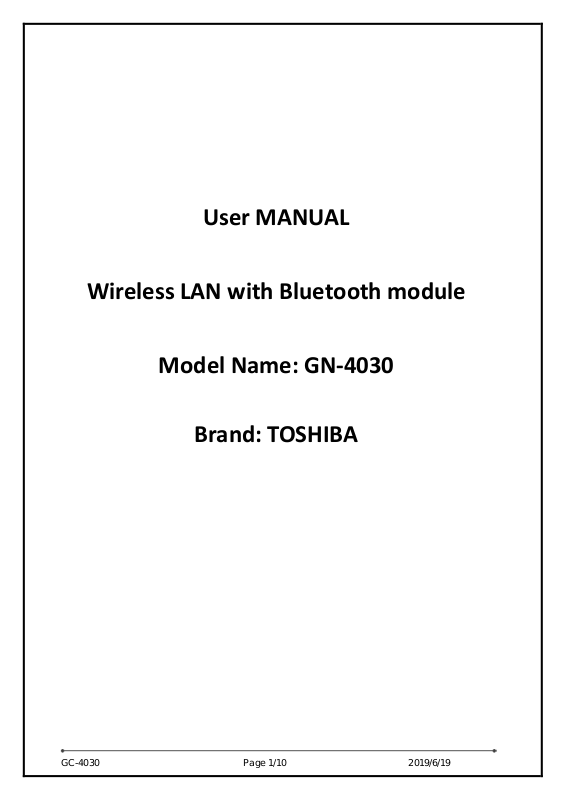

Toshiba GN4030 Users Manual

User MANUAL

Wireless LAN with Bluetooth module

Model Name: GN-4030

Brand: TOSHIBA

GC-4030 Page 1/10 2019/6/19

CONTENT

1 PRODUCT OVERVIEW ...................................................................................................................... 6

1.1 FEATURES .................................................................................................................................. 6

1.2 GENERAL SPECIFICATIONS ......................................................................................................... 6

1.3 BOARD OUTLINE ........................................................................................................................ 7

1.4 CONNECTOR PIN CONFIGURATION ........................................................................................... 8

1.5 CONNECTOR SPEC ..................................................................................................................... 8

1.6 MAC LABEL ................................................................................................................................ 9

1.7 EEPROM INFORMATION .......................................................................................................... 10

GC-4030 Page 2/10 2019/6/19

FCC Statement:

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant

to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception, which can

be determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one of the following measures:

- Reorient or relocate the receiving antenna. - Increase the separation between the equipment and

receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

˗Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)

This device may not cause harmful interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.

For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other

channels is not possible. This device and its antenna(s) must not be co-located with any other transmitters

except in accordance with FCC multi transmitter product procedures. Referring to the multi transmitter

policy, multiple transmitter(s) and module(s) can be operated simultaneously without C2PC.

IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation

exposure limits set forth for an uncontrolled environment. This equipment should be installed and

operated with minimum distance 20 cm between the radiator & your body.

IMPORTANT NOTE: This module is intended for OEM integrator. The OEM integrator is responsible for the

compliance to all the rules that apply to the product into which this certified RF module is integrated.

Additional testing and certification may be necessary when multiple modules are used.

GC-4030 Page 3/10 2019/6/19

20 cm minimum distance has to be able to be maintained between the antenna and the users for the host

this module is integrated into. Under such configuration, the FCC radiation exposure limits set forth for an

population/uncontrolled environment can be satisfied.

Any changes or modifications not expressly approved by the manufacturer could void the user's authority

to operate this equipment.

USERS MANUAL OF THE END PRODUCT:

In the user’s manual of the end product, the end user has to be informed to keep at least 20 cm separation

with the antenna while this end product is installed and operated. The end user has to be informed that

the FCC radio frequency exposure guidelines for an uncontrolled environment can be satisfied. The end

user has to also be informed that any changes or modifications not expressly approved by the

manufacturer could void the user's authority to operate this equipment. If the size of the end product is

smaller than 8x10cm, then additional FCC part 15.19 statement is required to be available in the user’s

manual: This device complies with Part 15 of FCC rules. Operation is subject to the following two

conditions: (1) this device may not cause harmful interference and (2) this device must accept any

interference received, including interference that may cause undesired operation.

LABEL OF THE END PRODUCT:

The final end product must be labeled in a visible area with the following " Contains FCC ID: BJI-GN4030".

If the size of the end product is larger than 8x10cm, then the following FCC part 15.19 statement has to

also be available on the label: This device complies with Part 15 of FCC rules. Operation is subject to the

following two conditions: (1) this device may not cause harmful interference and (2) this device must

accept any interference received, including interference that may cause undesired operation.

OEM Integrator Checklist

The party below will implement the LITE-ON Module in host systems in accordance with the instructions

specified in this document and the documents referenced herein.

1.The OEM integrator will ensure the Module is integrated in a host systems using only the approved

antenna model(s) described in this document.

2.The OEM integrator will ensure the antenna placement inside the host system willmaintain the required

spacing to end user for RF Exposure compliance, as specified in this document. 3.If other radios are

integrated inside the host with the LITE-ON Module, the OEM integrator will contact its test lab, TCB or

LITE-ON to determine if additional FCC compliance evaluation is required to meet FCC collocation rules.

4.The OEM integrator will ensure end user documentation will contain the specified regulatory wording

and ensure the host system and the Module itself are labeled as specified in this document.

5. The OEM integrator will ensure the Module is programmed in the factory with compliant transmit

power not exceeding the levels specified in this document. LITE-ON requests that the OEM integrator

acknowledge its receipt of this document and the above instructions. You may contact LITE-ON with any

GC-4030 Page 4/10 2019/6/19

questions concerning this document or the responsibilities of the OEM integrator

IC statement:

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and

Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two

conditions:

(1)This device may not cause interference.

(2)This device must accept any interference, including interference that may cause undesired operation of

the device.

L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR

d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de

licence. L’exploitation est autorisée aux deux conditions suivantes :

1. L’appareil ne doit pas produire de brouillage;

2. L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en

compromettre le fonctionnement.

IC Radiation Exposure Statement
This equipment complies with IC RSS-102 radiation exposure limit set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm between
the radiator and your body.
Déclaration d’exposition à la radiation : Cet équipement respecte les limites d’exposition aux
rayonnements IC définies pour un environnement non contrôlé. Cet équipement doit être installé et mis
en marche à une distance minimale de 20 cm qui sépare l’élément rayonnant de votre corps.
L’émetteur ne doit ni être utilisé avec une autre antenne ou un autre émetteur ni se trouver à leur
proximité.

End Product Labeling
This transmitter module is authorized only for use in device where the antenna may be installed such that
25 cm may be maintained between the antenna and users. The final end product must be labeled in a
visible area with the following: “Contains IC: 1004C-GN4030”.
Plaque signalétique du produit final
Ce module émetteur est autorisé uniquement pour une utilisation dans un dispositif où l'antenne peut
être installée de telle sorte qu'une distance de 25cm peut être maintenue entre l'antenne et les
utilisateurs. Le produit final doit être étiqueté dans un endroit visible avec l'inscription suivante: "Contient
des IC: 1004C-GN4030".

GC-4030 Page 5/10 2019/6/19

1 PRODUCT OVERVIEW

1.1 FEATURES

 Operate at 2.4GHz / 5GHz band

 867Mbps PHY Rate Support

 2T2R Mode

 USB 2.0 support for date rates up to 12Mbps full speed and 480Mbps high speed

 IEEE standards support: IEEE 802.11a/b/g and 802.11n/ac

 Bluetooth supports up to V4.2

 802.11i- WEP 64/128, AES, TKIP

 RoHS compliance

 Halogen Free compliance

1.2 GENERAL SPECIFICATIONS

Main Chipset

Standard

Bus Interface

Data Rate

Frequency Range

Transmit Output
Power

Receive Sensitivity

RTL8822BU

IEEE 802.11ac/a/b/g/n , Bluetooth 4.2 LE

USB 2.0 for WLAN and BT controller

WiFi:

802.11b:
CCK, DQPSK, DBPSK

802.11a, 802.11g:
64QAM, 16QAM, QPSK, BPSK

802.11n:
64QAM, 16QAM, QPSK, BPSK

802.11ac:
256QAM, 64QAM, 16QAM, QPSK, BPSK

Bluetooth:

GFSK, π/4-DQPSK and 8-DPSK

2.400 ~ 2.4835 GHz

5.150 ~ 5.85GHz

WiFi:
11b: 15+/-1.5dBm(11Mbps)
11a/g: 13+/-1.5dBm(54Mbps)

2.4G:
11n: 13+/-1.5dBm(MCS7HT20)
11n: 12+/-1.5dBm(MCS7HT40)
5G:
11n: 12+/-1.5dBm(MCS7HT20)
11n: 11+/-2dBm(MCS7HT40)
11ac: 9+/-2dBm (HT80)
Bluetooth:
6dBm
WiFi:
11b @ 11Mbps: (Max.) : -85dBm , (Typical) : -89.5dBm (PER<8%)
11g @ 54Mbps: (Max.) : -69dBm , (Typical) : -76dBm (PER<10%)

GC-4030 Page 6/10 2019/6/19

Temperature &
Humidity

11n @ MCS7 (2.4g HT20): (Max.) : -67dBm , (Typical) : -74.5dBm (PER<10%)
11n @ MCS7 (5g HT20): (Max.) : -67dBm , (Typical) : -73.5dBm (PER<10%)
11n @ MCS7 (5g HT40): (Max.) : -64dBm , (Typical) : -70dBm (PER<10%)

Bluetooth:
1DH5 BDR: (Max.): -86 dBm , (Typical): -95.5 dBm (BER < 0.1%)
2DH5 EDR: (Max.): -86 dBm , (Typical): -92.5 dBm (BER < 0.01%)
3DH5 EDR: (Max.): -80 dBm , (Typical): -86 dBm (BER < 0.10%)
BLE : (Max.): -90dBm , (Typical): -97dbBm (PER<30.8%)

Normal Test Condition: 25 +/- 2deg.C , 65 +/- 2% RH
Operating: 0 to 70 deg.C
Storage: -40 to 85 deg.C

Operating Voltage

Antenna Type

3.3V ± 10% I/O supply voltage

Printed Antenna *3( 2 for WIFI + 1 for Bluetooth)

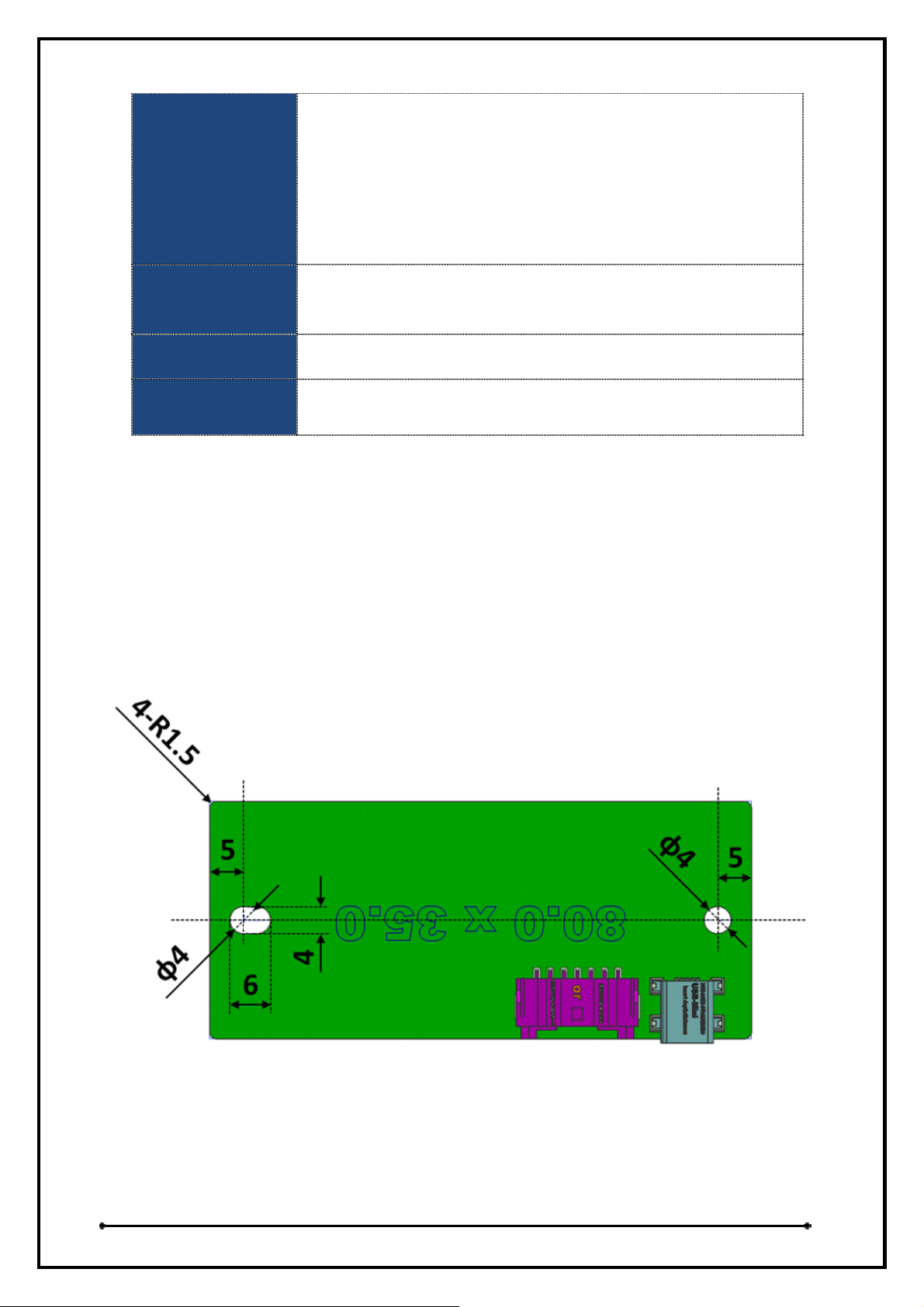

1.3 BOARD OUTLINE

PCB thickness = 1.0 mm

Module total height = 1.0 + 5.7(WTB connector height) + 0.1(solder paste)

= 6.8 mm (Maximum)

GC-4030 Page 7/10 2019/6/19

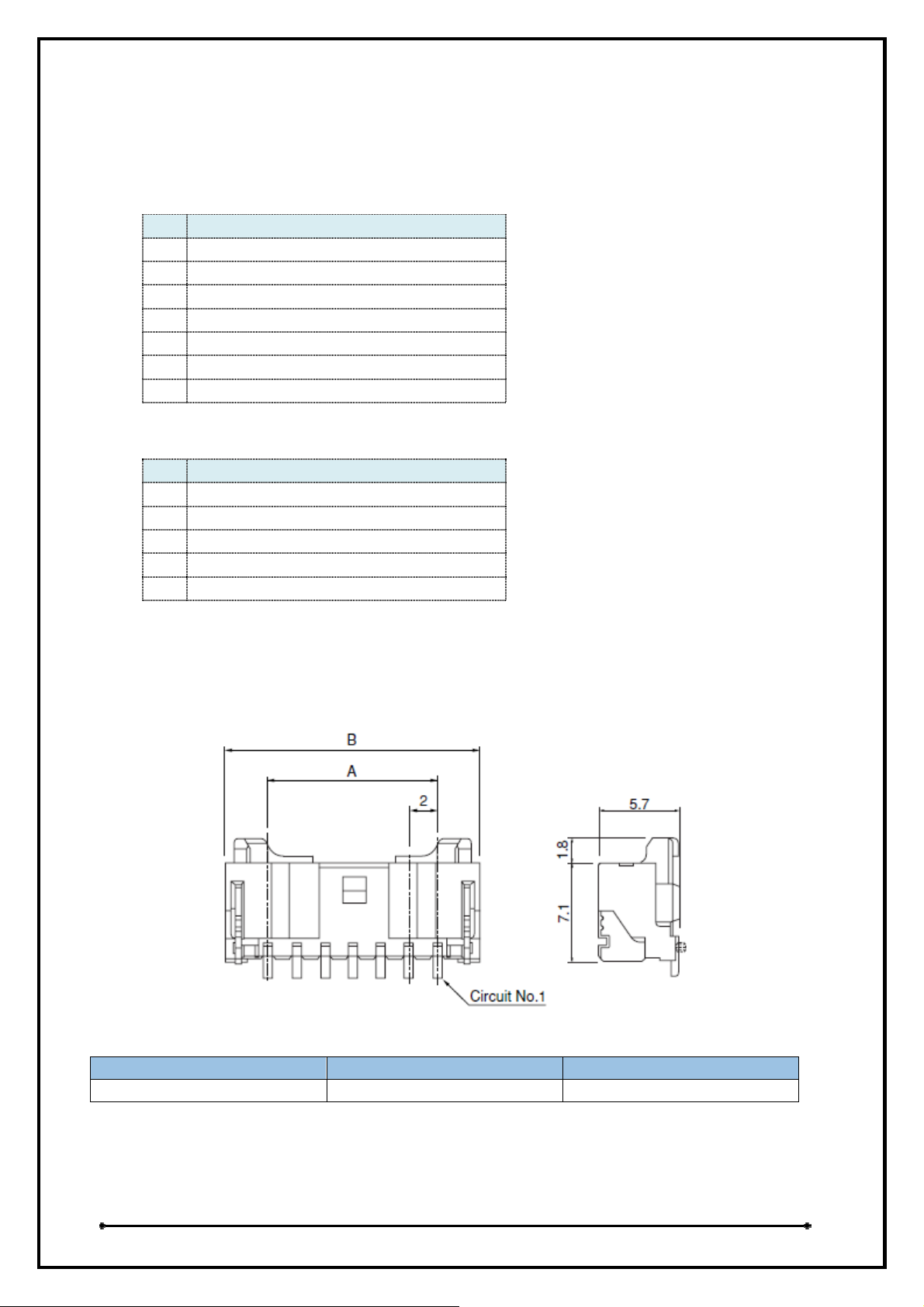

1.4 CONNECTOR PIN CONFIGURATION

WTB Connector (SM07B-PASS)

Pin Description

1 3.3VS
2 RESET(Chip-EN)
3 WL_WAKE_HST
4 HST_WAKE_WL
5 GND
6 BT_WAKE_HST
7 HST_WAKE_BT

USB miniB Connector (KS-BS-5B-L)

Pin Description

1 NC
2 D­3 D+
4 NC
5 GND

1.5 CONNECTOR SPEC

WTB Connector (SM07B-PASS)

Model No. Dimensions A Dimensions B

SM07B-PASS

12.0 mm 18 mm

GC-4030 Page 8/10 2019/6/19

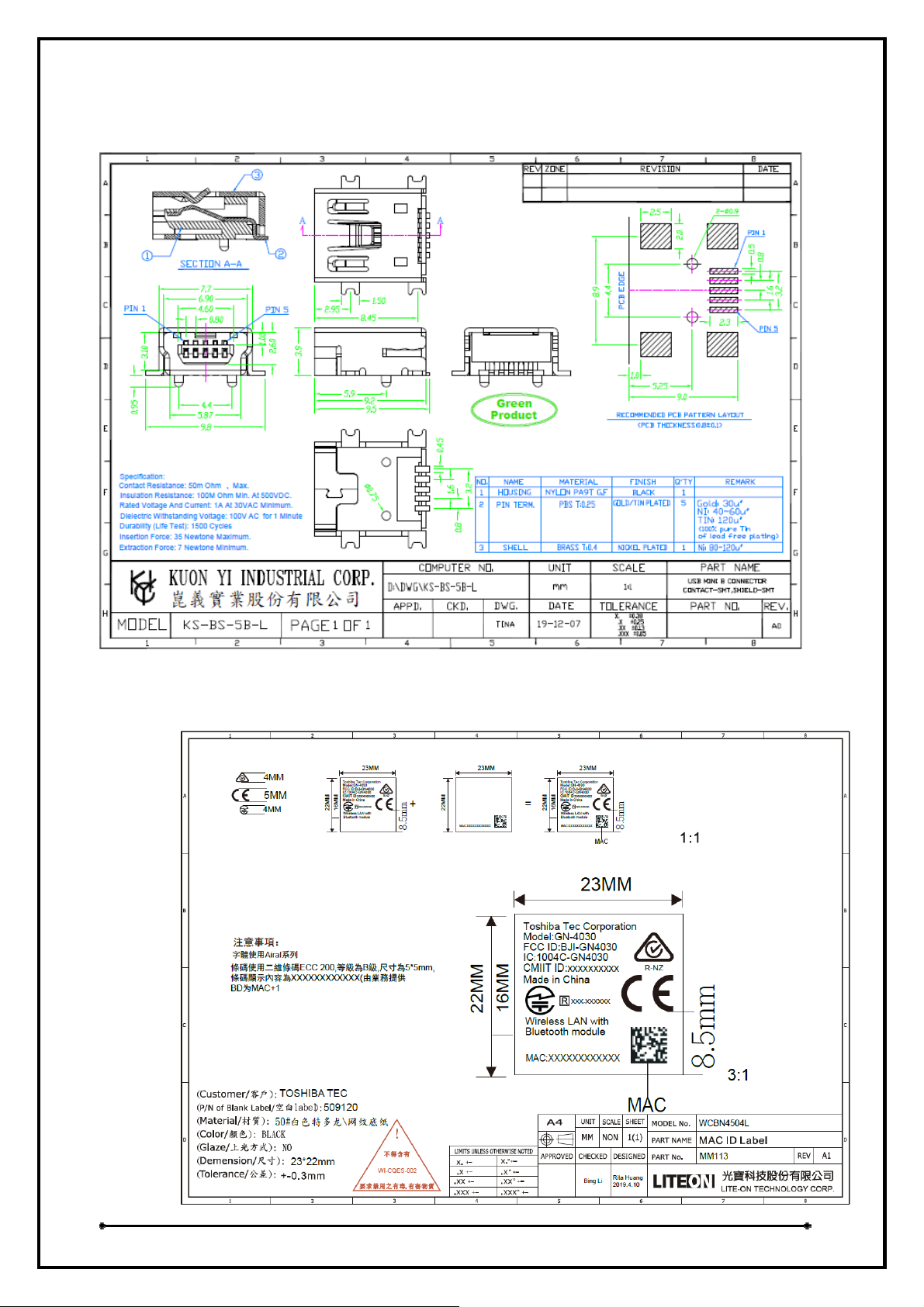

USB miniB Connector (KS-BS-5B-L)

1.6 MAC LABEL

GC-4030 Page 9/10 2019/6/19

1.7 EEPROM INFORMATION

Channel Plan
Vendor ID
Product ID

(Japan): 0x27
0x0BDA
0xB82C
