Toshiba Equium 7100S Specification Sheet

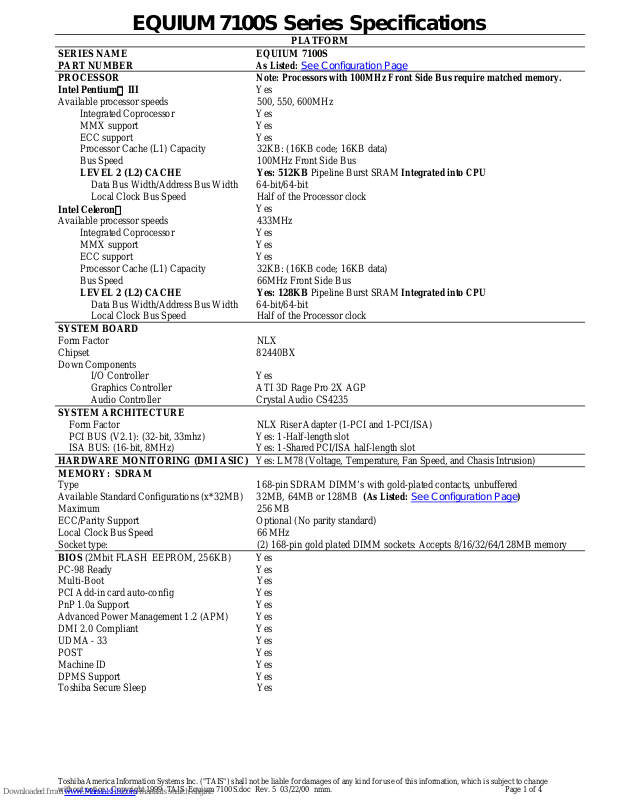

EQUIUM 7100S Series Specifications

PLATFORM

SERIES NAME EQUIUM 7100S PART NUMBER As Listed: See Configuration Page PROCESSOR Note: Processors with 100MHz Front Side Bus require matched memory. Intel Pentium III

Available processor speeds 500, 550, 600MHz

Integrated Coprocessor Yes MMX support Yes ECC support Yes Processor Cache (L1) Capacity 32KB: (16KB code; 16KB data) Bus Speed 100MHz Front Side Bus LEVEL 2 (L2) CACHE Yes: 512KB Pipeline Burst SRAM Integrated into CPU

Data Bus Width/Address Bus Width 64-bit/64-bit Local Clock Bus Speed Half of the Processor clock

Intel Celeron

Available processor speeds 433MHz

Integrated Coprocessor Yes MMX support Yes ECC support Yes Processor Cache (L1) Capacity 32KB: (16KB code; 16KB data) Bus Speed 66MHz Front Side Bus LEVEL 2 (L2) CACHE Yes: 128KB Pipeline Burst SRAM Integrated into CPU

Data Bus Width/Address Bus Width 64-bit/64-bit Local Clock Bus Speed Half of the Processor clock

SYSTEM BOARD

Form Factor NLX Chipset 82440BX Down Components

I/O Controller Yes Graphics Controller ATI 3D Rage Pro 2X AGP Audio Controller Crystal Audio CS4235

SYSTEM ARCHITECTURE

Form Factor NLX Riser Adapter (1-PCI and 1-PCI/ISA) PCI BUS (V2.1): (32-bit, 33mhz) Yes: 1-Half-length slot ISA BUS: (16-bit, 8MHz) Yes: 1-Shared PCI/ISA half-length slot

HARDWARE MONITORING (DMI ASIC) MEMORY: SDRAM

Type 168-pin SDRAM DIMM’s with gold-plated contacts, unbuffered Available Standard Configurations (x*32MB) Maximum 256 MB ECC/Parity Support Optional (No parity standard) Local Clock Bus Speed 66 MHz Socket type: (2) 168-pin gold plated DIMM sockets: Accepts 8/16/32/64/128MB memory

BIOS (2Mbit FLASH EEPROM, 256KB)

PC-98 Ready Yes Multi-Boot Yes PCI Add-in card auto-config Yes PnP 1.0a Support Yes Advanced Power Management 1.2 (APM) Yes DMI 2.0 Compliant Yes UDMA - 33 Yes POST Yes Machine ID Yes DPMS Support Yes Toshiba Secure Sleep Yes

Yes

Yes: LM78 (Voltage, Temperature, Fan Speed, and Chasis Intrusion)

32MB, 64MB or 128MB (As Listed: See Configuration Page)

Yes

Toshiba America Information Systems Inc. ("TAIS") shall not be liable for damages of any kind for use of this information, which is subject to change

EQUIUM 7100S Series Specifications

SERIES NAME EQUIUM 7100S PART NUMBER As Listed: See Configuration Page EXTERNAL INTERFACES All ports color coded for easy installation

One RJ-45 port One 9-Pin Serial (16550 UART compliant) Yes Universal Serial Bus ports

One 25-Pin Parallel Yes: Supports EPP, ECP One 15-Pin RGB (SVGA video) Yes One (PS/2) Mouse Port Yes One (PS/2) Windows 95 104 Keyboard Yes Microphone (3.5mm mini jack, monaural) Yes Line-out (3.5mm mini jack, stereo, 0.7V rms) Yes AC IN (Standard 3 prong ) Yes

VIDEO

Video Memory: SGRAM 4 MB expandable to 8MB (via SO-DIMM socket)

Speed 40ns Data Bus Width 64-bit Clock Speed 100 MHz

Graphic Controller

Standards Supported DPMS Power Managment, DDC1, DDC2B, PnP Compliant Local Bus support Yes: PCI Bus (33 Mhz, 32-bit) Controller Chip ATI 3D Rage Pro (AGP -- Accelerated Graphics Port)

Connected Bus type AGP 1.0

Bus Speed 133 MHz 64-bit BitBLT Engine Yes 2D Supported Features BitBLT, Hardware Cursor (up to 64 x 64 x 2), DirectDraw,

3D Supported Features Yes: supports 24-bit color

AGP Support Yes: (133mhz with sidebands and pipelining 64-bit PCI Graphics Accelerator)

Triangle Setup Yes

Modeling Fogging, lighting

Shading Gouraud shading

Rendering Texture mapping: Bilinear,Trilinear, Anti-aliasing, MIP mapping, Z-Buffering

Alpha-blending Yes

Direct3D support Yes

QuickDraw 3D RAVE support Yes

Open GL support Yes

Digital Video Accelerator

YUV Color Space Conversion Yes: Off-loads conversion from CPU for higher performance full motion video

Scaling/ Interpolation Yes: vertical & horizontal Direct Video, DirectMPEG Yes Motion Compensation Yes

SUPPORTED VIDEO RESOLUTIONS Colors/ Refresh Rate

(Non-interlaced unless otherwise specified) 4MB Memory

640 x 480 32-bit 120 Hz 800 x 600 32-bit 120 Hz 1024 x 768 32-bit 90 Hz 1152 x 864 32-bit 47 Hz 1280 x 1024 24-bit (16.7M) 70 Hz

1. Both ports operate from a single controller allowing 128 devices total, not per port. Throughput for the Universal Serial Bus (USB)

12mb/sec

As Listed: See Configuration Page

Supports 2 USB peripherals without external hub

Retangle Fill,Line Draw, Polygon Fill, Panning/Scrolling, Bit Masking, Monochrome Expansion, Scssoring and full ROP support

Without compromising picture quality or frame rate.

Toshiba America Information Systems Inc. ("TAIS") shall not be liable for damages of any kind for use of this information, which is subject to change

EQUIUM 7100S Series Specifications

SERIES NAME EQUIUM 7100S PART NUMBER As Listed: See Configuration Page SOUND SYSTEM

Chipsets: Crystal CS4235 Compatibility Sound Blaster Pro & Windows Sound System FM Synthesis Yes (Yamaha OPL3 compatible) 16-bit stereo audio

SRS

3D sound support Yes

full duplexed

Built-in microphone No

EXPANSION BAY TOTAL AVAILABLE CONFIGURED

5.25” 0 0 0

As Listed: See Configuration Page 5.25”

EXPANSION SLOTS TOTAL

PCI: Half-Le ngth 1 1 0 PCI/ISA Shared: Half-length 1 1 0

POWER SUPPLY( 145Watts )

Input (Voltage/Frequency) 115-230V; 50-60Hz Cord Length 6 feet

SUPPORTED SAFETY STANDARDS

CERTIFICATIONS: Windows 95,98 & Windows NT logo, Novell Client, Energy Star HARDWARE COMPLIANT: PC97, PC98, Wired For Management (WfM) SECURITY

Hardware Chasis Lock (key mechanism/padlock) -- Lock not included Keyboard/Mouse Lock Secure sleep Miscellaneous Screen blank Password Support Power-on, Supervisor/Administrator, User, Sleep

DIMENSIONS WEIGHT (w/o CD-ROM)

(w CD-ROM)

BUNDLED SOFTWARE OPTIONS: Windows 95, Windows 98 or Windows NT Workstation v4.0 w/NT Service Pack 3

Intel LanDesk Client Manager 3.1; Microsoft Internet Explorer 4.0.; Expert Intelligent Help(SystemWizard v1.4) Online User’s Guide. CD’s Included: Backup CD, Toshiba Configuratio n Builder (Rec overy) CD

WARRANTY: 3 Yr. Parts/One Yr. Labor (First Yr. On-site), Years 2 & 3 Parts only; 24 x 7 Dedicated technical support ENVIRONMENTAL SPECIFICATIONS Operating Non-operating

Temperature: 50°F (1 0°C) to 95°F (35°C) -4°F (-20°C) to 140°F (60°C)

Packaged: -30°C to 70°C -- --

Relative Humidity: 30% to 80% non-condensing 10% to 90% non-condensi ng Shock: 10G; 1.5G w/CD-ROM installed 60G; 10G w/CD-ROM installed Vibration (5~150Hz f/30 minutes, each axis) 0.3G

Packaged: 1.0G -- --

2. Sound Retrieval System creates a 3D sound image using two conventional speakers, by retrieving pre-recorded spatial information and restoring it to the original 3D sound field.

Yes

CHASSIS "SLIMLINE DESKTOP DESIGN"

Internal 3.5” 1 1 1 (HDD)

External 3.5” 1 0 1 (FDD)

101 (CD-ROM)

AVAILABLE CONFIGURED

US/Canada UL 1950 - CSA950-95, 3rd Edition, 7/28/95

CSA22.2 No.950-93, 3rd Edition ICES-003, Issue 2 FCC Class B

Europe EN 60950 w/Nordic deviation

CE Mark EN61000-4-2 (IEC 801-2), EN61000-4-3 (IEC 801-3), EN61000-4-4 TUV/GS Mark

Japan EN61000-4-5, VCCI Class 2 (ITE)

16.10”W x 14.84”D x 3.86”H

17.16 lbs.

19.36 lbs.

0.6G

Toshiba America Information Systems Inc. ("TAIS") shall not be liable for damages of any kind for use of this information, which is subject to change

EQUIUM 7100S Series Specifications

SERIES NAME EQUIUM 7100S PART NUMBER As Liste d: See Configuration Page

COMPONENT STORAGE FDD HDD (3.5” Ha lf-height Enhanced IDE) As Listed: See Configuration Page

Type Removable, SMART, Ultra-DMA Capacity options RPM 5400 Buffer 256KB Access Time <9.7 msec Ultra DMA Yes

Burst Data Transfer Rate Ultra DMA Mode2 (33.0MB/sec); PIO Mode 4 (16.7MB/sec) Certifications SMART, UDMA-33, Energy Star Controller Integrated (ATA-4)

CD-ROM: As Listed: See Configuration Page

Available options CD-ROM speed 40X

Interface ATAPI ( Enhanced IDE )

Modes supported PIO Mode4, DMA Mode2 and Ultra DMA/33 Random Access Time 80ms Sustained Data Transfer Rate 2100~6000KB/Sec(14X~40X), average over 28X Standards supported MPC Level 2 & 3 Disk Formats supported SO9660 Data Discs, CD-ROM(Mode 1 & Mode 2), Mixed Mode (Audio Combined

DVD-ROM (Toshiba SD-M1202) 4X speed, Region 1 (DVD-ROM is for storage only)

Interface ATAPI ( Enhanced IDE )

Random Access Time 160 ms Sustained Data Transfer Rate 2,704 KB/sec to 6,534KB/sec Supported Disk Formats Multisession Photo-CD, CD-Extra, CD-ROM XA, CD-I, Video CD, CD-G,

ETHERNET SUPPORT As Listed: See Configuration Page

Available options Intel EtherExpress PRO/100B PCI, 3Com Fast EtherLink XL 10/100, or None Chipset i82558 (Specs not available for 3COM Option) Support Network 100Base-TX, 10Base T Port RJ 45 (with Connection Status LED and Ethernet Speed LED) Wake on LAN Yes

KEYBOARD (PS/2) Two Keyboard Options available

Enhanced 104-key keyboard Yes Windows 95 support Yes

3.5mm Travel Yes 12 dedicated function keys Yes Numeric keypad Yes Keyboard tilt Yes Detatchable palm rest No Scroll Lock, CapsLock, NumLock Indicators Yes POINTING DEVICE - PS/2 Mouse

3.5” 1.44MB Floppy Disk Drive

4GB, 6.4GB, 8GB, 10GB, 13.6GB, 17.2GB or 20.5GB ( See Configuration Page)

No CD-ROM, 40X CD-ROM or 4X DVD-ROM (DVD-ROM is for storage only)

CD-ROM Disc), CD-ROM/XA(Mode2, Form 1 & Form 2), CD-I/FMV, Video CD, CD-DA, Photo-CD(Single & Multisession), Karaoke CD, CD Extra, CD-RW (Read Only)

with 256KB Buffer

CD-I Ready, MPC-3 Compliant, Red Book, Yellow Book, Plug and Play

Value Keyboard Option

Yes: 2 Button with 6 foot cable

Toshiba America Information Systems Inc. ("TAIS") shall not be liable for damages of any kind for use of this information, which is subject to change
