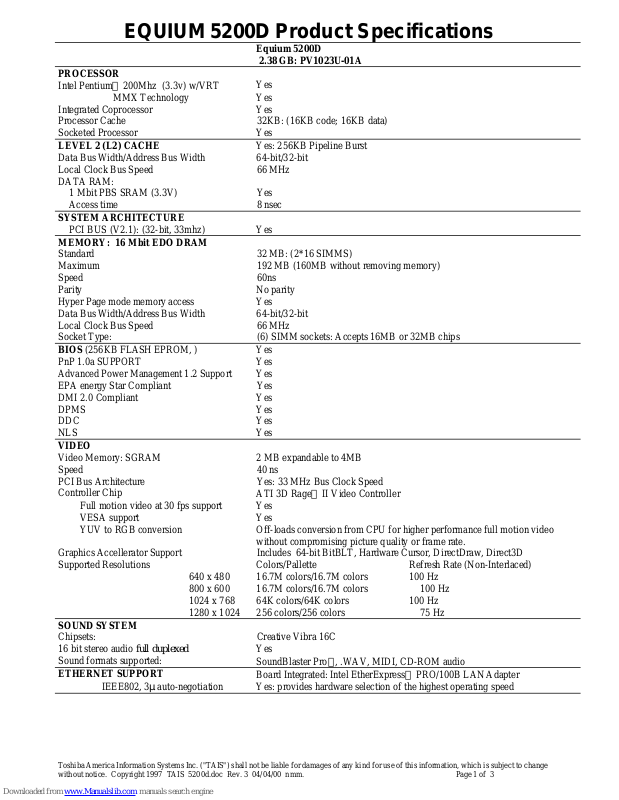

EQUIUM 5200D Product Specifications
Equium 5200D
2.38 GB: PV1023U-01A
PROCESSOR
Intel Pentium 200Mhz (3.3v) w/VRT
MMX Technology Yes
Integrated Coprocessor Yes
Processor Cache 32KB: (16KB code; 16KB data)
Socketed Processor Yes
LEVEL 2 (L2) CACHE
Data Bus Width/Address Bus Width 64-bit/32-bit
Local Clock Bus Speed 66 MHz
DATA RAM:
1 Mbit PBS SRAM (3.3V) Yes
Access time 8 nsec
SYSTEM ARCHITECTURE
PCI BUS (V2.1): (32-bit, 33mhz) Yes
MEMORY: 16 Mbit EDO DRAM
Standard 32 MB: (2*16 SIMMS)
Maximum 192 MB (160MB without removing memory)
Speed 60ns
Parity No parity
Hyper Page mode memory access Yes
Data Bus Width/Address Bus Width 64-bit/32-bit
Local Clock Bus Speed 66 MHz
Socket Type: (6) SIMM sockets: Accepts 16MB or 32MB chips
BIOS (256KB FLASH EPROM, )
PnP 1.0a SUPPORT Yes
Advanced Power Management 1.2 Support Yes
EPA energy Star Compliant Yes
DMI 2.0 Compliant Yes
DPMS Yes
DDC Yes
NLS Yes
VIDEO
Video Memory: SGRAM 2 MB expandable to 4MB
Speed 40 ns
PCI Bus Architecture Yes: 33 MHz Bus Clock Speed
Controller Chip
Full motion video at 30 fps support Yes
VESA support Yes
YUV to RGB conversion Off-loads conversio n from CPU for higher performance full motion video
Graphics Accellerator Support Includes 64-bit BitBLT, Hardware Cursor, DirectDraw, Direct3D
Supported Resolutions Colors/Pallette Refresh Rate (Non-Interlaced)
640 x 480 16.7M colors/16.7M colors 100 Hz
800 x 600 16.7M colors/16.7M colors 100 Hz
1024 x 768 64K colors/64K colors 100 Hz
1280 x 1024 256 colors/256 colors 75 Hz
SOUND SYSTEM
Chipsets: Creative Vibra 16C
16 bit stereo audio
Sound formats supported:
ETHERNET SUPPORT
IEEE802, 3µ auto-negotiation
full duplexed
Yes
Yes: 256KB Pipeline Burst
Yes
ATI 3D Rage II Video Controller
without compromising picture quality or frame rate.
Yes
SoundBlaster Pro, .WAV, MIDI, CD-ROM audio
Board Integrated: Intel EtherExpress PRO/100B LAN Adapter
Yes: provide s hardware selectio n of the highest operating speed
Toshiba America Information Systems Inc. ("TAIS") shall not be liable for damages of any kind for use of this information, which is subject to change
without notice. Copyright 1997 TAIS 5200d.doc Rev. 3 04/04/00 nmm. Page 1 of 3
EQUIUM 5200D Product Specifications
Equium 5200D
2.38 GB: PV1023U-01A
STORAGE
CONTROLLER TYPE Dual Channel, Bus Mastering PCI-EIDE (supports 4 IDE devices)
PIO Mode 4 (up to 16Mb/sec transfer rate) Yes
HDD ( 3.5”Half-height Enhanced IDE) 2.56 billion byte (= 2.38GB)
Access Time <10msec
Burst Data Transfer Rate PIO Mode 4 (16.7MB/sec)
PCI Bus Master support Yes
FDD 3.5” Floppy Disk Drive
CD-ROM: Toshiba XM-5702B-SC-FM 12X- speed
PCI Bus Master support Yes
Interface ATAPI ( Enhanced IDE ) w/256KB Buffer
Random Seek Time 115 ms
Data Transfer Rate 1.8 MB/sec
Supported Disk Formats Red Book, Yellow Book, CD-ROM XA, CD-Bridge (Photo-CD, Video-CD),
CD-I, CD-I Ready, CD-G, Multisession (Photo-CD, CD-Extra, CD-E)
EXPANSION SLOTS
Number of PCI Slots ( Available/Total ) 2/2
Number of ISA Slots ( Available/Total ) 3/3
EXPANSION BAY
Internal Bay One - occupied with HDD
External 5.25” Bay One open - Two occupied with 3.5”FDD and 12X CD-ROM
EXTERNAL INTERFACES
One RJ-45 port for ethernet card (supplied) Yes
One IrDA infrared interface Yes: IrDA 115.2Kbps compatible
One 9-Pin Serial (16550 UART compliant) Yes
Universal Serial Bus ports
One 25-Pin Parallel (IEEEP1284 compliant) Yes: ECP
One 15-Pin RGB (SVGA video) Yes
One (PS/2) Mouse Port Yes
One (PS/2) Windows 95 104 Keyboard Yes
Microphone (3.5mm mini jack, monaural) Yes
Line-out (3.5mm mini jack, stereo, 0.7V rms) Yes
AC IN (Standard 2 prong ) Yes
KEYBOARD
104-key keyboard with the Windows 95 keys Yes
3.8mm Travel Yes
12 dedicated function keys Yes
Numeric keypad Yes
POINTING DEVICE
PS/2 Mouse Yes
SECURITY
POWER SUPPLY( 145Watts )
Input (Voltage/Frequency) 115-230V; 50-60Hz, Switch Selectable
Supported Safety Standards UL/CSA, NRTL/C, VDE 0805, IEC 950, EN 60950, NEMKO
DIMENSIONS: (L x W x D)
WEIGHT
BUNDLED SOFTWARE: User Selectable choice of Windows for Workgroups 3.11 & MS-DOS 6.22 or Windows 95;
Disk Creation utility; Ethernet drivers (DOS, Window95, NTW, OS/2, Netware), Intel LANDesk Client Manager
Mouse drivers, PUMA TranXit for IRDA; Plug and Play drivers
WARRANTY: 3 Yr. Parts & Labor (First Yr. On-site); Dedicated technical support, business hours nationwide
1. Both ports operate from a single controller allowing 128 devices total, not per port. Throughput for the Universal Serial
Bus (UBS) is 12Mbits/sec.
1
Supports 2 USB peripherals without external hub
Chasis intrusion alert, Password protection, Cable lock receptacle
17.625” x 18.375” x 4.75”
28 LBS
Toshiba America Information Systems Inc. ("TAIS") shall not be liable for damages of any kind for use of this information, which is subject to change
without notice. Copyright 1997 TAIS 5200d.doc Rev. 3 04/04/00 nmm. Page 2 of 3
EQUIUM 5200D Product Specifications
PRICING
5200D 200MHz Pentium with MMX, 2.38GB HDD, 12X CD-ROM PV1023U-01A $1,369
EQUIUM MONITORS
17” (15.8” viewable image)TekBright Multimedia Monitor (DC786MF) PV2003U-01 $649
Toshiba TekBright
Toshiba TekBright
17” (16.23”viewable image) Autoscan Monitor DP782M-01 $599
15” (13.78”viewable image) Autoscan Monitor DP566M-01 $299
EQUIUM ACCESSORIES
6260M)
8MB Kingston Noteworthy EDO memory upgrade module KTT-INF/8 $40
16MB Kingston Noteworthy EDO memory upgrade module KTT-INF/16 $70
32MB Kingston Noteworthy EDO memory upgrade module KTT-INF/32 $136
64MB Kingston Noteworthy EDO memory upgrade module KTT-INF/64 $263
128MB Kingston Noteworthy EDO memory upgrade module KTT-INF/128 $629
2MB Video memory upgrade module
17” (15.8” viewable image) Monitor -- 700P
15” (13.7” viewable image) Monitor -- 500V
(For 5160D, 5200D, 5230D, 6200D,
(For 5160D, 5200D, 5230D, 6200M)
PART # PRICE
PART # PRICE
PV2006U-01 $649 NEW!!
PV2005U-01 $349 NEW!!
PART # PRICE
KTT-VATI/2 $50
Toshiba America Information Systems Inc. ("TAIS") shall not be liable for damages of any kind for use of this information, which is subject to change
without notice. Copyright 1997 TAIS 5200d.doc Rev. 3 04/04/00 nmm. Page 3 of 3
