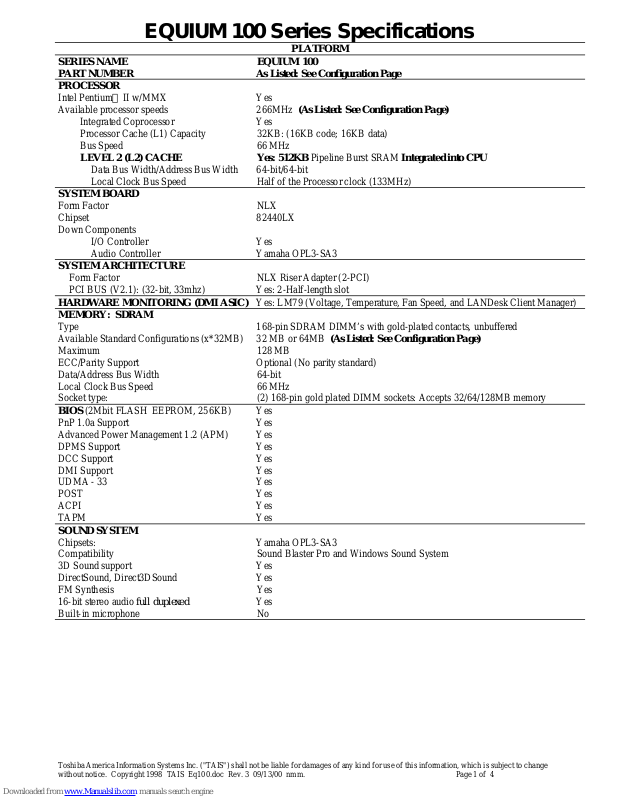

EQUIUM 100 Series Specifications
PLATFORM
SERIES NAME EQUIUM 100
PART NUMBER As Listed: See Configuration Page
PROCESSOR
Intel Pentium II w/MMX
Available processor speeds
Integrated Coprocessor Yes
Processor Cache (L1) Capacity 32KB: (16KB code; 16KB data)
Bus Speed 66 MHz
LEVEL 2 (L2) CACHE Yes: 512KB Pipeline Burst SRAM Integrated into CPU
Data Bus Width/Address Bus Width 64-bit/64-bit
Local Clock Bus Speed Half of the Processor clock (133MHz)
SYSTEM BOARD
Form Factor NLX
Chipset 82440LX
Down Components
I/O Controller Yes
Audio Controller Yamaha OPL3-SA3
SYSTEM ARCHITECTURE
Form Factor NLX Riser Adapter (2-PCI)
PCI BUS (V2.1): (32-bit, 33mhz) Yes: 2-Half-length slot
HARDWARE MONITORING (DMI ASIC)
MEMORY: SDRAM
Type 168-pin SDRAM DIMM’s with gold-plated contacts, unbuffered
Available Standard Configurations (x*32MB)
Maximum 128 MB
ECC/Parity Support Optional (No parity standard)
Data/Address Bus Width 64-bit
Local Clock Bus Speed 66 MHz
Socket type: (2) 168-pin gold plated DIMM sockets: Accepts 32/64/128MB memory
BIOS (2Mbit FLASH EEPROM, 256KB)
PnP 1.0a Support Yes
Advanced Power Management 1.2 (APM) Yes
DPMS Support Yes
DCC Support Yes
DMI Support Yes
UDMA - 33 Yes
POST Yes
ACPI Yes
TAPM Yes
SOUND SYSTEM
Chipsets: Yamaha OPL3-SA3
Compatibility Sound Blaster Pro and Windows Sound System
3D Sound support Yes
DirectSound, Direct3DSound Yes
FM Synthesis Yes
16-bit stereo audio full duplexed Yes
Built-in microphone No
Yes
266MHz (As Listed: See Configuration Page)
Yes: LM79 (Voltage, Temperature, Fan Sp eed, and LANDesk Cli ent Manager)
32 MB or 64MB (As Listed: See Configuration Page)
Yes
Toshiba America Information Systems Inc. ("TAIS") shall not be liable for damages of any kind for use of this information, which is subject to change
without notice. Copyright 1998 TAIS Eq100.doc Rev. 3 09/13/00 nmm. Page 1 of 4
EQUIUM 100 Series Specifications
PLATFORM (con.)
SERIES NAME EQUIUM 100
PART NUMBER As Listed: See Configuration Page
EXTERNAL INTERFACES
One RJ-45 port
One 9-Pin Serial (16550 UART compliant) Yes
Universal Serial Bus ports
One 25-Pin Parallel Yes: Supports EPP, ECP
One (PS/2) Mouse Port Yes
One (PS/2) Windows 95 104 Keyboard Yes
Microphone (3.5mm mini jack, monaural) Yes
Line-out (3.5mm mini jack, stereo, 0.7V rms) Yes
AC IN (Standard 3 prong ) Yes
DISPLAY
LCD Panel
Type 15”Diagonal TFT Active Matrix (1,024 x 768 resolution)
Dot Pitch .297mm x .297mm
Contrast Ratio 100:1 (min)
Brightness 200cd/m2 (max)
Maximum colors 256K
Vertical Refresh rate 60Hz
Interface Digital (Panel Link) Internal Connection
Power Management Energy Star Compliant
Screen Rotation
Supported Display Resolutions (max)
VIDEO
Video Memory: SGRAM 2 MB
Data Bus Width 64-bit
Clock Speed 83 MHz
Graphic Controller
Standards Supported DPMS Power Managment; Plug & Play compliant
Local Bus support Yes: PCI (v.2.1) Bus (33 Mhz, 32-bit)
Controller Chip S3 Virge/MX+(PCI)
64-bit BitBLT Engine Yes
2D Supported Features BitBLT, Hardware Cursor (up to 64 x 64 x 2), DirectDraw,
3D Supported Features Yes: supports 24-bit color
PCI Support Yes
Modeling Fogging, lighting
Shading Flat shading, Gouraud shading
Rendering Texture mapping: Bilinear,Trilinear, Anti-aliasing, MIP mapping, Z-Buffering
Alpha-blending Yes
Direct3D support Yes
QuickDraw 3D RAVE support Yes
Open GL support Yes
1. Both ports operate from a single controller allowing 128 devices total, not per port. Throughput for the Universal Serial
Bus (UBS) is 12Mbits/sec.
1
640 x 480 256K 60 Hz
480 x 600 256K 60 Hz
800 x 600 256K 60 Hz
600 x 800 256K 60 Hz
1024 x 768 64K 60 Hz
768 x 1024 64K 60 Hz
As Listed: See Configuration Page
Supports 2 USB peripherals without external hub
Yes: 90° Vertical (Portrait mode) or 90° Horizontal (Landscape)
Colors/ Refresh Rate
Retangle Fill,Line Draw, Polygon Fill, Panning/Scrolling, Bit Masking,
Monochrome Expansion, Scssoring and full ROP support
Toshiba America Information Systems Inc. ("TAIS") shall not be liable for damages of any kind for use of this information, which is subject to change
without notice. Copyright 1998 TAIS Eq100.doc Rev. 3 09/13/00 nmm. Page 2 of 4
EQUIUM 100 Series Specifications
CHASSIS
SERIES NAME EQUIUM 100
PART NUMBER As Listed: See Configuration Page
EXPANSION BAY TOTAL
Internal 3.5” 1 0 1 (HDD)
5.25” 0 0 0
External 3.5” 1 0 1 (FDD)
As Listed: See Configuration Page 5.25”
CD-ROM 1 0 1 (CD-ROM)
EXPANSION SLOTS TOTAL
PCI: Half-Length 2 1 1 (GRAPHICS)
POWER SUPPLY( 125Watts )
Input (Voltage/Frequency) 115V; 60Hz
SUPPORTED SAFETY STANDARDS
US/Canada UL 1950 3rd Edition
CSA22.2 No.950-93 3rd Edition
EMI FCC Part 15, Subpart B
CERTIFICATIONS: Windows 95 & Windows NT logo, Energy Star
HARDWARE COMPLIANT: PC97, PC98, ACPI
SECURITY
Hardware Chasis Lock (key mechanism/padlock) -Password Support Power-on, Supervisor/Administrator, User, Keyboard/Mouse,
Setup Utility, Setup Utility Disable
DIMENSIONS (Landscape)
(Portrait)
WEIGHT (w CD-ROM)
BUNDLED SOFTWARE: Windows 95 or Windows NT Workstation 4.0 w/Windows NT Service Pack 4.0 (optional);
Intel LanDesk Client Manager 3.1; Expert Intelligent Help(SystemWizard v1.4); Online User’s Guide
CD’s Included: Recovery CD (Bootable)
WARRANTY: 3 Yr. Parts/One Yr. Labor (First Yr. On-site); Years 2 & 3 Parts only; 24 x 7 Dedicated technical support
ENVIRONMENTAL SPECIFICATIONS Operating Non-operating
Temperature: 50°F (10°C) to 95°F (35°C) -4°F (-20°C) to 140°F (60°C)
Thermal Gradient 20° per hour -- --
Relative Humidity: 30% to 80% non-c ondensing 20% to 90% non-condensing
Shock: 3G; 1.5G w/CD-ROM installed 50G; 50G w/CD-ROM installed
Vibration (5~150Hz f/30 minutes, each axis) 0.3G
AC Line Noise Compliant w/IEC801-4/IEC1000-4-4 -Electrostatic Discharge Compliant w/IEC801-2/IEC1000-4-2 -Immunity Surge Compliant w/IEC801-5/IEC1000-4-5 --
15.63”W x 8.58”D x 16.46”H
14.41”W x 8.58”D x 18.38”H
24.2 lbs.
00 0
AVAILABLE CONFIGURED
AVAILABLE CONFIGURED
Lock not included
0.6G
Toshiba America Information Systems Inc. ("TAIS") shall not be liable for damages of any kind for use of this information, which is subject to change
without notice. Copyright 1998 TAIS Eq100.doc Rev. 3 09/13/00 nmm. Page 3 of 4
EQUIUM 100 Series Specifications
COMPONENT
SERIES NAME EQUIUM 100
PART NUMBER As Listed: See Configuration Page
STORAGE
FDD
HDD (3.5” Ha lf-height Enhanced IDE) As Listed: See Configuration Page
Type SMART, Ultra-DMA
Capacity
Buffer 256KB EDO DRAM
Ultra DMA Yes
Burst Data Transfer Rate Ultra DMA Mode2 (33.0MB/sec); PIO Mode 4 (16.7MB/sec)
Certifications SMART, UDMA-33, Energy Star
Controller Integrated (ATA-4)
CD-ROM:
Toshiba XM-1602BV (5.25”), 12.7mm 16X Max-speed CD-ROM
Interface ATAPI ( Enhanced IDE ) w/128KB Buffer
Average Random Access Time 135ms (16X Max.); 165 ms (4X)
Data Transfer Rate 600 KB/sec to 3000 KB/sec (4X to 16X)
Supported Disk Formats Multisession (Photo-CD, CD-Extra), CD-ROM XA, CD-I, CD-RW (read only)
ETHERNET SUPPORT As Listed: See Configuration P age
Form Factor NSX Riser
Model
Chipset i82558
Support Network 100Base-TX, 10Base T
Port RJ 45 (with Connection Status LED and Ethernet Speed LED)
Wake on LAN Yes
KEYBOARD (PS/2) As Listed: See Configuration Page
Enhanced 104-key keyboard Yes Yes
Windows 95 support Yes Yes
Total Number of Hot Keys 14 None
Application Launch keys 6 Not Applicable
CD keys 4 Not Applicable
Volume keys 3 Not Applicable
Sleep keys 1 Not Applicable
3.5mm Travel Yes Yes
12 dedicated function keys Yes Yes
Numeric keypad Yes Yes
Keyboard tilt Yes Yes
Detatchable palm rest Yes No
Scroll Lock, CapsLock, NumLock Indicators Yes Yes
POINTING DEVICE
PS/2 Mouse Yes: 2 Button with 6 foot cable
3.5” 1.44MB Floppy Disk Drive
3GB HDD; (As Listed: See Configuration Page)
CD-I Bridge (Photo-CD, Video CD), CD-R, CD-I Ready, CD-G, Red Book
Yellow Book
Intel EtherExpress PRO PCI
Mult-function Keyboard Option Value Keyboard Option
Toshiba America Information Systems Inc. ("TAIS") shall not be liable for damages of any kind for use of this information, which is subject to change
without notice. Copyright 1998 TAIS Eq100.doc Rev. 3 09/13/00 nmm. Page 4 of 4
