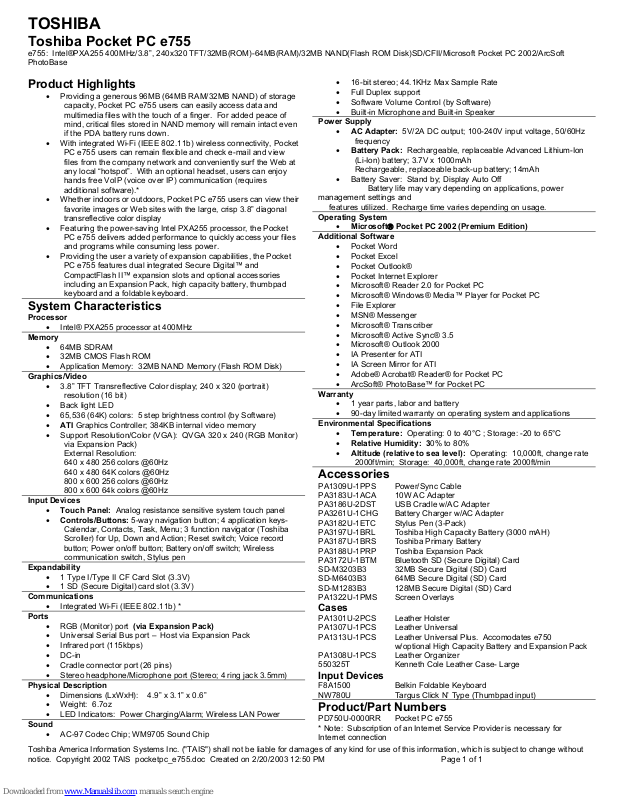

TOSHIBA
Toshiba Pocket PC e755
e755: Intel®PXA255 400MHz/3.8”, 240x320 TFT/32MB(ROM)-64MB(RAM)/32MB NAND(Flash ROM Disk)SD/CFII/Microsoft Pocket PC 2002/ArcSoft
PhotoBase
Product Highlights
• Providing a generous 96MB (64MB RAM/32MB NAND) of storage
capacity, Pocket PC e755 users can easily access data and
multimedia files with the touch of a finger. For added peace of
mind, critical files stored in NAND memory will remain intact even
if the PDA battery runs down.
• With integrated Wi-Fi (IEEE 802.11b) wireless connectivity, Pocket
PC e755 users can remain flexible and check e-mail and view
files from the company network and conveniently surf the Web at
any local “hotspot”. With an optional headset, users can enjoy
hands free VoIP (voice over IP) communication (requires
additional software).*
• Whether indoors or outdoors, Pocket PC e755 users can view their
favorite images or Web sites with the large, crisp 3.8” diagonal
transreflective color display
• Featuring the power-saving Intel PXA255 processor, the Pocket
PC e755 delivers added performance to quickly access your files
and programs while consuming less power.
• Providing the user a variety of expansion capabilities, the Pocket
PC e755 features dual integrated Secure Digital™ and
CompactFlash II™ expansion slots and optional accessories
including an Expansion Pack, high capacity battery, thumbpad
keyboard and a foldable keyboard.
System Characteristics
Processor
• Intel® PXA255 processor at 400MHz
Memory
• 64MB SDRAM
• 32MB CMOS Flash ROM
• Application Memory: 32MB NAND Memory (Flash ROM Disk)
Graphics/Video
• 3.8” TFT Transreflective Color display; 240 x 320 (portrait)
resolution (16 bit)
• Back light LED
• 65,536 (64K) colors: 5 step brightness control (by Software)
• ATI Graphics Controller; 384KB internal video memory
• Support Resolution/Color (VGA): QVGA 320 x 240 (RGB Monitor)
via Expansion Pack)
External Resolution:
640 x 480 256 colors @60Hz
640 x 480 64K colors @60Hz
800 x 600 256 colors @60Hz
800 x 600 64k colors @60Hz
Input Devices
• Touch Panel: Analog resistance sensitive system touch panel
• Controls/Buttons: 5-way navigation button; 4 application keys-
Calendar, Contacts, Task, Menu; 3 function navigator (Toshiba
Scroller) for Up, Down and Action; Reset switch; Voice record
button; Power on/off button; Battery on/off switch; Wireless
communication switch, Stylus pen
Expandability
• 1 Type I/Type II CF Card Slot (3.3V)
• 1 SD (Secure Digital) card slot (3.3V)
Communications
• Integrated Wi-Fi (IEEE 802.11b) *
Ports
• RGB (Monitor) port (via Expansion Pack)
• Universal Serial Bus port – Host via Expansion Pack
• Infrared port (115kbps)
• DC-in
• Cradle connector port (26 pins)
• Stereo headphone/Microphone port (Stereo; 4 ring jack 3.5mm)
Physical Description
• Dimensions (LxWxH): 4.9” x 3.1” x 0.6”
• Weight: 6.7oz
• LED Indicators: Power Charging/Alarm; Wireless LAN Power
Sound
• AC-97 Codec Chip; WM9705 Sound Chip
Toshiba America Information Systems Inc. ("TAIS") shall not be liable for damages of any kind for use of this information, which is subject to change without
notice. Copyright 2002 TAIS pocketpc_e755.doc Created on 2/20/2003 12:50 PM Page 1 of 1
• 16-bit stereo; 44.1KHz Max Sample Rate
• Full Duplex support
• Software Volume Control (by Software)
• Built-in Microphone and Built-in Speaker
Power Supply
• AC Adapter: 5V/2A DC output; 100-240V input voltage, 50/60Hz
frequency
• Battery Pack: Rechargeable, replaceable Advanced Lithium-Ion
(Li-Ion) battery; 3.7V x 1000mAh
Rechargeable, replaceable back-up battery; 14mAh
• Battery Saver: Stand by; Display Auto Off
Battery life may vary depending on applications, power
management settings and
features utilized. Recharge time varies depending on usage.
Operating System
• Microsoft Pocket PC 2002 (Premium Edition)
Additional Software
• Pocket Word
• Pocket Excel
• Pocket Outlook®
• Pocket Internet Explorer
• Microsoft® Reader 2.0 for Pocket PC
• Microsoft® Windows® Media™ Player for Pocket PC
• File Explorer
• MSN® Messenger
• Microsoft® Transcriber
• Microsoft® Active Sync® 3.5
• Microsoft® Outlook 2000
• IA Presenter for ATI
• IA Screen Mirror for ATI
• Adobe® Acrobat® Reader® for Pocket PC
• ArcSoft® PhotoBase™ for Pocket PC
Warranty
• 1 year parts, labor and battery
• 90-day limited warranty on operating system and applications
Environmental Specifications
• Temperature: Operating: 0 to 40°C ; Storage: -20 to 65°C
• Relative Humidity: 30% to 80%
• Altitude (relative to sea level): Operating: 10,000ft, change rate
2000ft/min; Storage: 40,000ft, change rate 2000ft/min
Accessories
PA1309U-1PPS Power/Sync Cable
PA3183U-1ACA 10W AC Adapter
PA3186U-2DST USB Cradle w/AC Adapter
PA3261U-1CHG Battery Charger w/AC Adapter
PA3182U-1ETC Stylus Pen (3-Pack)
PA3197U-1BRL Toshiba High Capacity Battery (3000 mAH)
PA3187U-1BRS Toshiba Primary Battery
PA3188U-1PRP Toshiba Expansion Pack
PA3172U-1BTM Bluetooth SD (Secure Digital) Card
SD-M3203B3 32MB Secure Digital (SD) Card
SD-M6403B3 64MB Secure Digital (SD) Card
SD-M1283B3 128MB Secure Digital (SD) Card
PA1322U-1PMS Screen Overlays
Cases
PA1301U-2PCS Leather Holster
PA1307U-1PCS Leather Universal
PA1313U-1PCS Leather Universal Plus. Accomodates e750
w/optional High Capacity Battery and Expansion Pack
PA1308U-1PCS Leather Organizer
550325T Kenneth Cole Leather Case- Large
Input Devices
F8A1500 Belkin Foldable Keyboard
NW780U Targus Click N’ Type (Thumbpad input)
Product/Part Numbers
PD750U-0000RR Pocket PC e755
* Note: Subscription of an Internet Service Provider is necessary for
Internet connection
