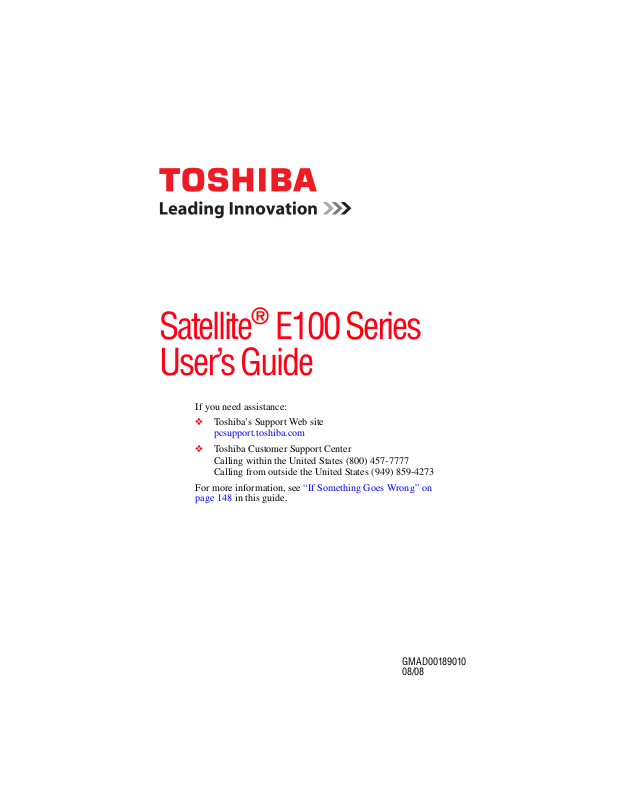

Satellite® E100 Series User’s Guide

If you need assistance:

❖ Toshiba’s Support Web site

pcsupport.toshiba.com

❖ Toshiba Customer Support Center

Calling within the United States (800) 457-7777 Calling from outside the United States (949) 859-4273

For more information, see “If Something Goes Wrong” on

page 148 in this guide.

GMAD00189010 08/08

Handling the cord on this product will expose you to lead, a chemical known to the State of California to cause birth defects or other reproductive harm. Wash hands after handling.

Model: Satellite® E100 Series

Recordable and/or ReWritable Drive(s) and Associated Software Warranty

The computer system you purchased may include Recordable and/or ReWritable optical media drive(s) and associated software, among the most advanced data storage technologies available. As with any new technology, you must read and follow all set-up and usage instructions in the applicable user guides and/or manuals enclosed or provided electronically. If you fail to do so, this product may not function properly and you may lose data or suffer other damage. TOSHIBA AMERICA INFORMATION SYSTEMS, INC. (“TOSHIBA”), ITS AFFILIATES AND SUPPLIERS DO NOT WARRANT THAT OPERATION OF THE PRODUCT WILL BE UNINTERRUPTED OR ERROR FREE. YOU AGREE THAT TOSHIBA, ITS AFFILIATES AND SUPPLIERS SHALL HAVE NO RESPONSIBILITY FOR DAMAGE TO OR LOSS OF ANY BUSINESS, PROFITS, PROGRAMS, DATA, NETWORK SYSTEMS OR REMOVABLE STORAGE MEDIA ARISING OUT OF OR RESULTING FROM THE USE OF THE PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY THEREOF.

Protection of Stored Data

For your important data, please make periodic back-up copies of all the data stored on the hard disk or other storage devices as a precaution against possible failures, alteration, or loss of the data. IF YOUR DATA IS ALTERED OR

LOST DUE TO ANY TROUBLE, FAILURE OR MALFUNCTION OF THE HARD DISK DRIVE OR OTHER STORAGE DEVICES AND THE DATA CANNOT BE RECOVERED, TOSHIBA SHALL NOT BE LIABLE FOR ANY DAMAGE OR LOSS OF DATA, OR ANY OTHER DAMAGE RESULTING THEREFROM. WHEN COPYING OR TRANSFERRING YOUR DATA, PLEASE BE SURE TO CONFIRM WHETHER THE DATA HAS BEEN SUCCESSFULLY COPIED OR TRANSFERRED. TOSHIBA DISCLAIMS ANY LIABILITY FOR THE FAILURE TO COPY OR TRANSFER THE DATA CORRECTLY.

Critical Applications

NOTE

The computer you have purchased is not designed for any “critical applications.” “Critical applications” means life support systems, medical applications, connections to implanted medical devices, commercial transportation, nuclear facilities or systems or any other applications where product failure could lead to injury to persons or loss of life or catastrophic property damage.

ACCORDINGLY, TOSHIBA, ITS AFFILIATES AND SUPPLIERS DISCLAIM ANY AND ALL LIABILITY ARISING OUT OF THE USE OF THE COMPUTER PRODUCTS IN ANY CRITICAL APPLICATIONS. IF YOU USE THE COMPUTER PRODUCTS IN A CRITICAL APPLICATION, YOU, AND NOT TOSHIBA, ASSUME FULL RESPONSIBILITY FOR SUCH USE.

FCC Notice “Declaration of Conformity Information”

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

❖ Reorient or relocate the receiving antenna. ❖ Increase the separation between the equipment and receiver. ❖ Connect the equipment to an outlet on a circuit different from that to which

the receiver is connected.

❖ Consult the dealer or an experienced radio/TV technician for help.

Only Peripherals complying with the FCC Class B limits may be attached to this equipment. Operation with noncompliant peripherals or peripherals not recommended by Toshiba is likely to result in interference to radio and TV reception. Shielded cables must be used between the external devices and the computer's ports. Changes or modifications made to this equipment not expressly approved by Toshiba or parties authorized by Toshiba could void the user's authority to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

❖ This device may not cause harmful interference. ❖ This device must accept any interference received, including interference

that may cause undesired operation.

Contact either:

❖ Toshiba’s Support Web site at pcsupport.toshiba.com. ❖ Or call the Toshiba Customer Support Center:

Within the United States at (800) 457-7777 Outside the United States at (949) 859-4273

Industry Canada Requirement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conformé à la norme NMB-003 du Canada.

FCC requirements

The following information is pursuant to FCC CFR 47, Part 68 and refers to internal modems.

This equipment complies with Part 68 of the FCC rules. On the bottom of this equipment is a label that contains, among other information, the FCC registration number and ringer equivalence number (REN) for this equipment. If requested, the information must be provided to the telephone company.

The modem connects to the telephone line by means of a standard jack called the USOC RJ11C.

A plug and jack used to connect this equipment to the premises wiring and telephone network must comply with the applicable FCC part 68 rules and requirements adopted by the ACTA. It is designed to be connected to a compatible modular jack that is also compliant.

The REN is used to determine the number of devices that may be connected to a telephone line. Excessive RENs on a telephone line may result in the devices not ringing in response to an incoming call. In most but not all areas, the sum of RENs should not exceed five (5.0). To be certain of the number of devices that may be connected to a line, as determined by the total RENs, contact the local telephone company. For products approved after July 23, 2001, the REN for this product is part of the product identifier that has the format US:AAAEQ##TXXXX. The digits represented by the ## are the REN without a decimal point (e.g., 03 is a REN of 0.3). For earlier products, the REN is separately shown on the label.

Connection to party line service is subject to state tariffs. Contact the state public utility commission, public service commission or corporation commission for information.

Telephone Company Procedures

The goal of the telephone company is to provide you with the best service it can. In order to do this, it may occasionally be necessary for them to make changes in their equipment, operations or procedures. If these changes might affect your service or the operation of your equipment, the telephone company will give you notice, in writing, to allow you to make any changes necessary to maintain uninterrupted service.

If Problems Arise

If this equipment causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinuance of service may be required. But if advanced notice is not practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is necessary.

If trouble is experienced with this equipment, for repair or standard limited warranty information, please contact Toshiba Corporation, Toshiba America Information Systems, Inc. or an authorized representative of Toshiba, or the Toshiba Customer Support Center within the United States at (800) 457-7777 or Outside the United States at (949) 859-4273. If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the problem is resolved.

Disconnection

If you should ever decide to permanently disconnect your modem from its present line, please call the telephone company and let them know of this change.

Fax Branding

The Telephone Consumer Protection Act of 1991 makes it unlawful for any person to use a computer or other electronic device, including Fax machines, to send any message unless such message clearly contains in a margin at the top or bottom of each transmitted page or on the first page of the transmission, the date and time it is sent and an identification of the business or other entity, or other individual sending the message and the telephone number of the sending machine or such business, other entity, or individual. (The telephone number provided may not be a 900 number or any other number for which charges exceed local or long-distance transmission charges.)

In order to program this information into your fax transmission, refer to the fax software instructions installed on this computer.

Alarm Equipment

If your home has specially wired alarm equipment connected to the telephone line, ensure the installation of this equipment does not disable your alarm equipment. If you have questions about what will disable alarm equipment, consult your telephone company or a qualified installer.

Instructions for IC CS-03 Certified Equipment

1 NOTICE: The Industry Canada label identifies certified equipment.

This certification means that the equipment meets certain telecommunications network protective, operational and safety requirements as prescribed in the appropriate Terminal Equipment Technical Requirements document(s). The Department does not guarantee the equipment will operate to the user’s satisfaction.

Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommunications company. The equipment must also be installed using an acceptable method of connection. The customer should be aware that compliance with the above conditions may not prevent degradation of service in some situations.

Repairs to certified equipment should be coordinated by a representative designated by the supplier. Any repairs or alterations made by the user to this equipment, or equipment malfunctions, may give the telecommunications company cause to request the user to disconnect the equipment.

Users should ensure for their own protection that the electrical ground connections of the power utility, telephone lines and internal metallic water pipe system, if present, are connected together. This precaution may be particularly important in rural areas.

Caution: Users should not attempt to make such connections themselves, but should contact the appropriate electric inspection authority, or electrician, as appropriate.

2 The user manual of analog equipment must contain the equipment’s

Ringer Equivalence Number (REN) and an explanation notice similar to the following:

The Ringer Equivalence Number (REN) of this device can be found on the label affixed to your computer.

NOTICE: The Ringer Equivalence Number (REN) assigned to each terminal device provides an indication of the maximum number of terminals allowed to be connected to a telephone interface. The termination on an interface may consist of any combination of devices subject only to the requirement that the sum of the Ringer Equivalence Numbers of all the devices does not exceed 5.

3 The standard connecting arrangement (telephone jack type) for this

equipment is jack type(s): USOC RJ11C.

Wireless Interoperability

NOTE

The TOSHIBA Wireless LAN Mini PCI Card products are designed to be interoperable with any wireless LAN product that is based on Direct Sequence Spread Spectrum (DSSS) radio technology, and is compliant to:

❖ The IEEE 802.11 Standard on Wireless LANs (Revision A/B/G), as defined

and approved by the Institute of Electrical and Electronics Engineers.

❖ The Wireless Fidelity (Wi-Fi

The “Wi-Fi CERTIFIED” logo is a certification mark of the Wi-Fi Alliance.

Bluetooth® and Wireless LAN devices operate within the same radio

frequency range and may interfere with one another. If you use Bluetooth and Wireless LAN devices simultaneously, you may occasionally experience a less than optimal network performance or even lose your network connection.

If you should experience any such problem, immediately turn off your Bluetooth or Wireless LAN device.

Please contact Toshiba computer product support on Web site http://www.toshiba-europe.com/computers/tnt/bluetooth.htm in Europe or pcsupport.toshiba.com in the United States for more information.

Radio Frequency Interference Requirements

This device is restricted to indoor use due to its operation in the 5.15 GHz to

5.25 GHz frequency range. FCC requires this product to be used indoors for frequency range 5.15 GHz to 5.25 GHz to reduce the potential for harmful interference to co-channel Mobile Satellite systems.

High power radars are allocated as primary users of the 5.25 GHz to 5.35 GHz and 5.65 GHz to 5.85 GHz bands. These radar stations can cause interference with and/or damage this device.

) certification as defined by the Wi-Fi Alliance.

The above Caution applies to products that operate with an 802.11a radio device.

Wireless LAN and Your Health

Wireless LAN products, like other radio devices, emit radio frequency electromagnetic energy. The level of energy emitted by Wireless LAN devices however is far much less than the electromagnetic energy emitted by wireless devices like for example mobile phones.

Because Wireless LAN products operate within the guidelines found in radio frequency safety standards and recommendations, TOSHIBA believes Wireless LAN is safe for use by consumers. These standards and recommendations reflect the consensus of the scientific community and result from deliberations of panels and committees of scientists who continually review and interpret the extensive research literature.

In some situations or environments, the use of Wireless LAN may be restricted by the proprietor of the building or responsible representatives of the organization. These situations may for example include:

❖ Using the Wireless LAN equipment on board airplanes, or ❖ In any other environment where the risk of interference to other devices or

services is perceived or identified as harmful.

If you are uncertain of the policy that applies on the use of wireless devices in a specific organization or environment (e.g. airports), you are encouraged to ask for authorization to use the Wireless LAN device prior to turning on the equipment.

Exposure to Radio Frequency Radiation

The radiated output power of the TOSHIBA Wireless LAN Mini PCI Card is far below the FCC radio frequency exposure limits. Nevertheless, the TOSHIBA Wireless LAN Mini PCI Card shall be used in such a manner that the potential for human contact during normal operation is minimized. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Regulatory Information

The TOSHIBA Wireless LAN Mini PCI Card must be installed and used in strict accordance with the manufacturer’s instructions as described in the user documentation that comes with the product. This device complies with the following radio frequency and safety standards.

Canada – Industry Canada (IC)

This device complies with RSS 210 of Industry Canada.

The installer of this radio equipment must ensure that the antenna is located or pointed such that it does not emit RF field in excess of Health Canada limits for the general population; consult Safety Code 6, obtainable from Health Canada’s Web site www.hc-sc.gc.ca/rpb. The RF device shall not be co-located with any other transmitter that has not been tested with this device.

NOTE

Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device.

L’ utilisation de ce dispositif est soumis aux deux conditions suivantes: (1) il ne doit pas produire de brouillage et (2) l’utilisateur du dispositif doit être prêt à accepter tout brouillage radioélectrique reçu, même s’il est susceptible de compromettre son fonctionnement.

The term “IC” before the equipment certification number only signifies that the Industry Canada technical specifications were met.

To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing.

Pour empecher que cet appareil cause du brouillage au service faisant l’objet d’une licence, il doit etre utilize a l’interieur et devrait etre place loin des fenetres afin de Fournier un ecram de blindage maximal. Si le matriel (ou son antenne d’emission) est installe a l’exterieur, il doit faire l’objet d’une licence.

This device is restricted to indoor use due to its operation in the 5.15 GHz to

5.25 GHz frequency range. Industry Canada requires this product to be used indoors for frequency range 5.15 GHz to 5.25 GHz to reduce the potential for harmful interference to co-channel Mobile Satellite systems.

High power radars are allocated as primary users of the 5.25 GHz to 5.35 GHz and 5.65 GHz to 5.85 GHz bands. These radar stations can cause interference with and/or damage this device.

The above Caution applies to products that operate with an 802.11a radio device.

EU Declaration of Conformity

TOSHIBA declares that this product conforms to the following Standards:

Supplementary Information:

This product is carrying the CE-Mark in accordance with the related European Directives. The party responsible for CE-Marking is TOSHIBA Europe GmbH, Hammfelddamm 8, 41460 Neuss, Germany.

*The product complies with the requirements of the Low Voltage Directive 73/23/EEC, the EMC Directive 89/336/EEC and/or the R&TTE Directive 1999/5/EC.

The European Union WEEE (Waste from Electrical and Electronic Equipment) Directive Information

The European Union WEEE (Waste from Electrical and Electronic Equipment) Directive is intended to protect the quality of the environment and human health through the responsible use of natural resources and the adoption of waste management strategies that focus on recycling and reuse. This Directive requires producers of electrical and electronic products put on the market in European Union (EU) member countries after August 2005 to mark such products with a crossed-out wheeled bin symbol.

In the European Union, this symbol indicates that when the last end user wishes to discard this product, it must be sent to appropriate facilities for recovery and recycling. This Directive applies to EU member countries only and does not apply to end users in other countries such as the United States.

Although the initial emphasis is in Europe, Toshiba is already working with design engineers, suppliers, and other partners to determine appropriate worldwide product life cycle planning and end-of-life strategies for our products. Please contact your local government for applicable laws and regulations governing the disposal of this product. For information on how to trade-in or recycle your product, visit www.reuse.toshiba.com.

VCCI Class B Information

Modem Warning Notice

Conformity Statement

The equipment has been approved to [Commission Decision “CTR21”] for panEuropean single terminal connection to the Public Switched Telephone Network (PSTN).

However, due to differences between the individual PSTNs provided in different countries/regions the approval does not, of itself, give an unconditional assurance of successful operation on every PSTN network termination point.

In the event of problems, you should contact your equipment supplier in the first instance.

Taiwa n

Article 14 Unless approved, for any model accredited low power radio frequency

electric machinery, any company, trader or user shall not change the frequency, increase the power or change the features and functions of the original design.

Article 17 Any use of low power radio frequency electric machinery shall not affect

aviation safety and interfere with legal communications. In the event interference is caused, the use of such electric machinery shall be immediately discontinued. Operation of such products can be resumed only when they are modified and can no longer cause interference.

The legal communications mentioned in the above item refer to radio communications operated in accordance with telecommunication laws and regulations.

Low power radio frequency electric machinery shall resist against interference from legal communications or from industrial, scientific and medical radio emission electric machinery.

Using this Equipment in Japan

In Japan, the frequency bandwidth of 2,400 MHz to 2,483.5 MHz for second generation low-power data communication systems such as this equipment overlaps that of mobile object identification systems (premises radio station and specified low-power radio station).

1. Sticker Please put the following sticker on devices incorporating this product.

The frequency bandwidth of this equipment may operate within the same range as industrial devices, scientific devices, medical devices, microwave ovens, licensed radio stations and non-licensed specified low-power radio stations for mobile object identification systems (RFID) used in factory product lines (Other Radio Stations).

1. Before using this equipment, ensure that it does not interfere with any of the equipment listed above.

2. If this equipment causes RF interference to other radio stations, promptly change the frequency being used, change the location of use, or turn off the source of emissions.

3. Contact TOSHIBA Direct PC if you have problems with interference caused by this product to Other Radio Stations.

2. Indication

The indication shown below appears on this equipment.

(3)

(1) (2)

2.4DSOF4

1 2.4: This equipment uses a frequency of 2.4 GHz. 2 DS: This equipment uses DS-SS modulation.

OF: This equipment uses OFDM modulation.

3 The interference range of this equipment is less than 40m. 4 This equipment uses a frequency bandwidth from

2,400 MHz to 2,483.5 MHz. It is possible to avoid the band of mobile object identification systems.

3. TOSHIBA Direct PC

Monday – Friday: 10:00 – 17:00

Toll Free Tel: 0120-15-1048 Direct Dial: 03-3457-4850

Fax: 03-3457-4868

(4)

Device Authorization

This device obtains the Technical Regulation Conformity Certification and the Technical Conditions Compliance Approval, and it belongs to the device class of radio equipment of low-power data communication system radio station stipulated in the Radio Law and the Telecommunications Business Law of Japan.

The Name of the radio equipment: refer to the equipment label provided on the computer

JAPAN APPROVALS INSTITUTE FOR TELECOMMUNICATIONS EQUIPMENT

Approval Number: D01-1128JP

TELECOM ENGINEERING CENTER Approval Number: 03NY.A0018, 03GZDA0017

The following restrictions apply:

❖ Do not disassemble or modify the device. ❖ Do not install the embedded wireless module into other device. ❖ 5.17 GHz to 5.23 GHz for indoor use only.

Radio Approvals for Wireless Devices

NOTE

The following information is dependent on what type of wireless device is in your computer. Not all devices are available on all models.

Approved Countries/Regions for the Intel® Wireless Wi-Fi® Link 5000 Series

This equipment is approved to the radio standard by the countries/regions in the following table.

Do not use this equipment except in the countries/regions in the following table.

Andorra Argentina CNC:

533AN_HMW: “CNC C-6367” 533AN_MMW: “CNC C-6366” 512AN_HMW: “CNC C-6373”

512AN_MMW: “CNC C-6374” Austria Azerbaijan Belgium Bermuda Brazil Bulgaria Caicos Islands Cambodia Canada Cayman Islands China Costa Rica Croatia Curacao, Netherlands Antilles Cyprus Czech Republic Denmark Egypt Estonia Falkland Islands Finland France French Guinea French Polynesia Germany Gibraltar Greece Guadeloupe Hungary Iceland India Indonesia Ireland Italy Japan Kenya Kuwait Latvia Liechtenstein Lithuania Luxemburg Malaysia Malta Martinique Mayotte Mexico Monaco Montserrat Morocco Netherlands New Caledonia New Zealand Norway Oman Paraguay Philippines Poland Portugal Qatar Réunion

Australia

NOTE

Romania Russia Saint Martin San Marino Saudi Arabia Serbia Singapore Slovakia Slovenia South Africa South Korea Spain Sweden Switzerland Tahiti Taiwan Turk Islands Ukraine UAE

(United Arab Emirates)

USA Vatican Vietnam Virgin Islands Zimbabwe

Approved Countries/Regions for use for the Atheros AR5BXB72

2.4 + 5GHz 11n minicard

This equipment is approved to the radio standard by the countries/regions in the following table.

Do not use this equipment except in the countries/regions in the following table.

This device works on passive scan only.

A peer-to-peer mode is not available in 802.11a and Turbo Mode.

United Kingdom Uruguay

Argentina Australia Austria Azerbaijan Bahrain Belgium Brazil Bulgaria Canada Chile China (PRC) Cyprus Czech Republic Denmark Ecuador Egypt Finland France Germany Greece Hong Kong Hungary Iceland India Indonesia Ireland Italy Japan Latvia Lithuania Luxembourg Malta Mexico Netherlands New Zealand Norway Pakistan Peru Philippines Poland Portugal Romania Russia Saudi Arabia Slovakia

Slovenia South Korea Spain Sweden Switzerland/

Liechtenstein

UAE (United Arab Emirates)

Uruguay USA Venezuela

Ukraine United Kingdom

Europe - Restrictions for use of 2.4 GHz Frequencies in European Community Countries

België/ Belgique:

Deutschland: License required for outdoor installations. Check with reseller for

France: Restricted frequency band: only channels 1 to 7 (2400 MHz and 2454

Italia: License required for indoor use. Use with outdoor installations not

Nederland: License required for outdoor installations. Check with reseller for

For private usage outside buildings across public grounds over less than 300m no special registration with IBPT/BIPT is required. Registration to IBPT/BIPT is required for private usage outside buildings across public grounds over more than 300m. For registration and license please contact IBPT/BIPT.

Voor privé-gebruik buiten gebouw over publieke groud over afstand kleiner dan 300m geen registratie bij BIPT/IBPT nodig; voor gebruik over afstand groter dan 300m is wel registratie bij BIPT/IBPT nodig. Voor registratie of licentie kunt u contact opnemen met BIPT.

Dans le cas d’une utilisation privée, à l’extérieur d’un bâtiment, audessus d’un espace public, aucun enregistrement n’est nécessaire pour une distance de moins de 300m. Pour une distance supérieure à 300m un enregistrement auprès de l’IBPT est requise. Pour les enregistrements et licences, veuillez contacter l’IBPT.

procedure to follow. Anmeldung im Outdoor-Bereich notwendig, aber nicht

genehmigungspflichtig. Bitte mit Händler die Vorgehensweise abstimmen.

MHz respectively) may be used outdoors in France. Please contact A.R.T. (http://www.art-telecom.fr) for applicable procedures to follow.

Bande de fréquence restreinte: seuls les canaux 1- 7 (2400 et 2454 MHz respectivement) doivent être utilisés endroits extérieur en France. Vous pouvez contacter l’Autorité de Régulation des Télécommunications (http://www.art-telecom.fr) pour la procédure à suivre.

allowed. È necessaria la concessione ministeriale anche per l’uso interno.

Verificare con i rivenditori la procedura da seguire.

procedure to follow.

Taiwan (ROC )

Licentie verplicht voor gebruik met buitenantennes. Neem contact op met verkoper voor juiste procedure.

Europe - Restrictions for Use of 5 GHz Frequencies in European Community Countries

European Community Countries

Austria O x x Belgium, France,

Switzerland/Liechtenstein Denmark, Finland,

Germany, Greece, Ireland, Italy, Luxembourg, Netherlands, Norway, Portugal, Sweden, UK

Iceland, Spain O O O

O: allowed x: forbidden

5150-5250 MHz

Channels: 36, 40, 44,

Indoor Only

OO x

OO O

5250-5350 MHz

Channels: 52, 56, 60,

Indoor Only

5470-5725 MHz

Channels: 100, 104, 108, 112,

116, 120, 124, 128, 132, 136, 140

Indoor/Outdoor

❖ To remain in conformance with European spectrum usage laws for Wireless

LAN operation, the above 2.4 GHz and 5 GHz channel limitations apply. The user should use the wireless LAN utility to check the current channel of operation. If operation is occurring outside of the allowable frequencies as listed above, the user must cease operating the Wireless LAN at that location and consult the local technical support staff responsible for the wireless network.

❖ The 5 GHz Turbo mode feature is not allowed for operation in any

European Community country.

❖ This device must not be operated in ad-hoc mode using channels in the

5 GHz bands in the European Community. Ad-hoc mode provides a direct communication between two client devices without a Wireless LAN Access Point.

❖ This device must be used with Access Points that have employed and

activated a radar detection feature required for European Community operation in the 5 GHz bands. This device will operate under the control of the Access Point in order to avoid operating on a channel occupied by any radar system in the area. The presence of nearby radar operation may result in temporary interruption of operation of this device. The Access Point’s radar detection feature will automatically restart operation on a channel free of radar. You may consult with the local technical support staff responsible

for the wireless network to ensure the Access Point device(s) are properly configured for European Community operation.

Approved Countries/Regions for use for the Atheros AR5BXB63 11g minicard

This equipment is approved to the radio standard by the countries/regions in the following table.

Do not use this equipment except in the countries/regions in the following table.

Argentina Australia Austria Azerbaijan Bahrain Belgium Brazil Brunei Canada Chile China (PRC) Colombia Costa Rica Cyprus Czech Republic Denmark Ecuador Egypt Finland France Germany Greece Honduras Hong Kong Hungary Iceland India Indonesia Ireland Italy Jamaica Japan Jordan Latvia Lithuania Luxembourg Malta Mexico Montenegro Netherlands New Zealand Norway Pakistan Panama Peru Philippines Poland Portugal Russia Saudi Arabia Serbia Slovakia Slovenia South Korea Spain Sri Lanka Sweden Switzerland/

Liechtenstein UAE (United Arab

Emirates) Uruguay USA Venezuela Vie tna m

Taiwan (ROC) Thailand

Ukraine United Kingdom

Approved Countries/Regions for the Realtek® RTL8187B

This equipment is approved to the radio standard by the countries/regions in the following table.

Do not use this equipment except in the countries/regions in the following table.

Albania Argentina Australia Austria Azerbaijan Bahrain Bangladesh Belgium Bolivia Bosnia and

Herzegovina Canada Chile China Colombia Costa Rica Croatia Cyprus Czech Republic Denmark Ecuador Egypt El Salvador Estonia Finland France Germany Ghana Greece Guatemala Honduras Hong Kong Hungary Iceland India Indonesia Ireland Israel Italy Japan - Jate Japan - Teleco Jordan Kazakhstan Kenya Kuwait Latvia Lebanon Lesotho Liechtenstein Lithuania Luxembourg Macedonia Malaysia Malta Mexico Monaco Morocco Netherlands New Zealand Nicaragua Nigeria Norway Oman Pakistan Panama Papua New Guinea Paraguay Peru Philippines Poland Portugal Puerto Rico Qatar Rep. Dominicana Romania Russia Saudi Arabia Senegal Serbia and Montenegro Singapore Slovak Republic Slovenia South Africa South Korea Spain Sri Lanka Sweden Switzerland Taiwan Thailand Turkey Ukraine UAE (United Arab

Emirates) USA Venezuela Vietnam Yemen Zimbabwe

Bulgaria Cambodia

United Kingdom Uruguay

Approved Countries/Regions for use for the

NOTE

Intel® PRO/Wireless 3945ABG Network Connection

This equipment is approved to the radio standard by the countries/regions in the following table.

Do not use this equipment except in the countries/regions in the following table.

An adhoc mode is available in Ch1-Ch11(802.11b/g), An Infrastructure mode is available in Ch1-Ch11 (802.11b/g) Ch36,40,44,48,52,56,60,64,149,153,157,161,165 (802.11a) Wake-up on wireless lan function is not available in battery mode.

802.11b/g (2.4 GHz) Australia Brunei Canada

Chile Hong Kong India Indonesia Malaysia Mexico New Zealand Saudi Arabia Taiwan USA Venezuela Vietnam

802.11a (5 GHz)

Australia Brunei Canada Chile Hong Kong India Indonesia Malaysia Mexico New Zealand Saudi Arabia Taiwan USA Venezuela Vietnam

Approved Countries/Regions for the Intel® Wireless Wi-Fi® Link 4965AGN

This equipment is approved to the radio standard by the countries/regions in the following table.

Do not use this equipment except in the countries/regions in the following table.

NOTE

An adhoc mode is available in Ch1-Ch11(802.11b/g), An Infrastructure mode is available in Ch1-Ch11 (802.11b/g) Ch36,40,44,48,52,56,60,64,149,153,157,161,165 (802.11a).

Antigua Argentina Aruba Bahamas Barbados Belize Bermuda Bolivia Canada Chile Cayman Islands Colombia Costa Rica Curacao Dominican Republic Ecuador El Salvador Grenada Guadeloupe Guyana Haiti Honduras Jamaica Martinique Netherlands Antilles Nicaragua Panama Paraguay Peru Puerto Rico St. Kitts St. Maarten Suriname Trinidad and Tobago Uruguay USA US Virgin Islands Venezuela

11a, 11b, 11g and 11n wireless are based on IEEE 802.11a, 802.11b, 802.11g and 802.11n respectively. The IEEE 802.11n specification has not been finalized and is currently in draft release. The TOSHIBA 11a/b/g/n Wireless LAN Adapters are based on the Draft Release, Version 1.0, of the IEEE 802.11n specification. An adapter with 11a/b, 11a/b/g, or 11a/b/g/n can communicate on any of its supported formats; the actual connection will be based on the access point to which it connects.

Connection compatibility with the wireless equipment in Draft 11n mode is not guaranteed.

The Draft 11n function cannot be used with WEP/TKIP. Draft 11n mode can be used only with WPA-PSK(AES) mode or no security mode.

Bluetooth® Wireless Technology Interoperability

Bluetooth® Cards from TOSHIBA are designed to be interoperable with any

product with Bluetooth wireless technology that is based on Frequency Hopping Spread Spectrum (FHSS) radio technology, and is compliant to:

❖ Bluetooth Specification as defined and approved by The Bluetooth Special

Interest Group.

❖ Logo certification with Bluetooth wireless technology as defined by The

Bluetooth Special Interest Group.

Bluetooth wireless technology is a new innovative technology, and TOSHIBA has not confirmed compatibility of its Bluetooth products with all computers and/or equipment using Bluetooth wireless technology other than TOSHIBA portable computers.

Always use Bluetooth cards from TOSHIBA in order to enable wireless networks over two or more (up to a total of seven) TOSHIBA portable computers using these cards. Please contact TOSHIBA computer product support on Web site http://www.toshiba-europe.com/computers/tnt/ bluetooth.htm in Europe or pcsupport.toshiba.com in the United States for more information.

When you use Bluetooth cards from TOSHIBA close to 2.4 GHz Wireless LAN devices, Bluetooth transmissions might slow down or cause errors. If you detect certain interference while you use Bluetooth cards from TOSHIBA, always change the frequency, move your computer to the area outside of the interference range of 2.4 GHz Wireless LAN devices (40 meters/43.74 yards or more) or stop transmitting from your computer. Please contact TOSHIBA computer product support on Web site http://www.toshiba-europe.com/ computers/tnt/bluetooth.htm in Europe or pcsupport.toshiba.com in the United States for more information.

Bluetooth and Wireless LAN devices operate within the same radio frequency range and may interfere with one another. If you use Bluetooth and Wireless LAN devices simultaneously, you may occasionally experience a less than optimal network performance or even lose your network connection. If you should experience any such problem, immediately turn off either one of your Bluetooth or Wireless LAN. Please contact Toshiba computer product support on Web site http://www.toshiba-europe.com/computers/tnt/ bluetooth.htm in Europe or pcsupport.toshiba.com in the United States for more information.

Approved Countries/Regions for use (Bluetooth® wireless technology)

Bluetooth® Card from Toshiba equipment is approved to the radio standard by the

countries/regions in the following table.

Do not use this equipment except in the countries/regions in the following table.

Argentina Australia Austria Belgium Bulgaria Canada Chile China Cyprus Czech Republic Denmark Egypt Estonia Finland France

Germany Greece Hong Kong Hungary Iceland Ireland Italy Japan Jordan Korea Kuwait Latvia Lebanon Liechtenstein Lithuania Luxembourg Malta Netherlands New Zealand Norway Oman Peru Philippines Poland Portugal Singapore Slovakia Slovenia Spain Sweden Switzerland Thailand UK Uruguay USA Venezuela

Bluetooth® Wireless Technology and Your Health

The products with Bluetooth® wireless technology, like other radio devices, emit radio frequency electromagnetic energy. The level of energy emitted by devices with Bluetooth wireless technology however is much less than the electromagnetic energy emitted by wireless devices such as mobile phones.

Because products with Bluetooth wireless technology operate within the guidelines found in radio frequency safety standards and recommendations, TOSHIBA believes Bluetooth wireless technology is safe for use by consumers. These standards and recommendations reflect the consensus of the scientific community and result from deliberations of panels and committees of scientists who continually review and interpret the extensive research literature.

In some situations or environments, the use of Bluetooth wireless technology may be restricted by the proprietor of the building or responsible representatives of the organization. These situations may for example include:

❖ Using the equipment with Bluetooth wireless technology on board

airplanes, or

❖ In any other environment where the risk of interference to other devices or

services is perceived or identified as harmful.

If you are uncertain of the policy that applies on the use of wireless devices in a specific organization or environment (e.g. airports), you are encouraged to ask for authorization to use the device with Bluetooth wireless technology prior to turning on the equipment.

Exposure to Radio Frequency Radiation

The radiated output power of the Bluetooth Card from TOSHIBA is far below the FCC radio frequency exposure limits. Nevertheless, the Bluetooth Card from TOSHIBA shall be used in such a manner that the potential for human contact during normal operation is minimized.

Regulatory statements

This product complies with any mandatory product specification in any country/ region where the product is sold. In addition, the product complies with the following:

European Union (EU) and EFTA

This equipment complies with the R&TTE directive 1999/5/EC and has been provided with the CE mark accordingly.

Canada — Industry Canada (IC)

This device complies with RSS 210 of Industry Canada.

Taiwa n

Article 14 Unless approved, for any model accredited low power radio frequency

electric machinery, any company, trader or user shall not change the frequency, increase the power or change the features and functions of the original design.

Article 17 Any use of low power radio frequency electric machinery shall not affect

The legal communications mentioned in the above item refer to radio communications operated in accordance with telecommunication laws and regulations.

Low power radio frequency electric machinery shall resist against interference from legal communications or from industrial, scientific and medical radio emission electric machinery.

Using this Equipment in Japan

1. Sticker

Please put the following sticker on devices incorporating this product.

1. Before using this equipment, ensure that it does not interfere with any of the equipment listed above.

2. If this equipment causes RF interference to other radio stations, promptly change the frequency being used, change the location of use, or turn off the source of emissions.

3. Contact TOSHIBA Direct PC if you have problems with interference caused by this product to Other Radio Stations.

2. Indication

The indication shown below appears on this equipment.

(1) (2)

2.4FH1

(3)

(4)

1 2.4: This equipment uses a frequency of 2.4 GHz. 2 FH: This equipment uses FH-SS modulation. 3 The interference range of this equipment is less than 10m. 4 This equipment uses a frequency bandwidth from 2,400 MHz to

2,483.5 MHz. It is impossible to avoid the band of mobile object identification systems.

3. TOSHIBA Direct PC

Monday – Friday: 10:00 – 17:00

Toll Free Tel: 0120-15-1048 Direct Dial: 03-3457-4850

Fax: 03-3457-4868

Device Authorization

This device obtains the Technical Regulation Conformity Certification, and it belongs to the device class of radio equipment of low-power data communication system radio station stipulated in the Radio Law of Japan.

The Name of the radio equipment: EYXF2CS TELECOM ENGINEERING CENTER

Approval Number: 01NYDA1305

The following restrictions apply:

❖ Do not disassemble or modify the device. ❖ Do not install the embedded wireless module into other device.

Optical Drive Safety Instructions

This appliance contains a laser system and is classified as a CLASS 1 LASER PRODUCT. To use this model properly, read the user’s guide carefully and keep it for your future reference.

Never attempt to disassemble, adjust or repair an optical drive. You could damage the drive. You would also be exposed to laser light or other safety hazards, resulting in serious injury. Always contact an authorized Toshiba service provider, if any repair or adjustment is required.

Location of the Required Label

(Sample shown below. Location of the label and manufacturing information may vary.)

This guide is copyrighted by Toshiba America Information Systems, Inc. with all rights reserved. Under the copyright laws, this guide cannot be reproduced in any form without the prior written permission of Toshiba. No patent liability is assumed, however, with respect to the use of the information contained herein.

Export Administration Regulation

This document contains technical data that may be controlled under the U.S. Export Administration Regulations, and may be subject to the approval of the U.S. Department of Commerce prior to export. Any export, directly or indirectly, in contravention of the U.S. Export Administration Regulations is prohibited.

Notice

The information contained in this manual, including but not limited to any product specifications, is subject to change without notice.

TOSHIBA CORPORATION AND TOSHIBA AMERICA INFORMATION SYSTEMS, INC. (TOSHIBA) PROVIDES NO WARRANTY WITH REGARD TO THIS MANUAL OR ANY OTHER INFORMATION CONTAINED HEREIN AND HEREBY EXPRESSLY DISCLAIMS ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE WITH REGARD TO ANY OF THE FOREGOING. TOSHIBA ASSUMES NO LIABILITY FOR ANY DAMAGES INCURRED DIRECTLY OR INDIRECTLY FROM ANY TECHNICAL OR TYPOGRAPHICAL ERRORS OR OMISSIONS CONTAINED HEREIN OR FOR DISCREPANCIES BETWEEN THE PRODUCT AND THE MANUAL. IN NO EVENT SHALL TOSHIBA BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, SPECIAL, OR EXEMPLARY DAMAGES, WHETHER BASED ON TORT, CONTRACT OR OTHERWISE, ARISING OUT OF OR IN CONNECTION WITH THIS MANUAL OR ANY OTHER INFORMATION CONTAINED HEREIN OR THE USE THEREOF.

Trademarks

Satellite and ConfigFree are registered trademarks of Toshiba America Information Systems, Inc. and/or Toshiba Corporation.

Microsoft, Outlook, Windows, and Windows Vista are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

DirectX, Active Desktop, DirectShow, and Windows Media are registered trademarks of Microsoft Corporation.

Wi-Fi is a registered trademark of the Wi-Fi Alliance. HDMI, the HDMI Logo and High-Definition Multimedia Interface are

trademarks or registered trademarks of HDMI Licensing LLC. Intel, Intel Core, Celeron, Centrino and Pentium are trademarks or registered

trademarks of Intel Corporation or its subsidiaries in the United States and other countries.

TouchPad is a trademark of Synaptics, Inc. Adobe and Photoshop are either registered trademarks or trademarks of Adobe

Systems Incorporated in the United States and/or other countries. Memory Stick and Memory Stick PRO are trademarks or registered trademarks

of Sony Corporation. Secure Digital and SD are trademarks of SD Card Association. MultiMediaCard and MMC are trademarks of MultiMediaCard Association. xD-Picture Card is a trademark of Fuji Photo Film, Co., Ltd. Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any

use of such marks by Toshiba is under license. Other trademarks and trade names are those of their respective owners.

All other brand and product names are trademarks or registered trademarks of their respective companies.

Computer Disposal Information

Lamp contains mercury. Disposal of this product may be regulated due to environmental considerations. For disposal, reuse or recycling information, please contact your local government or the Electronic Industries Alliance at

www.eiae.org.

As part of Toshiba’s commitment to preserving the environment, Toshiba supports various trade-in and recycling programs. Visit www.ToshibaDirect.com and select Recycling & Trade-in Programs, or enter Recycle in the search bar.

Introduction................................................................................ 35

This guide ...............................................................37

Safety icons ............................................................38

Other icons used...............................................38

Other documentation ..............................................39

Service options .......................................................39

Chapter 1: Getting Started......................................................... 40

Selecting a place to work ........................................40

Setting up a work environment .........................40

Keeping yourself comfortable ...........................41

Precautions.......................................................41

Important information on your computer’s

cooling fan ..................................................43

Setting up your computer .......................................43

Setting up your software...................................44

Registering your computer with Toshiba ................45

Adding optional external devices.............................45

Connecting to a power source ................................46

Charging the main battery.......................................48

Contents

Using the computer for the first time......................49

Opening the display panel.................................49

Your computer’s features and specifications ....50

Turning on the power .......................................50

Adding memory (optional)......................................51

Using the TouchPad™.............................................52

Scrolling with the TouchPad™ ..........................52

Control buttons.................................................53

Disabling or enabling the TouchPad™ ..............53

Using external display devices ................................53

Directing the display output when you

turn on the computer ..................................54

Adjusting the quality of the external display......55

Using an external keyboard.....................................55

Using a mouse........................................................55

Connecting a printer ...............................................56

Setting up a printer ...........................................57

Connecting an optional external diskette drive........57

Turning off the computer ........................................58

Options for turning off the computer ................58

Using the Shut Down command .......................61

Using and configuring Hibernation mode .........63

Using and configuring Sleep mode ...................65

Closing the display panel ..................................68

Customizing your computer’s settings....................68

Caring for your computer........................................68

Cleaning the computer......................................68

Moving the computer........................................69

Using a computer lock ......................................69

Chapter 2: Learning the Basics................................................. 70

Computing tips .......................................................70

Using the keyboard .................................................72

Character keys .................................................72

Making your keyboard emulate a full-size

keyboard .....................................................72

Contents

Ctrl, Fn, and Alt keys .........................................73

Function keys....................................................73

Special Windows® keys ...................................73

Overlay keys .....................................................74

Using the overlay to type numeric data.............74

Starting a program..................................................75

Starting a program from the Start menu...........75

Starting a program from Windows® Explorer ...76 Starting a program using the Start

Search field.................................................77

Saving your work....................................................77

Printing your work ..................................................79

Backing up your work .............................................80

Restoring your work .........................................81

Using the optical drive ............................................81

Optical drive components .................................82

Media control buttons.......................................83

Inserting an optical disc ...................................84

Playing an audio CD..........................................85

Playing optical media........................................85

Recording optical media ...................................86

Removing a disc with the computer on.............86

Removing a disc with the computer off ............87

Caring for optical discs ....................................87

Toshiba’s online resources .....................................87

Chapter 3: Mobile Computing................................................... 88

Toshiba’s energy-saver design................................88

Running the computer on battery power ................88

Battery Notice ...................................................89

Power management ..........................................90

Using additional batteries .................................90

Charging batteries...................................................90

Charging the main battery.................................91

Charging the RTC battery..................................91

Monitoring main battery power...............................92

Contents

Determining remaining battery power...............93

What to do when the main battery runs low .....94

Setting battery notifications ..............................94

Conserving battery power ................................95

Power Plans......................................................96

Using a hot key to set the Power Plan...............97

Changing the main battery ......................................98

Removing the battery from the computer .........98

Inserting a charged battery .............................100

Taking care of your battery ...................................101

Safety precautions ..........................................101

Maintaining your battery .................................102

Disposing of used batteries ..................................102

Traveling tips ........................................................104

Chapter 4: Exploring Your Computer’s Features................... 105

Exploring the desktop ...........................................105

Finding your way around the desktop .............106

Setting up for communications.............................108

Connecting your computer to a network.........108

An overview of using the Internet .........................109

The Internet ....................................................109

The World Wide Web .....................................109

Internet Service Providers ..............................110

Connecting to the Internet .............................110

Surfing the Internet.........................................110

Internet features..............................................110

Uploading to, and downloading files

from, the Internet .....................................111

Exploring audio features .......................................111

Recording sounds...........................................111

Using external speakers or headphones..........112

FM tuner ...............................................................113

Web Camera .........................................................113

Using the Bridge Media Adapter Slot ....................114

Inserting memory media.................................114

Contents

Removing memory media...............................115

Using the eSATA/USB combo port........................115

Chapter 5: Utilities....................................................................116

TOSHIBA Assist ....................................................117

Connect...........................................................118

Secure.............................................................119

Protect & Fix ...................................................120

Optimize..........................................................121

Setting passwords ................................................122

Using an instant password..............................122

Using a supervisor password..........................123

Using a user password ...................................124

Deleting a user password................................125

TOSHIBA PC Diagnostic Tool Utility......................126

TOSHIBA HDD Protection Utility ...........................127

TOSHIBA SD™ Memory Card Format Utility .........128

TOSHIBA SD™ Memory Boot Utility......................129

Booting from a bootable SD card....................130

Mouse Utility ........................................................131

TOSHIBA Hardware Setup.....................................132

TOSHIBA Zooming Utility......................................137

TOSHIBA Button Support......................................138

CD/DVD Drive Acoustic Silencer ...........................139

TOSHIBA Accessibility ..........................................140

Fingerprint Authentication Utility...........................141

Fingerprint utility limitations ...........................141

Using the Fingerprint Authentication Utility.....141

Fingerprint Logon ...........................................142

Care and maintenance of your fingerprint

reader .......................................................142

Fingerprint reader limitations..........................143

ConfigFree

Getting Started................................................144

ConfigFree® Utilities........................................145

...........................................................144

Contents

Chapter 6: If Something Goes Wrong ................................... 148

Problems that are easy to fix ................................148

Problems when you turn on the computer............149

The Windows® operating system is not working ..152

Using Startup options to fix problems ............152

Internet problems ...........................................153

The Windows® operating system can

help you ....................................................154

Resolving a hardware conflict...............................154

A plan of action...............................................154

Fixing a problem with Device Manager ...........155

Power and the batteries ..................................156

Keyboard problems.........................................157

Display problems ............................................158

Disk or internal storage drive problems ..........160

Optical drive problems....................................162

Sound system problems .................................163

Printer problems.............................................163

Wireless networking problems .......................164

DVD operating problems.......................................166

Develop good computing habits ...........................167

Data and system configuration backup in

the Windows® operating system...............168

If you need further assistance...............................173

Before you contact Toshiba ............................173

Contacting Toshiba .........................................173

Other Toshiba Internet Web sites..........................174

Toshiba’s worldwide offices..................................174

Appendix A: Hot Keys/TOSHIBA Cards ................................. 176

Hot Key Cards .......................................................176

Using the Hot Key Cards .................................177

Application Cards..................................................178

Using the Application Cards............................179

Card Case........................................................180

Contents

Hot key functions..................................................180

Volume Mute ..................................................181

Lock (Instant security)....................................182

Power plan .....................................................183

Sleep mode.....................................................184

Hibernation mode ...........................................185

Output (Display switch) .................................186

Display brightness ..........................................187

Disabling or enabling wireless devices............188

Disabling or enabling the TouchPad™ ............189

Zoom (Display resolution) ..............................190

Keyboard hot key functions ...........................191

Appendix B: Power Cord/Cable Connectors.......................... 192

Glossary.................................................................................... 193

Index..........................................................................................207

Introduction

Welcome to the world of powerful, portable, multimedia computing. With your Toshiba computer, your work and entertainment can accompany you wherever you go.

Your Computer model may be ENERGY STAR model you purchased is compliant, it is labeled with the ENERGY

STAR

logo on the computer and the following information

applies. Toshiba is a partner in the Environmental Protection Agency’s

(EPA) ENERGY STAR to meet the latest ENERGY STAR efficiency. Your computer ships with the power management options preset to a configuration that will provide the most stable operating environment and optimum system performance for both AC power and battery modes.

To conserve energy, your computer is set to enter the low-power Sleep mode which shuts down the system and display within 15 minutes of inactivity in AC power mode. We recommend that you leave this and other energy saving features active, so that your computer will operate at its maximum energy efficiency. You can wake the computer from Sleep mode by pressing the power button. See the “Mobile Computing” section of the Toshiba User’s Guide for more information on using power management settings to conserve computer energy.

compliant. If the

Program and has designed this computer

guidelines for energy

NOTE

Introduction

According to the EPA, a computer meeting the new ENERGY

STAR

specifications will use between 20% and 50% less energy depending on how it is used. If all U.S. household and businesses replaced old computers with new ENERGY STAR

qualified models, we would save more than $1.8 billion in energy costs over the next five years and avoid greenhouse gas emissions equivalent to more than 2.7 million cars.

If every computer purchased by businesses next year met the new ENERGY STAR

requirements, businesses would save more than $210 million over the lifetime of those models. That is equivalent to lighting 120 million square feet of U.S. commercial building space each year.

During 2006 Americans, with the help of ENERGY STAR

, saved about $14 billion dollars on their utility bills and avoided greenhouse gas emissions equivalent to those from 25 million vehicles.

Visit http://www.energystar.gov or

http://www.energystar.gov/powermanagement for more

information regarding the ENERGY STAR

Program.

This computer is compatible with European Union Directive 2002/95/EC, Restriction of the use of certain Hazardous Substances in electrical and electronic equipment (RoHS), which restricts use of lead, cadmium, mercury, hexavalent chromium, PBB, and PBDE. Toshiba requires its computer component suppliers to meet RoHS requirements and verifies its suppliers’ commitment to meeting RoHS requirements by conducting component sampling inspections during the product design approval process.

Certain Microsoft® software product(s) included with this computer may use technological measures for copy protection. IN SUCH EVENT, YOU WILL NOT BE ABLE TO USE THE PRODUCT IF YOU DO NOT FULLY COMPLY WITH THE PRODUCT ACTIVATION PROCEDURES. Product activation procedures and Microsoft’s privacy policy will be detailed during initial launch of the product, or upon certain reinstallations of the software product(s) or reconfigurations of the computer, and may be completed by Internet or telephone (toll charges may apply).

Some software may differ from its retail version (if available), and may not include user manuals or all program functionality.

This guide

NOTE

This guide introduces the computer’s features. You can:

❖ Read the entire guide from beginning to end. ❖ Skim through and stop when a topic interests you. ❖ Use the table of contents and the index to find specific

Introduction

This guide

The product specifications and configuration information are designed for a product Series. Your particular model may not have all the features and specifications listed or illustrated. For more detailed information about the features and specifications on your particular model, please visit Toshiba’s Web site at

pcsupport.toshiba.com.

While Toshiba has made every effort at the time of publication to ensure the accuracy of the information provided herein, product specifications, configurations, prices, system/component/options availability are all subject to change without notice. For the most upto-date product information about your computer, or to stay current with the various computer software or hardware options, visit Toshiba’s Web site at pcsupport.toshiba.com.

information.

NOTE

Safety icons

This manual contains safety instructions that must be observed to avoid potential hazards that could result in personal injuries, damage to your equipment, or loss of data. These safety cautions have been classified according to the seriousness of the risk, and icons highlight these instructions as follows:

Introduction

Safety icons

Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

Indicates a potentially hazardous situation which, if not avoided, may result in property damage.

Provides important information.

Other icons used

Additional icons highlight other helpful or educational information:

TECHNICAL NOTE: This icon indicates technical information about the computer.

HINT: This icon indicates helpful hints and tips.

DEFINITION: This icon indicates the definition of a term used in the text.

Service options

Toshiba offers a full line of optional service programs to complement its standard limited warranty. Toshiba’s standard limited warranty, extended warranty, and service upgrade terms and conditions are available at warranty.toshiba.com

To stay current on the most recent software and hardware options for your computer, and for other product information, be sure to regularly check the Toshiba Web site at pcsupport.toshiba.com.

If you have a problem or need to contact Toshiba, see “If Something

Goes Wrong” on page 148.

Introduction

Selecting a place to work

Your computer is portable and designed to be used in a variety of circumstances and locations.

Setting up a work environment

Place the computer on a hard flat surface that is large enough for the computer and any other items you are using, such as a printer. Leave enough space around the computer and other equipment to provide adequate ventilation. Otherwise, they may overheat. Read the “Provide adequate ventilation” section in the “Instruction Manual for Safety and Comfort” that is shipped with your computer.

To keep your computer in prime operating condition, protect your work area from:

❖ Dust, moisture, and direct sunlight. ❖ Equipment that generates a strong electromagnetic field, such

as stereo speakers (other than speakers that are connected to the computer) or speakerphones.

❖ Rapid changes in temperature or humidity and sources of

temperature change such as air conditioner vents or heaters.

❖ Extreme heat, cold, or humidity. ❖ Liquids and corrosive chemicals.

Keeping yourself comfortable

The Toshiba Instruction Manual for Safety and Comfort, included with your computer, contains helpful information for setting up your work environment and tips for working comfortably throughout the day.

Precautions

Your computer is designed to provide optimum safety and ease of use, and to withstand the rigors of travel. You should observe certain precautions to further reduce the risk of personal injury or damage to the computer.

❖ Avoid prolonged physical contact with the underside or surface

of the computer.

Getting Started

Selecting a place to work

Never allow any liquids to spill into any part of your computer, and never expose the computer to rain, water, seawater or moisture. Exposure to liquid or moisture can cause electric shock or fire, resulting in damage or serious injury. If any of these eventualities should accidentally occur, immediately:

1. Turn off the computer.

2. Disconnect the AC adaptor from the power plug socket and computer.

3. Remove the battery pack.

Failure to follow these instructions could result in serious injury or permanent damage to the computer.

Do not turn on the power again until you have taken the computer to an authorized service center.

Getting Started

Selecting a place to work

❖ Avoid prolonged physical contact with the underside or surface

of the computer.

❖ Computer base and palm rest can become hot! Avoid prolonged

contact to prevent heat injury to skin.

Read the “Avoid extended contact between computer base/palm rest and skin” section in the “Instruction Manual for Safety and Comfort” that is shipped with your computer.

Never place a heavy object on the computer and be careful not to drop a heavy object onto the computer. It could damage the computer or cause system failure.

❖ Never turn off the computer if a drive light indicates a drive is active.

Turning off the computer while it is reading from or writing to a disk/disc or flash media may damage the disk/disc or flash media, the drive, or both.

❖ Keep the computer and disks away from objects that generate

strong magnetic fields, such as large stereo speakers. Information on some disks is stored magnetically. Placing a

magnet too close to a disk can erase important files.

Handle discs carefully. Avoid touching the surface of the disc. Grasp it by its center hole and edge. If you handle the disc incorrectly, you could damage the disc and possibly lose data.

❖ Scan all new files for viruses.

This precaution is especially important for files you receive via email or download from the Internet. Occasionally, even new programs you buy from a supplier may contain a computer virus. You need a special program to check for viruses. Ask your dealer to help you.

Getting Started

NOTE

Setting up your computer

Important information on your computer’s cooling fan

Your computer may have a CPU cooling fan that cools the CPU by drawing outside air into the computer.

Always make sure your computer and AC adaptor have adequate ventilation and are protected from overheating when the power is turned on or when an AC adaptor is connected to a power outlet (even if your computer is in Sleep mode). In this condition, observe the following:

❖ Never cover your computer or AC adaptor with any object. ❖ Never place your computer or AC adaptor near a heat source,

such as an electric blanket or heater.

❖ Never cover or block the air vents including those located at the

base of the computer.

❖ Always operate your computer on a hard flat surface. Using your

computer on a carpet or other soft material can block the vents located at the base of the computer.

Overheating your computer or AC adaptor could cause system failure, computer or AC adaptor damage or a fire, possibly resulting in serious injury.

Read the “Provide adequate ventilation” section in the “Instruction Manual for Safety and Comfort” that is shipped with your computer.

The cooling fan location will vary depending on the computer.

Setting up your computer

TECHNICAL NOTE: You must complete all setup steps up to and including “Setting up your software” on page 44 before adding external or internal components to your computer. These components include, but are not limited to, a mouse, keyboard, printer, and memory.

Your computer contains a rechargeable main battery that needs to be charged before you can use it.

To use external power or to charge the battery you must attach the AC adaptor. See “Connecting to a power source” on page 46.

NOTE

Getting Started

Setting up your computer

Please handle your computer carefully to avoid scratching or damaging the surface.

Setting up your software

When you turn on the computer for the first time, do not turn off the power again until the operating system has loaded completely.

The names of windows displayed, and the order in which windows appear, may vary according to your software setup choices.

The first time you turn on your computer, the Setup Wizard guides you through steps to set up your software.

1 From the Welcome screen click Next to enter the Setup

Wizard.

2 Confirm acceptance of Microsoft’s End User License

Agreement and click Next.

3 Enter your desired user name and password, choose a picture to

be associated with your user account, and then click Next.

4 Enter the computer name and choose your background and

then click Next.

5 Click the appropriate option from the Help Protect Windows

Automatically screen.

6 Follow the remaining screen prompts to complete the setup

process.

7 Click Start when the Thank You message appears.

The Windows performance, and then may restart your computer.

operating system checks the system’s

Registering your computer with Toshiba

NOTE

Registering your computer with Toshiba

Product registration is strongly recommended, and allows Toshiba to send you periodic updates, announcements, and special offers applicable to your product. Product registration can be completed by either visiting the Toshiba Web site at

http://www.register.toshiba.com, or by double-clicking the Tos hi ba

Resources icon on your desktop and then double-clicking Tos hi ba Registration. Failure to complete Product Registration will not

diminish Customer rights under the Toshiba standard limited Warran ty.

To register online, you must be connected to the Internet.

Adding optional external devices

Before adding external devices or memory, Toshiba recommends setting up your software. See “Setting up your software” on page 44.

After starting your computer for the first time you may want to:

❖ Connect a mouse (see “Using a mouse” on page 55) ❖ Connect a full-size keyboard (see “Using an external

keyboard” on page 55)

❖ Connect an external monitor (see “Using external display

devices” on page 53)

❖ Connect a local printer (see “Connecting a printer” on page 56) ❖ Connect an optional external disk drive (see “Connecting an

optional external diskette drive” on page 57)

Getting Started

Connecting to a power source

Your computer requires power to operate. Use the power cord/cable and AC adaptor to connect the computer to a live electrical outlet, or to charge the computer’s battery.

Never pull on a power cord/cable to remove a plug from a socket. Always grasp the plug directly. Failure to follow this instruction may damage the cord/cable, and/or result in a fire or electric shock, possibly resulting in serious injury.

Always confirm that the power plug (and extension cable plug if used) has been fully inserted into the socket, to ensure a secure electrical connection. Failure to do so may result in a fire or electric shock, possibly resulting in serious injury.

Be careful if you use a multiple connector. An overload on one socket could cause a fire or electric shock, possibly resulting in serious injury.

Always use the TOSHIBA AC adaptor that was provided with your computer and the TOSHIBA Battery Charger (that may have been provided with your computer), or use AC adaptors and battery chargers specified by TOSHIBA to avoid any risk of fire or other damage to the computer. Use of an incompatible AC adaptor or Battery Charger could cause fire or damage to the computer possibly resulting in serious injury. TOSHIBA assumes no liability for any damage caused by use of an incompatible adaptor or charger.

Power cord/cable

AC adaptor

(Sample Illustration) Power cord/cable and AC adaptor

AC adaptor cord

Getting Started

Connecting to a power source

To connect AC power to the computer:

1 Connect the power cord/cable to the AC adaptor.

(Sample Illustration) Connecting the power cord/cable to the AC adaptor

Handling the cord on this product will expose you to lead, a chemical known to the State of California to cause birth defects or other reproductive harm. Wash hands after handling.

2 Plug the AC adaptor cord into the DC-IN on the side of the

computer.

(Sample Illustration) Connecting the AC adaptor cord to the computer

3 Connect the power cord/cable to a live electrical outlet.

The AC power light on the indicator panel glows white.

Never attempt to connect or disconnect a power plug with wet hands. Failure to follow this instruction could result in an electric shock, possibly resulting in serious injury.

NOTE

Getting Started

Charging the main battery

The computer’s main battery light gives you an indication of the main battery’s current charge:

❖ Glows amber while the main battery is being charged

(AC adaptor connected)

❖ Glows white when the main battery is fully charged ❖ Is unlit when the main battery has discharged, the battery

is not charging, or the AC adaptor is not plugged into the computer or AC outlet

❖ Flashes amber when the main battery charge is low and it

is time to recharge the main battery or plug in the AC adaptor

If the AC power light flashes amber during charging, either the main battery is malfunctioning, or it is not receiving correct input from the AC power supply.

Disconnect the AC power cord/cable and remove the main battery pack. See “Changing the main battery” on page 98 for information on replacing the main battery.

Charging the main battery

Before using the battery to power the computer, you must charge the battery.

To charge the battery, leave the computer plugged into an AC power source with the computer turned off until the battery light glows white. After that, the battery will be completely charged and ready to power the computer.

Once the battery is charged for the first time, avoid leaving the computer plugged in and turned off for more than a few hours at a time. Continuing to charge a fully charged battery can damage the battery.

TECHNICAL NOTE: The recharging of the battery cannot occur when your computer is using all of the power provided by the AC adaptor to run applications, features, and devices. Your computer’s Power Options utility can be used to select a power level setting that reduces the power required for system operation and will allow the battery to recharge.

Using the computer for the first time

NOTE

Battery life and charge time may vary depending on the applications, power management settings, and features used.

Using the computer for the first time

The computer is now ready for you to turn it on and begin using it.

Opening the display panel

1 Facing the front of the computer, locate the center of the

display panel.

2 Gently raise the panel. 3 Adjust the display to a comfortable viewing angle.

Getting Started

(Sample Illustration) Opening the display panel

When opening or closing the display panel, place one hand on the palm rest to hold the computer in place and use the other hand to slowly open or close the display panel.

To avoid damaging the display panel, do not force it beyond the point where it moves easily and never lift the computer by the display panel.

Do not press or push on the display panel and be careful to remove any pens or other objects from the keyboard area before closing the display panel.

Getting Started

Using the computer for the first time

Small bright dots may appear on your screen display when you turn on your computer. Your display contains an extremely large number of thin-film transistors (TFT) and is manufactured using highprecision technology. Any small bright dots that may appear on your display are an intrinsic characteristic of the TFT manufacturing technology. Over a period of time, and depending on the usage of the computer, the brightness of the screen will deteriorate. This is also an intrinsic characteristic of the screen technology. When the computer is operated on battery power, the screen will dim and you may not be able to increase the brightness of the screen while on battery power.

Your computer’s features and specifications

Certain computer chassis are designed to accommodate all possible configurations for an entire product Series. Your select model may not have all the features and specifications corresponding to all of the icons or switches shown on the computer chassis, unless you have selected all those features.

This information applies to all the features and icons described in this guide.

Below are examples of some of the many possible icons used on your computer:

(Sample Illustration) System icons

Turning on the power

To turn on the computer:

1 Make sure any external devices (such as the AC adaptor, if you

plan to use AC power rather than battery power) are properly connected and ready.

2 Check to ensure that all optical drives are empty.

3 Press and release the power button. The on/off light glows

NOTE

white.

(Sample Illustration) Turning on the power

The preinstalled operating system will load automatically.

When you turn on the computer for the first time, do not turn off the power again until the operating system has loaded completely.

Adding memory (optional)

Getting Started

Adding memory (optional)

HINT: To purchase additional memory modules, see the accessories information packaged with your system or visit

accessories.toshiba.com.

Your computer comes with enough memory to run most of today’s popular applications. You may want to increase the computer’s memory if you use complex software or process large amounts of data.

If you are a technically advanced user, visit pcsupport.toshiba.com for information. Toshiba will not be responsible for any product damage, data loss, service or part replacement made necessary by improper installation of a memory module.

Your computer has two memory module slots. Both slots are located under the keyboard and should only be accessed by a Toshiba-authorized service provider.

Before adding external devices or memory, Toshiba recommends setting up your software. See “Setting up your software” on page 44

NOTE

Getting Started

Using the TouchPad™

Using the TouchPad

The TouchPad™, the small, rectangular area located in front of the keyboard, is sensitive to touch and enables you to move the cursor with the stroke of a finger. Simply move your finger on the TouchPad in the direction you would like to move the cursor:

❖ To move the cursor to the top of the page, push your finger

forward on the TouchPad.

❖ To move the cursor to the bottom of the page, drag your finger

toward yourself.

❖ To move the cursor to the right side of the page, slide your

finger across the TouchPad from left to right.

❖ To move it to the left side, slide your finger from right to left.

Because the TouchPad is much smaller than the display screen, moving your cursor across the screen often means having to move your finger several times across the TouchPad in the preferred direction.

Once you have positioned your cursor, you can click it into place by either double-tapping the TouchPad or clicking the control buttons.

™

Scrolling with the TouchPad

There are two active regions on the TouchPad™ that allow you to scroll as you would with any wheel device on a mouse or trackball.

To scroll vertically, run your finger up or down along the right edge of the TouchPad. To scroll horizontally, run your finger along the bottom edge of the TouchPad. This feature can be disabled or changed in the Mouse Properties dialog box.

™

Control buttons

NOTE

When a step instructs you to click or choose an item, move the cursor to the item, then press and release the primary (left-hand) button. To double-click, press the primary button twice in rapid succession. The primary button usually corresponds to the left mouse button.

The function of the secondary (right-hand) button depends on the program you are using. It usually corresponds to the right mouse button (“right-clicking”). Check your program’s documentation to determine whether it uses the right mouse button.

Getting Started

Using external display devices

Disabling or enabling the TouchPad

The TouchPad™ is enabled by default. To change the enable/disable TouchPad setting, press TouchPad. For more information, see “Disabling or enabling the

TouchPad™” on page 189.

Fn + F9. This hot key enables/disables the

Using external display devices

Your computer comes with a built-in display, but you can also connect an external monitor, projector or TV via the HDMI Out port.

Connecting an external display device

You can easily attach an external monitor, projector or TV to your computer if you need a larger screen. To do this:

1 Read the directions that came with the external device to see if

you first need to install new software.

2 Connect the external device’s video cable to the HDMI Out

port on the side of the computer.

3 Connect the device’s power cable to a live electrical outlet. 4 Turn on the external device.

Your computer will automatically detect the external display device and activate a screen with display options.

5 Select the settings you desire and click Apply. 6 Click OK.

™

In the future you can change the display settings by pressing Fn+F5, or by configuring the display properties settings.

NOTE

Getting Started

Using external display devices

Connecting to a TV using HDMI™-CEC

HDMI™-CEC (Consumer Electronics Control) is a standard in the CE Industry which allows devices to work together over an HDMI cable. Toshiba computers with HDMI-CEC include a Toshiba utility (that may need to be installed) which can allow you to:

❖ Use the TV remote control to output the computer screen onto

the TV screen.

❖ Use the TV remote control to launch, operate and close

applications on your computer.

❖ Turn on the TV when the HDMI output is selected using the

Fn+F5 key.

❖ Switch the video output (HDMI or LCD) when executing

certain desktop icons.

❖ Enable/Disable the HDMI-CEC function on the computer.

For more detailed HDMI-CEC information, visit

pcsupport.toshiba.com.

Directing the display output when you turn on the computer

Once you have connected an external display device, you can choose to use the internal display only, the external device only, or both simultaneously.

Some modes are only available with the appropriate device attached and turned on.

The quickest way to change the display output settings is to use the display hot key (

1 Press 2 While holding down

you want takes effect. Briefly pause each time you press the key to allow time for the display to change.

This hot key cycles through the settings in the following order (the last two options are available if an external monitor is connected):

❖ LCD—Built-in display only ❖ LCD + HDMI—Built-in display and TV (or other external

video device) simultaneously

❖ HDMI—TV (or other external video device) only

Fn + F5):

Fn and F5 simultaneously.

Fn, press F5 repeatedly until the setting

Getting Started

Using an external keyboard

❖ LCD + HDMI—Built-in display and TV (extended

desktop)

❖ Switch monitor—Switch primary display between internal

display and external monitor when using extended desktop

(Sample Image) Display options window

3 Release the

Fn key.

Adjusting the quality of the external display

To obtain the best picture quality from your television (or other video display device), you may need to adjust the video settings. See the video device documentation for additional configuration steps.

Using an external keyboard

If you prefer to use a full-size keyboard, you can attach one to your computer. The computer’s USB ports support most USBcompatible keyboards.

Using a mouse

You may want to use a mouse instead of the computer’s built-in TouchPad. You can use a USB-compatible mouse.

NOTE

Getting Started

Connecting a printer

Your printer documentation may require you to install the printer software before physically connecting the printer to your computer. If you do not install the software as instructed by the printer manufacturer, the printer may not function correctly.

Read the documentation that came with your printer. Follow the manufacturer’s instructions when connecting a printer.

You can connect a USB-compatible printer to your computer through the USB ports. To determine if the printer is USBcompatible, check its documentation.

To make the connection, you need a suitable USB cable which may come with your printer. If a USB cable was not included with your printer, you can purchase one from a computer or electronics store.

If your printer supports Plug and Play, your computer may automatically recognize the printer; the printer is then ready for use. Refer to your printer documentation for further instructions.

TECHNICAL NOTE: To determine if your printer supports Plug and Play, check its documentation.

If your printer does not support Plug and Play, you can set up the printer as described in “Setting up a printer” on page 57.

To connect a printer to your computer:

1 Connect the printer cable to the printer and then connect the

other end to one of the computer’s USB ports.

2 Plug the printer’s power cable into a live AC outlet.

Connecting an optional external diskette drive

NOTE

Setting up a printer

Some printers require a specific installation process. Refer to your printer installation guide for instructions before completing the following procedure.

If your printer does not support Plug and Play, follow these steps to set it up for the first time. You only need to set up the printer once.

1 Click Start, Control Panel, Hardware and Sound, and then

under Printers, click Add a printer. The Add Printer Wizard appears.

Getting Started

(Sample Image) Add Printer Wizard

2 Follow the on-screen instructions to set up your printer.

Connecting an optional external diskette drive

Some operations, such as creating a password service diskette, require a diskette drive designed for use with 3.5-inch diskettes.

(Sample Illustration) Optional external USB diskette drive

Getting Started

Turning off the computer

To connect an optional external USB diskette drive, connect the cable to one of the computer’s USB ports.

(Sample Illustration) Connecting an optional external USB diskette

drive

Turning off the computer

Pressing the power button before shutting down the Windows® operating system could cause you to lose your work. Make sure the system indicator panel’s storage drive light and the drive-in-use light are off. If you turn off the power while a disk/disc is being accessed, you may lose data or damage the disk/disc and/or drive.

It is a good idea to turn off your computer when you are not using it for a while.

If you are using the computer for the first time, leave the computer plugged into a power source (even though the computer is off) to fully charge the main battery.

Options for turning off the computer

Depending on the operating system installed, you have more than one option available for turning off the computer: Shut Down, Hibernate, and Sleep. Each option has its advantages.

❖ Use the Shut Down or Hibernate command if you will not be

using the computer for several days or if you must turn off your computer.

You must turn off your computer in order to upgrade your computer’s internal hardware (such as memory).

Getting Started

Turning off the computer

TECHNICAL NOTE: Before using the Shut Down option to turn off your computer, save your files and make sure all disk/disc activity lights are off.

If you change your mind and decide to continue working after all, wait a few seconds before turning the computer on again.

❖ Use the Sleep command to save your work, system settings,

and current state of the desktop to memory, so that when you turn on the computer again, you will quickly and automatically return to where you left off.

Hibernation mode

Hibernation mode shuts the computer down completely, but it first saves the current state of the computer to the internal storage drive. Since Hibernation mode does not require power to maintain the saved information, system settings are retained indefinitely.

Factors to consider when choosing Hibernation:

❖ While in Hibernation mode, the computer uses no main battery

power.

❖ Because the state of the system is stored to the internal storage

drive, no data is lost if the main battery discharges.

❖ Restarting from Hibernation takes less time and consumes less

main battery power than restarting after turning off the computer using the Shut down command.

❖ Restarting from Hibernation takes a little more time and

consumes more main battery power than restarting from Sleep.

❖ When starting up again, the computer returns to the state in

which you left it, including all open programs and files you were using.

For information on how to use and configure Hibernation mode see

“Using and configuring Hibernation mode” on page 63.

NOTE

Getting Started

Turning off the computer

Sleep mode

The Sleep command places the computer into a power-saving mode. Sleep saves the current state of the computer to memory so that, when you restart the computer, you can continue working from where you left off.

After your computer sleeps for an extended period of time, the Windows programs to your internal storage drive, and then shuts down the computer.

Factors to consider when choosing Sleep:

❖ While in Sleep mode, the computer uses some main battery

power.

❖ Because the state of the system is stored in memory, you will

lose data if the main battery discharges while the computer is in Sleep mode.

❖ Restarting from Sleep takes less time and consumes less main

battery power than restarting after turning off the computer using the Hibernation or Shut down commands.

❖ When starting up again, the computer returns to the mode in

which you left it, including all open programs and files you were using.

❖ If the battery charge becomes critically low, the computer will

try to enter Hibernation mode.

If you power down using the Sleep command and the main battery discharges fully, your unsaved information will be lost. Be sure to save your work first.

operating system may save any open documents and

For information on using Sleep, see “Using and configuring Sleep

mode” on page 65.

Using the Shut Down command

The Shut down command completely shuts down the computer without saving your work or the current state of the computer. This command closes all open programs, shuts down the operating system, and then turns off your computer.

Use the following steps to turn off your computer using the Shut Down command:

1 Click Start, and then click the arrow next to the Lock button in

the lower-right part of the Start menu. The Shut Down menu appears.

Getting Started

Turning off the computer

Start

(Sample Image) Shut Down menu

2 Click Shut Down.

The computer closes all open programs, shuts down the operating system, and then turns off.

Arrow

Shut Down Menu

Turning off the computer more quickly

You can also turn off the computer by pressing the power button. To use this method, you first need to activate it using the Power

Options feature. By default, pressing your computer’s power button puts the computer into Sleep mode.

1 Click Start, Control Panel, System and Maintenance, and

then Power Options. The Power Options window appears.

2 Click Change plan settings under the power plan to be

customized. The Edit Plan Settings window appears.

NOTE

Getting Started

Turning off the computer

3 Click Change advanced power settings.

The Advanced settings tab of the Power Options window appears.

(Sample Image) Advanced settings tab of Power Options screen

4 Click Power buttons and lid to display the actions that you

can configure.

5 Select the options you want from the drop-down lists.

These options can be set separately for how they operate while the computer is running on battery power or while connected to AC power.

❖ Lid close action

Set this option to Shut down if you want the computer to shut down when you close the display panel.

❖ Power button action

Set this option to Shut down if you want the computer to shut down when you press the power button.

❖ Start menu power button

Set this option to Shut down if you want the computer to shut down when you click the power button in the Start menu.

6 Click Apply. 7 Click OK.

Turning off the computer

Once the computer is configured, you can turn it off by either pressing the power button or closing the display panel, depending on the options set.

Restarting your computer

To start the computer up again, press the power button until the on/off light glows white.

If you turn off the computer by closing the display panel, you can start it again by opening the display panel.

Using and configuring Hibernation mode

To turn off the computer using the Hibernation command:

1 Click Start, and then click the arrow next to the Lock button in

the lower-right part of the Start menu. The Shut Down menu appears.

Getting Started

Start

(Sample Image) Shut Down menu

2 Click Hibernate.

The computer saves the state of all open programs and files, turns off the display, and then turns off.

Arrow

Shut Down Menu

Configuring Hibernation mode options

You can place the computer into Hibernation mode by either pressing the power button or closing the display panel. You can also specify an amount of time after which the computer automatically goes into Hibernation mode.

NOTE

Getting Started

Turning off the computer

To use any of these methods, you first need to enable them using the Power Options feature.

1 Click Start, Control Panel, System and Maintenance, and

then Power Options. The Power Options window appears.

2 Click Change plan settings under the power plan to be

customized. The Edit Plan Settings window appears.

3 Click Change advanced power settings.

The Advanced settings tab of the Power Options window appears.

(Sample Image) Advanced settings tab of Power Options screen

4 Click Power buttons and lid to display the actions that you

can configure.

5 Select Hibernate for the options you want.

These options can be set separately for how they operate while the computer is running on battery power or while connected to AC power.

❖ Lid close action

Set this option to Hibernate if you want the computer to go into Hibernation mode when you close the display panel.

Getting Started

Turning off the computer

❖ Power button action

Set this option to Hibernate if you want the computer to go into Hibernation mode when you press the power button.

❖ Start menu power button

Set this option to Hibernate if you want the computer to go into Hibernation mode when you click the power button in the Start menu.

6 Click Apply. 7 Click OK.

Once the computer is configured, you can place it into Hibernation mode by either pressing the power button or closing the display panel, depending on the Hibernation options set.

Starting again from Hibernation mode

To start up the computer from Hibernation mode, press the power button until the on/off light glows white. The computer returns to the screen(s) you were using.

If you put the computer in Hibernation mode by closing the display panel, you can start it again by opening the display panel.

Using and configuring Sleep mode

To turn off the computer using the Sleep command:

1 Click Start, and then click the arrow next to the Lock button in

the lower-right part of the Start menu. The Shut Down menu appears.

Start

(Sample Image) Shut Down menu

Arrow

Shut Down Menu

Getting Started

Turning off the computer

2 Click Sleep.

The computer saves the status of all open programs and files to the memory, turns off the display, and enters into a low-power mode. The on/off light blinks amber indicating the computer is in Sleep mode.

Configuring Sleep mode options

You can place the computer into Sleep mode by either pressing the power button or closing the display panel. You can also specify an amount of time after which the computer automatically goes into Sleep mode.

To use any of these methods, you first need to enable them using the Power Options feature.

1 Click Start, Control Panel, System and Maintenance, and

then Power Options. The Power Options window appears.

2 Click Change plan settings under the power plan to be

customized. The Edit Plan Settings window appears.

(Sample Image) Edit Plan Settings screen

3 To change the amount of time after which the computer enters

Sleep mode:

❖ Under Put the computer to sleep, select the desired

amount of time in both the On battery and Plugged in categories.

❖ To disable the computer from automatically entering Sleep

mode, select Never.

Getting Started

NOTE

Turning off the computer

4 Click Change advanced power settings.

The Advanced settings tab of the Power Options window appears.

(Sample Image) Advanced settings tab of Power Options screen

5 Click Power buttons and lid to display the actions that you

can configure.

6 Select Sleep for the options you want.

These options can be set separately for how they operate while the computer is running on battery power or while connected to AC power.

❖ Lid close action

Set this option to Sleep if you want the computer to go into Sleep mode when you close the display panel.

❖ Power button action

Set this option to Sleep if you want the computer to go into Sleep mode when you press the power button.

❖ Start menu power button

Set this option to Sleep if you want the computer to go into Sleep mode when you click the power button in the Start menu.

7 Click Apply. 8 Click OK.

NOTE

Getting Started

Customizing your computer’s settings

Once the computer is configured, you can place it into Sleep mode by either pressing the power button or closing the display panel, depending on the Sleep options set.

Starting again from Sleep mode

To start up the computer from Sleep mode, press the power button until the on/off light glows white. The computer returns to the screen(s) you were using.

If you place the computer in Sleep mode by closing the display panel, you can start it again by opening the display panel.

Closing the display panel

After you have turned off the computer, close the display panel to keep dust and dirt out of the computer.

Customizing your computer’s settings

There are several ways in which you can customize your computer to suit your particular requirements. Refer to your operating system documentation or Help and Support for details.

You may also wish to customize your power usage settings. For more information, see “Power Plans” on page 96. There are additional custom settings you can choose. See “Utilities” on

page 116.

Caring for your computer

This section gives tips on cleaning and moving your computer. For information about taking care of your computer’s battery, see

“Taking care of your battery” on page 101.

Please handle your computer carefully to avoid scratching or damaging the surface.

Cleaning the computer

Keep liquids, including cleaning fluid, out of the computer’s keyboard, speaker, and other openings. Never spray cleaner directly onto the computer and/or display. Never use harsh or caustic chemical products to clean the computer.

To keep your computer clean, gently wipe the display panel and exterior case with a lightly dampened cloth.

Moving the computer

Before moving your computer, even across the room, make sure all drive activity has ended (the internal storage drive and optical drive indicator lights stop glowing) and all external peripheral cables are disconnected.

Do not pick up the computer by its display panel or by the back. Doing so could damage the system.

Using a computer lock

You may want to secure your computer to a heavy object such as your desk. The easiest way to do this is to purchase an optional computer lock cable. For more information on purchasing a cable lock, visit accessories.toshiba.com.

Getting Started

Caring for your computer

(Sample Illustration) Computer lock cable

To secure the computer:

1 Wrap the cable through or around some part of a heavy object.

Make sure there is no way for a potential thief to slip the cable off the object.

2 Pass the locking end through the loop. 3 Insert the cable’s locking end into the security lock slot on your

computer, then engage the locking device. The computer is now securely locked.

(Sample Illustration) Attaching security lock cable

Chapter 2

Learning the Basics

This chapter gives some computing tips and provides important information about basic features.

Computing tips

❖ Save your work frequently.

Your work stays in the computer’s temporary memory until you save it to the internal storage drive. If the network you are using goes down and you must restart your computer to reconnect, or your battery runs out of charge while you are working, you will lose all work since you last saved.

See “Saving your work” on page 77 for further information.

HINT: Some programs have an automatic save feature that can be activated. This feature saves your file to the internal storage drive at preset intervals. See your software documentation for details.

Learning the Basics

NOTE

Computing tips

❖ Back up your files to disks (or other removable media) on a

regular basis. Label the backup copies clearly and store them in a safe place.

It is easy to put off backing up because it takes time. However, if your internal storage drive suddenly fails, you will lose all the data on it unless you have a separate backup copy. For more information, see “Data and system configuration backup in the

Windows® operating system” on page 168.

❖ Use Error-checking and Disk Defragmenter regularly to check

and optimize disk space and improve performance.

❖ Scan all new files for viruses.

This precaution is especially important for files you receive via diskette, email, or download from the Internet.

❖ Take frequent breaks to avoid repetitive-motion injuries and

eyestrain.

❖ Do not turn off the computer if a drive indicator light indicates

a drive is active. Turning off the computer while it is reading from or writing to

a disk may damage the disk, the drive, or both.

❖ Before turning off the computer, use the Shut Down command

or Sleep command. See “Using and configuring Sleep mode”

on page 65 to learn more about Sleep.

The Windows® operating system records information, such as your desktop setup, during its shutdown procedure. If you do not let the Windows new icon positions may be lost.

operating system shut down normally, details such as

Learning the Basics

Using the keyboard

Your computer’s keyboard contains character keys, control keys, function keys, and special Windows functionality of a full-size keyboard.

(Sample Illustration) Keyboard

Character keys

Typing with the character keys is very much like typing on a typewriter, except that:

❖ The space bar creates a space character instead of just passing

over an area of the page.

❖ The lowercase letter l (el) and the number 1 are not

interchangeable.

❖ The uppercase letter O and the number 0 are not

interchangeable.

keys, providing all the

Making your keyboard emulate a full-size keyboard

Although your computer’s keyboard layout is compatible with a standard full-size keyboard, it includes fewer keys.

A standard full-size keyboard includes two editing keys; cursor positioning keys; and a numeric keypad.

Your computer’s keyboard includes only one time, this does not matter. However, some programs assign separate functions to the regular and numeric pad keyboard. Using the Fn key, you can simulate the separate key, as follows: Press on the numeric pad of the enhanced keyboard. Pressing the simultaneously in combination with one of the specially marked keys allows you to emulate a full-size keyboard.

Fn and Enter simultaneously to simulate the Enter key

Enter, Ctrl, and Alt keys;

Enter keys on the full-sized

Enter key. Most of the

Fn key

Ctrl, Fn, and Alt keys

Learning the Basics

Using the keyboard

(Sample Illustration) Ctrl, Fn, and Alt keys

The

Ctrl, Fn, and Alt keys do different things depending on the

program you are using. For more information, see your program documentation.

Function keys

The function keys (not to be confused with the Fn key) are the 12 keys at the top of the keyboard.

(Sample Illustration) Function keys

F1 through F12 are called function keys because they execute

programmed functions when pressed. Used in combination with the

Fn key, function keys marked with icons execute specific functions

on the computer. For example, more information, see “Hot key functions” on page 180.

Special Windows® keys

Fn+F9 turns off the TouchPad. For

Windows

Application key

button

(Sample Illustration) Special Windows® keys

Your computer’s keyboard has one key and one button that have special functions in Windows

❖ Windows ❖ Application key—Has a similar function as the secondary

mouse button

button—Opens the Start menu

Overlay keys

The keys with gray numbers and symbols on the front of them form the numeric and cursor overlay. This overlay lets you enter numeric data or control the cursor as you would using the 10-key keypad on a desktop computer’s keyboard.

(Sample Illustration) Numeric and cursor control overlay

Learning the Basics

Using the keyboard

Using the overlay to type numeric data

The keys with the numbers on their right front are the numeric overlay keys.

To turn the numeric overlay on, press The numeric mode light on the keyboard indicator panel glows when the numeric overlay is on.

To disable the numeric overlay, hold down the again. The numeric mode light on the keyboard indicator panel goes out.

Using the overlay for cursor control

The keys with the gray arrows and symbols on their left front are the cursor control overlay keys.

To turn the cursor control overlay on, press simultaneously. The cursor control mode light on the keyboard indicator panel glows when the cursor control overlay is on.

To disable the cursor control overlay, hold down the press

F10 again. The cursor control mode light on the keyboard

indicator panel goes out.

Fn and F11 simultaneously.

Fn key and press F11

Fn and F10

Fn key and

Starting a program

NOTE

The easiest way to start a program is to double-click the name of the file that contains the information you want to work on. To find the file, use the Start menu or Windows

If you prefer to open the program first, you have four options. You can:

❖ Double-click the icon for the program on your desktop ❖ Use the Start menu ❖ Use Windows

program file

❖ Use the Search or Start Search field in the Start menu

The next three sections explain how to start a program from the Start menu, Windows

Starting a program from the Start menu

When you install a program, the operating system usually puts an icon in the All Programs menu. To start a program that has an icon in the All Programs menu, follow these steps, which use the Windows

1 Click Start, and then All Programs.

WordPad program as an example:

The Windows menu, which lists programs and program groups. If your program is listed, go to step 3, otherwise, continue with step 2.

Explorer or the Start menu to locate the

Explorer and the Start Search field.

operating system displays the All Programs

Learning the Basics

Starting a program

Explorer.

If you pause with your mouse on All Programs, it will open it up. You may need to scroll up or down to see the complete list.

2 Click the program group, in this example, Accessories.

The Accessories menu is displayed.

3 Click the program, in this example, WordPad.

WordPad opens. To close the program, click the Close button in the upper-right

corner of the program’s window.

NOTE

Learning the Basics

Starting a program

Starting a program from Windows® Explorer

If a program is not listed in the All Programs menu, you can start it from Windows your computer’s contents as a hierarchy or “tree.” You can easily see the contents of each drive and folder on your computer. To use this method, you should know the file name and location of the program’s executable file (this file ends with .exe).

This example opens WordPad using Windows

1 Click Start, and then All Programs.

2 Click Accessories. 3 Click Windows Explorer. 4 In the left part of the window, double-click Computer to

expand the window.

5 In the left part of the window, click the line that ends in “Local

Disk (C:).”

6 In the left part of the window, under the Local Disk C: icon,

double-click the folder containing the program, in this case Program Files.

Windows folder on the right side of the window. The left side of the window shows all the folders contained within the Program Files folder.

7 In the left part of the window, double-click Windows NT. 8 In the left part of the window, double-click Accessories.

Windows folder on the right side of the window.

9 In the right part of the window, double-click wordpad.

The operating system opens WordPad. To close the program, click the Close button in the upper-right

corner of the program’s window.

Explorer. Windows® Explorer gives you a view of

If you pause with your mouse on All Programs, it will open it up. You may need to scroll up or down to see the complete list.

Explorer shows the contents of the Program Files

Explorer shows the contents of the Accessories

Explorer.

Learning the Basics

Saving your work

Starting a program using the Start Search field

This example uses the Start menu’s Start Search field to start WordPad :

1 Click Start to display the Start menu.

The Start Search field appears at the bottom of the Start menu.

Start Search field

(Sample Image) Start Search field in Start menu

Arrow

2 Start typing the program’s name (

field. As you type, all matching files and programs are displayed in

the Start menu.

3 Click WordPad under Programs at the top left of the Start

menu.

Saving your work

Before you turn off the computer using the Shut Down command, save your work on the internal storage drive, diskette, flash media, or optical disc. This is one of the most important rules of computing.

When you turn off the computer using the Sleep or Hibernate commands, your work should be there when you resume.

Many programs offer a feature that saves documents at regular intervals. Check your program’s documentation to see if it has an automatic save feature.

wordpad) in the Start Search

Learning the Basics

Saving your work

Saving files

1 In your Windows®-based application, click File, and then Save. 2 Click Browse folders.

If you are working with a document that already has a file name, this is all you need to do. If you created a new document, your program displays a Save As dialog box.

Use this dialog box to specify where to store the document and to give it a file name.

(Sample Image) Save As dialog box

3 Choose the drive and folder where you want your file to be

stored.

4 Type a file name, then click Save.

HINT: To make another copy of the file you are currently working with, click File, and then Save As, and give the new file a different name.

Learning the Basics

Printing your work

File names

The Windows® operating system supports long file names that can contain up to 260 characters and can include spaces. Some applications do not support long file names and require file names limited to no more than eight characters.

You may use all the letters, numbers, and other characters on the keyboard, except for these characters: \ / ? : * " > < |. File names are not case-sensitive.

Using a file extension

Most programs assign an extension to the file name that identifies the file as being created in the program with a particular format. For example, Microsoft file name with an extension of “.doc” is assumed to be a Microsoft Word file. Creating your own extension is usually unwise, since the program is unlikely to recognize a strange extension and may refuse to handle your file correctly.

TECHNICAL NOTE: By default, the Windows® operating system does not show file extensions. For information on showing or hiding file extensions, see your Windows® online Help.

Word saves files with a .doc extension. Any

Printing your work

Ensure the operating system is set up for your printer as described in “Setting up a printer” on page 57.

HINT: You only need to set up the printer the first time you connect it. If you use more than one printer or are changing printers, you will need to set up the Windows additional printer(s).

To print a file:

1 If your printer is not on, turn it on now.

operating system to run with the

Learning the Basics

Backing up your work

2 In your Windows®-based application, click File, and then Print.

The program displays a Print dialog box.

(Sample Image) Print dialog box

3 Specify the print parameters. For example, the range of pages

and number of copies to print.

4 Click Print.

Backing up your work

Back up all the files you create in case something happens to your computer. You can back up your files to different types of media such as CDs, DVDs, diskettes, or to a network, if available.

To back up several files at one time, use the Microsoft backup program preinstalled on the computer’s internal storage drive. Also see “Backing up your data or your entire computer with

the Windows® operating system” on page 170.

HINT: Backing up all the files on your internal storage drive may take a considerable amount of time and multiple CDs/DVDs. You may prefer to use a high-capacity backup system, such as an external hard drive.

Small files can be backed up on diskettes if an optional external diskette drive is available.

Windows®

Restoring your work

NOTE

To restore information from your backup media to your internal storage drive, use the Restore page in the backup program. Look in the online Help or your operating system documentation for information on restoring files.

TECHNICAL NOTE: When restoring files, the backup program prompts you if you try to overwrite a file that already exists on the internal storage drive. Make sure the backup version is the one you want before overwriting the existing file.

Using the optical drive

Optical storage has become the preferred medium for software, music, and video. Digital versatile discs (DVDs) provide a significant increase in data storage and support features that were not available on previous video platforms. These features include wide-screen movies, multiple language tracks, digital surround sound, multiple camera angles, and interactive menus.

For these reasons, your computer may come with an optical drive.

Learning the Basics

Using the optical drive

TECHNICAL NOTE: Your optical drive is set to play region 1 (North America) DVD-ROMs. If you play a DVD disc from another region, the drive will automatically change to play in the format of the other region. The drive will allow you to change regions four times. On the fourth change, the region will be “locked in.” That is, the drive will only play DVDs from that last region. Note that changing from region 1 to region 2 and back to region 1 is counted as two changes.

For optimum DVD performance, it is recommended that you play DVDs while running the computer on AC power.

NOTE

Learning the Basics

Using the optical drive

When viewing DVD movies use the DVD Player software that came with your computer.

Optical drive components

The optical drive is located on the side of the computer. Your optical drive may look like this:

Drive in-use indicator light Eject button Manual eject hole

(Sample Illustration) Optical drive

Drive in-use indicator light—Indicates when the drive is in use. Eject button—Press to release the disc tray.

Do not press the eject button or turn off the computer while the drive in-use indicator light is glowing. Doing so could damage the disc or the drive.

When the disc tray is open, be careful not to touch the lens or the area around it. Doing so could cause the drive to malfunction.

Manual eject hole—Use if you need to release the disc tray when the power is off. Use a straightened paper clip or other narrow object to press the manual eject button located inside the hole.

Never use a pencil to press the manual eject button. Pencil lead can break off inside the computer and damage it.

Media control buttons

The media control buttons located to the side of the keyboard let you mute the sound and play audio CDs or DVD movies when the computer is on.

Learning the Basics

Using the optical drive

Play/Pause button

Stop button

Previous track button

Next track button

Mute button

Volume increase button

Volume decrease button

(Sample Illustration) Media control buttons

The Play/Pause button starts playing the disc or makes it pause if currently playing.

The Stop button stops a disc that is currently playing. The Previous track button returns to the preceding track on the

disc. The Next track button skips to the following track on the disc. The Mute button allows you to mute the sound. The Volume increase button allows you to increase the volume of

the sound coming from the computer. The Volume decrease button allows you to decrease the volume of

the sound coming from the computer.

Learning the Basics

Using the optical drive

Inserting an optical disc

To insert an optical disc into the drive:

1 Make sure the computer is turned on.

The drive will not open if the computer’s power is off.

2 Make sure the drive’s in-use indicator light is off. 3 Press the drive’s eject button.

The disc tray slides partially out of the drive (about 1 inch).

4 Grasp the tray and pull it fully open.

(Sample Illustration) Drive tray fully extended

5 Hold the disc by its edges and check that it is free of dust.

If the disc is dusty, clean it as described in “Caring for optical

discs” on page 87.

6 Place the disc carefully in the disc tray, label side up.

(Sample Illustration) Positioning the disc in the drive

7 Gently press the disc onto the center spindle until it clicks into

place.

Handle DVDs and CDs carefully, making contact only with the center hole and edge. Do not touch the surface of the disc. Do not stack discs. If you incorrectly handle the discs, you could lose data.

8 Make sure the disc is completely on the spindle and is lying flat

on the tray.

If you insert the disc incorrectly, it may jam the drive. If this happens, contact Toshiba support for assistance.

9 Push the disc tray in by pressing gently on the center of the tray

until it clicks into place. You are ready to use the disc.

Playing an audio CD

Insert an audio CD and close the disc tray. If the computer is turned on, the default player opens.

❖ To play the CD or to pause, click the Play/Pause button. ❖ To stop the CD, click the Stop button.

Learning the Basics

Using the optical drive

Before putting on headphones to listen, turn the volume down. Do not set the volume too high when using headphones. Continuous exposure to loud sound can harm your hearing.

Playing optical media

If you insert an optical disc into the optical drive and the Auto-Run feature does not automatically start your disc, try launching the optical disc manually. To do this, follow these steps:

1 Click Start, and then Computer. 2 Click the optical drive icon.

The disc drive will run the optical disc.

NOTE

Learning the Basics

Using the optical drive

If your disc does not run using this method, try using an application that is associated with the media on the disc. For example, if it is a music CD, open Windows Media then play the CD. For other types of media, use the associated software to open the files on the disc.

Recording optical media

Depending on the configuration, your computer may come with an optical drive that allows you to:

❖ Play pre-recorded and recorded optical media. ❖ Read/write data and multi-media files to recordable optical

media.

For more information regarding supported optical media formats please refer to your computer’s detailed specifications at

pcsupport.toshiba.com.

Due to manufacturing and quality variations in third party optical media (e.g., CD or DVD) or optical media players/recorders, in certain cases, your Toshiba optical drive may not record on certain optical media that bear the applicable logo, or play back optical media recorded by other computers or optical media recorders. Additionally, certain optical media recorded on your optical drive may not play back or operate properly on other computers or optical media players. These problems are not due to any defect in your Toshiba computer or optical drive. Please refer to your computer's product specification for listing of specific format compatibilities.

Copy protection technology may also prevent or limit recording or viewing of certain optical media.

Player and use it to select and

For details on how to use the software, please refer to the respective Online Help menus.

Removing a disc with the computer on

To remove an optical disc with the computer turned on:

1 Press the eject button on the drive.

Do not press the eject button while the in-use indicator light is glowing. Doing so could damage the disc or the drive.

Also, if the disc is still spinning when you open the disc tray, wait for it to stop spinning before you remove it.

Toshiba’s online resources

2 Pull the tray out until it is fully open, remove the disc, and

place it in its protective cover.

3 Gently press the tray in to close it.

Removing a disc with the computer off

To remove a disc with the computer turned off:

1 Insert a slender object, such as a straightened paper clip, into

the manual eject hole. The disc tray slides partially out of the drive (about 1 inch).

Never use a pencil to press the manual eject button. Pencil lead can break off inside the computer and damage it.

2 Pull the tray out until it is fully open, remove the disc, and

place it in its protective cover.

3 Gently press the tray in to close it.

Caring for optical discs

❖ Store your discs in their original containers to protect them

from scratches and keep them clean.

❖ Do not bend a disc or place heavy objects on top of it. ❖ Do not apply a label to, or otherwise mar the surface of, a disc. ❖ Hold a disc by its outside edge. Fingerprints on the surface can

prevent the optical drive from reading the data properly.

❖ Do not expose discs to direct sunlight or extreme heat or cold. ❖ To clean a disc that is dirty, wipe it with a clean, dry cloth. The

most efficient method to clean it is to start from the center of the disc and wipe toward the outward edge (not in a circle). If necessary, moisten the cloth with water or a neutral cleaner (not benzine or rubbing alcohol). Let the disc dry completely before inserting it in the drive.

Learning the Basics

Toshiba’s online resources

Toshiba maintains a number of online sites to which you can connect. These sites provide information about Toshiba products, give help with technical questions and keep you up to date with future upgrades. For more information, see “Contacting Toshiba”

on page 173.

Chapter 3

Mobile Computing

This chapter covers all aspects of using your computer while traveling.

Toshiba’s energy-saver design

Your computer enters a low-power suspension mode when it is not being used, thereby conserving energy and saving money in the process. It has a number of other features that enhance its energy efficiency.

Many of these energy-saving features have been preset by Toshiba. We recommend you leave these features active, allowing your computer to operate at its maximum energy efficiency, so that you can use it for longer periods while traveling.

Running the computer on battery power

The computer contains a removable Lithium-Ion (Li-Ion) battery that provides power when you are away from an AC outlet. You can recharge it many times.

Battery Notice

NOTE

Battery life may vary considerably from specifications depending on product model, configuration, applications, power management settings and features utilized, as well as the natural performance variations produced by the design of individual components. Published battery life numbers are achieved on select models and configurations tested by Toshiba at the time of publication. Recharge time varies depending on usage. Battery may not charge while the computer is consuming full power.

After a period of time, the battery will lose its ability to perform at maximum capacity and will need to be replaced. This is normal for all batteries. To purchase a new battery pack, see the accessories information included with your computer or visit the Toshiba Web site at accessories.toshiba.com. Use only batteries designed to work with your Toshiba computer.

To ensure that the battery maintains its maximum capacity, operate the computer on battery power at least once a month. The LithiumIon battery has no memory effect so it is not necessary to let the battery fully discharge each time. However, for better accuracy of the battery meter, it is helpful to fully discharge the battery periodically. Please see “Maintaining your battery” on page 102 for procedures. If the computer is continuously operated on AC power, either through an AC adaptor or a port replicator (if applicable to your system), for an extended period (more than a month), the battery may fail to retain a charge. This may shorten the life of the battery, and may cause the battery meter to be inaccurate.

Mobile Computing

Running the computer on battery power

For optimum DVD performance, it is recommended that you play DVDs while running the computer on AC power. For more information about Windows

page 96.

The computer also has an internal real-time-clock (RTC) battery. The RTC battery powers the RTC memory that stores your system

configuration settings and the current time and date information. It maintains this information for up to a month while the computer is turned off.

TECHNICAL NOTE: Depending on your system, the RTC battery may only charge while the computer is turned on.

power plans, see “Power Plans” on

NOTE

Mobile Computing

Charging batteries

Power management

Your computer ships with the power management options preset to a configuration that will provide the most stable operating environment and optimum system performance for both AC power and battery modes.

Changes to these settings may result in system performance or stability issues. Users who are not completely familiar with the power management component of the system should use the preset configuration. For assistance with setup changes, contact Toshiba’s Customer Support Center.

Using additional batteries

In addition to the main battery, you may also have an optional secondary battery (not included with your computer). If you travel and need to work for many hours without an AC power source, you may purchase a battery module for use in the computer, or carry additional charged battery packs with you. You can then replace a discharged battery and continue working.

For more information on batteries and accessories, see

accessories.toshiba.com.

Charging batteries

The battery needs to be charged before you can use it to power the computer.

Never leave batteries in the battery charger for more than a week at a time. Doing so may reduce the potential charge of the battery.

Always use the battery charger specified by Toshiba. You can order a Toshiba battery charger from Toshiba’s Web site at

accessories.toshiba.com.

Battery charge time may vary depending on the applications, power management settings, and features used.

Charging the main battery

NOTE

To charge the main battery while it is in your computer, plug the computer into a live electrical outlet. The battery charges whether the computer is on or off.

TECHNICAL NOTE: The recharging of the battery cannot occur when your computer is using all of the power provided by the AC adaptor to run applications, features, and devices. Your computer's Power Options utility can be used to select a power level setting that reduces the power required for system operation and will allow the battery to recharge.

The battery may not start charging immediately under the following conditions:

❖ The battery is extremely hot or cold.

To ensure that the battery charges to its full capacity, wait until it reaches room temperature (50 to 80 degrees Fahrenheit, 10 to 26 degrees Celsius).

❖ The battery is almost completely discharged.

Leave the power connected and the battery should begin charging after a few minutes.

Mobile Computing

Charging batteries

HINT: Once the battery is fully charged, we recommend that you operate your computer on battery power until the battery discharges completely. Doing this extends battery life and helps ensure accurate monitoring of battery capacity.

Charging the RTC battery

Your computer has an internal real-time clock (RTC) battery. The RTC battery powers the System Time Clock and BIOS memory used to store your computer’s configuration settings. When fully charged, it maintains this information for up to a month when the computer is powered off.

The RTC battery may have become completely discharged while your computer was shipped, resulting in a CMOS error message during startup. The error message may vary by computer model.

Depending on your system, the RTC battery may only charge while the computer is turned on.

NOTE

Mobile Computing

Monitoring main battery power

To recharge the RTC battery, plug the computer into a live electrical outlet and leave the computer powered on for 24 hours.

It is seldom necessary to charge the RTC battery because it charges while the computer is on. If the RTC battery is low, the real-time clock and calendar may display the incorrect time and date or stop working.

When Hibernation mode is enabled and the RTC battery is completely discharged, a warning prompts you to reset the real-time clock.

The computer can be used while the RTC battery is being charged.

Monitoring main battery power

The computer’s main battery light gives you an indication of the main battery’s current charge.

❖ Glows amber while the main battery is being charged

(AC adaptor connected).

❖ Glows white when the main battery is fully charged. ❖ Is unlit when the battery has discharged, the battery is not

charging, or the AC adaptor is not plugged into the computer or AC outlet.

Battery life and charge time may vary, depending upon power management settings, applications and features used.

❖ Flashes amber when the main battery charge is low and it is

time to recharge the main battery or plug in the AC adaptor.

If the AC power light flashes amber during charging, either a battery pack is malfunctioning, or it is not receiving correct input from the AC power supply.

Disconnect the AC power cord/cable and remove the battery pack. See “Changing the main battery” on page 98 for information on replacing the main battery.

Mobile Computing

NOTE

Monitoring main battery power

HINT: Be careful not to confuse the battery light ( ), the on/off light ( ), and the power button light (near the upper-right corner of the keyboard).

When the on/off light or power button light flashes amber, it indicates that the system is suspended (using the Windows

operating system Sleep command).

Power

button

Wireless indicator light

AC power light

On/off light

Battery light

(Sample Illustration) Power and battery light locations

Determining remaining battery power

Wait at least 16 seconds after turning on the computer before trying to monitor the remaining battery power. The computer needs this time to check the battery’s remaining capacity and perform its calculations.

System Indicator Lights

Bridge Medi Adapter light

Internal storage drive light

Mobile Computing

Monitoring main battery power

Move the cursor over the power icon in the Notification Area, see

“Finding your way around the desktop” on page 106. A pop-up

message displays the remaining battery power as a percentage. With repeated discharges and recharges, the battery’s capacity

gradually decreases. A frequently used older battery does not power the computer for as long as a new battery, even when both are fully charged.

TECHNICAL NOTE: The computer drains the battery faster at low temperatures. Check your remaining charge frequently if you are working in temperatures below 50 degrees Fahrenheit.

The computer calculates the remaining battery charge based on your current rate of power use and other factors such as the age of the battery.

What to do when the main battery runs low

When the main battery runs low you can:

❖ Plug the computer into an external power source and recharge

the main battery

❖ Place the computer into Hibernation mode and replace the

main battery with a charged spare (not included with your computer)

❖ Save your work and turn off the computer

If you do not manage to do any of these things before the main battery completely runs out of power, the computer automatically enters Hibernation mode and turns itself off. Hibernation mode keeps track of where you were, so that when you turn on the power again, you can continue where you left off.

If you have Hibernation mode enabled (the default), the computer copies the details of your open programs and files to the internal storage drive before shutting down. For more information on using Hibernation, see “Hibernation mode” on page 59.

Setting battery notifications

You can set two notifications. Each notification can be set to alert you when a specified percentage of remaining battery power has been reached. You can also set the computer to enter Sleep mode or Hibernation mode or to completely power down when the notification goes off.

Mobile Computing

Monitoring main battery power

To change the default notification settings:

1 Click Start, Control Panel, Mobile PC, and then Power

Options.

The Power Options window appears.

2 Click Change plan settings under the power plan to be

customized. The Edit Plan Settings window appears.

3 Click Change advanced power settings.

The Advanced settings tab of the Power Options window appears.

(Sample Image) Advanced settings tab of Power Options screen

4 Click Battery to display the battery options. 5 Configure the alarm settings to suit your needs.

Conserving battery power

How long a fully charged battery pack lasts when you are using the computer depends on a number of factors, such as:

❖ How the computer is configured ❖ How much you use the internal storage drive, optical drive,

diskette drives, or other optional devices

❖ Where you are working, since operating time decreases at low

temperatures

There are various ways in which you can conserve power and extend the operating time of your battery:

❖ Enable Sleep or Hibernation, which saves power when you turn

❖ Use the Windows

These power-saving options control the way in which the computer is configured. By using them, you can increase the length of time you can use the computer before you need to recharge the battery.

Microsoft Using one of these power plans lets you choose between maximum power savings and peak system performance. You may also set individual power-saving options to suit your own needs.

The following sections describe how to choose a Power Plan and discuss each power-saving option.

Power Plans

You can choose a predefined Power Plan or select your own combination of power options. To do this:

1 Click Start, Control Panel, Mobile PC, and then Power

Mobile Computing

Monitoring main battery power

off the computer and turn it back on again

power-saving option plans

has combined these options into preset Power Plans.

Options. The Windows

Power Options window appears.

(Sample Image) Windows® Power Options window

2 Select an appropriate plan for your work environment or create

your own custom plan.

3 Click Create a Power Plan to set up a new plan.

Mobile Computing

NOTE

Monitoring main battery power

To edit a plan or to edit advanced settings, continue to the following steps.

4 Click Change Plan Settings to choose the plan you want to

edit. This screen allows you to change basic settings.

5 Click Change Advanced Settings to access settings for

battery notification levels, internal storage drive power save time, etc.

You can click on the plus signs to expand each item and to see what settings are available for each item.

6 Click Save Changes to save the plan changes you have

performed.

By default the three power plans Balanced, Power Saver, and High Performance are satisfactory for most people and do not need to be edited. The Power Saver plan is the best used for maximum battery time. The High Performance plan will give you the shortest battery time, but the highest performance from your computer. The Balanced plan is a compromise between battery time and performance.

Using a hot key to set the Power Plan

You may use a hot key to set the Power Plan. To set the Power Plan:

1 Press

(Sample Image) Power Plan hot key card

Fn and F2 simultaneously to display the Power Plan hot

key card.

Mobile Computing

Changing the main battery

2 While continuing to press Fn, press F2 until you select the

desired Power Plan. The Power Plan options are: Balanced, Power Saver, and High

Performance.

3 Release the

The hot key card disappears. You are now in the selected mode.

Fn key.

Changing the main battery

When your main battery has run out of power, you have two options: plug in the AC adaptor or install a charged main battery.

Never short circuit the battery pack by either accidentally or intentionally bringing the battery terminals in contact with another conductive object. This could cause serious injury or fire, and could also damage the battery pack and computer.

❖ Never expose a battery pack to abnormal shock, vibration or

pressure. The battery pack's internal protective device could fail, causing it to overheat or ignite, resulting in caustic liquid leakage, or explosion or fire, possibly resulting in death or serious injury.

TECHNICAL NOTE: To avoid losing any data, save your files and then either completely shut down your computer or put it into Hibernation mode before changing the main battery.

Removing the battery from the computer

To remove the battery:

1 Save your work. 2 Turn off the computer or place it in Hibernation mode

according to the instructions in “Using and configuring

Hibernation mode” on page 63.

3 Unplug and remove any cables connected to the computer,

including the AC adaptor.

4 Close the display panel and turn the computer upside down.

Mobile Computing

Changing the main battery

5 Slide the battery release lock to the unlocked position.

(Sample Illustration) Unlocking the battery release lock

6 Slide the battery release latch to release the battery. 7 Pull the discharged battery out of the computer.

(Sample Illustration) Removing the battery

If the battery is leaking or its case is cracked, put on protective gloves to handle it, and discard it immediately. Always dispose of used battery packs in compliance with all applicable laws and regulations. Put insulating tape, such as cellophane tape, on the electrode during transportation to avoid a possible short circuit, fire or electric shock. Failure to do so could possibly result in serious injury.

100

Mobile Computing

Changing the main battery

Inserting a charged battery

To insert a battery:

1 Wipe the terminals of the charged battery with a clean cloth to

ensure a good connection.

2 Insert the charged battery into the slot until the latch clicks.

The battery pack has been designed so that you cannot install it with reverse polarity.

If the battery does not slide into the slot easily, move the battery release lock to the unlocked position and try again. Do not force the battery into position.

(Sample Illustration) Inserting the battery

3 Slide the battery release lock to the locked position.

(Sample Illustration) Locking the battery release lock

4 Turn the computer right side up.

Toshiba E100 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

Introduction

This guide

Safety icons

Other icons used

Other documentation

Service options

Selecting a place to work

Setting up a work environment

Keeping yourself comfortable

Precautions

Setting up your computer

Important information on your computer’s cooling fan

Setting up your software

Registering your computer with Toshiba

Adding optional external devices

Connecting to a power source

Charging the main battery

Using the computer for the first time

Opening the display panel

Your computer’s features and specifications

Turning on the power

Adding memory (optional)

Using the TouchPad™

Control buttons

Using external display devices

Directing the display output when you turn on the computer

Using an external keyboard

Adjusting the quality of the external display

Using a mouse

Connecting a printer

Connecting an optional external diskette drive

Setting up a printer

Turning off the computer

Options for turning off the computer

Using the Shut Down command

Using and configuring Hibernation mode

Using and configuring Sleep mode

Customizing your computer’s settings

Closing the display panel

Caring for your computer

Cleaning the computer

Moving the computer

Using a computer lock

Computing tips

Using the keyboard

Character keys

Making your keyboard emulate a full-size keyboard

Ctrl, Fn, and Alt keys

Function keys

Special Windows® keys

Overlay keys

Using the overlay to type numeric data

Starting a program

Starting a program from the Start menu

Starting a program from Windows® Explorer

Saving your work

Starting a program using the Start Search field

Printing your work

Backing up your work

Restoring your work

Using the optical drive

Optical drive components

Media control buttons

Inserting an optical disc

Playing an audio CD

Playing optical media

Recording optical media

Removing a disc with the computer on

Toshiba’s online resources

Removing a disc with the computer off

Caring for optical discs

Toshiba’s energy-saver design

Running the computer on battery power

Battery Notice

Charging batteries
