User’s Manual

TECRA A8 / Satellite Pro A120

Choose freedom.

computers.toshiba-europe.com

Disclaimer

TECRA A8 / Satellite Pro A120

© 2007 by TOSHIBA Corporation. All rights reserved. Under the copyright laws, this manual cannot be reproduced in any form without the prior written permission of TOSHIBA. No patent liability is assumed, with respect to the use of the information contained herein.

TOSHIBA TECRA A8 / Satellite Pro A120 Portable Personal Computer User’s Manual

Second edition January 2007 Copyright authority for music, movies, computer programs, data bases and

other intellectual property covered by copyright laws belongs to the author or to the copyright owner. Copyrighted material can be reproduced only for personal use or use within the home. Any other use beyond that stipulated above (including conversion to digital format, alteration, transfer of copied material and distribution on a network) without the permission of the copyright owner is a violation of copyright or author’s rights and is subject to civil damages or criminal action. Please comply with copyright laws in making any reproduction from this manual.

This manual has been validated and reviewed for accuracy. The instructions and descriptions it contains are accurate for the TOSHIBA TECRA A8 / Satellite Pro A120 Portable Personal Computer at the time of this manual’s production. However, succeeding computers and manuals are subject to change without notice. TOSHIBA assumes no liability for damages incurred directly or indirectly from errors, omissions or discrepancies between the computer and the manual.

Trademarks

IBM is a registered trademark and IBM PC is a trademark of International Business Machines Corporation.

Intel, Intel SpeedStep, Intel Core and Centrino are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries/regions.

Windows and Microsoft are registered trademarks and Windows Vista is a trademark of Microsoft Corporation.

Photo CD is a trademark of Eastman Kodak. Bluetooth is a trademark owned by its proprietor and used by TOSHIBA

under license. i.LINK is trademark and registered trademark of Sony Corporation. InterVideo and WinDVD are registered trademarks of InterVideo Inc.

DVD MovieFactory is a registered trademarks of Ulead Systems, Inc. Other trademarks and registered trademarks not listed above may be used

in this manual.

User’s Manual ii

EU Declaration of Conformity

This product is carrying the CE-Mark in accordance with the related European Directives. Responsible for CE-Marking is TOSHIBA Europe GmbH, Hammfelddamm 8, 41460 Neuss, Germany.

The complete and official EU Declaration of Conformity can be found on TOSHIBA’s web site http://epps.toshiba-teg.com on the Internet.

CE compliance

This product is labelled with the CE Mark in accordance with the related European Directives, notably Electromagnetic Compatibility Directive 89/ 336/EEC for the notebook and the electronic accessories including the supplied power adapter, the Radio Equipment and Telecommunications Terminal Equipment Directive 1999/5/EC in case of implemented telecommunication accessories and the Low Voltage Directive 73/23/EEC for the supplied power adapter.

This product and the original options are designed to observe the related EMC (Electromagnetic Compatibility) and safety standards. However, TOSHIBA cannot guarantee that this product still observes these EMC standards if options or cables not produced by TOSHIBA are connected or implemented. In this case the persons who have connected / implemented those options / cables have to provide assurance that the system (PC plus options / cables) still fulfils the required standards. To avoid general EMC problems, the following guidance should be noted:

■ Only CE marked options should be connected / implemented

■ Only best shielded cables should be connected

TECRA A8 / Satellite Pro A120

Working environment

This product was designed to fulfil the EMC (Electromagnetic Compatibility) requirements to be observed for so-called "Residential, commercial and light industry environments".

TOSHIBA do not approve the use of this product in working environments other than the above mentioned "Residential, commercial and light industry environments".

For example, the following environments are not approved:

■ Industrial Environments (e.g. environments where a mains voltage of

380V three-phase is used)

■ Medical Environments

■ Automotive Environments

■ Aircraft Environments

If this product is supplied with a network port, please refer to the paragraph "Network connection".

Any consequences resulting from the use of this product in working environments that are not approved are not the responsibility of TOSHIBA.

User’s Manual iii

The consequences of the use of this product in non-approved working environments may be:

■ Interference with other devices or machines in the near surrounding

area.

■ Malfunction of, or data loss from, this product caused by disturbances

generated by other devices or machines in the near surrounding area.

Therefore TOSHIBA strongly recommend that the electromagnetic compatibility of this product should be suitably tested in all non-approved working environments before use. In the case of automobiles or aircraft, the manufacturer or airline respectively should be asked for permission before use of this product.

Furthermore, for general safety reasons, the use of this product in environments with explosive atmospheres is not permitted.

Modem warning notice

Conformity Statement

The equipment has been approved to [Commission Decision "CTR21"] for pan-European single terminal connection to the Public Switched Telephone Network (PSTN).

However, due to differences between the individual PSTNs provided in different countries/regions the approval does not, of itself, give an unconditional assurance of successful operation on every PSTN network termination point.

In the event of problems, you should contact your equipment supplier in the first instance.

TECRA A8 / Satellite Pro A120

Network Compatibility Statement

This product is designed to work with, and is compatible with the following networks. It has been tested to and found to conform with the additional requirements conditional in EG 201 121.

Germany

Greece

Portugal

Spain

Switzerland

All other countries/regions

Specific switch settings or software setup are required for each network, please refer to the relevant sections of the user guide for more details.

User’s Manual iv

ATAAB AN005, AN006, AN007, AN009, AN010 and DE03, 04, 05, 08, 09, 12, 14, 17

ATAAB AN005, AN006 and GR01, 02, 03, 04

ATAAB AN001, 005, 006, 007, 011 and P03, 04, 08, 10

ATAAB AN005, 007, 012 and ES01

ATAAB AN002

ATAAB AN003, 004

TECRA A8 / Satellite Pro A120

The hookflash (timed break register recall) function is subject to separate national type approvals. It has not been tested for conformity to national type regulations, and no guarantee of successful operation of that specific function on specific national networks can be given.

Following information is only for EU-member states:

The use of the symbol indicates that this product may not be treated as household waste. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

User’s Manual v

Optical disc drive safety instructions

Be sure to check the international precautions at the end of this section.

Panasonic

DVD-ROM&CD-R/RW UJDA770

■ The DVD-ROM&CD-R/RW drive employs a laser system. To ensure

proper use of this product, please read this instruction manual carefully and retain for future reference. Should the unit ever require maintenance, contact an authorized service location.

■ Use of controls, adjustments or the performance of procedures other

than those specified may result in hazardous radiation exposure.

■ To prevent direct exposure to the laser beam, do not try to open the

enclosure.

TECRA A8 / Satellite Pro A120

User’s Manual vi

TECRA A8 / Satellite Pro A120

DVD Super Multi with Double Layer Recording UJ-841

■ The DVD Super Multi drive with Double Layer Recording model

employs a laser system. To ensure proper use of this product, please read this instruction manual carefully and retain for future reference. Should the unit ever require maintenance, contact an authorized service location.

■ Use of controls, adjustments or the performance of procedures other

than those specified may result in hazardous radiation exposure.

■ To prevent direct exposure to the laser beam, do not try to open the

enclosure.

User’s Manual vii

TECRA A8 / Satellite Pro A120

TEAC

CD-ROM CD-224E

■ The CD-ROM drive employs a laser system. To ensure proper use of

this product, please read this instruction manual carefully and retain for future reference. Should the unit ever require maintenance, contact an authorized service location.

■ Use of controls, adjustments or the performance of procedures other

than those specified may result in hazardous radiation exposure.

■ To prevent direct exposure to the laser beam, do not try to open the

enclosure.

User’s Manual viii

TECRA A8 / Satellite Pro A120

DVD-ROM DV-28E

■ DVD-ROM drive employs a laser system. To ensure proper use of this

product, please read this instruction manual carefully and retain for future reference. Should the unit ever require maintenance, contact an authorized service location.

■ Use of controls, adjustments or the performance of procedures other

than those specified may result in hazardous radiation exposure.

■ To prevent direct exposure to the laser beam, do not try to open the

enclosure.

User’s Manual ix

International precautions

CLASS 1 LASER PRODUCT LASERSCHUTZKLASSE 1 PRODUKT TOEN60825

TECRA A8 / Satellite Pro A120

CAUTION: This appliance contains a laser system and is classified as a "CLASS 1 LASER PRODUCT." To use this model properly, read the instruction manual carefully and keep this manual for your future reference. In case of any trouble with this model, please contact your nearest "AUTHORIZED service station." To prevent direct exposure to the laser beam, do not try to open the enclosure.

VORSICHT: Dieses Gerät enthält ein Laser-System und ist als „LASERSCHUTZKLASSE 1 PRODUKT“ klassifiziert. Für den richtigen Gebrauch dieses Modells lesen Sie bitte die Bedienungsanleitung sorgfältig durch und bewahren diese bitte als Referenz auf. Falls Probleme mit diesem Modell auftreten, benachrichtigen Sie bitte die nächste „autorisierte Service-Vertretung“. Um einen direkten Kontakt mit dem Laserstrahl zu vermeiden darf das Gerät nicht geöffnet werden.

ADVERSEL:USYNLIG LASERSTRÅLING VED ÅBNING, NÅR SIKKERHEDSAF-BRYDER

ER UDE AF FUNKTION. UNDGÅ UDSÆTTSLSE FOR STRÅLING

ADVARSEL: Denne mærking er anbragt udvendigt på apparatet og indikerer, at apparatet arbejder med laserstråler af klasse 1, hviket betyder, at der anvendes laserstrlier af svageste klasse, og at man ikke på apparatets yderside kan bilve udsat for utilladellg kraftig stråling.

APPARATET BOR KUN ÅBNES AF FAGFOLK MED SÆRLIGT KENDSKAB TIL APPARATER MED LASERSTRÅLER!

Indvendigt i apparatet er anbragt den her gengivne advarselsmækning, som advarer imod at foretage sådanne indgreb i apparatet, at man kan komme til at udsatte sig for laserstråling.

User’s Manual x

TECRA A8 / Satellite Pro A120

OBS! Apparaten innehåller laserkomponent som avger laserstråining överstigande gränsen för laserklass 1.

VAROITUS. Suojakoteloa si saa avata. Laite sisältää laserdiodin, joka lähetää näkymätöntä silmilie vaarallista lasersäteilyä.

CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED IN THE OWNER’S MANUAL MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

VORSICHT: DIE VERWENDUNG VON ANDEREN STEURUNGEN ODER EINSTELLUNGEN ODER DAS DURCHFÜHREN VON ANDEREN VORGÄNGEN ALS IN DER BEDIENUNGSANLEITUNG BESCHRIEBEN KÖNNEN GEFÄHRLICHE STRAHLENEXPOSITIONEN ZUR FOLGE HABEN.

User’s Manual xi

Preface

Congratulations on your purchase of the TECRA A8 / Satellite Pro A120 computer. This powerful notebook computer provides excellent expansion capability, including multimedia devices, and it is designed to provide years of reliable, high-performance computing.

This manual tells how to set up and begin using your TECRA A8 / Satellite Pro A120 computer. It also provides detailed information on configuring your computer, basic operations and care, using optional devices and troubleshooting.

If you are a new user of computers or if you’re new to portable computing, first read over the Introduction and The Grand Tour chapters to familiarize yourself with the computer’s features, components and accessory devices. Then read Getting Started for step-by-step instructions on setting up your computer.

If you are an experienced computer user, please continue reading the preface to learn how this manual is organized, then become acquainted with this manual by browsing through its pages. Be sure to look over the

Special features section of the Introduction, to learn about features that are

uncommon or unique to the computers and carefully read HW Setup. If you are going to install PC cards or connect external devices such as a

monitor, be sure to read Chapter 8, Optional Devices.

Manual contents

This manual is made up of the following. Chapter 1, Introduction, is an overview of the computer’s features,

capabilities, and options. Chapter 2, The Grand Tour, identifies the components of the computer and

briefly explains how they function.

User’s Manual xii

TECRA A8 / Satellite Pro A120

Chapter 3, Getting Started, provides a quick overview of how to begin operating your computer and gives tips on safety and designing your work area.

Chapter 4, Operating Basics, describes the basic operations of your computer and precautions when using it, as well as the handling of CD/ DVD.

Chapter 5, The Keyboard, describes special keyboard functions including the keypad overlay and hot keys.

Chapter 6, Power and Power-Up Modes, gives details on the computer’s power resources and battery save modes and how to set a password.

Chapter 7, HW Setup, explains how to configure the computer using the HW Setup program.

Chapter 8, Optional Devices, describes the optional hardware available. Chapter 9, Troubleshooting, provides helpful information on how to perform

some diagnostic tests, and suggests courses of action if the computer doesn’t seem to be working properly.

Chapter 10, Legal Footnotes, provides Legal Footnote information related to your computer.

The Appendixes provide technical information about your computer. The Glossary defines general computer terminology and includes a list of

acronyms used in the text. The Index quickly directs you to the information contained in this manual.

Conventions

This manual uses the following formats to describe, identify, and highlight terms and operating procedures.

Abbreviations

On first appearance, and whenever necessary for clarity, abbreviations are enclosed in parentheses following their definition. For example: Read Only Memory (ROM). Acronyms are also defined in the Glossary.

Icons

Icons identify ports, dials, and other parts of your computer. The indicator panel also uses icons to identify the components which is providing information on.

Keys

The keyboard keys are used in the text to describe many computer operations. A distinctive typeface identifies the key top symbols as they appear on the keyboard. For example, Enter identifies the Enter key.

User’s Manual xiii

TECRA A8 / Satellite Pro A120

Key operation

Some operations require you to simultaneously use two or more keys. We identify such operations by the key top symbols separated by a plus sign (+). For example, Ctrl + C means you must hold down Ctrl and at the same time press C. If three keys are used, hold down the first two and at the same time press the third.

ABC

When procedures require an action such as clicking an icon or entering text, the icon’s name or the text you are to type in is represented in the type face you see to the left.

Display

S ABC

Names of windows or icons or text generated by the computer that appear on its display screen are presented in the type face you see to the left.

Messages

Messages are used in this manual to bring important information to your attention. Each type of message is identified as shown below.

Pay attention! A caution informs you that improper use of equipment or failure to follow instructions may cause data loss or damage your equipment.

Please read. A note is a hint or advice that helps you make best use of your equipment.

Indicates a potentially hazardous situation, which could result in death or serious injury, if you do not follow instructions.

Terminology

This term is defined in this document as follows:

Start

User’s Manual xiv

The word "Start" refers to the " " button in Microsoft

Windows Vista™.

General Precautions

TOSHIBA computers are designed to optimize safety, minimize strain and withstand the rigors of portability. However, certain precautions should be observed to further reduce the risk of personal injury or damage to the computer.

Be certain to read the general precautions below and to note the cautions included in the text of the manual.

Creating a computer-friendly environment

Place the computer on a flat surface that is large enough for the computer and any other items you are using, such as a printer. Leave enough space around the computer and other equipment to provide adequate ventilation. Otherwise, they may overheat.To keep your computer in prime operating condition, protect your work area from:

■ Dust, moisture, and direct sunlight.

■ Equipment that generates a strong electromagnetic field, such as

stereo speakers (other than speakers that are connected to the computer) or speaker phones.

■ Rapid changes in temperature or humidity and sources of temperature

change such as air conditioner vents or heaters.

■ Extreme heat, cold, or humidity.

■ Liquids and corrosive chemicals.

Stress injury

Carefully read the Instruction Manual for Safety and Comfort. It contains information on prevention of stress injuries to your hands and wrists that can be caused by extensive keyboard use.

User’s Manual xv

Heat injury

■ Avoid prolonged physical contact with the computer. If the computer is

used for long periods, its surface can become very warm. While the temperature will not feel hot to the touch, if you maintain physical contact with the computer for a long time (if you rest the computer on your lap, or if you keep your hands on the palm rest, for example) your skin might suffer low-heat injury.

■ If the computer has been used for a long time, avoid direct contact with

the metal plate supporting the I/O ports. It can become hot.

■ The surface of the AC adaptor can become hot when in use. This

condition does not indicate a malfunction. If you need to transport the AC adaptor, disconnect it and let it cool before moving it.

■ Do not lay the AC adaptor on a material that is sensitive to heat. The

material could be damaged.

Pressure or impact damage

Do not apply heavy pressure to the computer or subject it to strong impact. Excessive pressure or impact can cause damage to computer components or otherwise cause malfunctions.

PC card overheating

TECRA A8 / Satellite Pro A120

Some PC cards can become hot with prolonged use. Overheating of a PC card can result in errors or instability in the PC card operation. Also be careful when you remove a PC card that has been used for a long time.

Mobile phone

Use of mobile phones can interfere with the audio system. Computer operation is not impaired but it is recommended that a distance of 30 cm be maintained between the computer and a mobile phone in use.

Instruction Manual for Safety and Comfort

All important information on the safe and proper use of this computer is described in the enclosed Instruction Manual for Safety and Comfort. Be sure to read it before using the computer.

User’s Manual xvi

Chapter 1 Introduction

Equipment checklist. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

Special features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11

TOSHIBA Value Added Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-13

Utilities and Applications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-14

Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-17

Chapter 2 The Grand Tour

Front with the display closed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Left side. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Right side . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

Back side. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

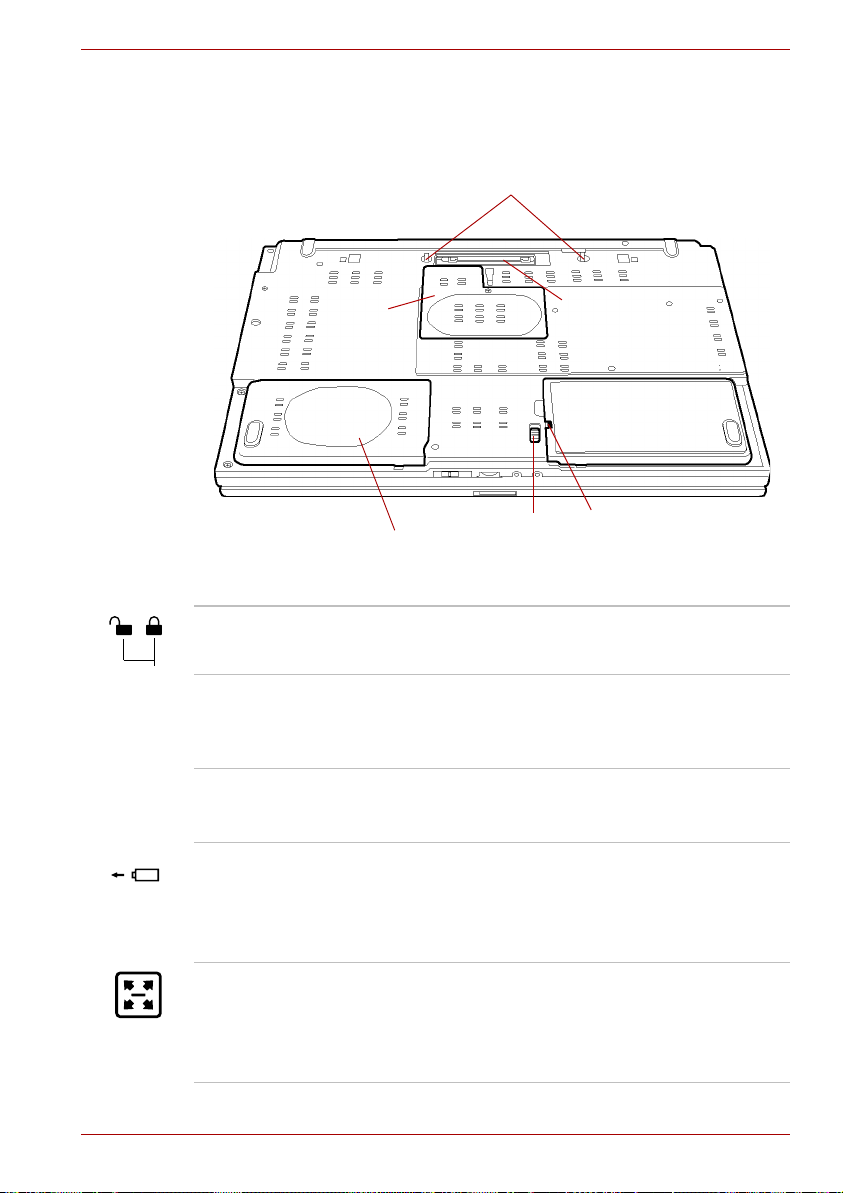

Underside . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7

Front with the display open. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8

System indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10

Keyboard indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11

USB floppy disk drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12

Optical disk drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13

AC adaptor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-16

Chapter 3 Getting Started

Connecting the AC adaptor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

Opening the display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

Turning on the power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5

Starting up for the first time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5

Turning off the power. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6

Restarting the computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10

System Recovery Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10

User’s Manual xvii

TECRA A8 / Satellite Pro A120

Chapter 4

Operating Basics

Using the USB floppy disk drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

Using optical disk drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3

Writing CDs on DVD-ROM&CD-R/RW drive . . . . . . . . . . . . . . . . . . . . 4-6

Writing CD/DVDs on DVD Super Multi drive . . . . . . . . . . . . . . . . . . . 4-8

Media care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15

Sound system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-17

Modem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-19

Wireless communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-22

LAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-26

Cleaning the computer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-28

Moving the computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-28

Using the Hard Disk Drive (HDD) Protection . . . . . . . . . . . . . . . . . . 4-29

Heat dispersal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-31

Chapter 5 The Keyboard

Typewriter keys. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

Function keys: F1 … F12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2

Soft keys: Fn key combinations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2

Hot keys. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3

Windows special keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5

Keypad overlay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6

Generating ASCII characters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-7

Chapter 6 Power and Power-Up Modes

Power conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

Power indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2

Battery types. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-3

Care and use of the battery pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-5

Replacing the battery pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-10

TOSHIBA Password Utility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-12

Power-up modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-15

Panel power on/off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-15

System Auto Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-15

Chapter 7 HW Setup

Accessing HW Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

HW Setup window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

Chapter 8 Optional Devices

PC card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2

SD card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3

Memory expansion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-6

Battery pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-9

AC adaptor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-9

Battery charger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-10

User’s Manual xviii

USB floppy disk drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-10

External monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-10

TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-11

i.LINK (IEEE1394) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-12

Advanced Port Replicator III Plus . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-14

Serial port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-15

Security lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-16

Chapter 9 Troubleshooting

Problem solving process. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-1

Hardware and system checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-3

TOSHIBA support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-22

Chapter 10 Legal Footnotes

CPU*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-1

General Main Memory*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-2

Battery Life*3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-2

Hard Disk Drive (HDD) Capacity*4 . . . . . . . . . . . . . . . . . . . . . . . . . . 10-2

LCD*5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-3

Graphics Processor Unit ("GPU")*6 . . . . . . . . . . . . . . . . . . . . . . . . . 10-3

Wireless LAN*7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-3

Non-applicable Icons*8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-3

Copy Protection*9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-3

Images*10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-3

TECRA A8 / Satellite Pro A120

Appendix A Specifications

Appendix B Display Controller and Modes

Appendix C Wireless LAN

Appendix D Bluetooth wireless technology Interoperability

Appendix E AC Power Cord and Connectors

Appendix F TOSHIBA Anti-theft Protection Timer

Appendix G If your computer is stolen

Glossary

Index

User’s Manual xix

Introduction

This chapter provides an equipment checklist, and it identifies the computer’s features, options and accessories.

Some of the features described in this manual may not function properly if you use an operating system that was not preinstalled by TOSHIBA.

Equipment checklist

Carefully unpack your computer. Save the box and packing materials for future use.

Hardware

Check to make sure you have all the following items:

■ TECRA A8 / Satellite Pro A120 Portable Personal Computer

■ AC adaptor and power cord (2-pin plug or 3-pin plug)

■ USB floppy disk drive (Option or provided with some models)

■ Battery pack (installed in the computer)

Chapter 1

User’s Manual 1-1

Software

The following Windows® operating system and utility softwares are preinstalled.

■ Microsoft® Windows Vista™

■ TOSHIBA Value Added Package

■ TOSHIBA SD Memory Boot Utility

■ DVD Video Player

■ Ulead DVD MovieFactory

■ TOSHIBA Disc Creator

■ TOSHIBA ConfigFree

■ TOSHIBA Assist

■ TOSHIBA SD Memory Utilities

■ TOSHIBA Acoustic Silencer

■ TOSHIBA HDD Protection

■ Windows Mobility Center

■ Online manual

Documentation and Backup Media

■ TECRA A8 / Satellite Pro A120 Portable Personal Computer User's

Manual

■ TECRA A8 / Satellite Pro A120 Quickstart

■ Instruction Manual for Safety and Comfort

■ Warranty Information

■ Product Recovery DVD-ROM

■ Microsoft

If any of the items are missing or damaged, contact your dealer immediately.

Windows Vista™ Quick Start Guide

Introduction

User’s Manual 1-2

Features

Introduction

The computer uses TOSHIBA’s advanced Large Scale Integration (LSI), Complementary Metal-Oxide Semiconductor (CMOS) technology extensively to provide compact size, minimum weight, low power usage, and high reliability. This computer incorporates the following features and benefits:

Processor

Built-in The computer is equipped with one of the

following Intel

■ Intel

processors.

Core™ 2 Duo Processor, which incorporates a 2MB or 4MB level 2 cache memory. It also supports Enhanced Intel® SpeedStep

Technology.

■ Intel® Core™ Duo Processor, which

incorporates a 2MB level 2 cache memory. It also supports Enhanced Intel

SpeedStep®

Technology.

■ Intel

Core™ Solo Processor, which incorporates a 2MB level 2 cache memory. It also supports Enhanced Intel® SpeedStep® Technology.

Some models in this series carry Intel® Centrino® Duo Mobile Technology, which is based on three separate technologies of Intel processor, Intel

PRO/Wireless Network Connection, and Mobile Intel®

Core™2 Duo

945 Express Chipset Family.

Some models in this series carry Intel which is based on three separate technologies of Intel processor, Intel

PRO/Wireless Network Connection, and Mobile Intel®

Centrino® Duo Mobile Technology,

Core™ Duo

945 Express Chipset Family.

Some models in this series carry Intel which is based on three separate technologies of Intel processor, Intel

PRO/Wireless Network Connection, and Mobile Intel®

Centrino® Mobile Technology,

Core™ Solo

945 Express Chipset Family.

Legal Footnote (CPU)*1

For more information on the Legal Footnote regarding CPU, please refer to the Legal Footnotes section in Chapter 10. Click the *1.

User’s Manual 1-3

Introduction

Memory

Slots 256, 512, 1,024 or 2,048 MB memory modules

can be installed in the two memory slots for a maximum of 4,096 MB.

Video RAM The Video RAM capacity will differ depending on

the system memory capacity in the computer.

■ If system memory is 512MB, a maximum of

64MB will be used as Video RAM.

■ If system memory is 1024MB or more, a

maximum of 256MB will be used as Video RAM.

Legal Footnote (General Main Memory)*2

For more information on the Legal Footnote regarding General Main Memory, please refer to the Legal Footnotes section in Chapter 10. Click the *2.

Power

Battery pack The computer is powered by one rechargeable

lithium-ion battery pack.

Legal Footnote (Battery Life)*3

For more information on the Legal Footnote regarding Battery Life, please refer to the Legal Footnotes section in Chapter 10. Click the *3.

RTC battery The internal RTC battery backs up the Real Time

Clock (RTC) and calendar.

AC adaptor The AC adaptor provides power to the system

and recharges the batteries when they are low. It comes with a detachable power cord which will either have a 2-pin or 3-pin plug enclosure.

Because it is universal, it can receive a range of AC voltage from 100 to 240 volts; however, the output current varies among different models. Using the wrong model can damage your computer. Refer to the AC adaptor section in Chapter 2, The Grand Tour.

User’s Manual 1-4

Disks

Introduction

Hard Disk Drive (HDD) Capacity

Available in five sizes.

■ 40.0 billion bytes (37.26 GB)

■ 60.0 billion bytes (55.89 GB)

■ 80.0 billion bytes (74.53 GB)

■ 100.0 billion bytes (93.16 GB)

■ 120.0 billion bytes (111.79 GB)

Part of the space in the hard disk drive is reserved as administration space.

Legal Footnote (Hard Disk Drive (HDD) Capacity)*4

For more information on the Legal Footnote regarding Hard Disk Drive (HDD) Capacity, please refer to the Legal Footnotes section in Chapter 10. Click the *4.

USB floppy disk drive

Accommodates either 3 1/2" 1.44-megabyte or 720-kilobyte floppy disk. It connects to a USB port. Optional or provide with some models.

Optical disk drive

Computers in this series can be configured with an optical disk drive installed. The available optical disk drives are described below.

CD-ROM drive Some models are equipped with a full-size,

CD-ROM drive module that lets you run CD without using an adaptor. It reads CD-ROMs at maximum 24 speed. This drive supports the following formats:

■ CD-DA

■ CD-Text

■ Photo CD™ (single/multi-session)

■ CD-ROM Mode 1, Mode 2

■ CD-ROM XA Mode 2 (Form1, Form2)

■ Enhanced CD (CD-EXTRA)

■ Addressing Method 2

User’s Manual 1-5

Introduction

DVD-ROM drive Some models are equipped with a full-size,

DVD-ROM drive module that lets you run either 12 cm (4.72") or 8 cm (3.15") CDs or 12cm (4.72") DVDs without using an adaptor. It runs DVD-ROMs at maximum 8 speed and CD-ROMs at maximum 24 speed. The drive supports the following formats:

■ DVD-ROM

■ DVD-Video

■ CD-DA

■ CD-Text

■ Photo CD™ (single/multi-session)

■ CD-ROM Mode 1, Mode 2

■ CD-ROM XA Mode 2 (Form1, Form2)

■ Enhanced CD (CD-EXTRA)

■ Addressing Method 2

DVD-ROM&CD-R/RW drive

Some models are equipped with a full-size, DVD-ROM&CD-R/RW drive module that lets you run CD/DVDs without using an adaptor. It reads DVD-ROMs at maximum 8 speed and CD-ROMs at maximum 24 speed. It writes CD-R at up to 24 speed and CD-RW at up to 24 speed. This drive supports the following formats in addition to DVD-ROM drive.

■ CD-R

■ CD-RW

User’s Manual 1-6

Introduction

DVD Super Multi drive

2.6GB and 5.2GB DVD-RAM discs cannot be read from or written to.

Some models are equipped with a full-size DVD Super Multi drive module that lets you record data to rewritable CD/DVDs as well as run either 12cm (4.72") or 8cm (3.15") CD/DVDs without using an adaptor. It reads DVD-ROMs at maximum 8 speed and CD-ROMs at maximum 24 speed. It writes CD-R at maximum 24 speed, CD-RW at maximum 10 speed, DVD-R and DVD+R at maximum 8 speed, DVD-RW and DVD+RW at maximum 4 speed, DVD-R DL at maximum 2 speed, DVD+R DL at maximum

2.4 speed, DVD-RAM at maximum 5 speed.This drive supports the following formats in addition to DVD-ROM&CD-R/ RW drive.

■ DVD-R

■ DVD-RW

■ DVD-RAM

■ DVD-R DL

■ DVD+R

■ DVD+RW

■ DVD+R DL

Display

The computer’ LCD display panel supports high-resolution video graphics. The LCD screen can be set at a wide range of viewing angles for maximum

comfort and readability.

Built-in 15.4" TFT LCD screen, 16 million colors, with

one of the following resolution:

■ WXGA, 1280 horizontal × 800 vertical pixels

Legal Footnote (LCD)*5

For more information on the Legal Footnote regarding LCD, please refer to the Legal Footnotes section in Chapter 10. Click the *5.

Graphics controller The graphics controller maximizes display

performance. Refer to Appendix B, Display

Controller and Modes, for more information.

User’s Manual 1-7

Introduction

Legal Footnote (Graphics Processor Unit ("GPU"))*6

For more information on the Legal Footnote regarding Graphics Processor Unit ("GPU"), please refer to the Legal Footnotes section in Chapter 10. Click the *6.

Keyboard

Built-in 85 keys or 87 keys, compatible with IBM

enhanced keyboard, embedded numeric overlay, dedicated cursor control, and keys. Refer to Chapter 5, The Keyboard, for details.

TOSHIBA Pointing Device

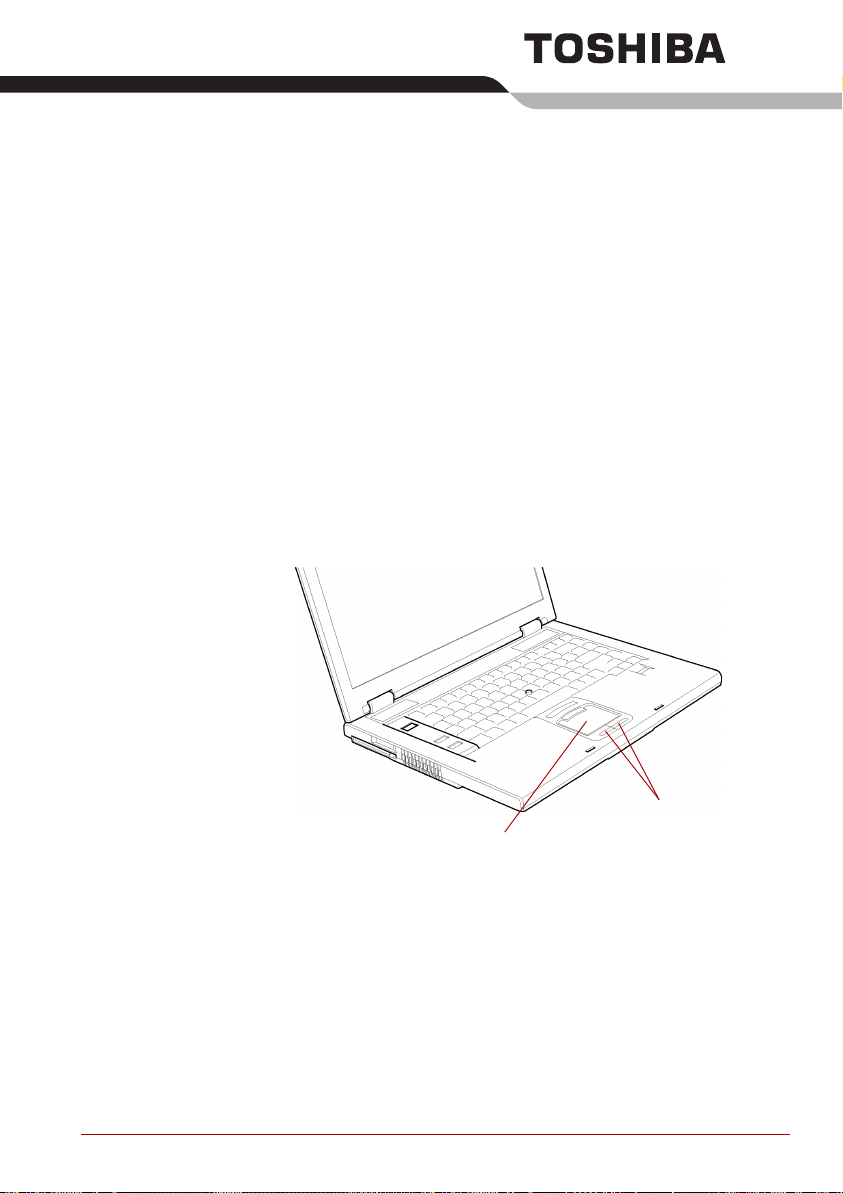

Built-in Touch Pad A Touch Pad and control buttons in the palm rest

enable control of the on-screen pointer and scrolling of windows.

Ports

Serial RS-232C compatible port (16550UART

compatible). Depending on the model, a serial port is not

present.

External monitor Analog VGA port supports VESA DDC2B

compatible functions.

Universal Serial Bus (USB 2.0)

Docking This port enables connection of an optional

The computer has three Universal Serial Bus ports that comply with the USB 2.0 standard.

Advanced Port Replicator III Plus described in the Options section.

Depending on the model, a docking port is not present.

Slots

PC card The PC card slot accommodates a Type II card.

SD card

User’s Manual 1-8

This slot lets you easily transfer data from devices, such as digital cameras and Personal Digital Assistants that use SD card flash memory.

Refer to Chapter 8, Optional Devices.

Introduction

Multimedia

Sound system The Windows sound system compatible sound

system provides output to internal speakers and a microphone as well as supporting jacks for an external microphone and headphones.

Video-out jack (S-Video)

Headphone jack A 3.5 mm mini headphone jack enables

Microphone jack A 3.5 mm mini microphone jack enables

The video out jack lets you transfer video data to external devices. Data output speed depends on the type of device connected to the S-Video cable.

Depending on the model, a Video out jack is not present.

connection of stereo headphones.

connection of a three-conductor mini jack for monaural microphone input.

Communications

Modem An internal modem provides capability for data

and fax communication supporting the V.90 (V.92) standards. Refer to AC Power Cord and

Connectors section in Appendix E. The speed of

data transfer and fax depends on analog telephone line conditions. It has a modem jack for connecting to a telephone line. It is preinstalled as a standard device in some markets. Both the V.90 and V.92 standards are supported only in the USA, Canada, UK, France, Germany and Australia. Only V.90 is available in other regions.

LAN This computer has built-in support for Ethernet

LAN (10 megabits per second, 10BASE-T), Fast Ethernet LAN (100 megabits per second, 100BASE-TX) or Gigabit Ethernet LAN (1000 megabits per second, 1000BASE-T).

Bluetooth Some computers in this series are equipped with

Bluetooth functions. Bluetooth wireless technology eliminates the need for cables between electronic devices such as computers and printers. Bluetooth provides fast, reliable, and secure wireless communication in a small space.

User’s Manual 1-9

Introduction

Wireless LAN Some computers in this series are equipped with

a Wireless LAN card that is compatible with other LAN systems based on Direct Sequence Spread Spectrum/Orthogonal Frequency Division Multiplexing radio technology that complies with the IEEE 802.11 Standard (Revision A, B or G).

■ Theoretical maximum speed: 54Mbps

(IEEE802.11a, 802.11g)

■ Theoretical maximum speed: 11Mbps

(IEEE802.11b)

■ Frequency Channel Selection (5 GHz:

Revision A / 2.4 GHz: Revision B/G)

■ Roaming over multiple channels

■ Card Power Management

■ Wired Equivalent Privacy (WEP) data

encryption, based on 128 bit encryption algorithm.

■ Wi-Fi Protected Access (WPA).

■ Advanced Encryption Standard (AES) data

encryption.

■ Wake-up on Wireless LAN (Intel module type)

■ The values shown above are the theoretical maximums for Wireless

LAN standards. The actual values may differ.

■ The transmission speed over the Wireless LAN and the distance over

which Wireless LAN can reach may vary depending on surrounding electromagnetic environment, obstacles, access point design and configuration, and client design and software/hardware configurations. The transmission rate described is the theoretical maximum speed as specified under the appropriate standard - the actual transmission speed will be lower than the theoretical maximum speed.

Legal Footnote (Wireless LAN)*7

For more information on the Legal Footnote regarding Wireless LAN, please refer to the Legal Footnotes section in Chapter 10. Click the *7.

Wireless communication switch

User’s Manual 1-10

This switch turns the Wireless LAN and Bluetooth functions on and off.

All models are provided with Wireless Communication switch. Some models are equipped with both Wireless LAN and Bluetooth functions.

Security

Security lock slot Allows the connection of a security lock to anchor

Special features

The following features are either unique to TOSHIBA computers or are advanced features which make the computer more convenient to use. Access each function using the following procedures.

*1 Click Start, Control Panel, System and Maintenance, and then click

Power Options.

Introduction

the computer to a desk or other large object.

TOSHIBA Assist button

TOSHIBA Presentation button

Hot keys Hot keys are specific key combinations that let

Display automatic power off *1

HDD automatic power off *1

Press this button to launch the program automatically. When power-off, Sleep Mode and Hibernation Mode, press this button to start the computer and launch the program.

This button is available on Tecra A8 models only.

Press this button to change internal display, simultaneous display or multi-monitor display.

The TOSHIBA Presentation button has the same functionality as the Connect display button in the Mobility Center. Pressing this button when an external display is connected will open the Windows Vista™ TMM (Transient Multimon Manager) screen.

This button is available on Tecra A8 models only.

you quickly change the system configuration directly from the keyboard without running a system program.

This feature automatically cuts off power to the computer’s LCD display panel when there is no keyboard input for a specified time. Power is restored when any key is pressed. This can be specified in the Power Options.

This feature automatically cuts off power to the hard disk drive when it is not accessed for a specified time. Power is restored when the hard disk is accessed. This can be specified in the Power Options.

User’s Manual 1-11

Introduction

System automatic Sleep/Hibernation *1

This feature automatically shuts down the system into Sleep Mode or Hibernation Mode when there is no input or hardware access for a time specified. This can be specified in the Power Options.

Keypad overlay A ten-key pad is integrated into the keyboard.

Refer to the Keypad overlay section in Chapter 5, The Keyboard, for instructions on using the keypad overlay.

Power on password Two levels of password security, supervisor and

user, are available to prevent unauthorized access to your computer.

Instant security A specific hot key function automatically blanks

the computer's display and locks the system providing data security.

Intelligent power supply *1

A microprocessor in the computer’s intelligent power supply detects the battery’s charge and calculates the remaining battery capacity. It also protects electronic components from abnormal conditions, such as voltage overload from an AC adaptor. This can be specified in the Power Options.

Battery save mode *1 This feature lets you save battery power. This can

be specified in the Power Options.

Panel power on/off *1 This feature turns power to the computer off

when the computer’s LCD display panel is closed and turns it back on when the computer’s LCD display panel is opened. This can be specified in the Power Options.

Low battery automatic hibernation *1

When battery power is exhausted to the point that computer operation cannot be continued, the system automatically enters Hibernation and shuts down. This can be specified in the Power Options.

User’s Manual 1-12

Introduction

Heat dispersal *1 To protect from overheating, the CPU has an

TOSHIBA HDD Protection

The HDD Protection function does not guarantee that the hard disk drive will not be damaged.

Hibernation Mode This feature lets you turn off the power without

Sleep Mode If you have to interrupt your work, you can turn off

internal temperature sensor. If the computer’s internal temperature rises to a certain level, the cooling fan is turned on or the processing speed is lowered. This can be specified in the Power Options.

Using the acceleration sensor built in the computer, the HDD Protection function detects vibration, shocks, and those signs in the computer, and automatically moves the HDD (Hard Disk Drive) head to the safe position to reduce the risk of damage that could be caused to the disk by head-to-disk contact. Refer to the

Using the Hard Disk Drive (HDD) Protection

section in Chapter 4, Operating Basics, for details.

exiting from your software. The contents of main memory are saved to the hard disk so that when you next turn the power on again, you can continue working right where you left off. Refer to the Turning off the power section in Chapter 3, Getting Started, for details.

the power without exiting from your software. Data is maintained in the computer’s main memory. When you turn on the power again, you can continue working right where you left off.

TOSHIBA Value Added Package

This section describes the TOSHIBA Component features pre-installed on the computer.

TOSHIBA Power Saver

TOSHIBA Button Support

User’s Manual 1-13

TOSHIBA Power Saver provides you with the features of more various power supply managements.

This utility controls the computer button functions.

The applications can be assigned to each button by the user.

Introduction

TOSHIBA Zooming Utility

TOSHIBA PC Diagnostic Tool

TOSHIBA Password Utility

TOSHIBA Flash Cards

HW Setup This utility allows you to customize your

TOSHIBA Accessibility

This utility allows you to enlarge or reduce the icon size on the Windows Desktop, or the zoom factor associated with specific supported applications.

The TOSHIBA PC Diagnostic Tool will display basic system configuration information and allow the functionality of some of the computer's builtin hardware devices to be tested.

The TOSHIBA Password utility allows you to set a password in order to restrict access to the computer.

This utility supports the following functions.

■ Hot key function

■ TOSHIBA utility launcher function

hardware settings according to the way you work with the computer and the peripherals you use.

The TOSHIBA Accessibility utility provides support to movement impaired users when they need to use the TOSHIBA Hot-key functions. In use, the utility allows you to make the Fn key 'sticky', that is you can press it once, release it, and they press one of the 'F' keys in order to access its specific function. When set, the Fn key will remain active until another key is pressed.

Utilities and Applications

This section describes the pre-installed utilities that come with the computer and details how to start them. For further information on their operation, please refer to each utility’s online manual, help files or README.TXT file.

DVD Video Player The DVD Video Player is used to play

Bluetooth Stack for Windows by Toshiba

Bluetooth functions cannot be used in models that do not have a Bluetooth module installed.

User’s Manual 1-14

DVD-Videos. It has an on-screen interface and functions. Click Start, point to All Programs, point to InterVideo WinDVD, then click InterVideo WinDVD for TOSHIBA.

This software enables communication between the computer and external Bluetooth devices such as printers and mobile phones.

Introduction

TOSHIBA Assist TOSHIBA Assist is a graphical user interface that

provides access to specific tools, utilities and applications that make the use and configuration of the computer easier.

TOSHIBA ConfigFree TOSHIBA ConfigFree is a suite of utilities that

improve the ease and control of communication devices and network connections, help in the identification of communication problems and allow the creation of profiles if you need to switch between different locations and communication networks. To run ConfigFree, click Start, select All Programs, TOSHIBA Networking and then click ConfigFree.

TOSHIBA Disc Creator

You can create CD’s and DVD’s in a number of formats including audio CD’s that can be played on a standard CD player, and data CD’s/DVD’s which can store copies of the files and folders on your computer’s hard disk drive. This software can be used on models with either a DVD-ROM/ CD-R/RW drive, or a DVD Super Multi drive. You can boot TOSHIBA Disc Creator from the menu bar as follows. Start -> All Programs ->

TOSHIBA -> CD&DVD Applications -> Disc Creator.

TOSHIBA DVD-RAM Utility

TOSHIBA DVD-RAM Utility has the function of Physical Format and Write-Protect to DVD-RAM. This utility is contained the setup module of TOSHIBA Disc Creator. You can boot TOSHIBA DVD-RAM Utility from the menu bar as follows.

Start -> All Programs -> TOSHIBA -> CD&DVD Applications -> DVD-RAM Utility.

Ulead DVD MovieFactory for TOSHIBA

Ulead DVD MovieFactory for TOSHIBA allows users to instantly create DVD video or slideshow discs via a user-friendly wizard interface with specific task oriented features.

TOSHIBA SD Memory Boot Utility

The TOSHIBA SD memory boot utility allows you to create a bootable SD memory card to start the system. You can access TOSHIBA SD Memory Boot Utility from the menu bar as follows. Click Start -> All Programs -> TOSHIBA -> Utilities > SD Memory Boot Utility.

User’s Manual 1-15

Introduction

TOSHIBA SD Memory Card Format

Windows Mobility Center

This utility allows you to format an SD memory card by the SD standard format.

This section describes the Windows Mobility Center. Mobility Center is a utility for accessing several mobile PC settings quickly in one window. A default maximum of eight tiles are provided by the operating system, and an additional two tiles are added to your Mobility Center.

■ Lock Computer:

This can be used to lock your computer without turning it off. This has the same function as the Lock button at the bottom of the right pane in the start menu.

■ TOSHIBA Assist:

This can be used to open TOSHIBA Assist if it is already installed in your computer.

Sound drivers A broad range of audio controls are available

through the ADI sound driver, including Software Synthesize, Mic Volume, Noise Reduction and Audio Power Management.

CD/DVD Drive Acoustic Silencer

This utility allows you to configure the read speed of the optical disc drive. You can either configure Normal Mode, which operates the drive at its maximum speed for quick data access, or Quiet Mode which runs audio CDs at single speed and which can lessen operational noise.

It is ineffective with DVDs.

User’s Manual 1-16

Options

Introduction

You can add a number of options to make your computer even more powerful and convenient to use. The following options are available:

Memory Kit A 256, 512, 1,024 MB (DDR2-667/533/400), or

2,048 MB memory module (DDR2-667) can be installed.

Battery pack An battery pack (3600 mAh or 4400 mAh) can be

Universal AC adaptor

Battery charger The battery charger lets you charge extra

Security lock A slot is available to attach a security cable to the

USB floppy disk drive Kit

Advanced Port Replicator III Plus

additionally purchased from your TOSHIBA dealer. Use it as a spare or replacement.

If you use your computer at more than one site frequently, it may be convenient to purchase an additional AC adaptor for each site so you will not have to carry the adaptor with you.

batteries outside the computer.

computer to deter theft.

The USB floppy disk drive accommodates either 3 1/2" 1.44-megabyte or 720-kilobyte floppy disk through connection to a USB port. Please note that you cannot format 720-kilobyte floppy disks under Windows Vista™, but you are able to use disks that have been previously formatted.

The Advanced Port Replicator III Plus provides the ports available on the computer in addition to separate PS/2 mouse and PS/2 keyboard ports, a digital visual interface (DVI) port, i.LINK™ (IEEE1394) port, line-in jack and line-out jack, External monitor port, Universal Serial Bus port (USB2.0) × 4, LAN jack, Modem jack, Serial port, Parallel port.

Bluetooth Kit This option enables Bluetooth wireless

User’s Manual 1-17

communications in computers that do not have Bluetooth preinstalled. It is installed by dealers only.

The Grand Tour

This chapter identifies the various components of your computer. Become familiar with each component before you operate the computer.

Legal Footnote (Non-applicable Icons)*8

For more information on the Legal Footnote regarding Non-applicable Icons, please refer to the Legal Footnotes section in Chapter 10. Click the *8.

Front with the display closed

Figure below shows the computer’s front with its LCD display panel in the closed position.

Microphone jack

Chapter 2

Display latch

System indicators

Headphone jack

Front of the computer with LCD display panel closed

User’s Manual 2-1

Volume

Wireless communication switch

The Grand Tour

System indicators These LEDs let you monitor the status of various

computer functions. Details are given in the

System indicators section.

Wireless communication switch

Slide this switch to the left to turn off Wireless LAN and Bluetooth functions. Slide it to the right to turn on the functions.

All models are provided with a Wireless Communication switch although only some models are equipped with both Wireless LAN and Bluetooth functions.

■ Turn Wireless LAN and Bluetooth functionalities off when near a

person who may have a cardiac pacemaker implant or other medical electric device. Radio waves may affect pacemaker or medical device operation, possibly resulting in serious injury. Follow the instruction of your medical device when using any Wireless LAN or Bluetooth functionality.

■ Always turn off Wireless LAN or Bluetooth functionality if the PC is near

automatic control equipment or appliances such as automatic doors or fire detectors. Radio waves can cause malfunction of such equipment, possibly resulting in serious injury.

■ Do not use the Wireless LAN or Bluetooth functionalities near a

microwave oven or in areas subject to radio interference or magnetic fields. Interference from a microwave oven or other source can disrupt Wireless LAN or Bluetooth operation.

Display latch This latch secures the LCD display panel in its

closed position. Slide the latch to open the LCD display panel.

Microphone jack A 3.5 mm mini microphone jack enables

connection of a three-conductor mini jack for monaural microphone input.

Volume co nt ro l Use this dial to adjust the volume of the stereo

speakers and the stereo headphones.

Headphone jack A 3.5 mm mini headphone jack enables

connection of stereo headphones.

User’s Manual 2-2

Left side

The Grand Tour

Figure below shows the computer’s left side.

SD card slot

PC card slot

PC card eject button

The left side of the computer

Cooling vents

Cooling vents Cooling vents help CPU keep from overheating.

Do not block the cooling vents. Never allow metal objects, such as screws, staples and paper clips, to enter the PC or keyboard. Foreign metal objects can create a short circuit, which can cause PC damage and fire, possibly resulting in serious injury.

PC card slot The PC card slot can accommodate a Type II

card. The slot supports 16-bit PC cards and CardBus PC cards.

PC card eject button This button is used to remove a PC card from the

PC card slot.

Keep foreign objects out of the PC card slot. Never allow metal objects, such as screws, staples and paper clips, to enter the PC or keyboard. Foreign metal objects can create a short circuit, which can cause PC damage and fire, possibly resulting in serious injury.

SD card slot SD cards are used in a wide variety of external

devices. This slot lets you transfer data from the device to your computer.

Keep foreign objects out of the SD card slot. A pin or similar object can damage the computer’s circuitry.

User’s Manual 2-3

Right side

The Grand Tour

Figure below shows the computer’s right side.

Optical disk drive Security lock slot

The right side of the computer

Back side

Security lock slot A security cable attaches to this slot. The

optional security cable anchors your computer to a desk or other large object to deter theft.

Optical disk drive A CD-ROM, DVD-ROM, DVD-ROM&CD-R/RW

drive or DVD Super Multi is installed.

Figure below shows the computer’s back side.

Video-out jack

Modem jack

Serial port

DC IN 15V jack

External monitor port

The back side of the computer

LAN active indicator (orange)

USB ports

Link indicator (green)

LAN jack

i.LINK (IEEE1394) port

Video-out jack Plug an S-Video cable into this jack for video-out.

The S-Video cable carries video signal.

Depending on the model, a Video-out jack is not present.

User’s Manual 2-4

The Grand Tour

External monitor port

This external monitor port lets you connect an external video display.

DC IN 15V jack The AC adaptor connects to this jack. Use only

the model of AC adaptor that comes with the computer. Using the wrong adaptor can damage your computer.

Modem jack The modem jack lets you use a modular cable to

connect the modem directly to a telephone line.

■ Connection to any communication line other than an analog phone line

could cause a PC system failure.

■ Connect the built-in modem only to ordinary analog phone lines.

■ Never connect the built-in modem to a digital line (ISDN).

■ Never connect the built-in modem to the digital connector on a

public telephone or to a digital private branch exchange (PBX).

■ Never connect the built-in modem to a key telephone system for

residences or offices.

■ Never operate your PC on AC power during a thunderstorm. If you see

lightning or hear thunder, immediately turn off the PC. An electric surge caused by the storm, may result in a system failure, loss of data or hardware damage.

LAN jack This jack lets you connect to a LAN. The adaptor

has built-in support for Ethernet LAN (10 megabits per second, 10BASE-T), Fast Ethernet LAN (100 megabits per second, 100BASE-TX) and Gigabit Ethernet LAN (1000 megabits per second, 1000BASE-T). The LAN has two indicators. Refer to Chapter 4, Operating Basics, for details.

■ Do not connect any cable other than a LAN cable to the LAN jack. It

could cause damage or malfunction.

■ Do not connect the LAN cable to a power supply. It could cause

damage or malfunction.

Link indicator (green)

This indicator glows green when the computer is connected to a LAN and the LAN is functioning properly.

User’s Manual 2-5

The Grand Tour

LAN active indicator (orange)

i.LINK (IEEE1394) port

This indicator glows orange when data is being exchanged between the computer and the LAN.

This port allows you to connect an external device, such as a digital video camera for highspeed data transfer.

Depending on the model, an i.LINK (IEEE1394) port is not present.

Serial port Use this 9-pin port to connect serial devices such

as an external modem, serial mouse or serial printer.

Depending on the model, a serial port is not present.

Universal Serial Bus (USB 2.0) ports

Three Universal Serial Bus ports are on the back side. The ports comply with the USB 2.0 standard.

Keep foreign objects out of the USB connectors. Never allow metal objects, such as screws, staples and paper clips, to enter the PC or keyboard. Foreign metal objects can create a short circuit, which can cause PC damage and fire, possibly resulting in serious injury.

Operation of all functions of all USB devices has not been confirmed. Some functions might not execute properly.

User’s Manual 2-6

Underside

Figure below shows the underside of the computer. Make sure the display is closed before turning over your computer.

The Grand Tour

Notches

Memory module cover

Battery

HDD pack cover

The underside of the computer

release latch

Docking port

Battery pack

Battery lock

Battery lock Slide the battery lock to release the battery pack

for removal.

Battery pack The battery pack powers the computer when the

AC adaptor is not connected. For detailed information on the battery pack, refer to Chapter 6, Power and Power-Up Modes.

Notches Notches on the computer engage hooks on the

Advanced Port Replicator III Plus to ensure a secure connection.

Battery release latch Slide and hold this latch to release the battery

pack for removal. For detailed information on removing the battery

pack, refer to Chapter 6, Power and Power-Up

Modes.

Docking port This port enables connection of an optional

Advanced Port Replicator III Plus described in Chapter 8, Optional Devices.

Depending on the model, a docking port is not present.

User’s Manual 2-7

The Grand Tour

■ Only the Advanced Port Replicator III plus can be used with this

computer. Do not attempt to use any other Port Replicator.

■ Keep foreign objects out of the docking port. A pin or similar object can

damage the computer's circuitry. A plastic shutter protects the connector.

Memory module cover

HDD pack cover A HDD pack is under this, which can be removed

Front with the display open

This section shows the computer with the LCD display panel open. Refer to the appropriate illustration for details. To open the LCD display panel, slide the display latch on the front of the LCD display panel and lift up. Position the LCD display panel at a comfortable viewing angle.

Display hinge

LCD Sensor switch (Not shown)

This cover protects memory module sockets. Refer to the Memory expansion section in Chapter 8, Optional Devices.

and reinstalled.

LCD screen

Stereo speaker (Right)

Touch Pad

Stereo speaker (Left)

Power button

TOSHIBA Assist button

TOSHIBA Presentation button

The front of the computer with the LCD display panel open

User’s Manual 2-8

Touch Pad control buttons

The Grand Tour

Display hinge The display hinge holds the LCD display panel at

easy-to-view angles.

LCD screen The LCD screen displays high-contrast text and

graphics. You can change the resolution between 800 × 600 and 1,280 × 800 pixels. Refer to

Display Controller and Modes section in

Appendix B. When the computer operates on the AC adaptor

the LCD screen’s image will be somewhat brighter than when it operates on battery power. The lower brightness level is intended to save battery power.

Stereo speakers The speakers emit sound generated by your

software as well as audio alarms, such as low battery condition, generated by the system.

Touch Pad control buttons

Control buttons below the Touch Pad let you select menu items or manipulate text and graphics designated by the on-screen pointer.

Touch Pad A Touch Pad located in the center of the palm

rest is used to control the on-screen pointer. Refer to the Using the Touch Pad section in Chapter 4, Operating Basics.

TOSHIBA Presentation button

Press this button to change internal display, simultaneous display, or multi-monitor display. The TOSHIBA Presentation button has the same functionality as the Connect display button in the Mobility Center. Pressing this button when an external display is connected will open the Windows Vista™ TMM (Transient Multimon Manager) screen.

Depending on the model, TOSHIBA Presentation button is not present.

TOSHIBA Assist button

Press this button to launch the program automatically. When power-off, Sleep Mode and Hibernation Mode, press this button to start the computer and launch the program. Depending on the model, TOSHIBA Assist button is not present.

User’s Manual 2-9

The Grand Tour

Power button Press the power button to turn the computer’s

LCD Sensor switch This switch senses when the computer’s LCD

Do not put a magnetic object close to the switch. The computer will automatically enter Hibernation Mode and shut down even if the Panel Power Off feature is disabled.

System indicators

LEDs at the left side of the icons, light when various computer operations are in progress.

power on and off.

display panel is closed or opened and activates the Panel Power Off/On feature. When you close the LCD display panel the computer enters Hibernation Mode and shuts down. When you open the computer's LCD display panel the computer starts in Hibernation Mode. You can specify within the Power Options. To access it, Click Start, Control Panel, System and Maintenance, and then click Power Options.

System indicators

SD card The SD card indicator glows green when the

computer is accessing the SD card slot.

DC IN The DC IN indicator glows green when DC power

Power The Power indicator glows green when the

Battery The Battery indicator shows the condition of the

User’s Manual 2-10

is supplied from the AC power adaptor. If the adaptor’s output voltage is abnormal or if the power supply malfunctions, this indicator flashes orange.

computer is on. If you select Sleep from Shut

Down Windows

second on, two seconds off) while the computer shuts down.

battery’s charge: Green indicates full charge, orange indicates battery charging and flashing orange indicates a low battery charge. Refer to Chapter 6, Power and Power-Up Modes.

, this indicator flashing (one

The Grand Tour

HDD The HDD indicator glows green when the

Wireless communication

Keyboard indicators

The figures below show the positions of the keypad overlay indicators and the Caps Lock indicator.

When the Arrow mode indicator glows the keypad overlay lets you control the cursor.

When the Numeric mode indicator glows the keypad overlay lets you enter numbers.

When the Caps Lock indicator glows the keyboard is in all-caps mode.

computer is accessing the built-in hard disk drive.

The Wireless communication indicator glows when the Bluetooth and wireless LAN functions are turned on.

All models are provided with a Wireless Communication switch although only some models are equipped with both Wireless LAN and Bluetooth functions.

Caps Lock indicator

Caps Lock This indicator glows green when the alphabet

keys are locked in uppercase.

User’s Manual 2-11

The Grand Tour

Arrow mode

Arrow mode When the Arrow mode indicator lights green,

Numeric mode You can use the keypad overlay (gray labelled

USB floppy disk drive

The USB floppy disk drive accommodates 1.44-megabyte or 720-kilobyte floppy disk and connects to the USB port. It is supplied as standard with some models and as an option with others.

Numeric mode

Keypad overlay indicators

you can use the keypad overlay (gray labelled keys) as cursor keys. Refer to the Keypad

overlay section in Chapter 5, The Keyboard.

keys) for numeric input when the Numeric mode indicator lights green. Refer to the Keypad

overlay section in Chapter 5, The Keyboard.

USB connector

Disk-In-Use Indicator

Floppy disk slot

USB floppy disk drive

Eject button

USB connector Insert this connector into one of the USB ports of

your computer.

Disk-In-Use Indicator This indicator lights when the floppy disk is being

accessed.

User’s Manual 2-12

Floppy disk slot Insert a floppy disk in this slot.

Eject button When a floppy disk is fully seated in the drive, the

Check the Disk-In-Use indicator when you use the USB floppy disk drive. Do not press the eject button or turn off the computer while the light is glowing. Doing so could destroy data and damage the floppy disk or the drive.

■ The USB floppy disk drive should be placed on a flat, horizontal surface

when in use.

■ Do not set anything on top of the floppy disk drive.

Optical disk drive

One of the following Optical disk drives is installed in the computer: CD-ROM, DVD-ROM, DVD-ROM&CD-R/RW and DVD Super Multi drives. An ATAPI interface controller is used for CD/DVD-ROM operation. When the computer is accessing a CD/DVD, an indicator on the drive glows.

For information on loading and unloading discs refer to the Using optical

disk drive section in Chapter 4, Operating Basics.

The Grand Tour

eject button pops out. To remove a floppy disk, push in the eject button and the floppy disk pops out partially for removal.

Region codes for DVD drives and media

DVD-ROM&CD-R/RW, DVD Super Multi drives and their associated media are manufactured according to the specifications of six marketing regions. When you purchase DVD-Video, make sure it matches your drive, otherwise it will not play properly.

Code Region

1 Canada, United States

2 Japan, Europe, South Africa, Middle East

3 Southeast Asia, East Asia

4 Australia, New Zealand, Pacific Islands, Central America, South

America, Caribbean

5 Russia, Indian Subcontinent, Africa, North Korea, Mongolia

6 China

User’s Manual 2-13

Writable discs

This section describes the types of writable CD/DVD discs. Check the specifications for your drive to for the type of discs it can write. Use TOSHIBA Disc Creator to write compact discs. Refer to Chapter 4,

Operating Basics.

CDs

■ CD-R discs can be written only once. The recorded data cannot be

erased or changed.

■ CD-RW discs including multi speed CD-RW discs, high-speed CD-RW

discs and ultra-speed CD-RW discs can be recorded more than once.

DVDs

■ DVD-R, DVD+R, DVD-R DL and DVD+R DL discs can be written only

once. The recorded data cannot be erased or changed.

■ DVD-RW, DVD+RW and DVD-RAM discs can be recorded more than

once.

Formats

The drives support the following formats:

The Grand Tour

■ CD-ROM

■ DVD-ROM

■ CD-DA

■ Photo CD™ (single/multi-

session)

■ CD-ROM XA Mode 2 (Form1,

Form2)

■ DVD -Video

■ CD-Text

■ CD-ROM Mode 1, Mode 2

■ Enhanced CD (CD-EXTRA)

■ Addressing Method 2

CD-ROM drive

The full-size CD-ROM drive module lets you run either 12 cm (4.72") or 8 cm (3.15") CD without using an adaptor.

The read speed is slower at the center of a disc and faster at the outer edge.

CD read 24 speed (maximum)

User’s Manual 2-14

DVD-ROM drive

The full-size DVD-ROM drive module lets you run either 12 cm (4.72") or 8 cm (3.15") CD/DVDs without using an adaptor.

The read speed is slower at the center of a disc and faster at the outer edge.

DVD read 8 speed (maximum) CD read 24 speed (maximum)

DVD-ROM&CD-R/RW drive

The full-size DVD-ROM&CD-R/RW drive module lets you record data to rewritable CDs as well as run either 12 cm (4.72") or 8 cm (3.15") CD/DVDs without using an adaptor.

The read speed is slower at the center of a disc and faster at the outer edge.

DVD read 8 speed (maximum) CD read 24 speed (maximum) CD-R write 24 speed (maximum) CD-RW write 24 speed (maximum, Ultra speed media)

DVD Super Multi drive

The full-size DVD Super Multi drive module lets you record data to rewritable CDs as well as run either 12 cm (4.72") or 8 cm (3.15") CD/DVDs without using an adaptor.

The Grand Tour

■ The read speed is slower at the center of a disc and faster at the outer

edge.

DVD read 8 speed (maximum) DVD-R write 8 speed (maximum) DVD-RW write 4 speed (maximum) DVD-R DL write 2 speed (maximum) DVD+R write 8 speed (maximum) DVD+R DL write 2.4 speed (maximum) DVD+RW write 4 speed (maximum) DVD-RAM write 5 speed (maximum) CD read 24 speed (maximum) CD-R write 24 speed (maximum) CD-RW write 10 speed (maximum, Ultra-speed media)

2.6GB and 5.2GB DVD-RAM media cannot be read from or written to.

User’s Manual 2-15

AC adaptor

The AC adaptor can automatically adjust to any voltage ranging from 100 to 240 volts and to a frequency of either 50 or 60 hertz, enabling you to use this computer in almost any country/region. The adaptor converts AC power to DC power and reduces the voltage supplied to this computer.

To recharge the battery, simply connect the AC adaptor to a power source and the computer. Refer to Chapter 6, Power and Power-Up Modes for details.

The Grand Tour

The AC adaptor (2-pin plug)

The AC adaptor (3-pin plug)

■ Depending on the model, a 2-pin or 3-pin plug set of the above may be

bundled.

■ Do not use a 3-pin to 2-pin conversion plug.

■ The supplied power cord conforms to safety rules and regulations in

the region the product is bought and should not be used outside this region. For use in other regions, please buy power cords that conform to safety rules and regulations in the particular region.

Always use the TOSHIBA AC adaptor that was provided with your PC and the TOSHIBA Battery Charger (that may have been provided with your PC), or use AC adaptors and battery chargers specified by TOSHIBA to avoid any risk of fire or other damage to the PC. Use of an incompatible AC adaptor or Battery Charger could cause fire or damage to the PC possibly resulting in serious injury.

User’s Manual 2-16

Getting Started

This chapter provides basic information to get you started using your computer. It covers the following topics:

■ Connecting the AC adaptor

■ Opening the display

■ Turning on the power

■ Starting up for the first time

■ Turning off the power

■ Restarting the computer

■ Creating recovery media

■ Restoring the preinstalled software from the Hard Disk Drive (HDD)

■ Restoring the preinstalled software from the Recovery Media

All users should be sure to read the section Starting up for the first time.

Chapter 3

Be sure to read the enclosed Instruction Manual for Safety and Comfort for information on the safe and proper use of this computer. It is intended to help you be more comfortable and productive while using a notebook computer. By following the recommendations in it you may reduce your chance of developing a painful or disabling injury to your hand, arms, shoulders or neck.

User’s Manual 3-1

Other Things to Note

■ Use a virus-check program and make sure it is updated regularly.

■ Never format storage media without checking its content. Formatting

destroys all stored data.

■ It is a good idea to periodically back up the internal hard disk or other

main storage device to external media. General storage media is not durable or stable over long periods of time and under certain conditions may result in data loss.

■ Before you install a device or application, save any data in memory to

the hard disk drive or other storage media. Failure to do so may result in the loss of data.

Connecting the AC adaptor

Attach the AC adaptor when you need to charge the battery or you want to operate from AC power. It is also the fastest way to get started, because the battery pack will need to be charged before you can operate from battery power.

The AC adaptor can be connected to any power source supplying from 100 to 240 volts and 50 or 60 hertz. For details on using the AC adaptor to charge the battery pack, refer to Chapter 6, Power and Power-Up Modes.

■ Always use the Toshiba AC adaptor that was provided with your PC

and the Toshiba Battery Charger (that may have been provided with your PC), or use Toshiba recommended alternate models to avoid any risk of fire or other damage to the PC. Use of an incompatible AC adaptor or Battery Charger could cause fire or damage to the PC possibly resulting in serious injury.

■ Use only the AC adaptor supplied with your computer or an equivalent

adaptor that is compatible. Use of any incompatible adaptor could damage your computer. TOSHIBA assumes no liability for any damage caused by use of an incompatible adaptor.

■ Never plug the AC adaptor or Battery Charger into a power source that

does not correspond to both the voltage and the frequency specified on the regulatory label of the unit. Failure to do so could result in a fire or electric shock, possibly resulting in serious injury.

■ Always use or purchase power cables that comply with the legal

voltage and frequency specifications and requirements in the country of use. Failure to do so could result in a fire or electric shock, possibly resulting in serious injury.

Getting Started

User’s Manual 3-2

Getting Started

■ The supplied power cord conforms to safety rules and regulations in

the region the product is bought and should not be used outside this region. For use in other regions, please buy power cords that conform to safety rules and regulations in the particular region.

■ Do not use a 3-pin to 2-pin conversion plug.

■ When you connect the AC adaptor to the computer, always follow the

steps in the exact order as described in the User’s Manual. Connecting the power cable to a live electrical outlet should be the last step otherwise the adaptor DC output plug could hold an electrical change and cause an electrical shock or minor bodily injury when touched. As a general safety precaution, avoid touching any metal parts.

■ Never place your PC or AC adaptor on a wooden surface, furniture, or

any other surface that could be marred by exposure to heat since the PC base and AC adaptor's surface increase in temperature during normal use.

■ Always place your PC or AC adaptor on a flat and hard surface that is

resistant to heat damage.

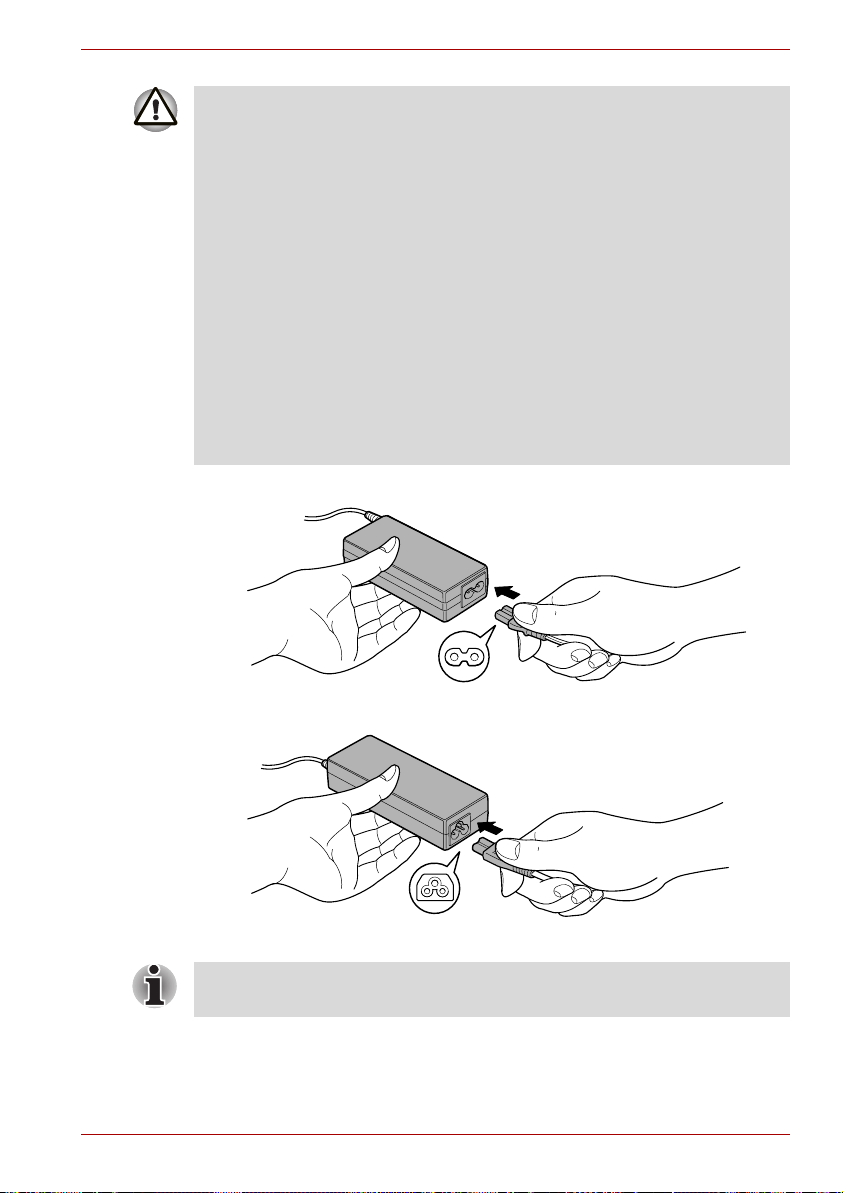

1. Connect the power cord to the AC adaptor.

Connecting the power cord to the AC adaptor (2-pin plug)

Connecting the power cord to the AC adaptor (3-pin plug)

Depending on the model, a 2-pin plug or 3-pin plug set of the above may be bundled.

User’s Manual 3-3

2. Connect the AC adaptor’s DC output plug to the DC IN 15V jack on the back of the computer.

3. Plug the power cord into a live wall outlet. The Battery and DC IN indicators on the front of the computer should glow.

Opening the display

The computer’s LCD display panel can be opened in a wide range of angles for optimal viewing.

1. Slide the display latch on the front of the computer to unlatch the display panel.

2. While holding down the palm rest with one hand so that the main body is not raised, lift the panel slowly. Adjust the angle of the panel to provide optimal clarity.

DC IN jack

AC adaptor's DC output plug

Connecting the adaptor to the computer

Getting Started

Use reasonable care when opening and closing the LCD display panel. Opening it vigorously or slamming it shut could damage the computer.

LCD display panel

Display latch

Opening the LCD display panel

User’s Manual 3-4

Turning on the power

This section describes how to turn on the power. The Power button LED indicates the status. Refer to the Power indicators

section in Chapter 6, Power and Power-Up Modes.

■ After you turn on the power for the first time, do not turn it off until you

have set up the operating system. Refer to the section Starting up for

the first time.

■ If the USB floppy disk drive is connected, make sure it is empty. If a

floppy disk is in the drive, press the eject button and remove the floppy disk.

1. Open the computer’s LCD display panel.

2. Press and hold the computer’s power button for two or three seconds.

Power button

Getting Started

Turning on the power

Starting up for the first time

The Microsoft Windows Vista™ Startup Screen will be the first screen displayed when you turn on the power. Follow the on-screen instructions on each screen in order to properly install the operating system.

When it is displayed, be sure to read the Software License Terms carefully.

User’s Manual 3-5

Turning off the power

The power can be turned off in one of three modes, either Shut Down (Boot) Mode, Hibernation Mode or Sleep Mode.

Shut Down mode (Boot mode)

When you turn off the power in Shut Down Mode no data will be saved and the computer will boot to the operating system's main screen the next time it is turned on.

1. If you have entered data, either save it to the hard disk drive or to other storage media.

2. Make sure all disk/disc activity has stopped before removing the CD/ DVD or floppy diskette.

■ Make sure the Hard Disk Drive indicator is off. If you turn off the power

while a disk (disc) is being accessed, you can lose data or damage the disk.

■ Never turn off the power while an application is running. Doing so could

cause loss of data.

■ Never turn off the power, disconnect an external storage device or

remove storage media during data read/write. Doing so can cause data loss.

3. Click Start.

4. Click the arrow button ( ) located in the power management buttons

( ) and select

5. Turn off any peripheral devices connected to your computer.

Getting Started

Shut Down from the menu.

Do not turn the computer or peripheral devices back on immediately - wait a short period to avoid any potential damage.

Sleep Mode

If you have to interrupt your work, you are able to turn off the power without exiting from your software by placing the computer into Sleep Mode. In this mode data is maintained in the computer's main memory so that when you turn on the power again, you can continue working right where you left off.

User’s Manual 3-6

Getting Started

■ When the AC adaptor is connected, the computer will go into Sleep

Mode according to the settings in the Power Options (to access it, Start

-> Control Panel -> System and Maintenance -> Power Options).

■ To restore the operation of the computer from Sleep Mode, press the

power button. Please be aware that this latter action only works on the internal keyboard if the Wake-up on Keyboard option is enabled within the HW Setup utility.

■ If the computer enters Sleep Mode while a network application is

active, the application might not be restored when the computer is next turned on and the system returns from Sleep Mode.

■ To prevent the computer from automatically entering Sleep Mode,

disable Sleep Mode within the Power Options (to access it, Start -> Control Panel -> System and Maintenance -> Power Options).

However, please be aware that this configuration will nullify the computer's Energy Star compliance.

■ To use the Hybrid Sleep function, configure it in the Power Options.

■ Before entering Sleep Mode, be sure to save your data.

■ Do not install or remove a memory module while the computer is in

Sleep Mode. The computer or the memory module could be damaged.

■ Do not remove the battery pack while the computer is in Sleep Mode

(unless the computer is connected to an AC power source). Data in memory could be lost.

Benefits of Sleep Mode

The Sleep Mode feature provides the following benefits:

■ Restores the previous working environment more rapidly than does the

Hibernation Mode feature.

■ Saves power by shutting down the system when the computer receives

no input or hardware access for the time period set by the System Sleep Mode feature.

■ Allows the use of the panel power off feature.

Executing Sleep Mode

You can also enable Sleep Mode by pressing Fn + F3 - please refer to Chapter 5, The Keyboard, for further details.

You can enter Sleep Mode in one of four ways:

■ Click Start then click the power button ( ) located in the power

management buttons ( ). Please note that this feature must be enabled within the Power Options

(to access it, click Start -> Control Panel -> System and Maintenance

-> Power Options).

User’s Manual 3-7

■ Click Start then click the arrow button ( ) and select Sleep from the

menu.

■ Close the display panel. Please note that this feature must be enabled

within the Power Options (to access it, click Start -> Control Panel -> System and Maintenance -> Power Options).

■ Press the power button. Please note that this feature must be enabled

within the Power Options (to access it, click Start -> Control Panel -> System and Maintenance -> Power Options).

When you turn the power back on, you can continue where you left when you shut down the computer.

■ When the computer is in Sleep Mode, the power indicator will blink

orange.

■ If you are operating the computer on battery power, you can lengthen

the overall operating time by turning it off into Hibernation Mode - Sleep Mode will consume more power while the computer is off.

Sleep Mode limitations

Sleep Mode will not function under the following conditions:

■ Power is turned back on immediately after shutting down.

■ Memory circuits are exposed to static electricity or electrical noise.

Hibernation Mode

The Hibernation Mode feature saves the contents of memory to the hard disk drive when the computer is turned off so that, the next time it is turned on, the previous state is restored. Please note that the Hibernation Mode feature does not save the status of any peripheral devices connected to the computer.

Getting Started

■ Save your data. While entering Hibernation Mode, the computer saves

the contents of memory to the hard disk drive. However, for safety sake, it is best to save your data manually.

■ Data will be lost if you remove the battery or disconnect the AC adaptor

before the save is completed. Wait for the Hard Disk Drive indicator to go out.

■ Do not install or remove a memory module while the computer is in

Hibernation Mode. Data will be lost.

User’s Manual 3-8

Getting Started

Benefits of Hibernation Mode

The Hibernation Mode feature provides the following benefits:

■ Saves data to the hard disk drive when the computer automatically

shuts down because of a low battery condition.

■ You can return to your previous working environment immediately when

you turn on the computer.

■ Saves power by shutting down the system when the computer receives

no input or hardware access for the time period set by the System Hibernate feature.

■ Allows the use of the panel power off feature.

Starting Hibernation Mode

You can also enable Hibernation Mode by pressing Fn + F4 - please refer to Chapter 5, The Keyboard, for further details.

To enter Hibernation Mode, follow the steps below.

1. Click Start.

2. Click the arrow button ( ) in the power management buttons

( ) and select

Hibernate from the menu.

Automatic Hibernation

The computer can be configured to enter Hibernation Mode automatically when you press the power button or close the lid. In order to define these settings, you can follow the steps as described below:

1. Click Start and click the Control Panel.

2. Click System and Maintenance and click Power Options.

3. Click Choose what the power buttons do or Choose what closing the lid does.

4. Enable the desired Hibernation Mode settings for When I press the power button and When I close the lid.

5. Click the Save changes button.

Data save in Hibernation Mode

When you turn off the power in Hibernation Mode, the computer will take a moment to save the current data in memory to the hard disk drive. During this time, the Hard Disk Drive indicator will glow.

After you turn off the computer, and the content of memory has been saved to the hard disk drive, turn off the power to any peripheral devices.

Do not turn the computer or devices back on immediately. Wait a moment to let all capacitors fully discharge.

User’s Manual 3-9

Restarting the computer

Certain conditions require that you reset the computer, for example if:

■ You change certain computer settings.

■ An error occurs and the computer does not respond to your keyboard

commands.

If you need to restart the computer, there are three ways this can be achieved:

■ Click Start then click the arrow button ( ) in the power management

buttons ( ) and select

■ Press Ctrl, Alt and Del simultaneously (once) to display the menu

window, then select Restart from the Shut down options.

■ Press the power button and hold it down for five seconds. Once the

computer has turned itself off, wait between ten and fifteen seconds before turning the power on again by pressing the power button.

System Recovery Options

About 1.5GB hidden partition is allocated on the hard drive for the System Recovery Options.

The System Recovery Options feature will be unusable if this partition is deleted.

Getting Started

Restart from the menu.

The System Recovery Options feature is installed on the hard disk when shipped from the factory. The System Recovery Options menu includes some tools to repair startup problems, run diagnostics or restore the system. You can see the more information about "Startup Repair" in "Windows Help and Support" content.

The System Recovery Options can also be run manually to repair problems. The procedure is as follows. Follow the instructions shown on the onscreen menu.

1. Turn off the computer.

2. While holding the F8 key, turn the computer on.

3. The Advanced Boot Options menu will be displayed. Use the arrow keys to select Repair Your Computer and press Enter.

4. Follow the on-screen instructions.

The Windows Vista CompletePC Backup feature can be used on Windows Vista™ Business Edition and Ultimate Edition.

User’s Manual 3-10

Getting Started

Restoring the preinstalled software from the Product Recovery Media

If pre-installed files are damaged, use the Product Recovery Media to restore them. To restore the operating system and all preinstalled software, follow the steps below.

When sound mute is turned ON by the Fn + Esc key, turn OFF before starting restore. Refer to Chapter 5, The Keyboard, for details.

You can not use System Recovery Options if restoring the pre-installed software without System Recovery Options.

When you reinstall the Windows operating system, the hard disk will be reformatted and all data will be lost.

1. Load the Recovery Media in the optional optical disc drive and turn off the computer’s power.

2. Hold down the F12 key and turn on the power. When

with Tomorrow TOSHIBA

3. Use the cursor key to select the CD/DVD icon in the display menu. For details, refer to the Boot Priority section in Chapter 7, HW Setup.

4. Follow the on-screen instructions.

5. If your computer came with additional software installed, this software can not be recovered from the Product Recovery disk. Re-install these applications (e.g. Works Suite, DVD Player, Games, etc.) separately from other media.

appears, release the F12 key.

In Touch

User’s Manual 3-11

Operating Basics

This chapter describes the basic operations of your computer and precautions when using it, as well as the handling of CD/DVD.

Using the Touch Pad

To use the Touch Pad, simply touch and move your fingertip across it in the direction you want the on-screen pointer to go.

Chapter 4

Touch Pad

Touch Pad and Touch Pad control buttons

Two buttons below the Touch Pad are used like the buttons on a mouse pointer. Press the left button to select a menu item or to manipulate text or graphics designated by the pointer. Press the right button to display a menu or other function depending on the software you are using.

User’s Manual 4-1

control buttons

You can also tap the Touch Pad to perform functions similar to those of the left button.

Click: Tap once Double-click: Tap twice Drag and drop: Tap to select the material you want to move. Leave

your finger on the Touch Pad after the second tap and move the material.

Using the USB floppy disk drive

The USB floppy disk drive accommodates 1.44-megabyte or 720-kilobyte floppy disk and connects to the USB port. Refer to Chapter 2, The Grand

Tour, for more information. It is supplied as standard with some models and

as an option with others.

Connecting USB floppy disk drive

To connect the drive, plug the floppy disk drive’s USB connector into a computer’s USB port. Refer to figure below.

Make sure the connector is right side up and properly aligned with the socket. Do not try to force the connection, doing so can damage the connecting pins.

Operating Basics

USB port

USB connector

Connecting the USB floppy disk drive

If you connect the USB floppy disk drive after turning on the computer, it will take about 10 seconds for the computer to recognize the drive. Do not disconnect and reconnect before 10 seconds has elapsed.

User’s Manual 4-2

Disconnecting USB floppy disk drive

When you have finished using the USB floppy disk drive, follow the procedures below to disconnect it:

1. Wait for the indicator light to go out to make sure all floppy disk activity has stopped.

If you disconnect the USB floppy disk drive or turn off the power while the computer is accessing the drive you may lose data or damage the floppy disk or the drive.

2. Click the Safely Remove Hardware icon on the Task Bar.

3. Click USB floppy disk drive device that you want remove.

4. Pull the floppy disk drive’s USB connector out of the computer’s USB port.

Using optical disk drive

The text and illustrations in this section refer primarily to the optical disk drive.The full-size drive provides high-performance execution of CD/ DVD-ROM-based programs. You can run either 12 cm (4.72") or 8 cm (3.15") CD/DVDs without an adaptor. An ATAPI interface controller is used for CD/DVD-ROM operation. When the computer is accessing a CD/ DVD-ROM, an indicator on the drive glows.

Use the WinDVD application to view DVD-Video discs.

Operating Basics

If you have a DVD-ROM&CD-R/RW drive, refer also to the Writing CDs on

DVD-ROM&CD-R/RW drive section for precautions on writing to CDs.

If you have a DVD Super Multi drive, refer also to the Writing CD/DVDs on

DVD Super Multi drive section for precautions on writing to CDs/DVDs.

Loading discs

To load CD/DVDs, follow the steps below and refer to figures below.

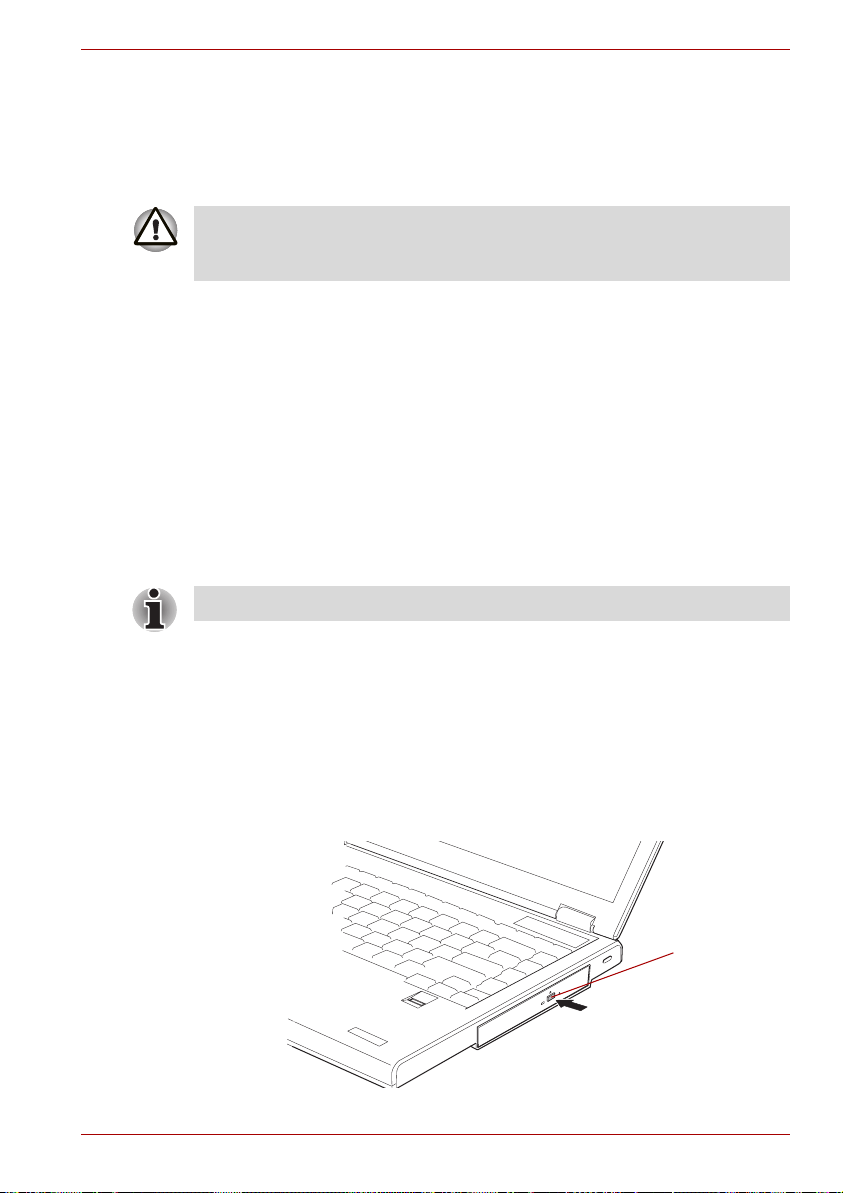

1. When the computer’s power is on, press the eject button to open the disc tray slightly.

Eject button

Pressing the eject button

User’s Manual 4-3

2. Grasp the disc tray gently and pull until it is fully opened.

Pulling the disc tray open

3. Lay the CD/DVD, label side up, in the disc tray.

Operating Basics

Disc tray

Laser lens

Inserting a CD/DVD

When the disc tray is fully opened, the edge of the computer will extend slightly over the CD/DVD tray. Therefore, you will need to turn the CD/DVD at an angle when you place it in the disc tray. After seating the CD/DVD, however, make sure it lies flat, as shown in figure above.

■ Do not touch a laser lens and its circumference portion. Doing so could

cause misalignment.

■ Prevent foreign objects from entering the drive. Check the surface of

the disc tray, especially the area behind the front edge of the disc tray, to make sure there are no such objects before closing the drive.

4. Press gently at the center of the CD/DVD until you feel it click into place. The CD/DVD should lie below the top of the spindle, flush with the spindle base.

User’s Manual 4-4

5. Push the center of the disc tray to close it. Press gently until it locks into place.

If the CD/DVD is not seated properly when the disc tray is closed, the CD/ DVD might be damaged. Also, the disc tray might not open fully when you press the eject button.

Closing the CD/DVD disc tray

Removing discs

To remove the CD/DVD, follow the steps below and refer to figure below.

Do not press the eject button while the computer is accessing the media drive. Wait for the optical disk indicator to go out before you open the disc tray. Also, if the CD/DVD is spinning when you open the disc tray, wait for it to stop before you remove it

Operating Basics

1. To pop the disc tray partially open, press the eject button. Gently pull the disc tray out until it is fully opened.

When the disc tray pops open slightly, wait a moment to make sure the CD/ DVD has stopped spinning before pulling the disc tray fully open.

2. The CD/DVD extends slightly over the sides of the disc tray so you can hold it. Hold the CD/DVD gently and lift it out.

Removing a CD/DVD

User’s Manual 4-5

3. Push the center of the disc tray to close it. Press gently until it locks into place.

How to remove CD/DVD when the disc tray will not open

Pressing the eject button will not open the disc tray when the computer power is off. If the power is off, you can open the disc tray by inserting a slender object (about 15 mm) such as a straightened paper clip into the eject hole just to the right of the eject button.

15mm

Eject hole

Manual release with the eject hole

Turn off the power before you use the eject hole. If the CD/DVD is spinning when you open the disc tray, the CD/DVD could fly off the spindle and cause injury.

Operating Basics

Writing CDs on DVD-ROM&CD-R/RW drive

Depending on the type of drive installed, you may be able to write CDs. The DVD-ROM&CD-R/RW drive lets you write as well as read CD-ROMs. Observe the precautions in this section to ensure the best performance for writing CDs. For information on loading and unloading CDs refer to the

Using optical disk drive section.

■ Refer to the Writable discs, section in Chapter 2 for details about the

types of writable CD/DVD discs.

■ Do not turn off the power of the optical disc drive while the computer is

accessing the drive. If you turn off the power, you may lose data.

■ When the power of the optical disc drive is off, the disc tray will not

open even if the eject button is pressed. Use the optical disc drive power icon to turn the power of the optical disc drive on. Refer to Chapter 1, Special features.

User’s Manual 4-6

When writing to media using an optical disc drive, always connect the AC adaptor to a power plug socket. If data is written while powered by the battery pack, writing may sometimes fail due to low battery power and data loss may occur.

Before writing or rewriting

Please observe the following points when you write or rewrite the data.

■ We recommend the following manufacturers of CD-R and CD-RW

media. Media quality can affect write or rewrite success rates.

CD-R:

TAIYO YUDEN CO., LTD. MITSUBISHI CHEMICAL CORPORATION RICOH Co., Ltd.

Multi-Speed and High-Speed CD-RW:

MITSUBISHI CHEMICAL CORPORATION RICOH Co., Ltd.

Ultra-Speed CD-RW:

MITSUBISHI CHEMICAL CORPORATION

TOSHIBA has confirmed the operation of CD-R and CD-RW media of the manufacturers above. Operation of other media cannot be guaranteed.

■ The actual number of rewrites to CD-RW is affected by the quality of the

disc and the way it is used.

■ Be sure to connect the AC adaptor when you write or rewrite.

■ Be sure to close all other software programs except the writing

software.

■ Do not run software such as a screen saver which can put a heavy load

on the CPU.

■ Operate the computer at full power. Do not use power-saving features.

■ Do not write while virus check software is running. Wait for it to finish,

then disable virus detection programs including any software that checks files automatically in the background.

■ Do not use hard disk utilities, including those intended to enhance hard

disk drive access speeds. They may cause unstable operation and damage data.

■ Write from the computer's hard disk drive to the CD. Do not try to write

from shared devices such as a LAN server or any other network device.

■ Writing with software other than Sonic TOSHIBA Disc Creator has not

been confirmed. Therefore, operation with other software cannot be guaranteed.

Operating Basics

User’s Manual 4-7

When writing or rewriting

Note the following when you write or rewrite a CD-R or CD-RW.

■ Always copy data from the hard disk drive to the optical disc. Do not use

cut-and-paste as the original data will be lost if there is a write error.

■ Do not perform any of the following actions:

■ Change users in the Windows Vista™ operating system.

■ Operate the computer for any other function, including use of a

mouse or Touch Pad, closing/opening the LCD panel.

■ Start a communication application such as a modem.

■ Apply impact or vibration to the computer.

■ Install, remove or connect external devices, including the following:

PC card, SD/SDIO card, Memory Stick/Memory Stick Pro, xD picture card, MultiMediaCar, USB devices, external monitor, i.LINK devices, optical digital devices.

■ Open the optical disc drive.

■ Remove the optical disc from the Optical Disc Drive.

■ Make sure writing or rewriting is completed before going into Sleep or

Hibernation Mode. When writing is completed, you can open the DVD-ROM&CD-R/RW drive tray.

■ If the media is poor in quality, dirty or damaged, writing or rewriting

errors may occur.

■ Set the computer on a level surface and avoid places subject to

vibration such as airplanes, trains or cars. Do not use an unstable surface such as a stand.

■ Keep mobile phones and other wireless communication devices away

from the computer.

Operating Basics

Writing CD/DVDs on DVD Super Multi drive

You can use the DVD Super Multi drive to write data to either CD-R/RW or DVD-R/-R DL/-RW/+R/+R DL/+RW/-RAM discs. The TOSHIBA Disc Creator and Ulead DVD MovieFactory for TOSHIBA are provided for writing.

■ Refer to the Writable discs, Chapter 2 for details about the types of

writable CD/DVD discs.

■ Do not turn off the power of the optical disc drive while the computer is

accessing the drive. If you turn off the power, you may lose data.

■ When the power of the optical disc drive is off, the disc tray will not

open even if the eject button is pressed. Use the optical disc drive power icon to turn the power of the optical disc drive on. Refer to Chapter 1, Special features.

User’s Manual 4-8

When writing to media using an optical disc drive, always connect the AC adaptor to a power plug socket. If data is written while powered by the battery back, writing may sometimes fail due to low battery power and data loss may occur.

Important message

Before you write or rewrite to CD-R/RW or DVD-R/-R DL/-RW/+R/+R DL/ +RW/-RAM discs, read and follow all setup and operating instructions in this section. If you fail to do so, the DVD Super Multi drive may not function

properly, and you may fail to write or rewrite, lose data or incur other damage.

Legal Footnotes

TOSHIBA does not bear responsibility for the following:

■ Damage to any CD-R/RW or DVD-R/-R DL/-RW/+R/+R DL/+RW/-RAM

disc that may be caused by writing or rewriting with this product.

■ Any change or loss of the recorded contents of CD-R/RW or DVD-R/-R

DL/-RW/+R/+R DL/+RW/-RAM disc that may be caused by writing or rewriting with this product, or for any business profit loss or business interruption that may be caused by the change or loss of the recorded contents.

■ Damage that may be caused by using third party equipment or

software.

Given the technological limitations of current optical disc writing drives, you may experience unexpected writing or rewriting errors due to disc quality or problems with hardware devices. Also, it is a good idea to make two or more copies of important data, in case of undesired change or loss of the recorded contents.

Operating Basics

Before writing or rewriting

■ Based on TOSHIBA's limited compatibility testing, we suggest the

following manufacturers of CD-R/RW and DVD-R/-R DL/+R/+R DL/RW/+RW/-RAM disc. However, in no event does TOSHIBA guarantee the operation, quality or performance of any disc. Disc quality can affect write or rewrite success rates.

CD-R:

TAIYO YUDEN CO., LTD. MITSUBISHI CHEMICAL CORPORATION RICOH Co., Ltd.

CD-RW: (Multi-Speed and High-Speed)

MITSUBISHI CHEMICAL CORPORATION RICOH Co., Ltd.

User’s Manual 4-9

Operating Basics

CD-RW: (Ultra-Speed)

MITSUBISHI CHEMICAL CORPORATION

DVD-R:

DVD Specifications for Recordable Disc for General Version 2.0

TAIYO YUDEN CO., LTD. Matsushita Electric Industrial Co., Ltd.

DVD-R (Dual Layer):

MITSUBISHI CHEMICAL CORPORATION

DVD+R:

MITSUBISHI CHEMICAL CORPORATION RICOH Co., Ltd.

DVD+R DL:

MITSUBISHI CHEMICAL CORPORATION

DVD-RW:

DVD Specifications for Recordable Disc for Version 1.1 or version 1.2

VICTOR COMPANY OF JAPAN.LIMITED MITSUBISHI CHEMICAL CORPORATION

DVD+RW:

MITSUBISHI CHEMICAL CORPORATION RICOH Co., Ltd.

DVD-RAM:

DVD Specifications for DVD-RAM Disc for Version 2.0, Version 2.1 or Version 2.2

Hitachi Maxell Ltd. Matsushita Electric Industrial Co., Ltd.

This drive cannot use discs that allow writing faster than 16 speed (DVD-R, DVD+R), 6 speed (DVD-RW), 4 speed (DVD+RW), 5 speed (DVD-RAM), 4 speed (DVD-R DL, Double Layer supported model only), 8 speed (DVD+R DL, Double Layer supported model only).

■ If the disc is poor in quality, dirty or damaged, writing or rewriting errors

may occur. Be careful to check the disc for dirt or damage before you use it.

■ The actual number of rewrites to CD-RW, DVD-RW, DVD+RW or

DVD-RAM is affected by the quality of the disc and the way it is used.

■ DISC created in DVD-R DL format4 (Layer Jump Recording) cannot be

read.

User’s Manual 4-10

Operating Basics

■ There are two types of DVD-R discs: authoring and general use discs.

Do not use authoring discs. Only general use discs can be written to by a computer drive.

■ You can use DVD-RAM discs that can be removed from a cartridge and

DVD-RAM discs designed without a cartridge.

■ Other DVD-ROM drives for computers or other DVD players may not be

able to read DVD-R/-R DL/-RW or DVD+R/+R DL/+RW discs.

■ Data written to a CD-R/DVD-R/-R DL/DVD+R/+R DL disc cannot be

deleted either in whole or in part.

■ Data deleted (erased) from a CD-RW, DVD-RW, DVD+RW and

DVD-RAM disc cannot be recovered. Check the content of the disc carefully before you delete it. If multiple drives that can write data to discs are connected, be careful not to delete data from the wrong drive.

■ In writing to a DVD-R/-R DL/-RW, DVD+R/+R DL/+RW or DVD-RAM

disc, some disc space is required for file management, so you may not be able to write the full capacity of the disc.

■ Since the disc is based on the DVD standard, it might be filled with

dummy data if the written data is less than about 1 GB. Even if you write only a small amount of data, it might take time to fill in the dummy data.

■ When multiple drives that can write data to discs are connected, be

careful not to write to the wrong drive.

■ Be sure to connect the AC adaptor before you write or rewrite.

■ Before you enter Sleep or Hibernation Mode, be sure to finish

DVD-RAM writing. When writing is finished, you can eject DVD-RAM media.

■ Be sure to close all other software programs except the writing

software.

■ Do not run software such as a screen saver, which can put a heavy load

on the CPU.

■ Operate the computer in the full-power mode. Do not use power-saving

features. Be careful not to write to the wrong drive.

■ Do not write while a virus check software is running. Wait for it to finish

and then disable virus detection programs including any software that checks files automatically in the background.

■ Do not use hard disk utilities, including those intended to enhance hard

disk drive access speed. They may cause unstable operation and data damage.

■ CD-RW (Ultra Speed +) media is not supported. If used, data may be

lost or damaged.

■ Write from the computer’s hard disk drive to the CD/DVD. Do not try to

write from shared devices such as a LAN server or any other network device.

When writing or rewriting

Please observe/consider the following when you write or rewrite to a CD-R/ RW, DVD-R/-R DL/-RW/-RAM or DVD+R/+R DL/+RW disc.

User’s Manual 4-11

Operating Basics

■ Do not perform any of the following actions when writing or rewriting:

■ Change users in the Windows Vista™ operating system.

■ Operate the computer for any other function, including using a

mouse or Touch Pad or closing/opening the LCD panel.

■ Start a communication application such as a modem.

■ Apply impact or vibration to the computer.

■ Install, remove or connect external devices, including the following:

PC card, SD/SDIO card, Memory Stick/Memory Stick Pro, xD picture card, MultiMediaCard, USB devices, external monitor, i.LINK devices, optical digital devices.

■ Use the Audio/Video control button to reproduce music or voice.

■ Open the optical disc drive.

■ Remove the optical disc from the Optical Disc Drive.

■ Do not use shut down/log off and Sleep/hibernation while writing or

rewriting.

■ Make sure writing or rewriting is completed before going into Sleep/

Hibernation Mode. Writing is completed if you can open the DVD-ROM&CD-R/RW or DVD Super Multi drive tray.

■ Set the computer on a level surface and avoid places subject to

vibration such as airplanes, trains, or cars. Do not use an unstable surface such as a stand.

■ Keep mobile phones and other wireless communication devices away

from the computer.

■ Always copy data from the hard disk drive to the optical disc. Do not use

cut-and-paste. The original data will be lost if there is a write error.

Discs created in DVD-R DL format4 (Layer Jump Recording) cannot be read.

TOSHIBA Disc Creator

Note the following limitations when you use TOSHIBA Disc Creator:

■ DVD-Video cannot be created using TOSHIBA Disc Creator.

■ DVD-Audio cannot be created using TOSHIBA Disc Creator.

■ You cannot use TOSHIBA Disc Creator's Audio function to record music

to the DVD-R/-R DL/-RW or DVD+R/+R DL/+RW discs.

■ Do not use the Disk Backup function of TOSHIBA Disc Creator to copy

DVD-Video and DVD-ROM with copyright protection.

■ DVD-RAM disc cannot be backed up with the Disk Backup function of

TOSHIBA Disc Creator.

■ You cannot back up a CD-ROM or CD-R/RW to DVD-R/-R DL/-RW or

DVD+R/+R DL/+RW using the Disk Backup function of TOSHIBA Disc Creator.

■ You cannot back up DVD-ROM, DVD-Video, DVD-R/-R DL/-RW or

DVD+R/+R DL/+RW to CD-R/RW using the Disk Backup function of TOSHIBA Disc Creator.

User’s Manual 4-12

■ TOSHIBA Disc Creator cannot record in packet format.

■ You might not be able to use the Disk Backup function of TOSHIBA

Disc Creator to back up a DVD-R/-R DL/-RW or DVD+R/+R DL/+RW disc that was made with other software on a different DVD-R/-R DL/RW or DVD+R/+R DL/+RW recorder.

■ If you add data to a DVD-R and DVD+R disc that you have already

recorded to, you might not be able to read the added data under some circumstances. It cannot be read in 16-bit operating systems, such as Windows 98SE and Windows Me. In Windows NT4, you will need Service Pack 6 or later to read added data. In Windows 2000, you will need Service Pack 2 or later to read it. Some DVD-ROM and DVDROM&CD-R/RW drives cannot read added data regardless of the operating system.

■ TOSHIBA Disc Creator does not support recording to DVD-RAM discs.

To record to a DVD-RAM, use Explorer or another utility.

■ When you back up a DVD disc, be sure the source drive supports

recording to DVD-R/-R DL/-RW or DVD+R/+R DL/+RW discs. If the source drive does not support recording to DVD-R/-R DL/-RW or DVD+R/+R DL/+RW discs, it might not be backed up correctly.

■ When you back up a DVD-R, DVD-RW, DVD+R or DVD+RW, be sure to

use the same type of disc.

■ You cannot partially delete any data written to a CD-RW, DVD-RW or

DVD+RW disc.

Data Verification

To verify that data is written or rewritten correctly, follow the steps below before you write or rewrite a Data CD/DVD.

1. Display the setting dialog box by one of the following two steps:

2. Click the setting button ( ) for writing on the main toolbar in the Data CD/DVD mode.

3. Select Setting for writing -> Data CD/DVD in the Setting menu.

4. Mark the Verify written data check box.

5. Select File Open or Full Compare mode.

6. Click the OK button.

When Using Ulead DVD MovieFactory

for TOSHIBA

Operating Basics

How to make a DVD-Video

Simplified steps for making a DVD-Video from video data captured from a DV-Camcorder:

1. Click Start -> All Programs -> DVD MovieFactory for TOSHIBA -> Ulead DVD MovieFactory for TOSHIBA Launcher to launch DVD MovieFactory.

2. Insert a DVD-RW or DVD+RW disc in Burner.

User’s Manual 4-13

Operating Basics

3. Click Video Disc -> Burn Video to Disc to launch Direct Recording dialog box, choose DVD-Video/+VR to invoke Straight Capture to Disc Page.

4. Choose DVD-Video format.

5. Choose the capture source is DV.

6. Press Capture button.

Simplified steps for making a DVD-Video from adding video source:

1. Click Start -> All Programs -> DVD MovieFactory for TOSHIBA -> Ulead DVD MovieFactory for TOSHIBA Launcher to launch DVD MovieFactory.

2. Click Video Disc -> New Project to invoke 2nd Launcher, choose your project type, then invoke DVD MovieFactory.

3. Add source from HD Disk by click Add Video files button to invoke browser dialog box.

4. Choose the source video then go to Next page to apply Menu.

5. After choose the menu template, press Next button to go to Burning Page.

6. Choose the output type then press Burn button.

How to learn more about Ulead DVD MovieFactory

Please refer to the Help and Manual files for additional Ulead DVD MovieFactory information.

Important information for use

Note the following limitations when you write Video DVD:

1. Editing digital video

■ Log in with Administrator rights to use DVD MovieFactory.

■ Make sure that your computer is running on AC power when using

DVD MovieFactory.

■ Operate the computer at Full Power. Do not use power-saving

features.

■ While you are editing DVD, you can display preview. However, if

another application is running. The preview might not display properly.

■ DVD MovieFactory cannot edit or play copy protected content.

■ Do not enter sleep or hibernation mode while using DVD

MovieFactory.

■ Do not operate DVD MovieFactory immediately after turning on the

computer. Please wait until all Disc Drive activity has stopped.

■ When recording to a DV-Camcorder, to ensure you capture all of

your data, let the camcorder record for a few seconds before you begin recording your actual data.

User’s Manual 4-14

Operating Basics

■ CD recorder, JPEG functions, DVD-Audio, mini DVD and Video CD

functions are not supported in this version.

■ While recording video to DVD, please close all other programs.

■ Do not run software like a screen saver because it can put a heavy

load on the CPU.

■ Do not support mp3 decode and encode.

2. Before recording the video to DVD

■ When you record DVD disc, please use only discs recommended by

the Drive manufacturer.

■ Do not set the working drive to a slow device like a USB1.1 hard

disk drive or it will fail to write DVD.

■ Do not perform any of the following actions:

■ Operate the computer for any other function, including using a

mouse to Touch Pad or closing/Opening the LCD panel.

■ Bump or cause vibration to the computer.

■ Use the Mode control button and Audio/Video control button to

reproduce music or voice.

■ Open the DVD drive.

■ Install, remove or connect external devices, including the

following: PC card, SD card, USB device, external display, i.LINK devices, optical digital devices.

■ Please verify your disc after recording important data.

■ DVD-R/+R/+RW disc cannot be written in VR format.

■ Not support to output VCD and SVCD format.

3. About Straight to Disc

■ Not support to record on DVD-R/+R disc

■ Not support to record DVD+VR format by HDV

■ HDV support to burn DVD-Video only

■ DVD-VR format not support to add Menu

4. About recorded DVDs

■ Some DVD-ROM drives for personal computers or other DVD

players may not be able to read DVD-R/+R/-RW/-RAM discs.

■ When playing your recorded disc on your computer, please use

InterVideo WinDVD software application.

■ If you use an over-used rewritable disc, the full formatting might be

locked. Please use a brand new disc.

Media care

This section provides tips on protecting data stored on your CD/DVDs and floppy disks.

Handle your media with care. The following simple precautions will increase the lifetime of your media and protect the data stored on them:

User’s Manual 4-15

CD/DVDs

1. Store your CD/DVDs in the container they came in to protect them and keep them clean.

2. Do not bend the CD/DVD.

3. Do not write on, apply a sticker to, or otherwise mar the surface of the CD/DVD that contains data.

4. Hold the CD/DVD by its outside edge or the edge on the center hole. Fingerprints on the surface can prevent the drive from properly reading data.

5. Do not expose to direct sunlight, extreme heat or cold. Do not place heavy objects on your CD/DVDs.

6. If your CD/DVDs become dusty or dirty, wipe them with a clean dry cloth. Wipe from the center out, do not wipe in a circular direction around the CD/DVD. If necessary, use a cloth dampened in water or a neutral cleaner. Do not use benzine, thinner or similar cleaner.

Floppy disks

1. Store your floppy disks in the container they came in to protect them and keep them clean. If a floppy disk is dirty, do not use cleaning fluid. Clean it with a soft damp cloth.

2. Never open the shutter or touch the magnetic surface of your floppy disk. You could permanently damage it and lose data.

3. Always handle floppy disks with care, to prevent the loss of stored data. Always apply the floppy disk label in the correct location. Never apply a new label on top of an existing one. The label could come loose and damage the floppy drive.

4. Never use a pencil for writing on a floppy disk label. Pencil lead dust could cause a system malfunction. Always use a felt-tipped pen. When writing a title on a label, first write on the label, then apply the label to the floppy disk.

5. Never put a floppy disk in a location where water or other liquid may contact it or where it is excessively damp. It could cause data loss. Never use a wet or damp floppy disk. It could damage the floppy disk drive or other devices.

6. Data may be lost if the floppy disk is twisted; bent; or exposed to direct sunlight, extreme heat or cold.

7. Do not place heavy objects on your floppy disks.

8. Do not eat, smoke, or use erasers near your floppy disks. Foreign particles inside the floppy disk’s jacket can damage the magnetic surface.

9. Magnetic energy can destroy the data on your floppy disks. Keep your floppy disks away from speakers, radios, television sets and other sources of magnetic fields.

Operating Basics

User’s Manual 4-16

Sound system

This section describes some of the audio control functions.

Volume Mixer

The Volume Mixer utility lets you control the audio volume for playback under Windows for a device and an application.

■ To launch the Volume Mixer utility, click the right button of a mouse on

the speaker icon on the taskbar, and select Open Volume Mixer in the sub menu.

■ To adjust the volume level of the speaker or the headphone, move the

Speakers slider.

■ To adjust the volume level of an application that you are using, move

the slider for the application.

Microphone level

In order to change the recording level of a microphone, follow the steps below.

1. Click the right button of a mouse on the speaker icon on the taskbar, and select Recording Devices in the sub menu.

2. Select Microphone, and click Properties.

3. On the Levels tab, move the Microphone slider to increase or decrease the volume level of a microphone. If you feel lack of the volume level of the microphone, move the Microphone Boost slider to the higher level.

Operating Basics

PC Beep Level

In order to change the playback level of the PC Beep, follow the steps below.

1. Click the right button of a mouse on the speaker icon on the taskbar, and select Playback Devices in the sub menu.

2. Select Speakers, and click Properties.

3. On the Levels tab, move the PC Beep slider to increase or decrease the volume level of the PC Beep.

Audio Enhancements

In order to apply the sound effects for your current speaker, follow the steps below.

1. Click the right button of a mouse on the speaker icon on the taskbar, and select Playback Devices in the sub menu.

2. Select Speakers, and click Properties.

3. On the Enhancement tab, select the sound effects you would like, and click Apply.

User’s Manual 4-17

Realtek HD Audio Manager

Realtek HD Audio Manager provides you a user interface to change

various settings of audio configuration. Some of functions in the Realtek HD Audio Manager are prepared also in the Sound property in the control panel.

Environment, Equalizer, Karaoke, and Power Management are prepared only by the Realtek HD Audio Manager.

Environment

You can select 23 kinds of sound effects by the pull down menu in the Environment pane. Five typical effects, Sweeper Pipe, Bathroom, Arena, Stone Room, and Auditorium are prepared by a picture button.

Equalizer

You can select 12 kinds of optimized setting for equalization by the pull down menu in the Equalizer pane. Four typical settings, Pop, Live, Club, and Rock are prepared by a button.

Karaoke

Karaoke eliminates the human voice from a sound. To adjust the key of a sound, use the Up-Arrow button and the Down-Arrow button.

Power Management

The audio controller in your computer can be powered down when the audio function is not used. To adjust the configuration of audio power management, click the battery button at the lower right of the Realtek HD Audio Manager.

■ To verify the audio power management is enabled, the circle button at

the higher left of the Power Management is blue and convex.

■ If the button is black and concave, the audio power management is

disabled.

Operating Basics

User’s Manual 4-18

Modem

Region selection

Operating Basics

This section describes how to connect and disconnect the internal modem to and from a telephone jack.

■ Connection to any communication line other than an analog phone line

could cause a PC system failure.

■ Connect the built-in modem only to ordinary analog phone lines.

■ Never connect the built-in modem to a digital line (ISDN).

■ Never connect the built-in modem to the digital connector on a

public telephone or to a digital private branch exchange (PBX).

■ Never connect the built-in modem to a key telephone system for

residences or offices.

■ Never operate your PC on AC power during a thunderstorm. If you see

lightning or hear thunder, immediately turn off the PC. An electric surge caused by the storm, may result in a system failure, loss of data or hardware damage.

Telecommunication regulations vary from one region to another, so you will need to make sure the internal modem’s settings are correct for the region in which it will be used.

The built-in modem can be used only in specified countries and regions. Using the modem in an area not specified for use may cause a system failure. Check the specified areas carefully before using it.

To select a region, follow the steps below.

1. Click start, point to All Programs, point to TOSHIBA, point to

Networking and click Modem Region Select.

Do not use the Country/Region Select function in the Modem setup utility in the Control Panel if the function is available. If you change the Country/ Region in the Control Panel, the change may not take effect.

2. The Region Selection icon will appear in the Windows Task Bar.

3. Click the icon with the primary mouse button to display a list of regions that the modem supports. A sub menu for telephony location information will also be displayed. A check will appear next to the currently selected region and telephony location.

4. Select a region from the region menu or a telephony location from the

sub-menu.

■ When you click a region it becomes the modem’s region selection,

and the New Location for telephony will be set automatically.

■ When you select a telephony location, the corresponding region is

automatically selected and it becomes the modem’s current region setting.

User’s Manual 4-19

Properties menu

Click the icon with the secondary mouse button to display properties menu on the screen.

Setting

You can enable or disable the following settings:

AutoRun Mode

The Region Select utility starts automatically when you start up the operating system.

Open the Dialing Properties dialog box after selecting region.

The dialing properties dialog box will be displayed automatically after you select the region.

Location list for region selection.

A submenu appears displaying location information for telephony. Open dialog box, if the modem and Telephony Current Location region

code do not match. A warning dialog box is displayed if current settings for region code and

telephony location are incorrect.

Modem Selection

If the computer cannot recognize the internal modem, a dialog box is displayed. Select the COM port for your modem to use.

Operating Basics

Dialing Properties

Select this item to display the dialing properties.

If you are using the computer in Japan, the Telecommunications Business Law requires that you select Japan region mode. It is illegal to use the modem in Japan with any other selection.

User’s Manual 4-20

Connecting

To connect the modular cable, follow the steps below.

The modular cable that comes with the computer must be used to connect the modem. Connect the end of the modular cable with the core to the computer.

■ Connection to any communication line other than an analog phone line

could cause a PC system failure.

■ Connect the built-in modem only to ordinary analog phone lines.

■ Never connect the built-in modem to a digital line (ISDN).

■ Never connect the built-in modem to the digital connector on a

public telephone or to a digital private branch exchange (PBX).

■ Never connect the built-in modem to a key telephone system for

residences or offices.

■ Never operate your PC on AC power during a thunderstorm. If you see

lightning or hear thunder, immediately turn off the PC. An electric surge caused by the storm, may result in a system failure, loss of data or hardware damage.

1. Plug one end of the modular cable into the computer’s modem jack.

2. Plug the other end of the modular cable into a telephone jack.

Operating Basics

Telephone jack

Modular cable

Modem jack

Connecting the internal modem

Do not pull on the cable or move the computer while the cable is connected.

If you use a storage device such as an optical drive or hard disk drive connected to a 16-bit PC card, you might experience the following modem problems:

■ Modem speed is slow or communication is interrupted.

■ Skips may occur in sound.

User’s Manual 4-21

Disconnecting

To disconnect the internal modular cable, follow the steps below.

1. Pinch the lever on the connector in the telephone jack and pull out the connector.

2. Disconnect the cable from the computer’s modem jack in the same manner.

Wireless communications

The computer’s wireless communication function supports both Wireless LAN and Bluetooth devices.

All models are provided with Wireless Communication switch. Some models are equipped with both Wireless LAN and Bluetooth functions.

■ Do not use the Wireless LAN (Wi-Fi), Bluetooth or Wireless WAN

functionalities near a microwave oven or in areas subject to radio interference or magnetic fields. Interference from a microwave oven or other source can disrupt Wi-Fi, Bluetooth or Wireless WAN operation.

■ Turn Wi-Fi, Bluetooth and Wireless WAN functionalities off when near a

■ Always turn off Wi-Fi or Bluetooth or Wireless WAN functionality if the

computer is near automatic control equipment or appliances such as automatic doors or fire detectors. Radio waves can cause malfunction of such equipment, possibly resulting in serious injury.

■ It may not be possible to make a network connection to a specified

network name using the ad hoc network function. If this occurs, the new network(*) will have to be configured for all computers connected to the same network in order to re-enable network connections. * Please be sure to use new network name.

Operating Basics

Wireless LAN

The Wireless LAN is compatible with other LAN systems based on Direct Sequence Spread Spectrum /Orthogonal Frequency Division Multiplexing radio technology that complies with IEEE802.11 Wireless LAN standard (Revision A, B or G).

■ Theoretical maximum speed: 54Mbps (IEEE802.11a, 802.11g)

■ Theoretical maximum speed: 11Mbps (IEEE802.11b)

■ Frequency Channel Selection (Revision A: 5 GHz, Revision B/G: 2.4

GHz)

■ Roaming over multiple channels

■ Card Power Management

User’s Manual 4-22

Operating Basics

■ Wired Equivalent Privacy (WEP) data encryption, based on 128 bit

encryption algorithm.

■ Wi-Fi Protected Access (WPA).

■ Advanced Encryption Standard (AES) data encryption.

■ Wake-up on Wireless LAN (Intel module type)

Do not install or remove an optional memory module while Wake-up on Wireless LAN is enabled.

■ The Wake-up on Wireless LAN function consumes power even when

the system is off. Leave the AC adaptor connected while using this feature.

■ The values shown above are the theoretical maximums for Wireless

LAN standards. The actual values may differ.

■ The transmission speed over the Wireless LAN, and the distance over

which the Wireless LAN can reach, may vary depending on surrounding electromagnetic environment, obstacles, access point design and configuration, client design and software/hardware configurations. The transmission rate described is the theoretical maximum speed as specified under the appropriate standard - the actual transmission speed will be lower than the theoretical maximum speed.

■ The Wake-up on Wireless LAN function is effective only when it is

connected with AP. This function becomes invalid when the connection is cut.

■ The Wake-up on Wireless LAN function is not available in battery

mode.

Security

■ TOSHIBA strongly recommend that you enable WEP (encryption)

functionality, otherwise your computer will be open to illegal access by an outsider using a wireless connection. If this occurs, the outsider may illegally access your system, eavesdrop, or cause the loss or destruction of stored data.

■ TOSHIBA is not liable for the loss of data due to eavesdropping or

illegal access through the Wireless LAN and the damage thereof.

Bluetooth wireless technology

Some models in this series are equipped with Bluetooth™ wireless technology that eliminates the need for cables between electronic devices such as desktop computers, printers and mobile phones.

You cannot use the built-in Bluetooth functions and an optional Bluetooth adapter simultaneously.

Bluetooth wireless technology has the following features:

User’s Manual 4-23

Worldwide operation

The Bluetooth radio transmitter and receiver operate in the 2.4 GHz band, which is license-free and compatible with radio systems in most countries in the world.

Radio links

You can easily establish links between two or more devices. The link is maintained even if the devices are not within line of sight.

Security

Two advanced security mechanisms ensure a high level of security:

■ Authentication prevents access to critical data and makes it impossible

to falsify the origin of a message.

■ Encryption prevents eavesdropping and maintains link privacy.

Bluetooth™ Stack for Windows® by TOSHIBA

Please note that this software is specifically designed for the following operating systems:

■ Microsoft

Detailed information regarding the use with these operating systems is listed below. Please refer also to the electronic information which is included with each software.

This Bluetooth™ Stack is based on Bluetooth™ Version 1.1/1.2/2.0+EDR specification. TOSHIBA cannot confirm compatibility between any PC products and/or other electronic devices that use Bluetooth™ other than TOSHIBA mobile PCs.

Windows Vista™

Operating Basics

Release Notes related to the Bluetooth™ Stack for

Windows

1. Fax application software: Regarding FAX application software, there are some software that you cannot use on this Bluetooth™ Stack.

2. Multi User: On Windows Vista™, the use of Bluetooth is not supported in a multiuser environment. This means that, when you use Bluetooth, other users logged onto the same computer will not be able to use its Bluetooth functionality.

by TOSHIBA

Product Support:

The latest information regarding Operating System support, Language Support or available upgrades can be found on our web site

http://www.toshiba-europe.com/computers/tnt/bluetooth.htm in Europe

or www.pcsupport.toshiba.com in the United States.

User’s Manual 4-24

Wireless communication switch

You can enable or disable Wireless LAN and Bluetooth functions, with the on/off switch. No transmissions are sent or received when the switch is off. Slide the switch to the right to turn it on and to the left to turn it off.

■ Do not use the Wireless LAN or Bluetooth functionalities near a

microwave oven or in areas subject to radio interference or magnetic fields. Interference from a microwave oven or other source can disrupt Wireless LAN or Bluetooth operation.

■ Turn Wireless LAN and Bluetooth functionalities off when near a

■ Always turn off Wireless LAN or Bluetooth functionality if the PC is near

automatic control equipment or appliances such as automatic doors or fire detectors. Radio waves can cause malfunction of such equipment, possibly resulting in serious injury.

■ It may not be possible to make a network connection to a specified

network name using the ad hoc network function.If this occurs, the new network(*) will have to be configured for all computers connected to the same network in order to re-enable network connections. * Please be sure to use new network name.

Operating Basics

Wireless communication Indicator

The wireless communication indicator indicates the status of the wireless communication functions.

Indicator status Indication

Indicator off Wireless communication switch is set to off.

Automatic power down because of overheating. Power malfunction.

Indicator glows Wireless communication switch is on. Wireless

If you used the Task Bar to disable the Wireless LAN, restart the computer or perform the following procedure to re-enable it: start, Control Panel,

System and Maintenance, System, Device Manager, Network adapters, Intel or Atheros AR5006EG/AR5006EX Wireless Network Adapter and enable.

User’s Manual 4-25

PRO/Wireless 3945BG/3945ABG Network Connection

LAN or Bluetooth is turned on by an application.

LAN

LAN cable types

Operating Basics

The computer has built-in support for Ethernet LAN (10 megabits per second, 10BASE-T), Fast Ethernet LAN (100 megabits per second, 100BASE-TX) and Gigabit Ethernet LAN (1000 megabits per second, 1000BASE-T). This section describes how to connect/disconnect to a LAN.

Do not install or remove an optional memory module while Wake-up on LAN is enabled.

■ The Wake-up on LAN function consumes power even when the system

is off. Leave the AC adaptor connected while using this feature.

■ The link speed (10/100/1000 megabits per second) switches

automatically according to your network environment (connected devices, cables, noise etc.).

The computer must be configured properly before connecting to a LAN. Logging onto a LAN using the computer’s default settings could cause a malfunction in LAN operation. Check with your LAN administrator regarding set-up procedures.

If you are using Gigabit Ethernet LAN (1000 megabits per second, 1000BASE-T), be sure to connect with a CAT5E cable or higher. You cannot use a CAT3 or CAT5 cable.

If you are using Fast Ethernet LAN (100 megabits per second, 100BASETX), be sure to connect with a CAT5 cable or higher. You cannot use a CAT3 cable.

If you are using Ethernet LAN (10 megabits per second, 10BASE-T), you can connect with a CAT3 or higher.

User’s Manual 4-26

Connecting LAN cable

To connect the LAN cable, follow the steps below.

■ Connect the AC adaptor before connecting the LAN cable. The AC

adaptor must remain connected during LAN use. If you disconnect the AC Adaptor while the computer is accessing a LAN, the system may hang up.

■ Do not connect any other cable to the LAN jack except the LAN cable.

Otherwise, malfunctions or damage may occur.

■ Do not connect any power supplying device to the LAN cable that is

connected to the LAN jack. Otherwise, malfunctions or damage may occur.

1. Turn off the power to the computer and to all external devices connected to the computer.

2. Plug one end of the cable into the LAN jack. Press gently until you hear the latch click into place.

LAN connector

LAN jack

Operating Basics

Connecting the LAN cable

3. Plug the other end of the cable into a LAN hub connector. Check with your LAN administrator before connecting to a hub.

When the computer is exchanging data with the LAN, the LAN Active indicator glows orange. When the computer is connected to a LAN hub but is not exchanging data, the Link indicator glows green.

Disconnecting LAN cable

To disconnect the LAN cable, follow the steps below.

Make sure the LAN Active indicator (orange LED) is out before you disconnect the computer from the LAN.

1. Pinch the lever on the connector in the computer’s LAN jack and pull out the connector.

2. Disconnect the cable from the LAN hub in the same manner. Check with your LAN administrator before disconnecting from the hub.

User’s Manual 4-27

Cleaning the computer

To help ensure long, trouble-free operation, keep the computer free of dust and use care with liquids around the computer.

■ Be careful not to spill liquids into the computer. If the computer does get

wet, turn the power off immediately and let the computer dry completely before you turn it on again.

■ Clean the computer using a slightly damp (with water) cloth. You can

use glass cleaner on the LCD display screen. Spray a small amount of cleaner on a soft, clean cloth and wipe the screen gently with the cloth.

Never spray cleaner directly onto the computer or let liquid run into any part of it. Never use harsh or caustic chemical products to clean the computer.

Moving the computer

The computer is designed for rugged durability. However, a few simple precautions taken when moving the computer will help ensure trouble-free operation.

■ Before moving the computer, it recommends changing the function of

HDD Protection. Refer to the section, Using the Hard Disk Drive (HDD)

Protection, in this chapter.

■ Make sure all disk activity has ended before moving the computer.

Check the HDD indicator on the computer.

■ If a CD/DVD is in the drives, remove it. Also make sure the disc tray is

securely closed.

■ Turn off the power to the computer.

■ Disconnect the AC adaptor and all peripherals before moving the

computer.

■ Close the LCD display panel. Do not pick up the computer by its display

panel.

■ Before carrying your computer, shut down the computer, disconnect the

power cable and wait until the PC cools down. Failure to follow this instruction could result in minor injury.

■ Always turn off the power when you move the computer. If the power

button has a lock, set it to the lock position. Also be careful not to subject the computer to impact. Failure to follow this instruction could result in damage to computer, computer failure or loss of data.

■ Never transport your computer with PC cards installed. This could

cause damage to your computer and/or PC card, resulting in product failure.

■ Use the carrying case when transporting the computer.

■ When carrying your computer, be sure to hold it securely so that it does

not fall or hit anything.

■ Do not carry your computer by holding protruded portions.

Operating Basics

User’s Manual 4-28

Using the Hard Disk Drive (HDD) Protection

This computer has a function for reducing the risk of damage on hard disk drive.

Using the acceleration sensor built in the computer, HDD Protection detects vibration, shocks, and those signs in the computer, and automatically moves the HDD (Hard Disk Drive) head to the safe position to reduce the risk of damage that could be caused to the disk by head-to-disk contact.

■ This function does not guarantee that the hard disk drive will not be

damaged.

■ A secondary hard disk drive fitted to the computer is not supported by

the HDD protection function.

When vibration is detected, the following message is displayed, and the icon in the notification area of the taskbar is changed to the protection state. This message is displayed until the OK button is pressed or 30 seconds pass. When vibration subsides, the icon returns to the normal state.

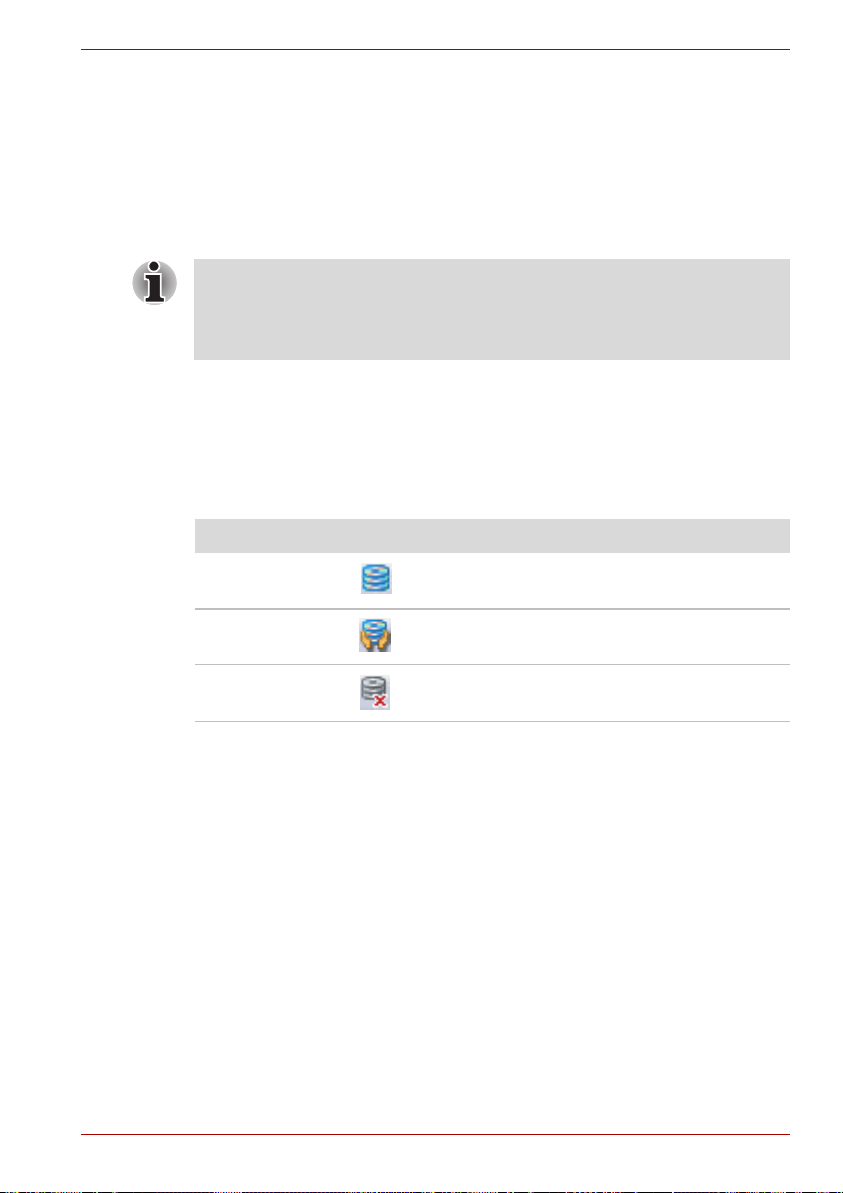

Taskbar Icon

State Icon Description

Normal HDD Protection is enabled.

Operating Basics

Protection HDD Protection is active. The hard disk drive

OFF HDD Protection is disabled.

head is in a safe position.

TOSHIBA HDD Protection Properties

You can make the HDD Protection settings by using the TOSHIBA HDD Protection Properties window. To open the window, click start, point to All

Programs, point to TOSHIBA, point to Utilities and click HDD Protection setting. The window can also be started from the icon on the Taskbar, or

from the Control Panel.

HDD Protection

You can choose whether to enable or disable HDD Protection.

User’s Manual 4-29

Operating Basics

Detection Level

This function can be set to four levels. The sensitivity levels in which vibrations, impacts and their similar signs are detected can be set to OFF, 1, 2 and 3 in ascending order. Level 3 is recommended for better protection of the computer. However, when the computer is used as handheld or in other unstable conditions, setting the detection level to 3 could result in frequent execution of HDD Protection, which will slow HDD reading and writing. Set a lower detection level when the speed of HDD reading and writing is a priority.

Different detection levels can be set depending on whether the computer is used as handheld or mobile usages, or whether it is used in a stable environment such as on a table in the workplace or at home. By setting different detection levels for the computer depending on whether it runs with the AC power (desktop) or with batteries (handheld or mobile usage), the detection level automatically switches according to the power connection mode.

3D Viewer

This feature displays a 3D object on the screen which moves in according to tilting or vibration of the computer.

When the TOSHIBA HDD Protection detects computer vibration the Hard Disk Drive head is parked and the 3D object disk rotation will stop. When the head is un-parked the disk will begin to rotate again.

The 3D Viewer can be started from the icon in the task tray.

■ This 3D object virtually represents the Computer's internal Hard Disk

Drive. This representation may vary from the actual number of disks, disk rotation, head movement, part size, shape and direction.

■ This feature may use a large amount of CPU and memory on some

models. The computer may become slow or sluggish when attempting to run other applications while the 3D Viewer is displayed.

■ Intensely shaking the computer or other subjecting it to strong impacts

may cause damage to the computer.

Details

To open the Details window, click the Setup Detail button in the TOSHIBA HDD Protection Properties window.

Detection Level Amplification

When the AC adaptor is disconnected or the lid is closed, HDD Detection assumes that the computer will be carried and sets the detection level to the maximum for 10 seconds.

User’s Manual 4-30

HDD Protection Message

Specify whether to display a message when TOSHIBA HDD Protection is active.

■ This function does not work when the computer is starting, in Sleep

Mode, in Hibernation Mode, in transition to Hibernation Mode, recovering from Hibernation Mode, or powered off. Be sure to not subject the computer to vibration or impact while the function is disabled.

■ This function only operates with Windows Vista™.

Heat dispersal

To protect from overheating, the CPU has an internal temperature sensor. If the computer’s internal temperature rises to a certain level, the cooling fan is turned on or the processing speed is lowered. You can select whether to control the CPU temperature by turning on the fan first, then if necessary, lowering the CPU speed. Or, by lowering the CPU speed first, then if necessary, turning on the fan. Use the Cooling Method item of the Basic Setup tab in TOSHIBA Power Saver.

When the CPU temperature falls to a normal range, the fan is turned off and the CPU operation returns to standard speed.

If the CPU temperature reaches an unacceptably high level with either setting, the system automatically shuts down to prevent damage. Data in memory will be lost.

Operating Basics

User’s Manual 4-31

The Keyboard

The computer’s keyboard layouts are compatible with a 101/102-key enhanced keyboard. By pressing some keys in combination, all the 101/ 102-key keyboard functions can be executed on the computer.

The number of keys on your keyboard depends on which country/region’s keyboard layout your computer is configured with. Keyboards for numerous languages are available.

There are six types of keys: typewriter keys, function keys, soft keys, Hot keys, Windows special keys and keypad overlay.

Typewriter keys

The typewriter keys produce the upper- and lower-case letters, numbers, punctuation marks, and special symbols that appear on the screen.

There are some differences, however, between using a typewriter and using a computer keyboard:

■ Letters and numbers produced in computer text vary in width. Spaces,

which are created by a "space character," may also vary depending on line justification and other factors.

■ The lowercase l (el) and the number 1 (one) are not interchangeable on

computers as they are on a typewriter.

■ The uppercase O (oh) and the 0 (zero) are not interchangeable.

■ The Caps Lock function key locks only the alphabetic characters in

uppercase while the shift lock on a typewriter places all keys in the shifted position.

■ The Shift keys, the Tab key, and the BkSp (backspace) key perform the

same function as their typewriter counterparts but also have special computer functions.

Chapter 5

User’s Manual 5-1

Function keys: F1 … F12

The function keys (not to be confused with Fn) are the 12 keys at the top of your keyboard. These keys function differently from other keys.

F1 through F12 are called function keys because they execute programmed functions when pressed. Used in combination with the Fn key, keys marked with icons execute specific functions on the computer. Refer to the section, Soft keys: Fn key combinations, in this chapter. The function executed by individual keys depends on the software you are using.

Soft keys: Fn key combinations

The Fn (function) is unique to TOSHIBA computers and is used in combination with other keys to form soft keys. Soft keys are key combinations that enable, disable or configure specific features.

Some software may disable or interfere with soft-key operations. Soft-key settings are not restored by the Sleep feature.

Emulating keys on enhanced keyboard

Esc

F3 F4 F5 F6 F7 F8 F9 F10 F11 F12

Tab

CapsLock

Ctrl

! 1

Shift

$4%

QW RTYU IOP

ASDFGHJ KL

CXZB

Alt

(9 )

The Keyboard

Pause

PrtSc

Scroll

SysReq

Break

lock

Bk Sp

{[}

]

;

Alt

Ins

Del

Enter

Shift

Ctrl

Num

PgUp

Home

End

PgDn

Lock

8 9

Home

PgUp

654

PgDn

End

0 Ins

Enter

. Del

A 101-key enhanced keyboard layout

The keyboard is designed to provide all the features of the 101-key enhanced keyboard, shown in figure above. The 101/102-key enhanced keyboard has a numeric keypad and scroll lock key. It also has additional Enter and Ctrl keys to the right of the main keyboard. Since the keyboard is smaller and has fewer keys, some of the enhanced keyboard functions must be simulated using two keys instead of one on the larger keyboard.

Your software may require you to use keys that the keyboard does not have. Pressing the Fn key and one of the following keys simulates the enhanced keyboard’s functions.

User’s Manual 5-2

The Keyboard

Press Fn + F10 or Fn + F11 to access the integrated keypad. When activated, the keys with gray markings on the bottom edge become numeric keypad keys (Fn + F11) or cursor control keys (Fn + F10). Refer to the Keypad overlay section in this chapter for more information on how to operate these keys. The power on default for both settings is off.

Press Fn + F12 (ScrLock) to lock the cursor on a specific line. The power on default is off.

Press Fn + Enter to simulate Enter on the enhanced keyboard’s numeric keypad.

Press Fn + Ctrl to simulate the enhanced keyboard’s right Ctrl key.

Hot keys

Hot keys (pressing Fn + a function or Esc key) let you enable or disable certain features of the computer.

Mute: Pressing Fn + Esc turns the volume on and off.

Lock: Pressing Fn + F1 enters "Lock computer" mode. To restore your

desktop, you need to log on again.

User’s Manual 5-3

The Keyboard

Power plan: Pressing Fn + F2 changes the power settings.

Sleep: Pressing Fn + F3 switches the system to Sleep mode.

Hibernate: Pressing Fn + F4 switches the system to Hibernate mode.

Output: Pressing Fn + F5 changes the active display device.

Brightness Down: Pressing Fn + F6 decreases the computer’s display

panel brightness in individual steps.

Brightness Up: Pressing Fn + F7 increases the computer’s display panel brightness in individual steps.

Wireless: Pressing Fn + F8 switches the active wireless devices if the wireless communication switch is switched on.

If no wireless communication device is installed, no dialog box will appear.

User’s Manual 5-4

Touch Pad: Pressing Fn + F9 enables or disables the Touch Pad function.

Zoom: Pressing Fn + Space changes the display resolution.

TOSHIBA Zooming Utility (reduce): Pressing Fn + 1 reduces the icon

size on the desktop or the font sizes within one of the supported application windows.

TOSHIBA Zooming Utility (enlarge): Pressing Fn + 2 enlarges the icon size on the desktop or the font sizes within one of the supported application windows.

Fn Sticky key

You can use the TOSHIBA Accessibility Utility to make the Fn key sticky, that is, you can press it once, release it, and then press an "F number" key. To start the TOSHIBA Accessibility Utility, click start, point to All Programs, point to TOSHIBA, point to Utilities and click Accessibility.

The Keyboard

Windows special keys

The keyboard provides two keys that have special functions in Windows: Windows logo key activates the start menu and the other, the application key, has the same function as the secondary mouse button.

This key activates the Windows start menu.

This key has the same function as the secondary mouse button.

User’s Manual 5-5

Keypad overlay

Your computer’s keyboard does not have an independent numeric keypad, but its numeric keypad overlay functions like one.

The keys in the center of the keyboard with gray letters make up the numeric keypad overlay. The overlay provides the same functions as the numeric keypad on the 101/102-key enhanced keyboard in figure below.

Turning on the overlays

The numeric keypad overlay can be used for numeric data input or cursor and page control.

Arrow mode

To turn on the Arrow mode, press Fn + F10. The Arrow mode indicator lights. Now try cursor and page control using the keys shown in figure below. Press Fn + F10 again to turn off the overlay.

Numeric mode

To turn on the Numeric mode, press Fn + F11. The Numeric mode indicator lights. Now try numeric data entry using the keys in figure below. Press Fn + F11 again to turn off the overlay.

The Keyboard

The numeric keypad overlay

User’s Manual 5-6
