FILE NO. 020-200307

DOCUMENT CREATED IN JAPAN, Apr., 2003

SERVICE MANUAL

COLOR TELEVISION

N3PSP Chassis

51H83, 57H83, 65H83

(TAC0353)(TAC0351)(TAC0352)

Page 2

CHAPTER 1 GENERAL ADJUSTMENTS

SAFETY INSTRUCTIONS .............................................................................................................................................. 3

CRT ASSEMBLY REPLACEMENT AND MOUNTING ................................................................................................... 4

PICTURE TUBE COMPONENTS ADJUSTMENT.......................................................................................................... 6

REPLACEMENT OF THE CRT....................................................................................................................................... 9

SERVICE MODE .......................................................................................................................................................... 10

ELECTRICAL ADJUSTMENT ...................................................................................................................................... 12

GENERAL ADJUSTMENTS

CONVERGENCE ADJUSTMENT ................................................................................................................................ 13

SCREEN AND MIRROR ALIGNMENTS ...................................................................................................................... 16

CIRCUIT CHECKS ....................................................................................................................................................... 17

CHAPTER 2 SPECIFIC INFORMATIONS

SETTING & ADJUSTING DATA .................................................................................................................................... 18

LOCATION OF CONTROLS ......................................................................................................................................... 19

ADDING CHANNELS TO THE TV'S MEMORY ............................................................................................................ 21

MECHANICAL DISASSEMBLY .................................................................................................................................... 23

SPECIFIC INFORMATIONS

CHASSIS REPLACEMENT PARTS LIST ..................................................................................................................... 27

PC BOARDS BOTTOM VIEW ...................................................................................................................................... 47

TERMINAL VIEW OF TRANSISTORS ......................................................................................................................... 60

CIRCUIT BLOCK DIAGRAM ........................................................................................................................................ 63

SPECIFICATIONS .................................................................................................................................................... END

APPENDIX:

CIRCUIT DIAGRAM

– 2 –

Page 3

CHAPTER 1 GENERAL ADJUSTMENTS

SAFETY INSTRUCTIONS

WARNING: BEFORE SERVICING THIS CHASSIS, READ THE “X-RAY RADIATION PRECAUTION”, “SAFETY PRECAU-

TION” AND “PRODUCT SAFETY NOTICE” INSTRUCTIONS BELOW.

X-RAY RADIATION PRECAUTION

1. Excessive high voltage can produce potentially hazardous X-RAY RADIATION. To avoid such hazards, the high voltage must not be above the specified limit. The nominal value of the high voltage of this receiver is (A) kV at zero beam current (minimum brightness) under a 120V AC power source. The high voltage must not, under any circumstances, exceed (B) kV.

Refer to table-1 for high voltage (A), (B). (See SETTING & ADJUSTING DATA on page 18)

Each time a receiver requires servicing, the high voltage should be checked following the HIGH VOLTAGE CHECK procedure in this manual. It is recommended that the reading of the high voltage be recorded as a part of the service record. It is important to use an accurate and reliable high voltage meter.

SAFETY PRECAUTION

WARNING : Service should not be attempted by anyone unfamiliar with the necessary precautions on this receiver. The following are the necessary precautions to be observed before servicing this chassis.

1. An isolation Transformer should be connected in the power line between the receiver and the AC line before any service is performed on the receiver.

2. Always discharge the picture tube anode to the CRT conductive coating before handling the picture tube. The picture tube is highly evacuated and if broken, glass fragments will be violently expelled. Use shatter proof goggles and keep picture tube away from the unprotected body while handling.

3. When replacing a chassis in the cabinet, always be certain that all the protective devices are put back in place, such as; non-metallic control knobs, insulating covers, shields, isolation resistor-capacitor network etc.

4. Before returning the set to the customer, always perform an AC leakage current check on the exposed metallic parts of the cabinet, such as antennas, terminals, screwheads, metal overlays, control shafts etc. to be sure the set is safe to operate without danger of electrical shock. Plug the AC line cord directly into a 120V AC outlet (do not use a line isolation transformer during this check). Use an AC voltmeter having 5000 ohms per volt or more sensitivity in the following manner:

PRODUCT SAFETY NOTICE

2. This receiver is equipped with a Fail Safe (FS) circuit which prevents the receiver from producing an excessively high voltage even if the B+ voltage increases abnormally. Each time the receiver is serviced, the FS circuit must be checked to determine that the circuit is properly functioning, following the FS CIRCUIT CHECK procedure in this manual.

3. The only source of X-RAY RADIATION in this TV receiver is the picture tube. For continued X-RAY RADIATION protection, the replacement tube must be exactly the same type tube as specified in the parts list.

4. Some part in this receiver have special safety-related characteristics for X-RAY RADIATION protection. For continued safety, parts replacement should be undertaken only after referring to the PRODUCT SAFETY NOTICE below.

Connect a 1500 ohm 10 watt resistor, paralleled by a 0.15 µF, AC type capacitor, between a known good earth ground (water pipe, conduit, etc.) and the exposed metallic parts, one at a time. Measure the AC voltage across the combination of 1500 ohm resistor and 0.15 µF capacitor. Reverse the AC plug at the AC outlet and repeat AC voltage measurements for each exposed metallic part. Voltage measured must not exceed 0.675 volts rms. This corresponds to 0.45 milliamp. AC. Any value exceeding this limit constitutes a potential shock hazard and must be corrected immediately.

AC VOLTMETER

0.15µF

Place this probe on

Good earth ground such as a water pipe, conduit, etc.

1500 ohm 10 watt

each exposed metallic part.

GENERAL ADJUSTMENTS

SPECIFIC INFORMATIONS

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These characteristics are often passed unnoticed by a visual inspection and the protection afforded by them cannot necessarily be obtained by using replacement components rated for higher voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in this manual and its supplements; electrical components having such features are identified by the international hazard symbols on the schematic diagram and the parts list. Before replacing any of these components, read the parts list in this manual carefully. The use of substitute replacement parts which do not have the same safety characteristics as specified in the parts list may create shock, fire, X-ray radiation or other hazards.

– 3 –

Page 4

CRT ASSEMBLY REPLACEMENT AND MOUNTING

CAUTION : DO NOT LOOSEN THE HEX HEAD BOLTS WITH SPRINGS (12 PCS), BECAUSE THOSE ARE FOR

SEALING OF CRT COOLANT.

GENERAL ADJUSTMENTS

SPECIFIC INFORMATIONS

Lens Assembly

Attention Serviceman

The Hex Head Bolts with Springs. (see sketch) used on CRT assembly, are NOT

Adjustment Screws DO NOT LOOSEN-FLUID LEAKAGE WILL OCCUR.

4 Screws

CRT Assembly

S.V.M. Coil

CRT DRIVE Board

CRT Mounting

Deflection Yoke and Conver Yoke

Lens and Neck Components View

– 4 –

Page 5

TO REMOVE CRT (Same procedure for R, G, B)

1. Remove CRT DRIVE Board, S. V. M. COIL and DEF. YOKE from CRT.

2. Remove Lens Assembly.

3. Detach CRT Anode Cap from CRT.

4. Remove CRT Assembly from CRT Mounting.

CRT REPLACEMENT (Same procedure for R, G, B) Reverse the removal procedures except the followings.

1. Anode Cable should be replaced with new one. See “SERVICING PRECAUTIONS” shown below.

2. Install silicon (T461B) to the CRT, replace the Anode cable and put enough silicon again on around the Anode Cap as illustrated.

CAUTION: Align the Anode cable as illustrated on page

ADJUSTING PROCEDURE IN REPLACING CRT

1. R.G.B. FOCUS ADJUSTMENT (page 7.)

2. PICTURE TILT ADJUSTMENT (page 7.)

3. USER CONVERGENCE CENTER CHECK (See owner's manual.)

4. CENTERING ADJUSTMENT (page 7.)

5. CONVERGENCE ADJUSTMENT (page 13.)

6. WHITE BALANCE ADJUSTMENT (page 12.)

Adjustments are complete.

Anode Cap

GENERAL ADJUSTMENTS

Silicon (On shaded area) TSE3843W #23960136

SERVICING PRECAUTIONS

■ Do not use a magnetized screw driver for screws of Deflection Yoke and Velocity Modulation Coil to avoid magnetization of electron gun. Magnetization of electron gun will degrade basic function and result in unbalance of right and left shift of user static convergence, and result in no variable quantity.

2 ~ 5 mm

SPECIFIC INFORMATIONS

15 ~ 25 mm

■ When replacing the anode cap assembly (CRT) or anode lead assembly (F.B.T.), remove the anode lead holder from old one and attach the holder again to new anode lead.

■ Check the point of anode lead in a straight line, if it is winding, please revise it.

Screw for D.Y

Screw for SVM coil

Anode lead holder

– 5 –

Page 6

WARNING : BEFORE SERVICING THIS CHASSIS, READ THE “X-RAY RADIATION PRECAUTION”, “SAFETY PRE- CAUTION” AND “PRODUCT SAFETY NOTICE” ON PAGE 3 OF THIS MANUAL.

DESCRIPTION OF NECK COMPONENTS



GENERAL ADJUSTMENTS

 Deflection yoke and convergence yoke

The position on the neck is required most front (CRT funnel side) and the screw is fastened after rotating yoke adjusting picture tilt.

 Centering magnet

After adjusting picture tilt, picture position is finally fixed by this magnet. In order to get maximum margin of user conver-

SPECIFIC INFORMATIONS

gence control for center of screen, this magnet have to be used for center convergence adjustment.

PICTURE TUBE COMPONENTS ADJUSTMENT



PREPARATION

Operate the receiver for at least 5 minutes.

– 6 –

Page 7

R, G, B FOCUS ADJUSTMENT

1. Before adjusting the R, G, B FOCUS, remove the 4 screws of Lens Assembly which is fixed on the CRT Assembly. (See page 4.) Then turn around the Lens Assembly by 180˚ to adjust the fastening screw (Fig. a) and fasten the 4 screws to secure Lens Assembly.

2. Select the adjustment mode. (See page 10.)

3. Press “7” button to display the built-in cross-hatch.

4. Press “0” and “RTN” buttons to make the picture a single Red color.

100 button ................ to erase Red color

0 button .................... to erase Green color

RTN button .............. to erase Blue color.

5. Loosen the fasten screw and adjust Red lens focus to best focusing point of picture center. Then fasten the screw. (See Fig. a.)

Fig. a

6. Adjust FOCUS VR “R” of FOCUS PACK to find best focusing point of picture center.

7. Repeat steps 3 to 5 for Green and Blue colors.

TILT ADJUSTMENT

Rotate R, G, B deflection yoke so that picture becomes horizon, then fasten screw.

CENTERING ADJUSTMENT

1. Stretch a thread between two center of screen edge (top and bottom, left and right).

GENERAL ADJUSTMENTS

2. Receive NTSC. Then select SERVICE MODE. (See Page 10.)

3. Select CONVERGENCE ADJUSTING mode, and press "7" button to display the internal net pattern. Move Cursol and recognize horizontal line indicated Y:4. This line is vertical center. Push "9" button to display the vertical stripes, and recognaize horizontal center.

SPECIFIC INFORMATIONS

4. Perform VCEN adjustment. (See page 12.)

5. Adjust G centering magnet so that the cross-bar pattern center comes to screen center.

6. Perform HEIGHT adjustment . (See page 13.)

7. Perform VERT. LINEARITY adjustment.

8. Perform WIDTH adjustment. (See page 12.)

9. Check whole quality of green line.

. Adjust R, B centering magnet so that the cross-bar pat-

tern center comes to screen center.

– 7 –

Page 8

LOCATION OF SCREEN AND FOCUS VR’S (57", 65")

GENERAL ADJUSTMENTS

SPECIFIC INFORMATIONS

LOCATION OF SCREEN AND FOCUS VR’S (46", 51")

SCREEN VR

FOCUS VR

RGB

Cover

Speaker grille

Cover

Speaker grille

RGB

FOCUS VR

SCREEN VR

– 8 –

Page 9

REPLACEMENT OF THE CRT

Service parts are provided for each R, G and B. The contents of the parts are as follows.

HITACHI

CRT 23008174 23008175 23008176

RG B

REPLACEMENT OF HIGH VOLTAGE CABLE

ANODE LEAD

RUBBER BOOT

LEAD HOLDER

Z450 TPA5007

Fig. a

1. When replacing Anode Lead or Anode Cap with new one, remove Lead Holder from old lead as shown in figure below, and put it on new lead. Do not throw away Lead Holder.

NOTE : THE LEAD HOLDER IS ATTACHED TO TPA5007

(Z450), BUT IS NOT ATTACHED TO ANODE LEAD AND ANODE CAP. RUBBER BOOT IS ATTACHED TO ANODE LEAD AND ANODE CAP.

2. Detaching Lead Holder

RUBBER BOOT

LOCK LEAD HOLDER

Fig. b

Cut here rubber boot and lead together to detach Lead Holder.

OLD ANODE LEAD

ANODE CAP

GENERAL ADJUSTMENTS

SPECIFIC INFORMATIONS

– 9 –

Page 10

1. ENTERING TO SERVICE MODE

1) Press MUTE button twice on Remote Control.

MUTE

SERVICE MODE

2) Press MUTE button again to keep pressing.

3) While pressing the MUTE button, press MENU button on TV set.

(Service mode display)

GENERAL ADJUSTMENTS

2. DISPLAYING THE ADJUSTMENT MENU

1) Press MENU button on TV.

Service mode

3. KEY FUNCTION IN THE SERVICE MODE

The following key entry during display of adjustment menu provides special functions.

SPECIFIC INFORMATIONS

Screen adjustment mode ON/OFF: TV (ANT)/VIDEO button (on TV) Selection of the adjustment items : Channel s/t (on TV or Remote) Change of the data value : Volume s/t (on TV or Remote) Adjustment menu mode ON/OFF : MENU button (on TV) Initialization of the memory (QA02) : RECALL+Channel button on TV (s) Initialization of the self diagnostic data: RECALL+Channel button on TV (t)

“RCUT” selection : 1 button “GCUT” selection : 2 button “BCUT” selection : 3 button “SCNT” selection : 4 button “SCOL” selection : 5 button “TNTC” selection : 6 button

Convergence adj : 7 button Self diagnostic display : 9 button

Adjustment mode

Press

Item

Data

– 10 –

Page 11

4. SELECTING THE ADJUSTING ITEMS

1) Every pressing of CHANNEL s button in the service mode changes the adjustment items in the order of table-2. (t button for reverse order)

Refer to table-2 for preset data of adjustment mode. (See SETTING & ADJUSTING DATA on page 18)

5. ADJUSTING THE DATA

1) Pressing of VOLUME s or t button will change the value of data in the range from 00H to FFH. The variable range

depends on the adjusting item.

6. EXIT FROM SERVICE MODE

1) Pressing POWER button to turn off the TV once.

■ INITIALIZATION OF MEMORY DATA OF QA02

After replacing QA02, the following initialization is required.

1. Enter the service mode, then select any register item.

2. Press and hold the RECALL button on the Remote, then press the CHANNEL s button on the TV. The initialization of QA02 has been complated.

3. Check the picture carefully. If necessary, adjust any adjustment item above. Perform “Programming Channel Memory” on the owner's manual.

CAUTION: Never attempt to initialize the data unless QA02 has been replaced.

7. SELF DIAGNOSTIC FUNCTION

1) Press “9” button on Remote Control during display of adjustment menu in the service mode. The diagnosis will begin to check if interface among IC’s are executed properly.

2) During diagnosis, the following displays are shown.

GENERAL ADJUSTMENTS

SELF CHECK



NO. 23 * * * * * *



POWER : 000



BUS LINE : OK



BUS CONT : OK



BLOCK : MAIN SUB



SET ID : 01



EEP VER : 02



OPT1 : 05 OPT2 : 70 DVI NO * * * * * * * *



ERR CODE : \\\\\\



IR BLASTER VER : NG



 Part number of microprocessor (QA01)

 Operation number of protection circuit (current limiter) . . . . “000” is normal.

 BUS line check “OK” ................... Normal

“SCL-GND” or “NG” ........... SCL-GND short circuit

“SDA-GND” or “NG” ........... SDA-GND short circuit

“SCL-SDA” or “NG” ............ SCL-SDA short circuit

 BUS line ACK (acknowledge) check

“OK” ..................... Normal

Display of Location Number . . . . NG

(Display example) “QA02 NG”, “H001 NG”, “Q501 NG” etc. Note: The indication of failure place is only one place though failure places are plural. When

repair of a failure place finishes, the next failure place is indicated. (The order of priority of indication is left side.)

 Sync. signal check Green display..... Normal

Red display ........ NG

MAIN ........ Main sync

SUB .......... Sub sync (when turn on the PIP)

 ID code for TV Set  Version of "EEP"  Data for "OPT"  Part number of DVI microprocessor (Q203)

 DVI error code ........ "\\\\\\" is normal. (When DVI signal is received)

 Version of IR braster IC ("NG" is displayed for models without TheaterLink.)

SPECIFIC INFORMATIONS

– 11 –

Page 12

ELECTRICAL ADJUSTMENT

ITEM ADJUSTMENT PROCEDURE

VERTICAL POSITION (VPSI)

WIDTH (WID)

GENERAL ADJUSTMENTS

SUB-BRIGHTNESS (BRTC)

HEIGHT (HIT)

SPECIFIC INFORMATIONS

1. Receive NTSC signal.

2. Connect he probe of digital voltmeter to TP-V and TP-G on SIGNAL Board.

3. Call up the adjustment mode display, then select the item VCEN.

4. Press the VOLUME s or t button to get the voltage 0±10 mV.

1. Receive NTSC signal.

2. Select the "FULL" mode by PIC SIZE button on Remote Control.

3. Call up the adjustment mode display, then select the item WID.

4. Press the VOLUME s or t button to get the picture so that left and right eddes of video signal begin to lack.

5. Press the VOLUME s button to advance the data by 8 steps.

NOTE: Check the horizontal picture position is correct.

1. Receive the air signal or aux Video signal.

2. Enter sports mode on user menu.

3. Enter the service mode, then select “BRTC” register.

4. Adjust the data to set dark area of picture to proper level.

1. Receive NTSC signal.

2. Select the "FULL" mode by PIC SIZE button on Remote Control.

3. Call up the adjustment mode display and select the item HIT.

4. Press the VOLUME s or t button to get the picture so that top and bottom of video signal begin to lack.

5. Press the VOLUME s button to advance the data by 8 steps.

Note: Check the vertical picture position is correct.

Adjust the data of height after vertical linearty.

VERTICAL LINEARITY (VLIN) (FULL mode only)

WHITE BALANCE (RCUT) (GCUT) (BCUT) (RDRV) (BDRV)

1. Receive cross-hatch pattern.

2. Call up the adjustment mode display, then select the item VLIN.

3. Press the VOLUME s or t button to obtain the picture of the best linearity.

4. Then readjust the item HIT.

1. Press RESET button on TV or remote hand set.

2. Call up the adjustment mode display, then adjust the data of items RCUT, GCUT and BCUT to “80”.

3. Press TV (ANT)/VIDEO button on TV.

4. Gradually rotate R, G and B SCREEN volume of FOCUS PAC (page 9) clockwise or counterclockwise until the raster appears slightly on the CRT through the each lens, and leave them. (Look into the lens in order to check the raster.)

5. Press TV (ANT)/VIDEO button on TV again.

6. Exit from service mode.

7. Receive white laster pattern signal, and adjust the contrast to the minimum to make white picture to low light.

8. Adjust the data of items RCUT, GCUT and BCUT for low light area.

9. Adjust the contrast to the maximum to make white picture to high light.

10. Adjust the data of items RDRV and BDRV Controls for proper white-balanced picture in high light area.

11. Check the white balance in both low and high light areas. If necessary, perform again steps from 7 to 9.

– 12 –

Page 13

CONVERGENCE ADJUSTMENT

1. Receive NTSC signal.

2. Enter to the service mode. (See Page 10.)

RCUT 40H

3. Press "7" button to enter the convergence adjusting mode, and the internal net pattern will be displayed. Then, press "9" button to display veritcal stripes.

4. Select the point and the color by pressing following buttons. (Cursor should be blinking.)

"2", "8", "4", "6" : To select point

"3" : To select color

5. Then press "5" button, and adjust the convergence by pressing following buttons. (Cursor should not be blingking.)

"2", "8", "4", "6" : To adjust convergence

"3" : To select color

6. Repeat from steps 3 to 4 until the convergence and the geometry become fine. (See Page 14.)

7. Press "7" button to momorize the adjusted data.

8. Message of "PLEASE PUSH TOUCH FOCUS" will be displayed, and press TOUCH FOCUS button which is located on the front panel.

9. TOUCH FOCUS CALIBRATION will start.

10. Soon message of "CALIBRATION FINISHED" will be displayed, and then a normal picture will be displayed.

11. Then push TOUCH FOCUS button again, and confirm that the convergence does not change.

EXPLANATION OF KEY-FUNCTION IN THE CONVERGENCE ADJUSTMENT MODE

Load BACK UP DATA: 1 button Up : 2 button Selet Green color: 3 button Left : 4 button Blinking of cursor ON/OFF: 5 button Right: 6 button Adjust mode ON/OFF: 7 button Down: 8 button Vertical stripe ON/OFF 9 button Erase Green line: 0 button Erase Red line: 100 button Erase Blue line: ENT button

GENERAL ADJUSTMENTS

SPECIFIC INFORMATIONS

Note: If message of "TOUCH FOCUS ERROR" is displayed,

1) Check the connection between four sensors and Convergence Unit.

2) Check the geometry of internal net pattern. (See Page

14.)

If any problem cannnot be found, hardware might have problem.

– 13 –

Page 14

DEFLECTION and CONVERGENCE

ITEM NAME SETTING

VPS1

VERTICAL Raster centering Adjusment

Centering Adjusment

WID

Horizontal Adjustment

GENERAL ADJUSTMENTS

HIT VLIN

(FULL)

Vertical Adjustment (FULL)

Conver-

SPECIFIC INFORMATIONS

gence

CONTRAST:MAX BRIGHNESS:CNT COLOUR :CNT TINT :CNT

CONTRAST:MAX BRIGHNESS:CNT COLOUR :CNT TINT :CNT PIC SIZE :FULL

INPUT

SIGNAL POINT

Retma Signal

TEST

Between TP-G to TP-V

Retma Signal

Picture Adjustment

MEASUREMENT

INSTRUMENT

Digital Volt Meter


To adjust the voltage between TPG and TP-V

1. To adjust the Magnet about

Adjustment

2. To adjust each R, G, B.

Picture Adjustment

To adjust the Horizontal Amplitude by WID.

Picture Adjustment

Refer to the following (Convergence Net Geometry)

ADJUSTMENT METHOD

Horizntal position and Vertical position should center of picture.

325

7531

575 300

525 LINE

1 3

531

ADJUSTMENT

SPEC

0 ± 10mV

11 ± 1 bar

Upper ......

Circle of Lion just touch to line of Mask.

Bottom ....

To hide the 12 bars by line of Mask.

CONVERGENCE (51 / 57 / 65 WIDE)

Net Pattern Geometry

Model H size H span 51WIDE 1129.0 549.7 458.1 274.9 91.6 0.0 91.6 274.9 458.1 549.7 91.6 57WIDE 1260.0 613.5 511.3 306.8 102.3 0.0 102.3 306.8 511.3 613.5 102.3 65WIDE 1442.0 702.1 585.1 351.1 117.0 0.0 117.0 351.1 585.1 702.1 117.0

Model 51WIDE 57WIDE 65WIDE

V size 635.085 780.750 810.000

308.0 344.0 392.8

231.0 258.0 294.6

115.5 129.0 147.3

0.0 0.0 0.0

115.5 129.0 147.3

231.0 258.0 294.6

308.0 344.0 392.8

V span 38.5 43.0 49.1

UNIT: mm

– 14 –

Page 15

NOTES

In many cases, color misconvergence may be corrected by returning HIT and WID data in main deflection side to initial adjusting values. Following cases will surely require readjustment of convergence.

CRT REPLACEMENT

When CRT is replaced, main deflection readjustment and color matching are required. Perform following procedures.

1. Replace two CRT’s of blue and red.

2. Perform horizontal adjustment for blue and red yokes on base of green CRT data. Mount yoke and velocity mod. coil alignment, pushing towards CRT without gap.

3. Adjust alignment of blue and red. (Refer Alignment adjustment for details.)

4. Rotating centering magnet, adjust CRT centers of red and blue to CRT center of green. (Picture position adjustment)

5. Adjust HIT and WID data of main deflection, and decide data at the most precise screen comparing to green data.

6. Adjust convergence of screen picture for color matching. Do not move green one at this time.

7. After convergence adjustment of screen picture finishes, replace green CRT. For green CRT as well, repeat steps 2 to 5 above on bases of red and blue color matching to adjust convergence.

8. Execute TOUCH FOCUS following instructions displayed on the screen after finishing convergence adjustments of all the colors.

Note: Press button "7" again after "PLEASE PUSH TOUCH FOCUS" has been displayed. Then, TOUCH FOCUS will not be

executed, and the current state of convergence will be displayed.

REPLACING CONVERGENCE UNIT

1. Confirm that the initial data, which is specified by a model name, is memorized in the new unit. (It's not allowed to use the data of other models.)

2. Mount the new unit to the SET, and turn the POWER on.

3. Adjust centering magnets, Hight (HIT) and Width (WID). (See Page 7.)

4. Adjust the convergence. (See Page 13.)

GENERAL ADJUSTMENTS

If the memory in the defective module is available, following steps are allowed.

1. Remove the memory (Q173) from the defective unit, and mount it to the new unit.

2. Mount the new unit to the SET, and turn the POWER on.

3. Enter to the convergence adjusting mode, and load BACKUP DATA by pressing "1" button. (See Page 13.)

4. Adjust centering magnets. (See Page 7.)

5. Adjust the convergence. (SeePage 13.)

SPECIFIC INFORMATIONS

– 15 –

Page 16

SCREEN AND MIRROR ALIGNMENTS

ASSEMBLING OF FRONT SCREEN

GENERAL ADJUSTMENTS

SPECIFIC INFORMATIONS

K503 FRONT PANEL

LENTICULAR

SMOOTH

K501

BLACK STRIPES

K502 FRESNAL

SMOOTH

INSIDE

OUT SIDE

BLACK STRIPES

SPACER

FRONT PANEL LENTICULAR FRESNEL

MOUNTING OF FRONT SCREEN

0 to 1 mm

SMOOTH

LENS

FRESNEL

LENTICULAR

FRONT PANEL

BEZEL

CAUTION : Do not hold the optical system parts (lens and

mirror) with bare hand to avoid finger-prints on the surface of those parts.

HOW TO CLEAN LENS AND MIRROR

1. Be sure to remove sand dust with an air brush, etc.

2. When it is stained slightly, breathe upon it and wipe away with the specified cleaning cloth. For other stains than the above, wipe the stains away with the specified cloth into which a cleaning liquid has been soaked.

Cleaning liquid.................... LENS LUSTER (Manufac-

tured by Edmund Scientific Co.), etc.

HOW TO CLEAN SCREEN

When cleaning the screen, use a soft cloth so as not to damage the screen.

1. Wipe the screen with a dry cloth to remove moisture on the screen.

Note : Absolutely do not use detergent, water, alcohol,

benzine, thinner, etc. for cleaning in order not to wipe away the black print on the surface.

– 16 –

Page 17

CIRCUIT CHECKS

HIGH VOLTAGE CHECK CAUTION: There is no HIGH VOLTAGE ADJUSTMENT on

this chassis. Checking should be done following the steps below.

1. Connect an accurate high voltage meter to the anode of the picture tube.

2. Turn on the receiver. Set the BRIGHTNESS and CONTRAST to minimum (zero beam current).

3. High voltage must be measured below (B) kV.

Refer to table-1 for high voltage (B). (See SETTING & ADJUSTING DATA on page 18)

4. Vary the BRIGHTNESS to both extremes to be sure the high voltage does not exceed the limit under any conditions.

CAUTION:

When the following parts fail, check the High Voltage after replacing.

Location

No.

T461 C440 C443 C444 C467 C468

Name

Flyback Capacitor Capacitor Capacitor Capacitor Capacitor

Descriptions 51", 57", 65"

TFB3092AD 1000pF, ±3% 5100pF, ±3% 3300pF, ±3% 6800pF, ±5% 6800pF, ±5%

FS CIRCUIT CHECK

The Fail Safe (FS) circuit check is indispensable for the final check in servicing. Checking should be done following the steps below.

1. Turn the receiver on.

2. Temporarily short TP- (R) and TP- (X) on the DEF/CONVER Board with a jumper wire. Raster and sound will disappear.

3. The receiver must remain in this state even after removing the jumper wire. This is the evidence that the FS circuit is functioning properly.

4. To obtain a picture again, temporarily turn the receiver off and allow the FS circuit more than 5 seconds to reset. Then turn the receiver on to produce a normal picture.

Troubleshooting Guide for Fail Safe Circuit

Check that the set returns to normal operation when pin  of P813A is grounded with jumper wire.

YES NO

Check the voltage across Capacitor C419 is approximately (

Refer to table –3 for fall safe voltage (

volts.

Faulty power circuit or horizontal circuit.

GENERAL ADJUSTMENTS

SPECIFIC INFORMATIONS

ANODE VOLTAGE MEASURING METHOD

CAUTION: Take extra precaution when measuring this high

voltage. High voltages are also present in surrounding circuit boards (CRT DRIVE assembly, DEFLECTION assembly, and POWER SUPPLY assembly).

1. Disconnect the FBT anode cable as outlined below. Measure high voltage at the point where the cable enters the FBT.

2. Holding the rubber cover firmly, turn it counterclockwise and check that the lock has been disengaged. (See Fig. b on page 9.)

3. Determine the extent of the rubber cover before disconnecting the cable.

4. Pull straight up the anode cable to disconnect.

5. When reconnecting the cable, proceed in the reverse order. After reconnecting, tug on the cable to check that it is secure.

YES

Defective Fail Safe Circuit

(See SETTING & ADJUSTING DATA on page 18)

– 17 –

Page 18

CHAPTER 2 SPECIFIC INFORMATIONS

SETTING & ADJUSTING DATA

SAFETY INSTRUCTIONS

HIGH VOLTAGE AT ZERO BEAM: (A) 31.0 kV MAX HIGH VOLTAGE:

Table-1

51", 57", 65"

(B) 32.5 kV

GENERAL ADJUSTMENTS

SPECIFIC INFORMATIONS

SERVICE MODE

ADJUSTING ITEMS AND DATA IN THE SERVICE MODE:

Item Name of adjustment

RCUT BCUT GDRV BDRV BRTC HIT VLIN VSC WID

CIRCUIT CHECKS

R CUT OFF B CUT OFF G DRIVE B DRIVE BRIGHT CENTER PICTURE HIT V LINEARITY V S CORRECTION PICTURE WIDTH

Preset Data

80H 80H 40H 40H 80H 32H 13H 29H 32H

HIGH VOLTAGE DET (C) 8.7 V

←

Table-2

Table-3

Item Name of adjustment Preset Data

COLC VCP PARA CNR HCP VFC VPSI TVOP

COLOR CENTER

V COMPENSATION EW PARABOLA EW M CORRECTION H COMPENSATION V f CORRECTION V CENTERRING TV OPTION

52H 04H 11H 10H 00H 00H 4DH 58H

←

– 18 –

Page 19

LOCATION OF CONTROLS (Representative: 51H83)

TV front

Remote sensor (Behind the screen)

VOLUME T S

ALS

ANT-1 IN

CHANNEL st

VOLUME

MENUPOWER

ANT-2 IN

CHANNEL

EXIT

TouchFoucus

TV/VIDEO

EXITMENU

TV/VIDEO

ANT OUT

)

ANT( 75

ANT-1 ANT-2OUT

TouchFocus

DVI/HDCP IN

L/MONO

VIDEO

AUDIO

S-VIDEO

VIDEO-3 Video/audio inputs

(Behind the door)

GENERAL ADJUSTMENTS

SPECIFIC INFORMATIONS

TV rear

VIDEO 2

VIDEO 1

S-VIDEO

VIDEO

MONO

AUDIO

VIDEO 1/2

ColorStream

HD1

COLOR

STREAM

HD-1

HD-2

AUDIO

ColorStream

HD2

AUDIO

OUT

VIDEO

MONO

AUDIO

R R

AUDIO CENTER

CHANNEL IN

VAR

AUDIO

ON OFF

Variable Audio OUT

AUDIO OUT

Audio Center

Channel

– 19 –

Page 20

Remote control

POWER turns the TV on and off

RECALL displays screen information

SLEEP sets the TV to turn off at a specific time

TV/VIDEO selects video input source

MUTE mutes the sound

Device Switch switches between TV, CLB/SAT/VCR and

GENERAL ADJUSTMENTS

DVD sets to “TV ” to control the TV.

CH (channel) st cycles through programmed channels

Channel Numbers (0-9,100) allow direct access to channels

VOL (volume) st adjusts the volume level

CH RTN returns to the memorized channel

MENU allows access to on-screen programming menus

ENTER sets programmed menu information

SPECIFIC INFORMATIONS

89; S select or adjust programming menus

POP CH st selects the POP (picture-out-picture) channel

FAV ts cycles through favorite channels

FAVORITE allows access to the favorite channel search func-

tion

PIC SIZE cycles through the five picture sizes: Normal, Theater

Wide 1,2,3,and Full

TV / VIDEO

RECALL

INFO

123

456

100

FAVO

TV CBL/SAT VCR DVD

TV/VCR PAUSE

CH SCAN

REC

+10

FAV

DVDMENU

FAV

VOLCH

POP DIRECT CH MUTE SLEEP

STOP

FREEZE SOURCE

FFREW

SKIP / SEARCH

SWAP POP CH

POWER

CHRTN

ENT

PIC SIZE

EXI

PLAY

SPLIT

LIGHT

EXIT exits programming menus

SPLIT turns the POP feature on and off

SOURCE selects the POP picture source

FREEZE freezes the POP picture

SWAP switches the main and POP pictures

POP DIRECT CH allows direct access to POP channels

CH SCAN allows access to the programmed channel search

function

LIGHT illuminates the keypad for five seconds

Note:

The error message “Not Available ” will appear if you press a key for a function that is not available.

– 20 –

Page 21

ADDING CHANNELS TO THE TV'S MEMORY

When you press Channel 8 or 9, your TV will stop only on the channels stored in the TV ’s channel memory. Follow the steps below to program all active channels into the TV ’s memory.

Programming channels automatically

Your TV can automatically detect all active channels in your area and store them in its memory.After the channels are stored automatically, you can manually add or erase individual channels. To program channels automatically:

1 Press MENU, and then press ; or : until the SET UP

menu appears.

2 Press 8 or 9 until the TV/CABLE is highlighted.

3 Press ; or : to highlight either TV or CABLE, depending

on which you use. If you use an antenna, highlight TV; if you use cable, highlight CABLE.

4 Press 9 to select CH PROGRAM.

5 Press ; or : to start channel programming.The TV will

automatically cycle through all the TV or Cable channels (depending on which you selected),and store all active channels in the channel memory. While the TV is cycling through the channels,the message “Programming Now —Please Wait ” appears.

6 When channel programming is complete,the message

“Completed ” appears.

Adding and erasing channels manually

After you have programmed the channels automatically, you can manually add or erase specific channels. To add or erase channels:

1 Select the channel you want to add or erase.If you are

adding a channel,you must select the channel using the Channel Number buttons.

2 Press MENU,and then press ; or : until the SET UP menu

appears.

3 Press 8 or 9 to highlight ADD/ERASE.

4 Press ; or : to select ADD or ERASE, depending on the

function you want to perform.

5 Repeat steps 1-4 for other channels you want to add or

erase.

Note:

To tune TV to a channel not pargrammed in the channel memory, you must use the Channel Number buttons on the remote control.

* Please refer to owner's manual in detail.

GENERAL ADJUSTMENTS

SPECIFIC INFORMATIONS

7 Press Channel 8 or 9 to view the programmed channels.

– 21 –

Page 22

GENERAL ADJUSTMENTS

SPECIFIC INFORMATIONS

THIS PAGE IS

INTENTIONALLY LEFT

BLANK.

– 22 –

Page 23

MECHANICAL DISASSEMBLY

K601

4 screws

A160 (CASTER)

A421

(A424)

1 Speaker Grille Removal 2 Control Panel Removal

A001

A201

A223

A202

A102

3 Front Mask Removal

K501 K502 K503

10 screws

4 screws

4 Shield Plate, Lens Removal 5 Mirror Removal

4 screws

K111 K112 K113

6 Back Board Removal

– 23 – – 24 –

Page 24

N3PSP DISASSEMBLY

DISASSEMBLY INSTRUCTIONS

Disassembly for the N3PSP is a 15-step procedure designed to provide the preferred method to remove the light box in this chassis family. The unit used for an example in this procedure is the 51-inch 51H83. This method applies to this and 46-inch version of the same chassis. Using this method, one person is able to disassemble the unit and remove the light box without assistance.

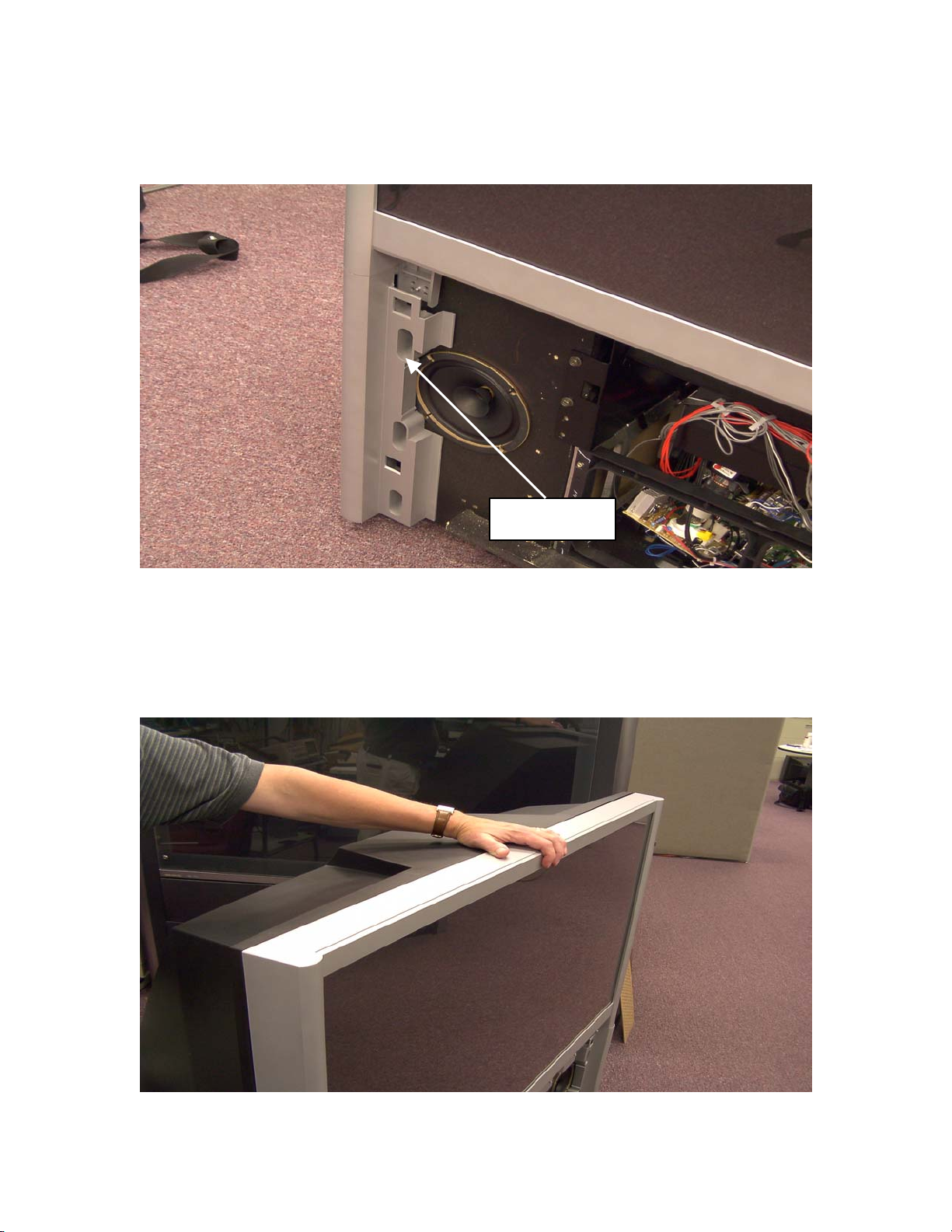

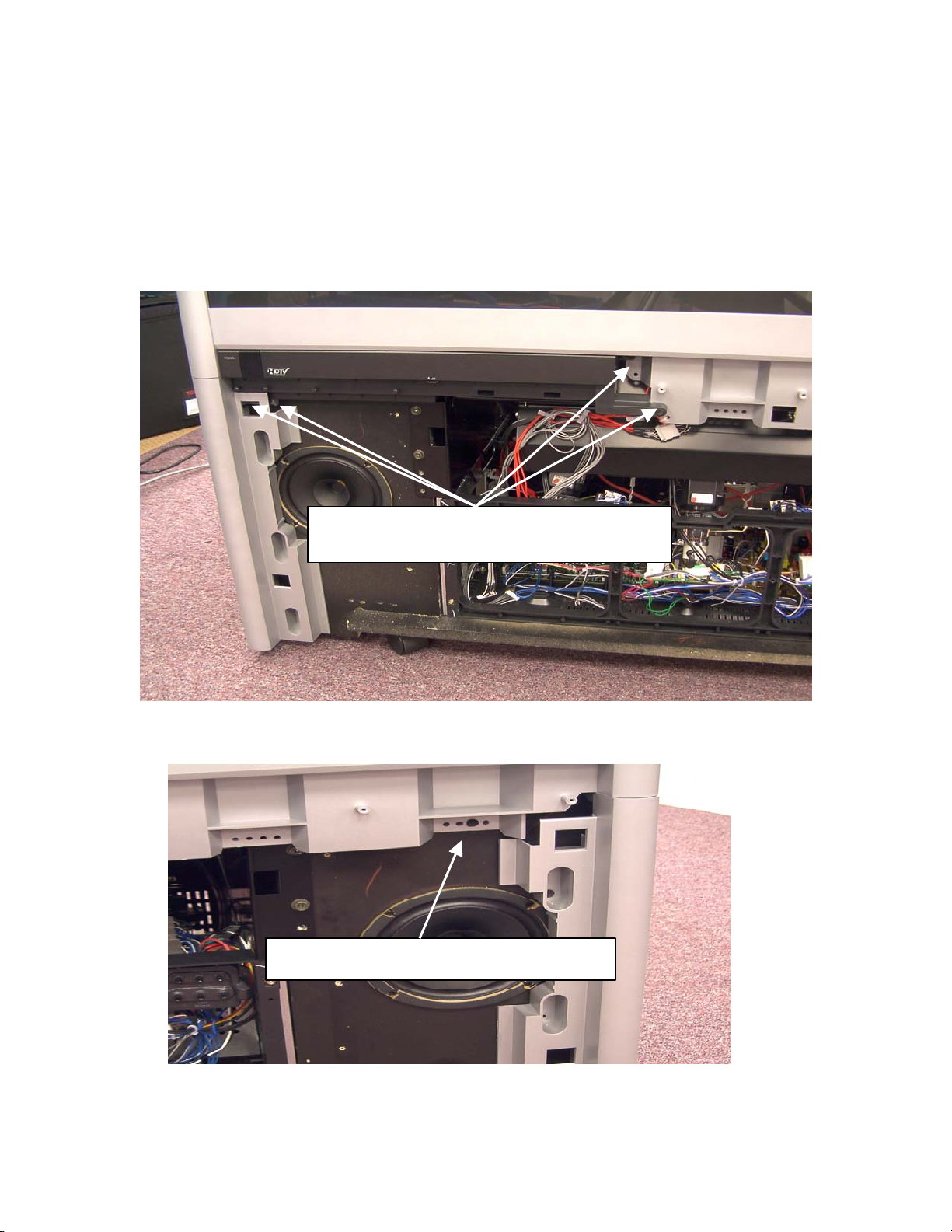

1. Remove the speaker grille first. Apply outward pressure to the grille at the left top (Figure 1a). This will allow the mounting clamp to release. Move to the center, then the right side of the grille and repeat the process. After the three clamps at the top of the speaker grille are disengaged and the top is loose, release two more clamps at the bottom right and left sides and remove the grille.

Figure 1a

Page 25

N3PSP DISASSEMBLY

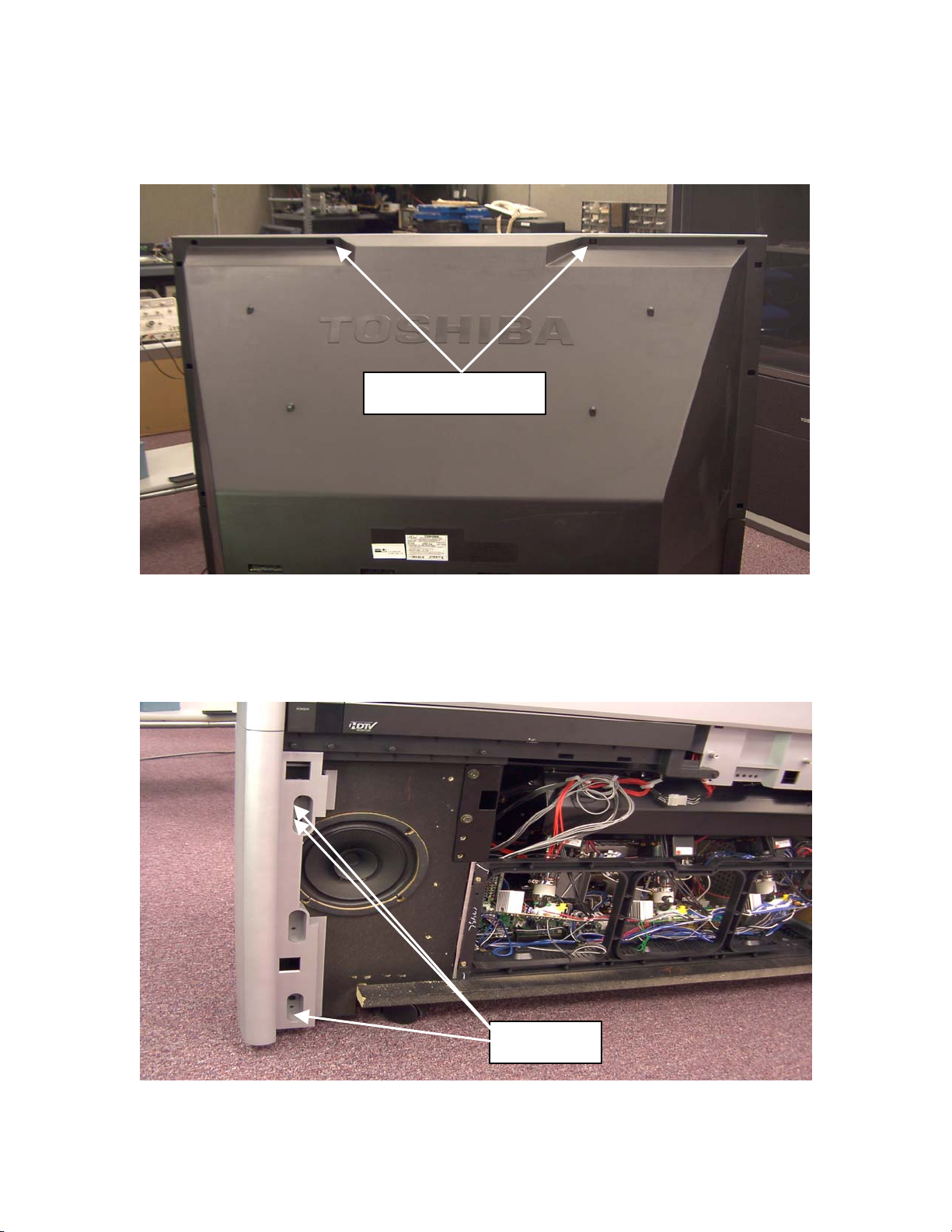

Next remove the back cover by removing 4 screws at the bottom (Figure 1b).

Figure 1b

4 Screws

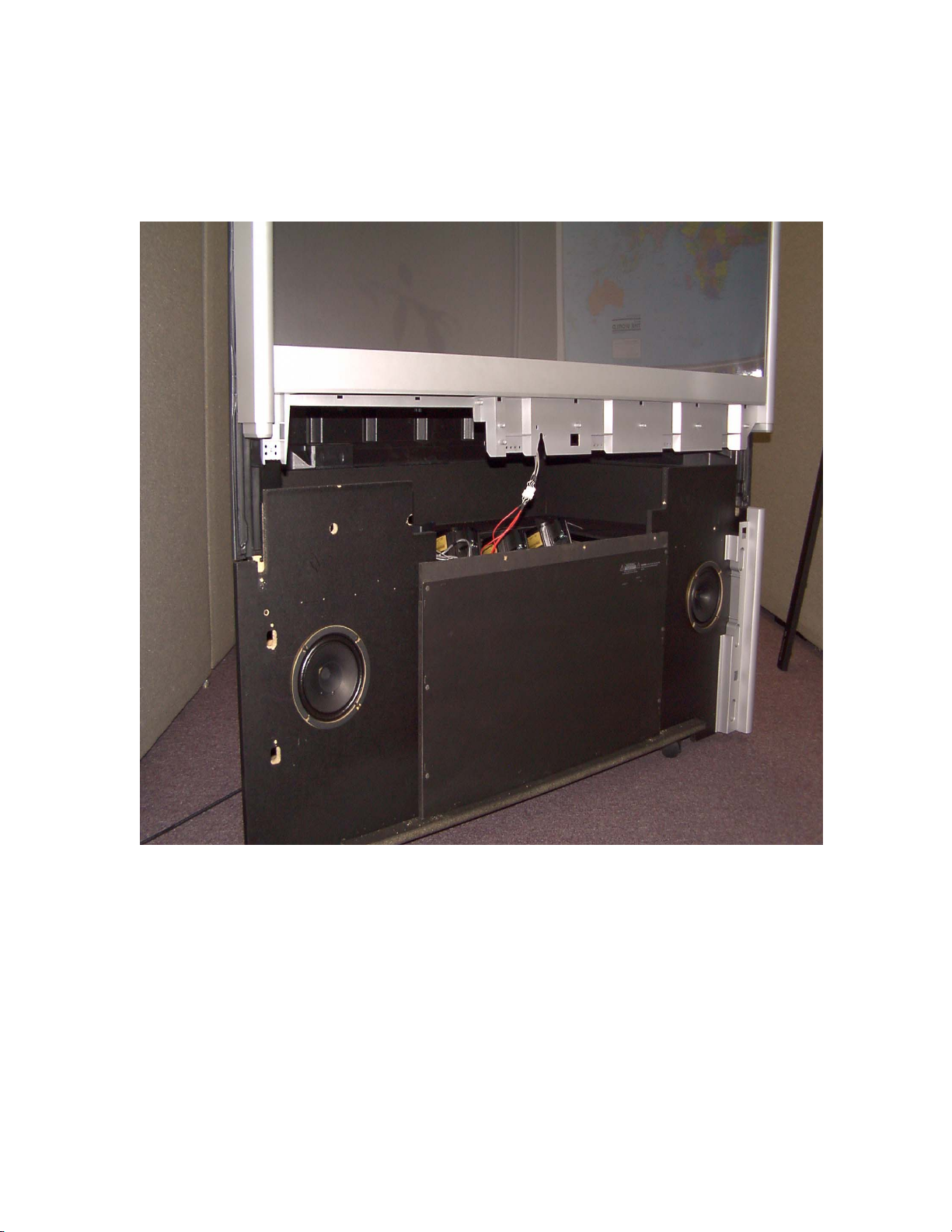

2. Now remove the front cover located at the bottom between the speakers. To do this, remove 3 screws securing it to the bezel at the top and 3 on each side (Figure 2). After removing the screws pull the cover out at the bottom, then straight down.

3 Screws at top

3 Each Side

Pull out, then down

Figure 2

Page 26

N3PSP DISASSEMBLY

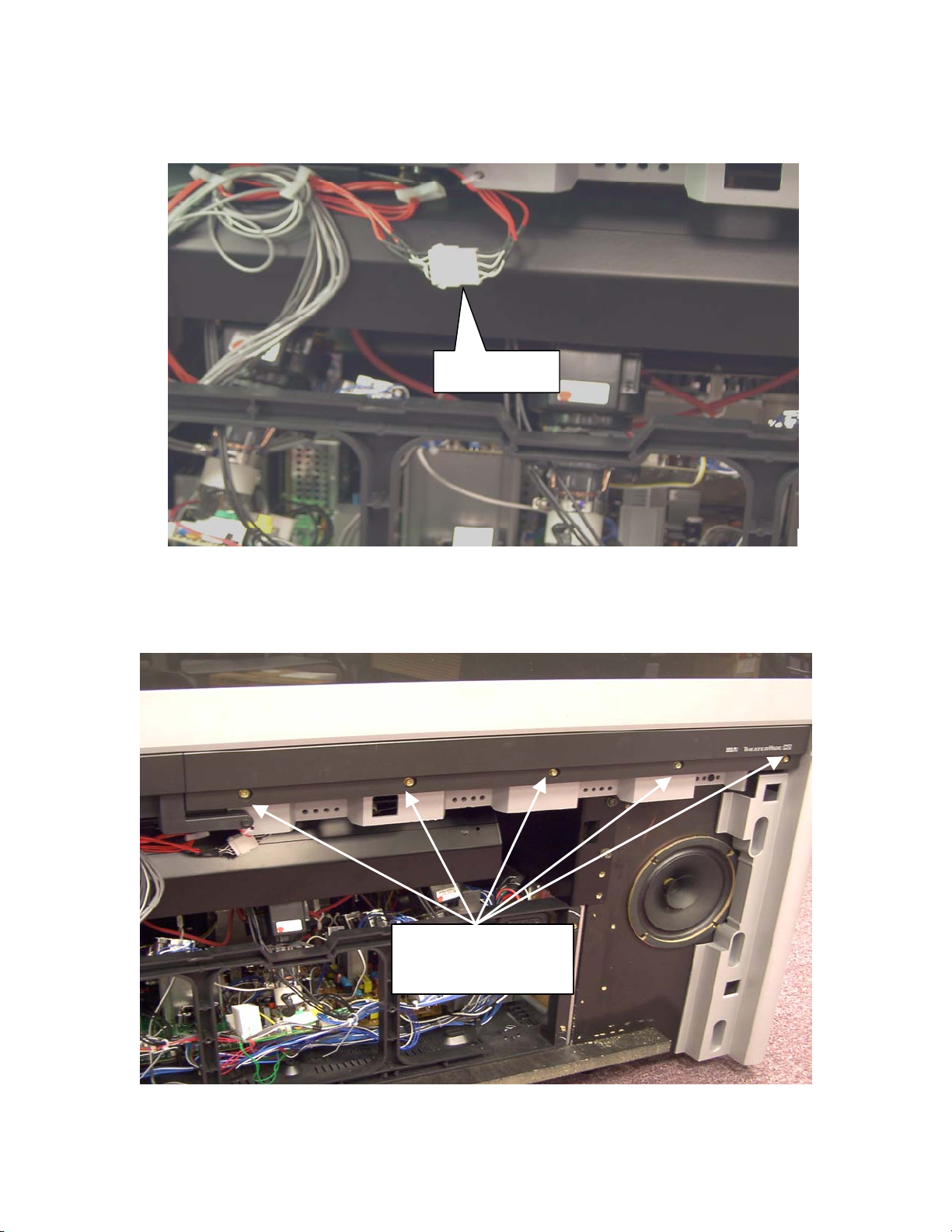

3. Disconnect the touch focus sensors by unplugging inline connector identified by the red wiring harness (Figure 3).

Connector

Figure 3

4. Remove 5 screws holding the decorative trim attached to the bottom of the screen and set it aside

(Figure 4).

Remove 5 screws in decorative trim

Figure 4

Page 27

N3PSP DISASSEMBLY

5. Remove 8 of the 10 screws holding the bezel in the rear of the upper cabinet. Leave both, top inside screws in place at this time (Figure 5).

Leave Top Inside

Figure 5

6. Remove the 3 screws holding the vertical trim at the bottom left side under the screen. Remove the trim and set it aside. This will be remounted and used for support later in the disassembly process.

(Figure 6)

3 Screws

Figure 6

Page 28

N3PSP DISASSEMBLY

7. Now remove 2 screws holding the control panel and bottom side of the screen bezel on the left bottom side. Next, remove the 2 remaining screws holding the right side of the control panel. Remove both plugs and place the panel in a safe location

(Figure 7).

Remove 4 screws from control panel

Figure 7

8. Remove 1 screw at the bottom right of the bezel (Figure 8).

Remove screw from bottom right

Figure 8

Page 29

N3PSP DISASSEMBLY

9. Using one screw at the top of the trim,

loosely remount the vertical trim

piece removed earlier in step 6 at the bottom left side of the bezel. This helps to secure the screen as it is removed

(Figure 9).

Remount

Figure 9

10. Finally, holding the top of the screen and bezel, remove the 2 screws in the top section of the back. Still holding the screen, move to the front of the unit. Let the top of the screen tilt forward and lift upward. Set the screens and bezel aside in a safe place to prevent damage

(Figure 10).

Figure 10

Page 30

N3PSP DISASSEMBLY

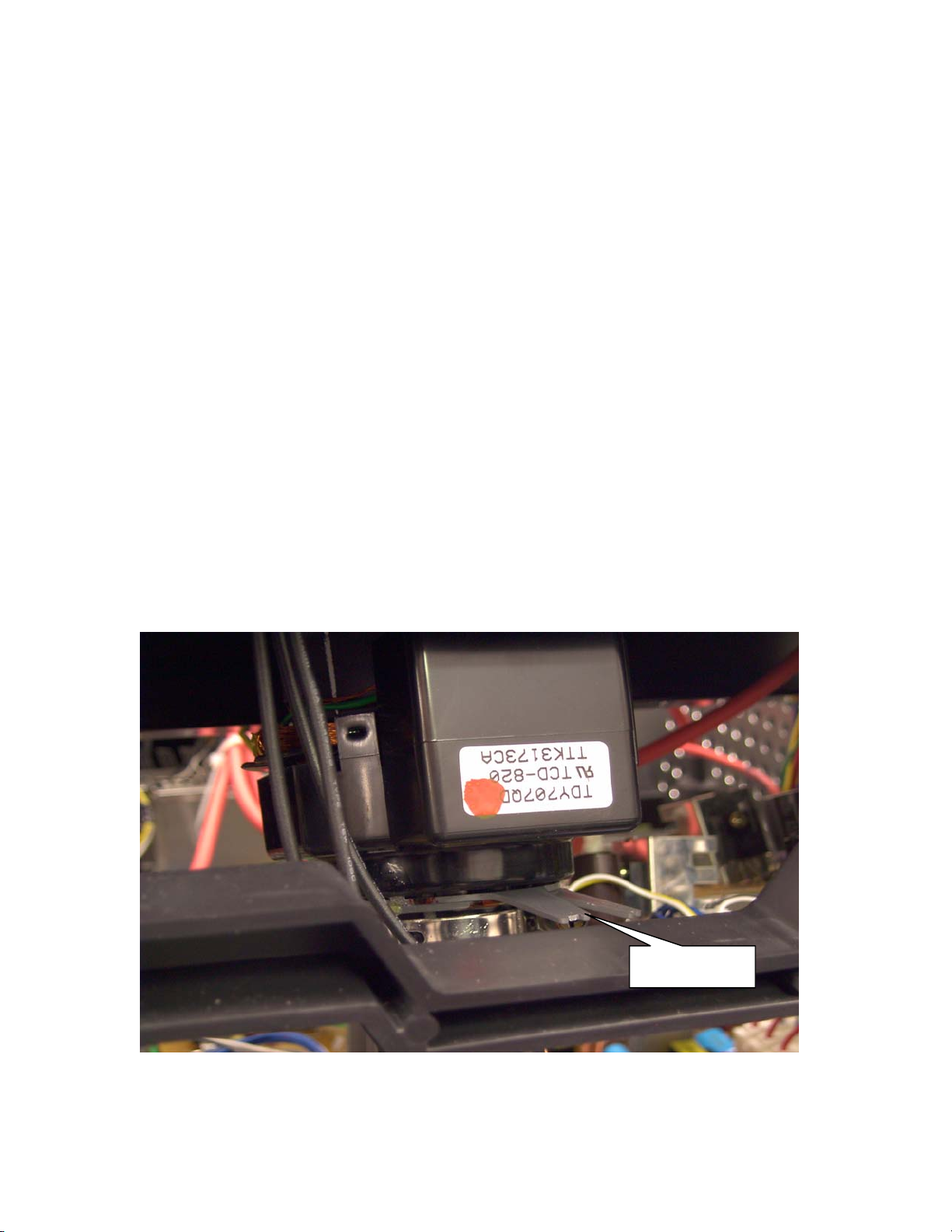

11. Now unplug the IR receiver in the upper part of the case

(Figure 11).

Figure 11

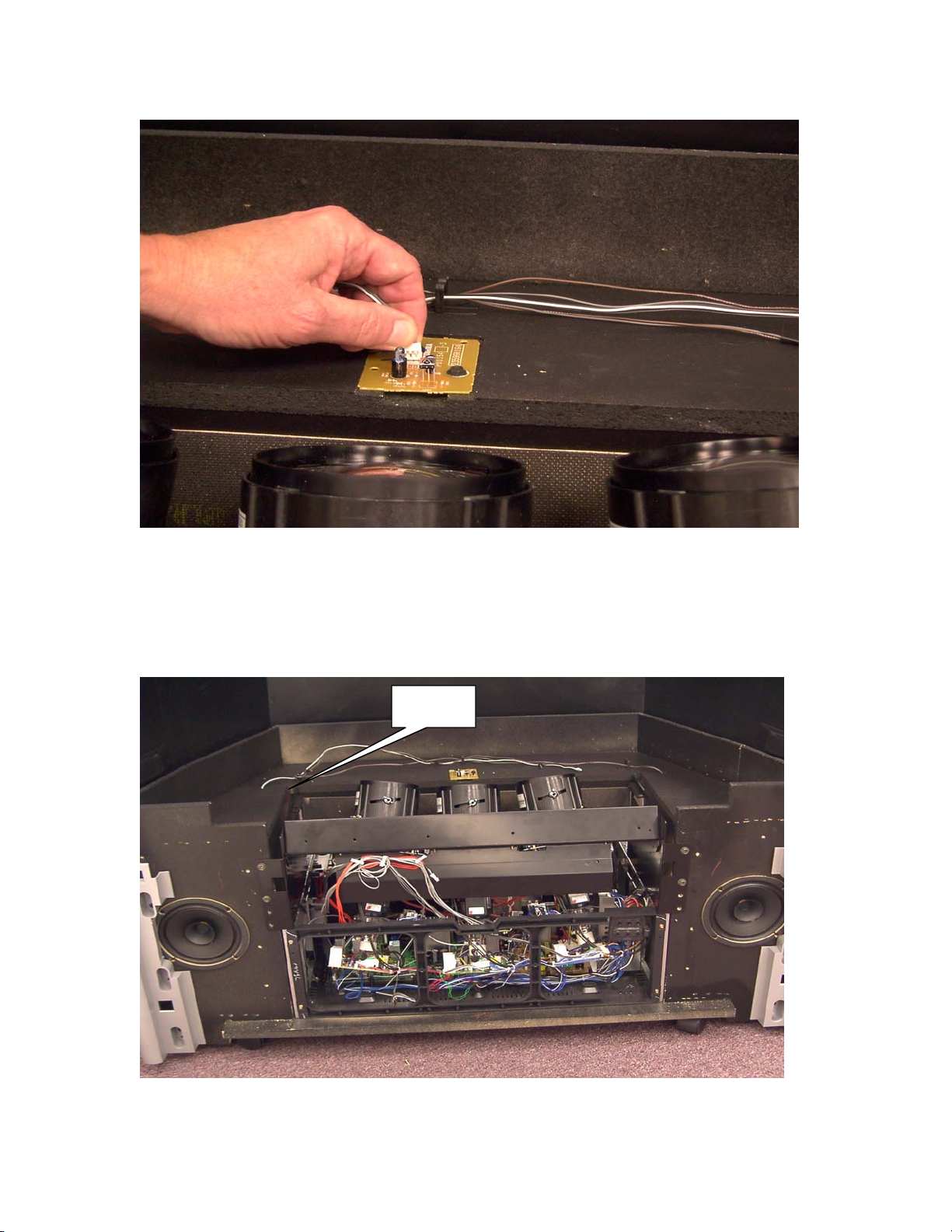

12. Then unplug the speaker cable located on the main signal PCB directly in front of the audio output IC. This cable is routed through the cutout at the left of the light box. Pull this cable up to protect it and secure it with the cable clamps in the upper part of the cabinet

(Figure 12).

Cutout

Figure 12

Page 31

N3PSP DISASSEMBLY

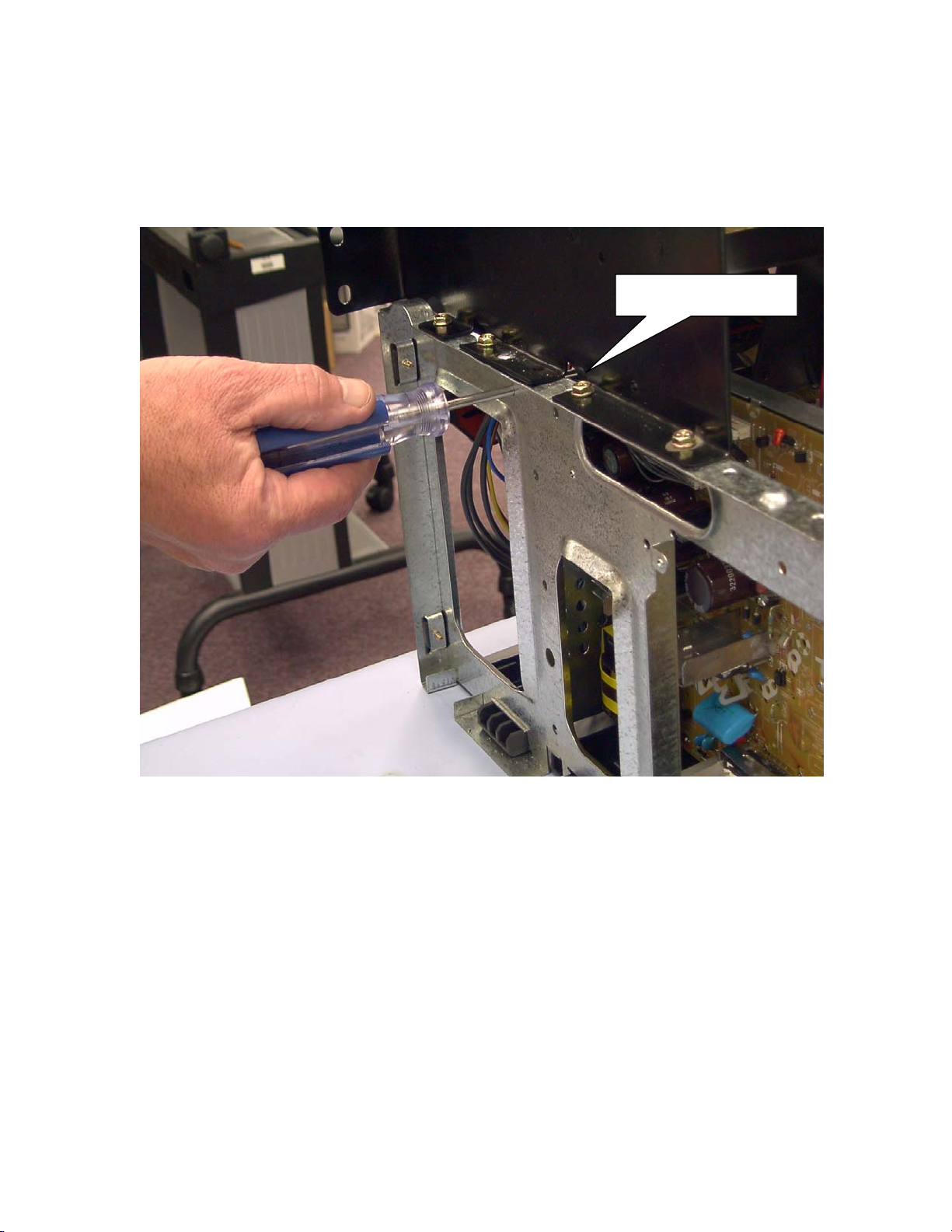

13. To remove the chassis assembly, remove the four screws, two on each side of the front plate holding the CRT assemblies

(Figure 13).

Chassis Mounting Screws

Figure 13

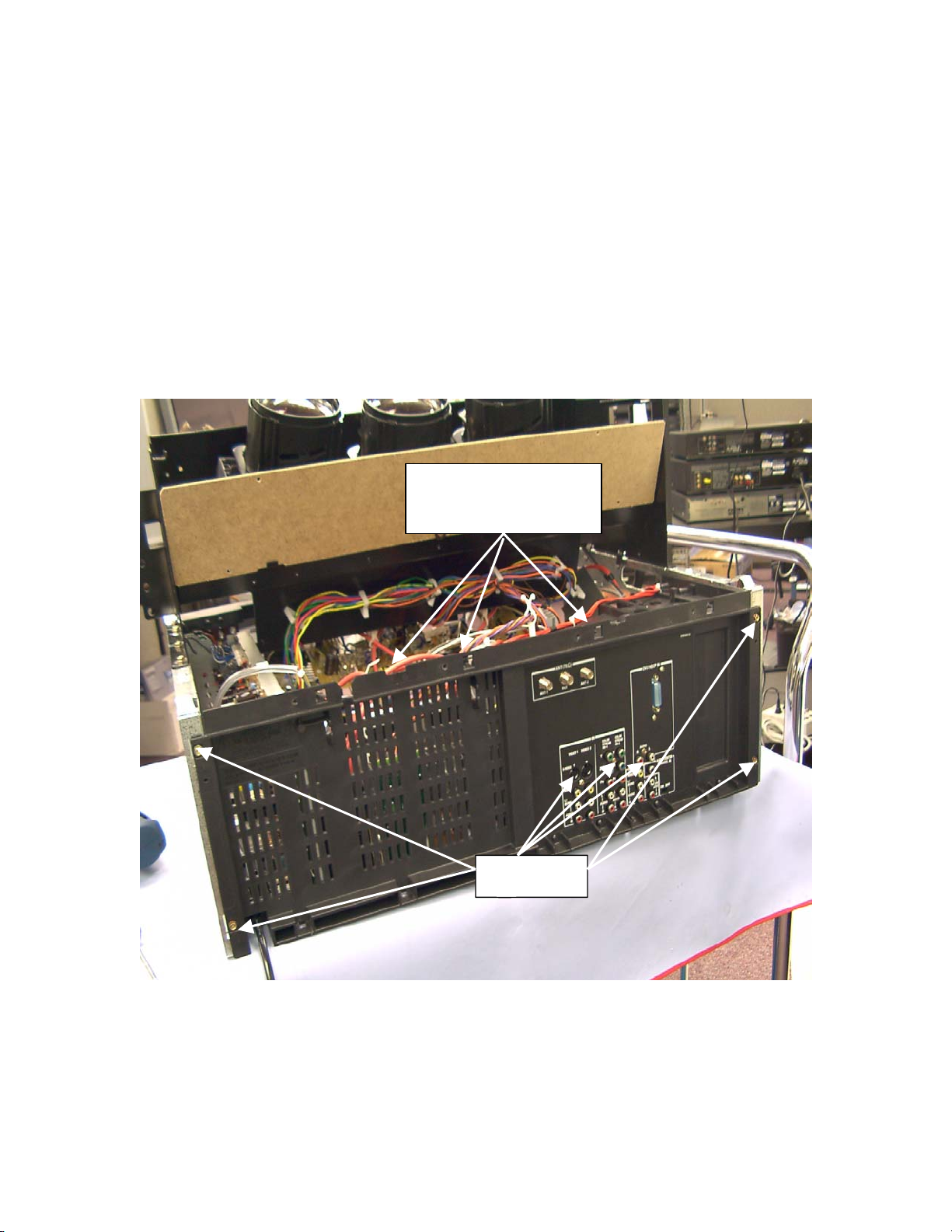

14. Next remove the four screws holding the back panel to the cabinet (Figure

14).

Rear Screws

Figure 14

Page 32

N3PSP DISASSEMBLY

15. Finally, grasp the metal CRT bracing and lift the front slightly. Then pull the entire chassis forward and out the front of the cabinet. Be careful not to pinch any cable assemblies as this is done (Figure 15).

Figure 15

Page 33

N3PSP DISASSEMBLY

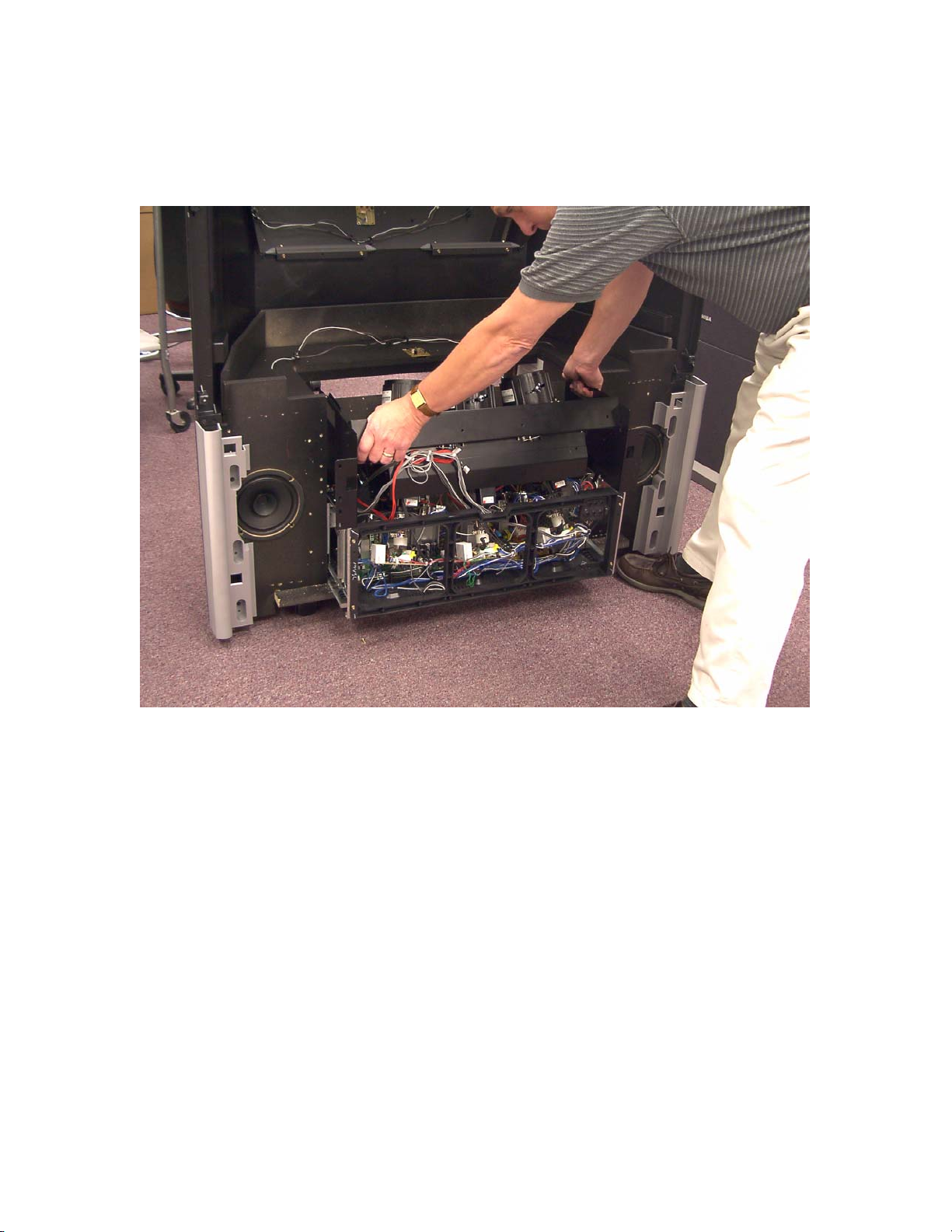

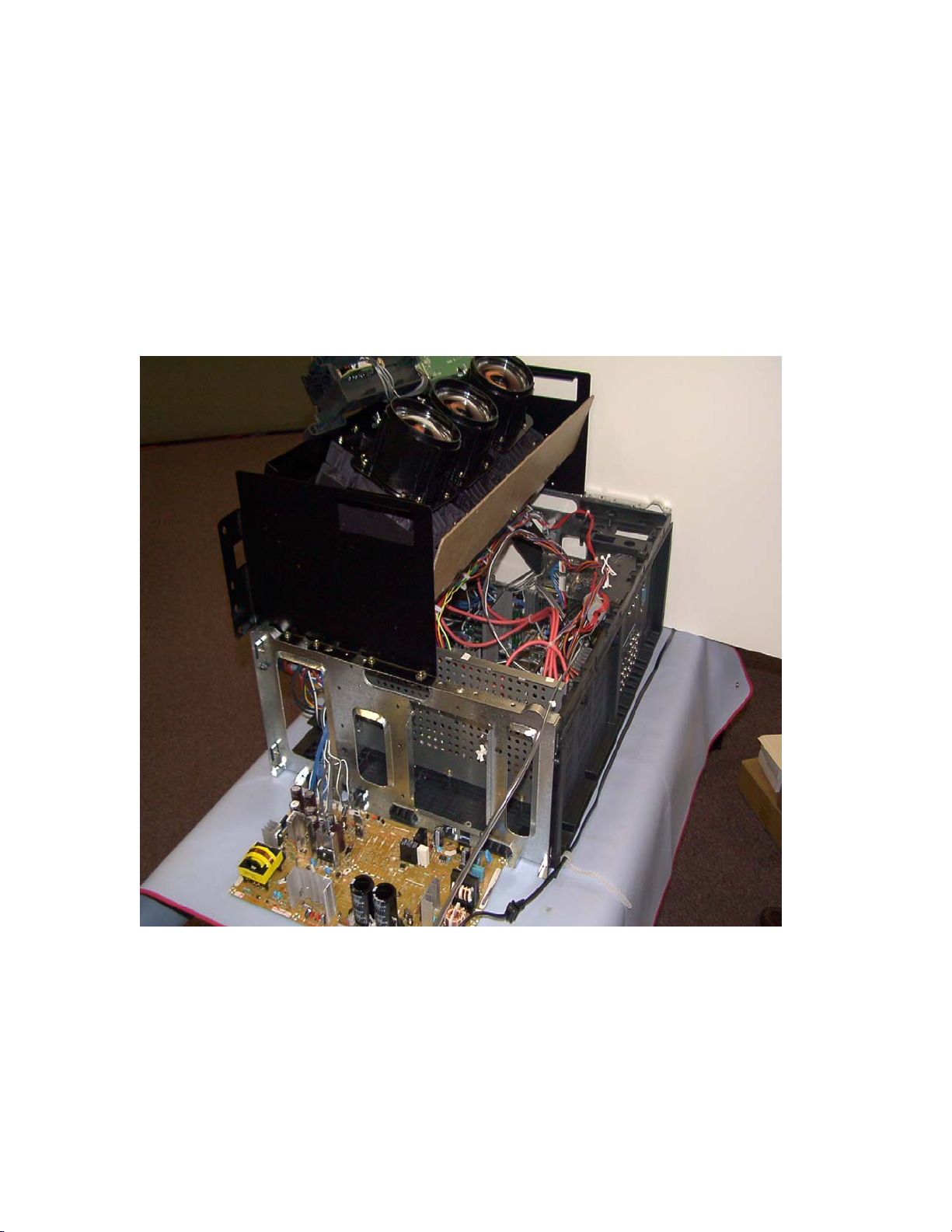

LIGHT BOX SERVICE POSITION

The objective of this section is to show the N3PSP in a serviceable position along with a simplified block diagram indicating the various sections of the unit. Figure 16 is a picture of the unit with the “light box” and power supply removed and placed in a serviceable position.

Figure 16

Notice that the power supply can be moved to almost any position so that it can be serviced to component level. Also be aware that standby, full power, and shutdown sections are all included on the power supply board.

Page 34

N3PSP DISASSEMBLY

Notice that with the unit removed from the cabinet, it can be checked for normal operation. To do this, place a white target (poster board) 30 to 35 inches from the focus lenses on the CRT’s

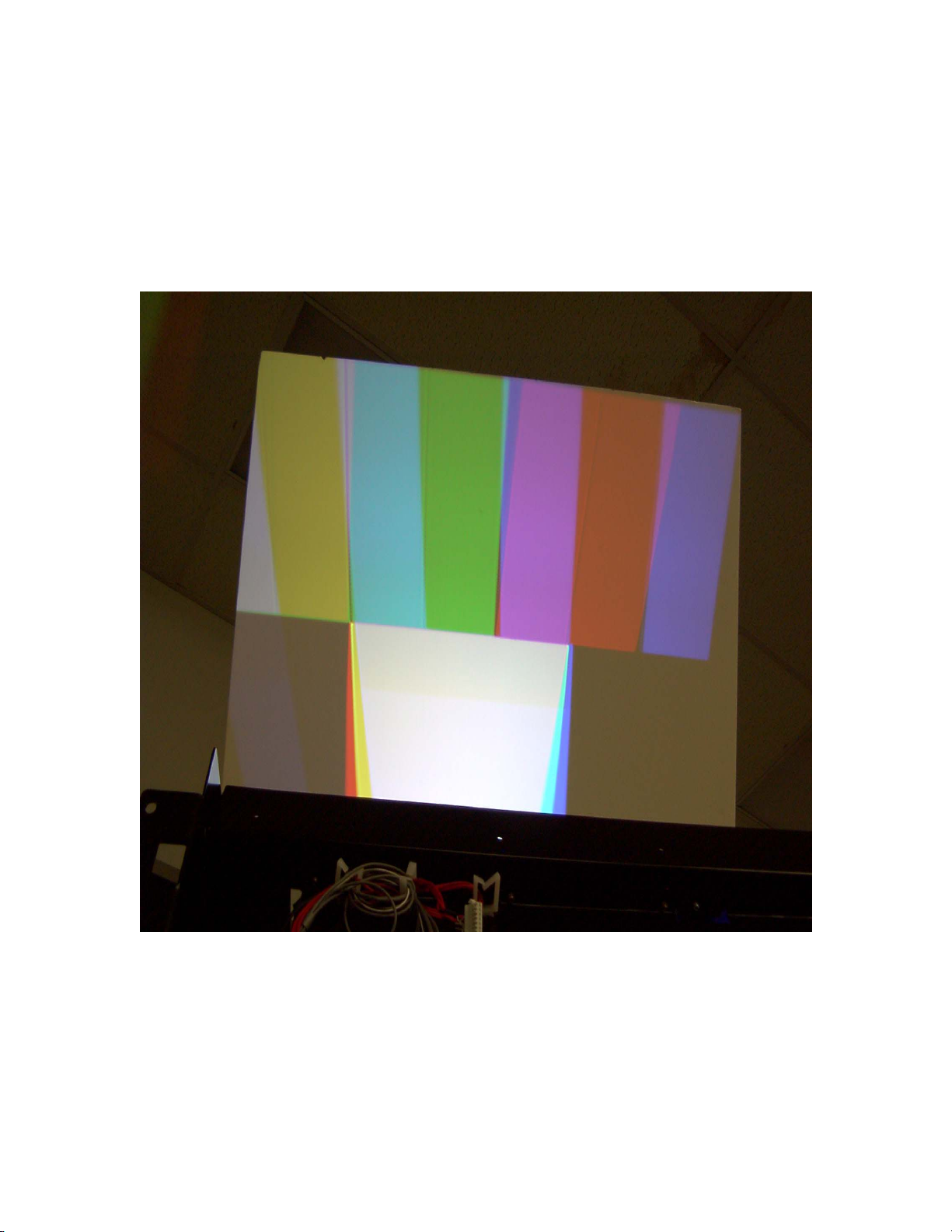

(Figure 17). Convergence and raster shape will

not be exact because of the trapezoidal distortion caused when the optical system (mirror and screen) of the receiver is missing. However, the center portion of the image will verify normal operation.

Figure 17

Page 35

N3PSP DISASSEMBLY

POWER SUPPLY REMOVAL

The power supply in this unit is serviceable to component level. This section of the disassembly process demonstrates the easiest method of power supply removal and reinstallation. In addition, a service position is suggested so the supply can be accessed while it is connected and operational. The easiest method of supply removal begins by removing the back cover of the light box. Remove 10 screws as shown in Figure 19. It is not necessary to remove the screws holding the antenna switching unit and the DVI/D jack assembly.

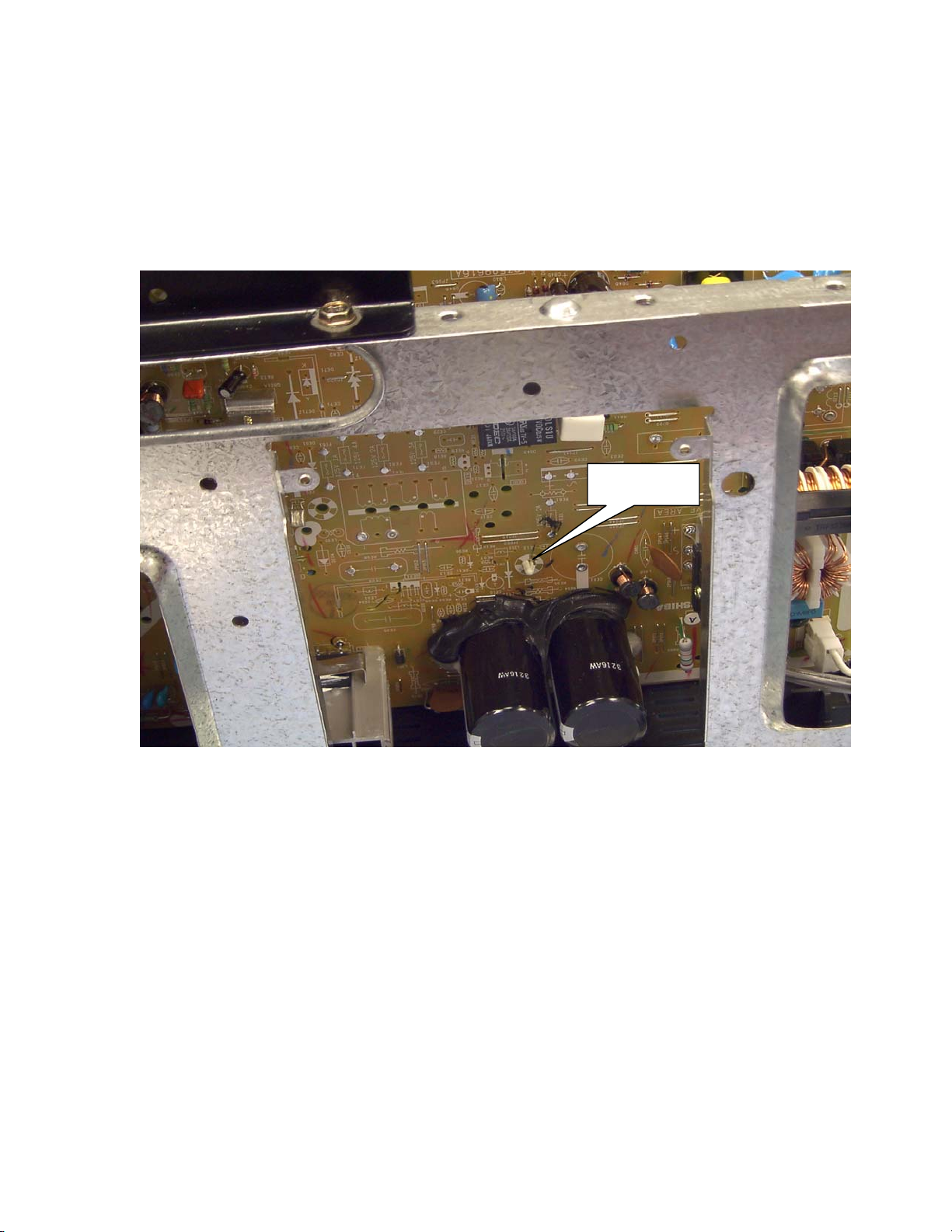

3 Screws 2 at top-1 at base

7 Screws

Figure 19

Page 36

N3PSP DISASSEMBLY

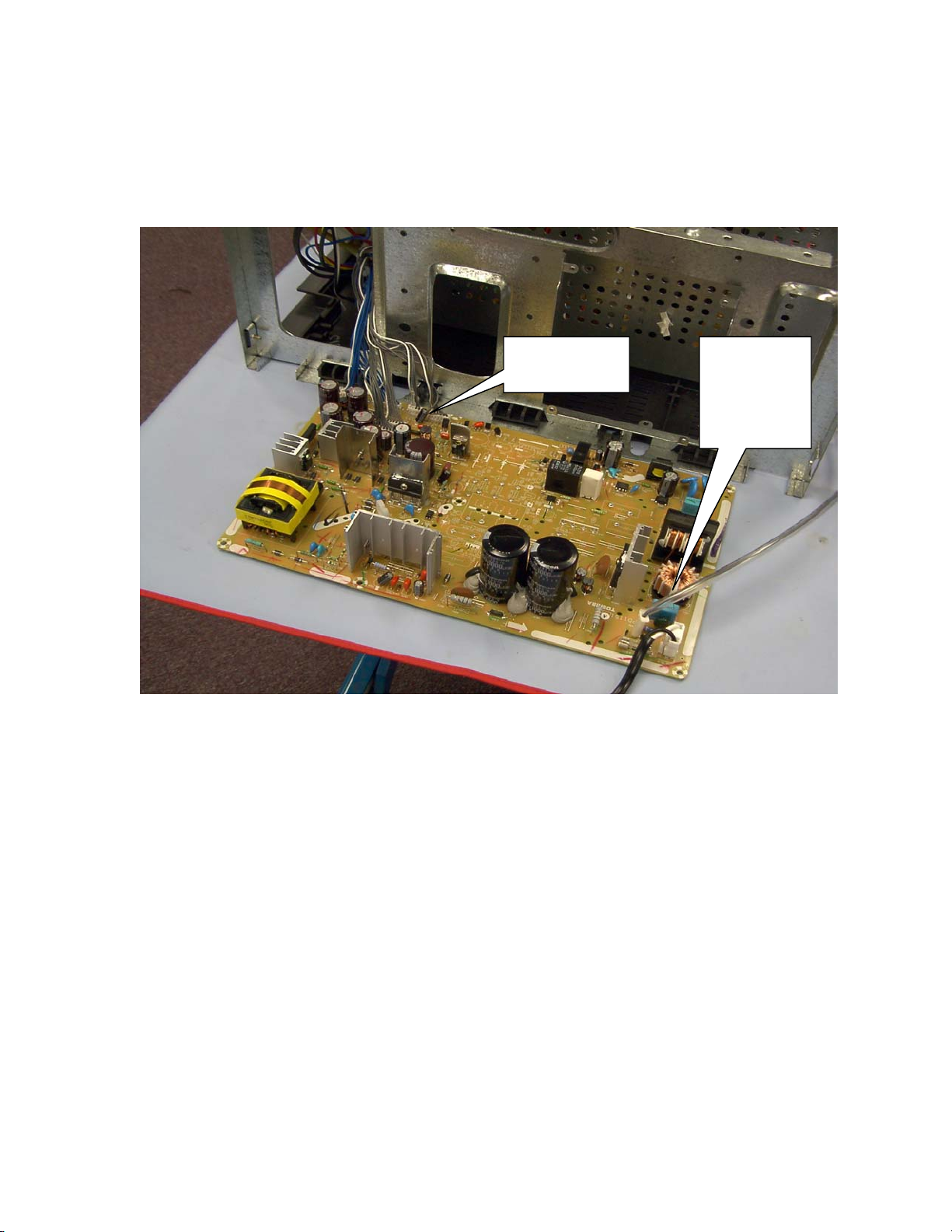

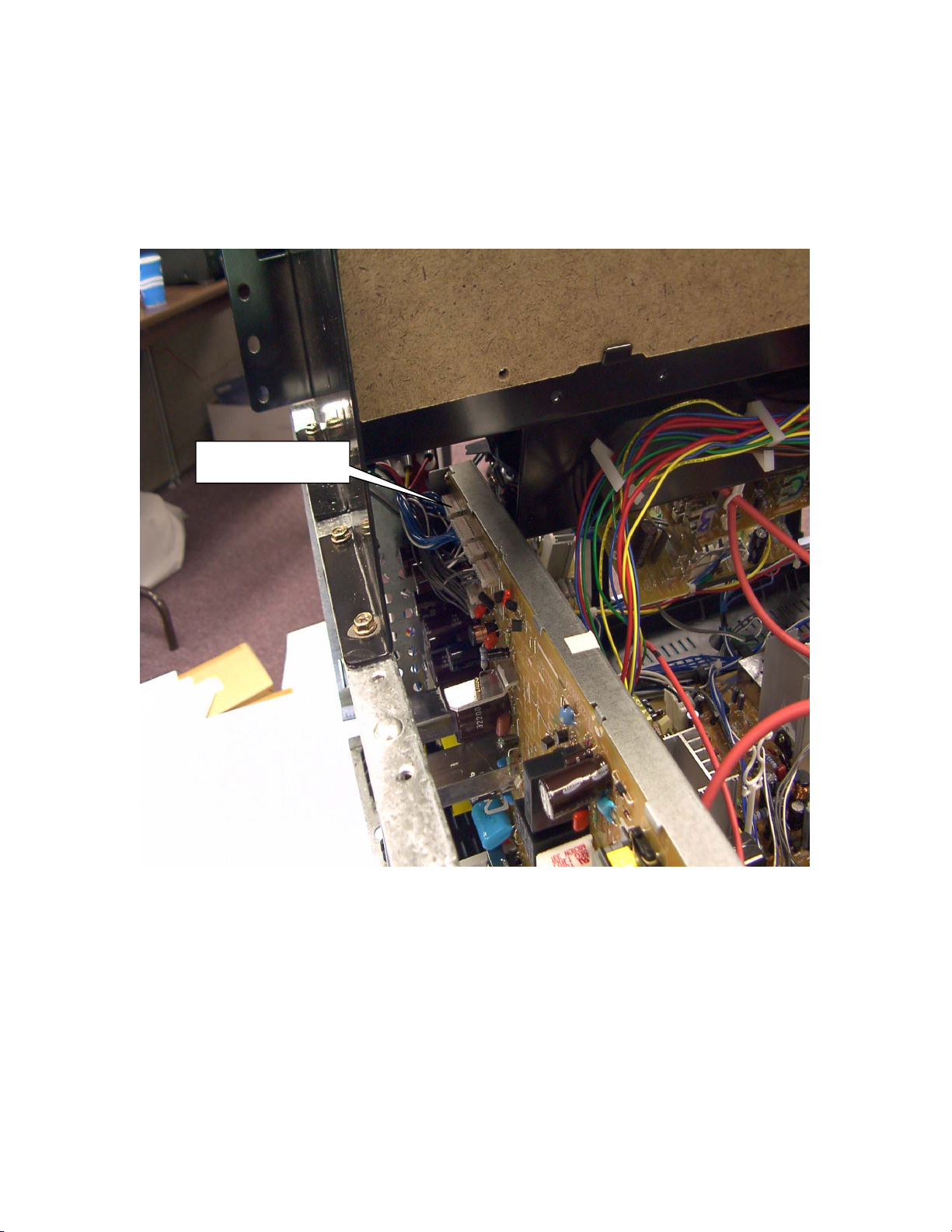

Next unplug six connectors at the upper left corner of the supply (Figure 20). The connectors are not marked but this is not important because their size will only allow them to fit properly on their intended sockets.

6 Connectors

Figure 20

Page 37

N3PSP DISASSEMBLY

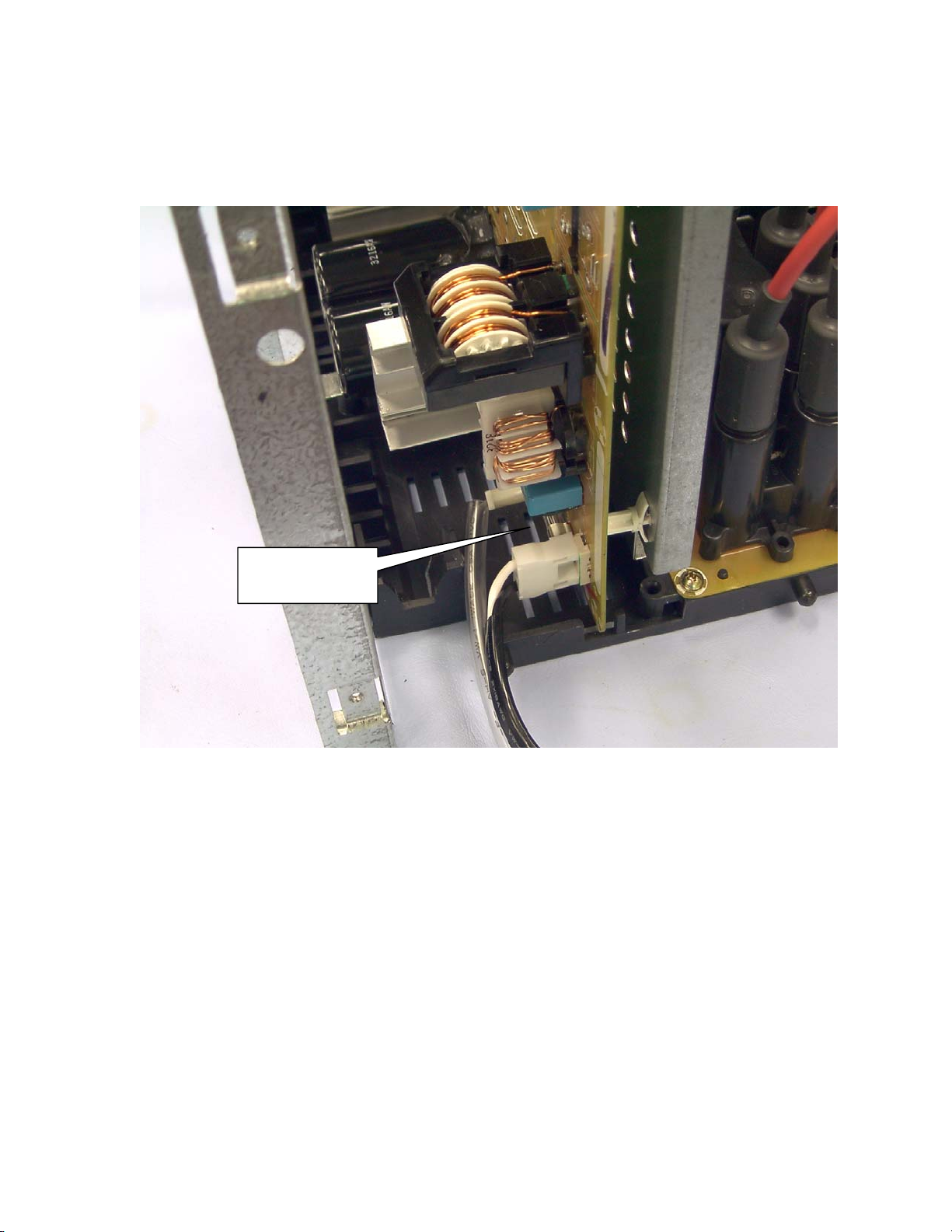

Now unplug the AC input (squeeze the plug release to free it) and the ground plug located on the lower right side of the supply (Figure 21).

AC Cable and Ground

Figure 21

Page 38

N3PSP DISASSEMBLY

The power supply is held to the frame by two restraints. The first is a screw located in the upper left corner of the board. To remove this screw, locate the access hole in the frame and insert a screwdriver through the hole

(Figure 22).

Mounting Screw

Figure 22

Page 39

N3PSP DISASSEMBLY

The second restraint is a fiber standoff that protrudes through the PCB near the center (Figure 23). Squeeze the restraint while moving the board outward. Now use a small screwdriver to force the PCB downward and outward to remove it from the shield guides. Move the board away from the shielding and out at the rear of the light box.

Standoff

Figure 23

Page 40

N3PSP DISASSEMBLY

To troubleshoot the power supply board, place it in the service position shown in figure 24. Remove the six cables from their cable clamps as necessary and reconnect them to the power supply board. Then plug in the AC input and ground cables. After this is done, the unit can be operated with the power supply board removed.

Plug in 6 cables

Plug in AC Cable and Ground

Figure 24

Page 41

N3PSP DISASSEMBLY

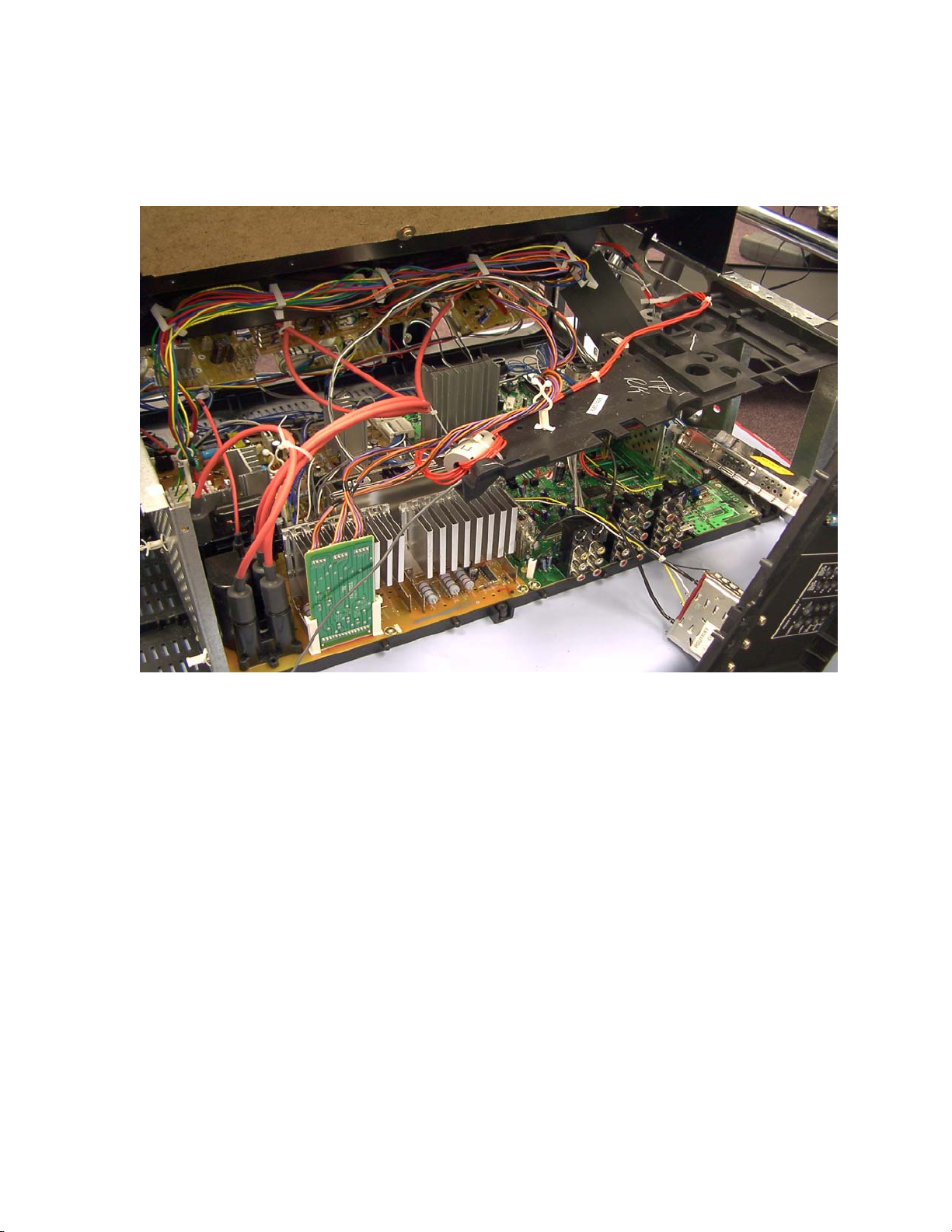

One additional aspect should be noted at this point. The bulk of the other PCBs can be accessed from the bottom. However, if these boards do need to be removed for any reason, removal of the back cover will aid this process as well

(Figure 25).

Figure 25

Page 42

N3PSP DISASSEMBLY

MECHANICAL AND ELECTRICAL ADJUSTMENTS

When making mechanical or electrical adjustments to the N3PSP, allow the unit to warm up for at least 15 minutes. The mechanical and electrical adjustments on this Toshiba chassis family will vary somewhat, depending on the model and screen size. In addition, most of the electrical adjustments require the unit to be placed in the service mode and the adjustments are actually made by changing data in a software register.

Always consult the service manual addressing the particular model being serviced.

ELECTRICAL

In addition to the adjustments made to the software registers, other electrical adjustments include dynamic focus and screen controls for each CRT. Again, consult the service manual addressing these adjustments for proper procedures.

MECHANICAL

The first two mechanical adjustments found in this unit are mechanical tilt or deflection yoke tilt and mechanical centering. Both of these adjustments are accessible from the front after the speaker grille and cover located between the speakers are removed (

Figure 26). Like the electrical adjustments, proper

procedure is explained in the service manual pertaining to the product.

Figure 26

Centering

Page 43

N3PSP DISASSEMBLY

The third adjustment is mechanical focus. This adjustment can be done with the wing nuts on the front of the focus lenses (

Figure 27). Facing the front of the

unit, the red CRT and lens assembly is on the left, green is in the center, and blue is on the right.

Focus

Figure 27

Page 44

N3PSP DISASSEMBLY

Two different adjustment procedures are used, depending on the screen size of the unit. The larger screen sizes employ a system to hang the screen higher so the focus adjustments can be accessed from the front by reaching under the screen

(Figure 28).

Figure 28

Page 45

N3PSP DISASSEMBLY

Fifty-one inch and smaller sizes require the screen to be mounted in its normal position. In these units, the servicer must reach behind the screen to make mechanical focus adjustments. When doing this, the screen must remain against the front of the cabinet to maintain proper focal length while making the adjustment.

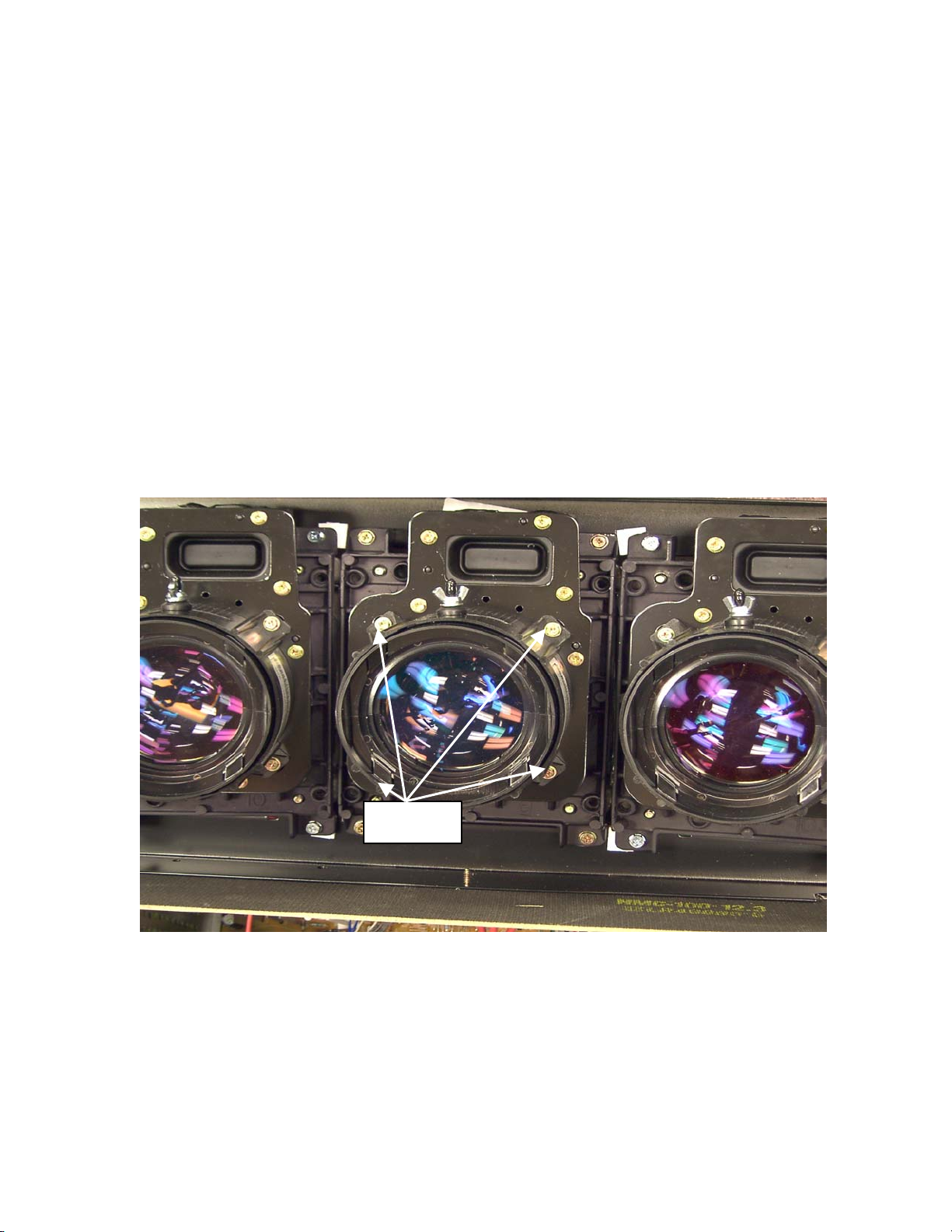

If it becomes necessary or more convenient when servicing the smaller screens, the lenses can be detached, rotated 180 degrees, and remounted so that the wing nut adjustments face the rear of the unit. To turn the lenses around, remove the 4 screws in the lens mounting tabs (

Figure 29). (Take care not to

loosen the hex head bolts with springs. These hold the lens to the face of the CRT and fluid leakage will occur if they are loosened) Rotate the lens

180 degrees and replace the screws in the mounting tabs. Remove the light shield by removing one screw from the center

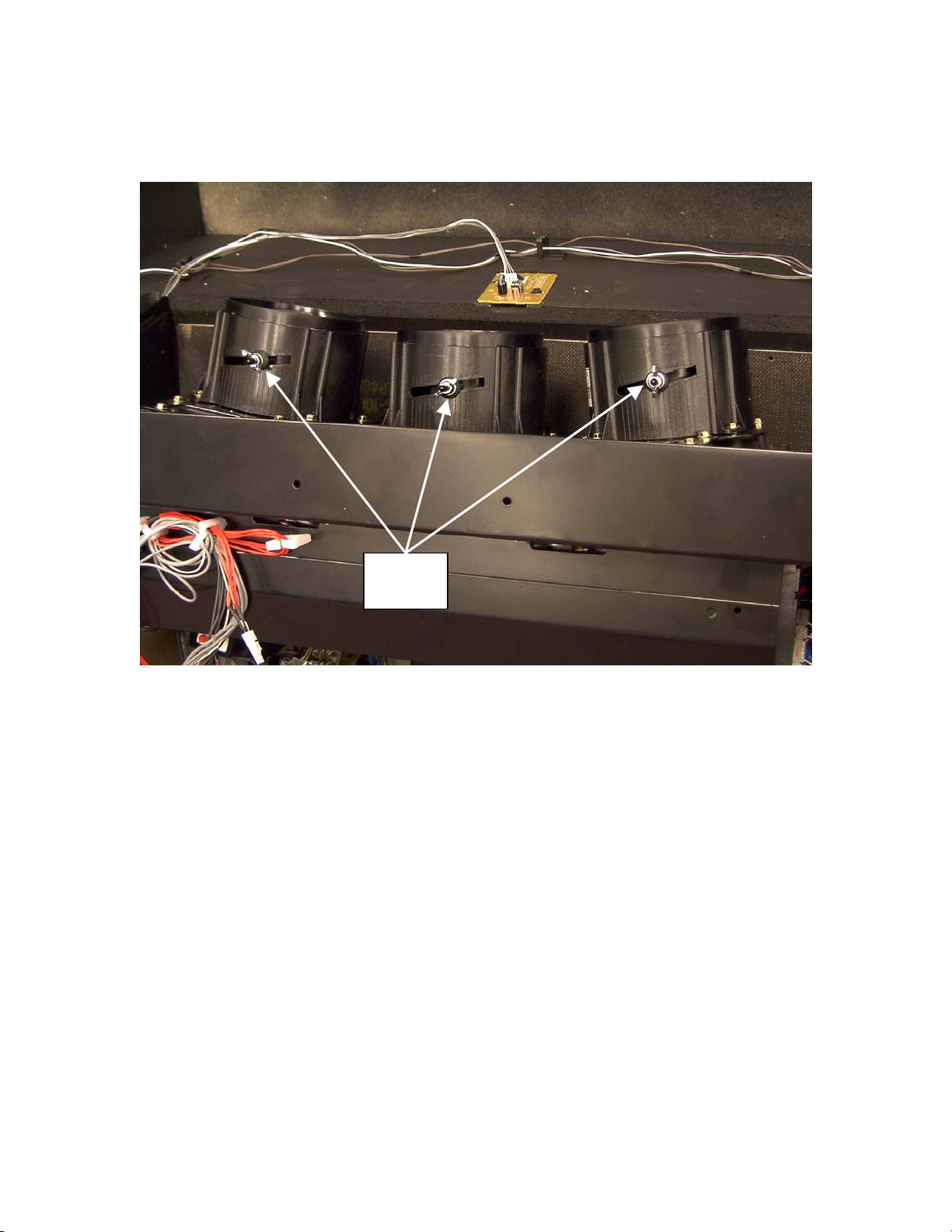

(Figure 30). With the light shield

removed, the mechanical focus adjustments can be made from the rear. Observe the backside of the screen as the lenses are adjusted to attain proper focus.

Screws

Figure 29

Page 46

N3PSP DISASSEMBLY

Retaining Screw Light Shield

Figure 30

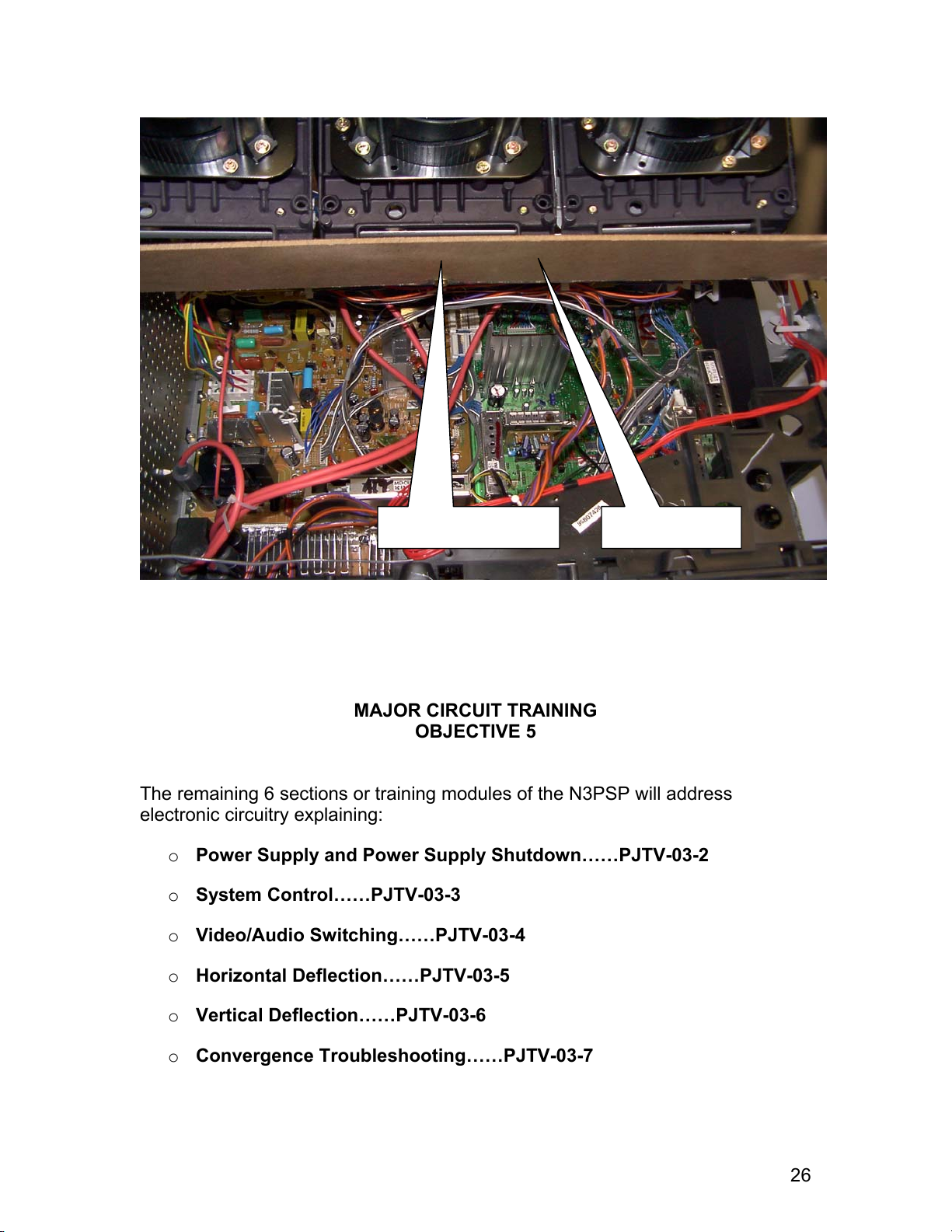

MAJOR CIRCUIT TRAINING

OBJECTIVE 5

The remaining 6 sections or training modules of the N3PSP will address electronic circuitry explaining:

o Power Supply and Power Supply Shutdown……PJTV-03-2

o System Control……PJTV-03-3

o Video/Audio Switching……PJTV-03-4

o Horizontal Deflection……PJTV-03-5

o Vertical Deflection……PJTV-03-6

o Convergence Troubleshooting……PJTV-03-7

Page 47

THIS PAGE IS

INTENTIONALLY LEFT

BLANK.

– 25–

– 26 –

Page 48

CHASSIS REPLACEMENT PARTS LIST

WARNING: BEFORE SERVICING THIS CHASSIS, READ THE “X-RAY RADIATION PRECAUTION”, “SAFETY PRE-

CAUTION” AND “PRODUCT SAFETY NOTICE” ON PAGE 3 OF THIS MANUAL.

CAUTION: The international hazard symbols “ ” in the schematic diagram and the parts list designate components which have special characteristics important for safety and should be replaced only with types identical to those in the original circuit or specified in the parts list. The mounting position of replacements is to be identical with originals. Before replacing any of these components, read carefully the PRODUCT SAFETY NOTICE. Do not degrade the safety of the receiver through improper servicing.

NOTICE:

•

The part number must be used when ordering parts, in order to assist in processing, be sure to include the Model

number and Description.

•

The PC board assembly with * mark is no longer available after the end of the production.

Models : 51H83, 57H83, 65H83

Capacitors ............. CD : Ceramic Disk PF : Plastic Film EL : Electrolytic

Resistors ............... CF : Carbon Film CC : Carbon Composition MF : Metal Film

OMF : Oxide Metal Film VR : Variable Resistor FR : Fusible Resistor

(All CD and PF capacitors are ±5%, 50V and all resistors, ±5%, 1/6W unless otherwise noted.)

Location

Parts No. Description

No.

CAPACITORS

C101 24797339 ELECTROLYTIO, 50V 3.3UF M C102 24665221 ELECTROLYTIC, 10V 220UF M 3A C105 24100102 CERAMIC CHIP, 50V F 1000PF Z C106 24669479 ELECTROLYTIC, 50V 4.7UF M 3A C107 24666221 ELECTROLYTIC, 16V 220UF M 3A C108 24665221 ELECTROLYTIC, 10V 220UF M 3A C112 24665221 ELECTROLYTIC, 10V 220UF M 3A C115 24100102 CERAMIC CHIP, 50V F 1000PF Z C117 24666221 ELECTROLYTIC, 16V 220UF M 3A C119 24109473 CERAMIC CHIP, 25V B 0.047UF K C198 24100104 CERAMIC CHIP, 25V F 0.1UF Z C199 24100104 CERAMIC CHIP, 25V F 0.1UF Z C205 24766229 ELECTROLYTIC, 50V 2.2UF M C206 24797229 ELECTROLYTIC, 50V 2.2UF M C221 24503041 PLASTIC FILM , 63V 0.1UF J C301 24503053 PLASTIC FILM, 63V 1UF J C302 24669010 ELECTROLYTIC, 50V 1UF M 3A C303 24503053 PLASTIC FILM, 63V 1UF J C308 24567223 PLASTIC FILM, 50V 0.022UF J C309 24109102 CERAMIC CHIP, 50V B 1000PF K C310 24073053 ELECTROLYTIC, 25V 100UF M 3A C311 24109103 CERAMIC CHIP, 50V B 0.01UF K C312 24109332 CERAMIC CHIP, 50V B 3300PF K C314 24503037 MT PLA CAP 63V 0.047UF J C315 24073020 ELECTROLYTIC, 10V 1000UF M 3A C320 24669101 ELECTROLYTIC, 50V 100UF M 3A C321 24669101 ELECTROLYTIC, 50V 100UF M 3A C323 24109473 CERAMIC CHIP, 25V B 0.047UF K C324 24503053 PLASTIC FILM, 63V 1UF J C325 24082057 PLASTIC FILM, 100V 0.22UF J C327 24092730 CERAMIC CHIP, 16V B 0.1UF K C328 24082256 PLASTIC FILM, 100V 2200PF J C330 24073034 ELECTROLYTIC, 16V 10UF M 3A C332 24669101 ELECTROLYTIC, 50V 100UF M 3A C333 24082272 PLASTIC FILM, 100V 0.047UF J C334 24109471 CERAMIC CHIP, 50V B 470PF K C338 24666100 ELECTROLYTIC, 10V 10UF M 3A C340 24073037 ELECTROLYTIC, 16V 47UF M 3A

Location

* C423 24503252 PLASTIC FILM, 400V 0.3UF J * C425 24503142 PLASTIC FILM, 400V 0.27UF J

* C440 24503059 PLASTIC FILM CF92 T 1800VH 1000PF H * C443 24503195 PLASTIC FILM, 1800VH 5100PF H * C444 24503346 PLASTIC FILM, 1800VH 3300PF H

* C467 24820682 PLASTIC FILM CQ92 T 630V 6800PF J * C468 24820682 PLASTIC FILM CQ92 T 630V 6800PF J

Parts No. Description

No.

C361 24092730 CERAMIC CHIP, 16V B 0.1UF K C362 24109473 CERAMIC CHIP, 25V B 0.047UF K C370 24669229 ELECTROLYTIC, 50V 2.2UF M 3A C371 24092730 CERAMIC CHIP, 16V B 0.1UF K C401 24214332 CERAMIC DISC, 500V B 3300PF K C402 24214391 CERAMIC DISC, 500V B 390PF K C405 24503041 PLASTIC FILM , 63V 0.1UF J C412 24828823 PLASTIC FILM, 200V 0.082UF J C415 24092484 CERAMIC DISC, 2KV B 1500PF K C416 24676220 ELECTROLYTIC, 100V 22UF M 3A C417 24503334 PLASTIC FILM CF92 T 250V 1R5UF J C419 24105331 CERAMIC CHIP, 50V CH 330PF J C420 24503041 PLASTIC FILM , 63V 0.1UF J C422 24591102 PLASTIC FILM, 50V 1000PF J

C426 24211222 CERAMIC DISC, 2KV B 2200PFK C432 24567333 PLASTIC FILM, 50V 33000PF J

C445 24828473 PLASTIC FILM, 200V 0.047UF J C446 24073120 ELECTRPLYTIC, 250V 33UF, 250YXF33M C448 24073118 ELECTROLYTIC, 160V 33UF M C449 24214221 CERAMIC DISC, 500V B 220PF K C450 24073057 ELECTROLYTIC, 25V 1000UF M 3A C460 24678220 ELECTROLYTIC, 200V 22UF M C463 24109472 CERAMIC CHIP, 50V B 4700PF K C464 24503149 PLASTIC FILM, 250V 3.3UF

C473 24503041 PLASTIC FILM , 63V 0.1UF J C481 24109103 CERAMIC CHIP, 50V B 0.01UF K C482 24109822 CERAMIC CHIP, 50V B 8200PF K C491 24666100 ELECTROLYTIC, 10V 10UF M 3A C496 24503049 PLASTIC FILM, 63V 0.47UF J C499 24666220 ELECTROLYTIC, 16V 22UF M 3A C513 24109103 CERAMIC CHIP, 50V B 0.01UF K C515 24503041 PLASTIC FILM , 63V 0.1UF J

SPECIFIC INFORMATIONS

– 27 –

Page 49

Location

SPECIFIC INFORMATIONS

Parts No. Description

No.

C518 24666100 ELECTROLYTIC, 10V 10UF M 3A C522 24100104 CERAMIC CHIP, 25V F 0.1UF Z C523 24100104 CERAMIC CHIP, 25V F 0.1UF Z C524 24100104 CERAMIC CHIP, 25V F 0.1UF Z C531 24666101 ELECTROLYTIC, 16V 100UF M 3A C532 24666100 ELECTROLYTIC, 10V 10UF M 3A C533 24100104 CERAMIC CHIP, 25V F 0.1UF Z C534 24100104 CERAMIC CHIP, 25V F 0.1UF Z C535 24109103 CERAMIC CHIP, 50V B 0.01UF K C536 24109103 CERAMIC CHIP, 50V B 0.01UF K C537 24109103 CERAMIC CHIP, 50V B 0.01UF K C538 24100104 CERAMIC CHIP, 25V F 0.1UF Z C540 24092538 CERAMIC CHIP, 10V F 1UF Z C541 24092538 CERAMIC CHIP, 10V F 1UF Z C542 24092538 CERAMIC CHIP, 10V F 1UF Z C547 24109103 CERAMIC CHIP, 50V B 0.01UF K C563 24797010 ELECTROLYTIC, 50V 1UF M C564 24797229 ELECTROLYTIC, 50V 2.2UF M C565 24100104 CERAMIC CHIP, 25V F 0.1UF Z C566 24100104 CERAMIC CHIP, 25V F 0.1UF Z C567 24100104 CERAMIC CHIP, 25V F 0.1UF Z C568 24100104 CERAMIC CHIP, 25V F 0.1UF Z C571 24109103 CERAMIC CHIP, 50V B 0.01UF K C572 24108100 CERAMIC CHIP, 50V SL 10PF D C573 24108100 CERAMIC CHIP, 50V SL 10PF D C574 24108100 CERAMIC CHIP, 50V SL 10PF D C584 24797010 ELECTROLYTIC, 50V 1UF M C585 24109103 CERAMIC CHIP, 50V B 0.01UF K C601 24109102 CERAMIC CHIP, 50V B 1000PF K C602 24109102 CERAMIC CHIP, 50V B 1000PF K C603 24669100 ELECTROLYTIC, 50V 10UF M 3A C604 24669100 ELECTROLYTIC, 50V 10UF M 3A C605 24667470 ELECTROLYTIC, 25V 47UF M 3A C606 24667470 ELECTROLYTIC, 25V 47UF M 3A C607 24503041 PLASTIC FILM , 63V 0.1UF J C608 24503041 PLASTIC FILM , 63V 0.1UF J C609 24669102 ELECTROLYTIC, 50V 1000UF M 3A C610 24669102 ELECTROLYTIC, 50V 1000UF M 3A C611 24668101 ELECTROLYTIC, 35V 100UF M 3A C612 24666221 ELECTROLYTIC, 16V 220UF M 3A C613 24669100 ELECTROLYTIC, 50V 10UF M 3A C661 24797010 ELECTROLYTIC, 50V 1UF M C662 24797010 ELECTROLYTIC, 50V 1UF M C663 24797010 ELECTROLYTIC, 50V 1UF M C665 24109103 CERAMIC CHIP, 50V B 0.01UF K C666 24797010 ELECTROLYTIC, 50V 1UF M C667 24794100 ELECTROLYTIC, 16V 10UF M C680 24669102 ELECTROLYTIC, 50V 1000UF M 3A C681 24666100 ELECTROLYTIC, 10V 10UF M 3A C682 24669229 ELECTROLYTIC, 50V 2.2UF M 3A C690 24109103 CERAMIC CHIP, 50V B 0.01UF K C704 24232103 CERAMIC DISC, 50V F 0.01UF Z C705 24206479 ELECTROLYTIC, 50V 4.7UF M 7L 3A C707 24797101 ELECTROLYTIC, 50V 100UF M (51H83) C707 24797470 ELECTROLYTIC, 50V 47UF M (57H83/65H83) C712 24797470 ELECTROLYTIC, 50V 47UF M (57H83/65H83) C713 24790470 ELECTROLYTIC, 160V 47UF M C715 24214472 CERAMIC DISC, 500V B 4700PF K C717 24214472 CERAMIC DISC, 500V B 4700PF K C718 24666470 ELECTORLYTIC, 16V 47UF M 3A C719 24435560 CERAMIC DISC, 500V SL 56PF J C720 24790220 ELECTROLYTIC, 160V 22UF M C721 24666470 ELECTORLYTIC, 16V 47UF M 3A C721 24073052 ELECTROLYTIC, 25V 47UF M 3A C722 24073052 ELECTROLYTIC, 25V 47UF M 3A

Location

* C801 24503002 PLASTIC FILM, AC275V 0.22UF M * C802 24503002 PLASTIC FILM, AC275V 0.22UF M

* C811 24092597 CERAMIC DISC CK45E AC250V 4700PF M * C812 24092597 CERAMIC DISC CK45E AC250V 4700PF M * C813 24092597 CERAMIC DISC CK45E AC250V 4700PF M * C814 24092579 CERAMIC DISC, AC250V 470PF K

Parts No. Description

No.

C723 24109103 CERAMIC CHIP, 50V B 0.01UF K C724 24109103 CERAMIC CHIP, 50V B 0.01UF K C726 24212102 CERAMIC DISC, 50V B 1000PF K C760 24797101 ELECTROLYTIC, 50V 100UF M (51H83) C760 24797470 ELECTROLYTIC, 50V 47UF M (57H83/65H83) C761 24212102 CERAMIC DISC, 50V B 1000PF K C762 24797470 ELECTROLYTIC, 50V 47UF M (57H83/65H83) C765 24214472 CERAMIC DISC, 500V B 4700PF K C766 24214472 CERAMIC DISC, 500V B 4700PF K C767 24790470 ELECTROLYTIC, 160V 47UF M C768 24666470 ELECTORLYTIC, 16V 47UF M 3A C769 24666470 ELECTORLYTIC, 16V 47UF M 3A C770 24435560 CERAMIC DISC, 500V SL 56PF J C771 24790220 ELECTROLYTIC, 160V 22UF M C780 24797101 ELECTROLYTIC, 50V 100UF M (51H83) C780 24797470 ELECTROLYTIC, 50V 47UF M (57H83/65H83) C781 24212102 CERAMIC DISC, 50V B 1000PF K C782 24797470 ELECTROLYTIC, 50V 47UF M (57H83/65H83) C784 24214472 CERAMIC DISC, 500V B 4700PF K C786 24214472 CERAMIC DISC, 500V B 4700PF K C787 24790470 ELECTROLYTIC, 160V 47UF M C788 24666470 ELECTORLYTIC, 16V 47UF M 3A C789 24666470 ELECTORLYTIC, 16V 47UF M 3A C790 24435560 CERAMIC DISC, 500V SL 56PF J C791 24790220 ELECTROLYTIC, 160V 22UF M

C805 24092281 CERAMIC DISC, AC250V E 4700PF C809 24073119 200V1000U105C, 200MXR1000M30X58 C810 24073119 200V1000U105C, 200MXR1000M30X58

C826 24503047 PLASTIC FILM, 63V 0.33UF J C827 24073037 ELECTROLYTIC, 16V 47UF M 3A C829 24503041 PLASTIC FILM , 63V 0.1UF J C830 24073037 ELECTROLYTIC, 16V 47UF M 3A C831 24503047 PLASTIC FILM, 63V 0.33UF J C832 24073038 ELECTROLYTIC, 16V 100UF M 3A C833 24073037 ELECTROLYTIC, 16V 47UF M 3A C834 24503047 PLASTIC FILM, 63V 0.33UF J C835 24073016 ELECTROLYTIC CE04P 10V 100UF M 3A C836 24617043 ELECTROLYTIC 04CH 35V 1000UF M C837 24214221 CERAMIC DISC, 500V B 220PF K C838 24617006 ELECTROLYTIC, 25V 820UF M C839 24503041 PLASTIC FILM , 63V 0.1UF J C840 24679220 ELECTROLYTIC, 250V 22UF M 3A C841 24666222 ELECTROLYTIC, 16V 2200UF M 3A C842 24503041 PLASTIC FILM , 63V 0.1UF J C843 24092333 CERAMIC DISC, 2KV 100PF K C845 24669229 ELECTROLYTIC, 50V 2.2UF M 3A C849 24669479 ELECTROLYTIC, 50V 4.7UF M 3A C850 24668222 ELECTROLYTIC, 35V 2200UF M 3A C851 24668222 ELECTROLYTIC, 35V 2200UF M 3A C852 24073094 ELECTROLYTIC, 50V 1000UF M 3A C853 24669331 ELECTROLYTIC, 50V 330UF M 3A C860 24214103 CERAMIC DISC, 500V B 0.01UF K C861 24214103 CERAMIC DISC, 500V B 0.01UF K C862 24092341 CERAMIC DISC, 2KV R 470PF K C863 24503045 PLASTIC FILM, 63V 0.22UF J C866 24503053 PLASTIC FILM, 63V 1UF J C867 24591472 PLASTIC FILM, 50V 4700PF J C868 24669101 ELECTROLYTIC, 50V 100UF M 3A C869 24678229 ELECTROLYTIC, 200V 2.2UF M 3A

– 28 –

Page 50

Location

Parts No. Description

No.

C870 24503355 PLASTIC FILM, 800V 0.1UF J C871 24092343 CERAMIC DISC, 2KV 680PF K C873 24503045 PLASTIC FILM, 63V 0.22UF J C874 24092337 CERAMIC DISC, 2KV 220PF K C876 24503049 PLASTIC FILM, 63V 0.47UF J C877 24092344 CERAMIC DISC, 2KV 820PF K C879 24214102 CERAMIC DISC, 500V B 1000PF K C880 24092339 CERAMIC DISC, 2KV 330PF K C881 24092339 CERAMIC DISC, 2KV 330PF K C882 24092339 CERAMIC DISC, 2KV 330PF K C883 24092339 CERAMIC DISC, 2KV 330PF K C884 24086916 ELECTROLYTIC, 160V 330UF M 3D C885 24073095 ELECTROLYTIC, 50V 2200UF M 3A C886 24591152 PLASTIC FILM, 50V 1500PF J C887 24678478 ELECTROLYTIC, 200V 0.47UF M 3A C888 24082229 PLASTIC FILM, 250V 0.1UF D C891 24214471 CERAMIC DISC, 500V B 470PF K C892 24214471 CERAMIC DISC, 500V B 470PF K C893 24073060 ELECTROLYTIC, 25V 4700UF M 3A C894 24073060 ELECTROLYTIC, 25V 4700UF M 3A C898 24503041 PLASTIC FILM , 63V 0.1UF J C901 24211102 CERAMIC DISC, 2KV B 1000PF K C902 24794101 ELECTROLYTIC, 16V 100UF M C903 24232103 CERAMIC DISC, 50V F 0.01UF Z C904 24436561 CERAMIC DISC, 50V SL 560PF J (51H83) C904 24436221 CERAMIC DISC, 50V SL 220PF J

C906 24679220 ELECTROLYTIC, 250V 22UF M 3A

C907 24214101 CERAMIC DISC, 500V B 100PF K C911 24211102 CERAMIC DISC, 2KV B 1000PF K C912 24794101 ELECTROLYTIC, 16V 100UF M C913 24232103 CERAMIC DISC, 50V F 0.01UF Z C914 24436681 CERAMIC DISC, 50V SL 680PF J (51H83) C914 24436221 CERAMIC DISC, 50V SL 220PF J

C915 24679330 ELECTROLYTIC, 250V 33UF M 3A (51H83) C915 24679220 ELECTROLYTIC, 250V 22UF M 3A

C917 24214101 CERAMIC DISC, 500V B 100PF K C921 24211102 CERAMIC DISC, 2KV B 1000PF K C922 24794101 ELECTROLYTIC, 16V 100UF M C923 24436681 CERAMIC DISC, 50V SL 680PF J (51H83) C923 24436221 CERAMIC DISC, 50V SL 220PF J

C924 24232103 CERAMIC DISC, 50V F 0.01UF Z C925 24679220 ELECTROLYTIC, 250V 22UF M 3A

C926 24214101 CERAMIC DISC, 500V B 100PF K C930 24214103 CERAMIC DISC, 500V B 0.01UF K

C935 24214103 CERAMIC DISC, 500V B 0.01UF K

C936 24214103 CERAMIC DISC, 500V B 0.01UF K

C961 24763102 ELECTROLYTIC, 16V 1000UF M C962 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A C967 24436331 CERAMIC DISC, 50V SL 330PF J (51H83) C967 24436471 CERAMIC DISC, 50V SL 470PF J (57H83) C967 24436821 CERAMIC DISC, 50V SL 820PF J (65H83) C2020 24109103 CERAMIC CHIP, 50V B 0.01UF K C2102 24108100 CERAMIC CHIP, 50V SL 10PF D C2103 24108100 CERAMIC CHIP, 50V SL 10PF D C2104 24108100 CERAMIC CHIP, 50V SL 10PF D C2110 24109103 CERAMIC CHIP, 50V B 0.01UF K

(57H83/65H83)

Location

Parts No. Description

No.

C2111 24763101 ELECTROLYTIC, 16V 100UF M C2112 24109103 CERAMIC CHIP, 50V B 0.01UF K C2113 24092731 CERAMIC CHIP, 16V B 1UF K C3110 24092730 CERAMIC CHIP, 16V B 0.1UF K C4401 24073039 ELECTROLYTIC, 16V 220UF M 3A C4402 24109103 CERAMIC CHIP, 50V B 0.01UF K C4403 24073081 ELECTROLYTIC, 50V 1.OUF M 3A C4404 24109103 CERAMIC CHIP, 50V B 0.01UF K C4405 24100104 CERAMIC CHIP, 25V F 0.1UF Z C4406 24109103 CERAMIC CHIP, 50V B 0.01UF K C4407 24073039 ELECTROLYTIC, 16V 220UF M 3A C4420 24109103 CERAMIC CHIP, 50V B 0.01UF K C4430 24073034 ELECTROLYTIC, 16V 10UF M 3A C4603 24109471 CERAMIC CHIP, 50V B 470PF K C5020 24109103 CERAMIC CHIP, 50V B 0.01UF K C5030 24763101 ELECTROLYTIC, 16V 100UF M C5080 24797010 ELECTROLYTIC, 50V 1UF M C5090 24763101 ELECTROLYTIC, 16V 100UF M C5140 24666100 ELECTROLYTIC, 10V 10UF M 3A C7701 24567334 PLASTIC FILM, 50V 0.33UF J C7704 24073053 ELECTROLYTIC, 25V 100UF M 3A C7705 24073053 ELECTROLYTIC, 25V 100UF M 3A C7706 24567334 PLASTIC FILM, 50V 0.33UF J C7721 24105102 CERAMIC CHIP, 25V CH 1000PF J C7722 24105331 CERAMIC CHIP, 50V CH 330PF J C7724 24073090 ELECTROLYTIC, 50V 100UF M 3A C7725 24073090 ELECTROLYTIC, 50V 100UF M 3A C7726 24105102 CERAMIC CHIP, 25V CH 1000PF J C7727 24105331 CERAMIC CHIP, 50V CH 330PF J C7729 24105102 CERAMIC CHIP, 25V CH 1000PF J C7730 24105331 CERAMIC CHIP, 50V CH 330PF J C7732 24105102 CERAMIC CHIP, 25V CH 1000PF J C7733 24105331 CERAMIC CHIP, 50V CH 330PF J C7735 24073090 ELECTROLYTIC, 50V 100UF M 3A C7736 24073090 ELECTROLYTIC, 50V 100UF M 3A C7737 24105102 CERAMIC CHIP, 25V CH 1000PF J C7738 24105331 CERAMIC CHIP, 50V CH 330PF J C7740 24105102 CERAMIC CHIP, 25V CH 1000PF J C7741 24105331 CERAMIC CHIP, 50V CH 330PF J C7766 24667221 ELECTROLYTIC, 25V 220UF M 3A C7769 24109103 CERAMIC CHIP, 50V B 0.01UF K C7774 24073016 ELECTROLYTIC CE04P 10V 100UF M 3A C7775 24073063 ELECTROLYTIC CE04P 35V 4.7UF M 3A C7776 24092730 CERAMIC CHIP, 16V B 0.1UF K C7777 24092730 CERAMIC CHIP, 16V B 0.1UF K C7779 24105331 CERAMIC CHIP, 50V CH 330PF J C7780 24436471 CERAMIC DISC, 50V SL 470PF J C7783 24436471 CERAMIC DISC, 50V SL 470PF J C7788 24353101 CERAMIC DISC, 50V CH 100PF J C7789 24591472 PLASTIC FILM, 50V 4700PF J C7791 24073056 ELECTROLYTIC, 25V 470UF M 3A C7792 24591472 PLASTIC FILM, 50V 4700PF J C7793 24567104 PLASTIC FILM, 50V 0.1UF J C7794 24567104 PLASTIC FILM, 50V 0.1UF J C7795 24591222 PLASTIC FILM, 50V 2200PF J C7796 24073091 ELECTROLYTIC, 50V 220UF M 3A C7797 24073094 ELECTROLYTIC, 50V 1000UF M 3A C7798 24073091 ELECTROLYTIC, 50V 220UF M 3A C7810 24092511 CERAMIC CHIP, 50V CH 470PF B C7811 24105561 CERAMIC CHIP, 50V CH 560PF J C7812 KETSU C7813 24667101 ELECTROLYTIC, 25V 100UF M 3A C7815 KETSU C7817 24591332 PLASTIC FILM, 50V 3300PF J C7818 24591102 PLASTIC FILM, 50V 1000PF J

SPECIFIC INFORMATIONS

– 29 –

Page 51

Location

SPECIFIC INFORMATIONS

Parts No. Description

No.

C7819 24591102 PLASTIC FILM, 50V 1000PF J C7820 24591222 PLASTIC FILM, 50V 2200PF J C7821 24669010 ELECTROLYTIC, 50V 1UF M 3A C7822 24503053 PLASTIC FILM, 63V 1UF J C9100 24436331 CERAMIC DISC, 50V SL 330PF J (51H83) C9100 24436471 CERAMIC DISC, 50V SL 470PF J (57H83) C9100 24436821 CERAMIC DISC, 50V SL 820PF J (65H83) C9200 24436331 CERAMIC DISC, 50V SL 330PF J (51H83) C9200 24436471 CERAMIC DISC, 50V SL 470PF J (57H83) C9200 24436821 CERAMIC DISC, 50V SL 820PF J (65H83) CA04 24109103 CERAMIC CHIP, 50V B 0.01UF K CA05 24109103 CERAMIC CHIP, 50V B 0.01UF K CA06 24109392 CERAMIC CHIP, 50V B 3900PF K CA07 24109392 CERAMIC CHIP, 50V B 3900PF K CA08 24109103 CERAMIC CHIP, 50V B 0.01UF K CA09 24109103 CERAMIC CHIP, 50V B 0.01UF K CA10 24105101 CERAMIC CHIP, 50V CH 100PF J CA14 24109103 CERAMIC CHIP, 50V B 0.01UF K CA15 24109103 CERAMIC CHIP, 50V B 0.01UF K CA22 24105101 CERAMIC CHIP, 50V CH 100PF J CA23 24105101 CERAMIC CHIP, 50V CH 100PF J CA24 24109103 CERAMIC CHIP, 50V B 0.01UF K CA25 24100103 CERAMIC CHIP, 50V F 0.01UF Z CA27 24092538 CERAMIC CHIP, 10V F 1UF Z CA28 24085970 ELECTROLYTIC, NONPOLAR, 16V 10UF M 7L CA30 24085970 ELECTROLYTIC, NONPOLAR, 16V 10UF M 7L CA31 24092538 CERAMIC CHIP, 10V F 1UF Z CA33 24100103 CERAMIC CHIP, 50V F 0.01UF Z CA34 24092538 CERAMIC CHIP, 10V F 1UF Z CA37 24105101 CERAMIC CHIP, 50V CH 100PF J CA38 24105101 CERAMIC CHIP, 50V CH 100PF J CA39 24105101 CERAMIC CHIP, 50V CH 100PF J CA42 24109392 CERAMIC CHIP, 50V B 3900PF K CA45 24105471 CERAMIC CHIP, 50V CH 470PF J CA46 24105471 CERAMIC CHIP, 50V CH 470PF J CA49 24105101 CERAMIC CHIP, 50V CH 100PF J CA52 24109103 CERAMIC CHIP, 50V B 0.01UF K CA53 24109103 CERAMIC CHIP, 50V B 0.01UF K CA54 24092730 CERAMIC CHIP, 16V B 0.1UF K CA55 24105101 CERAMIC CHIP, 50V CH 100PF J CA59 24105101 CERAMIC CHIP, 50V CH 100PF J CA60 24105101 CERAMIC CHIP, 50V CH 100PF J CA61 24666220 ELECTROLYTIC, 16V 22UF M 3A CA68 24666100 ELECTROLYTIC, 10V 10UF M 3A CA69 24109103 CERAMIC CHIP, 50V B 0.01UF K CA71 24105331 CERAMIC CHIP, 50V CH 330PF J CA72 24085970 ELECTROLYTIC, NONPOLAR, 16V 10UF M 7L CA73 24666100 ELECTROLYTIC, 10V 10UF M 3A CA80 24503041 PLASTIC FILM , 63V 0.1UF J CA81 24073015 ELECTROLYTIC, 10V 47UF M 3A CA82 24503049 PLASTIC FILM, 63V 0.47UF J CA251 24073015 ELECTROLYTIC, 10V 47UF M 3A CA331 24073015 ELECTROLYTIC, 10V 47UF M 3A CA371 24105820 CERAMIC CHIP, 50V CH 82PF J CA381 24105820 CERAMIC CHIP, 50V CH 82PF J CA391 24105820 CERAMIC CHIP, 50V CH 82PF J CA611 24109103 CERAMIC CHIP, 50V B 0.01UF K CA701 24092538 CERAMIC CHIP, 10V F 1UF Z CA705 24666100 ELECTROLYTIC, 10V 10UF M 3A CB01 24794470 ELECTORLYTIC, 16V 47UF M CB05 24666100 ELECTROLYTIC, 10V 10UF M 3A CB13 24085970 ELECTROLYTIC, NONPOLAR, 16V 10UF M 7L CB14 24105331 CERAMIC CHIP, 50V CH 330PF J CB15 24794100 ELECTROLYTIC, 16V 10UF M CB40 24092538 CERAMIC CHIP, 10V F 1UF Z

Location

Parts No. Description

No.

CB41 24109222 CERAMIC CHIP, 50V B 2200PF K CB42 24105561 CERAMIC CHIP, 50V CH 560PF J CB43 24109332 CERAMIC CHIP, 50V B 3300PF K CB45 24092538 CERAMIC CHIP, 10V F 1UF Z CB46 24109222 CERAMIC CHIP, 50V B 2200PF K CB47 24105561 CERAMIC CHIP, 50V CH 560PF J CB62 24105331 CERAMIC CHIP, 50V CH 330PF J CB90 24109103 CERAMIC CHIP, 50V B 0.01UF K CB91 24666100 ELECTROLYTIC, 10V 10UF M 3A CC01 24109102 CERAMIC CHIP, 50V B 1000PF K CC02 24109102 CERAMIC CHIP, 50V B 1000PF K CC03 24109102 CERAMIC CHIP, 50V B 1000PF K CC04 24109102 CERAMIC CHIP, 50V B 1000PF K CC05 24109102 CERAMIC CHIP, 50V B 1000PF K CC06 24109102 CERAMIC CHIP, 50V B 1000PF K CC07 24109102 CERAMIC CHIP, 50V B 1000PF K CC08 24109102 CERAMIC CHIP, 50V B 1000PF K CC11 24109102 CERAMIC CHIP, 50V B 1000PF K CC12 24109102 CERAMIC CHIP, 50V B 1000PF K CI01 24109103 CERAMIC CHIP, 50V B 0.01UF K CI02 24109103 CERAMIC CHIP, 50V B 0.01UF K CI03 24109103 CERAMIC CHIP, 50V B 0.01UF K CI04 24109103 CERAMIC CHIP, 50V B 0.01UF K CI05 24109103 CERAMIC CHIP, 50V B 0.01UF K CI07 24109103 CERAMIC CHIP, 50V B 0.01UF K CI08 24797010 ELECTROLYTIC, 50V 1UF M CI09 24105470 CERAMIC CHIP, 50V CH 47PF J CI10 24105180 CERAMIC CHIP, 50V CH 18PF J CI11 24105270 CERAMIC CHIP, 50V CH 27PF J CI12 24797478 ELECTROLYTIC, 50V 0.47UF M CI13 24109102 CERAMIC CHIP, 50V B 1000PF K CI14 24105470 CERAMIC CHIP, 50V CH 47PF J CI15 24105390 CERAMIC CHIP, 50V CH 39PF J CI16 24109103 CERAMIC CHIP, 50V B 0.01UF K CI17 24092726 CERAMIC CHIP CK733B 16V 2,200,000PFK CI18 24105181 CERAMIC CHIP, 50V CH 180PF J CI21 24109103 CERAMIC CHIP, 50V B 0.01UF K CI23 24109103 CERAMIC CHIP, 50V B 0.01UF K CI25 24105240 CERAMIC CHIP, 50V CH 24PF J CI51 24797220 ELECTROLYTIC, 50V 22UF M CI52 24794101 ELECTROLYTIC, 16V 100UF M CI53 24797339 ELECTROLYTIO, 50V 3.3UF M CR41 24100104 CERAMIC CHIP, 25V F 0.1UF Z CR42 24100104 CERAMIC CHIP, 25V F 0.1UF Z CR43 24100104 CERAMIC CHIP, 25V F 0.1UF Z CS01 24797229 ELECTROLYTIC, 50V 2.2UF M CS02 24797229 ELECTROLYTIC, 50V 2.2UF M CS03 24797229 ELECTROLYTIC, 50V 2.2UF M CS04 24797229 ELECTROLYTIC, 50V 2.2UF M CS05 24797229 ELECTROLYTIC, 50V 2.2UF M CS06 24797229 ELECTROLYTIC, 50V 2.2UF M CS07 24797229 ELECTROLYTIC, 50V 2.2UF M CS08 24797229 ELECTROLYTIC, 50V 2.2UF M CS09 24797229 ELECTROLYTIC, 50V 2.2UF M CS10 24797229 ELECTROLYTIC, 50V 2.2UF M CS11 24797229 ELECTROLYTIC, 50V 2.2UF M CS12 24797229 ELECTROLYTIC, 50V 2.2UF M CS13 24794100 ELECTROLYTIC, 16V 10UF M CS14 24794100 ELECTROLYTIC, 16V 10UF M CS15 24797229 ELECTROLYTIC, 50V 2.2UF M CS16 24797229 ELECTROLYTIC, 50V 2.2UF M CS19 24797479 ELECTROLYTIC, 50V 4.7UF M CS20 24669478 ELECTROLYTIC, 50V 0.47UF M 3A CS21 24797479 ELECTROLYTIC, 50V 4.7UF M CS22 24797479 ELECTROLYTIC, 50V 4.7UF M

– 30 –

Page 52

Location

Parts No. Description

No.

CS24 24797229 ELECTROLYTIC, 50V 2.2UF M CS25 24794470 ELECTORLYTIC, 16V 47UF M CS26 24085944 ELECTROLYTIC, NONPOLAR,

CS27 24085944 ELECTROLYTIC, NONPOLAR,

CS30 24797229 ELECTROLYTIC, 50V 2.2UF M CS31 24797229 ELECTROLYTIC, 50V 2.2UF M CS122 24797101 ELECTROLYTIC, 50V 100UF M CS123 24797470 ELECTROLYTIC, 50V 47UF M CV01 24092621 CERAMIC CHIP, 10V B 1UF K CV02 24092621 CERAMIC CHIP, 10V B 1UF K CV03 24092621 CERAMIC CHIP, 10V B 1UF K CV04 24100104 CERAMIC CHIP, 25V F 0.1UF Z CV05 24092621 CERAMIC CHIP, 10V B 1UF K CV06 24092621 CERAMIC CHIP, 10V B 1UF K CV07 24100104 CERAMIC CHIP, 25V F 0.1UF Z CV08 24794101 ELECTROLYTIC, 16V 100UF M CV09 24092621 CERAMIC CHIP, 10V B 1UF K CV10 24794100 ELECTROLYTIC, 16V 10UF M CV11 24092621 CERAMIC CHIP, 10V B 1UF K CV12 24100104 CERAMIC CHIP, 25V F 0.1UF Z CV13 24100104 CERAMIC CHIP, 25V F 0.1UF Z CV13 24794100 ELECTROLYTIC, 16V 10UF M CV14 24092621 CERAMIC CHIP, 10V B 1UF K CV14 24232103 CERAMIC DISC, 50V F 0.01UF Z CV15 24100104 CERAMIC CHIP, 25V F 0.1UF Z CV15 24232103 CERAMIC DISC, 50V F 0.01UF Z CV23 24794101 ELECTROLYTIC, 16V 100UF M CV24 24100104 CERAMIC CHIP, 25V F 0.1UF Z CV37 24797339 ELECTROLYTIO, 50V 3.3UF M CV38 24109102 CERAMIC CHIP, 50V B 1000PF K CV39 24109102 CERAMIC CHIP, 50V B 1000PF K CV40 24794101 ELECTROLYTIC, 16V 100UF M CV42 24100104 CERAMIC CHIP, 25V F 0.1UF Z CV45 24092621 CERAMIC CHIP, 10V B 1UF K CV46 24092621 CERAMIC CHIP, 10V B 1UF K CV47 24092621 CERAMIC CHIP, 10V B 1UF K CV48 24109332 CERAMIC CHIP, 50V B 3300PF K CV64 24794471 ELECTROLYTIC, 16V 470UF M CV65 24794101 ELECTROLYTIC, 16V 100UF M CV66 24100104 CERAMIC CHIP, 25V F 0.1UF Z CV67 24794100 ELECTROLYTIC, 16V 10UF M CV68 24100104 CERAMIC CHIP, 25V F 0.1UF Z CV238 24109103 CERAMIC CHIP, 50V B 0.01UF K CV244 24109103 CERAMIC CHIP, 50V B 0.01UF K CV245 24092441 CERAMIC CHIP, 16V F 1UF Z CV246 24092441 CERAMIC CHIP, 16V F 1UF Z CV247 24092441 CERAMIC CHIP, 16V F 1UF Z CV248 24109103 CERAMIC CHIP, 50V B 0.01UF K CV249 24092441 CERAMIC CHIP, 16V F 1UF Z CV250 24092441 CERAMIC CHIP, 16V F 1UF Z CV251 24092441 CERAMIC CHIP, 16V F 1UF Z CV252 24109103 CERAMIC CHIP, 50V B 0.01UF K CV253 24092441 CERAMIC CHIP, 16V F 1UF Z CV254 24092441 CERAMIC CHIP, 16V F 1UF Z CV255 24092441 CERAMIC CHIP, 16V F 1UF Z CV256 24109103 CERAMIC CHIP, 50V B 0.01UF K CV257 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A CV258 24666471 ELECTROLYTIC, 16V 470UF M 3A CV259 24109103 CERAMIC CHIP, 50V B 0.01UF K CV261 24109103 CERAMIC CHIP, 50V B 0.01UF K CV263 24109103 CERAMIC CHIP, 50V B 0.01UF K CY101 24092441 CERAMIC CHIP, 16V F 1UF Z CY102 24794101 ELECTROLYTIC, 16V 100UF M

50V 2.2UF M 11L

Location

Parts No. Description

No.

CY103 24100104 CERAMIC CHIP, 25V F 0.1UF Z CY104 24109103 CERAMIC CHIP, 50V B 0.01UF K CY105 24109103 CERAMIC CHIP, 50V B 0.01UF K CY106 24109103 CERAMIC CHIP, 50V B 0.01UF K CY107 24794100 ELECTROLYTIC, 16V 10UF M CY108 24100104 CERAMIC CHIP, 25V F 0.1UF Z CY109 24105101 CERAMIC CHIP, 50V CH 100PF J CY111 24109103 CERAMIC CHIP, 50V B 0.01UF K CY112 24105181 CERAMIC CHIP, 50V CH 180PF J CY113 24109103 CERAMIC CHIP, 50V B 0.01UF K CY114 24109103 CERAMIC CHIP, 50V B 0.01UF K CY115 24105390 CERAMIC CHIP, 50V CH 39PF J CY116 24105470 CERAMIC CHIP, 50V CH 47PF J CY117 24105180 CERAMIC CHIP, 50V CH 18PF J CY501 24109103 CERAMIC CHIP, 50V B 0.01UF K CY502 24092730 CERAMIC CHIP, 16V B 0.1UF K CY504 24109222 CERAMIC CHIP, 50V B 2200PF K CY505 24105120 CERAMIC CHIP, 50V CH 12PF J CY506 24109103 CERAMIC CHIP, 50V B 0.01UF K CY508 24092730 CERAMIC CHIP, 16V B 0.1UF K CY512 24092463 CERAMIC CHIP, 16V B 0.22UF K CY513 24092730 CERAMIC CHIP, 16V B 0.1UF K CY514 24092730 CERAMIC CHIP, 16V B 0.1UF K CY515 24092730 CERAMIC CHIP, 16V B 0.1UF K CY516 24109103 CERAMIC CHIP, 50V B 0.01UF K CY517 24092731 CERAMIC CHIP, 16V B 1UF K CY524 24092730 CERAMIC CHIP, 16V B 0.1UF K CY525 24092730 CERAMIC CHIP, 16V B 0.1UF K CY526 24092730 CERAMIC CHIP, 16V B 0.1UF K CY538 24794101 ELECTROLYTIC, 16V 100UF M CY539 24794102 ELECTROLYTIC, 16V 1000UF M CY582 24105101 CERAMIC CHIP, 50V CH 100PF J

RESISTORS

R101 24383183 OXIDE METAL FILM, 2W 18K OHM J R119 24011202 CHIP, METAL FILM, 1/20W 2K OHM J R150 24011101 CHIP, METAL FILM, 1/20W 100 OHM J R151 24011562 CHIP, METAL FILM, 1/20W 5.6K OHM J R152 24011103 CHIP, METAL FILM, 1/20W 10K OHM J R173 24011103 CHIP, METAL FILM, 1/20W 10K OHM J R174 24011273 CHIP, METAL FILM, 1/20W 27K OHM J R215 24011101 CHIP, METAL FILM, 1/20W 100 OHM J R232 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J R240 24367153 CARBON FILM, 1/6W 15K OHM G R241 24367223 CARBON FILM, 1/6W 22K OHM G R242 24367223 CARBON FILM, 1/6W 22K OHM G R243 24367333 CARBON FILM, 1/6W 33K OHM G R244 24366124 CARBON FILM, 1/6W 120K OHM J R245 24366472 CARBON FILM, 1/6W 4.7K OHM J R245 24011102 CHIP, METAL FILM, 1/20W 1K OHM J R246 24366472 CARBON FILM, 1/6W 4.7K OHM J R247 24366102 CARBON FILM, 1/6W 1K OHM J R249 24366474 CARBON FILM, 1/6W 470K OHM J R264 24011750 CHIP, METAL FILM, 1/20W 75 OHM J R265 24011750 CHIP, METAL FILM, 1/20W 75 OHM J R266 24011750 CHIP, METAL FILM, 1/20W 75 OHM J R286 24011750 CHIP, METAL FILM, 1/20W 75 OHM J R287 24011750 CHIP, METAL FILM, 1/20W 75 OHM J R288 24011750 CHIP, METAL FILM, 1/20W 75 OHM J R302 24011101 CHIP, METAL FILM, 1/20W 100 OHM J R305 24322109 OXIDE METAL FILM, 1W 1 OHM J R306 24011822 CHIP, METAL FILM, 1/20W 8.2K OHM J R307 24011101 CHIP, METAL FILM, 1/20W 100 OHM J R308 24011101 CHIP, METAL FILM, 1/20W 100 OHM J R311 24011563 CHIP, METAL FILM, 1/20W 56K OHM J

SPECIFIC INFORMATIONS

– 31 –

Page 53

Location

SPECIFIC INFORMATIONS

Parts No. Description

No.

R312 24011103 CHIP, METAL FILM, 1/20W 10K OHM J R314 24011473 CHIP, METAL FILM, 1/20W 47K OHM J R315 24011681 CHIP, METAL FILM, 1/20W 680 OHM J R321 24011562 CHIP, METAL FILM, 1/20W 5.6K OHM J R322 24011101 CHIP, METAL FILM, 1/20W 100 OHM J R325 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J R330 24000633 METAL FILM, 1/4W 10K OHM F R331 24000633 METAL FILM, 1/4W 10K OHM F R334 24011102 CHIP, METAL FILM, 1/20W 1K OHM J R335 24011102 CHIP, METAL FILM, 1/20W 1K OHM J R336 24011102 CHIP, METAL FILM, 1/20W 1K OHM J R337 24321129 OXIDE METAL FILM, 1/2W 1.2 OHM J R338 24011153 CHIP, METAL FILM, 1/2OW 15K OHM J R340 24011103 CHIP, METAL FILM, 1/20W 10K OHM J R341 24011183 CHIP, METAL FILM, 1/20W 18K OHM J R343 24011102 CHIP, METAL FILM, 1/20W 1K OHM J R344 24382151 OXIDE METAL FILM, 1W 150 OHM J R345 24000445 CHIP JUMPER, 1608TYPE R346 24382391 OXIDE METAL FILM, 1W 390 OHM J R348 24011473 CHIP, METAL FILM, 1/20W 47K OHM J R349 24011392 CHIP, METAL FILM, 1/20W 3.9K OHM J R350 24011123 CHIP, METAL FILM, 1/20W 12K OHM J R355 24011103 CHIP, METAL FILM, 1/20W 10K OHM J R360 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J R361 24011104 CHIP, METAL FILM, 1/20W 100K OHM J R362 24011473 CHIP, METAL FILM, 1/20W 47K OHM J R363 24011103 CHIP, METAL FILM, 1/20W 10K OHM J R364 24011331 CHIP, METAL FILM, 1/20W 330 OHM J R365 24011682 CHIP, METAL FILM, 1/20W 6.8K OHM J R366 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J R367 24011392 CHIP, METAL FILM, 1/20W 3.9K OHM J R368 24011101 CHIP, METAL FILM, 1/20W 100 OHM J R369 24011103 CHIP, METAL FILM, 1/20W 10K OHM J R370 24011102 CHIP, METAL FILM, 1/20W 1K OHM J R371 24011823 CHIP, METAL FILM, 1/20W 82K OHM J R372 24011332 CHIP, METAL FILM, 1/20W 3.3K OHM J R373 24011823 CHIP, METAL FILM, 1/20W 82K OHM J R374 24011104 CHIP, METAL FILM, 1/20W 100K OHM J R375 24011153 CHIP, METAL FILM, 1/2OW 15K OHM J R376 24011333 CHIP, METAL FILM, 1/20W 33K OHM J R378 24011103 CHIP, METAL FILM, 1/20W 10K OHM J R390 24382561 OXIDE METAL FILM, 1W 560 OHM J R391 24382561 OXIDE METAL FILM, 1W 560 OHM J R392 24382561 OXIDE METAL FILM, 1W 560 OHM J R403 24553101 OXIDE METAL FILM, 1W 100 OHM J R404 24366272 CARBON FILM, 1/6W 2.7K OHM J R405 24366101 CARBON FILM, 1/6W 100 OHM J R406 24383682 OXIDE METAL FILM, 2W 6.8K OHM J R407 24381100 OXIDE METAL FILM, 1/2W 10 OHM J R409 24555220 OXIDE METAL FILM, 3W 22 OHM J R410 24555220 OXIDE METAL FILM, 3W 22 OHM J R411 24323479 METAL FILM, 2W 4.7 OHM J R412 24383153 OXIDE METAL FILM, 2W 15K OHM J R413 24366101 CARBON FILM, 1/6W 100 OHM J R414 24019259 FUSIBLE, 1/4W 27 OHM G R415 24366102 CARBON FILM, 1/6W 1K OHM J R416 24383101 OXIDE METAL FILM, 2W 100 OHM J R417 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J R418 24011103 CHIP, METAL FILM, 1/20W 10K OHM J R419 24011103 CHIP, METAL FILM, 1/20W 10K OHM J R420 24366103 CARBON FILM, 1/6W 10K OHM J R421 24366223 CARBON FILM, 1/6W 22K OHM J R422 24366223 CARBON FILM, 1/6W 22K OHM J R423 24942102 CARBON COMPOSITION, 1/2W 1K OHM J R424 24376104 CARBON FILM, 1/2W 10OK OHM J

Location

* R477 24000141 METAL FILM, 1/4W 220 OHM F

* R492 24000360 METAL FILM, 1/4W 1.2K OHM F * R493 24000141 METAL FILM, 1/4W 220 OHM F * R494 24000141 METAL FILM, 1/4W 220 OHM F

Parts No. Description

No.

R425 24376104 CARBON FILM, 1/2W 10OK OHM J R426 24366101 CARBON FILM, 1/6W 100 OHM J R427 24366101 CARBON FILM, 1/6W 100 OHM J R428 24377224 CARBON FILM, 1W 220K OHM J R429 24942102 CARBON COMPOSITION, 1/2W 1K OHM J R431 24383102 OXIDE METAL FILM, 2W 1K OHM J R432 24376274 CARBON FILM, 1/2W 270K OHM J R433 24376274 CARBON FILM, 1/2W 270K OHM J R433 24366681 CARBON FILM, 1/6W 680 OHM J R434 24376274 CARBON FILM, 1/2W 270K OHM J R434 24366472 CARBON FILM, 1/6W 4.7K OHM J R435 24366332 CARBON FILM, 1/6W 3.3K OHM J R436 24366473 CARBON FILM, 1/6W 47K OHM J R437 24011223 CHIP, METAL FILM, 1/20W 22K OHM J R438 24011102 CHIP, METAL FILM, 1/20W 1K OHM J R439 24011103 CHIP, METAL FILM, 1/20W 10K OHM J R440 24011103 CHIP, METAL FILM, 1/20W 10K OHM J R441 24533331 FUSIBLE, 2W 330 OHM J R443 24310109 OXIDE METAL FILM, 1/2W 1 OHM J R444 24322398 OXIDE METAL FILM, 1W 0.39 OHM J R446 24366103 CARBON FILM, 1/6W 10K OHM J R447 24382473 OXIDE METAL FILM, 1W 47K OHM J R448 24366562 CARBON FILM, 1/6W 5.6K OHM J R449 24366152 CARBON FILM, 1/6W 1.5K OHM J R466 24011273 CHIP, METAL FILM, 1/20W 27K OHM J R467 24011223 CHIP, METAL FILM, 1/20W 22K OHM J R469 24366101 CARBON FILM, 1/6W 100 OHM J R470 24366224 CARBON FILM, 1/6W 220K OHM J R472 24366101 CARBON FILM, 1/6W 100 OHM J R473 24366223 CARBON FILM, 1/6W 22K OHM J R474 24376393 CARBON FILM, 1/2W 39K OHM J R475 24011101 CHIP, METAL FILM, 1/20W 100 OHM J R476 24366471 CARBON FILM, 1/6W 470 OHM J R477 24366102 CARBON FILM, 1/6W 1K OHM J

R480 24011473 CHIP, METAL FILM, 1/20W 47K OHM J R481 24011103 CHIP, METAL FILM, 1/20W 10K OHM J R481 24322478 OXIDE METAL FILM, 1W 0.47 OHM J R482 24011103 CHIP, METAL FILM, 1/20W 10K OHM J R482 24552271 OXIDE METAL FILM, 1/2W 270 OHM J R483 24552151 OXIDE METAL FILM, 1/2W 150 OHM J R484 24366102 CARBON FILM, 1/6W 1K OHM J R490 24552331 OXIDE METAL FILM, 1/2W 330 OHM J R491 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J

R495 24366333 CARBON FILM, 1/6W 33K OHM J R496 24366103 CARBON FILM, 1/6W 10K OHM J R497 24366100 CARBON FILM, 1/6W 10 OHM J R498 24366103 CARBON FILM, 1/6W 10K OHM J R499 24366102 CARBON FILM, 1/6W 1K OHM J R513 24366101 CARBON FILM, 1/6W 100 OHM J R513 24000445 CHIP JUMPER, 1608TYPE R515 24366103 CARBON FILM, 1/6W 10K OHM J R520 24011100 CHIP, METAL FILM, 1/20W 10 OHM J R521 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J R522 24011471 CHIP, METAL FILM, 1/20W 470 OHM J R523 24011102 CHIP, METAL FILM, 1/20W 1K OHM J R524 24011101 CHIP, METAL FILM, 1/20W 100 OHM J R525 24011101 CHIP, METAL FILM, 1/20W 100 OHM J R526 24011102 CHIP, METAL FILM, 1/20W 1K OHM J R527 24011101 CHIP, METAL FILM, 1/20W 100 OHM J R528 24011101 CHIP, METAL FILM, 1/20W 100 OHM J R531 24011103 CHIP, METAL FILM, 1/20W 10K OHM J

– 32 –

Page 54

Location

Parts No. Description

No.

R537 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J R538 24011103 CHIP, METAL FILM, 1/20W 10K OHM J R539 24011330 CHIP, METAL FILM, 1/20W 33 OHM J R541 24011182 CHIP, METAL FILM, 1/20W 1.8K OHM J R542 24011182 CHIP, METAL FILM, 1/20W 1.8K OHM J R543 24011182 CHIP, METAL FILM, 1/20W 1.8K OHM J R544 24011182 CHIP, METAL FILM, 1/20W 1.8K OHM J R545 24011182 CHIP, METAL FILM, 1/20W 1.8K OHM J R546 24011182 CHIP, METAL FILM, 1/20W 1.8K OHM J R547 24011680 CHIP, METAL FILM, 1/20W 68 OHM J R548 24011680 CHIP, METAL FILM, 1/20W 68 OHM J R549 24011102 CHIP, METAL FILM, 1/20W 1K OHM J R553 24011680 CHIP, METAL FILM, 1/20W 68 OHM J R560 24011102 CHIP, METAL FILM, 1/20W 1K OHM J R561 24552181 OXIDE METAL FILM, 1/2W 180 OHM J R562 24011103 CHIP, METAL FILM, 1/20W 10K OHM J R563 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J R564 24011101 CHIP, METAL FILM, 1/20W 100 OHM J R565 24011102 CHIP, METAL FILM, 1/20W 1K OHM J R566 24011101 CHIP, METAL FILM, 1/20W 100 OHM J R567 24011102 CHIP, METAL FILM, 1/20W 1K OHM J R568 24011101 CHIP, METAL FILM, 1/20W 100 OHM J R569 24011224 CHIP, METAL FILM, 1/20W 220K OHM J R601 24011332 CHIP, METAL FILM, 1/20W 3.3K OHM J R602 24011332 CHIP, METAL FILM, 1/20W 3.3K OHM J R603 24011122 CHIP, METAL FILM, 1/20W 1.2K OHM J R604 24011122 CHIP, METAL FILM, 1/20W 1.2K OHM J R609 24366229 CARBON FILM, 1/6W 2.2 OHM J R610 24366229 CARBON FILM, 1/6W 2.2 OHM J R613 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J R661 24011102 CHIP, METAL FILM, 1/20W 1K OHM J R662 24011333 CHIP, METAL FILM, 1/20W 33K OHM J R663 24011103 CHIP, METAL FILM, 1/20W 10K OHM J R665 24011223 CHIP, METAL FILM, 1/20W 22K OHM J R666 24011473 CHIP, METAL FILM, 1/20W 47K OHM J R667 24011223 CHIP, METAL FILM, 1/20W 22K OHM J R668 24011473 CHIP, METAL FILM, 1/20W 47K OHM J R671 24011102 CHIP, METAL FILM, 1/20W 1K OHM J R672 24011333 CHIP, METAL FILM, 1/20W 33K OHM J R673 24011103 CHIP, METAL FILM, 1/20W 10K OHM J R674 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J R682 24011473 CHIP, METAL FILM, 1/20W 47K OHM J R683 24011223 CHIP, METAL FILM, 1/20W 22K OHM J R684 24011223 CHIP, METAL FILM, 1/20W 22K OHM J R687 24011103 CHIP, METAL FILM, 1/20W 10K OHM J R688 24011224 CHIP, METAL FILM, 1/20W 220K OHM J R689 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J R690 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J R691 24011103 CHIP, METAL FILM, 1/20W 10K OHM J R692 24011103 CHIP, METAL FILM, 1/20W 10K OHM J R693 24000445 CHIP JUMPER, 1608TYPE R702 24552221 OXIDE METAL FILM, 1/2W 220 OHM J R709 24366563 CARBON FILM, 1/6W 56K OHM J R713 24366273 CARBON FILM, 1/6W 27K OHM J R715 24366273 CARBON FILM, 1/6W 27K OHM J (51H83) R715 24366333 CARBON FILM, 1/6W 33K OHM J

R716 24366273 CARBON FILM, 1/6W 27K OHM J R717 24366333 CARBON FILM, 1/6W 33K OHM J R718 24366101 CARBON FILM, 1/6W 100 OHM J R719 24366100 CARBON FILM, 1/6W 10 OHM J R720 24552331 OXIDE METAL FILM, 1/2W 330 OHM J R721 24546919 FUSIBLE, 1/2W 9.1 OHM J R722 24546919 FUSIBLE, 1/2W 9.1 OHM J R722 24552471 OXIDE METAL FILM, 1/2W 470 OHM J

(57H83/65H83)

Location

Parts No. Description

No.

R723 24366101 CARBON FILM, 1/6W 100 OHM J R723 24011102 CHIP, METAL FILM, 1/20W 1K OHM J R724 24366151 CARBON FILM, 1/6W 150 OHM J R724 24011102 CHIP, METAL FILM, 1/20W 1K OHM J R725 24366222 CARBON FILM, 1/6W 2.2K OHM J (51H83) R725 24366332 CARBON FILM, 1/6W 3.3K OHM J

R730 24552100 OXIDE METAL FILM, 1/2W 10 OHM J R731 24552331 OXIDE METAL FILM, 1/2W 330 OHM J R732 24366470 CARBON FILM, 1/6W 47 OHM J R733 24366683 CARBON FILM, 1/6W 68K OHM J R734 24366470 CARBON FILM, 1/6W 47 OHM J R735 24366683 CARBON FILM, 1/6W 68K OHM J R736 24553330 OXIDE METAL FILM, 1W 33 OHM J R737 24366751 CARBON FILM, 1/6W 750 OHM J R738 24366102 CARBON FILM, 1/6W 1K OHM J R739 24366751 CARBON FILM, 1/6W 750 OHM J R740 24553330 OXIDE METAL FILM, 1W 33 OHM J R741 24322229 OXIDE METAL FILM, 1W 2.2 OHM J R742 24322229 OXIDE METAL FILM, 1W 2.2 OHM J (51H83) R742 24321229 OXIDE METAL FILM, 1/2W 2.2 OHM J

R743 24554221 OXIDE METAL FILM, 2W 220 OHM J R744 24366122 CARBON FILM, 1/6W 1.2K OHM J R745 24366122 CARBON FILM, 1/6W 1.2K OHM J R761 24366273 CARBON FILM, 1/6W 27K OHM J R762 24366563 CARBON FILM, 1/6W 56K OHM J R763 24552331 OXIDE METAL FILM, 1/2W 330 OHM J R764 24366470 CARBON FILM, 1/6W 47 OHM J R765 24552100 OXIDE METAL FILM, 1/2W 10 OHM J R766 24366470 CARBON FILM, 1/6W 47 OHM J R767 24552221 OXIDE METAL FILM, 1/2W 220 OHM J R768 24366751 CARBON FILM, 1/6W 750 OHM J R769 24366122 CARBON FILM, 1/6W 1.2K OHM J R770 24553330 OXIDE METAL FILM, 1W 33 OHM J R771 24322229 OXIDE METAL FILM, 1W 2.2 OHM J R772 24366683 CARBON FILM, 1/6W 68K OHM J R773 24366683 CARBON FILM, 1/6W 68K OHM J R774 24366751 CARBON FILM, 1/6W 750 OHM J R775 24366122 CARBON FILM, 1/6W 1.2K OHM J R776 24553330 OXIDE METAL FILM, 1W 33 OHM J R777 24321229 OXIDE METAL FILM, 1/2W 2.2 OHM J R778 24366102 CARBON FILM, 1/6W 1K OHM J R779 24554221 OXIDE METAL FILM, 2W 220 OHM J R781 24366273 CARBON FILM, 1/6W 27K OHM J R782 24366563 CARBON FILM, 1/6W 56K OHM J R783 24552221 OXIDE METAL FILM, 1/2W 220 OHM J R784 24552100 OXIDE METAL FILM, 1/2W 10 OHM J R785 24366470 CARBON FILM, 1/6W 47 OHM J R786 24366751 CARBON FILM, 1/6W 750 OHM J R787 24366122 CARBON FILM, 1/6W 1.2K OHM J R788 24366683 CARBON FILM, 1/6W 68K OHM J R789 24366683 CARBON FILM, 1/6W 68K OHM J R790 24366751 CARBON FILM, 1/6W 750 OHM J R791 24366122 CARBON FILM, 1/6W 1.2K OHM J R792 24366102 CARBON FILM, 1/6W 1K OHM J R793 24321229 OXIDE METAL FILM, 1/2W 2.2 OHM J R794 24553330 OXIDE METAL FILM, 1W 33 OHM J R795 24322229 OXIDE METAL FILM, 1W 2.2 OHM J R796 24554221 OXIDE METAL FILM, 2W 220 OHM J R797 24366470 CARBON FILM, 1/6W 47 OHM J R798 24552331 OXIDE METAL FILM, 1/2W 330 OHM J R799 24553330 OXIDE METAL FILM, 1W 33 OHM J R810 24007061 CERAMIC COVERED, 2W 1.8 OHM K R818 24366102 CARBON FILM, 1/6W 1K OHM J

(57H83/65H83)

SPECIFIC INFORMATIONS

– 33 –

Page 55

Location

SPECIFIC INFORMATIONS

* R899 24010001 CARBON FILM, 1/2W 3.9M OHM J

Parts No. Description

No.

R819 24366103 CARBON FILM, 1/6W 10K OHM J R834 24000147 METAL FILM, 1/4W 470 OHM F R835 24000219 METAL FILM, 1/4W 10 F R836 24366102 CARBON FILM, 1/6W 1K OHM J R840 24552562 OXIDE METAL FILM, 1/2W 5.6K OHM J R841 24366102 CARBON FILM, 1/6W 1K OHM J R842 24376563 CARB0N FILM, 1/2W 56K OHM J R843 24376563 CARB0N FILM, 1/2W 56K OHM J R844 24366103 CARBON FILM, 1/6W 10K OHM J R849 24366101 CARBON FILM, 1/6W 100 OHM J R860 24383153 OXIDE METAL FILM, 2W 15K OHM J R861 24383153 OXIDE METAL FILM, 2W 15K OHM J R862 24321689 OXIDE METAL FILM, 1/2W 6.8 OHM J R864 24552102 OXIDE METAL FILM, 1/2W 1K OHM J R865 24552390 OXIDE METAL FILM, 1/2W 39 OHM J R866 24366472 CARBON FILM, 1/6W 4.7K OHM J R867 24366223 CARBON FILM, 1/6W 22K OHM J R868 24552470 OXIDE METAL FILM, 1/2W 47 OHM J R870 24381151 OXIDE METAL FILM, 1/2W 150 OHM J R871 24382680 OXIDE METAL FILM, 1W 68 OHM J R873 24552100 OXIDE METAL FILM, 1/2W 10 OHM J R874 24366150 CARBON FILM, 1/6W 15 OHM J R881 24366152 CARBON FILM, 1/6W 1.5K OHM J R882 24366101 CARBON FILM, 1/6W 100 OHM J R883 24381682 OXIDE METAL FILM, 1/2W 6.8K OHM J R885 24366102 CARBON FILM, 1/6W 1K OHM J R886 24366332 CARBON FILM, 1/6W 3.3K OHM J R893 24366472 CARBON FILM, 1/6W 4.7K OHM J R894 24366103 CARBON FILM, 1/6W 10K OHM J

R900 24000892 FUSIBLE, 1W 1.2 OHM J R901 24366101 CARBON FILM, 1/6W 100 OHM J (51H83) R901 24366331 CARBON FILM, 1/6W 330 OHM J

R903 24942102 CARBON COMPOSITION, 1/2W 1K OHM J

R903 24552101 OXIDE METAL FILM, 1/2W 100 OHM J

R904 24366222 CARBON FILM, 1/6W 2.2K OHM J (51H83) R905 24366330 CARBON FILM, 1/6W 33 OHM J (51H83) R905 24366270 CARBON FILM, 1/6W 27 OHM J (57H83/65H83) R906 24366331 CARBON FILM, 1/6W 330 OHM J (51H83) R906 24366271 CARBON FILM, 1/6W 270 OHM J

R908 24366150 CARBON FILM, 1/6W 15 OHM J (51H83) R908 24366680 CARBON FILM, 1/6W 68 OHM J (57H83/65H83) R909 24366330 CARBON FILM, 1/6W 33 OHM J (51H83) R909 24366180 CARBON FILM, 1/6W 18 OHM J (57H83/65H83) R910 24322568 OXIDE METAL FILM, 1W 0.56 OHM J R911 24366101 CARBON FILM, 1/6W 100 OHM J (51H83) R911 24366331 CARBON FILM, 1/6W 330 OHM J

R913 24942102 CARBON COMPOSITION, 1/2W 1K OHM J

R913 24552101 OXIDE METAL FILM, 1/2W 100 OHM J

R914 24366222 CARBON FILM, 1/6W 2.2K OHM J (51H83) R915 24366270 CARBON FILM, 1/6W 27 OHM J R916 24366331 CARBON FILM, 1/6W 330 OHM J (51H83) R916 24366271 CARBON FILM, 1/6W 270 OHM J

R918 24366100 CARBON FILM, 1/6W 10 OHM J (51H83) R918 24366680 CARBON FILM, 1/6W 68 OHM J (57H83/65H83) R919 24366270 CARBON FILM, 1/6W 27 OHM J (51H83) R919 24366180 CARBON FILM, 1/6W 18 OHM J (57H83/65H83)

(57H83/65H83)

(51H83)

(57H83/65H83)

(51H83)

(57H83/65H83)

Location

Parts No. Description

No.

R920 24366562 CARBON FILM, 1/6W 5.6K OHM J

R920 24366222 CARBON FILM, 1/6W 2.2K OHM J (57H83) R921 24366101 CARBON FILM, 1/6W 100 OHM J (51H83) R921 24366331 CARBON FILM, 1/6W 330 OHM J

R923 24942102 CARBON COMPOSITION, 1/2W 1K OHM J

R923 24552101 OXIDE METAL FILM, 1/2W 100 OHM J

R924 24366222 CARBON FILM, 1/6W 2.2K OHM J (51H83) R925 24366390 CARBON FILM, 1/6W 39 OHM J (51H83) R925 24366180 CARBON FILM, 1/6W 18 OHM J (57H83/65H83) R926 24366331 CARBON FILM, 1/6W 330 OHM J (51H83) R926 24366271 CARBON FILM, 1/6W 270 OHM J

R927 24366100 CARBON FILM, 1/6W 10 OHM J R928 24366100 CARBON FILM, 1/6W 10 OHM J (51H83) R928 24366680 CARBON FILM, 1/6W 68 OHM J (57H83/65H83) R929 24366330 CARBON FILM, 1/6W 33 OHM J (51H83) R929 24366270 CARBON FILM, 1/6W 27 OHM J (57H83/65H83) R930 24366153 CARBON FILM, 1/6W 15K OHM J (51H83) R930 24366222 CARBON FILM, 1/6W 2.2K OHM J

R931 24383153 OXIDE METAL FILM, 2W 15K OHM J R932 24383153 OXIDE METAL FILM, 2W 15K OHM J R934 24383153 OXIDE METAL FILM, 2W 15K OHM J

R935 24383153 OXIDE METAL FILM, 2W 15K OHM J

R936 24383153 OXIDE METAL FILM, 2W 15K OHM J R937 24383153 OXIDE METAL FILM, 2W 15K OHM J R938 24366150 CARBON FILM, 1/6W 15 OHM J R941 24383153 OXIDE METAL FILM, 2W 15K OHM J R942 24383153 OXIDE METAL FILM, 2W 15K OHM J R943 24383153 OXIDE METAL FILM, 2W 15K OHM J (51H83) R944 24383153 OXIDE METAL FILM, 2W 15K OHM J R945 24366150 CARBON FILM, 1/6W 15 OHM J R946 24383153 OXIDE METAL FILM, 2W 15K OHM J

R947 24383153 OXIDE METAL FILM, 2W 15K OHM J

R948 24366562 CARBON FILM, 1/6W 5.6K OHM J (51H83) R948 24366222 CARBON FILM, 1/6W 2.2K OHM J (57H83) R949 24366153 CARBON FILM, 1/6W 15K OHM J (51H83) R949 24383153 OXIDE METAL FILM, 2W 15K OHM J

R950 24366222 CARBON FILM, 1/6W 2.2K OHM J

R951 24383153 OXIDE METAL FILM, 2W 15K OHM J R952 24383153 OXIDE METAL FILM, 2W 15K OHM J R953 24383153 OXIDE METAL FILM, 2W 15K OHM J (51H83) R954 24383153 OXIDE METAL FILM, 2W 15K OHM J R955 24383153 OXIDE METAL FILM, 2W 15K OHM J

R956 24383153 OXIDE METAL FILM, 2W 15K OHM J

R957 24383153 OXIDE METAL FILM, 2W 15K OHM J

R958 24366150 CARBON FILM, 1/6W 15 OHM J (57H83/65H83) R959 24366150 CARBON FILM, 1/6W 15 OHM J (51H83) R961 24366152 CARBON FILM, 1/6W 1.5K OHM J (51H83) R961 24366122 CARBON FILM, 1/6W 1.2K OHM J

R962 24366102 CARBON FILM, 1/6W 1K OHM J (51H83)

(51H83/65H83)

(57H83/65H83)

(51H83)

(57H83/65H83)

– 34 –

Page 56

Location

Parts No. Description

No.

R962 24366471 CARBON FILM, 1/6W 470 OHM J

R963 24366100 CARBON FILM, 1/6W 10 OHM J R964 24366332 CARBON FILM, 1/6W 3.3K OHM J R965 24366471 CARBON FILM, 1/6W 470 OHM J (51H83) R965 24366101 CARBON FILM, 1/6W 100 OHM J

R966 24366331 CARBON FILM, 1/6W 330 OHM J R967 24366681 CARBON FILM, 1/6W 680 OHM J R968 24366222 CARBON FILM, 1/6W 2.2K OHM J

R978 24366222 CARBON FILM, 1/6W 2.2K OHM J

R987 24366470 CARBON FILM, 1/6W 47 OHM J (51H83) R987 24366101 CARBON FILM, 1/6W 100 OHM J

R988 24366222 CARBON FILM, 1/6W 2.2K OHM J

R991 24366562 CARBON FILM, 1/6W 5.6K OHM J

R991 24366222 CARBON FILM, 1/6W 2.2K OHM J (57H83) R992 24366153 CARBON FILM, 1/6W 15K OHM J (51H83) R992 24366222 CARBON FILM, 1/6W 2.2K OHM J

R995 24366100 CARBON FILM, 1/6W 10 OHM J (51H83) R995 24366330 CARBON FILM, 1/6W 33 OHM J (57H83/65H83) R2020 24011101 CHIP, METAL FILM, 1/20W 100 OHM J R2030 24011105 CHIP, METAL FILM, 1/20W 1M OHM J R2040 24011101 CHIP, METAL FILM, 1/20W 100 OHM J R2060 24011102 CHIP, METAL FILM, 1/20W 1K OHM J R2104 24011302 CHIP, METAL FILM, 1/20W 3K OHM J R2105 24011101 CHIP, METAL FILM, 1/20W 100 OHM J R2106 24011101 CHIP, METAL FILM, 1/20W 100 OHM J R2107 24011101 CHIP, METAL FILM, 1/20W 100 OHM J R2108 24011103 CHIP, METAL FILM, 1/20W 10K OHM J R2109 24011103 CHIP, METAL FILM, 1/20W 10K OHM J R2110 24011103 CHIP, METAL FILM, 1/20W 10K OHM J R2111 24011560 CHIP, METAL FILM, 1/20W 56 OHM J R2112 24011560 CHIP, METAL FILM, 1/20W 56 OHM J R2113 24011560 CHIP, METAL FILM, 1/20W 56 OHM J R2149 24871102 CHIP, METAL FILM, 1/8W 1K OHM J R2150 24871102 CHIP, METAL FILM, 1/8W 1K OHM J R2151 24871102 CHIP, METAL FILM, 1/8W 1K OHM J R2152 24011101 CHIP, METAL FILM, 1/20W 100 OHM J R2153 24011101 CHIP, METAL FILM, 1/20W 100 OHM J R2154 24011101 CHIP, METAL FILM, 1/20W 100 OHM J R2155 24871102 CHIP, METAL FILM, 1/8W 1K OHM J R2156 24871102 CHIP, METAL FILM, 1/8W 1K OHM J R2157 24871102 CHIP, METAL FILM, 1/8W 1K OHM J R2158 24011103 CHIP, METAL FILM, 1/20W 10K OHM J R2159 24011103 CHIP, METAL FILM, 1/20W 10K OHM J R2160 24011103 CHIP, METAL FILM, 1/20W 10K OHM J R2161 24871472 CHIP, METAL FILM, 1/8W 4.7K OHM J R2162 24871562 CHIP, METAL FILM, 1/8W 5.6K OHM J R2163 24011121 CHIP, METAL FILM, 1/20W 120 OHM J R2164 24011100 CHIP, METAL FILM, 1/20W 10 OHM J R2165 24011100 CHIP, METAL FILM, 1/20W 10 OHM J R2166 24011100 CHIP, METAL FILM, 1/20W 10 OHM J R2167 24011100 CHIP, METAL FILM, 1/20W 10 OHM J R2168 24011100 CHIP, METAL FILM, 1/20W 10 OHM J R4401 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J R4403 24011471 CHIP, METAL FILM, 1/20W 470 OHM J R4405 24011102 CHIP, METAL FILM, 1/20W 1K OHM J R4406 24011103 CHIP, METAL FILM, 1/20W 10K OHM J R4407 24011221 CHIP, METAL FILM, 1/20W 220 OHM J

(57H83/65H83)

(51H83/65H83)

(57H83/65H83)

Location

Parts No. Description

No.

R4409 24871472 CHIP, METAL FILM, 1/8W 4.7K OHM J R4411 24000445 CHIP JUMPER, 1608TYPE R4412 24011101 CHIP, METAL FILM, 1/20W 100 OHM J R4413 24011561 CHIP, METAL FILM, 1/20W 560 OHM J R4430 24381150 OXIDE METAL FILM, 1/2W 15 OHM J R4431 24366102 CARBON FILM, 1/6W 1K OHM J R4605 24011331 CHIP, METAL FILM, 1/20W 330 OHM J R5020 24011101 CHIP, METAL FILM, 1/20W 100 OHM J R5030 24011101 CHIP, METAL FILM, 1/20W 100 OHM J R7701 24011392 CHIP, METAL FILM, 1/20W 3.9K OHM J R7707 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J R7708 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J R7710 24384221 OXIDE METAL FILM, 3W 220 OHM J R7711 24547189 FUSIBLE, 1W 1.8 OHM J R7712 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J R7713 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J R7715 24384221 OXIDE METAL FILM, 3W 220 OHM J R7716 24547189 FUSIBLE, 1W 1.8 OHM J R7717 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J R7718 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J R7720 24384221 OXIDE METAL FILM, 3W 220 OHM J R7721 24547189 FUSIBLE, 1W 1.8 OHM J R7722 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J R7723 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J R7725 24384221 OXIDE METAL FILM, 3W 220 OHM J R7726 24547189 FUSIBLE, 1W 1.8 OHM J R7727 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J R7728 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J R7730 24384221 OXIDE METAL FILM, 3W 220 OHM J R7731 24547189 FUSIBLE, 1W 1.8 OHM J R7732 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J R7733 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J R7735 24384221 OXIDE METAL FILM, 3W 220 OHM J R7736 24547189 FUSIBLE, 1W 1.8 OHM J R7767 24011153 CHIP, METAL FILM, 1/2OW 15K OHM J R7775 24366221 CARBON FILM, 1/6W 220 OHM J R7776 24011823 CHIP, METAL FILM, 1/20W 82K OHM J R7777 24011223 CHIP, METAL FILM, 1/20W 22K OHM J R7778 24011473 CHIP, METAL FILM, 1/20W 47K OHM J R7779 24011102 CHIP, METAL FILM, 1/20W 1K OHM J R7781 24011333 CHIP, METAL FILM, 1/20W 33K OHM J R7786 24011101 CHIP, METAL FILM, 1/20W 100 OHM J R7788 24366221 CARBON FILM, 1/6W 220 OHM J R7790 KETSU R7799 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J R7836 24366472 CARBON FILM, 1/6W 4.7K OHM J R7837 24366100 CARBON FILM, 1/6W 10 OHM J R7841 24366101 CARBON FILM, 1/6W 100 OHM J R7842 24366472 CARBON FILM, 1/6W 4.7K OHM J R7843 24366471 CARBON FILM, 1/6W 470 OHM J R7844 24366472 CARBON FILM, 1/6W 4.7K OHM J R7845 24366471 CARBON FILM, 1/6W 470 OHM J R7846 24366103 CARBON FILM, 1/6W 10K OHM J R7847 24366103 CARBON FILM, 1/6W 10K OHM J R7848 24366222 CARBON FILM, 1/6W 2.2K OHM J R7861 24366472 CARBON FILM, 1/6W 4.7K OHM J R7862 24366222 CARBON FILM, 1/6W 2.2K OHM J R7864 24011101 CHIP, METAL FILM, 1/20W 100 OHM J R7866 24011471 CHIP, METAL FILM, 1/20W 470 OHM J R7868 24011752 CHIP, METAL FILM, 1/20W 7.5K OHM J R7872 24011103 CHIP, METAL FILM, 1/20W 10K OHM J R7880 24011221 CHIP, METAL FILM, 1/20W 220 OHM J R7881 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J R7882 24011103 CHIP, METAL FILM, 1/20W 10K OHM J R7883 24011103 CHIP, METAL FILM, 1/20W 10K OHM J

SPECIFIC INFORMATIONS

– 35 –

Page 57

Location

SPECIFIC INFORMATIONS

Parts No. Description

No.

R7890 24011561 CHIP, METAL FILM, 1/20W 560 OHM J R7891 24011561 CHIP, METAL FILM, 1/20W 560 OHM J R7903 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J R7904 24000203 METAL FILM, 1/4W 27K OHM F R7906 24011562 CHIP, METAL FILM, 1/20W 5.6K OHM J R7907 24011104 CHIP, METAL FILM, 1/20W 100K OHM J R7908 24366222 CARBON FILM, 1/6W 2.2K OHM J R7909 24011562 CHIP, METAL FILM, 1/20W 5.6K OHM J R7910 24011331 CHIP, METAL FILM, 1/20W 330 OHM J R7911 24011561 CHIP, METAL FILM, 1/20W 560 OHM J R7912 24011331 CHIP, METAL FILM, 1/20W 330 OHM J R7913 24011331 CHIP, METAL FILM, 1/20W 330 OHM J R7914 24381182 OXIDE METAL FILM, 1/2W 1.8K OHM J R7921 24011101 CHIP, METAL FILM, 1/20W 100 OHM J R7922 24011101 CHIP, METAL FILM, 1/20W 100 OHM J R7923 24011101 CHIP, METAL FILM, 1/20W 100 OHM J R7930 24011101 CHIP, METAL FILM, 1/20W 100 OHM J R7931 KETSU R7932 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J R7940 KETSU R7941 KETSU R7942 24011472 CHIP, METAL FILM, 1/16W 4.7K OHM J R7943 24011472 CHIP, METAL FILM, 1/16W 4.7K OHM J R9501 24366470 CARBON FILM, 1/6W 47 OHM J (51H83) R9501 24366101 CARBON FILM, 1/6W 100 OHM J

R9503 24366681 CARBON FILM, 1/6W 680 OHM J R9507 24366220 CARBON FILM, 1/6W 22 OHM J (51H83) R9507 24366330 CARBON FILM, 1/6W 33 OHM J (57H83/65H83) R9607 24366470 CARBON FILM, 1/6W 47 OHM J (51H83) R9607 24366101 CARBON FILM, 1/6W 100 OHM J

R9608 24366681 CARBON FILM, 1/6W 680 OHM J R9620 24366100 CARBON FILM, 1/6W 10 OHM J (51H83) R9620 24366330 CARBON FILM, 1/6W 33 OHM J (57H83/65H83) RA01 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RA02 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RA03 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RA04 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RA05 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RA06 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RA07 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RA08 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RA09 24011333 CHIP, METAL FILM, 1/16W 33K OHM J RA10 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RA12 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RA13 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RA14 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RA15 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RA16 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RA17 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RA20 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RA24 24011682 CHIP, METAL FILM, 1/20W 6.8K OHM J RA26 24011333 CHIP, METAL FILM, 1/20W 33K OHM J RA28 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RA30 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RA32 24011682 CHIP, METAL FILM, 1/20W 6.8K OHM J RA35 24011152 CHIP, METAL FILM, 1/20W 1.5K OHM J RA36 24011332 CHIP, METAL FILM, 1/20W 3.3K OHM J RA37 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RA38 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RA39 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RA40 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RA41 24011332 CHIP, METAL FILM, 1/20W 3.3K OHM J RA42 24011151 CHIP, METAL FILM, 1/20W 150 OHM J

(57H83/65H83)

Location

Parts No. Description

No.

RA43 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RA44 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RA45 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RA46 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RA49 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RA50 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RA51 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RA52 24011103 CHIP, METAL FILM, 1/20W 10K OHM J RA53 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RA54 24011332 CHIP, METAL FILM, 1/20W 3.3K OHM J RA55 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RA59 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RA60 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RA71 24366273 CARBON FILM, 1/6W 27K OHM J RA72 24366153 CARBON FILM, 1/6W 15K OHM J RA72 24011332 CHIP, METAL FILM, 1/20W 3.3K OHM J RA73 24366822 CARBON FILM, 1/6W 8.2K OHM J RA73 24011471 CHIP, METAL FILM, 1/20W 470 OHM J RA74 24011153 CHIP, METAL FILM, 1/2OW 15K OHM J RA75 24011153 CHIP, METAL FILM, 1/2OW 15K OHM J RA76 24366822 CARBON FILM, 1/6W 8.2K OHM J RA76 24011103 CHIP, METAL FILM, 1/20W 10K OHM J RA77 24366153 CARBON FILM, 1/6W 15K OHM J RA77 24011103 CHIP, METAL FILM, 1/20W 10K OHM J RA78 24366273 CARBON FILM, 1/6W 27K OHM J RA78 24011333 CHIP, METAL FILM, 1/20W 33K OHM J RA79 24366823 CARBON FILM, 1/6W 82K OHM J RA79 24011333 CHIP, METAL FILM, 1/20W 33K OHM J RA80 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RA81 24011473 CHIP, METAL FILM, 1/20W 47K OHM J RA021 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RA031 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RA091 24011683 CHIP, METAL FILM, 1/20W 68K OHM J RA141 24011683 CHIP, METAL FILM, 1/20W 68K OHM J RA161 24011103 CHIP, METAL FILM, 1/20W 10K OHM J RA241 24011153 CHIP, METAL FILM, 1/2OW 15K OHM J RA361 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RA374 24000445 CHIP JUMPER, 1608TYPE RA384 24000445 CHIP JUMPER, 1608TYPE RA394 24000445 CHIP JUMPER, 1608TYPE RA401 24011561 CHIP, METAL FILM, 1/20W 560 OHM J RA431 24011103 CHIP, METAL FILM, 1/20W 10K OHM J RA703 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RA705 24011103 CHIP, METAL FILM, 1/20W 10K OHM J RA708 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RB01 24366391 CARBON FILM, 1/6W 390 OHM J RB03 24011330 CHIP, METAL FILM, 1/20W 33 OHM J RB04 24366473 CARBON FILM, 1/6W 47K OHM J RB05 24366102 CARBON FILM, 1/6W 1K OHM J RB05 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RB14 24011153 CHIP, METAL FILM, 1/2OW 15K OHM J RB15 24366471 CARBON FILM, 1/6W 470 OHM J RB15 24011153 CHIP, METAL FILM, 1/2OW 15K OHM J RB16 24011471 CHIP, METAL FILM, 1/20W 470 OHM J RB17 24011332 CHIP, METAL FILM, 1/20W 3.3K OHM J RB19 24366470 CARBON FILM, 1/6W 47 OHM J RB37 24011331 CHIP, METAL FILM, 1/20W 330 OHM J RB38 24011105 CHIP, METAL FILM, 1/20W 1M OHM J RB39 24011123 CHIP, METAL FILM, 1/20W 12K OHM J RB40 24011392 CHIP, METAL FILM, 1/20W 3.9K OHM J RB41 24011392 CHIP, METAL FILM, 1/20W 3.9K OHM J RB42 24011103 CHIP, METAL FILM, 1/20W 10K OHM J RB43 24011331 CHIP, METAL FILM, 1/20W 330 OHM J RB44 24011105 CHIP, METAL FILM, 1/20W 1M OHM J RB45 24011123 CHIP, METAL FILM, 1/20W 12K OHM J

– 36 –

Page 58

Location

Parts No. Description

No.

RB46 24011392 CHIP, METAL FILM, 1/20W 3.9K OHM J RB47 24011392 CHIP, METAL FILM, 1/20W 3.9K OHM J RB48 24011103 CHIP, METAL FILM, 1/20W 10K OHM J RB61 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J RB62 24011103 CHIP, METAL FILM, 1/20W 10K OHM J RB64 24011332 CHIP, METAL FILM, 1/20W 3.3K OHM J RB65 24011392 CHIP, METAL FILM, 1/20W 3.9K OHM J RB81 24011122 CHIP, METAL FILM, 1/20W 1.2K OHM J RB82 24011123 CHIP, METAL FILM, 1/20W 12K OHM J RB83 24011123 CHIP, METAL FILM, 1/20W 12K OHM J RB84 24011562 CHIP, METAL FILM, 1/20W 5.6K OHM J RB90 24011392 CHIP, METAL FILM, 1/20W 3.9K OHM J RB91 24011473 CHIP, METAL FILM, 1/20W 47K OHM J RB92 24011271 CHIP, METAL FILM, 1/20W 270 OHM J RB93 24011271 CHIP, METAL FILM, 1/20W 270 OHM J RB94 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J RB95 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J RB96 24011273 CHIP, METAL FILM, 1/20W 27K OHM J RB97 24011273 CHIP, METAL FILM, 1/20W 27K OHM J RB98 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RB031 24011330 CHIP, METAL FILM, 1/20W 33 OHM J RB032 24011330 CHIP, METAL FILM, 1/20W 33 OHM J RB033 24011103 CHIP, METAL FILM, 1/20W 10K OHM J RB051 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RB052 24011332 CHIP, METAL FILM, 1/20W 3.3K OHM J RB512 24011100 CHIP, METAL FILM, 1/20W 10 OHM J RB551 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RB552 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RB553 24011332 CHIP, METAL FILM, 1/20W 3.3K OHM J RC01 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RC02 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RC03 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RC04 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RC05 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RC06 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RC07 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RC08 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RC09 24011221 CHIP, METAL FILM, 1/20W 220 OHM J RC10 24011221 CHIP, METAL FILM, 1/20W 220 OHM J RI01 24011270 CHIP, METAL FILM, 1/20W 27 OHM J RI02 24011512 CHIP, METAL FILM, 1/20W 5.1K OHM J RI03 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RI04 24011470 CHIP, METAL FILM, 1/20W 47 OHM J RI05 24011361 CHIP, METAL FILM, 1/20W 360 OHM J RI06 24011519 METAL FILM CHIP, 1/16W 5.1 J RI07 24011360 METAL FILM CHIP, 1/20W 36 J RI08 24011332 CHIP, METAL FILM, 1/20W 3.3K OHM J RI09 24011123 CHIP, METAL FILM, 1/20W 12K OHM J RI11 24011113 CHIP, METAL FILM, 1/20W 11K OHM J RI13 24011112 CHIP, METAL FILM, 1/20W 1.1K OHM J RI14 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RI15 24011182 CHIP, METAL FILM, 1/20W 1.8K OHM J RI16 24011122 CHIP, METAL FILM, 1/20W 1.2K OHM J RI17 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RI18 24011132 CHIP, METAL FILM, 1/20W 1.3K OHM J RI19 24011391 CHIP, METAL FILM, 1/20W 390 OHM J RI20 24011821 CHIP, METAL FILM, 1/20W 820 OHM J RI21 24011271 CHIP, METAL FILM, 1/20W 270 OHM J RI22 24011475 METAL FILM CHIP, 1/16W 4R7M K RI23 24011221 CHIP, METAL FILM, 1/20W 220 OHM J RI27 24011103 CHIP, METAL FILM, 1/20W 10K OHM J RI28 24011123 CHIP, METAL FILM, 1/20W 12K OHM J RI30 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RI32 24366750 CARBON FILM, 1/6W 75 OHM J RI33 24011124 CHIP, METAL FILM, 1/20W 120K OHM J

Location

Parts No. Description

No.

RI35 24011563 CHIP, METAL FILM, 1/20W 56K OHM J RI36 24011683 CHIP, METAL FILM, 1/20W 68K OHM J RI51 24066046 VARIABLE. CARBON, 0.1W 20K N RI52 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RJ41 24000445 CHIP JUMPER, 1608TYPE RJ42 24000445 CHIP JUMPER, 1608TYPE RJ43 24000445 CHIP JUMPER, 1608TYPE RJ44 24000445 CHIP JUMPER, 1608TYPE RJ45 24000445 CHIP JUMPER, 1608TYPE RJ46 24000445 CHIP JUMPER, 1608TYPE RJ47 24000445 CHIP JUMPER, 1608TYPE RR52 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RR53 24011471 CHIP, METAL FILM, 1/20W 470 OHM J RR54 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RR55 24011471 CHIP, METAL FILM, 1/20W 470 OHM J RR56 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RR57 24011471 CHIP, METAL FILM, 1/20W 470 OHM J RR61 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J RR62 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J RR63 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J RS01 24011562 CHIP, METAL FILM, 1/20W 5.6K OHM J RS02 24011562 CHIP, METAL FILM, 1/20W 5.6K OHM J RS03 24011562 CHIP, METAL FILM, 1/20W 5.6K OHM J RS04 24011562 CHIP, METAL FILM, 1/20W 5.6K OHM J RS05 24011562 CHIP, METAL FILM, 1/20W 5.6K OHM J RS06 24011562 CHIP, METAL FILM, 1/20W 5.6K OHM J RS07 24011562 CHIP, METAL FILM, 1/20W 5.6K OHM J RS08 24011562 CHIP, METAL FILM, 1/20W 5.6K OHM J RS09 24011562 CHIP, METAL FILM, 1/20W 5.6K OHM J RS10 24011562 CHIP, METAL FILM, 1/20W 5.6K OHM J RS11 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RS12 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RS13 24011562 CHIP, METAL FILM, 1/20W 5.6K OHM J RS14 24011562 CHIP, METAL FILM, 1/20W 5.6K OHM J RS15 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RS16 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RS17 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RS18 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RS19 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RS20 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RS21 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J RS22 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J RS25 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RS26 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RS29 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RS30 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RS31 24011104 CHIP, METAL FILM, 1/20W 100K OHM J RS32 24011104 CHIP, METAL FILM, 1/20W 100K OHM J RS33 24011223 CHIP, METAL FILM, 1/20W 22K OHM J RS34 24011223 CHIP, METAL FILM, 1/20W 22K OHM J RS35 24011473 CHIP, METAL FILM, 1/20W 47K OHM J RS37 24011473 CHIP, METAL FILM, 1/20W 47K OHM J RS38 24011473 CHIP, METAL FILM, 1/20W 47K OHM J RS39 24011473 CHIP, METAL FILM, 1/20W 47K OHM J RS40 24011473 CHIP, METAL FILM, 1/20W 47K OHM J RS41 24011473 CHIP, METAL FILM, 1/20W 47K OHM J RS42 24011473 CHIP, METAL FILM, 1/20W 47K OHM J RS44 24011473 CHIP, METAL FILM, 1/20W 47K OHM J RS45 24011103 CHIP, METAL FILM, 1/20W 10K OHM J RS46 24011103 CHIP, METAL FILM, 1/20W 10K OHM J RS47 24011473 CHIP, METAL FILM, 1/20W 47K OHM J RS48 24011473 CHIP, METAL FILM, 1/20W 47K OHM J RS49 24011473 CHIP, METAL FILM, 1/20W 47K OHM J RS50 24011473 CHIP, METAL FILM, 1/20W 47K OHM J RS51 24011272 CHIP, METAL FILM, 1/20W 2.7K OHM J

SPECIFIC INFORMATIONS

– 37 –

Page 59

Location

SPECIFIC INFORMATIONS

Parts No. Description

No.

RS52 24011104 CHIP, METAL FILM, 1/20W 100K OHM J RS55 24011103 CHIP, METAL FILM, 1/20W 10K OHM J RS56 24011104 CHIP, METAL FILM, 1/20W 100K OHM J RS57 24011562 CHIP, METAL FILM, 1/20W 5.6K OHM J RS58 24011562 CHIP, METAL FILM, 1/20W 5.6K OHM J RS59 24011562 CHIP, METAL FILM, 1/20W 5.6K OHM J RS60 24011562 CHIP, METAL FILM, 1/20W 5.6K OHM J RS61 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RS62 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RS63 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RS64 24011393 CHIP, METAL FILM, 1/20W 39K OHM J RS65 24011563 CHIP, METAL FILM, 1/20W 56K OHM J RS66 24011393 CHIP, METAL FILM, 1/20W 39K OHM J RS67 24011563 CHIP, METAL FILM, 1/20W 56K OHM J RS120 24554561 OXIDE METAL FILM, 2W 560 OHM J RS121 24011103 CHIP, METAL FILM, 1/20W 10K OHM J RS122 24011103 CHIP, METAL FILM, 1/20W 10K OHM J RS123 24011103 CHIP, METAL FILM, 1/20W 10K OHM J RS124 24011103 CHIP, METAL FILM, 1/20W 10K OHM J RS125 24000445 CHIP JUMPER, 1608TYPE RS126 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J RV01 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RV03 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RV06 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RV07 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RV08 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RV09 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RV10 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RV11 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RV12 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RV14 24011562 CHIP, METAL FILM, 1/20W 5.6K OHM J RV15 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RV17 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RV19 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RV20 24366750 CARBON FILM, 1/6W 75 OHM J RV20 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RV21 24366750 CARBON FILM, 1/6W 75 OHM J RV21 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RV22 24366750 CARBON FILM, 1/6W 75 OHM J RV23 24366332 CARBON FILM, 1/6W 3.3K OHM J RV26 24011561 CHIP, METAL FILM, 1/20W 560 OHM J RV27 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RV29 24552101 OXIDE METAL FILM, 1/2W 100 OHM J RV30 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RV33 24011750 CHIP, METAL FILM, 1/20W 75 OHM J RV34 24011750 CHIP, METAL FILM, 1/20W 75 OHM J RV35 24011750 CHIP, METAL FILM, 1/20W 75 OHM J RV36 24011750 CHIP, METAL FILM, 1/20W 75 OHM J RV37 24011750 CHIP, METAL FILM, 1/20W 75 OHM J RV38 24872184 CHIP, METAL FILM, 1/16W 180K OHM J RV39 24872334 CHIP, METAL FILM, 1/16W 330K OHM J RV40 24011750 CHIP, METAL FILM, 1/20W 75 OHM J RV41 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RV60 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J RV61 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RV62 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RV66 24011750 CHIP, METAL FILM, 1/20W 75 OHM J RV70 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RV71 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J RV72 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J RV73 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J RV74 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J RV75 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J RV76 24011272 CHIP, METAL FILM, 1/20W 2.7K OHM J RV77 24011101 CHIP, METAL FILM, 1/20W 100 OHM J

Location

Parts No. Description

No.

RV78 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RV79 24011272 CHIP, METAL FILM, 1/20W 2.7K OHM J RV82 24011562 CHIP, METAL FILM, 1/20W 5.6K OHM J RV85 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J RV86 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J RV323 24872101 CHIP, METAL FILM, 1/16W 100 OHM J RV324 24872101 CHIP, METAL FILM, 1/16W 100 OHM J RV325 24872101 CHIP, METAL FILM, 1/16W 100 OHM J RV330 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RV331 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RV332 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RV337 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RV338 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RV346 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RV347 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RV348 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RV351 24011330 CHIP, METAL FILM, 1/20W 33 OHM J RV352 24011330 CHIP, METAL FILM, 1/20W 33 OHM J RV353 24011330 CHIP, METAL FILM, 1/20W 33 OHM J RV354 24011330 CHIP, METAL FILM, 1/20W 33 OHM J RV355 24011330 CHIP, METAL FILM, 1/20W 33 OHM J RV356 24011330 CHIP, METAL FILM, 1/20W 33 OHM J RY101 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RY102 24011221 CHIP, METAL FILM, 1/20W 220 OHM J RY103 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RY104 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RY105 24011821 CHIP, METAL FILM, 1/20W 820 OHM J RY106 24000445 CHIP JUMPER, 1608TYPE RY107 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J RY109 24011332 CHIP, METAL FILM, 1/20W 3.3K OHM J RY110 24011152 CHIP, METAL FILM, 1/20W 1.5K OHM J RY501 24011303 CHIP, METAL FILM, 1/20W 30K OHM J RY502 24011103 CHIP, METAL FILM, 1/20W 10K OHM J RY503 24011223 CHIP, METAL FILM, 1/20W 22K OHM J RY504 24011103 CHIP, METAL FILM, 1/20W 10K OHM J RY505 24011123 CHIP, METAL FILM, 1/20W 12K OHM J RY507 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J RY508 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J RY509 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J RY510 24011152 CHIP, METAL FILM, 1/20W 1.5K OHM J RY511 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J RY512 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J RY513 24011152 CHIP, METAL FILM, 1/20W 1.5K OHM J RY516 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J RY517 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J RY518 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J RY519 24000445 CHIP JUMPER, 1608TYPE RY520 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RY521 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RY523 24011332 CHIP, METAL FILM, 1/20W 3.3K OHM J RY524 24011182 CHIP, METAL FILM, 1/20W 1.8K OHM J RY525 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J RY526 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J RY527 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J RY528 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J RY529 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RY532 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RY533 24000445 CHIP JUMPER, 1608TYPE RY534 24000445 CHIP JUMPER, 1608TYPE RY541 24011682 CHIP, METAL FILM, 1/20W 6.8K OHM J RY542 24011392 CHIP, METAL FILM, 1/20W 3.9K OHM J RY543 24011152 CHIP, METAL FILM, 1/20W 1.5K OHM J RY545 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RY548 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RY550 24011332 CHIP, METAL FILM, 1/20W 3.3K OHM J

– 38 –

Page 60

Location

Parts No. Description

No.

RY551 24011182 CHIP, METAL FILM, 1/20W 1.8K OHM J RY552 24011152 CHIP, METAL FILM, 1/20W 1.5K OHM J RY560 24011682 CHIP, METAL FILM, 1/20W 6.8K OHM J RY561 24011471 CHIP, METAL FILM, 1/20W 470 OHM J RY562 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RY573 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J RY575 24011103 CHIP, METAL FILM, 1/20W 10K OHM J RY576 24011123 CHIP, METAL FILM, 1/20W 12K OHM J RY585 24011103 CHIP, METAL FILM, 1/20W 10K OHM J RY590 24011103 CHIP, METAL FILM, 1/20W 10K OHM J

COILS & TRANSFORMERS

L101 23289845 COIL, PEAKING, TRF4680AT L103 23289844 COIL, PEAKING, TRF4470AT L111 23289845 COIL, PEAKING, TRF4680AT L113 23289842 COIL, PEAKING, TRF4220AT L115 23103852 COIL, FILTER, TEM2028AH L121 23238562 COIL, PEAKING, TRF4109AJ L122 23238562 COIL, PEAKING, TRF4109AJ L302 23248073 COIL, CHOKE, TLN3299D L303 23248073 COIL, CHOKE, TLN3299D L304 23103145 FERRITE CHOKE, TEM2011AA L305 23103248 FERRITR CHOKE, TEM2014AA L310 23289846 COIL, PEAKING, TRF4101AT L401 23289560 COIL, PEAKING, TRF4560AF

* L402 23248345 COIL, CHOKE EI24 120MMH, TLN3534AH

L403 23103145 FERRITE CHOKE, TEM2011AA L406 23248191 COIL, CHOKE, TLN3351AD L407 23103248 FERRITR CHOKE, TEM2014AA L408 23103248 FERRITR CHOKE, TEM2014AA

* L441 23233056 COIL, LINEARITY, TLN2222AG * L462 23231372 DEFLECTION YOKE, TDY707QD * L463 23231372 DEFLECTION YOKE, TDY707QD * L464 23231372 DEFLECTION YOKE, TDY707QD

L472 23102457 VM COIL, 29.1VM4T3PLEAD, MAG-1102 L473 23102457 VM COIL, 29.1VM4T3PLEAD, MAG-1102 L474 23102457 VM COIL, 29.1VM4T3PLEAD, MAG-1102 L501 23289844 COIL, PEAKING, TRF4470AT L503 23280022 COIL, PEAKING, TRF4101AZ L701 23237987 COIL, PEAKING, TRF4100AC L702 23261974 COIL, FERRITE BEAD, HC5-035 L704 23103145 FERRITE CHOKE, TEM2011AA L705 23103145 FERRITE CHOKE, TEM2011AA L762 23103145 FERRITE CHOKE, TEM2011AA (57H83/65H83) L764 23103145 FERRITE CHOKE, TEM2011AA L765 23103145 FERRITE CHOKE, TEM2011AA L766 23261974 COIL, FERRITE BEAD, HC5-035 L769 23237987 COIL, PEAKING, TRF4100AC L780 23237987 COIL, PEAKING, TRF4100AC L781 23103145 FERRITE CHOKE, TEM2011AA L782 23103145 FERRITE CHOKE, TEM2011AA L783 23261974 COIL, FERRITE BEAD, HC5-035 L805 23248213 COIL, CHOKE, TLN3481AH L806 23248213 COIL, CHOKE, TLN3481AH L830 23280019 COIL, PEAKING, TRF4330AZ L831 23103941 COIL, CHOKE, TEM2011 L832 23248257 COIL, CHOKE, TLN3503AH L833 23248247 COIL, CHOKE, TLN3499AH L840 23280019 COIL, PEAKING, TRF4330AZ L850 23103145 FERRITE CHOKE, TEM2011AA L851 23103145 FERRITE CHOKE, TEM2011AA L852 23103145 FERRITE CHOKE, TEM2011AA L861 23103145 FERRITE CHOKE, TEM2011AA L862 23103145 FERRITE CHOKE, TEM2011AA L864 23103145 FERRITE CHOKE, TEM2011AA

Location

Parts No. Description

No.

L880 23103145 FERRITE CHOKE, TEM2011AA L881 23103145 FERRITE CHOKE, TEM2011AA L882 23103145 FERRITE CHOKE, TEM2011AA L883 23103145 FERRITE CHOKE, TEM2011AA L885 23248073 COIL, CHOKE, TLN3299D L888 23248247 COIL, CHOKE, TLN3499AH L889 23248247 COIL, CHOKE, TLN3499AH L891 23103145 FERRITE CHOKE, TEM2011AA L892 23103145 FERRITE CHOKE, TEM2011AA L893 23248247 COIL, CHOKE, TLN3499AH L894 23248247 COIL, CHOKE, TLN3499AH L895 23103145 FERRITE CHOKE, TEM2011AA L896 23103145 FERRITE CHOKE, TEM2011AA L902 23289100 COIL, PEAKING, TRF4100AF (51H83) L902 23289159 COIL, PEAKING, TRF41R5AF (57H83/65H83) L903 23289101 COIL, PEAKING, TRF4101AF (51H83) L904 23289120 COIL, PEAKING, TRF4120AF (57H83/65H83) L905 23289689 COIL, PEAKING, TRF46R8AF (57H83/65H83) L907 23289229 COIL, PEAKING, TRF4229AF L911 23237987 COIL, PEAKING, TRF4100AC (51H83) L911 23289100 COIL, PEAKING, TRF4100AF (57H83/65H83) L912 23289101 COIL, PEAKING, TRF4101AF (51H83) L913 23289100 COIL, PEAKING, TRF4100AF (51H83) L913 23289159 COIL, PEAKING, TRF41R5AF (57H83/65H83) L915 23289689 COIL, PEAKING, TRF46R8AF (57H83/65H83) L916 23289120 COIL, PEAKING, TRF4120AF (57H83/65H83) L917 23289229 COIL, PEAKING, TRF4229AF L922 23289101 COIL, PEAKING, TRF4101AF (51H83) L923 23289150 COIL, PEAKING, TRF4150AF (51H83) L923 23289159 COIL, PEAKING, TRF41R5AF (57H83/65H83) L924 23289120 COIL, PEAKING, TRF4120AF (57H83/65H83) L925 23289689 COIL, PEAKING, TRF46R8AF (57H83/65H83) L927 23289229 COIL, PEAKING, TRF4229AF L961 23238714 COIL, PEAKING, TRF4100AJ (51H83) L961 23289100 COIL, PEAKING, TRF4100AF (57H83/65H83) L4401 23289220 COIL, PEAKING, TRF4220AF L7708 23103145 FERRITE CHOKE, TEM2011AA L7709 23103145 FERRITE CHOKE, TEM2011AA L7710 23248320 COIL, CHOKE 15X23H 100MMH 2.5A,

L7711 23248320 COIL, CHOKE 15X23H 100MMH 2.5A,

L7712 23248031 COIL, CHOKE, TLN3274D L7713 23248031 COIL, CHOKE, TLN3274D LA37 23289836 COIL, PEAKING, TRF42R2AT LA38 23289836 COIL, PEAKING, TRF42R2AT LA39 23289836 COIL, PEAKING, TRF42R2AT LI01 23246051 COIL, CHIP-INDUCTOR-0.22MMH K,

LI02 23246104 CHIP INDUCTOR, TRFR5C LI51 23289470 COIL, PEAKING, TRF4470AF LI52 23289120 COIL, PEAKING, TRF4120AF LI53 23289180 COIL, PEAKING, TRF4180AF LI54 23232050 COIL, VARIABLE, TRF3554D LI55 23289129 COIL, PEAKING 1.0MMH J 0405, TRF41R2AF LI56 23289180 COIL, PEAKING, TRF4180AF LI57 23289228 COIL, PEAKING, TRF4R22AF LV01 23103159 FILTER, EMI, TEM2028AA, 7.5X6.4X8

LV02 23103159 FILTER, EMI, TEM2028AA, 7.5X6.4X8

LV03 23103159 FILTER, EMI, TEM2028AA, 7.5X6.4X8

LV09 23289840 COIL, PEAKING, TRF4100AT LV13 23289840 COIL, PEAKING, TRF4100AT

TLN3441AH

COLTRF4R22CE

60MMH 0.5A

SPECIFIC INFORMATIONS

– 39 –

Page 61

Location

* T461 23236742 TRANSFORMER, FLYBACK, TFB3092AD

* T801 23211763 COIL, LINE FILTER 35X32H, TRF3241AQ * T802 23211765 COIL, LF LH35V, TRF3239AH * T840 23217431 TRANSFORMER, CONVERTER, TPW3425AH * T862 23217612 TRANSFORMER, CONVERTER, TPW3516AF

Parts No. Description

No.

LV20 23238705 COIL, PEAKING, TRF4560AJ LV42 23289840 COIL, PEAKING, TRF4100AT LV72 23103159 FILTER, EMI, TEM2028AA, 7.5X6.4X8

LV251 23103852 COIL, FILTER, TEM2028AH LV252 23103852 COIL, FILTER, TEM2028AH LV253 23103852 COIL, FILTER, TEM2028AH LV270 23289840 COIL, PEAKING, TRF4100AT LV271 23103146 EMI FILTER, TEM2030AA LY101 23103827 INDUCTOR, BEAD, TEM2120M LY102 23103827 INDUCTOR, BEAD, TEM2120M LY105 23246222 COIL, CHIP INDUCTOR, TRF4270CG T400 23224386 TRANSFORMER, FOCUS, TLN2220AH T401 23224371 TRANSFORMER, HORIZ DRIVE, TLN1080AH

T461A 23192972 ANODE CAP ASSY, TCC5609AT

SEMICONDUCTORS

Q151 23314994 TRANSISTOR, 2SA1576A106 Q152 23314993 TRANSISTOR, 2SC4081 Q Q172 23314993 TRANSISTOR, 2SC4081 Q Q201 23314993 TRANSISTOR, 2SC4081 Q Q241 23114756 TRANSISTOR, 2SC2482 Q301 23319787 IC, LA7833S

SPECIFIC INFORMATIONS

Q301B 70391356 SCREW, BITTB3X10 SZN Q302 23000711 IC, TA1317AN Q305 23314994 TRANSISTOR, 2SA1576A106 Q306 70119059 IC, OP AMP, TA75902P(J) Q370 23314993 TRANSISTOR, 2SC4081 Q Q371 23314994 TRANSISTOR, 2SA1576A106 Q372 23314993 TRANSISTOR, 2SC4081 Q Q400 23205079 TRANSISTOR, 2SC4686A Q402 23205166 TRANSISTOR, FET, 2SK2962 Q404 23205149 TRANSISTOR, 2SC5859(FA) Q404B 72471082 SCREW, 3X10MM Q405 23314962 TRANSISTOR, KTA1266 Y Q406 23314965 TRANSISTOR, KTC3198 Y

* Q408 23314962 TRANSISTOR, KTA1266 Y

Q409 23314965 TRANSISTOR, KTC3198 Y Q410 23314993 TRANSISTOR, 2SC4081 Q Q411 23314993 TRANSISTOR, 2SC4081 Q Q420 23114756 TRANSISTOR, 2SC2482 Q425 23205031 TRANSISTOR, FET, 2SK2920 Q428 23314965 TRANSISTOR, KTC3198 Y Q470 23314359 TRANSISTOR, 2SA1321(FA, C) Q471 23314965 TRANSISTOR, KTC3198 Y Q472 23314965 TRANSISTOR, KTC3198 Y Q473 23314962 TRANSISTOR, KTA1266 Y Q510 23009369 IC, TA1360AFG Q520 23205054 TRANSISTOR, KTA1504Y Q521 23205054 TRANSISTOR, KTA1504Y Q522 23205054 TRANSISTOR, KTA1504Y Q523 23314993 TRANSISTOR, 2SC4081 Q Q524 23114497 TRANSISTOR, RN1406 Q525 23114497 TRANSISTOR, RN1406 Q526 23114497 TRANSISTOR, RN1406 Q530 23314994 TRANSISTOR, 2SA1576A106 Q531 23314993 TRANSISTOR, 2SC4081 Q Q532 23904123 IC, TC4W53F Q601 23009485 IC, TA8258H(GR) Q601B 70391356 SCREW, BITTB3X10 SZN

60MMH 0.5A

Location

Parts No. Description

No.

Q612 23314994 TRANSISTOR, 2SA1576A106 Q661 70114396 TRANSISTOR, 2SC3326B Q662 70114396 TRANSISTOR, 2SC3326B Q663 23906596 IC, BA4558 Q664 23114493 TRANSISTOR, RN2404 Q681 70114396 TRANSISTOR, 2SC3326B Q682 70114396 TRANSISTOR, 2SC3326B Q683 23314993 TRANSISTOR, 2SC4081 Q Q706 23114528 TRANSISTOR, 2SC1740S Q707 23114437 TRANSISTOR, 2SC752GTM-Y Q709 23114528 TRANSISTOR, 2SC1740S Q710 23205123 TRANSISTOR, 2SA933ASQ Q711 23314909 TRANSISTOR, 2SA1837 Q711B 70391355 SCREW, BIND HEAD TAP-TITE B,

Q712 23314912 TRANSISTOR, 2SC4793 Q712B 70391355 SCREW, BIND HEAD TAP-TITE B,

Q719 23114528 TRANSISTOR, 2SC1740S Q720 23114528 TRANSISTOR, 2SC1740S Q721 23114735 TRANSISTOR, 2SA102-Y(C) Q722 23114733 TRANSISTOR, 2SC2655-Y Q751 23135040 IC, CONVERGENCE OUT, STK394-250 Q752 23135040 IC, CONVERGENCE OUT, STK394-250 Q760 23205123 TRANSISTOR, 2SA933ASQ Q761 23314909 TRANSISTOR, 2SA1837 Q761B 70391355 SCREW, BIND HEAD TAP-TITE B,

Q769 23114528 TRANSISTOR, 2SC1740S Q771 24000445 CHIP JUMPER, 1608TYPE Q772 23114433 TRANSISTOR, 2SC1815-Y Q776 23314965 TRANSISTOR, KTC3198 Y Q777 23314962 TRANSISTOR, KTA1266 Y Q778 23314965 TRANSISTOR, KTC3198 Y Q779 23114528 TRANSISTOR, 2SC1740S Q779 23314965 TRANSISTOR, KTC3198 Y Q780 23314962 TRANSISTOR, KTA1266 Y Q781 23114528 TRANSISTOR, 2SC1740S Q781 23314965 TRANSISTOR, KTC3198 Y Q782 23319894 IC, NJM79M05FA Q782 23205123 TRANSISTOR, 2SA933ASQ Q783 23114528 TRANSISTOR, 2SC1740S Q783 23205037 TRANSISTOR, 2SJ512 Q783B 70391356 SCREW, BITTB3X10 SZN Q784 23904268 IC, PQ05RR1 Q784 23314909 TRANSISTOR, 2SA1837 Q784B 70391356 SCREW, BITTB3X10 SZN Q784B 70391355 SCREW, BIND HEAD TAP-TITE B,

Q785 23314912 TRANSISTOR, 2SC4793 Q785B 70391355 SCREW, BIND HEAD TAP-TITE B,

Q788 23314993 TRANSISTOR, 2SC4081 Q Q792 23319666 IC, TC74HC123AP(NEW) Q793 23205031 TRANSISTOR, FET, 2SK2920 Q796 23314993 TRANSISTOR, 2SC4081 Q Q797 KETSU Q798 23314993 TRANSISTOR, 2SC4081 Q Q801 23135028 IC, STR-Z4479 Q830 23000804 IC, SI-3090J(LF1101) Q830B 70391356 SCREW, BITTB3X10 SZN Q831 23319941 IC, SI-3050C Q831B 70391356 SCREW, BITTB3X10 SZN Q832 23000806 IC, SI-8033SS

BITTB 3X8 SZN

– 40 –

Page 62

Location

* Q841 23009270 IC, PHOTO COUPLER, PS2581L1(D) * Q842 23009270 IC, PHOTO COUPLER, PS2581L1(D)

* Q862 23009270 IC, PHOTO COUPLER, PS2581L1(D) * Q881 23319693 IC, SE116N, LF4

Parts No. Description

No.

Q832B 70391355 SCREW, BIND HEAD TAP-TITE B,

Q833 23905976 IC, PQ05RD11 Q833B 70391356 SCREW, BITTB3X10 SZN Q840 23906133 IC, MIP280

Q843 23314965 TRANSISTOR, KTC3198 Y Q844 23314965 TRANSISTOR, KTC3198 Y

Q894 23314965 TRANSISTOR, KTC3198 Y Q901 23314971 TRANSISTOR, 2SC5360(FA) (51H83) Q901 23205159 TRANSISTOR, 2SC3942 (57H83/65H83) Q901B 70391355 SCREW, BIND HEAD TAP-TITE B,

Q902 23114433 TRANSISTOR, 2SC1815-Y (51H83) Q902 23205165 TRANSISTOR, 2SC3950E (57H83/65H83) Q911 23314971 TRANSISTOR, 2SC5360(FA) (51H83) Q911 23205159 TRANSISTOR, 2SC3942 (57H83/65H83) Q911B 70391355 SCREW, BIND HEAD TAP-TITE B,

Q912 23114433 TRANSISTOR, 2SC1815-Y (51H83) Q912 23205165 TRANSISTOR, 2SC3950E (57H83/65H83) Q913 23114735 TRANSISTOR, 2SA102-Y(C) (51H83) Q913 23314962 TRANSISTOR, KTA1266 Y (57H83/65H83) Q921 23314971 TRANSISTOR, 2SC5360(FA) (51H83) Q921 23205159 TRANSISTOR, 2SC3942 (57H83/65H83) Q921B 70391355 SCREW, BIND HEAD TAP-TITE B,

Q922 23114433 TRANSISTOR, 2SC1815-Y (51H83) Q922 23205165 TRANSISTOR, 2SC3950E (57H83/65H83) Q961 23114433 TRANSISTOR, 2SC1815-Y Q962 23114735 TRANSISTOR, 2SA102-Y(C) (51H83) Q962 23314962 TRANSISTOR, KTA1266 Y (57H83/65H83) Q973 23114735 TRANSISTOR, 2SA102-Y(C) (51H83) Q973 23314962 TRANSISTOR, KTA1266 Y (57H83/65H83) Q2104 23205123 TRANSISTOR, 2SA933ASQ Q2105 23205123 TRANSISTOR, 2SA933ASQ Q2106 23205123 TRANSISTOR, 2SA933ASQ Q2107 23205123 TRANSISTOR, 2SA933ASQ Q2108 23205123 TRANSISTOR, 2SA933ASQ Q2109 23205123 TRANSISTOR, 2SA933ASQ Q4430 23314164 TRANSISTOR, 2SC2236-Y(C)) QA01 23009505 IC, MCU 1CHIP 16BIT 4M 64P, MN102H85KFJ QA02 23009330 IC, AT24C64-10PI-2.7 QA70 23319935 IC, MM1096BS QA71 23314993 TRANSISTOR, 2SC4081 Q QA72 23314993 TRANSISTOR, 2SC4081 Q QA80 23906295 IC, UPC29M33HB QA81 70200563 IC, RESET VS=2.9V, PST9129 QB01 23114528 TRANSISTOR, 2SC1740S QB03 23114498 TRANSISTOR, RN1405 QB05 23314993 TRANSISTOR, 2SC4081 Q QB14 23314993 TRANSISTOR, 2SC4081 Q QB15 23314993 TRANSISTOR, 2SC4081 Q QB44 23205112 TRANSISTOR, 2SA1980UF-Y( QB45 23205116 TRANSISTOR, 2SC5343UF-Y(B QB46 23205112 TRANSISTOR, 2SA1980UF-Y( QB47 23205116 TRANSISTOR, 2SC5343UF-Y(B QB55 23314993 TRANSISTOR, 2SC4081 Q QB61 70114402 TRANSISTOR, 2SC3437-Y QB81 70114396 TRANSISTOR, 2SC3326B QB82 70114396 TRANSISTOR, 2SC3326B QB83 23314994 TRANSISTOR, 2SA1576A106

BITTB 3X8 SZN

Location

Parts No. Description

No.

QB84 23314993 TRANSISTOR, 2SC4081 Q QB85 23314994 TRANSISTOR, 2SA1576A106 QB86 23314994 TRANSISTOR, 2SA1576A106 QB87 23314994 TRANSISTOR, 2SA1576A106 QB88 23314994 TRANSISTOR, 2SA1576A106 QH301 23358557 OPT DEVICE, AM. PHOTOSENSOR,

QH301 23358557 OPT DEVICE, AM. PHOTOSENSOR,

QI01 23114611 TRANSISTOR, 2SC3357 QI02 23314994 TRANSISTOR, 2SA1576A106 QI03 23314993 TRANSISTOR, 2SC4081 Q QI05 23009240 IC, VIF/SIF SSOP24PIN, TA1274F(FA03A5,EL) QR14 23314994 TRANSISTOR, 2SA1576A106 QR15 23314994 TRANSISTOR, 2SA1576A106 QR16 23314994 TRANSISTOR, 2SA1576A106 QS03 23314993 TRANSISTOR, 2SC4081 Q QS04 23314993 TRANSISTOR, 2SC4081 Q QS05 23318977 IC, MC14052BF QS06 23318977 IC, MC14052BF QS07 70114396 TRANSISTOR, 2SC3326B QS08 70114396 TRANSISTOR, 2SC3326B QS09 23114493 TRANSISTOR, RN2404 QS10 23904896 IC, JLC1562BF QS11 23114499 TRANSISTOR, RN1404 QS12 23114499 TRANSISTOR, RN1404 QS13 23114499 TRANSISTOR, RN1404 QS14 23114499 TRANSISTOR, RN1404 QS120 23906596 IC, BA4558 QV01 23906887 IC, CXA2069Q QV04 23314993 TRANSISTOR, 2SC4081 Q QV06 23314994 TRANSISTOR, 2SA1576A106 QV09 23314994 TRANSISTOR, 2SA1576A106 QV12 23009418 IC, 2IN-1OUTSW DRIVER, MM1505XNRE QV70 23314993 TRANSISTOR, 2SC4081 Q QV71 23314993 TRANSISTOR, 2SC4081 Q QV72 23314994 TRANSISTOR, 2SA1576A106 QV73 23314994 TRANSISTOR, 2SA1576A106 QV254 23000360 IC, MM1519XQ QY100 23906515 IC, TC90A45F QY101 23314993 TRANSISTOR, 2SC4081 Q QY102 23314993 TRANSISTOR, 2SC4081 Q QY103 23314994 TRANSISTOR, 2SA1576A106 QY501 23000812 IC, TA1340F QY502 23205014 TRANSISTOR, 2SC4667-O QY503 23314994 TRANSISTOR, 2SA1576A106 QY504 23314994 TRANSISTOR, 2SA1576A106 QY507 23314993 TRANSISTOR, 2SC4081 Q QY511 23314994 TRANSISTOR, 2SA1576A106 QY512 23314994 TRANSISTOR, 2SA1576A106 QY513 23314994 TRANSISTOR, 2SA1576A106 QY514 23314994 TRANSISTOR, 2SA1576A106 QY515 23314994 TRANSISTOR, 2SA1576A106 QY516 23314994 TRANSISTOR, 2SA1576A106 QY518 23314993 TRANSISTOR, 2SC4081 Q QY520 23314993 TRANSISTOR, 2SC4081 Q D101 23316755 DIODE, ZENER, MTZJ33C D230 23118041 DIODE, MA111 D301 23316682 DIODE, ZENER, MTZJ7.5C D302 23357366 DIODE, FR105-B5 D304 23316794 DIODE, SC570A

AM-30-24CA

SPECIFIC INFORMATIONS

– 41 –

Page 63

Location

* D490 23316675 DIODE, ZENER, MTZJ6.2B

SPECIFIC INFORMATIONS

Parts No. Description

No.

D305 23118822 DIODE, ERB12-02 D306 23118822 DIODE, ERB12-02 D327 23316715 DIODE, ZENER, MTZJ11A D336 23316672 DIODE, ZENER, MTZJ5.6B D337 23316672 DIODE, ZENER, MTZJ5.6B D365 23316682 DIODE, ZENER, MTZJ7.5C D370 23118859 DIODE, 1SS133 D401 23118056 DIODE, AG01 D402 23357366 DIODE, FR105-B5 D404 23316254 DIODE, ERC06-15 D406 23115910 DIODE, S5295G D411 23316731 DIODE, ZENER, MTZJ18B D412 23118707 DIODE, RP-1H D413 23118707 DIODE, RP-1H D414 23357366 DIODE, FR105-B5 D415 23357366 DIODE, FR105-B5 D418 23316755 DIODE, ZENER, MTZJ33C D419 23316231 DIODE, 1SS355-TE17 D420 23118859 DIODE, 1SS133 D421 23357366 DIODE, FR105-B5 D425 23357366 DIODE, FR105-B5 D426 23316731 DIODE, ZENER, MTZJ18B D450 23357366 DIODE, FR105-B5 D461 23224366 DIODE, FMQ-3GU D461B 70391356 SCREW D470 23316719 DIODE, ZENER, MTZJ12B

D491 23118859 DIODE, 1SS133 D492 23316690 DIODE, ZENER, MTZJ10B D502 23118041 DIODE, MA111 D505 23118094 DIODE, EU2A D520 23118641 DIODE, ZENER, RD2.0ESA B2 D522 23118041 DIODE, MA111 D523 23118041 DIODE, MA111 D531 23316584 DIODE, ZENER CHIP VZ7.77-8.17V MA8082-L D532 23357365 DIODE, 1N4004A-B5 D533 23316591 DIODE, ZENER, MA8100-M D534 23316792 DIODE, SC215 D535 23316591 DIODE, ZENER, MA8100-M D536 23316231 DIODE, 1SS355 D601 23118041 DIODE, MA111 D602 23118041 DIODE, MA111 D603 23118041 DIODE, MA111 D604 23118041 DIODE, MA111 D607 23316622 DIODE, ZENER, MA8270-M D608 23316622 DIODE, ZENER, MA8270-M D611 23118041 DIODE, MA111 D612 23118041 DIODE, MA111 D613 23118041 DIODE, MA111 D614 23118041 DIODE, MA111 D615 23118041 DIODE, MA111 D616 23118041 DIODE, MA111 D617 23118041 DIODE, MA111 D704 23118859 DIODE, 1SS133 D705 23118859 DIODE, 1SS133 D715 23118859 DIODE, 1SS133 D721 23316722 DIODE, ZENER, MTZJ13B D721 23118859 DIODE, 1SS133 D722 23316722 DIODE, ZENER, MTZJ13B D761 23118859 DIODE, 1SS133 D762 23118859 DIODE, 1SS133 D763 23118859 DIODE, 1SS133 D764 23118859 DIODE, 1SS133 D776 23118859 DIODE, 1SS133 D781 23118859 DIODE, 1SS133

Location

* D880 23316661 DIODE, ZENER, MTZJ3.9B

* D899 24019485 VARISTOR, TNR10V431K

Parts No. Description

No.

D782 23118859 DIODE, 1SS133 D783 23118859 DIODE, 1SS133 D784 23118859 DIODE, 1SS133 D801 23316784 DIODE, RBV1506, LF-A D830 23118213 DIODE, RK44, D831 23316663 DIODE, ZENER, MTZJ4.3B D832 23118859 DIODE, 1SS133 D840 23357207 DIODE, LN1WBA60 D841 23316673 DIODE, ZENER, MTZJ5.6C D842 23316665 DIODE, ZENER, MTZJ4.7A D843 23357366 DIODE, FR105-B5 D844 23316672 DIODE, ZENER, MTZJ5.6B D845 23118859 DIODE, 1SS133 D846 23118633 DIODE, ZENER, RD3.0ES B2 D847 23118633 DIODE, ZENER, RD3.0ES B2 D848 23118859 DIODE, 1SS133 D851 23357216 DIODE, D4SBL20U D852 23316714 DIODE, RL2Z D853 23316714 DIODE, RL2Z D862 23357366 DIODE, FR105-B5 D864 23357366 DIODE, FR105-B5 D873 23316747 DIODE, ZENER, MTZJ27C D875 23316688 DIODE, ZENER, MTZJ9.1C D876 23316759 DIODE, ZENER, MTZJ36C D878 23316686 DIODE, ZENER, MTZJ9.1A D879 23316747 DIODE, ZENER, MTZJ27C

D881 23118859 DIODE, 1SS133 D882 23357012 DIODE, 1SS244 D883 23118859 DIODE, 1SS133 D884 23357217 DIODE, D4SBL40 D884B 70391334 SCREW D885 23357216 DIODE, D4SBL20U D891 23316184 DIODE, FML-G12S D891B 70391334 SCREW D892 23316184 DIODE, FML-G12S D892B 70391334 SCREW D893 23316782 DIODE, ZENER, MTZJ6.2C D894 23118859 DIODE, 1SS133

D901 23118859 DIODE, 1SS133 D902 23118859 DIODE, 1SS133 (51H83) D906 23357012 DIODE, 1SS244 (57H83/65H83) D907 23357012 DIODE, 1SS244 (57H83/65H83) D908 23357012 DIODE, 1SS244 (57H83/65H83) D909 23357012 DIODE, 1SS244 (57H83/65H83) D911 23118859 DIODE, 1SS133 (51H83) D912 23118859 DIODE, 1SS133 D913 23115337 DIODE, 1S1834 (57H83/65H83) D916 23115337 DIODE, 1S1834 (51H83) D916 23357012 DIODE, 1SS244 (57H83/65H83) D917 23357012 DIODE, 1SS244 (57H83/65H83) D918 23357012 DIODE, 1SS244 (57H83/65H83) D919 23357012 DIODE, 1SS244 (57H83/65H83) D921 23118859 DIODE, 1SS133 D922 23118859 DIODE, 1SS133 (51H83) D924 23118859 DIODE, 1SS133 (51H83) D925 23118859 DIODE, 1SS133 (51H83) D926 23357012 DIODE, 1SS244 (57H83/65H83) D927 23357012 DIODE, 1SS244 (57H83/65H83) D928 23357012 DIODE, 1SS244 (57H83/65H83) D929 23357012 DIODE, 1SS244 (57H83/65H83) D931 23118859 DIODE, 1SS133 (51H83) D932 23118859 DIODE, 1SS133 (51H83) D933 23118859 DIODE, 1SS133 (51H83)

– 42 –

Page 64

Location

Parts No. Description

No.

D934 23118859 DIODE, 1SS133 (51H83) D936 23115337 DIODE, 1S1834 D941 23118859 DIODE, 1SS133 D942 23118859 DIODE, 1SS133 D943 23118859 DIODE, 1SS133 D946 23118859 DIODE, 1SS133 (51H83) D961 23118859 DIODE, 1SS133 (51H83) D962 23118859 DIODE, 1SS133 (51H83) D963 23118859 DIODE, 1SS133 (51H83) D964 23118859 DIODE, 1SS133 (51H83) D965 23118859 DIODE, 1SS133 (51H83) D966 23118859 DIODE, 1SS133 (51H83) D967 23115337 DIODE, 1S1834 D4401 23316591 DIODE, ZENER, MA8100-M D4430 23357365 DIODE, 1N4004A-B5 D4431 23316715 DIODE, ZENER, MTZJ11A D4604 23316231 DIODE, 1SS355 D4605 23316591 DIODE, ZENER, MA8100-M D4606 23316231 DIODE, 1SS355 D7703 23357365 DIODE, 1N4004A-FL D7705 23316231 DIODE, 1SS355-TE17 D7706 23316231 DIODE, 1SS355-TE17 D7707 23316231 DIODE, 1SS355-TE17 D7708 23316231 DIODE, 1SS355-TE17 D7717 23118538 DIODE, ZENER, RD6.2ESA B2 D7718 23118538 DIODE, ZENER, RD6.2ESA B2 D7729 23316738 DIODE, ZENER, MTZJ22B D7730 23118538 DIODE, ZENER, RD6.2ESA B2 D7731 23118538 DIODE, ZENER, RD6.2ESA B2 D7732 23357365 DIODE, 1N4004A-FL D7733 23118499 DIODE, ZENER, RD18ESA B2 D7734 23118499 DIODE, ZENER, RD18ESA B2 D7735 23357365 DIODE, 1N4004A-FL D7806 23118041 DIODE, MA111 D7808 23118094 DIODE, EU2A D7809 23316231 DIODE, 1SS355-TE17 D7810 23118052 DIODE, RU4Z LF-L1 D7811 23316231 DIODE, 1SS355-TE17 D7820 KETSU DA02 23316574 DIODE, ZENER CHIP VZ6.05-6.36V MA8062-M DA23 23118041 DIODE, MA111 DA43 23118041 DIODE, MA111 DA44 23118041 DIODE, MA111 DA45 23118041 DIODE, MA111 DA46 23118041 DIODE, MA111 DA70 23118041 DIODE, MA111 DB01 23358564 DIODE, LED, SLR-56VC3FPQ DB03 23358522 DIODE, LED, SIR-56SB3F DB30 23118041 DIODE, MA111 DB31 23118041 DIODE, MA111 DB61 23118041 DIODE, MA111 DH301 23316672 DIODE, ZENER, MTZJ5.6B DH301 23316672 DIODE, ZENER, MTZJ5.6B DH301 23316672 DIODE, ZENER, MTZJ5.6B DH301 23316672 DIODE, ZENER, MTZJ5.6B DS120 23316740 DIODE, ZENER, MTZ J 22D DV30 23316792 DIODE, SC215 DV31 23316672 DIODE, ZENER, MTZJ5.6B DV39 23358543 PHOTO SENSOR, IF=10MA 650NM S7565 DV241 23316587 DIODE, ZENER, MA8091-L DV242 23316587 DIODE, ZENER, MA8091-L DV243 23316587 DIODE, ZENER, MA8091-L DV244 23316587 DIODE, ZENER, MA8091-L DV249 23316587 DIODE, ZENER, MA8091-L DV250 23316587 DIODE, ZENER, MA8091-L

Location

Parts No. Description

No.

DV251 23316577 DIODE, ZENER, MA8068-M DV252 23316577 DIODE, ZENER, MA8068-M DV256 23316587 DIODE, ZENER, MA8091-L DV257 23316587 DIODE, ZENER, MA8091-L DV258 23316587 DIODE, ZENER, MA8091-L

MISCELLANEOUS

B224 23035412 SCREW, BTB4X12SZN B231 23037312 SCREW, BTBW3X12SZN B232 23035310 SCREW, BTB3X10SZN B233 70391355 SCREW, BIND HEAD TAP-TITE B,

BB10 23713013 CONNECTOR, SOCKET, B-B 16P 1.5 BB20 23713013 CONNECTOR, SOCKET, B-B 16P 1.5 E913 23198540 CRT EARTH ASSY, TP48E60 E929 23969684 TAPE, GLASS-CLOTH, W/ADHESIVE

E943 23198540 CRT EARTH ASSY, TP48E60 E959 23969684 TAPE, GLASS-CLOTH, W/ADHESIVE

E973 23198540 CRT EARTH ASSY, TP48E60 E989 23969684 TAPE, GLASS-CLOTH, W/ADHESIVE

* F470 23144624 FUSE, AXIAL, 125V 2.0A * F7711 23144509 FUSE, AXIAL, 125V 2.5A * F7716 23144509 FUSE, AXIAL, 125V 2.5A * F7721 23144509 FUSE, AXIAL, 125V 2.5A * F7726 23144509 FUSE, AXIAL, 125V 2.5A * F7731 23144509 FUSE, AXIAL, 125V 2.5A * F7736 23144509 FUSE, AXIAL, 125V 2.5A * F801 23144481 FUSE, 125V 7.0A-T U/C MINI

F801A 23165433 FUSE HOLDER, 5.2 SOC F801B 23165433 FUSE HOLDER, 5.2 SOC

* F840 23144581 FUSE, AXIAL, 125V 200MA * F850 23144510 FUSE, AXIAL, 125V 3.5A * F851 23144456 FUSE, AXIAL, 125V 5.0A * F852 23144456 FUSE, AXIAL, 125V 5.0A * F860 23144626 FUSE, AXIAL, 125V 4.0A * F885 23144511 FUSE, AXIAL, 125V 4.0A * F891 23144456 FUSE, AXIAL, 125V 5.0A * F892 23144456 FUSE, AXIAL, 125V 5.0A

G101 24011151 CHIP, METAL FILM, 1/20W 150 OHM J G102 24011151 CHIP, METAL FILM, 1/20W 150 OHM J GJ07 24000824 CHIP JUMPER, 2125TYPE GJ33 24000445 CHIP JUMPER, 1608TYPE GJ79 24000824 CHIP JUMPER, 2125TYPE GJ81 24000824 CHIP JUMPER, 2125TYPE GJ83 24000824 CHIP JUMPER, 2125TYPE GJ101 24000445 CHIP JUMPER, 1608TYPE GJ102 24000445 CHIP JUMPER, 1608TYPE GJ105 24000445 CHIP JUMPER, 1608TYPE GJ109 24000445 CHIP JUMPER, 1608TYPE GJ110 24000445 CHIP JUMPER, 1608TYPE GJ113 24000445 CHIP JUMPER, 1608TYPE GJ114 24000824 CHIP JUMPER, 2125TYPE GJ116 24000445 CHIP JUMPER, 1608TYPE GJ118 24000445 CHIP JUMPER, 1608TYPE GJ121 24000445 CHIP JUMPER, 1608TYPE GJ122 24000445 CHIP JUMPER, 1608TYPE GJ123 24000824 CHIP JUMPER, 2125TYPE GJ127 24000445 CHIP JUMPER, 1608TYPE GJ128 24000445 CHIP JUMPER, 1608TYPE GJ603 24000445 CHIP JUMPER, 1608TYPE GJ605 24000824 CHIP JUMPER, 2125TYPE GJ606 24000824 CHIP JUMPER, 2125TYPE

BITTB 3X8 SZN

W=90 T=0.18

SPECIFIC INFORMATIONS

– 43 –

Page 65

Location

* P800 23368013 CONNECTOR, PLUG, 2P 11.88MM W VT-JST * P801 23372117 POWER CORD, U/C 125V10A HSV 5,

SPECIFIC INFORMATIONS

* SR81 23146574 RELAY, DLS5D1-O(M) 0.15W * SR82 23146564 RELAY, DC12V, TV5, DG-3

* V901A 23903148 SOCKET, ISH-44S-E ICE #5 (51H83) * V901A 23903168 SOCKET, CVT3277-5104G SMK,

* V902A 23903148 SOCKET, ISH-44S-E ICE #5 (51H83) * V902A 23903168 SOCKET, CVT3277-5104G SMK,

* V903A 23903148 SOCKET, ISH-44S-E ICE #5 (51H83) * V903A 23903168 SOCKET, CVT3277-5104G SMK,

Parts No. Description

No.

GJ710 24000445 CHIP JUMPER, 1608TYPE GJ711 24000445 CHIP JUMPER, 1608TYPE GJ771 24000445 CHIP JUMPER, 1608TYPE GJ772 24000445 CHIP JUMPER, 1608TYPE GJ773 24000445 CHIP JUMPER, 1608TYPE GJ774 24000445 CHIP JUMPER, 1608TYPE GJ775 24000445 CHIP JUMPER, 1608TYPE GJ776 24000445 CHIP JUMPER, 1608TYPE GJA33 24000445 CHIP JUMPER, 1608TYPE GR96 24000445 CHIP JUMPER, 1608TYPE GR99 24000445 CHIP JUMPER, 1608TYPE H002 23148042 IF MODULE, US WOW MSP3440G, MVUS51 H003 23124087 ANTENNA SWITCH, 2I3O BUNPAI US,

H003A 23740989 NUT, F-CONNECTOR 2H BS KB01 23000852 IC, REMOTE PHOTO RECEIVER,

P412 23713014 CONNECTOR, BRIDGE PLUG 16P 1.5 P413 23713014 CONNECTOR, BRIDGE PLUG 16P 1.5 P540 23903176 SOCKET, SOCKET 60P TKD 136901160W4 P708 23902655 CONNECTOR, B-B 15P P709 23902655 CONNECTOR, B-B 15P P710 23902655 CONNECTOR, B-B 15P P711 23367724 CONNECTOR, PLUG B-B 15P

P900 23164563 CONNECTOR, PLUG 3P P900 23164563 CONNECTOR, PLUG 3P P900 23164563 CONNECTOR, PLUG 3P P900 23164563 CONNECTOR, PLUG 3P PB11 23368587 CONNECTOR, PLUG, 8P 2.5MM W EH-JST,

PB13A 23367677 PLUG, 4P PV01 23023094 JACK, PIN 1S6P SMK, LAP5120-0205FC PV02 23023096 JACK, PIN 10P SMK, LAP5120-0401FC PV02 23365819 JACK, 1S3P PV05 23023095 JACK, PIN 8P SMK, LAP5120-0411FC S601 23344456 SWITCH, SLIDE SK22F28G9A MORNI SA01 23145226 SWITCH, 1C1P, PUSH SA02 23145226 SWITCH, 1C1P, PUSH SA03 23145226 SWITCH, 1C1P, PUSH SA04 23145226 SWITCH, 1C1P, PUSH SA05 23145226 SWITCH, 1C1P, PUSH SA06 23145226 SWITCH, 1C1P, PUSH SA07 23145226 SWITCH, 1C1P, PUSH SA08 23145226 SWITCH, 1C1P, PUSH SA09 23145226 SWITCH, 1C1P, PUSH

UH01 23148051 MODULE, D-CONVER, MDCU11 UV02 23148055 SCAN CONVERTER MODUL, 03DVI, MHDM01 UZ01 23148052 SCAN CONVERTER MODUL, G.HYPER,

W661 23351208 SPEAKER, 160X160 8-OHM 15W,

RSU135X1

PIC-37043TE2

CMC-02P 5

S8B-EH

MVPU41

CVT3277-5104G (57H83/65H83)

SPK-1235AW

Location

* Z410 23110841 FOCUS PACK, TPA6030

* Z450 24083013 COMPOSITE PARTS, CR-BLOCK, TPA5010AH

PC BOARD ASSEMBLIES

* * * * * * * * * * * * * * * * * * * * * * * * * *

PICTURE TUBE

* V901R 23071475 OTHER BLOCK, COUPLING R 51H83 (51H83) * V901R 23086603 OTHER BLOCK, COUPLING R 57H82 (57H83) * V901R 23072162 OTHER BLOCK, COUPLING R 65H83 (65H83) * V902G 23071476 OTHER BLOCK, COUPLING G 51H83 (51H83) * V902G 23086604 OTHER BLOCK, COUPLING G 57H82 (57H83) * V902G 23072163 OTHER BLOCK, COUPLING G 65H83 (65H83) * V903B 23071400 OTHER BLOCK, COUPLING B 51H83 (51H83) * V903B 23071302 OTHER BLOCK, COUPLING B 57H83 (57H83) * V903B 23071473 OTHER BLOCK, COUPLING B 65H83 (65H83)

TUNER

* H001 23321460 TUNER, US181CH IIC FONO 5V, ELA52LX2 * HY01 23321460 TUNER, US181CH IIC FONO 5V, ELA52LX2

Parts No. Description

No.

W662 23351208 SPEAKER, 160X160 8-OHM 15W,

X4402 23153721 CERAMIC RESONATOR, 503KHZ XA01 23153533 CERAMIC RESONATOR, CERA RESO,

XY501 23153961 CRYSTAL, 3.58MHZ XY502 23153721 CERAMIC RESONATOR, 503KHZ Z401 23140203 SPARK GAP, 2.0-3.0KV C-010,

Z410A 23505177 CABLE, FOCUS

Z450A 23501755 ANODE CABLE, 400LD FBT-C ZH04 23103778 FILTER, FERRITE CORE, TFE1008 ZH05 23103840 FERRITE CORE, TFE1013 ZI51 23303197 PIF SAW FILTER, TSF1248P ZI52 23303271 FILTER, TRAP 4.5MHZ, TCF1138AM ZI53 23303289 FILTER, TCF1141AM ZI55 23303244 FILTER, CERAMIC TRAP, TCF1121AM ZV60 23103778 FILTER, FERRITE CORE, TFE1008

E031Z 23788600 CRT-D/R BOARD, PD1200A-1 (51H83) E031Z 23788523 CRT-D/R BOARD, PD1153A-1 (57H83/65H83) E032Z 23788601 CRT-D/G BOARD, PD1200A-2 (51H83) E032Z 23788524 CRT-D/G BOARD, PD1153A-2 (57H83/65H83) E033Z 23788602 CRT-D/B BOARD, PD1200A-3 (51H83) E033Z 23788525 CRT-D/B BOARD, PD1153A-3 (57H83/65H83) E034Z 23788603 SVM/R BOARD, PD1200A-4 (51H83) E034Z 23788526 SVM/R BOARD, PD1153A-4 (57H83/65H83) E035Z 23788604 SVM/G BOARD, PD1200A-5 (51H83) E035Z 23788527 SVM/G BOARD, PD1153A-5 (57H83/65H83) E036Z 23788605 SVM/B BOARD, PD1200A-6 (51H83) E036Z 23788528 SVM/B BOARD, PD1153A-6 (57H83/65H83) E041Z 23788529 FRONT-CON BOARD, PD1154-1 E042Z 23788530 FRONT-IN BOARD, PD1154-2 E043Z 23788531 REM BOARD, PD1154-3 E044Z 23788532 FRONT-SEN BOARD, PD1154-4 E051Z 23786222 CONV-SEN BOARD, PD0079-1 E052Z 23786223 CONV-SEN2 BOARD, PD0079-2 E053Z 23786224 CONV-SEN3 BOARD, PD0079-3 E054Z 23786225 CONV-SEN4 BOARD, PD0079-4 U401 23788519 DEFCONVER BOARD, PD1147A U701 23788563 CONVER OUT BOARD, PD1163A-2 U801 23788521 POWER BOARD, PD1151A U901 23788518 SIGNAL BOARD, PD1146A UD01 23788562 DDCON BOARD, PD1163A-1 UF01 23788269 IF BOARD, PD1022A

SPK-1235AW

TCR1082AM

AG20PC152F-L3N

– 44 –

Page 66

Location

Parts No. Description

No.

ACCESSORIES

* K912 23306413 REMOCON HAND UNIT IR, PJTVUSA,

* Y101 23565901 OWNER’S MANUAL, ENGLISH/FRENCH,

CT-90086

51H83/57H83/65H83

CABINET PARTS

* A001 23411859 CABINET, WOOD CABINET SHIP, 51H83

* A001 23411854 CABINET, WOOD CABINET SHIP, 57H83

* A001 23411867 CABINET, WOOD CAB SHIP, 65H83 (65H83)

A102 23527268 GRILLE, SPEAKER GRILLE 51 REG, 51H83

A102 23527269 GRILLE, SPEAKER GRILLE 57 REG, 57H83

A102 23527279 GRILLE, SPK GRILLE ASSY, 65H83 (65H83) A160 23469228 CASTER, TP50H60

* A201 23530779 COVER, BEZEL, 51H83 (51H83) * A201 23530782 COVER, BEZEL, 57H83 (57H83) * A201 23530796 COVER, BEZEL, 65H83 (65H83)

A202 23450650 PANEL, CONTROL ASSY 57H83 A213 23428188 DOOR, 57H83 A215 23929911 PIECE, SNAP-IN GEAR DAMPER, CONNON A222 23929910 PIECE, FILTER, 57HX83 A223 23445706 BUTTON, POWER BUTTON, 57H83 A268 23530772 COVER, FRONT COVER, 51H83 (51H83) A268 23530770 COVER, FRONT COVER, 57HX83 (57H83) A268 23530771 COVER, FRONT COVER, 65H83 (65H83) A329 23433231 DECORATIVE, PIECE, 51H83 (51H83) A329 23433230 DECORATIVE, PIECE, 57H83 (57H83) A331 23929897 PIECE, POLE BOTTOM LEFT, 51H83 (51H83) A331 23929899 PIECE, POLE BOTTOM LEFT, 57H83

A332 23929898 PIECE, POLE BOTTOM RIGHT, 51H83 (51H83) A332 23929900 PIECE, POLE BOTTOM RIGHT, 57H83

* A401 23530781 COVER, BACK COVER, 51H83 (51H83) * A401 23530761 BACK COVER ASSY, 57HX83 (57H83) * A401 23530774 COVER, BACK COVER ASSY, 65H83 (65H83) * A421 23530812 COVER, REAR BOARD, 57H83 * A424 23530784 COVER, BACKBOARD, 57H83

A510 23030815 SCREW, WOOD, PTD #6 X 3/4 A701 23067099 CARTON, CARTON, 51H83 (51H83) A701 23067100 CARTON, CARTON, 57H83 (57H83) A701 23064558 CARTON, CARTON, 65H81 (65H83) A703 23946479 PACKING, TOP PACKING, 51H83 (51H83) A703 23946481 PACKING, TOP PACKING, 57H83 (57H83) A703 23946500 PACKING, TOP, 65H83 (65H83) A708 23946478 PACKING, BOTTOM PACKING, 51H83 (51H83) A708 23946480 PACKING, BOTTOM PACKING, 57H83 (57H83) A708 23946499 PACKING, BOTTOM, 65H83 (65H83) A709 23946483 PACKING, BOTTOM TRAY, 51H83 (51H83) A709 23946187 PACKING, BASE TRAY, 57H81 (57H83) A721 23943628 PLYETHLENE COVERING, 46GM88T K501 23311015 SCREEN, 51KNH LENTICULAR SHEET,

K501 23311013 SCREEN, 57KNH LENTICULAR SHEET,

K501 23311011 SCREEN, 65KNH LENTICULAR SHEET,

K502 23311016 SCREEN, 51KN FRESNEL SHEET,

K502 23311014 SCREEN, 57KN FRESNEL SHEET,

(51H83)

(57H83)

(51H83)

(57H83)

(57H83/65H83)

SCREEN51KNHL (51H83)

SCREEN57KNHL (57H83)

SCREEN65KNHL (65H83)

SCREEN51KN-F (51H83)

SCREEN57KN-F (57H83)

Location

Parts No. Description

No.

K502 23311010 SCREEN, 65KN FRESNEL SHEET,

K503 23311019 SCREEN, PROTECTOR 51RN, SCR-PRO51RN

K503 23311862 SCREEN, PROTECTOR 57RL, SCR-PRO57RL

K503 23311861 SCREEN, PROTECTOR 65RL, SCR-PRO65RL

K601 23405249 MIRROR, 51WL, 51H83 (51H83) K601 23405028 MIRROR, 57WL 1070/770x600x3, 57H81

K601 23405029 MIRROR, 65WL, 65H81 (65H83)

SCREEN65KN-F (65H83)

(51H83)

(57H83)

(65H83)

(57H83)

SPECIFIC INFORMATIONS

– 45 –

Page 67

SPECIFIC INFORMATIONS

THIS PAGE IS

INTENTIONALLY LEFT

BLANK.

– 46 –

Page 68

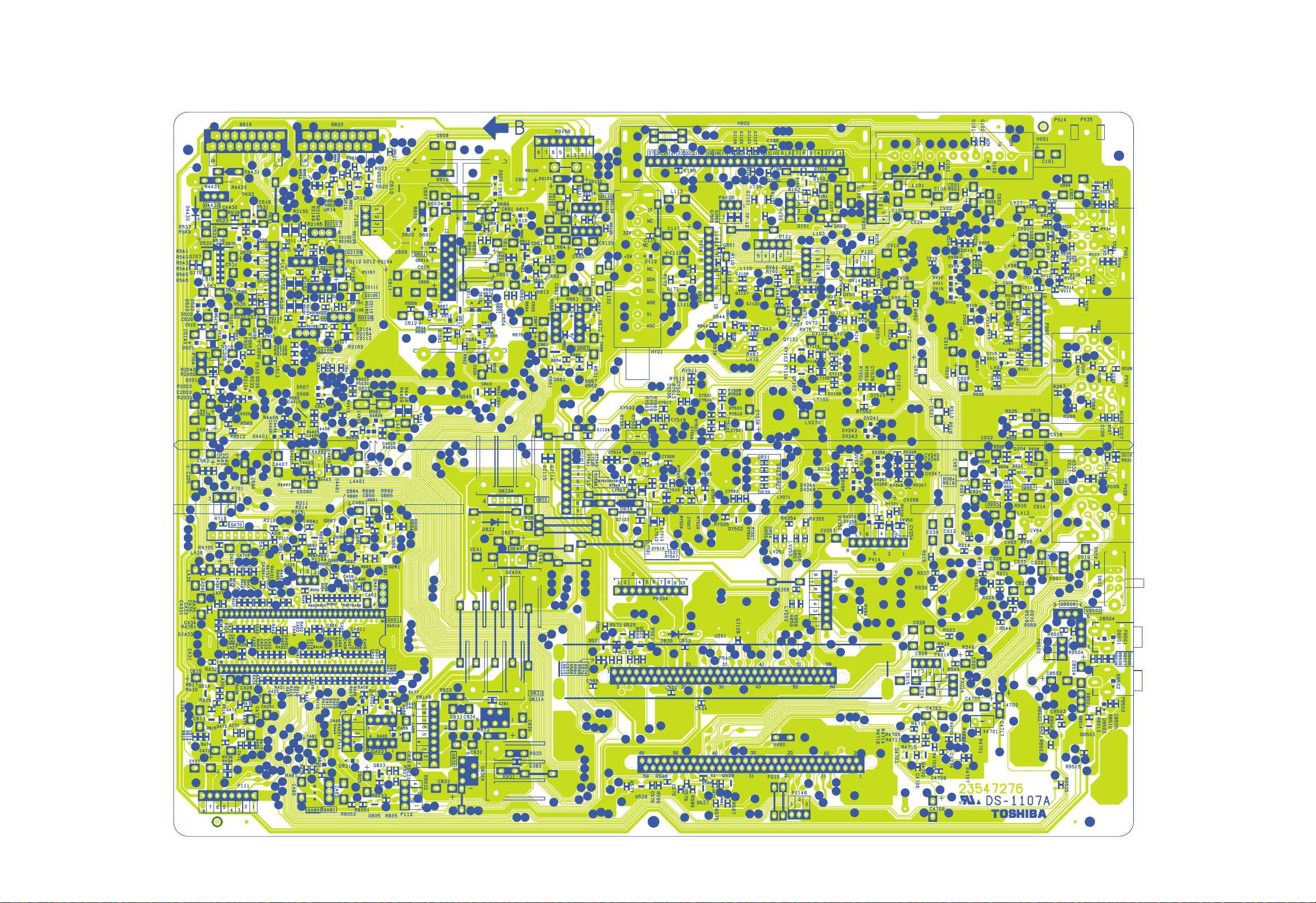

SIGNAL BOARD PD1146A

BOTTOM (FOIL) SIDE

– 47 – – 48 –

Page 69

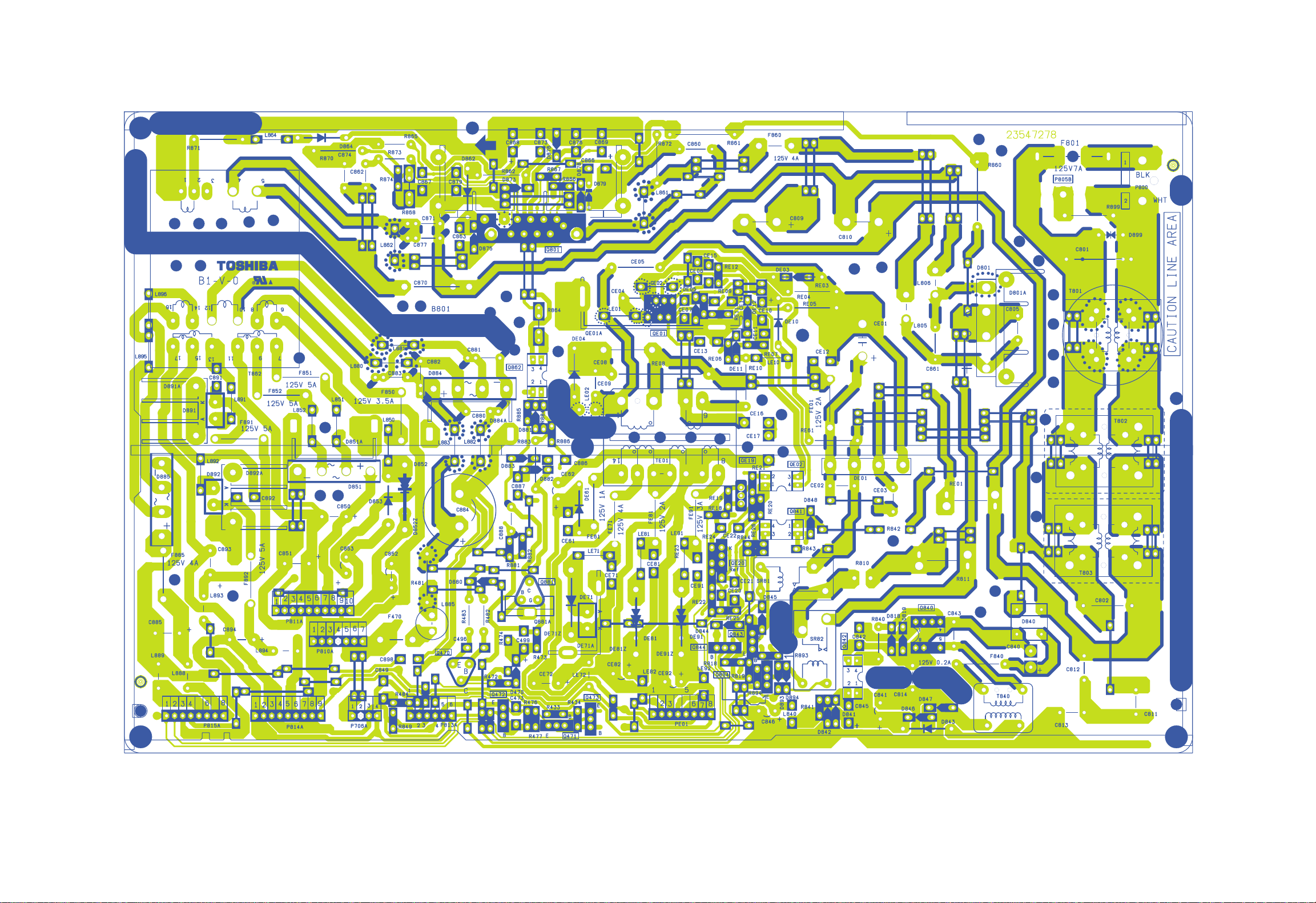

POWER BOARD PD1151A

BOTTOM (FOIL) SIDE

– 49 – – 50 –

Page 70

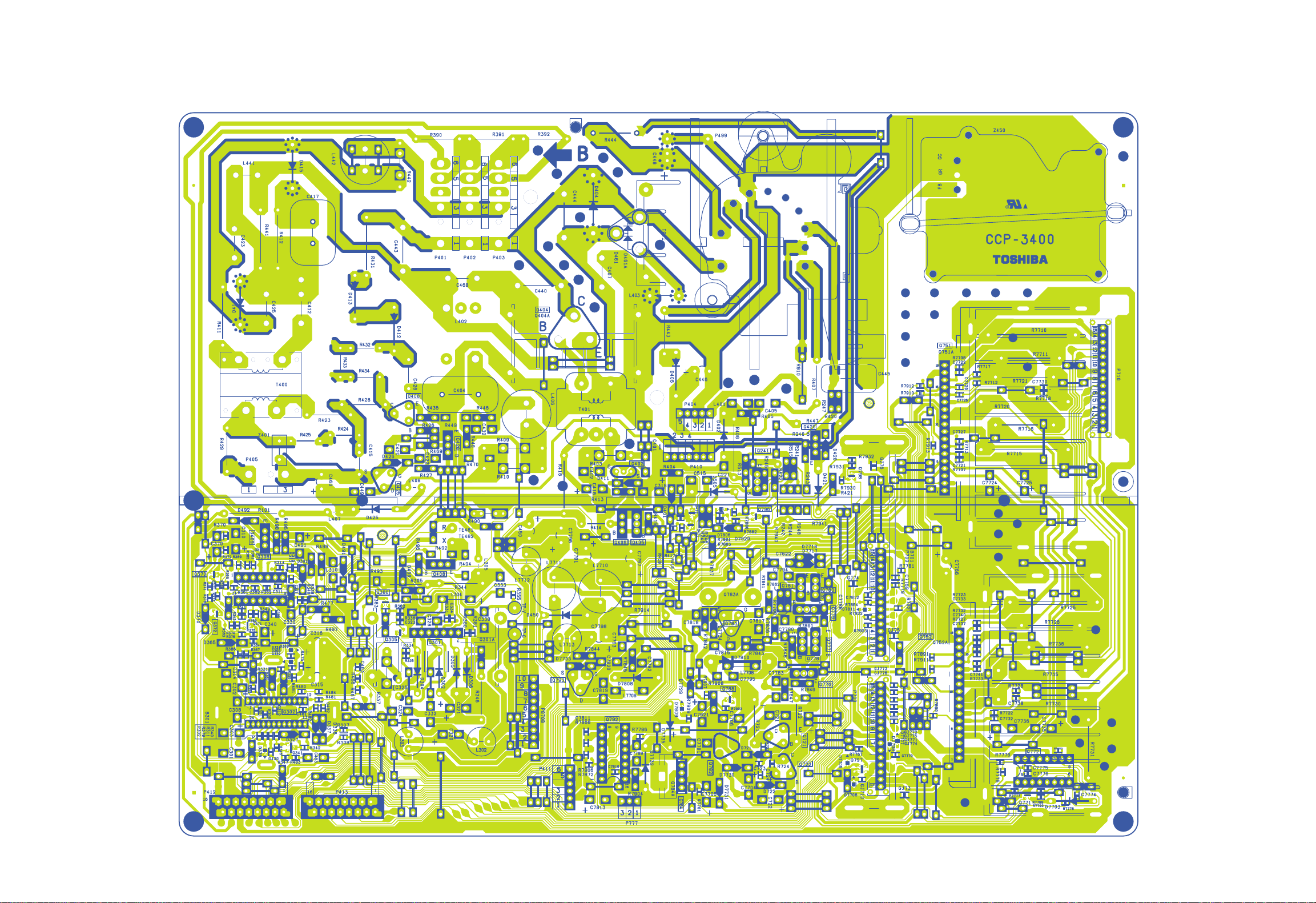

DEF/CONVER BOARD PD1147A

BOTTOM (FOIL) SIDE

– 51 – – 52 –

Page 71

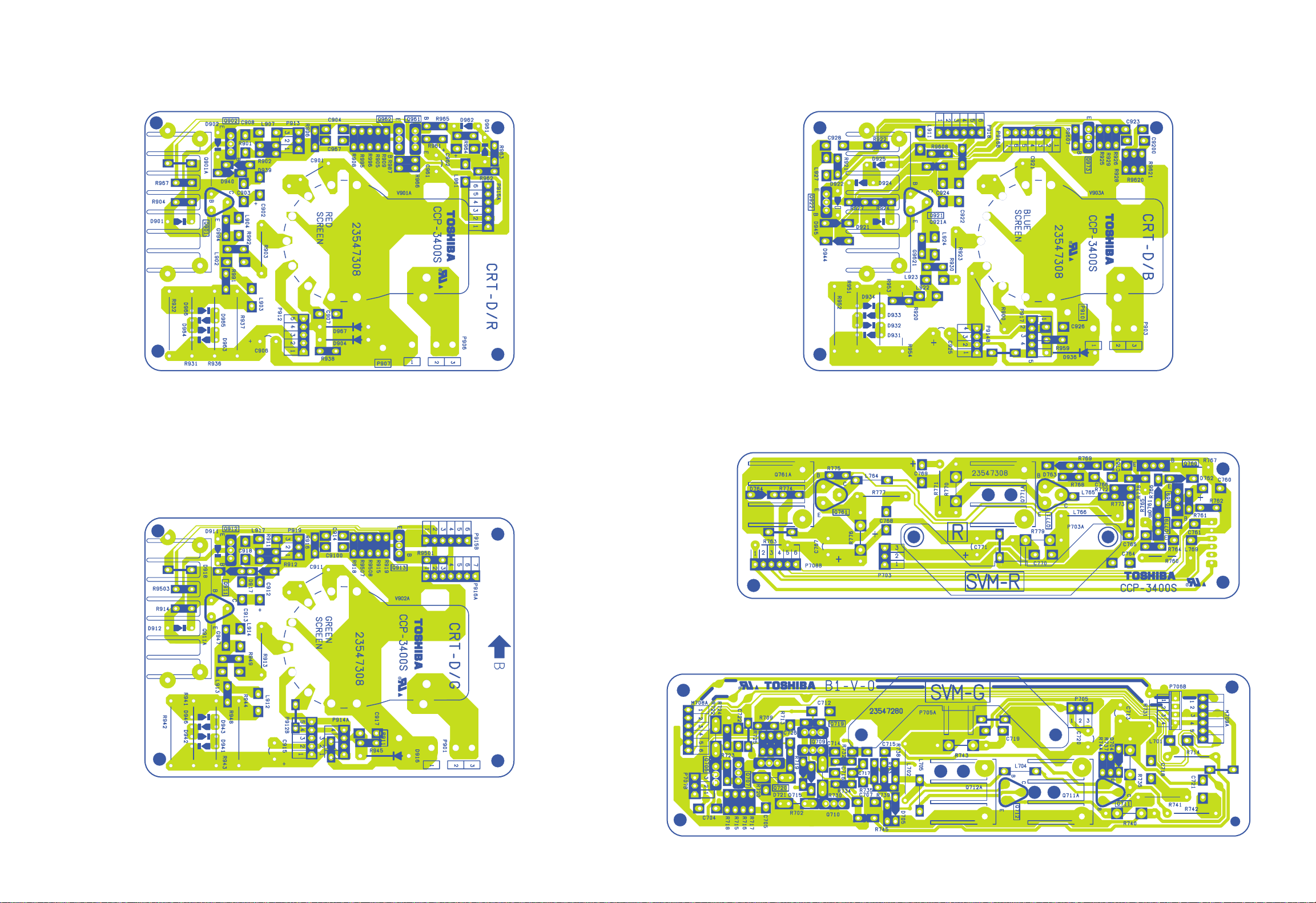

CRT-D/R BOARD PD1200A-1 (51H83)

BOTTOM (FOIL) SIDE

CRT-D/B BOARD PD1200A-3 (51H83)

BOTTOM (FOIL) SIDE

CRT-D/G BOARD PD1200A-2 (51H83)

BOTTOM (FOIL) SIDE

SVM/R BOARD PD1200A-4 (51H83)

BOTTOM (FOIL) SIDE

SVM/G BOARD PD1200A-5 (51H83)

BOTTOM (FOIL) SIDE

– 53 – – 54 –

Page 72

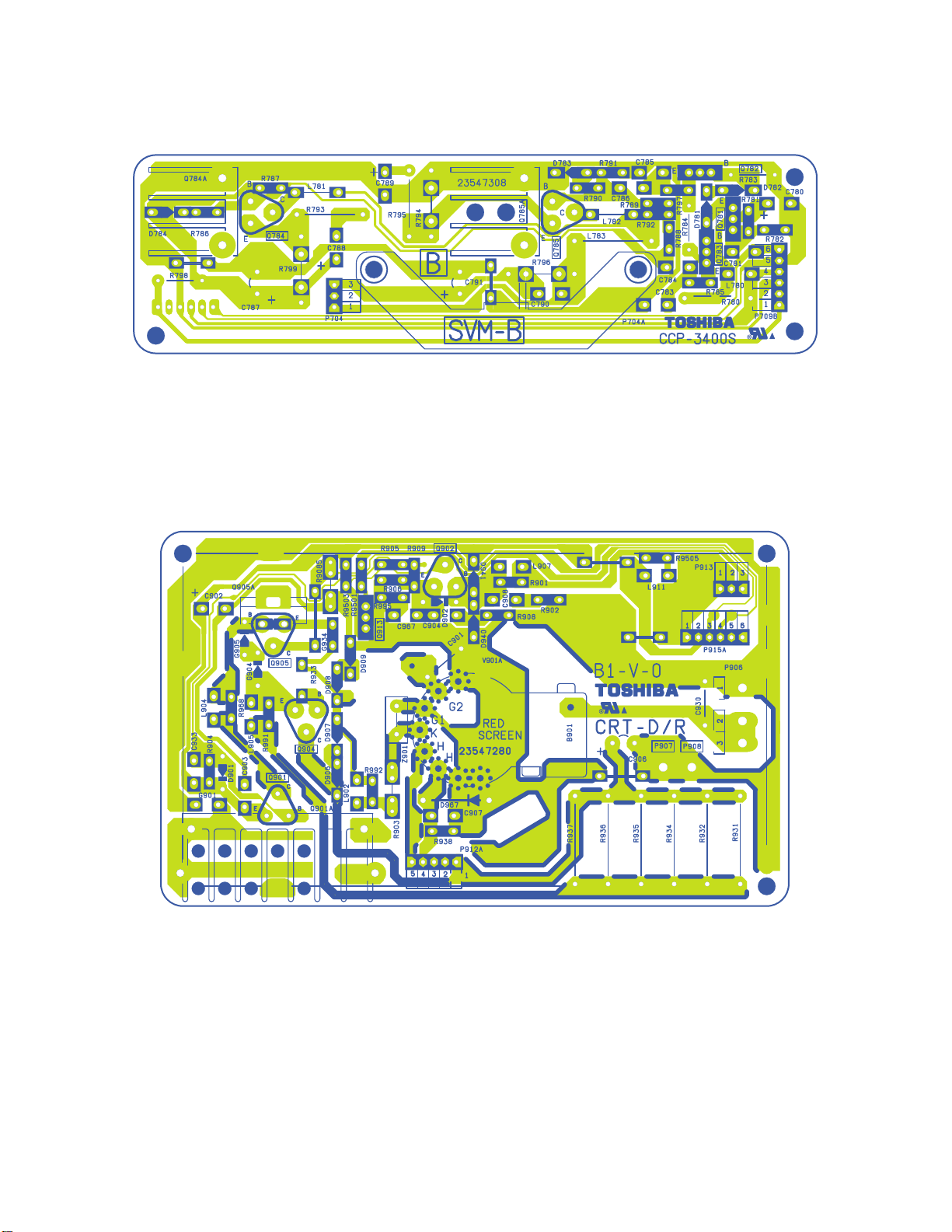

SVM/B BOARD PD1200A-6 (51H83)

BOTTOM (FOIL) SIDE

CRT-D/R BOARD PD1153A-1 (57H83/65H83)

BOTTOM (FOIL) SIDE

– 55 –

Page 73

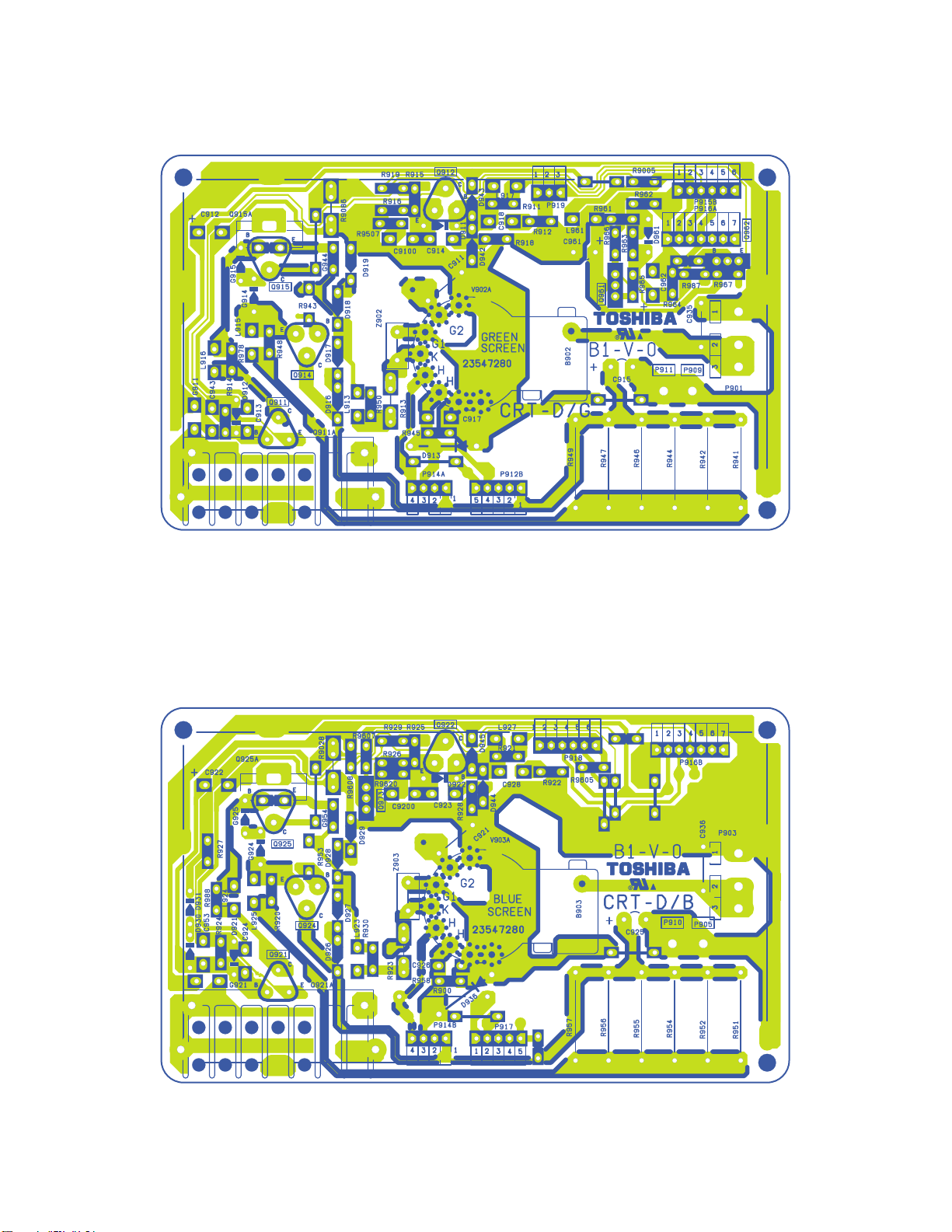

CRT-D/G BOARD PD1153A-2 (57H83/65H83)

BOTTOM (FOIL) SIDE

CRT-D/B BOARD PD1153A-3 (57H83/65H83)

BOTTOM (FOIL) SIDE

– 56 –

Page 74

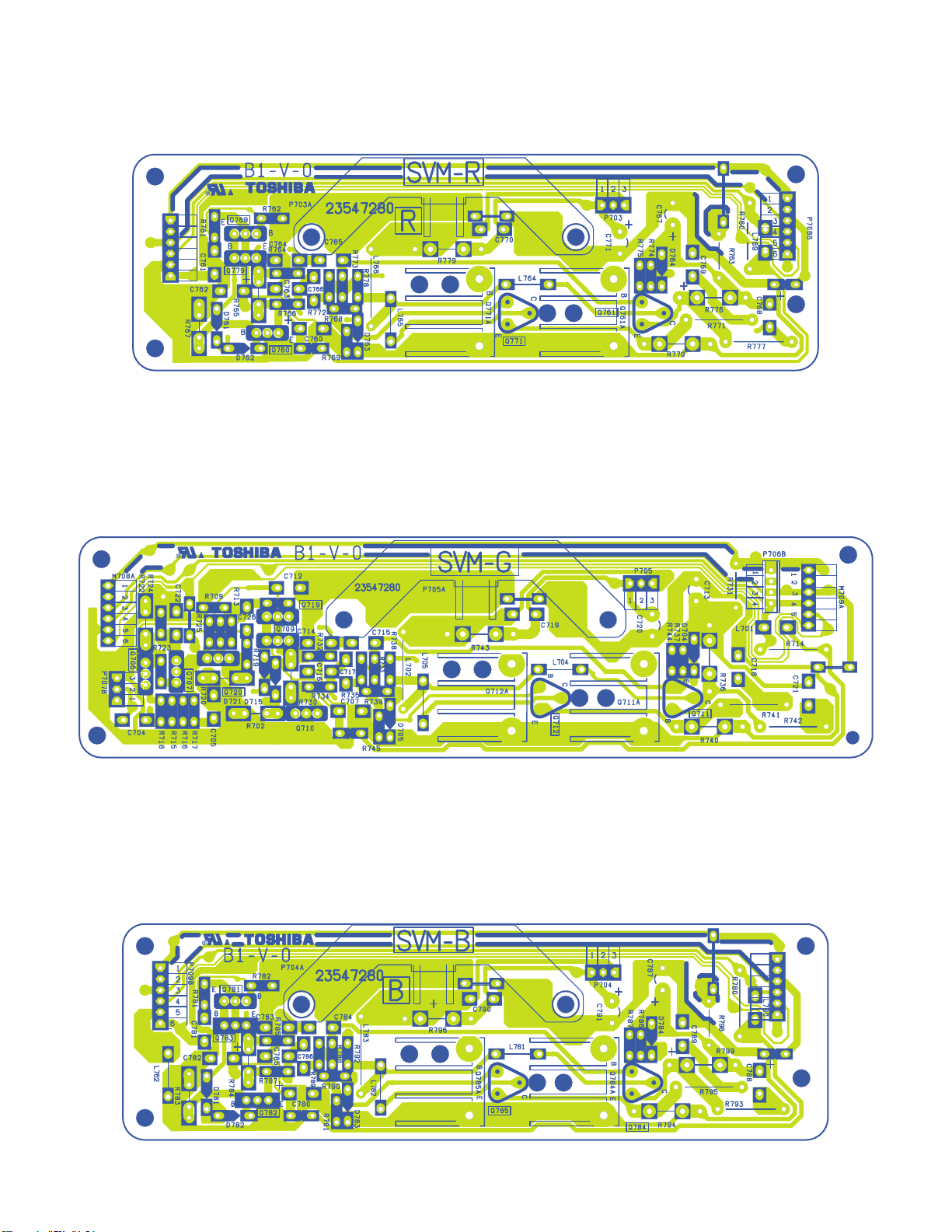

SVM/R BOARD PD1153A-4 (57H83/65H83)

BOTTOM (FOIL) SIDE

SVM/G BOARD PD1153A-5 (57H83/65H83)

BOTTOM (FOIL) SIDE

SVM/B BOARD PD1153A-6 (57H83/65H83)

BOTTOM (FOIL) SIDE

– 57 –

Page 75

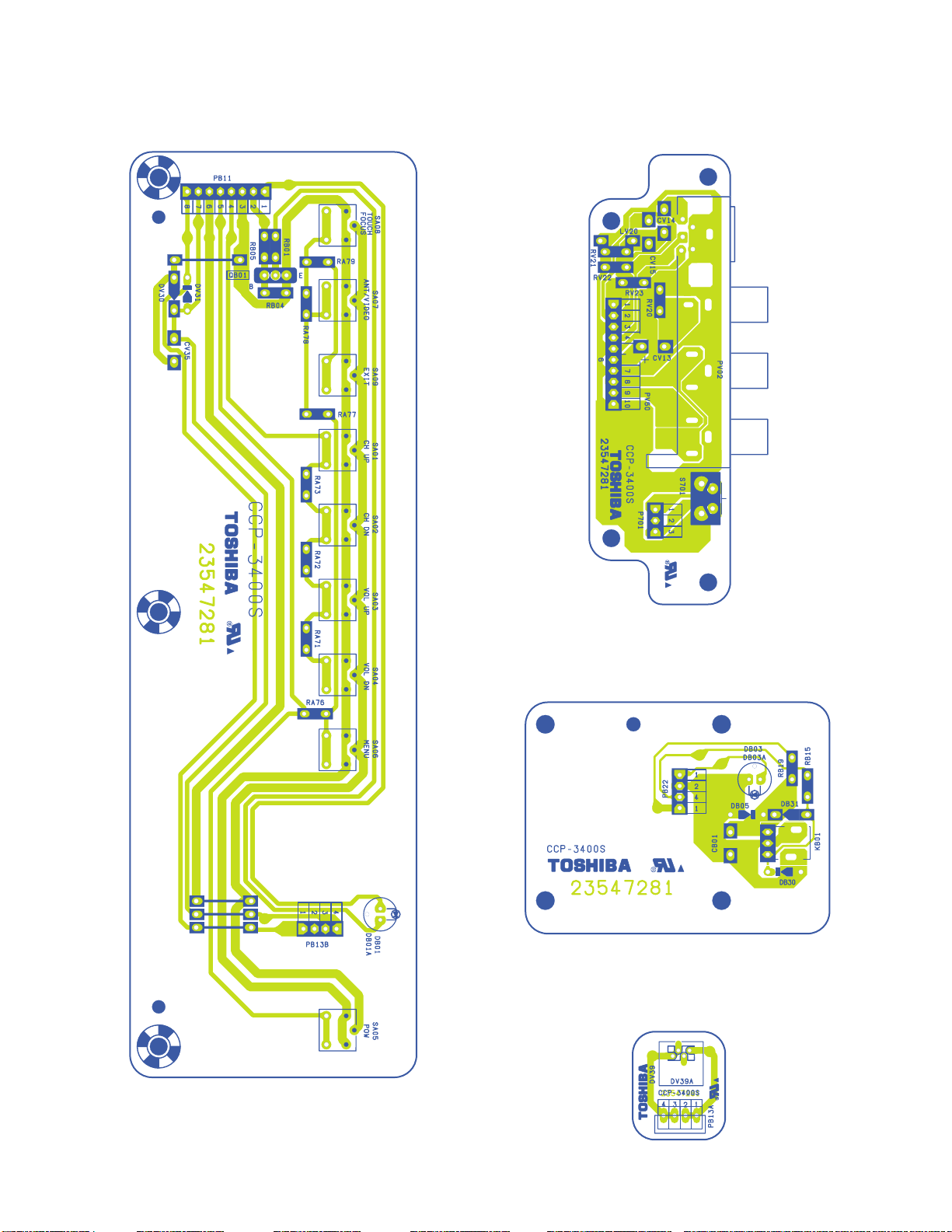

FRONT-CON BOARD PD1154-1

BOTTOM (FOIL) SIDE

FRONT-IN BOARD PD1154-2

BOTTOM (FOIL) SIDE

REM BOARD PD1154-3

BOTTOM (FOIL) SIDE

FRONT-SEN BOARD PD1154-4

BOTTOM (FOIL) SIDE

– 58 –

Page 76

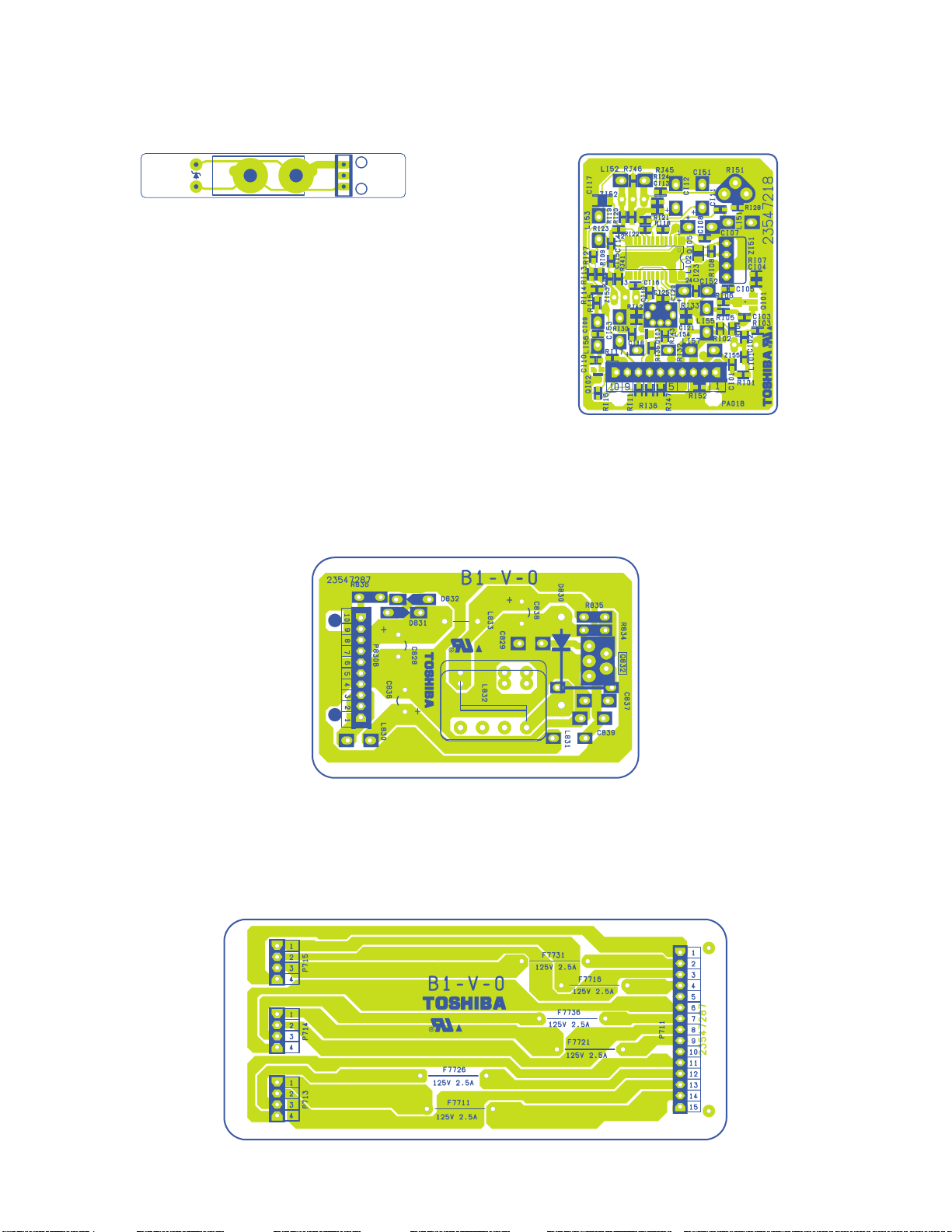

CONV-SEN BOARD PD0079

BOTTOM (FOIL) SIDE

DH301

QH301

B1-V-O

P900

DDCON BOARD PD1163A-1

BOTTOM (FOIL) SIDE

IF BOARD PD1022A

BOTTOM (FOIL) SIDE

CONVER OUT BOARD PD1163A-2

BOTTOM (FOIL) SIDE

– 59 –

Page 77

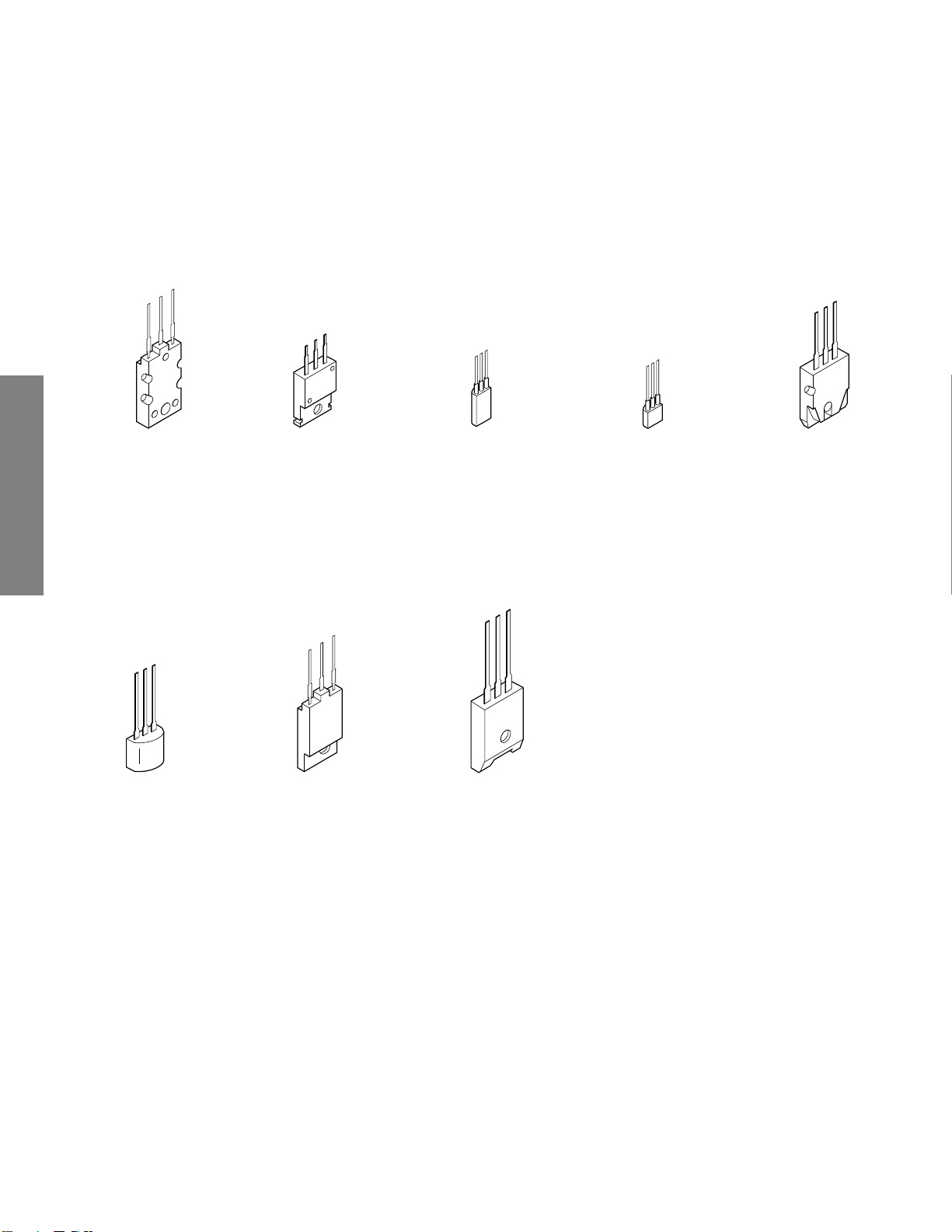

TERMINAL VIEW OF TRANSISTORS

 2SC5144

2SC5859

 RN2203

RN2201 RN2004 RN1203 RN1204

SPECIFIC INFORMATIONS

RN2204 RN1205 RN1202 RN1201

 2SC3852

2SD1763A 2SC1569 2SC4544 2SA1788 2SA1306 2SA1186A

 2SD1554

2SD2253 2SD1556 2SD2553 2SC5143

 2SC752GTM

2SC2482 2SC2655 2SC4721P

 ON4409

 2SC752

2SA562TM 2SA1015 2SC1815 2SC2878 2SC1740S 2SC2120 2SA9335

 2SA1788

– 60 –

Page 78

THIS PAGE IS

INTENTIONALLY LEFT

BLANK.

SPECIFIC INFORMATIONS

– 61 –

Page 79

SCHEMATIC DIAGRAM

MODEL : 51H83 / 57H83 / 65H83

WARNING: BEFORE SERVICING THIS CHASSIS, READ THE "X-RAY RADIATION PRECAUTION", "SAFETY PRECAUTION" AND "PRODUCT SAFETY NOTICE" ON THE MANUAL FOR THIS MODEL.

CAUTION: The international hazard symbols "*" in the schematic diagram and the parts list designate components which have special characteristics important for safety and should be replaced only with types identical to those in the original circuit or specified in the parts list. The mounting position of replacements is to be identical with originals. Before replacing any of these components, read carefully the PRODUCT SAFETY NOTICE on the MANUAL for this model. Do not degrade the safety of the receiver through improper servicing.

NOTE:

1. RESISTOR Resistance is shown in ohm [K = 1.000, M = 1.000.000]. All resistors are 1/6W and 5% tolerance carbon resistor, unless otherwise noted as the following marks. 1/2R = Metal or Metal oxide of 1/2 watt 1/2S = Carbon compsistion of 1/2 watt 1RF = Fuse resistor of 1 watt 10W = Cement of 10 watt

K = ±10% G = ±2% F = ±1%

2. CAPACITOR Unless otherwise noted in schematic, all capacitor values less than 1 are expressed in ?F, and the values more than 1 in pF. All capacitors are ceramic 50V, unless otherwise noted as the following marks.

Electolytic capacitor Mylar capacitor

3. The parts indicated with " * " have special characteristics, and should be replaced with identical parts only.

4. Voltages read with DIGITAL MULTI-METER from point indicated to chassing ground, using a color bar signal with all

controls at normal, line voltage 120 volts.

5. Waveforms are taken receiving color bar signal with enough sensitivity.

6. Voltage reading shown are nominal values and may vary ±20% except H.V.

SCHEMATIC DIAGRAM STRUCTURE:

SIGNAL Circuit Audio [ SHEET - 1/9 ] .......... 1/22

POWER Circuit ( 1/2 ) [ SHEET - 1/2 ] ........ 10/22

DEF / CONVER Circuit Vertical [ SHEET - 1/3 ] ........ 12/22

CRT / SVM Circuit (51") ........................................................................................ 15/22

CRT / SVM Circuit (57"/65") CRT-DRIVE [ SHEET - 1/2 ] ........ 16/22

DD-CON Circuit ( 1/2 ) [ SHEET - 1/2 ] ........ 18/22

FRONT Circuit ...................................................................................................... 20/22

T. FOCUS-SENSOR Circuit ................................................................................. 21/22

IF Circuit ................................................................................................................ 22/22

AV-1 [ SHEET - 2/9 ] .......... 2/22

Maicon [ SHEET - 3/9 ] .......... 3/22

REGULATOR [ SHEET - 4/9 ] .......... 4/22

Video [ SHEET - 5/9 ] .......... 5/22

AV-2 [ SHEET - 6/9 ] .......... 6/22

AV-3 [ SHEET - 7/9 ] .......... 7/22

IF [ SHEET - 8/9 ] .......... 8/22

SYNC OUT [ SHEET - 9/9 ] .......... 9/22

( 2/2 ) [ SHEET - 2/2 ] ........ 11/22

DEF [ SHEET - 2/3 ] ........ 13/22

CONVER-OUT [ SHEET - 3/3 ] ........ 14/22

SVM [ SHEET - 2/2 ] ........ 17/22

CONVER-OUT ( 2/2 ) [ SHEET - 2/2 ] ........ 19/22

– 62 –

Page 80

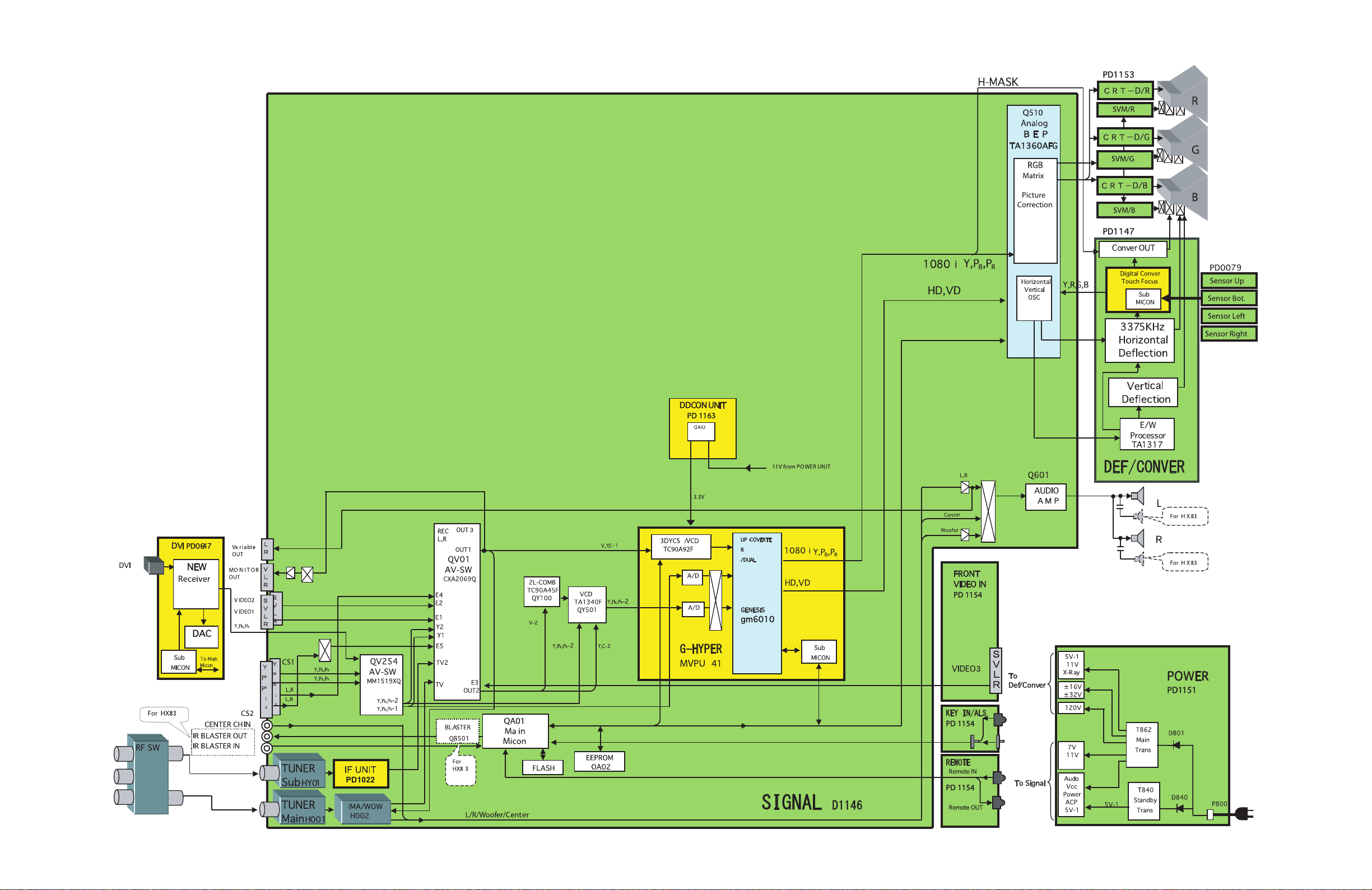

CIRCUIT BLOCK DIAGRAM

– 63 – – 64 –

Page 81

SPECIFICATIONS

Television System

NTSC standard

Channel Coverage

VHF: 2 through 13 UHF:14 through 69 Cable TV: Mid band (A-8 through A-1, A through I)

Super band (J through W) Hyper band (AA through ZZ, AAA, BBB) Ultra band (65 through 94,100 through 125)

Power Source

120 V AC, 60 Hz

Power Consumption

190 W (average)

Audio Power

20 W + 20 W

Speaker Type

51H83:Two 6-5/16 inches (16 cm) round 57H83:Two 6-5/16 inches (16 cm) round 65H83:Two 6-5/16 inches (16 cm) round

Video/Audio Terminals

S-VIDEO INPUT

Y :1 V(p-p),75 ohm, negative sync. C :0.286 V(p-p)(burst signal), 75 ohm

VIDEO/AUDIO INPUT

VIDEO: 1 V(p-p),75 ohm, negative sync. AUDIO: 150 mV (rms)(30% modulation equivalent,

47 k ohm)

ColorStream

(component video) INPUT Y :1V(p-p), 75 ohm PR:0.7 V(p-p), 75 ohm PB:0.7 V(p-p), 75 ohm AUDIO:150 mV (rms), 47 k ohm

VIDEO/AUDIO OUTPUT

VIDEO: 1 V(p-p), 75 ohm,negative sync. AUDIO: 150 mV(rms)(30% modulation equivalent,

4.7 k ohm)

VARIABLE AUDIO OUTPUT

0–300 mV(rms)(30%modulation equivalent, 4.7 k ohm)

AUDIO CENTER CHANNEL INPUT

300 mV(rms)(30% modulation equivalent, 10 k ohm)

DVI/HDCP INPUT

HDCP compliant E-EDID*11.3 compliant DVI-D uncompressed, high-speed, digital single-link connection Suggested scan rates:1080i, 480p, 480i

Dimensions

51H83: Width 47-3/5 inches (1,209 mm)

Height 50-2/5 inches (1,280 mm) Depth 22 inches (570 mm)

57H83: Width 52-3/4 inches (1,340 mm)

Height 55-1/16 inches (1,399 mm) Depth 23-7/8 inches (606 mm)

65H83: Width 60 inches (1,522 mm)

Height 59-7/8 inches (1,521 mm) Depth 25-1/5 inches (640 mm)

Mass

51H83:xxx lbs (xx kg) 57H83:230 lbs (105.0 kg) 65H83:xxx lbs (xx kg)

Supplied Accessories

Remote Control with 2 size “AA ” alkaline batteries

GENERAL ADJUSTMENTS

SPECIFIC INFORMATIONS

*1E-EDID = Enhanced-Extended Display Identification *2Design and specifications are subject to change without notice. *3Please refer to owner's manual in detail.

– 67 –

– END –

Page 82

TOSHIBA CORPORATION

1-1, SHIBAURA 1- CHOME, MINATO-KU, TOKYO 105-8001, JAPAN

Toshiba 51h83, 57h83, 65h83svm schematic

TABLE OF CONTENTS

CHAPTER 1 GENERAL ADJUSTMENTS

SAFETY INSTRUCTIONS

CRT ASSEMBLY REPLACEMENT AND MOUNTING

PICTURE TUBE COMPONENTS ADJUSTMENT

REPLACEMENT OF THE CRT

SERVICE MODE

ELECTRICAL ADJUSTMENT

CONVERGENCE ADJUSTMENT

SCREEN AND MIRROR ALIGNMENTS

CIRCUIT CHECKS

CHAPTER 2 SPECIFIC INFORMATIONS

SETTING & ADJUSTING DATA

ADDING CHANNELS TO THE TV'S MEMORY

MECHANICAL DISASSEMBLY

CHASSIS REPLACEMENT PARTS LIST

TERMINAL VIEW OF TRANSISTORS

CIRCUIT BLOCK DIAGRAM

SPECIFICATIONS
