Owner’s Manual

Integrated High Deﬁnition LCD Television

HIGH-DEFINITION TELE VISION

26AV52U 26AV502U 32AV502U 32AV50SU 37AV52U 37AV502U

For an overview of steps for setting up your new TV, see page 9.

Note: To display a High Deﬁnition picture, the TV must be receiving a High Deﬁnition signal (such as an over-the-air High Deﬁnition TV broadcast, a High Deﬁnition digital cable program, or a High Deﬁnition digital satellite program). For details, please contact your TV antenna installer, cable provider, or satellite provider.

Owner’s Record

The model number and serial number are on the back of your TV. Record these numbers in the spaces below. Refer to these numbers whenever you communicate with your Toshiba dealer about this TV.

Model number: Serial number:

VX3A00034900

Dear Customer,

Congratulations on your purchase! As you enjoy your new product, please keep these safety tips in mind:

The Issue

• The home theater entertainment experience is a growing trend and larger flat panel displays are popular purchases. However, flat panel displays are not always supported on the proper stands or installed according to the manufacturer’s recommendations.

• Flat panel displays that are inappropriately situated on dressers,

bookcases, shelves, desks,

speakers, chests or carts may fall

over and cause injury.

TOSHIBA Cares!

• The consumer electronics industry is committed to making home

entertainment enjoyable and safe.

Tune Into Safety

•

One size does NOT fit all. Follow the manufacturer’s recommendations for the safe installation and use of your flat panel display.

• Carefully read and understand all enclosed instructions for proper use of this product.

• Don’t allow children to climb on or play with furniture and television sets.

• Don’t place flat panel displays on furniture that can easily be used as steps, such as a chest of drawers.

• Remember that children can become excited while watching a program, especially on a “larger than life” flat panel display. Care should be taken to place or install the display where it cannot be pushed, pulled over, or knocked down.

• Care should be taken to route all cords and cables connected to the flat panel display so that they cannot be pulled or grabbed by curious children.

Wall Mounting: If you decide to wall mount your flat panel display, always:

• Use a mount that has been recommended by the display manufacturer and/or listed by an independent laboratory (such as UL, CSA, ETL).

• Follow all instructions supplied by the display and wall mount manufacturers.

• If you have any doubts about your ability to safely install your flat panel display, contact your retailer about professional installation.

• Make sure that the wall where you are mounting the display is appropriate. Some wall mounts are not designed to be mounted to walls with steel studs or old cinder block construction. If you are unsure, contact a professional installer.

• A minimum of two people are required for installation. Flat panel displays can be heavy.

CHILD SAFETY:

It Makes A Difference How and Where You Use Your Flat Panel Display

Thank you for purchasing this Toshiba LCD TV. This manual will help you use the many exciting features of your new LCD TV. Before operating your LCD TV, please read this manual completely, and keep it nearby for future reference.

Safety Precautions

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

WARNING

RISK OF ELECTRIC SHOCK DO NOT

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

OPEN.

WARNING

To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions. See item 20 on page 3.

WARNING: If you decide to wall mount this television, always

use a UL Listed wall bracket appropriate for the size and weight of this television. The use of any wall bracket other than a UL Listed wall bracket appropriate for the size and weight of this television for wall mounting this television could result in serious bodily injury and/or property damage. See “Removing the Pedestal Stand” ( page 5).

NOTE TO CATV INSTALLERS

This is a reminder to call the CATV system installer’s attention to Article 820-40 of the U.S. NEC, which provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical. For additional antenna grounding information, see items 27 and 28 on page 4.



Important Safety Instructions

pot VTedis VT

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

Do not use this apparatus near water.

Clean only with dry cloth.

Do not block any ventilation openings. Install in accordance

7) with the manufacturer’s instructions.

Do not install near any heat sources such as radiators, heat

8) registers, stoves, or other apparatus (including amplifiers) that produce heat.

Do not defeat the safety purpose of the

9) polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

Protect the power cord from being walked on

10) or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

Only use attachments/accessories specified by the

11) manufacturer.

Use only with the cart, stand, tripod, bracket,

12)

or table specified by the manufacturer, or sold with the apparatus. When a cart is used,

use caution when moving the cart/apparatus combination to avoid injury from tip-over.

Unplug this apparatus during lightning storms or when

13) unused for long periods of time.

Refer all servicing to qualified service personnel. Servicing

14) is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Wide blade

15) CAUTION:

To reduce the risk of electric shock, do not use the polarized

• plug with an extension cord, receptacle, or other outlet unless the blades can be inserted completely to prevent blade exposure.

•

To prevent electric shock, match wide blade of plug to wide slot; fully insert.

WARNING:

16) To prevent the spread of fire, keep candles or other open flames away from this product at all times.

Installation, Care, and Service

Installation

Follow these recommendations and precautions and heed all warnings when installing your TV:

Never modify this equipment. Changes or modifications may

17) void: a) the warranty, and b) the user’s authority to operate this equipment under the rules of the Federal Communications Commission.

18)

cart, stand, or table. The TV may fall, causing serious personal injury, death, or serious damage to the TV.

19)

To avoid damage to this product, never place or store the TV in

direct sunlight; hot, humid areas; or areas subject to excessive dust or vibration.

0) Always place the TV on the floor or a sturdy, level, stable surface

that can support the weight of the unit. To secure the TV, use a sturdy strap from the hook(s) on the rear of the TV to a wall stud, pillar, or other immovable structure. Make sure the strap is tight, secure, and parallel to the floor.

DANGER: RISK OF SERIOUS PERSONAL INJURY, DEATH, OR EQUIPMENT DAMAGE!

Never place the TV on an unstable

Sturdy strap (as short as possible)

min.

Hook

Additional Safety Precautions

14a) CAUTION: If the TV is dropped and the cabinet or enclosure

surface has been damaged or the TV does not operate normally, take the following precautions:

ALWAYS turn off the TV and unplug the power cord to avoid

• possible electric shock or fire.

NEVER allow your body to come in contact with any broken

• glass or liquid from the damaged television. The LCD panel inside the TV contains glass and a toxic liquid. If the liquid comes in contact with your mouth or eyes, or your skin is cut by broken glass, rinse the affected area thoroughly with water and consult your doctor.

ALWAYS contact a service technician to inspect the TV any

• time it has been damaged or dropped.

The apparatus shall not be exposed to dripping or splashing and

21) that no objects filled with liquids, such as vases, shall be placed on the apparatus.

Never block or cover the slots or openings in the TV cabinet

22) back, bottom, and sides. Never place the TV:

on a bed, sofa, rug, or similar surface;

•

too close to drapes, curtains, or

•

walls; or

•

in a confined space such as a bookcase, built-in cabinet, or any other place with poor ventilation.

The slots and openings are provided to protect the TV from overheating and to help maintain reliable operation of the TV. Leave a space of at least 4 (four) inches around the TV.

(continued)



23) Always place the back of the television at least four (4) inches away from any vertical surface (such as a wall) to allow proper ventilation.

Never allow anything to rest on or roll over the power cord, and

24) never place the TV where the power cord is subject to wear or abuse.

Never overload wall outlets and extension cords.

25)

26) Always operate this equipment from a 120 VAC, 60 Hz power source only.

Always make sure the antenna system is properly grounded to

27) provide adequate protection against voltage surges and built-up static charges (see Section 810 of the National Electric Code).

Antenna lead-in wire

Antenna discharge unit

Ground clamp

Electric service equipment

Ground clamps

28)

DANGER: RISK OF SERIOUS PERSONAL

(NEC Section 810-20)

Grounding conductors (NEC Section 810-21)

Power service grounding electrode system (NEC Art 250 Part-H)

INJURY OR DEATH!

•

Use extreme care to make sure you are never in a position where your body (or any item you are in contact with, such as a ladder or screwdriver) can accidentally touch overhead power lines. Never locate the antenna near overhead power lines or other electrical circuits.

•

Never attempt to install any of the following during lightning activity: a) an antenna system; or b) cables, wires, or any home theater component connected to an antenna or phone system.

Care

For better performance and safer operation of your TOSHIBA TV, follow these recommendations and precautions:

If you use the TV in a room whose temperature is 32 °F (0 °C)

29) or below, the picture brightness may vary until the LCD warms up. This is not a sign of malfunction.

30)

Always unplug the TV before cleaning. Gently wipe the display

panel surface (the TV screen) using a dry, soft cloth only (cotton, flannel, etc.). A hard cloth may damage the surface of the panel. Avoid contact with alcohol, thinner, benzene, acidic or alkaline solvent cleaners, abrasive cleaners, or chemical cloths, which may damage the surface. Never spray volatile compounds such as insecticide on the cabinet. Such products may damage or discolor the cabinet.

31)

WARNING:

RISK OF ELECTRIC SHOCK!

Never spill liquids or push objects of any kind into the TV cabinet slots.

While it is thundering, do not touch the connecting cables or

32) apparatus.

33)

For added protection of your TV from lightning and power

surges, always unplug the power cord and disconnect the antenna from the TV if you leave the TV unattended or unused for long periods of time.

During normal use, the TV may make occasional snapping

34) or popping sounds. This is normal, especially when the unit is being turned on or off. If these sounds become frequent or continuous, unplug the power cord and contact a Toshiba Authorized Service Center.

35)

DANGER: RISK OF SERIOUS PERSONAL INJURY OR DEATH!

Never strike the screen with a sharp or heavy object.

• The LCD screen of this product can be damaged by

36)

ultraviolet radiation from the sun. When selecting a location for the television, avoid locations where the screen may be exposed to direct sunlight, such as in front of a window.

Never touch, press, or place anything on the LCD screen.

•

These actions will damage the LCD screen. If you need to clean the LCD screen, follow the instructions in item 30 on this page.

Service

37)

Never attempt to service the TV yourself. Opening and removing the covers may expose you to dangerous voltage or other hazards. Failure to follow this WARNING may result in death or serious injury. Refer all servicing not specified in this manual to a Toshiba Authorized Service Center.

If you have the TV serviced:

38)

Ask the service technician to use only replacement parts

•

specified by the manufacturer.

•

Upon completion of service, ask the service technician to perform routine safety checks to determine that the TV is in safe operating condition.

The cold cathode fluorescent lamp in the LCD panel contains a

39) small amount of mercury.

When the TV reaches the end of its useful life, dispose of the used TV by the approved method for your area, or ask a qualified service technician to properly dispose of the TV.

Note: The lamp(s) inside this product contain mercury. Disposal may be regulated due to

environmental considerations. For disposal or recycling information, contact your local authorities or the Electronics Industries Alliance (www.eiae.org).

WARNING:

RISK OF ELECTRIC SHOCK!



Choosing a location for your LCD TV

To Display your LCD TV on the included Pedestal Stand:

Observe the following safety precautions:

1) Read and Follow the pedestal assembly instructions included with the pedestal.

CAUTION: Before beginning pedestal assembly, carefully lay the front of the LCD Panel face down on a flat, cushioned surface such as a quilt or blanket. Leave the bottom of the unit protruding over the edge of the surface and assemble the pedestal as indicated below.

Note: Extreme care should always be used when attaching the pedestal stand to avoid damage to the LCD panel.

2) Place the TV on a sturdy, level surface that can support the weight of the TV.

3) Be sure to secure the TV to a wall, pillar, surface, or other immovable structure. (

To Display your LCD TV using a Wall Bracket:

If you decide to wall mount your LCD TV, always use a UL listed wall bracket appropriate for the size and weight of the LCD TV (

1) CAUTION: Two people are required for installation.

2) Unplug and remove any cables and/or other component connectors from the rear of the TV.

3) Remove the screws of the 32”/ 37” VESA Mounting Pattern show in the right diagram.

4) Follow the instructions provided with your wall bracket. Before proceeding, make sure the appropriate bracket(s) are attached to the wall and the back of the TV as described in the instructions provided with the wall bracket.

5) After attaching the appropriate bracket(s) to the wall and the back of the TV, remove the pedestal stand from the TV as described below.

6) VESA Mounting Pattern

TV Size Hole Pattern(VxH) Screw Size

26” 100x200 mm M4 32” 2 37” 3

item 20, page 3).



00x400 mm M6 00x500 mm M6

(unit in mm)

 page 2):

6” TV

” TV

7” TV

Four screws

VESA Mounting Pattern

Hook Sturdy strap

(as short as possible)

VESA Mounting Pattern

Hook Sturdy strap

(as short as possible)

VESA Mounting Pattern

Removing the Pedestal Stand

1) Carefully lay the front of the unit face down on a flat, cushioned surface such as a quilt or blanket. Leave the stand protruding over the edge of the surface.

Note: Extreme care should always be used when removing the pedestal stand to avoid damage to the LCD panel.

2) Remove the four screws shown in the right diagram. This will allow removal of the pedestal stand.

3) Once you have removed all four screws, holding the pedestal stand in place, remove the pedestal stand from the TV.

Four screws

Always place the TV on the ﬂoor or a sturdy, level, stable surface that can support the weight of the unit. To secure the TV, use a sturdy strap from the hook(s) on the rear of the TV to a wall stud, pillar, or other immovable structure. Make sure the strap is tight, secure, and parallel to the ﬂoor.

Hook Sturdy strap

(as short as possible)



FCC Declaration of Conformity

ENERGY STAR® User Information Compliance Statement (Part 15):

The Toshiba 2AV52U, 2AV502U, 32AV502U, 32AV50SU,

37AV52U, and 37AV502U Televisions

FCC rules. Operation is subject to the following two conditions: (1) this

device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

The party responsible for compliance to these rules is: Toshiba America Consumer Products, L.L.C. 82 Totowa Rd. Wayne, NJ 07470. Ph: 1-800-631-3811

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by removing and applying power to the equipment, the user is encouraged to try to correct the interference by one or more of the following measures:

•

Reorient or relocate the receiving antenna.

•

Increase the separation between the equipment and the receiver.

Connect the equipment into an outlet on a circuit different

•

from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for

•

help.

Caution: Changes or modifications to this equipment not expressly approved by Toshiba could void the user’s authority to operate this equipment.

comply with Part 15 of the

ENERGY STAR User Information Statement: the factory default

settings of this television meet ENERGY STAR requirements.

Changing Picture Settings may increase energy consumption,

possibly beyond the limits required for ENERGY STAR

qualification.

To ensure your television is operating at optimal energy

efficiency, select [Home] mode during initial activation. To

return to [Home] mode settings, select [Standard] picture mode.

[Standard] mode is recommended for normal home use

ENERGY STAR® qualified TV. Products that earn the ENERGY STAR prevent green house gas emissions by meeting strict guidelines set by the U.S. Environmental Protection Agency. ENERGY STAR and the ENERGY STAR mark are registered U.S. marks.

Important notes about your LCD

The following symptoms are technical limitations of LCD

Display technology and are not an indication of malfunction;

therefore, Toshiba is not responsible for perceived issues

resulting from these symptoms.

An afterimage (ghost) may appear on the screen if a fixed,

1) nonmoving image is displayed for a long period of time. The afterimage is not permanent and will disappear in a short period of time.

The LCD panel contained in this TV is manufactured using an extremely high level of precision technology; however, there may be an occasional pixel (dot of light) that does not operate properly (does not light, remains constantly lit, etc.). This is a structural property of LCD technology, is not a sign of malfunction, and is not covered under your warranty. Such pixels are not visible when the picture is viewed from a normal viewing distance.

Note: Interactive video games that involve shooting a “gun” type of joystick at an on-screen target may not work with this TV.

Trademark Information

Manufactured under license from Dolby Laboratories.

•

Dolby and the double-D symbol are trademarks of Dolby Laboratories.

HDMI, the HDMI logo and High-Definition Multimedia Interface are

•

trademarks or registered trademarks of HDMI Licensing LLC.



Contents

Important Safety Instructions .......................................... 

Installation, Care, and Service ........................................ 

Chapter 1: Introduction.................................................. 8

Features of your new TV .........................................................8

Overview of steps for installing, setting up,

using your new TV .....................................................9

and

TV front and side panel controls and connections ................10

back panel connections ....................................................11

Chapter : Connecting your TV ....................................... 1

Overview of cable types ........................................................12

About the connection illustrations .........................................12

Connecting

Connecting Connecting a DVD player with ColorStream

Connecting a camcorder ........................................................16

Connecting Connecting Connecting

Connecting a personal computer (PC) ...................................19

Chapter : Using the remote control .................................0

Preparing the remote control for use .....................................20

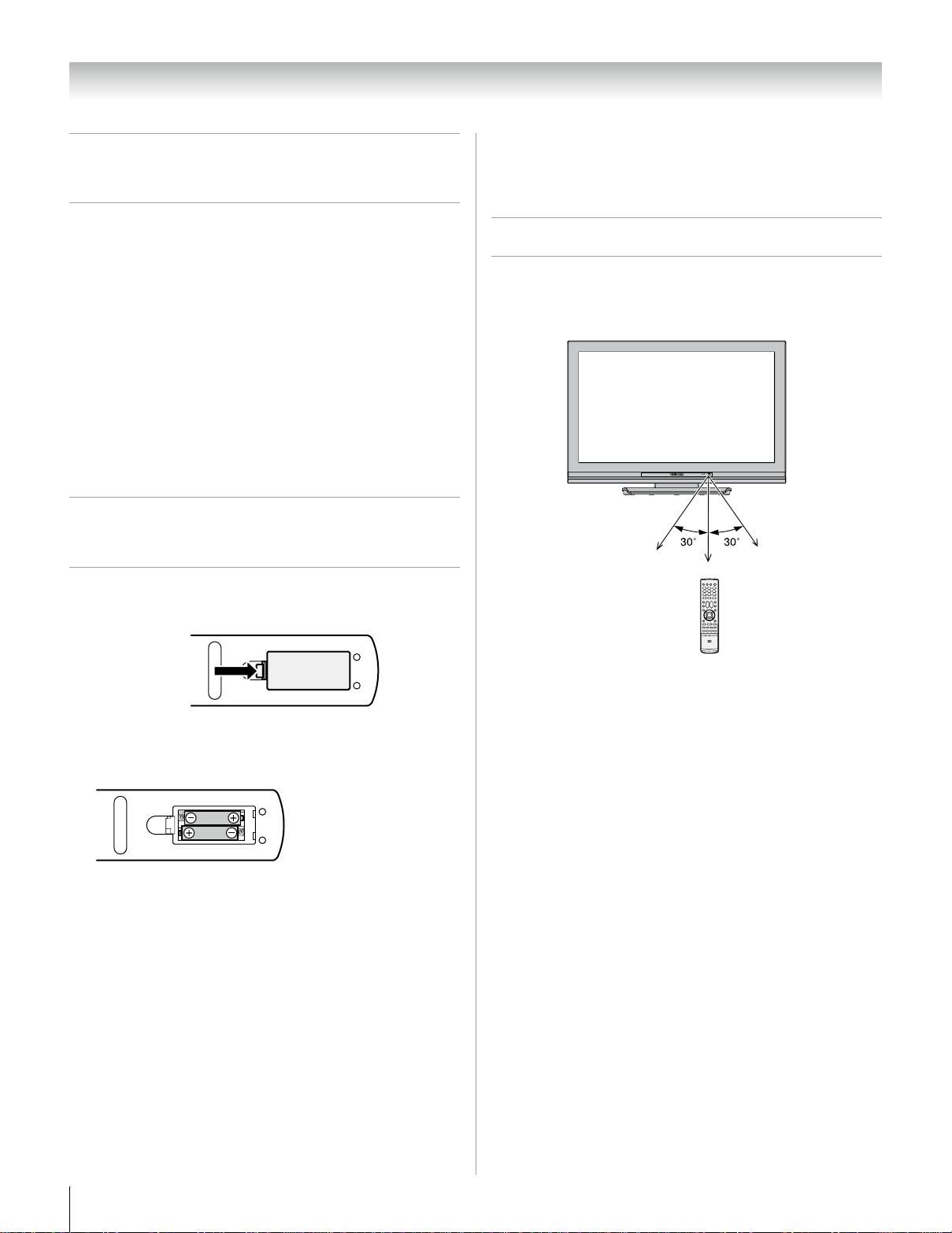

Installing the remote control batteries ...................................20

Remote control effective range ..............................................20

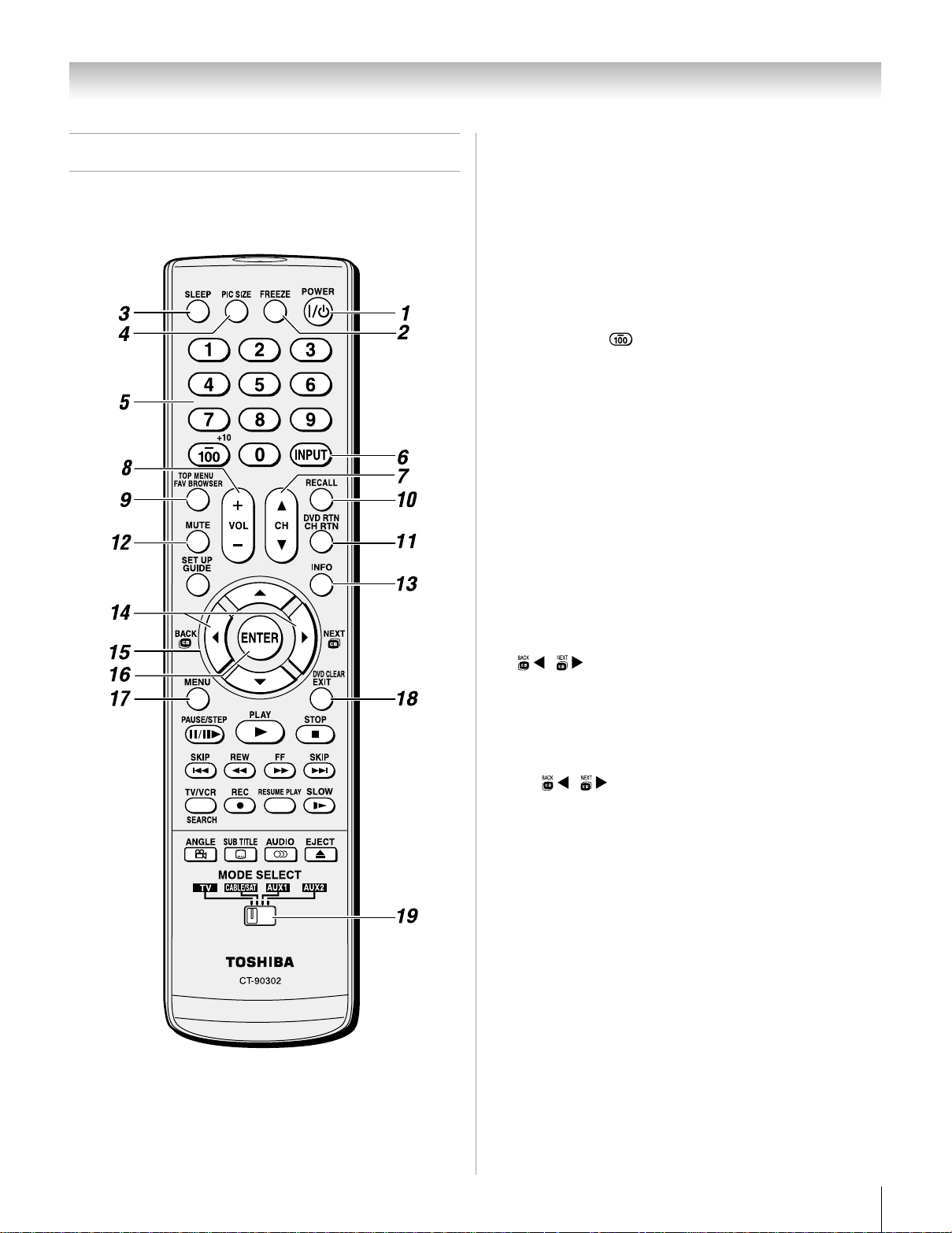

Learning about the remote control .........................................21

Using the remote control to control your other devices ........22

Remote Control functional key chart .....................................23

Programming the remote control to control

Remote control codes ............................................................25

Chapter : Menu layout and navigation .............................7

Main menu layout ..................................................................27

Setup/Installation menu layout ..............................................28

Navigating the menu system ..................................................28

Chapter : Setting up your TV ......................................... 9

Selecting the menu language .................................................29

Configuring the antenna input source for the

Programming

Labeling Setting V

iewing the digital signal meter ............................................33

Setting

Viewing the system status ......................................................33

Chapter 6: Using the TV’s features ................................... 

Selecting the video input source to view ...............................34

Labeling the video input sources ...........................................34

Tuning channels .....................................................................35

Selecting the picture size .......................................................38

a VCR and antenna or Cable TV

(no Cable box).................................................................13

a VCR with S-video and a cable box .................14

(component video), a VCR, and a satellite receiver ........15

an HDMI™ or DVI device to the HDMI input ..17

a digital audio system .........................................18

an audio system ..................................................18

your other devices ...........................................................24

ANT/CABLE

Programming Manually

in the channel memory .............................................30

channels ..................................................................31

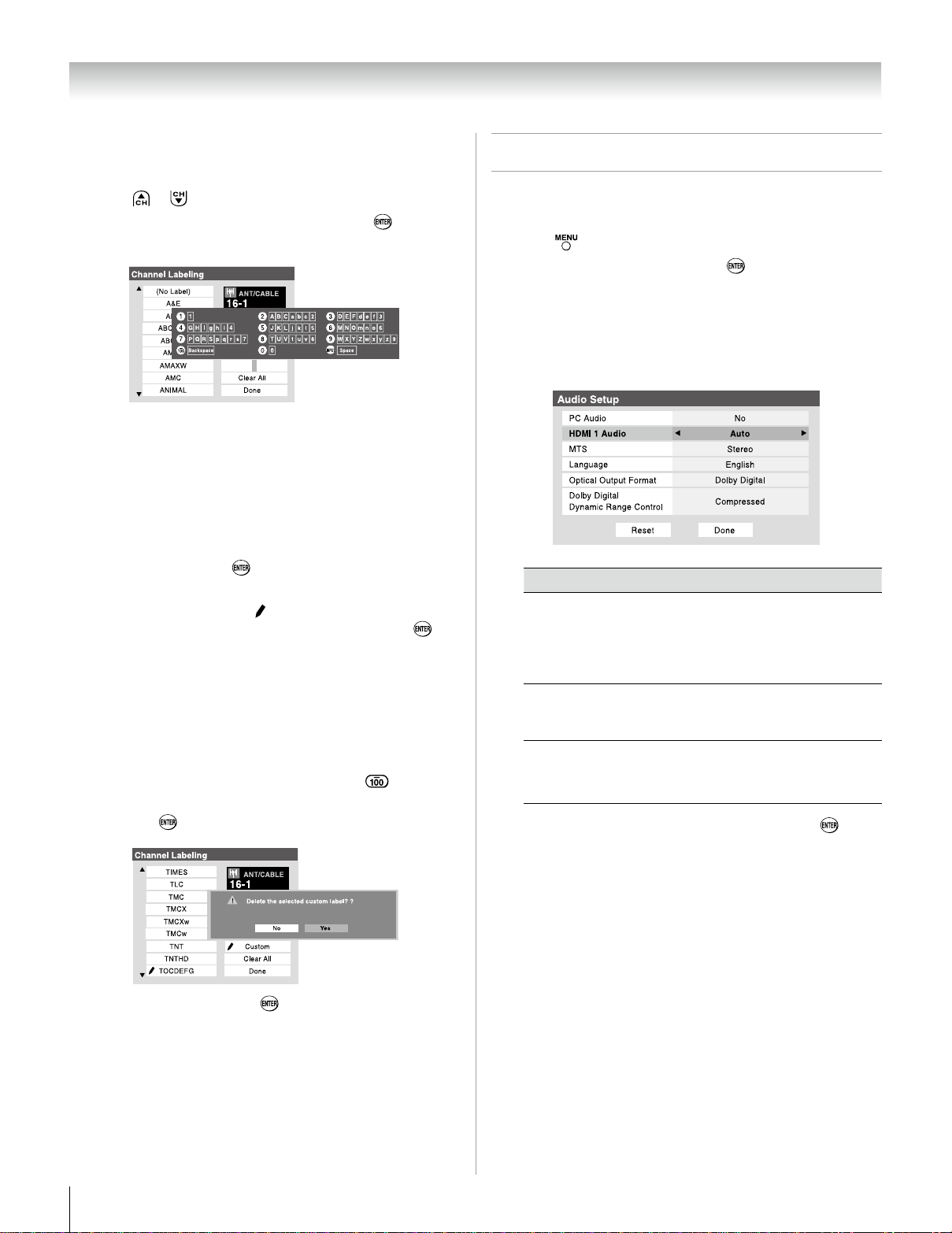

the HDMI™ audio mode ...........................................32

the time zone .............................................................33

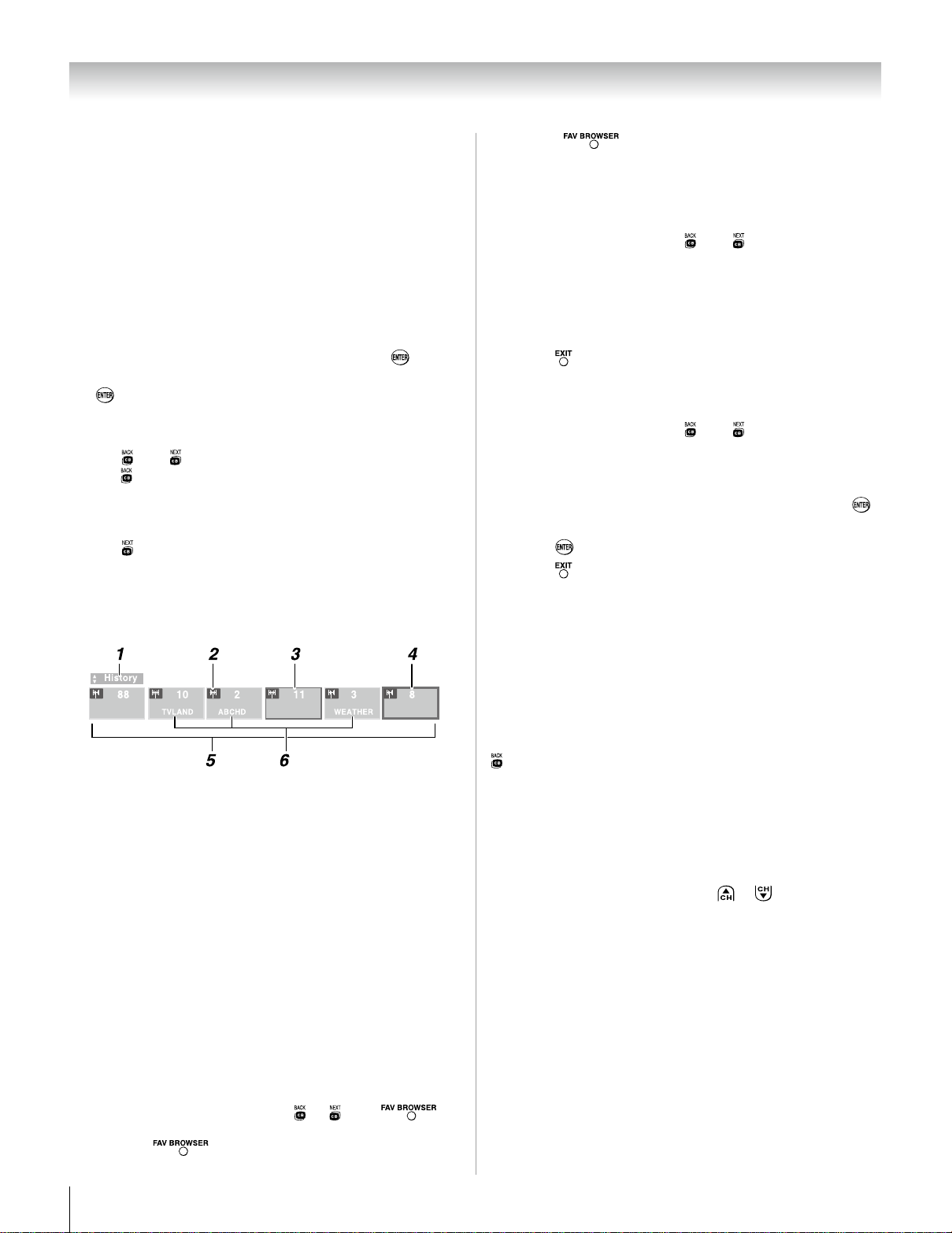

Tuning channels using the Channel Browser™ ..............35

Setting the Channel Tuning Mode ..................................37

Tuning to the next programmed channel ........................37

Tuning to a specific channel (programmed or

unprogrammed) ........................................................37

Switching between two channels using

Channel Return .........................................................37

Switching between two channels using SurfLock™ ......38

terminal ....................................................29

channels into the TV’s channel memory ........30

channels automatically .............................30

adding and deleting channels

Scrolling the TheaterWide

(TheaterWide 2 and 3 only) ............................................40

Using the auto aspect ratio feature ........................................40

Selecting

Using the FREEZE feature ....................................................40

Adjusting

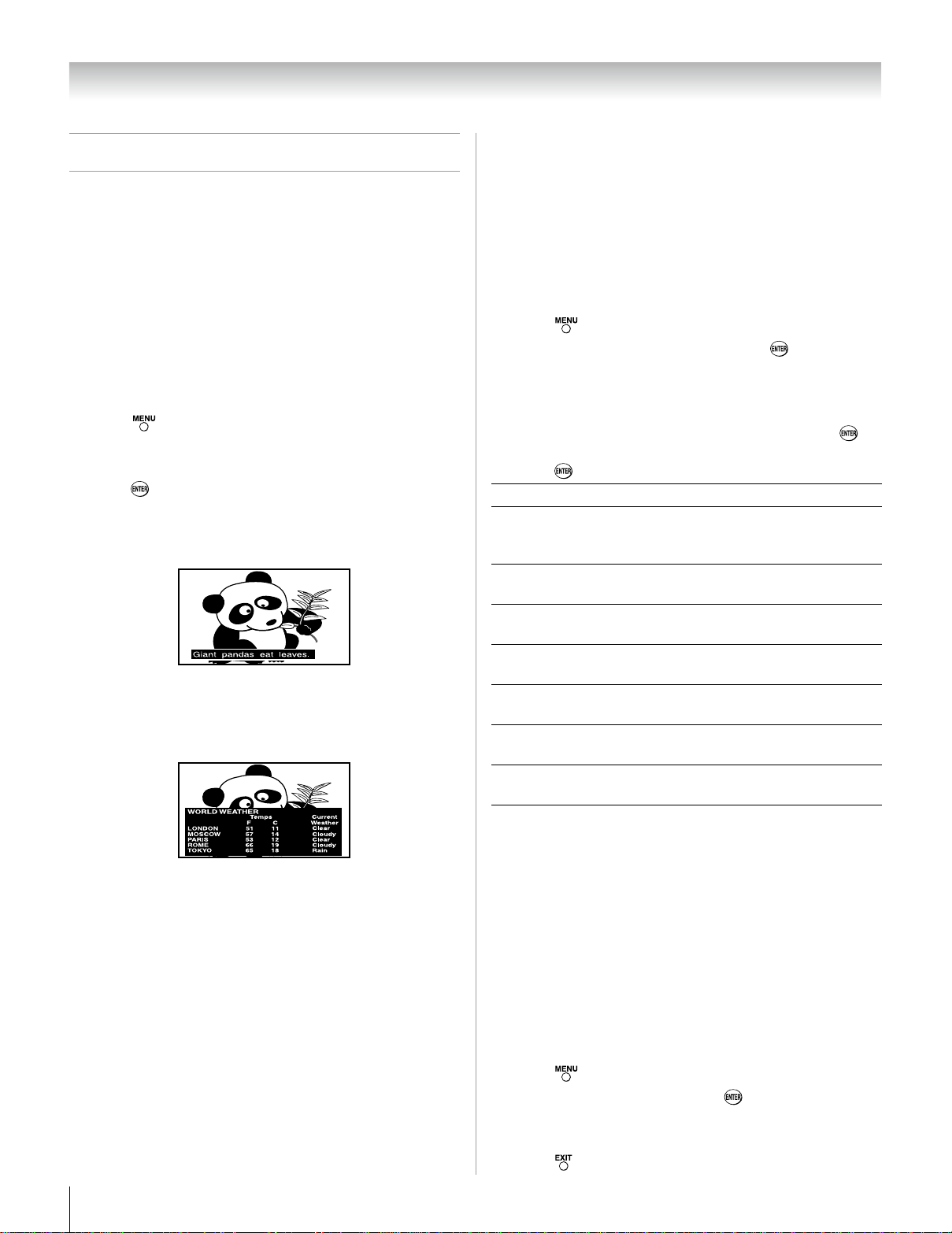

Using the closed caption mode ..............................................42

Adjusting the audio ................................................................43

Using the Locks menu ...........................................................45

Using the PC settings feature.................................................49

Setting the PC Audio .............................................................49

Setting the sleep timer ...........................................................49

Displaying TV status information .........................................50

Understanding the auto power off feature .............................50

Understanding the last mode memory feature .......................50

the cinema mode ....................................................40

the picture .............................................................41

Selecting the picture mode ..............................................41

Adjusting

Base

Digital CC Settings ........................................................42

Muting

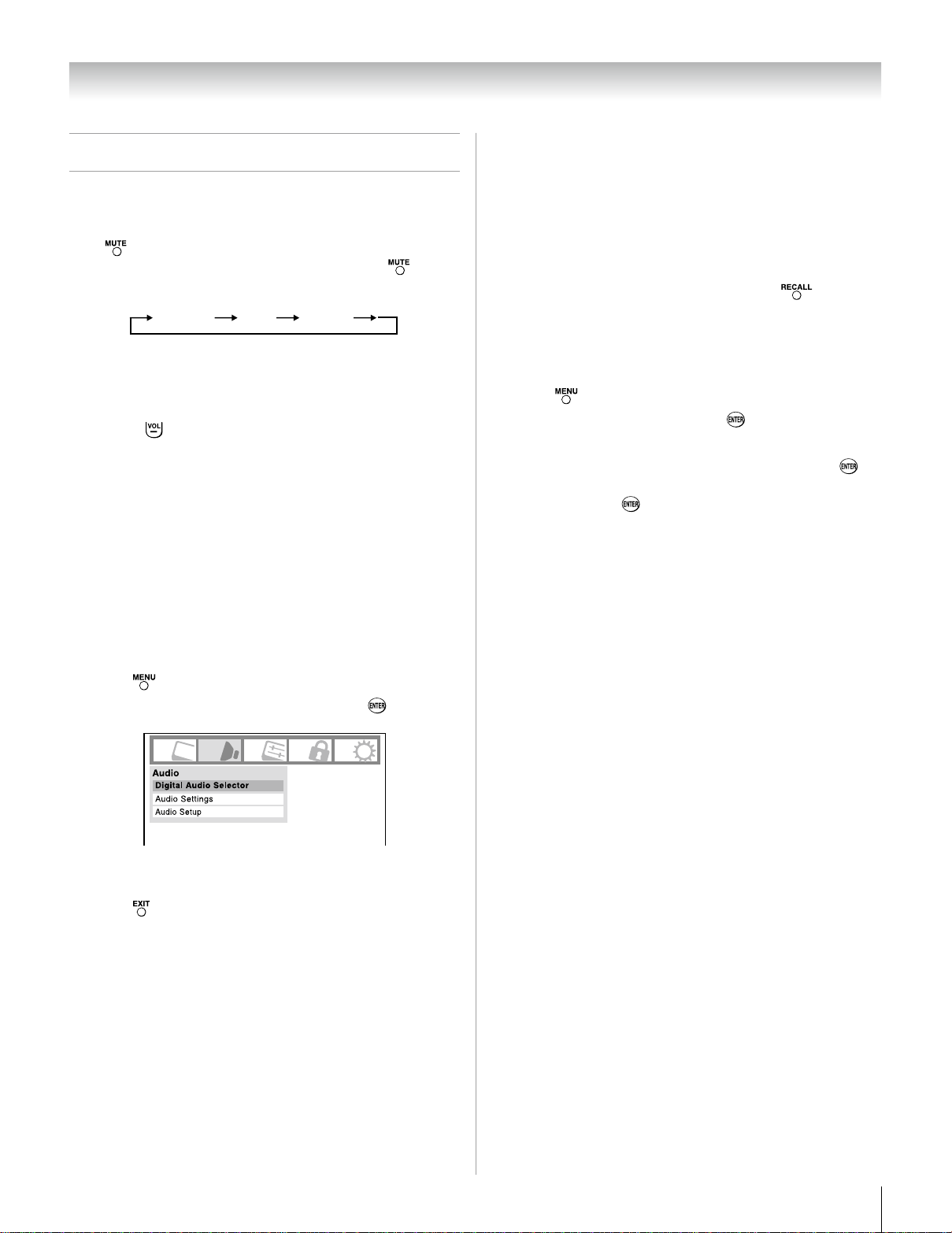

Using the digital audio selector.......................................43

Selecting

Adjusting the audio quality .............................................44

Selecting Using the Dolby

Entering the PIN code .....................................................45

If you cannot remember your PIN code ..........................45

Changing your PIN code .................................................45

Blocking TV programs and movies

Downloading an additional rating system

Blocking channels ...........................................................47

Unlocking programs temporarily ....................................47

Using the input lock feature ............................................47

Using the GameTimer® ...................................................48

Using the control panel lock feature ...............................48

the picture quality ...........................................41

closed captions .......................................................42

Selector .....................................................................42

the sound ............................................................43

stereo/SAP broadcasts .....................................43

the optical audio output format .......................44

Control feature..........................................................44

by rating (V-Chip) ....................................................45

for blocking TV programs and movies .....................46


Digital Dynamic Range

Chapter 7: Using the TV’s advanced features ...................... 1

Using the advanced picture settings features .........................51

Using dynamic contrast...................................................51

Using the static gamma feature .......................................51

Selecting the color temperature ......................................51

Using CableClear® digital noise reduction .....................52

Using MPEG noise reduction .........................................52

Using the Game Mode feature ........................................52

Chapter 8: Troubleshooting ............................................ 

General troubleshooting ........................................................53

Chapter 9: Appendix .................................................... 

Specifications .........................................................................55

Acceptable signal formats

for PC IN and HDMI terminals ......................................56

Limited United States Warranty

for LCD Televisions 26” and Larger ...............................57

Limited

Canadian Warranty

Toshiba Brand Flat Panel Televisions ........................58

for

Chapter 1: Introduction

Features of your new TV

The following are just a few of the many exciting features of your new Toshiba widescreen, integrated HD, LCD TV:

Integrated digital tuning (8VSB ATSC and QAM)

•

eliminates box (in most cases).

•

Two HDMI™ digital, high-definition multimedia interfaces 1080i input support ( page

HDMI new capability

•

Lip-Sync Latency adjustment function that allows HDMI source devices to accurately perform synchronization automatically. Two sets of ColorStream® HD high-resolution component

•

video inputs ( page Digital Audio Out optical audio connection with Dolby®

•

Digital optical output format ( page 44).

CableClear® digital picture noise reduction ( page 52).

•

PC IN (Analog RGB) computer terminal ( page 19).

•

Channel Labeling allows you to put the Call Letters (e.g.

•

ABC, HBO, etc.) on the screen along with the station numbers, so you always know what you’re watching ( page 31).

the need for a separate digital converter set-top

17).

activates an audio/video display timing

15).

Chapter 1: Introduction

Overview of steps for installing, setting up, and using your new TV

Follow these steps to set up your TV and begin using its many exciting features.

Carefully read the important safety, installation, care,

1�

and service information. Keep this manual for future reference.

Observ

�

�

�

�

6� 7�

8�

9�

e the following when choosing a location for the

TV:

Read

•

Do not plug in any power cords until AFTER you have connected all cables and devices to your TV.

BEFORE connecting cables or devices to the TV, learn the functions of the TV’s connections and controls ( pages

Connect your other electronic device(s) to the TV ( pages

Install the batteries in the remote control ( page See “Learning about the remote control” ( page

an overview of the buttons on the remote control. Program the remote control to operate your other

device(s) ( pages AFTER connecting all cables and devices, plug in the

power cords for your TV and other devices. Then press POWER on the TV. If the TV stops responding to the controls on the remote control or TV control panel and you cannot turn the TV off or on, please unplug the power cords few seconds then re-plug to try again.

“Important notes about your LCD TV” ( page Place the TV on the floor or a sturdy, level, stable surface that can support the weight of the unit. Secure the TV to a wall, pillar, or other immovable structure ( page 3). Place the TV in a location where light does not reflect on the screen. Place the TV far enough from walls and other objects to allow proper ventilation. Inadequate ventilation may cause overheating, which will damage the TV. THIS TYPE OF DAMAGE IS NOT COVERED UNDER THE TOSHIBA WARRANTY.

6).

10–11).

12–19).

20).

21) for

22–26).

on the TV control panel or remote control to turn

See “Menu layout and navigation” for a quick overview

10�

of navigating the TV’s menu system ( page 27). Program channels into the TV’s channel memory

11�

( page 30). For details on using the TV’s features, see Chapters 6

1�

and

For help, refer to the Troubleshooting Guide, Chapter 8.

1�

For technical specifications and warranty information,

1�

see Chapter 9. Enjoy your new TV!

1�

Chapter 1: Introduction

6 7

TV front and side panel controls and connections

Model 37AV502U is used in this manual for illustration purposes.

Green LED

1�

Power LED (Green) = Power indicator

Remote sensor

�

remote sensor ( “Remote control effective range” on page 20).

�

VIDEO- IN — The side panel A/V connections are

referred to as “VIDEO ” and include standard A/V connections.

�

POWER

If the TV stops responding to the controls on the remote control or TV control panel and you cannot turn off the TV, press and hold the POWER panel for 5 or more seconds to reset the TV.

�

ARROWS pqtu

buttons function as up/down/left/right menu navigation buttons.

6�

MENU (ENTER)

pages 27–28). When a menu is on-screen, the MENU button on the TV’s control panel functions as the ENTER button.

7�

EXIT

— Press to turn the TV on and off.

— Press to instantly close an on-screen menu.

— Point the remote control toward this

button on the TV control

— When a menu is on-screen, these

— Press to access the menu system (

CHANNEL pq

8�

buttons change the channel (programmed channels only;  page

9�

VOLUME tu INPUT

10�

viewing (ANT/CABLE, VIDEO 1, VIDEO , ColorStream HD1, ColorStream HD, HDMI 1, HDMI , PC).

30).

— Repeatedly press to change the source you are

— When no menu is on-screen, these

— These buttons adjust the volume level.

Chapter 1: Introduction

TV back panel connections

For an explanation of cable types and connections, see pages 12–19.

HDMI™ IN — High-Definition Multimedia Interface input

1�

receives digital audio and uncompressed digital video from an HDMI device or uncompressed digital video from a DVI device. Also see item 3. HDMI connection is necessary to receive 1080i signals.

Service port

�

— For service use only. Used for updating

the television’s firmware.

PC/HDMI-1 (AUDIO) IN

�

— PC audio input terminals are shared with HDMI-1 analog audio input terminals, and their use can be configured in the Audio Setup menu ( page 49).

�

PC IN

— For use when connecting a personal computer.

�

ColorStream

of ColorStream

HD-1 and ColorStream

high-definition component video inputs

HD- — Two sets

(with standard stereo audio inputs) for connecting devices with component video output, such as a Toshiba DVD player with ColorStream®.

Note: Component video cables carry only video information; separate audio cables are required for a complete connection.

Audio OUT Variable — Analog audio outputs for

6�

connecting an audio amplifier.

VIDEO-1 IN — Standard (composite) video and standard

7�

audio inputs plus optional S-video inputs for connecting devices with composite video or S-video output.

Note: Standard (composite) video and S-video cables carry only video information; separate audio cables are required for a complete connection.

ANT/CABLE — Antenna input that supports analog

8�

(NTSC) and digital (ATSC) off-air antenna signals and analog and digital Cable TV (QAM) signals.

Digital Audio OUT

9�

— Optical audio output in Dolby Digital or PCM (pulse-code modulation) format for connecting an external Dolby Digital decoder, amplifier, A/V receiver, or home theater system with optical audio input.

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC. Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

Chapter 2: Connecting your TV

Overview of cable types

Cables can be purchased from most stores that sell audio/ video devices. Before purchasing any cables, be sure of connector types required by your devices and the length of each cable.

Coaxial (F-type) cable

Coaxial (F-type) cable is used for connecting your antenna, cable TV service, and/or cable converter box to the ANT/ CABLE

Standard A/V cables (red/white/yellow)

Standard A/V cables (composite video) usually come in sets of three, and are for use with video devices with analog audio and composite video output. These cables (and the related inputs on your TV) are typically color-coded according to use: yellow for video, red for stereo right audio, and white for stereo left (or mono) audio.

S-video cable

input on your TV.

HDMI™ cable (with HDMI Logo “ ”)

HDMI (High-Definition Multimedia Interface) cable is for use with devices with an HDMI output. An HDMI cable delivers digital audio and video in its native format. This cable carries both video and audio information; therefore, separate audio cables are not required for a complete HDMI device connection ( page 17 and page 19).

Note: HDMI cable provides better picture performance than a standard (composite) video or S-video cable.

Optical audio cable

Optical audio cable is for connecting receivers with Dolby Digital or PCM (pulse-code modulation) optical audio input to the TV’s DIGITAL AUDIO OUT terminal ( page 18).

Analog RGB (15-pin) computer cable

Analog RGB (15-pin) computer cable is for connecting a PC to the TV’s PC IN terminal ( page 19).

S-video cable is for use with video devices with S-video output. Separate audio cables are required for a complete connection.

Note: An S-video cable provides better picture performance than a composite video cable. If you connect an S-video cable, be sure to disconnect the standard (composite) video cable or the picture performance will be unacceptable.

Component video cables (red/green/blue)

Component video cables come in sets of three and are for use with video devices with component video output. (ColorStream® is Toshiba’s brand of component video.) These cables are typically color-coded red, green, and blue. Separate audio cables are required for a complete connection.

Note: Component video cables provide better picture performance than a standard (composite) video or S-video cable.

About the connection illustrations

You can connect different types and brands of devices to your TV in several different configurations. The connection illustrations in this manual are representative of typical device connections only. The input/output terminals on your devices may differ from those illustrated herein. For details on connecting and using your specific devices, refer to each device’s owner’s manual.

1

Chapter 2: Connecting your TV

Connecting a VCR and antenna or Cable TV (no Cable box)

From Cable TV or antenna

You will need:

coaxial cables

•

standard A/V cables

•

For better picture performance, if your VCR has S-video,

− use an S-video cable (plus the audio cables) instead of the standard video cable. Do not connect both types of video cable to VIDEO 1 at the same time or the picture performance will be unacceptable.

If you have a mono VCR, connect L/MONO on the TV

− to your VCR’s audio out terminal using the white audio cable only.

To view the antenna or Cable signal:

Select the ANT/CABLE video input source on the TV.*

To view the VCR:

Turn ON the VCR. Select the VIDEO 1 video input source on the TV.*

To select the video input source, press INPUT on the remote control ( page 21). To program the TV remote control to operate other devices, see Chapter 3.

The unauthorized recording, use, distribution, or revision of television programs, videotapes, DVDs, and other materials is prohibited under the Copyright Laws of the United States and other countries, and may subject you to civil and criminal liability.

1

Chapter 2: Connecting your TV

Connecting a VCR with S-video and a cable box

An S-video connection will provide better picture performance than a standard (composite) video cable.

From Cable TV

You will need:

coaxial cables

•

S-video cable

•

Do not connect both types of video cable to VIDEO 1

− at the same time or the picture performance will be unacceptable.

standard audio cables

•

If you have a mono VCR, connect L/MONO on the TV

− to your VCR’s audio out terminal using the white audio cable only.

Note: When you use a Cable box, you may not be able to use the remote control to program or access certain features on the TV.

To view basic and premium Cable channels:

Turn OFF the VCR. Select the ANT/CABLE video input source on the TV.* Tune the TV to channel 3 or 4 (whichever channel the Cable box output is set to). Use the Cable box controls to change channels.

To view the VCR:

Turn ON the VCR. Select the VIDEO 1 video input source on the TV.*

To select the video input source, press INPUT on the remote control ( page 21). To program the TV remote control to operate other devices, see Chapter 3.

1

Chapter 2: Connecting your TV

Connecting a DVD player with ColorStream® (component video), a VCR, and a satellite receiver

Your TV has two sets of ColorStream® (component video) inputs.

You will need:

coaxial cables

•

standard A/V cables

•

−

For better picture performance, if your VCR has S-video, use an S-video cable (plus the audio cables) instead of the standard video cable. Do not connect both types of video cable to VIDEO 1 at the same time or the picture performance will be unacceptable.

−

If you have a mono VCR, connect L/MONO on the TV to your VCR’s audio out terminal using the white audio cable only.

•

standard audio cables

•

component video cables

−

You can connect the component video cables (plus audio cables) from the DVD player or satellite receiver to either set of ColorStream terminals on the TV (HD-1 or HD-2). The ColorStream HD-1 and HD-2 terminals can be used with Progressive (480p, 720p) and Interlaced (480i, 1080i) scan systems. A 1080i signal will provide the best picture performance (1080p is not supported).

−

If your DVD player or satellite receiver does not have component video, connect a standard A/V cable to VIDEO 2 on the side panel. If your DVD player has HDMI video, see page 17.

To view antenna or Cable channels:

Select the ANT/CABLE video input source on the TV.*

To view satellite programs using the component video connections:

Turn on the satellite receiver. Select the ColorStream HD-2 video input source on the TV.*

To view the VCR or view and record antenna channels:

Turn ON the VCR. Tune the VCR to the channel you want to watch. Select the VIDEO 1 video input source on the TV.*

To record a TV program while watching a DVD:

Turn ON the VCR. Tune the VCR to the channel to record. Select the ColorStream HD-1 video input source on the TV* to view the DVD.

To select the video input source, press INPUT on the remote control ( page 21). To program the TV remote control to operate other devices, see Chapter 3.

To view the DVD player:

Turn ON the DVD player. Select the ColorStream HD-1 video input source on the TV.*

1

Chapter 2: Connecting your TV

Connecting a camcorder

You will need:

standard A/V cables

•

−

For better picture performance, if your camcorder has S-video, connect an S-video cable (plus the audio cables) to VIDEO 1 on the TV back instead of the VIDEO 2 on the TV side panel.

To view the camcorder video:

Select the VIDEO 2 video input source on the TV.*

To select the video input source, press INPUT on the remote control

( page 21). To program the TV remote control to operate other devices, see Chapter 3.

Chapter 2: Connecting your TV

Connecting an HDMI™ or DVI device to the HDMI input

The HDMI input on your TV receives digital audio and uncompressed digital video from an HDMI source device, or uncompressed digital video from a DVI (Digital Visual Interface) source device. This input is designed to accept HDCP (High-Bandwidth Digital-Content Protection) program material in digital form from EIA/CEA-861-D–compliant devices (such as a set-top box or DVD player with HDMI or DVI output). The HDMI input can accept and display VGA, 480i (60Hz), 480p (60Hz), 720p (60Hz), and 1080i (60Hz) signal formats. For detailed signal specifications, see page 56. Supported Audio format: Linear PCM, sampling rate 32/44.1/ 48 kHz

Note: To connect a PC to the HDMI input, see page 19.

To connect an HDMI device, you will need:

one HDMI cable (type A connector) per HDMI device

•

−

For proper operation, it is recommended that you use an HDMI cable with the HDMI Logo (

−

To display an 1080i/60Hz signal format, you will need a Category 2 cable. Conventional HDMI/DVI cable may not work properly.

−

HDMI cable transfers both video and audio. Separate analog audio cables are not required (see illustration).

−

See “Setting the HDMI™ audio mode” ( page 32).

[1]

consumer electronic

To connect a DVI device, you will need:

one HDMI-to-DVI adapter cable (HDMI type A connector)

•

per DVI device

−

For proper operation, the length of an HDMI-to-DVI adapter cable should not exceed 9.8 ft (3m). The recommended length is 6.6 ft (2m).

•

one pair of standard analog audio cables per DVI device

−

An HDMI-to-DVI adapter cable transfers video only. Separate analog audio cables are required (see illustration).

−

See “Setting the HDMI™ audio mode” ( page 32).

Note: To ensure that the HDMI or DVI device is reset properly, it is recommended that you follow these procedures:

•

When turning on your electronic components, turn on the TV first, and then the HDMI or DVI device.

•

When turning off your electronic components, turn off the HDMI or DVI device first, and then the TV.

To view the HDMI device video:

Select the HDMI 1, or HDMI 2 video input source on the TV.*

To select the video input source, press INPUT on the remote control

(

 page 21). To program the TV remote control to operate other

devices, see Chapter 3.

[1] EIA/CEA-861-D compliance covers the transmission of

uncompressed digital video with high-bandwidth digital content protection, which is being standardized for reception of highdefinition video signals. Because this is an evolving technology, it is possible that some devices may not operate properly with the TV.

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

Chapter 2: Connecting your TV

Done

Audio Setup

Language

Reset

oeretSSTM

English

Dolby Digital

Optical Output Format

HDMI 1 Audio

oNoiduA CP

Auto

Dynamic Range Control

Compressed

Dolby Digital

Connecting a digital audio system

The TV’s DIGITAL AUDIO OUT terminal outputs a Dolby®* Digital or 2-channel down-mixed PCM (pulse-code modulation) signal for use with an external Dolby® Digital decoder or other external audio system with optical audio input.

You will need:

optical audio cable (Use an optical audio cable that has

•

the larger “TosLink” connector and not the smaller “minioptical” connector.)

Note:

Some audio systems may not be compatible with Dolby

•

Digital bitstream signals. Older audio systems that are not compatible with standard optical out signals may not work properly, creating a high noise level that may damage speakers or headphones. THIS DAMAGE IS NOT COVERED BY YOUR WARRANTY.

The DIGITAL AUDIO OUT terminal may not output some

•

digital audio sources because of copy restrictions.

Manufactured under license from Dolby Laboratories. Dolby and

the double-D symbol are trademarks of Dolby Laboratories.

Connecting an audio system

This connection allows you to use external speakers with an external analog audio amplifier to adjust the sound level.

You will need:

standard audio cables

•

To control the audio:

1� �

�

�

Turn on the TV and the digital audio device. Press

on the TV’s remote control and open the Audio

menu. Highlight

Audio Setup and

press .

In the Optical Output Format field, select either Dolby Digital or PCM, depending

on your device (“Selecting

the optical audio output format” on page 44).

To control the audio:

Turn on the TV and the stereo amplifier.

1�

Set up a optimum volume level of the stereo amplifier.

�

Then you can adjust the sound volume level from the TV’s volume control or the amplifier’s volume control.

Menu item of Speakers can turn to OFF to mute the TV’s

�

built in speakers.

Chapter 2: Connecting your TV

Connecting a personal computer (PC)

With either the PC IN or HDMI connection, you can watch your computer’s display on the TV and hear the sound from the TV’s speakers.

To connect a PC to the PC IN terminal on the TV:

When connecting a PC to the PC IN terminal on the TV, use an analog RGB (15-pin) computer cable and a PC audio cable.

may be skipped or you may not be able to pause during multi-angle scenes.

•

Signal names for mini D-sub 15-pin connector

Pin No.

Signal name

Pin No.

Signal name

Pin No.

Signal name

1 R 6 Ground 11 Reserved 2 G 7 Ground 12 SDA 3 B 8 Ground 13 H-sync 4 Reserved 9 5V 14 V-sync 5 Reserved 10 Ground 15 SCL

To connect a PC to the HDMI terminal on the TV:

When connecting a PC to the HDMI terminal on the TV, use an HDMI-to DVI adapter cable and analog audio cables. If connecting a PC with an HDMI terminal, use an HDMI cable (type A connector). Separate analog cables are not necessary ( page 17).

PC audio

cable

PC audio output

Conversion (if necessary)

To use a PC, set the monitor output resolution on the PC

•

adapter

before connecting it to the TV. The PC IN terminal can accept and display VGA, SVGA, XGA, and WXGA signal formats. For detailed signal specifications ( page 56). Other formats or non-standard signals will not be displayed correctly.

•

To display the optimum picture, use the PC setting feature ( “Using the PC settings feature” on page 49).

Note:

The PC audio input terminals on the TV are shared with the

•

HDMI-1 analog audio input terminals ( page 49). Some PC models cannot be connected to this TV.

•

An adapter is not needed for computers with a compatible

•

mini D-sub15-pin terminal. Depending on the DVD’s title and the specifications of the

•

PC on which you are playing the DVD-Video, some scenes

audio

cable

PC audio output

The HDMI input can accept and display VGA, 480i (60Hz), 480p (60Hz), 720p (60Hz), and 1080i (60Hz) signal formats. For detailed signal specifications, see page 56.

Note:

The edges of the images may be hidden.

•

If receiving a 720p, or 1080i signal program, Native mode

•

scales the video to display the entire picture within the borders of the screen (i.e. no overscanning).

+ 43 hidden pages
