Toshiba 36A13 User Manual

Download

OWNER’S MANUAL

Color Television

Introduction

Connecting

your TV

Remote Control

Using the

your TV

Features

Owner's Record

The model number and serial number are on the back of your TV. Record these numbers in the spaces below. Refer to these numbers whenever you communicate with your Toshiba dealer about this TV.

Setting up

Using the TV’s

Appendix

36A13

Model number:

Serial number:

36A13

23565968

Dear Customer,

Thank you for purchasing this Toshiba TV. This manual will help you use the many exciting features of your new TV.

Before operating the TV, please read this manual completely, and keep it nearby for future reference.

Child Safety

It Makes A Difference Where Your TV Stands

Safety Precautions

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning symbol in the triangle tells you that the voltage inside this product may be strong enough to cause an electric shock. DO NOT TRY TO SERVICE THIS PRODUCT YOURSELF.

The exclamation mark in the triangle tells you that important operating and maintenance instructions follow this symbol.

NOTE TO CATV INSTALLERS IN THE USA

This is a reminder to call the CATV system installer’s attention to Article 820-40 of the NEC, which provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical. For additional antenna grounding information, see items 25 and 26 on page 4.

NOTICE OF POSSIBLE TV STAND INSTABILITY

DANG ER: RISK OF SERIOUS PERSONAL INJURY OR DEATH!

the TOSHIBA TV stand recommended in the “Specifications” section only. result in instability, causing possible injury or death.

NOTICE OF POSSIBLE ADVERSE EFFECTS

ON TV PICTURE TUBE

If a fixed (non-moving) pattern remains on the TV screen for long periods of time, the image can become permanently engrained in the picture tube. This type of

damage is NOT COVERED BY YOUR WARRANTY.

See item 33 on page 4.

Use this TV with

Use with other stands may

Congratulations on your purchase! As you enjoy your new TV, keep these safety tips in mind:

The Issue

 If you are like most consumers, you have a TV in your home.

Many homes, in fact, have more than one TV.

 The home theater entertainment experience is a growing

trend, and larger TVs are popular purchases; however, they are not always supported on the proper TV stands.

 Sometimes TVs are improperly secured or inappropriately

situated on dressers, bookcases, shelves, desks, audio speakers, chests, or carts. As a result, TVs may fall over, causing unnecessary injury.

Toshiba Cares!

 The consumer electronics industry

is committed to making home

entertainment enjoyable and safe.

 The Consumer Electronics

Association formed the Home

Entertainment Support Safety

Committee, comprised of TV and consumer electronics furniture

manufacturers, to advocate

children’s safety and educate

consumers and their families about

television safety.

Tune Into Safety

 One size does NOT fit all! Use appropriate

furniture large enough to support the weight of your

TV (and other electronic components).

 Use appropriate angle braces, straps, and anchors to secure

your furniture to the wall (but never screw anything directly into the TV).

 Carefully read and understand the other enclosed

instructions for proper use of this product.

 Do not allow children to climb on or play with furniture

and TVs.

 Avoid placing any item on top of your TV (such as a VCR,

remote control, or toy) that a curious child may reach for.

 Remember that children can become excited while watching

a program and can potentially push or pull a TV over.

 Share our safety message about this hidden hazard of

home with your family and friends. Thank you!

2500 Wilson Blvd. Arlington, VA 22201 U.S.A. Tel. 703-907-7600 Fax 703-907-7690 www.CE.org

CEA is the Sponsor, Producer and

0303

Manager of the International CES

the

Important Safety Instructions

QUALIFIED

SERVICE

TECHNICIAN

Installation, Care, and Service

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near

water.

6) Clean only with a dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

Wide plug

Installation

Follow these recommendations and precautions and heed all warnings when installing your TV:

16) Never modify this equipment. Changes or modifications may void: a) the warranty, and b) the user’s authority to operate this equipment under the rules of the Federal Communications Commission.

17) DANGER: RISK OF SERIOUS PERSONAL

INJURY, DEATH, OR EQUIPMENT DAMAGE! Never place the TV on

an unstable cart, stand, or table. The TV may fall, causing serious personal injury, death, or serious damage to the TV.

18) Never place or store the TV in direct sunlight; hot, humid areas; areas subject to excessive dust or vibration; or locations with temperatures at or below 41°F (5°C).

19) Always place the TV on the floor or a sturdy, level, stable surface that can support the weight of the unit.

10) Protect the power cord from being

walked on or pinched, particularly at plugs, convenience receptacles, and the point where it exits the apparatus.

11) Only use attachments/accessories specified by the

manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use

caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during

lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15) CAUTION: To reduce the risk of electric shock, do not use the polarized plug with an extension cord, receptacle, or other outlet unless the blades can be inserted completely to prevent blade exposure.

20) Never place items such as vases, aquariums, or candles on top of the TV.

21) Never block or cover the slots or openings in the TV cabinet back, bottom, and sides. Never place the TV:

• on a bed, sofa, rug, or similar

surface;

• too close to drapes, curtains,

or walls; or

• in a confined space such as a

bookcase, built-in cabinet, or any other place with poor ventilation.

The slots and openings are provided to protect the TV from overheating and to help maintain reliable operation of the TV.

22) Never allow anything to rest on or roll over the power cord, and never place the TV where the power cord is subject to wear or abuse.

23) Never overload wall outlets and extension cords.

0303

Ground clamp

Antenna discharge unit (NEC Section 810-20)

Grounding conductors (NEC Section 810-21)

Power service grounding electrode system (NEC Art 250 Part H)

Ground clamps

Antenna lead-in wire

Electric service equipment

QUALIFIED

SERVICE

TECHNICIAN

24) Always operate this equipment from a 120 VAC, 60 Hz power source only.

30) [This item applies to projection TVs only.] If the air temperature rises suddenly (for example, when the TV is first delivered), condensation may form on the lenses. This can make the picture appear distorted or the color appear faded. If this happens, turn off the TV for 6 to 7 hours to allow the condensation to evaporate.

25) Always make sure the antenna system is properly grounded to provide adequate protection against voltage surges and built-up static charges (see Section 810 of the National Electric Code).

26) DANGER: RISK OF SERIOUS PERSONAL

INJURY OR DEATH!

• Use extreme care to make sure you are never in

a position where your body (or any item you are in contact with, such as a ladder or screwdriver) can accidentally touch overhead power lines. Never locate the antenna near overhead power lines or other electrical circuits.

• Never attempt to install any of the following during lightning activity: a) an antenna system; or b) cables, wires, or any home theater component connected to an antenna or phone system.

31)For added protection of your TV from lightning and power surges, always unplug the power cord and disconnect the antenna from the TV if you leave the TV unattended or unused for long periods of time.

32) During normal use, the TV may make occasional snapping or popping sounds. This is normal, especially when the unit is being turned on or off. If these sounds become frequent or continuous, unplug the power cord and contact a Toshiba Authorized Service Center.

33) Possible Adverse Effects on TV Picture Tube: If a fixed (non-moving) pattern remains on the TV screen for long periods of time, the image can become permanently engrained in the picture tube and cause subtle but permanent ghost images. This type of damage is NOT COVERED BY YOUR WARRANTY. Never leave your TV on for long periods of time while it is displaying the following formats or images:

• Fixed Images, such as PIP/POP windows, stock tickers,

video game patterns, TV station logos, and websites.

• Special Formats that do not use the entire screen. For

example, viewing letterbox style (16:9) media on a normal (4:3) display (gray bars at top and bottom of screen); or viewing normal style (4:3) media on a widescreen (16:9) display (gray bars on left and right sides of screen).

Care

For better performance and safer operation of your TOSHIBA TV, follow these recommendations and precautions:

27) Always sit approximately 10–25 feet away from the TV and as directly in front of it as possible. The picture can appear dull if you sit too far to the left or right of the TV, or if sunlight or room lights reflect on the screen. Turn the TV off to check for reflections on the screen, and then remove the source of reflections while viewing the TV.

28) Always unplug the TV before cleaning. Never use liquid or aerosol cleaners.

29) WARNING: RISK OF ELECTRIC SHOCK!

Never spill liquids or push objects of any kind into the TV cabinet slots.

Service

34) WARNING: RISK OF ELECTRIC SHOCK! Never attempt to service the

TV yourself. Opening and

removing the covers may expose you to dangerous voltage or other hazards. Refer all servicing to a Toshiba Authorized Service Center.

35) If you have the TV serviced:

• Ask the service technician to use only replacement parts

specified by the manufacturer.

• Upon completion of service, ask

the service technician to perform routine safety checks to determine that the TV is in safe operating condition.

36)When the TV reaches the end of its useful life, ask a

qualified service technician to properly dispose of the TV. Improper disposal may result in a picture tube implosion and possible personal injury.

0303

Important safety information............................. 2–4

Introduction............................................................... 6

Exploring your new TV ................................................ 6

Selecting a location for the TV...................................... 6

Connecting your TV ................................................. 7

Note regarding picture quality .................................. 7

Connecting a VCR ....................................................... 7

Connecting a cable converter box ................................. 7

Connecting a cable converter box and a VCR ............... 8

Connecting a satellite receiver and a VCR..................... 8

Connecting a DVD player with component video

and a VCR .................................................................... 9

Connecting two VCRs .................................................... 9

Using the remote control ....................................... 10

Preparing the remote control for use ............................. 10

Installing the remote control batteries ........................... 10

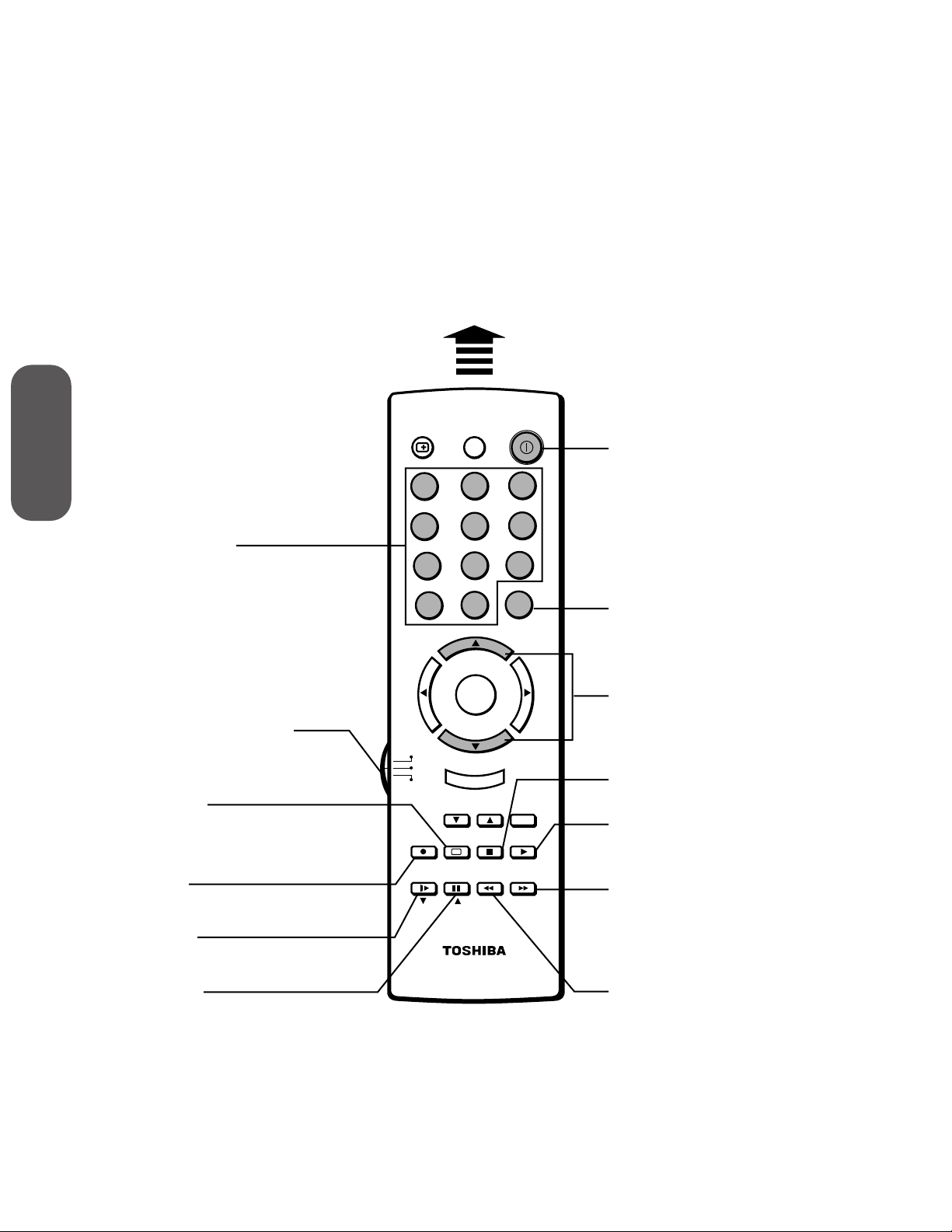

Location of controls on TV and remote control ............ 11

Using the remote control to operate a VCR or

cable TV converter ........................................................ 12

Programming the remote control .................................. 13

Device codes ................................................................. 14

VCR codes.................................................................... 14

Cable TV converter codes ............................................. 14

Setting up your TV ...................................................15

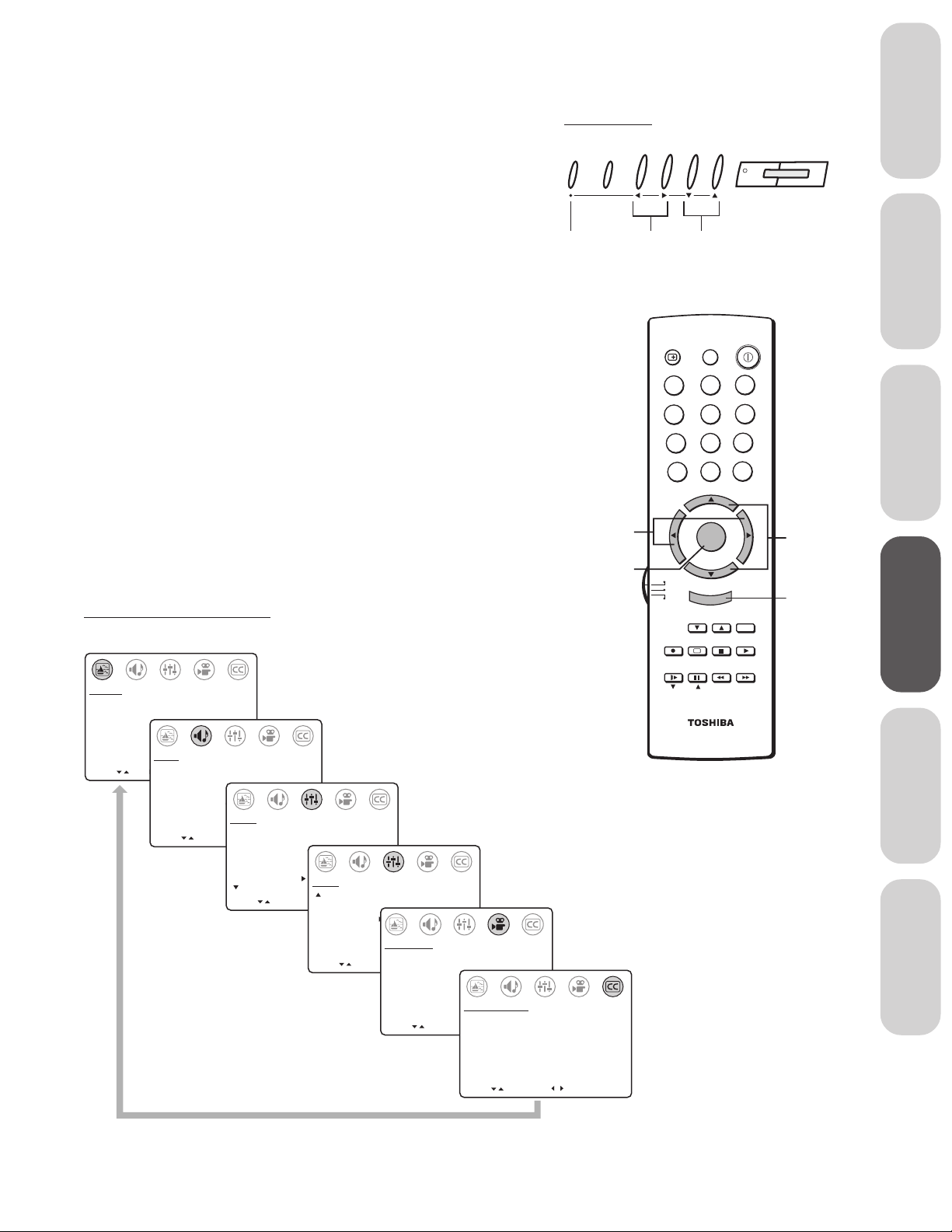

Menu system (general instructions) ............................... 15

Changing the on-screen display language ...................... 16

Selecting the signal source ............................................. 16

Programming channels into the TV’s memory .............. 16

Programming channels automatically ....................... 16

Adding and erasing channels manually..................... 17

Changing channels........................................................ 17

Using the TV’s features........................................... 18

Adjusting the channel settings ....................................... 18

Switching between two channels .............................. 18

Programming your favorite channels ........................ 18

Using the V-Chip Control (blocking) feature ................ 19

Selecting a PIN code ................................................ 19

Changing your PIN code ......................................... 20

If you forget your PIN code ................................. 20

Blocking programs by ratings ................................... 21

Ratings definitions (MPAA, Youth TV, TV) ............. 21

Unblocking programs temporarily ........................... 22

Blocking unrated movies and programs.................... 23

Blocking channels .................................................... 24

Adjusting the picture .................................................... 25

Adjusting the picture quality .................................... 25

Selecting the color temperature ................................ 25

Adjusting the picture preference............................... 26

Displaying on-screen information ................................. 26

Setting the off timer ...................................................... 26

Auto power off.............................................................. 26

Using the closed caption feature.................................... 27

Adjusting the sound ...................................................... 28

Muting the sound .................................................... 28

Selecting stereo/SAP broadcasts ............................... 28

Adjusting the sound quality ..................................... 29

Using the surround sound feature ............................ 29

Viewing the demonstration (DEMO) mode ................. 30

Understanding the last mode memory feature ............... 30

Appendix .................................................................... 31

Specifications ................................................................ 31

Tr oubleshooting ............................................................ 32

Limited United States warranty..................................... 33

Limited Canada warranty ............................................. 34

Introduction

• Instructions in this manual are based on using the remote control; however, you can use the buttons on the front panel of the TV if they have the same name as those referred to on the remote control.

• Write your model and serial numbers in the space provided on the front cover of this manual for your records.

Exploring your new TV

• You can operate your TV using the buttons on the front panel or remote control.

• The back and front panels provide all the inputs you will need to connect other equipment to your TV.

Front of TV

{

VIDEO-3

Back of TV

VIDEO VIDEO

L/ MONO

S-VIDEO

AUDIO

OUT

ANT

COLOR STREAM

VIDEO

VIDEO VIDEO

INPUT

MONO

S-VIDEO

AUDIO

VIDEO-1 VIDEO-2

{

VIDEO-2VIDEO-1

Selecting a location for your TV

• Place the TV in a location where light does not directly hit the screen.

• Place the TV far enough from the walls to allow proper ventilation. Inadequate ventilation may cause overheating, which can damage the TV.

NOTE: Before installing your TV, please read the important safety information on pages 2–4.

AUDIO

COLOR STREAM INPUT

{

OUT

VIDEO

MONO

AUDIO

ANT

RECALL MUTE

100

MENU/

VOL VOL

ENTER

TV CABLE VCR

EXIT

TV/VCR

REC

SLOW

PIP CH LOCATE SWAP

CT-90037

SOURCESTILL

STOP

REWPAUSE

POWER

CH RTN

ENT

TV/VIDEOFAV CH

PLAY

PIP

Connecting your TV

Note: Cables are not supplied with your TV.



Coaxial cable is the cable that comes in from your antenna, cable TV service, or cable converter box. Coaxial cable uses “F” connectors.



Standard A/V (audio/video) cables usually come in sets of three, and are typically color-coded according to use: yellow for video, red for stereo right audio, and white for stereo left (or mono) audio. On your TV’s back panel, the standard A/V inputs are color-coded in the same manner as the cables.



S-Video cable is for use with video equipment that has an S-Video input.



Component video cables come in sets of three, and are for use with video equipment that has component video inputs. (ColorStream

NOTE REGARDING PICTURE QUALITY

When connecting video equipment to your Toshiba TV:



For GOOD picture quality: Use a standard yellow video cable.



For BETTER picture quality: If your equipment has an S-video input, use an S-video cable instead of a standard yellow video cable. (You still must connect the standard red and white audio cables for full system connection, but do not connect the standard yellow video cable at the same time, or the picture performance will be unacceptable.)



For BEST picture quality: If your equipment has component video inputs, use component video cables instead of a standard video or S-video cable. (You still must connect the standard red and white audio cables for full system connection, but do not connect the standard yellow video cable or an S-Video cable at the same time.)

is Toshiba’s brand of component video.)

CAUTION: Do not plug in any power cords until you have finished connecting all equipment.

Coaxial (antenna) cable

Standard A/V cables (red/white/yellow)

S-video cable

Component video cables

Introduction

Connecting

your TV

Remote Control

Using the

Connecting a VCR

With this connection you can:

• watch TV channels and videotapes

• record one channel while watching the same or another channel

You will need:

• two coaxial cables

• one set of standard A/V cables

Note:

If you have a mono VCR, connect L/Mono to VCR Audio OUT using only one audio cable.

The VIDEO-2 inputs on the back of the TV (and the VIDEO-3 inputs on the front of the TV) can be used for connecting a second (and third) piece of video equipment, such as a DVD player or camcorder (see “Note Regarding Picture Quality” above).

For better quality, if your VCR has S-video, you can use an S-video cable (plus the standard audio cables) instead of the standard video cable. Do not connect a standard video cable and an S-video cable to VIDEO-1 at the same time or the picture performance will be unacceptable.

From cable or antenna

Stereo VCR

S-VIDEO VIDEO OUT

OUT

IN from ANT OUT to TV

CH3

CH4

VIDEO VIDEO

L/ MONO

S-VIDEO

AUDIO

VIDEO-1 VIDEO-2

AUDIO

COLOR STREAM INPUT

OUT

ANT

VIDEO

MONO

AUDIO

Connecting a cable converter box

With this connection you can:

• watch basic and premium cable channels

Tune the TV to channel 3 or 4 (whichever channel is vacant in your area), and then use the converter box to change channels.

You will need:

• two coaxial cables

Note:

When you use a converter box with your TV, you may not be able to use the remote control to program certain features (for example, blocking channels).

From cable

IN OUT

Cable converter box

S-VIDEO

VIDEO VIDEO

L/ MONO

AUDIO

VIDEO-1 VIDEO-2

AUDIO

The unauthorized recording, use, distribution, or revision of television programs, videotapes, DVDs, and other materials is prohibited under the Copyright Laws of the United States and other countries, and may subject you to civil and criminal liability.

COLOR STREAM INPUT

OUT

ANT

VIDEO

MONO

AUDIO

Setting up

your TV

Using the TV’s

Features

Appendix

Connecting a cable converter box and a VCR

With this connection you can:

• watch videotapes

• watch and record basic and premium cable channels

• record one channel while watching the same or another

Tune the VCR to channel 3 or 4 (whichever channel is vacant in your area), place the TV in VIDEO 1 mode, and then use the

your TV

Connecting

converter box to change channels.

You will need:

• one cable signal splitter

• four coaxial cables

• one set of standard A/V cables

Note:

If you have a mono VCR, connect TV L/Mono Audio IN to VCR Audio OUT using only one audio cable.

When you use a converter box with your TV, you may not be able to use the remote control to program certain features (for example, blocking channels).

basic channel

Stereo VCR

S-VIDEO VIDEO AUDIO

OUT

From Cable

S-VIDEO

IN from ANT OUT to TV

VIDEO VIDEO

L/ MONO

AUDIO

VIDEO-1 VIDEO-2

AUDIO

CH3

CH4

COLOR STREAM INPUT

OUT

Cable Converter

Box

Cable

OUT

Signal Splitter

OUT

VIDEO

MONO

AUDIO

ANT

Connecting a satellite receiver and a VCR

With this connection you can:

• watch videotapes

• watch satellite and TV channels

• record one TV channel while watching the same or another channel

You will need:

• three coaxial cables

• two sets of standard A/V cables

Note:

To watch satellite programs, the TV must select VIDEO-1 (see page 16).

To watch VCR programs, the TV must select VIDEO-2 (see page 16).

For better picture quality, if your device has S-video, you can use an S-video cable (plus the standard audio cables) instead of the standard video cable. Do not connect a standard video cable and an S-video cable to VIDEO-1 at the same time or the picture performance will be unacceptable.

From Satellite dish

Satellite Receiver

VIDEO AUDIO

S-VIDEO

OUT

Satellite IN

S-VIDEO

Stereo VCR

S-VIDEO VIDEO AUDIO

VIDEO VIDEO

L/ MONO

AUDIO

VIDEO-1 VIDEO-2

COLOR STREAM INPUT

AUDIO

OUT

ANT

VIDEO

MONO

AUDIO

OUT

IN from ANT OUT to TV

CH3

CH4

From antenna

Connecting a DVD player with component video and a VCR

Introduction

Your TV has ColorStream® (component video) inputs. Connecting your TV to a component video-compatible DVD

player (such as a Toshiba DVD player with ColorStream

With this connection you can:

• watch TV channels, DVDs, and videotapes

• record TV channels

• record one channel while watching the same or another channel

) can greatly enhance picture quality and performance.

From antenna

Stereo VCR

S-VIDEO VIDEO AUDIO

OUT

IN from ANT OUT to TV

CH3

CH4

You will need:

• two coaxial cables

• one set of standard A/V cables

• one set of component video cables

• one pair of audio cables

Note:

To watch the VCR, the TV must select VIDEO 1 (see page 16).

To watch the DVD player, the TV must select VIDEO 2 (see page 16).

Connecting two VCRs

With this connection you can:

• watch TV channels and videotapes

• record TV channels

S-VIDEO

AUDIO OUT

VIDEO VIDEO

L/ MONO

AUDIO

VIDEO-1 VIDEO-2

AUDIO

VIDEO S-VIDEO

VIDEO OUT

DVD player with component video

COLOR STREAM INPUT

OUT

VIDEO

MONO

AUDIO

ANT

COMPONENT VIDEO OUT

• record one TV channel while watching the same or another channel

• record (dub/edit) from one VCR to the other VCR while watching a videotape

You will need:

• two coaxial cables

• two sets of standard A/V cables

Note:

Do not connect the same VCR to both the OUT connections on the TV at the same time.

To record (dub/edit) from VCR 1 to VCR 2, the TV must select VIDEO 1 (see page 16), and VCR 2 must select LINE IN.

For better picture quality, if VCR1 has S-video, you can use an S-video cable (plus the standard audio cables) instead of the standard video cable. Do not connect a standard video cable and an S-video cable to VIDEO-1 at the same time or the picture performance will be unacceptable.

and the IN

From antenna

VCR1 (plays)

S-VIDEO VIDEO AUDIO

OUT

IN from ANT OUT to TV

S-VIDEO

VCR2 (records)

CH3

CH4

VIDEO VIDEO

L/ MONO

AUDIO

VIDEO-1 VIDEO-2

VIDEO AUDIO

AUDIO

COLOR STREAM INPUT

OUT

VIDEO

MONO

AUDIO

IN from ANT OUT to TV

OUT

ANT

Connecting

your TV

Remote Control

Using the

Setting up

your TV

Using the TV’s

Features

Appendix

CH3

CH4

Using the remote control

Preparing the remote control for use

Your TV remote control can operate your TV and most VCRs and cable TV converters, even if they are different brands.

If you have a Toshiba VCR or cable TV converter:

Your TV remote control is already programmed to operate it. See page 12.

If you have a non-Toshiba VCR or cable TV converter:

You must first program your remote control so it will operate the other equipment. See pages 12–14.

Installing the remote control batteries

Using the

Remote Control

1 Slide the battery cover off the back of the remote control.

Press and slide to remove.

2 Install two “AA” size batteries, making sure to match the + and –

signs on the batteries to the signs on the battery compartment.

Caution:

Dispose of batteries in a designated disposal area. Do not throw batteries into a fire.

Do not mix battery types or combine used batteries with new ones.

Remove dead batteries immediately to prevent battery acid from leaking into the battery compartment.

If you do not intend to use the remote control for a long time, remove the batteries.

Note:

If your Toshiba TV remote control does not operate all of the features of your VCR or cable TV converter, use the original remote control for your other equipment.

3 Slide the battery cover back onto the remote control until the lock

snaps.

Location of controls on TV and remote control

For details on the use of each control, refer to pages in brackets.

TV front panel

TV/VIDEO [16]

VOLUME T/S [28]

CHANNEL s/t [16]

MENU TV / VIDEO VOLUME CHANNEL POWER

POWER [12]

T/S/ t/s [15]

MENU [15]

Remote control sensor

POWER indicator

Introduction

Connecting

your TV

Remote Control

Using the

Remote control

●

The shaded buttons in the picture below glow in the dark.

MUTE [28]

RECALL [26]

CHANNEL s/t [16]

or Menu s/t [15]

TV/CABLE/VCR switch [12]

(Set to “TV” to control the TV).

FAV CH t/s [18]

VCR function buttons

Note: The PIP functions (Still,

Source, PIP, PIP Ch, Locate, and

Swap) are not available.

RECALL MUTE

100

VOL VOL

TV CABLE VCR

TV/VCR

REC

SLOW

PIP CH LOCATE SWAP

CT-90037

MENU/

ENTER

EXIT

SOURCESTILL

STOP

REWPAUSE

POWER

CH RTN

ENT

TV/VIDEOFAV CH

PLAY

PIP

POWER [12]

Channel Numbers [16]

CH RTN [18]

MENU [15]

VOLUME T/S [28] or Menu T/S [15]

EXIT [15]

TV/VIDEO [16]

Setting up

your TV

Using the TV’s

Features

Appendix

Using the remote control to operate a VCR or cable TV converter

• If you have a non-Toshiba VCR or cable TV converter or a Toshiba device that the remote control is not programmed to operate, you must first program the remote control to recognize your device.

• To use your TV remote control to operate a VCR, set the TV/CABLE/VCR switch to VCR. The shaded buttons in the picture below will then operate the VCR instead of the TV.

• To use your TV remote control to operate a cable TV converter, set the TV/CABLE/VCR switch to CABLE. The shaded buttons shown in the picture below will then operate the converter instead of the TV.

Point the remote control at the VCR or cable TV converter

Using the

Remote Control

Channel Numbers

Press to directly access channels (as opposed to the Channel s/t buttons).

TV/CABLE/VCR Switch

Set to CABLE to control the cable converter; set to VCR to control the VCR.

TV/VCR

To view one program while recording another, press to select TV mode.

REC

Starts tape recording.

SLOW

In play mode, press to view a slow-motion picture.

PAUSE

In play or record mode, press to freeze the picture; press again to release.

RECALL MUTE

100

TV CABLE VCR

REC

SLOW

MENU/

VOL VOL

ENTER

EXIT

TV/VCR

SOURCESTILL

PIP CH LOCATE SWAP

CT-90037

STOP

REWPAUSE

POWER

CH RTN

ENT

TV/VIDEOFAV CH

PLAY

PIP

POWER

Turns the VCR (or cable TV converter) on and off.

ENTER

Required by some VCRs and cable TV converters to change the channel.

CHANNEL s/ t

s selects the next higher channel, and t selects the next lower channel.

STOP

Stops the tape.

PLAY

Begins tape playback.

Fast-forwards the tape. In play mode, press to view the picture moving rapidly forward.

REW

Rewinds the tape. In play mode, press to view the picture moving rapidly backward.

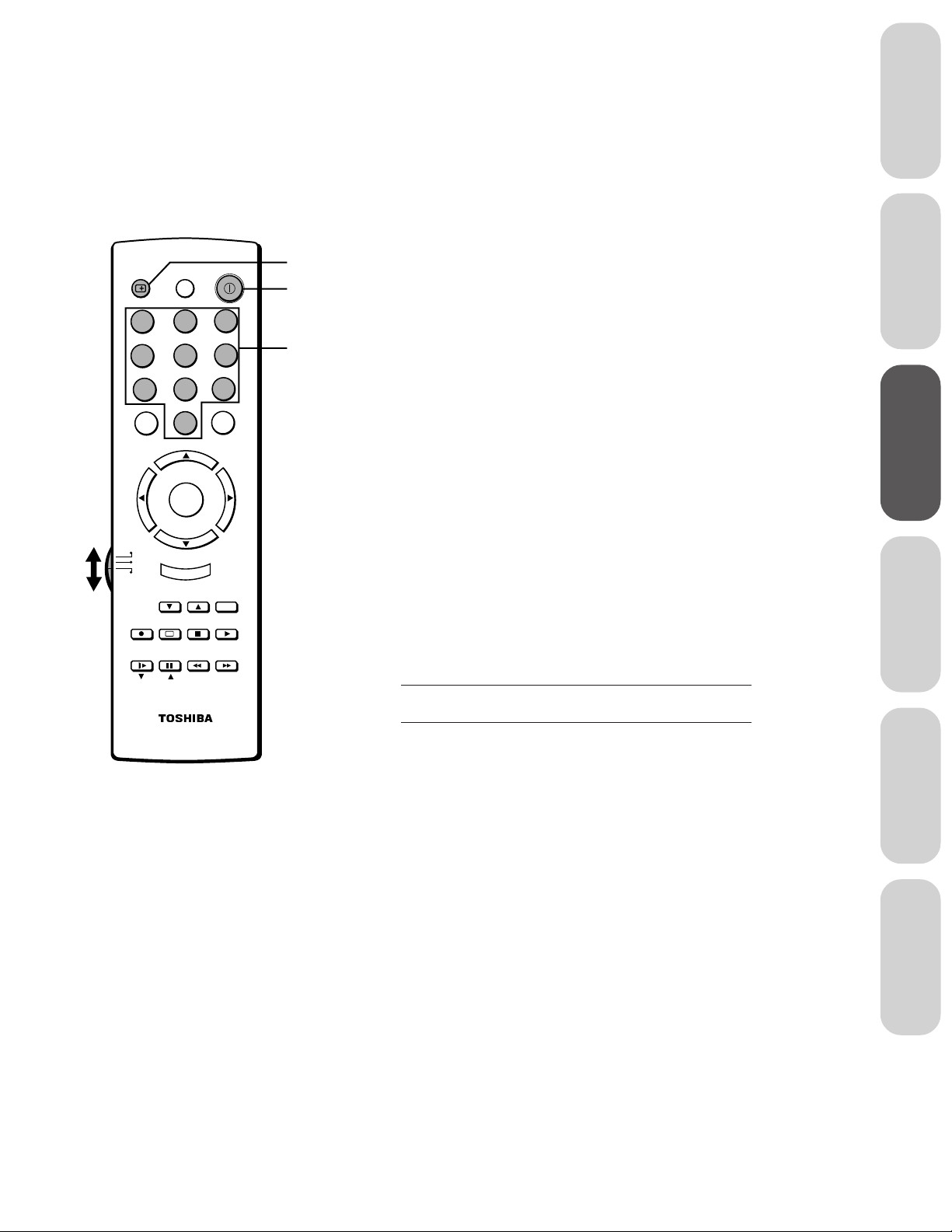

Programming the remote control

Your Toshiba TV remote control is preprogrammed to operate most Toshiba brand VCRs and cable TV converters. To program your TV remote control to operate a non-Toshiba device or Toshiba device it is not programmed to operate, follow these steps:

1 In the code table on page 14, find the code for your brand of VCR or

cable TV converter.

If more than one code is listed, try each one separately until you find one that works.

RECALL MUTE

POWER

RECALL

POWER

2 Set the TV/CABLE/VCR switch to VCR (for a VCR), or CABLE (for

EXIT

SOURCESTILL

STOP

REWPAUSE

CH RTN

ENT

TV/VIDEOFAV CH

PLAY

PIP

Channel Numbers

a cable TV converter).

3 While holding down RECALL, press the Channel Number buttons

to enter the 3-digit code for your brand of VCR or converter.

4 To test the code, turn the VCR or converter on, point the remote

control at it, and press POWER.

–If the correct code was entered, the VCR or converter will turn off.

–If the VCR or converter does not respond, repeat steps 1–4 using

another code.

–If the VCR or converter does not respond to a different code,

you will need to use the remote control that came with your VCR or converter.

5 Set the TV/CABLE/VCR switch to TV to control the TV.

For future reference, write down the code(s) you used:

VCR Code:

100

MENU/

VOL VOL

ENTER

TV CABLE VCR

TV/VCR

REC

SLOW

PIP CH LOCATE SWAP

Introduction

Connecting

your TV

Remote Control

Using the

Setting up

your TV

CT-90037

Cable TV Converter Code:

Note:

You must reprogram the remote control every time the batteries are changed.

Some newer VCRs respond to either of two codes. These VCRs have a switch labeled “VCR1/VCR2.” If your VCR has this kind of switch and does not respond to the codes for your VCR brand, set the switch to the other position (“VCR1” or “VCR2”) and reprogram the remote control.

Using the TV’s

Features

Appendix

Device codes

In some rare cases, you may not be able to operate your other device with your TV remote control. Your other device may use a code that is not recognized by the TV remote control. If this happens, you will need to use the remote control that came with your other device.

Using the

Remote Control

VCR codes

Adventura .................... 019

Aiko ............................. 297

Aiwa ............................ 019

Akai ............................. 060, 068, 080, 125, 261

American High ............ 054

Asha ............................ 259

Audiovox ..................... 056

Beaumark .................... 259

Bell & Howell .............. 123

Brandt ......................... 206

Broksonic .................... 140, 203, 230, 314, 380

Calix ............................ 056

Canon .......................... 054

Capehart ...................... 039

Carver .......................... 100

CCE ............................. 091, 297

Citizen ......................... 056, 297

Colt .............................. 091

Craig ............................ 056, 066, 091, 259

Curtis Mathes .............. 054, 060, 079

Cybernex ..................... 259

Daewoo ....................... 039, 064, 297

Daytron ....................... 039

Dynatech ..................... 019

Electrohome ................ 056

Electrophonic .............. 056

Emerex ........................ 051

Emerson ...................... 019, 021, 056, 062, 080,

087, 140, 203, 227, 228, 230, 231, 297, 313, 314,

380, 498

Fisher .......................... 066, 073, 085, 123

Fuji .............................. 052, 054

Funai ........................... 019, 344

Garrard ........................ 019, 344

GE ............................... 054, 079, 084, 221

Goldstar ...................... 037, 056, 057

Gradiente ..................... 019

Harley Davidson .......... 019

Harman/Kardon ........... 057, 094

Harwood ..................... 087, 091

Headquarter ................ 065

HI-Q ............................ 066

Hitachi ......................... 060, 061, 084, 124, 185,

254

Jensen ......................... 060

JVC .............................. 027, 060, 086

Kenwood ..................... 057, 060, 086

KLH ............................. 091

Kodak .......................... 054, 056

Lloyd ........................... 019

Lloyd’s ........................ 227

Logik ........................... 091

LXI ............................... 056

Magnavox ................... 054, 058, 100, 129, 168

Magnin ........................ 259

Marantz ....................... 054, 100

Marta ........................... 056

Matsushita .................. 054

MEI .............................. 054

Memorex ..................... 019, 054, 056, 058, 065,

066, 067, 123, 259

MGA ............................ 062, 080

MGN Technology ........ 259

Minolta ........................ 061, 124

Mitsubishi ................... 062, 080, 086, 094, 192,

233, 261

Motorola ..................... 054, 067

MTC ............................. 019, 259

Multitech ..................... 019, 091

NAD ............................. 077

NEC ............................. 057, 059, 060, 069, 086

Nikko ........................... 056

Noblex ......................... 259

Olympus ...................... 054

Optimus ...................... 056, 067, 077, 123

Optonica ...................... 081

Orion ........................... 498

Panasonic ................... 054, 096, 181, 244, 473

Penney ........................ 054, 056, 057, 059, 061,

073, 259

Pentax ......................... 061, 084, 124

Philco .......................... 054

Philips ......................... 054, 081, 100, 129

Pilot ............................. 056

Pioneer ........................ 077, 086

Portland ...................... 039

Protec .......................... 091

Pulsar .......................... 058

Quarter ........................ 065

Quarts ......................... 065

Quasar ......................... 054, 096

Radio Shack ................ 019, 056, 344

Radix ........................... 056

Randex ........................ 056

RCA ............................. 061, 079, 084, 096, 124,

125, 168, 221

Realistic ...................... 019, 054, 056, 065, 066,

067, 081, 085, 123, 259

Ricoh ........................... 053

Runco .......................... 058

Samsung ..................... 064, 259

Sanky .......................... 058, 067

Sansui ......................... 060, 086

Sanyo .......................... 065, 066, 123, 259

Scott ............................ 062, 064, 140, 203, 229,

230, 231

Sears ........................... 054, 056, 061, 065, 066,

073, 085, 123, 124

Sharp .......................... 067, 081

Shintom ...................... 091

Shogun ........................ 259

Singer .......................... 091

Sony ............................ 051, 052, 053, 054

STS ............................. 061

Sylvania ....................... 019, 054, 062, 100, 129

Symphonic .................. 019, 344

Tatung ......................... 060

Teac ............................ 019, 060

Technics ...................... 054, 181

Teknika ........................ 019, 054, 056, 071

Telefunken .................. 206

TMK ............................. 227, 259

Toshiba ....................... 062, 064, 085, 229, 231,

385

Totevision ................... 056, 259

Unitech ........................ 259

Vector .......................... 064

Vector Research ......... 057, 059

Video Concepts ........... 059, 064, 080

Videosonic .................. 259

Wards .......................... 019, 054, 061, 066, 067,

081, 091, 168, 231, 259

XR-1000 ...................... 019, 054, 091

Yamaha ....................... 057

Zenith .......................... 052, 053, 058

Cable TV converter codes

ABC .................................. 020, 022,026,027, 030,

Antronix ........................... 041

Archer .............................. 041, 058, 172

Belcor ............................... 075

Cable Star ........................ 075

Cabletenna ....................... 041

Cableview ......................... 041

Century ............................ 172

Citizen .............................. 172

Colour Voice .................... 044, 050

Comtronics ...................... 059, 079

Contec .............................. 038

Dae Ryung ....................... 027

Eastern ............................. 021

Focus ............................... 419

Garrard ............................. 172

GC Electronics ................. 075

Gemini .............................. 034, 089

General Instrument .......... 030, 295

Goldstar ........................... 059, 163

Hamlin .............................. 028, 039, 053, 278,

Hitachi .............................. 030

Hytex ................................ 026

Jasco ................................ 172

Jerrold .............................. 022, 030, 031, 033,

Macom ............................. 052

Magnavox ........................ 046

Memorex .......................... 019

Movie Time ...................... 175

NSC .................................. 089, 175

Oak ................................... 026, 038, 267

Panasonic ........................ 019, 040, 126

Paragon ............................ 019

Philips .............................. 044, 046, 047, 048,

Pioneer ............................. 042, 163, 552

Popular Mechanics .......... 419

Pulsar ............................... 019

RCA .................................. 040

Recoton ............................ 419

Regal ................................ 039, 278, 292

Regency ........................... 021

Rembrandt ....................... 030, 089

Runco ............................... 019

Samsung .......................... 059, 163

Scientific Atlanta .............. 025, 027, 036, 296

Signal ............................... 034, 059

Signature ......................... 030

SL Marx ........................... 059

Sprucer ............................ 040

Standard Components ..... 174

Starcom ........................... 022, 034, 066

Stargate ............................ 034, 059

Starquest ......................... 034

Sylvania ............................ 020

Teleview ........................... 059

Texscan ............................ 020

Tocom .............................. 031, 032, 078

Toshiba ............................ 019

Tusa ................................. 034

Unika ................................ 041, 172

United Artists ................... 026

United Cable ..................... 022

Universal .......................... 041, 058, 075, 172

Viewstar ........................... 046, 079, 230

Zenith ............................... 019

Zentek .............................. 419

032, 033, 036, 066

292

034, 066, 295

049, 050, 172

Setting up your TV

TV CABLE VCR

MENU/

ENTER

CH RTN

RECALL MUTE

VOL VOL

ENT

100

POWER

REWPAUSE

SOURCESTILL

PIP

SLOW

PIP CH LOCATE SWAP

STOP

PLAY

REC

TV/VCR

TV/VIDEOFAV CH

EXIT

CT-90037

Introduction

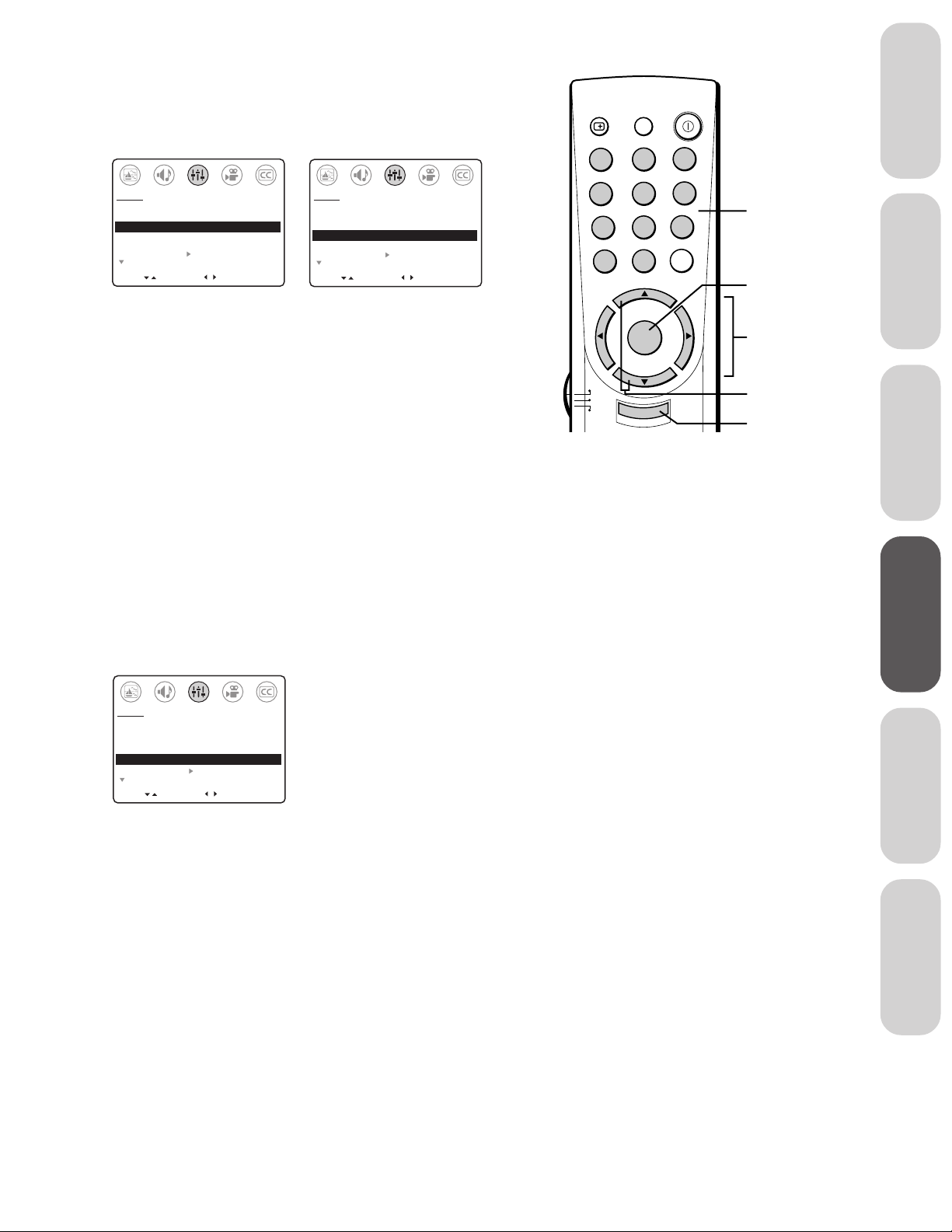

Menu system (general instructions)

After installing the batteries and programming the remote control, you will need to set some preferences on your TV using the menu system.

You can access the menus using the buttons on the TV front panel or remote control. Following are general instructions for using the menu system:

1. Repeatedly press MENU to select a menu (Picture, Audio, Setup,

Preference, or Closed Caption, as shown in the menu system overview, below).

2. Press t or s to select the function you want to adjust in the menu (the t/s buttons function as CHANNEL t/s buttons when no menu is on-screen).

3. Press T or S to adjust the selected function (the T/ S buttons function as VOLUME T/ S buttons when no menu is on-screen).

4. When you make a menu selection, your changes occur immediately. Yo u do not have to press MENU or EXIT to save your changes.

Note: The TV front panel does not have an EXIT button.

5. On-screen menus close automatically if no adjustments are made within 15 seconds. To close an on-screen menu instantly, press EXIT on the remote control.

Menu system overview

TV Front Panel

MENU TV/VIDEO VOLUME CHANNEL POWER

T / S t/ sMENU

T / S

s / t

EXIT

Connecting

your TV

Remote Control

Using the

Setting up

your TV


CONTRAST 50 BRIGHTNESS 50 SHARPNESS 50 COLOR 50 TINT 0 RESET

MOVE


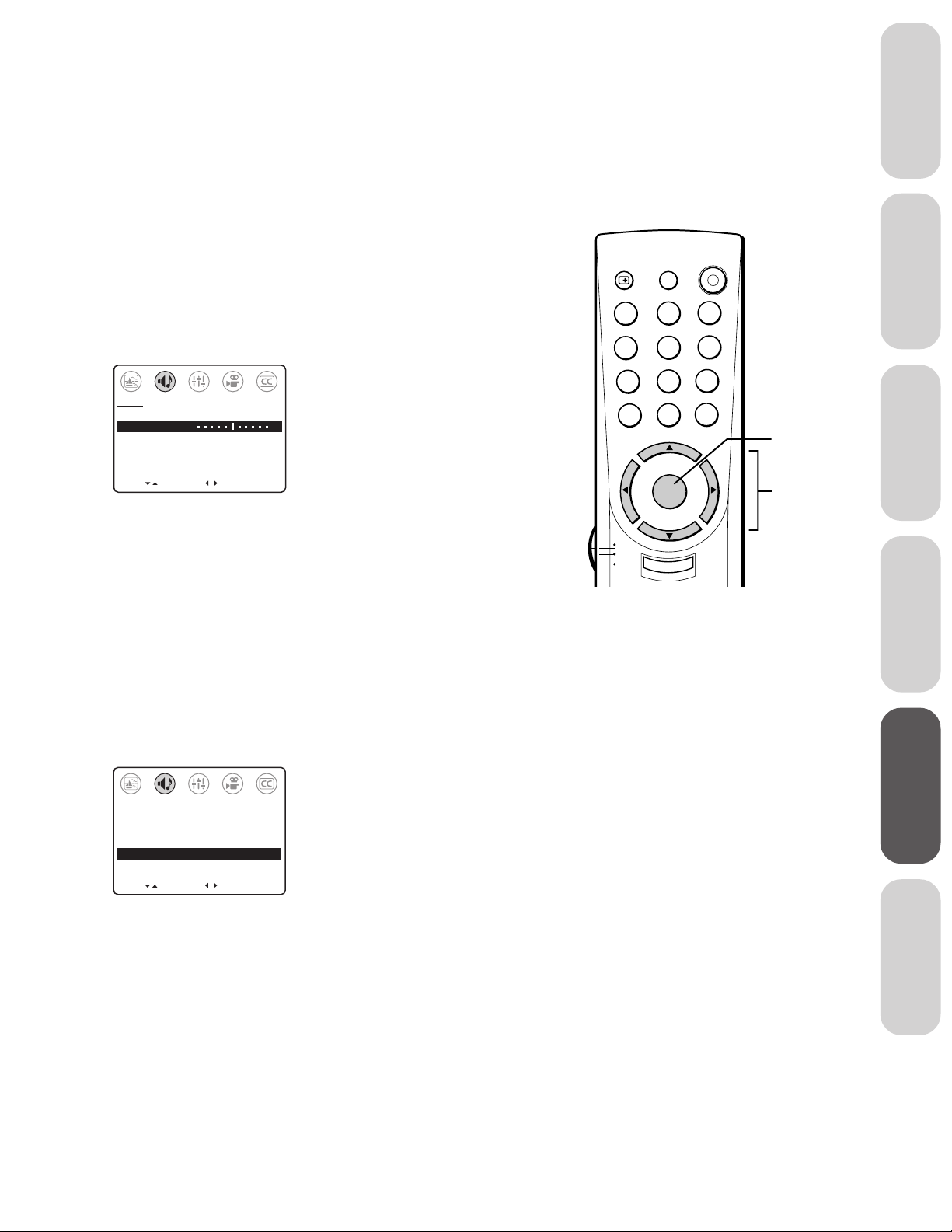

Audio

Using the TV’s

AUDIO

[

]

MTS: [STR] SAP MONO

[

]

ADJUST

BASS 50 TREBLE 50 BALANCE 0 SURROUND: [ON] OFF

MOVE

SET UP

[

]

LANGUAGE:

ADJUST

TV/CABLE: [TV] CABLE CH PROGRAM ADD/ERASE: [ADD] ERASE V-CHIP CONTROL MORE

MOVE SELECT

][

[ENGLISH] FRANCAIS ESPANOL

[

]

Set Up 1

SET UP

[

]

TIMER: 0 MIN DEMO: START [STOP] FAVORITE CH

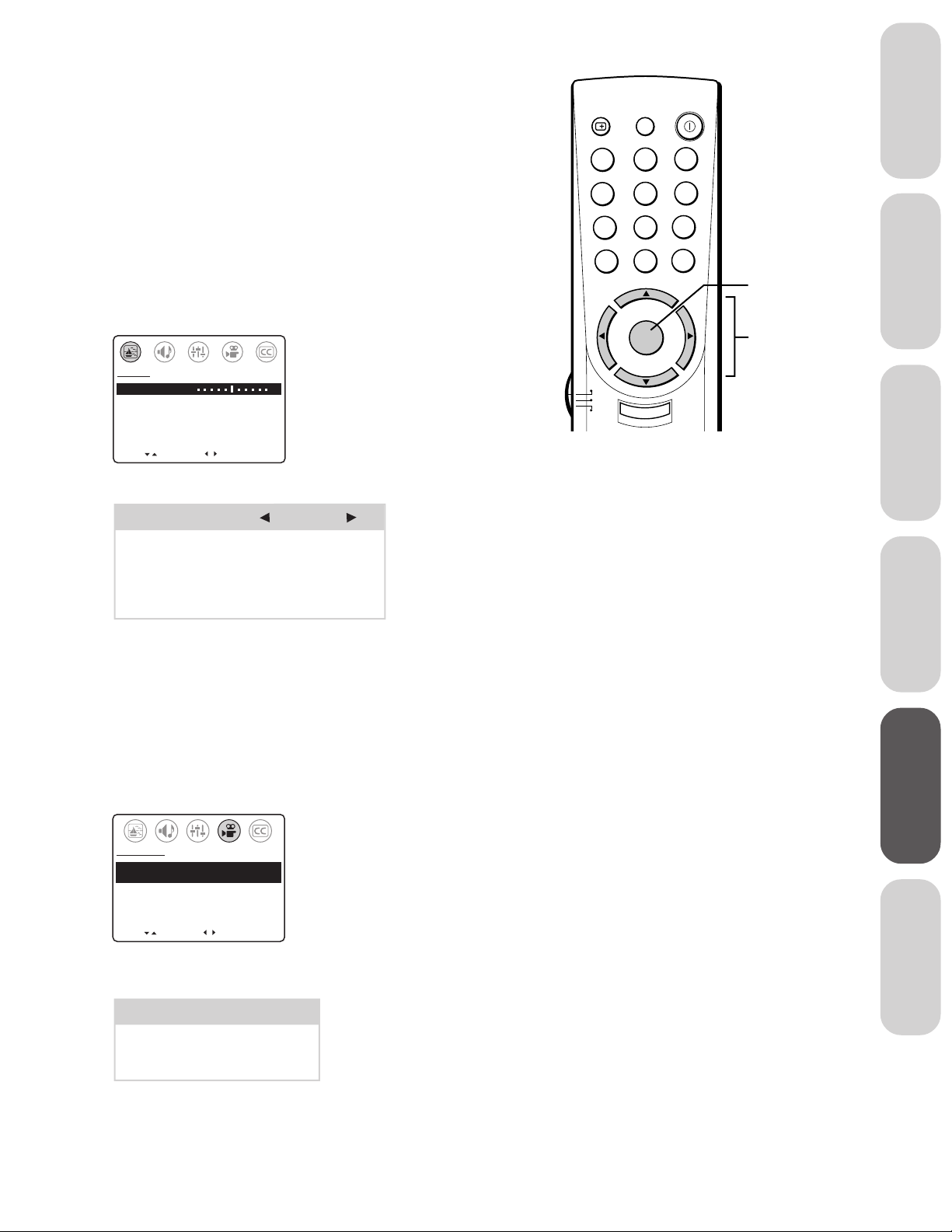

PREFERENCE

COLOR TEMPERATURE

[

]

[COOL] MEDIUM WARM

PICTURE PREFERENCE

[SPORTS] STANDARD MOVIE MEMORY

MOVE

[

MOVE SELECT

]

[

Set Up 2

CLOSED CAPTI0N

CC: C1 C2 C3 C4 T1

[

SELECT

MOVE

]

[

]

Preference

T2 T3 T4 [OFF]

[

]

SELECT

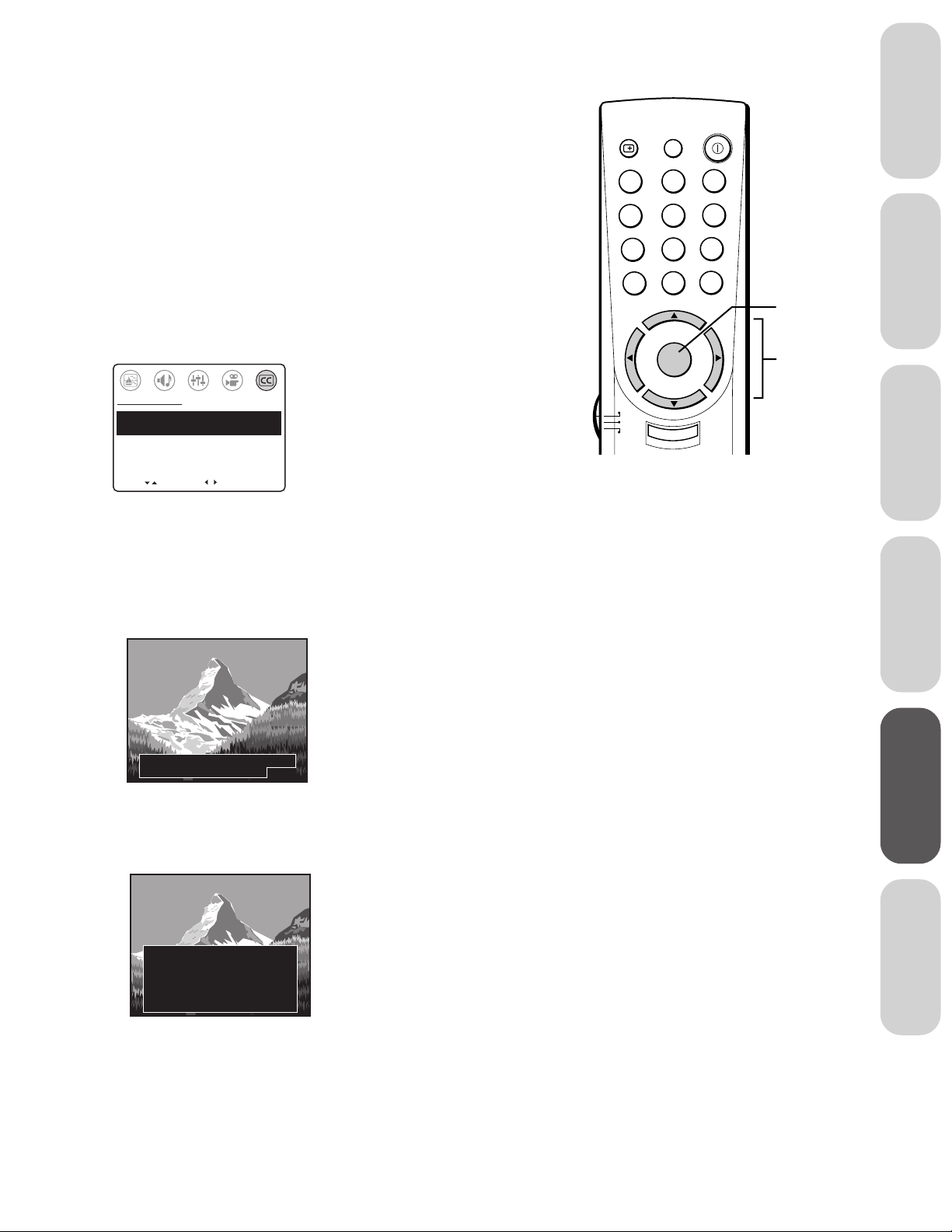

Closed Caption

]

Features

Appendix

Changing the on-screen display language

TV CABLE VCR

MENU/ ENTER

CH RTN

RECALL MUTE

VOL VOL

ENT

100

POWER

REWPAUSE

SOURCESTILL

PIP

SLOW

PIP CH LOCATE SWAP

STOP

PLAY

REC

TV/VCR

TV/VIDEOFAV CH

EXIT

CT-90037

You can choose from three different languages (English, French, or Spanish) for the on-screen display of menus and messages.

To select an on-screen display language:

1. Press MENU.

2. Press

3. Press

4. Press

CONFIGURATION

LANGUE:

TV/CABLE: PROGRAMME CAN AJOUT/EFF: CONTROLE V-CHIP PLUS

BOUGER CHOISIR

x or • until the SET UP menu appears. y or z to highlight LANGUAGE. x or • to highlight your desired language.

SET UP

LANGUAGE:

ENGLISH [FRANCAIS] ESPANOL

[TV] CABLE

[AJOUT] EFF

[

]

[ENGLISH] FRANCAIS ESPANOL

TV/CABLE: [TV] CABLE CH PROGRAM ADD/ERASE: [ADD] ERASE V-CHIP CONTROL MORE

[

]

MOVE SELECT

[

]

Selecting the signal source

Use the TV/VIDEO button on the remote control or TV to select the signal source connected to your TV.

To change the signal source:

Repeatedly press TV/VIDEO to select either TV, VIDEO 1, VIDEO 2, or VIDEO 3. The selected signal source is highlighted on-screen.

TV Front Panel

TV/VIDEO

MENU TV/VIDEO VOLUME CHANNEL POWER

CHANNEL s/t

T/ S t/s

RECALL

CHANNEL NUMBERS

yz x •

your TV

Setting up

TV VIDEO 1 VIDEO 2 VIDEO 3

TO SELECT PUSH TV/VIDEO

To verify the signal source:

Press RECALL.

Programming channels into the TV’s memory

When you press CHANNEL ▲▼ on the TV or remote control, the TV stops only on the channels stored in the TV’s memory.

Note: To tune the TV to a channel not programmed into the memory, use the CHANNEL NUMBERS on the remote control.

Follow the steps below and on the next page to program channels into the TV’s memory.

Programming channels automatically

Your TV can automatically detect all active channels in your area and store them in the TV’s memory. After the channels are stored automatically, you can manually add or erase individual channels (see page 17).

To program channels automatically:

1. Press MENU.

2. Press

x or • to highlight the SET UP menu.

CHANNEL yz

TV/VIDEO

3. Press y or z to highlight TV/CABLE.

TV CABLE VCR

MENU/ ENTER

CH RTN

RECALL MUTE

VOL VOL

ENT

100

POWER

EXIT

4. Press

x or • to highlight TV (if you use an antenna) or CABLE

(if you use cable).

5. Press

z to highlight CH PROGRAM.

Introduction

SET UP

LANGUAGE:

[ENGLISH] FRANCAIS ESPANOL

TV/CABLE:

CH PROGRAM ADD/ERASE: V-CHIP CONTROL MORE

[

]

MOVE SELECT

[TV] CABLE

[ADD] ERASE

[

]

SET UP

LANGUAGE:

[ENGLISH] FRANCAIS ESPANOL

TV/CABLE:

CH PROGRAM

ADD/ERASE: V-CHIP CONTROL MORE

[

]

MOVE SELECT

[TV] CABLE

[ADD] ERASE

[

]

6. Press x or • to start automatic channel programming (“CH PROGRAM” displays on-screen). The TV automatically cycles through every TV or cable channel (depending on which you selected), and stores all active channels in the TV’s memory.

7. When automatic channel programming is complete, the message “CH Programming Completed” appears.

8. Press CHANNEL

▲▼ to view the programmed channels.

Adding and erasing channels manually

After you have automatically programmed the channels into the TV’s memory, you can manually add and erase individual channels.

To add or erase a channel in the TV’s memory:

1. Tune the TV to the channel you want to add or erase. If you are adding a channel, you will need to use the CHANNEL NUMBERS to select the channel.

2. Press MENU.

3. Press x or • to highlight the SET UP menu.

4. Press

y or z to highlight ADD/ERASE.

CHANNEL NUMBERS

yz x •

CHANNEL yz

EXIT

Connecting

your TV

Remote Control

Using the

Setting up

your TV

SET UP

LANGUAGE:

[ENGLISH] FRANCAIS ESPANOL TV/CABLE: CH PROGRAM

ADD/ERASE:

V-CHIP CONTROL MORE

MOVE SELECT

[TV] CABLE

[ADD] ERASE

[

]

5. Press x or • to highlight ADD or ERASE, whichever function you want to perform.

6. Press MENU.

7. Repeat steps 1–6 for other channels you want to add or erase, or press EXIT to return to normal TV viewing.

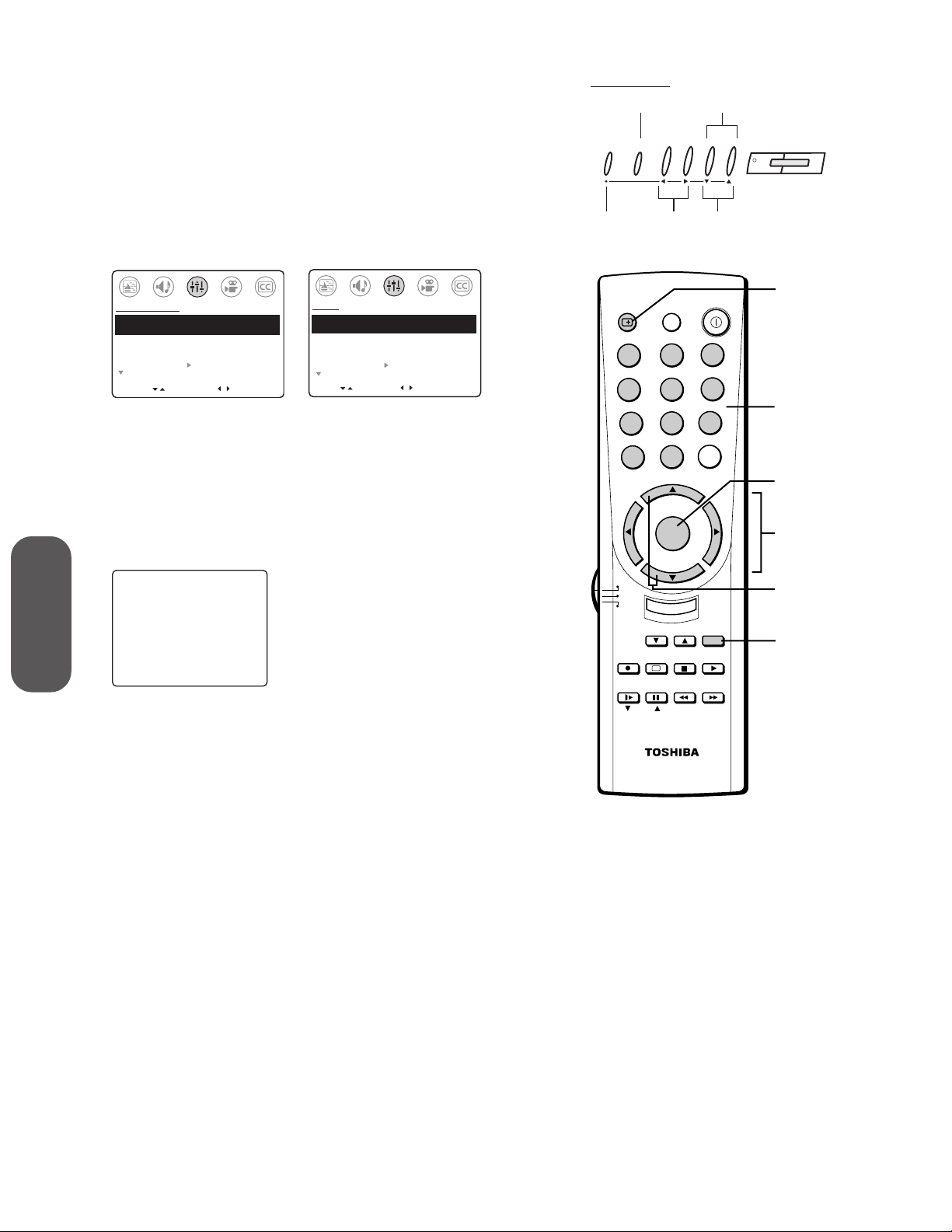

Changing channels

To change to the next programmed channel:

Press CHANNEL

To change to a specific channel (programmed or unprogrammed):

Press the CHANNEL NUMBERS (0–9 and 100). Note: For channels 100 and higher, press the 100 button, and then

yz.

the next two channel numbers (for example, to select channel 100, press 100, 0, 0; to select channel 125, press 100, 2, 5).

Using the TV’s

Features

Appendix

Using the TV’s features

TV CABLE VCR

MENU/ ENTER

CH RTN

RECALL MUTE

VOL VOL

ENT

100

POWER

REWPAUSE

SOURCESTILL

PIP

SLOW

PIP CH LOCATE SWAP

STOP

PLAY

REC

TV/VCR

TV/VIDEOFAV CH

EXIT

CT-90037

Adjusting the channel settings

Switching between two channels

You can switch between two channels without entering an actual channel number each time.

To switch between two channels:

1. Select the first channel you want to view.

2. Select a second channel using the CHANNEL NUMBERS

(0–9 and 100).

3. Press CH RTN (channel return). The previous channel will display.

Every time you press CH RTN, the TV will switch back and forth between the last two channels you tuned the TV to.

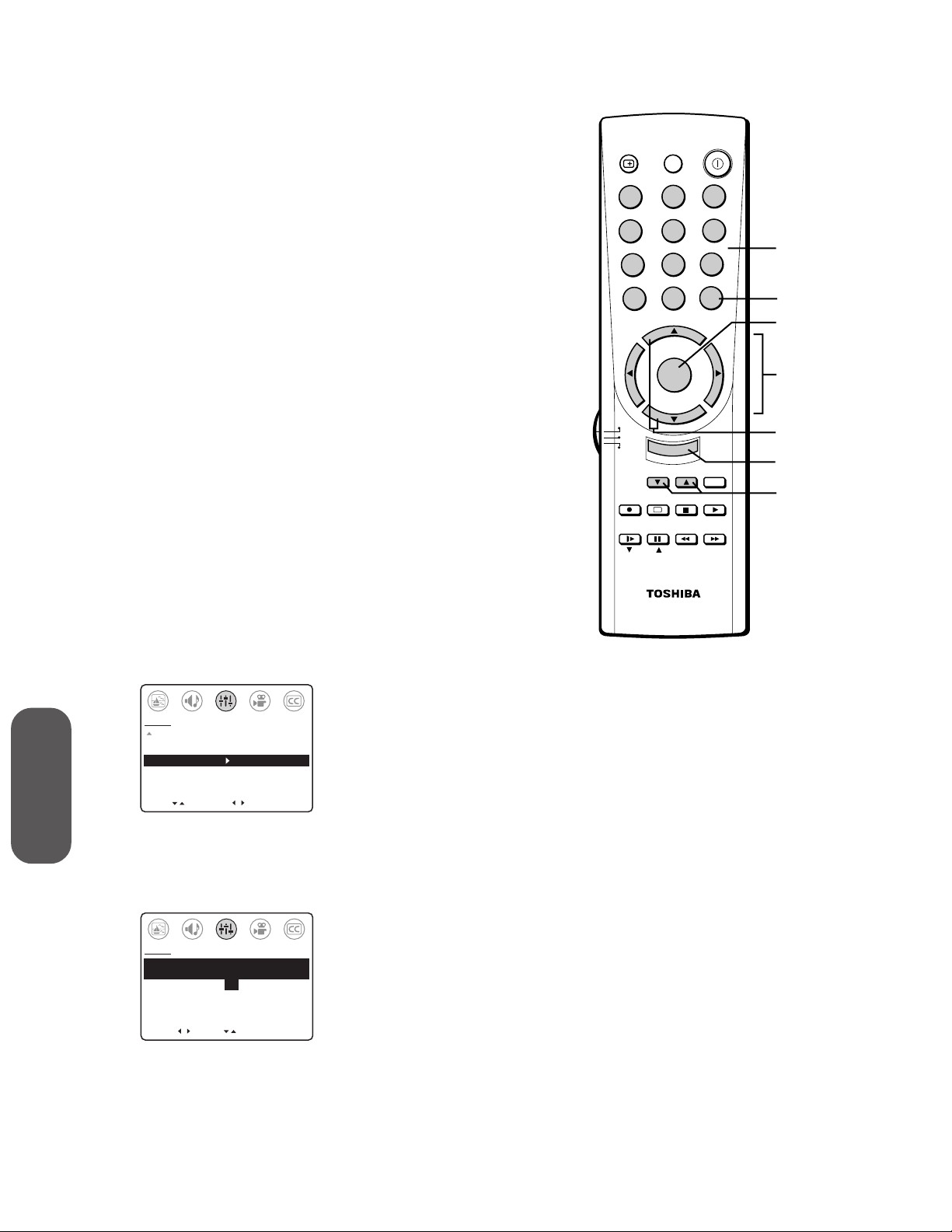

Programming your favorite channels

The Favorite Channel feature allows you to use the FAV CH ▼▲ buttons on the remote control to cycle through your favorite channels, skipping over channels you do not normally watch. You can program a maximum of 12 favorite channels.

Note: You can still use CHANNEL you previously programmed into the TV’s memory (see “Programming channels in to the TV’s memory” on page 16).

▲▼ to cycle through all the channels

CHANNEL NUMBERS

CH RTN

yz x •

CHANNEL yz

EXIT

FAV CH zy

Features

Using the TV’s

To program your favorite channels:

1. Tune the TV to a channel you want to program as a favorite channel.

2. Press MENU.

3. Press

4. Press

5. Press x or • to display the FAVORITE CH menu.

6. Press

7. Press

8. Press EXIT.

9. Repeat steps 1–8 for up to 12 channels.

x or • to highlight the SET UP menu. y or z to highlight FAVORITE CH.

SET UP

MORE TIMER: 0 MIN DEMO: START [STOP]

FAVORITE CH

[

MOVE

[

]

START

]

x or • to highlight SET. z to add the current channel to the list.

SET UP

FAVORITE CH [SET] CLEAR

256 0000 0000

[TV: CYAN, CABLE: BLUE]

[

SELECT

] [

SET

]

(Continued on next page)

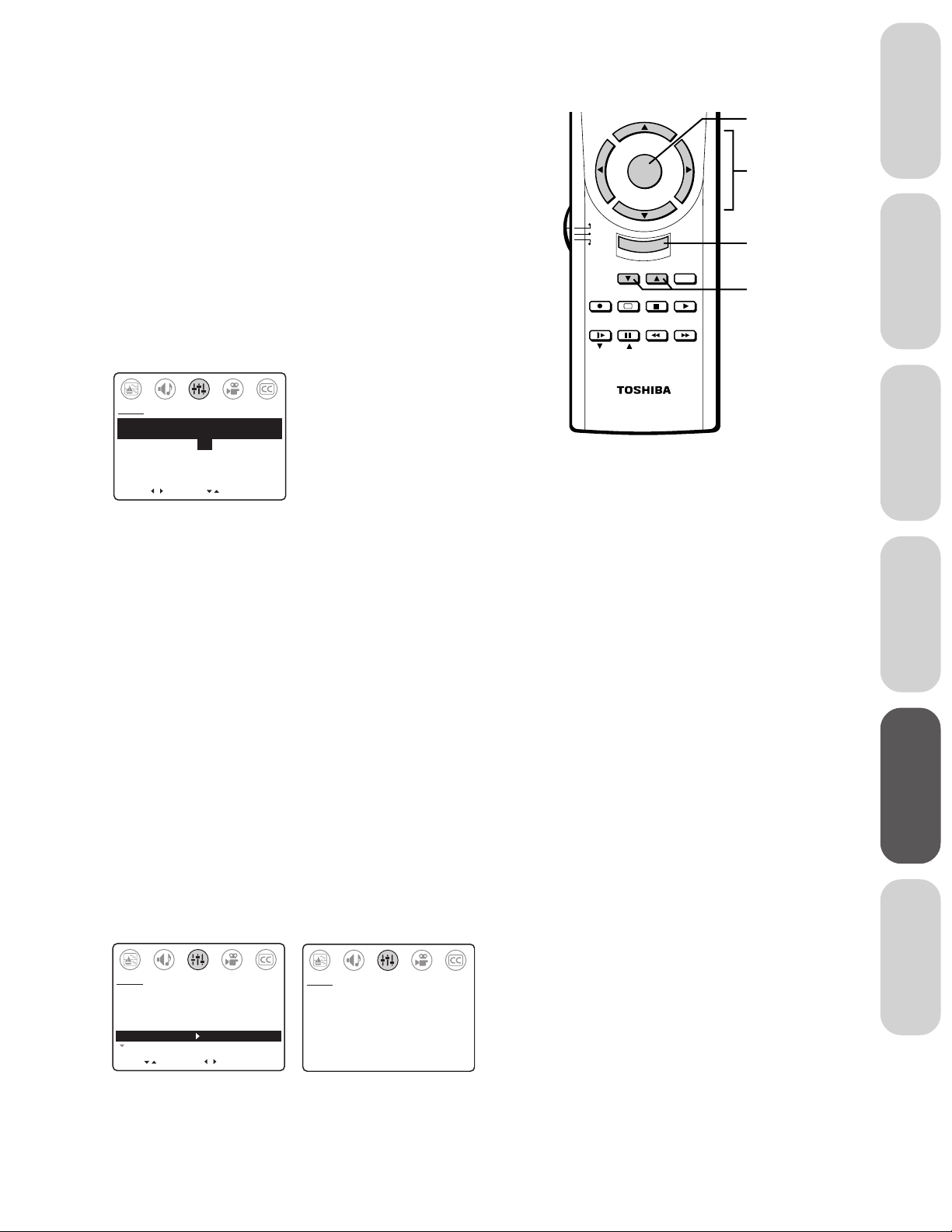

To select your favorite channels:

TV CABLE VCR

MENU/ ENTER

VOL VOL

REWPAUSE

SOURCESTILL

PIP

SLOW

PIP CH LOCATE SWAP

STOP

PLAY

REC

TV/VCR

TV/VIDEOFAV CH

EXIT

CT-90037

Press FAV CH

zy on the remote control to cycle through the

favorite channels you programmed. Note: The FAV CH

zy buttons will not work unless you program

at least one favorite channel.

To clear a favorite channel:

1. Tune the TV to the channel you want to clear from your favorite channel list.

2. Press MENU.

3. Press

4. Press

5. Press

6. Press

x or • to highlight the SET UP menu. y or z to highlight FAVORITE CH. x or • to display the FAVORITE CH menu. x or • to highlight CLEAR.

SET UP

FAVORITE CH SET [CLEAR]

256 0000 0000

[TV: CYAN, CABLE: BLUE]

[

SELECT

] [

CLEAR

]

yz x •

EXIT

FAV CH zy

Introduction

Connecting

your TV

Remote Control

Using the

7. Press z to clear the current channel number from the list.

8. Press EXIT.

9. Repeat steps 1–8 for other channels you want to clear from your

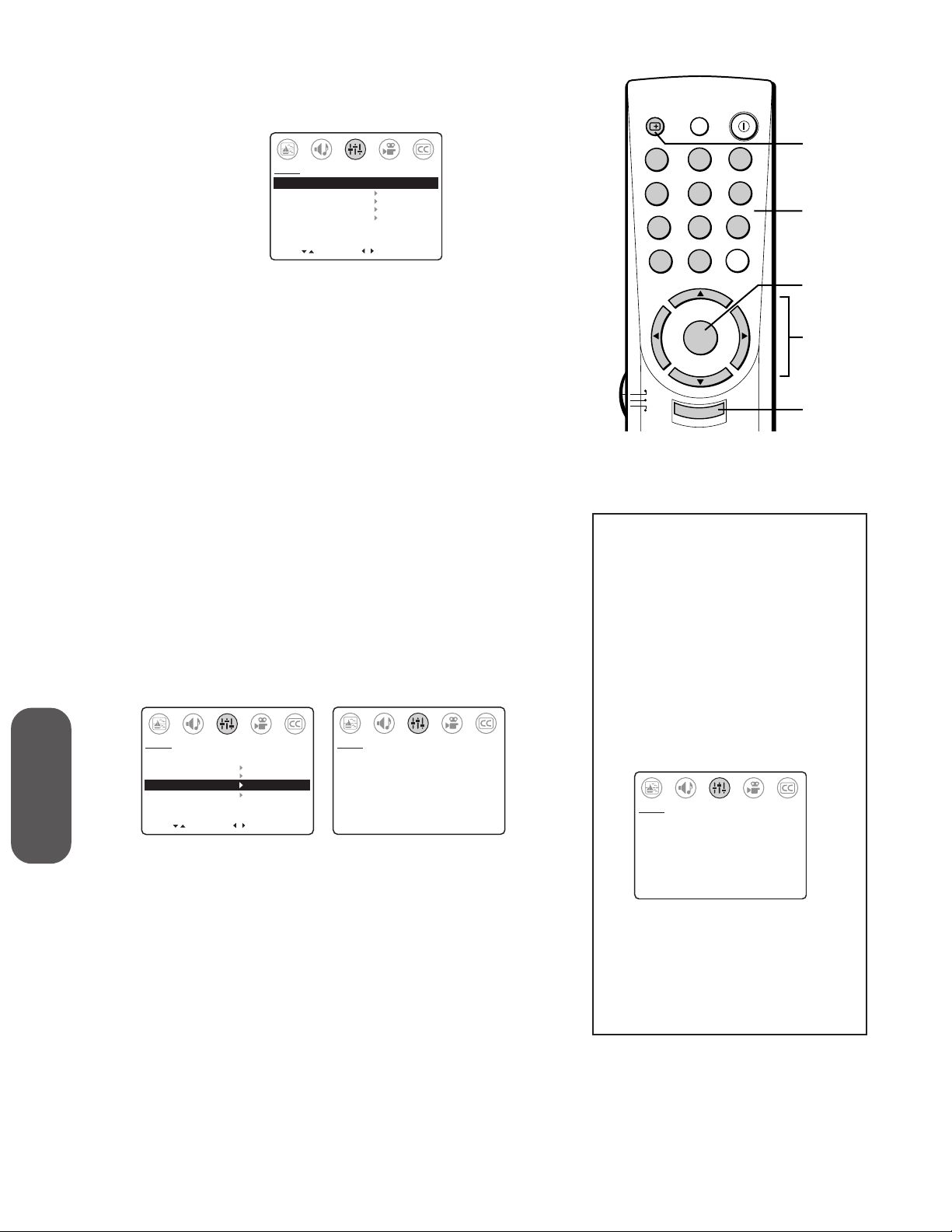

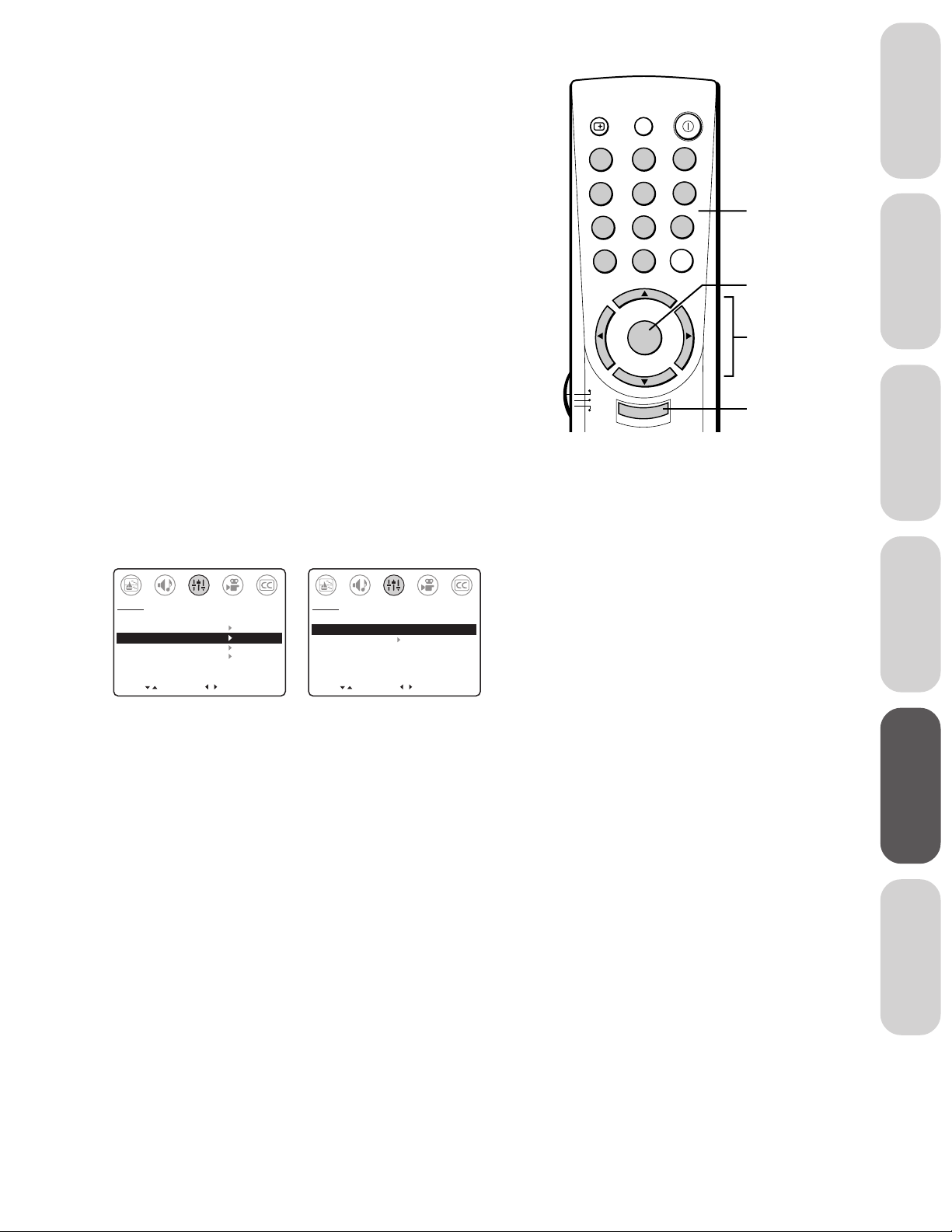

Using the V-Chip Control (blocking) feature

You can use the V-Chip Control feature to block certain programs or channels, to prevent others from viewing them.

Selecting a PIN code

Before you can block programs or channels, you must select a personal identification number (PIN) code. Your PIN code allows you to access the V-Chip Control menu, and prevents others from changing the rating and blocking limits you set.

To select your PIN code and access the V-Chip Control menu:

1. Press MENU.

2. Press

3. Press

4. Press

favorite channel list.

x or • to highlight the SET UP menu. y or z to highlight V-CHIP CONTROL. x or • to display the new PIN code entering screen.

SET UP

LANGUAGE: [ENGLISH]

TV/CABLE: CH PROGRAM ADD/ERASE:

V-CHIP CONTROL

[

MOVE

]

START

FRANCAIS ESPANOL

[TV] CABLE

[ADD] ERASE

[

]

SET UP

BLOCKING IS RESET PLEASE ENTER NEW PIN CODE

_ _ _ _

SELECT [0–9] END [EXIT]

Note:

The V-Chip function is available only for the U.S. V-Chip system. The Canadian V-Chip system is not supported.

Setting up

your TV

Using the TV’s

Features

Appendix

Features

TV CABLE VCR

MENU/ ENTER

CH RTN

RECALL MUTE

VOL VOL

ENT

100

POWER

EXIT

Using the TV’s

5. Use the CHANNEL NUMBERS (0–9) to enter your four-digit

PIN code. After the code is entered, the V-Chip Control menu appears.

SET UP

ENABLE BLOCKING [Y] N

SET RATING SET BLOCKING OPTIONS NEW PIN CODE BLOCK CHANNEL

MOVE

[

SELECT

]

V-Chip Control (Blocking) Menu

6. Press y or z to highlight ENABLE BLOCKING.

7. Press

x or • to highlight “Y,” which enables all blocking by activat-

ing the V-Chip. See “Blocking programs by ratings” on page 21, “Blocking unrated movies and programs” on page 23.

Note: The “Blocking channels” feature (page 24) is not affected by the “Enable Blocking” setting.

To disable blocking:

Highlight “N” in step 7, above, to deactivate the V-Chip Control feature and disable blocking.

Changing your PIN code

1. Press MENU.

2. Press

3. Press

4. Press

x or • to highlight the SET UP menu. y or z to highlight V-CHIP CONTROL. x or • to display the PIN code entering screen.

5. Use the Channel Number buttons (0–9) to enter your existing PIN code. After the code is entered, the V-Chip Control menu appears.

6. Press

7. Press

y or z to highlight NEW PIN CODE. x or • to display the New PIN Code entering screen.

SET UP

ENABLE BLOCKING [Y] N SET RATING SET BLOCKING OPTIONS

NEW PIN CODE

BLOCK CHANNEL

[

]

MOVE

SELECT

[

]

SET UP

PLEASE ENTER NEW PIN CODE

_ _ _ _

SELECT [0–9] END [EXIT]

8. Use the CHANNEL NUMBERS (0–9) to enter a new PIN code. After the new code is entered, the V-Chip Control menu appears.

9. Press EXIT to return to normal TV viewing.

RECALL

CHANNEL NUMBERS

yz x •

EXIT

If you forget your PIN code

1. Press MENU.

2. Press

x or • to highlight the SET

UP menu.

3. Press

y or z to highlight V-CHIP

CONTROL.

4. Press

x or • to display the PIN

code entering screen.

5. While the PIN code entering

screen is displayed, press RECALL four times within five seconds. The “Blocking Is Reset” screen appears.

SET UP

BLOCKING IS RESET PLEASE ENTER NEW PIN CODE

_ _ _ _

SELECT [0–9] END [EXIT]

6. Use the CHANNEL NUMBERS

(0–9) to enter a new PIN code. After the new code is entered, the V-Chip Control menu appears.

7. Press EXIT to return to normal TV

viewing.

Introduction

TV CABLE VCR

MENU/ ENTER

CH RTN

RECALL MUTE

VOL VOL

ENT

100

POWER

EXIT

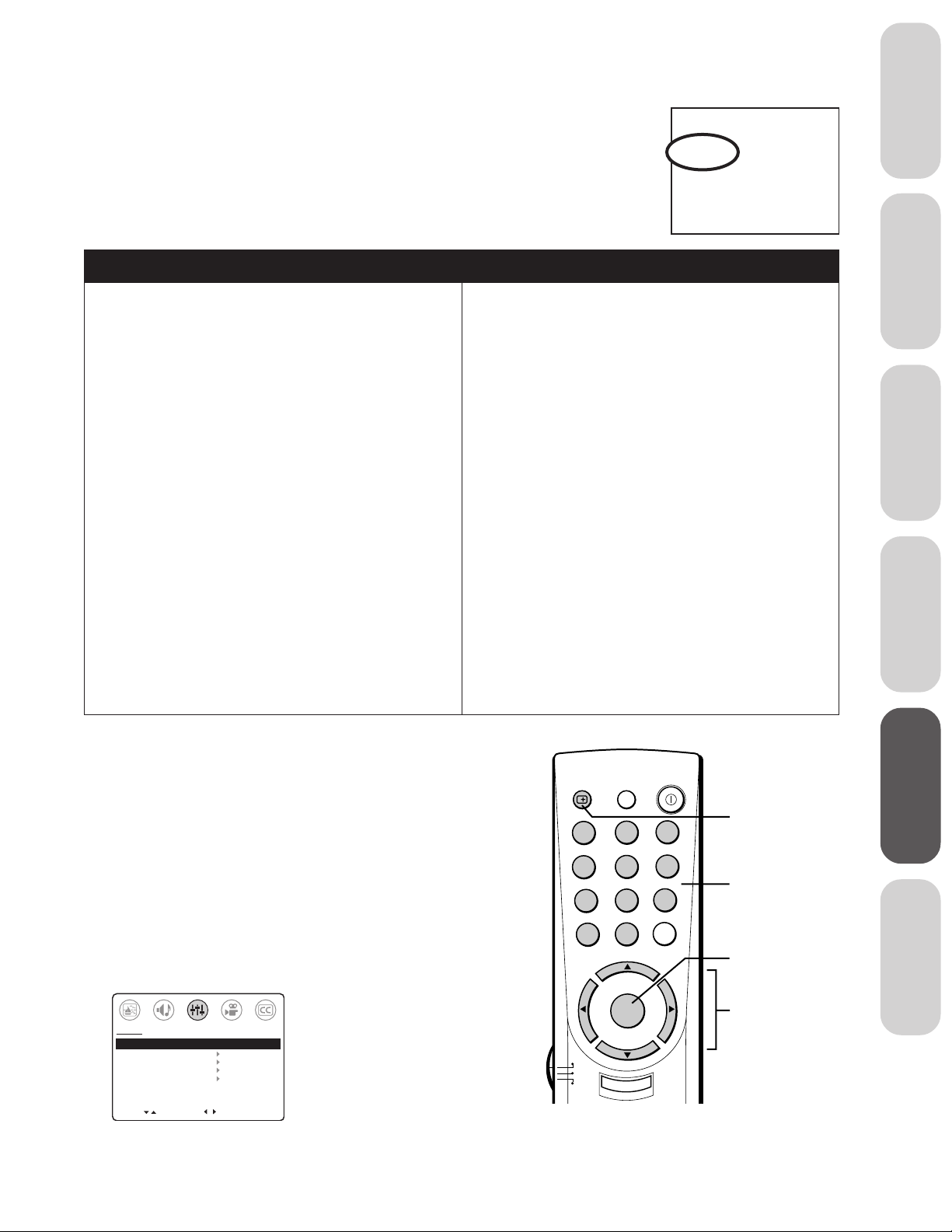

Blocking programs by ratings

The Motion Picture Association of America (MPAA) uses a rating system to qualify motion picture content. Television broadcasters employ a similar rating system to qualify the content of television programs. The MPAA, Youth TV, and TV ratings work with the V-Chip feature to allow you to block access to programs that exceed the rating limits you set.

Note:

Press RECALL to see the rating of the program you are viewing. Not all programs are rated, however. To block programs or movies that are not rated, see “Blocking unrated movies and programs” on page 23.

Ratings definitions

MPAA Ratings

X For adults only. NC17 Not intended for anyone 17 or under. R Restricted. Under 17 requires an accompanying

parent or adult guardian.

PG13 Parents strongly cautioned. Some material may not

be appropriate for children under 13.

PG Parental guidance suggested. Some material may

not be appropriate for children.

G General audience. Appropriate for all ages.

Youth TV Ratings

Y7, Y7FV Directed to older children. Programs rated Y7 are

designed for children 7 and above. Programs rated Y7FV contain fantasy violence that may be more intense or combative than Y7-rated programs.

Y For all children. Programs rated Y are designed to

be appropriate for all children.

TV Ratings

MA Mature audience only. This program is specifically

14 Parents strongly cautioned. This program contains

PG Parental guidance suggested. This program contains

G General audience. Most parents would find this

No DLSV Programs without any Dialog, Language, Sex, or

To block programs by rating:

1. Press MENU.

2. Press

3. Press

4. Press

x or • to highlight the SET UP menu. y or z to highlight V-CHIP CONTROL. x or • to display the PIN code entering screen.

5. Use the CHANNEL NUMBERS (0–9) to enter your four-digit

PIN code. After the code is entered, the V-Chip Control menu appears.

6. Press

7. Press

y or z to highlight ENABLE BLOCKING. x or • to highlight “Y,” which enables all blocking by

activating the V-Chip. (Note: Highlight “N” to deactivate the V-Chip Control feature and disable blocking.)

SET UP

ENABLE BLOCKING [Y] N

SET RATING SET BLOCKING OPTIONS NEW PIN CODE BLOCK CHANNEL

MOVE

[

SELECT

]

STEREO

TV-PG L V

TV 6

designed to be viewed by adults and therefore may be unsuitable for children under 17.

Dialog Intensely suggestive dialog Language Crude or indecent language Sex Explicit sexual activity Violence Graphic violence

some material that many parents would find unsuitable for children under 14 years of age.

Dialog Frequent suggestive dialog Language Frequent coarse language Sex Intense sexual situations Violence Intense violence

material that parents may find unsuitable for younger children.

Dialog Some suggestive dialog Language Occasional coarse language Sex Some sexual situations Violence Moderate violence

program suitable for all ages.

Violence ratings.

RECALL

CHANNEL NUMBERS

yz x •

Connecting

your TV

Remote Control

Using the

Setting up

your TV

Using the TV’s

Features

Appendix

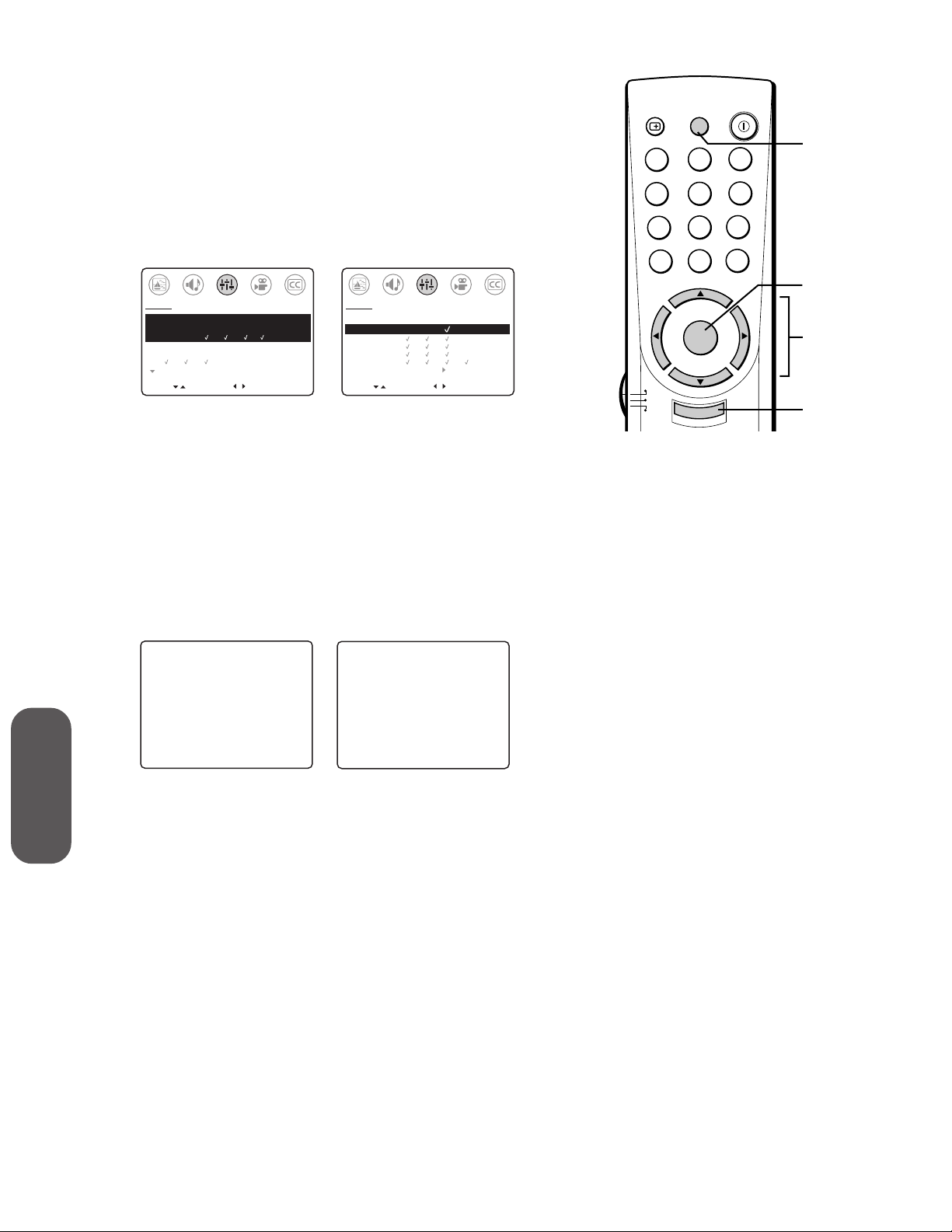

8. Press y or z to highlight SET RATING.

TV CABLE VCR

MENU/ ENTER

CH RTN

RECALL MUTE

VOL VOL

ENT

100

POWER

EXIT

9. Press

10. Press

x or • to display the Set Rating menu. y or z to highlight MPAA Rating, Youth TV Rating, or

TV Rating.

11. Press

• to select (or x to deselect) the ratings to be blocked. Blocked

ratings will be marked with “x”; unblocked ratings will will be marked with “✔.” All ratings higher than the ones that are selected are blocked as well. For example, if you block the MPAA rating R, programs with the higher ratings NC17 and X also will be blocked.

SET UP

MPAA RATING:

X NC17 R PG13 PG G

YOUTH TV RATING:

Y7FV Y7

TV RATING

MOVE

[

]

SELECT

[

]

SET UP

[

]

MA 14 PG G

TV RATING:

DIALOG:

LANGUAGE: SEX: VIOLENCE: NO DLSV: BACK TO V-CHIP MENU

MOVE

SELECT

[

]

12. When you finish selecting the program ratings to be blocked:

• To return to the V-Chip menu, press BACK TO V-CHIP MENU, and then press

y or z to highlight

x or •.

• To r eturn to normal TV viewing, press EXIT.

Unblocking programs temporarily

When you try to view a program with a ratings block, a message appears stating that the program has been blocked because the program’s rating exceeds the set limits. To temporarily override the block and view the program, press MUTE and enter your PIN code. To reset your original ratings blocks, turn the TV off and then on again.

MUTE

yz x •

EXIT

Note:

After unblocking programs temporarily, all programs will be unblocked until the TV is turned off. The TV will enter blocked mode when it is turned on again.

Features

Using the TV’s

THIS PROGRAM HAS BEEN BLOCKED!

TV-PG L V EXCEEDS SET LIMITS

PUSH MUTE TO ENTER PIN

BLOCKING IS ACTIVE PLEASE ENTER PIN CODE TO TEMPORARILY UN-BLOCK

_ _ _ _

SELECT [0–9] END [EXIT]

Blocking unrated movies and programs

TV CABLE VCR

MENU/ ENTER

CH RTN

RECALL MUTE

VOL VOL

ENT

100

POWER

EXIT

Some movies and programs are not rated. You can use the V-Chip Control feature to block unrated movies and programs.

To block unrated movies and programs:

1. Press MENU.

2. Press

3. Press

4. Press

x or • to highlight the SET UP menu. y or z to highlight V-CHIP CONTROL. x or • to display the PIN code entering screen.

5. Use the CHANNEL NUMBERS (0–9) to enter your four-digit

PIN code. After entering the code, the V-Chip Control menu appears.

6. Press

7. Press

y or z to highlight ENABLE BLOCKING. x or • to highlight “Y,” which enables all blocking by activat-

ing the V-Chip. (Note: Highlight “N” to deactivate the V-Chip feature and disable blocking.)

8. Press

9. Press

10. Press

y or z to highlight SET BLOCKING OPTIONS. x or • to display the unrated movie/program blocking menu. y or z to highlight BLOCK MPAA UNRATED (to block

unrated movies) or BLOCK TV NONE RATING (to block unrated TV programs).

11. Press

x or • to highlight “Y” to block movies/programs rated

“TV None.” (Note: Highlight “N” to unblock unrated programs.)

12. Press EXIT to return to normal TV viewing.

SET UP

ENABLE BLOCKING [Y] N SET RATING

SET BLOCKING OPTIONS

NEW PIN CODE BLOCK CHANNEL

[

]

MOVE

SELECT

[

]

SET UP

BLOCK MPAA UNRATED: [Y] N

BLOCK TV NONE RATING: [Y] N

BACK TO V-CHIP MENU

NOTICE: ENABLING THIS OPTION

MAY BLOCK EMERGENCY MESSAGES

[

MOVE

[

]

SELECT

]

CHANNEL NUMBERS

yz x •

EXIT

Note:

Blocking unrated TV programs (those rated “TV NONE”) also may block emergency messages.

Introduction

Connecting

your TV

Remote Control

Using the

Setting up

your TV

Using the TV’s

Features

Appendix

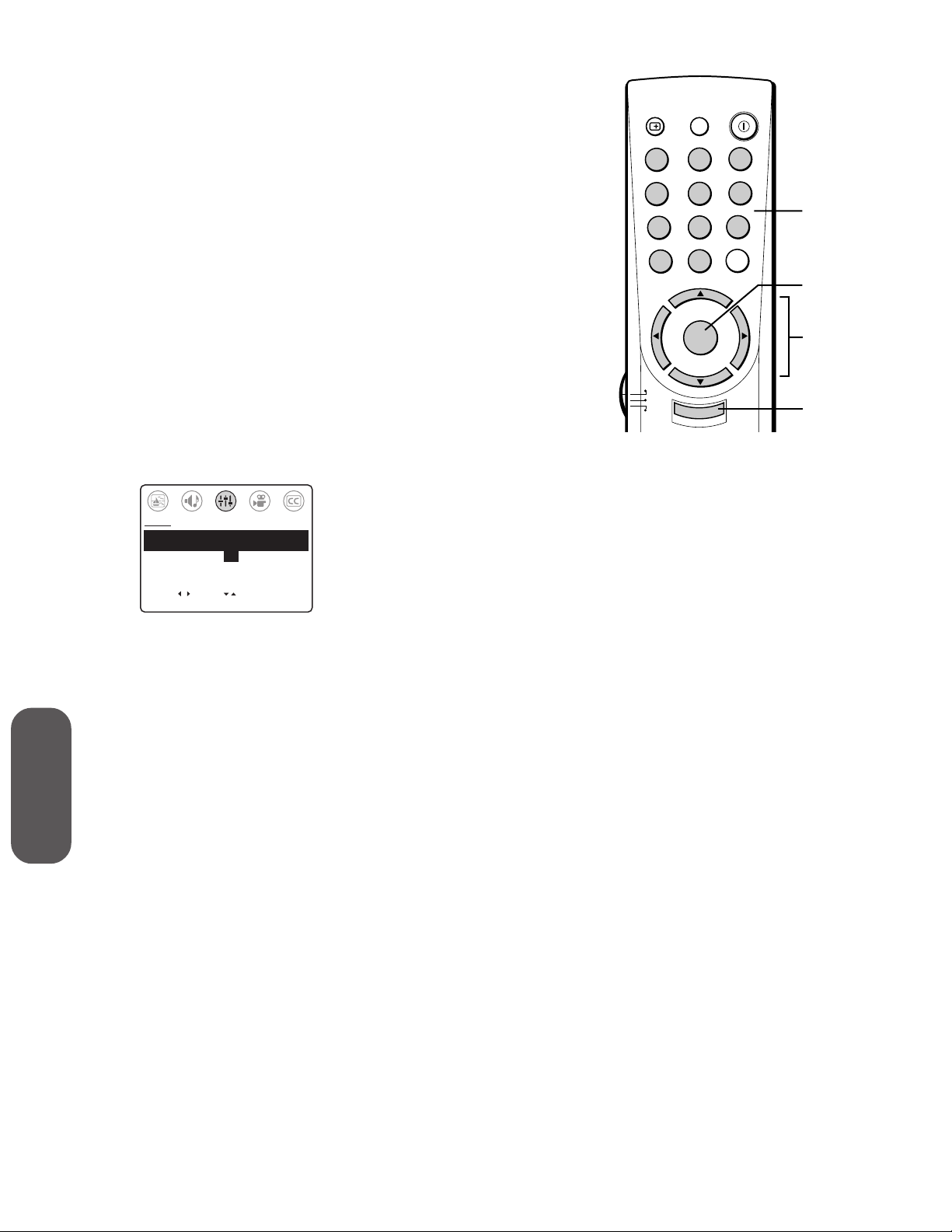

Blocking channels

TV CABLE VCR

MENU/ ENTER

CH RTN

RECALL MUTE

VOL VOL

ENT

100

POWER

EXIT

You can block a maximum of four TV channels and four cable channels. Blocked channels cannot be viewed, regardless of their programs’ ratings. If you try to tune the TV to a blocked channel, the nearest unblocked channel will display.

To block a channel:

1. Tune the TV to the channel you want to block.

2. Press MENU.

3. Press

4. Press

5. Press

x or • to highlight the SET UP menu. y or z to highlight V-CHIP CONTROL. x or • to display the PIN code entering screen.

6. Use the CHANNEL NUMBERS (0–9) to enter your four-digit

PIN code. After entering the code, the V-Chip Control menu appears.

7. Press

8. Press

y or z to highlight BLOCK CHANNEL. x or • to display the BLOCK CHANNEL menu.

SET/CLEAR will be highlighted.

9. Press

10. Press

x or • to highlight SET. z to add the current channel to the list.

CHANNEL NUMBERS

yz x •

EXIT

Features

Using the TV’s

SET UP

BLOCK CHANNEL [SET]

SELECT END [EXIT]

CLEAR

000

[

] [

SET

]

11. Press EXIT.

12. Repeat steps 1–11 to block additional channels.

To unblock all blocked channels: Note: This will unblock every channel you have blocked. You cannot

unblock individual channels.

1. Press MENU.

2. Press

3. Press

4. Press

x or • to highlight the SET UP menu. y or z to highlight V-CHIP CONTROL. x or • to display the PIN code entering screen.

5. Use the CHANNEL NUMBERS (0–9) to enter your four-digit

PIN code. After entering the code, the V-Chip Control menu appears.

6. Press

7. Press

y or z to highlight BLOCK CHANNEL. x or • to display the BLOCK CHANNEL menu.

SET/CLEAR will be highlighted.

8. Press

9. Press

x or • to highlight CLEAR. z to clear all blocked channels from the list.

10. Press EXIT.

Note:

After programming CHANNEL BLOCK, tune the TV to a channel that is not blocked before turning off the TV.

Adjusting the picture

TV CABLE VCR

MENU/ ENTER

CH RTN

RECALL MUTE

VOL VOL

ENT

100

POWER

EXIT

Adjusting the picture quality

You can adjust the picture’s contrast, brightness, sharpness, color, and tint. Your picture quality adjustments are stored automatically in the TV’s memory. You can keep these settings or choose preset options in the PREFERENCE menu (see “Selecting the color temperature” below, and “Adjusting the picture preference” on the next page.)

To adjust the picture quality:

1. Press MENU.

2. Press

3. Press

x or • to highlight the PICTURE menu. y or z until the quality you want to adjust is highlighted.

Introduction

Connecting

your TV

yz x •


CONTRAST 50

BRIGHTNESS 50 SHARPNESS 50 COLOR 50 TINT 0 RESET

[

]

MOVE

–

[

ADJUST

]

Note:

To reset the picture (and audio) adjustments to the factory settings, select RESET in the PICTURE menu, and then press

•.

4. Press x or • to adjust the level, as described in the following table:

Selection Pressing

Contrast Lower Higher Brightness Darker Lighter Sharpness Softer Sharper Color Paler Deeper Tint Reddish Greenish

Selecting the color temperature

Change the picture quality by selecting from three preset color temperatures—cool, medium, and warm.

To select the color temperature:

1. Press MENU.

2. Press

3. Press

x or • to highlight the PREFERENCE menu. y or z to highlight COLOR TEMPERATURE.

Remote Control

Using the

Setting up

your TV

Using the TV’s

Features

PREFERENCE

COLOR TEMPERATURE

[COOL] MEDIUM WARM

PICTURE PREFERENCE

[SPORTS] STANDARD MOVIE MEMORY

[

SELECT

]

[

]

MOVE

4. Press x or • to highlight the mode you prefer, as described in the following table:

Mode Picture Quality

Cool Blueish Medium Neutral Warm Reddish

Appendix

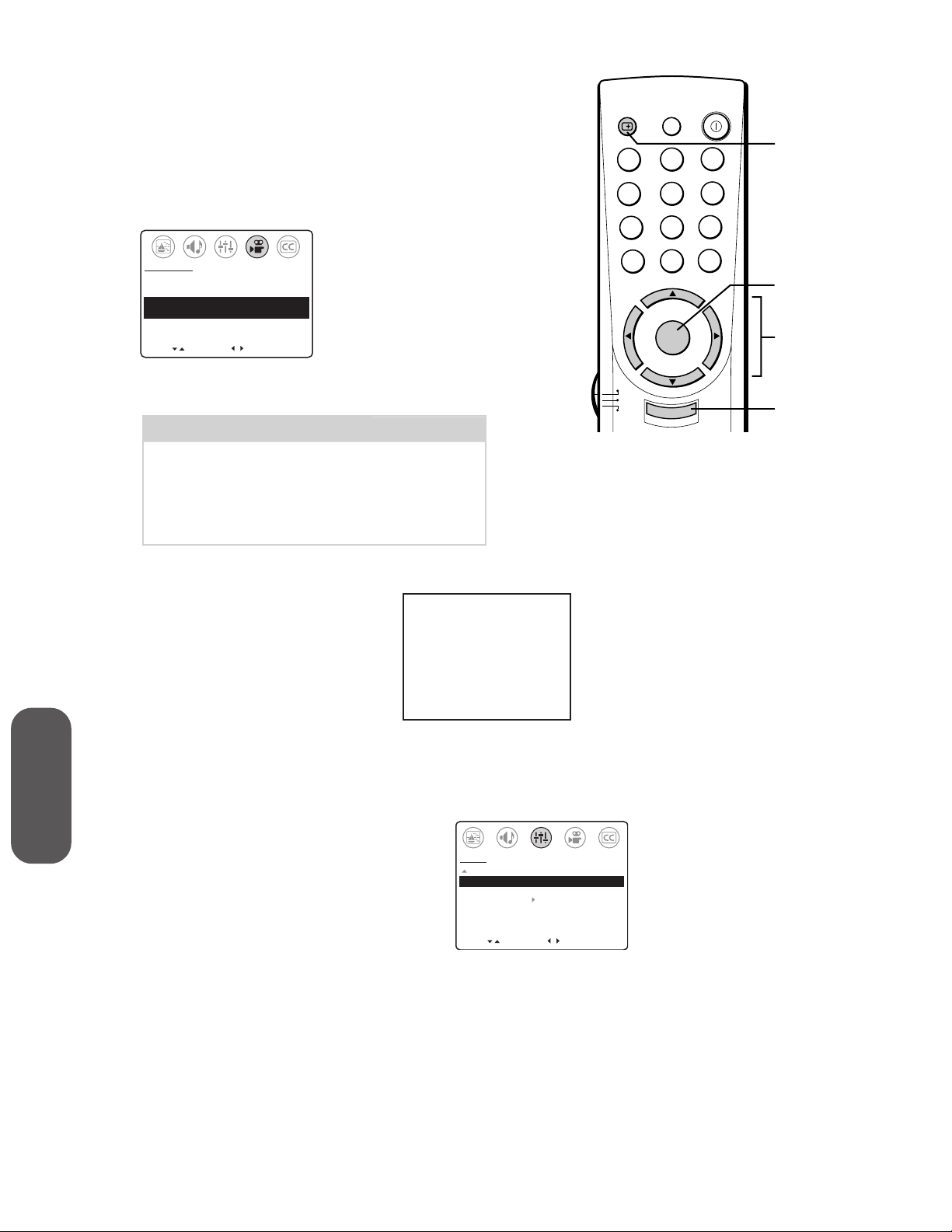

Adjusting the picture preference

TV CABLE VCR

MENU/ ENTER

CH RTN

RECALL MUTE

VOL VOL

ENT

100

POWER

EXIT

You can select from four picture modes—Sports, Standard, Movie, and Memory.

To adjust the picture preference:

1. Press MENU.

2. Press

3. Press

x or • to highlight the PREFERENCE menu. y or z to highlight PICTURE PREFERENCE.

PREFERENCE

COLOR TEMPERATURE

[COOL] MEDIUM WARM

PICTURE PREFERENCE

[SPORTS] STANDARD MOVIE MEMORY

[

MOVE

[

]

SELECT

]

4. Press x or • to highlight the mode you prefer, as described in the following table:

Mode

Sports

Standard

Movie Memory

Picture Quality

Bright and dynamic picture (factory-set)

Standard picture quality (factory-set)

Movie-like picture setting (factory-set) Your personal preferences (set by you; see

Adjusting the picture quality” on previous page)

RECALL

yz x •

EXIT

Features

Using the TV’s

Displaying on-screen information

Press RECALL to display the following information on-screen:

• Audio status (stereo or SAP)

• Rating of current program (if rated)

• Channel number or video mode

STEREO TV-PG L V

TV 6

Setting the off timer

The off timer automatically turns off the TV after a set amount of time.

To set the off timer:

1. Press MENU.

2. Press

3. Press

4. Press

5. Press EXIT to exit the menu and return to

To cancel the off timer:

Auto power off

The TV turns off automatically after approximately 15 minutes if it is tuned to a vacant channel or a station that stops broadcasting for the day.

Note: The auto power off feature does not work in VIDEO mode.

x or • to highlight the SETUP menu. y or z to highlight TIMER.

• to increase (or x to decrease) the amount

of time until the TV turns off automatically (in 10-minute increments, to a maximum of 180).

normal TV viewing.

SET UP

TIMER: 30 MIN

DEMO: START [STOP] FAVORITE CH

[

]

MOVE

START

Set the off timer to 0 (zero) minutes in step 4 above, or turn off the TV.

[

]

Using the closed caption feature

TV CABLE VCR

MENU/ ENTER

CH RTN

RECALL MUTE

VOL VOL

ENT

100

POWER

EXIT

The Closed Caption feature has two options:

• Captions—An on-screen display of the dialogue, narration, and sound effects of programs and videos that are closed-captioned (usually identified in your local TV listing as “CC”).

• Text—An on-screen display of information not related to the program, such as weather or stock data (if available in your viewing area).

To view captions or text:

1. Tune the TV to the desired program.

2. Press MENU, and then press

CAPTION menu.

3. Press

y or z to highlight CC.

CLOSED CAPTI0N

CC: C1 C2 C3 C4 T1

T2 T3 T4 [OFF]

[

MOVE

[

]

SELECT

]

x or • to highlight the CLOSED

Introduction

Connecting

your TV

yz x •

Remote Control

Using the

4. Press x or • to select the desired Closed Caption mode, as follows:

• To view captions, select C1, C2, C3, or C4 (C1 displays

translation of the primary language in your area). Note: If the program or video you selected is not closed-captioned, no captions will display on-screen.

The top of the mountain is covered with snow all the year round.

• To view text, select T1, T2, T3, or T4. Note: If text is not available in your viewing area, a black rectangle may appear on-screen. If this happens, set the Closed Caption feature to OFF.

WORLD WEATHER

LONDON MOSCOW PARIS ROME TOKYO

Temps F 51 57 53 66 65

• To turn off the Closed Caption feature, highlight OFF in the Closed Caption menu.

Current Weather

Clear

Cloudy

Clear

Cloudy

Rain

Note:

A closed caption signal may not display in the following situations:

• when a videotape has been dubbed

• when the signal reception is weak

• when the signal reception is non-standard

Setting up

your TV

Using the TV’s

Features

Appendix

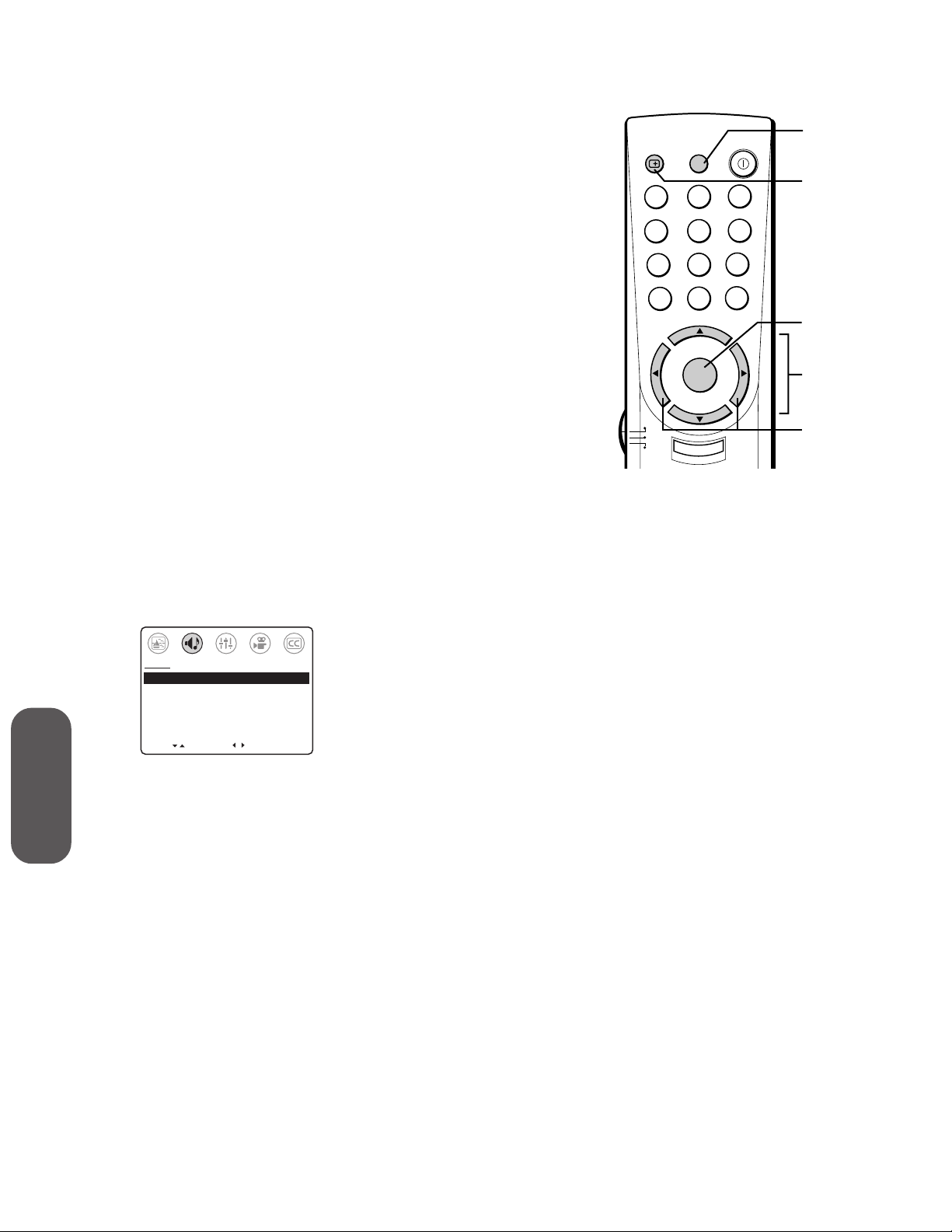

Adjusting the sound

TV CABLE VCR

MENU/ ENTER

CH RTN

RECALL MUTE

VOL VOL

ENT

100

POWER

EXIT

Muting the sound

Press MUTE to temporarily turn off the sound. While the sound is off, the screen displays the word “MUTE” in the lower right corner. To restore the sound, press MUTE or VOL

x •.

When you press MUTE, the Closed Caption feature is automatically activated. To deactivate captions and restore normal sound, press MUTE again. This feature works only when the Closed Caption mode is set to OFF. For more information about closed caption settings, see “Using the closed captioned feature” on page 27.

Selecting stereo/SAP broadcasts

The multi-channel TV sound (MTS) feature provides high-fidelity stereo sound. MTS also can transmit a second audio program (SAP) containing a second language or other audio information.

Note: The MTS feature is not available in VIDEO mode.

When the TV receives a stereo or SAP broadcast, the word “STEREO” or “SAP” displays on-screen every time you turn the TV on, change the channel, or press RECALL.

To listen to stereo sound:

1. Press MENU.

2. Press

3. Press

4. Press

x or • to highlight the AUDIO menu. y or z to highlight MTS. x or • to highlight STR (stereo).

Note: If the stereo sound is noisy, select MONO to reduce the noise.

MUTE

RECALL

yz x •

VOL x •

Features

Using the TV’s

AUDIO

MTS: [STR] SAP MONO

BASS 50 TREBLE 50 BALANCE 0 SURROUND: [ON] OFF

[

MOVE

[

]

SELECT

]

Note: In general, if you leave the TV in stereo (STR) mode, the TV will automatically output the type of sound being broadcast (stereo or mono).

To listen to a second audio program (SAP):

1. Press MENU.

2. Press

3. Press

4. Press

x or • to highlight the AUDIO menu. y or z to highlight MTS. x or • to highlight SAP. The TV speakers will output the

second audio program (if available), instead of normal audio.

Adjusting the sound quality

TV CABLE VCR

MENU/ ENTER

CH RTN

RECALL MUTE

VOL VOL

ENT

100

POWER

EXIT

You can change the sound quality of your TV by adjusting the bass, treble, and balance.

To adjust the sound quality:

1. Press MENU.

2. Press

3. Press

x or • to highlight the AUDIO menu. y or z to highlight the quality you want to adjust (BASS,

TREBLE, or BALANCE).

4. Press

x or • to adjust the level:

•

x makes the sound quality weaker or increases the balance in

the right channel, depending on the item selected.

• makes the sound quality stronger or increases the balance in

•

the left channel, depending on the item selected.

AUDIO

MTS: [STR] SAP MONO

BASS 50

TREBLE 50 BALANCE 0 SURROUND: [ON] OFF

MOVE

]

ADJUST

–

[

][

Introduction

Note:

To reset the audio adjustments (bass, treble, and balance) to the factory settings, select RESET in the PICTURE menu (see note on page 25).

Connecting

your TV

Remote Control

Using the

yz x •

Using the surround sound feature

The surround sound feature expands the audio listening field wider and deeper to create exceptional sound quality from the TV speakers. This feature uses stereo signals from a TV broadcast or video input.

To turn surround sound on:

1. Press MENU.

2. Press

3. If you have not already done so, select STEREO mode (press

4. Press

5. Press

x or • to highlight the AUDIO menu.

z to highlight MTS, and then press x or • to highlight STR).

y or z to highlight SURROUND. x or • to highlight ON.

AUDIO

MTS: [STR] SAP MONO BASS 50 TREBLE 50 BALANCE 0

SURROUND: [ON] OFF

[

MOVE

[

]

SELECT

]

y or

To turn surround sound off:

Highlight OFF in step 5 above.

Note: In general, if you leave the surround sound feature ON, the TV will automatically output the type of sound being broadcast (surround stereo or mono).

Setting up

your TV

Using the TV’s

Features

Appendix

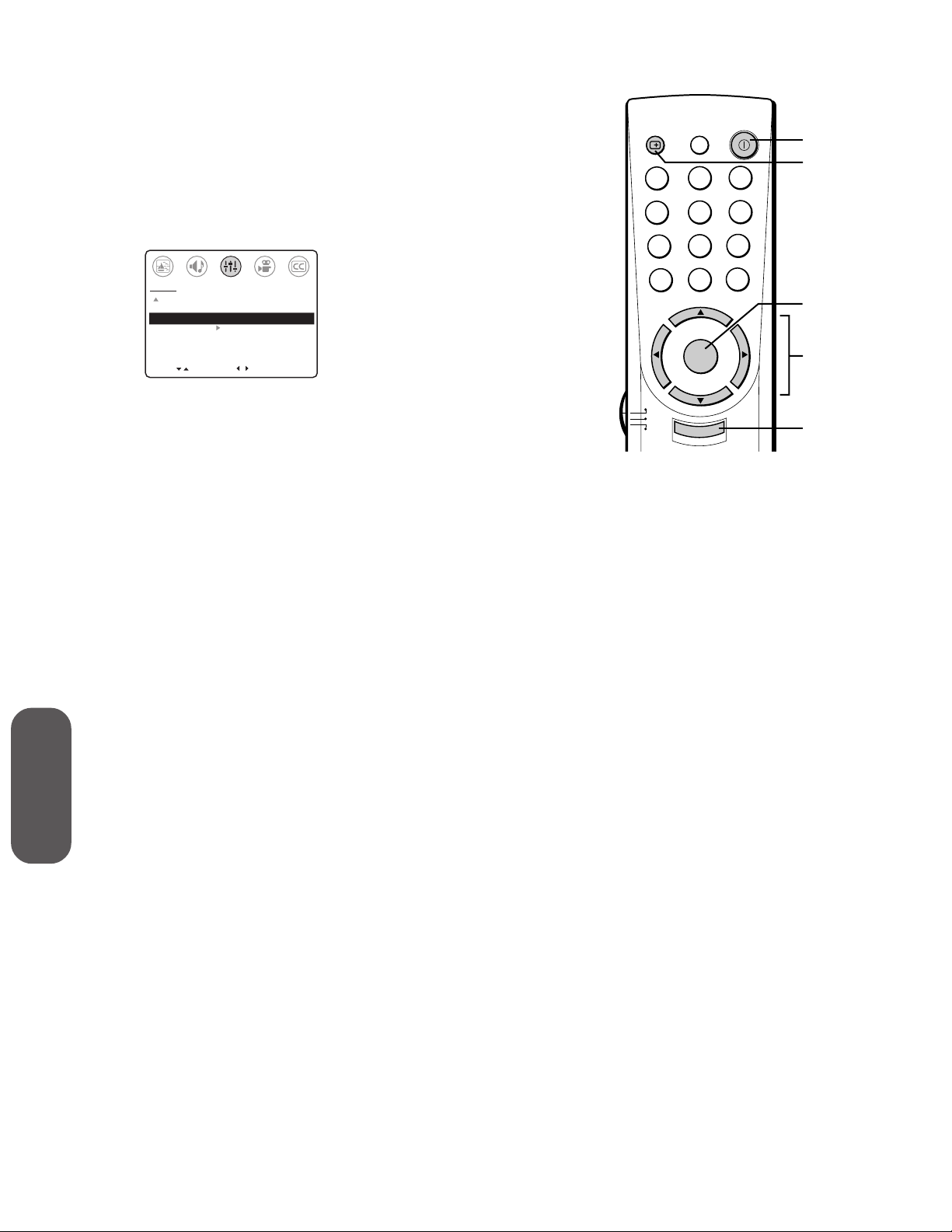

Viewing the demonstration (DEMO) mode

TV CABLE VCR

MENU/ ENTER

CH RTN

RECALL MUTE

VOL VOL

ENT

100

POWER

EXIT

The DEMO mode automatically demonstrates several features of your TV.

To start the DEMO mode:

1. Press MENU.

2. Press x or • to highlight the SET UP menu.

3. Press

y or z to highlight DEMO.

SET UP

TIMER: 0 MIN

DEMO [START] STOP

FAVORITE CH

POWER

RECALL

[

]

MOVE SELECT

]

4. Press x or • to highlight START.

5. Press MENU to start the demo.

To stop the DEMO mode:

Press RECALL, EXIT, or POWER.

Understanding the last mode memory feature

If the power is cut off while you are viewing the TV, the Last Mode Memory feature automatically turns on the TV when the power is resupplied.

If the power is going to be off for a long time and you are going to be away from your TV, unplug the power cord to prevent the TV from turning on in your absence.

yz x •

EXIT

Features

Using the TV’s

Appendix

Specifications

Television system NTSC standard

Channel coverage VHF: 2 through 13

UHF: 14 through 69 Cable TV: mid band (A-8 through A-1, A through I)

super band (J through W) hyper band (AA through ZZ, AAA, BBB) ultra band (65 through 94, 100 through 125)

Power source 120V AC, 60Hz

Power consumption 92W (average)

Audio power 5W + 5W

Speaker type 2-3/8 x 4-3/4 inches (60 x 120 mm)

Audio/Video terminals S-VIDEO INPUT

Y-INPUT: 1V (p-p), 75 ohm, negative sync. C-INPUT: 0.286V (p-p) (burst signal), 75 ohm

AUDIO/VIDEO INPUT

VIDEO: 1V(p-p), 75 ohm, negative sync. AUDIO: 150mV(rms) (30% modulation equivalent, 47k ohm)

ColorStream

Y: 1V (p-p), 75 ohm C

R (PR): 0.7 V (p-p), 75 ohm B (PB): 0.7 V (p-p), 75 ohm

AUDIO/VIDEO OUTPUT

VIDEO: 1V(p-p), 75 ohm, negative sync. AUDIO: 150mV(rms) (30% modulation equivalent, 4.7k ohm)

(component video) INPUT

Introduction

Connecting

your TV

Remote Control

Using the

Setting up

your TV

Dimensions Width 38-3/16 inches (970mm)

Height 29-9/16 inches (751mm) Depth 24-1/4 inches (616mm)

Mass 193 lbs (87.5kg)

Supplied accessories Remote Control with 2 size “AA” batteries

Design and specifications are subject to change without notice.

Using the TV’s

Features

Appendix

Troubleshooting

Before calling service personnel, please check the following chart for a possible cause of the problem you are experiencing. A minor adjustment on your part may eliminate the problem and restore your TV reception.

Problem Checks and Adjustments

TV will not turn on

No picture, no sound

No sound, picture OK

Poor sound, picture OK

Poor picture, sound OK

Poor reception of broadcast channels

No UHF, VHF OK

Black box appears on the screen

Cannot select a certain channel

Multiple images (ghosts)

Poor color or no color

No stereo or SAP sound from an MTS broadcast

The remote control does not operate

●

Make sure the power cord is plugged in, and then press POWER.

●

The remote control batteries may be dead. Replace the batteries.

●

Check the antenna/cable connections.

●

The sound may be muted. Press VOLUME S.

●

The station may have broadcast difficulties. Try another channel.

●

Make sure the MTS feature is set correctly.

●

The station may have broadcast difficulties. Try another channel.

●

An appliance near the TV may be causing interference. Move or turn off the appliance.

●

Check the antenna/cable connections.

●

The station may have broadcast difficulties.Try another channel.

●

An appliance near the TV may be causing interference. Move or turn off the appliance.

●

Adjust the Picture menu.

●

The station may have broadcast difficulties. Try another channel.

●

Check the antenna connections.

●

If using a VCR, make sure the TV/VCR button is set correctly.

●

Make sure the TV/CABLE function is set to the mode that corresponds to the signal source type (cable company or outside antenna).

●

The Closed Caption Text feature (T1, T2, T3, or T4) may be on. Set the Closed Caption feature to OFF.

●

The channel may be blocked by the BLOCK CHANNEL function. Unblock the channel.

●

The channel may have been erased from the channel memory by the ADD/ERASE function. Reprogram the channel into channel memory or use the Channel Numbers to select the channel.

●

The station may have broadcast difficulties. Try another channel.

●

Antenna reception may be poor. Use a highly directional outdoor antenna.

●

The station may have broadcast difficulties. Try another channel.

●

An appliance near the TV may be causing interference. Move or turn off the appliance.

●

Adjust the TINT and/or COLOR in the Picture menu.

●

If you change the direction of the TV while the TV is on, the picture may suffer from color shading. Turn off the TV and allow it to cool for about 30 minutes; then turn it on again.

●

Make sure the MTS feature is set correctly.

●

Make sure the TV/CABLE/VCR switch is set correctly.

●

There may be an obstruction between the remote control and the TV. Remove the obstruction and retry the remote control.

●

The remote control batteries may be dead. Replace the batteries.

Limited United States Warranty

for 27'' FST PURE® and All Larger Television Models

Introduction

Toshiba America Consumer Products, Inc. (“TACP”) and Toshiba Hawaii, Inc. (“THI”) make the following limited warranties to original consumers in the United States. THESE LIMITED WARRANTIES

EXTEND TO THE ORIGINAL CONSUMER PURCHASER OR ANY PERSON RECEIVING THIS TELEVISION AS A GIFT FROM THE ORIGI NAL CONSUMER PURCHASER AND TO NO OTHER PURCHASER OR TRANSFEREE.

PRODUCTS PURCHASED IN THE U.S.A. AND USED IN CANADA ARE NOT COVERED BY THESE WARRANTIES.

PRODUCTS PURCHASED IN CANADA AND USED IN THE U.S.A. ARE NOT COVERED BY THESE WARRANTIES.

Limited One (1) Year Warranty on Parts and Labor*

TACP/THI warrant this television and its parts against defects in materials or workmanship for a period of one (1) year after the date of original retail purchase. DURING THIS PERIOD, TACP/THI

WILL, AT TACP/THI’S OPTION, REPAIR OR REPLACE A DEFECTIVE PART WITH A NEW OR REFURBISHED PART WITHOUT CHARGE TO YOU FOR PARTS OR LABOR. TA CP/THI

Authorized Service Station personnel will come to your home when warranty service is required. Depending on the type of repair required, either the service will be performed in your home or the set will be taken to the TACP/THI Authorized Service Station for repair and returned to your home at no cost to you.

Limited Two (2) Year Warranty on Picture Tube*

TACP/THI further warrant the picture tube in this television against defects in materials or workmanship for a period of two (2) years after the date of original retail purchase. DURING THIS PERIOD,

TACP/THI WILL, AT TACP/THI’S OPTION, REPAIR OR REPLACE A DEFECTIVE PICTURE TUBE WITH A NEW OR REFURBISHED PICTURE TUBE WITHOUT CHARGE TO YOU, EXCEPT THAT, IF ADEFECTIVE PICTURE TUBE IS REPAIRED OR REPLACED AFTER ONE (1) YEAR FROM THE DATE OF THE ORIGINAL RETAIL PURCHASE, YOU PAY LABOR CHARGES INVOLVED IN THE REPAIR OR REPLACEMENT.

Rental Units

The warranty for rental units begins with the date of first rental or thirty (30) days from the date of shipment to the rental firm, whichever comes first.

*Commercial Units

Televisions sold and used for commercial purposes have a limited ninety (90) day warranty for all parts, labor, and picture tubes.

Owner’s Manual and Product Registration Card

Read this owner’s manual thoroughly before operating this television. Complete and mail the enclosed product registration card within ten days after you, or the person who has given you this product as a gift, purchased this television. Returning the product registration card will enable TACP/THI to provide you with better customer service and improved product support. Failure to return the product registration card will not affect your rights under this warranty.

Your Responsibility

THE ABOVE WARRANTIES ARE SUBJECT TO THE FOLLOWING CONDITIONS:

(1) You must provide your bill of sale or other proof of purchase. (2) All warranty servicing of this television must be made by an

Authorized TACP/THI Service Station.

(3) The warranties from TACP and THI are effective only if the

television is purchased and operated in the U.S.A. or Puerto Rico.

(4) Labor service charges for set installation, setup, adjustment of

customer controls, and installation or repair of antenna systems are not covered by these warranties. Reception problems caused by inadequate antenna systems are your responsibility.

(5) Warranties extend only to defects in materials or workmanship

as limited above and do not extend to any television or parts that have been lost or discarded by you or to damage to television or parts caused by misuse, accident, Acts of God (such as lightning or fluctuations in electric power), improper installation, improper maintenance, or use in violation of instructions furnished by TACP/THI; or to units that have been modified or had the serial number removed, altered, defaced, or rendered illegible.

How to Obtain Warranty Services

If, after following all of the operating instructions in this manual and checking the “Troubleshooting” section, you find that service is needed:

(1) To find the nearest TACP/THI Authorized Service Station:

For televisions purchased in the United States, except Hawaii, visit TACP’s web site at www.toshiba.com/tacp, or call toll free 1-800-631-3811.

For televisions purchased in Hawaii, contact Toshiba Hawaii, Inc., 327 Kamakee Street, Honolulu, HI 96814, (808) 591-9281.

(2) Present your bill of sale or other proof of purchase to the

Authorized Service Station. Authorized TACP/THI Service Station personnel will come to your home when warranty service is required. Depending on the type of repair required, either the service will be performed in your home or the set will be taken to the Authorized Service Station for repair and returned to your home at no cost to you.

For additional information, visit TACP’s web site:

ALL WARRANTIES IMPLIED BY THE LAW OF ANY STATE OF THE U.S.A., INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE EXPRESSLY LIMITED TO THE DURATION OF THE LIMITED WARRANTIES SET FORTH ABOVE. WITH THE EXCEPTION OF ANY WARRANTIES IMPLIED BY THE LAW OF ANY STATE OF THE U.S.A. AS HEREBY LIMITED, THE FOREGOING WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, GUARANTEES, AGREEMENTS, AND SIMILAR OBLIGATIONS OF TACP OR THI WITH RESPECT TO THE REPAIR OR REPLACEMENT OF ANY PARTS. IN NO EVENT SHALL TACP OR THI BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES.

No person, agent, distributor, dealer, or company is authorized to change, modify, or extend the terms of these warranties in any manner whatsoever. The time within which action must be commenced to enforce any obligation of TACP or THI arising under this warranty or under any law of the United States or of any state thereof is hereby limited to 90 days from the date you discover, or should have discovered, the defect. This limitation does not apply to implied warranties arising under the law of any state of the U.S.A.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH MAY VARY FROM STATE TO STATE IN THE U.S.A. SOME STATES OF THE U.S.A. DO NOT ALLOW LIMITATIONS ON THE DURATION OF AN IMPLIED WARRANTY, LIMITATIONS ON THE TIME WITHIN WHICH AN ACTION MAY BE BROUGHT, OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES; THEREFORE, THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU UNDER SUCH CIRCUMSTANCES.

FST PURE® is a registered trademark of Toshiba America Consumer Products, Inc.

www.toshiba.com/tacp.

REV. MAR02

Connecting

your TV

Remote Control

Using the

Setting up

your TV

Using the TV’s

Features

Appendix

Limited Canada Warranty

for 27'' FST PURE® and All Larger Television Models

Appendix

Toshiba of Canada Limited (“TCL”) makes the following limited warranties to original consumers in Canada.

THESE LIMITED WARRANTIES EXTEND TO THE ORIGINAL CONSUMER PURCHASER OR ANY PERSON RECEIVING THIS TELEVISION AS A GIFT FROM THE ORIGINAL CONSUMER PURCHASER AND TO NO OTHER PURCHASER OR TRANSFEREE.

PRODUCTS PURCHASED IN THE U.S.A. AND USED IN CANADA ARE NOT COVERED BY THESE WARRANTIES.

PRODUCTS PURCHASED IN CANADA AND USED IN THE U.S.A. ARE NOT COVERED BY THESE WARRANTIES.

Limited One (1) Year Warranty on Parts and Labor*

TCL warrants this television and its parts against defects in materials or workmanship for a period of one (1) year after the date of original retail purchase. DURING THIS PERIOD, TCL WILL, AT TCL’S

OPTION, REPAIR OR REPLACE A DEFECTIVE PART WITH A NEW OR REFURBISHED PART WITHOUT CHARGE TO YOU FOR PARTS OR LABOR. TC L Authorized Service Depot personnel

will come to your home when warranty service is required. Depending on the type of repair required, either the service will be performed in your home or the set will be taken to the TCL Authorized Service Depot for repair and returned to your home at no cost to you. IN-HOME SERVICE ONLY APPLIES WITHIN 100

KILOMETERS OF AN AUTHORIZED TCL SERVICE DEPOT.

Limited Two (2) Year Warranty on Picture Tube*

TCL further warrants the picture tube in this television against defects in materials or workmanship for a period of two (2) years after the date of original retail purchase. DURING THIS PERIOD,

TCL WILL, AT TCL’S OPTION, REPAIR OR REPLACE A DEFECTIVE PICTURE TUBE WITH A NEW OR REFURBISHED PICTURE TUBE WITHOUT CHARGE TO YOU, EXCEPT THAT, IFADEFECTIVE PICTURE TUBE IS REPAIRED OR REPLACED AFTER ONE (1) YEAR FROM THE DATE OF THE ORIGINAL RETAIL PURCHASE, YOU PAY LABOR CHARGES INVOLVED IN THE REPAIR OR REPLACEMENT.

Rental Units

The warranty for rental units begins with the date of first rental or thirty (30) days from the date of shipment to the rental firm, whichever comes first.

*Commercial Units

Televisions sold and used for commercial purposes have a limited ninety (90) day warranty for all parts, labor, and picture tubes.

Owner’s Manual

Read this owner’s manual thoroughly before operating this television.

Your Responsibility

THE ABOVE WARRANTIES ARE SUBJECT TO THE FOLLOWING CONDITIONS:

(1) You must provide your bill of sale or other proof of purchase.

(2) All warranty servicing of this television must be made by an

Authorized TCL Service Depot.

(3) The warranties from TCL are effective only if the television is

purchased in Canada from an authorized TCL dealer and operated in Canada.

(4) Labor service charges for set installation, setup, adjustment of

customer controls, and installation or repair of antenna systems are not covered by these warranties. Reception problems caused by inadequate antenna systems are your responsibility.

(5) Warranties extend only to defects in materials or workmanship

as limited above and do not extend to any television or parts that have been lost or discarded by you or to damage to television or parts caused by misuse, accident, Acts of God (such as lightning or fluctuations in electric power), improper installation, improper maintenance, or use in violation of instructions furnished by TCL; or to units that have been modified or had the serial number removed, altered, defaced, or rendered illegible.

How to Obtain Warranty Services

If, after following all of the operating instructions in this manual and checking the “Troubleshooting” section, you find that service is needed:

(1) To find the nearest TCL Authorized Service Depot, visit TCL’s

web site: www.toshiba.ca.

(2) Present your bill of sale or other proof of purchase to the

Authorized Service Depot. Authorized TCL Service Depot personnel will come to your home when warranty service is required. Depending on the type of repair required, either the service will be performed in your home or the set will be taken to the Authorized Service Depot for repair and returned to your home at no cost to you. IN-HOME SERVICE ONLY APPLIES

WITHIN 100 KILOMETERS OF AN AUTHORIZED TCL SERVICE DEPOT.

For additional information, visit TCL’s web site:

ALL WARRANTIES IMPLIED BY THE LAW OF ANY PROVINCE OF CANADA, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE EXPRES SLY LIMITED TO THE DURATION OF THE LIMITED WARRANTIES SET FORTH ABOVE. WITH THE EXCEPTION OF ANY WARRANTIES IMPLIED BY THE LAW OF ANY PROVINCE OF CANADA AS HEREBY LIMITED, THE FOREGOING WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, GUARANTEES, AGREEMENTS, AND SIMILAR OBLIGATIONS OF TCL WITH RESPECT TO THE REPAIR OR REPLACEMENT OF ANY PARTS. IN NO EVENT SHALL TCL BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAG ES.

No person, agent, distributor, dealer, or company is authorized to change, modify, or extend the terms of these warranties in any manner whatsoever. The time within which action must be commenced to enforce any obligation of TCL arising under this warranty or under any law of Canada or of any province thereof, is hereby limited to 90 days from the date you discover, or should have discovered, the defect. This limitation does not apply to implied warranties arising under the law of any province of Canada.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, ANDYOU MAY ALSO HAVE OTHER RIGHTS, WHICH MAY VARY FROM PROVINCE TO PROVINCE IN CANADA. SOME PROVINCES OF CANADA DO NOT ALLOW LIMITATIONS ON THE DURATION OF AN IMPLIED WARRANTY, LIMITATIONS ON THE TIME WITHIN WHICH AN ACTION MAY BE BROUGHT, OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES; THEREFORE, THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU UNDER SUCH CIRCUMSTANCES.

FST PURE® is a registered trademark of Toshiba America Consumer Products, Inc.

www.toshiba.ca

REV. MAR02

TOSHIBA AMERICA CONSUMER PRODUCTS, INC.

HEAD OFFICE: 82 TOTOWA ROAD, WAYNE, NJ 07470, U.S.A. NATIONAL SERVICE DIVISION: 1420-B TOSHIBA DRIVE, LEBANON, TN 37087, U.S.A.

TOSHIBA HAWAII, INC.

HEAD OFFICE: 327 KAMAKEE STREET, HONOLULU, HI 96814, U.S.A.

TOSHIBA OF CANADA LTD.

HEAD OFFICE: 191 McNABB STREET, MARKHAM, ONTARIO, L3R 8H2, CANADA — TEL: (905) 470-5400 SERVICE CENTERS:

TORONTO: 191 McNABB STREET, MARKHAM, ONTARIO, L3R 8H2, CANADA — TEL: (905) 470-5400 MONTREAL: 1643 NORTH SERVICE RD., TRANS-CANADA HIGHWAY, DORVAL QUEBEC, H9P 1J1, CANADA — TEL: (514) 856-4100 VANCOUVER: 22171 FRASERWOOD WAY, RICHMOND, B.C., V6W 1J5, CANADA — TEL: (604) 303-2500

MANUFACTURED BY

TOSHIBA AMERICA CONSUMER PRODUCTS, INC.

ColorStream is a registered trademark of Toshiba America Consumer Products, Inc.

PRINTED IN USA (03-06) B
