SETTING UP
Safety precautions – Some do’s and don’ts for you to be aware of 3 Installation and important information 4 The remote control – an at-a-glance guide 5 Connecting external equipment – a guide to connecting external equipment to the back of
the television 6 Connecting a computer – connecting a computer to the back of the television 7 Controls and input connections – switching on the television, standby, using the controls,
headphone socket, connecting equipment to the side input sockets 8 Tuning the television using Quick Setup – language, country 9 Sorting programme positions 9 Manual tune – an alternative to Quick Setup, direct entry of channels, tuning a programme
position for a media recorder 10 Programme skip 11 Auto tune 12
CONTROLS AND FEATURES
General controls – changing programme position 12 Sound controls – volume, sound mute, bass/treble/balance 12 Sound controls – bass boost, dual, stable sound SRS WOW™ sound effects – SRS 3D, FOCUS, TruBass 13 Widescreen viewing 14 Picture controls – picture position, back light 16 Picture controls – picture preferences (contrast, brightness, colour, tint, sharpness), black stretch,
MPEG noise reduction (MPEG NR), digital noise reduction (DNR) 17 Picture controls – colour temperature, 3D colour management, base colour adjustment 18 Picture controls – cinema mode, automatic format (widescreen), blue screen,
side panel adjustment 19 Panel lock – disabling the buttons on the television 20 Time display 20 Stereo and bilingual transmissions – stereo/mono or dual language broadcasts 20 The timer – setting the television to turn on and off 20 PC Setting – picture position, clock phase, sampling clock, reset 21 Input selection and AV connections – input and output sockets for connected equipment 22
®
13
TEXT SERVICES
Setting up, general information, Auto. and LIST modes 24 Control buttons 25
PROBLEM SOLVING
Questions and Answers – answers to some of the more common queries including
manual fine tuning and colour system 26
INFORMATION
Specifications and Accessories – technical information about the television, supplied accessories 28
2
Safety Precautions
This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken to obtain the best results and for safety to be assured. Please read the points below for your own safety. They are of a general nature, intended to help with all electronic consumer products and some points may not apply to the goods you have just purchased.
English
Air Circulation
Leave at least 10cm clearance around the television to allow adequate ventilation. This will prevent overheating and possible damage to the television. Dusty places should also be avoided.
Heat Damage
Damage may occur if the television is left in direct sunlight or near a heater. Avoid places subject to extremely high temperatures or humidity. Place in a location where the temperature remains between 5°C (41°F) min. and 35°C (94°F) max.
Mains Supply
The mains supply required for this equipment is 220-240v AC 50/60Hz. Never connect to a DC supply or any other power source. DO ensure that the television is not standing on the mains lead. DO NOT cut off the mains plug from this equipment, this incorporates a special Radio Interference Filter, the removal of which will impair its performance.
IF IN DOUBT PLEASE CONSULT A COMPETENT ELECTRICIAN.
Do
DO read the operating instructions before you attempt to use the equipment.
DO ensure that all electrical connections (including the mains plug, extension leads and inter-connections between pieces of equipment) are properly made and in accordance with the manufacturers’ instructions. Switch off and withdraw the mains plug before making or changing connections.
DO consult your dealer if you are ever in doubt about the installation, operation or safety of your equipment.
DO be careful with glass panels or doors on equipment.
DO NOT REMOVE ANY FIXED COVERS AS THIS WILL EXPOSE DANGEROUS AND 'LIVE' PARTS.
THE MAINS PLUG IS USED AS A DISCONNECTING DEVICE AND THEREFORE SHOULD BE READILY OPERABLE.
Do not
DO NOT obstruct the ventilation openings of the equipment with items such as newspapers, tablecloths, curtains, etc. Overheating will cause damage and shorten the life of the equipment.
DO NOT allow electrical equipment to be exposed to dripping or splashing or objects filled with liquids, such as vases, to be placed on the equipment.
DO NOT place hot objects or naked flame sources, such as lighted candles or nightlights on, or close to equipment. High temperatures can melt plastic and lead to fires.
DO NOT use makeshift stands and NEVER fix legs with wood screws. To ensure complete safety, always fit the manufacturers’ approved stand, bracket or legs with the fixings provided according to the instructions.
DO NOT listen to headphones at high volume, as such use can permanently damage your hearing.
DO NOT leave equipment switched on when it is unattended, unless it is specifically stated that it is designed for unattended operation or has a standby mode. Switch off by withdrawing the plug, make sure your family know how to do this. Special arrangements may need to be made for people with disabilities.
DO NOT continue to operate the equipment if you are in any doubt about it working normally, or it is damaged in any way – switch off, withdraw the mains plug and consult your dealer.
ABOVE ALL – NEVER let anyone, especially children, push or hit the screen, push anything into holes, slots or any other openings in the case.
NEVER guess or take chances with electrical equipment of any kind – it is better to be safe than sorry.
3
Installation and important information
English
Where to install
Locate the television away from direct sunlight and strong lights, soft, indirect lighting is recommended for comfortable viewing. Use curtains or blinds to prevent direct sunlight falling on the screen.
Place on a sturdy platform, the mounting surface should be flat and steady. It should then be secured to the wall with a sturdy tie using the clip on the back of the stand, or secured to the platform using the fixing strap located underneath the table top stand, this will prevent it from falling over.
The LCD display panels are manufactured using an extremely high level of precision technology, however sometimes some parts of the screen may be missing picture elements or have luminous spots. This is not a sign of a malfunction.
Make sure the television is located in a position where it cannot be pushed or hit by objects, as pressure will break or damage the screen, and that small items cannot be inserted into slots or openings in the case.

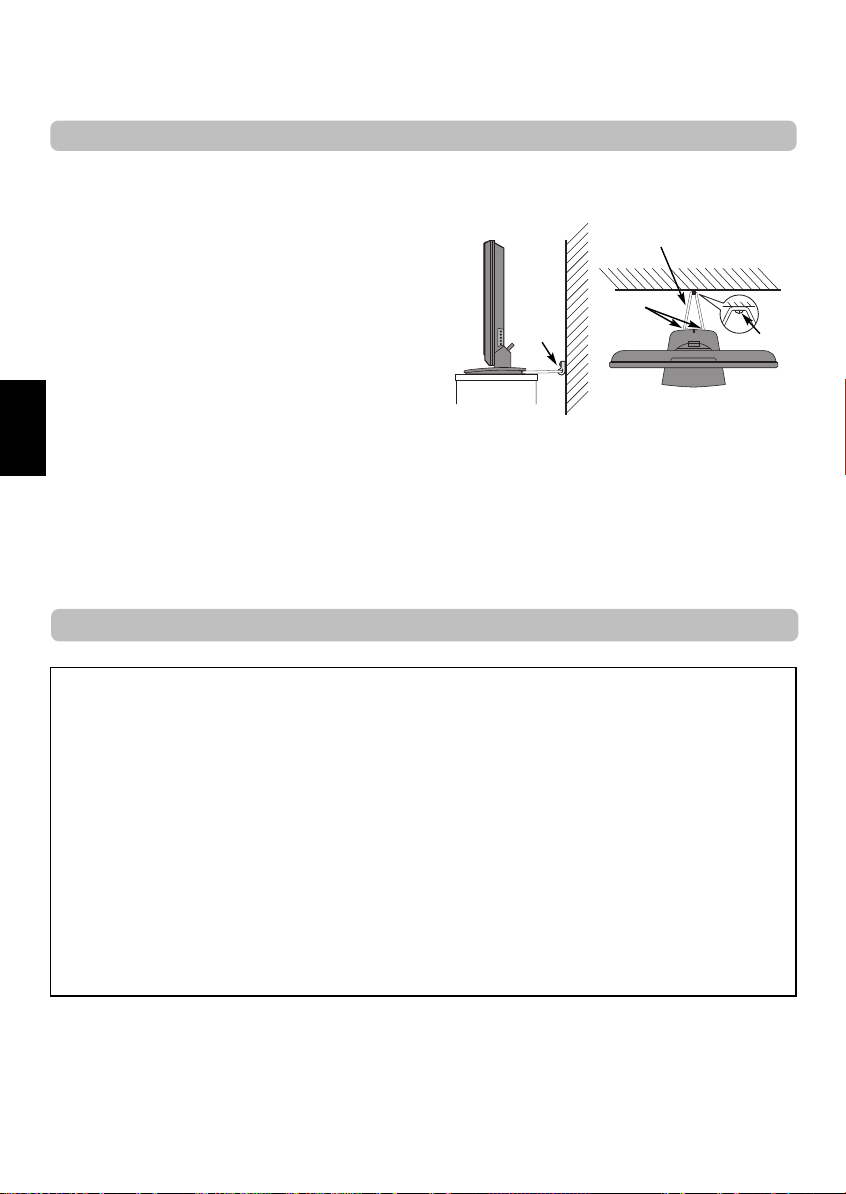

Side View Top View
Clip
Please take note
EXCLUSION CLAUSE
Sturdy tie
(as short as possible)
Clip
Clip
Toshiba shall under no circumstances be liable for loss and/or damage to the product caused by: i) fire; ii) earthquake; iii) accidental damage; iv) intentional misuse of the product; v) use of the product in improper conditions; vi) loss and/or damage caused to the product whilst in the possession of a third party; vii) any damage or loss caused as a result of the owner’s failure and/or neglect to follow the instructions set out in the owner’s
manual;
viii) any loss or damage caused directly as a result of misuse or malfunction of the product when used simultaneously with
associated equipment;
Furthermore, under no circumstances shall Toshiba be liable for any consequential loss and/or damage including but not limited to the following, loss of profit, interruption of business, the loss of recorded data whether caused during normal operation or misuse of the product.
If stationary images generated by text services, channel identification logos, computer displays, video games, on screen menus, etc. are left on the television screen for any length of time they could become conspicuous, it is always advisable to reduce both the brightness and contrast settings.
4
The remote control

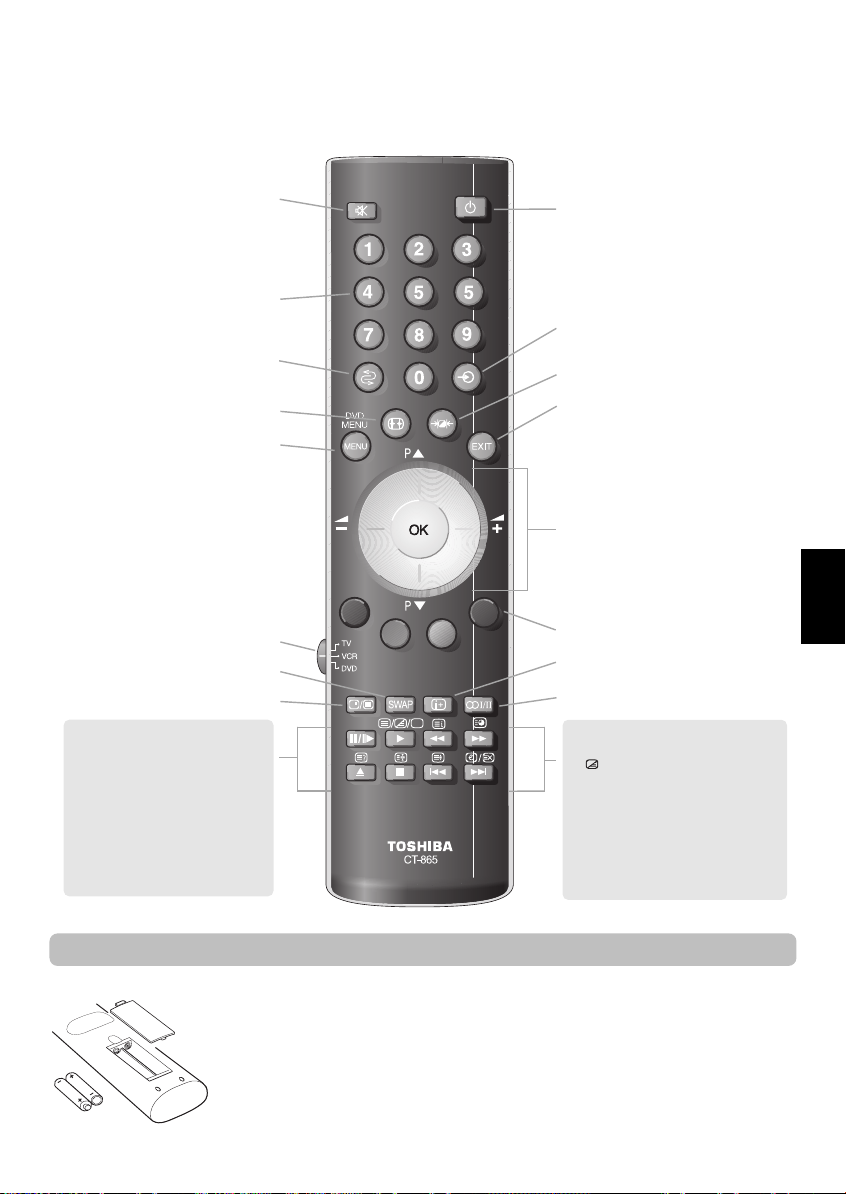

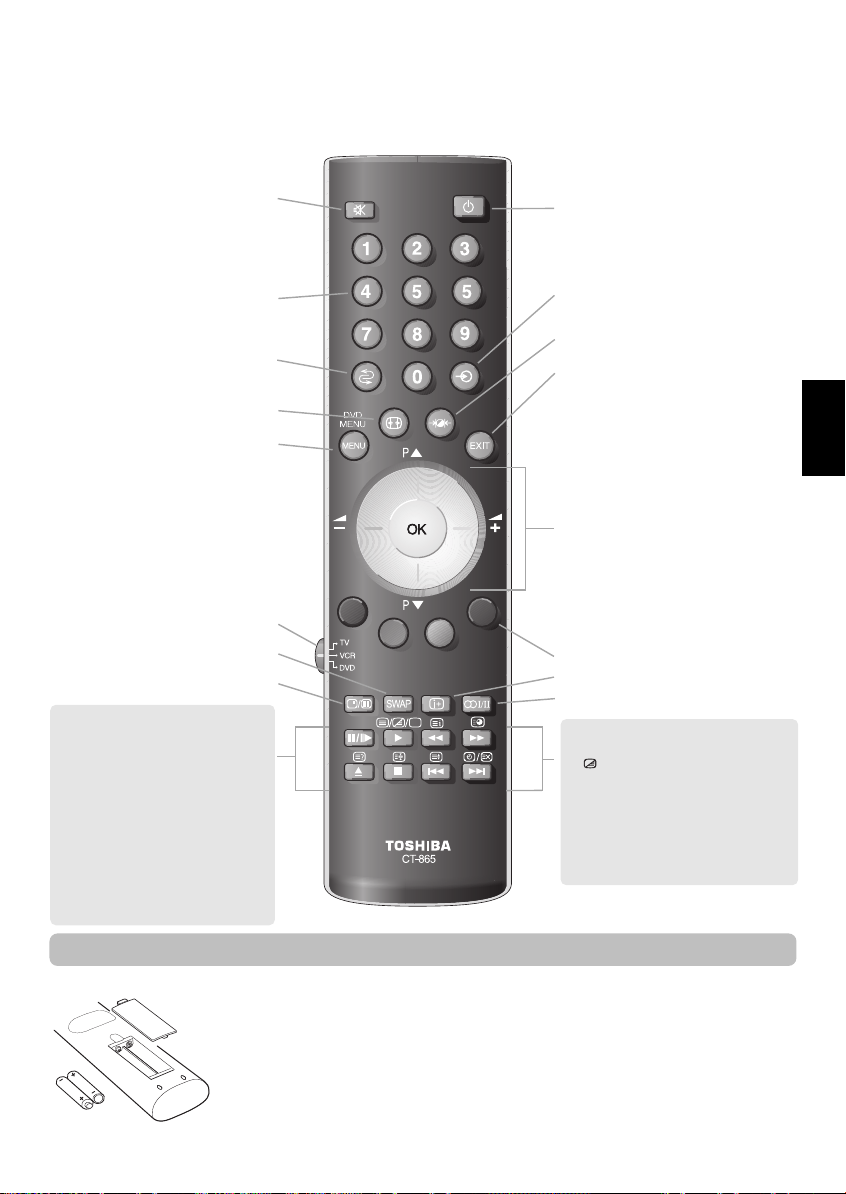

Simple at-a-glance reference of your remote control.
UP
English
To mute the sound
Number buttons
To return to the previous programme

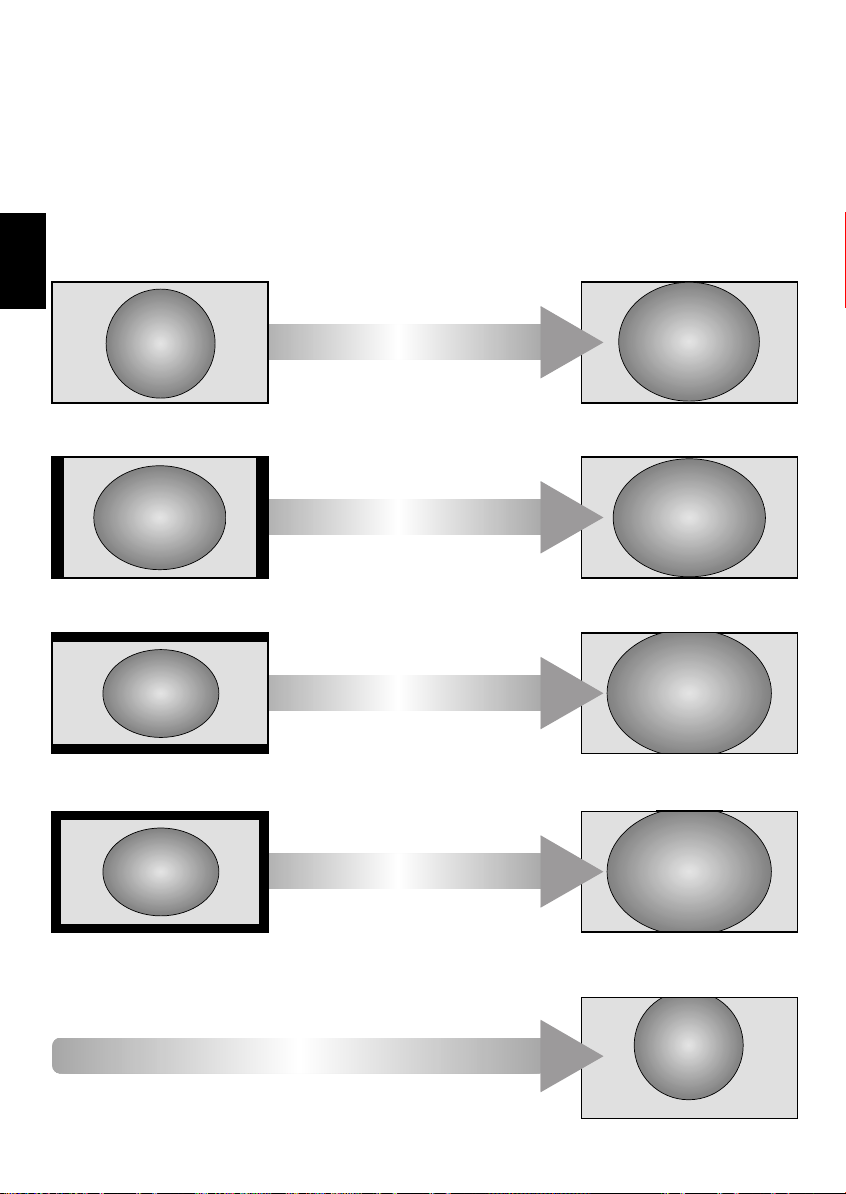

Widescreen viewing
On-screen Menus
To select mode
No function on this model
No function on this model
When using a TOSHIBA VCR or DVD:
press
/
to PAUSE/STEP
ll
r
m
press
to PLAY
r
press
to REWIND
q
press
to FAST FORWARD
s
press
to EJECT
w
press
to STOP
p
press
to SKIP-REWIND
l
q
press
to SKIP-FORWARD
l
s
For On/Standby mode
To select input from external sources
Selectable picture preferences
To exit Menus
Navigation Ring:
and P eto change programme
Use P
f
positions and text pages
j
– andj+ to alter the volume
Use When using menus press up, down, left
and right to move the cursor on the screen. OK to confirm your selection
Text control buttons
To display on-screen information
Stereo/bilingual transmissions
When in TV mode:
Time display
8/9
To call up text
6//7
When in Text mode:
To reveal concealed text
r
To hold a wanted page
q
To enlarge text display size
s
To select a page whilst viewing a
8/9
normal picture
Inserting batteries and effective range of the remote
Remove the back cover to reveal the battery compartment and make sure the batteries are inserted the right way round. Suitable battery types for this remote are AAA, IEC R03 1.5V.
Do not combine a used, old battery with a new one or mix battery types. Remove dead batteries immediately to prevent acid from leaking into the battery compartment. Dispose of them in a designated disposal area.
The performance of the remote control will deteriorate beyond a distance of five metres or outside an angle of 30 degrees from the centre of the television. If the operating range becomes reduced the batteries may need replacing.
5
Connecting external equipment
English

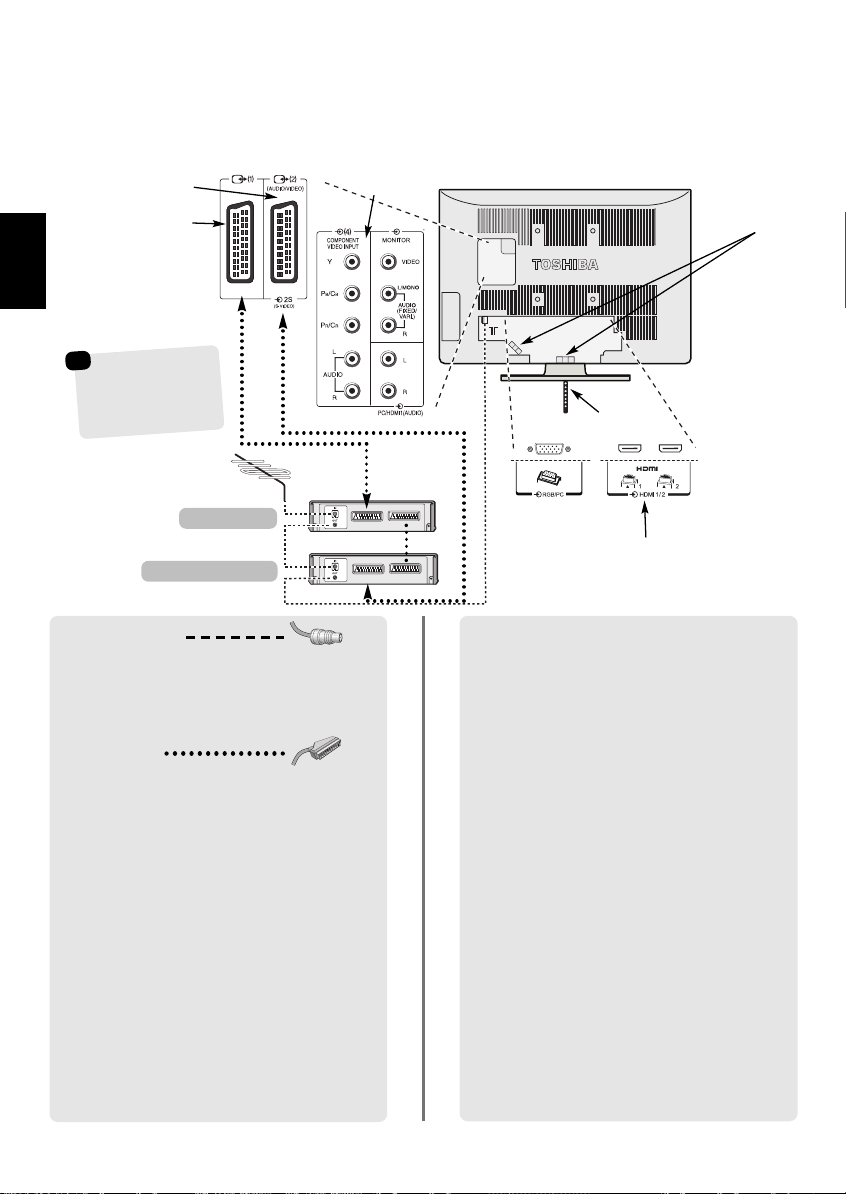

Before connecting any external equipment, turn off all main power switches. If there is no switch remove the mains plug from the wall socket.
SCART 2 (EXT2)
SCART 1 (EXT1)
a decoder could
*
be Digital Satellite or any other
compatible decoder.
decoder*
media recorder
Aerial cables:
Connect the aerial to the socket on the rear of the television. If you use a decoder* and/or a media recorder it is essential that the aerial cable is connected through the decoder and/or through the media recorder to the television.
SCART leads:
Connect the video recorder IN/OUT socket to the television. Connect the decoder TV socket to the television. Connect the media recorder SAT socket to the decoder MEDIA REC. socket.
Before running Auto tuning put your decoder and media recorder to Standby.
The phono sockets alongside the COMPONENT VIDEO INPUT sockets will accept L and R audio signals.
In addition there is a fixed/variable external audio ouput which enables the connection to a suitable Hi-Fi unit, make sure the Speaker option in the Sound menu is set of Off. The variable option is altered by using the sound controls.
COMPONENT
VIDEO (EXT3)
TV
IN/OUT
MEDIA REC.
SAT
CABLE HOLDER
FIXING STRAP
HDMI™ INPUT SOCKETS
HDMI™ (High-Definition Multimedia Interface) is for use with a DVD, decoder or electrical equipment with digital audio and video output. It is designed for best performance with 1080i high-definition video signals but will also accept and display 480i, 480p, 576i, 576p and 720p signals.
A wide variety of external equipment can be connected to the back of the television, therefore the relevant owners manuals for all additional equipment must be referred to.
We recommend SCART 1 for a decoder and SCART 2 for a media recorder.
If connecting S-VIDEO equipment, set the INPUT for EXT2. See page 22.
If the television automatically switches over to monitor external equipment, return to normal television by pressing the desired programme position button. To recall external equipment, press EXT1, EXT2, EXT3 (C), HDMI1, HDMI2 or PC.
The cable holder can be used for aerial, media recorder and audio cables. Do not use the cable holder as a handle and make sure all cables are removed before moving the television.
to select between
B
6
6
HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC.
Connecting a computer

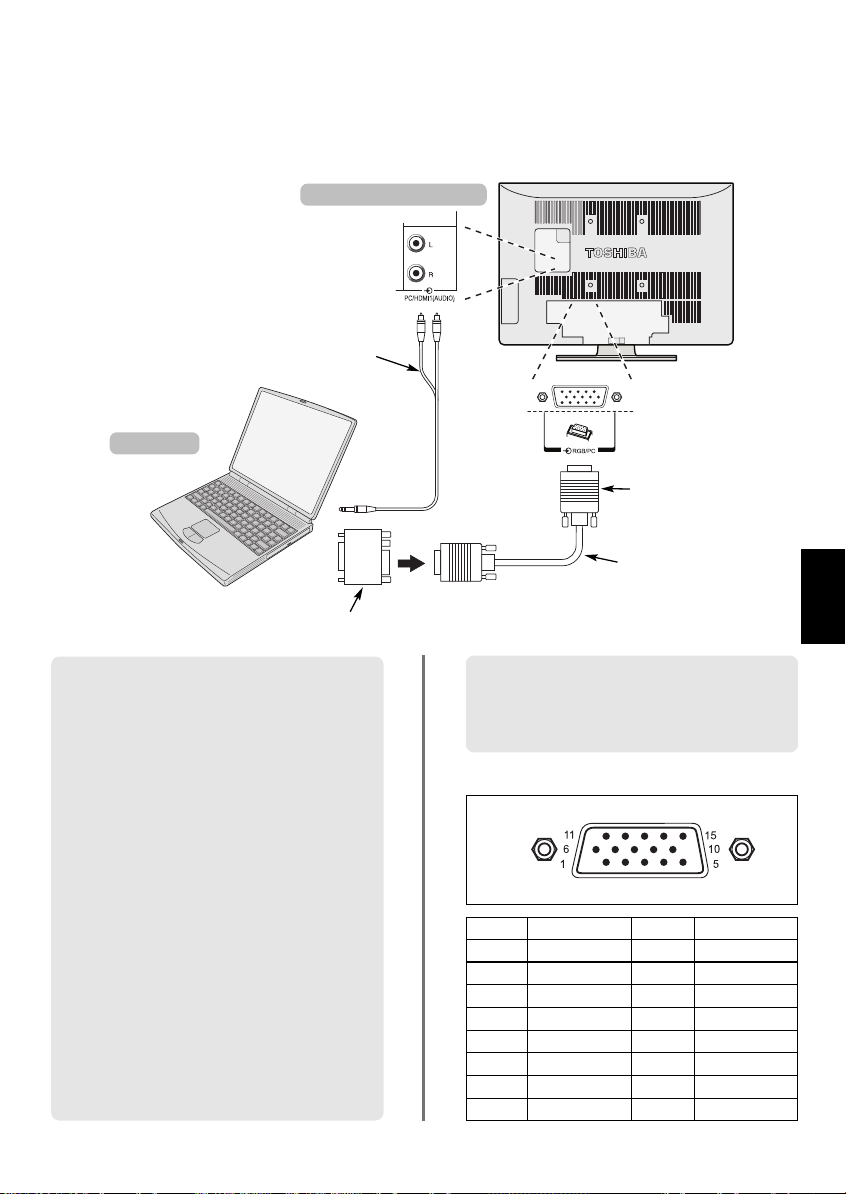

Before connecting any external equipment, turn off all main power switches. If there is no switch remove the mains plug from the wall socket.
the back of your television
Audio cable for PC to
television connection
(not supplied)
Computer
Mini D-sub
15 pin connector
RGB PC cable
(not supplied)
Conversion adaptor if required (not supplied)
English
Connect the PC cable from the computer to the PC terminal on the back of the television.
Connect the audio cable to the PC/HDMI1 Audio socket on the back of the television. Select PC from the PC/HDMI1 audio options in the AV connection menu located in the SET UP menu.
Press the Bto select PC mode.
The following signals can be displayed:
VGA: 640 x 480/60 Hz (VESA) SVGA: 800 x 600/60 Hz (VESA) XGA: 1024 x 768/60 Hz (VESA) SXGA: 1280 x 1024/60 Hz (VESA)
IMPORTANT NOTE: SXGA will display but it will not be to VESA standard.
PLEASE NOTE:
Some PC models cannot be connected to this television.
An adaptor is not needed for computers with a DOS/V compatible mini D-sub 15 pin terminal.
A band may appear at the edges of the screen or parts of the picture may be obscured. This is due to scaling of the picture by the set, it is not a malfunction.
When PC input mode is selected some of the television’s features will be unavailable e.g. Manual
setting in the SET UP menu, Colour, Tint, DNR and Black Stretch in the Picture settings menu.
Signal information for Mini D-sub 15 pin connector
Pin assignment for RGB/PC terminal
Pin. No. Signal name Pin No. Signal name
1R9NC 2 G 10 Ground 3B11NC 4 NC (not connected) 12 NC 5 NC 13 H-sync 6 Ground 14 V-sync 7 Ground 15 NC 8 Ground
7
Controls and input connections
English

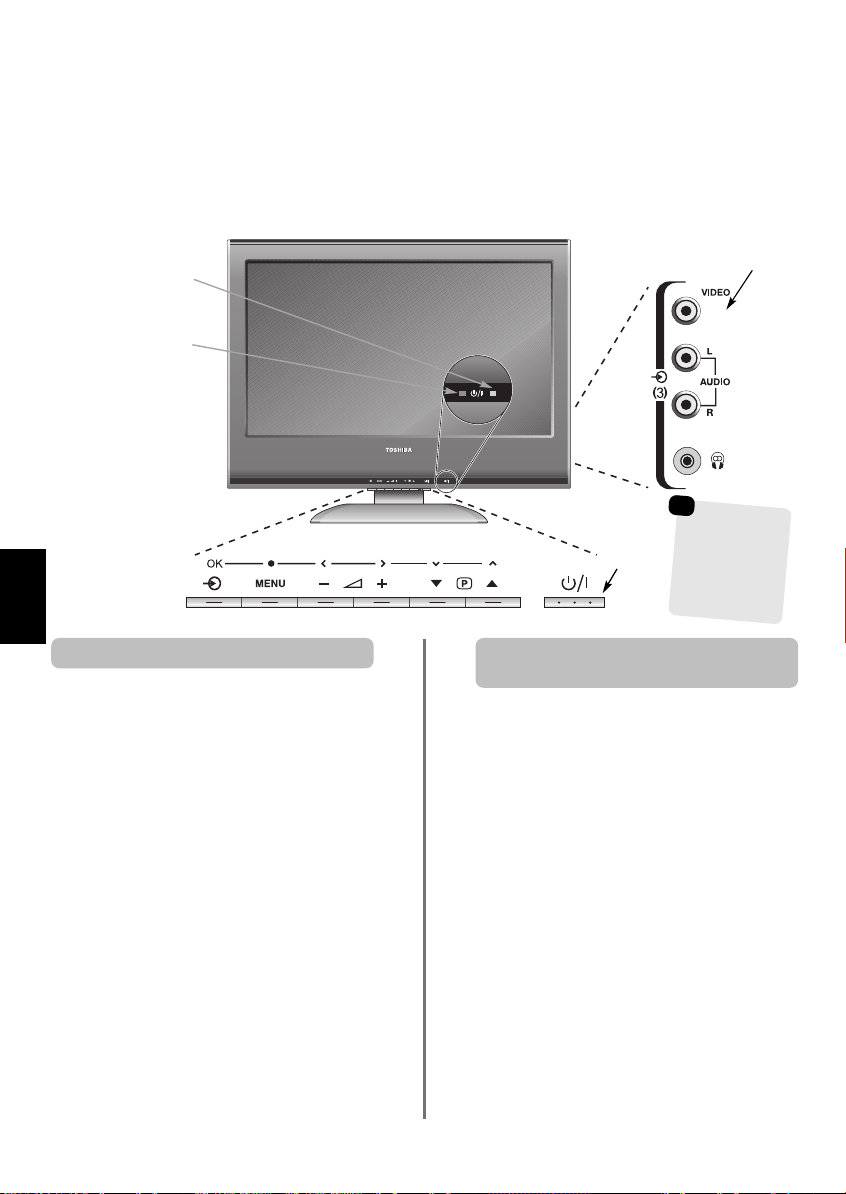

A wide variety of external equipment can be connected to the input sockets on the side of the television.
Whilst all the necessary adjustments and controls for the television are made using the remote control, the buttons on the television may be used for some functions.
GREEN LED – On timer
RED LED – Power on
Input 3 (side) will take priority over
Standby
EXT3 (back) if
both connections are used at the same time.
INPUT 3
(EXT3)
Switching on Using the controls and connections
If the RED LED is unlit check that the mains plug is connected to the power supply. If the picture does not appear press ion the remote control, it may take a few moments.
To put the television into Standby press ion the remote control. To view the television press iagain. The picture may take a few seconds to appear.
To set up the television you will now need to use the on-screen menus. Press the MENU button on the remote control to see the menus.
The menu bar at the top of the screens will show five different topics shown in symbols. As each symbol is selected by pressing left or right on the navigation ring on the remote control, its respective options will appear below.
To use the options, press down on the navigation ring to move down through them and OK, left or right to select the required choice. Follow the on-screen instructions. The functions of each menu are described in detail throughout the manual.
8
To alter the volume press j +.
To alter the programme position press
Press MENU and S, R, P or Q to control the sound and picture options.
Press MENU to finish.
When connecting sound equipment to EXT3, connect the audio output of the equipment to the phono sockets on the television.
To select the Input, press Buntil the display shows EXT3 as described on page 22. The television will automatically sense the type of signal.
Please always refer to the owner’s manual of the equipment to be connected for full details.
Please note: Inserting the headphone plug will mute the
sound from all speakers.
eeFff
.
Tuning the television using Quick Setup,
sorting programme positions
Before switching on the television put your decoder and media recorder to Standby if they are connected. To set up the television use the buttons on the remote control as detailed on page 5.
English
Connect the television to the mains power. The
1
Quick Setup screen will appear.
Quick Setup
Select your language.
Language English
EXIT
Watch TV
Using left or right select your language, then
2
press OK.
Then press left or right to select your country
3
and press OK.
Your System will have been selected, if there is a
4
choice, press right to select from the systems
OK
Next
displayed.
I
B/G – Continental Europe,
– UK
D/K – Eastern Europe, L – France
To start Auto tuning press OK.
5
Searching
Channel : C22 Station : BBC1
EXIT
Stop
The search will begin for all available stations.
6
The slide bar will move along the line as the
Auto tuning
search progresses.
You must allow the television to complete
the search.
When the search is complete the television will automatically select programme position 1. This may not be a clear picture or the signal may be weak, so the station order can be changed using Manual tuning which will appear on the screen.
Prog. Channel Station
OK
Select Sort
MENU
With the list of stations now showing use up or
7
down to highlight the station you want to move
Manual tuning
1 C22 BBC1
2 C28 BBC2
3 C25 ITV
4 C32 CH4
5 C69
6 C69
Back
EXIT
Watch TV
and press right.
The selected station will be moved to the right of the screen.
Prog. Channel Station
Store
MENU
Use up or down to move through the list to your
8
preferred position. As you do so the other stations
Manual tuning
1 C22 BBC1
2 C28 BBC2
3 C25 ITV
4C32CH4
5C69
6C69
Back
EXIT
Watch TV
will move to make room.
Press right to store your move.
9
Repeat as necessary, then press EXIT.
If the television cannot be connected to a media recorder/decoder with a SCART lead or if a station on another system is required, use Manual tuning to allocate a programme position, see page 10.
9
Manual tune
English
The television can be tuned-in manually using Manual tuning. For example: if the television cannot be connected to a media recorder/decoder with a SCART lead or to tune-in a station on another System (see page 9).
Use left and right to move across the screen and select any of these Manual Tune options.
Programme
Programme System
Colour
system
skip
Channel Search
Manual fine
tuning
Programme: The number to be pressed on the remote control.
System: Specific to certain areas. See page 9.
Colour system: Factory set to Auto, should only be changed if problems are experienced, i.e. NTSC input from
external source.
Programme skip: means nothing has been stored or the facility to skip the channel is ON. See page 11.
Channel: The channel number on which a station is being broadcast.
Search: Search up and down for a signal.
Manual fine tuning: Only used if interference/weak signal is experienced. See page 26.
Station: Station identification. Use up or down and left or right to enter up to seven characters.
Station
To allocate a programme position on the television for a decoder and media recorder: turn the decoder on,
insert a pre-recorded film in the media recorder and press PLAY, then manually tune.
Press MENU and using left or right select the
1
SET UP menu, with down highlight Manual tuning, press OK to select.
Language English
Country UK
Auto tuning
Manual tuning
AV connection
Picture position
MENU
Back
Use up or down to highlight the programme
2
position required e.g. we suggest Prog. 0 for
SET UP
EXIT
Watch TV
a media recorder.
Prog. Channel Station
OK
Select Sort
MENU
Manual tuning
0 C60
1 C22 BBC1
2 C28 BBC2
3 C25 ITV
4 C32 CH4
5 C69
Back
EXIT
Watch TV
Press OK to select. If the programme is skipped,
3
Programme skip must be removed before
storing.
Manual tuning
1/2
OK
OK
OK
OK
Different
Channel
numbers may be
displayed
0 I A C 60 0
OK
Store
MENU
Back
Press right to select System and use up or down
4
to change (if required, see page 9).
Then press right to select Search.
5
Press up or down to begin the search. The
6
search symbol will flash.
0 I A C 60 0
OK
Store
MENU
Back
Each signal will show on the television, if it is not
7
your media recorder, press up or down again to restart the search.
System
EXIT
Watch TV
Manual tuning
Search: Up
EXIT
Watch TV
10

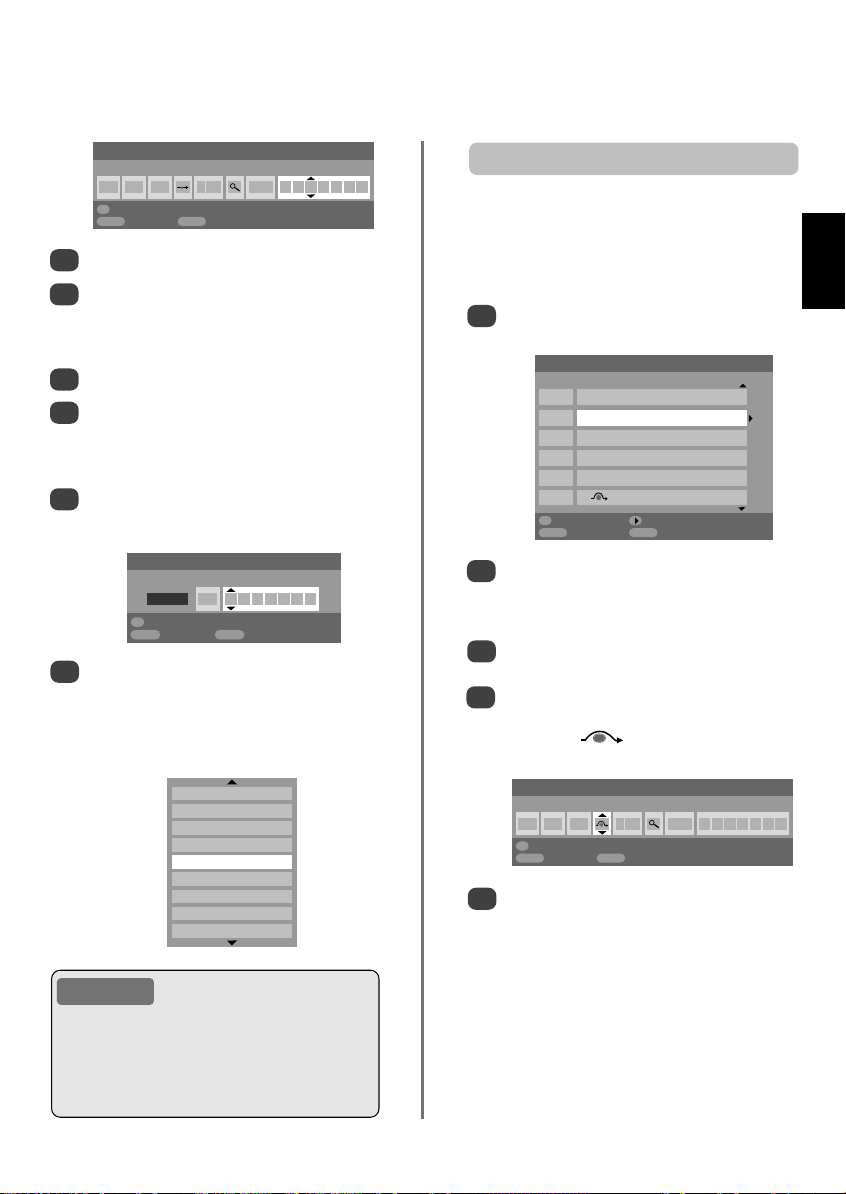

Manual tune continued,
Programme skip
When your media recorder signal is found, press
8
left to move along to Station. With up, down, left and right put in the required characters, e.g. VCR.
Manual tuning
EXIT
Manual setting
Back
3C 2DVD 1
Station
Watch TV
Label
EXIT
Watch TV
0 I A C 60 0 V C R
OK
Store
MENU
Back
Press OK to store.
9
Repeat for each programme position you want
10
to tune or, press MENU to return to the list of channels and select the next number to tune.
Press EXIT when you have finished.
11
To name external equipment, e.g. DVD on EXT2,
12
press Bto select EXT2, then select Manual setting from the SET UP menu.
Press right to select Label then using up, down,
13
left and right put in the required characters.
EXT2 A D V D
OK
Store
MENU
At any time by pressing OK a list will appear on
14
screen showing all stored programmes and external equipment. Use up and down to highlight and OK to select.
PC HDMI2 HDMI1
B B B
4 CH4 3 ITV 2 BBC2
P
LEASE NOTE
Select the Manual tuning screen in Step 3. Enter the Programme number, the System, then C for
standard (terrestrial) channels or S for cable channels and the Channel number. Press OK to store.
This television has direct channel entry if the channel numbers are known.
Programme skip
To prevent certain programmes from being viewed, the
programme position can be skipped. The remote control
must be removed as the channels will still be available using
the number buttons
normal using the controls on the television, but the television
will not show the skipped programme position.
Select Manual tuning from the SET UP menu.
1
Use up or down to highlight the programme
2
position to be skipped and press OK to select.
Press right to select Programme skip.
3
Use up or down to turn Programme skip on.
4
Press OK.
programme position.
OK
MENU
Press MENU and repeat from Step 2 or press
5
EXIT.
Each programme position has to be individually selected. To turn Programme skip off, repeat the procedure for each position.
Skipped programme positions cannot be selected by Pfand Peor by the controls on the television, but can still be accessed by the number buttons on the remote control.
. Programmes can then be watched as
Prog. Channel Station
OK
Select Sort
MENU
Manual tuning
0 C60 VCR
1 C22 BBC1
2 C28 BBC2
3 C25 ITV
4 C32 CH4
5 C69
Back
EXIT
Watch TV
on the screen indicates a skipped
Manual tuning
Back
Programme skip : On
EXIT
Watch TV
1 I A C 22 0 B B C 1
Store
English
11

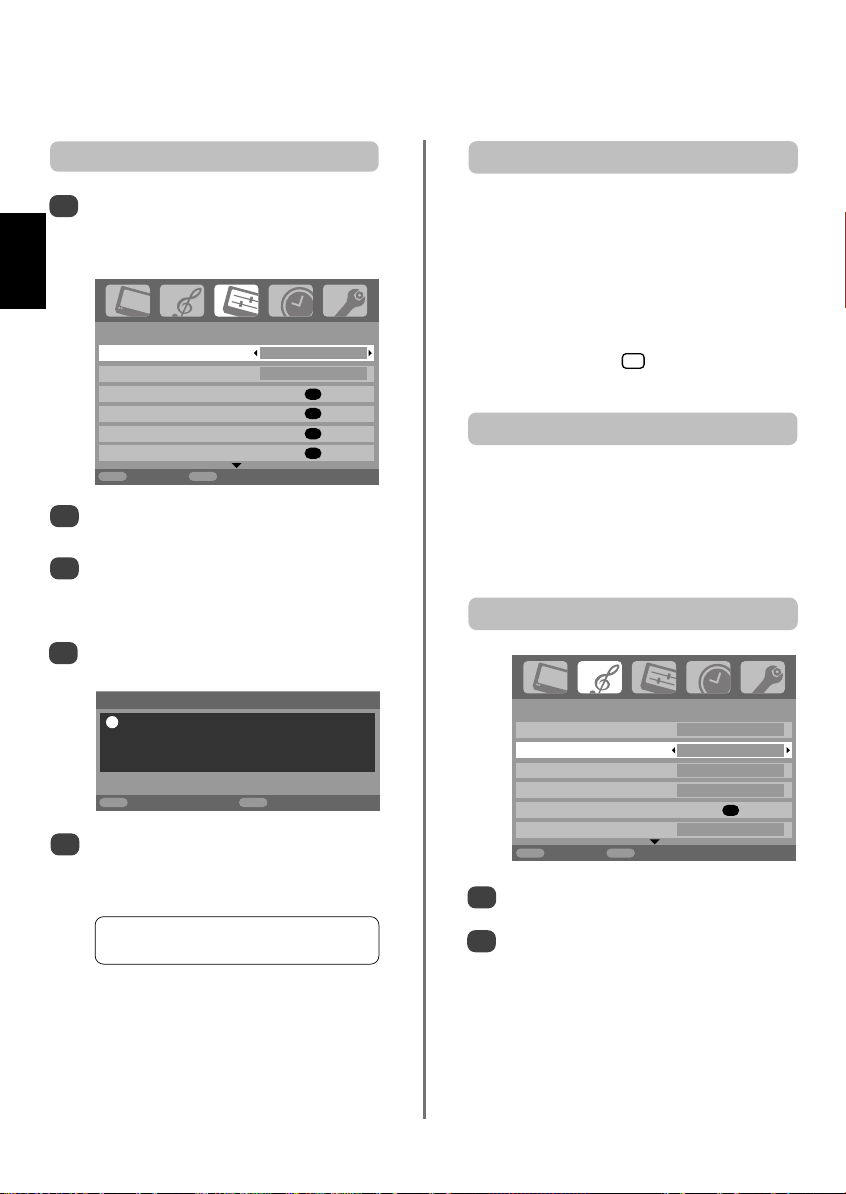

Auto tune, general controls, sound controls
English
Using Auto tuning
To set up the television using Auto tuning, press
1
MENU and use left or right to select the SET UP
menu.
Language English
Country UK
Auto tuning
Manual tuning
AV connection
Picture position
MENU
Back
Press down to highlight Language and left or
2
right to select.
Using down highlight Country, then left or right
3
to select. The television will now tune the stations for your country.
Press down to highlight Auto tuning, then press
4
OK.
!
Previous settings will be lost ! Press EXIT for no change. Press OK to start Auto tune.
MENU
Back
Your System will have been selected, if there is a
5
choice, press left or right to select from the systems displayed, then press OK.
B/G – Continental Europe, D/K – Eastern Europe, L – France
SET UP
EXIT
Watch TV
Auto tuning
EXIT
Watch TV
I
– UK
Selecting programme positions
To select a programme position use the numbered buttons on the remote control.
Programme positions can also be selected using P
.
P
e
1/2
OK
OK
OK
OK
To revert to the previous programme position press
To display on-screen information i.e. programme position, input mode or stereo/mono signal, press . Press again to cancel.
Sound controls
and
f
.
^^
+
i
Volume
Press j– or
j
+ to adjust the volume.
Sound Mute
Press konce to turn the sound off and again to cancel.
Bass, Treble and Balance
Dual Dual 1
Bass 0
Treble 0
Balance 0
WOW
Stable sound On
MENU
Back
Press MENU and left or right to select SOUND.
1
Press down to highlight Bass, Treble or Balance
2
and left or right to change the setting.
SOUND
EXIT
Watch TV
1/2
OK
You must allow the television to complete the search.
When the search is complete the television will automatically select programme position 1. This may not be a clear picture, so the station order can be changed using Manual tuning, see page 9.
12

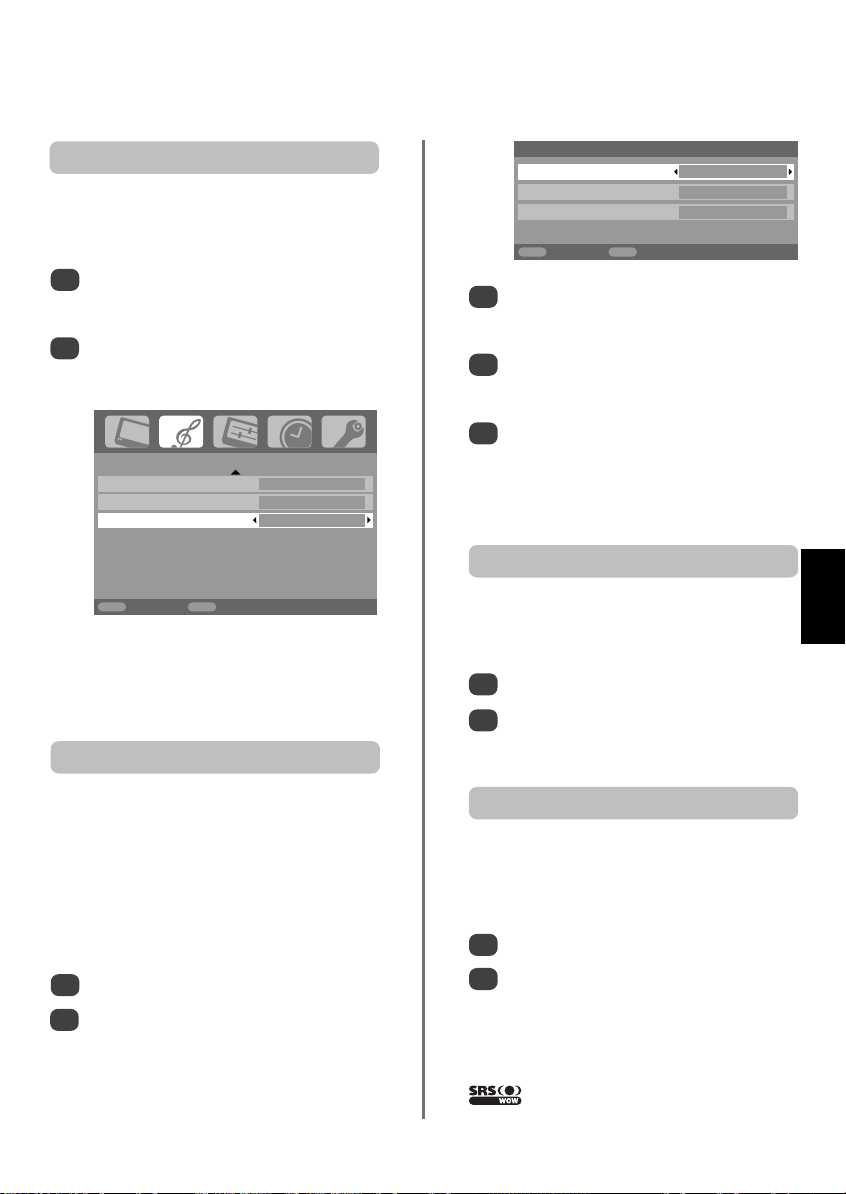

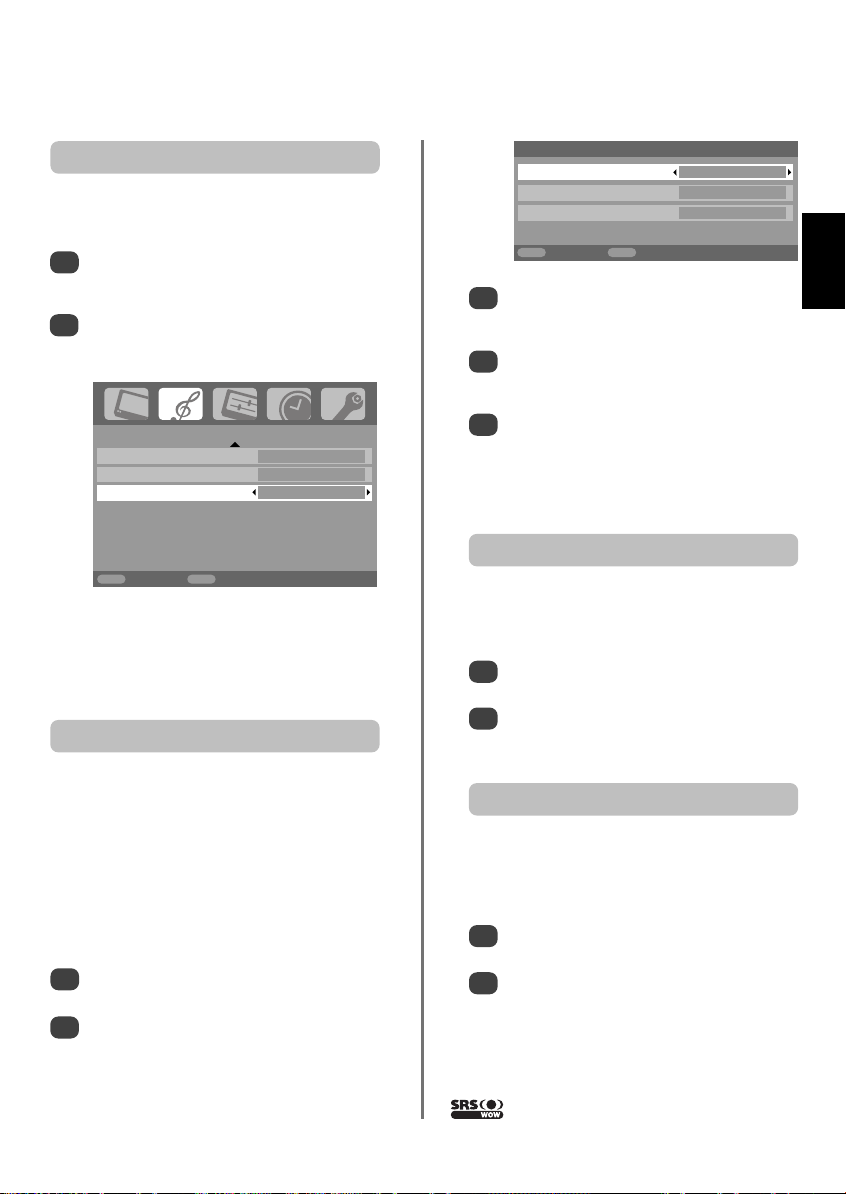

Sound controls continued, SRS WOW™ sound
effects, dual, stable sound
®
English
Bass boost
Bass boost enhances the depth of the sound. The difference will only be noticeable on sound with a
In the SOUND menu press down to highlight
1
Bass boost. Use left or right to select On.
Then press down to highlight Bass boost level
2
and using left or right adjust to suit your preference.
Speaker On Bass boost On Bass boost level 70
MENU
When connecting to a Hi-fi unit, set the Speaker option to Off. Then select Fixed or Variable for the Monitor (Audio) in the AV connection menu. (See 'Input Selection and AV Connections' section).
Back
strong bass.
SOUND
EXIT
Watch TV
2/2
WOW
SRS 3D On
FOCUS Off
TruBass Off
MENU
Back
Press down to highlight SRS 3D and using
3
left or right select between On or Off.
Then press down to highlight FOCUS and press
4
left or right to select between On or Off.
Highlight TruBass and use left or right to select
5
Off, Low or High to suit your preference.
NOTE: This feature is not available through
headphones.
EXIT
Watch TV
Dual
If a programme or film is being broadcast with a
soundtrack in more than one language, the DUAL feature
1 2
allows selection between them.
Press MENU and select the SOUND menu.
Use down to highlight Dual then press left or right to choose between Dual 1 or Dual 2.
SRS WOW™sound effects
SRS WOW™ is a suite of audio effects which use the
stereo signals being broadcast to produce enhanced sound
from the television’s speakers. If mono sound is broadcast
concentrates the sound and gives the effect of it coming from the centre of the television, TruBass enhances the
1 2
only TruBass will be available.
SRS 3D gives a rich sound experience, FOCUS
lower bass frequencies.
Press MENU and select the SOUND menu.
Use up or down to highlight WOW then press OK.
WOW, SRS and •symbol are trademarks of SRS Labs, Inc. WOW technology is incorporated under license from SRS Labs, Inc.
13
Stable sound
The Stable Sound feature limits high volume levels and
prevents the extreme changes in volume that can occur
when channels are changed or a programme switches to
Press MENU and select the SOUND menu.
1
Use down to highlight Stable Sound then press
2
left or right to select On or Off.
a commercial.
®
Widescreen viewing
English
Depending on the type of broadcast being transmitted, programmes can be viewed in a number of formats. Press the Live 1, Cinema 1, Subtitle and 14:9. Please note: Whenever the MENU button is pressed the picture size settings will change while the menus are ON the screen. This is to ensure the menus do not overlap the edges of the viewable area.
SUPER LIVE 1
SUPER LIVE 2
CINEMA 1
button repeatedly to select between Exact Scan, Wide, Super Live 2, Cinema 2, 4:3, Super
{
This setting will enlarge a 4:3 image to
fit the screen by stretching the image
horizontally and vertically, holding the
correct proportions at the centre of the
image. Some distortion may occur.
If a ‘side panel format’ signal is being
received this setting will enlarge the image to fit the screen by stretching
the image horizontally and vertically,
holding the correct proportions at the
centre of the image. Some distortion
eliminate or reduce the black bars at
the top and bottom of the screen by zooming in and selecting the image
may occur.
When watching ‘letterbox format’
films/video tapes, this setting will
without distortion.
CINEMA 2
SUBTITLE
When watching ‘all sides panel format’
films/video tapes, this setting will
eliminate or reduce the black bars at all
sides of the screen by zooming in and selecting the image without distortion.
When subtitles are included on a
letterbox format broadcast, this setting
will raise the picture to ensure that all
the text is displayed.
SUBTITLE
14
Widescreen viewing continued
English
14:9
WIDE
4:3
42 MODEL ONLY
EXACT SCAN
Use this setting when watching a 14:9
Use this setting when watching a
widescreen DVD, widescreen video
(when available). Due to the range of
20:9 etc.) black bars may be visible
on the top and bottom of the screen.
Use this setting to view a true 4:3
Use this setting when watching a
1080i source, it will display the image
broadcast.
tape or a 16:9 broadcast
widescreen formats (16:9, 14:9,
broadcast.
This option is only available when watching a 1080i source.
as transmitted without scaling or
cropping the picture.
Press and hold the {button and a list of all the widescreen formats will appear on screen. Use up and down to highlight the required format and OK to select.
Using the special functions to change the size of the displayed image (i.e. changing the height/width ratio) for the purposes of public display or commercial gain may infringe on copyright laws.
Exact Scan Wide Super Live 2 Cinema 2 4:3 Super Live 1 Cinema 1 Subtitle 14:9
15
English
Picture controls
Picture position
The picture position may be adjusted to suit personal
preference and can be particularly useful for
In the SET UP menu press down until
1
Picture position is highlighted.
Language English
Country UK
Auto tuning
Manual tuning
AV connection
Picture position
MENU
Press OK to view the options available for the
2
picture format that has been selected.
Press up and down to select an option, then left
3
or right to adjust the settings.
The options alter depending on the widescreen format chosen and when viewing connected equipment.
In Cinema 2:
Horizontal position 0
Vertical position 0
Reset
Back
external inputs.
SET UP
EXIT
Watch TV
Picture position
OK
OK
OK
OK
OK
1/2
Back light
Adjusting the Back light can improve the clarity of the
1
2
3
screen when viewing.
In the PICTURE menu press down to select Picture settings, then press OK.
Picture settings
3D Colour management
Base colour adjustment
Cinema mode
MENU
Back
EXIT
OK
Off
Off
Watch TV
In the Picture settings menu press down to select Back light.
Press left or right to adjust.
Picture settings
Back light 100
Contrast 100
Brightness 50
Colour 50
Tint 0
Sharpness 0
MENU
Back
EXIT
Watch TV
1/2
MENU
Back
EXIT
Watch TV
To return to the original factory settings select Reset in the Picture position menu and press OK.
16

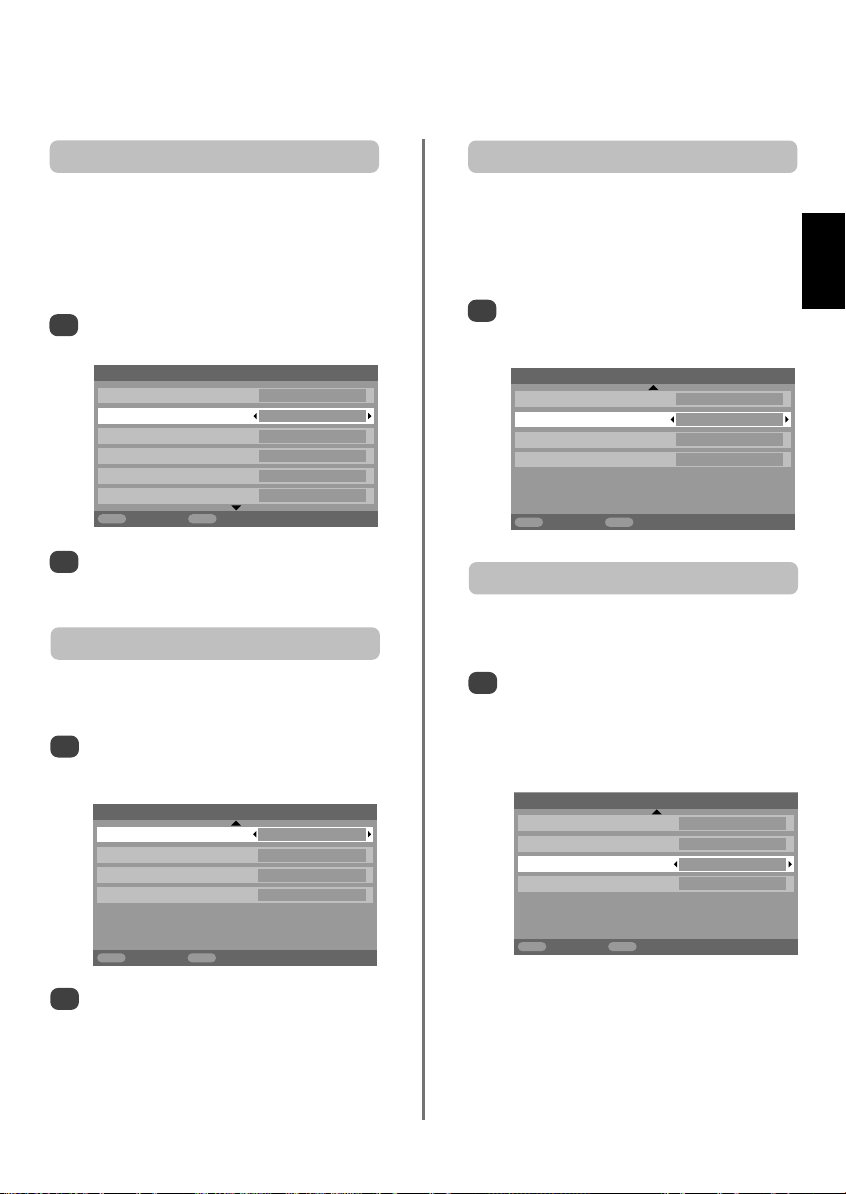

Picture controls continued
English
Picture preferences
This television offers the choice of personalising the picture
style. Press mto view the different styles available:
Picture mode-1 to 3 are preset options and
Picture mode-M stores your own settings:
Select Picture settings from the PICTURE menu.
1
Picture settings
Back light 100
Contrast 100
Brightness 50
Colour 50
Tint 0
Sharpness 0
MENU
Back
Use left or right to adjust the Contrast,
2
Brightness, Colour, Tint and Sharpness.
EXIT
Watch TV
1/2
Black stretch
Black Stretch increases the strength of dark areas of the
picture which improves the definition.
In the Picture settings menu press down until
1
Black Stretch is highlighted.
Picture settings
Black stretch On
MPEG NR Off
DNR Auto.
Colour Temperature Normal
2/2
MPEG NR – Noise Reduction
When watching a DVD the compression may cause some
words or picture elements to become distorted or pixelated.
Using the MPEG NR feature reduces this effect by
smoothing out the edges.
Select MPEG NR from the Picture settings
1
menu. Use left or right to select a setting to suit your preference.
Picture settings
Black stretch On
MPEG NR Middle
DNR Auto.
Colour Temperature Normal
MENU
Back
EXIT
Watch TV
2/2
DNR – Digital Noise Reduction
DNR enables you to ‘soften’ thescreen representation of a
weak signal to reduce the noise effect.
Select DNR from the Picture settings menu. Use
1
left or right to adjust. The differences may not
always be noticeable (for the best result use lower settings as picture quality can be lost if the setting is too high).
Picture settings
Black stretch On
MPEG NR Off
DNR Middle
Colour Temperature Normal
2/2
MENU
Back
Press left or right to select between On and Off.
2
The effect depends on the broadcast and is most
EXIT
Watch TV
noticeable on dark colours.
17
MENU
Back
EXIT
Watch TV
English
Picture controls continued
Colour temperature
Colour Temperature increases the ‘warmth’ or ‘coolness’
of a picture by increasing the red or blue tint.
In the Picture settings menu press down until
1
Colour Temperature is highlighted.
Picture settings
Black stretch On
MPEG NR Off
DNR Auto.
Colour Temperature Normal
MENU
Back
Press left or right to select between Normal,
2
Warm and Cool to suit your preference.
EXIT
Watch TV
2/2
3D Colour management
When 3D Colour management is selected it allows the
‘Base colour adjustment’ feature to become available.
In the PICTURE menu press down to select
1
3D Colour management.
Picture settings
3D Colour management
Base colour adjustment
Cinema mode
OK
On
OK
Off
Base colour adjustment
The Base colour adjustment feature allows the
adjustment of individual colours to suit personal
preference. This can be useful when using an
In the PICTURE menu press down to select
1
Base colour adjustment, then press OK.
Picture settings
3D Colour management
Base colour adjustment
Cinema mode
MENU
Press up and down to select an option, then
2
right to adjust the settings.
Reset
MENU
To return to the original factory settings select Reset and press OK.
external source.
Back
Red +2 +6 +4
Green 0 0 0
Blue 0 0 0
Yellow 0 0 0
Magenta 0 0 0
Cyan 0 0 0
EXIT
Watch TV
Base colour adjustment
Hue Saturation Brightness
Back
EXIT
Watch TV
OK
On
OK
Off
OK
MENU
Back
Press left or right to select On or Off.
2
EXIT
Watch TV
18

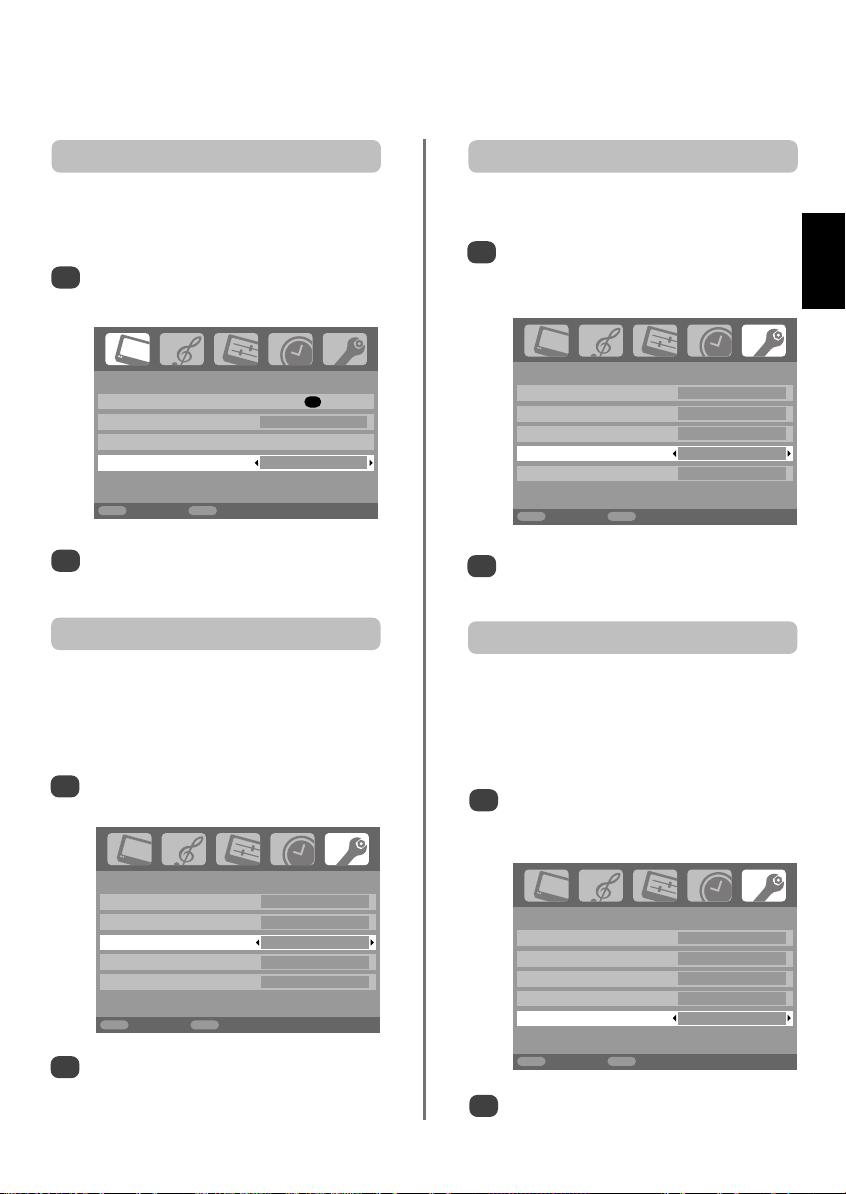

Picture controls continued
English
Cinema mode
If there are lines or jagged edges in the film or programme
being viewed, selecting Cinema mode can help correct
this by smoothing out the picture.
In the PICTURE menu press down to select
1
Cinema mode.
Picture settings
3D Colour management
Base colour adjustment
Cinema mode
MENU
Back
Press left or right to select On or Off.
2
EXIT
OK
Off
On
Watch TV
Automatic format (Widescreen)
When this television receives a true Widescreen picture and
Auto format is On, it will automatically be displayed in
Widescreen format, irrespective of the
television’s previous setting.
Press MENU and left or right to select the
1
FUNCTION menu.
Blue screen
When Blue screen is selected the screen will turn blue and
the sound will be muted when no signal is received.
In the FUNCTION menu press down to highlight
1
Blue screen.
Teletext Auto.
Panel lock Off
Auto format On
Blue screen On
Side Panel 1
MENU
Back
Press left or right to select On or Off.
2
FUNCTION
EXIT
Watch TV
Side panel adjustment
The Side Panel feature lightens or darkens the band each
side of the screen when in 4:3 or 14:9 format. This helps
prevent image retention of the band and can also make
viewing in bright or dark conditions more comfortable.
In the FUNCTION menu press down until Side
1
Panel is highlighted.
Teletext Auto.
Panel lock Off
Auto format On
Blue screen On
Side Panel 1
MENU
Back
Press down to highlight Auto format, then left
2
or right to select On or Off.
FUNCTION
EXIT
Watch TV
19
Teletext Auto.
Panel lock Off
Auto format On
Blue screen On
Side Panel 1
MENU
Back
Press left or right to adjust.
2
FUNCTION
EXIT
Watch TV

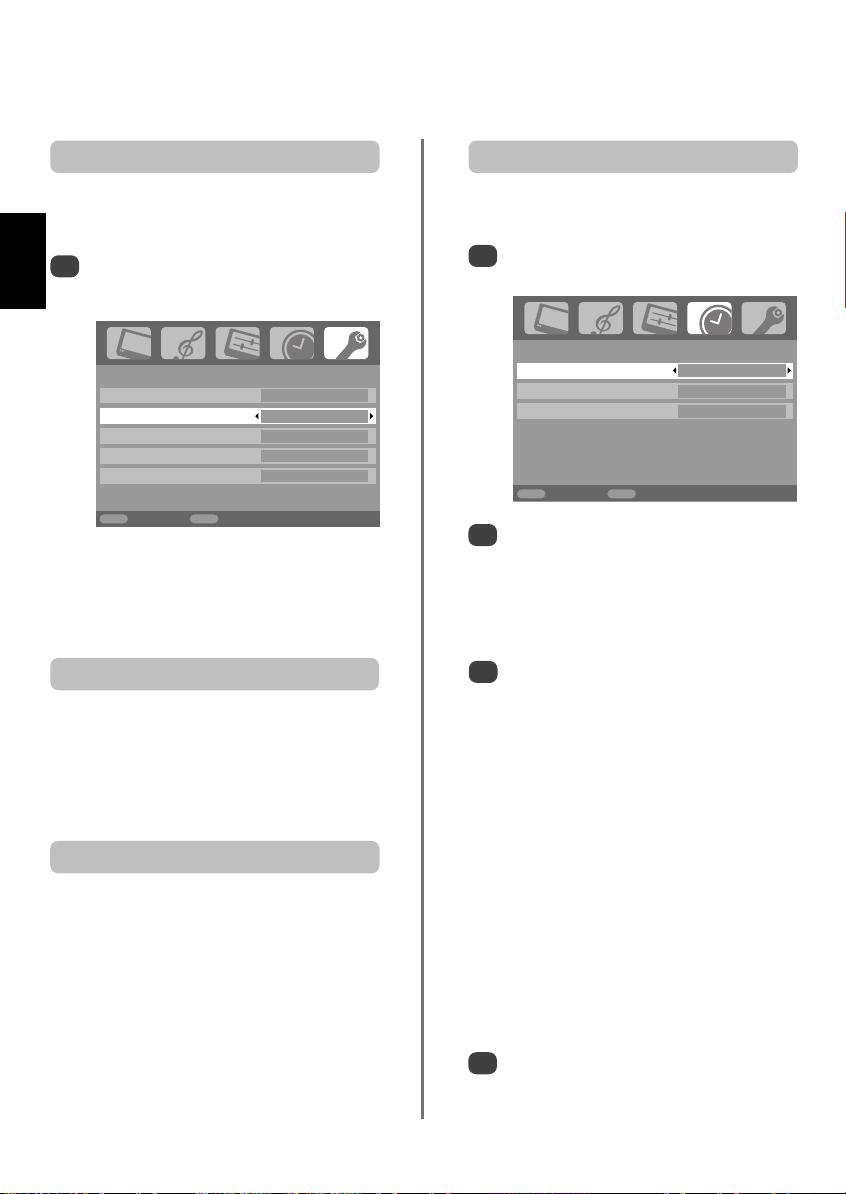

Panel lock, time display,
English
stereo/bilingual transmissions, the timer
Panel lock
Panel lock disables the buttons on the television. All
buttons on the remote control can still be used.
From the FUNCTION menu select Panel lock
1
and choose On or Off using left or right.
Teletext Auto.
Panel lock On
Auto format On
Blue screen On
Side Panel 1
MENU
Back
When Panel lock is On, a reminder will appear when the buttons on the television are pressed. If the standby
button is pressed the television will switch off and can only be brought out of standby by using the remote control.
FUNCTION
EXIT
Watch TV
The Time Display
The time display facility allows the current (text service)
time to be seen on the television screen.
Press broadcast to see a time display from the broadcaster. It will remain on screen for about 5 seconds.
whilst watching a normal television
8/9
The Timer
The television can be set to turn itself On or Off after a
Press MENU and left or right to select the TIMER
1
menu.
Sleep timer 01:30
On timer 00:00
On timer Position 01
MENU
Press down to select On or Sleep timer. Use the
2
number buttons to set the required time. For example, to switch the television off in one and a half hours enter 01:30, or press right to increase/decrease in steps of 10 minutes.
If setting the Sleep timer, press EXIT to finish. If
3
setting the On timer, press down to select On timer Position, enter the programme position
number required, then press ito put the television into Standby. The GREEN On timer indicator on the front of the television will now be lit.
Any equipment connected with SCART leads must also be put into Standby to prevent them from being displayed when the timer switches on.
Back
certain time.
TIMER
EXIT
Watch TV
Stereo and Bilingual transmissions
If stereo or dual language broadcasts are transmitted the word Stereo or Dual will appear on the screen each time
programme positions are changed, disappearing after a
few seconds. If the broadcast is not in stereo the word
Stereo… Press
Bilingual… Bilingual transmissions are rare. If they are
transmitted the word Dual will display. Choose the required programme number and if the word Dual
appears press OI/II to select Dual 1, Dual 2 or Mono.
Mono will appear.
OI/II to select Stereo or Mono.
20
Once the On timer has been set the television can be switched on at any time by pressing i. The Green On timer indicator will remain on until the set time period as passed when the television will go to the chosen channel. This feature can help to avoid missing favourite programmes.
To cancel the On timer/Sleep timer, enter zero
4
in each position.
PC settings – picture position, clock phase,
sampling clock, reset
Sampling clockPicture position
English
The picture position may be adjusted to suit personal
preference.
to select PC, then select PC Setting
Press
1
2
B
from the SET UP menu.
Language English
Country UK
AV connection
PC Setting
MENU
Back
SET UP
EXIT
Watch TV
OK
OK
Press OK. Press up and down to select an option, then left or right to adjust the settings.
Horizontal position 0
Horizontal width – 5
Vertical position 0
Vertical height – 5
Clock phase 0
Sampling clock 0
MENU
Back
EXIT
Watch TV
Clock phase
Adjusting the Sampling clock alters the number of pulses
per scan, this will clear vertical lines on the screen.
In the SET UP menu press down until PC Setting
1
is highlighted.
Press OK to select, then down to highlight
2
Sampling clock.
1/2PC Settings
Horizontal position 0
Horizontal width – 5
Vertical position 0
Vertical height – 5
Clock phase 0
Sampling clock 0
MENU
Back
Use left or right to adjust until the picture clears.
3
1/2PC Settings
EXIT
Reset
Watch TV
To return to the original factory settings.
In the SET UP menu press down until PC Setting
1
is highlighted.
Press OK to select, then down to highlight Reset.
2
PC Settings
Reset OK
2/2
The Clock phase matches the PC signal with the LCD
display. Adjusting this can clear horizontal stripes and
picture blur.
In the SET UP menu press down until PC Setting
1
is highlighted.
Press OK to select, then down to highlight Clock
2
phase.
Use left or right to adjust until the picture clears.
3
21
3
MENU
Back
Press OK.
EXIT
Watch TV
Input selection and
English
AV connections
Defining the INPUT and OUTPUT sockets so that the television recognises connected equipment. See page 6 for a clear view of the back connection recommendations.
Most media recorders and decoders send a signal through the SCART lead to switch the television to the correct Input socket.
Alternatively press the external source selection button
until the picture from connected equipment is shown.
B
This button must be used to view equipment connected using the COMPONENT VIDEO INPUT (EXT3C).
An S in the display e.g.B2S (EXT 2S), indicates the input is set for an S-Video signal.
Input selection
Use the Input Selection if the television does not switch
Press Bto select B1, B2, B3(C) (EXT1-3),
1
HDMI1, HDMI2 or PC.
HDMI™ displays equipment connected to Input HDMI on the back of the television. It is designed
for best performance with 1080i high definition signals.
PC displays a computer connected to Input RGB/PC on the back of the television.
To return to television mode press Bagain or
2
one of the numbered buttons.
over automatically.
This specifies the type of signal going into SCART 2 (EXT2)
manufacturers instructions for the connected equipment.
1
2
INPUT signal selection
on the back of the television. Please refer to the
In the SET UP menu press down until AV connection is highlighted, then press OK.
Language English
Country UK
Auto tuning
Manual tuning
AV connection
Picture position
MENU
Back
With left or right select either AV or S-VIDEO as the required input for EXT2.
PC/HDMI1 audio PC
HDMI1 audio Digital
EXT2 input S-VIDEO
Monitor (Audio) Fixed
MENU
Back
SET UP
EXIT
Watch TV
AV connection
EXIT
Watch TV
OK
OK
OK
OK
1/2
22
If the colour is missing try the alternative setting.
Input selection and
English
AV connections
PC audio
In order to receive sound from a connected PC, plug the
audio cable into the back of the television (as shown in
Connecting a computer’ section), then use the
PC/HDMI1 audio settings.
In the SET UP menu press down until
1
AV connection is highlighted, then press OK.
Language English
Country UK
Auto tuning
Manual tuning
AV connection
Picture position
MENU
Back
Highlight PC/HDMI1 audio then use right to
2
select the PC option.
PC/HDMI1 audio PC
HDMI1 audio Digital
EXT2 input S-VIDEO
Monitor (Audio) Fixed
MENU
Back
SET UP
EXIT
Watch TV
AV connection
EXIT
Watch TV
NOTE: Selecting the PC option will force HDMI into digital audio.
1/2
OK
OK
OK
OK
continued
HDMI audio
HDMI1 audio
If the connected HDMI source does not support digital
audio, plug the audio cable into PC/HDMI1 audio on the
back of the television (as shown in the ‘Connecting a
computer’ section), then use the HDMI1 audio settings.
In the SET UP menu press down until
1
AV connection is highlighted, then press OK.
Language English
Country UK
Auto tuning
Manual tuning
AV connection
Picture position
MENU
Back
In the AV connection menu press down to
2
highlight PC/HDMI1 audio and using right
SET UP
EXIT
Watch TV
select HDMI1.
Then highlight HDMI1 audio and using left or
3
right select Auto., Digital or Analogue.
AV connection
PC/HDMI1 audio HDMI1
HDMI1 audio Digital
EXT2 input S-VIDEO
Monitor (Audio) Fixed
MENU
Back
EXIT
Watch TV
1/2
OK
OK
OK
OK
23
If the sound is missing select an alternative setting.
NOTE: HDMI1 supports digital and analogue sound, HDMI2 is digital sound only.
HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC.
Text services – setting up,
general information, Auto and LIST modes
English
This television has a multi-page text memory, which takes a few moments to load. It offers two Modes of viewing text – Auto will display Fastext, if available. LIST will store your four favourite pages.
Selecting modes
The text character set will be automatically chosen by the
language setting in the SET UP menu.
Select Teletext from the FUNCTION menu.
1
With left or right choose Auto. or LIST then press
2
EXIT.
Teletext Auto.
Panel lock Off
Auto format On
Blue screen On
Side Panel 1
MENU
Back
FUNCTION
EXIT
Watch TV
Text information
/ /
The
6
To view text services press superimpose the text over a normal broadcast picture and again to return to normal viewing. Programmes cannot be changed until text is cancelled.
The first text page shown will be the initial page.
Any text page can be accessed by entering the 3 digit page number using the numbered buttons, pressing the coloured buttons or pressing Pfto advance to the next page and P eto go back to the previous page.
Sub-pages
If there are sub-pages they will automatically load into memory without changing the page on screen.
To access the sub-pages press Xthen use Pfand
P eto view them. A bar with numbers will appear on the
side of the screen.
7
button:
/ /
6
. Press again to
7
The sub-page you are viewing will be highlighted and, as the television loads any additional sub-pages the colour of the numbers will change, indicating that these pages have been loaded.
These sub-pages will remain available to view until another page is chosen or, in normal TV mode, the channel is changed.
Navigating pages using Auto.
If Fastext is available four coloured titles will appear at the base of the screen.
To access one of the four given subjects, press the relevant coloured button on the remote control.
For further information on your particular text system(s), see the broadcast text index page or, consult your local Toshiba dealer.
Navigating pages using LIST
The four coloured choices at the bottom of the screen are numbers – 100, 200, 300 and 400, which have been programmed into the television’s memory. To view these pages press the relevant coloured buttons.
To change these stored pages press the relevant coloured button and enter the 3 digit number. This number will change in the top left of the screen and in the coloured highlight.
Press OK to store. The bars at the bottom of the screen will flash white. Whenever OK is pressed all four
page numbers showing at the bottom will be stored and the previous ones will be lost.
If OK is not pressed the selection will be forgotten when text is cancelled.
Other pages may be viewed by entering the 3 digit page number – but DO NOT press OK or these pages will be stored.
24
Text services continued
– control buttons
Below is a guide to the functions of the remote control text buttons.
English
T
Press Tto access the index/initial page. The one displayed is dependant on the broadcaster.
6
Press superimpose text over a normal broadcast picture. Press again to return to normal television viewing. Programmes cannot be changed until this has been done.
X
For use with Pfand P eto view sub-pages when available.
r
To discover the solutions on quiz and joke pages press the
r
q
At times it is convenient to hold a page of text. Press and qwill appear in the top left of the screen. The page will be held on screen until the button is pressed again.
To display the index/initial page:
/ /
6
button.
To display a page of text:
7
/ /
to display text. Press again to
7
To access sub-pages:
To reveal concealed text:
To hold a wanted page:
q
8/9
Enter the page number then press picture will be displayed. The television will indicate when the page is present by displaying the page number at the top of the screen. Press
To display news flashes:
Select the news flash page for the chosen text service (see the index page of text service). Press news flashes will be displayed as and when they are broadcast. Press
The news flash page must be cancelled before changing programmes.
To select a page whilst viewing a normal page:
, a normal
8/9
/ /
6
to view the page.
7
8/9
again to cancel the display.
8/9
Remember to cancel text before
changing channels – press the
/ /
6
7
button twice.
. The
s
Press sonce to enlarge the top half of the page, press again to enlarge the bottom half of the page. Press again to revert to normal size.
To enlarge the text display size:
25
Questions and Answers
English
Below are the answers to some of the most common queries. For more information go to www.toshiba.co.uk
Why is there no sound or picture?
Q
Check the mains switch is on and check all mains
A
connections.
Check the television is not in standby mode.
There is a picture, but why is there little or no
Q
colour?
When using an external source, for instance, a
A
poor quality video tape, if there is little or no colour, improvements may sometimes be achieved. The colour is factory set to Auto. to automatically display the best colour system.
To check that you have the best colour:
With the external source playing, select Manual
1
setting from the SET UP menu.
Manual setting
Colour system: Auto.
EXT2 A V C R
OK
Store
MENU
Back
With up or down choose between Auto., PAL,
2
SECAM, NTSC 4. 43 or 3. 58.
EXIT
Watch TV
Why is the VCR/DVD picture in black and
Q
white?
Check the correct input has been chosen,
A
S-VIDEO or AV. See AV connections page.
What else can cause a poor picture?
Q
Interference or a weak signal. Try a different
A
television station. Manual fine tuning may help.
Select the Manual tuning menu. Highlight the
1
station and press OK, then press right Manual fine tuning
Using up or down adjust to get the best picture
2
and sound. Press OK and then EXIT.
1 I A C 22 +2 B B C 1
OK
Store
MENU
Back
Why don’t the controls on the front of the
Q
television work?
Check that Panel lock is not ON.
.
Manual tuning
Manual fine tuning
EXIT
Watch TV
A
to select
Why doesn’t the video/DVD being played show
Q
on screen?
Make sure the VCR or DVD player is connected to
A
the television as shown on page 6, then select the correct input by pressing B.
Why is there a good video picture but no sound?
Q
Check all lead connections.
A
Why is there a picture but no sound?
Q
Check the volume has not been turned down or
A
that sound mute has not been selected.
Why doesn’t the remote control work?
Q
Check the side switch on the remote control is in
A
TV mode.
Check the batteries aren’t dead or inserted incorrectly.
Why is there a message permanently on the
Q
screen?
Remove it by pressing .
A
Why are there vertical stripes on the screen
Q
when in PC mode?
The Sampling clock may need adjustment. Select
A
PC Setting from the SET UP menu, highlight
Sampling clock and adjust until the lines clear.
26
+
i
Questions and Answers continued
English
Why are there horizontal stripes and/or blurred
Q
images on the screen when in PC mode?
The Clock phase may need adjustment. Select
A
PC Setting from the SET UP menu, highlight
Clock phase and adjust until the picture clears.
Why is there no sound from my connected
Q
sound equipment?
Check the Speaker option in the Sound menu is
set to Off.
A
Why are there problems with text?
Q
Good performance of text depends on a good
A
strong broadcast signal. This normally requires a roof or loft aerial. If the text is unreadable or garbled, check the aerial. Go to the main index page of the text service and look for the User Guide. This will explain the basic operation of text in some detail. If further information is needed on how to use text see the text section.
Why are there no text sub-pages?
Q
There are none broadcast or they have not yet
A
loaded. Press the Xbutton to access. (See text section).
Why are the four coloured text numbers visible
Q
but no text?
Text has been selected whilst viewing an external
A
source i.e. DVD or VCR. No text will appear on screen or a box may appear stating no information is available. Select a broadcasting channel and press
/ /
6
Q
A
1 2
to access.
7
Why are the colours wrong when an NTSC source is played?
Connect the source via a SCART lead and play. Select Manual setting from the SET UP menu.
Manual setting
Colour system: Auto.
EXT2 A V C R
OK
Store
MENU
Back
Set the Colour to Auto. and exit.
Go to the Picture settings menu and adjust the tint.
EXIT
Watch TV
Cleaning the screen and cabinet…
Turn off the power, clean the screen and cabinet with a soft, dry cloth. We recommend that you do not use any proprietary polishes or solvents on the screen or cabinet as this may cause damage.
Disposal…
The following information is only for EU-member states:
The use of the symbol indicates that this product may not be treated as household waste. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
27
Specifications and accessories
English
Broadcast systems/channels
PAL-I UHF UK21-UK69
PAL-B/G UHF E21-E69
SECAM-L UHF F21-F69
SECAM-D/K UHF R21-R69
Video Input PAL, SECAM, NTSC 3.58/4.43
External connections
EXT1 Input 21-pin SCART RGB, A/V
EXT2 Input 21-pin SCART A/V, S-video
EXT3 Input Phono jacks Y, P
EXT3 Input (Side) Phono jack Video
HDMI 1/2 Input HDMI connector
PC Input Mini D-sub 15-pin Analog RGB signal
PC/HDMI1 Audio Phono jacks Audio L + R
Audio Ouput Fixed/Variable Phono jacks Audio L + R
VHF E2-E12, S1-S41
VHF F1-F10, B-Q
VHF R1-R12
Phono jacks A/V
Phono jacks Audio L + R
B/CB
, PR/C
Stereo Nicam
Visible Screen Size 32WL 80cm
(approx.) 37WL 94cm
Display 16:9
Sound output (at 10% distortion) Main 10W + 10W
Power consumption 32WL 153W
as specified in EN60107-1 : 1997 37WL 161W
Standby (approx.) 32WL <1W
R
Dimensions 32WL 61cm (H) 80cm (W) 30cm (D) (approx.) 37WL 69cm (H) 92cm (W) 30cm (D)
42WL 78cm (H) 105m (W) 36cm (D)
(Height dimension includes foot stand)
Weight (approx.) 32WL 19kg
Headphone socket 3.5mm stereo
Accessories Remote control
2 carrier system
42WL 107cm
42WL 245W
37WL <1W 42WL <1W
37WL 25kg 42WL 33kg
2 batteries (AAA, IEC R03 1.5V)
Printed on recycled paper. 100% Chlorine free.
© Toshiba Information Systems (U.K.) Limited
Reproduction in whole or part without written permission is strictly prohibited.
28
Toshiba Information Systems (U.K.) Limited
Specification is subject to change without notice.
Originated by Kensa Creative Solutions, Saltash, Cornwall.
Consumer Products Division,
Admiralty Way, Camberley,
All rights reserved.
European Service Centre,
Surrey, GU15 3DT, UK
Sommaire
MISE EN ROUTE
Mesures de sécurité – Quelques conseils de sécurité à connaître et autres mesures à respecter 31
Installation et informations importantes 32
La télécommande – guide en image 33 Connexion d'un équipement externe – guide pour la connexion d’un équipement externe à
l’arrière du téléviseur 34 Connexion d'un ordinateur – connexion d'un ordinateur à l'arrière du téléviseur 35 Commandes et connexions d'entrée – mise en marche du téléviseur, mode de veille,
Français
COMMANDES ET FONCTIONS
utilisation des commandes, prise pour casque d’écoute, connexion d’un équipement aux
prises d’entrée latérales 36
Réglage du téléviseur à l'aide de la Configuration rapide – langue, pays, système de diffusion 37 Attribution de programmes 37 Réglage manuel – en variante de la configuration rapide, il permet la mémorisation directe de
chaînes, le réglage d'une position de programme pour un magnétoscope 38 Saut de programme 39 Accord automatique 40
Commandes générales – changement de position de programme 40 Commandes du son – volume, son coupé, graves/aigus/balance, 40 Commandes du son – super basses, bilingue, egalisation du son Effet sonore SRS WOW™ – SRS 3D, FOCUS et TruBass 41 Grand écran 42 Commandes de l'image – position de l'image, rétroéclairage 44 Commandes de l'image – préférences d'image (contraste, lumière, couleur, teinte, définition),
étirage du noir, réduction du bruit MPEG (MPEG NR), réduction numérique du bruit (DNR) 45 Commandes de l'image – température des couleurs, gestion de la couleur 3D,
réglage des couleurs de base 46 Commandes de l'image – mode cinéma, format automatique (grand écran), écran bleu,
ajustement du panneau latéral 47 Verrouillage panneau – désactiver les touches sur le téléviseur 48 Affichage de l'heure 48 Transmissions stéréo et bilingues – diffusions stéréo/mono ou en deux langues 48 Minuterie – programmer le téléviseur pour qu'il se mette en marche et s'arrête 48 Réglages de l'ordinateur – position de l'image, phase de l'horloge, horloge d'échantillonnage, raz 49 Sélection d'entrée et connexions AV – prises d'entrée et de sortie pour les équipements connectés 50
®
41
TELETEXTE
Configuration, informations d'ordre général, mode Auto 52 Mode LISTE, touches de commande 53
RESOLUTION DES PROBLEMES
Questions et réponses – réponses à certaines des questions les plus courantes y compris
accord fin manuel et système de couleur 54
INFORMATIONS
Spécifications et accessoires – informations techniques concernant le téléviseur et les
accessoires fournis 56
30
Loading...
+ 166 hidden pages
