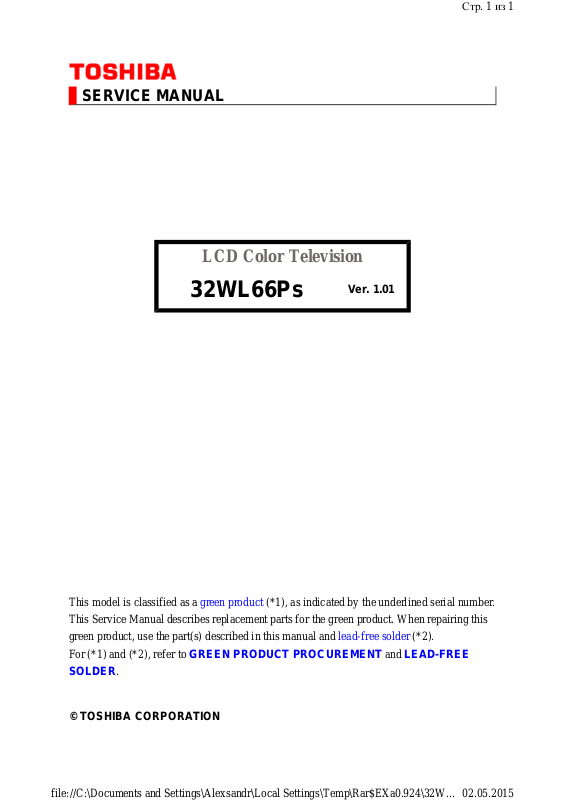

SERVICE MANUAL

(*1), as indicated by the underlined serial number.

Стр

. 1

из

02.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.924\32W

...

LCD Color Television

32WL66Ps

Ver. 1.01

This model is classified as a green product This Service Manual describes replacement parts for the green product. When repairing this green product, use the part(s) described in this manual and lead-free solder (*2). For (*1) and (*2), refer to

SOLDER

GREEN PRODUCT PROCUREMENT

and

LEAD-FREE

GREEN PRODUCT PROCUREMENT

Corporation recognizes environmental protection as a key management tasks, and is doing its

Стр

. 1

из

02.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.088\32W

...

The EC is actively promoting the WEEE & RoHS Directives that define standards for recycling and reuse of Waste Electrical and Electronic Equipment and for the Restriction of the use of certain Hazardous Substances. From July 1, 2006, the RoHS Directive will prohibit any marketing of new products containing the restricted substances.

Increasing attention is given to issues related to the global environmental. Toshiba

utmost to enhance and improve the quality and scope of its environmental activities. In line with this, Toshiba proactively promotes Green Procurement, and seeks to purchase and use products, parts and materials that have low environmental impacts.

Green procurement of parts is not only confined to manufacture. The same green parts used in manufacture must also be used as replacement parts.

LEAD-FREE SOLDER

free solder must

free solder may result in damage to the component and or PCB being

Стр

. 1

из

02.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.321\32W

...

This product is manufactured using lead-free solder as a part of a movement within the consumer products industry at large to be environmentally responsible. Leadbe used in the servicing and repair of this product.

WARNING: This product is manufactured using lead free solder.

DO NOT USE LEAD BASED SOLDER TO REPAIR THIS PRODUCT!

The melting temperature of lead-free solder is higher than that of leaded solder by 86ºF to 104ºF (30ºC to 40ºC). Use of a soldering iron designed for lead-based solders to repair product made with leadsoldered. Great care should be made to ensure high-quality soldering when servicing this product especially when soldering large components, through-hole pins, and on PCBs as the level of heat required to melt lead-free solder is high.

IMPORTANT NOTICE

Through WEB, ver. 6.5 has been released but with it, the linking function in this manual may

Стр

. 1

из

02.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.445\32W

...

A Known Malfunction

Autodesk® DWF™ Viewer version (Free software provided through WEB)

Use Autodesk DWF Viewer ver. 6.0.

not work properly. If ver. 6.5 has been installed, uninstall it and reinstall ver. 6.0.

To get ver. 6.0, click the icon, or contact to the nearest Toshiba Service Centre for further assistance.

Freezing windows opened (Cannot close the open windows)

This may happen occasionally. In case of encountering this, follow the procedure below.

1. Press [Ctrl], [Alt] and [Delete] keys at the same time to engage windows security windows.

2. Then, choose TASK manager and Application tab, and select TOSHIBA SERVICE MANUAL-Microsoft Internet Explorer.

3. Click TASK-end.

Main Window back forwarded

The real cause has not been found yet but with this condition, nothing disturbs the service manual operation.

Continue to use by operating the windows.

Стр

. 2

из

02.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.445\32W

...

Precaution when opening the diagrams

While opening the diagrams, the menu in the left frame changes its color to GRAY. This is an indication that the viewer is processing.

With this condition, the menu indication color may stick to the GRAY color or Windows may freeze if clicking other menu.

To avoid such things, do not operate any others while menu turns GRAY color.

If entering this, re-open the service manual or refresh the left frame.

IMPORTANT NOTICE

Стр

. 1

из

02.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.166\32W

...

User Guide

Autodesk® DWF™ Viewer

this system. Please download and install.

When function and this sample may not work. In that case, perform the Internet Explorer setting using the following procedure to restore normal operation.

Windows XP SP2

1. Windows version check [My Computer (right-click)] - [Properties]

is necessary to view drawings and to activate the functions of

is used, pop-up windows are limited by the enhanced security

2. Internet Explorer setting [Tools] - [Internet Options]

Стр

. 2

из

02.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.166\32W

...

Operating Environment

PC : Pentium III or higher recommended Monitor : 1024 x 768 or higher resolution recommended

Mouse : A mouse with wheel recommended

Стр

. 3

из

02.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.166\32W

...

OS : Microsoft Windows 2000/XP Browser : Microsoft Internet Explorer 6.0 or later Drawing viewer : Autodesk DWF Viewer 6.0

* Use the software following respective license terms and conditions.

Note:

In case of using this service manual with network connection, allocate its folder to the client PCs as

network drive

to avoid any possible malfunction.

Or in case of accessing it through WEB site, the small pop-up window appears at the left bottom corner on the screen whenever searching the location links. This is not malfunction.

Functions Provided on Each Drawing Page

Parts Information Reference Function

When the character string of a part on the drawing is clicked, its information is popped up at the location. You can get any parts information immediately on the screen without referring to the maintenance parts list. 

Parts Search Function

You can search any part within the displayed drawing or within the whole schematic diagram/board view by specifying a location number. The pop-up window displayed by clicking a part's character string allows to search the part within the applicable schematic diagram, board view or spare parts list. 

A circle appears when the part is found, showing the part's location within the drawing. 

Signal Line/Connector Destination Display Function

When a name at the end of a signal line in a divided schematic diagram is clicked, the destination of the signal is searched and the display changes to the destination. Connecter



destinations can also be searched in the same way. When two or more search results are provided, their drawing names are displayed, allowing

you to choose a desired drawing to display. 

Layer Display Changing Function

When a pattern on a board view is clicked, it is highlighted in green. This allows easy pattern

Стр

. 4

из

02.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.166\32W

...

When any of the color buttons on the toolbar is clicked, it can be selected to display desired layer in its color or not to display each layer. This allows you to see the pattern layer only by setting other layers to "non-display". 

PC Board View Pattern Highlighting Function

tracing. 

Specified Area Printing Function

The Autodesk DWF Viewer enables to print the displayed drawing region as it is on a printer. It also allows to print a large-sized drawing in multiple pieces (tile printing). 

IMPORTANT NOTICE

Стр

. 1

из

02.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.636\32W

...

WARNING:

You are requested that you shall not modify or alter the information or data provided herein without prior written consent by Toshiba. Toshiba shall not be liable to anybody for any damages, losses, expenses or costs, if any, incurred in connection with or as a result of such modification or alteration.

THE INFORMATION OR DATA HEREIN SHALL BE PROVIDED "AS IS" WITHOUT ANY WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

Toshiba shall not be liable for any damages, losses, expenses or costs, if any, incurred in connection with or as a result of use of any information or data provided herein.

ADJUSTMENT

↓

Стр

. 1

из

02.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.199\32W

...

Service Mode

Entering to Service Mode

1. Set VOLUME to minimum and press button once on remote control.

Service Mode display

2. Press button again and hold button down.

3. While holding the button, press MENU button on TV set.

Стр

. 2

из

02.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.199\32W

...

Displaying the Adjustment Menu

Press MENU button on TV.

Service Mode

Press

Adjustment Mode

↑ ↓

Press

Key Function in the Service Mode

The following key entry during display of adjustment menu provides special functions.

CAUTION: Never try to perform initialization unless you have changed the memory IC.

button (on remote control)

Never adjust H.POS and V.POS except PAL/WIDE mode.

Test signal selection

Стр

. 3

из

02.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.199\32W

...

Selection of the adjustment items Change of the data value Volume +/- (on TV or remote control) Adjustment menu mode ON/OFF MENU button (on TV) Initialization of the memory (QA02) CALL + CH button on TV Reset the count of operating

protect circuit to "00" Turn off I2C bus communication CALL + Volume + button on TV "RCUT" selection 1 button "GCUT" selection 2 button "BCUT" selection 3 button "CNTX" selection 4 button "COLC" selection 5 button "UVTT" selection 6 button Automatic A/D Adjustment

(PC, Component, Composite (PAL, NTSC))

CH (on TV or remote control)

CALL + CH button on TV

7 button

Self diagnostic display ON/OFF 9 button

Selecting the Adjusting Item

Every pressing of CH button in the service mode changes the adjustment items in the order of table below. ( button for reverse order)

SETTING & ADJUSTING DATA [ SERVICE MODE ]

ADJUSTING ITEMS AND DATA IN THE SERVICE MODE:

Note:

The image system data of RCUT-BDRV is different by each image format. The PAL value is indicated in the table.

Стр

. 4

из

02.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.199\32W

...

Item Name of adjustment

RCUT R CUT OFF GCUT G CUT OFF BCUT B CUT OFF RDRV R DRIVE GDRV G DRIVE BDRV B DRIVE BRTC BRIGHTNESS CENTER COLC COLOR CENTER UVTT BASE BAND TINT CNTX CONTRAST MAX VOLUX MAX VOLUME LIMITED PLLW0 PLL WAIT TIME PLLW1 PLL WAIT TIME PLLW2 PLL WAIT TIME PLLW3 PLL WAIT TIME PLLW4 PLL WAIT TIME PLLW5 PLL WAIT TIME OPT1 TV SET OPTION 1 OPT2 TV SET OPTION 2 (HOTEL MODE) OPT3 TV SET OPTION 3 OPT4 TV SET OPTION 4 (PANEL OPT DATA) OPT5 TV SET OPTION 5 (PANEL OPT DATA) OPT6 TV SET OPTION 6 (HOTEL MODE) OPT7 TV SET OPTION 7 (HOTEL MODE) OPT8 TV SET OPTION 8 (HOTEL MODE) TVOP TV SET OPTION ID MODEL ID BDWID BORDER WIDTH FOR EXACT SCAN BDHIT BORDER HEIGHT FOR EXACT SCAN

Factory preset data will be loaded after setting Model ID data.

(Refer to Initialization of Memory Data of QA02 and setting data of signal board.)

Стр

. 5

из

02.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.199\32W

...

Adjusting the Data

Pressing of VOLUME +/- button will change the value of data in the range from 00H to FFH. The variable range depends on the adjusting item.

I2C Bus Off

Turn off I2C communication between IC700 and IC400.

1) Press and hold the CALL button on the remote control, then press the Volume + button on the TV.

2) Display "BUS Off" OSD.

3) I2C communication turned off.

Note:

To return Bus on status, press and hold the CALL button on the remote control, then press the Volume + button on the TV again. TV will be turned off and automatically turned on, then status will be Bus On.

Setting TVOP

Enter to service mode and select menu of TVOP by pressing P or P during display of adjustment menu. After selecting TVOP, press + or - to set I2C check function to

disable or enable as below.

TVOP FUNCTION DESCRIPTION 1 0 (Normal)

D5 (bit5) I2C check between IC700 and IC400. (WDT) Disable Enable

Setting Panel Option Data

Panel option data is subject to OP4 and OP5.

Стр

. 6

из

02.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.199\32W

...

Enter to service mode and select menu of OPT4 or OPT5 by pressing P or P during display of adjustment menu. After selecting OPT4 or OPT5, press + or - to set OPT4

or OPT5 value as table below.

Panel option data

Series Model name Panel vendor OPT4 value OPT5 value

WL66s EU Ready 26WL66Ps/WL66Zs AUO (PMVA) 0x43 0x01

32WL66Ps/WL66Zs AUO (AMVA) 0x45 0x21

LPL 0x15 0x01

37WL66Ps/WL66Zs LPL 0x16 0x01

EU/UK Digital 26WLT66s/WLG66s AUO (PMVA) 0x43 0x01

32WLT66s/WLG66s AUO (AMVA) 0x45 0x21

LPL 0x15 0x01

37WLT66s/WLG66s AUO (AMVA) 0x46 0x21

LPL 0x16 0x01

OP4

Ex. OPT4 value 0xB7 is for 42 inches CMP made 1080p panel.

OPT4

Panel vendor LPL - 0 0 1 - - - -

SHP - 0 1 0 - - - CMO - 0 1 1 - - - AUO - 1 0 0 - - - -

Inch size 26 - - - - 0 0 1 1

32 - - - - 0 1 0 1

(bit7)

(bit6)

(bit5)

(bit4)

(bit3)

(bit2)

(bit1)

(bit0)

37 - - - - 0 1 1 0 42 - - - - 0 1 1 1 47 - - - - 1 0 0 0

OP5

OPT5

Стр

. 7

из

02.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.199\32W

...

AUO Panel PMVA - - 0 - - - - -

AMVA - - 1 - - - - -

100 Hz Drive Off - - - 0 - - - -

On - - - 1 - - - -

Panel Resolution

WXGA - - - - 0 0 0 1 1080p - - - - 0 0 1 0

(bit7)

(bit6)

(bit5)

(bit4)

(bit3)

(bit2)

(bit1)

(bit0)

Convert from Bit (Binary) to Hex

The table for converting from bit (D7-D0) to hex (0x**).

BIT (Binary) High nibble Low nibble HEX

0 1 2 3 4 5 6 7 8 1 9 1 A 1

D7 D6 D5 D4 D3 D2 D1 D0

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

1 1 1 1 1 1 1

0 0 0 0 0 0

1 1 1

0 0 0

B 1 C 1 1 D 1 1 E 1 1 1

1 1

0 0 0

F 1 1 1 1

Стр

. 8

из

02.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.199\32W

...

E.g. If Bit D7-0 = 0101 1010, Hex data is 0x5A.

Exit from Service Mode

Pressing POWER button to turn off the TV once.

Initialization of Memory Data of QA02 and Setting Data of Signal Unit

After replacing QA02 or signal board, the following initialization is required.

CAUTION: Never attempt to initialize the data unless QA02 has been replaced. Whenever using new signal board to the set, setting the Model ID data according to Panel option data.

1) Enter the service mode.

2) Select menu of ID by pressing P or P during display of adjustment menu in the service mode.

3) Change ID data into MODEL ID to initialize by pressing + or -., refer to table below.

4) Press and hold the CALL button on the remote control, then press the CHANNEL button on the TV.

5) Initialization progress dialog including model name and panel vendor is shown. Progress status is "WRITING".

6) Progress status is changed "OK" and power cycle (automatically). Then QA02 initialization has been completed.

7) Enter the service mode and select version check mode. Confirm if model name and

Стр

. 9

из

02.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.199\32W

...

model id set is correct. If not, repeat steps 1) to 6).

Note:

In case initialization by setting wrong MODEL ID is done, there is a possibility of abnormal display.

8) Set I2C check function of TVOP to enable.

9) Check the picture carefully. If necessary, adjust any adjustment item above. Perform "Auto tune" on the owner's manual.

Europe

MODEL ID (HEX)

Model name Panel vendor

0x01 32WL66Ps/WL66Zs LPL 0x02 26WL66Ps/WL66Zs AUO (PMVA) 0x03 37WL66Ps/WL66Zs LPL 0x04 26WLT66s AUO (PMVA) 0x05 32WLT66s AUO (AMVA) 0x06 37WLT66s AUO (AMVA) 0x07 26WLG66s AUO (PMVA) 0x08 32WLG66s AUO (AMVA) 0x09 37WLG66s AUO (AMVA) 0x10 32WLT66s LPL 0x11 37WLT66s LPL 0x12 32WLG66s LPL 0x13 37WLG66s LPL 0x14 32WL66Ps AUO (AMVA) 0x15 0x16 0x17 0x18 0x19 0x20 0x21 0x22

0x23

Стр

. 10

из

02.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.199\32W

...

0x24 0x25 0x26 0x27 0x28 0x29 0x30 0x31 0x32 0x33

Initializing Data setting flowchart after replacing the Signal Unit

Стр

. 11

из

02.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.199\32W

...

Test Signal Selection

Every pressing of button on the remote control changes the built-in test patterns on

Стр

. 12

из

02.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.199\32W

...

screen as described below in Service Mode.

Picture Signal

Red raster

Green raster

Blue raster

All Black

All White

Self Diagnostic Function

1. Press "9" button on remote control during display of adjustment menu in the service mode. The diagnosis will begin to check if interface among IC's is executed properly.

2. During diagnosis, the following displays are shown.

* Self check display and Item are subject to the models.

NG is abnormal (Red indication).

Стр

. 13

из

02.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.199\32W

...

(1) Firmware :

Version information of microprocessor

Series name (AAAA) and market area (BB) and software program version (0000) (2) Time : Total hour of turn the TV on. (Unit : H) (3) Bus line : -- "OK" is normal

SCL-GND (Red indication) : SCL-GND short circuit

SDA-GND (Red indication) : SDA-GND short circuit

SCL-SDA (Red indication) : SCL-SDA short circuit (4) Bus cont : --- "OK" is normal.

When the abnormal status is detected, type name of semiconductor is indicated in red colour.

(5) Block

UV :TV reception mode

V1 - V9:VIDEO 1-9 input mode

PC : PC mode

YUV :YUV mode

DTV : DTV mode

WL66Ps/WL66Zs, WLT66s, WLG66s

UV RF

(SCART (FULL))

(SCART (S + AV))

(Component/Composite)

Стр

. 14

из

02.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.199\32W

...

V4 HDMI1 V5 HDMI2 V6 -V7 -V8 -V9 --

PC PC YUV -DTV --

Version Check Mode

1. Press "9" button twice on remote control during display of adjustment menu in the service mode. The version of main MPU will be checked.

2. During Version Check, the following displays are shown.

* Version check display and Item are subject to the models.

Стр

. 15

из

02.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.199\32W

...

(1) MAIN MPU :

Version information of microprocessor Series name and Code Program Version (4 figure number) and OSD Version (2 figure number).

(2) EEPROM :

Version information of EEPROM : Display 1 byte data.

(3) SUB MPU :

Version information of SUB MPU : Display 1 byte data.

(4) OPTION :

Option information : Display six numbers of 1 byte data.

(5) HDMI ID :

HDMI ID information : Display 4 byte data.

(6) SW Ver

Version information of DB software as Toshiba release. (Only digital model.)

(7) MW Ver

Left side is Application and UI version information of DB software. (Only digital model.) Right side is Firmware (Driver) version information of DB software. (Only digital model.)

(8) A/D Adjust

NTSC (60 Hz) SD signal (composite input).

Стр

. 16

из

02.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.199\32W

...

A/D adjustment item.

--MAIN :It's enable only in double Window model. A/D adjustment status of main picture.

--PIP : It's enable only in double Window model. A/D adjustment status of sub picture.

--COMP:Component input

--PC : PC input

--NTSC :

--PAL :PAL (50 Hz) SD signal (composite input).

--OK : A/D adjustment set correctly.

--NG : A/D adjustment set incorrect.

-- :A/D adjustment is not needed. Because its picture format isn't used.

(9) 100 Hz FPGA Software Version

It's enable only in 100 Hz drive panel model. Upper 2 figure number means function versions of double frequency convert. Lower 2 figure number means function version of vector complement.

(10) Memory Data Version

Version information of EEPROM. DRMA**** means model number of EEPROM. REV** means version of EEPROM.

(11) CD number

CD information (ascii code). : Display 4 byte data.

(12) Model Name

Model name information (ascii code). : Display 7 byte data.

(13) LCD Panel Vendor information display

The following Panel Vendor (DDD) and screen size (00) are displayed. Example : AUO-32 indicates that Vendor is AUO and Screen Size is 32 inch

Status Check Mode

1. Press "9" button thrice on remote control during display of adjustment menu in the service mode. The status of this model will be checked.

2. During Status Check, the following displays are shown.

* Status check display and Item are subject to the models.

Стр

. 17

из

02.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.199\32W

...

(1) MAIN :

Main source information : Display RF position number (0 - 99) on the main screen, or Input Source (EXT1/2/3/HDMI etc.)

(2) MAIN FORMAT :

Display Video and PC format information

(3) MAIN PLL :

Main PLL information : Display 1 byte data at five.

(4) SUB :

Sub source information : Display RF position number (0 - 99) on the Sub screen, or Input Source (EXT1/2/3/HDMI etc.) This item displays only Double window model.

(5) SUB FORMAT :

Display Video and PC format information This item displays only Double window model.

(6) SUB PLL :

Sub PLL information : Display 1 byte data at five. This item displays only Double window model.

(7) SCREEN SIZE :

Display the screen size as follows.

Exact Scan Wide Super Live 2

Cinema 2

Стр

. 18

из

02.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.199\32W

...

4:3 Super Live 1 Cinema 1 Subtitle 14:9

Note:

Exact Scan is shown only for 1080p panel model with video input mode except pc.

(8) OTHER STATUS :

Other status information : Display three numbers of 2 byte data.

Setting Hotel Mode

Enter to service mode and select Hotel Mode menu by pressing P or P . After selecting Hotel Mode, press + to enter details setting in Hotel Mode.

To select menu, press P or P and press OK to enter the adjustment menu of table bellow. To move the cursor in the adjustment, press + or -.

1. By pressing P or P , OPT2 setting will change the value either 1 or 0 on selected items as follows;

OP2

OPT2 FUNCTION DESCRIPTION 1 0 (Normal)

D7 (bit7) - (no use) - D6 (bit6) - (no use) - D5 (bit5) FRONT Key Disable Enable D4 (bit4) All keys except input selector key

(Video/TV)

Disable Enable

D3 (bit3) User remote control operation Disable

(Service mode and Supere User mode may possible to setting only)

D2 (bit2) Disable SET UP MENU except Disable Enable

Enable

language.

Стр

. 19

из

02.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.199\32W

...

(tuning SETUP MENU)

D1 (bit1) Disable SETUP MENU Disable Enable

(Display the language only)

D0 (bit0) HOTEL Mode On (Enable the setting of D1

from to D7)

Off (Normal)

VOLUX

Set VOLUX as following.

1) Set speaker volume to 100. (Any value is OK, but 100 is better to check sound level.)

2) Down value of VOLUX until finding suitable sound volume level.

VOLUX FUNCTION DESCRIPTION 1 0 (Normal)

D7 (bit7) ~ D0 (bit0)

Max Limiter of Volume Control 0x00 ~ 0x7F (Normal: 0x7C)

OP6

OPT6 FUNCTION DESCRIPTION 1 0 (Normal)

D7 (bit7) Enable mode that POS or VIDEO program

number will be appeared in forced when turning the main power on

D6 (bit6) ~ D0 (bit0)

POS or VIDEO program number 0 ~ 127 [decimal] (Normal: 0)

Enable Disable

POS number: 0 ~ 99 VIDEO number: 100 ~ 127 (DTV = 100, VIDEO = 101, VIDEO = 102..) 100 is used as ATV when DTV option is disable.

OP7

OPT7 FUNCTION DESCRIPTION 1 0 (Normal)

D7 (bit7) Enable mode that speaker volume will be set

in forced when turning the main power on

Enable Disable

D6 (bit6) ~

Forced speaker volume 0 ~ 100 [decimal] (Normal: 0)

D0 (bit0) Value above 100 is no effect.

Стр

. 20

из

02.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.199\32W

...

OP8

OPT8 FUNCTION DESCRIPTION 1 0 (Normal)

D7 (bit7) ~ D3 (bit3)

D2 (bit2) Enable mode that picture mode will be set in

forced when turning the main power on

D1 (bit1) ~ D0 (bit0)

Forced picture mode 0 [dec]: Dynamic (mode-1)

- (no use) - -

Enable (Display the language only)

(Normal) 1 [dec]: Standard (mode-2) 2 [dec]: Mild (mode-3) 3 [dec]: Memory (mode-M)

Disable

LED Indication

The Green and Red LEDs on the TV (at the bottom center of the TV) indicate the TV's status, as described below.



Red ON (solid) and Green OFF = The TV power cord is plugged in.



Green ON (solid) and Red ON = The On timer is operating.

1 Green LED is OFF;

Red LED blinks continuously at

0.5-second intervals.

2 Green LED is OFF;

Red LED blinks continuously at 1second intervals.

LED Indication Condition Solution

Abnormal operation Turn the TV off and unplug the

Abnormal operation of BUS line.

power cord. Plug the power cord in again and turn the TV on.

Turn the TV off and unplug the power cord. Plug the power cord in again and turn the TV on.

+ 126 hidden pages
