FILE NO. 060-200601GR

SERVICE MANUAL

LCD Color Television

32WL66A

32WL66E

32WL66R

32WL66T

The above models are classied as green products (*1), as indicated by the underlined serial numbers. This Service Manual describes replacement parts for the green products. When repairing these green products, use the parts described in this manual and lead-free solder (*2).

For (*1) and (*2), see the next page.

TOSHIBA CORPORATION, 2006

Published in Japan, Apr. 2006 (YC)

TABLE OF CONTENTS

SERVICE INSTRUCTIONS .................................................................................................................................................... 3

HANDLING THE LCD MODULE ............................................................................................................................................ 5

SERVICE MODE .................................................................................................................................................................... 7

LOCATION OF CONTROLS ................................................................................................................................................. 14

LAYOUT OF MAJOR BOARDS ............................................................................................................................................ 17

PACKING EXPLODED VIEW ............................................................................................................................................... 18

CHASSIS AND CABINET REPLACEMENT PARTS LIST .................................................................................................... 19

PC BOARDS TOP & BOTTOM VIEW ................................................................................................................................... 28

CIRCUIT BLOCK DIAGRAM ................................................................................................................................................ 34

SPECIFICATIONS ................................................................................................................................................................ 35

APPENDIX:

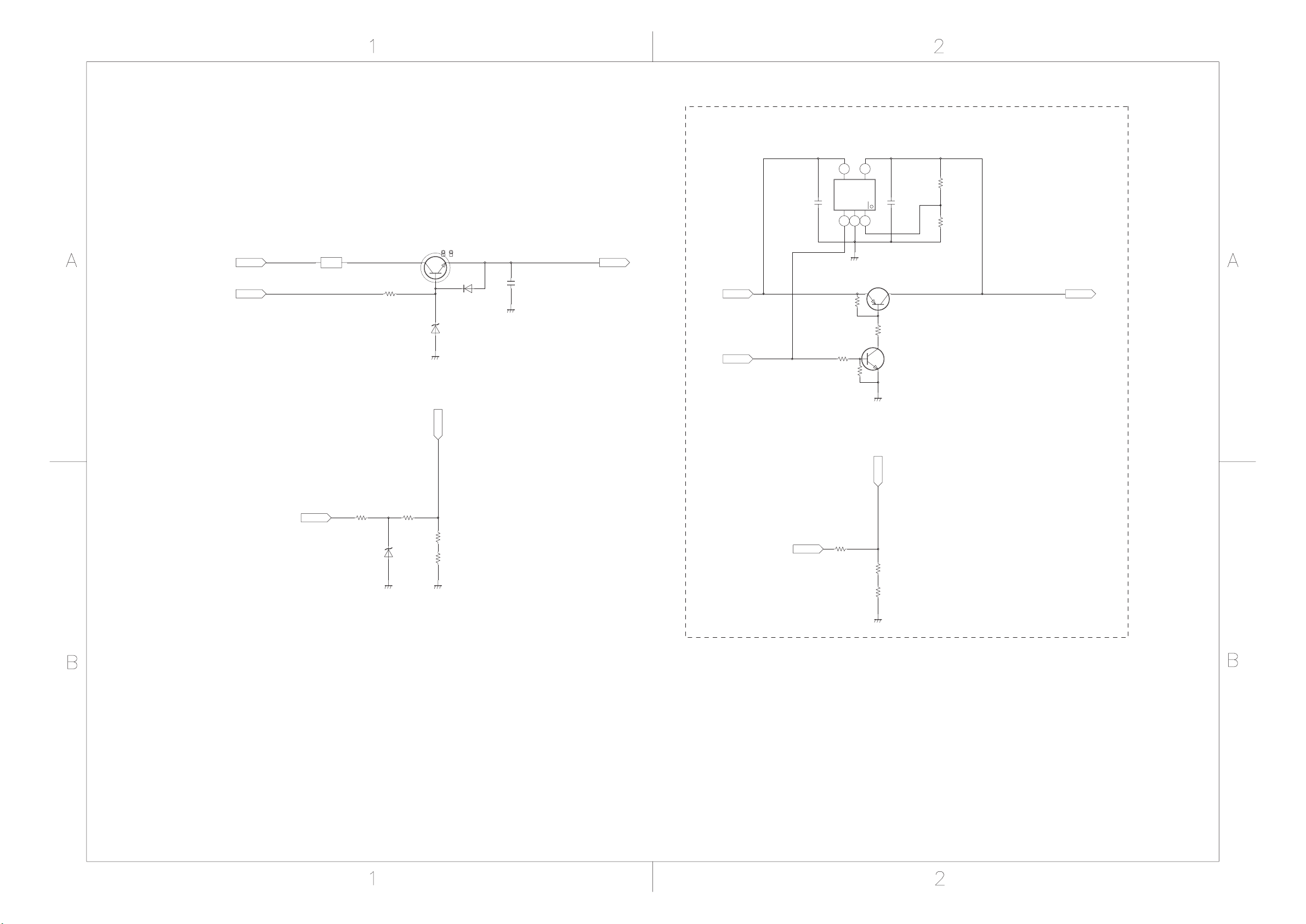

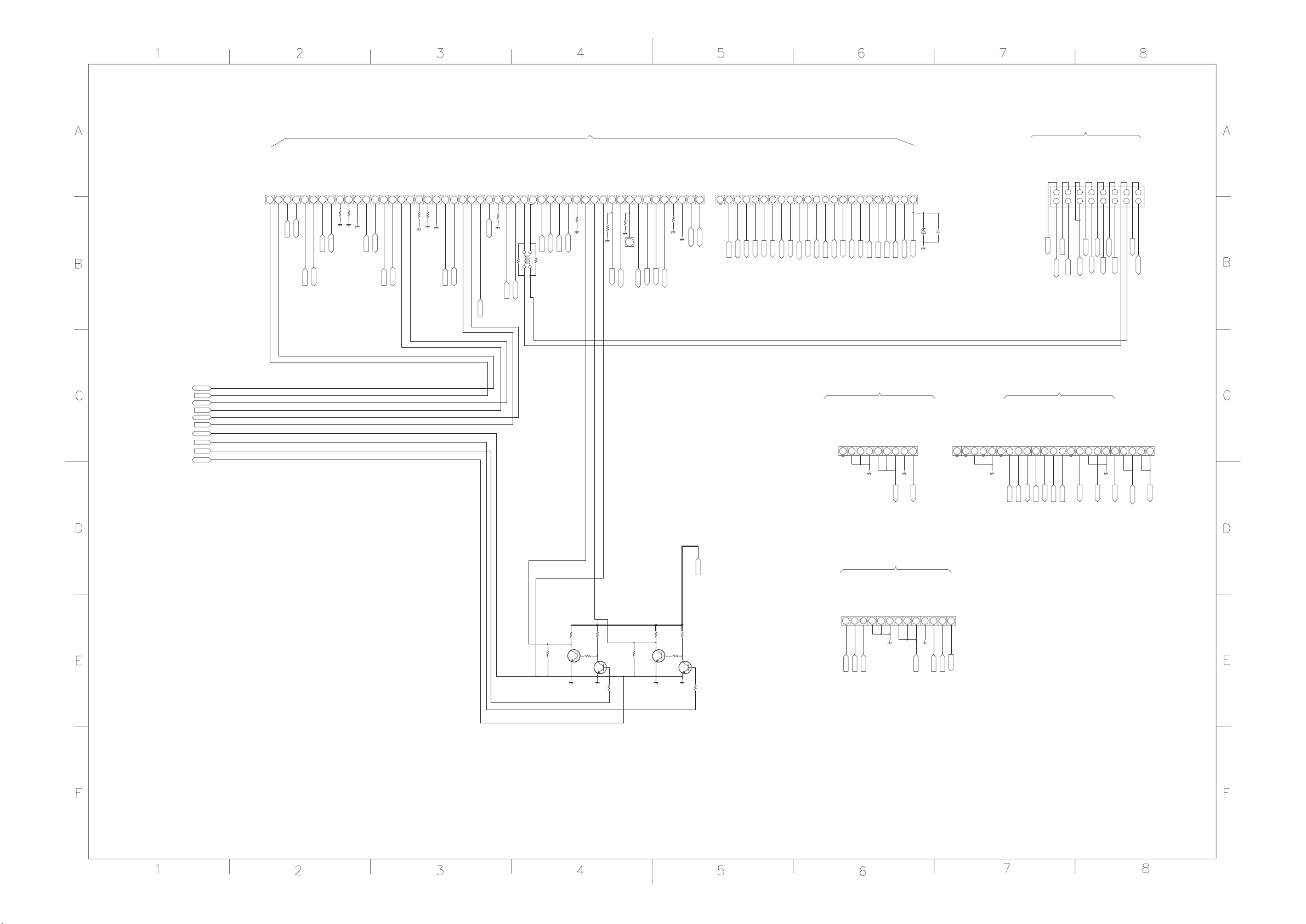

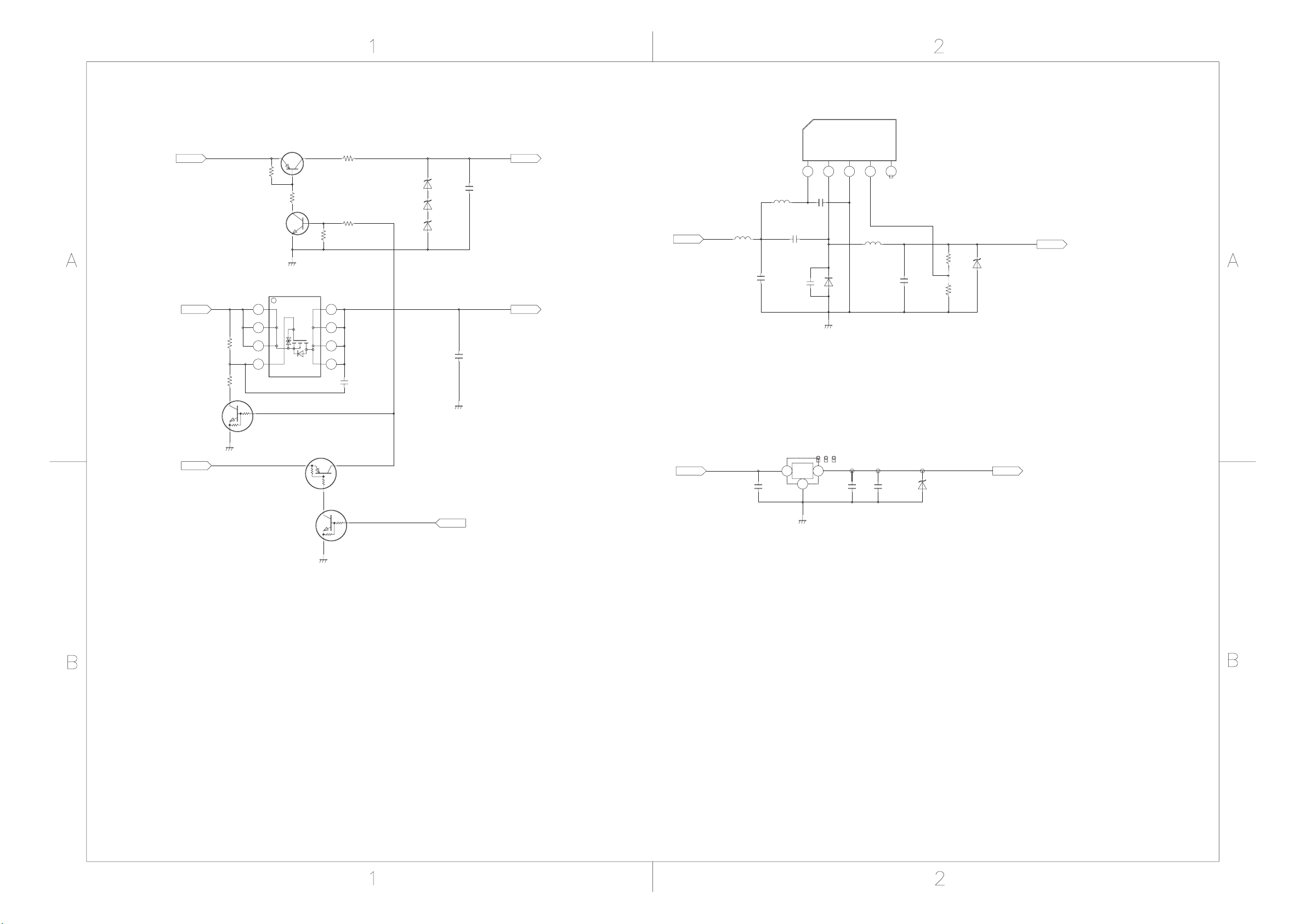

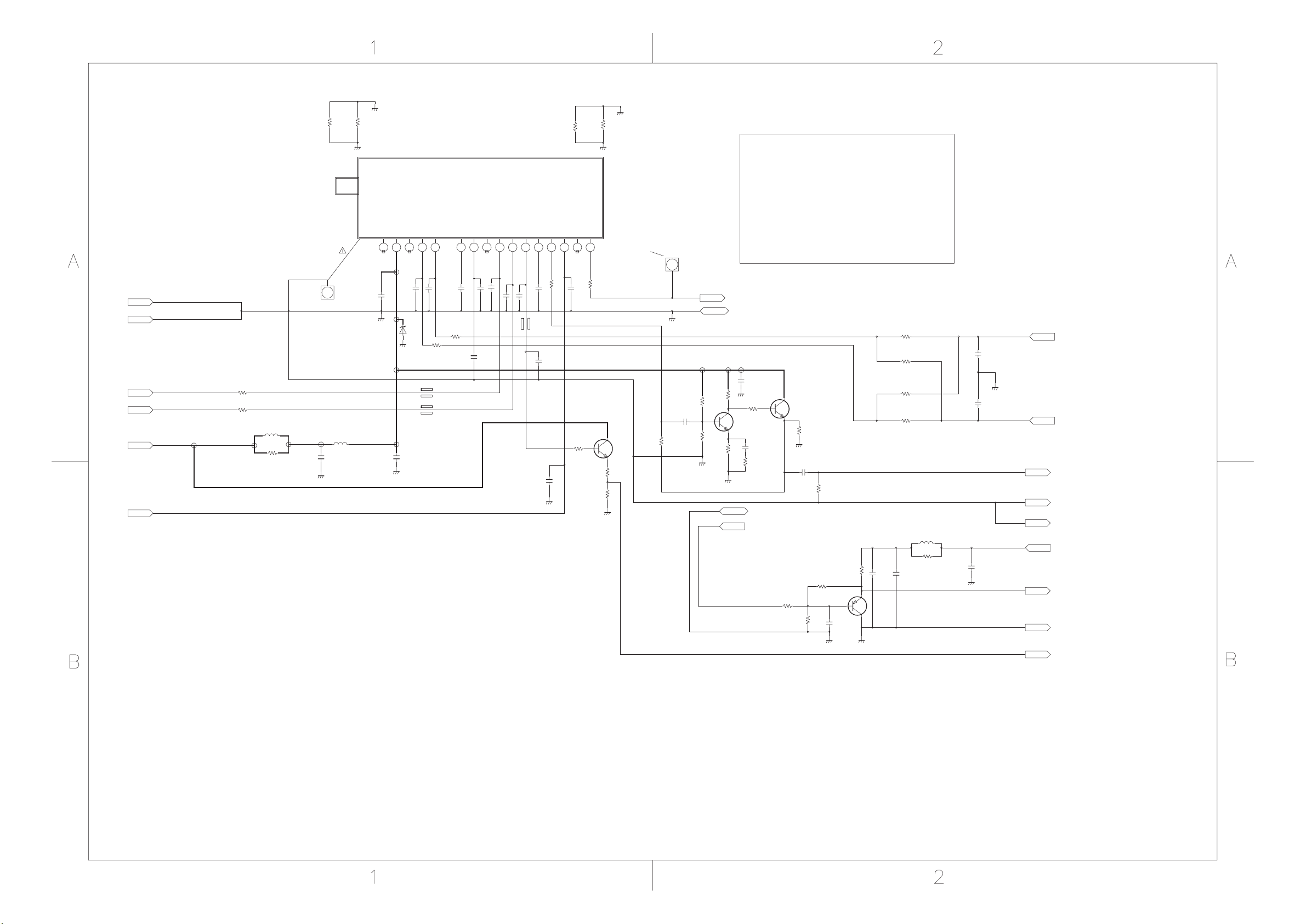

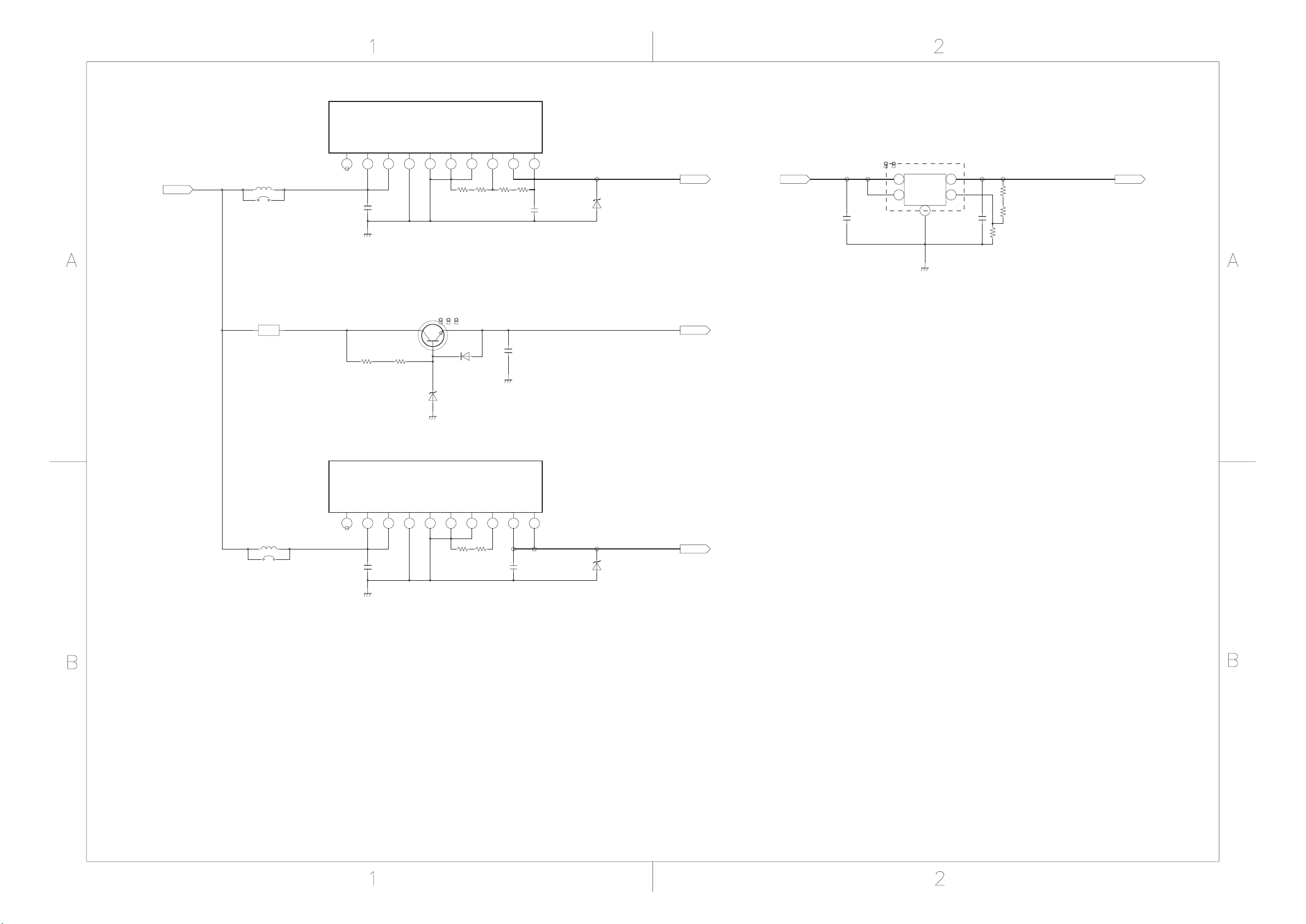

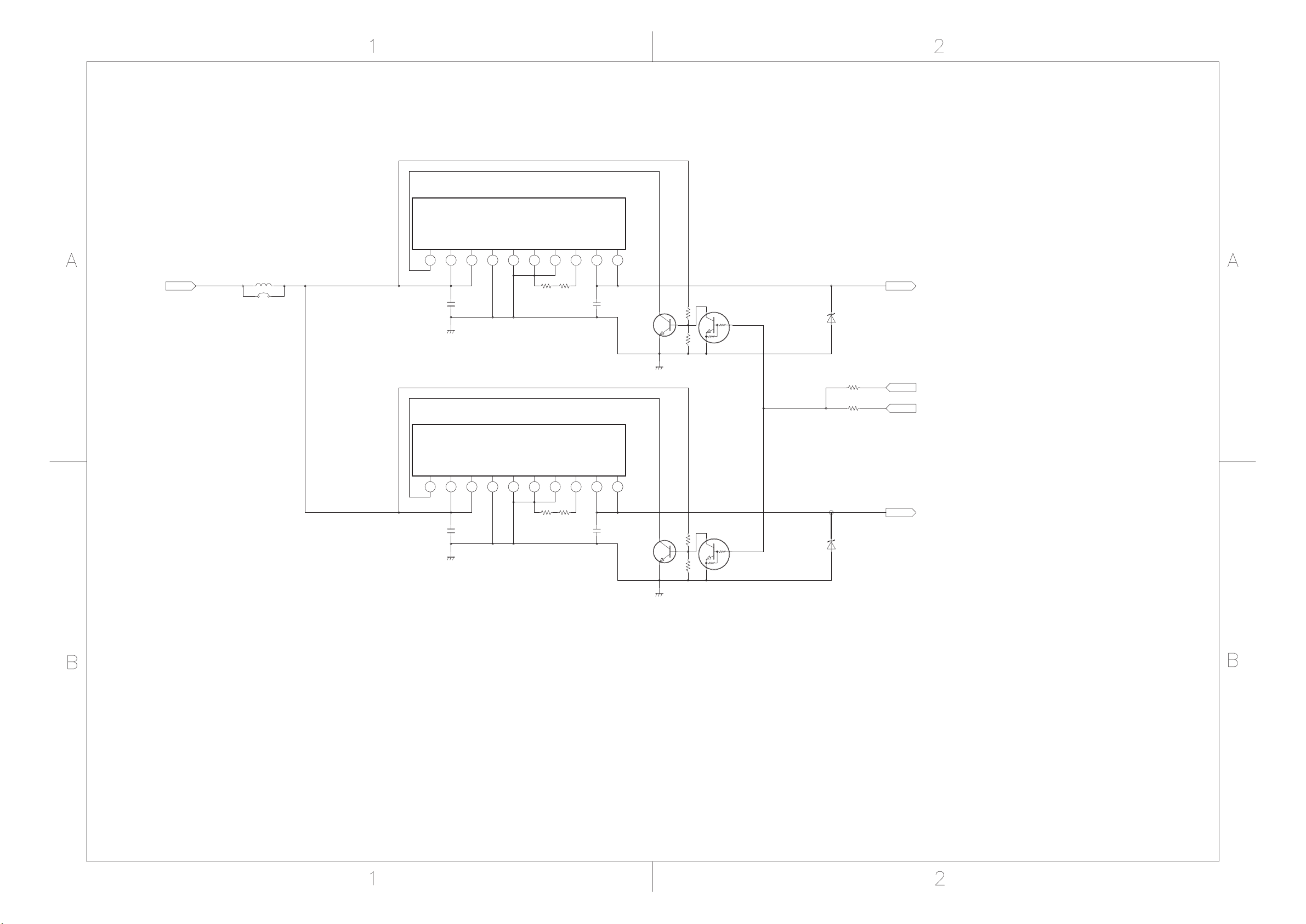

SCHEMATIC DIAGRAM

(*1) GREEN PRODUCT PROCUREMENT

The EC is actively promoting the WEEE & RoHS Directives that deﬁne standards for recycling and reuse of Waste Electrical and Electronic Equipment and for the Restriction of the use of certain Hazardous Substances. From July 1, 2006, the RoHS Directive will prohibit any marketing of new products containing the restricted substances.

Increasing attention is given to issues related to the global environmental. Toshiba Corporation recognizes environmental protection as a key management tasks, and is doing its utmost to enhance and improve the quality and scope of its environmental activities. In line with this, Toshiba proactively promotes Green Procurement, and seeks to purchase and use products, parts and materials that have low environmental impacts.

Green procurement of parts is not only conﬁned to manufacture. The same green parts used in manufacture must also be used as replacement parts.

(*2) LEAD-FREE SOLDER

This product is manufactured using lead-free solder as a part of a movement within the consumer products industry at large to be environmentally responsible. Lead-free solder must be used in the servicing and repair of this product.

WARNING

This product is manufactured using lead free solder.

DO NOT USE LEAD BASED SOLDER TO REPAIR THIS PRODUCT !

The melting temperature of lead-free solder is higher than that of leaded solder by 86°F to 104°F (30°C to 40°C). Use of a soldering iron designed for lead-based solders to repair product made with lead-free solder may result in damage to the component and or PCB being soldered. Great care should be made to ensure high-quality soldering when servicing this product  especially when soldering large components, through-hole pins, and on PCBs  as the level of heat required to melt lead-free solder is high.

GENERAL ADJUSTMENTS

SPECIFIC INFORMATIONS

SERVICE SAFETY PRECAUTIONS

• The caution items shown here describe major safety issues and should always be observed.

• The meanings of the various indications are as follows.

WARNING

CAUTION

Indicates a hypothetical situation in which service personnel and nearby third parties, or even end users due to a product defect after the service operation is completed, could possibly be in danger of injury or even death in the event of operational error.

Indicates a hypothetical situation in which service personnel and nearby third parties, or even end users after the service operation is completed, could possibly be in danger of injury, or where there could be physical damage in the event of operational error.

* Physical damage means major damage to a home, furnishings and other possessions.

Examples of marks

SHOCK HAZARD

PROHIBIT DISASSEM-

BLING

UNPULUG

The" indicates caution (including danger and warning). The actual meaning of this caution is indicated inside the " or nearby illustrations or text. The example shown to the left indicates the danger of "electrical shock".

The indicates a forbidden action. The actual meaning of this caution is indicated inside the or nearby illustrations or text. The example shown to the left indicates that disassembly is forbidden.

The - indicates a forced action (an action that must be performed). The actual meaning of this forced action is indicated by - or nearby illustrations or text. The example shown to the left indicates that the power plug must be disconnected.

32WL66A/E/R/T

WARNING

KEEP CHILDREN

AWAY

UNPULUG

SHOCK HAZARD

USE SPECIFIED

PARTS

CAUTION FOR

WIRING

CAUTION FOR

ASSEMBLING /

WIRING

CHECK INSULATION

RESISTANCE

PROHIBIT

REMODELING

• Always advise users to keep children away. There is danger of injury to children from tools, disassembled products, etc.

• Always disconnect the power plug before starting work whenever power is not required. Failure to disconnect the power plug before starting work can result in electrical shock.

• Depending on the model, use an insulation transformer or wear gloves when servicing with the power on, and disconnect the power plug to avoid electrical shock when replacing parts. In some cases, alternating current is also impressed in the chassis, so electrical shock is possible if the chassis is contacted with the power on.

• Always use the replacement parts specified for the particular model when making repairs. The parts used in products have the necessary safety characteristics such as inflammability, voltage resistance, etc.; therefore, use only replacement parts that have these same characteristics. Use only the specified parts when the

mark is included in a circuit diagram or parts list.

• Parts mounting and routing of the wiring should be the same as that used originally. For safety purposes, insulating materials such as tubing or tape is sometimes used and printed circuit boards are sometimes mounted floating. Also make sure that wiring is routed and clamped to avoid parts that generate heat and which use high voltage. Always follow the original scheme.

• After a repair has been completed, reassemble all disassembled parts, and route and reconnect the wiring, in accordance with the original scheme. Do not allow internal wiring to be pinched by cabinets, panels, etc. Any error in reassembly or wiring can result in electrical leakage, flame, etc., and may be hazardous.

• After completing the work, disconnect the power plug from the outlet, remove the antenna, turn on the power switch. Then, use a 500V insulation resistance meter to check the insulation resistance of the antenna terminal, other metallic parts and between the prongs of the power plug to make sure that the insulation resistance is 1M 1 or more. The set will require inspection and repair if the insulation resistance is below this value.

• Never remodel the product in any way. Remodeling can result in improper operation, malfunction, or electrical leakage and flame, which may be hazardous

32WL66A/E/R/T

GENERAL ADJUSTMENTS

SPECIFIC INFORMATIONS

HANDLING THE LCD MODULE

Safety Precautions

In the event that the screen is damaged or the liquid cr ystal (fluid) leaks, do not breathe in or drink this fluid. Also, never touch this fluid. Such actions could cause toxicity or skin irritation. If this fluid should enter the mouth, rinse the mouth thoroughly with water. If the fluid should contact the skin or clothing, wipe off with alcohol, etc., and rinse thoroughly with water. If the fluid should enter the eyes, immediately rinse the eyes thoroughly with running water.

Precautions for Handling the LCD Module

The LCD module can easily be damaged during disassembly or reassembly; therefore, always observe the following precautions when handling the module.

1. When attaching the LCD module to the LCD cover, position it appropriately and fasten at the position where the display can be viewed most conveniently.

2. Carefully align the holes at all four corners of the LCD module with the corresponding holes in the LCD cover and fasten with screws. Do not strongly push on the module because any impact can adversely affect the performance. Also use caution when handling the polarized screen because it can easily be damaged.

CAUTION

The metal edges of the LCD module are sharp, so use caution to avoid injury.

3. If the panel surface becomes soiled, wipe with cotton or a soft cloth. If this does not remove the soiling, breathe on the surface and then wipe again. If the panel surface is extremely solied, use a CRT cleaner as a cleaner. Wipe off the panel surface by drop the cleaner on the cloth. Do not drop the cleaner on the panel. Pay attention not to scratch the panel surface.

4. Leaving water or other fluids on the panel screen for an extended period of time can result in discoloration or stripes. Immediately remove any type of fluid from the screen.

5. Glass is used in the panel, so do not drop or strike with hard objects. Such actions can damage the panel.

6. CMOS-LSI circuitry is used in the LCD module, so avoid damage due to static electricity. When handling the module, use a wrist ground or anchor ground.

32WL66A/E/R/T

7. Do not expose the LCD module to direct sunlight or strong ultraviolet rays for an extended period of time.

8. Do not store the LCD module below the temperature conditions described in the specifications. Failure to do so could result in freezing of the liquid crystal due to cold air or loss of resilience or other damage.

9. Do not disassemble the LCD module. Such actions could result in improper operation.

10. When transporting the LCD module, do not use packing containing epoxy resin (amine) or silicon resin (alcohol or oxim). The gas generated by these materials can cause loss of polarity.

32WL66A/E/R/T

SERVICE MODE

1. ENTERING SERVICE MODE

1) Press

Remote Control. keep pressing.

button once on 2) Press button again and 3) While pressing the button,

press MENU button on TV set.

ADDR DATA BINARY 0000H 00H 00000000B

or Sound Mute

(Service mode display)

2. DISPLAYING THE ADJUSTMENT MENU

1) Press MENU button on TV.

Service mode Adjustment mode

Press

ADDR DATA BINARY 0000H 00H 00000000B

Press

3. KEY FUNCTION IN THE SERVICE MODE

The following key entry during display of adjustment menu provides special functions.

Test signal selection : button (on Remote) Selection of the adjustment items : Channel Change of the data value : Volume

(on TV or Remote)

▲/▼

+/− (on TV or Remote) Adjustment menu mode ON/OFF : MENU button (on TV) Initialization of the memory (QA02) : CALL

Channel button onTV(▲)

Reset the count of operating protect circuit to "00" : CALL

Channel button on TV (▼)

"RCUT" selection : 1 button "GCUT" selection : 2 button "BCUT" selection : 3 button "CNTX" selection : 4 button "COLC" selection : 5 button "UVTT" selection : 6 button Automatic A/D Adjustment (PC, Component, Composite [PAL, NTSC])

: 7 button

Self diagnostic display ON/OFF : 9 button

CAUTION : Never try to perform initialization unless you have changed the memory IC.

32WL66A/E/R/T

Signals Picture

• Red raster

• Green raster

• Blue raster

• All Black

• All White

4. SELECTING THE ADJUSTING ITEMS

1) Every pressing of CHANNEL (

button for reverse order)

▼

button in the service mode changes the adjustment items in the order of table-1.

▲

5. ADJUSTING THE DATA

1) Pressing of VOLUME

+/– button will change the value of data in the range from 00H to FFH. The variable

range depends on the adjusting item.

6. EXIT FROM SERVICE MODE

1) Pressing POWER button to turn off the TV once.

INITIALIZATION OF MEMORY DATA (QA02)

After replacing QA02, the following initialization is required.

1. Enter the service mode, then select any register item.

2. Press and hold the CALL button on the Remote, then press the CHANNEL QA02 has been complated.

3. Check the picture carefully. If necessary, adjust any adjustment item above.

Perform “Auto tune” on the owner’s manual. CAUTION: Never attempt to initialize the data unless QA02 has been replaced.

7. TEST SIGNAL SELECTION

1) Every pressing of

button on the Remote Control changes the built-in test patterns on screen as described

below in SERVICE MODE.

button on the TV. The initialization of

▲

BSignal off G

All BlackAll White

32WL66A/E/R/T

8. SELF DIAGNOSTIC FUNCTION

1) Press “9” button on Remote Control during display of adjustment menu in the service mode.

The diagnosis will begin to check if interface among IC’s is executed properly.

2) During diagnosis, the following displays are shown.

Self check

Firmware : WL66_ASIA_0326



Time : 000000



Bus line : OK



Bus cont : CXA2189Q(90H)



Block :



V6 V7 V8 V9 PC YUV DTV



Firmware :

Version information of microprocessor

In case of ﬁle name : WL66_ASIA and Version : 0326 indicates[WL66_ASIA_0326]. (This may differ among the destination)



Time : Total hour of turn the TV on. (Unit : H)



Bus line : --"OK" is normal "SCL-GND"(Red indication) : SCL-GND short circuit

"SDA-GND"(Red indication) : SDA-GND short circuit

"SDA-SCL"(Red indication) : SDA-SCL short circuit



Bus cont : --- "OK" is normal. NG is abnormal(Red indication).

When type name of semiconductor indicates.



Block UV : TV reception mode

V1-V9 : VIDEO 1-9 input mode

PC : PC mode

YUV : YUV mode

DTV : DTV mode

UV V1 V2 V3 V4 V5

This may differ among the destination.

WL66A,E,R,T UV RF V1 1

(Composite/Component)

V2 2

(S-VIDEO)

V3 3

(Component) V4 HDMI V5 V6 V7 V8 V9 PC PC YUV DTV -

32WL66A/E/R/T

9. VERSION CHECK MODE

1) Press “9” button twice on Remote Control during display of adjustment menu in the service mode. The version of main

MPU will begin to check.

2) During Version Check, the following displays are shown.

Version check

MAIN MPU : WL66_ASIA_0326(A01)



EEPROM : 01



SUB MPU : 02(NO RTC)



OPTION : 00 11 22 33 44 55



HDMI ID : 11223344



DB SW Ver : 1.0



DB MW Ver : 2.0



A/D Adjust : COMP PC NTSC PAL



OK NG OK NG

AUO-32

This may differ among the destination.



MAIN MPU : Version information of microprocessor In case of ﬁle name : WL66_ASIA, Version 0326 for Code Program Version and (A01) for OSD Version indicates [WL66_ASIA_0326(A01)] (



EEPROM : Version information of EEPROM : Display 1 byte data.



SUB MPU : Version information of SUB MPU : Display 1 byte data.



OPTION : Option information : Display six numbers of 1 byte data.



HDMI ID : HDMI ID information : Display 4 byte data.



SW Ver Version information of DB software. (Only digital model)



MW Ver Version information of DB software middleware. (Only digital model)



A/D Adjust A/D adjustment item.

COMP : Component input

PC : PC input

NTSC : NTSC(60Hz)SD signal (composite input).

PAL : PAL(50Hz)SD signal (composite input).

OK : A/D adjustment set correctly.

NG : A/D adjustment set incorrect.

LCD Panel Vender information display The following Panel Vender and screen size are displayed.

This may differ among the destination)

Panel Vender Screen Size(Inch)

LPL

SHP

CMO

AUO

Example : AUO-32 indicates that Vender is AUO and Screen Size is 32 inch.

-26

-32

-37

-42

-47

32WL66A/E/R/T

10. STATUS CHECK MODE

1) Press “9” button thrice on Remote Control during display of adjustment menu in the service mode. The status of this

model will begin to check.

2) During Status Check, the following displays are shown.

Status check

MAIN : EXT1



MAIN FORMAT : 1080i-60



MAIN PLL : C6 38 54 CE 08



SUB : 11



SUB FORMAT : 576i



SUB PLL : C6 38 54 CE 08



SCREEN SIZE : Super live



OTHER STATUS : 0000 0000 0000





MAIN : Main source information :

Display RF position number (0 - 99) on the main screen, or Input Source (EXT1/2/3/HDMI etc.)



MAIN FORMAT : Display Video and PC format information



MAIN PLL : Main PLL information : Display 1 byte data at ﬁve.



SUB : Sub source information :

Display RF position number (0 - 99) on the Sub screen, or Input Source (EXT1/2/3/HDMI etc.)

This item displays only Double window model.



SUB FORMAT : Display Video and PC format information

This item displays only Double window model.



SUB PLL : Sub PLL information : Display 1 byte data at ﬁve.

This item displays only Double window model.



SCREEN SIZE : Display the screen size as follows.

Exact Scan

Wide

Super Live 2

Cinema 2

4:3

Super Live 1

Cinema 1

Subtitle

14:9



OTHER STATUS : Other status information : Display three numbers of 2 byte data.

32WL66A/E/R/T

11. SETTING HOTEL MODE

Enter to service mode and select Hotel Mode menu by pressing P▲ or P▼.

After selecting Hotel Mode, press + to enter details setting in Hotel Mode.

To select menu, press P▲ or P

and press OK to enter the adjustment menu of OPT2.

▼

To move the cursor in the adjustment, press + or −.

(1) By pressing P▲ or P

, OPT2 setting will change the value either 1 or 0 on selected items as follows;

▼

OPT2 FUNCTION DESCRIPTION 1 0 (Normal)

D7 (bit7) POS1 stored program will appear POS1 in forced Disable in forced when turn ON the main power.

D6 (bit6) VIDEO1 stored program will appear VIDEO1 in forced Disable in forced when turn ON the main power.

D5 (bit5) FRONT Key Disable Enable

D4 (bit4) Front keys except input selector key Disable Enable (Video/TV)

D3 (bit3) User Remote Control operation Disable Enable (Service mode and

Super User mode may

possible to setting only)

D2 (bit2) Language display except SETUP MENU Disable Enable language (tuning adjustment etc.)

Display the language only

D1 (bit1) SETUP MENU Disable Enable

D0 (bit0) HOTEL Mode On (Enable the setting Off (Normal) of D1 to D7)

32WL66A/E/R/T

12. SETTING & ADJUSTING DATA

Item Name of adjustment ASIA ASIA

Preset Data

Item Name of adjustment

Preset Data

RCUT R CUT OFF GCUT G CUT OFF BCUT B CUT OFF RDRV R DRIVE GDRV G DRIVE BDRV B DRIVE BRTC

BRIGHTNESS CENTER COLC COLOR CENTER UVTT BASE BAND TINT CNTX CONTRAST MAX

00H 00H 00H 7AH 80H 88H 05H C8H 04H 90H

00HOPT2 TV SET OPTION 2

7FH

VOLUX MAX VOLUME LIMITED

14H 03H 0FH 05H 14H

04H

PLLW0 PLLW1 PLLW2 PLLW3 PLLW4 PLLW5 PLL WAIT TIME

PLL WAIT TIME

(HOTEL MODE)

[SERVICE MODE]

ADJUSTING ITEMS AND DATA IN THE SERVICE MODE:

Table-1

Note:

The image system data of RCUT-BDRV is different by each image format.

The PAL value is indicated in the table.

Never adjust H.POS and V.POS except PAL/WIDE mode.

13. LED indications

The Green and Red LEDs on the TV (at the bottom center of the TV) indicate the TV’s status, as

described below.

· Red ON (solid) and Green OFF = The TV power cord is plugged in.

· Green ON (solid) and Red ON = The On timer is operating.

LED Indication Condition Solution

Green is OFF;

Red blinks continuously

at 0.5-second intervals.

Abnormal operation Turn OFF the TV and unplug the power

cord.

Plug the power cord in again and turn

ON the TV.

Green is OFF;

Red blinks continuously

at 1-second intervals.

Abnormal operation of BUS line. Turn OFF the TV and unplug the power

cord.

Plug the power cord in again and turn

ON the TV.

32WL66A/E/R/T

TV top and front panel controls

TV top view

2 3 4

TV front view

You can swivel the TV screen.

Swivel angle: 15 degrees to

left and right.

987

1 o (Input source selection) — When no menu is on-

screen, this button selects the input source. OK — When a menu is on-screen, this button functions

as the next menu navigation button.

2 MENU — Press to access the menu system. 3 2 – + (Volume) — When no menu is on-screen, these

buttons adjust the volume level. I i (MENU left/right) — When a menu is on-screen,

these buttons function as left/right menu navigation buttons or adjust settings.

4 pBb (Program position) — When no menu is on-

screen, these buttons select the program position.

Uu (MENU up/down) — When a menu is on-screen, these buttons function as up/down menu navigation buttons.

5 1 (Power on/Standby) — Press to turn the TV on/

standby.

6 ! (Power switch) — Press to turn the TV on and off.

7 (Remote sensor) — Point the remote control toward

this remote sensor.

8 / (Power LED) — Power indicator. 9 4 (Green LED) — Timer indicator.

LOCATION OF CONTROLS

32WL66A/E/R/T

TV side and back panel connections

TV back view

Cable holder

Power cord

Right side view

Headphones (Not supplied)

10 O MONITOR (output terminals) — Standard video

and standard audio outputs.

11 o (3) (Video 3 input terminals) — High-definition

component video and standard audio inputs.

12 o PC/HDMI (AUDIO) (input terminals) — For use

when connecting a personal computer (PC) or a DVI device with standard audio output.

13 o (1) (Video 1 input terminals) — High-definition

component video or standard (composite) video and standard (analog) stereo audio inputs.

14 o (2) (Video 2 input terminals) — Optional S-video

or standard video and standard audio inputs.

15 D (Headphone jack) — For use with headphones.

Note:

When the Headphone jack is being used, the sound from all speakers will be muted, and normal sound will be output to the headphones only.

16 A (Antenna input terminal) — Analog antenna signal

input.

17 o RGB/PC (input terminal) — For use when

connecting a personal computer (PC).

18 o HDMI (input terminal) — High-Definition

Multimedia Interface input receives digital audio and uncompressed digital video from an HDMI device or uncompressed digital video from a DVI device.

32WL66A/E/R/T

Learning about the remote control

Location of controls

To return to the previous program

Teletext on/off

Picture mode selection

Picture still

Stereo/bilingual selection

• CALL

• Initial/index function for Teletext

• Menu

I i

• Volume – + (These buttons adjust the volume level.)

Power on/Standby

Number buttons (0-9)

• Input source selection

(O1 - O3, HDMI, PC)

Picture size selection

EXIT

• Menu U u

• Program position

• Teletext Bb

Bass boost on/off

Sound mute (This button turns off/on the sound.)

• To access sub-pages when in teletext

To enlarge teletext display size

To reveal concealed text when in teletext

To hold a wanted page when in teletext

• To select a page while viewing a normal picture when in teletext

• To select the time display

Teletext control buttons

(Four colored buttons: Red, Green, Yellow, Blue)

32WL66A/E/R/T

LAYOUT OF MAJOR BOARDS

LOWB

AC SW

U01B LOWB

U01A POWER

U02A AV_TERM

U02B FRONT AV

U02E AC SW

U02D KEY

U02C LED

U03 SIGNAL

32WL66A/E/R/T

PACKING EXPLODED VIEW

A702B

A702A

Y130Y170

Y101K

Y101J

Y101H

Y101A

Y101M

A701

A709

Y109

32WL66A/E/R/T

CHASSIS AND CABINET REPLACEMENT PARTS LIST

WARNING: BEFORE SERVICING THIS CHASSIS, READ THE “SERVICE SAFETY PRECAUTIONS” ON PAGE 4

OF THIS MANUAL.

CAUTION: The international hazard symbols " " in the schematic diagram and the parts list designate compo- nents which have special characteristics important for safety and should be replaced only with types identical to those in the original circuit or speciﬁed in the parts list. The mounting position of replacements is to be identical with originals. Before replacing any of these components, read carefully the SERVICE SAFETY PRECAUTIONS. Do not degrade the safety of the receiver through improper servicing.

NOTICE:

The part number must be used when ordering parts, in order to assist in processing, be sure to include the Model

•

number and Description.

The PC board assembly with ∗ mark is no longer available after the end of the production.

•

Model : 32WL66A/32WL66E/32WL66R/32WL66T

Capacitors .............. CD : Ceramic Disk PF : Plastic Film EL : Electrolytic

Resistors ................ CF : Carbon Film CC : Carbon Composition MF : Metal Film

OMF : Oxide Metal Film VR : Variable Resistor FR : Fusible Resistor (All CD and PF capacitors are ±5%, 50V and all resistors, ±5%, 1/6W unless otherwise noted.)

Location Parts No. Description

No.

#1:[32WL66A] #2:[32WL66E] #3:[32WL66R] #4:[32WL66T]

CAPACITORS

C101 76109103 CERAMIC CHIP, 50V B 0.01UF K C102 #1 76793471 ELECTROLYTIC, 10V 470UF M #2 76793471 ELECTROLYTIC, 10V 470UF M #3 76762471 ELECTROLYTIC, 10V 470UF M #4 76793471 ELECTROLYTIC, 10V 470UF M C103 76109102 CERAMIC CHIP, 50V B 1000PF K C104 #1 76206479 ELECTROLYTIC, 50V 4.7UF M #2 76206479 ELECTROLYTIC, 50V 4.7UF M #3 76766479 ELECTROLYTIC, 50V 4.7UF M #4 76206479 ELECTROLYTIC, 50V 4.7UF M C105 #1 76793471 ELECTROLYTIC, 10V 470UF M #2 76793471 ELECTROLYTIC, 10V 470UF M #3 76762471 ELECTROLYTIC, 10V 470UF M #4 76793471 ELECTROLYTIC, 10V 470UF M C110 76109102 CERAMIC CHIP, 50V B 1000PF K C111 76109102 CERAMIC CHIP, 50V B 1000PF K C114 76105180 CERAMIC CHIP, 50V CH 18PF J C115 76105180 CERAMIC CHIP, 50V CH 18PF J C117 76109103 CERAMIC CHIP, 50V B 0.01UF K C118 76109103 CERAMIC CHIP, 50V B 0.01UF K C162 76105101 CERAMIC CHIP, 50V CH 100PF J C164 76100103 CERAMIC CHIP, 50V F 0.01UF Z C190 76092730 CERAMIC CHIP, 16V B 0.1UF K C191 76092789 CERAMIC CHIP, 6.3V B 1UF K C192 76109103 CERAMIC CHIP, 50V B 0.01UF K C414 #1 76203470 ELECTROLYTIC, 16V 47UF M 7L 3A #2 76203470 ELECTROLYTIC, 16V 47UF M 7L 3A #3 76794470 ELECTROLYTIC, 16V 47UF M #4 76203470 ELECTROLYTIC, 16V 47UF M 7L 3A C415 76100104 CERAMIC CHIP, 25V F 0.1UF Z

C416 76092731 CERAMIC CHIP, 16V B 1UF K C417 76109221 CERAMIC CHIP, 50V B 220PF K C419 76109222 CERAMIC CHIP, 50V B 2200PF K C457 76092731 CERAMIC CHIP, 16V B 1UF K C458 76100104 CERAMIC CHIP, 25V F 0.1UF Z C459 76105220 CERAMIC CHIP, 50V CH 22PF J C460 76109221 CERAMIC CHIP, 50V B 220PF K C461 76109152 CERAMIC CHIP, 50V B 1500PF K C462 76109222 CERAMIC CHIP, 50V B 2200PF K

Location Parts No. Description

No.

C463 76092730 CERAMIC CHIP, 16V B 0.1UF K C465 76109152 CERAMIC CHIP, 50V B 1500PF K C601 76092730 CERAMIC CHIP, 16V B 0.1UF K C602 76109331 CERAMIC CHIP, 50V B 330PF K C603 76092730 CERAMIC CHIP, 16V B 0.1UF K C604 76109103 CERAMIC CHIP, 50V B 0.01UF K C605 76109103 CERAMIC CHIP, 50V B 0.01UF K C606 76092611 CERAMIC CHIP, 6.3V B 2.2UF K C608 76092730 CERAMIC CHIP, 16V B 0.1UF K C610 76092731 CERAMIC CHIP, 16V B 1UF K C611 76092730 CERAMIC CHIP, 16V B 0.1UF K C613 76092731 CERAMIC CHIP, 16V B 1UF K C614 76092730 CERAMIC CHIP, 16V B 0.1UF K C620 76092463 CERAMIC CHIP, 16V B 0.22UF K C621 76092730 CERAMIC CHIP, 16V B 0.1UF K C622 76092463 CERAMIC CHIP, 16V B 0.22UF K C623 76092463 CERAMIC CHIP, 16V B 0.22UF K C624 76092730 CERAMIC CHIP, 16V B 0.1UF K C625 76092463 CERAMIC CHIP, 16V B 0.22UF K C627 76092730 CERAMIC CHIP, 16V B 0.1UF K C629 #1 76073081 ELECTROLYTIC, 50V 1UF M #2 76073081 ELECTROLYTIC, 50V 1UF M #3 76669010 ELECTROLYTIC, 50V 1UF M #4 76073081 ELECTROLYTIC, 50V 1UF M C630 76092730 CERAMIC CHIP, 16V B 0.1UF K C635 #1 76073039 ELECTROLYTIC, 16V 220UF M 3A #2 76073039 ELECTROLYTIC, 16V 220UF M 3A #3 76666221 ELECTROLYTIC, 16V 220UF M #4 76073039 ELECTROLYTIC, 16V 220UF M 3A C636 #1 76073039 ELECTROLYTIC, 16V 220UF M 3A #2 76073039 ELECTROLYTIC, 16V 220UF M 3A

#3 76666221 ELECTROLYTIC, 16V 220UF M #4 76073039 ELECTROLYTIC, 16V 220UF M 3A C640 76092738 CERAMIC CHIP, 25V B 0.47UF K C641 76092738 CERAMIC CHIP, 25V B 0.47UF K C642 76285104 CERAMIC CHIP, 50V B 0.1UF K C643 76285104 CERAMIC CHIP, 50V B 0.1UF K C645 76109103 CERAMIC CHIP, 50V B 0.01UF K C665 #1 76073083 ELECTROLYTIC, 50V 3.3UF M 3A #2 76073083 ELECTROLYTIC, 50V 3.3UF M 3A #3 76669339 ELECTROLYTIC, 50V 3.3UF M #4 76073083 ELECTROLYTIC, 50V 3.3UF M 3A

32WL66A/E/R/T

Location Parts No. Description

No.

Location Parts No. Description No.

32WL66A/E/R/T

C666 #1 76073083 ELECTROLYTIC, 50V 3.3UF M 3A #2 76073083 ELECTROLYTIC, 50V 3.3UF M 3A #3 76669339 ELECTROLYTIC, 50V 3.3UF M #4 76073083 ELECTROLYTIC, 50V 3.3UF M 3A C667 76092515 CERAMIC CHIP, 16V F 4.7UF Z C669 76092515 CERAMIC CHIP, 16V F 4.7UF Z C672 76092726 CERAMIC CHIP, 10V B 2.2UF K C673 76092726 CERAMIC CHIP, 10V B 2.2UF K C675 76105221 CERAMIC CHIP, 50V CH 220PF J C676 76105221 CERAMIC CHIP, 50V CH 220PF J C677 76109391 CERAMIC CHIP, 50V B 390PF K C678 76109391 CERAMIC CHIP, 50V B 390PF K C685 #1 76073081 ELECTROLYTIC, 50V 1UF M #2 76073081 ELECTROLYTIC, 50V 1UF M #3 76669010 ELECTROLYTIC, 50V 1UF M #4 76073081 ELECTROLYTIC, 50V 1UF M C686 76092463 CERAMIC CHIP, 16V B 0.22UF K C689 76092463 CERAMIC CHIP, 16V B 0.22UF K C690 #1 76073005 ELECTROLYTIC, 6.3V 1000UF M 3A #2 76073005 ELECTROLYTIC, 6.3V 1000UF M 3A #3 76664102 ELECTROLYTIC, 6.3V 1000UF M 3A #4 76073005 ELECTROLYTIC, 6.3V 1000UF M 3A C691 76619102 ELECTROLYTIC CHIP, 16V 47UF M C692 76619102 ELECTROLYTIC CHIP, 16V 47UF M C693 76092795 CERAMIC CHIP, 6.3V B 2.2UF K C695 #1 76073019 ELECTROLYTIC, 10V 470UF M #2 76073019 ELECTROLYTIC, 10V 470UF M #3 76665471 ELECTROLYTIC, 10V 470UF M #4 76073019 ELECTROLYTIC, 10V 470UF M C696 #1 76073019 ELECTROLYTIC, 10V 470UF M #2 76073019 ELECTROLYTIC, 10V 470UF M #3 76665471 ELECTROLYTIC, 10V 470UF M #4 76073019 ELECTROLYTIC, 10V 470UF M

C801 76503507 PLASTIC FILM, AC275V 0.22UF K C802 76503507 PLASTIC FILM, AC275V 0.22UF K

C803 76503437 PLASTIC FILM, 630V 0.15UF J, 3D2J154J-A7 C804 76214103 CERAMIC DISC, 500V B 0.01UF K C805 76092281 CERAMIC DISC, AC250V E 4700PF C810 76125035 ELECTROLYTIC 692R 450V 470UF M 3F

C811 76092567 CERAMIC DISC, AC250V E 1000PF M C811A 23960136 ADHESIVE, SILICONE, TSE3843-W

C812 76092567 CERAMIC DISC, AC250V E 1000PF M C813 76503047 PLASTIC FILM, 63V 0.33UF J C815 76503049 PLASTIC FILM, 63V 0.47UF J C816 76073090 ELECTROLYTIC, 50V 100UF M C817 76567224 PLASTIC FILM, 50V 0.22UF J C819 76214101 CERAMIC DISC, 500V B 100PF K C820 76567224 PLASTIC FILM, 50V 0.22UF J C821 76092343 CERAMIC DISC, 2KV 680PF K C822 76092344 CERAMIC DISC, 2KV 820PF K C823 76092341 CERAMIC DISC, 2KV R 470PF K C824 76591102 PLASTIC FILM, 50V 1000PF J C825 76503053 PLASTIC FILM, 63V 1UF J C826 76092341 CERAMIC DISC, 2KV R 470PF K C827 76678229 ELECTROLYTIC, 200V 2.2UF M C851 76092538 CERAMIC CHIP, 10V F 1UF Z C852 76109102 CERAMIC CHIP, 50V B 1000PF K C883 76125039 ELECTROLYTIC 04P 35V 4700UF M 4A C888 76109102 CERAMIC CHIP, 50V B 1000PF K C889 76073094 ELECTROLYTIC, 50V 1000UF M C890 76503047 PLASTIC FILM, 63V 0.33UF J C890A 23960136 ADHESIVE, SILICONE, TSE3843-W C4073 76105220 CERAMIC CHIP, 50V CH 22PF J C8110 #1 76125008 ELECTROLYTIC, 450V 220UF M #2 76125008 ELECTROLYTIC, 450V 220UF M #4 76125008 ELECTROLYTIC, 450V 220UF M CA01 76092538 CERAMIC CHIP, 10V F 1UF Z CA02 76105101 CERAMIC CHIP, 50V CH 100PF J CA19 76092538 CERAMIC CHIP, 10V F 1UF Z CA70 76100104 CERAMIC CHIP, 25V F 0.1UF Z

CA71 76100104 CERAMIC CHIP, 25V F 0.1UF Z CA90 76100104 CERAMIC CHIP, 25V F 0.1UF Z CA91 76105101 CERAMIC CHIP, 50V CH 100PF J CA92 76105101 CERAMIC CHIP, 50V CH 100PF J CA93 76105101 CERAMIC CHIP, 50V CH 100PF J CB02 76202221 ELECTROLYTIC, 10V 220UF M CB03 76100104 CERAMIC CHIP, 25V F 0.1UF Z CB04 76100104 CERAMIC CHIP, 25V F 0.1UF Z CB05 76202221 ELECTROLYTIC, 10V 220UF M CC01 76109102 CERAMIC CHIP, 50V B 1000PF K CC02 76109102 CERAMIC CHIP, 50V B 1000PF K CC03 76109102 CERAMIC CHIP, 50V B 1000PF K CC05 76109102 CERAMIC CHIP, 50V B 1000PF K CC06 76109102 CERAMIC CHIP, 50V B 1000PF K CC07 76109102 CERAMIC CHIP, 50V B 1000PF K CC11 76109102 CERAMIC CHIP, 50V B 1000PF K CC12 76109102 CERAMIC CHIP, 50V B 1000PF K CC40 76109102 CERAMIC CHIP, 50V B 1000PF K CC41 76109102 CERAMIC CHIP, 50V B 1000PF K CE04 76092281 CERAMIC DISC, AC250V E 4700PF CE05 #1 76092281 CERAMIC DISC, AC250V E 4700PF #2 76092281 CERAMIC DISC, AC250V E 4700PF #4 76092281 CERAMIC DISC, AC250V E 4700PF CE07 76503049 PLASTIC FILM, 63V 0.47UF J CE09 76668339 ELECTROLYTIC, 35V 3.3UF M CE10 76125003 ELECTROLYTIC, 450V 120UF M CE12 76503041 PLASTIC FILM , 63V 0.1UF J

CE13 #1 76092567 CERAMIC DISC, AC250V E 1000PF M #2 76092567 CERAMIC DISC, AC250V E 1000PF M #3 76092565 CERAMIC DISC, AC250V B 470PF K #4 76092567 CERAMIC DISC, AC250V E 1000PF M CE14 #1 76092567 CERAMIC DISC, AC250V E 1000PF M #2 76092567 CERAMIC DISC, AC250V E 1000PF M #3 76092565 CERAMIC DISC, AC250V B 470PF K

#4 76092567 CERAMIC DISC, AC250V E 1000PF M CE16 76073181 ELECTROLYTIC, 35V 56UF M CE17 76092339 CERAMIC DISC, 2KV 330PF K CE23 76214471 CERAMIC DISC, 500V B 470PF K CE24 76285104 CERAMIC CHIP, 50V B 0.1UF K CE29 76436331 CERAMIC DISC, 50V SL 330PF J CE40 76073183 ELECTROLYTIC, 35V 220UF M CE42 76539104 PLASTIC FILM, 50V 0.1UF J CE43 76503041 PLASTIC FILM , 63V 0.1UF J CE51 76617023 ELECTROLYTIC, 16V 330UF M CE52 76092179 CERAMIC CHIP, 25V B 0.22UF K CE53 76092179 CERAMIC CHIP, 25V B 0.22UF K CE55 76073181 ELECTROLYTIC, 35V 56UF M CE82 76676470 ELECTROLYTIC, 100V 47UF M CE85 76073178 ELECTROLYTIC, 25V 3300UF M CE87 76669100 ELECTROLYTIC, 50V 10UF M CE90 76503047 PLASTIC FILM, 63V 0.33UF J CE91 76503041 PLASTIC FILM , 63V 0.1UF J CE92 76794101 ELECTROLYTIC, 16V 100UF M CE95 76092179 CERAMIC CHIP, 25V B 0.22UF K CE96 76073189 ELECTROLYTIC, 35V 1000UF M CG01 #1 76073086 ELECTROLYTIC, 50V 10UF M 3A #2 76073086 ELECTROLYTIC, 50V 10UF M 3A #3 76669100 ELECTROLYTIC, 50V 10UF M #4 76073086 ELECTROLYTIC, 50V 10UF M 3A CG02 76109152 CERAMIC CHIP, 50V B 1500PF K CG03 76109471 CERAMIC CHIP, 50V B 470PF K CG04 76109221 CERAMIC CHIP, 50V B 220PF K CG05 76092730 CERAMIC CHIP, 16V B 0.1UF K CG06 #1 76073086 ELECTROLYTIC, 50V 10UF M 3A #2 76073086 ELECTROLYTIC, 50V 10UF M 3A #3 76669100 ELECTROLYTIC, 50V 10UF M #4 76073086 ELECTROLYTIC, 50V 10UF M 3A

Location Parts No. Description

No.

CG07 #1 76073086 ELECTROLYTIC, 50V 10UF M 3A #2 76073086 ELECTROLYTIC, 50V 10UF M 3A #3 76669100 ELECTROLYTIC, 50V 10UF M #4 76073086 ELECTROLYTIC, 50V 10UF M 3A CG11 76794220 ELECTROLYTIC, 16V 22UF M CG12 76794220 ELECTROLYTIC, 16V 22UF M CG13 #1 76073086 ELECTROLYTIC, 50V 10UF M 3A #2 76073086 ELECTROLYTIC, 50V 10UF M 3A #3 76669100 ELECTROLYTIC, 50V 10UF M #4 76073086 ELECTROLYTIC, 50V 10UF M 3A CG14 #1 76073086 ELECTROLYTIC, 50V 10UF M 3A #2 76073086 ELECTROLYTIC, 50V 10UF M 3A #3 76669100 ELECTROLYTIC, 50V 10UF M #4 76073086 ELECTROLYTIC, 50V 10UF M 3A CG15 76105101 CERAMIC CHIP, 50V CH 100PF J CG16 76105101 CERAMIC CHIP, 50V CH 100PF J CG17 #1 76073093 ELECTROLYTIC, 50V 470UF M 3A #2 76073093 ELECTROLYTIC, 50V 470UF M 3A #3 76669470 ELECTROLYTIC, 50V 47UF M #4 76073093 ELECTROLYTIC, 50V 470UF M 3A CG20 #1 76073086 ELECTROLYTIC, 50V 10UF M 3A #2 76073086 ELECTROLYTIC, 50V 10UF M 3A #3 76669100 ELECTROLYTIC, 50V 10UF M #4 76073086 ELECTROLYTIC, 50V 10UF M 3A CG21 76092730 CERAMIC CHIP, 16V B 0.1UF K CG22 #1 76073086 ELECTROLYTIC, 50V 10UF M 3A #2 76073086 ELECTROLYTIC, 50V 10UF M 3A #3 76669100 ELECTROLYTIC, 50V 10UF M #4 76073086 ELECTROLYTIC, 50V 10UF M 3A CG23 76109103 CERAMIC CHIP, 50V B 0.01UF K CG24 76797339 ELECTROLYTIO, 50V 3.3UF M CG25 76092730 CERAMIC CHIP, 16V B 0.1UF K CG26 76092726 CERAMIC CHIP, 10V B 2.2UF K CG27 76092726 CERAMIC CHIP, 10V B 2.2UF K CG28 76092726 CERAMIC CHIP, 10V B 2.2UF K CG29 76092726 CERAMIC CHIP, 10V B 2.2UF K CG30 76092726 CERAMIC CHIP, 10V B 2.2UF K CG31 76092726 CERAMIC CHIP, 10V B 2.2UF K CG32 76092726 CERAMIC CHIP, 10V B 2.2UF K CG33 76092726 CERAMIC CHIP, 10V B 2.2UF K CG34 76092730 CERAMIC CHIP, 16V B 0.1UF K CG35 #1 76073086 ELECTROLYTIC, 50V 10UF M 3A #2 76073086 ELECTROLYTIC, 50V 10UF M 3A #3 76669100 ELECTROLYTIC, 50V 10UF M #4 76073086 ELECTROLYTIC, 50V 10UF M 3A CG36 #1 76073086 ELECTROLYTIC, 50V 10UF M 3A #2 76073086 ELECTROLYTIC, 50V 10UF M 3A #3 76669100 ELECTROLYTIC, 50V 10UF M #4 76073086 ELECTROLYTIC, 50V 10UF M 3A CG37 76109152 CERAMIC CHIP, 50V B 1500PF K CG38 76109471 CERAMIC CHIP, 50V B 470PF K CG39 76105560 CERAMIC CHIP, 50V CH 56PF J CG40 76105560 CERAMIC CHIP, 50V CH 56PF J CG41 76105560 CERAMIC CHIP, 50V CH 56PF J CG42 76105050 CERAMIC CHIP, 50V CH 5PF C CG43 76105010 CERAMIC CHIP, 50V CK 1PF C CG44 76109102 CERAMIC CHIP, 50V B 1000PF K CG45 76109102 CERAMIC CHIP, 50V B 1000PF K CG46 76109102 CERAMIC CHIP, 50V B 1000PF K CG50 #1 76073086 ELECTROLYTIC, 50V 10UF M 3A #2 76073086 ELECTROLYTIC, 50V 10UF M 3A #3 76669100 ELECTROLYTIC, 50V 10UF M #4 76073086 ELECTROLYTIC, 50V 10UF M 3A CG51 #1 76073086 ELECTROLYTIC, 50V 10UF M 3A #2 76073086 ELECTROLYTIC, 50V 10UF M 3A #3 76669100 ELECTROLYTIC, 50V 10UF M #4 76073086 ELECTROLYTIC, 50V 10UF M 3A CG52 76105101 CERAMIC CHIP, 50V CH 100PF J CG53 76105101 CERAMIC CHIP, 50V CH 100PF J CG54 76109102 CERAMIC CHIP, 50V B 1000PF K

Location Parts No. Description

No.

CG55 76109102 CERAMIC CHIP, 50V B 1000PF K CS01 76092726 CERAMIC CHIP, 10V B 2.2UF K CS03 76092726 CERAMIC CHIP, 10V B 2.2UF K CS04 #1 76766470 ELECTROLYTIC, 50V 47UF M #2 76766470 ELECTROLYTIC, 50V 47UF M #3 76797470 ELECTROLYTIC, 50V 47UF M #4 76766470 ELECTROLYTIC, 50V 47UF M CS06 76092726 CERAMIC CHIP, 10V B 2.2UF K CS07 76092726 CERAMIC CHIP, 10V B 2.2UF K CS31 #1 76206100 ELECTROLYTIC, 50V 10UF M #2 76206100 ELECTROLYTIC, 50V 10UF M #3 76797100 ELECTROLYTIC, 50V 10UF M #4 76206100 ELECTROLYTIC, 50V 10UF M CV51 #1 76203100 ELECTORLYTIC, 16V 10UF M #2 76203100 ELECTORLYTIC, 16V 10UF M #3 76794100 ELECTROLYTIC, 16V 10UF M #4 76203100 ELECTORLYTIC, 16V 10UF M CV52 #1 76203100 ELECTORLYTIC, 16V 10UF M #2 76203100 ELECTORLYTIC, 16V 10UF M #3 76794100 ELECTROLYTIC, 16V 10UF M #4 76203100 ELECTORLYTIC, 16V 10UF M CV53 #1 76203100 ELECTORLYTIC, 16V 10UF M #2 76203100 ELECTORLYTIC, 16V 10UF M #3 76794100 ELECTROLYTIC, 16V 10UF M #4 76203100 ELECTORLYTIC, 16V 10UF M CV54 #1 76203100 ELECTORLYTIC, 16V 10UF M #2 76203100 ELECTORLYTIC, 16V 10UF M #3 76794100 ELECTROLYTIC, 16V 10UF M #4 76203100 ELECTORLYTIC, 16V 10UF M CV55 #1 76203100 ELECTORLYTIC, 16V 10UF M #2 76203100 ELECTORLYTIC, 16V 10UF M #3 76794100 ELECTROLYTIC, 16V 10UF M #4 76203100 ELECTORLYTIC, 16V 10UF M CV121 76109103 CERAMIC CHIP, 50V B 0.01UF K CV122 76105101 CERAMIC CHIP, 50V CH 100PF J CV201 #1 76203101 ELECTROLYTIC, 16V 100UF M 7L 3A #2 76203101 ELECTROLYTIC, 16V 100UF M 7L 3A #3 76794101 ELECTROLYTIC, 16V 100UF M #4 76203101 ELECTROLYTIC, 16V 100UF M 7L 3A CV211 76092621 CERAMIC CHIP, 10V B 1UF K CV212 #1 76762471 ELECTROLYTIC, 10V 470UF M #2 76762471 ELECTROLYTIC, 10V 470UF M #3 76793471 ELECTROLYTIC, 10V 470UF M #4 76762471 ELECTROLYTIC, 10V 470UF M CV213 76100104 CERAMIC CHIP, 25V F 0.1UF Z CY650 76109103 CERAMIC CHIP, 50V B 0.01UF K

RESISTORS

R101 76011101 CHIP, 1/20W 100 OHM J R102 76011101 CHIP, 1/20W 100 OHM J R103 76011101 CHIP, 1/20W 100 OHM J R104 76011822 CHIP, 1/20W 8.2K OHM J R105 76011333 CHIP, 1/20W 33K OHM J R107 76000445 CHIP JUMPER, 1608TYPE R108 76000445 CHIP JUMPER, 1608TYPE R114 76000445 CHIP JUMPER, 1608TYPE R167 76011101 CHIP, 1/20W 100 OHM J R169 76000445 CHIP JUMPER, 1608TYPE R170 76011682 CHIP, 1/20W 6.8K OHM J R459 76011101 CHIP, 1/20W 100 OHM J R460 76011222 CHIP, 1/20W 2.2K OHM J R461 76011750 CHIP, 1/20W 75 OHM J R462 76011474 CHIP, 1/20W 470K OHM J R463 76011103 CHIP, 1/20W 10K OHM J R464 76011472 CHIP, 1/20W 4.7K OHM J R465 76011103 CHIP, 1/20W 10K OHM J R466 76011333 CHIP, 1/20W 33K OHM J R601 76553101 OXIDE METAL FILM, 1W 100 OHM J R602 76553101 OXIDE METAL FILM, 1W 100 OHM J R605 76000606 CHIP, 1/16W 8.2K OHM F

32WL66A/E/R/T

Location Parts No. Description

No.

Location Parts No. Description No.

32WL66A/E/R/T

R609 76011273 CHIP, 1/20W 27K OHM J R610 76011124 CHIP, 1/20W 120K OHM J R611 76011102 CHIP, 1/20W 1K OHM J R612 76011273 CHIP, 1/20W 27K OHM J R613 76011124 CHIP, 1/20W 120K OHM J R618 76011223 CHIP, 1/20W 22K OHM J R619 76011473 CHIP, 1/20W 47K OHM J R620 76871100 CHIP, 1/8W 10 OHM J R623 76871100 CHIP, 1/8W 10 OHM J R630 76011102 CHIP, 1/20W 1K OHM J R631 76011224 CHIP, 1/20W 220K OHM J R632 76011102 CHIP, 1/20W 1K OHM J R633 76011104 CHIP, 1/20W 100K OHM J R634 76011103 CHIP, 1/20W 10K OHM J R635 76011102 CHIP, 1/20W 1K OHM J R636 76011473 CHIP, 1/20W 47K OHM J R640 76011103 CHIP, 1/20W 10K OHM J R641 76011103 CHIP, 1/20W 10K OHM J R642 76011102 CHIP, 1/20W 1K OHM J R645 76011103 CHIP, 1/20W 10K OHM J R646 76011103 CHIP, 1/20W 10K OHM J R666 76011563 CHIP, 1/20W 56K OHM J R670 76011472 CHIP, 1/20W 4.7K OHM J R671 76011182 CHIP, 1/20W 1.8K OHM J R672 76011472 CHIP, 1/20W 4.7K OHM J R673 76011182 CHIP, 1/20W 1.8K OHM J R674 76011563 CHIP, 1/20W 56K OHM J R676 76011473 CHIP, 1/20W 47K OHM J R677 76011473 CHIP, 1/20W 47K OHM J R678 76011222 CHIP, 1/20W 2.2K OHM J R679 76011222 CHIP, 1/20W 2.2K OHM J R682 76011104 CHIP, 1/20W 100K OHM J R683 76011223 CHIP, 1/20W 22K OHM J R684 76011104 CHIP, 1/20W 100K OHM J R685 76011222 CHIP, 1/20W 2.2K OHM J R686 76011102 CHIP, 1/20W 1K OHM J R687 76011473 CHIP, 1/20W 47K OHM J R688 76011473 CHIP, 1/20W 47K OHM J R689 76011102 CHIP, 1/20W 1K OHM J R690 76011473 CHIP, 1/20W 47K OHM J R691 76011103 CHIP, 1/20W 10K OHM J R692 76011223 CHIP, 1/20W 22K OHM J R696 76871221 CHIP, 1/8W 220 OHM J R697 76871221 CHIP, 1/8W 220 OHM J R698 76871221 CHIP, 1/8W 220 OHM J R699 76871221 CHIP, 1/8W 220 OHM J

R801 76004716 METAL GLAZE, 1/2W 2.2M OHM J R803 76366562 CARBON FILM, 1/6W 5.6K OHM J R805 76011102 CHIP, 1/20W 1K OHM J R806 76552101 OXIDE METAL FILM, 1/2W 100 OHM J R807 76366393 CARBON FILM, 1/6W 39K OHM J R808 76552101 OXIDE METAL FILM, 1/2W 100 OHM J R809 76321689 OXIDE METAL FILM, 1/2W 6.8 OHM J R812 76552681 OXIDE METAL FILM, 1/2W 680 OHM J R813 76366270 CARBON FILM, 1/6W 27 OHM J R814 76552390 OXIDE METAL FILM, 1/2W 39 OHM J R815 76552100 OXIDE METAL FILM, 1/2W 10 OHM J R816 76011221 CHIP, 1/20W 220 OHM J R817 76377224 CARBON FILM, 1W 220K OHM J R821 76322689 OXIDE METAL FILM, 1W 6.8 OHM J R827 76383103 OXIDE METAL FILM, 2W 10K OHM J R828 76383103 OXIDE METAL FILM, 2W 10K OHM J R850 76011101 CHIP, 1/20W 100 OHM J R851 76011471 CHIP, 1/20W 470 OHM J R852 76011471 CHIP, 1/20W 470 OHM J R853 76011103 CHIP, 1/20W 10K OHM J R854 76011102 CHIP, 1/20W 1K OHM J R855 76011471 CHIP, 1/20W 470 OHM J R856 76011471 CHIP, 1/20W 470 OHM J R857 76011471 CHIP, 1/20W 470 OHM J

R858 76011471 CHIP, 1/20W 470 OHM J R859 76011102 CHIP, 1/20W 1K OHM J R860 76000445 CHIP JUMPER, 1608TYPE R862 76011121 CHIP, 1/20W 120 OHM J R863 76011103 CHIP, 1/20W 10K OHM J R869 76011472 CHIP, 1/20W 4.7K OHM J R873 76871152 CHIP, 1/8W 1.5K OHM J R874 76000445 CHIP JUMPER, 1608TYPE R890 76011102 CHIP, 1/20W 1K OHM J

R899 76004718 METAL GLAZE, 1/2W 8.2M OHM J R4073 76011101 CHIP, 1/20W 100 OHM J R4074 76011222 CHIP, 1/20W 2.2K OHM J R4075 76011750 CHIP, 1/20W 75 OHM J R4076 76011474 CHIP, 1/20W 470K OHM J R4077 76011103 CHIP, 1/20W 10K OHM J R4078 76011472 CHIP, 1/20W 4.7K OHM J R4079 76011103 CHIP, 1/20W 10K OHM J R4080 76011333 CHIP, 1/20W 33K OHM J R4082 76011223 CHIP, 1/20W 22K OHM J R4083 76011473 CHIP, 1/20W 47K OHM J R4084 76011473 CHIP, 1/20W 47K OHM J R4085 76011473 CHIP, 1/20W 47K OHM J R4100 76011102 CHIP, 1/20W 1K OHM J R4101 76011681 CHIP, 1/20W 680 OHM J R4102 76011471 CHIP, 1/20W 470 OHM J R4103 76011681 CHIP, 1/20W 680 OHM J R4104 76011102 CHIP, 1/20W 1K OHM J R4105 76011102 CHIP, 1/20W 1K OHM J R4106 76011681 CHIP, 1/20W 680 OHM J R4107 76011471 CHIP, 1/20W 470 OHM J R4108 76011681 CHIP, 1/20W 680 OHM J R4109 76011102 CHIP, 1/20W 1K OHM J R6601 76011223 CHIP, 1/20W 22K OHM J R6602 76011103 CHIP, 1/20W 10K OHM J R6603 76011104 CHIP, 1/20W 100K OHM J RA01 76011331 CHIP, 1/20W 330 OHM J RA02 76011105 CHIP, 1/20W 1M OHM J RA09 76011102 CHIP, 1/20W 1K OHM J RA10 76011102 CHIP, 1/20W 1K OHM J RA11 76011101 CHIP, 1/20W 100 OHM J RA12 76011101 CHIP, 1/20W 100 OHM J RA13 76011101 CHIP, 1/20W 100 OHM J RA14 76011101 CHIP, 1/20W 100 OHM J RA17 76011101 CHIP, 1/20W 100 OHM J RA20 76011102 CHIP, 1/20W 1K OHM J RA21 76011102 CHIP, 1/20W 1K OHM J RA22 76011102 CHIP, 1/20W 1K OHM J RA23 76011102 CHIP, 1/20W 1K OHM J RA24 76011102 CHIP, 1/20W 1K OHM J RA28 76011103 CHIP, 1/20W 10K OHM J RA29 76011103 CHIP, 1/20W 10K OHM J RA30 76011101 CHIP, 1/20W 100 OHM J RA31 76011101 CHIP, 1/20W 100 OHM J RA32 76011101 CHIP, 1/20W 100 OHM J RA33 76011101 CHIP, 1/20W 100 OHM J RA34 76011101 CHIP, 1/20W 100 OHM J RA35 76011101 CHIP, 1/20W 100 OHM J RA44 76011101 CHIP, 1/20W 100 OHM J RA45 76011101 CHIP, 1/20W 100 OHM J RA49 76011102 CHIP, 1/20W 1K OHM J RA50 76011103 CHIP, 1/20W 10K OHM J RA52 76011101 CHIP, 1/20W 100 OHM J RA53 76011101 CHIP, 1/20W 100 OHM J RA55 76011471 CHIP, 1/20W 470 OHM J RA56 76011331 CHIP, 1/20W 330 OHM J RA57 76011101 CHIP, 1/20W 100 OHM J RA58 76011101 CHIP, 1/20W 100 OHM J RA59 76011101 CHIP, 1/20W 100 OHM J RA60 76011101 CHIP, 1/20W 100 OHM J RA62 76011101 CHIP, 1/20W 100 OHM J

Location Parts No. Description

No.

RA63 76011101 CHIP, 1/20W 100 OHM J RA64 76011101 CHIP, 1/20W 100 OHM J RA65 76011473 CHIP, 1/20W 47K OHM J RA70 76011471 CHIP, 1/20W 470 OHM J RA71 76011683 CHIP, 1/20W 68K OHM J RA72 76011223 CHIP, 1/20W 22K OHM J RA73 76011103 CHIP, 1/20W 10K OHM J RA74 76000445 CHIP JUMPER, 1608TYPE RA77 76011103 CHIP, 1/20W 10K OHM J RA78 76000445 CHIP JUMPER, 1608TYPE RA79 76000445 CHIP JUMPER, 1608TYPE RA81 76011102 CHIP, 1/20W 1K OHM J RA82 76011473 CHIP, 1/20W 47K OHM J RA83 76011102 CHIP, 1/20W 1K OHM J RA84 76011472 CHIP, 1/20W 4.7K OHM J RA85 76011102 CHIP, 1/20W 1K OHM J RA86 76011101 CHIP, 1/20W 100 OHM J RA87 76011102 CHIP, 1/20W 1K OHM J RA112 76011103 CHIP, 1/20W 10K OHM J RA113 76011103 CHIP, 1/20W 10K OHM J RA114 76011473 CHIP, 1/20W 47K OHM J RA116 76011103 CHIP, 1/20W 10K OHM J RA117 76011103 CHIP, 1/20W 10K OHM J RA118 76011103 CHIP, 1/20W 10K OHM J RB08 76011470 CHIP, 1/20W 47 OHM J RB09 76011470 CHIP, 1/20W 47 OHM J RB32 76011103 CHIP, 1/20W 10K OHM J RB33 76011103 CHIP, 1/20W 10K OHM J RB57 76011103 CHIP, 1/20W 10K OHM J RB58 76011103 CHIP, 1/20W 10K OHM J RB59 76011103 CHIP, 1/20W 10K OHM J RB60 76011103 CHIP, 1/20W 10K OHM J RB62 76011103 CHIP, 1/20W 10K OHM J RC01 76011102 CHIP, 1/20W 1K OHM J RC02 76011102 CHIP, 1/20W 1K OHM J RC03 76011102 CHIP, 1/20W 1K OHM J RC04 76011102 CHIP, 1/20W 1K OHM J RC05 76011102 CHIP, 1/20W 1K OHM J RC06 76011102 CHIP, 1/20W 1K OHM J RC11 76011821 CHIP, 1/20W 820 OHM J RC12 76011821 CHIP, 1/20W 820 OHM J RC40 76011821 CHIP, 1/20W 820 OHM J RC41 76011821 CHIP, 1/20W 820 OHM J RE03 #1 76553683 OXIDE METAL FILM, 1W 68K OHM J #2 76553683 OXIDE METAL FILM, 1W 68K OHM J #3 76382104 OXIDE METAL FILM, 1W 100K OHM J #4 76553683 OXIDE METAL FILM, 1W 68K OHM J RE04 #1 76553683 OXIDE METAL FILM, 1W 68K OHM J #2 76553683 OXIDE METAL FILM, 1W 68K OHM J #3 76382104 OXIDE METAL FILM, 1W 100K OHM J #4 76553683 OXIDE METAL FILM, 1W 68K OHM J RE12 76552221 OXIDE METAL FILM, 1/2W 220 OHM J RE13 76366273 CARBON FILM, 1/6W 27K OHM J RE15 76366102 CARBON FILM, 1/6W 1K OHM J RE16 76366102 CARBON FILM, 1/6W 1K OHM J RE17 76366363 CARBON FILM, 1/6W 36K OHM J RE18 76079010 METAL RES 2W R47 J RE19 76310829 OXIDE METAL FILM, 1/2W 8.2 OHM J RE23 76552152 OXIDE METAL FILM, 1/2W 1.5K OHM J RE38 76871222 CHIP, 1/8W 2.2K OHM J RE39 76011152 CHIP, 1/20W 1.5K OHM J RE43 76011753 CHIP, 1/20W 75K OHM J RE44 76000593 METAL FILM CHIP 1/16W 10K F RE46 76000448 CHIP, 1/16W 1.8K OHM F RE48 76011222 CHIP, 1/20W 2.2K OHM J RE51 76011393 CHIP, 1/20W 39K OHM J RE52 76011152 CHIP, 1/20W 1.5K OHM J RE53 76871222 CHIP, 1/8W 2.2K OHM J RE54 76871222 CHIP, 1/8W 2.2K OHM J RE56 76000574 METAL FILM CHIP 1/16W 2.7K F

Location Parts No. Description

No.

RE57 76000552 CHIP, 1/16W 390 OHM F RE58 76190013 CHIP RES 1/16W 22K F RE59 76011333 CHIP, 1/20W 33K OHM J RE60 76011562 CHIP, 1/20W 5.6K OHM J RE61 76190014 METAL FILM CHIP 1/16W 18K F RE82 76011473 CHIP, 1/20W 47K OHM J RE83 76011473 CHIP, 1/20W 47K OHM J RE88 76011222 CHIP, 1/20W 2.2K OHM J RE91 76011103 CHIP, 1/20W 10K OHM J RE93 76011223 CHIP, 1/20W 22K OHM J RE95 76553122 OXIDE METAL FILM, 1W 1.2K OHM J RE96 76011473 CHIP, 1/20W 47K OHM J RE97 76011562 CHIP, 1/20W 5.6K OHM J RE98 76011104 CHIP, 1/20W 100K OHM J RG01 76011101 CHIP, 1/20W 100 OHM J RG02 76011101 CHIP, 1/20W 100 OHM J RG03 76011101 CHIP, 1/20W 100 OHM J RG04 76011472 CHIP, 1/20W 4.7K OHM J RG06 76011101 CHIP, 1/20W 100 OHM J RG07 76011101 CHIP, 1/20W 100 OHM J RG11 76011101 CHIP, 1/20W 100 OHM J RG12 76011101 CHIP, 1/20W 100 OHM J RG13 76011472 CHIP, 1/20W 4.7K OHM J RG14 76011472 CHIP, 1/20W 4.7K OHM J RG15 76011183 CHIP, 1/20W 18K OHM J RG16 76011183 CHIP, 1/20W 18K OHM J RG17 76011473 CHIP, 1/20W 47K OHM J RG18 76011473 CHIP, 1/20W 47K OHM J RG19 76011332 CHIP, 1/20W 3.3K OHM J RG23 76011332 CHIP, 1/20W 3.3K OHM J RG24 76011683 CHIP, 1/20W 68K OHM J RG25 76011222 CHIP, 1/20W 2.2K OHM J RG26 76011101 CHIP, 1/20W 100 OHM J RG27 76011101 CHIP, 1/20W 100 OHM J RG28 76011101 CHIP, 1/20W 100 OHM J RG29 76011101 CHIP, 1/20W 100 OHM J RG30 76011101 CHIP, 1/20W 100 OHM J RG31 76011101 CHIP, 1/20W 100 OHM J RG32 76011101 CHIP, 1/20W 100 OHM J RG33 76011101 CHIP, 1/20W 100 OHM J RG34 76011102 CHIP, 1/20W 1K OHM J RG35 76011101 CHIP, 1/20W 100 OHM J RG37 76011101 CHIP, 1/20W 100 OHM J RG38 76011101 CHIP, 1/20W 100 OHM J RG40 76011183 CHIP, 1/20W 18K OHM J RG41 76011183 CHIP, 1/20W 18K OHM J RG42 76011472 CHIP, 1/20W 4.7K OHM J RG43 76011472 CHIP, 1/20W 4.7K OHM J RG44 76011473 CHIP, 1/20W 47K OHM J RG45 76011473 CHIP, 1/20W 47K OHM J RG46 76011101 CHIP, 1/20W 100 OHM J RG47 76011101 CHIP, 1/20W 100 OHM J RR01 76871750 CHIP, 1/8W 75 OHM J RR02 76871750 CHIP, 1/8W 75 OHM J RR03 76871750 CHIP, 1/8W 75 OHM J RR04 76011330 CHIP, 1/20W 33 OHM J RR05 76011330 CHIP, 1/20W 33 OHM J RR06 76011330 CHIP, 1/20W 33 OHM J RS01 76011473 CHIP, 1/20W 47K OHM J RS02 76011473 CHIP, 1/20W 47K OHM J RS04 76011101 CHIP, 1/20W 100 OHM J RS06 76011101 CHIP, 1/20W 100 OHM J RS07 76011103 CHIP, 1/20W 10K OHM J RS08 76011103 CHIP, 1/20W 10K OHM J RS09 76011473 CHIP, 1/20W 47K OHM J RS10 76011473 CHIP, 1/20W 47K OHM J RS13 76011101 CHIP, 1/20W 100 OHM J RS14 76011101 CHIP, 1/20W 100 OHM J RS15 76011473 CHIP, 1/20W 47K OHM J RS81 76011104 CHIP, 1/20W 100K OHM J

32WL66A/E/R/T

+ 51 hidden pages
