SERVICE MANUAL

LCD Color Television

32W2353RB

REVISED:01

REVISION HISTORY

REV

Date

Reason for Change

1

Dec/19/2014

- Addition of "AFTER MAIN PCB REPLACEMENT".

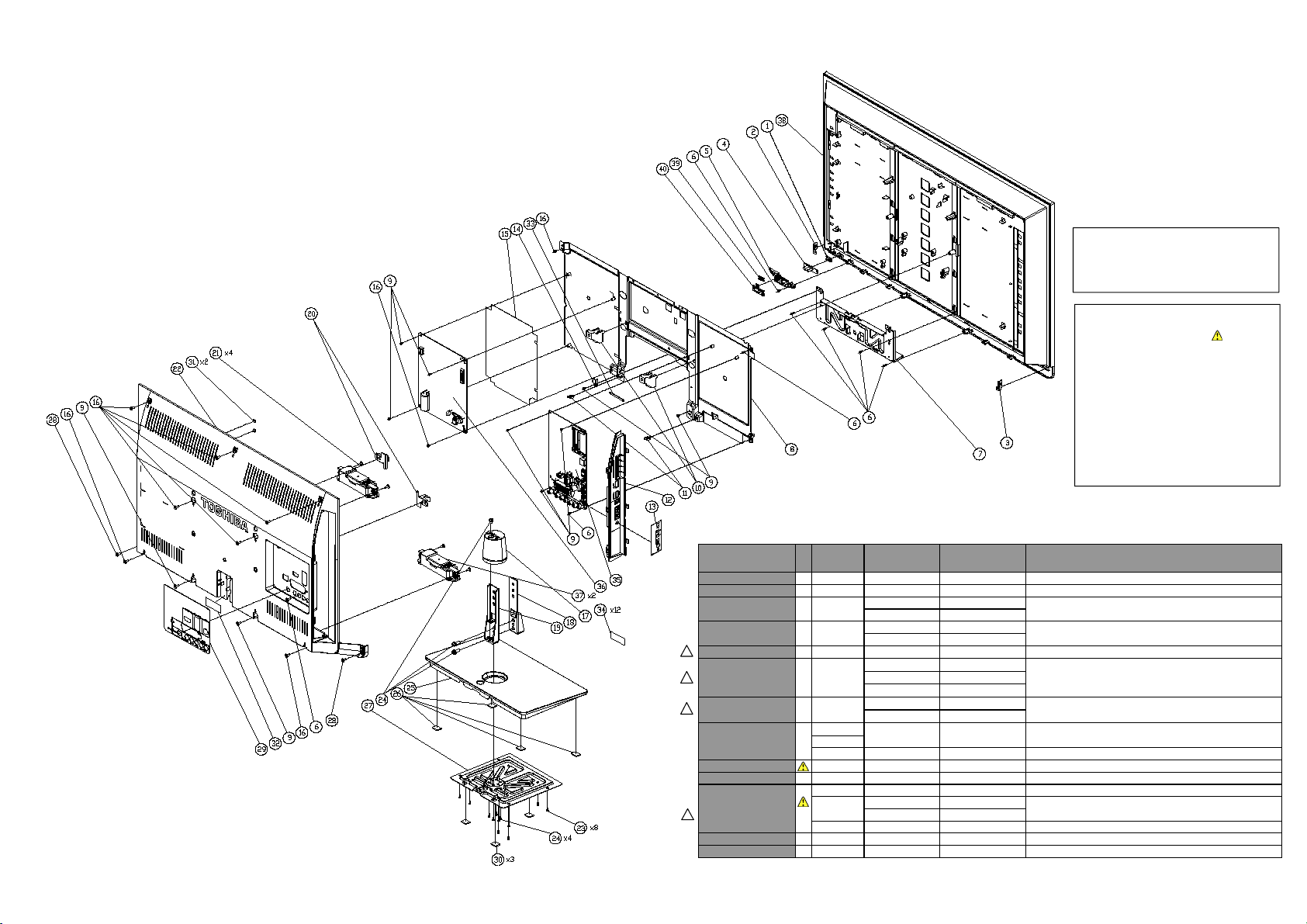

- Updating of the Parts List (Exploded View page)

IMPORTANT NOTICE

WARNING:

You are requested that you shall not modify or alter the information or data provided herein without prior written consent by Toshiba. Toshiba shall not be liable to anybody for any damages, losses, expenses or costs, if any, incurred in connection with or as a result of such modification or alteration.

THE INFORMATION OR DATA HEREIN SHALL BE PROVIDED "AS IS" WITHOUT ANY WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

Toshiba shall not be liable for any damages, losses, expenses or costs, if any, incurred in connection with or as a result of use of any information or data provided herein.

GREEN PRODUCT PROCUREMENT

The EC is actively promoting the WEEE & RoHS Directives that define standards for recycling and reuse of Waste Electrical and Electronic Equipment and for the Restriction of the use of certain Hazardous Substances. From July 1, 2006, the RoHS Directive will prohibit any marketing of new products containing the restricted substances.

Increasing attention is given to issues related to the global environmental. Toshiba Corporation recognizes environmental protection as a key management tasks, and is doing its utmost to enhance and improve the quality and scope of its environmental activities. In line with this, Toshiba proactively promotes Green Procurement, and seeks to purchase and use products, parts and materials that have low environmental impacts.

Green procurement of parts is not only confined to manufacture. The same green parts used in manufacture must also be used as replacement parts.

LEAD-FREE SOLDER

This product is manufactured using lead-free solder as a part of a movement within the consumer products industry at large to be environmentally responsible. Lead-free solder must be used in the servicing and repair of this product.

WARNING: This product is manufactured using lead free solder.

DO NOT USE LEAD BASED SOLDER TO REPAIR THIS PRODUCT!

The melting temperature of lead-free solder is higher than that of leaded solder by 30ºC to 40ºC (54ºF to 72ºF). Use of a soldering iron designed for lead-based solders to repair product made with lead-free solder may result in damage to the component and or PCB being soldered. Great care should be made to ensure high-quality soldering when servicing this product especially when soldering large components, through-hole pins, and on PCBs as the level of heat required to melt lead-free solder is high.

(1/4)

SAFETY INSTRUCTION

WARNING: BEFORE SERVICING THIS CHASSIS, READ THE "SAFETY PRECAUTION"

AND "PRODUCT SAFETY NOTICE" INSTRUCTIONS BELOW.

Safety Precaution

WARNING: SERVICING SHOULD NOT BE ATTEMPTED BY ANYONE UNFAMILIAR WITH

THE NECESSARY PRECAUTIONS ON THIS RECEIVER. THE FOLLOWING ARE THE NECESSARY PRECAUTIONS TO BE OBSERVED BEFORE SERVICING THIS CHASSIS.

1. An isolation transformer should be connected in the power line between the receiver

and the AC line before any service is performed on the receiver.

2. Always disconnect the power plug before any disassembling of the product. It may

result in electrical shock.

3. When replacing a chassis in the cabinet, always be certain that all the protective

devices are put back in place, such as nonmetallic control knobs, insulating covers,

shields, isolation resistor-capacitor network, etc.

4. Always keep tools, components of the product, etc away from the children, These items

may cause injury to children.

5. Depending on the model, use an isolation transformer or wear suitable gloves when

servicing with the power on, and disconnect the power plug to avoid electrical shock

when replacing parts. In some cases, alternating current is also impressed in the

chassis, so electrical shock is possible if the chassis is contacted with the power on.

6. Always use the replacement parts specified for the particular model when making

repairs. The parts used in products require special safety characteristics such as

inflammability, voltage resistance, etc. therefore, use only replacement parts that have

these same characteristics. Use only the specified parts when the

in the circuit diagram or parts list.

7. Parts mounting and routing dressing of wirings should be the same as that used

originally. For safety purposes, insulating materials such as isolation tube or tape are

sometimes used and printed circuit boards are sometimes mounted floating. Also make

sure that wirings is routed and clamped to avoid parts that generate heat and which use

high voltage. Always follow the manufactured wiring routes / dressings.

mark is indicated

(2/4)

8. Always ensure that all internal wirings are in accordance before re-assembling the

external casing after a repairing completed. Do not allow internal wiring to be pinched

by cabinets, panels, etc. Any error in reassembly or wiring can result in electrical

leakage, flame, etc., and may be hazardous.

9. NEVER remodel the product in any way. Remodeling can result in improper operation,

malfunction, or electrical leakage and flame, which may be hazardous.

10. Touch current check. (After completing the work, measure touch current to prevent an

electric shock.)

 Plug the AC cord directly into the AC outlet. Do NOT use an isolation transformer for

this check.

 Connect a measuring network for touch currents between each exposed metallic part

on the set and a good earth ground such as a water pipe.

Annex D

(normative)

Measuring network for TOUCH CURRENTS

Resistance values in orms (Ω).

V: Voltmeter or oscilloscope

(r.m.s. or peak reading)

Input resistance :

1 MΩ Input capacitance : 200 pF Frequency range : 15 Hz to 1 MHz and d.c. respectively

Note: Appropriate measures should be taken to obtain the correct value in case of non

sinusoidal waveforms.

The measuring instrument is calibrated by comparing the frequency factor of with the solid line in figure F.2 of IEC 60990 at various frequencies. A calibration curve is constructed showing the deviation of

from the ideal curve as a function of

frequency.

TOUCH CURRENT =

/ 500 (peak value).

(3/4)

 The potential at any point (TOUCH CURRENT) expressed as voltage and does

not exceed the following value:

The part or contact of a TERMINAL is not HAZARDOUS LIVE if: a) The open-circuit voltage should not exceed 35 V (peak) a.c. or 60 V d.c. or, if a) is

not met.

b)

The measurement of the TOUCH CURRENT shall be carried out in accordance

with IEC 60990, with the measuring network described in Annex D of this

standard.

The TOUCH CURRENT expressed as voltages and , does not exceed the following values:

- for a.c. : = 35 V (peak) and = 0.35 V (peak);

- for d.c. : = 1.0 V

Note: The limit values of = 0.35 V (peak) for a.c. and = 1.0 V for d.c.

correspond to the values 0.7 mA (peak) a.c. and 2.0 mA d.c.

(4/4)

Product Safety Notice

Many electrical and mechanical parts in this chassis have special safety-related characteristics.

These characteristics are often passed unnoticed by a visual inspection and the protection

afforded by them cannot necessarily be obtained by using replacement components rated for

higher voltage, wattage, etc. Replacement parts which have these special safety

characteristics are identified in this manual and its supplements; electrical components having

such features are identified by the international hazard symbols on the schematic diagram and

the parts list.

Before replacing any of these components, read the parts list in this manual carefully. The use

of substitute replacement parts which do not have the same safety characteristics as specified

in the parts list may create electrical shock, fire, or other hazards.

HOTEL MODE

(1/5)

1

Function Setting *off(normal set)

Hotel Mode On/Off Off/On Off Hotel mode enable

1

Panel Lock Off/On Off Inhibit all buttons which are on TV body

2

Panel Lock W/O Input Selector Keys. Off/On Off Inhibit all buttons which are on TV body only disable input key

3

Disable Remote Control Off/On Off Inhibit the remote control.

4

Disable All Menu Off/On Off

5

Disable Setup Menu Off/On Off Inhibit set up menu

6

*On: hotel mode on

*On: not available Side key

*On: not available Side key only disable input key

*Setting is enable at the Service mode.

*On: not available remote control

*On: All of user menu will be disabled.

*Off: All of user menu will work normally.

*On: set up menu Inhibit

Information

Setup Menu W/O Lang. Off/On Off Inhibit display set up menu except for language

setting.

7

*There is only language setting at the Setup menu.

*On: only lang. display at setup menu.

Max Volume Setting 0~100[dec] 100 Max volume control

(2/5)

8

Digital Tuner Off/On On DTV source selection depends on Digital Tuner setting.

9

USB Port Off/On On MEDIA source selection depends on USB port setting.

10

TV to USB NO/YES NO It will clone the data of TV to USB disk. The data

11

USB to TV NO/YES NO It will clone the data of USB disk to TV. The data

12

Disable NIT Update Off/On Off *On: enable NIT update

13

Max vol setting Method:

Setting 100 volume, and turning and choice this value.

*On: enable DTV

*Off: hide DTV

*On: enable MEDIA in inputs menu

*Off: hide MEDIA in inputs menu

*

Off (Enable 5V): Disable USB, but enable the 5V power.

includes user setting, the setting of hotel mode and

channel table.

includes user setting, the setting of hotel mode and

channel table.

*Off: disable NIT update

Detect SCART On / Off On

14

ON: Pin8 will go on normal operation and it is going to switch

between sources automatically.

Off: Pin8 is ignored and the automatic source switching would

be enabled.

(3/5)

2

1 Fixed Pos/Video

2 Fixed Volume

3 Fixed Picture Mode

Off/ On(AC)/

On

ATV(0~99)/SCART/AV/

YPBPR/HDMI1/HDMI2/

PC/DTV

Off/On Off Remote control power button on or TV power switch(on side

0~100[dec] (normal:50)

Off/On Off Remote control power button on or TV power

0:Dynamic(Default)

1:Standard

2:Mild

Off Remote control power button on or TV power switch

(on side body) on, then display goes to fixed POS/Video

(= nealy equal #9)

*On: fixed pos/video set

*On (AC): TV tunes to preset “Pos/Video” (channel or input) only

when AC power is applied. When TV is powered on by power

button, tune to the last channel or input.

*TV, Component, AV,…, PC,HDMI,….Off

TV:1~255[dec] (normal:0)

DTV: depends on channel auto tuning

body) on , then forced volume setting

*101~ : not available

switch(on side body) on, then picture mode is selected

*On: Fixed selectable Pic.

4 Welcome Message

3:Movie

4:Memory

Off/On Off Remote control power button on or TV power

(4/5)

1:Default

2:8 Sec.

3:15 Sec.

Update Welcome Message YES/NO NO It will update the logo, when TV on the new logo show.

5

Teletext Off/On On Teletext functions are depend on Teletext setting

6

ATV/DTV P+/P- Off/On Off *On: enable ATV/DTV P+/P-

7

switch(on side body) on, then fixed "Welcome to our hotel"

Message is displayed.

'Until first operation' means that first event for TV

occur (ex. Ch up).

Using USB, user replaces the user original message with the

*

default welcome message.

As below is message, the file limitation items:

1. File format should be JPG file.

2. JPG Resolution <= 1360 x 768.

3. JPG file size < 64KB.

4. JPG file name is “Hotel_Logo.jpg”.

*On: enable Teletext functions and operation

*Off: disable Teletext functions and operation

*Off: disable ATV/DTV P+/P

TV Power Disabled/

8

Reset Menu YES/NO NO Set to default all setting in Hotel mode menu

9

On/ Standby

Disabled

*Disabled: TV returns to previous Standby/On state when AC

power is applied.

*On: Power TV on when AC power is applied.

*Standby: Put TV in Standby when AC power is applied.

How to enter Hotel Mode.

1) Press “MUTE” button on the remote, and display [mute].

2) Within 2 sec, press “MUTE” button on the remote again, and hold the button down for 3 sec.

3) Then, press “INPUT” button on the TV side. Then hotel mode menu will appear.

How to exit Hotel mode.

Turn the TV power off

(5/5)

Copying Hotel Mode Setting

TV to USB:

Copying a BIN file into USB flash.

(1/4)

USB to TV:

Copying a BIN file into TV.

Copying Hotel Mode Setting

TV to USB Step :

1. Insert USB flash disk into TV USB port.

2. Please press “MUTE” key twice (MUTE icon disappear) , at the same time, press “SOURCE” by keypad for a while.

->“Hotel Menu” will come out.

3. Select the item “TV to USB” and press Left or Right button to choose “YES”. Then press “OK” button.

->The hotel settings will copy into USB disk with file name

(2/4)

HOTEL_xxx23xxx.BIN

4. Once copy is finished. The OSD message “Please

wait...” will disappear then shown "OK! " message.

Copying Hotel Mode Setting

USB to TV Step (method 1) :

1. Insert USB disk with available file into TV USB port.

2. Please press “MUTE” key twice (MUTE icon disappear) , at

the same time, press “SOURCE” by keypad for a while.

->“Hotel Menu” will come out.

3. Selecting the item “USB to TV ” and press Left or Right button to choose “YES”. Then press “OK” button.

(3/4)

->The hotel settings will copy from USB to TV with file name

HOTEL_xxx23xxx.BIN.

4. Once copy is finished. The OSD message “Please wait...” will disappear then shown "Please remove USB memory, then

TV will be reset automatically" message.

(4/4)

Copying Hotel Mode Setting

USB to TV Step (method 2) :

1. Insert USB disk with available file into TV USB port.

2. Please reboot (AC Off/On) TV to update hotel settings automatically.

->the set will shown “Hotel Mode Settings Update Please Wait”.

3. The OSD message “Please wait...” will disappear then shown “Update is finished .Please remove USB memory, then TV will be

reset automatically.”

4. Please remove USB disk then turn AC Off/On to reboot TV. The new settings will be active.

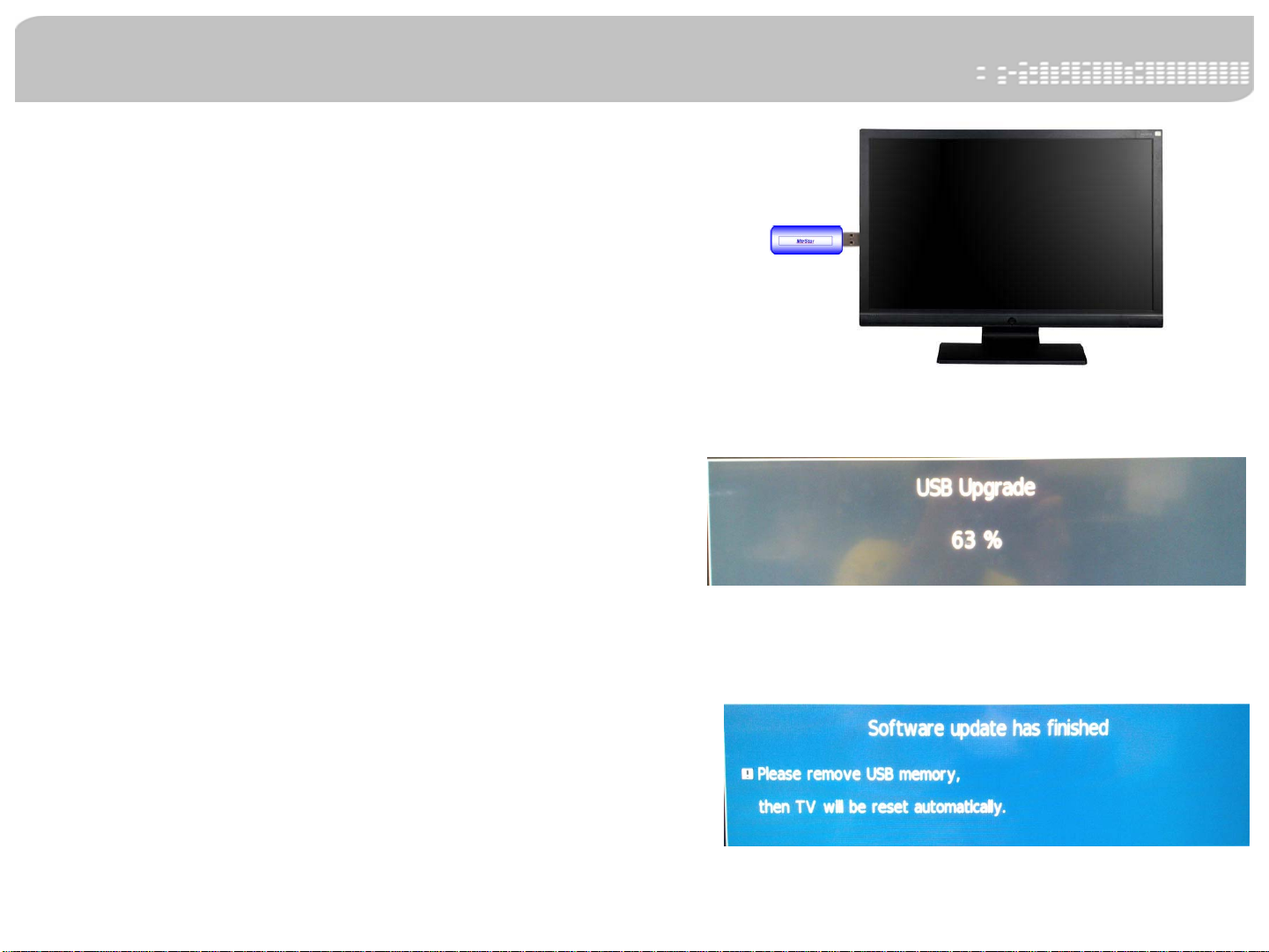

Firmware Upgrade – USB

1. Copying a firmware BIN file to USB disk. (root directory)

2. Plug in USB disk to TV USB port.

3. Reboot (AC Off/On) TV to update F/W automatically.

4. During firmware upgrade will have display a OSD on LCD

(1/2)

screen and power status LED will be blinking.

5. When F/W upgrade is finished, a message on screen will be shown then unplug USB disk.

6. TV will be reset automatically.

1

Definition of Firmware file name

File name: xxx23xxx_001_REV00.bin.

xx: for all TV size.

x23xxx: model series.

001 : firmware version ex 001 is 0.01, 100 is 1.00

(2/2)

REV00: fixed for revision 00

2

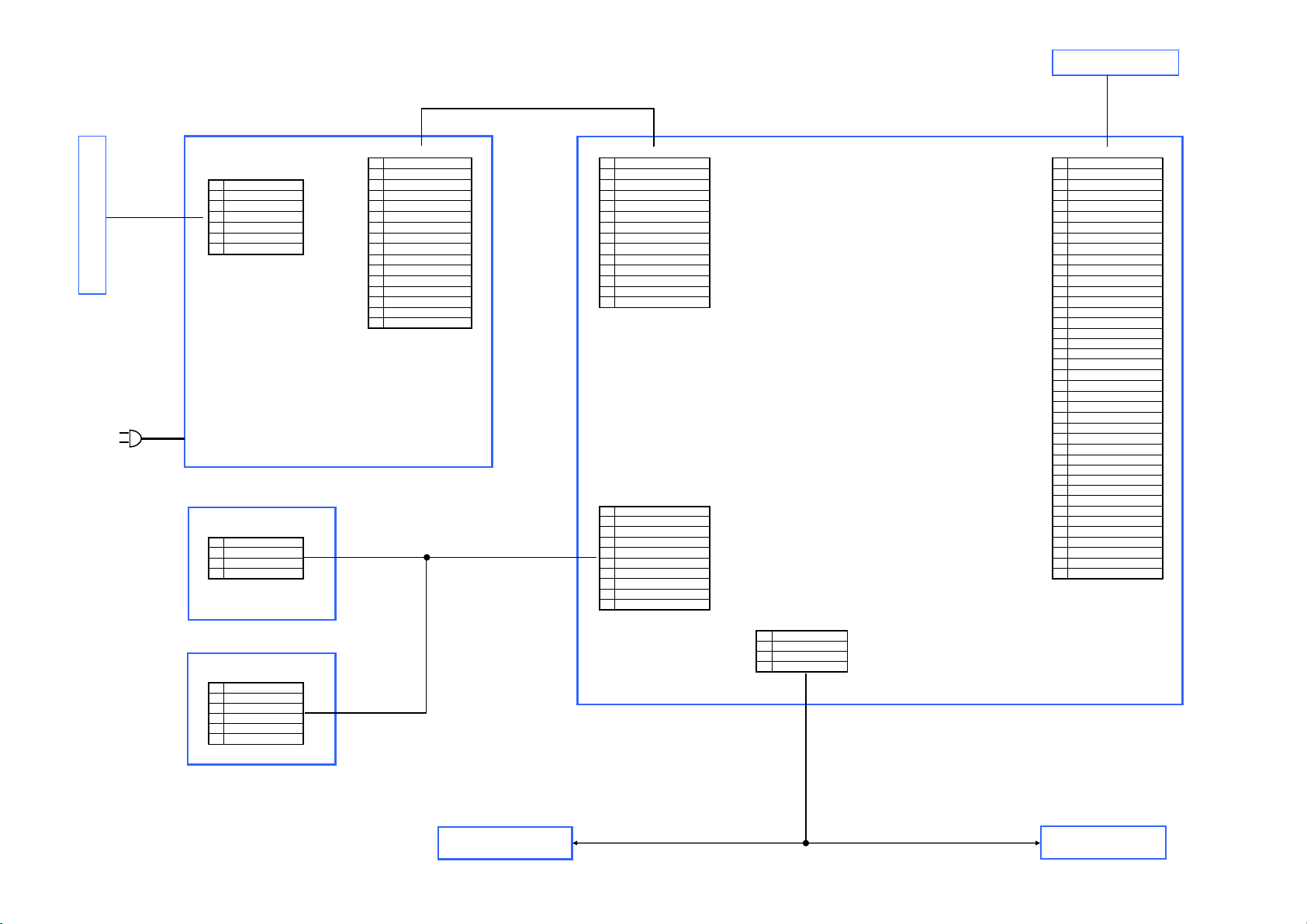

PANEL (LED B/L)

E320

E260

E270

PANEL (T-CON)

E344

E310A/B

(For AUO/SAM Panel)

75033844 (RA) 75033845 (RB)

CON201 CN1 CN14

CON301 2 12V 13 +12V_Normal 2 PANEL_VCC 1 Anode1 3 12V 12 +12V_Normal 3 PANEL_VCC 2 Anode2 4 GND 11 GND 4 PANEL_VCC 3 Anode3 5 GND 10 GND 5 RANEL_VCC 4 NC 6 NC 9 GND 6 RANEL_VCC 5 Cathode1 7 GND 8 +5V_Standby 7 GND 6 Cathode2 8 5VSB 7 +5V_Standby 8 GND 7 Cathode3 9 5VSB 6 +5V_Standby 9 RXA0+

E250

POWER BOARD

LED_BORAD

1 GND 4 Ring_G 37 RXB4+ 2 LED_Bri 5 LED-Brighness 38 RXB43 Ring_Red 6 GND 39 BRIGHT_ADJ 4 Ring_Green 7 +3.3V_Normal 40 OCP_OUTPUT_PWM

IR_BORAD

1 +3.3V_Standby_IR 2 RC_IR 3 SCL 4 SDA 5 +3.3V_Normal_ALS 6 GND

1 12V 14 +12V_Normal 1 PANEL_VCC

10 5VSB 5 SCANNING_BL_EN 10 RXA011 GND 4 ACDetect 11 RXA1+ 12 ACD 3 OCP_OUTPUT_PWM 12 RXA113 PS_ON 2 BL_EN 13 RXA2+ 14 BL_ON 1 12V_EN 14 RXA215 NC 15 GND 16 PWM1 16 GND

E200A/B/C

MAIN BOARD

1 +3.3V_Standby 34 RXBCK2 IRIN 35 RXB3+ 3 Ring_R 36 RXB3-

CN3 33 RXBCK+

17 RXACK18 RXACK+ 19 RXA320 RXA3+ 21 RXA4+ 22 RXA423 GND 24 GND 25 RXB0+ 26 RXB027 RXB1+ 28 RXB129 RXB2+ 30 RXB231 GND 32 GND

E342

8 MI2C-SCL 9 MI2C-SDA

10 GND

CN13 1 SPK_L+ 2 SPK_L3 SPK_R+ 4 SPK_R-

E340

E310C

(For LG Panel)

75033846 (RA) 75033847 (RB)

Speaker

EXPLODED VIEW

t

r

(

)

(Op

)

Y

32W2353RB

Note: Please see PPL put on WebPRESS for the latest information or other parts.

SAFETY PRECAUTION

The parts identified by mark are critical for safety. Replace only with part number specified. The mounting position of replacement is to be identical with originals. The substitute replacement parts which do not have the same safety characteristics as specified in the parts list may create shock, fire or other hazards.

32W2353RB No. Location

1 E104 75033745 13EB-45Q0601 FILTER 4 E102 75033744 13EB-45Q0101 LED LENS

5 E106 SUPPORT FOR SMALL BOARD 12+13 E140 SIDE KEY BEZEL ASSY

1

17+18+19+24 E150 75033754 13EB-45B0D01 NECK ASSY

22+20+29+31 E110 BACK COVER ASSY

1

23+25+26+27+30 E120

35

36 E250 75033820 0433-007V000 POWER BOARD ASSY 37 E330 75029565 04A4-012X000 SPEAKER

38

1

39 E260 75033758 9C-EB40S0250 LED BOARD ASS 40 E270 75033759 9C-EB40S0270 IR BOARD ASS

Toshiba Service Par

75033813 13EB-45Q0K11 75033914 13EB-45Q0K02 75033752 13EB-44B0E01 75033918 13EB-44B0E11

75033815 13EB-45B0F11 75035727 13EB-45B0F21 75035733 13EB-45B0N02 75036206 13EB-45B1711

E200A E200B E200C

E300A E300B S-Fit LCD Panel, (Open Cell, SAM,LSC320AN02-T) E300C

75035730 13EB-45B1702 75034062 9C-EB40M01D0 MAIN BOARD ASSY, For AUO/SAM Panel 75034063 9C-EB40M01L0

75033840 75033839 75036398 75033841

ODM Partne Part

Description

STAND ASSY

MAIN BOARD ASSY, For LG Panel

S-Fit LCD Panel, (Open Cell, AUO, T320XVN02.9 SKD

S-Fit LCD Panel,

LEFT AND RIGHT

en Cell, LG, LC320DXJ-SFE1

SET ID and PANEL ID

g

(

)

r

A

A1A

Panel ID in Global Serial No.

Total digits YWK SET ID SERIAL Panel ID Max 14 YWK *** ****** **

its 3 digits 6 digits 2 digits

3 di

A00001-Z99999

YWK

Y: Yea

Panel vendor Information (Panel ID)

13th digit:

Marking Marking Marking

BKT CLU DMV ENW

FPX GQY HRZ

14th digit:

1-9 When the panel version is updated within the same panel vendor, the last digit will be

incremented by 1.

8 2008 WK: Week 01 WK01 9 2009 02 WK02

2010 03 WK03

B 2011 04 WK04

C 2012

…

Panel Vendor

AUO

BriView

CMO

CHILIN

…

Panel Vendor

JS

SAMSUNG

LPL/LGD

CPT

IPS

…

53 WK53

Panel Vendor

…

SHARP

Model/Panel Information

Model SET ID

32W2353RB L51

32L2353RB L52

39L2353RB L53 50L2353RK L54

Panel ID

1 K1 L1

2 L1

Panel

T320XVN02.9 SKD (Open Cell, AUO)

LSC320AN02-T (Open Cell, SAM)

LC320DXJ-SFE1 (Open Cell, LG)

T320HVN04.0 SKD (Open Cell, AUO)

LSC320HN03-T (Open Cell, SAM)

LC320EUJ-FFE2 (Open Cell, LG) T390HVN01.0 SKD (Open Cell, AUO) T390HVN04.0 SKD (Open Cell, AUO)

LC500DUE-SFR1 (LCM, LG)

(1/1)

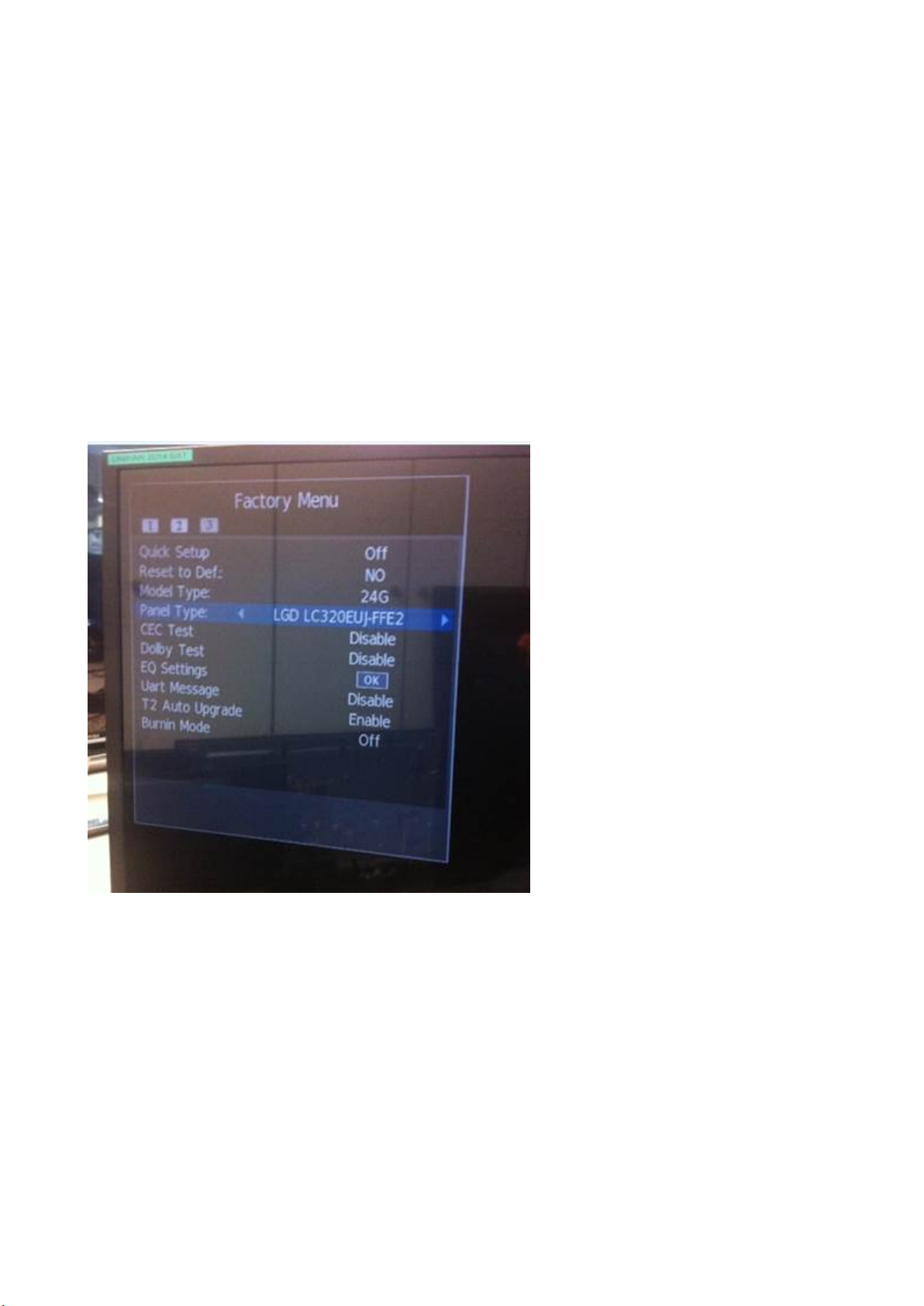

AFTER MAIN PCB REPLACEMENT

The following setting must be checked after PCB replacement to make sure, that PCB setting corresponds to the panel type:

1. Enter Factory Menu:

- MENU

- Applications

- Sleep Timer + “2766”

2. Go to page 3 and select the proper panel type (take care of the full panel name, not only panel vendor name).

Panel type can be found on the panel serial number sticker.

3. Press EXIT to leave the factory mode (please make sure you have selected the proper panel type, before you press EXIT !).

4. If the proper panel type was set, TV will come up with proper picture after TV restart.

PLEASE TAKE CARE: set may come up with NO PICTURE at all when wrong panel was selected and it will be very difficult/impossible to adjust the proper settings afterwards.

TOSHIBA LIFESTYLE PRODUCTS & SERVICES CORPORATION

2-9, Suehiro-Cho, Ome-Shi, Tokyo 198-8710, Japan

REV. 01 Dec/19/2014

5

4

3

2

1

CONTENTS

SCHEMATIC Name

D D

01.Contents & History 1

02.LED

C C

SHEET Author VerDate

2

REVISION HISTORY

Comments

1.002012/09/03 For SR stage.Jeff/Webb

2012/12/17 Jeff/Webb 1.01 For MP stage.

B B

A A

Contents&History

Title :

Engineer:

L2300

Engineer:

LED BOARD

Size Project Na me

B

Date: Sheet of

5

4

3

2

Date: Sheet of

Contents&History

Jeff Y Hsiao/Webb Chen

1 2Monday, March 18, 2013

1

Rev

1.01

5

4

3

2

1

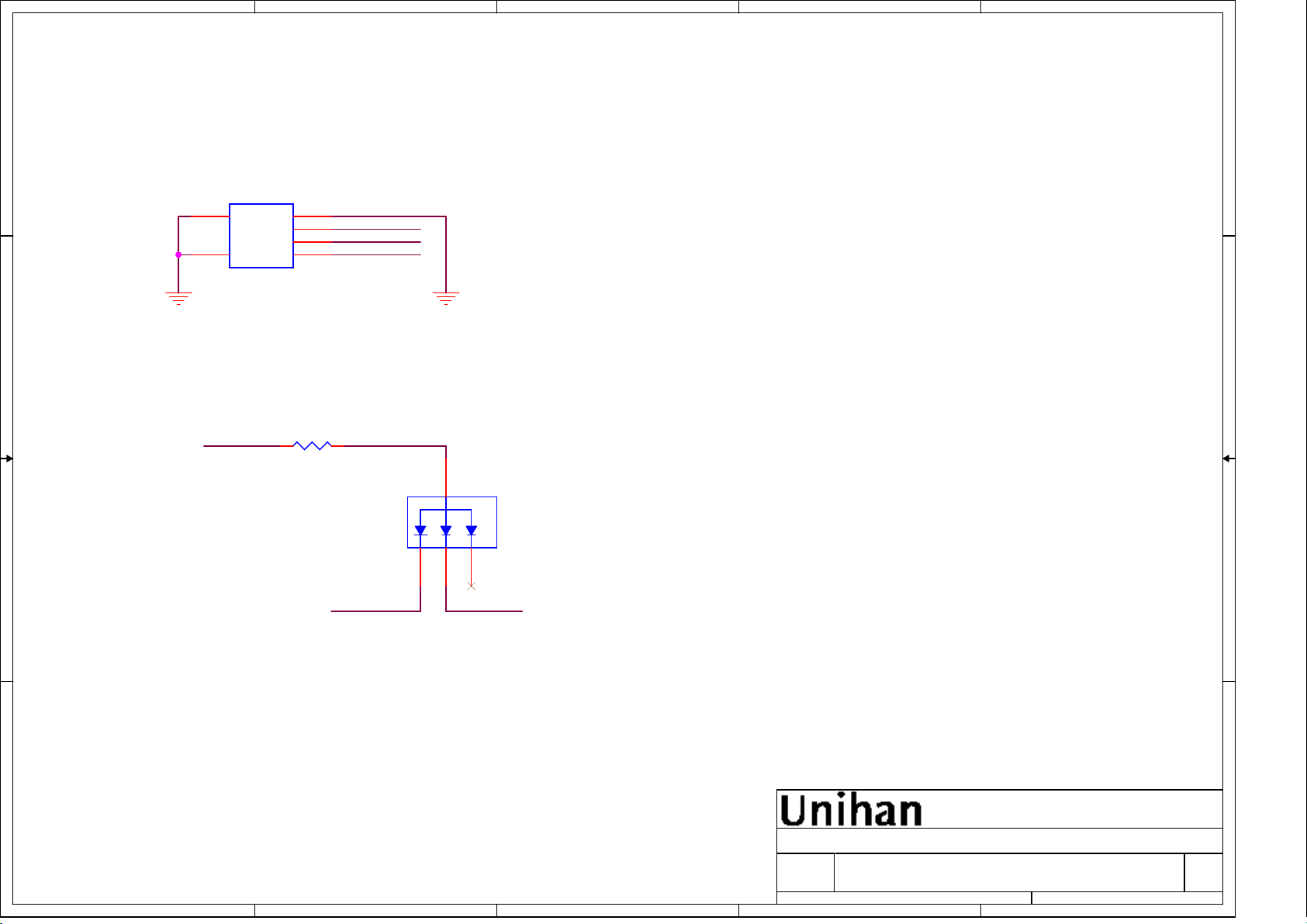

Power On mode-------Green

Standby mode--------Red

D D

CN1

6

SIDE2

5

SIDE1

WTOB_CON_4P

C C

LED_Bri

1

2

3

4

R1 200 Ohm

1 2

LED_Bri Ring_Red Ring_Green

LED driver current set 10mA

23

LED1

+

G R

- -

B B

Ring_Green Ring_Red

1

B

RED&GREEN&BLUE

-

4

A A

Title :

Engineer:

LED BOARD

Size Project Name

A

Date: Sheet of

5

4

3

Date: Sheet of

2

L2300

Engineer:

LED

Jeff Y Hsiao/Webb Chen

Rev

1.01

2 2Monday, March 18, 2013

1

5

4

3

2

1

CONTENTS

SCHEMATIC Name

D D

01.Contents & History

02.TV System Power Budget

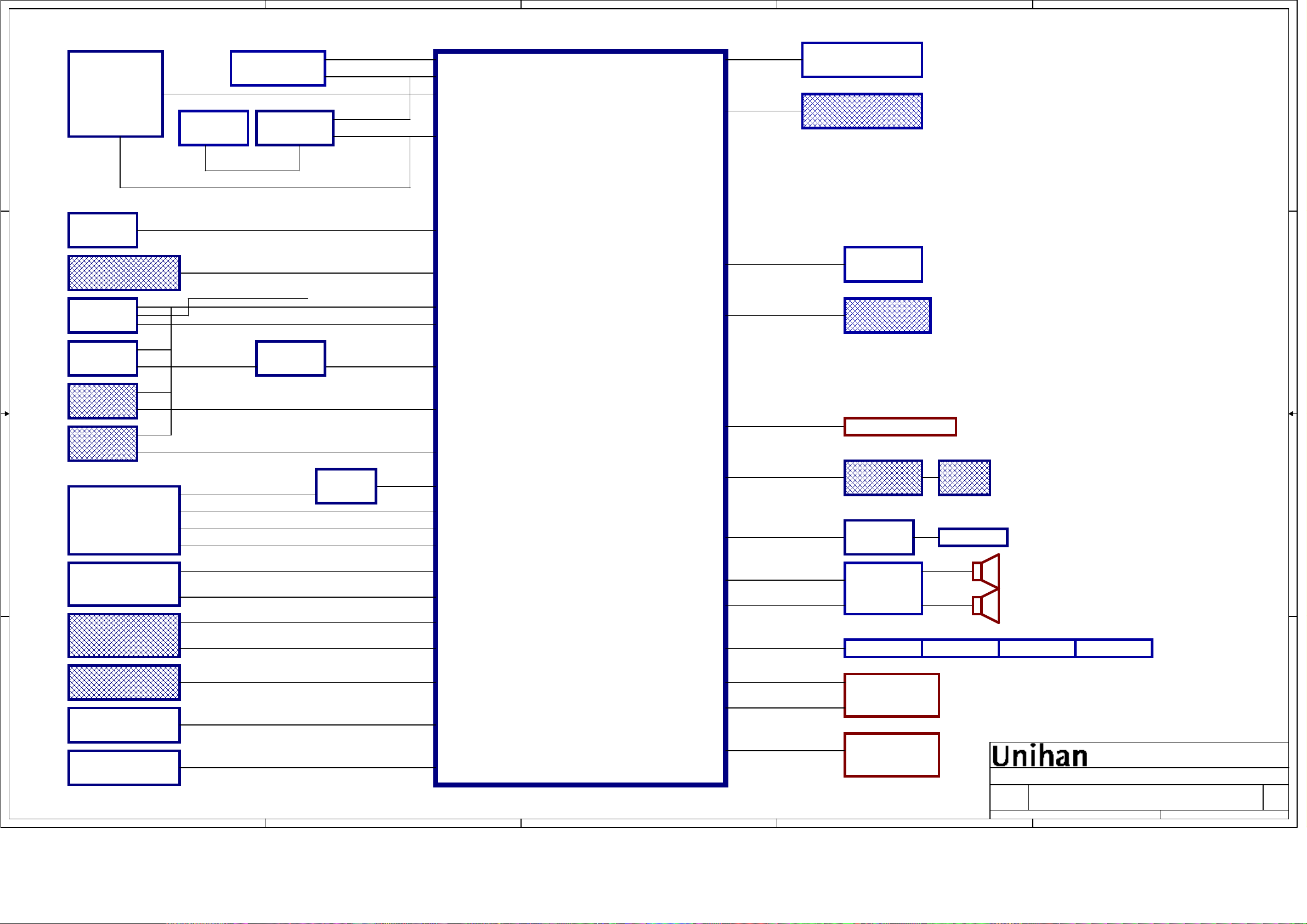

03.MB Block Diagram

04.DC to DC

05.MSD8841-3A3D&USB&AUDIO

06.MSD8841-DDR&LVDS&GPIO

07.MSD8841_POWER

08.MSD8841-CI&TFE&TS&NAND

C C

09.MEMORY DDR3

10.PCMCIA CONN

11.HDMI and MHL

SHEET

1

2

3

4

5

6

7

8

9

10

11

REVISION HISTORY

Author VerDate

1.002012/08/27 For SR stage.

2012/09/14

Jeff/Jerry

Jeff/Jerry 1.01 For SR2 stage.

2012/10/20 Jeff/Jerry 1.02 For ER stage.

2012/11/07 Jeff/Jerry 1.03 For ER2 stage.

Jeff/Jerry 1.03a For PR stage.2012/11/21

Comments

12.VGA

13.COMPONENT and AV

14.SCART

15.SPEAKER&EARPHONE AMP

16.TUNER

B B

17.LVDS

12

13

14

15

16

17

18.SPDIF 18

19.USB

20.NAND FLASH

21.Ethernet CONN

22.MSB1230

23.IR_ALS

19

20

21

22

23

A A

Contents&History

Title :

Engineer:

MAIN BOARD

Size Project Name

L2300

B

Date: Sheet of

5

4

3

2

Date: Sheet of

L2300

Engineer:

1

Contents&History

Jeff Y Hsiao/Jerry Lo

Rev

1.03a

1 23Thursday, December 20, 2012

5

4

3

2

1

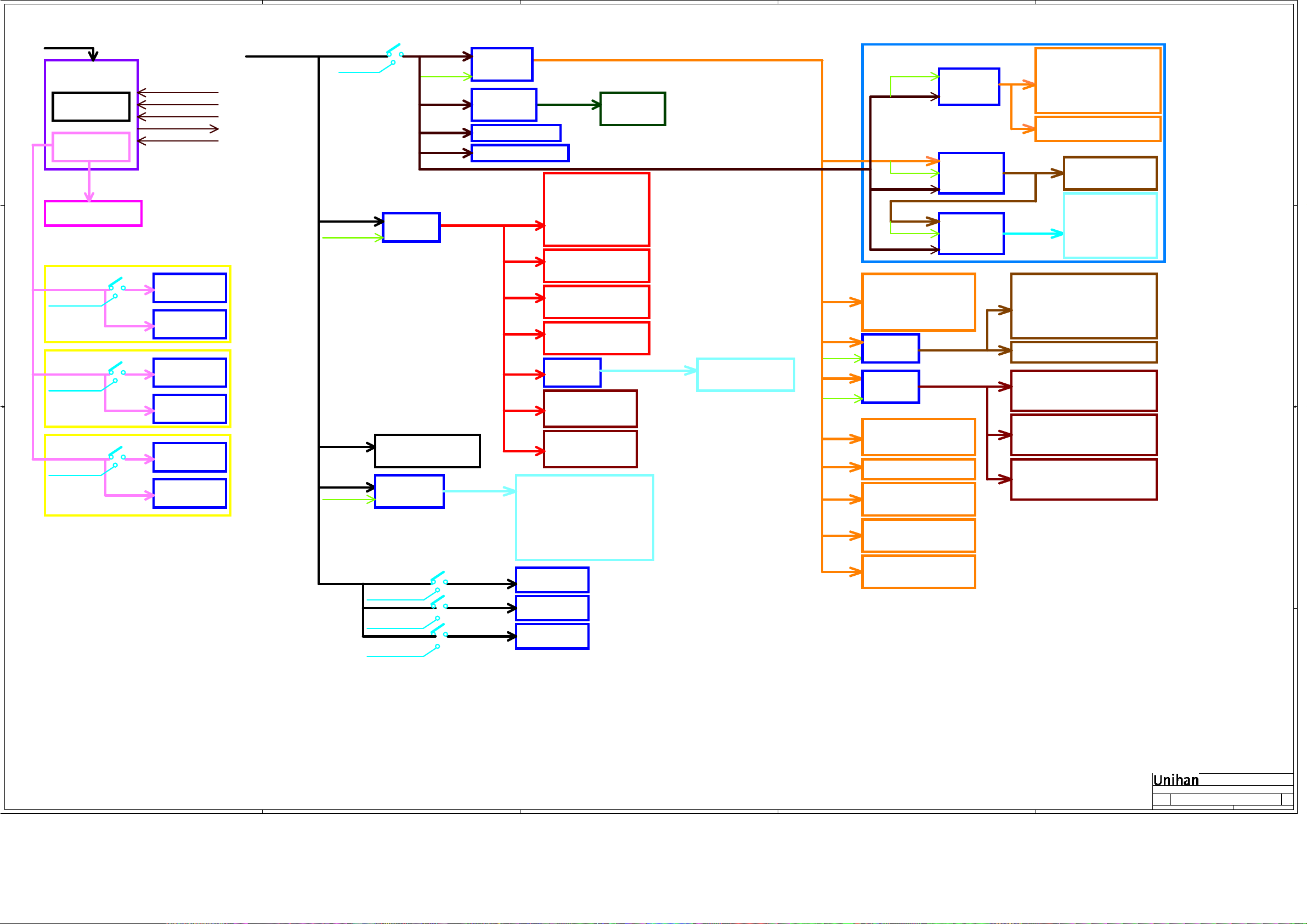

TV System Power Budget Block Diagram

AC 220~240

PSU Unit

32"/39"/50"

D D

C C

B B

+5V_Standby

+12V_Normal

LIPS

32WX/32FHD/39FHD/50FHD

LED Driver

+12V_Normal

GPIO_Panel_VCC_ON

Amp efficiency:85% , Devition 5%

+12V_Normal

GPIO_Panel_VCC_ON

Amp efficiency:85% , Devition 5%

+12V_Normal

GPIO_Panel_VCC_ON

Amp efficiency:85% , Devition 5%

PANEL_VCC

1.3A

GPIO_12V_EN

GPIO_OCP_OUTPUT_PWM

GPIO_BL_EN

ACDetect

SCANNING_BL_EN

Panel _Tcon0.7A

32WX/32FHD

AMP(7W+7W)

Panel _Tcon0.7A

39FHD

AMP(7W+7W)

Panel _Tcon0.7A

50FHD

AMP(7W+7W)

+5V_Standby

3947mA

1307mA

NORMAL_PWR_CTL

330mA

+5V_Standby

Enable_Control

0.046mA

410mA

+3.3V_Normal

Enable_Control

((1340mA/1000)*1.2)/(0.8)/5= 0.402

1900mA

U1

LDO RT9043-GB

U27 MHL to HDMI

MSG1200

Power on Max. current= 0.046mA

Standby Max. current= 0.046mA

U6

DC/DC MSD8841BX_BGA20x20 TPS5432DDAR

GPIO_USB1_PWR_SW

GPIO_PCM_5V_CTL

PS_CTRL#

+5V_Normal

1047mA

Enable_Control

240mA

10mA

+3.3V_Standby

+1.2V_Normal

U2

DC/DC

TPS5432DDAR

U17

LDO APE1117AK-HF

SPDIF_OUT CIRCUIT

SC_CVBS_OUT CIRCUIT

56mA

330mA

20mA

45mA

96mA

85mA

15mA

10mA

1339mA

USB_5V

500mA(Min).

VCC-PCMCIA

500mA(Min).

+5V_HDMIC

900mA(Max).

+3.3V_Normal

1047mA

TUNER_3.3V

240mA

U7

MSD8841BX_BGA20x20

AVDD_ALIVE(ball=N7)= 17.31mA

AVDD_DVI(ball=L7,K7)= 18.64mA

AVDD_DMPLL(ball=P6)= 6.01mA

AVDD_MPLL(ball=M8)= 13.24mA

Power on Max. current=

Standby Max. current=

U8

G690H293T73UF

Power on Max. current=

Standby Max. current=

U11

W25Q64FVSSIG

Power on Max. current=

Standby Max. current=

U27 MHL to HDMI

MSG1200

Power on Max. current=

Standby Max. current=

U3

LDO RT9043-GB

TU1

TUNER

SUT_RE221

55.2mA

2.912mA

Reset IC

20mA

SPI Flash

45mA

0.05mA

95.12mA

1.12mA

+1.2V_Standby_MHL U27 MHL to HDMI

85mA

IR_ALS Board

Power on Max. current=

Standby Max. current=

15mA

LED_Board

Power on Max. current=

Standby Max. current=

10mA

U7

VDDC (ball=G9,H9,K10,K11,L10,M12,M13, N12,P14,P15,R10,R14,R15,T10)= 1266.25mA

DVDDC(ball=M14)(DVDD_DDR)= 55.5mA

AVDDLV_USB(ball=K12)= 1.08mA

AVDDL_MOD(ball=R16)= 7.8mA

AVDD11_ETH(ball=L11)= 0.67mA

AVDD1P1(ball=P10)= 7.7mA

Power on Max. current= 1339mA

USB

PCMCIA

MHL

MSG1200

Power on Max. current=

Standby Max. current=

85mA

0.58mA

50mA

110mA

Enable_Control

200mA

Enable_Control

30mA

20mA

4mA

83mA

25mA

DEMOD

Enable_Control

80mA

445mA

Enable_Control

+5V_Normal

DT2_2.5V

400mA

Enable_Control

+5V_Normal

U7

MSD8841BX_BGA20x20

VDDP(ball=R19,T19)= 8.59mA

AVDD_AU(ball=T7)= 17.32mA

AVDD_EAR(ball=R7)= 5.08mA

AVDD_LPLL(ball=W17,W18)=18.19mA

Power on Max. current= 49.18mA

U5

LDO RT9043-GB

U4

DC/DC RT8059GJ5

((530mA/1000)*1.5)/(0.8)/5= 0.198

H27U2G8F2C

VCC1(Pin12) VCC2(Pin37)

Power on Max. current=

pull high Resistor

Power on Max. current=

U16 Audio

TAS5707L

TAS5707L= 83mA

Power on Max. current=

U14

DRV632PWR

VDD(Pin 9)

Power on Max. current=

U21

LDO RT9043-GB

U21

LDO RT9025_25PSP

U22

LDO RT9025_25PSP

+2.5V_Normal

105.24mA

+1.5V_Normal

530mA

NAND FlashU18

30mA

20mA

Headphone Amplifier

4mA

Power Amplifier

83mA

Line Driver

25mA

105.24mA

U24

MSB1230-LF

AVDD_SAR_T2(Pin33)

55mA

DT2_2.5V

443mA

AVDD33_ADC_T2(Pin36)

AVDD_MPLL_T2(Pin43)

AVDD_APLL_TS/SDR_T2(Pin47)

VDD33_T2(Pin7,18,28,31,50,53,60)

Power on Max. current=

25mA

U23

EN25F20-100GCP

Power on Max. current=

43mA

DT2_1.2V

400mA

U7

MSD8841BX_BGA20x20

AVDD_ADC(ball=V8,W7,W8)= 36.2mA

AVDD25_PGA(ball=W11)= 0.01mA

AVDD_REF(ball=W9)= 0.43mA

AVDD_LAN(ball=W14)= 15.3mA

AVDD_MOD(ball=V16,W16)= 53.3mA

Power on Max. current= 105.24mA

U19

U7

MSD8841BX_BGA20x20

AVDD_DDR0(ball=J17,K15,K16,L15)=

AVDD_DDR1(ball=K17,L17,M17,L16)=

Power on Max. current= 110mA

U12

H5TQ2G63DFR-PBC

VDD1..9(ball=N1,R1,B2,K2,G7,K8,D9,N9,R9)

VDDQ1..9(ball=A1,C1,F1,D2,H2,A8,C9,E9,H9)

Power on Max. current=

U13

H5TQ1G63DFR-PBC

VDD1..9(ball=N1,R1,B2,K2,G7,K8,D9,N9,R9)

VDDQ1..9(ball=A1,C1,F1,D2,H2,A8,C9,E9,H9)

Power on Max. current=

U24

MSB1230-LF

AVDD25_ADC_T2(pin42)

Power on Max. current= 43mA

U24

MSB1230-LF

VDDC1(Pin9)

VDDC2(Pin20)

VDDC3(Pin30)

VDDC4(Pin51)

VDDC5(Pin59)

Power on Max. current= 400mA

TS21C_HF

210mA

DDR3 Memory

55mA

SPI_Flash

25mA

57.5mA

52.5mA

A A

TV System Power Budget

Title :

Jeff Y Hsiao/Jerry Lo

Engineer:

L2300

Engineer:

Rev

1.03a

2 23Thursday, December 20, 2012

MAIN BOARD

Size Project Name

D

Date: Sheet of

5

4

3

2

Date: Sheet of

1

5

4

3

2

1

TS0

DVB-T/T2/C

DIF

PCMCIA SLOT

TS1

Silcon

D D

Tuner

SPI Flash 2Mbit

MSB-1230 Demod

Tuner I2C BUS

TS

DDR BUS

DDR3 2GBit

DDR BUS

DDR3 1GBit

SPI FLASH BUS

Tuner I2C BUS

2G DDR3 Vender:

1st:

2nd:

Hynix H5TQ2G63DFR-PBC DDR3-1600 11-11-11/ 64MB*16

Samsung K4B2G1646E-BCK0000 DDR3-1600 11-11-11/ 64MB*16

1G DDR3 Vender:

1st:

2nd:

Hynix H5TQ1G63DFR-PBC DDR3-1600 11-11-11/ 64MB*16

Samsung K4B1G1646G-BGK0 DDR3-1600 11-11-11/ 64MB*16

RGB-In/H/V/DDC

VGA

L/R-In

SPI FLASH BUS

VGA Phone Jack

CEC

C C

HDMI 1

HDMI ---ARC

TDMS-A In/DDC

CEC

NAND FLASH BUS

SPI Flash 64MBit

NAND Flash 2GBit

CEC

HDMI 2

HDMI 3

HDMI 4

CEC

TDMS/CBUS

MHL

MSG1200

TDMS-B In/DDC

MSD8841BX

TDMS-C In/DDC

2 CH LVDS

Panel Unit

TDMS-D In/DDC

1st:

2nd:

1st:

2nd:

Windbond W25Q64FVSSIG

Hynix H27U2G8F2C

Toshiba TC58NVG1S3ETA00

Ethernet-Tx/Rx

L/R-Out

AV Out

B B

SCART(Full)

RGB In/AV In

L/R-In

YPbPr In

Component

L/R-In

AMP

DVR632

L/R OUT

I2S BUS

I2C BUS

TS21C_HF

TPA6132

RJ-45

Earphone

SPEAKERTAS5707L

AV In

Composite Input+L/R

L/R-In

DP0/DM0

USB 0

A A

USB 1(SIDE)

DP1/DM1

SPDIF_Out

SPDIF out

5

4

3

SAR I/F

IR In

I2C BUS

LED I/F

Power KEY

IR/ALS Board

LED Board

2

"+" KEY "-" KEY P/V/AV KEY

Title :

Engineer:

MAIN BOARD

Size Project Name

L2300

B

Date: Sheet of

L2300

Engineer:

Block Diagram

Jeff Y Hsiao/Jerry Lo

3 23Thursday, December 20, 2012

1

3 23Thursday, December 20, 2012

Rev

1.03a

5

CN1

14 13 12 11 10 9 8 7

D D

6 5 4 3 2 1

WAFER_HD_1X14P

FB1 120Ohm FB2 120Ohm

FB3 120Ohm FB4 120Ohm

NC

C352

12

1000PF/50V

C347

12

22PF/50V

21 21

+5V_Standby

21 21

NC

C2

C11

12

0.1UF/16V

1000PF/50V

C12

12

C3

12

10UF/10V

12

22PF/50V

R8

R14

4.7KOHM

47KOHM

C6

C5

12

0.1UF/16V

1000PF/50V

R144 0 Ohm

R2 0 Ohm R554 33 OHM R556 33 OHMNC

R555 33 OHM

12

R15

4.7KOHM

+12V_Normal

NC

C429

C8

12

4.7UF/25V

0.1UF/16V

1 2

1 2 1 2 1 2

1 2

4

C9

12

0.1UF/16V

SCANNING_BL_EN 6 ACDetect 6 OCP_OUTPUT_PWM 17 BL_EN 6 FRC_BL_EN 17

12V_EN 6

+5V_Standby +3.3V_Standby

C13

1UF/16V

12

C14

0.1UF/16V

12

3

U1 RT9043-GB

1

VIN

12

R12

12KOhm

12

R16

10KOhm

NC

12

C25

0.1UF/16V

2

GND

3

EN

VOUT

FB

5

4

R13

180KOHM

R17

100KOHM

2

G1

1

NP_NC

2

GND1

12

C15

1UF/16V

12

C16

0.1UF/16V

3

GND2

4

GND3

C315D157N

G2

1

NP_NC

2

GND1

3

GND2

4

GND3

C315DO169x130n

GND8 GND7 GND6 GND5 GND4

9 8 7 6 5

1

1 2 3 4

C315D130N

1 2 3 4

C315D130N

G3

NP_NC GND1 GND2 GND3

G4

NP_NC GND1 GND2 GND3

GND8 GND7 GND6 GND5 GND4

9 8 7 6 5

+5V_Standby

C C

B B

+3.3V_Normal

12

A A

NORMAL_PWR_CTL4,6

C40

10UF/10V

FB35 120Ohm

12

C36

0.1UF/16V

C332

0.1UF/16V

1 2

R420 56KOhm

C451 1UF/16V

2 3

12

21

12

C324

C325

10UF/10V

0.1UF/16V

12

R428 56KOhm

+5V_Normal

12

R32

10KOhm

12

R33

10KOhm

12

C44

2.2UF/10V

12

Q18 AP2307GN

S

2

1

12

3

C

B

1

E 2

U4A

1

PGOOD

2

EN

3

VIN

4

VDD

RT9025_25PSP_12VIA

U4B

10

GND3

11

GND4

12

GND5

13

GND6

14

GND7

15

GND8

RT9025_25PSP_12VIA

D

3

12

G

R421 56KOhm

Q19 PMBS3904

GND10 GND11 GND12 GND13 GND14

C326

0.1UF/16V

GND2 GND1

VOUT

GND9

+5V_Normal

ADJ

NC

16 17 18 19 20 21

12

U6

1

BOOT

2

VIN

3

PH

4

GND1

TPS5432DDAR

12

C43

0.1UF/16V

+5V_Normal

12

C91

0.22UF/25V

GND2

COMP

VSENSE

R95

12KOHM

R98

10KOhm

9 8

SS

7

EN

6 5

C38 330PF/50V

1 2

R31

12KOHM

1 2

R37

24KOHM

U5 RT9043-GB

R131 0 Ohm

1 2 3

12

VIN GND EN

Pd:0.4W

NORMAL_PWR_CTL 4,6

R36

C28

1UF/16V

C45

0.01UF/50V

12

C29

12

R28

12

C46

12

0.1UF/16V

2.05KOhm

0.01UF/50V

10KOhm

1 2

R38 22KOHM

+3.3V_Normal

12

NC

C48

0.22UF/25V

12

NC

R39

10KOhm

NC

R40

22KOHM

C47

12

0.1UF/16V

VOUT

FB

5

4

R27 110KOHM

1 2

R35 100KOHM

12

C93

0.1UF/16V

C153

10UF/10V

12

C96

0.1UF/16V

R30 51KOHM

1 2

R34 56KOHM

12

9 8 7 6 5

R96 0 Ohm

12

2 1

12

L3

2.2uH

NC

C157

22UF/6.3V

+1.5V_Normal

12

C235

510mA

12

C41

10UF/10V

U15

1

BOOT

2

VIN

3

PH

4

GND1

+3.3V_Normal

12

C158

22UF/6.3V

0.1UF/16V

12

C37

0.1UF/16V

GND2

COMP

VSENSE

TPS5432DDAR

R130

49.9 OHM

1 2

C95 220PF/50V

1 2

R101 20KOhm

1 2

R100

6.49KOHM

+5V_Standby

12

C32

SS EN

10UF/10V

9 8 7 6 5

12

0.1UF/16V

C33

0.1UF/16V

C39

C162

0.01UF/50V

12

R3 0 Ohm

L2

2.2uH

2 1

12

C42

R97

C94

22UF/6.3V

12

9.1KOhm

2200PF/50V

12

NC

12

C238

220PF/50V

+1.2V_Normal

NC

C231

22UF/6.3V

+2.5V_Normal+3.3V_Normal

12

C30

1UF/16V

12

C31

0.1UF/16V

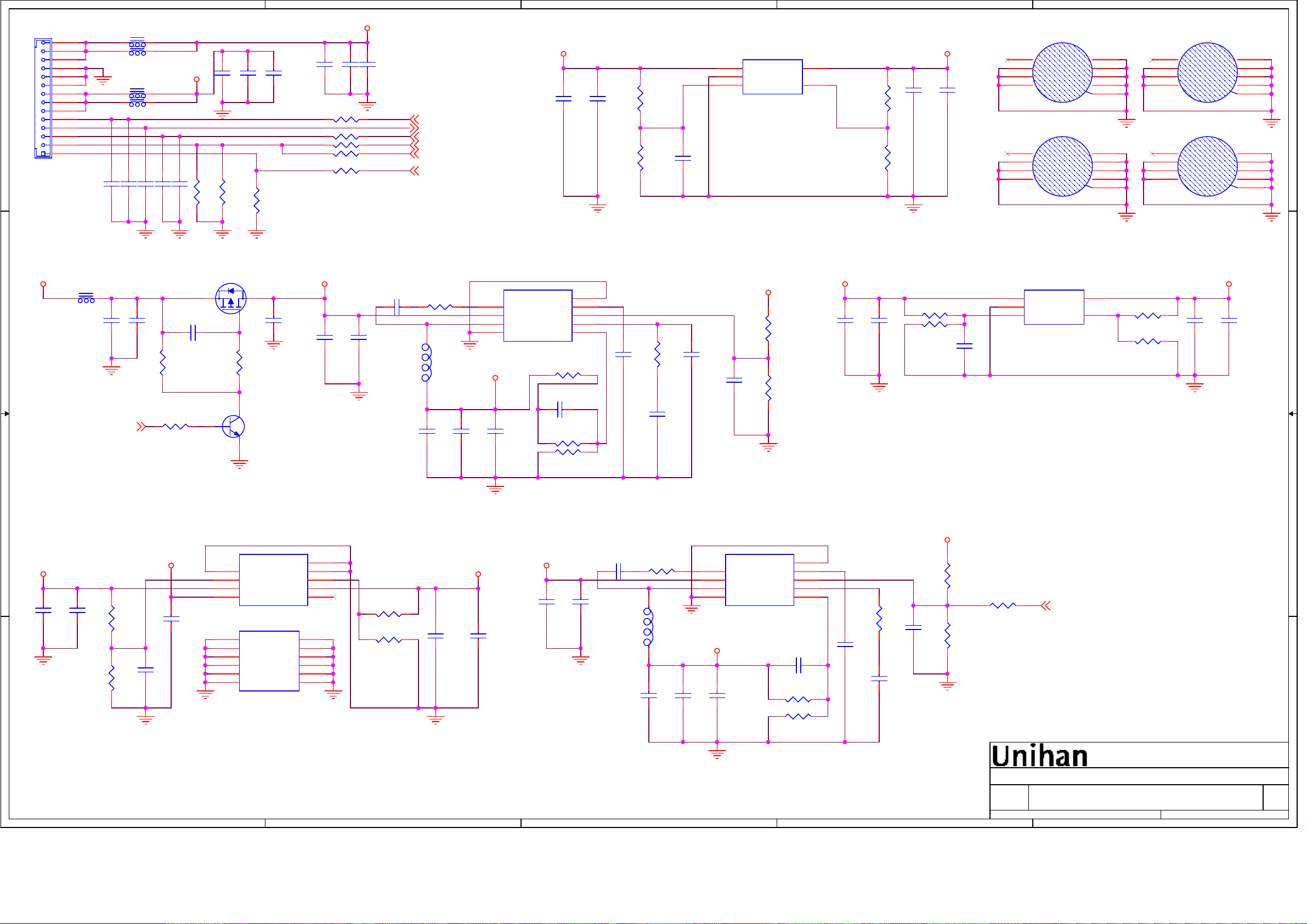

DC to DC

Title :

Engineer:

MAIN BOARD

Size Project Name

L2300

B

Date: Sheet of

5

4

3

2

Date: Sheet of

L2300

Engineer:

1

DC to DC

Jeff Y Hsiao/Jerry Lo

Rev

1.03a

4 23Thursday, December 20, 2012

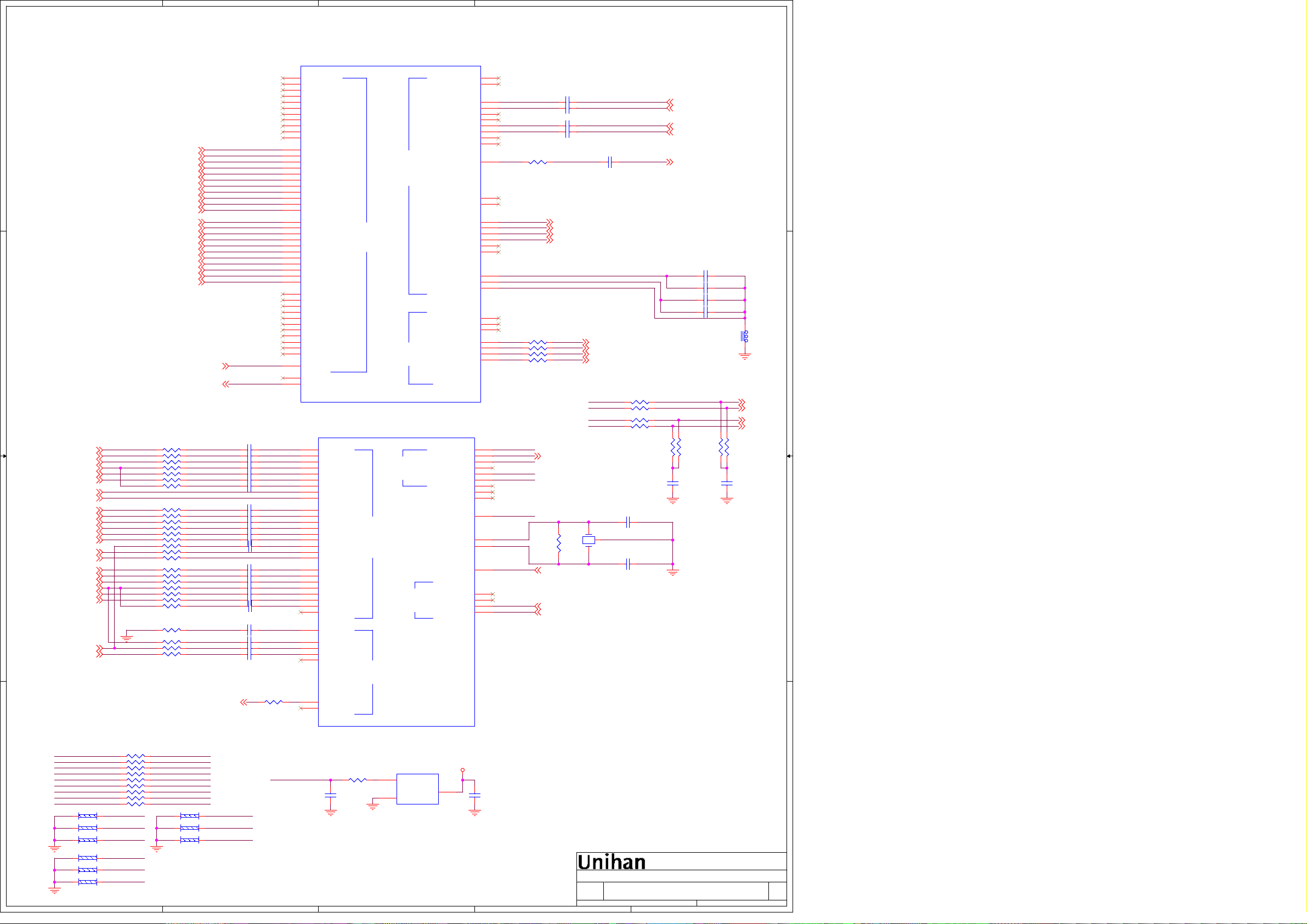

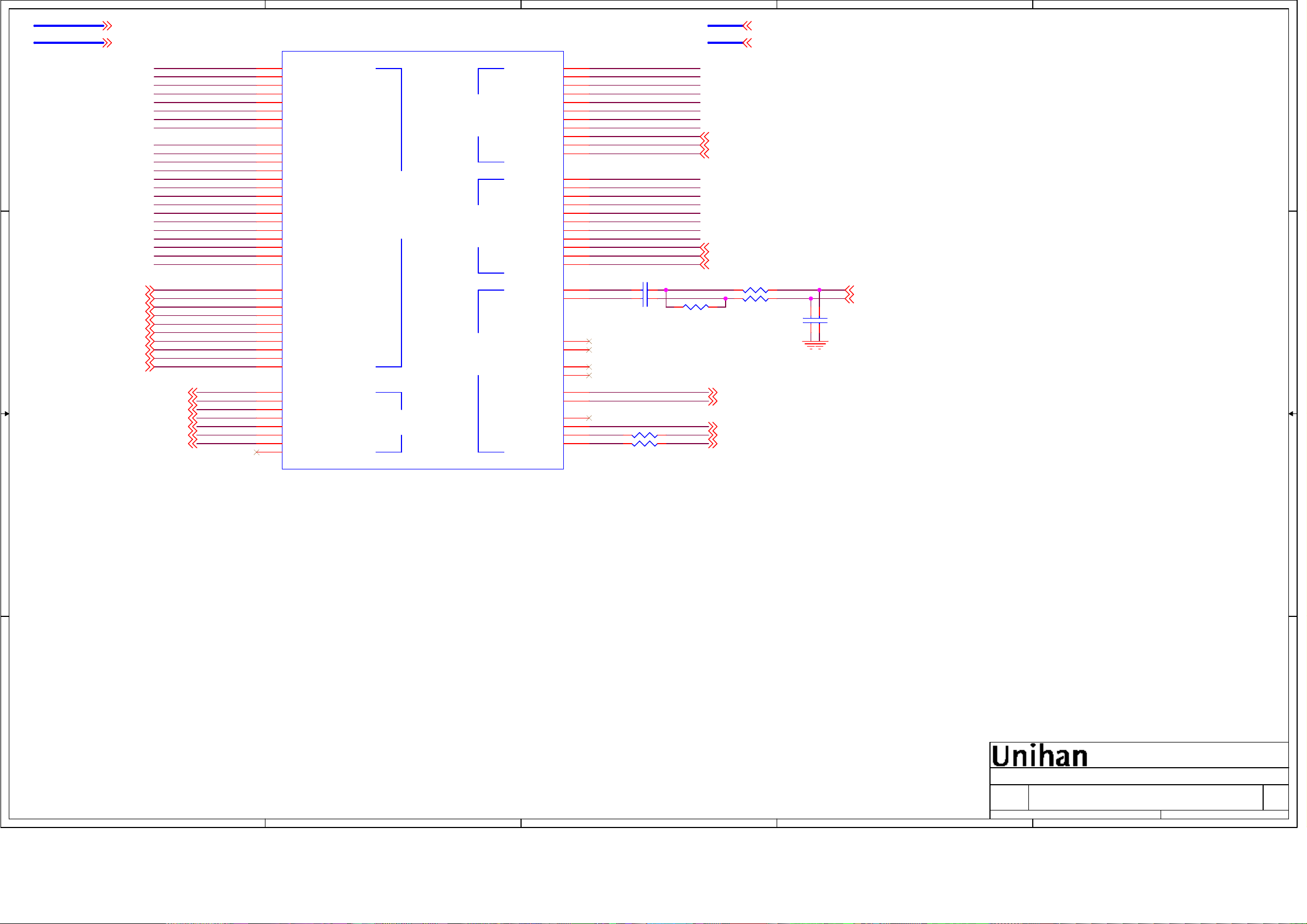

5

D D

HDMI_B_RX0N11 HDMI_B_RX0P11 HDMI_B_RX1N11 HDMI_B_RX1P11 HDMI_B_RX2N11 HDMI_B_RX2P11 HDMI_B_RXCN11 HDMI_B_RXCP11 HDMI_B_SCL11 HDMI_B_SDA11 HDMI_B_HP11

HDMI_C_RX0N11 HDMI_C_RX0P11 HDMI_C_RX1N11 HDMI_C_RX1P11 HDMI_C_RX2N11 HDMI_C_RX2P11 HDMI_C_RXCN11 HDMI_C_RXCP11 HDMI_C_SCL11 HDMI_C_SDA11 HDMI_C_HP11

C C

HDMI_CEC11

SPDIF_OUT18

1 2

VGA_R-12 VGA_R+12 VGA_G-12 VGA_G+1 2 VGA_B-12 VGA_B+12

VGA_HS12 VGA_VS12

SC_R-14 SC_R+14,5 SC_G-14 SC_G+14 SC_B-14 SC_B+14

SC_FS114 SC_FB114

B B

PR-13 PR+13 Y-13 Y+13 PB-13 PB+13

SC_CVBS14

SC_R+14,5

R50 130 OHM

1 2

R53 100 Ohm

1 2

R56 130 OHM

1 2

R57 100 Ohm

1 2

R58 130 OHM

1 2

R59 100 Ohm

1 2

R60 470 OHM

1 2

R61 130 OHM

1 2

R62 100 Ohm

1 2

R63 130 OHM

1 2

R64 100 Ohm

1 2

R65 130 OHM

1 2

R66 100 Ohm

1 2

R68 470 OHM

1 2

R69 100 Ohm

1 2

R70 100 Ohm

1 2

R72 130 OHM

1 2

R77 100 Ohm

1 2

R73 130 OHM

1 2

R71 100 Ohm

1 2

R76 130 OHM

1 2

R75 100 Ohm

1 2

R74 470 OHM

1 2

R78 130 OHM

1 2

R79 100 Ohm

1 2

R80 100 Ohm

1 2

R81 100 Ohm

4

AD1

AD4

1 2

12 12 12 12 12 12 12

12 12 12 12 12 12

12

12 12 12

C60 0.047UF/25V C61 0.047UF/25V C62 0.047UF/25V C63 0.047UF/25V C64 0.047UF/25V C65 0.047UF/25V C66 1000PF/50V

C69 0.047UF/25V C70 0.047UF/25V C71 0.047UF/25V C73 0.047UF/25V C74 0.047UF/25V C75 0.047UF/25V C76 1000PF/50V

C81 0.047UF/25V C97 0.047UF/25V C102 0.047UF/25V C90 0.047UF/25V C84 0.047UF/25V C82 0.047UF/25V C83 1000PF/50V

C85 0.047UF/25V

C86 0.047UF/25V C87 0.047UF/25V C88 0.047UF/25V

M1 N3 N1 N2

P3

P2 M3 M2

V5

V4

J1 K3 K1 K2 L3 L2

J3

J2

U5 U6

T5

R1

T3 T1 T2

U3 U2 R3 R2

V6

W6

F1

G3 G1 G2 H3 H2

F3 F2

R6

T4

R5

T6

E6 E5

U7C

RXA0N RXA0P RXA1N RXA1P RXA2N RXA2P RXACKN RXACKP DDCDA_CK DDCDA_DA HOTPLUGA

RXB0N RXB0P RXB1N RXB1P RXB2N RXB2P RXBCKN RXBCKP DDCDB_CK DDCDB_DA HOTPLUGB

RXC0N RXC0P RXC1N RXC1P RXC2N RXC2P RXCCKN RXCCKP DDCDC_CK DDCDC_DA HOTPLUGC

RXD0N RXD0P RXD1N RXD1P RXD2N RXD2P RXDCKN RXDCKP DDCDD_CK DDCDD_DA HOTPLUGD

CEC

SPDIF_IN SPDIF_OUT

U7E

Y3 W2 W1 W3

V2

V3

V1

AC1 AC2

AB2 AB1 AB3 AA1 AA3

Y2

AA2 AC3 AC4

AA8

Y7

AA7

Y6

AB6 AA6 AA5 AB8

Y5

Y4 W5 W4

AB5

RIN0M RIN0P GIN0M GIN0P BIN0M BIN0P SOGIN0 HSYNC0 VSYNC0

RIN1M RIN1P GIN1M GIN1P BIN1M BIN1P SOGIN1 HSYNC1 VSYNC1

RIN2M RIN2P GIN2M GIN2P BIN2M BIN2P SOGIN2 HSYNC2

VCOM

CVBS0 CVBS1 CVBS2 CVBS3

HDMI

SPDIF

RGB

3

Analog

Audio

I2S

PHY

USB

LINEIN_L0

LINEIN_R0

LINEIN_L2

LINEIN_R2

LINEIN_L3

LINEIN_R3

LINEIN_L4

LINEIN_R4

LINEIN_L5

LINEIN_R5

EAR_OUTL

EAR_OUTR

LINEOUT_L0

LINEOUT_R0

LINEOUT_L2

LINEOUT_R2

LINEOUT_L3

LINEOUT_R3

AUVRP AUVAG AUVRM

I2S_IN_BCK

I2S_IN_SD

I2S_IN_WS

I2S_OUT_BCK

I2S_OUT_MCK

I2S_OUT_WS

I2S_OUT_SD

MSD8841BX

GPIO55/LED[0]

GPIO56/LED[1]

GPIO58 GPIO61 GPIO62

RESET

XIN

XOUT

IRIN

DM_P0

DP_P0

DM_P1

DP_P1

ARC0

TN

TP

RP

RN

Y12 AA12

AA11

LINEIN_L2

AB11

LINEIN_R2

AE8 AC9 Y8

LINEIN_L4

Y9

LINEIN_R4

AA10 AB9

NC

N4

R41 0 Ohm

AA9 Y10

AC12 AE12 AC11 AD10 AD11 AE11

AD9

AU_VRP

AC10

AU_VAG

AE9

AU_VRM

C8 D8 D9

B10

R42 33 OHM

C9

R43 33 OHM

C10

R44 33 OHM

B9

R45 33 OHM

B5

TN_C

B4 C5

TP_C

C4 C6

RP_C

A6

RN_C

C3 A3 B3

N5

System-RST

AE3

XTALI

AE2

XTALO

G4

D1 D2 AD12 AC13

2

C51 2.2UF/10V C52 2.2UF/10V

C53 2.2UF/10V C54 2.2UF/10V

1 2

HP_Out_L 15 HP_Out_R 1 5 SC_AUOUT_L 14 SC_AUOUT_R 14

1 2 1 2 1 2 1 2

Link_LED 21

12

R67 1MOhm

IRIN 6

USB1_DM 19 USB1_DP 19

12 12

NC

1 2

C55 0.047UF/25V

I2S_OUT_BCK 15,6 I2S_OUT_MCK 15,6

I2S_OUT_WS 15

I2S_OUT_SD 15

TN_C

R46 0 OhmNC

TP_C

R47 0 OhmNC

RP_C

R48 0 OhmNC

RN_C

R49 0 OhmNC

C72 27PF/50V

12

X1

GND

24MHZ

3

C77 27PF/50V

1 2 1 2

1 2

1

COMP_AU_LIN 13 COMP_AU_RIN 13

SC_AU_LIN 14 SC_AU_RIN 14

HDMIB_ARC 11

120Ohm/100Mhz

NC

R52

R54

49.9 OHM

12

C56 0.1UF/16V

C57 10UF/10V

C58 1UF/16V

C59 4.7UF/10V

12

NC

R51

49.9 OHM

12

NC

C67

0.1UF/16V

12

FB9

12

NC

R55

49.9 OHM

12

NC

C68

0.1UF/16V

2 1

MDI_TN 21 MDI_TP 21

MDI_RP 21 MDI_RN 2 1

CVBS

R83

SC_CVBS_OUT14

0 Ohm

AA4

12

AB4

CVBSOUT1 CVBSOUT2

MSD8841BX

VGA_R+ VGA_G+ VGA_B+

SC_G+ SC_B+ Y+

A A

PB+ PR+

1 2

R586 0Ohm

1 2

R587 0Ohm

1 2

R588 0Ohm

1 2

R592 0Ohm

1 2

R593 0Ohm

1 2

R594 0Ohm

5

1 2

R84 75 OHM

1 2

R85 75 OHM

1 2

R86 75 OHM

1 2

R89 75 OHM

1 2

R87 75 OHM

1 2

R90 75 OHM

1 2

R91 75 OHM

1 2

R92 75 OHM

1 2

R93 75 OHM

Y-

PB-

PR-

SC_R-

SC_G-

SC_B-

VGA_RVGA_GVGA_BSC_R-SC_R+ SC_GSC_BYPBPR-

1 2

R589 0Ohm

1 2

R590 0Ohm

1 2

R591 0Ohm

VGA_R-

VGA_G-

VGA_B-

4

System-RST

VCC

+3.3V_Standby

3

12

C89

0.1UF/16V

MSD8841

Title :

Engineer:

L2300

Engineer:

MAIN BOARD

Size Project Na me

Custom

Date: Sheet of

2

MSD8841

Jeff Y Hsiao/Jerry Lo

5 23Thursday, December 20 , 2012

1

Rev

1.03a

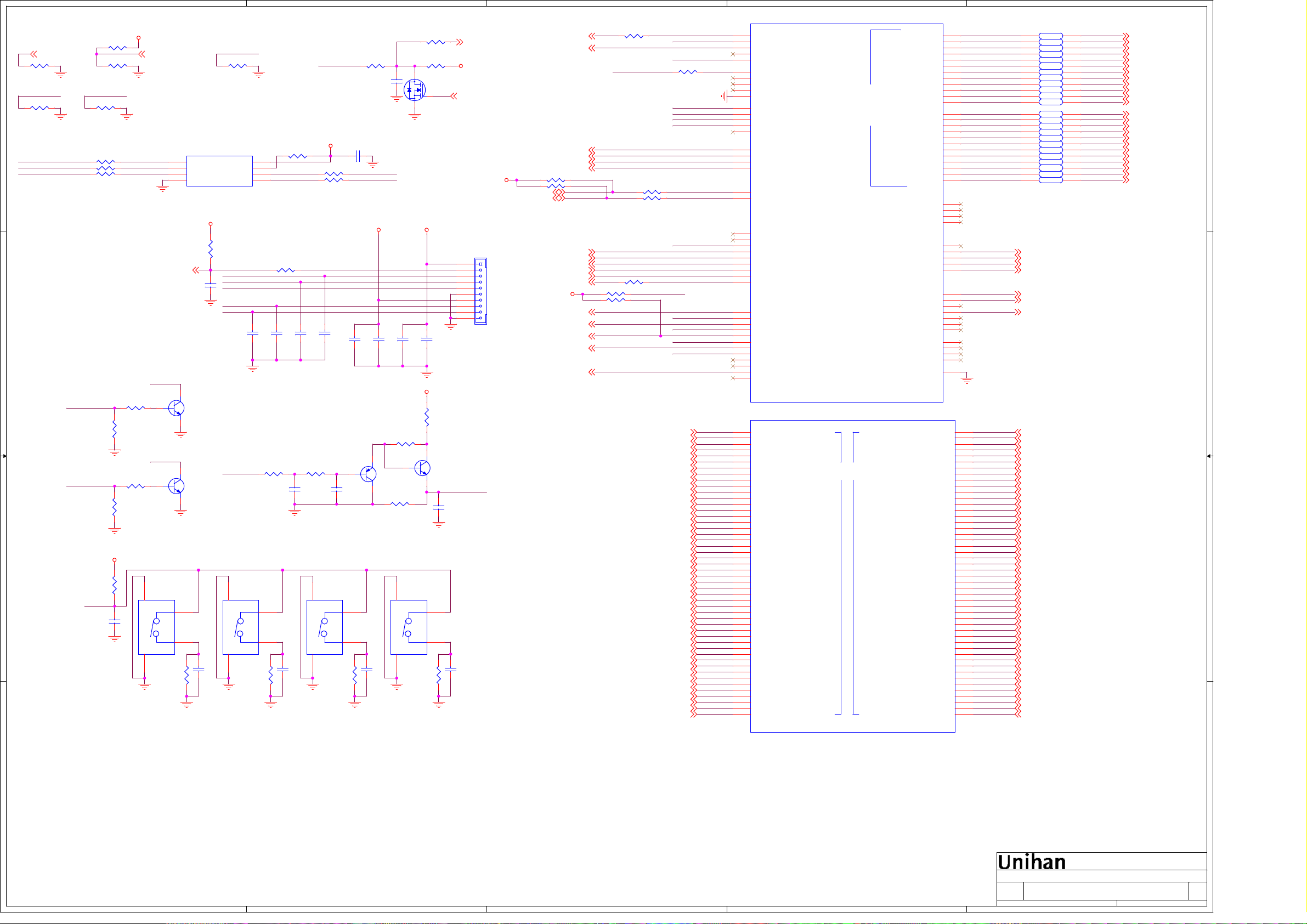

R88

470 OHM

NC

12

C278

0.1UF/16V

12

U8

2

RESET

1

GND

G690H293T73UF

3

5

+3.3V_Normal

R118

NC

4.7KOHM

R117

4.7KOHM

12

1 2

12

R567

4.7KOHM

1 2

12

R568

4.7KOHM

12

R583 10KOhm

R585 10KOhm

CS

WP

Ring_R

B

1

Q43 PMBS3904

Ring_G

B

1

Q44 PMBS3904

SW1

3

TACT_SWITCH_2P

1

P_GND1

2

P_GND2

4

R22 470 OHM

U11

1

CS#

2

DO(IO1)

3

WP#(IO2)

4

GND

+3.3V_Standby

R152 22KOHM

IRIN5

C98

NC

22PF/50V

3 C

E 2

3 C

E 2

1

2

12

I2S_OUT_BCK 15,5 I2S_OUT_MCK 15,5

12

R116

4.7KOHM

PWM1 PWM0

12

R122

D D

4.7KOHM

Boot-Flash-CSN SPI_DO DO Boot-Flash_WPN

C C

B B

R123

4.7KOHM

1 2

R165 33 OHM

1 2

R163 33 OHM

1 2

R167 33 OHM

Ring_LED_R

Ring_LED_G

+3.3V_Standby

R21

3.3KOHM

KEY0

C10

0.1UF/16V

W25Q64FVSSIG

12

C23

0.1UF/16V

PWM_PM

R121

4.7KOHM

VCC

HOLD#(IO3)

CLK

DI(IO0)

Ring_R Ring_G LED_Brighness

MI2C-SCL MI2C-SDA

PWM_PM

SW2

3

TACT_SWITCH_2P

P_GND1

P_GND2

4

12

+3.3V_Standby

R155 10KOhm

C101

22PF/50V

12

1 2

12

C24

0.1UF/16V

12

C440

0.1UF/16V

R157 10KOhm

C286

0.1UF/16V

SW3

3

TACT_SWITCH_2P

P_GND1

P_GND2

4

8 7 6

CLK

5

DI SPI_DI

1 2

R154 33 OHM

12

C100

22PF/50V

R153 10KOhm

1 2

1

2

12

R29

1.3KOHM

ACDetect_A

12

C443

0.1UF/16V

R23 11KOHM

4

R137 33 OHM

1 2

C92

0.01UF/50V

1 2

C99 0.1UF/16V

12

SPI_CK

R16133 OHM

12

R16233 OHM

+3.3V_Normal

12

C446

C105

0.1UF/16V

1UF/16V

2 E

Q41

B

1

PMBS3906

12

C288

0.01UF/50V

1

2

C

3

1

2

12

C21

0.1UF/16V

32

12

3

D

S

2

+3.3V_Standby

12

C103

0.1UF/16V

+5V_Standby

R564 100 Ohm

R559

4.7KOHM

Q42 PMBS3904

B

1

R560

4.7KOHM

12

SW4

3

TACT_SWITCH_2P

P_GND1

P_GND2

4

R20

3.3KOHM

R134 33 OHM

1 2

R138 10KOhm

Q7 2N7002

1

G

12

C104

10UF/10V

12

3

C

E 2

12

1

2

12

ACD_INT 10,11

12

+3.3V_Normal

ACDetect 4

+3.3V_Normal

1 2 3 4 5 6 7 8 9

10

LED_Brighness

C289

0.1UF/16V

12

C22

0.1UF/16V

CN3

WAFER_HD_1X10P

PWM_LR17

BRIGHT_ADJ17

UART_RX12 UART_TX12 AMP_RST15 AMP_PDN15

1 2

R106 1KOhm

1 2

R107 1KOhm

MI2C-SCL11,15,17 MI2C-SDA11,15,17

FRC_3D_FLAG_EN17

HDMIB_ARC_Detect11

SCANNING_BL_EN4

+3.3V_Standby

NORMAL_PWR_CTL4

MHL_PWR_FAULT11

MI2C-SCL MI2C-SDA

USB1_OCD19

MHL_INT11

Ear_DET15

USB1_PWR_SW19

MHL_RESET11

12V_EN4

3

NC

1 2

R115 33 OHM

KEY0

1 2

R108 33 OHM

1 2

R109 33 OHM

1 2

R143 33 OHM

1 2

R110 10KOhm

1 2

R111 10KOhm

PWM0 PWM1

PWM_PM

1 2

R103 1KOhm

SPI_CK SPI_DI SPI_DO TEST1

ACDetect_A

TEST1

Ring_LED_G

Boot-Flash-CSN

Ring_LED_R

Boot-Flash_WPN

A-TMA09 A-TMA19 A-TMA29 A-TMA39 A-TMA49 A-TMA59 A-TMA69 A-TMA79 A-TMA89 A-TMA99 A-TMA109 A-TMA119 A-TMA129 A-TMA139 A-TMA149 A-TMDQL09 A-TMDQL19 A-TMDQL29 A-TMDQL39 A-TMDQL49 A-TMDQL59 A-TMDQL69 A-TMDQL79 A-TMDQU09 A-TMDQU19 A-TMDQU29 A-TMDQU39 A-TMDQU49 A-TMDQU59 A-TMDQU69 A-TMDQU79 A-TMCASB9 A-TMRASB9 A-TMWEB9 A-TMDML9 A-TMDMU9 A-TMODT9 A-TMBA09 A-TMBA19 A-TMBA29 A-TMRESETB9 A-TMCKE9 A-TMCK9 A-TMCKB9 A-TMDQSL9 A-TMDQSLB9 A-TMDQSU9 A-TMDQSUB9

U7D

N24

PWM0

N25

PWM1

P23

PWM2

N23

PWM3

F6

PWM_PM

G5

SAR0

H5

SAR1

H6

SAR2

J6

SAR3

J5

GND51

A2

SPI_CK

B2

SPI_DI

B1

SPI_DO

C2

TEST1

C1

SPI_CZ

P5

DDCA_CK/UART0_RX

R4

DDCA_DA/UART0_TX

R23

GPIO64/UART3_RX

P24

GPIO65/UART3_TX

R24

DDCR_CK

R25

DDCR_DA

D4

GPIO43/UART2_TX

E4

GPIO44/UART2_RX

D7

GPIO45

D6

GPIO46

B8

GPIO47/UART4_TX

A8

GPIO48/UART4_RX

F7

GPIO49

A9

GPIO51

F4

GPIO52

K5

GPIO6

M5

GPIO7/PM_UART1_TX

K6

GPIO8

L5

GPIO12/CSZ1

J4

GPIO10

M4

GPIO11/PM_UART1_RX

M7

GPIO13

M6

GPIO14

K4

GPIO15

D3

GPIO16

L6

GPIO17

N6

GPIO18

MSD8841BX

U7A

A11

A_DDR3_A0

C14

A_DDR3_A1

B11

A_DDR3_A2

F12

A_DDR3_A3

C15

A_DDR3_A4

E12

A_DDR3_A5

A14

A_DDR3_A6

D11

A_DDR3_A7

B14

A_DDR3_A8

D12

A_DDR3_A9

C16

A_DDR3_A10

C13

A_DDR3_A11

A15

A_DDR3_A12

E11

A_DDR3_A13

B13

A_DDR3_A14

D17

A_DDR3_DQL0

G15

A_DDR3_DQL1

B21

A_DDR3_DQL2

F15

A_DDR3_DQL3

B22

A_DDR3_DQL4

F14

A_DDR3_DQL5

A22

A_DDR3_DQL6

D15

A_DDR3_DQL7

G16

A_DDR3_DQU0

B20

A_DDR3_DQU1

F16

A_DDR3_DQU2

C21

A_DDR3_DQU3

E16

A_DDR3_DQU4

A20

A_DDR3_DQU5

D16

A_DDR3_DQU6

C20

A_DDR3_DQU7

A12

A_DDR3_CASZ

B12

A_DDR3_RASZ

C12

A_DDR3_WEZ

E15

A_DDR3_DML

A21

A_DDR3_DMU

E14

A_DDR3_ODT

F13

A_DDR3_BA0

B15

A_DDR3_BA1

E13

A_DDR3_BA2

F11

A_DDR3_RESET

B16

A_DDR3_CKE

C17

A_DDR3_MCLK

A17

A_DDR3_MCLKZ

B19

A_DDR3_DQSL

C18

A_DDR3_DQSLB

B18

A_DDR3_DQSU

A18

A_DDR3_DQSUB

2

PWM

SAR

SPI

UART

I2C

GPIO

PM

MIU0 MIU1

LVDS

GPIO

LVB0P LVB0N LVB1P LVB1N LVB2P

LVB2N LVBCKP LVBCKN

LVB3P

LVB3N

LVB4P

LVB4N

LVA0P

LVA0N

LVA1P

LVA1N

LVA2P

LVA2N LVACKP LVACKN

LVA3P

LVA3N

LVA4P

LAV4N

NC5 NC7 NC6 NC8

GPIO131 GPIO132 GPIO133 GPIO134 GPIO135

GPIO36 GPIO37 GPIO38 GPIO39 GPIO40 GPIO41 GPIO42

NC1 NC2 NC3 NC4

GND15

B_DDR3_A0 B_DDR3_A1 B_DDR3_A2 B_DDR3_A3 B_DDR3_A4 B_DDR3_A5 B_DDR3_A6 B_DDR3_A7 B_DDR3_A8

B_DDR3_A9 B_DDR3_A10 B_DDR3_A11 B_DDR3_A12 B_DDR3_A13 B_DDR3_A14

B_DDR3_DQL0 B_DDR3_DQL1 B_DDR3_DQL2 B_DDR3_DQL3 B_DDR3_DQL4 B_DDR3_DQL5 B_DDR3_DQL6

B_DDR3_DQL7 B_DDR3_DQU0 B_DDR3_DQU1 B_DDR3_DQU2 B_DDR3_DQU3 B_DDR3_DQU4 B_DDR3_DQU5 B_DDR3_DQU6 B_DDR3_DQU7

B_DDR3_CASZ

B_DDR3_RASZ

B_DDR3_WEZ

B_DDR3_DML

B_DDR3_DMU

B_DDR3_ODT

B_DDR3_BA0 B_DDR3_BA1 B_DDR3_BA2

B_DDR3_RESET

B_DDR3_CKE

B_DDR3_MCLK

B_DDR3_MCLKZ

B_DDR3_DQSL

B_DDR3_DQSLB

B_DDR3_DQSU

B_DDR3_DQSUB

V23 U24 V25 V24 W25 W23 Y23 W24 AA23 Y24 AA25 AA24

AB25 AB23 AC25 AB24 AD25 AC24 AE24 AD24 AE23 AC23 AC22 AD23

T23 T25 T24 U23

AA18 U22 AB22 T22 W21

C7 E3 F5 B6 E2 D5 B7

A1 A25 AE1 AE25

E8

B23 D25 F22 G22 E24 F21 E23 D22 D24 D21 C24 C25 F23 E21 D23 L23 J24 L24 J23 M24 H23 M23 K23 G21 L22 H22 K20 H20 L21 H21 K21 B24 B25 A24 H24 L20 D20 G20 F24 F20 E20 F25 G25 G23 K24 K25 J21 J20

LVA0N

RN1A 10 OHM

LVA0P

RN1B 10 OHM

LVA1N

RN1C 10 OHM

LVA1P

RN1D 10 OHM

LVA2N

RN3A 10 OHM

LVA2P

RN3B 10 OHM

LVACKN

RN3D 10 OHM

LVACKP

RN3C 10 OHM

LVA3N

RN2B 10 OHM

LVA3P

RN2A 10 OHM

LVA4N

RN2C 10 OHM

LVA4P

RN2D 10 OHM

LVB0N

RN4A 10 OHM

LVB0P

RN4B 10 OHM

LVB1N

RN4C 10 OHM

LVB1P

RN4D 10 OHM

LVB2N

RN5A 10 OHM

LVB2P

RN5B 10 OHM

LVBCKN

RN5C 10 OHM

LVBCKP

RN5D 10 OHM

LVB3N

RN6A 10 OHM

LVB3P

RN6B 10 OHM

LVB4N

RN6D 10 OHM

LVB4P

RN6C 10 OHM

Panel_VCC_ON 17 Demod-RST 22 BL_EN 4 PCM_5V_CTL 10

SCART_MUTE 14 MSB1230_detect 22

Ear_MUTE 15

B-TMA0 9 B-TMA1 9 B-TMA2 9 B-TMA3 9 B-TMA4 9 B-TMA5 9 B-TMA6 9 B-TMA7 9 B-TMA8 9 B-TMA9 9 B-TMA10 9 B-TMA11 9 B-TMA12 9 B-TMA13 9 B-TMA14 9 B-TMDQL0 9 B-TMDQL1 9 B-TMDQL2 9 B-TMDQL3 9 B-TMDQL4 9 B-TMDQL5 9 B-TMDQL6 9 B-TMDQL7 9 B-TMDQU0 9 B-TMDQU1 9 B-TMDQU2 9 B-TMDQU3 9 B-TMDQU4 9 B-TMDQU5 9 B-TMDQU6 9 B-TMDQU7 9 B-TMCASB 9 B-TMRASB 9 B-TMWEB 9 B-TMDML 9 B-TMDMU 9 B-TMODT 9 B-TMBA0 9 B-TMBA1 9 B-TMBA2 9 B-TMRESETB 9 B-TMCKE 9 B-TMCK 9 B-TMCKB 9 B-TMDQSL 9 B-TMDQSLB 9 B-TMDQSU 9 B-TMDQSUB 9

1 2 3 4 5 6 7 8 1 2 3 4 7 8 5 6 3 4 1 2 5 6 7 8

1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 7 8 5 6

1

RXA0- 17 RXA0+ 1 7 RXA1- 17 RXA1+ 1 7 RXA2- 17 RXA2+ 1 7 RXACK- 17 RXACK+ 17 RXA3- 17 RXA3+ 1 7 RXA4- 17 RXA4+ 1 7

RXB0- 17 RXB0+ 1 7 RXB1- 17 RXB1+ 1 7 RXB2- 17 RXB2+ 1 7 RXBCK- 17 RXBCK+ 17 RXB3- 17 RXB3+ 1 7 RXB4- 17 RXB4+ 1 7

MSD8841BX

A A

MSD8841

Title :

Engineer:

L2300

Engineer:

1

MAIN BOARD

Size Project Nam e

C

Date: Sheet of

5

4

3

2

Date: Sheet of

MSD8841

Jeff Y Hsiao/Jerry Lo

Rev

1.03a

6 23Thursday, December 20, 2012

1.03a

Rev

5

4

3

2

1

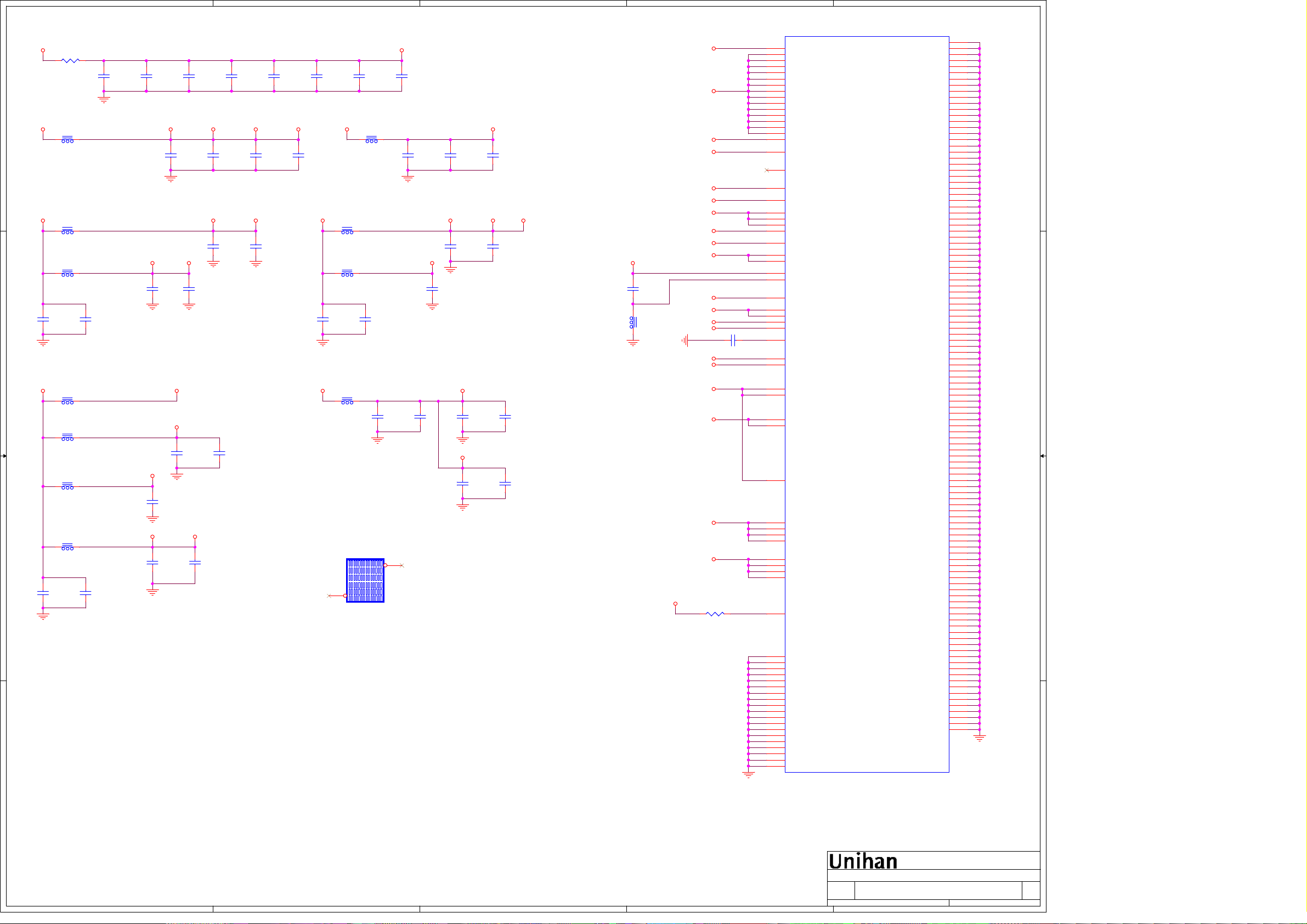

+1.2V_Normal

VDDC

AVDDLV_USB

1 2

R168 0 Ohm

D D

+1.2V_Normal

12

NC

C106 22UF/6.3V

12

C118 10UF/10V

12

C119

0.1UF/16V

12

C107

0.1UF/16V

12

C108

0.1UF/16V

12

C109

0.1UF/16V

AVDDL_MODAVDDLV_USB AVDD_LAN12 AVDD12_ADC

21

FB11 120OHM

+3.3V_Standby

12

C111 10UF/10V

12

C112

0.1UF/16V

12

C113

0.1UF/16V

AVDD_DVI_USB

12

C114

0.1UF/16V

+3.3V_Normal

21

FB12 120OHM

AVDD_DMPLL

AVDD_MPLL

12

C121

0.1UF/16V

12

C122

0.1UF/16V

21

FB14 120OHM

12

C129 10UF/10V

C C

+2.5V_Normal

12

C130

0.1UF/16V

12

C125

0.1UF/16V

C126

0.1UF/16V

12

AVDD_PGA25 VDDIO_0

+1.5V_Normal

21

FB17 120OHM

AVDD_ADC25

+1.2V_Normal

FB13 120OHM

FB15 120OHM

C131 10UF/10V

FB18 120OHM

12

C110

0.1UF/16V

FB10 120OHM

21

12

21

C132

0.1UF/16V

12

C134 10UF/10V

12

C120

0.1UF/16V

12

AVDD_LPLL

C115 10UF/10V

12

C135

0.1UF/16V

VDDP AVDD_AU AVDD_EARAVDD_ALIVE

12

C127

0.1UF/16V

12

C116

0.1UF/16V

12

C123

0.1UF/16V

12

C136

0.1UF/16V

DVDD_DDR

12

C117

0.1UF/16V

C124

0.1UF/16V

12

C137

0.1UF/16V

AVDD_PGA25

12

C128

0.1UF/16V

FB16 120OHM

2 1

VDDC

AVDD12_ADC

AVDDL_MOD

AVDD_LAN12

DVDD_DDR

AVDD_ADC25

AVDD_REF25

AVDD_LAN25

AVDD_MOD

PGA_COM

AVDD_ALIVE

AVDD_DVI_USB

AVDD_MPLL

AVDD_DMPLL

AVDD_AU AVDD_EAR

VDDP

AVDD_LPLL

12

C1331UF/16V

21

FB19 120OHM

FB20 120OHM

12

C138

AVDD_MOD

0.1UF/16V

21

12

C142

0.1UF/16V

AVDD_REF25 AVDD_LAN25

12

C139

0.1UF/16V

VDDIO_1

12

C140

0.1UF/16V

12

C141

0.1UF/16V

VDDIO_0

21

FB21

12

C145 10UF/10V

120OHM

12

C146

0.1UF/16V

B B

12

C143

0.1UF/16V

12

C144

0.1UF/16V

HEATSINK1

2

HEATSINK

NC

1

VDDIO_1

+2.5V_Normal

1 2

R169 10KOhm

K12

K10 K11

L10 M12 M13 N12

P14

P15 R10 R14 R15

T10

P10

R16

P19

L11

M14

W7 W8 W9

W14

V16 W16

W11 W12

M19

R19

T19

W17 W18

V19

J17 K16 K15 L15

K17 L17

M17

L16

A23 B17

C11 C19 C22 C23 D14 D18 D19

E17 E18 E19 E22

F17 F18 F19

G9 H9

V8

N7

L7

K7 M8 P6

T7 R7

E9

A5

F8

G8

U7F

MSD8841BX

AVDDLV_USB VDDC1 VDDC2 VDDC3 VDDC4 VDDC5 VDDC6 VDDC7 VDDC8 VDDC9 VDDC10 VDDC11 VDDC12 VDDC13 VDDC14 AVDD12

AVDDL_MOD

FB_CORE

AVDD_LAN12

DVDD_DDR

AVDD_ADC25_1 AVDD_ADC25_2 AVDD_ADC25_3 AVDD_REF25

AVDD_LAN25

AVDD_MOD1 AVDD_MOD2

AVDD_PGA25 PGA_COM

AVDD_ALIVE

AVDD_DVI_USB2 AVDD_DVI_USB1 AVDD_MPLL AVDD_DMPLL

BYPASS

AVDD_AU33 AVDD_EAR33

VDDP1 VDDP2

AVDD_LPLL1 AVDD_LPLL2

VDDP3

AVDD_DDR0_1 AVDD_DDR0_3 AVDD_DDR0_2 AVDD_DDR0_4

AVDD_DDR1_1 AVDD_DDR1_3 AVDD_DDR1_4 AVDD_DDR1_2

TEST2

GND2 GND1 GND3 GND4 GND5 GND6 GND7 GND8 GND9 GND10 GND11 GND12 GND13 GND14 GND19 GND16 GND17 GND18 GND29

GND20 GND21 GND22 GND23 GND24 GND25 GND26 GND27 GND28 GND40 GND30 GND31 GND32 GND33 GND34 GND35 GND36 GND37 GND38 GND39 GND52 GND53 GND54 GND41 GND42 GND43 GND44 GND45 GND46 GND47 GND48 GND49 GND50 GND60 GND55 GND56 GND57 GND58 GND59 GND66 GND61 GND62 GND63 GND64 GND65 GND76 GND67 GND68 GND69 GND70 GND71 GND72 GND73 GND74 GND75 GND77 GND78 GND79 GND80 GND81 GND82 GND83 GND84 GND85 GND86 GND87 GND94 GND95 GND96 GND88 GND89 GND90 GND91 GND92

GND93 GND102 GND103

GND97

GND98

GND99 GND100 GND101 GND112 GND113 GND104 GND105 GND106 GND107 GND108 GND109 GND110 GND111 GND122 GND123 GND124 GND114 GND115 GND116 GND117 GND118 GND119 GND120 GND121 GND132 GND125 GND126 GND127 GND128 GND129 GND130 GND131 GND133 GND134 GND135

G10 G11 G12 G13 G14 G17 G18 G19 G24 H8 H10 H11 H12 H13 H14 H15 H16 H17 H18 H19 J7 J8 J9 J10 J11 J12 J13 J14 J15 J16 J18 J19 J25 K9 K13 K14 K18 K19 K22 L9 L12 L13 L14 L18 L19 M9 M10 M11 M15 M16 M18 M20 M21 M22 M25 N10 N11 N13 N14 N15 N16 N17 N19 N20 N21 N22 P7 P8 P9 P11 P12 P13 P16 P17 P18 R8 R9 R11 R12 R13 R17 R18 T8 T9 T11 T12 T13 T14 T15 T16 T17 T18 U7 U8 U9 U10 U11 U12 U13 U14 U15 U16 U17 V9 V10 V11 V12 V14 V15 V17 V18 W10 W13 W15

A A

MSD8841

Title :

Engineer:

L2300

Engineer:

1

MAIN BOARD

Size Projec t Name

Custom

Date: Sheet of

5

4

3

2

Date: Sheet of

MSD8841

Jeff Y Hsiao/Jerry Lo

7 23Thursday, December 20, 2012

Rev

1.03a

5

4

3

2

1

PAD_PCM_A[14:0] 10

PAD_PCM_D[7:0] 10

PAD_PCM_D0 PAD_PCM_D1 PAD_PCM_D2 PAD_PCM_D3 PAD_PCM_D4

NAND_ALE20 NAND_WPZ20 NAND_CEZ20 NAND_CLE20 NAND_REZ20 NAND_WEZ20 NAND_RBZ20

PAD_PCM_D5 PAD_PCM_D6 PAD_PCM_D7

PAD_PCM_A0 PAD_PCM_A1 PAD_PCM_A2 PAD_PCM_A3 PAD_PCM_A4 PAD_PCM_A5 PAD_PCM_A6 PAD_PCM_A7 PAD_PCM_A8 PAD_PCM_A9 PAD_PCM_A10 PAD_PCM_A11 PAD_PCM_A12 PAD_PCM_A13 PAD_PCM_A14

D D

PAD_PCM_IRQA_N_ACD10

PAD_PCM_OE_N10

C C

PAD_PCM_IORD_N10 PAD_PCM_CE_N10 PAD_PCM_WE_N10 PAD_PCM_CD_N10 PAD_PCM_RESET10 PAD_PCM_REG_N10 PAD_PCM_IOWR_N10 PAD_PCM_WAIT_N10

U7B

V20

PCM_D[0]/NF_AD[0]

AD22

PCM_D[1]/NF_AD[1]

AB21

PCM_D[2]/NF_AD[2]

AE17

PCM_D[3]/NF_AD[3]

AC18

PCM_D[4]/NF_AD[4]

AE18

PCM_D[5]/NF_AD[5]

AA19

PCM_D[6]/NF_AD[6]

AD18

PCM_D[7]/NF_AD[7]

AA21

PCM_A[0]

Y22

PCM_A[1]

R20

PCM_A[2]

W19

PCM_A[3]

T20

PCM_A[4]

AA22

PCM_A[5]

V21

PCM_A[6]

AB16

PCM_A[7]

W22

PCM_A[8]

AE20

PCM_A[9]

AD19

PCM_A[10]

AB17

PCM_A[11]

AB20

PCM_A[12]

AC20

PCM_A[13]

AE21

PCM_A[14]

Y19

PCM_IRQA_N

AD20

PCM_OE_N

AC19

PCM_IORD_N

AB18

PCM_CE_N

AD21

PCM_WE_N

AB19

PCM_CD_N

T21

PCM_RST

AA20

PCM_REG_N

Y18

PCM_IOWR_N

U21

PCM_WAIT_N

R21

NF_ALE

W20

NF_WPZ

Y20

NF_CEZ

AC21

NF_CLE

P21

NF_REZ

P22

NF_WEZ

Y21

NF_RBZ

P20

NF_CEZ1

CI

PCMCIA

P-FLASH

TS1

(In/Out)

TS0

(In)

Front End

TS1_D[0] TS1_D[1] TS1_D[2] TS1_D[3] TS1_D[4] TS1_D[5] TS1_D[6]

TS1_D[7] TS1_CLK TS1_VLD

TS1_SYNC

TS0_D[0]

TS0_D[1]

TS0_D[2]

TS0_D[3]

TS0_D[4]

TS0_D[5]

TS0_D[6]

TS0_D[7] TS0_CLK TS0_VLD

TS0_SYNC

VIFP VIFM

SIFP SIFM

IFAGC

RFAGC

GPIO73 GPIO74 GPIO75 GPIO76

AC14

PAD_TS1_D0

AD14

PAD_TS1_D1

AE14

PAD_TS1_D2

AD15

PAD_TS1_D3

AC15

PAD_TS1_D4

AD16

PAD_TS1_D5

AD17

PAD_TS1_D6

AC17

PAD_TS1_D7

AC16 AE15 AD13

Y16

PAD_TS0_D0

AA17

PAD_TS0_D1

AA16

PAD_TS0_D2

Y13

PAD_TS0_D3

AA13

PAD_TS0_D4

AA14

PAD_TS0_D5

AB14

PAD_TS0_D6

AA15

PAD_TS0_D7

AB15 Y15 Y14

AE6

IP

AD6

IM

AD7 AC7

AC8 AD8

AC5 AD5

AD3 AD2 AC6

R175 33 OHM

AE5

R176 33 OHM

ZIF_IP

ZIF_IM

C147

0.1UF/16V

1 2 1 2

C148

0.1UF/16V

1 2 1 2

1 2

PAD_TS1_CLK 10 PAD_TS1_VLD 10 PAD_TS1_SYNC 10

PAD_TS0_CLK 10 PAD_TS0_VLD 10 PAD_TS0_SYNC 10

NC

R171 180 OHM

TUNER_CTRL 16

MS_SCL 16,22 MS_SDA 16,22

PAD_TS1_D[7:0] 10

PAD_TS0_D[7:0] 10

R170

0 Ohm

1 2 1 2

R172

0 Ohm

IF_AGC 16 RF_AGC 16

C150

22PF/50V

NC

DIFP 16,22

C151

NC

DIFM 16,22

22PF/50V

12

MSD8841BX

B B

A A

MSD8841

Title :

Engineer:

MAIN BOARD

Size Project Name

L2300

B

Date: Sheet of

5

4

3

2

Date: Sheet of

L2300

Engineer:

MSD8841

Jeff Y Hsiao/Jerry Lo

8 23Thursday, December 20, 2012

1

8 23Thursday, December 20, 2012

Rev

1.03a

5

4

3

2

1

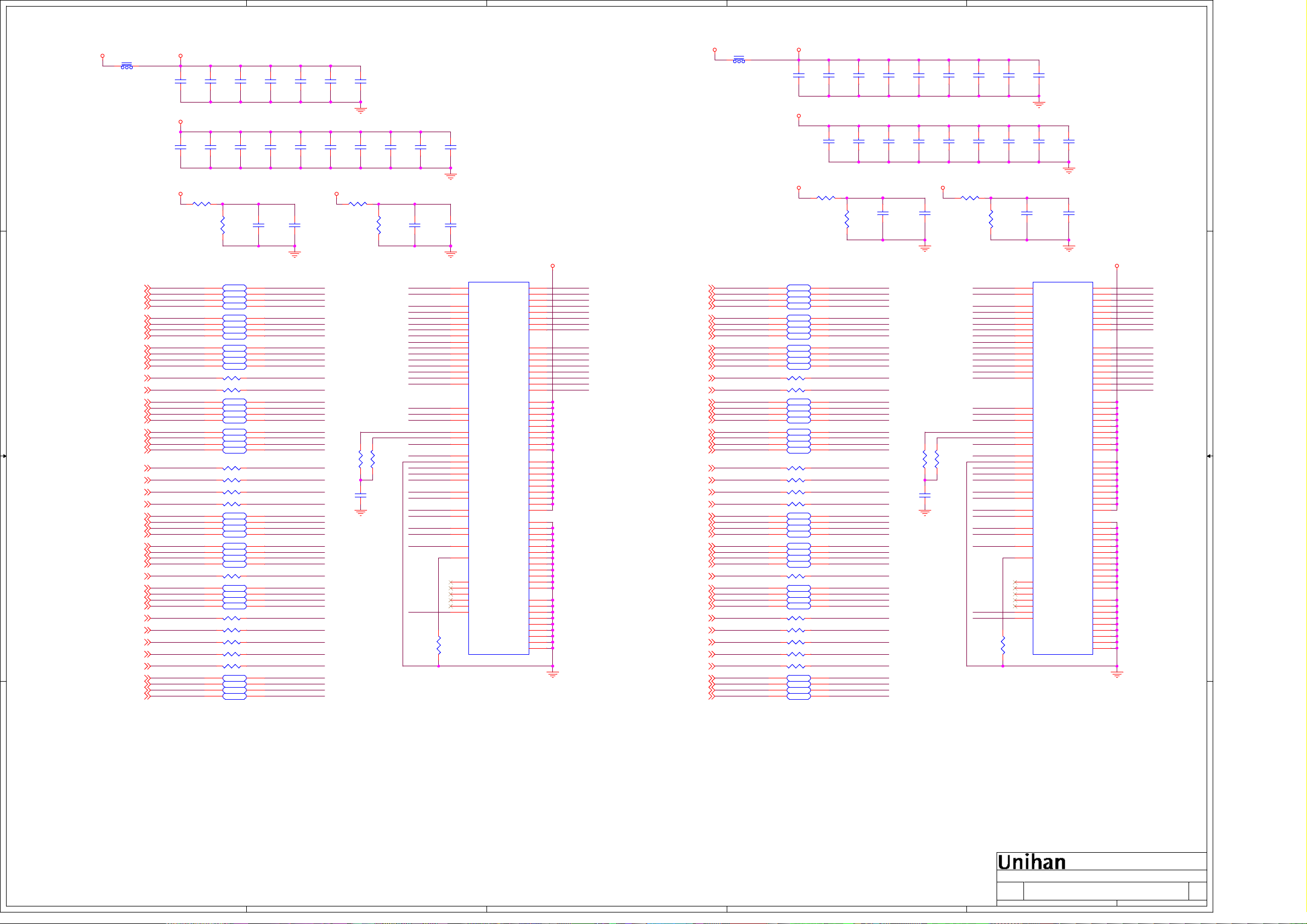

AVDD_DDR1

NC

12

C166

10UF/10V

AVDD_DDR1

1 2

R179 1KOhm

RN16BNC RN16ANC RN18ANC RN18DNC

RN17BNC RN17ANC RN16DNC RN16CNC

RN18CNC RN18BNC RN17DNC RN17CNC

R197NC

R198NC

RN19ANC RN19DNC RN19CNC RN19BNC

RN20CNC RN20BNC RN20DNC RN20ANC

R201NC

R202NC

R203NC

R204NC

RN21DNC RN21CNC RN21BNC RN21ANC

RN22BNC RN22ANC RN22CNC RN22DNC

R205NC

RN23CNC RN23DNC RN23ANC RN24ANC

R206NC

R207NC

R208NC

R209NC

R210NC

RN24BNC RN24DNC RN24CNC RN23BNC

34 12 12 78

34 12 78 56

56 34 78 56

12

12 78 56 34

56 34 78 12

12

78 56 34 12

34 12 56 78

12

56 78 12 12

12

34 78 56 34

12

C168

0.1UF/16V

NC

12

C188

0.1UF/16V

12

NC

R183 1KOhm

B-MA12 B-MBA1 B-MA10 B-MWEB

B-MA1 B-MA8 B-MA6 B-MA4

B-MCASB B-MRASB B-MA11 B-MA14

B-MBA2

B-MA0

B-MA2 B-MBA0 B-MA3 B-MA5

B-MA9 B-MA13 B-MA7 B-MRESETB

B-MODT

B-MCKE

B-MCK

B-MCKB

B-MDQL0 B-MDQL2 B-MDQL6 B-MDQL4

B-MDQU7 B-MDQU1 B-MDQU3 B-MDQU5

B-MDQL5

B-MDQL3 B-MDML B-MDQL7 B-MDQU2

B-MDQSLB

B-MDQSL

B-MDQSUB

B-MDQSU

B-MDMU

B-MDQU6 B-MDQU4 B-MDQU0 B-MDQL1

NC

C170

0.1UF/16V

NC

C190

0.1UF/16V

NC

12

NC

R211 56 OHM

NC

C171

0.1UF/16V

NC

C191

0.1UF/16V

AVDD_DDR1

12

C198

NC

1000PF/50V

12

NC

R212 56 OHM

12

C206

NC

0.01UF/50V

12

C169

0.1UF/16V

NC

12

C189

0.1UF/16V

B-MVREFCA B-MVREFDQ

12

C197

NC

0.1UF/16V

NC

C172

0.1UF/16V

NC

C192

0.1UF/16V

1 2

R180

NC

1KOhm

B-MVREFCA B-MVREFDQ

B-MA0 B-MA1 B-MA2 B-MA3 B-MA4 B-MA5 B-MA6 B-MA7 B-MA8 B-MA9 B-MA10 B-MA11 B-MA12

B-MBA0 B-MBA1 B-MBA2

B-MCK B-MCKB B-MCKE

B-MODT

B-MRASB B-MCASB B-MWEB

B-MDQSL B-MDQSU

B-MDML

B-MDQSLB B-MDQSUB

B-MRESETB

B-MA13 B-MA14

NC

12

C173

0.1UF/16V

NC

12

C193

0.1UF/16V

12

R184

NC

1KOhm

12

R226 240Ohm

C174

0.1UF/16V

NC

C194

0.1UF/16V

12

C199

0.1UF/16V

U13

M8

VREFCA

H1

VREFDQ

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC#

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK#

K9

CKE

K1

ODT

L2

CS#

J3

RAS#

K3

CAS#

L3

WE#

F3

DQSL

C7

DQSU

E7

DML

D3

DMU

G3

DQSL#

B7

DQSU#

T2

RESET#

L8

ZQ

J1

NC1

L1

NC3

J9

NC2

L9

NC4

M7

NC5

T3

NC6

T7

NC7

NC

12

C175

0.1UF/16V

NC

12

H5TQ1G63DFR-PBC

C195

0.1UF/16V

NC

12

VDDQ1 VDDQ2 VDDQ3 VDDQ4 VDDQ5 VDDQ6 VDDQ7 VDDQ8 VDDQ9

VSSQ1 VSSQ2 VSSQ3 VSSQ4 VSSQ5 VSSQ6 VSSQ7 VSSQ8 VSSQ9

C196

0.1UF/16V

C200

1000PF/50V

DQL0 DQL1 DQL2 DQL3 DQL4 DQL5 DQL6 DQL7

DQU0 DQU1 DQU2 DQU3 DQU4 DQU5 DQU6 DQU7

VDD1 VDD2 VDD3 VDD4 VDD5 VDD6 VDD7 VDD8 VDD9

VSS1 VSS2 VSS3 VSS4 VSS5 VSS6 VSS7 VSS8

VSS9 VSS10 VSS11 VSS12

NC

E3

B-MDQL0

F7

B-MDQL1

F2

B-MDQL2

F8

B-MDQL3

H3

B-MDQL4

H8

B-MDQL5

G2

B-MDQL6

H7

B-MDQL7

D7

B-MDQU0

C3

B-MDQU1

C8

B-MDQU2

C2

B-MDQU3

A7

B-MDQU4

A2

B-MDQU5

B8

B-MDQU6

A3

B-MDQU7

N1 R1 B2 K2 G7 K8 D9 N9 R9

A1 C1 F1 D2 H2 A8 C9 E9 H9

E1 M1 P1 T1 J2 B3 G8 J8 A9 M9 P9 T9

B1 D1 G1 E2 D8 E8 B9 F9 G9

B-TMA126 B-TMBA16 B-TMA106 B-TMWEB6

B-TMA16 B-TMA86 B-TMA66 B-TMA46

B-TMCASB6 B-TMRASB6 B-TMA116 B-TMA146

B-TMBA26

B-TMA06

B-TMA26 B-TMBA06 B-TMA36 B-TMA56

B-TMA96 B-TMA136 B-TMA76 B-TMRESETB6

B-TMODT6

B-TMCKE6

B-TMCK6

B-TMCKB6

B-TMDQL06 B-TMDQL26 B-TMDQL66 B-TMDQL46

B-TMDQU76 B-TMDQU16 B-TMDQU36 B-TMDQU56

B-TMDQL56

B-TMDQL36 B-TMDML6 B-TMDQL76 B-TMDQU26

B-TMDQSLB6

B-TMDQSL6

B-TMDQSUB6

B-TMDQSU6

B-TMDMU6

B-TMDQU66 B-TMDQU46 B-TMDQU06 B-TMDQL16

+1.5V_Normal

D D

C C

B B

A-TMA126 A-TMBA16 A-TMA106 A-TMCKE6

A-TMA16 A-TMA86 A-TMA66 A-TMA46

A-TMCASB6 A-TMRASB6 A-TMA116 A-TMA146

A-TMA26

A-TMA06

A-TMBA26 A-TMBA06 A-TMA36 A-TMA56

A-TMA96 A-TMA136 A-TMA76 A-TMRESETB6

A-TMODT6

A-TMWEB6

A-TMCKB6

A-TMCK6

A-TMDMU6 A-TMDQL26 A-TMDQL66 A-TMDQL46

A-TMDQU76 A-TMDQU16 A-TMDQU56 A-TMDQU36

A-TMDQL06

A-TMDQL36 A-TMDML6 A-TMDQL76 A-TMDQL56

A-TMDQSLB6

A-TMDQSL6

A-TMDQSUB6

A-TMDQSU6

A-TMDQU26

A-TMDQU66 A-TMDQU46 A-TMDQU06 A-TMDQL16

FB22 120OHM

AVDD_DDR0

21

AVDD_DDR0

12

C154

10UF/10V

12

C177

0.1UF/16V

1 2

R177 1KOhm

RN7D 22 OHM RN7C 22 OHM RN7B 22 OHM RN7A 22 OHM

RN8D 22 OHM RN8C 22 OHM RN8B 22 OHM RN8A 22 OHM

RN9D 22 OHM RN9C 22 OHM RN9B 22 OHM RN9A 22 OHM

R185 22 OHM

R186 22 OHM

RN10D 22 OHM RN10C 22 OHM RN10B 22 OHM RN10A 22 OHM

RN11D 22 OHM RN11C 22 OHM RN11B 22 OHM RN11A 22 OHM

R187 22 OHM

R188 22 OHM

R189 22 OHM

R190 22 OHM

RN12D 22 OHM RN12C 22 OHM RN12B 22 OHM RN12A 22 OHM

RN13D 22 OHM RN13C 22 OHM RN13B 22 OHM RN13A 22 OHM

R191 22 OHM

RN14D 22 OHM RN14C 22 OHM RN14B 22 OHM RN14A 22 OHM

R192 22 OHM

R193 22 OHM

R194 22 OHM

R195 22 OHM

R196 22 OHM

RN15D 22 OHM RN15C 22 OHM RN15B 22 OHM RN15A 22 OHM

12

C155

0.1UF/16V

12

C178

0.1UF/16V

12

R181 1KOhm

C156

C179

12

0.1UF/16V

78 56 34 12

A-MVREFCA

12

C201

12

0.1UF/16V

C159

0.1UF/16V

C180

0.1UF/16V

C160

0.1UF/16V

12

C181

0.1UF/16V

12

C202

1000PF/50V

A-MA12 A-MBA1 A-MA10 A-MCKE

A-MA1 A-MA8 A-MA6 A-MA4

A-MCASB A-MRASB A-MA11 A-MA14

A-MA2

A-MA0

A-MBA2 A-MBA0 A-MA3 A-MA5

A-MA9 A-MA13 A-MA7 A-MRESETB

A-MODT

A-MWEB

A-MCKB

A-MCK

A-MDMU A-MDQL2 A-MDQL6 A-MDQL4

A-MDQU7 A-MDQU1 A-MDQU5 A-MDQU3

A-MDQL0

A-MDQL3 A-MDML A-MDQL7 A-MDQL5

A-MDQSLB

A-MDQSL

A-MDQSUB

A-MDQSU

A-MDQU2

A-MDQU6 A-MDQU4 A-MDQU0 A-MDQL1

C161

0.1UF/16V

12

C182

0.1UF/16V

AVDD_DDR0

1 2

R178 1KOhm

R199 56 OHM

12

C164

0.1UF/16V

12

C183

0.1UF/16V

C205

0.01UF/50V

12

C184

0.1UF/16V

12

R200 56 OHM

A-MVREFDQ

12

R182 1KOhm

C203

0.1UF/16V

A-MVREFCA A-MVREFDQ

A-MA0 A-MA1 A-MA2 A-MA3 A-MA4 A-MA5 A-MA6 A-MA7 A-MA8 A-MA9 A-MA10 A-MA11 A-MA12 A-MA13

A-MBA0 A-MBA1 A-MBA2

A-MCK A-MCKB A-MCKE

A-MODT

A-MRASB A-MCASB A-MWEB

A-MDQSL A-MDQSU

A-MDML A-MDMU B-MDMU

A-MDQSLB A-MDQSUB

A-MRESETB

A-MA14

C185

0.1UF/16V

12

R225 240Ohm

C186

C204

M8 H1

N3

P7 P3

N2

P8

P2 R8 R2

T8 R3

L7 R7 N7

T3

M2 N8 M3

K7

K9

K1

L2

K3

L3

F3 C7

E7 D3

G3

B7

T2

L8

L1

L9 M7

T7

0.1UF/16V

1000PF/50V

U12

VREFCA VREFDQ

A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10/AP A11 A12/BC# A13

BA0 BA1 BA2

J7

CK CK# CKE

ODT CS#

J3

RAS# CAS# WE#

DQSL DQSU

DML DMU

DQSL# DQSU#

RESET#

ZQ

J1

NC1 NC3

J9

NC2 NC4 NC5 NC6

H5TQ2G63DFR-PBC

AVDD_DDR0 AVDD_DDR1

E3

DQL0 DQL1 DQL2 DQL3 DQL4 DQL5 DQL6 DQL7

DQU0 DQU1 DQU2 DQU3 DQU4 DQU5 DQU6 DQU7

VDD1 VDD2 VDD3 VDD4 VDD5 VDD6 VDD7 VDD8 VDD9

VDDQ1 VDDQ2 VDDQ3 VDDQ4 VDDQ5 VDDQ6 VDDQ7 VDDQ8 VDDQ9

VSS1 VSS2 VSS3 VSS4 VSS5 VSS6 VSS7 VSS8

VSS9 VSS10 VSS11 VSS12

VSSQ1 VSSQ2 VSSQ3 VSSQ4 VSSQ5 VSSQ6 VSSQ7 VSSQ8 VSSQ9

A-MDQL0

F7

A-MDQL1

F2

A-MDQL2

F8

A-MDQL3

H3

A-MDQL4

H8

A-MDQL5

G2

A-MDQL6

H7

A-MDQL7

D7

A-MDQU0

C3

A-MDQU1

C8

A-MDQU2

C2

A-MDQU3

A7

A-MDQU4

A2

A-MDQU5

B8

A-MDQU6

A3

A-MDQU7

N1 R1 B2 K2 G7 K8 D9 N9 R9

A1 C1 F1 D2 H2 A8 C9 E9 H9

E1 M1 P1 T1 J2 B3 G8 J8 A9 M9 P9 T9

B1 D1 G1 E2 D8 E8 B9 F9 G9

FB23

NC

120OHM

21

A A

DDR3

Title :

Engineer:

L2300

Engineer:

1

MAIN BOARD

Size Project Nam e

C

Date: Sheet of

5

4

3

2

Date: Sheet of

DDR3

Jeff Y Hsiao/Jerry Lo

Rev

1.03a

9 23Thursday, December 20, 2012

1.03a

5

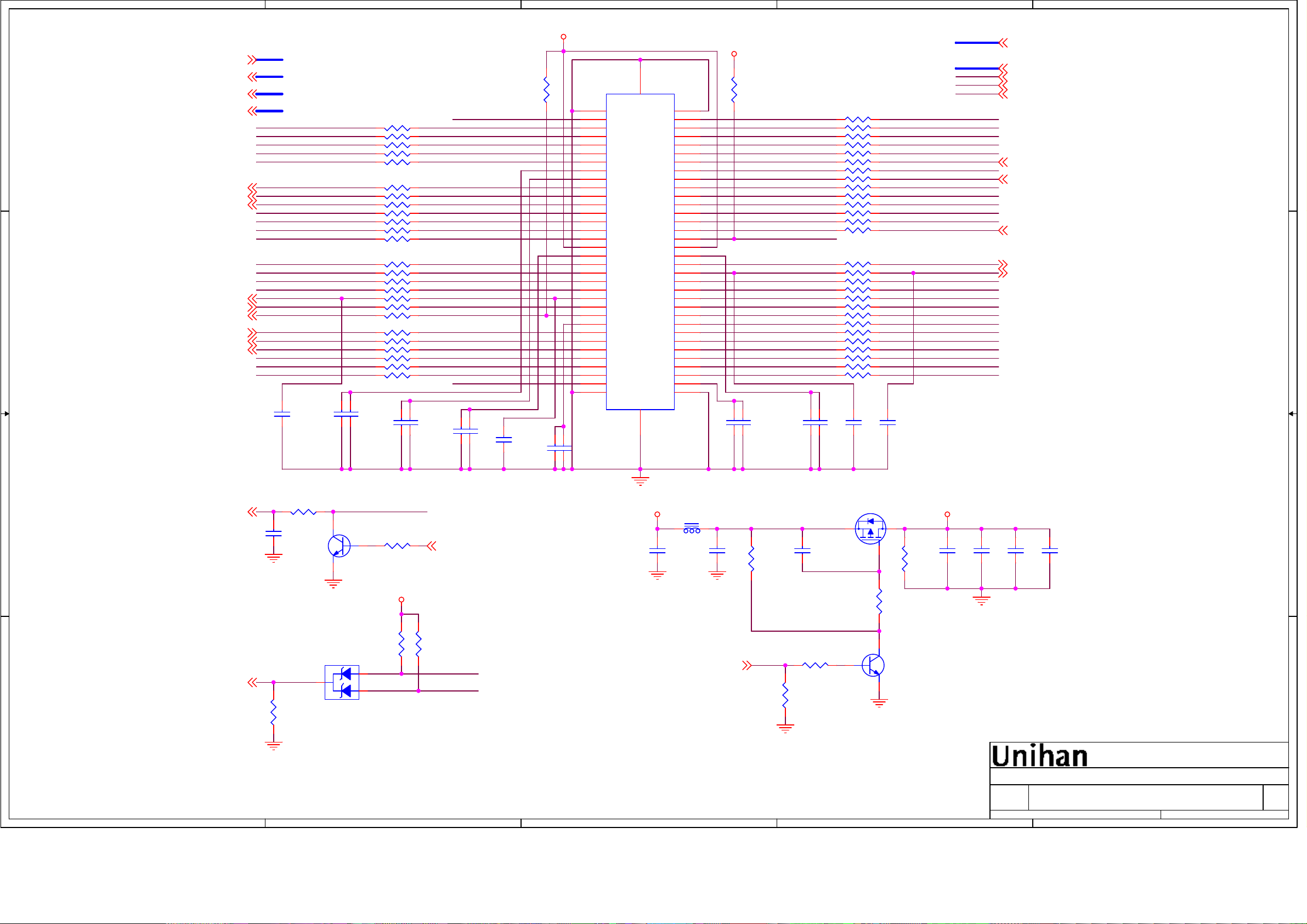

PAD_PCM_A[14:0]8

PAD_PCM_D[7:0]8

PAD_TS1_D[7:0]8

D D

C C

PAD_TS0_D[7:0]8

PAD_PCM_IORD_N8 PAD_PCM_IOWR_N8

PAD_TS1_SYNC8

PAD_TS0_CLK8

PAD_PCM_RESET8

PAD_PCM_WAIT_N8

PAD_PCM_REG_N8

PAD_TS0_VLD8 PAD_TS0_SYNC8

PAD_TS0_D3 PAD_TS0_D4 PAD_TS0_D5 PAD_TS0_D6 PAD_TS0_D7

PAD_TS1_D0 PAD_TS1_D1 PAD_TS1_D2 PAD_TS1_D3

PAD_TS1_D4 PAD_TS1_D5 PAD_TS1_D6 PAD_TS1_D7

PAD_TS0_D0 PAD_TS0_D1 PAD_TS0_D2

NC

12

C207

4.7PF/50V

C208

100PF/50V

R234 33 OHM R236 33 OHM R238 33 OHM R240 33 OHM R242 33 OHM

R246 33 OHM R248 33 OHM R250 33 OHM R252 33 OHM R254 33 OHM R256 33 OHM R258 33 OHM

R259 33 OHM R261 33 OHM R263 33 OHM R265 33 OHM R267 33 OHM R269 33 OHM R271 33 OHM

R274 33 OHM R276 33 OHM R278 33 OHM R280 33 OHM R282 33 OHM R284 33 OHM

12

C209

4

1 2 1 2 1 2 1 2 1 2

1 2 1 2 1 2 1 2 1 2 1 2 1 2

1 2 1 2 1 2 1 2 1 2 1 2

C210

0.1UF/16V 100PF/50V

3

VCC-PCMCIA

+3.3V_Normal

C214

100PF/50V

12

R232 10KOhm

PCM_D3 PCM_D4 PCM_D5 PCM_D6 PCM_D7 PCM_CE_N PCM_A10 PCM_OE_N PCM_A11 PCM_A9 PCM_A8 PCM_A13 PCM_A14 PCM_WE_N PCM_IRQA_N

TS1_VLD TS1_CLK PCM_A12 PCM_A7 PCM_A6 PCM_A5 PCM_A4 PCM_A3 PCM_A2 PCM_A1 PCM_A0 PCM_D0 PCM_D1 PCM_D2

12

C215

0.1UF/16V

C216

100PF/50V

12

C217

NC

12

C218

0.1UF/16V

4.7PF/50V

12

R231 10KOhm

35

PCM_CD1_N TS0_D3 TS0_D4 TS0_D5 TS0_D6 TS0_D7

PCM_IORD_N PCM_IOWR_N TS1_SYNC TS1_D0 TS1_D1 TS1_D2 TS1_D3

TS1_D4 TS1_D5 TS1_D6 TS1_D7 TS0_CLK PCM_RESET PCM_WAIT_N

PCM_REG_N TS0_VLD TS0_SYNC TS0_D0 TS0_D1 TS0_D2 PCM_CD2_N

12

C211

0.1UF/16V

C212

12

C213

100PF/50V

NC

12

C220

0.1UF/16V

4.7PF/50V

C221

12

0.1UF/16V

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

12

C222

100PF/50V

35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68

69

CN4

1 2

P_GND3

3 4 5 6 7 8

9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34

P_GND4

PCMCIA_68P

70

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34

2

PCM_A[7:0] 20

TS1_D[7:0] 22 TS1_CLK 22 TS1_VLD 22 TS1_SYNC 22

12

R23333 OHM

12

R23533 OHM

12

R23733 OHM

12

R23933 OHM

12

R24133 OHM

12

R24333 OHM

12

R24433 OHM

12

R24533 OHM

12

R24733 OHM

12

R24933 OHM

12

R25133 OHM

12

R25333 OHM

12

R25533 OHM

12

R25733 OHM

12

R26033 OHM

12

R26233 OHM

12

R26433 OHM

12

R26633 OHM

12

R26833 OHM

12

R27033 OHM

12

R27233 OHM

12

R27333 OHM

12

R27533 OHM

12

R27733 OHM

12

R27933 OHM

12

R28133 OHM

12

R28333 OHM

12

R28533 OHM

12

NC

C219

4.7PF/50V

PAD_PCM_D3 PAD_PCM_D4 PAD_PCM_D5 PAD_PCM_D6 PAD_PCM_D7

PAD_PCM_A10

PAD_PCM_A11 PAD_PCM_A9 PAD_PCM_A8 PAD_PCM_A13 PAD_PCM_A14

PAD_PCM_A12 PAD_PCM_A7 PAD_PCM_A6 PAD_PCM_A5 PAD_PCM_A4 PAD_PCM_A3 PAD_PCM_A2 PAD_PCM_A1 PAD_PCM_A0 PAD_PCM_D0 PAD_PCM_D1 PAD_PCM_D2

PAD_PCM_CE_N 8

PAD_PCM_OE_N 8

PAD_PCM_WE_N 8

PAD_TS1_VLD 8 PAD_TS1_CLK 8

1

R286 33 OHM

B B

A A

PAD_PCM_IRQA_N_ACD8

PAD_PCM_CD_N8

R295

4.7KOHM

5

1 2

12

C223

0.01UF/50V

12

3

C

E 2

D1

BAT54C

PCM_IRQA_N

B

1

Q11 PMBS3904

R292 10KOhm

2

1

R287 47KOHM

1 2

+5V_Standby

12

4

ACD_INT 11,6

12

R293 10KOhm

PCM_CD1_N

PCM_CD2_N

+5V_Standby VCC-PCMCIA

3

12

C224

0.1UF/16V

FB24 30Ohm/100Mhz

21

12

C225

PCM_5V_CTL6

12

R288

0.1UF/16V 47KOHM

12

C226

0.1UF/16V

R291 47KOHM

1 2

12

R294

4.7KOHM

Q10 AP2307GN

2 3

S

2

R290 47KOHM

1

G

1

12

3

C

B

Q12 PMBS3904

E 2

D

3

12

2

R289

10KOhm

12

C227

10UF/10V

12

C228

0.1UF/16V

MAIN BOARD

Size Project Name

B

Date: Sheet of

C229

0.1UF/16V

12

C230

0.1UF/16V

MSD8841

Jeff Y Hsiao/Jerry Lo

10 23Thursday, December 20, 2012

1

10 23Thursday, December 20, 2012

L2300

Title :

Engineer:

Rev

1.03a

5

4

3

2

1

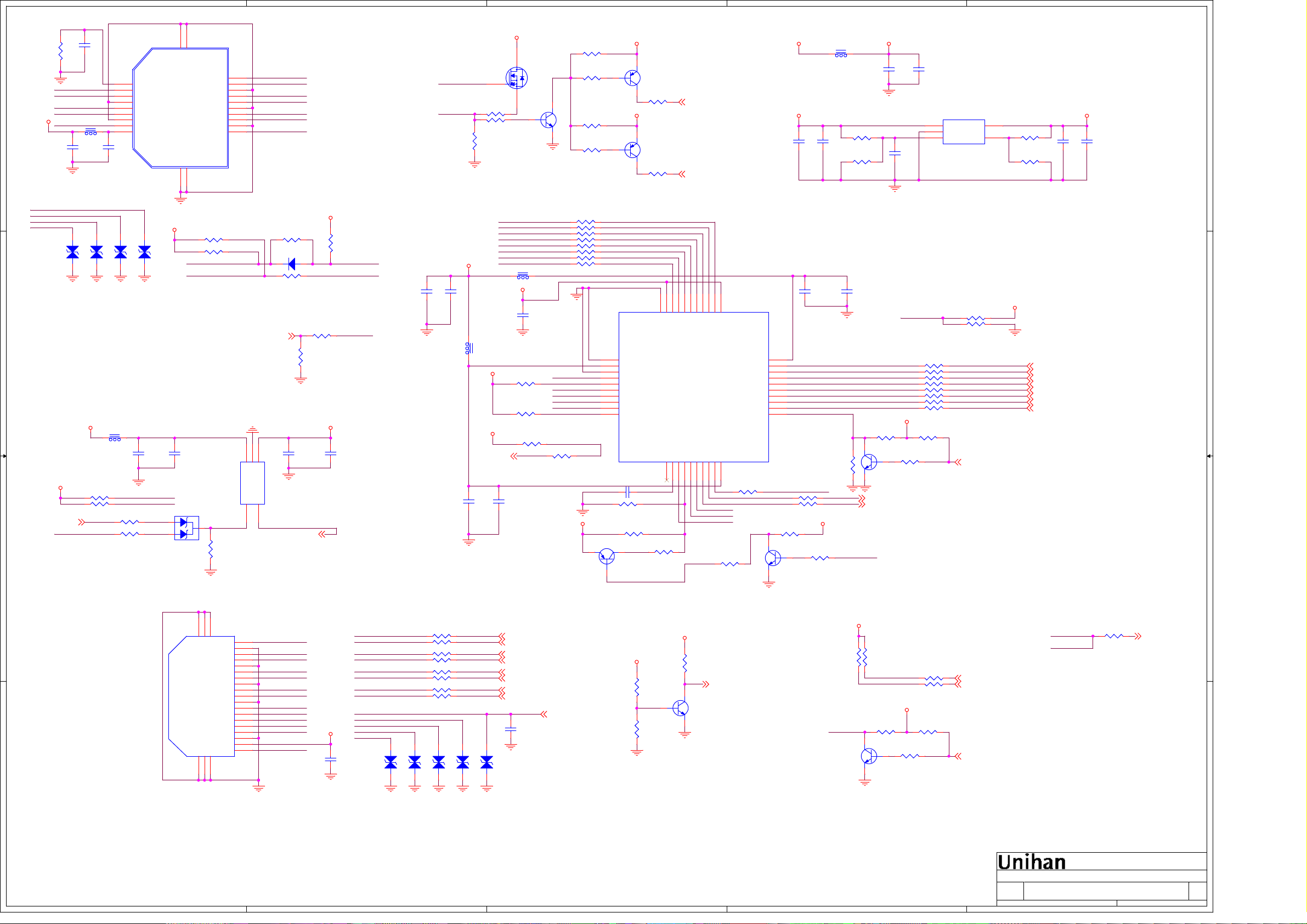

M_CD_SENSE

12

C7

R19

0.047UF/16V

300KOHM

2

TMSD_Data2_Shield

M_HDMIC_RX1P M_HDMIC_RX1N M_HDMIC_RX0P

M_HDMIC_RXCP M_HDMIC_RXCN M_HDMIC_CEC

+5V_HDMIC

D D

C C

B B

M_HDMIC_SDA

12

C232

0.1UF/16V

M_HDMIC_SCL M_HDMIC_SDA M_HDMIC_CEC M_HDMIC_HP

12

+5V_Standby +5V_HDMIC

+5V_Standby

R531 10KOhm R11 10KOhm

ACD_INT10,6

PS_CTRL#

FB56 120Ohm

N/A

ZD1

PESD0603-240

1 2 1 2

4

TMSD_Data1+

6

TMSD_Data1-

8

TMSD_Data0_Shield

10

TMSD_Clock+

12

TMSD_Clock-

14

Reserved

16

SDA

18

21

12

R140 0 Ohm

R141 0 Ohm

12

C375

NC

ZD2

PGB1010603NR

FB52 120Ohm

1 2

+5_Power

0.1UF/16V

12

NC

ZD3

ZD4

PGB1010603NR

21

12

C437

10UF/10V

OC# PS_CTRL#

20

22

P_GND1

P_GND3

TMSD_Data2+

TMSD_Data2-

TMSD_Data1_Shield

TMSD_Data0+

TMSD_Data0-

TMSD_Clock_Shield

DDC/CEC_GND

Hot_Plug_Detect

P_GND2

P_GND4

HDMI_CON_19P

21

23

+5V_Standby

1 2

R133 47KOHM

1 2

R129 47KOHM

PGB1010603NR

12

C438

0.1UF/16V

D3

1

2

BAT54C

CN7

1

M_HDMIC_RX2P

3

M_HDMIC_RX2N

5 7 9

M_HDMIC_RX0N

11 13

CEC

15 17 19

M_HDMIC_SCL

M_HDMIC_HP

MHL_RESET6

1

2IN3

U28

OUT

GND

EN/EN#4OC#

G5250F2T1U

5

MHL_PWR_FAULT6

NC

R343 0 Ohm

1 2

D6 1SS404

1 2

R306 0 Ohm

12

C441 10UF/10V

12

R491 100 Ohm

1 2

12

R493

4.7KOHM

+5V_Standby

12

R139

8.2KOHM

HDMI_C_SCLM_HDMIC_SCL

HDMI_C_SDAM_HDMIC_SDA

NC

12

C430

0.1UF/16V

OC#

RESET#

SCL

3

12

R142 300KOHM

M_CD_SENSE

GPIO0

R132

4.7KOHM

+1.2V_Standby_MHL

12

C79

4.7UF/10V

C165

0.1UF/16V

+3.3V_Standby

1

R18 100 Ohm

12

R149 10KOhm

FB51 120OHM

+3.3V_Standby

FB53 120OHM

2 1

+5V_Standby_MHL

NC

R10 0 Ohm

NC

R113 0 Ohm

+3.3V_Standby

NC

R99 10KOhm

MHL_INT6

12

C274

0.1UF/16V

32

Q25

D

DMN26D0UT-7

G

S

Q20 PMBS3904

12

B

1

12

M_HDMIC_RXCN M_HDMIC_RXCP M_HDMIC_RX0N M_HDMIC_RX0P M_HDMIC_RX1N M_HDMIC_RX1P M_HDMIC_RX2N M_HDMIC_RX2P

21

12

C234

0.1UF/16V

1 2

C275

0.1UF/16V

R396

4.7KOHM

12

1 2

R147

2.2KOHM

3 C

R398

4.7KOHM

E 2

1 2

R148

2.2KOHM

1 2

R327 4.7 OHM

1 2

R328 4.7 OHM

1 2

R329 4.7 OHM

1 2

R330 4.7 OHM

1 2

R331 4.7 OHM

1 2

R332 4.7 OHM

1 2

R333 4.7 OHM

1 2

R334 4.7 OHM

RESET#

INT HDMI_C_SDA HDMI_C_SCL M_HDMIC_HP

INT

NC

12

R940 Ohm

+5V_HDMIC

1

12

1

U27

1 2 3 4 5 6 7 8 9

10

1 2

R7 4.7 OHM

C

E12

Q30

B

PMBS3906

+5V_Standby

2 E

Q24 PMBS3906

B

C

R145

3

1.5KOHM

1 2

+5V_Standby

2 E

Q26 PMBS3906

B

C 3

1 2

R146

1.5KOHM

RXCN RXCP RX0N RX0P RX1N RX1P RX2N RX2P

39

40

41

RX2P

GND3

GND1 VDDC1 GND2 RESET_Z MGPIO00 MGPIO01/INT MGPIO02/DSDA MGPIO03/DSDL MGPIO04/CBUS/HPD AVDD5V_HDMI

12

NC

3

R112 4.7 OHM

NC

C2370.1UF/16V

12

R910KOhm

1 2

VDDP/AVDD33_RX

NC11AVDD33_LDO3312MGPIO0513MGPIO0614MGPIO07/CI2CA15MGPIO1016SDA17SCL18MGPIO11/CEC19VDDC2

HDMI_C_SCL 5

HDMI_C_SDA 5

34

35

36

37

38

RX0P

RX1P

RX1N

RX2N

GPIO0 GPIO1 PS_CTRL#

31

32

33

RX0N

RXCP

RXCN

AVDD33

AVDD12_TX

MGPIO12/HPD_IN

MSG1200

20

NC

1 2

R4 0 Ohm

R394

NC

2.2KOHM

12

+5V_Standby +5V_Standby_MHL

12

NC

C20

0.1UF/16V

R326 10KOhm

21

1 2

R102 220KOHM

R104 330KOhm

12

C149

0.1UF/16V

3

12

C

E 2

HDMIC_HP

+3.3V_Standby

30 29

TXCN

28

TXCP

27

TX0N

26

TX0P

25

TX1N

24

TX1P

23

TX2N

22

TX2P

21

M_HDMIC_CEC

1 2

R335 33 OHM

1 2

R336 33 OHM

R376

4.7KOHM

3 C

B

1

E

Q27

2

PMBS3904

FB32 120OHM

12

C17

1UF/16V

12

C78

4.7UF/10V

TXCN TXCP TX0N TX0P TX1N TX1P TX2N TX2P HDMIC_HP

+5V_HDMIC

NC

12

R344

4.7KOHM

1 2

NC

12

C277

0.1UF/16V

12

C26

0.1UF/16V

12

R307 4.7 OHM R305 4.7 OHM R304 4.7 OHM R302 4.7 OHM R299 4.7 OHM R298 4.7 OHM R297 4.7 OHM R296 4.7 OHM

+5V_HDMIC

R308 1KOhm

12

R310

4.7KOHM

B

1

1 2

Q13 PMBS3904

MI2C-SCL 15,17,6 MI2C-SDA 15,17,6

12

C267

4.7UF/10V

GPIO1

1 2 1 2 1 2 1 2 1 2 1 2 1 2 1 2

R309 10KOhm

1 2

U3 RT9043-GB

1

VIN

2

GND

3

EN

R338 4.7KOHM

VOUT

FB

1 2

HDMI_C_HP 5

5

4

+3.3V_Standby

12

NC

R3374.7KOHM

R105 12KOHM

1 2

R119 820KOHM

HDMI_C_RXCN 5 HDMI_C_RXCP 5 HDMI_C_RX0N 5 HDMI_C_RX0P 5 HDMI_C_RX1N 5 HDMI_C_RX1P 5 HDMI_C_RX2N 5 HDMI_C_RX2P 5

+1.2V_Standby_MHL

12

C19

12

C18

0.1UF/16V

1UF/16V

24

CN6

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

HDMIB_RX2P

HDMIB_RX2N HDMIB_RX1P

HDMIB_RX1N HDMIB_RX0P

HDMIB_RX0N HDMIB_RXCP

HDMIB_RXCN HDMIB_CEC HDMIB_ARC HDMIB_SCL HDMIB_SDA

HDMIB_HP

C233

0.1UF/16V

+5V_HDMIB

1 2 3

P_GND120P_GND322P_GND5

4 5 6 7 8

9 10 11 12 13 14 15 16 17 18 19

P_GND221P_GND423P_GND6

HDMI_CON_19P

25

A A

5

HDMIB_RX2P HDMIB_RX2N

HDMIB_RX1P HDMIB_RX1N

HDMIB_RX0P HDMIB_RX0N

HDMIB_RXCP HDMIB_RXCN

HDMIB_ARC HDMIB_SCL HDMIB_SDA HDMIB_CEC HDMIB_HP

12

4

1 2

R311 4.7 OHM

1 2

R312 4.7 OHM

1 2

R313 4.7 OHM

1 2

R314 4.7 OHM

1 2

R317 4.7 OHM

1 2

R318 4.7 OHM

1 2

R320 4.7 OHM

1 2

R322 4.7 OHM

N/A

ZD6

12

NC

ZD7

PESD0603-240

PGB1010603NR

12

NC

ZD8

PGB1010603NR

NC

ZD9

PGB1010603NR

12

NC

ZD5

PESD0603-240

HDMI_B_RX2P 5 HDMI_B_RX2N 5

HDMI_B_RX1P 5 HDMI_B_RX1N 5

HDMI_B_RX0P 5 HDMI_B_RX0N 5

HDMI_B_RXCP 5 HDMI_B_RXCN 5

12

C428

NC

1PF/50V

HDMIB_ARC 5

+5V_HDMIB

12

3

R340 10KOhm

R342 10KOhm

NC

B

1

NC

+3.3V_Normal

12

R339 10KOhm

3

C

Q15 PMBS3904

E 2

NC

HDMIB_ARC_Detect 6

NC

+5V_HDMIB

R315 47KOHM

HDMIB_HP

Q14 PMBS3904

2

12

3

C

E 2

R316 47KOHM

HDMIB_SCL HDMIB_SDA

+5V_HDMIB

R323 1KOhm

B

1

12

1 2

R325

4.7KOHM

R319 33 OHM

R321 33 OHM

R324 10KOhm

12

HDMI_B_SCL 5

12

HDMI_B_SDA 5

HDMI_B_HP 5

HDMIB_CEC

M_HDMIC_CEC

MAIN BOARD

Size Project Nam e

C

Date: Sheet of

L2300

R341 200 Ohm

1 2

Title :

Engineer:

1

HDMI_CEC 5

HDMI and MHL

Jeff Y Hsiao/Jerry Lo

Rev

1.03a

11 23Thursday, December 20, 2012

1.03a

5

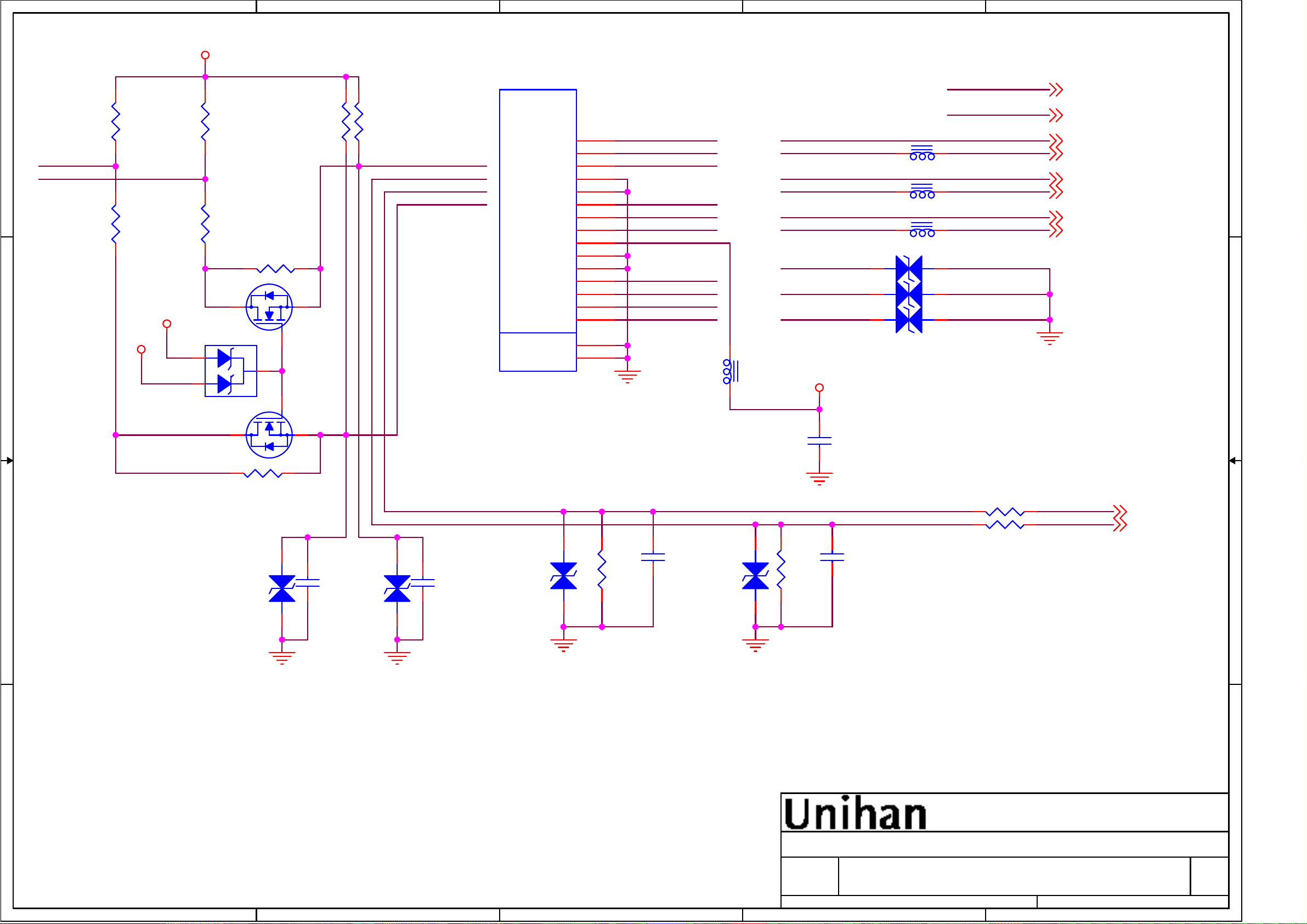

VGA5V

4

3

2

1

21

UART_RX

UART_TX

UART_RX 6

UART_TX 6

VGA_R- 5

VGA_R+ 5

VGA_G- 5

VGA_G+ 5

VGA_B- 5

VGA_B+ 5

12

R347

D D

C C

4.7KOHM

UART_TX

R348 33 OHM

1 2

+5V_Normal

VGA5V

12

1 2

D5

1

2

BAT54C

R345

4.7KOHM

R349 33 OHM

R442 0 Ohm

3 2

D

3

NC

3 2

3

1

3

1

D

R346

NC

4.7KOHM

12

S

2

Q28

NC

G

2N7002

2N7002 Q29

NC

G

2

S

12

R393

4.7KOHM

NC

DDC_SDA_DUART_RX

HS VS

DDC_SCL_D

CN9

[C15A2]

D_SUB_15P

10 11 12 13 14 15

1T 2T

1

2

3

4

5

6

7

8

9

10 11 12 13 14 15

1T 2T

VGA-R+ VGA-G+ VGA-B+

VGA_RVGA_GVGA_B-

DDC_SDA_D HS VS DDC_SCL_D

FB28 120OHM

2 1

VGA_RVGA-R+

VGA_GVGA-G+

VGA_BVGA-B+

VGA-R+

VGA-B+

VGA-G+

VGA5V

1 2

FB25 30Ohm/100Mhz

FB26 30Ohm/100Mhz

FB27 30Ohm/100Mhz

N/A

ZD19 PESD0603-240

N/A

ZD22 PESD0603-240

N/A

ZD23 PESD0603-240

C240

1 2

0.1UF/16V

R490 0 Ohm

N/A

B B

A A

ZD16

12

PESD0603-240

C239

10PF/50V

N/A

ZD17

NC

12

PESD0603-240

12

C241

10PF/50V

NC

N/A

ZD20

12

PESD0603-240

12

R352

2.2KOHM

12

C242

10PF/50V

NC

N/A

ZD21

12

PESD0603-240

R353

2.2KOHM

12

C243

10PF/50V

NC

R350 100 Ohm R351 100 Ohm

Title :

12 12

VGA

VGA_VS 5 VGA_HS 5

Jeff Y Hsiao/Jerry Lo

Engineer:

MAIN BOARD

Size Project Name

A

Date: Sheet of

5

4

3

2

L2300

Engineer:

Jeff Y Hsiao/Jerry Lo

Rev

1.03a

12 23Thursday, December 20, 2012

1

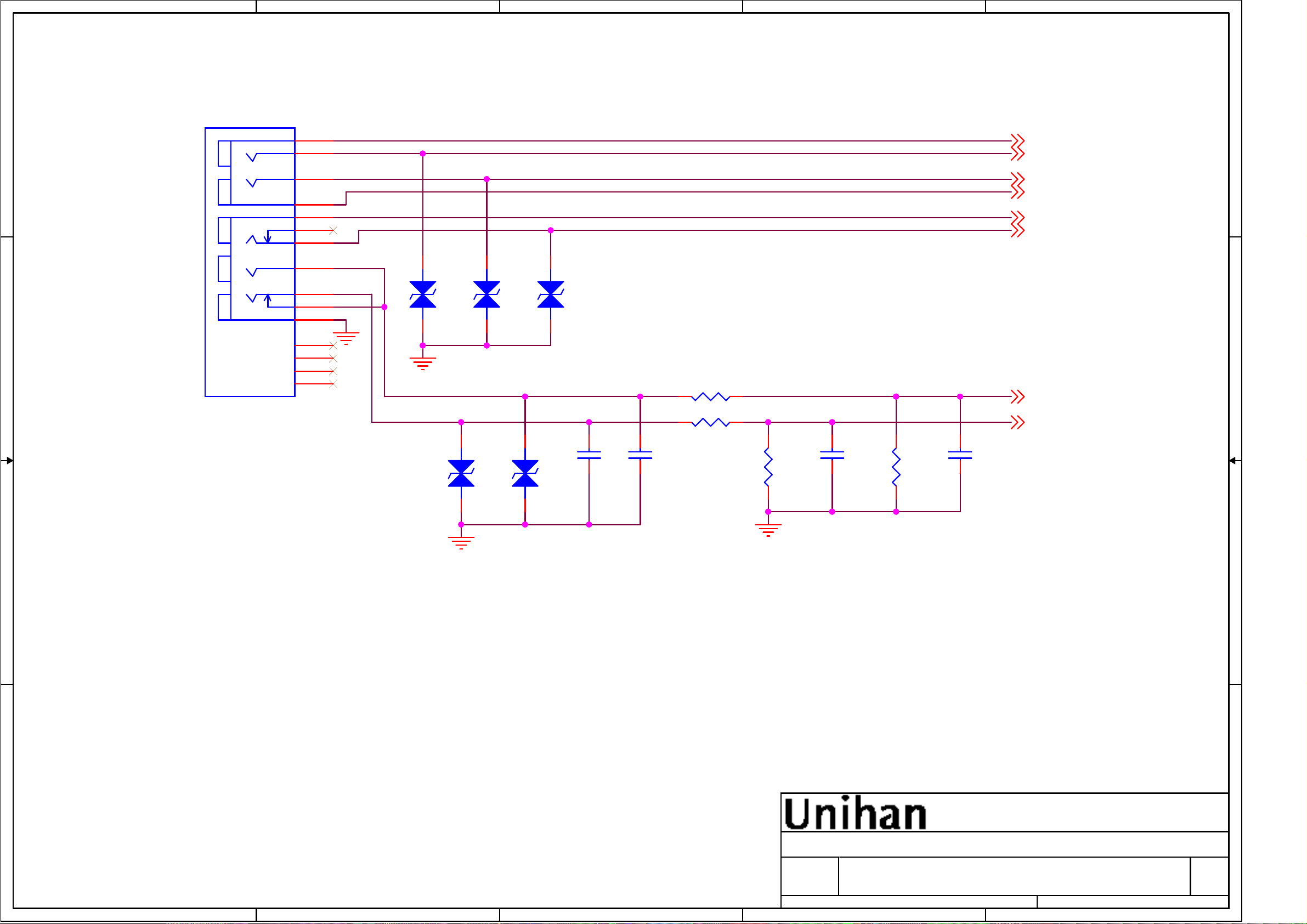

5

4

3

2

1

D D

C C

CN20

NP_NC1 NP_NC2 NP_NC3 NP_NC4

RCA_JACK_11P

11 10

9

8 7 5 6

4

3 2 1

12 13 14 15

N/A

12

ZD46

PESD0603-240

COMP_AU_INL

COMP_AU_INR

12

N/A

ZD27

PESD0603-240

N/A

ZD47

PESD0603-240

12

N/A

ZD28

PESD0603-240

N/A

ZD48

PESD0603-240

12

C244

330PF/50V

12

1 2

C245

330PF/50V

R354 10KOhm

R355 10KOhm

12

R356

12KOhm

12

C246

560PF/50V

12

R357

12KOhm

12

Y- 5 Y+ 5

PB+ 5 PB- 5

PR- 5 PR+ 5

COMP_AU_LIN 5

COMP_AU_RIN 5

C247

560PF/50V

B B

A A

COMPONENT

Jeff Y Hsiao/Jerry Lo

Rev

1.03a

MAIN BOARD

Size Project Name

A

L2300

Title :

Engineer:

Date: Sheet of

5

4

3

2

13 23Thursday, December 20, 2012

1

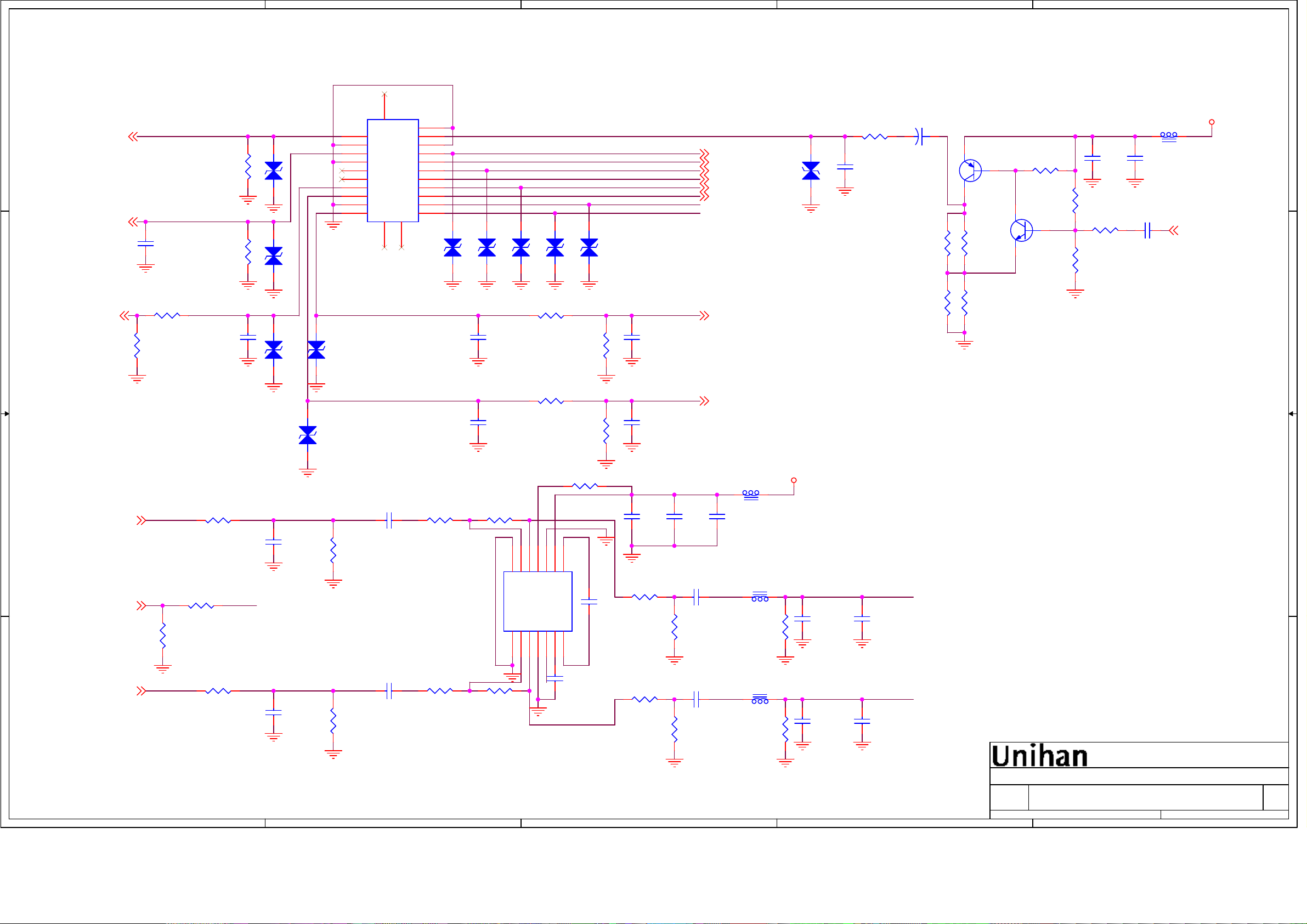

5

4

3

2

1

D D

SC_CVBS5

SC_FB15

C C

SC_FS15

12

C249

47PF/50V

R363 10KOhm

1 2

12

1.5KOHM R368

R359 75 OHM

R361 75 OHM

C254

47PF/50V

12

N/A

12

ZD29

PESD0603-240

N/A

12

ZD31

PESD0603-240

12

N/A

ZD39

PESD0603-240

N/A

ZD38

PESD0603-240

N/A

12

ZD32

PESD0603-240

23

CN11

21

20

18

16 14 12 10

NP_NC2

16 14 12 10

8

6

4

2

NP_NC1

22

19

17

15

13

11

9

7

5

3

1

NP_NC3

RF_CON_21P

24

N/A

12

SC_R+ 5

SC_R- 5

SC_G+ 5

SC_G- 5

SC_B+ 5

SC_L_Out

12

C258

560PF/50V

12

C260

560PF/50V

SC_R_Out

N/A

12

ZD33

PESD0603-240

12

Scart_R

12

C257

330PF/50V

Scart_L

12

C259

330PF/50V

N/A

ZD34

PESD0603-240

N/A

12

ZD35

1 2

PESD0603-240

R371 10KOhm

R373 10KOhm

N/A

12

ZD36

PESD0603-240

R372 12KOhm

R374 12KOhm

N/A

12

ZD37

PESD0603-240

12

SC_B- 5

SC_AU_RIN 5

SC_AU_LIN 5

ZD30

PESD0603-240

12

C250 47PF/50V

R358 75 OHM

C248 100UF/16V

12

+

R365 100 Ohm

R369 100 Ohm

12

2

Q16

E

PMBS3906

C

3

12

R366 100 Ohm

12

R370 100 Ohm

R360 470 OHM

1

1 2

3

C

E 2

Q17 PMBS3904

R362 12KOHM

B

1

B

1 2

12

R367

8.2KOHM

12

C251

R364 0 Ohm

0.1UF/16V

12

120OHM

2 1

12

C252

10UF/10V

C253 10UF/10V

FB29

12

+5V_Normal

SC_CVBS_OUT 5

R375 10KOhm

12

R377 100 Ohm

B B

A A

SC_AUOUT_L5

SCART_MUTE6

12

SC_AUOUT_R5

5

1 2

R381 100 Ohm

1 2

R383

4.7KOHM

1 2

R386 100 Ohm

/SD

12

C265 3300PF/50V

12

C272 3300PF/50V

12

R380 220KOHM

12

R390 220KOHM

C261

2.2UF/10V

1 2

C271

2.2UF/10V

1 2

4

R378 10KOhm

DRV632PWR

R388 10KOhm

U14

12

R379 47KOHM

1 2

14

1 2

R389 47KOHM

SCART_L_OUT

13

12

11

10

9CP8

-INL

UVP

OUTL

GND2

12

/SD

VDD

7

C269

1UF/16V

SCART_R_OUT

+INL

+INR1-INR2OUTR3GND14MUTE#5VSS6CN

12

C266

1UF/16V

12

C262

0.1UF/16V

R382 470 OHM

1 2

R387 470 OHM

3

12

C263

1 2

12

R384 22KOHM

1 2

12

R391 22KOHM

1UF/16V

C270 10UF/10V

C276 10UF/10V

12

C264

10UF/10V

FB49 120OHM

2 1

FB30 30Ohm/100Mhz

R385 100KOHM

FB31 30Ohm/100Mhz

R392 100KOHM

+3.3V_Normal

21

12

21

12

C268 100PF/50V

C273 100PF/50V

SC_L_Out

12

C256 4700PF/25V

SC_R_Out

12

C255 4700PF/25V

NC

SCART

Title :

Engineer:

MAIN BOARD

Size Project Name

L2300

B

Date: Sheet of

2

Date: Sheet of

L2300

Engineer:

SCART

Jeff Y Hsiao/Jerry Lo

14 23Thursday, December 20, 2012

1

14 23Thursday, December 20, 2012

Rev

1.03a

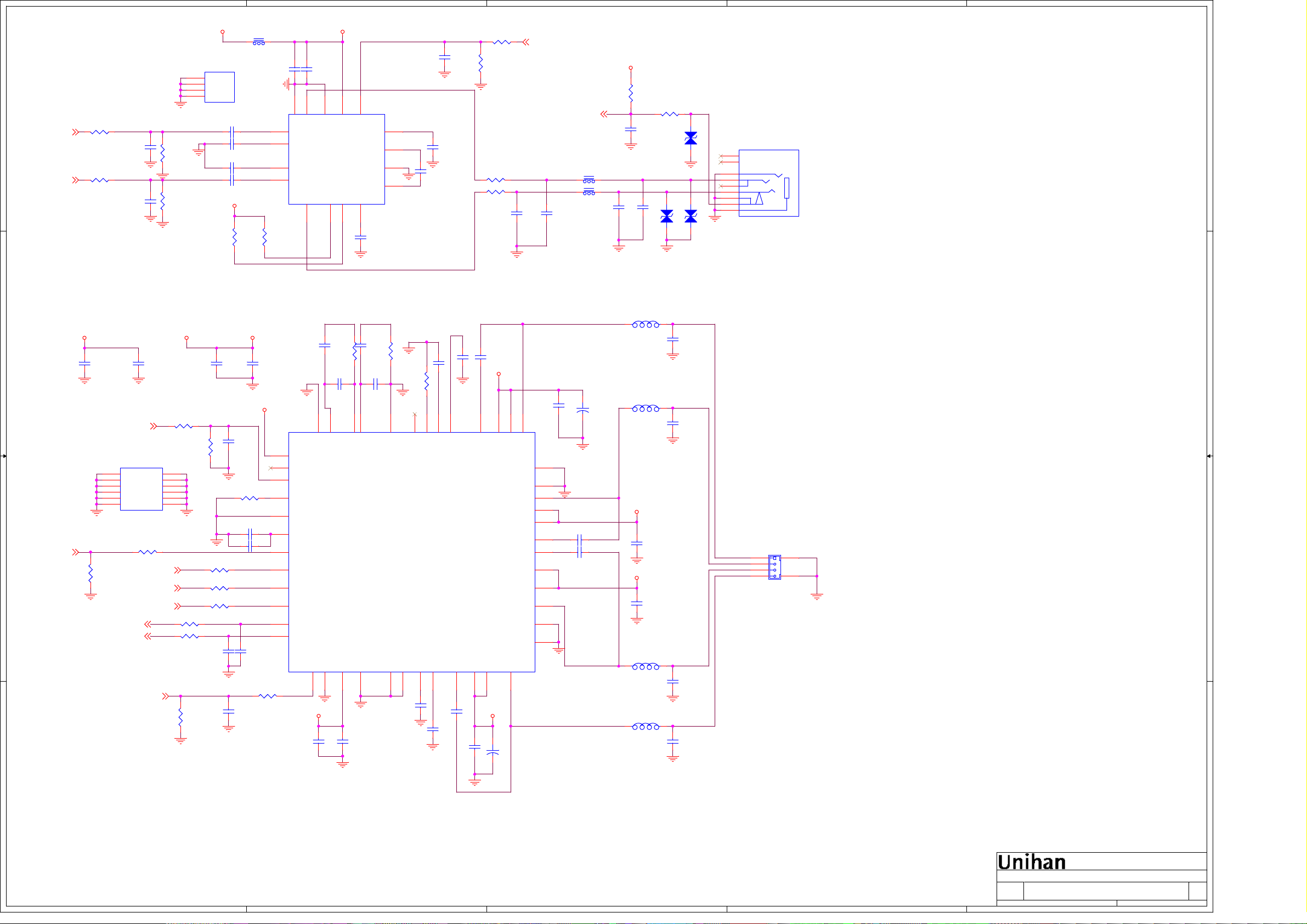

5

4

3

2

1

+3.3V_Normal

U29B

18

GND1

19

GND2

20

GND3

21

GND4

TPA6132A2RTER_4VIA

D D

HP_Out_L5

HP_Out_R5

C C

AMP_PDN6

B B

1 2

R612 100 Ohm

3300PF/50V

1 2

R613 100 Ohm

3300PF/50V

12

C293

NC

4.7UF/25V

I2S_OUT_MCK5,6

50 51 52 53 54

R410 100 Ohm

12

R411

4.7KOHM

MI2C-SDA11,17,6

MI2C-SCL11,17,6

12

C455

12

C453

12

C294

0.1UF/16V

U16B

GND2

GND13

GND3

GND12

GND4

GND11

GND5

GND10

GND6

GND9

GND755GND8

TAS5707L_12VIA

1 2

I2S_OUT_WS5

I2S_OUT_BCK5,6

I2S_OUT_SD5

AMP_RST6

R418

4.7KOHM

LIN

12

R607 220KOHM

12

R574 220KOHM

61 60 59 58 57 56

R415 33 OHM

R416 33 OHM

C459 1UF/16V

C454 1UF/16V

C281 1UF/16V

RIN

C283 1UF/16V

R608

4.7KOHM

12

R407 0 Ohm

12

R408

10KOhm

/PDN

1 2

R412 33 OHM

1 2

R413 33 OHM

1 2

R414 33 OHM

1 2

12

C315

0.1UF/16V

NC

C312

22PF/50V

FB46 120OHM

1 2

VCC

12

R606

4.7KOHM

PLL_VDD_3.3V+3.3V_Normal+12V_Normal

12

C295 10UF/10V

PLL_VDD_3.3V

MCLK

12

C305

1PF/50V

R409

18.2KOHM

C307 0.1UF/16V

1 2

C308 4.7UF/10V

NC

12

C313

22PF/50V

1 2

12

21

C284

0.1UF/16V

12

C296

0.1UF/16V

12

R417 100 Ohm

1

2

3

4

13

14

15

16

17

18

19

20

21

22

23

24

C321

0.1UF/16V

12

17

T_P

INL-

INL+

INR+

INR-

AVDD

FAULT#

MCLK

OSC_RES

DVSSO

VR_DIG

PDN#

LRCLK

SCLK

SDIN

SDA

SCL

+3.3V_Normal

12

16

OUTL

OUTR

5

C282 1UF/16V

15

12

C290

49

GND1

RESET#25STEST

26

12

VCC

14

SGND

G0

6

7

0.047UF/25V

C298 4700PF/25V

12

VR_ANA

12

EN

13

U29A

EN

AVDD

HPVDD

CPP

PGND

CPN

HPVSS

G1

TPA6132A2RTER_4VIA

8

12

C463

2.2UF/10V

R404 470 OHM

12

C291

0.047UF/25V

12

C299 4700PF/25V

10

11

PLL_FLTP

PLL_FLTM

DVDD27DVSS

28

C323 10UF/10V

12

C285 1UF/16V

Ear_OUT_L

12

11

10

9

R405 470 OHM

12

9

AVSS

GND29AGND30VREG31GVDD_OUT232BST_D33PVDD_D134PVDD_D2

C316

0.1UF/16V

C318

1UF/16V

12

R406 22.1KOHM

1 2

7NC8

12

C462

2.2UF/10V

C457 1UF/16V

Ear_OUT_R

1 2

6

OC_ADJ

12

C3011UF/16V

12

C300 2200PF/50V

5

SSTIMER

GVDD_OUT1

C317

12

0.033UF/50V

12

1 2

12

4

+12V_Normal

C3190.1UF/16V

1 2

R609 100 Ohm

1 2

R619

4.7KOHM

R611 10 OHM

R605 10 OHM

C297

0.033UF/50V

+12V_Normal

3

BST_A

PGND_AB2

PGND_AB1

PGND_CD2

PGND_CD1

35

C322 220UF/25V

12

+

Ear-OUT_L

Ear-OUT_R

12

C460

0.022UF/16V

1

U16A

OUT_A

PVDD_A12PVDD_A2

OUT_B

PVDD_B2

PVDD_B1

BST_B

BST_C

PVDD_C2

PVDD_C1

OUT_C

OUT_D

TAS5707L_12VIA

36

Ear_MUTE 6

12

C456

0.022UF/16V

12

48

47

46

45

44

43

42

41

40

39

38

37

Ear_DET6

FB57

600Ohm/100Mhz

FB58

600Ohm/100Mhz

12

C303

C302

+

220UF/25V

0.1UF/16V

C306

0.033UF/50V

12

C309

0.033UF/50V

21

+3.3V_Normal

12

R604 10KOhm

12

C458

0.047UF/25V

L4

15UH

L5

15UH

+12V_Normal

12

+12V_Normal

12

L6

15UH

L7

15UH

1 2

C461

NC

100PF/50V

Ear-OUT-L

Ear-OUT-R

12

C452

0.047UF/25V

C310

0.1UF/16V

C311

0.1UF/16V

R610 100 Ohm

N/A

12

ZD49

21

12

21

12

21

12

21

12

N/A

12

ZD58

N/A

12

ZD59

PESD0603-240

C292

0.68UF/25V

C304

0.68UF/25V

C314

0.68UF/25V

C320

0.68UF/25V

CN12

NP_NC2

9

NP_NC1

8

PESD0603-240

2 4 6 3 7 5 1

PHONE_JACK_7P

PESD0603-240

CN13

SPK_L+ SPK_LSPK_R+ SPK_R-

1 2 3 456

WAFER_HD_1X4P

A A

Audio AMP

Title :

Engineer:

L2300

Engineer:

1

MAIN BOARD

Size Project Nam e

C

Date: Sheet of

5

4

3

2

Date: Sheet of

Audio AMP

Jeff Y Hsiao/Jerry Lo

Rev

1.03a

15 23Thursday, December 20, 2012

1.03a

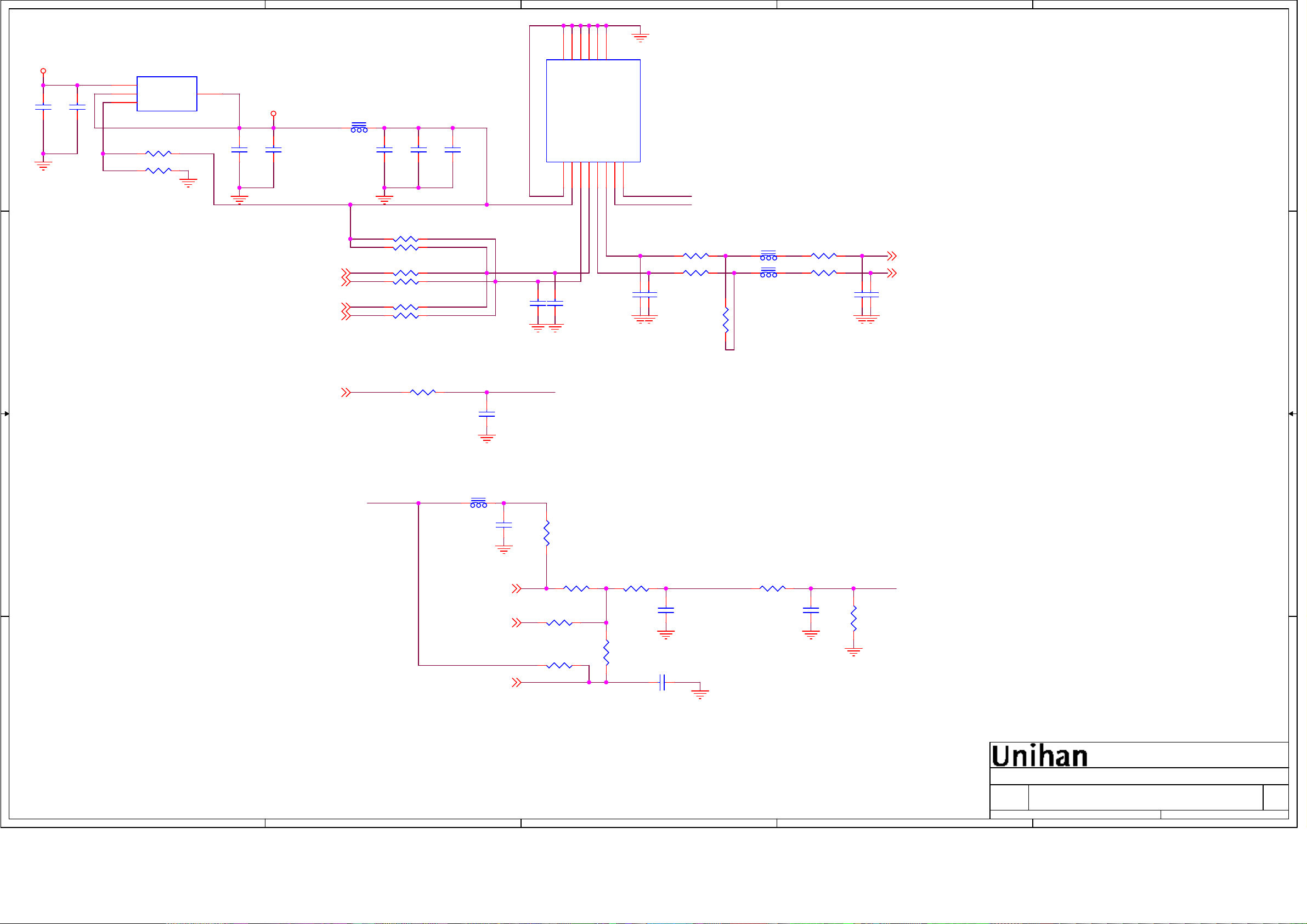

5

+5V_Normal

12

D D

C C

C327

10UF/10V

12

C328

0.1UF/16V

U17

3

IN

2

OUT

1

ADJ/GND

APE1117AK-HF

R419 121 Ohm

1 2

R422 200 Ohm

Vout

12

4

C333

10UF/10V

12

C334

0.1UF/16V

TUNER_3.3V

12

1230_MSCL22 1230_MSDA22

MS_SCL22,8 MS_SDA22,8

FB36 120OHM

R423 4.7KOHM R424 4.7KOHM

R426 33 OHM R427 33 OHM

R429 33 OHM NC R430 33 OHM NC

4

21

12

C329

10UF/10V

1 2 1 2

3

14

TU2

P_GND19P_GND210P_GND311P_GND412P_GND513P_GND6

12

C330

0.1UF/16V

12

C331

0.01UF/50V

VCC_3.3V

SCL_T SDA_T

C335

22PF/50V

12

ANT_5V/GND1VCC2I2C_SDA3I2C_SCL4IF_N5IF_P6AGC7GPIO

DIF_P

DIF_N

NC

C336

22PF/50V

C340

TDSY-G230D

8

TUNER-CTRL

12

47PF/50V

12

NC

C341

AGC

1 2

47PF/50V

R614 10 OHM

R617 10 OHM

R618 10 OHM

NC

L8 120Ohm

L9

12

120Ohm

21

1 2

21

1 2

R615 0 Ohm

R616 0 Ohm

NC

C342

47PF/50V

12

NC

C343

47PF/50V

2

DIFM 22,8

DIFP 22,8

1

NC

1 2

TUNER_CTRL8

B B

R537 1KOhm

VCC_3.3V

Demod_IF_AGC22

12

FB37 120OHM

IF_AGC8

RF_AGC8

TUNER-CTRL

NC

C442

0.1UF/16V

21

12

C339

0.1UF/16V

12

R434 1KOhm

R435

9.1KOhm

1 2

R548 0 Ohm

1 2

R173

NC

12KOhm

1 2

R436 0 Ohm

1 2

R174

NC

0 Ohm

1 2

12

C152

1 2

C344

0.022UF/16V

NC

R437 1KOhm

1 2

AGC

C345

0.1UF/16V

12

R438 22KOHM

NC

12

0.1UF/16V

A A

Tuner

Title :

Jeff Y Hsiao/Jerry Lo

Engineer:

MAIN BOARD

Size Project Name

L2300

B

Date: Sheet of

5

4

3

2

Date: Sheet of

L2300

Engineer:

Jeff Y Hsiao/Jerry Lo

1

Tuner

Rev

1.03a

16 23Thursday, December 20, 2012

5

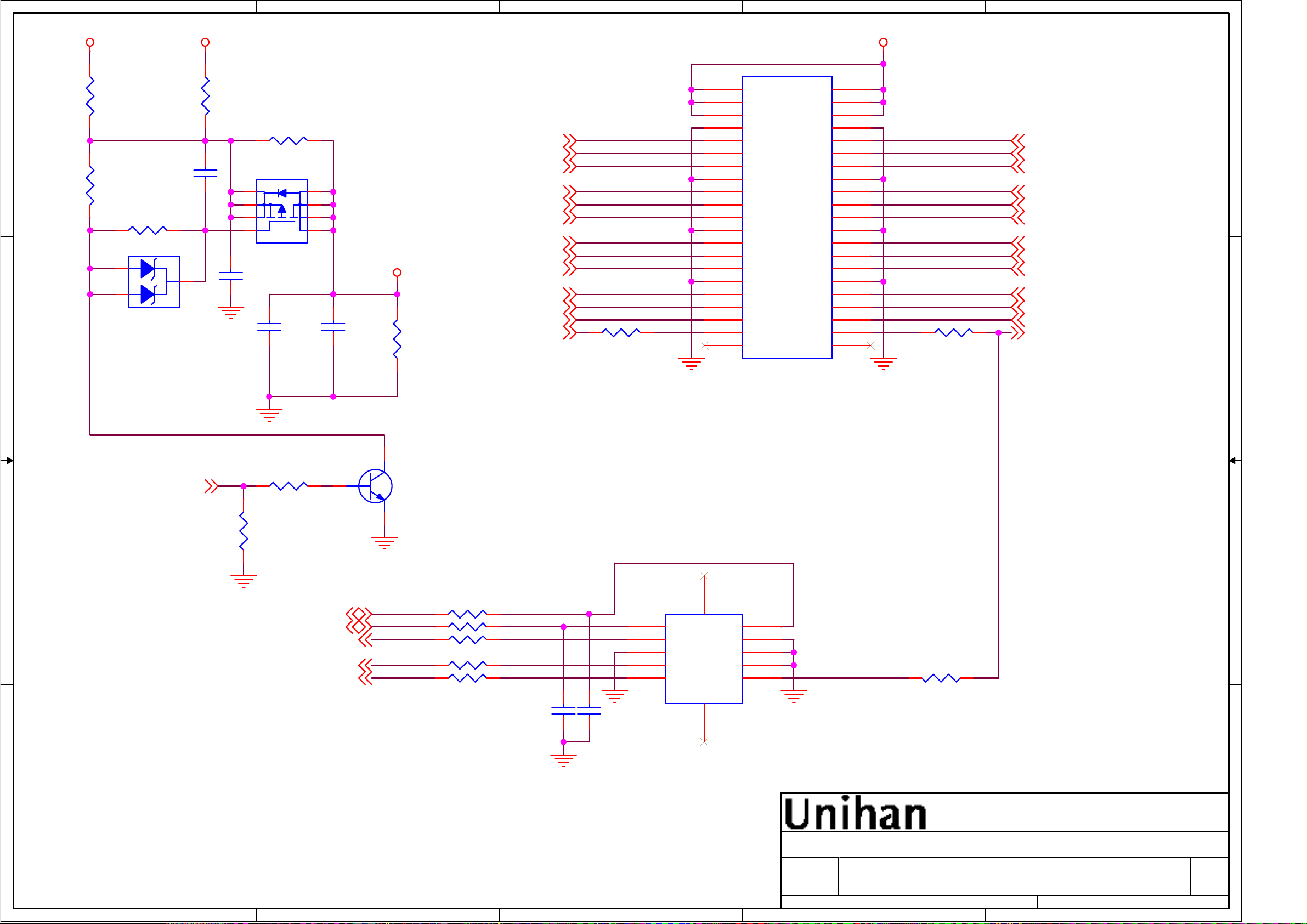

+5V_Standby+12V_Normal PANEL_VCC

4

3

2

1

12

R443 0 Ohm

D D

12

R446 56KOhm

C C

C348

0.22UF/25V

R448 56KOhm

D2

1

2

BAT54C

NC

12

R444

NC

0 Ohm

R445

NC

0 Ohm

1 2

12

Q21

1

S D

2 3

12

3

4

12

C349

0.1UF/16V

G

AP4435GM

12

C350

8 7 6 5

PANEL_VCC

12

C351

10UF/16V

0.1UF/16V

12

R449

10KOhm

RXA0+6 RXA1+6 RXA2+6

RXACK-6 RXA3-6 RXA4+6

RXB0+6 RXB1+6 RXB2+6

RXBCK+6 RXB3+6 RXB4+6

BRIGHT_ADJ6

1 2

R450 33 OHM

CN14

1

3

5

7

9

11

13

15

17

19

21

23

25

27

29

31

33

35

37

39

39 SIDE141SIDE2

WTOB_CON_40P

10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40

2

4

6

8

10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42

12

R451 33 OHM

RXA0- 6 RXA1- 6 RXA2- 6

RXACK+ 6 RXA3+ 6 RXA4- 6

RXB0- 6 RXB1- 6 RXB2- 6

RXBCK- 6 RXB3- 6 RXB4- 6

OCP_OUTPUT_PWM 4

R452

4.7KOHM

B

Panel_VCC_ON6

B B

1 2

R453

4.7KOHM

1 2

MI2C-SCL11,15,6 MI2C-SDA11,15,6

PWM_LR6

FRC_BL_EN4

FRC_3D_FLAG_EN6

1

3

C

Q22 PMBS3904

E 2

12

R46433 OHM NC R46333 OHM NC

12 12

R53833 OHM NC

12

R46133 OHM NC

12

R46233 OHM NC

C360

NC

33PF/50V

NC

CN18

1 3 5 7 9

12

C362

NC

33PF/50V

11

10

2

4

6

8

10

FRC_BL_PWM

NC

R460 33 OHM

1 2

1 3 5 7 9

SIDE1

SIDE2

WTOB_CON_10P

12

A A

LVDS Interface

Title :

Engineer:

MAIN BOARD

Size Project Name

A

Date: Sheet of

5

4

3

L2300

2

Engineer:

LVDS Interface

Jeff Y Hsiao/Jerry Lo

Rev

1.03a

17 23Thursday, December 20, 2012

1

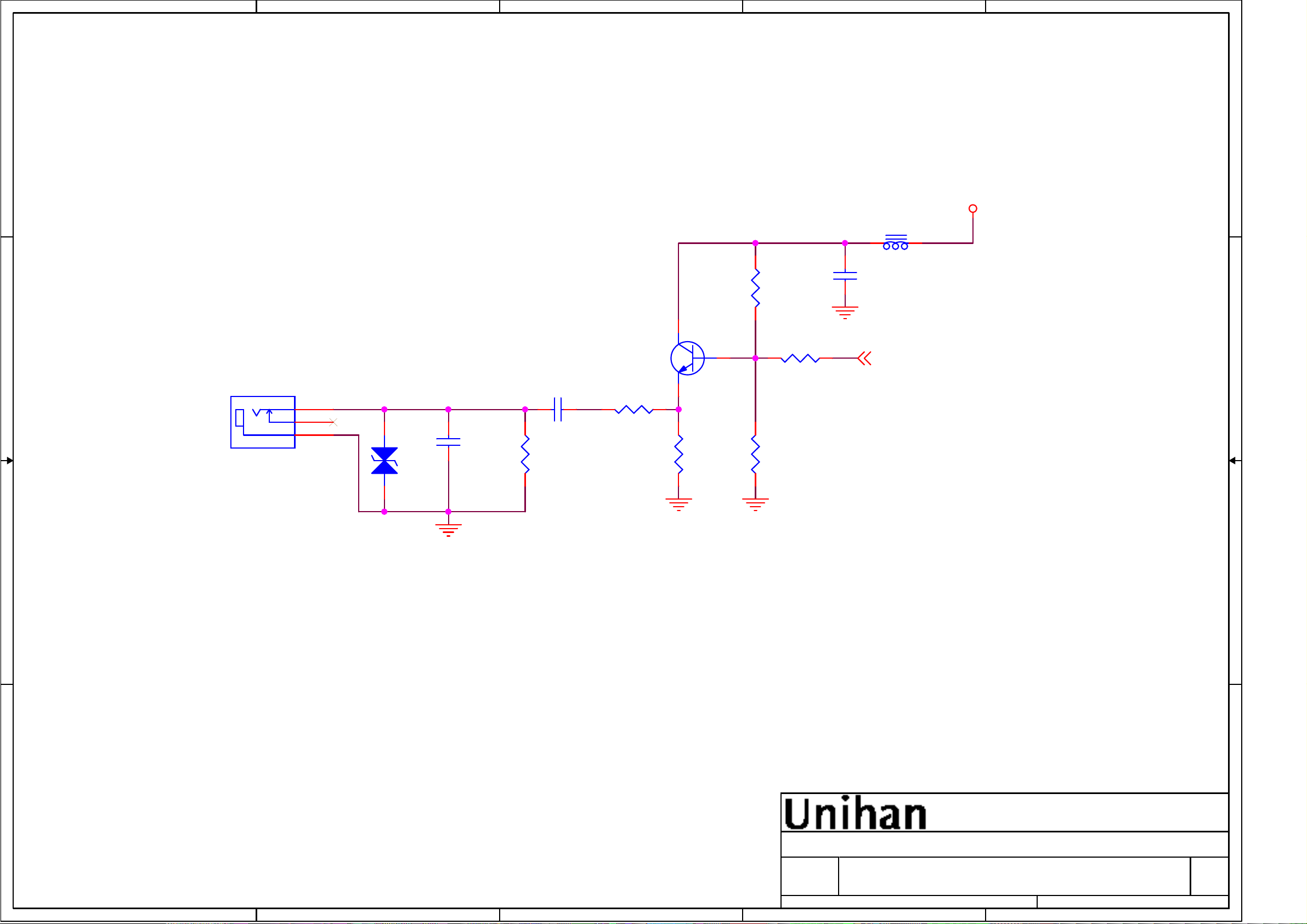

5

D D

4

3

2

FB38 120OHM

2 1

1

+5V_Normal

12

R454

1.5KOHM

3

C

B

C C

E 2

12

CN15

RCA_JACK_3P

C356

1UF/16V

3 2 1

12

N/A

ZD43

PESD0603-240

12

C357

1PF/50V

NC

1 2

12

R457

100KOHM

R456 56 OHM

1 2

1

Q23

PMBS3904

R458 200 Ohm

1 2

R455

2.2KOHM

12

R459

3.3KOHM

12

C355

0.1UF/16V

SPDIF_OUT 5

B B

A A

SPDIF OUT

Jeff Y Hsiao/Jerry Lo

Rev

1.03a

MAIN BOARD

Size Project Name

A

L2300

Title :

Engineer:

Date: Sheet of

5

4

3

2

18 23Thursday, December 20, 2012

1

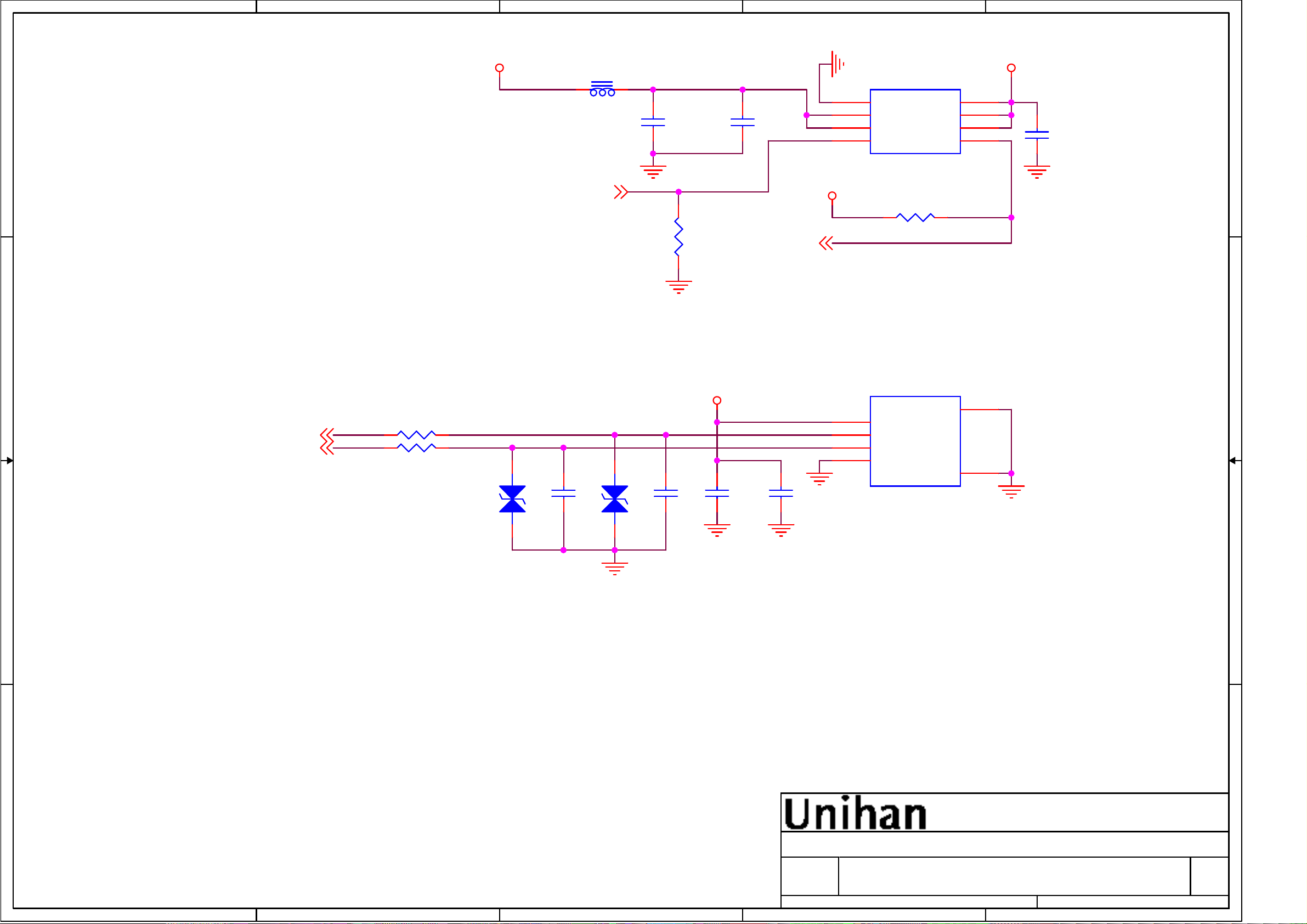

5

4

3

2

1

+5V_Standby

D D

USB1_PWR_SW6

C C

Irat=3A

FB39 120Ohm

21

12

R465

NC

4.7KOHM

C358

10UF/10V

U30

12

C359

0.1UF/16V

+5V_Standby

12

USB1_OCD6

1

GND

2

IN1

3

IN2 EN#/EN4OC#

G547H2P81U

R552 10KOhm

1 2

OUT1 OUT2

OUT/NC

USB_5V

8 7 6 5

12

C361

0.1UF/16V

USB_5V

USB1_DM5 USB1_DP5

B B

R466 4.7 OHM R467 4.7 OHM

1 2 1 2

12

NC

ZD44

PGB1010603NR

12

NC

C337

1PF/50V

12

NC

ZD45

PGB1010603NR

12

NC

C338

1PF/50V

12

C364

10UF/10V

12

C365

0.1UF/16V

CN16

1 2 3 4

P_GND1 1 2 3 4

P_GND2

USB_CON_1X4P

5

6

A A

USB

Title :

Engineer:

MAIN BOARD

Size Project Name

A

Date: Sheet of

5

4

3

2

L2300

Engineer:

USB

Jeff Y Hsiao/Jerry Lo

Rev

1.03a

19 23Thursday, December 20, 2012

1

5

4

3

2

1

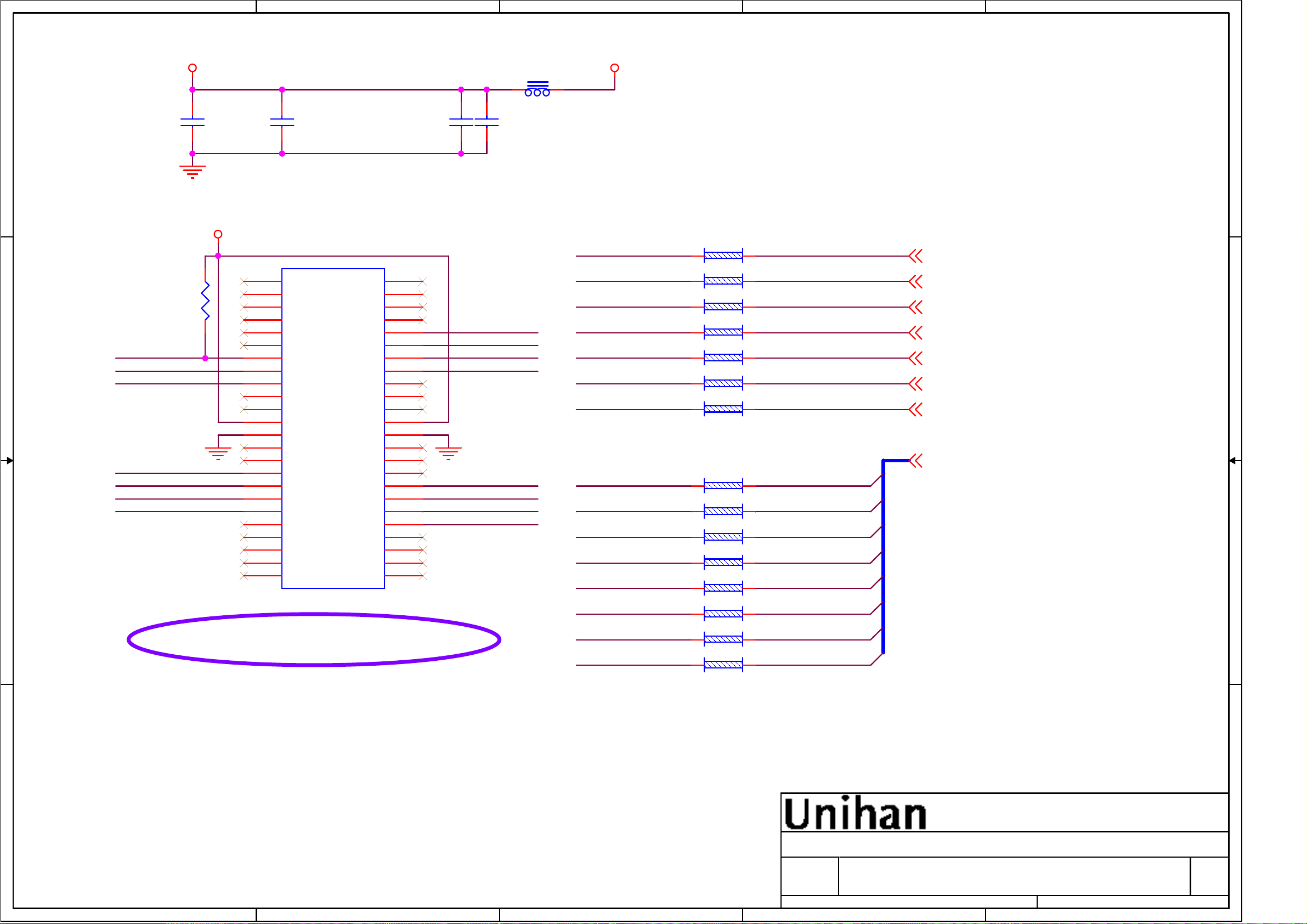

FLH_3.3V

12

C366

D D

FLH_3.3V

12

R469

NC

3.9KOHM

C C

B B

NAND-RBZ NAND-REz NAND-CEz

NAND-CLE NAND-ALE NAND-WEz NAND-WPz

NC

0.1UF/16V

12

U18

1

NC1

2

NC2

3

NC3

4

NC4

5

NC5

6

NC28

7

R/B#

8

RE#

9

CE#

10

NC29

11

NC6

12

Vcc1

13

Vss1

14

NC7

15

NC8

16

CLE

17

ALE

18

WE#

19

WP#

20

NC9

21

NC10

22

NC11

23

NC12

24

NC13

H27U2G8F2C

C367

NC

0.1UF/16V

NC

NC27 NC26 NC25 NC24

NC23 NC22 NC21

NC20 NC19 NC18

NC17 NC16 NC15 NC14

I/O7 I/O6 I/O5 I/O4

Vcc2 Vss2

I/O3 I/O2 I/O1 I/O0

C368

NC

0.1UF/16V

48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25

12

NAND_D7 NAND_D6 NAND_D5 NAND_D4

NAND_D3 NAND_D2 NAND_D1 NAND_D0

FB47 120OHM

2 1

C369

NC

2.2UF/10V

NC

1Gbit: Hynix-----0500-00SJ000

+3.3V_Normal

NC

NAND-WPz

NAND-REz

NAND-CEz

NAND-CLE

NAND-ALE

NAND-WEz

NAND-RBZ

NAND_D7

NAND_D6

NAND_D5

NAND_D4

NAND_D3

NAND_D2

NAND_D1

NAND_D0

R468 0Ohm

NC

R470 0Ohm

NC

R471 0Ohm

NC

R472 0Ohm

NC

R473 0Ohm

NC

R474 0Ohm

NC

R475 0Ohm

NC

R476 0Ohm

NC

R477 0Ohm

NC

R478 0Ohm

NC

R479 0Ohm

NC

R480 0Ohm

NC

R481 0Ohm

NC

R482 0Ohm

NC

R483 0Ohm

1 2

NAND_WPZ 8

NAND_REZ 8

NAND_CEZ 8

NAND_CLE 8

NAND_ALE 8

NAND_WEZ 8

NAND_RBZ 8

PCM_A[7:0] 10

PCM_A7

PCM_A6

PCM_A5

PCM_A4

PCM_A3

PCM_A2

PCM_A1

PCM_A0

A A

NAND FLASH

Title :

Engineer:

MAIN BOARD

Size Project Name

A

Date: Sheet of

5

4

3

2

L2300

Engineer:

NAND FLASH

Jeff Y Hsiao/Jerry Lo

Rev

1.03a

20 23Thursday, December 20, 2012

1

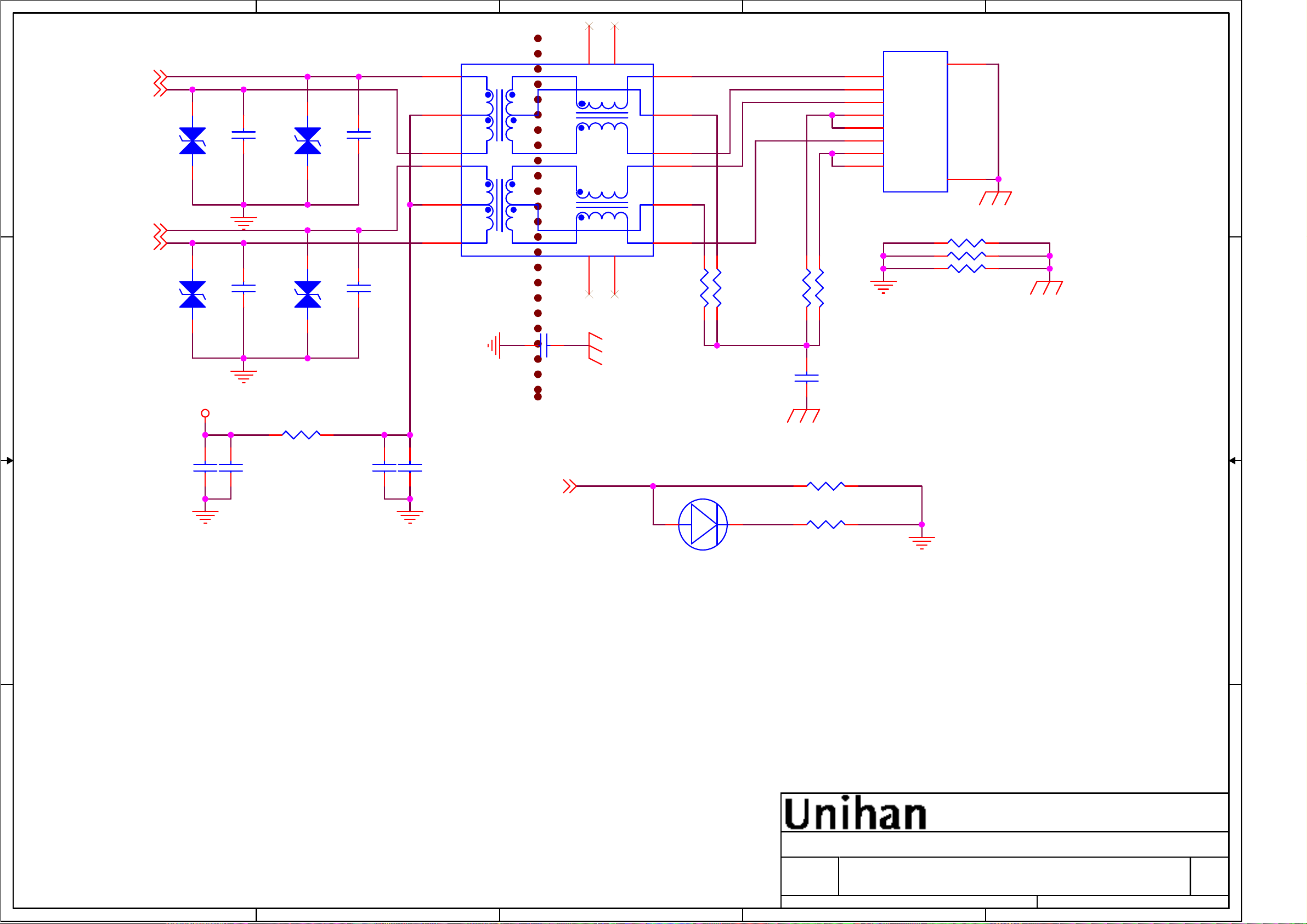

5

4

3

2

1

U19

NC

MDI_TP5 MDI_TN5

D D

MDI_RP5 MDI_RN5

C C

12

NC

ZD51

PGB1010603NR

NC

ZD53

PGB1010603NR

12

NC

C379

1PF/50V

NC

C424

1PF/50V

12

NC

ZD50

PGB1010603NR

NC

ZD52

PGB1010603NR

12

NC

C378

1PF/50V

NC

C394

1PF/50V

1

2

3 6

7

8

TX

1

2

3

RX

6

7

8

TS21C_HF

NC

C370

12

1NF/2KV

5

NC14NC2

NC312NC4

13

16

15

14 11

10

16

15

14 11

10

9

12

NC

R484

75 OHM

12

NC

R485

75 OHM

C376 1NF/2KV

MDI_TP-C MDI_TN-C MDI_RP-C

MDI_RN-C

NC

R486

NC

12

75 OHM

12

NC

R487

75 OHM

CN17

1 2 3 4 5 6 7 8

LAN_JACK_8P

NC

P_GND2 1 2 3 4 5 6 7 8

P_GND1

R494 0 OhmNC R501 0 OhmNC R502 0 OhmNC

9

10

1 2 1 2 1 2

+2.5V_Normal

NC

R492 0 Ohm

NC

C371

10UF/10V

B B

12

1 2

C372

NC

0.1UF/16V

NC

C373

0.1UF/16V

12

C374

0.01UF/50V

NC

Ethernet LED Configuration:

NC

Link_LED5

+

1 2

NC

LED1 GREEN

R488 5.1KOHM

NC

R489 510 OHM

1 2

A A

Ethernet Conn

Title :

Engineer:

MAIN BOARD

Size Project Name

A

Date: Sheet of

5

4

3

2

L2300

Engineer:

Ethernet Conn

Jeff Y Hsiao/Jerry Lo

Rev

1.03a

21 23Thursday, December 20, 2012

1

5

4

3

2

1

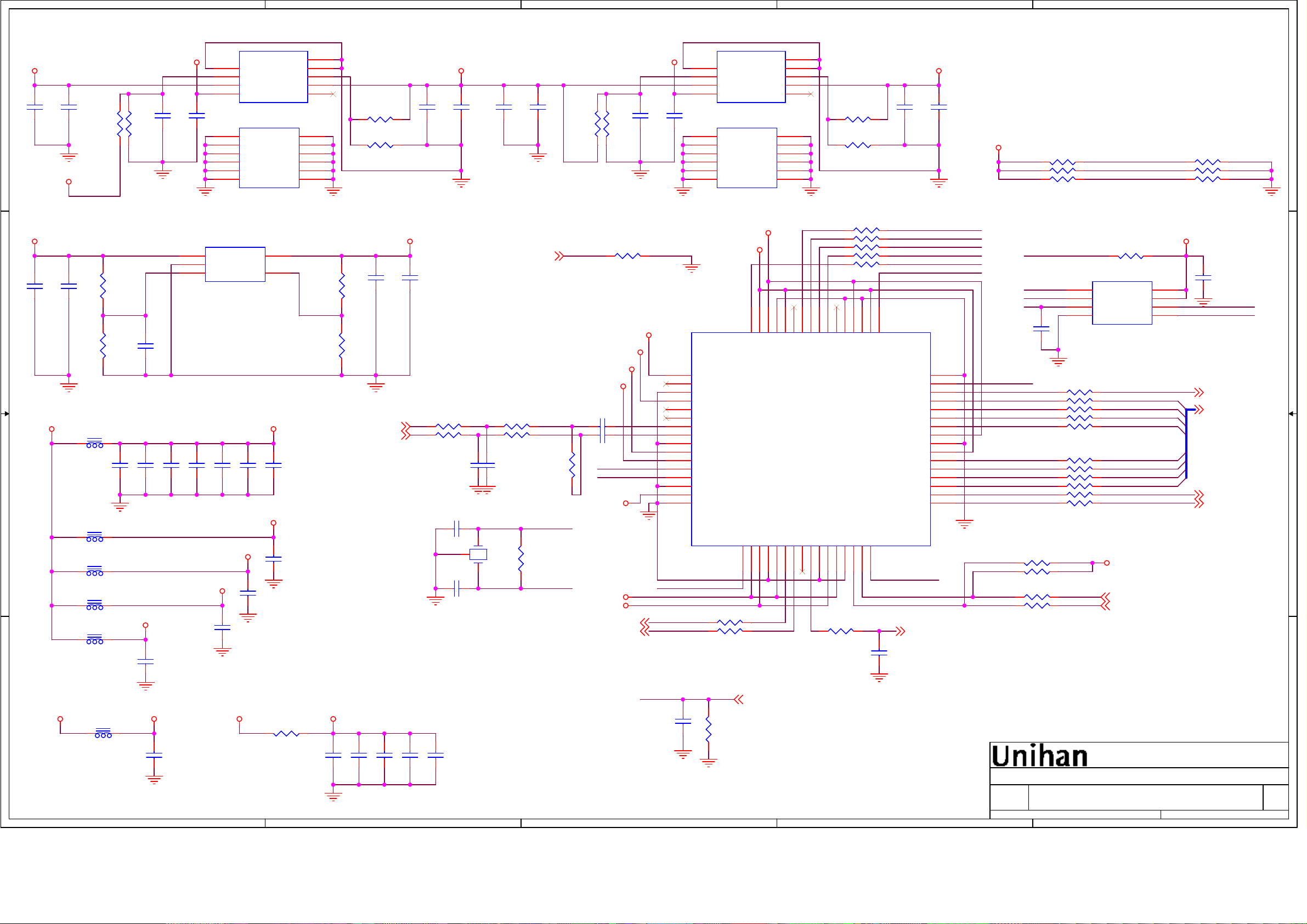

+3.3V_Normal

C382

10UF/10V

+3.3V_Normal

C167

1UF/16V

DT2_3.3V

12

C383

0.1UF/16V

C236

0.1UF/16V

FB40 120OHM

FB41 120OHM

FB42 120OHM

FB44 120OHM

FB43 120OHM

12

R495

10KOhm

1 2

12

R126

12KOhm

12

R125

10KOhm

21

12

C395

21

AVDD_APLL_TS/SDR_T2

21

12

D D

+5V_Normal DT2_3.3V

12

C C

B B

+5V_Normal +5V_Normal

NC

R496

10KOhm

12

NC

C163

0.1UF/16V

C384

0.1UF/16V

12

C385 1UF/16V

U20 RT9043-GB

1 2 3

Total:55mA

12

0.1UF/16V

12

C396

0.1UF/16V

12

C407

0.1UF/16V

C398

C397

0.1UF/16V

AVDD33_ADC_T2

AVDD_MPLL_T2

U21A

1

PGOOD

2

EN

3

VIN

4

VDD

RT9025_25PSP_12VIA

U21B

10

GND3

11

GND4

12

GND5

13

GND6

14

GND7

15

GND8

RT9025_25PSP_12VIA

VIN

VOUT GND EN

12

C399

0.1UF/16V

AVDD_SAR_T2

12

C406

0.1UF/16V

GND9 GND10 GND11 GND12 GND13 GND14

5

4

FB

VDD33_T2

12

C401

C400

0.1UF/16V

12

C405

0.1UF/16V

GND2 GND1

ADJ

VOUT

NC

16 17 18 19 20 21

180KOHM

100KOHM

0.1UF/16V

C403

0.1UF/16V

9 8 7 6 5

R128

R127

1 2

12

R497 220KOhm

R503 100KOHM

12

C187

1UF/16V

DIFM16,8 DIFP16,8

12

C386

10UF/10V

C176

0.1UF/16V

R561

0 Ohm

1 2 1 2

R562

0 Ohm

C410

47PF/50V

C413 33PF/50V

C419 33PF/50V

NC

12

3

12

C387

0.1UF/16V

12

1 2

GND

12

MSB1230_detect6

1 2 1 2

12

C411 47PF/50V

X2 24MHZ

12

C388

R517 100 Ohm

R518 100 Ohm

C389

10UF/10V

0.1UF/16V

NC

R515 100 Ohm

AVDD_APLL_TS/SDR_T2

XTAL_IN

R527 1MOhm

1 2

XTAL_OUT

R499

22KOHM

XTAL_OUT XTAL_IN

12

C390

0.1UF/16V

IM IP

12

R498

10KOhm

1 2

R114 10KOhm

AVDD_SAR_T2

AVDD33_ADC_T2

AVDD25_ADC_T2

AVDD_MPLL_T2

C408

0.1UF/16V

1 2 1 2

12

C409

0.1UF/16V

VDD33_T2 VDD12_T2

1230_MSCL16 1230_MSDA16

NC

12

C391 1UF/16V

33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48

GPIO_0

U22A

1

PGOOD

2

EN

3

VIN

4

VDD

RT9025_25PSP_12VIA

U22B

10

GND3

11

GND4

12

GND5

13

GND6

14

GND7

15

GND8

RT9025_25PSP_12VIA

VDD12_T2

VDD33_T2

U24

AVDD_33_1 SAR_RSSI GND6 AVDD_33_2 QM QP IM IP GND7 AVDD_25 AVDD_33_3 XOUT XIN GND8 AVDD_33_4 GND9

9

GND2

8

GND1

7

ADJ

6

VOUT

5

NC

16

GND9 GND10 GND11 GND12 GND13 GND14

32

GPIO[0]49VDDP550VDDC451GND1052VDDP653I2CM_SCL54I2CM_SDA55RF_AGC56IF_AGC57GND1158VDDC559VDDP760GND1261I2CS_SCL62I2CS_SDA63GPIO[3]

12 12

17 18 19 20 21

25

26

27

28

29

30

31

GND5

GPIO2

VDDP3

VDDP4

VDDC3

GPIO[11]

R53433 OHM R53533 OHM

SPI_CZ

R500 56KOHM

1 2

R505 100KOHM

1 2

R506 33 OHM

1 2

R507 33 OHM

1 2

R508 33 OHM

1 2

R509 33 OHM

1 2

R511 33 OHM

19

20

21

22

23

24

GND3

GND4

GPIO1

SPI_DI

SPI_DO

1 2

SPI_CLK

R536 0 Ohm

VDDC2

12

17

18

MSB1230-LF

VDDP2

RESETZ

TS_DATA7 TS_DATA6 TS_DATA5 TS_DATA4

TS_DATA3 TS_DATA2 TS_DATA1 TS_DATA0

64

DI2CS_SDA DI2CS_SCL

12

C420

0.022UF/16V

DT2_1.2VDT2_2.5V

12

C392

10UF/10V

GND2

TS_ERR

TS_CLK

VDDC1

GND1

VDDP1

TS_VLD

TS_SYNC

GPIO_3

Demod_IF_AGC 16

NC

12

C393

0.1UF/16V

SPI-CZ SPI-DO SPI-DI SPI-CK SPI-WPN RESETn

16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

VDD33_T2

1 2

R540 10KOhmNC

1 2

R542 10KOhmNC

1 2

R544 10KOhmNC

SPI-WPN

SPI-CZ SPI-DO SPI-WPN SPI-CK

C404 1UF/16V

TS_EER TS_CLK TS_D7 TS_D6 TS_D5 TS_D4

TS_D3 TS_D2 TS_D1 TS_D0 TS_VLD TS_SYNC

R532 33 OHM R533 33 OHM

12

NC

1 2

R512 33 OHM

1 2

R513

1 2

R514

1 2

R516

1 2

R519

1 2

R520 33 OHM

1 2

R521 33 OHM

1 2

R522 33 OHM

1 2

R523 33 OHM

1 2

R524 33 OHM

1 2

R525 33 OHM

12

R52810KOhm

12

R53010KOhm

1 2 1 2

U23

1

CE#

2

SO

3

WP#

4

GND

PM25LD020C

33 OHM 33 OHM 33 OHM 33 OHM

VDD33_T2

GPIO_0 GPIO_3 TS_EER

R510 10KOhm

12

VCC

HOLD#

SCK

SIO

TS1_D7 TS1_D6 TS1_D5 TS1_D4

TS1_D3 TS1_D2 TS1_D1 TS1_D0

MS_SDA 16,8 MS_SCL 16,8

1 2

R541 10KOhm

1 2

R543 10KOhm

1 2

R545 10KOhm

DT2_3.3V

12

C402

8 7 6 5

0.1UF/16V

SPI-DI

TS1_CLK 10

TS1_D[7:0] 10

TS1_VLD 10 TS1_SYNC 10

RESETn

12

A A

FB45 120OHM

AVDD25_ADC_T2DT2_2.5V

21

12

C412

0.1UF/16V

5

R529 0 Ohm

1 2

VDD12_T2DT2_1.2V

12

C414

0.1UF/16V

12

C416

C415

0.1UF/16V

4

C417

12

C418

0.1UF/16V

C421

3

12

R539

4.7KOHM

Demod-RST 6

MSB1230

Title :

Engineer:

MAIN BOARD

Size Project Name

L2300

B

Date: Sheet of

2

Date: Sheet of

L2300

Engineer:

MSB1230

Jeff Y Hsiao/Jerry Lo

22 23Thursday, December 20, 2012

1

22 23Thursday, December 20, 2012

Rev

1.03a

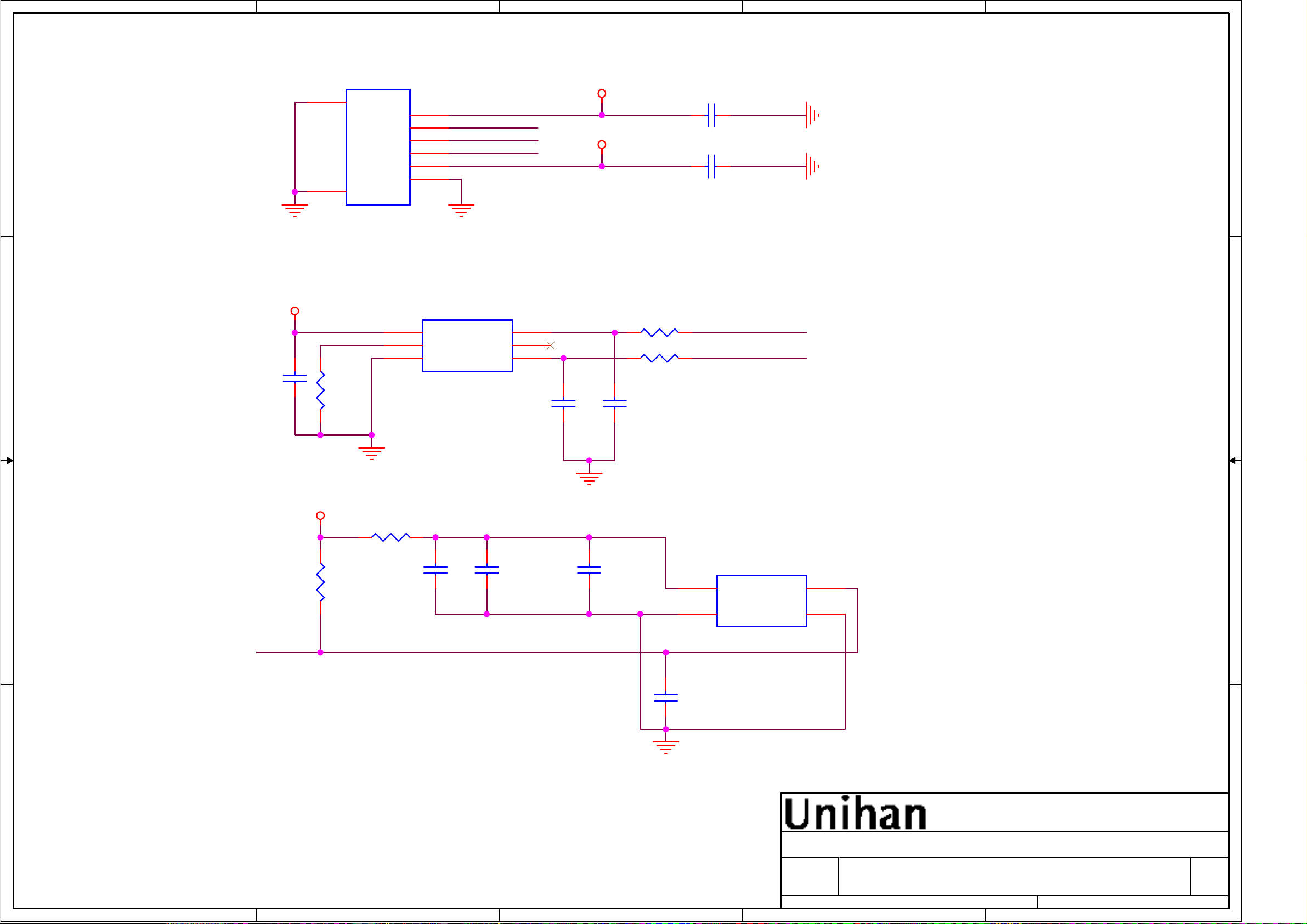

5

4

3

2

1

CN2

7

SIDE1

D D

8

SIDE2

WTOB_CON_6P

+3.3V_Normal_ALS

C C

C34

0.1UF/16V

12

R5 0 Ohm

1 2 3 4 5 6

1 2 3

1 2 3 4 5 6

U9

VDD ADRS GND

JSA1126

RC_IR SCL SDA

SDA

INT

SCL

6 5 4

+3.3V_Standby_IR

+3.3V_Normal_ALS

NC

12

C4

10PF/50V

NC

12

C50

10PF/50V

C1 0.1UF/16V

C80 0.1UF/16V

1 2

12

R2533 OHM

12

R2633 OHM

SDA

SCL

+3.3V_Standby_IR

12

B B

RC_IR

A A

R82 22KOHM

R24 47 OHM

1 2

NC

12

C49

12

C279

22UF/6.3V

12

C27

0.1UF/16V

NC

12

C35

10PF/50V

U10

1

VCC

4

GND2

GP1USC31XP

VOUT

GND1

2

3

IR_ALS

Title :

IR_ALS

Jeff Y Hsiao/Jerry Lo

Engineer:

MAIN BOARD

Size Project Name

A

Date: Sheet of

5

4

3

2

L2300

Engineer:

Jeff Y Hsiao/Jerry Lo

Rev

1.03a

23 23Thursday, December 20, 2012

1

5

4

3

2

1

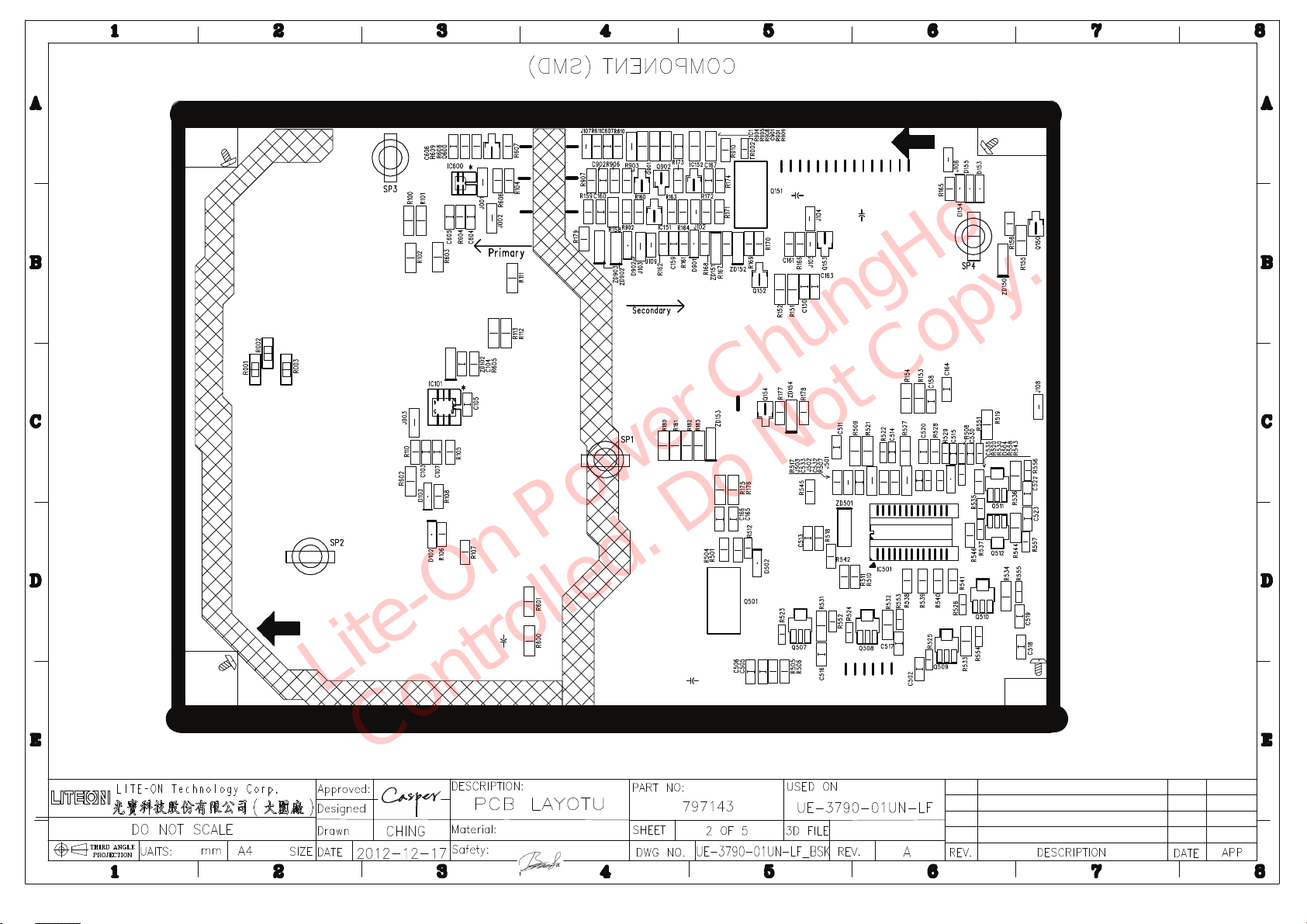

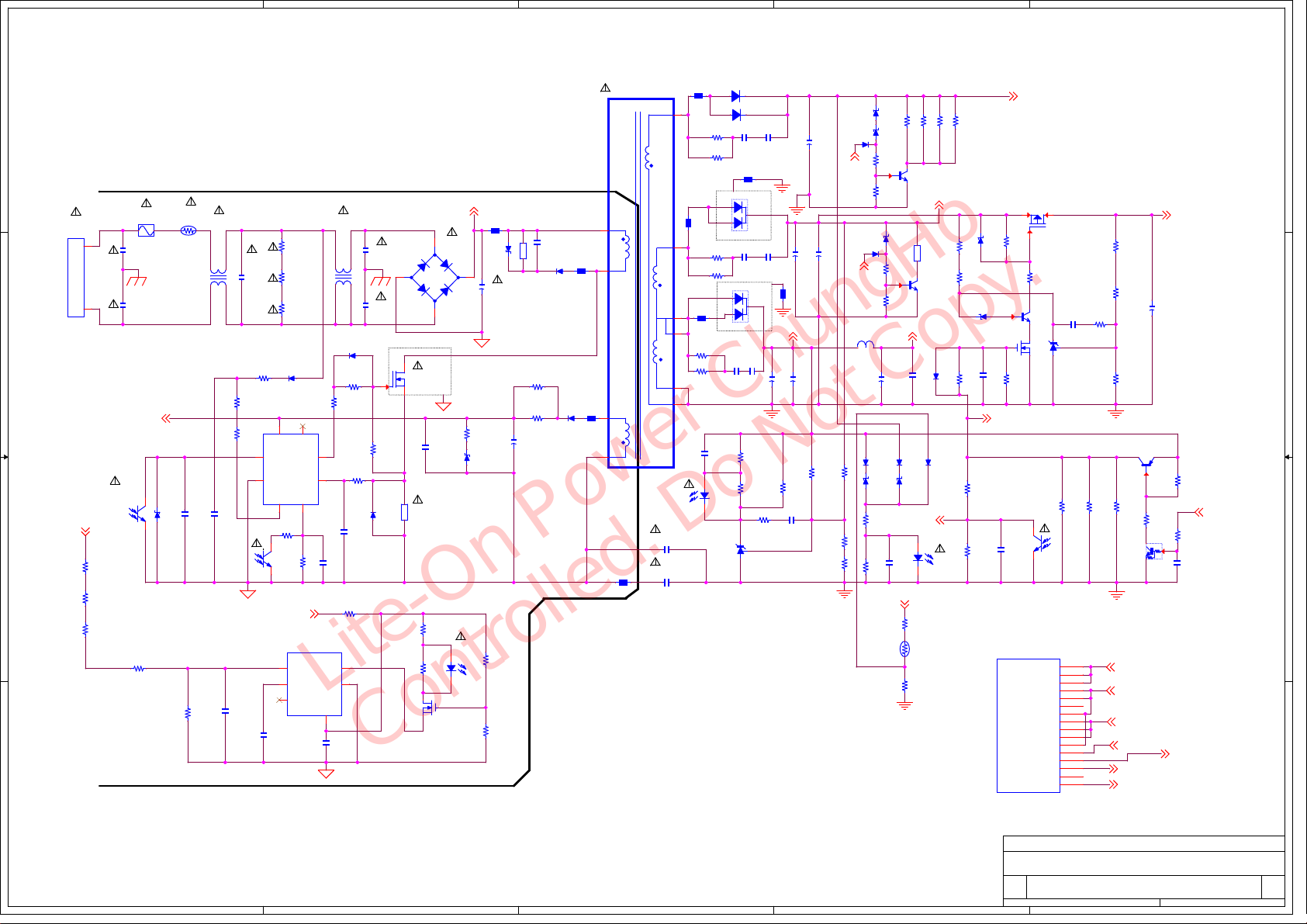

FB153

C007 221/Y1

C006 471/Y1

BEAD-3mm

6

R175 56R

R176 56R

FB152 BEAD-3mm

5

R153 47R

R154 47R

FB151

1 2

BEAD-3mm

3 4

ER3019

T301

D D

C105 104/50V

R606

1K

Q600 2N7002K

BD001 TS406G

12

B+

IC601A LTV817

FB002

BEAD-3mm

ZD101

+

C101 150uF/450V

R111 10R/1206

ZD103 22V

NC

R608

4.7M

R609 2M

2WS

R103 91K/2WS

R112

3.9R/1206

R113

3.9R/1206

+

C108 47uF 50V

C102 152 1KV

D101

PR1007

FB003

BEAD-3mm

D105 PR1007

BEAD-3mm

10

FB004

11

T301A

BEAD-3mm

7

8

FB001

TR001

F001

SCK055

C104

222/50V

R604

76.8KF

LF001 781762

243 1

C100

104/450V

C003 474/X2

R101 91K/1206

R102 91K/1206

C604 471/50V

R100

10K/1206

2

1

R003 750K/1206

R002 510K/1206

R001 750K/1206

IC101

FAN6754MRMY

7

VCC

FB

GND

HV

4

R104 1K

43

IC900B LTV817

6 5 4

C605 221/50V

1

2

IC102B LTV817

R600

4.3MF/1206

R601

3.3MF/1206

R602 499KF/1206

T3.15A 250V

C001 NC

C002 NC

VCC

43

R603

499KF/1206

ZD102 NC

C0N101

A3963W R2

L

N

C C

B+

B B

A A

LF002 781769

C005

331/Y1

243 1

D102

D100 PR1007

GATE

SENSE

VCC

IN1 CD NDFPO

1N4148

R106 33R

R105

4.7R

3

NC

8

R108 1K

6

RT

5

C107 471/50V

103/50VC103

R110 100K

R605 3K

IC600 IN1M101

1

FPO

2

VSS

Lite-On Power ChungHo

VCC

3

C606 NC

- +

C004 331/Y1

HS1

Q100 AOTF9N70

R107 10K

R109

2WS

D103

0.18R/2W S

1N4148

R607

47K

Controlled. Do Not Copy.

HS2

R151 47R

12

HS3

FCQS20A65

R152 47R

C160 NC

IC102A LTV817

C165

102/100V

FB154 BEAD-9mm

FCH10A10

C158

102/100V

C150

102/50V

3

2

D157 SB3150

D156 SB3150

C166

102/100V

D152

C164

102/100V

D151

+

C163

R158 470R/1206

R159 1K

R162 3K

1

IC151 TL431/SOT23

5VSS

C151

1000uF/16V

R160

18.2KF

R179

NC

C159

224/50V

ZD151

5.6V

3.4KF

ZD152 12V

C161

20V/1.6A

R169

2K

Q153

2N7002K

R166 200K

105/25V

5VSW

C607 102/50V

C0N201 A2010W R0-16P

Q152 3904

IC601B LTV817

43

GND GND

GND 5VSB 5VSB 5VSB

GND

ACD

PS_ON

BL_ON

PWM1

R170 2K

12V 12V 12V

NC

Q151 P1504EDG

C167 221/50V

3

1

IC152 TLA431/SOT23

2

R908

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

300R/1206

R174

1K

R905

R171 0R

R172 39KF

R173 10KF

GND

Q901

KTN2907AS

R904

300R/1206

Q902

GND

12V/2.71A GND

5VSB/3.0A

ACD

BL_ON PWM1

PDTC143ET

C162

+

470uF/16V

R903

2.2K

12V/2.71A

R902

4.7K

R901 1K/1206

C901 103/50V

PS_ON

ZD153

NC

ZD154

D155

C157

+

470uF/50V

C155

C156

+

470uF/25V

FB155

BEAD-3mm

C152

+

1000uF/16V

R161

2MF

R163

17.4KF

R164

0R

470uF/25V

1N4148

5VSW

1N4148

5VSW

D153

L151

1.15uH

NC

D902 1N4148

ZD902

5V6

R906 100RF

R907

2.49KF

R178

4.7K

R177

4.7K

+

ZD150 NC

R155

4.7K

R156

4.7K

C154

C902

NC

5VSB/3.0A

680uF 10V

D903 NC

ZD903

NC

AC_DET

5VSW

9.1K/1206 R180

Q154 2222

12VSS

2WS

R157

Q150

2222

C153

104/50V

12

R909 1KF/1206

TR002 TSM1A104

R910

10.2KF

9.1K/1206 R181

560R/2WS

D154

D901

4148

IC900A LTV817

9.1K/1206 R183

9.1K/1206 R182

R167

1.2K

R168

1.2K

R165 75K

1N4148

R610

R611

7.68KF

Title

Size Document Number Rev

A3

UE-3790-01UN-LF

Date: Sheet of

5

4

3

2

Date: Sheet of

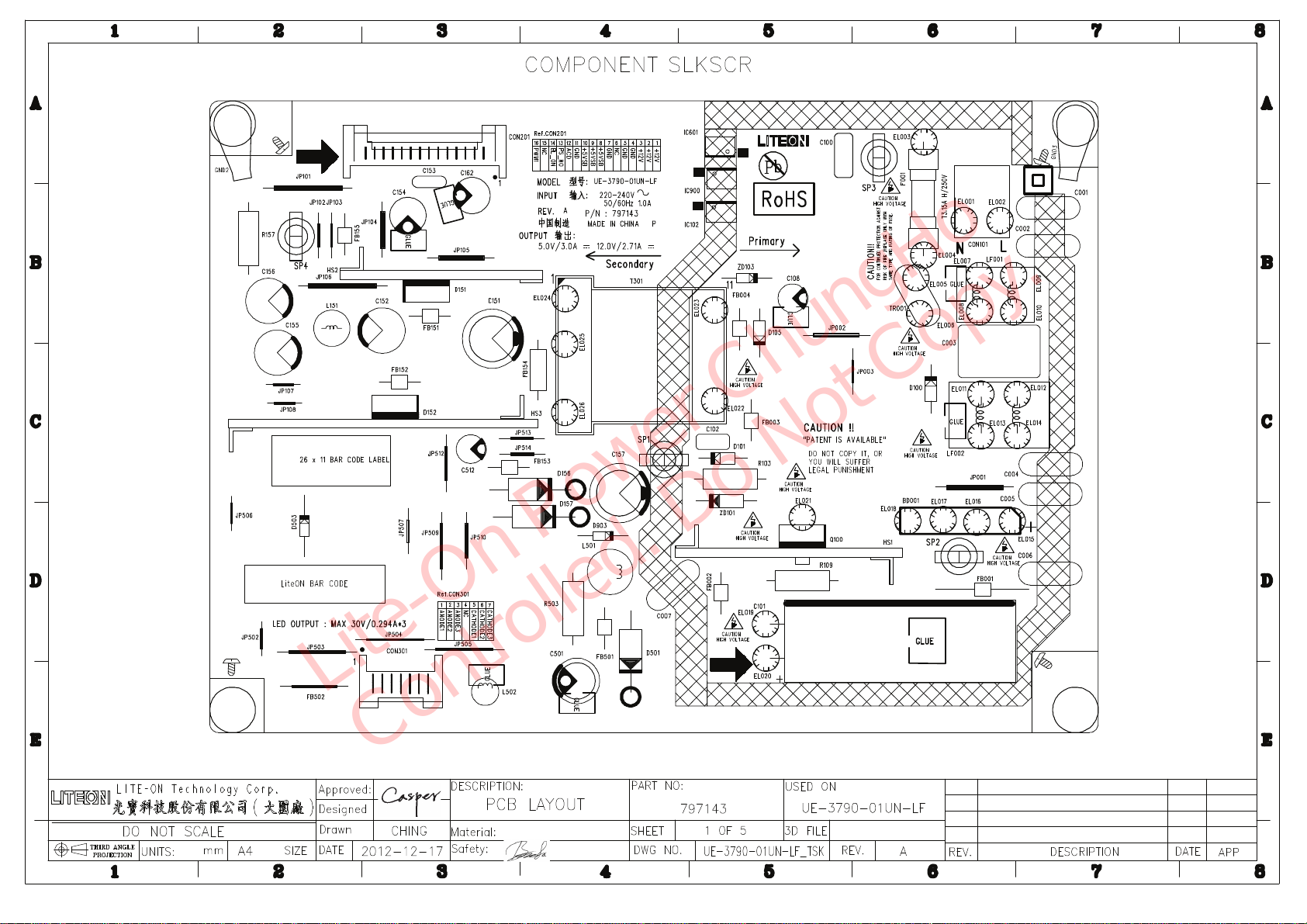

AD POWER

A

1 2Thursday, December 20, 2012

1

A

5

4

3

2

1

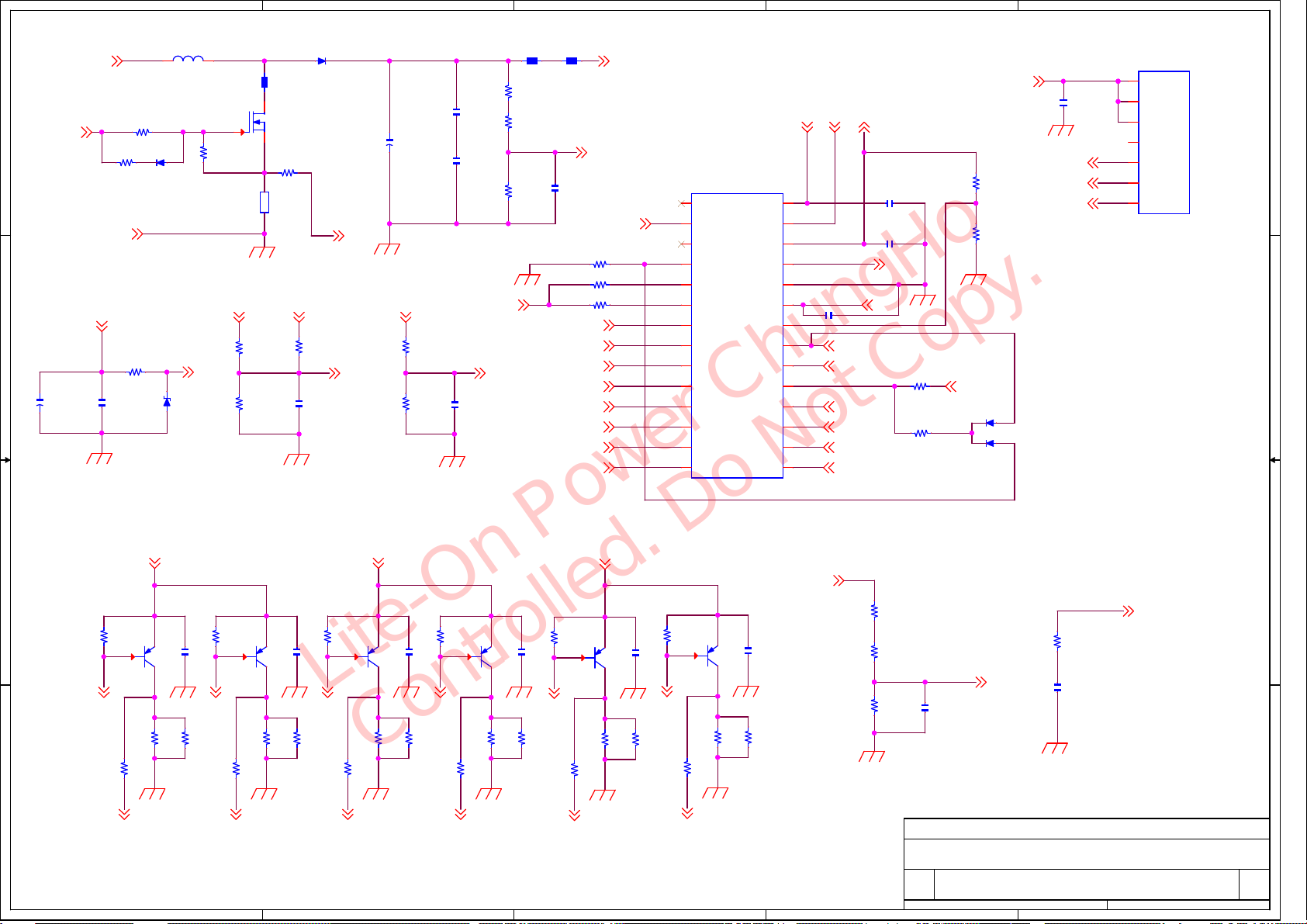

PWM

ENA

R505 499KF

R506 499KF

R508

51.1KF

L502 R6H 6*10*0.85-3TS

FB502 JP

C530 222/50V

R542 165KF R510 10K R511 10K

ISEN1 COMP1 ISEN2 COMP2 ISEN3 COMP3 ISEN4 COMP4

OVP

ANODE

VREF

IC501

OZ9908AGN

1

STATUS

2

ADIM

3

COM

4

RT

5

PWM1

6

PWM2

7

ISEN1

8

COMP1

9

ISEN2

10

COMP2

11

ISEN3

12

COMP3

13

ISEN4 COMP414ISEN5

VIN

ENA

VREF

DRV

GND

ISW

RANGELED

SSTCMP

UVLS

OVP

COMP6

ISEN6

COMP5

VIN ENA

28 27 26 25 24 23 22

C536 471/50V

21 20 19 18 17 16 15

VREF

SSTCMP

UVLO

COMP6

ISEN6

COMP5

ISEN5

C533

105/25V

C532

225/25V

LDR

ISW

R551 200K

R558 10K

OVP

R507 100KF

R520

15KF

D504

1N4148

D503

1N4148

ANODE

CATHODE1 CATHODE2 CATHODE3

C502 NC

CON301

A2010WR0-7P

1

Anode1

2

Anode2

3

Anode3

4

NC

5

Cathode1

6

Cathode2

7

Cathode3

L501

R501

22R

D502

NC

100uH

FB501

BEAD-3mm

R504 10K

R503

0.2R/2WS

20V/1.6A

D D

LDR

R512

NC

GNDL

VIN

R517

100K

R518

36KF

12V/2.71A

C C

+

C512 NC

R509

100R/1206

C511 105/25V

ZD501 SMAJ15CA

Q501 AOD478

R545

1K

2WS

PWM1

D501 SB560

R519

1K/1206

C513 471/50V

ISW

PWM

C501

+

120uF/50V

BL_ON

R521

1K/1206

R522

150K

C505

NC

C506

NC

C514 103/25V

CATHODE3

B B

R523

5.1K

Q507

BCX53-16

COMP1

R531

R538

1K

A A

3.92RF/1206

ISEN1

5

R524

C516

5.1K

223/50V

Q508

BCX53-16

COMP2

R552

51.1RF R539

1K

3.92RF/1206

ISEN2 ISEN3

C517

223/50V

R553

51.1RF

R532

CATHODE1

R525

5.1K

Q509

BCX53-16

Lite-On Power ChungHo

COMP3

R533

R540

1K

Controlled. Do Not Copy.

3.92RF/1206

4

C518

223/50V

COMP4

R554

51.1RF R541

R526

5.1K

Q510

BCX53-16

1K

ISEN4

C519

223/50V

R555

51.1RF

R534

3.92RF/1206

COMP5

R543

1K

CATHODE2

R535

5.1K

Q511

BCX53-16

ISEN5

20V/1.6A

R527 220KF/1206

R537

5.1K

C522

223/50V

Q512

BCX53-16

COMP6

R556

51.1RF

R536

3.92RF/1206

R546

1K

ISEN6

3

C523

223/50V

R557

51.1RF

R544

3.92RF/1206

R528 220K

UVLO

R529 100KF

C515 471/50V

Title

LED DRIVER

Size Document Number Rev

UE-3790-01UN-LF

Date: Sheet of

2

R530 1K

C520 224/50V

SSTCMP

2 2Thursday, December 20, 2012

1

A

!"#$!%&'()*+,!-.../0$12!324-.567.879:;')+!<=4..7>9>[email protected].?@DB9E4%"[email protected].?@DB9E7#4GH4HIJ*:K

Lite-On Power ChungHo

Controlled. Do Not Copy.

!"#$!%&'()*+,!-.../0$12!324-.567.879:;')+!<=4..7>9>[email protected].?@DB9E4%"[email protected].?@DB9E7#4GH4HIJ*:K

Lite-On Power ChungHo

Controlled. Do Not Copy.
