Toshiba 32AF45 User Manual

Safeguards

Important

Welcome to

Toshiba

Connecting

your TV

Remote Control

Using the

Setting up

your TV

Using the TV’s

Features

32AF45

J3S90121A(E)_COVER 9/03/2005, 5:57 PM1

Appendix

Dear Customer,

Thank you for purchasing this Toshiba TV. This manual will

Important

help you use the many exciting features of your new TV.

Safeguards

Before operating the TV, please read this manual completely, and keep it nearby for future reference.

Child Safety

It Makes A Difference Where Your TV Stands

Safety Precautions

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning symbol in the triangle tells you that the voltage inside this product may be strong enough to cause an electric shock. DO NOT TRY TO SERVICE THIS PRODUCT YOURSELF.

The exclamation mark in the triangle tells you that important operating and maintenance instructions follow this symbol.

CAUTION: To reduce the risk of electric shock, do not use the polarized plug with an extension cord, receptacle, or other outlet unless the blades can be inserted completely to prevent blade exposure.

Congratulations on your purchase! As you enjoy your new TV, keep these safety tips in mind:

The Issue

 If you are like most consumers, you have a TV in your home.

Many homes, in fact, have more than one TV.

 The home theater entertainment experience is a growing

trend, and larger TVs are popular purchases; however, they are not always supported on the proper TV stands.

 Sometimes TVs are improperly secured or inappropriately

situated on dressers, bookcases, shelves, desks, audio speakers, chests, or carts. As a result, TVs may fall over, causing unnecessary injury.

Toshiba Cares!

 The consumer electronics industry

is committed to making home

entertainment enjoyable and safe.

 The Consumer Electronics

Association formed the Home

Entertainment Support Safety

Committee, comprised of TV and consumer electronics furniture

manufacturers, to advocate

children’s safety and educate

consumers and their families about

television safety.

NOTE TO CATV INSTALLERS

This is a reminder to call the CATV system installer’s attention to Article 820-40 of the NEC, which provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical. For additional antenna grounding information, see items 25 and 26 on page 4.

NOTICE OF POSSIBLE ADVERSE EFFECTS

ON TV PICTURE TUBE

If a fixed (non-moving) pattern remains on the TV screen for long periods of time, the image can become permanently ingrained in the picture tube. This type of

damage is NOT COVERED BY YOUR WARRANTY.

See item 33 on page 4.

2

Tune Into Safety

 One size does NOT fit all! Use appropriate

furniture large enough to support the weight of your

TV (and other electronic components).

 Use appropriate angle braces, straps, and anchors to secure

your furniture to the wall (but never screw anything directly into the TV).

 Carefully read and understand the other enclosed

instructions for proper use of this product.

 Do not allow children to climb on or play with furniture

and TVs.

 Avoid placing any item on top of your TV (such as a VCR,

remote control, or toy) that a curious child may reach for.

 Remember that children can become excited while watching

a program and can potentially push or pull a TV over.

 Share our safety message about this hidden hazard of

home with your family and friends. Thank you!

2500 Wilson Blvd. Arlington, VA 22201 U.S.A. Tel. 703-907-7600 Fax 703-907-7690 www.CE.org

CEA is the Sponsor, Producer and

0303

2

Manager of the International CES

the

®

J3S90121A(E)_P02-06 9/03/2005, 5:57 PM2

Important Safety Instructions

QUALIFIED

SERVICE

TECHNICIAN

Installation, Care, and Service

Safeguards

Important

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near

water.

6) Clean only with a dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

Wide plug

Installation

Follow these recommendations and precautions and heed all warnings when installing your TV:

16) Never modify this equipment. Changes or modifications may void: a) the warranty, and b) the user’s authority to operate this equipment under the rules of the Federal Communications Commission.

17) DANGER: RISK OF SERIOUS PERSONAL

INJURY, DEATH, OR EQUIPMENT DAMAGE! Never place the TV on

an unstable cart, stand, or table. The TV may fall, causing serious personal injury, death, or serious damage to the TV.

18) Never place or store the TV in direct sunlight; hot, humid areas; areas subject to excessive dust or vibration; or locations with temperatures at or below 41°F (5°C).

19) Always place the TV on the floor or a sturdy, level, stable surface that can support the weight of the unit.

Welcome to

Toshiba

Connecting

your TV

Remote Control

Using the

10) Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where it exits the apparatus.

11) Only use attachments/accessories specified by the

manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use

caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during

lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15) CAUTION: To reduce the risk of electric shock, do

not use the polarized plug with an extension cord, receptacle, or other outlet unless the blades can

be inserted completely to prevent blade exposure.

20) Never place items such as vases, aquariums, or candles on top of the TV.

21) Never block or cover the slots or openings in the TV cabinet back, bottom, and sides. Never place the TV:

• on a bed, sofa, rug, or similar

surface;

• too close to drapes, curtains,

or walls; or

• in a confined space such as a

bookcase, built-in cabinet, or any other place with poor ventilation.

The slots and openings are provided to protect the TV from overheating and to help maintain reliable operation of the TV.

22) Never allow anything to rest on or roll over the power cord, and never place the TV where the power cord is subject to wear or abuse.

23) Never overload wall outlets and extension cords.

0303

3

Setting up

your TV

Using the TV’s

Features

Appendix

J3S90121A(E)_P02-06 9/03/2005, 5:57 PM3

24) Always operate this equipment from

Ground clamp

Antenna discharge unit (NEC Section 810-20)

Grounding conductors (NEC Section 810-21)

Power service grounding electrode system (NEC Art 250 Part H)

Ground clamps

Antenna lead-in wire

Electric service equipment

QUALIFIED

SERVICE

TECHNICIAN

Important

Safeguards

a 120V AC, 60 Hz power source only.

30) [This item applies to projection TVs only.] If the air temperature rises suddenly (for example, when the TV is first delivered), condensation may form on the lenses. This can make the picture appear distorted or the color appear faded. If this happens, turn off the TV for 6 to 7 hours to allow the condensation to evaporate.

25) Always make sure the antenna system is properly grounded to provide adequate protection against voltage surges and built-up static charges (see Section 810 of the National Electric Code).

26) DANGER: RISK OF SERIOUS PERSONAL

INJURY OR DEATH!

• Use extreme care to make sure you are never in a position where your body (or any item you are in contact with, such as a ladder or screwdriver) can accidentally touch overhead power lines. Never locate the antenna near overhead power lines or other electrical circuits.

• Never attempt to install any of the following during lightning activity: a) an antenna system; or b) cables, wires, or any home theater component connected to an antenna or phone system.

Care

For better performance and safer operation of your TOSHIBA TV, follow these recommendations and precautions:

27) Always sit approximately 10–25 feet away from the TV and as directly in front of it as possible. The picture can appear dull if you sit too far to the left or right of the TV, or if sunlight or room lights reflect on the screen. Turn the TV off to check for reflections on the screen, and then remove the source of reflections while viewing the TV.

28) Always unplug the TV before cleaning. Never use liquid or aerosol cleaners.

31) For added protection of your TV from lightning and power surges, always unplug the power cord and disconnect the antenna from the TV if you leave the TV unattended or unused for long periods of time.

32) During normal use, the TV may make occasional snapping or popping sounds. This is normal, especially when the unit is being turned on or off. If these sounds become frequent or continuous, unplug the power cord and contact a Toshiba Authorized Service Center.

33) Possible Adverse Effects on TV Picture Tube: If a fixed (non-moving) pattern remains on the TV screen for long periods of time, the image can become permanently ingrained in the picture tube and cause subtle but permanent ghost images. This type of damage is NOT COVERED BY YOUR WARRANTY. Never leave your TV on for long periods of time while it is displaying the following formats or images:

• Fixed Images, such as PIP/POP windows, stock tickers,

video game patterns, TV station logos, closed captions, and websites.

• Special Formats that do not use the entire screen. For

example, viewing letterbox style (16:9) media on a normal (4:3) display (gray bars at top and bottom of screen); or viewing normal style (4:3) media on a widescreen (16:9) display (gray bars on left and right sides of screen).

Service

34) WARNING: RISK OF ELECTRIC

SHOCK! Never attempt to service the

TV yourself. Opening and removing the covers may expose you to dangerous voltage or other hazards. Refer all servicing to a Toshiba Authorized Service Center.

35) If you have the TV serviced:

• Ask the service technician to use only replacement parts

specified by the manufacturer.

• Upon completion of service, ask

the service technician to perform routine safety checks to determine that the TV is in safe operating condition.

J3S90121A(E)_P02-06 9/03/2005, 5:57 PM4

29) WARNING: RISK OF ELECTRIC SHOCK! Never spill liquids or push objects of any kind into the TV cabinet slots.

36) When the TV reaches the end of its useful life, ask a qualified service technician to properly dispose of the TV. Improper disposal may result in a picture tube implosion and possible personal injury.

0303

4

Important Safety Information .......................................................................................... 2-4

Welcome to Toshiba ............................................................................................................ 6

Exploring your new TV ................................................................................................................................6

Selecting a location for the TV ....................................................................................................................6

Connecting your TV ............................................................................................................ 7

Connecting a VCR ....................................................................................................................................... 7

Connecting a cable converter box ...............................................................................................................8

Connecting a DVD player/satellite receiver and a VCR .............................................................................. 9

Connecting a DVD player with ColorStream® (component video) and a VCR ............................................ 9

Connecting two VCRs ...............................................................................................................................10

Connecting a camcorder ........................................................................................................................... 10

Connecting an audio amplifier ................................................................................................................... 10

Using the remote control................................................................................................... 11

Preparing the remote control for use ......................................................................................................... 11

Installing the remote control batteries ....................................................................................................... 11

Using the remote control to operate your other devices ........................................................................... 11

Programming the remote control to operate your other devices ...............................................................12

VCR, DVD player, and cable TV converter codes ..................................................................................... 13

Learning about the remote control ............................................................................................................ 14

Setting up your TV ............................................................................................................ 15

Changing the on-screen display language ................................................................................................ 15

Adding channels to the TV’s memory ........................................................................................................16

Programming channels automatically ................................................................................................ 16

Adding and erasing channels manually ............................................................................................. 16

Changing channels .................................................................................................................................... 16

Using the TV’s features .................................................................................................... 17

Adjusting the channel settings ................................................................................................................... 17

Switching between two channels ....................................................................................................... 17

Programming your favorite channels .................................................................................................17

Using theV-Chip (parental control) feature (U.S. V-Chip system only) .....................................................18

Selecting a PIN code .......................................................................................................................... 18

Blocking programs by ratings ............................................................................................................. 19

Blocking unrated movies or programs ................................................................................................ 22

Using the LOCK menu ............................................................................................................................... 22

Locking channels ................................................................................................................................22

Locking video input .............................................................................................................................23

Setting the GameTimerTM...........................................................................................................................23

Labeling channels ......................................................................................................................................24

Setting the clock ........................................................................................................................................ 25

Setting the ON/OFF timer ..........................................................................................................................25

Setting the on timer ............................................................................................................................ 25

Setting the off timer ............................................................................................................................ 26

Adjusting the picture quality ......................................................................................................................27

Watching video input .................................................................................................................................27

Specifying the ColorStream® setting .........................................................................................................27

Displaying on-screen information ..............................................................................................................27

Setting the sleep timer ...............................................................................................................................28

Using the closed caption feature ...............................................................................................................28

Changing the picture size .......................................................................................................................... 28

Adjusting the sound ...................................................................................................................................29

Muting the sound ................................................................................................................................29

Selecting stereo/SAP broadcasts .......................................................................................................29

Adjusting the sound quality ................................................................................................................ 30

Using the BBE sound feature ............................................................................................................. 30

Using the surround sound feature ......................................................................................................31

Using the StableSound® feature .........................................................................................................31

Auto power off............................................................................................................................................31

Understanding the Power Return feature ..................................................................................................31

Appendix ............................................................................................................................ 32

Troubleshooting ......................................................................................................................................... 32

Specifications............................................................................................................................................. 33

Limited United States Warranty ................................................................................................................. 34

Safeguards

Important

Welcome to

Toshiba

Connecting

your TV

Remote Control

Using the

Setting up

your TV

Using the TV’s

Features

Appendix

J3S90121A(E)_P02-06 9/03/2005, 5:57 PM5

5

Welcome to Toshiba

POWER

CT-847

1

23

4

56

789

0

TV VCR CABLE

DVD

10 0

CH

+

CH

–

FAV

EXIT

RECALL

TV/VIDEO

CH RTN

VOL

CODE

DISPLAY

MTS

SLEEP

MUTE

REWFFPLAY

TV/VCR

PAUSE/STILL

REC

VCR CH

DVD SKIP

STOP

RESET

CAP/TEXT

DVD CLEAR DVD MENUTOP MENU

1/2

16:9

MENU/ ENTER

VOL

FAV

VOL +

–

+10

Congratulations! You have purchased one of the finest color TVs on the market. The goal of this manual is to guide you through setting up and operating your Toshiba TV as quickly as possible. You may need to purchase other audio or video cables to connect your equipment. See “Connecting your TV” on page 7 for more information.

Please read all the safety and operating instructions carefully before you begin.

Exploring your new TV

You can operate your TV by using the buttons on the front panel or the

Toshiba

Welcome to

remote control. The front and back panels provide all the inputs you will need to connect other equipment to your TV.

POWER

Remote sensor

Power indicator

Channelt/

s

Volumet/

Audio(L/R)/Video In

s

Phones

TV front panel

ANT (75Ω)

TV back panel

Selecting a location for the TV

• Place the TV on the floor or on a sturdy platform in a location where light does not directly hit the screen.

J3S90121A(E)_P02-06 11/03/2005, 3:58 PM6

• Place the TV far enough from the walls to allow proper ventilation. Inadequate ventilation may cause overheating, which may damage the TV.

IN OUT

VIDEO

L/MONO

AUDIOS-VIDEO

R

VIDEO 1 VIDEO 2

Y

B

P

R

VIDEO

L/MONO

AUDIO

R

6

Connecting your TV

• A coaxial cable is the standard cable that comes in from your antenna or cable converter box. Coaxial cables use “F” connectors.

• Standard A/V (audio/video) cables are usually color coded according to use: yellow for video and red and white for audio. The red audio cable is for the stereo right channel, and the white audio cable is for the stereo left (or mono) channel. If you look at the rear panel of the TV, you will see that the terminals are color coded in the same manner as the cables.

• An S-video cable provides better picture performance than a standard video cable. S-video cables can only be used with S-video compatible components.

• Component video cables come in sets of three and provide the best picture performance. Component video cables can only be used with component video compatible components.

ANTENNA

Coaxial Cable

S-Video

Cable

NOTICE: RISK OF EQUIPMENT DAMAGE!

Do not plug in any power cords until you have finished connecting all equipment.

Safeguards

Important

Welcome to

Toshiba

Connecting

your TV

AUDIO Cables

VIDEO

Cable

Component video

Cables

Connecting a VCR

This connection allows you to watch local channels and video programs, play or record on the VCR while watching TV, and record from one channel while watching another channel.

TV

Cable Lead-in from cable box or antenna

ANT (75Ω)

IN from ANT

CH 3 CH 4

IN OUT

VIDEO

L/MONO

AUDIOS-VIDEO

R

VIDEO 1 VIDEO 2

OUT to TV

IN

OUT

VIDEO

Y

P

B

P

R

VIDEO

L/MONO

AUDIO

R

Stereo VCR

LR

AUDIO

You will need:

• two coaxial cables

• one set of standard A/V cables

Note:

If using a mono VCR, connect L/Mono to VCR Audio OUT using only one audio cable. For better picture quality, if your VCR has Svideo, you can use an S-video cable instead of the standard video cable. Do not connect a standard video cable and an S-video cable to VIDEO1 simultaneously.

The unauthorized recording, use, distribution or revision of television programs, videotapes, DVDs, and other materials is prohibited under the Copyright Laws of the United States and other countries, and may subject you to civil and criminal liability.

Remote Control

Using the

Setting up

your TV

Using the TV’s

Features

Appendix

J3S90121A(E)_P07-16 9/03/2005, 5:57 PM7

7

Connecting a cable converter box

This television has an extended tuning range and can tune most cable channels without using a cable company supplied converter box. Some cable companies offer “premium pay channels” in which the signal is scrambled. Descrambling these signals for normal viewing requires the use of a descrambler device, which is generally provided by the cable company.

For Subscribers to Basic Cable TV Service

For basic cable service not requiring a Converter/Descrambler box, connect the CATV 75 ohm Coaxial Cable directly to the Antenna Jack on the back of the television.

For Subscribers to Scrambled Cable TV Service

If you subscribe to a cable service that requires the use of a Converter/ Descrambler box, connect the incoming cable to the Converter/ Descrambler box and connect the output of the box to the Antenna Jack on the back of the television. Follow the connections shown below. Set the television to the output of the Converter/Descrambler box (usually channel 3 or 4) and use the Converter/Descrambler box to select channels.

your TV

Connecting

For Subscribers to Unscrambled Basic Cable with Scrambled Premium Channels

If you subscribe to a cable service in which basic cable channels are unscrambled and premium channels require the use of a Converter/ Descrambler box, you may wish to use a two-set signal splitter (sometimes called a “two-set coupler”) and an A/B Switch box from the cable installer or an electronics supply store. Follow the connections shown below. With the switch in the “B” position, you can directly tune any nonscrambled channels on your TV. With the switch in the “A” position, tune your TV to the output of the Converter/Descrambler box (usually channel 3 or 4) and use the box to tune scrambled channels.

Note:

When you use a converter box with your TV, there may be features that you cannot program using the remote control, such as labeling channels, blocking channels, and programming your favorite channels.

Incoming CATV

Converter/Descrambler

/

B SwitchSplitter

A

IN OUT

ANT (75Ω)

A

B

VIDEO

L/MONO

AUDIOS-VIDEO

R

VIDEO 1 VIDEO 2

Y

P

B

P

R

VIDEO

L/MONO

AUDIO

R

J3S90121A(E)_P07-16 9/03/2005, 5:57 PM8

8

Connecting a DVD player/satellite receiver and a VCR

This connection allows you to watch DVD/satellite, VCR, or TV programs. You can record from the satellite receiver and TV, as well as record one TV channel while watching another channel.

To satellite

DVD player/ Satellite Receiver

OUT

Satellite IN

S-VIDEO

L

R

AUDIO

TV

IN OUT

ANT (75Ω)

VIDEO

L/MONO

AUDIOS-VIDEO

R

VIDEO 1 VIDEO 2

Y

P

VIDEO

B

L/MONO

AUDIO

R

You will need:

• three coaxial cables

• two sets of standard A/V cables

• one S-video cable

• one pair of standard audio cables

Note:

You can use a standard video cable instead of the S-video cable, but the picture quality will decrease. If you use an S-video cable between the TV and DVD player/satellite receiver, make the audio connections only and remove the standard video cable.

Safeguards

Important

Welcome to

Toshiba

Connecting

your TV

To antenna

Connecting a DVD player with ColorStream

Stereo VCR

IN from ANT

CH 3 CH 4

OUT to TV

IN

OUT

VIDEO

LR

AUDIO

®

(component video) and a VCR

This connection allows you to watch DVD, VCR, or TV programs and record TV programs. You can record from one source while watching a program from another source. Your TV is capable of using ColorStream (component video). Connecting your TV to a component video compatible DVD player, such as a Toshiba DVD player with ColorStream greatly enhance picture quality and performance.

®

OUT

VIDEO

AUDIO

OUT

IN OUT

Y

B

P

R

IN

OUT

LR

VIDEO

AUDIO

TM

COLORSTREAM

YCbCr

VIDEO

L/MONO

AUDIO

R

To antenna

DVD player with ColorStream

L

R

S-VIDEO

TV

ANT (75Ω)

VIDEO

L/MONO

AUDIOS-VIDEO

R

VIDEO 1 VIDEO 2

Stereo VCR

IN from ANT

CH 3 CH 4

OUT to TV

®

, can

You will need:

• two coaxial cables

• one set of standard A/V cables

• one set of component video cables

• one pair of standard audio cables

Note:

The ColorStream inputs on this TV are for use with devices that output 480i interlaced signals ONLY. This TV will not accept or display 480p or 720p progressive scan signals or 1080i interlaced high-definition signals. If you connect a high-definition settop receiver, 480p progressive scan DVD player, or other similar device to the TV’s ColorStream inputs, YOU MUST SWITCH THE DEVICE’S OUTPUT TO 480i INTERLACED MODE FIRST. Failure to do this will cause a poor picture or no picture to display.

The unauthorized recording, use, distribution or revision of television programs, videotapes, DVDs, and other materials is prohibited under the Copyright Laws of the United States and other countries, and may subject you to civil and criminal liability.

Remote Control

Using the

Setting up

your TV

Using the TV’s

Features

Appendix

J3S90121A(E)_P07-16 9/03/2005, 5:57 PM9

9

Connecting two VCRs

This connection allows you to record (dub/edit) from one VCR to another VCR. You will also be able to record from one TV channel while watching another channel.

To antenna

your TV

Connecting

Connecting a camcorder

This connection allows you to watch video materials recorded on a camcorder.

Stereo VCR / Playback

IN from ANT

OUT to TV

CH 3 CH 4

TV

ANT (75Ω)

VIDEO

L/MONO

AUDIOS-VIDEO

R

VIDEO 1 VIDEO 2

Stereo VCR/ Recording

IN from ANT

OUT to TV

CH 3 CH 4

IN

OUT

IN OUT

OUT

IN

VIDEO

Y

B

P

R

LR

AUDIO

VIDEO

L/MONO

AUDIO

R

LR

AUDIO

Camcorder

You will need:

• two coaxial cables

• two sets of standard A/V cables

Note:

Do not connect the same VCR to the output and input jacks on the TV at the same time. For better picture quality, if your VCR has Svideo, you can use an S-video cable instead of the standard video cable. Do not connect a standard video cable and an S-video cable to VIDEO1 simultaneously.

You will need:

• one set of standard A/V cables

AUDIO

VIDEO

L

R

OUT

AUDIO

VIDEO 3 L/MONO

R PHONESR

Front Panel of TV

Connecting an audio amplifier

This connection allows you to use an audio amplifier to enjoy high quality sound. This also allows you to use external speakers. To control the audio, turn on the TV and the stereo amplifier.

Audio Amplifier

AUDIO

LR

IN

OUT

To cable,

cable box

or antenna

TV

ANT (75Ω)

VIDEO

L/MONO

AUDIOS-VIDEO

R

VIDEO 1 VIDEO 2

IN OUT

Y

B

P

PR

VIDEO

L/MONO

AUDIO

R

Note:

For better picture quality, if your camcorder has S-video, you can connect an S-video (and standard audio cables) to VIDEO1 on the back of the TV. Do not connect a standard video cable and an S-video cable to VIDEO1 simultaneously.

You will need:

• one coaxial cable

• one pair of audio cables

The unauthorized recording, use, distribution or revision of television programs, videotapes, DVDs, and other materials is prohibited under the Copyright Laws of the United States and other countries, and may subject you to civil and criminal liability.

J3S90121A(E)_P07-16 9/03/2005, 5:57 PM10

10

Safeguards

Important

Using the remote control

Preparing the remote control for use

With the remote control, you can operate your TV, most VCR and DVD player models, and cable TV converters together, even if they are different brands. If you will be using your TV with a Toshiba VCR or DVD player, your remote control is already programmed and ready to use. If you own different brands of VCRs, DVD players and/or converters, you first have to program your remote control. (See “Programming the remote control to operate your other devices” on page 12.)

Installing the remote control batteries

To install the batteries:

1. Open the battery cover on the back of the remote control.

2. Install two “AAA” size batteries. Match the + and – signs on the

batteries to the signs on the battery compartment.

3. Close the battery cover on the remote control until the lock snaps.

Note:

The TV remote control may not operate your VCR, DVD player, or cable TV converter. Refer to the owner's manual supplied with the applicable equipment to see which features may be available. Additionally, the remote control for this TV may not support certain features available on the original remote controls for such additional equipment, in which case, it is suggested that you use the original remote control for the applicable device.

Caution:

• Never throw batteries into a fire.

Notes:

• Be sure to use AAA size batteries.

Dispose of batteries in a designated

•

disposal area.

•

Batteries should always be disposed of with the environment in mind. Always dispose of batteries in accordance with applicable laws and regulations.

•

If the remote control does not operate correctly, or if the operating range becomes reduced, replace batteries with new ones.

•

When necessary to replace batteries in the remote control, always replace both batteries with new ones. Never mix battery types or use new and used batteries in combination.

•

Always remove batteries from remote control if they are dead or if the remote control is not to be used for an extended period of time. This will prevent battery acid from leaking into the battery compartment.

Welcome to

Toshiba

Connecting

your TV

Remote Control

Using the

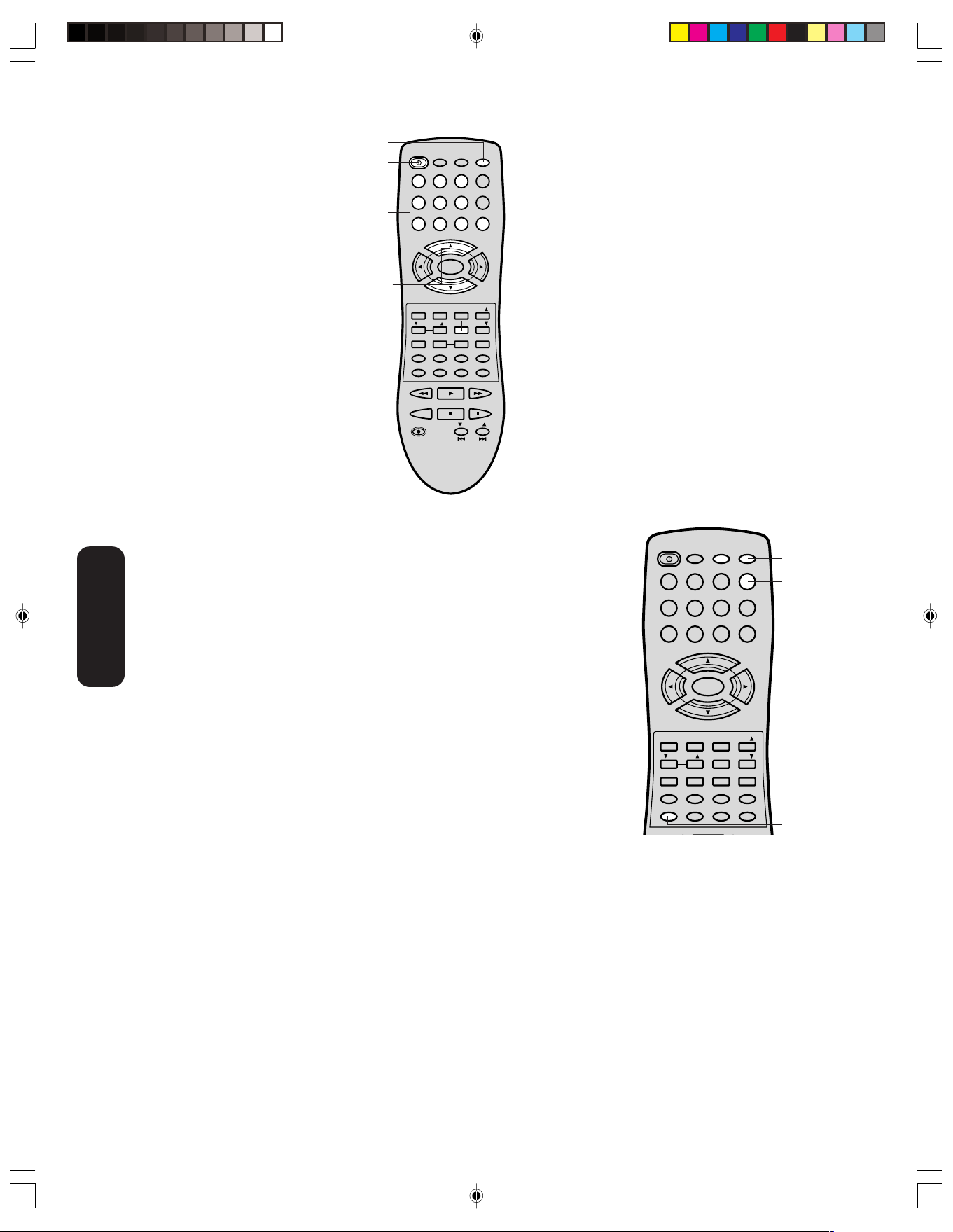

Using the remote control to operate your other devices

To control a VCR:

Program the remote control to recognize the brand of your VCR (see “Programming the remote control to operate your other devices” on page 12). The buttons shown at right will then control the VCR. Press the VCR button first.

Fast Forward

VCR CH ▲/▼

VCR

Power

Channel

Numbers

Channel +/–

CH Enter

Play

Rewind

TV/VCR

Record

Stop

Pause/Still

POWER

TV VCR CABLE

1

23

4

56

789

VOL

MENU/

–

ENTER

EXIT

RECALL

VOL

CAP/TEXT

RESET

DVD CLEAR DVD MENUTOP MENU

DISPLAY

MTS

CODE

REWFFPLAY

STOP

TV/VCR

REC

CH

+

–

TV/VIDEO

CH RTN

1/2

SLEEP

VCR CH

DVD SKIP

DVD

+10

10 0

0

FAV

16:9

MUTE

PAUSE/STILL

To control a DVD player:

Program the remote control to recognize the brand of your DVD player (see “Program remote control

VOL +

operate your other devices” on page 12).

ming the

to

The buttons shown at right will then control the DVD player. Press the DVD button first.

11

Power

Number

buttons

DVD MENU

▲/▼/ /

TOP Menu

Volume

▲/▼ (TV)

DVD Clear

Display

Fast Forward

Rewind

DVD Menu

DVD Skip /

Pause/Still

DVD

Enter

Play

Stop

POWER

TV VCR CABLE

1

23

4

56

789

CH

VOL

MENU/

–

ENTER

CH

EXIT

RECALL

VOL

CAP/TEXT

RESET

DVD CLEAR DVD MENUTOP MENU

DISPLAY

MTS

CODE

REWFFPLAY

STOP

TV/VCR

REC

+

–

TV/VIDEO

CH RTN

1/2

SLEEP

DVD SKIP

PAUSE/STILL

VCR CH

DVD

10 0

FAV

16:9

MUTE

Setting up

your TV

+10

0

VOL

+

Using the TV’s

Features

Appendix

J3S90121A(E)_P07-16 9/03/2005, 5:57 PM11

POWER

1

23

4

56

789

0

TV VCR CABLE

DVD

10 0

CH

+

CH

–

FAV

EXIT

RECALL

TV/VIDEO

CH RTN

CODE

MTS

SLEEP

MUTE

REWFFPLAY

RESET

CAP/TEXT

DVD CLEAR DVD MENUTOP MENU

1/2

16:9

MENU/

ENTER

VOL

FAV

VOL

+

–

+10

VOL

DISPLAY

To control a cable TV converter:

Program the remote control to recognize the brand of your converter (see “Programming the remote control to operate your other devices” below). The buttons shown at right will control the cable TV converter. Press the CABLE button first.

CABLE

Power

Channel

Numbers

Channel +/–

CH Enter

POWER

TV VCR CABLE

1

23

4

56

789

VOL

MENU/

–

ENTER

EXIT

RECALL

VOL

CAP/TEXT

RESET

DVD CLEAR DVD MENUTOP MENU

DISPLAY

MTS

CODE

REWFFPLAY

STOP

TV/VCR

REC

CH

+

–

TV/VIDEO

CH RTN

1/2

SLEEP

DVD SKIP

PAUSE/STILL

VCR CH

DVD

10 0

FAV

16:9

MUTE

+10

0

VOL

+

Using the

Remote Control

Programming the remote control to operate your other devices

This remote control is pre-programmed to operate Toshiba VCRs and DVD players. To control VCRs, DVD players, or cable converters other than Toshiba models, you must follow the steps below to program your remote control.

1. While holding down the CODE button, press the button for the device you want to control (VCR, DVD, or CABLE).

2. Enter the 2-digit code listed on page 13 using the Number buttons (0–9) within 10 seconds.

3. Point the remote control at the VCR, DVD player, or converter and press POWER to test the code. If the VCR, DVD player, or converter turns on, you have entered the right code. If the VCR, DVD player, or converter does not respond to the remote control, you may have entered the wrong code. Repeat steps 1 and 2 using another code.

For future reference, write down the codes you used:

VCR code ________________________

DVD player code ___________________

Cable TV converter code ____________

VCR

CABLE

DVD

Code

Notes:

• When shipped from the factory, the remote control is set to operate your TV.

• If you do not enter the code within 10 seconds from step 1 or if you enter a code not listed below, this operation is canceled.

• Each time you replace the batteries, you must reprogram the remote control.

• Some newer VCRs are capable of working on either of two remote codes. These VCRs have a switch labeled “VCR1/VCR2.” If your VCR has this kind of switch and does not respond to any of the codes for your VCR, set the switch to the other position (VCR1 or VCR2) and reprogram the remote control.

J3S90121A(E)_P07-16 9/03/2005, 5:57 PM12

12

VCR, DVD player, and cable TV converter codes

VCR

Admiral 08, 61 Multi Tech 39 Adventura 31 NEC 02, 18 Aiwa 31 Orion 33, 50 Akai Audio Dynamics 02, 18 Pentax 15 Bell & Howell 06, 47 Philco 07, 14 Broksonic 21, 26, 33, 50, 55 Philips 07, 14, 27 Canon 14 Pioneer 10, 15 Citizen 09 Portland 46 Craig 12 Pro Scan 16, 60 Curtis Mathes 14, 59 Quasar 14, 59 Daewoo 44, 46, 48, 54 RCA 15, 16, 20, 27, 40, 42, 60 Daytron 36, 46 Realistic 06, 08, 12, 14, 31 DBX 02, 18 Samsung 20, 30 Emerson 03, 21 23, 26, 33, 35, 43, 50 Sansui 39 Fisher 11, 12, 13, 47 Sanyo 06, 12, 47 Funai 31 Scott 04, 05, 33, 43 General Electric 14, 16, 20 Sears 06, 09, 11, 12, 15 Goldstar 09 Sharp 08, 61 Go Video 56, 62, 63 Shintom 39 Hitachi 15, 57 Signature 2000 08, 14, 16, 19, 31, 49 Instant Replay 14, 27 Sony 17, 32, 37 J.C. Penney 14, 15, 18, 27 Sylvania 07, 14, 27 JVC 02, 25, 58 Symphonic 31 Kenwood 02 Tashiko 09 Logik 39 Tatung 02 LXI 09, 31 Teac 02, 31 Magnavox 07, 14, 31 Teknika 34 Marantz 07, 18 Toshiba 05, 15 Marta 09 XR1000 39 Memorex 06, 12, 14, 31, 33 Vector Research 04, 18 Mitsubishi 04, 22, 52, 64 Yamaha 02, 18 Montgomery Ward

23, 38, 41

08, 14, 16, 19, 31, 49

Panasonic

Zenith

14, 51, 59

01, 24, 25, 29, 37

Safeguards

Important

Welcome to

Toshiba

Connecting

your TV

Remote Control

Using the

DVD PLAYER

Aiwa 23 RCA 01,06 Apex 20 Saba 01 Denon 00, 17 Sampo 14 Ferguson 01 Samsung 10 Hitachi 11 Sharp 08 JVC 09 Silvania 32, 18 Kenwood 15, 29 SMC 25 Konka 19 Sony 04, 26, 27, 28 Mitsubishi 05 Technics 00 Nordmende 01 Thomson 01 Onkyo 21 Toshiba 03 Oritron 24 Wave 22 Panasonic 00 Yamaha 00, 30 Philips 03, 16 Pioneer 02 Vialta 31 Raite

13

Zenith

Funai

07, 12

32, 18

CABLE TV CONVERTER

Allegro Allegro A/B Switch

Gemini General Electric General Instrument Hamlin Jerrold Kale Vision Macom Magnavox NSC

Oak Panasonic Paragon Philips Pioneer

58, 62 61

05, 31, 38 67 05, 06 02, 03, 45, 65, 66 04, 07, 08, 09, 10, 18, 60, 63 35 14, 21 34 35, 39, 68, 69, 70

11, 32, 42 13, 20 33 47, 50, 52, 54, 55 15, 43

RCA DSS Regency

Samsung Scientic Atlanta Sprucer Standard Comp Texscan Tocom Unika United Satellite Universal

Vid Tech Video Way Viewstar Zenith Zenith Satellite

73 29

35 16, 23, 36, 64 13 35 39, 56, 71 17, 18, 46 48, 62 44 58, 62

40 49 54, 55, 72 01, 53, 74 12, 28, 30, 51

Setting up

your TV

Using the TV’s

Features

Appendix

J3S90121A(E)_P07-16 9/03/2005, 5:57 PM13

13

Learning about the remote control

POWER turns the TV on and off

SLEEP programs the TV to turn off at a set time (page 28)

TV/VIDEO selects the video input source (page 27)

CH + / – cycles through programmed channels (page 16)

TV/VCR/CABLE/DVD

CHANNEL NUMBERS allow direct access to channels (page 16)

VOLUME + / – adjusts the volume level

CH RTN (Channel Return)

(page 17)

MENU/ENTER allows access to programming menus, and sets

programmed menu information (page 15)

FAV ▲/▼ (Favorite Channels)

RESET returns settings to preset factory formats (pages 27 and 30)

CAP/TEXT turns closed captions or text on and off (page 28)

1/2 selects closed caption/text channel 1 or 2 (page 28)

MUTE turns off the sound (page 29)

MTS switches among STEREO, SAP, and MONO sound (page 29)

RECALL displays status information on-screen (page 27)

CODE is used to program the remote control (page 12)

Using the

EXIT closes on-screen menus (page 15)

Remote Control

16:9 toggles the aspect ratio between 4:3 (letterbox) and 16:9 (wide

screen) modes (page 28)

select TV, VCR, Cable, or DVD mode (page 11)

returns to the last viewed channel

STOP stops a videotape/DVD

TV/VCR/CABLE/DVD

cycle through favorite channels (page 17)

Volume ▼/▲ (DVD)

Display (DVD)

POWER

Channel

Numbers

CH +/–

Recall

Exit

Closed

Captioning

Reset

DVD Clear

Code

MTS

Rew Play

TV/VCR

Rec

Stop

POWER

TV VCR CABLE

1

23

4

56

789

CH

VOL

–

RESET

DISPLAY

CODE

EXIT

RECALL

VOL

CAP/TEXT

DVD CLEAR DVD MENUTOP MENU

MTS

REWFFPLAY

TV/VCR

REC

MENU/ ENTER

CH

STOP

+

–

TV/VIDEO

CH RTN

1/2

SLEEP

VCR CH

DVD SKIP

DVD

+10

100

0

VOL

FAV

16:9

MUTE

PAUSE/STILL

Menu/Enter

+

Volume +/– TV/Video

FAV ▲/▼(Favorite Channels) CH RTN (Channel Return) 16:9

DVD Menu TOP Menu

Mute Sleep

FF

Pause/Still

VCR Channel ▲▼/DVD Skip

REC starts recording a videotape

PLAY plays a videotape/DVD

FF fast forwards a videotape/DVD

REW rewinds a videotape/DVD

PAUSE/STILL pauses a videotape/DVD

TV/VCR toggles between TV and VCR modes when viewing while

recording

VCR CHANNEL ▲

and ▼ cycle through programmed VCR channels

DVD SKIP skips DVD chapter

DISPLAY displays DVD status information on-screen

VOLUME ▲/▼ (DVD) adjust the DVD volume level

DVD CLEAR clears input data in DVD mode

TOP MENU accesses the DVD TOP menu

DVD MENU accesses the DVD menu

14

J3S90121A(E)_P07-16 9/03/2005, 5:57 PM14

Setting up your TV

After you have installed the batteries and programmed the remote control, you need to set some preferences on the TV using the menu system. You can access the menu system with the buttons on the remote control.

• When you make a menu selection, your changes occur immediately. You do not have to press MENU or EXIT to see your changes.

• After five seconds, the menu screen will automatically close if you do not make a selection. Your changes will still be saved.

• When you are finished programming the menus, press EXIT.

Safeguards

Important

Welcome to

Toshiba

Changing the on-screen display language

You can choose from three different languages (English, French, and Spanish) for the on-screen display of adjustment menus and messages.

To select a language:

1. Press MENU, then press

PICTURE AUDIO SETUPCHOPTION

LANGUAGE CH LABEL START

FAVORITE CH V-CHIP LOCK ON/OFF TIMER COLORSTREAM

SELECT ADJUST

ENGLISH

START START START OFF DVD

2. Press ▲ or ▼ to highlight LANGUAGE.

PICTURE AUDIO SETUPCHOPTION

LANGUAGE

CH LABEL START FAVORITE CH V-CHIP LOCK ON/OFF TIMER COLORSTREAM SELECT ADJUST

ENGLISH FRANCAIS ESPANOL

START START START OFF DVD

or until the OPTION menu appears.

POWER

TV VCR CABLE

1

23

4

56

789

CH

VOL

–

EXIT

RESET

DISPLAY

CODE

MENU/ ENTER

CH

RECALL

VOL

CAP/TEXT

DVD CLEAR DVD MENUTOP MENU

MTS

+

–

TV/VIDEO

CH RTN

1/2

SLEEP

DVD

10 0

0

FAV

16:9

MUTE

+10

Connecting

your TV

VOL

+

Menu

Exit

Remote Control

Using the

Setting up

your TV

3. Press

or to highlight your desired language.

Using the TV’s

Features

Appendix

15

J3S90121A(E)_P07-16 9/03/2005, 5:57 PM15

Adding channels to the TV’s memory

POWER

1

23

4

56

789

0

TV VCR CABLE

DVD

10 0

CH

+

CH

–

FAV

EXIT

RECALL

TV/VIDEO

CH RTN

CODE

MTS

SLEEP

MUTE

RESET

CAP/TEXT

DVD CLEAR DVD MENUTOP MENU

1/2

16:9

MENU/ ENTER

VOL

FAV

VOL

+

–

+10

VOL

DISPLAY

When you press CH +/- on the remote control or CHANNEL ▲/▼ on the TV front panel, your TV will stop only on the channels stored in the TV’s channel memory. Follow the steps below to program channels into the memory.

Programming channels automatically

Your TV can automatically detect all active channels and store them in its memory. After the TV has stored the channels in its memory automatically, you can add or erase specific channels manually.

To add channels automatically:

1. Press MENU, then press or to display the SETUP menu.

2. Press ▲ or ▼ until the TV/CABLE selection is highlighted.

3. Press TV or CABLE, depending on which you use.

If you use an antenna, choose TV. If you use cable, choose CABLE.

or to highlight either

PICTURE AUDIO SETUP OPTION

TV / CABLE TV CABLE

CH PROGRAM

ADD / ERASE

SELECT ADJUST

4. Press ▼ to select CH PROGRAM.

5. Press

or to start channel programming. The TV will automatically cycle through all the TV or Cable channels (depending on which you selected), and store all active channels in the channel memory. While the TV is cycling through the channels, the message “PROGRAMMING NOW-PLEASE WAIT” appears.

6. When channel programming is complete, the message “COMPLETED” appears.

7. Press CH + or – to view the programmed channels.

CH

START

ADD

Channel Numbers

Channel +/–

Menu

Adding and erasing channels manually

After you have programmed the channels automatically, you can add or erase specific channels manually.

To add or erase channels manually:

your TV

Setting up

Changing channels

To change to the next programmed channel:

To change to a specific channel (programmed or unprogrammed):

1. Select the channel you want to add or erase. If you are adding a channel, you must select the channel using the Channel Number buttons.

2. Press MENU, then press to display the SETUP menu.

3. Press ▲ or ▼ to highlight ADD/ ERASE.

4. Press

or to select ADD or

or

PICTURE AUDIO SETUP OPTION

CH

TV / CABLE CABLE

CH PROGRAM START

ADD / ERASE ADD ERASE

ERASE, whichever function you want to perform.

5. Repeat steps 1–4 for other

SELECT ADJUST

channels you want to add or erase.

Press CHANNEL ▲/▼ on the TV front panel or CH +/– on the remote control.

Press the Channel Number buttons (0–9 and 100) on the remote control. For example, to select channel 125, press 100, 2, 5.

J3S90121A(E)_P07-16 9/03/2005, 5:57 PM16

16

Safeguards

Important

Using the TV’s features

Adjusting the channel settings

Switching between two channels

You can switch between two channels without entering an actual channel number each time.

To switch between two channels:

1. Select the first channel you want to view.

2. Select a second channel using the Channel Number buttons (0–9,

100).

3. Press CH RTN. The previous channel will be displayed. Each time you press CH RTN, the TV will switch back and forth between the two channels.

Programming your favorite channels

You can preset up to 12 of your favorite channels using the Favorite Channel Programming feature. Because this feature scans through only your favorite channels, it allows you to skip other channels you do not normally watch. You can still use Channel + / – to scan through all the channels you programmed in the TV’s memory.

To program your favorite channels:

1. Select a channel you want to program as a favorite channel.

2. Press MENU, then press

3. Press ▲ or ▼ to highlight FAVORITE CH.

PICTURE AUDIO SETUPCHOPTION

CH LABEL START

FAVORITE CH

V-CHIP LOCK ON/OFF TIMER COLORSTREAM

SELECT START

4. Press

ENGLISHLANGUAGE

START START START OFF DVD

or to display the FAVORITE CH menu. SET/CLEAR will

be highlighted.

PICTURE AUDIO SETUPCHOPTION

FAVORITE CH : CH 012

SET/CLEAR SET CLEAR

SET UP CH

TV CABLE SELECT END EXIT

5. Press

or to highlight SET and press ENTER.

0000 0000 0000

SET ENTER

6. Press EXIT to close the screen.

7. Repeat steps 1–6 for up to 11 other channels.

To select your favorite channels:

Press the FAV ▲ ▼ buttons on the remote control to select your favorite channels. The FAV ▲ ▼ buttons will not work until you have programmed your favorite channels.

or to display the OPTION menu.

POWER

TV VCR CABLE

1

23

4

56

789

CH

VOL

–

EXIT

VOL

RESET

DISPLAY

CODE

POWER

1

4

MENU/ ENTER

CH

RECALL

CAP/TEXT

DVD CLEAR DVD MENUTOP MENU

MTS

TV VCR CABLE

23

56

789

CH

VOL

–

EXIT

RESET

DISPLAY

CODE

MENU/ ENTER

CH

RECALL

VOL

CAP/TEXT

DVD CLEAR DVD MENUTOP MENU

MTS

+

–

TV/VIDEO

CH RTN

1/2

SLEEP

+

–

TV/VIDEO

CH RTN

1/2

SLEEP

DVD

10 0

0

FAV

16:9

MUTE

DVD

10 0

0

FAV

16:9

MUTE

+10

VOL

+

VOL

+

Channel Numbers

CH RTN

Channel Numbers

Menu/ Enter

Exit

FAV

Welcome to

Toshiba

Connecting

your TV

Remote Control

Using the

Setting up

your TV

Using the TV’s

Features

J3S90121A(E)_P17-28 9/03/2005, 5:57 PM17

Appendix

17

To clear your favorite channels:

POWER

1

23

4

56

789

0

TV VCR CABLE

DVD

10 0

CH

+

CH

–

FAV

EXIT

RECALL

TV/VIDEO

CH RTN

CODE

MTS

SLEEP

MUTE

RESET

CAP/TEXT

DVD CLEAR DVD MENUTOP MENU

1/2

16:9

MENU/ ENTER

VOL

FAV

VOL

+

–

+10

VOL

DISPLAY

POWER

1

23

4

56

789

0

TV VCR CABLE

DVD

10 0

CH

+

CH

–

FAV

EXIT

RECALL

TV/VIDEO

CH RTN

CODE

MTS

SLEEP

MUTE

RESET

CAP/TEXT

DVD CLEAR DVD MENUTOP MENU

1/2

16:9

MENU/ ENTER

VOL

FAV

VOL

+

–

+10

VOL

DISPLAY

1. Select a channel you want to clear.

2. Press MENU, then press or to display the OPTION menu.

3. Press ▲ or ▼ to highlight FAVORITE CH.

4. Press

or to display the FAVORITE CH menu. SET/CLEAR will

be highlighted.

PICTURE AUDIO SETUPCHOPTION

FAVORITE CH : CH 012

SET/CLEAR SET CLEAR

SET UP CH

TV CABLE SELECT END EXIT

5. Press

or to highlight CLEAR.

PICTURE AUDIO SETUPCHOPTION

FAVORITE CH : CH 012

SET/CLEAR SET CLEAR

SET UP CH

TV CABLE SELECT END EXIT

736 4 1 12 125 63 40 13 28 97 112

SET ENTER

736 4 1 12 125 63 40 13 28 97 112

CLEAR ENTER

Channel Numbers

Menu/ Enter

Exit

Features

Using the TV’s

6. Press ENTER until “0” replaces the channel number you want to erase.

7. Press EXIT to clear the screen.

8. Repeat steps 1–6 for the other channels.

Using the V-Chip (parental control) feature

The V-Chip feature is available only for the U.S. V-Chip system. The Canadian V-Chip system is not supported.

You can prevent others from viewing certain programs or channels by blocking them using the V-Chip feature.

Selecting a PIN code

Before you can block programs and channels, you must select a personal identification number (PIN) code. The PIN code you select prevents others from changing the rating limits you set.

To select your PIN code and access the V-Chip menus:

1. Press MENU, then press

2. Press ▲ or ▼ to highlight V-CHIP.

PICTURE AUDIO SETUPCHOPTION

CH LABEL START FAVORITE CH

V-CHIP

LOCK ON/OFF TIMER COLORSTREAM SELECT START

ENGLISHLANGUAGE

START START START OFF DVD

Note:

The PIN code you programmed is also used in the LOCK menu; see pages 22 and 23.

or to highlight the OPTION menu.

Menu

J3S90121A(E)_P17-28 9/03/2005, 5:57 PM18

18

3. Press or to display the V-CHIP menu.

PICTURE AUDIO SETUPCHOPTION

V-CHIP BLOCKING RESET

PIN CODE

SELECT END EXIT

SET ENTER

[0-9]

4. Use the Channel Number buttons (0–9) to enter your PIN code. If you are accessing the V-Chip menus for the first time, select a four-digit number to be your PIN code. Press ENTER. The BLOCKING menu appears.

Note:

If you forget your PIN code, press RECALL four times within five seconds from the V-CHIP menu. This allows you to proceed to the BLOCKING menu and resets your PIN code.

Safeguards

Important

Welcome to

Toshiba

PICTURE AUDIO SETUPCHOPTION

V-CHIP

ENABLE BLOCKING ON OFF

SET RATING BLOCKING OPTION NEW PIN CODE

START START START

ADJUSTSELECT

5. You may now enable blocking. See “Blocking programs by ratings” (below), “Locking channels” (page 22), “To change your PIN code” (below), or “Blocking unrated movies or programs” (page 22).

To change your PIN code:

1. Press MENU, then press

or to display the OPTION menu.

2. Press ▲ or ▼ to highlight V-CHIP.

3. Press or to display the V-CHIP menu.

4. Use the Channel Number buttons (0–9) to enter your PIN code. Press ENTER. The BLOCKING menu appears.

5. Press ▲ or ▼ to highlight NEW PIN CODE and press

or to

display the NEW PIN CODE menu.

6. Use the Channel Number buttons (0–9) to enter a new code. Press ENTER.

7. Press EXIT to return to normal viewing.

Blocking programs by ratings

The Motion Picture Association of America (MPAA) uses a rating system to qualify motion picture content. Television broadcasters employ a rating system to qualify the content of television programs, as well. The MPAA, Youth TV, and TV ratings work with the V-Chip feature and allow you to block programs according to the rating limits you set.

POWER

TV VCR CABLE

1

23

4

56

789

CH

VOL

–

EXIT

RESET

DISPLAY

CODE

MENU/ ENTER

CH

RECALL

VOL

CAP/TEXT

DVD CLEAR DVD MENUTOP MENU

MTS

+

–

TV/VIDEO

CH RTN

1/2

SLEEP

DVD

10 0

0

FAV

16:9

MUTE

+10

VOL

+

Channel Numbers

Menu/ Enter

Recall

Exit

Connecting

your TV

Remote Control

Using the

Setting up

your TV

Using the TV’s

Features

J3S90121A(E)_P17-28 9/03/2005, 5:57 PM19

Appendix

19

MPAA Ratings

X For adults only. NC17 Not intended for anyone 17 or under. R Restricted. Under 17 requires an accompanying

parent or adult guardian.

PG13 Parents strongly cautioned. Some material may be

inappropriate for children under 13.

PG Parental guidance suggested. Some material may

not be appropriate for children.

G General audience. Appropriate for all ages.

Youth TV Ratings

Y7FV, Y7 Directed to older children. This program is designed

for children age 7 and above. Programs in which fantasy violence may be more intense or combative than other programs in this category are designated TV-Y7-FV.

Y All children. This program is designed to be appropri-

ate for all children.

TV Ratings

MA Mature audience only. This program is specifically

designed to be viewed by adults and therefore may be unsuitable for children under 17.

Language Crude or indecent language. Sex Explicit sexual activity. Violence Graphic violence.

14 Parents strongly cautioned. This program contains

some material that many parents would find unsuitable for children under 14 years of age.

Dialog Intensely suggestive dialog. Language Strong, coarse language. Sex Intense sexual situations. Violence Intense violence.

PG Parental guidance suggested. This program contains

material that parents may find unsuitable for younger children. Dialog Some suggestive dialog. Language Infrequent coarse language. Sex Some sexual situations. Violence Moderate violence.

Note:

To see the rating of the program you are viewing, press RECALL at any time.

G General audience. Most parents would find this

No DLSV Programs not rated according to Dialog, Language,

Features

Using the TV’s

J3S90121A(E)_P17-28 9/03/2005, 5:58 PM20

program suitable for all ages.

Sex or Violence.

20

To use the V-Chip to block programs by rating:

1. Press MENU, then press or to display the OPTION menu.

2. Press ▲ or ▼ to highlight V-CHIP.

3. Press

or to display the V-CHIP menu.

4. Use the Channel Number buttons (0–9) to enter your PIN code. If you are accessing the V-Chip menus for the first time, select a four-digit number to be your PIN code. Press ENTER. The BLOCKING menu appears.

PICTURE AUDIO SETUPCHOPTION

V-CHIP

ENABLE BLOCKING ON OFF

SET RATING BLOCKING OPTION NEW PIN CODE

START START START

ADJUSTSELECT

5. Press ▲ or ▼ to highlight ENABLE BLOCKING.

• Press

or to highlight ON to enable V-Chip program blocking

by rating.

• Press

or to highlight OFF to disable V-Chip program blocking

by rating.

6. Press ▲ or ▼ to highlight SET RATING. Then, press or to display the SET RATING menu.

POWER

TV VCR CABLE

1

23

4

56

789

CH

VOL

–

EXIT

RESET

DISPLAY

CODE

MENU/ ENTER

CH

RECALL

VOL

CAP/TEXT

DVD CLEAR DVD MENUTOP MENU

MTS

+

–

TV/VIDEO

CH RTN

1/2

SLEEP

DVD

10 0

0

FAV

16:9

MUTE

+10

VOL

+

Channel Numbers

Menu/ Enter

Exit

Safeguards

Important

Welcome to

Toshiba

Connecting

your TV

PICTURE AUDIO SETUPCHOPTION

SET RATING

MPAA

RATING

YOUTH TV

RATING

MORE

SELECT

NC17 R

X

Y7FV Y7 Y

ADJUST

PG13

PG G

PICTURE AUDIO SETUPCHOPTION

TV RATING

DIALOG

LANGUAGE SEX VIOLENCE NO DLSV V-CHIP MENU

SELECT

MA 14 PG G

START

ADJUST

7. Press ▲ or ▼ to highlight MPAA Rating, Youth TV Rating or individual TV Ratings.

8. Press

or to select the ratings that will be blocked. Blocked

ratings are signified by a red “X.” Unblocked ratings are signified by a green “✓.” As you block ratings, all ratings higher than the ones you select are blocked, as well. For example, if you choose to block the MPAA rating R, the higher ratings NC17 and X are automatically blocked too.

9. When you are done selecting the ratings to be blocked, press EXIT to return to normal viewing.

When you try to view a program with a ratings block, a message will appear listing the program’s ratings. The program can still be viewed if you press MUTE and then enter your PIN code to temporarily bypass the block.

Note:

Not all programs are rated. To block programs or movies that are unrated, see “Blocking unrated movies or programs,” page 22.

Remote Control

Using the

Setting up

your TV

Using the TV’s

Features

J3S90121A(E)_P17-28 9/03/2005, 5:58 PM21

Appendix

21

Blocking unrated movies or programs

POWER

1

23

4

56

789

0

TV VCR CABLE

DVD

10 0

CH

+

CH

–

FAV

EXIT

RECALL

TV/VIDEO

CH RTN

CODE

MTS

SLEEP

MUTE

RESET

CAP/TEXT

DVD CLEAR DVD MENUTOP MENU

1/2

16:9

MENU/ ENTER

VOL

FAV

VOL

+

–

+10

VOL

DISPLAY

Some movies and programs are not rated. You can block these movies and programs using the V-Chip.

To block unrated movies or programs:

1. Press MENU, then press or to display the OPTION menu.

2. Press ▲ or ▼ to highlight V-CHIP.

3. Press

or to display the V-CHIP menu.

4. Use the Channel Number buttons (0–9) to enter your PIN code. If you are accessing the V-Chip menus for the first time, select a four-digit number to be your PIN code. Press ENTER. The BLOCKING menu appears.

to

5. Press ▲ or ▼

highlight BLOCKING OPTION.

6. Press or to display the BLOCKING OPTION menu.

7. Press ▲ or ▼ to highlight MPAA UNRATED.

• Press

or to highlight ON to block unrated movies.

• Press or to highlight OFF to unblock unrated movies.

8. Press ▲ or ▼ to highlight TV NONE RATING.

• Press

or to highlight ON to block programs with a rating of “TV NONE.” When you select ON, the message “NOTICE: ENABLING THIS OPTION MAY BLOCK EMERGENCY MESSAGES” appears.

• Press

or to highlight OFF to unblock programs with a rating of “TV NONE.”

9. Press EXIT to return to normal viewing.

Using the LOCK menu

The LOCK menu includes the CH LOCK, VIDEO LOCK, GAME TIMER, and NEW PIN CODE functions. You can use these functions after entering the correct PIN code. (This PIN code is the same one selected under “Selecting a PIN code” on page 18.)

Note:

Blocking television programs with a rating of “TV NONE” may block emergency messages.

Features

Using the TV’s

Locking channels

With the CH LOCK feature, you can lock specific channels. You will not be able to tune locked channels unless you clear the setting. You can choose to lock up to nine TV channels and nine cable channels.

To lock channels:

1. Select a channel you wish to lock.

2. Press MENU, then press

3. Press ▲ or ▼ to highlight LOCK.

4. Press or to display the LOCK menu.

5. Use the Channel Number buttons (0–9) to enter your PIN code, then press ENTER. The LOCK menu appears.

6. Press ▲ or ▼ to highlight CH LOCK and press

or to display the CH

LOCK menu.

7. Press

or to select the following:

• SET– to set the channel as one to be

locked. Then press ENTER.

• CLEAR– to clear all channels from

the list of locked channels. Then press ENTER.

8. Repeat steps 1 through 7 to lock other channels. When you are finished locking channels, press EXIT to return to normal viewing. If you try to tune a locked channel, the TV will not display it, but will display the nearest unlocked channel.

or to display the OPTION menu.

PICTURE AUDIO SETUPCHOPTION

LOCK

CH LOCK START

VIDEO LOCK

GAME TIMER NEW PIN CODE SELECT ADJUST

PICTURE AUDIO SETUPCHOPTION

CH LOCK : CH 12

SET/CLEAR SET CLEAR

LOCKED CH

TV CABLE SELECT END EXIT

OFF

OFF START

000 000 000

SET ENTER

Channel Numbers

Menu/ Enter

Exit

Note:

After programming CH LOCK, change channels before turning off the television.

J3S90121A(E)_P17-28 9/03/2005, 5:58 PM22

22

To unlock channels:

1. Press MENU, then press or to display the OPTION menu.

2. Press ▲ or ▼ to highlight LOCK and then press or to display the LOCK menu.

3. Use the Channel Number buttons (0–9) to enter your PIN code, then press ENTER. The LOCK menu appears.

4. Press ▲ or ▼ to highlight CH LOCK and press

or to display

the CH LOCK menu.

5. Press or to highlight CLEAR, and then press ENTER. This clears all channels from the list of locked channels.

6. Press EXIT to return to normal viewing.

Locking video input

With the VIDEO LOCK feature, you can lock out the input sources (VIDEO1, VIDEO2, VIDEO3, COLORSTREAM) and channels 3 and 4. You will not be able to select the input sources with the TV/VIDEO button or Channel buttons unless you clear the setting.

To set up the video lock:

1. Press MENU, then press

2. Press ▲ or ▼ to highlight LOCK.

3. Press

or to display the LOCK menu.

4. Use the Channel Number buttons (0–9) to enter your PIN code, then press ENTER. The LOCK menu appears.

5. Press ▲ or ▼ to highlight VIDEO LOCK.

6. Press

or to select:

• OFF: Unlocks all video input

sources. VIDEO: Locks VIDEO1, VIDEO2,

•

VIDEO3 and COLORSTREAM.

• VIDEO +: Locks VIDEO1, VIDEO2,

VIDEO3, COLORSTREAM, channel 3 and channel 4. This option should be used if you use the antenna terminal to play a video tape.

7. Press EXIT to return to normal viewing.

Setting the GameTimer

With the GameTimerTM feature, you can automatically activate the VIDEO LOCK feature (VIDEO setting) TV game (30, 60, 90 or 120 minutes).

To set up the GameTimer:

1. Press MENU, then press

2. Press ▲ or ▼ to highlight LOCK.

3. Press or to display the LOCK menu.

4. Use the Channel Number buttons (0–9) to enter your PIN code, then press ENTER. The LOCK menu appears.

5. Press ▲ or ▼ to highlight GameTimer.

6. Press minutes, 120 minutes or OFF).

7. Press EXIT to return to normal viewing. After the GameTimer is programmed, the display will appear briefly every ten minutes to remind you that the GameTimer is operating. When the programmed time is reached, the display will change the channel automatically.

or to select a time limit (30 minutes, 60 minutes, 90

or to display the OPTION menu.

PICTURE AUDIO SETUPCHOPTION

LOCK

CH LOCK START

VIDEO LOCK

GAME TIMER NEW PIN CODE SELECT ADJUST

OFF VIDEO VIDEO+ OFF START

TM

to set a time limit for playing a

or to display the OPTION menu.

PICTURE AUDIO SETUPCHOPTION

LOCK

CH LOCK START VIDEO LOCK

GAME TIMER

NEW PIN CODE SELECT ADJUST

OFF

OFF 30 60 90 120 START

POWER

TV VCR CABLE

DVD

1

4

23

56

+10

10 0

Channel Numbers

789

CH

VOL

MENU/

–

ENTER

0

+

VOL

+

Menu/ Enter

–

CH

TV/VIDEO

CH RTN

1/2

SLEEP

FAV

16:9

MUTE

Exit

EXIT

VOL

CAP/TEXT

RESET

DVD CLEAR DVD MENUTOP MENU

DISPLAY

CODE

RECALL

MTS

Note:

After programming VIDEO LOCK, change channels or activate the TV/VIDEO key before turning off the television.

POWER

TV VCR CABLE

DVD

1

23

4

56

789

CH

VOL

–

EXIT

RESET

DISPLAY

CODE

MENU/ ENTER

CH

RECALL

VOL

CAP/TEXT

DVD CLEAR DVD MENUTOP MENU

MTS

+

–

TV/VIDEO

CH RTN

1/2

SLEEP

10 0

0

FAV

16:9

MUTE

+10

VOL

+

Channel Numbers

Menu/ Enter

Exit

Safeguards

Important

Welcome to

Toshiba

Connecting

your TV

Remote Control

Using the

Setting up

your TV

Using the TV’s

Features

Appendix

J3S90121A(E)_P17-28 9/03/2005, 5:58 PM23

23

SPACE

– 09

+

• • •

–

• • •

A

Z

Labeling channels

POWER

1

23

4

56

789

0

TV VCR CABLE

DVD

10 0

CH

+

CH

–

FAV

EXIT

RECALL

TV/VIDEO

CH RTN

CODE

MTS

SLEEP

MUTE

RESET

CAP/TEXT

DVD CLEAR DVD MENUTOP MENU

1/2

16:9

MENU/ ENTER

VOL

FAV

VOL

+

–

+10

VOL

DISPLAY

Channel labels appear over the channel number display each time you turn on the TV, select a channel, or press the Recall button. You can choose any four characters to identify a channel.

To create channel labels:

1. Select a channel you want to label.

2. Press MENU, then press

3. Press ▲ or ▼ to highlight CH LABEL.

or until the OPTION menu appears.

Channel Numbers

PICTURE AUDIO SETUPCHOPTION

CH LABEL START

FAVORITE CH V-CHIP LOCK ON/OFF TIMER COLORSTREAM

SELECT START

4. Press

ENGLISHLANGUAGE

START START START OFF DVD

or to display the CH LABEL menu. SET/CLEAR will be

highlighted.

PICTURE AUDIO SETUPCHOPTION

CH LABEL : CH 12

SET/CLEAR SET CLEAR

LABEL

SELECT END EXIT

SET ENTER

5. Press or to highlight SET.

6. Press ▲ or ▼ to highlight LABEL.

PICTURE AUDIO SETUPCHOPTION

CH LABEL : CH 12 SET/CLEAR SET

LABEL

Menu/ Enter

Exit

SELECT END EXIT

7. Press or to enter a character in the first space. Press the button repeatedly until the character you want appears on the screen. Press ENTER.

8. Repeat step 7 to enter the rest of the characters. If you would like a blank space in the label name, you must choose a blank space from the list of characters; otherwise, a dash will appear in that space.

9. Repeat steps 1–8 for other channels. You can assign a label to each channel.

Using the TV’s

J3S90121A(E)_P17-28 9/03/2005, 5:58 PM24

10. Press EXIT to clear the screen.

Features

To erase channel labels:

1. Select a channel with a label.

2. Press MENU, then press

3. Press ▲ or ▼ to highlight CH LABEL.

4. Press SET/CLEAR will be highlighted.

5. Press

6. Press ENTER.

7. Repeat steps 1–6 to erase other channel labels.

or to display the CH LABEL menu.

or to highlight CLEAR.

SET ENTER

PICTURE AUDIO SETUPCHOPTION

CH LABEL : CH 12 SET/CLEAR SET

LABEL

SELECT END EXIT

A

SET ENTER

or until the OPTION menu appears.

24

Note:

The character will change as below.

Setting the clock

You must set the clock before you can program the ON/OFF timer.

To set the clock: (Example: 8:30 AM)

1. Press MENU, then press or to display the OPTION menu.

2. Press ▲ or ▼

PICTURE AUDIO SETUPCHOPTION

CH LABEL START FAVORITE CH V-CHIP LOCK

ON/OFF TIMER

COLORSTREAM SELECT ADJUST SET ENTER

3. Press or to highlight SET, then press ENTER. The ON/OFF TIMER menu appears.

4. Press ▲ or ▼ to highlight CLOCK, then press or to highlight the hour position.

PICTURE AUDIO SETUPCHOPTION

ON/OFF TIMER

CLOCK 12:00 AM

ON TIMER

12:00 AM CH 001

OFF TIMER

12:00 AM

SELECT END EXIT

5. Press ▲ or ▼ to set the hour, then press position.

to highlight ON/OFF TIMER.

ENGLISHLANGUAGE

START START START ON OFF SET DVD

CLEAR

ADJUST

to highlight the minute

POWER

TV VCR CABLE

DVD

1

23

4

56

789

CH

VOL

–

MENU/

ENTER

+10

10 0

0

+

VOL +

Menu/ Enter

–

CH

TV/VIDEO

CH RTN

1/2

SLEEP

FAV

16:9

MUTE

Exit

EXIT

VOL

CAP/TEXT

RESET

DVD CLEAR DVD MENUTOP MENU

DISPLAY

CODE

RECALL

MTS

Note:

If the power source for the TV is interrupted (for example, the power cord is unplugged or a power failure occurs), you will need to reset the clock.

Safeguards

Important

Welcome to

Toshiba

Connecting

your TV

Remote Control

Using the

PICTURE AUDIO SETUPCHOPTION

ON/OFF TIMER

CLOCK 8:30 AM

ON TIMER

12:00 AM CH 001

OFF TIMER

12:00 AM

SELECT END EXIT

CLEAR

ADJUST

6. Press ▲ or ▼ to set the minutes, then press EXIT to return to normal viewing.

Setting the ON/OFF timer

Setting the on timer

This feature allows you to program the TV to turn on automatically at a set time. If you program the ON TIMER to “DAILY,” the TV will turn on every day at the same time to the same channel until you clear the ON TIMER.

To set the on timer: (Example: Turning on the TV to channel 12 at 7:00 AM, DAILY)

1. Press MENU, then press

2. Press ▲ or ▼ to highlight ON/OFF TIMER.

3. Press or to highlight SET, then press ENTER. The ON/OFF TIMER menu appears.

4. Press ▲ or ▼ to highlight ON TIMER and press the hour position.

PICTURE AUDIO SETUPCHOPTION

ON/OFF TIMER CLOCK 12:00 AM

ON TIMER

12:00 AM CH 001

OFF TIMER

12:00 AM

SELECT END EXIT

CLEAR

ADJUST

or to display the OPTION menu.

or to highlight

25

POWER

TV VCR CABLE

DVD

1

23

4

56

789

CH

VOL

MENU/

–

ENTER

+10

10 0

0

+

VOL

+

Menu/ Enter

EXIT

VOL

CAP/TEXT

RESET

DVD CLEAR DVD MENUTOP MENU

DISPLAY

CODE

RECALL

MTS

CH

–

TV/VIDEO

CH RTN

1/2

SLEEP

FAV

16:9

MUTE

Note:

After a power failure or disconnection of the power, the timer settings will be lost.

Setting up

your TV

Using the TV’s

Features

Appendix

J3S90121A(E)_P17-28 9/03/2005, 5:58 PM25

5.Press ▲ or ▼ to set the desired hour, then press .

POWER

1

23

4

56

789

0

TV VCR CABLE

DVD

10 0

CH

+

CH

–

FAV

EXIT

RECALL

TV/VIDEO

CH RTN

MENU/ ENTER

VOL

FAV

VOL

+

–

+10

VOL

POWER

1

23

4

56

789

0

TV VCR CABLE

DVD

10 0

CH

+

CH

–

FAV

EXIT

RECALL

TV/VIDEO

CH RTN

MENU/ ENTER

VOL

FAV

VOL

+

–

+10

VOL

PICTURE AUDIO SETUPCHOPTION

ON/OFF TIMER CLOCK 12:00 AM

ON TIMER

7:00 AM CH 001

OFF TIMER

12:00 AM

SELECT END EXIT

CLEAR

ADJUST

6.Set the desired minutes and channel, as in step 5.

7.Press

or to select ONCE or DAILY timer date.

PICTURE AUDIOCHOPTIONSETUP

ON/OFF TIMER CLOCK 12:00 AM

ON TIMER

7:00 AM CH 012

OFF TIMER

12:00 AM

SELECT END EXIT

CLEARONCE DAILY

CLEAR

SET ENTER

8. Press EXIT to return to normal viewing.

To cancel the on timer:

Select CLEAR in step 7 above. Press EXIT to return to normal viewing.

Setting the off timer

This feature allows you to program the TV to turn off automatically at a set time. If you program the OFF TIMER to “DAILY,” the TV will automatically turn off every day at the same time.

To set the off timer: (Example: Turning off the TV at 11:30 PM)

1. Press MENU, then press

2. Press ▲ or ▼

3. Press

to highlight ON/OFF TIMER.

or to highlight SET, then press ENTER.

The ON/OFF TIMER menu appears.

4. Press ▲ or ▼

to highlight OFF TIMER, then press or to

highlight the hour position.

or to display the OPTION menu.

Exit

Note:

The ON TIMER has a one-hour automatic shut off. One hour after the ON TIMER has turned on the TV, the TV will turn off automatically unless you press any button .

Features

Using the TV’s

PICTURE AUDIO SETUPCHOPTION

ON/OFF TIMER CLOCK 12:00 AM ON TIMER

7:00 AM CH 012

OFF TIMER

12:00 AM

SELECT END EXIT

DAILY

CLEAR

ADJUST

5. Press ▲ or ▼ to set the desired hour, then press

PICTURE AUDIO SETUPCHOPTION

ON/OFF TIMER CLOCK 12:00 AM ON TIMER

7:00 AM CH 012

OFF TIMER

11:00 PM

SELECT END EXIT

DAILY

CLEAR

ADJUST

6. Set the desired minutes, as in step 5.

7. Press or to select ONCE or DAILY.

PICTURE AUDIO SETUPCHOPTION

ON/OFF TIMER CLOCK 12:00 AM ON TIMER

7:00 AM CH 012

OFF TIMER

11:30 PM

SELECT END EXIT

DAILY

ONCE DAILY

CLEAR

SET ENTER

8. Press EXIT to return to normal viewing.

To cancel the off timer:

Select CLEAR in step 7 above. Press EXIT to return to normal viewing.

Menu/ Enter

.

Exit

26

J3S90121A(E)_P17-28 9/03/2005, 5:58 PM26

Adjusting the picture quality

You can adjust the picture quality to your personal preferences, including the contrast, brightness, color, tint, and sharpness. The qualities you choose will be stored automatically in your TV’s memory so you can recall them at any time.

To adjust the picture quality:

1. Press MENU, then press or to display the PICTURE menu.

PICTURE AUDIO SETUPCHOPTION

CONTRAST BRIGHTNESS COLOR 32 TINT SHARPNESS

SELECT ADJUST

2. Press ▲ or ▼ until the item you want to adjust is highlighted.

3. Press

or to adjust the level.

Selection Pressing

contrast lower higher brightness darker lighter color paler deeper tint reddish greenish sharpness softer sharper

4. Press EXIT to return to normal viewing.

Watching video input

You can use the TV/VIDEO button on the remote control to view a signal coming from other devices, such as VCRs or video disc players that may be connected to your TV. (See “Connecting your TV” on page 7.)

Specifying the ColorStream® setting

You can use the ColorStream (component video) input for connecting either a DVD player or a DTV receiver.

Note:

This TV is not HD ready.

1. Press TV/VIDEO to put the TV in ColorStream mode.

2. Press MENU, then press the OPTION menu appears.

3. Press ▲ or ▼ to highlight COLORSTREAM.

4. Press

or to highlight DVD or DTV, depending on which device is connected.

5. Press EXIT to return to normal viewing.

Note:

The factory setting is DVD.

Displaying on-screen information

Press RECALL to display the following on-screen information:

• Clock

• Channel number or VIDEO mode

selected

• Channel label (if preset)

• Stereo or SAP (second audio program) audio status

• Content rating

64 32

0

32

or until

PICTURE AUDIO SETUPCHOPTION

CH LABEL START FAVORITE CH V-CHIP LOCK ON/OFF TIMER

COLORSTREAM

SELECT ADJUST

12:00 AM

ENGLISHLANGUAGE

START START START OFF DVD DTV

CABLE 007 STEREO SAP

(TV)

ABCD

MPAA

X

POWER

TV VCR CABLE

DVD

1

23

4

56

789

CH

VOL

–

EXIT

RESET

DISPLAY

CODE

MENU/ ENTER

CH

RECALL

VOL

CAP/TEXT

DVD CLEAR DVD MENUTOP MENU

MTS

+

–

TV/VIDEO

CH RTN

1/2

SLEEP

10 0

0

FAV

16:9

MUTE

+10

VOL

+

Menu

Exit

Reset

Note:

To reset the picture adjustments to the factory settings, press RESET.

To select the input mode:

Press the TV/VIDEO button repeatedly to select the desired mode. The signal source you are connected to is displayed in light blue.

TV VIDEO 1

POWER

TV VCR CABLE

1

23

4

56

789

+

CH

VOL

–

EXIT

RESET

DISPLAY

CODE

MENU/ ENTER

–

CH

TV/VIDEO

RECALL

CH RTN

VOL

CAP/TEXT

DVD CLEAR DVD MENUTOP MENU

MTS

SLEEP

1/2

VIDEO 2 VIDEO 3

COLOR

STREAM

DVD

+10

10 0

0

VOL +

Menu

FAV

16:9

MUTE

TV/Video

Recall

Safeguards

Important

Welcome to

Toshiba

Connecting

your TV

Remote Control

Using the

Setting up

your TV

Using the TV’s

Features

Appendix

J3S90121A(E)_P17-28 9/03/2005, 5:58 PM27

27

POWER

1

23

4

56

789

0

TV VCR CABLE

DVD

10 0

CH

+

CH

–

FAV

EXIT

RECALL

TV/VIDEO

CH RTN

CODE

MTS

SLEEP

MUTE

RESET

CAP/TEXT

DVD CLEAR DVD MENUTOP MENU

1/2

16:9

MENU/ ENTER

VOL

FAV

VOL

+

+10

–

VOL

DISPLAY

Setting the sleep timer

You can set the TV so it turns off automatically.

To set the sleep timer:

Repeatedly press SLEEP on the remote control to set the length of time until the TV turns off. The clock will count down 10 minutes for each press of the SLEEP button (120, 110, ...10, 0). After the sleep time is programmed, the display will appear briefly every ten minutes to remind you that the sleep timer is operating.

To confirm the sleep timer setting:

Press SLEEP one time. The remaining time will be momentarily displayed.

To cancel the sleep timer:

Repeatedly press SLEEP until the display turns to 0.

Using the closed caption feature

The closed caption feature has two options: captions or text. A caption is a printed version of the dialogue, narration and/or sound effects of a program. Text is information not related to the program that appears on half of the TV screen when available.

To view captions or text:

1. Select the desired program. Closed captioned programs are usually marked in your local TV listing as “CC.”

2. Press CAP/TEXT repeatedly to select caption or text mode.

CAPTION CH1 TEXT CH1

3. Press 1/2 to select the caption or text channel.

CAPTION CH2

TEXT CH2

4. To turn off the closed caption feature, press CAP/TEXT repeatedly until captions or text no longer display on-screen.

Changing the picture size

You can change the picture size to 16:9 (widescreen) style.

To view 16:9 style:

Select the desired program, then press 16:9. The picture size will be displayed 16:9 style. “16:9” will appear on the screen for approx. 4 seconds.

To cancel 16:9 style:

Press 16:9 again. The picture size will return to 4:3 style.

1/2 16:9

CAP/TEXT

Sleep

Note:

A closed caption signal may not be decoded in the following situations:

• When a video tape has been dubbed.

• When the signal reception is weak.

• When the signal reception is non-standard.

When you select the text mode, the text screen always appears as a black box. When there is no signal, however, the text screen will not display text characters. Repeatedly press CAP/TEXT until the box disappears.

NOTICE OF POSSIBLE ADVERSE EFFECTS ON TV PICTURE TUBE

Avoid displaying stationary images on your TV screen for extended periods of time. Fixed (non-moving) images (such as black/ gray bars in wide-screen picture formats, video game patterns, TV station logos, closed captions) can become permanently ingrained in the picture tube. This type of

damage is NOT COVERED BY YOUR WARRANTY.

J3S90121A(E)_P17-28 9/03/2005, 5:58 PM28

Features

Using the TV’s

4:3 Normal

16:9

16:9 Widescreen

28

Adjusting the sound

POWER

1

23

4

56

789

0

TV VCR CABLE

DVD

10 0

CH

+

CH

–

FAV

EXIT

RECALL

TV/VIDEO

CH RTN

DVD MENU

CODE

MTS

SLEEP

MUTE

RESET

CAP/TEXT

DVD CLEAR DVD MENUTOP MENU

1/2

16:9

MENU/

ENTER

VOL

FAV

VOL

+

–

POWER

1

23

4

56

789

0

TV VCR CABLE

DVD

10 0

CH

+

CH

–

FAV

EXIT

RECALL

TV/VIDEO

CH RTN

CODE

MTS

SLEEP

MUTE

RESET

CAP/TEXT

DVD CLEAR DVD MENUTOP MENU

1/2

16:9

MENU/ ENTER

VOL

FAV

VOL

+

–

+10

VOL

DISPLAY

Muting the sound

Press MUTE to temporarily turn off the sound. While the sound is off, the screen will display the word MUTE in the lower right-hand corner. To restore the sound, press MUTE again.

Safeguards

Important

Selecting stereo/SAP broadcasts

You can listen to high-fidelity stereo sound with the Multi-channel TV Sound (MTS) feature. MTS can also transmit a second audio program (SAP) containing a second language or other audio information.

When the TV receives a stereo or SAP broadcast, the word STEREO or SAP appears on-screen every time the TV is turned on, the channel is changed, or the RECALL button is pressed. The MTS feature is not available in the VIDEO mode.

You can leave your TV in STEREO mode because it will automatically output stereo or monaural sound, depending on the broadcast type. If the stereo sound is noisy, select MONO to reduce the noise. The word STEREO or SAP is displayed in light blue when the TV receives the signal.

To select the desired MTS setting:

Repeatedly press the MTS button to select either STEREO, SAP, MONO+SAP, or MONO. If the current program is not available in stereo or SAP, the setting will not be available when you press the MTS button.

STEREO

SAP

Recall

Mute

MTS

Welcome to

Toshiba

Connecting

your TV

Remote Control

Using the

MONO

MONO + SAP

If the current program is not broadcasting either stereo or SAP, those settings will not be available when you press the MTS button.

Setting up

your TV

Using the TV’s

Features

Appendix

J3S90121A(E)_P29-BACK 9/03/2005, 5:58 PM29

29

Adjusting the sound quality

POWER

1

23

4

56

789

0

TV VCR CABLE

DVD

10 0

CH

+

CH

–

FAV

EXIT

RECALL

TV/VIDEO

CH RTN

CODE

MTS

SLEEP

MUTE

RESET

CAP/TEXT

DVD CLEAR DVD MENUTOP MENU

1/2

16:9

MENU/ ENTER

VOL

FAV

VOL

+

–

VOL

DISPLAY

+10

POWER

1

23

4

56

789

0

TV VCR CABLE

DVD

10 0

CH

+

CH

–

FAV

EXIT

RECALL

TV/VIDEO

CH RTN

CODE

MTS

SLEEP

MUTE

RESET

CAP/TEXT

DVD CLEAR DVD MENUTOP MENU

1/2

16:9

MENU/ ENTER

VOL

FAV

VOL

+

–

+10

VOL

DISPLAY

You can change the sound quality of your TV by adjusting the bass, treble, and balance.

To adjust the sound quality:

1. Press MENU, then press

PICTURE AUDIO SETUPCHOPTION

BASS TREBLE BALANCE BBE SURROUND STABLE SOUND SELECT ADJUST

OFF OFF OFF

2. Press ▲ or ▼ to highlight the item you want to adjust.

3. Press

or to adjust the level.

PICTURE AUDIO SETUPCHOPTION

BASS

TREBLE BALANCE BBE SURROUND STABLE SOUND SELECT ADJUST

OFF OFF OFF

or until the AUDIO menu appears.

32 32

0

32 32

0

Menu

Reset

Note:

To reset the audio adjustments to the factory settings, press RESET.

Features

Using the TV’s

makes the sound quality weaker or decreases the balance in

•

the right channel, depending on the item selected.

makes the sound quality stronger or decreases the balance in

•

the left channel, depending on the item selected.

Using the BBE sound feature

By correcting the phase delay and distortion naturally generated by speaker systems, the BBE sound feature ensures that the sound that reaches your ears is as natural as the original sound. Human voices are clearer and music is natural and well-defined.

To turn on the BBE sound feature:

1. Press MENU, then press

2. Press ▲ or ▼ to highlight BBE.

3. Press

or to highlight ON.

PICTURE AUDIO SETUPCHOPTION

BASS TREBLE BALANCE

BBE

SURROUND STABLE SOUND SELECT ADJUST

ON OFF OFF OFF

To turn off the BBE sound feature:

Highlight OFF in step 3 above.

or until the AUDIO menu appears.

32 32

0

Menu

Licensed by BBE Sound, Inc. under USP5510752 and 5736897. BBE and BBE symbol are registered trademarks of BBE Sound, Inc.

J3S90121A(E)_P29-BACK 9/03/2005, 5:58 PM30

30

Using the surround sound feature

The surround sound feature expands the audio listening field wider and deeper to create exceptional sound quality from the TV’s speakers. The feature uses stereo signals from a TV broadcast or video input.

To turn on the surround sound feature:

1. Select the STEREO mode, if available (see “Selecting stereo/SAP broadcasts” on page 29.)

2. Press MENU, and then press

or until the AUDIO menu

appears.

3. Press ▲ or ▼ to highlight SURROUND.

4. Press

or to highlight ON.

PICTURE AUDIO SETUPCHOPTION

BASS TREBLE BALANCE BBE

SURROUND

STABLE SOUND SELECT ADJUST

OFF ON OFF

OFF

32 32

0

To turn off the surround sound feature:

Highlight OFF in step 4 above.

In general, you can leave your TV in surround mode because it will automatically output the type of sound being broadcast (surround stereo or monaural).

Using the StableSound® feature

POWER

TV VCR CABLE

1

23

4

56

789

CH

VOL

–

EXIT

RESET

DISPLAY

CODE

MENU/ ENTER

CH

RECALL

VOL

CAP/TEXT

DVD CLEAR DVD MENUTOP MENU

MTS

+

–

TV/VIDEO

CH RTN

1/2

SLEEP

DVD

10 0

0

FAV

16:9

MUTE

Safeguards

Important

+10

Welcome to

Toshiba

VOL

+

Menu

Connecting

your TV

Remote Control

Using the

The StableSound feature limits the highest volume level to prevent extreme changes in volume when the signal source is changed.

®

To turn on the StableSound

feature:

1. Press MENU, then press or until the AUDIO menu appears.

2. Press ▲ or ▼ to highlight STABLE SOUND.

3. Press

To turn off the StableSound

or to highlight ON.

PICTURE AUDIO SETUPCHOPTION

BASS TREBLE BALANCE BBE SURROUND

STABLE SOUND

SELECT ADJUST

OFF OFF ON OFF

32 32

0

®

feature:

Highlight OFF in step 3 above.

Auto power off

The TV will automatically turn off after approximately 15 minutes if it is tuned to a vacant channel or a station that completes broadcast for the day and stops broadcasting on that channel. This feature does not work in VIDEO mode.

its

Understanding the Power Return feature

If the power is cut off while you are viewing the TV and the power is resupplied, the Power Return feature will turn the TV on automatically.

If the power is going to be off for a long time or you are going to be away from home for a long time, unplug the power cord from the wall outlet to prevent the TV from turning on in your absence.

Setting up

your TV

Using the TV’s

Features

Appendix

J3S90121A(E)_P29-BACK 9/03/2005, 5:58 PM31

31

Appendix

Troubleshooting

Before calling a service technician, please check the following table for a possible cause of the problem and some solutions.

Problem Solution

TV will not turn on • Make sure the power cord is plugged in, then press POWER.

• The remote control batteries may be dead. Replace the batteries.

No picture, no sound • Check the antenna/cable connections.

• This TV will not accept or display 480p or 720p progressive scan

signals or 1080i interlaced high-definition signals through its ColorStream inputs. Switch the other device’s output to 480i interlaced mode first (see page 9).

No sound, picture OK • The sound may be muted. Press VOLUME.

• The station may have broadcast difficulties. Try another

• The MTS feature may be in SAP mode. Press the MTS button on the remote control until STEREO (or MONO) mode is active.

Poor sound, picture OK • The station may have broadcast difficulties. Try another channel.

• The MTS feature may be in SAP mode. Press the MTS button on the remote control until STEREO (or MONO) mode is active.

Poor picture, sound OK • Check the antenna connections.

• The station may have broadcast difficulties. Try another channel.

• Adjust the PICTURE menu.

• This TV will not accept or display 480p or 720p progressive scan

signals or 1080i interlaced high-definition signals through its ColorStream inputs. Switch the other device’s output to 480i interlaced mode first (see page 9).

Poor reception of broadcast channels • The station may have broadcast difficulties. Try another channel.

• Check the antenna connections.

• If you are using a VCR, make sure the TV/VCR button is set correctly.

Cannot receive above channel 13 •

Unable to select a certain channel • The channel may be blocked by the V-Chip feature or CH LOCK

Cannot access signal input sources (Video1, • Check the VIDEO LOCK feature. Video2, Video3 and ColorStream) and/or Channels 3 and 4

Multiple images • The station may have broadcast difficulties. Try another channel.

Poor color or no color • The station may have broadcast difficulties. Try another channel.

Black box on screen • Repeatedly press CAP/TEXT to turn off the Closed Caption Text mode.

No stereo or SAP sound from a • Make sure the MTS feature is set properly. known MTS broadcast

The V-Chip PIN code does not work • Change or reset your PIN code (pages 18 and 19). (U.S. V-Chip system only)

The remote control does not operate • Make sure the TV/VCR/DVD/CABLE mode is set properly on the

Make sure the TV/CABLE feature in the SETUP menu is set to “CABLE”.

feature, or erased with the add/erase feature.

• Use a highly directional outdoor antenna.

• Adjust the TINT and/or COLOR in the PICTURE menu.

• If you change the direction of the TV while it is turned on, the picture

could suffer from color shading. If so, turn off the TV and allow it to cool for several hours before turning it on again.

remote control.

• Remove all obstructions between the remote control and the TV.

• The remote control batteries may be dead. Replace the batteries.

channel.

Appendix

J3S90121A(E)_P29-BACK 9/03/2005, 5:58 PM32

32

Specifications

• This model complies with the specifications below.

• Design and specifications are subject to change without notice.

• This model may not be compatible with features and/or specifications that may be added in the future.

Picture Tube 32 in. (802 mm) diagonal (Screen size is approximate.)

Television system NTSC standard

Channel coverage VHF: 2–13

UHF: 14–69

Cable TV: 4A, A-5–A-1, A-I,

J–W, W+1–W+84

Power source 120V AC, 60 Hz

Power consumption 137 W

Audio power 5 W + 5 W

Speaker type 2 in. x 4-11/16 in. (50.8 mm x 119.4 mm) x 2 pcs.

Video/Audio terminals S-VIDEO INPUT

Y-INPUT: 1V (p-p), 75 ohm, negative sync.

C-INPUT: 0.286V (p-p) (burst signal), 75 ohm

VIDEO/AUDIO INPUT

VIDEO: 1V (p-p), 75 ohm, negative sync.

AUDIO: 150 mV (rms) (30% modulation equivalent, 47k ohm)

ColorStream

Y : 1V (p-p), 75 ohm

PR : 0.7V (p-p), 75 ohm

PB : 0.7V (p-p), 75 ohm

VIDEO/AUDIO OUTPUT

VIDEO: 1V (p-p), 75 ohm, negative sync.

AUDIO: 150 mV (rms) (30% modulation equivalent, 47k ohm)

Dimensions Width : 30-1/2 in. (774 mm)

Height : 27-1/16 in. (687 mm)

Depth : 22-1/2 in. (572 mm)

Weight 136.7 Ibs. (62 kg)

Supplied accessories Remote control with two size “AAA” batteries

®

(component video) INPUT

Safeguards

Important

Welcome to

Toshiba

Connecting

your TV

Remote Control

Using the

Setting up

your TV

J3S90121A(E)_P29-BACK 9/03/2005, 5:58 PM33

33

Using the TV’s

Features

Appendix

Limited United States Warranty

For 27'' FST PURE® and All Larger Television Models

Toshiba America Consumer Products, L.L.C. (“TAC P ”) makes the following

limited warranties to

LIMITED WARRANTIES EXTEND TO THE ORIGINAL CONSUMER

PURCHASER

GIFT FROM THE ORIGINAL CONSUMER PURCHASER AND TO NO

OTHER PURCHASER OR TRANSFEREE.

PRODUCTS PURCHASED IN THE U.S.A. AND USED ANYWHERE

OUTSIDE OF THE U.S.A., INCLUDING, WITHOUT LIMITATION, CANADA

AND MEXICO, ARE NOT COVERED BY THESE WARRANTIES.

PRODUCTS PURCHASED ANYWHERE OUTSIDE OF THE U.S.A.,

INCLUDING, WITHOUT LIMITATION, CANADA AND MEXICO, AND USED

IN THE U.S.A., ARE NOT COVERED BY THESE WARRANTIES.

Limited One (1) Year Warranty on Parts and Labor*

TACP warrants this television and its parts against defects in materials or

workmanship for a period of one (1) year after the date of original retail

purchase. DURING THIS PERIOD, TACP WILL, AT TACP’S OPTION, REPAIR

OR REPLACE A DEFECTIVE PART WITH A NEW OR REFURBISHED PART

WITHOUT CHARGE TO YOU FOR PARTS OR LABOR. TACP Authorized

Service Station personnel will come to your home when warranty service is

required. Depending on the type of repair required, either the service will be

performed in your home or the set will be taken to the TACP Authorized Service

Station for repair and returned to your home at no cost to you.

Limited Two (2) Year Warranty on Picture Tube*

TACP further warrants the picture tube in this television against defects in

materials or workmanship for a period of two (2) years after the date of

original retail purchase. DURING THIS PERIOD, TACP WILL, AT TACP’S

OPTION, REPAIR OR REPLACE A DEFECTIVE PICTURE TUBE WITH A

NEW OR REFURBISHED PICTURE TUBE WITHOUT CHARGE TO YOU,

EXCEPT THAT IF A DEFECTIVE PICTURE TUBE IS REPAIRED OR

REPLACED AFTER NINETY (90) DAYS FROM THE DATE OF THE

ORIGINAL RETAIL PURCHASE, YOU MUST PAY ALL LABOR CHARGES

INVOLVED IN THE REPAIR OR REPLACEMENT. YOU MUST DELIVER

THE ENTIRE TELEVISION TO AN AUTHORIZED TACP SERVICE

STATION. YOU MUST PAY FOR ALL TRANSPORTATION AND INSUR-

ANCE CHARGES FOR THE TELEVISION TO AND FROM THE SERVICE

STATION.

Rental Units

The warranty for rental units begins with the first rental or thirty (30) days

from the date of shipment to the rental firm, whichever comes first.

*Commercial Units

Televisions sold and used for commercial purposes have a limited ninety

(90) day warranty for all parts, labor and picture tube.

Owner’s Manual and Product Registration Card

Read this owner’s manual thoroughly before operating this television. Complete and mail the enclosed product registration card or register your product on-line at www.tacp.toshiba.com/service as soon as possible. By registering your product you will enable TACP to bring you new products specifically designed to meet your needs and help us to contact you in the unlikely event a safety notification is required under the Consumer Product Safety Act. Failure to complete and return the product registration card

does not diminish your warranty rights.

Your Responsibility

THE ABOVE WARRANTIES ARE SUBJECT TO THE FOLLOWING

CONDITIONS:

(1) You must provide your bill of sale or other proof of purchase.

(2) All warranty servicing of this television must be made by an

(3) Warranties from TACP are effective only if the television is

Appendix

original consumers in the United States. THESE

OR ANY PERSON RECEIVING THIS TELEVISION AS A

Authorized TACP Service Station.

purchased and operated in the U.S.A. or Puerto Rico.

(4) Labor service charges for set installation, setup, adjustment of

customer controls and installation or repair of antenna

not covered by these warranties. Reception problems caused by

inadequate antenna systems are your responsibility.

(5) Warranties extend only to defects in materials or workmanship as

limited above and do not extend to any television or parts which

have been lost or discarded by you or to damage to television or

parts caused by fires, misuse, accident, Acts of God, such as

lightning or fluctuations in electric power, improper installation,

improper maintenance or use in violation of instructions furnished by

TACP; or to units which have been modified or had the serial number

removed, altered, defaced or rendered illegible.

How to Obtain Warranty Services

If, after following all of the operating instructions in this manual and checking

the section “Troubleshooting”, you find that service is needed:

(1) To find the nearest TACP Authorized Service Station, visit TACP’s

web site at www.tacp.toshiba.com, or call toll-free 1-800-631-3811.

(2) Present your bill of sale or other proof of purchase to the Authorized

Service Station. Authorized TACP Service Station personnel will

come to your home when warranty service is required. Depending on

the type of repair required, either the service will be performed in

your home or the set will be taken to the Authorized Service Station

for repair and returned to your home at no cost to you.

For additional information, visit TACP’s web site: www.toshiba.com/tacp.

ALL WARRANTIES IMPLIED BY THE LAW OF ANY STATE OF THE

U.S.A., INCLUDING THE IMPLIED WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE,

ARE EXPRESSLY LIMITED TO THE DURATION OF THE LIMITED

WARRANTIES SET FORTH ABOVE. WITH THE EXCEPTION OF ANY

WARRANTIES IMPLIED BY THE LAW OF ANY STATE OF THE U.S.A. AS

HEREBY LIMITED, THE FOREGOING WARRANTY IS EXCLUSIVE AND

IN LIEU OF ALL OTHER WARRANTIES, GUARANTEES, AGREEMENTS,

AND SIMILAR OBLIGATIONS OF TACP WITH RESPECT TO THE

REPAIR OR REPLACEMENT OF ANY PARTS. IN NO EVENT SHALL

TACP BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES

(INCLUDING, BUT NOT LIMITED TO, LOST PROFITS, BUSINESS

INTERRUPTION, OR MODIFICATION OR ERASURE OF RECORDED

DATA CAUSED BY USE, MISUSE OR INABILITY TO USE THIS

PRODUCT).

No person, agent, distributor, dealer or company is authorized to change,

modify or extend the terms of these warranties in any manner whatsoever.

The time within which action must be commenced to enforce any obligation

of TACP arising under this warranty or under any law of the United States

or of any state thereof is hereby limited to 90 days from the date you

discover or should have discovered, the defect. This limitation does not

apply to implied warranties arising under the law of any state of the U.S.A.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU

MAY ALSO HAVE OTHER RIGHTS WHICH MAY VARY FROM STATE TO

STATE IN THE U.S.A. SOME STATES OF THE U.S.A. DO NOT ALLOW

LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, WHEN

AN ACTION MAY BE BROUGHT, OR THE EXCLUSION OR LIMITATION

OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE

LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU UNDER

SUCH CIRCUMSTANCES.

FST PURE

Products, L.L.C.

®

is a registered trademark of Toshiba America Consumer

34

systems are

J3S90121A(E)_P29-BACK 9/03/2005, 5:58 PM34

MEMO

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Safeguards

Important

Welcome to

Toshiba

Connecting

your TV

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Remote Control

Using the

Setting up

your TV

Using the TV’s

Features

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

J3S90121A(E)_P29-BACK 9/03/2005, 5:58 PM35

35

Appendix

National Service Division

ColorStream®, FST Pure® and StableSound® are registered trademarks of Toshiba America Consumer Products, L.L.C. GameTimer is a trademark of Toshiba America Consumer Products, L.L.C.

PRINTED IN UNITED STATES

J3S90121A(E)_P29-BACK 9/03/2005, 5:58 PM36

36

Toshiba 32AF45 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
