SERVICE MANUAL

Color Television

21CSZ7DR

FILE NO. 060-200340

S3ES Chassis

21SZ7DE 21SZ7SH

21SZ7ST

21SZ7VX

Feb. 2004 (YC/X)

Page 2

CHAPTER 1 GENERAL ADJUSTMENTS

SAFETY INSTRUCTIONS ........................................................................................................................................ 3

SET-UP ADJUSTMENT ............................................................................................................................................ 4

SERVICE MODE ...................................................................................................................................................... 8

DESIGN MODE ...................................................................................................................................................... 11

ELECTRICAL ADJUSTMENTS .............................................................................................................................. 12

CIRCUIT CHECK.................................................................................................................................................... 14

GENERAL ADJUSTMENTS

CHAPTER 2 SPECIFIC INFORMATIONS

SETTING & ADJUSTING DATA .............................................................................................................................. 15

LOCATION OF CONTROLS ................................................................................................................................... 16

PROGRAMMING CHANNEL MEMORY................................................................................................................. 17

CHASSIS AND CABINET REPLACEMENT PARTS LIST ......................................................................................20

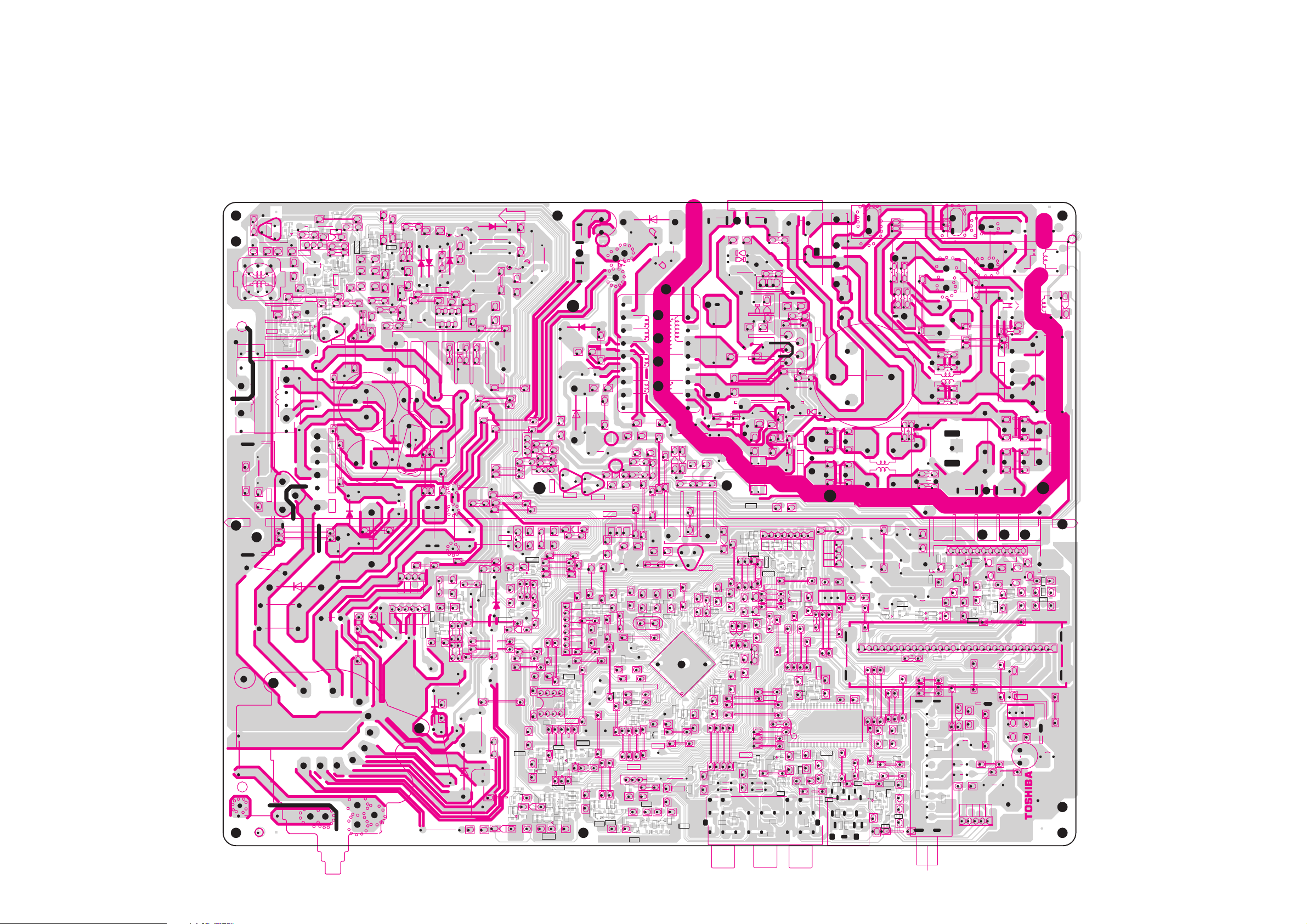

PC BOARDS TOP & BOTTOM VIEW...................................................................................................................... 33

TERMINAL VIEW OF TRANSISTORS ................................................................................................................... 41

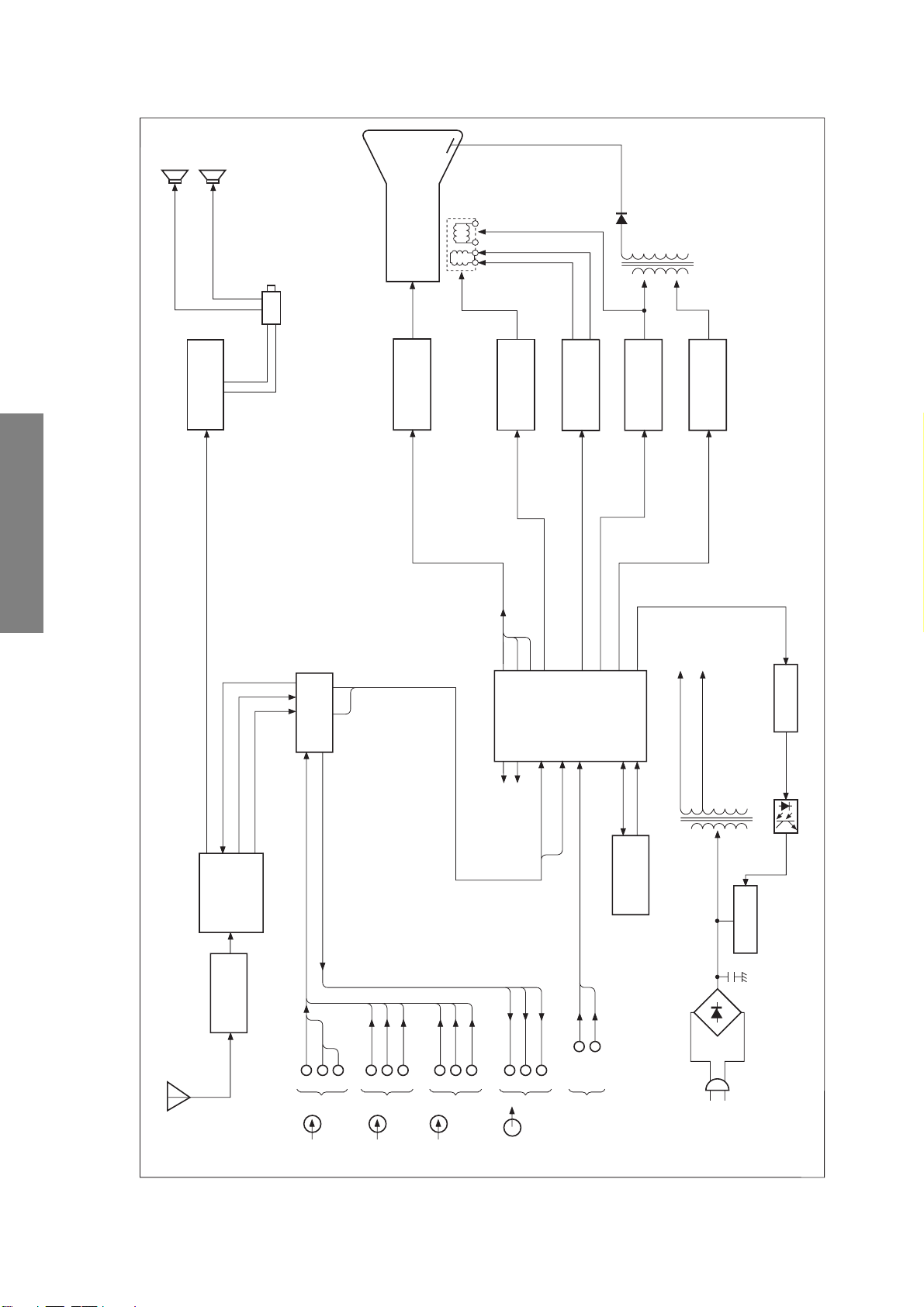

CIRCUIT BLOCK DIAGRAM .................................................................................................................................. 44

TABLE OF CONTENTS

SPECIFICATIONS .............................................................................................................................................. END

APPENDIX:

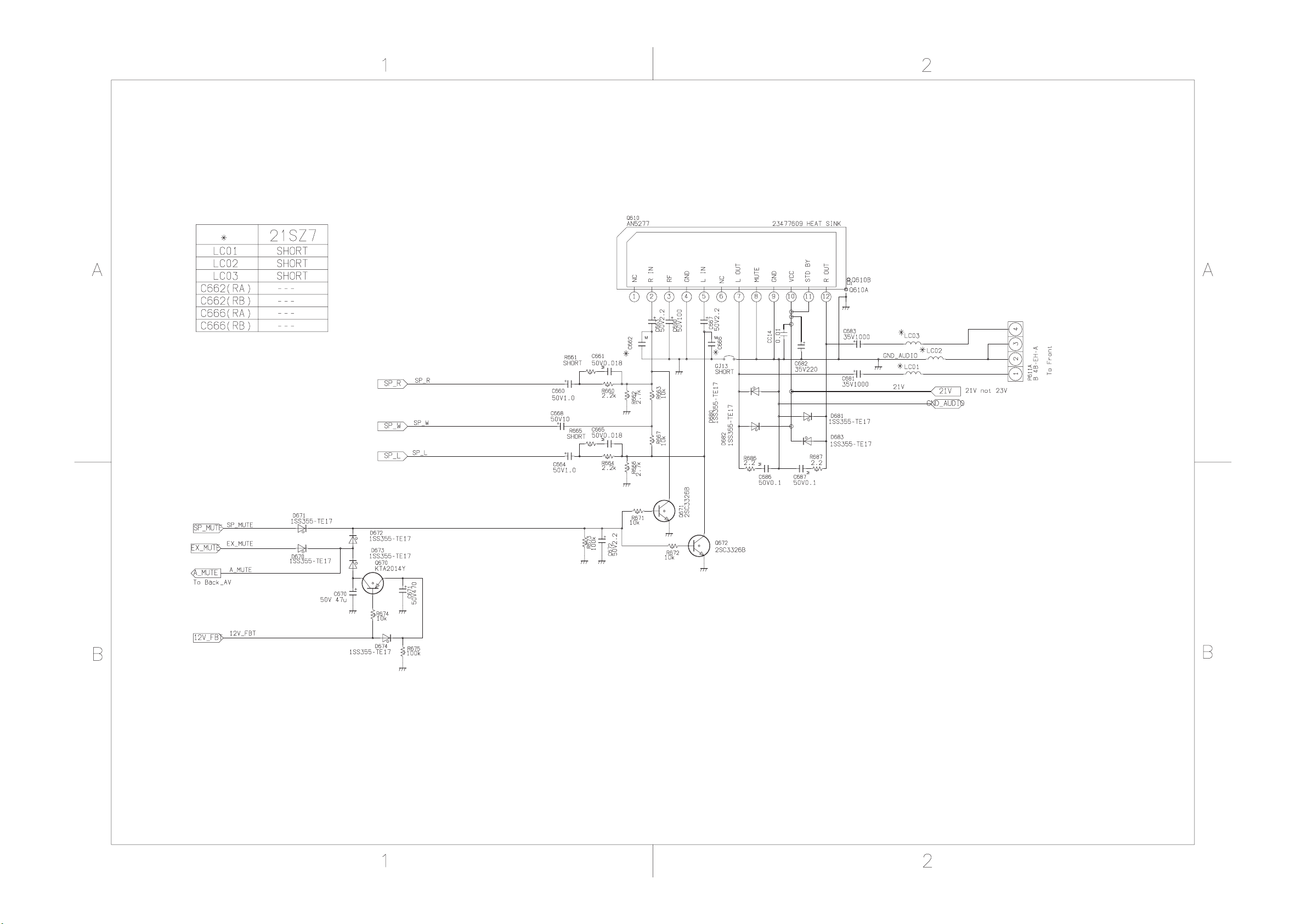

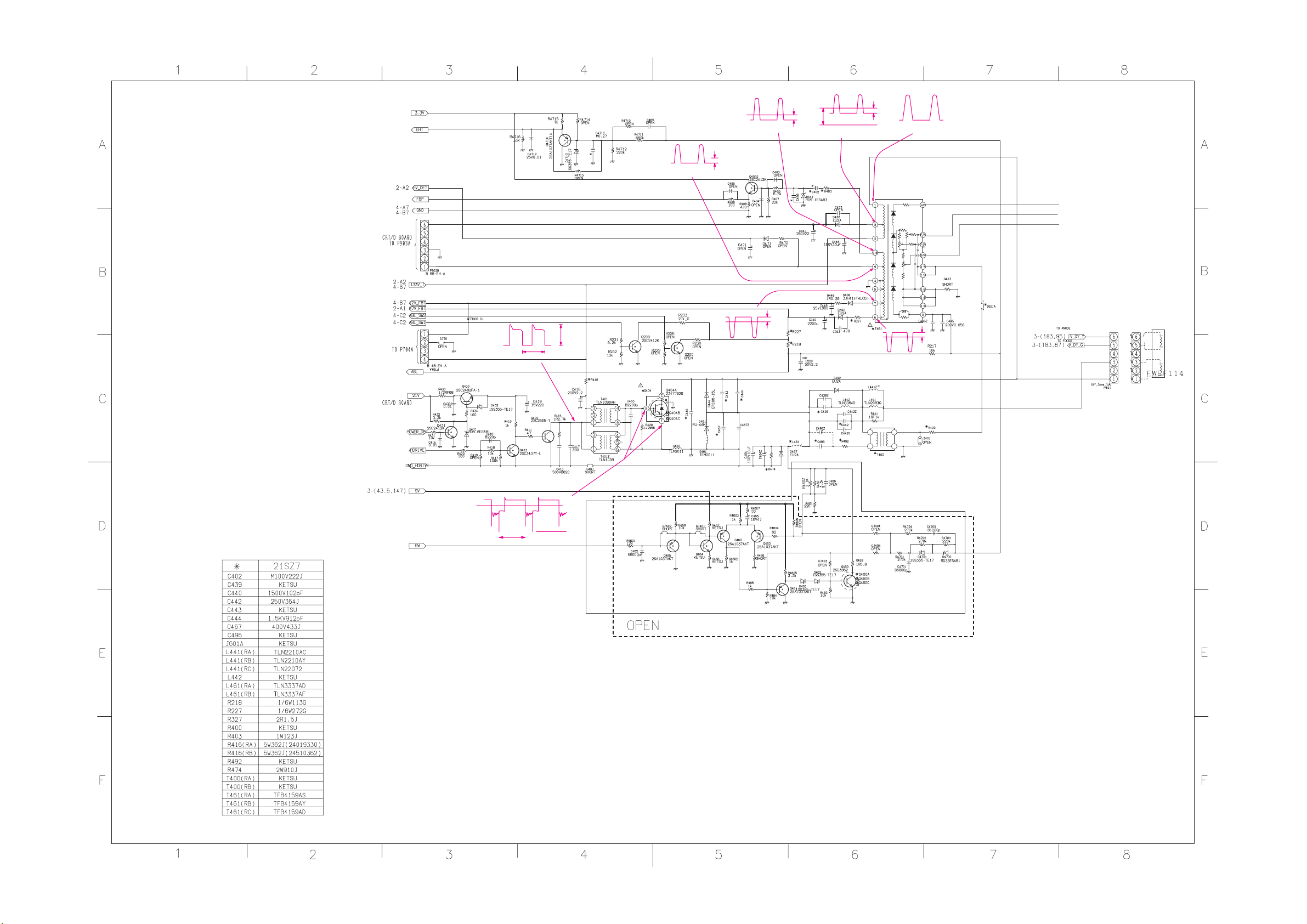

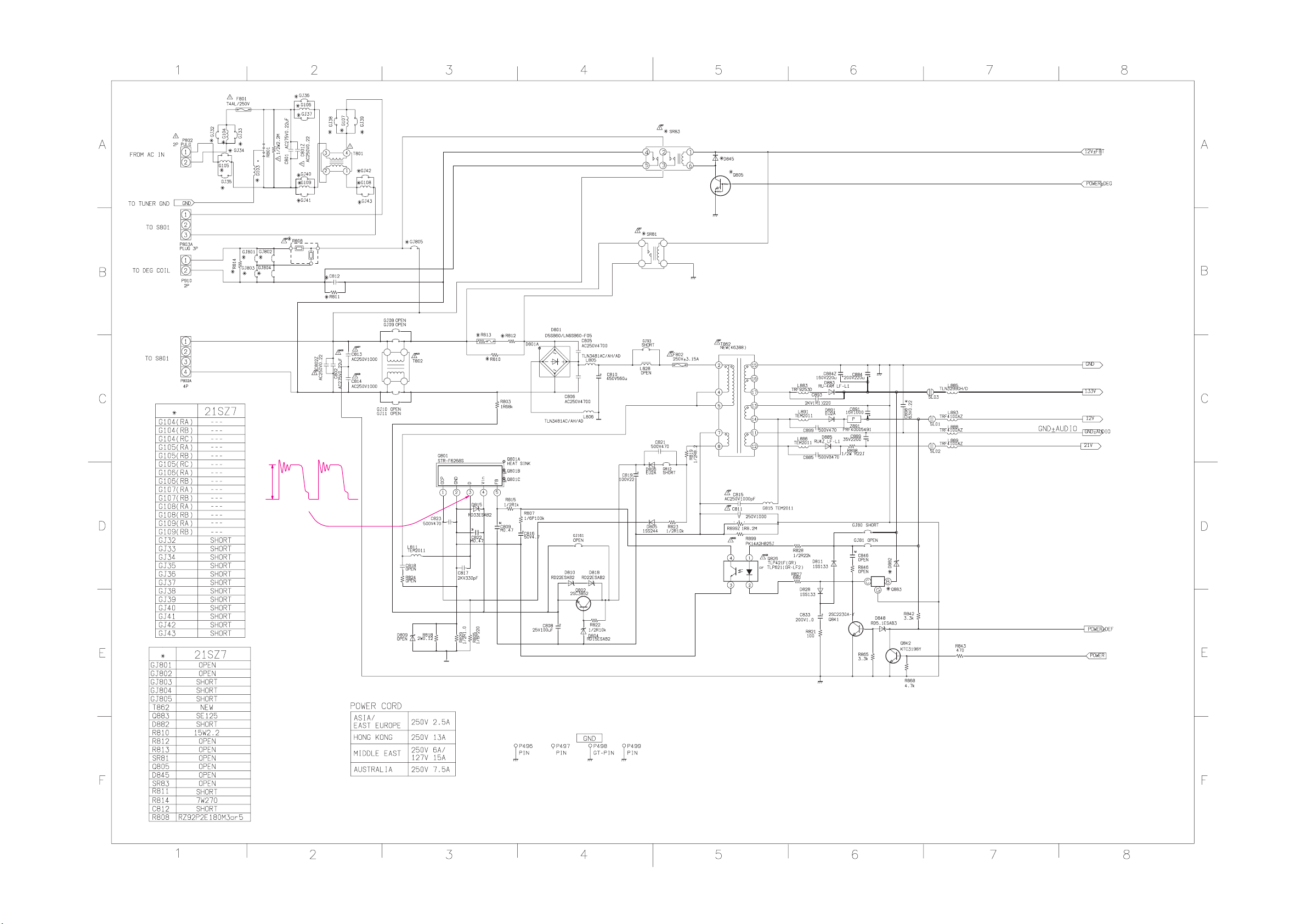

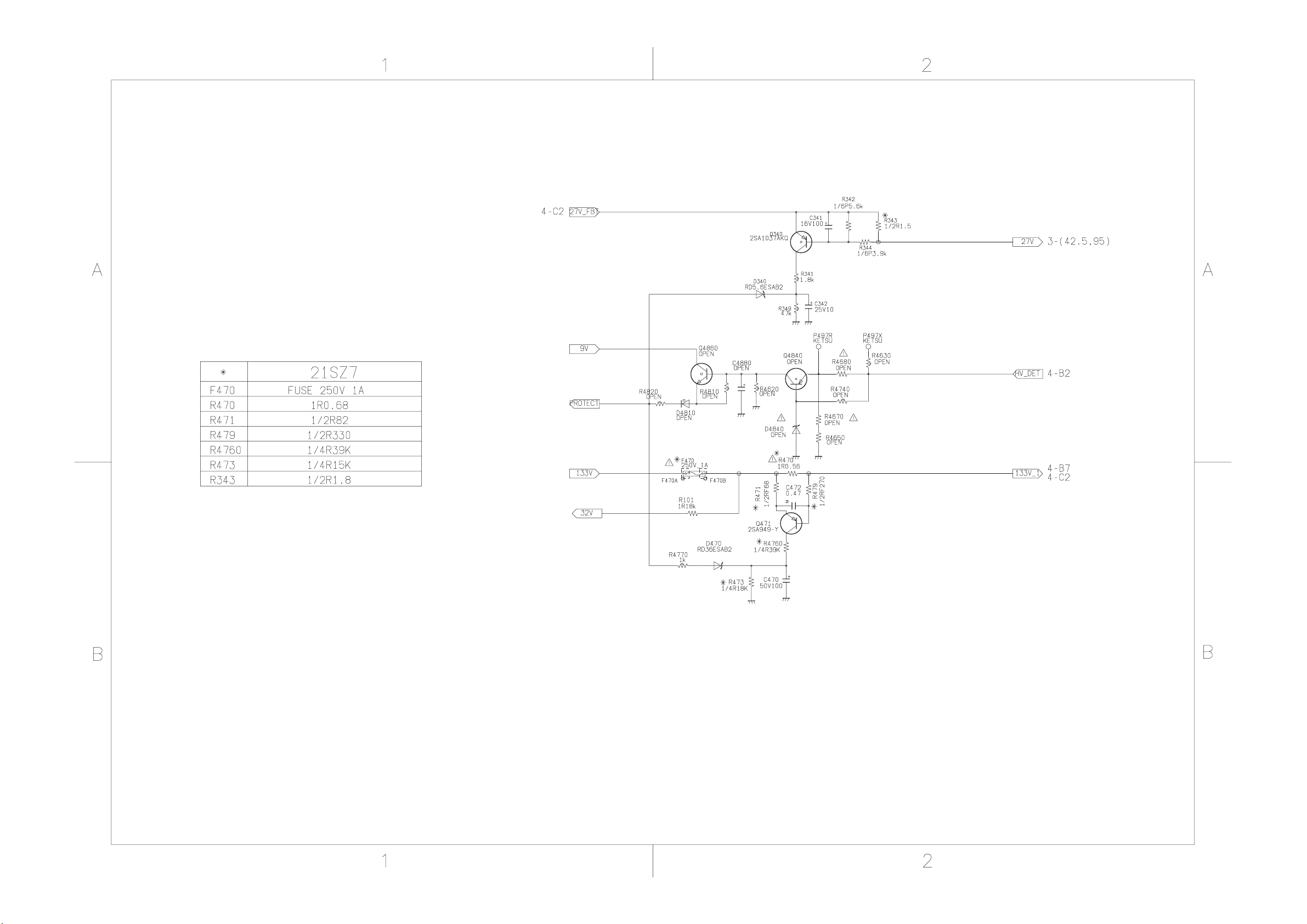

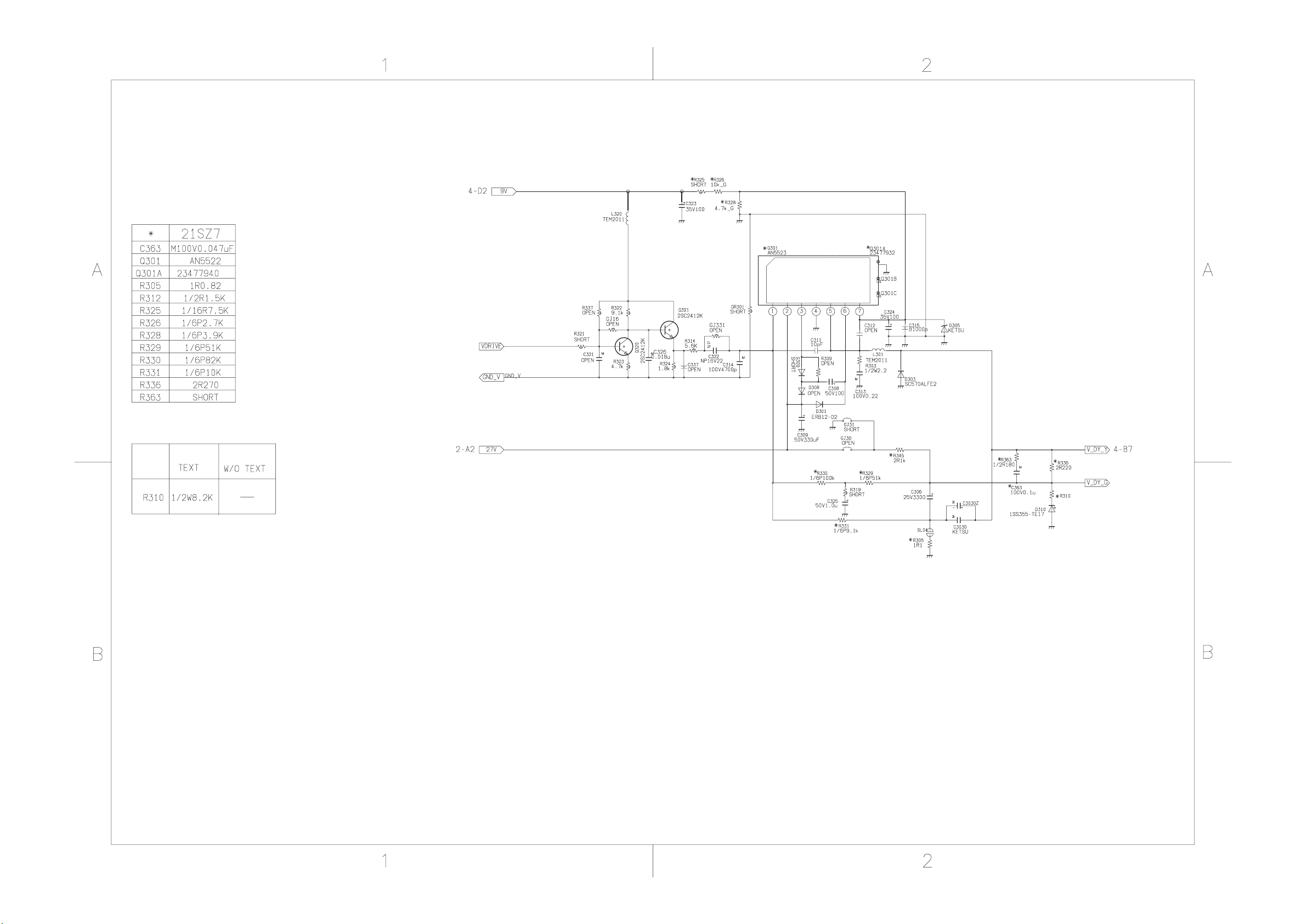

CIRCUIT DIAGRAM

– 2 –

Page 3

CHAPTER 1 GENERAL ADJUSTMENTS

SAFETY INSTRUCTIONS

WARNING: BEFORE SERVICING THIS CHASSIS, READ THE “X-RAY RADIATION PRECAUTION”, “SAFETY PRECAU-

TION” AND “PRODUCT SAFETY NOTICE” INSTRUCTIONS BELOW.

X-RAY RADIATION PRECAUTION

1. Excessive high voltage can produce potentially hazardous X-RAY RADIATION. To avoid such hazards, the high voltage must not be above the specified limit. The nominal value of the high voltage of this receiver is (A) kV at zero beam current (minimum brightness) under a (C) V AC power source. The high voltage must not, under any circumstances, exceed (B) kV.

Refer to table-1 for high voltage (A), (B) & AC voltage (C). (See SETTING & ADJUSTING DATA on page 15)

Each time a receiver requires servicing, the high voltage should be checked following the HIGH VOLTAGE CHECK procedure in this manual. It is recommended that the reading of the high voltage be recorded as a part of the service record. It is important to use an accurate and reliable high voltage meter.

SAFETY PRECAUTION

WARNING : Service should not be attempted by anyone unfamiliar with the necessary precautions on this receiver. The following are the necessary precautions to be observed before servicing this chassis.

1. An isolation transformer should be connected in the power line between the receiver and the AC line before any service is performed on the receiver.

2. Always discharge the picture tube anode to the CRT conductive coating before handling the picture tube. The picture tube is highly evacuated and if broken, glass fragments will be violently expelled. Use shatter proof goggles and keep picture tube away from the unprotected body while handling.

3. When replacing a chassis in the cabinet, always be certain that all the protective devices are put back in place, such as; nonmetallic control knobs, insulating covers, shields, isolation resistor-capacitor network etc.

2. The only source of X-RAY RADIATION in this TV receiver is the picture tube. For continued X-RAY RADIATION protection, the replacement tube must be exactly the same type tube as specified in the parts list.

3. Some part in this receiver have special safety-related characteristics for X-RAY RADIATION protection. For continued safety, parts replacement should be undertaken only after referring to the PRODUCT SAFETY NOTICE below.

GENERAL ADJUSTMENTS

PRODUCT SAFETY NOTICE

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These characteristics are often passed unnoticed by a visual inspection and the protection afforded by them cannot necessarily be obtained by using replacement components rated for higher voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in this manual and its supplements; electrical components having such features are identified by the international hazard symbols on the schematic diagram and the parts list. Before replacing any of these components, read the parts list in this manual carefully. The use of substitute replacement parts which do not have the same safety characteristics as specified in the parts list may create shock, fire, X-ray radiation or other hazards.

– 3 –

Page 4

WARNING: BEFORE SERVICING THIS CHASSIS, READ THE “X-RAY RADIATION PRECAUTION”, “SAFETY PRECAU- TION” AND “PRODUCT SAFETY NOTICE” ON PAGE 3 OF THIS MANUAL.

SET-UP ADJUSTMENT

■ The following adjustments should be made when a complete realignment is required or a new picture tube is installed.

Perform the adjustments in order as follows :

1. Color Purity

2. Convergence

3. White Balance

Note: 1.The PURITY/CONVERGENCE MAGNET assembly and rubber wedges need mechanical positioning.

Refer to figure 1.

GENERAL ADJUSTMENTS

COLOR PURITY ADJUSTMENT NOTE : Before attempting any purity adjustments, the receiver

1. Demagnetize the picture tube and cabinet using a degauss-

2. Set the brightness and contrast to maximum.

3. Use a green raster from among the built-in test signals.

4. Loosen the clamp screw holding the yoke and slide the

2.Mounting position of the purity magnet assembly should fit to same position as old one because slightly difference to the position depend on a kind of tube.

There are no adjustment of purity and convergence in some picture tube (Unified with purity magnet)

5. Remove the Rubber Wedges.

should be operated for at least fifteen minutes.

ing coil.

yoke backward or forward to provide vertical green belt (zone) in the picture screen.

6. Rotate and spread the tabs of the purity magnet (See figure 2.) around the neck of the picture tube until the green belt is in the center of the screen. At the same time, enter the raster vertically.

7. Slowly move the yoke forward or backward until a uniform green screen is obtained. Tighten the clamp screw of the yoke temporarily.

8. Check the purity of the red and blue raster.

GLASS CLOTH TAPES

DEFLECTION YOKE

29.1mm(28", 29") 25mm(25") 19mm(19", 20", 21") 14mm(13", 14")

PURITY/ CONVERGENCE MAGNET ASS'Y

Figure 1.

TEMPORARY MOUNTING

RUBBER WEDGE

ADHESIVE

DEFLECTION YOKE

– 4 –

Page 5

CONVERGENCE ADJUSTMENTS

NOTE: Before attempting any convergence adjustments, the

receiver should be operated for at least fifteen minutes.

■ CENTER CONVERGENCE ADJUSTMENT

1. Use the cross-dot pattern from among the built-in test signals.

2. Set the brightness and contrast for well defined pattern.

3. Adjust two tabs of the 4-Pole Magnets to change the angle between them (See figure 2.) and superimpose red and blue vertical lines in the center area of the picture screen.

4. Turn the both tabs at the same time keeping the angle constant to superimpose red and blue horizontal lines at the center of the screen.

5. Adjust two tabs of 6-Pole Magnets to superimpose red/ blue line and green one. Adjusting the angle affects the vertical lines and rotating both magnets affects the horizontal lines.

6. Repeat adjustments 3, 4, 5 keeping in mind red, green and blue movement, because 4-Pole Magnets and 6-Pole Magnets have mutual interaction and make dot movement complex.

4-POLE MAGNETS

6-POLE MAGNETS

ADJUST THE ANGLE (VERTICAL LINES)

■ CIRCUMFERENCE CONVERGENCE ADJUSTMENT

1. Loosen the clamping screw of deflection yoke slightly to allow the yoke to tilt.

2. Temporarily put a wedge as shown in figure 1. (Do not remove cover paper on adhesive part of the wedge.)

3. Tilt front of the deflection yoke up or down to obtain better convergence in circumference. (See figure 3.) Push the mounted wedge into the space between picture tube and the yoke to fix the yoke temporarily.

4. Put other wedge into bottom space and remove the cover paper to stick.

5. Tilt front of the yoke right or left to obtain better convergence in circumference. (See figure 3.)

6. Keep the yoke position and put another wedge in either upper space. Remove cover paper and stick the wedge on picture tube to fix the yoke.

7. Detach the temporarily mounted wedge and put it in another upper space. Stick it on picture tube to fix the yoke.

8. After fixing three wedges, recheck overall convergence. Tighten the screw firmly to fix the yoke and check the yoke is firm.

9. Stick three adhesive tapes on wedges as shown in figure

FIXED

GENERAL ADJUSTMENTS

ROTATE TWO TABS AT THE SAME TIME (HORIZONTAL LINES)

PURITY MAGNETS

CONVERGENCE MAGNET ASSEMBLY ADJUSTMENT OF MAGNETS

Figure 2.

BLU RED

BLU

RED

4-POLE MAGNETS MOVEMENT

BGR

R G B

RGB

RED/BLU

GRN

Center Convergence by Convergence Magnets

B G R

RED/BLU GRN

6-POLE MAGNETS MOVEMENT

B G R

BGR

RGB

R G B

INCLINE THE YOKE UP (OR DOWN)

Circumference Convergence by DEF Yoke

Figure 3. Dot Movement Pattern

INCLINE THE YOKE RIGHT (OR LEFT)

– 5 –

Page 6

WARNING: BEFORE SERVICING THIS CHASSIS, READ THE “X-RAY RADIATION PRECAUTION”, “SAFETY PRECAU-

TION” AND “PRODUCT SAFETY NOTICE” ON PAGE 3 OF SERVICE MANUAL.

■ The following adjustments should be made when a complete realignment is required or a new picture tube is installed.

Perform the adjustments in order as follows :

1. Color Purity

2. Convergence

3. White Balance Note:The PURITY/CONVERGENCE MAGNET assembly and rubber wedges need mechanical positioning.

Refer to figure 1.

COLOR PURITY ADUSTMENT

(1)Let the screen face in the installing direction or toward the east (when it is to be moved), bring up the service mode

screen after demagnetizing (front, left, right, and top) with the degaussing coil, receive white signals by pressing the

GENERAL ADJUSTMENTS

[TV/VIDEO] button, and then the receiver should be operated for more than 40 minutes.

(2)Perform rough adjustment of the central convergence with the P/C magnet according to the adjustment item.

(3)Receive built-in green signals, loosen set screws on the deflection yoke, remove rubber wedges, and shift the deflection

yoke to toward front.

(4)Move alternately the two 2-pole magnets of the P/C magnets so that the green raster can come to the center of the

screen.

SET-UP ADJUSTMENT (FOR FLAT TUBE)

Figure 1.

2-pole purity magnet

(27": Magnet is fixed with deflection yoke.)

Green Belt

Sub-4-pole convergence magnet (32" : 34") Sub-4-pole convergence magnet (to be installed on deflection yoke for 30", 32”)

Main 4-pole convergence magnet (30" : 32") 6-pole convergence magnet (34") 6-pole convergence magnet (30" : 32") Main 4-pole convergence magnet (34")

P/C magnet installing position A

• 30"=26.5 mm

• 32"=30.5 mm or 32.5 mm

• 34"=37 mm

• 34"=39 mm

(5)Receive built-in red and blue signals, check that there is no inclination of the single color raster toward one side, and if

each color tilts to a great extent, make adjustment with the 2-pole magnet so that the 3 colors will come to the center evenly.

(6)Receive the green raster, shift the deflection yoke from a

foremost position (hitting against the picture tube) to a

Shift deflection yoke

(7) Perform marking of each point

(6)

(8)

on the tape of picture tube

backward position horizontally, stop the deflection yoke at a position where it begins to become a green raster, and perform accurate marking on the picture tube.

(7)Shift the deflection yoke further backward, and perform

Picture tube

CRT-D board

accurate marking at a position where the green raster begins to being luck.

(8)Fix the deflection yoke at a position 60% forward within

the range marked in items (6) and (7) above.

CONVERGENCE ADJUSTMENTS

100 60 0%

Fix the deflection yoke at a position 60% forward from a point between (6) and (7)

P/C Mag

* Adjust the convergence magnet to get vest convergence in the the order to (1) ~ (5).

■ CENTER CONVERGENCE:

(1)Receive the white crosshatch or dot pattern from the service signal generator.

(2)Use the 2 pieces of main 4-pole magnets of P/C magnets, change the open angle, and align the red and blue vertical

lines on the screen center.

(3)Freeze the open angle of the main 4-pole magnets, turn them simultaneously, and align the horizontal lines.

(4)Take the same steps for items (2) and (3) above and align red/blue with green on the screen center using two 6-pole

magnets.

– 6 –

Page 7

(5)Adjust the sub-4-pole magnets only in case there is any deviation of Xv bow-shaped convergence. (To be usually set at

the initial position)

Align both sides with the sub-4-pole magnets and minimize the deviation of blue and red with the main 4-pole magnets.

blue

blue red

red

Main 4-pole magnet

red/blue

green

6-pole magnet

■ CIRCUMFERENCE CONVERGENCE:

Perform correction in the following manner.

blue

green red

(Parts code:23 948 274) TC-S

blue

green

red

S N

Blue color or blue mark

*Insert the correction piece between the picture tube and the deflection yoke.

Bonded surface

(Insertion position of correction piece)

Adjust VR 1 and minimize the deviation of YH. *Only 27", 30" and 32".

Red

green

blue

green

Red

Xv bow-shaped deviation of convergence

blue

green

red

Sub-4-pole magnet

• Adjust coils and minimize deviation (The 27” unit has coils underneath it)

■ 30", 27", 32"

blue

green

red

(Parts code:23 948 464)

N S

Transparent

GENERAL ADJUSTMENTS

Bonded surface

Red

green

blue

green

Red

Adjust VR 2 (YHC) and minimize the deviation of YH.

Red

blue

green

blue

Red

blue

Red

green

Red

blue

Adjust VR 3 (YV) and minimize the deviation of YV.

Red

green

blue

green

Red

blue

green

blue

red

green

blue

red

blue

green

Red

Red green

blue

green

Red

blue

VR3

VR2 VR1

■ 34"

YV YHC

27" (Part No. 23 947 371) 32", 30" (Part No. 23 947 121) 34" (Part No. 23 993 080)

Perform correction by inserting the

correction piece into the clearance of terminal board coils of the deflection yoke.

Note:

Perform insertion by turning the

metal side to the terminal board side of the deflection yoke.

– 7 –

Page 8

1. ENTERING TO SERVICE MODE

1) Press o button once on Remote Control.

SERVICE MODE

2) Press o button again to keep pressing.

3) While pressing the o button, press MENU button on TV set.

GENERAL ADJUSTMENTS

2. DISPLAYING THE ADJUSTMENT MENU

1) Press MENU button on TV.

Service mode

3. KEY FUNCTION IN THE SERVICE MODE

The following key entry during display of adjustment menu provides special functions.

A single horizontal line ON/OFF: - / - - button (on Remote) or a button (on TV) Test signal selection : a button (on Remote) Selection of the adjustment items : Channel s/t (on TV or Remote) Change of the data value : Volume ; +/– (on TV or Remote) Adjustment menu mode ON/OFF : MENU button (on TV) Initialization of the memory (QA10) : CALL + Channel button on TV (s) Reset the count of operating protect

circuit to “00”: CALL + Channel button on TV (t)

“RCUT” selection : 1 button “GCUT” selection : 2 button “BCUT” selection : 3 button “CNTX” (or “SCNT”) selection : 4 button “COLC” selection : 5 button “TNTC” selection : 6 button

Test audio signal ON/OFF (1kHz) : 8 button Self diagnostic display ON/OFF : 9 button

Press

Adjustment mode

Item

Data

(Service mode display)

Item

Data

Color thickness correction note: Displayed differently as shown below, de-

pending on the setting of the receiving color system. COLP (PAL) COLC (NTSC) COLS (SECAM)

CAUTION : Never try to perform initialization unless you have changed the memory IC.

The key function marked with are not usable to control in the Test signal for some model.

– 8 –

Page 9

4. SELECTING THE ADJUSTING ITEMS

1) Every pressing of CHANNEL s button in the service mode changes the adjustment items in the order of table-2. (t button for reverse order)

Refer to table-2 for preset data of adjustment mode. (See SETTING & ADJUSTING DATA on page 15)

5. ADJUSTING THE DATA

1) Pressing of VOLUME ; +/– button will change the value of data in the range from 00H to FFH. The variable

range depends on the adjusting item.

6. EXIT FROM SERVICE MODE

1) Pressing POWER button to turn off the TV once.

■ INITIALIZATION OF MEMORY DATA OF QA10

After replacing QA10, the following initialization is required.

1. Enter the service mode, then select any register item.

2. Press and hold the CALL button on the Remote, then press the CHANNEL s button on the TV. The initialization of QA10 has

been complated.

3. Check the picture carefully. If necessary, adjust any adjustment item above. Perform “Auto search Memory” on the owner’s manual.

CAUTION: Never attempt to initialize the data unless QA10 has been replaced.

7. TEST SIGNAL SELECTION

1) Every pressing of a button on the Remote Control changes the built-in test patterns on screen as described below in SERVICE MODE.

GENERAL ADJUSTMENTS

Signal off

NTSC signals (14 patterns)

PAL signals (14 patterns)

Signals Picture

• Red raster

• Green raster

• Blue raster

• All Black

• All White

• Black & White

• Black cross-bar

• White cross-bar

• Black cross-bar

on green raster

• Black cross-hatch

• White cross-hatch

• Black cross-dot

• White cross-dot

• H signal (white)

• H signal (black)

The signals marked with are not usable to display in the Test signal for some model.

– 9 –

Page 10

8. SELF DIAGNOSTIC FUNCTION

1) Press “9” button on Remote Control during display of adjustment menu in the service mode. The diagnosis will begin to check if interface among IC’s are executed properly.

2) During diagnosis, the following displays are shown.

Indicated color of mode now selected : Green and Red

23******



POWER : 00



BUS LINE : OK



BUS CONT : OK



BLOCK : UV V1 V2



V3 QV01

Indicated color of other modes : White

Green : Normal Red : The microprocessor operates to provide judgement

of no video signal. The red color is still indicated though the signal is input, failure may exist in input signal line including QV01.

QV01 : In case of indication green ---Normal

In case of indication red with input signal----

GENERAL ADJUSTMENTS

Failure may exist in output line including QV01.

 Part number of microprocessor (QA51)  Operation number of protecting circuit ----“00” is nor-

mal. When indication is other than “00”, overcurrent apts to flow, and circuit parts may possibly be damaged.

 BUS LINE CHECK ----“OK” is normal.

“SDA1-GND” ------------- SDA-GND short circuit. “SCL1-GND” -------------- SCL-GND short circuit. “SCL1-SDA1” ------------- SCL-SDA short circuit.

 BUS CONT ----“OK” is normal.

When indication shows “Q uuu NG”, the device with the number may possibly be damaged.

BLOCK

NOTE: Component which controls character display on

screen is QA51 (TELETEXT IC.). If this display function fails to operate due to damage in QA51, self diagnosis procedure is as follows. (1) In case that power indicator is blinking with

interval of 0.5 seconds; it means protecting circuit (Current limiter) is operating, and circuit components may possibly be damaged. Check related components.

(2) In case that power indicator is blinking with

interval of 1 second; Protecting circuit does not operate, but a part of Bus line does not operate normally. Check Bus line.

UV : TV reception mode V1 : VIDEO 1 input mode (a1) V2 : VIDEO 2 input mode (a2) V3 : VIDEO 3 input mode (a3)

The items marked with are not usable to display in the SELF DIAGNOSTIC FUNCTION for some model.

– 10 –

Page 11

1. ENTERING TO DESIGN MODE

1) Select the Service mode.

DESIGN MODE

2) While pressing Remote and press MENU button on TV.

o(or CALL) button on

3) Press MENU button on TV.

S D

(Design mode) (Adjustment mode)

When QA10 is initialized, items “OPT0” and “OPT1” of DESIGN MODE are set to the data of the representative model of this chassis family. Therefore, because ON-SCREEN specification remains in the state of the representative of model. This model is required to reset the data of items “OPT0” and “OPT1”.

2. SELECTING THE ADJUSTING ITEMS

Every pressing of CHANNEL t button in the design mode changes the adjustment items in the order of table-3. (s button for reverse order)

Refer to table-3 for data of design mode. (See SETTING & ADJUSTING DATA on page 15)

3. ADJUSTING THE DATA

Pressing of VOLUME s or t button will change the value of data.

Press

ITEM

DATA

GENERAL ADJUSTMENTS

– 11 –

Page 12

ELECTRICAL ADJUSTMENTS

ITEM ADJUSTMENT PROCEDURE

FOCUS VR ADJ

SUB-BRIGHTNESS (BRTC)

GENERAL ADJUSTMENTS

Note: Constrict the picture height

until the vertical retrace line appears adjusting the item HIT (HEIGHT).

HORIZONTAL POSITION ADJUSTMENT (HPOS)

VERTICAL POSITION ADJUSTMENT (VPOS)

1. Enter the service mode, then select any register item.

2. Press the TV/VIDEO button on the Remote until the black cross-bar pattern appears on the screen.

3. Adjust the FOCUS control (on T461) for well defined scanning lines on the picture screen.

1. Set CONTRAST to minimum, and BRIGHTNESS to center by adjusting user controls.

2. Set the TV in service mode to get white cross-bar of inside pattern.

3. Select BRTC (brightness correction), and adjust the ; – /+ button to reduce the value so that white portion of inside pattern slightly light.

4. Adjust ; – /+ button to increase the data value of BRTC, and set it just before the difference between the belt of vertical retrace and the border of black portion of inside pattern is visible. After that, return vertical height and contrast.

1. Set the TV in service mode, and get

black or white cross-bar signal with VIDEO button on remote hand unit.

2. Select either HPOS (Horizontal pic-

ture phase) or VPOS (Vertical picture phase) with CHANNEL s, t buttons, and adjust horizontal or vertical picture position in the center of screen with VOLUME ; – /+ buttons.

Belt of vertical retrace

VERTICAL AMPLITUDE ADJUSTMENT (HIT)

1. Set the TV in service mode, and get

black or white cross-hatch signal with VIDEO button on remote hand unit.

2. Select HIT (Vertical amplitude) with

CHANNEL s, t buttons, and adjust vertical amplitude with VOLUME ; – /+ buttons so that vertical amplitude lacks a little.

3. Adjust vertical amplitude with VOL-

UME ; – /+ buttons so that the first bar on cross-hatch signal touches edge of screen.

The first

– 12 –

Page 13

ITEM ADJUSTMENT PROCEDURE

WHITE BALANCE ADJUSTMENT

CUTOFF ADJUSTMENT

•

(RCUT) (GCUT) (BCUT)

DRIVE ADJUSTMENT

•

(GDRV) (BDRV)

1. Set Contrast to 40, and brightness to +20 by picture control.

2. Set the TV in service mode, and get the inside W/B adjusting signal with VIDEO button.

3. Select RCUT, GCUT and BCUT with CHANNEL s, t buttons, to set individual values to Initial reference data, and to set GDRV and BDRV to Initial reference data with VOLUME ; – /+ buttons (See page 19).

4. Press -/- - button on the remote control and rotate Screen VR to get one slight horizontal line on screen. Note: Every pressing of -/- - button provides Horizontal line picture and Normal picture alternately.

5. Press -/- - button to release horizontal line picture, and select the two other colors which did not light in the above step with CHANNEL s, t buttons. Then tap VOLUME ; – /+ buttons so that three colors slightly light in the same level.

X To correct white balance in light area,

select GDRV and BDRV with CHANNEL s, t buttons to adjust.

X To correct white balance in dark area,

perform fine adjustment of RCUT, GCUT and BCUT.

Light area check

(to show white)

Dark area check

(to show black)

GENERAL ADJUSTMENTS

NOTE: It is released built-in test pattern by changing the adjustment item for some model.

In this case, select the adjustment item with channel st button first and then select the built-in test pattern with -/- - button.

– 13 –

Page 14

CIRCUIT CHECK

HIGH VOLTAGE CHECK CAUTION: There is no HIGH VOLTAGE ADJUSTMENT on this chassis. Checking should be done following the steps

below.

1. Connect an accurate high voltage meter to the second anode of the picture tube.

2. Turn on the receiver. Set the BRIGHTNESS and CONTRAST controls to minimum (zero beam current).

3. High voltage must be measured below (B) kV.

Refer to table-1 for high voltage (B). (See SETTING & ADJUSTING DATA on page 15)

4. Vary the BRIGHTNESS control to both extremes to be sure the high voltage does not exceed the limit under any conditions.

GENERAL ADJUSTMENTS

– 14 –

Page 15

CHAPTER 2 SPECIFIC INFORMATIONS

SETTING & ADJUSTING DATA

SAFETY INSTRUCTIONS

HIGH VOLTAGE AT ZERO BEAM: (A) 29.7 kV MAX HIGH VOLTAGE: AC VOLTAGE

Table-1

SERVICE MODE

ADJUSTING ITEMS AND DATAS IN THE SERVICE MODE:

Item Adjustment Reference data

21"

(B) 32.0 kV (C) 110~240 V

RCUT GCUT BCUT RDRV GDRV BDRV BRTC COLC TNTC COLP COLS SCNT HPOS VPOS HIT VLIN WID PARA TRAP BELL SRY SBY

DESIGN MODE

R CUTOFF H G CUTOFF H B CUTOFF H R DRIVE H G DRIVE H B DRIVE H SUB BRIGHT CEN SUB COLOR CEN NTSC SUB TINT CEN SUB COLOR CEN PAL SUB COLOR CEN SECAM SUB CONTRAST 50Hz H-POSITION V-POSITION HEIGHT V-LINEARITY PICTURE WIDTH E-W PARABOLA TRAPEZIUM SECAM BELL FILTER SECAM R-Y SECAM-B-Y

Table-2

00H 00H 00H 00H 00H 00H 80H 80H 40H F6H F6H 07H 26H

74H 7BH 5DH 2CH

2BH

0BH

01H

08H

SPECIFIC INFORMATIONS

ADJUSTING ITEMS AND DATAS IN THE DESIGN MODE:

Item Name of adjustment Preset Data Data Remarks

OPT 1 OPTION 1 05H 22H OPT 2 OPTION 2 10H 1DH

Table-3

– 15 –

Page 16

LOCATION OF CONTROLS (Representative: 21CSZ7DR)

Front

SPECIFIC INFORMATIONS

AUDIO

L/MONO

;

VIDEO (3)

Remote

! "

6 ) ~

7 2

9 3

8 # % & (

NAMES OF PARTS

a q

b c q

d e a

h L

j VIDEO

Main power on/off

Infrared sensor Power indicator

(red)

Timer-ON

indicator (green) Menu open

TV/VIDEO select

Volume down/up,

–;+

Menu select, Level adjust

Channel down/up,

tcs

Item select Headphone

jack Audio input

AUDIO

terminals Video input

terminal

Remote ControlTV Set

0~9

3 CH s/t

; –/+

–/--

8 9 a

! CALLi

mI/II

TXT/TV

(

y/X

)

Power on/standby Direct select Channel up/down.

Item select Volumedown/up,

Menu select, Level adjust

Digit select Menu open Sound mute

Picture control TV/VIDEO select,

Timer-ON position setting

On-screen on/off T eletext initial index

Stereo/bilingual Sound control

T eletext/TV select Full/stop/bottom Reveal/Conceal Time/Text cancel

Stop a page of text T ext select

Red/Green/Yellow/Blue

– 16 –

Page 17

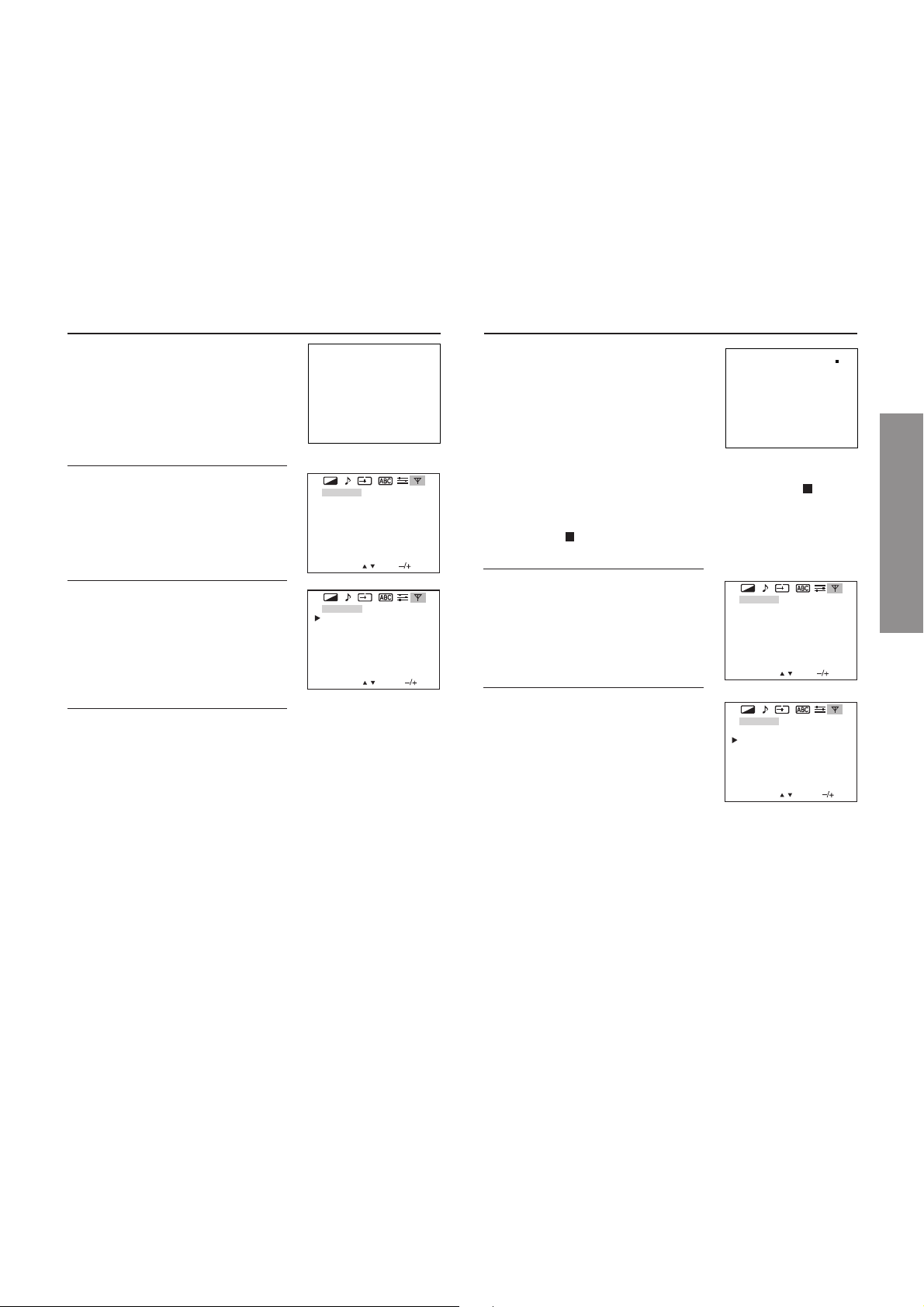

PROGRAMMING CHANNEL MEMORY

• First, use the ASM (Automatic Search Memory) function to preset all active channels in your area

automatically.

Then, arrange the preset channels with the SEARCH, SKIP and MFT (Manual Fine Tuning) functions so that

you can tune into only desired channels.

• Use the SEARCH function if desired channels cannot be preset with the ASM or if you would like to preset

channels to specific position numbers one by one.

To preset channels (ASM, SEARCH)

To use the ASM function

Select the head of the position number to start the ASM with

the CH s/t buttons or the digit/direct select (-/--, 0 – 9) buttons.

Press the MENU button and

press the ; –/+ buttons to display the SET UP menu on the screen.

SET UP COLOR SOUND SK I P TEXT TEXT LANGUAGE 1

SELECT / MENU

Confirm that “COLOR” is set to “AUTO” and “SOUND”

is set to proper system. If not, press the CH s/t buttons to move the cursor (S) to “COLOR” or “SOUND” and press the ; –/+ buttons to select each proper system.

Select the TUNING menu page, and move the cursor

(S) to “ASM”.

TUN I NG

MFT AFT

ASM

SEARCH POSITION MEMORY

SELECT / ADJUST

Press the ; + button to start the ASM. All active channels

will be preset automatically. When presetting is complete, the initial position number will reappear.

ASM

STOP

Press the ; – button to cancel ASM function.

After presetting

Check the preset channels by pressing the CH s/t buttons.

• If the picture or sound of a certain channel is not good, fine-

tune the channel using the MFT function.

• If the color of a certain channel is abnormal, automatic color

system selection (AUTO) may malfunction, or sound system selection is wrong. In such a case, select another color and/ or sound system.

AUTO B/G OFF FAST

[ – ] [ + ] ON

[ + ]

[ – ] [ + ] P001 [ + ]

VHF L

001

To use the SEARCH function

Press the MENU button and

press the ; –/+ buttons to display the TUNING menu on the screen.

Press the CH s/t buttons to

move the cursor (S ) to “SEARCH”.

Press the ; –/+ buttons to

start searching. The ; + button searches for the higher-numbered channels. Press the ; – button to cancel SEARCH function. The ; – button searches for the lower-numbered channels. Press the ; + button to cancel SEARCH function. Repeat this process until you can get the desired channel.

When the desired channel is shown, press the CH t button

to select “POSITION”.

Press the ; –/+ buttons

repeatedly until the position number to be preset is shown.

When the desired program appears, press the CH s/t

buttons to select “MEMORY”, then press the ; + button to memorize the channel at the current position.

TUN I NG MFT AFT ASM SEARCH POSITION MEMORY

SELECT / MENU

TUN I NG

MFT

AFT ASM

POSITION MEMORY

SELECT / ADJUST

Ex. + button

STOP

Ex. – button

STOP ( + )

TUN I NG

MFT AFT ASM SEARCH

POSITION

MEMORY

SELECT / ADJUST

TUN I NG

MFT AFT ASM SEARCH

POSITION

MEMORY

SELECT / ADJUST

TUN I NG

MFT AFT ASM SEARCH POSITION

MEMORY

SELECT / ADJUST

[ – ] [ + ] ON [ + ] [ – ] [ + ] P001 [ + ]

[ – ] [ + ] ON [ + ]

[ – ] [ + ]

P001 [ + ]

VHF L

[ – ] [ + ] ON [ + ] [ – ] [ + ]

P001

[ + ]

[ – ] [ + ] ON [ + ] [ – ] [ + ]

P004

[ + ]

[ – ] [ + ] ON

[ + ] [ – ] [ + ] P004

[ + ]

001

SPECIFIC INFORMATIONS

– 17 –

When you program other

channels, repeat steps 2 to 6.

Page 18

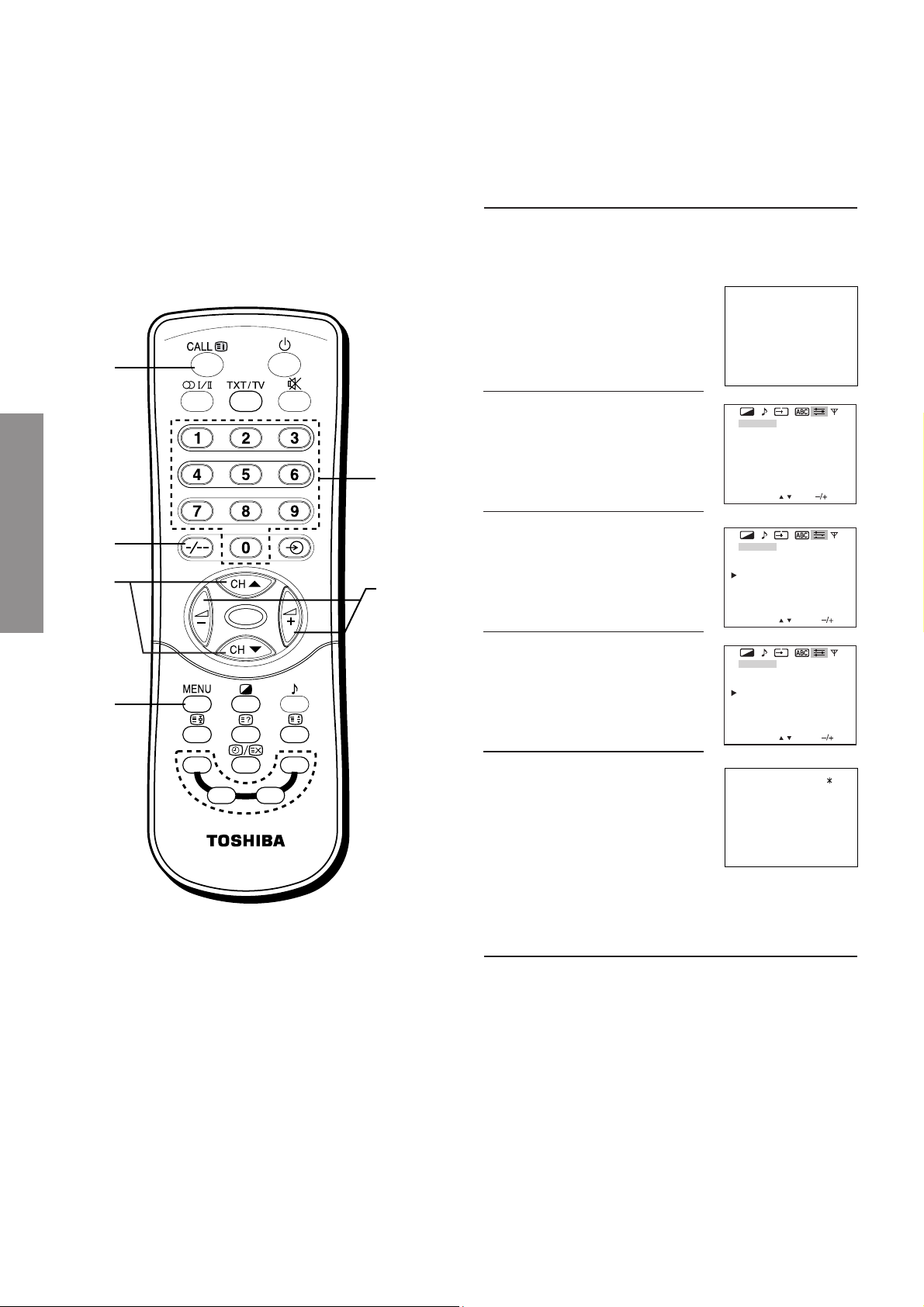

To preset channels (SKIP)

CALL

To skip a position number

After presetting the channels, you may skip unnecessary position numbers so that only the channels you want to watch are selected.

Select the position number to be skipped with the

CH s/t buttons or the digit/ direct select (-/--, 0 – 9) buttons.

(Digit select)

CH s/t

SPECIFIC INFORMATIONS

Direct select (0 – 9)

; –/+

Press the MENU button and press the ; –/+ buttons to

display the SET UP menu on the screen.

SET UP COLOR SOUND SK I P TEXT TEXT LANGUAGE 1

SELECT / MENU

Press the CH s/t buttons to

move the cursor (S) to “SKIP”.

Press the ; –/+ buttons to

select “SKIP ON”.

SET UP

COLOR SOUND

SK I P

TEXT TEXT LANGUAGE 1

SELECT / ADJUST

SET UP

COLOR SOUND

SK I P

TEXT TEXT LANGUAGE 1

SELECT / ADJUST

Press the CALL button to turn

off the SET UP menu display. Select the position number to be skipped with the digit/direct select (-/--, 0 – 9) buttons. The “ * ” mark appears to the left of the position number. The position number will then be skipped when you select the position with the CH s/t buttons.

AUTO B/G

OFF FAST

AUTO B/G

OFF

FAST

AUTO B/G

FAST

To restore a skipped position number

1 Select the position number you want to restore with the digit/

direct select (-/--, 0 – 9) buttons.

2 Press the MENU button, then press the ; –/+ buttons to

display the SET UP menu and press the CH s/t select “SKIP”.

3 Press the ; –/+ buttons to select “SKIP OFF”.

– 18 –

buttons to

Page 19

• The adjustments below are not necessary under normal conditions. However, in areas of inferior broadcast

conditions where adjustment is necessary for a better picture, adjust the tuning with the MFT (Manual Fine Tuning). The AFT OFF status automatically keeps the condition adjusted with the MFT function.

• The AFT (Automatic Fine Tuning) function automatically corrects slight fluctuations when receiving signals.

• When using Manual Search to preset the channel, the AFT will automatically turn ON and SKIP to OFF.

To preset channels (MFT, AFT)

MFT (Manual Fine Tuning)

Select the position number where the channel you want

to fine-tune with the CH s/t buttons or the digit/ direct select (-/--, 0 – 9) buttons.

Press the MENU button and press the ; –/+ buttons

to display the TUNING menu on the screen.

Press the CH s/t buttons to

select “MFT”.

Press the ; –/+ buttons repeatedly until the best possible picture and sound are obtained.

Note

When operating the MFT function, the AFT status is automatically set to OFF.

TUN I NG MFT AFT ASM SEARCH POSITION MEMORY

SELECT / MENU

TUN I NG MFT

AFT ASM SEARCH POSITION MEMORY

SELECT / ADJUST

[ – ] [ + ] ON [ + ] [ – ] [ + ] P006 [ + ]

[ – ] [ + ]

[ + ] [ – ] [ + ] P006 [ + ]

AFT (Automatic Fine Tuning)

Select the position number

where the channel you want

to fine-tune with the CH s/t buttons or the digit/ direct select (-/--, 0 – 9) buttons.

Note

When the position is set to AFT OFF status, the “

” mark appears to the left of the position number. When the channel is set to AFT ON status, the position number is displayed without the “

Press the MENU button and

press the ; –/+ buttons to display the TUNING menu on the screen.

” mark.

TUN I NG

MFT AFT ASM SEARCH POSITION MEMORY

SELECT / MENU

[ – ] [ + ] OFF [ + ] [ – ] [ + ] P003 [ + ]

Press the CH s/t buttons to

move the cursor (S) to “AFT”. Press the ; –/+ buttons to select the “ON” indication.

TUN I NG

MFT

AFT

ASM SEARCH POSITION MEMORY

SELECT / ADJUST

[ – ] [ + ]

[ + ] [ – ] [ + ] P003 [ + ]

SPECIFIC INFORMATIONS

– 19 –

Page 20

CHASSIS AND CABINET REPLACEMENT PARTS LIST

WARNING: BEFORE SERVICING THIS CHASSIS, READ THE "X-RAY RADIATION PRECAUTION", "SAFETY PRE-

CAUTION" AND "PRODUCT SAFETY NOTICE" ON PAGE 3 OF THIS MANUAL.

CAUTION: The international hazard symbols " " in the schematic diagram and the parts list designate components which have special characteristics important for safety and should be replaced only with types identical to those in the original circuit or specified in the parts list. The mounting position of replacements is to be identical with originals. Before replacing any of these components, read carefully the PRODUCT SAFETY NOTICE. Do not degrade the safety of the receiver through improper servicing.

NOTICE:

··

The part number must be used when ordering parts, in order to assist in processing, be sure to include the

··

Model number and Description.

··

The PC board assembly with * mark is no longer available after the end of the production.

··

Model : 21CSZ7DR/21SZ7DE/21SZ7SH/21SZ7ST/21SZ7VX

Capacitors ............. CD : Ceramic Disk PF : Plastic Film EL : Electrolytic

Resistors ............... CF : Carbon Film CC : Carbon Composition MF : Metal Film

OMF : Oxide Metal Film VR : Variable Resistor FR : Fusible Resistor

(All CD and PF capacitors are

±5%, 50V and all resistors, ±5%, 1/6W unless otherwise noted.)

Location Parts No. Description No.

#1 : [21CSZ7DR] #2 : [21SZ7DE] #3 : [21SZ7SH] #4 : [21SZ7ST]

SPECIFIC INFORMATIONS

#5 : [21SZ7VX]

CAPACITORS

C101 #1 24206479 ELECTROLYTIC, 50V 4.7UF M 7L 3A

#2 24206479 ELECTROLYTIC, 50V 4.7UF M 7L 3A #3 24206479 ELECTROLYTIC, 50V 4.7UF M 7L 3A #4 24206479 ELECTROLYTIC, 50V 4.7UF M 7L 3A

#5 24797479 ELECTROLYTIC, 50V 4.7UF M C103 24797221 ELECTROLYTIC, 50V 220UF M C105 24109102 CERAMIC CHIP, 50V B 1000PF K C106 24797100 ELECTROLYTIC, 50V 10UF M C110 24797221 ELECTROLYTIC, 50V 220UF M C200 24793101 ELECTROLYTIC, 10V 100UF M C201 24092538 CERAMIC CHIP, 10V F 1UF Z C202 24092538 CERAMIC CHIP, 10V F 1UF Z C203 24092538 CERAMIC CHIP, 10V F 1UF Z C204 24793470 ELECTROLYTIC CE04G 10V 47UF M C205 24092538 CERAMIC CHIP, 10V F 1UF Z C206 24109103 CERAMIC CHIP, 50V B 0.01UF K C207 24092538 CERAMIC CHIP, 10V F 1UF Z C208 #1 24203220 ELECTROLYTIC, 16V 22UF M 7L 3A

#2 24203220 ELECTROLYTIC, 16V 22UF M 7L 3A

#3 24203220 ELECTROLYTIC, 16V 22UF M 7L 3A

#4 24203220 ELECTROLYTIC, 16V 22UF M 7L 3A

#5 24794220 ELECTROLYTIC, 16V 22UF M C209 #1 24203220 ELECTROLYTIC, 16V 22UF M 7L 3A

#2 24203220 ELECTROLYTIC, 16V 22UF M 7L 3A

#3 24203220 ELECTROLYTIC, 16V 22UF M 7L 3A

#4 24203220 ELECTROLYTIC, 16V 22UF M 7L 3A

#5 24794220 ELECTROLYTIC, 16V 22UF M C210 24085949 ELEC. NONPOLAR CE04J 25V 10UF M 11L NP C211 24092538 CERAMIC CHIP, 10V F 1UF Z C212 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A C213 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A C220 24085944 ELECTROLYTIC, NONPOLAR, 50V 2.2UF M 11L C221 24092538 CERAMIC CHIP, 10V F 1UF Z C303 24214471 CERAMIC DISC, 500V B 470PF K C306 24073059 ELECTROLYTIC, 25V 3300UF M 3A C308 24766101 ELECTROLYTIC, 50V 100UF M C309 24766331 ELECTROLYTIC CE04G 50V 330UF M C310 24766222 ELECTROLYTIC CE04G 50V 2200UF M C311 #1 24435560 CERAMIC DISC, 500V SL 56PF J

Location Parts No. Description No.

#2 24435560 CERAMIC DISC, 500V SL 56PF J #3 24435560 CERAMIC DISC, 500V SL 56PF J #4 24435560 CERAMIC DISC, 500V SL 56PF J

#5 24434560 CERAMIC DISC, 500V SL 56PF J C313 24082061 PLASTIC FILM, 100V 0.47UF J C314 24693472 PLASTIC FILM, 100V 4700PF J C315 24109102 CERAMIC CHIP, 50V B 1000PF K C320 24503052 MT PLA CAP 63V 0.82UF J C321 24591183 PLASTIC FILM, 50V 0.018UF J C323 24765101 ELECTROLYITC, 35V 100UF M C325 #1 24206479 ELECTROLYTIC, 50V 4.7UF M 7L 3A

#2 24206479 ELECTROLYTIC, 50V 4.7UF M 7L 3A

#3 24206479 ELECTROLYTIC, 50V 4.7UF M 7L 3A

#4 24206479 ELECTROLYTIC, 50V 4.7UF M 7L 3A

#5 24797479 ELECTROLYTIC, 50V 4.7UF M C341 24794101 ELECTROLYTIC, 16V 100UF M C342 24795100 ELECTROLYTIC, 25V 10UF M C363 24693473 PLASTIC FILM, 100V 0.047UF J C401 24108680 CERAMIC CHIP, 50V SL 68PF J C402 24693393 PLASTIC FILM, 100V 0.039UF J C406 24109221 CERAMIC CHIP, 50V B 220PF K C407 24092730 CERAMIC CHIP, 16V B 0.1UF K C408 24108330 CERAMIC CHIP, 50V SL 33PF J C409 24109103 CERAMIC CHIP, 50V B 0.01UF K C410 #1 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

#2 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

#3 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

#4 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

#5 24794100 ELECTROLYTIC, 16V 10UF M C413 24214821 CERAMIC DISC, 500V B 820PF K C415 24109103 CERAMIC CHIP, 50V B 0.01UF K C416 24678229 ELECTROLYTIC, 200V 2.2UF M 3A C417 24214391 CERAMIC DISC, 500V B 390PF K C418 24109221 CERAMIC CHIP, 50V B 220PF K C419 24765221 ELECTROLYTIC, 35V 220UF M C430 24092730 CERAMIC CHIP, 16V B 0.1UF K C431 24794101 ELECTROLYTIC, 16V 100UF M C440 #1 24503193 PLASTIC FILM, 1500VH 1000PF H

#2 24503193 PLASTIC FILM, 1500VH 1000PF H

#3 24503193 PLASTIC FILM, 1500VH 1000PF H

#4 24503193 PLASTIC FILM, 1500VH 1000PF H

#5 24503211 PLASTIC FILM, 1500VH 1200PF H C442 24082995 PLASTIC FILM, 250V 0.36 UF J C444 24503279 PLASTIC FILM, 1500VH 9100PF H C445 24828563 PLASTIC FILM, 200V 56000PF J C447 24679220 ELECTROLYTIC, 250V 22UF M 3A

– 20 –

Page 21

Location Parts No. Description No.

C448 24073118 ELECTROLYTIC, 160V 33UF M C449 24764102 ELECTROLYTIC, 25V 1000UF M C463 24212222 CERAMIC DISC, 50V B 2200PF K C464 24073124 TOKUSHU 100YXG10MCA10X20 100V 10U C467 #1 24829433 PLASTIC FILM, 400V 0.043UF J

#2 24829433 PLASTIC FILM, 400V 0.043UF J #3 24829433 PLASTIC FILM, 400V 0.043UF J #4 24829433 PLASTIC FILM, 400V 0.043UF J

#5 24503158 PLASTIC FILM, 630V 0.036UF J C470 24797101 ELECTROLYTIC, 50V 100UF M C472 24503049 PLASTIC FILM, 63V 0.47UF J C475 24092730 CERAMIC CHIP, 16V B 0.1UF K C476 24105100 CERAMIC CHIP, 50V CH 10PF D C500 24092730 CERAMIC CHIP, 16V B 0.1UF K C501 24109103 CERAMIC CHIP, 50V B 0.01UF K C502 24793102 ELECTROLYTIC, 10V 1000UF M C503 24109103 CERAMIC CHIP, 50V B 0.01UF K C510 24105390 CERAMIC CHIP, 50V CH 39PF J C511 24105390 CERAMIC CHIP, 50V CH 39PF J C512 24105390 CERAMIC CHIP, 50V CH 39PF J C543 #1 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

#2 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

#3 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

#4 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

#5 24794100 ELECTROLYTIC, 16V 10UF M C547 24793101 ELECTROLYTIC, 10V 100UF M C560 24794101 ELECTROLYTIC, 16V 100UF M C561 24109103 CERAMIC CHIP, 50V B 0.01UF K C620 #5 24206100 ELECTROLYTIC, 50V 10UF M 7L 3A C621 #5 24797479 ELECTROLYTIC, 50V 4.7UF M C622 #5 24109273 CERAMIC CHIP, 25V B 0.027UF K C623 #5 24109822 CERAMIC CHIP, 50V B 8200PF K C624 #1 24206478 ELECTROLYTIC, 50V 0.47UF M 7L 3A

#2 24206478 ELECTROLYTIC, 50V 0.47UF M 7L 3A

#3 24206478 ELECTROLYTIC, 50V 0.47UF M 7L 3A

#4 24206478 ELECTROLYTIC, 50V 0.47UF M 7L 3A

#5 24109103 CERAMIC CHIP, 50V B 0.01UF K @U903

#5 24797478 ELECTROLYTIC, 50V 0.47UF M @U902 C625 #5 24109103 CERAMIC CHIP, 50V B 0.01UF K C626 #5 24109822 CERAMIC CHIP, 50V B 8200PF K C627 #5 24109273 CERAMIC CHIP, 25V B 0.027UF K C628 #5 24109103 CERAMIC CHIP, 50V B 0.01UF K C630 #5 24503038 PLASTIC FILM, 63V 0.056UF J C631 #5 24092729 CERAMIC CHIP CK73B 16V 68000PFK C633 #5 24109153 CERAMIC CHIP, 50V B 0.015UF K C635 #5 24109333 CERAMIC CHIP CK73B 25V 33000PFK C636 #5 24206339 ELECTROLYTIC, 50V 3.3UF M 7L 3A C640 #5 24794100 ELECTROLYTIC, 16V 10UF M C641 #5 24085981 ELEC. NONPOLAR CE04J 16V 10UF M 11L NP C642 #5 24085981 ELEC. NONPOLAR CE04J 16V 10UF M 11L NP C660 #1 24206010 ELECTROLYTIC, 50V 1.0UF M 7L 3A

#2 24206010 ELECTROLYTIC, 50V 1.0UF M 7L 3A

#3 24206010 ELECTROLYTIC, 50V 1.0UF M 7L 3A

#4 24206010 ELECTROLYTIC, 50V 1.0UF M 7L 3A

#5 24797010 ELECTROLYTIC, 50V 1UF M C661 24591183 PLASTIC FILM, 50V 0.018UF J C662 #1 24591102 PLASTIC FILM, 50V 1000PF J C663 24766229 ELECTROLYTIC, 50V 2.2UF M C664 #1 24206010 ELECTROLYTIC, 50V 1.0UF M 7L 3A

#2 24206010 ELECTROLYTIC, 50V 1.0UF M 7L 3A

#3 24206010 ELECTROLYTIC, 50V 1.0UF M 7L 3A

#4 24206010 ELECTROLYTIC, 50V 1.0UF M 7L 3A

#5 24797010 ELECTROLYTIC, 50V 1UF M C665 24591183 PLASTIC FILM, 50V 0.018UF J C666 #1 24591102 PLASTIC FILM, 50V 1000PF J C667 24766229 ELECTROLYTIC, 50V 2.2UF M C668 24797100 ELECTROLYTIC, 50V 10UF M C670 24797470 ELECTROLYTIC, 50V 47UF M C671 24797471 ELECTROLYTIC, 50V 470UF M C672 #1 24766470 ELECTROLYTIC, 50V 47UF M

#2 24766470 ELECTROLYTIC, 50V 47UF M

#3 24766470 ELECTROLYTIC, 50V 47UF M

#4 24766470 ELECTROLYTIC, 50V 47UF M

#5 24794470 ELECTROLYTIC, 16V 47UF M C681 24765102 ELECTROLYTIC CE04G 35V 1000UF M C682 24765221 ELECTROLYTIC, 35V 220UF M

Location Parts No. Description No.

C683 24765102 ELECTROLYTIC CE04G 35V 1000UF M C686 24591104 PLASTIC FILM, 50V 0.1UF J C687 24591104 PLASTIC FILM, 50V 0.1UF J C690 24766101 ELECTROLYTIC, 50V 100UF M C739 #1 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

#2 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A #3 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A #4 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

#5 24794100 ELECTROLYTIC, 16V 10UF M C801 24503507 PLASTIC FILM, AC275V 0.22UF K C802 24503507 PLASTIC FILM, AC275V 0.22UF K C805 24092281 CERAMIC DISC, AC250V E 4700PF C806 24092281 CERAMIC DISC, AC250V E 4700PF C808 24795101 ELECTROLYTIC, 25V 100UF M C809 24503049 PLASTIC FILM, 63V 0.47UF J C810 #1 24086857 ELECTROLYTIC, 400V 560UF

#2 24086857 ELECTROLYTIC, 400V 560UF

#3 24086857 ELECTROLYTIC, 400V 560UF

#4 24086857 ELECTROLYTIC, 400V 560UF

#5 24086934 ELECTROLYTIC, 450V 560UF M 35F C811 24092555 CERAMIC DISC, AC250V E 1000PF M C813 24092555 CERAMIC DISC, AC250V E 1000PF M C814 24092555 CERAMIC DISC, AC250V E 1000PF M C815 24092555 CERAMIC DISC, AC250V E 1000PF M C816 24766479 ELECTROLYTIC, 50V 4.7UF M C817 24092339 CERAMIC DISC, 2KV 330PF K C819 24676220 ELECTROLYTIC, 100V 22UF M 3A C821 24214471 CERAMIC DISC, 500V B 470PF K C822 24503049 PLASTIC FILM, 63V 0.47UF J C823 24214471 CERAMIC DISC, 500V B 470PF K C830 24503047 PLASTIC FILM, 63V 0.33UF J C831 24503047 PLASTIC FILM, 63V 0.33UF J C832 24503047 PLASTIC FILM, 63V 0.33UF J C833 24678010 ELECTROLYTIC, 200V 1UF M 3A C834 24503047 PLASTIC FILM, 63V 0.33UF J C840 24763470 ELECTROLYTIC 16MV47HC +T C841 24503047 PLASTIC FILM, 63V 0.33UF J C842 24503047 PLASTIC FILM, 63V 0.33UF J C884 24086052 ELECTROLYTIC, 200V 220UF M 22A C885 24214471 CERAMIC DISC, 500V B 470PF K C889 24765222 ELECTROLYTIC CE04G 35V 2200UF M C891 24763102 ELECTROLYTIC, 16V 1000UF M C893 24092337 CERAMIC DISC, 2KV 220PF K C898 24503045 PLASTIC FILM, 63V 0.22UF J C899 24214471 CERAMIC DISC, 500V B 470PF K C902 24092339 CERAMIC DISC, 2KV 330PF K C904 #1 24436681 CERAMIC DISC, 50V SL 680PF J

#2 24436681 CERAMIC DISC, 50V SL 680PF J

#3 24436681 CERAMIC DISC, 50V SL 680PF J

#4 24436681 CERAMIC DISC, 50V SL 680PF J

#5 24436471 CERAMIC DISC, 50V SL 470PF J C905 #1 24436821 CERAMIC DISC, 50V SL 820PF J

#2 24436821 CERAMIC DISC, 50V SL 820PF J

#3 24436821 CERAMIC DISC, 50V SL 820PF J

#4 24436821 CERAMIC DISC, 50V SL 820PF J

#5 24436561 CERAMIC DISC, 50V SL 560PF J C907 #1 24436102 CERAMIC DISC, 50V SL 1000PF J

#2 24436102 CERAMIC DISC, 50V SL 1000PF J

#3 24436102 CERAMIC DISC, 50V SL 1000PF J

#4 24436102 CERAMIC DISC, 50V SL 1000PF J

#5 24436681 CERAMIC DISC, 50V SL 680PF J C909 24679220 ELECTROLYTIC, 250V 22UF M 3A C910 24797100 ELECTROLYTIC, 50V 10UF M C912 24794222 ELECTROLYTIC, 16V 2200UF M C913 #1 24203220 ELECTROLYTIC, 16V 22UF M 7L 3A

#2 24203220 ELECTROLYTIC, 16V 22UF M 7L 3A

#3 24203220 ELECTROLYTIC, 16V 22UF M 7L 3A

#4 24203220 ELECTROLYTIC, 16V 22UF M 7L 3A

#5 24794220 ELECTROLYTIC, 16V 22UF M C915 #1 24203220 ELECTROLYTIC, 16V 22UF M 7L 3A

#2 24203220 ELECTROLYTIC, 16V 22UF M 7L 3A

#3 24203220 ELECTROLYTIC, 16V 22UF M 7L 3A

#4 24203220 ELECTROLYTIC, 16V 22UF M 7L 3A

#5 24794220 ELECTROLYTIC, 16V 22UF M C930 24214101 CERAMIC DISC, 500V B 100PF K C931 24214101 CERAMIC DISC, 500V B 100PF K

SPECIFIC INFORMATIONS

– 21 –

Page 22

Location Parts No. Description No.

C997 #5 24214102 CERAMIC DISC, 500V B 1000PF K C998 #5 24214102 CERAMIC DISC, 500V B 1000PF K C999 24436221 CERAMIC DISC, 50V SL 220PF J C4200 24109221 CERAMIC CHIP, 50V B 220PF K C4300 24109103 CERAMIC CHIP, 50V B 0.01UF K C4712 24109103 CERAMIC CHIP, 50V B 0.01UF K CA09 24109103 CERAMIC CHIP, 50V B 0.01UF K CA14 24105680 CERAMIC CHIP, 50V CH 68PF J CA15 24105680 CERAMIC CHIP, 50V CH 68PF J CA48 24105221 CERAMIC CHIP, 50V CH 220PF J CA49 #1 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

#2 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A #3 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A #4 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

#5 24794100 ELECTROLYTIC, 16V 10UF M CA50 24105270 CERAMIC CHIP, 50V CH 27PF J CA51 24105270 CERAMIC CHIP, 50V CH 27PF J CA54 24092730 CERAMIC CHIP, 16V B 0.1UF K CA55 24100103 CERAMIC CHIP, 50V F 0.01UF Z CA56 24100103 CERAMIC CHIP, 50V F 0.01UF Z CA60 24092538 CERAMIC CHIP, 10V F 1UF Z CA61 24793101 ELECTROLYTIC, 10V 100UF M CA65 24092729 CERAMIC CHIP CK73B 16V 68000PFK CA72 24105680 CERAMIC CHIP, 50V CH 68PF J CA73 24105680 CERAMIC CHIP, 50V CH 68PF J CA77 24092538 CERAMIC CHIP, 10V F 1UF Z CA82 24793470 ELECTROLYTIC CE04G 10V 47UF M CA99 24353101 CERAMIC DISC, 50V CH 100PF J CB01 #1 24203470 ELECTROLYTIC, 16V 47UF M 7L 3A

#2 24203470 ELECTROLYTIC, 16V 47UF M 7L 3A

#3 24203470 ELECTROLYTIC, 16V 47UF M 7L 3A

#4 24203470 ELECTROLYTIC, 16V 47UF M 7L 3A

#5 24794470 ELECTROLYTIC, 16V 47UF M CB05 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

SPECIFIC INFORMATIONS

CC01 24109103 CERAMIC CHIP, 50V B 0.01UF K CC07 #1 24109102 CERAMIC CHIP, 50V B 1000PF K CC08 #1 24109102 CERAMIC CHIP, 50V B 1000PF K CC09 #1 24109102 CERAMIC CHIP, 50V B 1000PF K CC10 #1 24109102 CERAMIC CHIP, 50V B 1000PF K CC14 24232103 CERAMIC DISC, 50V F 0.01UF Z CC20 24105100 CERAMIC CHIP, 50V CH 10PF D CC25 #1 24109102 CERAMIC CHIP, 50V B 1000PF K CC26 #1 24109102 CERAMIC CHIP, 50V B 1000PF K CC28 24105100 CERAMIC CHIP, 50V CH 10PF D CC32 #1 24232103 CERAMIC DISC, 50V F 0.01UF Z CC33 #1 24232103 CERAMIC DISC, 50V F 0.01UF Z CD01 #1 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

#2 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

#3 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

#4 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A CD02 #1 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

#2 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

#3 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

#4 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A CD03 #1 24109152 CERAMIC CHIP, 50V B 1500PF K

#2 24109152 CERAMIC CHIP, 50V B 1500PF K

#3 24109152 CERAMIC CHIP, 50V B 1500PF K

#4 24109152 CERAMIC CHIP, 50V B 1500PF K CD04 #1 24105471 CERAMIC CHIP, 50V CH 470PF J

#2 24105471 CERAMIC CHIP, 50V CH 470PF J

#3 24105471 CERAMIC CHIP, 50V CH 470PF J

#4 24105471 CERAMIC CHIP, 50V CH 470PF J CD05 #1 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

#2 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

#3 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

#4 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A CD06 #1 24092730 CERAMIC CHIP, 16V B 0.1UF K

#2 24092730 CERAMIC CHIP, 16V B 0.1UF K

#3 24092730 CERAMIC CHIP, 16V B 0.1UF K

#4 24092730 CERAMIC CHIP, 16V B 0.1UF K CD07 #1 24797339 ELECTROLYTIO CE04G, 50V 3.3UF M

#2 24797339 ELECTROLYTIO CE04G, 50V 3.3UF M

#3 24797339 ELECTROLYTIO CE04G, 50V 3.3UF M

#4 24797339 ELECTROLYTIO CE04G, 50V 3.3UF M CD08 #1 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

#2 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

Location Parts No. Description No.

#3 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A #4 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

CD09 #1 24085944 ELECTROLYTIC, NONPOLAR, 50V 2.2UF M 11L

#2 24085944 ELECTROLYTIC, NONPOLAR, 50V 2.2UF M 11L #3 24085944 ELECTROLYTIC, NONPOLAR, 50V 2.2UF M 11L #4 24085944 ELECTROLYTIC, NONPOLAR, 50V 2.2UF M 11L

CD10 #1 24085944 ELECTROLYTIC, NONPOLAR, 50V 2.2UF M 11L

#2 24085944 ELECTROLYTIC, NONPOLAR, 50V 2.2UF M 11L #3 24085944 ELECTROLYTIC, NONPOLAR, 50V 2.2UF M 11L #4 24085944 ELECTROLYTIC, NONPOLAR, 50V 2.2UF M 11L

CD11 #1 24109103 CERAMIC CHIP, 50V B 0.01UF K

#2 24109103 CERAMIC CHIP, 50V B 0.01UF K #3 24109103 CERAMIC CHIP, 50V B 0.01UF K #4 24109103 CERAMIC CHIP, 50V B 0.01UF K

CD12 #1 24105560 CERAMIC CHIP, 50V CH 56PF J

#2 24105560 CERAMIC CHIP, 50V CH 56PF J #3 24105560 CERAMIC CHIP, 50V CH 56PF J #4 24105560 CERAMIC CHIP, 50V CH 56PF J

CD13 #1 24109152 CERAMIC CHIP, 50V B 1500PF K

#2 24109152 CERAMIC CHIP, 50V B 1500PF K #3 24109152 CERAMIC CHIP, 50V B 1500PF K #4 24109152 CERAMIC CHIP, 50V B 1500PF K

CD14 #1 24105471 CERAMIC CHIP, 50V CH 470PF J

#2 24105471 CERAMIC CHIP, 50V CH 470PF J #3 24105471 CERAMIC CHIP, 50V CH 470PF J #4 24105471 CERAMIC CHIP, 50V CH 470PF J

CD15 #1 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

#2 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A #3 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A #4 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

CD16 #1 24206229 ELECTROLYTIC, 50V 2.2UF M 7L 3A

#2 24206229 ELECTROLYTIC, 50V 2.2UF M 7L 3A #3 24206229 ELECTROLYTIC, 50V 2.2UF M 7L 3A #4 24206229 ELECTROLYTIC, 50V 2.2UF M 7L 3A

CD17 #1 24109152 CERAMIC CHIP, 50V B 1500PF K

#2 24109152 CERAMIC CHIP, 50V B 1500PF K #3 24109152 CERAMIC CHIP, 50V B 1500PF K #4 24109152 CERAMIC CHIP, 50V B 1500PF K

CD18 #1 24105471 CERAMIC CHIP, 50V CH 470PF J

#2 24105471 CERAMIC CHIP, 50V CH 470PF J #3 24105471 CERAMIC CHIP, 50V CH 470PF J #4 24105471 CERAMIC CHIP, 50V CH 470PF J

CD19 #1 24105221 CERAMIC CHIP, 50V CH 220PF J

#2 24105221 CERAMIC CHIP, 50V CH 220PF J #3 24105221 CERAMIC CHIP, 50V CH 220PF J #4 24105221 CERAMIC CHIP, 50V CH 220PF J

CD20 #1 24109222 CERAMIC CHIP, 50V B 2200PF K

#2 24109222 CERAMIC CHIP, 50V B 2200PF K #3 24109222 CERAMIC CHIP, 50V B 2200PF K #4 24109222 CERAMIC CHIP, 50V B 2200PF K

CD21 #1 24105220 CERAMIC CHIP, 50V CH 22PF J

#2 24105220 CERAMIC CHIP, 50V CH 22PF J #3 24105220 CERAMIC CHIP, 50V CH 22PF J #4 24105220 CERAMIC CHIP, 50V CH 22PF J

CD22 #1 24105220 CERAMIC CHIP, 50V CH 22PF J

#2 24105220 CERAMIC CHIP, 50V CH 22PF J #3 24105220 CERAMIC CHIP, 50V CH 22PF J #4 24105220 CERAMIC CHIP, 50V CH 22PF J

CD23 #1 24092730 CERAMIC CHIP, 16V B 0.1UF K

#2 24092730 CERAMIC CHIP, 16V B 0.1UF K #3 24092730 CERAMIC CHIP, 16V B 0.1UF K #4 24092730 CERAMIC CHIP, 16V B 0.1UF K

CD24 #1 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

#2 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A #3 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A #4 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

CD25 #1 24092743 CERAMIC CHIP, 10V F 0.47UF Z

#2 24092743 CERAMIC CHIP, 10V F 0.47UF Z #3 24092743 CERAMIC CHIP, 10V F 0.47UF Z #4 24092743 CERAMIC CHIP, 10V F 0.47UF Z

CD26 #1 24105560 CERAMIC CHIP, 50V CH 56PF J

#2 24105560 CERAMIC CHIP, 50V CH 56PF J #3 24105560 CERAMIC CHIP, 50V CH 56PF J #4 24105560 CERAMIC CHIP, 50V CH 56PF J

CD27 #1 24105560 CERAMIC CHIP, 50V CH 56PF J

#2 24105560 CERAMIC CHIP, 50V CH 56PF J

– 22 –

Page 23

Location Parts No. Description No.

#3 24105560 CERAMIC CHIP, 50V CH 56PF J

#4 24105560 CERAMIC CHIP, 50V CH 56PF J CD28 #1 24109102 CERAMIC CHIP, 50V B 1000PF K

#2 24109102 CERAMIC CHIP, 50V B 1000PF K

#3 24109102 CERAMIC CHIP, 50V B 1000PF K

#4 24109102 CERAMIC CHIP, 50V B 1000PF K CD29 #1 24109102 CERAMIC CHIP, 50V B 1000PF K

#2 24109102 CERAMIC CHIP, 50V B 1000PF K

#3 24109102 CERAMIC CHIP, 50V B 1000PF K

#4 24109102 CERAMIC CHIP, 50V B 1000PF K CD30 #1 24109102 CERAMIC CHIP, 50V B 1000PF K

#2 24109102 CERAMIC CHIP, 50V B 1000PF K

#3 24109102 CERAMIC CHIP, 50V B 1000PF K

#4 24109102 CERAMIC CHIP, 50V B 1000PF K CD31 #1 24109102 CERAMIC CHIP, 50V B 1000PF K

#2 24109102 CERAMIC CHIP, 50V B 1000PF K

#3 24109102 CERAMIC CHIP, 50V B 1000PF K

#4 24109102 CERAMIC CHIP, 50V B 1000PF K CD32 #1 24109222 CERAMIC CHIP, 50V B 2200PF K

#2 24109222 CERAMIC CHIP, 50V B 2200PF K

#3 24109222 CERAMIC CHIP, 50V B 2200PF K

#4 24109222 CERAMIC CHIP, 50V B 2200PF K CD33 #1 24109222 CERAMIC CHIP, 50V B 2200PF K

#2 24109222 CERAMIC CHIP, 50V B 2200PF K

#3 24109222 CERAMIC CHIP, 50V B 2200PF K

#4 24109222 CERAMIC CHIP, 50V B 2200PF K CD34 #1 24092743 CERAMIC CHIP, 10V F 0.47UF Z

#2 24092743 CERAMIC CHIP, 10V F 0.47UF Z

#3 24092743 CERAMIC CHIP, 10V F 0.47UF Z

#4 24092743 CERAMIC CHIP, 10V F 0.47UF Z CD35 #1 24092743 CERAMIC CHIP, 10V F 0.47UF Z

#2 24092743 CERAMIC CHIP, 10V F 0.47UF Z

#3 24092743 CERAMIC CHIP, 10V F 0.47UF Z

#4 24092743 CERAMIC CHIP, 10V F 0.47UF Z CD36 #1 24109103 CERAMIC CHIP, 50V B 0.01UF K

#2 24109103 CERAMIC CHIP, 50V B 0.01UF K

#3 24109103 CERAMIC CHIP, 50V B 0.01UF K

#4 24109103 CERAMIC CHIP, 50V B 0.01UF K CD37 #1 24105010 CERAMIC CHIP CC73CK 50V 1PF C

#2 24105010 CERAMIC CHIP CC73CK 50V 1PF C

#3 24105010 CERAMIC CHIP CC73CK 50V 1PF C

#4 24105010 CERAMIC CHIP CC73CK 50V 1PF C CD38 #1 24105050 CERAMIC CHIP, 50V CH 5PF C

#2 24105050 CERAMIC CHIP, 50V CH 5PF C

#3 24105050 CERAMIC CHIP, 50V CH 5PF C

#4 24105050 CERAMIC CHIP, 50V CH 5PF C CD39 #1 24109103 CERAMIC CHIP, 50V B 0.01UF K

#2 24109103 CERAMIC CHIP, 50V B 0.01UF K

#3 24109103 CERAMIC CHIP, 50V B 0.01UF K

#4 24109103 CERAMIC CHIP, 50V B 0.01UF K CI01 24109103 CERAMIC CHIP, 50V B 0.01UF K CI02 24109103 CERAMIC CHIP, 50V B 0.01UF K CI03 24109103 CERAMIC CHIP, 50V B 0.01UF K CI04 24109103 CERAMIC CHIP, 50V B 0.01UF K CI05 24109103 CERAMIC CHIP, 50V B 0.01UF K CI06 24109103 CERAMIC CHIP, 50V B 0.01UF K CI08 #1 24206229 ELECTROLYTIC, 50V 2.2UF M 7L 3A

#2 24206229 ELECTROLYTIC, 50V 2.2UF M 7L 3A

#3 24206229 ELECTROLYTIC, 50V 2.2UF M 7L 3A

#4 24206229 ELECTROLYTIC, 50V 2.2UF M 7L 3A

#5 24797010 ELECTROLYTIC, 50V 1UF M CI09 24109103 CERAMIC CHIP, 50V B 0.01UF K CI10 #1 24797101 ELECTROLYTIC, 50V 100UF M

#2 24797101 ELECTROLYTIC, 50V 100UF M

#3 24797101 ELECTROLYTIC, 50V 100UF M

#4 24797101 ELECTROLYTIC, 50V 100UF M

#5 24794101 ELECTROLYTIC, 16V 100UF M CI12 24092573 CERAMIC CHIP, 16V B 0.47UF K CI13 24109102 CERAMIC CHIP, 50V B 1000PF K CI14 24109103 CERAMIC CHIP, 50V B 0.01UF K CI15 #1 24105150 CERAMIC CHIP, 50V CH 15PF J

#2 24105150 CERAMIC CHIP, 50V CH 15PF J

#3 24105150 CERAMIC CHIP, 50V CH 15PF J

#4 24105150 CERAMIC CHIP, 50V CH 15PF J CI16 #5 24105150 CERAMIC CHIP, 50V CH 15PF J CI17 #1 24206229 ELECTROLYTIC, 50V 2.2UF M 7L 3A

Location Parts No. Description No.

#2 24206229 ELECTROLYTIC, 50V 2.2UF M 7L 3A #3 24206229 ELECTROLYTIC, 50V 2.2UF M 7L 3A #4 24206229 ELECTROLYTIC, 50V 2.2UF M 7L 3A #5 24797229 ELECTROLYTIC, 50V 2.2UF M

CI18 #1 24203220 ELECTROLYTIC, 16V 22UF M 7L 3A

#2 24203220 ELECTROLYTIC, 16V 22UF M 7L 3A #3 24203220 ELECTROLYTIC, 16V 22UF M 7L 3A #4 24203220 ELECTROLYTIC, 16V 22UF M 7L 3A

#5 24794220 ELECTROLYTIC, 16V 22UF M CI20 24105560 CERAMIC CHIP, 50V CH 56PF J CI21 24105430 CERAMIC CHIP CC73CH 50V 43PF J CI30 24109103 CERAMIC CHIP, 50V B 0.01UF K CI31 #1 24206479 ELECTROLYTIC, 50V 4.7UF M 7L 3A

#2 24206479 ELECTROLYTIC, 50V 4.7UF M 7L 3A

#3 24206479 ELECTROLYTIC, 50V 4.7UF M 7L 3A

#4 24206479 ELECTROLYTIC, 50V 4.7UF M 7L 3A

#5 24797479 ELECTROLYTIC, 50V 4.7UF M CI56 24105120 CERAMIC CHIP, 50V CH 12PF J CI57 24105510 CERAMIC CHIP, 50V CH 51PF J CI60 24105470 CERAMIC CHIP, 50V CH 47PF J CI61 24105470 CERAMIC CHIP, 50V CH 47PF J CI62 #5 24109103 CERAMIC CHIP, 50V B 0.01UF K CI63 #5 24109103 CERAMIC CHIP, 50V B 0.01UF K CI65 #5 24109153 CERAMIC CHIP, 50V B 0.015UF K CI71 24109103 CERAMIC CHIP, 50V B 0.01UF K CI81 24109103 CERAMIC CHIP, 50V B 0.01UF K CI90 #5 24105470 CERAMIC CHIP, 50V CH 47PF J CI91 #5 24105470 CERAMIC CHIP, 50V CH 47PF J CI92 #5 24109103 CERAMIC CHIP, 50V B 0.01UF K CI93 #5 24109103 CERAMIC CHIP, 50V B 0.01UF K CS02 #1 24206010 ELECTROLYTIC, 50V 1.0UF M 7L 3A

#2 24206010 ELECTROLYTIC, 50V 1.0UF M 7L 3A

#3 24206010 ELECTROLYTIC, 50V 1.0UF M 7L 3A

#4 24206010 ELECTROLYTIC, 50V 1.0UF M 7L 3A

#5 24797010 ELECTROLYTIC, 50V 1UF M CS03 #1 24206010 ELECTROLYTIC, 50V 1.0UF M 7L 3A

#2 24206010 ELECTROLYTIC, 50V 1.0UF M 7L 3A

#3 24206010 ELECTROLYTIC, 50V 1.0UF M 7L 3A

#4 24206010 ELECTROLYTIC, 50V 1.0UF M 7L 3A

#5 24797010 ELECTROLYTIC, 50V 1UF M CS04 #1 24206010 ELECTROLYTIC, 50V 1.0UF M 7L 3A

#2 24206010 ELECTROLYTIC, 50V 1.0UF M 7L 3A

#3 24206010 ELECTROLYTIC, 50V 1.0UF M 7L 3A

#4 24206010 ELECTROLYTIC, 50V 1.0UF M 7L 3A

#5 24797010 ELECTROLYTIC, 50V 1UF M CS05 #1 24206010 ELECTROLYTIC, 50V 1.0UF M 7L 3A

#2 24206010 ELECTROLYTIC, 50V 1.0UF M 7L 3A

#3 24206010 ELECTROLYTIC, 50V 1.0UF M 7L 3A

#4 24206010 ELECTROLYTIC, 50V 1.0UF M 7L 3A

#5 24797010 ELECTROLYTIC, 50V 1UF M CS06 #1 24206010 ELECTROLYTIC, 50V 1.0UF M 7L 3A

#2 24206010 ELECTROLYTIC, 50V 1.0UF M 7L 3A

#3 24206010 ELECTROLYTIC, 50V 1.0UF M 7L 3A

#4 24206010 ELECTROLYTIC, 50V 1.0UF M 7L 3A

#5 24797010 ELECTROLYTIC, 50V 1UF M CS07 #1 24206010 ELECTROLYTIC, 50V 1.0UF M 7L 3A

#2 24206010 ELECTROLYTIC, 50V 1.0UF M 7L 3A

#3 24206010 ELECTROLYTIC, 50V 1.0UF M 7L 3A

#4 24206010 ELECTROLYTIC, 50V 1.0UF M 7L 3A

#5 24797010 ELECTROLYTIC, 50V 1UF M CS10 #1 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

#2 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

#3 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

#4 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

#5 24794100 ELECTROLYTIC, 16V 10UF M CS11 #1 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

#2 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

#3 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

#4 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

#5 24794100 ELECTROLYTIC, 16V 10UF M CS12 #1 24206010 ELECTROLYTIC, 50V 1.0UF M 7L 3A

#2 24206010 ELECTROLYTIC, 50V 1.0UF M 7L 3A

#3 24206010 ELECTROLYTIC, 50V 1.0UF M 7L 3A

#4 24206010 ELECTROLYTIC, 50V 1.0UF M 7L 3A

#5 24797010 ELECTROLYTIC, 50V 1UF M CS13 #1 24206010 ELECTROLYTIC, 50V 1.0UF M 7L 3A

SPECIFIC INFORMATIONS

– 23 –

Page 24

Location Parts No. Description No.

#2 24206010 ELECTROLYTIC, 50V 1.0UF M 7L 3A #3 24206010 ELECTROLYTIC, 50V 1.0UF M 7L 3A #4 24206010 ELECTROLYTIC, 50V 1.0UF M 7L 3A

#5 24797010 ELECTROLYTIC, 50V 1UF M CS15 24109103 CERAMIC CHIP, 50V B 0.01UF K CS29 #1 24203220 ELECTROLYTIC, 16V 22UF M 7L 3A

#2 24203220 ELECTROLYTIC, 16V 22UF M 7L 3A

#3 24203220 ELECTROLYTIC, 16V 22UF M 7L 3A

#4 24203220 ELECTROLYTIC, 16V 22UF M 7L 3A

#5 24794220 ELECTROLYTIC, 16V 22UF M CV01 #1 24212102 CERAMIC DISC, 50V B 1000PF K @U904

#1 24794101 ELECTROLYTIC, 16V 100UF M @U902

#2 24794101 ELECTROLYTIC, 16V 100UF M

#3 24794101 ELECTROLYTIC, 16V 100UF M

#4 24794101 ELECTROLYTIC, 16V 100UF M

#5 24794101 ELECTROLYTIC, 16V 100UF M CV02 #1 24092730 CERAMIC CHIP, 16V B 0.1UF K @U902

#1 24212102 CERAMIC DISC, 50V B 1000PF K @U904

#2 24092730 CERAMIC CHIP, 16V B 0.1UF K

#3 24092730 CERAMIC CHIP, 16V B 0.1UF K

#4 24092730 CERAMIC CHIP, 16V B 0.1UF K

#5 24092730 CERAMIC CHIP, 16V B 0.1UF K CV03 #1 24092730 CERAMIC CHIP, 16V B 0.1UF K @U902

#1 24212102 CERAMIC DISC, 50V B 1000PF K @U904

#2 24092730 CERAMIC CHIP, 16V B 0.1UF K

#3 24092730 CERAMIC CHIP, 16V B 0.1UF K

#4 24092730 CERAMIC CHIP, 16V B 0.1UF K

#5 24092730 CERAMIC CHIP, 16V B 0.1UF K CV04 #1 24206010 ELECTROLYTIC, 50V 1.0UF M 7L 3A @U902

#1 24212102 CERAMIC DISC, 50V B 1000PF K @U904

#2 24206010 ELECTROLYTIC, 50V 1.0UF M 7L 3A

#3 24206010 ELECTROLYTIC, 50V 1.0UF M 7L 3A

#4 24206010 ELECTROLYTIC, 50V 1.0UF M 7L 3A

#5 24797010 ELECTROLYTIC, 50V 1UF M

SPECIFIC INFORMATIONS

CV05 #1 24203220 ELECTROLYTIC, 16V 22UF M 7L 3A

#2 24203220 ELECTROLYTIC, 16V 22UF M 7L 3A

#3 24203220 ELECTROLYTIC, 16V 22UF M 7L 3A

#4 24203220 ELECTROLYTIC, 16V 22UF M 7L 3A

#5 24794220 ELECTROLYTIC, 16V 22UF M CV06 24591473 PLASTIC FILM, 50V 0.047UF J CV19 24092730 CERAMIC CHIP, 16V B 0.1UF K CV20 24092730 CERAMIC CHIP, 16V B 0.1UF K CV22 24092730 CERAMIC CHIP, 16V B 0.1UF K CV33 24109103 CERAMIC CHIP, 50V B 0.01UF K CV34 24762471 ELECTROLYTIC, 10V 470UF M CV36 24794221 ELECTROIYTIC, 16V 220UF M

RESISTORS

R101 24553183 OXIDE METAL FILM, 1W 18K OHM J R121 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J R200 24011103 CHIP, METAL FILM, 1/20W 10K OHM J R201 24011103 CHIP, METAL FILM, 1/20W 10K OHM J R202 24011102 CHIP, METAL FILM, 1/20W 1K OHM J R203 24011103 CHIP, METAL FILM, 1/20W 10K OHM J R204 24011103 CHIP, METAL FILM, 1/20W 10K OHM J R205 24011821 CHIP, METAL FILM, 1/20W 820 OHM J R206 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J R207 24011821 CHIP, METAL FILM, 1/20W 820 OHM J R208 24011102 CHIP, METAL FILM, 1/20W 1K OHM J R210 24011272 CHIP, 1/20W 2.7K OHM J R212 24011273 CHIP, METAL FILM, 1/20W 27K OHM J R215 24011362 CHIP, 1/20W 3.6K OHM J R216 24011223 CHIP, METAL FILM, 1/20W 22K OHM J R217 24366103 CARBON FILM, 1/6W 10K OHM J R218 24367272 CARBON FILM, 1/6W 2.7K OHM J R219 24011682 CHIP, METAL FILM, 1/20W 6.8K OHM J R220 24011822 CHIP, METAL FILM, 1/20W 8.2K OHM J R221 24011183 CHIP, METAL FILM, 1/20W 18K OHM J R222 24011681 CHIP, METAL FILM, 1/20W 680 OHM J R225 24011223 CHIP, METAL FILM, 1/20W 22K OHM J R227 24367113 CARBON FILM, 1/2W 11K OHM J R231 24011622 CHIP, METAL FILM, 1/20W 6.2K OHM J R232 24011123 CHIP, METAL FILM, 1/20W 12K OHM J R233 24367273 CARBON FILM, 1/6W 27K OHM G R303 24321109 OXIDE METAL FILM, 1/2W 1 OHM J R305 #1 24338159 OXIDE METAL FILM, 1W 1.5 OHM J

Location Parts No. Description No.

#2 24338159 OXIDE METAL FILM, 1W 1.5 OHM J #3 24338159 OXIDE METAL FILM, 1W 1.5 OHM J #4 24338159 OXIDE METAL FILM, 1W 1.5 OHM J

#5 24338109 OXIDE METAL FILM, 1W 1 OHM J R314 24011562 CHIP, METAL FILM, 1/20W 5.6K OHM J R319 24000445 CHIP JUMPER, 1608TYPE R320 24000445 CHIP JUMPER, 1608TYPE R321 24011183 CHIP, METAL FILM, 1/20W 18K OHM J R322 24011303 CHIP, METAL FILM, 1/20W 30K OHM J R324 24011182 CHIP, METAL FILM, 1/20W 1.8K OHM J R325 24011752 CHIP, METAL FILM, 1/20W 7.5K OHM J R327 24323159 OXIDE METAL FILM, 2W 1.5 OHM J R328 24367472 CARBON FILM, 1/6W 4.7K OHM G R329 24000633 METAL FILM, 1/4W 10K OHM F R330 24000245 METAL FILM, 1/4W 33K OHM F R331 24366153 CARBON FILM, 1/6W 15K OHM J R336 24383101 OXIDE METAL FILM, 2W 100 OHM J R341 24011182 CHIP, METAL FILM, 1/20W 1.8K OHM J R342 24366562 CARBON FILM, 1/6W 5.6K OHM J R343 24310189 OXIDE METAL FILM, 1/2W 1.8 OHM J R344 24366392 CARBON FILM, 1/6W 3.9K OHM J R345 24552561 OXIDE METAL FILM, 1/2W 560 OHM J R349 24011473 CHIP, METAL FILM, 1/20W 47K OHM J R401 24011471 CHIP, METAL FILM, 1/20W 470 OHM J R402 24011471 CHIP, METAL FILM, 1/20W 470 OHM J R403 24553123 OXIDE METAL FILM, 1W 12K OHM J R404 24011680 CHIP, METAL FILM, 1/20W 68 OHM J R405 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J R406 24011682 CHIP, METAL FILM, 1/20W 6.8K OHM J R407 24011223 CHIP, METAL FILM, 1/20W 22K OHM J R408 24011471 CHIP, METAL FILM, 1/20W 470 OHM J R409 24011101 CHIP, METAL FILM, 1/20W 100 OHM J R410 24872102 CHIP, 1/16W 1K OHM J R411 24011470 CHIP, METAL FILM, 1/20W 47 OHM J R415 24553272 OXIDE METAL FILM, 1W 2.7K OHM J R416 24019330 OXIDE METAL FILM, 5W 3.6K OHM J R417 24011104 CHIP, METAL FILM, 1/20W 100K OHM J R418 24011103 CHIP, METAL FILM, 1/20W 10K OHM J R420 24011101 CHIP, METAL FILM, 1/20W 100 OHM J R424 24011103 CHIP, METAL FILM, 1/20W 10K OHM J R425 24011103 CHIP, METAL FILM, 1/20W 10K OHM J R429 #1 24552560 OXIDE METAL FILM, 1/2W 56 OHM J

#2 24366560 CARBON FILM, 1/6W 56 OHM J

#3 24552560 OXIDE METAL FILM, 1/2W 56 OHM J

#4 24552560 OXIDE METAL FILM, 1/2W 56 OHM J

#5 24552560 OXIDE METAL FILM, 1/2W 56 OHM J R431 24011103 CHIP, METAL FILM, 1/20W 10K OHM J R432 24366332 CARBON FILM, 1/6W 3.3K OHM J R433 24531680 FUSIBLE, 1/2W 68 OHM J R434 24366101 CARBON FILM, 1/6W 100 OHM J R441 24532102 FUSIBLE, 1W 1K OHM J R448 24338398 OXIDE METAL FILM, 1W 0.39 OHM J R463 24011103 CHIP, METAL FILM, 1/20W 10K OHM J R470 24338688 OXIDE METAL FILM, 1W 0.68 OHM J R471 24381820 OXIDE METAL FILM, 1/2W 82 OHM J R473 24000637 METAL FILM, 1/4W 15K OHM F R474 #1 24383181 OXIDE METAL FILM, 2W 180 OHM J

#2 24383181 OXIDE METAL FILM, 2W 180 OHM J

#3 24383181 OXIDE METAL FILM, 2W 180 OHM J

#4 24383181 OXIDE METAL FILM, 2W 180 OHM J

#5 24383910 OXIDE METAL FILM, 2W 91 OHM J R479 24381331 OXIDE FILM 1/2W 330 J R501 24011562 CHIP, METAL FILM, 1/20W 5.6K OHM J R502 24011152 CHIP, METAL FILM, 1/20W 1.5K OHM J R512 24011121 CHIP, METAL FILM, 1/20W 120 OHM J R513 24011121 CHIP, METAL FILM, 1/20W 120 OHM J R515 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J R520 24011271 CHIP, METAL FILM, 1/20W 270 OHM J R521 24011271 CHIP, METAL FILM, 1/20W 270 OHM J R522 24011271 CHIP, METAL FILM, 1/20W 270 OHM J R544 24011333 CHIP, METAL FILM, 1/20W 33K OHM J R545 24011121 CHIP, METAL FILM, 1/20W 120 OHM J R623 #1 24011103 CHIP, METAL FILM, 1/20W 10K OHM J

#2 24011103 CHIP, METAL FILM, 1/20W 10K OHM J

#3 24011103 CHIP, METAL FILM, 1/20W 10K OHM J

#4 24011103 CHIP, METAL FILM, 1/20W 10K OHM J

– 24 –

Page 25

Location Parts No. Description No.

#5 24011103 CHIP, METAL FILM, 1/20W 10K OHM J @U902 #5 24011103 CHIP, METAL FILM, 1/20W 10K OHM J @U903

R624 #1 24011104 CHIP, METAL FILM, 1/20W 100K OHM J

#2 24011104 CHIP, METAL FILM, 1/20W 100K OHM J #3 24011104 CHIP, METAL FILM, 1/20W 100K OHM J #4 24011104 CHIP, METAL FILM, 1/20W 100K OHM J #5 24011101 CHIP, METAL FILM, 1/20W 100 OHM J @U903

#5 24011104 CHIP, METAL FILM, 1/20W 100K OHM J @U902 R625 #5 24011101 CHIP, METAL FILM, 1/20W 100 OHM J R626 #5 24011101 CHIP, METAL FILM, 1/20W 100 OHM J R627 #5 24011101 CHIP, METAL FILM, 1/20W 100 OHM J R628 #5 24011101 CHIP, METAL FILM, 1/20W 100 OHM J R629 #5 24011101 CHIP, METAL FILM, 1/20W 100 OHM J R630 #5 24011101 CHIP, METAL FILM, 1/20W 100 OHM J R660 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J R661 24000445 CHIP JUMPER, 1608TYPE R662 24011272 CHIP, 1/20W 2.7K OHM J R663 24011103 CHIP, METAL FILM, 1/20W 10K OHM J R664 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J R665 24000445 CHIP JUMPER, 1608TYPE R666 24011272 CHIP, 1/20W 2.7K OHM J R667 24011103 CHIP, METAL FILM, 1/20W 10K OHM J R671 24011103 CHIP, METAL FILM, 1/20W 10K OHM J R672 24011103 CHIP, METAL FILM, 1/20W 10K OHM J R673 24011104 CHIP, METAL FILM, 1/20W 100K OHM J R674 24011103 CHIP, METAL FILM, 1/20W 10K OHM J R675 24011104 CHIP, METAL FILM, 1/20W 100K OHM J R686 24011229 CHIP, METAL FILM, 1/16W 2.2 OHM J R687 24011229 CHIP, METAL FILM, 1/16W 2.2 OHM J R801 24009954 METAL FILN, 1/2W 2.2M OHM J R803 24553683 OXIDE METAL FILM, 1W 68K OHM J R805 24366221 CARBON FILM, 1/6W 220 OHM J R807 24366104 CARBON FILM, 1/6W 100K OHM J R808 24019476 THERMISTOR, POSITIVE, AC290V 18 OHM M R810 24007737 CERAMIC COVERED, 15W 2.2 OHM J R814 24568271 CERAMIC COVERED, 7W 270 OHM J R815 24381102 OXIDE METAL FILM, 1/2W 1K OHM J R818 24019459 METAL PLATE, 2W 0.12 OHM J R819 24310829 OXIDE METAL FILM, 1/2W 8.2 OHM J R821 24366101 CARBON FILM, 1/6W 100 OHM J R822 24552103 OXIDE METAL FILM, 1/2W 10K OHM J R823 24552103 OXIDE METAL FILM, 1/2W 10K OHM J R827 24366681 CARBON FILM, 1/6W 680 OHM J R828 24381223 OXIDE METAL FILM, 1/2W 22K OHM J R829 24321338 OXIDE METAL FILM, 1/2W 0.33 OHM J R840 24366471 CARBON FILM, 1/6W 470 OHM J R842 24366332 CARBON FILM, 1/6W 3.3K OHM J R843 24366471 CARBON FILM, 1/6W 470 OHM J R844 24321478 OXIDE METAL FILM, 1/2W 0.47 OHM J R865 24366332 CARBON FILM, 1/6W 3.3K OHM J R868 24366472 CARBON FILM, 1/6W 4.7K OHM J R898 24321228 OXIDE METAL FILM, 1/2W 0.22 OHM J R899 24004718 METAL GLAZE 1/2W 8R2M J R901 #1 24376102 CARBON FILM, 1/2W 1K OHM J

#2 24376102 CARBON FILM, 1/2W 1K OHM J

#3 24376102 CARBON FILM, 1/2W 1K OHM J

#4 24376102 CARBON FILM, 1/2W 1K OHM J

#5 24376152 CARBON FILM, 1/2W 1.5K OHM J R902 #1 24376102 CARBON FILM, 1/2W 1K OHM J

#2 24376102 CARBON FILM, 1/2W 1K OHM J

#3 24376102 CARBON FILM, 1/2W 1K OHM J

#4 24376102 CARBON FILM, 1/2W 1K OHM J

#5 24376152 CARBON FILM, 1/2W 1.5K OHM J R903 #1 24376102 CARBON FILM, 1/2W 1K OHM J

#2 24376102 CARBON FILM, 1/2W 1K OHM J

#3 24376102 CARBON FILM, 1/2W 1K OHM J

#4 24376102 CARBON FILM, 1/2W 1K OHM J

#5 24376152 CARBON FILM, 1/2W 1.5K OHM J R904 24366472 CARBON FILM, 1/6W 4.7K OHM J R905 24366150 CARBON FILM, 1/6W 15 OHM J R912 24366102 CARBON FILM, 1/6W 1K OHM J R914 24366561 CARBON FILM, 1/6W 560 OHM J R915 24366121 CARBON FILM, 1/6W 120 OHM J R916 24366181 CARBON FILM, 1/6W 180 OHM J R917 24366821 CARBON FILM, 1/6W 820 OHM J R918 24366270 CARBON FILM, 1/6W 27 OHM J

Location Parts No. Description No.

R919 24366102 CARBON FILM, 1/6W 1K OHM J R920 24000880 FUSIBLE, 1W 5.1 OHM J R921 24366561 CARBON FILM, 1/6W 560 OHM J R922 24366121 CARBON FILM, 1/6W 120 OHM J R924 24366270 CARBON FILM, 1/6W 27 OHM J R925 24366821 CARBON FILM, 1/6W 820 OHM J R926 24366102 CARBON FILM, 1/6W 1K OHM J R928 24366561 CARBON FILM, 1/6W 560 OHM J R929 24366121 CARBON FILM, 1/6W 120 OHM J R930 24366270 CARBON FILM, 1/6W 27 OHM J R932 24366102 CARBON FILM, 1/6W 1K OHM J R934 24366561 CARBON FILM, 1/6W 560 OHM J R935 24366392 CARBON FILM, 1/6W 3.9K OHM J R936 24545150 FUSIBLE, 1/4W 15 OHM J R937 24366821 CARBON FILM, 1/6W 820 OHM J R942 #1 24366562 CARBON FILM, 1/6W 5.6K OHM J

#2 24366562 CARBON FILM, 1/6W 5.6K OHM J #3 24366562 CARBON FILM, 1/6W 5.6K OHM J #4 24366562 CARBON FILM, 1/6W 5.6K OHM J

R943 #1 24366562 CARBON FILM, 1/6W 5.6K OHM J

#2 24366562 CARBON FILM, 1/6W 5.6K OHM J #3 24366562 CARBON FILM, 1/6W 5.6K OHM J #4 24366562 CARBON FILM, 1/6W 5.6K OHM J

R944 #1 24366562 CARBON FILM, 1/6W 5.6K OHM J

#2 24366562 CARBON FILM, 1/6W 5.6K OHM J #3 24366562 CARBON FILM, 1/6W 5.6K OHM J

#4 24366562 CARBON FILM, 1/6W 5.6K OHM J R945 24366181 CARBON FILM, 1/6W 180 OHM J R946 24366181 CARBON FILM, 1/6W 180 OHM J R960 24383153 OXIDE METAL FILM, 2W 15K OHM J R961 24383153 OXIDE METAL FILM, 2W 15K OHM J R962 24383153 OXIDE METAL FILM, 2W 15K OHM J R977 24366122 CARBON FILM, 1/6W 1.2K OHM J R992 24366150 CARBON FILM, 1/6W 15 OHM J R4200 24011471 CHIP, METAL FILM, 1/20W 470 OHM J R4711 24011684 CHIP, METAL FILM, 1/20W 680K OHM J R4712 24011224 CHIP, METAL FILM, 1/20W 220K OHM J R4715 24011102 CHIP, METAL FILM, 1/20W 1K OHM J R4716 24011333 CHIP, METAL FILM, 1/20W 33K OHM J R4760 24000247 METAL FILM, 1/4W 39K OHM F R4770 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RA01 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RA03 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RA04 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RA05 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RA11 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J RA12 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J RA40 24366683 CARBON FILM, 1/6W 68K OHM J RA41 24366223 CARBON FILM, 1/6W 22K OHM J RA42 24366103 CARBON FILM, 1/6W 10K OHM J RA43 24366103 CARBON FILM, 1/6W 10K OHM J RA44 24366223 CARBON FILM, 1/6W 22K OHM J RA45 24366683 CARBON FILM, 1/6W 68K OHM J RA49 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J RA50 24011680 CHIP, METAL FILM, 1/20W 68 OHM J RA54 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RA55 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RA56 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RA59 #1 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J

#2 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J

#3 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J

#4 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J RA61 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RA65 24011333 CHIP, METAL FILM, 1/20W 33K OHM J RA66 24011333 CHIP, METAL FILM, 1/20W 33K OHM J RA69 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RA70 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RA72 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J RA74 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J RA76 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J RA77 24011123 CHIP, METAL FILM, 1/20W 12K OHM J RA79 #1 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J

#2 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J

#3 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J

#4 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J RA80 #1 24011102 CHIP, METAL FILM, 1/20W 1K OHM J

SPECIFIC INFORMATIONS

– 25 –

Page 26

Location Parts No. Description No.

#2 24011102 CHIP, METAL FILM, 1/20W 1K OHM J #3 24011102 CHIP, METAL FILM, 1/20W 1K OHM J #4 24011102 CHIP, METAL FILM, 1/20W 1K OHM J

RA81 #1 24011102 CHIP, METAL FILM, 1/20W 1K OHM J

#2 24011102 CHIP, METAL FILM, 1/20W 1K OHM J #3 24011102 CHIP, METAL FILM, 1/20W 1K OHM J

#4 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RB01 24366271 CARBON FILM, 1/6W 270 OHM J RB02 24366221 CARBON FILM, 1/6W 220 OHM J RB03 24366103 CARBON FILM, 1/6W 10K OHM J RB04 24366102 CARBON FILM, 1/6W 1K OHM J RB05 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RB06 24366102 CARBON FILM, 1/6W 1K OHM J RB09 24366470 CARBON FILM, 1/6W 47 OHM J RB48 24011332 CHIP, METAL FILM, 1/20W 3.3K OHM J RB49 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RC12 #1 24011102 CHIP, METAL FILM, 1/20W 1K OHM J

#2 24000445 CHIP JUMPER, 1608TYPE

#3 24000445 CHIP JUMPER, 1608TYPE

#4 24000445 CHIP JUMPER, 1608TYPE

#5 24000445 CHIP JUMPER, 1608TYPE RC13 #1 24011102 CHIP, METAL FILM, 1/20W 1K OHM J

#2 24000445 CHIP JUMPER, 1608TYPE

#3 24000445 CHIP JUMPER, 1608TYPE

#4 24000445 CHIP JUMPER, 1608TYPE

#5 24000445 CHIP JUMPER, 1608TYPE RC14 #1 24011102 CHIP, METAL FILM, 1/20W 1K OHM J

#2 24000445 CHIP JUMPER, 1608TYPE

#3 24000445 CHIP JUMPER, 1608TYPE

#4 24000445 CHIP JUMPER, 1608TYPE

#5 24000445 CHIP JUMPER, 1608TYPE RC15 #1 24011102 CHIP, METAL FILM, 1/20W 1K OHM J

#2 24000445 CHIP JUMPER, 1608TYPE

#3 24000445 CHIP JUMPER, 1608TYPE

SPECIFIC INFORMATIONS

#4 24000445 CHIP JUMPER, 1608TYPE

#5 24000445 CHIP JUMPER, 1608TYPE RC16 #1 24011102 CHIP, METAL FILM, 1/20W 1K OHM J

#2 24000445 CHIP JUMPER, 1608TYPE

#3 24000445 CHIP JUMPER, 1608TYPE

#4 24000445 CHIP JUMPER, 1608TYPE

#5 24000445 CHIP JUMPER, 1608TYPE RC17 #1 24011102 CHIP, METAL FILM, 1/20W 1K OHM J

#2 24000445 CHIP JUMPER, 1608TYPE

#3 24000445 CHIP JUMPER, 1608TYPE

#4 24000445 CHIP JUMPER, 1608TYPE

#5 24000445 CHIP JUMPER, 1608TYPE RD01 #1 24011101 CHIP, METAL FILM, 1/20W 100 OHM J

#2 24011101 CHIP, METAL FILM, 1/20W 100 OHM J

#3 24011101 CHIP, METAL FILM, 1/20W 100 OHM J

#4 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RD02 #1 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J

#2 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J

#3 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J

#4 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J RD04 #1 24011102 CHIP, METAL FILM, 1/20W 1K OHM J

#2 24011102 CHIP, METAL FILM, 1/20W 1K OHM J

#3 24011102 CHIP, METAL FILM, 1/20W 1K OHM J

#4 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RD05 #1 24011102 CHIP, METAL FILM, 1/20W 1K OHM J

#2 24011102 CHIP, METAL FILM, 1/20W 1K OHM J

#3 24011102 CHIP, METAL FILM, 1/20W 1K OHM J

#4 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RD06 #1 24011102 CHIP, METAL FILM, 1/20W 1K OHM J

#2 24011102 CHIP, METAL FILM, 1/20W 1K OHM J

#3 24011102 CHIP, METAL FILM, 1/20W 1K OHM J

#4 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RD07 #1 24000445 CHIP JUMPER, 1608TYPE

#2 24000445 CHIP JUMPER, 1608TYPE

#3 24000445 CHIP JUMPER, 1608TYPE

#4 24000445 CHIP JUMPER, 1608TYPE RD08 #1 24000445 CHIP JUMPER, 1608TYPE

#2 24000445 CHIP JUMPER, 1608TYPE

#3 24000445 CHIP JUMPER, 1608TYPE

#4 24000445 CHIP JUMPER, 1608TYPE RD09 #1 24011101 CHIP, METAL FILM, 1/20W 100 OHM J

#2 24011101 CHIP, METAL FILM, 1/20W 100 OHM J

Location Parts No. Description No.

#3 24011101 CHIP, METAL FILM, 1/20W 100 OHM J #4 24011101 CHIP, METAL FILM, 1/20W 100 OHM J

RD10 #1 24011101 CHIP, METAL FILM, 1/20W 100 OHM J

#2 24011101 CHIP, METAL FILM, 1/20W 100 OHM J #3 24011101 CHIP, METAL FILM, 1/20W 100 OHM J #4 24011101 CHIP, METAL FILM, 1/20W 100 OHM J

RD11 #1 24011563 CHIP, METAL FILM, 1/20W 56K OHM J

#2 24011563 CHIP, METAL FILM, 1/20W 56K OHM J #3 24011563 CHIP, METAL FILM, 1/20W 56K OHM J #4 24011563 CHIP, METAL FILM, 1/20W 56K OHM J

RD12 #1 24011823 CHIP, METAL FILM, 1/20W 82K OHM J

#2 24011823 CHIP, METAL FILM, 1/20W 82K OHM J #3 24011823 CHIP, METAL FILM, 1/20W 82K OHM J #4 24011823 CHIP, METAL FILM, 1/20W 82K OHM J

RD13 #1 24011101 CHIP, METAL FILM, 1/20W 100 OHM J

#2 24011101 CHIP, METAL FILM, 1/20W 100 OHM J #3 24011101 CHIP, METAL FILM, 1/20W 100 OHM J #4 24011101 CHIP, METAL FILM, 1/20W 100 OHM J

RD14 #1 24011101 CHIP, METAL FILM, 1/20W 100 OHM J

#2 24011101 CHIP, METAL FILM, 1/20W 100 OHM J #3 24011101 CHIP, METAL FILM, 1/20W 100 OHM J #4 24011101 CHIP, METAL FILM, 1/20W 100 OHM J

RD15 #1 24011101 CHIP, METAL FILM, 1/20W 100 OHM J

#2 24011101 CHIP, METAL FILM, 1/20W 100 OHM J #3 24011101 CHIP, METAL FILM, 1/20W 100 OHM J #4 24011101 CHIP, METAL FILM, 1/20W 100 OHM J

RD16 #1 24011101 CHIP, METAL FILM, 1/20W 100 OHM J

#2 24011101 CHIP, METAL FILM, 1/20W 100 OHM J #3 24011101 CHIP, METAL FILM, 1/20W 100 OHM J #4 24011101 CHIP, METAL FILM, 1/20W 100 OHM J

RD17 #1 24011101 CHIP, METAL FILM, 1/20W 100 OHM J

#2 24011101 CHIP, METAL FILM, 1/20W 100 OHM J #3 24011101 CHIP, METAL FILM, 1/20W 100 OHM J #4 24011101 CHIP, METAL FILM, 1/20W 100 OHM J

RD18 #1 24011101 CHIP, METAL FILM, 1/20W 100 OHM J

#2 24011101 CHIP, METAL FILM, 1/20W 100 OHM J #3 24011101 CHIP, METAL FILM, 1/20W 100 OHM J #4 24011101 CHIP, METAL FILM, 1/20W 100 OHM J

RD19 #1 24011101 CHIP, METAL FILM, 1/20W 100 OHM J

#2 24011101 CHIP, METAL FILM, 1/20W 100 OHM J #3 24011101 CHIP, METAL FILM, 1/20W 100 OHM J #4 24011101 CHIP, METAL FILM, 1/20W 100 OHM J

RD20 #1 24011101 CHIP, METAL FILM, 1/20W 100 OHM J

#2 24011101 CHIP, METAL FILM, 1/20W 100 OHM J #3 24011101 CHIP, METAL FILM, 1/20W 100 OHM J #4 24011101 CHIP, METAL FILM, 1/20W 100 OHM J

RD21 #1 24011101 CHIP, METAL FILM, 1/20W 100 OHM J

#2 24011101 CHIP, METAL FILM, 1/20W 100 OHM J #3 24011101 CHIP, METAL FILM, 1/20W 100 OHM J #4 24011101 CHIP, METAL FILM, 1/20W 100 OHM J

RD22 #1 24011101 CHIP, METAL FILM, 1/20W 100 OHM J

#2 24011101 CHIP, METAL FILM, 1/20W 100 OHM J #3 24011101 CHIP, METAL FILM, 1/20W 100 OHM J #4 24011101 CHIP, METAL FILM, 1/20W 100 OHM J

RD23 #1 24011101 CHIP, METAL FILM, 1/20W 100 OHM J

#2 24011101 CHIP, METAL FILM, 1/20W 100 OHM J #3 24011101 CHIP, METAL FILM, 1/20W 100 OHM J #4 24011101 CHIP, METAL FILM, 1/20W 100 OHM J

RD24 #1 24011101 CHIP, METAL FILM, 1/20W 100 OHM J

#2 24011101 CHIP, METAL FILM, 1/20W 100 OHM J #3 24011101 CHIP, METAL FILM, 1/20W 100 OHM J #4 24011101 CHIP, METAL FILM, 1/20W 100 OHM J

RD25 #1 24011563 CHIP, METAL FILM, 1/20W 56K OHM J

#2 24011563 CHIP, METAL FILM, 1/20W 56K OHM J #3 24011563 CHIP, METAL FILM, 1/20W 56K OHM J #4 24011563 CHIP, METAL FILM, 1/20W 56K OHM J

RD26 #1 24011823 CHIP, METAL FILM, 1/20W 82K OHM J

#2 24011823 CHIP, METAL FILM, 1/20W 82K OHM J #3 24011823 CHIP, METAL FILM, 1/20W 82K OHM J #4 24011823 CHIP, METAL FILM, 1/20W 82K OHM J

RD27 #1 24011563 CHIP, METAL FILM, 1/20W 56K OHM J

#2 24011563 CHIP, METAL FILM, 1/20W 56K OHM J #3 24011563 CHIP, METAL FILM, 1/20W 56K OHM J #4 24011563 CHIP, METAL FILM, 1/20W 56K OHM J

RD28 #1 24011823 CHIP, METAL FILM, 1/20W 82K OHM J

#2 24011823 CHIP, METAL FILM, 1/20W 82K OHM J

– 26 –

Page 27

Location Parts No. Description No.

#3 24011823 CHIP, METAL FILM, 1/20W 82K OHM J

#4 24011823 CHIP, METAL FILM, 1/20W 82K OHM J RI01 24011330 CHIP, 1/20W 33 OHM J RI02 24011682 CHIP, METAL FILM, 1/20W 6.8K OHM J RI03 24011272 CHIP, 1/20W 2.7K OHM J RI04 24011330 CHIP, 1/20W 33 OHM J RI05 24011751 CHIP, METAL FILM, 1/20W 750 OHM J RI06 24011330 CHIP, 1/20W 33 OHM J RI07 24871390 CHIP, 1/8W 39 OHM J RI08 24011821 CHIP, METAL FILM, 1/20W 820 OHM J RI09 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RI10 24011103 CHIP, METAL FILM, 1/20W 10K OHM J RI11 24011302 CHIP, METAL FILM, 1/20W 3K OHM J RI12 24011103 CHIP, METAL FILM, 1/20W 10K OHM J RI13 24011332 CHIP, METAL FILM, 1/20W 3.3K OHM J RI14 24000445 CHIP JUMPER, 1608TYPE RI15 #1 24011105 CHIP, METAL FILM, 1/20W 1M OHM J

#2 24011105 CHIP, METAL FILM, 1/20W 1M OHM J

#3 24011105 CHIP, METAL FILM, 1/20W 1M OHM J

#4 24011105 CHIP, METAL FILM, 1/20W 1M OHM J

#5 24011103 CHIP, METAL FILM, 1/20W 10K OHM J RI16 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RI17 24011271 CHIP, METAL FILM, 1/20W 270 OHM J RI18 24011331 CHIP, METAL FILM, 1/20W 330 OHM J RI19 #1 24011103 CHIP, METAL FILM, 1/20W 10K OHM J

#2 24011103 CHIP, METAL FILM, 1/20W 10K OHM J

#3 24011103 CHIP, METAL FILM, 1/20W 10K OHM J

#4 24011103 CHIP, METAL FILM, 1/20W 10K OHM J

#5 24011105 CHIP, METAL FILM, 1/20W 1M OHM J RI20 24011821 CHIP, METAL FILM, 1/20W 820 OHM J RI21 #1 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J

#2 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J

#3 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J

#4 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J

#5 24011271 CHIP, METAL FILM, 1/20W 270 OHM J RI30 24011473 CHIP, METAL FILM, 1/20W 47K OHM J RI31 24011433 CHIP, METAL FILM, 1/20W 43K OHM J RI32 24011123 CHIP, METAL FILM, 1/20W 12K OHM J RI33 #1 24011272 CHIP, 1/20W 2.7K OHM J

#2 24011272 CHIP, 1/20W 2.7K OHM J

#3 24011272 CHIP, 1/20W 2.7K OHM J

#4 24011272 CHIP, 1/20W 2.7K OHM J

#5 24011302 CHIP, METAL FILM, 1/20W 3K OHM J RI40 24011104 CHIP, METAL FILM, 1/20W 100K OHM J RI41 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RI42 24011112 CHIP, 1/20W 1.1K OHM J RI43 24011561 CHIP, METAL FILM, 1/20W 560 OHM J RI44 24011471 CHIP, METAL FILM, 1/20W 470 OHM J RI45 24011561 CHIP, METAL FILM, 1/20W 560 OHM J RI46 24011122 CHIP, METAL FILM, 1/20W 1.2K OHM J RI47 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RI51 24066046 VARIABLE. CARBON, 0.1W 20K N RI52 24011331 CHIP, METAL FILM, 1/20W 330 OHM J RI61 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RI62 #5 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RI63 #5 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RI65 #5 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J RI67 24011563 CHIP, METAL FILM, 1/20W 56K OHM J RI68 24011563 CHIP, METAL FILM, 1/20W 56K OHM J RI69 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RI71 24011134 CHIP, METAL FILM, 1/2OW 130K OHM J RI72 24011134 CHIP, METAL FILM, 1/2OW 130K OHM J RI73 24011303 CHIP, METAL FILM, 1/20W 30K OHM J RI74 24011223 CHIP, METAL FILM, 1/20W 22K OHM J RI77 #5 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RI78 #5 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RI79 24011333 CHIP, METAL FILM, 1/20W 33K OHM J RI80 24011183 CHIP, METAL FILM, 1/20W 18K OHM J RI81 24011301 CHIP, METAL FILM, 1/20W 300 OHM J RI82 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RI83 #5 24011103 CHIP, METAL FILM, 1/20W 10K OHM J RI84 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J RI85 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J RI87 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J RI88 24011203 CHIP, METAL FILM, 1/20W 20K OHM J RI91 24011102 CHIP, METAL FILM, 1/20W 1K OHM J

Location Parts No. Description No.

RI97 #5 24011563 CHIP, METAL FILM, 1/20W 56K OHM J RI98 #5 24011563 CHIP, METAL FILM, 1/20W 56K OHM J RI99 #5 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RJ01 #5 24000445 CHIP JUMPER, 1608TYPE RJ02 #5 24000445 CHIP JUMPER, 1608TYPE RJ05 #5 24000445 CHIP JUMPER, 1608TYPE RS01 24011103 CHIP, METAL FILM, 1/20W 10K OHM J RS02 24011104 CHIP, METAL FILM, 1/20W 100K OHM J RS03 24011103 CHIP, METAL FILM, 1/20W 10K OHM J RS04 24011104 CHIP, METAL FILM, 1/20W 100K OHM J RS10 24011562 CHIP, METAL FILM, 1/20W 5.6K OHM J RS11 24011562 CHIP, METAL FILM, 1/20W 5.6K OHM J RS14 24011562 CHIP, METAL FILM, 1/20W 5.6K OHM J RS15 24011562 CHIP, METAL FILM, 1/20W 5.6K OHM J RS17 24011562 CHIP, METAL FILM, 1/20W 5.6K OHM J RS18 24011562 CHIP, METAL FILM, 1/20W 5.6K OHM J RS19 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RS20 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J RS21 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RS22 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J RS23 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RS24 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RS27 24011561 CHIP, METAL FILM, 1/20W 560 OHM J RS61 24552221 OXIDE METAL FILM, 1/2W 220 OHM J RS62 24552221 OXIDE METAL FILM, 1/2W 220 OHM J RV01 24011102 CHIP, METAL FILM, 1/20W 1K OHM J @U902

24366223 CARBON FILM, 1/6W 22K OHM J @U904

RV02 24011102 CHIP, METAL FILM, 1/20W 1K OHM J @U902

24366223 CARBON FILM, 1/6W 22K OHM J @U904

RV03 #1 24011750 CHIP, METAL FILM, 1/20W 75 OHM J @U902

#1 24366102 CARBON FILM, 1/6W 1K OHM J @U904 #2 24011750 CHIP, METAL FILM, 1/20W 75 OHM J #3 24011750 CHIP, METAL FILM, 1/20W 75 OHM J #4 24011750 CHIP, METAL FILM, 1/20W 75 OHM J #5 24011750 CHIP, METAL FILM, 1/20W 75 OHM J

RV04 #1 24011102 CHIP, METAL FILM, 1/20W 1K OHM J @U902

#1 24366102 CARBON FILM, 1/6W 1K OHM J @U904 #2 24011102 CHIP, METAL FILM, 1/20W 1K OHM J #3 24011102 CHIP, METAL FILM, 1/20W 1K OHM J #4 24011102 CHIP, METAL FILM, 1/20W 1K OHM J

#5 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RV06 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J RV07 24011103 CHIP, METAL FILM, 1/20W 10K OHM J RV10 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RV11 24011562 CHIP, METAL FILM, 1/20W 5.6K OHM J RV12 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RV13 24011562 CHIP, METAL FILM, 1/20W 5.6K OHM J RV15 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RV17 24366750 CARBON FILM, 1/6W 75 OHM J RV21 24366151 CARBON FILM, 1/6W 150 OHM J RV24 24552101 OXIDE METAL FILM, 1/2W 100 OHM J RV25 24011750 CHIP, METAL FILM, 1/20W 75 OHM J RV26 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RV31 24011750 CHIP, METAL FILM, 1/20W 75 OHM J RV33 24011750 CHIP, METAL FILM, 1/20W 75 OHM J RV34 24011750 CHIP, METAL FILM, 1/20W 75 OHM J RV90 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RV91 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RV92 24011103 CHIP, METAL FILM, 1/20W 10K OHM J RV93 24011103 CHIP, METAL FILM, 1/20W 10K OHM J GJ04 #5 24000445 CHIP JUMPER, 1608TYPE GJ06 #2 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J

#3 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J

#4 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J GJ07 #2 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J

#3 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J

#4 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J

#5 24000445 CHIP JUMPER, 1608TYPE GJ16 24000445 CHIP JUMPER, 1608TYPE GJ48 24000445 CHIP JUMPER, 1608TYPE GJ49 24000445 CHIP JUMPER, 1608TYPE GJ50 24000445 CHIP JUMPER, 1608TYPE GJ51 24000445 CHIP JUMPER, 1608TYPE GJ331 24000445 CHIP JUMPER, 1608TYPE GR30 24000445 CHIP JUMPER, 1608TYPE GR45 24000445 CHIP JUMPER, 1608TYPE

SPECIFIC INFORMATIONS

– 27 –

Page 28

Location Parts No. Description No.

GR301 24000445 CHIP JUMPER, 1608TYPE GR601 #5 24000445 CHIP JUMPER, 1608TYPE GR602 #5 24000445 CHIP JUMPER, 1608TYPE GRI01 24000445 CHIP JUMPER, 1608TYPE GRI02 24000445 CHIP JUMPER, 1608TYPE GRI04 #1 24000445 CHIP JUMPER, 1608TYPE

#2 24000445 CHIP JUMPER, 1608TYPE #3 24000445 CHIP JUMPER, 1608TYPE #4 24000445 CHIP JUMPER, 1608TYPE

GRI06 #1 24000445 CHIP JUMPER, 1608TYPE

#2 24000445 CHIP JUMPER, 1608TYPE #3 24000445 CHIP JUMPER, 1608TYPE

#4 24000445 CHIP JUMPER, 1608TYPE JR001 24000445 CHIP JUMPER, 1608TYPE JR002 24000445 CHIP JUMPER, 1608TYPE JR003 24000445 CHIP JUMPER, 1608TYPE JR004 24000445 CHIP JUMPER, 1608TYPE JR007 24000445 CHIP JUMPER, 1608TYPE JR008 24000445 CHIP JUMPER, 1608TYPE JR009 24000445 CHIP JUMPER, 1608TYPE JR010 24000445 CHIP JUMPER, 1608TYPE JR011 24000445 CHIP JUMPER, 1608TYPE

COILS & TRANSFORMERS

L101 #1 23248296 COIL, CHOKE

#2 23248367 COIL, CHOKE 9X13H 221MMH 0.6A TLN3278AC

#3 23248367 COIL, CHOKE 9X13H 221MMH 0.6A TLN3278AC

#4 23248367 COIL, CHOKE 9X13H 221MMH 0.6A TLN3278AC

#5 23248367 COIL, CHOKE 9X13H 221MMH 0.6A TLN3278AC L301 23103249 CORE, FERRITE BEAD 3.5X4.5, TEM2011AO L320 23103249 CORE, FERRITE BEAD 3.5X4.5, TEM2011AO L441 23233999 COIL, LINEALITY, TLN2215AY L461 #1 23248177 COIL, CHOKE, TLN3337AD

#2 23248177 COIL, CHOKE, TLN3337AD

SPECIFIC INFORMATIONS

#3 23248177 COIL, CHOKE, TLN3337AD

#4 23248177 COIL, CHOKE, TLN3337AD

#5 23248364 L462 #1 23231355 COIL, DEFLECTION YOKE, TDY-821AZ

#2 23231355 COIL, DEFLECTION YOKE, TDY-821AZ

#3 23231355 COIL, DEFLECTION YOKE, TDY-821AZ

#4 23231355 COIL, DEFLECTION YOKE, TDY-821AZ L462A #1 23993696 BOARD, CORRECTION

#2 23993696 BOARD, CORRECTION

#3 23993696 BOARD, CORRECTION

#4 23993696 BOARD, CORRECTION L462B #1 23949616 CONVER CORRECTOR, YV TC-R TC-R(YV)

#2 23949616 CONVER CORRECTOR, YV TC-R TC-R(YV)

#3 23949616 CONVER CORRECTOR, YV TC-R TC-R(YV)

#4 23949616 CONVER CORRECTOR, YV TC-R TC-R(YV) L462C #1 23993081

#2 23993081

#3 23993081

#4 23993081 L462D #1 23948535 SHEET, MAGNETIC FERRITE

#2 23948535 SHEET, MAGNETIC FERRITE

#3 23948535 SHEET, MAGNETIC FERRITE

#4 23948535 SHEET, MAGNETIC FERRITE L462E #1 23948536 SHEET, MAGNETIC FERRITE

#2 23948536 SHEET, MAGNETIC FERRITE

#3 23948536 SHEET, MAGNETIC FERRITE

#4 23948536 SHEET, MAGNETIC FERRITE L501 23289912 COIL, PEAKING COIL 3.3MMH TRF4339AU L502 23289924 COIL, PEAKING COIL 33MMH TRF4330AU L503 23289924 COIL, PEAKING COIL 33MMH TRF4330AU L505 23289924 COIL, PEAKING COIL 33MMH TRF4330AU L506 23103249 CORE, FERRITE BEAD 3.5X4.5, TEM2011AO L507 23289924 COIL, PEAKING COIL 33MMH TRF4330AU L805 23248234 COIL, CHOKE, TLN3481AC L806 23248234 COIL, CHOKE, TLN3481AC L811 23103249 CORE, FERRITE BEAD 3.5X4.5, TEM2011AO L883 23221747 COIL, CHOKE, TRF9253D L885 23248327 COIL, CHOKE 10X13.3H 100MMH TLN3299AC L886 23103249 CORE, FERRITE BEAD 3.5X4.5, TEM2011AO L888 23280016 COIL, PEAKING, TRF4100AZ L889 23280016 COIL, PEAKING, TRF4100AZ L891 23103249 CORE, FERRITE BEAD 3.5X4.5, TEM2011AO

COIL, CHOKE 17X29H 680MMH 1.7A TLN3337AC

METAL SHEET, CONV. CORRECTION TCRMXH01H METAL SHEET, CONV. CORRECTION TCRMXH01H METAL SHEET, CONV. CORRECTION TCRMXH01H METAL SHEET, CONV. CORRECTION TCRMXH01H

Location Parts No. Description No.

L893 23280016 COIL, PEAKING, TRF4100AZ L900 23103249 CORE, FERRITE BEAD 3.5X4.5, TEM2011AO L901 #1 23200534 COIL, DG-0.37 TSB-2301AH

#2 23200534 COIL, DG-0.37 TSB-2301AH #3 23200534 COIL, DG-0.37 TSB-2301AH #4 23200534 COIL, DG-0.37 TSB-2301AH #5 23200486 COIL, DG-0.37, 55T 22.5R-8TYPE TSB-2301BV

L902 #1 23289221 COIL, PEAKING, TRF4221AF

#2 23289221 COIL, PEAKING, TRF4221AF #3 23289221 COIL, PEAKING, TRF4221AF #4 23289221 COIL, PEAKING, TRF4221AF

L903 #1 23289221 COIL, PEAKING, TRF4221AF

#2 23289221 COIL, PEAKING, TRF4221AF #3 23289221 COIL, PEAKING, TRF4221AF #4 23289221 COIL, PEAKING, TRF4221AF

L904 #1 23289221 COIL, PEAKING, TRF4221AF

#2 23289221 COIL, PEAKING, TRF4221AF #3 23289221 COIL, PEAKING, TRF4221AF #4 23289221 COIL, PEAKING, TRF4221AF

L905 #1 23289390 COIL, PEAKING, TRF4390AF

#2 23289390 COIL, PEAKING, TRF4390AF #3 23289390 COIL, PEAKING, TRF4390AF #4 23289390 COIL, PEAKING, TRF4390AF #5 23289925 COIL, PEAKING, TRF4390AU

L906 #1 23289390 COIL, PEAKING, TRF4390AF

#2 23289390 COIL, PEAKING, TRF4390AF #3 23289390 COIL, PEAKING, TRF4390AF #4 23289390 COIL, PEAKING, TRF4390AF #5 23289925 COIL, PEAKING, TRF4390AU

L907 #1 23289390 COIL, PEAKING, TRF4390AF

#2 23289390 COIL, PEAKING, TRF4390AF #3 23289390 COIL, PEAKING, TRF4390AF #4 23289390 COIL, PEAKING, TRF4390AF

#5 23289925 COIL, PEAKING, TRF4390AU LA01 23103249 CORE, FERRITE BEAD 3.5X4.5, TEM2011AO LC01 #1 23221129 CHOKE COIL, TRF9240AC TRF9240AC LC02 #1 23221129 CHOKE COIL, TRF9240AC TRF9240AC LC03 #1 23221129 CHOKE COIL, TRF9240AC TRF9240AC LC04 #1 23103279 FILTER, FERRITR CHOKE 3.5X5X2 TEM2014AO

#2 23289910 COIL, PEAKING COIL 2.2MMH TRF4229AU

#3 23289910 COIL, PEAKING COIL 2.2MMH TRF4229AU

#4 23289910 COIL, PEAKING COIL 2.2MMH TRF4229AU

#5 23289910 COIL, PEAKING COIL 2.2MMH TRF4229AU LC05 #1 23103279 FILTER, FERRITR CHOKE 3.5X5X2 TEM2014AO

#2 23289910 COIL, PEAKING COIL 2.2MMH TRF4229AU

#3 23289910 COIL, PEAKING COIL 2.2MMH TRF4229AU

#4 23289910 COIL, PEAKING COIL 2.2MMH TRF4229AU

#5 23289910 COIL, PEAKING COIL 2.2MMH TRF4229AU LD01 #1 23103825 INDUCTOR, BEAD, TEM2118M

#2 23103825 INDUCTOR, BEAD, TEM2118M

#3 23103825 INDUCTOR, BEAD, TEM2118M

#4 23103825 INDUCTOR, BEAD, TEM2118M LD02 #1 23103825 INDUCTOR, BEAD, TEM2118M

#2 23103825 INDUCTOR, BEAD, TEM2118M

#3 23103825 INDUCTOR, BEAD, TEM2118M

#4 23103825 INDUCTOR, BEAD, TEM2118M LI01 23238554 COIL, PEAKING, TRF4R22AJ LI03 23238503 COIL, PEAKING, TRF4129AJ LI04 23238706 COIL, PEAKING, TRF4470AJ LI06 23238719 COIL, PEAKING, TRF4399AJ LI07 23238712 COIL, PEAKING, TRF4150AJ LI10 23289923 COIL, PEAKING COIL 27MMH TRF4270AU LI51 #5 23232032 COIL, VARIABLE TRF3546D LI54 #1 23232032 COIL, VARIABLE TRF3546D

#2 23232032 COIL, VARIABLE TRF3546D

#3 23232032 COIL, VARIABLE TRF3546D

#4 23232032 COIL, VARIABLE TRF3546D LI56 23238562 COIL, PEAKING, TRF4109AJ LI57 23238562 COIL, PEAKING, TRF4109AJ LI61 23238710 COIL, PEAKING, TRF4220AJ LI91 #5 23238713 COIL, PEAKING, TRF4120AJ T401 23224391 TRANSFORMER, DRIVE, TLN1104AH T461 #1 23236738 TRANSFORMER, HORIZ OUTPUT, TFB4159AS

#2 23236738 TRANSFORMER, HORIZ OUTPUT, TFB4159AS

#3 23236738 TRANSFORMER, HORIZ OUTPUT, TFB4159AS

#4 23236738 TRANSFORMER, HORIZ OUTPUT, TFB4159AS

– 28 –

Page 29

Location Parts No. Description No.

T801 23211787 COIL, LINE FILTER TRF3247AM T802 23211777 COIL, LINE FILTER 37X40H 4.7MH TRF3202AR T862 23217639 TRANSFORMER, TPW3535AM G103 #1 23103249 CORE, FERRITE BEAD 3.5X4.5, TEM2011AO G104 #1 23248234 COIL, CHOKE, TLN3481AC G105 #1 23248234 COIL, CHOKE, TLN3481AC G106 #1 23103249 CORE, FERRITE BEAD 3.5X4.5, TEM2011AO G107 #1 23103249 CORE, FERRITE BEAD 3.5X4.5, TEM2011AO G108 #1 23103249 CORE, FERRITE BEAD 3.5X4.5, TEM2011AO G109 #1 23103249 CORE, FERRITE BEAD 3.5X4.5, TEM2011AO G402 23103249 CORE, FERRITE BEAD 3.5X4.5, TEM2011AO G461 23103249 CORE, FERRITE BEAD 3.5X4.5, TEM2011AO G815 23103249 CORE, FERRITE BEAD 3.5X4.5, TEM2011AO

SEMICONDUCTORS

Q104 70200934 IC, PST9126NR Q201 23314475 TRANSISTOR, 2SC2712-Y Q202 23314475 TRANSISTOR, 2SC2712-Y Q205 23314475 TRANSISTOR, 2SC2712-Y Q208 23314475 TRANSISTOR, 2SC2712-Y Q210 23314475 TRANSISTOR, 2SC2712-Y Q211 23314475 TRANSISTOR, 2SC2712-Y Q301 23009352 IC, AN5522 Q321 23314475 TRANSISTOR, 2SC2712-Y Q340 23314163 TRANSISTOR, 2SA1162-Y Q402 23114755 TRANSISTOR, 2SC2482FA-1 Q403 70114402 TRANSISTOR, 2SC3437-Y Q404 #1 23314375 TRANSISTOR, ON4409

#1 23314970 TRANSISTOR, 2SD2539(FA) #2 23314375 TRANSISTOR, ON4409 #2 23314970 TRANSISTOR, 2SD2539(FA) #3 23314375 TRANSISTOR, ON4409 #3 23314970 TRANSISTOR, 2SD2539(FA) #4 23314375 TRANSISTOR, ON4409 #4 23314970 TRANSISTOR, 2SD2539(FA)

#5 23314375 TRANSISTOR, ON4409 Q430 23114733 TRANSISTOR, 2SC2655-Y Q431 23314475 TRANSISTOR, 2SC2712-Y Q471 23205257 TRANSISTOR, PNP VCBO=-150V KTA1024-Y Q502 23009508 IC, RGB AMP MATSUSHITA AN15931A Q610 23906582 IC, AN5277 Q620 #5 23906919 IC, TA1304F Q623 23205222 Q670 23205005 TRANSISTOR, KTA2014Y Q671 70114396 TRANSISTOR, 2SC3326B Q672 70114396 TRANSISTOR, 2SC3326B Q801 23135037 IC, STR-F6268S Q802 23205160 TRANSISTOR, NPN VCBO=100V KTD2092 Q826 23906937 IC, PHOTO COUPLER, ON3171-R Q830 23009843 IC, REGULATOR +5V 4% S7805PI Q835 23009844 IC, REGULATOR +9V 4% S7809PI Q840 23205160 TRANSISTOR, NPN VCBO=100V KTD2092 Q841 23114879 TRANSISTOR, 2SC2230A-Y(C) Q842 23205085 TRANSISTOR, 2SC5343-Y Q843 23009512 Q883 23000352 IC, SE125N, LF4 Q901 23314780 TRANSISTOR, 2SC4544 Q902 23205085 TRANSISTOR, 2SC5343-Y Q903 23314780 TRANSISTOR, 2SC4544 Q904 23205085 TRANSISTOR, 2SC5343-Y Q905 23314780 TRANSISTOR, 2SC4544 Q906 23205085 TRANSISTOR, 2SC5343-Y Q907 23205081 TRANSISTOR, 2SA1980-Y Q908 23205202 TRANSISTOR, 2SC5344Y 2SC5344Y Q4030 23314475 TRANSISTOR, 2SC2712-Y Q4710 23314163 TRANSISTOR, 2SA1162-Y QA10 23009648 IC, AT24C32A-10PI-2.7 QA51 #1 23009951

#2 23009950

#3 23009948

#4 23009948

#5 23009948 QA71 23314163 TRANSISTOR, 2SA1162-Y QB02 23314965 TRANSISTOR, KTC3198 Y QB03 23205081 TRANSISTOR, 2SA1980-Y QB05 23314475 TRANSISTOR, 2SC2712-Y

TRANSISTOR, PNP R1=R2=47KOHM SRA2204S (SOT-23)

IC, REGULATOR, +3.3V 2% TO-220F NJU7223F33

IC, PANA MICRO VCD COMB TEXT MN101E02HME IC, PANA MICRO VCD COMB TEXT MN101E02HMD IC, PANA MICRO VCD COMB TEXT MN101E04GAF IC, PANA MICRO VCD COMB TEXT MN101E04GAF IC, PANA MICRO VCD COMB TEXT MN101E04GAF

Location Parts No. Description No.

QD01 #1 23009522 IC, NICAM DECODER PLQFP64 MSP3410G

#2 23009522 IC, NICAM DECODER PLQFP64 MSP3410G #3 23009522 IC, NICAM DECODER PLQFP64 MSP3410G #4 23009522 IC, NICAM DECODER PLQFP64 MSP3410G

QD02 #1 23009278 IC, RESET 4.2V SMP5 BD4742G-TR

#2 23009278 IC, RESET 4.2V SMP5 BD4742G-TR #3 23009278 IC, RESET 4.2V SMP5 BD4742G-TR #4 23009278 IC, RESET 4.2V SMP5 BD4742G-TR

QD03 #1 23205006 TRANSISTOR, KTC4075Y

#2 23205006 TRANSISTOR, KTC4075Y #3 23205006 TRANSISTOR, KTC4075Y #4 23205006 TRANSISTOR, KTC4075Y

QD04 #1 23205006 TRANSISTOR, KTC4075Y

#2 23205006 TRANSISTOR, KTC4075Y #3 23205006 TRANSISTOR, KTC4075Y #4 23205006 TRANSISTOR, KTC4075Y

QD05 #1 23205006 TRANSISTOR, KTC4075Y

#2 23205006 TRANSISTOR, KTC4075Y #3 23205006 TRANSISTOR, KTC4075Y #4 23205006 TRANSISTOR, KTC4075Y

QD06 #1 23205214

#2 23205214 #3 23205214

#4 23205214 QI01 23906820 IC, VIF/SIF SSOP 24PIN TA1267AF(FA02,EL) QI02 23114611 TRANSISTOR, 2SC3357 QI04 23205005 TRANSISTOR, KTA2014Y QI05 23205006 TRANSISTOR, KTC4075Y QI06 23205005 TRANSISTOR, KTA2014Y QI07 23205214 QI08 23205214 QI09 23205214 QI12 23314926 TRANSISTOR, FET, 2SK880-Y QI15 23205214 QI16 23205214 QI17 23205214 QI60 #1 23205214

#2 23205214

#3 23205214

#4 23205214 QI61 23205006 TRANSISTOR, KTC4075Y QI63 #5 23205214 QI64 #5 23205214 QI65 #5 23205006 TRANSISTOR, KTC4075Y QI71 23205006 TRANSISTOR, KTC4075Y QI81 23205214 QI91 #5 23205006 TRANSISTOR, KTC4075Y QI92 23205214 QS01 23205006 TRANSISTOR, KTC4075Y QS02 23205006 TRANSISTOR, KTC4075Y QS03 23205204 TRANSISTOR, NPN VEBO=25V KTC2875B-RTK QS04 23205204 TRANSISTOR, NPN VEBO=25V KTC2875B-RTK QV01 23000368 IC, MM1495XF QV02 23205085 TRANSISTOR, 2SC5343-Y QV04 23205006 TRANSISTOR, KTC4075Y D101 23118607 DIODE, ZENER, RD33ESA B3 D210 23357447 DIODE, SWITCH SILICON KDS160-RTK/USC D211 23357447 DIODE, SWITCH SILICON KDS160-RTK/USC D301 23357448 DIODE, DIODE IF=1.0A GP10D D302 23357372 DIODE, AXIAL EU2JGF-41U2 D303 23316794 DIODE, SC570A D340 23118529 DIODE, ZENER, RD5.6ES B2 D406 23357372 DIODE, AXIAL EU2JGF-41U2 D408 23357375 DIODE, 3JHJGR-M2 D431 23118530 DIODE, ZENER, RD5.6ESA B1 D432 23316231 DIODE, 1SS355 D441 23118531 DIODE, ZENER, RD5.1ESA B3 D444 23316254 DIODE, ERC06-15 D461 23357364 DIODE, RU4JGF- M2 RU4JGF- M2 D467 23357372 DIODE, AXIAL EU2JGF-41U2 D470 23118511 DIODE, ZENER, RD12ES B2 D473 23118635 DIODE, ZENER, RD2.7ESA B2 D474 23118635 DIODE, ZENER, RD2.7ESA B2 D670 23316231 DIODE, 1SS355 D671 23316231 DIODE, 1SS355 D672 23316231 DIODE, 1SS355

TRANSISTOR, NPN R1=R2=10KOHM SRC1202U (SOT-323) TRANSISTOR, NPN R1=R2=10KOHM SRC1202U (SOT-323) TRANSISTOR, NPN R1=R2=10KOHM SRC1202U (SOT-323) TRANSISTOR, NPN R1=R2=10KOHM SRC1202U (SOT-323)

TRANSISTOR, NPN R1=R2=10KOHM SRC1202U (SOT-323) TRANSISTOR, NPN R1=R2=10KOHM SRC1202U (SOT-323) TRANSISTOR, NPN R1=R2=10KOHM SRC1202U (SOT-323)

TRANSISTOR, NPN R1=R2=10KOHM SRC1202U (SOT-323) TRANSISTOR, NPN R1=R2=10KOHM SRC1202U (SOT-323) TRANSISTOR, NPN R1=R2=10KOHM SRC1202U (SOT-323) TRANSISTOR, NPN R1=R2=10KOHM SRC1202U (SOT-323) TRANSISTOR, NPN R1=R2=10KOHM SRC1202U (SOT-323) TRANSISTOR, NPN R1=R2=10KOHM SRC1202U (SOT-323) TRANSISTOR, NPN R1=R2=10KOHM SRC1202U (SOT-323)

TRANSISTOR, NPN R1=R2=10KOHM SRC1202U (SOT-323) TRANSISTOR, NPN R1=R2=10KOHM SRC1202U (SOT-323)

TRANSISTOR, NPN R1=R2=10KOHM SRC1202U (SOT-323)

SPECIFIC INFORMATIONS

– 29 –

Page 30

Location Parts No. Description No.

D673 23316231 DIODE, 1SS355 D674 23316231 DIODE, 1SS355 D680 23357447 DIODE, SWITCH SILICON KDS160-RTK/USC D681 23316231 DIODE, 1SS355 D682 23316231 DIODE, 1SS355 D683 23316231 DIODE, 1SS355 D801 23357041 DIODE, LN6SB60-F05 D804 23118505 DIODE, ZENER, RD15ESA B2 D805 23357012 DIODE, 1SS244 D806 23357372 DIODE, AXIAL EU2JGF-41U2 D810 23118496 DIODE, ZENER, RD22ESA B2 D811 23357341 DIODE, 1SS133 D815 23118608 DIODE, ZENER, RD33ES B2 D818 23118496 DIODE, ZENER, RD22ESA B2 D828 23357341 DIODE, 1SS133 D840 23118528 DIODE, ZENER, RD5.6ESA B3 D848 23118531 DIODE, ZENER, RD5.1ESA B3 D883 23357364 DIODE, RU4JGF- M2 RU4JGF- M2 D885 23118052 DIODE, RU4Z LF-L1 D891 23357372 DIODE, AXIAL EU2JGF-41U2 D901 23357450 DIODE, VRM=90V IO=130MA ISS133 D903 23357450 DIODE, VRM=90V IO=130MA ISS133 D904 23357450 DIODE, VRM=90V IO=130MA ISS133 D905 23357450 DIODE, VRM=90V IO=130MA ISS133 D906 23357450 DIODE, VRM=90V IO=130MA ISS133 D907 23357450 DIODE, VRM=90V IO=130MA ISS133 D908 23357450 DIODE, VRM=90V IO=130MA ISS133 D909 23357450 DIODE, VRM=90V IO=130MA ISS133 D910 23357450 DIODE, VRM=90V IO=130MA ISS133 D911 23357449 DIODE, DIODE IO=1.0A ERB10JGR-41A-1AU D4710 23316231 DIODE, 1SS355 DA78 23357447 DIODE, SWITCH SILICON KDS160-RTK/USC DB01 23358567 LED, LAMP RED/GREEN L-59EGW DB03 23118635 DIODE, ZENER, RD2.7ESA B2

SPECIFIC INFORMATIONS

DD01 #1 23118138 DIODE, MA77

#2 23118138 DIODE, MA77 #3 23118138 DIODE, MA77

#4 23118138 DIODE, MA77 DI01 23357446 DIODE, VR=30V IF=50MA KDS112-RTK/USM DI02 23357212 DI03 23357445 DIODE, KDS114-RTK/USC KDS114-RTK/USC DV01 23316588 DIODE, ZENER, MA8091-M DV02 23316588 DIODE, ZENER, MA8091-M DV04 23316588 DIODE, ZENER, MA8091-M KB01 23009490 IC, REMOCON RECEIVER, PIC-TB19

DIODE, CHIP VRM=85V IO=200MA KC KDS120-RTK

Location Parts No. Description No.

#4 23368249 POWER CORD, 2P 11.88MM VH-JST P803B 23164729 P900 23164725 CONNECTOR, PLUG 2P P910 23164725 CONNECTOR, PLUG 2P PI01A 23023145 PLUG, B15PS-TB-2 B15PS-TB-2 PI02A 23023145 PLUG, B15PS-TB-2 B15PS-TB-2 PV01 23023139 JACK, PIN JACK 3P AV3-23-002 PV02 23023199 JACK, 8P (4SW) DAV8-31B01114S01 PV03 23023178 JACK, 0S+3P JACK KM04015GP-01Z S801 23344481 SWITCH, POWER, AAPY2211 SA01 23344443 SWITCH, TACTING SWITCH TSV TYP TSVB-1 SA02 23344443 SWITCH, TACTING SWITCH TSV TYP TSVB-1 SA03 23344443 SWITCH, TACTING SWITCH TSV TYP TSVB-1 SA04 23344443 SWITCH, TACTING SWITCH TSV TYP TSVB-1 SA05 23344443 SWITCH, TACTING SWITCH TSV TYP TSVB-1 SA06 23344443 SWITCH, TACTING SWITCH TSV TYP TSVB-1 V901A 23903147 SOCKET, ISH46S-E ICE 29MM V901B #1 23102959 MAGNET, RUBBER

#2 23102959 MAGNET, RUBBER

#3 23102959 MAGNET, RUBBER

#4 23102959 MAGNET, RUBBER V901M #1 23102424 CONVERGENCE MAGNET, MAG-1082

#2 23102424 CONVERGENCE MAGNET, MAG-1082

#3 23102424 CONVERGENCE MAGNET, MAG-1082

#4 23102424 CONVERGENCE MAGNET, MAG-1082 W661 23351236 W662 23351236 XA03 23153759 CRYSTAL RESONATOR, 10MHZ XD01 #1 23153490 CRYSTAL, 18.432 20PPM CL=13PF

#2 23153490 CRYSTAL, 18.432 20PPM CL=13PF

#3 23153490 CRYSTAL, 18.432 20PPM CL=13PF

#4 23153490 CRYSTAL, 18.432 20PPM CL=13PF Z891 23144542 PROTECTOR, 491SERIES, 125V 4A Z902 #5 23103840 FERRITE CORE, TFE1013 ZI01 23303223 SAW FILTER, PIF ZI02 23303210 SAW FILTER, SIF ZI05 23303085 CERAMIC TRAP, TCF1092 ZI06 23303136 CERAMIC TRAP, TCF1097 ZI07 23303290 FILTER, FIL-CTRAP-4.5MHZ TCF1142AM ZI54 23303166 CERAMIC TRAP, 39.5MHZ TCF1107 ZI55 23303224 CERAMIC TRAP, TCF1120AM ZI61 #5 23303294 FILTER, FIL CFILT 5.5MHZ TCF1146AM ZI62 #5 23303269 FILTER, FIL CFILT 6.0MHZ TCF1136AM ZI63 #5 23303270 FILTER, CFILT 6.5MHZ, TCF1137AM ZI64 23303289 FILTER, TCF1141AM

CONNECTOR, PLUG, 3P 5MM B JALCO YKF21-0027

SPEAKER, 60X120 4-OHM 10W FOSTER SPK-1451AF SPEAKER, 60X120 4-OHM 10W FOSTER SPK-1451AF

MISCELLANEOUS

F470 23144647 FUSE, CARTRIDGE 5X20 250V 1.0A F470A 23165433 FUSE HOLDER, 5.2 SOC F470B 23165433 FUSE HOLDER, 5.2 SOC F801 23144508 FUSE, CARTRIDGE 5.2X20, 250V 4.0A F801A 23165433 FUSE HOLDER, 5.2 SOC F801B 23165433 FUSE HOLDER, 5.2 SOC F802 23144652 FUSE, CARTRIDGE 5X20 250V 3.15A F802A 23165433 FUSE HOLDER, 5.2 SOC F802B 23165433 FUSE HOLDER, 5.2 SOC M461A 23192962 ANODE CAP ASSY, TCC5606AT M461B 23509110 CABLE, FOCUS M461C 23509371 CABLE ASSY, SCREEN N724 #1 23965900

#2 23965900 #3 23965900 #4 23965900

N728 #1 23960101 SILICONE RUBBER, TSE-382 RTV

#2 23960101 SILICONE RUBBER, TSE-382 RTV #3 23960101 SILICONE RUBBER, TSE-382 RTV

#4 23960101 SILICONE RUBBER, TSE-382 RTV P661 23023116 PLUG, HEAD PHONE JACK 3.5MM PJ3-14-7 P801 #1 23372052 POWER CORD, 250V2.5A

#2 23372159 POWER CORD, CEE 250V 2.5A SILV 201

#3 23372168 POWER CORD, UK-HK VO 6A F13A

#4 23372199 POWER CORD, THAI THAI

#5 23372224 POWER CORD, CEE 250V 2.5A VIET M4206N P802 #1 23368249 POWER CORD, 2P 11.88MM VH-JST

#2 23368249 POWER CORD, 2P 11.88MM VH-JST

#3 23368249 POWER CORD, 2P 11.88MM VH-JST

TAPE, GLASS-CLOTH, W/ADHESIVE W=18 T=0.18 TAPE, GLASS-CLOTH, W/ADHESIVE W=18 T=0.18 TAPE, GLASS-CLOTH, W/ADHESIVE W=18 T=0.18 TAPE, GLASS-CLOTH, W/ADHESIVE W=18 T=0.18

PC BOARD ASSEMBLIES

U901 #1 23761146

PPICTURE TUBE

#2 23761146 #3 23761146 #4 23761146 #5 23761589

U902 #1 23761717

#2 23761598 #3 23761720 #4 23761721 #5 23761722

U903 #1 23761366

#2 23761366 #3 23761366 #4 23761366 #5 23761750

U904 #1 23761742

#2 23761599 #3 23761599 #4 23761599 #5 23761723

V901 #1 23312954 PICTURE TUBE, A51LVV896X, 21FFG02

#2 23312954 PICTURE TUBE, A51LVV896X, 21FFG02 #3 23312954 PICTURE TUBE, A51LVV896X, 21FFG02 #4 23312954 PICTURE TUBE, A51LVV896X, 21FFG02 #5 23324023

PC BOARD ASSY, PD0607C CRT/D TSP2003040360 PC BOARD ASSY, PD0607C CRT/D TSP2003040360 PC BOARD ASSY, PD0607C CRT/D TSP2003040360 PC BOARD ASSY, PD0607C CRT/D TSP2003040360 PC BOARD ASSY, PD0607D CRT/D TSP2003063034 PC BOARD ASSY, PD1525A SIG 21S TSP20030730122 PC BOARD ASSY, PD1526K SIG 21S TSP2003063043 PC BOARD ASSY, PD1526N SIG 21S TSP20030730125 PC BOARD ASSY, PD1526O SIG 21S TSP20030730126 PC BOARD ASSY, PD1526P SIG 21S TSP20030730127 PC BRD ASSY, IF STEREO PD1474A TSP2002050268 PC BRD ASSY, IF STEREO PD1474A TSP2002050268 PC BRD ASSY, IF STEREO PD1474A TSP2002050268 PC BRD ASSY, IF STEREO PD1474A TSP2002050268 PC BOARD ASSY, PD1346G IF/MONO TSP2003080802 PC BOARD ASSY, PD1421I CONT 21 TSP2003080401 PC BOARD ASSY, PD1421F CONT 21 TSP2003063044 PC BOARD ASSY, PD1421F CONT 21 TSP2003063044 PC BOARD ASSY, PD1421F CONT 21 TSP2003063044 PC BOARD ASSY, PD1421G CONT 21 TSP20030730128

PICTURE TUBE, 20VPF ITC ZERO A51LVV897X06

– 30 –

Page 31

Location Parts No. Description No.

TUNER

H001 #1 23321450 TUNER, ASIA HYPER FS D-J, ENV59DA7G3

#2 23321417 TUNER, ASIA MLT IICPLL D-J LG ECA33LX6

#2 23321428 TUNER, ASIA MLT IICPLL SANYO ECA33LX8

#2 23321452 TUNER, ASIA MLT IICPLL SAMSUNG ECA33LXB

#2 23321473 TUNER, ASIA MLT IICPLL SANYO ECA33LXC

#3 23321417 TUNER, ASIA MLT IICPLL D-J LG ECA33LX6

#3 23321428 TUNER, ASIA MLT IICPLL SANYO ECA33LX8

#3 23321452 TUNER, ASIA MLT IICPLL SAMSUNG ECA33LXB

#3 23321473 TUNER, ASIA MLT IICPLL SANYO ECA33LXC

#4 23321417 TUNER, ASIA MLT IICPLL D-J LG ECA33LX6

#4 23321428 TUNER, ASIA MLT IICPLL SANYO ECA33LX8

#4 23321452 TUNER, ASIA MLT IICPLL SAMSUNG ECA33LXB

#4 23321473 TUNER, ASIA MLT IICPLL SANYO ECA33LXC

#5 23321357 TUNER, ECA33LX1, ASIA MLT IICPLL D-J MATU

#5 23321450 TUNER, ASIA HYPER FS D-J, ENV59DA7G3

ACCESSORIES

K902 23306459 REMOCON HAND UNIT IR, CTVPAL CT-90119 Y101A #1 23566086 OWNER’S MANUAL

#2 23566085 OWNER’S MANUAL

#3 23566085 OWNER’S MANUAL

#4 23566085 OWNER’S MANUAL

#5 23566091 OWNER’S MANUAL Y101B #2 23566173 OWNER’S MANUAL

#3 23566089 OWNER’S MANUAL

#4 23566090 OWNER’S MANUAL Y120 23943846 BAG, POLY Y121 #2 23943846 BAG, POLY Y125 #5 23142083 ADAPTOR Y126 #5 23124081 ANTENNA, ROD TT-ANT07-TB

Location Parts No. Description No.

CABINET PARTS

A201 #1 23532479 COVER, FRONT ASSY TSP2003080612

#2 23532422 COVER, FRONT ASSY TSP2003070401

#3 23532482 COVER, FRONT ASSY TSP2003080615

#4 23532482 COVER, FRONT ASSY TSP2003080615

#5 23532483 COVER, FRONT ASSY TSP2003080616 A264 23929509 HOLDER, BUTTON A265 23445744 KNOB, POWER BUTTON TSP2003021909 A266 #1 23428257 DOOR, FRONT TSP2003080617

#2 23428251 DOOR, FRONT TSP2003070402

#3 23428259 DOOR, FRONT TSP2003080619

#4 23428259 DOOR, FRONT TSP2003080619

#5 23428218 DOOR, FRONT TSP2003021918 A270 23451204 PUSH CATCH A401 #1 23532018 COVER, BACK PROPER TSP2003021919

#2 23532018 COVER, BACK PROPER TSP2003021919

#3 23532018 COVER, BACK PROPER TSP2003021919

#4 23532018 COVER, BACK PROPER TSP2003021919 A701 #1 23067203 CARTON, BOX

#2 23067199 CARTON, BOX

#3 23067200 CARTON, BOX

#4 23067201 CARTON, BOX

#5 23067202 CARTON, BOX A702A #1 23946613 PACKING, TOP TSP2003050607

#2 23946613 PACKING, TOP TSP2003050607

#3 23946613 PACKING, TOP TSP2003050607

#4 23946613 PACKING, TOP TSP2003050607

#5 23946695 PACKING, TOP A702B #1 23946614 PACKING, BOTTOM TSP2003050608

#2 23946614 PACKING, BOTTOM TSP2003050608

#3 23946614 PACKING, BOTTOM TSP2003050608

#4 23946614 PACKING, BOTTOM TSP2003050608

#5 23946696 PACKING, BOTTOM AT03 23588765 REMOCON PART, BATTERY COVER, CT-90119 E501 23198694 WIRE, CRT EARTH, 21D7DXE E912 #1 23848729 WEDGE, YOKE HOLDING, 3 REQUIRED

#2 23848729 WEDGE, YOKE HOLDING, 3 REQUIRED

#3 23848729 WEDGE, YOKE HOLDING, 3 REQUIRED

#4 23848729 WEDGE, YOKE HOLDING, 3 REQUIRED

SPECIFIC INFORMATIONS

– 31 –

Page 32

SPECIFIC INFORMATIONS

THIS PAGE IS

INTENTIONALLY LEFT

BLANK.

– 32 –

Page 33

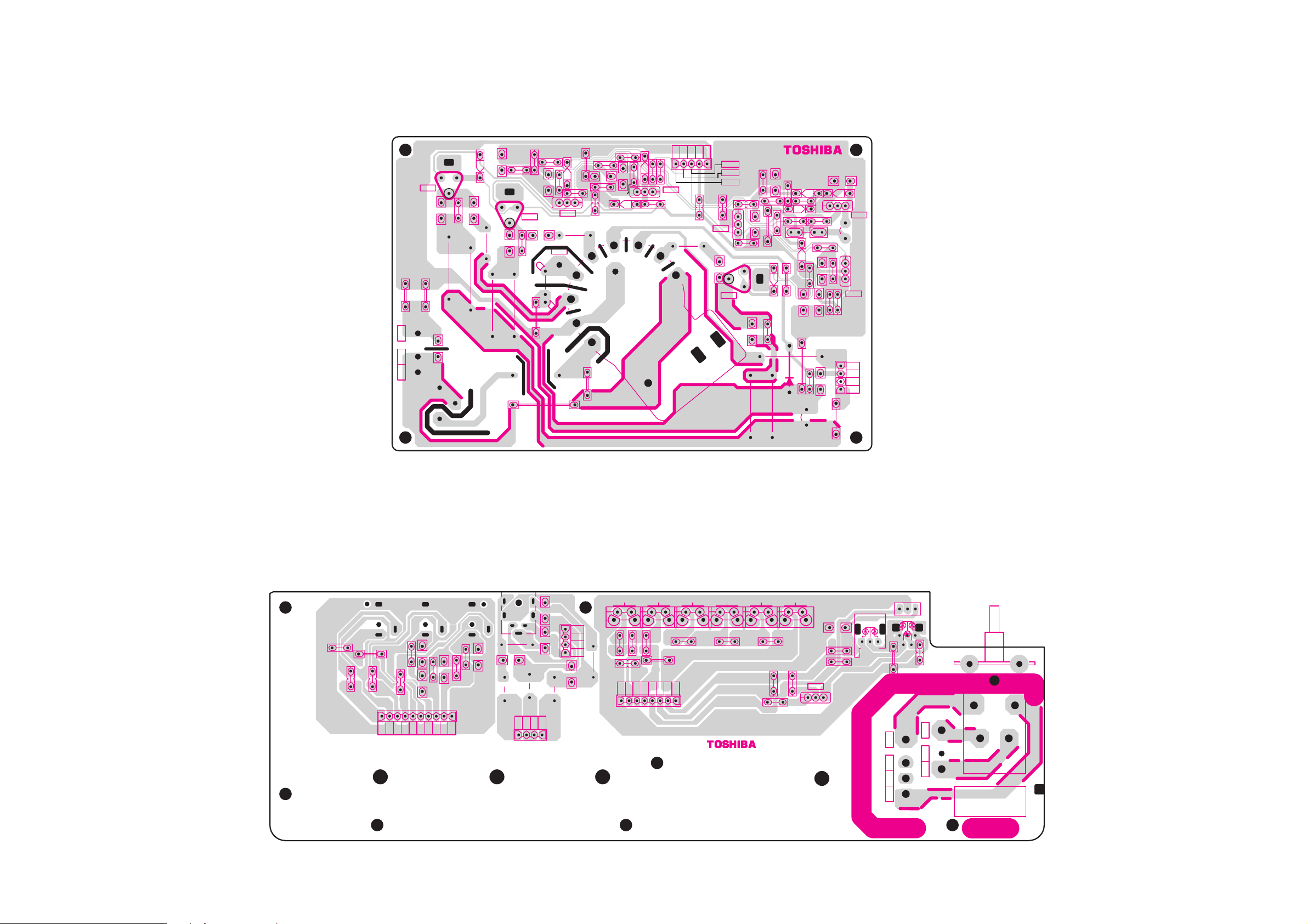

CRT/D BOARD PD0607C (21CSZ7DR/21SZ7DE/21SZ7SH/21SZ7ST) (U901)

CRT/D BOARD PD0607D (21SZ7VX) (U901)

BOTTOM (FOIL) SIDE

R925

Q901

TP47R

R942

R963

L905

R922

C906

P905

R946

C902

Q904

D905

R919

R901

R924

C905

D908

Q903

P900

32 31

L903

TP47G

R943

R961

C930

L906

R964

R902

L902

R960

R918

R917

C904

C903

R915

D907

V901A

R916

R912

D904

R914

Q902

P501B

2021222324

R921

R903

CCP-3400

TP46B

TP46G

TP46R

Q907

TP47B

L907

C Q905

R977

R935

L904

R965

C915

R932

R944

R928

D909

R920

R962

23546994

R934

C911

D903

D910

R905

R936

D906

R926

C913

D911

C909

R904

C907

D901

C908

R992

R909

R945

C931

R929

R937

L900

C910

C912

R930

P502B

Q906

Q908

14 13 12 11

RV17

FRONT AV BOARD PD1421I (21CSZ7DR) (U904)

FRONT AV BOARD PD1421F (21SZ7DE/21SZ7SH/21SZ7ST) (U904)

FRONT AV BOARD PD1421G (21SZ7VX) (U904)

BOTTOM (FOIL) SIDE

PV01

23547434

SA06 SA04

RS62

CC32

LC01

P611B

CC31

CC30

P611

CC33

LC03

4321

MENU VIDEO VOL/DN VOL/UP CH/DN CH/UP

RA44

PA1 1 B

RA43

RA40

87654321

RA45

4321

RS61

P661

RV03

RV02

CV04

RV04

CV02

CV03

P511B

CV01

RV01

12345679810

LC02

SA03 SA02

MCL-437F

RA42RA41

RB03

RB04

RB02

SA01SA07

RB09

RB01

QB02

CB01

KB01

DB02A

DB02

DB01

DB01Z

S801

P802B

P803B

CAUTION

LIVE AREA

– 33 – – 34 –

Page 34

MAIN BOARD PD1525A (21CSZ7DR) (U902)

MAIN BOARD PD1526K (21SZ7DE) (U902) MAIN BOARD PD1526N (21SZ7SH) (U902)

MAIN BOARD PD1526O(21SZ7ST) (U902)

MAIN BOARD PD1526P (21SZ7VX) (U902)

BOTTOM (FOIL) SIDE

G403

P499

D432

R410

R433

C4300

E B

D432

R410

Q402

R411

R415

C413

T401

R461

R4605

Z401

T400

Q430

C417

C416

GJ402

R467

Q462

R4602

R4604

R4603

R4605R466

R4602

R4604

Q463

D463

Q463

Q461

R464

R466

Q461

R464

R441

R429

G402

C463

Q404

C440

D444

C443

C444

P498

R400

C419

Q403

GJ402

Q465

R465

D462

GJ403

D463

GJ403

10 9

R431

C415

R431

C415

C4300

Q431

R417

Q403

C418

R469

GJ401

Q464

Q465

R468

R4606

GJ404

GJ405

C465

D462

R463

Q460

R463

R492

R337

C326

R460

Q320

L320

R322

R337

JR001

GJ16

R322

GJ16

JR001

CEC

Q321

Q320

R321

R323

Q321

C337

R323

C321

R324

C337

C314

C322

R329

R330

C466

D431

R321

R432

R434

R417

R419

R420

C418

R420

R418

R4607

Q464

R4607

R4606

R462

L441

654

D442

R345

GR301

C308

GR30

R309

D308

D301

R314

GJ331

C325

D310

R331

R319

Q301

C309

R319

R310

D310

462

L442

C496

C439

C311

G309

C313

C312

D305

D303

R303

R305

C306

C315

C323

C324

C315

R325

R326

R328

C442

L461

G461

C464

D461

P704A

D406

R416

R470

R101

R471

R479

P903B

C447

R344

C341

R342

R349

C342

R349

Q208

R231

R232

Q208

Q200

R230

R228

Q200

R228

R229

C220

R229

R218

R227

R4740

R4630

R4740

Q340

R341

R231

D471

R341

R343

R233

P401

D467

R474

C467

C448

C473

C310

T461

D302

C303

449

R448

327 R

D408

R217

C445

R403

C402

R472

D441

Q471

R4630

Q4840

R843

C4880

C471

R4701

R4810

R4702

Q4840

R4701

R4704

R4620

R4810

C4700

R4702

R4620

D4810

C4700

R4704

L301

C3030

C363

C E

Q842

C472

Q4860

D4810

R4670

R4680

P497R

P497X

D340

L503

Q210

D210

R215

C210

R4703

D4700

D4701

C4701

R363

R336

Z891

C898

R842

D848

R865 R868

Q805

C470

R473

Q4860

R4770

R4820

R4650

R4820

D4840

PA1 1 A

C501

RB05

CB05

RB05

CA14

LA01

CA15

CA14

CA15

CA09

R213

Q211

R213

Q211

Q210

D210

R211

R214

R212

R215

R212

R214

D211

C469

Q4030

R4710

R408

R4711

R4710

C469

R408

R4715

R4714

R4711

Q4030

R4713

C404

R4713

R4714

C404

R4712

C4712

R4716

Q4710

R4716

D4710

C498

C4710

Q4710

C4712

L885

F470

T1A L/250V

D883

L883

C893

T862

D891

C899

L891

C891

C885

D885

Q841

TE6

QB05

RA11

RA12

QA10

R210

RA74

R210

RA74

DA78

R211

RJ01

RJ02

R409

C405

R406

C403

R407

D4710

L886

R898

C889

D882

Q883

Q843

D470

R4760

C841

L506

L501

RA55

CA55

RA65

CA55

RA55

CA56

RA66

RA56

CA56

CA54

CA61

TE1

RB48

TE2

RB48

RB49

JR002

TE3

TE7

TE8

QA71

CA65

QA71

CA65

DA78

RJ01

RS27

CS29

RS27

R409

RS21

RS22

RS21

RS20

C405

R406

RS20

RS24

C403

QS02

RS24

QS01

QS02

C624

G815

L889

R899

D828

C846

R846

L893

C842

C840

R844

C503

RA65

RA66

RA72

RS19

QS01

R840

C502

C543

C547

RA54

L502

RA54

RA50

XA03

RA61

CA60

TE5

LA02

LA102

LA72

RA76

CA72

RA76 RA72

CA73

LA73

RA59

RA59 RA79

QV02

RV25

RS19

RS23

R624

R623

Q623

R623

R545

CA48

C500

CA49

C500

CA48

RA49

RA50

RA49

R501

CA51

CA50

CA51

RA70

QA51

CA72

CA77

CA73

RA77

TE4

RA01

RA80

RA79

RA81

Q104

R121

Q104

R121

RV26

RV21

CV36

CV34

QS04

CS10

CS11

QS04

RS04

QS03

RS04

Q623

RS03

CS15

RS01

RS03

C811

D811

C833

R828

R821

R827

Q840

R512

C739

R512

R545

R502

R544

R513

R501

R513

R401

R515

R544

R515

R320

C407

QA51

C201

RA05

R225

RA03

RA05

RA69

R225

RA69

C200

RA04

CA82

R202

JR003

RV24

C212

Q201

R200

RS02

QS03

CS15

CAUTION LIVE AREA

F802

T3.15A L/250V

C808

D810

D818

R822

C818

L811

C809

R824

R819

D806

C815

Q826

R700

R701

R701 C700

C700

D840

C430

R4601

R402

R320

R401

C407

C409

C205

C202

C205

C202

C203

C206

R702

C431

C320

C462

GR45

L505

L507

C401

C408

R404

D474

C408

C406

R402

C406

R4200

R405

C4200

R424

R425

C4200

R424

R4200

R405

C476

C475

D473

C476

R221

R219

C221

R222

R221

R220

C221

R222

R220

C207

C208

C207

C209

R216

C204

Q202

R208

R204

R208

Q202

R204

GJ57

R202

GJ57

R201

GJ48

C213

GJ48

R201

L208

GJ49

CC26

RC17

RC16

CC25

RC17

CC25

RC16

MON OUT COMPORNENT

QV04

CV33

RV11

Q835

RV01

QV01

RS05

DV01

CV22

RV12

JR009

QV01

PV03

432

P611A

RV31

CV05

C830

CV02

JR011

C805

R810

P497

R813

D801

R814

L806

P910

R808

R812

R811

C812

SR83

SR81

D845

C813

C810

T802

G107

G109

R801

C801

M804A

T801

T4A L/250V

10 5

D683

D682

R686

R672

R673

R672

C672

U903

B903A

D101

C106

C105

C110

LC04

C101

Q672

P511A

D680

C665

LC05

F801

D680

Q610

C667

R666

R664

R666

R664 R665

R665

Q671

Q672

Q671

R671

OUT

C834

G103

5432

G106

LC03

LC02

LC01

C831

OUT

R675

RV90

CV06

RV91

RS14

RV13

CV11

RV13

RV30

CV11

JR010

JR011

JR010

DV02

CC08

RS06

RV14

RC13

CS07

RS06

RC13

C682

CC14

R687

D673

D670

C681

D673

D670

D681

C687

D681

D672

D671

RJ05

D683

C686

C670

R673

RJ05

C683

C671

Q670

R675

D674

R674

D674

R674

RV90

CV03

CS02

CV03

CC20

RS14

CS03

CC20

RS15

RV93

RS15

RV30

QV03

CS12

JR008

QV03

JR008

RV16

RV29

RV05

RV15

RS11

RV15

RS11

CV19

32V

CC01

+5V

SDA

RS10

SCL

RS10

GJ06

GJ07

GJ06

ADR

GJ07

H001

AGC

CS13

C666

C690

R667

R663

C664

C802

P802A

G105

C814

BLU

P802

BRN

G104

C663

R662

R667

R663

C668

C662

R661

C661

R660

C660

R660

Q830

GND

C832

L101

C103

MCL-437F

P496

23547492

L805

L828

C806

R803

Q802

D815

D804

C823

C817

C822

Q801

R805

R818

D805

R815

R807

D809

R829

P803A

R823

C821

C816

C819

G108

L888

R704

R700

R704

R703

Q701

R710

R703

R705

R710

Q701

Q703

R705

R706

Q703

R706

Q702

R708

Q502

R404

C410

R425

C211

Q205

R205

CC28

DV04

RV10

JR007

RV10

CV20

GJ58

RV06

GJ58 R203

CC10

RV07

GJ50

R203

GJ50

RV07

L209

GJ51

JR004

PV02

RV34

RV33

1234567

C512

C511

C512

C511

E B

Q702

R708

P902A

C510

R709

C510

R520

R521

R709

R707

R522

R520

R521

R522

R707

Q502

C561

C560

RV92

CV01

RV92

R206

QV04

GJ05

RV01

GJ52

R207

GJ05

CV02

R207

RV04

Q205

RV04

CV33

RV02

RS18

RV11

CC28

RS17

CS04

CS05

RV06

CS06

CC09

RS07

CV22

CC09

RS07

RC14

CC10

RS08

CV04

RV12

RC12

RC14

RS08

RV03

JR004

RV03

RC12

CC07

CC07 RS05

RC15

– 35 – – 36 –

Page 35

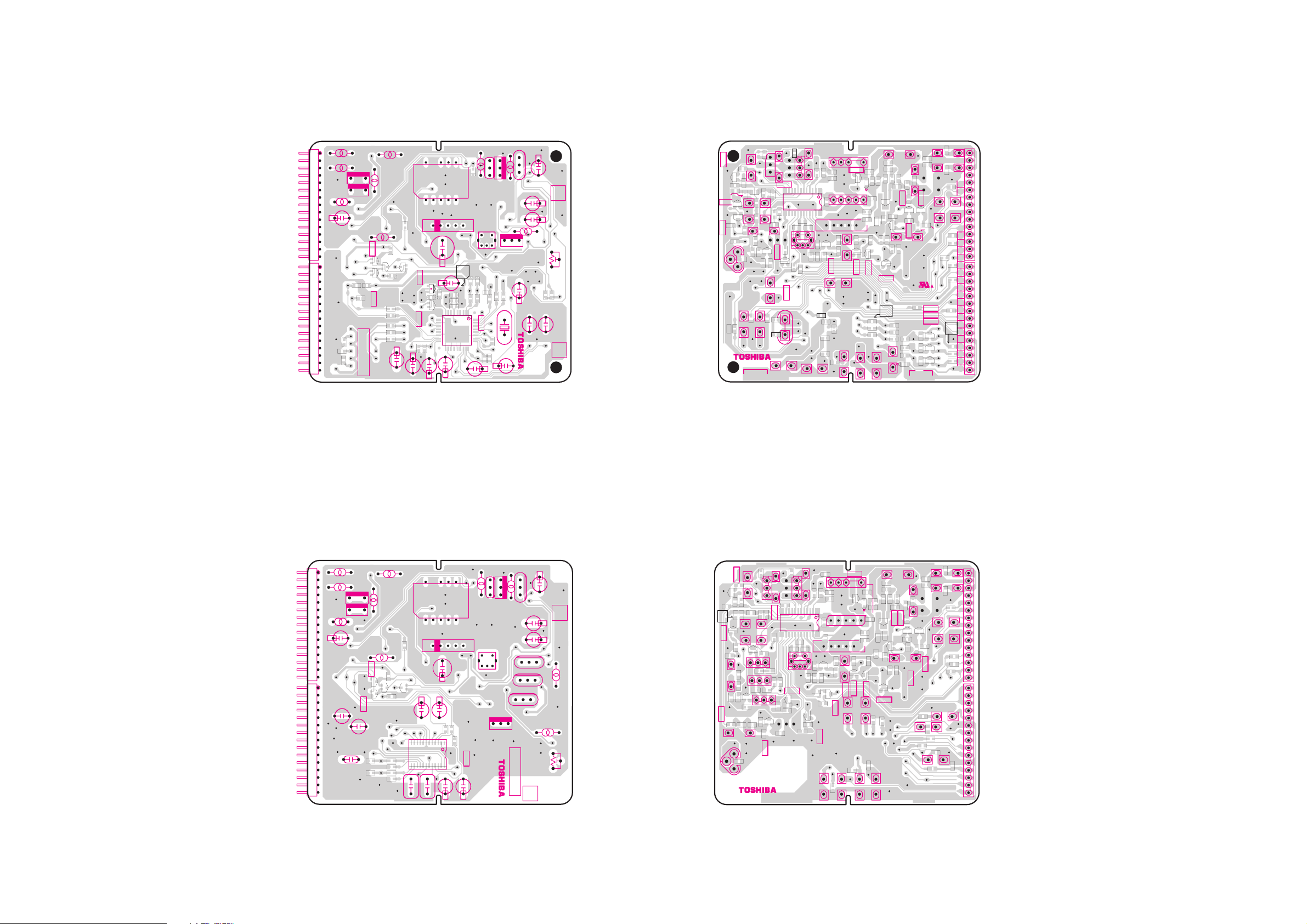

IF STEREO BOARD PD1474A

(21CSZ7DR/21SZ7DE/21SZ7SH/21SZ7ST) (U903)

TOP (COMPONENT) SIDE

CI31

LI57

LI03

LI56

LI01

LI10

ZI54 ZI55

QI17

DI01

QI16QI17

RD08

CD30

RD08

CD30

QI16

CD31

RD10

CD31

RD09

RD06

CD35 CD34

23599848A

RD06

RD04

RD05

CD25

CD02

RD05

ZI01

RI40

LI04

RI85

DI02

QD02

RI84

RD10

QD06

RD09

CD35

CD14

CD13

CD34

CD25

CD14

CD13

CD15

CD01

RD02

RI41

ZI05

LI06

ZI06

LI07

ZI02

CI10

CD22

CD21

CD17

CD18

CD08

CD21

CD22

CD19

QD02

RD02

RD16

CD17

RD15

CD39

QD06

CD39

RD16

CD18

CD19

QD01

CD07

CD24

RD15

LI54

CD11

CD03

RD01

CD12

CD04

CD05

GRI02

CI08

ZI64

GRI01

GRI02

XD01

CD12

CI17

ZI07

CI18

LI61

RI51

GRI04

CD16

CD10

GRI03

GRI04

GRI03

CD09

PD1474

PI01A

15 16

PI02A

RD04

IF STEREO BOARD PD1474A

(21CSZ7DR/21SZ7DE/21SZ7SH/21SZ7ST) (U903)

BOTTOM (FOIL) SIDE

LI01

RI45

RI87

RD20

RI03

RI45

LI04

RD27

CI57

LI57

CI57

RI52

RI01

CI56

RI01

ZI54

RI47

GRI09

ZI55

QI06

QI06 QI12

LI10

RI46

CI15

GRI08

RI46

CI15

GRI07

RI83

RD20

QD05

QD03 QD04

RD11

QD05

RD11

QD03 QD04

RD25

RD27

RD22

RD21

RD19

RD18 RD17 RD13

CI56

LI56

RI47

PI01A

CI31

10152025

GRI08

GRI07

RI83

RD22

RD21

RD19

PI02A

RD18

RD17

RD13

RI20

RI81 RI21

QI81

QI92

QI04

RI17

CI17

RI18

RI14

QI04

RI20

CI18

RI14

RI81

CI12

RI21

RI61

QI81

RI61

CI60

QI92

CI60

CI81

CI08

LI61

RI82

RI32

RI79

CI61

RI67

CI61

RI33

RI51

CD09

CD10

CD28

CD26

CD27

CD26

CD27

23547474

RI16

ZI07

RI16

RI17

ZI05

LI07

ZI06

CI12

QI01

RI68

QI61

RI69

CD29

LI06

RI15

QI01

RI80

RI15

RI92

RI80

RI92

CI25

CI91

CI21

ZI64

LI54

RI91

QI61

QI60

GRI06

GRI05

RI69

GRI05

CD16

GRI06

QI60

CD37

XD01

CD37

CD36

CD38

CI13

CI91

RI67

RI68

CD29

CD38

DS-1107

CD05

ZI01

RI31

RI30

RI42

CI30

RI42

RI30

RI08

ZI02

CI20

CI09

QI71

RI71

RI73

CI71

RI74

RI72

RI73

QI71

CI71

RI74

RI72

RI71

CI10

CD08

LD01

CD36

LD02

RD07

LD02

RD07

CD23

CD06

CD24

QI07

CI04

RI10

CD07

RI10

QI08

LI03

QI07

RI11

QI08

RI09

RI13

CI03

RI13

CI03

RI06

RI05

RI02

CI14

RI12

CI02

RI02

RI06

RI05

RI04

DI03

RI12

RI11

CI04

QI09

RD24

RD23

RD14

CD01

RI04

CI02

CI05

QI02

RI03

QI02

CI05

RI44

CI06

RI44

CI06

RI07

QI05

RI07

QI05

RI19

QI12

CI01

RI43

RI88

RI87

CI01

QI15

RI88

QI15

RD24 RD23 RD14

CD33

CD32

CD20

RD12

CD20

RD26 RD26 RD28

CD02

RD28

DD01

CD15

IF/MONO BOARD PD1346G (21SZ7VX) (U903)

TOP (COMPONENT) SIDE

PI01A

PI02A

LI57

ZI54

LI56

LI10

LI03

LI01

ZI01

ZI55

QI17

RI40

LI04

RI85

QI17

DI01

DI02

QI16

DI02

RI84

C621

CI31

C641

QI16

C642

C628

R628

C628

C627

C625

C630

C627 R627

C625

R627

C626

C632

ZI06

ZI05

LI06

LI07

ZI02

CI10

LI51

ZI61

ZI07

CI17

CI18

CI08

ZI62

LI91

C620

GR601

GR602

GR601

R623

Q620

C634

Q620

C636

C640

ZI63

ZI64

23599749A

LI61

PD1346

RI51

IF/MONO BOARD PD1346G (21SZ7VX) (U903)

BOTTOM (FOIL) SIDE

LI06

CI17

QI04

RI18

QI04

RI14

GJ02

RI14

GJ02

RI20

RI21

RI81

CI12

RI21

RI81

QI81

RI82

QI92

CI81

RI91

CI92

LI91

RI91

CI90

RI99

QI91

RI97

CI91

RI99

CI91

RI98

RI97

CI60

QI91

RI61

CI61

CI60

RI61

LI61

RI16

ZI07

RI17

LI07

ZI05

GJ04

RI19

CI13

CI12

QI01

RI19

CI18

RI79

CI25

CI08

RI79

QI92

CI21

RI80

ZI62

LI51

RI78

CI92

RI78

ZI61

RI32

RI77

CI93

QI63

CI93

QI63

GJ03

RI63

ZI63

CI63

RI63

CI63

RI67

QI61

RI67

RI68

RI69

ZI64

RI69

RI68

RI41

QI07

RI16

RI30

RI31

RI42

GJ04

RI32

GJ03

CI30

RI31

RI42

ZI06

CI30

RI30

QI01

RI08

GJ01 ZI02

CI25

GJ01

CI20

CI21

CI20

QI71

RI71

RI74

RI72

CI71

RI71

CI71

RI74

RI72

CI65

RI65

QI64

CI62

RI62

QI64

ZI01

QI07

D103

RI08

RI11

RI11 CI04

CI09

RI10

CI09

RI10

QI08

CI10

RI73

QI09

RI73

QI65

QI08

QI71

QI65

C620

C621

RI09

CI03

RI13

RI12

CI14RI04

CI05

RI07

CI04

RI15

QI09

C622

LI03

RI09

LI01

RI02

RI06

RI05

CI03

RI02

RI05

RI06

RI12

RI07

CI01

GRI09

CI02

GRI09

CI02

RI04 CI14

RI03

QI05

QI02

RI03

QI02

CI06

QI06

QI12

RI45

CI06

RI44

RI45

CI16

QI05

RI43

RI44

CI16

RI88

RI87

LI04

RI87

RI88

QI12

QI15

C623

R624

C642

R625

R630

QI61

RI33

RI51

DS-1107A

23547395

C636

C635

C640

C635

C631

C633

C634

C631

C632

C630

CI57

RI52

CI57

RI52

RI01

CI56

LI56

ZI54

ZI55

RI46

QI06

RI83

C641

R624

R625

R629

R630

C629

R626

LI57

CI56

RI47

PI01A

LI10

10152025

CI31

GRI01 GRI02

GRI01

GRI02

RI83

PI02A

C624

– 37 – – 38 –

Page 36

THIS PAGE IS

INTENTIONALLY LEFT

BLANK.

– 40 –– 39 –

Page 37

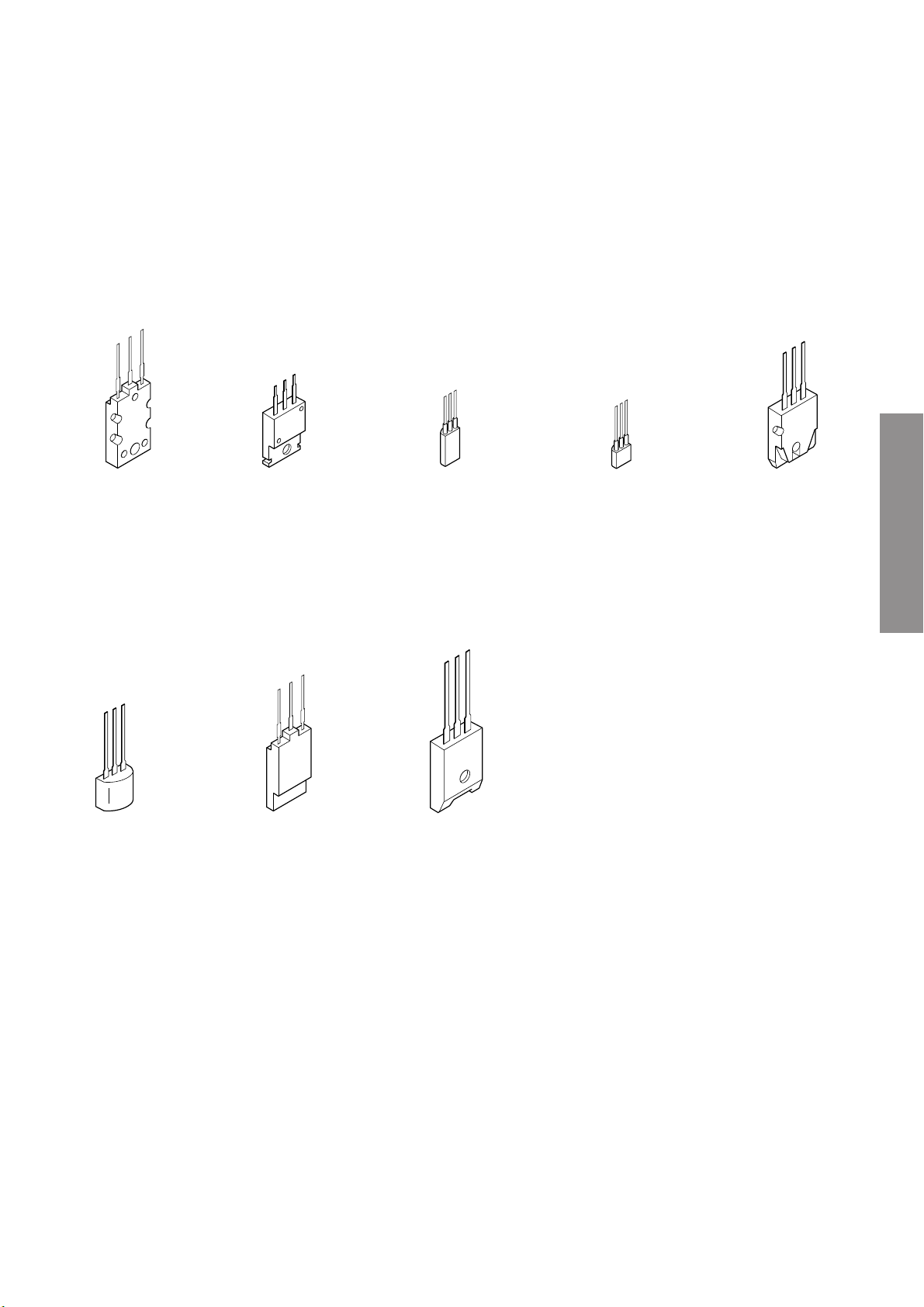

TERMINAL VIEW OF TRANSISTORS

 2SD2253

(old) 2SC5243

 RN2203

RN2201 RN2004 RN1203 RN1204 RN2204 RN1205 RN1202 RN1201

 2SC3852

2SD1763A 2SC1569 2SC4544 2SA1788 2SA1306 2SA1186A

 2SD1554

2SD2253 2SD1556 2SC5143

 2SC752GTM

2SC2482 2SC2655 2SC4721P

 ON4409

 2SC752

2SA562TM 2SA1015 2SC1815 2SC2878 2SC1740S 2SC2120 2SA9335

 2SA1788

SPECIFIC INFORMATIONS

– 41 –

Page 38

SPECIFIC INFORMATIONS

THIS PAGE IS

INTENTIONALLY LEFT

BLANK.

– 42 –

Page 39

SCHEMATIC DIAGRAM

MODEL :

WARNING: BEFORE SERVICING THIS CHASSIS, READ THE "X-RAY RADIATION PRECAUTION", "SAFETY

PRECAUTION" AND "PRODUCT SAFETY NOTICE" ON THE MANUAL FOR THIS MODEL.

CAUTION: The international hazard symbols " " in the schematic diagram and the parts list designate components which have special characteristics important for safety and should be replaced only with types identical to those in the original circuit or specified in the parts list. The mounting position of replacements is to be identical with originals. Before replacing any of these components, read carefully the PRODUCT SAFETY NOTICE on the MANUAL for this model. Do not degrade the safety of the receiver through improper servicing.

NOTE:

1. RESISTOR Resistance is shown in ohm [K = 1.000, M = 1.000.000]. All resistors are 1/6W and 5% tolerance

2. CAPACITOR Unless otherwise noted in schematic, all capacitor values less than 1 are expressed in

3. The parts indicated with "

4. Voltages read with DIGITAL MULTI-METER from point indicated to chassing ground, using a color bar signal with all controls at normal, line voltage at 220 volts.

5. Waveforms are taken receiving color bar signal with enough sensitivity.

6. Voltage reading shown are nominal values and may vary ±20% except H.V.

21CSZ7DR/21SZ7DE/21SZ7SH/21SZ7ST/21SZ7VX

carbon resistor, unless otherwise noted as the following marks. 1/2R = Metal or Metal oxide of 1/2 watt 1/2S = Carbon compsistion of 1/2 watt 1RF = Fuse resistor of 1 watt 10W = Cement of 10 watt

±10% G = ±2% F = ±1%

K =

F, and the values more than 1 in pF. All capacitors are ceramic 50V, unless otherwise noted as the following marks.

Electolytic capacitor

" have special characteristics, and should be replaced with identical parts only.

Mylar capacitor

SPECIFIC INFORMATIONS

SCHEMATIC DIAGRAM STRUCTURE:

– MAIN Circuit TUNER [ SHEET– 1/9 ] ........................ 1/12

– AV SW [ SHEET– 2/9 ] ........................ 2/12

– VERT [ SHEET– 3/9 ] ........................ 3/12

– HDEF [ SHEET– 4/9 ] ........................4/12

– VCD/MICON [ SHEET– 5/9 ] ........................ 5/12

– A-PRO/AUDIO-AMP [ SHEET– 6/9 ] ........................ 6/12

– PROTECTOR [ SHEET– 7/9 ] ........................ 7/12

– POWER [ SHEET– 8/9 ] ........................ 8/12

– LOW B REG [ SHEET– 9/9 ] ........................ 9/12

– CRT DRIVE Circuit ........................................................................................................................ 10/12

– FRONT AV Circuit.......................................................................................................................... 11/12

– IF Circuit ........................................................................................................................................ 12/12

– 43 –

Page 40

CRT

H.V.

Q610

SPECIFIC INFORMATIONS

V901

F.B.T.

C BUS CONTROL BLOCK

D.Y.

R/G/BR/G/B

HEAD PHONE

VSM

AUDIO AMP

VIDEO DRIVE

Q901,Q903,Q905

Q711,Q712

V_DY_Y

V_DY_G

V. DRIVE

Q301

H OUT

V OUT

H. DRIVE

Q402-Q404

Q460-Q463,Q465

POWER ON/OFF

CIRCUIT BLOCK DIAGRAM

AV SW

QV01

TV_VIDEO

TV_L/R

SP_L/W/R

AUDIO_L/R

QI01, Q620

H001

TUNER

VIDEO

QA51

(1)

AV IN

(2)

AV IN

(3)

AV IN

(FRONT)

MICROPROCESSOR

VIDEO

CHROMA

DEF

COMB

C BUS

VIDEO

OUTPUT

MONITOR

TEXT

+B VOLTAGE

SCL

SDA

T862

MEMORY

QA10

Q801

D801

VIDEO INPUT

COMPONENT

– +

RESET

Q841,Q842

Q826

CONVERTER TRANS.

HYBRID

– 44 –

Page 41

SPECIFICATIONS

MODEL

Rated voltage

Power consumption (at ~ 220V 50Hz)

Dimensions (Width x Depth x Height)

Mass Picture Tube

Television system Channel (Aerial input) coverage

Special RF Color system: NTSC4.43 signal

Color system PAL / SECAM / NTSC4.43 / NTSC3.58

Sound output 10 W x 2

Terminals Input: Video, Audio L/MONO, Audio R

Speaker 6 x 12cm (2)

~ 220 - 240V, 50Hz

613(W) X 487(D) X 470(H) mm

Type 21

System Channel VHF UHF CATV

PAL B/G CCIR 2 - 12 21 - 69 X~Z+2, S1~S41 PAL I UK –– 21 - 69 –– PAL D/K CHINA 1 -12 13 - 57 Z-1~ Z-38 SECAM B/G CCIR 2 - 12 21 - 69 X~Z+2, S1~S41 SECAM D/K OIRT 1 -12 21 - 69 X1~X19 NTSC M US 2 -13 14 - 69 A-6~A-1, A~W, AA~ZZ, AAA, BBB NTSC M JAPAN 1 -12 13 - 62 M1~M10, S1~41

Sound system: 5.5/6.0/6.5 MHz

DVD Component input: Video/Y, PB/CB, PR/CR, Audio L/MONO, Audio R

Monitor output: Video, Audio L/MONO, Audio R

Headphone output: Ø 3.5 mm (mini jack stereo type)

Flat square picture tube (549.1mm) Overall picture tube measured diagonally (505.5mm) Viewable picture tube measured diagonally 90° deflection

21SZ7SH21SZ7DE21CSZ7DR 21SZ7ST 21SZ7VX

~ 110 - 240V, 50/60Hz

125W

23.4kg

SPECIFIC INFORMATIONS

* Please refer to owner's manual in detail.

– 29 –

– END –

Page 42

TOSHIBA CORPORATION

1-1, SHIBAURA 1- CHOME, MINATO-KU, TOKYO 105-8001, JAPAN

Page 43

SCHEMATIC DIAGRAM

MODEL :

WARNING: BEFORE SERVICING THIS CHASSIS, READ THE "X-RAY RADIATION PRECAUTION", "SAFETY

PRECAUTION" AND "PRODUCT SAFETY NOTICE" ON THE MANUAL FOR THIS MODEL.

CAUTION: The international hazard symbols " " in the schematic diagram and the parts list designate components which have special characteristics important for safety and should be replaced only with types identical to those in the original circuit or specified in the parts list. The mounting position of replacements is to be identical with originals. Before replacing any of these components, read carefully the PRODUCT SAFETY NOTICE on the MANUAL for this model. Do not degrade the safety of the receiver through improper servicing.

NOTE:

1. RESISTOR Resistance is shown in ohm [K = 1.000, M = 1.000.000]. All resistors are 1/6W and 5% tolerance

2. CAPACITOR Unless otherwise noted in schematic, all capacitor values less than 1 are expressed in

3. The parts indicated with "

4. Voltages read with DIGITAL MULTI-METER from point indicated to chassing ground, using a color bar signal with all controls at normal, line voltage at 220 volts.

5. Waveforms are taken receiving color bar signal with enough sensitivity.

6. Voltage reading shown are nominal values and may vary ±20% except H.V.

21CSZ7DR/21SZ7DE/21SZ7SH/21SZ7ST/21SZ7VX

carbon resistor, unless otherwise noted as the following marks. 1/2R = Metal or Metal oxide of 1/2 watt 1/2S = Carbon compsistion of 1/2 watt 1RF = Fuse resistor of 1 watt 10W = Cement of 10 watt

±10% G = ±2% F = ±1%

K =

F, and the values more than 1 in pF. All capacitors are ceramic 50V, unless otherwise noted as the following marks.

Electolytic capacitor Mylar capacitor

" have special characteristics, and should be replaced with identical parts only.

SCHEMATIC DIAGRAM STRUCTURE:

– MAIN Circuit TUNER [ SHEET– 1/9 ] ........................ 1/12

– AV SW [ SHEET– 2/9 ] ........................ 2/12

– VERT [ SHEET– 3/9 ] ........................ 3/12

– HDEF [ SHEET– 4/9 ] ........................4/12

– VCD/MICON [ SHEET– 5/9 ] ........................ 5/12

– A-PRO/AUDIO-AMP [ SHEET– 6/9 ] ........................ 6/12

– PROTECTOR [ SHEET– 7/9 ] ........................ 7/12

– POWER [ SHEET– 8/9 ] ........................ 8/12

– LOW B REG [ SHEET– 9/9 ] ........................ 9/12

– CRT DRIVE Circuit ........................................................................................................................ 10/12

– FRONT AV Circuit.......................................................................................................................... 11/12

– IF Circuit ........................................................................................................................................ 12/12

– 43 –

Page 44

CRT

H.V.

Q610

SPECIFIC INFORMATIONS

V901

F.B.T.

C BUS CONTROL BLOCK

D.Y.

R/G/BR/G/B

HEAD PHONE

VSM

AUDIO AMP

VIDEO DRIVE

Q901,Q903,Q905

Q711,Q712

V_DY_Y

V_DY_G

V. DRIVE

Q301

H OUT

V OUT

H. DRIVE

Q402-Q404

Q460-Q463,Q465

POWER ON/OFF

CIRCUIT BLOCK DIAGRAM

AV SW

QV01

TV_VIDEO

TV_L/R

SP_L/W/R

AUDIO_L/R

QI01, Q620

H001

TUNER

VIDEO

QA51

(1)

AV IN

(2)

AV IN

(3)

AV IN

(FRONT)

MICROPROCESSOR

VIDEO

CHROMA

DEF

COMB

C BUS

VIDEO

OUTPUT

MONITOR

TEXT

+B VOLTAGE

SCL

SDA

T862

MEMORY

QA10

Q801

D801

VIDEO INPUT

COMPONENT

– +

RESET

Q841,Q842

Q826

CONVERTER TRANS.

HYBRID

– 44 –

Page 45

4.5V 4.5V 5.0V 3 2.0V

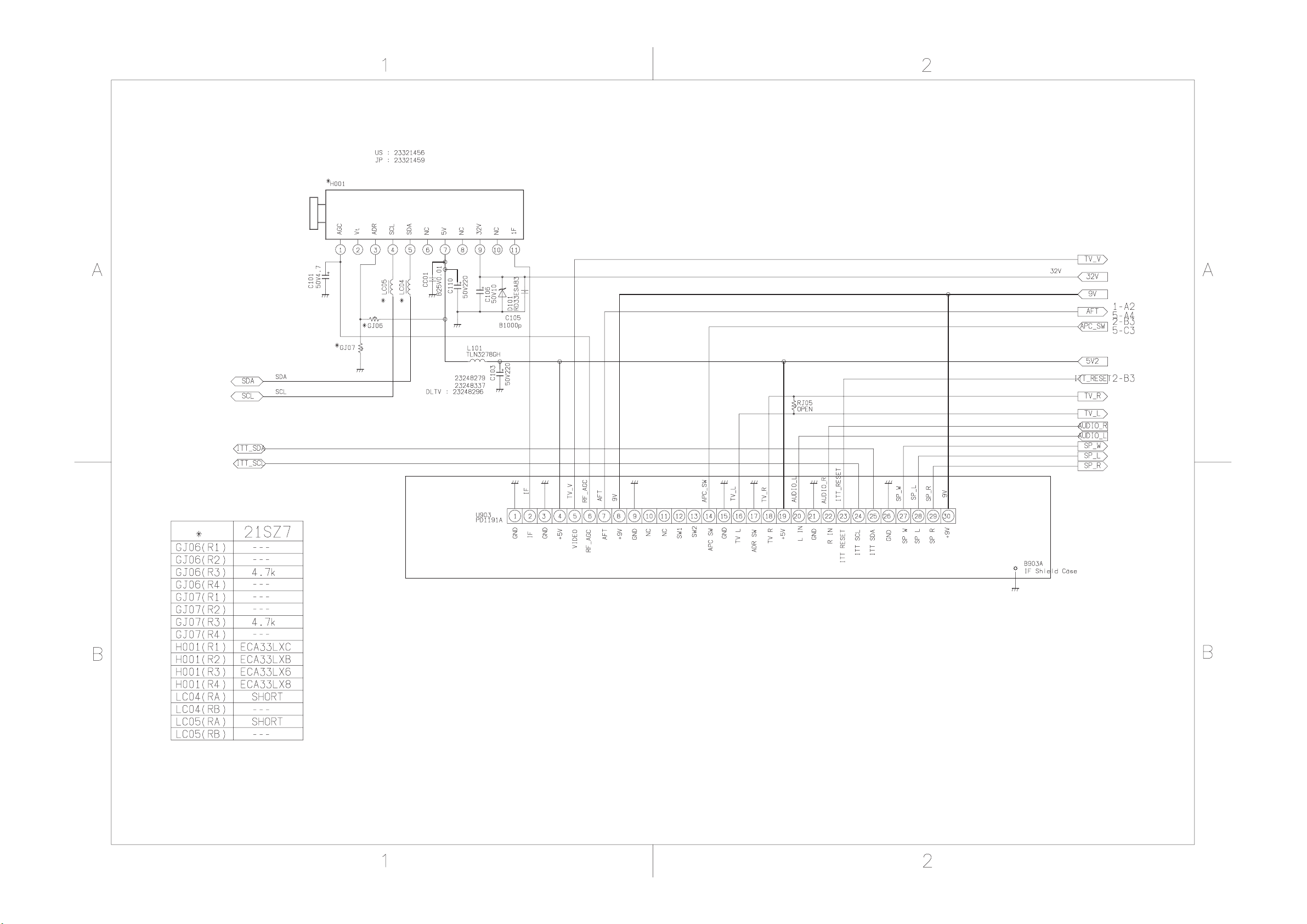

21CSZ7DR/21SZ7DE/21SZ7SH/21SZ7ST/21SZ7VX MAIN (TUNER) SHEET-1/9

(1/12)

Page 46

2.0Vp-p

3.8V

4.0V

4.5V

4.0V

3.8V

9.0V

3.8V

9.0V

5.2V

4.0V

5.2V

3.5V

3.3V

4.0V

5.2V

9.0V

4.0V

3.4V

9.0V

4.0V

3.4V

9.0V

4.5V

3.9V

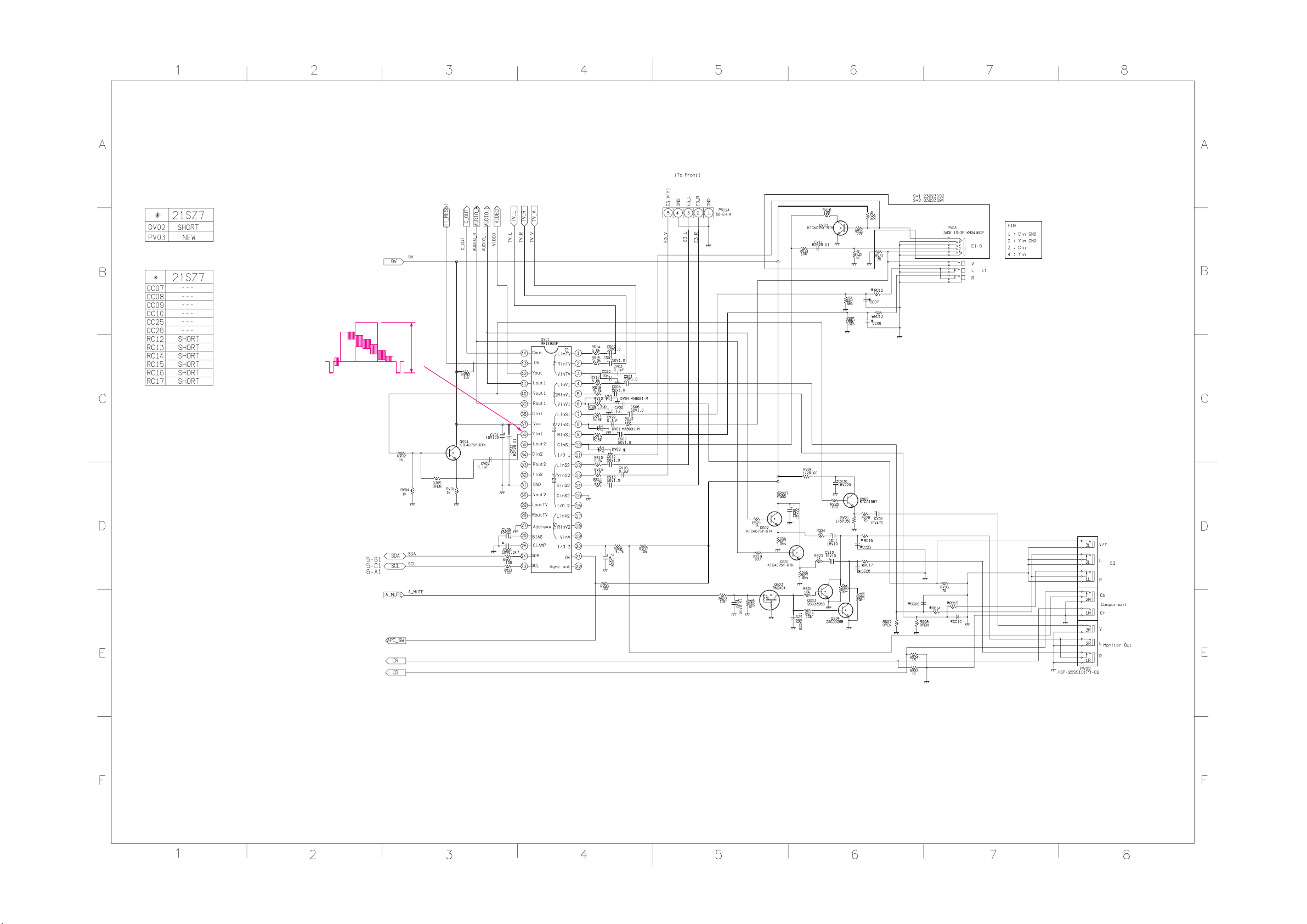

21CSZ7DR/21SZ7DE/21SZ7SH/21SZ7ST/21SZ7VX MAIN (AV SW) SHEET-2/9

(2/12)

Page 47

27.0V 0V

21CSZ7DR/21SZ7DE/21SZ7SH/21SZ7ST/21SZ7VX MAIN (VERT) SHEET-3/9

(3/12)

Page 48

150Vp-p(H)

115

82Vp-p(H)

1000Vp-p(H)

27Vp-p(H)

23.0V

-2.0V

27.0V

0.4V 0V

-2.0V

120Vp-p(H)

280Vp-p(H)

150V

-10V

21CSZ7DR/21SZ7DE/21SZ7SH/21SZ7ST/21SZ7VX MAIN (HDEF) SHEET-4/9

(4/12)

Page 49

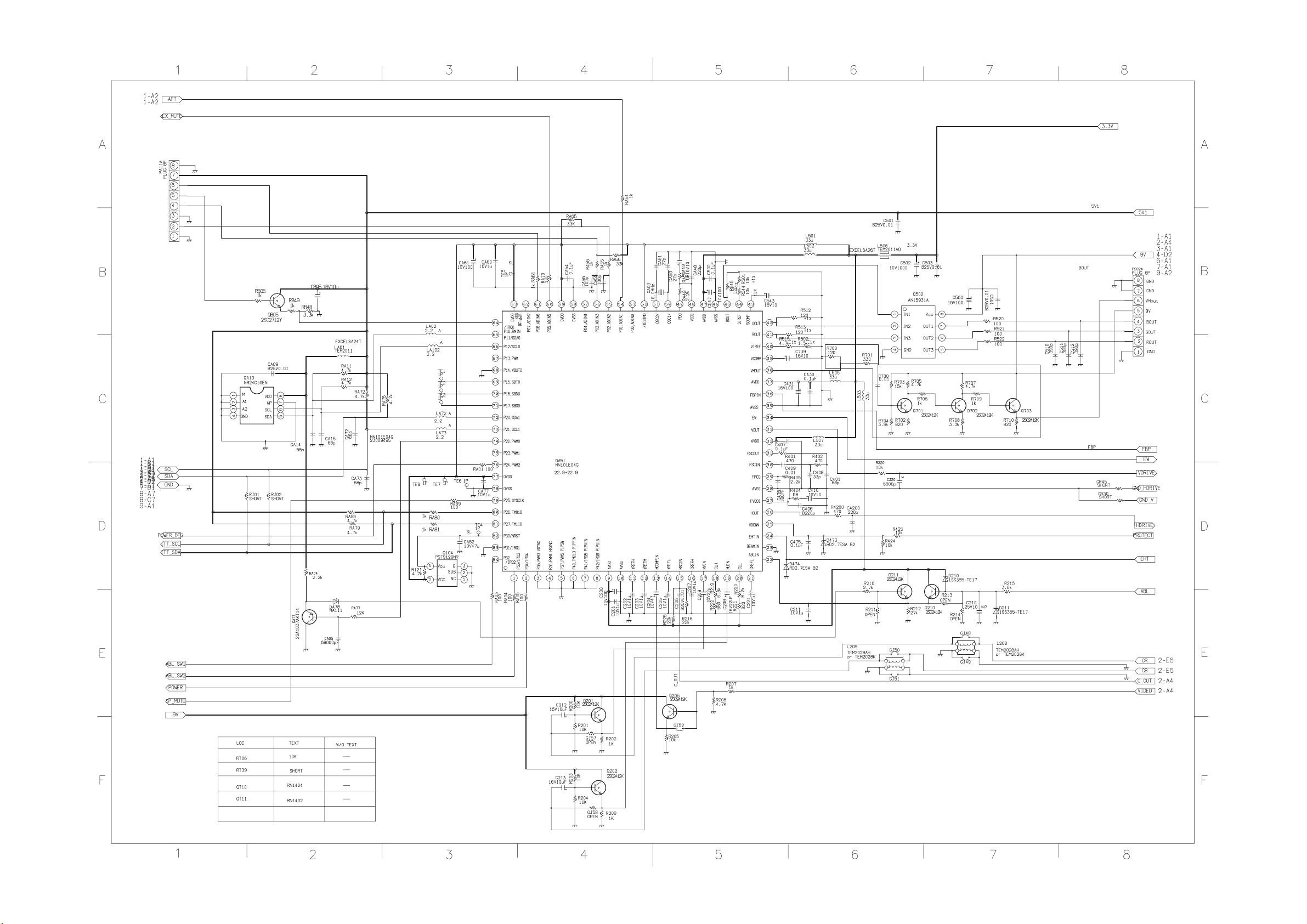

21CSZ7DR/21SZ7DE/21SZ7SH/21SZ7ST/21SZ7VX MAIN (VCD/MICON) SHEET-5/9

(5/12)

Page 50

2.2V 0V 2.2V 9.9V 21.0V 9.7V

21CSZ7DR/21SZ7DE/21SZ7SH/21SZ7ST/21SZ7VX MAIN (A-PRO/AUDIO-AMP) SHEET-6/9

(6/12)

Page 51

21CSZ7DR/21SZ7DE/21SZ7SH/21SZ7ST/21SZ7VX MAIN (PROTECTOR) SHEET-7/9

(7/12)

Page 52

450Vp-p

(AC=220V)

1.5V

40mV

14V 0V

6.7 V

51.0V

14.0V

1.1V

21CSZ7DR/21SZ7DE/21SZ7SH/21SZ7ST/21SZ7VX MAIN (POWER) SHEET-8/9

(8/12)

Page 53

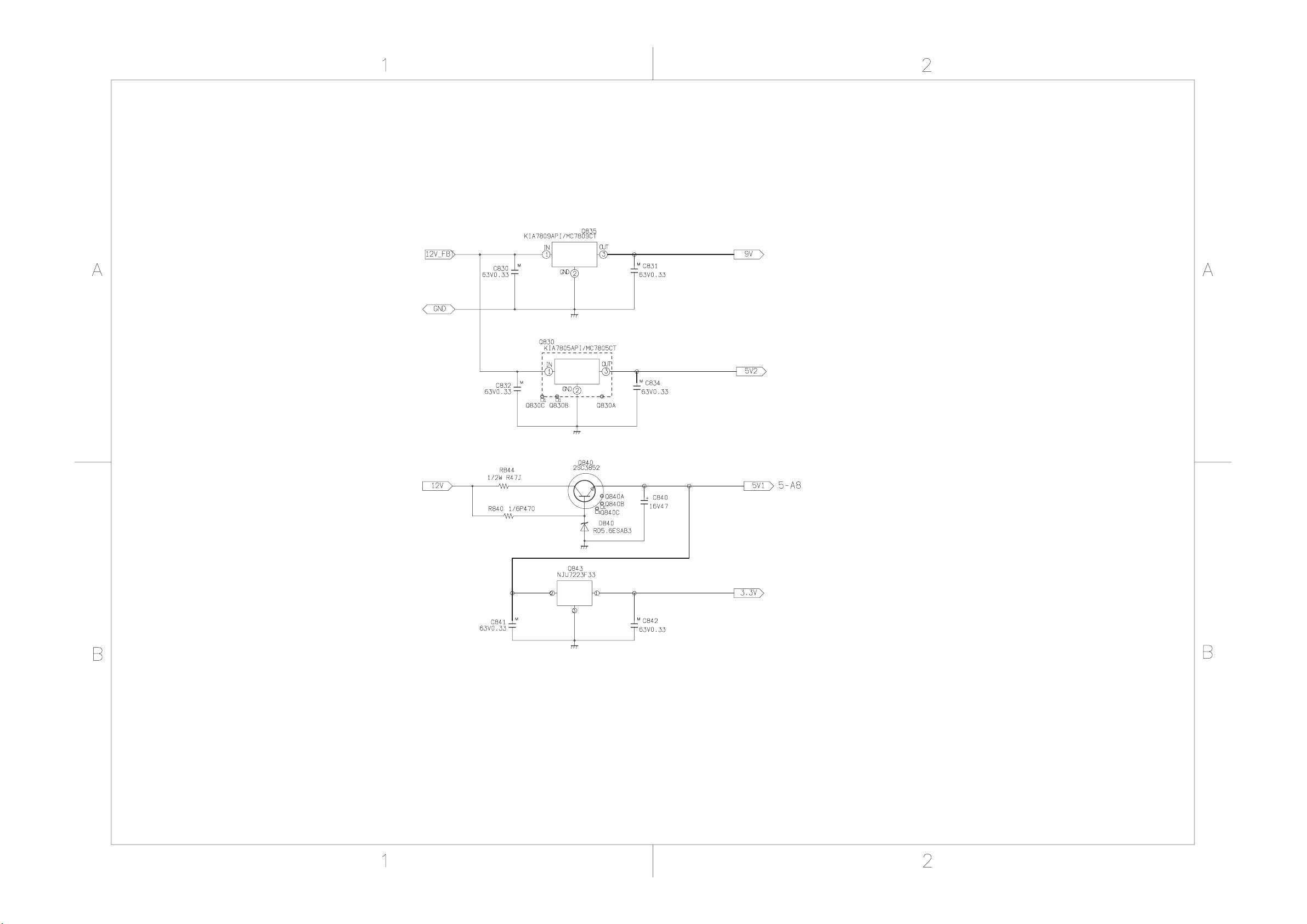

21CSZ7DR/21SZ7DE/21SZ7SH/21SZ7ST/21SZ7VX MAIN (LOW B REG) SHEET-9/9

(9/12)

Page 54

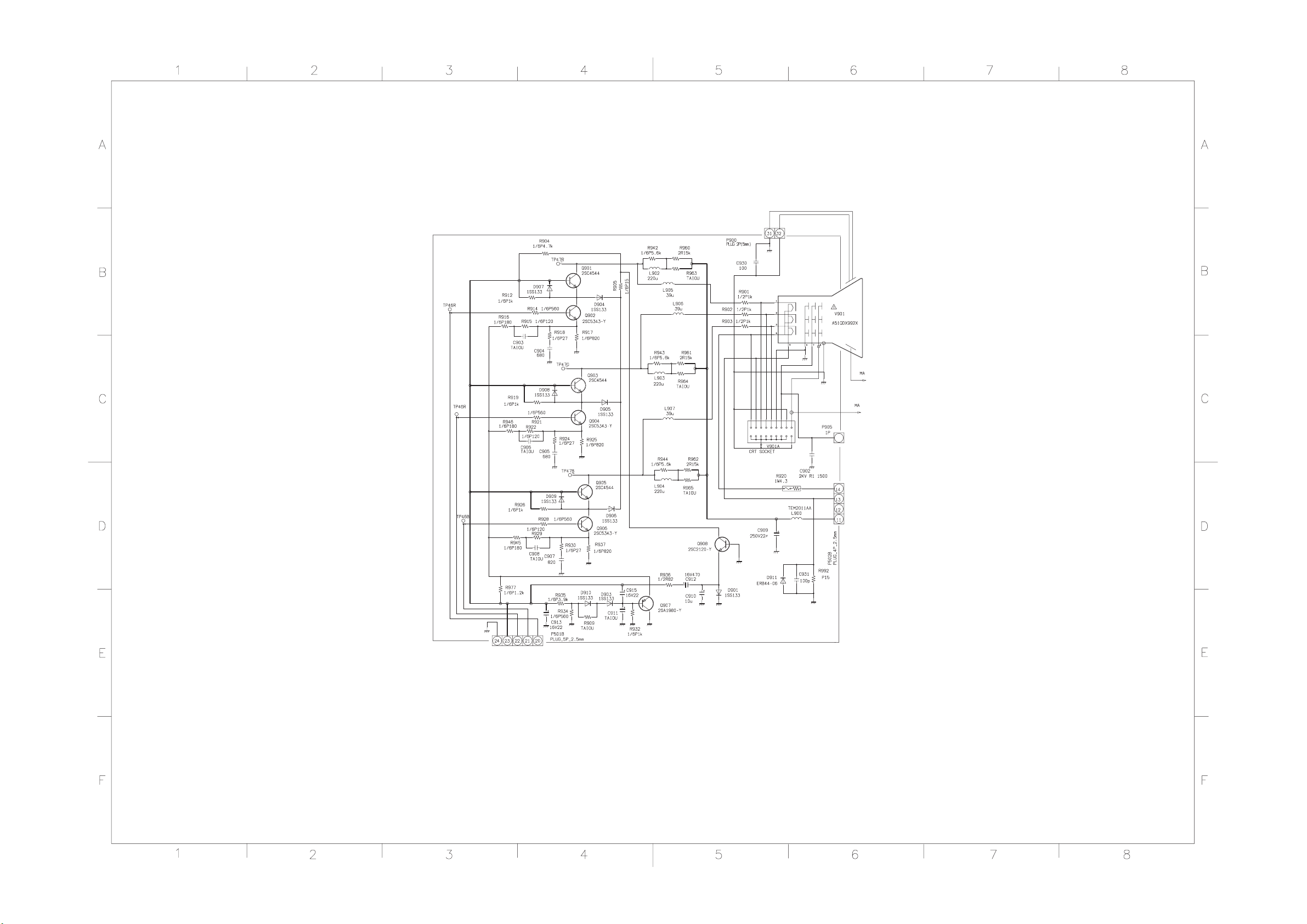

21CSZ7DR/21SZ7DE/21SZ7SH/21SZ7ST/21SZ7VX CRT DRIVE

(10/12)

Page 55

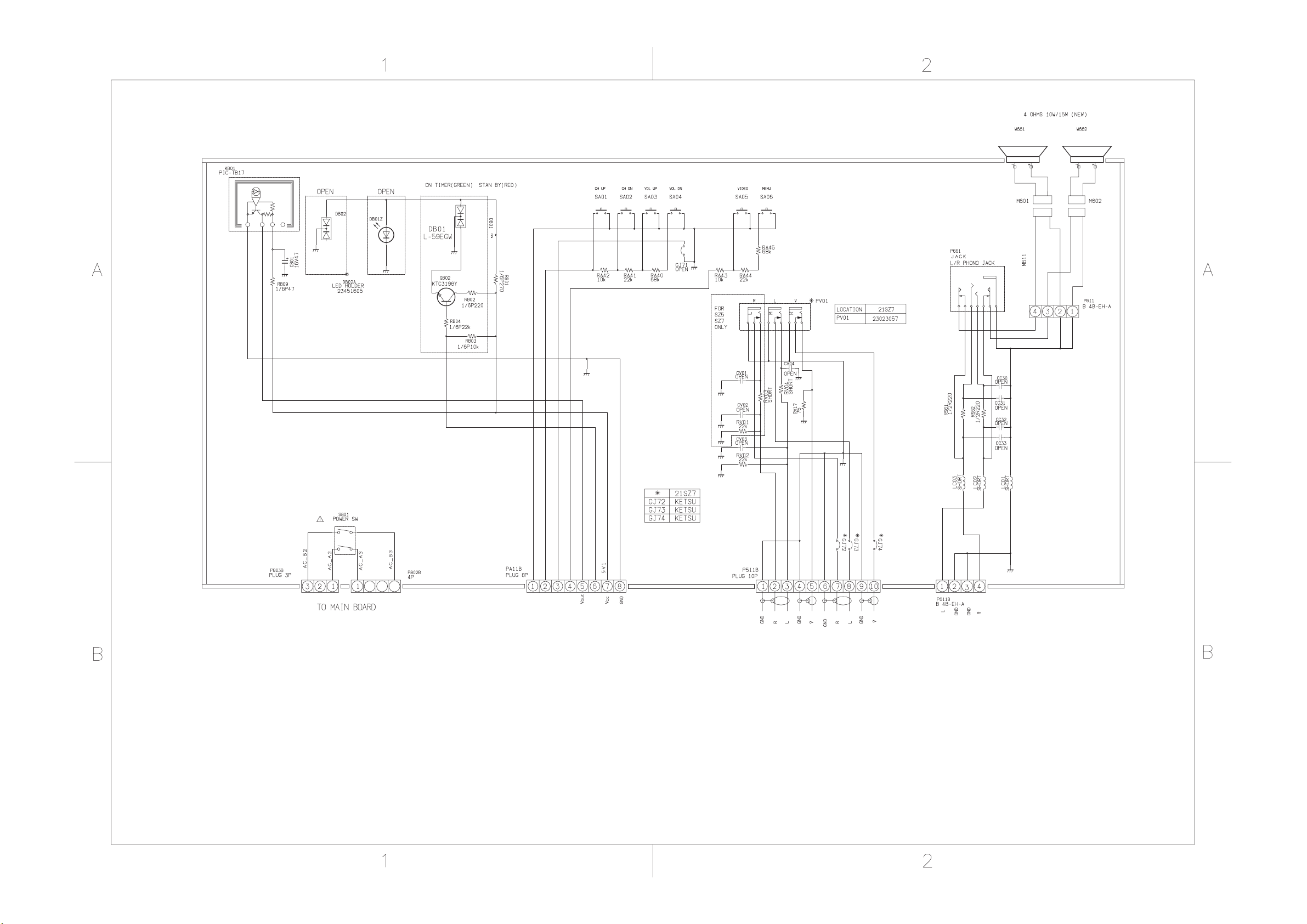

21CSZ7DR/21SZ7DE/21SZ7SH/21SZ7ST/21SZ7VX FRONT AV

(11/12)

Page 56

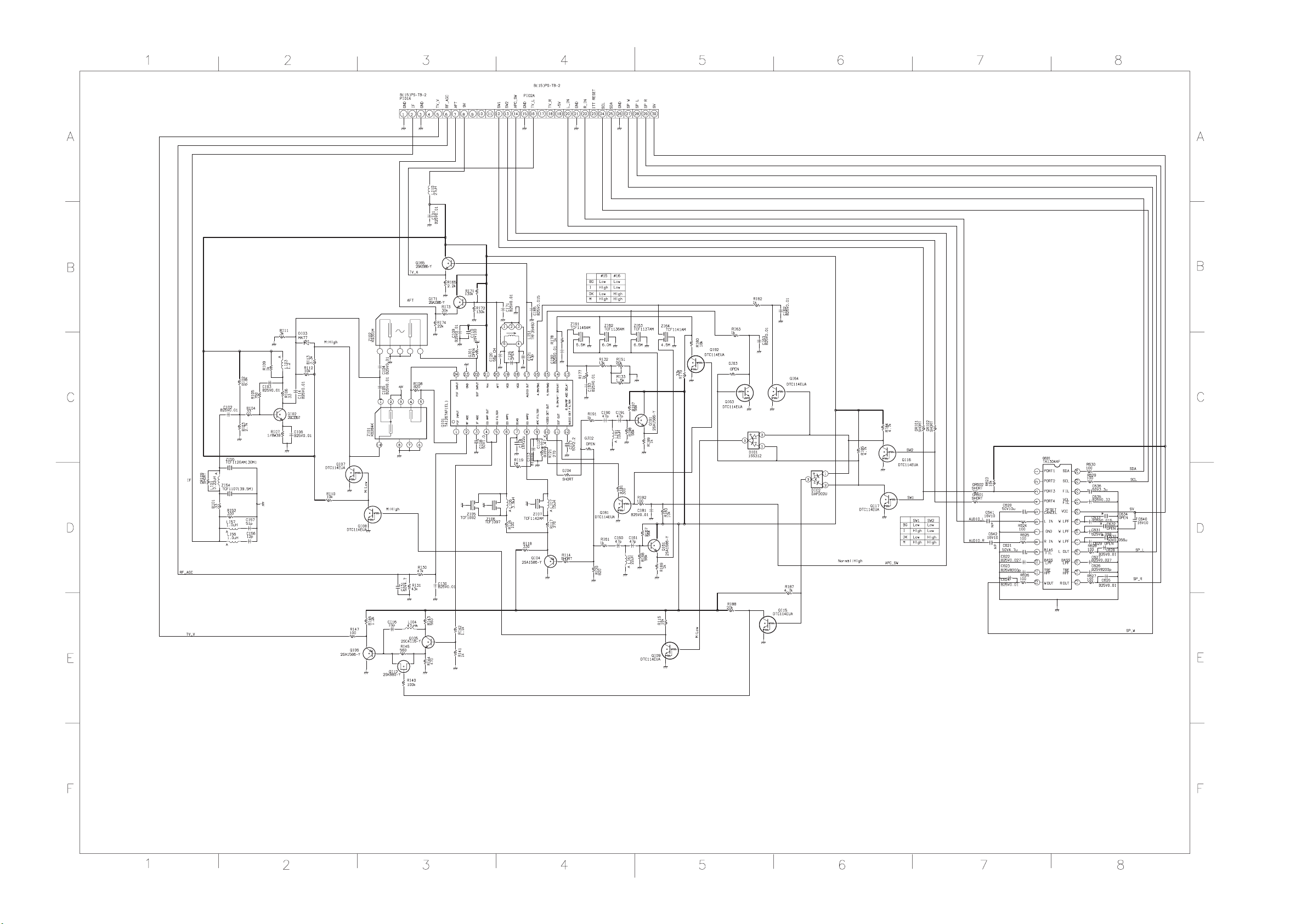

21CSZ7DR/21SZ7DE/21SZ7SH/21SZ7ST/21SZ7VX IF

(12/12)
