SERVICE MANUAL

Color Television

21CSZ5TR

FILE NO. 060-200343

S3ES Chassis

21SZ5TM

21SZ5VX

Feb. 2004 (YC/X)

Page 2

CHAPTER 1 GENERAL ADJUSTMENTS

SAFETY INSTRUCTIONS ........................................................................................................................................ 3

SET-UP ADJUSTMENT ............................................................................................................................................ 4

SERVICE MODE ...................................................................................................................................................... 6

DESIGN MODE ........................................................................................................................................................ 9

ELECTRICAL ADJUSTMENTS .............................................................................................................................. 10

CIRCUIT CHECK ....................................................................................................................................................12

GENERAL ADJUSTMENTS

CHAPTER 2 SPECIFIC INFORMATIONS

SETTING & ADJUSTING DATA .............................................................................................................................. 13

LOCATION OF CONTROLS ...................................................................................................................................14

PROGRAMMING CHANNEL MEMORY .................................................................................................................15

CHASSIS AND CABINET REPLACEMENT PARTS LIST ......................................................................................17

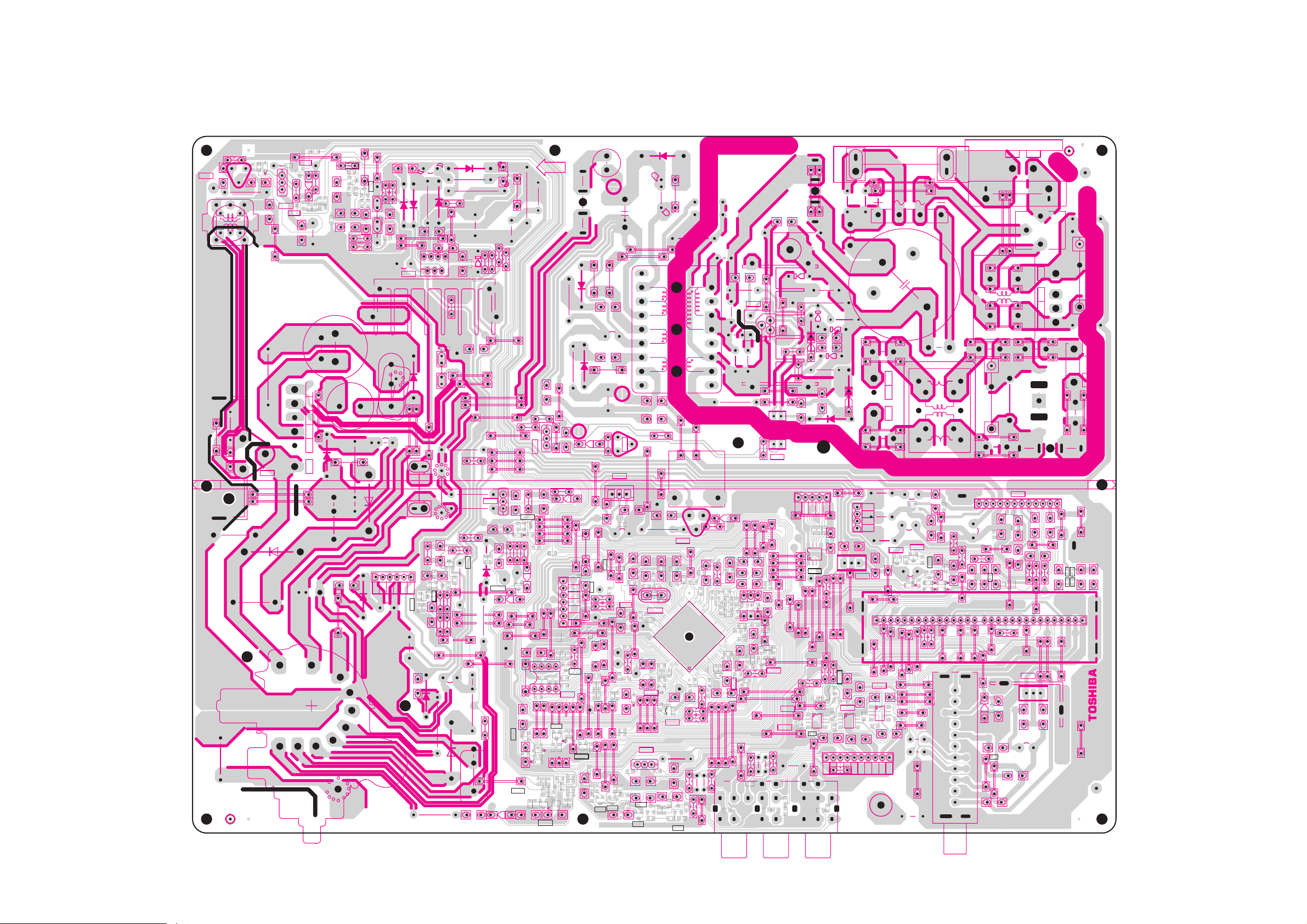

PC BOARDS BOTTOM VIEW................................................................................................................................. 25

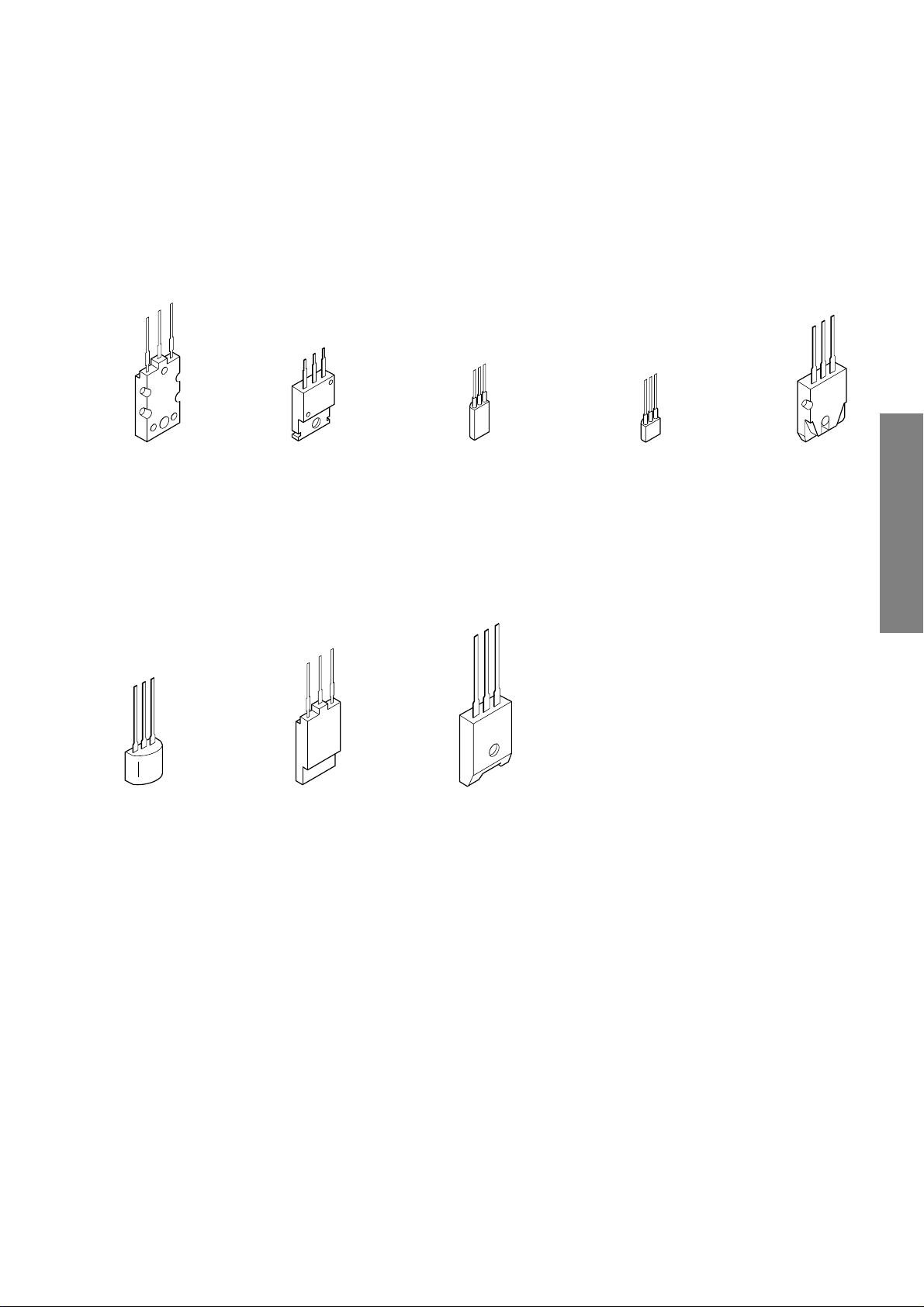

TERMINAL VIEW OF TRANSISTORS ................................................................................................................... 29

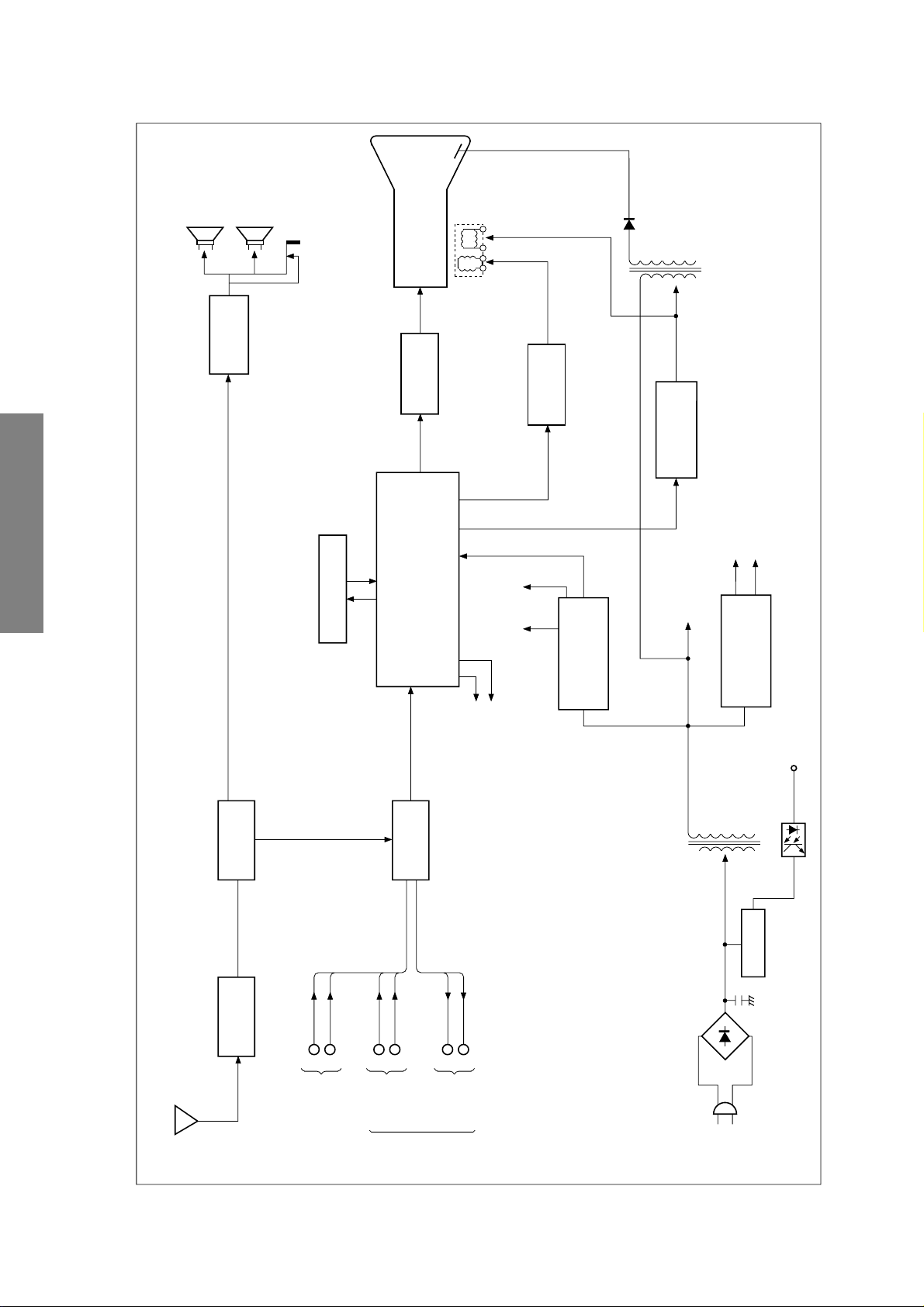

CIRCUIT BLOCK DIAGRAM .................................................................................................................................. 32

TABLE OF CONTENTS

SPECIFIC INFORMATIONS

SPECIFICATIONS .............................................................................................................................................. END

APPENDIX:

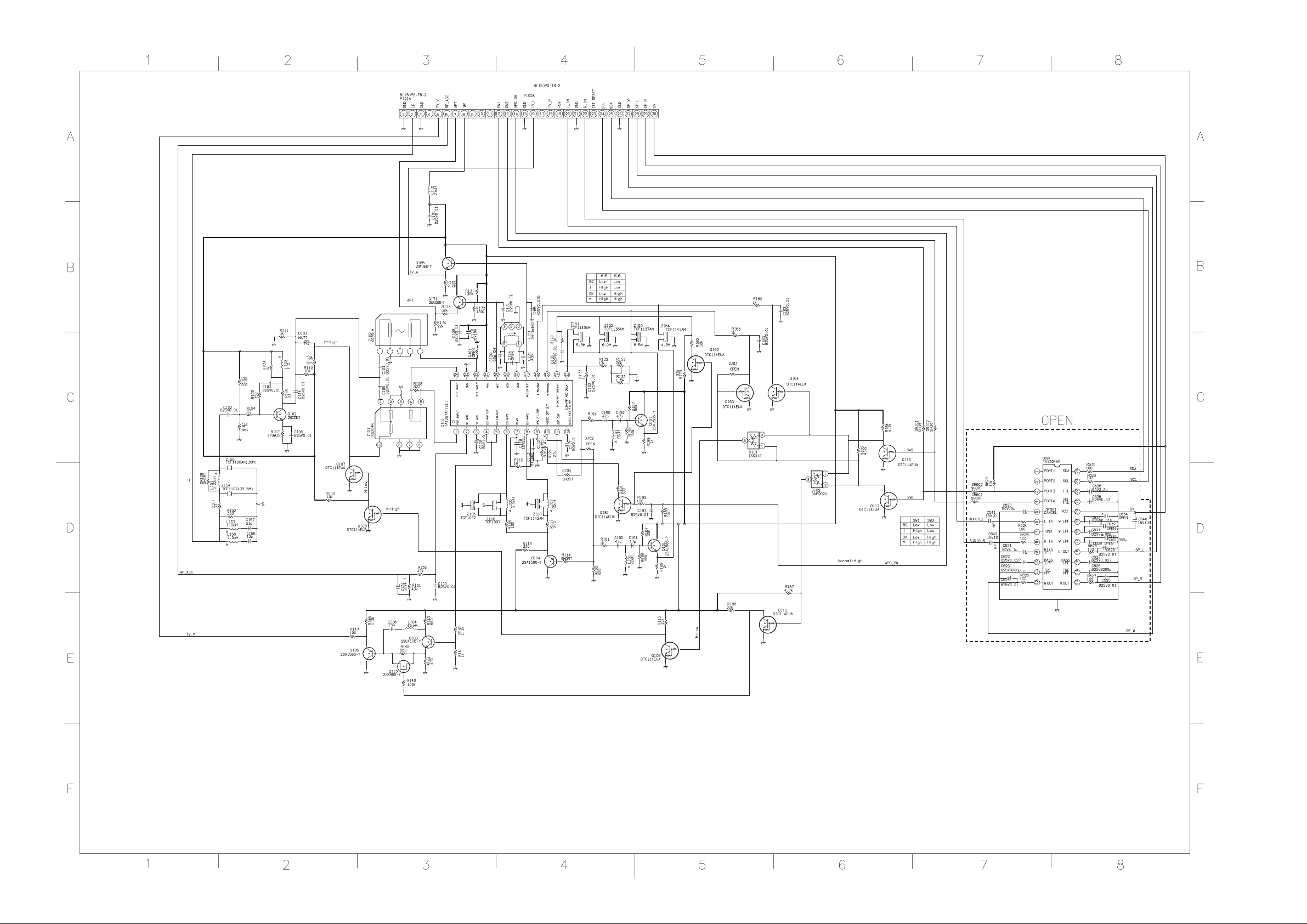

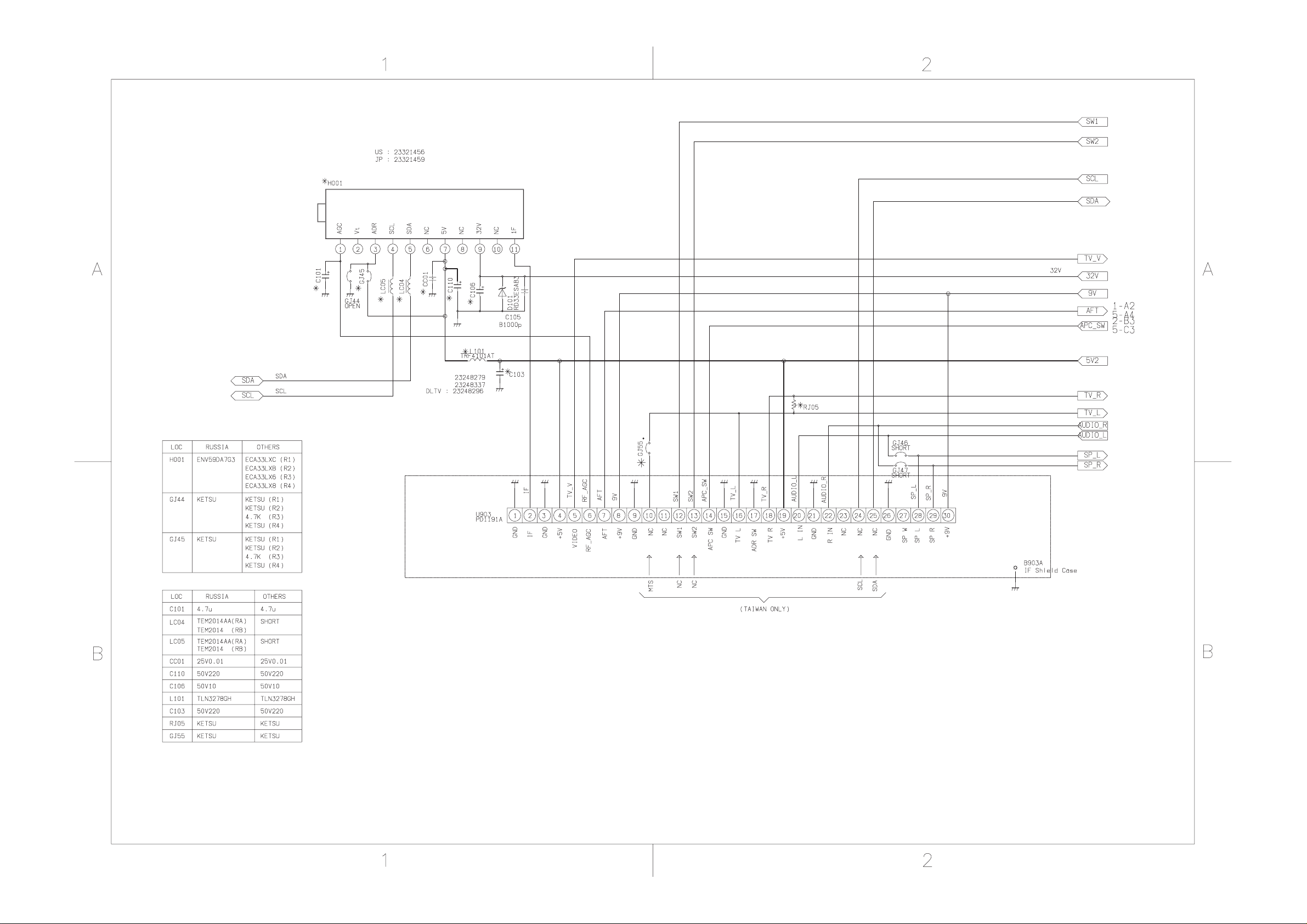

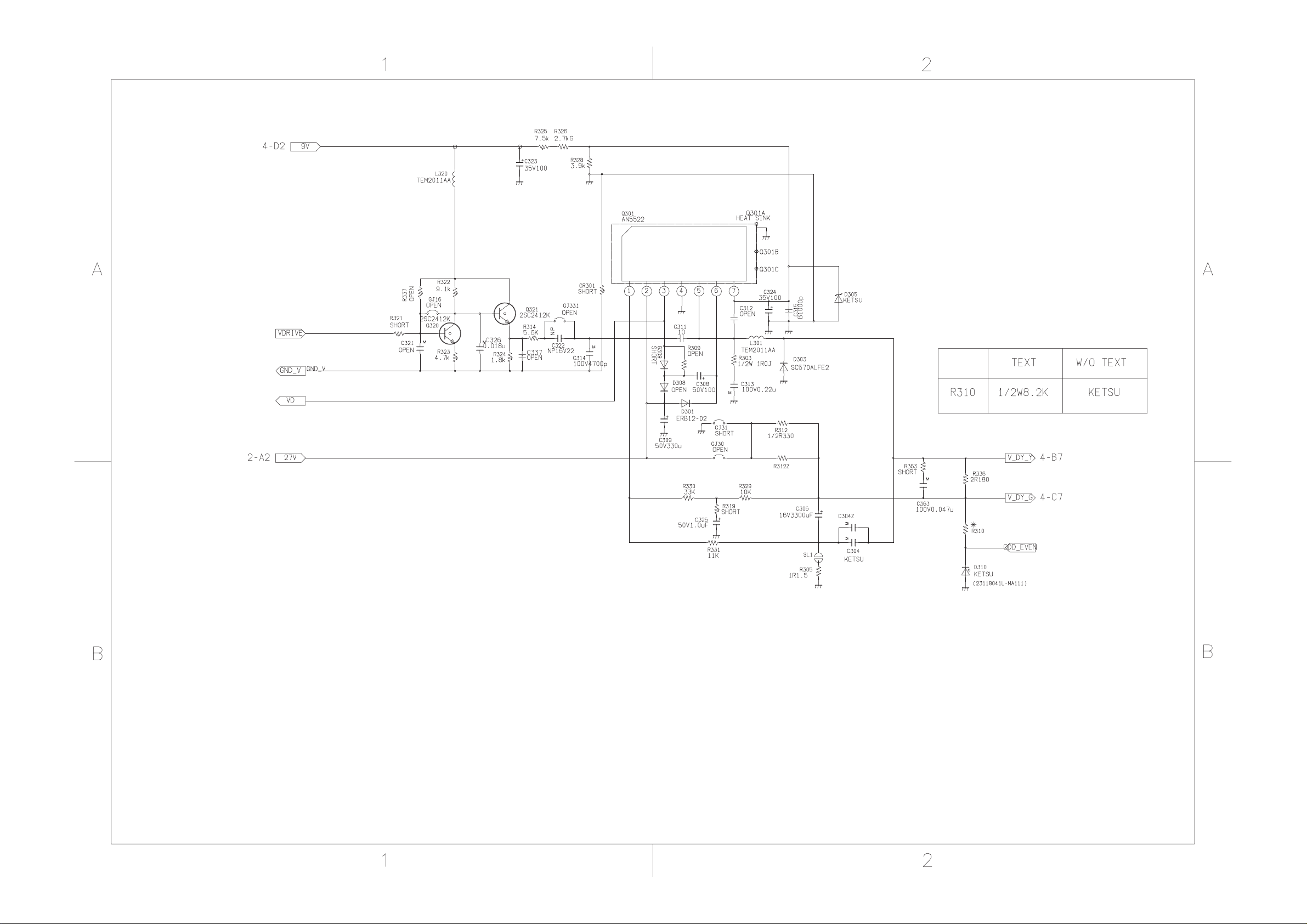

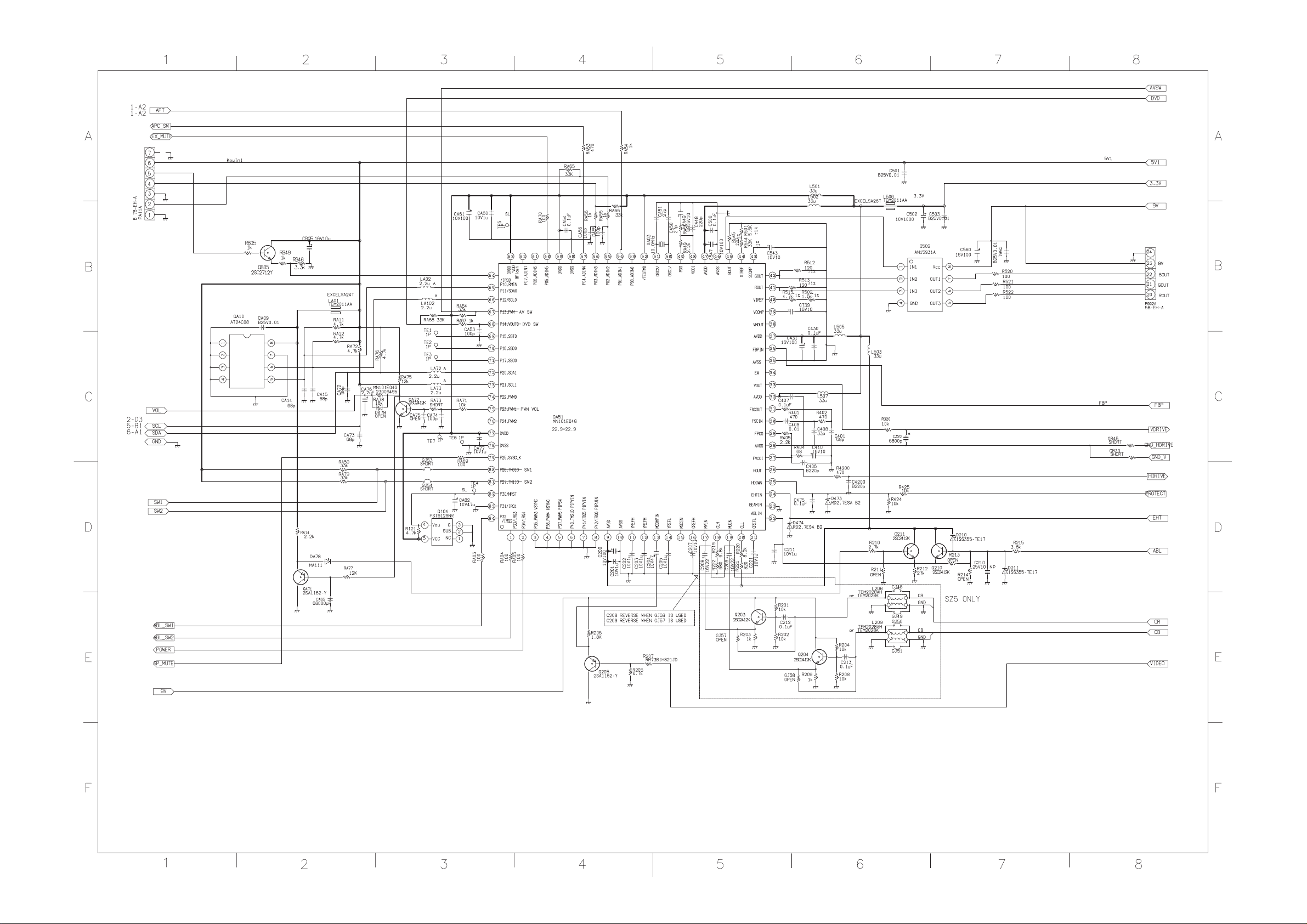

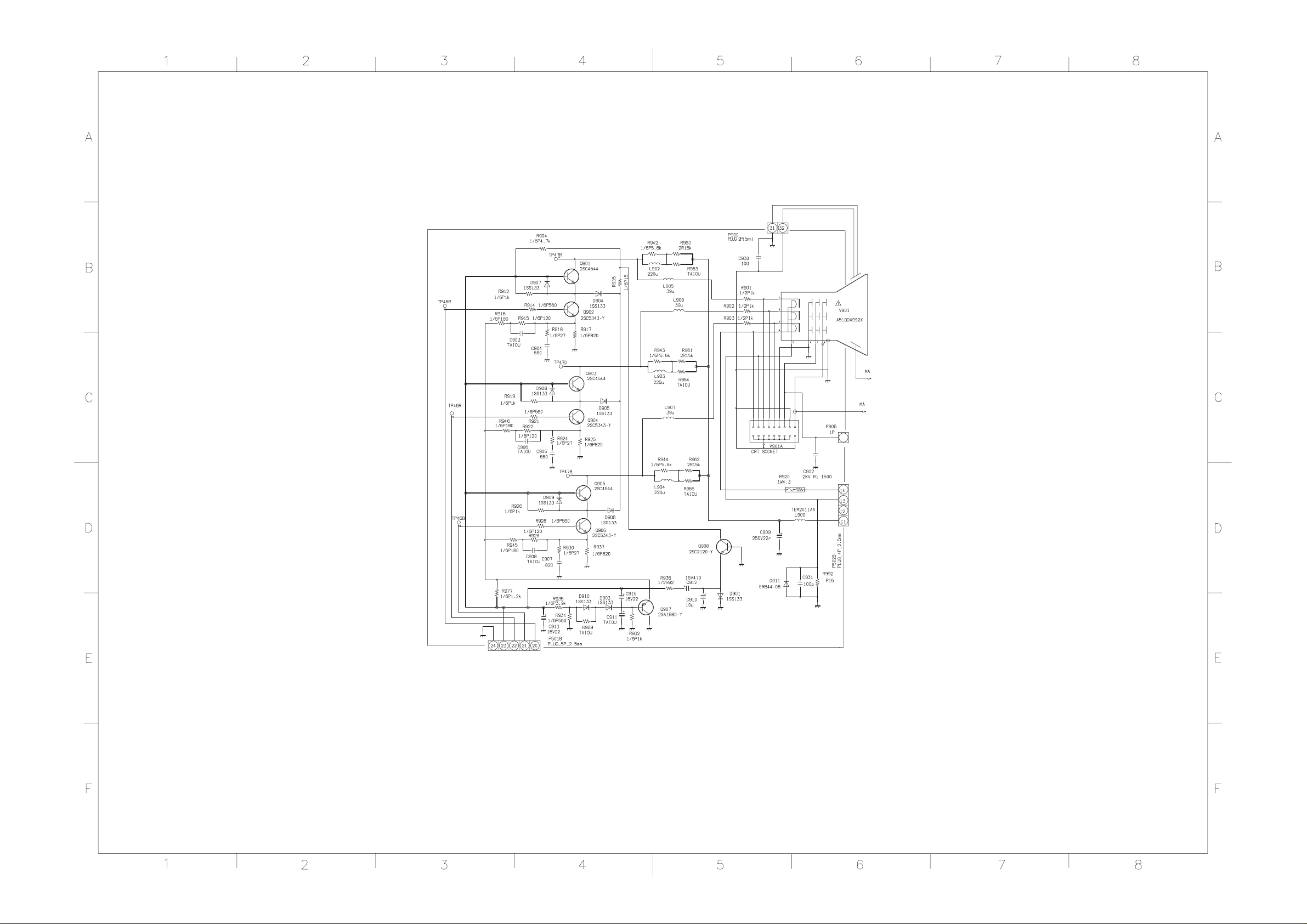

CIRCUIT DIAGRAM

– 2 –

Page 3

CHAPTER 1 GENERAL ADJUSTMENTS

SAFETY INSTRUCTIONS

WARNING: BEFORE SERVICING THIS CHASSIS, READ THE “X-RAY RADIATION PRECAUTION”, “SAFETY PRECAU-

TION” AND “PRODUCT SAFETY NOTICE” INSTRUCTIONS BELOW.

X-RAY RADIATION PRECAUTION

1. Excessive high voltage can produce potentially hazardous X-RAY RADIATION. To avoid such hazards, the high voltage must not be above the specified limit. The nominal value of the high voltage of this receiver is (A) kV at zero beam current (minimum brightness) under a (C) V AC power source. The high voltage must not, under any circumstances, exceed (B) kV.

Refer to table-1 for high voltage (A), (B) & AC voltage (C). (See SETTING & ADJUSTING DATA on page 13)

Each time a receiver requires servicing, the high voltage should be checked following the HIGH VOLTAGE CHECK procedure in this manual. It is recommended that the reading of the high voltage be recorded as a part of the service record. It is important to use an accurate and reliable high voltage meter.

SAFETY PRECAUTION

WARNING : Service should not be attempted by anyone unfamiliar with the necessary precautions on this receiver. The following are the necessary precautions to be observed before servicing this chassis.

1. An isolation transformer should be connected in the power line between the receiver and the AC line before any service is performed on the receiver.

2. Always discharge the picture tube anode to the CRT conductive coating before handling the picture tube. The picture tube is highly evacuated and if broken, glass fragments will be violently expelled. Use shatter proof goggles and keep picture tube away from the unprotected body while handling.

3. When replacing a chassis in the cabinet, always be certain that all the protective devices are put back in place, such as; nonmetallic control knobs, insulating covers, shields, isolation resistor-capacitor network etc.

2. The only source of X-RAY RADIATION in this TV receiver is the picture tube. For continued X-RAY RADIATION protection, the replacement tube must be exactly the same type tube as specified in the parts list.

3. Some part in this receiver have special safety-related characteristics for X-RAY RADIATION protection. For continued safety, parts replacement should be undertaken only after referring to the PRODUCT SAFETY NOTICE below.

GENERAL ADJUSTMENTS

SPECIFIC INFORMATIONS

PRODUCT SAFETY NOTICE

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These characteristics are often passed unnoticed by a visual inspection and the protection afforded by them cannot necessarily be obtained by using replacement components rated for higher voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in this manual and its supplements; electrical components having such features are identified by the international hazard symbols on the schematic diagram and the parts list. Before replacing any of these components, read the parts list in this manual carefully. The use of substitute replacement parts which do not have the same safety characteristics as specified in the parts list may create shock, fire, X-ray radiation or other hazards.

– 3 –

Page 4

WARNING: BEFORE SERVICING THIS CHASSIS, READ THE “X-RAY RADIATION PRECAUTION”, “SAFETY PRECAU- TION” AND “PRODUCT SAFETY NOTICE” ON PAGE 3 OF THIS MANUAL.

SET-UP ADJUSTMENT

■ The following adjustments should be made when a complete realignment is required or a new picture tube is installed. Perform the adjustments in order as follows :

1. Color Purity

2. Convergence

3. White Balance

Note: The PURITY/CONVERGENCE MAGNET assembly and rubber wedges need mechanical positioning.

Refer to figure 1.

GENERAL ADJUSTMENTS

COLOR PURITY ADJUSTMENT NOTE : Before attempting any purity adjustments, the receiver

1. Demagnetize the picture tube and cabinet using a degauss-

2. Set the brightness and contrast to maximum.

3. Use a green raster from among the built-in test signals.

4. Loosen the clamp screw holding the yoke and slide the

SPECIFIC INFORMATIONS

Mounting position of the purity magnet assembly should fit to same position as old one because slightly difference to the position depend on a kind of tube.

There are no adjustment of purity and convergence in some picture tube (Unified with purity magnet)

5. Remove the Rubber Wedges.

should be operated for at least fifteen minutes.

ing coil.

yoke backward or forward to provide vertical green belt (zone) in the picture screen.

6. Rotate and spread the tabs of the purity magnet (See figure 2.) around the neck of the picture tube until the green belt is in the center of the screen. At the same time, enter the raster vertically.

7. Slowly move the yoke forward or backward until a uniform green screen is obtained. Tighten the clamp screw of the yoke temporarily.

8. Check the purity of the red and blue raster.

GLASS CLOTH TAPES

DEFLECTION YOKE

29.1mm(28", 29") 25mm(25") 19mm(19", 20", 21") 14mm(13", 14")

PURITY/ CONVERGENCE MAGNET ASS'Y

Figure 1.

TEMPORARY MOUNTING

RUBBER WEDGE

ADHESIVE

DEFLECTION YOKE

– 4 –

Page 5

CONVERGENCE ADJUSTMENTS

NOTE: Before attempting any convergence adjustments, the

receiver should be operated for at least fifteen minutes.

■ CENTER CONVERGENCE ADJUSTMENT

1. Use the cross-dot pattern from among the built-in test signals.

2. Set the brightness and contrast for well defined pattern.

3. Adjust two tabs of the 4-Pole Magnets to change the angle between them (See figure 2.) and superimpose red and blue vertical lines in the center area of the picture screen.

4. Turn the both tabs at the same time keeping the angle constant to superimpose red and blue horizontal lines at the center of the screen.

5. Adjust two tabs of 6-Pole Magnets to superimpose red/ blue line and green one. Adjusting the angle affects the vertical lines and rotating both magnets affects the horizontal lines.

6. Repeat adjustments 3, 4, 5 keeping in mind red, green and blue movement, because 4-Pole Magnets and 6-Pole Magnets have mutual interaction and make dot movement complex.

6-POLE

4-POLE

MAGNETS

ADJUST THE ANGLE (VERTICAL LINES)

■ CIRCUMFERENCE CONVERGENCE ADJUSTMENT

1. Loosen the clamping screw of deflection yoke slightly to allow the yoke to tilt.

2. Temporarily put a wedge as shown in figure 1. (Do not remove cover paper on adhesive part of the wedge.)

3. Tilt front of the deflection yoke up or down to obtain better convergence in circumference. (See figure 3.) Push the mounted wedge into the space between picture tube and the yoke to fix the yoke temporarily.

4. Put other wedge into bottom space and remove the cover paper to stick.

5. Tilt front of the yoke right or left to obtain better convergence in circumference. (See figure 3.)

6. Keep the yoke position and put another wedge in either upper space. Remove cover paper and stick the wedge on picture tube to fix the yoke.

7. Detach the temporarily mounted wedge and put it in another upper space. Stick it on picture tube to fix the yoke.

8. After fixing three wedges, recheck overall convergence. Tighten the screw firmly to fix the yoke and check the yoke is firm.

9. Stick three adhesive tapes on wedges as shown in figure

FIXED

GENERAL ADJUSTMENTS

ROTATE TWO TABS AT THE SAME TIME (HORIZONTAL LINES)

PURITY MAGNETS

CONVERGENCE MAGNET ASSEMBLY ADJUSTMENT OF MAGNETS

Figure 2.

BLU RED

BLU

RED

4-POLE MAGNETS MOVEMENT

BGR

R G B

RGB

RED/BLU

GRN

Center Convergence by Convergence Magnets

B G R

RED/BLU GRN

6-POLE MAGNETS MOVEMENT

B G R

BGR

RGB

R G B

SPECIFIC INFORMATIONS

INCLINE THE YOKE UP (OR DOWN)

Circumference Convergence by DEF Yoke

Figure 3. Dot Movement Pattern

INCLINE THE YOKE RIGHT (OR LEFT)

– 5 –

Page 6

1. ENTERING TO SERVICE MODE

1) Press o button once on

Remote Control.

SERVICE MODE

2) Press o button again to

keep pressing.

3) While pressing the o button,

press MENU button on TV set.

GENERAL ADJUSTMENTS

2. DISPLAYING THE ADJUSTMENT MENU

1) Press MENU button on TV.

Service mode

3. KEY FUNCTION IN THE SERVICE MODE

The following key entry during display of adjustment menu provides special functions.

SPECIFIC INFORMATIONS

A single horizontal line ON/OFF: - / - - button (on Remote) or a button (on TV) Test signal selection : a button (on Remote) Selection of the adjustment items : Channel s/t (on TV or Remote) Change of the data value : Volume ; +/– (on TV or Remote) Adjustment menu mode ON/OFF : MENU button (on TV) Initialization of the memory (QA10) : CALL + Channel button on TV (s) Reset the count of operating protect

circuit to “00”: CALL + Channel button on TV (t)

“RCUT” selection : 1 button “GCUT” selection : 2 button “BCUT” selection : 3 button “CNTX” (or “SCNT”) selection : 4 button “COLC” selection : 5 button “TNTC” selection : 6 button

Test audio signal ON/OFF (1kHz) : 8 button Self diagnostic display ON/OFF : 9 button

Press

Adjustment mode

Item

Data

(Service mode display)

Item

Data

Color thickness correction note: Displayed differently as shown below, de-

pending on the setting of the receiving color system. COLP (PAL) COLC (NTSC) COLS (SECAM)

CAUTION : Never try to perform initialization unless you have changed the memory IC.

– 6 –

Page 7

4. SELECTING THE ADJUSTING ITEMS

1) Every pressing of CHANNEL s button in the service mode changes the adjustment items in the order of table-2. (t button for reverse order)

Refer to table-2 for preset data of adjustment mode. (See SETTING & ADJUSTING DATA on page 13)

5. ADJUSTING THE DATA

1) Pressing of VOLUME ; +/– button will change the value of data in the range from 00H to FFH. The variable

range depends on the adjusting item.

6. EXIT FROM SERVICE MODE

1) Pressing POWER button to turn off the TV once.

■ INITIALIZATION OF MEMORY DATA OF QA10

After replacing QA10, the following initialization is required.

1. Enter the service mode, then select any register item.

2. Press and hold the CALL button on the Remote, then press the CHANNEL s button on the TV. The initialization of QA10 has

been complated.

3. Check the picture carefully. If necessary, adjust any adjustment item above. Perform “Auto search Memory” on the owner’s manual.

CAUTION: Never attempt to initialize the data unless QA10 has been replaced.

7. TEST SIGNAL SELECTION

1) Every pressing of a button on the Remote Control changes the built-in test patterns on screen as described below

in SERVICE MODE.

GENERAL ADJUSTMENTS

Signal off

NTSC signals (14 patterns)

PAL signals (14 patterns)

Signals Picture

• Red raster

• Green raster

• Blue raster

• All Black

• All White

• Black & White

• Black cross-bar

• White cross-bar

• Black cross-bar

on green raster

• Black cross-hatch

• White cross-hatch

• Black cross-dot

• White cross-dot

SPECIFIC INFORMATIONS

• H signal (white)

• H signal (black)

The signals marked with are not usable to display in the Test signal for some model.

– 7 –

Page 8

8. SELF DIAGNOSTIC FUNCTION

1) Press “9” button on Remote Control during display of adjustment menu in the service mode. The diagnosis will begin to check if interface among IC’s are executed properly.

2) During diagnosis, the following displays are shown.

Indicated color of mode now selected : Green and Red



23******



POWER : 00



BUS LINE : OK



BUS CONT : OK



BLOCK : UV V1 V2

Indicated color of other modes : White

Green : Normal Red : The microprocessor operates to provide judgement

of no video signal. The red color is still indicated though the signal is input, failure may exist in input signal line.

GENERAL ADJUSTMENTS

 Part number of microprocessor (QA51)  Operation number of protecting circuit ----“00” is nor-

mal. When indication is other than “00”, overcurrent apts to flow, and circuit parts may possibly be damaged.

 BUS LINE CHECK ----“OK” is normal.

“SDA1-GND” ------------- SDA-GND short circuit. “SCL1-GND” -------------- SCL-GND short circuit. “SCL1-SDA1” ------------- SCL-SDA short circuit.

 BUS CONT ----“OK” is normal.

When indication shows “Q uuu NG”, the device with

SPECIFIC INFORMATIONS

the number may possibly be damaged.

 BLOCK

UV : TV reception mode V1 : VIDEO 1 input mode (a1) V2 : VIDEO 2 input mode (a2)

The items marked with are not usable to display in the SELF DIAGNOSTIC FUNCTION for some model.

– 8 –

Page 9

1. ENTERING TO DESIGN MODE

1) Select the Service mode.

DESIGN MODE

2) While pressing o (or CALL) button on

Remote and press MENU button on TV.

3) Press MENU button on TV.

S D

(Design mode) (Adjustment mode)

When QA10 is initialized, items “OPT0” and “OPT1” of DESIGN MODE are set to the data of the representative model of this chassis family. Therefore, because ON-SCREEN specification remains in the state of the representative of model. This model is required to reset the data of items “OPT0” and “OPT1”.

2. SELECTING THE ADJUSTING ITEMS

Every pressing of CHANNEL t button in the design mode changes the adjustment items in the order of table-3. (s button for reverse order)

Refer to table-3 for data of design mode. (See SETTING & ADJUSTING DATA on page 13)

3. ADJUSTING THE DATA

Pressing of VOLUME s or t button will change the value of data.

Press

ITEM

DATA

GENERAL ADJUSTMENTS

SPECIFIC INFORMATIONS

– 9 –

Page 10

ELECTRICAL ADJUSTMENTS

ITEM ADJUSTMENT PROCEDURE

FOCUS VR ADJ

SUB-BRIGHTNESS (BRTC)

GENERAL ADJUSTMENTS

SPECIFIC INFORMATIONS

Note: Constrict the picture height

until the vertical retrace line appears adjusting the item HIT (HEIGHT).

HORIZONTAL POSITION ADJUSTMENT (HPOS)

VERTICAL POSITION ADJUSTMENT (VPOS)

1. Enter the service mode, then select any register item.

2. Press the TV/VIDEO button on the Remote until the black cross-bar pattern appears on the screen.

3. Adjust the FOCUS control (on T461) for well defined scanning lines on the picture screen.

1. Set CONTRAST to minimum, and BRIGHTNESS to center by adjusting user controls.

2. Set the TV in service mode to get white cross-bar of inside pattern.

3. Select BRTC (brightness correction), and adjust the ; – /+ button to reduce the value so that white portion of inside pattern slightly light.

4. Adjust ; – /+ button to increase the data value of BRTC, and set it just before the difference between the belt of vertical retrace and the border of black portion of inside pattern is visible. After that, return vertical height and contrast.

1. Set the TV in service mode, and get black or white cross-bar signal with VIDEO button on remote hand unit.

2. Select either HPOS (Horizontal picture phase) or VPOS (Vertical picture phase) with CHANNEL s, t buttons, and adjust horizontal or vertical picture position in the center of screen with VOLUME ; – /+ buttons.

Belt of vertical retrace

VERTICAL AMPLITUDE ADJUSTMENT (HIT)

1. Set the TV in service mode, and get black or white cross-hatch signal with VIDEO button on remote hand unit.

2. Select HIT (Vertical amplitude) with CHANNEL s, t buttons, and adjust vertical amplitude with VOLUME ; – /+ buttons so that vertical am- plitude lacks a little.

3. Adjust vertical amplitude with VOLUME ; – /+ buttons so that the first bar on cross-hatch signal touches edge of screen.

The first

– 10 –

Page 11

ITEM ADJUSTMENT PROCEDURE

WHITE BALANCE ADJUSTMENT

CUTOFF ADJUSTMENT

•

(RCUT) (GCUT) (BCUT)

DRIVE ADJUSTMENT

•

(GDRV) (BDRV)

NOTE: It is released built-in test pattern by changing the adjustment item for some model.

In this case, select the adjustment item with channel s t buttons first and then select the built-in test pattern with

-/- - button.

1. Set Contrast to 40, and brightness to +20 by picture control.

2. Set the TV in service mode, and get the inside W/B adjusting signal with VIDEO

button.

3. Select RCUT, GCUT and BCUT with CHANNEL s, t buttons, to set individual

values to Initial reference data, and to set GDRV and BDRV to Initial reference data with VOLUME ; – /+ buttons.

4. Press -/- - button on the remote control and rotate Screen VR to get one slight

horizontal line on screen. Note: Every pressing of -/- - button provides Horizontal line picture and Normal picture alternately.

5. Press -/- - button to release horizontal line picture, and select the two other colors

which did not light in the above step with CHANNEL s, t buttons. Then tap VOL- UME ; – /+ buttons so that three colors slightly light in the same level.

X To correct white balance in light area,

select GDRV and BDRV with CHANNEL s, t buttons to adjust.

X To correct white balance in dark area,

perform fine adjustment of RCUT, GCUT and BCUT.

GENERAL ADJUSTMENTS

Light area check

(to show white)

Dark area check

(to show black)

SPECIFIC INFORMATIONS

– 11 –

Page 12

CIRCUIT CHECK

HIGH VOLTAGE CHECK CAUTION: There is no HIGH VOLTAGE ADJUSTMENT on this chassis. Checking should be done following the steps

below.

1. Connect an accurate high voltage meter to the second anode of the picture tube.

2. Turn on the receiver. Set the BRIGHTNESS and CONTRAST controls to minimum (zero beam current).

3. High voltage must be measured below (B) kV.

Refer to table-1 for high voltage (B). (See SETTING & ADJUSTING DATA on page 13)

4. Vary the BRIGHTNESS control to both extremes to be sure the high voltage does not exceed the limit under any conditions.

GENERAL ADJUSTMENTS

SPECIFIC INFORMATIONS

– 12 –

Page 13

CHAPTER 2 SPECIFIC INFORMATIONS

SETTING & ADJUSTING DATA

SAFETY INSTRUCTIONS

HIGH VOLTAGE AT ZERO BEAM: (A) 29.7 kV MAX HIGH VOLTAGE: AV VOLTAGE

Table-1

SERVICE MODE

ADJUSTING ITEMS AND DATA IN THE SERVICE MODE:

21"

(B) 32.0 kV (C) 110~240 V

Item Adjustment

RCUT GCUT BCUT GDRV BDRV BRTC COLC TNTC COLP COLS SCNT HPOS VPOS HIT VLIN SRY SBY RAGC

DESIGN MODE

R CUTOFF (B/W) G CUTOFF (B/W) B CUTOFF (B/W) G DRIVE B DRIVE SUB BRIGHT CEN SUB COLOR CEN NTSC SUB TINT CEN SUB COLOR CEN PAL SUB COLOR CEN SECAM SUB CONTRAST 50Hz H-POSITION V-POSITION HEIGHT V-LINEARITY SECAM R-Y SECAM-B-Y RF AGC

Reference data

21CSZ5TR 21SZ5TM 21SZ5VX 21CSZ5TR 21SZ5TM 21SZ5VX

00H 00H 00H 00H 00H 40H 30H 45H 09H 30H 08H 26H 74H 7BH

5DH

08H 08H 2AH

Table-2

80H 4FH 80H 90H

ACH

30H 74H

9CH

44H

Data

33H 79H 83H 45H

00H

B7H

00H 00H 00H

30H 74H

9CH

44H

SPECIFIC INFORMATIONS

ADJUSTING ITEMS AND DATA IN THE DESIGN MODE:

Item Name of adjustment

* There are no adjusting items in the design mode.

Data

Preset Data 21"

Table-3

– 13 –

Remarks

Page 14

Front

LOCATION OF CONTROLS

SPECIFIC INFORMATIONS

Remote

6 & (

AUDIO

VIDEO

;

NAMES OF PARTS

Remote Control

1 2

3 CH s/t

5 6 7

8 9 a ! CALLi

TXT/TV

# $ % &

(

Power on/standby

0~9

Direct select Channel up/down.

Item select

; –/+

Volumedown/up, Menu select, Level adjust

Digit select

–/--

Menu open

Sound mute Picture control

TV/VIDEO select, On-screen on/off

Teletext initial index Teletext/TV select

Full/stop/bottom

Reveal/Conceal

y/X

Time/Text cancel

Stop a page of text Text select

Red/Green/Yellow/Blue

7 2

9 3

# $ %

TV Set

a q

b c q

d e a

–;+

tcs

h L

AUDIO

j VIDEO

L/R

Main power on/off

Infrared sensor Power indicator

(red)

Menu open

TV/VIDEO select

Volume down/up, Menu select, Level adjust

Channel down/up, Item select

Headphone jack

Audio input terminals

Video input terminal

Note: The shaded buttons are not available for your TV.

– 14 –

Page 15

PROGRAMMING CHANNEL MEMORY

• For easy Channel selection, the chosen Position should have the same number as Channel stored there. For this operation, you may use the “SEARCH” and “SKIP” functions. Example : Presetting Channel 12 to Position 12

Channel Preset

Auto search memory (ASM)

All the channels that can be received are preset automatically.

Select the starting position for ASM. Press (0~9) or CH

s/t.

Set the correct broadcast system for your region. Press

MENU and ; –/+ to call up the “SET UP” menu D7 . Set “COLOR” to “AUTO” and set “SOUND” according to the table above using CHs/t and ; –/+.

Press MENU and ; –/+ to call up the “TUNING” menu

D8 . Select “ASM”, then press ; + to start the search. When the TV screen returns to the start position, the procedure is complete.

Manual Search and Changing the assigned position

Manual Search

Select Position 12.

Press CH s/t repeatedly until 12 is displayed. Or, press

-/-- twice to display “--” on the screen then press the “1” and “2” buttons in this order.

Press MENU and ; –/+ to call up the “TUNING” menu

D8 . Press CH s/t and select “SEARCH”. Press ; –/+ to search. Pressing “-” searches for chan- nels at lower frequencies while pressing “+” searches for channels at higher frequencies.

When Channel 12 is found, press CH s/t to select

“MEMORY”. Press “+” to complete the presetting.

Store Position

Select Channel 12.

Press (0~9) or CH s/t to find the position preset for Channel 12.

GENERAL ADJUSTMENTS

SPECIFIC INFORMATIONS

When Channel 12 is selected, press MENU and

; –/+ to call up the “TUNING” menu D8 . Press CH s/t and select “POSITION”. Press ; –/+ and set “PO-

SITION” to P012. Pressing “-” and “+” respectively de- creases and increases the position number.

When Position 12 is found, press CH s/t to select

“MEMORY”. Press “+” to complete the presetting.

– 15 –

Page 16

• Under some reception conditions, fine tuning may be necessary to improve the picture quality. In such cases, adjust the manual fine tuning (MFT).

• If the signal frequency is unstable due to environmental conditions, use auto fine tuning.

Skip Function

If you set “SKIP ON” for unnecessary position numbers, these will be skipped when selecting channels using CH s/t. Example : Skipping Channel 13

Select Position 13 using the same method for select-

ing Position 12 (above).

Press MENU and ; –/+ to call up the “SET UP” menu

D7 . Press CH s/t and select “SKIP”. Press ; –/+ to switch the “SKIP” setting from “OFF” to “ON”. This completes the setting for skipping Posi-

SPECIFIC INFORMATIONS

tion 13.

Note:

• When “SKIP” is ON, the Position number is prefixed by “*”.

Example: *13. To confirm this, select Position 13 using the -/-- and 0~9 buttons.

• If you want to restore a skipped position number, select it using the -/-- and 0~9 buttons then switch the “SKIP” setting to “OFF” as in step 2 above.

Manual fine tuning (MFT)

Auto fine tuning (AFT)

Press MENU and ; –/+ to call up the “TUNING” menu

D8 .

Press CH s/t and select “AFT”. Press ; –/+ to switch it to “ON”. This completes the setting.

Notes:

• When you operate MFT, AFT is switched OFF

automatically. If you switch on AFT after fine tuning with MFT, MFT may be cancelled.

• AFT may be set independently for each Position.

Press MENU and ; –/+ to call up the “TUNING” menu

D8 .

Press CH s/t and select “MFT”. Press ; –/+ to start

fine tuning. Pressing “-” fine tunes to a lower frequency while pressing “+” fine tunes to a higher frequency.

– 16 –

Page 17

CHASSIS AND CABINET REPLACEMENT PARTS LIST

WARNING: BEFORE SERVICING THIS CHASSIS, READ THE "X-RAY RADIATION PRECAUTION", "SAFETY PRE-

CAUTION" AND "PRODUCT SAFETY NOTICE" ON PAGE 3 OF THIS MANUAL.

CAUTION: The international hazard symbols " " in the schematic diagram and the parts list designate components which have special characteristics important for safety and should be replaced only with types identical to those in the original circuit or specified in the parts list. The mounting position of replacements is to be identical with originals. Before replacing any of these components, read carefully the PRODUCT SAFETY NOTICE. Do not degrade the safety of the receiver through improper servicing.

NOTICE:

··

The part number must be used when ordering parts, in order to assist in processing, be sure to include the

··

Model number and Description.

··

The PC board assembly with * mark is no longer available after the end of the production.

··

Model : 21CSZ5TR/21SZ5TM/21SZ5VX

Capacitors ............. CD : Ceramic Disk PF : Plastic Film EL : Electrolytic

Resistors ............... CF : Carbon Film CC : Carbon Composition MF : Metal Film

OMF : Oxide Metal Film VR : Variable Resistor FR : Fusible Resistor

(All CD and PF capacitors are

±5%, 50V and all resistors, ±5%, 1/6W unless otherwise noted.)

Location Parts No. Description No.

#1 : [21CSZ5TR] #2 : [21SZ5TM] #3 : [21SZ5VX]

CAPACITORS

C101 #1 24797479 ELECTROLYTIC, 50V 4.7UF M

#2 24206479 ELECTROLYTIC, 50V 4.7UF M 7L 3A

#3 24797479 ELECTROLYTIC, 50V 4.7UF M C103 24797221 ELECTROLYTIC, 50V 220UF M C105 24109102 CERAMIC CHIP, 50V B 1000PF K C106 24797100 ELECTROLYTIC, 50V 10UF M C110 24797221 ELECTROLYTIC, 50V 220UF M C200 24793101 ELECTROLYTIC, 10V 100UF M C201 24092538 CERAMIC CHIP, 10V F 1UF Z C202 24092538 CERAMIC CHIP, 10V F 1UF Z C203 24092538 CERAMIC CHIP, 10V F 1UF Z C204 24793470 ELECTROLYTIC CE04G 10V 47UF M C205 24092538 CERAMIC CHIP, 10V F 1UF Z C207 24092538 CERAMIC CHIP, 10V F 1UF Z C208 #1 24794220 ELECTROLYTIC, 16V 22UF M

#2 24203220 ELECTROLYTIC, 16V 22UF M 7L 3A

#3 24794220 ELECTROLYTIC, 16V 22UF M C209 #1 24794220 ELECTROLYTIC, 16V 22UF M

#2 24203220 ELECTROLYTIC, 16V 22UF M 7L 3A

#3 24794220 ELECTROLYTIC, 16V 22UF M C210 24085949 ELEC. NONPOLAR CE04J 25V 10UF M 11L NP C211 24092538 CERAMIC CHIP, 10V F 1UF Z C220 24085944 ELECTROLYTIC, NONPOLAR, 50V 2.2UF M 11L C221 24092538 CERAMIC CHIP, 10V F 1UF Z C298 #1 24794100 ELECTROLYTIC, 16V 10UF M

#2 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

#3 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A C299 #1 24794100 ELECTROLYTIC, 16V 10UF M

#2 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

#3 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A C303 24214471 CERAMIC DISC, 500V B 470PF K C306 24666332 ELECTROLYTIC, 16V 3300UF M 3A C308 #1 24669101 ELECTROLYTIC, 50V 100UF M 3A

#2 24766101 ELECTROLYTIC, 50V 100UF M

#3 24766101 ELECTROLYTIC, 50V 100UF M C309 #1 24669331 ELECTROLYTIC, 50V 330UF M 3A

#2 24766331 ELECTROLYTIC CE04G 50V 330UF M

#3 24766331 ELECTROLYTIC CE04G 50V 330UF M C310 #1 24669222 ELECTROLYTIC, 50V 2200UF M 3A

#2 24766222 ELECTROLYTIC CE04G 50V 2200UF M

#3 24766222 ELECTROLYTIC CE04G 50V 2200UF M

Location Parts No. Description No.

C311 #1 24435560 CERAMIC DISC, 500V SL 56PF J

#2 24435560 CERAMIC DISC, 500V SL 56PF J

#3 24434560 CERAMIC DISC, 500V SL 56PF J C313 24082061 PLASTIC FILM, 100V 0.47UF J C314 24693472 PLASTIC FILM, 100V 4700PF J C315 24109102 CERAMIC CHIP, 50V B 1000PF K C320 24503052 MT PLA CAP 63V 0.82UF J C321 24591183 PLASTIC FILM, 50V 0.018UF J C323 #1 24668101 ELECTROLYTIC, 35V 100UF M 3A

#2 24765101 ELECTROLYITC, 35V 100UF M

#3 24765101 ELECTROLYITC, 35V 100UF M C325 24206479 ELECTROLYTIC, 50V 4.7UF M 7L 3A C341 24794101 ELECTROLYTIC, 16V 100UF M C342 24795100 ELECTROLYTIC, 25V 10UF M C363 24693473 PLASTIC FILM, 100V 0.047UF J C401 24108680 CERAMIC CHIP, 50V SL 68PF J C402 24693393 PLASTIC FILM, 100V 0.039UF J C406 24109221 CERAMIC CHIP, 50V B 220PF K C407 24092730 CERAMIC CHIP, 16V B 0.1UF K C408 24108330 CERAMIC CHIP, 50V SL 33PF J C409 24109103 CERAMIC CHIP, 50V B 0.01UF K C410 #1 24794100 ELECTROLYTIC, 16V 10UF M

#2 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

#3 24794100 ELECTROLYTIC, 16V 10UF M C413 24214821 CERAMIC DISC, 500V B 820PF K C415 24109103 CERAMIC CHIP, 50V B 0.01UF K C416 24678229 ELECTROLYTIC, 200V 2.2UF M 3A C417 24214391 CERAMIC DISC, 500V B 390PF K C418 24109221 CERAMIC CHIP, 50V B 220PF K C419 24668221 ELECTROLYTIC, 35V 220UF M 3A C430 24092730 CERAMIC CHIP, 16V B 0.1UF K C431 24794101 ELECTROLYTIC, 16V 100UF M C440 #1 24503193 PLASTIC FILM, 1500VH 1000PF H

#2 24503193 PLASTIC FILM, 1500VH 1000PF H

#3 24503211 PLASTIC FILM, 1500VH 1200PF H C442 24082995 PLASTIC FILM, 250V 0.36 UF J C444 24503279 PLASTIC FILM, 1500VH 9100PF H C445 24828563 PLASTIC FILM, 200V 56000PF J C447 24679220 ELECTROLYTIC, 250V 22UF M 3A C448 #1 24640908 ELECTROLYTIC, 160V 33UF M 3A LI

#2 24073118 ELECTROLYTIC, 160V 33UF M

#3 24073118 ELECTROLYTIC, 160V 33UF M C449 #1 24667102 ELECTROLYTIC, 25V 1000UF M 3A

#2 24764102 ELECTROLYTIC, 25V 1000UF M

#3 24764102 ELECTROLYTIC, 25V 1000UF M C463 24212222 CERAMIC DISC, 50V B 2200PF K

SPECIFIC INFORMATIONS

– 17 –

Page 18

Location Parts No. Description No.

C464 #1 24640872 ELECTROLYTIC, 100V 10UF M 3A

#2 24073124 100V 10U TOKUSHU 100YXG10MCA10X20 #3 24073124 100V 10U TOKUSHU 100YXG10MCA10X20

C467 #1 24820433 PLASTIC FILM, 630V 0.043UF J

#2 24820433 PLASTIC FILM, 630V 0.043UF J

#3 24503158 PLASTIC FILM, 630V 0.036UF J C470 24797101 ELECTROLYTIC, 50V 100UF M C472 #1 24539474 PLASTIC FILM, 50V 0.47UF J

#2 24503049 PLASTIC FILM, 63V 0.47UF J

#3 24503049 PLASTIC FILM, 63V 0.47UF J C475 24092730 CERAMIC CHIP, 16V B 0.1UF K C499 24353100 CERAMIC DISC, 50V CH 10PF C C500 24092730 CERAMIC CHIP, 16V B 0.1UF K C501 24109103 CERAMIC CHIP, 50V B 0.01UF K C502 24793102 ELECTROLYTIC, 10V 1000UF M C503 24109103 CERAMIC CHIP, 50V B 0.01UF K C543 #1 24794100 ELECTROLYTIC, 16V 10UF M

#2 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

#3 24794100 ELECTROLYTIC, 16V 10UF M C547 24793101 ELECTROLYTIC, 10V 100UF M C560 24794101 ELECTROLYTIC, 16V 100UF M C561 24109103 CERAMIC CHIP, 50V B 0.01UF K C597 24436390 CERAMIC DISC, 50V SL 39PFJ C598 24436390 CERAMIC DISC, 50V SL 39PFJ C599 24436390 CERAMIC DISC, 50V SL 39PFJ C624 #1 24797478 ELECTROLYTIC, 50V 0.47UF M

#2 24206478 ELECTROLYTIC, 50V 0.47UF M 7L 3A

#3 24797478 ELECTROLYTIC, 50V 0.47UF M C664 #1 24797478 ELECTROLYTIC, 50V 0.47UF M

#2 24206478 ELECTROLYTIC, 50V 0.47UF M 7L 3A

#3 24797478 ELECTROLYTIC, 50V 0.47UF M C666 24591563 PLASTIC FILM, 50V 0.056UF J C670 24797470 ELECTROLYTIC, 50V 47UF M C671 24797471 ELECTROLYTIC, 50V 470UF M

SPECIFIC INFORMATIONS

C672 24766470 ELECTROLYTIC, 50V 47UF M C674 #1 24797478 ELECTROLYTIC, 50V 0.47UF M

#2 24206478 ELECTROLYTIC, 50V 0.47UF M 7L 3A

#3 24797478 ELECTROLYTIC, 50V 0.47UF M C675 #1 24109102 CERAMIC CHIP, 50V B 1000PF K C676 24591823 PLASTIC FILM, 50V 0.082UF J C677 #1 24539823 PLASTIC FILM, 50V 0.082UF J

#2 24591823 PLASTIC FILM, 50V 0.082UF J

#3 24591823 PLASTIC FILM, 50V 0.082UF J C678 #1 24109102 CERAMIC CHIP, 50V B 1000PF K C679 #1 24539563 PLASTIC FILM, 50V 0.056UF J

#2 24591563 PLASTIC FILM, 50V 0.056UF J

#3 24591563 PLASTIC FILM, 50V 0.056UF J C680 #1 24669229 ELECTROLYTIC, 50V 2.2UF M 3A

#2 24766229 ELECTROLYTIC, 50V 2.2UF M

#3 24766229 ELECTROLYTIC, 50V 2.2UF M C681 #1 24669229 ELECTROLYTIC, 50V 2.2UF M 3A

#2 24766229 ELECTROLYTIC, 50V 2.2UF M

#3 24766229 ELECTROLYTIC, 50V 2.2UF M C682 #1 24669229 ELECTROLYTIC, 50V 2.2UF M 3A

#2 24766229 ELECTROLYTIC, 50V 2.2UF M

#3 24766229 ELECTROLYTIC, 50V 2.2UF M C683 24795101 ELECTROLYTIC, 25V 100UF M C684 24503049 PLASTIC FILM, 63V 0.47UF J C685 24797100 ELECTROLYTIC, 50V 10UF M C686 24795102 ELECTROLYTIC, 25V 1000UF M C687 24797100 ELECTROLYTIC, 50V 10UF M C688 24503049 PLASTIC FILM, 63V 0.47UF J C689 #1 24667471 ELECTROLYTIC, 25V 470UF M 3A

#2 24764471 ELECTROLYTIC, 25V 470UF M

#3 24764471 ELECTROLYTIC, 25V 470UF M C690 #1 24667471 ELECTROLYTIC, 25V 470UF M 3A

#2 24764471 ELECTROLYTIC, 25V 470UF M

#3 24764471 ELECTROLYTIC, 25V 470UF M C739 #1 24794100 ELECTROLYTIC, 16V 10UF M

#2 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

#3 24794100 ELECTROLYTIC, 16V 10UF M C801 24503507 PLASTIC FILM, AC275V 0.22UF K C802 24503507 PLASTIC FILM, AC275V 0.22UF K C805 24092281 CERAMIC DISC, AC250V E 4700PF C806 24092281 CERAMIC DISC, AC250V E 4700PF C808 #1 24668101 ELECTROLYTIC, 35V 100UF M 3A

Location Parts No. Description No.

#2 24765101 ELECTROLYITC, 35V 100UF M #3 24765101 ELECTROLYITC, 35V 100UF M

C810 #1 24086857 ELECTROLYTIC, 400V 560UF

#2 24086857 ELECTROLYTIC, 400V 560UF

#3 24086934 ELECTROLYTIC, 450V 560UF M 35F C811 24092555 CERAMIC DISC, AC250V E 1000PF M C813 24092555 CERAMIC DISC, AC250V E 1000PF M C814 24092555 CERAMIC DISC, AC250V E 1000PF M C815 24092551 CERAMIC DISC, AC250V B 220PF K C817 24092338 CERAMIC DISC, 2KV R 270PF K C818 24092341 CERAMIC DISC, 2KV R 470PF K C821 24214561 CERAMIC DISC, 500V B 560PF K C822 24214102 CERAMIC DISC, 500V B 1000PF K C823 24214471 CERAMIC DISC, 500V B 470PF K C829 24212561 CERAMIC DISC, 50V B 560PF K C830 24503047 PLASTIC FILM, 63V 0.33UF J C831 24503047 PLASTIC FILM, 63V 0.33UF J C832 24503047 PLASTIC FILM, 63V 0.33UF J C834 24503047 PLASTIC FILM, 63V 0.33UF J C840 24666470 ELECTORLYTIC CE04Q, 16V 47UF M 3A C841 24503047 PLASTIC FILM, 63V 0.33UF J C842 24503047 PLASTIC FILM, 63V 0.33UF J C862 24092339 CERAMIC DISC, 2KV 330PF K C883 24214561 CERAMIC DISC, 500V B 560PF K C884 24086052 ELECTRORYTIC, 200V 220UF M 22A C885 24214471 CERAMIC DISC, 500V B 470PF K C889 #1 24668222 ELECTROLYTIC CE04Q, 35V 2200UF M 3A

#2 24765222 ELECTROLYTIC CE04G 35V 2200UF M

#3 24765222 ELECTROLYTIC CE04G 35V 2200UF M C891 #1 24666102 ELECTROLYTIC, 16V 1000UF M 3A

#2 24763102 ELECTROLYTIC, 16V 1000UF M

#3 24763102 ELECTROLYTIC, 16V 1000UF M C893 24092337 CERAMIC DISC, 2KV 220PF K C898 24503045 PLASTIC FILM, 63V 0.22UF J C899 24214471 CERAMIC DISC, 500V B 470PF K C902 24092339 CERAMIC DISC, 2KV 330PF K C904 #1 24436681 CERAMIC DISC, 50V SL 680PF J

#2 24436681 CERAMIC DISC, 50V SL 680PF J

#3 24436471 CERAMIC DISC, 50V SL 470PF J C905 #1 24436821 CERAMIC DISC, 50V SL 820PF J

#2 24436821 CERAMIC DISC, 50V SL 820PF J

#3 24436561 CERAMIC DISC, 50V SL 560PF J C907 #1 24436102 CERAMIC DISC, 50V SL 1000PF J

#2 24436102 CERAMIC DISC, 50V SL 1000PF J

#3 24436681 CERAMIC DISC, 50V SL 680PF J C909 24679220 ELECTROLYTIC, 250V 22UF M 3A C910 24797100 ELECTROLYTIC, 50V 10UF M C912 24794222 ELECTROLYTIC, 16V 2200UF M C913 #1 24203220 ELECTROLYTIC, 16V 22UF M 7L 3A

#2 24203220 ELECTROLYTIC, 16V 22UF M 7L 3A

#3 24794220 ELECTROLYTIC, 16V 22UF M C915 #1 24203220 ELECTROLYTIC, 16V 22UF M 7L 3A

#2 24203220 ELECTROLYTIC, 16V 22UF M 7L 3A

#3 24794220 ELECTROLYTIC, 16V 22UF M C930 24214101 CERAMIC DISC, 500V B 100PF K C931 24214101 CERAMIC DISC, 500V B 100PF K C997 #3 24214102 CERAMIC DISC, 500V B 1000PF K C998 #3 24214102 CERAMIC DISC, 500V B 1000PF K C999 24436221 CERAMIC DISC, 50V SL 220PF J C4200 24109221 CERAMIC CHIP, 50V B 220PF K C4300 24109103 CERAMIC CHIP, 50V B 0.01UF K C4712 24109103 CERAMIC CHIP, 50V B 0.01UF K CA09 24109103 CERAMIC CHIP, 50V B 0.01UF K CA14 24105680 CERAMIC CHIP, 50V CH 68PF J CA15 24105680 CERAMIC CHIP, 50V CH 68PF J CA48 24105221 CERAMIC CHIP, 50V CH 220PF J CA49 #1 24794100 ELECTROLYTIC, 16V 10UF M

#2 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

#3 24794100 ELECTROLYTIC, 16V 10UF M CA50 24105270 CERAMIC CHIP, 50V CH 27PF J CA51 24105270 CERAMIC CHIP, 50V CH 27PF J CA53 24105101 CERAMIC CHIP, 50V CH 100PF J CA54 24092730 CERAMIC CHIP, 16V B 0.1UF K CA55 24100103 CERAMIC CHIP, 50V F 0.01UF Z CA56 24100103 CERAMIC CHIP, 50V F 0.01UF Z CA60 24092538 CERAMIC CHIP, 10V F 1UF Z

– 18 –

Page 19

Location Parts No. Description No.

CA61 24793101 ELECTROLYTIC, 10V 100UF M CA65 24092729 CERAMIC CHIP CK73B 16V 68000PFK CA72 24105680 CERAMIC CHIP, 50V CH 68PF J CA73 24105680 CERAMIC CHIP, 50V CH 68PF J CA74 24105101 CERAMIC CHIP, 50V CH 100PF J CA76 #1 24797229 ELECTROLYTIC, 50V 2.2UF M

#2 24206229 ELECTROLYTIC, 50V 2.2UF M 7L 3A

#3 24797229 ELECTROLYTIC, 50V 2.2UF M CA77 24092538 CERAMIC CHIP, 10V F 1UF Z CA82 24793470 ELECTROLYTIC CE04G 10V 47UF M CA99 24353101 CERAMIC DISC, 50V CH 100PF J CB01 #1 24794470 ELECTROLYTIC, 16V 47UF M

#2 24203470 ELECTROLYTIC, 16V 47UF M 7L 3A

#3 24794470 ELECTROLYTIC, 16V 47UF M CB05 #1 24666100 ELECTROLYTIC, 10V 10UF M 3A

#2 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

#3 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A CC01 24109103 CERAMIC CHIP, 50V B 0.01UF K CC11 #1 24109102 CERAMIC CHIP, 50V B 1000PF K CC12 #1 24109102 CERAMIC CHIP, 50V B 1000PF K CC25 #1 24109102 CERAMIC CHIP, 50V B 1000PF K CC26 #1 24109102 CERAMIC CHIP, 50V B 1000PF K CC32 #1 24232103 CERAMIC DISC, 50V F 0.01UF Z CC33 #1 24232103 CERAMIC DISC, 50V F 0.01UF Z CI01 24109103 CERAMIC CHIP, 50V B 0.01UF K CI02 24109103 CERAMIC CHIP, 50V B 0.01UF K CI03 24109103 CERAMIC CHIP, 50V B 0.01UF K CI04 24109103 CERAMIC CHIP, 50V B 0.01UF K CI05 24109103 CERAMIC CHIP, 50V B 0.01UF K CI06 24109103 CERAMIC CHIP, 50V B 0.01UF K CI08 #1 24797010 ELECTROLYTIC, 50V 1UF M

#2 24206010 ELECTROLYTIC, 50V 1.0UF M 7L 3A

#3 24797010 ELECTROLYTIC, 50V 1UF M CI09 24109103 CERAMIC CHIP, 50V B 0.01UF K CI10 24794101 ELECTROLYTIC, 16V 100UF M CI12 24092573 CERAMIC CHIP, 16V B 0.47UF K CI13 24109102 CERAMIC CHIP, 50V B 1000PF K CI14 24109103 CERAMIC CHIP, 50V B 0.01UF K CI16 24105150 CERAMIC CHIP, 50V CH 15PF J CI17 #1 24797229 ELECTROLYTIC, 50V 2.2UF M

#2 24206229 ELECTROLYTIC, 50V 2.2UF M 7L 3A

#3 24797229 ELECTROLYTIC, 50V 2.2UF M CI18 #1 24794220 ELECTROLYTIC, 16V 22UF M

#2 24203220 ELECTROLYTIC, 16V 22UF M 7L 3A

#3 24794220 ELECTROLYTIC, 16V 22UF M CI20 24105560 CERAMIC CHIP, 50V CH 56PF J CI21 24105430 CERAMIC CHIP CC73CH 50V 43PF J CI30 24109103 CERAMIC CHIP, 50V B 0.01UF K CI31 #1 24797479 ELECTROLYTIC, 50V 4.7UF M

#2 24206479 ELECTROLYTIC, 50V 4.7UF M 7L 3A

#3 24797479 ELECTROLYTIC, 50V 4.7UF M CI56 24105120 CERAMIC CHIP, 50V CH 12PF J CI57 24105510 CERAMIC CHIP, 50V CH 51PF J CI60 24105470 CERAMIC CHIP, 50V CH 47PF J CI61 24105470 CERAMIC CHIP, 50V CH 47PF J CI62 24109103 CERAMIC CHIP, 50V B 0.01UF K CI63 24109103 CERAMIC CHIP, 50V B 0.01UF K CI65 24109153 CERAMIC CHIP, 50V B 0.015UF K CI71 24109103 CERAMIC CHIP, 50V B 0.01UF K CI81 24109103 CERAMIC CHIP, 50V B 0.01UF K CI90 24105470 CERAMIC CHIP, 50V CH 47PF J CI91 24105470 CERAMIC CHIP, 50V CH 47PF J CI92 24109103 CERAMIC CHIP, 50V B 0.01UF K CI93 24109103 CERAMIC CHIP, 50V B 0.01UF K CS10 #1 24794100 ELECTROLYTIC, 16V 10UF M

#2 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

#3 24794100 ELECTROLYTIC, 16V 10UF M CS11 #1 24794100 ELECTROLYTIC, 16V 10UF M

#2 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

#3 24794100 ELECTROLYTIC, 16V 10UF M CS12 #1 24794220 ELECTROLYTIC, 16V 22UF M

#2 24203220 ELECTROLYTIC, 16V 22UF M 7L 3A

#3 24794220 ELECTROLYTIC, 16V 22UF M CS13 #1 24794220 ELECTROLYTIC, 16V 22UF M

#2 24203220 ELECTROLYTIC, 16V 22UF M 7L 3A

#3 24794220 ELECTROLYTIC, 16V 22UF M

Location Parts No. Description No.

CS15 24109103 CERAMIC CHIP, 50V B 0.01UF K CS16 #1 24794220 ELECTROLYTIC, 16V 22UF M

#2 24203220 ELECTROLYTIC, 16V 22UF M 7L 3A #3 24794220 ELECTROLYTIC, 16V 22UF M

CS17 #1 24794220 ELECTROLYTIC, 16V 22UF M

#2 24203220 ELECTROLYTIC, 16V 22UF M 7L 3A #3 24794220 ELECTROLYTIC, 16V 22UF M

CS29 #1 24794220 ELECTROLYTIC, 16V 22UF M

#2 24203220 ELECTROLYTIC, 16V 22UF M 7L 3A

#3 24794220 ELECTROLYTIC, 16V 22UF M CV01 #1 24212102 CERAMIC DISC, 50V B 1000PF K CV02 #1 24212102 CERAMIC DISC, 50V B 1000PF K CV03 #1 24212102 CERAMIC DISC, 50V B 1000PF K CV04 #1 24212102 CERAMIC DISC, 50V B 1000PF K CV13 24085942 ELECTROLYTIC, NONPOLAR, 16V 10UF M 5L CV14 #1 24794100 ELECTROLYTIC, 16V 10UF M

#2 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

#3 24794100 ELECTROLYTIC, 16V 10UF M CV34 24762471 ELECTROLYTIC, 10V 470UF M CV36 24794221 ELECTROIYTIC, 16V 220UF M

RESISTORS

R101 24553153 OXIDE METAL FILM, 1W 15K OHM J R121 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J R201 24011103 CHIP, METAL FILM, 1/20W 10K OHM J R202 24011103 CHIP, METAL FILM, 1/20W 10K OHM J R203 24011102 CHIP, METAL FILM, 1/20W 1K OHM J R204 24011103 CHIP, METAL FILM, 1/20W 10K OHM J R205 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J R206 24011182 CHIP, METAL FILM, 1/20W 1.8K OHM J R207 24011821 CHIP, METAL FILM, 1/20W 820 OHM J R208 24011103 CHIP, METAL FILM, 1/20W 10K OHM J R209 24011102 CHIP, METAL FILM, 1/20W 1K OHM J R210 24011272 CHIP, 1/20W 2.7K OHM J R212 24011273 CHIP, METAL FILM, 1/20W 27K OHM J R215 24011362 CHIP, 1/20W 3.6K OHM J R217 24366103 CARBON FILM, 1/6W 10K OHM J R218 24367272 CARBON FILM, 1/6W 2.7K OHM J R219 24011682 CHIP, METAL FILM, 1/20W 6.8K OHM J R220 24011822 CHIP, METAL FILM, 1/20W 8.2K OHM J R221 24011183 CHIP, METAL FILM, 1/20W 18K OHM J R222 24011681 CHIP, METAL FILM, 1/20W 680 OHM J R227 24367113 CARBON FILM, 1/2W 11K OHM J R231 24011622 CHIP, METAL FILM, 1/20W 6.2K OHM J R232 24011123 CHIP, METAL FILM, 1/20W 12K OHM J R233 24367273 CARBON FILM, 1/6W 27K OHM G R303 24321109 OXIDE METAL FILM, 1/2W 1 OHM J R305 #1 24338159 OXIDE METAL FILM, 1W 1.5 OHM J

#2 24338159 OXIDE METAL FILM, 1W 1.5 OHM J

#3 24338109 OXIDE METAL FILM, 1W 1 OHM J R312 24552561 OXIDE METAL FILM, 1/2W 560 OHM J R314 24011562 CHIP, METAL FILM, 1/20W 5.6K OHM J R319 24000445 CHIP JUMPER, 1608TYPE R320 24000445 CHIP JUMPER, 1608TYPE R321 24011183 CHIP, METAL FILM, 1/20W 18K OHM J R322 24011303 CHIP, METAL FILM, 1/20W 30K OHM J R324 24011182 CHIP, METAL FILM, 1/20W 1.8K OHM J R325 24011752 CHIP, METAL FILM, 1/20W 7.5K OHM J R327 24323159 OXIDE METAL FILM, 2W 1.5 OHM J R328 24367472 CARBON FILM, 1/6W 4.7K OHM G R329 24000633 METAL FILM, 1/4W 10K OHM F R330 24000245 METAL FILM, 1/4W 33K OHM F R331 24366153 CARBON FILM, 1/6W 15K OHM J R336 24383101 OXIDE METAL FILM, 2W 100 OHM J R341 24011182 CHIP, METAL FILM, 1/20W 1.8K OHM J R342 24366562 CARBON FILM, 1/6W 5.6K OHM J R343 24310189 OXIDE METAL FILM, 1/2W 1.8 OHM J R344 24366392 CARBON FILM, 1/6W 3.9K OHM J R349 24011473 CHIP, METAL FILM, 1/20W 47K OHM J R401 24011471 CHIP, METAL FILM, 1/20W 470 OHM J R402 24011471 CHIP, METAL FILM, 1/20W 470 OHM J R403 24382123 OXIDE METAL FILM, 1W 12K OHM J R404 24011680 CHIP, METAL FILM, 1/20W 68 OHM J R405 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J R406 24011682 CHIP, METAL FILM, 1/20W 6.8K OHM J R407 24011223 CHIP, METAL FILM, 1/20W 22K OHM J

SPECIFIC INFORMATIONS

– 19 –

Page 20

Location Parts No. Description No.

R408 24011471 CHIP, METAL FILM, 1/20W 470 OHM J R409 24011101 CHIP, METAL FILM, 1/20W 100 OHM J R410 24872102 CHIP, 1/16W 1K OHM J R411 24011470 CHIP, METAL FILM, 1/20W 47 OHM J R415 24553272 OXIDE METAL FILM, 1W 2.7K OHM J R416 24019330 OXIDE METAL FILM, 5W 3.6K OHM J R417 24011104 CHIP, METAL FILM, 1/20W 100K OHM J R418 24011103 CHIP, METAL FILM, 1/20W 10K OHM J R420 24011101 CHIP, METAL FILM, 1/20W 100 OHM J R424 24011103 CHIP, METAL FILM, 1/20W 10K OHM J R425 24011103 CHIP, METAL FILM, 1/20W 10K OHM J R429 #1 24366560 CARBON FILM, 1/6W 56 OHM J

#2 24366560 CARBON FILM, 1/6W 56 OHM J

#3 24552560 OXIDE METAL FILM, 1/2W 56 OHM J R431 24011103 CHIP, METAL FILM, 1/20W 10K OHM J R432 24366332 CARBON FILM, 1/6W 3.3K OHM J R433 24531680 FUSIBLE, 1/2W 68 OHM J R434 24366101 CARBON FILM, 1/6W 100 OHM J R441 24532102 FUSIBLE, 1W 1K OHM J R448 24338398 OXIDE METAL FILM, 1W 0.39 OHM J R470 24338688 OXIDE METAL FILM, 1W 0.68 OHM J R471 24381820 OXIDE METAL FILM, 1/2W 82 OHM J R473 24000637 METAL FILM, 1/4W 15K OHM F R474 #1 24383181 OXIDE METAL FILM, 2W 180 OHM J

#2 24383181 OXIDE METAL FILM, 2W 180 OHM J

#3 24383910 OXIDE METAL FILM, 2W 91 OHM J R479 24381331 OXIDE FILM 1/2W 330 J R501 24011562 CHIP, METAL FILM, 1/20W 5.6K OHM J R502 24011152 CHIP, METAL FILM, 1/20W 1.5K OHM J R512 24011121 CHIP, METAL FILM, 1/20W 120 OHM J R513 24011121 CHIP, METAL FILM, 1/20W 120 OHM J R515 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J R520 24011271 CHIP, METAL FILM, 1/20W 270 OHM J R521 24011271 CHIP, METAL FILM, 1/20W 270 OHM J

SPECIFIC INFORMATIONS

R522 24011271 CHIP, METAL FILM, 1/20W 270 OHM J R544 24011333 CHIP, METAL FILM, 1/20W 33K OHM J R545 24011121 CHIP, METAL FILM, 1/20W 120 OHM J R623 24011103 CHIP, METAL FILM, 1/20W 10K OHM J R624 24011104 CHIP, METAL FILM, 1/20W 100K OHM J R660 24011223 CHIP, METAL FILM, 1/20W 22K OHM J R661 24011223 CHIP, METAL FILM, 1/20W 22K OHM J R662 24011220 CHIP, METAL FILM, 1/20W 22 OHM J R663 24011102 CHIP, METAL FILM, 1/20W 1K OHM J R664 24011152 CHIP, METAL FILM, 1/20W 1.5K OHM J R665 24011152 CHIP, METAL FILM, 1/20W 1.5K OHM J R666 24011273 CHIP, METAL FILM, 1/20W 27K OHM J R667 24011272 CHIP, 1/20W 2.7K OHM J R668 24011273 CHIP, METAL FILM, 1/20W 27K OHM J R669 24011272 CHIP, 1/20W 2.7K OHM J R673 24011104 CHIP, METAL FILM, 1/20W 100K OHM J R674 24011103 CHIP, METAL FILM, 1/20W 10K OHM J R675 24011104 CHIP, METAL FILM, 1/20W 100K OHM J R690 24011102 CHIP, METAL FILM, 1/20W 1K OHM J R691 24011220 CHIP, METAL FILM, 1/20W 22 OHM J R801 24009954 METAL FILN, 1/2W 2.2M OHM J R802 24383104 OXIDE METAL FILM, 2W 100K OHM J R805 24366681 CARBON FILM, 1/6W 680 OHM J R807 24376684 R808 24019476 THERMISTOR, POSITIVE, AC290V 18 OHM M R809 24376433 RD14B2H433J R810 24007737 CERAMIC COVERED, 15W 2.2 OHM J R811 24568271 CERAMIC COVERED, 7W 270 OHM J R815 24366562 CARBON FILM, 1/6W 5.6K OHM J R820 24019463 METAL PLATE RK99 2W R22 J R821 24310479 OXIDE METAL FILM, 1/2W 4.7 OHM J R823 24376152 CARBON FILM, 1/2W 1.5K OHM J R827 24366102 CARBON FILM, 1/6W 1K OHM J R829 24988027 METAL FILM 1W R47 J R840 24366471 CARBON FILM, 1/6W 470 OHM J R842 24366332 CARBON FILM, 1/6W 3.3K OHM J R843 24366471 CARBON FILM, 1/6W 470 OHM J R844 24321478 OXIDE METAL FILM, 1/2W 0.47 OHM J R863 24366132 CARBON FILM, 1/6W 1.3K OHM J R865 24366332 CARBON FILM, 1/6W 3.3K OHM J R868 24366472 CARBON FILM, 1/6W 4.7K OHM J R898 24321228 OXIDE METAL FILM, 1/2W 0.22 OHM J

Location Parts No. Description No.

R899 24004718 METAL GLAZE 1/2W 8R2M J R901 #1 24376102 CARBON FILM, 1/2W 1K OHM J

#2 24376102 CARBON FILM, 1/2W 1K OHM J #3 24376152 CARBON FILM, 1/2W 1.5K OHM J

R902 #1 24376102 CARBON FILM, 1/2W 1K OHM J

#2 24376102 CARBON FILM, 1/2W 1K OHM J #3 24376152 CARBON FILM, 1/2W 1.5K OHM J

R903 #1 24376102 CARBON FILM, 1/2W 1K OHM J

#2 24376102 CARBON FILM, 1/2W 1K OHM J

#3 24376152 CARBON FILM, 1/2W 1.5K OHM J R904 24366472 CARBON FILM, 1/6W 4.7K OHM J R905 24366150 CARBON FILM, 1/6W 15 OHM J R912 24366102 CARBON FILM, 1/6W 1K OHM J R914 24366561 CARBON FILM, 1/6W 560 OHM J R915 24366121 CARBON FILM, 1/6W 120 OHM J R916 24366181 CARBON FILM, 1/6W 180 OHM J R917 24366821 CARBON FILM, 1/6W 820 OHM J R918 24366270 CARBON FILM, 1/6W 27 OHM J R919 24366102 CARBON FILM, 1/6W 1K OHM J R920 24000880 FUSIBLE, 1W 5.1 OHM J R921 24366561 CARBON FILM, 1/6W 560 OHM J R922 24366121 CARBON FILM, 1/6W 120 OHM J R924 24366270 CARBON FILM, 1/6W 27 OHM J R925 24366821 CARBON FILM, 1/6W 820 OHM J R926 24366102 CARBON FILM, 1/6W 1K OHM J R928 24366561 CARBON FILM, 1/6W 560 OHM J R929 24366121 CARBON FILM, 1/6W 120 OHM J R930 24366270 CARBON FILM, 1/6W 27 OHM J R932 24366102 CARBON FILM, 1/6W 1K OHM J R934 24366561 CARBON FILM, 1/6W 560 OHM J R935 24366392 CARBON FILM, 1/6W 3.9K OHM J R936 24545150 FUSIBLE, 1/4W 15 OHM J R937 24366821 CARBON FILM, 1/6W 820 OHM J R942 #1 24366562 CARBON FILM, 1/6W 5.6K OHM J

#2 24366562 CARBON FILM, 1/6W 5.6K OHM J R943 #1 24366562 CARBON FILM, 1/6W 5.6K OHM J

#2 24366562 CARBON FILM, 1/6W 5.6K OHM J R944 #1 24366562 CARBON FILM, 1/6W 5.6K OHM J

#2 24366562 CARBON FILM, 1/6W 5.6K OHM J R945 24366181 CARBON FILM, 1/6W 180 OHM J R946 24366181 CARBON FILM, 1/6W 180 OHM J R960 24383153 OXIDE METAL FILM, 2W 15K OHM J R961 24383153 OXIDE METAL FILM, 2W 15K OHM J R962 24383153 OXIDE METAL FILM, 2W 15K OHM J R977 24366122 CARBON FILM, 1/6W 1.2K OHM J R992 24366150 CARBON FILM, 1/6W 15 OHM J R4200 24011471 CHIP, METAL FILM, 1/20W 470 OHM J R4711 24011684 CHIP, METAL FILM, 1/20W 680K OHM J R4712 24011224 CHIP, METAL FILM, 1/20W 220K OHM J R4715 24011102 CHIP, METAL FILM, 1/20W 1K OHM J R4716 24011333 CHIP, METAL FILM, 1/20W 33K OHM J R4760 24000247 METAL FILM, 1/4W 39K OHM F R4770 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RA03 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RA04 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RA05 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RA11 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J RA12 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J RA40 24366683 CARBON FILM, 1/6W 68K OHM J RA41 24366223 CARBON FILM, 1/6W 22K OHM J RA42 24366103 CARBON FILM, 1/6W 10K OHM J RA43 24366103 CARBON FILM, 1/6W 10K OHM J RA44 24366223 CARBON FILM, 1/6W 22K OHM J RA45 24366683 CARBON FILM, 1/6W 68K OHM J RA49 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J RA50 24011680 CHIP, METAL FILM, 1/20W 68 OHM J RA53 24011471 CHIP, METAL FILM, 1/20W 470 OHM J RA54 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RA55 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RA56 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RA59 24011333 CHIP, METAL FILM, 1/20W 33K OHM J RA63 24367333 CARBON FILM, 1/6W 33K OHM G RA64 24011103 CHIP, METAL FILM, 1/20W 10K OHM J RA65 24011333 CHIP, METAL FILM, 1/20W 33K OHM J RA66 24011333 CHIP, METAL FILM, 1/20W 33K OHM J RA67 24011102 CHIP, METAL FILM, 1/20W 1K OHM J

– 20 –

Page 21

Location Parts No. Description No.

RA68 24011333 CHIP, METAL FILM, 1/20W 33K OHM J RA69 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RA70 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RA71 24011103 CHIP, METAL FILM, 1/20W 10K OHM J RA72 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J RA73 24000445 CHIP JUMPER, 1608TYPE RA74 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J RA75 24011123 CHIP, METAL FILM, 1/20W 12K OHM J RA76 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J RA77 24011123 CHIP, METAL FILM, 1/20W 12K OHM J RA78 24011183 CHIP, METAL FILM, 1/20W 18K OHM J RA79 24011333 CHIP, METAL FILM, 1/20W 33K OHM J RB01 24366271 CARBON FILM, 1/6W 270 OHM J RB05 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RB09 24366470 CARBON FILM, 1/6W 47 OHM J RB48 24011332 CHIP, METAL FILM, 1/20W 3.3K OHM J RB49 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RC11 #1 24011102 CHIP, METAL FILM, 1/20W 1K OHM J

#2 24000445 CHIP JUMPER, 1608TYPE #3 24000445 CHIP JUMPER, 1608TYPE

RC12 #1 24011102 CHIP, METAL FILM, 1/20W 1K OHM J

#2 24000445 CHIP JUMPER, 1608TYPE #3 24000445 CHIP JUMPER, 1608TYPE

RC16 #1 24011102 CHIP, METAL FILM, 1/20W 1K OHM J

#2 24000445 CHIP JUMPER, 1608TYPE #3 24000445 CHIP JUMPER, 1608TYPE

RC17 #1 24011102 CHIP, METAL FILM, 1/20W 1K OHM J

#2 24000445 CHIP JUMPER, 1608TYPE

#3 24000445 CHIP JUMPER, 1608TYPE RI01 24011330 CHIP, 1/20W 33 OHM J RI02 24011682 CHIP, METAL FILM, 1/20W 6.8K OHM J RI03 24011272 CHIP, 1/20W 2.7K OHM J RI04 24011330 CHIP, 1/20W 33 OHM J RI05 24011751 CHIP, METAL FILM, 1/20W 750 OHM J RI06 24011330 CHIP, 1/20W 33 OHM J RI07 24871390 CHIP, 1/8W 39 OHM J RI08 24011821 CHIP, METAL FILM, 1/20W 820 OHM J RI09 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RI10 24011103 CHIP, METAL FILM, 1/20W 10K OHM J RI11 24011302 CHIP, METAL FILM, 1/20W 3K OHM J RI12 24011103 CHIP, METAL FILM, 1/20W 10K OHM J RI13 24011332 CHIP, METAL FILM, 1/20W 3.3K OHM J RI14 24000445 CHIP JUMPER, 1608TYPE RI15 24011103 CHIP, METAL FILM, 1/20W 10K OHM J RI16 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RI17 24011271 CHIP, METAL FILM, 1/20W 270 OHM J RI18 24011331 CHIP, METAL FILM, 1/20W 330 OHM J RI19 24011105 CHIP, METAL FILM, 1/20W 1M OHM J RI20 24011821 CHIP, METAL FILM, 1/20W 820 OHM J RI21 24011271 CHIP, METAL FILM, 1/20W 270 OHM J RI30 24011473 CHIP, METAL FILM, 1/20W 47K OHM J RI31 24011433 CHIP, METAL FILM, 1/20W 43K OHM J RI32 24011123 CHIP, METAL FILM, 1/20W 12K OHM J RI33 #1 24011272 CHIP, 1/20W 2.7K OHM J

#2 24011272 CHIP, 1/20W 2.7K OHM J

#3 24011302 CHIP, METAL FILM, 1/20W 3K OHM J RI40 24011104 CHIP, METAL FILM, 1/20W 100K OHM J RI41 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RI42 24011112 CHIP, 1/20W 1.1K OHM J RI43 24011561 CHIP, METAL FILM, 1/20W 560 OHM J RI44 24011471 CHIP, METAL FILM, 1/20W 470 OHM J RI45 24011561 CHIP, METAL FILM, 1/20W 560 OHM J RI46 24011122 CHIP, METAL FILM, 1/20W 1.2K OHM J RI47 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RI51 24066046 VARIABLE. CARBON, 0.1W 20K N RI52 24011331 CHIP, METAL FILM, 1/20W 330 OHM J RI61 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RI62 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RI63 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RI65 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J RI67 24011563 CHIP, METAL FILM, 1/20W 56K OHM J RI68 24011563 CHIP, METAL FILM, 1/20W 56K OHM J RI69 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RI71 24011134 CHIP, METAL FILM, 1/2OW 130K OHM J RI72 24011134 CHIP, METAL FILM, 1/2OW 130K OHM J RI73 24011303 CHIP, METAL FILM, 1/20W 30K OHM J

Location Parts No. Description No.

RI74 24011223 CHIP, METAL FILM, 1/20W 22K OHM J RI77 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RI78 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RI79 24011333 CHIP, METAL FILM, 1/20W 33K OHM J RI80 24011183 CHIP, METAL FILM, 1/20W 18K OHM J RI81 24011301 CHIP, METAL FILM, 1/20W 300 OHM J RI82 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RI83 24011103 CHIP, METAL FILM, 1/20W 10K OHM J RI84 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J RI85 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J RI87 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J RI88 24011203 CHIP, METAL FILM, 1/20W 20K OHM J RI91 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RI97 24011563 CHIP, METAL FILM, 1/20W 56K OHM J RI98 24011563 CHIP, METAL FILM, 1/20W 56K OHM J RI99 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RS01 24011103 CHIP, METAL FILM, 1/20W 10K OHM J RS02 24011104 CHIP, METAL FILM, 1/20W 100K OHM J RS03 24011103 CHIP, METAL FILM, 1/20W 10K OHM J RS04 24011104 CHIP, METAL FILM, 1/20W 100K OHM J RS11 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RS12 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RS19 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RS20 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J RS21 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RS22 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J RS23 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RS24 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RS27 24011561 CHIP, METAL FILM, 1/20W 560 OHM J RS61 24552221 OXIDE METAL FILM, 1/2W 220 OHM J RS62 24552221 OXIDE METAL FILM, 1/2W 220 OHM J RV01 24366223 CARBON FILM, 1/6W 22K OHM J RV02 24366223 CARBON FILM, 1/6W 22K OHM J RV03 #1 24366102 CARBON FILM, 1/6W 1K OHM J RV04 #1 24366102 CARBON FILM, 1/6W 1K OHM J RV06 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J RV07 24366202 CARBON FILM, 1/6W 2K OHM J RV08 24366202 CARBON FILM, 1/6W 2K OHM J RV17 24366750 CARBON FILM, 1/6W 75 OHM J RV18 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RV24 24552181 OXIDE METAL FILM, 1/2W 180 OHM J RV25 24011750 CHIP, METAL FILM, 1/20W 75 OHM J RV26 24011101 CHIP, METAL FILM, 1/20W 100 OHM J RV33 24011750 CHIP, METAL FILM, 1/20W 75 OHM J RV34 24011750 CHIP, METAL FILM, 1/20W 75 OHM J GJ04 24000445 CHIP JUMPER, 1608TYPE GJ44 #2 24366472 CARBON FILM, 1/6W 4.7K OHM J GJ45 #2 24366472 CARBON FILM, 1/6W 4.7K OHM J GJ331 24000445 CHIP JUMPER, 1608TYPE GR30 24000445 CHIP JUMPER, 1608TYPE GR301 24000445 CHIP JUMPER, 1608TYPE GRI01 24000445 CHIP JUMPER, 1608TYPE GRI02 24000445 CHIP JUMPER, 1608TYPE JP242 24000445 CHIP JUMPER, 1608TYPE JP247 24000445 CHIP JUMPER, 1608TYPE JR001 24000445 CHIP JUMPER, 1608TYPE

COILS & TRANSFORMERS

L101 #1 23248296 COIL, CHOKE

#2 23248367 COIL, CHOKE 9X13H 221MMH 0.6A TLN3278AC

#3 23248367 COIL, CHOKE 9X13H 221MMH 0.6A TLN3278AC L301 23103249 CORE, FERRITE BEAD 3.5X4.5, TEM2011AO L320 23103249 CORE, FERRITE BEAD 3.5X4.5, TEM2011AO L441 23233999 COIL, LINEALITY, TLN2215AY L461 #1 23248177 COIL, CHOKE, TLN3337AD

#2 23248364

#3 23248364 L462 #1 23231355 COIL, DEFLECTION YOKE, TDY-821AZ

#2 23231355 COIL, DEFLECTION YOKE, TDY-821AZ L462A #1 23993696 BOARD, CORRECTION

#2 23993696 BOARD, CORRECTION L462B #1 23949616 CONVER CORRECTOR, YV TC-R TC-R(YV)

#2 23949616 CONVER CORRECTOR, YV TC-R TC-R(YV) L462C #1 23993081

#2 23993081 L462D #1 23948535 SHEET, MAGNETIC FERRITE

COIL, CHOKE 17X29H 680MMH 1.7A TLN3337AC COIL, CHOKE 17X29H 680MMH 1.7A TLN3337AC

METAL SHEET, CONV. CORRECTION TCRMXH01H METAL SHEET, CONV. CORRECTION TCRMXH01H

SPECIFIC INFORMATIONS

– 21 –

Page 22

Location Parts No. Description No.

#2 23948535 SHEET, MAGNETIC FERRITE

L462E #1 23948536 SHEET, MAGNETIC FERRITE

#2 23948536 SHEET, MAGNETIC FERRITE L501 23289912 COIL, PEAKING COIL 3.3MMH TRF4339AU L502 23289924 COIL, PEAKING COIL 33MMH TRF4330AU L503 23289924 COIL, PEAKING COIL 33MMH TRF4330AU L505 23289924 COIL, PEAKING COIL 33MMH TRF4330AU L506 23103249 CORE, FERRITE BEAD 3.5X4.5, TEM2011AO L507 23289924 COIL, PEAKING COIL 33MMH TRF4330AU L805 23248234 COIL, CHOKE, TLN3481AC L806 23248234 COIL, CHOKE, TLN3481AC L810 23103279 FILTER, FERRITR CHOKE 3.5X5X2 TEM2014AO L811 23103279 FILTER, FERRITR CHOKE 3.5X5X2 TEM2014AO L883 23103249 CORE, FERRITE BEAD 3.5X4.5, TEM2011AO L885 #1 23248288 COIL, CHOKE, TLN3299GH

#2 23248327 COIL, CHOKE 10X13.3H 100MMH TLN3299AC

#3 23248327 COIL, CHOKE 10X13.3H 100MMH TLN3299AC L886 23103249 CORE, FERRITE BEAD 3.5X4.5, TEM2011AO L888 23280016 COIL, PEAKING, TRF4100AZ L889 23280016 COIL, PEAKING, TRF4100AZ L891 23103249 CORE, FERRITE BEAD 3.5X4.5, TEM2011AO L893 23280016 COIL, PEAKING, TRF4100AZ L900 23103249 CORE, FERRITE BEAD 3.5X4.5, TEM2011AO L901 #1 23200534 COIL, DG-0.37 TSB-2301AH

#2 23200534 COIL, DG-0.37 TSB-2301AH

#3 23200486 COIL, DG-0.37, 55T 22.5R-8TYPE TSB-2301BV L902 #1 23289221 COIL, PEAKING, TRF4221AF

#2 23289221 COIL, PEAKING, TRF4221AF L903 #1 23289221 COIL, PEAKING, TRF4221AF

#2 23289221 COIL, PEAKING, TRF4221AF L904 #1 23289221 COIL, PEAKING, TRF4221AF

#2 23289221 COIL, PEAKING, TRF4221AF L905 #1 23289390 COIL, PEAKING, TRF4390AF

#2 23289390 COIL, PEAKING, TRF4390AF

SPECIFIC INFORMATIONS

#3 23289925 COIL, PEAKING, TRF4390AU L906 #1 23289390 COIL, PEAKING, TRF4390AF

#2 23289390 COIL, PEAKING, TRF4390AF

#3 23289925 COIL, PEAKING, TRF4390AU L907 #1 23289390 COIL, PEAKING, TRF4390AF

#2 23289390 COIL, PEAKING, TRF4390AF

#3 23289925 COIL, PEAKING, TRF4390AU LA01 23103249 CORE, FERRITE BEAD 3.5X4.5, TEM2011AO LC01 #1 23221129 CHOKE COIL , TRF9240AC LC02 #1 23221129 CHOKE COIL , TRF9240AC LC03 #1 23221129 CHOKE COIL , TRF9240AC LC04 #1 23103279 FILTER, FERRITR CHOKE 3.5X5X2 TEM2014AO

#2 23289910 COIL, PEAKING COIL 2.2MMH TRF4229AU

#3 23289910 COIL, PEAKING COIL 2.2MMH TRF4229AU LC05 #1 23103279 FILTER, FERRITR CHOKE 3.5X5X2 TEM2014AO

#2 23289910 COIL, PEAKING COIL 2.2MMH TRF4229AU

#3 23289910 COIL, PEAKING COIL 2.2MMH TRF4229AU LI01 23238554 COIL, PEAKING, TRF4R22AJ LI03 23238503 COIL, PEAKING, TRF4129AJ LI04 23238706 COIL, PEAKING, TRF4470AJ LI06 23238719 COIL, PEAKING, TRF4399AJ LI07 23238712 COIL, PEAKING, TRF4150AJ LI10 23289270 COIL, PEAKING, TRF4270AF LI51 23232032 COIL, VARIABLE TRF3546D LI56 23238562 COIL, PEAKING, TRF4109AJ LI57 23238562 COIL, PEAKING, TRF4109AJ LI61 23238710 COIL, PEAKING, TRF4220AJ LI91 23238713 COIL, PEAKING, TRF4120AJ T401 23224391 TRANSFORMER, DRIVE, TLN1104AH T461 #1 23236738

#2 23236738 T461Z 23236612 T801 23211731 COIL, LINE FILTER, TRF3164AC T802 23211777 COIL, LINE FILTER 37X40H 4.7MH TRF3202AR T862 23217638 TRANSFORMER, TPW3534AM G103 #1 23103249 CORE, FERRITE BEAD 3.5X4.5, TEM2011AO G104 #1 23248234 COIL, CHOKE, TLN3481AC G105 #1 23248234 COIL, CHOKE, TLN3481AC G106 #1 23103249 CORE, FERRITE BEAD 3.5X4.5, TEM2011AO G107 #1 23103249 CORE, FERRITE BEAD 3.5X4.5, TEM2011AO G108 #1 23103249 CORE, FERRITE BEAD 3.5X4.5, TEM2011AO G109 #1 23103249 CORE, FERRITE BEAD 3.5X4.5, TEM2011AO

TRANSFORMER, HORIZ OUTPUT, TFB4159AS(NO SEVICE PART) TRANSFORMER, HORIZ OUTPUT, TFB4159AS(NO SEVICE PART) TRANSFORMER, HORIZ OUTPUT, SERVICE, TFB4159ZD

Location Parts No. Description No.

G402 23103249 CORE, FERRITE BEAD 3.5X4.5, TEM2011AO G461 23103249 CORE, FERRITE BEAD 3.5X4.5, TEM2011AO G815 23103249 CORE, FERRITE BEAD 3.5X4.5, TEM2011AO GL10 #1 23103249 CORE, FERRITE BEAD 3.5X4.5, TEM2011AO

SEMICONDUCTORS

Q104 70200934 IC, PST9126NR Q107 #2 23205238 TRANSISTOR, NPN R1=R2=10K KRC402 (USM) Q203 #1 23314204 TRANSISTOR, 2SC2412K,Q

#2 23314475 TRANSISTOR, 2SC2712-Y #3 23314475 TRANSISTOR, 2SC2712-Y

Q204 #1 23314204 TRANSISTOR, 2SC2412K,Q

#2 23314475 TRANSISTOR, 2SC2712-Y #3 23314475 TRANSISTOR, 2SC2712-Y

Q205 #1 23205045 TRANSISTOR, 2SA1037AKQ

#2 23314163 TRANSISTOR, 2SA1162-Y #3 23314163 TRANSISTOR, 2SA1162-Y

Q208 #1 23314204 TRANSISTOR, 2SC2412K,Q

#2 23314475 TRANSISTOR, 2SC2712-Y #3 23314475 TRANSISTOR, 2SC2712-Y

Q210 #1 23314204 TRANSISTOR, 2SC2412K,Q

#2 23314475 TRANSISTOR, 2SC2712-Y #3 23314475 TRANSISTOR, 2SC2712-Y

Q211 #1 23314204 TRANSISTOR, 2SC2412K,Q

#2 23314475 TRANSISTOR, 2SC2712-Y

#3 23314475 TRANSISTOR, 2SC2712-Y Q301 23009352 IC, AN5522 Q321 #1 23314204 TRANSISTOR, 2SC2412K,Q

#2 23314475 TRANSISTOR, 2SC2712-Y

#3 23314475 TRANSISTOR, 2SC2712-Y Q340 #1 23205045 TRANSISTOR, 2SA1037AKQ

#2 23314163 TRANSISTOR, 2SA1162-Y

#3 23314163 TRANSISTOR, 2SA1162-Y Q402 23114755 TRANSISTOR, 2SC2482FA-1 Q403 70114402 TRANSISTOR, 2SC3437-Y Q404 #1 23314375 TRANSISTOR, ON4409

#1 23314970 TRANSISTOR, 2SD2539(FA)

#2 23314375 TRANSISTOR, ON4409

#2 23314970 TRANSISTOR, 2SD2539(FA)

#3 23314375 TRANSISTOR, ON4409 Q430 23114733 TRANSISTOR, 2SC2655-Y Q431 #1 23314204 TRANSISTOR, 2SC2412K,Q

#2 23314475 TRANSISTOR, 2SC2712-Y

#3 23314475 TRANSISTOR, 2SC2712-Y Q471 #1 23114759 TRANSISTOR, 2SA949-Y

#2 23205257 TRANSISTOR, PNP VCBO=-150V KTA1024-Y

#3 23205257 TRANSISTOR, PNP VCBO=-150V KTA1024-Y Q502 23009508 IC, RGB AMP MATSUSHITA AN15931A Q610 23000867 IC, AN5274 Q623 #1 23114493 TRANSISTOR, RN2404

#2 23205222

#3 23205222 Q670 23205005 TRANSISTOR, KTA2014Y Q801 23009322 IC, POW SW.REG.IC VDS=650V,PO= STR-G8656 Q826 23906937 IC, PHOTO COUPLER, ON3171-R Q830 #1 23009188 IC, KIA7805API

#2 23009843 IC, REGULATOR +5V 4% S7805PI

#3 23009843 IC, REGULATOR +5V 4% S7805PI Q835 #1 23009187 IC, REGULATOR +9V 4% KIA7809API

#2 23009844 IC, REGULATOR +9V 4% S7809PI

#3 23009844 IC, REGULATOR +9V 4% S7809PI Q840 #1 23314141 TRANSISTOR, 2SC3852

#2 23205160 TRANSISTOR, NPN VCBO=100V KTD2092

#3 23205160 TRANSISTOR, NPN VCBO=100V KTD2092 Q841 23114879 TRANSISTOR, 2SC2230A-Y(C) Q842 #1 23314965 TRANSISTOR, KTC3198 Y

#2 23205085 TRANSISTOR, 2SC5343-Y

#3 23205085 TRANSISTOR, 2SC5343-Y Q843 23009512 Q901 23314780 TRANSISTOR, 2SC4544 Q902 23205085 TRANSISTOR, 2SC5343-Y Q903 23314780 TRANSISTOR, 2SC4544 Q904 23205085 TRANSISTOR, 2SC5343-Y Q905 23314780 TRANSISTOR, 2SC4544 Q906 23205085 TRANSISTOR, 2SC5343-Y Q907 23205081 TRANSISTOR, 2SA1980-Y

TRANSISTOR, PNP R1=R2=47KOHM SRA2204S (SOT-23) TRANSISTOR, PNP R1=R2=47KOHM SRA2204S (SOT-23)

IC, REGULATOR, +3.3V 2% TO-220F NJU7223F33

– 22 –

Page 23

Location Parts No. Description No.

Q908 23205202 TRANSISTOR, 2SC5344Y Q4030 #1 23314204 TRANSISTOR, 2SC2412K,Q

#2 23314475 TRANSISTOR, 2SC2712-Y #3 23314475 TRANSISTOR, 2SC2712-Y

Q4710 #1 23205045 TRANSISTOR, 2SA1037AKQ

#2 23314163 TRANSISTOR, 2SA1162-Y

#3 23314163 TRANSISTOR, 2SA1162-Y QA10 23009648 IC, AT24C32A-10PI-2.7 QA51 #1 23009951

#2 23009951

#3 23009948 QA71 #1 23205045 TRANSISTOR, 2SA1037AKQ

#2 23314163 TRANSISTOR, 2SA1162-Y

#3 23314163 TRANSISTOR, 2SA1162-Y QA72 #1 23314204 TRANSISTOR, 2SC2412K,Q

#2 23314475 TRANSISTOR, 2SC2712-Y

#3 23314475 TRANSISTOR, 2SC2712-Y QA73 23114460 TRANSISTOR, RN1204 QB05 #1 23314204 TRANSISTOR, 2SC2412K,Q

#2 23314475 TRANSISTOR, 2SC2712-Y

#3 23314475 TRANSISTOR, 2SC2712-Y QI01 23906820 IC, VIF/SIF SSOP 24PIN TA1267AF(FA02,EL) QI02 23114611 TRANSISTOR, 2SC3357 QI04 23205005 TRANSISTOR, KTA2014Y QI05 23205006 TRANSISTOR, KTC4075Y QI06 23205005 TRANSISTOR, KTA2014Y QI07 #1 23205140 TRANSISTOR, DTC114EUAT106

#2 23205214

#3 23205214 QI08 #1 23205140 TRANSISTOR, DTC114EUAT106

#2 23205214

#3 23205214 QI09 #1 23205140 TRANSISTOR, DTC114EUAT106

#2 23205214

#3 23205214 QI12 23314926 TRANSISTOR, FET, 2SK880-Y QI15 #1 23205140 TRANSISTOR, DTC114EUAT106

#2 23205214

#3 23205214 QI16 #1 23205140 TRANSISTOR, DTC114EUAT106

#2 23205214

#3 23205214 QI17 #1 23205140 TRANSISTOR, DTC114EUAT106

#2 23205214

#3 23205214 QI61 23205006 TRANSISTOR, KTC4075Y QI63 #1 23205140 TRANSISTOR, DTC114EUAT106

#2 23205214

#3 23205214 QI64 #1 23205140 TRANSISTOR, DTC114EUAT106

#2 23205214

#3 23205214 QI65 23205006 TRANSISTOR, KTC4075Y QI71 23205006 TRANSISTOR, KTC4075Y QI81 #1 23205140 TRANSISTOR, DTC114EUAT106

#2 23205214

#3 23205214 QI91 23205006 TRANSISTOR, KTC4075Y QI92 #1 23205140 TRANSISTOR, DTC114EUAT106

#2 23205214

#3 23205214 QS01 23205006 TRANSISTOR, KTC4075Y QS02 23205006 TRANSISTOR, KTC4075Y QS03 #1 70114396 TRANSISTOR, 2SC3326B

#2 23205204 TRANSISTOR, NPN VEBO=25V KTC2875B-RTK

#3 23205204 TRANSISTOR, NPN VEBO=25V KTC2875B-RTK QS04 #1 70114396 TRANSISTOR, 2SC3326B

#2 23205204 TRANSISTOR, NPN VEBO=25V KTC2875B-RTK

#3 23205204 TRANSISTOR, NPN VEBO=25V KTC2875B-RTK QS11 23000359 IC, MM1111XF QS12 23000359 IC, MM1111XF QV02 #1 23314962 TRANSISTOR, KTA1266 Y

#2 23205081 TRANSISTOR, 2SA1980-Y

#3 23205081 TRANSISTOR, 2SA1980-Y QV10 #1 23114498 TRANSISTOR, RN1405

#2 23205209

IC, PANA MICRO VCD COMB TEXT MN101E02HME IC, PANA MICRO VCD COMB TEXT MN101E02HME IC, PANA MICRO VCD COMB TEXT MN101E04GAF

TRANSISTOR, NPN R1=R2=10KOHM SRC1202U (SOT-323) TRANSISTOR, NPN R1=R2=10KOHM SRC1202U (SOT-323)

TRANSISTOR, NPN R1=2.2K R2=47K SRC1205S (SOT-23)

Location Parts No. Description No.

#3 23205209 QV11 23905020 IC, MM1116XF QV12 23114462 TRANSISTOR, RN1202 D101 23118607 DIODE, ZENER, RD33ESA B3 D210 #1 23316231 DIODE, 1SS355

#2 23357447 DIODE, SWITCH SILICON KDS160-RTK/USC

#3 23357447 DIODE, SWITCH SILICON KDS160-RTK/USC D211 #1 23316231 DIODE, 1SS355

#2 23357447 DIODE, SWITCH SILICON KDS160-RTK/USC

#3 23357447 DIODE, SWITCH SILICON KDS160-RTK/USC D301 #1 23118822 DIODE, ERB12-02

#2 23357448 DIODE, DIODE IF=1.0A GP10D

#3 23357448 DIODE, DIODE IF=1.0A GP10D D302 23357372 DIODE, AXIAL EU2JGF-41U2 D303 23316794 DIODE, SC570A D340 23118529 DIODE, ZENER, RD5.6ES B2 D406 23357372 DIODE, AXIAL EU2JGF-41U2 D408 23357375 DIODE, 3JHJGR-M2 D431 23118530 DIODE, ZENER, RD5.6ESA B1 D432 23316231 DIODE, 1SS355 D441 23118531 DIODE, ZENER, RD5.1ESA B3 D444 23316254 DIODE, ERC06-15 D461 23357364 DIODE, RU4JGF- M2 RU4JGF- M2 D467 23357372 DIODE, AXIAL EU2JGF-41U2 D470 23118511 DIODE, ZENER, RD12ES B2 D473 23118635 DIODE, ZENER, RD2.7ESA B2 D474 23118635 DIODE, ZENER, RD2.7ESA B2 D670 23316231 DIODE, 1SS355 D671 23316231 DIODE, 1SS355 D672 23316231 DIODE, 1SS355 D673 23316231 DIODE, 1SS355 D674 23316231 DIODE, 1SS355 D801 #1 23357237 DIODE, TS4B05G-A1

#2 23357237 DIODE, TS4B05G-A1

#3 23118173 DIODE, RBV-406M D805 23357012 DIODE, 1SS244 D806 23357372 DIODE, AXIAL EU2JGF-41U2 D809 23118529 DIODE, ZENER, RD5.6ES B2 D810 23118616 DIODE, ZENER, RD27ESA B2 D812 23357372 DIODE, AXIAL EU2JGF-41U2 D819 23118526 DIODE, ZENER, RD6.8ES B2 D840 23118528 DIODE, ZENER, RD5.6ESA B3 D848 23118531 DIODE, ZENER, RD5.1ESA B3 D872 23118511 DIODE, ZENER, RD12ES B2 D883 23357336 DIODE, RL3A LF014-3 D885 23357372 DIODE, AXIAL EU2JGF-41U2 D891 23357372 DIODE, AXIAL EU2JGF-41U2 D901 23357450 DIODE, VRM=90V IO=130MA ISS133 D903 23357450 DIODE, VRM=90V IO=130MA ISS133 D904 23357450 DIODE, VRM=90V IO=130MA ISS133 D905 23357450 DIODE, VRM=90V IO=130MA ISS133 D906 23357450 DIODE, VRM=90V IO=130MA ISS133 D907 23357450 DIODE, VRM=90V IO=130MA ISS133 D908 23357450 DIODE, VRM=90V IO=130MA ISS133 D909 23357450 DIODE, VRM=90V IO=130MA ISS133 D910 23357450 DIODE, VRM=90V IO=130MA ISS133 D911 23357449 DIODE, DIODE IO=1.0A ERB10JGR-41A-1AU D4710 23316231 DIODE, 1SS355 DA78 #1 23316231 DIODE, 1SS355

#2 23357447 DIODE, SWITCH SILICON KDS160-RTK/USC

#3 23357447 DIODE, SWITCH SILICON KDS160-RTK/USC DB01Z 23358571 DIODE, LED, BT-H254N-31-SH DI01 #1 23314428

#2 23357446 DIODE, VR=30V IF=50MA KDS112-RTK/USM

#3 23357446 DIODE, VR=30V IF=50MA KDS112-RTK/USM DI02 #1 23118043

#2 23357212

#3 23357212 DI03 #1 23118138 DIODE, MA77

#2 23357445 DIODE, KDS114-RTK/USC KDS114-RTK/USC

#3 23357445 DIODE, KDS114-RTK/USC KDS114-RTK/USC KB01 23009490 IC, REMOCON RECEIVER, PIC-TB19

MISCELLANEOUS

F470 23144646 FUSE, CARTRIDGE 5X20 250V 0.8A F470A 23165433 FUSE HOLDER, 5.2 SOC

TRANSISTOR, NPN R1=2.2K R2=47K SRC1205S (SOT-23)

DIODE, SILICON BAND SWICHING 1SS312(TE85L)

DIODE, CHIP VRM80V 100MA A-C US DAP202U T106 DIODE, CHIP VRM=85V IO=200MA KC KDS120-RTK DIODE, CHIP VRM=85V IO=200MA KC KDS120-RTK

SPECIFIC INFORMATIONS

– 23 –

Page 24

Location Parts No. Description No.

F801 23144508 FUSE, CARTRIDGE 5.2X20, 250V 4.0A F801A 23165433 FUSE HOLDER, 5.2 SOC M461A 23192962 ANODE CAP ASSY, TCC5606AT M461B 23509110 CABLE, FOCUS M461C 23509371 CABLE ASSY, SCREEN N724 #1 23965900

#2 23965900

N728 #1 23960101 SILICONE RUBBER, TSE-382 RTV

#2 23960101 SILICONE RUBBER, TSE-382 RTV P661 23023116 PLUG, HEAD PHONE JACK 3.5MM PJ3-14-7 P801 #1 23372052 POWER CORD, 250V2.5A

#2 23372160 POWER CORD, SSA 127V15A 250V6A CMC-02

#3 23372224 POWER CORD, CEE 250V 2.5A VIET M4206N P802 #1 23368249 POWER CORD, 2P 11.88MM VH-JST

#2 23368249 POWER CORD, 2P 11.88MM VH-JST P900 23164725 CONNECTOR, PLUG 2P P910 23164725 CONNECTOR, PLUG 2P PI01A 23023145 PLUG, B15PS-TB-2 B15PS-TB-2 PI02A 23023145 PLUG, B15PS-TB-2 B15PS-TB-2 PV01 #1 23023139 JACK, PIN JACK 3P AV3-23-002

#2 23023139 JACK, PIN JACK 3P AV3-23-002

#3 23023057 JACK, 3P KM04036B01-01 PV02 23023200 JACK, 8P (3SW) DAV8-31B01113S01 S801 23344481 SWITCH, POWER, AAPY2211 SA01 #1 23145227 SWITCH, PUSH, 1C1P

#2 23344443 SWITCH, TACTING SWITCH TSV TYP TSVB-1

#3 23344443 SWITCH, TACTING SWITCH TSV TYP TSVB-1 SA02 #1 23145227 SWITCH, PUSH, 1C1P

#2 23344443 SWITCH, TACTING SWITCH TSV TYP TSVB-1

#3 23344443 SWITCH, TACTING SWITCH TSV TYP TSVB-1 SA03 #1 23145227 SWITCH, PUSH, 1C1P

#2 23344443 SWITCH, TACTING SWITCH TSV TYP TSVB-1

#3 23344443 SWITCH, TACTING SWITCH TSV TYP TSVB-1 SA04 #1 23145227 SWITCH, PUSH, 1C1P

SPECIFIC INFORMATIONS

#2 23344443 SWITCH, TACTING SWITCH TSV TYP TSVB-1

#3 23344443 SWITCH, TACTING SWITCH TSV TYP TSVB-1 SA05 #1 23145227 SWITCH, PUSH, 1C1P

#2 23344443 SWITCH, TACTING SWITCH TSV TYP TSVB-1

#3 23344443 SWITCH, TACTING SWITCH TSV TYP TSVB-1 SA06 #1 23145227 SWITCH, PUSH, 1C1P

#2 23344443 SWITCH, TACTING SWITCH TSV TYP TSVB-1

#3 23344443 SWITCH, TACTING SWITCH TSV TYP TSVB-1 V901A 23903147 SOCKET, ISH46S-E ICE 29MM V901B #1 23102959 MAGNET, RUBBER

#2 23102959 MAGNET, RUBBER V901M #1 23102424 CONVERGENCE MAGNET, MAG-1082

#2 23102424 CONVERGENCE MAGNET, MAG-1082 W661 23351227 W662 23351227 XA03 23153759 CRYSTAL RESONATOR, 10MHZ Z891 23144542 PROTECTOR, 491SERIES, 125V 4A Z902 #3 23103840 FERRITE CORE, TFE1013 ZI01 23303223 SAW FILTER, PIF ZI02 23303210 SAW FILTER, SIF ZI05 23303085 CERAMIC TRAP, TCF1092 ZI06 23303136 CERAMIC TRAP, TCF1097 ZI07 23303290 FILTER, FIL-CTRAP-4.5MHZ TCF1142AM ZI54 23303166 CERAMIC TRAP, 39.5MHZ TCF1107 ZI55 23303224 CERAMIC TRAP, TCF1120AM ZI61 23303294 FILTER, FIL CFILT 5.5MHZ TCF1146AM ZI62 23303269 FILTER, FIL CFILT 6.0MHZ TCF1136AM ZI63 23303270 FILTER, CFILT 6.5MHZ, TCF1137AM ZI64 23303289 FILTER, TCF1141AM

TAPE, GLASS-CLOTH, W/ADHESIVE W=18 T=0.18 TAPE, GLASS-CLOTH, W/ADHESIVE W=18 T=0.18

SPEAKER, 60X120 16-OHM 3W SEA SPK-1418AC SPEAKER, 60X120 16-OHM 3W SEA SPK-1418AC

Location Parts No. Description No.

#3 23761597

PICTURE TUBE

V901 #1 23312954 PICTURE TUBE, A51LVV896X, 21FFG02

#2 23312954 PICTURE TUBE, A51LVV896X, 21FFG02 #3 23324023 P I CTURE TUBE, 20VPF ITC ZERO

A51LVV897X06

TUNER

H001 #1 23321450 TUNER, ASIA HYPER FS D-J, ENV59DA7G3

#2 23321417 TUNER, ASIA MLT IICPLL D-J LG ECA33LX6 #2 23321428 TUNER, ASIA MLT IICPLL SANYO ECA33LX8 #2 23321452 TUNER, ASIA MLT IICPLL SAMSUNG ECA33LXB #2 23321473 TUNER, ASIA MLT IICPLL SANYO ECA33LXC #3 23321357 TUNER, ECA33LX1, ASIA MLT IICPLL D-J MATU #3 23321450 TUNER, ASIA HYPER FS D-J, ENV59DA7G3

ACCESSORIES

K902 23306459 REMOCON HAND UNIT IR, CTVPAL CT-90119 Y101A #1 23566082 OWNER’S MANUAL

#2 23566081 OWNER’S MANUAL

#3 23566083 OWNER’S MANUAL Y108 #2 23725049 CONNECTOR, AC ADAPTER NC3528 Y120 23943846 BAG, POLY Y125 #3 23142083 ADAPTOR Y126 #2 23124089 ANTENNA, ROD ANTENNA 700MM 2-52245 CA

#3 23124081 ANTENNA, ROD TT-ANT07-TB

CABINET PARTS

A201 #1 23532539 COVER, FRONT ASSY TSP2003090403

#2 23532539 COVER, FRONT ASSY TSP2003090403

#3 23532418 COVER, FRONT ASSY F/C ASSY A264 23929509 HOLDER, BUTTON A265 23445744 KNOB, POWER BUTTON TSP2003021909 A266 #1 23428269 DOOR, FRONT TSP2003090402

#2 23428269 DOOR, FRONT TSP2003090402

#3 23428218 DOOR, FRONT TSP2003021918 A270 23451204 PUSH CATCH A401 #1 23532018 COVER, BACK PROPER TSP2003021919

#2 23532018 COVER, BACK PROPER TSP2003021919 A701 #1 23067211 CARTON, BOX

#2 23067210 CARTON, BOX

#3 23067208 CARTON, BOX A702A #1 23946613 PACKING, TOP TSP2003050607

#2 23946613 PACKING, TOP TSP2003050607

#3 23946695 PACKING, TOP A702B #1 23946614 PACKING, BOTTOM TSP2003050608

#2 23946614 PACKING, BOTTOM TSP2003050608

#3 23946696 PACKING, BOTTOM AT03 23588765 REMOCON PART, BATTERY COVER, CT-90119 E501 23198694 WIRE, CRT EARTH, 21D7DXE E912 #1 23848729 WEDGE, YOKE HOLDING, 3 REQUIRED

#2 23848729 WEDGE, YOKE HOLDING, 3 REQUIRED

PC BOARD ASSY, PD1421E CONT 21 TSP2003063042

PC BOARD ASSEMBLIES

U901 #1 23761146

#2 23761146 #3 23761589

U902 #1 23761789

#2 23761595 #3 23761738

U903 #1 23761819

#2 23761148 #3 23761704

U904 #1 23761790

#2 23761344

PC BOARD ASSY, PD0607C CRT/D TSP2003040360 PC BOARD ASSY, PD0607C CRT/D TSP2003040360 PC BOARD ASSY, PD0607D CRT/D TSP2003063034 PC BOARD ASSY, PD1563B SIG 21S TSP2003082887 PC BOARD ASSY, PD1420K SIG 21S TSP2003063040 PC BOARD ASSY, PD1420P SIG 21S TSP2003073105 PC BOARD ASSY, PD1346J IF/MONO TSP2003091602 PC BD ASSY PD1346A IF/MONO, TSP2003040362 PC BOARD ASSY, PD1346E IF/MONO TSP2003072912 PC BOARD ASSY, PD1421I CONT 21 TSP2003082888 PC BD ASSY, PD1421A CONT 21S TSP2003050238

– 24 –

Page 25

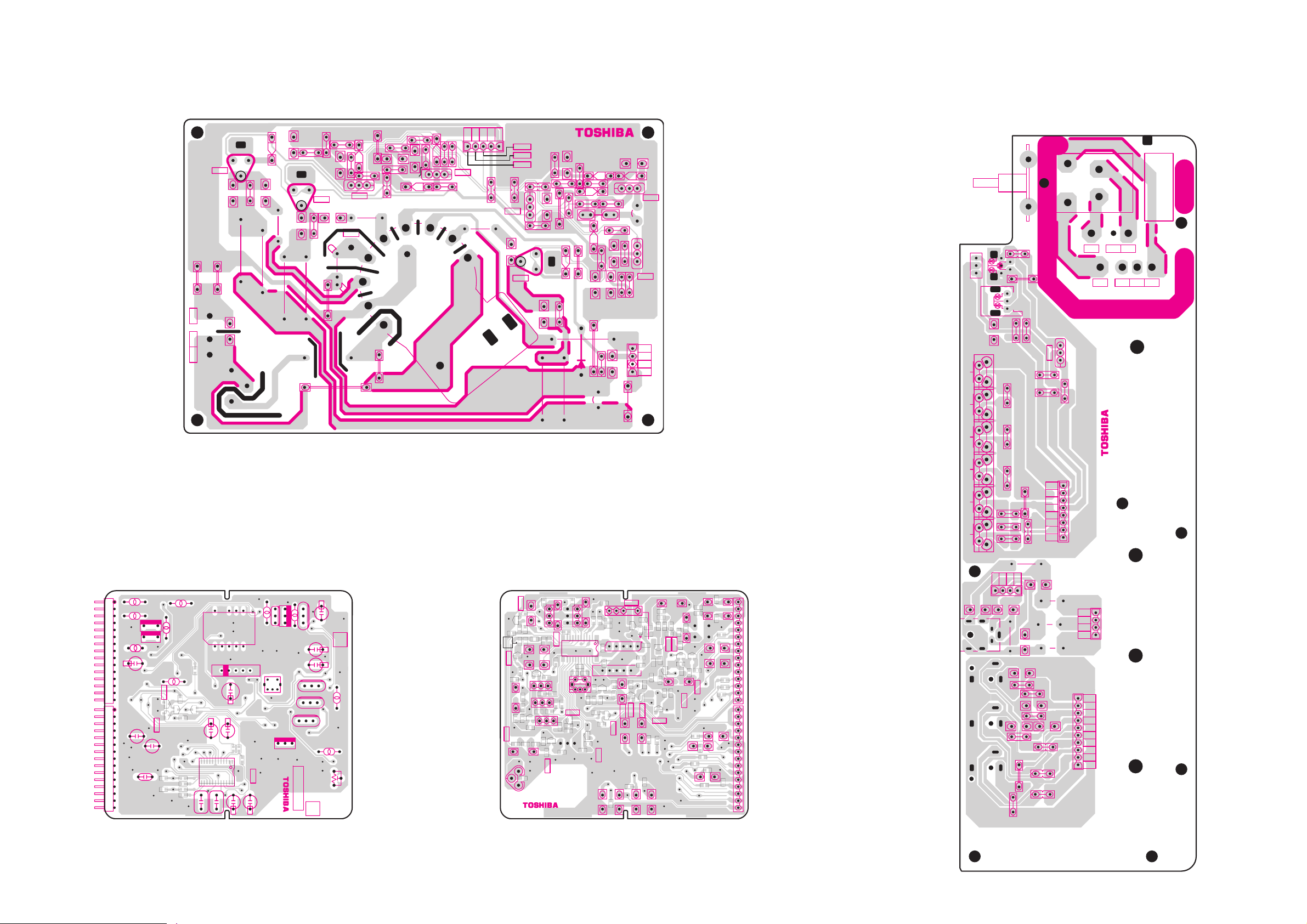

CRT/D BOARD PD0607C (21CSZ5TR/21SZ5TM) (U901)

CRT/D BOARD PD0607D (21SZ5VX) (U901)

BOTTOM (FOIL) SIDE

R918

R917

C904

C903

R915

D907

V901A

R916

R912

Q903

R925

Q901

TP47R

R942

R963

L905

P905

R922

C906

R946

C902

Q904

D905

R919

R901

R924

C905

D908

TP47G

R943

L906

L903

L902

R902

R961

R964

R960

P900

C930

32 31

R963

D904

R914

R921

Q902

P501B

2021222324

R903

CCP-3400

TP46B

TP46G

TP46R

Q907

TP47B

L907

C Q905

R977

R935

L904

R965

C915

R932

R944

R928

D909

R920

R962

23546994

R934

C911

D903

D910

R905

R936

D906

R926

C913

D911

C909

R904

C907

R992

D901

C908

R909

R945

C931

R929

R937

L900

C910

C912

R930

P502B

Q906

Q908

14 13 12 11

FRONT AV BOARD PD1421I (21CSZ5TR) (U904)

FRONT AV BOARD PD1421A (21SZ5TM) (U904)

FRONT AV BOARD PD1421E (21SZ5VX) (U904)

BOTTOM (FOIL) SIDE

S801

CAUTION

LIVE AREA

P803B

KB01

DB02A

SA01SA07

DB02

CB01

RB09

RA42RA41

DB01

DB01Z

RB01

QB02

RB02

RB03

P802B

E C B

RB04

IF/MONO BOARD PD1346J (21CSZ5TR) (U903)

IF/MONO BOARD PD1346A (21SZ5TM) (U903)

IF/MONO BOARD PD1346E (21SZ5VX) (U903)

TOP (COMPONENT) SIDE

PI01A

PI02A

LI57

ZI54

LI56

LI10

LI03

LI01

ZI01

ZI55

CI31

QI16

C641

RI40

LI04

RI85

QI17

RI85

QI17

DI01

DI02

QI16

DI02

RI84

C621

C642

C628

R628

C628

C627

C625

C630

C627 R627

C625

R627

C626

C632

ZI07

ZI63

PD1346

CI17

CI18

CI08

ZI62

LI91

LI61

RI51

ZI06

ZI05

LI06

LI07

ZI02

LI51

ZI61

C620

CI10

GR601

GR602

GR601

R623

Q620

C640

C634

ZI64

23599749A

C636

IF/MONO BOARD PD1346J (21CSZ5TR) (U903)

IF/MONO BOARD PD1346A (21SZ5TM) (U903)

IF/MONO BOARD PD1346E (21SZ5VX) (U903)

BOTTOM (FOIL) SIDE

LI06

RI16

CI17

ZI07

RI17

QI04

RI18

QI04

RI14

GJ02

RI14

RI20

RI81

RI21

RI81

QI81

RI82

CI81

RI91

LI91

RI91

CI90

RI97

CI91

RI97

CI60

QI91

RI61

CI60

RI61

LI61

RI33

RI51

LI07

GJ02

QI91

RI98 RI98

ZI05

GJ04

RI19

CI13

CI12

QI01

RI19

CI12

CI18

RI79

CI08

RI79

QI92

CI21

RI80

ZI62 RI78

CI92

RI78

ZI61

RI32

RI77

CI93

RI99

CI93

RI99

QI63

GJ03

RI63

ZI63

CI63

RI63

CI63

RI67

QI61

RI67

CI61

RI68

RI69

RI68

QI61

RI33

DS-1107A

RI16

GJ04

ZI06

QI01

CI25

CI21

CI20

LI51

RI71

RI77

RI32

QI63

GJ03

RI62

ZI64

RI62

23547395

RI41

QI07

ZI01

RI30

RI31

RI42

CI25

CI20

QI71

RI71

RI74

RI72

CI71

RI72

CI65

RI65

QI64

CI62

QI64

C636

QI07

CI30

RI31 CI30

RI30

RI08

D103

RI08

RI11

GJ01

ZI02

CI04

GJ01

CI09

RI10

CI09

RI10

QI08

CI10

RI73

QI09

RI73

RI74

QI65

QI08

QI71

RI65

QI65

C620

C621

CI62

C633

C635

C634

C640

C635

RI09 CI03

RI13

RI12

D103

CI05

RI07

CI04

RI15

QI09

C622

C631

C632

RI09

CI03

RI05

RI06

RI12

CI14RI04

RI04 CI14

QI02

CI06

RI07

CI06

QI05

RI43

CI01

RI43

RI88

CI01

RI88

QI15

C622

C623

C631

LI03

LI01

RI02

RI06

RI05

RI02

GRI09

CI02

GRI09

CI02

RI03

QI05

QI02

QI12

RI45

RI44

RI45

RI44

CI16

RI87

LI04

RI87

QI12

R624

C642

R625

R630

C630

CI57

RI52

CI57

RI52

RI01

LI56

ZI54

ZI55

RI03

QI06

RI46

CI16

RI46

QI06

RI83

C641

R624

R625

R629

R630

C629 C629

R626

LI57

CI56

RI47

PI01A

LI10

10152025

CI31

GRI01 GRI02

GRI01

GRI02

RI83

PI02A

C624

SA03 SA02

SA06 SA04

CC31

P661

P611

PV01

MENU VIDEO VOL/DN VOL/UP CH/DN CH/UP

CC30

RS62

RV17

RA43

RA44

RA45

RA40

4321

RV03

RV02

CV04

RV04

CV01

RS61

CC32

CV02

CC33

CV03

87654321

LC01

LC03

LC02

RV01

MCL-437F

PA1 1 B

4321

P611B

12345679810

P511B

23547434

– 25 – – 26 –

Page 26

MAIN BOARD PD1563B (U902) MAIN BOARD PD1420K (U902)

MAIN BOARD PD1420P (U902)

BOTTOM (FOIL) SIDE

Q402

P496

C413

G402

G403

C463

C440

R415

R429

R411

T401

C444

CAUTION LIVE AREA

T802

G109

R661

R673

C672

D672

202530

C686

C666

C674

RJ05

32V

D101

+5V

H001

SDA

SCL

ADR

AGC

P910

R811

R808

R801

M804A

C801

F801

C685

T4A L/250V

Q610

R660

R691

C684

C680

C682

R691

C683

C676

R667

C681

C675

R666

C675

R666

G106

R690

R665

P497

C813

C802

P802A

C814

G105

P802

G104

R669

R669 R668

R664

C677

C679

C664

C678

C678 R664

R668

U903

Q830

OUT

C105

C106

C105

L101

CC01

C834

GND

C832

MCL-437F

23547433

C103

C110

P495

C101

17 11

Q841

JP247

RV25

C503

L502

R624

C842

RA64

RA54

RA70

DA79

ECB

QS04

Q623

CA49

RA50

RA70

QV02

D883

R810

L883

C893

T862

L889

L888

R842

C840

R844

Q840

C543

C547

C500

R545

CA48

R545

CA48

R544

R513

RA49

R501

QA51

R544

RA49

R501

CA51

CA50

LA73

RA71

RA73

RA77

RA73

CA75

R121

RV26

RC17

RS04

XA03

QA51

CA74

CA77

CA75

RA03

QA72

CA74

RA03

CA82

Q104

RV24

CV36

CS11

RC17

RS02

QS03

RS02

CC26

RS01

CS15

RS01

CS15

CC26

QS03

RA50

CA51

CA54

LA72

RA77

QA72

CV34

CS10

QS04

RS03

L208

C815

C811

R899

L810

C883

R807

Q801

C862

L811

C817

C818

R821

R827

D840

R840

R512

C431

C739

R512

R502

C430

R502

C430

C320

GR45

R513

RA69

L507

C401

R401

C401

R515

R401

R320

R402

C407

C408

C407

C406

C409

R405

C475

R219

22 21

C207

C205

C203

C202

C201

C204

RA05

C201

RA05

RA04

C200

RA04

RV33

DVD

GR30

D474

R402

R404

C410

R425

R424

C408

R425

R424

C406

C475

R221

D473

R221

R219

C211

C221

R222

R220

C221

C209

R220

GJ58

C213

GJ58

R203

C208

Q204

GJ57

C205

C212

GJ57

C212

Q203

R201

R202

Q203

L209

RV34

CC12

RV33

L505

F802

T3.15A L/250V

C822

R802

P499

D809

R820

R829

R805

D812

R863

C821

24 232221

R520

Q502

R207

QV10

RV06

D819

D810

C823

D872

R823

C808

D806

R522

R521

R520

R522

R521

C561

R205

R207

R205

R206

QV11

CV14

R815

Q826

P902A

GR45

GR30

C211

R209 C213

R209

R208

R204

Q204

QV11

QV10

GL10

PV02

C806

C805

L805

D801

C810

R809

C829

G108

D805Z

P803A

D805

G107

LC03

1234

LC02

P611A

C560

C561

Q205

CV13

Q205

R206

QS11

CV12

RS11

LC01

C830

OUT

Q835

CS12

RV18

QS11

P511A

CS13

Q671

C831

R675

D674

QS12

CS17

QS12

CS14

CS18

RS12

CS14

CS16

2345610 1

L806

T801

C690

R662

C688

R662

R663

C689

C687

Q672

R671

Q672

R671

R672

Q670

C670

Q670

C671

D673

R675

D672

D673

R674

D674

R674

D670

D671

D670

D671

CS18

LC04

LC05

RC11

RC12

CC25

RC16

CC25

CC11

RC16

G103

MON OUT

C415

R431

C415

R433

D432

R410

C4300

R410

D432

C417

Q430

C416

R431

Q431

R434

C418

Q403

R417

Q403

R417

C418

C419

Q320

R321

Q320

D431

R432

C321

R419

R323

R322

R323

R419

R420

GR301

R329

R322

C326

C322

R330

R418

L320

Q321

R324

R314

R324

C314

R312

R319

C325

C308

R309

D301

D308

R319

C309

Q301

C313

G309

C311

R331

D303

C304

R303

R305

SL1

C306

C312

C324

R326

R328

C315

D305

R325

L301

C363

R336

R363

L885

F470

T800mA L/250V

L891

D891

Z891

C884

G815

C899

L506

CA55

C891

C885

L886

C889

R865

D848

Q843

C841

C503

C502

JP247

L501

RA53

CA56

CA61

CA60

RA64

LA102

LA02

RA67

CA53

RA67

RA68

RA76

RA72

RA76

RA68

RA75

RA78

RA72

RA75

CA72

CA73

RA78

CA72

CA73

CA76

RA79

RA59

CA65

RS27

RV25

RS27

RS20

RS21

RS22

RS21

RS22

RS19

RS20

RS19

RS23

QS02

QS01

RS24

QS01

R624

QS02

RS24

R623

C624

R623

Q404

R441

D444

10 9

L441

C442

654

P401

C448

T461

D467

L461

C464

G461

R474

D461

C467

P903B

D406

Q200

C447

C303

C473

R416

C342

C310

D310

R310

D442

R470

C341

R342

R349

Q208

R232

Q200

Q208

R228

R229

C220

R228

R229

R218

C449

D302

R327

D408

R403

C323

D885

R898

C898

R868

R843

L893

D340

R4810

Q842

R4760

C470

C472

R473

D4810

P497R

R215

D4810

Q4840

Q210

Q4030

R4716

L503

R4810

C210

C4711

Q4860

R215

R4770

LA01

R4770

Q210

C4712

D470

Q4860

R4820

JP242

R4820

JP242

R4680

R4670

R4650

PA11A

CA55

RA55

D4840

RA65 RA66 RA56

CB05

RA12

JR001

CA09

R213

D210

R214

D211

C469

R4715

C469

R4715

R4711

R4713

Q4710

C4712

R4716

Q4710 RS03

RA55

RA65

RA66

RA56

C501

RB48

RB05

RB49

RB05

RB49

RB48

QB05

CA14

RA11

RA12

CA15

QA10

RA11

R210

Q211

RA74

Q211

R210

RA74

DA78

D210

QA71

R211

R212

R211

DA78

QA71

D211

R409

R408

R409

R408

C405

R4710

C405

R4710

R406

CS29

Q4030

R406

R4714

C403

R4712

R4714

C403

R4712

C404

R407

C404

D4710

R407

D4710

C4710

R101

R471

Q471

R479

R4620

C4880

R4740

D471

R472

R4630

C471

R4630

R4740

P497X

Q4840

TE6

R344

Q340

R341

R231

R341

R343

R231

R233

R230

R227

R448

R217

C445

C402

D441

– 27 – – 28 –

Page 27

TERMINAL VIEW OF TRANSISTORS

 2SD2253

(old) 2SC5243

 RN2203

RN2201 RN2004 RN1203 RN1204 RN2204 RN1205 RN1202 RN1201

 2SC3852

2SD1763A 2SC1569 2SC4544 2SA1788 2SA1306 2SA1186A

 2SD1554

2SD2253 2SD1556 2SC5143 2SD2553

 2SC752GTM

2SC2482 2SC2655 2SC4721P

 ON4409

 2SC752

2SA562TM 2SA1015 2SC1815 2SC2878 2SC1740S 2SC2120 2SA9335

 2SA1788

SPECIFIC INFORMATIONS

– 29 –

Page 28

SPECIFIC INFORMATIONS

THIS PAGE IS

INTENTIONALLY LEFT

BLANK.

– 30 –

Page 29

SCHEMATIC DIAGRAM

MODEL : 21CSZ5TR/21SZ5TM/21SZ5VX

WARNING: BEFORE SERVICING THIS CHASSIS, READ THE "X-RAY RADIATION PRECAUTION", "SAFETY

PRECAUTION" AND "PRODUCT SAFETY NOTICE" ON THE MANUAL FOR THIS MODEL.

CAUTION: The international hazard symbols " " in the schematic diagram and the parts list designate components which have special characteristics important for safety and should be replaced only with types identical to those in the original circuit or specified in the parts list. The mounting position of replacements is to be identical with originals. Before replacing any of these components, read carefully the PRODUCT SAFETY NOTICE on the MANUAL for this model. Do not degrade the safety of the receiver through improper servicing.

NOTE:

1. RESISTOR Resistance is shown in ohm [K = 1.000, M = 1.000.000]. All resistors are 1/6W and 5% tolerance carbon resistor, unless otherwise noted as the following marks. 1/2R = Metal or Metal oxide of 1/2 watt 1/2S = Carbon compsistion of 1/2 watt 1RF = Fuse resistor of 1 watt 10W = Cement of 10 watt

±10% G = ±2% F = ±1%

K =

2. CAPACITOR Unless otherwise noted in schematic, all capacitor values less than 1 are expressed in the values more than 1 in pF. All capacitors are ceramic 50V, unless otherwise noted as the following marks.

Electolytic capacitor

Mylar capacitor

F, and

3. The parts indicated with "

4. Voltages read with DIGITAL MULTI-METER from point indicated to chassing ground, using a color bar signal with

all controls at normal, line voltage at 220 volts.

5. Waveforms are taken receiving color bar signal with enough sensitivity.

6. Voltage reading shown are nominal values and may vary ±20% except H.V.

SCHEMATIC DIAGRAM STRUCTURE:

– MAIN Circuit TUNER [ SHEET– 1/9 ] ........................ 1/12

– CRT DRIVE Circuit ........................................................................................................................ 10/12

– FRONT AV Circuit.......................................................................................................................... 11/12

– IF Circuit ........................................................................................................................................ 12/12

" have special characteristics, and should be replaced with identical parts only.

– AV SW [ SHEET– 2/9 ] ........................ 2/12

– VERT [ SHEET– 3/9 ] ........................ 3/12

– HDEF [ SHEET– 4/9 ] ........................4/12

– VCD/MICON [ SHEET– 5/9 ] ........................ 5/12

– A-PRO/AUDIO-AMP [ SHEET– 6/9 ] ........................ 6/12

– PROTECTOR [ SHEET– 7/9 ] ........................ 7/12

– POWER [ SHEET– 8/9 ] ........................ 8/12

– LOW B REG [ SHEET– 9/9 ] ........................ 9/12

SPECIFIC INFORMATIONS

– 31 –

Page 30

TUNER

H001

QI01

AV SW

QV11, QS11-12

C BUS

QA51

MICRO PROCESSOR

VIDEO,CHROMA,DEF

Q840, Q843

5V-13.3V

REGULATOR

Q840, Q843

REGULATOR

PROTECT

+125V

QA10 MEMORY

Q801

T862

D801

Q826

Q404

T461

Q301

Q502

Q610

SP L/R

R/G/B

V901

P651

AV IN

FRONT

PV01

PV02

AV IN

BACK

HYBRID

CONVERTER TRANS.

POWER DEF/MUTE

+B VOLTAGE

VIDEO OUT

V. OUT

H. OUT

F.B.T.

H.V.

D.Y.

V DRIVE VDY_Y/G

CRT

AUDIO OUT

W661,W662

HEADPHONE

JACK

BUS CONTROL BLOCK

MONITOR

OUTPUT

SPECIFIC INFORMATIONS

CIRCUIT BLOCK DIAGRAM

VIDEO

5V-2

– 32 –

Page 31

SPECIFICATIONS

MODEL

Rated voltage

Power consumption (at ~ 220V 50Hz)

Dimensions (Width x Depth x Height)

Mass

Picture Tube

Television system Channel (Aerial input) coverage

Special RF signal

Color system PAL / SECAM / NTSC4.43 / NTSC3.58

Sound output 2.5 W x 2

Terminals Input: Video/Audio (monaural)

Speaker 6 x 12cm (2)

System Channel VHF UHF CATV

PAL B/G CCIR 2 - 12 21 - 69 X~Z+2, S1~S41 PAL I UK –– 21 - 69 –– PAL D/K CHINA 1 - 12 13 - 57 Z-1~ Z-38 SECAM B/G CCIR 2 - 12 21 - 69 X~Z+2, S1~S41 SECAM D/K OIRT 1 - 12 21 - 69 X1~X19 NTSC M US 2 - 13 14 - 69 A-6~A-1, A~W, AA~ZZ, AAA, BBB NTSC M JAPAN 1 - 12 13 - 62 M1~M10, S1~41

Color system: NTSC4.43 Sound system: 5.5/6.0/6.5 MHz

21CSZ5TR 21SZ5TM 21SZ5VX

~ 220 - 240V, 50Hz

110W

Type 21

DVD Component input:  Video/Y, PB/CB, PR/CR,

 Audio L, Audio R

Monitor output:  Video, Audio L, Audio R

Headphone output:  Ø 3.5 mm

 (mini jack stereo type)

Flat square picture tube (549.1mm) Overall picture tube measured diagonally (505.5mm) Viewable picture tube measured diagonally 90° deflection

613(W) X 487(D) X 470(H) mm

Monitor output: Video/Audio (monaural)

~ 110 - 240V, 50/60Hz

107W

23.4kg

SPECIFIC INFORMATIONS

* Please refer to owner's manual in detail.

– END –

Page 32

TOSHIBA CORPORATION

1-1, SHIBAURA 1- CHOME, MINATO-KU, TOKYO 105-8001, JAPAN

Page 33

SCHEMATIC DIAGRAM

MODEL : 21CSZ5TR/21SZ5TM/21SZ5VX

WARNING: BEFORE SERVICING THIS CHASSIS, READ THE "X-RAY RADIATION PRECAUTION", "SAFETY

PRECAUTION" AND "PRODUCT SAFETY NOTICE" ON THE MANUAL FOR THIS MODEL.

CAUTION: The international hazard symbols " " in the schematic diagram and the parts list designate components which have special characteristics important for safety and should be replaced only with types identical to those in the original circuit or specified in the parts list. The mounting position of replacements is to be identical with originals. Before replacing any of these components, read carefully the PRODUCT SAFETY NOTICE on the MANUAL for this model. Do not degrade the safety of the receiver through improper servicing.

NOTE:

±10% G = ±2% F = ±1%

K =

Electolytic capacitor

Mylar capacitor

F, and

3. The parts indicated with "

4. Voltages read with DIGITAL MULTI-METER from point indicated to chassing ground, using a color bar signal with

all controls at normal, line voltage at 220 volts.

5. Waveforms are taken receiving color bar signal with enough sensitivity.

6. Voltage reading shown are nominal values and may vary

SCHEMATIC DIAGRAM STRUCTURE:

– MAIN Circuit TUNER [ SHEET– 1/9 ] ........................ 1/12

– CRT DRIVE Circuit ........................................................................................................................ 10/12

– FRONT AV Circuit.......................................................................................................................... 11/12

– IF Circuit ........................................................................................................................................ 12/12

" have special characteristics, and should be replaced with identical parts only.

±20% except H.V.

– AV SW [ SHEET– 2/9 ] ........................ 2/12

– VERT [ SHEET– 3/9 ] ........................ 3/12

– HDEF [ SHEET– 4/9 ] ........................4/12

– VCD/MICON [ SHEET– 5/9 ] ........................ 5/12

– A-PRO/AUDIO-AMP [ SHEET– 6/9 ] ........................ 6/12

– PROTECTOR [ SHEET– 7/9 ] ........................ 7/12

– POWER [ SHEET– 8/9 ] ........................ 8/12

– LOW B REG [ SHEET– 9/9 ] ........................ 9/12

– 31 –

Page 34

TUNER

H001

QI01

AV SW

QV11, QS11-12

C BUS

QA51

MICRO PROCESSOR

VIDEO,CHROMA,DEF

Q840, Q843

5V-13.3V

REGULATOR

Q840, Q843

REGULATOR

PROTECT

+125V

QA10 MEMORY

Q801

T862

D801

Q826

Q404

T461

Q301

Q502

Q610

SP L/R

R/G/B

V901

P651

AV IN

FRONT

PV01

PV02

AV IN

BACK

HYBRID

CONVERTER TRANS.

POWER DEF/MUTE

+B VOLTAGE

VIDEO OUT

V. OUT

H. OUT

F.B.T.

H.V.

D.Y.

V DRIVE VDY_Y/G

CRT

AUDIO OUT

W661,W662

HEADPHONE

JACK

BUS CONTROL BLOCK

MONITOR

OUTPUT

SPECIFIC INFORMATIONS

CIRCUIT BLOCK DIAGRAM

VIDEO

5V-2

– 32 –

Page 35

21CSZ5TR/21SZ5TM/21SZ5VX MAIN (TUNER) SHEET-1/9

(1/12)

Page 36

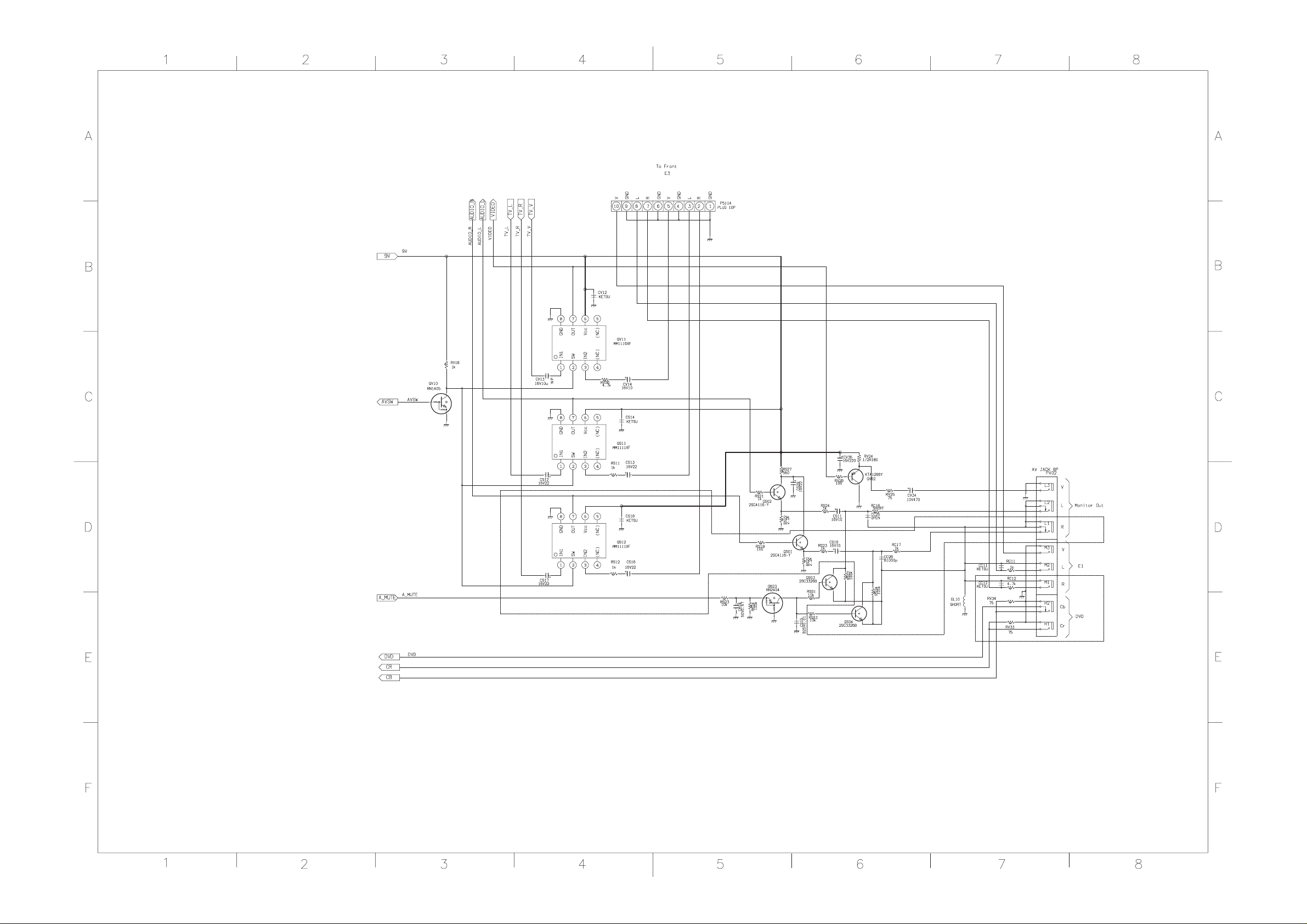

21CSZ5TR/21SZ5TM/21SZ5VX MAIN (AV SW) SHEET-2/9

(2/12)

Page 37

21CSZ5TR/21SZ5TM/21SZ5VX MAIN (VERT) SHEET-3/9

(3/12)

Page 38

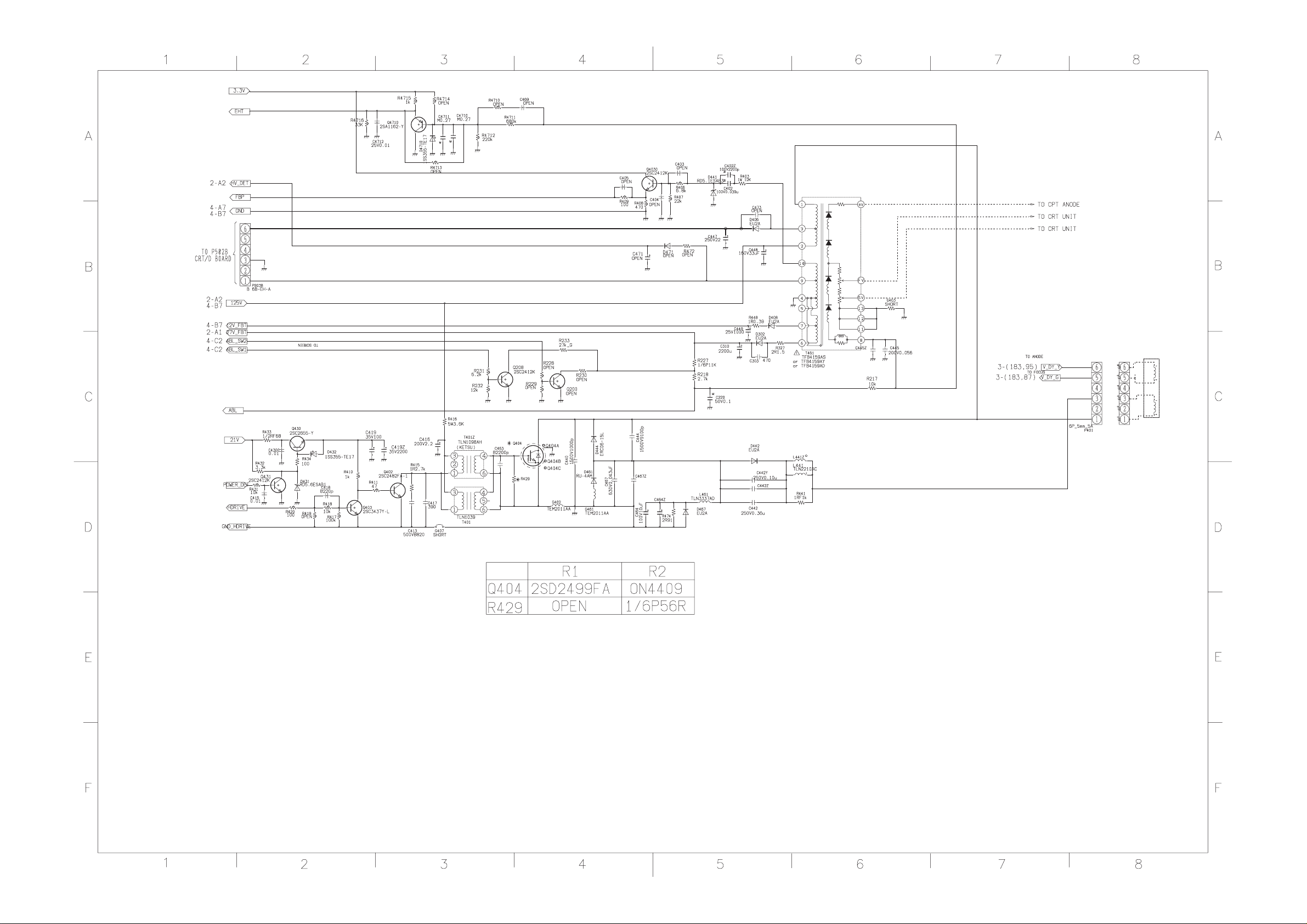

21CSZ5TR/21SZ5TM/21SZ5VX MAIN (HDEF) SHEET-4/9

(4/12)

Page 39

21CSZ5TR/21SZ5TM/21SZ5VX MAIN (VCD/MICON) SHEET-5/9

(5/12)

Page 40

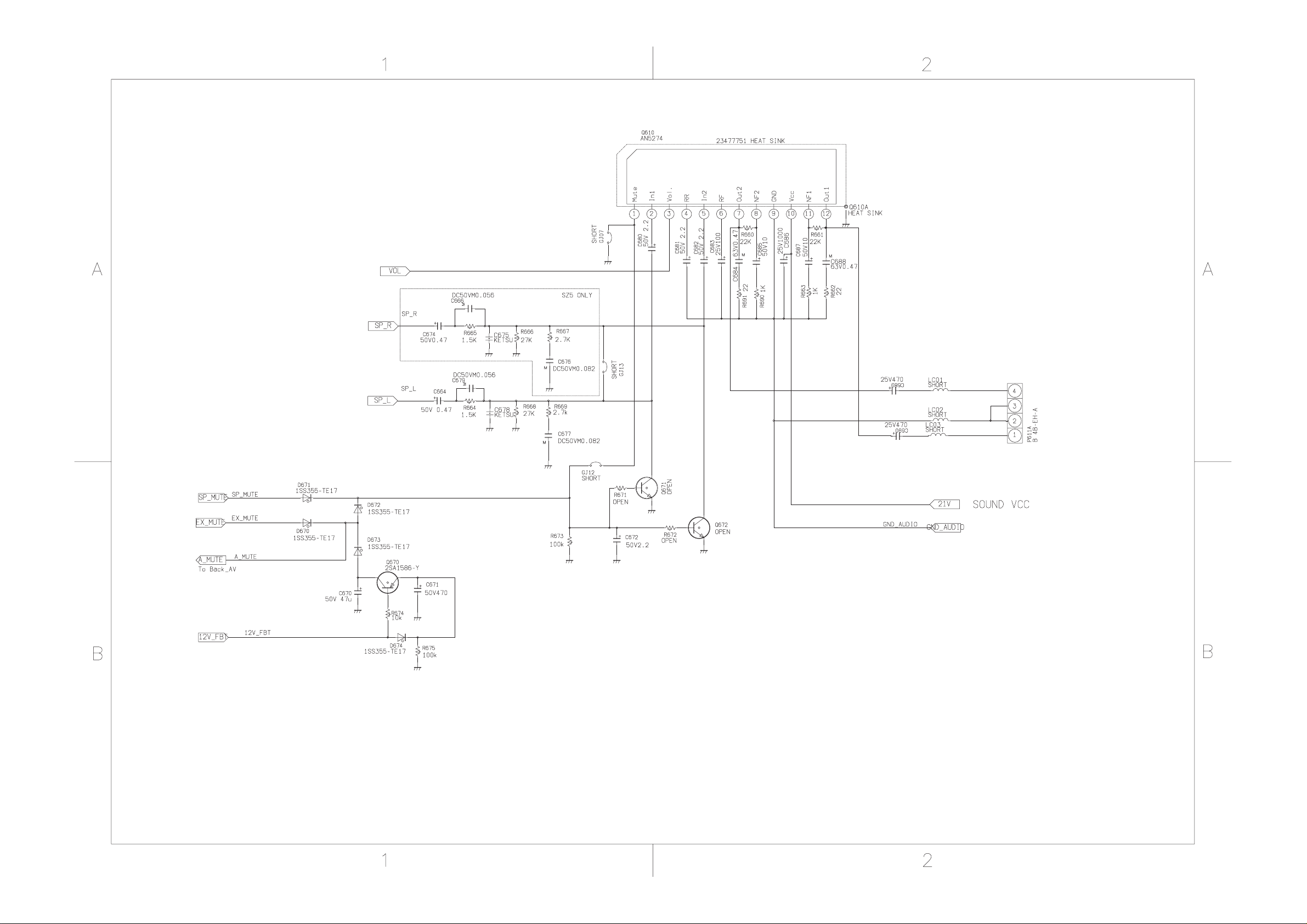

21CSZ5TR/21SZ5TM/21SZ5VX MAIN (A-PRO/AUDIO-AMP) SHEET-6/9

(6/12)

Page 41

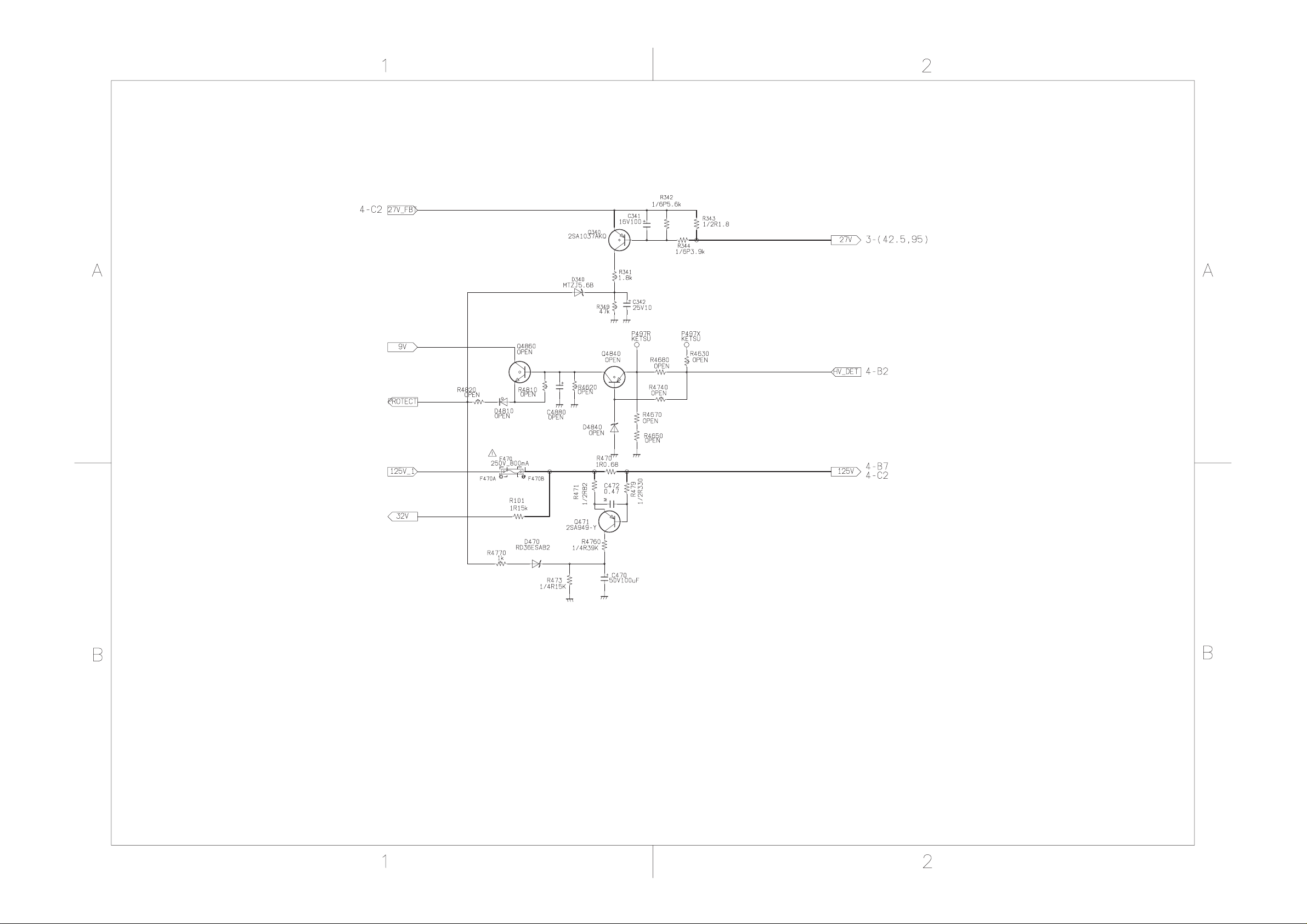

21CSZ5TR/21SZ5TM/21SZ5VX MAIN (PROTECTOR) SHEET-7/9

(7/12)

Page 42

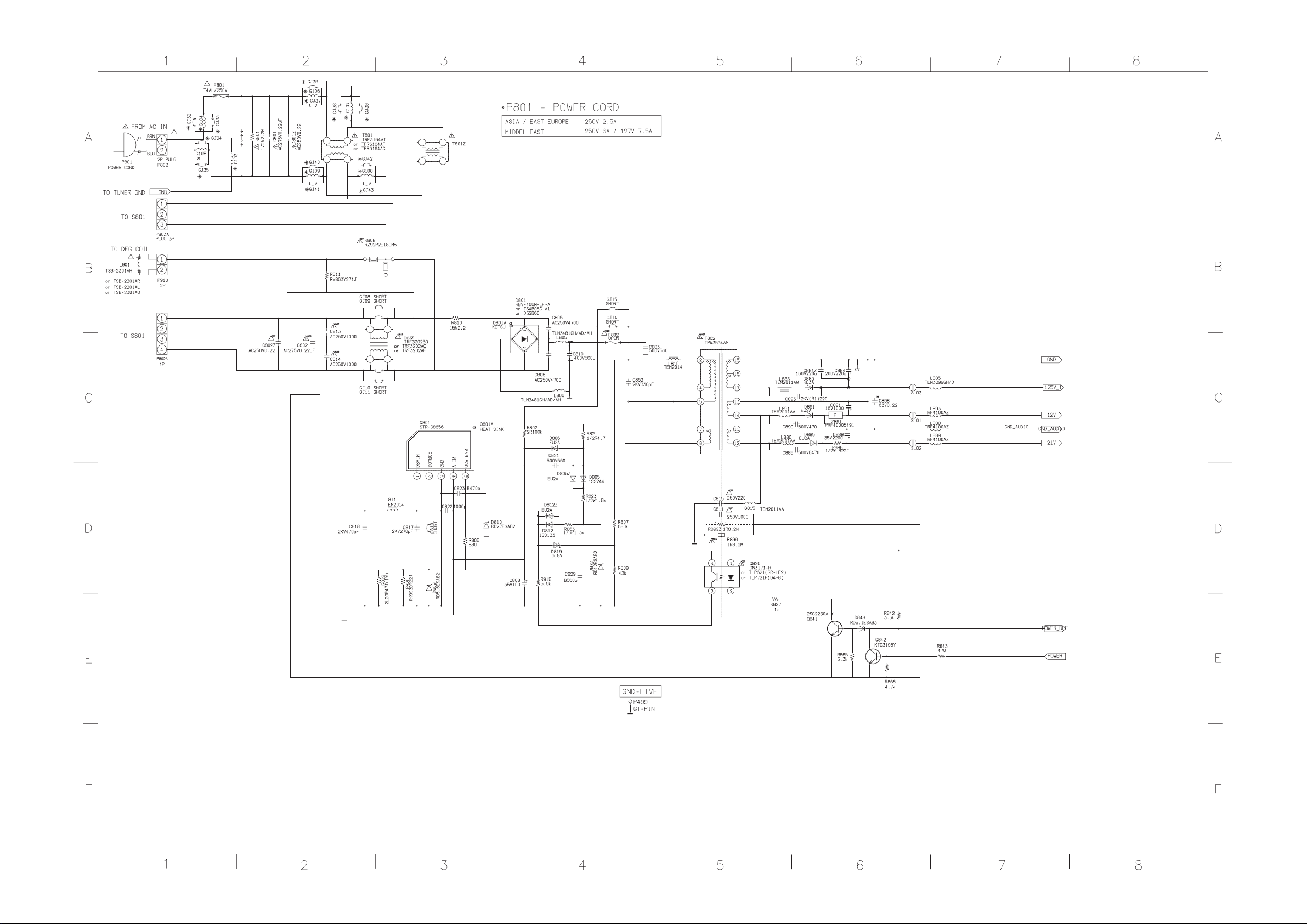

21CSZ5TR/21SZ5TM/21SZ5VX MAIN (POWER) SHEET-8/9

(8/12)

Page 43

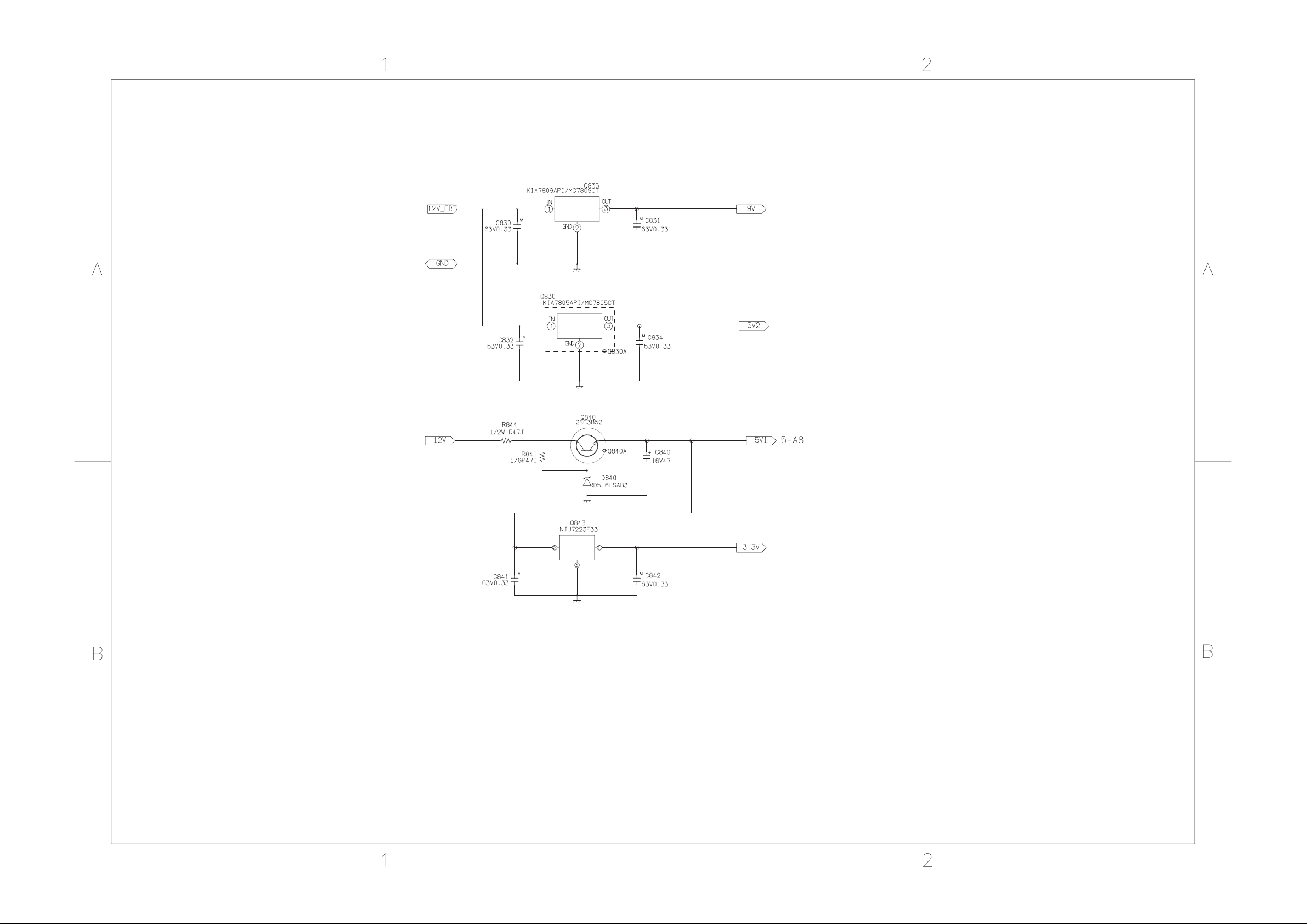

21CSZ5TR/21SZ5TM/21SZ5VX MAIN (LOW B REG) SHEET-9/9

(9/12)

Page 44

21CSZ5TR/21SZ5TM/21SZ5VX CRT DRIVE

(10/12)

Page 45

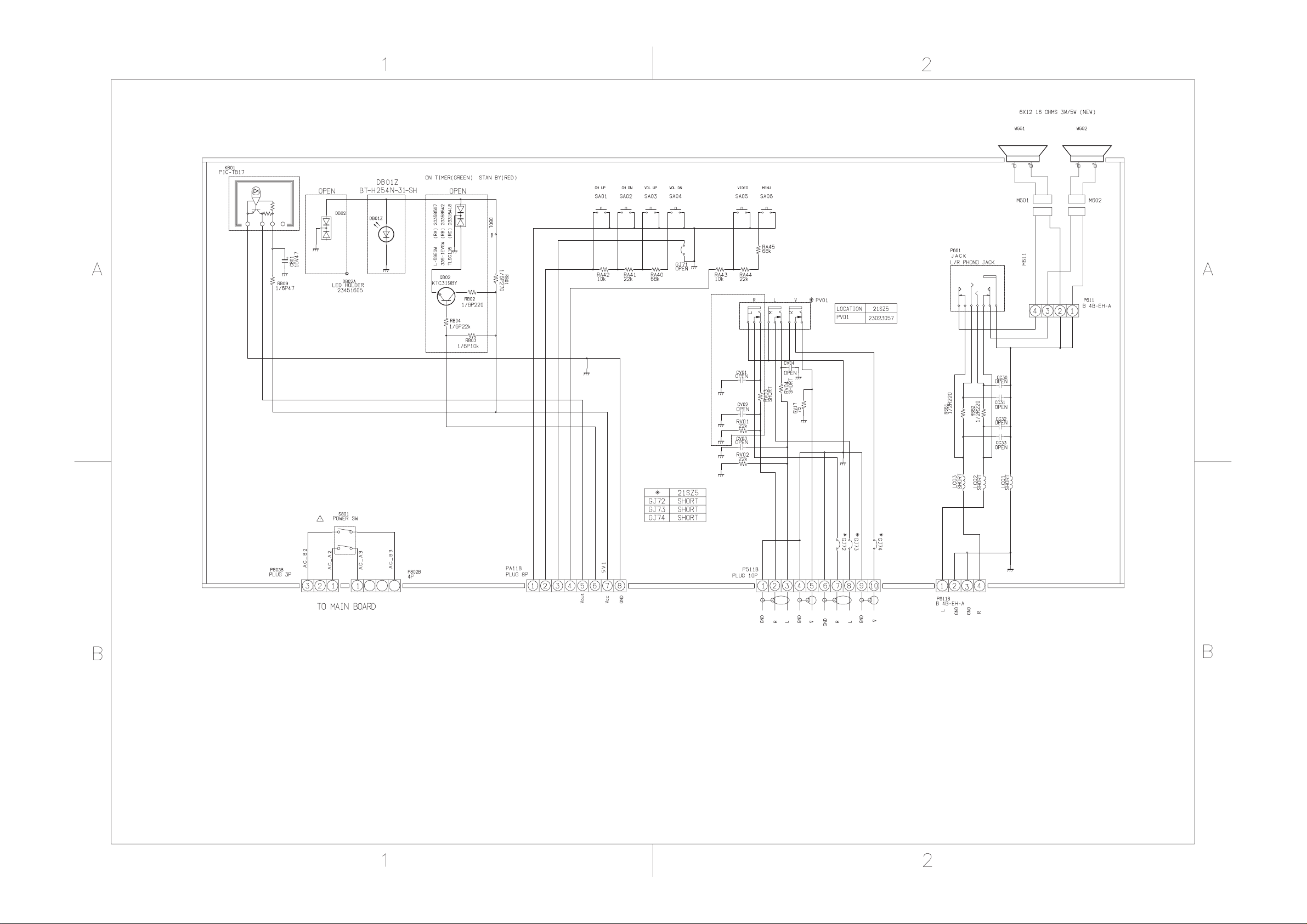

21CSZ5TR/21SZ5TM/21SZ5VX FRONT AV

(11/12)

Page 46

21CSZ5TR/21SZ5TM/21SZ5VX IF

(12/12)
