Toshiba 15DLV77 User Manual

ADVANTAGE TOSHIBA

15" Diagonal 4x3, TFT LCD Display with 1024x768 Pixel Resolution, perfect for

viewing standard, high definition and analog television signals and DVD movies.

Built-In ATSC/NTSC/QAM digital tuning allows for tuning of standard cable

channels as well as off-air digital broadcasts, in addition to digital “cable-in-the-

clear” broadcasts.

Built-In Slot Loading DVD player with easy to access operation buttons is a

convenient all-in-one space saving design.

DivX

Home Theater Certified* allows playback of DivX, AVI and MPEG4

compressed files downloaded from the internet to a personal computer and

stored on a CD-R/RW.

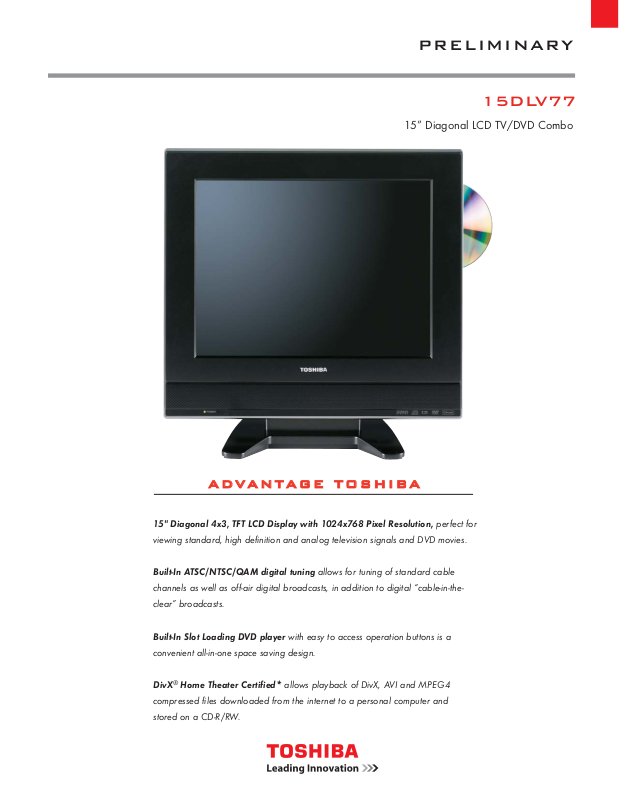

15DLV77

PRELIMINARY

15” Diagonal LCD TV/DVD Combo

15DLV77 Specifications

Screen Size 15" diagonal 4:3 TFT LCD TV Tuner ATSC/NTSC/QAM Digital Tuning Pixel Resolution 1024 x 768 Comb Filter

✓

Progressive Scan Digital Cinema Progressive 3:2 Pulldown

✓

Component Input 480i/480p DivX

Home Theater Certified ✓

3 Mode Picture Size Adjustment ✓

Dolby®Digital/DTS®Compatible ✓ StableSound

✓

Bottom Mount Stereo Speakers ✓ Surround Sound ✓ Bass/Treble Balance ✓

Auto Channel Memory ✓ Sleep Timer, Closed Caption, V-Chip ✓ Tri-Lingual Select, Multi-Subtitle Select ✓ Energy Star Compliant ✓ Remote Control Unified System

Disc Qty 1 Playable Disc Types* DVD/DVD-R/DVD-RW/CD/CD-R

CD-RW/VCD

DivX

®/

WMA & MP3 Playback* ✓ Digital Picture Zoom, JPEG Viewer* ✓ Fast Scan, Slow-Motion ✓ Multi-Camera Angle Select ✓

Inputs

ColorStream Pro

Component 1 S-Video 1 RCA-Video 1 rear, 1 side L-R Audio 1 rear, 1 side RF 1

Outputs

Digital Audio Out 1 Coaxial (DVD only) Headphone 1

VESA

Mounting Holes** 100 mm Unit Dimensions w/stand (WHD) in. 18-3/4 x 13-15/16 x 9-1/8 Unit Dimensions w/o stand (WHD) in. 18-3/4 x 12-5/16 x 3-1/8 Carton Dimensions (WHD) in. 22.64 x 12.91 x 17.36 Unit Weight 13.2 lbs. Carton Weight 17.6 lbs. UPC Code 022265000335

DVD

Audio

http://www.tacp.toshiba.com Customer Solutions: 800.631.3811

ColorStream Pro and StableSound are registered trademarks of Toshiba America Consumer Products, L.L.C. VESA is a registered trademark of Video Electronics Standards Association. Dolby and the double-D symbol are registered trademarks of Dolby Laboratories. “DTS” is a registered trademark of DTS, Inc. DivX, DivX Certified, and associated logos are trademarks of DivX, Inc. and are used under license. Energy Star is a registered trademark of the U.S Government.

Product design and specifications subject to change or modification without notice.

Product & Packaging

Terminals

Convenience

*Some DVD-R/DVD-RW and CD-R/CD-RW discs may be incompatible due to laser pick up and disc design. CD-R/CD-RW discs must be recorded using CD-DA method for CD audio playback. The DVD player in this TV may not support some MP3/WMA/JPEG/DivX recordings due to differences in recording formats, disc structure, or condition of the disc (use of CD-RW for MP3 files is not recommended). See owner’s manual for more information.

**If you decide to wall mount your Toshiba television, always use a UL Listed wall bracket appropriate for the size and weight of the television.
