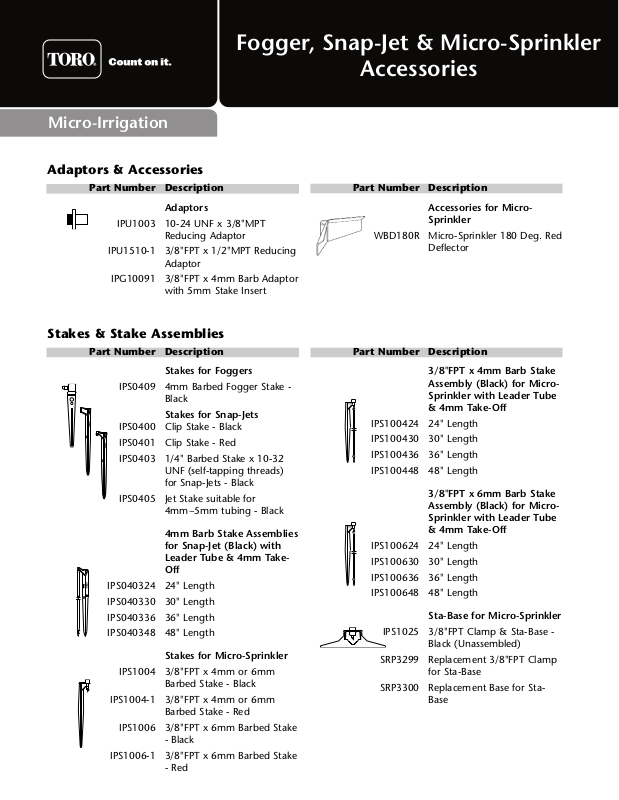

Toro Stakes and Accessories Data Sheet
Micro-Irrigation
Adaptors & Accessories
Part Number Description
Fogger, Snap-Jet & Micro-Sprinkler
Accessories
Part Number Description
Adaptors
IPU1003 10-24 UNF x 3/8"MPT
Reducing Adaptor
IPU1510-1 3/8"FPT x 1/2"MPT Reducing
Adaptor
IPG10091 3/8"FPT x 4mm Barb Adaptor
with 5mm Stake Insert
Stakes & Stake Assemblies
Part Number Description
Stakes for Foggers
IPS0409 4mm Barbed Fogger Stake -
Black
Stakes for Snap-Jets
IPS0400 Clip Stake - Black
IPS0401 Clip Stake - Red
IPS0403 1/4" Barbed Stake x 10-32
UNF (self-tapping threads)
for Snap-Jets - Black
IPS0405 Jet Stake suitable for
4mm~5mm tubing - Black
4mm Barb Stake Assemblies
for Snap-Jet (Black) with
Leader Tube & 4mm TakeOff
IPS040324 24" Length
IPS040330 30" Length
IPS040336 36" Length
IPS040348 48" Length
Stakes for Micro-Sprinkler
IPS1004 3/8"FPT x 4mm or 6mm
Barbed Stake - Black
IPS1004-1 3/8"FPT x 4mm or 6mm
Barbed Stake - Red
IPS1006 3/8"FPT x 6mm Barbed Stake
- Black
IPS1006-1 3/8"FPT x 6mm Barbed Stake
- Red
Accessories for MicroSprinkler
WBD180R Micro-Sprinkler 180 Deg. Red
Deflector
Part Number Description
3/8"FPT x 4mm Barb Stake
Assembly (Black) for MicroSprinkler with Leader Tube
& 4mm Take-Off
IPS100424 24" Length
IPS100430 30" Length
IPS100436 36" Length
IPS100448 48" Length
3/8"FPT x 6mm Barb Stake
Assembly (Black) for MicroSprinkler with Leader Tube
& 4mm Take-Off
IPS100624 24" Length
IPS100630 30" Length
IPS100636 36" Length
IPS100648 48" Length
Sta-Base for Micro-Sprinkler
IPS1025 3/8"FPT Clamp & Sta-Base -
Black (Unassembled)
SRP3299 Replacement 3/8"FPT Clamp
for Sta-Base
SRP3300 Replacement Base for Sta-
Base
Fogger, Snap-Jet & Micro-Sprinkler Accessories
Leader Tube with Take-Off
Part Number Description
4mm ULDPE Leader Tube
with 4mm Barbed Take-Off
for 4mm Clip Stake
HWF424 24" Length
HWF430 30" Length
HWF436 36" Length
4mm LLDPE Leader Tube
with 4mm Barbed Take-Off
for 4mm Barb Stake
HWF324 24" Length
HWF330 30" Length
HWF336 36" Length
HWF348 48" Length
6mm LLDPE Leader Tube
with 6mm Barbed Take-Off
for 6mm Barb Stake
HWF624 24" Length
HWF630 30" Length
HWF636 36" Length
HWF648 48" Length
Leader Tube
Part Number Description
4mm ULDPE Leader Tube
(0.153" ID x 0.259" OD x
0.053" Wall) for 4mm Clip
Stake
SFH0424 24" Length
SFH0430 30" Length
SFH0436 36" Length
4mm LLDPE Leader Tube
(0.153" ID x 0.279" OD x
0.063" Wall) for 4mm Barb
Stake
SFH0324 24" Length
SFH0330 30" Length
SFH0336 36" Length
SFH0348 48" Length
6mm LLDPE Leader Tube
(0.250" ID x 0.346" OD x
0.048" Wall) for 6mm Barb
Stake
SFH0624 24" Length
SFH0630 30" Length
SFH0636 36" Length
SFH0648 48" Length
©2012 The Toro Company
Micro-Irrigation Business
1588 N. Marshall Avenue, El Cajon, CA 92020-1523, USA
Tel: +1(800) 333-8125 or +1 (619) 562-2950
Fax: +1 (800) 892-1822 or +1 (619) 258-9973
toro.com
ALT025 11/04
