Toro Lynx Central Control SE 2.0 OSMA Specifications

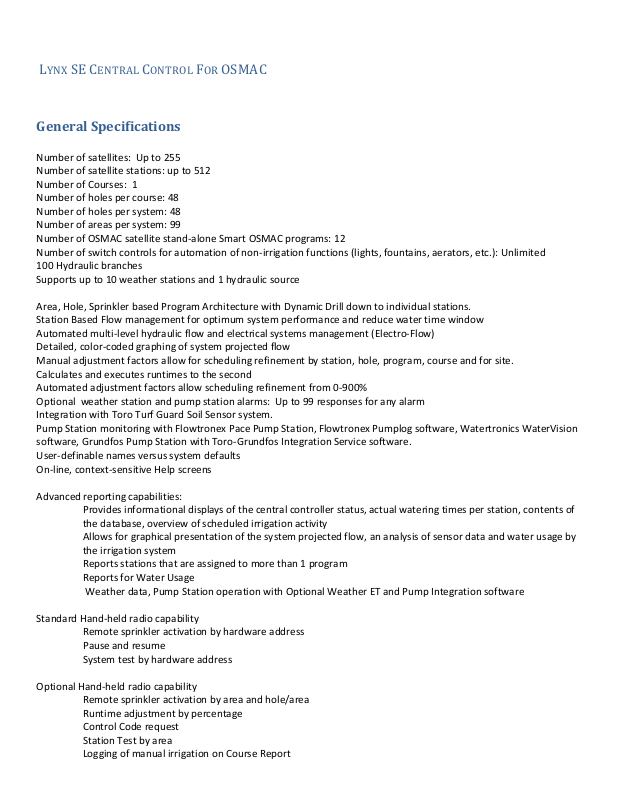

LYNX SE CENTRAL CONTROL FOR OSMAC

General Specifications

Number of satellites: Up to 255
Number of satellite stations: up to 512
Number of Courses: 1
Number of holes per course: 48
Number of holes per system: 48
Number of areas per system: 99
Number of OSMAC satellite stand-alone Smart OSMAC programs: 12
Number of switch controls for automation of non-irrigation functions (lights, fountains, aerators, etc.): Unlimited
100 Hydraulic branches
Supports up to 10 weather stations and 1 hydraulic source

Area, Hole, Sprinkler based Program Architecture with Dynamic Drill down to individual stations.
Station Based Flow management for optimum system performance and reduce water time window
Automated multi-level hydraulic flow and electrical systems management (Electro-Flow)
Detailed, color-coded graphing of system projected flow
Manual adjustment factors allow for scheduling refinement by station, hole, program, course and for site.
Calculates and executes runtimes to the second
Automated adjustment factors allow scheduling refinement from 0-900%
Optional weather station and pump station alarms: Up to 99 responses for any alarm
Integration with Toro Turf Guard Soil Sensor system.
Pump Station monitoring with Flowtronex Pace Pump Station, Flowtronex Pumplog software, Watertronics WaterVision
software, Grundfos Pump Station with Toro-Grundfos Integration Service software.
User-definable names versus system defaults
On-line, context-sensitive Help screens

Advanced reporting capabilities:

Provides informational displays of the central controller status, actual watering times per station, contents of
the database, overview of scheduled irrigation activity
Allows for graphical presentation of the system projected flow, an analysis of sensor data and water usage by
the irrigation system
Reports stations that are assigned to more than 1 program
Reports for Water Usage
Weather data, Pump Station operation with Optional Weather ET and Pump Integration software

Standard Hand-held radio capability
Remote sprinkler activation by hardware address
Pause and resume
System test by hardware address

Optional Hand-held radio capability
Remote sprinkler activation by area and hole/area
Runtime adjustment by percentage
Control Code request
Station Test by area
Logging of manual irrigation on Course Report

Digital paging communication mode

Irrigation methods:
Basic: daily run times or application amounts assigned to programs
With Weather ET software option:
Intermediate: run times modified automatically with changes in daily ET, identified by ET source

Advanced: run times calculated automatically based on sprinkler data, site parameters and measured ET

Microsoft Windows 7 Ultimate operating platform
True 100% 64-bit architecture
Supports 16 languages: English, Bulgarian, Simplified Chinese, Czech, Danish, Dutch, French, German, Italian, Japanese,
Korean, Norwegian, Portuguese, Russian, Spanish and Swedish
Supports U.S and metric units of measure
Runs on Toro basic computer (contact local distributor for current specifications)

Integrated Map software allows:
Dynamic, interactive operation
Use of a non-scaled graphic image file
Use of a scaled CAD generated map
Enhanced graphics
GPS compatibility for accuracy
User Editing of Sprinkler, Satellite, Sensor, and Switch locations
Floating of map onto secondary 1080P monitor

Standard Weather Software allows:
On-site or off-site weather station
Rain Shut Down alarm response

Optional Weather ET software allows:
Automatic system adjustment using ET
Interactive, automatic response to the central
User-defined alarm thresholds
Rain Re-Flow alarm responses

Standard Pump software allows:
Monitoring of 1 pump station

Optional Pump Integration software allows:
Pump station integration with 1 pump station and alarm responses
