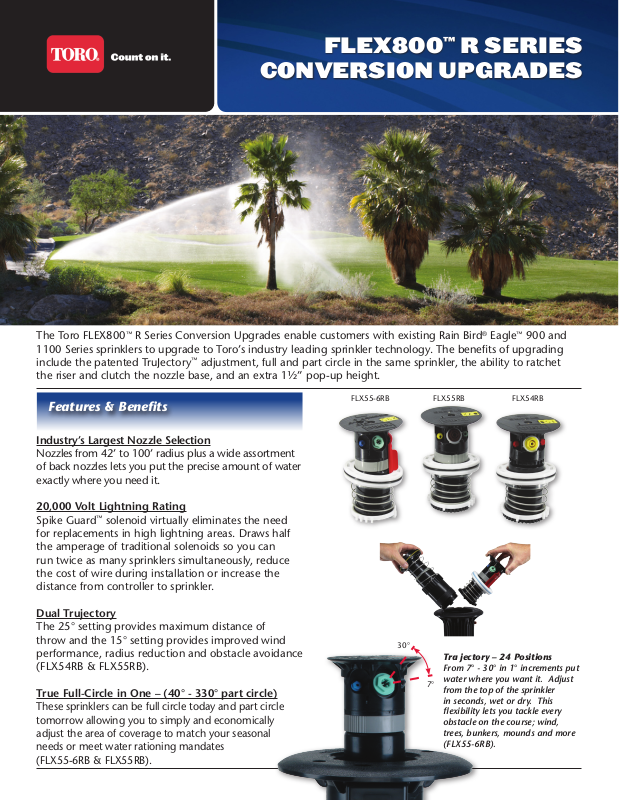

FLEX800™ R SERIES

CONVERSION UPGRADES

The Toro FLEX800™ R Series Conversion Upgrades enable customers with existing Rain Bird® Eagle™ 900 and
1100 Series sprinklers to upgrade to Toro’s industry leading sprinkler technology. The benefits of upgrading
include the patented TruJectory™ adjustment, full and part circle in the same sprinkler, the ability to ratchet
the riser and clutch the nozzle base, and an extra 1½” pop-up height.

Features & Benefits

Industry’s Largest Nozzle Selection

Nozzles from 42’ to 100’ radius plus a wide assortment
of back nozzles lets you put the precise amount of water
exactly where you need it.

20,000 Volt Lightning Rating

Spike Guard™ solenoid virtually eliminates the need
for replacements in high lightning areas. Draws half
the amperage of traditional solenoids so you can
run twice as many sprinklers simultaneously, reduce
the cost of wire during installation or increase the
distance from controller to sprinkler.

Dual Trujectory

The 25° setting provides maximum distance of
throw and the 15° setting provides improved wind
performance, radius reduction and obstacle avoidance
(FLX54RB & FLX55RB).

True Full-Circle in One – (40° - 330° part circle)

These sprinklers can be full circle today and part circle
tomorrow allowing you to simply and economically
adjust the area of coverage to match your seasonal
needs or meet water rationing mandates
(FLX55-6RB & FLX55RB).

FLX55-6RB FLX55RB FLX54RB

30°

Tra jectory – 24 Positions

From 7° - 30° in 1° increments put
water where you want it. Adjust

7°

from the top of the sprinkler
in seconds, wet or dry. This
flexibility lets you tackle every
obstacle on the course; wind,
trees, bunkers, mounds and more
(FLX55-6RB).

FLEX800™ R SERIES CONVERSION UPGRADES

Main Nozzle Data

FLX55-6RB-5154 Performance Chart FLX55-6RB-5558 Performance Chart

Nozzle Set 51

Nozzle Set 52

Nozzle Set 53

Nozzle Set 54

Nozzle Set 55

Nozzle Set 56

Nozzle Set 57

Nozzle Set 58

Front

Nozzle

Positions

Back

Nozzle

Positions

PSI rad/ft gpm rad/ft gpm rad/ft gpm rad/ft gpm rad/ft gpm rad/ft gpm rad/ft gpm rad/ft gpm
60 55 16.1 63 20.3 69 23.4 75 31.3 — — — — — — — —
70 56 17.4 66 21.8 70 25.3 76 33.8 — — — — — — — —
80 57 18.5 68 23.3 72 27.0 77 36.0 80 39.1 85 41.0 88 45.4 92 49.7
90 58 19.4 70 24.5 75 28.5 79 38.1 83 41.5 87 43.5 91 48.2 94 52.8

100 59 20.5 72 25.9 76 30.0 80 40.2 86 43.7 90 45.7 94 50.6 96 55.3

Stator 102-1939 Yellow 102-1940 White

(Yellow)

102-4587 102-4588 102-4589

102-2925 102-2910 102-2928 102-2910 102-2926 102-2910 102-2926 102-2910 102-2925 102-2910 102-2925 102-2910 102-2926 102-2910 102-2925 102-2910

Red Plug Red Plug Red Plug Red Plug Red Plug Red Plug Red Plug Red Plug Red Plug Red Plug Red Plug Red Plug Red Plug Red Plug Red Plug Red Plug

102-4335 102-4335 102-4335 102-4335 102-4335 102-4335 102-4335 102-4335 102-4335 102-4335 102-4335 102-4335 102-4335 102-4335 102-4335 102-4335

(Blue)

(Brown)

(Orange)

102-0728

(Green)

102-0729 102-0730 102-4261 102-4260

(Gray)

(Black)

(Red)

FLX55RB-5154 Performance Chart FLX55RB-5558 Performance Chart

Nozzle Set 51

Front

Nozzle

Positions

Back

Nozzle

Positions

PSI rad/ft gpm rad/ft gpm rad/ft gpm rad/ft gpm rad/ft gpm rad/ft gpm rad/ft gpm rad/ft gpm
60 56 15.2 57 20.1 66 24.3 68 28.0 — — — — — — — —
70 58 16.5 60 21.7 67 26.2 71 30.4 — — — — — — — —
80 59 17.5 62 23.1 68 27.8 72 31.7 76 39.7 80 43.1 83 48.2 85 53.0
90 60 18.4 64 24.5 71 28.8 74 34.5 78 43.1 81 45.1 86 51.2 87 56.0

100 61 19.3 66 25.3 72 30.3 75 36.5 80 45.5 82 49.0 90 54.5 89 59.0

Stator 102-1939 Yellow 102-1940 White

(Yellow)

102-6906 102-0726 102-6907 102-0728 102-6955 102-6935 102-6936 102-6909

102-5670 102-5671 102-5670 102-6884 102-5670 102-6884 102-5670 102-6884 102-5670 102-6885 102-6531 102-6885 102-6531 102-6885 102-6531 102-6885

Red Plug Red Plug Red Plug Red Plug Red Plug Red Plug Red Plug Red Plug Red Plug Red Plug Red Plug Red Plug Red Plug Red Plug Red Plug Red Plug

102-4335 102-4335 102-4335 102-4335 102-4335 102-4335 102-4335 102-4335 102-4335 102-4335 102-4335 102-4335 102-4335 102-4335 102-4335 102-4335

Nozzle Set 52

(Blue)

Nozzle Set 53

(Brown)

Nozzle Set 54

(Orange)

Nozzle Set 55

(Green)

Nozzle Set 56

(Gray)

Nozzle Set 57

(Black)

Nozzle Set 58

(Red)

FLX54RB-5154 Performance Chart FLX54RB-5558 Performance Chart

Nozzle Set 51

Front

Nozzle

Positions

Red Plug Red Plug Red Plug Red Plug Red Plug Red Plug Red Plug Red Plug Red Plug Red Plug Red Plug Red Plug Red Plug Brown Red Plug Brown

Back

Nozzle

Positions

Stator 102-6929 Blue 102-1940 White

Yellow Blue Yellow Orange Yellow Red Yellow Beige Yellow Beige Yellow Red Yellow Gray Yellow Gray

102-6937 102-2925 102-6937 102-2926 102-6937 102-2928 102-6937 102-2929 102-6937 102-2929 102-6937 102-2928 102-6937 102-4965 102-6937 102-4965

PSI rad/ft gpm rad/ft gpm rad/ft gpm rad/ft gpm rad/ft gpm rad/ft gpm rad/ft gpm rad/ft gpm
60 59 14.6 62 17.4 68 24.3 71 28.2 — — — — — — — —
70 60 15.7 63 18.8 70 26.3 75 30.6 — — — — — — — —
80 61 16.4 64 20.0 72 27.6 78 32.6 83 39.5 85 42.7 87 45.9 91 50.2
90 62 17.8 66 21.3 74 29.9 80 34.7 85 41.6 88 44.9 90 48.5 93 52.8

100 63 18.1 67 23.6 75 30.4 81 36.7 87 43.7 90 46.8 93 51.2 95 55.4

(Yellow)

102-0725 102-7001 102-0727 102-7002 102-6908 102-0730 102-4261 102-4260

Nozzle Set 52

(Blue)

Toro recommends the use of a 11⁄4" swing joint at flows over 25-GPM (95-LPM). Sprinkler radius data collected in Toro’s zero wind test facility per ASAE standard S398.1.

Nozzle Set 53

(Brown)

Nozzle Set 54

(Orange)

Nozzle Set 55

Nozzle Set 56

Nozzle Set 57

(Green)

Actual site conditions must be considered when selecting the appropriate nozzle.

(Gray)

■

Not recommended at these pressures. Radius shown in feet.

(Black)

Nozzle Set 58

(Red)

Mainless Data

FLX55-6RB Series Mainless Nozzle Performance Data

Blue Plug Grey

102-2925 102-2208 102-2910

PSI Radius GPM Radius GPM Radius GPM Radius GPM Radius GPM

65 46 8.7 46 10.4 50 12.4 42 10.2 47 13.9

SOR 5:02 4:16 3:36 4:19 4:06

80 46 9.6 47 11.5 53 13.7 44 11.2 51 15.3

SOR 4:22 3:40 3:03 3:53 3:40

FLX55RB Mainless Nozzle Performance Data

Orange Plug Grey

102-2926 102-2208 102-2910

Red Plug Grey

102-2928 102-2208 102-2910

Grey Plug Grey

102-2910 102-2208 102-2910

Requires the low-flow stator 102-6929 for indicated rotation speeds.

Grey Plug Grey

102-2930 102-2208 102-2910

SOR: Speed of rotation

Green Plug Grey

102-6531 102-2208 102-2910

PSI Radius GPM Radius GPM Radius GPM Radius GPM

65 34 10.4 44 10.2 48 11.5 50 13.5

SOR 3:40 3:50 3:25 2:40

80 37 11.6 44 11.4 48 12.9 50 15.0

SOR 3:15 3:25 3:00 2:30

102-6531 102-2208 102-6885

Green Plug Green

Green Plug Red

102-6531 102-2208 102-2928

Requires the low-flow stator 102-6929 for indicated rotation speeds.

102-6531 102-2208 102-2929

Green Plug Beige

SOR: Speed of rotation

Back Nozzle Performance Data

Nozzles 65 PSI 80 PSI

Part # Description Color Radius GPM Radius GPM Profile

102-6937

102-6531

102-6883 Intermediate Nozzle Brown 38 2.8 38 2.8

102-6884 Intermediate Nozzle Yellow 41 4.1 43 4.5

Inner Nozzle

w/ Yellow Restrictor

Inner Nozzle

w/ White Restrictor

Yel/Yel 29 3.7 30 4.1

Grn/Wht 31 4.3 33 4.6

102-6885 Intermediate Nozzle Green 42 5.4 45 6.0

102-2925 Intermediate Nozzle Blue 40 2.8 42 3.2

102-2926 Intermediate Nozzle Orange 44 4.3 45 4.8

102-2927 Intermediate Nozzle Gray 46 5.1 47 5.4

102-2928 Intermediate Nozzle Red 48 6.5 50 7.0

102-2929 Intermediate Nozzle Beige 51 8.1 53 9.1

FLEX800™ R SERIES CONVERSION UPGRADES

Main Nozzle Adapter Performance Charts

Intermediate Nozzle Performance Charts

102-2929

Beige

Pressure Flow Radius Radius Radius Radius Radius Radius

PSI BAR GPM lpm Feet Meters Feet Meters Feet Meters Feet Meters Feet Meters Feet Meters

50 3.4 8.1 30.7 53 17.4 52 17.1 50 16.4 48 15.7 45 14.8 42 13.8
60 4.1 8.9 33.7 57 18.7 56 18.4 53 17.4 51 16.7 47 15.4 45 14.8
65 4.5 9.3 35.2 58 19.0 56 18.4 54 17.7 51 16.7 49 16.1 46 15.1
70 4.8 9.6 36.3 59 19.4 57 18.7 56 18.4 53 17.4 50 16.4 48 15.7
80 5.5 10.3 39.0 61 20.0 60 19.7 58 19.0 56 18.4 53 17.4 50 16.4
90 6.2 10.9 41.3 63 20.7 61 20.0 59 19.4 57 18.7 54 17.7 51 16.7

100 6.9 11.5 43.5 65 21.3 63 20.7 60 19.7 58 19.0 55 18.0 51 16.7

Trajectory 30° 25° 20° 15° 10° 7°

102-2928

Red

Pressure Flow Radius Radius Radius Radius Radius Radius

PSI BAR GPM lpm Feet Meters Feet Meters Feet Meters Feet Meters Feet Meters Feet Meters

50 3.4 6.3 23.8 53 17.4 51 16.7 48 15.7 46 15.1 43 14.1 40 13.1
60 4.1 7.0 26.5 55 18.0 53 17.4 50 16.4 48 15.7 45 14.8 42 13.8
65 4.5 7.2 27.3 56 18.4 54 17.7 52 17.1 49 16.1 47 15.4 44 14.4
70 4.8 7.5 28.4 57 18.7 55 18.0 53 17.4 51 16.7 49 16.1 46 15.1
80 5.5 8.0 30.3 59 19.4 58 19.0 56 18.4 54 17.7 52 17.1 49 16.1
90 6.2 8.5 32.2 60 19.7 58 19.0 57 18.7 55 18.0 53 17.4 50 16.4

100 6.9 9.0 34.1 61 20.0 59 19.4 57 18.7 55 18.0 53 17.4 50 16.4

102-2927

Gray

Pressure Flow Radius Radius Radius Radius Radius Radius

PSI BAR GPM lpm Feet Meters Feet Meters Feet Meters Feet Meters Feet Meters Feet Meters

50 3.4 5.0 18.9 50 16.4 48 15.7 46 15.1 44 14.4 41 13.5 38 12.5
60 4.1 5.5 20.8 52 17.1 50 16.4 48 15.7 46 15.1 43 14.1 40 13.1
65 4.5 5.7 21.6 53 17.4 51 16.7 49 16.1 46 15.1 44 14.4 41 13.5
70 4.8 5.9 22.3 53 17.4 51 16.7 49 16.1 47 15.4 45 14.8 42 13.8
80 5.5 6.3 23.8 54 17.7 52 17.1 50 16.4 48 15.7 46 15.1 43 14.1
90 6.2 6.7 25.4 55 18.0 53 17.4 52 17.1 50 16.4 48 15.7 45 14.8

100 6.9 7.1 26.9 55 18.0 54 17.7 53 17.4 52 17.1 50 16.4 46 15.1

102-2926

Orange

Pressure Flow Radius Radius Radius Radius Radius Radius

PSI BAR GPM lpm Feet Meters Feet Meters Feet Meters Feet Meters Feet Meters Feet Meters

50 3.4 4.3 16.3 48 15.7 46 15.1 44 14.4 42 13.8 39 12.8 35 11.5
60 4.1 4.7 17.8 50 16.4 48 15.7 46 15.1 44 14.4 41 13.5 38 12.5
65 4.5 4.9 18.5 51 16.7 49 16.1 47 15.4 45 14.8 42 13.8 39 12.8
70 4.8 5.1 19.3 51 16.7 50 16.4 48 15.7 46 15.1 43 14.1 40 13.1
80 5.5 5.4 20.4 52 17.1 51 16.7 50 16.4 48 15.7 45 14.8 42 13.8
90 6.2 5.8 22.0 53 17.4 52 17.1 51 16.7 49 16.1 47 15.4 44 14.4

100 6.9 6.1 23.1 54 17.7 53 17.4 52 17.1 50 16.4 48 15.7 45 14.8

Trajectory 30° 25° 20° 15° 10° 7°

Trajectory 30° 25° 20° 15° 10° 7°

Trajectory 30° 25° 20° 15° 10° 7°

102-2925

Blue

Pressure Flow Radius Radius Radius Radius Radius Radius

PSI BAR GPM lpm Feet Meters Feet Meters Feet Meters Feet Meters Feet Meters Feet Meters

50 3.4 2.7 10.2 42 13.8 41 13.5 39 12.8 38 12.5 36 11.8 34 11.2
60 4.1 3.0 11.4 43 14.1 42 13.8 40 13.1 39 12.8 37 12.1 35 11.5
65 4.5 3.2 12.1 43 14.1 42 13.8 40 13.1 39 12.8 37 12.1 35 11.5
70 4.8 3.3 12.5 44 14.4 42 13.8 41 13.5 39 12.8 38 12.5 36 11.8
80 5.5 3.5 13.2 44 14.4 43 14.1 41 13.5 40 13.1 38 12.5 36 11.8
90 6.2 3.7 14.0 45 14.8 44 14.4 42 13.8 41 13.5 39 12.8 37 12.1

100 6.9 3.9 14.8 45 14.8 44 14.4 43 14.1 42 13.8 40 13.1 38 12.5

Trajectory 30° 25° 20° 15° 10° 7°

Main Nozzle Adapter Performance Charts

Intermediate Nozzle Performance Charts

102-6885

Green

Pressure Flow Radius Radius Radius Radius Radius Radius

PSI BAR GPM lpm Feet Meters Feet Meters Feet Meters Feet Meters Feet Meters Feet Meters

50 3.4 5.4 20.4 51 16.7 50 16.4 48 15.7 45 14.8 42 13.8 39 12.8
60 4.1 5.9 22.3 52 17.1 51 16.7 49 16.1 46 15.1 43 14.1 41 13.5
65 4.5 6.1 23.1 52 17.1 51 16.7 50 16.4 47 15.4 44 14.4 42 13.8
70 4.8 6.3 23.8 53 17.4 52 17.1 50 16.4 47 15.4 44 14.4 42 13.8
80 5.5 6.7 25.4 53 17.4 52 17.1 51 16.7 48 15.7 45 14.8 43 14.1
90 6.2 7.1 26.9 54 17.7 53 17.4 52 17.1 50 16.4 47 15.4 45 14.8

100 6.9 7.4 28.0 55 18.0 55 18.0 54 17.7 52 17.1 49 16.1 47 15.4

Trajectory 30° 25° 20° 15° 10° 7°

102-6884

Yellow

Pressure Flow Radius Radius Radius Radius Radius Radius

PSI BAR GPM lpm Feet Meters Feet Meters Feet Meters Feet Meters Feet Meters Feet Meters

50 3.4 4.1 15.5 48 15.7 47 15.4 45 14.8 41 13.5 38 12.5 35 11.5
60 4.1 4.5 17.0 49 16.1 48 15.7 47 15.4 44 14.4 41 13.5 38 12.5
65 4.5 4.7 17.8 50 16.4 49 16.1 48 15.7 45 14.8 42 13.8 39 12.8
70 4.8 4.8 18.2 50 16.4 49 16.1 48 15.7 45 14.8 43 14.1 40 13.1
80 5.5 5.1 19.3 51 16.7 50 16.4 49 16.1 47 15.4 44 14.4 41 13.5
90 6.2 5.4 20.4 53 17.4 52 17.1 50 16.4 48 15.7 45 14.8 42 13.8

100 6.9 5.8 22.0 54 17.7 53 17.4 51 16.7 49 16.1 46 15.1 43 14.1

102-6883

Brown

Pressure Flow Radius Radius Radius Radius Radius Radius

PSI BAR GPM lpm Feet Meters Feet Meters Feet Meters Feet Meters Feet Meters Feet Meters

50 3.4 2.4 9.1 41 13.5 40 13.1 38 12.5 36 11.8 33 10.8 30 9.8
60 4.1 2.6 9.8 43 14.1 42 13.8 40 13.1 38 12.5 36 11.8 33 10.8
65 4.5 2.7 10.2 44 14.4 42 13.8 41 13.5 39 12.8 37 12.1 34 11.2
70 4.8 2.8 10.6 45 14.8 43 14.1 42 13.8 40 13.1 38 12.5 35 11.5
80 5.5 3.0 11.4 46 15.1 45 14.8 43 14.1 41 13.5 40 13.1 36 11.8
90 6.2 3.2 12.1 46 15.1 45 14.8 44 14.4 42 13.8 41 13.5 37 12.1

100 6.9 3.4 12.9 46 15.1 45 14.8 44 14.4 43 14.1 41 13.5 38 12.5

Trajectory 30° 25° 20° 15° 10° 7°

Trajectory 30° 25° 20° 15° 10° 7°

Inner Nozzle Performance Charts*

102-6937

Yellow

Pressure Flow Radius Radius Radius

PSI BAR GPM lpm Feet Meters Feet Meters Feet Meters

50 3.4 3.7 14.0 26 8.5 24 7.9 20 6.6
60 4.1 4.0 15.1 28 9.2 25 8.2 22 7.2
65 4.5 4.2 15.9 28 9.2 25 8.2 22 7.2
70 4.8 4.4 16.7 28 9.2 26 8.5 23 7.5
80 5.5 4.7 17.8 28 9.2 26 8.5 24 7.9
90 6.2 5.0 18.9 29 9.5 27 8.9 25 8.2

100 6.9 5.2 19.7 30 9.8 29 9.5 27 8.9

Trajectory 30° 25° 20°

Main Nozzle Adaptor
P/N 118-1521

102-6531

Green

Pressure Flow Radius Radius Radius

PSI BAR GPM lpm Feet Meters Feet Meters Feet Meters

50 3.4 4.0 15.1 32 10.5 30 9.8 26 8.5
60 4.1 4.3 16.3 34 11.2 31 10.2 27 8.9
65 4.5 4.5 17.0 34 11.2 31 10.2 27 8.9
70 4.8 4.7 17.8 34 11.2 31 10.2 28 9.2
80 5.5 5.0 18.9 34 11.2 32 10.5 29 9.5
90 6.2 5.3 20.1 34 11.2 32 10.5 29 9.5

100 6.9 5.6 21.2 35 11.5 33 10.8 30 9.8

Trajectory 30° 25° 20°

* Not recommended below 20°

FLEX800™ R SERIES CONVERSION UPGRADES

SPECIFICATIONS

Operational

Adds 1½” of
pop-up height

Left: Rain Bird Eagle 900

Right: Rain Bird Eagle
900 upgraded with
Toro FLEX800 R SERIES
upgrade assembly and
optional Spike Guard
solenoid/adapter

• Ratcheting riser allows riser positioning without riser removal.

• Recommended Operating Pressure Range: 60-100 PSI
(maximum – 150 PSI and minimum – 40 PSI)

• Radius reduction screw for radius refinement

• Riser pull-up feature simplifies servicing

• Effluent identifier included

• Yardage marker capable

• 3.25” pop-up clears tall grasses

• Nozzle base clutching (FLX55-6RB & FLX55RB) allows nozzle
base movement by hand

Nozzles

• 4 main nozzle combinations included provides a wide range
of radius and flow capabilities.

• Back nozzle capable (FLX55-6RB & FLX55RB)

• Two additional front nozzle positions (FLX54RB only)

• All nozzles threaded from the front with no other
disassembly required.

FLEX800 R SERIES Solenoid Adapters

The New Toro
solenoid adapters
allow you to easily
and economically
upgrade your Rain
Bird® Eagle 700,
900 and 1100 Series
sprinklers with the
Toro Spike Guard™
solenoids.

Features

SPIKEGUARD-RB

• 20,000 volt surge protection; 3 times the surge
protection of the leading competitor. Save time and
money with fewer replacements and less time digging
up failed solenoids

• Half the amperage of the leading competitor; Run more
heads simultaneously (if control system and available
water allow) and provides improved performance in low
voltage situations

Toro® has designed and manufactured this product to fit within a sprinkler housing made
by Rain Bird® Corporation, but Toro’s product is not manufactured by or affiliated with Rain
Bird. Rain Bird is a registered trademark of Rain Bird Corporation.

Specifying Information—FLEX800 R SERIES Conversion Assemblies

Model Number Description

FLX55-6RB-5154
FLX55-6RB-5558

FLX55RB-5154
FLX55RB-5558
FLX54RB-5154
FLX54RB-5558

SPIKEGUARD-RB

R Series Conversion with FLX55-6 riser assembly and low flow nozzle set #51 - #54
R Series Conversion with FLX55-6 riser assembly and high flow nozzle set #55 - #58
R Series Conversion with FLX55 riser assembly and low flow nozzle set #51 - #54
R Series Conversion with FLX55 riser assembly and high flow nozzle set #55 - #58
R Series Conversion with FLX54 riser assembly and low flow nozzle set #51 - #54
R Series Conversion with FLX54 riser assembly and high flow nozzle set #55 - #58
Toro solenoid adapter with Spike Guard™ solenoid for Rain Bird Eagle 700, 900 or 1100 Series sprinklers

www.toro.com / e Toro Company, Irrigation Division / 5825 Jasmine Street, Riverside, CA 92504 / 877-345-8676 / Specications subject to change without notice / © 2015. All rights reserved / P/N 15-5041-IG
