Toro Dingo 320-D Operator's Manual

Download

DingoR 320-D

Traction Unit

Model Number 22303—200000001 & Up

Form No. 3324-312

Operator’s Manual

Domestic English (EN)

Introduction

Thank you for purchasing a Toro product. All of us at Toro want you to be completely satisfied

with your new product, so feel free to contact your local Authorized Service Dealer for help with service, genuine replacement parts, or other information you may require.

Whenever you contact your Authorized Service Dealer or the factory, always know the model and serial numbers of your product. These numbers will help the Service Dealer or Service Representative provide exact information about your specific product. The two numbers are stamped into a plate mounted on left rear side of frame.

For your convenience, write the product model and serial numbers in the space below.

Model No:

Serial No.

Read this manual carefully to learn how to operate and maintain your product correctly. Reading this manual will help you and others avoid personal injury and damage to the product. Although we design, produce and market safe, state-of-the-art products, you are responsible for using the product properly and safely. You are also responsible for training persons, who you allow to use the product, about safe operation.

The warning system in this manual identifies potential hazards and has special safety messages that help you and others avoid personal injury, even death. DANGER, WARNING and CAUTION are signal words used to identify the level of hazard. However, regardless of the hazard, be extremely careful.

DANGER signals an extreme hazard that will cause serious injury or death if the recommended precautions are not followed.

WARNING signals a hazard that may cause serious injury or death if the recommended precautions are not followed.

CAUTION signals a hazard that may cause minor or moderate injury if the recommended precautions are not followed.

EThe Toro Company – 1999

8111 Lyndale Ave. South Bloomington, MN 55420–1196

Two other words are also used to highlight information. “Important” calls attention to special mechanical information and “Note” emphasizes general information worthy of special attention.

The left and right side of the machine is determined by standing on the platform in the normal operator’s position.

The engine exhaust from this product

contains chemicals known to the State of

California to cause cancer, birth defects,

or other reproductive harm.

Printed in the USA

Contents

Safety 2.

Assembly 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Specifications 11. . . . . . . . . . . . . . . . . . . . . . . . . . .

Before Operating 13. . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Safe Operating Practices 2. . . . . . . . . . . . . .

Slope Chart 6. . . . . . . . . . . . . . . . . . . . . . . . .

Safety and Instruction Decals 7. . . . . . . . . .

Loose Parts 8. . . . . . . . . . . . . . . . . . . . . . . . .

Installing the Valve Lever 8. . . . . . . . . . . . .

Activating the Battery 8. . . . . . . . . . . . . . . .

Attachments 11. . . . . . . . . . . . . . . . . . . . . . . .

Stability Data 12. . . . . . . . . . . . . . . . . . . . . . .

Adding Fuel 13. . . . . . . . . . . . . . . . . . . . . . . .

Draining Water from the Fuel Filter 14. . . . .

Checking the Oil Level 14. . . . . . . . . . . . . . .

Checking the Cooling System 15. . . . . . . . . .

Removing Debris from the Traction Unit 15.

Checking the Hydraulic Fluid 16. . . . . . . . . .

Tire pressure 16. . . . . . . . . . . . . . . . . . . . . . . .

Page

Operation 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Traction Unit Overview 17. . . . . . . . . . . . . . .

Controls 18. . . . . . . . . . . . . . . . . . . . . . . . . . .

Indicator Lights 20. . . . . . . . . . . . . . . . . . . . .

Starting and Stopping the Engine 20. . . . . . .

Driving Forward or Backward 21. . . . . . . . . .

Stopping the Traction Unit 21. . . . . . . . . . . . .

Moving a Non-functioning Traction Unit 22.

Using the Cylinder Locks 22. . . . . . . . . . . . .

Installing and Removing Attachments 23. . . .

Securing the Traction Unit for Transport 25. .

Maintenance 26. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Service Interval Chart 26. . . . . . . . . . . . . . . .

Opening the Access Covers

Greasing the Traction Unit 28. . . . . . . . . . . . .

Servicing the Air Cleaner 28. . . . . . . . . . . . . .

Servicing the Engine Oil 30. . . . . . . . . . . . . .

Servicing the Battery 31. . . . . . . . . . . . . . . . .

Servicing the Hydraulic System 32. . . . . . . . .

Changing the Fuel Filter 33. . . . . . . . . . . . . .

Bleeding the Fuel System 34. . . . . . . . . . . . .

Draining the Fuel Tank 35. . . . . . . . . . . . . . .

Cleaning and Storage 35. . . . . . . . . . . . . . . . .

Troubleshooting 37. . . . . . . . . . . . . . . . . . . . . . . . .

Warranty

. . . . . . . . . . . . . . . . . . . . . . . . . .

Back Cover

Page

27. . . . . . . . . . . .

                  

                           

Safety

Improper use or maintenance by the operator or owner can result in injury. To reduce the potential for injury, comply with these safety instructions and always pay attention to the safety alert symbol, which means CAUTION, WARNING, or DANGER—“personal safety instruction.” Failure to comply with the instruction may result in personal injury or death.

Safe

This product is capable of amputating hands and feet. Always follow all safety instructions to avoid serious injury or death.

Operating Practices

POTENTIAL HAZARD

• Engine exhaust contains carbon monoxide,

which is an odorless, deadly poison.

WHAT CAN HAPPEN

• Carbon monoxide can kill you and is also

known to the State of California to cause birth defects.

HOW TO AV

OID THE HAZARD

• Do not run engine indoors or in an enclosed

area.

maintained in working order, or the engine is constricted, equipped, and maintained for the prevention of fire.

General Operation

• Read, understand, and follow all instructions in

the operator’s manual, in the video, and on the traction unit before starting. Also, read all attachment manuals where supplied

• Allow only responsible adults who are familiar

with the instructions to operate the traction unit.

• Wear long pants and substantial shoes. Wearing

safety glasses, safety shoes, hearing protection, and a hard hat are advisable and may be required by some local ordinances and insurance regulations.

• Ensure that the area is clear of other people

before operating the traction unit. Stop the traction unit if anyone enters the area.

• Never carry passengers on attachments or on the

traction unit.

• Always look down and behind before and while

backing.

• Do not place your feet under the platform.

Because in some areas there are local, state, or federal regulations requiring that a spark-arrester be used on engines, a spark-arrester is available as an option for the traction unit. If a spark-arrester is required, contact your Toro dealer. Genuine Toro approved spark-arresters are approved by the USDA Forestry Service. It is a violation of the State of California PRC Section 4442 to use or operate the engine on any forest-covered, brush-covered, or grass-covered land, unless the engine is equipped with a spark-arrester,

• Slow down before turning. Sharp turns on any

terrain may cause loss of control.

• Never leave a running traction unit unattended.

Always lower the loader arms, stop the engine, and remove the key before dismounting.

• Do not exceed the rated operating capacity, as

the traction unit may become unstable which may result in loss of control.

Safety

• Do not carry a load with the arms raised. Always

carry loads close to the ground. Do not step off of the platform with the load raised.

• Do not over-load the attachment and always

keep the load level when raising the loader arms. Logs, boards, and other items could roll down the loader arms, injuring you.

• Never jerk the control levers; use a steady

motion.

• Keep your hands, feet, hair, and loose clothing

away from any moving parts.

• Operate only in daylight or good artificial light.

• Do not operate the traction unit while under the

influence of alcohol or drugs.

• Watch for traffic when operating near or crossing

roadways.

• Use extra care when loading or unloading the

traction unit onto a trailer or truck.

• Do not operate the traction unit on hillsides or

slopes exceeding the angles recommended in the

Stability Data section, page 12, and those in the

attachment operator’s manual. See also the

slope chart on page 6.

• Operate up and down slopes with the heavy

end of the traction unit uphill. Weight

distribution changes. An empty bucket will make

the rear of the traction unit the heavy end, and a

full bucket will make the front of the traction

unit the heavy end. Most other attachments will

make the front of traction unit the heavy end.

• Raising the loader arms on a slope will affect the

stability of the machine. Whenever possible,

keep the loader arms in the lowered position

when on slopes.

• Removing an attachment on a slope will make

the rear of the traction unit heavy. Refer to the

Stability Data section, page 12, to determine

whether the attachment can be safely removed

on the slope.

• Do not touch parts which may be hot from

operation. Allow them to cool before attempting to maintain, adjust, or service.

• Do not operate the traction unit with any of the

covers or guards removed.

• Check for overhead clearances (i.e. branches,

doorways, electrical wires) before driving under any objects and do not contact them.

• Before digging, have the area marked for

underground utilities, and do not dig in marked areas.

Slope Operation

Slopes are a major factor related to loss-of-control and tip-over accidents, which can result in severe injury or death. All slopes require extra caution.

• Remove obstacles such as rocks, tree limbs, etc.

from the work area. Watch for holes, ruts, or

bumps, as uneven terrain could overturn the

traction unit. Tall grass can hide obstacles.

• Use slow speed on slopes. Before starting the

engine, put the pump selector lever in the slow

(turtle) position so that you will not have to stop

or shift while on the slope.

• Follow the recommendations in the attachment

manuals for the use of counterweights to

improve stability.

• Use only Toro approved attachments.

Attachments can change the stability and the

operating characteristics of the traction unit.

Warranty may be voided if used with

unapproved attachments.

Safety

• Keep all movements on slopes slow and gradual.

Do not make sudden changes in speed or direction.

• Avoid starting or stopping on a slope. If tires

lose traction, proceed slowly, straight down the slope.

• Avoid turning on slopes. If you must turn, turn

slowly and keep the heavy end of the traction unit uphill.

• Do not operate near drop-offs, ditches, or

embankments. The traction unit could suddenly turn over if a wheel goes over the edge of a cliff or ditch, or if an edge caves in.

• Do not operate on wet grass. Reduced traction

could cause sliding.

• Do not park the traction unit on a hillside or

slope without lowering the attachment to the ground and chocking the wheels.

• Do not try to stabilize the traction unit by putting

your foot on the ground.

• Use extra care when approaching blind corners,

shrubs, trees, the end of a fence, or other objects that may obscure vision.

Service

• Stop the engine before performing any service,

repairs, maintenance, or adjustments.

• If any maintenance or repair requires the loader

arms to be in the raised position, secure the arms in the raised position with the hydraulic cylinder locks included with traction unit.

• Never run a traction unit inside a closed area.

• Keep nuts and bolts tight. Keep equipment in

good condition.

• Never tamper with safety devices. Check safety

systems for proper operation before each use.

• Keep the traction unit free of grass, leaves, or

other debris build-up. Clean up oil or fuel spillage. Allow the traction unit to cool before storing.

Children

Tragic accidents can occur if the operator is not alert to the presence of children. Children are often attracted to the traction unit and the work activity. Never assume that children will remain where you last saw them.

• Keep children out of the work area and under the

watchful care of another responsible adult.

• Be alert and turn the traction unit off if children

enter the area.

• Before and while backing, look behind and down

for small children.

• Never carry children. They may fall off and be

seriously injured or interfere with safe traction unit operation.

• Never allow children to operate the traction unit.

• Use extra care when handling fuel. It is

flammable and vapors are explosive.

• Use only an approved container.

• Never remove the fuel cap or add fuel when

the engine is running. Allow the engine to cool before refueling. Do not smoke.

• Never refuel the traction unit indoors.

• Never store the traction unit or fuel

container inside where there is an open flame, such as near a water heater or furnace.

• Never fill a container while it is inside a

vehicle, trunk, pick–up bed, or any surface other than the ground.

• Keep container nozzle in contact with the

tank during filling.

• Stop and inspect the equipment if you strike an

object. Make any necessary repairs before restarting.

• Use only genuine replacement parts to ensure

that original standards are maintained.

• Battery acid is poisonous and can cause burns.

Avoid contact with skin, eyes, and clothing. Protect your face, eyes, and clothing when working with a battery.

• Battery gases can explode. Keep cigarettes,

sparks and flames away from the battery.

• Keep your body and hands away from pin hole

leaks or nozzles that eject high pressure hydraulic fluid. Use cardboard or paper to find hydraulic leaks. Hydraulic fluid escaping under pressure can penetrate skin and cause injury requiring surgery within a few hours by a qualified surgeon or gangrene may result.

Safety

Slope

Chart

M-4402

Safety and Instruction Decals

Safety decals and instructions are easily visible to the operator and are located near any area of potential danger. Replace any decal that is damaged or lost.

Safety

# 98-8219

# 98-4677

# 98-8235

# 98–8220

# 98-9051

# 93-7814

# 85-4730

# 93-6680

# 98-4682

# 93-9084

# 93-6681

# 100–6141

1. Fast

2. Traction

3. Slow

drive

Entanglement hazard

5. Stay

away

from moving parts

Figure 1

6. Use

only diesel fuel

Lift point

# 99-3157

Engine speed Cutting hazard—moving fan

Assembly

Loose

Parts

Note: Use the chart below to verify that all parts have been shipped.

DESCRIPTION QTY. USE

raction Unit

alve Lever

Key 2

Installing

the V

alve Lever

1. Thread the lever into the speed selector valve

(Fig. 2).

1 1

Install valve lever

Start engine

Activating

the Battery

The traction unit is shipped with a dry battery. Bulk electrolyte with 1.260 specific gravity must be purchased from a local battery supply outlet.

Note: The lever should be installed with the

bend toward the operator.

1. Remove the four bolts securing the battery cover

and remove the cover (Fig. 3)

2. Tighten the jam nut on the lever to lock it in

position.

2. Remove the nuts and bars securing the battery

(Fig. 3).

1. Speed

selector lever

Figure 2

m–3883

1. Battery

2. Bolt

3. Battery

4. Bars

cover

Figure 3

5. Nut

Positive cable

Negative cable

m–4391

3. Lift the battery off of its platform.

Assembly

POTENTIAL HAZARD

• Battery electrolyte contains sulfuric acid

which is a deadly poison and it causes severe burns.

WHAT CAN HAPPEN

• If you drink electrolyte you could die, or, if

it gets onto your skin, you will be burned.

HOW TO AV

OID THE HAZARD

• Do not drink electrolyte and avoid contact

with skin, eyes or clothing. Wear safety glasses to shield your eyes and rubber gloves to protect your hands.

• Fill the battery where clean water is always

available for flushing the skin.

• Follow all instructions and comply with all

safety messages on the electrolyte container.

4. Remove the filler caps from the battery.

5. Slowly pour electrolyte into each cell until the

electrolyte level is up to the lower part of the tube (Fig. 4).

1254

Figure 5

1. Positive

post

Negative post

Charger red (+) wire

Charger black (–) wire

7. Charge the battery at a rate of 4 amperes or less

for 4 hours (12 volts).

1262

Figure 4

1. Filler

2. Electrolyte

caps

Lower part of the tube

6. Leave the covers off and connect a 3 to 4 amp

battery charger to the battery posts (Fig. 5).

POTENTIAL HAZARD

• Charging the battery pr

oduces gasses.

WHAT CAN HAPPEN

• Battery gasses can explode.

HOW TO AV

OID THE HAZARD

• Keep cigarettes, sparks, and flames away

from the battery.

8. When the battery is fully charged, disconnect the

charger from the electrical outlet and from the

negative and positive battery posts (Fig. 5).

9. Slowly pour electrolyte into each cell until the

level is once again up to the upper line on the

battery case (Fig. 4) and install the covers.

Assembly

10. Install the battery onto its platform (Fig. 3).

11. Secure the battery in the chassis with the bars

and nuts removed previously (Fig. 3).

12. Connect the positive (red) cable to the

positive (+) battery post (Fig. 3). Slide the rubber cover over the battery post.

13. Connect the negative (black) cable to the

negative (–) battery post (Fig. 3). Note: Ensure that the battery cables do not

contact any sharp edges or each other.

14. Install the battery cover (Fig. 3).

Specifications

Note: Specifications and design are subject to change without notice.

Width Length Height Weight Operating capacity (with a 200 lb operator) T

ipping capacity (with a 200 lb operator) Wheelbase Dump height (with standard bucket) 47 inches (1 Reach—fully raised (with the standard bucket) Height to hinge pin (with the standard bucket fully raised)

41 inches (104 cm) 60 inches (152 cm) 49 inches (125 cm) 1726 lbs (783 Kg) 515 lbs (234 Kg) 1030 lbs (467 Kg) 28 inches (71 cm)

19 cm) 26 inches (66 cm) 66 inches (168 cm)

Attachments

Many attachments are available for use with the traction unit. These attachments allow you to t perform many different functions with the traction unit such as hauling materials, digging holes, grading, and more. Contact your Toro dealer for a list of all approved SiteW

IMPORTANT: Use only Toro approved attachments.

ork Systems attachments and accessories.

Check Before Operating

Stability Data

The following table lists the maximum slope recommended for the traction unit in the positions listed in the table. Slopes over the listed degree may cause the traction unit to become unstable. The data in the table assumes that the loader arms are fully lowered and that the factory installed tires are on the traction unit, inflated to the recommended pressure; raised arms and other tire types or pressure may affect the stability.

Maximum Recommended Slope

when Operating with:

Front Uphill

Configuration

raction unit without attachment

raction unit with counterweight, without attachment

raction unit with an attachment rated with one of the following

stability ratings for each slope position:*

A 25° 25° 20° B 18° 19° 18° C 15° 16° 14° D 10° 10° 9° E 5° 5° 5°

7° 20° 17° 5° 21° 17°

Rear Uphill

Side Uphill

* In each attachment manual is a set of three stability ratings, one for each hill position. To determine the maximum slope you can traverse with the attachment installed, find the degree of slope that corresponds to the stabilities ratings of the attachment.

Example: If the attachment installed on the traction unit has a Front Uphill rating of B, a Rear Uphill rating of D, and a Side Uphill rating of C, then you could drive forward up an 18

° slope, rearward up a 10° slope, or

sideways on a 14° slope, as listed in the above table.

Before Operating

Before operating, check the fuel and oil level, remove debris from the traction unit, and check the tire pressure. Also, ensure that the area is clear of people and debris. You should also know and have marked the locations of all utility lines.

Adding

The engine runs on clean, fresh diesel fuel with a minimum cetane rating of 40. Purchase fuel in quantities that can be used within 30 days to ensure fuel freshness.

Use summer grade diesel fuel (No. 2-D) at temperatures above 20 F (–7 C) and winter grade diesel fuel (No. 1-D or No. 1-D/2-D blend) below 20 F (–7 C). Use of winter grade diesel fuel at lower temperatures provides lower flash point and pour point characteristics, allowing easier starts and lessening the chances of chemical separation of the fuel due to lower temperatures.

Use of summer grade diesel fuel above 20 F (–7 C) will contribute toward longer life of the fuel pump components.

IMPORTANT: Do not use ker gasoline in place of diesel fuel. Failure to observe this caution will damage the engine.

1. Park the traction unit on a level surface, lower

the loader arms, and stop the engine.

Fuel

osene or

5. Install the fuel tank cap securely. Wipe up any

fuel that may have spilled.

If possible, fill the fuel tank after each use. This will minimize possible buildup of condensation inside the fuel tank.

POTENTIAL HAZARD

• Under certain conditions fuel is extremely

flammable and highly explosive.

WHAT CAN HAPPEN

• A fire or explosion from fuel can burn you,

others, and cause property damage.

HOW TO AV

OID THE HAZARD

• Fill the fuel tank outdoors, in an open area,

when the engine is cold. Wipe up any fuel that spills.

• Do not fill the fuel tank completely full.

Add fuel to the fuel tank until the level is 1/4 to 1/2 in. (6 to 13 mm) below the bottom of the filler neck. This empty space in the tank allows fuel to expand.

• Never smoke when handling fuel, and stay

away from an open flame or where fuel fumes may be ignited by a spark.

• Store fuel in an approved container and

keep it out of the reach of children. Never buy more than a 30-day supply.

2. Remove the key and allow the engine to cool.

3. Clean around the fuel tank cap and remove the

cap.

4. Use a funnel and add diesel fuel to the fuel tank,

until the level is 1/4 to 1/2 inch (6 mm to 13 mm) below the bottom of the filler neck.

Note: This space in the tank allows fuel to

expand. Do not fill the fuel tank completely full.

Check Before Operating

Draining Water from the Fuel Filter

Drain water or other contaminants from the fuel filter daily.

1. Stop the engine and remove the key.

2. Open the rear access cover; refer to Opening the

Rear Access Cover

3. Turn the drain valve until the water runs out of

the filter (Fig. 6). Note: The fuel filter is located near the

bottom of the fuel tank.

, page 27.

3. Open the rear access cover; refer to Opening the

Rear Access Cover

, page 27.

4. Clean around the oil dipstick (Fig. 7).

5. Pull out the dipstick and wipe the metal end

clean (Fig. 7).

6. Slide the dipstick fully into the dipstick tube

(Fig. 7).

7. Pull the dipstick out and look at the metal end.

8. If the oil level is low, clean around the oil filler

cap and remove the cap (Fig. 7).

9. Slowly pour only enough oil into the valve cover

to raise the level to the F (full) mark.

IMPORTANT: If you overfill the crankcase with oil, the excess oil may damage the engine.

10. Replace the filler cap and dipstick.

1. Fuel

filter

Figure 6

Drain valve

m–3708

4. Close the valve.

5. Close the rear access cover.

Checking

the Oil Level

1. Park the traction unit on a level surface, lower

the loader arms, and stop the engine.

2. Remove the key and allow the engine to cool.

m–4594 m–3219

1. Oil

dipstick

Filler cap

Figure 7

3. V

alve cover

Metal end

11. Close the rear access cover.

Check Before Operating

Checking

The cooling system is filled with a 50/50 solution of water and permanent ethylene glycol anti–freeze. Check the level of coolant at the beginning of each day, before starting the engine.

POTENTIAL HAZARD

the Cooling System

• Coolant is hot and pressurized.

WHAT CAN HAPPEN

• Discharge of hot pressurized coolant can

cause sever

HOW TO AV

e burns.

OID THE HAZARD

• Do not remove the radiator cap when the

engine is hot. Always allow the engine to cool at least 15 minutes or until the radiator cap is cool enough to touch without burning your hand before removing it.

m–4591

Figure 8

1. Filler

Removing T

1. Park the traction unit on a level surface, raise the

Cap

Debris from the

raction Unit

IMPORTANT: Operating the engine with a blocked radiator, may result in engine damage from overheating.

loader arms, and install the cylinder locks; refer to Using the Cylinder Locks, page 22.

1. Park the traction unit on a level surface, lower

the loader arms, and stop the engine. Remove the key.

2. Allow the engine to cool.

3. Remove the radiator filler cap and check the

coolant level (Fig. 8). The coolant should be up to filler neck.

4. If coolant level is low, replenish the system. IMPORTANT: Do not over fill the radiator.

5. Replace the radiator filler cap, ensuring that it is

tightly sealed.

2. Stop the engine and remove the key.

3. Remove the front access cover, refer to

Removing the Front Access Cover, page 27.

4. Clean any debris from the grill.

5. Open the rear access cover; refer to Opening the

Rear Access Cover

6. Wipe away debris from the air cleaner.

7. Clean any debris build–up on the engine with a

brush or blower before each use.

IMPORTANT: It is preferable to blow dirt out, rather than washing it out. If water is used, keep it away from electrical items and hydraulic valves. Do not use a high-pressure washer. High-pressure washing can damage the electrical system and hydraulic valves or deplete grease.

8. Replace and secure the front and rear access

covers.

, page 27.

Check Before Operating

9. Remove and store the cylinder locks (refer to

Using the Cylinder Locks, page 22), and lower the loader arms.

Checking

the Hydraulic Fluid

Check the hydraulic fluid level before the engine is first started and after every 25 operating hours.

Hydraulic Tank Capacity: 17.25 gal. (67 l) Use only Group 1 ISO type 46/68 anti–wear

hydraulic fluids, recommended for ambient temperatures consistently below 100_F (38_C), such as Toro Hy–Pro, Mobil Fluid 424, or other equivalent fluid.

IMPORTANT: Use only the group 1 ISO type 46/68 anti–wear hydraulic fluids. Other fluids could cause system damage.

1. Remove the attachment, if one is installed; refer

to Removing an Attachment, page 24.

7. If the level is low, add enough fluid to raise it to

the proper level.

8. Install the cap on the filler neck.

9. Install the front access cover.

10. Remove and store the cylinder locks (refer to

Using the Cylinder Locks, page 22) and lower the loader arms.

Tire

pressure

Maintain the air pressure in the tires as specified. Check the tires when they are cold to get the most accurate reading.

Pressure: 15–20 psi (103–138 kPa)

Note: Use a lower tire pressure (15 psi/

103 kPa) when operating in sandy soil conditions to provide better traction in the loose soil.

2. Park the traction unit on a level surface, raise the

loader arms, and install the cylinder locks; refer to Using the Cylinder Locks, page 22.

3. Stop the engine and remove the key.

4. Remove the front access cover, refer to

Removing the Front Access Cover, page 27.

5. Clean the area around the filler neck of the

hydraulic tank (Fig. 9).

6. Remove the cap from the filler neck and check

the fluid level on the dipstick (Fig. 9).

m–4596

Figure 9

1. Filler

neck cap

2. Dipstick

Figure 10

1. Valve

m–1872

stem

Operation

Traction

Unit Overview

Figure 11 contains a front and back view of the traction unit. Familiarize yourself with all of the traction unit components listed in Figure 11.

Fuel tank

7. Wheel Lift cylinder

Operator platform

m-4592

Figure 1

10.

Rear access cover (open)

11. Engine Air filter

12.

13.

Control panel

14.

Lift points

15. Handle

16. Battery Indicator lights

17.

m-4599

1. Mount

2. T

plate

ilt cylinder Auxiliary hydraulic couplers Loader arms Front access cover

POTENTIAL

HAZARD

• The operator could fall off of the platform.

WHAT CAN HAPPEN

• The operator could be seriously injured.

HOW TO AV

• Do not move any of the contr

unless standing with both feet on the

platform and with hands holding the

handles.

OID THE HAZARD

ol levers

POTENTIAL HAZARD

• If the traction unit is operated without

covers or guards in place, the operator could be injured by moving parts.

WHAT CAN HAPPEN

• The operator could be seriously injured.

HOW TO AV

OID THE HAZARD

• Do not operate the traction unit with any of

the covers or guards removed.

Operation

Controls

Become familiar with all the controls (Fig. 12) before you start the engine and operate the traction unit.

1. Traction

control levers Attachment tilt lever Loader arm lever Auxiliary hydraulics lever

Figure 12

Key Switch

The key switch, used to start and stop the engine, has three positions: stop, run, and start.

To start the engine, rotate the key to the start position. Release the key when engine starts and it will move automatically to the run position.

To stop the engine, rotate the key to the stop position.

Throttle Lever

m–4388

Speed selector lever Throttle lever Key switch

To turn, move the lever located on the side you want to turn back toward the neutral position while keeping the other lever engaged.

The farther you move the traction control levers in either direction, the faster the traction unit will move in that direction.

To slow or stop, move the traction control levers to neutral.

Attachment Tilt Lever

To tilt the attachment forward, slowly push the attachment tilt lever forward.

To tilt the attachment rearward, slowly pull the attachment tilt lever rearward.

Loader Arm Lever

To lower the loader arms, slowly push the loader arm lever forward.

To raise the loader arms, slowly pull the loader arm lever rearward.

Auxiliary Hydraulics Lever

To operate a hydraulic attachment in a forward direction, slowly pull the auxiliary hydraulics lever rearward.

Move the control forward to increase the engine speed and rearward to decrease speed.

Traction Control Levers

To move forward, move the traction control levers forward. To move rearward, move the traction control levers rearward.

To go straight, move both traction control levers equally.

To operate a hydraulic attachment in a reverse direction, slowly push the auxiliary hydraulics lever forward.

Speed Selector Lever

Move the speed selector lever to the fast (rabbit) position to set the traction drive, loader arms, and attachment tilt to high speed and the auxiliary hydraulics to low speed.

Operation

Move the speed selector lever to the slow (turtle) position to set the auxiliary hydraulics to high speed and the traction drive, loader arms, and attachment tilt to low speed.

POTENTIAL HAZARD

• If the speed selector lever is moved while

the traction unit is in motion, the traction unit will either stop suddenly or accelerate quickly.

• If the traction unit is operated with the

speed selector lever in an intermediate position, the traction unit will operate erratically and may be damaged.

WHAT CAN HAPPEN

• You could be thrown forward or backward,

resulting in injury.

• If the traction unit accelerates quickly, you

could lose control of the traction unit and injure bystanders or yourself.

• You could lose control of the traction unit,

severely injuring yourself or others.

• The traction unit could be damaged.

HOW TO AV

OID THE HAZARD

• Do not move the speed selector lever when

the traction unit is in motion.

• Do not operate the traction unit when the

speed selector is in any intermediate position (i.e., any position other than fully forward or fully rearward).

Flow Divider Control

The traction unit hydraulics (i.e., the traction drive, loader arms, and attachment tilt) work on a separate hydraulic circuit from the auxiliary hydraulics for powering attachments; however, the two systems share the same hydraulic pumps. Using the flow divider control (Fig. 13), you can vary the speed of the traction unit hydraulics by diverting hydraulic flow to the auxiliary hydraulics circuit. The flow divider allows you to divide the flow of fluid in varying degrees to slow the traction unit. Thus, the

more hydraulic flow you divert to the auxiliary hydraulics, the slower the traction unit hydraulics will move.

Note: The flow divider position (i.e., 9–12

o’clock) is determined when standing in the normal operator’s position. Figure 13 shows the flow divider from the front.

Figure 13

1. Flow

2. Knob

divider control

12 o’clock position

10 to 1

1 o’clock position

9 o’clock position

• Move the flow divider control to the twelve

o’clock position to provide maximum speed to the traction unit hydraulics.

Use this setting for fast operation of the traction unit.

• Move the flow divider control between the

twelve o’clock and nine o’clock positions to slow the traction unit hydraulics and fine tune the speed.

Use a setting in this range with attachments with hydraulics where you need to both run the attachment and move the traction unit hydraulics, such as the auger, boring unit, hydraulic blade, and tiller.

• Move the control to the nine o’clock position to

transfer all hydraulic flow to the auxiliary hydraulics of the attachment.

In this setting, the traction unit hydraulics will not work. Use this setting with hydraulic attachments that do not required the traction unit hydraulics. There are currently no attachments that require the nine o’clock position; however,

Operation

the trencher does work best if you set it close to nine o’clock so that the traction unit will creep slowly when trenching.

Note: The flow divider control can be fixed

in place by turning the knob on the control clockwise until it contacts the dial (Fig. 13).

Indicator

Lights

The indicator lights warn you in the case of a system malfunction and, in the case of the glow plug light, indicate that the glow plugs are on. Figure 14 illustrates the four indicator lights.

m–4603

down. Check the oil level and fill the crankcase with oil as needed. If the problem persists, contact your Authorized Toro Dealer for diagnostics and repair.

Battery Light

This light is on for a few seconds whenever you start the engine. If the battery light is on while the engine is running, the alternator, battery, or electrical system is broken. Contact your Authorized Toro Dealer for diagnostics and repair.

Glow Plug Light

This light is on when the key is turned to run before starting the engine. The glow plug light will remain on for up to 10 seconds, indicating that the glow plugs are warming the engine. If the glow plug light is on while the engine is running, the glow plugs are broken. Contact your Authorized Toro Dealer for diagnostics and repair.

Figure 14

1. Engine

temperature light

Oil pressure light

Battery light

Glow plug light

Engine Temperature Light

If the engine temperature light is on, the engine is overheating. Stop the engine and allow the traction unit to cool down. Check the coolant level and the belts to the fan and water pump. Fill the coolant as required and replace any worn or slipping belts. If the problem persists, contact your Authorized Toro Dealer for diagnostics and repair.

Oil Pressure Light

This light is on for a few seconds whenever you start the engine. If the oil pressure light is on while the engine is running, the engine oil pressure is low. Stop the engine and allow the traction unit to cool

Starting

and Stopping the

Engine

Starting the Engine

1. Stand on the platform.

2. Move the auxiliary hydraulics valve lever to

neutral.

3. Move the throttle lever midway between slow

(turtle) and fast (rabbit) positions.

4. Insert the key into the ignition and turn it to the

run position. Note: The battery, oil pressure, and glow

plug lights will come on.

5. When the glow plug light turns off, turn the key

to the start position. When the engine starts, release the key.

Operation

Note: A warm or hot engine may be started

without waiting for the light to turn off.

IMPORTANT: Do not engage the starter for more than 10 seconds at a time. If the engine fails to start, allow a 30 second cool-down period between attempts. Failure to follow these instructions can burn out the starter motor.

6. Move the throttle lever to the desired setting. IMPORTANT: If the engine is run at high

speeds when the hydraulic system is cold (i.e., when the ambient air temperature is around freezing or lower), hydraulic system damage could occur. When starting the engine in cold conditions, allow the engine to run in the middle throttle position for 2 to 5 minutes before moving the throttle to fast (rabbit).

Stopping the Engine

To drive the traction unit, complete the following actions as necessary:

• To move forward, move the traction control

levers forward.

• To move rearward, move the traction control

levers rearward.

• To go straight, move both traction control levers

equally.

• To turn, move the lever located on the side you

want to turn toward the neutral position while keeping the other lever engaged.

• To slow or stop, move the traction control levers

to neutral. Note: The farther you move the traction

control levers in either direction, the faster the traction unit will move in that direction.

1. Move the throttle lever to the slow (turtle) position.

2. Lower the loader arms to the ground.

3. Turn the ignition key to the stop position. Note: If the engine has been working hard or

is hot, let it idle for a minute before stopping it. This helps to cool the engine. In an emergency, the engine may be stopped immediately.

Driving

The throttle control regulates the engine speed as measured in rpm (revolutions per minute). Place the throttle lever in the fast (rabbit) position for best performance.

Note: You can use a slower throttle position

Forward or Backward

to operate the traction unit at slower speeds.

Stopping

To stop the traction unit, move the traction control levers to neutral and the throttle lever to slow (turtle), lower loader arms to the ground, and stop the engine. Remove the key.

POTENTIAL HAZARD

the T

raction Unit

• Someone could move or attempt to operate

the traction unit while it is unattended.

WHAT CAN HAPPEN

• Children or bystanders may be injured if

they use the traction unit.

HOW TO AV

•

Always r leaving the traction unit, even if just for a few seconds.

OID THE HAZARD

emove the ignition key when

Operation

Moving T

raction Unit

a Non-functioning

IMPORTANT: Never tow or pull the traction unit. Rotating the wheels manually will cause damage to the hydraulic wheel motors.

1. Stop the engine.

2. Lift the traction unit off the ground, using the

two lift points (Fig. 15), and move it onto a trailer.

m–4389

Figure 15

1. Lift

points

Using

POTENTIAL

the Cylinder Locks

HAZARD

• The loader arms may lower when in the

raised position.

WHAT CAN HAPPEN

• Anyone under the loader arms may be

injured or crushed.

HOW TO AV

OID THE HAZARD

• Always install the cylinder locks when

loader arms.

doing maintenance that requir

es raised

Installing the Cylinder Locks

1. Start the engine.

2. Raise the loader arms to the fully raised position.

3. Stop the engine.

4. Position a loader arm cylinder lock over each lift

cylinder rod (Fig. 16).

5. Secure each loader arm cylinder lock with a

clevis pin and cotter pin (Fig. 16).

Clevis pin

Lift cylinder rod

m–4398

1. Cylinder

Lift cylinder

Hairpin cotter

Figure 16

lock

6. With the engine off, lower the loader arms.

Operation

Removing/Storing the Cylinder Locks

1. Start the engine.

2. Raise the loader arms to the fully raised position.

3. Stop the engine.

4. Remove the clevis pin and cotter pin securing

each cylinder lock.

5. Remove the cylinder locks.

6. Lower the loader arms.

7. Install the cylinder locks over the hydraulic

hoses and secure them with the clevis pins and cotter pins (Fig. 17).

IMPORTANT: Before installing the attachment, ensure that the mount plates are free of any dirt or debris.

1. Position the attachment on a level surface with

enough space behind it to accommodate the traction unit.

2. Move the speed selector lever to the turtle

position.

3. Start the engine.

4. Slowly push the attachment tilt lever forward to

tilt the attachment mount plate forward.

5. Position mount plate into the upper lip of the

attachment receiver plate (Fig. 18).

m–4055

Figure 17

1. Hydraulic

Cylinder locks

Installing

hoses

and Removing

Hairpin cotter Clevis pin

Attachments

Connecting an Attachment

IMPORTANT: Use only Toro approved attachments. Attachments can change the stability and the operating characteristics of the traction unit. The warranty of the traction unit may be voided if used with unapproved attachments.

m–4601

Figure 18

1. Mount

plate

Receiver plate

6. Raise the loader arms while tilting back the

mount plate at the same time.

IMPORTANT: The attachment should be raised enough to clear the ground, and the mount plate should be tilted all the way back.

7. Stop the engine.

8. Engage the quick attach pins (Fig. 19).

9. Ensure that the cam collars are seated on top of

the cast pin brackets (Fig. 19).

Operation

1. Quick

attach pins (shown in engaged position)

Cam collars

POTENTIAL HAZARD

m–4056

Figure 19

• Hydraulic fluid escaping under pressure

can penetrate skin and cause injury.

WHAT CAN HAPPEN

• Fluid accidentally injected into the skin

must be surgically removed within a few hours by a doctor familiar with this form of injury or gangrene may result.

Connecting the Hydraulic Hoses

If the attachment requires hydraulics for operation, connect the hydraulic hoses as follows:

1. Stop the engine.

2. Move the auxiliary hydraulics lever forward,

backward, and back to neutral to relieve pressure at the hydraulic couplers.

3. Push the auxiliary hydraulics lever forward into

the detent position.

4. Remove the protective covers from the hydraulic

couplers on the traction unit.

5. Ensure that all foreign matter is cleaned from the

hydraulic connectors.

6. Push the attachment male connector into the

female connector on the traction unit. Note: When you connect the attachment male

connector first, you will relieve any pressure build up in the attachment.

HOW TO AV

OID THE HAZARD

• Keep body and hands away from pin hole

leaks or nozzles that eject high pressure hydraulic fluid.

• Use cardboard or paper to find hydraulic

leaks, never use your hands.

POTENTIAL HAZARD

• Hydraulic couplers, hydraulic lines/valves,

and hydraulic fluid may be hot.

WHAT CAN HAPPEN

• Contact with hot hydraulic components or

fluid may cause burns.

HOW TO AV

OID THE HAZARD

• Wear gloves when operating the hydraulic

couplers.

• Allow the traction unit to cool before

touching hydraulic components.

• Do not touch hydraulic fluid spills.

7. Push the attachment female connector into the

male connector on the traction unit.

8. Confirm that the connection is secure by pulling

on the hoses.

9. Move the auxiliary hydraulics lever to neutral.

Removing an Attachment

1. Lower the attachment to the ground

2. Stop the engine.

3. Disengage the quick attach pins by turning them

to the outside.

4. If the attachment uses hydraulics, move the auxiliary hydraulics lever forward, backward, and back to neutral to relieve pressure at the hydraulic couplers.

5. If the attachment uses hydraulics, slide the collar back on the hydraulic couplers and disconnect them.

IMPORTANT: Connect the attachment hoses together to prevent hydraulic system contamination during storage.

6. Install the protective covers onto the hydraulic

couplers on the traction unit.

Operation

7. Start the engine, tilt the mount plate forward, and back the traction unit away from the attachment.

Securing

the T

raction Unit for

Transport

When transporting the traction unit on a trailer, always use the following procedure:

IMPORTANT: Do not operate or drive the traction unit on roadways.

1. Lower the loader arms.

2. Stop the engine.

3. Secure the traction unit to the trailer with chains

or straps using the operator platform support openings to secure the rear of the traction unit and the loader arms/mount plate to secure the front of the traction unit.

Maintenance

Check battery cable connections

)

fil

Check radiator coolant rotection tem erature

Service

Grease the traction unit Check engine oil level Check radiator coolant level Check for loose fasteners Check tire pressure (20 psi)

Clean primary air filter Check hydraulic oil level Inspect hydraulic lines for leaks

Change engine oil Check

Check wheel lug nut torque (50 ft.-lbs)

Change engine oil filter (every other oil change)

Interval Chart

Hours 25 Hours 75 Hours

1, 2

battery electrolyte level

1, 4

150 Hours 400 Hours

Yearly/Storage

Check

engine speed (1300 rpm idle and 3700 full throttle,

Check fan belt and alternator belt tension

Change hydraulic filter Inspect

Change hydraulic oil Replace

Check radiator coolant protection temperature T

1. More

2. Change oil after the first 50 operating hours.

3. Change the hydraulic filter and torque the lug nuts after the first 8–10 operating hours

4. For severe duty or rental applications, change every 75 operating hours.

5. For severe duty or rental applications, change every 150 operating hours.

6. For severe duty or rental applications, change every 400 operating hours

7. Flush radiator coolant system and replace coolant every two years.

fuel lines for leaks

primary and secondary air filters

pReplace the fuel

ouch up chipped paint

often in dusty

1, 3, 5

1, 6

ter

, dirty conditions.

±100)

Maintenance

POTENTIAL

HAZARD

• If you leave the key in the ignition switch, someone could start the engine.

WHAT CAN HAPPEN

• Accidental starting of the engine could seriously injure you or other bystanders.

HOW TO AV

OID THE HAZARD

• Remove the key from the ignition switch and and disconnect negative battery cable

from battery before you do any maintenance.

Opening

the Access Covers

Removing the Front Access Cover

1. Raise the loader arms and install the cylinder locks; refer to Using the Cylinder Locks, page 22.

Note: In the case that you need to remove the

front access cover without raising the loader arms, be very careful not to damage the cover or hydraulic hoses as you maneuver the cover out from under the arms.

2. Stop the engine and remove the key.

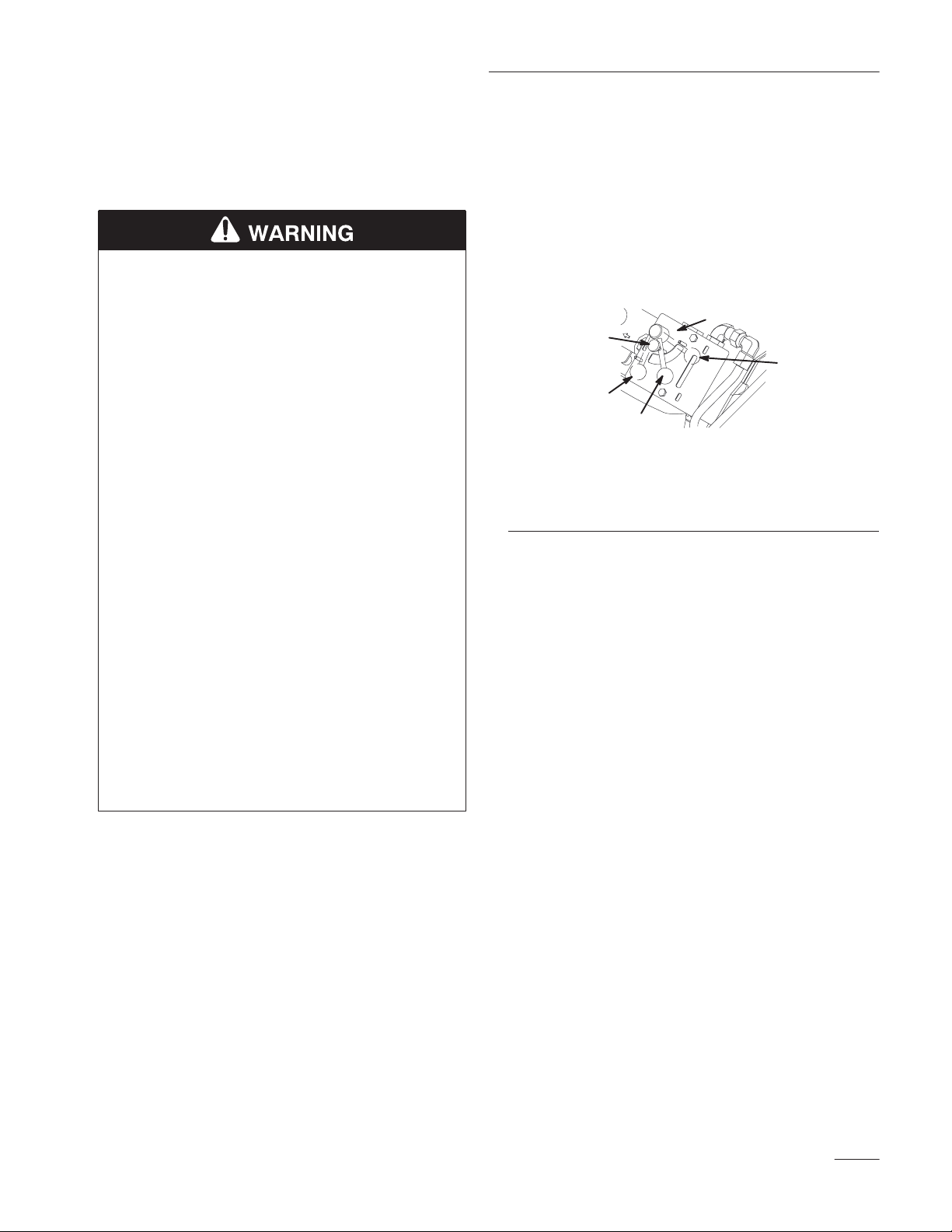

Figure 20

1. Front access cover 2.

m–4595

Locking tabs

3. Release the two locking tabs (Fig. 20).

4. Pull the cover off of the traction unit (Fig. 20).

5. When finished, replace the front access cover

and secure it with the two locking tabs.

Opening the Rear Access Cover

1. Stop the engine and remove the key.

2. Release the two locking tabs on top of the rear

access cover (Fig. 21).

3. Grasping the handle, pull the cover up and back

to swing it open (Fig. 21).

Maintenance

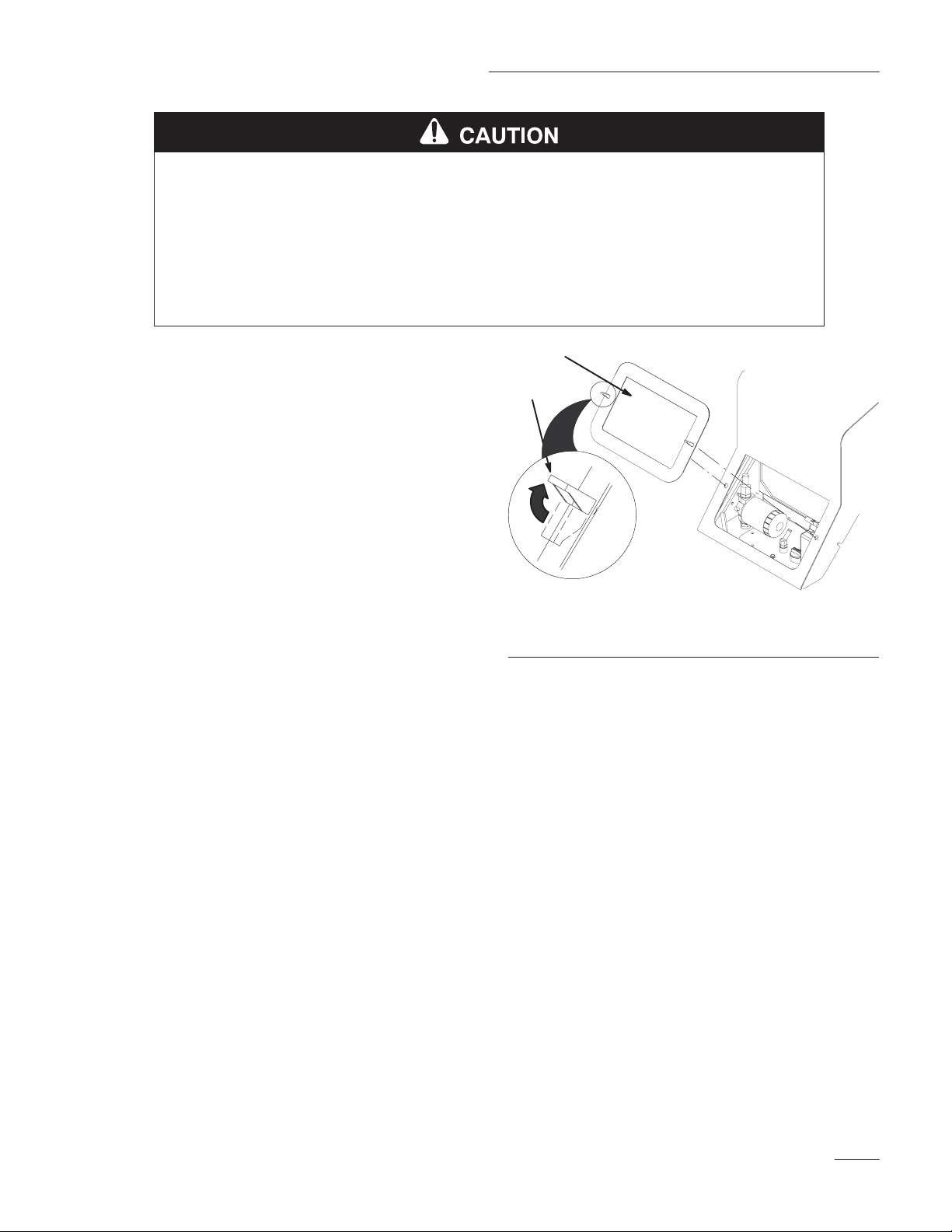

Figure 21

1. Rear access cover 2.

m-4597

Locking tabs

m–4396

4. When finished, close the rear access cover by

swinging it up and seating it in place. Secure it with the two locking tabs.

Greasing

the T

raction Unit

Grease all pivot joints every 8 operating hours and immediately after every washing.

Grease Type: General-purpose grease.

1. Lower the loader arms and stop the engine.

Remove the key.

2. Clean the grease fittings with a rag.

3. Connect a grease gun to each fitting

(Fig 22 and 23).

Figure 22

m–4056

Figure 23

4. Pump grease into the fittings until grease begins

to ooze out of the bearings (approximately 3 pumps).

5. Wipe up any excess grease.

Servicing

the Air Cleaner

Clean the primary filter every 25 operating hours. Replace the primary and secondary filter yearly.

Note: Service the air cleaner more frequently

if operating conditions are extremely dusty or sandy.

Maintenance

Removing the Filter

1. Lower the loader arms and stop the engine. Remove the key.

2. Open the rear access cover; refer to Opening the Rear Access Cover

3. Release the latches on the air cleaner and pull the air cleaner cover off of the air cleaner body (Fig. 24).

4. Clean the inside of the air cleaner cover with compressed air

5. Gently slide the primary filter out of the air cleaner body (Fig. 24). Avoid knocking the filter into the side of the body. Do not remove the safety filter, unless you intend to replace it as well.

6. Inspect the primary filter for damage by looking into the filter while shining a bright light on the outside of the filter. Holes in the filter will appear as bright spots. If the filter is damaged, discard it; otherwise, clean it.

IMPORTANT: Never attempt to clean the safety filter. If the safety filter is dirty, then the primary filter is damaged and you should replace both filters.

, page 27.

m–4387

1. Latches

2. Air

cleaner cover

Air filter body

Figure 24

Primary filter Safety filter

Cleaning the Primary Filter

Blow compressed air from the inside to the outside of the primary filter.

IMPORTANT: Do not exceed 100 psi (689.5 kPa) and keep the hose at least 2 inches (5 cm) from the filter.

Installing the Filters

1. If installing new filters, check each filter for

shipping damage. Do not use a damaged filter.

2. If the safety filter is being replaced, carefully

slide it into the filter body (Fig. 24).

3. Carefully slide the primary filter over the safety

filter (Fig. 24). Ensure that it is fully seated by pushing on the outer rim of the filter while installing it.

IMPORTANT: Do not press on the soft inside area of the filter.

Maintenance

4. Install the air cleaner cover with the side

indicated as UP facing up and secure the latches (Fig. 24).

5. Close the rear access cover.

POTENTIAL HAZARD

• Components will be hot if the traction unit

has been running.

Servicing

the Engine Oil

Change oil after the first 50 operating hours and then every 75 operating hours thereafter.

Note: Change oil more frequently when

operating conditions are extremely

dusty or sandy. Oil Type: MIL-L-2104C (API service CD or higher) Crankcase Capacity: w/filter, 0.84 gal. (3.2 l) Viscosity: See table below

USE THESE SAE VISCOSITY OILS

10W–30, 10W–40

5W–20, 5W–30

WHAT CAN HAPPEN

• Touching hot components can cause burns.

HOW TO AV

OID THE HAZARD

• Allow the traction unit to cool before

performing maintenance or touching any components.

4. Place a pan under the oil drain tube (Fig. 25).

5. Loosen the clamp and remove the plug (Fig. 25).

6. When the oil has drained completely, replace the

plug and tighten the clamp. Note: Dispose of the used oil at a certified

recycling center.

–20 0 20

–30°–20 –10

40 60

01020

80 100

30 40

Changing the Oil

1. Start the engine and let it run for five minutes.

This warms the oil so it drains better.

2. Park the traction unit so that the drain side is

slightly lower than the opposite side to ensure that the oil drains completely.

3. Lower the loader arms, chock the wheels, and

stop the engine. Remove the key.

m-4593

1. Clamp

2. Oil

drain tube

Figure 25

3. Plug

7. Open the rear access cover; refer to Opening the

Rear Access Cover

, page 27.

8. Remove the oil fill cap and slowly pour

approximately 80% of the specified amount of oil in through the valve cover.

9. Check the oil level; refer to Checking the Oil

Level, page 14.

10. Slowly add additional oil to bring the level to the

F (full) mark on the dipstick.

Maintenance

11. Replace the fill cap.

12. Close the rear access cover.

Changing the Oil Filter

Replace the oil filter every 150 hours or every other oil change.

Note: Change the oil filter more frequently

when operating conditions are extremely hot, dusty, or sandy.

1. Drain the oil from the engine; refer to Changing

the Oil, page 30.

2. Open the rear access cover; refer to Opening the

Rear Access Cover

3. Remove the old filter and wipe the filter adapter

(Fig. 26) gasket surface.

4. Allow a minute or two for the oil to be absorbed

by filter material, then pour off the excess oil.

5. Apply a thin coat of new oil to the rubber gasket

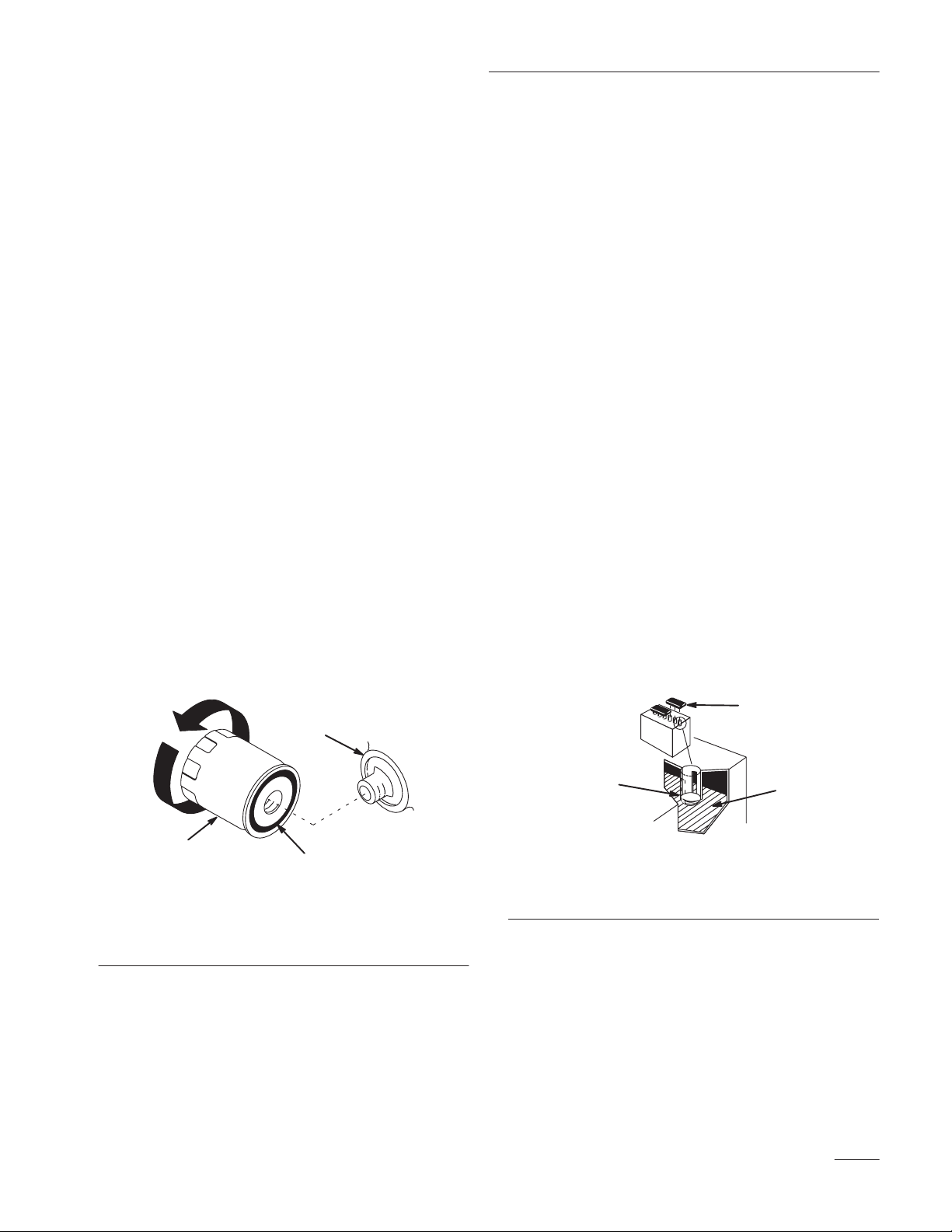

on the replacement filter (Fig. 26).

, page 27.

7. Fill the crankcase with the proper type of new

oil; refer to Changing the Oil, page 30.

8. Close the rear access cover.

Servicing

the Battery

Check the electrolyte level in the battery every 75 hours. Always keep the battery clean and fully charged. Use a paper towel to clean the battery case. If the battery terminals are corroded, clean them with a solution of four parts water and one part baking soda. Apply a light coating of grease to the battery terminals to reduce corrosion.

Voltage: 12 v, 435 Cold Cranking Amps

Checking the Electrolyte Level

1. Remove the battery cover (Fig. 3).

2. Open covers to see into the cells. The electrolyte

must be up to the lower part of the tube (Fig. 27).

IMPORTANT: Do not allow the electrolyte to get below the plates. (Fig. 27).

1. Oil

filter

2. Gasket

Figure 26

3. Adapter

6. Install the replacement oil filter to the filter

adapter. Turn the oil filter clockwise until the rubber gasket contacts the filter adapter, then tighten the filter an additional 1/2 turn (Fig. 26).

m–1256

1. Filler

caps

Lower part of tube

Figure 27

3. Plates

1262

3. If the electrolyte is low, add the required amount

of distilled water; refer to Adding Water to the Battery, below.

Maintenance

Adding Water to the Battery

The best time to add distilled water to the battery is just before you operate the traction unit. This lets the water mix thoroughly with the electrolyte solution.

1. Clean the top of the battery with a paper towel.

2. Lift off the filler caps (Fig. 27).

3. Slowly pour distilled water into each battery cell

until the level is up to the lower part of the tube (Fig. 27).

IMPORTANT: Do not overfill the battery because electr sever

e corr

4. Press the filler caps onto the battery.

olyte (sulfuric acid) can cause

osion and damage to the chassis.

Charging the Battery

IMPORTANT: Always keep the battery fully charged (1.260 specific gravity). This is especially important to prevent battery damage when the temperature is below 32°F (0°C).

3. Install the filler caps after the battery is fully

charged.

4. Replace the battery cover.

Servicing

the Hydraulic

System

Replacing the Hydraulic Filter

Change the hydraulic filter:

• After the first 8 operating hours.

• After every 400 operating hours.

1. Position traction unit on a level surface.

2. Raise the loader arms and install the cylinder

locks; refer to Using the Cylinder Locks, page 22.

3. Stop the engine and remove the key.

4. Remove the front access cover, refer to

Removing the Front Access Cover, page 27.

1. Check the electrolyte level; refer to Checking

Electrolyte Level, page 31.

2. Remove the filler caps from the battery and

connect a 3 to 4 amp battery charger to the battery posts. Charge the battery at a rate of 4 amperes or less for 4 hours (12 volts). Do not overcharge the battery.

POTENTIAL HAZARD

• Charging the battery pr

WHAT CAN HAPPEN

oduces gasses.

• Battery gasses can explode.

HOW TO AV

OID THE HAZARD

• Keep cigarettes, sparks, and flames away

from the battery.

IMPORTANT: Do not substitute an automotive oil filter or severe hydraulic system damage may result.

5. Place a drain pan under the filter.

6. Remove the old filter and wipe the filter adapter,

gasket surface clean.

7. Apply a thin coat hydraulic fluid to the rubber

gasket on the replacement filter (Fig. 28).

8. Install the replacement hydraulic filter onto the

filter adapter. Tighten it clockwise until the rubber gasket contacts the filter adapter, then tighten the filter an additional 1/2 turn (Fig. 28).

9. Clean up any spilled fluid.

10. Start the engine and let it run for about two

minutes to purge air from the system.

11. Stop the engine and check for leaks.

Maintenance

12. Check the fluid level in the hydraulic tank (refer

to Checking the Hydraulic Fluid, page 16) and add fluid to raise the level to the mark on the dipstick. Do not over fill the tank.

Figure 28

1. Hydraulic

2. Gasket

filter

3. Adapter

13. Install the front access cover.

14. Remove and store the cylinder locks (refer to

Using the Cylinder Locks, page 22) and lower the loader arms.

7. Install the drain plug.

8. Fill the hydraulic tank with Toro Hy-Pro, Mobil

Fluid 424, or equivalent; refer to Checking the Hydraulic Fluid, page 16.

Note: Dispose of used oil at a certified

recycling center.

9. Install the front access cover

10. Remove and store the cylinder locks (refer to

Using the Cylinder Locks, page 22) and lower the loader arms.

Checking Hydraulic Lines

After every 25 operating hours, check the hydraulic lines and hoses for leaks, loose fittings, kinked lines, loose mounting supports, wear, weather, and chemical deterioration. Replace all moving hydraulic hoses every 1500 hours or 2 years, which ever comes first. Make necessary repairs before operating.

Changing the Hydraulic Fluid

Change the hydraulic fluid yearly.

1. Position traction unit on a level surface.

2. Raise the loader arms and install the cylinder

locks; refer to Using the Cylinder Locks, page 22.

3. Stop the engine and remove the key.

4. Remove the front access cover, refer to

Removing the front access cover, page 27.

IMPORTANT: Do not substitute automotive oil or severe hydraulic system damage may result.

5. Place a large drain pan under the traction unit

that can hold at least 17 gal. (67 l).

6. Remove the drain plug from the bottom of the

hydraulic tank and allow the fluid to completely drain out.

POTENTIAL HAZARD

• Hydraulic fluid escaping under pressure

can penetrate skin and cause injury.

WHAT CAN HAPPEN

• Fluid accidentally injected into the skin

must be surgically removed within a few hours by a doctor familiar with this form of injury or gangrene may result.

HOW TO AV

OID THE HAZARD

• Keep body and hands away from pin hole

leaks or nozzles that eject high pressure hydraulic fluid.

• Use cardboard or paper to find hydraulic

leaks, never use your hands.

Changing

Change the fuel filter yearly. Never install a dirty filter.

the Fuel Filter

Maintenance

1. Lower the loader arms and stop the engine.

Remove the key.

2. Shut off the fuel valve on the bottom of the fuel

tank (Fig. 31).

3. Open the rear access cover; refer to Opening the

Rear Access Cover

, page 27.

4. Open the drain valve (Fig. 29) and drain the fuel

from the fuel filter into a suitable container and dispose of it properly.

5. Remove the fuel filter with a filter wrench

(Fig. 29).

Bleeding

the Fuel System

Bleeding the air from the fuel system in any of the following situations:

• Initial start up of a new traction unit or a traction

unit that has been stored.

• After the engine has ceased running due to lack

of fuel.

• After maintenance has been performed on the

fuel system components.

1. Open the rear access cover; refer to Opening the

Rear Access Cover

, page 27.

2. Place a drain pan under the fuel filter to catch

spills.

3. Open the bleed screw on top of the fuel filter to

fill the bowl with fuel (Fig. 30).

Figure 29

1. Drain

valve

Fuel filter

6. Clean the mounting surface.

7. Lubricate the gasket on the new filter with clean

engine oil. Screw on the new filter by hand until the gasket contacts the housing. Then tighten it another 1/2 turn.

8. Open the fuel valve on the bottom of the fuel

tank (Fig. 31).

9. Bleed the fuel system; refer to Bleeding the Fuel

System, page 34.

10. Close the rear access cover.

11. Start the engine and check for leaks.

m–3708

Figure 30

1. Fuel

filter

Bleed screw

4. Close the bleed screw when fuel comes out in a

steady stream.

5. On left side of the engine, locate the air vent

plug on top of the fuel injection pump and connect a hose to it, leading to a drain pan.

6. Open the vent plug and crank the engine until

fuel comes out a steady stream.

7. Close the vent plug.

8. Close the rear access cover.

Maintenance

Draining

POTENTIAL

the Fuel T

HAZARD

ank

• In certain conditions fuel is extremely

flammable and highly explosive.

WHAT CAN HAPPEN

• A fire or explosion from fuel can burn you,

others, and cause property damage.

HOW TO AV

OID THE HAZARD

• Drain fuel from the fuel tanks when the

engine is cold. Do this outdoors in an open area. Wipe up any fuel that spills.

• Never drain fuel near an open flame or

where fumes may be ignited by a spark.

• Never smoke while handling fuel.

1. Park the traction unit on a level surface, to

ensure that the fuel tanks drain completely.

2. Lower the loader arms and stop the engine.

Remove the key.

3. Shut off the fuel valve on the bottom of the fuel

tank (Fig. 31).

Note: Now is the best time to install a new

fuel filter because the fuel tank is empty.

7. Install the fuel line onto the fuel filter.

8. Slide the hose clamp close to the fuel filter to

secure the fuel line.

9. Close the rear access cover.

10. Open the fuel valve on the bottom of the fuel

tank.

Cleaning

1. Lower the loader arms and stop the engine.

Remove the key.

2. Remove dirt and grime from the external parts of

the entire traction unit, especially the engine. Clean dirt and chaff from the outside of the engine.

IMPORTANT: You can wash the traction unit with mild detergent and water. Do not pressure wash the traction unit. Avoid excessive use of water, especially near the control panel, engine, hydraulic pumps, and motors.

and Storage

m–4390

Figure 31

1. Fuel

4. Open the rear access cover; refer to Opening the

5. Loosen the hose clamp at the fuel filter and slide

6. Pull the fuel line off of the fuel filter, open the

valve

Rear Access Cover

it up the fuel line away from the filter.

fuel valves, and allow the fuel to drain into a fuel can or drain pan.

, page 27.

3. Service the air cleaner; refer to Servicing the Air

Cleaner, page 28.

4. Grease the traction unit; refer to Greasing the

Traction Unit, page 28.

5. Change the crankcase oil; refer to Servicing the

Engine Oil, page 30.

6. Check the tire pressure; refer to Tire Pressure,

page 16.

7. Charge the battery; refer to Servicing the Battery,

page 31.

8. Flush the fuel tank with fresh, clean diesel fuel

9. Check and tighten all bolts, nuts, and screws.

Repair or replace any part that is damaged.

Maintenance

10. Paint all scratched or bare metal surfaces. Paint

is available from your Authorized Service Dealer.

11. Check anti–freeze protection and fill the radiator

with a 50/50 solution of water and permanent ethylene glycol anti–freeze.

12. Store the traction unit in a clean, dry garage or

storage area. Remove the key from the ignition switch and keep it in a memorable place.

13. Cover the traction unit to protect it and keep it

clean.

Troubleshooting

PROBLEM

The starter does not crank.

The engine cranks, but will not start.

POSSIBLE CAUSES

The electrical connections are corroded or loose.

A fuse is blown or loose.

The relay or switch is damaged.

The battery is discharged.

A damaged starter or starter solenoid.

Seized internal engine components.

Incorrect starting procedure.

The fuel tank is empty

The fuel shut-of closed.

Dirt, water, stale fuel, or incorrect fuel is in the fuel system.

f valve is

. 2.

CORRECTIVE ACTION

Check the electrical connections for good contact.

Correct or replace the fuse. Contact your Authorized

Service Dealer Charge the battery or replace

it. Contact your Authorized

Service Dealer Contact your Authorized

Service Dealer Refer to Starting and

Stopping the Engine, page

20. Fill with fresh fuel. Open the fuel shut-of

Drain and flush the fuel system; add fresh fuel.

f valve.

Clogged fuel line.

There is air in the fuel

Inoperative glow plugs.

Clean or replace.

Bleed the nozzles and check for air leaks at the fuel hose connections and fittings between the fuel tank and engine.

Check the fuse, glow plugs and wiring.

Troubleshooting

PROBLEM

The engine cranks, but will not start (continued).

POSSIBLE CAUSES

Slow cranking speed.

The air cleaner element is dirty.

10.

Low compression.

11.

The injection nozzles are damaged.

12.

The fuel filter is clogged.

13.

The injections pump timing is incorrect.

14.

The injection pump is broken.

15.

Improper fuel grade for cold weather use.

CORRECTIVE ACTION

Check the battery viscosity and starting motor (contact your Authorized Service Dealer).

Clean or replace.

10.

Contact your Authorized Service Dealer

11.

Contact your Authorized Service Dealer

12.

Replace the fuel filter

13.

Contact your Authorized Service Dealer

14.

Contact your Authorized Service Dealer

15.

Drain the fuel system and replace the fuel filter fresh fuel of proper grade for ambient temperature conditions. Y warm the entire traction unit.

ou may need to

, oil

. Add

The engine starts, but does not keep running.

16.

The ETR solenoid is broken.

The fuel tank vent is restricted.

Dirt or water is in the fuel system.

The fuel filter is clogged.

The fuel pump is damaged.

There is air in the fuel.

Improper fuel grade for cold weather use.

16.

Contact your Authorized Service Dealer

Loosen the cap. If the engine runs with the cap loosened, replace the cap.

Drain and flush the fuel system; add fresh fuel.

Replace the fuel filter

Contact your Authorized Service Dealer

Bleed the nozzles and check for air leaks at fuel hose connections and fittings between the fuel tank and engine.

Drain the fuel system and replace the fuel filter fresh fuel of proper grade for ambient temperature conditions.

. Add

Troubleshooting

PROBLEM

The engine runs, but knocks or misses.

POSSIBLE CAUSES

Dirt, water, stale fuel, or incorrect fuel is in the fuel system.

Engine overheating.

There is air in the fuel.

The injection nozzles are damaged.

Low compression

The injection pump timing is incorrect.

Excessive carbon build–up.

Internal wear or damage.

CORRECTIVE ACTION

Drain and flush the fuel system; add fresh fuel.

See ENGINE OVERHEA

Bleed nozzles and check for air leaks at the fuel hose connections and fittings between the fuel tank and engine.

Contact your Authorized Service Dealer

TS.

The engine will not idle.

The fuel tank vent is restricted.

Dirt, water, stale fuel, or incorrect fuel is in the fuel system.

The fuel pump is damaged.

Low compression.

The air cleaner element is dirty.

The fuel filter is clogged.

There is air in the fuel.

Loosen the cap. If the engine runs with the cap loosened, replace the cap.

Drain and flush the fuel system; add fresh fuel.

Contact your Authorized Service Dealer

Clean or replace.

Replace the fuel filter

Bleed the nozzles and check for air leaks at the fuel hose connections and fittings between the fuel tank and engine.

Troubleshooting

PROBLEM

The engine overheats.

The engine loses power

POSSIBLE CAUSES

More coolant is needed.

Restricted air flow to the radiator.

The crankcase oil level is incorrect.

Excessive loading.

The thermostat is damaged.

The fan belt is loose or broken.

Incorrect fuel is in the fuel system.

Injection timing is incorrect.

Coolant pump is damaged.

The crankcase oil level is incorrect.

CORRECTIVE ACTION

Check and add coolant.

Inspect and clean the radiator screen with every use.

Fill or drain to the full mark.

Reduce load; use lower ground speed.

Contact your Authorized Service Dealer

Drain and flush the fuel system; add fresh fuel.

Contact your Authorized Service Dealer

Fill or drain to the full mark.

The air cleaner element is dirty.

Dirt, water, stale fuel, or incorrect fuel is in the fuel system.

The engine is overheated.

Low compression.

The fuel tank vent is restricted.

The engine load is excessive.

There is air in the fuel.

The injection pump timing is incorrect.

10.

The injection pump is damaged.

Clean or replace.

Drain and flush the fuel system; add fresh fuel.

See ENGINE OVERHEA

Contact your Authorized Service Dealer

Reduce ground speed.

Bleed the nozzles and check for air leaks at the fuel hose connections and fittings between the fuel tank and engine.

Contact your Authorized Service Dealer

10.

Contact your Authorized Service Dealer

TS.

Troubleshooting

PROBLEM

Excessive black smoke from exhaust.

Excessive white smoke from exhaust.

POSSIBLE CAUSES

The air cleaner element is dirty.

The injection pump timing is incorrect.

Incorrect fuel is in the fuel system.

The injection nozzles are damaged.

The injection pump is damaged.

Excessive loading.

The key was turned to the start position before the glow plug light turned of

The engine temperature is

2. low.

The glow plugs are inoperative.

CORRECTIVE ACTION

Clean or replace.

Contact your Authorized Service Dealer

Drain the fuel system and refill with specified fuel.

Contact your Authorized Service Dealer

Reduce load; use lower ground speed.

1. T

urn the key to the run

position and allow the glow

plug light to turn of starting the engine.

Check the thermostat.

Check the fuse, glow plugs and wiring.

f before

raction unit does not drive.

The fuel injection nozzles are damaged.

The injection pump timing is incorrect.

Low compression.

1. T

raction pump drive coupler

is loose or broken.

Hydro fluid level low

Pump and/or wheel motor is damaged.

Control valve is damaged.

Relief valve is damaged.

Flow divider valve lever is in 9 o’clock position.

Contact your Authorized Service Dealer

Contact Authorized Service Dealer.

Add hydro fluid to reservoir

Contact your Authorized Service Dealer

Move lever to 12 o’clock to 10 o’clock position.

The Toro Siteworkt Systems Product Line

A One-Year Limited Warranty

Conditions

The Toro Company and its af pursuant to an agreement between them, jointly warrant your T

oro Sitework Systems Product (“Product”) to be free from de fects in materials or workmanship for one year or 500 operation al hours, whichever occurs first. Where a warrantable condition exists, we will repair the Product at no cost to you including diagnosis, labor, and parts. This warranty begins on the date the Product is delivered to the original retail purchaser

Instructions for Obtaining W

Should

you feel your T or workmanship, contact the distributor or dealer who sold you the product or any Authorized Sitework Systems Service Dealer The Yellow Pages of your telephone directory is a good refer ence source. The dealer will arrange service at his/her dealer ship. Y

ou may need proof of purchase (copy of registration card,

sales receipt, etc.) for warranty validation. If for any reason you are dissatisfied with the Service Dealer

analysis of the defect in materials or workmanship or if you need a referral to a T please feel free to contact us at:

LCB Customer Service Department T

oro W

arranty Company

811

1 L

yndale A Bloomington, MN 55420-1 612-888-8801 888-577-7466

You

must maintain your T nance procedures described in the operator’s manual. Such routine maintenance, whether performed by a dealer or by you, is at your expense. Parts scheduled for replacement as required maintenance (“Maintenance Parts”), are warranted for the peri od of time up to the scheduled replacement time for that part. Failure to perform required maintenance and adjustments can be grounds for disallowing a warranty claim.

and Products Covered

filiate, T

oro W

arranty Company

arranty Service

oro Product contains a defect in materials

oro Sitework Systems Service Dealer,

venue South

196

Owner Responsibilities

oro Product by following the mainte

’s

•

Product failures which result from operating the Product in an abusive, negligent or reckless manner

•

Parts subject to consumption through use unless found to be defective. Examples of parts which are consumed, or

used up, during normal Product operation include, but are not limited to, digging teeth, tines, spark plugs, tires, filters, chains, etc.

Failures caused by outside influence. Items considered to

•

be outside influence include, but are not limited to, weather storage practices, contamination, use of unapproved cool ants, lubricants, additives, or chemicals, etc.

•

Normal “wear and tear” items. Normal “wear and tear” in cludes, but is not limited to, worn painted surfaces,

scratched decals or windows, etc.

•

Any component covered by a separate manufacturer ranty.

• Pickup and delivery charges.

General Conditions

Repair

by an Authorized T

dy under this warranty Neither The Toro Company nor Toro W

for indirect, incidental or consequential damages in connection with

the use of the T

ing

any cost or expense of providing substitute equipment or ser

vice

during reasonable periods of malfunction or non-use pending completion low tions on how long an implied warranty lasts, so the above exclusions

This warranty gives you specific legal rights, and you may also have

Except for the Emissions warranty referenced below ble, there is no other express warranty merchantability and fitness for use are limited to the duration of this express warranty.

repairs under this warranty

exclusions of incidental or consequential damages, or limita

and limitations may not apply to you.

other rights which vary from state to state.

oro Service Dealer is your sole reme

arranty Company is liable

oro Products covered by this warranty

. Some states do not al

, if applica

. All implied warranties of

’s war-

, includ

Items and Conditions Not Covered

Not

all product failures or malfunctions that occur during the warranty period are defects in materials or workmanship. This express warranty does not cover:

•

Product failures which result from the use of non-T

placement parts, or from installation and use of add-on,

modified, or unapproved accessories.

•

Product failures which result from failure to perform required

maintenance and/or adjustments.

oro re

Countries Other than the United States or Canada

Customers to

obtain guarantee policies for your country have Company.

who have purchased T

dif

ficulty obtaining guarantee information, contact the T

oro products exported from the United States or Canada should contact their T

, province, or state. If for any reason you are dissatisfied with your Distributor’s service or

oro importer

Note to California residents:

on your Product may be covered by a separate warranty meet ing requirements established by the U.S. Environmental Protec tion Agency (EP (CARB). The hour limitations set forth above do not apply to the Emissions Control System Warranty Emission Control W manual or contained in the engine manufacturer’s documenta tion for details.

. If all other remedies fail, you may contact us at T

A) or the California Air Resources Board

arranty Statement printed in you operator

The Emissions Control System

. Refer to the California

oro Distributor

(Dealer)

oro W

arranty

Rev. 11/05/1999

’s

Toro Dingo 320-D Operator's Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
