Toro 75741 Operator's Manual

FormNo.3449-733RevA

TimeCutter

®

4200Cand4275C

RidingMower

ModelNo.75741—SerialNo.410000000andUp
ModelNo.75743—SerialNo.410200000andUp

Registeratwww.T oro.com.
OriginalInstructions(EN)

*3449-733*

ItisaviolationofCaliforniaPublicResourceCode
Section4442or4443touseoroperatetheengineon
anyforest-covered,brush-covered,orgrass-covered
landunlesstheengineisequippedwithaspark
arrester,asdenedinSection4442,maintainedin
effectiveworkingorderortheengineisconstructed,
equipped,andmaintainedforthepreventionofre.

GrossorNetTorque:Thegrossornettorque
ofthisenginewaslaboratoryratedbytheengine
manufacturerinaccordancewiththeSocietyof
AutomotiveEngineers(SAE)J1940orJ2723.As
conguredtomeetsafety,emission,andoperating
requirements,theactualenginetorqueonthisclass
ofmowerwillbesignicantlylower.Pleasereferto
theenginemanufacturer’sinformationincludedwith
themachine.

Gotowww.Toro.comtoviewspecicationsonyour
model.

Theenclosedengineowner'smanualissupplied
forinformationregardingtheUSEnvironmental
ProtectionAgency(EPA)andtheCaliforniaEmission
ControlRegulationofemissionsystems,maintenance,
andwarranty.Replacementsmaybeorderedthrough
theenginemanufacturer.

itsintendedusecouldprovedangeroustoyouand
bystanders.

Readthisinformationcarefullytolearnhowtooperate
andmaintainyourproductproperlyandtoavoid
injuryandproductdamage.Youareresponsiblefor
operatingtheproductproperlyandsafely .

Visitwww.Toro.comforproductsafetyandoperation
trainingmaterials,accessoryinformation,helpnding
adealer,ortoregisteryourproduct.

Wheneveryouneedservice,genuineToroparts,or
additionalinformation,contactanAuthorizedService
DealerorToroCustomerServiceandhavethemodel
andserialnumbersofyourproductready.Figure1
identiesthelocationofthemodelandserialnumbers
ontheproduct.Writethenumbersinthespace
provided.

Important:Withyourmobiledevice,youcan

scantheQRcodeontheserialnumberdecal(if
equipped)toaccesswarranty,parts,andother
productinformation.

WARNING

CALIFORNIA

Proposition65Warning

Theengineexhaustfromthisproduct

containschemicalsknowntotheStateof

Californiatocausecancer,birthdefects,

orotherreproductiveharm.

Batteryposts,terminals,andrelated

accessoriescontainleadandlead

compounds,chemicalsknownto

theStateofCaliforniatocause

cancerandreproductiveharm.Wash

handsafterhandling.

Useofthisproductmaycauseexposure

tochemicalsknowntotheStateof

Californiatocausecancer,birthdefects,

orotherreproductiveharm.

Introduction

Thisrotary-blade,ridinglawnmowerisintendedtobe
usedbyhomeownersinresidentialapplications.Itis
designedprimarilyforcuttinggrassonwell-maintained
lawns.Usingthisproductforpurposesotherthan

g297763

Figure1

1.Modelandserialnumberplate

Writetheproductmodelandserialnumbersinthe
spacebelow:

ModelNo.

SerialNo.

Thismanualuses2wordstohighlightinformation.
Importantcallsattentiontospecialmechanical
informationandNoteemphasizesgeneralinformation
worthyofspecialattention.

Thesafety-alertsymbol(Figure2)appearsbothin
thismanualandonthemachinetoidentifyimportant
safetymessagesthatyoumustfollowtoavoid
accidents.Thissymbolwillappearwiththeword

Danger,Warning,orCaution.

©2021—TheToro®Company
8111LyndaleAvenueSouth
Bloomington,MN55420

Contactusatwww.Toro.com.

2

PrintedintheUSA

AllRightsReserved

•Dangerindicatesanimminentlyhazardous

situationwhich,ifnotavoided,willresultindeath
orseriousinjury.

•Warningindicatesapotentiallyhazardous

situationwhich,ifnotavoided,couldresultin
deathorseriousinjury.

•Cautionindicatesapotentiallyhazardoussituation

which,ifnotavoided,mayresultinminoror
moderateinjury.

Figure2

1.Safety-alertsymbol

Contents

Safety.......................................................................4

GeneralSafety...................................................4

SlopeIndicator...................................................5

SafetyandInstructionalDecals..........................6

ProductOverview....................................................11

Controls...........................................................13

BeforeOperation.................................................14

BeforeOperationSafety...................................14

AddingFuel......................................................15

PerformingDailyMaintenance..........................16

BreakinginaNewMachine..............................16

UsingtheSafety-InterlockSystem....................16

PositioningtheSeat..........................................17

AdjustingtheMyRide®Suspension

System..........................................................17

AdjustingtheMotion-ControlLevers.................18

DuringOperation.................................................18

DuringOperationSafety...................................18

OperatingtheMowerBlade-ControlSwitch

(PTO)............................................................20

OperatingtheThrottle.......................................21

OperatingtheChoke.........................................21

StartingtheEngine...........................................21

ShuttingOfftheEngine.....................................22

UsingtheMotion-ControlLevers.......................22

DrivingtheMachine..........................................22

UsingtheSmartSpeed

System..........................................................23

UsingtheSideDischarge.................................24

AdjustingtheHeightofCut...............................24

AdjustingtheAnti-ScalpRollers........................25

OperatingTips.................................................25

AfterOperation....................................................26

AfterOperationSafety......................................26

CleaningtheMachine.......................................26

PushingtheMachinebyHand..........................27

TM

Control

TransportingtheMachine.................................28

Maintenance...........................................................30

MaintenanceSafety..........................................30

RecommendedMaintenanceSchedule(s)...........31

Pre-MaintenanceProcedures..............................32

RaisingtheMachine.........................................32

Lubrication..........................................................32

GreasingtheBearings......................................32

EngineMaintenance...........................................33

EngineSafety...................................................33

ServicingtheAirCleaner..................................33

ServicingtheEngineOil....................................34

ServicingtheSparkPlug...................................36

sa-black

CleaningtheCoolingSystem............................36

FuelSystemMaintenance...................................37

ReplacingtheIn-LineFuelFilter.......................37

ElectricalSystemMaintenance...........................38

ElectricalSystemSafety...................................38

ServicingtheBattery.........................................38

DriveSystemMaintenance..................................39

CheckingtheTirePressure...............................39

ReleasingtheElectricBrake.............................40

AdjustingtheTracking......................................40

BeltMaintenance................................................41

InspectingtheBelts..........................................41

ReplacingtheMowerBelt.................................41

MowerMaintenance.............................................42

BladeSafety.....................................................42

ServicingtheCuttingBlades.............................42

LevelingtheMowerDeck..................................45

RemovingtheMowerDeck...............................47

InstallingtheMowerDeck.................................48

ReplacingtheGrassDeector..........................48

Cleaning..............................................................49

WashingtheUndersideoftheMower

Deck..............................................................49

CleaningtheSuspensionSystem.....................50

DisposingofWaste...........................................50

Storage...................................................................50

StorageSafety..................................................50

CleaningandStorage.......................................50

StoringtheBattery............................................51

Troubleshooting......................................................52

Schematics.............................................................54

3

Safety

Thismachinehasbeendesignedinaccordancewith
ANSIB71.1-2017.

GeneralSafety

Thisproductiscapableofamputatinghandsand
feetandofthrowingobjects.Alwaysfollowallsafety
instructionstoavoidseriouspersonalinjuryordeath.

•Readandunderstandthecontentsofthis

Operator’sManualbeforestartingtheengine.

•Keepbystandersandchildrenaway.

•Donotallowchildrenoruntrainedpeopleto

operateorservicethemachine.Allowonlypeople
whoareresponsible,trained,familiarwiththe
instructions,andphysicallycapabletooperateor
servicethemachine.

•Donotoperatethemachineneardrop-offs,

ditches,embankments,water,orotherhazards,or
onslopesgreaterthan15°.

•Donotputyourhandsorfeetnearmoving

componentsofthemachine.

•Donotoperatethemachinewithoutallguards,

safetyswitches,andothersafetyprotective
devicesinplaceandfunctioningproperly.

•Shutofftheengine,removethekey,andwait

forallmovingpartstostopbeforeleavingthe
operator’sposition.Allowthemachinetocool
beforeservicing,adjusting,fueling,cleaning,or
storingit.

4

SlopeIndicator

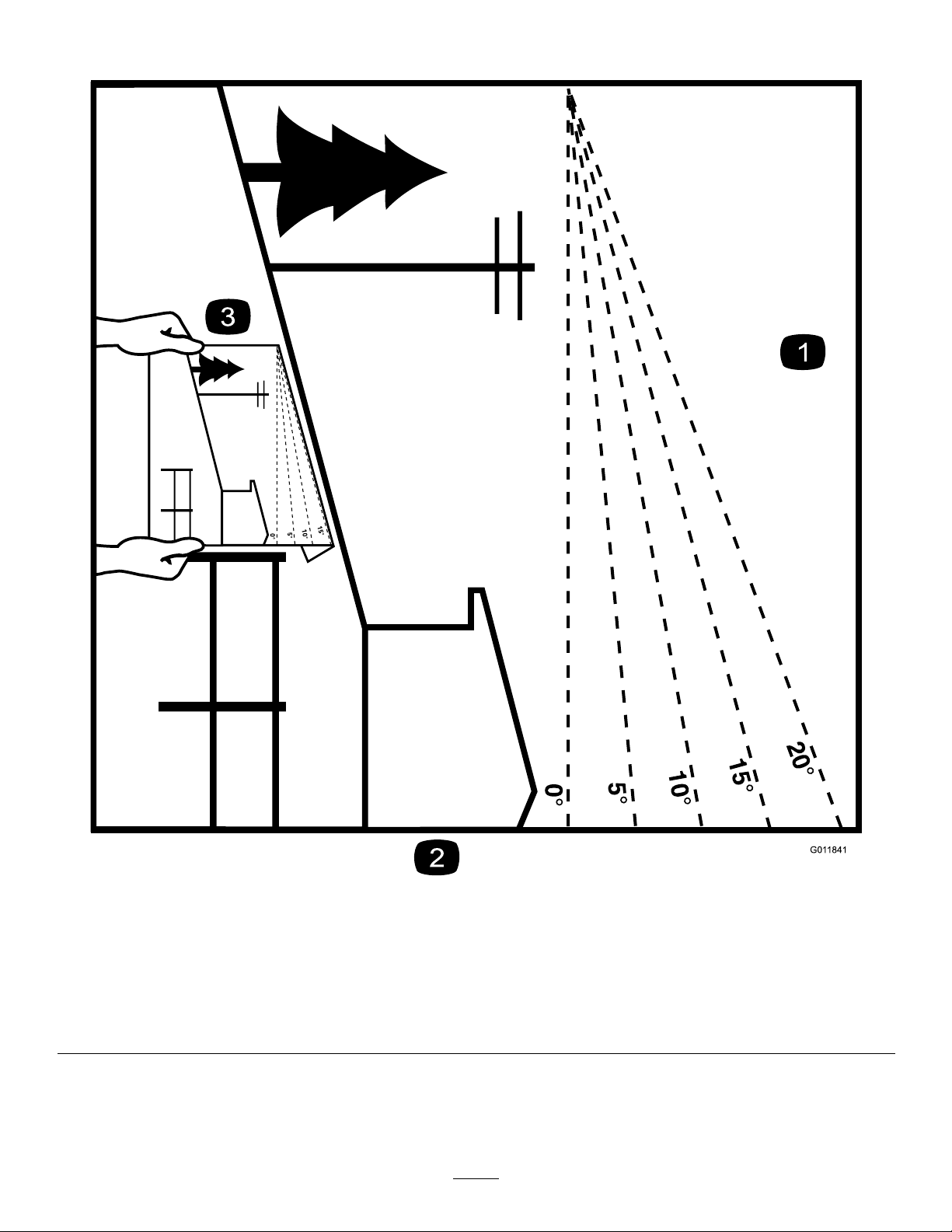

Figure3

Youmaycopythispageforpersonaluse.

1.Themaximumslopeyoucanoperatethemachineonis15degrees.Usetheslopecharttodeterminethedegreeofslopeof
hillsbeforeoperating.Donotoperatethismachineonaslopegreaterthan15degrees.Foldalongtheappropriateline
tomatchtherecommendedslope.

2.Alignthisedgewithaverticalsurface,atree,building,fencepole,etc.

3.Exampleofhowtocompareslopewithfoldededge

5

g011841

SafetyandInstructionalDecals

Safetydecalsandinstructionsareeasilyvisibletotheoperatorandarelocatednearanyarea
ofpotentialdanger.Replaceanydecalthatisdamagedormissing.

BatterySymbols

Someorallofthesesymbolsareonyourbattery .

decalbatterysymbols

1.Explosionhazard6.Keepbystandersaway

2.Nore,opename,or
smoking

3.Causticliquid/chemical
burnhazard

4.Weareyeprotection.9.Flusheyesimmediately

5.ReadtheOperator's
Manual.

fromthebattery .

7.Weareyeprotection;
explosivegasescan
causeblindnessandother
injuries.

8.Batteryacidcancause
blindnessorsevereburns.

withwaterandgetmedical
helpfast.

10.Containslead;donot
discard

Manufacturer'sMark

1.Thismarkindicatesthatthebladeisidentiedasapart
fromtheoriginalmachinemanufacturer.

93-7009

1.Warning—donotoperatethemowerwiththedeectorup
orremoved;keepthedeectorinplace.

2.Cutting/dismembermenthazardofhandorfoot,mower
blade—stayawayfrommovingparts.

decal105-7015

105-7015

1.Beltrouting

decaloemmarkt

decal121-2989b

121-2989

decal93-7009

1.Bypassleverpositionfor
pushingthemachine

2.Bypassleverpositionfor
operatingthemachine

6

decal132-0872

132-0872

1.Thrownobject
hazard—keepbystanders
awayfromthemachine.

2.Thrownobjecthazard,
raiseddeector—donot
operatethemachinewith
anopendeck;usea
baggeroradeector .

3.Severinghazardofhand
orfoot—keepawayfrom
movingparts.

4.Entanglement
hazard—keepaway
frommovingparts;keep
allguardsandshieldsin
place.

142-5864

Decal138-6074ismoldedintothefueltank.

138-6074

decal139-2388

139-2388

1.Slow

decal142-5864

decal138-2456

2.Hauling

3.Fast

1.ReadtheOperator’s
Manual.

2.Parkthemachineona
levelsurfacewhenlling
thefueltank.

3.Donotoverllthefuel
tank.

decal139-2391

139-2391

1.Fast

2.Slow

7

decal139-2395

139-2395

1.Parkingbrake4.Neutral

2.Fast5.Reverse

3.Slow

6.Tractioncontrols

Decal139-2397isformodelswithMyRideOnly.

decal139-2397

139-2397

decal139-2392

139-2392

139-2394

1.Tractioncontrols4.Neutral

2.Fast5.Reverse

3.Slow

decal139-2394

6.Parkingbrake

8

Decal144-5288isformodelswithoutMyRideonly.

decal144-5288

144-5288

Note:Thismachinecomplieswiththeindustrystandard

stabilitytestinthestaticlateralandlongitudinaltestswiththe
maximumrecommendedslopeindicatedonthedecal.Reviewthe
instructionsforoperatingthemachineonslopesintheOperator’s
Manualaswellastheconditionsinwhichyouwouldoperatethe
machinetodeterminewhetheryoucanoperatethemachineinthe
conditionsonthatdayandatthatsite.Changesintheterraincan
resultinachangeinslopeoperationforthemachine.

1.Warning—readthe
Operator’sManual.

2.Cutting/dismemberment
hazardofthengersor
hand—keephandsaway
frommovingparts;keep
allguardsandshieldsin
place.

3.Thrownobject
hazard—keepbystanders
away;pickupanydebris;
keepthedeectorinplace.

4.Runoverhazard—donot
carrypassengers;look
behindyouwhenmoving
inreverse.

5.Tippinghazard—when
loadingontoatrailer,do
notusedualramps;only
useasingularrampwide
enoughforthemachine;
donotusearampwith
aslopegreaterthan15°;
backuptheramp(in
reverse)anddriveforward
offtheramp.

6.Tippinghazard—donot
usethemachinenear
drop-offsoronslopes
greaterthan15°;only
operateacrossslopesless
than15°.

9

Decal132-0869isformodelswithMyRideOnly.

132-0869

Note:Thismachinecomplieswiththeindustrystandardstabilitytestinthestaticlateralandlongitudinaltestswiththemaximum

recommendedslopeindicatedonthedecal.ReviewtheinstructionsforoperatingthemachineonslopesintheOperator’sManualas
wellastheconditionsinwhichyouwouldoperatethemachinetodeterminewhetheryoucanoperatethemachineintheconditionson
thatdayandatthatsite.Changesintheterraincanresultinachangeinslopeoperationforthemachine.

decal132-0869

1.Warning—readthe
Operator'sManual.

2.Warning—readthe
Operator'sManualbefore
performingmaintenance;
engagetheparkingbrake,
removethekey ,and
disconnectthesparkplug.

3.Cutting/dismemberment
hazardofthehand,mower
blade;entanglement
hazardofthehand,
belt—stayawayfrom
movingparts;keepall
guardsandshieldsinplace.

4.Thrownobject
hazard—keepbystanders
away;pickupdebris
beforeoperating;keepthe
deectorinplace.

5.Tippinghazard—donot
usedualrampswhen
loadingontoatrailer;use
1rampwideenoughfor
themachine;usearamp
withaslopelessthan15°;
backuptherampwhen
loadingthemachineand
driveforwardofftheramp
whenunloading.

6.Runoverhazard—donot
carrypassengers;look
behindyouwhenmowing
inreverse.

7.Tippinghazard—donotuse
themachineneardrop-offs
oronslopesgreaterthan
15°;onlyoperateacross
slopeslessthan15°.

10

ProductOverview

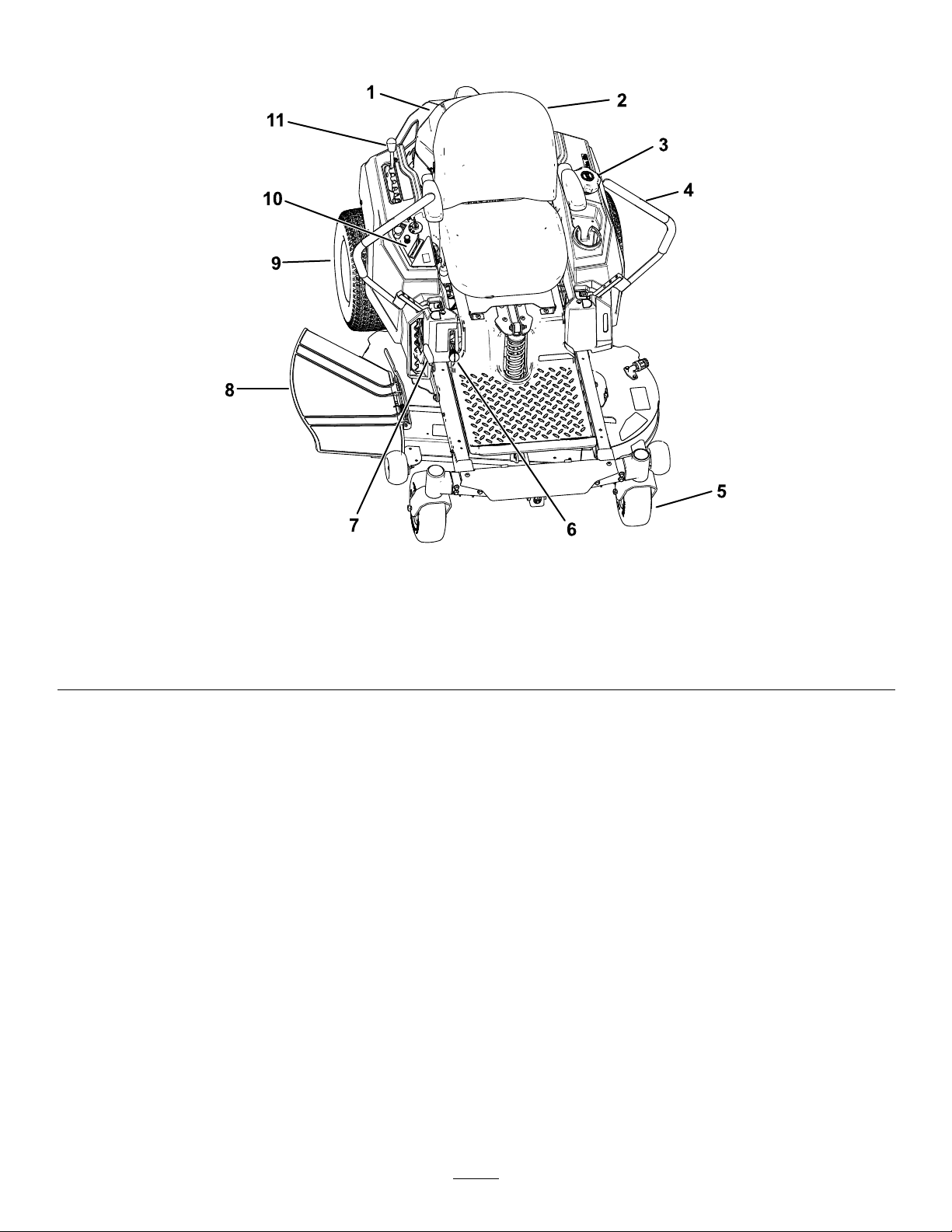

1.Engine4.Motion-controllevers

2.Operatorseat

3.Fuel-tankcap

5.Frontcasterwheel

6.SmartSpeed™lever

ModelswithMyRide

Figure4

7.Height-of-cutlever10.Controlpanel

8.Deector

9.Reardrivewheel

g308236

11.MyRide™adjustmentlever

11

ModelswithoutMyRide

g308237

Figure5

1.SmartSpeed™lever4.Controlpanel

2.Height-of-cutlever

5.Engine8.Frontcasterwheel

3.Motion-controllevers6.Fuel-tankcap

7.Anti-scalproller

9.Deector

12

Controls

Becomefamiliarwithallthecontrolsbeforeyoustart
theengineandoperatethemachine.

ControlPanel

ParkPosition

Movethemotion-controlleversoutwardfromthe
centertothePARKpositionwhenexitingthemachine
toengagetheelectricbrake(Figure22).Always
positionthemotion-controlleversintothePARK
positionwhenyoustopthemachineorleaveit
unattended.

MyRide™AdjustmentLever

ForMachineswiththeMyRide™Suspension
System

UsetheMyRide™adjustmentlevertoadjusttheseat
suspension(Figure4).

SmartSpeed™ControlSystem

Figure6

1.Throttlecontrol3.Blade-controlswitch

2.Chokecontrol

(powertakeoff)

4.Keyswitch

KeySwitch

Thekeyswitch,usedtostartandshutofftheengine,
has3positions:OFF,RUN,andSTART(Figure6).

ThrottleControl

Thethrottlecontrolstheenginespeed,andithasa
continuous-variablesettingfromtheSLOWtoFAST
position(Figure6).

ChokeControl

Usethechokecontroltostartacoldengine(Figure6).

g293303

Lever

TheSmartSpeed™Control-Systemlever,located
belowtheoperatingposition,givesyouachoiceto
drivethemachineat3speedranges—trim,tow,and
mow(Figure4andFigure5).

Fuel-PresenceWindow

Youcanusethefuelwindow,locatedontheleftside
ofthemachine,toverifythepresenceoffuelinthe
tank(Figure7).

Blade-ControlSwitch(Power
Takeoff)

Theblade-controlswitch,representedbya
power-takeoff(PTO)symbol,engagesand
disengagespowertothemowerblades(Figure6).

Motion-ControlLevers

Usethemotion-controlleverstodrivethemachine
forward,reverse,andturneitherdirection(Figure4
orFigure5).

g292100

Figure7

1.Fuel-presencewindow

13

Height-of-CutLever

Usetheheight-of-cutlevertolowerandraisethedeck
fromtheseatedposition.Movingtheleverup(toward
you)raisesthedeckfromthegroundandmovingthe
leverdown(awayfromyou)lowersthedecktoward
theground.Adjusttheheight-of-cutonlywhilethe
machineisnotmoving(Figure4andFigure5).

Operation

Note:Determinetheleftandrightsidesofthe

machinefromthenormaloperatingposition.

BeforeOperation

Attachments/Accessories

AselectionofT oroapprovedattachmentsand
accessoriesisavailableforusewiththemachine
toenhanceandexpanditscapabilities.Contact
yourAuthorizedServiceDealerorauthorizedT oro
distributororgotowww.Toro.comforalistofall
approvedattachmentsandaccessories.

Toensureoptimumperformanceandcontinuedsafety
certicationofthemachine,useonlygenuineT oro
replacementpartsandaccessories.Replacement
partsandaccessoriesmadebyothermanufacturers
couldbedangerous,andsuchusecouldvoidthe
productwarranty.

BeforeOperationSafety

GeneralSafety

•Donotallowchildrenoruntrainedpeopleto

operateorservicethemachine.Localregulations
mayrestricttheageoftheoperator.Theowner
isresponsiblefortrainingalloperatorsand
mechanics.

•Inspecttheareawhereyouwillusethemachine,

andremoveallobjectsthatcouldinterferewith
theoperationofthemachineorthatthemachine
couldthrow.

•Becomefamiliarwiththesafeoperationofthe

equipment,operatorcontrols,andsafetysigns.

•Checkthatoperator-presencecontrols,safety

switches,andguardsareattachedandworking
properly.Donotoperatethemachineunlessthey
arefunctioningproperly.

•Shutofftheengine,removethekey,andwait

forallmovingpartstostopbeforeleavingthe
operator’sposition.Allowthemachinetocool
beforeservicing,adjusting,fueling,cleaning,or
storingit.

•Beforemowing,inspectthemachinetoensure

thatthecuttingassembliesareworkingproperly .

•Evaluatetheterraintodeterminetheappropriate

equipmentandanyattachmentsoraccessories
requiredtooperatethemachineproperlyand
safely.

•Wearappropriateclothing,includingeye

protection;longpants;substantial,slip-resistant
footwear;andhearingprotection.Tiebacklong
hairanddonotwearlooseclothingorloose
jewelry.

•Donotcarrypassengersonthemachine.

•Keepbystandersandpetsawayfromthemachine

duringoperation.Shutoffthemachineand
attachment(s)ifanyoneentersthearea.

•Donotoperatethemachineunlessallguardsand

safetydevices,suchasthedeectorsandthe
entiregrasscatcher,areinplaceandfunctioning
properly.Replacewornordeterioratedpartswhen
necessary.

14

FuelSafety

•Fuelisextremelyammableandhighlyexplosive.

Areorexplosionfromfuelcanburnyouand
othersandcandamageproperty.

–Topreventastaticchargefromignitingthe

fuel,removethemachinefromthetruckor
trailerandrefuelitontheground,awayfrom
allvehicles.Ifthisisnotpossible,placea
portablefuelcontainerontheground,away
fromallvehicles,andllit;thenrefuelthe
machinefromthefuelcontainerratherthan
fromafuel-dispensernozzle.

–Fillthefueltankoutdoorsonlevelground,in

anopenarea,andwhentheengineiscold.
Wipeupanyfuelthatspills.

–Donothandlefuelwhensmokingoraroundan

openameorsparks.

–Donotremovethefuelcaporaddfueltothe

tankwhiletheengineisrunningorhot.

–Ifyouspillfuel,donotattempttostartthe

engine.Avoidcreatingasourceofignitionuntil
thefuelvaporshavedissipated.

–Storefuelinanapprovedcontainerandkeep

itoutofthereachofchildren.

•Fuelisharmfulorfatalifswallowed.Long-term

exposuretovaporscancauseseriousinjuryand
illness.

–Avoidprolongedbreathingofvapors.

–Keepyourhandsandfaceawayfromthe

nozzleandthefuel-tankopening.

–Keepfuelawayfromyoureyesandskin.

•Donotstorethemachineorfuelcontainerwhere

thereisanopename,spark,orpilotlight,such
asonawaterheateroronotherappliances.

•Donotoperatethemachinewithouttheentire

exhaustsysteminplaceandinproperworking
condition.

AddingFuel

RecommendedFuel

TypeUnleadedgasoline

Minimumoctanerating

Ethanol

MethanolNone

MTBE(methyltertiarybutyl
ether)

OilDonotaddtothefuel

Useonlyclean,fresh(nomorethan30daysold),fuel
fromareputablesource.

UsingStabilizer/Conditioner

Usefuelstabilizer/conditionerinthemachinetokeep
thefuelfreshlongerwhenusedasdirectedbythe
fuel-stabilizermanufacturer.

Important:Donotusefueladditivescontaining

methanolorethanol.

Addtheamountoffuelstabilizer/conditionertofresh
fuelasdirectedbythefuel-stabilizermanufacturer.

FillingtheFuelTank

1.Parkthemachineonalevelsurface.

2.Movethemotion-controlleversoutwardtothe
PARKposition.

3.Shutofftheengineandremovethekey.

4.Cleanaroundthefuel-tankcap.

5.Fillthefueltanktothebottomofthellerneck
(Figure8).Donotllthefueltankcompletely
full.

87(US)or91(research
octane;outsidetheUS)

Nomorethan10%byvolume

Lessthan15%byvolume

•Keepthefuel-dispensernozzleincontactwith

therimofthefueltankorcontaineropeningat
alltimesuntilfuelingiscomplete.Donotusea
nozzlelock-opendevice.

•Ifyouspillfuelonyourclothing,changeyour

clothingimmediately.

•Donotoverllthefueltank.Replacethefuelcap

andtightenitsecurely.

•Cleangrassanddebrisfromthecuttingunit,

mufer,drives,grasscatcher,andengine
compartmenttohelppreventres.Cleanupoilor
fuelspills.

15

Understandingthe
Safety-InterlockSystem

Thesafety-interlocksystemisdesignedtopreventthe
enginefromstartingunless:

•Theblade-controlswitch(PTO)isdisengaged.

•Themotion-controlleversareinthePARKposition.

Thesafety-interlocksystemalsoisdesignedtoshut
offtheenginewheneverthecontrolleversareoutof
thePARKpositionandyourisefromtheseat.

TestingtheSafety-Interlock
System

Testthesafety-interlocksystembeforeyouusethe
machineeachtime.Ifthesafetysystemdoesnot
operateasdescribedbelow,haveanAuthorized
ServiceDealerrepairthesafetysystemimmediately .

Figure8

PerformingDaily
Maintenance

Beforestartingthemachineeachday ,performthe
EachUse/DailyprocedureslistedinMaintenance

(page30).

BreakinginaNewMachine

Newenginestaketimetodevelopfullpower.Mower
decksanddrivesystemshavehigherfrictionwhen
new,placingadditionalloadontheengine.Allow
40to50hoursofbreak-intimefornewmachinesto
developfullpowerandbestperformance.

UsingtheSafety-Interlock

g293796

1.Sitontheseat,movethemotion-controllevers
inthePARKposition,andmovetheblade-control
switchtotheONposition.Trystartingthe
engine;theengineshouldnotcrank.

2.Sitontheseatandmovetheblade-controlswitch
totheOFFposition.Moveeithermotion-control
levertothecenter,unlockedposition.Try
startingtheengine;theengineshouldnotcrank.
Repeatwiththeothermotion-controllever.

3.Sitontheseat,movetheblade-controlswitch
totheOFFposition,andlockthemotion-control
leversinthePARKposition.Starttheengine.
Whiletheengineisrunning,engagethe
blade-controlswitch,andriseslightlyfromthe
seat;theengineshouldshutoff.

4.Sitontheseat,movetheblade-controlswitch
totheOFFposition,andlockthemotion-control
leversinthePARKposition.Starttheengine.
Whiletheengineisrunning,movethe
motion-controlleverstothecenter,unlocked
positionandriseslightlyfromtheseat;the
engineshouldshutoff.

System

WARNING

Ifthesafety-interlockswitchesare
disconnectedordamaged,themachinecould
operateunexpectedly,causingpersonal
injury.

•Donottamperwiththeinterlockswitches.

•Checktheoperationoftheinterlock
switchesdailyandreplaceanydamaged
switchesbeforeoperatingthemachine.

16

PositioningtheSeat

AdjustingtheMyRide®

Theseatcanmoveforwardandbackward.Position
theseatwhereyouhavethebestcontrolofthe
machineandaremostcomfortable(Figure9orFigure

10).

Figure9

MachineswithMyRide

SuspensionSystem

MachineswithMyRideOnly

YoucanadjusttheMyRide®suspensionsystemfora
smoothandcomfortableride.Theslotsforadjusting
thesuspensionhavedetentpositionsforreference,
rangingfromasofttoarmride(Figure11).

1.Parkthemachineonalevelsurface,disengage
theblade-controlswitch,andmovethe
motion-controlleversoutwardtothePARK
position.

2.Shutofftheengine,removethekey ,andwait
forallmovingpartstostopbeforeleavingthe
operatingposition.

3.Stepoffthemachine.

4.Whilestandingontherightsideofthemachine,
movetheadjustmentleverlefttowardthe–

g027632

symbolforasoftersuspension.

Movetheadjustmentleverrighttowardthe+
symbolforarmersuspension.

Figure10

MachineswithoutMyRide

g292102

Figure11

1.MyRideadjustmentlever3.Firmersuspension

2.Softersuspension

g027249

17
