FormNo.3443-802RevB
eS3200DC72VTORO
ModelNo.75501—SerialNo.321000001andUp
®
81cm
Registeratwww.T oro.com.
OriginalInstructions(EN)
*3443-802*
Writetheproductmodelandserialnumbersinthe
spacebelow:
ModelNo.
Introduction
Thisrotary-blade,ridinglawnmowerisintendedtobe
usedbyhomeownersinresidentialapplications.Itis
designedprimarilyforcuttinggrassonwell-maintained
lawns.Usingthisproductforpurposesotherthan
itsintendedusecouldprovedangeroustoyouand
bystanders.
Readthisinformationcarefullytolearnhowtooperate
andmaintainyourproductproperlyandtoavoid
injuryandproductdamage.Youareresponsiblefor
operatingtheproductproperlyandsafely .
Visitwww.Toro.comforproductsafetyandoperation
trainingmaterials,accessoryinformation,helpnding
adealer,ortoregisteryourproduct.
Wheneveryouneedservice,genuineToroparts,or
additionalinformation,contactanAuthorizedService
DealerorToroCustomerServiceandhavethemodel
andserialnumbersofyourproductready.Figure1
identiesthelocationofthemodelandserialnumbers
ontheproduct.Writethenumbersinthespace
provided.
Important:Withyourmobiledevice,youcan
scantheQRcodeontheserialnumberdecal(if
equipped)toaccesswarranty,parts,andother
productinformation.
SerialNo.
Thismanualuses2wordstohighlightinformation.
Importantcallsattentiontospecialmechanical
informationandNoteemphasizesgeneralinformation
worthyofspecialattention.
Thesafety-alertsymbol(Figure2)appearsbothin
thismanualandonthemachinetoidentifyimportant
safetymessagesthatyoumustfollowtoavoid
accidents.Thissymbolwillappearwiththeword
Danger,Warning,orCaution.
•Dangerindicatesanimminentlyhazardous
situationwhich,ifnotavoided,willresultindeath
orseriousinjury.
•Warningindicatesapotentiallyhazardous
situationwhich,ifnotavoided,couldresultin
deathorseriousinjury.
•Cautionindicatesapotentiallyhazardoussituation
which,ifnotavoided,mayresultinminoror
moderateinjury.
sa-black
Figure2
1.Modelandserialnumberplate
1.Safety-alertsymbol
g378763
Figure1
©2022—TheToro®Company
8111LyndaleAvenueSouth
Bloomington,MN55420
Contactusatwww.Toro.com.
2
PrintedintheUSA
AllRightsReserved
Contents
Safety
Safety.......................................................................3
GeneralPowerT oolSafetyWarnings..................3
LawnMowerSafetyWarnings............................5
AdditionalToroSafety.........................................6
SlopeIndicator.................................................10
SafetyandInstructionalDecals.........................11
Setup......................................................................14
1ConnectingtheBatteryCable........................14
2ChargingtheBattery......................................14
ProductOverview...................................................15
Controls...........................................................15
Specications..................................................17
Attachments/Accessories.................................17
BeforeOperation.................................................17
PerformingDailyMaintenance..........................17
UsingtheSafety-InterlockSystem....................17

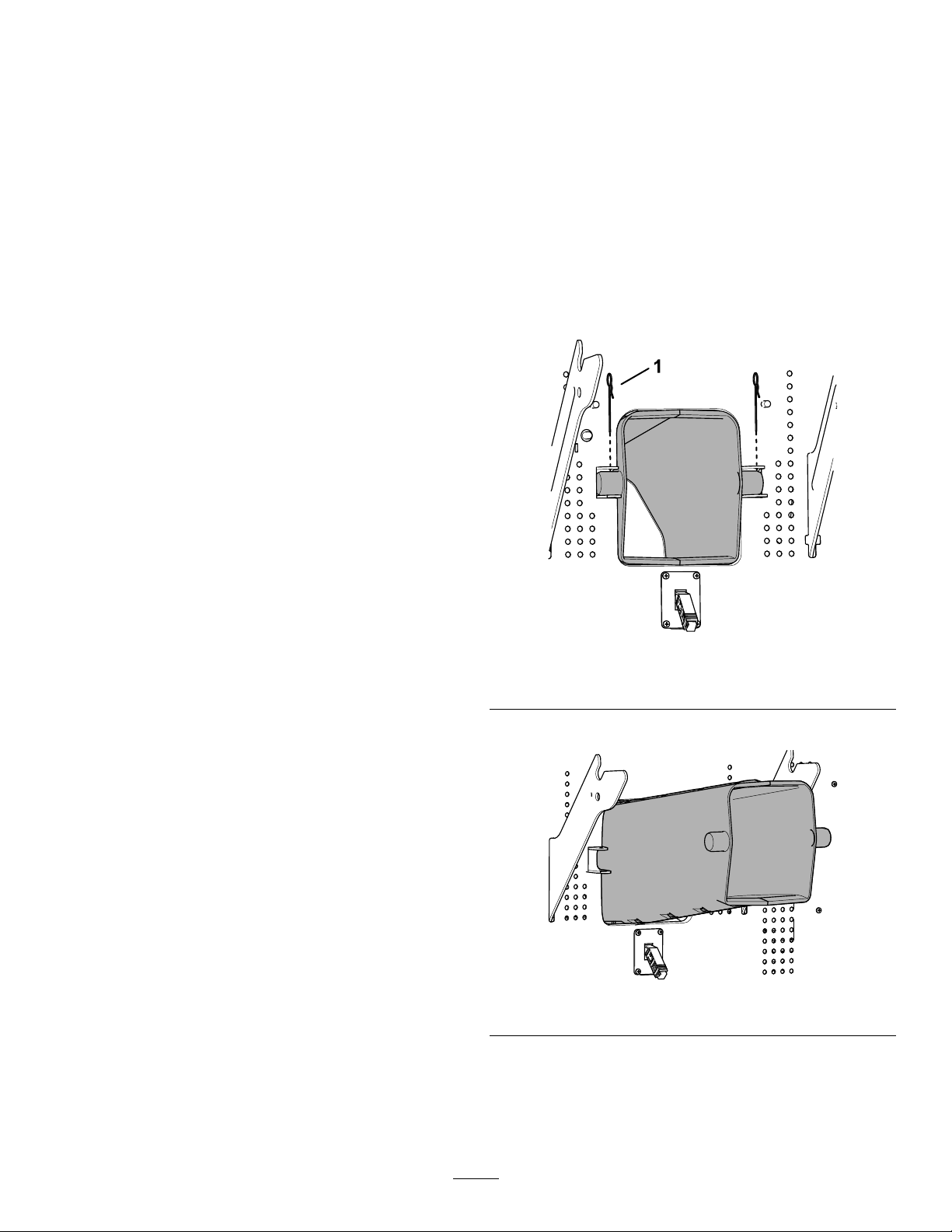

PositioningtheSeat..........................................18
RemovingtheGrassCatcher............................18
InstallingtheGrassCatcher..............................19
InstallingtheMulchingPlug..............................19
AdjustingtheFull-BagIndicatorSwitch.............20
DuringOperation.................................................20
StartingtheMachine.........................................20
DrivingtheMachine..........................................20
ShuttingOfftheMachine..................................20
OperatingtheMowerBlade-ControlSwitch
(PTO)............................................................21
AdjustingtheHeightofCut...............................21

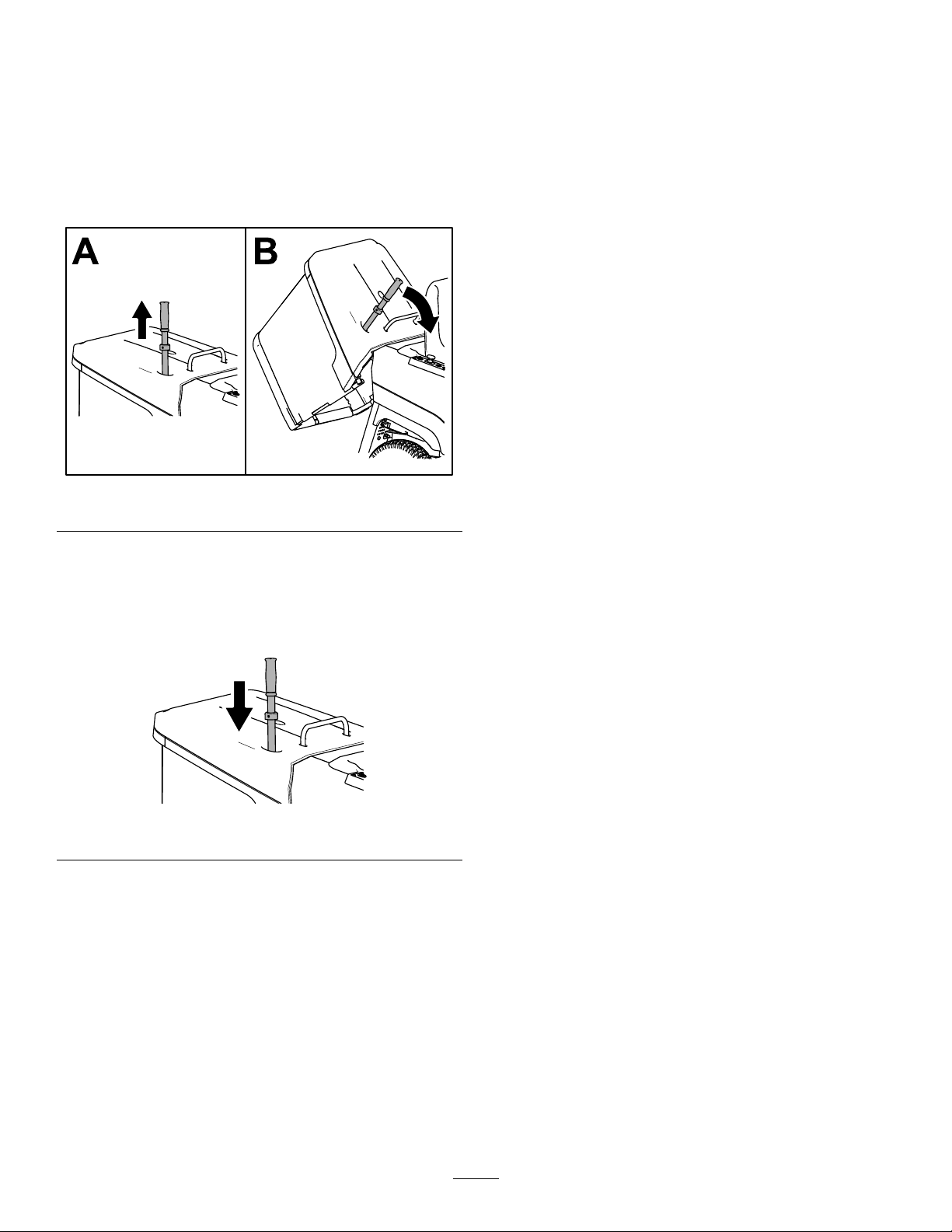

EmptyingtheGrassCatcher.............................22
OperatingTips.................................................22
AfterOperation....................................................23
ClearingtheDischargeChute...........................23
TransportingtheMachine.................................24
MovingaNon-FunctioningMachine..................26
Maintenance...........................................................27
RecommendedMaintenanceSchedule(s)...........27
Pre-MaintenanceProcedures..............................28
AccessingtheBattery.......................................28
Lubrication..........................................................29
GreasingtheFrontWheelBearings..................29
ElectricalSystemMaintenance...........................29
MaintainingtheBattery.....................................29
DriveSystemMaintenance..................................31
CheckingtheTirePressure...............................31
MowerMaintenance.............................................31
ServicingtheCuttingBlades.............................31
Cleaning..............................................................34
CleaningtheUndersideoftheMower
Deck..............................................................34
DisposingofWaste...........................................34
Storage...................................................................34
CleaningandStorage.......................................34
Troubleshooting......................................................35
Schematics.............................................................36
GeneralPowerToolSafety
Warnings
WARNING
Readallsafetywarnings,instructions,
illustrationsandspecicationsprovidedwith
thispowertool.
Failuretofollowthewarningsandinstructions
mayresultinelectricshock,reand/orserious
injury.
Theterm“powertool”inallofthewarningslisted
belowreferstoyourmains-operated(corded)power
toolorbattery-operated(cordless)powertool.
1.Workareasafety
A.Keepworkareacleanandwelllit.
Clutteredordarkareasinviteaccidents.
B.Donotoperatepowertoolsinexplosive
atmospheres,suchasinthepresence
ofammableliquids,gasses,ordust.
Powertoolscreatesparkswhichmayignite
thedustorfumes.
C.Keepchildrenandbystandersaway
whileoperatingapowertool.Distractions
cancauseyoutolosecontrol.
2.Electricalsafety
A.Powertoolplugsmustmatchtheoutlet.
Nevermodifythepluginanyway .Do
notuseanyadapterplugswithearthed
(grounded)powertools.Unmodied
plugsandmatchingoutletswillreducerisk
ofelectricshock.
B.Avoidbodycontactwithearthedor
groundedsurfaces,suchaspipes,
radiators,ranges,andrefrigerators.
Thereisanincreasedriskofelectricshock
ifyourbodyisearthedorgrounded.
C.Donotexposepowertoolstorainorwet
conditions.Waterenteringapowertool
willincreasetheriskofelectricshock.
D.Donotabusethecord.Neverusethe
cordforcarrying,pullingorunplugging
thepowertool.Keepcordawayfrom
heat,oil,sharpedges,ormovingparts.
Damagedorentangledcordsincreasethe
riskofelectricshock.
E.Whenoperatingapowertooloutdoors,
useanextensioncordsuitablefor
outdooruse.Useofacordsuitablefor
3
outdoorusereducestheriskofelectric
shock.
F.Ifoperatingapowertoolinadamp
locationisunavoidable,usearesidual
currentdevice(RCD)protectedsupply .
UseofanRCDreducestheriskofelectric
shock.
3.Personalsafety
A.Stayalert,watchwhatyouaredoing,
andusecommonsensewhenoperating
apowertool.Donotuseapowertool
whileyouaretiredorundertheinuence
ofdrugs,alcohol,ormedication.A
momentofinattentionwhileoperatingpower
toolsmayresultinseriouspersonalinjury .
B.Usepersonalprotectiveequipment.
Alwaysweareyeprotection.Protective
equipmentsuchasadustmask,non-skid
safetyshoes,orhearingprotectionusedfor
appropriateconditionswillreducepersonal
injuries.
C.Preventunintentionalstarting.Ensure
theswitchisintheoff-positionbefore
connectingtopowersourceand/or
batterypack,pickinguporcarryingthe
tool.Carryingpowertoolswithyournger
ontheswitchorenergisingpowertoolsthat
havetheswitchoninvitesaccidents.
D.Removeanyadjustingkeyorwrench
beforeturningthepowertoolon.A
wrenchorakeyleftattachedtoarotating
partofthepowertoolmayresultinpersonal
injury.
E.Donotoverreach.Keepproper
footingandbalanceatalltimes.This
enablesbettercontrolofthepowertoolin
unexpectedsituations.
F.Dressproperly.Donotwearloose
clothingorjewelry .Keepyourhairand
clothingawayfrommovingparts.Loose
clothes,jewelryorlonghaircanbecaught
inmovingparts.
G.Ifdevicesareprovidedforthe
connectionofdustextractionand
collectionfacilities,ensuretheseare
connectedandproperlyused.Useof
dustcollectioncanreducedust-related
hazards.
H.Donotletfamiliaritygainedfrom
frequentuseoftoolsallowyouto
becomecomplacentandignoretool
safetyprinciples.Acarelessactioncan
causesevereinjurywithinafractionofa
second.
4.Powertooluseandcare
A.Donotforcethepowertool.Usethe
correctpowertoolforyourapplication.
Thecorrectpowertoolwilldothejob
betterandsaferattherateforwhichitwas
designed.
B.Donotusethepowertooliftheswitch
doesnotturnitonandoff.Anypowertool
thatcannotbecontrolledwiththeswitchis
dangerousandmustberepaired.
C.Disconnecttheplugfromthepower
sourceand/orremovethebattery
pack,ifdetachable,fromthepower
toolbeforemakinganyadjustments,
changingaccessories,orstoringpower
tools.Suchpreventivesafetymeasures
reducetheriskofstartingthepowertool
accidentally.
D.Storeidlepowertoolsoutofthereach
ofchildrenanddonotallowpersons
unfamiliarwiththepowertoolorthese
instructionstooperatethepowertool.
Powertoolsaredangerousinthehandsof
untrainedusers.
E.Maintainpowertoolsandaccessories.
Checkformisalignmentorbindingof
movingparts,breakageofpartsand
anyotherconditionthatmayaffectthe
operationofthepowertool.Ifdamaged,
havethepowertoolrepairedbefore
use.Manyaccidentsarecausedbypoorly
maintainedpowertools.
F.Keepcuttingtoolssharpandclean.
Properlymaintainedcuttingtoolswithsharp
cuttingedgesarelesslikelytobindandare
easiertocontrol.
G.Usethepowertool,accessories,and
toolbitsetc.,inaccordancewiththese
instructions,takingintoaccountthe
workingconditionsandtheworkto
beperformed.Useofthepowertoolfor
operationsdifferentfromthoseintended
couldresultinahazardoussituation.
H.Keephandlesandgraspingsurfaces
dry,cleanandfreefromoilandgrease.
Slipperyhandlesandgraspingsurfacesdo
notallowforsafehandlingandcontrolof
thetoolinunexpectedsituations.
5.Batterytooluseandcare
A.Rechargeonlywiththechargerspecied
byamanufacturer.Achargerthatis
suitableforonetypeofbatterypackmay
createariskofrewhenusedwithanother
batterypack.
4
B.Usepowertoolsonlywithspecically
designatedbatteries.Useofanyother
batteriesmaycreateariskofinjuryandre.
C.Whenbatterypackisnotinuse,keep
itawayfromothermetalobjects,like
paperclips,coins,keys,nails,screws
orothersmallmetalobjects,thatcan
makeaconnectionfromoneterminal
toanother.Shortingthebatteryterminals
togethermaycauseburnsorare.
D.Underabusiveconditions,liquidmaybe
ejectedfromthebattery;avoidcontact.
Ifcontactaccidentallyoccurs,ushwith
water.Ifliquidcontactseyes,additionally
seekmedicalhelp.Liquidejectedfromthe
batterymaycauseirritationorburns.
E.Donotuseabatterypackortoolthat
isdamagedormodied.Damagedor
modiedbatteriesmayexhibitunpredictable
behaviorresultinginre,explosionorrisk
orinjury .
F.Donotexposeabatterypackortoolto
reorexcessivetemperature.Exposure
toretemperatureabove130°Cmaycause
anexplosion.
G.Followallcharginginstructionsand
donotchargethebatterypackortool
outsidethetemperaturerangespecied
intheinstructions.Changingimproperly
orattemperaturesoutsidethespecied
rangemaydamagethebatteryandincrease
theriskofre.
6.Service
A.Haveyourpowertoolservicedby
aqualiedrepairpersonusingonly
identicalreplacementparts.Thiswill
ensurethatthesafetyofthepowertoolis
maintained.
B.Neverservicedamagedbatterypacks.
Serviceofbatterypacksshouldbe
performedonlybythemanufactureror
authorizedserviceproviders.
C.Thoroughlyinspecttheareawhereyouwilluse
thelawnmowerandremoveallstones,sticks,
wires,bones,andotherforeignobjects.Thrown
objectscancausepersonalinjury.
D.Beforeusingthelawnmower,alwaysvisually
inspecttoseethatthebladeandtheblade
assemblyarenotwornordamaged.Wornor
damagedpartsincreasetheriskofinjury.
E.Keepguardsinplace.Guardsmustbein
workingorderandbeproperlymounted.Aguard
thatisloose,damaged,orisnotfunctioning
correctlymayresultinpersonalinjury.
F.Keepallcoolingairinletsclearofdebris.
Blockedairinletsanddebrismayresultin
overheatingorriskofre.
G.Donotoperatethelawnmoweronsteepslopes.
Thisreducestheriskoflossofcontrol,slipping,
andfalling,whichmayresultinpersonalinjury.
H.Whileoperatingthelawnmower,alwayswear
longtrousers.Exposedskinincreasesthe
likelihoodofinjuryfromthrownobjects.
I.Alwaysworkupordownthefaceofslopes,
neveracross,andexerciseextremecaution
whenchangingdirection.Thisreducestherisk
oflossofcontrol,slippingandfallingwhichmay
resultinpersonalinjury.
J.Donottouchbladesandotherhazardous
movingpartswhiletheyarestillinmotion.This
reducestheriskofinjuryfrommovingparts.
K.Beforeclearingjammedmaterialorcleaning
thelawnmower,turnoffallpowerswitches
andremovethekey.Unexpectedoperationof
thelawnmowermayresultinseriouspersonal
injury.
L.Ifthemachinestrikesanobjectorstartsto
vibrate,immediatelyturnoffthelawnmower,
removethekey(ifequipped),andwaitforall
movingpartstostopbeforeexaminingthe
machinefordamage.Makeallnecessary
repairsbeforeresumingoperation.
M.Beforestoringthelawnmower,cleangrass
anddebrisfromthecuttingunit,drives,grass
catcher,andmotortohelppreventres.
LawnMowerSafety
Warnings
A.Donotusethelawnmowerinbadweather
conditions,especiallywhenthereisariskof
lightning.Thisdecreasestheriskofbeingstruck
bylightning.
B.Thoroughlyinspecttheareaforwildlifewhere
youwillusethelawnmower.Wildlifemaybe
injuredbythelawnmowerduringoperation.
N.T oensureoptimumperformance,use
onlygenuineTororeplacementpartsand
accessories.Replacementpartsand
accessoriesmadebyothermanufacturerscould
bedangerous,andsuchusecouldvoidthe
productwarranty.
O.Replacewornordamagedbladesandboltsin
setstopreservebalance.
P .Onmulti-bladedmachines,takecareasrotating
onebladecancauseotherbladestorotate.
5
Q.Donotputyourhandsorfeetnearmoving
componentsofthemachine.
•Alwayslookdownandbehindyoubeforemoving
themachineinreverse.
R.Shutoffthelawnmower,removethekey ,and
waitforallmovingpartstostopbeforeyouleave
theoperator’sposition.Allowthemachineto
coolbeforeadjusting,servicing,cleaning,or
storingit.
S.Avoidmowingonwetgrassorintherain.Doing
somayincreasetheriskofelectricshock.
AdditionalToroSafety
GeneralSafety
Thisproductiscapableofamputatinghandsand
feetandofthrowingobjects.Alwaysfollowallsafety
instructionstoavoidseriouspersonalinjury.
•Donotallowchildrenoruntrainedpeopleto
operateorservicethemachine.Allowonlypeople
whoareresponsible,trained,familiarwiththe
instructions,andphysicallycapabletooperate
orservicethemachine.Localregulationsmay
restricttheageoftheoperator.
•Donotoperatethemachineneardrop-offs,
ditches,embankments,water,orotherhazards,or
onslopesgreaterthan12°.
BeforeOperationSafety
•Becomefamiliarwiththesafeoperationofthe
equipment,operatorcontrols,andsafetysigns.
•Checkthatoperator-presencecontrols,safety
switches,andguardsareattachedandworking
properly.Donotoperatethemachineunlessthey
arefunctioningproperly.
•Beforemowing,inspectthemachinetoensure
thatthecuttingassembliesareworkingproperly .
•Evaluatetheterraintodeterminetheappropriate
equipmentandanyattachmentsoraccessories
requiredtooperatethemachineproperlyand
safely.
•Donotcarrypassengersonthemachine.
DuringOperationSafety
•Theowner/operatorcanpreventandisresponsible
foraccidentsthatmaycausepersonalinjuryor
propertydamage.
•Keepyourhandsandfeetawayfromthecutting
units.Keepclearofthedischargeopening.
•Donotmowwiththedischargedeector
raised,removed,oralteredunlessthereisa
grass-collectionsystemormulchkitinplaceand
workingproperly.
•Useextremecarewhenapproachingblind
corners,shrubs,trees,orotherobjectsthatmay
blockyourview.
•Stopthebladeswheneveryouarenotmowing.
•Slowdownandusecautionwhenmakingturns
andcrossingroadsandsidewalkswiththe
machine.Alwaysyieldtheright-of-way.
•Beforeyouleavetheoperatingposition,dothe
following:
–Parkthemachineonalevelsurface.
–Disengagethepowertakeoff.
–Engagetheparkingbrake.
–Shutoffthemachineandremovethekey.
–Waitforallmovingpartstostop.
•Neverleavearunningmachineunattended.
•Beawareofthemowerdischargepathanddirect
thedischargeawayfromothers.Avoiddischarging
materialagainstawallorobstructionbecausethe
materialmayricochetbacktowardyou.
•Stoptheblades,slowdownthemachine,anduse
cautionwhencrossingsurfacesotherthangrass
orwhentransportingthemachinetoandfromthe
operatingarea.
•Childrenareoftenattractedtothemachineand
themowingactivity.Neverassumethatchildren
willremainwhereyoulastsawthem.
•Keepchildrenoutoftheoperatingareaandunder
thewatchfulcareofaresponsibleadultotherthan
theoperator.
•Bealertandshutoffthemachineifchildrenenter
theoperatingarea.
•Beforebackinguporturningthemachine,look
downandallaroundforsmallchildren.
•Donotcarrychildrenonthemachine,evenwhen
thebladesarenotmoving.Childrencouldfall
offandbeseriouslyinjuredorpreventyoufrom
safelyoperatingthemachine.Childrenwhohave
beengivenridesinthepastcouldappearinthe
operatingareawithoutwarningandberunoveror
backedoverbythemachine.
•Useextracarewithattachments.Theycan
changethestabilityofthemachine.
•Donotattempttostabilizethemachinebyputting
yourfootontheground.
SlopeSafety
•Slopesareamajorfactorrelatedtolossofcontrol
androlloveraccidents,whichcanresultinsevere
6
injuryordeath.Theoperatorisresponsiblefor
safeslopeoperation.Operatingthemachineon
anysloperequiresextracaution.Beforeusingthe
machineonaslope,dothefollowing:
–Reviewandunderstandtheslopeinstructions
inthemanualandonthemachine.
–Useanangleindicatortodeterminethe
approximateslopeangleofthearea.
–Neveroperatethelawnmoweronslopes
greaterthan12°.
–Evaluatethesiteconditionsofthedayto
determineiftheslopeissafeformachine
operation.Usecommonsenseandgood
judgmentwhenperformingthisevaluation.
Changesintheterrain,suchasmoisture,can
quicklyaffecttheoperationofthemachineon
aslope.
•Identifyhazardsatthebaseoftheslope.Do
notoperatethemachineneardrop-offs,ditches,
embankments,water,orotherhazards.The
machinecouldsuddenlyrolloverifawheelgoes
overtheedgeortheedgecollapses.Keepasafe
distance(twicethewidthofthemachine)between
themachineandanyhazard.Useawalk-behind
machineorahandtrimmertomowthegrassin
theseareas.
•Driveupanddownslopes,notacross.Exercise
extremecautionwhenchangingdirectionon
slopes.
•Avoidstarting,stopping,orturningthemachineon
slopes.Avoidmakingsuddenchangesinspeedor
direction;turnslowlyandgradually.
•Ifthemachinestopsgoinguphill,stoptheblades
andbackdownslowly.
•Donotoperateamachineunderanyconditions
wheretraction,steering,orstabilityisinquestion.
Beawarethatoperatingthemachineonwet
grass,acrossslopes,ordownhillmaycausethe
machinetolosetraction.Lossoftractiontothe
drivewheelsmayresultinslidingandalossof
brakingandsteering.Themachinecanslideeven
ifthedrivewheelsarestopped.
•Removeormarkobstaclessuchasditches,holes,
ruts,bumps,rocks,orotherhiddenhazards.T all
grasscanhideobstacles.Uneventerraincould
overturnthemachine.
•Ifpossible,keepthedeckloweredtotheground
whileoperatingonslopes.Raisingthedeckwhile
operatingonslopescancausethemachineto
becomeunstable.
AfterOperationSafety
1.SafeZone—usethe
machinehereonslopes
lessthan12°oratareas.
2.DangerZone—usea
walk-behindmowerand/or
ahandtrimmeronslopes
greaterthan12°andnear
drop-offsorwater.
3.Water
Figure3
4.W=Widthofthemachine
5.Keepasafedistance
(twicethewidthofthe
machine)betweenthe
machineandanyhazard.
Removethekeybeforestoringortransportingthe
machine.
BatteryandChargerSafety
General
•Improperlyusingormaintainingthebattery
chargercouldresultininjury.Toreducethis
potential,complywiththeallsafetyinstructions.
•Useonlythesuppliedchargerforbatterycharging.
•Conrmthevoltagethatisavailableinyour
countrybeforeusingthecharger.
•ForconnectiontoasupplynotintheUS,
g371007
useanattachmentplugadapteroftheproper
congurationforthepoweroutlet,ifneeded.
•Donotgetthechargerwet;keepitprotectedfrom
rainandsnow.
•Ariskofre,electricshock,orinjurymayresult
fromusinganaccessorynotrecommendedor
soldbyToro.
•T oreduceriskofabatteryexplosion,followthese
instructionsandtheinstructionsforanyequipment
thatyouintendtousenearthecharger.
•Batteriescouldemitexplosivegassesiftheyare
signicantlyovercharged.
7
Training
•Neverallowchildrenoruntrainedpeopleto
operateorservicethecharger.Localregulations
mayrestricttheageoftheoperator.Theowner
isresponsiblefortrainingalloperatorsand
mechanics.
•Read,understand,andfollowallinstructionson
thechargerandinthemanualbeforeoperating
thecharger.Befamiliarwiththeproperuseofthe
charger.
Preparation
•Keepbystandersandchildrenawaywhile
charging.
•Wearappropriateclothingwhilecharging,
includingeyeprotection;longpants;and
substantial,slip-resistantfootwear.
•Shutoffthemachineandwaituntilthemachine
hascompletelypowereddownbeforecharging.
Failuretodothismaycausearcing.
•Ensurethattheareaiswellventilatedwhile
charging.
•Readandfollowallprecautionsforcharging.
•UseonlyapowercordapprovedbyToro.
Operation
•Donotchargeafrozenbattery.
•Donotabusethecord.Donotcarrythecharger
bythecordoryankonthepowersupplycordto
disconnectthechargerfromthereceptacle.Keep
thecordfromheat,oil,andsharpedges.
•Connectthechargerdirectlytoagrounding
receptacle.Donotusethechargeronan
ungroundedoutlet,evenwithanadaptor.
•Donotaltertheprovidedpowercordorplug.
•Avoiddroppingametaltoolnearorontoabattery;
itmightcauseasparkorshort-circuitanelectrical
partthatcouldleadtoanexplosion.
•Removemetalitemssuchasrings,bracelets,
necklaces,andwatcheswhenworkingwitha
lithium-ionbattery.Alithium-ionbatterycan
produceenoughcurrenttocauseasevereburn.
•Neveroperatethechargerwithoutgoodvisibility
orlight.
•Useanappropriateextensioncord.
•Ifthepowersupplycordisdamagedwhileitis
pluggedin,disconnectthecordfromthewall
receptacleandcontactanAuthorizedService
Dealerforareplacement.
•Unplugthechargerfromtheelectricaloutletwhen
notinuse,beforemovingittoanotherlocation,or
priortoservicingit.
MaintenanceandStorage
•Storethechargerindoorsinadry,secureplace
thatisoutofthereachofunauthorizedusers.
•Donotdisassemblethecharger.T akethecharger
toanAuthorizedServiceDealerwhenserviceor
repairisrequired.
•Unplugthepowercordfromtheoutletbefore
startinganymaintenanceorcleaningtoreduce
riskofelectricshock.
•Maintainorreplacesafetyandinstructionlabels
asneeded.
•Donotoperatethechargerwithadamaged
cordorplug.Replaceadamagedcordorplug
immediately.
•Ifthechargerhasreceivedanimpact,been
dropped,orotherwisedamaged,donotuseit;
takeittoanAuthorizedServiceDealer.
MaintenanceSafety
•Ifyouleavethekeyintheswitch,someonecould
accidentlystartthemachineandseriouslyinjure
youorotherbystanders.Removethekeyfromthe
switchbeforeyouperformanymaintenance.
•Beforeyouleavetheoperator’sposition,dothe
following:
–Parkthemachineonalevelsurface.
–Disengagethedrives.
–Engagetheparkingbrake.
–Shutoffthemachineandremovethekey.
–Allowmachinecomponentstocoolbefore
performingmaintenance.
•Donotallowuntrainedpersonneltoservicethe
machine.
•Carefullyreleasepressurefromcomponentswith
storedenergy.
•Checktheparkingbrakeoperationfrequently.
Adjustandserviceitasrequired.
•Nevertamperwithsafetydevices.Checktheir
properoperationregularly.
•Donotrelyonhydraulicormechanicaljacksto
supportthemachine;supportthemachinewith
jackstandswheneveryouraisethemachine.
•Keepallpartsingoodworkingcondition
andallhardwaretightened,especiallythe
blade-attachmenthardware.Replaceallwornor
damageddecals.
•Disconnectthebatterybeforerepairingthe
machine.Disconnectthenegativeterminalrst
andthepositivelast.Connectthepositiveterminal
rstandthenegativelast.
8
•Inspectthebladesperiodicallyforwearordamage.
•Usecarewhencheckingtheblades.Wrapthe
bladesorweargloves,andusecautionwhen
servicingtheblades.Onlyreplaceorsharpenthe
blades;neverstraightenorweldthem.
StorageSafety
•Shutoffthemachine,removethekey ,andwait
forallmovingpartstostopbeforeyouleavethe
operator’sposition.Allowthemachinetocool
beforeadjusting,servicing,cleaning,orstoringit.
•Donotstorethemachinewherethereisanopen
ame,spark,orpilotlight,suchasonawater
heateroronotherappliances.
Saveallwarningsandinstructions
forfuturereference.
9
SlopeIndicator
Figure4
Youmaycopythispageforpersonaluse.
1.Themaximumslopeyoucanoperatethemachineonis12degrees.Usetheslopecharttodeterminethedegreeofslopeof
hillsbeforeoperating.Donotoperatethismachineonaslopegreaterthan12degrees.Foldalongtheappropriateline
tomatchtherecommendedslope.
2.Alignthisedgewithaverticalsurface,atree,building,fencepole,etc.
3.Exampleofhowtocompareslopewithfoldededge
10
g011841
SafetyandInstructionalDecals
Safetydecalsandinstructionsareeasilyvisibletotheoperatorandarelocatednearanyarea
ofpotentialdanger.Replaceanydecalthatisdamagedormissing.
decal134-6563
134-6563
134-6026
1.Batterycharge;readtheOperator’sManual.
134-6032
1.Brake
134-6033
1.Propel
decal134-6026
1.Thrownobject
hazard—keepbystanders
3.Attention—donotspray
withwater.
awayfromthemachine.
2.Cutting/dismemberment
hazardofhandorfoot,
mowerblade—keepaway
frommovingparts;keep
allguardsandshieldsin
place.
decal134-6032
decal134-6033
134-6565
decal134-6565
1.Parkingbrake—engage2.Parkingbrake—disengage
1.Batterypowered
decal134-6070
134-6070
11
134-6562
Note:Thismachinecomplieswiththeindustrystandardstabilitytestinthestaticlateralandlongitudinaltestswiththemaximum
recommendedslopeindicatedonthedecal.ReviewtheinstructionsforoperatingthemachineonslopesintheOperator’sManualas
wellastheconditionsinwhichyouwouldoperatethemachinetodeterminewhetheryoucanoperatethemachineintheconditionson
thatdayandatthatsite.Changesintheterraincanresultinachangeinslopeoperationforthemachine.
decal134-6562
1.Warning—readtheOperator'sManual.5.Tippinghazard—donotturnsharplywhiletravelingfast;drive
slowlywhenturning;onlyoperateupslopeslessthan12°;
onlyoperateacrossslopeslessthan12°.
2.Cutting/dismembermenthazardofhandorfoot,mower
blade—keepawayfrommovingparts;keepallguardsand
shieldsinplace.
6.Tippinghazard—donotusedualrampswhenloadingontoa
trailer;use1rampwideenoughforthemachine;usearamp
withaslopelessthan12°;backuptherampwhenloadingthe
machineanddriveforwardofftherampwhenunloading.
3.Runoverhazard—donotcarrypassengers;lookbehindyou
7.Warning—wearhearingprotection;weareyeprotection.
whenmowinginreverse.
4.Thrownobjecthazard—pickupdebrisbeforeoperating;keep
thedeectorinplace;keepbystandersaway.
8.Warning—shutoffthemachineandremovethekeybefore
performingmaintenance.
134-6564
1.Forward
2.Reverse
3.Reversewithoutmowing
4.Reversemowing
5.Cruisecontrol
6.On
7.Off
decal134-6564
12
decal134-6568
134-6568
1.Parkingbrake
4.Clippingslevel
2.PTO5.Leftmotorspeed(r/min)
3.Catcherstatus6.Rightmotorspeed(r/min)
13
Setup
2
1
ConnectingtheBattery
Cable
NoPartsRequired
Procedure
1.Removethesidepanelasdescribedin
AccessingtheBattery(page28).
2.Connectthe2cables.
ChargingtheBattery
NoPartsRequired
Procedure
RefertoChargingtheBattery(page29).
Figure5
3.Ensurethatallwiringissecure.
4.Installthesidepanelandsecurethescrews.
g343324
14
ProductOverview
Figure6
1.Dischargehandle6.Tractionpedal
2.Operatorseat7.Chargerreceptacle
3.Height-of-cutlever
4.SteeringWheel9.Controlpanel
5.Brakepedal
8.Anti-scalproller
10.Grasscatcher
Blade-ControlSwitch(Power
Takeoff)
Theblade-controlswitch,representedbya
power-takeoff(PTO)symbol,engagesand
disengagespowertothemowerblades.
BrakePedal
Usethebrakepedaltostoporslowthemachine.
ParkingBrake
Toengagetheparkingbrake,fullypressdownthe
g368368
brakepedal,liftthelockinglever,andremoveyour
footfromthepedal.
Controls
Becomefamiliarwithallthecontrolsbeforeyoustart
andoperatethemachine.
ControlPanel
Figure7
1.Informationdisplay5.Cruise-controloperation
2.USBport
3.Drive-modeswitch7.Keyswitch
4.Reverse-mowing
operationbutton
KeySwitch
Thekeyswitchhas2positions:ONandOFF.Usethe
keyswitchtostartorshutoffthemachine.
button
6.Blade-controlswitch
g368925
Figure8
g368367
Fullypressdownthebrakepedaltoreleasethe
parkingbrakeandpedal.
Ifthemachinemoveswhiletheparkingbrakeis
engaged,theparkingbrakeneedstobeadjusted.
ContactyourAuthorizedT oroDealerfordetails.
Traction-ControlPedal
Usethetraction-controlpedaltovarytheground
speedofthemachine.Thefartheryoupressthe
pedal,thefasterthemachinemoves.
Drive-ModeSwitch
Thedrive-modeswitchhas3positions:FORWARD,
NEUTRAL,andREVERSE.Thedrive-modeswitchmust
beintheFORWARDpositionbeforeengagingthe
mowerblades.
15
InformationDisplay
Battery-ChargeIndicator
Messagesandmachinestatus(i.e.,motorspeed,
batterycharge,operatinghours)appearonthe
informationdisplay.
Note:Theinterlockindicatorsappearwheneach
componentmeetstheappropriateconditiontostart
themachine.
Note:Thedisplaycyclesbetweenbatterycharge
percentageandbatterytemperature.
Figure9
1.Interlockindicators
2.Leftmotorspeed
3.Battery
charge/temperature
4.Currentdrivemode
5.Workinghours
6.Rightmotorspeed
ComponentStatus
Parkingbrake
Blade-control
Catcherstatus
Clippingslevel
Theparking
brakeis
disengaged.
The
blade-control
switchis
disengaged.
switch
Thegrass
catcheris
closed.
Thegrass
catcheris
empty.
Theparking
brakeis
engaged.
The
blade-control
switchis
engaged.
Thegrass
catcherisopen.
Thegrass
catcherisfull.
Thebattery-chargeindicatordisplaystheremaining
chargeinthebatteries.Whenthebatterychargeis
low,themachinealertsyouandthemowerblades
automaticallydisengage;chargethebatterieswhen
thisoccurs.
Reverse-MowingOperation(RMO)
Button
Usethereverse-mowingoperation(RMO)buttonto
operatethemowerbladeswhiledrivingthemachine
inreverse.
Engagethereverse-mowingmodeinthefollowing
ways:
•Beforeengagingtheblades
–Pressthereverse-mowingbutton,engage
themowerblades,thenmovethedrive-mode
switchtotheREVERSEposition.
–Engagethemowerblades,pressthe
g385447
reverse-mowingbutton,thenmovethe
drive-modeswitchtotheREVERSEposition.
•Whilemowingintheforwarddirection
–Pressthereverse-mowingbutton,thenmove
thedrive-modeswitchtotheREVERSEposition.
–Movethedrive-modeswitchtotheREVERSE
position,disengagethemowerblades,press
thereverse-mowingbutton,thenengagethe
mowerblades.
Cruise-ControlSystem(CCS)
Button
Usethecruise-controlsystem(CCS)buttonto
maintainthetractionspeedwithoutyourfootonthe
pedal.
Pressthetraction-controlpedaltothedesiredspeed,
holdthecruise-controlbutton,thenreleaseyourfoot
fromthepedal.
Pressthetraction-controlpedalorbrakepedalto
disengagethecruisecontrol.
Height-of-CutLever
Usetheheight-of-cutlevertolowerandraisethedeck
fromtheseatedposition.Movingthelevertowardyou
raisesthedeckfromthegroundandmovingthelever
awayfromyoulowersthedecktowardtheground.
Adjusttheheight-of-cutonlywhilethemachineisnot
moving.
16
Specications
Note:Specicationsanddesignaresubjectto
changewithoutnotice.
Cuttingwidth81cm(32inches)
Width
Length
Height
Weight
Chargingtimewith2.5A
charger
Chargingtimewithoptional
10Acharger
85cm(33.4inches)
200cm(78.7inches)
104cm(40.9inches)
164kg(362lb)
10hours
3hours
Operation
Note:Determinetheleftandrightsidesofthe
machinefromthenormaloperatingposition.
BeforeOperation
PerformingDaily
Maintenance
Beforestartingthemachineeachday ,performthe
EachUse/DailyprocedureslistedinPerformingDaily
Maintenance(page17).
Attachments/Accessories
AselectionofT oroapprovedattachmentsand
accessoriesisavailableforusewiththemachine
toenhanceandexpanditscapabilities.Contact
yourAuthorizedServiceDealerorauthorizedT oro
distributororgotowww.Toro.comforalistofall
approvedattachmentsandaccessories.
Toensureoptimumperformanceandcontinuedsafety
certicationofthemachine,useonlygenuineT oro
replacementpartsandaccessories.Replacement
partsandaccessoriesmadebyothermanufacturers
couldbedangerous,andsuchusecouldvoidthe
productwarranty.
UsingtheSafety-Interlock
System
WARNING
Ifthesafety-interlockswitchesare
disconnectedordamaged,themachinecould
operateunexpectedly,causingpersonal
injury.
•Donottamperwiththeinterlockswitches.
•Checktheoperationoftheinterlock
switchesdailyandreplaceanydamaged
switchesbeforeoperatingthemachine.
Understandingthe
Safety-InterlockSystem
Thesafety-interlocksystemisdesignedtopreventthe
machinefromstartingunless:
•Theblade-controlswitch(PTO)isdisengaged.
•Theparkingbrakeisdisengaged.
•Y ouareseatedintheoperator'sseat.
•Thedrive-modeswitchisintheFORWARDor
NEUTRALposition.
Thesafety-interlocksystemalsoisdesignedto
preventthemowerbladesfromengagingunlessthe
drive-modeswitchisintheFORWARDposition.
TestingtheSafety-Interlock
System
Testthesafety-interlocksystembeforeyouusethe
machineeachtime.Ifthesafetysystemdoesnot
operateasdescribedbelow,haveanAuthorized
ServiceDealerrepairthesafetysystemimmediately .
1.Sitontheseat,engagetheparkingbrake,move
thedrive-modeswitchtotheFORWARDposition,
17
andmovetheblade-controlswitchtotheOFF
position.Trystartingthemachine;themachine
shouldnotstart.
2.Sitontheseat,disengagetheparkingbrake,
movethedrive-modeswitchtotheFORWARD
position,andmovetheblade-controlswitchto
theONposition.Trystartingthemachine;the
machineshouldnotstart.
3.Sitontheseat,disengagetheparkingbrake,
movethedrive-modeswitchtotheREVERSE
position,andmovetheblade-controlswitchto
theOFFposition.Trystartingthemachine;the
machineshouldnotstart.
4.Sitontheseat,disengagetheparkingbrake,
movethedrive-modeswitchtotheFORWARD
position,andmovetheblade-controlswitchto
theOFFposition.Startthemachine.Whilethe
machineisrunning,riseslightlyfromtheseat;
themachineshouldshutoff.
PositioningtheSeat
Theseatcanmoveforwardandbackward.Position
theseatwhereyouhavethebestcontrolofthe
machineandaremostcomfortable.
5.Sitontheseat,disengagetheparkingbrake,
movethedrive-modeswitchtotheFORWARD
position,andmovetheblade-controlswitchto
theOFFposition.Startthemachine.Whilethe
machineisrunning,engagetheblade-control
switch,andriseslightlyfromtheseat;themower
bladesandmachineshouldshutoff.
6.Sitontheseat,disengagetheparkingbrake,
movethedrive-modeswitchtotheFORWARD
position,andmovetheblade-controlswitchto
theOFFposition.Startthemachine.Whilethe
machineisrunning,engagetheblade-control
switch,andmovethedrive-modeswitchtothe
REVERSEposition;themowerbladesshould
shutoff.
g341496
Figure10
RemovingtheGrass
Catcher
1.Parkthemachineonalevelsurface,disengage
theblade-controlswitch,andengagetheparking
brake.
2.Shutoffthemachineandremovethekey.
3.Openthegrasscatcherbypullingoutthe
discharginghandleandpushingitforward.
g369295
Figure11
18
4.Liftthegrasscatcheroffthemachineusingthe
handleandrearframe.
Figure12
InstallingtheGrassCatcher
1.Installthegrasscatcherframeontothebrackets.
InstallingtheMulchingPlug
1.Parkthemachineonalevelsurface,disengage
theblade-controlswitch,andengagetheparking
brake.
2.Shutoffthemachineandremovethekey.
3.Removethegrasscatcher;refertoRemoving
theGrassCatcher(page18).
4.Insertthemulchingplugintothedischarge
openinguntilitstopsonthebottomofthe
dischargechute.
g371008
2.Insertthedischarginghandle.
g369383
Figure15
5.Extendthe2springstothehooksontherear
panel.
g371021
Figure13
Figure14
3.Ensurethatthebottomlatchisengaged.
g369382
Figure16
g371020
1.Hook(2)3.Spring(2)
2.Mulchplughandle
19
6.Installthegrasscatcher;refertoInstallingthe
GrassCatcher(page19).
Note:Themowerdoesnotoperateunlessthe
grasscatcherisinstalled.
DuringOperation
StartingtheMachine
1.Sitontheoperator’sseat.
AdjustingtheFull-Bag
IndicatorSwitch
1.Parkthemachineonalevelsurface,disengage
theblade-controlswitch,andengagetheparking
brake.
2.Shutoffthemachineandremovethekey.
3.Removethegrasscatcher;refertoRemoving
theGrassCatcher(page18).
4.Extendthelevertoincreasethesensitivityofthe
switch;shortenittodecreasethesensitivity.
2.Disengagetheparkingbrake.
3.Ensurethattheblade-controlswitch(PTO)is
disengaged.
4.Ensurethatthedrive-modeswitchisinthe
NEUTRALposition.
5.TurnthekeyswitchtotheONposition.
DrivingtheMachine
Note:Alwaysusecautionwhenbackingupand
turning.
1.Movethedrive-modeswitchtotheFORWARDor
REVERSEposition.
2.Placeyourfootonthetraction-controlpedaland
slowlypressittostartdriving.
Note:Thefartheryoupressthepedal,the
fasterthemachinemoves.
3.Releasethetraction-controlpedalandslowly
pressthebrakepedaltostoporslowthe
machine.
Figure17
1.Decreaseswitch
sensitivity
5.Installthegrasscatcher;refertoInstallingthe
GrassCatcher(page19).
2.Increaseswitchsensitivity
Note:Stopthemachinebeforechanging
directiontoforwardorreverse.
ShuttingOfftheMachine
g373733
1.Parkthemachineonalevelsurface.
2.Disengagethemowerblades.
3.Engagetheparkingbrake.
4.TurnthekeyswitchtotheOFFpositionand
removethekey.
20
OperatingtheMower
AdjustingtheHeightofCut
Blade-ControlSwitch(PTO)
Theblade-controlswitch(PTO)startsandstopsthe
mowerblades.
EngagingtheBlade-Control
Switch(PTO)
Ensurethatthedrive-modeswitchisintheFORWARD
orNEUTRALpositionbeforeengagingthemower
blades.RefertoReverse-MowingOperation(RMO)
Button(page16)formowinginreverse.
Figure18
DisengagingtheBlade-Control
Switch(PTO)
Note:Themowerbladesautomaticallydisengage
whenoperatingthemachineinreverse(whennot
usingthereverse-mowingbutton)orwhenthe
operatorrisesfromtheseat.
Youcanadjusttheheightofcutfrom25to127mm
(1to5inches).Pullthelevertotheright,moveitto
thedesiredheight,andreleasetheleverintotheslot.
Refertothetablefortheheight-of-cutpositions.
g369282
Figure20
g008945
Height-of-CutPosition
1
2
3
4
5
6
7
8
9
10
Height
25.0mm(1.0inch)
31mm(1.2inches)
39mm(1.6inches)
49mm(1.9inches)
61mm(2.4inches)
73mm(2.9inches)
86mm(3.4inches)
100mm(3.9inches)
113mm(4.47inches)
127mm(5inches)
Figure19
g009174
21
EmptyingtheGrass
Catcher
Whenthegrasscatcherisfull,asensoralertsthe
operatorontheinformationdisplay .
1.Whilesittingintheoperator’sseat,pulloutthe
discharginghandleandthenpushittoforward
toopenthegrasscatcher.
Figure21
2.Whilethecatcherisopen,movethemachine
forwardapproximately1m(3.3ft)toemptyall
theclippings.
3.Movethehandlebacktoclosethecatcherand
insertit.
OperatingTips
CuttingaLawnfortheFirstTime
Cutgrassslightlylongerthannormaltoensurethat
thecuttingheightofthemowerdeckdoesnotscalp
anyunevenground.However,thecuttingheight
usedinthepastisgenerallythebestonetouse.
Whencuttinggrasslongerthan15cm(6inches)tall,
youmaywanttocutthelawntwicetoensurean
acceptablequalityofcut.
CuttingaThirdoftheGrassBlade
Itisbesttocutonlyaboutathirdofthegrassbladeor
nomorethan2.5cm(1inch)offtheheight.Cutting
morethanthatisnotrecommendedunlessgrassis
sparse,oritislateautumnwhengrassgrowsmore
slowly.
AlternatingtheMowingDirection
g369295
Alternatethemowingdirectiontokeepthegrass
standingstraight.Thisalsohelpsdisperseclippings,
whichenhancesdecompositionandfertilization.
MowingatCorrectIntervals
Grassgrowsatdifferentratesatdifferenttimesof
theyear.Tomaintainthesamecuttingheight,mow
moreofteninearlyspring.Asthegrassgrowthrate
slowsinmidsummer,mowlessfrequently.Ifyou
cannotmowforanextendedperiod,rstmowata
highcuttingheight,thenmowagain2dayslaterata
lowerheightsetting.
Figure22
4.Ensurethatthebottomlatchisengaged.
UsingaSlowerCuttingSpeed
g371020
Toimprovecutquality,useaslowergroundspeed
incertainconditions.
AvoidingCuttingTooLow
Whenmowinguneventurf,raisethecuttingheight
toavoidscalpingtheturf.
StoppingtheMachine
Ifyoumuststoptheforwardmotionofthemachine
whilemowing,aclumpofgrassclippingsmay
dropontoyourlawn.Toavoidthis,moveontoa
previouslycutareawiththebladesengagedoryou
candisengagethemowerdeckwhilemovingforward.
22
KeepingtheUndersideofthe
MowerDeckClean
AfterOperation
Cleanclippingsanddirtfromtheundersideofthe
mowerdeckaftereachuse.Ifgrassanddirtbuildup
insidethemowerdeck,cuttingqualitywilleventually
becomeunsatisfactory.
Important:Donotusewatertocleanthemower
deck,otherwiseyoucoulddamagetheelectric
motors.
MaintainingtheBlade(s)
Maintainasharpbladethroughoutthecuttingseason
becauseasharpbladecutscleanlywithouttearingor
shreddingthegrassblades.Tearingandshredding
turnsgrassbrownattheedges,whichslowsgrowth
andincreasesthechanceofdisease.Checkthe
mowerbladesaftereachuseforsharpness,and
foranywearordamage.Filedownanynicksand
sharpenthebladesasnecessary.Ifabladeis
damagedorworn,replaceitimmediatelywitha
genuineT ororeplacementblade.
MulchingGrass
ClearingtheDischarge
Chute
1.Parkthemachineonalevelsurface,disengage
theblade-controlswitch,andengagetheparking
brake.
2.Shutoffthemachineandremovethekey.
3.Removethegrasscatcher;refertoEmptying
theGrassCatcher(page22)
4.Removethe2pinssecuringthechute.
Themulchingbladecutsthegrassclippingsmultiple
timesandreducestheirsizesothatastheyfallonto
thelawn,theydisperseintothegrassandisless
noticeable.Themulchedgrassbiodegradesmore
quicklytoprovidenutrientsforthelawn.
Certaintypesofgrassandgrassconditionsmay
requiremulchinganareaasecondtimetohidethe
clippings.Onthesecondcutpath,mowperpendicular
totherstcutpath.
g371442
Figure23
1.Pin(2)
5.Pullthechuteoutofthemachine.
g371443
Figure24
6.Cleardebrisfromthechute.Useasticktoclear
debrisinsidethemachine.
23
7.Installthechuteinthemachine;ensuretoinstall
itaroundthechuteweldedonthedeckas
shown.
Figure25
Rearplatenotshownforclarity
8.Securethechutewiththe2pins.
TransportingtheMachine
Useaheavy-dutytrailerortrucktotransportthe
machine.Useafull-widthramp.Ensurethatthetrailer
ortruckhasallthenecessarybrakes,lighting,and
markingasrequiredbylaw.Pleasecarefullyreadall
thesafetyinstructions.Knowingthisinformationcould
helpyouorbystandersavoidinjury.Refertoyour
localordinancesfortrailerandtie-downrequirements.
WARNING
Drivingonthestreetorroadwaywithout
turnsignals,lights,reectivemarkings,ora
slow-moving-vehicleemblemisdangerous
g371441
andcanleadtoaccidents,causingpersonal
injury.
Donotdrivethemachineonapublicstreet
orroadway.
SelectingaTrailer
WARNING
Loadingamachineontoatrailerortruck
increasesthepossibilityoftip-overandcould
causeseriousinjuryordeath(Figure27).
•Useonlyafull-widthramp;donotuse
individualrampsforeachsideofthe
machine.
•Donotexceeda12-degreeanglebetween
therampandthegroundorbetweenthe
rampandthetrailerortruck.
g371442
Figure26
1.Pin
•Ensurethatthelengthoftherampisat
least4timesaslongastheheightofthe
trailerortruckbedtotheground.This
ensuresthattherampangledoesnot
exceed12degreesonatground.
24
1.Ifusingatrailer,connectittothetowingvehicle
andconnectthesafetychains.
2.Ifapplicable,connectthetrailerbrakesand
lights.
3.Lowertheramp,ensuringthattheangle
betweentherampandthegrounddoesnot
exceed12degrees(Figure27).
4.Backthemachineuptheramp.
Figure28
g028294
1.Full-widthrampinstowed
position
2.Sideviewoffull-width
rampinloadingposition
3.Notgreaterthan
12degrees
LoadingtheMachine
WARNING
Figure27
4.Rampisatleast4times
aslongastheheightof
thetrailerortruckbedto
theground
5.H=heightofthetraileror
truckbedtotheground
6.Trailer
1.Backthemachineupthe
ramp.
2.Drivethemachineforward
downtheramp.
5.Shutoffthemachine,removethekey,and
engagetheparkingbrake.
6.Tiedownthemachineatthefrontandrearaxles
withstraps,chains,cable,orropes.Referto
localregulationsfortie-downrequirements.
g027996
g369852
Figure29
1.Tie-downpoints
Loadingamachineontoatrailerortruck
increasesthepossibilityoftip-overandcould
causeseriousinjuryordeath.
•Useextremecautionwhenoperatinga
machineonaramp.
•Backthemachineuptherampanddriveit
forwarddowntheramp.
•Avoidsuddenaccelerationordeceleration
whiledrivingthemachineonarampas
thiscouldcausealossofcontrolora
tip-oversituation.
UnloadingtheMachine
1.Lowertheramp,ensuringthattheangle
betweentherampandthegrounddoesnot
exceed12degrees(Figure27).
2.Drivethemachineforwarddowntheramp
(Figure28).
25
MovingaNon-Functioning
Machine
Themachinealertsyouwhenthebatterychargeis
lowsothatyouhaveenoughpowertoreturnittothe
charginglocation;refertoBattery-ChargeIndicator
(page16).
Ifyouneedtotowthemachine,disengagetheparking
brakeandtowthemachineatawalkingspeed.
26
Maintenance
Note:Determinetheleftandrightsidesofthemachinefromthenormaloperatingposition.
RecommendedMaintenanceSchedule(s)
MaintenanceService
Interval
Beforeeachuseordaily
Aftereachuse
Every25hours
Beforestorage
MaintenanceProcedure
•Checkthesafety-interlocksystem.
•Chargethebattery.
•Inspecttheblades.
•Cleanthemower-deckhousing.
•Greasethefrontwheelbearings.
•Removethesidepanelandcleanthebattery.
•Checkthetirepressure.
•Performallmaintenanceprocedureslistedabovebeforestorage.
CAUTION
Ifyouleavethekeyintheswitch,someonecouldaccidentlystartthemachineandseriously
injureyouorotherbystanders.
Shutoffthemachineandremovethekeyfromtheswitchbeforeyouperformanymaintenance.
27
Pre-MaintenanceProcedures
AccessingtheBattery
1.Parkthemachineonalevelsurface,disengage
theblade-controlswitch,andengagetheparking
brake.
2.Shutoffthemachineandremovethekey.
3.Removethegrasscatcher;refertoEmptying
theGrassCatcher(page22).
4.Removethefrontscrew.
6.Removethe2rearscrews.
g371398
Figure32
1.Thread-formingscrew
7.Removethesidecovertoaccessthebattery.
Figure30
1.Screw(M4x35mm)
5.Removethe3rightscrewsfromthecontrol
panel.
Figure31
g371400
g371401
Figure33
8.Reversetheproceduretoinstallthecover.
Important:Aftermaintenance,ensurethatthere
g371399
arenoopencircuitsorloosewiring.
1.Screw(M4x35mm)2.Screw(M4x70mm)
28
Lubrication
GreasingtheFrontWheel
ElectricalSystem
Maintenance
Bearings
ServiceInterval:Every25hours
Greasetype:General-purposegrease
1.Parkthemachineonalevelsurface,disengage
theblade-controlswitch,andengagetheparking
brake.
2.Shutoffthemachineandremovethekey.
3.Cleanthegreasettingswitharag.
Note:Makesuretoscrapeanypaintoffthe
frontofthetting(s).
4.Connectagreaseguntothetting.
5.Pumpgreaseintothettingsuntilgreasebegins
tooozeoutofthebearings.
6.Wipeupanyexcessgrease.
MaintainingtheBattery
Note:Theoriginalbatteryismaintenance-freeand
doesnotrequireservice.
WARNING
Batteryterminalsormetaltoolscouldshort
againstmetalcomponentscausingsparks.
Sparkscancausethebatterygasesto
explode,resultinginpersonalinjury.
•Whenremovingorinstallingthebattery,
donotallowthebatteryterminalstotouch
anymetalpartsofthemachine.
•Donotallowmetaltoolstoshortbetween
thebatteryterminalsandmetalpartsofthe
machine.
•Useinsulatedtoolswhenmaintainingthe
battery.
•Alwayskeepthebatteryretainersinplace
toprotectandsecurethebattery.
Figure34
DANGER
Donottouchanyelectricalcomponentsor
contactsonthemotor.
Touchinganyofthesecomponentsor
contactscouldseriouslyinjureyouorcause
g343313
death.
ChargingtheBattery
ServiceInterval:Beforeeachuseordaily
Formaximumbatterylife,drainthebatteryaslow
aspossiblebeforeeachcharge.Chargethebattery
immediatelyafterdepletingasubstantialamount
ofpower.Thebatterywillproducemoreefcient
electricalproductionafteryouchargeanddepleteit
anumberofcycles.
Note:RefertoSpecications(page17)forthe
chargetime.
Important:Chargethebatterybetween0to40°C
(32to104°F).
1.Parkthemachineonalevelsurface,ina
well-ventilatedareanearasuitablepoweroutlet.
2.Disengagetheblade-controlswitchandengage
theparkingbrake.
29
3.Shutoffthemachine,removethekey,andwait
forallmovingpartstostopbeforeleavingthe
operatingposition.
Note:Thechargerlightwillilluminateredto
indicateaconnectionbetweenthebatteryand
charger.
4.Connectthechargertothechargingreceptacle
androtatetheplugclockwisetosecureit(Figure
35).
Note:Thechargeplugonlytsonthemachine
1way .
Note:Ensurethatthecharger-voltagesetting
matchesthevoltageatthepoweroutletbeing
used.
Note:Ifthebatterychargeristoohot,itmay
notchargeproperly .Incoldtemperatures,itmay
takealongerforthebatterytocharge.
6.Allowthebatterytocharge.
Note:Thebatteryisfullychargedonlywhen
thechargerlightilluminatesgreen.
7.Aftercharging,disconnectthecordfromthe
poweroutlet.
8.Slidebackthebuttonontheplug,turntheplug
counterclockwise,andpulltheplugoutofthe
socket(Figure36).
g341470
Figure36
Figure35
ReplacingtheBattery
ContactyourAuthorizedServiceDealerforreplacing
thebattery .
g369316
g341469
5.Plugthechargerpowercordintothepower
outlet.
30
DriveSystem
MowerMaintenance
Maintenance
ServicingtheCutting
CheckingtheTirePressure
ServiceInterval:Every25hours—Checkthetire
pressure.
Maintaintheairpressureinthefrontandreartiresas
specied.Uneventirepressurecancauseanuneven
cut.Checkthepressureatthevalvestemwhen
thetiresarecoldtogetthemostaccuratepressure
reading.
Inatethefronttiresto103kPa(15psi).
Inatethereartiresto138kPa(20psi).
Figure37
1.Valvestem
Blades
Toensureasuperiorqualityofcut,keeptheblades
sharp.Forconvenientsharpeningandreplacement,
keepextrabladesonhand.
BeforeInspectingorServicingthe
Blades
1.Parkthemachineonalevelsurface,disengage
theblade-controlswitch,andengagetheparking
brake.
2.Shutoffthemachineandremovethekey.
3.Raisethemachineoffthegroundsothatyou
canaccessbeneathit.Supportthemachine
usingjackstands.
WARNING
Mechanicalorhydraulicjacksmayfailto
g000554
supportthemachineandcauseserious
injury.
Usejackstandswhensupportingthe
machine.
InspectingtheBlades
ServiceInterval:Beforeeachuseordaily
1.Inspectthecuttingedges.
2.Iftheedgesarenotsharporhavenicks,remove
andsharpentheblade;refertoSharpeningthe
Blades(page33).
3.Inspecttheblades,especiallyinthecurvedarea.
4.Ifyounoticeanycracks,wear,oraslotforming
inthisarea,immediatelyinstallanewblade.
Figure38
1.Cuttingedge3.Wear/slotforming
2.Curvedarea4.Crack
g006530
31
CheckingforBentBlades
Note:Themachinemustbeparkedonalevel
surfaceforthefollowingprocedure.
1.Raisethemowerdecktothehighest
height-of-cutposition.
2.Whilewearingthicklypaddedgloves,orother
adequatehandprotection,slowlyrotatethe
bladeintoapositionthatallowsyoutomeasure
thedistancebetweenthecuttingedgeandthe
levelsurface.
4.Rotatethesameblade180degreessothat
theopposingcuttingedgeisnowinthesame
position.
g343369
Figure41
1.Blade(sidepreviouslymeasured)
2.Measurement(positionusedpreviously)
3.Opposingsideofbladebeingmovedintomeasurement
position
Figure39
1.Deck3.Blade
2.Spindlehousing
3.Measurefromthetipofthebladetothelevel
surface.
Figure40
1.Blade(inpositionformeasuring)
2.Levelsurface
3.Measureddistancebetweenbladeandthesurface(A)
g343366
5.Measurefromthetipofthebladetothelevel
surface.
Note:Thevarianceshouldbenomorethan
3mm(1/8inch).
g343365
Figure42
g343365
1.Oppositebladeedge(inpositionformeasuring)
2.Levelsurface
3.Secondmeasureddistancebetweenbladeandsurface(B)
A.IfthedifferencebetweenAandBisgreater
than3mm(1/8inch),replacethebladewith
anewblade;refertoRemovingtheBlades
(page33)andInstallingtheBlades(page
33).
Note:Ifabentbladeisreplacedwitha
newblade,andthedimensionobtained
continuestoexceed3mm(1/8inch),the
bladespindlecouldbebent.Contactan
AuthorizedServiceDealerforservice.
B.Ifthevarianceiswithinconstraints,moveto
thenextblade.
6.Repeatthisprocedureoneachblade.
32
RemovingtheBlades
Replacethebladesiftheyhitasolidobject,orifthe
bladeisoutofbalanceorbent.
1.Placeawoodblockbetweenthebladeand
mowerhousingtopreventthebladefrom
turning.
2.Holdthebladeendusingaragorthicklypadded
glove.
3.Removetheblade.
Note:Ifthebladeisnotbalanced,lesome
metalofftheendofthesailareaonly(Figure44).
g000553
Figure45
1.Blade2.Balancer
3.Repeatthisprocedureuntilthebladeis
balanced.
InstallingtheBlades
1.Installthebladeandadapterontothespindle
shaft.
Important:Thecurvedpartoftheblade
mustbepointingupwardtowardtheinside
ofthemowertoensurepropercutting.
Figure43
1.Spindleshaft4.Curvedwasher
2.Adapter5.Nut
3.Blade
SharpeningtheBlades
1.Usealetosharpenthecuttingedgeatboth
endsoftheblade.
Note:Maintaintheoriginalangle.
Note:Thebladeretainsitsbalanceifthesame
amountofmaterialisremovedfrombothcutting
edges.
Figure44
g343371
g343371
Figure46
1.Spindleshaft4.Curvedwasher
2.Adapter5.Nut
3.Blade
2.Installthecurvedwasher(cuppedsidetoward
theblade)andthenut.
3.T orquethenutto35N∙m(26ft-lb).
g000552
1.Sharpenatoriginalangle.
2.Checkthebalanceofthebladebyputtingiton
abladebalancer.
Note:Ifthebladestaysinahorizontalposition,
thebladeisbalancedandcanbeused.
33
Cleaning
Storage
CleaningtheUndersideof
theMowerDeck
ServiceInterval:Aftereachuse—Cleanthe
mower-deckhousing.
Cleantheundersideofthemowerdeckaftereachuse
topreventgrassbuildupforimprovedmulchaction
andclippingdispersal.
Important:Donotusewatertocleanthemower
deck,otherwiseyoucoulddamagetheelectric
motors.
1.Parkthemachineonalevelsurface,disengage
theblade-controlswitch(PTO),andengagethe
parkingbrake.
2.Shutoffthemachine,removethekey,andwait
forallmovingpartstostopbeforeleavingthe
operatingposition.
3.Raisethemachineoffthegroundsothatyou
canaccessbeneathit.Supportthemachine
usingjackstands.
CleaningandStorage
1.Parkthemachineonalevelsurface,disengage
theblade-controlswitch(PTO),andengagethe
parkingbrake
2.Shutoffthemachine,removethekey,andwait
forallmovingpartstostopbeforeleavingthe
operatingposition.
3.Removegrassclippings,dirt,andgrimefromthe
externalpartsoftheentiremachine,especially
themotor.
4.Checktheparkingbrakeoperation;referto
ParkingBrake(page15).
5.Greasethemachine;refertoLubrication(page
29).
6.Checkthetirepressure;refertoCheckingthe
TirePressure(page31).
7.Chargethebattery;refertoChargingtheBattery
(page29).
8.Scrapeanyheavybuildupofgrassanddirtfrom
theundersideofthemower.
WARNING
Mechanicalorhydraulicjacksmayfailto
supportthemachineandcauseserious
injury.
Usejackstandswhensupportingthe
machine.
4.Scrapebuildupofgrassandotherdebrisfrom
themowerdeck,nishedsurfaces,andwheels.
DisposingofWaste
Engineoil,batteries,hydraulicuid,andengine
coolantarepollutantstotheenvironment.Disposeof
theseaccordingtoyourstateandlocalregulations.
9.Checktheconditionoftheblades;referto
ServicingtheCuttingBlades(page31).
10.Checkandtightenallfasteners.Repairor
replaceanypartthatisdamaged.
11.Paintallscratchedorbaremetalsurfaces.Paint
isavailablefromyourAuthorizedServiceDealer.
12.Storethemachineinaclean,drygarageor
storagearea.Removethekeyfromtheswitch
andkeepitoutofreachofchildrenorother
unauthorizedusers.Coverthemachineto
protectitandkeepitclean.
34
Troubleshooting
Problem
Thedrivemotordoesnotstart.
Theblademotordoesnotstart.
Themachinedoesnotstart.
PossibleCauseCorrectiveAction
1.Thedrive-modeswitchisinthe
NEUTRALposition.
2.Theparkingbrakeisengaged.2.Disengagetheparkingbrake.
3.Thebrakepedalisengaged.3.Releasethebrakepedal.
4.Thetraction-controlpedalisengaged.4.Releasethetraction-controlpedal.
5.Theblademotorisblocked.
6.Thedrivemotorisblocked.
7.Batterychargeislow.
1.Thedrive-modeswitchisinthe
NEUTRALposition.
2.Theparkingbrakeisengaged.2.Disengagetheparkingbrake.
3.Theblademotorisblocked.
4.Batterychargeislow.
1.Thecontrollerormotorisdamaged.
2.Abatteryisdamaged.2.Replacethebattery.
1.Movethedrive-modeswitchtothe
FORWARDorREVERSEposition.
5.Turnoffthemachineandcleandebris,
orwaituntilthecontrollerautomatically
unlocksafter5seconds.
6.Removedebrisorobstaclesfromthe
drivemotor .
7.Chargethebattery.
1.Movethedrive-modeswitchtothe
FORWARDposition.
3.Turnoffthemachineandcleandebris,
orwaituntilthecontrollerautomatically
unlocksafter5seconds.
4.Chargethebattery.
1.Shutoffthemachineandstartitagain
after5seconds.Ifthemachinedoes
notstartafterseveralcycles,replace
thecontroller.
Themachinevibratesabnormally .
Thecuttingheightisuneven.
Themachinedoesnotdischargeorit
dischargesimproperly.
1.Thecuttingblade(s)is/arebentor
unbalanced.
2.Theblademountingboltisloose.2.Tightentheblademountingbolt.
3.Thebladespindleisbent.
4.Themotormountislooseorworn.
1.Acuttingblade(s)is/arenotsharp.1.Sharpentheblade(s).
2.Acuttingblade(s)is/arebent.2.Installanewcuttingblade(s).
3.Theundersideofthemowerdeckis
dirty.
4.Thetirepressureisincorrect.4.Adjustthetirepressure.
5.Abladespindleisbent.
1.Thegrassistooheavyortall.
2.Thegrassistoowet.2.Waituntilthelawnisdry .
1.Installnewcuttingblade(s).
3.ContactanAuthorizedServiceDealer.
4.ContactanAuthorizedServiceDealer.
3.Cleantheundersideofthemower
deck.
5.ContactanAuthorizedServiceDealer.
1.Mowonthehighestheightofcut;then
mowatthedesiredheight.
35
Schematics
ElectricalSchematic(Rev .A)
36
g374611
Notes:
Notes:
Notes:
EEA/UKPrivacyNotice
Toro’sUseofYourPersonalInformation
TheT oroCompany(“T oro”)respectsyourprivacy.Whenyoupurchaseourproducts,wemaycollectcertainpersonalinformationaboutyou,eitherdirectly
fromyouorthroughyourlocalT orocompanyordealer.T orousesthisinformationtofullcontractualobligations-suchastoregisteryourwarranty ,
processyourwarrantyclaimortocontactyouintheeventofaproductrecall-andforlegitimatebusinesspurposes-suchastogaugecustomer
satisfaction,improveourproductsorprovideyouwithproductinformationwhichmaybeofinterest.T oromayshareyourinformationwithoursubsidiaries,
afliates,dealersorotherbusinesspartnersinconnectiontheseactivities.Wemayalsodisclosepersonalinformationwhenrequiredbylaworin
connectionwiththesale,purchaseormergerofabusiness.Wewillneversellyourpersonalinformationtoanyothercompanyformarketingpurposes.
RetentionofyourPersonalInformation
Torowillkeepyourpersonalinformationaslongasitisrelevantfortheabovepurposesandinaccordancewithlegalrequirements.Formoreinformation
aboutapplicableretentionperiodspleasecontactlegal@toro.com.
Toro’sCommitmenttoSecurity
YourpersonalinformationmaybeprocessedintheUSoranothercountrywhichmayhavelessstrictdataprotectionlawsthanyourcountryofresidence.
Wheneverwetransferyourinformationoutsideofyourcountryofresidence,wewilltakelegallyrequiredstepstoensurethatappropriatesafeguardsare
inplacetoprotectyourinformationandtomakesureitistreatedsecurely.
AccessandCorrection
Youmayhavetherighttocorrectorreviewyourpersonaldata,orobjecttoorrestricttheprocessingofyourdata.Todoso,pleasecontactusbyemail
atlegal@toro.com.IfyouhaveconcernsaboutthewayinwhichT orohashandledyourinformation,weencourageyoutoraisethisdirectlywithus.
PleasenotethatEuropeanresidentshavetherighttocomplaintoyourDataProtectionAuthority.
374-0282RevC
Loading...
