Toro 75201, 75202 Operator's Manual

FormNo.3417-433RevA

TimeCutter

®

HDZX4800and

ZX5400RidingMower

ModelNo.75201—SerialNo.401500000andUp
ModelNo.75202—SerialNo.401500000andUp

Registeratwww.T oro.com.
OriginalInstructions(EN)

*3417-433*A

WARNING

CALIFORNIA

Proposition65Warning

Thisproductcontainsachemical

orchemicalsknowntotheStateof

Californiatocausecancer,birthdefects,

orreproductiveharm.

Theengineexhaustfromthisproduct

containschemicalsknowntotheStateof

Californiatocausecancer,birthdefects,

orotherreproductiveharm.

ItisaviolationofCaliforniaPublicResourceCode
Section4442or4443touseoroperatetheengineon
anyforest-covered,brush-covered,orgrass-covered
landunlesstheengineisequippedwithaspark
arrester,asdenedinSection4442,maintainedin
effectiveworkingorderortheengineisconstructed,
equipped,andmaintainedforthepreventionofre.

GrossorNetTorque

high-altitudelabelforyourmachine.Tolocate
adealerconvenienttoyou,accessourwebsite
atwww.T oro.comorcontactourT oroCustomer
CareDepartmentatthenumber(s)listedinyour
EmissionControlWarrantyStatement.

Removethekitfromtheengineandrestorethe
enginetoitsoriginalfactorycongurationwhen
runningtheengineunder1500m(5,000ft).Do
notoperateanenginethathasbeenconverted
forhigh-altitudeuseatloweraltitudes;otherwise,
youcouldoverheatanddamagetheengine.

Ifyouareunsurewhetherornotyourmachine
hasbeenconvertedforhigh-altitudeuse,lookfor
thefollowinglabel.

decal127-9363

Thegrossornettorqueofthisenginewaslaboratory
ratedbytheenginemanufacturerinaccordancewith
theSocietyofAutomotiveEngineers(SAE)J1940or
J2723.Asconguredtomeetsafety,emission,and
operatingrequirements,theactualenginetorqueon
thisclassofmowerwillbesignicantlylower.

Gotowww.Toro.comtoviewspecicationsonyour
mowermodel.

WARNING

Removingstandardoriginalequipmentparts
andaccessoriesmayalterthewarranty,
traction,andsafetyofthemachine.Failureto
useoriginalT oropartscouldcauseserious
injuryordeath.Makingunauthorizedchanges
totheengine,fuelorventingsystem,may
violateEPAandCARBregulations.

Replaceallpartsincluding,butnotlimited
to,tires,belts,blades,andfuelsystem
componentswithoriginalToroparts.

Important:IfyouareusingamachinewithaToro

engineabove1500m(5,000ft)foracontinuous
period,ensurethattheHighAltitudeKithasbeen
installedsothattheenginemeetsCARB/EP A
emissionregulations.TheHighAltitudeKit
increasesengineperformancewhilepreventing
spark-plugfouling,hardstarting,andincreased
emissions.Onceyouhaveinstalledthekit,attach
thehigh-altitudelabelnexttotheserialdecalon
themachine.ContactanyAuthorizedToroService
DealertoobtaintheproperHighAltitudeKitand

Introduction

Thisrotary-blade,ridinglawnmowerisintendedtobe
usedbyhomeownersinresidentialapplications.Itis
designedprimarilyforcuttinggrassonwell-maintained
lawns.Itisnotdesignedforcuttingbrush,mowing
grassandothergrowthalongsidehighways,orfor
agriculturaluses.

Readthisinformationcarefullytolearnhowtooperate
andmaintainyourproductproperlyandtoavoid
injuryandproductdamage.Youareresponsiblefor
operatingtheproductproperlyandsafely .

YoumaycontactTorodirectlyatwww.Toro.com
forproductsafetyandoperationtrainingmaterials,
accessoryinformation,helpndingadealer,orto
registeryourproduct.

Wheneveryouneedservice,genuineToroparts,or
additionalinformation,contactanAuthorizedService
DealerorToroCustomerServiceandhavethemodel
andserialnumbersofyourproductready.Figure1
identiesthelocationofthemodelandserialnumbers
ontheproduct.Writethenumbersinthespace
provided.

Important:Withyourmobiledevice,youcan

scantheQRcodeontheserialnumberdecal(if
equipped)toaccesswarranty,parts,andother
productinformation.

©2017—TheToro®Company
8111LyndaleAvenueSouth
Bloomington,MN55420

Contactusatwww.Toro.com.

2

PrintedintheUSA

AllRightsReserved

Figure1

1.Modelandserialnumberplate

Writetheproductmodelandserialnumbersinthe
spacebelow:

ModelNo.

SerialNo.

Thismanualidentiespotentialhazardsandhas
safetymessagesidentiedbythesafety-alertsymbol
(Figure2),whichsignalsahazardthatmaycause
seriousinjuryordeathifyoudonotfollowthe
recommendedprecautions.

Figure2

Safety-AlertSymbol

Thismanualuses2wordstohighlightinformation.
Importantcallsattentiontospecialmechanical
informationandNoteemphasizesgeneralinformation
worthyofspecialattention.

Contents

Safety.......................................................................4

GeneralSafety...................................................4

SlopeIndicator...................................................5

SafetyandInstructionalDecals..........................6

ProductOverview...................................................10

Controls...........................................................10

BeforeOperation.................................................12

BeforeOperationSafety...................................12

AddingFuel......................................................12

PerformingDailyMaintenance..........................13

g234368

g000502

BreakinginaNewMachine..............................13

UsingtheSafety-InterlockSystem....................14

PositioningtheSeat..........................................14

AdjustingtheMotion-ControlLevers.................15

DuringOperation.................................................15

DuringOperationSafety...................................15

OperatingtheParkingBrake.............................17

OperatingtheMowerBlade-ControlSwitch

(PTO)............................................................18

OperatingtheThrottle.......................................18

OperatingtheChoke.........................................18

StartingtheEngine...........................................19

ShuttingOfftheEngine.....................................19

UsingtheMotion-ControlLevers.......................19

DrivingtheMachine..........................................20

UsingtheSmartSpeed

TM

Control

System..........................................................21

UsingtheSideDischarge.................................21

AdjustingtheHeightofCut...............................22

AdjustingtheAnti-ScalpRollers........................22

UsingAttachmentsandAccessories.................23

OperatingTips.................................................23

AfterOperation....................................................24

AfterOperationSafety......................................24

PushingtheMachinebyHand..........................24

TransportingtheMachine.................................25

Maintenance...........................................................27

RecommendedMaintenanceSchedule(s)...........27

Pre-MaintenanceProcedures..............................28

MaintenanceSafety..........................................28

EngineMaintenance...........................................28

EngineSafety...................................................28

ServicingtheAirCleaner..................................28

ServicingtheEngineOil....................................30

ServicingtheSparkPlug...................................32

CleaningtheCoolingSystem............................33

FuelSystemMaintenance...................................34

ReplacingtheIn-LineFuelFilter.......................34

ElectricalSystemMaintenance...........................35

ElectricalSystemSafety...................................35

ServicingtheBattery.........................................35

ServicingtheFuses..........................................36

DriveSystemMaintenance..................................37

CheckingtheTirePressure...............................37

MowerMaintenance.............................................37

ServicingtheCuttingBlades.............................37

3

LevelingtheMowerDeck..................................40

RemovingtheMowerDeck...............................42

InstallingtheMowerDeck.................................43

ReplacingtheGrassDeector..........................43

MowerBeltMaintenance......................................44

InspectingtheBelts..........................................44

ReplacingtheMowerBelt.................................44

Cleaning..............................................................45

WashingtheUndersideoftheMower................45

DisposingofWaste...........................................46

Storage...................................................................46

StorageSafety..................................................46

CleaningandStorage.......................................46

StoringtheBattery............................................47

Troubleshooting......................................................48

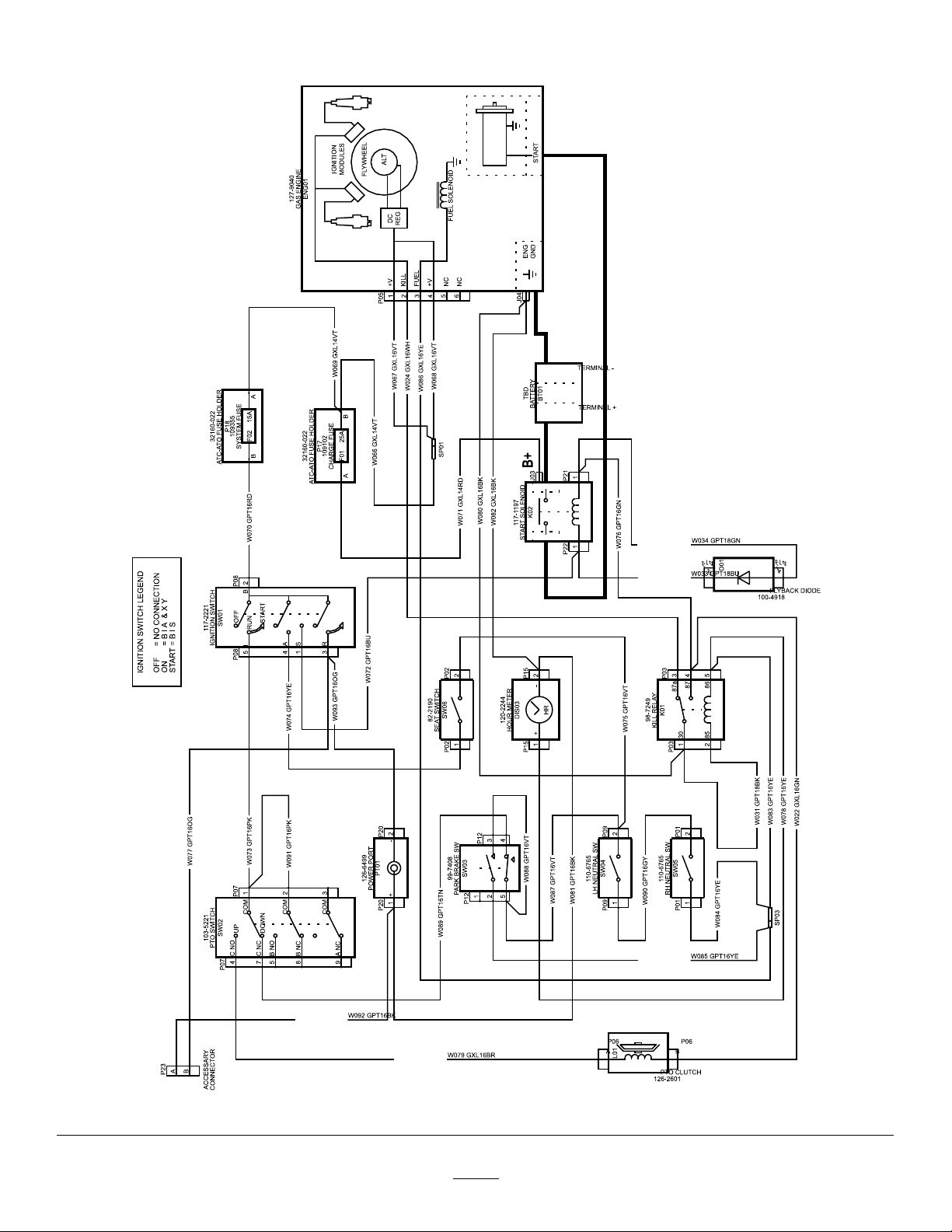

Schematics.............................................................50

Safety

Thismachinehasbeendesignedinaccordancewith
ANSIB71.1-2012.

GeneralSafety

Thisproductiscapableofamputatinghandsand
feetandofthrowingobjects.Alwaysfollowallsafety
instructionstoavoidseriouspersonalinjury.

Usingthisproductforpurposesotherthanitsintended
usecouldprovedangeroustoyouandbystanders.

•Donotoperatethemachineneardrop-offs,

ditches,embankments,water,orotherhazards,or
onslopesgreaterthan15degrees.

•Readandunderstandthecontentsofthis

Operator’sManualbeforestartingtheengine.

•Donotputyourhandsorfeetnearmoving

componentsofthemachine.

•Donotoperatethemachinewithoutallguards

andothersafetyprotectivedevicesinplaceand
workingonthemachine.

•Keepchildrenandbystandersoutoftheoperating

area.Neverallowchildrentooperatethemachine.

•Stopthemachineandshutofftheenginebefore

servicing,fueling,oruncloggingthemachine.

Improperlyusingormaintainingthismachinecan
resultininjury.Toreducethepotentialforinjury,
complywiththesesafetyinstructionsandalwayspay
attentiontothesafety-alertsymbol,whichmeans
Caution,Warning,orDanger—personalsafety
instruction.Failuretocomplywiththeseinstructions
mayresultinpersonalinjuryordeath.

Youcanndadditionalsafetyinformationwhere
neededthroughoutthismanual.

4

SlopeIndicator

Figure4

Thispagemaybecopiedforpersonaluse.

1.Themaximumslopeyoucanoperatethemachineonis15degrees.Usetheslopecharttodeterminethedegreeofslopeof
hillsbeforeoperating.Donotoperatethismachineonaslopegreaterthan15degrees.Foldalongtheappropriateline
tomatchtherecommendedslope.

2.Alignthisedgewithaverticalsurface,atree,building,fencepole,etc.

3.Exampleofhowtocompareslopewithfoldededge

5

g011841

SafetyandInstructionalDecals

Safetydecalsandinstructionsareeasilyvisibletotheoperatorandarelocatednearanyarea
ofpotentialdanger.Replaceanydecalthatisdamagedormissing.

Manufacturer'sMark

1.Indicatesthebladeisidentiedasapartfromtheoriginal
machinemanufacturer.

BatterySymbols

Someorallofthesesymbolsareonyourbattery .

decaloemmarkt

decal117-1 194

decalbatterysymbols

1.Engine

117-1194

1.Explosionhazard

2.Nore,opename,or
smoking

3.Causticliquid/chemical
burnhazard

4.Weareyeprotection.9.Flusheyesimmediately

5.ReadtheOperator's

Manual.

6.Keepbystandersasafe

7.Weareyeprotection;

8.Batteryacidcancause

10.Containslead;donot

distanceawayfromthe
battery.

explosivegasescan
causeblindnessandother
injuries.

blindnessorsevereburns.

withwaterandgetmedical
helpfast.

discard

1.Bypassleverpositionfor
pushingthemachine

decal121-2989b

121-2989

2.Bypassleverpositionfor
operatingthemachine

6

decal131-1097

131-1097

1.Oildrain

decal130-0654

130-0654

1.Transport—lock

2.Transport—unlock

1.Warning—thrownobject
hazard;keepthedeector
shieldinplace.

3.Heightofcut

130-0731

2.Cuttinghazardofhandor
foot,mowerblade—keep
awayfrommovingparts.

decal132-0872

decal130-0731

1.Thrownobject
hazard—keepbystanders
awayfromthemachine.

2.Thrownobjecthazard,
raisedbafe—donot
operatethemachinewith
anopendeck;usea
baggerorabafe.

132-0872

3.Severinghazardofhand
orfoot—keepawayfrom
movingparts.

4.Entanglement
hazard—keepaway
frommovingparts;keep
allguardsandshieldsin
place.

1.ReadtheOperator's
Manual.

2.Height-of-cutselection

130-0765

3.Removethekeyfromthe
keyswitchandreadthe
Operator'sManualbefore
performingmaintenance.

decal130-0765

136-4243

decal136-4243

1.Fast4.Reverse

2.Slow

5.Parkingbrakedisengaged

3.Neutral6.Parkingbrakeengaged

7

136-4244

1.Fast3.Neutral

2.Slow

decal136-4244

decal136-5596

136-5596

1.Checkthetirepressure

4.Reverse

every25operatinghours.

2.Engineoil

3.Checkthetirepressure
every25operatinghours.

4.Checkthetirepressure
every25operatinghours.

5.ReadtheOperator's
Manualbeforeperforming
maintenance.

decal136-9186

136-9186

1.ReadtheOperator'sManualbeforeaddingweighttothe
bucket.

decal131-3947

131-3947

1.Trim—slow

2.Tow—medium

3.Mow—fast

8

decal133-9263

133-9263

1.Fast

4.PTOdisengage

2.Slow5.PTOengage

3.Choke

133-9255

Note:Thismachinecomplieswiththeindustrystandardstabilitytestinthestaticlateralandlongitudinaltestswiththemaximum

recommendedslopeindicatedonthedecal.ReviewtheinstructionsforoperatingthemachineonslopesintheOperator’sManualas
wellastheconditionsinwhichyouwouldoperatethemachinetodeterminewhetheryoucanoperatethemachineinthoseconditions
onthatdayandatthatsite.Changesintheterraincanresultinachangeinslopeoperationforthemachine.Ifpossible,keepthe
cuttingunitsloweredtothegroundwhileoperatingthemachineonslopes.Raisingthecuttingunitswhileoperatingonslopescan
causethemachinetobecomeunstable.

decal133-9255

1.Warning—readtheOperator'sManual.

2.Ramphazard—donotusedualrampswhenloadingontoa
trailer;use1rampwideenoughforthemachine;usearamp
withaslopelessthan15°;backuptherampwhenloadingthe
machineanddriveforwardofftherampwhenunloading.

3.Thrownobjecthazard—keepbystandersasafedistancefrom
themachine,pickupdebrisbeforeoperating,andkeepthe
deectorshielddown.

4.Bodilyharmhazard—donotcarrypassengers;lookbehind
youwhenmowinginreverse.

5.Tippinghazard—donotuseonslopesnearopenwater;do
notuseonslopesgreaterthan15°.

6.Cuttingandpinchhazard—keepawayfrommovingparts;
keepallguardsandshieldsinplace.

7.Warning—beforeperformingmaintenance,readthe
Operator'sManual;engagetheparkingbrake,removethe
key,anddisconnectthesparkplug.

9

ProductOverview

1.Deck-liftpedal

2.Height-of-cutpin

3.Height-of-cut
lever/transportlock

4.SmartSpeed™lever

5.Motion-controllever

6.Controls

Figure5

7.Engine

8.Fuelcap

9.Mowerdeck

10.Anti-scalproller

11.Casterwheel

12.Parking-brakelever

Controls

BecomefamiliarwithallcontrolsinFigure6and

Figure7beforeyoustarttheengineandoperatethe

machine.

ControlPanel

g188738

Figure6

1.Hourmeter4.Keyswitch

g188739

2.Throttlecontrol5.Blade-controlswitch

3.Chokecontrol

(powertakeoff)

6.12Vpowerpoint

FuelGauge

Thefuelgaugedisplaystheamountoffuelinthetank
(Figure7).

Figure7

1.Fuelgauge2.Fuel-tankcap

ThrottleControl

Thethrottlecontrolstheenginespeed,andithasa
continuous-variablesettingfromtheSLOWtoFAST
position(Figure6).

10

g238298

ChokeControl

12VPowerPoint

Usethechokecontroltostartacoldengine.

HourMeter

Thehourmeterrecordsthenumberofhoursthe
enginehasoperated.Itoperateswhentheengine
isrunning.Usethesetimesforschedulingregular
maintenance(Figure6).

Motion-ControlLevers

Usethemotion-controlleverstodrivethemachine
forward,reverse,andturneitherdirection(Figure5).

Neutral-LockPosition

Movethemotion-controlleversoutwardfromthe
centertotheNEUTRAL-LOCKpositionwhenexiting
themachine(Figure21).Alwayspositionthe
motion-controlleversintotheNEUTRAL-LOCKposition
whenyoustopthemachineorleaveitunattended.

Parking-BrakeLever

Theparking-brakeleverislocatedontheleftsideof
theconsole(Figure5).Thebrakeleverengagesa
parkingbrakeonthedrivewheels.

Usethepowerpointtopower12Vaccessories
(Figure6).

Important:Whennotusingthe12Vpowerpoint,

inserttherubberplugtopreventdamagetothe
powerpoint.

KeySwitch

Thekeyswitch,usedtostartandshutofftheengine,
has3positions:OFF,RUN,andST ART.Referto

StartingtheEngine(page19).

Blade-ControlSwitch(Power
Takeoff)

Theblade-controlswitch,representedbya
power-takeoff(PTO)symbol,engagesand
disengagespowertothemowerblades(Figure6).

Height-of-CutLever

Theheight-of-cutleverworkswiththefootpedalto
lockthedeckinaspeciccuttingheight.Adjustthe
heightofcutonlywhenthemachineisnotmoving
(Figure5).

Toengagetheparkingbrake,pulluptheleveruntilit
latchesintothedetentslot.

Todisengagetheparkingbrake,pulltheleveroutof
thedetentslotandtowardyou,thenpushitdown.

FootPedalDeck-LiftSystem

Thefootpedaldeck-liftsystemallowsyoutolower
andraisethedeckfromtheseatedposition.Y ou
canusethefootpedaltoliftthedeckbrieytoavoid
obstaclesorlockthedeckinthehighestheightofcut
ortransportposition(Figure5).

SmartSpeed™ControlSystem
Lever

TheSmartSpeed™Control-Systemlever,located
belowtheoperatingposition,givesyouachoiceto
drivethemachineat3speedranges—trim,tow,and
mow(Figure24).

Attachments/Accessories

AselectionofToroapprovedattachmentsand
accessoriesisavailableforusewiththemachineto
enhanceandexpanditscapabilities.Contactyour
AuthorizedServiceDealerorDistributororgoto
www.T oro.comforalistofallapprovedattachments
andaccessories.

Tobestprotectyourinvestmentandmaintainoptimal
performanceofyourToroequipment,countonT oro
genuineparts.Whenitcomestoreliability,T oro
deliversreplacementpartsdesignedtotheexact
engineeringspecicationofourequipment.Forpeace
ofmind,insistonTorogenuineparts.

11

Operation

Note:Determinetheleftandrightsidesofthe

machinefromthenormaloperatingposition.

BeforeOperation

BeforeOperationSafety

GeneralSafety

•Neverallowchildrenoruntrainedpeopleto

operateorservicethemachine.Localregulations
mayrestricttheageoftheoperator.Theowner
isresponsiblefortrainingalloperatorsand
mechanics.

•Becomefamiliarwiththesafeoperationofthe

equipment,operatorcontrols,andsafetysigns.

•Knowhowtostopthemachineandshutoffthe

enginequickly.

•Checkthatoperator-presencecontrols,safety

switches,andshieldsareattachedandfunctioning
properly.Donotoperatethemachineunlessthey
arefunctioningproperly.

•Beforemowing,alwaysinspectthemachineto

ensurethattheblades,bladebolts,andcutting
assembliesareingoodworkingcondition.
Replacewornordamagedbladesandboltsinsets
topreservebalance.

•Inspecttheareawhereyouwillusethemachine

andremoveallobjectsthatthemachinecould
throw.

•Evaluatetheterraintodeterminetheappropriate

equipmentandanyattachmentsoraccessories
requiredtooperatethemachineproperlyand
safely.

FuelSafety

•Toavoidpersonalinjuryorpropertydamage,use

extremecareinhandlingfuel.Fuelvaporsare
ammableandexplosive.

•Extinguishallcigarettes,cigars,pipes,andother

sourcesofignition.

•Useonlyanapprovedfuelcontainer.

•Donotremovethefuelcaporaddfueltothefuel

tankwhiletheengineisrunningorwhilehot.

•Donotrefuelthemachineindoors.

•Donotstorethemachineorfuelcontainerwhere

thereisanopename,spark,orpilotlight,such
asonawaterheateroronotherappliances.

•Donotllcontainersinsideavehicleoronatruck

ortrailerbedwithaplasticliner.Alwaysplace

containersontheground,awayfromyourvehicle
beforelling.

•Removetheequipmentfromthetruckortrailer

andrefuelitwhileitisontheground.Ifthisisnot
possible,thenrefuelfromaportablecontainer
ratherthanafuel-dispensernozzle.

•Donotoperatethemachinewithouttheentire

exhaustsysteminplaceandinproperworking
condition.

•Keepthefuel-dispensernozzleincontactwith

therimofthefueltankorcontaineropeningat
alltimesuntilfuelingiscomplete.Donotusea
nozzlelock-opendevice.

•Ifyouspillfuelonyourclothing,changeyour

clothingimmediately.Wipeupanyfuelthatspills.

•Neveroverllthefueltank.Replacethefuelcap

andtightenitsecurely.

•Storefuelinanapprovedcontainerandkeepit

outofthereachofchildren.Neverbuymorethan
a30-daysupplyoffuel.

•Donotllthefueltankcompletelyfull.Addfuelto

thefueltankuntilthelevelis6to13mm(1/4to
1/2inch)belowthebottomofthellerneck.This
emptyspaceinthetankallowsfueltoexpand.

–Avoidprolongedbreathingofvapors.
–Keepyourfaceawayfromthenozzleandfuel

tankopening.

–Avoidcontactwithskin;washoffspillswith

soapandwater.

AddingFuel

RecommendedFuel

•Forbestresults,useonlyclean,fresh(lessthan

30daysold),unleadedgasolinewithanoctane
ratingof87orhigher((R+M)/2ratingmethod).

•Ethanol:Gasolinewithupto10%ethanol

(gasohol)or15%MTBE(methyltertiarybutyl
ether)byvolumeisacceptable.Ethanoland
MTBEarenotthesame.Gasolinewith15%
ethanol(E15)byvolumeisnotapprovedforuse.

Neverusegasolinethatcontainsmorethan
10%ethanolbyvolume,suchasE15(contains

15%ethanol),E20(contains20%ethanol),orE85
(containsupto85%ethanol).Usingunapproved
gasolinemaycauseperformanceproblemsand/or
enginedamagewhichmaynotbecoveredunder
warranty.

•Donotusegasolinecontainingmethanol.

•Donotstorefueleitherinthefueltankorfuel

containersoverthewinterunlessyouuseafuel
stabilizer.

•Donotaddoiltogasoline.

12

UsingStabilizer/Conditioner

Useafuelstabilizer/conditionerinthemachineto
providethefollowingbenets:

•Keepsfuelfreshduringstorageof90daysorless

(drainthefueltankwhenstoringthemachinefor
morethan90days)

•Cleanstheenginewhileitruns

•Eliminatesgum-likevarnishbuildupinthefuel

system,whichcauseshardstarting

Important:Donotusefueladditives

containingmethanolorethanol.

Addthecorrectamountoffuelstabilizer/conditioner
tothefuel.

Note:Afuelstabilizer/conditionerismost

effectivewhenmixedwithfreshfuel.T ominimize
thechanceofvarnishdepositsinthefuelsystem,
usefuelstabilizeratalltimes.

FillingtheFuelTank

1.Parkthemachineonalevelsurface.

2.Engagetheparkingbrake.

3.Shutofftheengineandremovethekey.

4.Cleanaroundthefuel-tankcap.

5.Fillthefueltankuntilthefuelgaugereadsatthe

fullmark(Figure8).

Note:Donotllthefueltankcompletelyfull.

Theemptyspaceinthetankallowsthefuelto
expand.

g197123

Figure8

PerformingDaily Maintenance

Beforestartingthemachineeachday ,performthe
EachUse/DailyprocedureslistedinMaintenance

(page27).

BreakinginaNewMachine

Newenginestaketimetodevelopfullpower.Mower
decksanddrivesystemshavehigherfrictionwhen
new,placingadditionalloadontheengine.Allow
40to50hoursofbreak-intimefornewmachinesto
developfullpowerandbestperformance.

13

UsingtheSafety-Interlock System

WARNING

Ifthesafety-interlockswitchesare
disconnectedordamaged,themachinecould
operateunexpectedly,causingpersonal
injury.

•Donottamperwiththeinterlockswitches.

•Checktheoperationoftheinterlock
switchesdailyandreplaceanydamaged
switchesbeforeoperatingthemachine.

Understandingthe Safety-InterlockSystem

Thesafety-interlocksystemisdesignedtopreventthe
enginefromstartingunless:

•Theblade-controlswitch(PTO)isdisengaged.

andriseslightlyfromtheseat;theengineshould
shutoff.

4.Sitontheseat,engagetheparkingbrake,
movetheblade-controlswitch(PTO)totheOFF
position,andmovethemotion-controllevers
toNEUTRAL-LOCKposition.Starttheengine.
Whiletheengineisrunning,centereither
motion-controlleverandmoveitforwardor
reverse;theengineshouldshutoff.Repeatfor
othermotion-controllever.

5.Sitontheseat,disengagetheparkingbrake,
movetheblade-controlswitch(PTO)totheOFF
position,andmovethemotion-controlleversto
NEUTRAL-LOCKposition.Trystartingtheengine;
theengineshouldnotcrank.

PositioningtheSeat

Theseatcanmoveforwardandbackward.Position
theseatwhereyouhavethebestcontrolofthe
machineandaremostcomfortable(Figure9).

•Themotion-controlleversareintheNEUTRAL-LOCK

position.

•Theparkingbrakeisengaged.

Thesafety-interlocksystemalsoisdesignedtoshut
offtheenginewheneverthecontrolleversareoutof
theNEUTRAL-LOCKpositionandyourisefromtheseat.

TestingtheSafety-Interlock System

ServiceInterval:Beforeeachuseordaily

Testthesafety-interlocksystembeforeyouusethe
machineeachtime.Ifthesafetysystemdoesnot
operateasdescribedbelow,haveanAuthorized
ServiceDealerrepairthesafetysystemimmediately .

1.Sitontheseat,engagetheparkingbrake,and
movetheblade-controlswitch(PTO)totheON
position.Trystartingtheengine;theengine
shouldnotcrank.

2.Sitontheseat,engagetheparkingbrake,and
movetheblade-controlswitch(PTO)totheOFF
position.Moveeithermotion-controllever(out
oftheNEUTRAL-LOCKposition).Trystartingthe
engine;theengineshouldnotcrank.Repeatfor
othercontrollever.

g027632

Figure9

3.Sitontheseat,engagetheparkingbrake,
movetheblade-controlswitch(PTO)totheOFF
position,andmovethemotion-controlleversto
theNEUTRAL-LOCKposition.Starttheengine.
Whiletheengineisrunning,releasetheparking
brake,engagetheblade-controlswitch(PTO),

14

Adjustingthe Motion-ControlLevers

AdjustingtheHeight

Youcanadjustthemotion-controllevershigheror
lowerformaximumcomfort(Figure10).

Figure10

AdjustingtheTilt

Youcanadjustthemotion-controlleversforwardor
rearwardforyourcomfort.

1.Loosentheupperboltholdingthecontrollever
tothecontrol-armshaft.

2.Loosenthelowerboltjustenoughtopivotthe
controlleverforwardorrearward(Figure10).

3.Tightenbothboltstosecurethecontrolleverin
thenewposition.

4.Repeattheadjustmentfortheothercontrollever.

DuringOperation

DuringOperationSafety

GeneralSafety

•Theowner/operatorcanpreventandisresponsible

foraccidentsthatmaycausepersonalinjuryor
propertydamage.

•Wearappropriateclothing,includingeye

protection;longpants;slip-resistant,substantial
footwear;andhearingprotection.Tiebacklong
hairanddonotwearjewelry.

•Donotoperatethemachinewhileill,tired,or

undertheinuenceofalcoholordrugs.

•Nevercarrypassengersonthemachineandkeep

bystandersandpetsawayfromthemachine
duringoperation.

•Operatethemachineonlyingoodvisibilitytoavoid

g027252

holesorhiddenhazards.

•Avoidmowingonwetgrass.Reducedtraction

couldcausethemachinetoslide.

•Ensurethatalldrivesareinneutral,theparking

brakeisengaged,andyouareintheoperating
positionbeforeyoustarttheengine.

•Keepyourhandsandfeetawayfromthecutting

units.Keepclearofthedischargeopeningatall
times.

•Lookbehindanddownbeforebackinguptobe

sureofaclearpath.

•Usecarewhenapproachingblindcorners,shrubs,

trees,orotherobjectsthatmayobscureyour
vision.

•Donotmowneardrop-offs,ditches,or

embankments.Themachinecouldsuddenlyroll
overifawheelgoesovertheedgeoriftheedge
givesway.

•Stopthebladeswheneveryouarenotmowing.

•Stopthemachineandinspectthebladesafter

strikinganobjectorifthereisanabnormal
vibrationinthemachine.Makeallnecessary
repairsbeforeresumingoperation.

•Slowdownandusecautionwhenmakingturns

andcrossingroadsandsidewalkswiththe
machine.Alwaysyieldtheright-of-way.

•Disengagethedrivetothecuttingunitandshut

offtheenginebeforeadjustingtheheightof
cut(unlessyoucanadjustitfromtheoperating
position).

•Neverrunanengineinanareawhereexhaust

gasesareenclosed.

•Neverleavearunningmachineunattended.

15

•Beforeleavingtheoperatingposition(including

toemptythecatchersortounclogthechute),do
thefollowing:

–Stopthemachineonlevelground.

–Disengagethepowertake-offandlowerthe

attachments.

–Engagetheparkingbrake.

–Shutofftheengineandremovethekey.

–Waitforallmovingpartstostop.

•Donotoperatethemachinewhenthereistherisk

oflightning.

•Donotusethemachineasatowingvehicleunless

ithasahitchinstalled.

•Donotchangethegovernorspeedoroverspeed

theengine.

•Useonlyaccessoriesandattachmentsapproved

byToro.

•Thismachineproducessoundlevelsinexcess

of85dBAattheoperator’searandcancause
hearinglossthroughextendedperiodsof
exposure.

•Identifyhazardsatthebaseoftheslope.Do

notoperatethemachineneardropoffs,ditches,
embankments,water,orotherhazards.The
machinecouldsuddenlyrolloverifawheelgoes
overtheedgeortheedgecollapses.Keepasafe
distance(twicethewidthofthemachine)between
themachineandanyhazard.Useawalkbehind
machineorahandtrimmertomowthegrassin
theseareas.

•Avoidstarting,stoppingorturningthemachineon

slopes.Avoidmakingsuddenchangesinspeedor
direction;turnslowlyandgradually.

•Donotoperateamachineunderanyconditions

wheretraction,steeringorstabilityisinquestion.
Beawarethatoperatingthemachineonwet
grass,acrossslopesordownhillmaycausethe
machinetolosetraction.Lossoftractiontothe
drivewheelsmayresultinslidingandalossof
brakingandsteering.Themachinecanslideeven
ifthedrivewheelsarestopped.

•Removeormarkobstaclessuchasditches,holes,

ruts,bumps,rocks,orotherhiddenhazards.T all
grasscanhideobstacles.Uneventerraincould
overturnthemachine.

Figure11

1.Wearhearingprotection.

SlopeSafety

•Slopesareamajorfactorrelatedtolossofcontrol

androlloveraccidents,whichcanresultinsevere
injuryordeath.Theoperatorisresponsiblefor
safeslopeoperation.Operatingthemachineon
anysloperequiresextracaution.Beforeusingthe
machineonaslope,dothefollowing:

–Reviewandunderstandtheslopeinstructions

inthemanualandonthemachine.

–Useanangleindicatortodeterminethe

approximateslopeangleofthearea.

–Neveroperateonslopesgreaterthan15

degrees.

–Evaluatethesiteconditionsofthedayto

determineiftheslopeissafeformachine
operation.Usecommonsenseandgood
judgmentwhenperformingthisevaluation.
Changesintheterrain,suchasmoisture,can
quicklyaffecttheoperationofthemachineon
aslope.

•Useextracarewhileoperatingwithaccessoriesor

attachments,suchasgrasscollectionsystems.
Thesecanchangethestabilityofthemachine
andcausealossofcontrol.Followdirectionsfor
counterweights.

g229846

•Ifpossible,keepthedeckloweredtotheground

whileoperatingonslopes.Raisingthedeckwhile
operatingonslopescancausethemachineto
becomeunstable.

•A2-postROPS(RolloverProtectionSystem)is

availableforthemachineasanaccessory.A
ROPSisrecommendedifyouwillbemowingnext
todrop-offs,nearwater,oronsteepbanks,which
couldresultinarollover.ContactanAuthorized
ServiceDealerformoredetails.TheCalifornia
CodeofRegulationsrequiresROPS(ifavailable)
onallmowersusedcommercially ,effectiveMarch
1,201 1.

16
