Toro 72110 Parts Catalogue
FORM NO. 3317–776
Lawn & Garden
Tractor
Model No. 72110 — 6900001 & Up
Parts Catalog
3317–776
ORDERING REPLACEMENT PARTS
To order replacement parts, please supply: the part number, the quantity, and the description of each
part desired.
Contents
Description Page Description Page
Hood and Grill 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Dash 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Steering Wheel and Tilt 3. . . . . . . . . . . . . . . . . . . . . .
Lower Steering 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front Axle 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Seat 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fender and Footrest 7. . . . . . . . . . . . . . . . . . . . . . . . .
Twin Cylinder Engine, Muffler, and P.T.O. 8. . . . . . .
Clutch 92–6885 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Battery 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hoodstand and Firewall 11. . . . . . . . . . . . . . . . . . . . . .
Fuel Tank and Hydro Reservoir 12. . . . . . . . . . . . . . . .
Lift Lever and Height of Cut 13. . . . . . . . . . . . . . . . . . .
Power Lift 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Frame 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hydro Drive Components 16. . . . . . . . . . . . . . . . . . . . .
Hydro Brake 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hydro Control 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hydro Transaxle 19. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cruise Control 20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Wheel 21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Crankshaft 22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Crankcase 23. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Oil Pan / Lubrication 24. . . . . . . . . . . . . . . . . . . . . . . . .
Head / Valve / Breather 25. . . . . . . . . . . . . . . . . . . . . .
Ignition / Electrical 26. . . . . . . . . . . . . . . . . . . . . . . . . . .

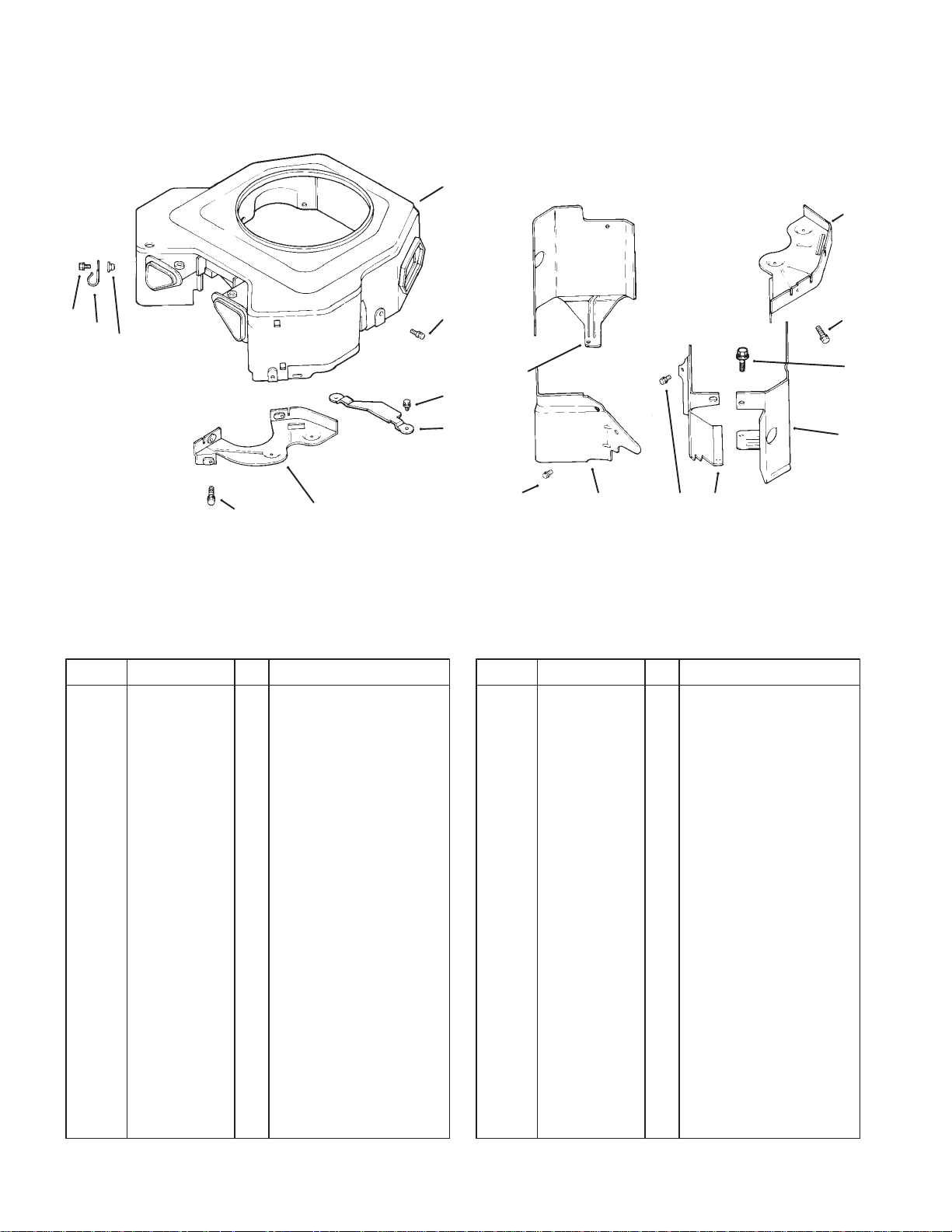

Blower Housing & Baffles 27. . . . . . . . . . . . . . . . . . . . .
Starting System 28. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

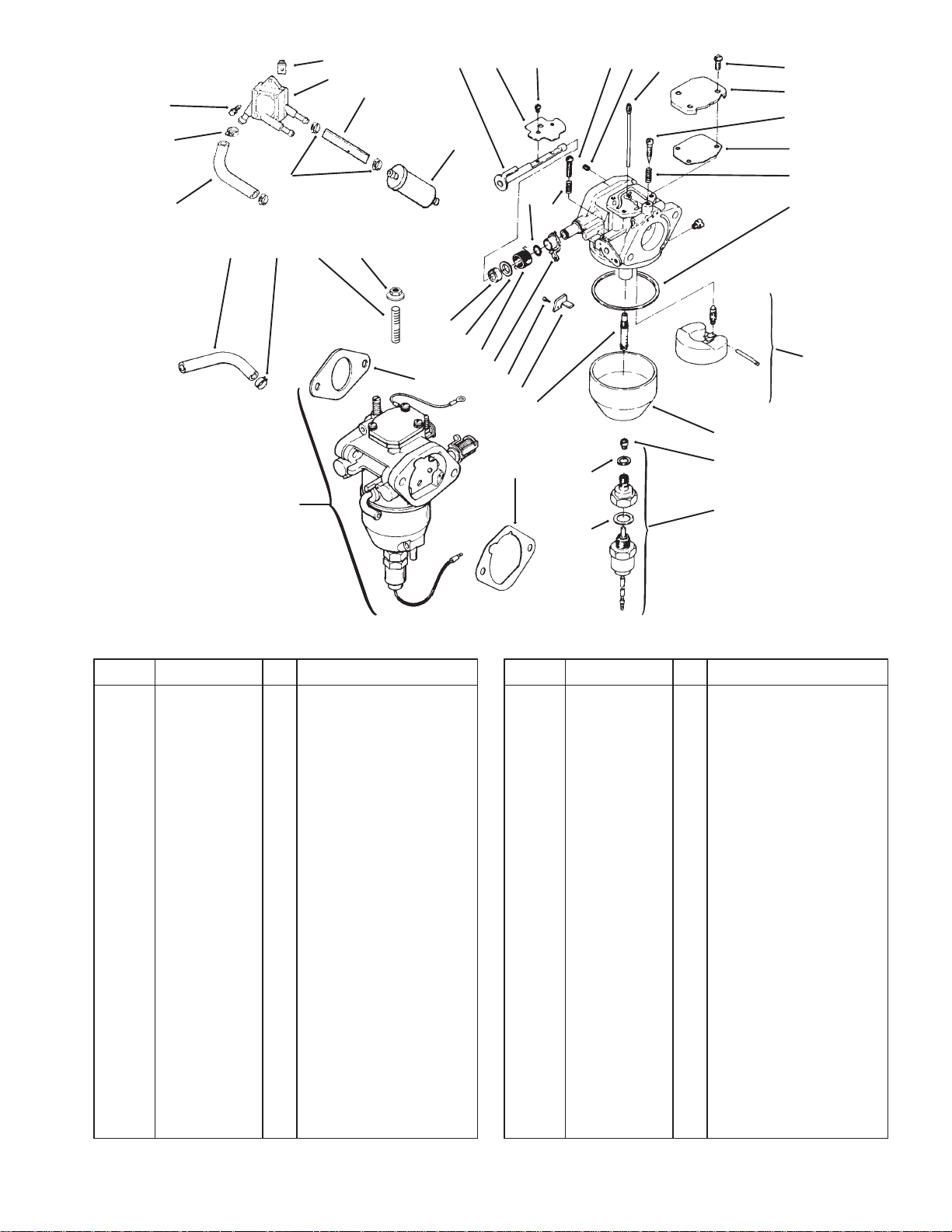

Fuel System 29. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel System 30. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine Controls 31. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Air Intake / Filtration 32. . . . . . . . . . . . . . . . . . . . . . . . .
Exhaust 33. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Transaxle Case 34. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Center Case 35. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pump Shaft 36. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Motor Shaft 37. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Range Shift 38. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Bypass Return 39. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Lever Damper 40. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
N-Centering 41. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brake Interlock 42. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Differential Gear 43. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Final Pinion 44. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Axle Shaft 45. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brake 46. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electric Schematic Twin Cyl. Hydro Drive,
Cruise w/Lift 47. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wire Harness Routing — Twin Cylinder Engine 48. .
Wire Harness Routing — Hydro/wCruise 49. . . . . . .
Accessories
Description Model / Parts No. Description Model / Parts No.
38″ Side Discharge Mower 78216. . . . . . . . . . . . . . .
38″ Recycler Mower 78226. . . . . . . . . . . . . . . . . . . . .
42″ Side Discharge Mower 78231. . . . . . . . . . . . . . .
48″ Side Discharge Mower 78260. . . . . . . . . . . . . . .
52” Side Discharge Mower 78280. . . . . . . . . . . . . . .
52” Recycler Mower 78285. . . . . . . . . . . . . . . . . . . . .
38″ Twin Bagger 79202. . . . . . . . . . . . . . . . . . . . . . . .
48″ Vacuum Bagger 79203. . . . . . . . . . . . . . . . . . . . .
48″ Snow Blade 79252. . . . . . . . . . . . . . . . . . . . . . . . .
42″ Snow Thrower 79263. . . . . . . . . . . . . . . . . . . . . .
36″ Tiller 79271. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hour Meter Kit 92–6898. . . . . . . . . . . . . . . . . . . . . . .
Indicator Light 92–6897. . . . . . . . . . . . . . . . . . . . . . .
Part Description Abbreviations
Part descriptions in this catalog may include the following abbreviations.
Abbreviation Meaning Abbreviation Meaning
ii
The TORO Company — 1995
All Rights Reserved
3317–776
AR as required. . . . . . . . . . . . . . . . .
ASM assembly. . . . . . . . . . . . . . . .
CARR carriage. . . . . . . . . . . . . .
DEG degrees. . . . . . . . . . . . . . . .
FH flat head. . . . . . . . . . . . . . . . .
GA gauge. . . . . . . . . . . . . . . . .
HF hex flange. . . . . . . . . . . . . . . . .
HFW hex flange washer. . . . . . . . . . . . . . .
HH hex head. . . . . . . . . . . . . . . . .
HHF hex head flange. . . . . . . . . . . . . . . .
HHST hex head self tapping. . . . . . . . . . . . . . .
HJ hex jam. . . . . . . . . . . . . . . . . .
HOC height-of-cut. . . . . . . . . . . . . . . .
HS hex socket. . . . . . . . . . . . . . . . .
HSBH hex socket button head. . . . . . . . . . . . . .
HSFH hex socket flat head. . . . . . . . . . . . . . .
HSH hex socket head. . . . . . . . . . . . . . . .
HWH hex washer head. . . . . . . . . . . . . . .
HWHTF hex washer head. . . . . . . . . . . . .
thread forming
INC incorporated. . . . . . . . . . . . . . . . .
LH left hand. . . . . . . . . . . . . . . . .
PH pan head. . . . . . . . . . . . . . . . .
PPH Phillips pan head. . . . . . . . . . . . . . . .
PTO power take off. . . . . . . . . . . . . . . .
RH right hand. . . . . . . . . . . . . . . . .
SFH slotted fillister head. . . . . . . . . . . . . . . .
SH square head. . . . . . . . . . . . . . . . .
SHWH slotted hex washer head. . . . . . . . . . . . . .
SPH slotted pan head. . . . . . . . . . . . . . . .
STD standard. . . . . . . . . . . . . . . .
TAP self tapping. . . . . . . . . . . . . . . .
TH truss head. . . . . . . . . . . . . . . . .
TTH Torx truss head. . . . . . . . . . . . . . . .
WH wing head. . . . . . . . . . . . . . . . .
Important Format Explanations
This catalog uses special formats to convey information in illustrations and parts lists. Specifically, one format is
used in conjunction with service assemblies and another with quantities associated with reference numbers.
Service Assemblies
Parts within service assemblies have reference numbers in the form
assembly and Y is a sequential number unique to each part within the service assembly.
For example, a wheel assembly might be identified by reference number 6, the tire by 6:1, the valve by 6:2, and
the wheel by 6:3. When you order the assembly identified by reference number 6, you receive all parts identified
by reference numbers 6:1, 6:2, and 6:3. However, you may also order any part individually.
Reference numbers of this type appear in part lists and as callouts in illustrations.
X:Y. X
is the reference number of the service
iii
Reference Numbers with Quantities
Illustrations may have a quantity in parentheses next to a reference number, in the form
number. Y in parentheses is the quantity of the part identified by the reference number.
For example, the illustration callout 4 (2) indicates that two parts are used in that instance.
X (Y). X
3317–776
is the reference
iv
Parts Identified in illustration but not in parts list are not used on this Model
1 (2)
3317–776
2
26 (2)
24
10
23
27
28
29
30
31 (2)
22
32
33 (2)
5 (4)
20 LH
Hood and Grill
19 (2)
19 (2)
16 (2)
17 LH
3
4
6 (2)
7 LH
9 LH9 LH
11 (2)
12 LH
14 (4)
14 (4)
15 (2)
DescriptionPart No. Qty.Ref. No. DescriptionPart No. Qty.Ref. No.
1 94–1980 2 Foam–Hood
2 93–0490 1 Hood
3 92–7076 1 Inlet–Seal Air
4 92–7006 4 Nut
5 32105–15 12 Screw–HH
6 92–7148 2 Foam–Sidepanel
7 93–0491 1 Sidepanel–LH Hood
8 93–0492 1 Sidepanel–RH Hood
9 92–6918–03 1 Bracket–Hinge LH
10 92–6917–03 1 Bracket–Hinge RH
11 32144–14 2 Screw–HH
12 92–6728 1 Decal–Hood LH
13 92–6729 1 Decal–Hood RH
14 32128–10 8 Nut–Lock HHF
15 322–3 2 Screw–HH
16 105503 2 Bushing
17 92–6997–03 1 Hinge–Hood LH
18 92–6996–03 1 Hinge–Hood RH
19 3296–29 4 Nut–Lock
20 92–7049–03 1 Bracket–Hood Hinge
LH
21 92–7048–03 1 Bracket–Hood Hinge
RH
22 93–0494 1 Grille & Screen ASM
23 92–6656 1 Lens–Headlight
24 92–6987 1 Decal–Horsehead
26 3230–1 2 Screw–CARR
27 702366 1 Clip–Wire Retainer
28 88–3970 1 Reflector–Lamp
29 88–4320 1 Harness–Wire
30 614249 1 Tie Strap
31 46–8093 2 Screw–TAP
32 92–6914–03 1 Baffle–Hood Upper
33 32144–32 2 Screw–Plastic
5
3317–776
Parts Identified in illustration but not in parts list are not used on this Model
1 2 (2) 3 (2) 4 5 (2) 6 7 8
9
10 (2)
31
11
20
30
29 (3)
262728 23 (2) 24 23 (2) 22 1925
DescriptionPart No. Qty.Ref. No. DescriptionPart No. Qty.Ref. No.
7 94–1894 1 Dash–Hydro
8 92–6680 1 Boot–Steering
9 94–2966 1 Clip–Boot
10 66–0120 2 Knob
11 93–0533 1 Cover–Cruise
13 93–7255 1 Decal–Dash
14 62–7770 1 Key–Ignition
15 700919 1 Nut
16 93–9998 1 Switch–PTO
17 92–6785 1 Switch–Ignition
18 93–7256 1 Decal–Dash
19 94–3513 1 Cover–Lift
20 93–0527 1 Switch–Cruise
21 94–1742 1 Switch–Lift
22 92–6784 1 Control–Throttle
23 32144–32 4 Screw–Plastic
24 92–6783 1 Control–Choke
25 93–7308 1 Decal–Dash Lens
26 92–6705 1 Lens–Dash
27 94–4208 1 Hourmeter
28 93–8452 1 ASM–Housing
29 32104–118 3 Screw–PH
30 32144–8 2 Screw–PPH
31 116397 4 Relay
12
13
14
15
16
17
18
21
Dash
6
Parts Identified in illustration but not in parts list are not used on this Model
6:1
3317–776
24 (4)
1 2 (4) 3 4 5
23
22
16
19 (2)
20 (2)
18
17
16
6
12
13
14
15
11
9
1010
7
8
Steering Wheel and Tilt
DescriptionPart No. Qty.Ref. No. DescriptionPart No. Qty.Ref. No.
1 92–6777–03 1 Bracket–Support
2 321–4 4 Screw–HH
3 93–1146 1 Bushing–Steering
4 7896 1 Washer–Bowed
5 92–6971 1 Lever–Tilt
6 94–3501 1 Steering Wheel–Soft
Touch
6:1 88–3870 1 Cover–Steering Wheel
7 3217–9 1 Nut–HH
8 3253–7 1 Washer–Lock
9 94–2874 1 Shaft–Steer Upper
10 3256–28 1 Washer–Flat
11 92–6798 1 Cap–Rod
12 93–1148–03 1 Column
13 92–6776 1 Bracket–Detent
14 93–1357 1 Spring–Extension
15 92–6999 1 Spacer–Yoke
16 3256–23 2 Washer–Flat
17 322–3 1 Screw–HH
18 92–6717 1 U–Joint–Steering
19 3253–4 2 Washer–Lock
20 48–7730 2 Screw–HH
21 3296–29 2 Nut–Lock
22 92–6998 1 Spacer–Yoke
23 322–17 1 Screw–HH
24 3296–8 4 Nut–Lock
21 (2)
7
3317–776
Parts Identified in illustration but not in parts list are not used on this Model
5
6
4
3
2
1
8:1
7
8
9
10
12
Lower Steering
DescriptionPart No. Qty.Ref. No. DescriptionPart No. Qty.Ref. No.
1 111419 1 Washer–Bearing
2 78–2610 1 Gear–Sector
3 111418 1 Bushing
4 78–9150–03 1 Plate
5 108881 1 Nut–Hex
6 110391 1 Bearing–Wheel
7 109189 1 Bearing–Flange
8 111383 1 Collar W/Set Screw
8:1 3245–32 1 Screw–Set
9 111646 1 Grip Ring
10 92–6702 1 Shaft–Steering Lower
11 1278 2 Washer–Shim
12 3231–4 1 Bolt–CARR
11 (2)11 (2)
8
Parts Identified in illustration but not in parts list are not used on this Model
3317–776
1 (2)
20 (4)
17 (4)
3:2 (2)
3:5
2 (2)
3:3
3:1
3:4
5 (2)
3
4
6
7:2
7:1
7:3
7
8 (2)
9
9:3
10
11
8 (2)
9:1
12
9:2
13 (2)
18 (2)
DescriptionPart No. Qty.Ref. No. DescriptionPart No. Qty.Ref. No.
1 61–9780 2 Hubcap
2 3272–17 2 Pin–Cotter
3 2 ASM–Wheel & Tire
3:1 93–9801 2 ASM–Wheel W/Zerk
3:2 110513 4 Bearing–Wheel
3:3 5108 2 Valve–Tire Tubeless
3:4 117127 2 Tire
4 78–7960–01 1 Axle–Front
5 933270 2 Pin–Roll
6 78–1950–01 1 Arm–Front Spindle LH
7 92–6883 1 Steering Link RH
7:1 1 Nut–Hex Jam
7:2 78–2920 1 Joint–Ball
7:3 78–5801 1 Joint–Ball RH W/ Jam
Nut
8 9150026 4 Nut–Lock
9 92–6884 1 Steering Link LH
9:1 1 Nut–Hex Jam
9:2 78–2920 1 Joint–Ball
9:3 78–5811 1 Joint–Ball LH
10 9267154 1 Screw
11 92–7057–03 1 Pin–Front
12 78–1940–01 1 Arm–Front Spindle RH
13 78–2601–01 2 Spindle
14 302–5 2 Fitting–Grease
14 (2)1516 (2)17 (2)18 (2)19
Front Axle
15 302–11 1 Fitting–Grease
16 9202324 2 Washe
17 1278 4 Washer–Shim
18 5210 4 Washer–Shim
19 5618 1 Ring–Retaining
20 28–2480 2 Washer–Flat
Not serviced
9
3317–776
Parts Identified in illustration but not in parts list are not used on this Model
1
2
3 (2)
4 (2)
21 (2)
20 (2)
19 (4)
18 (2)
17
16 (2)
16 (4)
5
6
7 (2)
8 (2)
9 (2)
10 (2)
11 (4)
12 (2)
13 (4)
4 (2)
14 (2)
15
Seat
DescriptionPart No. Qty.Ref. No. DescriptionPart No. Qty.Ref. No.
1 92–6511 1 Seat
1:1 94–4909 1 Trim–Seat
2 38–1420 1 Switch–Seat
3 92–6750 2 Spacer–Nylon
4 322–5 4 Screw–HH
5 92–6972–03 1 Support–Seat
6 114621 1 Decal–Noise
7 92–7054 2 Spring–Compression
8 92–6986 2 Bolt–Shoulder
9 3296–58 2 Nut–Flange
10 701178 2 Cap–Protector
11 3290–282 4 Pop Rivet
12 106557 2 Reflector
13 3256–49 4 Washer–Flt
14 105503 2 Bushing
15 79–0970–03 1 Bracket–Pivot LH
16 3296–29 6 Nut–Lock
17 79–0950–03 1 Bracket–Pivot RH
18 700806 2 Knob
19 3230–2 4 Screw–CARR
20 94–2869 2 Washer–Flat
21 109989 2 Spacer
10
19
21
20 (4)
24
23
22 (2)
26
25 (4)
Parts Identified in illustration but not in parts list are not used on this Model
1
28
27
4 (4)
11 (4)
2
3
3317–776
4 (2)
5
6
7 (2)
8 (2)
9 (2)
10 (2)
11 (2)
11 (4)
12 (4)
18
Fender and Footrest
DescriptionPart No. Qty.Ref. No. DescriptionPart No. Qty.Ref. No.
*1 1 Decal–Model/Serial Ce
2 702366 1 Clip–Wire Retainer
3 92–6730 1 Decal–Rear Fender
4 3230–2 6 Screw–CARR
5 92–6727 1 Decal–Fuel Level
6 94–1717–03 1 Rear Panel
7 3256–22 2 Washer–Flat
8 321–4 2 Screw–HH
9 609900 2 Nut–Speed
10 3256–23 2 Washer–Flat
11 3296–29 14 Nut–Lock
12 94–2869 4 Washer–Flat
13 94–1711–01 1 Footrest–LH
15 3230–20 4 Bolt–CARR
16 106288 2 Clamp
17 3290–479 14 Fastener–Panel
18 92–6688 1 Mat–Foot LH
19 92–6747–01 1 Footrest–RH
20 107069 4 Nut–Speed
21 92–6687 1 Mat–Foot RH
22 3230–23 3 Screw–CARR
23 92–7092 1 Decal–HOC
24 94–4243–01 1 Plate–Footrest
W/Decal
25 92–7020 4 Screw–TTH
26 93–7314 1 Decal–Danger
13
4 (2)
14
15 (4)
16 (2)11 (4)17 (14)
28 92–6795–01 1 Fender
29 3230–23 1 Screw–CARR
* Not illustrated
11
3317–776
5
Parts Identified in illustration but not in parts list are not used on this Model
10 (2)
9
8
7
6 (2)
5 (4)
4
3
2
1
16 (4)16 (4)
11 (4)
12
13
14
15
Twin Cylinder Engine, Muffler, and P.T.O.
DescriptionPart No. Qty.Ref. No. DescriptionPart No. Qty.Ref. No.
1 94–6950–03 1 Muffler Baffle ASM
2 702366 1 Clip–Wire Retainer
3 32144–14 3 Screw–HH
4 92–6861 1 Muffler
5 92–6780 4 Nut–HHF
6 93–0350 2 Gasket–Exhaust
7 94–3515 1 Engine–Kohler 20
8 94–2870 1 Decal–Toro Power
Plus 20
9 92–6877 1 Valve–Oil Drain
10 32144–118 2 Screw–PPH
11 3296–29 4 Nut–Lock
12 92–6888 1 Pulley
13 92–6885 1 Clutch–PTO
14 112843 1 Washer–PTO
15 9114466 1 Screw HH
16 322–9 4 Screw–HH
17 3231–25 2 Screw–CARR
18 92–6867–01 1 Shield–Muffler
19 3256–24 2 Washer–Flat
20 3296–39 2 Nut–Lock
17 (2)3 (2)1819 (2)20 (2)
Sheet No.:
12
Parts Identified in illustration but not in parts list are not used on this Model
3317–776
4
3
1
1
2
2
Clutch 92-6885
DescriptionPart No. Qty.Ref. No. DescriptionPart No. Qty.Ref. No.
1 92–3014 3 Nut & Spring ASM
2 92–3015 1 Rotor ASM W/Bearing
3 92–3016 1 Field ASM W/Bearing
4 114064 2 Bearing–Elec Clutch
4
Sheet No.: 501
13
3317–776
16
Parts Identified in illustration but not in parts list are not used on this Model
1
2 3
4 (2)
3
15
14
4 (2)
13
12
11
10
9
Battery
8 (2)
5
10:1
66
7
Sheet No.: 6
DescriptionPart No. Qty.Ref. No. DescriptionPart No. Qty.Ref. No.
1 92–6989 1 Cable–Battery Red
2 117316 1 Rod–Battery Hold
Down
3 321–4 2 Screw–HH
4 32103–22 4 Nut–Wing
5 93–0324 1 Cable–Battery Black
6 106948 1 Tray–Battery
7 78–6820–03 1 Plate–Battery
8 109547 2 Hook–Battery
9 114720 1 Tube–Battery Drain
10 94–1735 1 Harness–Wire
10:1 120930 1 Holder–Fuse
11 32144–14 1 Screw–HH
12 115877 1 Battery
13 93–6668 1 Decal–Battery Charge
Ins
14 93–7276 1 Decal–Danger
15 109553 1 Boot–Battery Cable
16 93–3190 1 Boot–Terminal
Insulator
14
Parts Identified in illustration but not in parts list are not used on this Model
1 (4) 2 4 5 (2) 6 7 (4) 8 (4)
5 (2)3 (2)
3317–776
9
10 (4)
11
12
24 (2)
23
22 (2)
21 (4)
20 (2)
19 (2)
18
17
12 (2)
26 (2)
25 (2)
Hoodstand and Firewall
DescriptionPart No. Qty.Ref. No. DescriptionPart No. Qty.Ref. No.
1 92–7020 9 Screw–TTH
2 92–6937–03 1 Cover–Side RH
3 32149–2 2 Nut–Hex Lock
4 94–1712–03 1 Panel–Support
5 3229–11 4 Bolt–CARR
6 92–6859–03 1 Support–Dash
7 3296–8 4 Nut–Lock
8 92–6860 4 Nut–Retainer
9 92–6778–03 1 Support–Column
10 321–4 4 Screw–HH
11 3296–42 3 Nut–Lock
12 93–7313 1 Decal–Danger
13 83–6620 1 Decal–Instruction
14 93–0488–03 1 Hoodstand W/Decals
15 92–6936–03 1 Cover–Side LH
16 94–3388 2 Decal–270–H
17 614249 1 Tie Strap
18 94–1749–03 1 Firewall
19 24–7924 2 Cover–Drive Shaft
20 32144–4 2 Screw–TAP
21 32103–22 4 Nut–Wing
22 46–8093 2 Screw–TAP
23 93–1131 1 Trim–Seal
24 92–6960 2 Latch–Hood
25 32144–14 2 Screw–HH
14
15
16 (2)16 (2)
27
26 32144–8 2 Screw–PPH
27 250–7 1 Tie–Cable
13
1 (4)
1
Sheet No.: 10
15
3317–776
Parts Identified in illustration but not in parts list are not used on this Model
16 (2)
12 (2)
15
14 (2)
17
1
2
3
9 (2)
8
7 (2)
10
12 (2)
13 (2)
3:1
3:2
4 (2)
5
6 (2)
Sheet No.: 7
Fuel Tank and Hydro Reservoir
DescriptionPart No. Qty.Ref. No. DescriptionPart No. Qty.Ref. No.
1 93–7328 1 Decal–Oil Check
2 88–3980 1 Gas Cap ASM
3 94–6927 1 Tank–Gas
4 2412–98 2 Clamp–Hose
5 93–1627 1 Hose–Fuel Line
6 93–1144 2 Spacer–Fuel Tank
7 321–4 2 Screw–HH
8 92–6737 1 Hose
9 2412–129 2 Clamp–Hose
10 79–3500 1 Reservoir
12 3256–22 4 Washer–Flat
13 3296–42 2 Nut–Lock
14 32144–14 2 Screw–HH
15 93–9275 1 Guard–Fan
16 32104–96 2 Screw–HHST
17 94–1716 1 Fuel Level Sensor
ASM
16
46 (2)
Parts Identified in illustration but not in parts list are not used on this Model
3 (2)21
4 6 78 95
10
11
12
13
14
15
16
17
18
19
3317–776
19
20 (2)
45
44
19
43
42
41
40
39
38
37
36 (2)
27
35
34
19
Lift Lever and Height of Cut
DescriptionPart No. Qty.Ref. No. DescriptionPart No. Qty.Ref. No.
1 3290–354 1 Nut–Speed
2 88–9930 1 Switch–Micro
3 147665 2 Screw
4 92–6794 1 Wedge–HOC Adjust
5 32144–4 1 Screw–TAP
6 92–6965 1 Rod–HOC
7 933141 1 Pin–Spirol
8 115593 1 Knob
9 78–9740 1 Decal–HOC Knob
18 3272–6 1 Pin–Cotter
19 32120–47 5 Ring–Retaining
20 3256–26 6 Washer–Flt
21 3231–25 2 Screw–CARR
22 3256–24 2 Washer–Flat
23 3296–39 2 Nut–Lock
24 79–3401–03 1 Gage Shaft
25 8870 1 Trunnion
26 3296–23 1 Nut–Lock
27 79–1250 2 Pin
28 78–7390 1 Link
29 78–2431 1 Rod
30 94–4944 1 Shaft
31 256–90 2 Bushing–Flange
32 92–6855–03 1 Arm
33 78–7360 1 Rod
34 94–3552–03 1 Lift Arm
33
24
25
26
27
28
29
30
32 31 (2)
1920
20
19
Sheet No.: 11
35 78–6810–03 1 Plate
36 32144–14 2 Screw–HH
37 32121–103 1 Pin–Spring
38 92–6978 1 Rod–HOC Indicator
39 92–7007 1 Spring–Extension
40 32121–25 1 Pin–Roll
41 78–2140 1 Trunnion
42 92–6979 1 Plate–HOC Gage
43 106269 1 Bearing–Flange
44 93–0523–03 1 Bracket–Pivot Linkage
45 32144–14 2 Screw–HH
21 (2)
22 (2)
23 (2)
17
3317–776
Parts Identified in illustration but not in parts list are not used on this Model
3
2
4 (2) 5 6
22
(3)
25
24
23 (2)
1
15
16
17 (2)
(2)
18
1917 (3)2021
7
8 (2)
9 (2)
10
11
12
13
14
Sheet No.: 26
Power Lift
DescriptionPart No. Qty.Ref. No. DescriptionPart No. Qty.Ref. No.
1 94–1700 1 Pump–Hydraulic
2 94–3344 1 Hose Assy
3 94–1713 1 Hose ASM
4 94–3561 2 Fitting–O Ring/Jic
90deg
5 94–1748–03 1 Clamp–Hydraulic
Pump
6 32103–22 1 Nut–Wing
7 94–1747–03 1 Bracket–Mounting
8 321–4 2 Screw–HH
9 3256–22 2 Washer–Flat
10 3229–33 1 Screw–CARR
11 94–3553–03 1 End Cap W.a
12 94–4927 1 Arm–HOC
13 92–6869 1 Bushing
14 94–4928 1 Bracket–Lift Arm
15 5618 1 Ring–Retaining
16 94–1708 1 Rod
17 32144–14 5 Screw–HH
18 94–1709–03 1 Bracket–Support
19 94–1701 1 Cylinder–Hydraulic Lift
20 94–1705–03 1 Cylinder Mtg Brkt
21 3272–6 1 Pin–Cotter
22 614249 1 Tie Strap
23 3296–8 2 Nut–Lock
24 1278 1 Washer–Shim
25 94–1743 1 Tubing
26 505–136 1.4 Oil–Transaxle
18
1 (2)
2 (2)
Parts Identified in illustration but not in parts list are not used on this Model
7
6
5 (4)
4
3 (2)
8
3317–776
9
10
16
DescriptionPart No. Qty.Ref. No. DescriptionPart No. Qty.Ref. No.
15
1 3296–29 2 Nut–Lock
2 3256–23 2 Washer–Flat
3 3230–2 2 Screw–CARR
4 92–6868–03 1 Bracket–Idler
5 32144–14 6 Screw–HH
6 92–6964–03 1 Bracket–HOC
7 92–6674–03 1 Support–Fender
8 322–5 1 Screw–HH
9 3296–29 1 Nut–Lock
10 94–2668 1 Frame
11 614249 1 Tie Strap
12 92–6992–03 1 Bracket–Steering
13 93–7324 2 Decal–Installation
14 92–8747 2 Decal–Attach A Matic
15 78–2491–03 1 Stop–PTO
16 8830 1 Retainer–”j”
14
5 (2)
Frame
11
12
13
Sheet No.: 14
19
3317–776
3
Parts Identified in illustration but not in parts list are not used on this Model
15 (2)
14 (2)
3 (2)
2 (2)
12
13
2
1
3
4
5
6
7
6 (2)
8
9
10
6 (2)
10 (2)
Hydro Drive Components
DescriptionPart No. Qty.Ref. No. DescriptionPart No. Qty.Ref. No.
1 2534 2 Clip–Spring
2 323–10 3 Screw–HH
3 3296–29 3 Nut–Lock
4 88–4590 1 Bolt–Shoulder
5 111419 1 Washer–Bearing
6 3256–24 7 Washer–Flat
7 92–6900 1 Arm–Idler
8 92–7101 1 Pulley–Flat
9 79–7530 1 Spring–Extension
10 3296–59 4 Nut–Lock
11 111418 1 Bushing
12 93–3658 2 Spacer
13 92–7102 2 Pulley–Idler
14 322–5 2 Screw–HH
15 3256–23 2 Washer–Flat
11
12
1313
1
10
6 (2)
Sheet No.:
20
16
15
14
Parts Identified in illustration but not in parts list are not used on this Model
1
22
21
20
18
20
19
18
17 (2)
2
3 (2)
3317–776
4
3 (2)
5
6
7
13
12 (2)
Hydro Brake
DescriptionPart No. Qty.Ref. No. DescriptionPart No. Qty.Ref. No.
1 93–3167 1 Rod–Park Brake
2 92–7009 1 Grip–Parking Brake
3 32144–14 4 Screw–HH
4 92–7000–03 1 Bracket–Park Brake
5 92–6968 1 Trunnion–Brake
6 3272–6 2 Pin–Cotter
7 3256–23 1 Washer–Flat
8 92–6988 1 Rod–Brake
9 93–0540 1 Spring–Extension
10 94–1722–03 1 Lever–Brake
11 32121–69 1 Pin–Spring
12 256–90 2 Bushing–Flange
13 3256–24 1 Washer–Flat
14 92–6982 1 Spacer–Brake
15 94–4233–03 1 Brake Pedal
16 65–2920 1 Pad–Pedal
16 92–6949 1 Tube–Brake
16 94–1720 1 Lever–Brake
17 93–0539 2 Screw–PPH
18 88–9932 2 Switch – Micro
19 3290–354 1 Nut–Speed
20 93–3240 2 Seal–Plunger
21 93–0520–03 1 Bracket–Micro Sw
22 92–7004–03 1 Support–Park Brake
11
910
886
Sheet No.: 12
21
Loading...
