FORM NO. 3316–505EN
Wheel Horse
266H
Yard Tractor
Model No. 72103 – 4900001 & Up
Operator’s Manual
IMPORTANT: Read this manual carefully. It contains information about your
safety and the safety of others. Also become familiar with the controls and
their proper use before you operate the product.
Page 2
Introduction
Thank you for purchasing a Toro product.
All of us at Toro want you to be completely satisfied
with your new product, so feel free to contact your
local Authorized Service Dealer for help with service,
genuine replacement parts, or other information you
may require.
Whenever you contact your Authorized Service
Dealer or the factory, always know the model and
serial numbers of your product. These numbers will
help the Service Dealer or Service Representative
provide exact information about your specific
product. You will find the model and serial number
plate located in a unique place on the product as
shown below.
Read this manual carefully to learn how to operate
and maintain your product correctly. Reading this
manual will help you and others avoid personal injury
and damage to the product. Although we design,
produce and market safe, state-of-the-art products,
you are responsible for using the product properly
and safely. You are also responsible for training
persons, who you allow to use the product, about safe
operation.
The warning system in this manual identifies
potential hazards and has special safety messages that
help you and others avoid personal injury, even death.
DANGER, WARNING and CAUTION are signal
words used to identify the level of hazard. However,
regardless of the hazard, be extremely careful.
DANGER signals an extreme hazard that will cause
serious injury or death if the recommended
precautions are not followed.
WARNING signals a hazard that may cause serious
injury or death if the recommended precautions are
not followed.
1

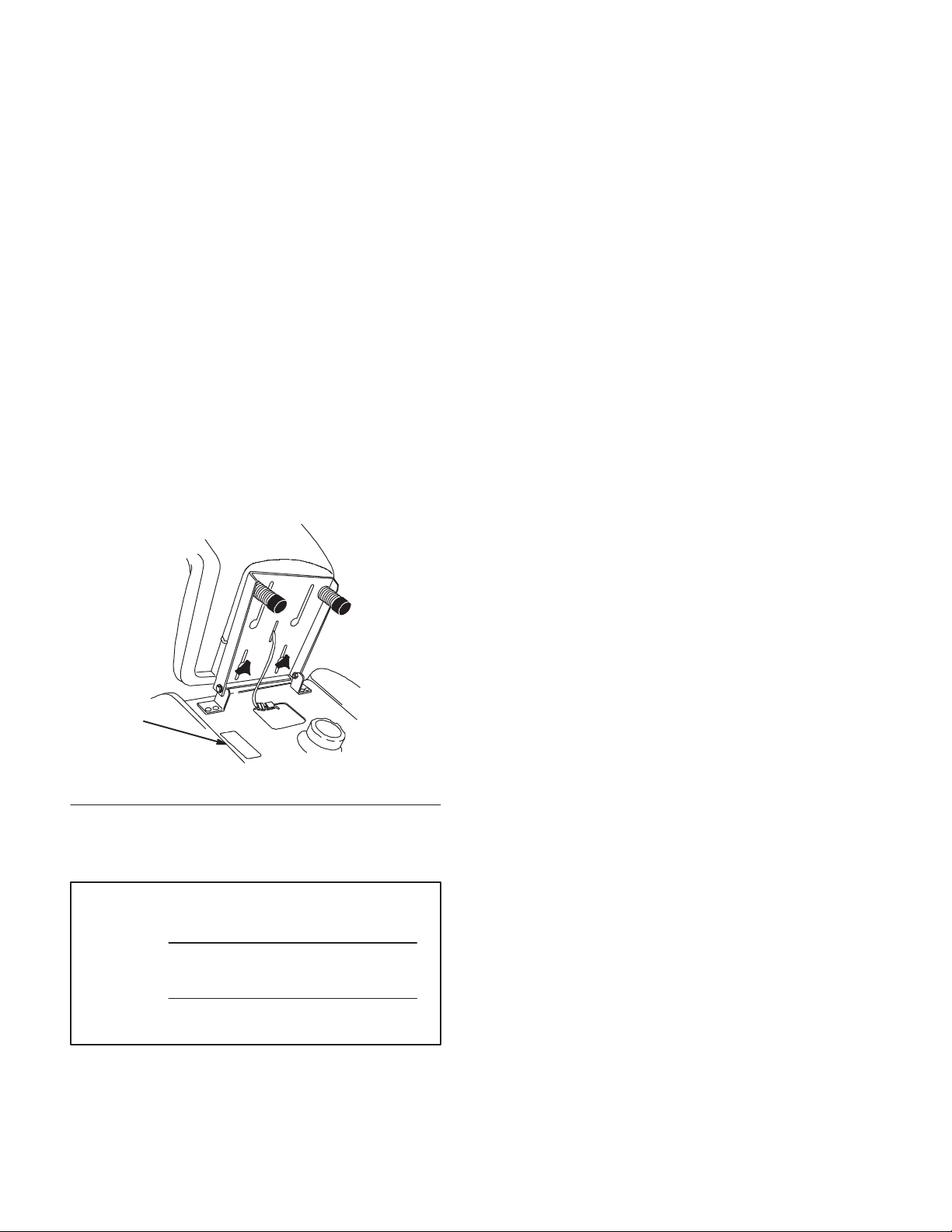

1. Model and Serial Number Plate (under the seat)
For your convenience, write the product model and
serial numbers in the space below.
Model No:
Serial No.
1202
CAUTION signals a hazard that may cause minor or
moderate injury if the recommended precautions are
not followed.
Two other words are also used to highlight
information. “Important” calls attention to special
mechanical information and “Note” emphasizes
general information worthy of special attention.
The left and right side of the machine is determined
by sitting on the seat in the normal operator’s
position.
The Toro Company – 1994
All Rights Reserved
Page 3
Contents
Safety 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safe Operating Practices 2. . . . . . . . . . . . . .
Slope Chart 5. . . . . . . . . . . . . . . . . . . . . . . . .

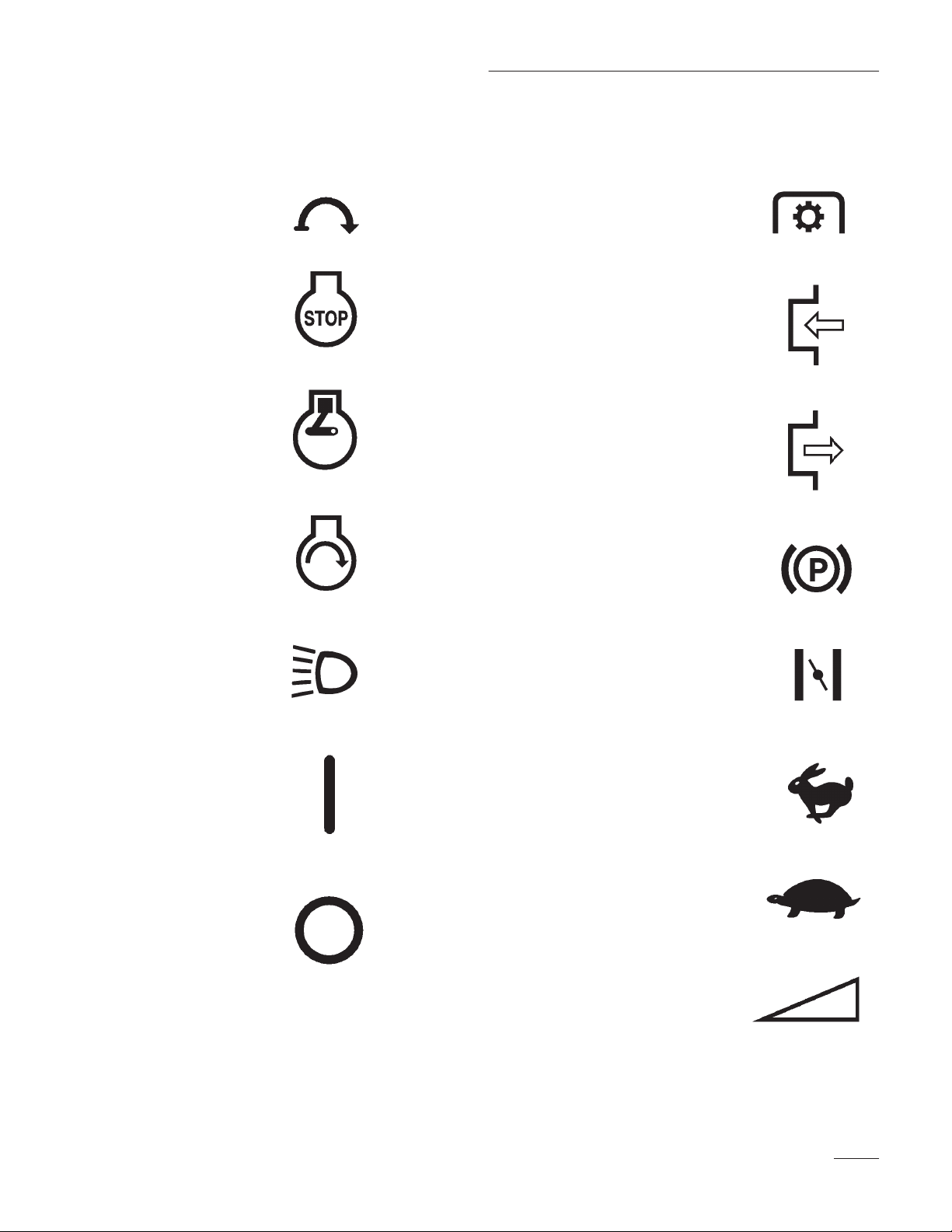

ISO Symbols 7. . . . . . . . . . . . . . . . . . . . . . .
Gasoline and Oil 8. . . . . . . . . . . . . . . . . . . . . . . .
Recommended Gasoline 8. . . . . . . . . . . . . . .
Stabilizer/Conditioner 8. . . . . . . . . . . . . . . .
Filling the Fuel Tank 8. . . . . . . . . . . . . . . . .
Check Engine Oil Level 8. . . . . . . . . . . . . . .
Operation 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Think Safety First 9. . . . . . . . . . . . . . . . . . .

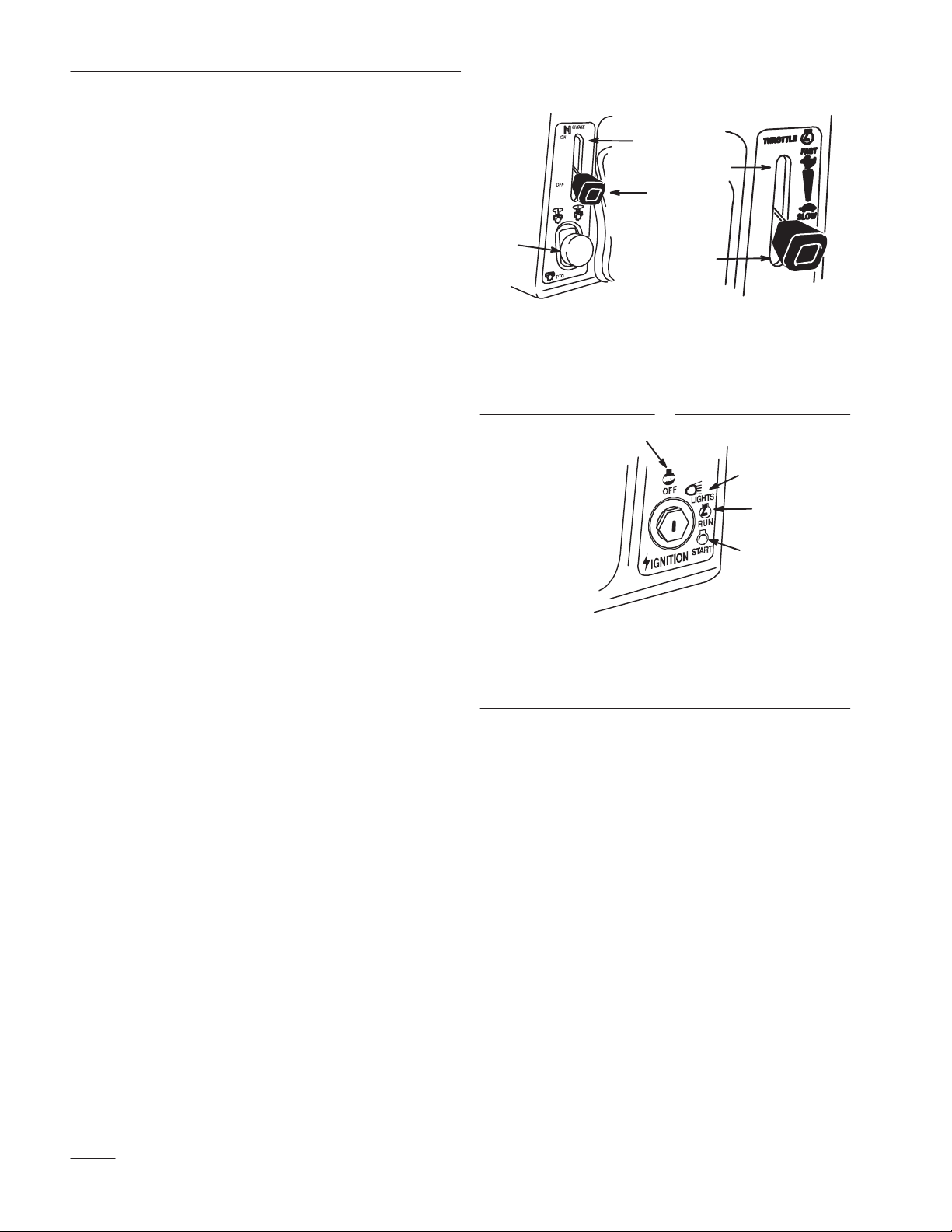

Controls 9. . . . . . . . . . . . . . . . . . . . . . . . . . .

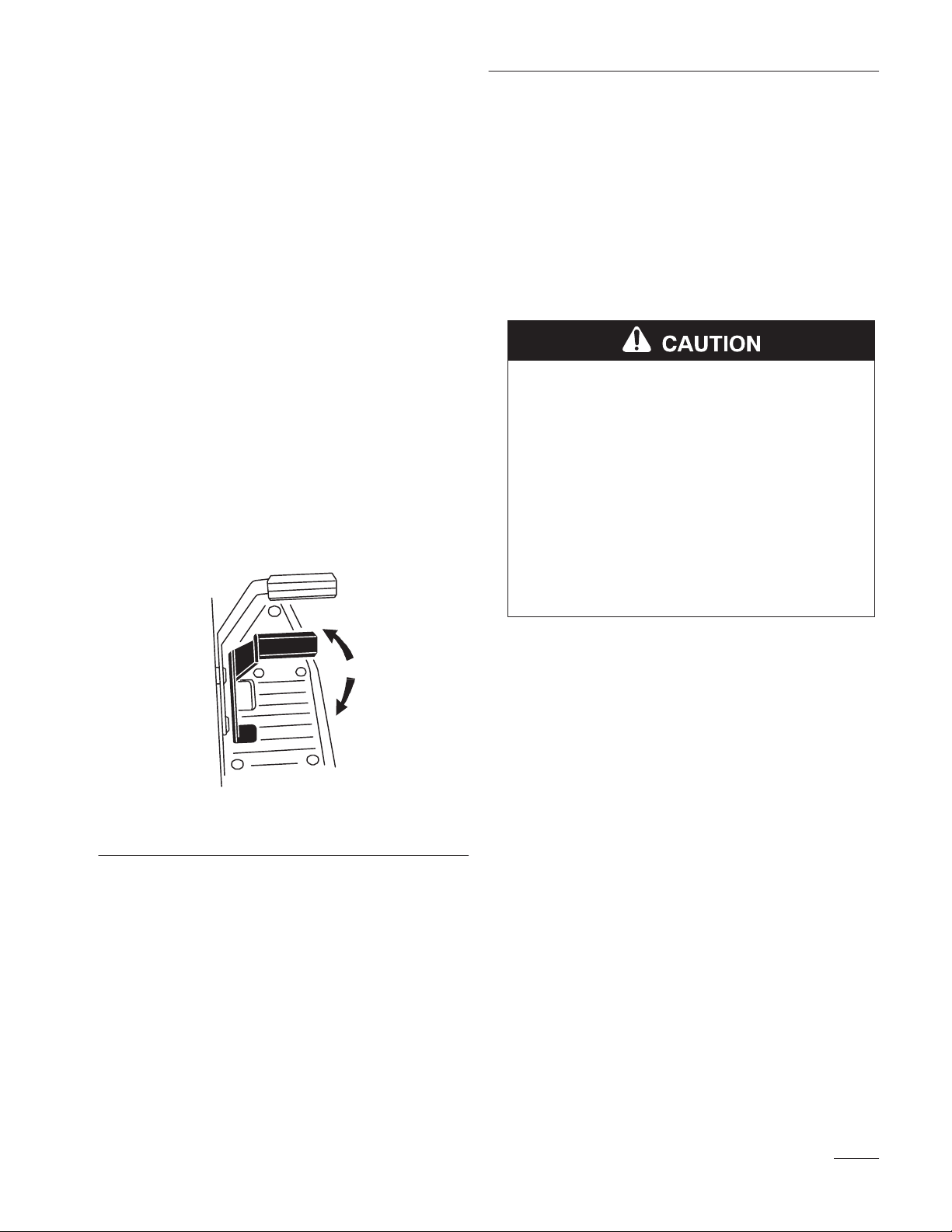

Parking Brake 9. . . . . . . . . . . . . . . . . . . . . . .

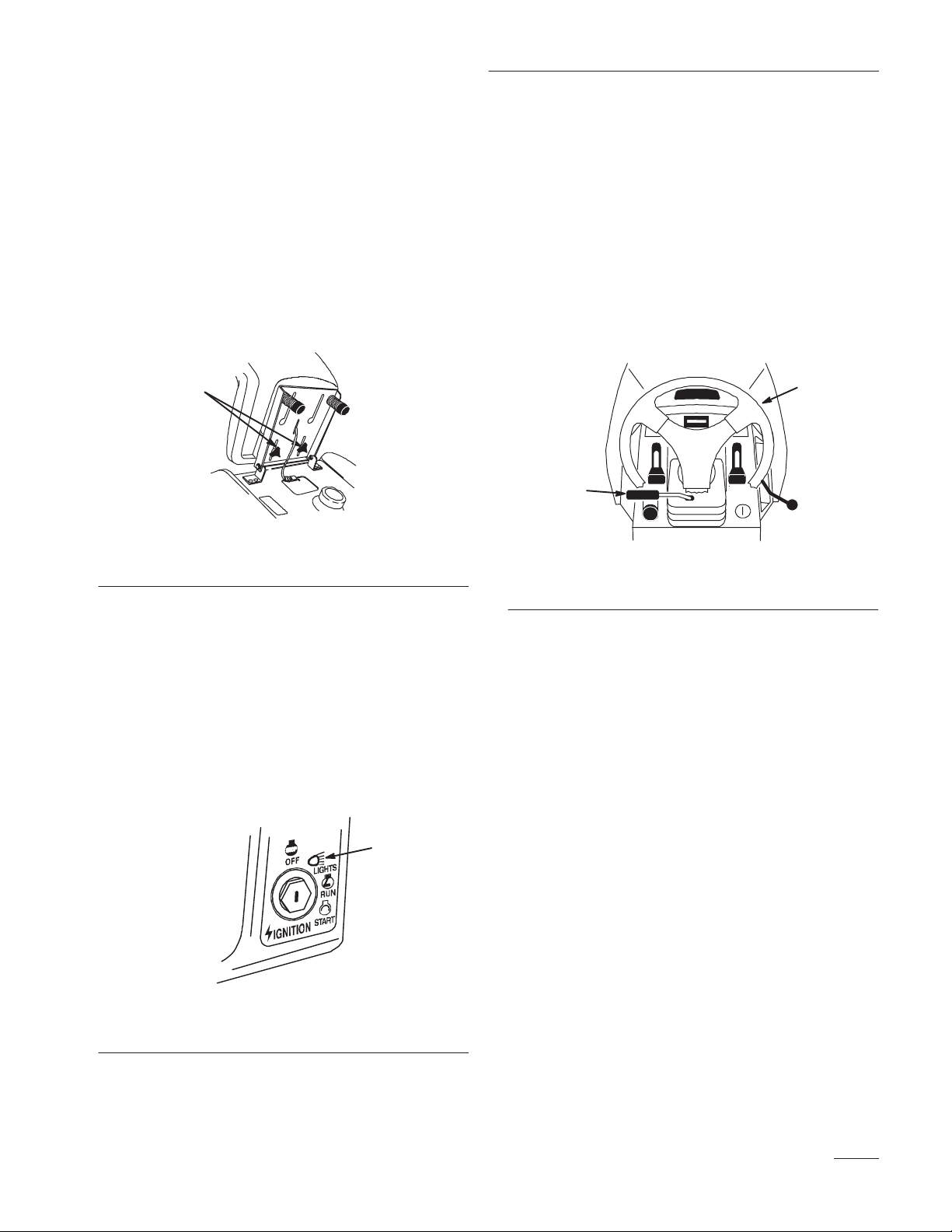

Starting and Stopping the Engine 10. . . . . . .

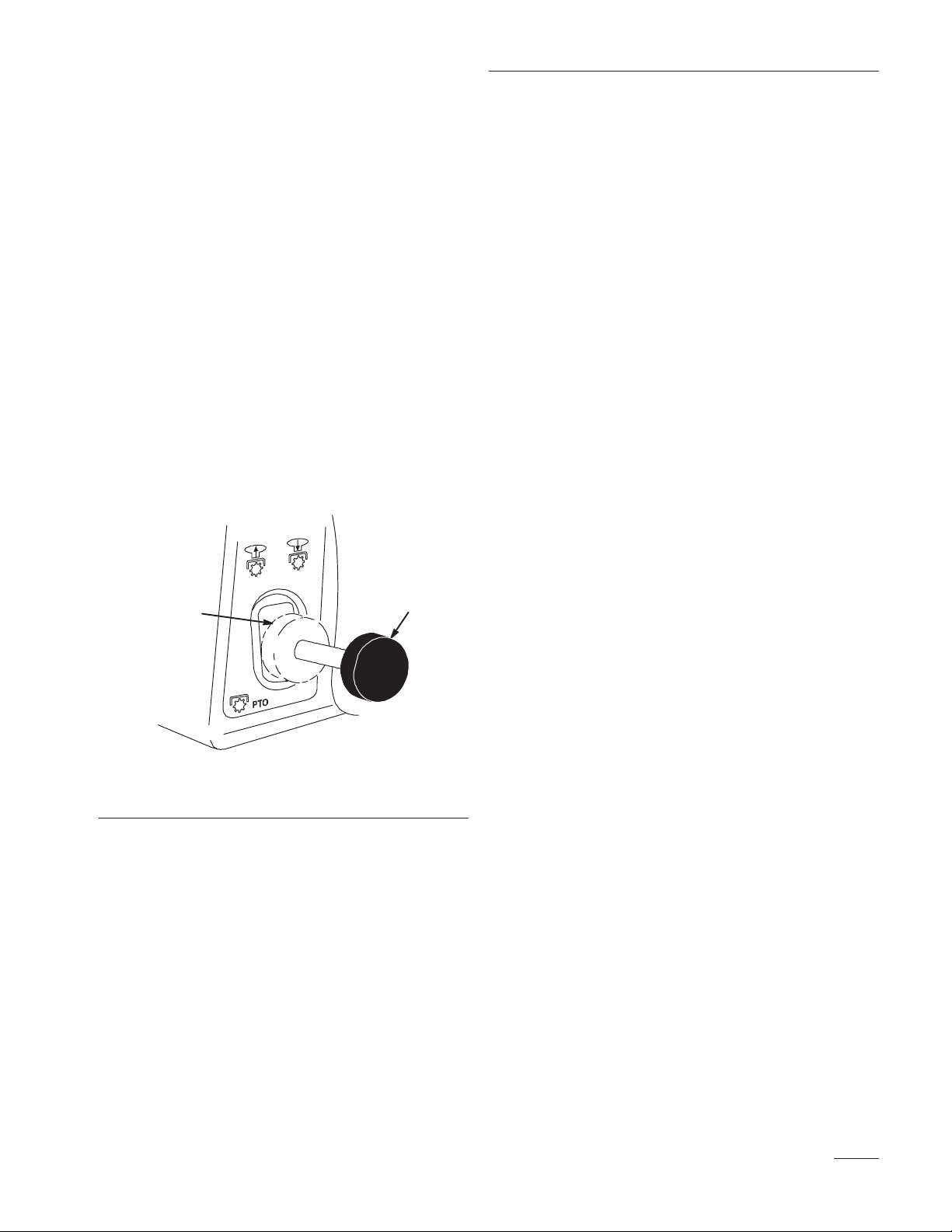

Operating the Power Take Off (PTO) 11. . . .
The Safety Interlock System 11. . . . . . . . . . .

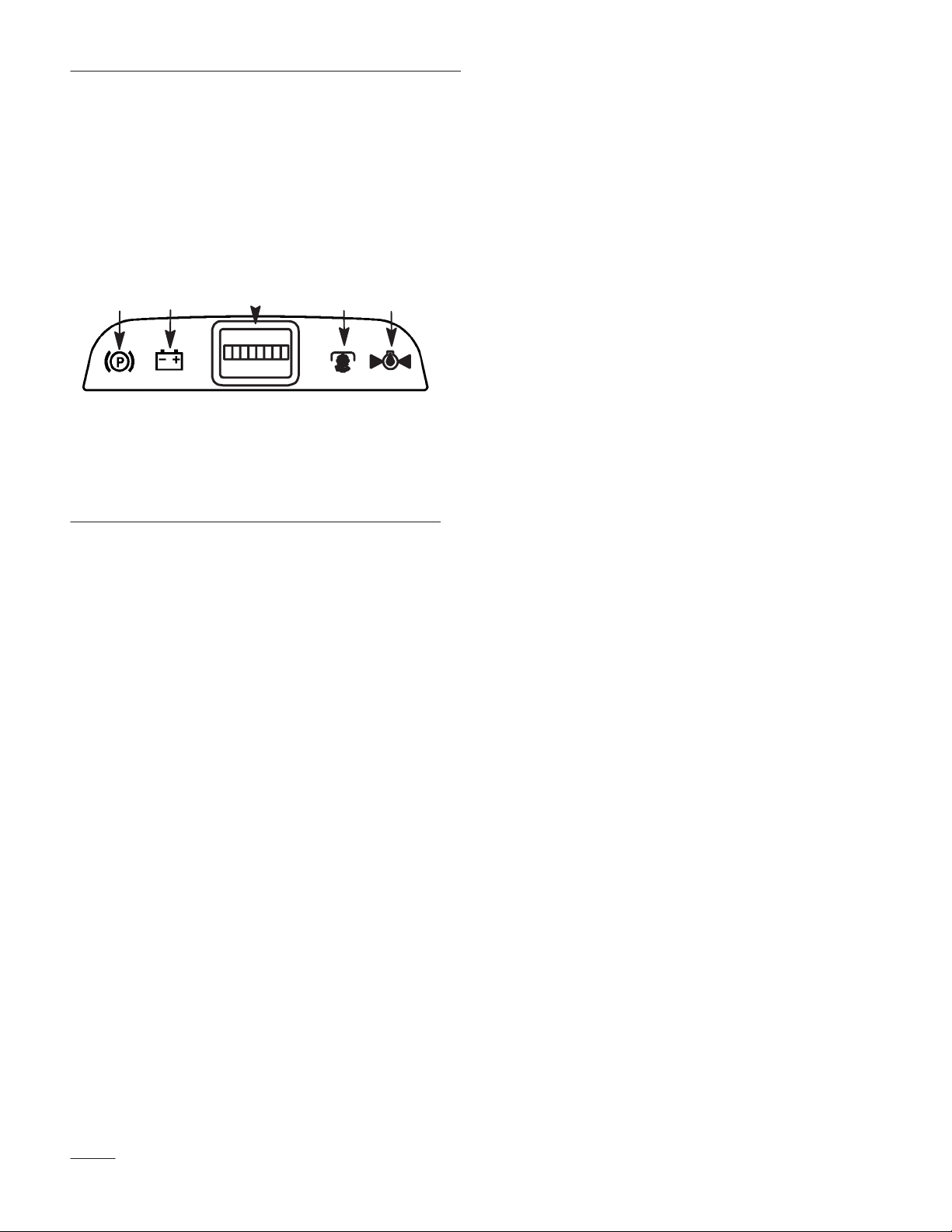

Indicator Control Module 12. . . . . . . . . . . . . .
Hourmeter 12. . . . . . . . . . . . . . . . . . . . . . . . .
Driving Forward or Backward 13. . . . . . . . . .
Stopping the Machine 13. . . . . . . . . . . . . . . .
Attachment Lift Lever 14. . . . . . . . . . . . . . . .
Adjusting Dial-A-Height 14. . . . . . . . . . . . . .
Positioning the Seat 15. . . . . . . . . . . . . . . . . .
Page
Page
Headlights 15. . . . . . . . . . . . . . . . . . . . . . . . .
Positioning the Tilt Steering Wheel 15. . . . . .
Using the Cruise Control 16. . . . . . . . . . . . . .
Pushing the Machine by Hand 16. . . . . . . . . .
Maintenance 17. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service Interval Chart 17. . . . . . . . . . . . . . . .

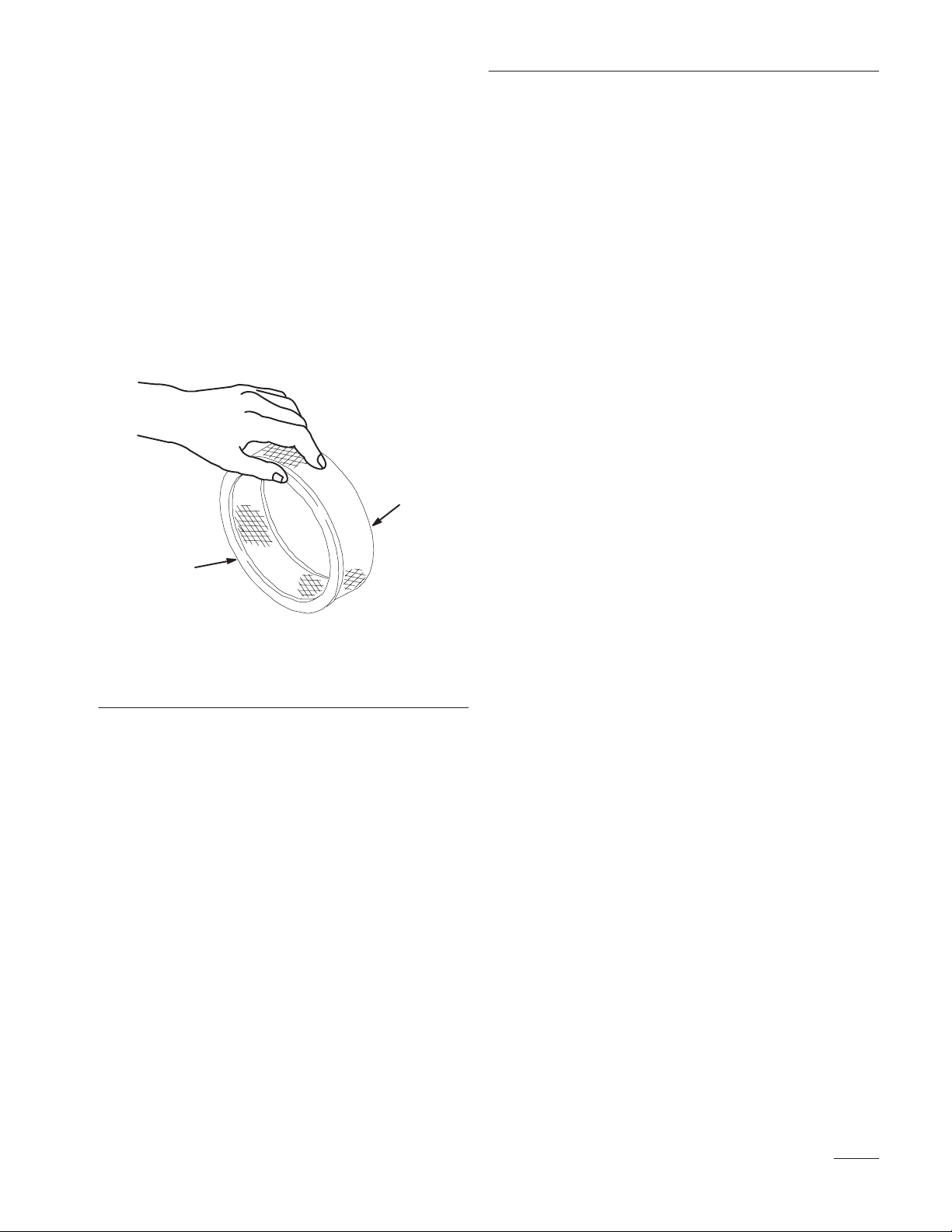

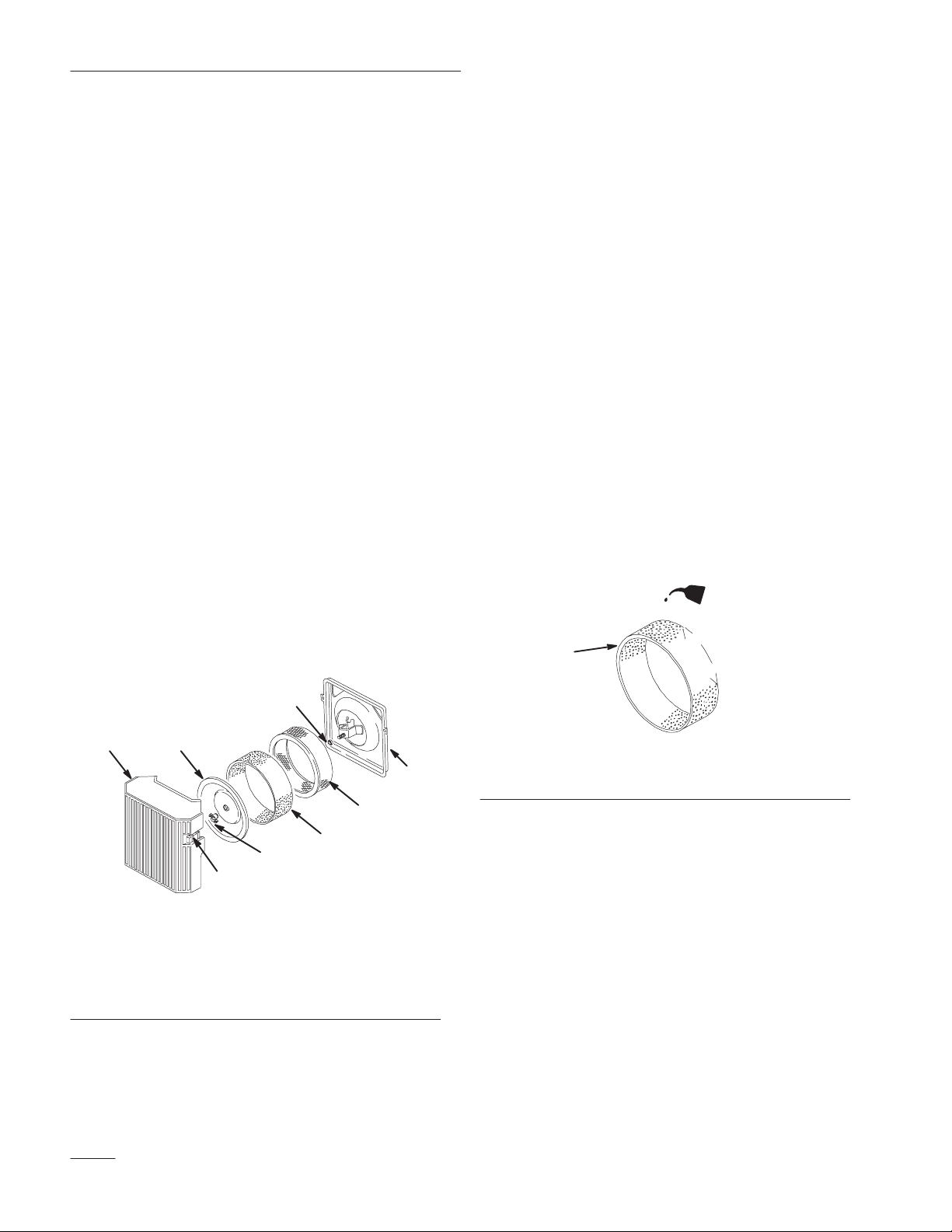

Air Cleaner 18. . . . . . . . . . . . . . . . . . . . . . . . .

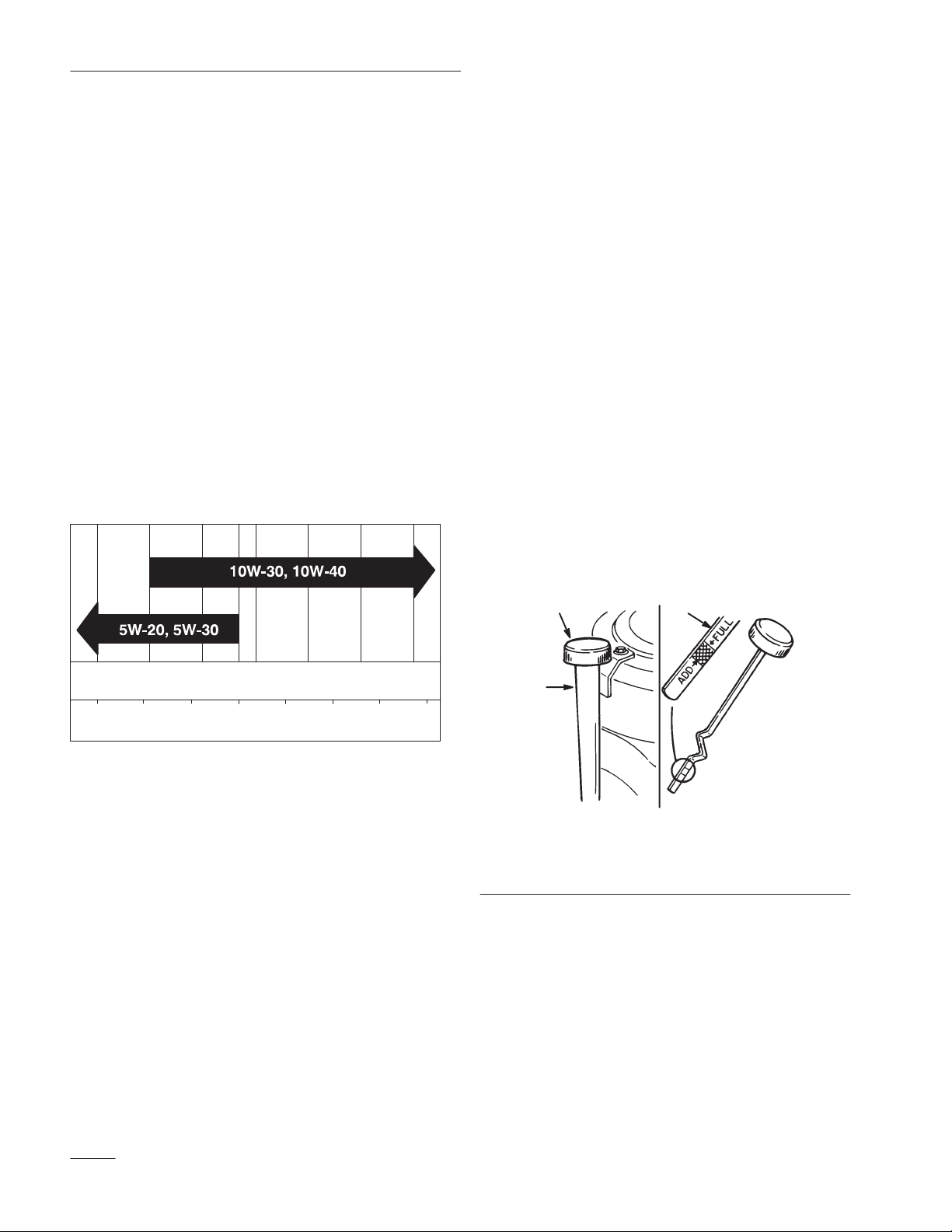

Engine Oil 20. . . . . . . . . . . . . . . . . . . . . . . . .

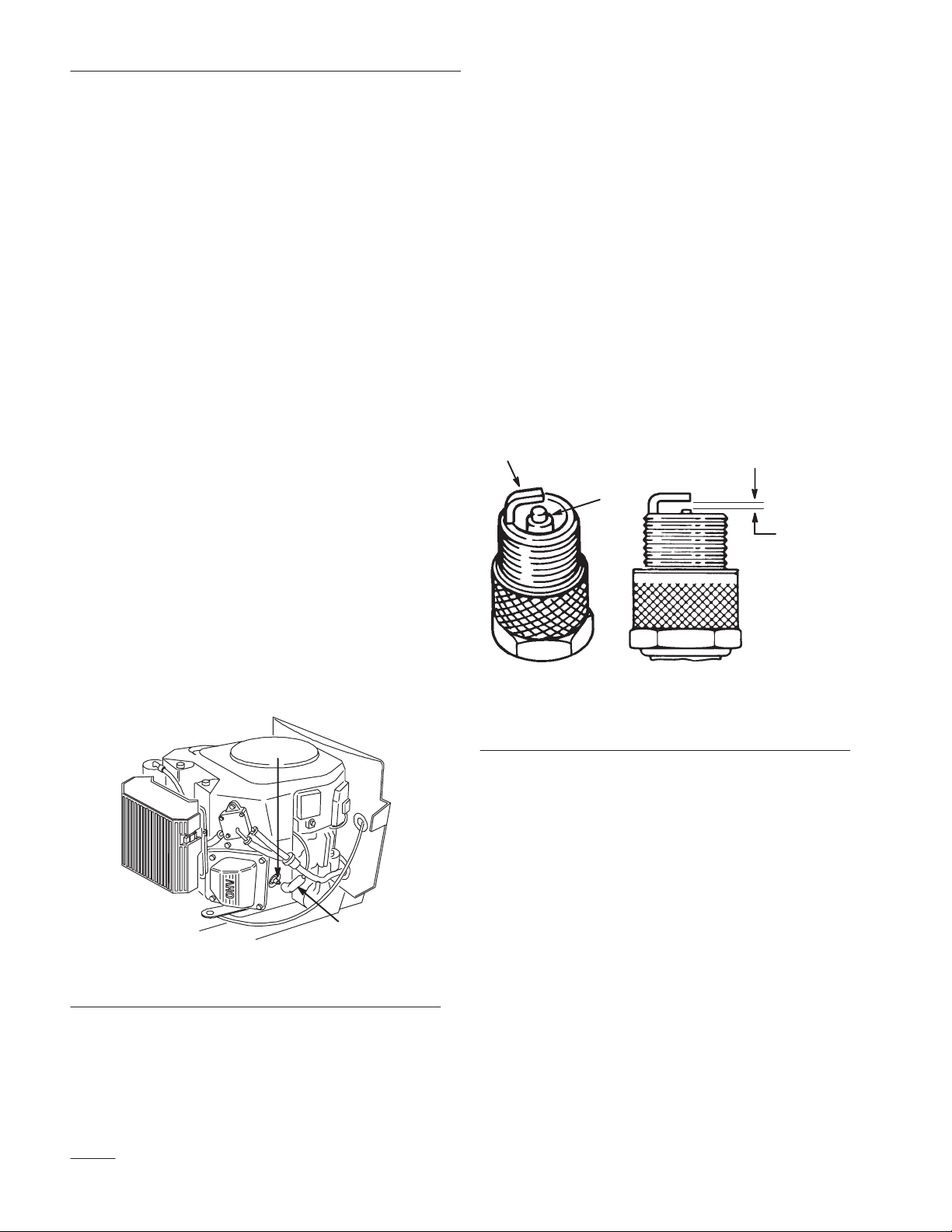

Spark Plug 22. . . . . . . . . . . . . . . . . . . . . . . . .
Greasing and Lubrication 23. . . . . . . . . . . . . .
Tire Pressure 23. . . . . . . . . . . . . . . . . . . . . . . .
Brake 24. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel Tank 25. . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel Filter 26. . . . . . . . . . . . . . . . . . . . . . . . . .

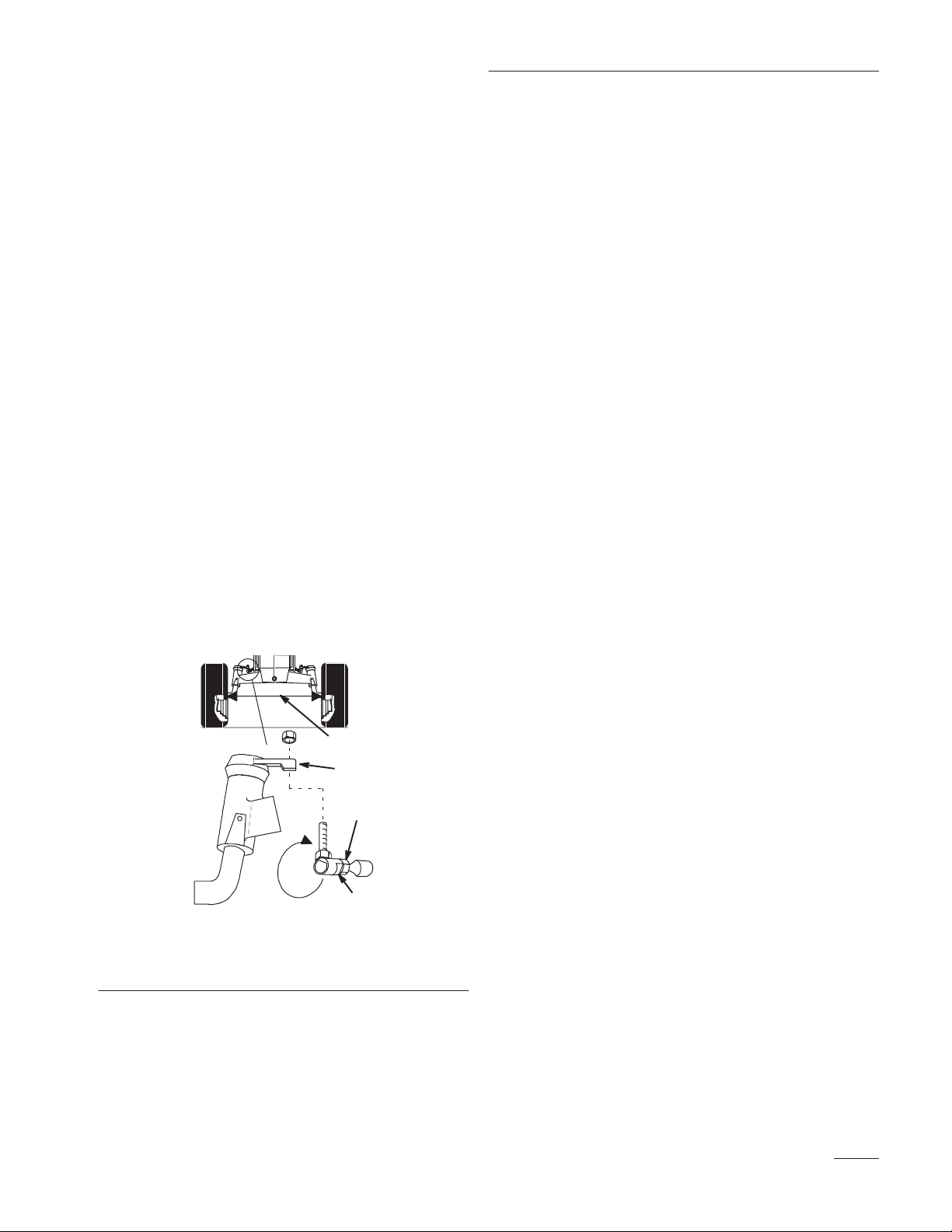

Front Wheel Toe-In 27. . . . . . . . . . . . . . . . . .
Transaxle Fluid 28. . . . . . . . . . . . . . . . . . . . . .
Fuse 28. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

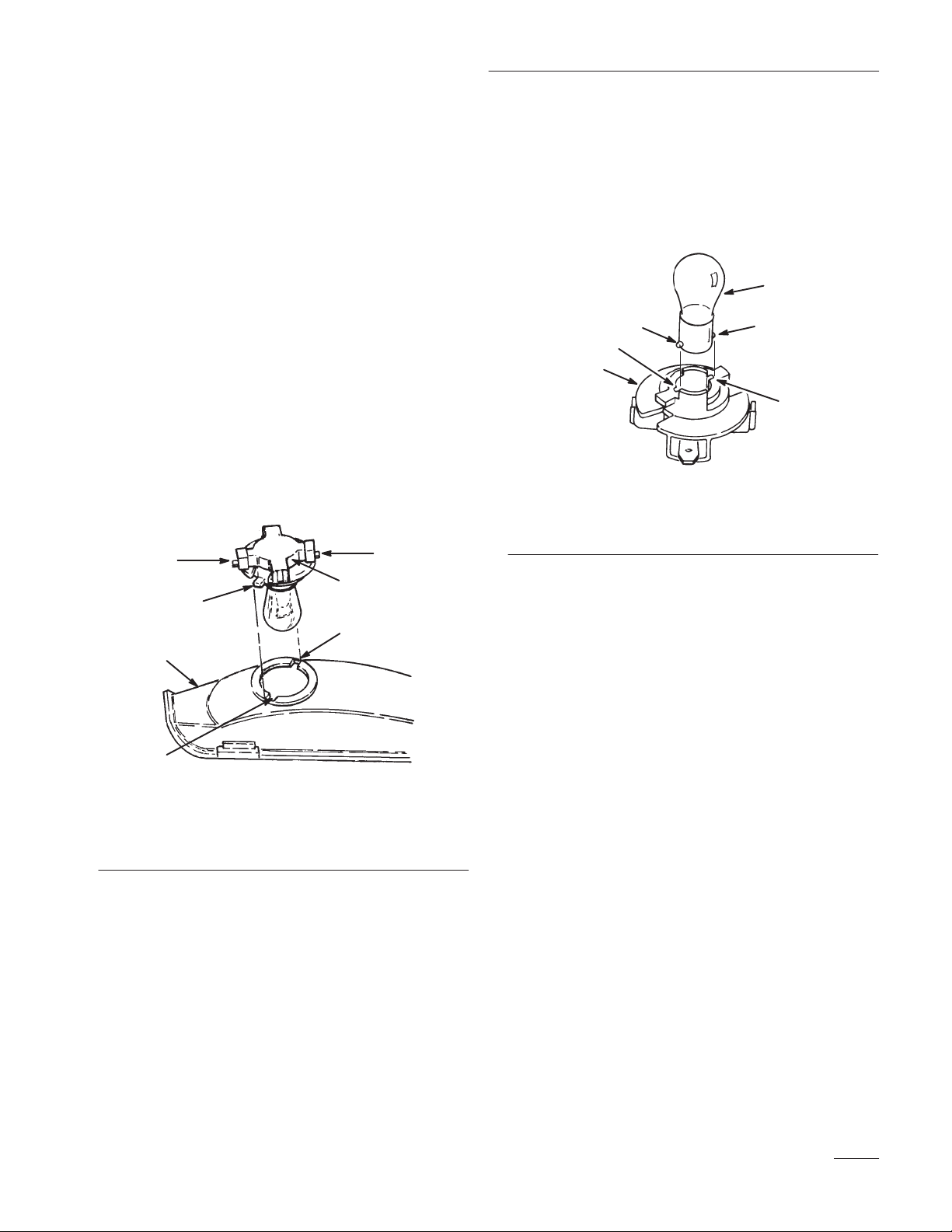

Headlights 29. . . . . . . . . . . . . . . . . . . . . . . . .

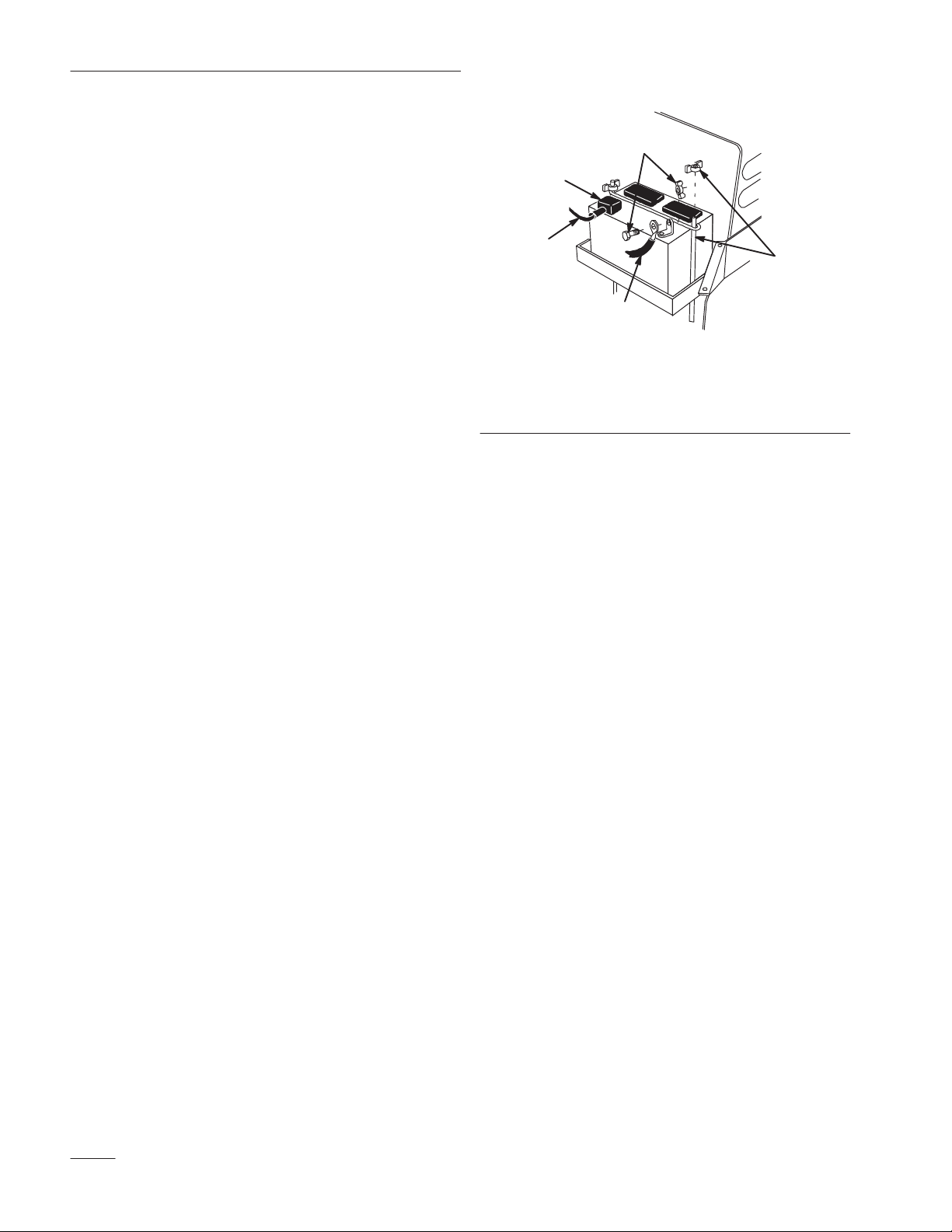

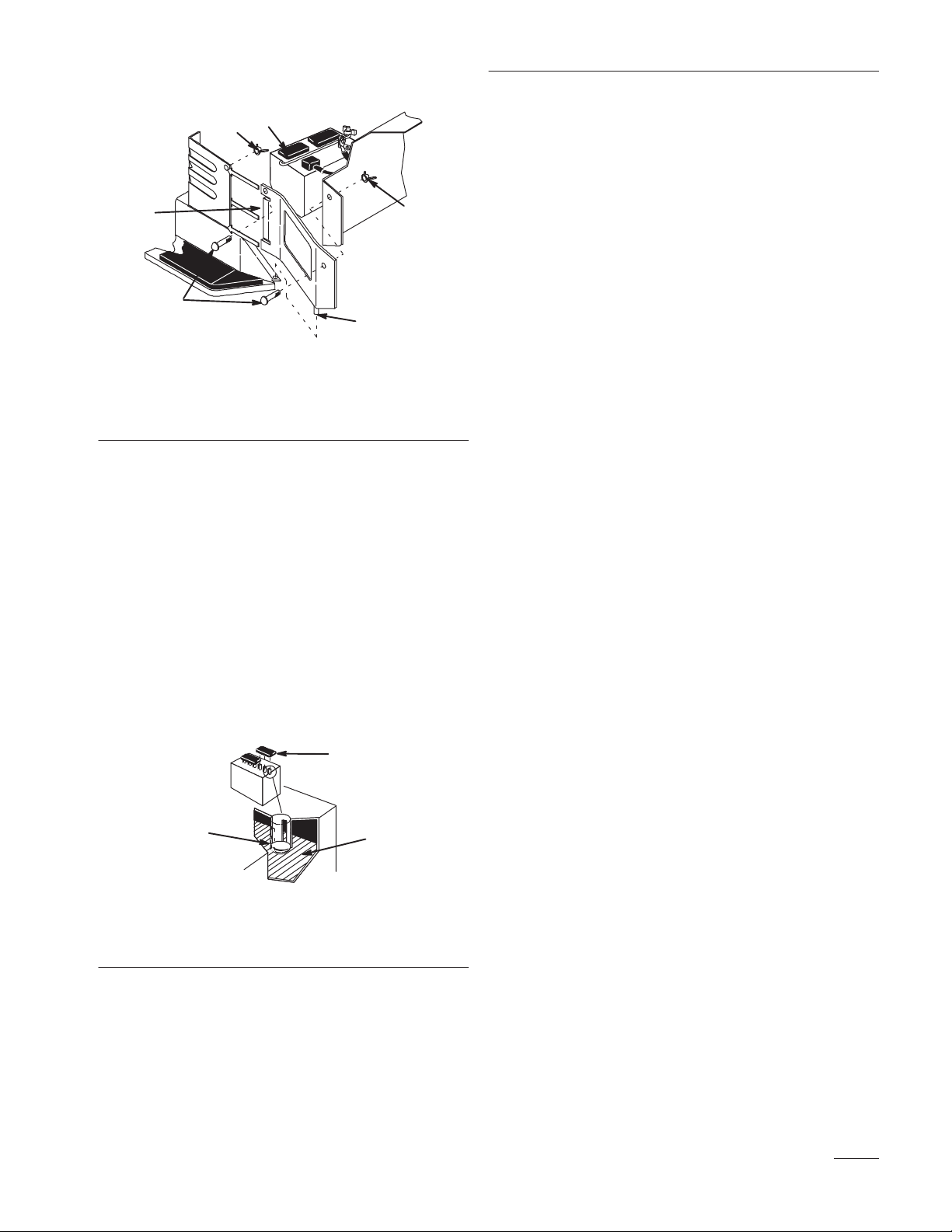

Battery 30. . . . . . . . . . . . . . . . . . . . . . . . . . . .

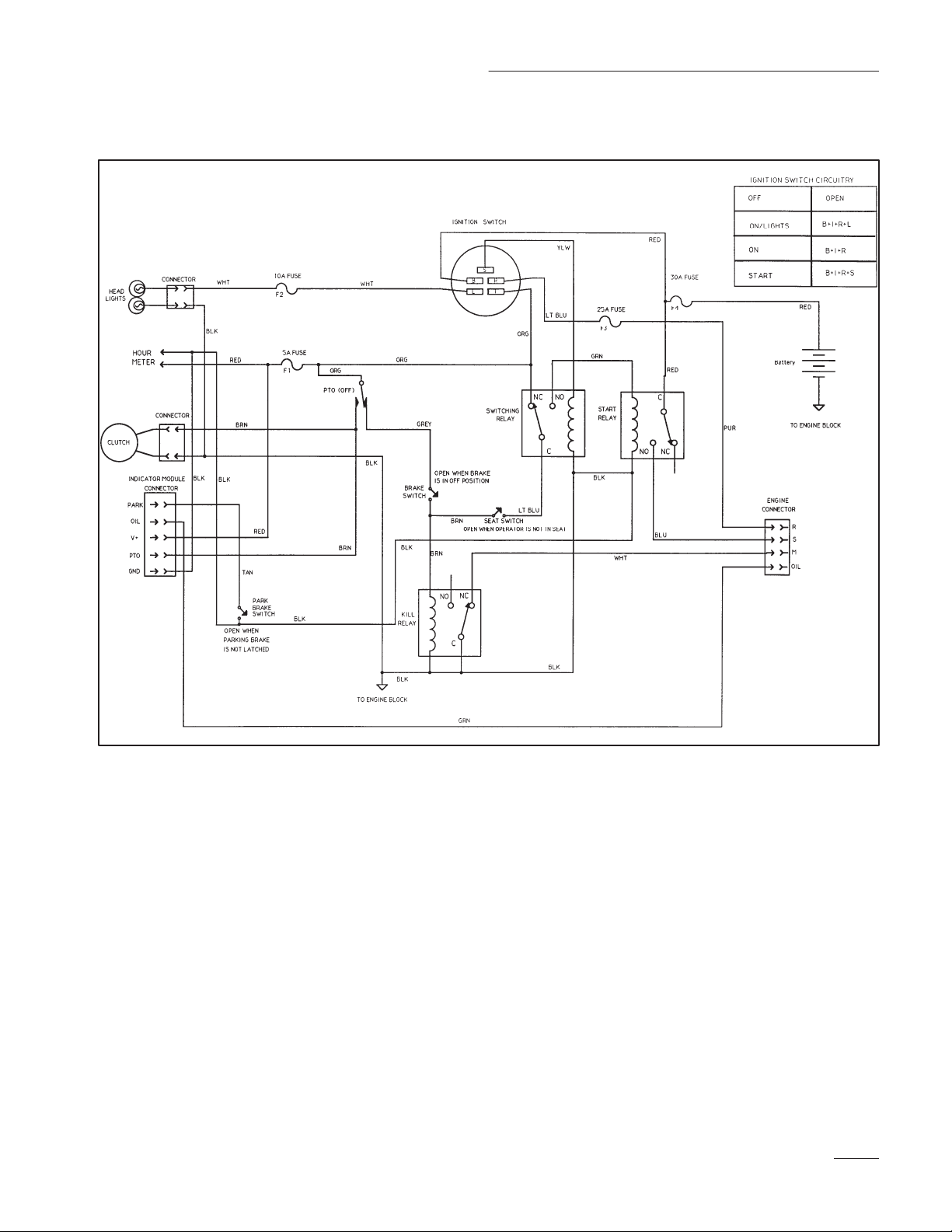

Wiring Diagram 33. . . . . . . . . . . . . . . . . . . . .
Cleaning and Storage 34. . . . . . . . . . . . . . . . .
Troubleshooting 35. . . . . . . . . . . . . . . . . . . . . . . . .
1
Page 4
Safety
This machine meets or exceeds the B71.1–1990
specifications of the American National Standards
Institute, in effect at the time of production.
However, improper use or maintenance by the
operator or owner can result in injury. To reduce
the potential for injury, comply with these safety
instructions and always pay attention to the safety
alert
WARNING, or DANGER—“personal safety
instruction.” Failure to comply with the
instruction may result in personal injury or death.
symbol, which means CAUTION,
Safe Operating Practices
This product is capable of amputating hands and feet
and throwing objects. Always follow all safety
instructions to avoid serious injury or death.
POTENTIAL HAZARD
• Engine exhaust contains carbon monoxide,
which is an odorless, deadly poison.
WHAT CAN HAPPEN
• Carbon monoxide can kill you and is also
known to the State of California to cause
birth defects.
HOW TO AVOID THE HAZARD
• Do not run engine indoors or in an enclosed
area.
General Operation
1. Read, understand, and follow all instructions in
the operator’s manual and on the machine before
starting.
2. Allow only responsible adults who are familiar
with the instructions to operate the machine.
3. Clear the area of objects such as rocks, toys,
wire, etc., which could be picked up and thrown
by the blade.
4. Be sure the area is clear of other people before
mowing. Stop the machine if anyone enters the
area.
5. Never carry passengers.
6. Do not mow in reverse unless absolutely
necessary. Always look down and behind before
and while backing.
7. Be aware of the mower discharge direction and
do not point it at anyone. Do not operate the
mower without either the entire grass catcher or
the guard in place.
8. Slow down before turning. Sharp turns on any
terrain may cause loss of control.
9. Never leave a running machine unattended.
Always turn off blades, set parking brake, stop
engine, and remove key before dismounting.
10. Turn off blades when not mowing.
11. Keep hands, feet, hair and loose clothing away
from attachment discharge area, underside of
mower and any moving parts while engine is
running.
12. Stop the engine before removing the grass
catcher or unclogging the chute.
2
Page 5
Safety
13. Mow only in daylight or good artificial light.
14. Do not operate the machine while under the
influence of alcohol or drugs.
15. Watch for traffic when operating near or crossing
roadways.
16. Use extra care when loading or unloading the
machine onto a trailer or truck.
17. Do not touch equipment or attachment parts
which may be hot from operation. Allow to cool
before attempting to maintain, adjust or service.
Slope Operation
Slopes are a major factor related to loss-of-control
and tip-over accidents, which can result in severe
injury or death. All slopes require extra caution. If
you cannot back up the slope or if you feel uneasy on
it, do not mow it.
• Keep all movement on slopes slow and gradual.
Do not make sudden changes in speed or
direction.
• Avoid starting or stopping on a slope. If tires
lose traction, disengage the blades and proceed
slowly straight down the slope.
DO NOT
• Do not operate machine on hillsides or slopes
exceeding 15°.
• Avoid turning on slopes. If you must turn, turn
slowly and gradually downhill, if possible.
• Do not mow near drop-offs, ditches, or
embankments. The machine could suddenly turn
over if a wheel goes over the edge of a cliff or
ditch, or if an edge caves in.
• Do not mow on wet grass. Reduced traction
could cause sliding.
DO
• Mow up and down slopes greater than 5°, not
across.
• Mow downhill only on slopes above 10°, never
mow uphill. If a steep slope must be ascended,
back up the hill, and drive forward down the hill,
keeping the machine in gear.
• Remove obstacles such as rocks, tree limbs, etc.
from the mowing area. Watch for holes, ruts or
bumps, as uneven terrain could overturn the
machine. Tall grass can hide obstacles.
• Use slow speed. Choose a low gear so that you
will not have to stop or shift while on the slope.
• Follow the manufacturer’s recommendations for
wheel weight or counterweights to improve
stability.
• Use extra care with grass catchers or other
attachments. These can change the stability of
the machine.
• Do not try to stabilize the machine by putting
your foot on the ground.
• Do not use a grass catcher on steep slopes.
Heavy grass bags could cause loss of control or
overturn the machine.
3
Page 6
Safety
Children
Tragic accidents can occur if the operator is not alert
to the presence of children. Children are often
attracted to the machine and the mowing activity.
Never assume that children will remain where you
last saw them. The following requirements must be
followed to prevent injury to children.
1. Keep children out of the mowing area and under
the watchful care of another responsible adult.
2. Be alert and turn the machine off if children
enter the area.
3. Before and while backing, look behind and down
for small children.
4. Never carry children. They may fall off and be
seriously injured or interfere with safe machine
operation.
5. Never allow children to operate the machine.
6. Use extra care when approaching blind corners,
shrubs, trees, the end of a fence or other objects
that may obscure vision.
4. Keep nuts and bolts tight, especially the blade
attachment bolts. Keep equipment in good
condition.
5. Never tamper with safety devices. Check safety
systems for proper operation before each use.
6. Keep the machine free of grass, leaves, or other
debris build-up. Clean up oil or fuel spillage.
Allow the machine to cool before storing.
7. Stop and inspect the equipment if you strike an
object. Repair, if necessary, before restarting.
8. Grass catcher components are subject to wear,
damage and deterioration, which could expose
moving parts or allow objects to be thrown.
Frequently check components and replace with
manufacturer’s recommended parts, when
necessary.
9. Mower blades are sharp and can cut. Wrap the
blade(s) or wear gloves, and use extra caution
when servicing them.
10. Use only genuine replacement parts to ensure
that original standards are maintained.
Service
1. Stop the engine and disconnect spark plug
wire(s) before performing any service, repairs,
maintenance or adjustments.
2. Use extra care when handling gasoline and other
fuels. They are flammable and vapors are
explosive.
A. Use only an approved container.
B. Never remove the gas cap or add fuel when
the engine is running. Allow the engine to
cool before refueling. Do not smoke.
C. Never refuel the machine indoors.
D. Never store the machine or fuel container
inside where there is an open flame, such as
near a water heater or furnace.
3. Never run a machine inside a closed area.
11. Check brake operation frequently. Adjust and
service as required.
12. Battery acid is poisonous and can cause burns.
Avoid contact with skin, eyes and clothing.
Protect your face, eyes and clothing when
working with a battery.
13. Battery gases can explode. Keep cigarettes,
sparks and flames away from battery.
4
Page 7
Slope Chart
Read all safety instructions on pages 2–4.
Safety
5
Page 8
6
Page 9
ISO Symbols
Safety
Start Switch
Engine stop
Engine Run
Engine start
Headlights
– Main Beam
PTO (Power Take Off)
Engage
Disengage
Parking brake
Choke
On
Off
Fast
Slow
Continuously variable
–Linear
7
Page 10
Gasoline and Oil
Recommended Gasoline
Use UNLEADED Regular Gasoline suitable for
automotive use (85 pump octane minimum). Leaded
regular gasoline may be used if unleaded regular is
not available.
IMPORTANT: Never use methanol, gasoline
containing methanol, or gasohol containing
more than 10% ethanol because the fuel
system could be damaged. Do not mix oil with
gasoline.
POTENTIAL HAZARD
• In certain conditions gasoline is extremely
flammable and highly explosive.
WHAT CAN HAPPEN
• A fire or explosion from gasoline can burn
you, others, and cause property damage.
HOW TO AVOID THE HAZARD
• Use a funnel and fill the fuel tank outdoors,
in an open area, when the engine is cold.
Wipe up any gasoline that spills.
• Do not fill the fuel tank completely full.
Add gasoline to the fuel tank until the level
is 1/4” to 1/2” (6 mm to 13 mm) below the
bottom of the filler neck. This empty space
in the tank allows gasoline to expand.
• Never smoke when handling gasoline, and
stay away from an open flame or where
gasoline fumes may be ignited by a spark.
• Store gasoline in an approved container
and keep it out of the reach of children.
Never buy more than a 30-day supply of
gasoline.
Stabilizer/Conditioner
Add the correct amount of gas stabilizer/conditioner
to the gas. Using a stabilizer/conditioner that is
isopropyl-based in the machine:
• Keeps gasoline fresh during storage
• Cleans the engine while it runs
• Eliminates gum-like buildup in the fuel system,
which causes hard starting
IMPORTANT: Never use fuel additives
containing methanol or ethanol.
Filling the Fuel Tank
1. Shut the engine off and raise the seat.
2. Clean around the fuel tank cap and remove the
cap. Use a funnel and add unleaded regular
gasoline to the fuel tank, until the level is 1/4 to
1/2 inch (6 mm to 13 mm) below the bottom of
the filler neck. This space in the tank allows
gasoline to expand. Do not fill the fuel tank
completely full.
3. Install the fuel tank cap securely. Wipe up any
gasoline that may have spilled.
4. Low fuel level is viewed
through frame in rear of machine.
Check Engine Oil Level
Before you start the engine and use the machine,
check the oil level in the engine crankcase; refer to
Checking Oil Level, page 20.
8
Page 11
Operation
Think Safety First
Please carefully read all the safety instructions on
pages 2–7. Knowing this information could help you,
your family, pets or bystanders avoid injury.

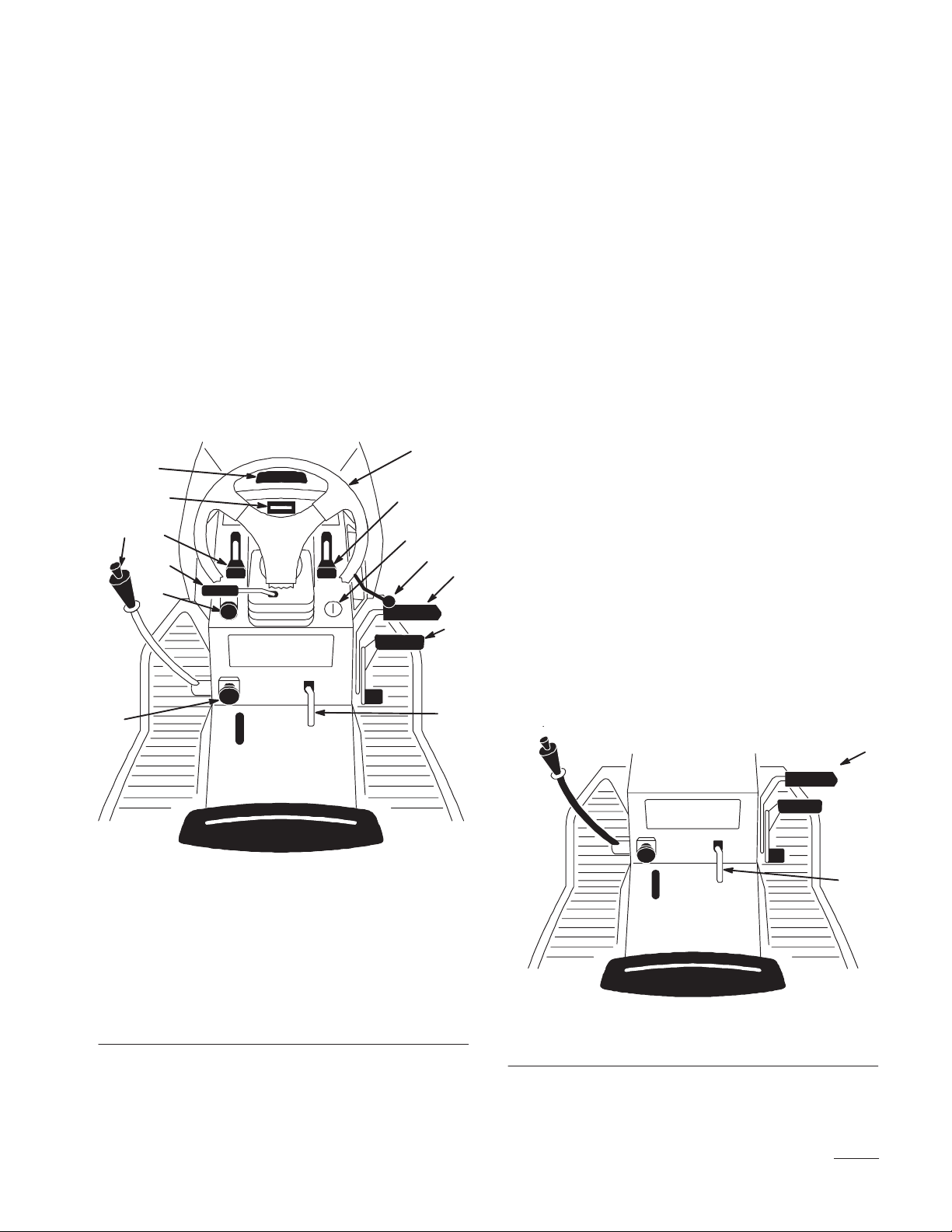

Controls
Become familiar with all the controls (Fig. 1) before
you start the engine and operate the machine.
1
13
6
2
9
5
11
10
7
12
8
Parking Brake
Always set the parking brake when you stop the
machine or leave it unattended.
While the ignition key is in the “RUN” or “LIGHTS”
positions and the Parking Brake is engaged, the light,
in the Indicator Module, will be lit.
Setting the Parking Brake
1. Push the brake pedal (Fig. 2) down and hold it in
the depressed position.
2. Lift the parking brake lever (Fig. 2) up and
gradually take your foot off the brake pedal. The
brake pedal should stay in the depressed (locked)
position.
3
Releasing the Parking Brake
1. Push down on the brake pedal (Fig. 2). The
parking brake lever should release.
14
1. Steering wheel
2. Ignition switch
3. Brake pedal
4. Parking brake lever
5. Traction control pedal
6. Throttle lever
7. Choke lever
8. Power take off (PTO)
Figure 1
9. Cruise control switch
10. Indicator control
module/Hourmeter
11. Attachment lift lever
12. Tilt wheel lever
13. Hood opening
14. Dial-a-height knob
4
2. Gradually release the brake pedal.
1
2
1201
Figure 2
1. Brake pedal 2. Parking brake lever
9
Page 12
Operation
Starting and Stopping
the Engine
Starting
1. Sit down on the seat.
2. Set the parking brake; refer to Setting the
Parking Brake, page 9.
Note: The engine will not start unless you set
the parking brake or fully depress the
brake pedal.
3. Push the PTO (power take off) to “OFF”
(Fig. 3).
4. Move the choke lever to “ON” (Fig. 3).
Note: An engine that has been running and is
warm may not require step 4.
5. Move throttle lever to “FAST” (Fig. 4).
1
Figure 3
1. PTO—Off
2. Choke–On
3. Choke–Off
1206
2
1
3
2
1207
Figure 4
1. Fast
2. Slow
1
2
3
4
6. Turn the ignition key clockwise and hold it in
the “START” position (Fig. 5). When the engine
starts, release the key.
IMPORTANT: If the engine does not start
after 30 seconds of continuous cranking, turn
the ignition key to “OFF” and let the starter
motor cool; refer to Troubleshooting, page 35.
7. After the engine starts, move the choke lever to
“OFF” (Fig. 4). If the engine stalls or hesitates,
move the choke lever back to “ON” for a few
seconds. Then move the throttle lever to desired
setting. Repeat this as required.
Figure 5
1. Off
2. Lights
3. Run
4. Start
Stopping
1. Move the throttle lever to “SLOW” (Fig. 4).
2. Turn the ignition key to “OFF” (Fig. 5).
Note: If the engine has been working hard or
is hot, let it idle for a minute before
turning the ignition key “OFF.” This
helps cool the engine before it is
stopped. In an emergency, the engine
may be stopped by turning the ignition
key to “OFF.”
1208
10
Page 13
Operation
Operating the
Power Take Off (PTO)
The power take off (PTO) engages and disengages
power to the electric clutch.
While the ignition key is in “RUN” or “LIGHTS”
position and the power take off (PTO) is engaged
“ON”, the PTO light, in the Indicator Module, will be
“ON”. When this light is “ON” it is a reminder; the
starter will not crank or to turn the off PTO before
getting off.
Engaging the Power Take Off (PTO)
1. Depress the brake pedal to stop the machine.
2. Pull the power take off (PTO) to “ON” (Fig. 6).
The Safety Interlock System
Understanding the Safety Interlock
System
The safety interlock system is designed to prevent the
engine from starting unless:
• You are sitting on the seat
• The brake pedal is depressed
• The power take off (PTO) is “OFF”
• On gear drive models the speed selector lever is
in “N” neutral.
The safety interlock system is designed to stop the
engine if you rise from the seat when the brake pedal
is released or the power take off (PTO) is “ON”or
gear selector is not in “N” neutral.
Testing the Safety Interlock System
1
2
Figure 6
1. Off-Disengaged 2. On-Engaged
Disengaging the Power Take Off (PTO)
1. Depress the brake pedal to stop the machine.
2. Push the power take off (PTO) to “OFF”
(Fig. 6).
1206
Test the safety interlock system before you use the
machine each time. If the safety system does not
operate as described below, have an Authorized
Service Dealer repair the safety system immediately.
1. Set the parking brake. Move the power take off
(PTO) to “ON”. Now turn the ignition key to
“START”; the engine should not crank.
2. Push the power take off (PTO) to “OFF” and
release the parking brake. Now turn the ignition
key to “START”; the engine should not crank.
3. Set the parking brake and move the power take
off (PTO) to “OFF”(On gear drive models the
speed selector lever must be in “N” neutral).
Now start the engine. While the engine is
running, release the parking brake and rise
slightly from the seat; the engine should stop.
11
Page 14
Operation
Indicator Control Module
The indicator control module (optional on some
models) (Fig. 7) lights when the parking brake or
power take off (PTO), is actuated and when there is a
problem of low oil pressure or alternator output, that
needs immediate attention.
54213
Figure 7
1. Parking brake
2. Battery
3. Hourmeter
Following are the conditions when indicator lights
will be “ON”. At other times the lights should be off.
4. Oil
5. PTO (power take off)
Oil
The oil light will be “ON” when the key is in the
“RUN” or “LIGHTS” positions and the engine is not
running, after the engine is started the light should go
out. When the engine is running if the oil pressure
drops below a safe operating level the light comes
“ON”. When the light comes on while the engine is
running, Stop engine immediately and correct the
cause of low oil pressure.
Battery
The battery light will be “ON” when the key is in the
“RUN” or “LIGHTS” positions if the battery voltage
is below 12.6 volts or when the engine is running and
the alternator output is above 14.8 volts. When this
light comes on it is important to have your battery
and electrical system checked and the problem
corrected.
Hourmeter
Parking Brake
The parking brake light will be “ON” when the key is
in the “RUN” or “LIGHTS” positions and the parking
brake is secured with the parking brake lever raised.
When this light is “ON” it is a reminder; do not drive
machine with parking brake on and set parking brake
before getting off machine.
PTO (Power Take Off)
The PTO (power take off) light will be “ON” when
the key is in the “RUN” or “LIGHTS” positions and
the PTO (power take off) is engaged “ON”. When
this light is “ON” it is a reminder; the starter will not
crank and turn off the PTO before getting off.
The hourmeter (optional on some models) records the
number of hours the engine has operated (Fig. 7). It is
turned on when the ignition switch is in the “RUN”
or “LIGHTS” positions. Use the times for scheduling
regular maintenance.
12
Page 15
Operation
Driving Forward or Backward
The throttle control regulates the engine speed as
measured in rpm (revolutions per minute). Place the
throttle control in the “FAST” position for best
performance.
To go forward or backward, release the parking brake:
refer to Releasing the Parking Brake, page 9. Place
your foot on the traction control pedal and slowly
press on the top of the traction control pedal to move
forward or on the bottom of the traction control pedal
to move backward (Fig. 8). The farther you move the
traction control pedal in either direction, the faster the
machine will move in that direction.
To slow down, release the pressure on the traction
control pedal.
IMPORTANT: To avoid transmission
damage, always release the parking brake
before moving the traction control pedal.
Stopping the Machine
To stop the machine, release the traction control
pedal, disengage the power take off (PTO), and turn
the ignition key to “OFF” to stop the engine. Also set
the parking brake if you leave the machine
unattended; refer to Setting the Parking Brake,
page 9. Remember to remove the key from the
ignition switch.
POTENTIAL HAZARD
• Someone could move or attempt to operate
the tractor while it is unattended.
WHAT CAN HAPPEN
• Children or bystanders may be injured if
they use the tractor.
HOW TO AVOID THE HAZARD
• Always remove the ignition key and set the
parking brake when leaving the machine
unattended, even if just for a few minutes.
1
2
Figure 8
1. Forward 2. Backward
1210
13
Page 16
Operation

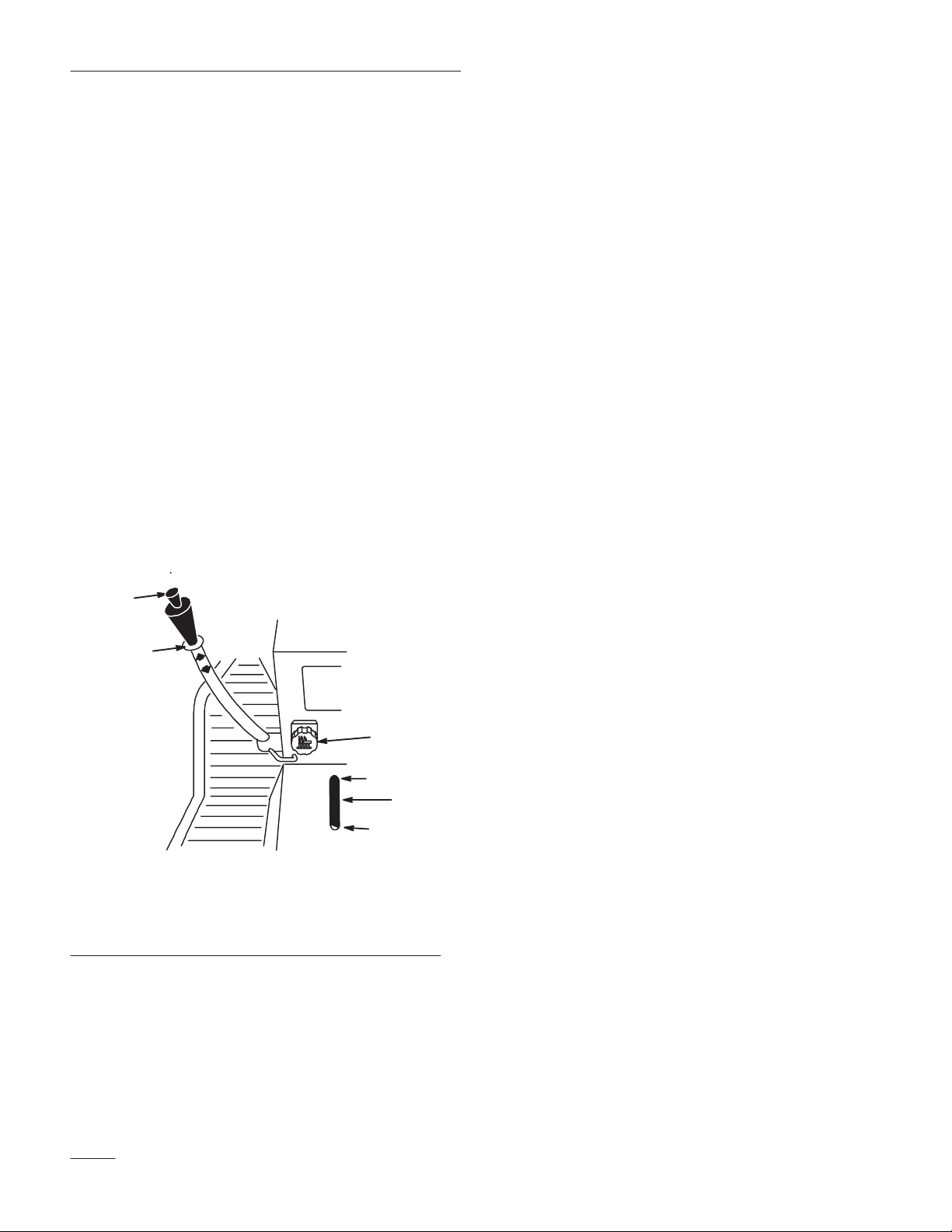

Attachment Lift Lever
The attachment lift lever (Fig. 9) is used to raise and
lower various attachments.
Raising Attachments
1. Depress the brake pedal to stop the machine.
2. Pull attachment lift lever rearward until latch
locks. In this position the lift will hold the
attachment in the up, or raised position.
Lowering Attachments
1. Depress the brake pedal to stop the machine.
2. Pull attachment lift lever rearward, to release lift
pressure, and push the button on top to release
the latch. Move lift lever forward to lower
attachment.
Adjusting Dial-A-Height
The Dial-A-Height control (Fig. 9) is used to limit the
downward travel of the attachment. The
Dial-A-Height knob is rotated to change the location
of this stop, up or down.
1. Raise the attachment lift lever: Refer to Raising
Attachments. In the raised position the
Dial-A-Height knob (Fig. 9) can be rotated to
change the stop location. Turn clockwise to raise
and counterclockwise to lower the height of the
attachment.
2. The Dial-A-Height indicator (Fig. 9) will show
the change, high to low, in attachment lift height
as adjustment is made.
2
1
1. Lift lever
2. Button
3. Dial-A-Height
Figure 9
3
5
4. Indicator
5. High
6. Mounting position
4
6
1205
14
Page 17
Operation
Positioning the Seat
The seat can move forward and backward. Position
the seat where you have the best control of the
machine and are most comfortable.
1. Raise the seat and loosen the adjustment knobs
(Fig. 10).
2. Slide the seat to the desired position and tighten
the knobs.
1
1202
Figure 10
1. Adjustment knob
Positioning the
Tilt Steering Wheel
The steering wheel has four tilt locations. Position the
steering wheel where you have the best control of the
machine and are most comfortable.
1. Lift the tilt lever to release the lock (Fig. 12).
2. Move the steering wheel to a comfortable
position; then release the lever to lock.
2
1
1203
Figure 12
1. Tilt lever 2. Steering wheel
Headlights
The headlights are turned on with a separate position,
“LIGHTS”, of the ignition switch (Fig. 11). The
lights are on while the ignition switch is in the
“LIGHTS” position even with the engine off.
Remove the key when the machine is left unattended
so lights can not be turned on discharging the battery.
1
1208
Figure 11
1. Lights
15
Page 18
Operation

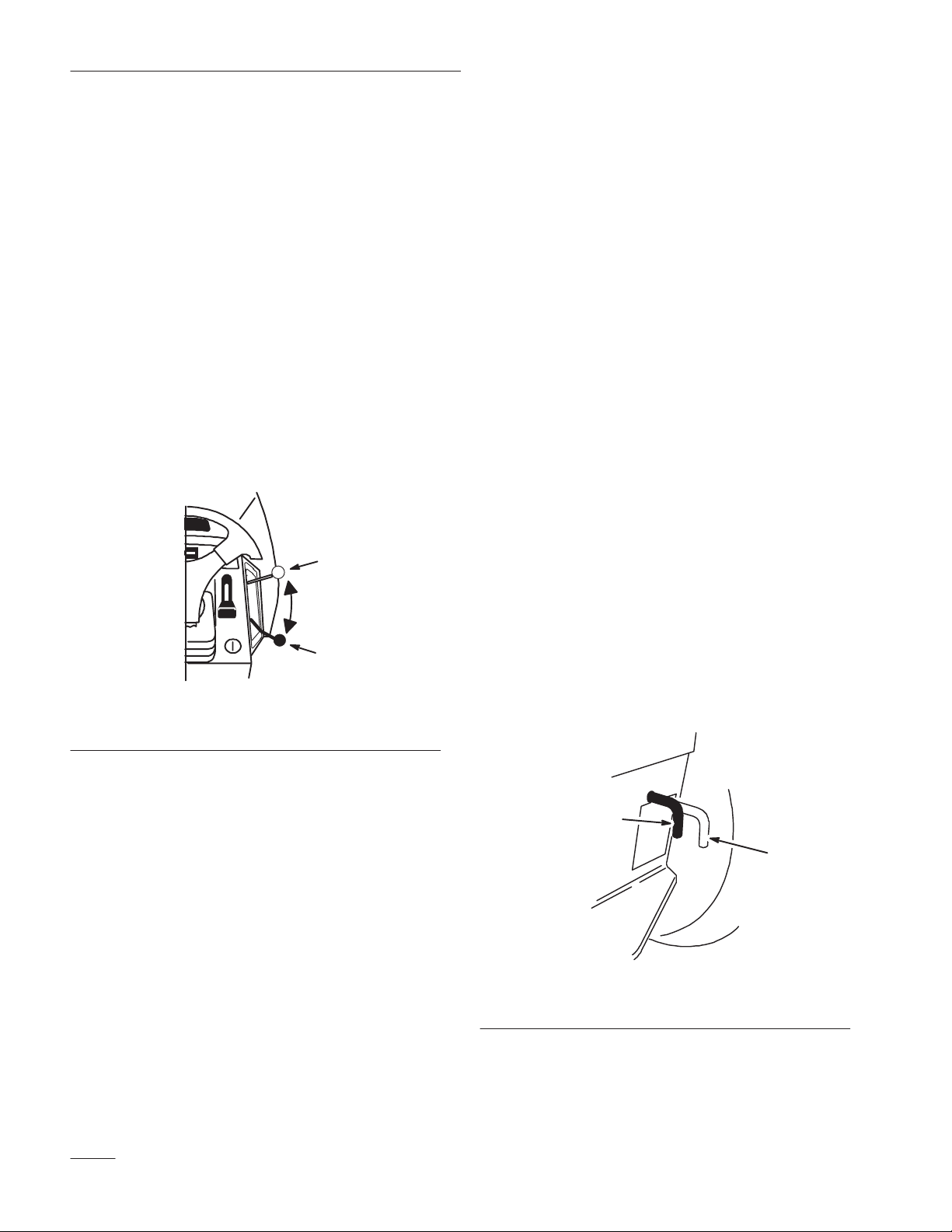

Using the Cruise Control
The cruise control is optional on some models. A 3
position: Lock-Set (spring loaded), On and
Off-Unlock dash switch (Fig. 13) controls the
engagement. Cruise control maintains the traction
control position without foot pressure. Cruise control
is intended for operation in the forward direction
only. Do not use cruise control in reverse.
Engaging the Cruise Control
1. Begin driving tractor: Refer to Driving Forward
or Backward, Page 13. While holding your foot
steady on the traction control, push the cruise
control switch (Fig. 13) to the “LOCK”-“SET”
position.
2
Pushing the Machine by Hand
IMPORTANT: Always push the machine by
hand. Never tow the machine because
transaxle damage may occur.
To Push the Machine
1. Disengage the power take off (PTO) and turn the
ignition key to “OFF” to stop the engine.
2. Move the drive control rod to the “PUSH”
position. This disengages the drive system and
allows the wheels to turn freely (Fig. 14).
IMPORTANT: Drive control rod moves to the
“OPERATE” position when the brake is
applied.
To Operate the Machine
1. Apply the brake, this moves the drive control rod
to “OPERATE” and engages the drive system, or
move the drive control rod to the “OPERATE”
position (Fig. 14).
1
1238
Figure 13
1. Lock-Set 2. Unlock-Off
2. This locks the traction control in position and
your foot can then be removed from the traction
control. A constant ground speed will be
maintained.
Disengaging the Cruise Control
1. While holding your foot steady on the traction
control, move the cruise control switch (Fig. 13)
to the “UNLOCK”-“OFF” position.
2. This unlocks the traction control and your foot
then operates the traction control.
3. For quick stops, just press on the brake pedal.
This automatically disengages the cruise control
and applies the brake at the same time.
Note: The machine will not drive unless the
drive control rod is in the “OPERATE”
position.
1
2
1209
Figure 14
1. Operate position 2. Push position
16
Page 19
Maintenance
Service Interval Chart
Each
Service Operation
Oil—check level X
Oil—change* Initial X
Oil Filter—change* (200 hours, every
other oil change or yearly)
Safety System—check X X
Brake—check X X X X
Chassis—grease* X X
Foam Air Cleaner—service* X X
Paper Air Cleaner—replace* X X
Spark Plug(s)—check X X X
Belts—check for wear/cracks X X
Gasoline—drain X
Engine—clean outside X X X
Chipped Surfaces—paint X
Battery—check electrolyte X X X
Battery—charge, disconnect cables X
Fuel Filter—replace X X
Tires—check pressure X X X
Front Wheels–check toe-in X X
Transaxle Fluid–check level X X X
Use5Hours25Hours50Hours
100
Hours
X X
Storage
Service
Spring
Service
* More often in dusty, dirty conditions
POTENTIAL HAZARD
• If you leave the key in the ignition switch, someone could start the engine.
WHAT CAN HAPPEN
• Accidental starting of the engine could seriously injure you or other bystanders.
HOW TO AVOID THE HAZARD
• Remove the key from the ignition switch and pull the wire(s) off the spark plug(s)
before you do any maintenance. Also push the wire(s) aside so it does not
accidentally contact the spark plug(s).
17
Page 20
Maintenance
Air Cleaner
Service Interval/Specification
Foam Element: Clean and re-oil after every 25
operating hours, or yearly, whichever occurs first.
Paper Element: Replace after every 100 operating
hours or yearly, whichever occurs first.
Note: Service the air cleaner more frequently
(every few hours) if operating
conditions are extremely dusty or
sandy.
Removing the Foam and Paper Elements
1. Disengage the power take off (PTO), set the
parking brake, and turn the ignition key to
“OFF” to stop the engine. Remove the key.
2. Open the hood.
4. Carefully slide the foam element off the paper
element (Fig. 15).
5. Unscrew the cover nut and remove the cover and
paper element (Fig. 15).
Cleaning the Foam and Paper Elements
1. Foam Element
A. Wash the foam element in liquid soap and
warm water. When the element is clean,
rinse it thoroughly.
B. Dry the element by squeezing it in a clean
cloth.
C. Put one or two ounces of oil on the element
(Fig. 16). Squeeze the element to distribute
the oil.
IMPORTANT: Replace the foam element if it
is torn or worn.
3. Clean around the air cleaner to prevent dirt from
getting into the engine and causing damage.
Unhook latches and remove the air cleaner cover
(Fig. 15).
7
1
1. Air cleaner cover
2. Latches
3. Cover nut
4. Cover
4
8
6
5
3
2
Figure 15
5. Foam element
6. Paper element
7. Rubber seal
8. Air cleaner base
1213
2
1
1213
Figure 16
1. Foam element 2. Oil
18
Page 21
Maintenance
2. Paper Element
A. Lightly tap the element on a flat surface to
remove dust and dirt (Fig. 17).
B. Inspect the element for tears, an oily film,
and damage to the rubber seal.
IMPORTANT: Never clean the paper element
with pressurized air or liquids, such as
solvent, gas, or kerosene. Replace the paper
element if it is damaged, defective, or cannot
be cleaned thoroughly.
Installing the Foam and Paper Elements
IMPORTANT: To prevent engine damage,
always operate the engine with the complete
foam and paper air cleaner assembly
installed.
1. Carefully slide the foam element onto the paper
air cleaner element (Fig. 15).
2. Slide the air cleaner assembly and cover onto the
long rod. Now screw the cover nut finger-tight
against the cover (Fig. 15).
Note: Make sure the rubber seal is flat
against the air cleaner base and cover.
3. Install the air cleaner cover and hook latches
(Fig. 15).
1
4. Close the hood.
2
Figure 17
1. Paper element 2. Rubber seal
1213
19
Page 22
Maintenance
Engine Oil
Service Interval/Specification
Change oil:
• After the first 5 operating hours.
• After every 100 operating hours.
Note: Change oil more frequently when
operating conditions are extremely
dusty or sandy.
Oil Type: Detergent oil (API service SF or SG)
Crankcase Capacity: w/filter, 4 pints (1.9 l)
Viscosity: See table below
USE THESE SAE VISCOSITY OILS
Checking Oil Level
1. Park the machine on a level surface, disengage
the power take off (PTO), set the parking brake,
and turn the ignition key to “OFF” to stop the
engine. Remove the key.
2. Open the hood.
3. Clean around the oil dipstick (Fig. 18) so dirt
cannot fall into the filler hole and damage the
engine.
4. Unscrew the oil dipstick and wipe the metal end
clean (Fig. 18).
5. Screw the oil dipstick fully onto the filler tube
(Fig. 18). Unscrew the dipstick again and look at
the metal end. If oil level is low, slowly pour
only enough oil into the filler tube to raise the
level to the “FULL” mark.
IMPORTANT: Do not overfill the crankcase
with oil because the engine may be damaged.
–20 0 20
°
F
–30°–20 –10
C
40 60
32
01020
80 100
30 40
1
3
1. Oil dipstick
2. Metal end
2
Figure 18
3. Filler tube
20
Page 23
Maintenance

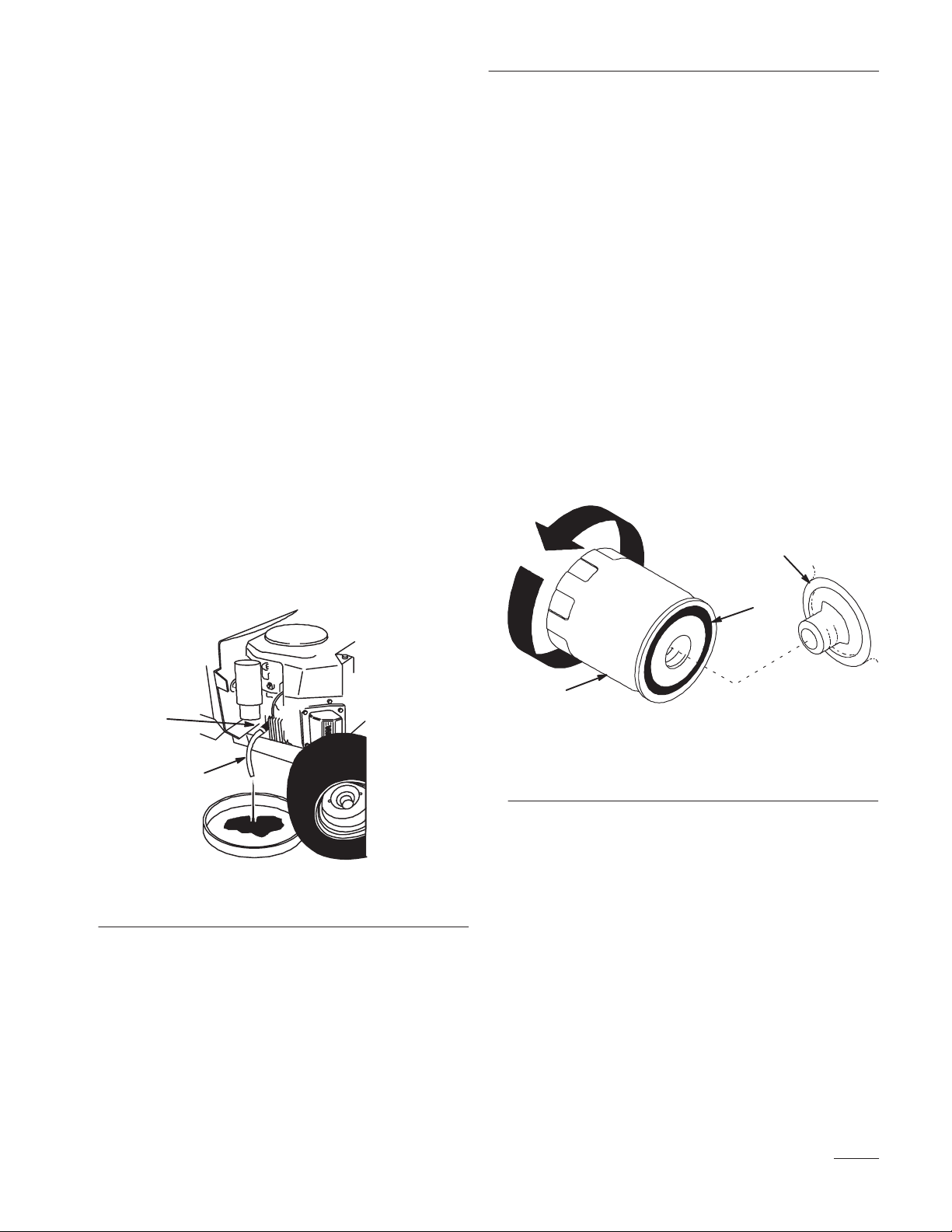

Changing/Draining Oil
1. Start the engine and let it run five minutes. This
warms the oil so it drains better.
2. Park the machine so that the drain side is slightly
lower than the opposite side to assure the oil
drains completely. Then disengage the power
take off (PTO), set the parking brake, and turn
the ignition key to “OFF” to stop the engine.
Remove the key.
3. Open the hood.
4. Slide a piece of hose over oil drain to direct oil.
5. Place a pan below the oil drain. Open the drain
by turning counterclockwise, 1/8 turn and pull
out (Fig. 19).
6. When oil has drained completely, close the drain
by pushing in and turning clockwise, 1/8 turn.
Note: Dispose of the used oil at a certified
recycling center.
Change Oil Filter
Service Interval/Specification
Replace the oil filter every 200 hours or every other
oil change.
Note: Change oil filter more frequently when
operating conditions are extremely
dusty or sandy.
1. Drain the oil from the engine; refer to
Changing/Draining Oil, page 21.
2. Remove the old filter and wipe the filter adapter
(Fig. 20) gasket surface.
3. Apply a thin coat of new oil to the rubber gasket
on the replacement filter (Fig. 20).
3
2
1
2
1241
Figure 19
1. Oil drain 2. Hose
7. Slowly pour approximately 80% of the specified
amount of oil into the filler tube (Fig. 18). Now
check the oil level; refer to Checking Oil Level,
page 20. Slowly add additional oil to bring to
“FULL” mark on dipstick.
1
Figure 20
1. Oil filter
2. Gasket
3. Adapter
4. Install the replacement oil filter to the filter
adapter. Turn the oil filter clockwise until the
rubber gasket contacts the filter adapter, then
tighten the filter an additional 1/2 turn (Fig. 20).
5. Fill the crankcase with the proper type of new
oil; refer to Changing/Draining Oil, page 21.
1256
21
Page 24
Maintenance
Spark Plug
Service Interval/Specification
Install a new spark plug(s) after every 100 operating
hours. Check the spark plug(s) after every 25
operating hours. Make sure the air gap between the
center and side electrodes is correct before installing
the spark plug. Use a spark plug wrench for removing
and installing the spark plug(s) and a gapping
tool/feeler gauge to check and adjust the air gap.
Type: Champion RJ–19LM (or equivalent)
Air Gap: 0.030” (0.762 mm)
Removing the Spark Plug(s)
1. Disengage the power take off (PTO), set the
parking brake, and turn the ignition key to
“OFF” to stop the engine. Remove the key.
2. Open the hood.
Checking the Spark Plug
1. Look at the center of the spark plug(s) (Fig. 22).
If you see light brown or gray on the insulator,
the engine is operating properly. A black coating
on the insulator usually means the air cleaner is
dirty.
IMPORTANT: Never clean the spark plug(s).
Always replace the spark plug(s) when it has:
a black coating, worn electrodes, an oily film,
or cracks.
2. Check the gap between the center and side
electrodes (Fig. 22). Bend the side electrode
(Fig. 22) if the gap is not correct.
2
1
3
0.030”
(0.762 m m )

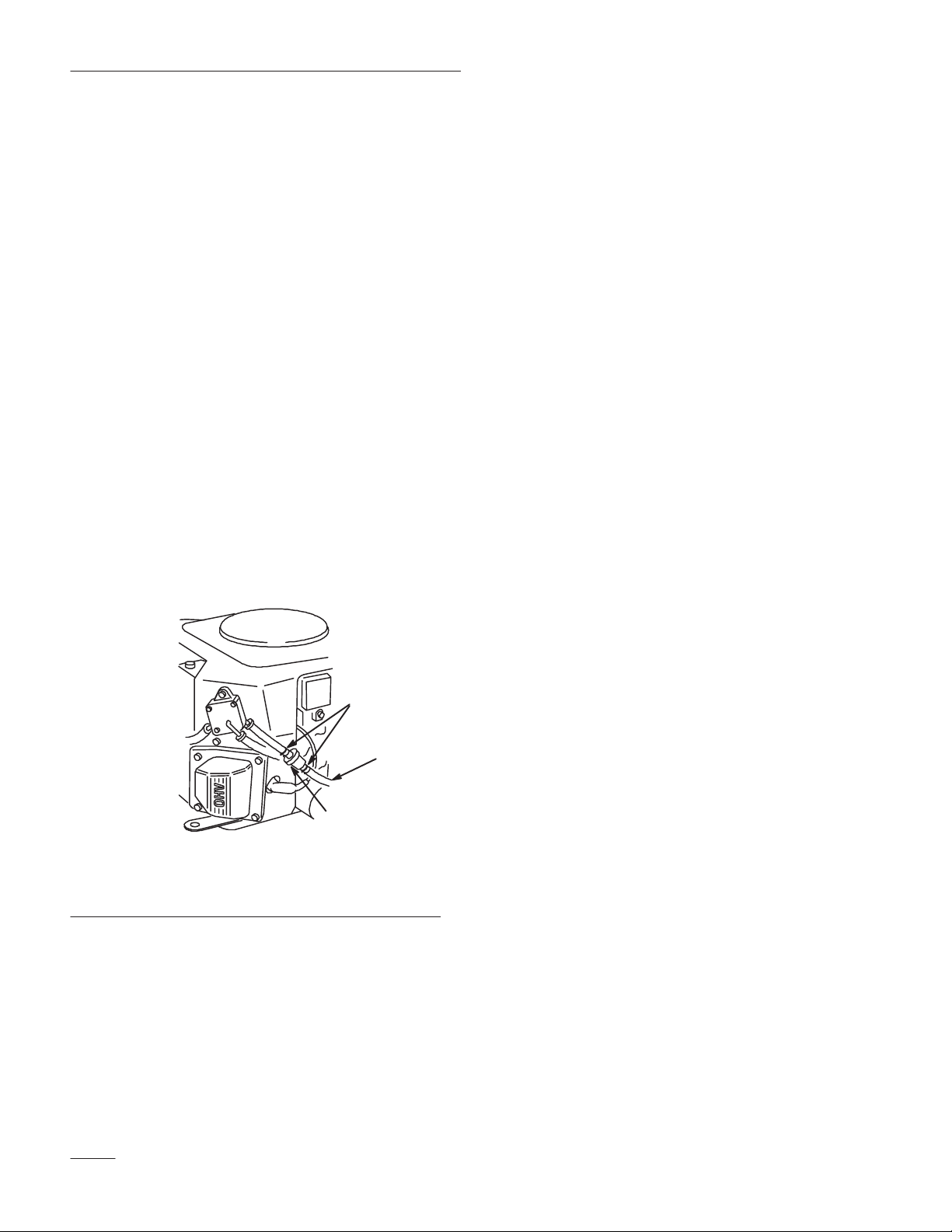

3. Pull the wire(s) off the spark plug(s) (Fig. 21).
Now clean around the spark plug(s) to prevent
dirt from falling into the engine and potentially
causing damage.
4. Remove the spark plug(s) and metal washer.
2
1
Figure 21
1. Spark plug wire 2. Spark plug
1215
Figure 22
1. Center electrode insulator
2. Side electrode
3. Air gap (not to scale)
Installing the Spark Plug(s)
1. Install the spark plug(s) and metal washer. Make
sure the air gap is set correctly.
2. Tighten the spark plug(s) to 15 ft–lb (20.4 Nm).
3. Push the wire(s) onto the spark plug(s) (Fig. 21).
4. Close the hood.
22
Page 25
Maintenance

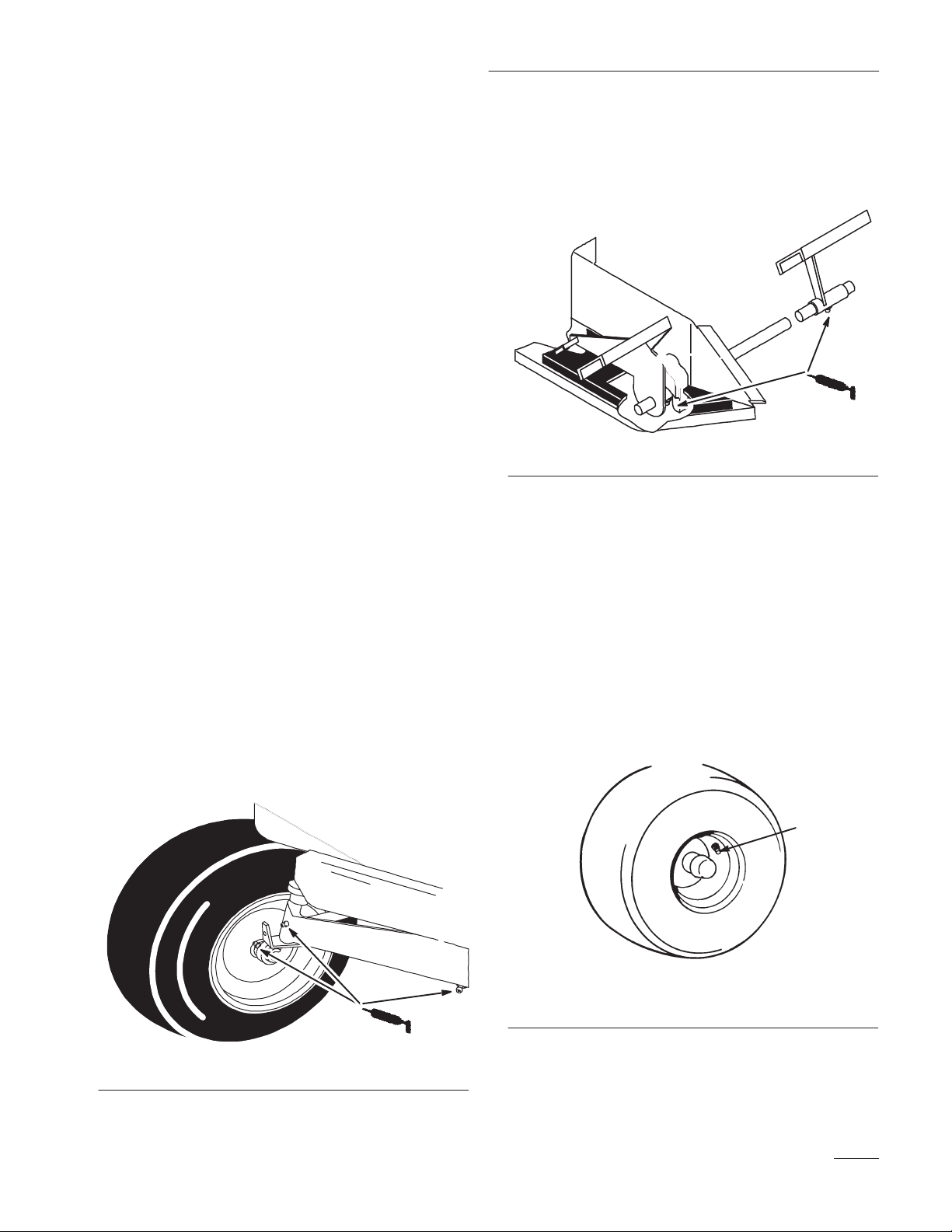

Greasing and Lubrication
Service Interval/Specification
Grease the machine after every 50 operating hours or
yearly, whichever occurs first. Grease more frequently
when operating conditions are extremely dusty or
sandy.
Grease Type: General-purpose grease.
How to Grease
1. Disengage the power take off (PTO), set the
parking brake, and turn the ignition key to
“OFF” to stop the engine. Remove the key.
2. Clean the grease fittings with a rag. Make sure to
scrape any paint off the front of the fitting(s).
3. Connect a grease gun to the fitting. Pump grease
into the fittings until grease begins to ooze out of
the bearings.
3. Lubricate the traction control pedal on
hydrostatic models (or brake and clutch pedals
on gear drive models) where they pivot on
mounting shaft (Fig. 24).
1264
Figure 24
Tire Pressure
Service Interval/Specification
4. Wipe up any excess grease.
Where to Add Grease
1. Lubricate the front wheels and spindles until
grease begins to ooze out of the bearings
(Fig. 23).
2. Lubricate the front axle pivot (Fig. 23).
1211
Maintain the air pressure in the front and rear tires as
specified. Check the pressure at the valve stem after
every 25 operating hours or monthly, whichever
occurs first (Fig. 25). Check the tires when they are
cold to get the most accurate pressure reading.
Pressure: 12 psi (.85 kPa) front and rear
1
Figure 25
1. Valve stem
Figure 23
23
Page 26
Maintenance
Brake
Always set the parking brake when you stop the
machine or leave it unattended. If the parking brake
does not hold securely, an adjustment is required.
Checking the Brake
1. Park the machine on a level surface, disengage
the power take off (PTO), set the parking brake,
and turn the ignition key to “OFF” to stop the
engine. Remove the key.
2. Rear wheels must lock and skid when you try to
push the tractor forward. Adjustment is required
if the wheels turn and do not lock; refer to
Adjusting the Brake, page 24.
3. Release the brake and move the drive control rod
to the “PUSH” position; refer to Pushing the
Machine by Hand, page 16. Wheels should
rotate freely.
4. If both conditions are met no adjustment is
required.
IMPORTANT: Drive control rod moves to the
“OPERATE” position when the brake is
applied.

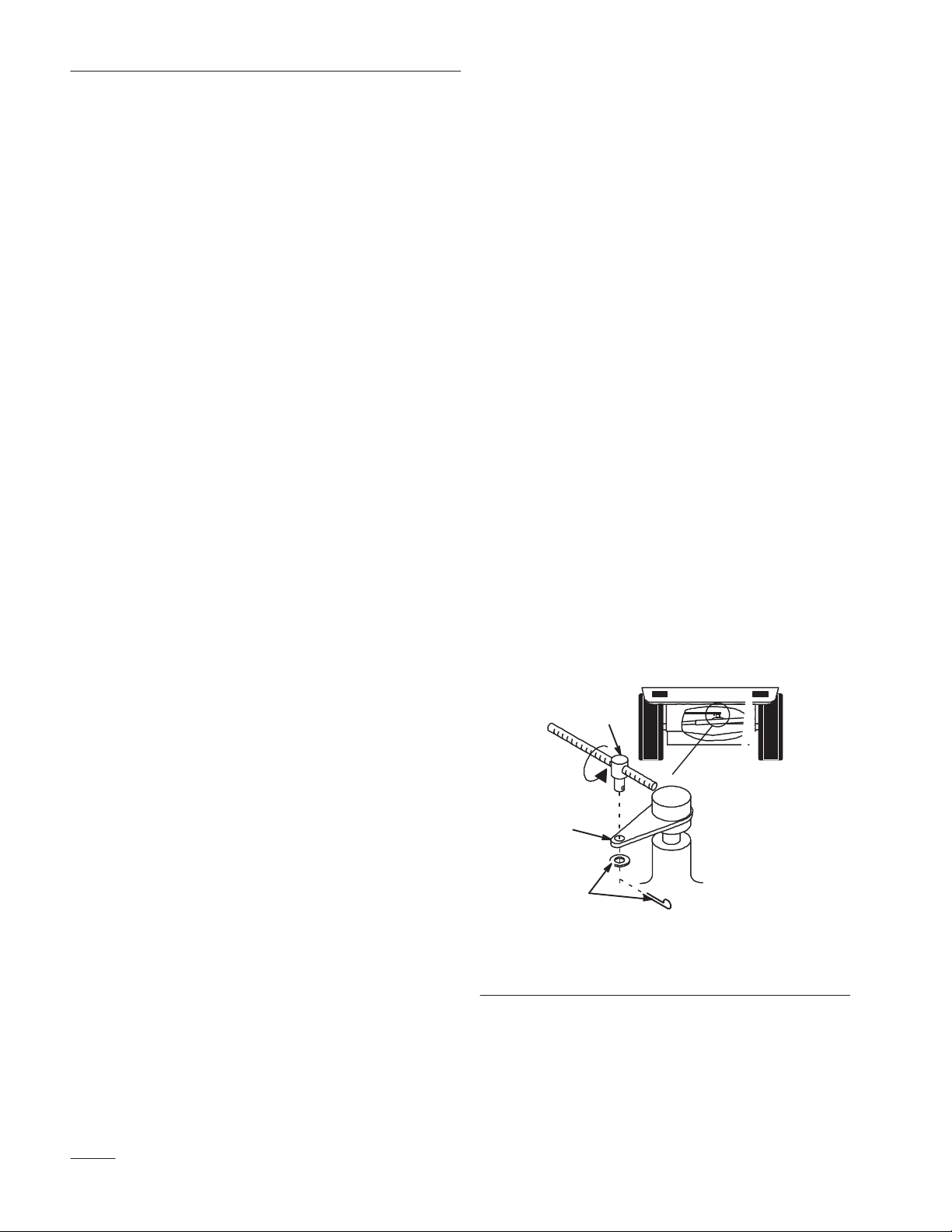

Adjusting the Brake
The brake lever is on top of the transaxle (Fig. 26). If
the parking brake does not hold securely, an
adjustment is required.
1. Check the brake before you adjust it; refer to
Checking the Brake, page 24.
2. Release the parking brake; refer to Releasing the
Parking Brake, page 9.
3. To adjust the brake remove the cotter pin and
washer from the brake lever (Fig. 26).
4. Rotate the trunnion so it smoothly slides into
brake lever (Fig. 26).
5. Secure trunnion to brake lever with washer and
cotter pin (Fig. 26).
6. Check the brake operation again; refer to
Checking the Brake, page 24.
IMPORTANT: With the parking brake
released, the rear wheels must rotate freely
when you push the mower. If brake action
and free wheel rotation cannot be achieved
contact your service dealer immediately.
2
24
3
1
1. Cotter pin and washer
2. Trunnion
1245
Figure 26
3. Brake lever
Page 27
Maintenance

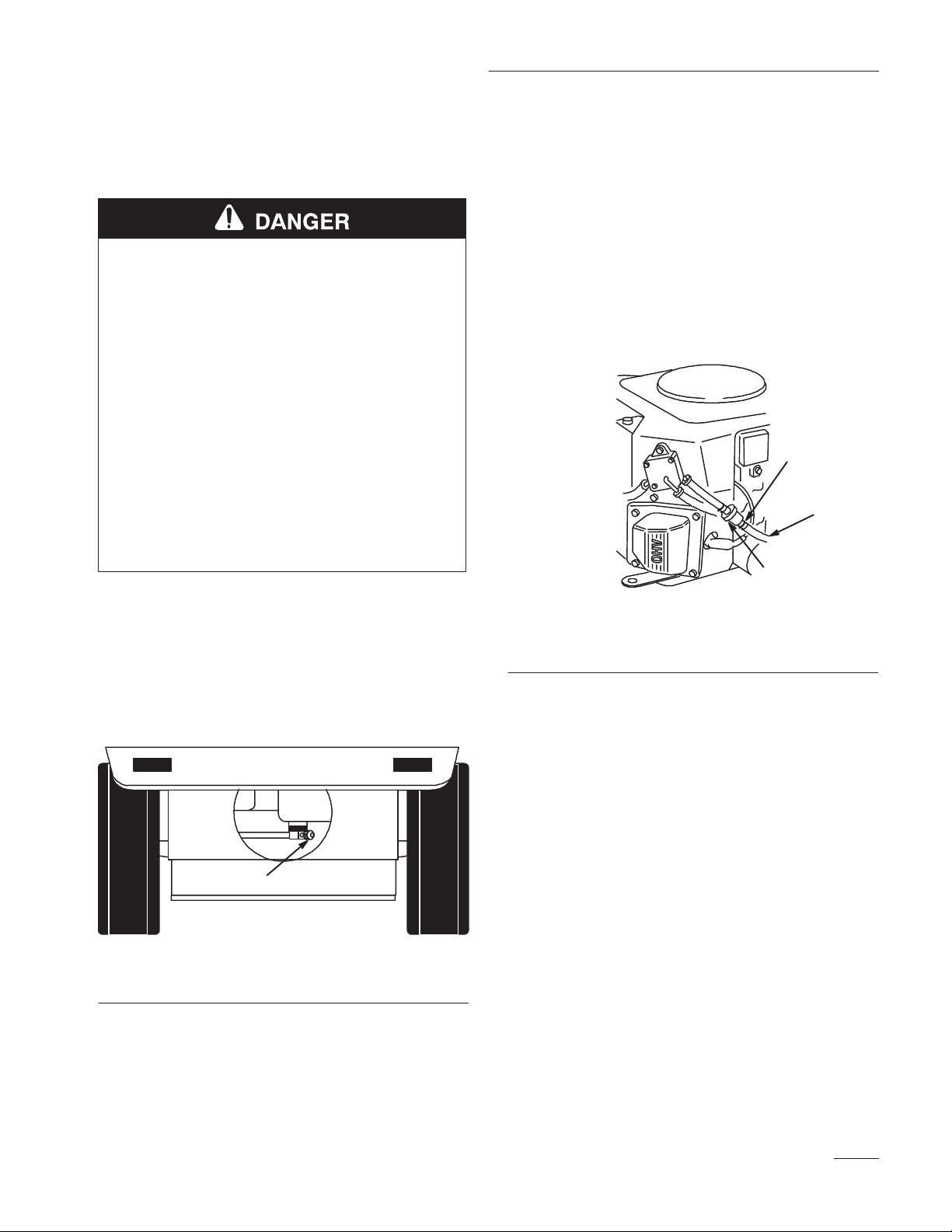

Fuel Tank
Draining The Fuel Tank
POTENTIAL HAZARD
• In certain conditions gasoline is extremely
flammable and highly explosive.
WHAT CAN HAPPEN
• A fire or explosion from gasoline can burn
you, others, and cause property damage.
HOW TO AVOID THE HAZARD
• Drain gasoline from the fuel tank when the
engine is cold. Do this outdoors in an open
area. Wipe up any gasoline that spills.
• Never drain gasoline near an open flame or
where gasoline fumes may be ignited by a
spark.
• Never smoke a cigarette, cigar or pipe.
1. Park the machine on a level surface, to assure
fuel tank drains completely. Then disengage the
power take off (PTO), set the parking brake, and
turn the ignition key to “OFF” to stop the
engine. Remove the key.
5. Pull the fuel line off the filter (Fig. 28). Open
fuel shut-off valve and allow gasoline to drain
into a gas can or drain pan.
Note: Now is the best time to install a new
fuel filter because the fuel tank is
empty.
6. Install the fuel line onto the filter. Slide the hose
clamp close to the filter to secure the fuel line
and filter. Refer to Replacing the Fuel Filter;
page 26.
1
2
1217
1. Hose clamp
2. Fuel line
3
Figure 28
3. Filter
2. Close fuel shut–off valve at fuel tank (Fig. 27).
1
1263
Figure 27
1. Fuel shut-off valve
3. Open the hood.
4. Squeeze the ends of the hose clamp together and
slide it up the fuel line toward the fuel tank
(Fig. 28).
25
Page 28
Maintenance
Fuel Filter
Service Interval/Specification
Replace the fuel filter after every 100 operating hours
or yearly, whichever occurs first.
Replacing the Fuel Filter
Never install a dirty filter if it is removed from the
fuel line.
1. Disengage the power take off (PTO), set the
parking brake, and turn the ignition key to
“OFF” to stop the engine. Remove the key.
2. Close fuel shut–off valve at fuel tank (Fig. 27).
3. Open the hood.
4. Squeeze the ends of the hose clamps together
and slide them away from the filter (Fig. 29).
5. Remove the filter from the fuel lines.
1
2
3
Figure 29
1. Hose clamp
2. Fuel line
3. Filter
6. Install a new filter and move the hose clamps
close to the filter.
1217
7. Open fuel shut-off valve at fuel tank (Fig. 27).
8. Close the hood.
26
Page 29
Maintenance
Front Wheel Toe-In
Service Interval/Specification
Maintain toe-in of the front wheels as specified. If
uneven tire wear, lawn scuffing or hard steering
develop adjustment may be required. Check the toe-in
after every 100 operating hours or yearly, whichever
occurs first (Fig. 30).
Specification: 1/8–1/4 inch toe-in on front wheels.
Measuring Toe-in
1. Disengage the power take off (PTO), set the
parking brake, and turn the ignition key to
“OFF” to stop the engine. Remove the key.
2. Push front tires out, at front, to remove normal
looseness in the linkage.
3. Measure, between the rims, at spindle level, in
the front and rear of the wheels (Fig. 30).
Adjusting Toe-In
1. Check the toe-in before you adjust it; refer to
Measuring Toe-In, Page 27.
2. Remove ball joint from one steering lever
(Fig. 30).
3. Loosen jam nut securing ball joint to steering
rod. Rotate ball joint one turn, clockwise to
increase or counter clockwise to decrease toe-in.
4. Hold flats on ball joint to align with flats on tie
rod and tighten jam nut (Fig. 30).
5. Install ball joint to steering lever and check the
toe-in; refer to Measuring Toe-In, Page 32.
IMPORTANT: If more than one turn is
required to meet specifications, alternate
between left and right steering rods to
maintain steering wheel alignment.
4. The front measurement should be less than the
rear, as specified.
1
4
3
2
Figure 30
1. Measure here
2. Ball joint flats
3. Jam nut
4. Steering lever
1261
27
Page 30
Maintenance

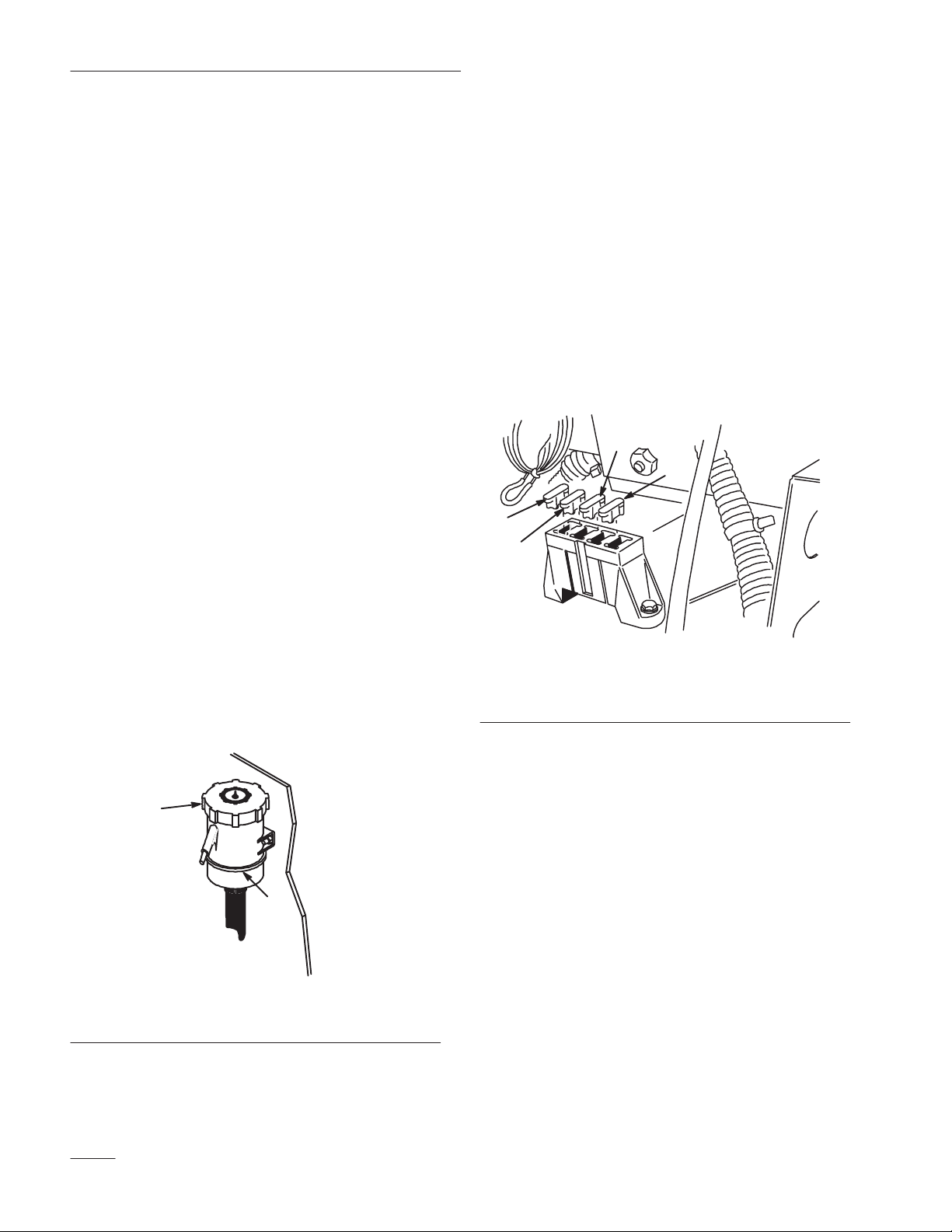

Transaxle Fluid
Service Interval/Specification
Check fluid level after every 100 hours or yearly
whichever comes first. Always keep the fluid level at
the full level when the transaxle is cold. The transaxle
is a sealed system and no changing of the fluid is
required.
Fluid Type: SAE 10W–30 Detergent oil (API service
SF or SG)
Checking Fluid Level
1. Park the machine on a level surface, disengage
the power take off (PTO), set the parking brake,
and turn the ignition key to “OFF” to stop the
engine. Remove the key.
2. Open the hood.
3. Clean around the fluid reservoir (Fig. 31) so
level is clearly visible and so dirt cannot fall into
the reservoir if fluid is added.
4. When transaxle is cold add oil to “Full Cold”
line on reservoir (Fig. 31).
IMPORTANT: Do not fill above the full cold
line as the transaxle may be damaged.
Fuse
Service Interval/Specification
The electrical system is protected by fuses. It requires
no maintenance, however, if a fuse blows check
component/circuit for malfunction or short. To
replace fuses pull up on the fuse (Fig. 32) to remove
or replace it.
Fuse: Dash/Hour meter F1–5 amp, blade-type
Head lights F2–10 amp, blade-type
Alternator F3–25 amp, blade-type
Main/Starter F4–30 amp, blade-type
2
1
4
3
1212
Figure 32
1. Dash/Hour me t e r - 5 A m p
2. Head lights-10 amp
3. Alternator-25 amp
4. Main-30 amp
1
2
Figure 31
1. Fluid reservoir 2. Full cold level
28
1243
Page 31
Maintenance
Headlights
Specification: Bulb # 1156 Automotive Type
Removing the Bulb
1. Disengage the power take off (PTO), set the
parking brake, and turn the ignition key to
“OFF” to stop the engine. Remove the key.
2. Open the hood. Pull wire connectors off both
bulb holder terminals.
3. Rotate the bulb holder 1/4 turn counterclockwise
and remove it from the reflector (Fig. 33).
4. Push and rotate the bulb counterclockwise until
it stops (approx. 1/4 turn) and remove bulb from
the bulb holder (Fig. 34).
5
3
2
5
1
4
Installing the Bulb
1. The bulb has metal pins on the side of its base.
Align the pins with the slots in the bulb holder
and insert the base into the holder (Fig. 34).
Push and rotate the bulb clockwise until it stops.
1
2
4
3
Figure 34
1. Bulb
2. Metal pins
3. Bulb holder
4. Slots
2. The bulb holder has two tabs (Fig. 33). Align the
tabs with the slots in the reflector, insert the bulb
holder into the reflector and rotate it 1/4 turn
clockwise until it stops.
3. Push the wire connectors onto the terminals on
the bulb holder.
2
4
4
1. Bulb holder
2. Reflector
3. Tabs
Figure 33
4. Slots
5. Terminals
29
Page 32
Maintenance
Battery
Service Interval/Specification
Check the electrolyte level in the battery before each
use. Always keep the battery clean and fully charged.
Use a paper towel to clean the battery case. If the
battery terminals are corroded, clean them with a
solution of four parts water and one part baking soda.
Apply a light coating of grease to the battery
terminals to prevent corrosion.
Voltage: 12 v, 280 Cold Cranking Amps
Removing the Battery
1. Disengage the power take off (PTO), set the
parking brake, and turn the ignition key to
“OFF” to stop the engine. Remove the key.
2. Open the hood to see the battery.
3. Remove side panels for clearance when
removing battery (Fig. 36). Remove the wing
nuts and screws and lift up to clear pin and slide
panel tabs out from steering tower.
4. Disconnect the negative (black) ground cable
from the battery post (Fig. 35).
5. Lift the rubber cover up on the positive (red)
cable. Disconnect the positive (red) cable from
the battery post (Fig. 35).
6. Remove the battery hold down rods (Fig. 35).
4
2
3
1. Negative cable (black)
2. Rubber cover
3. Positive cable (red)
1
Figure 35
4. Bolt and wing nut
5. Hold down rod and wing
nut
5
1219
Installing the Battery
7. Install the battery into the chassis (Fig. 36).
8. Secure battery in chassis with hold down rods.
9. Using the bolt and wing nut, connect the positive
(red) cable to the positive (+) battery post
(Fig. 35). Slide the rubber cover over the battery
post.
10. Using the bolt and wing nut, connect the
negative (black) cable to the negative (–) battery
post (Fig. 35).
11. Install side panels by sliding tabs into steering
tower and inserting pin into flange of footrest.
Secure with screws and wing nuts (Fig. 36).
30
Page 33
Maintenance
1
4
2
3
1. Battery
2. Side panel tabs
3. Screw
5
Figure 36
4. Wing nut
5. Pin
4
Checking Electrolyte Level
1. With the engine off, open the hood to see the
battery.
1260
Adding Water to the Battery
The best time to add distilled water to the battery is
just before you operate the machine. This lets the
water mix thoroughly with the electrolyte solution.
1. Clean the top of the battery with a paper towel.
2. Lift off the filler caps (Fig. 37).
3. Slowly pour distilled water into each battery cell
until the level is up to the lower part of the tube
(Fig. 37).
IMPORTANT: Do not overfill the battery
because electrolyte (sulfuric acid) can cause
severe corrosion and damage to the chassis.
4. Press the filler caps onto the battery.
2. Open covers to see into the cells. The electrolyte
must be up to the lower part of the tube
(Fig. 37). Do not allow the electrolyte to get
below the plates. (Fig. 37).
3. If the electrolyte is low, add the required amount
of distilled water; refer to Adding Water to the
Battery, page 31.
1
2
1. Filler caps
2. Lower part of tube
Figure 37
3. Plates
3
1262
31
Page 34
Maintenance
Charging the Battery
IMPORTANT: Always keep the battery fully
charged (1.260 specific gravity). This is
especially important to prevent battery
damage when the temperature is below 32°F
(0°C).
1. Remove the battery from the chassis; refer to
Removing the Battery, page 30.
2. Check the electrolyte level; refer to Checking
Electrolyte Level, page 31, steps 2–3.
3. Remove the filler caps from the battery and
connect a 3 to 4 amp battery charger to the
battery posts. Charge the battery at a rate of 4
amperes or less for 4 hours (12 volts). Do not
overcharge the battery. Install the filler caps after
the battery is fully charged.
POTENTIAL HAZARD
• Charging the battery produces gasses.
WHAT CAN HAPPEN
• Battery gasses can explode.
HOW TO AVOID THE HAZARD
• Keep cigarettes, sparks and flames away
from battery.
4. Install the battery in the chassis; refer to
Installing the Battery, page 30.
32
Page 35
Wiring Diagram
Maintenance
1250
33
Page 36
Maintenance
Cleaning and Storage
1. Disengage the power take off (PTO), set the
parking brake, and turn the ignition key to
“OFF” to stop the engine. Remove the key.
2. Remove grass clippings, dirt, and grime from the
external parts of the entire machine, especially
the engine. Clean dirt and chaff from the outside
of the engine’s cylinder head fins and blower
housing.
IMPORTANT: You can wash the machine
with mild detergent and water. Do not
pressure wash the machine. Avoid excessive
use of water, especially near the control panel,
lights, engine, and the battery.
3. Check the brake; refer to Brake, page 23.
4. Service the air cleaner; refer to Air Cleaner,
page 18.
5. Grease the chassis; refer to Greasing and
Lubrication, page 23.
40°F (4°C). If the temperatures will be above
40°F (4°C), check the water level in the
battery and charge it every 30 days.
9. Check the tire pressure; refer to Tire Pressure,
page 23.
10. During long-term storage, either drain gasoline
from the fuel tank (step A) or add a fuel
stabilizer/conditioner additive to a full tank of
gasoline (step B).
A. Drain gasoline from the fuel tank; refer to
Fuel Tank, page 25. After fuel is drained,
start the engine and let it idle until all
gasoline is consumed and the engine stops.
This eliminates gum-like buildup in the fuel
system, which causes hard starting. Try to
start the engine two more times to assure
that no gasoline is in the fuel system.
B. Add the correct amount of a fuel
stabilizer/conditioner or an isopropyl-based
stabilizer/conditioner to a full tank of
gasoline.
6. Change the crankcase oil; refer to Engine Oil,
page 20.
7. Remove the spark plug(s) and check its
condition; refer to Spark Plug, page 22. With the
spark plug(s) removed from the engine, pour two
tablespoons of engine oil into the spark plug
hole. Now use the electric starter to crank the
engine and distribute the oil inside the cylinder.
Install the spark plug(s) and tighten it to 15 ft–lb
(20.4 Nm). Do not install the wire on the spark
plug(s).
8. Remove the battery from the chassis, check the
electrolyte level, and charge it fully; refer to
Battery, page 30. Do not connect the battery
cables to the battery posts during storage.
IMPORTANT: The battery must be fully
charged to prevent it from freezing and being
damaged at temperatures below 32°F (0°C). A
fully charged battery maintains its charge for
about 50 days at temperatures lower than
Note: Stabilizer/conditioners normally
preserve gasoline for six to eight
months.
11. Check and tighten all bolts, nuts, and screws.
Repair or replace any part that is damaged or
defective.
12. Paint all scratched or bare metal surfaces. Paint
is available from your Authorized Service
Dealer.
13. Store the machine in a clean, dry garage or
storage area. Remove the key from the ignition
switch and keep it in a memorable place. Cover
the machine to protect it and keep it clean.
34
Page 37
Troubleshooting
g,,
g
PROBLEM POSSIBLE CAUSES CORRECTIVE ACTION
Starter does not crank
Engine will not start, starts hard, or
fails to keep running.
1. Blade control (PTO) is
ENGAGED.
2. Parking brake is not on. 2. Set parking brake.
3. Operator is not seated.
4. Battery is dead.
5. Electrical connections are
corroded or loose.
6. Fuse is blown. 6. Replace fuse.
7. Relay or switch is defective. 7. Contact Authorized Service
1. Fuel tank is empty. 1. Fill fuel tank with gasoline.
2. Choke is not ON. 2. Move choke lever to ON.
3. Air cleaner is dirty. 3. Clean or replace air cleaner
4. Spark plug wire is loose or
disconnected.
5. Spark plug is pitted, fouled, or
gap is incorrect.
6. Dirt in fuel filter. 6. Replace fuel filter.
1. Move blade control (PTO) to
DISENGAGED.
3. Sit on the seat.
4. Charge the battery.
5. Check electrical connections
for good contact.
Dealer.
element.
4. Install wire on spark plug.
5. Install new, correctly gapped
spark plug.
Engine loses power.
7. Dirt, water, or stale fuel is in
fuel system.
1. Engine load is excessive. 1. Reduce ground speed.
2. Air cleaner is dirty. 2. Clean air cleaner element.
3. Oil level in crankcase is low. 3. Add oil to crankcase.
4. Cooling fins and air passages
under engine blower housing
are plugged.
5. Spark plug is pitted, fouled, or
gap is incorrect.
6. Vent hole in fuel cap is
plugged.
7. Dirt in fuel filter. 7. Replace fuel filter.
8. Dirt, water, or stale fuel is in
fuel system.
7. Contact Authorized Service
Dealer.
4. Remove obstruction from
cooling fins and air passages.
5. Install new, correctly gapped
spark plug.
6. Clean or replace the fuel cap.
8. Contact Authorized Service
Dealer.
35
Page 38
Troubleshooting
g
PROBLEM CORRECTIVE ACTIONPOSSIBLE CAUSES
Engine overheats.
Abnormal vibration.
Machine does not drive.
1. Engine load is excessive. 1. Reduce ground speed.
2. Oil level in crankcase is low. 2. Add oil to crankcase.
3. Cooling fins and air passages
under engine blower housing
are plugged.
1. Engine mounting bolts are
loose.
2. Loose engine pulley, idler
pulley, or blade pulley.
3. Engine pulley is damaged. 3. Contact Authorized Service
1. Drive control is in “PUSH”
position.
2. Traction belt is worn, loose or
broken.
3. Traction belt is off pulley. 3. Contact Authorized Service
3. Remove obstruction from
cooling fins and air passages.
1. Tighten engine mounting
bolts.
2. Tighten the appropriate
pulley.
Dealer.
1. Move drive control to
“OPERATE” position.
2. Contact Authorized Service
Dealer.
Dealer.
36
Page 39
Page 40
Loading...
