Toro 60217, 60217C, 60221, 60221C, 60221HD Operator's Manual

FormNo.3422-822RevA

MMX-658K-P ,MMX-858K-P ,and
MMX-858H-PMortarMixers

ModelNo.60217—SerialNo.400000000andUp
ModelNo.60217C—SerialNo.400000000andUp
ModelNo.60221—SerialNo.400000000andUp
ModelNo.60221C—SerialNo.400000000andUp
ModelNo.60221HD—SerialNo.400000000andUp

Registeratwww.T oro.com.
OriginalInstructions(EN)

*3422-822*A

ItisaviolationofCaliforniaPublicResourceCode
Section4442or4443touseoroperatetheengineon
anyforest-covered,brush-covered,orgrass-covered
landunlesstheengineisequippedwithaspark
arrester,asdenedinSection4442,maintainedin
effectiveworkingorderortheengineisconstructed,
equipped,andmaintainedforthepreventionofre.

Theenclosedengineowner'smanualissupplied
forinformationregardingtheUSEnvironmental
ProtectionAgency(EPA)andtheCaliforniaEmission
ControlRegulationofemissionsystems,maintenance,
andwarranty.Replacementsmaybeorderedthrough
theenginemanufacturer.

TireInformation—TheDOTtireinformationislocated
onthesideofeachtire.Thisinformationgivesload
andspeedratings.Replacementtiresshouldhavethe
sameorbetterratings;refertoSpecications(page

17)toensurethatthetiresonyourmachinemeetor

exceedtheweightrequirementsofyourmachine.

Ifyoubelievethatyourmachinehasadefectwhich
couldcauseacrashorcouldcauseinjuryordeath,
youshouldimmediatelyinformtheNationalHighway
TrafcSafetyAdministration(NHTSA)ifyoulivein
theUnitedStatesorTransportCanadaifyoulivein
Canada,inadditiontonotifyingTheT oroCompany.
IfNHTSAorTransportCanadareceivessimilar
complaints,itmayopenaninvestigation,andifitnds
thatasafetydefectexistsinagroupofmachines,it
mayorderarecallandremedycampaign.However,
NHTSAorTransportCanadacannotbecomeinvolved
inindividualproblemsbetweenyou,yourdealer,or
TheToroCompany.

•TocontactNHTSA,youmaycalltheVehicle

SafetyHotlinetoll-freeat1-888-327-4236;goto
http://www.safercar.gov;orwriteto:Administrator,
NHTSA,1200NewJerseyAvenue,SEWest
Building,Washington,DC20590.Y oucanalso
obtainotherinformationaboutmotorvehiclesafety
fromhttp://www.safercar.gov.

•TocontactTransportCanada,youmaycall

1-800-333-0510or(819)994-3328;goto
http://www.tc.gc.ca/roadsafety/;writeto:Road
SafetyandMotorVehicleRegulationDirectorate,
TransportCanada,TowerC,PlacedeVille,330
SparksStreet,Ottawa,Ontario,K1A0N5;oremail
[email protected].

WARNING

CALIFORNIA

Proposition65Warning

Theengineexhaustfromthisproduct

containschemicalsknowntotheStateof

Californiatocausecancer,birthdefects,

orotherreproductiveharm.

Useofthisproductmaycauseexposure

tochemicalsknowntotheStateof

Californiatocausecancer,birthdefects,

orotherreproductiveharm.

Introduction

Thismachineisdesignedtomixmortar,plaster,
reproongmaterial,grout,andothersmall-grained
Portlandcementproducts.Avehicleequippedwith
anappropriatepintlehitchorballhitchcantowthe
machine.

Readthisinformationcarefullytolearnhowtooperate
andmaintainyourproductproperlyandtoavoid
injuryandproductdamage.Youareresponsiblefor
operatingtheproductproperlyandsafely .

YoumaycontactTorodirectlyatwww.T oro.com
forproductsafetyandoperationtrainingmaterials,
accessoryinformation,helpndingadealer,orto
registeryourproduct.

Wheneveryouneedservice,genuineToroparts,or
additionalinformation,contactanAuthorizedService
DealerorToroCustomerServiceandhavethemodel
andserialnumbersofyourproductready.Figure1
identiesthelocationofthemodelandserialnumbers
ontheproduct.Writethenumbersinthespace
provided.

Important:Withyourmobiledevice,youcan

scantheQRcodeontheserialnumberdecal(if
equipped)toaccesswarranty,parts,andother
productinformation.

©2018—TheToro®Company
8111LyndaleAvenueSouth
Bloomington,MN55420

Contactusatwww.Toro.com.

2

PrintedintheUSA

AllRightsReserved

Figure1

1.Modelandserialnumberlocation

ModelNo.

SerialNo.

Thismanualidentiespotentialhazardsandhas
safetymessagesidentiedbythesafety-alertsymbol
(Figure2),whichsignalsahazardthatmaycause
seriousinjuryordeathifyoudonotfollowthe
recommendedprecautions.

Figure2

Safety-alertsymbol

g249187

g000502

Thismanualuses2wordstohighlightinformation.
Importantcallsattentiontospecialmechanical
informationandNoteemphasizesgeneralinformation
worthyofspecialattention.

3

Contents

Safety.......................................................................5

SafeOperatingPractices....................................5

SafetyandInstructionalDecals..........................8

Setup.......................................................................11

1InstallingtheDumpHandle.............................11

2InstallingtheT owPole...................................12

3InstallingtheSafetyChain..............................12

4AdjustingtheMixingPaddles.........................12

ProductOverview...................................................13

Controls...........................................................14

EngineControls............................................15

Specications..................................................17

Operation................................................................17

ThinkSafetyFirst..............................................17

TowingtheMachine..........................................17

AdjustingtheAxleWidth...................................21

PreparingtoUsetheMachine...........................21

OpeningtheCowl.............................................22

ClosingtheCowl...............................................22

AddingFuel......................................................22

PerformingDailyMaintenance..........................24

StartingtheEngine...........................................24

ShuttingOfftheEngine.....................................25

MixingtheMaterial...........................................25

DumpingtheMaterial........................................26

CleaningtheDrum............................................27

Maintenance...........................................................28

RecommendedMaintenanceSchedule(s)...........28

Pre-MaintenanceProcedures..............................29

PreparingtheMachineforMaintenance............29

DisconnectingtheSpark-PlugWire..................29

RemovingtheDividerPlate..............................29

InstallingtheDividerPlate................................29

Lubrication..........................................................30

LubricatingtheBearings,Seals,and

Gears............................................................30

EngineMaintenance...........................................31

ServicingtheAirCleaner..................................31

ServicingtheEngineOil....................................32

ServicingtheSparkPlug...................................34

CleaningtheSparkArrester..............................35

RemovingandInstallingtheEngine..................36

FuelSystemMaintenance...................................38

CleaningtheFuel-SedimentCup......................38

DrainingtheFuelT ank......................................38

ElectricalSystemMaintenance...........................39

ServicingtheLightBulbs..................................39

DriveSystemMaintenance..................................40

TireAirPressure...............................................40

InspectingtheTires..........................................40

TorquingtheWheelLugNuts............................40

ServicingtheReductionCase...........................41

BeltMaintenance................................................43

InspectingtheBelts..........................................43

AdjustingtheBeltT ension.................................43

ReplacingtheBelts...........................................44

AligningthePulleys..........................................46

PaddleMaintenance............................................47

AdjustingthePaddles.......................................47

Cleaning..............................................................49

CleaningtheMachine.......................................49

Storage...................................................................49

Troubleshooting......................................................51

4

Safety

Improperuseormaintenancebytheoperatoror
ownercanresultininjury.T oreducethepotential
forinjury ,complywiththesesafetyinstructions
andalwayspayattentiontothesafety-alertsymbol
(Figure2),whichmeans:Caution,Warning,or
Danger—personalsafetyinstruction.Failureto
complywiththeinstructionmayresultinpersonal
injuryordeath.

SafeOperatingPractices

Thisproductiscapableofamputatinghands.Always
followallsafetyinstructionstoavoidseriousinjuryor
death.

WARNING

Machiningorhandlingstone,masonry,
concrete,metal,andothermaterialscan
generatedust,mists,andfumescontaining
chemicals,suchassilica,knowntocause
seriousorfatalinjuryorillness,suchas
respiratorydisease,silicosis,cancer,birth
defects,orotherreproductiveharm.

•Controldust,mist,andfumesatthe
sourcewherepossible.Usewaterfordust
suppressionwheneverpossible.

•Usegoodworkpracticesandfollowthe
recommendationsofthemanufactureror
suppliers,OSHA,andotheroccupational
andtradeassociations.

•Alwaysfollowrespiratoryprecautions.

•Whenyoucannoteliminatethehazards
frominhalation,youandallbystanders
shouldweararespiratorapprovedby
OSHAforthematerialthatyouare
handling.

WARNING

Engineexhaustcontainscarbonmonoxide,
whichislethalifinhaled.

Donotruntheengineindoorsorinan
enclosedarea.

•Readandunderstandthecontentsofthis

Operator’sManualbeforeyoustarttheengine.
Ensurethateveryoneusingthisproductknows
howtouseitandunderstandsthewarnings.

•Becomefamiliarwiththesafeoperationofthe

equipment,operatorcontrols,andsafetysigns.

•Alloperatorsandmechanicsshouldbetrained.

Theownerisresponsiblefortrainingthem.

•Neverletchildrenoruntrainedpeopleoperateor

servicetheequipment.Localregulationsmay
restricttheageoftheoperator.

•Theowner/usercanpreventandisresponsible

foraccidentsorinjuriestopeopleordamageto
property.

Towing

•Checkwithyourlocalcountyorstatetowingsafety

regulationsbeforetowingthemachine.

•Toreducethepossibilityofanaccidentwhile

transportingthemachineonpublicroads,ensure
thatthetowingvehicleismechanicallysoundand
ingoodoperatingcondition.

•Shutofftheenginebeforetransportingthe

machine.

•Whentowingwithaballhitch,ensurethatitisthe

propersizeforthehitchcoupleronthemachine.

•Whentowingwithapintlehitch,ensurethatthe

eyeofthetowpoleisthecorrectdimensionfor
thepintlehook.

•Inspectthehitchandcouplingforwear.Donot

towthemachinewithdamagedorwornhitches,
couplings,chains,orothercomponents.

•Checktheairpressureofthetiresonthetowing

vehicleandadjustthepressureasneeded.

•Checkthetiretreadandsidewallfordamageand

wearandreplacethetireifnecessary.

•Properlyattachthesafetychainstothetowing

vehiclebycrossingthechainsandremovingany
extraslack.

•Ensurethatthedirectionalandbrakelightsare

workingproperly(ifequipped).

•Ensurethatthedirectional,backup,andbrake

lightsofthetowvehicleareworkingproperly(if
equipped).

Training

•Parkthemachineonalevelsurface,shutoffthe

engine,waitforallmovingpartstostop,andallow
themachinetocoolbeforeadjusting,cleaning,
storing,orrepairingthemachine.

•Beforetowing,ensurethatyourmachineis

correctlyandsecurelyattachedtothetowing
vehicle.

•Ensurethatthesafetychainsareproperlysecured

tothevehicle,andleaveenoughslackforturning.

5

•Donotcarryanymaterialinthemachinewhen

towing.

•Avoidsuddenstopsandstarts.Thiscancause

skiddingorjackkning.Smooth,gradualstartsand
stopsimprovestowing.

•Avoidsharpturnstopreventrolling.T owonlywith

avehiclethathasahitchdesignedfortowing.Do
notattachtowedequipmentexceptatthehitch
point.

•Donottowthemachinefasterthan88km/h(55

mph).

•Usecautionwhenbackingup;useaspotter

outsidethevehicletoguideyou.

•Donotallowanyonetositorrideonthemachine.

•Disconnectthemachinefromthetowvehicle

beforeusingit.

•Placechocksunderneaththetirestopreventthem

fromrollingwhilethemachineisparked.

Preparation

–Ensurethatthelugnutsaretightandtorqued

properly.

–Ensurethatthemachineisproperlysecured.

FuelSafety

•Useextremecareinhandlingfuel.Itisammable

anditsvaporsareexplosive.

•Extinguishallcigarettes,cigars,pipes,andother

sourcesofignition.

•Useonlyanapprovedfuelcontainer.

•Donotremovethefuelcaporllthefueltank

whiletheengineisrunningorhot.

•Donotaddordrainfuelinanenclosedspace.

•Donotstorethemachineorfuelcontainerwhere

thereisanopename,spark,orpilotlight,such
asonawaterheaterorotherappliance.

•Ifyouspillfuel,donotattempttostarttheengine;

avoidcreatinganysourceofignitionuntilthefuel
vaporshavedissipated.

Becomefamiliarwiththesafeoperationofthe
equipment,operatorcontrols,andsafetysigns.

•Useonlyaccessoriesandattachmentsapproved

bythemanufacturer.

•Wearpersonalprotectiveequipmentand

appropriateclothingincluding:

–Hardhat
–Respiratorordustmask
–Faceshield
–Safetyglasses
–Hearingprotection
–Safetyshoes
–Longpants
–Shirtwithlongsleevesthataretightatthe

wrists

–Tight-ttinggloveswithoutdrawstringsorloose

cuffs

•Wearappropriateclothing,includingeye

protection;longpants;substantial,slip-resistant
footwear;andhearingprotection.Tiebacklong
hairanddonotwearloosejewelry .

•Ensurethatthemachineisonalevelsurface

beforeoperatingit.

•Chockthetiresofthemachinetoprevent

unintendedmovement.

•Beforeeveryuse,dothefollowing:

–Inspectthecoupler,ball,andhitch.
–Ensurethatalllightsarefunctioningproperly

(ifequipped).

–Ensurethatthetiresareproperlyinated.

Operation

•Useyourfullattentionwhileoperatingthe

machine.Donotengageinanyactivitythat
causesdistractions;otherwise,injuryorproperty
damagemayoccur.

•Donotrunanengineinanenclosedorpoorly

ventilatedarea.

•Operatethemachineonlyingoodlighting

conditions.

•Beforestartingthemachine,ensurethatthereare

nopeopleorobstaclesnearorunderthemachine.

•Shutofftheenginebeforeleavingthemachinefor

anyreason.

Neverleavearunningmachineunattended.
Alwaysshutofftheengineandverifythatall
movingpartshavestopped.

•Chockthetiresofthemachineorkeepitattached

tothetowingvehiclewhenitisnotinuse.

•Keepyourhandsawayfromanymovingparts.

Keepyourfeetawayfromthetiresandthefront
post.

•Donotoperatethemachineundertheinuence

ofalcoholordrugs.

•Donotplaceyourhandsoranysolidobjectinto

thedrumwhenthemachineisinoperation.

•Donottouchpartsthatmaybehotfromoperation.

Allowthemtocoolbeforeattemptingtomaintain,
adjust,orservicethemachine.

•Nevermovethemachinewhiletheengineis

running.

•Keepthecowlclosedandlatchedduringoperation.

6

•Ensurethatalltheguardsandshieldsaresecurely

inplacebeforeoperatingthemachine.

•Ifthemixingpaddlesstrikeanobjectorifthe

machinestartsmakinganunusualnoiseor
vibration,shutofftheengine,waitforallmoving
partstostop,andemptythedrum.Inspectfor
cloggingordamage.Clean,repair,and/orreplace
anydamagedparts.

•Donotchangetheenginegovernorsettingor

overspeedtheengine.

•Donotoperatethemachinewhenthereistherisk

oflightning.

MaintenanceandStorage

•Beforeperformingmaintenance,dothefollowing:

–Parkthemachineonalevelsurface.

–Shutofftheengine,disconnectthespark-plug

wire,andwaitforallmovementtostopbefore
adjusting,cleaning,orrepairingthemachine.

–Lettheenginecoolbeforeperforming

maintenanceorstoringthemachine.

–Disengageallpowerandoperationcontrols.

•Neverlubricate,service,repair,oradjustthe

machinewiththeenginerunning.

•Keepequipmentmaterialsclearfromthemufer

andenginetopreventres.Cleanupoilorfuel
spills.

•Neverallowuntrainedpersonneltoservicethe

machine.

•Keepyourhands,feet,andclothingawayfrom

movingparts.Ifpossible,donotmakeadjustments
withtheenginerunning.

•Keepallpartsingoodworkingconditionandall

fastenerstightened.Replaceallwornordamaged
decals.

•Removeanybuildupofgrease,oil,ordebrisfrom

themachine.

•Shutofftheengineandinspectthemachineif

anobjectentersthedrumorcausesanother
obstruction.Makeallnecessaryrepairsbefore
startingthemachine.

•Donottamperwithsafetydevices.

•Chockthetireswhenstoringthemachine.

•Keepallfastenersandhoseclampssecurely

tightenedandallequipmentingoodcondition.

•UseonlygenuineTororeplacementparts.

7

SafetyandInstructionalDecals

Safetydecalsandinstructionsareeasilyvisibletotheoperatorandarelocatednearanyarea
ofpotentialdanger.Replaceanydecalthatisdamagedormissing.

decal125-8175

125-8175

1.ReadtheOperator’sManualforinformationongreasing
themachine.

1.Warning—readthe
Operator’sManual.

2.Handandarm
entanglementatthe
beltdrive;crushinghazard
ofhand;entanglement
hazardofhandatthe
shaft—keepyourhands
awayfrommovingparts;
keepallguardsand
shieldsinplace.

3.Entanglementhazard
atpaddles—shutoff
theengineandwait
forallmovingpartsto
stopbeforeperforming
maintenance.

decal125-4939

125-4939

4.Toxicgasinhalation
hazard—Donotrunthe
engineinanenclosed
space.

5.Explosionhazard—shut
offtheengineandkeep
awayfromameswhen
refueling.

1.ReadtheOperator’s
Manualforinformationon
howtotowthemachine.

125-8216

2.Warning—limittowing
speedtolessthan88km/h
(55mph).

decal125-8216

8

decal133-5619

decal130-8322

133-5619

130-8322

1.Usefuelwithanalcohol
contentbyvolumeunder
10%only.

2.ReadtheOperator's
Manualformore
informationonfuel.

3.Donotusefuelwithan
alcoholcontentgreater
than10%byvolume.

decal137-7483

137-7483

9

1.ReadtheOperator’sManual.

decal137-7491

137-7491

10

Setup

LooseParts

Usethechartbelowtoverifythatallpartshavebeenshipped.

ProcedureDescription

Dumphandle1

1

2

3

4

Carriagebolt
Nut2

Towpolekit(soldseparately)

Safetychain(includedwiththetowpole
kit)

Connectinglink(includedwiththetow
polekit)

Nopartsrequired

1

InstallingtheDumpHandle

Partsneededforthisprocedure:

1Dumphandle

2

Carriagebolt

2Nut

Qty.

Use

2

1

1

2

–

Installthedumphandle.

Installthetowpole(side-dumpmodels
only).

Installthesafetychain.

Adjustthemixingpaddles.

Procedure

1.Cutthecabletiestoremovethedumphandle
fromtheundersideofthegrate.

2.Installthedumphandletothesideofthedrum
using2carriagebolts(installedontheinsideof
thedrum)andnutsasshowninFigure3.

g232183

Figure3

11

2

InstallingtheTowPole

Partsneededforthisprocedure:

1

Towpolekit(soldseparately)

4.Threadthenutontotheboltandtightenthem
untiltheyaretightagainsttheframetting
(Figure4).

Note:Iftheself-lockingnyloninsertinthe

locknutwearswithuse,replacethenutwitha
newGrade5orGrade8locknut.

3

TowPoleSpecications

Purchasethetowpolekit(includingfasteners)that
meetsyourneedsfromyourAuthorizedService
Dealer.Themachinehasthefollowingtowpole
options:

HitchTypeLength

50mm(2inch)ball—stamped78.7cm(31inches)or127cm

50mm(2inch)ball—forged78.7cm(31inches)or127cm

Pintle

(50inches)

(50inches)

78.7cm(31inches)or127cm
(50inches)

InstallingtheTowPole

1.Removetheboltandnutfromthetowpole
(Figure4).

InstallingtheSafetyChain

Partsneededforthisprocedure:

1

Safetychain(includedwiththetowpolekit)

2

Connectinglink(includedwiththetowpolekit)

Procedure

Safetychainandconnectinglinkareincludedinthe
towpolekit(soldseparately);referto2Installingthe

TowPole(page12).

Formahookontheendofabendablepieceofrodor
stiffwire(notincluded)andinstallthesafetychainand
connectinglinksasshowninFigure5.

Figure4

1.Towpole4.Bolthole

2.Frontpost

3.Bolt6.Nut

2.Slidethetowpoleforwardandaligntheholein
thepolewiththeholeintheframetting(Figure

4).

3.Inserttheboltthroughtheholesinthettingand
thepole(Figure4).

5.Frametting

g019804

g035100

Figure5

Note:Ensurethatapproximatelyequallengthsof

safetychainextendfromeithersideofthefrontpost.

12

4

AdjustingtheMixing
Paddles

NoPartsRequired

Procedure

Adjustthepaddlebladestobeascloseaspossible
totheinnerwallsofthedrum;refertoAdjustingthe

Paddles(page47).

ProductOverview

g232184

Figure6

Rightside

1.Rearcowl

2.Frontcowl8.Drumlatch14.Axle

3.Grate

4.Bagsplitter10.Towpole16.Wheel

5.Dumphandle

6.Grateliftarm

7.Clutchlever13.Chute

9.Frontpost

11.Safety-chain
keyhole

12.Drum

15.Cowllatch

assembly

13

Controls

Becomefamiliarwithallthecontrolsbeforeyoustart
theengineandoperatethemachine.

ClutchLever

Usetheclutchlevertoengageanddisengagethe
paddles.

Figure7

DumpHandle

Usethedumphandletorotatethedrumtothedump
positionandtorotatethedrumtothemixposition
(upright).

g232185

Figure9

g019875

1.Dumphandle

1.Clutchlever

DrumLatch

Usethedrumlatchtosecurethedrumtothemix
position(upright)formixingoperationsandwhen
transportingthemachine.

Figure8

g019877

1.Drumlatch

14

EngineControls

Figure10

Model60221HDshown

1.Recoil-starthandle5.Fuelcap

2.Fuelvalve

3.Chokelever7.Oil-drainplug

4.Throttlelever

6.Oildipstick

8.On/Offswitch

FuelValve

Thefuelvalve(Figure12andFigure13)islocated
underneaththechokelever.Movetheleverforthe
fuelvalvetotheONpositionbeforeattemptingtostart
theengine.Whenyouhavenishedmixing,shutoff
theengineandmovethefuel-valvelevertotheOFF
position.

g019744

g018792

Figure12

Model60221HDshown

1.Fuelvalve3.Throttlelever

2.Chokelever

Figure11

Models60217/C,60221/Cshown

1.Recoil-starthandle5.Throttlelever

2.Fuelvalve

3.Chokelever7.Oil-drainplug

4.Fuelcap

6.Oildipstick

8.On/Offswitch

g232310

Figure13

g232321

Models60217/C,60221/Cshown

1.Fuelvalve

2.Chokelever

ChokeLever

Usethechokelever(Figure12andFigure13)tostart
acoldengine.Beforepullingtherecoil-starthandle,
movethechokelevertotheCLOSEDposition.Once

15

theengineisrunning,movethechokelevertothe
OPENposition.Donotusethechokeiftheengineis
alreadywarmeduporiftheairtemperatureishigh.

ThrottleLever

Thethrottlelever(Figure12andFigure11)controls
thespeed(rpm)oftheengine.Itislocatednexttothe
chokelever.Itsetstheenginespeedandtherefore
canincreaseanddecreasetherotationspeedofthe
mixingpaddles.Forbestperformance,setthiscontrol
totheFASTpositionwhenmixingmaterial.

EngineOn/OffSwitch

TheOn/Offswitchislocatedonthefrontoftheengine.

•RotateittotheONpositiontostartandrunthe

engine.

•RotateittotheOFFpositiontoshutofftheengine.

Figure14

1.OFFposition2.ONposition

Recoil-StartHandle

Tostarttheengine,pulltherecoil-starthandle(Figure

10andFigure11)quicklytoturntheengineover.

Theenginecontrolsdescribedabovemustallbeset
correctlyfortheenginetostart.

Oil-LevelSwitch

Theoil-levelswitchislocatedinsidetheengine,andit
doesnotallowtheenginetorunintheeventtheoil
levelisbelowthesafeoperatinglimit.

g021103

16

Specications

Note:Specicationsanddesignaresubjecttochangewithoutnotice.

MachineSpecications

Model

BatchCapacity0.17m

TotalVolume

DrumMaterialPolyethylenePolyethylenePolyethylene

Length

(withouttowpole)

Width86cm

Height142cm

Weight250kg

Axle

Engine

Drivebeltbeltbelt

60217,60217C60221,60221C

3

(6.0ft3)0.23m

3

0.19m

150cm
(59inches)

(34inches)

(56inches)

(552lb)

86to117cm(34to46inches)
extendable

Kohler

(6.7ft3)0.24m

®

CH395Kohler

3

(8.0ft3)0.23m

3

(8.6ft3)0.24m

168cm
(66inches)

86cm
(34inches)

142cm
(56inches)

254kg
(560lb)

86to117cm(34to46inches)
extendable

®

CH395Honda

Operation

60221HD

3

(8.0ft3)

3

(8.6ft3)

168cm
(66inches)

86cm
(34inches)

142cm
(56inches)

254kg
(560lb)

86to117cm(34to46inches)
extendable

®

GX240

ThinkSafetyFirst

Carefullyreadallsafetyinstructionsandsymbolsin
thismanual,ontheproductdecals,andothermedia
suppliedwiththeproduct.Knowingthisinformation
couldhelpyouorbystandersavoidinjury.

Knowhowtoquicklyshutdownthemachineinan
emergency.

Useahard-hat,hearingprotection,ashirtwithlong
sleevesthataretightatthewrists,tight-ttinggloves
withoutdrawstringsorloosecuffs,eyeprotection,and
adustmaskorrespirator.Ameshvisoralonedoes
notprovidesufcienteyeprotection;supplementwith
protectiveglasses.

CAUTION

Thismachineproducessoundlevelsthatcan
causehearinglossthroughextendedperiods
ofexposure.

Wearhearingprotectionwhenoperatingthis
machine.

g229846

Figure15

1.Wearhearingprotection.

TowingtheMachine

Beforetowingthemachine,readalltheinformation
andperformalltheapplicableprocedurestointhis
sectiontoensuresafeandpropertowing.

WARNING

Towingthemachineathighspeedincreases
theriskofahitchmalfunctionandtirefailure.
Higherspeedsalsoincreasethemomentum
ofthemachineandbrakingdistance.Ifthe
machinedetachesfromthetowvehicleathigh
speed,itcouldcausedamagetoproperty,or
injuryordeathtobystanders.

Donotexceed88km/h(55mph)whentowing
themachine.Forpoorroadconditionsor
inclementweather,reducespeedaccordingly .

17

WARNING

Towingthemachinewithmaterialinthedrum
increasestheriskofahitchmalfunctionand
tirefailure.Inaddition,materialcouldbounce
outofthedrumandhitothervehiclesand/or
people.Materialinthedrumincreasesthe
weight,whichaffectsmomentumandbraking
distance.

Donottowthemachinewithmaterialinthe
drum.

•ReviewandunderstandtheSafeOperating

Practices(page5).

•Testthebrakesofthetowvehiclebeforetowing.

•Avoidsuddenstartsandstopswhiletowingthe

machine.

g019741

Figure16

TowVehicleRequirements

Beforeconnectingthemachinetoyourtowvehicle,
ensurethatyourvehicleispreparedasfollows:

•Ensurethatyourtowvehiclehastowing

capacityfortheweightofthemachine;referto

Specications(page17).

•UseaClass2orlargerreceiver.

•Ensurethatyourtowvehiclehastheappropriate

hitchtotowthemachine;optionsincludea50mm
(2inch)ballhitchorapintlehitch.

•Ifthemachineisequippedwithatrailer-lightkit,

ensurethattheelectricalconnectorofthetow
vehicleiscompatiblewiththeelectricalconnector
ofthemachine.Themachineusesastandard
4-pin,atplug.Ifyourtowvehiclehasadifferent
typeofplug,obtainanadapterfromanautomotive
partsstore.

PreparingtheMachineforTowing

1.Shutofftheengineandfuelvalve.

2.Emptythedrum.

5.Ifyouhaveadjustedtheaxletothenarrow
position(ifequippedonyourmodel),extendthe
axle;refertoAdjustingtheAxleWidth(page21).

6.Inspectthetires;refertoInspectingtheTires

(page40).

HitchingtheMachinetoaTow Vehicle

Yourmachineisequippedwith1ofthefollowing
hitchtypes;hitchitasdescribedintheappropriate
procedure:

•Stamped-ballcoupler—HitchingaStamped-Ball

Coupler(page18)

•Forged-ballcoupler—HitchingaForged-Ball

Coupler(page19)

•Pintle-hitchcoupler—HitchingaPintle-Hitch

Coupler(page19)

HitchingaStamped-BallCoupler

1.Applychassisgreasetothesocketofthecoupler
andtheareaoftheclampthatcontactstheball.

3.Positionthedruminthemixposition(upright)
andlockit.

4.Closetheenginecowlandsecurethecowl
latches(Figure16).

2.Oilthepivotpointsandslidingsurfacesofthe
couplerwithSAE30motoroil.

3.HitchthemachineasshowninFigure17.

18

Figure17

HitchingaForged-BallCoupler

1.Applyremovablethread-lockingcompoundto
thethreadsofthecouplerbolttopreventthe
couplerhandlefromcomingloose.

g035115

Figure18

Note:Useawrenchtokeeptheboltfrom

spinning.

HitchingaPintle-HitchCoupler

g035113

Important:Applythread-lockingcompound

asneededinthefuture.

2.Applychassisgreasetothesocketofthecoupler
andtheareaoftheclampthatcontactstheball.

3.HitchthemachineasshowninFigure18.

g035164

Figure19

19

ConnectingtheSafetyChainsto theTowVehicle

1.Pullthesafetychainthroughtheslotsinthe
keyholes,sothatthelengthsoneachsideare
equal.

2.Crossbothlengthsofchainunderthetowpole.

Note:Crossingthechainsdecreasesthe

chancesofthefrontofthemachinedropping
tothegroundifthehitchdoesnotholdthe
connection.

Figure21

1.Connectinglink3.Chainlink

2.Safetychainmounting
pointontowvehicle

4.Chain

ConnectingandCheckingthe

g019927

Figure20

1.Connectinglinks3.Chaincrossedundertow
pole

2.Keyholesinfrontpost

3.Connecteachlengthofchaintothesafety

chainmountingpointonthetowvehiclewiththe
connectinglinks(Figure21).

Important:Ensurethatthechainhas

enoughslackforturningaroundcorners
whentowingthemachine.

Note:Stowtheexcesschaininsidethebottom

ofthefrontpostbypushingitintothekeyholes
andlatchingtheappropriatelinksintothe
keyholeslots.

Lights

MachinesEquippedwithaLightKitOnly

g021177

1.Connecttheelectricalplugofthemachinewith
theelectricalplugofthetowvehicle(Figure24).

g020828

Figure22

Note:Themachineusesastandard4-pin,at

plug.Ifyourtowvehiclehasadifferenttype
ofplug,obtainanadapterfromanautomotive
partsstore.

2.EnsurethatthetowvehicleisintheNEUTRAL
position,engagetheparkingbrake,andstart
theengine.

3.Testthelightsasfollows:

A.Turnontheheadlightsofthetowvehicle.

Thetaillightsofthemachineshould
illuminate.

B.Pressthebrakepedalofthetowvehicle.

Thebrakelightsofthemachineshould
illuminate.

C.Operateeachturnsignalofthetowvehicle

inturn.

20

Thecorrespondingturn-signallightsofthe
machineshouldilluminate.

AdjustingtheAxleWidth

ModelswithAdjustableAxlesOnly

Ifyourmodelisequippedwithanadjustableaxle
(Figure24),youcanadjusttheaxletothenarrow
positiontomovethemachinethroughanarrow
accesspoint,suchasthegateofafenceorthe
doorwayofabuilding.

WARNING

Themachineisnotstablewhentowedwith
theaxleinthenarrowposition.

Towthemachinewiththeaxleinthewide
position.

Important:Themachineislessstablewiththe

axleinthenarrowposition.Onlyadjustittothe
narrowpositionwhennecessarytomovepastan
obstruction,thenreturnittothewideposition
beforetowingoroperatingthemachine.

1.Parkthemachineonalevelsurfaceand
disconnectthemachinefromthetowvehicle.

2.Securethemachinefrommovement.

3.Emptythedrum,moveittotheuprightposition,
andlockthedrum.

4.Alignajackwithanadequateliftheight
andweightcapacityundertheaxle;referto

Specications(page17).

5.Liftthemachineuntilthetiresareofftheground.

6.Useajackstandateachsupportpointonthe
rearframeextension(Figure23).

Figure23

1.Supportpoint(2)

7.Removetheboltsandnutsthatsecuretheinner
axletotheouteraxle(Figure24).

Figure24

1.Wideposition(towing)

2.Narrowposition5.Bolt—wideposition

3.Nut—wideposition6.Bolt—narrowposition

4.Nut—narrowposition

g029390

g020020

WARNING

Mechanicalorhydraulicjacksmayfailto
supportthemachineandcauseserious
injury.

Usejackstandswhensupportingthe
machine.

8.Aligntheinneraxletothedesiredpositionas
follows:

•Slideeachsideoftheaxleinwardtothe

narrowposition(Figure24).

•Slideeachsideoftheaxleoutwardtothe

wide(tow)position(Figure24).

9.Securetheaxlewiththeboltsandnutsremoved
previously(Figure24)andtorquethemto87
N∙m(64ft-lb).

PreparingtoUsethe Machine

1.Parkthemachineonalevelsurfaceand
disconnectthemachinefromthetowvehicle.

21

2.Ensurethatallguardsandpaddlesareinplace
andingoodcondition.

3.Performalldailymaintenanceprocedures
prescribedinMaintenance(page28).

4.Chockthefrontandbackofthetirestoprevent
themachinefrommoving.

5.Movethedrumtotheuprightpositionandlockit.

OpeningtheCowl

ClosingtheCowl

Figure25

g035135

Figure26

AddingFuel

DANGER

g035134

Incertainconditions,fuelisextremely
ammableandhighlyexplosive.Areor
explosionfromfuelcanburnyouandothers
andcandamageproperty.

•Fillthefueltanksoutdoors,inanopen
area,whentheengineiscold.Wipeupany
fuelthatspills.

•Neverllthefueltanksinsideanenclosed
trailer.

•Neversmokewhenhandlingfuelandstay
awayfromanopenameorwherefuel
fumesmaybeignitedbyaspark.

•Storefuelinanapprovedcontainerand
keepitoutofthereachofchildren.Never
buymorethana30-daysupplyoffuel.

•Donotoperatewithoutentireexhaust
systeminplaceandinproperworking
condition.

22

DANGER

Incertainconditionsduringfueling,static
electricitycanbereleased,causingaspark
thatcanignitethefuelvapors.Areor
explosionfromfuelcanburnyouandothers
andcandamageproperty.

•Alwaysplacefuelcontainersontheground
awayfromyourvehiclebeforelling.

•Donotllfuelcontainersinsideavehicle
oronatruckortrailerbed,becauseinterior
carpetsorplastictruckbedlinersmay
insulatethecontainerandslowthelossof
anystaticcharge.

•Whenpractical,removeequipmentfrom
thetruckortrailerandrefueltheequipment
withitswheelsontheground.

•Ifthisisnotpossible,thenrefuelsuch
equipmentonatruckortrailerfroma
portablecontainerratherthanfroma
fuel-dispensernozzle.

•Ifyoumustuseafuel-dispensernozzle,
keepthenozzleincontactwiththerimof
thefueltankorcontaineropeningatall
timesuntilfuelingiscomplete.

•Donotstorefueleitherinthefueltankorinfuel

containersoverthewinterunlessyouuseafuel
stabilizer.

•Donotaddoiltogasoline.

Important:T oreducestartingproblems,addfuel

stabilizertothefuelallseason,mixingitwithfuel
lessthan30daysold;runthemachinedrybefore
storingitformorethan30days.

Donotusefueladditivesotherthanafuel
stabilizer/conditioner.Donotusefuelstabilizers
withanalcoholbasesuchasethanol,methanol,
orisopropanol.

FuelTankCapacity

Model

60217,60217C,60221,
60221C

60221HD

FuelTankCapacity

7.0L(1.85USgallons)

5.3L(1.40USgallons)

FillingtheFuelTank

1.Parkthemachineonalevelsurface,shutoffthe
engine,andallowtheenginetocool.

2.Cleanaroundthefuelcapandremoveit(Figure

27).

WARNING

Fuelisharmfulorfatalifswallowed.
Long-termexposuretovaporscancause
seriousinjuryandillness.

•Avoidprolongedbreathingofvapors.

•Keepyourfaceawayfromthenozzleand
fueltankopening.

•Keepfuelawayfromyoureyesandskin.

FuelRecommendations

•Forbestresults,useonlyclean,fresh(lessthan

30daysold),unleadedgasolinewithanoctane
ratingof87orhigher((R+M)/2ratingmethod).

•Ethanol:Gasolinewithupto10%ethanol

(gasohol)or15%MTBE(methyltertiarybutyl
ether)byvolumeisacceptable.Ethanoland
MTBEarenotthesame.Gasolinewith15%
ethanol(E15)byvolumeisnotapprovedforuse.

Neverusegasolinethatcontainsmorethan
10%ethanolbyvolume,suchasE15(contains

15%ethanol),E20(contains20%ethanol),orE85
(containsupto85%ethanol).Usingunapproved
gasolinemaycauseperformanceproblemsand/or
enginedamagewhichmaynotbecoveredunder
warranty.

•Donotusegasolinecontainingmethanol.

g019799

Figure27

Model60221HDengineshown

1.Fuelcap

3.ForModel60221HDonly:Addfueltothefuel

tankuntilthelevelisatthemaximumfuellevel
(Figure28).

23

Important:Thisspaceinthetankallows

fueltoexpand.Donotllthefueltank
completelyfull.

g019815

Figure29

Figure28

Model60221HDengineshown

1.Maximumfuellevel

4.ForModels60217,60217C,60221,60221C:

Fillonlytothebottomofthelterscreeninthe
fueltankinlet.

5.Installthefuelcapsecurely(Figure27).

6.Wipeupanyspilledfuel.

PerformingDaily Maintenance

Beforestartingthemachineeachday ,performthe
EachUse/DailyprocedureslistedinMaintenance

(page28).

1.Chokelever

2.Fuelvalve

3.Throttlelever

3.MovethechokelevertotheONposition(Figure

g020679

29).

Note:Awarmorhotenginemaynotrequire

choking.

4.Movethethrottlelever1/3ofthewaytowardthe
MAXposition.

5.MovetheengineswitchtotheONposition
(Figure30).

g021103

Figure30

1.Engineswitch—OFF

position

2.Engineswitch—ON
position

StartingtheEngine

1.EnsurethattheclutchleverisintheOFF
position.

2.MovethefuelvalvetotheOPENposition,allthe
waytotheright(Figure29).

6.Pullthestarterhandlelightlyuntilyoufeel
resistance,thenpullthehandlebriskly(Figure

31).Returnthestarterhandlegently.

24

Figure31

Model60221HDshown

7.Aftertheenginestarts,graduallymovethe
chokeleverbacktotheOFFposition.Ifthe
enginestallsorhesitates,movethechokeback
totheONpositionagainuntiltheenginewarms
up.ThenmoveittotheOFFposition.

ShuttingOfftheEngine

DANGER

Thismachineiscapableofamputatinghands.

•Stayintheoperator’spositionwhilethe
machineisrunning.

•Keepallbystandersasafedistanceaway
fromthemachine.

•Stopthemachineimmediatelyifany
peopleoranimalsentertheworkarea.

•Neverplaceanypartofyourbodyintoa
positionthatcausesanunsafeoperating

g019747

condition.

Important:Donotaddmorematerialthan

thebatchcapacityofthemachine;referto

Specications(page17).

Note:Followthemanufacturer’sinstructionsthatare

printedonthepackagingoftheproductyouareusing.

1.Ensurethatthereisnoold,loosematerialin
thedrumthatcancontaminatethebatchof
material;refertoCleaningtheDrum(page27)
andDumpingtheMaterial(page26),thenreturn
thedrumtotheuprightposition.

1.MovethethrottlelevertotheMINposition
(Figure10).

Note:Iftheenginehasbeenworkinghardor

ishot,letitidleforaminutebeforeshuttingoff
theengine.Thishelpstocooltheenginebefore
stopping.Inanemergency,shutofftheengine
immediately.

2.MovetheengineswitchtotheOFFposition.

3.MovethefuelvalvetotheCLOSEDposition,all
thewaytotheleft.

MixingtheMaterial

DANGER

Eyeandskincontactwithconcretematerials
andbreathingthedustinvolvedishazardous
toyourhealth.

•Ensurethatthereisadequateair
ventilation.

Note:Ensurethatthedrumisinthemix

position(upright)andthedrumlatchisengaged.

2.MovetheclutchlevertotheOFFposition(Figure

32).

3.Starttheengine.

Note:Allowtheenginetowarmupat2/3

throttlefor1to2minutes.

4.SetthethrottleleverontheenginetotheMAX
position.

5.MovetheclutchlevertotheONposition(Figure

32).

•Wearadustmasktopreventinhalationof
dustwhileusingthemachine;refertoSafe

OperatingPractices(page5).

•Avoiddirectcontactofcementand
concretematerialswithskinandeyes.

25

7.Allowthepaddlestomixthematerialuntilthe
ingredientshaveauniformappearance.

Note:Ifneeded,addwaterorplaster,cement,

orotherbindingmaterialuntiltheconsistency
ofthebatchiscorrect.

DumpingtheMaterial

DANGER

Contactwiththemixingpaddlescouldcause
damageorinjury.

Neverputyourhandsinsidethedrumwhile
theengineisrunning.

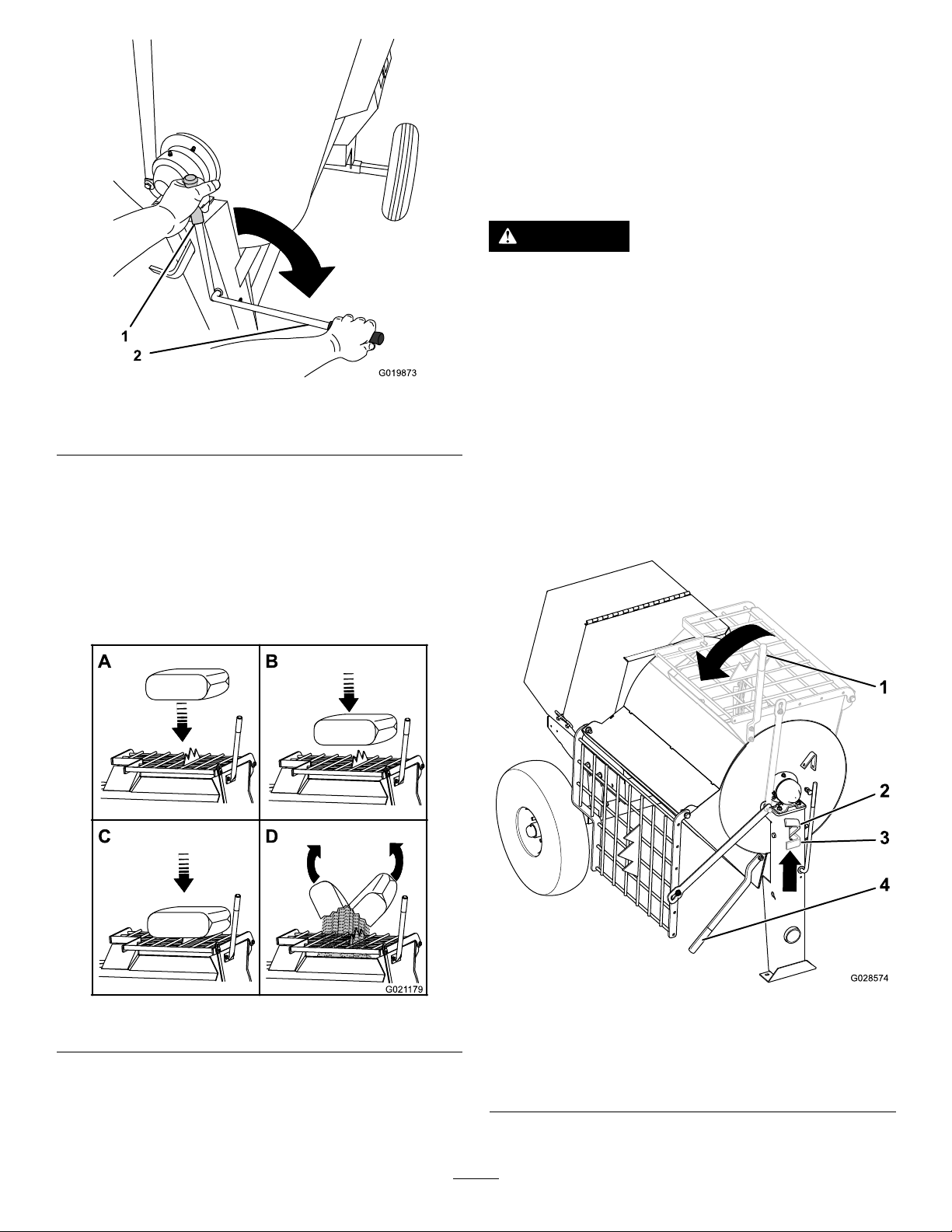

Figure32

1.OFFposition2.ONposition

6.Addtheingredientsforthebatchasfollows:

A.Pourwaterintothedrumthroughthegrate.

B.Addtheplaster,cement,orotherbinding

material.

Note:Youcanopenbagsofcement,

plaster,andbindingmaterialsbylowering
thebagontothebagsplitter(Figure33).

g019873

Note:Whendumpingabatchofmaterial,leave

theengine/motorrunningandtheclutchintheON
positionsothattherotatingpaddleshelpdischarge
thematerial.

1.Alignawheelbarroworsimilarcontainerof
adequatecapacityinthepathofthedrum
opening.

2.Graspthedumphandlewithyourlefthand
(Figure34).

Figure33

C.Ifyouareusingsandand/orother

reinforcingmaterials,addthemintothe
drum.

g021179

1.Dumphandle—Mix

position

2.Drumlatch—Release

position

Figure34

3.Drumlatch—Locked
position

4.Dumphandle—Dump
position

g028574

3.Liftthehandleofthedrumlatch(Figure34).

26

4.Withbothhandsonthedumphandle,rotateit
counterclockwisetodischargethecontentsof
thedrum(Figure34).

Note:Allowthemachinetocompletely

dischargethecontentsofthedrum.

5.Rotatethedumphandleclockwiseuntilthe
drumlatchlocksthedrumintheuprightposition
(Figure34).

6.Afterdumpingabatchofmaterial,clean
thedrumtopreventdriedmaterialfrom
contaminatingthenextbatchofmaterial;referto

CleaningtheDrum(page27).

CleaningtheDrum

Important:Donotstrikeonthedrumwitha

shovel,hammer,oranyotherdevicetoloosenany
accumulateddriedmaterials.

1.MovetheclutchlevertotheOFFpositiontostop
thepaddles.

2.Shutofftheengine/motor.

3.Ensurethatthedrumisinthemixposition
(upright).

4.Spraythemachinewithwatertoremoveany
accumulatedmaterial.

5.Starttheengine/motor.

6.MovetheclutchlevertotheONpositiontostart
thepaddles.

7.Dumpthedrum.

27

Maintenance

WARNING

Failuretoproperlymaintainthemachinecouldresultinprematurefailureofmachinesystems
causingpossibleharmtoyouorbystanders.

Keepthemachinewellmaintainedandingoodworkingorderasindicatedintheseinstructions.

Important:Refertoyourengineoperator'smanualforadditionalmaintenanceprocedures.

RecommendedMaintenanceSchedule(s)

MaintenanceService

Interval

Aftertherst20hours

Aftertherst25hours

Beforeeachuseordaily

Aftereachuse

Every40hours

Every50hours

Every100hours

MaintenanceProcedure

•Changethereduction-caseoil(Model60221HDonly).

•Changetheengineoil.

•Inspectthebeltsandadjustasnecessary(belt-drivemodelsonly).

•Inspecttheair-cleanerelements.

•Checktheengine-oillevel.

•Inspectthetires.

•Checkthereduction-caseoil(Model60221HDonly).

•Cleanthedrumbetweenmixingbatchesofmaterial.

•Lubricatethetrunnions.

•Torquethewheellugnutsto108to122N∙m(80to90ft-lb)aftertowing.

•Inspectthebeltsandadjustasnecessary(belt-drivemodelsonly).

•Checktheclutchoperation

•Cleantheair-cleanerelements.Cleanthemmorefrequentlyindustyoperating
conditions.

•Lubricateallthegearteetharoundthepaddle-drivegearandpiniongear.

•Changetheengineoil.

•Checkthesparkplug.

•Cleanthesparkarrester(ifequipped).

•Cleanthefuel-sedimentcup(Model60221HDonly).

•Changethereduction-caseoil(Model60221HDonly).

Every300hours

Yearlyorbeforestorage

Every2years

•Replacethepaperair-cleanerelement.Replaceitmorefrequentlyindusty
operatingconditions.

•Replacethesparkplug.

Monthly

•Lubricatethepillow-blockbearings.

•Cleanthefuel-sedimentcup(Model60221HDonly).

•Replacethebelts(belt-drivemodelsonly).

28

Pre-Maintenance
Procedures

PreparingtheMachinefor Maintenance

1.Shutofftheengineandallowittocool
completely.

2.Parkthemachineonalevelsurface.

3.Removethemachinefromthetowvehicle.

g232217

Figure36

4.Securethemachinefrommovement.

5.Disconnectthespark-plugwire.

Disconnectingthe Spark-PlugWire

Pullthespark-plugwireofftheterminalofthespark
plug(Figure35).

3.Toremovethedividerplate,liftitupwardandtilt
itbacksothatitclearsvariouscomponents.

InstallingtheDividerPlate

Whennishedperformingmaintenance,installthe
dividerplateasfollows:

1.Guidethedividerplateintopositionagainstthe
frontcowl.

Note:Startwiththedividerplaterotatedslightly

counterclockwise,andthenrotateitclockwise
whileloweringitintoposition.

Ensurethatthedividerplateisnotbackward.

Figure35

Model60221HDshown

1.Sparkplug

RemovingtheDividerPlate

Ifyourmodelhasadividerplate,youmayneed
toremoveitbeforeperformingsomemaintenance
procedures:

1.Openthecowl.

2.Useawrenchtoremovethe3boltsthatsecure
thedividerplatetothefrontcowl.

Note:Retainthefastenersforinstallingthe

dividerplate.

g019281

g232218

Figure37

2.Aligntheboltholesinthedividerplateandthe
frontcowl.

3.Installeachofthe3bolts,andhand-tighten
themtopreventcross-threading.

4.Tightentheboltswithawrenchuntiltheyare
secure.

29

Lubrication

LubricatingtheBearings, Seals,andGears

ServiceInterval:Aftereachuse—Lubricatethe

trunnions.

Monthly—Lubricatethepillow-blockbearings.

Every100hours—Lubricateallthegearteeth
aroundthepaddle-drivegearandpiniongear.

Note:Thepillow-blockbearingsareinsidethe

cowl—removethedividerplate(ifequipped)toaccess
them;refertoRemovingtheDividerPlate(page29).

GreaseType:No.2lithiumgrease.

1.CompletetheprocedureslistedinPreparingthe

MachineforMaintenance(page29).

2.Cleantheareaaroundeachgreasettingwitha
ragandlifttheplasticcapoffthegreasetting
(Figure38).

g250569

3.Pumpgreaseintoeachttingasfollows:

•Forthepillow-blockbearings,pump1shotof

greaseintoeachtting(AofFigure38).

•Forthefronttrunnion(CofFigure38)and

reartrunnion(BofFigure38),pumpseveral
shotsofgreaseintoeachttinguntilitstarts
tooozeoutofthebearinghousing.

Important:Pumpgreaseinslowlyand

carefullytopreventdamagetothebearing
seals.

4.Applygreasetoallthegearteetharoundthe
piniongear(DofFigure38)andpaddle-drive
gear(EofFigure38).

5.Wipeupanyexcessgrease.

g250570

Figure38

30

EngineMaintenance

ServicingtheAirCleaner

ServiceInterval:Beforeeachuseordaily—Inspect

theair-cleanerelements.

Every50hours—Cleantheair-cleaner
elements.Cleanthemmorefrequentlyindusty
operatingconditions.

Every300hours/Y early(whichevercomes
rst)—Replacethepaperair-cleanerelement.
Replaceitmorefrequentlyindustyoperating
conditions.

Important:Donotoperatetheenginewithout

theair-lterassembly;extremeenginedamage
willoccur.

1.Shutofftheengineandwaitforallmovingparts
tostop.

2.Disconnectthewirefromthesparkplug;referto

DisconnectingtheSpark-PlugWire(page29).

3.Removethenutthatsecuresthecover(Figure

39).

Figure39

Model60221HDshown

1.Covernut

2.Cover

3.Wingnut6.Base

g019728

4.Foamelement

5.Paperelement

31

Figure40

Models60217/C,60221/Cshown

1.Cover

2.Coverlatch

3.Foamelement

4.Filterelement

5.Base

4.Removethecover.

Note:Becarefultopreventdirtanddebrisfrom

fallingintothebase.

5.Removethefoamandpaperelementsfromthe
base(Figure39).

11.Wipedirtfromthebaseandthecoverwitha
moistrag.

Note:Becarefultopreventdirtanddebrisfrom

enteringtheairductleadingtothecarburetor.

12.Installtheair-cleanerelementsandensurethat
theyareproperlypositioned.

13.Securelyinstallthecoverwiththenut.

ServicingtheEngineOil

Engine-OilSpecications

ToroPremiumEngineOilisavailablefromyour
AuthorizedT oroDealer.

Important:Use4-cycleengineoilthatmeetsor

exceedstherequirementsforAPIservicecategory
SJ,SL,SM,orhigher.

Model(s)CrankcaseCapacity

g232363

60217,60217C,60221,
60221C

60221HD

1.3L(1.4USqt)

1.1L(1.2USqt)

Important:Iftheoillevelinthecrankcaseistoo

lowortoohighandyouruntheengine,youmay
damagetheengine.Thistypeofdamageisnot
coveredbythewarranty.

Note:UseSAE10W-30forgeneraluse.Youcan

usetheotherviscositiesshowninthechartwhen
theaveragetemperatureinyourareaiswithinthe
indicatedrange(Figure41).

6.Removethefoamelementfromthepaper
element(Figure39).

7.Inspectthefoamandpaperelementsand
replacethemiftheyaredamagedorexcessively
dirty.

Note:Nevertrytobrushdirtoffthepaper

element;brushingforcesthedirtintothebers.

8.Cleanthefoamelementinwarm,soapywater
orinanonammablesolvent.

Note:Donotusefueltocleanthefoamelement

becauseitcouldcreateariskofreorexplosion.

9.Rinseanddrythefoamelementthoroughly .

10.Dipthefoamelementincleanengineoil,then
squeezeouttheexcessoil.

Note:Excessoilinthefoamelementrestricts

theairowthroughtheelementandmayreach
thepaperlterandclogit.

g013375

Figure41

32

CheckingtheEngine-OilLevel

ChangingtheEngineOil

ServiceInterval:Beforeeachuseordaily

1.Parkthemachineonalevelsurfaceandshut
offtheengine.

2.Allowtheenginetocool.

3.Disconnectthewirefromthesparkplug;referto

DisconnectingtheSpark-PlugWire(page29).

4.Cleanaroundthedipstick.

5.ChecktheoillevelasshowninFigure42.

ServiceInterval:Aftertherst25hours

Every100hours

WARNING

Oilmaybehotaftertheenginehasbeenrun,
andcontactwithhotoilcancausesevere
personalinjury.

Avoidcontactingthehotengineoilwhenyou
drainit.

1.Shutofftheengineandwaitforallmovingparts
tostop.

2.Disconnectthewirefromthesparkplug;referto

DisconnectingtheSpark-PlugWire(page29).

3.Placeadrainpanundertheoil-drainholeofthe
engine(Figure43).

Figure42

g019750

Figure43

1.Oil-drainplug3.Oil-drainpan

2.Oil-drainhole

g035136

4.Removethedrainplugandcatchtheoilinthe
oil-drainpan(Figure43).

5.Whentheoilhasdrainedcompletely,installthe
drainplugwithanewwasher(Figure43).

Note:Disposeoftheusedoilatacertied

recyclingcenter.

6.Removethedipstick(Figure44)andslowly
pouroilintothellholeuntiltheoilreachesthe
upper-limitmark(bottomedgeoftheoil-llhole)
onthedipstick.

33

Figure44

1.Oil-llhole3.Oil-levelupperlimit

2.Dipstick

4.Oil-levellowerlimit

7.Replaceandsecurethedipstick.

RemovingtheSparkPlug

1.Parkthemachineonalevelsurfaceandshut
offtheengine.

2.Ensurethatthemachinesurfacesarecool.

3.Pullthespark-plugwireofftheterminalofthe
sparkplug(Figure45).

g028981

8.Wipeupanyspilledoil.

ServicingtheSparkPlug

ServiceInterval:Every100hours/Every6months

(whichevercomesrst)—Checkthe
sparkplug.

Every300hours/Y early(whichevercomes
rst)—Replacethesparkplug.

SparkPlugSpecications

Models60217,
60217C,60221,
and60221C

Type

Gap

Type:NGKBPR6ESorequivalent

Refertoengine
owner’smanual

0.7to0.8mm
(0.028to0.031
inch)

Model60221HD

NGKBPR6ES

0.7to0.8mm
(0.028to0.031
inch)

Figure45

1.Sparkplug

2.Wire

4.Cleanaroundthesparkplug.

5.Rotatethesparkplugcounterclockwiseusing
thedesignatedspark-plugwrenchtoremovethe
plugandthesealingwasher(Figure46).

g014506

Gap:0.7to0.8mm(0.028to0.031inch)

Note:ForModel60221HDonly:Usea21mm

(13/16inch)spark-plugwrenchforremovingand
installingthesparkplug.

Note:ForModels60217,60217C,60221,and

60221C:Usea5/8inchspark-plugwrenchfor

removingandinstallingthesparkplug.

g019749

Figure46

34

CheckingtheSparkPlug

CleaningtheSparkArrester

Important:Donotcleanthesparkplug.Always

replacethesparkplugwhenithasablackcoating,
wornelectrodes,anoilylm,orcracks.

Note:Ifyouseelightbrownorgrayontheinsulator,

theengineisoperatingproperly.Ablackcoatingon
theinsulatorusuallymeansthattheaircleanerisdirty.

Setthegapto0.7to0.8mm(0.028to0.031inch).

g206628

Figure47

InstallingtheSparkPlug

Important:Ensurethatthegapbetweentheside

andcenterelectrodesiscorrectbeforeinstalling
thesparkplug.

ServiceInterval:Every100hours

Note:Asparkarresterisavailableasanoption.If

yourequireasparkarrester,contactyourAuthorized
ToroServiceDealer.

GenuineT orosparkarrestersareapprovedbythe
USDAForestryService.

WARNING

Iftheenginehasbeenrunning,themufer
willbehot.Contactwithhotsurfacesmay
causepersonalinjury.

Keepyourhands,feet,face,clothingand
otherbodypartsawayfromthemuferand
otherhotsurfacesuntiltheyhavecooled.

1.Parkthemachineonalevelsurfaceandshut
offtheengine.

2.Allowtheenginetocool.

3.Disconnectthewirefromthesparkplug;referto

DisconnectingtheSpark-PlugWire(page29).

4.Removethedividerplate(ifequipped);referto

RemovingtheDividerPlate(page29).

1.Threadthesparkplugclockwiseintothe
spark-plugholebyhand.

Note:Avoidcross-threadingthesparkplugwith

thethreadsofthespark-plughole.

2.Rotatethesparkplugclockwiseusingthe
designatedspark-plugwrenchuntiltheplugand
sealingwasherareseated(Figure46).

3.Tightenthesparkplugasfollows:

•Wheninstallinganin-servicesparkplug,

tightenthepluganadditional1/8to1/4turn.

•Wheninstallinganewsparkplug,tightenthe

pluganadditional1/2turn.

4.Pushthespark-plugwireontotheterminalofthe
sparkplug(Figure45).

5.Removethe2nuts(8mm)andremovethe
muferfromthecylinder(Figure48).

Note:Thelocationandsizeofpartsmaybe

differentforyourmachine,buttheprocedureis
thesame.

35

10.Installthesparkarrester,muferprotector,
exhaustdeector,andmuferinthereverse
orderofdisassembly.

11.Installthedividerplate(ifequipped);referto

InstallingtheDividerPlate(page29).

RemovingandInstalling theEngine

RemovingtheEngine

WARNING

Thespringisundertensionwheninstalled
andcancausepersonalinjury .

Figure48

Model60221HDshown

1.Deector(if
applicable)

2.Protector

3.Screw(6mm)7.Gasket

4.Mufer8.Bolt(8mm)12.Screw(4mm)

5.Exhaustpipe

6.Nut(8mm)10.Screws(5mm)

9.Sparkarrester

11.Exhaustport

6.Removethe3screws(4mm)fromtheexhaust

deector,andremovethedeector(Figure48).

7.Removethescrews(5mmand6mm)from

themuferprotector,andremovethemufer
protector(Figure48).

8.Removethescrews(4mm)fromthespark

arrester,andremovethesparkarresterfromthe
mufer(Figure48).

9.Useabrushtocarefullyremovecarbondeposits

fromthespark-arresterscreen(Figure49).

Note:Replacethesparkarresterifithas

breaksorholes.

g019331

Becarefulwhenremovingthespring.

1.Parkthemachineonalevelsurfaceandshut
offtheengine.

2.Allowtheenginetocool.

3.Disconnectthewirefromthesparkplug;referto

DisconnectingtheSpark-PlugWire(page29).

4.Removethedividerplate;refertoRemovingthe

DividerPlate(page29).

5.Removethebeltguide;refertoRemovingthe

Belts(page44).

6.Removethebelts;refertoRemovingtheBelts

(page44).

7.Usingaspring-removaltool(T oroPartNo.
92-5771),removethespringfromtheanchor
bracketontheenginedeck(Figure50).

Note:Leavetheotherendofthespring

attachedtotheframeofthemachine.

g020119

Figure50

g208746

Figure49

1.Screen

2.Brush

1.Anchorbracket

2.Enginedeck

3.Spring-removaltool(T oro

PartNo.92-5771)

36

4.Spring-removaltool
(springremoved)

5.Spring(springremoved)

8.Removetheboltandnutthatsecuretherear
bracketfortheenginedeckhingetotheframe
ofthemachine(Figure51).

InstallingtheEngine

1.Aligntheengineandenginedecktotherear
frameofthemachine.

Note:Thedrivepulleyontheenginemustalign

forward.

2.Alignthepivotontheenginedeckwiththe
forwardhingebracket(Figure52).

3.Slidetheenginedeckforwardandthepivotinto
theforwardhingebracket(Figure52).

4.Aligntherearhingebracketwiththepivotonthe
engine-deckhinge(Figure52).

5.Liftupontherearedgeoftheenginedeckand
slipthehingebracketontothepivot.

6.Securetherearbrackettotheframeofthe
machineusingtheboltandnut(Figure51)
removedinstep8ofRemovingtheEngine

(page36).

Figure51

1.Enginedeck

2.Pivot5.Nut

3.Rearhingebracket6.Bolt

4.Frame

9.Liftuptherearedgeoftheenginedeckand
removethehingebracket(Figure51).

10.Slidetheenginedeckrearwardandoutfromthe
forwardhingebracket(Figure52).

Note:Donotremovetheforwardhingebracket.

g020120

92-5771),installthetensionspringtotheanchor
bracketontheenginedeck(Figure50).

8.Installthebeltsandbeltguide;refertoInstalling

theBelts(page44).

9.Adjustthebeltguide;refertoAdjustingtheBelt

Guide(page45).

10.Installthedividerplate;refertoInstallingthe

DividerPlate(page29).

7.Usingaspring-removaltool(T oroPartNo.

Figure52

11.Removetheengineandenginedeckfromthe
machine(Figure52).

g020121

37

FuelSystem
Maintenance

CleaningtheFuel-Sediment Cup

Model60221HDOnly

ServiceInterval:Every100hours/Every6months

(whichevercomesrst)—Cleanthe
fuel-sedimentcup(Model60221HD
only).

Yearlyorbeforestorage—Cleanthe
fuel-sedimentcup(Model60221HDonly).

Underneaththefuelvalveisasedimentcuptocatch
dirtinthefuel.

1.Parkthemachineonalevelsurfaceandshut
offtheengine.

2.Allowtheenginetocool.

3.Disconnectthewirefromthesparkplug;referto

DisconnectingtheSpark-PlugWire(page29).

8.WipetheO-ringwithaclean,drycloth.

9.Installthefuellterinthebottomofthe
carburetor(Figure53).

10.AligntheO-ringintothegrooveinthesediment
cupandinstallthesedimentcuptothefuel-valve
housing.

11.MovetheleverofthefuelvalvetotheON
position(allthewaytotheright)andcheckfor
leaks.Ifitleaks,replacetheO-ring.

DrainingtheFuelTank

1.Removetheengine;refertoRemovingthe

Engine(page36).

2.Removethefuelcapbyrotatingit
counterclockwise(Figure54).

4.MovetheleverofthefuelvalvetotheOFF
position,allthewaytotheleft(Figure53).

5.Unscrewthefuel-sedimentcup(Figure53).

6.RemoveandretainthefuellterandO-ring
(Figure53).

Note:DonotcleantheO-ringinsolvent.

Figure53

g035167

Figure54

3.Alignadrainpantothehingeoftheenginedeck.

4.Rotatetheengineonthehingesideofthe
enginedeckanddrainthefuelfromthetank
(Figure55).

g019333

Figure55

g035168

1.Fuelvalve—OFFposition3.Fuellter

2.O-ring

7.Cleanthefuellterandsedimentcupusinga
nonammablesolvent,anddryitcarefully.

4.Fuel-sedimentcup

5.Carefullylowertheengineandenginedeck.

6.Installthefuelcap.

7.Installtheengine;refertoInstallingtheEngine

(page37).

38

ElectricalSystem
Maintenance

ServicingtheLightBulbs

ForModels60217C,60221C,
60221C

ReplacingtheRear-FacingSide Bulbs

Note:Theleftrear-facingbulbalsoilluminates

licenseplate.

1.Useascrewdrivertoremovethe4screwsfrom
thelargesquarelensonthelight(Figure56).

Figure56

g020830

Figure57

2.Removethelens(Figure57).

3.Pullthebulboutofthesocket(Figure57).

4.Pushanew168bulbintothesocket(Figure57).

5.Installthelensandthe2screws(Figure57).

ReplacingtheFrontAmberBulbs

1.Usingascrewdriver,removethe2screwsfrom
thesmallrectangular,amberlensonthefront
ofthelight(Figure58).

g020829

2.Removethelens(Figure56).

3.Pushandtwistthebulbcounterclockwiseto
removeitfromthesocket(Figure56).

4.Pushanew1157bulbintothesocketandthen
twistitclockwise(Figure56).

5.Installthelensandthe4screws(Figure56).

ReplacingtheSide-FacingBulbs

1.Useascrewdrivertoremovethe2screwsfrom
thesmallrectangularlensonthesideofthelight
(Figure57).

g024883

Figure58

2.Removetheamberlens(Figure58).

3.Pullthebulboutofthesocket(Figure58).

4.Insertanew193bulbintothesocket(Figure58).

5.Installtheamberlensandthe2screws(Figure

58).

39

DriveSystem
Maintenance

TireAirPressure

Thefollowingtableshowstheappropriateairpressure
forthetiresasinstalledatthefactory.

Important:Alwayschecktheinformationon

theactualtiresforthecorrectairpressure
requirement.

ModelMaximumAirPressure

60217,60217C414kPa(60psi)

60221,60221C,60221HD241kPa(35psi)

InspectingtheTires

ServiceInterval:Beforeeachuseordaily

WARNING

Failuretomaintaincorrecttirepressure
mayresultintirefailureandlossofcontrol,
resultinginpropertydamageandserious
injuryordeath.

•Checkthetirepressurefrequentlyto
ensureproperination.Ifthetiresarenot
inatedtothecorrectpressure,theywill
wearprematurely .

g020836

Figure59

1.Exampleoftirewearcausedbyunderination

g010293

Figure60

1.Exampleoftirewearcausedbyoverination

2.Ensurethatthetiresareinatedtothecorrect
airpressure;refertoTireAirPressure(page40).

Important:Themostcommoncauseoftire

troubleisunder-ination.Maintainfullair
pressure.

•Inspectthetireconditionbeforetowing
andafteranyoperatingaccident.

TheDOTtireinformationislocatedonthesideof
eachtire.Thisinformationgivesloadandspeed
ratings.Replacementtiresshouldhavethesameor
betterratings

Note:Ensurethatanytiresinstalledonyourmachine

meetorexceedtheweightrequirementsofyour
machineaslistedinSpecications(page17).

1.Visuallyinspectthetiresfordamageandwear
(Figure59andFigure60).

TorquingtheWheelLug Nuts

ServiceInterval:Aftereachuse

Torquethewheellugnutsinitiallyandaftertowing.

Torquethewheellugnuts108to122N∙m(80to90
ft-lb),inthesequenceshowninFigure61.

g021107

Figure61

40

ServicingtheReduction Case

Model60221HDOnly

Important:Iftheoillevelinthereductioncase

istoolowortoohighandyouruntheengine,
youmaydamagetheengineorthereduction
case.Thistypeofdamageisnotcoveredbythe
warranty.

Reduction-CaseOilSpecications

Oiltype:4-cycle,SAE10W-30motoroil

OilAPIservicecategory:SJ,SL,SM,orhigher

Reduction-casecapacity:0.15L(5oz)

6.Alignaragbelowtheoil-levelportintheside
ofthereductioncase.

7.Removetheoil-level-checkboltandwasher
fromtheoil-levelport(Figure62).

•Iftheoillevelisbelowthethreadsinthe

oil-levelport,addoilasfollows:

A.Removethellerboltandwasherfrom

thellerportonthetopofthereduction
case(Figure62).

B.Slowlypourthespeciedoilintothell

portuntiltheoillevelislevelwiththe
threadsatthebottomoftheoil-level
port.

C.Installthellerboltandthewasherto

thellerportofthereductioncase,and
tightenthellerbolt(Figure62).

CheckingtheReduction-CaseOil

ServiceInterval:Beforeeachuseordaily—Check

thereduction-caseoil(Model
60221HDonly).

1.Parkthemachineonalevelsurfaceandshut
offtheengine.

2.Allowtheenginetocool.

3.Disconnectthewirefromthesparkplug;referto

DisconnectingtheSpark-PlugWire(page29).

4.Removethedividerplate;refertoRemovingthe

DividerPlate(page29).

5.Locatethereductioncasebetweentheengine
andtheenginepulley(Figure62).

•Iftheoillevelistoohigh,allowtheoiltoow

outuntilitisushwiththethreadsatthe
bottomoftheoil-levelport.

8.Whentheoilislevelisushwiththethreads
atthebottomoftheoil-levelport,installthe
oil-level-checkboltandwashertotheport,and
tightenthebolt(Figure62).

9.Installthedividerplate;refertoInstallingthe

DividerPlate(page29).

1.Oil-level-checkboltand
washer

2.Oillevel(normal)

g019974

Figure62

3.Reductioncase

4.Fillerboltandwasher

41

ChangingtheReduction-CaseOil

ServiceInterval:Aftertherst20hours—Changethe

reduction-caseoil(Model60221HD
only).

Every100hours/Every6months(whichever
comesrst)—Changethereduction-caseoil
(Model60221HDonly).

1.Parkthemachineonalevelsurfaceandshut

offtheengine.

2.Allowtheenginetocool.

3.Disconnectthewirefromthesparkplug;referto

DisconnectingtheSpark-PlugWire(page29).

4.Removetheengine;refertoRemovingthe

Engine(page36).

5.Drainthefueltank;refertoDrainingtheFuel

Tank(page38).

6.Removethellerboltandwasherfromtheller

portonthetopofthereductioncase(Figure63).

g020128

Figure64

9.Rotatetheengineonthehingesideofthe
enginedeck,anddraintheoilfromthereduction
case(Figure64).

10.Carefullylowertheengineandenginedeck.

11.Slowlypourthespeciedoilintothellport
untiltheoillevelislevelwiththethreadsatthe
bottomoftheoil-levelport(Figure62).

Figure63

1.Oil-level-check
bolt

2.Washer4.Pulley6.Fillerbolt

3.Oil-levelport

5.Fillerport

7.Removetheoil-level-checkboltandwasher

fromtheoil-levelportinthesideofthereduction
case(Figure63).

12.Installtheoil-level-checkboltandwashertothe
oil-levelportofthereductioncase,andtighten
thebolt(Figure63).

13.Installthellerboltandwashertothellerport
ofthereductioncaseandtightenthellerbolt
(Figure63).

14.Installtheengine;refertoInstallingtheEngine

(page37).

g020127

8.Alignadrainpantothehingeoftheenginedeck
(Figure64).

42

BeltMaintenance

InspectingtheBelts

ServiceInterval:Aftertherst25hours—Inspect

thebeltsandadjustasnecessary
(belt-drivemodelsonly).

Every40hours—Inspectthebeltsandadjustas
necessary(belt-drivemodelsonly).

1.Parkthemachineonalevelsurfaceandshut
offtheengine.

2.Allowthemachinetocool.

3.Disconnectthewirefromthesparkplug;referto

DisconnectingtheSpark-PlugWire(page29).

4.Removethedividerplate;refertoRemovingthe

DividerPlate(page29).

5.MovetheclutchlevertotheOFFposition.

6.Examinethebeltsforwearordamage.Ifthe
beltsarewornordamaged,replacethem;refer
toReplacingtheBelts(page44).

7.Examinethepulleysforwear,damage,and
misalignment;refertoAligningthePulleys(page

46).

8.Installthedividerplate;refertoInstallingthe

DividerPlate(page29).

Figure65

1.Enginedeck

2.Clutchroller

6.Ifthemeasuredairgapisnotwithinthespecied
range,adjustthegapasfollows:

A.MovetheclutchlevertotheOFFposition.

B.Loosenthenutsandboltsthatsecurethe

enginetotheenginedeck(Figure66).

3.Clutchairgap:2.5to6.5
mm(3/32to1/4inch)

g019976

AdjustingtheBeltTension

Clutchairgap:2.5to6.5mm(3/32to1/4inch)

1.Parkthemachineonalevelsurfaceandshut
offtheengine.

2.Allowthemachinetocool.

3.Disconnectthewirefromthesparkplug;referto

DisconnectingtheSpark-PlugWire(page29).

4.MovetheclutchlevertotheONposition.

5.Measuretheairgapbetweentheenginedeck
andtherollerontheclutch(Figure65).

Figure66

1.Idlerpulley3.Nutandbolt

2.Setscrew

C.Movetheenginepositionasfollows:

4.Enginedeck

•Increasetheairgap—movetheengine

awayfromtheidlerpulley(Figure66).

•Decreasetheairgap—movethe

enginetowardtheidlerpulley(Figure

66).

D.Alignastraightedgeacrosstheengine

pulleyandtheidlerpulley(Figure67).

g020006

43

5.Removethedividerplate;refertoRemovingthe

DividerPlate(page29).

6.Removetheboltthatsecuresthebeltguideto
theengine,andremovethebeltguide(Figure

68).

Figure67

1.Enginepulley

2.Idlerpulley6.Jamnut

3.Reductioncase(engine)7.Setscrew

4.Beltguide

5.Idlershaft

8.Straightedge

E.Ifnecessary,pivottheengineontheengine

deckuntiltheenginepulleyandidlerpulley
arealignedtothestraightedge(Figure67).

F.Tightenthenutsandboltsthatsecurethe

enginetotheenginedecktoatorqueof18
N∙m(13ft-lb).

G.Checktheairgapbetweentheenginedeck

andtherollerontheclutch.Iftheairgapis
notwithinthespeciedrange,repeatstep6
untiltheairgapmeasurementiswithinthe
speciedrange.

H.Installthedividerplate;refertoInstalling

theDividerPlate(page29).

Important:Ensurethatthepaddlesdonotrotate

whentheclutchleverisintheOFFposition.

ReplacingtheBelts

ServiceInterval:Every2years(belt-drivemodels

only).

RemovingtheBelts

1.Parkthemachineonalevelsurfaceandshut
offtheengine.

2.Allowthemachinetocool.

3.Disconnectthewirefromthesparkplug;referto

DisconnectingtheSpark-PlugWire(page29).

4.MovetheclutchlevertotheOFFposition.

g020009

1.Bolt2.Beltguide

Figure68

g020010

7.Sliptheforwardbeltforwardandofftheidler
pulley(Figure69).

g020012

Figure69

1.Enginepulley3.Idlerpulley

2.Forwardbelt4.Rearbelt

8.Sliptherearbeltrearwardandofftheidlerpulley
(Figure69).

9.Slipthebeltsofftheenginepulley.

10.Removethebeltsfromthemachine.

InstallingtheBelts

1.Parkthemachineonalevelsurfaceandshut
offtheengine.

2.Allowthemachinetocool.

44

3.Disconnectthewirefromthesparkplug;referto

DisconnectingtheSpark-PlugWire(page29).

4.EnsurethattheclutchleverisintheOFF
position.

5.Aligntherearbelttothereargrooveinthe
enginepulley.

Note:Donotaligntherearbelttotheidler

pulley.

6.Aligntheforwardbelttotheforwardgrooveof
theidlerpulley.

7.Sliptherearbeltovertheidlerpulleyandalign
thebelttotherearpulleygroove.

8.Sliptheforwardbeltovertheenginepulleyand
alignthebelttotheforwardpulleygroove.

9.Checkthebelttension;refertostep4through6
inAdjustingtheBeltT ension(page43).

10.Looselysecurethebeltguidetotheengine
(Figure68)withtheboltthatwasremovedin
step6ofRemovingtheBelts(page44).

11.Adjustthebeltguide;refertoAdjustingtheBelt

Guide(page45).

12.Installthedividerplate;refertoInstallingthe

DividerPlate(page29).

AdjustingtheBeltGuide

Note:T oaccessthebeltguide,removethedivider

plate;refertoRemovingtheDividerPlate(page29).

Guideairgap:2.5to4.0mm(3/32to5/32inch)

1.Parkthemachineonalevelsurfaceandshut
offtheengine.

2.Allowthemachinetocool.

3.Disconnectthewirefromthesparkplug;referto

DisconnectingtheSpark-PlugWire(page29).

4.EnsurethattheclutchleverisintheONposition.

5.Ensurethatthebelttensioniscorrect;referto

AdjustingtheBeltTension(page43).

6.Checkthattheairgapbetweenthebeltguide
andthebeltsis2.5to4.0mm(3/32to5/32
inch);refertoFigure70.

g020011

Figure70

1.Enginepulleys4.Beltguide

2.Belts5.Bolt

3.Guideairgap:2.5to4.0
mm(3/32to5/32inch)

7.Iftheairgapisnotwithinthespeciedrange,

dothefollowing:

A.Loosentheboltthatsecuresthebeltguide

totheengine(Figure70).

Important:Ensurethatthebeltguideis

towardtheenginepulley.

B.Rotatethebeltguideupordownuntilthere

isanairgapof2.5to4.0mm(3/32to5/32
inch)betweentheguideandeachbelt
(Figure70).

Important:Thebeltguideshouldnot

contactthebeltswiththeclutchleverin
theONposition.

Note:Iftheairgapbetweenthebeltguide

andbothbeltscannotbeattained,then1of
thebeltsistoolong.

C.Tightentheboltthatsecuresthebeltguide

totheengine(Figure70).

D.Checktheclutchoperation;referto

CheckingtheClutchOperation(page45).

8.Installthedividerplate;refertoInstallingthe

DividerPlate(page29).

CheckingtheClutchOperation

ServiceInterval:Every40hours

Important:Thepaddlesmustnotrotateinan

emptydrumwhentheclutchleverisintheOFF
position.

1.MovetheclutchlevertotheOFFposition.

2.Starttheengine.

3.Ifthepaddlesrotatewiththeclutchlevertothe

OFFpositiondothefollowing:

45

A.Shutofftheengine.

B.Checktheairgapbetweenthebeltguide

andthebelts.

Note:Iftheairgapislargerthan4.0mm

(5/32inch),decreasethegapbetweenthe
beltguideandthebelts;refertoAdjusting

theBeltGuide(page45).

4.Repeatsteps1through3untilallthefollowing
conditionsaremet:

•Theengineisrunat2/3throttle.

•TheclutchleverisintheOFFposition.

•Thepaddlesdonotrotateinanemptydrum

whiletheengineisrunning.

AligningthePulleys

1.Parkthemachineonalevelsurfaceandshut
offtheengine.

2.Allowthemachinetocool.

3.Disconnectthewirefromthesparkplug;referto

DisconnectingtheSpark-PlugWire(page29).

4.Removethedividerplate;refertoRemovingthe

DividerPlate(page29).

5.Placeastraightedgeacrossthefaceofthe
enginepulleyandidlerpulley(Figure71).

Figure71

1.Enginepulley

2.Idlerpulley5.Locknut

3.Straightedge6.Setscrew

4.Idlershaft

Note:Bothpulleysmustbealignedushwith

thestraightedge.

6.Ifthepulleysarenotaligneddothefollowing:

A.MovetheclutchlevertotheOFFposition.

B.Loosenthelocknutsandsetscrewsthat

securetheidlerpulleytotheidlershaft
(Figure71).

C.Usingasoft-facemallet,taptheidlerpulley

forwardorbackwardalongtheidlershaft
untiltheenginepulleyandidlerpulleyare
alignedtothestraightedge(Figure71).

D.Tightenthesetscrewsandlocknutsthat

securetheidlerpulleytotheidlershaft
(Figure71).

g020015

7.Installthedividerplate;refertoInstallingthe

DividerPlate(page29).

46

PaddleMaintenance

AdjustingthePaddles

Important:CompletethePreparingtheMachine

forMaintenance(page29)beforeadjustingany

ofthepaddles.

Note:Overtime,youmayneedtoadjustthemixer

paddlestoaccountforwear.

AligningtheCircumferential-Drum Wipers

1.Rotateapaddlefromtheleftrowofpaddles
aroundthedrumandlocateattheinteriorofthe
drumthesmallestdistancebetweenthedrum
andthewiperofthepaddle(Figure72).

Figure73

1.Wiper4.Paddleblade

2.Distancebetween
paddle-bladeedgeand
wiperedge—3to6mm
(1/8to1/4inch)

3.Wiperbar

5.Carriageboltandanged
locknut

g029188

2.Marktheinsideoftheinsideofthedrumatthe
locationthatyoudeterminedinstep1.

Figure72

5.Adjustthepositionofthewipersothatthewiper
lightlycontactsthedrumacrossthelengthof
thewiper(Figure74).

g250828

Figure74

1.Wiperlightlycontactingthedrumatthesmallestdistance

betweenthedrumandthewiperofthepaddle

g250827

6.Adjustthepositionofthepaddlebladesothat
theouteredgeis3to6mm(1/8to1/4inch)
fromtheouteredgeofthewiper.

3.Alignthewiperofapaddletothemark.

4.Loosenthecarriageboltsandangedlocknuts
thatsecurethepaddlebladeandwipertothe
paddle(Figure73).

7.T orquethecarriageboltsandnutsto19to25
N-m(14to18ft-lb).

8.Repeatsteps4through7fortheotherpaddle
forthatpaddlerow.

9.Repeattheprocedurefortheotherpaddlerows.

47

AligningtheEnd-PaddleWipers

AligningtheAdjustable-End

1.Rotatethewiperandxedpaddlearoundthe
endplateofthedrumandlocatesmallest
distancebetweenthedrumandthewiperofthe
paddle.

2.Marktheinsideoftheendplateatthelocation
thatyoudeterminedinstep1.

Figure75

1.Carriageboltandanged

locknut

2.Closestpointofcontact

3.Drumendplate

3.Alignthewiperofapaddletothemark.

Paddles

1.Aligntheadjustable-endpaddletothemarkthat
youmadeinstep2ofAligningtheEnd-Paddle

Wipers(page48).

2.Loosenthecarriageboltsandangedlocknuts
thatsecuretheadjustableendpaddletothe
xedpaddle.(Figure76)

g250829

g250826

Figure76

1.Carriageboltandanged

locknut

2.Closestpointofcontact

3.Drumendplate

4.Loosenthecarriageboltsandangedlocknuts
thatsecurethepaddlebladeandwipertothe
xedpaddle.(Figure75)

5.Adjustthepositionofthewipersothatthewiper
lightlycontactstheendplateacrossthelength
ofthewiper.

6.Adjustthepositionofthepaddlebladesothat
theouteredgeofthebaris3to6mm(1/8to1/4
inch)fromtheouteredgeofthewiper.

7.T orquethecarriageboltsandnutsto19to25
N-m(14to18ft-lb).

8.Repeattheprocedureforthewiperattheend
plateontheotherendofthedrum.

3.Adjustthepositionoftheadjustable-endpaddle
sothatitisasclosetotheendplateaspossible,
acrossthelengthofthepaddle,withouttouching
endplatewhenthepaddlesarerotated.

4.T orquethecarriageboltsandnutsto37to45
N∙m(27to33ft-lb).

5.Repeattheprocedurefortheadjustableend
paddleattheendplateontheotherendofthe
drum.

48

Cleaning

CleaningtheMachine

Regularcleaningandwashingwithmilddetergentand
waterincreasesthelifespanofthemachine.Clean
themachineaftereachusebeforethedirthardens.

Removedirtandgrimefromtheexternalpartsofthe
entiremachine,especiallytheengine.Cleandirtand
concretematerialsfromtheoutsideoftheengine.

Ensurethatthefuelcapandtheoil-llcap/dipstickare
securetoavoidgettingwaterintheengine.

Usecarewhenusingahigh-pressuresprayer
becauseitcandamagethesafetydecals,instruction
signs,andtheengine.

Important:Lubricatethebearingsandsealsafter

cleaning;refertoLubricatingtheBearings,Seals,

andGears(page30).

Storage

Forstorageover30days,preparethemachineas
follows:

1.Removedirtandgrimefromtheexternalpartsof
theentiremachine,especiallytheengine.Clean
dirtanddebrisfromtheoutsideoftheengine
cylinder-headnsandblowerhousing.

Important:Youcanwashthemachinewith

milddetergentandwater.

2.Conditionthefuelsystemasfollows:

A.Addapetroleum-based

stabilizer/conditionertofuelinthe
tank.Followthemixinginstructionsfrom
thestabilizermanufacturer.Donotuse
analcohol-basedstabilizer(ethanolor
methanol).

Important:Donotstore

stabilizer/conditionedfuelover90
days.

Note:Fuelstabilizer/conditionerismost

effectivewhenmixedwithfreshfueland
usedatalltimes.

B.Runtheenginefor5minutestodistribute

theconditionedfuelthroughthefuelsystem.

C.Shutofftheengine,allowittocool,and

drainthefueltankusingapump-type
siphon.Disposeoffuelproperly;recycleit
accordingtolocalcodes.

D.Starttheengineandrunituntilitstops.

E.Choketheengine.

F.Startandruntheengineuntilitdoesnot

startagain.

3.ForModel60221HDonly:Cleanthesediment
cup;refertoCleaningtheFuel-SedimentCup

(page38).

4.Servicetheaircleaner;refertoServicingtheAir

Cleaner(page31).

5.Changetheengineoil;refertoChangingthe

EngineOil(page33).

6.Removethesparkplugandcheckthecondition;
refertoRemovingtheSparkPlug(page34).

7.Conditiontheengineasfollows:

A.Pour2tablespoonsofengineoilintothe

spark-plughole;refertoServicingtheSpark

Plug(page34).

B.Pulltherecoil-starthandleslowlytocrank

theengineanddistributetheoilinsidethe
cylinder.

C.Installthesparkplug;refertoInstallingthe

SparkPlug(page35).

49

Note:Donotinstallthewireonthespark

plug.

8.Greasethemachine;refertoLubricatingthe

Bearings,Seals,andGears(page30).

9.Checkandtightenallbolts,nuts,andscrews.
Repairorreplaceanypartthatisdamaged.

10.Paintallscratchedorbaremetalsurfaceswith
paintavailablefromyourAuthorizedService
Dealer.

11.Storethemachineinaclean,drygarageor
storagearea.

12.Coverthemachinetoprotectitandkeepitclean.

50

Troubleshooting

Problem

Theenginedoesnotstart.

Theenginelackspowerorrunsrough.

PossibleCauseCorrectiveAction

1.Thefuel-valveleverisintheOFF
position.

2.Thechokeisclosed

3.Thechokeisopen.

4.TheengineOn/OffswitchisintheOFF
position.

5.Theengineoillevelislow(engines
withtheoil-levelswitch).

6.Thefueltankisempty.6.Fillthefueltankwithfreshfuel.

7.Theenginecontainsbad/oldfuel.7.Drainthefueltankandcarburetor.

8.Thesparkplugisfouledorimproperly
gapped.

9.Thesparkplugiswetwithfuel(ooded
engine).

10.Thespark-plugwireislooseor
disconnected.

1.Theairlterisrestricted.

2.Theenginecontainsbadoroldfuel.

3.Thereiswaterorcontaminationinthe
fuel.

4.Thefuellineisrestricted.4.Cleanthefuellterandsedimentcup.

5.Thechokeisclosed

6.Thesparkplugiswornorhasbuildup
ontheelectrodes.

7.Thereistoomuchoilintheengine
crankcase.

1.Movethefuel-valvelevertotheON
position.

2.Openthechokewhenstartingahot
engine.

3.Closethechokewhenstartingacold
engine.

4.RotatetheswitchtotheONposition.

5.Filltheengine,withtherecommended
oil,totheproperlevel.

Refuelwithfreshfuel.

8.Gaporreplacethesparkplug.

9.Removethesparkplug,dryit,and
installtheplug.Starttheenginewith
thethrottleintheMAXposition.

10.Removethespark-plugwire,cleanthe
spark-plugterminalandtheterminal
socketinthebootofthespark-plug
wire,andinstallthespark-plugwire.

1.Cleanorreplacetheair-lter
element(s).

2.Drainthefueltankandcarburetor.
Refuelwithfreshfuel.

3.Drainthefueltankandcarburetor.
Refuelwithfreshfuel.

5.Openthechoke.

6.Checktheelectrodegapandadjustor
replacethesparkplug.

7.Draintheoiltotheproperlevel.

Thebeltslipsorcomesoffthepulleys.

isintheOFFposition.

leverisintheONposition.

Thepaddlesrotateslowlywhentheclutch
leverisintheONposition.

1.Thebelttensionisinsufcient.

2.Thebeltisworn.2.Replacethebelt.

3.Thepulley(s)areworn.

4.Thepulley(s)aremisaligned.4.Alignthepulley(s).

1.Theclutchleverisnotadjusted
correctly.

2.Thebeltguideisnotadjustedcorrectly .2.Adjustthebeltguide.

1.Theclutchleverisnotadjusted
correctly.

2.Thepaddlesarestuckinthedrum

1.Theclutchleverisnotadjusted
correctly.

1.Adjustthebelttension.

3.ContactyourAuthorizedService
Dealer.

1.Adjustthebelttension. Thepaddlesrotatewhentheclutchlever

1.Adjustthebelttension. Thepaddlesdonotrotatewhentheclutch

2.Cleanthepaddlesanddrum.

1.Adjustthebelttension.

51

Notes:

Notes:

Notes:

CaliforniaProposition65WarningInformation

Whatisthiswarning?

Youmayseeaproductforsalethathasawarninglabellikethefollowing:

WARNING:CancerandReproductiveHarm—www.p65Warnings.ca.gov.

WhatisProp65?

Prop65appliestoanycompanyoperatinginCalifornia,sellingproductsinCalifornia,ormanufacturingproductsthatmaybesoldinorbroughtinto
California.ItmandatesthattheGovernorofCaliforniamaintainandpublishalistofchemicalsknowntocausecancer,birthdefects,and/orother
reproductiveharm.Thelist,whichisupdatedannually,includeshundredsofchemicalsfoundinmanyeverydayitems.ThepurposeofProp65isto
informthepublicaboutexposuretothesechemicals.

Prop65doesnotbanthesaleofproductscontainingthesechemicalsbutinsteadrequireswarningsonanyproduct,productpackaging,orliteraturewith
theproduct.Moreover,aProp65warningdoesnotmeanthataproductisinviolationofanyproductsafetystandardsorrequirements.Infact,the
CaliforniagovernmenthasclariedthataProp65warning“isnotthesameasaregulatorydecisionthataproductis‘safe’or‘unsafe.’”Manyofthese
chemicalshavebeenusedineverydayproductsforyearswithoutdocumentedharm.Formoreinformation,gotohttps://oag.ca.gov/prop65/faqs-view-all

AProp65warningmeansthatacompanyhaseither(1)evaluatedtheexposureandhasconcludedthatitexceedsthe“nosignicantrisklevel”;or(2)
haschosentoprovideawarningbasedonitsunderstandingaboutthepresenceofalistedchemicalwithoutattemptingtoevaluatetheexposure.

Doesthislawapplyeverywhere?

Prop65warningsarerequiredunderCalifornialawonly.ThesewarningsareseenthroughoutCaliforniainawiderangeofsettings,includingbutnot
limitedtorestaurants,grocerystores,hotels,schools,andhospitals,andonawidevarietyofproducts.Additionally,someonlineandmailorder
retailersprovideProp65warningsontheirwebsitesorincatalogs.

.

HowdotheCaliforniawarningscomparetofederallimits?

Prop65standardsareoftenmorestringentthanfederalandinternationalstandards.TherearevarioussubstancesthatrequireaProp65warning
atlevelsthatarefarlowerthanfederalactionlimits.Forexample,theProp65standardforwarningsforleadis0.5μg/day,whichiswellbelow
thefederalandinternationalstandards.

Whydon’tallsimilarproductscarrythewarning?

•ProductssoldinCaliforniarequireProp65labellingwhilesimilarproductssoldelsewheredonot.

•AcompanyinvolvedinaProp65lawsuitreachingasettlementmayberequiredtouseProp65warningsforitsproducts,butothercompanies

makingsimilarproductsmayhavenosuchrequirement.

•TheenforcementofProp65isinconsistent.

•CompaniesmayelectnottoprovidewarningsbecausetheyconcludethattheyarenotrequiredtodosounderProp65;alackofwarningsfora

productdoesnotmeanthattheproductisfreeoflistedchemicalsatsimilarlevels.

WhydoesToroincludethiswarning?

Torohaschosentoprovideconsumerswithasmuchinformationaspossiblesothattheycanmakeinformeddecisionsabouttheproductstheybuyand
use.T oroprovideswarningsincertaincasesbasedonitsknowledgeofthepresenceofoneormorelistedchemicalswithoutevaluatingthelevelof
exposure,asnotallthelistedchemicalsprovideexposurelimitrequirements.WhiletheexposurefromToroproductsmaybenegligibleorwellwithinthe
“nosignicantrisk”range,outofanabundanceofcaution,T orohaselectedtoprovidetheProp65warnings.Moreover ,ifTorodoesnotprovidethese
warnings,itcouldbesuedbytheStateofCaliforniaorbyprivatepartiesseekingtoenforceProp65andsubjecttosubstantialpenalties.

RevA

Alimitedwarranty(seewarrantyperiodsbelow)

TheToroWarranty

Concrete,
Masonry,and
Compaction
Equipment

ConditionsandProductsCovered

TheT oroCompanyanditsafliate,T oroWarrantyCompany,pursuantto
anagreementbetweenthem,jointlywarrantyourT oroConcrete,Masonry ,
andCompactionEquipmentProductslistedbelowtobefreefromdefectsin
materialsorworkmanship.

Thiswarrantycoversthecostofpartsandlabor,butyoumustpay
transportationcosts.

Thefollowingtimeperiodsapplyfromthedateofpurchase:

ProductsWarrantyPeriod

ConcreteMixers

•SpindleBearingsLifetime*(originalowneronly)
MortarMixers1year

•DrumBearingsandSealsLifetime*(originalowneronly)
ForwardPlateCompactors
ReversiblePlates1year
RammerCompactors
MudBuggy1year
VibratingTrenchRoller2years
ConcreteSaws
MasonrySaws
PowerTrowels1year
Screeds
ConcreteVibrators

Whereawarrantableconditionexists,wewillrepairtheProductatnocost
toyouincludingdiagnosis,labor,andparts.

*

LifetimeWarranty-Ifthebearing(s)orseal(s)onyourmixerfail,itwillbereplacedunderwarranty ,

atnocostforpartsorlabor.

1year

2years

2years

1year
1year

1year
1year

InstructionsforObtainingWarrantyService

IfyouthinkthatyourT oroProductcontainsadefectinmaterialsor
workmanship,followthisprocedure

1.ContactanyAuthorizedServicingOutlettoarrangeserviceattheir
dealership.T olocateoneconvenienttoyou,accessourwebsiteat
www.T oro.com.Select“WheretoBuy”andselect“Contractor”under
producttype.Y oumayalsocallourtollfreenumberbelow .

2.Bringtheproductandyourproofofpurchase(salesreceipt)tothem.

3.IfforanyreasonyouaredissatisedwiththeServiceOutlet’sanalysis
orwiththeassistanceprovided,contactusat:

SWSCustomerCareDepartment
ToroWarrantyCompany
811 1LyndaleAvenueSouth
Bloomington,MN55420-1196
TollFree:800-888-9926

**

ToroAuthorizedRentalCustomerswhohavepurchasedproductsdirectlyfromT oroandhave

signedtheT oroRentalCustomerAgreementhavetheabilitytoperformtheirownwarrantywork.

PleasevisitT oro’sRentalPortalforelectronicwarrantyclamlingproceduresorcallthetollfree

numberabove.

**

:

OwnerResponsibilities

YoumustmaintainyourToroProductbyfollowingthemaintenance
proceduresdescribedintheOperator’sManual.Suchroutinemaintenance,
whetherperformedbyadealerorbyyou,isatyourexpense.Parts
scheduledforreplacementasrequiredmaintenance(“MaintenanceParts”),
arewarrantedfortheperiodoftimeuptothescheduledreplacementtime

forthatpart.Failuretoperformrequiredmaintenanceandadjustmentscan
begroundsfordisallowingawarrantyclaim.

ItemsandConditionsNotCovered

Notallproductfailuresormalfunctionsthatoccurduringthewarrantyperiod
aredefectsinmaterialsorworkmanship.Thisexpresswarrantydoesnot
coverthefollowing:

•Productfailureswhichresultfromtheuseofnon-Tororeplacement

parts,orfrominstallationanduseofadd-on,modied,orunapproved
accessories

•Productfailureswhichresultfromfailuretoperformrequired

maintenanceand/oradjustments

•ProductfailureswhichresultfromoperatingtheProductinanabusive,

negligentorrecklessmanner

•Partssubjecttoconsumptionthroughuseunlessfoundtobedefective.

Examplesofpartswhichareconsumed,orusedup,duringnormal
productoperationinclude,butarenotlimitedto,belts,wipers,spark
plugs,tires,lters,gaskets,wearplates,seals,O-rings,drivechains,
clutches.

•Failurescausedbyoutsideinuence.Itemsconsideredtobeoutside

inuenceinclude,butarenotlimitedto,weather,storagepractices,
contamination,useofunapprovedcoolants,lubricants,additives,or
chemicals,etc.

•Normal“wearandtear”items.Normal“wearandtear”includes,butis

notlimitedto,wornpaintedsurfaces,scratcheddecals,etc.

•Repairsnecessaryduetofailuretofollowrecommendedfuel

procedure(consultOperator'sManualformoredetails)

–Removingcontaminantsfromthefuelsystemisnotcovered

–Useofoldfuel(morethanonemonthold)orfuelwhichcontains

morethan10%ethanolormorethat15%MTBE

–Failuretodrainthefuelsystempriortoanyperiodofnon-use

overonemonth

•Anycomponentcoveredbyaseparatemanufacturer’swarranty

•Pickupanddeliverycharges

GeneralConditions

RepairbyanAuthorizedServicingOutletorSelf-ServiceasanAuthorized
RentalCustomerisyoursoleremedyunderthewarranty.

NeitherTheToroCompanynorToroWarrantyCompanyisliablefor
indirect,incidentalorconsequentialdamagesinconnectionwiththe
useoftheToroProductscoveredbythiswarranty,includingany
costorexpenseofprovidingsubstituteequipmentorserviceduring
reasonableperiodsofmalfunctionornon-usependingcompletionof
repairsunderthiswarranty .Allimpliedwarrantiesofmerchantability
andtnessforusearelimitedtothedurationofthisexpresswarranty.
Somestatesdonotallowexclusionsofincidentalorconsequential
damages,orlimitationsonhowlonganimpliedwarrantylasts,sothe
aboveexclusionsandlimitationsmaynotapplytoyou.

Thiswarrantygivesyouspeciclegalrights,andyoumayalsohaveother
rightswhichvaryfromstatetostate.

ExceptfortheenginewarrantycoverageandtheEmissionswarranty
referencedbelow,ifapplicable,thereisnootherexpresswarranty .The
EmissionsControlSystemonyourProductmaybecoveredbyaseparate
warrantymeetingrequirementsestablishedbytheU.S.Environmental
ProtectionAgency(EPA)ortheCaliforniaAirResourcesBoard(CARB).
RefertotheCaliforniaEmissionControlWarrantyStatementsuppliedwith
yourProductorcontainedintheenginemanufacturer’sdocumentationfor
details.

CountriesOtherthantheUnitedStatesorCanada

CustomerswhohavepurchasedT oroproductsoutsidetheUnitedStatesorCanadashouldcontacttheirT oroDistributor(Dealer)toobtainguarantee
policiesforyourcountry,province,orstate.IfforanyreasonyouaredissatisedwithyourDistributor'sserviceorhavedifcultyobtainingguarantee
information,contacttheT oroimporter.Ifallotherremediesfail,youmaycontactusatT oroWarrantyCompany.

AustralianConsumerLaw:AustraliancustomerswillnddetailsrelatingtotheAustralianConsumerLaweitherinsidetheboxoratyourlocalT oro
Dealer.

374-0288RevC
