FormNo.3417-962RevB

PowerPlex

™

24in40VMAXHedge

Trimmer

ModelNo.51491—SerialNo.318000001andUp ModelNo.51491T—SerialNo.318000001andUp

Registeratwww.T oro.com. OriginalInstructions(EN)

*3417-962*B

Ifyouhavequestionsor problems,calltollfree 1-800-237-2654(US)or 1-800-248-3258(Canada) beforereturningthis product.

Safety

WARNING

Failuretofollowallwarningsandinstructions mayresultinelectricshock,reand/or seriouspersonalinjury.

WARNING

CALIFORNIA

Proposition65Warning

Thisproductcontainsachemical

orchemicalsknowntotheStateof

Californiatocausecancer,birthdefects,

orreproductiveharm.

Introduction

Thishedgetrimmerisintendedtobeusedby residentialhomeownerstomaintainbushesand hedges.ItisdesignedtouseonlybatterypackModel 88540(providedwithModel51491)or88541.

Readthisinformationcarefullytolearnhowtooperate andmaintainyourproductproperlyandtoavoid injuryandproductdamage.Y ouareresponsiblefor operatingtheproductproperlyandsafely .

YoumaycontactT orodirectlyatwww.T oro.comfor productandaccessoryinformation,helpndinga dealer,completewarrantydetails,ortoregisteryour product.

Model51491Tdoesnotincludeabatteryora charger.

Readallsafetywarningsandallinstructions.

Saveallwarningsandinstructionsforfuture reference.

Theterm“powertool”inthewarningsreferto yourmains-operated(corded)powertoolor battery-operated(cordless)powertool.

1.Workareasafety

A.Keeptheworkareacleanandwelllit.

Clutteredordarkareasinviteaccidents.

B.Donotoperatepowertoolsinexplosive

atmospheres,suchasinthepresence ofammableliquids,gasses,ordust.

Powertoolscreatesparks,whichmayignite thedustorfumes.

C.Keepchildrenandbystandersaway

whileoperatingapowertool.Distractions

cancauseyoutolosecontrol.

D.Avoiddangerousenvironments.Donot

useappliancesindamporwetlocations.

2.Personalsafety

A.Stayalert;watchwhatyouaredoing

andusecommonsensewhenoperating apowertool.Donotuseapowertool whileyouaretiredorundertheinuence ofdrugs,alcohol,ormedication.A

momentofinattentionwhileoperatingpower toolsmayresultinseriouspersonalinjury .

B.Usepersonalprotectiveequipment.

Alwaysweareyeprotection.Protective

equipmentsuchasadustmask,non-skid safetyshoes,ahardhat,orhearing protectionusedforappropriateconditions willreducepersonalinjuries.

C.Preventunintentionalstarting.Ensure

thattheswitchisintheOFFposition beforeconnectingtoapowersource and/orbatterypackandpickingupor carryingthetool.Carryingpowertools

withyourngerontheswitchorenergizing powertoolsthathavetheswitchoninvites accidents.

D.Removeanyadjustingkeyorwrench

beforeturningonthepowertool.A

wrenchorakeyleftattachedtoarotating

Contactusatwww.T oro.com.

PrintedinChina

AllRightsReserved

partofthepowertoolmayresultinpersonal injury.

E.Donotoverreach.Keepproper

footingandbalanceatalltimes.This

enablesbettercontrolofthepowertoolin unexpectedsituations.

F.Dressproperly .Donotwearloose

clothingorjewelry .Keepyourhairtied backandyourclothingandglovesaway frommovingparts.Looseclothes,jewelry,

orlonghaircanbecaughtinmovingparts.

G.Ifdevicesareprovidedforthe

connectionofdustextractionand collectionfacilities,ensurethatthese areconnectedandproperlyused.Use

ofdustcollectioncanreducedust-related hazards.

3.Powertooluseandcare

A.Donotforcethepowertool.Usethe

correctpowertoolforyourapplication.

Thecorrectpowertoolwilldothejob betterandsaferattherateforwhichitwas designed.

B.Donotusethepowertooliftheswitch

doesnotturnitonandoff.Anypowertool

thatcannotbecontrolledwiththeswitchis dangerousandmustberepaired.

C.Disconnecttheplugfromthepower

sourceand/orthebatterypackfrom thepowertoolbeforemakingany adjustments,changingaccessories,or storingpowertools.Suchpreventive

safetymeasuresreducetheriskofstarting thepowertoolaccidentally.

D.Storeidlepowertoolsoutofthereach

ofchildrenanddonotallowpersons unfamiliarwiththepowertoolorthese instructionstooperatethepowertool.

Powertoolsaredangerousinthehandsof untrainedusers.

E.Maintainpowertools.Checkfor

misalignmentorbindingofmoving parts,breakageofpartsandanyother conditionthatmayaffectthepowertools operation.Ifdamaged,havethepower toolrepairedbeforeuse.Manyaccidents

arecausedbypoorlymaintainedpower tools.

F.Keepcuttingtoolssharpandclean.

Properlymaintainedcuttingtoolswithsharp cuttingedgesarelesslikelytobindandare easiertocontrol.

G.Usethepowertool,accessoriesand

toolbitsetc.inaccordancewiththese instructions,takingintoaccountthe

workingconditionsandtheworkto beperformed.Usingthepowertoolfor

operationsdifferentfromthoseintended couldresultinahazardoussituation.

4.Batterytooluseandcare

A.Chargeonlywiththechargerspecied

bythemanufacturer.Achargerthatis suitablefor1typeofbatterypackmay createariskofrewhenusedwithanother batterypack.

B.Usepowertoolsonlywithspecically

designatedbatterypacks.Usingany

otherbatterypacksmaycreateariskof injuryandre.

C.Whenbatterypackisnotinuse,keepit

awayfromothermetalobjects,suchas paperclips,coins,keys,nails,screws, orothersmallmetalobjectsthatcan makeaconnectionfromoneterminal toanother.Shortingthebatteryterminals

togethermaycauseburnsorare.

D.Underabusiveconditions,liquidmaybe

ejectedfromthebattery;avoidcontact. Ifcontactaccidentallyoccurs,ush withwater.Ifliquidcontactseyes, additionallyseekmedicalhelp.Liquid

ejectedfromthebatterymaycauseirritation orburns.

E.Chargingtimeincreasesifthebattery

packisnotchargedwithintheappropriate temperaturerange;refertoSpecications

(page7).

5.Service

Haveyourpowertoolservicedbya qualiedrepairpersonusingonlyidentical replacementparts.Thiswillensurethatthe

safetyofthepowertoolismaintained.

HedgeTrimmerSafetyWarnings

•Keepallpartsofthebodyawayfromthecutter

blade.Donotremovecutmaterialorhold materialtobecutwhenbladesaremoving. Makesurethattheswitchisoffwhenclearing jammedmaterial.Thebladescoastafteryou turnthemoff.Amomentofinattentionwhile

operatingthehedgetrimmermayresultinserious personalinjury.

•Carrythehedgetrimmerbythehandlewith

thecutterbladestopped.Properhandlingofthe hedgetrimmerreducespossiblepersonalinjury fromthecutterblades.

•Holdthepowertoolbyinsulatedgripping

surfacesonly ,becausethecutterblademay contacthiddenwiringoritsowncord.Cutter

bladescontactinga“live”wiremaymakeexposed

metalpartsofthepowertool“live”andcouldgive youanelectricshock.

•DANGER—Keepyourhandsawayfromblade.

Contactwithbladewillresultinseriouspersonal injury.

AdditionalSafetyWarnings

•Keephandsandfeetawayfromthecuttingdevice

atalltimesandespeciallywhenswitchingthe producton.

•Donottrytograsporremovetrimmingswhenthe

productisrunning.Removeonlytrimmingswhen theproductisswitchedoffanddisconnectedfrom thepowersupply.

•Neverholdtheproductbytheguard.

•Alwaysbesureofasafeandsecureoperating

positionwhileusingtheproduct.

•Neverusetheproductwhilestandingonstepsor

aladder.Donotworkovershoulderheight.

•Alwaysensurethesafetyguardsuppliedis

ttedbeforeusingtheproduct.Neverattemptto useanincompleteproductoronettedwithan unauthorizedmodication.

•Checkthecuttingdeviceregularlyfordamage,

andifdamaged,repairimmediately.

•Donotoverloadtheproduct.

•Checkimmediatelyiftheproductstartstovibrate

abnormally.Excessivevibrationcancauseinjury.

•Switchtheproductoffwhenthecuttingdevice

isblocked.Disconnectitfrompowersupply (i.e.,removethebatterypack)andremovethe blockage.Inspectthecuttingdevicefordamage beforeusingtheproductagain.

•Followthemaintenanceandrepairinstructionsfor

thisproduct.Nevercarryoutanymodicationsto theproduct.Informationaboutmaintenanceand repairisprovidedinthisinstructionmanual.

•Knowhowtostoptheproductquicklyinan

emergency.

•Donotexposetheproducttorain.Donotoperate

theproductonawethedge.

•Usetheproductonlyindaylightorgoodarticial

light.

•Checkthehedgeforforeignobjectsbefore

operation(e.g.,wirefences).T akecarethatthe cuttingdevicedoesnotcomeintocontactwithwire orothermetalobjects.

•Holdthehedgetrimmerproperly(e.g.,withboth

handsif2handlesareprovided).Lossofcontrol cancausepersonalinjury.

AdditionalSafetyWarningsfortheCharger

•Thischargercanbeusedbypersonswithreduced

physical,sensory,ormentalcapabilities,oralack

ofexperienceandknowledgeiftheyhavebeen givensupervisionorinstructionconcerninguse ofthechargerinasafewayandunderstandthe hazardsinvolved.

•Childrenshallnotplaywiththecharger.

•Cleaningandusermaintenanceshallnotbemade

bychildrenwithoutsupervision.

•Ifthesupplycordisdamaged,itmustbereplaced

bythemanufacturer,itsserviceagent,orsimilarly qualiedpersonsinordertoavoidahazard.

•Disconnectthechargerfromthepowersupplyand

allowittocooldownbeforecleaning,maintenance, storage,andtransportation.

•Beforeusingthecharger,readalltheinstructions

andcautionarymarkingsonthechargerand batterypack.

•Thechargerandbatterypacksuppliedwithitare

specicallydesignedtoworktogether.Usethe chargeronlywiththebatterypackforthistool.

•Chargethebatterypackindoorsonlyasthe

chargerisdesignedforindooruseonly .

•Donotchargenon-rechargeablebatteries.

•Protectthechargeragainstmoistureandwet

conditions.Thereisadangerofelectricshock.

•Donotplaceanyobjectontopofthechargerasit

couldcauseoverheating.Donotplacethecharger nearanyheatsource.

•Donotuseanextensioncordonthecharger

unlessitisabsolutelynecessary.Theuseofan improperextensioncordcouldcausetheriskof re,electricshock,orelectrocution.

•Donotusethechargerifithasbeensubjectedto

aheavyknock,dropped,orotherwisedamagedin anyway.Havethechargercheckedandrepaired byanauthorizedservicecenter.

AdditionalSafetyWarningsforBatteryPacks

•Donotattempttochargethebatterypackwithany

otherchargerthantheonesupplied.Thecharger andbatterypacksuppliedwithitarespecically designedtoworktogether.

•Toensurethelongestbatterylifeandbest

performance,onlychargeandstorethebattery packintemperaturesthatarewithinthe appropriaterange;refertoSpecications(page

7).Donotchargeorstorethebatterypackin

temperaturesoutsideofthesuggestedrange.

•Smallleakageofliquidfromthebatterypack

mayoccurunderextremeusageortemperature conditions.However,iftheoutersealisbroken andthisleakagecomesintocontactwithyour skin,washtheaffectedareaquicklywithwater.If theleakagegetsinyoureyes,ushyoureyeswith cleanwaterforaminimumof10minutesandseek immediatemedicalattention.

•Neverattempttoopenthebatterypackforany

reason.Iftheplastichousingofthebatterypack breaksopenorcracks,immediatelydiscontinueits useanddonotrechargeit.

•Donotstoreorcarryasparebatterypackina

pocketortoolboxoranyotherplacewhereitmay comeintocontactwithmetalobjects.Thebattery packmayshort-circuit,causingdamagetothe batterypack,burns,orare.

•Donotpiercethebatterywithnails,strikethe

batterywithahammer,steponthebattery ,or otherwisesubjectittostrongimpactsorshocks.

SafetyandInstructionalDecals

Safetydecalsandinstructionsareeasilyvisibletotheoperatorandarelocatednearanyarea ofpotentialdanger.Replaceanydecalthatisdamagedormissing.

SymbolDesignation/Explanation

Readtheinstructionmanual.

•Protectthebatterypackagainstheat.Donot

placethebatteryindirectsunlightoruseorstore thebatteryinsidecarsinhotweather.Doingso maycausethebatterytogenerateheat,explode orignite.

•Nevertrytochargeabatterypackthatiscracked

ordamagedinanyotherway.Thereisadanger ofelectricshockorelectrocution.

Wearhearingprotection.

Weareyeprotection.

Wearadustmask.

Wearprotectivegloves.

Wearprotective,slip-resistant footwear.

Donotexposetheproduct torainorwetconditions (moisture).

Keepngersawayfrom movingcuttingdevice.

WEEEsymbol.Waste electricalproductsshouldnot bedisposedofwithhousehold waste.Pleaserecyclewhere facilitiesexist.Checkwith yourLocalAuthorityorlocal storeforrecyclingadvice.

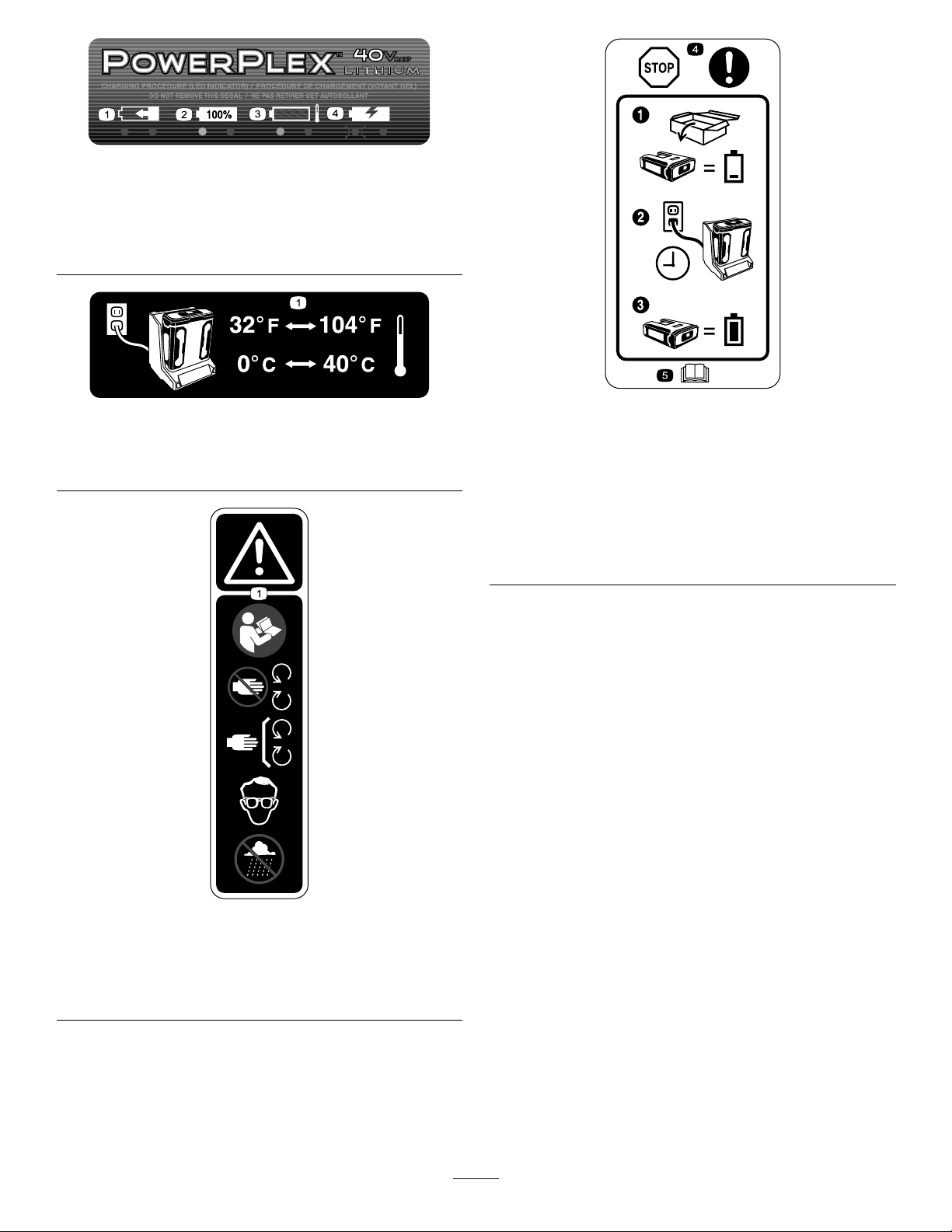

decal136-2461

136-2461

Model51491

decal136-2462

136-2462

Model51491T

decal136-2471

136-2471

decal136-2473

136-2473

136-2533

decal136-2533

1.Warning—readtheOperator’sManual;keepawayfrom movingparts;keepallguardsandcoversinplace;wear eyeprotection;donotoperateinwetconditions.

decal136-2476

136-2476

1.Thebatterypackis charging.

2.Thebatterypackisfully

3.Thebatterypackistoo warm.

4.Replacethebatterypack.

charged.

136–2539

1.Chargethebatterywherethetemperatureisbetween0°C and40°C(32°Fand104°F).

decal136-2539

decal136-2534

136-2534

1.Thebatterydoesnot comeoutoftheboxfully charged.

2.Placethebatteryinthe batterycharger.

3.Waituntilthebatteryis fullychargedbeforethe rstuse.

4.Stop—followthese instructionsbeforerst use.

5.ReadtheOperator’s Manual.

Setup

Note:Thebatterypackisnotfullychargedwhenit

ispurchased.Beforeusingthetoolforthersttime, refertoChargingtheBatteryPack(page9).

MountingtheBattery Charger(Optional)

ProductOverview

Ifdesired,mountthebatterychargersecurelyona wallusingthewall-mountkeyholesonthebackof thecharger.

Mountitindoors(suchasagarageorotherdryplace), nearapoweroutlet,andoutofthereachofchildren.

RefertoFigure1forassistanceinmountingthe charger.

Note:Slideandtwistthechargeroverthe

appropriatelypositionedhardwaretosecurethe chargerinplace(hardwarenotincluded).

Figure2

LeftSideofHedgeTrimmer

1.Blades6.Lockswitch

2.Guard

3.Auxiliary-handleswitch8.Batterylatch

4.Auxiliaryhandle9.Batterypack

5.Handle-rotationbutton10.Protectivecover

7.Trigger

Specications

Model5149151491T

Cutting Length

Rated Voltage

No-load Speed

Cutting width

Charger Type

BatteryType

610mm

40VDCmaximum,36VDCnominalusage

3000spmat40VDCmax

18mm

88542

88540(includedwith51491),88541(sold separately)

g204357

Figure1

AppropriateTemperatureRanges

Chargethebatteryat0°C(32°F)to40°C(104°F)*

Useproductsat

g194202

Storeproductsat-15°C(5°F)to60°C(140°F)

UnplugthechargerifBelow0°C(32°F)orabove

*Chargingtimewillincreaseifyoudonotchargethe batterywithinthisrange.

Storethetool,batterypack,andbatterychargerinan enclosedclean,dryarea.

-15°C(5°F)to60°C(140°F)

40°C(104°F)

Operation

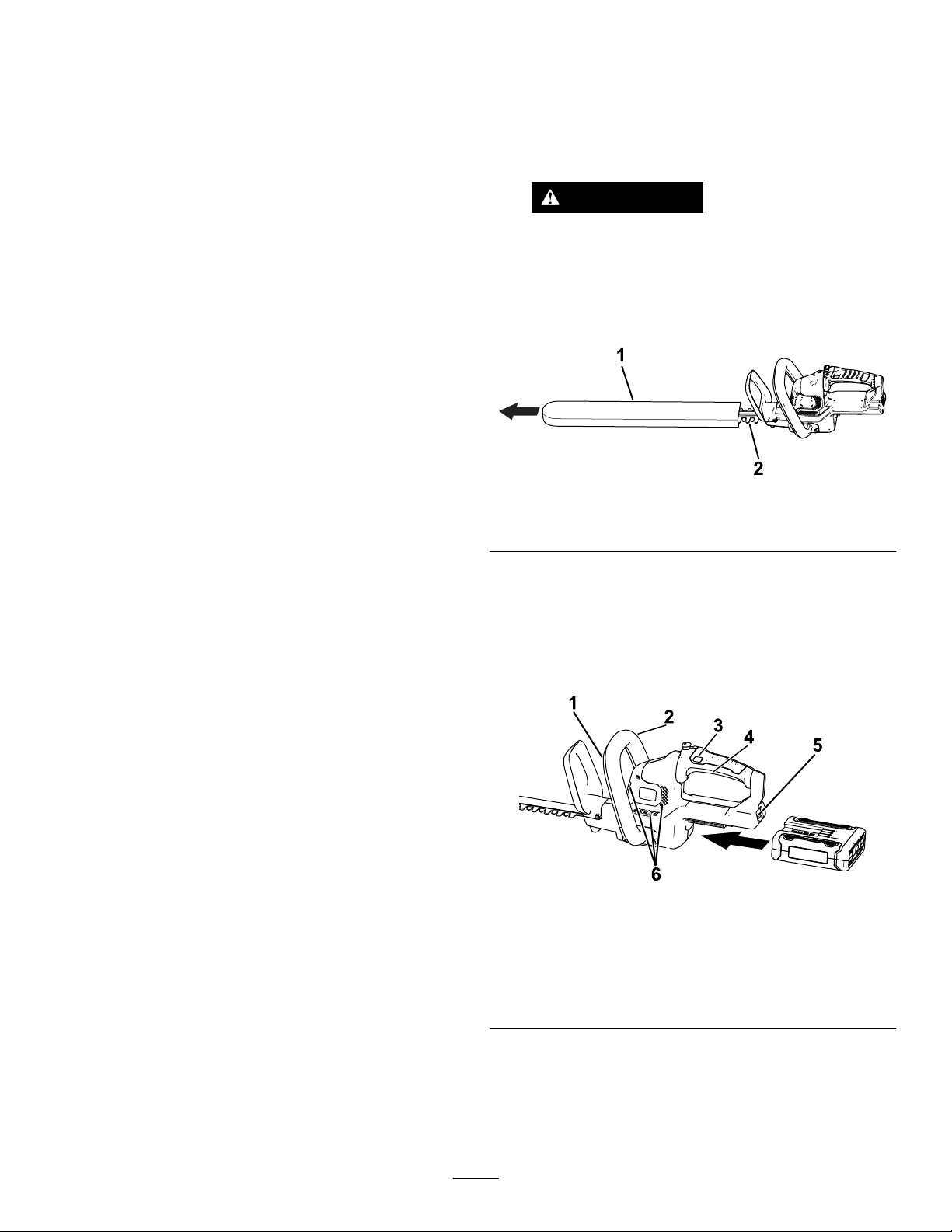

StartingtheHedgeTrimmer

1.Removetheprotectivecoverfromtheblades (Figure3).

WARNING

Thehedgetrimmerbladescancause cutsoramputation.

Becarefulwhenhandlingthehedge trimmerwiththeprotectivecover removed.

Figure3

Thetrimmerstaysonaslongasthe auxiliary-handleswitchisengagedandthe triggerissqueezed.Youmayreleasethe lockswitchoncethehedgetrimmerisrunning (Figure4).

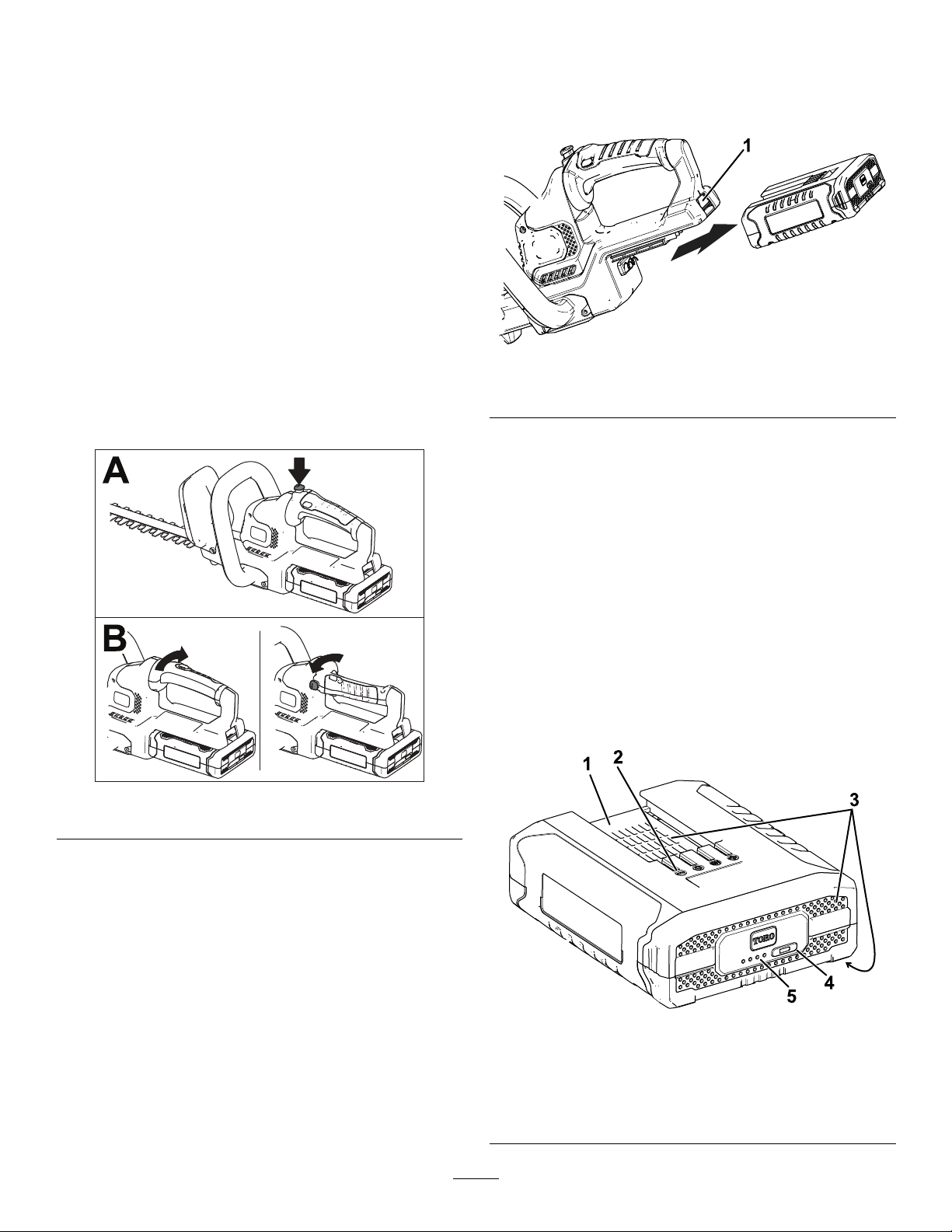

RotatingtheHedgeTrimmer Handle

1.Pressandholdtherotationallockbutton(Aof

Figure5).

2.Rotatethehandle90°totherightorleft dependingondesiredcuttingdirection,then releasetherotationallockbuttontolockthe handleinthedesiredposition(BofFigure5).

g203890

1.Protectivecover2.Blades

2.Makesurethattheventsonthehedgetrimmer areclearofanydustanddebris.

3.Alignthecavityofthebatterypackwiththe tongueinthehandlehousing,graspthehandle, andpushthebatterypackintothehandleuntil thelatchlocksintoplace(Figure4).

Figure4

1.Auxiliary-handleswitch4.Trigger

2.Auxiliaryhandle5.Batterylatch

3.Lockswitch6.Hedgetrimmerventing

areas

g190070

Figure5

ShuttingOfftheHedge Trimmer

g228569

Toshutoffthehedgetrimmer,releasethetrigger, auxiliary-handleswitch,orboth(Figure4).Allowat least5secondsforthecuttingbladetostopmoving.

Wheneveryouarenotusingthetrimmerorare transportingthetrimmertoorfromtheworkarea, removethebatterypack.

4.Place1handonthetriggerhandle.Placethe otherhandontheauxiliaryhandle(Figure4).

5.Pressthelockswitchandthensqueeze thetriggerswitchwhileengagingthe auxiliary-handleswitchtoturnonthehedge trimmer(Figure4).

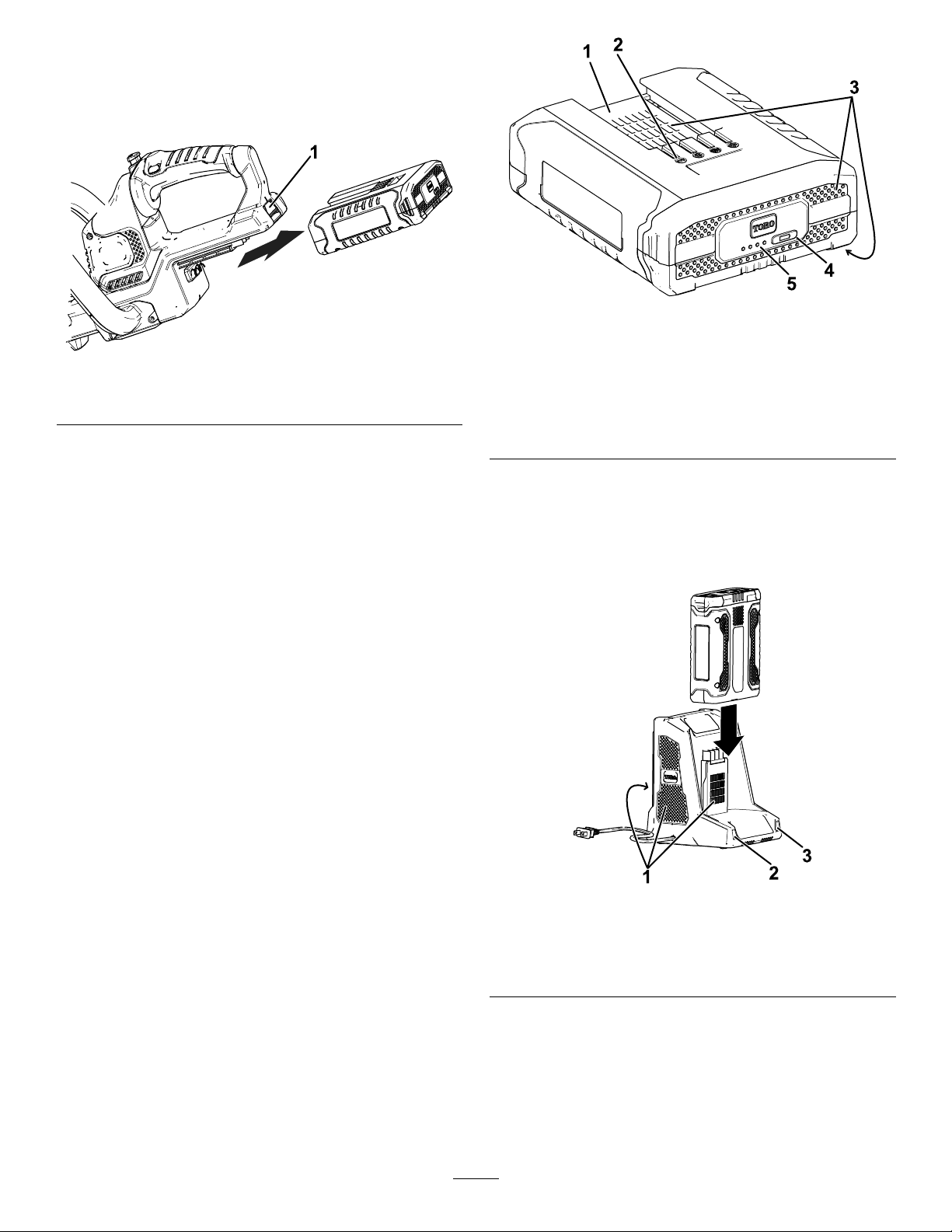

RemovingtheBatteryPack

Pressthebatterylatchonthetooltoreleasethe batterypackandslidethebatterypackoutofthetool (Figure6).

g228487

Figure7

Figure6

1.Batterylatch

ChargingtheBatteryPack

Important:Readallsafetyprecautions.

Important:Chargethebatterypackonlyin

temperaturesthatarewithintheappropriate range;refertoSpecications(page7).

Note:Atanytime,pressthebattery-charge-indicator

buttononthebatterypacktodisplaythecurrent charge(LEDindicators).

1.Makesurethattheventsonthebatteryareclear ofanydustanddebris.

2.Lineupthecavityinthebatterypack(Figure7) withthetongueonthecharger.

g194190

1.Batterypackcavity4.Battery-charge-indicator

2.Batterypackterminals

3.Batterypackventingareas

button

5.LEDindicators(current charge)

3.Makesurethattheventsonthebatterycharger areclearofanydustanddebris.

4.Slidethebatterypackintothechargeruntilitis fullyseated(Figure8).

Figure8

1.Chargerventingareas

2.Leftindicatorlight

5.Toremovethebatterypack,slidethebattery backwardoutofthecharger.

g194423

3.Rightindicatorlight

6.RefertothefollowingtabletointerprettheLED indicatorsonthebatterycharger.

LeftLight

Off

RedRedBatterypackischarging

Green

Orange

RedBlinkingRedReplacethebatterypack

RightLight

Red

RedBatterypackischarged

RedBatterypackistoowarm

Indicates

Chargerison;nobattery packinserted

OperatingTips

•Usethepowertoolforcuttingineitherdirectionin

aslow,sweepingactionfromsidetoside.

•Standsothatyouarestableandbalancedonboth

feet.Donotoverreach.

•Inspectandcleartheareaofanyhiddenobjects.

•Neverusethehedgetrimmernearpowerlines,

fencing,posts,buildings,orotherimmovable objects.

•Neveruseabladeafterhittingahardobject

withoutrstinspectingitfordamage.Donotuseif itisdamaged.

•Nevertouchbladesorserviceunitwiththepower

supplyconnected.

•Donotforcethehedgetrimmerthroughheavy

shrubbery.Thiscancausethebladestobindand slowdown.Ifthebladesslowdown,reducethe pace.

•Donotattempttocutstemsortwigsthatarelarger

than18mm(0.71inch)indiameter,orthose obviouslytoolargetofeedintothecuttingblade. Useanon-poweredhandsaworpruningsawto trimlargestems.

•Ifthebladesdobecomejammed,stopthemotor,

allowthebladestostop,andremovethebattery beforeattemptingtoremovetheobstruction.

CAUTION:Thebladesmaymoveslightlydue toresidualtension.

•Ifdesired,youcanuseastringtohelpcutyour

hedgelevel.Decidehowhighyouwantthehedge. Stretchapieceofstringalongthehedgeatthe desiredheight.Trimthehedgejustabovethe guidelineofstring.

•Weargloveswhentrimmingthornyorprickly

growth.Whentrimmingnewgrowth,useawide sweepingactionsothatthestemsarefeddirectly intothecuttingblade.

Maintenance

Disconnecttheproductfromthepowersupply(i.e., removetheplugfromthepowersupplyorthebattery pack)beforemaintenanceorcleaningwork.

Useonlythemanufacturer’srecommended replacementpartsandaccessories.

Inspectandmaintaintheproductregularly.Have theproductrepairedonlybyanAuthorizedService Dealer.

•Keepthetool,batterypack,andbatterycharger

awayfromcorrosiveagents,suchasgarden chemicalsandde-icingsalts.

•Toreducetheriskofseriouspersonalinjury,do

notstorethebatterypackoutsideorinvehicles.

•Storethetool,batterypack,andbatterycharger

inanenclosedclean,dryarea.

PreparingtheBatteryPack forRecycling

OilingtheTrimmerBlade

Note:Oilthetrimmerbladebeforeandaftereach

use.

1.Stopthemotorandremovethebattery.

2.Cleandirtanddebrisfromthebodyofthe hedgetrimmer,usingadampclothwithamild detergent.

Note:Donotuseanystrongdetergentson

theplastichousingorthehandle.Theycanbe damagedbycertainaromaticoils,suchaspine andlemon,andbysolventssuchaskerosene.

3.Laythehedgetrimmeronaatsurface.Apply light-weightmachineoilalongtheedgeofthe topblade.Ifyouwillbeusingthehedgetrimmer foranextendedperiodoftime,oiltheblade duringuse.

Note:Donotoilthehedgetrimmerwhileitis

running.

Storage

Important:Uponremoval,covertheterminalsof

thebatterypackwithheavy-dutyadhesivetape. Donotattempttodestroyordisassemblethe batterypackorremoveanyofitscomponents. Recycleorproperlydisposeoflithium-ionbattery packsatabatteryrecyclingfacility.

Formoreinformationonrecyclinglithium-ion batterypacksandtolocatethebattery recyclingfacilityclosesttoyou,visit www.Call2Recycle.org(USandCanadaonly). IfyouarelocatedoutsideoftheUSand Canada,pleasecontactyourauthorizedT oro distributor.

Important:Storethetool,batterypack,and

chargeronlyintemperaturesthatarewithinthe appropriaterange;refertoSpecications(page7).

Important:Ifyouarestoringthetoolforayear

orlonger,removethebatterypackfromthetool andchargethebatterypackuntil2or3LED indicatorsturnblueonthebattery.Donotstorea fullychargedorfullydepletedbattery.Whenyou arereadytousethetoolagain,chargethebattery packuntiltheleftindicatorlightturnsgreenon thechargerorall4LEDindicatorsturnblueon thebattery.

•Disconnecttheproductfromthepowersupply

(i.e.,removetheplugfromthepowersupplyorthe batterypack)andcheckfordamageafteruse.

•Cleanallforeignmaterialfromtheproduct.

•Whennotinuse,storethetool,batterypack,and

batterychargeroutofthereachofchildren.

Troubleshooting

Performonlythestepsdescribedintheseinstructions.Allfurtherinspection,maintenance,andrepairwork mustbeperformedbyanauthorizedservicecenterorasimilarlyqualiedspecialistifyoucannotsolvethe problemyourself.

Problem

Thetooldoesnotstart.

Thetooldoesnotreachfullpower .

Thetoolisproducingexcessivevibration ornoise.

Thebatterypackloseschargequickly.1.Thebatterypackisoverorunderthe

Thebatterychargerisnotworking.

1.Thebatteryisnotfullyinstalledinthe tool.

2.Thebatterypackisnotcharged.

3.Thebatterypackisdamaged.3.Replacethebatterypack.

4.Thereisanotherelectricalproblem withthetool.

1.Thebatterypackchargecapacityis toolow.

2.Theairventsareblocked.

1.Thebladesaredullordamaged.

appropriatetemperaturerange.

1.Thebatterychargerisoverorunder theappropriatetemperaturerange.

2.Theoutletthatthebatterychargeris pluggedintodoesnothavepower.

PossibleCauseCorrectiveAction

1.Removeandthenreplacethebattery intothetool,makingsurethatitisfully installedandlatched.

2.Removethebatterypackfromthetool andchargeit.

4.ContactanAuthorizedServiceDealer.

1.Removethebatterypackfromthetool andfullychargethebatterypack.

2.Cleantheairvents.

1.ContactanAuthorizedServiceDealer.

1.Movethebatterypacktoaplace whereitisdryandthetemperatureis between0°C(32°F)and40°C(104°F).

1.Unplugthebatterychargerandmove ittoaplacewhereitisdryandthe temperatureisbetween0°C(32°F) and40°C(104°F).

2.Contactyourlicensedelectricianto repairtheoutlet.

Thebatterypackshowsonly3LED indicatorsafteronlyafewsecondsof usingafullychargedbattery .

All4LEDindicatorsareblinkingon thebatterypackafteryoupressthe battery-charge-indicatorbuttononthe batterypackandthecurrentcharge displays(whenthebatterypackisnotin use).

All4LEDindicatorsareblinkingonthe batterypackafterreleasingthetrigger (whenthebatterypackisinuse).

2LEDindicatorsareblinkingon thebatterypackafteryoupressthe battery-charge-indicatorbuttononthe batterypackandthecurrentcharge displays(whenthebatterypackisnotin use).

2LEDindicatorsareblinkingonthe batterypackafterreleasingthetrigger (whenthebatterypackisinuse).

1.Thisisanormaloccurrence.

1.Thebatterypackisoverorunderthe appropriatetemperaturerange.

1.Thereisadifferenceinvoltage betweencellsinthebatterypack.

1.Stopthetoolandpressthe battery-charge-indicatorbuttonor theremovethebatteryfromthetoolto displaytheactualbatterycharge.

1.Movethebatterypacktoaplace whereitisdryandthetemperatureis between0°C(32°F)and40°C(104°F).

1.Placethebatteryonthechargeruntil itisfullycharged.

Problem

PossibleCauseCorrectiveAction

1LEDindicatorisblinkingonthebattery pack.

Itisdifculttoremovethebatterypack fromthetool.

1.Thebatterypackvoltageislow.1.Placethebatterypackonthecharger.

1.Thebatterypack/toolisneworthere iscorrosioninthebatteryterminals and/ortheterminalsonthetool.

1.Cleantheterminalsonthebatterypack andthetool.Thenapplydielectric greasetothebatteryterminals;donot useanyothertypeoflubricantasitcan damagetheterminals.

+ 30 hidden pages
