Toro 22345 Operator's Manual

FormNo.3450-616RevA

StandardandLowProleBucket

TX1300CompactToolCarriers

ModelNo.22345—SerialNo.400000000andUp
ModelNo.22346—SerialNo.400000000andUp

Registeratwww.T oro.com.
OriginalInstructions(EN)

*3450-616*

WARNING

CALIFORNIA

Proposition65Warning

Useofthisproductmaycauseexposure

tochemicalsknowntotheStateof

Californiatocausecancer,birthdefects,

orotherreproductiveharm.

g240343

Figure1

Introduction

Thebucketisaload-bearingattachmentintendedto
beusedonaT orotoolcarrier.Itisdesignedprimarily
formovingrock,dirt,sand,orothermaterials.Using
thisproductforpurposesotherthanitsintendeduse
couldprovedangeroustoyouandbystanders.

Readthisinformationcarefullytolearnhowtooperate
andmaintainyourproductproperlyandtoavoid
injuryandproductdamage.Youareresponsiblefor
operatingtheproductproperlyandsafely .

Visitwww.Toro.comforproductsafetyandoperation
trainingmaterials,accessoryinformation,helpnding
adealer,ortoregisteryourproduct.

Wheneveryouneedservice,genuineToroparts,or
additionalinformation,contactanAuthorizedService
DealerorToroCustomerServiceandhavethemodel
andserialnumbersofyourproductready.Figure1
identiesthelocationofthemodelandserialnumbers
ontheproduct.Writethenumbersinthespace
provided.

Important:Withyourmobiledevice,youcan

scantheQRcodeontheserialnumberdecal(if
equipped)toaccesswarranty,parts,andother
productinformation.

1.Modelandserialnumberlocation

ModelNo.

SerialNo.

Thismanualidentiespotentialhazardsandhas
safetymessagesidentiedbythesafety-alertsymbol
(Figure2),whichsignalsahazardthatmaycause
seriousinjuryordeathifyoudonotfollowthe
recommendedprecautions.

g000502

Figure2

1.Safety-alertsymbol

Thismanualuses2wordstohighlightinformation.
Importantcallsattentiontospecialmechanical
informationandNoteemphasizesgeneralinformation
worthyofspecialattention.

©2021—TheToro®Company
8111LyndaleAvenueSouth
Bloomington,MN55420

Contactusatwww.Toro.com.

2

PrintedintheUSA

AllRightsReserved

Contents

Safety.......................................................................3

GeneralSafety...................................................3

SlopeSafety.......................................................4

BucketSafety.....................................................4

MaintenanceandStorageSafety........................4

SafetyandInstructionalDecals..........................5

ProductOverview.....................................................5

Specications....................................................5

MaximumMaterialDensityatCapacity...............5

Operation..................................................................6

InstallingandRemovingtheAttachment.............6

FillingtheBucket................................................6

TransportPosition..............................................7

Storage.....................................................................7

Safety

DANGER

Theremaybeburiedutilitylinesinthework
area.Diggingintothemmaycauseashock
oranexplosion.

Havethepropertyorworkareamarkedfor
buriedlinesanddonotdiginmarkedareas.
Contactyourlocalmarkingserviceorutility
companytohavethepropertymarked(for
example,intheUS,call811orinAustralia,
call1100forthenationwidemarkingservice).

GeneralSafety

Alwaysfollowallsafetyinstructionstoavoidserious
injuryordeath.

•Donottransportanattachmentwiththe

armsraisedorextended;alwaystransportthe
attachmentclosetotheground,withtheloader
armsretracted;refertoTransportPosition(page

7).

•Havethepropertyorworkareamarkedforburied

linesandotherobjects,anddonotdiginmarked
areas.

•ReadandunderstandthecontentofthisOperator’s

Manualbeforestartingtheengine.

•Useyourfullattentionwhileoperatingthe

machine.Donotengageinanyactivitythat
causesdistractions;otherwise,injuryorproperty
damagemayoccur.

•Neverallowchildrenoruntrainedpeopleto

operatethemachine.

•Keepyourhandsandfeetawayfromthemoving

componentsandattachments.

•Donotoperatethemachinewithouttheguards

andothersafetyprotectivedevicesinplaceand
workingonthemachine.

•Keepbystandersandpetsawayfromthemachine.

•Stopthemachine,shutofftheengine,andremove

thekeybeforeservicing,fueling,orunclogging
themachine.

Improperlyusingormaintainingthismachinecan
resultininjury.T oreducethepotentialforinjury,
complywiththesesafetyinstructionsandalways
payattentiontothesafety-alertsymbol
meansCaution,Warning,orDanger—personalsafety
instruction.Failuretocomplywiththeseinstructions
mayresultinpersonalinjuryordeath.

3

,which

SlopeSafety

•Operatethemachineupanddownslopeswith

theheavyendofthemachineuphill.Weight
distributionchangeswithattachments.Anempty
load-bearingattachmentmakestherearofthe
machinetheheavyend,andafullload-bearing
attachmentmakesthefrontofthemachinethe
heavyend.Mostotherattachmentsmakethefront
ofmachinetheheavyend.

•Raisingorextendingtheloaderarmsonaslope

affectsthestabilityofthemachine.Keepthe
loaderarmsintheloweredandretractedposition
whenonslopes.

•Slopesareamajorfactorrelatedtolossofcontrol

andtip-overaccidents,whichcanresultinsevere
injuryordeath.Operatingthemachineonany

slopeoruneventerrainrequiresextracaution.

•Establishyourownproceduresandrulesfor

operatingonslopes.Theseproceduresmust
includesurveyingthesitetodeterminewhich
slopesaresafeformachineoperation.Always
usecommonsenseandgoodjudgmentwhen
performingthissurvey.

•Slowdownanduseextracareonhillsides.Ground

conditionscanaffectthestabilityofthemachine.

•Avoidstartingorstoppingonaslope.Ifthe

machinelosestraction,proceedslowly,straight
downtheslope.

asafedistancebetweenthemachineandany
hazard.

•Donotremoveoraddattachmentsonaslope.

•Donotparkthemachineonahillsideorslope.

BucketSafety

•Alwayslowertheattachmentandshutoffthe

machineeachtimeyouleavetheoperating
position.

•Whenliftingtheattachment,keepitleveland

preventtheloadfromspillingbackward.

MaintenanceandStorage
Safety

•Checkfastenersatfrequentintervalsforproper

tightnesstoensurethattheequipmentisinsafe
operatingcondition.

•RefertothisOperator’sManualforimportant

detailsifyoustoretheattachmentforanextended
periodoftime.

•Maintainorreplacesafetyandinstructionlabels,

asnecessary.

•Avoidturningonslopes.Ifyoumustturn,turn

slowlyandkeeptheheavyendofthemachine
uphill.

•Keepallmovementsonslopesslowandgradual.

Donotmakesuddenchangesinspeedor
direction.

•Ifyoufeeluneasyoperatingthemachineona

slope,donotdoit.

•Watchforholes,ruts,orbumps,asuneventerrain

couldoverturnthemachine.T allgrasscanhide
obstacles.

•Usecautionwhenoperatingonwetsurfaces.

Reducedtractioncouldcausesliding.

•Evaluatetheareatoensurethatthegroundis

stableenoughtosupportthemachine.

•Usecautionwhenoperatingthemachinenearthe

following:

–Drop-offs

–Ditches

–Embankments

–Bodiesofwater

Themachinecouldsuddenlyrolloverifatrack
goesovertheedgeortheedgecavesin.Maintain

4

SafetyandInstructional
Decals

Safetydecalsandinstructionsare
easilyvisibletotheoperatorandare
locatednearanyareaofpotential
danger.Replaceanydecalthatis
damagedormissing.

Decal139-4758isforModel22345.

ProductOverview

Specications

Note:Specicationsanddesignaresubjectto

changewithoutnotice.

ModelModel22345Model22346

Width

decal133-8061

Length

133-8061

Height

Weight

Capacity

SAEstruck
capacity

Heapedcapacity

MaximumLoad

121cm(47.8
inches)

61cm(24.0
inches)

41cm(16.2
inches)

80kg(177lb)79kg(174lb)

3

0.13m

0.16m

590kg(1300lb)499kg(1100lb)

(4.7ft3)0.11m

3

(5.7ft3)0.14m

121cm(47.8
inches)

68cm(26.7
inches)

32cm(12.6
inches)

3

(3.9ft3)

3

(4.9ft3)

139-4758

1.Tippinghazard—readtheOperator’sManualforload
limits;themaximumloadcapacityfortheTX1300withthe
attachmentretractedis590kg(1300lb);themaximumload
capacityfortheTX1300withtheattachmentextendedis
272kg(600lb).

Decal139-4759isforModel22346.

139-4759

1.Tippinghazard—readtheOperator’sManualforload
limits;themaximumloadcapacityfortheTX1300withthe
attachmentretractedis499kg(1100lb);themaximumload
capacityfortheTX1300withtheattachmentextendedis
226kg(500lb).

decal139-4758

Toensureoptimumperformanceandcontinuedsafety
certicationofthemachine,useonlygenuineToro
replacementpartsandaccessories.Replacement
partsandaccessoriesmadebyothermanufacturers
couldbedangerous,andsuchusecouldvoidthe
productwarranty.

MaximumMaterialDensityat
Capacity

Thedensityofthematerialsmovedbythebucket
variesand,therefore,sodoestheamountofmaterial
thatthebucketcancarrybeforereachingthe
maximumloadrating.Therst2tablesliststhe
densityofmaterialthatcanbecarried,bothheaped
andstruck(i.e.,leveledoff),inthebucket.The

decal139-4759

MaterialDensitytablelistscommonmaterialsand
theirdensities.

MaximumDensity

BucketCapacity

Struck(leveled)
bucket

Heapedbucket

Note:Maximumdensity=Maximumloadrating/Capacity

Model22345Model22346

4437kg/m
lb/ft

3684kg/m
lb/ft

3

3

)

3

)

(277

3

(230

4517kg/m

3

lb/ft

)

3588kg/m

3

lb/ft

)

3

(282

3

(224

5

MaterialDensity

Material

Caliche1250kg/m

Clay:

Naturalbed

Dry

Wet

Withgravel,dry

Withgravel,wet

Coal:

Anthracite,broken

Bituminous,broken

Earth:

Dry,packed

Wet,packed

Loam

Granite,brokenorlarge
crushed

Gravel:

Dry

Pitrun(graveledsand)1930kg/m

Dry,13to51mm(1/2to2
inch)

Wet,13to51mm(1/2to2
inch)

Limestone,brokenorcrushed

Sand:

Dry

Wet

Withgravel,dry

Withgravel,wet

Sandstone,broken1510kg/m

Shale1250kg/m

Slag,broken1750kg/m

Stone,crushed1600kg/m

Topsoil

Operation

Density(Approximate)

3

(78lb/ft

1600kg/m

1480kg/m

1660kg/m

1420kg/m

1540kg/m

1100kg/m

830kg/m

1510kg/m

1600kg/m

1250kg/m

1660kg/m

1510kg/m

1690kg/m

2020kg/m

1540kg/m

1420kg/m

1840kg/m

1720kg/m

2020kg/m

950kg/m

3

(104lb/ft

3

(93lb/ft

3

(104lb/ft

3

(89lb/ft

3

(96lb/ft

3

(69lb/ft

3

(52lb/ft

3

(94lb/ft

3

(100lb/ft

3

(78lb/ft

3

(104lb/ft

3

(94lb/ft

3

(120lb/ft

3

(106lb/ft

3

(126lb/ft

3

(96lb/ft

3

(89lb/ft

3

(115lb/ft

3

(107lb/ft

3

(126lb/ft

3

(94lb/ft

3

(78lb/ft

3

(109lb/ft

3

(100lb/ft

3

(59lb/ft

3

)

3

)

3

)

3

)

3

)

3

)

3

)

3

)

3

)

3

)

3

)

3

)

3

)

3

)

3

)

3

)

3

)

3

)

3

)

3

)

3

)

3

)

3

)

3

)

3

)

3

)

Determinetheleftandrightsidesofthemachinefrom
thenormaloperatingposition.

InstallingandRemoving
theAttachment

RefertotheOperator’sManualforthetractionunitfor
theinstallationandremovalprocedure.

Important:Beforeinstallingtheattachment,

positionthemachineonalevelsurface,ensure
thatthemountplatesarefreeofanydirtordebris,
andensurethatthepinsrotatefreely .Ifthepins
donotrotatefreely,greasethem.

Note:Alwaysusethetractionunittoliftandmove

theattachment.

WARNING

Ifyoudonotfullyseatthequick-attach
pinsthroughtheattachmentmountplate,
theattachmentcouldfalloffthemachine,
crushingyouorbystanders.

Ensurethatthequick-attachpinsarefully
seatedintheattachmentmountplate.

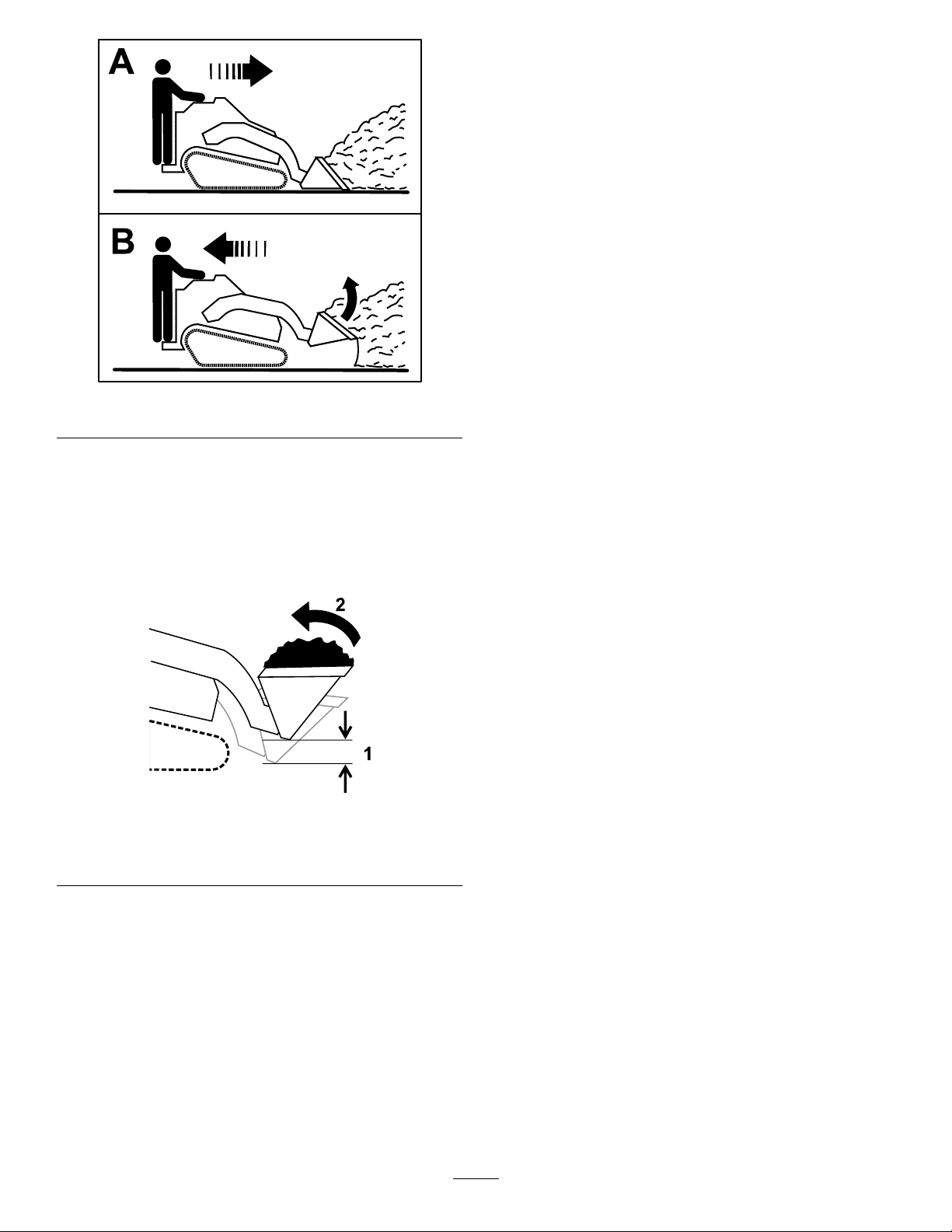

FillingtheBucket

1.Positionthebucketleveltotheground.

2.Driveforwardandinsertthebucketintothepile
ofmaterial.

3.Whenthebucketisfull,drivethemachinein
reverseandgentlytiltthebucketrearwardto
decreasetheliftingresistancewhenyouliftthe
load.

Important:Alwayscarryloadsclosetothe

ground;refertoTransportPosition(page7).

6

TransportPosition

Storage

1.Beforelong-termstorage,washtheattachment
withmilddetergentandwatertoremovedirtand
grime.

2.Paintallscratchedorbaremetalsurfaces.

Note:PaintisavailablefromyourAuthorized

ServiceDealer.

3.Storetheattachmentinaclean,drygarageor
storagearea.Coverittoprotectitandkeepit
clean.

g266856

Figure3

Whentransportingaload,keeptheattachmentas
closetothegroundaspossible,nomorethan15cm
(6inches)abovetheground.Tiltitrearwardtokeep
theloadlevel.

Figure4

1.Nomorethan15cm(6
inches)abovetheground

2.Tilttheloadrearward

g240205

7

CaliforniaProposition65WarningInformation

Whatisthiswarning?

Youmayseeaproductforsalethathasawarninglabellikethefollowing:

WARNING:CancerandReproductiveHarm—www.p65Warnings.ca.gov.

WhatisProp65?

Prop65appliestoanycompanyoperatinginCalifornia,sellingproductsinCalifornia,ormanufacturingproductsthatmaybesoldinorbroughtinto
California.ItmandatesthattheGovernorofCaliforniamaintainandpublishalistofchemicalsknowntocausecancer,birthdefects,and/orother
reproductiveharm.Thelist,whichisupdatedannually,includeshundredsofchemicalsfoundinmanyeverydayitems.ThepurposeofProp65isto
informthepublicaboutexposuretothesechemicals.

Prop65doesnotbanthesaleofproductscontainingthesechemicalsbutinsteadrequireswarningsonanyproduct,productpackaging,orliteraturewith
theproduct.Moreover,aProp65warningdoesnotmeanthataproductisinviolationofanyproductsafetystandardsorrequirements.Infact,the
CaliforniagovernmenthasclariedthataProp65warning“isnotthesameasaregulatorydecisionthataproductis‘safe’or‘unsafe.’”Manyofthese
chemicalshavebeenusedineverydayproductsforyearswithoutdocumentedharm.Formoreinformation,gotohttps://oag.ca.gov/prop65/faqs-view-all

AProp65warningmeansthatacompanyhaseither(1)evaluatedtheexposureandhasconcludedthatitexceedsthe“nosignicantrisklevel”;or(2)
haschosentoprovideawarningbasedonitsunderstandingaboutthepresenceofalistedchemicalwithoutattemptingtoevaluatetheexposure.

Doesthislawapplyeverywhere?

Prop65warningsarerequiredunderCalifornialawonly.ThesewarningsareseenthroughoutCaliforniainawiderangeofsettings,includingbutnot
limitedtorestaurants,grocerystores,hotels,schools,andhospitals,andonawidevarietyofproducts.Additionally ,someonlineandmailorder
retailersprovideProp65warningsontheirwebsitesorincatalogs.

.

HowdotheCaliforniawarningscomparetofederallimits?

Prop65standardsareoftenmorestringentthanfederalandinternationalstandards.TherearevarioussubstancesthatrequireaProp65warning
atlevelsthatarefarlowerthanfederalactionlimits.Forexample,theProp65standardforwarningsforleadis0.5μg/day,whichiswellbelow
thefederalandinternationalstandards.

Whydon’tallsimilarproductscarrythewarning?

•ProductssoldinCaliforniarequireProp65labellingwhilesimilarproductssoldelsewheredonot.

•AcompanyinvolvedinaProp65lawsuitreachingasettlementmayberequiredtouseProp65warningsforitsproducts,butothercompanies

makingsimilarproductsmayhavenosuchrequirement.

•TheenforcementofProp65isinconsistent.

•CompaniesmayelectnottoprovidewarningsbecausetheyconcludethattheyarenotrequiredtodosounderProp65;alackofwarningsfora

productdoesnotmeanthattheproductisfreeoflistedchemicalsatsimilarlevels.

WhydoesToroincludethiswarning?

Torohaschosentoprovideconsumerswithasmuchinformationaspossiblesothattheycanmakeinformeddecisionsabouttheproductstheybuyand
use.T oroprovideswarningsincertaincasesbasedonitsknowledgeofthepresenceofoneormorelistedchemicalswithoutevaluatingthelevelof
exposure,asnotallthelistedchemicalsprovideexposurelimitrequirements.WhiletheexposurefromT oroproductsmaybenegligibleorwellwithinthe
“nosignicantrisk”range,outofanabundanceofcaution,T orohaselectedtoprovidetheProp65warnings.Moreover ,ifTorodoesnotprovidethese
warnings,itcouldbesuedbytheStateofCaliforniaorbyprivatepartiesseekingtoenforceProp65andsubjecttosubstantialpenalties.

RevA
