53cmSuperBaggerLawnMower
ModelNo.20899—SerialNo.401000000andUp
Introduction
Thisrotary-blade,walk-behindlawnmowerisintended tobeusedbyresidentialhomeowners.Itisdesigned primarilyforcuttinggrassonwell-maintainedlawns onresidentialproperties.Itisnotdesignedforcutting brushorforagriculturaluses.
Readthisinformationcarefullytolearnhowtooperate andmaintainyourproductproperlyandtoavoid injuryandproductdamage.Youareresponsiblefor operatingtheproductproperlyandsafely.
YoumaycontactTorodirectlyatwww.T oro.comfor productandaccessoryinformation,helpndinga dealer,ortoregisteryourproduct.
Wheneveryouneedservice,genuineToroparts,or additionalinformation,contactanAuthorizedService DealerorToroCustomerServiceandhavethemodel andserialnumbersofyourproductready .Figure1 identiesthelocationofthemodelandserialnumbers ontheproduct.Writethenumbersinthespace provided.
Important:Withyoursmartphoneortablet,scan
theQRcodeontheserialnumberdecaltoaccess warranty,parts,andotherproductinformation.
FormNo.3418-989RevB
Operator'sManual
g000502
Figure2
Safety-alertsymbol
Thismanualuses2wordstohighlightinformation. Importantcallsattentiontospecialmechanical informationandNoteemphasizesgeneralinformation worthyofspecialattention.
ThisproductcomplieswithallrelevantEuropean directives.Fordetails,seetheseparate product-specicDeclarationofConformity(DOC) sheet.
GrossorNetTorque:Thegrossornettorque ofthisenginewaslaboratoryratedbytheengine manufacturerinaccordancewiththeSocietyof AutomotiveEngineers(SAE)J1940orJ2723.As conguredtomeetsafety,emission,andoperating requirements,theactualenginetorqueonthisclass ofmowerwillbesignicantlylower.Pleasereferto theenginemanufacturer’sinformationincludedwith themachine.
Figure1
1.Modelandserialnumberlocation
ModelNo.
SerialNo.
Thismanualidentiespotentialhazardsandhas safetymessagesidentiedbythesafety-alertsymbol (Figure2),whichsignalsahazardthatmaycause seriousinjuryordeathifyoudonotfollowthe recommendedprecautions.
©2017—TheT oro®Company 8111LyndaleAvenueSouth Bloomington,MN55420
CV
Registeratwww.Toro.com.
Contents
Introduction...............................................................1
Safety.......................................................................2
GeneralSafety...................................................2
g226629
SafetyandInstructionalDecals..........................2
Setup........................................................................4
1UnfoldingtheHandle.......................................4
2InstallingtheRecoil-StarterRopeinthe
RopeGuide.....................................................4
3FillingtheEnginewithOil.................................4
4InstallingtheMulchPlugortheGrass
Bag.................................................................5
5AssemblingtheGrassBag...............................6
ProductOverview.....................................................7
Specications....................................................7
Operation..................................................................8
BeforeOperation...................................................8
BeforeOperationSafety.....................................8
FillingtheFuelTank............................................8
CheckingtheEngine-OilLevel............................9
AdjustingtheUpperHandleHeight.....................9
AdjustingtheCuttingHeight.............................10
OriginalInstructions(EN)
PrintedinMexico
AllRightsReserved
DuringOperation.................................................10
DuringOperationSafety...................................10
StartingtheEngine............................................11
UsingtheSelf-PropelDrive................................11
ShuttingOfftheEngine......................................11
MulchingtheClippings......................................12
BaggingtheClippings.......................................12
Side-DischargingtheClippings.........................14
OperatingTips.................................................15
AfterOperation....................................................15
AfterOperationSafety......................................15
CleaningundertheMachine.............................16
FoldingtheHandle...........................................16
Maintenance...........................................................17
RecommendedMaintenanceSchedule(s)...........17
MaintenanceSafety..........................................17
PreparingforMaintenance...............................17
ServicingtheAirFilter.......................................18
ChangingtheEngineOil...................................18
LubricatingtheUpperHandle...........................19
AdjustingtheSelf-PropelDrive.........................19
ReplacingtheBlade..........................................20
CleaningtheBlade-StopSystemShield............21
Storage...................................................................22
PreparingtheMachineforStorage...................22
RemovingtheMachinefromStorage................22
Safety
Usingthisproductforpurposesotherthanitsintended usecouldprovedangeroustoyouandbystanders.
Read,understand,andfollowtheinstructions
andwarningsinthisOperator’sManualandon themachineandattachmentsbeforestartingthe engine.
Donotputyourhandsorfeetnearmovingpartsof
orunderthemachine.Keepclearofanydischarge opening.
Donotoperatethemachinewithoutallguards
andothersafetyprotectivedevicesinplaceand workingonthemachine.
Keepbystandersandchildrenasafedistance
awayfromthemachine.Donotallowchildrento operatethemachine.Allowonlypeoplewhoare responsible,trained,familiarwiththeinstructions, andphysicallycapabletooperatethemachine.
Stopthemachine,shutofftheengine,andwaitfor
allmovingpartstostopbeforeservicing,fueling, oruncloggingthemachine.
Improperlyusingormaintainingthismachinecan resultininjury.Toreducethepotentialforinjury, complywiththesesafetyinstructionsandalwayspay attentiontothesafety-alertsymbol,whichmeans Caution,Warning,orDanger—personalsafety instruction.Failuretocomplywiththeseinstructions mayresultinpersonalinjuryordeath.
Thismachinehasbeendesignedinaccordancewith ENISO5395:2013.

GeneralSafety

Thisproductiscapableofamputatinghandsand feetandofthrowingobjects.Alwaysfollowallsafety instructionstoavoidseriouspersonalinjury .
SafetyandInstructionalDecals
Safetydecalsandinstructionsareeasilyvisibletotheoperatorandarelocatednear anyareaofpotentialdanger.Replaceanydecalthatisdamagedormissing.
Manufacturer'sMark
1.Indicatesthebladeisidentiedasapartfromtheoriginal machinemanufacturer.
Youcanndadditionalsafetyinformationwhere neededthroughoutthismanual.
decaloemmarkt
2
decal114-2820
114-2820
110-9457
1.EngineswitchOff
2.EngineswitchOn
3.Unlocked
4.Locked
112-8760
1.Thrownobjecthazard—keepbystandersasafedistance fromthemachine.
2.Cutting/dismembermentofhandorfoot—stayawayfrom movingparts.
1.Warning—readthe
decal110-9457
Operator'sManual.
4.Cutting/dismemberment hazardofhandorfoot, mowerblade—stayaway frommovingparts.
2.Thrownobject hazard—keepbystanders asafedistanceawayfrom themachine.
5.Cutting/dismemberment hazardofhandorfoot, mowerblade—remove theignitionkeyandread theinstructionsbefore servicingorperforming maintenance.
3.Thrownobjecthazard—do notoperatethemachine withouttherear-discharge plugorbaginplace;do notoperatethemachine withouttheside-discharge coverordeectorinplace.
6.Cutting/dismemberment hazardofhandorfoot, mowerblade—donot operatethemachineup anddownslopes;operate itsidetosideonslopes; shutofftheenginebefore leavingtheoperating position;andlookbehind youwhenbackingup.
decal112-8760
121–2370
1.Handleinraisedposition3.Footpedallocation
2.Handleinloweredposition
3
decal121-2370
Setup
Important:Removeanddiscardtheprotective
plasticsheetthatcoverstheengine.
1

UnfoldingtheHandle

NoPartsRequired
Procedure
1.Movethehandlerearwardandholdtheupper handleinplace(Figure3).
2

InstallingtheRecoil-Starter RopeintheRopeGuide

NoPartsRequired
Procedure
Important:Tostarttheenginesafelyandeasily
wheneveryouusethemachine,installthe recoil-starterropeintheropeguide.
Holdtheblade-controlbartotheupperhandleand pulltherecoil-starterropethroughtheropeguideon thehandle(Figure5).
Figure3
2.Tightentheupperhandleknobastightasyou can(Figure4).
Figure4
g010260
Figure5
1.Recoil-starterrope2.Ropeguide
g003251
3

FillingtheEnginewithOil

NoPartsRequired
Procedure
g020803
Important:Yourmachinedoesnotcomewithoil
intheengine.Beforestartingtheengine,llthe enginewithoil.
EngineOilSpecications
Engineoilcapacity
OilviscositySAE30orSAE10W-30
APIserviceclassicationSJorhigher
0.55L(18.6oz)
detergentoil
1.Movethemachinetoalevelsurface.
4
2.Removethedipstickbyrotatingthecap counterclockwiseandpullingitout(Figure6).
Figure6
1.Full3.Add
2.High
4

InstallingtheMulchPlugor theGrassBag

NoPartsRequired
Procedure
Youmustcorrectlyinstalleitherthemulchplug(for recyclingorside-dischargingthegrassclippings)or thegrassbag;otherwise,theenginewillnotstart.
Themachinehasasafetyswitch(locatedatthe bottomofthechannelontheupperrightrearofthe machine)thatpreventsthemachinefromoperating withoutamulchplugoragrassbaginplace.This
g232743
preventsthemachinefromthrowingdebrisatyou throughtherearopening.
Fortheswitchtodetectthemulchplug,thetopofthe mulchpluglevermustliefullyinthebottomofthe channel(Figure7).
3.Carefullypourabout3/4oftheenginecapacity ofoilintotheoil-lltube.
4.Wait3minutesfortheoiltosettleintheengine.
5.Wipethedipstickcleanwithacleancloth.
6.Insertthedipstickintotheoil-lltube,butdonot screwitin,thenremovethedipstick.
7.Readtheoillevelonthedipstick(Figure6).
Iftheoillevelonthedipstickistoolow,
carefullypourasmallamountofoilintothe oil-lltube,wait3minutes,andrepeatsteps
5through7untiltheoilonthedipstickisat
thecorrectlevel.
Iftheoillevelonthedipstickistoohigh,drain
theexcessoiluntiltheoilonthedipstickis atthecorrectlevel;refertoChangingthe
EngineOil(page18).
Important:Iftheoillevelintheengineistoo
lowortoohighandyouruntheengine,you maydamagetheengine.
8.Installthedipstickintotheoil-lltubesecurely.
g005324
Figure7
1.Thetopofmulchplugleverintheswitchchannel
1.Insertthemulchplugintothemachineifitisnot alreadyinstalled(Figure8).
Important:Changetheengineoilaftertherst5
operatinghours;changeityearlythereafter.Refer toChangingtheEngineOil(page18).
5
Figure8
g005308
Figure10
g005310
2.Squeezethebuttonontheleverwithyour thumb,andfullyinsertthemulchplugintothe opening(Figure9).
Figure9
3.Releasethebuttonontheleverandensurethat thetopoftheleverliesfullyintheswitchchannel (Figure10).Ifthetopoftheleverisnotinthe
switchchannel,yourmachinewillnotstart!
Note:Iftheleverdoesnotlatchproperly,
disconnectthewirefromthesparkplugand checkforandremoveanydebrisbuildupinthe tunnel.
5

AssemblingtheGrassBag

NoPartsRequired
Procedure
1.Slipthegrassbagovertheframeasshownin
Figure1 1.
g005309
g027156
Figure11
1.Handle
2.Frame
6
3.Grassbag
Note:Donotslipthebagoverthehandle
(Figure1 1).
2.Hookthebottomchannelofthebagontothe bottomoftheframe(Figure12).
ProductOverview
g012244
Figure13
Figure12
3.Hookthetopandsidechannelsofthebagonto thetopandsidesoftheframe,respectively (Figure12).
1.Cutting-heightlever(4)
2.Oilll/dipstick(notshown)
3.Recoil-starthandle8.Footpedal
4.Blade-controlbar
5.Upperhandle
g027157
6.Upper-handleknob
7.Fuel-tankcap
9.Airlter
10.Sparkplug
g005325
Figure14
1.Grassbag3.Mulchplug(comes
2.Side-dischargechute
installedonthemachine)
Specications
ModelWeightLengthWidthHeight
2089934kg
(75lb)
7
159cm
(63
inches)
56cm
(22
inches)
110cm
(43
inches)
Operation
–Avoidprolongedbreathingofvapors.
–Keepyourhandsandfaceawayfromthe
nozzleandthefuel-tankopening.
BeforeOperation
–Keepfuelawayfromyoureyesandskin.

BeforeOperationSafety

GeneralSafety
Becomefamiliarwiththesafeoperationofthe
equipment,operatorcontrols,andsafetysigns.
Checkthatallguardsandsafetydevices,suchas
deectorsand/orgrasscatcher,areinplaceand workingproperly.
Alwaysinspectthemachinetoensurethatthe
blades,bladebolts,andcuttingassemblyarenot wornordamaged.
Inspecttheareawhereyouwillusethemachine,
andremoveallobjectsthatcouldinterferewith theoperationofthemachineorthatthemachine couldthrow.
Adjustingthecuttingheightmaybringyouinto
contactwiththemovingblade,causingserious injury.
–Shutofftheengine,removetheignitionkey
(electric-startmodelonly),andwaitforall movingpartstostop.
–Donotputyourngersunderthehousing
whenadjustingthecuttingheight.

FillingtheFuelTank

Forbestresults,useonlyclean,fresh,unleaded
gasolinewithanoctaneratingof87orhigher ((R+M)/2ratingmethod).
Oxygenatedfuelwithupto10%ethanolor15%
MTBEbyvolumeisacceptable.
Donotuseethanolblendsofgasoline,such
asE15orE85,withmorethan10%ethanolby volume.Performanceproblemsand/orengine damagemayresult,whichmaynotbecovered underwarranty.
Donotusegasolinecontainingmethanol.
Donotstorefueleitherinthefueltankorinfuel
containersoverthewinterunlessfuelstabilizer hasbeenaddedtothefuel.
Donotaddoiltogasoline.
Fillthefueltankwithfreshunleadedregulargasoline fromamajorname-brandservicestation(Figure15).
Important:Toreducestartingproblems,add
fuelstabilizertothegasolineallseason.Mixthe stabilizerwithgasolinelessthan30daysold.
FuelSafety
Fuelisextremelyammableandhighlyexplosive.
Areorexplosionfromfuelcanburnyouand othersandcandamageproperty.
–Topreventastaticchargefromignitingthefuel,
placethecontainerand/ormachinedirectlyon thegroundbeforelling,notinavehicleoron anobject.
–Fillthefueltankoutdoors,inanopenarea,
whentheengineiscold.Wipeupanyfuelthat spills.
–Donothandlefuelwhensmokingoraroundan
openameorsparks.
–Donotremovethefuelcaporaddfueltothe
tankwhiletheengineisrunningorhot.
–Ifyouspillfuel,donotattempttostartthe
engine.Avoidcreatingasourceofignitionuntil thefuelvaporshavedissipated.
–Storefuelinanapprovedcontainerandkeep
itoutofthereachofchildren.
Fuelisharmfulorfatalifswallowed.Long-term
exposuretovaporscancauseseriousinjuryand illness.
Refertoyourengineowner’smanualforadditional information.
g230458
Figure15
8
CheckingtheEngine-Oil
AdjustingtheUpperHandle
Level
1.Movethemachinetoalevelsurface.
2.Removethedipstickbyrotatingthecap counterclockwiseandpullingitout(Figure16).
Height
Youmayraiseorlowertheupperhandletoaposition comfortableforyou.
Note:Y oucannotraisetheupperhandlehigherthan
theangleofthelowerhandle.
1.Loosentheupper-handleknob(Figure17).
g010334
Figure17
2.Movetheupperhandletothedesiredposition (Figure18).
Figure16
1.Full3.Add
2.High
3.Wipethedipstickcleanwithacleancloth.
4.Insertthedipstickintotheoil-lltube,butdonot screwitin,thenremovethedipstick.
5.Readtheoillevelonthedipstick(Figure16).
Iftheoillevelonthedipstickistoolow
(Figure16),carefullypourasmallamount ofSAE30orSAE10W-30detergentoilinto theoil-lltube,wait3minutes,andrepeat steps3through5untiltheoilonthedipstick isatthecorrectlevel.
Iftheoillevelonthedipstickistoohigh
(Figure16),draintheexcessoiluntiltheoil onthedipstickisatthecorrectlevel;referto
ChangingtheEngineOil(page18).
Important:Iftheoillevelintheengineistoo
lowortoohighandyouruntheengine,you maydamagetheengine.
g232743
g010265
Figure18
3.Tightentheupperhandleknobastightasyou can(Figure19).
g010352
Figure19
6.Installthedipstickintotheoil-lltubesecurely.
9

AdjustingtheCutting Height

Adjustthecuttingheightasdesired.Setthefront wheelstothesameheightastherearwheels(Figure
20).
Note:Toraisethemachine,moveallthe
cutting-heightleversforward;tolowerthemachine, moveallthecutting-heightleversrearward.
within3seconds.Ifnot,stopusingyourmachine immediatelyandcontactanAuthorizedService Dealer.
Keepbystanders,especiallysmallchildren,outof
theoperatingarea.Stopthemachineifanyone entersthearea.
Alwayslookdownandbehindyoubeforemoving
themachineinreverse.
Operatethemachineonlyingoodvisibilityand
appropriateweatherconditions.Donotoperate themachinewhenthereistheriskoflighting.
Wetgrassorleavescancauseseriousinjuryif
youslipandcontacttheblade.Avoidmowingin wetconditions.
Useextremecarewhenapproachingblind
corners,shrubs,trees,orotherobjectsthatmay blockyourview.
Watchforholes,ruts,bumps,rocks,orother
hiddenobjects.Uneventerraincouldcausethe machinetooverturnorcauseyoutoloseyour balanceorfooting.
Figure20
Note:Thecutting-heightsettingsare25mm(1inch);
35mm(1-3/8inch);44mm(1-3/4inch);54mm(2-1/8 inches);64mm(2-1/2inches);73mm(2-7/8inches); 83mm(3-1/4inches);92mm(3-5/8inches);and102 mm(4inches).
DuringOperation

DuringOperationSafety

GeneralSafety
Wearappropriateclothing,includingeye
protection;longpants;slip-resistant,substantial footwear;andhearingprotection.Tiebacklong hair,securelooseclothing,anddonotwearloose jewelry.
Donotoperatethemachinewhileill,tired,or
undertheinuenceofalcoholordrugs.
Thebladeissharp;contactingthebladecanresult
inseriouspersonalinjury.Shutofftheengine, removetheignitionkey(electric-startmodelonly), andwaitforallmovingpartstostopbeforeleaving theoperatingposition.
Whenyoureleasetheblade-controlbar,the
engineshouldshutoffandthebladeshouldstop
Ifthemachinestrikesanobjectorstartstovibrate,
g010264
immediatelyshutofftheengine,removethekey (ifequipped),waitforallmovingpartstostop,and disconnectthewirefromthesparkplugbefore examiningthemachinefordamage.Makeall necessaryrepairsbeforeresumingoperation.
Beforeleavingtheoperatingposition,shutoff
theengine,removetheignitionkey(electric-start modelonly),andwaitforallmovingpartstostop.
Iftheenginehasbeenrunningthemuferwillbe
hotandcanseverelyburnyou.Keepawayfrom thehotmufer.
Checkthegrasscatchercomponentsand
thedischargechutefrequentlyforanywear ordeteriorationandreplacethemwiththe manufacturer'srecommendedpartswhen necessary.
Useaccessoriesandattachmentsapprovedby
TheToro®Companyonly.
SlopeSafety
Mowacrossthefaceofslopes;neverupand
down.Useextremecautionwhenchanging directiononslopes.
Donotmowonexcessivelysteepslopes.Poor
footingcouldcauseaslip-and-fallaccident.
Mowwithcautionneardrop-offs,ditches,or
embankments.
10

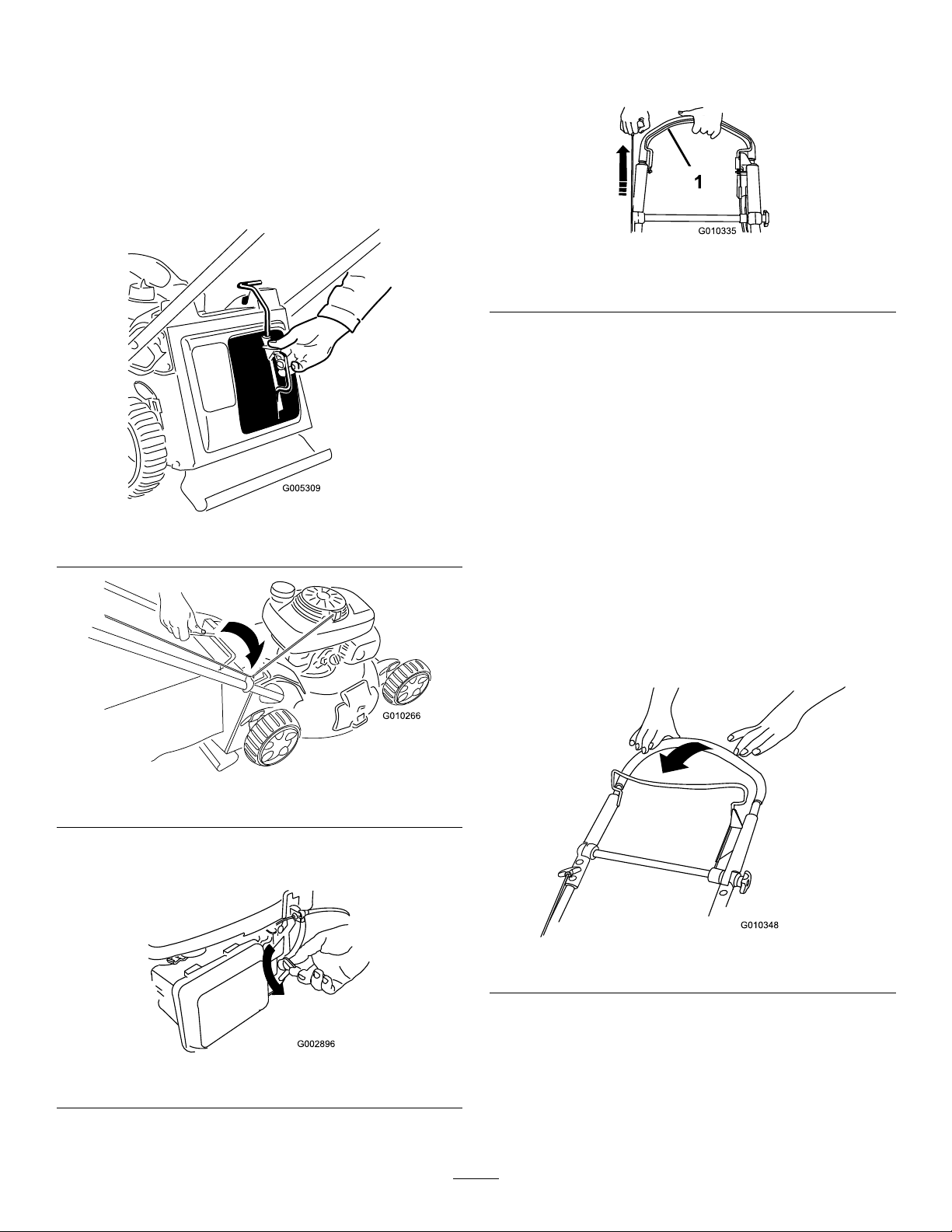

StartingtheEngine

Important:Themachinehasasafetyswitchthat
preventsyoufromstartingthemachineunless yourstinstallthemulchplugorthegrassbag securelyonthemachine.
1.Installthemulchplug(Figure21)orthegrass bag(Figure22)onthemachine.
g010335
Figure24
1.Blade-controlbar
Note:Ifthemachinestilldoesnotstart,contact
anAuthorizedServiceDealer.

UsingtheSelf-PropelDrive

Tooperatetheself-propeldrive,simplywalkwithyour handsontheupperhandleandyourelbowsatyour sides,andthemachinewillautomaticallykeeppace withyou.
Figure21
Figure22
2.TurnthefuelvalvelevertotheONposition (Figure23).
g005309

ShuttingOfftheEngine

Toshutofftheengine,releasetheblade-controlbar (Figure25).
g010266
g010348
Figure25
Important:Whenyoureleasetheblade-control
bar,theengineshouldshutoffandtheblade shouldstopwithin3seconds.Iftheydonot,stop usingyourmachineimmediatelyandcontactan AuthorizedServiceDealer.
Figure23
3.Pullandholdtheblade-controlbartothehandle andpulltherecoil-starthandle(Figure24).
g002896
11

MulchingtheClippings

BaggingtheClippings

Yourmachinecomesfromthefactoryreadytomulch thegrassandleafclippingsbackintothelawn.
Ifthegrassbagisonthemachine,removeit;referto
RemovingtheGrassBag(page13)beforemulching
theclippings.Iftheside-dischargechuteisonthe machine,removeitandlocktheside-discharge deector;refertoRemovingtheSide-DischargeChute
(page14)beforemulchingtheclippings.
Important:Themachinehasasafetyswitchthat
preventsyoufromstartingthemachineunless yourstinstallthemulchplugsecurelyonthe machine(Figure26).
InstallthemulchplugasillustratedinFigure26.
Usethegrassbagwhenyouwanttocollectgrassand leafclippingsfromthelawn.
WARNING
Aworngrassbagcouldallowsmallstones andothersimilardebristobethrownatyou orbystanders,resultinginseriouspersonal injuryordeath.
Checkthegrassbagfrequently .Ifitis damaged,installanewTororeplacementbag.
Iftheside-dischargechuteisonthemachine,remove itandlocktheside-dischargedeector;referto
RemovingtheSide-DischargeChute(page14)before
baggingtheclippings.
WARNING
Thebladeissharp;contactingthebladecan resultinseriouspersonalinjury.
Shutofftheengineandwaitforallmoving partstostopbeforeleavingtheoperating position.
Figure26
1.Topofmulchplugleverinswitchchannel
InstallingtheGrassBag
1.Removethemulchplug(Figure27).
g005324
g005309
Figure27
2.Routethestarterropearoundthelower-rope guide(Figure28).
12
Figure28
g010267
Figure30
g010269
Note:Thelowerropeguidereleasesthestarter
ropewhenyoupulltherecoil-starthandle.
3.Insertthegrass-baghandleintothegroovesat thetopofthemachine(Figure29).
Important:Themachinehasasafetyswitch
thatpreventsyoufromstartingthemachine unlessyourstinstallthegrassbagsecurely onthemachine.
Figure29
2.Liftthegrass-baghandleoutfromthegrooves atthetopofthemachine,andremovethebag fromthemachine(Figure31).
g010270
Figure31
3.Insertthemulchplug(Figure32).
g010268
RemovingtheGrassBag
1.Routethestarterropearoundthelower-rope guide(Figure30).
g005309
Figure32
13

Side-Dischargingthe Clippings

Usethesidedischargeforcuttingverytallgrass.
Ifthegrassbagisonthemachine,removeitbefore side-dischargingtheclippings;refertoRemovingthe
GrassBag(page13).
Important:Themachinehasasafetyswitchthat
preventsyoufromstartingthemachineunless yourstinstallthemulchplugsecurelyonthe machine;refertoMulchingtheClippings(page
12).
InstallingtheSide-Discharge Chute
Unlock,unlatch,andliftupthesidedeectorand installtheside-dischargechute(Figure33).
g231921
Figure34
Figure33
RemovingtheSide-Discharge Chute
Toremovetheside-dischargechute,liftuptheside deector,removetheside-dischargechute,andlower theside-dischargedeector.
Important:Locktheside-dischargedeector
afteryoucloseit(Figure34).
g236532
14
OperatingTips
GeneralMowingTips
Inspecttheareawhereyouwillusethemachine
andremoveallobjectsthatthemachinecould throw.
Avoidstrikingsolidobjectswiththeblade.Never
deliberatelymowoveranyobject.
Ifthemachinestrikesanobjectorstartstovibrate,
immediatelyshutofftheengine,removethekey (ifequipped),waitforallmovingpartstostop,and disconnectthewirefromthesparkplugbefore examiningthemachinefordamage.Makeall necessaryrepairsbeforeresumingoperation.
Forbestperformance,installanewbladebefore
thecuttingseasonbegins.
ReplacethebladewhennecessarywithaT oro
replacementblade.
CuttingGrass
Cutonlyaboutathirdofthegrassbladeatatime.
Donotcutbelow51mm(2inches)unlessthe grassissparseoritislatefallwhengrassgrowth beginstoslowdown.
Whencuttinggrassover15cm(6inches)tall,
mowatthehighestcuttingheightsettingandwalk slower;thenmowagainatalowersettingforthe bestlawnappearance.Ifthegrassistoolong,the machinemayplugandcausetheenginetostall.
Wetgrassandleavestendtoclumpontheyard
andcancausethemachinetoplugortheengine tostall.Avoidmowinginwetconditions.
Beawareofapotentialrehazardinverydry
conditions,followalllocalrewarnings,andkeep themachinefreeofdrygrassandleafdebris.
Alternatethemowingdirection.Thishelps
dispersetheclippingsoverthelawnforeven fertilization.
Ifthenishedlawnappearanceisunsatisfactory,
try1ormoreofthefollowing:
–Replacethebladeorhaveitsharpened.
–Walkataslowerpacewhilemowing.
–Raisethecuttingheightonyourmachine.
–Cutthegrassmorefrequently.
–Overlapcuttingswathsinsteadofcuttingafull
swathwitheachpass.
Iftherearemorethan13cm(5inches)ofleaves
onthelawn,mowatahighercuttingheightand thenagainatthedesiredcuttingheight.
Slowdownyourmowingspeedifthemachine
doesnotcuttheleavesnelyenough.
AfterOperation

AfterOperationSafety

GeneralSafety
Cleangrassanddebrisfromthemachinetohelp
preventres.Cleanupoilorfuelspills.
Allowtheenginetocoolbeforestoringthemachine
inanyenclosure.
Neverstorethemachineorfuelcontainerwhere
thereisanopename,spark,orpilotlight,such asonawaterheateroronotherappliances.
HaulingSafety
Removetheignitionkey(ifequipped)before
loadingthemachineforhauling.
Usecarewhenloadingorunloadingthemachine.
Securethemachinefromrolling.
CuttingLeaves
Aftercuttingthelawn,ensurethathalfofthelawn
showsthroughthecutleafcover.Y oumayneed tomakemorethanasinglepassovertheleaves.
15

CleaningundertheMachine

ServiceInterval:Aftereachuse
Forbestresults,cleanunderthemachinesoonafter youhavecompletedmowing.
1.Lowerthemachinetoitslowestcutting-height setting.
2.Movethemachineontoapavedlevelsurface.
3.Withtheenginerunningandthebladeengaged, sprayastreamofwaterinfrontoftheright,rear wheel(Figure35).
Note:Thewaterwillsplashintothepathofthe
blade,cleaningouttheclippings.
Figure35
g020809
Figure37
ForwardPosition
1.Withthehandleintheuprightposition,stepon
g002600
thefootpedalandholditdown.
2.Movethehandleallthewayforwardandloosen theupperhandleknob(Figure38).
4.Whennomoreclippingscomeout,stopthe waterandmovethemachinetoadryarea.
5.Runtheengineforafewminutestodrythe undersideofthemachine.

FoldingtheHandle

UprightPosition
1.Steponthefootpedalandholditdown(Figure
36).
Figure36
g010273
Figure38
3.Tounfoldthehandle,referto1Unfoldingthe
Handle(page4).
g002773
2.Movethehandletotheuprightposition(Figure
37).
16
Maintenance
Important:Refertoyourengineowner’smanualforadditionalmaintenanceprocedures.
RecommendedMaintenanceSchedule(s)
MaintenanceService
Interval
Beforeeachuseordaily
Aftereachuse
Every25hours
Yearly
Yearlyorbeforestorage
MaintenanceProcedure
•Ensurethattheengineshutsoffwithin3secondsafterreleasingtheblade-control bar.
•Checktheairlterfordirtanddamageandcleanorreplaceitifnecessary.
•Cleangrassclippingsanddirtfromunderthemachine.
•Cleantheblade-stopsystemshield.
•Cleanorreplacetheairlter(morefrequentlyindustyoperatingconditions).
•Changetheengineoil.
•Lubricatetheupperhandle.
•Replacethebladeorhaveitsharpened(morefrequentlyiftheedgedullsquickly).
•Cleantheenginebyremovingdirtanddebrisfromitstopandsides;cleanitmore frequentlyindustyoperatingconditions.
•Emptythefueltankbeforerepairsasdirectedandbeforeyearlystorage.

MaintenanceSafety

Disconnectthespark-plugwirefromthesparkplug
beforeperforminganymaintenanceprocedure.
Wearglovesandeyeprotectionwhenservicing
themachine.

PreparingforMaintenance

1.Shutofftheengineandwaitforallmovingparts tostop.
2.Disconnectthespark-plugwirefromthespark plug(Figure39).
Thebladeissharp;contactingthebladecanresult
inseriouspersonalinjury .Weargloveswhen servicingtheblade.Donotrepairoralterthe blade(s).
Nevertamperwithsafetydevices.Checktheir
properoperationregularly .
Tippingthemachinemaycausethefueltoleak.
Fuelisammableandexplosive,andcancause personalinjury.Runtheenginedryorremovethe fuelwithahandpump;neversiphonthefuel.
Toensureoptimumperformanceandcontinued
safetycerticationofthemachine,useonly genuineTororeplacementpartsandaccessories. Replacementpartsandaccessoriesmadeby othermanufacturerscouldbedangerous,and suchusecouldvoidtheproductwarranty .
g002901
Figure39
1.Spark-plugwire
3.Afterperformingthemaintenanceprocedure(s), connectthespark-plugwiretothesparkplug.
Important:Beforetippingthemachineto
changetheoilorreplacetheblade,allowthe fueltanktorundrythroughnormalusage.If youmusttipthemachinepriortorunning outoffuel,useahandfuelpumptoremove thefuel.Alwaystipthemachineontoits side,withthedipstickdown.
17

ServicingtheAirFilter

ChangingtheEngineOil

ServiceInterval:Beforeeachuseordaily
Yearly
1.Pressdownonthelatchtabsontopofthe air-ltercover(Figure40).
Figure40
1.Latchtabs
2.Openthecover.
3.Removetheairlter(Figure41).
ServiceInterval:Y early
Note:Runtheengineafewminutesbeforechanging
theoiltowarmit.Warmoilowsbetterandcarries morecontaminants.
EngineOilSpecications
Engineoilcapacity
OilviscositySAE30orSAE10W-30
APIserviceclassicationSJorhigher
1.Movethemachinetoalevelsurface.
2.RefertoPreparingforMaintenance(page17).
g002902
3.Removethedipstickbyrotatingthecap counterclockwiseandpullingitout(Figure42).
0.55L(18.6oz)
detergentoil
Figure41
4.Iftheairlterisdamagedoriswetwithoilor fuel,replaceit.
5.Iftheairlterisdirty,tapitonahardsurface severaltimesorblowcompressedairlessthan 207kPa(30psi)throughthesideofthelter thatfacestheengine.
Note:Donotbrushthedirtoffthelter;
brushingforcesdirtintothebers.
6.Removedirtfromtheair-lterbodyandcover usingamoistrag.Donotwipedirtintothe
airduct.
7.Installtheairlter.
8.Closethecover.
g010271
Figure42
4.Tipthemachineontoitsside(sothattheair lterisup)todraintheusedoilfromtheoil-ll tube(Figure42).
g002903
g010272
Figure43
5.Afterdrainingtheusedoil,returnthemachineto theoperatingposition.
6.Carefullypourabout3/4oftheenginecapacity ofoilintotheoil-lltube.
7.Wait3minutesfortheoiltosettleintheengine.
8.Wipethedipstickcleanwithacleancloth.
9.Insertthedipstickintotheoil-lltube,butdonot screwitin,thenremovethedipstick.

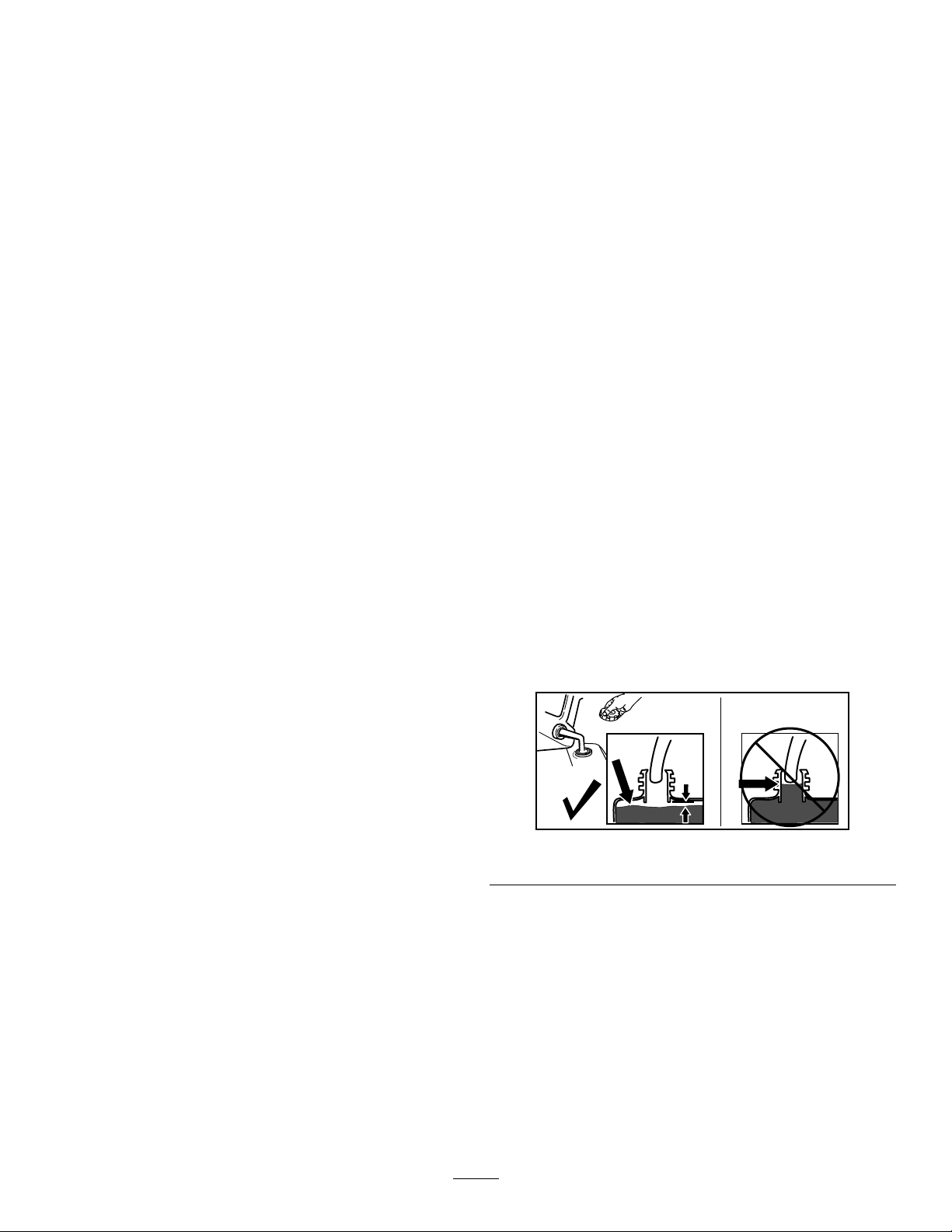

10.Readtheoillevelonthedipstick(Figure16).
18
Iftheoillevelonthedipstickistoolow,
carefullypourasmallamountofoilintothe oil-lltube,wait3minutes,andrepeatsteps
8through10untiltheoillevelonthedipstick
iscorrect.
Iftheoillevelonthedipstickistoohigh,
draintheexcessoiluntiltheoillevelonthe dipstickiscorrect.
Important:Iftheoillevelintheengineistoo
lowortoohighandyouruntheengine,you maydamagetheengine.
11.Installthedipstickintotheoil-lltubesecurely .
12.Recycletheusedoilproperly .

LubricatingtheUpper Handle

ServiceInterval:Y early
Lubricatetheleftandrightsidesoftheupperhandle withalow-viscositysiliconespraylubricant.

AdjustingtheSelf-Propel Drive

Ifyourmachinedoesnotself-propelproperly,adjust theself-propel-drivecable.
1.Loosenthenutonthecablemount(Figure46).

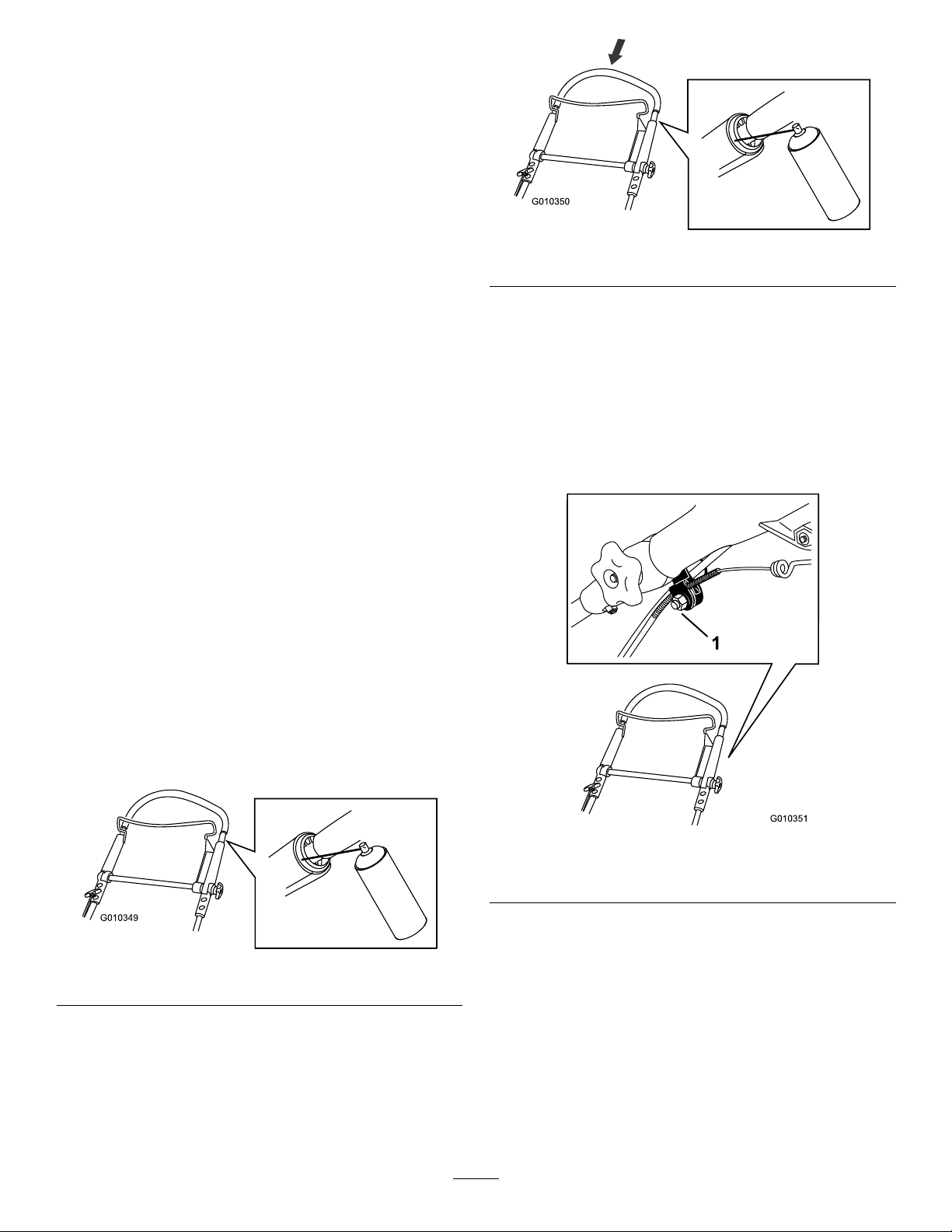

1.Spraytheouterplasticendoftheinnerhandle (Figure44).
Figure44
Note:Usethestrawthatcomeswiththespray
cantodirectthespray.
2.Pushtheupperhandlefullydownandspraythe innerplasticsurfaceoftheouterhandle(Figure
45).
g010351
Figure46
1.Cablemount
2.Pulltheupperhandlebackfullyrearward.
Note:Ifthehandledoesnotmovesmoothly,
refertoLubricatingtheUpperHandle(page19).
3.Pullthecablejacketdownwarduntilyouremove
g010349
theslackintheexposedcable(Figure47).
g007744
Figure47
Figure45
1.Exposedcable
4.Pushthecablejacketupward3mm(1/8inch).
g010350
19
Note:Youcanplacearuleragainsttheupper
sideoftheblackcablemountandmeasurehow fartheupperendofthecablejacketmoves (Figure48).

ReplacingtheBlade

ServiceInterval:Yearly—Replacethebladeorhave
itsharpened(morefrequentlyifthe edgedullsquickly).
Important:Youwillneedatorquewrenchto
installthebladeproperly.Ifyoudonothavea
torquewrenchorareuncomfortableperforming thisprocedure,contactanAuthorizedService Dealer.
Figure48
1.Cablemount2.Cablejacket
Important:Movingthecablejacketupward
decreasesthegroundspeed;movingthe jacketdownwardincreasestheground speed.
5.Tightenthenutrmly.
6.Startthemachineandchecktheadjustment.
Note:Iftheself-propeldriveisnotproperly
adjusted,repeatthisprocedure.
g007745
Examinethebladewheneveryourunoutoffuel.Ifthe bladeisdamagedorcracked,replaceitimmediately. Ifthebladeedgeisdullornicked,haveitsharpened andbalanced,orreplaceit.
WARNING
Thebladeissharp;contactingthebladecan resultinseriouspersonalinjury.
Weargloveswhenservicingtheblade.
1.Disconnectthespark-plugwirefromthespark plug;refertoPreparingforMaintenance(page
17).
2.Tipthemachineontoitssidewiththeairlterup.

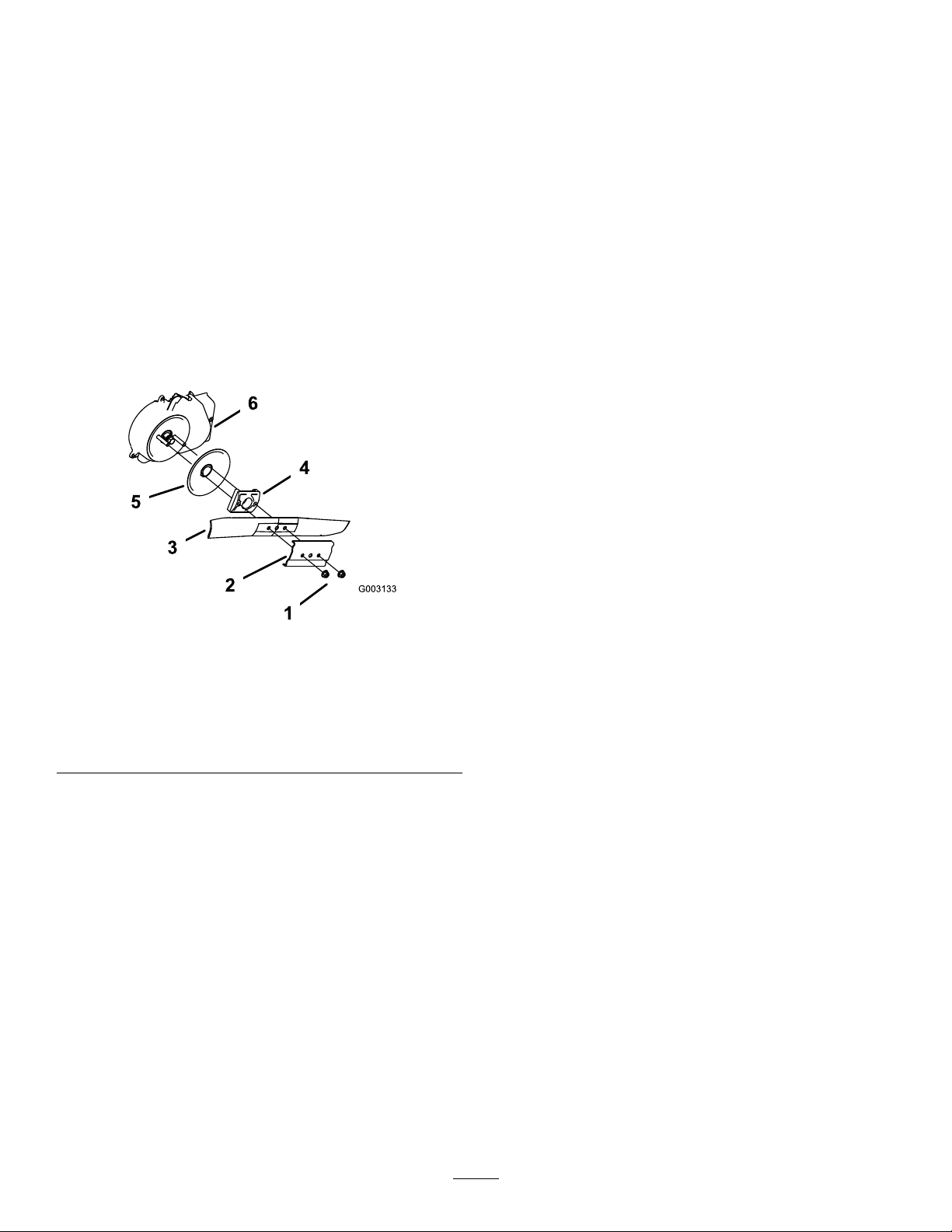

3.Removethe2bladenutsandthestiffener (Figure49).
Figure49
1.Bladenuts4.Bladedriver
2.Stiffener
3.Blade6.Blade-stopsystemshield
5.Anti-scalpdisk
4.Removetheblade(Figure49).
5.Installthenewblade(Figure49).
6.Installthestiffeneryoupreviouslyremoved.
7.Installthebladenutsandtorquethemto20
to37N∙m(15to27ft-lb).
20
g003133

CleaningtheBlade-Stop SystemShield

ServiceInterval:Every25hours
1.Disconnectthespark-plugwirefromthespark plug;refertoPreparingforMaintenance(page
17).
2.Tipthemachineontoitssidewiththedipstick down.
3.Removethe2bladenutsandthestiffener (Figure50).
Figure50
1.Bladenuts4.Bladedriver
2.Stiffener
3.Blade6.Blade-stopsystemshield
4.Removetheblade(Figure50).
5.Removethebladedriverandtheanti-scalpdisk (Figure50).
6.Removetheblade-stopsystemshield(Figure
50).
7.Brushorblowoutdebrisfromtheinsideofthe shieldandaroundalltheparts.
8.Installtheblade-stopsystemshieldthatyou previouslyremoved.
9.Installthebladedriverandanti-scalpdiskthat youpreviouslyremoved.
10.Installthebladeandthestiffenerwiththe2blade nutsthatyoupreviouslyremoved(Figure50).
11.Installthebladenuts.
5.Anti-scalpdisk
g003133
Note:Torquethebladenutsto20to37N∙m
(15to27ft-lb).
21
Storage
Storethemachineinacool,clean,dryplace.

PreparingtheMachinefor Storage

1.Onthelastrefuelingoftheyear,addfuel stabilizer(suchasToroPremiumFuel Treatment)tothefuelasdirectedonthelabel.
2.Disposeofanyunusedfuelproperly.Recycle itaccordingtolocalcodesoruseitinyour automobile.
Note:Oldfuelinthefueltankistheleading
causeofhardstarting.Donotstorefuelwithout fuelstabilizermorethan30days,anddonot storestabilizedfuelmorethan90days.
3.Runthemachineuntiltheengineshutsofffrom runningoutoffuel.
4.Starttheengineagainandallowittorununtil itshutsoff.Whenyoucannolongerstartthe engine,itissufcientlydry.
5.Disconnectthewirefromthesparkplugand connectthewiretotheretainingpost(if equipped).
6.Removethesparkplug,add30ml(1oz)of engineoilthroughthespark-plughole,andpull thestarterropeslowlyseveraltimestodistribute oilthroughoutthecylindertopreventcylinder corrosionduringtheoff-season.
7.Looselyinstallthesparkplug.
8.Tightenallnuts,bolts,andscrews.

RemovingtheMachine fromStorage

1.Checkandtightenallfasteners.
2.Removethesparkplugandspintheengine rapidlybypullingtherecoil-starthandletoblow theexcessoilfromthecylinder.
3.Installthesparkplugandtightenitwithatorque wrenchto20N∙m(15ft-lb).
4.Performanymaintenanceprocedures;referto
Maintenance(page17).
5.Checktheengine-oillevel;refertoCheckingthe
Engine-OilLevel(page9).
6.Fillthefueltankwithfreshfuel;refertoFilling
theFuelT ank(page8).
7.Connectthewiretothesparkplug.
22
EuropeanPrivacyNotice
TheInformationT oroCollects ToroWarrantyCompany(T oro)respectsyourprivacy.Inordertoprocessyourwarrantyclaimandcontactyouintheeventofaproductrecall,weaskyou tosharecertainpersonalinformationwithus,eitherdirectlyorthroughyourlocalT orocompanyordealer.
TheTorowarrantysystemishostedonserverslocatedwithintheUnitedStateswhereprivacylawmaynotprovidethesameprotectionasapplies inyourcountry.
BYSHARINGYOURPERSONALINFORMA TIONWITHUS,YOUARECONSENTINGTOTHEPROCESSINGOFYOURPERSONALINFORMATION ASDESCRIBEDINTHISPRIVACYNOTICE.
TheWayToroUsesInformation Toromayuseyourpersonalinformationtoprocesswarrantyclaims,tocontactyouintheeventofaproductrecallandforanyotherpurposewhichwetell youabout.ToromayshareyourinformationwithT oro'safliates,dealersorotherbusinesspartnersinconnectionwithanyoftheseactivities.Wewillnot sellyourpersonalinformationtoanyothercompany .Wereservetherighttodisclosepersonalinformationinordertocomplywithapplicablelawsand withrequestsbytheappropriateauthorities,tooperateoursystemsproperlyorforourownprotectionorthatofotherusers.
RetentionofyourPersonalInformation Wewillkeepyourpersonalinformationaslongasweneeditforthepurposesforwhichitwasoriginallycollectedorforotherlegitimatepurposes (suchasregulatorycompliance),orasrequiredbyapplicablelaw.
Toro'sCommitmenttoSecurityofY ourPersonalInformation Wetakereasonableprecautionsinordertoprotectthesecurityofyourpersonalinformation.Wealsotakestepstomaintaintheaccuracyandcurrent statusofpersonalinformation.
AccessandCorrectionofyourPersonalInformation Ifyouwouldliketorevieworcorrectyourpersonalinformation,pleasecontactusbyemailatlegal@toro.com.
AustralianConsumerLaw
AustraliancustomerswillnddetailsrelatingtotheAustralianConsumerLaweitherinsidetheboxoratyourlocalT oroDealer.
374-0282RevC
SuperBagger-Rasenmäher(53cm)
Modellnr.20899—Seriennr.401000000undhöher
FormNo.3418-991RevB
Bedienungsanleitung
Einführung
DieserhandgeführteRasenmähermitSichelmessern solltevonPrivatleutenodergeschultenLohnarbeitern verwendetwerden.EristhauptsächlichfürdasMähen vonGrasaufgepegtenGrünächeninPrivatanlagen gedacht.EristnichtfürdasSchneidenvonBüschen oderfüreinenlandwirtschaftlichenEinsatzgedacht.
LesenSiedieseInformationensorgfältigdurch, umsichmitdemordnungsgemäßenEinsatzund derWartungdesGerätsvertrautzumachenund VerletzungenundeineBeschädigungdesGerätszu vermeiden.SietragendieVerantwortungfüreinen ordnungsgemäßenundsicherenEinsatzdesGeräts.
WendenSiesichhinsichtlichInformationenzu ProduktenundZubehörsowieAngabenzuIhrem örtlichenVertragshändleroderzurRegistrierungdes ProduktesdirektanTorounterwww.Toro.com.
WendenSiesichandenToro-Vertragshändler oderKundendienst,wennSieeineServiceleistung, ToroOriginalersatzteileoderweitereInformationen benötigen.HabenSiedafürdieModell-und SeriennummernderMaschinegriffbereit.InBild1 wirdderStandortderModell-undSeriennummernauf demProduktangegeben.TragenSiehierbittedie Modell-undSeriennummerndesGerätsein.
Wichtig:ScannenSiemitIhremSmartphone
oderTabletdenQR-Codeaufdem Seriennummernaufkleber,umaufGarantie-, Ersatzteil-oderandereProduktinformationen zuzugreifen.
IndieserAnleitungwerdenpotenzielleGefahren angeführt,undSicherheitsmeldungenwerdenvom Sicherheitswarnsymbol(Bild2)gekennzeichnet, dasaufeineGefahrhinweist,diezuschweren odertödlichenVerletzungenführenkann,wenn SiedieempfohlenenSicherheitsvorkehrungennicht einhalten.
g000502
Sicherheitswarnsymbol
IndieserAnleitungwerdenzweiBegriffezur HervorhebungvonInformationenverwendet.Wichtig weistaufspeziellemechanischeInformationenhin, undHinweishebtallgemeineInformationenhervor, dieIhrebesondereBeachtungverdienen.
DiesesProduktentsprichtallenrelevanten europäischenRichtlinien.WeitereAngaben ndenSieinderproduktspezischen Konformitätsbescheinigung.
Brutto-oderNettodrehmoment:DasBrutto­oderNettodrehmomentdiesesMotorswurde vomMotorherstellerimLaborgemäßSAEJ1940 oderJ2723ermittelt.AufgrundderKonguration zurErfüllungvonSicherheits-,Emissions­undBetriebsanforderungenistdietatsächliche MotorleistungindieserKlassederRasenmäher wesentlichniedriger.WeitereInformationennden SieinderMotorbedienungsanleitungdesHerstellers, diemitderMaschineausgeliefertwurde.
1.TypenschildmitModell-undSeriennummer
©2017—TheT oro®Company 8111LyndaleAvenueSouth Bloomington,MN55420
CV
Modellnr.
Seriennr.
RegistrierenSieIhrProduktunter
www.T oro.com.
g226629
Inhalt
Einführung................................................................1
Sicherheit..................................................................2
AllgemeineSicherheit.........................................2
Sicherheits-undBedienungsschilder.................3
Einrichtung................................................................4
1AufklappendesHolms.....................................4
2BefestigendesRücklaufstarterseilsinder
Seilführung......................................................4
3AuffüllendesMotorsmitÖl..............................5
Originaldokuments(DE)
AlleRechtevorbehalten
Druck:Mexiko
*3418-991*B
4EinsetzendesMulchverschlussesoder
desFangkorbs................................................6
5MontierendesFangkorbs................................7
Produktübersicht.......................................................8
TechnischeDaten..............................................8
Betrieb......................................................................8
VordemEinsatz....................................................8
VordersicherenVerwendung.............................8
Betanken............................................................9
PrüfendesMotorölstands...................................9
EinstellenderHöhedesoberenHolms.............10
EinstellenderSchnitthöhe................................10
WährenddesEinsatzes........................................11
HinweisezurSicherheitwährenddes
Betriebs..........................................................11
AnlassendesMotors........................................12
VerwendendesSelbstantriebs.........................12
AbstellendesMotors........................................12
MulchendesSchnittguts...................................13
SammelndesSchnittguts.................................13
SeitenauswurfdesSchnittguts.........................14
Betriebshinweise.............................................15
NachdemEinsatz...............................................16
HinweisezurSicherheitnachdem
Betrieb..........................................................16
ReinigenunterdemGerät.................................17
ZusammenklappendesHolms.........................17
Wartung..................................................................18
EmpfohlenerWartungsplan.................................18
Wartungssicherheit...........................................18
VorbereitenfürdieWartung..............................18
WartendesLuftlters........................................19
WechselndesMotoröls....................................19
EinschmierendesoberenHolms......................20
EinstellendesSelbstantriebs............................20
AuswechselndesMessers...............................21
ReinigungdesSchutzblechsdesSystems
zumAnhaltendesMessers...........................22
Einlagerung............................................................23
VorbereitenderMaschinefürdas
Einlagern.......................................................23
HerausnehmendesRasenmähersausder
Einlagerung...................................................23
Sicherheit
DieseMaschineerfülltENISO5395:2013.

AllgemeineSicherheit

DiesesProduktkannHändeundFüßeamputieren undGegenständeaufschleudern.Befolgenimmer sämtlicheSicherheitshinweise,umschwereoder tödlicheVerletzungenzuvermeiden.
WenndiesesProduktfüreinenanderenZweck eingesetztwird,kanndasfürBedienerundandere Personengefährlichsein.
Lesen,verstehenundbefolgenSievordem
AnlassendesMotorsalleAnweisungenund WarnungeninderBedienungsanleitungundan derMaschine.
BerührenSiebeweglicheT eileoderdieUnterseite
derMaschinenichtmitdenHändenoderFüßen. KommenSieAuswurföffnungennichtzunahe.
SetzenSiedieMaschinenurein,wenn
alleSchutzvorrichtungenundandere Sicherheitsvorrichtungenmontiertund funktionsfähigsind.
HaltenSieUnbeteiligteundKinderineinem
sicherenAbstandzurMaschine.DasFahrzeug darfniemalsvonKindernbetriebenwerden. NurverantwortungsbewusstePersonen,die geschultundmitdenAnweisungenvertrautsind undkörperlichfähigsind,solltendieMaschine verwenden.
HaltenSiedieMaschinean,stellenSieden
MotorabundwartenSie,bisallebeweglichen TeilezumStillstandgekommensind,bevorSie Wartungsarbeitendurchführen,Auftankenoder Verstopfungenentfernen.
DerunsachgemäßeEinsatzoderdiefalscheWartung dieserMaschinekannzuVerletzungenführen. DurchdasBefolgendieserSicherheitshinweisekann dasVerletzungsrisikoverringertwerden.Achten SieimmeraufdasWarnsymbol.Esbedeutet Vorsicht,WarnungoderGefahr–Hinweisefürdie Personensicherheit.WennSiedieseAnweisungen nichteinhalten,kanneszuVerletzungenggf. tödlichenVerletzungenkommen.
SiendenweitereSicherheitsinformationenbei BedarfindieserBedienungsanleitung.
2
Sicherheits-undBedienungsschilder
DieSicherheits-undBedienungsaufklebersindgutsichtbar;siebendensichin derNähedermöglichenGefahrenbereiche.TauschenSiebeschädigteoderverloren gegangeneAufkleberaus.
Herstellermarke
1.Gibtan,dassdasMesserT eilderOriginalmaschinedes Herstellersist.
decaloemmarkt
decal114-2820
114-2820
110-9457
1.Motorschalter:Aus3.Entriegelt
2.Motorschalter:Ein4.Verriegelt
decal110-9457
1.Warnung:LesenSiedie Bedienungsanleitung.
2.Gefahrdurch herausgeschleuderte Gegenstände:AchtenSie darauf,dassUnbeteiligte denSicherheitsabstand zurMaschineeinhalten.
3.Gefahrdurch herausgeschleuderte Gegenstände:Setzen SiedenRasenmäher nichtohnedie Heckauswurfklappe oderFangkorbein. SetzenSieden Rasenmähernichtohne Seitenauswurfabdeckung oderAblenkblechein.
4.GefahreinerSchnittwunde und/oderderAmputation vonHändenoderFüßen durchMähwerkmesser: HaltenSiesichvon beweglichenT eilenfern.
5.Schnitt-bzw. Amputationsgefahran HändenundFüßenbeim Schnittmesser:Ziehen SiedenZündschlüssel abundlesenSiedie Anweisungen,bevor SieWartungs-oder Reparaturarbeiten ausführen.
6.Schnitt-bzw. Amputationsgefahrvon HändenoderFüßendurch Mähwerkmesser:Mähen Sieniehangaufwärts oder-abwärts,mähen Sieimmerwaagrecht zumHang.StellenSie denMotorab,bevor SiedieBedienerposition verlassenundschauen Sienachhinten,wennSie rückwärtsfahren.
112-8760
1.GefahrdurchherausgeschleuderteTeile:AchtenSie darauf,dassUnbeteiligtedenSicherheitsabstandzum Geräteinhalten.
2.GefahreinerSchnittwundeund/oderderAmputationvon HändenoderFüßen:BerührenSiekeinebeweglichen Teilen.
decal112-8760
3
Einrichtung
Wichtig:NehmenSiedenPlastikschutzab,mit
demderMotorabgedecktist.WerfenSieihnab.
1

AufklappendesHolms

KeineTeilewerdenbenötigt
Verfahren
1.AufgeklappterHolm
2.Zusammengeklappter Holm
decal121-2370
121-2370
3.Pedal
1.SchiebenSiedenHolmnachhintenundhalten SiedenoberenHolmfest(Bild3).
g010260
2.ZiehenSiedasobereHolmhandradsofestwie esgeht(Bild4).
g020803
4
2
Befestigendes Rücklaufstarterseilsin derSeilführung
KeineTeilewerdenbenötigt
Verfahren
Wichtig:BefestigenSiedasRücklaufstarterseil
inderSeilführung,umdenMotorsicherund mühelosanzulassen.
DrückenSiedenSchaltbügelzumoberenHolm undziehenSiedasRücklaufstarterseildurchdie SeilführungamHolm(Bild5).
1.StellenSiedieMaschineaufeinerebenen Flächeab.
2.EntfernenSiedenPeilstab,indemSieden Deckelnachlinksdrehenundherausziehen (Bild6).
1.Rücklaufstarterseil2.Seilführung
3

AuffüllendesMotorsmitÖl

KeineTeilewerdenbenötigt
Verfahren
Wichtig:DieMaschinehatbeiderAuslieferung
keinÖlimMotor.FüllenSiedenMotormitÖl, bevorSieihnanlassen.
Motorölsorte
Motorölmenge
Ölviskosität
API-KlassikationSJoderhöher
0,55l
WaschaktivesÖlderSorte SAE30oderSAE10W-30
g232743
1.Voll
2.Hoch
g003251
3.GießenSieca.¾derMotorölfüllmengelangsam indenÖleinfüllstutzen.
4.WartenSiedreiMinuten,damitsichdasÖlim Motorsetzenkann.
5.WischenSiedenPeilstabmiteinemsauberen Lappenab.
6.SteckenSiedenPeilstabindenÖleinfüllstutzen, schraubenSieihnjedochnichtein;nehmenSie denPeilstabdannheraus.
7.LesenSiedenÖlstandamPeilstabab.(Bild6)
WennderÖlstandamPeilstabzuniedrig
ist,füllenSielangsametwasÖlinden Öleinfüllstutzen,wartenSiedreiMinutenund wiederholenSiedanndieSchritte5bis7,bis derÖlstandamPeilstabrichtigist.
WennderÖlstandamPeilstabzuhochist,
lassenSieÖlab,bisderÖlstandamPeilstab richtigist,sieheWechselndesMotoröls
(Seite19).
Wichtig:WennderÖlstandimMotor
zuhochoderzuniedrigistundSieden Motorlaufenlassen,könnenMotorschäden auftreten.
8.SteckenSiedenPeilstabfestinden Öleinfüllstutzen.
3.Add(Nachfüllen)
5
Loading...
+ 67 hidden pages
