Toro 20379 Operator's Manual

22inRecycler

ModelNo.20379—SerialNo.407810000andUp

®

Introduction

Thisrotary-blade,walk-behindlawnmowerisintended
tobeusedbyresidentialhomeowners.Itisdesigned
primarilyforcuttinggrassonwell-maintainedlawnson
residentialproperties.Usingthisproductforpurposes
otherthanitsintendedusecouldprovedangerousto
youandbystanders.

Readthisinformationcarefullytolearnhowtooperate
andmaintainyourproductproperlyandtoavoid
injuryandproductdamage.Youareresponsiblefor
operatingtheproductproperlyandsafely.

Visitwww.T oro.comformoreinformation,including
safetytips,trainingmaterials,accessoryinformation,
helpndingadealer,ortoregisteryourproduct.

Wheneveryouneedservice,genuineToroparts,or
additionalinformation,contactanAuthorizedService
DealerorToroCustomerServiceandhavethemodel
andserialnumbersofyourproductready .Figure1
identiesthelocationofthemodelandserialnumbers
ontheproduct.Writethenumbersinthespace
provided.

Important:Withyourmobiledevice,youcan

scantheQRcodeontheserialnumberdecal(if
equipped)toaccesswarranty,parts,andother
productinformation.

Figure1

1.Modelandserialnumberlocation

ModelNo.

SerialNo.

Thismanualidentiespotentialhazardsandhas
safetymessagesidentiedbythesafety-alertsymbol
(Figure2),whichsignalsahazardthatmaycause
seriousinjuryordeathifyoudonotfollowthe
recommendedprecautions.

FormNo.3442-471RevA

LawnMower

Operator'sManual

g000502

Figure2

Safety-alertsymbol

Thismanualuses2wordstohighlightinformation.
Importantcallsattentiontospecialmechanical
informationandNoteemphasizesgeneralinformation
worthyofspecialattention.

ItisaviolationofCaliforniaPublicResourceCode
Section4442or4443touseoroperatetheengineon
anyforest-covered,brush-covered,orgrass-covered
landunlesstheengineisequippedwithaspark
arrester,asdenedinSection4442,maintainedin
effectiveworkingorderortheengineisconstructed,
equipped,andmaintainedforthepreventionofre.

Theenclosedengineowner'smanualissupplied
forinformationregardingtheUSEnvironmental
ProtectionAgency(EPA)andtheCaliforniaEmission
ControlRegulationofemissionsystems,maintenance,
andwarranty.Replacementsmaybeorderedthrough
theenginemanufacturer.

GrossorNetTorque:Thegrossornettorque
ofthisenginewaslaboratoryratedbytheengine
manufacturerinaccordancewiththeSocietyof
AutomotiveEngineers(SAE)J1940orJ2723.As
conguredtomeetsafety,emission,andoperating
requirements,theactualenginetorqueonthisclass
ofmowerwillbesignicantlylower.Pleasereferto
theenginemanufacturer’sinformationincludedwith
themachine.

g307059

WARNING

CALIFORNIA

Proposition65Warning

Theengineexhaustfromthisproduct

containschemicalsknowntotheStateof

Californiatocausecancer,birthdefects,

orotherreproductiveharm.

Useofthisproductmaycauseexposure

tochemicalsknowntotheStateof

Californiatocausecancer,birthdefects,

orotherreproductiveharm.

©2020—TheT oro®Company
8111LyndaleAvenueSouth
Bloomington,MN55420

Registeratwww.Toro.com.

OriginalInstructions(EN)

PrintedinMexico

AllRightsReserved

*3442-471*

Contents

Safety

Introduction...............................................................1

Safety.......................................................................2

GeneralSafety...................................................2

SafetyandInstructionalDecals..........................3

Setup........................................................................4

1AssemblingandUnfoldingtheHandle..............4

2InstallingtheRecoil-StarterRopeinthe

RopeGuide.....................................................5

3AddingOiltotheEngine...................................6

4AssemblingtheGrassBag...............................7

ProductOverview.....................................................8

Specications....................................................8

Attachments/Accessories...................................8

Operation..................................................................9

BeforeOperation...................................................9

BeforeOperationSafety.....................................9

FillingtheFuelTank............................................9

CheckingtheEngine-OilLevel..........................10

AdjustingtheHandleHeight.............................10

AdjustingtheCuttingHeight..............................11

DuringOperation.................................................12

DuringOperationSafety...................................12

StartingtheEngine...........................................12

UsingtheSelf-PropelDrive...............................13

ShuttingOfftheEngine.....................................13

RecyclingtheClippings....................................13

BaggingtheClippings.......................................14

Side-DischargingtheClippings.........................14

OperatingTips.................................................15

AfterOperation....................................................15

AfterOperationSafety......................................15

CleaningundertheMachine.............................15

FoldingtheHandle...........................................16

Maintenance...........................................................17

RecommendedMaintenanceSchedule(s)...........17

MaintenanceSafety..........................................17

PreparingforMaintenance...............................17

ServicingtheAirFilter.......................................18

ChangingtheEngineOil...................................18

ReplacingtheBlade..........................................19

AdjustingtheSelf-PropelDrive.........................20

Storage...................................................................21

StorageSafety..................................................21

PreparingtheMachineforStorage...................21

RemovingtheMachinefromStorage................21

Thismachinehasbeendesignedinaccordancewith
ANSIB71.1-2017.

GeneralSafety

Thisproductiscapableofamputatinghandsand
feetandofthrowingobjects.Alwaysfollowallsafety
instructionstoavoidseriouspersonalinjuryordeath.

•Read,understand,andfollowtheinstructions

andwarningsinthisOperator’sManualandon
themachineandattachmentsbeforestartingthe
engine.

•Donotputyourhandsorfeetnearmovingpartsor

underthemachine.Keepclearofanydischarge
opening.

•Donotoperatethemachinewithoutallguards

andothersafetyprotectivedevicesinplaceand
functioningproperlyonthemachine.

•Keepbystandersandchildrenoutoftheoperating

area.Donotallowchildrentooperatethemachine.
Allowonlypeoplewhoareresponsible,trained,
familiarwiththeinstructions,andphysically
capabletooperatethemachine.

•Stopthemachine,shutofftheengine,andwaitfor

allmovingpartstostopbeforeservicing,fueling,
oruncloggingthemachine.

Improperlyusingormaintainingthismachinecan
resultininjury.Toreducethepotentialforinjury,
complywiththesesafetyinstructionsandalways
payattentiontothesafety-alertsymbol
meansCaution,Warning,orDanger—personalsafety
instruction.Failuretocomplywiththeseinstructions
mayresultinpersonalinjuryordeath.

,which

2

SafetyandInstructionalDecals

Safetydecalsandinstructionsareeasilyvisibletotheoperatorandarelocatednearanyarea
ofpotentialdanger.Replaceanydecalthatisdamagedormissing.

Manufacturer'sMark

1.Thismarkindicatesthatthebladeisidentiedasapart
fromtheoriginalmachinemanufacturer .

94-8072

decaloemmarkt

decal133-8062

133-8062

decal94-8072

decal137-9196

137-9196

1.Lock2.Unlock

131-4514

1.Warning—readtheOperator'sManual.

2.Cutting/dismembermenthazardofhand,mower
blade—stayawayfrommovingparts;keepallguardsand
shieldsinplace.

3.Cutting/dismembermenthazardofhand,mower
blade—disconnectthespark-plugwirebeforeperforming
maintenance.

4.Thrownobjecthazard—keepbystandersaway;shutoffthe
enginebeforeleavingtheoperatingposition;pickupany
debrisbeforemowing.

5.Cutting/dismembermenthazardoffoot,mowerblade—do
notoperateupanddownslopes;operatesidetosideon
slopes;lookbehindyouwhenmovinginreverse.

decal131-4514

3

Setup

Important:Removeanddiscardtheprotectiveplasticsheetthatcoverstheengineandanyother

plasticorwrappingonthemachine.

1

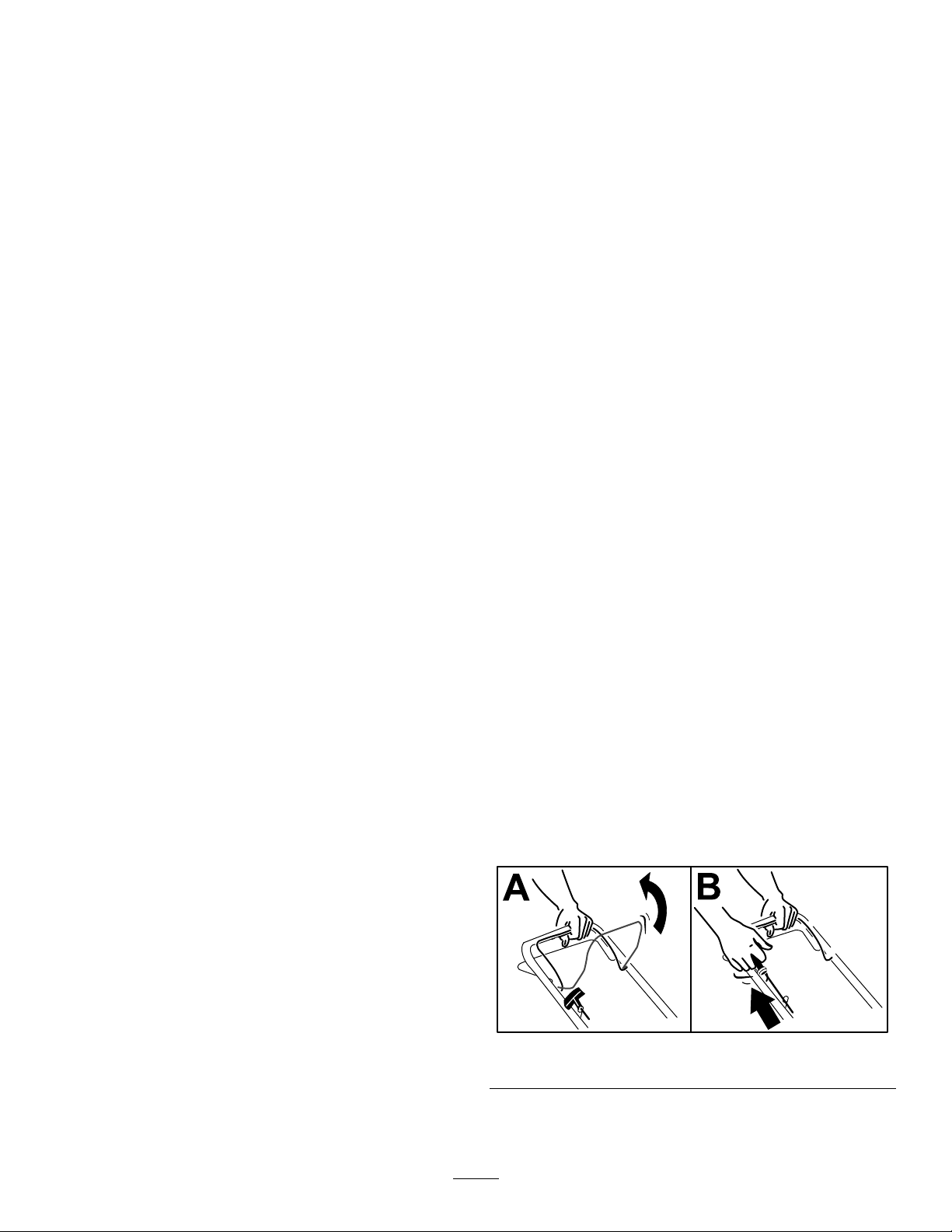

AssemblingandUnfoldingtheHandle

NoPartsRequired

Procedure

Figure3

g230890

4

2

InstallingtheRecoil-StarterRopeintheRopeGuide

NoPartsRequired

Procedure

Important:Tostarttheenginesafelyandeasilywheneveryouusethemachine,installtherecoil-starter

ropeintheropeguide.

Figure4

g230180

5

3

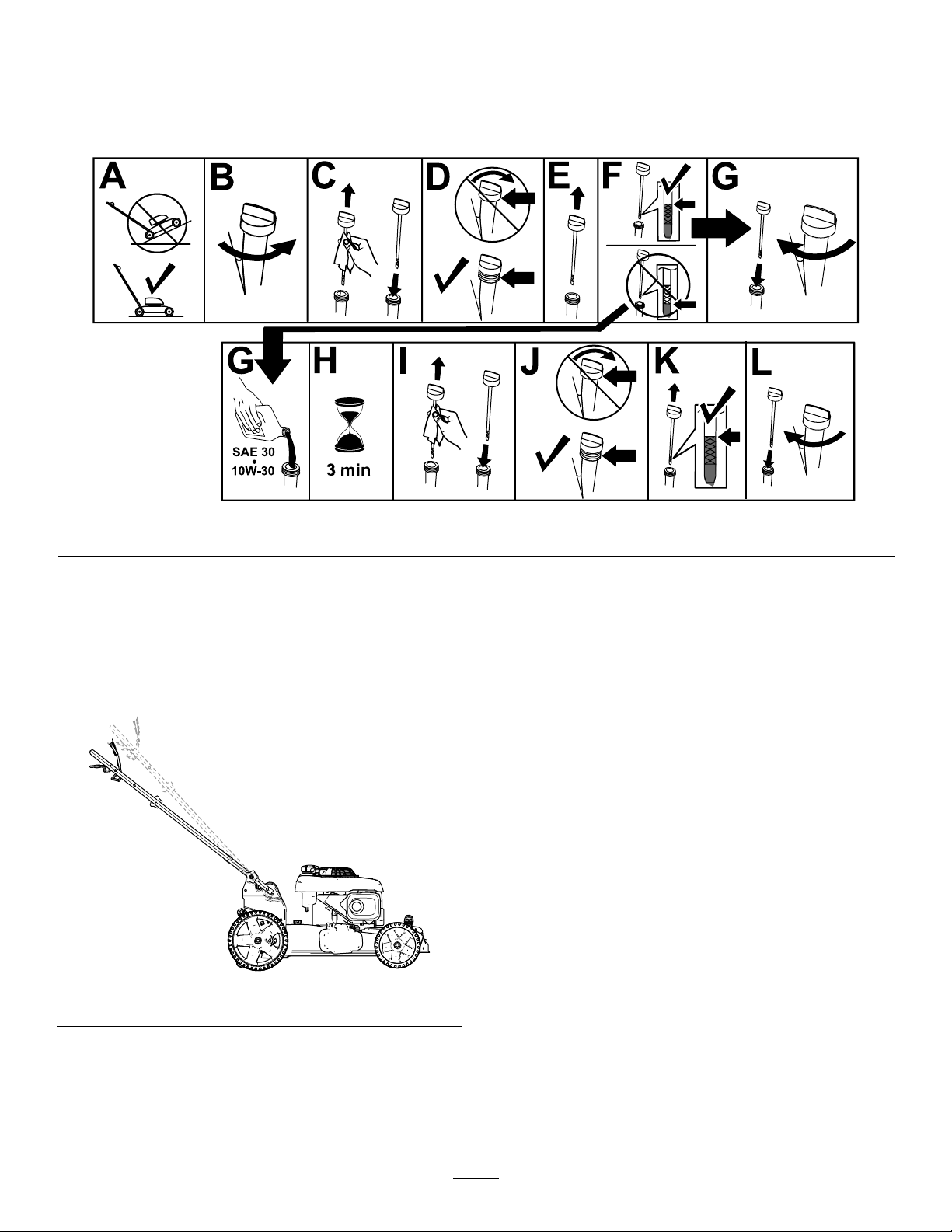

AddingOiltotheEngine

NoPartsRequired

Procedure

Important:Iftheoillevelintheengineistoolowortoohighandyouruntheengine,youmaydamage

theengine.

Figure5

g235721

6

4

AssemblingtheGrassBag

NoPartsRequired

Procedure

g235791

Figure6

7

ProductOverview

Specications

ModelWeightLengthWidthHeight

34kg150cm59cm99cm

20379

(75lb)(59inches)(23inches)(39inches)

Attachments/Accessories

AselectionofToroapprovedattachmentsand
accessoriesisavailableforusewiththemachine
toenhanceandexpanditscapabilities.Contact
yourAuthorizedServiceDealerorauthorizedT oro
distributororgotowww.T oro.comforalistofall
approvedattachmentsandaccessories.

Toensureoptimumperformanceandcontinuedsafety
certicationofthemachine,useonlygenuineToro
replacementpartsandaccessories.Replacement
partsandaccessoriesmadebyothermanufacturers
couldbedangerous,andsuchusecouldvoidthe
productwarranty.

g307070

Figure7

1.Blade-controlbar

2.Self-propel-drivebar9.Side-dischargedeector

3.Adjustmentforthe
self-propeldrive

4.Handleknob(2)11.Cutting-heightlever(4)

5.Fuel-tankcap12.Handle

6.Washoutport(notshown)

7.Airlter

8.Sparkplug

10.Oilll/dipstick(notshown)

13.Recoil-starthandle

Figure8

g009571

1.Grassbag2.Side-dischargechute

8

Operation

Note:Determinetheleftandrightsidesofthe

machinefromthenormaloperatingposition.

–Avoidprolongedbreathingofvapors.

–Keepyourhandsandfaceawayfromthe

nozzleandthefuel-tankopening.

–Keepfuelawayfromyoureyesandskin.

BeforeOperation

BeforeOperationSafety

GeneralSafety

•Alwaysshutoffthemachine,waitforallmoving

partstostop,andallowthemachinetocoolbefore
adjusting,servicing,cleaning,orstoringit.

•Becomefamiliarwiththesafeoperationofthe

equipment,operatorcontrols,andsafetysigns.

•Checkthatallguardsandsafetydevices,suchas

deectorsand/orgrasscatcher,areinplaceand
functioningproperly.

•Alwaysinspectthemachinetoensurethatthe

bladesandbladeboltsarenotwornordamaged.

•Inspecttheareawhereyouwillusethemachine,

andremoveallobjectsthatcouldinterferewith
theoperationofthemachineorthatthemachine
couldthrow.

•Contactwiththemovingbladewillcauseserious

injury.Donotputyourngersunderthehousing.

FillingtheFuelTank

TypeUnleadedgasoline

Minimumoctanerating

Ethanol

MethanolNone

MTBE(methyltertiarybutyl
ether)

OilDonotaddtothefuel

Useonlyclean,fresh(nomorethan30daysold),fuel
fromareputablesource.

Important:Toreducestartingproblems,addfuel

stabilizer/conditionertofreshfuelasdirectedby
thefuel-stabilizer/conditionermanufacturer.

Refertoyourengineowner’smanualforadditional
information.

FillthefueltankasshowninFigure9.

87(US)or91(research
octane;outsidetheUS)

Nomorethan10%byvolume

Lessthan15%byvolume

FuelSafety

•Fuelisextremelyammableandhighlyexplosive.

Areorexplosionfromfuelcanburnyouand
othersandcandamageproperty.

–Topreventastaticchargefromignitingthefuel,

placethecontainerand/ormachinedirectlyon
thegroundbeforelling,notinavehicleoron
anobject.

–Fillthefueltankoutdoors,inanopenarea,

whentheengineiscold.Wipeupanyfuelthat
spills.

–Donothandlefuelwhensmokingoraroundan

openameorsparks.

–Donotremovethefuelcaporaddfueltothe

tankwhiletheengineisrunningorhot.

–Ifyouspillfuel,donotattempttostartthe

engine.Avoidcreatingasourceofignitionuntil
thefuelvaporshavedissipated.

–Storefuelinanapprovedcontainerandkeep

itoutofthereachofchildren.

•Fuelisharmfulorfatalifswallowed.Long-term

exposuretovaporscancauseseriousinjuryand
illness.

g230458

Figure9

9

CheckingtheEngine-OilLevel

ServiceInterval:Beforeeachuseordaily

Important:Iftheoillevelinthecrankcaseistoolowortoohighandyouruntheengine,youmay

damagetheengine.

Figure10

g235721

AdjustingtheHandle
Height

Youcanraiseorlowerthehandlein1of2positions
thatismorecomfortableforyou(Figure11).

Figure11

1.Loosenbothhandleknobsuntilyoucanpush

thesquareedgesofthecarriageboltsoutofthe
squareholesinthehandlebrackets.

3.Movethehandletotheupperorlowerheight
position.

4.Pulltheknobsuntilthesquareedgesofeach
carriagebolttsintoitsrelatedsquarehole.

5.Tightenthehandleknobsastightasyoucan.

g193180

2.Pushtheknobsuntiltheyareloose.

10

AdjustingtheCuttingHeight

DANGER

Adjustingthecutting-heightleverscouldbringyourhandsintocontactwithamovingblade
andresultinseriousinjury.

•Shutofftheengineandwaitforallmovingpartstostopbeforeadjustingthecuttingheight.

•Donotputyourngersunderthehousingwhenadjustingthecuttingheight.

CAUTION

Iftheenginehasbeenrunning,themuferwillbehotandcanburnyou.

Keepawayfromthehotmufer.

Adjustthecuttingheightasdesired.Setallwheelstothesamecuttingheight(Figure12).

Figure12

g254132

11

DuringOperation

DuringOperationSafety

GeneralSafety

•Wearappropriateclothing,includingeye

protection;longpants;substantial,slip-resistant
footwear;andhearingprotection.Tiebacklong
hairanddonotwearlooseclothingorloose
jewelry.

•Useyourfullattentionwhileoperatingthe

machine.Donotengageinanyactivitythat
causesdistractions;otherwise,injuryorproperty
damagemayoccur.

•Donotoperatethemachinewhileill,tired,or

undertheinuenceofalcoholordrugs.

•Thebladeissharp;contactingthebladecanresult

inseriouspersonalinjury.Shutofftheengineand
waitforallmovingpartstostopbeforeleavingthe
operatingposition.

allmovingpartstostop,anddisconnectthewire
fromthesparkplugbeforeexaminingthemachine
fordamage.Makeallnecessaryrepairsbefore
resumingoperation.

•Beforeleavingtheoperatingposition,shutoffthe

engineandwaitforallmovingpartstostop.

•Iftheenginehasbeenrunning,itwillbehotand

canseverelyburnyou.Keepawayfromthehot
engine.

•Operatetheengineonlyinwell-ventilatedareas.

Exhaustgasescontaincarbonmonoxide,whichis
anodorless,deadlypoison.

•Checkthegrasscatchercomponentsandthe

dischargechutefrequentlyforanywearor
deteriorationandreplacethemwithgenuineT oro
partswhennecessary.

SlopeSafety

•Mowacrossthefaceofslopes;neverupand

down.Useextremecautionwhenchanging
directiononslopes.

•Whenyoureleasetheblade-controlbar,the

engineshouldshutoffandthebladeshouldstop
within3seconds.Ifnot,stopusingyourmachine
immediatelyandcontactanAuthorizedService
Dealer.

•Keepbystandersoutoftheoperatingarea.Keep

smallchildrenoutoftheoperatingareaandunder
thewatchfulcareofaresponsibleadultwhois
notoperatingthemachine.Stopthemachineif
anyoneentersthearea.

•Alwayslookdownandbehindyoubeforemoving

themachineinreverse.

•Operatethemachineonlyingoodvisibilityand

appropriateweatherconditions.Donotoperate
themachinewhenthereistheriskoflightning.

•Wetgrassorleavescancauseseriousinjuryif

youslipandcontacttheblade.Avoidmowingin
wetconditions.

•Useextremecarewhenapproachingblind

corners,shrubs,trees,orotherobjectsthatmay
blockyourview.

•Donotdirectthedischargematerialtoward

anyone.Avoiddischargingmaterialagainstawall
orobstruction;materialmayricochettowardyou.
Stoptheblade(s)whencrossinggravelsurfaces.

•Watchforholes,ruts,bumps,rocks,orother

hiddenobjects.Uneventerraincouldcauseyou
toloseyourbalanceorfooting.

•Donotmowonexcessivelysteepslopes.Poor

footingcouldcauseaslip-and-fallaccident.

•Mowwithcautionneardrop-offs,ditches,or

embankments.

StartingtheEngine

1.Holdtheblade-controlbaragainstthehandle
(AofFigure13).

2.Pulltherecoil-starthandle(BofFigure13).

Note:Whenyoupulltherecoil-starthandle,

pullitlightlyuntilyoufeelresistance,thenpullit
sharply.Allowtheropetoreturntothehandle
slowly.

Note:Ifthemachinedoesnotstartafterseveral

attempts,contactanAuthorizedServiceDealer.

g233069

Figure13

•Ifthemachinestrikesanobjectorstartsto

vibrate,immediatelyshutofftheengine,waitfor

12

UsingtheSelf-PropelDrive

ForSelf-Propel-DriveModelsOnly

•Toengagetheself-propeldrive,pullthe

self-propel-drivebartothehandleandholdit
(Figure14).

Figure14

1.Self-propel-drivebar

Note:Themaximumself-propel-drivespeedis

xed.T oreducethespeed,increasethespace
betweentheself-propel-drivebarandthehandle.

•Todisengagetheself-propel-drive,releasethe

self-propeldrivebar.

g240765

ShuttingOfftheEngine

ServiceInterval:Beforeeachuseordaily—Ensure

thattheengineshutsoffwithin
3secondsafterreleasingthe
blade-controlbar.

Toshutofftheengine,releasetheblade-controlbar.

Important:Whenyoureleasetheblade-control

bar,boththeengineandbladeshouldstopwithin
3seconds.Iftheydonotstopproperly,stop
usingyourmachineimmediatelyandcontactan
AuthorizedServiceDealer.

RecyclingtheClippings

Yourmachinecomesfromthefactoryreadytorecycle
thegrassandleafclippingsbackintothelawn.

Ifthegrassbagisonthemachine,removeit;
refertoRemovingtheGrassBag(page14).Ifthe
side-dischargechuteisonthemachine,removeit;
refertoRemovingtheSide-DischargeChute(page

14).

13

BaggingtheClippings

Usethegrassbagwhenyouwanttocollectgrassandleafclippingsfromthelawn.

Iftheside-dischargechuteisonthemachine,removeit;refertoRemovingtheSide-DischargeChute(page14).

InstallingtheGrassBag

1.Raiseandholdupthereardeector(AofFigure15).

2.Installthegrassbag,ensuringthatthepinsonthebagrestinthenotchesonthehandle(BofFigure15).

3.Lowerthereardeector.

g235812

Figure15

RemovingtheGrassBag

1.Raiseandholdupthereardeector.

2.Liftthegrassbagoffofthenotchesonthehandle.

3.Lowerthereardeector.

Side-DischargingtheClippings

Usesidedischargingforcuttingtallgrass,thickgrass,orconditionswhererecyclingdoesnotworkwell.

Ifthegrassbagisonthemachine,removeit;refertoRemovingtheGrassBag(page14).

InstallingtheSide-DischargeChute

Liftupthesidedeectorandinstalltheside-dischargechute(AandBFigure16).

Figure16

RemovingtheSide-DischargeChute

Toremovetheside-dischargechute,liftupthesidedeector,removetheside-dischargechute,andlowerthe
side-dischargedeector.

14

g233435

OperatingTips

GeneralMowingTips

•Inspecttheareawhereyouwillusethemachine

andremoveallobjectsthatthemachinecould
throw.

•Avoidstrikingsolidobjectswiththeblade.Never

deliberatelymowoveranyobject.

•Iftherearemorethan13cm(5inches)ofleaves

onthelawn,mowatahighercuttingheightand
thenagainatthedesiredcuttingheight.

•Slowdownyourmowingspeedifthemachine

doesnotcuttheleavesnelyenough.

AfterOperation

•Ifthemachinestrikesanobjectorstartstovibrate,

immediatelyshutofftheengine,waitforallmoving
partstostop,disconnectthewirefromthespark
plug,andexaminethemachinefordamage.

•Forbestperformance,installanewToroblade

beforethecuttingseasonbeginsorwhen
necessary.

CuttingGrass

•Cutonlyaboutathirdofthegrassbladeatatime.

Donotcutbelow51mm(2inches)unlessthe
grassissparseoritislatefallwhengrassgrowth
beginstoslowdown.

•Whencuttinggrassover15cm(6inches)tall,

mowatthehighestcuttingheightsettingandwalk
slower;thenmowagainatalowersettingforthe
bestlawnappearance.Ifthegrassistoolong,the
machinemayplugandcausetheenginetostall.

•Wetgrassandleavestendtoclumpontheyard

andcancausethemachinetoplugortheengine
tostall.Avoidmowinginwetconditions.

•Beawareofapotentialrehazardinverydry

conditions,followalllocalrewarnings,andkeep
themachinefreeofdrygrassandleafdebris.

•Alternatethemowingdirection.Thishelps

dispersetheclippingsoverthelawnforeven
fertilization.

•Ifthenishedlawnappearanceisunsatisfactory,

try1ormoreofthefollowing:

–Replacethebladeorhaveitsharpened.

–Walkataslowerpacewhilemowing.

–Raisethecuttingheightonyourmachine.

–Cutthegrassmorefrequently.

–Overlapcuttingswathsinsteadofcuttingafull

swathwitheachpass.

AfterOperationSafety

GeneralSafety

•Alwaysshutoffthemachine,waitforallmoving

partstostop,andallowthemachinetocoolbefore
adjusting,servicing,cleaning,orstoringit.

•Cleangrassanddebrisfromthemachinetohelp

preventres.Cleanupoilorfuelspills.

•Neverstorethemachineorfuelcontainerwhere

thereisanopename,spark,orpilotlight,such
asonawaterheateroronotherappliances.

HaulingSafety

•Usecarewhenloadingorunloadingthemachine.

•Securethemachinefromrolling.

CleaningundertheMachine

ServiceInterval:Aftereachuse

Forbestresults,cleanthemachinesoonafteryou
havecompletedmowing.

1.Movethemachineontoaatpavedsurface.

2.Shutofftheengineandwaitforallmovingparts
tostopbeforeleavingtheoperatingposition.

3.Lowerthemachinetoitslowestcutting-height
setting.RefertoAdjustingtheCuttingHeight

(page1 1).

4.Washouttheareaunderthereardoorwherethe
clippingsgofromtheundersideofthemachine
tothegrassbag.

Note:Washouttheareawiththe

bag-on-demand(ifequipped)inboththefully
forwardandfullyrearwardpositions.

CuttingLeaves

•Aftercuttingthelawn,ensurethathalfofthelawn

showsthroughthecutleafcover.Y oumayneed
tomakemorethanasinglepassovertheleaves.

5.Attachagardenhosethatisconnectedtoa
watersupplytothewashoutport(Figure17).

15

Figure18

g189871

Figure17

1.Washoutport

6.Turnthewateron.

7.Starttheengineandrunituntiltheclippingsno
longercomeoutfromunderthemachine.

8.Shutofftheengine.

9.Shutoffthewateranddisconnectthegarden
hosefromthemachine.

10.Starttheengineandrunitforafewminutesto
drytheundersideofthemachinetopreventit
fromrusting.

11.Shutofftheengineandallowittocoolbefore
storingthemachineinanenclosedarea.

FoldingtheHandle

WARNING

1.Handleknob

2.Carriagebolt

2.Foldthehandlebyrotatingitforward(Figure19).

g193192

g193193

Figure19

1.Operatingposition

2.Foldedposition

3.Insertthecarriagebolt(withtheboltheadtoward
theinside)throughthehandlebracketandthe
upperholeinthehandleend.Ensurethatthe
squareedgesofeachcarriagebolttsintothe
upperorlowersquareholeinitsrelatedhandle
bracket(Figure20).

Foldingorunfoldingthehandleimproperly
candamagethecables,causinganunsafe
operatingcondition.

•Donotdamagethecableswhenfoldingor
unfoldingthehandle.

•Ifacableisdamaged,contactan
AuthorizedServiceDealer.

1.Removeandsavethe2handleknobsand2
carriageboltsfromthehandlebrackets(Figure

18).

Important:Routethecablestotheoutside

ofthehandleknobsasyoufoldthehandle.

Figure20

1.Handleknob

2.Carriagebolt

4.Looselyinstallthehandleknobsandcarriage
boltsonthehandlebrackets.

5.Tounfoldthehandle,referto1Assemblingand

UnfoldingtheHandle(page4).

16

g189864

Maintenance

RecommendedMaintenanceSchedule(s)

MaintenanceService

Interval

Beforeeachuseordaily

Aftereachuse

Yearly

Yearlyorbeforestorage

MaintenanceProcedure

•Checktheengine-oillevelandaddoilasneeded.

•Ensurethattheengineshutsoffwithin3secondsafterreleasingtheblade-control
bar.

•Cleangrassclippingsanddirtfromunderthemachine.

•Servicetheairlter.

•Changetheengineoil.

•Replacethebladeorhaveitsharpened(morefrequentlyiftheedgedullsquickly).

•Cleantheenginebyremovingdirtanddebrisfromitstopandsides;cleanitmore
frequentlyindustyoperatingconditions.

•Emptythefueltankbeforerepairsasdirectedandbeforeyearlystorage.

Important:Refertoyourengineowner’smanualforadditionalmaintenanceprocedures.

MaintenanceSafety

•Alwaysshutoffthemachine,waitforallmoving

partstostop,andallowthemachinetocoolbefore
adjusting,servicing,cleaning,orstoringit.

•Disconnectthespark-plugwirefromthesparkplug

beforeperforminganymaintenanceprocedure.

•Wearglovesandeyeprotectionwhenservicing

themachine.

•Thebladeissharp;contactingthebladecanresult

inseriouspersonalinjury .Weargloveswhen
servicingtheblade.Donotrepairoralterthe
blade(s).

•Nevertamperwithsafetydevices.Checktheir

properoperationregularly .

•Tippingthemachinemaycausethefueltoleak.

Fuelisammableandexplosive,andcancause
personalinjury.Runtheenginedryorremovethe
fuelwithahandpump;neversiphonthefuel.

•Toensureoptimumperformanceofthemachine,

useonlygenuineTororeplacementpartsand
accessories.Replacementpartsandaccessories
madebyothermanufacturerscouldbedangerous,
andsuchusecouldvoidtheproductwarranty.

PreparingforMaintenance

1.Shutofftheengineandwaitforallmovingparts
tostop.

g193195

Figure21

1.Spark-plugwire

3.Afterperformingthemaintenanceprocedure(s),
connectthespark-plugwiretothesparkplug.

Important:Beforetippingthemachineto

changetheoilorreplacetheblade,allowthe
fueltanktorundrythroughnormalusage.If
youmusttipthemachinepriortorunning
outoffuel,useahandfuelpumptoremove
thefuel.Alwaystipthemachineontoits
side,withthedipstickdown.

2.Disconnectthespark-plugwirefromthespark
plug(Figure21).

17

ServicingtheAirFilter

ChangingtheEngineOil

ServiceInterval:Yearly

1.Pressdownonthelatchtabsontopofthe
air-ltercover(Figure22).

ServiceInterval:Yearly

Note:Runtheengineafewminutesbeforechanging

theoiltowarmit.Warmoilowsbetterandcarries
morecontaminants.

EngineOilSpecications

Engineoilcapacity

OilviscositySAE30orSAE10W-30

APIserviceclassicationSJorhigher

*Thereisresidualoilinthecrankcaseafteryoudrain
theoil.Donotpourtheentirecapacityofoilintothe
crankcase.Fillthecrankcasewithoilasdirectedin
thefollowingsteps.

1.Movethemachinetoalevelsurface.

2.RefertoPreparingforMaintenance(page17).

3.Removethedipstickbyrotatingthecap
counterclockwiseandpullingitout(Figure23).

0.55L(18.6oz)*

detergentoil

Figure22

1.Latchtabs

2.Paperairlter

3.Foampre-lter

2.Openthecover.

3.Removethepaperairlterandthefoam
pre-lter(Figure22).

4.Inspectthefoampre-lter,andreplaceitifitis
damagedorexcessivelydirty.

5.Inspectthepaperairlter.

•Iftheairlterisdamagedoriswetwithoil

orfuel,replaceit.

•Iftheairlterisdirty,tapitonahardsurface

severaltimesorblowcompressedairless
than207kPa(30psi)throughthesideofthe
lterthatfacestheengine.

Note:Donotbrushthedirtoffthelter;

brushingforcesdirtintothebers.

6.Removethedirtfromtheair-lterbodyandthe
coverusingamoistrag.

g027782

g024432

Figure23

1.Full3.Low

2.High

4.Tipthemachineontoitsside(sothattheair
lterisup)todraintheusedoilfromtheoil-ll
tube(Figure23).

Important:Donotwipedirtintotheairduct.

7.Installthefoampre-lterandthepaperairlter
intotheairlter.

8.Installthecover.

18

ReplacingtheBlade

ServiceInterval:Yearly

Important:Youwillneedatorquewrenchto

installthebladeproperly.Ifyoudonothavea

torquewrenchorareuncomfortableperforming
thisprocedure,contactanAuthorizedService
Dealer.

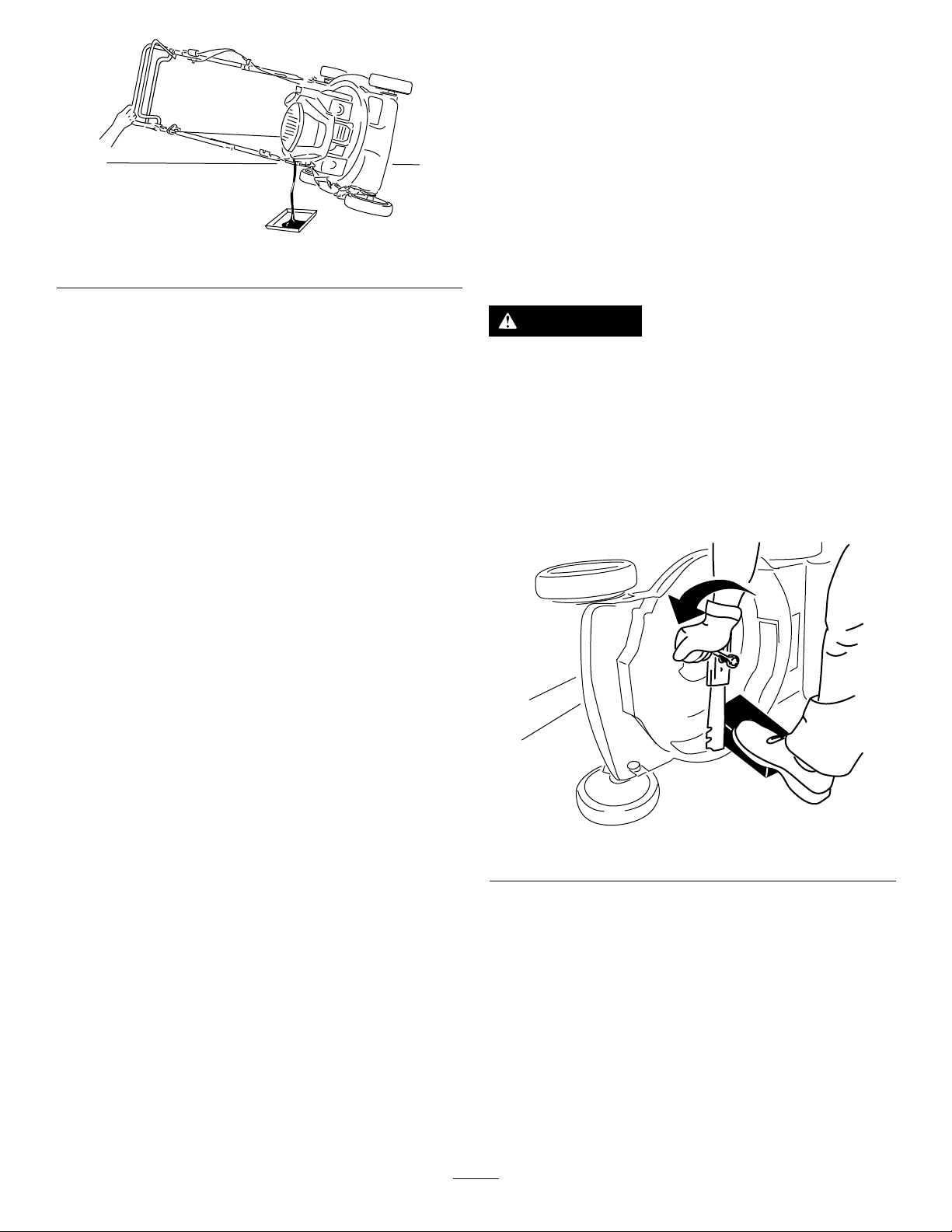

Figure24

5.Afterdrainingtheusedoil,returnthemachineto
theoperatingposition.

6.Carefullypourabout3/4oftheenginecapacity
ofoilintotheoil-lltube.

7.Wait3minutesfortheoiltosettleintheengine.

8.Wipethedipstickcleanwithacleancloth.

9.Insertthedipstickintotheoil-lltube,butdonot
screwitin,thenremovethedipstick.

10.Readtheoillevelonthedipstick(Figure23).

•Iftheoillevelonthedipstickistoolow,

carefullypourasmallamountofoilintothe
oil-lltube,wait3minutes,andrepeatsteps

8through10untiltheoillevelonthedipstick

iscorrect.

•Iftheoillevelonthedipstickistoohigh,

draintheexcessoiluntiltheoillevelonthe
dipstickiscorrect.

g188765

Examinethebladewheneveryourunoutoffuel.Ifthe
bladeisdamagedorcracked,replaceitimmediately.
Ifthebladeedgeisdullornicked,haveitsharpened
andbalanced,orreplaceit.

WARNING

Thebladeissharp;contactingthebladecan
resultinseriouspersonalinjury.

Weargloveswhenservicingtheblade.

1.RefertoPreparingforMaintenance(page17).

2.Tipthemachineontoitssidewiththeairlterup.

3.Useablockofwoodtoholdthebladesteady
(Figure25).

Important:Iftheoillevelintheengineistoo

lowortoohighandyouruntheengine,you
maydamagetheengine.

11.Installthedipstickintotheoil-lltubesecurely.

12.Recycletheusedoilproperly.

g231389

Figure25

4.Removetheblade,savingallmountinghardware
(Figure25).

5.Installthenewbladeandallmountinghardware
(Figure26).

19

Figure26

Important:Positionthecurvedendsofthe

bladetopointtowardthemachinehousing.

6.Useatorquewrenchtotightenthebladebolt
to82N∙m(60ft-lb).

AdjustingtheSelf-Propel
Drive

ForSelf-Propel-DriveModelsOnly

Wheneveryouinstallanewself-propelcableorif
theself-propeldriveisoutofadjustment,adjustthe
self-propeldrive.

1.Turntheadjustmentnutcounterclockwiseto
loosenthecableadjustments(Figure27).

g231390

g273506

Figure27

1.Handle(leftside)

2.Adjustmentnut5.Turnthenut

3.Self-propel-drivecables

4.Turnthenutclockwiseto
tightentheadjustment.

counterclockwiseto
loosentheadjustment.

2.Adjustthetensiononthecables(Figure27)by
pullingthembackorpushingthemforwardand
holdingthatposition.

Note:Pushthecablestowardtheengineto

increasethetraction;pullthecablesawayfrom
theenginetodecreasethetraction.

3.Turntheadjustmentnutclockwisetotightenthe
cableadjustments.

Note:Tightenthenutrmlywithasocketor

wrench.

20

Storage

4.Performanymaintenanceprocedures;referto

Maintenance(page17).

Storethemachineinacool,clean,dryplace.

StorageSafety

Alwaysshutoffthemachine,waitforallmoving
partstostop,andallowthemachinetocoolbefore
adjusting,servicing,cleaning,orstoringit.

PreparingtheMachinefor
Storage

1.Onthelastrefuelingoftheyear,addfuel
stabilizer(suchasToroPremiumFuel
Treatment)tothefuelasdirectedonthelabel.

2.Disposeofanyunusedfuelproperly .Recycle
itaccordingtolocalcodesoruseitinyour
automobile.

Important:Oldfuelinthefueltankisthe

leadingcauseofhardstarting.Donotstore
thefuelwithoutfuelstabilizermorethan
30days,anddonotstorestabilizedfuel
beyondthedurationrecommendedbythe
fuel-stabilizermanufacturer.

5.Checktheengine-oillevel;refertoCheckingthe

Engine-OilLevel(page10).

6.Fillthefueltankwithfreshfuel;refertoFilling

theFuelT ank(page9).

7.Connectthewiretothesparkplug.

3.Runthemachineuntiltheengineshutsofffrom
runningoutoffuel.

4.Starttheengineagainandallowittorununtil
itshutsoff.Whenyoucannolongerstartthe
engine,itissufcientlydry.

5.Disconnectthewirefromthesparkplugand
connectthewiretotheretainingpost(if
equipped).

6.Removethesparkplug,add30ml(1oz)of
engineoilthroughthespark-plughole,andpull
thestarterropeslowlyseveraltimestodistribute
oilthroughoutthecylindertopreventcylinder
corrosionduringtheoff-season.

7.Looselyinstallthesparkplug.

8.Tightenallnuts,bolts,andscrews.

RemovingtheMachine
fromStorage

1.Checkandtightenallfasteners.

2.Removethesparkplugandspintheengine
rapidlybypullingtherecoil-starthandletoblow
theexcessoilfromthecylinder.

3.Installthesparkplugandtightenitwithatorque
wrenchto20N∙m(15ft-lb).

21

Notes:

CaliforniaProposition65WarningInformation

Whatisthiswarning?

Youmayseeaproductforsalethathasawarninglabellikethefollowing:

WARNING:CancerandReproductiveHarm—www.p65Warnings.ca.gov.

WhatisProp65?

Prop65appliestoanycompanyoperatinginCalifornia,sellingproductsinCalifornia,ormanufacturingproductsthatmaybesoldinorbroughtinto
California.ItmandatesthattheGovernorofCaliforniamaintainandpublishalistofchemicalsknowntocausecancer,birthdefects,and/orother
reproductiveharm.Thelist,whichisupdatedannually,includeshundredsofchemicalsfoundinmanyeverydayitems.ThepurposeofProp65isto
informthepublicaboutexposuretothesechemicals.

Prop65doesnotbanthesaleofproductscontainingthesechemicalsbutinsteadrequireswarningsonanyproduct,productpackaging,orliteraturewith
theproduct.Moreover,aProp65warningdoesnotmeanthataproductisinviolationofanyproductsafetystandardsorrequirements.Infact,the
CaliforniagovernmenthasclariedthataProp65warning“isnotthesameasaregulatorydecisionthataproductis‘safe’or‘unsafe.’”Manyofthese
chemicalshavebeenusedineverydayproductsforyearswithoutdocumentedharm.Formoreinformation,gotohttps://oag.ca.gov/prop65/faqs-view-all

AProp65warningmeansthatacompanyhaseither(1)evaluatedtheexposureandhasconcludedthatitexceedsthe“nosignicantrisklevel”;or(2)
haschosentoprovideawarningbasedonitsunderstandingaboutthepresenceofalistedchemicalwithoutattemptingtoevaluatetheexposure.

Doesthislawapplyeverywhere?

Prop65warningsarerequiredunderCalifornialawonly.ThesewarningsareseenthroughoutCaliforniainawiderangeofsettings,includingbutnot
limitedtorestaurants,grocerystores,hotels,schools,andhospitals,andonawidevarietyofproducts.Additionally,someonlineandmailorder
retailersprovideProp65warningsontheirwebsitesorincatalogs.

.

HowdotheCaliforniawarningscomparetofederallimits?

Prop65standardsareoftenmorestringentthanfederalandinternationalstandards.TherearevarioussubstancesthatrequireaProp65warning
atlevelsthatarefarlowerthanfederalactionlimits.Forexample,theProp65standardforwarningsforleadis0.5μg/day,whichiswellbelow
thefederalandinternationalstandards.

Whydon’tallsimilarproductscarrythewarning?

•ProductssoldinCaliforniarequireProp65labellingwhilesimilarproductssoldelsewheredonot.

•AcompanyinvolvedinaProp65lawsuitreachingasettlementmayberequiredtouseProp65warningsforitsproducts,butothercompanies

makingsimilarproductsmayhavenosuchrequirement.

•TheenforcementofProp65isinconsistent.

•CompaniesmayelectnottoprovidewarningsbecausetheyconcludethattheyarenotrequiredtodosounderProp65;alackofwarningsfora

productdoesnotmeanthattheproductisfreeoflistedchemicalsatsimilarlevels.

WhydoesToroincludethiswarning?

Torohaschosentoprovideconsumerswithasmuchinformationaspossiblesothattheycanmakeinformeddecisionsabouttheproductstheybuyand
use.Toroprovideswarningsincertaincasesbasedonitsknowledgeofthepresenceofoneormorelistedchemicalswithoutevaluatingthelevelof
exposure,asnotallthelistedchemicalsprovideexposurelimitrequirements.WhiletheexposurefromT oroproductsmaybenegligibleorwellwithinthe
“nosignicantrisk”range,outofanabundanceofcaution,TorohaselectedtoprovidetheProp65warnings.Moreover,ifT orodoesnotprovidethese
warnings,itcouldbesuedbytheStateofCaliforniaorbyprivatepartiesseekingtoenforceProp65andsubjecttosubstantialpenalties.

RevA
