Toro 20370, 20371 Operator's Manual

22inRecycler

G017301

ModelNo.20370—SerialNo.316000001andUp

ModelNo.20371—SerialNo.316000001andUp

ModelNo.20377—SerialNo.316000001andUp

ModelNo.20378—SerialNo.316000001andUp

ReplacementpartsareavailablefromanAuthorizedServiceDealeroratwww.shoptoro.com.

®

LawnMower

Introduction

FormNo.3402-422RevA

Operator'sManual

Readthisinformationcarefullytolearnhowtooperateand
maintainyourproductproperlyandtoavoidinjuryand
productdamage.Youareresponsibleforoperatingthe
productproperlyandsafely.

YoumaycontactT orodirectlyatwww.Toro.comforproduct
andaccessoryinformation,helpndingadealer,ortoregister
yourproduct.

Wheneveryouneedservice,genuineToroparts,oradditional
information,contactanAuthorizedServiceDealerorToro
CustomerServiceandhavethemodelandserialnumbersof

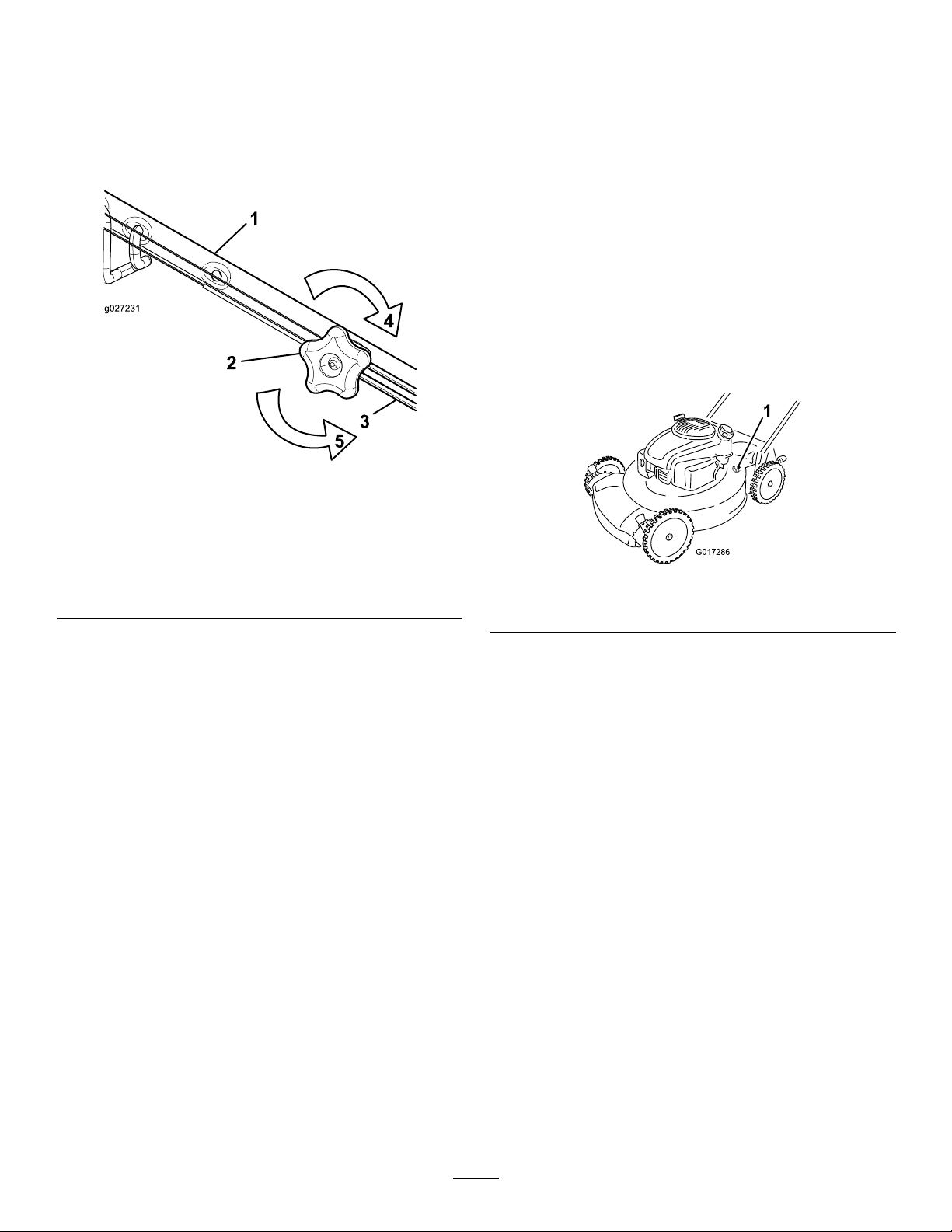

yourproductready.Figure1identiesthelocationofthe
modelandserialnumbersontheproduct.

Figure1

1.Modelandserialnumberplate

Writetheproductmodelandserialnumbersinthespace
below:

ModelNo.

SerialNo.

Thismanualidentiespotentialhazardsandhassafety
messagesidentiedbythesafetyalertsymbol(Figure2),
whichsignalsahazardthatmaycauseseriousinjuryordeath
ifyoudonotfollowtherecommendedprecautions.

Figure2

1.Safetyalertsymbol

Thismanualuses2wordstohighlightinformation.
Importantcallsattentiontospecialmechanicalinformation
andNoteemphasizesgeneralinformationworthyofspecial
attention.

WARNING

CALIFORNIA

Proposition65Warning

Theengineexhaustfromthisproduct

containschemicalsknowntotheStateof

Californiatocausecancer,birthdefects,

orotherreproductiveharm.

ItisaviolationofCaliforniaPublicResourceCode
Section4442or4443touseoroperatetheengineonany
forest-covered,brush-covered,orgrass-coveredlandunless
theengineisequippedwithasparkarrester,asdenedin
Section4442,maintainedineffectiveworkingorderorthe
engineisconstructed,equipped,andmaintainedforthe
preventionofre.

ThissparkignitionsystemcomplieswithCanadianICES-002.

Theenclosed

Engine Owner's Man ual

informationregardingtheUSEnvironmentalProtection
Agency(EPA)andtheCaliforniaEmissionControl
Regulationofemissionsystems,maintenance,and
warranty.Replacementsmaybeorderedthroughthe
enginemanufacturer.

Formodelswithstatedenginehorsepower,thegross
horsepoweroftheenginewaslaboratoryratedbytheengine
manufacturerinaccordancewithSAEJ1940.Ascongured
tomeetsafety,emission,andoperatingrequirements,the
actualenginehorsepoweronthisclassoflawnmowerwill
besignicantlylower.

issuppliedfor

©2015—TheToro®Company
8111LyndaleAvenueSouth
Bloomington,MN55420

Registeratwww.Toro.com.

OriginalInstructions(EN)

PrintedintheUSA

AllRightsReserved

*3402-422*A

Contents

Safety

Introduction..................................................................1

Safety...........................................................................2

GeneralSafety.........................................................2

SafetyandInstructionalDecals.................................3

Setup............................................................................4

1InstallingtheHandle.............................................4

2InstallingtheRecoil-StarterRopeintheRope

Guide.................................................................4

3FillingtheEnginewithOil......................................5

4AssemblingtheGrassBag......................................5

ProductOverview..........................................................6

Operation.....................................................................6

BeforeOperation.......................................................6

BeforeOperationSafety...........................................6

FillingtheFuelTank................................................7

CheckingtheEngine-OilLevel..................................7

AdjustingtheCuttingHeight....................................7

DuringOperation......................................................8

DuringOperatingSafety...........................................8

StartingtheEngine..................................................8

UsingtheSelf-PropelDrive......................................8

StoppingtheEngine................................................9

RecyclingtheClippings............................................9

BaggingtheClippings..............................................9

Side-DischargingtheClippings.................................10

OperatingTips......................................................10

AfterOperation........................................................11

AfterOperatingSafety............................................11

FoldingtheHandle.................................................11

Maintenance.................................................................12

RecommendedMaintenanceSchedule(s)......................12

MaintenanceSafety.................................................12

PreparingforMaintenance.......................................12

ServicingtheAirCleaner.........................................13

ChangingtheEngineOil.........................................13

ReplacingtheBlade................................................14

AdjustingtheSelf-PropelDrive................................15

CleaningundertheMachine.....................................15

Storage........................................................................16

PreparingtheMachineforStorage............................16

RemovingtheMachinefromStorage.........................16

ThismachinehasbeendesignedinaccordancewithENISO
5395:2013andANSIB71.1-2012.

GeneralSafety

Thisproductiscapableofamputatinghandsandfeetand
ofthrowingobjects.Alwaysfollowallsafetyinstructionsto
avoidseriouspersonalinjury.

Usingthisproductforpurposesotherthanitsintendeduse
couldprovedangeroustoyouandbystanders.

•ReadandunderstandthecontentsofthisOperator’ sManual

beforeyoustarttheengine.Ensurethateveryoneusing
thisproductknowshowtouseitandunderstandsthe
warnings.

•Donotputyourhandsorfeetnearmovingcomponents

ofthemachine.

•Donotoperatethemachinewithoutallguardsandother

safetyprotectivedevicesinplaceandworkingonthe
machine.

•Keepclearofanydischargeopening.Keepbystandersa

safedistancefromthemachine.

•Keepchildrenoutoftheoperatingarea.Neverallow

childrentooperatethemachine.

•Stopthemachineandshutofftheenginebeforeservicing,

fueling,oruncloggingthemachine.

Improperlyusingormaintainingthismachinecanresult
ininjury.Toreducethepotentialforinjury,complywith
thesesafetyinstructionsandalwayspayattentiontothe
safety-alertsymbol,whichmeansCaution,Warning,or
Danger—personalsafetyinstruction.Failuretocomplywith
theseinstructionsmayresultinpersonalinjuryordeath.

Youcanndadditionalitemsofsafetyinformationintheir
respectivesectionsthroughoutthismanual.

2

SafetyandInstructionalDecals

Important:Safetyandinstructiondecalsarelocatednearareasofpotentialdanger.Replacedamageddecals.

Manufacturer'sMark

1.Indicatesthebladeisidentiedasapartfromtheoriginal
machinemanufacturer.

94-8072

112-8867

1.Lock2.Unlock

131-0894

TractionAdjustment

1.Attention;readtheOperator'sManual—1)Loosenthe
knobbyturningitcounterclockwise;2)Pullthecable(s)
awayfromtheenginetodecreasethetraction,orpush
thecable(s)towardtheenginetoincreasethetraction;3)
Tightentheknobbyturningitclockwise.

131–4514

1.Warning—readtheOperator'sManual.

2.Cutting/dismembermenthazardofhandorfoot,mower
blade—stayawayfrommovingparts;keepallguardsand
shieldsinplace.

3.Cutting/dismembermenthazardofhandorfoot,mower
blade—disconnectthespark-plugwireandreadthe
instructionsbeforeservicingorperformingmaintenance.

4.Thrownobjecthazard—keepbystandersasafedistance
fromthemachine.

5.Cutting/dismembermenthazardofhandorfoot,mower
blade—donotoperateupanddownslopes;operatesideto
sideonslopes;stoptheenginebeforeleavingtheoperating
position;andlookbehindyouwhenbackingup.

3

Setup

G017283

Important:Removeanddiscardtheprotectiveplastic
sheetthatcoverstheengine.

1

InstallingtheHandle

NoPartsRequired

Procedure

WARNING

Foldingorunfoldingthehandleimproperlycan
damagethecables,causinganunsafeoperating
condition.

•Donotdamagethecableswhenfoldingor
unfoldingthehandle.

•Ifacableisdamaged,contactanAuthorized
ServiceDealer.

2

InstallingtheRecoil-Starter RopeintheRopeGuide

NoPartsRequired

Procedure

Important:Tostarttheenginesafelyandeasily

wheneveryouusethemachine,installtherecoil-starter
ropeintheropeguide.

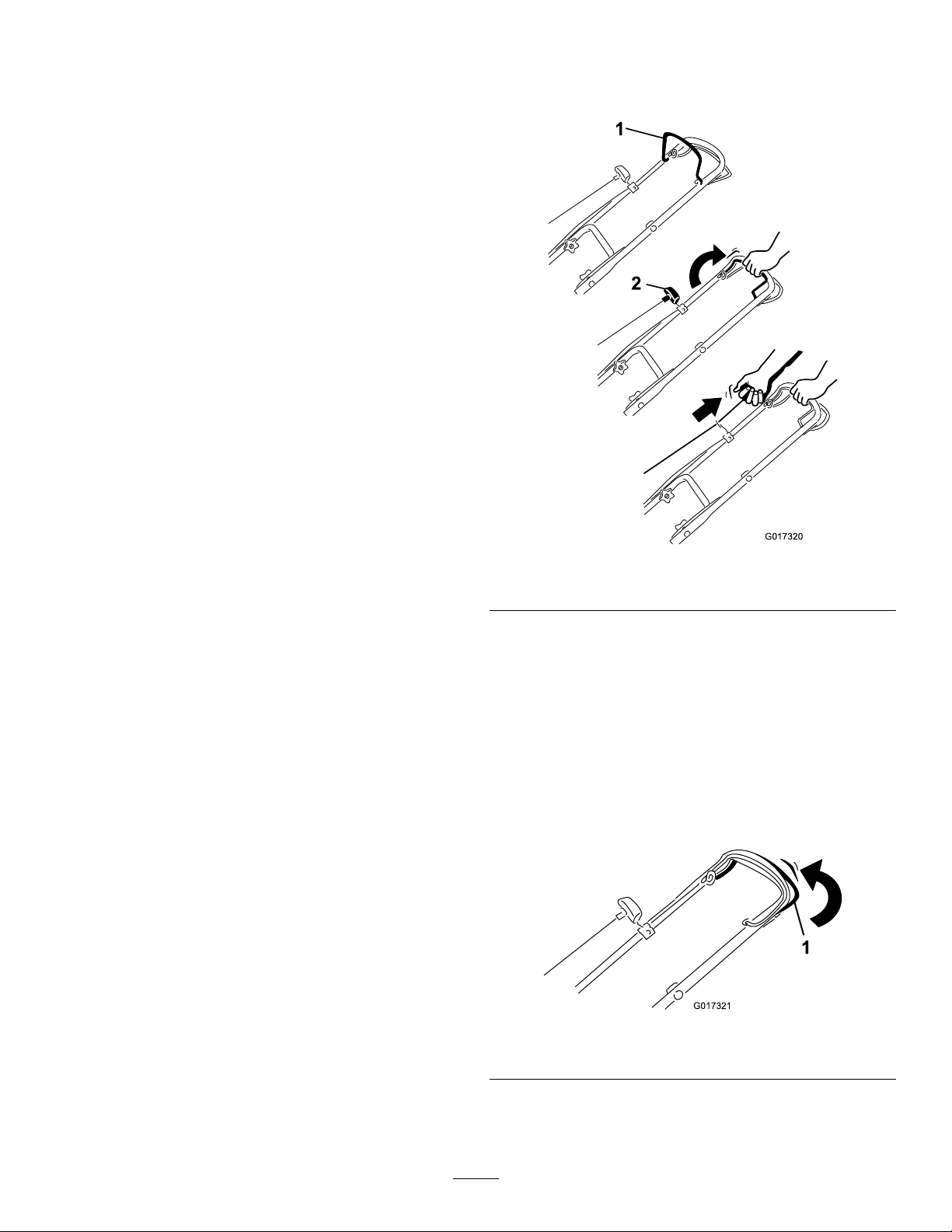

Holdtheblade-controlbartotheupperhandleandpullthe
recoil-starterropethroughtheropeguideonthehandle
(Figure4).

1.Removethehandleknobsfromthemachinehousing
(Figure3).

Important:Routethecablestotheoutsideofthe
handleknobsasyouinstallthehandle.

Figure3

Figure4

1.Recoil-starterrope2.Ropeguide

2.Movethehandletotheoperatingposition.

3.Installandtightenthehandleknobsthatyouremoved
instep1(Figure3).

4

3

1

2

3

g027120

g027121

FillingtheEnginewithOil

NoPartsRequired

Procedure

Yourmachinedoesnotcomewithoilintheengine.

1.Removethedipstick(Figure5).

Figure6

Figure5

2.Slowlypouroilintotheoil-lltubeuntiltheoillevel
reachestheFulllineonthedipstick(Figure5).Donot
overll.(Max.ll:0.53L(18oz),type:10W -30or
SAE30detergentoilwithanAPIserviceclassication
ofSJorhigher.)

Note:Eachtimeyouchecktheoillevel,removethe
dipstickandwipeitclean,insertitintotheoilller
neck(butdonotscrewitin),thenremoveitagainand
checkthelevel(Figure5).

Note:Ifyouoverlltheengine,poursomeoiloutof
it;refertoChangingtheEngineOil(page13).

3.Installthedipsticksecurely.

Important:

operating hour s

toChangingtheEngineOil(page13).

Change the engine oil after the r st 5

;changeityearlythereafter.Refer

1.Handle

2.Frame

Note:Donotslipthebagoverthehandle(Figure6).

2.Hookthebottomchannelofthebagontothebottom
oftheframe(Figure7).

3.Grassbag

4

AssemblingtheGrassBag

NoPartsRequired

Procedure

1.SlipthegrassbagovertheframeasshowninFigure6.

Figure7

3.Hookthetopandsidechannelsofthebagontothetop
andsidesoftheframe,respectively(Figure7).

5

ProductOverview

12

g027306

Figure8

1.Cutting-heightlever(4)

2.Sparkplug

3.Airlter(notshown)9.Self-propel-drivebar

4.Oilll/dipstick10.Adjustmentknobforthe

5.Fuel-tankcap

6.Handle12.Washoutport

7.Recoil-starthandle

8.Blade-controlbar

self-propeldrive

11.Handleknob(2)

Operation

BeforeOperation

BeforeOperationSafety

GeneralSafety

•Becomefamiliarwiththesafeoperationoftheequipment,

operatorcontrols,andsafetysigns.

•Checkthatallguardsandsafetydevices,suchasdeectors

and/orgrasscatcher,areinplaceandworkingproperly .

•Alwaysinspectthemachinetoensurethattheblades,

bladebolts,andcuttingassemblyarenotwornor
damaged.

•Inspecttheareawhereyouwillusethemachineand

removeallobjectsthatthemachinecouldthrow.

•Adjustingthecuttingheightmaybringyouintocontact

withthemovingblade,causingseriousinjury.

–Shutofftheengineandwaitforallmovingpartsto

stop.

–Donotputyourngersunderthehousingwhen

adjustingthecuttingheight.

FuelSafety

Figure9

1.Grassbag2.Side-dischargechute

DANGER

Fuelisextremelyammableandhighlyexplosive.
Areorexplosionfromfuelcanburnyouand
othersandcandamageproperty.

•Topreventastaticchargefromignitingthefuel,
placethecontainerand/ormachinedirectlyon
thegroundbeforelling,notinavehicleoron
anobject.

•Fillthefueltankoutdoors,inanopenarea,when
theengineiscold.Wipeupanyfuelthatspills.

•Donothandlefuelwhensmokingoraroundan
openameorsparks.

•Storefuelinanapprovedcontainerandkeepit
outofthereachofchildren.

WARNING

Fuelisharmfulorfatalifswallowed.Long-term
exposuretovaporscancauseseriousinjuryand
illness.

•Avoidprolongedbreathingofvapors.

•Keepyourhandsandfaceawayfromthenozzle
andthefuel-tankopening.

•Keepfuelawayfromyoureyesandskin.

6
