Toro 20361 Operator's Manual

FormNo.3422-624RevE

FlexForcePowerSystem™60VMAX22in
Recycler®LawnMower

20361,20361T

CortacéspedRecycler®60VMAXde56cm
(22")conFlex-ForcePowerSystem™

20361,20361T

TondeuseRecycler®60VMAX56cm(22o)
avecFlexForcePowerSystem™

20361,20361T

www.T oro.com.

*3422-624*

FormNo.3418-438RevE

FlexForcePowerSystem
MAX22inRecycler

ModelNo.20361—SerialNo.400000000andUp
ModelNo.20361T—SerialNo.400000000andUp

®

LawnMower

™

60V

Registeratwww.T oro.com.
OriginalInstructions(EN)

*3418-438*

Forassistance,pleasesee
www.Toro.com/support
forinstructionalvideos
orcontact1-888-384-9939
beforereturningthis
product.

WARNING

CALIFORNIA

Proposition65Warning

Thepowercordonthisproductcontains

lead,achemicalknowntotheState

ofCaliforniatocausebirthdefects

orotherreproductiveharm.Wash

handsafterhandling.

Useofthisproductmaycauseexposure

tochemicalsknowntotheStateof

Californiatocausecancer,birthdefects,

orotherreproductiveharm.

Wheneveryouneedservice,genuinethe
manufacturerparts,oradditionalinformation,contact
anAuthorizedServiceDealerorthemanufacturer
CustomerServiceandhavethemodelandserial
numbersofyourproductready.Figure1identies
thelocationofthemodelandserialnumbersonthe
product.Writethenumbersinthespaceprovided.

Important:Withyourmobiledevice,youcan

scantheQRcodeontheserialnumberdecal(if
equipped)toaccesswarranty,parts,andother
productinformation.

g275230

Figure1

1.Modelandserialnumberlocation

ModelNo.

Introduction

Thisrotary-blade,walk-behindlawnmowerisintended
tobeusedbyresidentialhomeowners.Itisdesigned
primarilyforcuttinggrassonwell-maintainedlawns
onresidentialproperties.ItisdesignedtouseToro
Flex-Forcelithium-ionbatterypackModel88660
(providedwithModel20361)orModel88675;itcan
alsousebatterypackModel88620,Model88625,
Model88640,orModel88650.Usingtheseproducts
forpurposesotherthantheirintendedusecouldprove
dangeroustoyouandbystanders.

Model20361Tdoesnotincludeabatteryora
charger.

Readthisinformationcarefullytolearnhowtooperate
andmaintainyourproductproperlyandtoavoid
injuryandproductdamage.Y ouareresponsiblefor
operatingtheproductproperlyandsafely.

SerialNo.

Thismanualidentiespotentialhazardsandhas
safetymessagesidentiedbythesafety-alertsymbol
(Figure2),whichsignalsahazardthatmaycause
seriousinjuryordeathifyoudonotfollowthe
recommendedprecautions.

g000502

Figure2

Safety-alertsymbol

Thismanualuses2wordstohighlightinformation.
Importantcallsattentiontospecialmechanical
informationandNoteemphasizesgeneralinformation
worthyofspecialattention.

Visitwww.T oro.comformoreinformation,including
safetytips,trainingmaterials,accessoryinformation,
helpndingadealer,ortoregisteryourproduct.

©2021—TheToro®Company
8111LyndaleAvenueSouth
Bloomington,MN55420

Contactusatwww.Toro.com.

2

PrintedinChina

AllRightsReserved

Contents

Safety

Safety.......................................................................3

SafetyandInstructionalDecals..........................6

Setup........................................................................8

1MountingtheBatteryCharger

(Optional)........................................................8

2UnfoldingtheHandle.......................................9

3AssemblingtheGrassBag...............................9

ProductOverview...................................................10

Specications...................................................11

Attachments/Accessories..................................1 1

BeforeOperation.................................................12

InstallingtheBatteryPack................................12

AdjustingtheHandleHeight.............................12

AdjustingtheCuttingHeight.............................13

DuringOperation.................................................14

StartingtheMachine.........................................14

ShuttingOfftheMachine..................................14

MulchingtheClippings......................................14

BaggingtheClippings.......................................15

Side-DischargingtheClippings.........................15

RemovingtheBatteryPackfromthe

Machine........................................................16

OperatingTips.................................................16

AfterOperation....................................................17

ChargingtheBatteryPack................................17

CleaningUndertheMachine............................17

FoldingtheHandle...........................................18

StoringtheMachineintheVertical-Stow

Position.........................................................19

Maintenance...........................................................20

LubricatingtheMachine....................................20

ReplacingtheBlade..........................................20

Storage...................................................................21

PreparingtheBatteryPackfor

Recycling......................................................21

Troubleshooting......................................................22

IMPORTANTSAFETY
INSTRUCTIONS

WARNING—Whenusinganelectricmachine,always
readandfollowbasicsafetywarningsandinstructions
toreducetheriskofre,electricshock,orinjury,
includingthefollowing:

I.Training

1.Theoperatorofthemachineisresponsiblefor
anyaccidentsorhazardsoccurringtoothersor
theirproperty .

2.Donotallowchildrentouseorplaywiththe
machine,batterypack,orthebatterycharger;
localregulationsmayrestricttheageofthe
operator.

3.Donotallowchildrenoruntrainedpeopleto
operateorservicethisdevice.Allowonlypeople
whoareresponsible,trained,familiarwiththe
instructions,andphysicallycapabletooperate
orservicethedevice.

4.Beforeusingthemachine,batterypack,and
batterycharger,readalltheinstructionsand
cautionarymarkingsontheseproducts.

5.Becomefamiliarwiththecontrolsandproper
useofthemachine,batterypack,andbattery
charger.

II.Preparation

1.Keepbystanders,especiallychildrenandpets,
outoftheoperatingarea.

2.Donotoperatethemachinewithoutallguards
andsafetydevices,suchasdeectorsandgrass
catchers,inplaceandfunctioningproperlyon
themachine.

3.Inspecttheareawhereyouwillusethemachine
andremoveallobjectsthatcouldinterferewith
theoperationofthemachineorthatthemachine
couldthrow.

4.Beforeusingthemachine,ensurethattheblade,
bladebolt,andbladeassemblyarenotwornor
damaged.Replaceanydamagedorunreadable
labels.

5.UseonlythebatterypackspeciedbyToro.
Usingotheraccessoriesandattachmentsmay
increasetheriskofinjuryandre.

6.Pluggingthebatterychargerintoanoutletthatis
not120Vcancauseareorelectricshock.Do
notplugthebatterychargerintoanoutletother
than120V .Foradifferentstyleofconnection,
useanattachmentplugadapteroftheproper
congurationforthepoweroutletifneeded.

3

7.Donotuseadamagedormodiedbattery
packorbatterycharger,whichmayexhibit
unpredictablebehaviorthatresultsinre,
explosion,orriskofinjury .

8.Ifthesupplycordtothebatterychargeris
damaged,contactanAuthorizedServiceDealer
toreplaceit.

9.Donotusenon-rechargeablebatteries.

10.Chargethebatterypackwithonlythebattery
chargerspeciedbyToro.Achargersuitablefor
1typeofbatterypackmaycreateariskofre
whenusedwithanotherbatterypack.

11.Chargethebatterypackinawell-ventilatedarea
only.

12.Donotexposeabatterypackorbatterycharger
toreortotemperatureshigherthan68°C
(154°F).

13.Followallcharginginstructionsanddo
notchargethebatterypackoutsideofthe
temperaturerangespeciedintheinstructions.
Otherwise,youmaydamagethebatterypack
andincreasetheriskofre.

14.Dressproperly—Wearappropriateclothing,
includingeyeprotection;longpants;substantial,
slip-resistantfootwear(notbarefootorwearing
sandals);andhearingprotection.Tiebacklong
hairanddonotwearlooseclothingorloose
jewelrythatcangetcaughtinmovingparts.
Wearadustmaskindustyoperatingconditions.
Useofrubberglovesisrecommended.

III.Operation

1.Contactwiththemovingbladewillcauseserious
injury.Keepyourhandsandfeetawayfromthe
cuttingareaandallmovingpartsofthemachine.
Keepclearofanydischargeopening.

2.Usingthismachineforpurposesotherthanits
intendedusecouldprovedangeroustoyouand
bystanders.

3.Disengagetheself-propeldrive(ifequipped)
beforestartingthemachine.

4.Donottiltthemachinewhenstartingthemotor.

5.Preventunintentionalstarting—Ensurethatthe
electric-startbuttonisremovedfromtheignition
beforeconnectingthebatterypackandhandling
themachine.

6.Useyourfullattentionwhileoperatingthe
machine.Donotengageinanyactivitythat
causesdistractions;otherwise,injuryorproperty
damagemayoccur.

7.Whenyoureleasetheblade-controlbar,the
motorshouldshutoffandthebladeshould
stopwithin3seconds.Ifnot,stopusingyour

machineimmediatelyandcontactanAuthorized
ServiceDealer.

8.Stopthemachine,removetheelectric-start
button,removethebatterypackfromthe
machine,andwaitforallmovementtostop
beforeadjusting,servicing,cleaning,orstoring
themachine.

9.Removethebatterypackandelectric-start
buttonfromthemachinewheneveryouleaveit
unattendedorbeforechangingaccessories.

10.Donotforcethemachine—Allowthemachineto
dothejobbetterandsaferattherateforwhichit
wasdesigned.

11.Stayalert—Watchwhatyouaredoinganduse
commonsensewhenoperatingthemachine.
Donotusethemachinewhileill,tired,orunder
theinuenceofalcoholordrugs.

12.Operatethemachineonlyingoodvisibilityand
appropriateweatherconditions.Donotoperate
themachinewhenthereistheriskoflightning.

13.Useextremecautionwhenreversingorpulling
themachinetowardyou.

14.Keepproperfootingandbalanceatalltimes,
especiallyonslopes.Mowacrosstheface
ofslopes,neverupanddown.Useextreme
cautionwhenchangingdirectionsonslopes.Do
notmowexceedinglysteepslopes.Walk,never
runwiththemachine.

15.Donotdirectthedischargematerialtoward
anyone.Avoiddischargingmaterialagainsta
wallorobstruction;materialmayricochettoward
you.Stoptheblade(s)whencrossingsurfaces
otherthangrass.

16.Watchforholes,ruts,bumps,rocks,orother
hiddenobjects.Uneventerraincouldcauseyou
toloseyourbalanceorfooting.

17.Wetgrassorleavescancauseseriousinjuryif
youslipandcontacttheblade.Avoidmowingin
wetconditionsorwhenitisraining.

18.Ifthemachinestrikesanobjectorstartsto
vibrate,immediatelyshutoffthemachine,
removetheelectric-startbutton,removethe
batterypack,andwaitforallmovementtostop
beforeexaminingthemachinefordamage.
Makeallnecessaryrepairsbeforeresuming
operation.

19.Stopthemachineandremovetheelectric-start
buttonbeforeloadingthemachineforhauling.

20.Underabusiveconditions,thebatterypackmay
ejectliquid;avoidcontact.Ifyouaccidently
comeintocontactwiththeliquid,ushwith
water.Iftheliquidcontactsyoureyes,seek

4

medicalhelp.Liquidejectedfromthebattery
packmaycauseirritationorburns.

IV.MaintenanceandStorage

1.Stopthemachine,removetheelectric-start
button,removethebatterypackfromthe
machine,andwaitforallmovementtostop
beforeadjusting,servicing,cleaning,orstoring
themachine.

2.Donotattempttorepairthemachineexceptas
indicatedintheinstructions.HaveanAuthorized
ServiceDealerperformserviceonthemachine
usingidenticalreplacementparts.

3.Wearglovesandeyeprotectionwhenservicing
themachine.

4.Sharpenadullbladeonbothedgestomaintain
balance.Cleanthebladeandensurethatitis
balanced.

5.Replacethebladeifitisbent,worn,orcracked.
Anunbalancedbladecausesvibration,which
coulddamagethemotororcausepersonal
injury.

6.Whenservicingtheblade,beawarethatthe
bladecanstillmoveeventhoughthepower
sourceisoff.

7.Checkthegrasscollectionbagfrequentlyfor
deteriorationorwear,andreplaceawornbag
withaT oro[replacement]bag.

8.Forbestperformance,useonlygenuineToro
replacementpartsandaccessories.Other
replacementpartsandaccessoriescouldbe
dangerous,andsuchusecouldvoidtheproduct
warranty.

9.Maintainthemachine—Keepcuttingedges
sharpandcleanforthebestandsafest
performance.Keephandlesdry,clean,andfree
fromoilandgrease.Keepguardsinplaceandin
workingorder.Keepbladessharp.Useidentical
replacementbladesonly.

10.Checkthemachinefordamagedparts—Ifthere
aredamagedguardsorotherparts,determine
whetherthemachinewilloperateproperly.
Checkformisalignedandbindingmovingparts,
brokenparts,mounting,andanyothercondition
thatmayaffectitsoperation.Unlessindicated
intheinstructions,haveanAuthorizedService
Dealerrepairorreplaceadamagedguardor
part.

11.Whenthebatterypackisnotinuse,keepit
awayfrommetalobjectssuchaspaperclips,
coins,keys,nails,andscrewsthatcanmakea
connectionfrom1terminaltoanother.Shorting
thebatteryterminalsmaycauseburnsorare.

12.Checkthebladeandmotormountingbolts
frequentlyfortightness.

13.Whenyouarenotusingthemachine,storeit
indoorsinadry,secureplaceoutofthereach
ofchildren.

14.CAUTION—Amistreatedbatterypackmay
presentariskofreorchemicalburn.Donot
disassemblethebatterypack.Donotheatthe
batterypackabove68°C(154°F)orincinerate
it.ReplacethebatterypackwithagenuineT oro
batterypackonly;usinganothertypeofbattery
packmaycauseareorexplosion.Keep
batterypacksoutofthereachofchildrenand
intheoriginalpackaginguntilyouarereadyto
usethem.

15.Donotdisposeofthebatteryinare.The
cellmayexplode.Checkwithlocalcodesfor
possiblespecialdisposalinstructions.

SAVETHESE
INSTRUCTIONS

5

SafetyandInstructionalDecals

Safetydecalsandinstructionsareeasilyvisibletotheoperatorandarelocatednearanyarea
ofpotentialdanger.Replaceanydecalthatisdamagedormissing.

94-8072

decal94-8072

decal137-9196

137-9196

1.Lock2.Unlock

1.Warning—readthe
Operator’sManual.

2.Cutting/dismemberment
hazardofthehand,mower
blade—stayawayfrom
movingparts;keepall
guardsandshieldsin
place.

3.Cutting/dismemberment
hazardofthehand,mower
blade—removethekey
andreadtheOperator’s
Manualbeforeperforming
maintenance.

decal140-1328

140-1328

4.Thrownobject
hazard—keepbystanders
away;shutofftheengine
andwaitforallmoving
partstostopbefore
leavingthemachine;pick
updebrisbeforemowing.

5.Cutting/dismemberment
hazardofthefoot,mower
blade—donotmowup
ordownslopes;only
mowacrossslopes;look
behindyouwhenmowing
inreverse.

decal137-9455

137-9455

1.ReadtheOperator’s
Manual.

2.Keepawayfromopenre
orames.

decal133-8061

3.Donotexposetorain.

133-8061

1.Batterychargestatus

6

decal137-9461

137-9461

1.Thebatterypackischarging.

2.Thebatterypackisfullycharged.

3.Thebatterypackisoverorundertheappropriatetemperaturerange.

4.Batterypackchargingfault

decal137-9462

137-9462

decal137-9463

137-9463

decal139-8986

139-8986

7

Setup

Important:Thebatterypackisnotfullycharged

whenitispurchased.Beforeusingthemachine
forthersttime,refertoChargingtheBattery

Pack(page17).

1

MountingtheBattery
Charger(Optional)

NoPartsRequired

Procedure

Ifdesired,mountthebatterychargersecurelyona
wallusingthewall-mountkeyholesonthebackof
thecharger.

Mountitindoors(suchasagarageorotherdryplace),
nearapoweroutlet,andoutofthereachofchildren.

RefertoFigure3forassistanceinmountingthe
charger.

Slidethechargerovertheappropriatelypositioned
hardwaretosecurethechargerinplace(hardware
notincluded).

Figure3

g290534

8

2

UnfoldingtheHandle

NoPartsRequired

Procedure

WARNING

Unfoldingthehandleimproperlycandamagethecables,causinganunsafeoperating
condition.

•Donotdamagethecable(s)whenfoldingorunfoldingthehandle.

•Ensurethatthecable(s)areroutedtotheoutsideofthehandle.

•Ifacableisdamaged,contactanAuthorizedServiceDealer.

Important:Holdthehandlewhileengagingthehandlelockstoavoidpinchingyourhands.

3

AssemblingtheGrassBag

NoPartsRequired

Procedure

g239997

Figure4

Figure5

9

g235791

ProductOverview

g009571

Figure7

1.Grassbag2.Side-dischargechute

Figure6

1.Handle

2.Blade-controlbar7.Batterycompartment

3.Electric-startbutton

4.Electric-startignition

5.Reardeector(notshown)10.Handleknob(2)

6.Washoutport(notshown)

8.Cutting-heightlever(4)

9.Side-dischargedeector

g355813

g251015

1.Batterycharger(included
withModel20361)

Figure8

2.Batterypack(included
withModel20361)

10

Specications

BatteryPack

Model88660

Batterypackcapacity

Batterymanufacturerrating=60Vmaximumand54Vnominal.
Actualvoltagevarieswithload.

BatteryCharger

Model88602

Type

Input

Output60VMAXDC2.0A

AppropriateT emperatureRanges

6.0Ah

324Wh

60VMAXLithium-IonBatteryCharger

120VAC50/60HzMax2.0A

Charge/storethebatterypack
at

Usethebatterypackat

Usethemachineat

5°C(41°F)to40°C(104°F)*

-30°C(-22°F)to49°C(120°F)*

0°C(32°F)to49°C(120°F)*

*Chargingtimewillincreaseifyoudonotchargethe
batterypackwithinthisrange.

Storethemachine,batterypack,andbatterycharger
inanenclosedclean,dryarea.

Attachments/Accessories

AselectionofToroapprovedattachmentsand
accessoriesmaybeavailableforusewiththemachine
toenhanceandexpanditscapabilities.Contact
yourAuthorizedServiceDealerorauthorizedT oro
distributororgotowww.T oro.comforalistofall
approvedattachmentsandaccessories.

Toensureoptimumperformanceandcontinuedsafety
certicationofthemachine,useonlygenuineT oro
replacementpartsandaccessories.Replacement
partsandaccessoriesmadebyothermanufacturers
couldbedangerous,andsuchusecouldvoidthe
productwarranty .

11

Operation

Note:Determinetheleftandrightsidesofthemachinefromthenormaloperatingposition.

BeforeOperation

InstallingtheBatteryPack

Important:Usethebatterypackonlyintemperaturesthatarewithintheappropriaterange;refer

toSpecications(page11).

1.Makesurethattheventsonthebatteryareclearofanydustanddebris.

2.Liftupthebattery-compartmentlid(AofFigure9).

3.Lineupthecavityinthebatterypackwiththetongueonthemachineandslidethebatterypackintothe
compartmentuntilitlocksintoplace(BofFigure9).

4.Closethebattery-compartmentlid(CofFigure9).

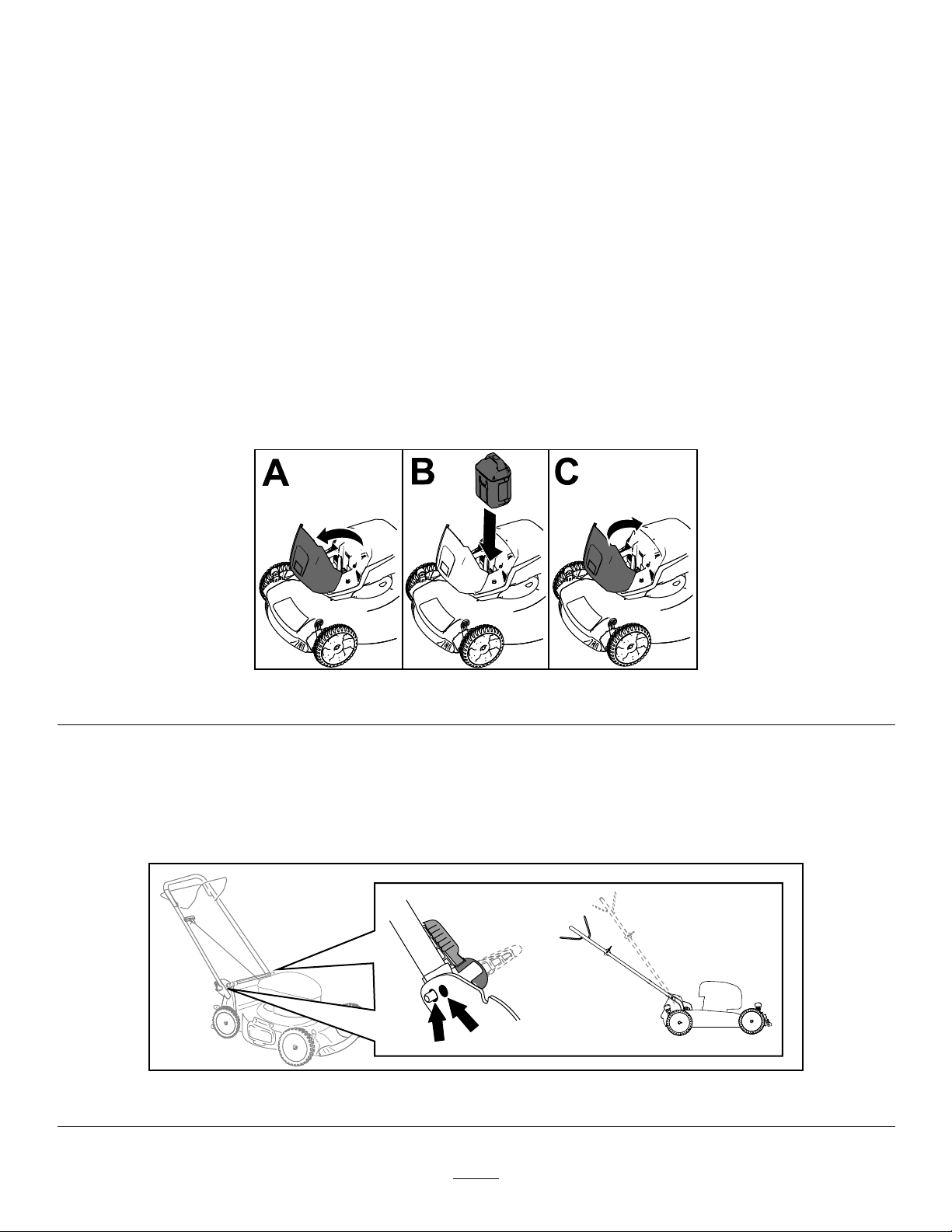

Note:Ifthebattery-compartmentliddoesnotclosecompletely,thebatteryisnotfullyinstalled.

Figure9

AdjustingtheHandleHeight

Youmayraiseorlowerthehandletoapositioncomfortableforyou.

Rotatethehandlelock,movethehandleto1of2positions,andlockthehandleintoposition(Figure10).

Figure10

g274513

g274514

12

AdjustingtheCuttingHeight

WARNING

Adjustingtheheight-of-cutcouldbringyourhandsintocontactwithamovingbladeand
resultinseriousinjury .

•Shutoffthemotor,removethebattery,andwaitforallmovingpartstostopbeforeadjusting
thecuttingheight.

•Donotputyourngersunderthehousingwhenadjustingthecuttingheight.

Adjustthecuttingheightasdesired.Setallwheelstothesamecuttingheight(Figure11).

Figure11

13

g254132

DuringOperation

StartingtheMachine

1.Ensurethatthebatterypackisinstalledinthemachine;refertoInstallingtheBatteryPack(page12).

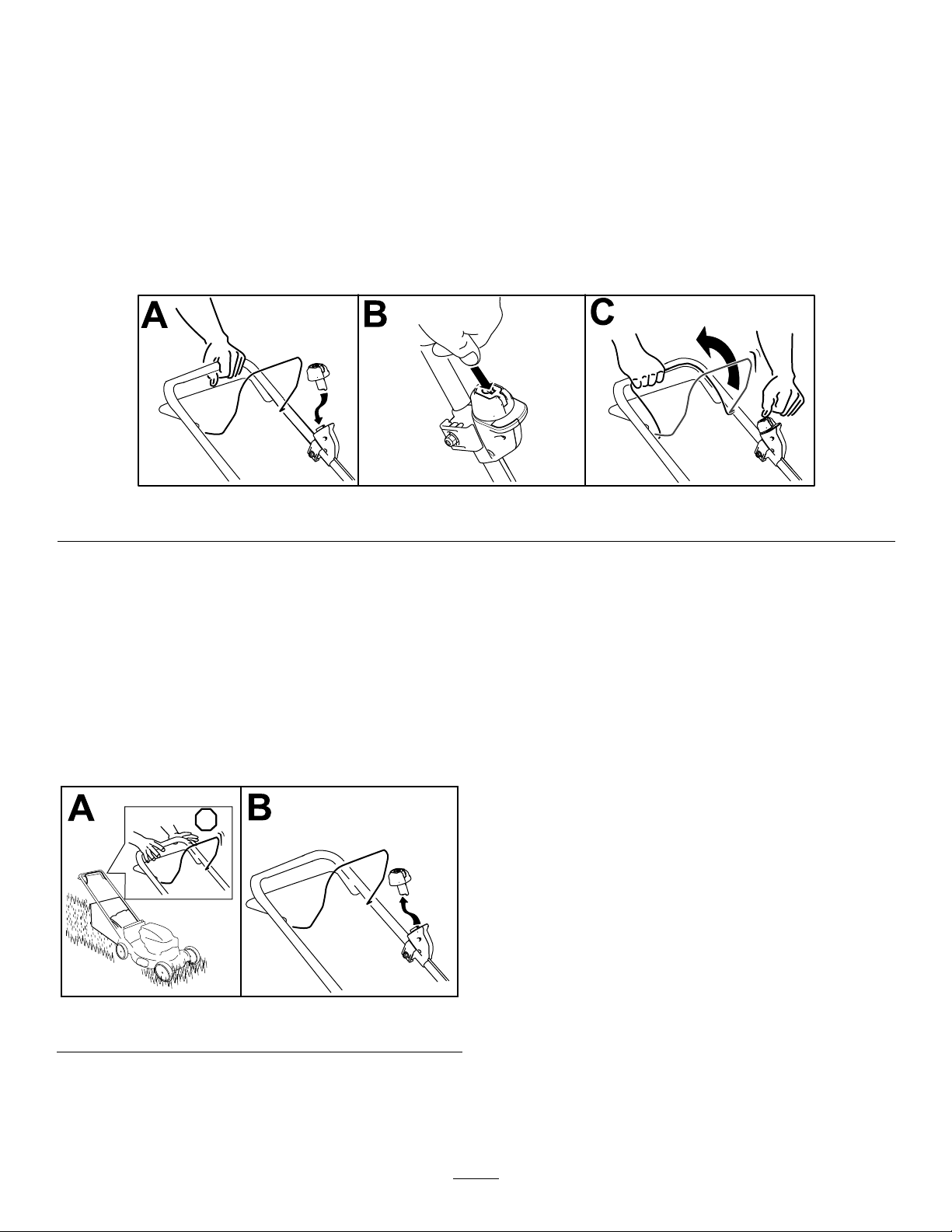

2.Inserttheelectric-startbuttonintotheelectricstarter(AofFigure12).

3.Presstheelectric-startbuttonandkeepitpressed(BofFigure12).

4.Squeezetheblade-controlbarandholdittothehandleuntilthemotorstarts(CofFigure12).

Note:Whenyousqueezetheblade-controlbar,thebattery-chargeindicatorlightsonthebattery

illuminate.

Figure12

g284072

ShuttingOfftheMachine

1.Releasetheblade-controlbar(AofFigure13).

2.Removetheelectric-startbuttonfromtheelectric
starter(BofFigure13).

3.Removethebatterypack;refertoRemovingthe

BatteryPackfromtheMachine(page16).

Note:Wheneveryouarenotusingthemachine,

removethebatterypack.

Figure13

MulchingtheClippings

Yourmachinecomesfromthefactoryreadytomulch
thegrassandleafclippingsbackintothelawn.

Ifthegrassbagisonthemachine,removeitbefore
mulchingtheclippings.RefertoRemovingtheGrass

Bag(page15).

g251286

14

BaggingtheClippings

Usethegrassbagwhenyouwanttocollectgrassandleafclippingsfromthelawn.

Iftheside-dischargechuteisonthemachine,removeit;refertoRemovingtheSide-DischargeChute(page15).

InstallingtheGrassBag

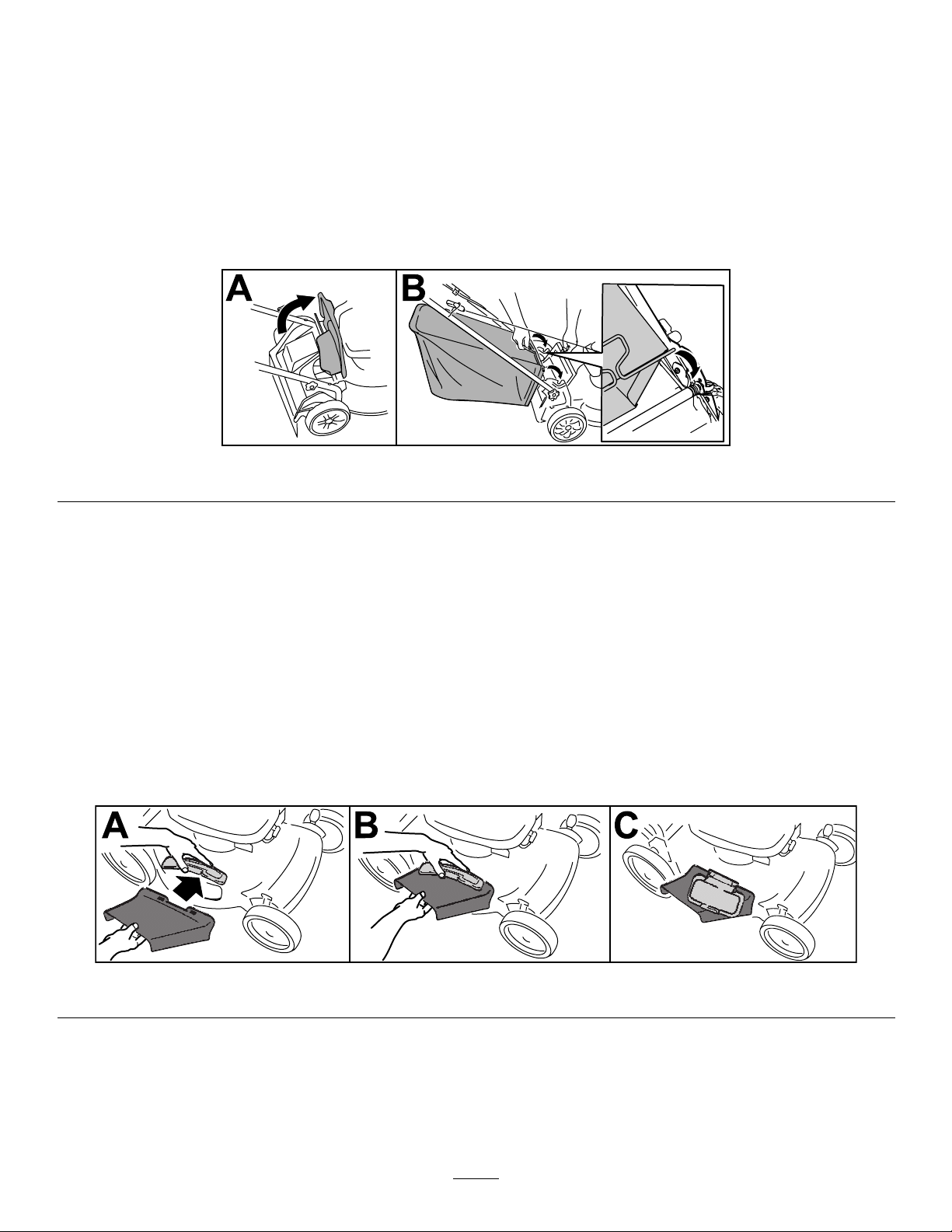

1.Raiseandholdupthereardeector(AofFigure14).

2.Installthegrassbag,ensuringthatthepinsonthebagrestinthenotchesonthehandle(BofFigure14).

3.Lowerthereardeector.

g235812

Figure14

RemovingtheGrassBag

Toremovethebag,reversethestepsinInstallingtheGrassBag(page15).

Side-DischargingtheClippings

Usesidedischargingforcuttingverytallgrass.

Ifthegrassbagisonthemachine,removeit;refertoRemovingtheGrassBag(page15).

InstallingtheSide-DischargeChute

Liftupthesidedeectorandinstalltheside-dischargechute(AandBFigure15).

Figure15

g233435

RemovingtheSide-DischargeChute

Toremovetheside-dischargechute,liftupthesidedeector,removetheside-dischargechute,andlowerthe
side-dischargedeector.

15

RemovingtheBatteryPack
fromtheMachine

1.Liftupthebattery-compartmentlid.

2.Pressthebattery-packlatchtoreleasethe
batterypackandremovethebatterypack.

3.Closethebattery-compartmentlid.

OperatingTips

GeneralMowingTips

•Avoidstrikingsolidobjectswiththeblade.Never

deliberatelymowoveranyobject.

•Forbestperformance,installanewToroblade

beforethecuttingseasonbeginsorwhen
necessary.

CuttingGrass

•Cutonlyaboutathirdofthegrassbladeatatime.

Forimprovedruntime,cutgrassatahigherheight
ofcut.

•Donotcutbelow51mm(2inches)unlessthe

grassissparseoritislatefallwhengrassgrowth
beginstoslowdown.

•Whencuttinggrassover15cm(6inches)tall,

mowatthehighestcuttingheightsettingandwalk
slower;thenmowagainatalowersettingforthe
bestlawnappearance.Ifthegrassistoolong,the
machinemayplugandcausethemotortostall.

•Wetgrassandleavestendtoclumpontheyard

andcancausethemachinetoplugorthemotorto
stall.Avoidmowinginwetconditions.

•Beawareofapotentialrehazardinverydry

conditions,followalllocalrewarnings,andkeep
themachinefreeofdrygrassandleafdebris.

•Alternatethemowingdirection.Thishelps

dispersetheclippingsoverthelawnforeven
fertilization.

•Ifthenishedlawnappearanceisunsatisfactory,

try1ormoreofthefollowing:

–Replacethebladeorhaveitsharpened.
–Walkataslowerpacewhilemowing.
–Raisethecuttingheightonyourmachine.
–Cutthegrassmorefrequently.
–Overlapcuttingswathsinsteadofcuttingafull

swathwitheachpass.

•Iftherearemorethan13cm(5inches)ofleaves

onthelawn,mowatahighercuttingheightand
thenagainatthedesiredcuttingheight.

•Slowdownyourmowingspeedifthemachine

doesnotcuttheleavesnelyenough.

CuttingLeaves

•Aftercuttingthelawn,ensurethathalfofthelawn

showsthroughthecutleafcover.Y oumayneed
tomakemorethanasinglepassovertheleaves.

16

AfterOperation

ChargingtheBatteryPack

Important:Thebatterypackisnotfullycharged

whenyoupurchaseit.Beforeusingthetoolfor
thersttime,placethebatterypackinthecharger
andchargeituntiltheLEDdisplayindicatesthe
batterypackisfullycharged.Readallsafety
precautions.

Important:Chargethebatterypackonlyin

temperaturesthatarewithintheappropriate
range;refertoSpecications(page11).

Note:Atanytime,pressthebattery-charge-indicator

buttononthebatterypacktodisplaythecurrent
charge(LEDindicators).

1.Ensurethattheventsonthebatteryandcharger
areclearofanydustanddebris.

Green
blinking

Green

Red

Red
blinking

Batterypackischarging

Batterypackischarged

Batterypackand/orbatterychargerisoverorunder
theappropriatetemperaturerange

Batterypackchargingfault*

*RefertoTroubleshooting(page22)formore
information.

Important:Thebatterycanbeleftonthecharger

forshortperiodsbetweenuses.
Ifthebatterywillnotbeusedforlongerperiods,

removethebatteryfromthecharger;referto

Storage(page21).

CleaningUnderthe
Machine

ServiceInterval:Aftereachuse

g290533

Figure16

1.Batterypackcavity

2.Batterypackventingareas6.Handle

3.Batterypackterminals

4.Battery-charge-indicator

button

5.LEDindicators(current
charge)

7.ChargerLEDindicator
light

8.Chargerventingareas

2.Lineupthecavityinthebatterypack(Figure16)
withthetongueonthecharger.

3.Slidethebatterypackintothechargeruntilitis
fullyseated(Figure16).

4.Toremovethebatterypack,slidethebattery
backwardoutofthecharger.

5.RefertothefollowingtabletointerprettheLED
indicatorlightonthebatterycharger.

CleaningundertheMachineUsing
theWashoutPort

Forbestresults,cleanthemachinesoonafteryou
havecompletedmowing.

1.Movethemachineontoaatpavedsurface.

2.Shutoffthemotorandwaitforallmovingparts
tostopbeforeleavingtheoperatingposition.

3.Lowerthemachinetoitslowestcutting-height
setting.RefertoAdjustingtheCuttingHeight

(page13).

4.Washouttheareaunderthereardoorwherethe
clippingsgofromtheundersideofthemachine
tothegrassbag.

Note:Washouttheareawiththe

bag-on-demand(ifequipped)inboththefully
forwardandfullyrearwardpositions.

5.Attachagardenhosethatisconnectedtoa
watersupplytothewashoutport(Figure17).

Indicator
light

Off

Indicates

Nobatterypackinserted

17

Figure18

g251288

Figure17

1.Washoutport

6.Turnthewateron.

7.Startthemotorandrunituntiltheclippingsno
longercomeoutfromunderthemachine.

8.Shutoffthemotor.

9.Shutoffthewateranddisconnectthegarden
hosefromthemotor.

10.Startthemotorandrunitforafewminutesto
drytheundersideofthemachinetopreventit
fromrusting.

11.Shutoffthemotor,removetheelectric-start
button,andallowtheittocoolbeforestoringthe
machineinanenclosedarea.

CleaningundertheMachineinthe
Vertical-StowPosition

g251300

2.Holdthehandlewhiledisengagingthehandle
lockstoavoidpinchingyourhands.

3.Disengagethehandlelocksuntilyoucanmove
theupperhandlefreely.

4.Foldthehandleforwardeithertothevertical
positionorthefullyforwardpositionasshown
inFigure19.

Important:Routethecablestotheoutside

ofthehandlelocksasyoufoldthehandle.

1.Setthemachineinthevertical-stowposition;
refertoStoringtheMachineintheVertical-Stow

Position(page19).

2.Washouttheclippingsfromunderthemachine.

FoldingtheHandle

WARNING

Foldingorunfoldingthehandleimproperly
candamagethecables,causinganunsafe
operatingcondition.

•Donotdamagethecableswhenfoldingor
unfoldingthehandle.

•Ifacableisdamaged,contactan
AuthorizedServiceDealer.

1.Removetheelectric-startbutton(Figure18).

g251299

Figure19

5.Tounfoldthehandle,referto2Unfoldingthe

Handle(page9).

18

StoringtheMachineinthe
Vertical-StowPosition

Duringthemowingseasonorintheoff-season,you
canstoreyourmachineintheverticalpositionto
minimizestoragespace.

WARNING

Foldingorunfoldingthehandleimproperly
candamagethecables,causinganunsafe
operatingcondition.

•Donotdamagethecableswhenfoldingor
unfoldingthehandle.

•Ifacableisdamaged,contactan
AuthorizedServiceDealer.

1.Removetheelectric-startbuttonandbattery
fromthemachine.

2.Ensurethatthecutting-heightsettingonthe
machineis92mm(3-5/8inches)orlower;ifitis
not,lowerit;refertoAdjustingtheCuttingHeight

(page13).

3.Disengagethehandlelocks(Figure20).

Figure20

1.Handlelockdisengaged

positions

4.Foldthehandlefullyforward.

2.Handlelockengaged
position

Important:Routethecablestotheoutside

ofthehandleknobsasyoufoldthehandle.

5.Engagethehandlelocks.

6.Liftthefrontofthemachinebythehandleand
moveitintoastoragespace(Figure21).

Figure21

g251558

g251559

19

Maintenance

Removetheelectric-startbuttonandbatterypack
fromthemachinebeforemaintainingorcleaningthe
machine.

Useonlythemanufacturer’srecommended
replacementpartsandaccessories.

Inspectandmaintainthemachineregularly.Have
themachinerepairedonlybyanAuthorizedService
Dealer.

LubricatingtheMachine

Youdonotneedtolubricatethemachine;allthe
bearingshavebeenlubricatedatthefactoryforthe
lifeofthemachine.

ReplacingtheBlade

ServiceInterval:Yearly

Important:Youwillneedatorquewrenchto

installthebladeproperly.Ifyoudonothavea

torquewrenchorareuncomfortableperforming
thisprocedure,contactanAuthorizedService
Dealer.

Ifthebladeisdamagedorcracked,replaceit
immediately.Ifthebladeedgeisdullornicked,have
itsharpenedandbalanced,orreplaceit.

WARNING

Whenservicingtheblade,beawarethatthe
bladecanstillmoveeventhoughthepower
sourceisoff.Thebladeissharp;contacting
thebladecanresultinseriouspersonalinjury.

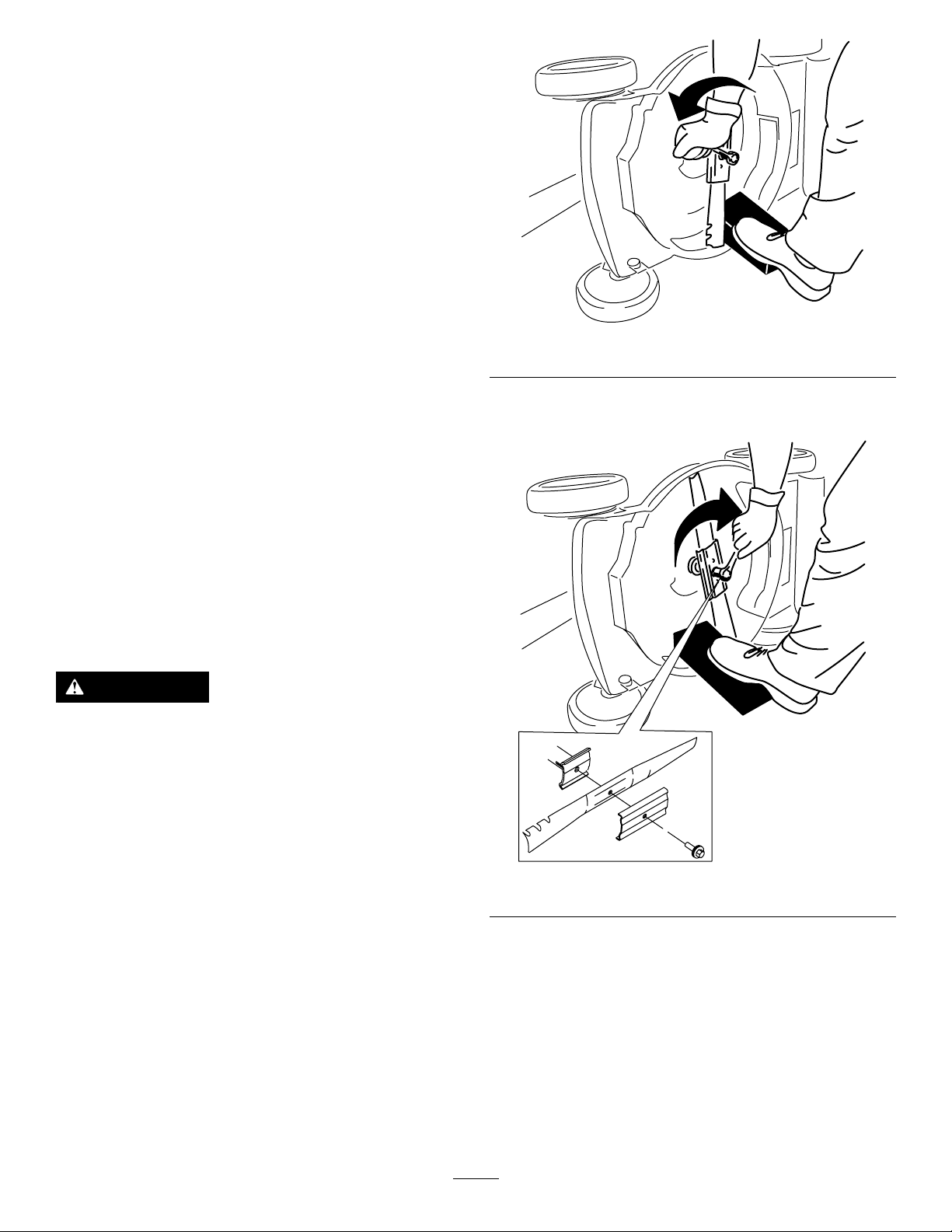

g231389

Figure22

4.Installthenewbladeandallmountinghardware
(Figure23).

Weargloveswhenservicingtheblade.

1.Removetheelectric-startbuttonandbattery
packfromthemachine.

2.Useablockofwoodtoholdthebladesteady
(Figure22).

3.Removetheblade,savingallmountinghardware
(Figure22).

g231390

Figure23

Important:Positionthecurvedendsofthe

bladetopointtowardthemachinehousing.

5.Useatorquewrenchtotightenthebladebolt
to68N∙m(50ft-lb).

20

Storage

Important:Storethemachine,batterypack,and

chargeronlyintemperaturesthatarewithinthe
appropriaterange;refertoSpecications(page

11).

Important:Ifyouarestoringthebatterypack

fortheoff-season,chargeituntil2or3LED
indicatorsturngreenonthebattery.Donotstore
afullychargedorfullydepletedbattery .When
youarereadytousethemachineagain,charge
thebatterypackuntiltheleftindicatorlightturns
greenonthechargerorall4LEDindicatorsturn
greenonthebattery.

•Disconnecttheproductfromthepowersupply(i.e.,

removethebatterypack)andcheckfordamage
afteruse.

•Cleanallforeignmaterialfromtheproduct.

•Donotstorethemachinewiththebatterypack

installed.

•Whennotinuse,storethemachine,electric-start

button,batterypack,andbatterychargeroutofthe
reachofchildren.

•Keepthemachine,batterypack,andbattery

chargerawayfromcorrosiveagents,suchas
gardenchemicalsandde-icingsalts.

•Toreducetheriskofseriouspersonalinjury ,do

notstorethebatterypackoutsideorinvehicles.

•Storethemachine,batterypack,andbattery

chargerinanenclosedclean,dryarea.

PreparingtheBatteryPack
forRecycling

Important:Uponremoval,covertheterminalsof

thebatterypackwithheavy-dutyadhesivetape.
Donotattempttodestroyordisassemblethe
batterypackorremoveanyofitscomponents.

Lithium-ionbatterypackslabeledwiththe
Call2Recyclesealcanberecycledatany
participatingretailerorbatteryrecycling
facilityintheCall2Recycleprogram(US
andCanadaonly).T olocateaparticipating
retailerorfacilityclosesttoyou,pleasecall
1-800-822-8837orvisitwww.call2recycle.org.
Ifyoucannotlocateaparticipatingretaileror
facilitynearby,orifyourrechargeablebattery
isnotlabeledwiththeCall2Recycleseal,
pleasecontactyourlocalmunicipalityformore
informationonhowtoresponsiblyrecyclethe
battery.IfyouarelocatedoutsideoftheUS
andCanada,pleasecontactyourauthorized
Torodistributor.

21

Troubleshooting

Performonlythestepsdescribedintheseinstructions.Allfurtherinspection,maintenance,andrepairwork
mustbeperformedbyanauthorizedservicecenterorasimilarlyqualiedspecialistifyoucannotsolvethe
problemyourself.

Problem

Themachinedoesnotstart.

Themachinedoesnotruncontinuously.

Themachinedoesnotreachfullpower .

PossibleCauseCorrectiveAction

1.Thebatteryisnotfullyinstalledinthe
machine.

2.Thebatterypackisnotcharged.

3.Thebatterypackisoverorunderthe
appropriatetemperaturerange.

4.Thebatterypackisdamaged.4.Replacethebatterypack.

5.Thereisanotherelectricalproblem
withthemachine.

1.Thereismoistureontheleadsofthe
batterypack.

2.Thebatteryisnotfullyinstalledintothe
tool.

3.Thebatterypackisoverorunderthe
appropriatetemperaturerange.

1.Thebatterypackchargecapacityis
toolow.

2.Theairventsareblocked.

1.Removeandthenreplacethebattery
intothemachine,makingsurethatitis
fullyinstalledandlatched.

2.Removethebatterypackfromthe
machineandchargeit.

3.Movethebatterypacktoaplace
whereitisdryandthetemperatureis
between5°C(41°F)and40°C(104°F).

5.ContactanAuthorizedServiceDealer.

1.Allowthebatterypacktodryorwipeit
dry.

2.Removeandthenreplacethebattery
intothetoolmakingsurethatitisfully
installedandlatched.

3.Movethebatterypacktoaplace
whereitisdryandthetemperatureis
between5°C(41°F)and40°C(104°F).

1.Removethebatterypackfromthe
machineandfullychargethebattery
pack.

2.Cleantheairvents.

Thebatterypackloseschargequickly.1.Thebatterypackisoverorunderthe

Thebatterychargerisnotworking.

TheLEDindicatorlightonthebattery
chargerisred.

TheLEDindicatorlightonthebattery
chargerisblinkingred.

appropriatetemperaturerange.

1.Thebatterychargerisoverorunder
theappropriatetemperaturerange.

2.Theoutletthatthebatterychargeris
pluggedintodoesnothavepower.

1.Thebatterychargerand/orbattery
packisoverorundertheappropriate
temperaturerange.

1.Thereisanerrorinthecommunication
betweenthebatterypackandthe
charger.

2.Thebatterypackisweak.

1.Movethebatterypacktoaplace
whereitisdryandthetemperatureis
between5°C(41°F)and40°C(104°F).

1.Unplugthebatterychargerandmove
ittoaplacewhereitisdryandthe
temperatureisbetween5°C(41°F)
and40°C(104°F).

2.Contactyourlicensedelectricianto
repairtheoutlet.

1.Unplugthebatterychargerandmove
thebatterychargerandbatterypack
toaplacewhereitisdryandthe
temperatureisbetween5°C(41°F)
and40°C(104°F).

1.Removethebatterypackfromthe
batterycharger,unplugthebattery
chargerfromtheoutlet,andwait10
seconds.Plugthebatterychargerinto
theoutletagainandplacethebattery
packonthebatterycharger.IftheLED
indicatorlightonthebatterychargeris
stillblinkingred,repeatthisprocedure
again.IftheLEDindicatorlighton
thebatterychargerisstillblinkingred
after2attempts,properlydisposeof
thebatterypackatabatteryrecycling
facility.

2.Properlydisposeofthebatterypackat
abatteryrecyclingfacility.

22
