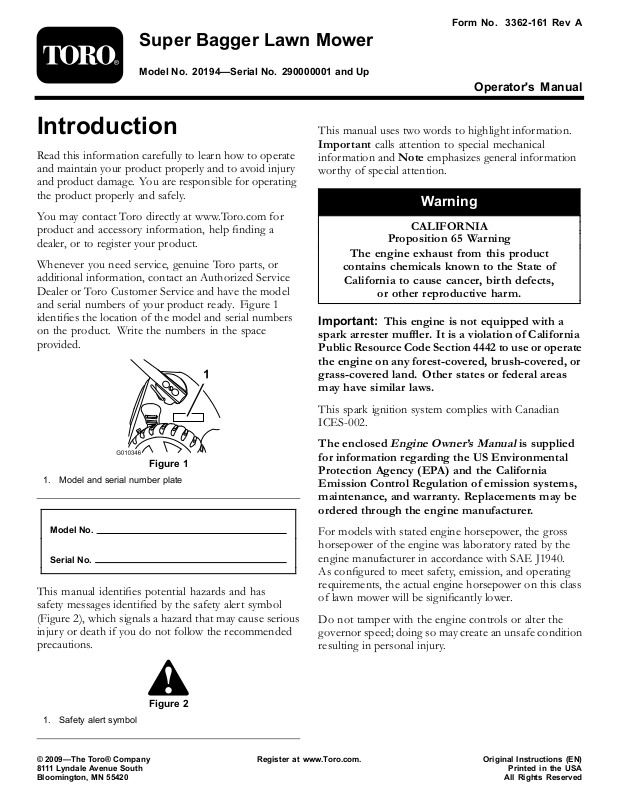

Page 1

SuperBaggerLawnMower

ModelNo.20194—SerialNo.290000001andUp

FormNo.3362-161RevA

Operator'sManual

Introduction

Readthisinformationcarefullytolearnhowtooperate andmaintainyourproductproperlyandtoavoidinjury andproductdamage.Youareresponsibleforoperating theproductproperlyandsafely.

YoumaycontactTorodirectlyatwww.Toro.comfor productandaccessoryinformation,helpndinga dealer,ortoregisteryourproduct.

Wheneveryouneedservice,genuineToroparts,or additionalinformation,contactanAuthorizedService DealerorToroCustomerServiceandhavethemodel andserialnumbersofyourproductready.Figure1 identiesthelocationofthemodelandserialnumbers ontheproduct.Writethenumbersinthespace provided.

Thismanualusestwowordstohighlightinformation. Importantcallsattentiontospecialmechanical informationandNoteemphasizesgeneralinformation worthyofspecialattention.

Warning

CALIFORNIA

Proposition65Warning

Theengineexhaustfromthisproduct

containschemicalsknowntotheStateof

Californiatocausecancer,birthdefects,

orotherreproductiveharm.

Important:Thisengineisnotequippedwitha sparkarrestermufer.ItisaviolationofCalifornia PublicResourceCodeSection4442touseoroperate theengineonanyforest-covered,brush-covered,or grass-coveredland.Otherstatesorfederalareas mayhavesimilarlaws.

ThissparkignitionsystemcomplieswithCanadian ICES-002.

Figure1

1.Modelandserialnumberplate

ModelNo.

SerialNo.

Thismanualidentiespotentialhazardsandhas safetymessagesidentiedbythesafetyalertsymbol (Figure2),whichsignalsahazardthatmaycauseserious injuryordeathifyoudonotfollowtherecommended precautions.

Figure2

1.Safetyalertsymbol

Theenclosed

Engine Owner’ s Man ual

issupplied forinformationregardingtheUSEnvironmental ProtectionAgency(EPA)andtheCalifornia EmissionControlRegulationofemissionsystems, maintenance,andwarranty.Replacementsmaybe orderedthroughtheenginemanufacturer.

Formodelswithstatedenginehorsepower,thegross horsepoweroftheenginewaslaboratoryratedbythe enginemanufacturerinaccordancewithSAEJ1940. Asconguredtomeetsafety,emission,andoperating requirements,theactualenginehorsepoweronthisclass oflawnmowerwillbesignicantlylower.

Donottamperwiththeenginecontrolsoralterthe governorspeed;doingsomaycreateanunsafecondition resultinginpersonalinjury.

Registeratwww.Toro.com.

OriginalInstructions(EN)

PrintedintheUSA

AllRightsReserved

Page 2

Safety

ThislawnmowermeetsorexceedstheCPSCblade safetyrequirementsforwalk-behindrotarylawnmowers andtheB71.1specicationsoftheAmericanNational StandardsInstituteineffectatthetimeofproduction.

Readandunderstandthecontentsofthismanual beforeyoustarttheengine.

Thesafetyalertsymbol(Figure2)isusedtoalertyou topotentialpersonalinjuryhazards.Obeyallsafety messagesthatfollowthissymboltoavoidpossibleinjury ordeath.Improperlyusingormaintainingthismower couldresultininjuryordeath.Toreducethispotential, complywiththefollowingsafetyinstructions.

Thefollowinginstructionshavebeenadaptedfromthe ANSI/OPEIstandardB71.1-2003.

Thiscuttingmachineiscapableofamputating handsandfeetandofthrowingobjects.Failure toobservethefollowingsafetyinstructionscould resultinseriousinjuryordeath.

GeneralOperation

•Read,understand,andfollowallinstructionsonthe machineandinthemanual(s)beforestarting.

•Donotputhandsorfeetnearorunderthemachine. Keepclearofthedischargeopeningatalltimes.

•Onlyallowresponsibleadults,whoarefamiliarwith theinstructions,tooperatethismachine.

•Cleartheareaofobjectssuchasrocks,wire,toys, etc.,whichcouldbethrownbytheblade.Stay behindthehandlewhentheengineisrunning.

•Besuretheareaisclearofbystandersbefore operating.Stopmachineifanyoneentersthearea.

•Donotoperatemachinebarefootedorwhilewearing sandals.Alwayswearsubstantialfootwear.

•Donotpullmachinebackwardunlessabsolutely necessary.Alwayslookdownandbehindbeforeand whilemovingbackward.

•Neverdirectdischargedmaterialtowardanyone. Avoiddischargingmaterialagainstawallor obstruction.Materialmayricochetbacktoward theoperator.Stopthebladewhencrossinggravel surfaces.

•Donotoperatemachinewithouttheentiregrass catcher,dischargeguard,rearguard,orothersafety protectivedevicesinplaceandworking.

•Neverleavearunningmachineunattended.

•Stoptheengineandwaituntilthebladecomes toacompletestopbeforecleaningthemachine,

removinggrasscatcher,oruncloggingthedischarge guard.

•Operatemachineonlyindaylightorgoodarticial light.

•Donotoperatemachinewhileundertheinuence ofalcoholordrugs.

•Neveroperatemowerinwetgrass.Alwaysbesure ofyourfooting;walk;neverrun.

•Disengagethedrivesystem,ifsoequipped,before startingtheengine.

•Ifthemachineshouldstarttovibrateabnormally, stoptheengineandcheckforthecauseimmediately. Vibrationisgenerallyawarningoftrouble.

•Alwaysweareyeprotectionwhenoperatingmachine.

•Seemanufacturer’sinstructionsforproperoperation andinstallationofaccessories.Onlyuseaccessories approvedbythemanufacturer.

SlopeOperation

Slopesareamajorfactorrelatedtoslipandfallaccidents, whichcanresultinsevereinjury.Operationonallslopes requireextracaution.Ifyoufeeluneasyonaslope,do notmowit.

•Mowacrossthefaceofslopes;neverupanddown. Exerciseextremecautionwhenchangingdirection onslopes.

•Watchforholes,ruts,bumps,rocks,orotherhidden objects.Uneventerraincouldcauseaslipandfall accident.Tallgrasscanhideobstacles.

•Donotmowonwetgrassorexcessivelysteepslopes. Poorfootingcouldcauseaslipandfallaccident.

•Donotmowneardrop-offs,ditches,or embankments.Youcouldloseyourfootingor balance.

Children

Tragicaccidentscanoccuriftheoperatorisnotalertto thepresenceofchildren.Childrenareoftenattractedto themachineandthemowingactivity.Neverassume thatchildrenwillremainwhereyoulastsawthem.

•Keepchildrenoutofthemowingareaandunder thewatchfulcareofaresponsibleadultotherthan theoperator.

•Bealertandturnmoweroffifachildentersthearea.

•Neverallowchildrentooperatethemachine.

•Useextracarewhenapproachingblindcorners, shrubs,trees,orotherobjectsthatmayblockyour viewofachild.

Page 3

Service

anyfuel-soakeddebris.Allowmachinetocool beforestoring.

SafeHandlingofGasoline

Toavoidpersonalinjuryorpropertydamage,use extremecareinhandlinggasoline.Gasolineis extremelyammableandthevaporsareexplosive.

•Extinguishallcigarettes,cigars,pipes,andother sourcesofignition.

•Useonlyanapprovedgasolinecontainer.

•Neverremovegascaporaddfuelwiththeengine running.Allowenginetocoolbeforerefueling.

•Neverrefuelthemachineindoors.

•Neverstorethemachineorfuelcontainerwhere thereisanopename,spark,orpilotlightsuchas onawaterheateroronotherappliances.

•Neverllcontainersinsideavehicleoronatruck ortrailerbedwithaplasticliner.Alwaysplace containersonthegroundawayfromyourvehicle beforelling.

•Removegas-poweredequipmentfromthetruck ortrailerandrefuelitontheground.Ifthisisnot possible,thenrefuelsuchequipmentwithaportable container,ratherthanfromagasolinedispenser nozzle.

•Ifyoustrikeaforeignobject,stopandinspectthe machine.Repair,ifnecessary,beforestarting.

•Nevermakeanyadjustmentsorrepairswiththe enginerunning.Disconnectthesparkplugwire andgroundagainstenginetopreventunintended starting.

•Checkgrasscatchercomponentsandthedischarge guardfrequentlyandreplacewithmanufacturer’ s recommendedparts,whennecessary.

•Mowerbladesaresharp.Wrapthebladeorwear gloves,anduseextracautionwhenservicingthem.

•Donotchangetheenginegovernorsettingor overspeedtheengine.

•Maintainorreplacesafetyandinstructionlabels,as necessary.

•Keepthenozzleincontactwiththerimofthefuel tankorcontaineropeningatalltimesuntilfuelingis complete.Donotuseanozzlelock-opendevice.

•Iffuelisspilledonclothing,changeclothing immediately.

•Neveroverllfueltank.Replacegascapandtighten securely.

Exhaustcontainscarbonmonoxide,an odorless,deadlypoisonthatcankillyou.

Donotruntheengineindoorsorinanenclosed area.

GeneralService

•Neveroperatemachineinaclosedarea.

•Keepallnutsandboltstighttobesuretheequipment isinsafeworkingcondition.

•Nevertamperwithsafetydevices.Checktheir properoperationregularly .

•Keepmachinefreeofgrass,leaves,orotherdebris build-up.Cleanupoilorfuelspillageandremove

Page 4

SafetyandInstructionalDecals

Important:Safetyandinstructiondecalsarelocatednearareasofpotentialdanger.Replacedamaged

decals.

114-2820

1.Warning—readthe Operator’sManual.

94-8072

2.Thrownobject hazard—keepbystanders asafedistancefromthe machine.

3.Thrownobjecthazard—do notoperatethemower withoutthereardischarge plugorbaginplace;do notoperatethemower withoutthesidedischarge coverordeectorinplace.

108–9393

4.Cutting/dismemberment hazardofhandorfoot, mowerblade—stayaway frommovingparts.

5.Cutting/dismemberment hazardofhandorfoot, mowerblade—remove theignitionkeyandread theinstructionsbefore servicingorperforming maintenance.

6.Cutting/dismemberment hazardofhandorfoot, mowerblade—donot operateupanddown slopes;operatesideto sideonslopes;stopthe enginebeforeleavingthe operatingposition;and lookbehindyouwhen backingup.

1.EngineswitchOff

2.EngineswitchOn

110-9457

3.Unlocked

4.Locked

117-5902

1.HandleUpright

2.Handlefolded

3.Releasefootswitchtofold handle

Page 5

Setup

2.FillingtheEnginewithOil

1.UnfoldingtheHandle

Procedure

1.Movethehandlerearwardandholdtheupperhandle inplace(Figure3).

Figure3

Note:Thehandlewillclickintoposition.

2.Tightentheupperhandleknobastightasyoucan (Figure4).

0.58

quart

(0.55l)

SAE30detergentoilwithanAPIserviceclassication ofSH,SJ,SL,orhigher(notsuppliedwiththemower).

Procedure

Important:Yourmower

intheengine.

1.Removethedipstick(Figure5).

does not

comewithoil

Figure4

Figure5

2.Slowlypouroilintotheoillltube,periodically checkingthelevelwiththedipstick,untilthedipstick indicatesthattheengineisfullasillustratedin Figure5.Donotoverll.(Max.ll:0.58quart(0.55 l),type:SAE30detergentoilwithanAPIservice classicationofSH,SJ,SL,orhigher.)

Note:Eachtimeyouchecktheoillevel,removethe dipstickandwipeitclean,insertitintotheoilller neck(butdonotscrewitin),thenremoveitagain andcheckthelevel(Figure5).

Note:Ifyouoverlltheengine,poursomeoilout ofitasdirectedinChangingtheEngineOil.

3.Installthedipsticksecurely.

Important:

5 operating hour s

RefertoChangingtheEngineOil.

Change the engine oil after the r st

;changeityearlythereafter.

Page 6

3.InstalltheMulchPlugor GrassBag

Procedure

Youmustcorrectlyinstallthemulchplug(formulching orside-discharging)orgrassbag(forbagging)orthe enginewillnotstart.

Themowerhasasafetyswitch,locatedatthebottom ofachannelonthetop,rightrearofthemower,that preventsthemowerfromoperatingwithoutamulch plugorgrassbag.Thispreventsthemowerfrom throwingdebrisattheoperatorthroughtherearchute.

Fortheswitchtodetectthepresenceofthemulchplug, thetopofthemulchpluglevermustliefullyinthe bottomofthechannel(Figure6).

2.Squeezethebuttonontheleverwithyourthumb andfullyinsertthemulchplugintotheopening (Figure8).

Figure8

3.Releasethebuttonontheleverandensurethatthe topoftheleverisliesfullyintheswitchchannel (Figure9).Ifthetopoftheleverisnotinthe

switchchannel,yourmowerwillnotstart!

Figure6

1.Topofmulchplugleverinswitchchannel

1.Insertthemulchplugintothemower,ifitisn’t alreadyinstalled(Figure7).

Figure7

Figure9

Note:Iftheleverdoesnotlatchproperly,

disconnectthewirefromthesparkplugandcheck forandremoveanydebrisbuildupinthetunnel.

Page 7

ProductOverview

Figure10

1.Cuttingheightlever

2.Oilll/Dipstick(notshown)

3.Recoilstarthandle10.Footpedal

4.Bladecontrolbar11.Fuelvalve

5.Upperhandle

6.Bladecontrolbutton

7.Upperhandleknob

12.Airlter

13.Sparkplug

8.Throttle

9.Fueltankcap

Operation

FillingtheFuelTank

Gasolineisextremelyammableandexplosive. Areorexplosionfromgasolinecanburnyou andothers.

•Topreventastaticchargefromignitingthe gasoline,placethecontainerand/ormower directlyonthegroundbeforelling,notina vehicleoronanobject.

•Fillthetankoutdoorswhentheengineis cold.Wipeupspills.

•Donothandlegasolinewhensmokingor aroundanopenameorsparks.

•Storegasolineinanapprovedfuelcontainer, outofthereachofchildren.

Fillthefueltankwithfreshunleadedregulargasoline fromamajorname-brandservicestation(Figure12).

Important:Toreducestartingproblems,add fuelstabilizertothefuelallseason,mixingitwith gasolinelessthan30daysold.

Figure11

1.Grassbag3.Mulchplug(comes installedonthemower)

2.Sidedischargechute

Figure12

Page 8

CheckingtheEngineOilLevel

ServiceInterval:Beforeeachuseordaily

1.Removethedipstick,wipeitclean,andinsertitinto theoilllerneck,butdonotscrewitin(Figure13).

AdjustingtheCuttingHeight

Adjustingthecuttingheightmaybringyouinto contactwiththemovingblade,causingserious injury.

•Stoptheengineandwaitforallmovingparts tostop.

•Donotputyourngersunderthehousing whenadjustingthecuttingheight.

Adjustthecuttingheightasdesired.Setallfourwheels tothesameheight.

Note:Toraisethemower,moveall4cuttingheight leversforward;tolowerthemower,movethem rearward.

Figure13

2.Removethedipstickandchecktheoillevel (Figure13).

Ifthereisnooilonthedipstick,slowlypouroil intotheoillltube,periodicallycheckingthelevel withthedipstick,untilthedipstickindicatesthat theengineisfullasillustratedinFigure13.Donot overll.(Max.ll:0.58quart(0.55l),type:SAE 30detergentoilwithanAPIserviceclassication ofSH,SJ,SL,orhigher.)

Note:Ifyouoverlltheengine,poursomeoilout ofitasdirectedinChangingtheEngineOil.

3.Installthedipsticksecurely.

Figure14

Page 9

AdjustingtheUpperHandle

StartingtheEngine

Height

Youmayraiseorlowertheupperhandletoaposition comfortableforyou.

Note:Youcannotraisetheupperhandlehigherthan theangleofthelowerhandle.

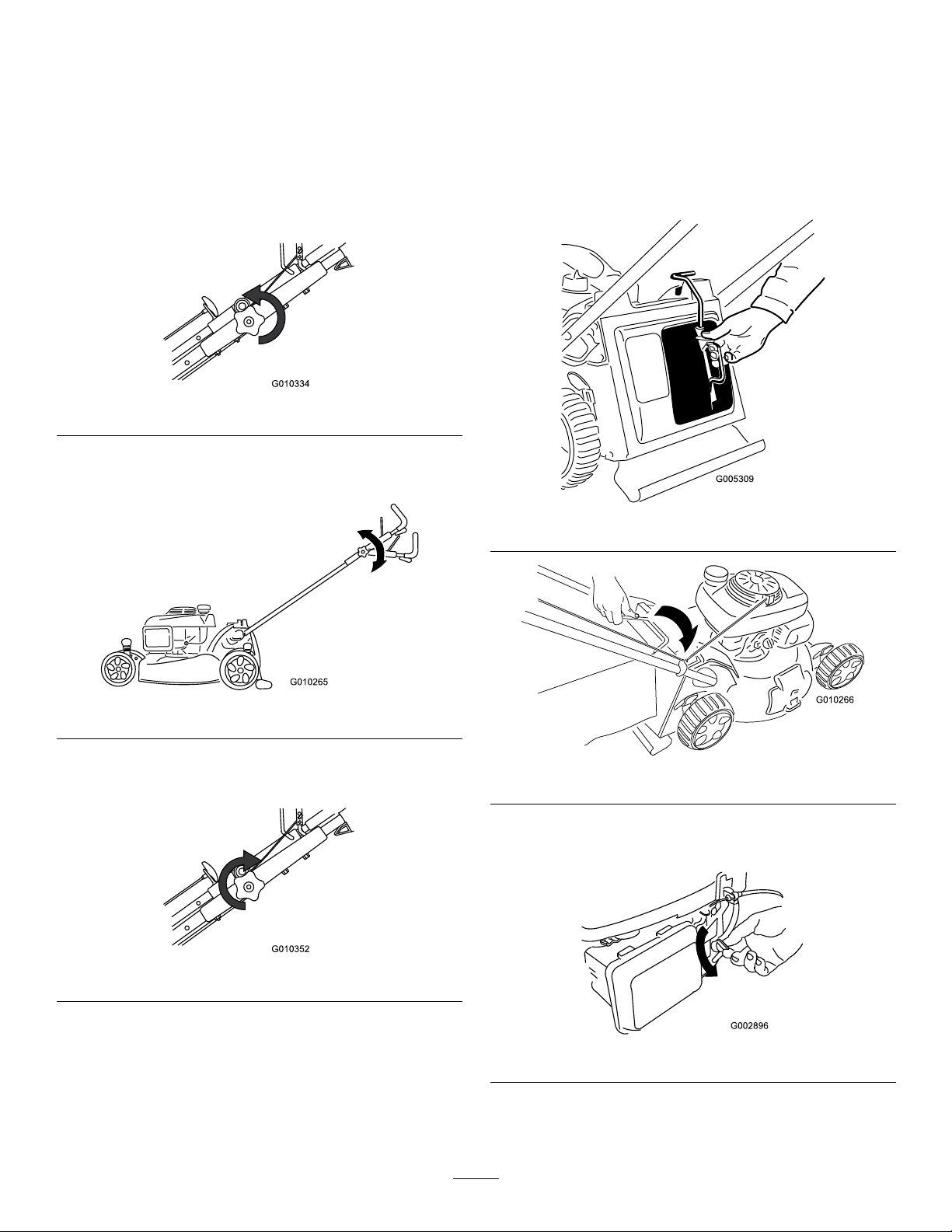

1.Loosentheupperhandleknob(Figure15).

Figure15

2.Movetheupperhandletothedesiredposition (Figure16).

Important:Themowerhasasafetyswitchthat preventsyoufromstartingthemowerunlessyou rstinstallthemulchplugorthegrassbagsecurely onthemower.

1.Installthemulchplug(Figure18)orthegrassbag (Figure19)onthemower.

Figure18

Figure16

3.Tightentheupperhandleknobastightasyoucan (Figure17).

Figure17

Figure19

2.TurnthefuelvalvelevertotheOnposition (Figure20).

Figure20

3.MovethethrottlelevertotheChokeposition (Figure21).

Page 10

Figure21

4.Pulltherecoilstarter(Figure22).

Figure22

UsingtheSelf-propelDrive

Tooperatetheself-propeldrive,simplywalkwithyour handsontheupperhandleandyourelbowsatyour sides,andthemowerwillautomaticallykeeppacewith you(Figure24).

Figure24

1.Nudgehere

Note:If,whenbackingupafterself-propelling,the mowerdoesnotrollbackwardfreely,nudgethemower forwardaboutaninchortwowithoutengagingthe self-propeldrive(Figure24),thenpullthemower backward.

Note:Ifthemowerstilldoesnotstart,contactan AuthorizedServiceDealer.

5.Whentheenginestarts,movethethrottletotheFast position(Figure23).

Figure23

EngagingtheBlade

Whenyoustarttheenginethebladedoesnotturn.You mustengagethebladetomow.

1.Pushthebladecontrolbuttonandpulltheblade controlbartothehandle(Figure25).

Figure25

2.Holdthebladecontrolbaragainstthehandle (Figure26).

Page 11

Figure26

DisengagingtheBlade

Releasethebladecontrolbar(Figure27).

3.Engagetheblade.

Note:Thebagshouldbegintoinate,indicating thatthebladeisengagedandrotating.

4.Releasethebladecontrolbar.

Note:Ifthebagdoesnotimmediatelydeate, thebladeisstillrotating.Thebladebrakeclutch mechanismmaybedeterioratingand,ifignored, couldresultinanunsafeoperatingcondition.Have themowerinspectedandservicedbyanAuthorized ServiceDealer.

5.Stoptheengineandwaitforallmovingpartstostop.

NotUsingtheGrassBag

1.Movethemowerontoapavedsurfaceina non-windyarea.

2.Setall4wheelstothe3inch(76mm)cutsetting.

3.Takeahalfsheetofnewspaperandcrumpleitinto aballsmallenoughtogounderthemowerhousing (about3inchesor76mmindiameter).

Figure27

Important:Whenyoureleasethebladecontrol

bar,thebladeshouldstopwithin3seconds.If itdoesnotstopproperly,stopusingyourmower immediatelyandcontactanAuthorizedService Dealer.

CheckingtheBladeBrake ClutchOperation

Checkthecontrolbarbeforeeachusetoensurethatthe bladebrakeclutchsystemisoperatingproperly.

UsingtheGrassBag

ServiceInterval:Beforeeachuseordaily

4.Placethenewspaperballabout5inches(13cm)in frontofthemower(Figure28).

Figure28

5.Starttheengine.

6.Engagetheblade.

7.Releasethebladecontrolbar.

8.Immediatelypushthemoweroverthenewspaper ball.

9.Stoptheengineandwaitforallmovingpartstostop.

10.Gotothefrontofthemowerandcheckthe newspaperball.

Note:Ifthenewspaperballdidnotgounderthe mower,repeatsteps2through10.

Youcanusethegrassbagtoperformanadditionaltest tocheckthebladebrakeclutchmechanism.

1.Installtheemptygrassbagonthemower.

2.Starttheengine.

11.Ifthenewspaperisunravelledorshredded,the bladedidnotstopproperly,whichcouldresultinan unsafeoperatingcondition.ContactanAuthorized ServiceDealer.

Page 12

StoppingtheEngine

BaggingtheClippings

MovethethrottletotheOffposition(Figure29).

Figure29

MulchingtheClippings

Yourmowercomesfromthefactoryreadytomulchthe grassandleafclippingsbackintothelawn.

Ifthegrassbagisonthemower,removeit(referto RemovingtheGrassBag)beforemulchingtheclippings. Ifthesidedischargechuteisonthemower,removeit andlockthesidedischargedoor(refertoRemovingthe SideDischargeChute)beforemulchingtheclippings.

Usethegrassbagwhenyouwanttocollectgrassand leafclippingsfromthelawn.

Ifthesidedischargechuteisonthemower,removeit andlockthesidedischargedoor(refertoRemovingthe SideDischargeChute)beforebaggingtheclippings.

Aworngrassbagcouldallowsmallstones andothersimilardebristobethrowninthe operator’sorbystander’sdirectionandresultin seriouspersonalinjuryordeathtotheoperator orbystanders.

Checkthegrassbagfrequently.Ifitis damaged,installanewTororeplacementbag.

Thebladeissharp;contactingthebladecan resultinseriouspersonalinjury.

Stoptheengineandwaitforallmovingpartsto stopbeforeleavingtheoperatingposition.

Important:Themowerhasasafetyswitchthat preventsyoufromstartingthemowerunlessyou rstinstallthemulchplugsecurelyonthemower (Figure30).

InstallthemulchplugasillustratedinFigure30.

Figure30

1.Topofmulchplugleverinswitchchannel

InstallingtheGrassBag

1.Removethemulchplug(Figure31).

Figure31

2.Routethestarterropearoundthelowerropeguide (Figure32).

Page 13

Figure32

Note:Thelowerropeguidereleasesthestarterrope

whenyoupulltherecoilstarthandle.

3.Insertthegrassbaghandleintothegroovesatthe topofthemower(Figure33).

Important:Themowerhasasafetyswitchthat preventsyoufromstartingthemowerunlessyou rstinstallthegrassbagsecurelyonthemower.

Figure33

Figure35

3.Insertthemulchplug(Figure36).

Figure36

RemovingtheGrassBag

1.Routethestarterropearoundthelowerropeguide (Figure34).

Figure34

2.Liftthegrassbaghandleoutfromthegroovesat thetopofthemowerandremovethebagfromthe mower(Figure35).

Side-dischargingtheClippings

Usethesidedischargeforcuttingverytallgrass.

Ifthebagisonthemower,removeitandinsertthe mulchplug(refertoRemovingtheGrassBag)before side-dischargingtheclippings.

Important:Themowerhasasafetyswitchthat preventsyoufromstartingthemowerunlessyou rstinstallthemulchplugsecurelyonthemower (refertoMulchingtheClippings).

Page 14

InstallingtheSideDischargeChute

1.Unlockthesidedischargedoor(Figure37).

Figure37

Figure40

OperatingTips

2.Liftopenthesidedischargedoor(Figure38).

Figure38

3.Installthesidedischargechuteandclosethedoor ontothechute(Figure39).

Figure39

GeneralMowingTips

•Cleartheareaofsticks,stones,wire,branches,and otherdebristhatthebladecouldhit.

•Avoidstrikingsolidobjectswiththeblade.Never deliberatelymowoveranyobject.

•Ifthemowerstrikesanobjectorstartstovibrate, immediatelystoptheengine,disconnectthewire fromthesparkplug,andexaminethemowerfor damage.

•Forbestperformance,installanewbladebeforethe cuttingseasonbegins.

•ReplacethebladewhennecessarywithaToro replacementblade.

CuttingGrass

•Cutonlyaboutathirdofthegrassbladeatatime. Donotcutbelowthe2inch(51mm)settingunless thegrassissparseoritislatefallwhengrassgrowth beginstoslowdown.RefertoAdjustingtheCutting Height.

•Whencuttinggrassover6inches(15cm)tall,mow atthehighestcuttingheightsettingandwalkslower; thenmowagainatalowersettingforthebestlawn appearance.Ifthegrassistoolong,themowermay plugandcausetheenginetostall.

•Mowonlydrygrassorleaves.Wetgrassandleaves tendtoclumpontheyardandcancausethemower toplugortheenginetostall.

RemovingtheSideDischargeChute

Toremovethesidedischargechute,reversethesteps above.

Important:Lockthesidedischargedoorafteryou closeit(Figure40).

Wetgrassorleavescancauseseriousinjuryif youslipandcontacttheblade.Mowonlyindry conditions.

•Alternatethemowingdirection.Thishelpsdisperse theclippingsoverthelawnforevenfertilization.

•Ifthenishedlawnappearanceisunsatisfactory,try oneormoreofthefollowing:

Page 15

–Ifthebladeisdullornicked,replaceitorhave

itsharpened.

–Walkataslowerpacewhilemowing.

–Raisethecuttingheightonyourmower.

–Cutthegrassmorefrequently.

–Overlapcuttingswathsinsteadofcuttingafull

swathwitheachpass.

–Setthecuttingheightonthefrontwheelsone

notchlowerthantherearwheels.Forexample,

CuttingLeaves

•Aftercuttingthelawn,ensurethathalfofthelawn showsthroughthecutleafcover.Youmayneedto makemorethanonepassovertheleaves.

•Iftherearemorethan5inches(13cm)ofleaves onthelawn,setthefrontcuttingheightoneortwo notcheshigherthantherearcuttingheight.

•Slowdownyourmowingspeedifthemowerdoes notcuttheleavesnelyenough.

setthefrontwheelsat2inches(51mm)andthe rearwheelsat2-1/2inches(64mm).

Maintenance

Note:Determinetheleftandrightsidesofthemachinefromthenormaloperatingposition.

RecommendedMaintenanceSchedule(s)

MaintenanceService

Interval

Aftertherst5hours

Beforeeachuseordaily

Every25hours

Beforestorage

Yearly

Important:Refertoyour

MaintenanceProcedure

•Changetheengineoil.

•Checktheengineoillevel.

•Checkthebladebrakeclutchoperation.

•Checktheaircleanerfordirtand/ordamageandcleanorreplaceitifnecessary .

•Cleangrassclippingsanddirtfromunderthemower.

•Cleanthebladebrakeclutchshield.

•Emptythefueltankbeforerepairsasdirectedandbeforeannualstorage.

•Cleantheairlter(morefrequentlyindustyoperatingconditions).

•Changetheengineoil.

•Lubricatetheupperhandle.

•Replacethebladeorhaveitsharpened(morefrequentlyiftheedgedullsquickly).

•RefertoyourEngineOperator’sManualforanyadditionalyearlymaintenance procedures.

Engine Operator’ s Man ual

PreparingforMaintenance

1.Stoptheengineandwaitforallmovingpartstostop.

2.Disconnectthesparkplugwirefromthesparkplug (Figure41)beforeperforminganymaintenance procedure.

foradditionalmaintenanceprocedures.

Figure41

3.Afterperformingthemaintenanceprocedure(s), connectthesparkplugwiretothesparkplug.

Important:Beforetippingthemowertochange theoilorreplacetheblade,allowthefueltank torundrythroughnormalusage.Ifyoumust tipthemowerpriortorunningoutoffuel,usea

Page 16

handfuelpumptoremovethefuel.Alwaystip themowerontoitssidewiththeairlterup.

Tippingthemowermaycausethefueltoleak. Gasolineisammable,explosiveandcancause personalinjury.

Runtheenginedryorremovethegasolinewith ahandpump;neversiphon.

Note:Donotbrushthedirtoffthelter;brushing forcesdirtintothebers.

6.Removedirtfromtheaircleanerbodyandcover usingamoistrag.Donotwipedirtintotheair

duct.

7.Installthelterintotheaircleaner.

8.Closethecover.

ChangingtheEngineOil

ServiceInterval:Aftertherst5hours

ServicingtheAirCleaner

ServiceInterval:Beforeeachuseordaily

Yearly

1.Pressdownonthelatchtabsontopoftheaircleaner cover(Figure42).

Figure42

1.Latchtabs

2.Openthecover.

3.Removetheairlter(Figure43).

Yearly

Changetheengineoilaftertherst5operating hours;changeityearlythereafter.

Runtheengineafewminutesbeforechangingtheoil towarmit.Warmoilowsbetterandcarriesmore contaminants.

1.Performthepre-maintenanceprocedures;referto PreparingforMaintenance.

2.TurnthefuelvalvetotheOffpositiontoprevent anyfuelleakage.

3.Removethedipstick(Figure44).

Figure44

Figure43

4.Iftheairlterisdamagedoriswetwithoilorfuel, replaceit.

5.Iftheairlterisdirty,tapitonahardsurfaceseveral timesorblowcompressedairlessthan30psi(207 kPa)throughthesideofthelterthatfacesthe engine.

4.Tipthemowerontoitsside,withtheairlterup, todraintheusedoiloutthroughtheoillltube (Figure45).

Figure45

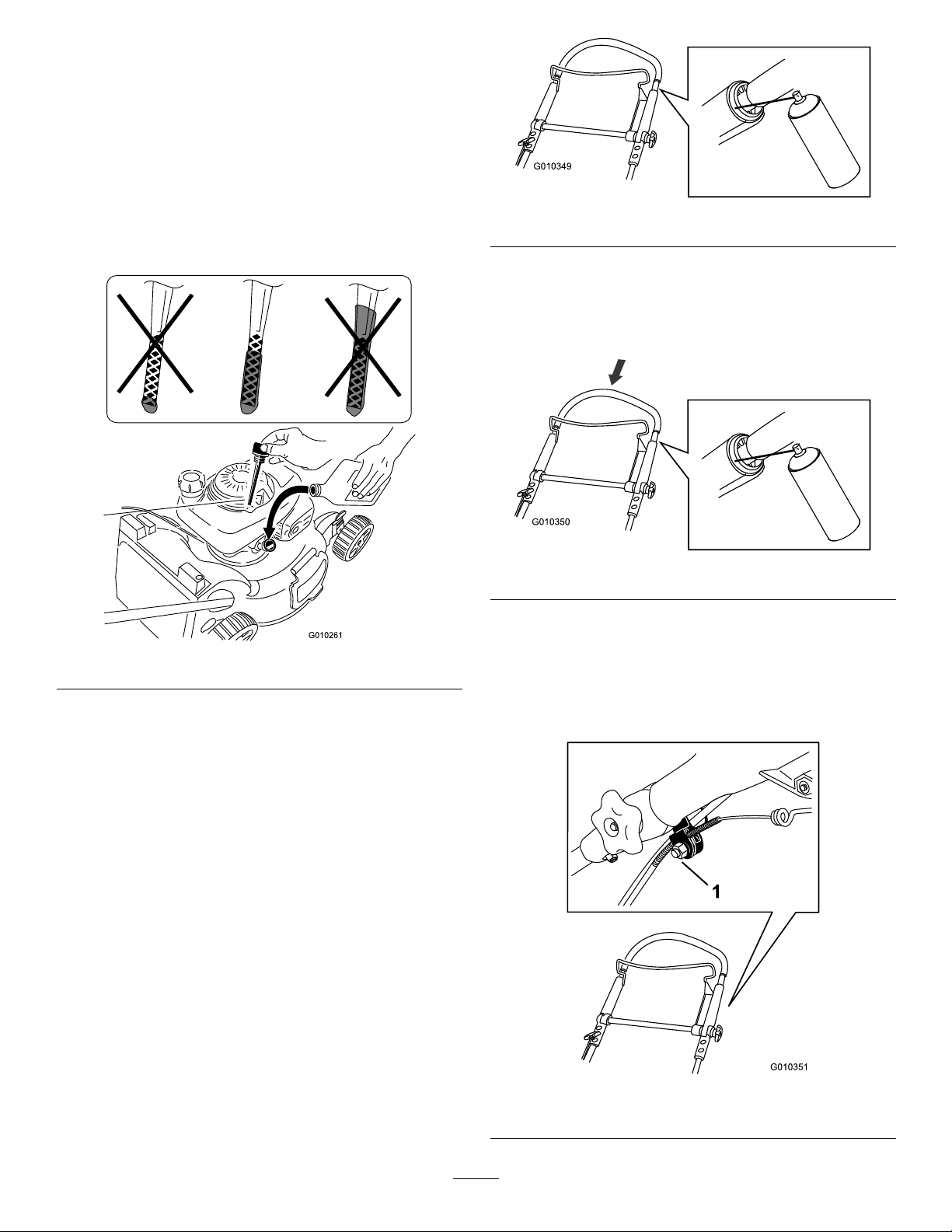

5.Slowlypouroilintotheoillltube,periodically checkingthelevelwiththedipstick,untilthedipstick

Page 17

indicatesthattheengineisfullasillustratedin Figure46.Donotoverll.(Max.ll:0.58quart (0.55l),type:SAE30detergentoilwithanAPI serviceclassicationofSH,SJ,SL,orhigher.)

Note:Eachtimeyouchecktheoillevel,removethe dipstickandwipeitclean,insertitintotheoilller neck(butdonotscrewitin),thenremoveitagain andcheckthelevel(Figure46).

Note:Ifyouoverlltheengine,poursomeoilout ofit.

Figure47

Note:Usethestrawthatcomeswiththespraycan

todirectthespray.

2.Pushtheupperhandlefullydownandspraythe innerplasticsurfaceoftheouterhandle(Figure48).

Figure46

6.Installthedipsticksecurely.

7.Disposeoftheusedoilproperlyatalocalrecycling center.

LubricatingtheUpperHandle

ServiceInterval:Yearly

Lubricatetheleftandrightsidesoftheupperhandle withalow-viscositysiliconespraylubricantyearlyor asneeded.

1.Spraytheouterplasticendoftheinnerhandle (Figure47).

Figure48

AdjustingtheSelf-propelDrive

Ifyourmowerdoesnotself-propelproperly,adjustthe self-propeldrivecable.

1.Loosenthenutonthecablemount(Figure49).

Figure49

1.Cablemount

Page 18

2.Pulltheupperhandlebackfullyrearward.

ReplacingtheBlade

Note:Ifthehandledoesnotmovesmoothly,refer

toLubricatingtheUpperHandle.

3.Pullthecablejacketdownwarduntilyouremovethe slackintheexposedcable(Figure50).

Figure50

1.Exposedcable

4.Pushthecablejacketupward1/8inch(3mm).

Note:Youcanplacearuleragainsttheupperside oftheblackcablemountandmeasurehowfarthe upperendofthecablejacketmoves(Figure51).

ServiceInterval:Yearly

Important:

the blade pr oper l y

Y ou will need a torque wr ench to install

.Ifyoudonothaveatorque wrenchorareuncomfortableperformingthis procedure,contactanAuthorizedServiceDealer.

Examinethebladewheneveryourunoutofgasoline.If thebladeisdamagedorcracked,replaceitimmediately. Ifthebladeedgeisdullornicked,haveitsharpenedor replaceit.

Thebladeissharp;contactingthebladecan resultinseriouspersonalinjury.

Weargloveswhenservicingtheblade.

1.Disconnectthesparkplugwirefromthesparkplug.

RefertoPreparingforMaintenance.

2.Tipthemowerontoitssidewiththeairlterup.

3.Removethe2bladenutsandthestiffener(Figure52).

Figure51

1.Cablemount2.Cablejacket

Note:Movingthecablejacketupwarddecreases thegroundspeed;movingthejacketdownward increasesthegroundspeed.

5.Tightenthenutrmly.

6.Startthemowerandchecktheadjustment.

Note:Iftheself-propeldriveisnotproperly adjusted,repeatthisprocedure.

Figure52

1.Bladenuts

2.Stiffener

4.Removetheblade(Figure52).

5.Installthenewblade(Figure52).

Important:Positionthecurvedendsofthe bladetopointtowardthemowerhousing.

6.Installthestiffeneryouremovedinstep3.

7.Installthebladenutsandtorquethemto15to

27ft-lb(20to37N⋅ ⋅⋅m).

Page 19

CleaningtheBladeBrake

CleaningtheMower

ClutchShield

ServiceInterval:Every25hours

Cleanthebladebrakeclutchshieldatleastevery25 operatinghoursoryearlytopreventthebladefrom stallingwhileyoumow .

1.Disconnectthesparkplugwirefromthesparkplug. RefertoPreparingforMaintenanceonpage18.

2.Tipthemowerontoitssidewiththeairlterup.

3.Removethe2bladenutsandthestiffener(Figure53).

ServiceInterval:Beforeeachuseordaily

Themowermaydislodgematerialfromunder themowerhousing.

•Weareyeprotection.

•Stayintheoperatingposition(behindthe handle).

•Donotallowbystandersinthearea.

1.Movethemowerontoaatpavedsurface.

2.Withtheenginerunningandthebladeengaged, sprayastreamofwaterinfrontoftherightrear wheel(Figure54).

Thewaterwillsplashintothepathoftheblade, cleaningouttheclippings.

Figure53

1.Bladenuts4.Bladedriver

2.Stiffener

3.Blade6.Bladebrakeclutchshield

5.Disk

4.Removetheblade(Figure53).

5.Removethebladedriveranddisk(Figure53).

6.Removethebladebrakeclutchshield(Figure53).

7.Brushorblowoutdebrisfromtheinsideofthe shieldandaroundalltheparts.

8.Installthebladebrakeclutchshield(Figure53).

9.Installthebladedriver(Figure53).

10.Installtheblade(Figure53).

Important:Positionthecurvedendsofthe bladetopointtowardthemowerhousing.

11.Installthestiffener(Figure53).

12.Installthebladenutsandtorquethemto15to

27ft-lb(20to37N⋅ ⋅⋅m).

Figure54

3.Whennomoreclippingscomeout,stopthewater andmovethemowertoadryarea.

4.Runtheenginewiththebladeengagedforafew minutestodrythehousingtopreventitfromrusting.

Page 20

Storage

Storethemowerinacool,clean,dryplace.

PreparingtheMowerfor Storage

Gasolinevaporscanexplode.

•Donotstoregasolinemorethan30days.

•Donotstorethemowerinanenclosurenear anopename.

•Allowtheenginetocoolbeforestoringit.

1.Onthelastrefuelingoftheyear,addfuelstabilizer tothefuelasdirectedbytheenginemanufacturer.

2.Runthemoweruntiltheenginestopsfromrunning outoffuel.

Figure56

ForwardPosition

1.Withthehandleintheuprightposition,steponthe footpedalandholditdown.

2.Movethehandleallthewayforwardandloosenthe upperhandleknob(Figure57).

3.Primetheengineandstartitagain.

4.Allowtheenginetorununtilitstops.Whenyoucan nolongerstarttheengine,itissufcientlydry.

5.Disconnectthewirefromthesparkplugandconnect thewireontotheretainingpost.

6.Removethesparkplug,add1oz.(30ml)ofoil throughthesparkplughole,andpullthestarterrope slowlyseveraltimestodistributeoilthroughoutthe cylindertopreventcylindercorrosionduringthe off-season.

7.Looselyinstallthesparkplug.

8.Tightenallnuts,bolts,andscrews.

FoldingtheHandle

UprightPosition

1.Steponthefootpedalandholditdown(Figure55).

Figure57

3.Tounfoldthehandle,refertoUnfoldingtheHandle.

RemovingtheMowerfrom Storage

1.Removethesparkplugandspintheenginerapidly usingthestartertoblowtheexcessoilfromthe cylinder.

2.Installthesparkplugandtightenitwithatorque wrenchto15ft-lb(20N⋅m).

3.Connectthewiretothesparkplug.

Figure55

2.Movethehandletotheuprightposition(Figure56).

Page 21

Notes:

Page 22

The Toro Starting Guarantee

A Five-Year Full Warranty on All Toro GTS®-5 Engines

(Not Applicable for Commercial Use)

Super Recycler Super Bagger Walk Mowers

Conditions and Products Covered

The Toro Company and its affiliate, Toro Warranty Company, pursuant to an agreement between them, jointly guarantee that your Toro Engine will start on the first or second pull for five years from the date of purchase—if you provide the routine maintenance it requires—or we will fix it free of charge. This warranty covers the cost of parts and labor, but you must pay transportation costs. This covers Toro rotary mower engines.

Instructions for Obtaining Warranty Service

If you think that your Toro product contains a defect in materials or workmanship, follow this procedure:

1. Contact any Toro Authorized or Master Service Dealer to

arrange service at their dealership. To locate a dealer convenient to you, refer to the Yellow Pages of your telephone directory (look under “Lawn Mowers”) or access our website at www.Toro.com. You may also call our Toro Customer Care Department toll free at 888-865-5688 (U.S. customers) or 888-865-5705 (Canada customers).

2. Bring the product and your proof of purchase (sales receipt) to

the Service Dealer.

If for any reason you are dissatisfied with the Service Dealer’s analysis or with the assistance provided, call us toll free at the numbers listed or write us at:

Customer Care Department, Consumer Division Toro Warranty Company 81 11 Lyndale Avenue South Bloomington, MN 55420-1196

Owner Responsibilities

You must maintain your Toro Engine by following the maintenance schedule detailed in the Operator’s Manual. You must record this work in the maintenance chart provided in your Operator’s Manual and keep your proof of purchase. Such routine maintenance, whether performed by a dealer or by you, is at your expense.

Items and Conditions Not Covered

There is no other express warranty except for The Toro Total Coverage Guarantee and special emission system coverage on some products. This warranty does not cover the following:

• Any repairs on products used commercially

• Normal maintenance including replacement of spark plugs, air

filter, fuel filter, and carburetor adjustments

• Oil change and lubrication

• Repairs or adjustments due to the following:

-- failure to follow proper maintenance procedures

-- rotary mower blade striking an object

-- contaminants in the fuel system

-- improper fuel or fuel mixture (consult your operator’s manual if in doubt)

-- failure to drain the fuel system prior to any period of non-use over three months

-- operation misuse, neglect, or accidents

-- repairs or attempted repairs by anyone other than an Authorized Service Dealer

• Special operational conditions where starting may require more than two pulls, including the following:

-- first time starts after extended period of non-use or

seasonal storage

-- cool temperature starts such as those found in early spring

and late autumn (applies to rotary products only)

-- improper starting procedures

If you have difficulty starting your unit, please check the Operator’s Manual to ensure that you are using the correct starting procedure. This can save an unnecessary visit to a Service Dealer.

General Conditions

All repairs covered by this warranty must be performed by an Authorized Toro Service Dealer using Toro approved replacement parts. Repair by an Authorized Toro Service Dealer is your sole remedy under this warranty.

Neither The Toro Company nor Toro Warranty Company is liable for indirect, incidental or consequential damages in connection with the use of the Toro products covered by this warranty, including any cost or expense of providing substitute equipment or service during reasonable periods of malfunction or non-use pending completion of repairs under this warranty.

Some states do not allow exclusion or limitation of incidental or consequential damages, so the above exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Guaranteed to Start Maintenance Record

To keep the starting guarantee in effect, you must perform the following maintenance according to the recommended maintenance schedule. Follow the procedures in this operator’s manual and record all maintenance activities on this chart.

Date

Hours

Used

Air Cleaner

Service

(mowers only)

Change Oil

(does not apply

to two-cycle)

Lubricate Wheels

(mowers only)

Check Spark

Plug

Storage

Preparation

Page 23

Date Storage

Hours

Used

Air Cleaner

Service

(mowers only)

Change Oil

(does not apply

to two-cycle)

Lubricate Wheels

(mowers only)

Check Spark

Plug

Preparation

Part No. 374-0018 Rev. F

Page 24

The Toro Total Coverage Guarantee

A Five--Year Full Warranty

(Limited Warranty for Commercial Use)

Super Recycler Super Bagger Walk Mowers

Conditions and Products Covered

The Toro Company and its affiliate, Toro Warranty Company, pursuant to an agreement between them, jointly promise to repair any Toro product used for normal residential purposes* if defective in materials or workmanship or if it stops functioning due to the failure of a component. The following time periods apply from the date of purchase:

Products Warranty Period

• Super Recycler Bagger Walk Mowers and Accessories

• Batteries 1 year full warranty

This warranty includes the cost of parts and labor, but you must pay transportation costs.

This warranty applies to Super Recycler Mowers and Accessories.

and Super

5 year full warranty

and Super Bagger Walk

Limited Warranty for Commercial Use

Toro Walk Power Mowers used for commercial, institutional, or rental are warranted against defects in materials or workmanship for 45 days from the date of purchase. Components failing due to normal wear are not covered by this warranty.

Instructions for Obtaining Warranty Service

If you think that your Toro product contains a defect in materials or workmanship, follow this procedure:

1. Contact any Toro Authorized or Master Service Dealer to

2. Bring the product and your proof of purchase (sales receipt) to

the Service Dealer.

If for any reason you are dissatisfied with the Service Dealer’s analysis or with the assistance provided, call us toll free at the numbers listed or write us at:

Customer Care Department, Consumer Division Toro Warranty Company 81 11 Lyndale Avenue South Bloomington, MN 55420-1196

You must maintain your Toro product by following the maintenance procedures described in the Operator’s Manual. Such routine maintenance, whether performed by a dealer or by you, is at your expense.

There is no other express warranty except for special emission system coverage on some products and the Toro Starting Guarantee on GTS Engine. This express warranty does not cover:

• Cost of regular maintenance service or parts, such as filters, fuel, lubricants, oil changes, spark plugs, blade sharpening, worn blade, cable/linkage adjustments, or brake and clutch adjustments

• Any product or part which has been altered or misused or required replacement or repair due to accidents or lack of proper maintenance

• Repairs necessary due to improper fuel, contaminants in the fuel system, or failure to properly prepare the fuel system prior to any period of non-use over three months

• Repairs necessary due to improper battery care or failure to properly prepare the mower prior to any period of non-use

• Pickup and delivery charges

If you have difficulty starting your unit, please check the Operator’s Manual to ensure that you are using the correct starting procedure. This can save an unnecessary visit to a Service Dealer.

Owner Responsibilities

Items and Conditions Not Covered

General Conditions

Countries Other than the United States or Canada

Customers who have purchased Toro products exported from the United States or Canada should contact their ToroDistributor (Dealer) to obtain guarantee policies for your country, province, or state. If for any reason you are dissatisfied with your Distributor’s service or have difficulty obtaining guarantee information, contact the Toro importer. If all other remedies fail, you may contact us at Toro Warranty Company. *Normal residential purposes means use of the product on the same lot as your home. Use at more than one location is considered commercial use, and the commercial use warranty would apply.

Part No. 374-0080 Rev. B

Toro 20194 Operator's Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
