Form No. 3327-157
Super Recycler
Walk Power Lawn Mower
Model No. 20033—Serial No. 220000001 and Up
Operator ’s Manual
Para obtener una versión gratis de este manual en español, escriba a la dirección indicada
más abajo. Asegúrese de indicar el modelo y el número de serie de su producto.
Pour obtenir gratuitement une version en français de ce manuel, écrivez à l’adresse
ci–dessous. N’oubliez pas d’indiquer les numéros de modèle et de série de votre produit.
The Toro Company, Attn: Parts Dept., 8111 Lyndale Ave S, Bloomington, MN 55420–1196.
Domestic English (EN)
Warning
The engine exhaust from this product contains
chemicals known to the State of California to cause
cancer, birth defects, or other reproductive harm.
Important This engine is not equipped with a spark
arrester muffler. It is a violation of California Public
Resource Code Section 4442 to use or operate this engine
on any forest-covered, brush-covered or grass-covered
land. Other states or federal areas may have similar laws.
This spark ignition system complies with Canadian
ICES-002.
Ce système d’allumage par étincelle de véhicule est
conforme à la norme NMB-002 du Canada.
The enclosed Engine Owner’s Manual is supplied for
information regarding The U.S. Environmental
Protection Agency (EPA) and the California Emission
Control Regulation of emission systems, maintenance
and warranty. See the emission label(s) on the engine.
Keep this engine Owner’s Manual with your unit.
Should this engine Owner’s Manual become damaged
or illegible, replace immediately. Replacements may be
ordered through the engine manufacturer.
Page
Replacing the Air Filter 12. . . . . . . . . . . . . . . . . . . .
Servicing the Spark Plug 13. . . . . . . . . . . . . . . . . . .
Changing the Engine Oil 13. . . . . . . . . . . . . . . . . . .
Maintaining the Blade 14. . . . . . . . . . . . . . . . . . . . .
Cleaning the Cooling System 15. . . . . . . . . . . . . . . .
Emptying the Fuel Tank 15. . . . . . . . . . . . . . . . . . . .
Folding the Handle 16. . . . . . . . . . . . . . . . . . . . . . . .
Storage 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Preparing the Fuel System 16. . . . . . . . . . . . . . . . . .
Preparing the Engine 16. . . . . . . . . . . . . . . . . . . . . .
General Information 17. . . . . . . . . . . . . . . . . . . . . . .
Removing From Storage 17. . . . . . . . . . . . . . . . . . .
Accessories 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Troubleshooting 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
The Toro Total Coverage Guarantee 20. . . . . . . . . . . . .
Introduction
Read this manual carefully to learn how to operate and
maintain your product properly. The information in this
manual can help you and others avoid injury and product
damage. Although Toro designs and produces safe
products, you are responsible for operating the product
properly and safely.
Contents
Introduction 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
General Lawn Mower Safety 3. . . . . . . . . . . . . . . .
Safety and Instruction Decals 6. . . . . . . . . . . . . . . .
Setup 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing the Handle 7. . . . . . . . . . . . . . . . . . . . . .
Installing the Starter Rope 7. . . . . . . . . . . . . . . . . .
Before Starting 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Filling the Crankcase with Oil 7. . . . . . . . . . . . . . .
Filling the Fuel Tank with Gasoline 8. . . . . . . . . . .
Reviewing the Maintenance Schedule 9. . . . . . . . .
Operation 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Controls 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Starting the Engine 9. . . . . . . . . . . . . . . . . . . . . . . .
Stopping the Engine 9. . . . . . . . . . . . . . . . . . . . . . .
Adjusting the Cutting Height 10. . . . . . . . . . . . . . . .
Operating Tips 10. . . . . . . . . . . . . . . . . . . . . . . . . . .
Maintenance 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Recommended Maintenance Schedule 11. . . . . . . . .
Checking the Engine Oil Level 12. . . . . . . . . . . . . .
Cleaning the Underside of the Housing 12. . . . . . . .
Page
Whenever you need service, genuine Toro parts, or
additional information, contact an Authorized Service
Dealer or Toro Customer Service and have the model and
serial numbers of your product ready. Figure 1 illustrates
the location of the model and serial numbers on the
product.
1
1064
Figure 1
1. Location of the model and serial numbers
Write the product model and serial numbers in the space
below:
Model No.
Serial No.
2001 by The Toro Company
8111 Lyndale Avenue South
Bloomington, MN 55420-1196
All Rights Reserved
Printed in the USA
2
This manual identifies potential hazards and has special
safety messages that help you and others avoid personal
injury and even death. Danger, Warning, and Caution are
signal words used to identify the level of hazard. However,
regardless of the hazard, be extremely careful.
Danger signals an extreme hazard that will cause serious
injury or death if you do not follow the recommended
precautions.
Warning signals a hazard that may cause serious injury or
death if you do not follow the recommended precautions.
Caution signals a hazard that may cause minor or moderate
injury if you do not follow the recommended precautions.
This manual uses 2 other words to highlight information.
Important calls attention to special mechanical
information and Note: emphasizes general information
worthy of special attention.
Safety
This lawn mower meets or exceeds the CPSC blade
safety requirements for walk-behind rotary lawn
mowers and the B71.1 specifications of the American
National Standards Institute in effect at the time of
production.
Improperly using or maintaining this lawn mower can
result in injury. To reduce the potential for injury,
comply with these safety instructions.
Toro designed and tested this lawn mower for to offer
reasonably safe service; however, failure to comply with
the following instructions may result in personal injury.
Warning
Engine exhaust contains carbon monoxide, an
odorless, deadly poison that can kill you.
Do not run the engine indoors or in an enclosed
area.
General Lawn Mower Safety
The following instructions have been adapted from the
ANSI/OPEI standard B71.1—1998 and ISO standard
5395:1990(E). Information or terminology specific to Toro
lawn mowers is enclosed in parenthesis.
This lawn mower is capable of amputating hands and feet
and of throwing objects. Failure to observe the following
safety instructions could result in serious injury or death.
Training
• Read this operator’s manual carefully. Be thoroughly
familiar with the controls and the proper use of the lawn
mower before starting it.
• Never allow children to operate the lawn mower. Local
regulations may restrict the age of the operator.
• Never allow adults unfamiliar with these instructions to
operate the lawn mower.
• Never mow while people (especially children) or pets
are nearby. Stop the lawn mower if anyone enters the
area.
• Tragic accidents can occur if the operator is not alert to
the presence of children. Children are often attracted to
the lawn mower and the mowing activity. Never assume
that children will remain where you last saw them.
• Keep children out of the mowing area and under the
watchful care of a responsible adult.
• Be alert and turn the lawn mower off if children enter
the area.
• Use extra care when approaching blind corners, shrubs,
trees, or other objects that may obscure vision.
• Keep in mind that the operator or user is responsible for
accidents or hazards occurring to other people or their
property.
• See the manufacturer’s instructions for proper operation
and installation of accessories. Use only the accessories
that are approved by the manufacturer.
To ensure maximum safety, best performance, and to
gain knowledge of the product, it is essential that you
and any other operator of the lawn mower read and
understand the contents of this manual before the
engine is ever started. Pay particular attention to the
safety alert symbol which means caution, warning,
or danger — “personal safety instruction.” Read and
understand the instruction because it has to do with
safety. Failure to comply with the instruction may result
in personal injury.
Preparation
• Thoroughly inspect the area where you will use the
lawn mower, and remove all stones, sticks, wires,
bones, and other foreign objects.
• While mowing, always wear substantial footwear and
long trousers.
• Do not operate the lawn mower when barefoot or
wearing open sandals.
• Always wear safety goggles or safety glasses with side
shields when operating the lawn mower.
3
• Warning: Gasoline is highly flammable. Take the
following precautions:
– Store fuel in containers specifically designed for this
purpose.
• Never operate the lawn mower with damaged or
missing guards or shields, or without safety devices
(such as deflectors and grass catchers) in place.
• Do not change the speed settings on the engine.
– Refuel outdoors only and do not smoke while
refuelling.
– Add fuel before starting the engine. Never remove
the cap of the fuel tank or add gasoline while the
engine is running or when the engine is hot.
– If gasoline is spilled, do not attempt to start the
engine. Move the lawn mower away from the area
of spillage to avoid creating any source of ignition
until the gasoline vapors have dissipated.
– Replace all fuel tank and container caps securely.
– If you must drain the fuel from the fuel tank, do it
outdoors.
• Replace faulty mufflers.
• Before using, always visually inspect the blades, blade
bolts, and cutter assembly for wear or damage. Replace
worn or damaged blades and bolts in sets to preserve
balance.
• On multibladed lawn mowers, use care as rotating one
blade can cause the other blades to rotate.
Operation
• Do not operate the engine in a confined space where
dangerous carbon monoxide fumes can collect.
• Mow only in daylight or in good artificial light.
• Always be sure of your footing on slopes.
• Walk; never run.
• Keep a firm hold on the handle.
• For wheeled rotary lawn mowers, mow across the face
of slopes, never up and down.
• Exercise extreme caution when changing the direction
on slopes.
• Do not mow excessively steep slopes.
• Use extreme caution when reversing or pulling the lawn
mower toward you.
• Before and while moving backward, look behind and
down for small children.
• Stop the blade(s) if you must tilt the lawn mower for
transportation when crossing surfaces other than grass
and when transporting the lawn mower to and from the
area to be mowed.
• Disengage all blade and drive clutches before starting
the engine.
• Start the engine carefully according to instructions and
with feet well away from the blade(s).
• Do not tilt the lawn mower when starting the engine,
unless you must tilt the lawn mower to start it. In this
case, do not tilt it more than absolutely necessary and
lift only the part which is away from the operator.
• Do not start the engine when standing in front of the
discharge chute.
• Do not put your hands or feet near or under rotating
parts. Keep clear of the discharge opening at all times.
• Never pick up or carry a lawn mower while the engine
is running.
• Stop the engine and disconnect the spark-plug wire:
– before clearing blockages or unclogging the chute;
– before checking, cleaning, or working on the lawn
mower;
– after striking a foreign object. Inspect the lawn
mower for damage and make repairs before starting
and operating the lawn mower; and
– if the lawn mower starts to vibrate abnormally
(check it immediately).
• Stop the engine:
– whenever you leave the lawn mower; and
– before refuelling.
• Reduce the throttle setting during engine run-out and, if
the engine has a shutoff valve, turn the fuel off after
mowing.
• Stop the blade(s) when crossing gravel drives, walks, or
roads.
• Shut the engine off and wait until the blade comes to a
complete stop before removing the grass catcher.
• Do not operate the lawn mower while under the
influence of alcohol or drugs.
• If the lawn mower should start to vibrate abnormally,
stop the engine and check immediately for the cause.
Vibration is generally a warning of trouble.
Slopes are a major factor related to slip and fall accidents
which can result in a severe injury. If you feel uneasy on a
slope, do not mow it.
4
• Watch for holes, ruts, or bumps. Tall grass can hide
obstacles.
• Do not mow near drop-offs, ditches, or embankments.
You could lose your footing or balance.
• Do not mow on wet grass. Reduced footing could cause
slipping.
Maintenance and Storage
• Keep all nuts, bolts (especially blade attachment bolts),
and screws tight to ensure that the lawn mower is in
safe working condition.
• Never store the lawn mower with gasoline in the tank
inside a building where fumes may reach an open flame
or spark.
• Allow the engine to cool before storing the lawn mower
in any enclosure.
• To reduce the fire hazard, keep the engine, muffler,
battery compartment, and gasoline storage area free of
grass, leaves, or excessive grease.
• Check the grass catcher frequently for wear or
deterioration.
• Replace worn or damaged parts.
• Use extra care when handling gasoline; gasoline vapors
are explosive.
• Never tamper with safety devices. Check their proper
operation regularly.
• Keep the lawn mower free of grass, leaves, or other
debris buildup. Clean up any oil or fuel that spills.
• Stop and inspect the lawn mower if you strike an object.
Repair the lawn mower, if necessary, before starting the
engine.
• Never attempt to make wheel height adjustments while
the engine is running.
• Grass catcher components are subject to wear, damage,
and deterioration, which could expose moving parts or
allow objects to be thrown. Frequently check the
components and replace them with the manufacturer’s
recommended parts when necessary.
• Lawn mower blades are sharp and can cut. Wrap the
blade(s) or wear gloves, and use extra caution when
servicing them.
• Do not change the speed settings on the engine.
• If you must drain the fuel from the fuel tank, do it
outdoors.
• To ensure the best performance and safety, purchase
only genuine Toro replacement parts and accessories.
• Maintain or replace safety and instruction decals when
necessary.
5
Safety and Instruction Decals
Safety decals and instructions are easily visible to the operator and are located near any area
of potential danger. Replace any decal that is damaged or lost.
43-8480
93-0248
99-6018
6
Setup
Note: Determine the left and right sides of the machine
from the normal operating position.
Installing the Handle
1. Align the upper and lower handle sections, and remove
the packing filler between them with a pliers.

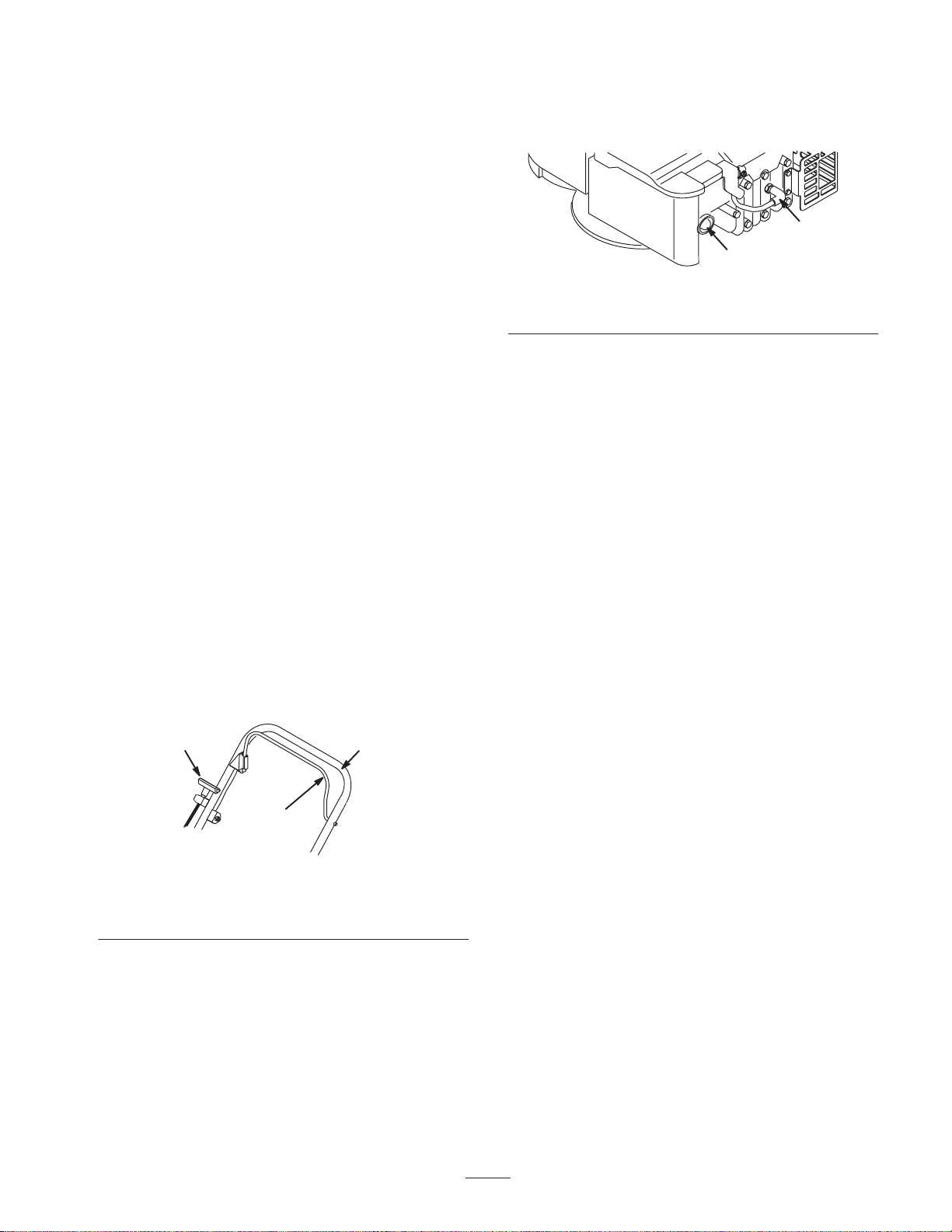

2. Remove the left knob and bolt (Fig. 2).
1
1. Left handle knob (before
moving it on the inside)
2
Figure 2
2. Right handle knob
311
Installing the Starter Rope
Pull the starter rope through the rope guide on the handle
(Fig. 4).
2
1
210
Figure 4
1. Rope guide 2. Starter rope
Before Starting
3. Install the left knob on the inside of the handle (Fig. 2).
4. Tighten both handle knobs.
5. Move the handle support brackets slightly outward so
that they will not be in the way when you move the
handle backward into the operating position (Fig. 3).
4
3
2
1
Figure 3
1. Support bracket
2. Handle stud
6. Move the handle backward.
3. Control cable
4. Cable tie
m-4271
Filling the Crankcase with Oil
The crankcase can hold 20 ounces (0.59 liters) of oil. Use
only high-quality, SAE 30 weight detergent oil that has the
American Petroleum Institute (API) service classification
SF, SG, SH, or SJ.
Before each use, ensure that the oil level is between the
Add and the Full marks on the dipstick (Fig. 5).
3
2
4
1
7. Move the support brackets inward while you position
the handle studs into the center hole of the brackets
(Fig. 3).
Note: If the handle height is not satisfactory, adjust it by
placing the handle stud into a different hole.
8. Secure the cable to the upper handle section with a
cable tie (Fig. 3).
1. Dipstick
2. Add mark
7
1626
Figure 5
3. Full mark
4. Fuel tank cap
To add oil:
1. Move the lawn mower to a level surface.
Danger
2. Clean around the dipstick (Fig. 5).
3. Remove the dipstick by rotating the cap
counterclockwise and pulling it out.
4. Wipe the dipstick clean with a clean cloth.
5. Fully insert the dipstick into the filler neck, then remove
it.
Note: To ensure an accurate oil level reading, you must
fully install the dipstick.
6. Read the oil level on the dipstick (Fig. 5).
7. If the oil level reading is below the Add mark on the
dipstick, slowly pour only enough oil into the filler hole
to raise the oil level to the Full mark on the dipstick.
Important Do not overfill the crankcase with oil and
run the engine; engine damage will result. Drain the excess
oil until the oil level on the dipstick reads Full.
8. Insert the dipstick into the filler neck and rotate the cap
clockwise until it is tight.
Filling the Fuel Tank with
Gasoline
For best results, use clean, fresh, lead-free gasoline with an
octane rating of 87 or higher. To ensure freshness, purchase
only the quantity of gasoline that you expect to use in 30
days. Unleaded gasoline burns cleaner, extends engine life,
and promotes good starting. You may use leaded gasoline if
unleaded gasoline is not available.
Important Do not add oil to the gasoline.
Important Do not use methanol, gasoline containing
methanol, gasohol containing more than 10% ethanol,
premium gasoline, or white gas. Using these fuels can
damage the engine’s fuel system.
Important Do not use gasoline that is more than 30
days old.
In certain conditions, gasoline is extremely
flammable and highly explosive. A fire or
explosion from gasoline can burn you and others
and can damage property.
• Fill the fuel tank outdoors, in an open area, and
when the engine is cold. Wipe up any gasoline
that spills.
• Do not fill the fuel tank completely full. Add
gasoline to the fuel tank until the level is 1/4 to
1/2 in. (6 to 13 mm) below the bottom of the
filler neck. This empty space in the tank allows
the gasoline to expand.
• Never smoke when handling gasoline, and stay
away from an open flame or where a spark may
ignite the gasoline fumes.
• Store gasoline in an approved fuel container and
keep it out of the reach of children.
• Never buy more than a 30-day supply of
gasoline.
Danger
When fueling, under certain circumstances, a
static charge can develop, igniting the gasoline. A
fire or explosion from gasoline can burn you and
others and damage property.
• Always place gasoline containers on the ground
and away from your vehicle before filling.
• Do not fill gasoline containers inside a vehicle or
on a truck or trailer bed because interior
carpets or plastic truck bed liners may insulate
the container and slow the loss of any static
charge.
• When practical, remove gasoline-powered
equipment from the truck or trailer and refuel
the equipment with its wheels on the round.
• If this is not possible, then refuel such
equipment on a truck or trailer from a portable
container, not from a gasoline dispenser nozzle.
• If you must use a gasoline dispenser nozzle, keep
the nozzle in contact with the rim of the fuel
tank or container opening at all times until
fueling is complete.
Use a fuel stabilizer/conditioner regularly during operation
and storage. A stabilizer/conditioner cleans the engine
during operation and prevents gum-like varnish deposits
from forming in the engine during periods of storage.
Important Do not use fuel additives other than a fuel
stabilizer/conditioner. Do not use fuel stabilizers with an
alcohol base such as ethanol, methanol, or isopropanol.
8
1. Clean around the fuel tank cap (Fig. 5).
2. Remove the cap from the tank.
3. Fill the fuel tank with unleaded gasoline to within 1/4 to
1/2 in. (6 to 13 mm) from the top of the tank. Do not fill
into the filler neck.
4. Install the fuel tank cap and wipe up any spilled
gasoline.
Reviewing the Maintenance
Schedule
Review the Recommended Maintenance Schedule on
page 11. You may need to perform one or more additional
procedures before or soon after you begin operating the
lawn mower.
Starting the Engine
1. Connect the wire to the spark plug (Fig. 7).
2
13441
Figure 7
1. Primer 2. Spark-plug wire
2. Push in the primer 3 times, waiting one second between
each push (Fig. 7).
Note: If the temperature is 55F (13C) or below, push in
the primer 5 times, waiting one second between each push.
Operation
Note: Determine the left and right sides of the machine
from the normal operating position.
Each time before you mow, make sure that the self-propel
drive and the blade control bail operate properly. When you
release the blade control bail, the engine and the blade
should stop. If they do not, contact an Authorized Service
Dealer.
Controls
The starter handle and the blade control bail are on the
upper handle as shown in Figure 6.
3 2
1
m-3712
Figure 6
1. Blade control bail
2. Upper handle
3. Starter handle
Note: Do not use the primer to start a warm engine after a
brief shutdown. However, cool weather may require you to
prime the engine again.
3. Hold the blade control bail against the upper handle
(Fig. 6).
4. Pull the starter handle lightly until you feel resistance,
then pull it sharply (Fig. 6). Allow the rope return to the
handle slowly.
Note: Allow the engine to warm up for at least one minute;
longer in cooler temperatures.
Note: If the engine fails to start after 3 attempts, repeat
steps 2 through 4.
Stopping the Engine
Release the blade control bail. Both the engine and the
blade should stop. If they do not stop properly, contact your
Authorized Service Dealer.
9
Adjusting the Cutting Height
You can adjust each wheel individually with the wheel
height adjustment lever. Cutting heights are 1 inch
(25 mm); 1-1/2 inches (38 mm); 2 inches (51 mm);
2-1/2 inches (64 mm); and 3 inches (76 mm).
Danger
• Maintain a sharp blade throughout the cutting season.
Periodically file down nicks on the blade.
• Replace the blade when necessary with an original Toro
replacement blade.
• Mow only dry grass or leaves. Wet grass and leaves
tend to clump on the yard and can cause the lawn
mower to plug or the engine to stall.
Adjusting the cutting height levers could bring
your hands into contact with a moving blade and
result in serious injury.
• Stop the engine and wait for all movement to
stop before adjusting the cutting height.
• Do not put fingers under the housing when
adjusting the cutting height.
1. To change the cutting height, pull the cutting height
lever toward the wheel and move it to the desired
position (Fig. 8).
1
A = 1 in. (25 mm)
B = 1-1/2 in. (38 mm)
C = 2 in. (51 mm)
D = 2-1/2 in. (64 mm)
E = 3 in. (76 mm)
788
Figure 8
1. Cutting height lever
2. Release the cutting height lever and seat it securely in
the notch.
Warning
Wet grass or leaves can cause serious injury if you
slip and contact the blade.
Mow only in dry conditions.
• Clean the underside of the lawn mower deck after each
mowing. See Cleaning the Underside of the Housing on
page 12.
• Keep the engine in good running condition.
• Set the engine speed to the fastest position for the best
cutting results.
Warning
Operating a lawn mower with its engine running
at a speed greater than the factory setting can
cause the lawn mower to throw a part of the blade
or engine into the operator’s or bystander’s area
and result in serious personal injury or death.
• Do not change the engine speed setting.
• If you suspect the engine speed is faster than
normal, contact an Authorized Service Dealer.
Note: Set all 4 wheels at the same height.
Operating Tips
• Review the safety instructions and read this manual
carefully before operating the lawn mower.
• Clear the area of sticks, stones, wire, branches, and
other debris that the blade could hit and throw.
• Keep everyone, especially children and pets, away from
the area of operation.
• Avoid striking trees, walls, curbs, or other solid objects.
Never deliberately mow over any object.
• If the lawn mower strikes an object or starts to vibrate,
immediately stop the engine, disconnect the wire from
the spark plug, and examine the lawn mower for
damage.
• Clean the air filter frequently. Mulching stirs up more
clippings and dust which clogs the air filter and reduces
engine performance.
Cutting Grass
• Grass grows at different rates at different times of the
year. In the summer heat, it is best to cut grass at the
2 inch (51 mm), 2-1/2 inch (64 mm), or 3 inch (76 mm)
cutting height settings. Cut only about a third of the
grass blade at a time. Do not cut below the 2-inch
(51 mm) setting unless the grass is sparse or it is late
fall when grass growth begins to slow down.
• When cutting grass over 6 inches (15 cm) tall, first
mow at the highest cutting height setting and walk
slower; then mow again at a lower setting for the best
lawn appearance. If the grass is too long, the lawn
mower may plug and cause the engine to stall.
• Alternate the mowing direction. This helps disperse the
clippings over the lawn for even fertilization.
10
If the finished lawn appearance is unsatisfactory, try one or
more of the following:
• Sharpen the blade.
• Walk at a slower pace while mowing.
• Raise the cutting height on your lawn mower.
• Cut the grass more frequently.
• Overlap cutting swaths instead of cutting a full swath
with each pass.
• Set the cutting height on the front wheels one notch
lower than the rear wheels. For example, set the front
wheels at 2 inches (51 mm) and the rear wheels at
2-1/2 inches (64 mm).
Cutting Leaves
• After cutting the lawn, ensure that half of the lawn
shows through the cut leaf cover. You may need to
make more than one pass over the leaves.
• For light leaf coverage, set all the wheels at the same
cutting height setting.
• If there are more than 5 inches (12.7 cm) of leaves on
the lawn, set the front cutting height one or 2 notches
higher than the rear cutting height. This makes it easier
to feed the leaves under the lawn mower deck.
• Slow down your mowing speed if the lawn mower does
not cut the leaves finely enough.
• If you mow over oak leaves, you can add lime to the
grass in the spring to reduce the acidity of the oak
leaves.
Maintenance
Note: Determine the left and right sides of the machine from the normal operating position.
Recommended Maintenance Schedule
Maintenance Service
Interval
Each Use
5 Hours
25 Hours
50 Hours
100 Hours • Clean the cooling system. Refer to Cleaning the Cooling System on page 15.
Storage
Maintenance Procedure
• Check the engine oil level. Refer to Checking the Engine Oil Level on page 12.
• Check the stopping time of the blade brake. The blade must stop within
3 seconds of releasing the bail; if it does not, contact an Authorized Service
Dealer for repair.
• Remove grass clippings and dirt from under the housing. Refer to Cleaning the
Underside of the Housing on page 12.
• Check the blade and the engine mounting fasteners. Tighten them if they are
loose.
• Replace the air filter; replace it more frequently in dusty or dirty operating
conditions. Refer to Replacing the Air Filter on page 12.
• Inspect the spark plug and replace it if necessary. Refer to Servicing the Spark
Plug on page 13.
• Change the engine oil.
• Sharpen or replace the blade; maintain it more frequently if the edge dulls quickly
in rough or in sandy conditions. Refer to Maintaining the Blade on page 14.
• Check for leaks in the fuel system and/or a deteriorating fuel hose. Replace parts
if necessary.
• Empty the fuel tank before repairs as directed or before storage. Refer to
Emptying the Fuel Tank on page 15.
1,2
Refer to Changing the Engine Oil on page 13.
1
Change the engine oil after the first 5 operating hours.
2
Change the engine oil after every 25 operating hours in dusty conditions or in high temperatures.
Important Refer to your engine operator’s manual for additional maintenance procedures.
11
Caution
If you leave the wire on the spark plug, someone could accidently start the engine and seriously
injure you or other bystanders.
Disconnect the wire from the spark plug before you do any maintenance. Set the wire aside so
that it does not accidentally contact the spark plug.
Checking the Engine Oil Level
Before you use the lawn mower, ensure that the oil level is
between the Add and the Full marks as shown on the
dipstick (Fig. 5). If the oil level is below the Add mark, add
oil. Refer to Filling the Crankcase with Oil on page 7.
Cleaning the Underside of the
Housing
Remove grass clippings and dirt from the underside of the
housing after each use.
Washing Method
1. Move the lawn mower onto a flat paved surface near a
water hose.
2. Turn the water on high.
3. Start the engine.
4. Hold the running water hose at handle level and direct
the water flow on the ground just in front of the rear
right wheel (Fig. 9).
Scraping Method
Warning
Tipping the lawn mower may cause the fuel to leak
from the carburetor or the fuel tank. Gasoline is
extremely flammable, highly explosive and under
certain conditions can cause personal injury or
property damage.
Avoid fuel spills by running the engine dry or
removing gasoline with a hand pump; never
siphon.
If washing does not remove all the debris from under the
deck, tip the lawn mower and scrape it clean.
1. Disconnect the wire from the spark plug (Fig. 7).
2. Drain the gasoline from the fuel tank; refer to steps 3
and 4 of Emptying the Fuel Tank on page 15.
3. Tip the lawn mower onto its left side.
4. Remove the dirt and grass clippings with a hardwood or
plastic scraper. Avoid burrs and sharp edges.
1
1093
Figure 9
1. Rear right wheel
Note: The water will splash into path of the blade and
wash out the clippings. Continue washing with water
until you no longer see clippings being washed out from
under the housing.
5. Move the lawn mower to a dry area, and let the engine
run for one minute to dry out the lawn mower and its
components.
6. Stop the engine and wait for all moving parts to stop.
If the underside of the lawn mower deck has excessive
grass buildup, wait for 30 minutes and repeat steps 2
through 6 above.
Important Move the blade as little as possible to avoid
future starting problems.
5. Turn the lawn mower upright.
6. Connect the wire to the spark plug.
Replacing the Air Filter
Replace the air filter after every 25 operating hours; replace
it more frequently when you operate the lawn mower in
dusty or dirty conditions.
Important Do not operate the engine without the air
filter element; extreme engine damage will occur.
1. Stop the engine and wait for all moving parts to stop.
2. Disconnect the wire from the spark plug (Fig. 7).
3. Loosen the screw that secures the air filter cover to the
engine (Fig. 10).
12
1
Changing the Engine Oil
Change the oil after the first 5 operating hours and then
after every 50 hours or every season. Run the engine just
before changing the oil to warm the oil. Warm oil flows
better and carries more contaminants.
Note: Change the oil after every 25 hours when operating
under a heavy load or in high temperatures.
2
3
1003
Figure 10
1. Air filter
2. Screw
3. Cover
4. Tilt the air filter cover down and clean it thoroughly.
5. Remove and discard the old paper air filter (Fig. 10).
Important Do not try to clean a paper air filter.
6. Insert a new air filter.
7. Install the air filter cover.
8. Connect the wire to the spark plug.
Servicing the Spark Plug
Check the spark plug after every 25 operating hours. Use a
Champion RJ19LM spark plug or equivalent.
1. Stop the engine and wait for all moving parts to stop.
2. Disconnect the wire from the spark plug (Fig. 7).
3. Clean around the spark plug and remove it from the
cylinder head.
1. Disconnect the wire from the spark plug (Fig. 7).
2. Drain the gasoline from the fuel tank; refer to steps 3
and 4 of Emptying the Fuel Tank on page 15.
3. Remove the dipstick from oil fill tube and place a drain
pan next to the left side of the lawn mower.
4. Tip the lawn mower onto its left side, allowing the oil
to drain into the drain pan (Fig. 12).
1
m-1782
Figure 12
1. Oil fill tube
5. Turn the lawn mower upright.
6. Fill the crankcase with fresh oil to the Full mark on the
dipstick. Refer to Filling the Crankcase with Oil on
page 7.
7. Install the dipstick.
Important Replace a cracked, fouled, or dirty spark
plug. Do not clean the electrodes because grit entering the
cylinder could damage the engine.
4. Set the gap on the new plug to 0.030 in. (0.76 mm)
(Fig. 11).
1
986
Figure 11
1. 0.030 in. (0.76 mm)
5. Install the spark plug and the gasket seal.
6. Torque the spark plug to 15 ft-lb (20 Nm).
7. Connect the wire to the spark plug.
8. Wipe up any spilled oil.
9. Connect the wire to the spark plug.
10.Recycle the used oil according to local codes.
13
Maintaining the Blade
A straight, sharp blade provides the best cutting
performance. Regularly inspect and sharpen the blade.
blade; refer to Removing the Blade on page 15.
1
A
Warning
The blade is sharp; contacting the blade can result
in serious personal injury.
Wear gloves or wrap the sharp edges of the blade
with a rag.
1. Stop the engine and wait for all moving parts to stop.
2. Disconnect the wire from the spark plug (Fig. 5).
Warning
Tipping the lawn mower may cause the fuel to leak
from the carburetor or the fuel tank. Gasoline is
extremely flammable, highly explosive and under
certain conditions can cause personal injury or
property damage.
Avoid fuel spills by running the engine dry or
removing gasoline with a hand pump; never
siphon.
3. Drain the gasoline from the fuel tank; refer to steps 3
and 4 of Emptying the Fuel Tank on page 15.
4. Tip the lawn mower on its left side (air filter up)
(Fig. 13).
2
B
3
C
4
Figure 14
1. Sail
2. Flat part of blade
Note: For the best performance, install a new blade before
the cutting season begins. During the year, file down any
small nicks to maintain the cutting edge.
3. Wear
4. Slot formed
1
1
270
Danger
A worn or damaged blade can break, and a piece
of the blade could be thrown into the operator’s or
bystander’s area, resulting in serious personal
injury or death.
• Inspect the blade periodically for wear or
damage.
• Replace a worn or damaged blade.
757
Figure 13
Important Move the blade as little as possible to avoid
future staring problems.
Inspecting the Blade
Carefully examine the blade for sharpness and wear,
especially where the flat and the curved parts meet
(Fig. 14A). Because sand and abrasive material can wear
away the metal that connects the flat and curved parts of the
blade, check the blade before using the lawn mower. If you
notice a slot or wear (Figs. 14B and 14C), replace the
14
Removing the Blade
1. Grasp the end of the blade using a rag or a thickly
padded glove.
2. Remove the blade bolt, the lock washer, the accelerator,
and the blade (Fig. 15).
Note: You can also check the balance using a commercially
manufactured blade balancer.
2. If either end of the blade rotates downward, file that end
(not the cutting edge or the end near the cutting edge).
The blade is properly balanced when neither end drops.
4
5
3
2
1
1627
Figure 15
1. Blade bolt
2. Lock washer
3. Accelerator
4. Blade
5. Blade driver
Sharpening the Blade
File the top side of the blade to maintain its original cutting
angle (Fig. 16A) and inner cutting edge radius (Fig. 16B).
The blade will remain balanced if you remove the same
amount of material from both cutting edges.
AB
1
2
Installing the Blade
1. Install a sharp, balanced Toro blade, an accelerator, a
lock washer, and the blade bolt (Fig. 15).
Note: The sail part of the blade must point upward
(toward the top of the housing).
2. Torque the blade bolt to 50 ft-lb (68 Nm).
Warning
Operating the lawn mower without the accelerator
in place can cause the blade to flex, bend, or break,
resulting in serious injury or death to the operator
or bystanders.
Do not operate the lawn mower without the
accelerator.
3. Return the lawn mower to its upright position.
4. Connect the wire to the spark plug.
Cleaning the Cooling System
153
m4783
Figure 16
1. Sharpen at this angle only 2. Maintain the original
radius here
Balancing the Blade
1. Check the balance of the blade by placing the center
hole of the blade over a nail or screwdriver shank
clamped horizontally in a vise (Fig. 17).
1007
Figure 17
After every 100 operating hours or every season, clean the
dirt and the chaff from the cylinder, the cylinder head fins,
and around the carburetor and the linkage. Remove debris
from the air intake slots on the recoil housing. This will
ensure proper cooling and the best engine performance.
Emptying the Fuel Tank
1. Stop the engine and wait for it to cool.
Important Drain gasoline from a cold engine only.
2. Disconnect the wire from the spark plug (Fig. 7).
3. Remove the cap from the fuel tank (Fig. 5).
4. Use a hand pump to pump the gasoline into a clean
approved gasoline container.
5. Connect the wire to the spark plug.
6. Run the engine until it stops.
7. Start the engine again to ensure that all the gasoline is
out of the carburetor.
15
Folding the Handle
Storage
Warning
Folding or unfolding the handle improperly can
pinch, stretch, or damage one or more of the
cables. Any pinched, stretched, or damaged cable
may cause an operational failure that results in an
unsafe operating condition.
• Do not pinch, stretch, or damage the cables.
• Handle the cables with care when folding or
unfolding the handle.
• Do not use the lawn mower if one or more of the
cables are pinched, stretched, or damaged.
Contact your Authorized Service Dealer.
Important Do not remove or loosen the knobs that
secure the the lower handle to the swing bracket. Do not
fold the upper handle backward.
1. Loosen the knobs that secure the upper handle section.
2. Carefully swing the upper handle section forward until
it rests on the engine (Fig. 18).
To prepare the lawn mower for off-season storage, perform
the recommended maintenance procedures. Refer to
Maintenance on page 11.
Store the lawn mower in a cool, clean, dry place. Cover the
lawn mower to keep it clean and protected.
Preparing the Fuel System
Warning
Gasoline can vaporize if you store it over long
periods of time and explode if it comes into contact
with an open flame.
• Do not store gasoline over long periods of time.
• Do not store the lawn mower with gasoline in
the fuel tank or the carburetor in an enclosure
with an open flame. (For example, a furnace or
a water heater pilot light.)
• Allow the engine to cool before storing it in any
enclosure.
Empty the fuel tank when mowing the last time before
storing the lawn mower.
Figure 18
m-4217a
1. Run the lawn mower until the engine stops from
running out of fuel.
2. Prime the engine and start it again.
3. Allow the engine to run until it stops. When you can no
longer start the engine, it is sufficiently dry.
Preparing the Engine
1. While the engine is still warm, change the oil in the
crankcase. Refer to Changing the Engine Oil on
page 13.
2. Remove the spark plug (Fig. 7).
3. Using an oil can, add about one tablespoon of oil
through the spark plug hole.
4. Slowly rotate the engine several times using the starter
rope to distribute the oil.
5. Install the spark plug but do not connect the wire to the
spark plug.
16
General Information
1. Clean the housing. Refer to Cleaning the Underside of
the Housing on page 12.
2. Clean any dirt and chaff from the cylinder, cylinder
head fins, and blower housing.
3. Remove grass clippings, dirt, and grime from the
external parts of the engine, the shrouding, and the top
of the housing.
4. Check the condition of the blade. Refer to Maintaining
the Blade on page 14.
5. Replace the air filter; refer to Replacing the Air Filter
on page 12.
6. Tighten all nuts, bolts, and screws.
7. Touch up all rusted or chipped paint surfaces with paint
available from an Authorized Service Dealer.
Removing From Storage
Warning
Accessories
You may purchase the following accessories from an
Authorized Service Dealer:
• Dethatcher kit
• Side discharge kit
• Spark arrestor
Folding or unfolding the handle improperly can
pinch, stretch, or damage one or more of the
cables. Any pinched, stretched, or damaged cable
may cause an operational failure that results in an
unsafe operating condition.
• Do not pinch, stretch, or damage the cables.
• Handle the cables with care when folding or
unfolding the handle.
• Do not use the lawn mower if one or more of the
cables are pinched, stretched, or damaged.
Contact your Authorized Service Dealer.
1. Carefully unfold the upper handle until it nests with the
lower handle, then tighten the knobs.
2. Check and tighten all fasteners.
3. Remove the spark plug (Fig. 7) and spin the engine
rapidly using the starter to blow the excess oil from the
cylinder.
4. Clean the spark plug or replace it if it is cracked,
broken, or if the electrodes are worn.
5. Install the spark plug and torque it to 15 ft-lb (20 Nm).
6. Perform the recommended maintenance procedures;
refer to Maintenance on page 11.
7. Fill the fuel tank with fresh, clean gasoline.
8. Check the engine oil level. Refer to Checking the
Engine Oil Level on page 12.
9. Connect the wire to the spark plug.
17
Troubleshooting
Toro designed and built your lawn mower for trouble-free operation. Check the following components and items carefully,
and refer to Maintenance on page 11 for more information. If a problem continues, contact an Authorized Service Dealer.
Problem Possible Causes Corrective Action
Engine does not start 1. The fuel tank is empty or the
fuel system contains stale fuel.
2. The primer has not been
pushed in.
3. The wire is not connected to
the spark plug.
4. The spark plug is pitted, fouled,
or the gap is incorrect.
Engine starts hard or loses power 1. The fuel tank contains stale
fuel.
2. The fuel cap vent hole is
plugged.
3. The air filter element is dirty
and is restricting the air flow.
4. The underside of the lawn
mower deck contains clippings
and debris.
5. The spark plug is pitted, fouled,
or the gap is incorrect.
6. The engine oil level is low or
the oil is dirty.
1. Drain and/or fill the fuel tank
with fresh gasoline. If the
problem persists, contact an
Authorized Service Dealer.
2. Push the primer in 3 times.
3. Connect the wire to the spark
plug.
4. Check the spark plug and
adjust the gap if necessary.
Replace the spark plug if it is
pitted, fouled, or cracked.
1. Drain and fill the fuel tank with
fresh gasoline.
2. Clean the fuel cap vent hole or
replace the fuel cap.
3. Clean the air filter pre-cleaner
and/or replace the paper air
filter.
4. Clean the underside of the lawn
mower deck.
5. Check the spark plug and
adjust the gap if necessary.
Replace the spark plug if it is
pitted, fouled, or cracked.
6. Check the engine oil. Change
the oil if it is dirty or add oil if it
is low.
Engine runs rough 1. The wire is not connected to
the spark plug.
2. The spark plug is pitted, fouled,
or the gap is incorrect.
3. The air filter element is dirty
and is restricting the air flow.
18
1. Connect the wire to the spark
plug.
2. Check the spark plug and
adjust the gap if necessary.
Replace the spark plug if it is
pitted, fouled, or cracked.
3. Clean the air filter pre-cleaner
and/or replace the paper air
filter.
Problem Corrective ActionPossible Causes
Lawn mower or engine vibrates
excessively
Uneven cutting pattern 1. All 4 wheels are not at the
Discharge chute plugs 1. The cutting height is too low.
1. The blade is bent or is out of
balance.
2. The blade bolt is loose.
3. The underside of the lawn
mower deck contains clippings
and debris.
4. The engine mounting bolts are
loose.
same height.
2. The blade is dull.
3. You are mowing in the same
pattern repeatedly.
4. The underside of the lawn
mower deck contains clippings
and debris.
2. You are mowing too fast.
3. The grass is wet.
4. The underside of the lawn
mower deck contains clippings
and debris.
1. Balance the blade. If the blade
is bent, replace it.
2. Tighten the blade bolt.
3. Clean the underside of the lawn
mower deck.
4. Tighten the engine mounting
bolts.
1. Place all 4 wheels at the same
height.
2. Sharpen and balance the
blade.
3. Change the mowing pattern.
4. Clean the underside of the lawn
mower deck.
1. Raise the cutting height.
2. Slow down.
3. Allow the grass to dry before
mowing.
4. Clean the underside of the lawn
mower deck.
Lawn mower does not self-propel 1. The self-propel drive cable is
out of adjustment or is
damaged.
2. There is debris under the belt
cover.
1. Adjust the self-propel drive
cable. Replace the cable if
necessary.
2. Clean the debris from under the
belt cover.
19
Gas, Cordless,
Electric, and 21″
Commercial Duty
Walk Mowers
The Toro Total Coverage Guarantee
A Full Warranty
(Limited Warranty for Commercial Use)
Conditions and Products Covered
The Toro Company and its affiliate, Toro Warranty Company,
pursuant to an agreement between them, jointly promise to repair
any Toro Product used for normal residential purposes* if defective
in materials or workmanship or if it stops functioning due to the
failure of a component. The following time periods apply from the
date of purchase:
Products
• Super Recycler Walk Mowers
• All Other Mowers 2 year full warranty
• All Batteries 1 year full warranty
This warranty includes the cost of parts and labor, but you must
pay transportation costs.
This warranty applies to all gas, cordless, and electric consumer
walk power mowers.
* Normal residential purposes means use of the product on the
same lot as your home. Use at more than one location is
considered commercial use, and the commercial use warranty
would apply.
Warranty Period
5 year full warranty
Limited Warranty for Commercial Use
Toro Walk Power Mowers used for commercial, institutional, or
rental use are warranted against defects in materials or workmanship. Components failing due to normal wear are not covered by
this warranty. The following time periods apply from the date of
purchase:
Products
• 21″ Commercial
Duty Walk Mowers
• All Other Mowers 45 day limited 45 day limited
2 year limited 1 year limited
Warranty Period
Engine Entire Unit
Instructions for Obtaining Warranty Service
If you think that your T oro Product contains a defect in materials or
workmanship, follow this procedure:
1. Contact any Toro Authorized or Master Service Dealer to
arrange service at their dealership. To locate a dealer
convenient to you, refer to the Y ellow Pages of your telephone
directory (look under “Lawn Mowers”) or access our website at
www.Toro.com. U.S. Customers may also call 800-421-9684
to use our 24-hour Toro dealer locator system.
2. Bring the product and your proof of purchase (sales receipt) to
the Service Dealer.
If for any reason you are dissatisfied with the Service Dealer’s
analysis or with the assistance provided, contact us at:
Customer Care Department, Consumer Division
Toro Warranty Company
8111 Lyndale Avenue South
Bloomington, MN 55420-1196
800-348-2424 (U.S. customers)
877-484-9255 (Canada customers)
You must maintain your Toro Product by following the maintenance
procedures described in the operator’s manual. Such routine
maintenance, whether performed by a dealer or by you, is at your
expense.
There is no other express warranty except for special emission
system coverage on some products and the Toro Starting
Guarantee on GTS Engine. This express warranty does not cover:
• Cost of regular maintenance service or parts, such as filters,
fuel, lubricants, oil changes, spark plugs, blade sharpening,
worn blade, cable/linkage adjustments, or brake and clutch
adjustments
• Any product or part which has been altered or misused or
required replacement or repair due to accidents or lack of
proper maintenance
• Repairs necessary due to improper fuel, contaminants in the
fuel system, or failure to properly prepare the fuel system prior
to any period of non-use over three months
• Repairs necessary due to improper battery care, electrical
supply irregularities, or failure to properly prepare the mower
prior to any period of non-use
• Pickup and delivery charges
All repairs covered by this warranty must be performed by an
Authorized T oro Service Dealer using Toro approved replacement
parts.
Repair by an Authorized Toro Service Dealer is your sole remedy
under this warranty.
Neither The Toro Company nor Toro Warranty Company is liable
for indirect, incidental or consequential damages in connection
with the use of the Toro Products covered by this warranty,
including any cost or expense of providing substitute equipment or
service during reasonable periods of malfunction or non-use
pending completion of repairs under this warranty.
Some states do not allow exclusions of incidental or consequential
damages, or limitations on how long an implied warranty lasts, so
the above exclusions and limitations may not apply to you.
This warranty gives you specific legal rights, and you may also
have other rights which vary from state to state.
Owner Responsibilities
Items and Conditions Not Covered
General Conditions
Countries Other than the United States or Canada
Customers who have purchased Toro products exported from the United States or Canada should contact their Toro Distributor (Dealer)
to obtain guarantee policies for your country, province, or state. If for any reason you are dissatisfied with your Distributor’s service or
have difficulty obtaining guarantee information, contact the Toro importer. If all other remedies fail, you may contact us at Toro Warranty
Company.
Part No. 374-0000 Rev. B
Loading...
