Op e r a t O r ’s Ma n u a l
Form Number 3362-904 Rev A
READ AND FOLLOW ALL SAFETY RULES AND INSTRUCTIONS IN THIS MANUAL
FAILURE TO COMPLY WITH THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY.
Printed In USA
Triple Rear Bagger - Model No. 19A40002000
WARNING
BEFORE ATTEMPTING TO OPERATE THIS MACHINE.
MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
FORM NO. 769-05035
04/17/ 20 09
To The Owner
Thank You
Thank you for purchasing a bagging attachment manufactured
by MTD LLC. It was carefully engineered to provide excellent
performance when properly operated and maintained.
Please read this entire manual prior to operating the equipment.
It instructs you how to safely and easily set up, operate and
maintain this attachment. Please be sure that you, and any
other persons who will operate the machine, carefully follow the
recommended safety practices at all times. Failure to do so could
result in personal injury or property damage.
All information in this manual is relative to the most recent
product information available at the time of printing. Review this
manual frequently to familiarize yourself with the attachment,
its features and operation. Please be aware that this Operator’s
Manual may cover a range of product specifications for various
models. Characteristics and features discussed and/or illustrated
in this manual may not be applicable to all models. MTD LLC
reserves the right to change product specifications, designs and
equipment without notice and without incurring obligation.
Table of Contents
Safe Operation Practices ........................................ 3
Carton Contents & Hardware Packs ...................... 6
Assembly & Installation .......................................... 8
1
If you have any problems or questions concerning this
attachment, phone your local authorized MTD service dealer
or contact us directly. MTD’s Customer Support telephone
numbers, website address and mailing address can be found on
this page. We want to ensure your complete satisfaction at all
times.
Throughout this manual, all references to right and left side of the
machine are observed from the operating position
Operation ................................................................15
Parts List ..................................................................16
Warranty ..................................................Back Cover
Record Product Information
Before setting up and operating your new equipment, please
locate the model plate on the equipment and record the
information in the provided area to the right. You can locate the
model plate by looking at the topside of the bagger cover. This
information will be necessary, should you seek technical support
via our web site, Customer Support Department, or with a local
authorized service dealer.
MO d e l nu M b e r
se r i a l nu M b e r
Customer Support
Please do NOT return the machine to the retailer or dealer without first contacting our Customer Support Department.
If you have difficulty assembling this product or have any questions regarding the controls, operation, or maintenance of
this machine, you can seek help from the experts. Choose from the options below:
Visit us on the web at www.mtdproducts.com◊
Call a Customer Support Representative at (800) 800-7310 or (330) 220-4683◊
Write us at MTD LLC • P.O. Box 361131 • Cleveland, OH • 44136-0019◊
2
Important Safe Operation Practices
WARNING! This symbol points out important safety instructions which, if not followed,
could endanger the personal safety and/or property of yourself and others. Read and follow
all instructions in this manual before attempting to operate this machine. Failure to comply
with these instructions may result in personal injury.
When you see this symbol. HEED ITS WARNING!
DANGER! This attachment was built to be used according to the safe operation practices in
this manual. Carelessness or error on the part of the operator can result in serious injury.
Mowers are capable of amputating hands and feet and throwing objects. Failure to observe
the following safety instructions as well as the instructions provided with your mower, could
result in serious injury or death.
2
General Operation
Read, understand, and follow all instructions on your 1.
equipment and in their manuals before attempting to
assemble and operate. Keep this manual in a safe place for
future and regular reference and for ordering replacement
parts.
To help avoid blade contact or a thrown object injury, keep 2.
bystanders, helpers, children and pets at least 75 feet from
the mower while it is in operation. Stop machine if anyone
enters the area.
Thoroughly inspect the area where the equipment is to be 3.
used. Remove all stones, sticks, wire, bones, toys, and other
foreign objects which could be picked up and thrown by
the blade(s). Thrown objects can cause serious personal
injury.
Always wear safety glasses or safety goggles during 4.
operation and while performing an adjustment or repair
to protect your eyes. Thrown objects which ricochet can
cause serious injury to the eyes.
Do not operate the mower without the discharge cover 5.
or entire grass catcher in its proper place. A missing
or damaged discharge cover or grass bag attachment
component may result in thrown objects or blade contact
injuries.
Do not put hands or feet near rotating parts or under the 6.
cutting deck. Contact with the blade(s) can amputate
hands and feet.
Shut off mower’s engine and wait for blades to come to 7.
a complete stop before unclogging mower’s discharge
opening or bagger parts.
Slow down before turning. Operate the machine smoothly. 8.
Avoid erratic operation and excessive speed. Be aware
that a grass catcher attachment can affect the handling
characteristics of your mower.
Disengage blade(s), set parking brake, stop engine and wait 9.
until the blade(s) come to a complete stop before opening
bagger attachment’s top cover, removing grass catcher,
emptying grass, unclogging chute, removing any grass or
debris, or making any adjustments.
Never leave a running machine unattended. Always turn 10.
off blade(s), place transmission in neutral, set parking
brake, stop engine and remove key before dismounting.
Your machine is designed to cut normal residential grass of 11.
a height no more than 10”. Do not attempt to mow through
unusually tall, dry grass (e.g., pasture) or piles of dry leaves.
Dry grass or leaves may contact the engine exhaust and/
or build up on the mower deck presenting a potential fire
hazard.
If situations occur which are not covered in this manual, use 12.
care and good judgment. Contact your customer service
representative for assistance.
Slope Operation
Slopes are a major factor related to loss of control and tip-over
accidents which can result in severe injury or death. Attachments
can also affect the stability of the machine. All slopes require
extra caution.
For your safety, use the slope gauge included as part of this
manual to estimate the angle of slopes before operating this
machine on a sloped or hilly area. If the slope is greater than 10
degrees as shown on the slope gauge, do not operate the mower
with the grass bag attachment installed on that area or serious
injury could result.
Do:
Mow up and down slopes, not across. Exercise extreme 1.
caution when changing direction on slopes.
Watch for holes, ruts, bumps, rocks, or other hidden 2.
objects. Uneven terrain could overturn the machine. Tall
grass can hide obstacles.
3
Use slow speed. Choose a low enough speed setting so 3.
that you will not have to stop or shift while on the slope.
Tires may lose traction on slopes even though the brakes
are functioning properly. Always keep machine in gear
when going down slopes to take advantage of engine
braking action.
Follow the manufacturer’s recommendations for wheel 4.
weights or counterweights to improve stability.
Keep all movement on the slopes slow and gradual. Do 5.
not make sudden changes in speed or direction. Rapid
engagement or braking could cause the front of the
machine to lift and rapidly flip over backwards which could
cause serious injury.
Avoid starting or stopping on a slope. If tires lose traction, 6.
disengage the blade(s) and proceed slowly straight down
the slope.
Do Not:
Do not turn on slopes unless necessary; then, turn slowly 1.
and gradually downhill, if possible.
Do not mow near drop-offs, ditches or embankments. The 2.
mower could suddenly turn over if a wheel is over the edge
of a cliff, ditch, or if an edge caves in.
Do not try to stabilize the machine by putting your foot on 3.
the ground.
Do not use a grass catcher on steep slopes. 4.
Do not mow on wet grass. Reduced traction could cause 5.
sliding.
General Service
Before cleaning, repairing, or inspecting, make certain the 1.
blade(s) and all moving parts have stopped. Disconnect the
spark plug wire and ground against the engine to prevent
unintended starting.
Keep all nuts, bolts, and screws tight to be sure the 2.
equipment is in safe working condition.
Never tamper with your mower’s safety interlock system 3.
or other safety devices. Check their proper operation
regularly.
Never attempt to make adjustments or repairs while the 4.
mower’s engine is running.
Grass catcher components and the discharge cover are 5.
subject to wear and damage which could expose moving
parts or allow objects to be thrown. For safety protection,
frequently check components and replace immediately
with original equipment manufacturer’s (O.E.M.) parts only,
listed in this manual. Use of parts which do not meet the
original equipment specifications may lead to improper
performance and compromise safety!
Maintain or replace safety and instruction labels, as 6.
necess ary.
Safety Symbols
This table depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the
machine before attempting to assemble and operate.
Symbol Description
READ THE OPERATOR’S MANUAL(S)
Read, understand, and follow all instructions in the manual(s) before attempting to
assemble and operate
STOP
Turn off the engine before opening the bagger cover.
WARNING! Your Responsibility—Restrict the use of this power machine to persons who read, understand and
follow the warnings and instructions in this manual and on the machine.
SAVE THESE INSTRUCTIONS!
4 se c t i O n 2 — iM p O r t a n t sa f e Op e r a t i O n pr a c t i c e s
Sight and hold this level with a vertical tree...
or a corner of a building...
or a fence post
Fold along dotted line (represents a 10° slope)
10°
Use this page as a guide to determine slopes where you may safely operate your mower with a grass bag attachment installed.
WARNING! Do not operate your lawn mower with a bagger attachment on inclines with a slope in excess of 10 degrees
(a rise of approximately 1-⁄ feet every 10 feet). A riding mower with a bagger attachment could overturn and cause serious
injury. Operate riding mowers up and down slopes, never across the face of slopes.
5se c t i O n 2 — iM p O r t a n t sa f e Op e r a t i O n pr a c t i c e s
Contents of Carton
3
Before beginning installation, remove all parts from the carton to make sure everything is present. Carton contents are listed below
and shown in Fig. 3-1. Three hardware packs are included in this kit and are detailed on the following page.
Hitch Bracket Kit • (3 Pcs. & Hardware Pack)
Chute Tube Extension•
Discharge Chute Elbow•
Hitch Support•
Grass Catcher Cover Screen•
Grass Catcher Cover•
Three Grass Bag Assemblies•
Upper Chute Tube•
Upper Chute Support•
Hinge Cover Pin•
Bagging Blades (3 blades total)•
Deck Baffle•
Chute Discharge Plate•
Chute Stop Bracket•
Upright Support•
Bag Support Assembly•

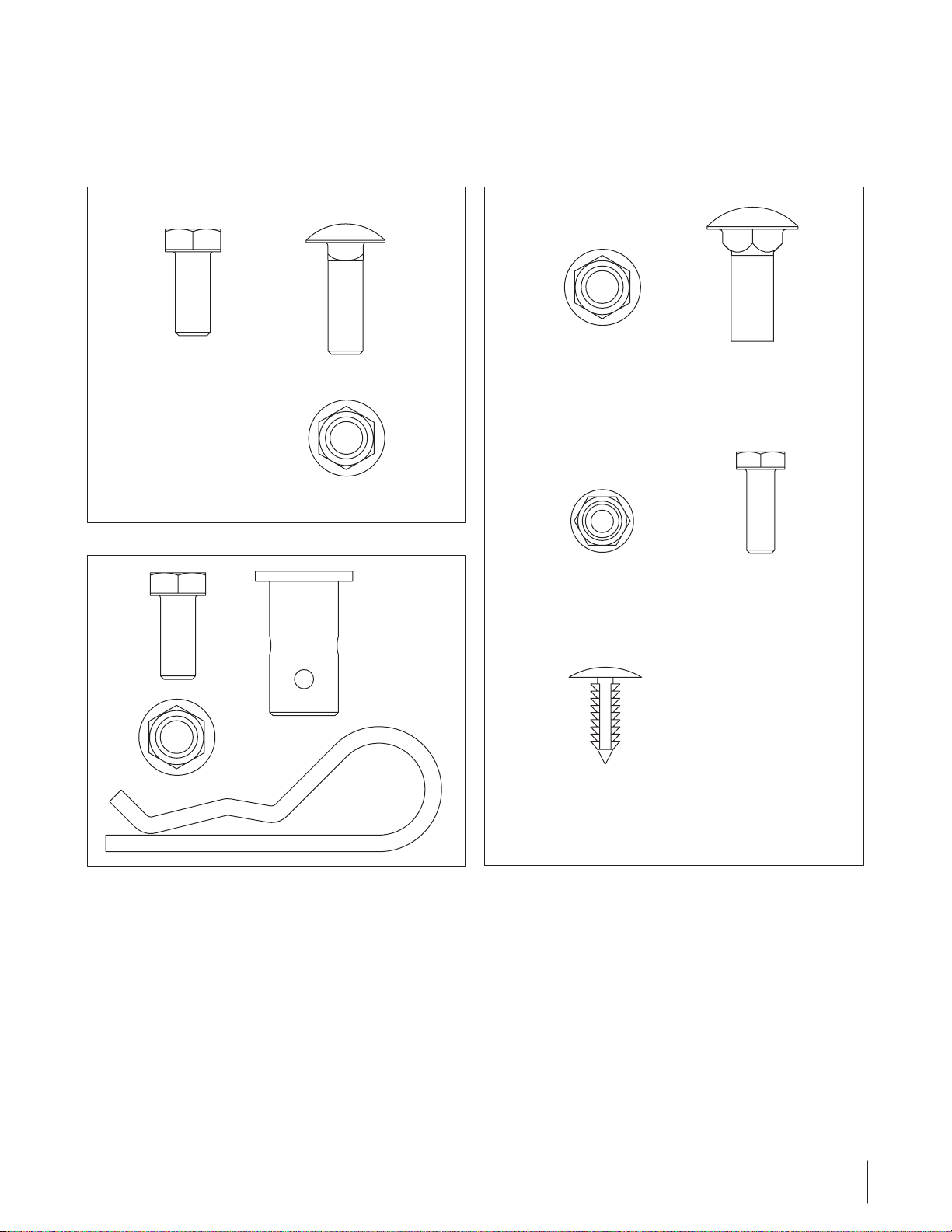

Three Hardware Packs •
(Detailed & il lustrated on next page)
Hitch Bracket Kit
(3 Pcs. & Hardware)
Figure 3-1
6
CONTENTS OF HARDWARE PACK
This grass collector kit is shipped with three loose hardware packs enclosed and one set of hardware included in the mounting bracket kit.
Please check your hardware packs against the illustrations below. The quantities for each item is listed in parenthesis.
Hardware included with 689-00084
(1)
710-3008
710-0276
712-04063
Hardware Pack 689-00087
(1)
(1)
(4)
(2)
Hardware Pack 689-00098
(3)
712-04065
(2)
712-04064
(3)
710-3168
(2)
710-3015
710-3008
712-04063
(4)
(2)
711-0309A
(1)
726-3046
714-0117
7se c t i O n 3 — cO n t e n t s O f ca r t O n
Assembly & Installation
Side View
NOTE: References to left, right, front and rear of the tractor are
from the operator’s position, unless otherwise stated.
Before assembly, place the tractor on a firm, level surface, •
disengage the PTO, stop the tractor engine and set the
parking brake.
For convenience, pivot the seat forward and leave it in •
that position until the grass collector is fully mounted and
assembled.
Assemble Mounting Brackets
To assemble the bagger mounting assembly, locate the
mounting assembly pack and follow these steps:
Attach the two hitch side brackets to the universal rear 1.
attachment bracket using four hex bolts and flange lock
nuts. With the hooks on the hitch side brackets pointing
down, the tabs on the hitch plates should be pointing
upwards. See Fig. 4-1.
3
Figure 4-2
Assembling The Support Assembly
Locate the upright support bracket and the bag support
assembly. Assemble it by following these steps:
Lay the bag support assembly topside down with the 1.
mounting bracket portion facing upwards.
Insert the notched end of the vertical support bracket into the 2.
bag support assembly, as in Fig. 4-3, and secure with a 5/16-18
carriage bolt and 5/16-18 flange lock nut. See Fig. 4-4.
8
Figure 4-1
Flip over assembly and mount the hitch support bracket to 2.
the mounting assembly as seen in Fig. 4-2.
Note: It might be easier during the mounting stage to
leave this hardware only finger tight to facilitate lining up
the hitch hole for the clevis pin. You will be instructed to
tighten this hardware later in this manual.
Figure 4-3
Align hole on bracket
with hole on tractor
Figure 4-4
Mounting Hole
Mount Assembly on Tractor
Install mounting assembly on tractor as follows:
Place the hooked ends of the mounting assembly over 1.
the shoulder bolts, as in Fig. 4-5, on the tractor and line up
the hitch support bracket center hole with the hole on the
tractor’s hitch.
Note: The clevis pin can be fed down through the hitch
plate and secured underneath with the hairpin clip, or it
may be easier to feed the clevis pin up through the hitch
plate hole and secure with the hairpin clip on the topside.
The latter method may be preferred since it can be easier
to insert the hairpin clip. Either way will work, the decision
should be based on operator preference.
Figure 4-6
Note: If you decided to leave the hitch support only
finger tight during the assembly process, tighten all of the
hardware securely at this time.
Install the bagger hanger assembly onto the mounting 3.
assembly on the tractor by hooking it over the hitch plate
in the center, lining up the center mounting hole as seen in
Fig. 4-7.
Figure 4-5
Install the clevis pin from hardware pack 689-00087 into the 2.
tractor’s hitch and secure with a hairpin clip inserted into the
top hole, which is the hole located closest to the head of the
clevis pin. See Fig. 4-6.
Figure 4-7
Secure the hanger assembly to the mounting assembly 4.
using a 5/16” bolt and flange nut provided. See Fig. 4-7.
9se c t i O n 4 — as s e M b l y & in s t a l l a t i O n
Assembling Remaining Bagger Components
Cover mounts in
between these
two tabs
Now that the mounting brackets are assembled and are in place
on the tractor, follow these steps to assemble the remaining
bagger components.
Snap the plastic upper chute support in place by first 1.
clipping the side portion onto the bagger support rail with
the edge of the snap feature aligned with the red line, as
seen in Fig. 4-8.
Snap the front side of the chute support to the rail, as 2.
shown in the inset of Fig. 4-8.
Make sure screen sits under the cover’s lip
Figure 4-10
Install the bagger cover onto the bag support assembly, as 5.
seen in Fig. 4-11. The plastic cover goes in between the two
mounting tabs.
Figure 4-8
Install the bagger screen into the bagger cover by first 3.
inserting the end closest to the center into the cutout
mounting hole, as in Fig. 4-9. Make sure to feed the screen
under the lip, as in Fig. 4-10.
Figure 4-9
Clip in the other side by flexing the screen and pushing it 4.
down into the provided cutout hole. See Fig. 4-10.
Figure 4-11
10 se c t i O n 4 — as s e M b l y & in s t a l l a t i O n
Slide the hinge pin into the hole located on the mounting 6.
Hinge Pin
1
2
1
2
tab, as in Fig. 4-12. Use the cut-out window (See inset in
Fig. 4-12) to line up the hinge pin on the other side and
push pin all the way in until it reaches the end-stop. At this
point the pin clips into place and is secured by a tab in the
bagger cover. See Fig. 4-13.
Figure 4-12
Open Hood by pushing in on the rear, right-side tab with 7.
your right hand, as seen in 1 of Fig. 4-14, and lifting the cover
with your left hand in the center rear of the bagger cover, 2.
Figure 4-14
Install the bag assemblies, with the tight mesh side facing 8.
the rear of the tractor, onto the bag support brackets by
inserting the front edge in first, as seen in Fig. 4-15, and
setting the back edge down until it fits into the assembly.
Figure 4-13
Figure 4-15
11se c t i O n 4 — as s e M b l y & in s t a l l a t i O n
Attaching Blades
Wood Block
Hex Flange Nut
Spindle Assembly
Deck Baffle
Hex Bolt
Hex Nut
WARNING! Always protect your hands while
servicing blades by wearing heavy work gloves or
using heavy rags.
NOTE: Three high-lift bagging blades are included in the grasscatcher kit. Replace the blades with these new blades and save
the existing blades as replacements or to reinstall on the blade
spindles when not using the bagger kit.
Remove cutting deck from beneath the tractor following 1.
instructions for Deck Removal in operator’s manual of the
tractor. Gently flip the deck over to expose its underside.
Place a block of wood between the center deck housing 2.
baffle and the cutting blade to act as a stabilizer. See Fig.
4 -16.
Move the wood block to either the left or right blade for 6.
stabilization and remove and replace the center blade so
that side of the blade with part number faces the ground
when the mower is in the operating position.
NOTE: Save the three blades you just removed to use as
replacements or to reinstall on the blade spindles when not
using the bagger kit.
Installing the Deck Baffle
Note: If the deck is still flipped upside down with the blades
exposed, it may be easiest to flip the deck back over to complete the
following installation of the deck baffle and chute stop bracket.
Remove two of the self-tapping deck screws on the front 1.
right side of your deck.
Install the front deck baffle using two 710-3015 1/4-20 hex 2.
bolts and 712-04064 1/4-20 flange lock nuts from hardware
pack 689-00098 included with this bagger kit. See Fig. 4-17.
Figure 4-16
Use a 15/16” wrench to remove the hex flange nut that 3.
secures the blades to the blade spindle assemblies. See Fig.
4-16.
WARNING! The hex flange nut has a right-handed
thread pattern. Do not attempt to force the nut in
wrong direction; it may damage the nut and create a
safety hazard.
Place a new blade on each spindle so that side of the blade 4.
with part number faces the ground when the mower is in
the operating position.
Secure with the hex flange nut removed earlier. Use a 5.
torque wrench to tighten the hex flange nut between 70 to
90 foot-pounds.
Figure 4-17
12 se c t i O n 4 — as s e M b l y & in s t a l l a t i O n
Installing the Chute Discharge Plate
A
C
B
Remove the discharge chute by removing the two flange 1.
lock nuts securing it.
With a hammer, lightly tap the bolts out. Discard the bolts 2.
and flange lock nuts.
Install the chute discharge plate to the bottom side of the 3.
deck opening, as seen in Fig. 4-18, using two carriage bolts
supplied in hardware pack 689-00098.
NOTE: An extra carriage bolt and lock nut have been
supplied in your bagger kit in hardware pack 689-00098.
You may replace the old hardware for the chute stop
bracket with this new hardware, or save for later use.
NOTE: This chute stop bracket may stay on the unit even
when the bagger is not being used.
Installing the Discharge Chute
Reinstall the cutting deck to the tractor reversing the 1.
instructions for Deck Removal in operator’s manual of the
tractor.
Raise the deck to its highest position. 2.
Raise the chute deflector (A in Fig. 4-20) on the deck and 3.
hold it while you position the discharge chute over the
chute opening.
Figure 4-18
Replace the discharge chute and secure with two flange 4.
lock nuts included in the hardware pack 689-00098.
Securely tighten the hardware at this time.5.
Attaching Chute Stop Bracket
Remove the carriage bolt and lock nut holding the chute 1.
stop to the deck. See the left Inset of Fig. 4-19. Save the
hardware.
Figure 4-20
Insert the hinge pin of the discharge chute into the tube on 4.
the chute stop bracket. See B in Fig. 4-20.
Rotate the chute around the deck so that its front edge fits 5.
snugly into the deck opening. Lower the chute deflector
slowly (C in Fig. 4-20).
Attach the retainer strap on the discharge chute to the 6.
retainer clip on the deck. Refer to Fig. 4-21.
Figure 4-19
Install the new chute stop bracket, from the loose parts, at 2.
the same position on the deck. See the right Inset of Fig.
4-19. Secure with the hardware removed earlier.
Figure 4-21
13se c t i O n 4 — as s e M b l y & in s t a l l a t i O n
Note: For the chute elbow to be properly installed, the bottom
edge must fall below the bottom of the deck opening and the
tab on top of the elbow should rest above the deck opening.
Install the chute adapter onto the chute elbow by lining up 7.
the tabs and sliding the adapter over the chute elbow, as in
Fig. 4-22. Secure the chute adapter by installing two ratchet
clips (726-3046), included in hardware pack 689-00098,
into the holes provided.
With the bagger cover open, install the upper chute over 8.
the chute adapter, and rest the top so that the chute
support sits in the upper chute groove. See Fig. 4-23.
Note: Make sure to align the upper chute with the ridges
on the bagger support bracket.
Figure 4-23
Figure 4-22
14 se c t i O n 4 — as s e M b l y & in s t a l l a t i O n
Operation
2
1
1
2
5
Bagger Usage
NOTE: When all of the grass bags are full, place the tractor on a
firm, level surface, disengage the PTO, turn the tractor engine off
and set the parking brake.
Flip Seat up.1.
Lift up grass bag cover by pushing in on the rear, right-side 2.
tab with your right hand, as seen in 1 of Fig. 5-1, and lifting
the cover with your left hand in the center rear of the bagger
cover, 2. Do not remove the chute tube assembly from the
trac tor.
Figure 5-1
Remove the grass bags, as shown in Fig. 5-2, by lifting each 3.
bag up (1) and moving the bags away from the bag support
assembly (2).
Figure 5-2
Empty the grass clippings at a proper disposal sight, use 4.
the handle at the bottom of each grass bag. Holding the
bag firmly, empty the contents
Replace grass bags in the reverse order in which they were 5.
removed, close lid, flip down seat, restart your tractor and
resume cutting your grass.
Note: The side of each grass bag with the tight mesh
screening must face towards the tractor.
15
MANUFACTURER’S LIMITED WARRANTY FOR
The limited warranty set forth below is given by MTD LLC with
respect to new merchandise purchased and used in the United States
and/or its territories and possessions, and by MTD Products Limited
with respect to new merchandise purchased and used in Canada and/
or its territories and possessions (either entity respectively, “MTD”).
“MTD” warrants this product (excluding its Normal Wear Parts a nd
Attachments as described below) against defects in material and
workmanship for a period of one (1) year commencing on the date
of original purchase and will, at its option, repair or replace, free of
charge, any part found to be defective in materials or workmanship.
This limited warranty shall only apply if this product has been
operated and maintained in accordance with the Operator’s Manual
furnished with the product, and has not been subject to misuse,
abuse, commercial use, neglect, accident, improper maintenance,
alteration, vandalism, theft, fire, water, or damage because of other
peril or natural disaster. Damage resulting from the installation or use
of any par t, accessory or attachment not approved by MTD for use
with the product(s) covered by this manual will void your warranty as
to any resulting damage.
Normal Wear Parts are warranted to be free from defects in material
and workmanship for a period of thirty (30) days from the date of
purchase. Normal wear parts include, but are not limited to items
such as: batteries, belts, blades, blade adapters, tines, grass bags,
wheels, rider deck wheels, seats, snow thrower skid shoes, friction
wheels, shave plates, auger spiral rubber and tires.
Attachments — MTD warrants attachments for this product against
defects in material and workmanship for a period of one (1) year,
commencing on the date of the attachment’s original purchase or
lease. Attachments include, but are not limited to items such as:
grass collectors and mulch kits.
HOW TO OBTAIN SERVICE: Warranty service is available, WITH
PROOF OF PURCHASE, through your local authorized service dealer.
To locate the dealer in your area:
In the U.S. A.
Check your Yellow Pages, or contact
Cleveland, Ohio 44136-0019, or call 1-800-800-7310, 1-330-2204683 or log on to our Web site at www.mtdproducts.com
In Canada
Contact MTD Products Limited, Kitchener, ON N2G 4J1, or call 1-800668-1238 or log on to our Web site at www.mtdcanada.com.
This limited warranty does not provide coverage in the following
cases:
a. Log splitter pumps, valves, and cylinders have a separate one-
year warranty.
MTD LLC at P.O. Box 361131,
.
b. Routine maintenance items such as lubricants, filters, blade
sharpening, tune-ups, brake adjustments, clutch adjustments,
deck adjustments, and normal deterioration of the exterior finish
due to use or exposure.
c. Service completed by someone other than an authorized service
dealer.
d. MTD does not extend any warranty for products sold or exported
outside of the United States and/or Canada, and their respective
possessions and territories, except those sold through MTD’s
authorized channels of export distribution.
e. Replacement parts that are not genuine MTD parts.
f. Transportation charges and service calls.
g. MTD does not warrant this product for commercial use.
No implied warranty, including any implied warranty of
merchantability of fitness for a particular purpose, applies after
the applicable period of express written warranty above as to the
parts as identified. No other express warranty, whether written or
oral, except as mentioned above, given by any person or entity,
including a dealer or retailer, with respect to any product, shall
bind MTD. During the period of the warranty, the exclusive remedy
is repair or replacement of the product as set forth above.
The provisions as set forth in this warranty provide the sole and
exclusive remedy arising from the sale. MTD shall not be liable
for incidental or consequential loss or damage including, without
limitation, expenses incurred for substitute or replacement lawn
care services or for rental expenses to temporarily replace a
warranted product.
Some states do not allow the exclusion or limitation of incidental
or consequential damages, or limitations on how long an implied
warranty lasts, so the above exclusions or limitations may not apply
to you.
In no event shall recovery of any kind be greater than the amount of
the purchase price of the product sold. Alteration of safety features of
the product shall void this warranty. You assume the risk and liability
for loss, damage, or injury to you and your property and/or to others
and their property arising out of the misuse or inability to use the
product.
This limited warranty shall not extend to anyone other than the
original purchaser or to the person for whom it was purchased as a
gift.
HOW STATE LAW RELATES TO THIS WARRANT Y: This limited
warranty gives you specific legal rights, and you may also have other
rights which vary from state to state.
IMPORTANT: Owner may be required to present proof of purchase to
obtain warranty coverage.
MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019; Phone: 1-800-800-7310, 1-330-220-4683
MTD Canada Limited - KITCHENER, ON N2G 4J1; Phone 1-800-668-1238
GDOC-100167 REV. A
Loading...
