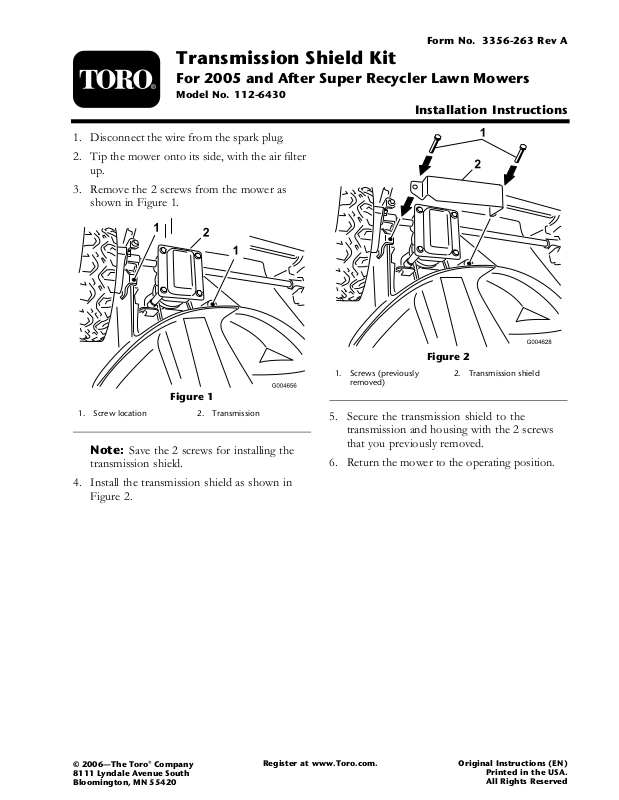

Toro 112-6430 Installation Instructions

Transmission Shield Kit

For 2005 and After Super Recycler Lawn Mowers

Model No. 112-6430

1. Disconnect the wire from the spark plug .

2. Tip the mo w er onto its side , with the air ﬁlter up .

3. R emo v e the 2 screws from the mo w er as sho wn in Figure 1 .

Form No. 3356-263 Rev A

Installation Instructions

Figure 1

1. Screw location

2. Transmission

Note: Sa v e the 2 screws for installing the transmission shield.

4. Install the transmission shield as sho wn in Figure 2 .

Figure 2

1. Screws (previously removed)

2. Transmission shield

5. Secure the transmission shield to the transmission and housing with the 2 screws that y ou previously remo v ed.

6. R etur n the mo w er to the operating position.
