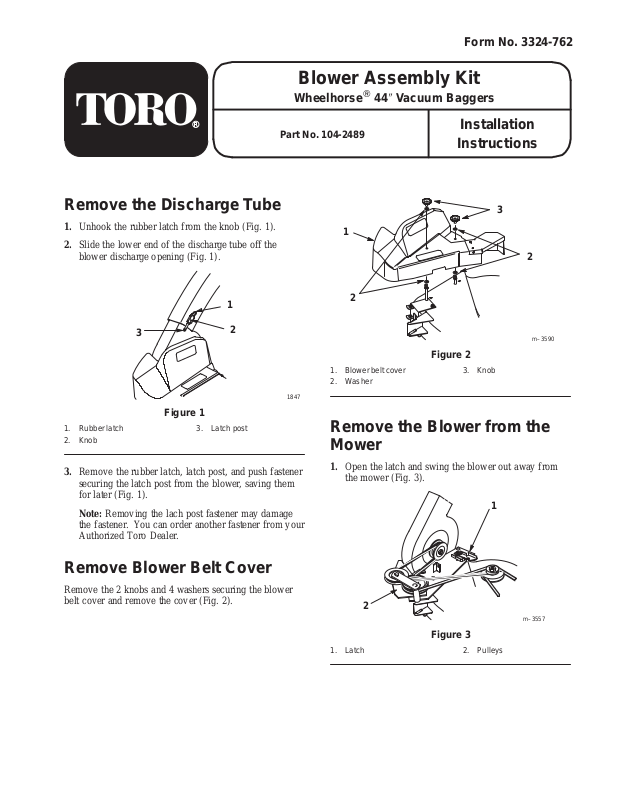

Form No. 3324-762
Blower Assembly Kit
Wheelhorse 44 Vacuum Baggers
Remove the Discharge Tube
1. Unhook the rubber latch from the knob (Fig. 1).
2. Slide the lower end of the discharge tube off the
blower discharge opening (Fig. 1).
1
2
1. Rubber latch
2. Knob
3
Figure 1
3. Latch post
Part No. 104-2489
1
2
1. Blower belt cover
2. Washer
1847
Remove the Blower from the
Mower
Installation
Instructions
3
2
m–3590
Figure 2
3. Knob
3. Remove the rubber latch, latch post, and push fastener
securing the latch post from the blower, saving them
for later (Fig. 1).
Note: Removing the lach post fastener may damage
the fastener. You can order another fastener from your
Authorized Toro Dealer.
Remove Blower Belt Cover
Remove the 2 knobs and 4 washers securing the blower
belt cover and remove the cover (Fig. 2).
1. Open the latch and swing the blower out away from
the mower (Fig. 3).
1
2
m–3557
Figure 3
1. Latch 2. Pulleys
2. Remove the blower belt from idler and blower pulleys
(Fig. 3).
3. Remove the blower by lifting the pivot pin out of the
pivot support (Fig. 4).
4. Save the blower mounting plate, latch, and all
removed hardware, and discard the blower
Assembling the New Blower
1. Assemble the blower mounting plate to the new
blower (Fig. 6) with 3 carriage bolts and flange nuts.
1
2
m–3593
Figure 4
1. Pivot pin 2. Pivot support
Removing the Latch and
Blower Mounting Plate
1. Remove the bolt, washer, and nut securing the latch to
the top of the blower (Fig. 5).
Note: You can leave the latch connected to the blower
mounting plate by the spring if desired.
6
4
5
2
3
1
7
4
1495
Figure 6
1. Blower mounting plate
2. Blower assembly
3. Carriage bolt, 5/16 x
3/4 in.
4. Flange nut, 5/16 in.
5. L-bracket
6. Carriage bolt, 5/16 x
7/8 in. (down from top)
7. Washer, 5/16 in.
2. In the front inside hole of the blower insert a carriage
bolt (Fig. 6).
Important The carriage bolt must be installed down
through the plate and blower for proper belt clearance.
3. Inside the blower housing, slide the L-bracket over the
bolt.
2
1
Figure 5
1. Latch 2. Bolt, nut, and washer
2. Remove the flange nut, washer, and carriage bolt
securing the L–bracket and remove the bracket.
3. Remove the 3 carriage bolts and flange nuts securing
the blower mounting plate to the blower and remove
the plate.
2
4. Hold the L-bracket tight against the blower housing
wall and secure it with the washer and flange nut
(Fig. 6).
5. Install the latch using the bolt, washer, and nut
removed previously (Fig. 5).
Important Ensure that you do not over tighten the bolt
and nut securing the latch. The latch must be able to pivot
freely.
6. If you disconnected the latch spring, connect it to the
bracket on the blower mounting plate.
7. Install the bolt, latch post, and rubber latch on the new
blower (Fig. 1).
Installing the Blower
Install the blower onto your mower as directed in your
Blower Operator’s Manual.
