XC6219/XC6211 Series
ETR0307_009
300mA High Speed LDO Regulators with ON/OFF Switch
■GENERAL DESCRIPTION
The XC6219/XC6211 series are highly accurate, low noise, CMOS LDO Voltage Regulators. Offering low output noise, high ripple rejection ratio, low dropout and very fast turn-on times, the XC6219/XC6211 series is ideal for today’s cutting edge mobile phone. Internally the XC6219/XC6211 includes a reference voltage source, error amplifiers, driver transistors, current limiters and phase compensators. The XC6219/XC6211’s current limiters' foldback circuit also operates as a short protect for the output current limiter and. the output pin. The output voltage is set by laser trimming. Voltages are selectable in 50mV steps within a range of 0.9V to 5.0V. The XC6219/XC6211 series is also fully compatible with low ESR ceramic capacitors, reducing cost and improving output stability. This high level of output stability is maintained even during frequent load fluctuations, due to the excellent transient response performance and high PSRR achieved across a broad range of frequencies. The CE function allows the output of regulator to be turned off, resulting in greatly reduced power consumption.
■APPLICATIONS
●Mobile phones
Cordless phones, radio communication equipment
●
●Portable games
●Cameras, Video cameras
●Reference voltage sources
●Battery powered equipment
■TYPICAL APPLICATION CIRCUIT
●XC6219 series
C
IN
1μF
1
2
3
V
OUT
V
IN
V
SS
CE NC
SOT-25
5
CL 1μF
4
■FEATURES
Maximum Output Current
Dropout Voltage Operating Voltage Range Output Voltage Range Highly Accuracy
Low Power Consumption Standby Current High Ripple Rejection Operating Ambient Tempera ture Low ESR Capacitor Ultra Small Packages
Environmentally Friendly
■TYPICAL PERFORMANCE
CHARACTERISTICS
●Ripple Rejection Rate
: 150mA (VOUT<1.75V, A~D type) 240mA (V 300mA (V : 200mV @ 100mA : 2.0V ~ 6.0V : 0.9V ~ 5.0V (0.05V steps) : +
2% (VOUT>1.5V)
+30mV (VOUT≦1.5V) +
1% (VOUT≧3.0V) : 25μA (TYP.) : Less than 0.1μA (TYP.) : 65dB @10kHz : -40℃ ~ 85℃ : Ceramic capacitor compatible : SOT-25 SOT-89-5 (for XC6219 only) USP-6B (for XC6219 only) : EU RoHS Compliant, Pb Free
OUT>1.8V, A~D type) OUT>1.3V, E~H type)
XC6219/XC6211
1/30
XC6219/XC6211 Series
■PIN CONFIGURATION
[XC6219 Series]
VOUT
2 3
1
VIN
VSS
SOT-25
(TOP VIEW)
NC
4 5
CE
VOUT 5 VSS
[XC6211 Series]
VIN
1
(TOP VIEW)
VOUT
45
2 3
VSS NCCE
SOT-25
■PIN ASSIGNMENT
1
NC
SOT-89-5
(TOP VIEW)
PIN NUMBER XC6211 XC6219 SOT-25 SOT-25 SOT-89-5 USP-6B
5 1 4 1 VIN Power Input 2 2 2 5 VSS Ground 1 3 3 6 CE ON / OFF Control 3 4 1 2, 4 NC No Connection 4 5 5 3 VOUT Output
■FUNCTION
TYPE A,E TYPE B,F
PIN NAME SIGNAL STATUS PIN NAME SIGNAL STATUS
L Stand-by L Stand-by
CE
H Active H Active
OPEN Stand-by
TYPE C,G TYPE D,H
PIN NAME SIGNAL STATUS PIN NAME SIGNAL STATUS
L Active L Active
2
2
VSS
VIN
4
CE 6
VSS 5
3
CE
NC 4
USP-6B
(BOTTOM VIEW)
PIN NAME FUNCTIONS
CE
OPEN Undefined state
1 VIN
2 NC
3 VOUT
* The dissipation pad for the USP-6B package should be solder-plated in recommended mount pattern and metal masking so as to enhance mounting strength and hear release. If the pad needs to be connected to other pins, it should be connected to the V
SS pin.
CE
H Stand-by H Stand-by
OPEN Stand-by
CE
OPEN Undefined state
*If XC6211/XC6219 B,D,F,H types are used with the CE pin opened, the IC goes into “Undefined state”.
The CE pin voltage should be fixed in low or high for stable operation.
2/30
■PRODUCT CLASSIFICATION
●Ordering Information
XC6219 ①②③④⑤⑥-⑦ XC6211 ①②③④⑤⑥-⑦
(*1)
(Standard pin layout versions)
(*1)
(Different pin layout version in SOT-25)
DESIGNATOR ITEM SYMBOL DESCRIPTION
A 150mA, High Active, pull-down resistor built in B 150mA, High Active, no pull-down resistor built in (Standard) C 150mA, Low Active, pull-up resistor built in
①
CE Pin Logic
D 150mA, Low Active, no pull-up resistor built in (Semi-custom) E 300mA, High Active, pull-down resistor built in F 300mA, High Active, no pull-down resistor built in (Standard) G 300mA, Low Active, pull-up resistor built in H 300mA, Low Active, no pull-up resistor built in (Semi-custom)
XC6219/XC6211
Series
(*4)
(Semi-custom)
(*4)
(Semi-custom)
(*4)
(Semi-custom)
(*4)
(Semi-custom)
②③
④
Output Voltage
Output Voltage Accuracy
09～50
(*3)
2
(*2)
1
(*3)
A
(*2)
B
e.g. ②=3, ③=0, → 3.0V
0.1V increments, ±2% accuracy
e.g. ③=2, ③=8, ④=2 → 2.80V, ±2%
0.1V increments, ±1% accuracy
e.g. ②=3, ③=0, ④=1 → 3.00V, ±1%
0.05V increments, ±2% accuracy
e.g. ②=2, ③=8, ④=A → 2.85V, ±2%
0.05V increments, ±1% accuracy
e.g. ②=3, ③=0, ④=B → 3.05V, ±1%
MR SOT-25(3,000/Reel)
MR-G SOT-25(3,000/Reel)
⑤⑥-⑦
Packages
(Order Unit)
PR SOT-89-5 (for XC6219 only) (1,000/Reel)
PR-G SOT-89-5 (for XC6219 only) (1,000/Reel)
DR USP-6B (for XC6219 only) (3,000/Reel)
DR-G USP-6B (for XC6219 only) (3,000/Reel)
(*1)
The “-G” suffix denotes Halogen and Antimony free as well as being fully RoHS compliant.
(*2)
Output voltage of the ±1% accuracy product is 3.0V or more.
(*3)
Output voltage accuracy of the V
(*4)
With the pull-up resistor or pull-down resistor built-in types, the supply current during operation will increase by VIN / 2.0MΩ (TYP.)
≦1.5V is ±30mV.
OUT
3/30
A
XC6219/XC6211 Series

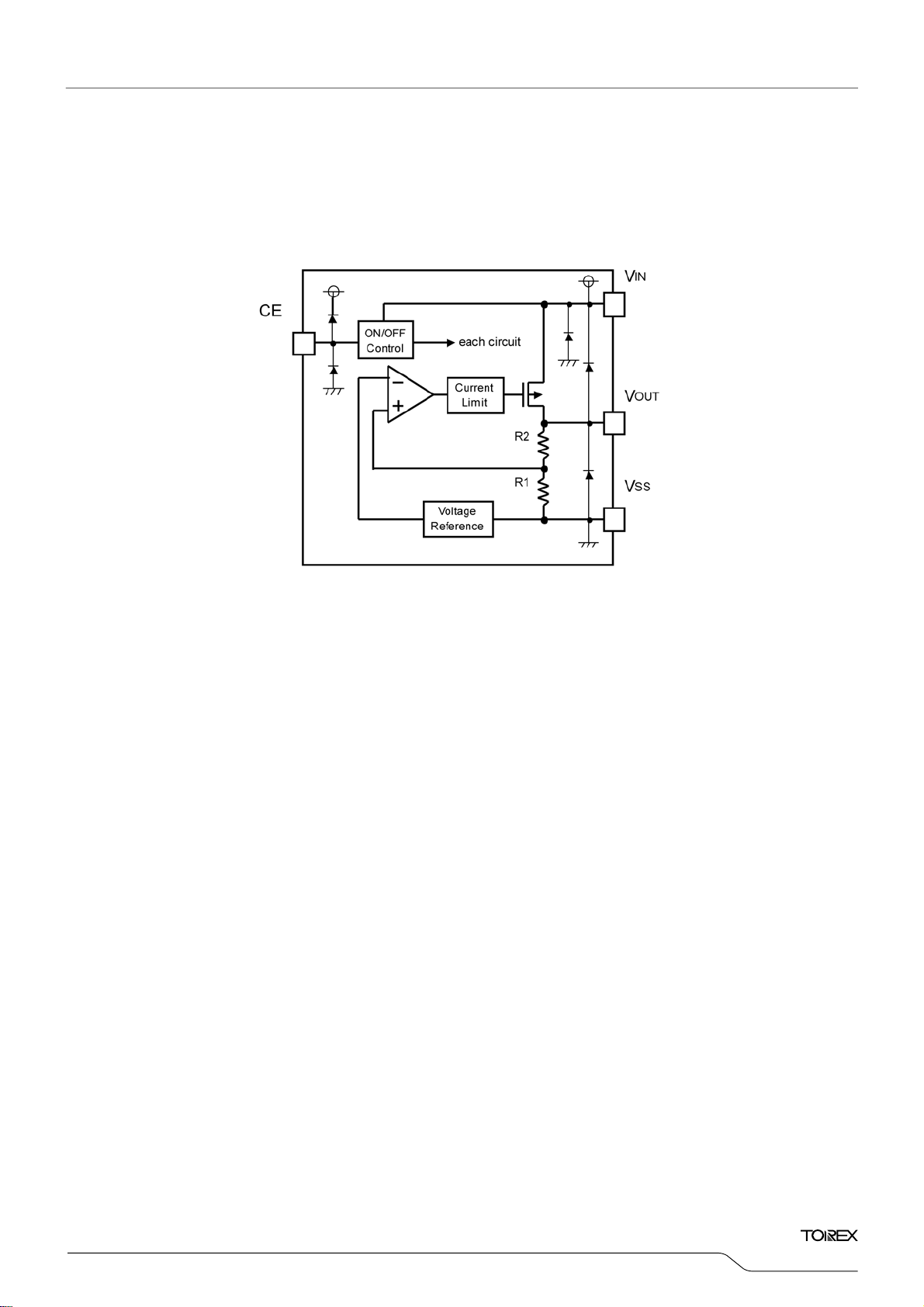

■BLOCK DIAGRAM
*Diode inside the circuit are an ESD protection diode and a parasitic diode.
BSOLUTE MAXIMUM RATINGS
■
Power Dissipation
Operating Ambient Temperature Topr - 40 ~ + 85
All voltages are described based on the V
(*1)
I
≦Pd/（VIN-V
OUT
(*2)
The power dissipation figure shown is PCB mounted and is for reference only. Please refer to page 24~26 for details.
XC6211,XC6219 series Type A,E XC6211,XC6219 series Type B,D,F,H
XC6211,XC6219 series Type C,G
Ta =2 5℃
PAR AMETER SYMBOL RATINGS UNITS
Input Voltage VIN 7 V
Output Current IOUT 500
(*1)
mA
Output Voltage VOUT VSS - 0.3 ~ VIN + 0.3 V
CE Pin Voltage VCE VSS - 0.3 ~ VIN + 0.3 V
SOT-25
SOT-89
USP-6B
Pd
600 (PCB mounted)
1300 (PCB mounted)
1000 (PCB mounted)
250
(*2)
mW
500
(*2)
120
(*2)
℃
Storage Temperature Tstg - 55 ~ + 125
pin.
SS
）
OUT
℃
4/30
■ELECTRICAL CHARACTERISTICS
●XC6219/XC6211 Type A,B
PARAMETER SYMBOL CONDITIONS MIN. TYP. MAX. UNITS CIRCUIT
Output Voltage
Output Voltage
Maximum Output
Current
(2%)
(1%)
(*5)
(*6)
(*3)
I
V
OUT(E)
I
OUTMAX
=30mA
OUT
0.9V≦V
1.8V≦V
OUT(T)
OUT(T)
≦1.75V
≦5.0V
V
OUT(T)
×0.98
V
OUT(T)
×0.99
(*2)
(*2)
V
V
OUT(T)
OUT(T)
(*2)
(*2)
V
OUT(T)
×1.02
V
OUT(T)
×1.01
(*2)
(*2)
150 - -
240 - -
XC6219/XC6211
Series
Ta =2 5℃
V
mA
①
①
Load Regulation ΔV
Dropout Voltage
(*4)
Supply Current
(Type A)
Supply Current
(Type B)
Stand-by Current I
Line Regulation
(ΔV
OUT
Vdif1 I
Vdif2 I
I
DD
STB
ΔV
/
OUT
)
IN・VOUT
1mA≦I
OUT
OUT
V
V
V
V
V
V
I
OUT
V
≦100mA
OUT
=30mA - E-1
=100mA - E-2
CE=VIN=VOUT(T)
≦0.95V, VIN=VCE=2.0V
OUT
IN=VOUT(T)
≦0.95V, VIN=2.0V
OUT
OUT(T)
≦0.95V, 2.0V≦VIN≦6.0V
OUT
+1.0V
+1.0V、VCE=V
+1.0V≦VIN≦6.0Ｖ
SS
=30mA
≦1.75V, I
OUT
OUT
=10mA
- 15 50 mV
mV
- 28 55
μA ②
- 25 50
- 0.01 0.10
μA ②
- 0.01 0.20 %/V
Input Voltage VIN - 2 - 6 V -
Output Voltage
Temperature
Characteristics
ΔV
(ΔTopr・V
Power Supply
Rejection Ratio
Current Limiter Ilim
Short Circuit Current I
CE ‘High’ Level Voltage V
CE ‘Low’ Level Voltage V
CE ‘High’ Level Current
(Type A)
CE ‘High’ Level Current
(Type B)
OUT
PSRR
SHORT
CEH
CEL
I
CEH
I
/
OUT
=30mA
OUT
)
-40℃≦Topr≦85℃
=[V
V
IN
OUT(T)
V
≦1.5, VIN=2.5V+1.0Vp-p
OUT
I
=50mA、f=10kHz
OUT
VIN=V
OUT(T)
0.9V≦V
V
IN=VOUT(T)
1.8V≦V
V
IN=VOUT(T)
V
≦1.75V, VIN=V
OUT
+1.0]V+1.0Vp-pAC
+2.0V、VCE=V
≦1.75V
OUT(T)
+1.0V、VCE=V
≦5.0V
OUT(T)
+1.0V、 VCE=V
OUT(T)
IN
IN
IN
+2.0V
- ±100 -
AC
- E-3 - dB
- 300 -
240 300 -
- 50 - mA
ppm/℃ ①
mA
- 1.6 - VIN V
- - - 0.25 V
V
IN=VCE=VOUT(T)
≦0.95V, VIN=VCE=2.0V
V
OUT
+1.0V
-0.10 - 5.0
μA ②
-0.10 - 0.10
①
①
①
④
①
①
①
①
CE ‘Low’ Level Current I
(*1) Unless otherwise stated, VIN=V
(*2) V
(*3) V
(*4) Vdif={V
（*5）If V （*6）Only for the V
= Specified output voltage
OUT(T)
= Effective output voltage
OUT(E)
The output voltage when "V
V
=A voltage equal to 98% of the output voltage whenever an amply stabilized I
OUT1
=The Input Voltage when V
V
IN1
OUT(T)
IN1-VOUT1
is less than 1.45V, V
OUT(T)
CEL
+1.0V. If V
OUT(T)
+1.0V" is provided at the VIN pin while maintaining a certain I
OUT(T)
}
appears as Input Voltage is gradually decreased.
OUT1
-30mV (MIN.), V
OUT(T)
is more than 3.0V products.
V
V
+1.0V、VCE=VSS
IN=VOUT(T)
≦0.95V, VIN=2.0V
OUT
is less than 0.95V, VIN= 2.0V.
OUT
+ 30mV (MAX.)
OUT(T)
-0.10 - 0.10
value.
OUT
{V
OUT
+1.0V} is input.
OUT(T)
μA ②
5/30
XC6219/XC6211 Series
■ELECTRICAL CHARACTERISTICS
●XC6219/XC6211 Type C,D
PARAMETER SYMBOL CONDITIONS MIN. TYP. MAX. UNITS CIRCUIT
Output Voltage
Output Voltage
Maximum Output
Current
(2%)
(1%)
(*5)
(*6)
(*3)
I
V
OUT(E)
I
OUTMAX
=30mA
OUT
0.9V≦V
1.8V≦V
OUT(T)
OUT(T)
≦1.75V
≦5.0V
V
OUT(T)
×0.98
V
OUT(T)
×0.99
(*2)
(*2)
V
V
OUT(T)
OUT(T)
(*2)
(*2)
V
OUT(T)
×1.02
V
OUT(T)
×1.01
(*2)
(*2)
150 - -
240 - -
V
mA
Ta =2 5℃
①
①
Load Regulation ΔV
Dropout Voltage
(*4)
Supply Current
(Type C)
Supply Current
(Type D)
Stand-by Current I
Line Regulation
Input Voltage VIN - 2 - 6 V -
Output Voltage
Temperature
Characteristics
Power Supply
Rejection Ratio
Current Limiter Ilim
Short Circuit Current I
CE ‘High’ Level Voltage V
CE ‘Low’ Level Voltage V
CE ‘High’ Level Current I
CE ‘Low’ Level Current
(Type C)
CE ‘Low’ Level Current
(Type D)
(*1) Unless otherwise stated, VIN=V
(*2) V
(*3) V
(*4) Vdif={V
（*5）If V （*6）Only for the V
= Specified output voltage
OUT(T)
= Effective output voltage
OUT(E)
The output voltage when "V
=A voltage equal to 98% of the output voltage whenever an amply stabilized I
V
OUT1
V
=The Input Voltage when V
IN1
OUT(T)
}
IN1-VOUT1
is less than 1.45V, V
is more than 3.0V products.
OUT(T)
OUT
Vdif1 I
Vdif2 I
1mA≦I
OUT
OUT
V
I
DD
V
V
STB
V
V
V
V
/
I
)
OUT
(ΔV
ΔV
IN・VOUT
OUT
V
ΔV
OUT
(ΔTopr・V
I
/
OUT
)
-40℃≦Topr≦85℃
OUT
V
PSRR
V
I
OUT
VIN=V
0.9V≦V
V
1.8V≦V
V
SHORT
CEH
CEL
CEH
I
CEL
OUT(T)
+1.0V" is provided at the VIN pin while maintaining a certain I
OUT(T)
OUT1
OUT(T)
V
- 1.6 - VIN V
- - - 0.25 V
V
V
V
V
+1.0V. If V
appears as Input Voltage is gradually decreased.
-30mV (MIN.), V
≦100mA
OUT
=30mA - E-1
=100mA - E-2
+1.0V
IN=VOUT(T)
≦0.95V, VIN=2.0V
OUT
CE=VSS
+1.0V、VCE=V
IN=VOUT(T)
≦0.95V, VIN=VCE=2.0V
OUT
+1.0V≦VIN≦6.0Ｖ
OUT(T)
≦0.95V, 2.0V≦VIN≦6.0V
OUT
IN
=30mA
≦1.75V, I
OUT
OUT
=10mA
=30mA
=[V
IN
OUT
+1.0]V+1.0Vp-pAC
OUT(T)
≦1.5, VIN=2.5V+1.0Vp-p
AC
=50mA、f=10kHz
+2.0V、VCE=V
OUT(T)
≦1.75V
OUT(T)
+1.0V、VCE=V
IN=VOUT(T)
≦5.0V
OUT(T)
+1.0V、 VCE=V
IN=VOUT(T)
≦1.75V, VIN=V
OUT
CE=VIN=VOUT(T)
≦0.95V, VCE=VIN=2.0V
OUT
+1.0V,VCE=V
IN=VOUT(T)
≦0.95V, VIN=2.0V
OUT
is less than 0.95V, VIN= 2.0V.
OUT
+ 30mV (MAX.)
OUT(T)
+1.0V
OUT(T)
SS
SS
IN
+2.0V
SS
- 15 50 mV
- 28 55
- 25 50
- 0.01 0.10
- 0.01 0.20 %/V
- ±100 -
- E-3 - dB
- 300 -
240 300 -
- 50 - mA
-0.10 - 0.10
-5.0 - 0.10
-0.10 - 0.10
value.
OUT
{V
OUT
+1.0V} is input.
OUT(T)
①
mV
①
μA ②
μA ②
①
ppm/℃ ①
④
mA
①
①
①
①
μA ②
μA ②
6/30
■ELECTRICAL CHARACTERISTICS
●XC6219/XC6211 Type E,F
PARAMETER SYMBOL CONDITIONS MIN. TYP. MAX. UNITS CIRCUIT
(2%)
(*5)
(*6)
(*3)
I
V
OUT(E)
OUT
=30mA
Output Voltage
Output Voltage
(1%)
Maximum Output
Current
Load Regulation ΔV
Load Regulation2 ΔV
Dropout Voltage
(*4)
I
VIN=E-5
OUTMAX
OUT
OUT2
Vdif1 I
Vdif2 I
(*7)
E-4 - - mA
1mA≦I
1mA≦I
OUT
OUT
≦100mA
OUT
≦300mA
OUT
=30mA - E-1
=100mA - E-2
Supply Current
(Type E)
Supply Current
I
DD
V
CE=VIN=VOUT(T)
≦0.95V, VCE=VIN=2.0V
V
OUT
+1.0V
(Type F)
Stand-by Current I
Line Regulation
(ΔV
STB
ΔV
IN・VOUT
OUT
V
V
V
V
/
I
)
OUT
V
+1.0V、VCE=V
IN=VOUT(T)
≦0.95V, VCE=VIN=2.0V
OUT
+1.0V≦VIN≦6.0Ｖ
OUT(T)
≦0.95V, 2.0V≦VIN≦6.0V
OUT
=30mA
≦1.75V, I
OUT
OUT
=10mA
SS
Input Voltage VIN - 2 - 6 V -
Output Voltage
Temperature
Characteristics
ΔV
(ΔTopr・V
Power Supply
Rejection Ratio
Current Limiter Ilim
Short Circuit Current I
CE ‘High’ Level Voltage V
CE ‘Low’ Level Voltage V
OUT
PSRR
SHORT
CEH
CEL
I
/
OUT
=30mA
OUT
)
-40℃≦Topr≦85℃
=[V
V
IN
OUT(T)
≦1.5, VIN=2.5V+1.0Vp-p
V
OUT
I
=50mA、f=10kHz
OUT
VIN=V
OUT(T)
0.9V≦V
V
IN=VOUT(T)
1.8V≦V
V
IN=VOUT(T)
V
≦1.75V, VIN=V
OUT
+1.0]V+1.0Vp-pAC
+2.0V、VCE=V
≦1.75V
OUT(T)
+1.0V、VCE=V
≦5.0V
OUT(T)
+1.0V、 VCE=V
OUT(T)
IN
IN
IN
+2.0V
- 1.6 - VIN V
- - - 0.25 V
CE ‘High’ Level Current
(Type E)
CE ‘High’ Level Current
I
CEH
V
IN=VCE=VOUT(T)
≦0.95V, VIN=VCE=2.0V
V
OUT
+1.0V
(Type F)
CE ‘Low’ Level Current I
(*1) Unless otherwise stated, VIN=V
(*2) V
(*3) V
(*4) Vdif={V
（*5）If V （*6）Only for the V （*7）Please refer to the “Voltage Chart” table.
= Specified output voltage
OUT(T)
= Effective output voltage
OUT(E)
The output voltage when "V
V
=A voltage equal to 98% of the output voltage whenever an amply stabilized I
OUT1
V
=The Input Voltage when V
IN1
OUT(T)
}
IN1-VOUT1
is less than 1.45V, V
OUT(T)
OUT(T)
is more than 3.0V products.
CEL
OUT(T)
V
+1.0V. If V
V
+1.0V" is provided at the VIN pin while maintaining a certain I
appears as Input Voltage is gradually decreased.
OUT1
-30mV (MIN.), V
OUT(T)
+1.0V、VCE=VSS
IN=VOUT(T)
≦0.95V, VIN=2.0V
OUT
is less than 0.95V, VIN= 2.0V.
OUT
+ 30mV (MAX.)
OUT(T)
(*2)
V
OUT(T)
×0.98
V
OUT(T)
×0.99
(*2)
V
V
OUT(T)
OUT(T)
(*2)
(*2)
- 15 50 mV
- - 100 mV
- 28 55
- 25 50
- 0.01 0.10
- 0.01 0.20 %/V
- ±100 -
AC
- 70 - dB
- 380 - mA
- 50 - mA
-0.10 - 5.0
-0.10 - 0.10
-0.1 - 0.1
value.
OUT
{V
OUT
+1.0V} is input.
OUT(T)
V
OUT(T)
×1.02
V
OUT(T)
×1.01
(*2)
(*2)
mV
μA ②
μA ②
ppm/℃ ①
μA ②
μA ②
XC6219/XC6211
Series
Ta =2 5℃
V
①
①
①
①
①
①
④
①
①
①
①
7/30
XC6219/XC6211 Series
■ELECTRICAL CHARACTERISTICS
●XC6219/XC6211 Type G,H
PARAMETER SYMBOL CONDITIONS MIN. TYP. MAX. UNITS CIRCUIT
Output Voltage
Output Voltage
Maximum Output
Current
Load Regulation ΔV
Load Regulation2 ΔV
Dropout Voltage
Supply Current
(Type G)
Supply Current
(Type H)
Stand-by Current I
Line Regulation
Input Voltage VIN - 2 - 6 V -
Output Voltage
Temperature
Characteristics
Power Supply
Rejection Ratio
Current Limiter Ilim
Short Circuit Current I
CE ‘High’ Level Voltage V
CE ‘Low’ Level Voltage V
CE ‘High’ Level Current I
CE ‘Low’ Level Current
(Type G)
CE ‘Low’ Level Current
(Type H)
(*1) Unless otherwise stated, VIN=V
(*2) V
OUT(T)
(*3) V
OUT(E)
The output voltage when "V
(*4) Vdif={V
V
OUT1
=The Input Voltage when V
V
IN1
（*5）If V
OUT(T)
（*6）Only for the V （*7）Please refer to the “Voltage Chart” table.
(*5)
(2%)
(*6)
V
OUT(E)
(*3)
I
OUT
=30mA
(1%)
(*7)
E-4 - - mA
1mA≦I
1mA≦I
OUT
OUT
V
V
V
V
V
V
V
I
OUT
V
I
OUT
≦100mA
OUT
≦300mA
OUT
=30mA - E-1
=100mA - E-2
CE=VIN=VOUT(T)
≦0.95V, VIN=2.0V
OUT
CE=VSS
IN=VOUT(T)
≦0.95V, VCE=VIN=2.0V
OUT
OUT(T)
≦0.95V, 2.0V≦VIN≦6.0V
OUT
+1.0V
+1.0V、VCE=V
+1.0V≦VIN≦6.0Ｖ
IN
=30mA
≦1.75V, I
OUT
OUT
=10mA
=30mA
-40℃≦Topr≦85℃
=[V
V
IN
V
OUT
I
OUT
VIN=V
0.9V≦V
V
IN=VOUT(T)
1.8V≦V
V
IN=VOUT(T)
V
OUT
V
CE=VIN=VOUT(T)
V
OUT
V
IN=VOUT(T)
V
OUT
+1.0]V+1.0Vp-pAC
OUT(T)
≦1.5, VIN=2.5V+1.0Vp-p
=50mA、f=10kHz
+2.0V、VCE=V
OUT(T)
≦1.75V
OUT(T)
+1.0V、VCE=V
≦5.0V
OUT(T)
+1.0V、 VCE=V
≦1.75V, VIN=V
OUT(T)
SS
SS
ss
+2.0V
+1.0V
≦0.95V, VCE=VIN=2.0V
+1.0V、VCE=VSS
≦0.95V, VIN=2.0V
is less than 0.95V, VIN= 2.0V.
OUT
(*4)
VIN=E-5
I
OUTMAX
OUT
OUT2
Vdif1 I
Vdif2 I
I
DD
STB
ΔV
OUT
(ΔV
IN・VOUT
ΔV
OUT
(ΔTopr・V
/
)
/
)
OUT
PSRR
SHORT
- 1.6 - VIN V
CEH
- - - 0.25 V
CEL
CEH
I
CEL
+1.0V. If V
OUT(T)
= Specified output voltage
= Effective output voltage
+1.0V" is provided at the VIN pin while maintaining a certain I
OUT(T)
IN1-VOUT1
}
=A voltage equal to 98% of the output voltage whenever an amply stabilized I
appears as Input Voltage is gradually decreased.
is less than 1.45V, V
is more than 3.0V products.
OUT(T)
OUT1
-30mV (MIN.), V
OUT(T)
+ 30mV (MAX.)
OUT(T)
(*2)
V
OUT(T)
×0.98
V
OUT(T)
×0.99
(*2)
V
V
OUT(T)
OUT(T)
(*2)
(*2)
- 15 50 mV
- - 100 mV
- 28 55
- 25 50
- 0.01 0.10
- 0.01 0.20 %/V
- ±100 -
AC
- 70 - dB
- 380 - mA
- 50 - mA
-0.10 - 0.10
-5.0 - 0.10
-0.10 - 0.10
value.
OUT
{V
OUT
+1.0V} is input.
OUT(T)
V
OUT(T)
×1.02
V
OUT(T)
×1.01
(*2)
(*2)
mV
μA ②
μA ②
ppm/℃ ①
μA ②
μA ②
V
Ta =2 5℃
①
①
①
①
①
①
④
①
①
①
①
8/30
■ELECTRICAL CHARACTERISTICS (Continued)
●Voltage Chart
SYMBOL E-0 E-1 E-2 E-3
PARAMETER
OUTPUT VOLTAGE
V
OUT(T)
0.90 0.870 0.930 - -
0.95 0.920 0.980 - -
1.00 0.970 1.030 - -
1.05 1.020 1.080 - -
1.10 1.070 1.130 - -
1.15 1.120 1.180 - -
1.20 1.170 1.230 - -
1.25 1.220 1.280 - -
1.30 1.270 1.330 - -
1.35 1.320 1.380 - -
1.40 1.370 1.430 - -
1.45 1.420 1.480 - -
1.50 1.470 1.530 - -
1.55 1.519 1.581 - -
1.60 1.568 1.632 - -
1.65 1.617 1.683 - -
1.70 1.666 1.734 - -
1.75 1.715 1.785 - -
1.80 1.764 1.836 - -
1.85 1.813 1.887 - -
1.90 1.862 1.938 - -
1.95 1.911 1.989 - -
2.00 1.960 2.040 - -
2.05 2.009 2.091 - -
2.10 2.058 2.142 - -
2.15 2.107 2.193 - -
2.20 2.156 2.244 - -
2.25 2.205 2.295 - -
2.30 2.254 2.346 - -
2.35 2.303 2.397 - -
2.40 2.352 2.448 - -
2.45 2.401 2.499 - -
2.50 2.450 2.550 - -
2.55 2.499 2.601 - -
2.60 2.548 2.652 - -
2.65 2.597 2.703 - -
2.70 2.646 2.754 - -
2.75 2.695 2.805 - -
2.80 2.744 2.856 - -
2.85 2.793 2.907 - -
2.90 2.842 2.958 - -
2.95 2.891 3.009 - -
OUTPUT VOLTAGE
(2%)
(V)
V
V
OUT
MIN MAX MIN MAX TYP MAX TYP MAX TYP
OUTPUT VOLTAGE
(1%)
(V)
Vdif1 Vdif2 PSRR
OUT
DROPOUT
VOLTAGE1 (mV)
(I
=30mA)
OUT
Ta=25℃ Ta=25℃ Ta=25℃
1100 1110 1150 1200
1000 1010 1050 1100
900 910 950 1000
800 810 850 900
700 710 750 800
600 610 650 700
500 510 550 600
400 410 500 550
300 310 400 450
200 210 300 400
120 150 280 380
80 120 240
70 100 220
XC6219/XC6211
DROPOUT
VOLTAGE2 (mV)
(I
=100mA)
OUT
350
330
310
290
270
Series
Power
Supply
Rejection
Ratio
65
70
9/30
XC6219/XC6211 Series
■ELECTRICAL CHARACTERISTICS (Continued)
●Voltage Chart
SYMBOL E-0 E-1 E-2 E-3
PARAMETER
OUTPUT VOLTAGE
V
OUT(T)
3.00 2.940 3.060 2.970 3.030
3.05 2.989 3.111 3.020 3.081
3.10 3.038 3.162 3.069 3.131
3.15 3.087 3.213 3.119 3.182
3.20 3.136 3.264 3.168 3.232
3.25 3.185 3.315 3.218 3.283
3.30 3.234 3.366 3.267 3.333
3.35 3.283 3.417 3.317 3.384
3.40 3.332 3.468 3.366 3.434
3.45 3.381 3.519 3.416 3.485
3.50 3.430 3.570 3.465 3.535
3.55 3.479 3.621 3.515 3.586
3.60 3.528 3.672 3.564 3.636
3.65 3.577 3.723 3.614 3.687
3.70 3.626 3.774 3.663 3.737
3.75 3.675 3.825 3.713 3.788
3.80 3.724 3.876 3.762 3.838
3.85 3.773 3.927 3.812 3.889
3.90 3.822 3.978 3.861 3.939
3.95 3.871 4.029 3.911 3.990
4.00 3.920 4.080 3.960 4.040
4.05 3.969 4.131 4.010 4.091
4.10 4.018 4.182 4.059 4.141
4.15 4.067 4.233 4.109 4.192
4.20 4.116 4.284 4.158 4.242
4.25 4.165 4.335 4.208 4.293
4.30 4.214 4.386 4.257 4.343
4.35 4.263 4.437 4.307 4.394
4.40 4.312 4.488 4.356 4.444
4.45 4.361 4.539 4.405 4.494
4.50 4.410 4.590 4.455 4.545
4.55 4.459 4.641 4.504 4.595
4.60 4.508 4.692 4.554 4.646
4.65 4.557 4.743 4.603 4.696
4.70 4.606 4.794 4.653 4.747
4.75 4.655 4.845 4.702 4.797
4.80 4.704 4.896 4.752 4.848
4.85 4.753 4.947 4.801 4.898
4.90 4.802 4.998 4.851 4.949
4.95 4.851 5.049 4.900 4.999
5.00 4.900 5.100 4.950 5.050 50 70 160 210
OUTPUT VOLTAGE
(2%)
(V)
V
V
OUT
MIN MAX MIN MAX TYP MAX TYP MAX TYP
OUTPUT VOLTAGE
(1%)
(V)
Vdif1 Vdif2 PSRR
OUT
DROPOUT
VOLTAGE1 (mV)
(I
=30mA)
OUT
Ta=25℃ Ta=25℃ Ta=25℃
60
DROPOUT
VOLTAGE2 (mV)
(I
=100mA)
OUT
270
90 200
250
80 180 230
Power
Supply
Rejection
Ratio
70
10/30
■ELECTRICAL CHARACTERISTICS (Continued)
●Specification & Condition by Series
SYMBOL E-5 E-4
CONDITION, RATINGS
OUTPUT VOLTAGE (V)
0.90～0.95
1.00～1.05
1.10～1.15
1.20～1.25
1.30～1.35
1.40～1.45
1.50～1.95
2.00～6.00
* V
=Nominal output voltage
OUT(T)
INPUT VOLTAGE (V)
VIN MIN
2.5 260
2.5 260
2.6 270
2.7 290
2.8
2.9
3.0
+1.0
V
OUT(T)
MAX. OUTPUT CURRENT
(mA)
300
XC6219/XC6211
Series
11/30
i
XC6219/XC6211 Series
■TEST CIRCUITS
Circuit ①
Circuit ②
Circuit ③
ceramic
CIN=1.0uF
ceramic
(ｾﾗﾐｯｸ)
VIN VOUT
CE
VCE
VSS
CL=1.0uF
(ｾﾗﾐｯｸ)
ceram
ceramic
c
F.F.T
IOUT=10mA
Circuit ④
12/30
*TEST CIRCUIT VCE (CE Pin Voltage) ACTIVE
XC6211/XC6219 Type A,B,E,F: VCE=VIN
XC6211/XC6219 Type C,D,G,H: VCE=V
SS
STANDBY
XC6211/XC6219 Type A,B,E,F: VCE=VSS
XC6211/XC6219 Type C,D,G,H: VCE=VIN
ceramic
XC6219/XC6211
Series
■OPERATIONAL EXPLANATION
<Output Voltage Control>
The voltage divided by resistors R1 & R2 is compared with the internal reference voltage by the error amplifier. The P-channel MOSFET, which is connected to the VOUT pin, is then driven by the subsequent output signal. The output voltage at the V protect circuit operate in relation to the level of output current. Further, the IC's internal circuitry can be shutdown via the CE pin's signal
<Low ESR Capacitors>
With the XC6219/XC6211 series, a stable output voltage is achievable even if used with low ESR capacitors as a phase compensation circuit is built-in. In order to ensure the effectiveness of the phase compensation, we suggest that an output capacitor (C with a capacitance value of at least 1.0μF. Also, please connect an input capacitor (C and the VSS pin in order to ensure a stable power input. Stable phase compensation may not be ensured if the capacitor runs out capacitance when depending on bias and temperature. In case the capacitor depends on the bias and temperature, please make sure the capacitor can ensure the actual capacitance.
<Current Limiter, Short-Circuit Protection>
The XC6219/XC6211 series includes a combination of a fixed current limiter circuit & a foldback circuit, which aid the operations of the current limiter and circuit protection. When the load current reaches the current limit level, the fixed current limiter circuit operates and output voltage drops. As a result of this drop in output voltage, the foldback circuit operates, output voltage drops further and output current decreases. When the output pin is shorted, a current of about 50mA flows.
<CE Pin>
The IC's internal circuitry can be shutdown via the signal from the CE pin with the XC6219/6211 series. In shutdown mode, output at the V selectable (please refer to the selection guide). Note that as the standard XC6219/6211B type's regulator 1 and 2 are both ' High Active/No Pull-Down', operations will become unstable with the CE pin open. Although the CE pin is equal to an inverter input with CMOS hysteresis, with either the pull-up or pull-down options, the CE pin input current will increase when the IC is in operation. We suggest that you use this IC with either a VIN voltage or a VSS voltage input at the CE pin. If this IC is used with the correct specifications for the CE pin, the operational logic is fixed and the IC will operate normally. However, supply current may increase as a result of through current in the IC's internal circuitry.
■NOTES ON USE
1. For temporary, transitional voltage drop or voltage rising phenomenon, the IC is liable to malfunction should the ratings be exceeded.
2. Where wiring impedance is high, operations may become unstable due to noise and/or phase lag depending on output current. Please keep the resistance low between V
3. Please wire the input capacitor (C
4. The IC is controlled with constant current start-up. Start-up sequence control is requested to draw a load current after even nominal output
voltage rising up the output voltage.
5. Torex places an importance on improving our products and their reliability. We request that users incorporate fail-safe designs and post-aging protection treatment when using Torex products in their systems.
OUT pin is controlled and stabilized by a system of negative feedback. The current limit circuit and short
L) is connected as close as possible to the output pin (VOUT) and the VSS pin. Please use an output capacitor
IN) of 1.0μF between the VIN pin
OUT pin will be pulled down to the VSS level via R1 & R2. The operational logic of the IC's CE pin is
and VSS wiring in particular.
IN
) and the output capacitor (CL) as close to the IC as possible.
IN
13/30
X
X
X
XC6219/XC6211 Series
■TYPICAL PERFORMANCE CHARACTERISTICS

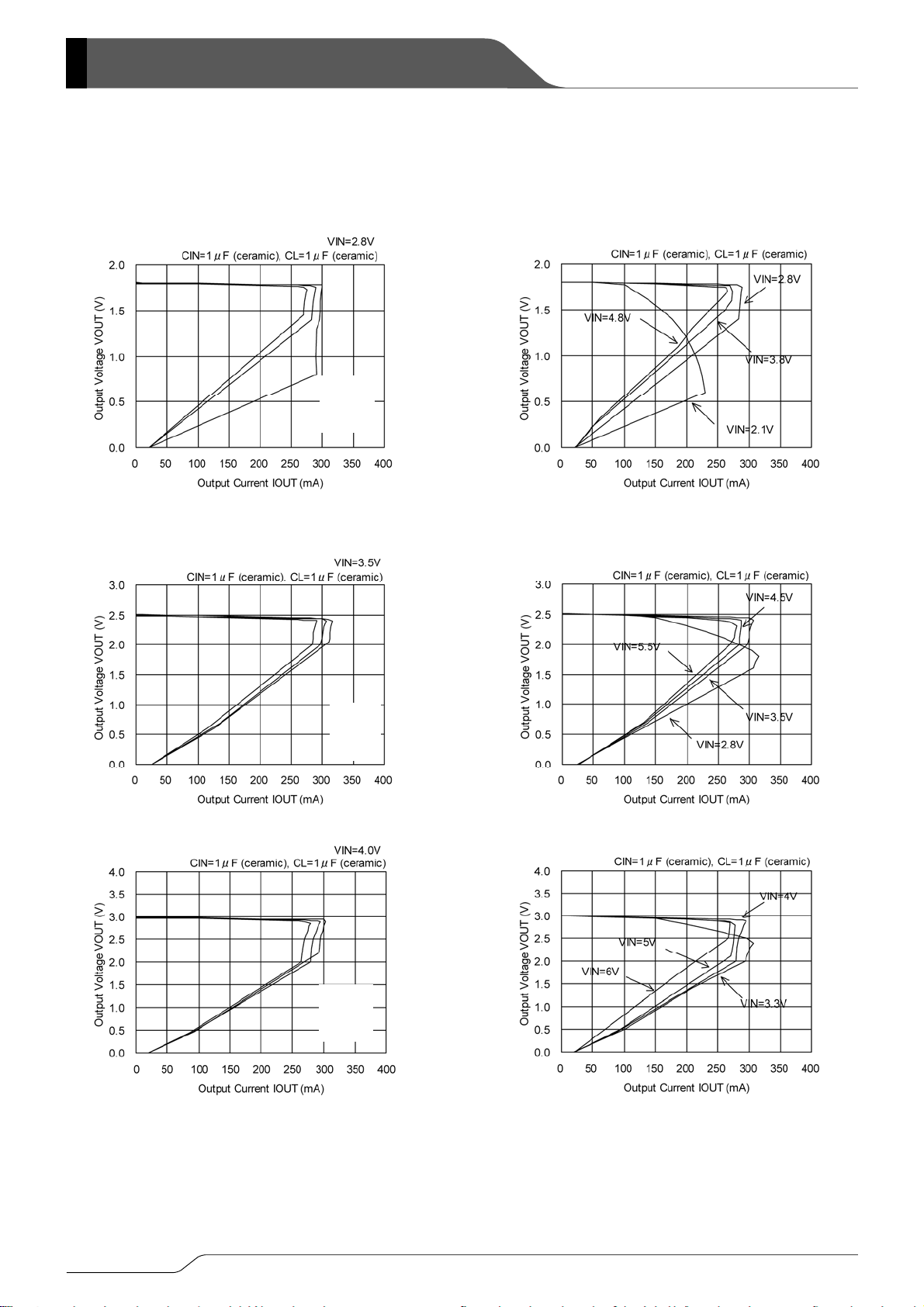

(1) Output Voltage vs. Output Current
XC6219/11x182
Top r =8 5℃
25℃
-40℃
C6219/11x182
XC6219/11x252
XC6219/11x302
C6219/11x252
Top r =8 5℃
25℃
-40℃
C6219/11x302
Top r =8 5℃
25℃
-40℃
14/30
■TYPICAL PERFORMANCE CHARACTERISTICS (Continued)
(2) Output Voltage vs. Input Voltage
XC6219/11x182
XC6219/11x252
XC6219/11x302
XC6219/11x182
XC6219/11x252
XC6219/11x302
XC6219/XC6211
Series
15/30
XC6219/XC6211 Series
■TYPICAL PERFORMANCE CHARACTERISTICS (Continued)
(3) Dropout Voltage vs. Output Current
XC6219/11x182
XC6219/11x252
XC6219/11x302
(4) Supply Current vs. Input Voltage
XC6219/11x182
XC6219/11x252
16/30
Top r =8 5℃
25℃
-40℃
Top r =8 5℃
25℃
-40℃
X
■TYPICAL PERFORMANCE CHARACTERISTICS (Continued)
(4) Supply Current vs. Input Voltage (Continued)
XC6219/11x302
Top r =8 5℃
25℃
-40℃
XC6219/XC6211
Series
(5) Output Voltage vs. Ambient Temperature
XC6219/11x182
XC6219/11x302
C6219/11x252
17/30
X
XC6219/XC6211 Series
■TYPICAL PERFORMANCE CHARACTERISTICS (Continued)
(6) Supply Current vs. Ambient Temperature
XC6219/11x182
XC6219/11x302
C6219/11x252
18/30
X
X
X
X
X
■TYPICAL PERFORMANCE CHARACTERISTICS (Continued)

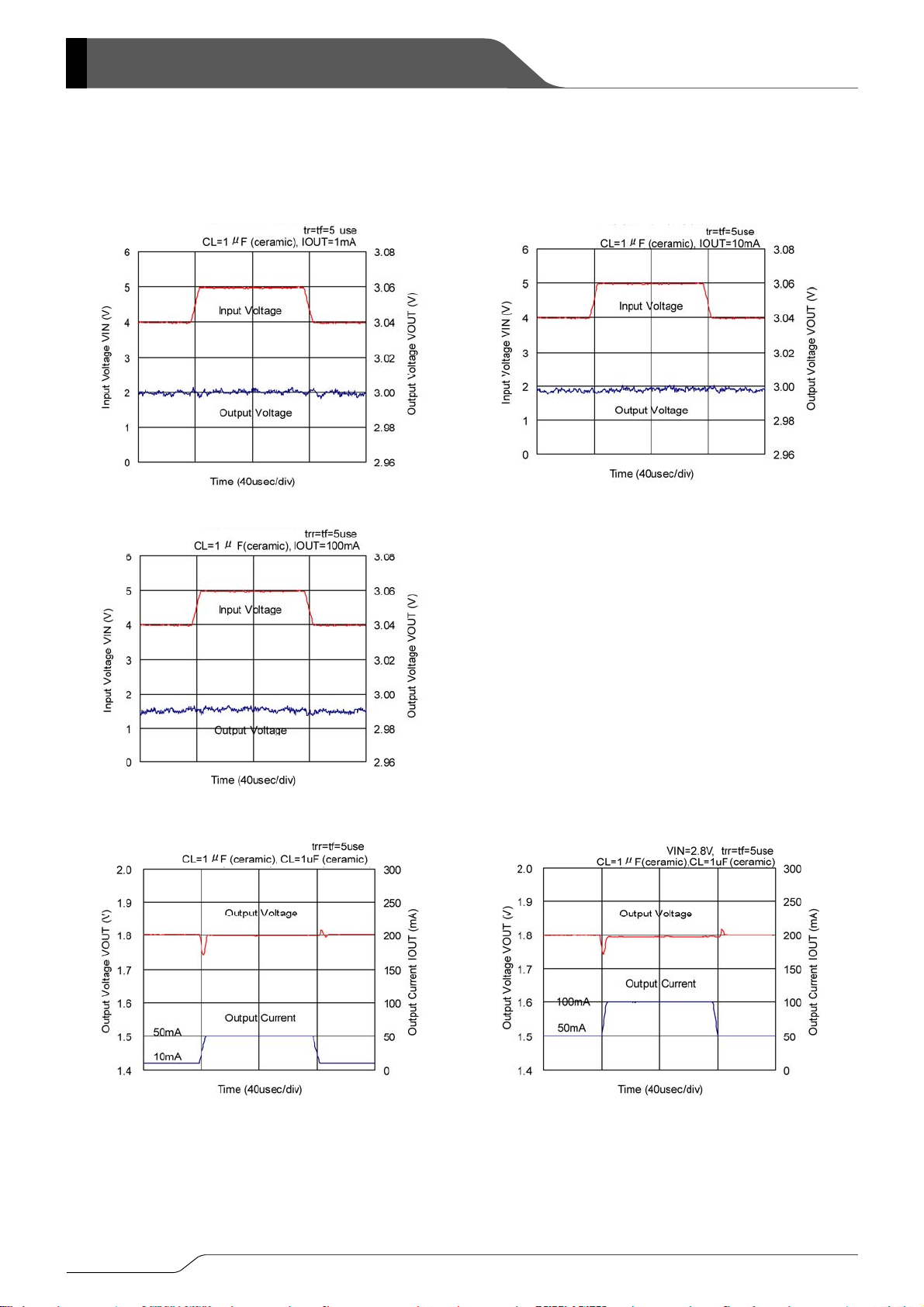

(7) Input Transient Response
XC6219/XC6211
Series
XC6219/11x182
XC6219/11x182
C6219/11x182
C6219/11x252
C6219/11x252
XC6219/11x252
XC6219/11x252
C6219/11x252
C6219/11x252
19/30
X
X
X
XC6219/XC6211 Series
■TYPICAL PERFORMANCE CHARACTERISTICS (Continued)
(7) Input Transient Response (Continued)
XC6219/11x302
XC6219/11x302
C6219/11x302
C6219/11x302
(8) Load Transient Response
XC6219/11x182
C6219/11x182
20/30
(
■TYPICAL PERFORMANCE CHARACTERISTICS (Continued)
(8) Load Transient Response (Continued)
XC6219/XC6211
Series
XC6219/11x182
CL=1μF (ceramic), CL=1uF (ceramic)
VIN=2.8V, trr=tf=5use
XC6219/11x252
CL=1μF (ceramic), CL=1uF (ceramic)
VIN=3.5V, trr=tf=5use
XC6219/11x252
CL=1μF (ceramic), CL=1uF (ceramic)
XC6219/11x252
CL=1μF (ceramic), CL=1uF (ceramic)
VIN=3.5V, trr=tf=5use
VIN=3.5V, trr=tf=5use
XC6219/11x302
CL=1μF (ceramic), CL=1uF (ceramic)
VIN=4.0V, trr=tf=5use
XC6219/11x302
CL=1μF
ceramic), CL=1uF (ceramic)
VIN=4.0V, trr=tf=5use
21/30
XC6219/11x302
XC6219/11x252
XC6219/11x302
XC6219/XC6211 Series
■TYPICAL PERFORMANCE CHARACTERISTICS (Continued)
(8) Load Transient Response (Continued)

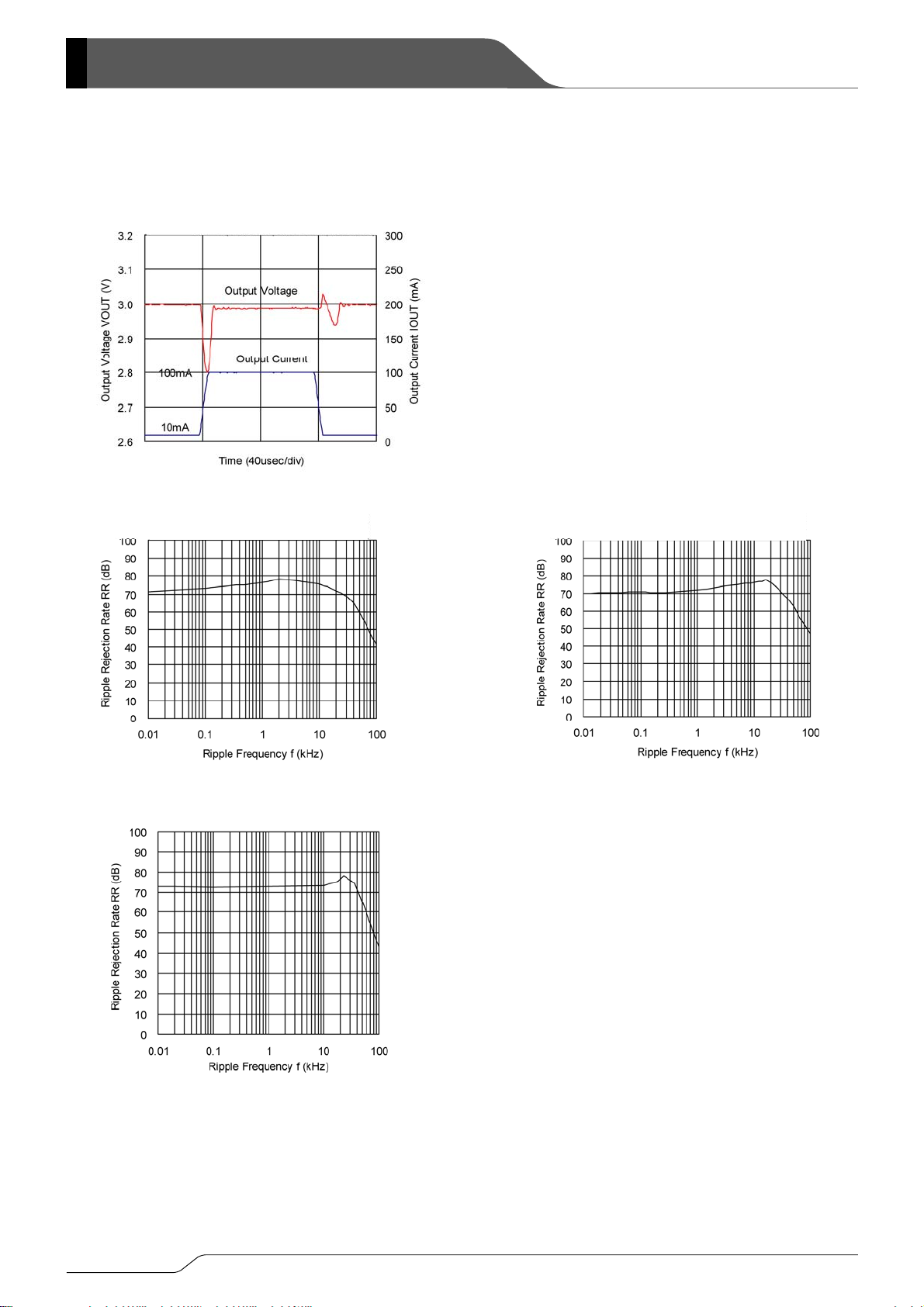

(9) Ripple Rejection Rate
CL=1μF (ceramic), CL=1uF (ceramic)
22/30
XC6219/11x182
VIN=2.8V, DC+1Vp-pAC
IOUT=50mA, CL=1uF (ceramic)
VIN=2.8V, DC+1Vp-pAC
IOUT=50mA, CL=1uF (ceramic)
VIN=4.0V, trr=tf=5use
VIN=2.8V, DC+1Vp-pAC
IOUT=50mA, CL=1uF (ceramic)
T
■PACKAGING INFORMATION
●SOT-25
+0.2
●USP-6B
-0.1
1.6
2.8±0.2
1.3MAX
1.1±0.1
0.2MIN
XC6219/XC6211
●SO
-89-5
●USP-6B Reference Pattern Layout
●USP-6B Reference Metal Mask Design
Series
23/30
XC6219/XC6211 Series
● SOT-25 Power Dissipation
Power dissipation data for the SOT-25 is shown in this page. The value of power dissipation varies with the mount board conditions. Please use this data as the reference data taken in the following condition.
1. Measurement Condition
Condition: Mount on a board
Ambient: Natural convection
Soldering: Lead (Pb) free
Board Dimensions: 40 x 40 mm (1600 mm Metal Area :
Material: Glass Epoxy (FR-4)
Thickness: 1.6 mm
Through-hole: 4 x 0.8 Diameter
Copper (Cu) traces occupy 50% of the board area in top and back faces.
Package heat-sink is tied to the copper traces
2
in one side)
Evaluation Board (Unit: mm)
2. Power Dissipation vs. Ambient Temperature（85℃）
Board Mount ( Tjmax=125℃)
Ambient Temperature (℃)
Power Dissipation Pd (mW)
25 600 85 240
700
600
500
400
300
200
100
Power Dissipation Pd（mW）
0
25 45 65 85 105 125
Pd vs Ta
Ambient Temperature Ta（℃）
Thermal Resistance (℃/W）
166.67
24/30
● SOT-89-5 Power Dissipation
Power dissipation data for the SOT-89-5 is shown in this page. The value of power dissipation varies with the mount board conditions. Please use this data as the reference data taken in the following condition.
1. Measurement Condition
Condition: Mount on a board
Ambient: Natural convection
Soldering: Lead (Pb) free
2
Board Dimensions: 40 x 40 mm (1600 mm Metal Area :
Copper (Cu) traces occupy 50% of the board area in top and back faces.
Package heat-sink is tied to the copper traces
in one side)
Material: Glass Epoxy (FR-4)
Thickness: 1.6 mm
Through-hole: 5 x 0.8 Diameter
XC6219/XC6211
28.9
Evaluation Board (Unit: mm)
Series
40.0
2.5
2. Power Dissipation vs. Ambient Temperature（85℃）
Board Mount ( Tjmax=125℃)
Ambient Temperature (℃)
Power Dissipation Pd (mW)
25 1300 85 520
1400
1200
1000
800
600
400
200
Power Dissipation Pd （mW）
0
25 45 65 85 105 125
Pd vs Ta
Ambient Temperature Ta（℃）
Thermal Resistance (℃/W）
76.92
25/30
XC6219/XC6211 Series
● USP-6B Power Dissipation
Power dissipation data for the USP-6B is shown in this page. The value of power dissipation varies with the mount board conditions. Please use this data as the reference data taken in the following condition.
1. Measurement Condition
Condition: Mount on a board
Ambient: Natural convection
Soldering: Lead (Pb) free
2
Board Dimensions: 40 x 40 mm (1600 mm
Metal Area: Copper (Cu) traces occupy 50% of the board
area in top and back faces.
Package heat-sink is tied to the copper traces
Material: Glass Epoxy (FR-4)
Thickness: 1.6 mm
Through-hole: 4 x 0.8 Diameter
2. Power Dissipation vs. Ambient Temperature
in one side)
Evaluation Board (Unit: mm)
Board Mount (Tj max = 125℃)
Ambient Temperature（℃） Power Dissipation Pd（mW） Thermal Resistance(℃/W)
25 1000
100.00
85 400
1200
1000
800
600
400
200
Power Dissipation Pd（mW）
0
25 45 65 85 105 125
Pd vs Ta
Ambient Temperature Ta（℃）
26/30
■MARKING RULE
[XC6219 Series]
●SOT-25, SOT-89-5
54
① ② ③ ④
123
SOT-25
(TOP VIEW)
524
②①
123
④③
SOT-89-5
(TOP VIEW)
③ represents output voltage
XC6219/XC6211
① represents product series
MARK PRODUCT SERIES
L XC6219xxxxxx
② represents type of regulator
MARK
V
100mV INCREMENTS V
OUT
V
:0.1~3.0V V
OUT
:3.1~6.0V V
OUT
50mV INCREMENTS
OUT
:0.15~3.05V V
OUT
:3.15~6.05V
OUT
V A E L XC6219Axxxxx X B F M XC6219Bxxxxx Y C H N XC6219Cxxxxx Z D K P XC6219Dxxxxx V A E L XC6219Exxxxx X B F M XC6219Fxxxxx Y C H N XC6219Gxxxxx Z D K P XC6219Hxxxxx
MARK OUTPUT VOLTAGE (V) MARK OUTPUT VOLTAGE (V)
0 - 3.1 - 3.15 F 1.6 4.6 1.65 4.65 1 - 3.2 - 3.25 H 1.7 4.7 1.75 4.75 2 - 3.3 - 3.35 K 1.8 4.8 1.85 4.85 3 - 3.4 - 3.45 L 1.9 4.9 1.95 4.95 4 - 3.5 - 3.55 M 2.0 5.0 2.05 ­5 - 3.6 - 3.65 N 2.1 - 2.15 ­6 - 3.7 - 3.75 P 2.2 - 2.25 ­7 - 3.8 - 3.85 R 2.3 - 2.35 ­8 0.9 3.9 0.95 3.95 S 2.4 - 2.45 -
9 1.0 4.0 1.05 4.05 T 2.5 - 2.55 ­A 1.1 4.1 1.15 4.15 U 2.6 - 2.65 ­B 1.2 4.2 1.25 4.25 V 2.7 - 2.75 ­C 1.3 4.3 1.35 4.35 X 2.8 - 2.85 ­D 1.4 4.4 1.45 4.45 Y 2.9 - 2.95 ­E 1.5 4.5 1.55 4.55 Z 3.0 - 3.05 -
④ represents production lot number
0 to 9, A to Z reverse character of 0 to 9, A to Z repeated (G, I, J, O, Q, W excluded)
PRODUCT SERIES
Series
27/30
XC6219/XC6211 Series
■MARKING RULE (Continued)
●USP-6B
USP-6B
(TOP VIEW)
①② represents product series
① ②
1 9 XC6219xxxxDx
③ represents type of regulator
MARK TYPE PRODUCT SERIES
A High Active, pull-down resistor built-in (semi-custom) XC6219AxxxMx B High Active, no pull-down resistor built-in (standard) XC6219BxxxMx C Low Active, pull-up resistor built-in (semi-custom) XC6219CxxxMx D Low Active, no pull-up resistor built-in (semi-custom) XC6219DxxxMx E High Active, pull-down resistor built-in (semi-custom) XC6219ExxxDx F High Active, no pull-down resistor built-in (standard) XC6219FxxxDx Z Low Active, pull-up resistor built-in (semi-custom) XC6219GxxxDx H Low Active, no pull-up resistor built-in (semi-custom) XC6219HxxxDx
④ represents product series
MARK VOLTAGE (V) PRODUCT SERIES
3 3.X XC6219x3xxDx 5 5.X XC6219x5xxDx
⑤ represents output voltage
MARK VOLTAGE PRODUCT SERIES SYMBOL VOLTAGE PRODUCT SERIES
0 X.0 XC6219xx0xDx A X.05 XC6219xx0ADx 1 X.1 XC6219xx1xDx B X.15 XC6219xx1ADx 2 X.2 XC6219xx2xDx C X.25 XC6219xx2ADx 3 X.3 XC6219xx3xDx D X.35 XC6219xx3ADx 4 X.4 XC6219xx4xDx E X.45 XC6219xx4ADx 5 X.5 XC6219xx5xDx F X.55 XC6219xx5ADx 6 X.6 XC6219xx6xDx H X.65 XC6219xx6ADx 7 X.7 XC6219xx7xDx K X.75 XC6219xx7ADx 8 X.8 XC6219xx8xDx L X.85 XC6219xx8ADx 9 X.9 XC6219xx9xDx M X.95 XC6219xx9ADx
⑥ represents production lot number
0 to 9, A to Z repeated ( * No character inversion used.
MARK
G, I, J, O, Q, W
PRODUCT SERIES
excluded)
28/30
■MARKING RULE (Continued)
[XC6211 Series]
●SOT-25
54
① ② ③ ④
123
① represents product series
② represents type of regulator
VOUT 100mV INCREMENTS VOUT 50mV INCREMENTS
VOUT:0.1~3.0V VOUT:3.1~6.0V VOUT:0.15~3.05V VOUT:3.15~6.05V
V A E L XC6211AxxxMx X B F M XC6211BxxxMx Y C H N XC6211CxxxMx Z D K P XC6211DxxxMx V A E L XC6211ExxxMx X B F M XC6211FxxxMx Y C H N XC6211GxxxMx Z D K P XC6211HxxxMx
③ represents output voltage
MARK OUTPUT VOLTAGE (V) MARK OUTPUT VOLTAGE (V)
0 - 3.1 - 3.15 F 1.6 4.6 1.65 4.65 1 - 3.2 - 3.25 H 1.7 4.7 1.75 4.75 2 - 3.3 - 3.35 K 1.8 4.8 1.85 4.85 3 - 3.4 - 3.45 L 1.9 4.9 1.95 4.95 4 - 3.5 - 3.55 M 2.0 5.0 2.05 5.05 5 - 3.6 - 3.65 N 2.1 5.1 2.15 5.15 6 - 3.7 - 3.75 P 2.2 5.2 2.25 5.25 7 - 3.8 - 3.85 R 2.3 5.3 2.35 5.35 8 - 3.9 - 3.95 S 2.4 5.4 2.45 5.45 9 - 4.0 - 4.05 T 2.5 5.5 2.55 5.55 A - 4.1 - 4.15 U 2.6 5.6 2.65 5.65
B - 4.2 - 4.25 V 2.7 5.7 2.75 5.75 C - 4.3 - 4.35 X 2.8 5.8 2.85 5.85 D - 4.4 - 4.45 Y 2.9 5.9 2.95 5.95
E - 4.5 - 4.55 Z 3.0 6.0 3.05 6.05
④ represents production lot number
0 to 9, A to Z reverse character of 0 to 9, A to Z repeated (G, I, J, O, Q, W excluded)
XC6219/XC6211
Series
MARK PRODUCT SERIES
A XC6211xxxxMx
MARK
PRODUCT SERIES
29/30
XC6219/XC6211 Series
1. The products and product specifications contained herein are subject to change without
notice to improve performance characteristics. Consult us, or our representatives
before use, to confirm that the information in this datasheet is up to date.
2. We assume no responsibility for any infringement of patents, patent rights, or other
rights arising from the use of any information and circuitry in this datasheet.
3. Please ensure suitable shipping controls (including fail-safe designs and aging
protection) are in force for equipment employing products listed in this datasheet.
4. The products in this datasheet are not developed, designed, or approved for use with
such equipment whose failure of malfunction can be reasonably expected to directly
endanger the life of, or cause significant injury to, the user.
(e.g. Atomic energy; aerospace; transport; combustion and associated safety
equipment thereof.)
5. Please use the products listed in this datasheet within the specified ranges.
Should you wish to use the products under conditions exceeding the specifications,
please consult us or our representatives.
6. We assume no responsibility for damage or loss due to abnormal use.
7. All rights reserved. No part of this datasheet may be copied or reproduced without the
prior permission of TOREX SEMICONDUCTOR LTD.
30/30
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
